Force sensing with nanowire cantilevers

TL;DR

Nanowire cantilevers are highly sensitive force transducers with diverse applications in microscopy and force detection, leveraging their unique mechanical properties and material versatility.

Contribution

This review summarizes recent advances in nanowire cantilever force sensing, highlighting methods, experimental progress, and future potential in high-sensitivity measurements.

Findings

Nanowire cantilevers achieve record force sensitivities.

They enable vectorial force and mass detection.

Applications include surface imaging and magnetic resonance force microscopy.

Abstract

Nanometer-scale structures with high aspect ratio such as nanowires and nanotubes combine low mechanical dissipation with high resonance frequencies, making them ideal force transducers and scanning probes in applications requiring the highest sensitivity. Such structures promise record force sensitivities combined with ease of use in scanning probe microscopes. A wide variety of possible material compositions and functionalizations is available, allowing for the sensing of various kinds of forces with optimized sensitivity. In addition, nanowires possess quasi-degenerate mechanical mode doublets, which has allowed the demonstration of sensitive vectorial force and mass detection. These developments have driven researchers to use nanowire cantilevers in various force sensing applications, which include imaging of sample surface topography, detection of optomechanical, electrical, and magnetic forces, and magnetic resonance force microscopy. In this review, we discuss the motivation behind using nanowires as force transducers, explain the methods of force sensing with nanowire cantilevers, and give an overview of the experimental progress and future prospects of the field.

Figures

Tables

Table 1. Table 1: Experimentally determined parameters of singly-clamped NW cantilevers. Here the diameter d 𝑑 d is the average cross-sectional width and ω / 2 ​ π 𝜔 2 𝜋 \omega/2\pi is the average frequency of the fundamental flexural mode doublet. The quality factor Q 𝑄 Q is the average value of the fundamental flexural mode doublet, taken for a freestanding NW, far from any sample surface and measured at low ambient pressures. RT stands for room temperature.

Material	Cross-section	$d$ (nm)	$L$ (µm)	$\omega /2\pi$ (kHz)	$k$ (N/m)	$Q$	Ref.
GaAs/AlGaAs	Hexagonal	350	25	417	1$\cdot {\text{10}}^{\text{-2}}$	50,000 ($4K$)	RossiVectorialscanningforce2017 ; BraakmanCoherentTwoModeDynamics2018
GaAs	Hexagonal	234	16.8	598	8.3$\cdot {\text{10}}^{\text{-3}}$	46,553 ($4K$)	RossiMagneticforcesensing2018a
GaAs	Hexagonal	100	25	1,197	8.3$\cdot {\text{10}}^{\text{-3}}$	4,900 (RT)	CadedduTimeResolvedNonlinearCoupling2016
GaAs/AlGaAs	Hexagonal	390	20	795	$9\cdot {\text{10}}^{\text{-2}}$	6,700 (4K)	MontinaroQuantumDotOptoMechanics2014
GaAs	Hexagonal	130	14.5	465	-	2,000-3,000 (RT)	FosterTuningNonlinearMechanical2016
InAs	Hexagonal	60-80	4-5.5	2,023.9	$3.6\cdot {\text{10}}^{\text{-3}}$	1,752 (RT)	PairisShotnoiselimited2018
SiC	Circular	150	52	113	4$\cdot {\text{10}}^{\text{-4}}$	2,890 (RT)	GloppeBidimensionalnanooptomechanicstopological2014
SiC	Circular	200	50	78	1.5$\cdot {\text{10}}^{\text{-4}}$	1,000 (RT)	deLepinayuniversalultrasensitivevectorial2017a
SiC	Circular	120	165	6.7	3$\cdot {\text{10}}^{\text{-6}}$	3,000 (RT)	LepinayEigenmodeorthogonalitybreaking2018
SiC	Circular	284	128	33	-	36,000 (RT)	PerisanuHighfactormechanical2007
SiC	Circular	206	93	43	-	159,000 (RT)	PerisanuHighfactormechanical2007
SiC	Circular	50	7	1,519	-	2,500 (RT)	PerisanulinearDuffingregimes2010
SiC	Circular	300	6	6,140	1.5	33 (RT, Air)	PigeauObservationphononicMollow2015
Si	Circular	44	14.4	210.5	2.8$\cdot {\text{10}}^{\text{-5}}$	9,250 (RT)	NicholDisplacementdetectionsilicon2008
Si	Circular	46	12.9	273	6.6$\cdot {\text{10}}^{\text{-5}}$	7,250 (RT)	NicholDisplacementdetectionsilicon2008
Si	-	35	15	1,060	6.5$\cdot {\text{10}}^{\text{-4}}$	25,000 ($8K$)	NicholNanomechanicaldetectionnuclear2012
Si	-	50	15	333	1.5$\cdot {\text{10}}^{\text{-4}}$	18,000 ($6K$)	NicholNanoscaleFourierTransformMagnetic2013
Si	Circular	50	15	197.5	2.0$\cdot {\text{10}}^{\text{-5}}$	3,000 - 3,500 (RT)	NicholControllingnonlinearitysilicon2009
Si	Elongated circular	60, 80	20	342	$1\cdot {\text{10}}^{\text{-4}}$	8,150 (4K)	RoseHighResolutionNanoscaleSolidState2018
Si	Hexagonal	100-300	5-10	2,000-6,000	-	2,000 (RT)	Gil-SantosNanomechanicalmasssensing2010
Si	Hexagonal	165	12.7	1,772.4	-	3,000 (RT)	Gil-SantosOpticalbackactionsilicon2013
Si	Hexagonal	90	9.3	2,504.3	-	3,000 (RT)	Gil-SantosOpticalbackactionsilicon2013
Si	Hexagonal	100-200	6-8	3,500 - 4,000	$2.4-5\cdot {\text{10}}^{\text{-2}}$	3,000-3,500 (RT)	RamosOptomechanicsSiliconNanowires2012
Si	Hexagonal	150 (clamp), 60 (tip)	11.3	2,480	-	-	RamosSiliconnanowireswhere2013
Si	Hexagonal	39-400	2-20	1,000 - 12,000	-	3,000-25,000 (RT)	BelovMechanicalresonanceclamped2008
Si (metallized)	Hexagonal	142	2.25	200,000	110.3	2,000 ($25K$)	FengVeryHighFrequency2007
Si (metallized )	Hexagonal	118	2.1	188,000	62.9	2,500 ($25K$)	FengVeryHighFrequency2007
Si	Hexagonal	81	1.69	215,000	31.4	5,750 ($25K$)	FengVeryHighFrequency2007
Si	Hexagonal	74	2.77	80,000	6.0	13,100 ($25K$)	FengVeryHighFrequency2007
CNT	Circular	50	18	270	$\sim {\text{10}}^{\text{-4}}$	250 (RT)	SiriaElectronbeamdetection2017
CNT	Circular	1 - 3	5	38,178.5	$4.5\cdot {\text{10}}^{\text{-8}}$	2,245 (RT)	TavernarakisOptomechanicshybridcarbon2018
CNT	Circular	4	1.2	5,955	$2.1\cdot {\text{10}}^{\text{-5}}$	-	TsioutsiosRealTimeMeasurementNanotube2017
CNT	Circular	-	-	363.5	$4.8\cdot {\text{10}}^{\text{-6}}$	571 (RT)	TsioutsiosRealTimeMeasurementNanotube2017

Table 2. Table 2: Wave numbers β n subscript 𝛽 𝑛 \beta_{n} and normalized eigenfrequencies ω n subscript 𝜔 𝑛 \omega_{n} of a singly-clamped beam.

$n$	${\beta }_n$	${\omega }_n/{\omega }_0$
0	1.875	1.000
1	4.694	6.267
2	7.855	17.547
3	10.996	34.386
$n\ge 3$	$\left(n+1/2\right)\pi$	[$(n+1/2)\pi /{\beta }_0]{}^2$

Equations

$$E_{Y}I\frac{{\partial }^{4}U(z,t)}{\partial z^4}+\rho A\frac{{\partial }^{2}U(z,t)}{\partial t^2}=0,$$

$$u_n(z)=$$

$$\displaystyle+\frac{\cos{\beta_{n}}+\cosh{\beta_{n}}}{\sin{\beta_{n}}+\sinh{\beta_{n}}}\bigg{(}(\sinh{(\frac{\beta_{n}}{L}z)}-\sin{(\frac{\beta_{n}}{L}z)}\bigg{)}\Bigg{]},$$

$${\omega }_n=\frac{{\beta }_n^2}{L^2}\sqrt{\frac{E_{Y}I}{\rho A}}$$

$$r_n({\omega }_n)=F_n({\omega }_n){\chi }_n({\omega }_n)\equiv \frac{F_n({\omega }_n)}{m_{n,eff}}\frac{1}{{\omega }_{0n}^2-{\omega }_n^2+i{\omega }_{0n}^2/Q_n}$$

$$m\ddot{r}+\Gamma \dot{r}+(k-F_r)r=F(0)+F_{Th},$$

$$\Gamma =\frac{1}{2k_{B}T}\underset{-\infty }{\overset{\infty }{\int }}⟨F_{Th}(t)F_{Th}(t+s)⟩ds,$$

$$S_F(\omega )=2\underset{-\infty }{\overset{\infty }{\int }}⟨F(t)F(t+\tau )⟩e^{i\omega \tau }d\tau ,\text{ for }0<\omega <\infty$$

$$S_r(\omega )$$

$$=S_F(\omega )|\chi {|}^2(\omega )=\frac{S_F(\omega )}{m^2}\frac{1}{({\omega }_0^2-{\omega }^2{)}^2+{\omega }_0^4/Q^2}$$

$$m\ddot{\text{r}}+\mathbf{\Gamma }\cdot \dot{\text{r}}+\text{K}\cdot \text{r}=\text{F}(0)+{\text{F}}_{Th}$$

$$k_{1,2}^{\prime }=$$

$$\displaystyle\pm\sqrt{\Big{(}k_{1}-k_{2}-F_{11}+F_{22}\Big{)}^{2}+4F_{12}F_{21}}\bigg{]}.$$

$${\hat{\mathbf{r}}}^{\prime }{}_1=\frac{1}{\sqrt{(k_2-F_{22}-k_1^{\prime }{)}^2+F_{12}^2}}\left(\begin{array}{c}{k}_2-F_{22}-k_1^{\prime }\\ F_{12}\end{array}\right),$$

$${\hat{\mathbf{r}}}^{\prime }{}_2=\frac{1}{\sqrt{(k_1-F_{11}-k_2^{\prime }{)}^2+F_{21}^2}}\left(\begin{array}{c}{F}_{21}\\ k_1-F_{11}-k_2^{\prime }\end{array}\right)$$

$$F_{ii}{|}_{r_i=0}\approx -2k_i\Delta {\omega }_{0,i}/{\omega }_{0,i}.$$

$$F_{ij}{|}_{r_i=0}\approx |k_i-k_j|\tan ({\varphi }_i)\text{ for }i\ne j.$$

$$r_i^{\prime }(\omega )=\text{F}(\omega )\cdot {\hat{\mathbf{r}}}^{\prime }{}_{\mathbf{i}}{\chi }_i^{\prime }(\omega )\text{ with }i,j\in \{1,2\},$$

$$m\ddot{r}+\Gamma \dot{r}+\eta r^2\dot{r}+kr+\alpha r^3=F(0)+F_{Th}(0)+F_{r}r$$

$$F_{\text{min}}=\sqrt{S_{F,th}}=\sqrt{4k_{B}T\Gamma },$$

Full text

1. I Introduction

2. II Mechanics of nanowire cantilevers

3. II.1 Linear motion of a single mode

4. II.2 Linear motion of two orthogonal modes

5. II.3 Coherent two-mode dynamics

6. II.4 Non-linear motion

7. III Force sensing with nanowire cantilevers

8. III.1 Force sensitivity

9. III.2 Displacement detection

10. IV Force microscopy with nanowire cantilevers

11. IV.1 Optical force sensing

12. IV.2 Electrical force sensing

13. IV.3 Magnetic force microscopy

14. IV.4 Magnetic resonance force microscopy

15. V Outlook

I Introduction

Recent years have seen a dramatic reduction in the size of mechanical elements that can be used as mass and force sensors. For the most sensitive applications, micro-processed Si cantilevers are starting to give way to bottom-up fabricated structures such as nanowires (NWs) and carbon nanotubes (CNTs). Bottom-up processes rely on self-assembly or driven self-assembly and allow for the production of nanometer-scale structures with atomic-scale precision. This trend towards miniaturization is not arbitrary: smaller mechanical transducers are inherently more sensitive. At the same time, atomic-scale control in the growth of such structures presents the opportunity to drastically reduce defects, improving mechanical quality and therefore also ultimate detection sensitivity.

Among the large variety of bottom-up nanostructures, NW cantilevers are particularly promising mechanical sensors due to their high aspect ratio. A long and thin NW that is clamped on one end forms an ideal scanning probe, making it amenable to a number of sensitive nanometer-scale imaging problems. At the same time, its symmetric cross-section results in orthogonal flexural mode doublets that are nearly degenerate. These modes allow a NW to be used as a kind of nanometer-scale force compass GloppeBidimensionalnanooptomechanicstopological2014 , such that both the magnitude and direction of a force can be measured. When the NW axis is oriented perpendicular to a sample surface, i.e. in the pendulum geometry, this enables the vectorial transduction of lateral forces. Moroever, the pendulum geometry allows a significant reduction of surface-induced dissipation compared to the more conventional parallel configuration. Furthermore, epitaxial growth allows the realization of NWs from a number of materials as well as heterostructures of such materials. In fact, due to their large surface-to-volume ratio, NWs are able to accommodate larger strain than conventional epitaxial films, allowing for the dislocation-free combination of materials with large lattice mismatch ThillosenStateStrainSingle2006 .

The application of NWs to force sensing is proving particularly apt. As highly sensitive scanning probes, NW sensors have the ability to reveal subtle force fields with high spatial resolution. Unlike conventional atomic force microscopy (AFM), which reveals large, close-range forces – in some cases with atomic resolution – NWs are adept at discerning weak interactions. Ultra-low intrinsic mechanical losses make NWs excellent probes of tip-sample dissipation, a contrast which can be used to observe phase transitions as well as the local density of states GrutterMagneticdissipationforce1997 ; KisielSuppressionelectronicfriction2011 ; CockinsExcitedStateSpectroscopyIndividual2012 . The capability of nearly symmetric NWs to transduce lateral forces in two directions allows for imaging the full vectorial character of force fields. In particular, this enables the distinction of non-conservative forces, such as optical or frictional forces, from conservative ones, such as those arising from an electrical potential. Functionalized with a magnetic tip, a NW cantilever forms an excellent probe for the subtle magnetic field patterns produced by nanometer-scale magnetization textures such as domain walls, vortices, and skyrmions; superconducting vortices; mesoscopic transport in two-dimensional systems; and small ensembles of nuclear spins. Although NW force sensors are just starting to be used for many of these applications, they have already been applied as the active sensors in some of the most sensitive and highest resolution magnetic resonance imaging experiments realized to date NicholNanomechanicaldetectionnuclear2012 ; NicholNanoscaleFourierTransformMagnetic2013 ; RoseHighResolutionNanoscaleSolidState2018 .

This review is structured as follows: Section II gives an introduction to the mechanical dynamics of NW cantilevers. We first describe in Section II.1 flexural motion in a single oscillation direction and with displacement amplitudes small enough such that motion remains linear. Next, in Section II.2 we consider flexural motion in two different oscillation directions and the effects of vectorial forces and spatial force derivatives. This provides the conceptual background for the detection of 2D forces and force derivatives. We then see that shear force derivatives can lead to coupling between oscillations in two directions. As shown in Section II.3, such coupling can be used to implement coherent two-mode dynamics, reminiscent of the dynamics of a quantum two-level system. Finally, we treat non-linear regimes of motion in Section II.4. In Section III.1 we discuss the high force sensitivity of NW cantilevers. In particular, we cover how the geometry of a NW impacts its force sensitivity. In Section III.2 we discuss optical methods of detecting NW displacement in two directions. In Section IV we give an overview of experimental progress thus far and of the capabilities of NW transducers for specific forces. We conclude the review with an outlook for NW force transducers in Section V.

II Mechanics of nanowire cantilevers

In this section, we give an overview of the mechanical behavior of NW cantilevers. Both the geometry and the material composition play an important role in determining the mechanical response of a NW cantilever to externally applied forces and force gradients, through its displacement profile, resonance frequency, and energy dissipation. NWs differ from conventional cantilevers in possessing a nearly symmetric cross-section. As we will see, this property implies that it is possible to use NW cantilevers as bidimensional force sensors. It is therefore of key importance to carefully choose the right type of NW for a specific force sensing application. Fortunately, a wide variety of NWs has become available in the last decades, produced either through bottom-up methods or by a top-down approach. This offers researchers a choice of many materials, heterostructures combining different materials, and various types of functionalization such as integrated quantum dots or magnetic tips. Furthermore, fine control over the shape of NWs has been demonstrated, yielding NWs with a tunable diameter, length, and with a variety of different cross-sections. In Table 1 we list experimentally determined mechanical properties of various NW cantilevers found in literature.

In the following, we model the NW cantilever as a singly-clamped beam of length $L$ and with a uniform cross-section along its length. Fig. 1a schematically indicates the relevant parameters descibing a singly-clamped beam undergoing flexural motion in a plane. For the purposes of force sensing, we are primarily interested in flexural modes and we do not consider longitudinal and torsional vibrations, since these modes are comparatively stiff and consequently have much higher oscillation frequencies.

II.1 Linear motion of a single mode

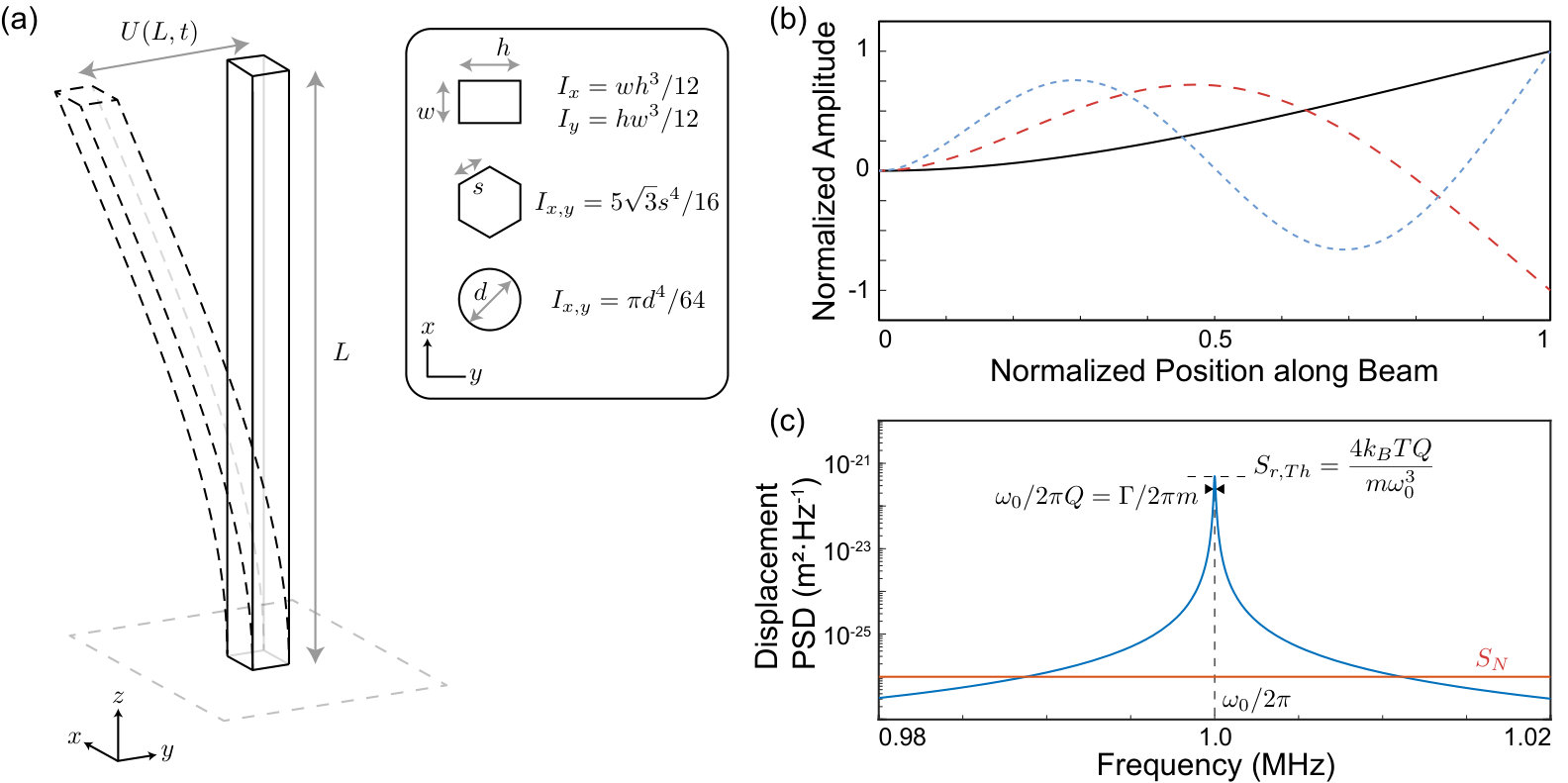

The flexural eigenfrequencies and eigenmodes of a singly-clamped beam can be derived analytically using Euler-Bernoulli theory, which gives a valid approximation when $L$ is much larger than the cross-sectional dimension and when rotational bending and shear deformation can be neglectedClelandFoundationsNanomechanicsSolidState2003 . For a beam with completely symmetric cross-section, the bending moment of inertia is independent of the oscillation direction. As a consequence, flexural motion takes place in an arbitrary direction. For very asymmetric beams, such as conventional cantilever force transducers, which are flat, thin, and long, the predominant flexural motion occurs in one direction. In both cases, we can approximate the flexural motion by considering motion in one dimension. In Section II.2, we consider NWs with slightly asymmetric cross-sections, in which case we will generalize the formalism to take into account a second dimension of flexural motion.

As a starting point, we consider an idealized situation in which there is no dissipation and we do not take any driving forces into account. In this case, one can approximate the effect of a transverse force to be a torque perpendicular to both force and beam axis. An evaluation of the internal forces and torques along a flexing beam yields the following equation of motion:

[TABLE]

with $z$ referring to the position along the beam, $E_{Y}$ the Young’s modulus of elasticity, $I$ the second moment of area, which depends on the direction of flexural motion with respect to the cross-section, $\rho$ the mass density, and $A$ the cross-sectional area. This equation can be solved for the beam displacement $U(z,t)$, which can be separated into position- and time-dependent parts such that $U(z,t)=\sum\limits_{n=1}^{\infty}r_{n}u_{n}(z)e^{i\omega_{n}t}$. Here we sum over the $n$ particular solutions, or modes, with $u_{n}(z)$, $r_{n}$, and $\omega_{n}$ the one-dimensional shape, amplitude, and eigenfrequency associated with the $n^{th}$ mode, respectively. In order for $r_{n}$ to correspond to the amplitude of cantilever displacement, we use the normalization $|u_{n}(L)|=1$. Note that this normalization entails that the $n$ modes are orthogonal but not orthonormal.

Using the boundary conditions of a cantilever, i.e. that one end of the beam is fixed ($u_{n}(0)=0$) and not bending ($u_{n}^{\prime}(0)=0$)) and that the other end is free to move (zero torque: $u_{n}^{\prime\prime}(L)=0$ and zero transverse force: $u_{n}^{\prime\prime\prime}(L)=0$), for small displacements Euler-Bernoulli theory yields the mode shapes:

[TABLE]

with $A$ a normalization constant and $\beta_{n}$ the dimensionless wavenumber of mode $n$. Fig. 1b shows the first three of these flexural mode shapes. The modes $u_{n}(z)$ can now be used in Eq. 1, resulting in the eigenfrequencies:

[TABLE]

Table 2 lists values of $\beta_{n}$ and normalized values of the eigenfrequencies.

The eigenmodes and eigenfrequencies of Eq. 2 and Eq. 3 correspond to the ideal case of a cantilever without dissipation and without specifying any external transverse forces. To describe realistic time-dependent behavior of the beam, we must also include dissipation and external driving forces. Dissipation can be characterized by a quality factor, which is defined as the ratio between the total stored energy of a resonator and the energy loss per cycle: $Q=2\pi E/\Delta E$. In terms of the displacement, $Q$ is a dimensionless constant describing exponential decay: $U(z,t)=\sum\limits_{n=1}^{\infty}u_{n}(z)e^{i\omega_{0n}t}e^{-\omega_{0n}t/(2Q)}=\sum\limits_{n=1}^{\infty}U_{n}(z)e^{i(1+i/(2Q)\omega_{0n}t}$. Hence, we see that dissipation can be incorporated by defining a new eigenfrequency $\omega_{0n}^{\prime}=(1+i/2Q)\omega_{0n}$.

Mechanical force sensors sensitively transduce forces and force gradients into a change of displacement or resonance frequency. To explain this in more detail, we now introduce transverse driving forces of the form $F_{n}(z,t)=F_{0n}(z)e^{i\omega_{n}t}$. For times long compared to transient time scales ($t>>Q_{n}/\omega_{n}$), the displacement of the beam follows the driving force and has the form $U(z,t)=\sum\limits_{n=1}^{\infty}U_{n}(z)e^{i\omega_{n}t}$. In the following, we only consider the motion of the free end ($z=L$) of the cantilever. By adding $F_{n}(L,t)$ to the right-hand-side of Eq. 1, we can evaluate the complex displacement response of the free end of the cantilever as a function of driving frequency $\omega_{n}$ as:

[TABLE]

Here $F_{n}(\omega_{n})$ is the Fourier transform of $F_{n}(L,t)$ and $\chi_{n}(\omega_{n})$ the mechanical susceptibility of the NW cantilever. Note that the displacement response given by the mode shapes requires the use of a mode-dependent effective mass $m_{n,eff}$ rather than the cantilever mass in describing the dynamical behavior of the cantilever. This can be udnerstood by considering that elements of the beam located closer to its clamped end react to a transverse force as if the local mass were higher than for elements closer to the free end. In fact, the effective mass is proportional to the square of the mode volume $m_{n,eff}=\frac{1}{|u_{n}(z_{0})|^{2}}\int\rho(z)|u_{n}(z)|^{2}dV$ and hence depends on the chosen normalization of $u_{n}(z)$ PootMechanicalsystemsquantum2012 . Furthermore, $m_{n,eff}$ depends on the position along the beam $z_{0}$ for which motion is evaluated. For the fundamental flexural mode using our normalization condition $|u_{n}(L)|=1$, it has a minimum of $m_{0,eff}=M/4$ for $z_{0}=L$, with $M$ the cantilever mass. From here on we will use the notation $m\equiv m_{0,eff}$. Interestingly, Eq. 4 differs only slightly from the response of a simple harmonic oscillator, for which $i\omega_{0n}^{2}/Q_{n}$ is replaced by $i\omega_{n}\omega_{0n}/Q_{n}$. The difference is negligible for large values of $Q_{n}$ and disappears when driving on resonance.

In the following, we will therefore approximate the dynamics of a mode of a singly-clamped NW cantilever with that of a driven damped harmonic oscillator, considering only the displacement of the free end of the NW and assuming near-resonant driving. For simplicity, from now, we only consider the fundamental flexural mode (typically the only one used in force sensing) and consequently we drop the subscript $n$. For small NW oscillation amplitudes, we can approximate the force $F$ acting on the NW around its equilibrium displacement $r=0$ as $F\approx F(0)+rF_{r}$, with $F_{r}\equiv\partial F/\partial r|_{0}$. Writing the displacement $r(t)$ of the tip of the nanowire in an equation of motion of a damped driven harmonic oscillator, we obtain:

[TABLE]

where $k$ is the mode spring constant and dots indicate differentiation with respect to time. We see that spatial derivatives $F_{r}$ of forces acting on the NW modify the effective spring constant of the NW. Stationary forces acting on the NW provide a static offset of the cantilever displacement, whereas time-dependent forces can drive the motion of the NW and change its displacement amplitude, through the spectral transfer function of the resonance shown in Eq. 4. The aim of most force sensing experiments is the measurement of the forces $F(0)$ and force derivatives $F_{r}$.

The remaining terms in Eq. 5, $\Gamma\dot{r}$ and $F_{Th}$, correspond to dissipation and thermal force noise, respectively. Forces acting on the resonator typically do not only arise from controlled interactions, but also include components originating from the cantilever being in contact with a thermal bath. The noise in the resonator motion that results from this interaction is observable in the most sensitive force sensing measurements, and is what typically sets the limit to their sensitivity. We include further terms in the equation of motion that account for energy dissipation and noise arising from the resonator being in contact with a largely uncontrolled and fluctuating environment of temperature $T$. This environment consists of a large number of degrees of freedom, such as those describing the motion of the molecules in the (typically highly diluted) fluid through which the nanowire moves and the phonon bath in the substrate to which the NW is attached through its clamping point. We use a statistical approach to include these effects in the equation of motion. The interactions with the environment can be decomposed into a rapidly fluctuating thermal force noise term $F_{Th}$ and a slowly varying dissipation term proportional to the velocity of the resonator, $\Gamma\dot{r}$ (see Reif ReifFundamentalsstatisticalthermal1965 ), with $\Gamma=m\omega/Q$. While in thermal equilibrium, these two terms are related through the fluctuation-dissipation theorem Kubofluctuationdissipationtheorem1966 , resulting in:

[TABLE]

where $k_{B}$ is the Boltzmann constant and the brackets $\langle...\rangle$ indicate that an ensemble average is taken, here used in the correlation function $\langle F_{Th}(t)F_{Th}(t+s)\rangle$, with $t$ and $t+s$ different points in time. To further describe the fluctuating force term $F_{Th}(t)$, we use the power spectral density (PSD). We define the force PSD $S_{F}(\omega)$ as the Fourier transform of the force correlation function:

[TABLE]

Here we defined $S_{F}(\omega)$ to be single-sided: since $\langle F_{Th}(t)F_{Th}(t+s)\rangle$ is real, its Fourier transform is even. This allows us to only take into account positive values of $\omega$ in Eq. 7, provided we multiply the integral by 2. Furthermore, note that from the inverse Fourier transform of Eq. 7 we can find specifically that $\langle F(t)^{2}\rangle=\frac{1}{2\pi}\int\limits_{0}^{\infty}S_{F}(\omega)d\omega$. Correlations in a thermal bath (other than those taken into account for damping) usually exist only for extremely short times (typically $<10^{-13}$ s). Therefore, for thermal noise we can assume $\langle F_{Th}(t)F_{Th}(t+s)\rangle=2\Gamma k_{B}T\delta(s)$, resulting in the white single-sided force PSD $S_{F,Th}=4k_{B}T\Gamma$.

The single-sided displacement PSD $S_{r}(\omega)$ can be similarly expressed by combining the amplitude response function of Eq. 4 with Eq. 7 as:

[TABLE]

We see that the mechanical resonator acts as a filter on the driving force, with $\chi(\omega)$ the filter transfer function. An important example of this filtering effect is that spectrally white force noise results in displacement noise with a nearly Lorentzian spectrum with a maximum of $S_{r,Th}=4k_{B}TQ/m\omega_{0}^{3}$. As discussed in Section III.1, this thermally induced displacement noise is what ultimately limits the sensitivity of force detection. Finally, we note that thermally induced phase noise (see Refs.RobinsPhasenoisesignal1982 ; ClelandFoundationsNanomechanicsSolidState2003 for a thorough treatment) similarly limits the frequency stability of a mechanical resonatorSansaFrequencyfluctuationssilicon2016 .

II.2 Linear motion of two orthogonal modes

For any cross-section that is symmetric around its center point, the moments of inertia $I_{x}$ and $I_{y}$ are equal, resulting in degenerate eigenmodes. The flexural oscillation direction in the plane is arbitrary in this case. Then the formalism of a single mode direction as discussed in the previous subsection suffices to describe the motion. However, small asymmetries in the cross-section or in the clamping conditions NicholDisplacementdetectionsilicon2008 lift this degeneracy and split each mode into a doublet of modes oscillating along orthogonal directions $\hat{\mathbf{r}}\mathbf{{}_{1}}$ and $\hat{\mathbf{r}}\mathbf{{}_{2}}$ (see Fig. 2). For the fundamental flexural mode of NW cantilevers, this results in a doublet with resonance frequencies that are typically split by a small fraction of the resonance frequencies, but many times the resonance linewidths. Several groups working with NW force sensors have observed orthogonal modes with frequency splittings of the order of $10^{3}-10^{4}$ Hz. Moreover, similar orthogonal flexural modes can arise in doubly-clamped beams and have been observed, for example, in carbon nanotubes and SiN etched beams MoserUltrasensitiveforcedetection2013 ; FaustNonadiabaticDynamicsTwo2012 ; FaustCoherentcontrolclassical2013 . The use of such mode doublets as a way to realize bidimensional force sensing forms a major motivation for using NW cantilevers as force transducers and we will treat it in detail in this review. The mechanical dynamics of these mode doublets are very similar to that of two coupled modes and we can therefore apply the formalism of the previous subsection generalized to two modes.

Taking into account both orthogonal modes, the equation of motion can now be written in vectorial form as:

[TABLE]

Here the displacement and forces are vectors defined in the basis of the two mode directions $\hat{\mathbf{r}}\mathbf{{}_{1}}$ and $\hat{\mathbf{r}}\mathbf{{}_{2}}$, i.e. $\textbf{r}\equiv\left(\begin{smallmatrix}r_{1}\\ r_{2}\end{smallmatrix}\right)$, $\textbf{F}(0)\equiv\left(\begin{smallmatrix}F_{1}(0)\\ F_{2}(0)\end{smallmatrix}\right)$, and $\textbf{F}_{Th}\equiv\left(\begin{smallmatrix}F_{Th,1}\\ F_{Th,2}\end{smallmatrix}\right)$. The effective mass $m$ is taken to be equal for the two modes (see for experimental verification of this the Supplementary Information of Ref.GloppeBidimensionalnanooptomechanicstopological2014 ), and $r_{i}$ are the mode displacements. $F_{Th,i}$ and $F_{i}$ represent thermal force noise and other external forces acting on each of the two modes, respectively. We use the small-displacement approximation around $r_{i}=0$, $F_{i}\approx F_{i}(0)+r_{j}\frac{F_{i}}{\partial r_{j}}|_{0}$. Furthermore, we define the dissipation and effective spring constant matrices $\mathbf{\Gamma}\equiv\left(\begin{smallmatrix}\Gamma_{1}&0\\ 0&\Gamma_{2}\end{smallmatrix}\right)$ and $\textbf{K}\equiv\left(\begin{smallmatrix}k_{1}-F_{11}&-F_{21}\\ -F_{12}&k_{2}-F_{22}\end{smallmatrix}\right)$. We write the four spatial force derivatives in shorthand notation as $F_{ij}\equiv\frac{\partial F_{i}}{\partial r_{j}}|_{0}$, with $i,j\in\{1,2\}$.

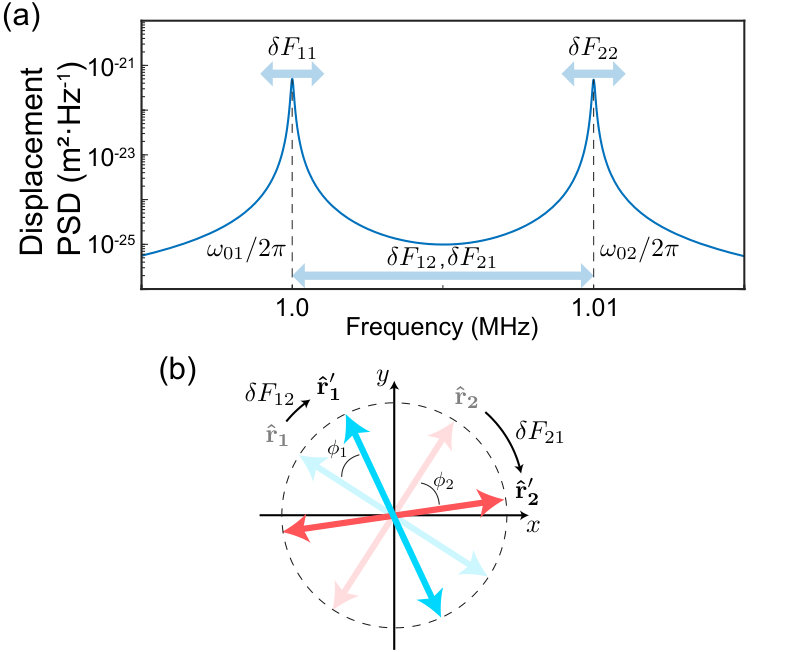

We see that the force derivatives $F_{ii}$ cause a change in the spring constant of each mode, similar to the single-mode case. The off-diagonal elements of K linearly couple the two modes, resulting in two new hybridized modes. The eigenvalues of the hybridized modes obtained by diagonalizing the K matrix can be expressed as the modified spring constants (for $\Gamma_{i}/2m<<\sqrt{k_{i}/m}$):

[TABLE]

The modified eigenfrequencies then follow as $\omega_{0,i}^{\prime}=\sqrt{k_{i}^{\prime}/m}$. The directions of the corresponding new eigenmodes can be written as:

[TABLE]

We can further simplify Eq. 10 by making the assumption that the force derivatives are much smaller than the bare NW spring constants $k_{i}$, which is usually satisfied. This yields $k_{i}^{\prime}\approx k_{i}-F_{ii}$ and the following expression for the diagonal elements of the force derivative matrix:

[TABLE]

Here $\Delta\omega_{0,i}$ is the frequency shift of mode $i$ induced by the force derivatives. Using the same approximation, the off-diagonal elements of the force derivative matrix (shear force derivatives) can be deduced from the angle $\phi_{i}$ (see Fig. 2b)between the mode direction $\hat{\mathbf{r}}^{\prime}\mathbf{{}_{i}}$ in the presence of the force derivatives and the bare mode direction $\hat{\mathbf{r}}\mathbf{{}_{i}}$ to be:

[TABLE]

Note that in the situation where the NW cantilever is very soft and strong force derivatives are probed, these approximations are not valid and expressions for $F_{ii}$ and $F_{ij}$ remain slightly more complicated. In this case, the effects of the external force field dominate over the intrisic NW mechanical properties, and the new eigenmodes tend to align with the eigenvectors of the force derivative matrixdeLepinayuniversalultrasensitivevectorial2017a .

Eq. 12 and Eq. 13 show that all in-plane force derivatives can be determined from measurements of the frequencies and oscillation angle of the two modes. The effect of $F_{ij}$ on the two resonance frequencies is illustrated in Fig. 2a. Finally, we note that the hybridized modes remain orthogonal as long as only conservative forces are included, in which case $F_{12}=F_{21}$. For forces with a finite curl, such as those arising from optical or frictional forces, $F_{12}\neq F_{21}$ and orthogonality is not maintained. In this situation, the standard fluctuation-dissipation theorem is no longer a valid method of describing the interactions of the bimodal NW with a thermal environment and needs to be modified to include excess noise arising from the non-zero curl of F LepinayEigenmodeorthogonalitybreaking2018 . An important further consequence of non-orthogonality is that it becomes impossible to distinguish a rotation of a mode from a change in mode temperature without a full vectorial read-out as described in Section III.2.

The forces $\mathbf{F}$ and $\mathbf{F}_{Th}$ are two-dimensional generalizations of the forces acting on a single mode. As for a single mode, stationary forces $\mathbf{F_{1}}$ and $\mathbf{F_{2}}$ yield a static offset in the NW displacement, now for each mode direction. Time-dependent forces drive the modes, leading to mode displacements given by a generalization of Eq. 4:

[TABLE]

with $\hat{\mathbf{r}}^{\prime}\mathbf{{}_{i}}$ the unit vector along the oscillation direction and $\chi_{i}^{\prime}(\omega)$ the susceptibility of mode $i$, respectively. As described before, the force derivatives acting on the NW lead to the modified spring constants $k_{i}^{\prime}$ and mode directions $\hat{\mathbf{r}}^{\prime}\mathbf{{}_{i}}$, resulting in the new susceptibilities $\chi_{i}^{\prime}(\omega)$. Fig. 3b and c show how measurements of the displacement amplitudes and phases of both modes as a function of driving frequency can be used to reconstruct the full vectorial driving force.

II.3 Coherent two-mode dynamics

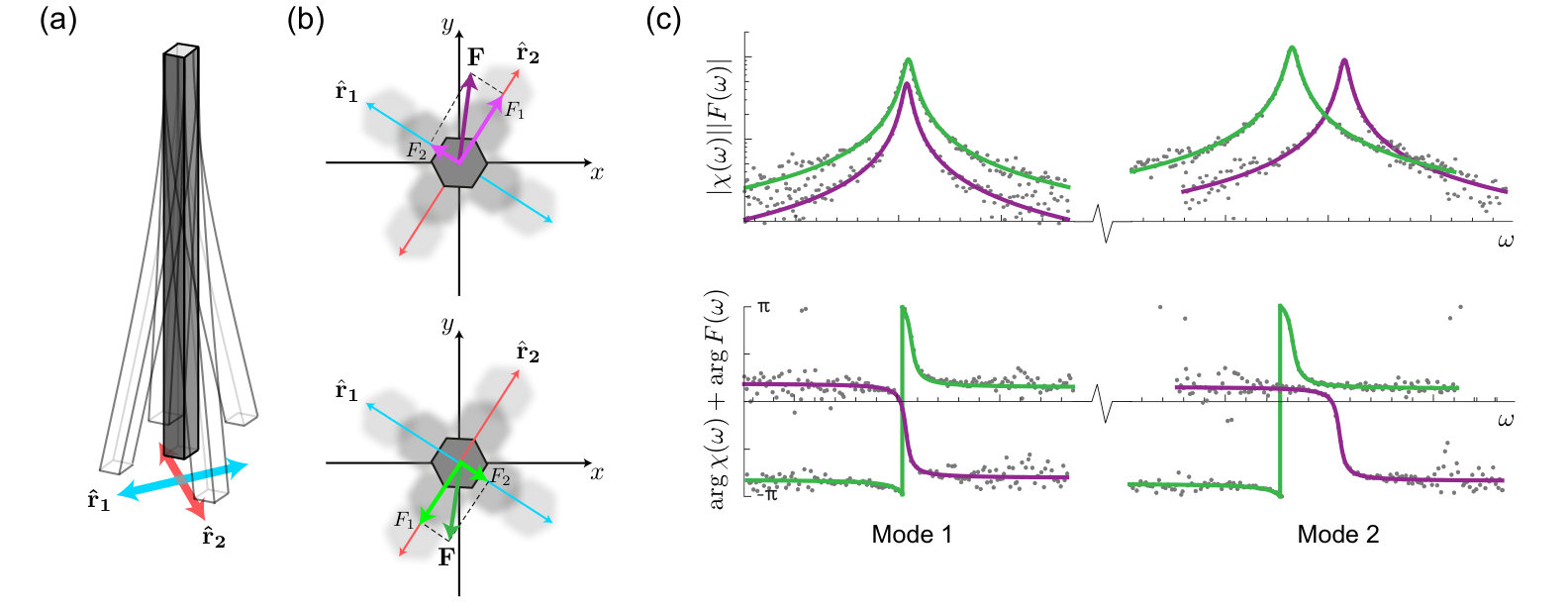

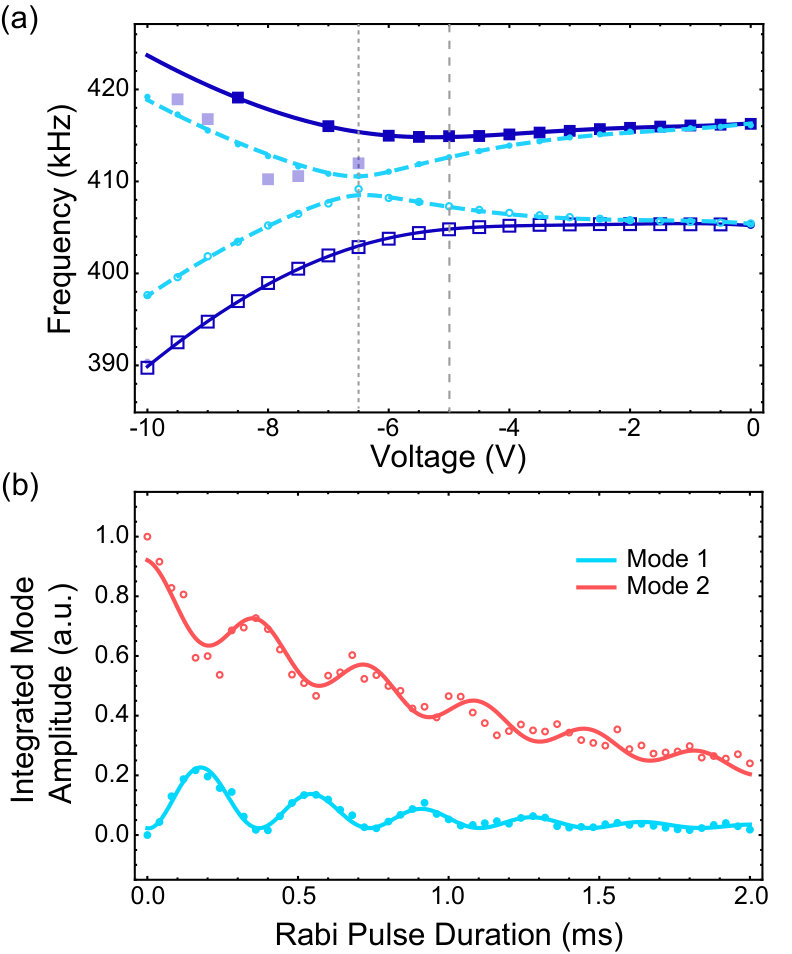

As mentioned in the above, the shear force derivatives $F_{ij}$, with $i\neq j$, couple the motion in the two modes. Interestingly, the resulting hybridized eigenmodes display coherent dynamics similar to that of quantum two-level systems. Coherent two-mode phenomena such as avoided mode crossings and Rabi oscillations have been observed in classical systems including modes of optical ring resonatorsSpreeuwClassicalrealizationstrongly1990 and recently also in nanomechanical resonators FaustNonadiabaticDynamicsTwo2012 ; FaustCoherentcontrolclassical2013 ; OkamotoCoherentphononmanipulation2013 . Furthermore, coupling of the orthogonal fundamental flexural modes of a NW cantilever was demonstrated through the measurement of avoided crossings of the mode frequencies BraakmanCoherentTwoModeDynamics2018 , see Fig. 4a. In the same experiment, Rabi oscillations were demonstrated through the use of time-dependent electric field derivatives, see Fig. 4b. The NW was embedded in a scanning probe setup, which made it possible to tune both the coupling strength and the Rabi frequency by positioning the NW inside the electric field provided by the sample. Such coherent two-mode dynamics does not only illustrate the similarities of quantum and classical wave mechanics, but can also be used to enhance force sensing. In particular, coherent pulse sequences reminiscent from quantum control techniquesDegenQuantumsensing2017 , such as Hahn echoes and dynamical decoupling, give the potential to increase the frequency stability of mechanical sensors, ultimately leading to higher sensitivities. Furthermore, such pulsing techniques make it possible to implement a range of noise spectroscopy methods in classical force and mass sensingDegenQuantumsensing2017 .

II.4 Non-linear motion

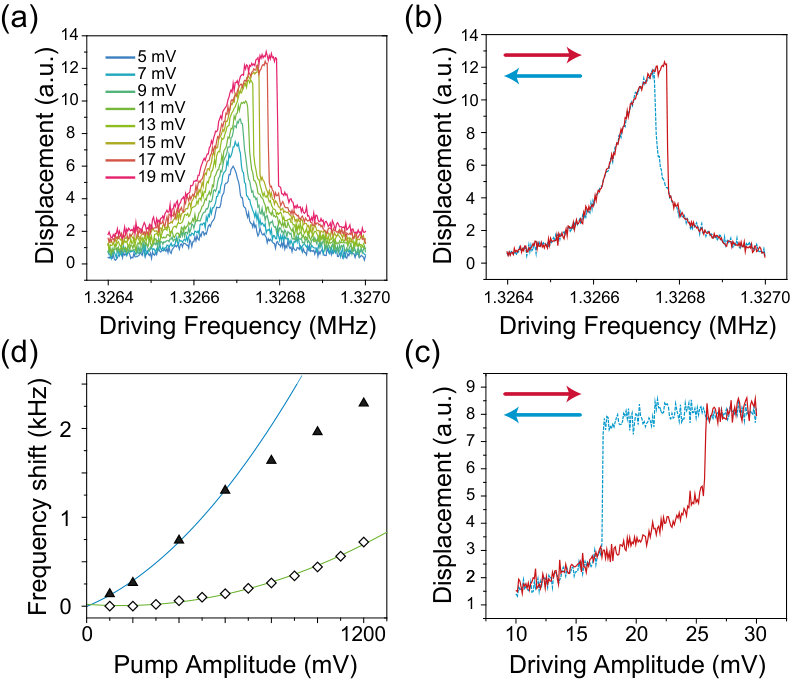

In force sensing, non-linear regimes of motion are typically avoided. However, in nanomechanical resonators suchs as NWs, non-linear motion typically arises already for modest driving amplitudes and therefore needs to be considered. Moreover, non-linearities can be put to good use, since they allow to implement amplification of forces through parametric drivingClelandFoundationsNanomechanicsSolidState2003 or through mechanical mixingBraakmanNonlinearmotionmechanical2014 . Furthermore, parametric driving allows to increase the ratio of transduced force signal to read-out noiseEichlerparametricsymmetrybreaking2018 . In the last part of this section, we treat the situation in which the displacement of the NW cannot be considered to be small anymore and non-linear terms need to be added to the equation of motion that depend on the oscillation amplitude.

It can be shown that for the fundamental flexural mode of a cantilever, the geometric non-linearity, associated with the lengthening of the beam as it flexes, dominates over other types of non-linearity, such as inertial non-linearitySilvaNonlinearFlexuralFlexuralTorsionalDynamics1978 ; SilvaNonlinearFlexuralFlexuralTorsionalDynamics1978a ; SchmidFundamentalsNanomechanicalResonators2016 . The first relevant higher-order terms are a damping term, as well as an effective spring constant term, that both have a quadratic dependence on the oscillation amplitude. For a single mode, this results in the following equation of motion CadedduNanomechanicsscanningprobe :

[TABLE]

The coefficient $\alpha$ parametrizes the strength of the cubic (Duffing) non-linearity, whereas $\eta$ is the coefficient of non-linear damping (note that here we contracted $m$ into $\alpha$ and $\eta$). For weak damping and weak anharmonicity, other second- and third-order terms can be absorbed into the coefficients $\alpha$ and $\eta$ LifshitzNonlineardynamicsnanomechanical ; EichlerNonlineardampingmechanical2011 . The equation of motion Eq. 15 leads to an amplitude response as a function of driving frequency with a characteristic shark-fin shape, as shown in Figure 5. This lineshape is a consequence of Eq. 15 having two stable solutions within a certain frequency range. This bistability leads to the switching phenomena seen for high driving amplitudes at the right flank of the response peak (Fig. 5 (a)). Which of the two solutions is realized, is determined by the initial conditions, and mechanical hysteresis can be observed when adiabatically sweeping the driving frequency or driving amplitude up and down (Fig. 5 (b) and (c)). When $\alpha$ is positive (negative), the Duffing non-linearity increases (decreases) the effective spring constant with increasing driving amplitude, thus stiffening (softening) the motion. The value and sign of $\alpha$ has been demonstrated to be tunable both through the shape of the NW FosterTuningNonlinearMechanical2016 , as well as through feedback using a nearby gate electrode NicholControllingnonlinearitysilicon2009 . The non-linear damping term has the effect of decreasing the shift of the frequency of maximum response amplitude due to the Duffing non-linearity, as well as decreasing the size of the hysteresis loop. Non-linear damping has so far not been demonstrated for NW cantilevers. Finally, note that the dependence of mode frequencies on the displacement can lead to coupling between the two orthogonal modes. Considering only the Duffing non-linearity, the non-linear term for two modes becomes $\alpha|\textbf{r}|^{2}\textbf{r}$; this term induces a coupling between two modes. The coupling can be observed as a quadratic shift of a mode frequency as a function of the oscillation amplitude of the other mode (see Fig. 5 (d)).

Notwithstanding its potential for force amplification, non-linear motion has so far not been used in experiments on force sensing with NW cantilevers. In the following sections, we therefore only consider the operation of NW force transducers in a linear regime of motion.

III Force sensing with nanowire cantilevers

III.1 Force sensitivity

The key component in any force microscope is the force sensor. This device consists of a mechanical transducer, used to convert force into displacement, and an optical or electrical displacement detector. Although early AFM transducers were simply pieces of gold or aluminum foil RugarAtomicForceMicroscopy2008 , specially designed and mass-produced Si cantilevers soon became the industry standard and led to improved resolution and force sensitivity AkamineImprovedatomicforce1990 . These micro-processed devices are now cheap, readily available, and designed – depending on the target application – to have a variety of features including coatings, electrical contacts, or magnetic tips.

Conventional top-down cantilevers are well-suited for the measurement of the large forces and force gradients present on the atomic-scale. Nevertheless, for some applications sensitivity to small forces is crucial. These range from mass detection, to cantilever magnetometry, to scanning measurements of friction forces, Kelvin probe microscopy, electric force microscopy, magnetic force microscopy (MFM), and force-detected magnetic resonance. This push towards higher sensitivity has generated an interest in using ever smaller mechanical force transducers, especially those made by bottom-up techniques.

The trend towards decreasing the size of mechanical transducers is based on fundamental principles. Once the detection of a transducer’s displacement is optimized, the minimum detectable force $F_{\text{min}}$ is ultimately limited by the thermal force fluctuations acting on the transducer, whose PSD, as discussed in Section II.1, is given by $S_{F,th}$. As a result,

[TABLE]

Optimizing sensitivity therefore involves reducing the operating temperature and the dissipation. Note that efforts aimed purely at increasing mechanical quality factor may not necessarly minimize $F_{\text{min}}$. Work on so-called ‘damping dilution’, uses tension applied to strings or membranes to increase resonant frequency $\omega$ while holding $\Gamma$ constant, thereby increasing $Q$ GonzalezBrownianmotionmass1994 ; CagnoliDampingdilutionfactor2000 ; SchmidFundamentalsNanomechanicalResonators2016 ; TsaturyanUltracoherentnanomechanicalresonators2017 ; GhadimiElasticstrainengineering2018 . Although these methods do not improve $F_{min}$, they do reduce the thermal decoherence time, which is important for experiments seeking to probe macroscopic quantum superposition states MarshallQuantumSuperpositionsMirror2003 .

The sensitivity to a number of measurements is closely related to $F_{\text{min}}$ RugarAdventuresattonewtonforce2001 . For example, the minimum detectable force gradient is given by $\left(\partial F/\partial x\right)_{\text{min}}=F_{\text{min}}/x_{\text{osc}}$, where $x_{\text{osc}}$ is the root-mean-square oscillation amplitude of the transducer. Cantilever beams are also excellent torque transducers and, for some applications, torque is the measurement quantity of interest, e.g. in torque magnetometry. A cantilever’s thermally limited torque sensitivity is given by $\tau_{\text{min}}=l_{e}F_{\text{min}}$, where $l_{e}$ is the effective length of the cantilever, which takes into account the shape of the flexural mode StipeMagneticDissipationFluctuations2001 . Finally, for experiments that measure energy dissipation, $\Gamma_{\text{min}}=F_{\text{min}}/(\omega_{0}x_{\text{osc}})$.

In practice, this means that at a given temperature, a well-designed cantilever transducer must simultaneously have low $m\omega_{0}$ and large $Q$. In the limit of long and thin cantilever beam, the Euler-Bernoulli equations imply that $m\omega_{0}\propto d^{3}/l$, where $d$ is its diameter and $l$ its length. For sensitive transducers, experiments show that $Q$ is limited by surface-related losses, which lead to a linear decrease of $Q$ with increasing surface-to-volume ratio, i.e. $Q\propto d$ TaoPermanentreductiondissipation2015 . As a result, we see that $\Gamma\propto d^{2}/l$, implying that long and thin cantilevers should be the most sensitive. In fact, a review of real transducers confirms this trend.

High mechanical resonance frequencies are also attractive for sensitive force transducers, since they allow for the measurement of fast dynamics and they decouple the sensor from common sources of noise. A prominent example is the additional noise experienced by a cantilever as its tip approaches a surface StipeNoncontactFrictionForce2001 ; KuehnDielectricFluctuationsOrigins2006 . This so-called non-contact friction is largely due to electronic fluctuators on the surface and typically has a $1/f$-like frequency dependence. As a cantilever approaches a surface, $\Gamma$ usually increases and its force resolution suffers. Such processes can be mitigated through the use of high-frequency cantilevers. When the resonant frequency of the mechanical oscillator is much higher than the characteristic frequency of the external noise, the resonator can be effectively decoupled from that noise.

A cantilever’s angular resonance frequency is given by $\omega_{0}\propto d/l^{2}$. Therefore, if we scale each of its dimensions uniformly by a factor $\beta$, we find that $\omega_{0}\propto 1/\beta$, while $\Gamma\propto\beta$. Therefore, in order to simultaneously maximize $\omega_{0}$ and minimize $\Gamma$, the entire structure should be scaled down. $F_{\text{min}}\propto\beta^{1/2}$, while because of the additional contribution of the cantilever’s effective length $l_{e}\propto\beta$, $\tau_{\text{min}}\propto\beta^{3/2}$. Reducing all dimensions while preserving the aspect ratio of a long and thin cantilever beam should thus optimize its ultimate force and torque sensitivity. This necessity for further miniturization has positioned bottom-up techniques as the fabrication methods of the future.

In recent years, remarkable progress has been made in this direction with force sensors made from doubly clamped CNTs Sazonovatunablecarbonnanotube2004 , suspended graphene sheets BunchElectromechanicalResonatorsGraphene2007 , and NW cantilevers GloppeBidimensionalnanooptomechanicstopological2014 ; RossiVectorialscanningforce2017 ; deLepinayuniversalultrasensitivevectorial2017a . In two separate papers, Moser et al. demonstrated the use of a CNT as a sensitive force sensor with a thermally limited force sensitivity of $12\text{\,}\mathrm{z}\mathrm{N}\mathrm{/}\sqrt{\mathrm{Hz}}$ at $1.2\text{\,}\mathrm{K}$ in 2013 MoserUltrasensitiveforcedetection2013 and then of $1\text{\,}\mathrm{z}\mathrm{N}\mathrm{/}\sqrt{\mathrm{Hz}}$ at $44\text{\,}\mathrm{mK}$ in 2014 MoserNanotubemechanicalresonators2014 . Given their geometry, graphene resonators are extremely difficult to apply in scanning probe applications. Singly clamped NWs and CNTs on the other hand, when arranged in the pendulum geometry – that is, with their long axes perpendicular to the sample surface – are well-suited as scanning probes. Their orientation prevents the tip from snapping into contact GysinLowtemperatureultrahigh2011 . When brought close to a surface, NWs experience extremely low non-contact friction NicholNanomechanicaldetectionnuclear2012 , making near-surface ($<$100\text{,}\mathrm{nm}$$) force sensitivities around $1\text{\,}\mathrm{a}\mathrm{N}\mathrm{/}\sqrt{\mathrm{Hz}}$. As a result, NWs have already been used as scanning probes in a variety of proof-of-principle experiments discussed in Section IV.

III.2 Displacement detection

As discussed above, the force tranducer sets the fundamental sensitivity limits of any force sensor. However, for a force to be measured, the transducer’s displacement must be detected. Therefore, in order to achieve the sensor’s ultimate sensitivity, a displacement detection scheme sensitive enough to detect the transducers thermal motion is required. The displacement of conventional AFM cantilevers is measured through the deflection of a laser beam reflected off of the cantilever and onto a split photodetector. Although this scheme works well for cantilevers with flat surfaces large enough to specularly reflect a laser beam, it is not well-suited for NWs. Given their shape and sub-wavelength diameter, diffraction effects emerge and an alternative means of displacement detection must be employed.

To circumvent this challenge, researchers have developed a number of optical SekaricNanomechanicalresonantstructures2002 ; AzakNanomechanicaldisplacementdetection2007 ; LiBottomupassemblylargearea2008 ; BelovMechanicalresonanceclamped2008 ; FaveroFluctuatingnanomechanicalsystem2009 ; RamosOptomechanicsSiliconNanowires2012 and non-optical techniques, including electron beam TannerHighQGaNnanowire2007 , piezoresistive HeSelfTransducingSiliconNanowire2008 , magnetomotive FengVeryHighFrequency2007 , and capacitive TruittEfficientSensitiveCapacitive2007 ; Sazonovatunablecarbonnanotube2004 displacement detection. None of these, however, are compatible with sensitive scanning probe microscopy (SPM) applications, in which the NW cantilever’s thermal motion must be non-invasively detected while its tip is positioned close to the surface of a sample. Most recently, a pair of optical techniques based on optical interferometry or scattering have been shown to be compatible with SPM applications, while at the same time providing access to both the amplitude and direction of the NW displacement NicholDisplacementdetectionsilicon2008 ; GloppeBidimensionalnanooptomechanicstopological2014 ; RossiVectorialscanningforce2017 ; deLepinayuniversalultrasensitivevectorial2017a ; RossiMagneticforcesensing2018a . A technique in which the electron beam in a scanning electron microscope (SEM) is focused on a cantilever and the inelastically scattered electrons are detected also resolved thermal displacement fluctuations of a singly clamped CNT TsioutsiosRealTimeMeasurementNanotube2017 . This scheme was subsequently integrated into a SPM with the CNT as the force transducer SiriaElectronbeamdetection2017 . Due to its flexibity and relatively simple hardware required for its implementation, we will focus here on the optical techniques.

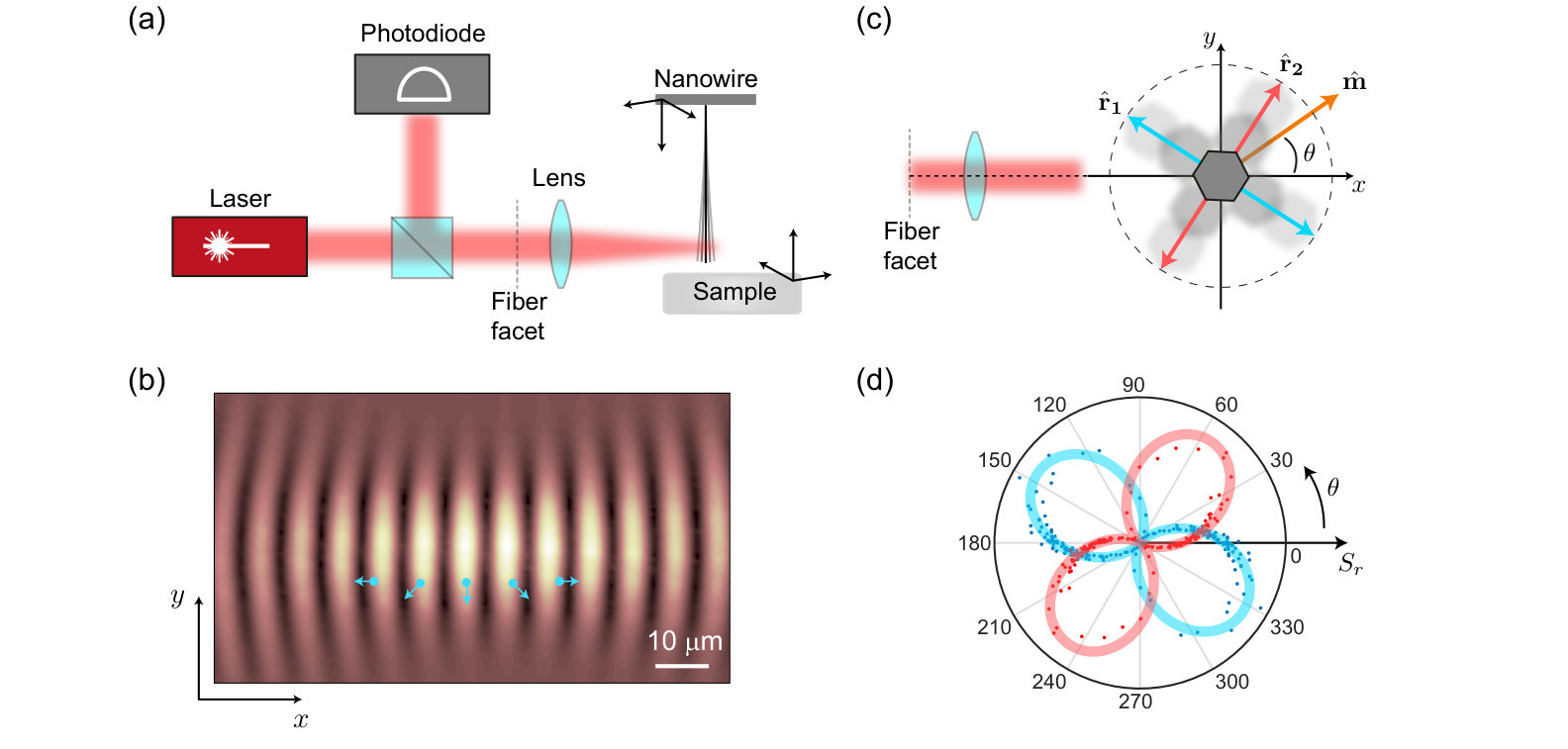

Using Mie scattering analysis, it can be shown that a NW positioned near the focus of an incident laser beam scatters sufficient light such that a measurement of optical transmission is sufficient to sensitively detect its displacement SaniiHighSensitivityDeflection2010 . The technique uses the strong scattering intensity gradient as a function of the NW position in the plane perpendicular to its axis ($xy$-plane), to convert NW displacement into a change in optical transmission intensity $I_{T}$. The gradient of this intensity as a function of the NW position yields both the detection efficiency $\epsilon=\left|\nabla I_{T}(x,y)\right|$ in $\text{W}/\text{m}$ and the direction along which displacement is detected $\hat{\mathbf{m}}=\nabla I_{T}(x,y)/\left|\nabla I_{T}(x,y)\right|$  GloppeBidimensionalnanooptomechanicstopological2014 . The measured displacement is therefore a projection of the dispacement of the two flexural modes $m(t)=\hat{\mathbf{m}}\cdot(\mathbf{r_{1}}(t)+\mathbf{r_{2}}(t))$ along a direction that depends on the position of the NW in the beam waist. Using a split-photodiode detector, different response profiles can be obtained from the sum and difference of the two sensors. As a result, displacement signals along two perpendicular directions can be measured at the same time deLepinayuniversalultrasensitivevectorial2017a . In this way, even with modest optical powers, the thermal displacement of the NW modes can be measured in two-dimensions. The detection can be used to fully characterize the response of each set of doublet flexural modes to external forces and force gradients. Ultimately, this vectorial information allows for the reconstruction of the full two-dimensional force field acting on the NW. In addition, the relative orientation of the doublet, i.e. whether these modes oscillate orthogonal to each other or not, carries information about whether the force field in which the NW is immersed is conservative or not LepinayEigenmodeorthogonalitybreaking2018 .

Another version of this detection scheme uses the interference between light scattered back from the NW and light reflected from the cleaved end of an optical fiber to measure NW displacement RossiMagneticforcesensing2018a ; FuDeterminingdirectionnanowire2017 . In this case, a fiber-based confocal reflection microscope is used to collect the light scattered from the NW, as shown in Fig. 6 (a). The fiber’s end and the NW form a low-finesse Fabry-Perot cavity interferometer NicholDisplacementdetectionsilicon2008 ; RossiVectorialscanningforce2017 , whose interferometric response depends on the position of the NW in the beam waist, as seen in Fig. 6 (b). A fast photo-receiver monitors variations in the reflected intensity $I_{R}$, allowing for the sensitive detection of NW motion. As before, the efficiency $\epsilon=\left|\nabla I_{R}(x,y)\right|$ and the direction of the detected displacement $\hat{\mathbf{m}}=\nabla I_{R}(x,y)/\left|\nabla I_{R}(x,y)\right|$ depend on the variations of $I_{R}$ as a function of the NW position in the optical waist RossiMagneticforcesensing2018a . In this case, along the cavity’s axis, $\nabla I_{R}$ depends on an interference effect and therefore can have a very high $\epsilon$, which can be improved by increasing the cavity finesse. Detection efficiency perpendicular to the cavity axis, on the other hand, depends on the narrowness of the optical waist. Using this method, the axis along which displacement is measured can be changed either by moving the NW within the optical waist or by tuning the laser excitation wavelength, which alters the interference pattern shown in Fig. 6 (b). As with the scattering based technique, this two-dimensional displacement detection technique allows for both angular and spectral tomography of a NW’s flexural modes. As an example, the displacement power spectral density of a NW’s thermally-excited fundamental mode doublet and its displacement power density as a function of the angle in the $xy$-plane are shown in Fig. 6 (d).

Both the optical transmission and the interferometric techniques have been successfully integrated into a SPM using a single NW as the force transducer. Although technical restrictions exist, such that there is sufficient optical access to the NW (e.g. on the length of NW and the distance of the scanning region from the sample edge), setups can be designed to work with most samples of interest.

IV Force microscopy with nanowire cantilevers

Recently, several proof-of-concept experiments have been performed that demonstrate the potential of force microscopy with NW cantilevers. First experiments focused on developing the optical detection of NW displacementNicholDisplacementdetectionsilicon2008 ; RamosOptomechanicsSiliconNanowires2012 ; RamosSiliconnanowireswhere2013 with high enough precision to observe the NW’s thermomechanical noise, as well as on characterizing the mechanical properties of NW cantileversNicholControllingnonlinearitysilicon2009 ; BraakmanNonlinearmotionmechanical2014 ; CadedduTimeResolvedNonlinearCoupling2016 . The promise of ultralow dissipation motivated researchers to implement NW cantilevers into scanning probe setups, for the sensitive detection of various types of forces. In a series of experimentsNicholNanomechanicaldetectionnuclear2012 ; NicholNanoscaleFourierTransformMagnetic2013 ; NicholControllingnonlinearitysilicon2009 , Nichol et al. first used Si NWs as transducers in magnetic resonance force microscopy, exploiting their high mechanical frequencies and low dissipation to improve the sensitivity and resolution in measurements of small numbers of nuclear spins.

As mentioned before, when used in the pendulum geometry, NW cantilevers enable scanning probe microscopy of lateral forces. Such a mode of operation is of great interest for the detection of for instance frictional forcesKisielSuppressionelectronicfriction2011 and for the detection of short-range non-central forcesWeymouthNoncontactlateralforce2017 . Although one-dimensional dynamic lateral force microscopy can be realized using the torsional mode of conventional AFM cantilevers PfeifferLateralforcemeasurementsdynamic2002 ; GiessiblFrictiontracedsingle2002 ; KawaiDynamiclateralforce2005 ; KawaiDirectmappinglateral2009 ; KawaiUltrasensitivedetectionlateral2010 , the ability to simultaneously image all vectorial components of nanoscale force fields is of great interest. Not only does it provide more information on tip-sample interactions, but it also enables the investigation of inherently 2D effects, such as the anisotropy or non-conservative character of specific interaction forces. This vectorial force sensing has now been demonstrated for a variety of types of interaction.

The first implementation of a vectorial NW force sensor was realized by Gloppe et al.GloppeBidimensionalnanooptomechanicstopological2014 in an experiment where the optical force field of a laser beam focused onto a NW was mapped out. Optomechanical interactions lie at the basis of a very fruitful line of research in which quantum states of motion are studied using optical fields, for instance in optical resonators. To fully describe such optomechanical interactions, one needs to take into account their non-conservative nature, and their spatial mapping necessitates the use of a fully vectorial force sensor as described by Gloppe et al. Interestingly, this non-conservative character of the optomechanical interaction can induce strong coupling between orthogonal mechanical modes. Interestingly, the vectorial nature of the optomechanical interaction can induce strong coupling between orthogonal mechanical modes, which can lead to non-trivial forms of back-action on the NW motion.

In a next step, vectorial NW force sensors were implemented in scanning probe setups, in which the NW cantilever could be scanned over a sample surfaceRossiVectorialscanningforce2017 ; deLepinayuniversalultrasensitivevectorial2017a . These setups allowed for the measurement of two-dimensional maps of the sample surface, in which forces arising from Coulombic interactions, chemical bonding, and van der Waals interactions provide a topographic contrast. The NW cantilevers complement conventional AFM in providing a full determination of the four lateral force derivatives. Together, these experiments show the potential of NW cantilevers as ultrasensitive bidimensional force transducers and provide experimental quantification of sensitivities and resolution. Force sensitivities were measured to be in the $\textrm{aN Hz}^{-1/2}$ range. This is on par with or slightly better than sensitivities reached with conventional AFM. However, there is great potential for improvement of the force sensitivity, through optimization of NW geometry and surface properties. Spatial resolution was limited, as expected, by the NW tip diameter, which for these first experiments ranged between 100 and 350 nm. Also here, there is a clear route for improvement, since several types of NWs and nanotubes with tip diameters that are 10-100 times smaller have been grown.

A further exciting new development is the use of NW cantilevers with magnetic tips for sensitive and vectorial detection of magnetic forces. In recent years, there has been a flurry of activity in developing nanometer-scale magnetic imaging technology. These efforts are driven by a number outstanding questions in spintronics – such as how to control magnetic skyrmions – and in mesoscopic transport – such as how current flows in topological insulators and two-dimensional materials. Scanning probe microscopy, in particular, has made remarkable improvements in both the sensitivity and resolution of magnetic imaging. Some of the most successful tools are magnetic force microscopy (MFM), spin-polarized scanning tunneling microscopy, as well as scanning magnetometers based on nitrogen-vacancy centers in diamond, Hall-bars, and superconducting quantum interference devices (SQUIDs). Despite this progress, it is now becoming clear that nanomechanical sensors, in general, and NWs in particular, provide a huge untapped opportunity in magnetic sensing. First results of NW MFM were obtained using a NW with a magnetic segment grown at its tipRossiMagneticforcesensing2018a .

IV.1 Optical force sensing

Optical setups used to detect the displacement of a cantilever, be it based on interferometry or scattering of light, can also be applied to study optomechanical interactions. The NW cantilever with its two orthogonal flexural modes gives the opportunity to investigate the vectorial nature of optomechanical coupling. Gloppe et al. have performed such a study, by placing a NW cantilever inside the optical field of a laser beam tightly focused by a microscope objective with a high numerical apertureGloppeBidimensionalnanooptomechanicstopological2014 . In this experiment, the optical intensity of the field was modulated with a frequency that was swept through both orthogonal mode resonant frequencies, providing driving forces through the optomechanical interaction. A second, much weaker laser beam was used to probe the thermal force noise of the NW, allowing the determination of the direction of the NW modes following the method outlined in Section II.2. The method of Fig. 3 was then used to acquire a map of the magnitude and direction of the in-plane optomechanical force. The force field of Fig. 7a shows a converging and diverging vector flow corresponding to the waist area of the focused laser beam. The optomechanical interaction is in general non-conservative and therefore the force field acting on the NW can possess a non-zero curl. The curl can be found by differentiating the vector force field and was determined to be maximum at the waist, on each side of the optical axis (see Fig. 7b). Furthermore, by measuring the delay between the laser intensity modulation and the NW response it was shown that the optomechanical force was in phase with the intensity modulation, as expected for a dissipative optomechanical coupling. The authors report a force sensitivity in the $\textrm{aN Hz}^{-1/2}$ range at room temperature.

IV.2 Electrical force sensing

In scanning probe measurements of a sample surface, such as those made in conventional atomic force microscopy, the underlying sample-cantilever forces are typically of electrical origin. These forces include contributions from van der Waals forces and various other interactions of electrostatic origin. The measured forces closely follow the geometrical pattern of the sample surface, enabling the reconstruction of sample topography. In contrast to conventional AFM, NW cantilevers arranged in the pendulum geometry allow for the measurement of vectorial topographical maps of sample surfaces through the measurement of in-plane forces and force derivatives. In two experimentsRossiVectorialscanningforce2017 ; deLepinayuniversalultrasensitivevectorial2017a , researchers recently demonstrated the use of NW cantilevers to measure such topographical maps.

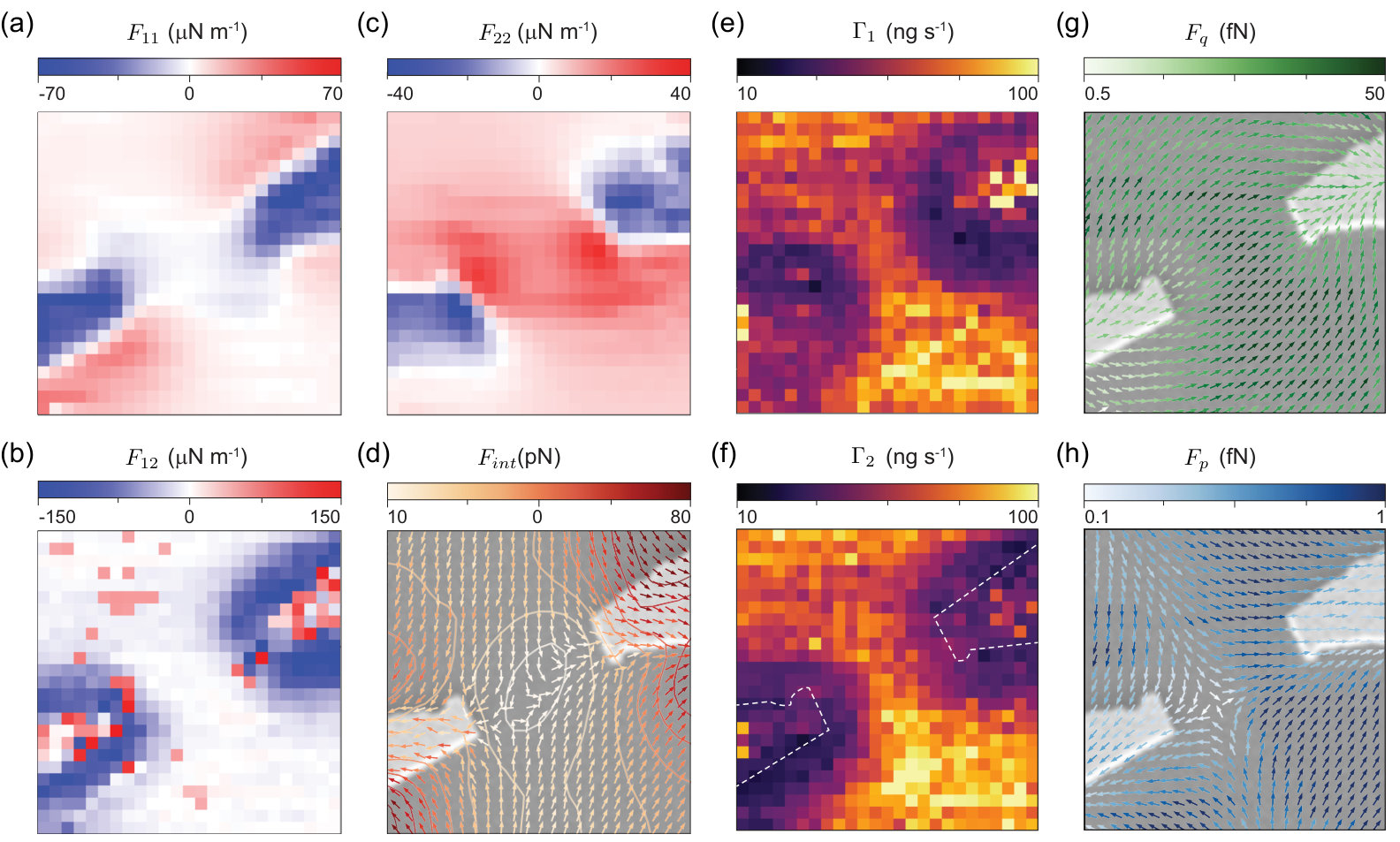

Fig. 8 shows various measurements involving a specific sample featuring $200\text{\,}\mathrm{nm}$ thick Au gate electrodes lithographically defined on a planar Si substrate. By scanning a NW cantilever over the sample surface, vectorial maps of the tip-sample forces and forces derivatives, as well as of the dissipation of both NW modes, were measuredRossiVectorialscanningforce2017 . Fig. 8a-c show maps of in-plane spatial force derivatives $F_{11}$, $F_{22}$, and $F_{12}$ (since electrical potentials are conservative, here $F_{21}=F_{12}$), through measurements of the frequency shift and oscillation direction of the two orthogonal flexural modes of the NW. The measured in-plane force derivatives can be integrated to produce a map of in-plane tip-sample forces, up to an integration constant corresponding to a constant force in the plane. Fig. 8d shows a map of the force field $F_{int}$ extracted from such an integration and confirms that the measured forces are roughly perpendicular to the edges defined by the sample topography. Furthermore, Fig. 8e, f show maps of measured dissipations $\Gamma_{i}$, extracted from the mode linewidths. Dissipation was measured to be nearly isotropic in the plane and was affected mostly by the different materials and tip-sample spacing over electrodes and substrate. In principle however, the demonstrated ability to produce vectorial maps of dissipation moreover that NW cantilevers could find application in the study of anisotropic non-contact friction, which is important for instance for the study of superlubricityVilhenaSlipperyeverydirection2018 .

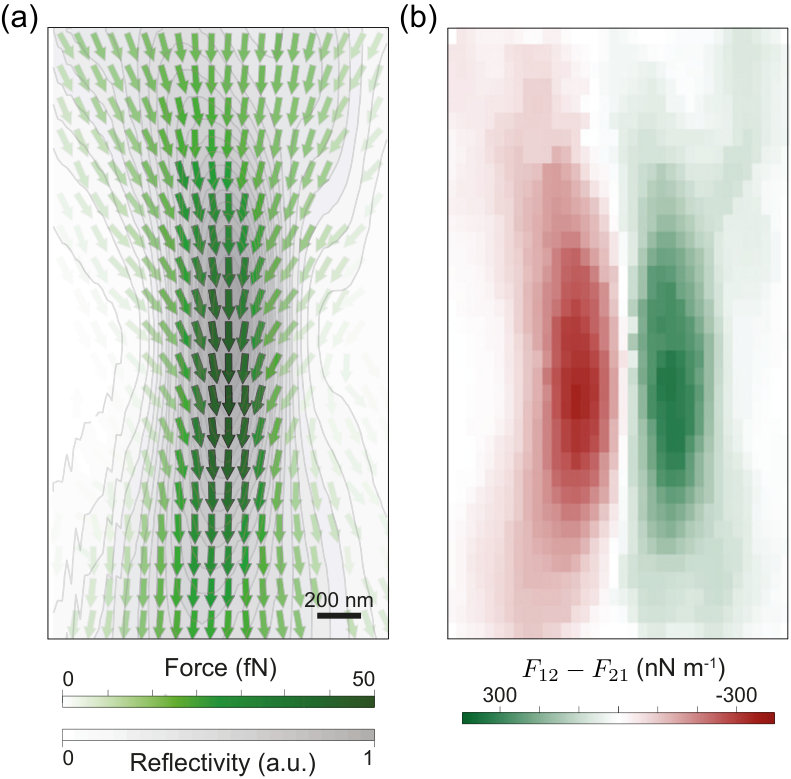

In a next step, the authors generated an alternating electric field $\textbf{E}(\textbf{r},t)$ using the patterned electrodes to drive the motion of both NW modes. In this way, vectorial in-plane maps of the driving forces were obtained (see Fig. 8g, h), with a thermally limited sensitivity of 5 $\textrm{aN Hz}^{-1/2}$ at a temperature of $4\text{\,}\mathrm{K}$. Two types of driving forces resulted from $\textbf{E}(\textbf{r},t)$: $\textbf{F}_{q}=q\textbf{E}$ and $\textbf{F}_{p}=-\nabla(\alpha|\textbf{E}|^{2})$. Here $q$ is the net charge on the NW tip and $\alpha$ the polarizability of the NW. Since $\textbf{F}_{q}$ shows a linear dependence on the magnitude of the electric field, while that of $\textbf{F}_{p}$ is quadratic, these two forces are spectrally separated and could therefore be distinguished in measurement. Interestingly, such force measurements also allow the characterization of the NW itself. By comparing the magnitude of the measured forces with that of the applied electric field, the average values of the constants $q$ and $\alpha$ could in this case be determined.

In a similar setting, Mercier de Lépinay et al. measured vectorial force fields and force field derivatives arising from the electrostatic interaction of a voltage-biased metallic sample of pyramidical shape with a NW cantileverdeLepinayuniversalultrasensitivevectorial2017a . The authors furthermore reconstructed a three-dimensional image of the force field derivatives by scanning the NW vertically away from the sample, up to a tip-sample distance of several microns.

IV.3 Magnetic force microscopy

In recent years, there has been a flurry of activity in developing nanometer-scale magnetic imaging technology. These efforts are driven by a number outstanding questions in spintronics – such as how to control magnetic skyrmions – and in mesoscopic transport – such as how current flows in topological insulators and two-dimensional materials. Scanning probe microscopy, in particular, has made remarkable improvements in both the sensitivity and resolution of magnetic imaging. Some of the most successful tools are magnetic force microscopy (MFM), spin-polarized scanning tunneling microscopy, as well as scanning magnetometers based on nitrogen-vacancy centers in diamond, Hall-bars, and superconducting quantum interference devices (SQUIDs). Despite this progress, it is now becoming clear that nanomechanical sensors, in general, and NWs in particular, provide a huge untapped opportunity in magnetic sensing.

The first magnetic SPM, MFM, was introduced in the late 1980s as a natural extension of AFM. These days, it is performed in air, liquid, vacuum, and at a variety of temperatures. Under ideal conditions, state-of-the-art MFM can reach spatial resolutions down to 10 nm SchmidExchangeBiasDomain2010 , though more typically around 100 nm. In 2009, its application to magnetic resonance, magnetic resonance force microscopy (MRFM), resulted in the first demonstration of three-dimensional nuclear magnetic resonance imaging (MRI) with nanometer-scale resolution DegenNanoscalemagneticresonance2009 .

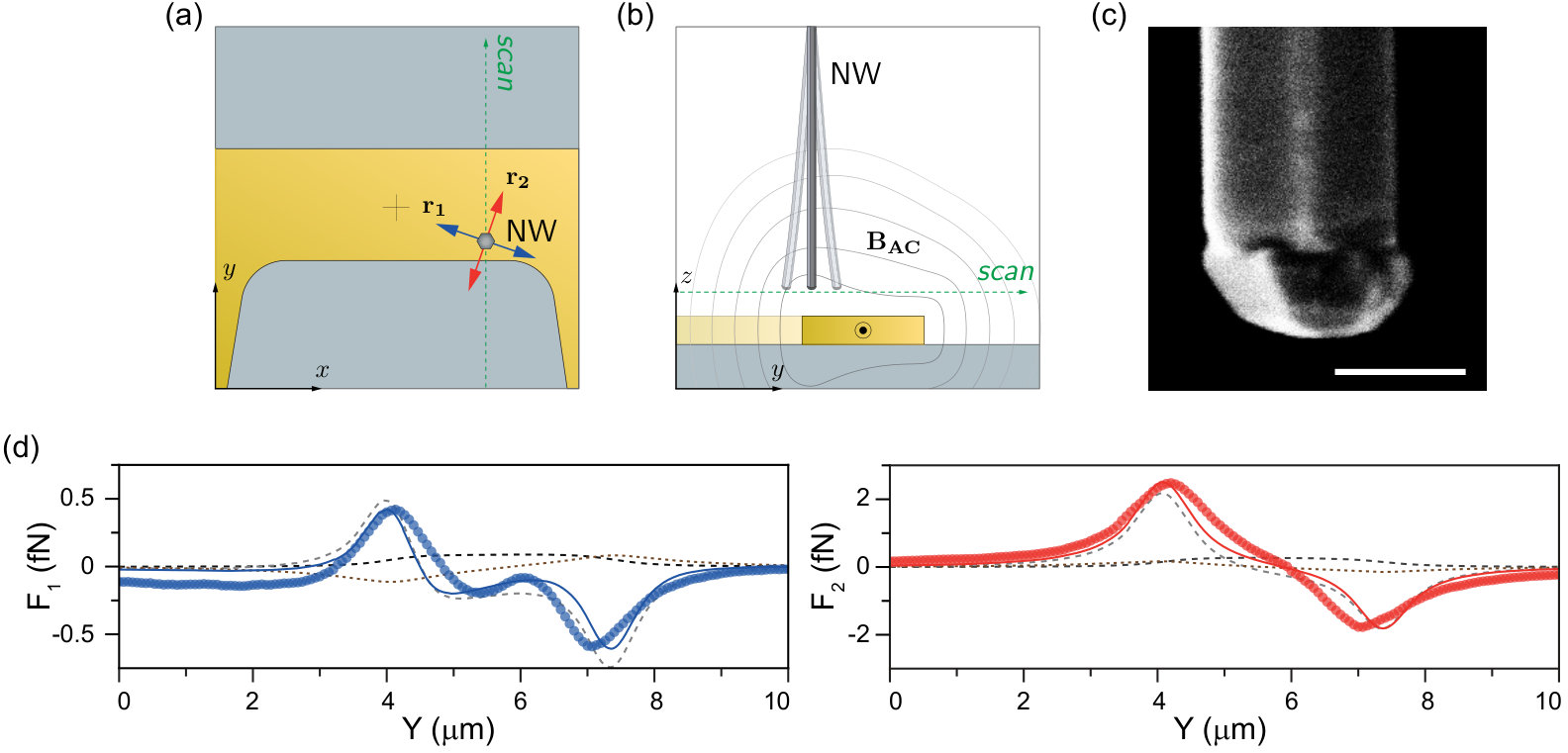

NW scanning force sensors with proper functionalization of their tips, can be used to measure weak magnetic forces. Recent experiments have shown that a NW’s high force sensitivity – when combined with a highly concentrated and strongly magnetized tip – gives it an exquisitive sensitivity to magnetic field gradients RossiMagneticforcesensing2018a . Using a MnAs-tipped GaAs NW, the authors demonstrated a sensitivity to $11\text{\,}\mathrm{m}\mathrm{T}\mathrm{/}\mathrm{m}\sqrt{\mathrm{Hz}}$. Having quantified the NW’s response to magnetic field gradients, the authors calculate its sensitivity to other magnetic field sources, including a magnetic moment (dipole field), a superconducting vortex (monopole field), or an infinitely long and thin line of current KirtleyFundamentalstudiessuperconductors2010 . In particular, they expect a moment sensitivity of 54 $\mu_{B}/\sqrt{\text{Hz}}$, a flux sensitivity of 1.3 $\mu\Phi_{0}/\sqrt{\text{Hz}}$, and line-current sensitivity of $9\;\text{nA}/\sqrt{\text{Hz}}$ at a tip-sample spacing of $250\text{\,}\mathrm{nm}$. Such sensitivities compare favorably to those of other magnetic microscopies, including scanning Hall microscopy, magneto-optic microscopy, scanning SQUID microscopy, and scanning nitrogen-vacancy magnetometry. Furthermore, magnet-tipped NWs have a huge potential for improvement as probes of weak magnetic field patterns if tips sizes and tip-sample spacings can be further reduced.

In addition to improved sensitivity, NW MFM provides other potential advantages compared to conventional MFM. First, scanning in the pendulum geometry with the NW oscillating in the plane of the sample has the characteristics of lateral MFM. This technique, which is realized with the torsional mode of a conventional cantilever, distinguishes itself from the more commonly used tapping-mode MFM in its ability to produce magnetic images devoid of spurious topography-related contrast and in a demonstrated improvement in lateral spatial resolution of up to 15% KaidatzisTorsionalresonancemode2013 . Second, the nanometer-scale magnetic particle at the apex of the NW force sensor minimizes the size of the MFM tip, allowing for optimal spatial resolution and minimal perturbation of the investigated sample.

There have been a number of efforts at creating high-resolution MFM tips on conventional cantilevers, including attaching coated CNT tips DengMetalcoatedcarbonnanotube2004 , milling tips by FIB PhillipsHighresolutionmagnetic2002 , or using electron beam induced deposition techniques LauPropertiesapplicationscobaltbased2002 ; KoblischkaImprovementslateralresolution2003 . Despite this work, non-invasive, high-resolution MFM tips are still needed. In particular, the tips with the smallest volumes realized thus far, tend to have rather undefined magnetization directions due to amorphous magnetic materials and nearly symmetric particle shape. Recent results show that small single crystal magnetic particles with defined and predictable magnetization directions can be realized atop a single NW HubmannEpitaxialGrowthRoomTemperature2016 ; RossiMagneticforcesensing2018a . In particular, Rossi et al. carried out measurements of dynamic cantilever magnetometry RosselActivemicroleversminiature1996 ; HarrisIntegratedmicromechanicalcantilever1999 ; StipeMagneticDissipationFluctuations2001 to extract the magnetic properties of each MnAs tip from the mechanical response of the NW to a uniform external magnetic field. These measurements, along with measurements of the NW’s response to a well-known magnetic field profile generated by a lithographically patterned wire, confirmed that in remanence the magnetic tips are – in most cases – strongly magnetized and dipole-like. Fig. 9a and b show the experimental setup in which the magnet-tipped NW is scanned across a current-carrying wire. An SEM of the MnAs magnetic tip is shown in Fig. 9 c. The magnetic force measured along the two mode directions is shown in Fig. 9 d, showing a response consistent with a remanent dipole-like magnetic tip. These results bode well for the resolution possible with NW MFM probes. In principle, as discussed by van Schendel et al., detailed analysis of MFM tips shows that the closer a tip approaches an ideal magnetic dipole, the better its sensitivity to high spatial frequencies, and therefore the higher its potential resolution Schendelmethodcalibrationmagnetic2000 .

The prospect of increased sensitivity and resolution, combined with few restrictions on operating temperature, make NW MFM ideally suited to investigate nanometer-scale spin textures, skyrmions, superconducting and magnetic vortices, as well as ensembles of electronic or nuclear spins. Non-invasive magnetic tips may also open opportunities to study current flow in 2D materials and topological insulators. The ability of a NW sensor to map all in-plane spatial force derivatives RossiVectorialscanningforce2017 ; deLepinayuniversalultrasensitivevectorial2017a should provide fine detail of stray field profiles above magnetic and current carrying samples, in turn providing detailed information on the underlying phenomena. Directional measurements of dissipation may also prove useful for visualizing domain walls and other regions of inhomogeneous magnetization. As shown by Grütter et al., dissipation contrast, which maps the energy transfer between the tip and the sample, strongly depends on the sample’s nanometer-scale magnetic structure GrutterMagneticdissipationforce1997 .

IV.4 Magnetic resonance force microscopy

So far, the most developed application for magnetic force sensing with NWs has been MRFM for nanometer-scale magnetic resonance imaging (nano-MRI). The method relies on an ultra-sensitive mechanical force sensor to detect the magnetic resonance from tiny ensembles of nuclear spins.

Conventional MRI techniques employ pick-up coils to detect the small changes in magnetic field induced by flipping nuclear moments contained in a sample. These magnetic signals are so weak that conventional instruments cannot resolve objects smaller than several micrometers – about the size of a small cell Ciobanu3DMRmicroscopy2002 . MRFM improves on this sensitivity by mechanically detecting the magnetic forces produced by nuclear moments. A mechanical resonator is used to sense the forces arising between nuclear moments in a sample and a nearby source of magnetic field gradient. In MRFM, RF pulses cause nuclear moments in a sample to periodically flip, generating an oscillating force on the mechanical resonator. These alternating forces, in turn, drive the resonator to oscillate. Force-detected MRI is more sensitive to nanometer-scale samples than conventional techniques because much smaller detectors can be made. For the inductive technique to be sensitive, the size of the pick-up coil must be similar to the size of the sample. For nanometer-scale samples, this is practically impossible. On the other hand, high-quality cantilevers can have dimensions far below a micrometer such that the sample mass is significant compared to the bare resonator mass. Such mechanical transducers enabled the current state-of-the-art force-detected nano-MRI, which was demonstrated by Degen et al. in 2009 DegenNanoscalemagneticresonance2009 . In this work, researchers captured 3D images of individual tobacco mosaic virus (TMV) particles with a resolution better than 10 nm along each dimension. The technique has the unique capability to image the interior of nanometer-scale objects non-invasively and with intrinsic chemical selectivity. Despite a number of further refinements and demonstrations PoggioForcedetectednuclearmagnetic2010 ; PoggioForceDetectedNuclearMagnetic2018 , improvements in MRFM sensitivity and resolution have stalled in recent years, leaving a number of technical obstacles to be overcome for the technique to become a useful tool for biologists and materials scientists.

Foremost among these obstacles is the reduction in the mechanical dissipation of the cantilever sensor. Lower mechanical dissipation would yield better force sensitivities and therefore sensitivity to smaller numbers of nuclear spins. Such an improvement would result in nano-MRI with improved resolution. In the last few years, the development and application of NW cantilevers to MRFM has been making promising steps in this direction. In 2012, Nichol et al. used a Si NW force transducer in an MRFM experiment detecting 1H in a nanometer-scale polystyrene sample NicholNanomechanicaldetectionnuclear2012 . During the measurements they achieved a thermally limited force sensitivity of around $1\text{\,}\mathrm{a}\mathrm{N}\mathrm{/}\sqrt{\mathrm{Hz}}$ at a spacing of $80\text{\,}\mathrm{nm}$ from the surface at $8\text{\,}\mathrm{K}$, which is significantly lower than was measured at $300\text{\,}\mathrm{mK}$ in the TMV experiment DegenNanoscalemagneticresonance2009 . This improvement is largely due to the ultra-low native dissipation of the NWs in comparison to top-down ultrasensitive cantilever and to their drastically reduced surface dissipation. In fact, Nichol et al., show that at a tip-surface spacing of $7\text{\,}\mathrm{nm}$, a typical Si NW experiences nearly a factor of 80 less surface dissipation and factor of 250 less total dissipation than audio frequency cantilevers under similar conditions. The mechanisms behind this difference are not completely clear; the small cross-sectional area of a NW may decreases its coupling to the surface or, perhaps, the spectral density of surface fluctuations is lower at the MHz resonant frequencies of the NWs that at the kHz resonant frequencies of the cantilevers.

This ground-breaking work established NW oscillators as ultrasensitive cantilevers for MRFM detection. The measurement protocol that was developed for the NW transducers uses a nanoscale current-carrying wire to generate both time-dependent RF magnetic fields and time-dependent magnetic field gradients. This protocol, known as MAGGIC, may ultimately open new avenues for nanoscale magnetic resonance imaging with more favorable SNR properties NicholNanoscaleFourierTransformMagnetic2013 .

Given that nanometer-scale MRFM requires intense static magnetic field gradients, both NMR spectroscopy and uniform spin manipulation using RF pulses have always been difficult to implement in such measurements. As a result, MRFM experiments often rely on inherently slow adiabatic passage pulses, which limited the mechanical transducer to resonance frequencies in the few kHz regime. In addition, conventional pulsed magnetic resonance techniques cannot be applied to nanometer-scale MRFM because statistical spin fluctuations often exceed the Boltzmann spin polarization herzog_boundary_2014 . In this regime, the projection of the sample magnetization along any axis fluctuates randomly in time.

In their article, Nichol et al. presented a new paradigm in force-detected magnetic resonance that overcomes both challenges to enable pulsed nuclear magnetic resonance in nanometer-size statistically polarized samples. The first challenge was solved by using the nanometer-scale constriction to generate both large RF fields and large magnetic field gradients. In this way, the authors were able to turn their magnetic field gradients and on and off at will. The method allowed the use of high-frequency mechanical resonances, such as those provided by a NW. Using a scheme similar to conventional MRI, switchable gradients in static and RF field encoded the Fourier transform of the 2D spin density into their spin signal. As a result, they were able to reconstruct a 2D projection of the 1H density in a polystyrene sample with roughly 10-nm resolution. The protocol was able to function in the statistically polarized regime because the authors periodically applied RF pulses, which create correlations in the statistical polarization of a solid organic sample. The spin-noise correlations were then read-out using gradient pulses generated by ultra-high current densities in the nanoscale metal constriction. The authors also showed that Fourier-transform imaging enhances sensitivity via the multiplex advantage for high-resolution imaging of statistically polarized samples. Most importantly, the protocol established a method by which all other pulsed magnetic resonance techniques can be used for nanoscale imaging and spectroscopy. Recent work by Rose et al., combines the high spin sensitivity of NW-based magnetic resonance detection with high-spectral-resolution NMR spectroscopy RoseHighResolutionNanoscaleSolidState2018 . The authors make use of the resulting enhancement in nuclear spin coherence times to perform Fourier-transform imaging of proton spins with a one-dimensional slice thickness below $2\text{\,}\mathrm{nm}$.

Given the potential for even more sensitive NW transducers, these proof-of-concept experiments bode well for increasing nano-MRI sensitivity and resolution. Even without improvement in sensitivity, the authors’ technique could also be extended to enable full 3D encoding with constrictions capable of producing two orthogonal static gradients NicholNanoscalemagneticresonance2014 . More generally, the approach serves as a model for applying sophisticated pulsed magnetic resonance schemes from conventional MRI to the nanometer-scale version.

V Outlook

The application of NW cantilevers as sensitive force transducers is in the early stages. Nevertheless, the demand for more sensitive techniques has positioned nanometer-scale mechanical structures – and NWs in particular – as the transducers of the future. At present, the promise of these devices has been demonstrated in a small number of proof-of-concept experiments. As discussed in this review, these methods and applications demonstrate the capabilities of NW transducers and their unique advantages, especially in the detection of weak forces. Nevertheless, much work remains to be done before NWs become part of the standard tool-box of scanning probe microscopies.

Force sensitivity can undoubtedly be improved by developing longer and thinner NW transducers. So far, researchers have not made concerted efforts to optimize NW geometry, leaving much to be gained by such work. Better spatial resolutions could also be achieved by developing NWs with sharper tips, through, for example, specialized growth techniques or by focussed ion beam milling. By carrying out SPM experiments with such sharp NWs in ultra-high vacuum conditions, atomic resolution should be possible. Combined with its vectorial force sensing capability, such a NW scanning probe could be used to reveal the anisotropy of atomic bonding forces.

Higher force sensitivity would also translate into more sensitive measurements of dissipation and non-contact friction. AFM in the pendulum geometry – the same geometry used for NWs – is ideally suited to measurements of nanometer-scale dissipation. Such measurements have recently been used to detect superconducting KisielSuppressionelectronicfriction2011 and bulk structural phase transitions KisielNoncontactAtomicForce2015 . They can also shed light on concepts such as superlubricity, atomic-scale friction, and quantum friction VolokitinQuantumFriction2011 . Furthermore, energy dissipation plays a central role in the breakdown of topological protection, the loss of quantum information, and disorder-assisted hot electrons scattering in graphene HalbertalNanoscalethermalimaging2016 . The ability to map tip-sample force fields and energy losses makes NW transducers ideal for investigating how and where energy leaks.

Finally, the combination of high force sensitivity, high spatial resoltution, and low invasivement of magnetic NW probes has the potential to expand the applicability of MFM. Such sensors could image the stray field thin ferromagnetic layers and other magnetic nanostructures hosting non-uniform states too fragile for conventional MFM. For such applications, efforts must first focus on producing smaller magnetic tips. Alternatively, the production of different types of magnet-tipped NWs could be attempted, through the evaporation of magnetic caps on sharp non-magnetic NWs or by direct focused ion beam induced deposition. By combining NW transducers with ferromagnetic resonance techniques, the spatial imaging of spin waves and the dynamics of individual skyrmions may also become possible.
