Massive and charged scalar field in Kerr-Newman spacetime: Absorption and superradiance

TL;DR

This paper studies how scalar fields interact with Kerr-Newman black holes, analyzing absorption and superradiance phenomena through numerical and semi-analytical methods across different frequencies and angles.

Contribution

It provides a comprehensive numerical analysis of scalar field absorption and superradiance in Kerr-Newman spacetime, including semi-analytical approximations and the effect of charge and incidence angles.

Findings

Absorption cross sections vary with frequency and incidence angle.

Semi-analytical formulas agree with numerical results.

Charged scalar fields can undergo superradiant scattering.

Abstract

We consider the propagation of a generic scalar field around a rotating and charged black hole. Using the partial wave method, we find, numerically, the total and partial absorption cross sections for different incidence angles. We investigate the low- and high-frequency limits, finding semi-analytical approximations for the absorption cross section, which we compare with our numerical results. Finally, we consider the superradiant regime, showing that, for charged fields, planar waves can be superradiantly scattered.

Figures

Equations

$$d{s}^2$$

$$({\nabla }^{\alpha }+iq{A}^{\alpha })({\nabla }_{\alpha }+iq{A}_{\alpha })\Psi +{\mu }^2\Psi =0.$$

$$A_{\alpha }=\frac{rQ}{{\rho }^2}(1,0,0,-a{\sin }^2\theta ).$$

$${\Psi }_{\omega }=\sum _{l=0}^{+\infty }\sum _{m=-l}^{+l}\frac{U_{\omega lm}(r)}{\sqrt{r^2+a^2}}{S}_{\omega lm}(\theta )e^{im\varphi -i\omega t},$$

$$\left(\frac{d^2}{d{\theta }^2}+\cot \theta \frac{d}{d\theta }\right)S_{\omega lm}$$

$$+\left[{\lambda }_{lm}+a^2({\omega }^2-{\mu }^2){\cos }^2\theta -\frac{m^2}{{\sin }^2\theta }\right]S_{\omega lm}=0,$$

$$\int d\theta \sin \theta {\left|S_{\omega lm}(\theta )\right|}^2=\frac{1}{2\pi }.$$

$$r_{\star }\equiv \int dr\left(\frac{r^2+a^2}{\Delta }\right)$$

$$\left(\frac{d^2}{d{r}_{\star }^2}+V_{\omega lm}\right)U_{\omega lm}(r_{\star })=0,$$

$$V_{\omega lm}(r)=\frac{H^2+[2ma\omega -{\mu }^2(r^2+a^2)-{\lambda }_{lm}-a^2({\omega }^2-{\mu }^2)]\Delta }{(r^2+a^2{)}^2}-\frac{\Delta [\Delta +2r(r-M)]}{(r^2+a^2{)}^3}+\frac{3r^2{\Delta }^2}{(r^2+a^2{)}^4},$$

$$H\equiv (r^2+a^2)\omega -am-qQr.$$

$$U_{\omega lm}(r_{\star})\sim\left\{\begin{array}[]{c l}{\mathcal{I}_{\omega lm}}U_{I}+{{\cal R}_{\omega lm}}U_{I}^{*}&(r_{\star}/M\rightarrow+\infty),\\ {\mathcal{T}_{\omega lm}}U_{T}&(r_{\star}/M\rightarrow-\infty),\end{array}\right.$$

$$U_I=e^{-i\omega v{r}_{\star }}{r}^{\tau }\sum _{j=0}^N\frac{h_j}{r^j}$$

$$\tau \equiv \frac{i(M{\mu }^2-qQ\omega )}{\omega v}$$

$$v\equiv \sqrt{1-\frac{{\mu }^2}{{\omega }^2}}.$$

$$U_T=e^{-i\left(\omega -{\omega }_c\right)r_{\star }}\sum _{j=0}^N{g}_j(r-r_{+}{)}^j,$$

$${\omega }_c\equiv m\frac{a}{r_{+}^2+a^2}+\frac{qQ{r}_{+}}{r_{+}^2+a^2}$$

$$\sigma =\sum _{l=0}^{\infty }\sum _{m=-l}^l{\sigma }_{l,m},$$

$${\sigma }_{l,m}=\frac{4{\pi }^2}{{\omega }^2{v}^2}|S_{\omega lm}(\gamma ){|}^2\left[1-{\left|\frac{{\mathcal{R}}_{\omega lm}}{{\mathcal{I}}_{\omega lm}}\right|}^2\right],$$

$${\sigma }^{\text{co}}=\sum _{l=1}^{\infty }\sum _{m=1}^l{\sigma }_{l,m},$$

$${\sigma }^{\text{counter}}=\sum _{l=1}^{\infty }\sum _{m=1}^l{\sigma }_{l,-m},$$

$${\sigma }^{\text{axial}}=\sum _{l=0}^{\infty }{\sigma }_{l,0}.$$

$${\sigma }_{\text{hf}}={\int }_{-\pi }^{\pi }{b}_c(\chi ,\gamma )d\chi ,$$

$$\mathbf{b}=\left(b\cos \gamma \cos \chi ,b\sin \chi ,-b\sin \gamma \sin \chi \right).$$

$$R(r)=P^2-\Delta [(1-v^2)r^2+({\mathcal{L}}_z-a{)}^2+\mathcal{C}],$$

$$P\equiv (r^2+a^2)-a{\mathcal{L}}_z-\frac{qQr}{E},$$

$${\mathcal{L}}_z\equiv L_z{E}^{-1}=bv\sin \chi \sin \gamma ,$$

$$\mathcal{C}\equiv \frac{C}{E^2}=b^2{v}^2({\cos }^2\chi +{\sin }^2\chi {\cos }^2\gamma )-a^2{v}^2{\cos }^2\gamma .$$

$$U^{(0)}=\sqrt{r^2+a^2}\left\{A-\frac{B}{2}\left[\ln \frac{(r-r_{+})}{(r-r_{-})}+i\pi \right]\right\},$$

$$U^{(0)}\approx \sqrt{r_{+}^2+a^2}\left\{A-\frac{B}{2}\left[\ln \frac{(r-r_{+})}{(r_{+}-r_{-})}+i\pi \right]\right\}.$$

$$U^H={\mathcal{T}}_{\omega 00}{e}^{-i(\omega -{\omega }_c)r_{\star }}.$$

Full text

I Introduction

General relativity (GR) is the most accepted theory of gravity, passing every test so far Will (2014). However, most tests were performed in the weak field regime. This scenario changed with the detections of gravitational waves by the LIGO/VIRGO collaborations Abbott et al. (2016, 2016, 2017a, 2017b, 2017c, 2017d), what confirmed a prediction of GR for the strong field regime. Such detections allow us to access the dynamics of dramatic phenomena, such as the merger of two black holes.

Besides the detection of black holes through gravitational waves, the shadows of these objects are expected to be probed in the near future with the Event Horizon Telescope (EHT) Psaltis (2018). This could help to test the no-hair conjecture, by checking deviations from the Kerr geometry Johannsen and Psaltis (2011). Furthermore, with the information from the vicinity of the event horizon, one could also access horizon-scale quantum fluctuations Giddings and Psaltis (2018).

Scattering and absorption processes play important roles in the study of black holes. Shadows of black holes, in particular, are obtained when we consider the scattering of light by a black hole. For fields around rotating black holes, one finds that low-frequency modes are subjected to superradiant scattering Misner (1972), what decreases the energy of the black hole. This effect is not exclusive of black holes, being present also in other contexts Dicke (1954); Zel’Dovich (1971, 1972); Oliveira et al. (2010); Dolan et al. (2011). Although it has been predicted in the 70’s, rotational superradiance was only recently verified in the laboratory Torres et al. (2017).

Superradiance is also present in the context of static black holes, when we consider, for instance, charged fields around Reissner-Nordström black holes Di Menza and Nicolas (2015); Benone and Crispino (2016). This phenomena is much more efficient for the charged case than for the rotating case. If we consider, for instance, the scalar field case, the maximum amplification for the rotating case is $0.4\%$, while for the charged case it reaches $40\%$ for a massless field with charge $q=1$ Brito et al. (2015).

Superradiance is associated to a negative absorption cross section. For a rotating black hole, the scalar absorption cross section can be negative for corotating spherical waves, remaining positive for planar waves Macedo et al. (2013a). Nevertheless, for a static charged black hole, due to the contribution of the Lorentz force, the absorption cross section can be negative for planar waves Benone and Crispino (2016).

Various works on scattering and absorption of fields by static black holes can be found in the literature, for uncharged Matzner (1968); Sanchez (1978); Jung and Park (2004); Dolan et al. (2006); Doran et al. (2005) and charged black holes Crispino and Oliveira (2008); Benone et al. (2014, 2017); Benone and Crispino (2016). For stationary black holes there are works considering spin 0 Macedo et al. (2013b); Leite et al. (2017a); Benone et al. (2018), spin 1 Leite et al. (2017b, 2018) and spin 2 fields Dolan (2008); Leite et al. (2017b). However, regarding the Kerr-Newman spacetime there is still a wide gap in the investigations of absorption.

The study of charged black holes is sometimes left aside, due to the consideration that astrophysical black holes are not expected to have significant charge Gibbons (1975). However, studies of minicharged dark matter suggest the possibility of charged black holes Cardoso et al. (2016). In any case, from a theoretical point of view, the study of charged solutions gives a more complete picture of the physics of black holes.

We consider the absorption of a massive and charged scalar field by a Kerr-Newman black hole. Due to the complexity of the corresponding equations, the solutions are obtained using a numerical approach, but for the low- and high-frequency regimes we obtain semi-analytical approximations. We pay special attention to the role of the charge in the superradiance.

The remaining of this work is organized as follows. In Sec. II we present the relevant equations for computing the absorption of a massive charged field around a charged and rotating black hole. In Sec. III we consider the equations of motion of a massive and charged particle in a Kerr-Newman spacetime, finding a semi-analytical approximation for the absorption cross section. In Sec. IV we consider the low-frequency limit of the field equations, obtaining a generalization for the (well-known) corresponding limit of the absorption cross section. In Sec. V we present our numerical results for the partial and total absorption cross sections, which we compare with the semi-analytical results obtained in previous sections. In Sec. VI we conclude with our final remarks. We use natural units, so that $c=G=\hbar=1.$

II Scalar absorption in Kerr-Newman spacetimes

The Kerr-Newman spacetime can be described by the line element

[TABLE]

where  $\rho^{2}=r^{2}+a^{2}\cos^{2}\theta$, $\Delta=r^{2}-2Mr+a^{2}+Q^{2}$, and $\xi=(r^{2}+a^{2})^{2}-\Delta a^{2}\sin^{2}\theta$. For $M\geq\sqrt{a^{2}+Q^{2}}$, this spacetime is associated to a black hole that possesses mass $M$, charge $Q$ and angular momentum $J=aM$. This solution generally presents two horizons, $r_{\pm}=M\pm\sqrt{M^{2}-(a^{2}+Q^{2})}$, which coincide for $M^{2}=a^{2}+Q^{2}$.

We are interested in the absorption of a massive and charged scalar field, so that we have to solve the following Klein-Gordon equation

[TABLE]

Equation (2) dictates the dynamics of a scalar field with charge $q$ and mass $\mu$ ($<\omega$), subjected to the electromagnetic vector potential

[TABLE]

In order to solve Eq. (2), we perform the separation of variables given by

[TABLE]

where $S_{\omega lm}$ are the spheroidal harmonics, which obey the equation

[TABLE]

with $\lambda_{lm}$ being the eigenvalues of the spheroidal harmonics, which are normalized according to

[TABLE]

We define the tortoise coordinate as

[TABLE]

and use it to rewrite the radial equation as

[TABLE]

with $V_{\omega lm}$ given by

[TABLE]

where

[TABLE]

The asymptotic limits of the solution of Eq. (8), associated to an incident wave from spatial infinity, are given by

[TABLE]

in which

[TABLE]

is associated to an incident wave, with

[TABLE]

and

[TABLE]

The transmitted wave is given by

[TABLE]

where

[TABLE]

is the critical frequency.

For $\omega>\omega_{c}$, $U_{T}$ corresponds to a wave going into the black hole horizon. However, for $\omega<\omega_{c}$ the exponential of $U_{T}$ changes its overall sign, corresponding to an outgoing wave. In the latter case we have superradiance, what will be investigated in Sec. V.

Using the partial wave method one can show that the total absorption cross section can be written as

[TABLE]

where $\sigma_{l,m}$ is the partial absorption cross section, given by

[TABLE]

with $\gamma$ being the incidence angle. We can split $\sigma$ into corotating modes, given by

[TABLE]

counterrotating modes, given by

[TABLE]

and axially-symmetric modes,

[TABLE]

Such separation is useful for understanding the behavior of off-axis incidence.

III High-frequency limit

In the high-frequency limit we can find an approximation for the absorption cross section by analyzing the path of a massive and charged particle subjected to the electromagnetic vector potential (3). For a wavefront impinging upon the black hole, making an angle of $\gamma$ with the rotation axis, the high-frequency absorption cross section is given by Macedo et al. (2013b)

[TABLE]

where $\chi$ is an angle defined in the plane of the wavefront and $b_{c}$ is the critical impact parameter.

In order to find the critical impact parameter, we consider an impact vector given by

[TABLE]

Considering Eq. (23) we find, for the radial part of the equations of motion,

[TABLE]

where

[TABLE]

with

[TABLE]

and

[TABLE]

The constants $E$ and $L_{z}$ are the energy and the $z$ component of the angular momentum of the particle, respectively, and $C$ is the Carter’s constant. The critical impact parameter is found by imposing $R(r)=0$ and $R^{\prime}(r)=0$. In Sec. V we compare $\sigma_{\text{hf}}$ with the numerical results for a selection of parameters, including the incidence angle.

IV Low-frequency limit

It is possible to find an analytical solution for the radial equation (8) in the low-frequency limit. For the massless (and chargeless) scalar case, the absorption cross section goes to the area of the black hole in this limit, a result which was shown to be valid quite generically Higuchi (2001). We can also find an analytical solution for the massive and charged case, restricting our analysis to low values of the scalar field mass ($\mu\approx 0$) and charge ($q\approx 0$). For small frequencies, the greatest contribution comes from the mode for $l=m=0$, such that we will find an approximate solution only for this case.

In order to obtain the low-frequency limit we will first find a solution for the null frequency case and then match this solution with the asymptotic limits, given by Eq. (11). Considering $\omega=0$ (and also $\mu=q=l=m=0$) in Eq. (8), we find the solution

[TABLE]

where $A$ and $B$ are constants to be determined. For the limit $r\rightarrow r_{+}$, Eq. (28) reduces to

[TABLE]

Close to the horizon we can consider the solution given by Eq. (11), keeping only the term $j=0$ of the summation in Eq. (15), such that we have

[TABLE]

In this limit the tortoise coordinate behaves as

[TABLE]

where

[TABLE]

Considering Eq. (30), together with Eq. (31), in the limit $\omega\rightarrow 0$, we have

[TABLE]

Comparing Eqs. (29) and (33) we find

[TABLE]

where we neglected a term of $(\omega-\omega_{c})\ln(r_{+}-r_{-})$ to obtain Eq. (34).

In the limit $r\rightarrow\infty$, the radial equation (8) is given by

[TABLE]

where

[TABLE]

To obtain Eqs. (36) and (37) we neglected terms of order $\mathcal{O}(r^{-2})$. The solution for Eq. (36) can be written as

[TABLE]

where $F_{l}(\eta,x)$ and $G_{l}(\eta,x)$ are the Coulomb wave functions and

[TABLE]

The coefficients $\zeta$ and $\kappa$ of Eq. (35) are related to ${\mathcal{I}_{\omega lm}}$ and ${\mathcal{R}_{\omega lm}}$ through

[TABLE]

and

[TABLE]

Considering the limit $\omega vr\ll 1$ in Eq. (38), we find

[TABLE]

where we used the approximations $F_{0}(\eta,x)=\beta x$ and $G_{0}(\eta,x)=1/\beta$, with

[TABLE]

Considering the limit $r\gg r_{+}$ in Eq. (28), we find

[TABLE]

Comparing Eqs. (42) and (44), and using also Eq. (35), we find

[TABLE]

Substituting Eqs. (45) in Eqs. (40) and (41), we obtain

[TABLE]

[TABLE]

Substituting Eqs. (46) and (47) in Eq. (17), and using that, in the low-frequency limit, $S_{\omega 00}\rightarrow 1/\sqrt{4\pi}$, we find

[TABLE]

By considering only the first term in the denominator, we are left with

[TABLE]

Next, we have to consider the expansion of $\beta$, which, according to Eqs. (39) and (43), depends on the velocity of the scalar field, and we define $v_{c}\equiv 2\pi(M\mu-Qq)$.

For $v>v_{c}$, $\beta\rightarrow 1$, we obtain

[TABLE]

This result reduces to the one obtained in Ref. Benone and Crispino (2016) for $a\rightarrow 0$ and to the result of Ref. Benone et al. (2014) for both $a$ and $q$ going to zero.

For $v<v_{c}$, $\beta\rightarrow 2\pi(M\mu-Qq)/v$, we obtain

[TABLE]

This result reduces to the one in Ref. Benone et al. (2017) for $a=q=0$.

V Results

In this section we present an assortment of our numerical results, which we compare with the high- and low-frequency limits obtained in previous sections. We solved Eq. (8) numerically, using the asymptotic expressions given by Eqs. (11), with the help of Eqs. (12) and (15). In order to simplify the calculations we assume $h_{0}=g_{0}=1$, while the other terms of $h_{j}$ and $g_{j}$ in Eqs. (12) and (15), respectively, are found by assuming that the radial equation is subjected to the boundary conditions given by Eq. (11). Knowing the radial solution, we can find the reflection coefficient and, hence, the absorption cross section through Eq. (18).

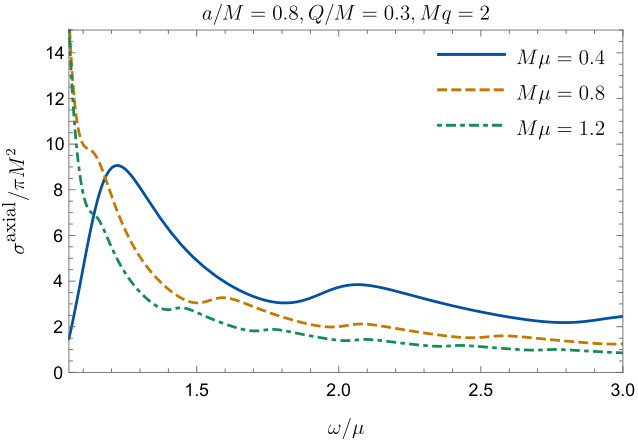

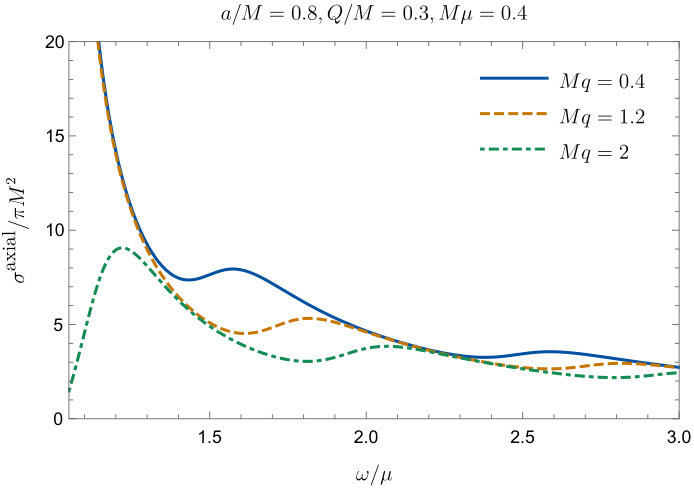

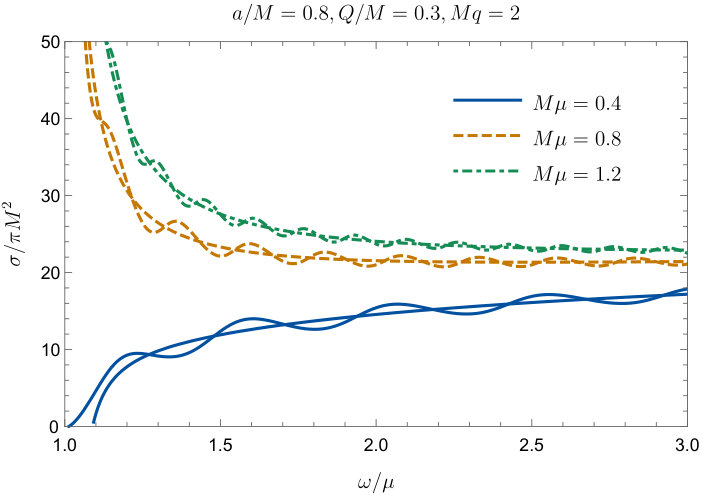

In Fig. 1 we present the total absorption cross section for incidence along the black hole rotation axis, varying the parameters of the scalar field ($\mu$ and $q$). The numerical results oscillate around the corresponding high frequency solution, tending to it as we increase $\omega$. As we increase the mass of the field, the absorption cross section increases. However, as we increase the charge of the field, the absorption cross section decreases. For some ranges of the parameters, the total absorption cross section goes to infinity as $\omega\rightarrow\mu$, but as we increase the value of $q$ we obtain finite values of the absorption cross section for this limit.

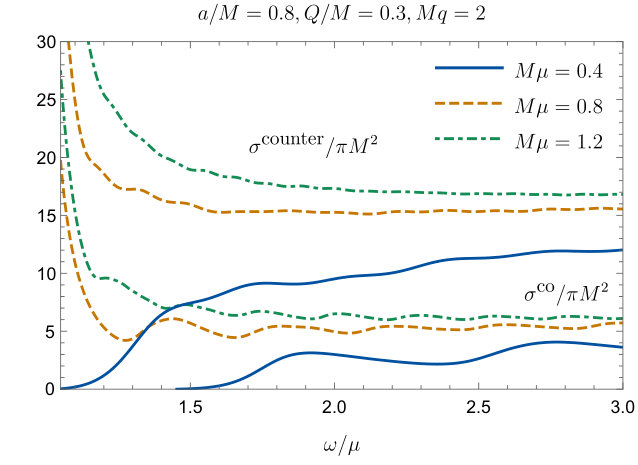

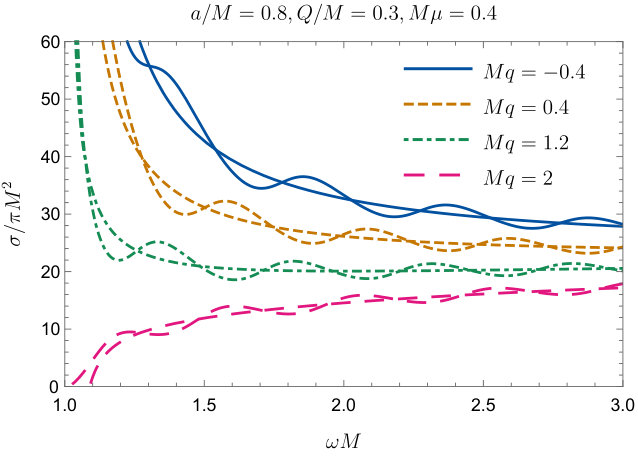

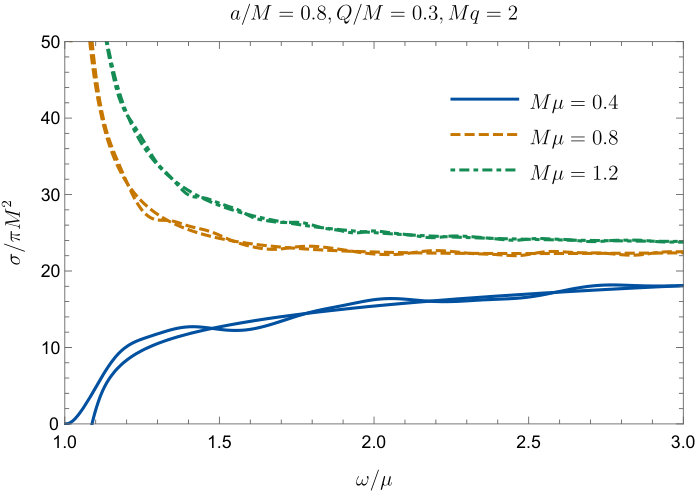

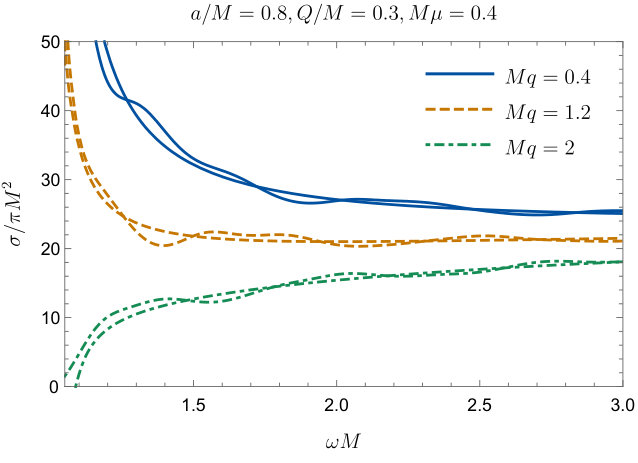

For the off-axis incidence case, the oscillations of the total absorption cross section become less regular as we increase $\gamma$, specially for high values of $a$. In Fig. 2 we present results for the off-axis incidence in the equatorial plane ($\gamma=\pi/2$). The behavior of the off-axis incidence can be better seen if we consider the corotating [given by Eq. (19)] and the counterrotating [given by Eq. (20)] contributions separately, as shown in Fig. 3. The counterrotating modes are always more absorbed than the corotating ones. Depending on the values of the parameters, both modes can go to infinity or to a finite value in the low-frequency limit.

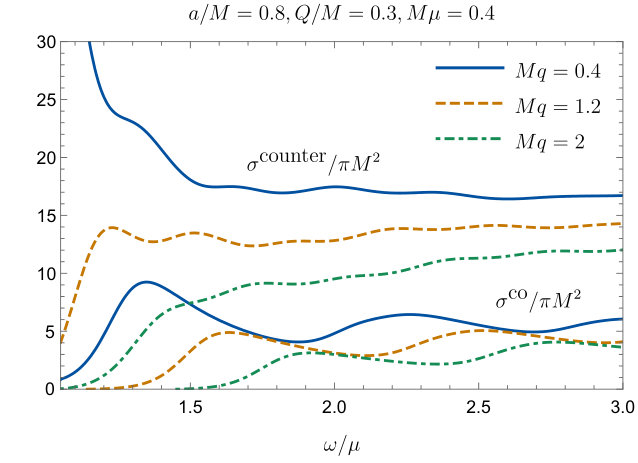

In Fig. 4 we display the contribution to the absorption cross section given by the axiallly-symmetric modes [cf. Eq. (21)]. In general, as we increase either the charge or the mass of the field, the axial absorption cross section increases. However, in the low-frequency limit, as we decrease the mass of the field, the axial absorption cross section increases.

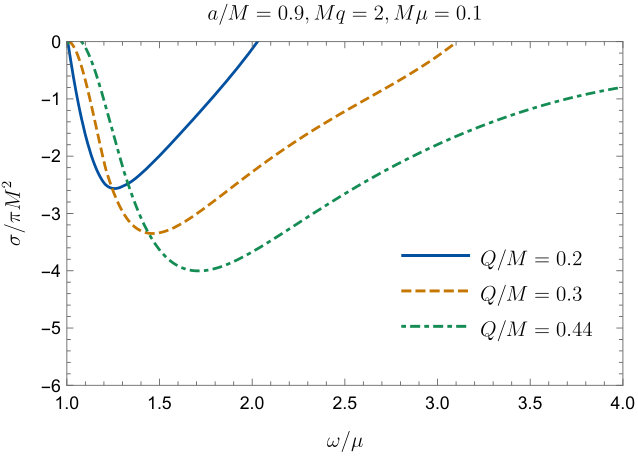

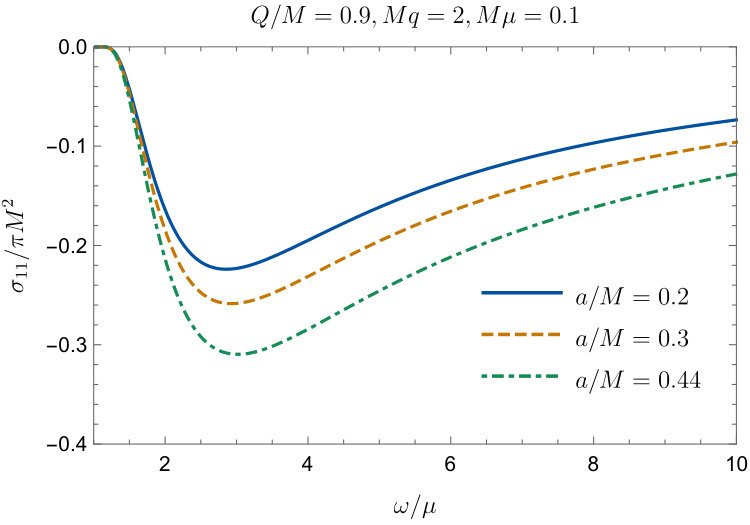

In Fig. 5 we exhibit only the negative part of the total absorption cross section, for different values of the black hole charge. We see that, as we increase $Q$, the superradiance increases. In Fig. 6 we also exhibit the negative part of the partial absorption cross section, this time for $l=m=1$, and for different values of the black hole angular momentum. As we increase $a$, the superradiance increases, but the increment with $Q$ is more significant [cf. Fig. 5].

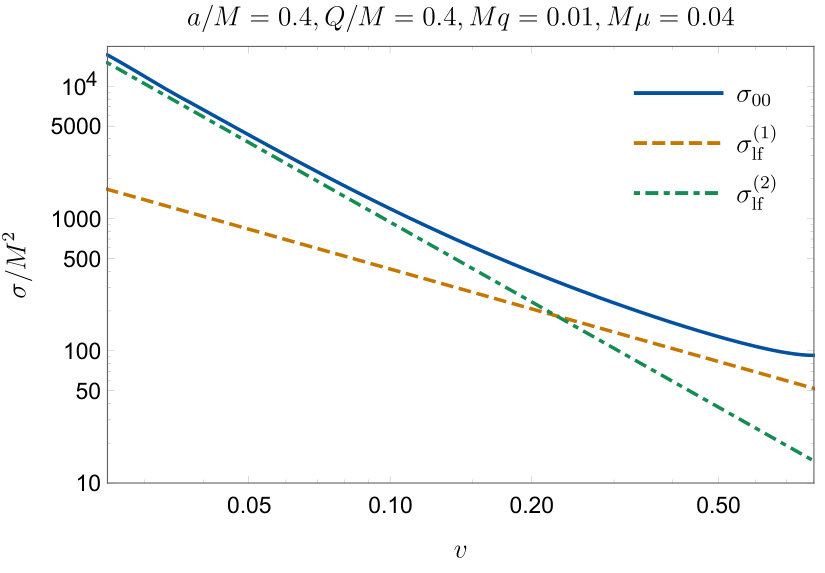

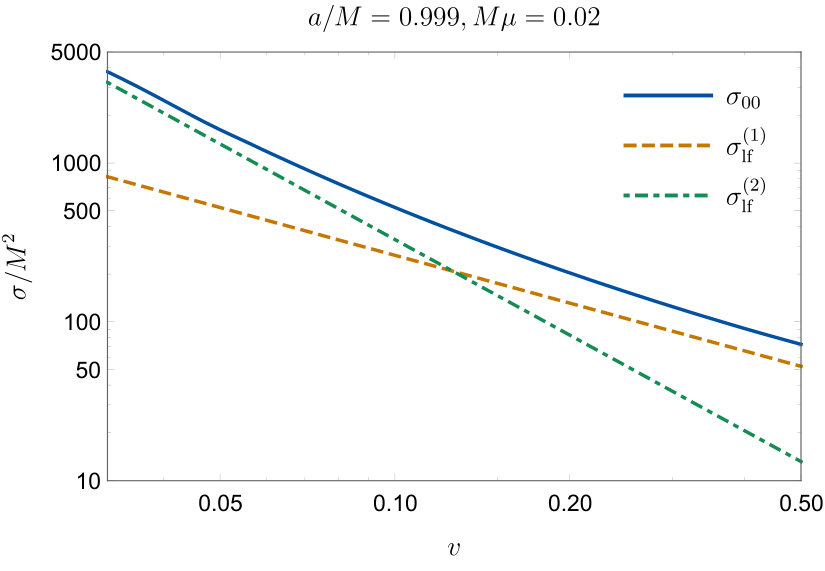

In Fig. 7 we display the low-frequency limits of the absorption cross section, given by Eqs. (50) and (51), comparing these with numerical results for the partial absorption cross section for $l=m=0$. In the top plot of Fig. 7 we consider the chargeless BH case, while in the bottom we consider the charged BH case. For both cases we see a transition of the numerical results for the cross section from the $\sigma_{\text{lf}}^{(1)}$ to the $\sigma_{\text{lf}}^{(2)}$ limits at $v\approx v_{c}$.

VI Final remarks

We have considered a massive and charged scalar field around a Kerr-Newman black hole, computing the partial and total absorption cross sections, using the partial wave method. The limits for low frequencies were obtained analytically, while the high-frequency limit was obtained semi-analytically. We obtained numerically the total absorption cross section for the full range of frequencies, comparing our numerical results with the (semi-)analytical limits in the suitable regimes, finding excellent agreement.

For the on-axis incidence case we have shown that the total absorption cross section oscillates around the high-frequency limit, a feature already known from other black hole cases such as for static spacetimes. For $Qq>0$, as we increase $\mu$ and decrease $q$, the total absorption cross section decreases. This happens because the term $Qq$ implies the presence of a repulsive electromagnetic force, which decreases the absorption. When $Qq<0$, an electromagnetic attractive force is present, increasing the absorption. For a massive scalar field the total absorption cross section goes to infinity as $\omega\rightarrow\mu$; however, for $Qq>0$ the total absorption cross section can have a finite low-frequency limit, depending on the values of the parameters.

For off-axis incidence we have shown that the total absorption cross section presents less regular oscillations around the high-frequency limit, a feature which can be better understood when we consider the corotating and counterrotating contributions separately. We obtained that the counterrotating modes are more absorbed than the corotating ones, due to the dragging of inertial frames in the rotating black hole spacetime.

We also investigated superradiance, showing that, as we increase either $a$ or $Q$, the superradiance increases. For the chargeless black hole case the total absorption cross section is always positive, while for the charged black hole case the total absorption cross section can be negative. This becomes explicit when we consider the contributions of corotating and counterrotating modes separately. For the chargeless case the absorption cross section associated to the counterrotating modes is always positive, what accounts, when summed with the corotating modes, for a positive total absorption cross section. For the charged black hole case both corotating and counterrotating modes can present a negative absorption cross section, due to the influence of the Lorentz force, resulting in a negative total absorption cross section for low frequencies.

For the low-frequency limit we have shown that the absorption cross section has two different limits, depending on the velocity of the field, as already shown for other cases Unruh (1976); Benone et al. (2017). We have compared the numerical and analytical results, showing that the numerical absorption cross section presents a transition of regime near a critical velocity, $v_{c}$. Since for massive fields the low-frequency limit corresponds to $\omega\rightarrow\mu$, then this regime can only be achieved by bosons with very low mass. It is possible to show that both regimes can be relevant in the context of ultralight bosons Hui et al. (2017).
