HI-MaNGA: HI Followup for the MaNGA Survey

TL;DR

The HI-MaNGA project enhances the MaNGA galaxy survey by adding HI 21cm radio observations, providing crucial gas content data to improve understanding of galaxy evolution.

Contribution

This paper introduces the HI-MaNGA follow-up program, detailing its observational plans, initial data, and integration with existing HI surveys to augment galaxy evolution studies.

Findings

First 331 galaxies observed with GBT in 2016

Cross-matched MaNGA DR15 with ALFALFA HI data

Enhanced dataset for studying galaxy gas content

Abstract

We present the HI-MaNGA programme of HI follow-up for the Mapping Nearby Galaxies at Apache Point Observatory (MaNGA) survey. MaNGA, which is part of the Fourth phase of the Sloan Digital Sky Surveys (SDSS-IV), is in the process of obtaining integral field unit (IFU) spectroscopy for a sample of ~10,000 nearby galaxies. We give an overview of the HI 21cm radio follow-up observing plans and progress and present data for the first 331 galaxies observed in the 2016 observing season at the Robert C. Bryd Green Bank Telescope (GBT). We also provide a cross match of the current MaNGA (DR15) sample with publicly available HI data from the Arecibo Legacy Fast Arecibo L-band Feed Array (ALFALFA) survey. The addition of HI data to the MaNGA data set will strengthen the survey's ability to address several of its key science goals that relate to the gas content of galaxies, while also increasing the legacy of this survey for all extragalactic science.

Figures

Tables

Table 1. Table 1: Summary of measurements made on HI detections

Name	Units	Description
$S_p$	mJy	The peak HI flux density.
$S/N$	-	The peak signal to $rms$ noise ratio.
$F_{\mathrm{HI}}$	Jy km s-1	The integrated HI flux. Note this is not self-absorption corrected.
$\log \left(M_{\mathrm{HI}}/M_{\odot }\right)$	-	Log of the HI mass (in solar masses) from Equation 2 assuming $D=v_{\mathrm{opt}}/70$ km s-1 Mpc-1
		and using the raw HI flux (no correction for self-absorption).
$V_{\mathrm{HI}}$	km s-1	Central redshift of the HI detection (using optical definition for redshift, and in the Barycentric frame).
$W_{M50}$	km s-1	Width of the HI line measured at 50% of the median (which is also the mean) of the two peaks.
$W_{P50}$	km s-1	Width of the HI line measured at 50% of the peak.
$W_{P20}$	km s-1	Width of the HI line measured at 20% of the peak.
$W_{2P50}$	km s-1	Width of the HI line measured at 50% of the peak on either side.
$W_{F50}$	km s-1	Width of the HI line measured at 50% of the peak$-rms$ on fits to the sides of the profile.
$P_r$, $P_l$	mJy	The peak HI flux densities in the low and high velocity peaks respectively.
$a_r$, $a_l$	mJy	Fit parameters in $F\left(v\right)=a+bv$ fits to either side of the profile (used in measuring $W_{F50}$),
$b_r$, $b_l$	mJy/(km s-1)	where the zeropoint of the velocity axis in the fit is defined as the central velocity of the HI.

Table 2. Table 2: Summary of first year of observing for HI-MaNGA at GBT (AGBT16A_95)

Status	Ngalaxies
All observed	331
Detections	181
Upper limits	150
Bonus detections	38

Equations

$$F_{\mathrm{HI},\mathrm{error}}=rms\sqrt{\Delta vW},$$

$$M_{\mathrm{HI}}/M_{\odot }=2.356\times 10^5{\left(\frac{D}{\mathrm{Mpc}}\right)}^2\left(\frac{F_{\mathrm{HI}}}{\mathrm{Jy}km/s}\right).$$

$$M_{\mathrm{HI},\mathrm{c}}=c{M}_{\mathrm{HI}},$$

$$W_c=\left[\frac{W-2\Delta v\lambda }{1+z}-\Delta t\right]\frac{1}{\sin i},$$

$$\cos i=\sqrt{\frac{(b/a{)}^2-q^2}{1-q^2}},$$

$$F_{\mathrm{HI},\lim }<200rms{\mathrm{mJy}\mathrm{kms}}^{-1},$$

$$M_{\mathrm{HI},\lim }/M_{\odot }<2.356\times 10^5{\left(\frac{D}{\mathrm{Mpc}}\right)}^2\left(\frac{F_{\mathrm{HI},\lim }}{\mathrm{Jy}km/s}\right),$$

$$F_{\mathrm{HI},\lim }=3rms\sqrt{W\Delta v}{\mathrm{mJy}\mathrm{km}\mathrm{s}}^{-1},$$

Full text

††pubyear: 2018††pagerange: HI-MaNGA: HI Follow-up for the MaNGA Survey–References

1 Introduction

MaNGA (Mapping Nearby Galaxies at Apache Point Observatory; Bundy et al. 2015) is part of the SDSS-IV programme of surveys (Blanton et al., 2017) which began in 2014 and is running until 2020. MaNGA modified the SDSS-III BOSS fibre fed spectrograph (Smee et al., 2013) on the Sloan Foundation 2.5m telescope (Gunn et al., 2006) to create pluggable Integral Field Units (IFUs) which group between 19-127 fibres in a hexagonal pattern (or “bundle") across the face of each MaNGA galaxy (Law et al., 2015), ranging in size from 12-32″ in diameter. This allows the survey to obtain spatially resolved spectra for a large sample of galaxies. The MaNGA instrument has seventeen such fibre bundles in each SDSS plate (a sky area with a diameter of 3∘).

MaNGA is observing $\sim$1600 galaxies/year for a planned sample of $\sim$10,000 galaxies over its full 6 year duration (Law et al., 2015; Wake et al., 2017). In the most recent public release (Data Release 15, or DR15, Abolfathi et al. 2018) MaNGA data for 4,621 unique galaxies were made available to the community. These data already make MaNGA the largest IFU survey in the world (e.g. ATLAS-3D, CALIFA or SAMI with $N=260$, $N=600$ and $N\sim 3000$ respectively, Cappellari et al. 2011; Sánchez et al. 2012; Bryant et al. 2015), allowing the internal kinematics and spatially resolved properties of stellar populations and ionised gas to be studied as a function of local environment and halo mass across all types of galaxies.

MaNGA will provide the most comprehensive census of the stellar (and ionised gas) content of local galaxies to-date, but galaxies are not made of stars alone. The science goals of MaNGA are focused on understanding the physical mechanisms which drive the evolution of the galaxy population. These goals have been developed into the four key science questions of MaNGA (Bundy et al., 2015), all of which crucially depend on understanding not only the stellar content but also the cold gas budget of galaxies in the MaNGA sample. In the next section we summarize how knowledge of HI content contributes to all of MaNGA’s key science questions.

1.1 How HI will Contribute to MaNGA Key Science Questions

How does gas accretion drive the growth of galaxies? Information on the total cold gas content is a necessary first step to fully explore the role of gas accretion, by revealing the global HI content of each galaxy, and in particular galaxies found to have more HI than is typical may be used to reveal gas accretion. Asymmetry in the HI profile may also correlate with accretion (e.g. Bournaud et al., 2005). Finally, knowledge of total content will also provide targets for spatially resolved HI follow-up to reveal the details of gas accretion. 2. 2.

What are the relative roles of stellar accretion, major mergers, and instabilities in forming galactic bulges and ellipticals? The cold gas content drives the dynamics of secular evolution (e.g. bars, Athanassoula 2003), as dynamically cold gas is a more efficient transport of angular momentum than the stars. Modeling of the shape of the HI profile, combined with MaNGAs stellar and ionised gas velocity maps may allow us to statistically probe HI distributions - e.g. looking for central holes. This is a technique we plan to investigate in future work. Extended HI is also a better probe of interactions than stellar morphology (e.g Holwerda et al., 2011). 3. 3.

What quenches star formation? What external forces affect star formation in groups and clusters? Information about the cold gas content is crucial for understanding the physical mechanisms that regulate gas accretions and quench galaxy growth via the conversion of gas into stars (e.g. see Rosario et al., 2018, who look at the links between AGN feedback and CO content). HI-MaNGA data can be combined with CO follow-up to add information on the molecular hydrogen (e.g. ongoing CO followup surveys like MASCOT111http://www.eso.org/~dwylezal/mascot and JINGLE, Saintonge et al. 2018222http://www.star.ucl.ac.uk/JINGLE/) in order to complete this picture across a representative subset of the MaNGA sample. The efficiency of converting atomic into molecular hydrogen, given by the H2-to-HI mass ratio, is tightly related to the large-scale star formation in galaxies (e.g., Leroy et al., 2008). Exploring the dependencies of this ratio on mass, mass surface density, galaxy type, specific star formation rate, and environment will help to clarify the role of global disk instabilities versus local processes of the ISM in the star formation efficiency of galaxies (e.g., Blitz & Rosolowsky, 2006; Krumholz et al., 2009; Obreschkow & Rawlings, 2009). These can also be compared with the star formation histories (either from stellar population synthesis, or using current SFR via ionized gas) as well as metallicities obtained the MaNGA data, adding crucial information for this analysis. 4. 4.

How was angular momentum distributed among baryonic and non-baryonic components as the galaxy formed, and how do various mass components assemble and influence one another? Without the full baryonic mass accounting for both stars and gas this question cannot be answered. Nowadays, the stellar-to-halo mass relation is one of the most used relations in extragalactic astronomy (Wechsler & Tinker, 2018). A generalization of it to the gaseous and total baryonic contents provides relevant information for understanding the galaxy-halo connection and the main physical processes that drive galaxy evolution. Volume weights can be applied to the MaNGA survey to produce a volume-limited sample (e.g., Wake et al., 2017), in such a way that the galaxy-halo connection for stellar, HI, H2, and baryonic masses will be possible. The baryonic Tully-Fisher relation (e.g. McGaugh et al., 2000; Stark et al., 2009; Avila-Reese et al., 2008) provides the most direct observational link between baryonic mass and dark halo mass. Molecular gas typically does not contribute significantly to the total baryonic mass ($M_{\rm H2}\sim 0.1$ M⋆; e.g. Boselli et al. 2014), but HI mass can be a significant fraction, or even the dominant component, in the mass range of the MaNGA sample and so the total HI mass must be directly measured. Further, MaNGA traces the stellar and ionised gas kinematics out to only 1.5$r_{e}$ or 2.5$r_{e}$ (Law et al., 2015). HI kinematics (rotation widths) will provide an anchor point for the rotation speed of galaxies in their outer parts.

In this paper we introduce HI-MaNGA, a program of HI (21cm line) followup of MaNGA galaxies aimed at contributing HI information to help MaNGA data be used to address its key science questions. This first HI-MaNGA paper is intended to introduce the survey and document the first release of data, which was released as a Value Added Catalogue (VAC) in SDSS-IV DR15 (Abolfathi et al., 2018). We provide in this release data from our first year of observing at the Robert C. Byrd Green Bank Telescope (GBT; under project code AGBT16A_095). This comprises the results of observations of 331 MaNGA galaxies. Observations have to-date been completed at GBT for a further $\sim$2000 MaNGA targets; those data will be released in the future.

The structure of this paper is as follows. We describe the target selection for HI-MaNGA and existing HI in §2. Our observational strategy and data reduction process is described in §3. We show some overview results based on the HI content or dynamics of MaNGA galaxies in §4, and conclude with a summary in §5

2 Target Selection and Existing HI

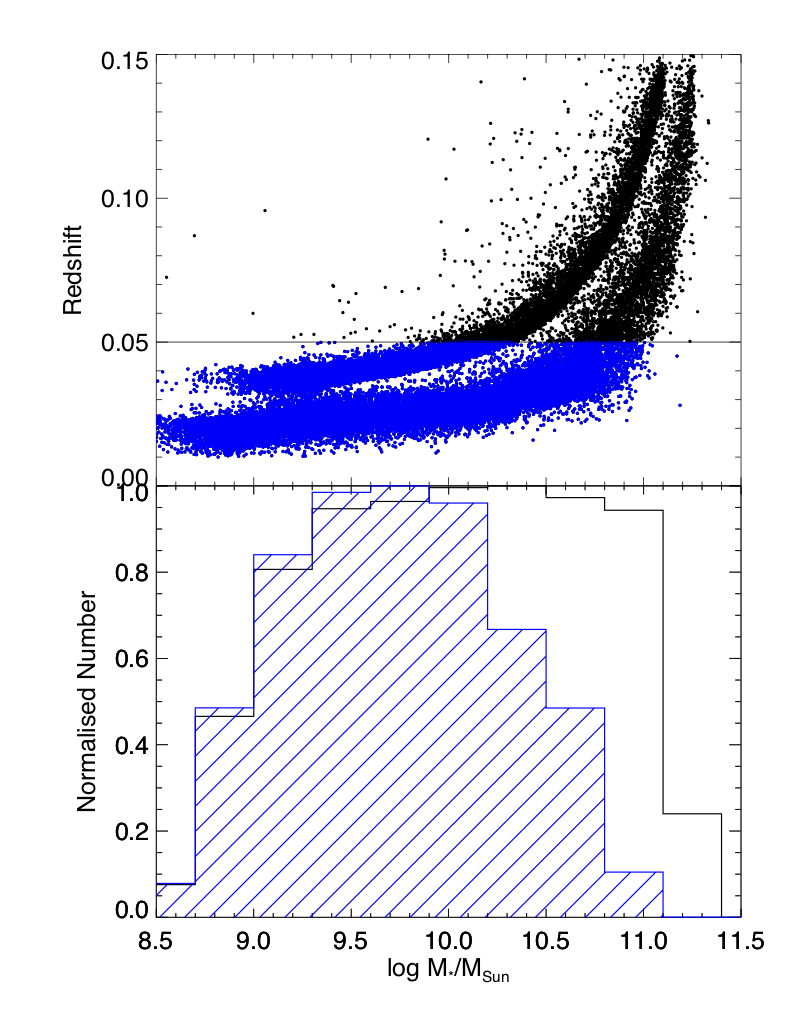

The basic selection for HI-MaNGA targets is all MaNGA observed galaxies with $cz<15,000$ km s*-1*, and not obviously in the sky area observed by ALFALFA (Haynes et al., 2011, 2018).333There is some deliberate overlap to check cross calibration. Also, as the final ALFALFA100 catalogue was not released at the start of HI-MaNGA there is some unintentional overlap at the edges of the surveys.

Our GBT observations (see §3) are designed to reach comparable $rms$ noise to the ALFALFA survey (around 1.5 mJy at 10 km s*-1* velocity resolution Haynes et al. 2011); the upper redshift limit is chosen partly by the redshift range of ALFALFA, and partly by the distance at our expected depth where we expect more non-detections than detections. This redshift cut partially acts as a stellar mass limit in the MaNGA sample because of the way MaNGA is selected (Wake et al., 2017). We illustrate this in Figure 1 which shows the stellar mass redshift relation (upper) and the mass distribution (lower) of MaNGA and HI-MaNGA targets respectively. Notice how MaNGA has a flat mass distribution across $M_{\star}\sim 10^{9-11}M_{\odot}$, while HI-MaNGA targets are more strongly peaked at $M_{\star}\sim 10^{9.8}M_{\odot}$: while basically all low mass MaNGA galaxies will be followed up in HI, higher mass galaxies are preferentially further away, and therefore less likely to be part of the follow-up presented here. By observing all MaNGA galaxies regardless of morphology we will provide an unbiased (or at least agnostic to morphological properties) census of the HI content and the impact this has on galaxy properties.

At the beginning of planning for HI-MaNGA, the MaNGA sample that was available was the “MPL-4" list (“MaNGA Product Launch-4", an internal name for the subset of MaNGA observations which was then later released in DR13; Albareti et al. 2017). This means that all galaxies with HI measurements released in this preliminary data release are part of the DR13 (and therefore also DR15 and later) MaNGA samples. From within this list observing was completed in an order which maximised efficiency on sky, with a secondary goal of finishing HI observations for MaNGA galaxies on SDSS plates that were partially completed in earlier GBT observing sessions. We show in Figure 2 the sky distribution of MaNGA targets, observations and HI followup (as well as other relevant HI surveys).

As part of more recent planning for the HI-MaNGA observing, we also performed a cross-match of the MaNGA MPL-7 sample (the set which was released in DR15) with the final ALFALFA (100%) release (Haynes et al., 2018). This provides all strong detections (roughly $S/N>4.5$) in ALFALFA. We also extract upper limits for non-detections by measuring the noise at the sky and redshift position of each MaNGA galaxy directly from the cubes. We find a total of 908 of the MaNGA DR15 sample at $z<0.05$ in ALFALFA (334 detections and 574 upper limits).444Details of how to access this catalogue can be found at https://www.sdss.org/dr15/data_access/value-added-catalogs/?vac_id=hi-manga-data-release-1

3 GBT Observations and Data Reduction

In this paper we present observations from the first 331 HI-MaNGA targets, using 192.5 hours of GBT telescope time (or 35 minutes telescope time per galaxy). This was completed during the 2016A and 2016B observing semesters (all under proposal code AGBT16A_95).

3.1 Observations

Observations were performed using the L-band (1.15-1.73 GHz) receiver on GBT, which has a FWHM beam of 8.8’ at these frequencies. We made use of the VErsatile GBT Astronomical Spectrometer (VEGAS) backend555For details on VEGAS see http://www.gb.nrao.edu/vegas/report/URSI2011.pdf. VEGAS was tuned to place 21cm (1420.405 MHz) emission at the known optical redshift of the MaNGA galaxy (from the NASA Sloan Atlas, Blanton et al. 2011) at the centre of the bandpass, which was set to have a width of 23.44 MHz. A total of 4096 channels were used to collect data (which therefore had a raw spectral resolution of 5.72 kHz; or 1.2 km/s). As this is much smaller than needed to resolve the velocity structure of a typical galaxy, we boxcar smooth by a factor of four (to a resolution of 22.89 kHz, or $\sim$5.0 km/s) during the final data processing, and then performed a Hanning Smoothing for a final effective velocity resolution of 10 km s*-1*. 666As galaxies in our sample range from $z=0.01-0.05$ the exact value varies by about 5% across the redshift range

Observations were done in position switch mode using multiples of 5 min ON/OFF pairs (i.e. $\sim$10 mins telescope time). Data were collected in 10 second “data samples" in order to mitigate the impact of time dependent radio frequency interference (RFI) causing catastrophic loss of entire samples (or more usually several samples in a row). In most cases each target was observed for a total of three ON/OFF pairs; sometimes, where a strong detection was found early observing this was cut short, and in some cases where significant interference from passing Global Positioning System (GPS) satellites ruined a significant fraction of “samples" in an ON/OFF pair, an additional set (or sometimes more than one) was obtained. This procedure can be identified in Figure 3 which shows the measured $rms$ noise as a function of total integration time in seconds. The vertical strip at $t=900$ s represents observations comprising three sets of 5 minute (or 300 s) ON/OFF pairs, while a large number of observations which lost small fractions of time to GPS or other interference scatter below or sometimes above this.

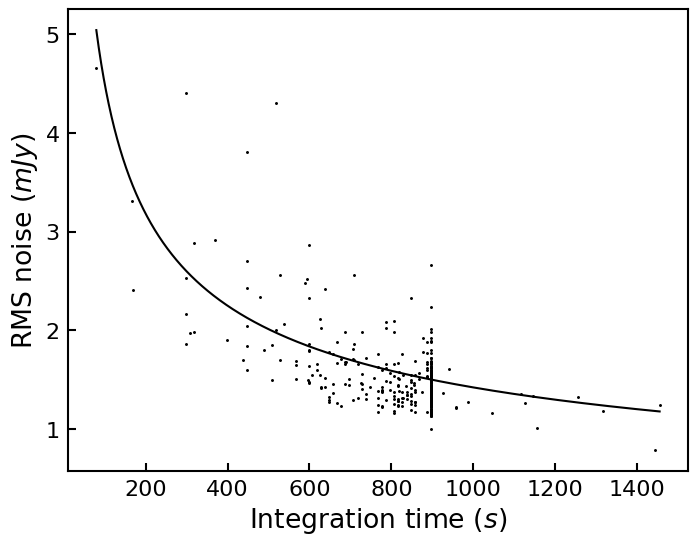

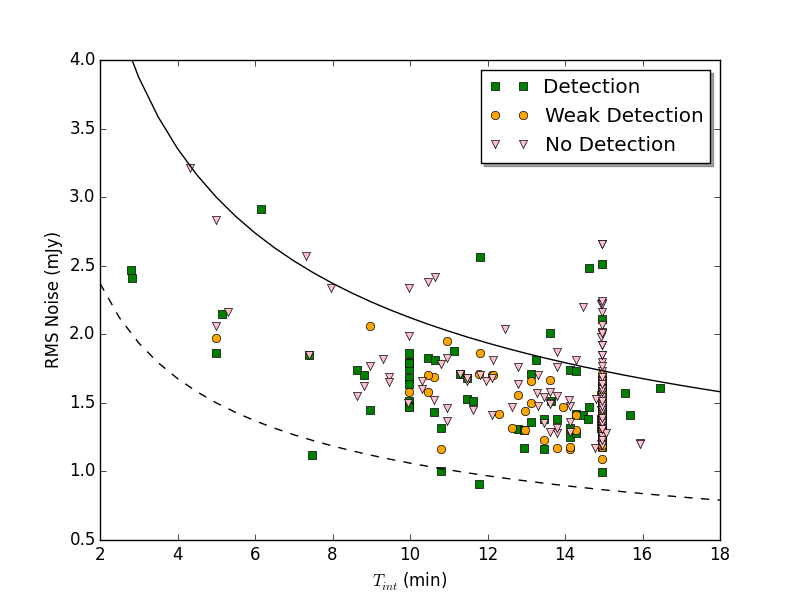

Figure 3 also illustrates that our goal to obtain roughly $rms$=1.5 mJy observations has been largely achieved; where the noise is significantly higher this is typically because the galaxy was a strong HI emitter (and therefore detected even in a noisier spectrum). The solid line shows a behaviour of $t^{-1/2}$ normalized to 1.5 mJy at $t=900$ s.

3.2 Data Reduction

Data was reduced making use of the custom GBTIDL777http://gbtidl.nrao.edu/ interface to IDL (the Interactive Data Language888https://www.harrisgeospatial.com/SoftwareTechnology/IDL.aspx). Data segments free of GPS or other significant interference are first combined, edges trimmed, and narrow frequency RFI removed before smoothing to the final 10 km s*-1* resolution.

Calibration was performed using the GBT gain curves which are reported to be highly accurate at L-band for simple ON/OFF observing.999A flux scale accuracy of 10-20% is reported in the GBTIDL Calibration Document at http://wwwlocal.gb.nrao.edu/GBT/DA/gbtidl/gbtidl_calibration.pdf Finally baselines are fit to the signal free part of the spectrum.

The reduced and baseline-fitted spectra for the first 331 targets observed at GBT on this programme are provided as a Value Added Catalogue in SDSS DR15 (Abolfathi et al., 2018) accessible on the SDSS Science Archive Server (SAS101010https://data.sdss.org/sas/mangawork/manga/HI/v1_0_1/spectra/GBT16A_095/); a detailed data model is provided.111111https://internal.sdss.org/dr15/datamodel/files/MANGA_HI/HIPVER/spectra/HIPROP/mangaHI.html For each observation we provide a row in an overview catalogue file,121212https://data.sdss.org/sas/dr15/manga/HI/v1_0_1/mangaHIall.fits which also has a data model available.131313 https://internal.sdss.org/dr15/datamodel/files/MANGA_HI/HIPVER/mangaHIall.html This mangaHIall file includes information on either the detection or non-detection as well as meta-data to aid in using in combination with MaNGA data. This is intended to be the structure for future larger data releases from the same program, which will have their own corresponding updated data models.

It is also possible to access HI-MaNGA data using the Marvin interface (Cherinka et al., 2018).141414For details on this see the tutorial at https://sdss-marvin.readthedocs.io/en/stable/tools/catalogues.html#value-added-catalogs-vacs

3.2.1 Characterising Detections

As all galaxies are observed at their known optical redshift, we determine detection at a fixed smoothing scale by eye. This procedure is standard for similar single dish surveys; a more quantitative/automated detection scheme is being considered for future HI-MaNGA data releases.

We report the peak $S/N$ calculated as $S/N=S_{p}/rms$. This will introduce a slight bias due to the measured $S_{p}$ being elevated by positive noise peaks. The user may prefer to re-calculate $S/N_{c}=(S_{p}-rms)/rms$ from tabulated values. The integrated $S/N$ is more appropriate to assess the significance of detections, and can be calculated as $S/N_{\rm int}=F_{\rm HI}/F_{\rm HI,error}$, where $F_{\rm HI,error}$ is described below.

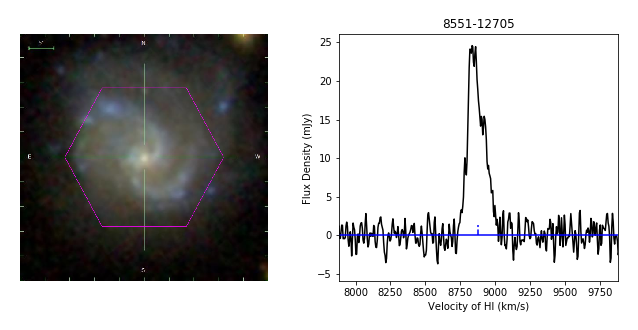

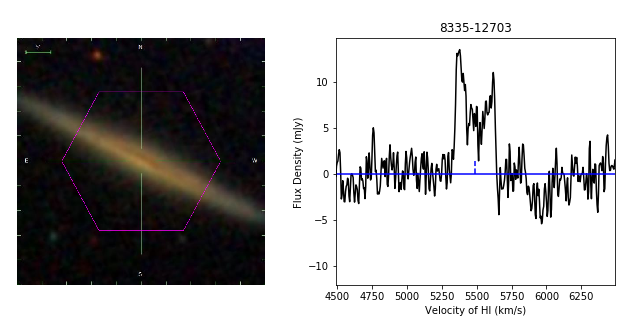

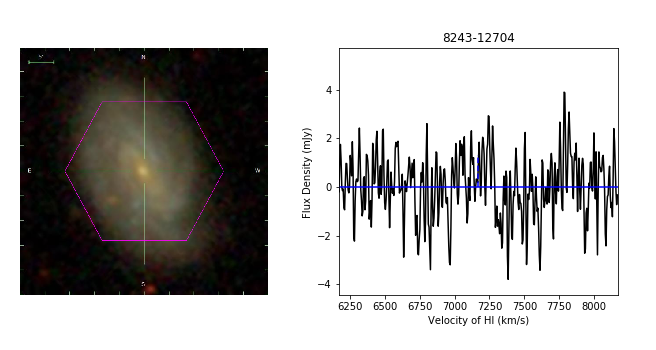

Example detections across low, median and high $S/N$ are shown in Figure 4. HI widths like these are characterised using the same procedure as was described in Masters et al. (2014); based on Springob et al. (2005) this is also similar to the measurements performed by ALFALFA (Haynes et al., 2018). Not all measurements are possible on the lowest $S/N$ detections; which should always be used with caution as errors on extracted quantities will be large, and the likelihood of spurious detections is high.

A summary of all measurements which are provided for each detection (where possible) is given in Table 1. We refer the reader to Masters et al. (2014) and references therein for full details of these measurements, but provide here for convenience the formula used to calculate:

The statistical error on the HI flux:

[TABLE]

where $\Delta v=10$km s*-1* is the channel resolution (after Hanning smoothing), and $W$ should be the width of the profile (ideally the full width of baseline where signal is integrated, a value of $1.2W_{\rm P20}$ can be used to approximate this). 2. 2.

HI masses from fluxes:

[TABLE]

We highlight that we provide raw widths and fluxes (and HI masses) in the catalogue. Users may wish to apply the following corrections to reconstruct more physically representative values:

To correct HI masses for HI self-absorption you may like to use

[TABLE]

where $c=(a/b)^{0.12}$ has been recommended (using the optical axial ratio $(a/b)$, see Giovanelli et al. 1994 for details). 2. 2.

To correct HI widths for inclination effects, cosmological broadening and the impact of turbulent motions and instrumental resolution use

[TABLE]

with $\Delta v=$ 5.00 km s*-1* (the effective resolution before Hanning smoothing) and where $\lambda$ is a factor which accounts for the impact of noise on the effective resolution, taken from the simulations of Springob et al. (2005).151515We use the values for $\Delta v<5$ km s*-1of $\lambda=0.005$ for $\log(S/N)<0.6$, $\lambda=-0.4685+0.785\log(S/N)$ for $0.6<\log(S/N)<1.1$ and $\lambda=0.395$ for $\log(S/N)>1.1$. The correction $\Delta t=6.5$ km s-1* is proposed to correct for turbulent motions, (also from the work of Springob et al. 2005) and the inclination $i$ can be calculated for a disc of intrinsic thickness, $q$ from its observed axial ratio $(a/b$) using

[TABLE]

and where $q=0.2$ is a reasonable average estimate for discs (see Masters et al. 2014 and references therein). 3. 3.

Cosmological corrections are small in this redshift range ($0.01<z<0.05$), however we list some here (and point the reader to Meyer et al. 2017 for a full discussion). We re-iterate that these corrections have not been applied in our DR1 catalogue.

• •

The use of Jy km s*-1* as units of flux (which is standard in HI surveys in the local Universe) introduces a $(1+z)^{2}$ term into the flux when expressed in units with the dimensions of flux (Jy Hz). This will propagate into all measurements using integrated flux (i.e. HI masses).

• •

Peculiar velocities can introduce significant distance errors in the local Universe (e.g. as explored in Masters et al., 2004). However the minimum redshift limit of the MaNGA survey ($z>0.01$) means the impact of this is $<10\%$ on HI-MaNGA masses.

• •

Widths are provided in rest frame. Equation 4 includes the $(1+z)$ correction which should be applied to correct to observed frame.

3.2.2 Characterising Non-Detections

Non-detections are reported just as the $rms$ noise across the spectrum (in mJy), but we also report a conservative estimate of the HI mass upper limit, assuming width of $W=200$ km s*-1* to allow to calculate an estimate of the HI flux which could have remained undetected (to $1\sigma$) as:

[TABLE]

and therefore the HI upper limit as

[TABLE]

assuming $D=v_{\rm opt}/70$ km s*-1* Mpc*-1* (where $v_{\rm opt}$ is the optical redshift of the MaNGA galaxies in the NSA). To be used for statistical analysis, this simple estimate should be corrected so it does not depend on the channel width of the observations (which is implicit in the measurement of the $rms$). A better choice of a 3-$\sigma$ upper limit (which we do not provide in this catalogue release, but which can be calculated from the information given) would be

[TABLE]

where $\Delta v=10$km s*-1* is the velocity resolution (after Hanning smoothing), and $W$ is the assumed width (e.g. 200 km s*-1* as used above, or this could be based on the optically measured rotation from MaNGA). Although channel size, $\Delta v$, is included in Eqn 8, this calculated upper limit will not scale with channel size, as any increase/decrease in channel size will be canceled by a decrease/increase in $rms$ (which should be calculated at $\Delta v$ resolution). On average we find that Equation 8 gives an upper limit $\sim 1.5\times$ smaller than that we report in the catalogue (which can therefore be considered a more conservative upper limit) and should be more appropriate in terms of noise statistics.

4 Results

The simplest result we can show is the detection fraction for the programme. This is summarized in Table 2. Out of 331 galaxies observed we report detections consistent with HI coming from the target galaxy in redshift in 181 cases (i.e. a detection fraction of 55%). We further report 38 “bonus” detections,161616https://data.sdss.org/sas/dr15/manga/HI/v1_0_1/mangaHIbonus.fits representing HI detected either at a redshift significantly offset from the target, or in the OFF position. These results should be used with extreme caution as the object emitting the HI is unlikely to be centred in the GBT beam, and therefore beam attenuation may be significant.

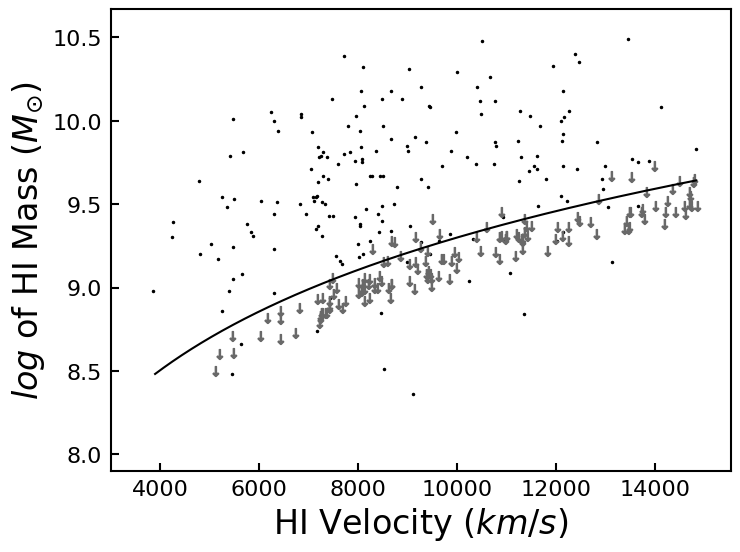

For all primary detections (and upper limits for the 150 non-detections), we show the HI mass (or limit) plotted against redshift in Figure 5. The solid line shows our estimated detection limit of $10^{9.4}M_{\odot}$ at a recessional velocity of $v=9,000$ km s*-1* (or a distance of 129 Mpc$/h_{70}$). There is some scatter around this line for observations with significantly higher or lower noise than typical (see Figure 3 which shows the $rms$ noise of all observations).

4.1 HI Mass Fraction

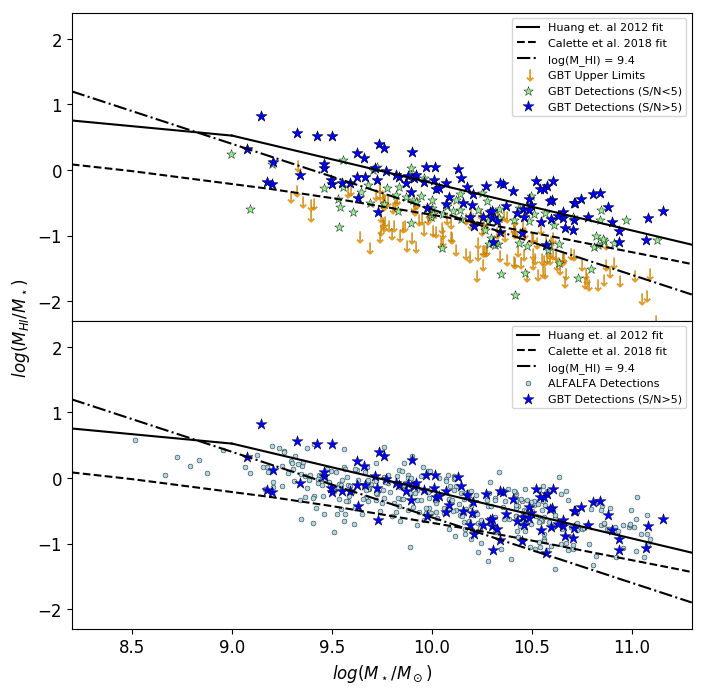

As a check on data quality, we plot in Figure 6 our corrected HI mass fraction against stellar mass, and compare to results from ALFALFA matches to MaNGA galaxies, as well as the published relations based on all ALFALFA detections from Huang et al. (2012), and the fit to a compilation and homogenization of data from various sources for late-type galaxies in Calette et al. (2018). We use stellar masses from the Pipe3D analysis tool (Sánchez et al., 2016a, b) applied to the MaNGA data and presented in a Value Added Catalog (Sánchez et al., 2018); here we use specifically the MPL-6 version of Pipe3d which used the same set of galaxies as released in DR15, but an earlier reduction pipeline. The HI masses here are corrected for self-absorption following the procedure in §3.2.1. Our results follow the published relation (and ALFALFA measurements) well, with some scatter to lower mass fractions, which are mostly low $S/N$ detections, and reflect the survey strategy as a follow-up to optical detections, rather than a blind HI survey like ALFALFA, which naturally picks up higher HI mass fraction galaxies in a stellar mass selected sample (because galaxies which scatter below the relation will preferentially have low $S/N$ detections which may not be believed in the targeted follow-up but not in a blind survey).

4.2 Star Formation and HI Detections

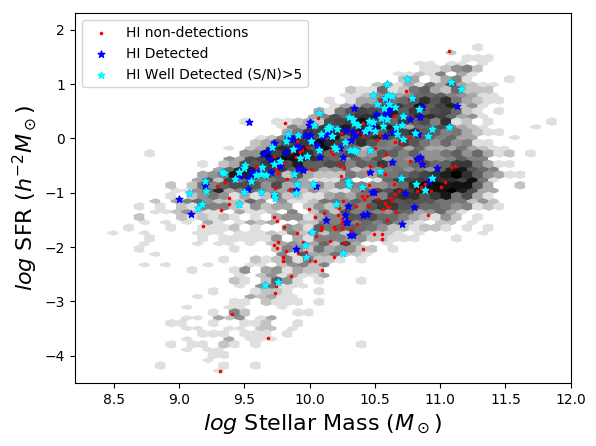

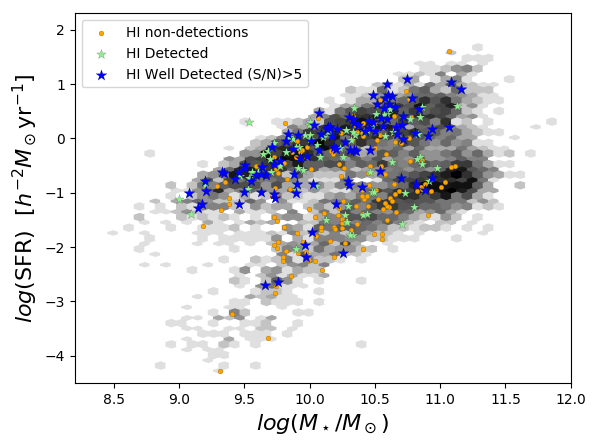

In Figure 7 we show a star formation stellar mass plot for the MaNGA DR15 sample. The integrated star-formation rates and stellar masses shown in this plot are taken from the Pipe3D analysis of MaNGA data (Sánchez et al., 2018). All DR15 galaxies are shown in grey to reveal the typical distribution of MaNGA galaxies on the plot (with star forming galaxies in the upper sequence, and “quiescent" galaxies below. We highlight HI non-detections (red points), weak detections (blue stars; $S/N<5$ in HI) and strong detections (cyan stars; $S/N>5$ in HI) from the HI data released with this publication, which we note does not cover all DR15 MaNGA galaxies (*i.e.*a grey point means that the galaxy does not have HI data, not that it does not have HI).

As is expected, HI detections concentrate in the star forming sequence of this plot, however we note that detections are found in some quiescent MaNGA galaxies and some star forming galaxies have no detected HI. This trend has been previously noted in HI surveys (e.g. Brown et al., 2015; Saintonge et al., 2017), who note that the molecular gas is more strongly correlated to the starformation properties than HI. Further work using this sample will investigate how the HI content of MaNGA galaxies correlates with star formation properties in more detail.

5 Summary and Conclusions

In this paper, we introduce the HI-MaNGA follow-up survey of the MaNGA sample (Bundy et al., 2015). This programme is aiming to obtain HI follow-up observations for a large subset of the MaNGA galaxies, selected only on redshift ($cz<15,000$ km s*-1*). We present here the observational and data reduction strategy, as well as basic results from the first year of observing at the GBT (under project code AGBT16A_95) which obtained HI measurements (or upper limits) for 331 MaNGA galaxies. These data are released as a VAC in SDSS DR15 (Abolfathi et al., 2018) available to download via https://data.sdss.org/home and with a catalogue available in CasJobs.171717https://skyserver.sdss.org/CasJobs/

These data are already in use by the wider MaNGA science team. Published work which has already made use of these GBT HI data include a study of the properties of quiescent dwarf galaxies (Penny et al., 2016), a paper on an unusual galaxy showing evidence for hot ionised gas infall (which is not detected in HI with GBT; Lin et al. 2017a) and a paper which presents ALMA data for a sample of three green valley galaxies (Lin et al., 2017b).

We have performed a cross match of the MaNGA DR15 sample with the ALFALFA100 catalogue. We find 1308 of the MaNGA DR15 galaxies have HI data in ALFALFA (334 detections, and 574 upper limits). We provide our cross match as an electronic table.

We show some simple plots using these data in combination with MaNGA measurements (or other ancillary data). These include the HI mass fraction as a function of stellar mass, and an illustration of where HI detections lie on the star-formation–stellar mass plot.These provide an illustration of the kind of science which will be enabled by HI follow-up for MaNGA.

These data will provide a valuable resource to combine with MaNGA data for studies of galaxy evolution and understanding the role of cold gas content which we will explore in future work. The addition of HI data to the MaNGA data set will strengthen the survey’s ability to address several of its key science goals that relate to the gas content of galaxies, while also increasing the legacy of this survey for all extragalactic science.
