Lithium-loaded Liquid Scintillator Production for the PROSPECT experiment

TL;DR

This paper details the production and thorough characterization of lithium-loaded liquid scintillator in multiple batches for the PROSPECT experiment, ensuring quality and performance standards are met.

Contribution

It presents the first large-scale production and comprehensive quality assessment of lithium-loaded liquid scintillator specifically for the PROSPECT experiment.

Findings

59 batches produced, 57 passed QA

Samples showed consistent optical and scintillation properties

LiLS met the required performance criteria for PROSPECT

Abstract

This work reports the production and characterization of lithium-loaded liquid scintillator (LiLS) for the Precision Reactor Oscillation and Spectrum Experiment (PROSPECT). Fifty-nine 90 liter batches of LiLS (${}^6{\rm Li}$ mass fraction 0.082%$\pm$0.001%) were produced and samples from all batches were characterized by measuring their optical absorbance relative to air, light yield relative to a pure liquid scintillator reference, and pulse shape discrimination capability. Fifty-seven batches passed the quality assurance criteria and were used for the PROSPECT experiment.

Figures

Equations

$${\mathrm{Li}}_2{\mathrm{CO}}_3+2\mathrm{HCl}\to 2\mathrm{LiCl}+{\mathrm{H}}_2\mathrm{O}+{\mathrm{CO}}_2.$$

$$f(t)=A_1{e}^{-t/{\tau }_1}+A_2{e}^{-t/{\tau }_2},$$

$$PSD=(q_{tot}-q_f)/q_{tot},$$

$$FOM=({\mu }_n-{\mu }_e)/\sqrt[]{FWH{M}_n^2+FWH{M}_e^2},$$

Full text

1 Introduction

The Precision Reactor Oscillation and Spectrum Experiment (PROSPECT) is a reactor antineutrino experiment at the Oak Ridge National Laboratory (ORNL) [1]. It is deployed to make a precise measurement of the energy spectrum of antineutrinos emitted from the High Flux Isotope Reactor (HFIR) at short baselines in the range from 7 to 13 meters. It also provides a probe of eV-scale sterile neutrino oscillations.

The PROSPECT detector is a $\sim\!2.0$ m × 1.6 m × 1.2 m active rectangular volume containing about four tons of non-flammable liquid scintillator loaded with 6Li (LiLS) to a mass fraction of approximately $0.1\%$ [2]. The detector operates with minimal overburden from the HFIR building. Thin specularly reflecting panels divide the LiLS volume into an 11×14 array of 154 optically isolated rectangular segments (14.5 cm × 14.5 cm × 117.6 cm each) viewed on both ends by 5-inch (12.7 cm) photomultiplier tubes (PMTs).

Including a 20% contingency, the production of approximately 5000 liters LiLS was required. LiLS was chosen because it allows efficient capturing of neutrons produced by the inverse beta decay (IBD) reaction in a compact detector. 6Li has a high capture cross section for IBD neutrons, and an alpha and a triton are produced from the capture with approximately 540 keV of visible energy in the scintillator [3, 4]. These particles are spatially localized, and the deposited energy can be distinguished from electron-like events by pulse shape discrimination (PSD).

The collaboration developed a LiLS that fulfills the requirements of the experiment in terms of light yield, PSD, and stability. The chosen LiLS formulation is the result of about three years of development. The production of LiLS was carried out at the Chemistry Department of Brookhaven National Laboratory (BNL). Fifty-nine 90 liter batches of LiLS were produced over a period of nine months, starting in Jan. 2017.

This paper summarizes the LiLS production and its quality assurance (QA) program. Criteria for acceptance were based on comparison to the performance of an initial LiLS batch deployed in a 50 liter, two-segment prototype detector known as PROSPECT-50 [5]. PROSPECT-50 was designed to replicate essential properties of the 154-segment PROSPECT and achieved PSD and light yield of the LiLS satisfying the PROSPECT design requirements. Each LiLS production batch was required to be consistent with or superior to that of PROSPECT-50 in terms of absorbance at 420 nm of incident light relative to air, light yield relative to a liquid scintillator reference (linear alkylbenzene, LAB), and PSD.

2 LiLS production

2.1 Materials and quality assurance

The generic formula of the LiLS consists of a nonionic surfactant, a 9.98 mol/L aqueous solution of lithium chloride (LiCl) with 95% enriched ${}^{6}{\rm Li}$ by atom, 2,5-diphenyloxazole (PPO) and 1,4-bis(2-methylstyryl) benzene (bis-MSB) in a commercial, di-isopropylnaphthalene (DIN)-based scintillator (EJ-309)444Certain trade names and company products are mentioned in the text or identified in illustrations in order to adequately specify the experimental procedure and equipment used. In no case does such identification imply recommendation or endorsement by the National Institute of Standards and Technology, nor does it imply that the products are necessarily the best available for the purpose.. The surfactant is an ether-based glycol from DOW Chemical. The PPO and bis-MSB were obtained from Research Product International.

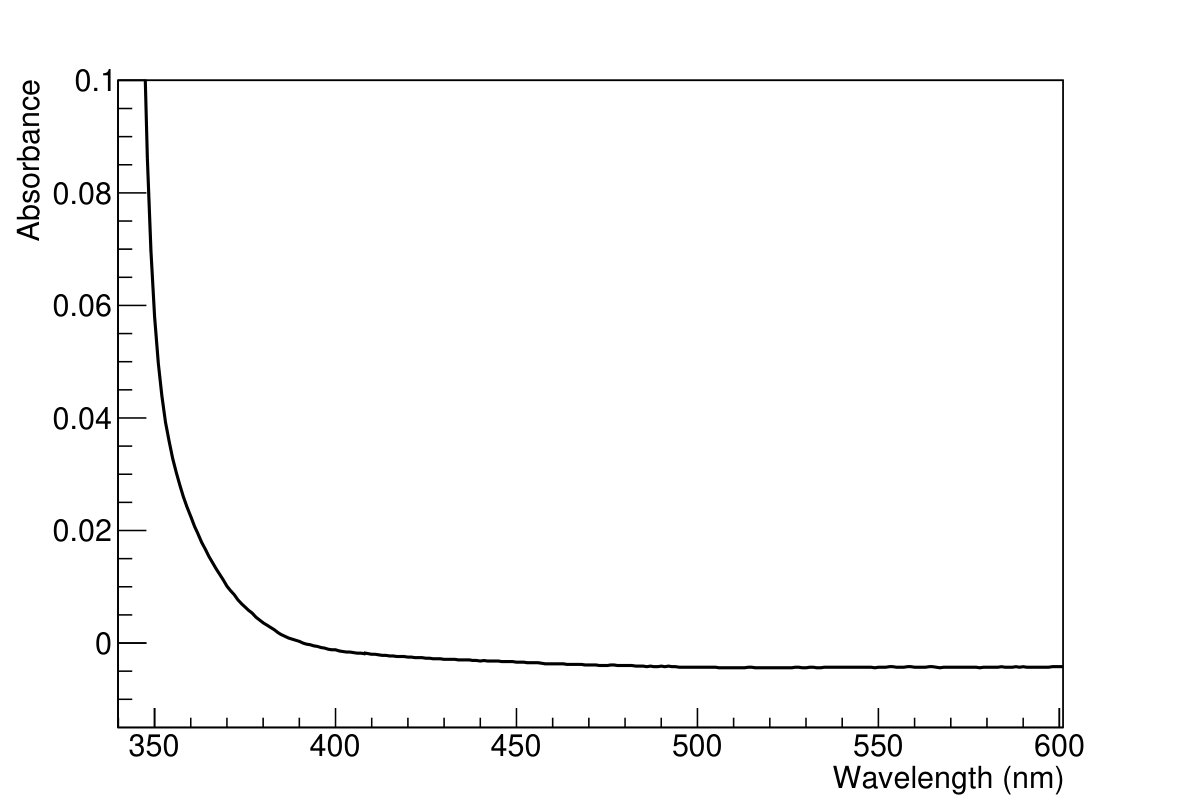

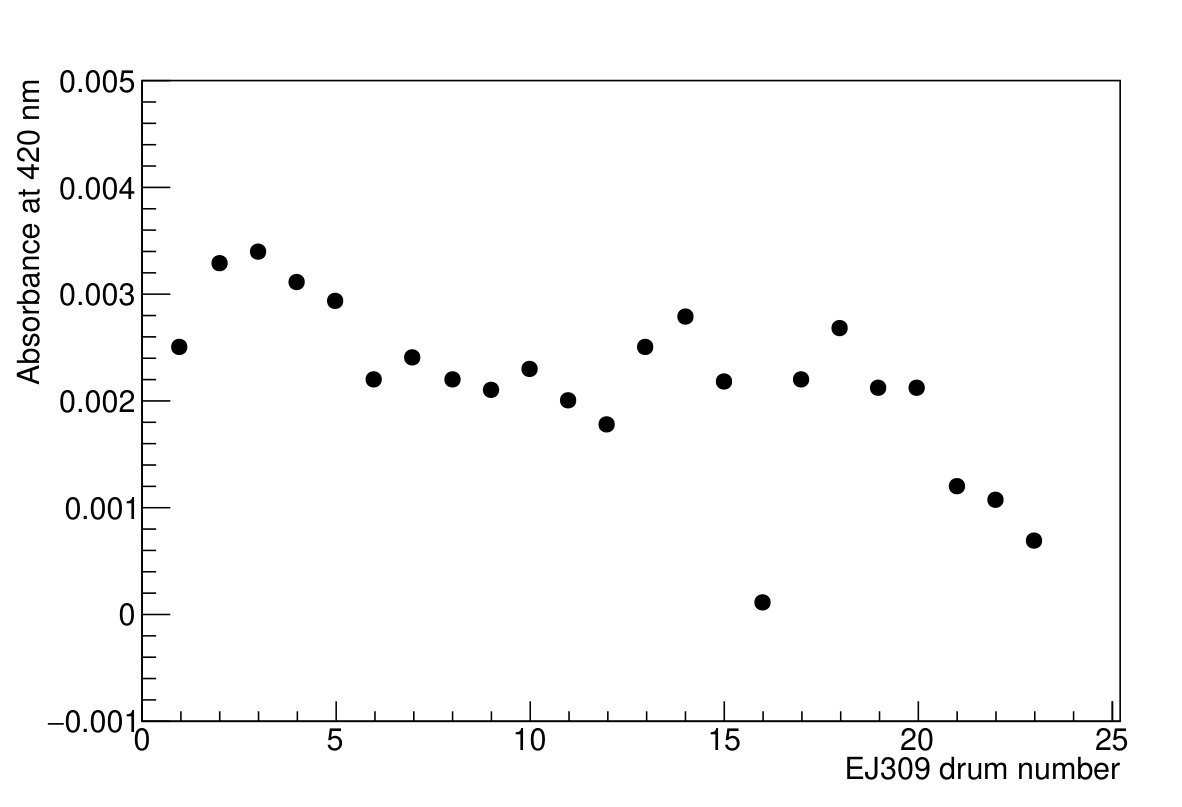

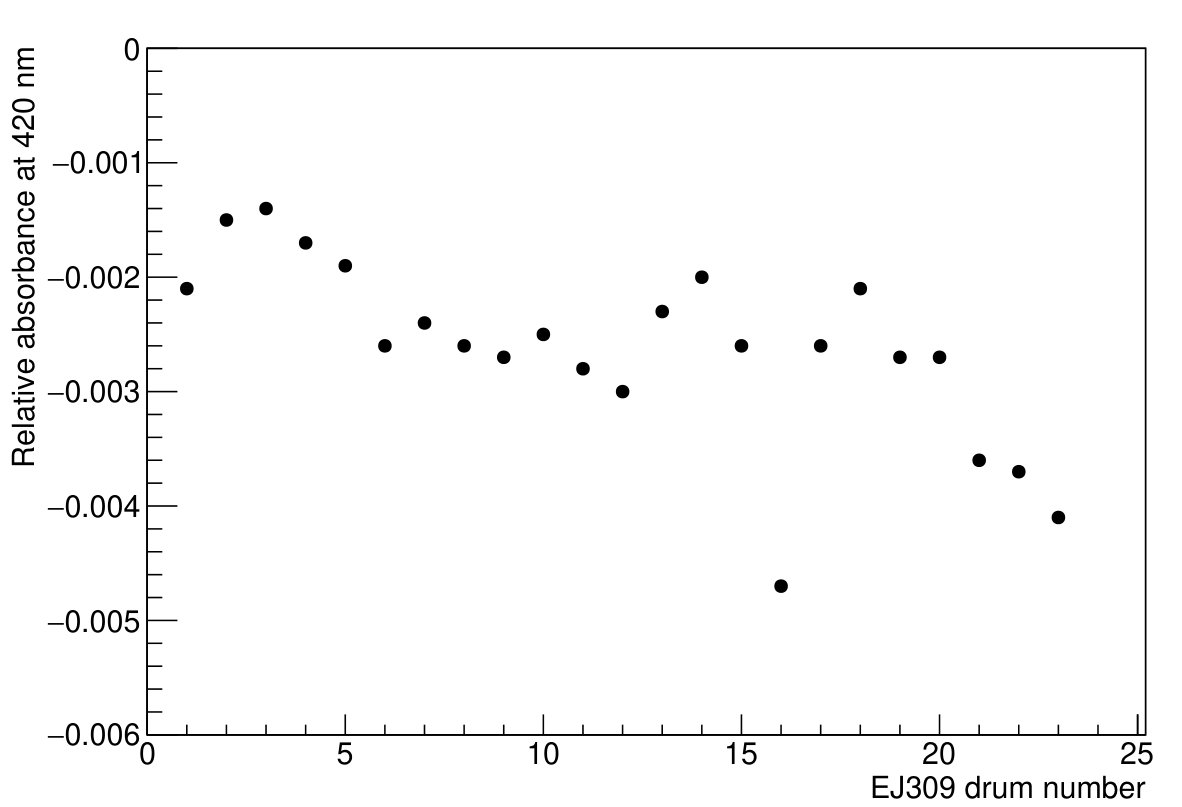

The EJ-309 scintillator was purchased from Eljen Technology, it was delivered in 23 drums (4600 L in total). The absorbance of a sample of each EJ-309 drum relative to air was measured using a UV-vis spectrophotometer (Shimadzu UV-1800). Two cylindrical quartz glass cells (10 cm path length, 25.4 mm diameter, 1 mm wall thickness) were used in the measurements, with one holding a 48 mL liquid sample and the other left empty for reference. Each sample’s absorbance spectrum was measured by scanning from wavelength 200 nm to 1100 nm in 1 nm steps. Figure 1 shows the measured relative absorbance spectrum of an EJ-309 scintillator sample from drum 10 over the wavelength range from 350 nm to 600 nm where the PMTs are sensitive. Negative values in absorbance are attributed to the refractive index differences between the sample (scintillator) and reference (air) in the measurements. Figure 2 shows relative absorbance of all EJ-309 samples at 420 nm, near the most sensitive wavelength for the PMTs. Drums 2-4 had a slightly higher absorbance due to oxygen contamination in the manufacturer’s nitrogen purging line.

The LiCl solution was supplied by the National Institute of Standards and Technology from enriched lithium carbonate (95$\pm$1% 6Li by atom) and analytical grade concentrated (37$\pm$1% by mass) hydrochloric acid, produced with the chemical reaction

[TABLE]

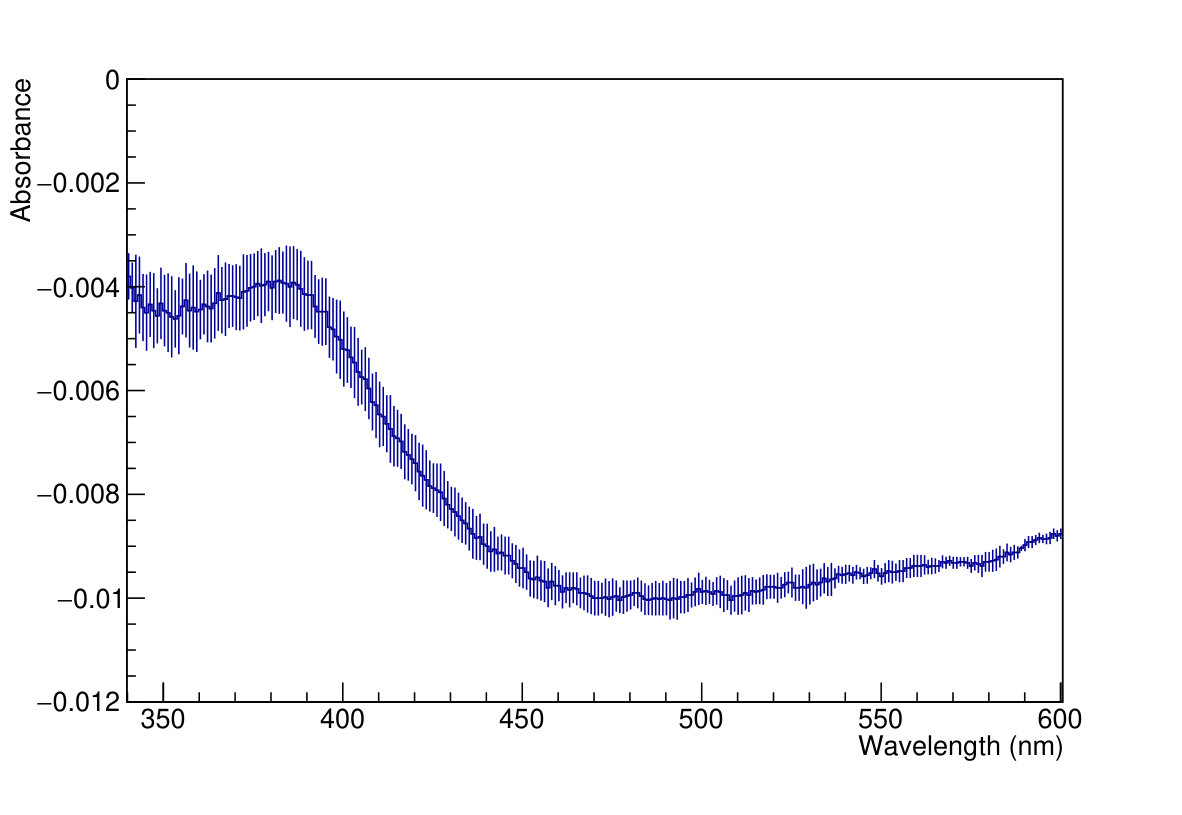

The LiCl solution was filtered and passed through an anion exchange chromatography column (Bio-Rad AG 1-X4, 100 to 200 mesh) to remove colored (e.g., iron) impurities. A total of 86 L of 9.98$\pm$0.02 mol/L purified LiCl solution was prepared in six individual batches. The average absorbance of the purified LiCl batches is shown in Figure 3.

2.2 LiLS production procedures and storage

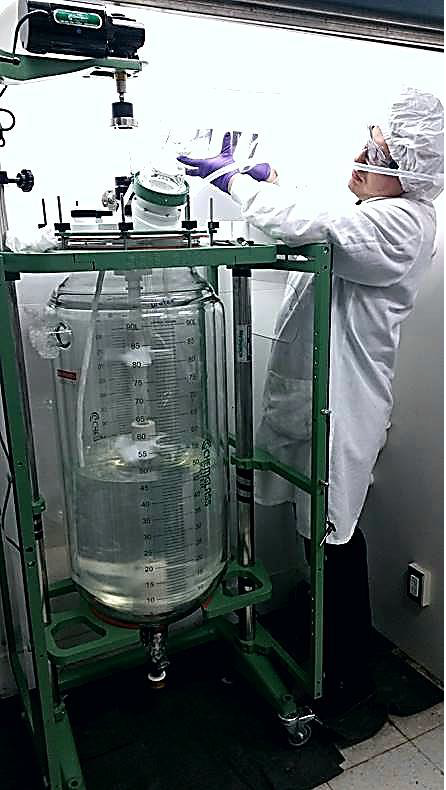

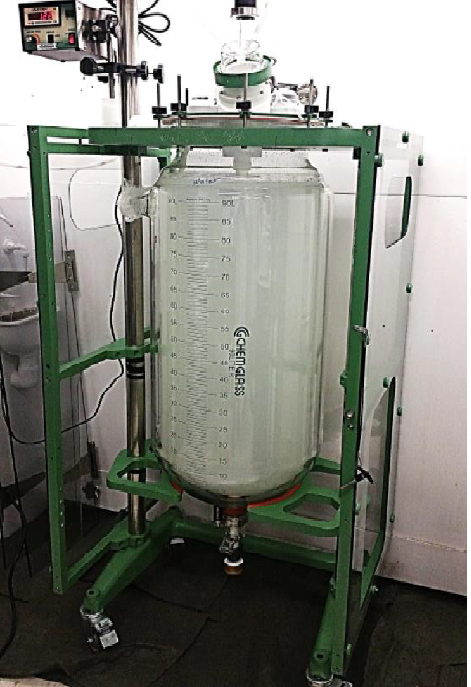

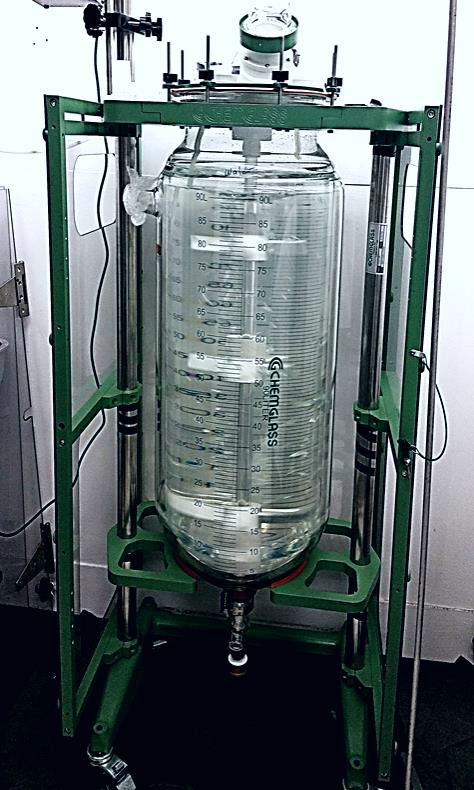

The LiLS was produced by first purifying the raw components and then mixing in stages in a double-jacketed 90 L Chemglass reaction vessel, shown in Figure 4. The metal-loading principle of water-based liquid scintillator (WbLS) was applied to the synthesis of LiLS [6]. Since WbLS loading is a one-step, direct aqueous/organic mixing procedure, as shown in Figure 4, no loss of 6Li during synthesis in LS is expected. The fraction of 6Li loaded in the scintillator was $(0.082\pm 0.001)\%$ by mass [7].

The ether-based surfactant was purified by thin-film vacuum distillation while the EJ-309 was pre-purified by the manufacturer. The reaction vessel has several injection ports made of polytetrafluoroethylene (PTFE) for adding chemical materials. All the tubing, filtration system, liners, and the mixing system were pre-cleaned with ethanol (Ethyl alcohol 190 proof), rinsed with ultrapure water (resistivity 18.2 MΩ$\times$cm) and dried with nitrogen gas. The system was sealed in an inert environment until use.

All purified raw materials were introduced through different ports into the reactor at different synthesis stages and mixed for 2 hours. After the synthesis was completed, the LiLS was discharged through a 2 $\mu$m glass filter (Whatman) situated in a 316-stainless steel filtration system and stored in a 208 L lined drum. Each drum was equipped with a 5 $\mu$m thick perfluoroalkoxy alkane inner bag for liquid storage and a 5 $\mu$m thick outer polypropylene liner for secondary containment. The maximum storage capacity of each drum was limited to 180 L, equal to two 90 L batches, for ease of handling and overflow prevention. Nitrogen cover gas was added to the rest of the volume. All materials in contact with the LiLS are compatible with LiLS. During batch production, two one-liter-sized samples from every batch were taken for quality assurance measurements.

During the production period, one to three batches were produced weekly with 57 batches produced in the first six months. The production of the final two batches was delayed by three months due to a temporary shortage of raw scintillator. Batches 1 and 2 were used for prototyping and material compatibility tests. All other drums were stored in a temperature-controlled warehouse at BNL and later transported in temperature-controlled trucks to ORNL for the PROSPECT experiment. The temperature was controlled between 20 ℃ and 30 ℃.

3 LiLS quality assurance measurements

In this section, the measurement methods, data analysis strategies, selection criteria, and results are described for qualifying the LiLS samples in terms of their optical absorbance, light yield, and PSD.

3.1 Relative optical absorbance

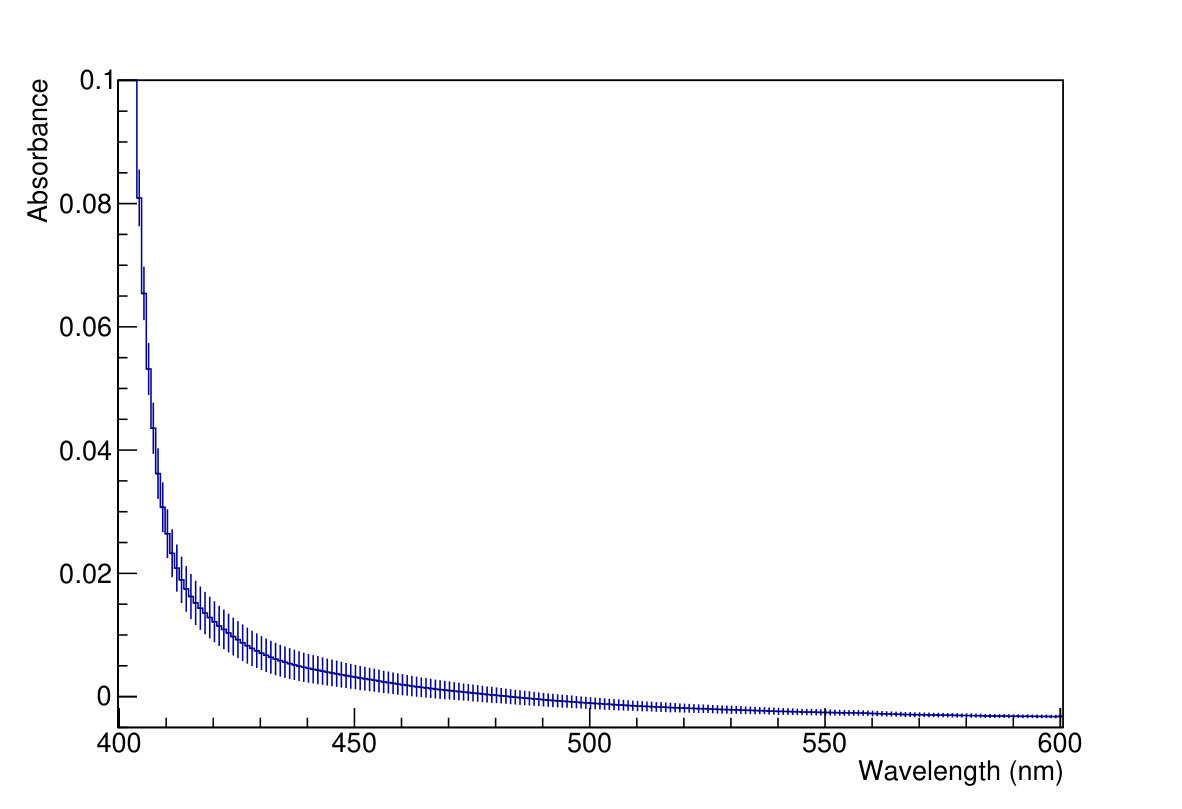

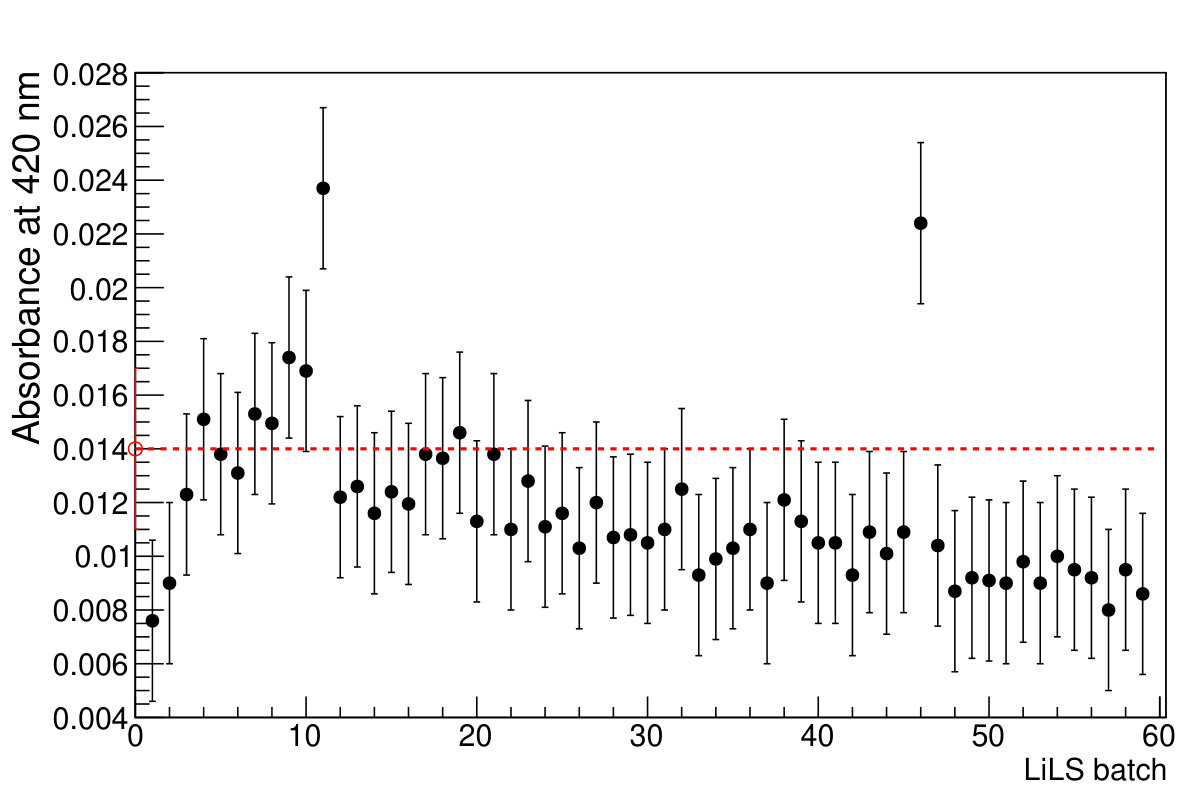

The relative optical absorbance of a sample from each batch was measured immediately after production. Figure 5 shows average absorbance for all the measured samples. Figure 6 presents the samples’ absorbance at 420 nm, the absorbance for a PROSPECT-50 sample is included for comparison. A standard deviation of 0.003 for UV absorbance was determined from measurements of nine PROSPECT-50 samples and assigned as the systematic uncertainty of each sample measurement. The large variation in the first 10 batches is attributed to the oxygen contamination of EJ-309 as described earlier. The absorbance for batches 11 and 46 was clearly higher than other samples and therefore they were rejected. The other batches were all considered acceptable with absorbance comparable to the PROSPECT-50 sample. The rejected samples were not subjected to light yield and PSD measurements.

The optical absorbance of the LiLS was stable from production to deployment. The absorbance of repeated measurements of samples from a stored drum taken over a six month period showed no variations greater than the estimated 0.003 systematic uncertainty in the 400 nm to 600 nm range. Samples from drums after shipment from BNL to ORNL show similar behavior. All drums of LiLS shipped to ORNL were accepted for deployment in the PROSPECT detector.

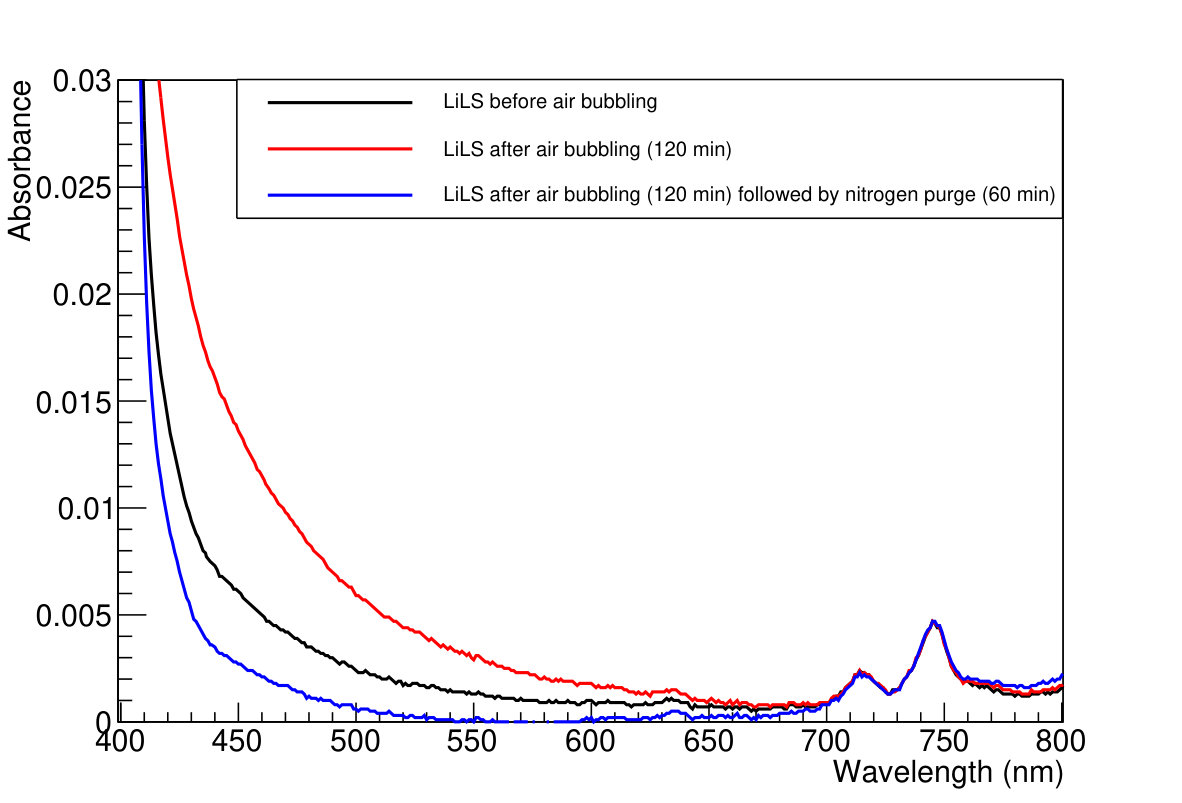

A measurement of the oxygen quenching effect on absorbance is shown in Figure 7. The LiLS absorbance degrades when oxygen is introduced by bubbling air through the scintillator. Sparging the LiLS with nitrogen gas removes the oxygen and improves the absorbance [8]. To minimize quenching, all the LiLS samples were sparged with nitrogen gas at 30 mL/min for 30 min prior to the light yield measurements.

3.2 Relative light yield

The light yield of a LiLS sample from each 90 L batch relative to a LAB sample was measured with an automatic liquid scintillator counter (Beckman LS6500). The counter is equipped with a 137Cs gamma source, two photomultiplier tubes in coincidence mode, and a multichannel analyzer.

Liquid scintillator samples of about 10.6 g each were filled in borosilicate glass vials with white polyethylene caps with PTFE inner liners (vial outer diameter 28.6 mm and height 61 mm). The LiLS samples were sparged with nitrogen at $\sim$30 mL/min for about 30 minutes and then closed for measurement. No effort was made to remove air from the closed vials, and the light yield subsequently diminished due to oxygen quenching [8, 9].

The counter enabled automatic cyclical measurements of the reference and LiLS samples over an extended period of typically 70 hours. Each sample was measured for 15 minutes in each cycle. Three quantities were extracted from the data for each LiLS sample for the QA: the initial light yield relative to the LAB reference and the fast and slow time constants. The initial relative light yield is the main quantity used for LiLS acceptance. The fast time constant is attributed to oxygen quenching and the slow time constant indicates the LiLS performance stability.

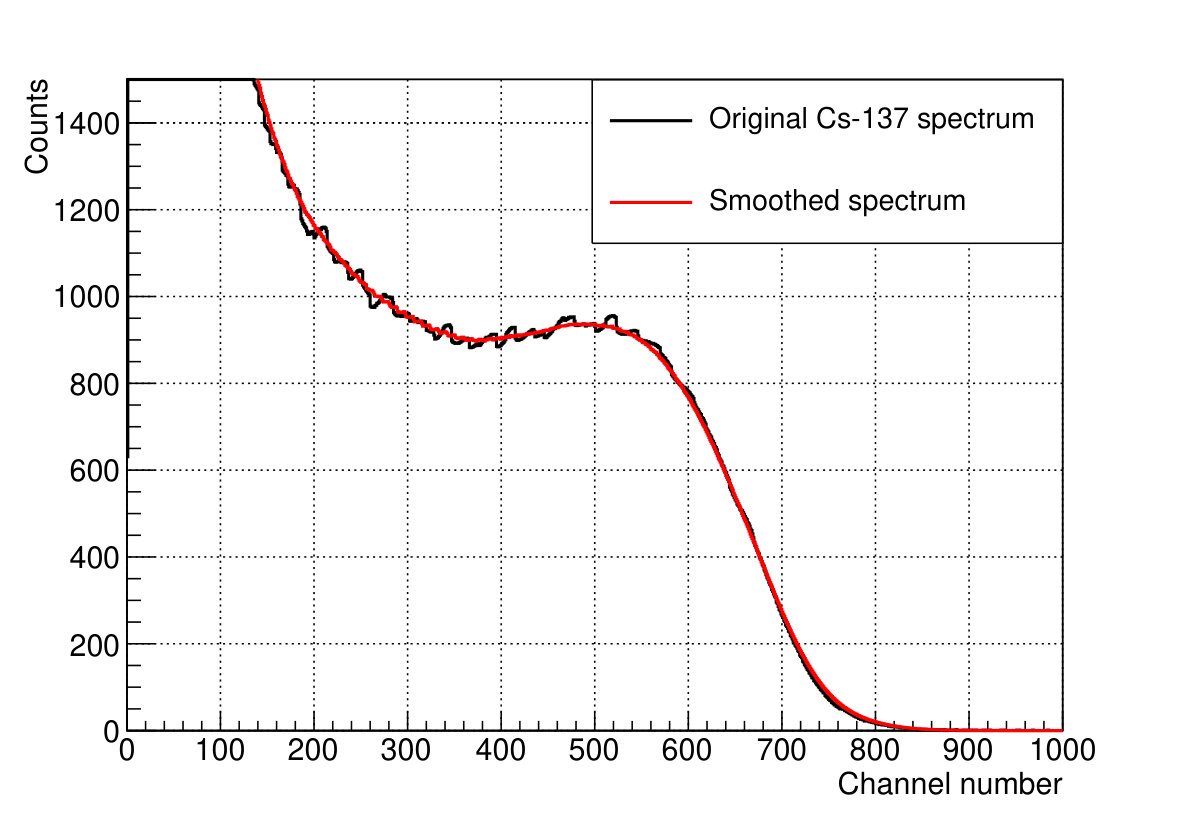

There are artifacts in the observed spectrum that arise from the LS6500 counter [10], as can be seen in Figure 8. The original spectrum is smoothed by applying the Gauss-Hermite quadrature and the smoothed spectrum is used to extract the Compton edge as a measure of the light yield following the differentiation method described in [11].

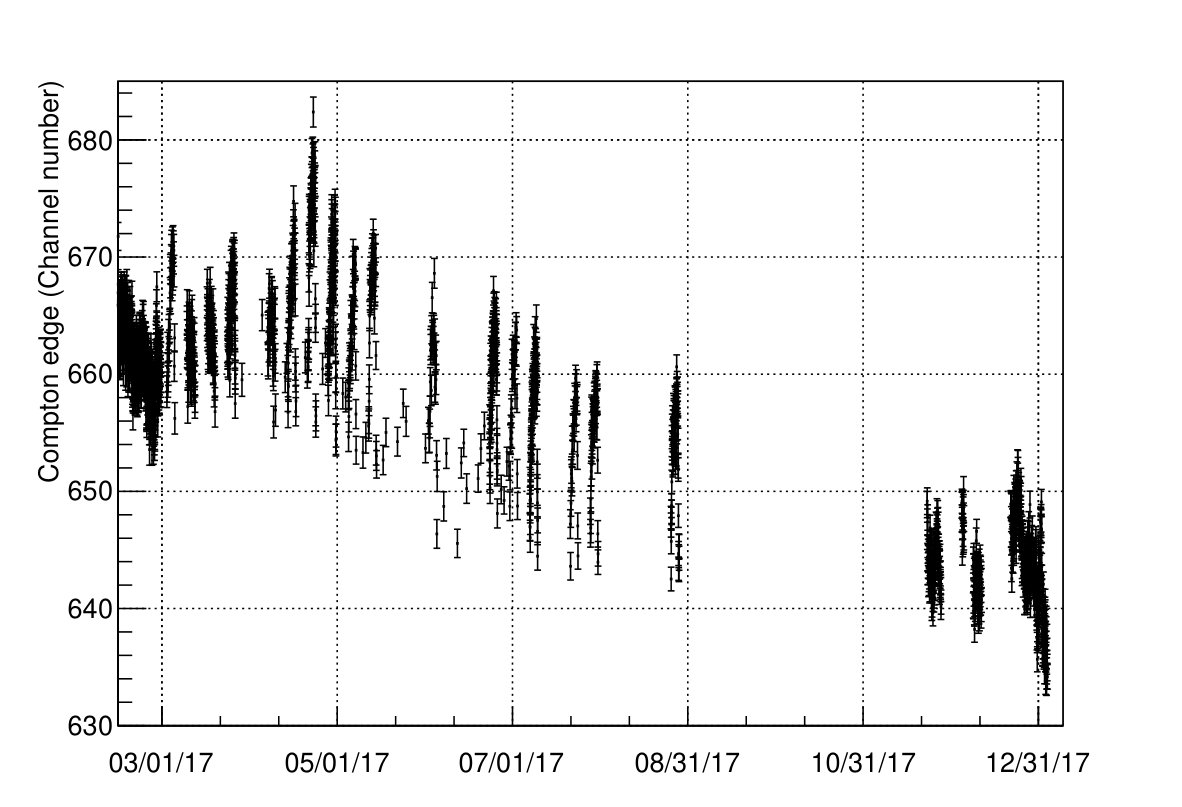

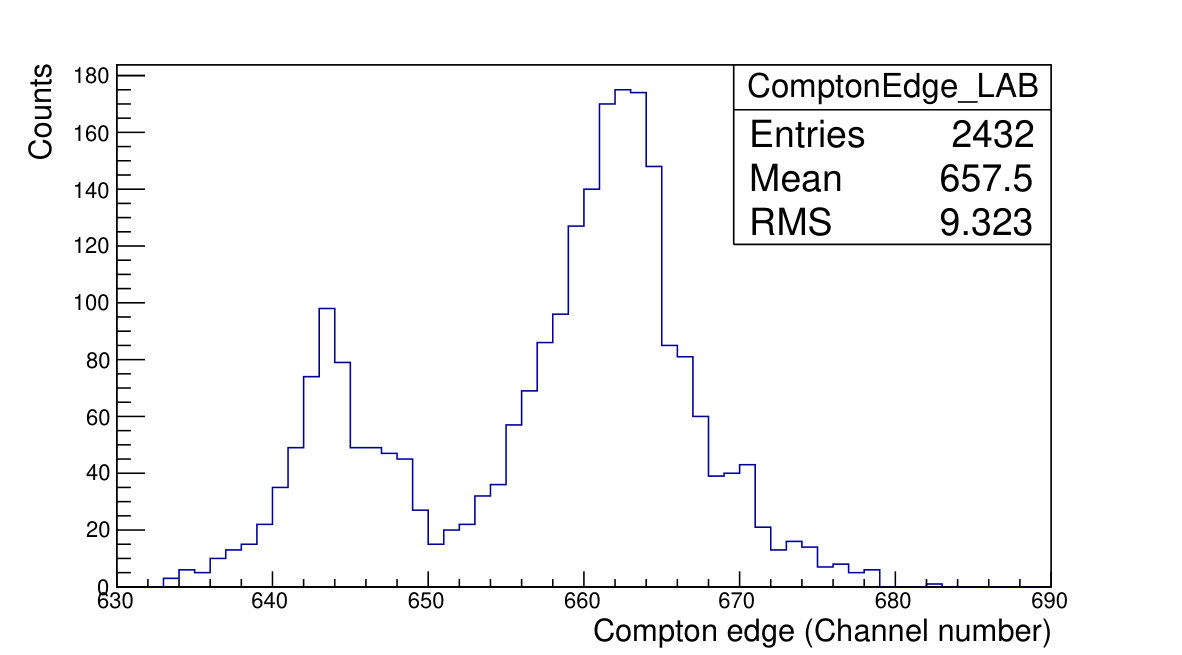

The identified Compton edge of the reference LAB sample used for the quality assurance measurements as a function of time is shown in Figure 9. The variation in the reference sample light yield is consistent with the long term behavior of the LS6500 observed previously [10].

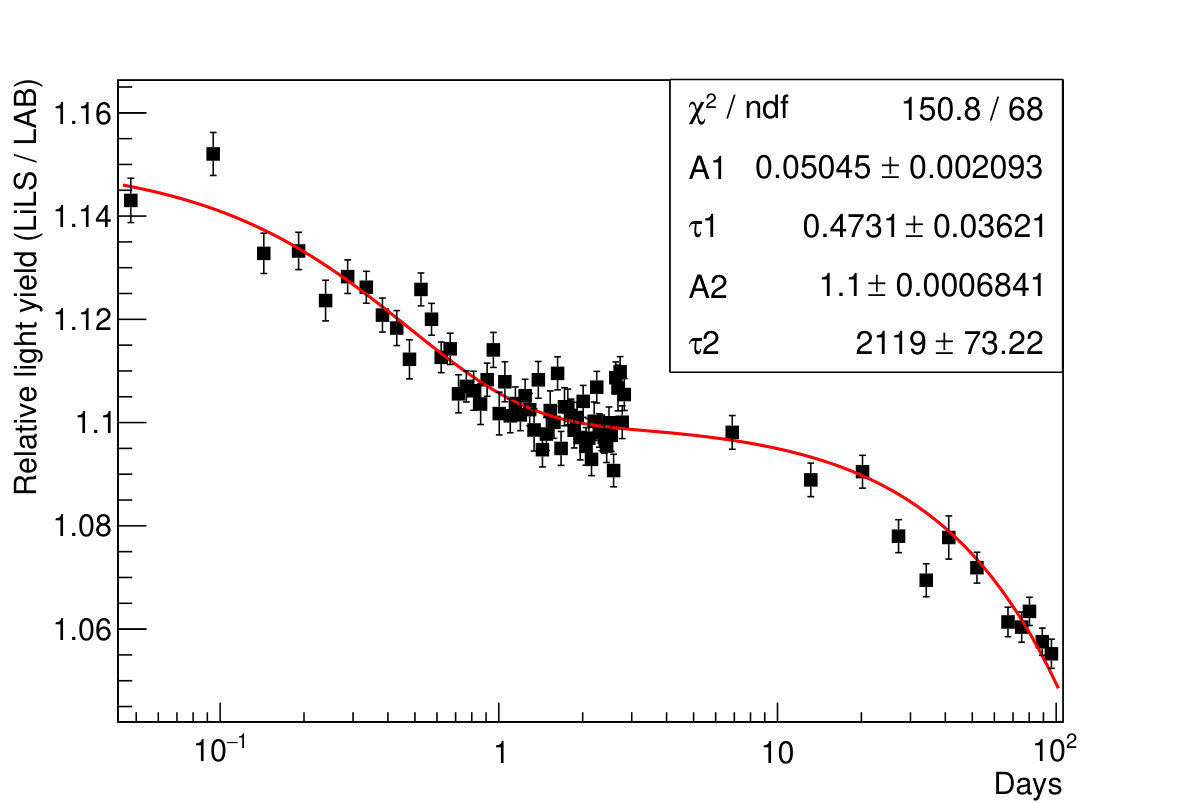

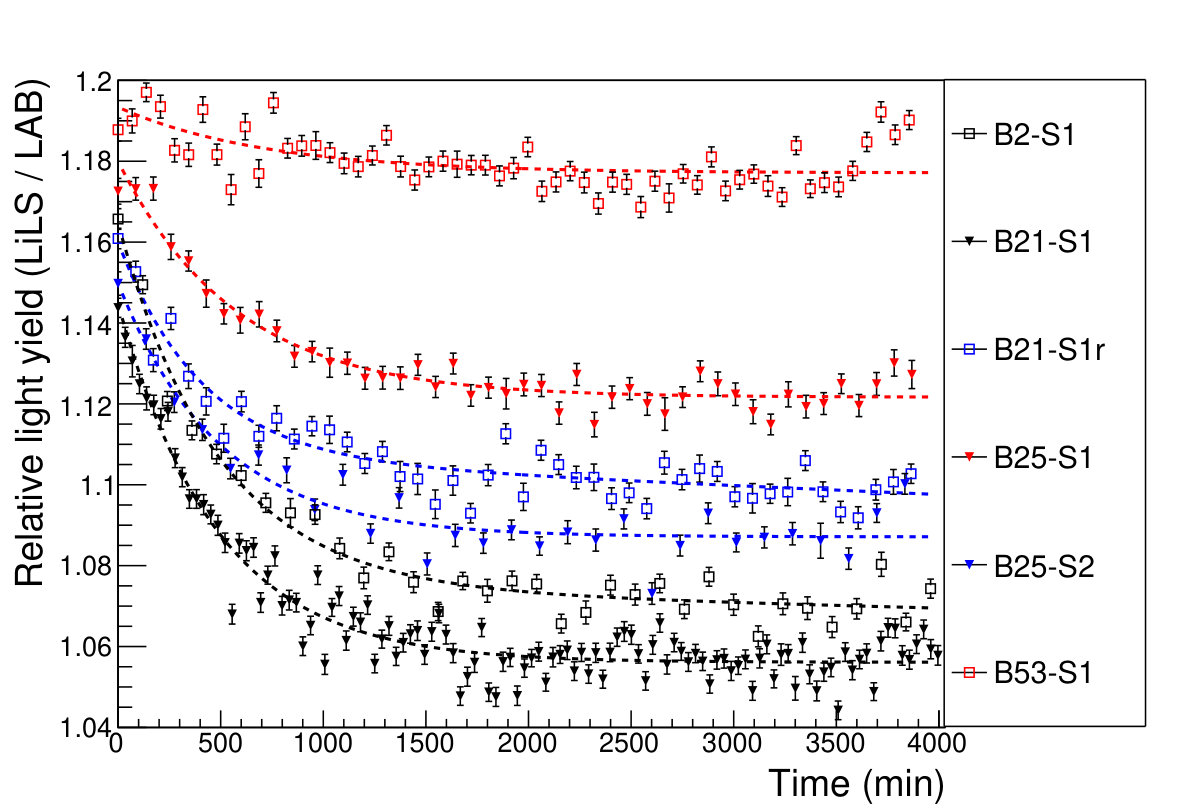

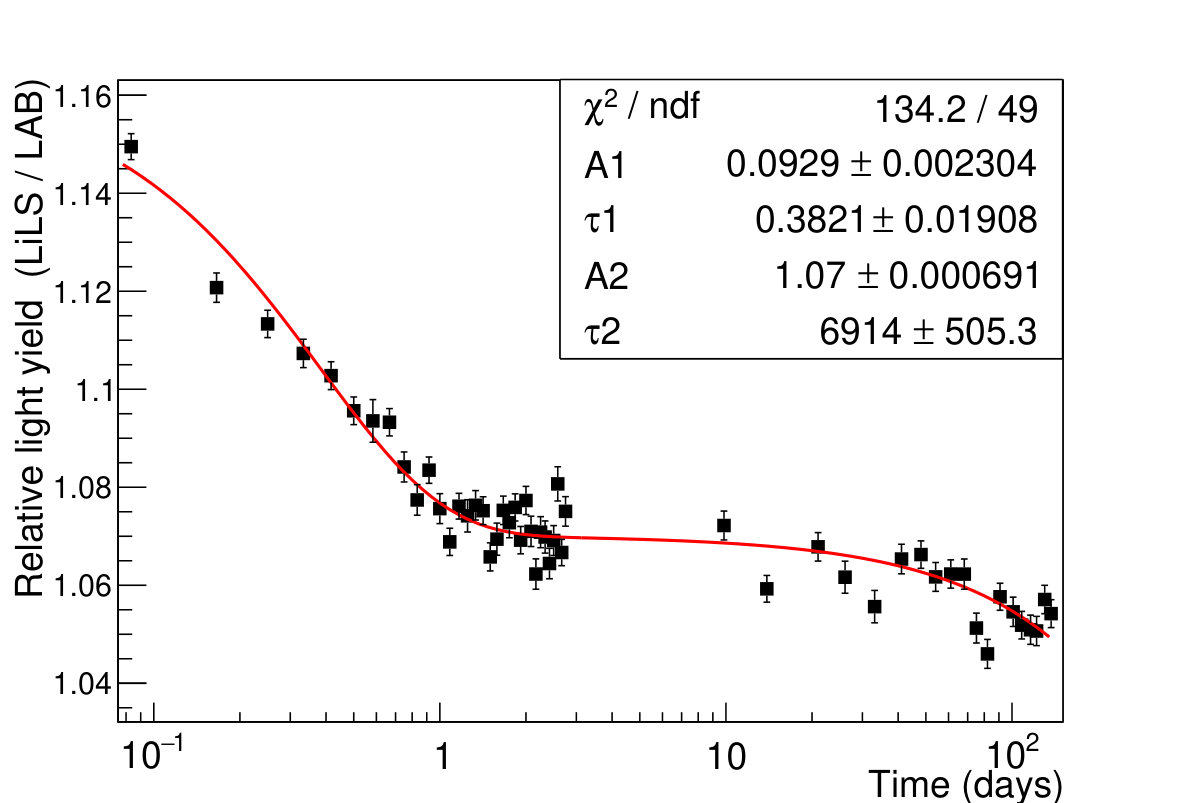

Each LiLS sample’s light yield was assessed using $\sim$70 hours data. The relative light yield is defined by the ratio of Compton edges between the LiLS sample and LAB reference. Figure 10 shows the relative light yield of representative LiLS samples in the first 70 hours. All other samples have a light yield between the extreme curves shown in Figure 10. The relative light yield decreases rapidly in the first $\sim$500 minutes and then undergoes a much slower decrease. Consequently, we fit this time-dependence with a double exponential function

[TABLE]

in which $A_{1,2}$ and $\tau_{1,2}$ are the corresponding relative light yields and time constants for the fast and slow components, respectively. The sum $A_{1}+A_{2}$ describes the initial relative light yield of an LiLS sample and is the main quantity that is used in the QA process. Some samples were monitored for a few months and the fitted $\tau_{2}$ is at least four years. As an example, the fitted measurements for the batch 18 sample are shown in Figure 10.

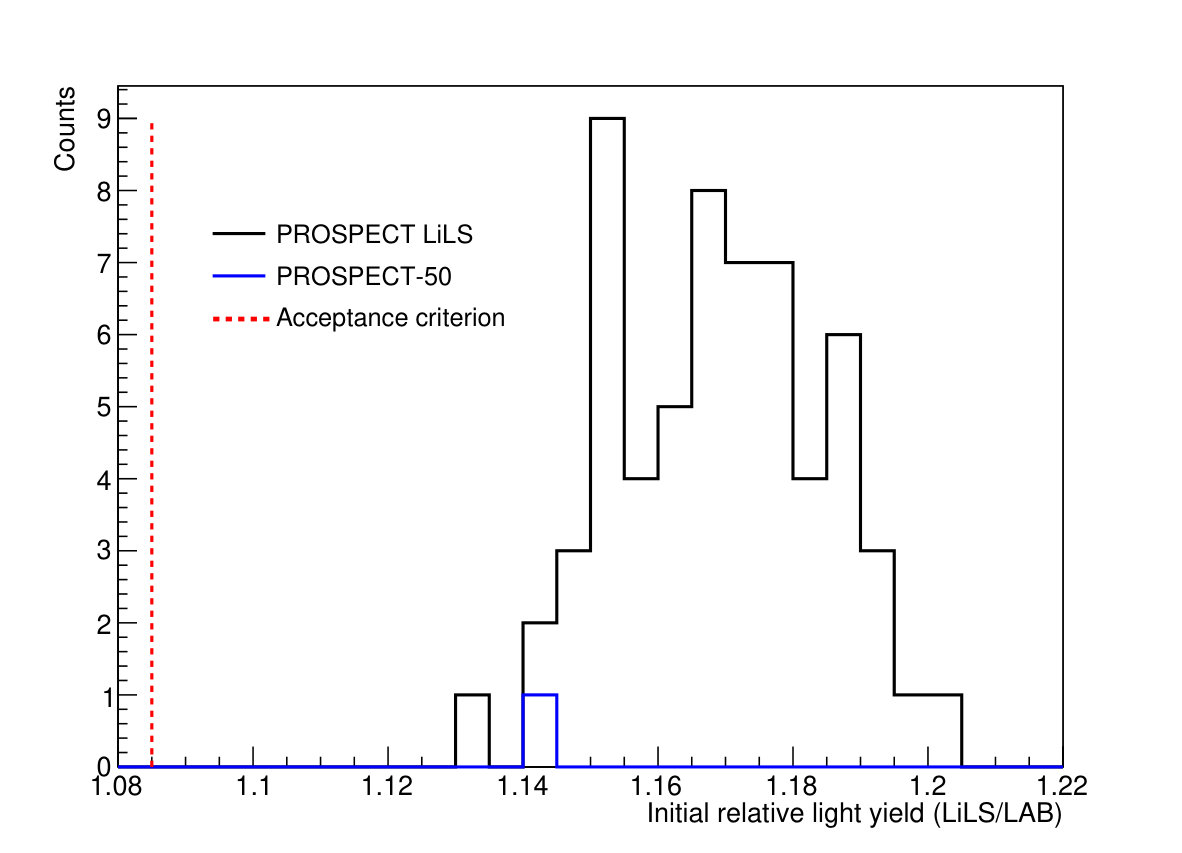

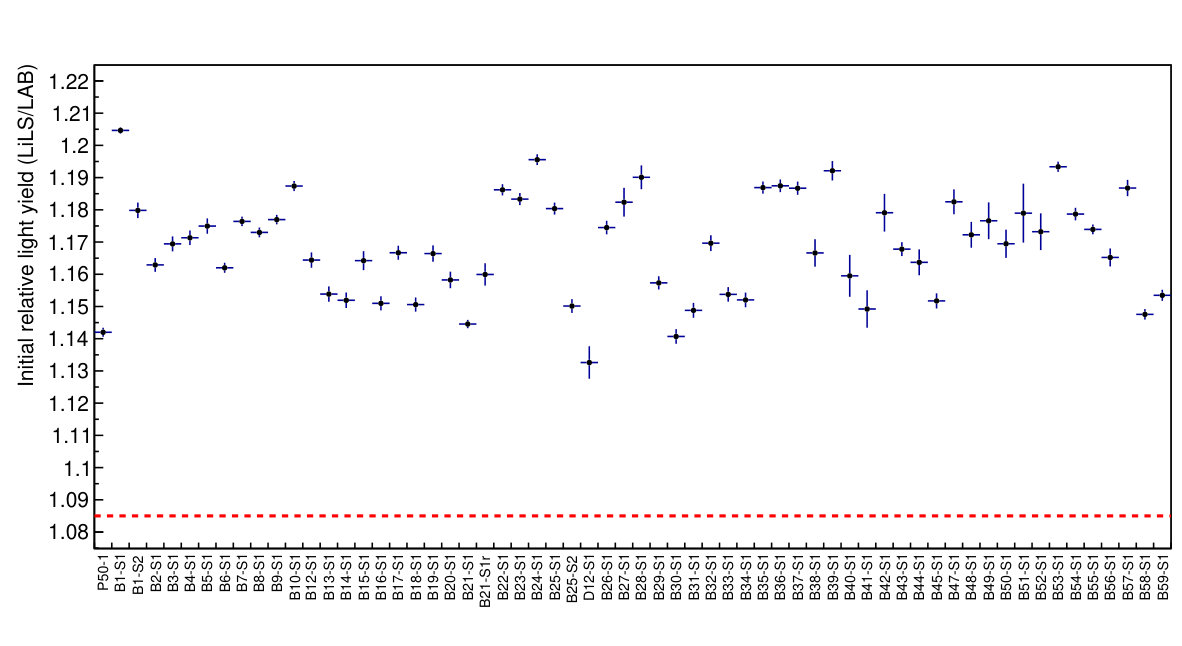

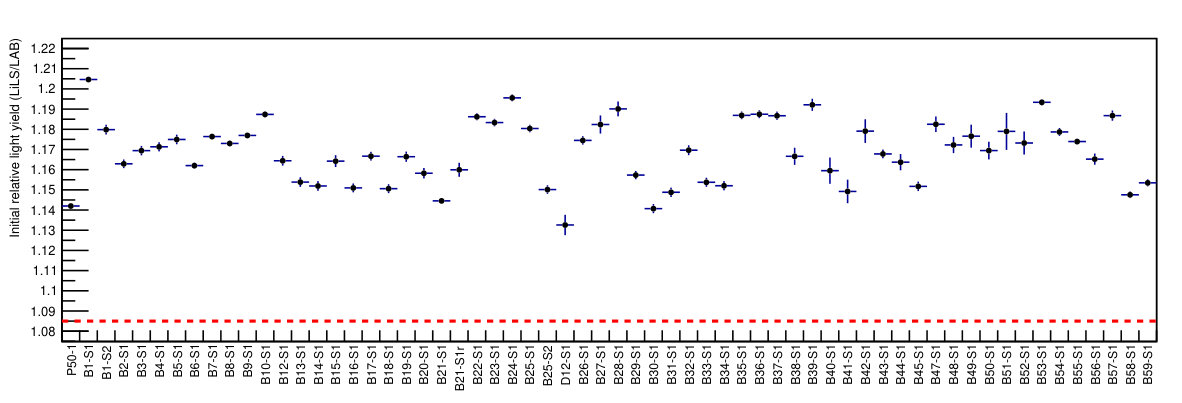

Figure 11 shows the initial relative light yield for all the LiLS samples as well as a sample from PROSPECT-50 [5]. The PROSPECT-50 sample was used to set the light yield selection criterion: the initial relative light yield of LiLS was required to be greater than 95% of the PROSPECT-50 sample; that is, $A_{1}+A_{2}>1.085$ since the measured initial light yield for the PROSPECT-50 sample was 1.142. As can be seen from Figure 11, all the measured samples show a satisfactory initial light yield well above the required threshold.

3.3 Pulse shape discrimination

The same LiLS samples were used in the PSD measurements right after the light yield measurement without additional nitrogen sparging. The PSD capability of the LiLS samples was measured using an 241Am-9Be neutron source (105 MBq) from which the rate of nuclear recoils in a $\sim$10 g sample largely exceeded the thermal neutron capture rate. The PSD for nuclear recoils as a function of visible energy is measured and the result is used to estimate the PSD for thermal neutron captures according to the measured response of the LiLS in reference [5].

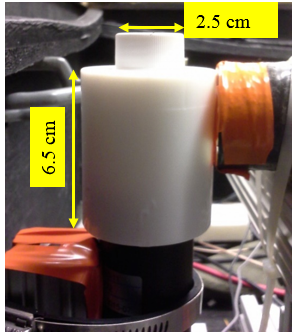

Each sample was placed in a reflective PTFE collar on the face of a 1.5-inch (38.1 mm) Hamamatsu PMT (R9420-100) operated at about $5\times 10^{5}$ gain (Figure 12). A Tektronix 3450 oscilloscope was used to record 20000 waveforms at 5 GHz sampling rate, with a 2 $\mu$s window and an 80-mV threshold. Another 5000 waveforms were acquired with an additional 137Cs source (0.68 MBq) to provide energy calibration. Figure 13 shows the measured 137Cs spectrum for the sample from batch 2.

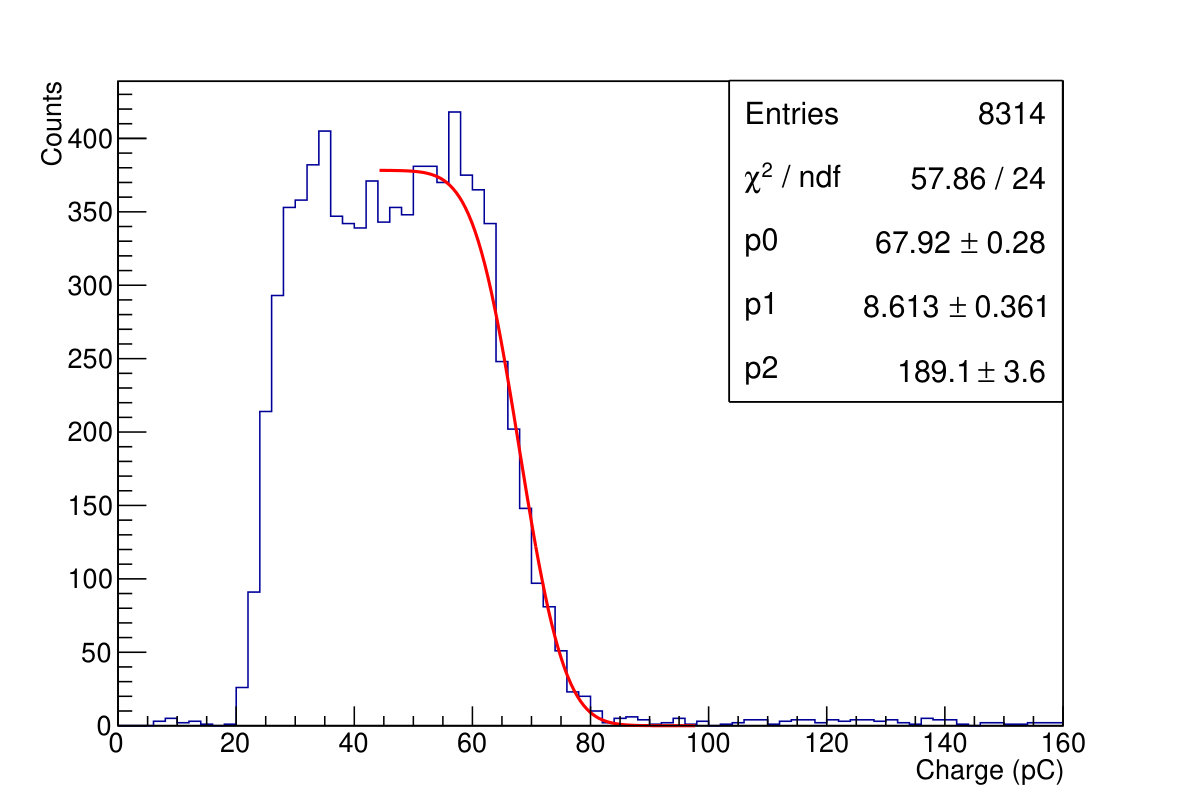

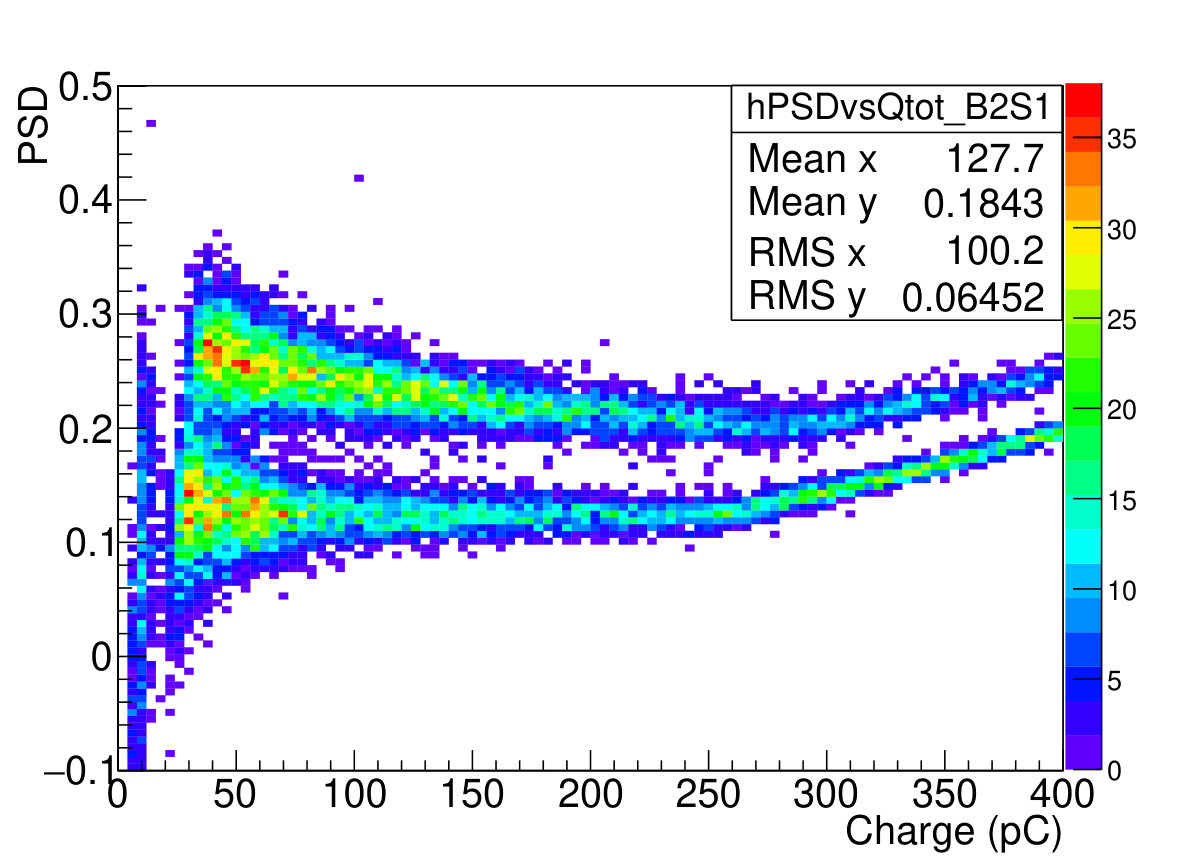

The total charge, $q_{tot}$, measured by a waveform is computed from an interval of [-10, 160] ns about the minimum of the negative-going signal waveform. The Compton edge of the 137Cs data is fitted to estimate the energy scale. The PSD is defined as

[TABLE]

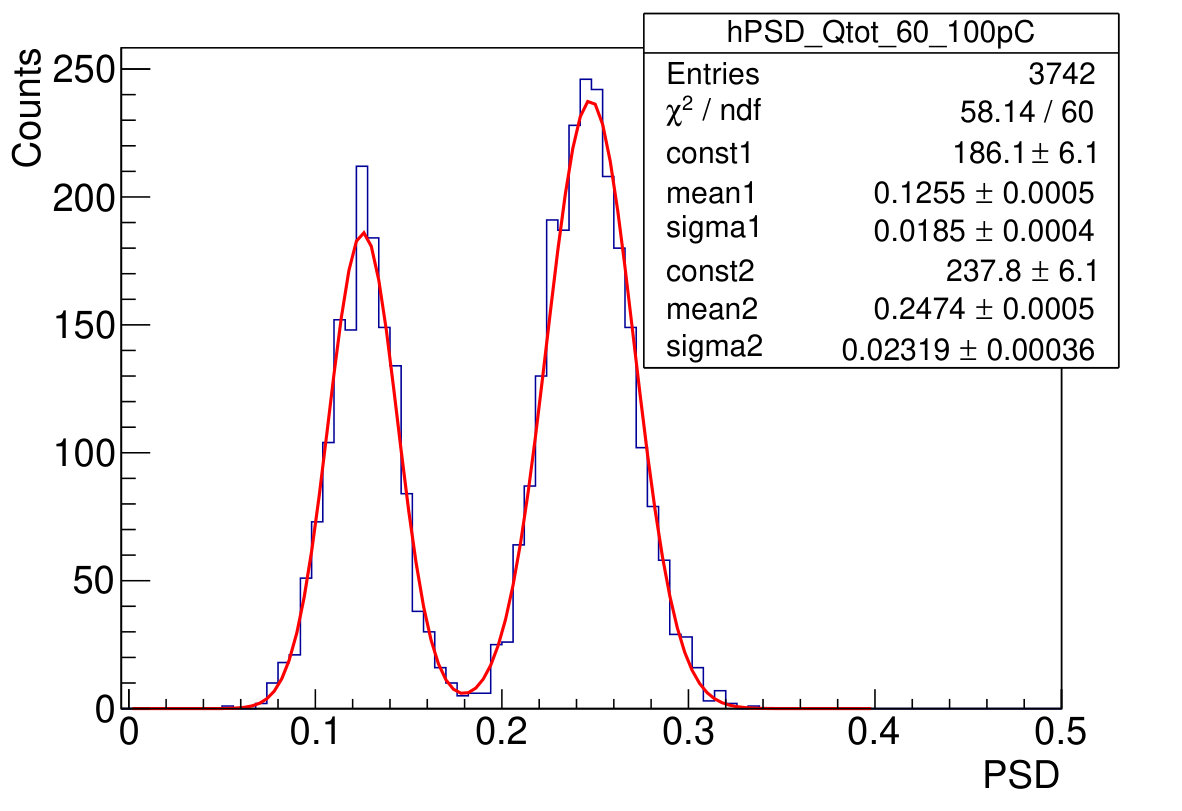

where $q_{f}$ is the charge in the [-10, 20] ns interval about the waveform minimum. The PSD distribution in intervals of charge is fitted with two Gaussians to evaluate the PSD for electronic and nuclear recoils (Figure 14). The figure-of-merit (FOM) is defined as

[TABLE]

where $\mu_{n(e)}$ and $FWHM_{n(e)}$ are the mean and full width at half maximum of the Gaussians corresponding to nuclear (electronic) recoils.

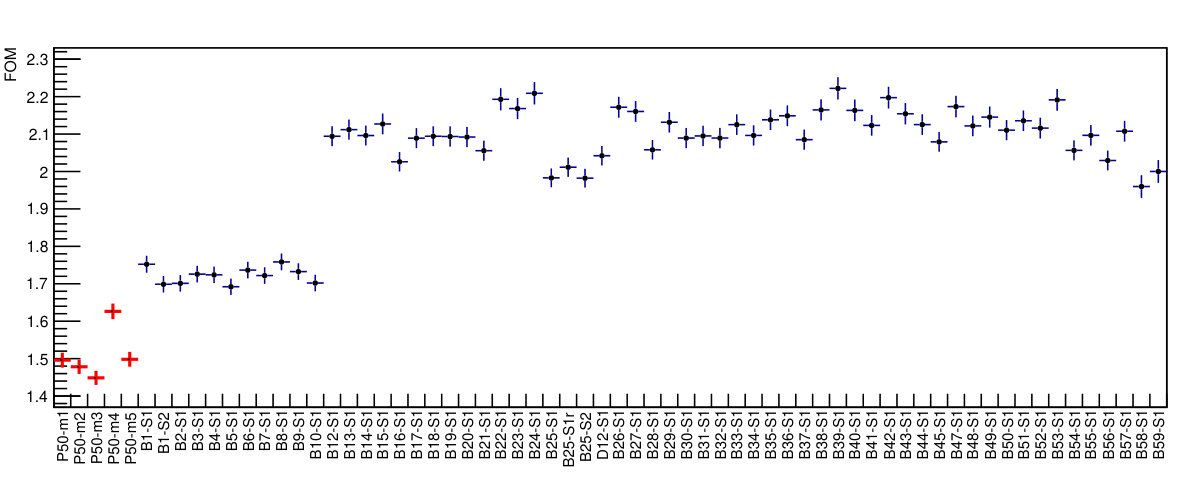

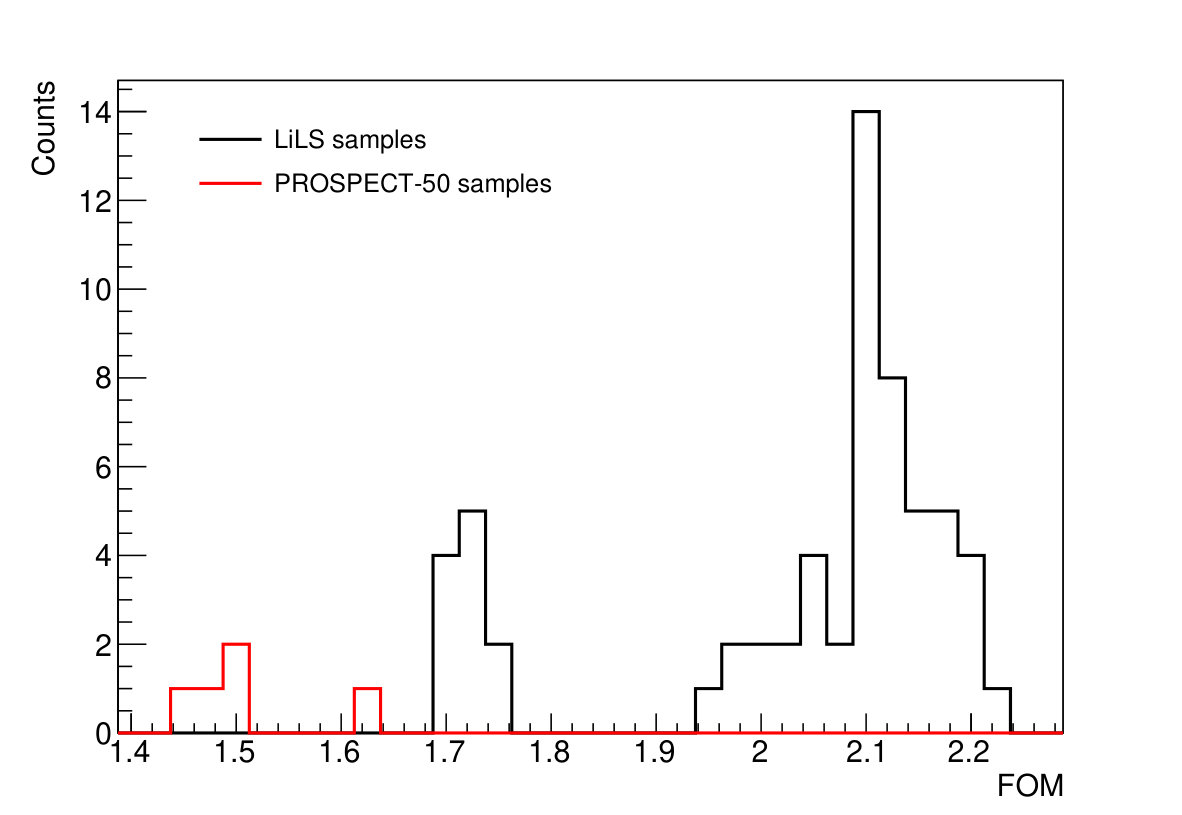

The measured FOM as a function of energy is linearly interpolated to estimate the FOM of the neutron capture process 6Li(n, $\alpha$)3H at $\sim$540 keV electron equivalent which is used to assess the LiLS PSD quality. The higher the FOM value, the better the separation between nuclear and electronic recoils. The FOM of all measured samples exceeds that of the PROSPECT-50 samples as shown in Figure 15, consequently the samples are all accepted. The increase in FOM for batch $\geq$12 is attributed to the better quality of EJ-309 scintillator from the later drums as described earlier.

4 Summary

A total of fifty-nine batches of 90 liter LiLS were produced for the PROSPECT experiment. A one liter sample was collected from each batch for QA measurements. Two batches were rejected due to unsatisfactory absorbance, another two batches were used for prototyping and material compatibility tests, the remaining batches satisfied the acceptance criteria in absorbance, light yield and PSD capabilities and were delivered for deployment in the PROSPECT detector at ORNL.
