Event-shape and multiplicity dependence of freeze-out radii in pp collisions at $\sqrt{{\textit s}}=7$ TeV

TL;DR

This study investigates how event shape influences particle source radii in proton-proton collisions at 7 TeV, revealing that spherical events have minimal background effects and a reduced dependence on transverse momentum, providing new insights into particle emission sources.

Contribution

The paper introduces an event-shape dependent analysis method that enables the determination of source radii at higher transverse momenta in pp collisions, distinguishing background effects based on event sphericity.

Findings

Spherical events show little background correlation influence.

Jet-like events are dominated by background correlations.

Source radii in spherical events have reduced transverse momentum dependence.

Abstract

Two-particle correlations in high-energy collision experiments enable the extraction of particle source radii by using the Bose-Einstein enhancement of pion production at low relative momentum $q\propto 1/R$. It was previously observed that in $\rm{p}\rm{p}$ collisions at $\sqrt{s}=7$ TeV the average pair transverse momentum $k_{\rm T}$ range of such analyses is limited due to large background correlations which were attributed to mini-jet phenomena. To investigate this further, an event-shape dependent analysis of Bose-Einstein correlations for pion pairs is performed in this work. By categorizing the events by their transverse sphericity $S_{\rm T}$ into spherical $(S_\textrm{T}>0.7)$ and jet-like $(S_\textrm{T}<0.3)$ events a method was developed that allows for the determination of source radii for much larger values of $k_{\rm T}$ for the first time. Spherical events demonstrate little or no background correlations while jet-like events are dominated by them. This observation agrees with the hypothesis of a mini-jet origin of the non-femtoscopic background correlations and gives new insight into the physics interpretation of the $k_{\rm T}$ dependence of the radii. The emission source size in spherical events shows a substantially diminished $k_{\rm T}$ dependence, while jet-like events show indications of a negative trend with respect to $k_{\rm T}$ in the highest multiplicity events. Regarding the emission source shape, the correlation functions for both event sphericity classes show good agreement with an exponential shape, rather than a Gaussian one.

Figures

Tables

Table 1. Table 1: Intervals of N ch rec superscript subscript 𝑁 ch rec N_{\rm ch}^{\rm rec} and corresponding mid-rapidity ⟨ d ​ N ch / d ​ η ⟩ delimited-⟨⟩ d subscript 𝑁 ch d 𝜂 \left<{\rm d}N_{\rm ch}/{\rm d}\eta\right> with | η | < 1.2 𝜂 1.2 \left|\eta\right|<1.2 and 0.13 < p T < 4.0 0.13 subscript 𝑝 T 4.0 0.13<p_{\mathrm{T}}{}<4.0 GeV/ c for both sphericity ranges.

$N_{\mathrm{ch}}^{\mathrm{rec}}$
[1,13]	$4.3\pm 2.0$	$5.3\pm 2.2$
[14,21]	$9.6\pm 2.0$	$10.5\pm 2.1$
[22,30]	$13.9\pm 2.2$	$14.9\pm 2.3$
[31,54]	$18.7\pm 3.2$	$20.4\pm 3.2$

Equations

$$S_{\text{XY}}=\frac{1}{{\sum }_i{p}_{\text{T}}^i}\sum _i\frac{1}{p_{\text{T}}^i}\left(\begin{array}{cc}(p_x^i{)}^2& p_x^i\cdot p_y^i\\ p_x^i\cdot p_y^i& (p_y^i{)}^2\end{array}\right),$$

$$S_{\text{T}}=\frac{2\cdot \text{min}({\lambda }_1\text{, }{\lambda }_2)}{{\lambda }_1+{\lambda }_2}.$$

$$C(q;N_{\mathrm{ch}}^{\mathrm{rec}},S_{\mathrm{T}})=\xi (N_{\mathrm{ch}}^{\mathrm{rec}},S_{\mathrm{T}})\cdot \frac{A(q;N_{\mathrm{ch}}^{\mathrm{rec}},S_{\mathrm{T}})}{B(q;N_{\mathrm{ch}}^{\mathrm{rec}},S_{\mathrm{T}})}.$$

$$\text{centering}\tilde{C}(q)=\frac{C_{\mathrm{data}}(q)}{C_{\mathrm{MC}}(q)}=\frac{C_{\mathrm{BE}+\mathrm{FSI}}(q)\cdot C_{\mathrm{ES}}(q)}{C_{\mathrm{ES}}^{\mathrm{MC}}(q)},\text{@add@centering}$$

$$\text{centering}\tilde{C}(q)=\left[(1-f_{\mathrm{c}}^2)+f_{\mathrm{c}}^{2}K(q)C^{\mathrm{QS}}(q)\right],\text{@add@centering}$$

$$\text{centering}{C}^{\mathrm{QS}}(q)=1+\lambda \cdot e^{\left(-R_{inv}\cdot q\right)}.\text{@add@centering}$$

Full text

\PHyear2018 \PHnumber332 \PHdate10 December \ShortTitleEvent-shape and multiplicity dependence of freeze-out radii in pp \CollaborationALICE Collaboration††thanks: See Appendix A for the list of collaboration members \ShortAuthorALICE Collaboration

Two-particle correlations in high-energy collision experiments enable the extraction of particle source radii by using the Bose-Einstein enhancement of pion production at low relative momentum $q\propto 1/R$. It was previously observed that in $\rm{p}\rm{p}$ collisions at $\sqrt{s}=7$ TeV the average pair transverse momentum $k_{\rm T}$ range of such analyses is limited due to large background correlations which were attributed to mini-jet phenomena. To investigate this further, an event-shape dependent analysis of Bose-Einstein correlations for pion pairs is performed in this work. By categorizing the events by their transverse sphericity $S_{\rm T}$ into spherical $(S_{\textrm{T}}>0.7)$ and jet-like $(S_{\textrm{T}}<0.3)$ events a method was developed that allows for the determination of source radii for much larger values of $k_{\rm T}$ for the first time. Spherical events demonstrate little or no background correlations while jet-like events are dominated by them. This observation agrees with the hypothesis of a mini-jet origin of the non-femtoscopic background correlations and gives new insight into the physics interpretation of the $k_{\rm T}$ dependence of the radii. The emission source size in spherical events shows a substantially diminished $k_{\rm T}$ dependence, while jet-like events show indications of a negative trend with respect to $k_{\rm T}$ in the highest multiplicity events. Regarding the emission source shape, the correlation functions for both event sphericity classes show good agreement with an exponential shape, rather than a Gaussian one.

1 Introduction

Bose-Einstein correlations for pairs of identical bosons with low relative momentum are essential tools for understanding particle production in ultra-relativistic collision experiments [1, 2, 3]. They allow one to extract the dimensions of the freeze-out stage of the reaction, usually known as the “source radii”. A linear dependence of the volume defined by such radii on the charged-particle multiplicity produced in the event was observed in pp, p–Pb, and Pb–Pb collisions at the Large Hadron Collider (LHC) [4, 5, 6, 7, 8, 9, 10]. Interestingly, pp collisions at the LHC have reached multiplicities similar to the ones obtained in peripheral p–Pb and Pb–Pb collisions, thus allowing for a direct comparison of their source radii [7, 8, 9].

In proton-proton collisions, correlations of non-identical pions $(\pi^{+}\pi^{-})$ show significant deviations from unity particularly in low multiplicity events and at high pair transverse momentum $k_{\textrm{T}}=\frac{1}{2}\left|{\bf p}_{1}+{\bf p}_{2}\right|_{\rm T}$, which are attributed to resonance decays and fragmentation of mini-jets from low momentum-transfer scatterings [7, 8]. These correlations are a dominant background to the Bose-Einstein correlations between pairs of identical pions $(\pi^{+}\pi^{+}+\pi^{-}\pi^{-})$ and make interferometry analyses at the LHC challenging for $k_{\rm T}$ greater than about 0.6 GeV/$c$. However, the three-pion cumulant approach significantly suppresses the mini-jet related backgrounds in pp and p-Pb collisions [9], though it can suffer from statistical limitations.

In this paper, we introduce a new way of reducing the mini-jet background in pp collisions by selecting events based on their transverse sphericity [11, 12], an observable that is sensitive to particle collimation and as such can differentiate between jet-like (hard) and spherical (soft) event topologies. Such a differential measurement based on sphericity, $k_{\rm T}$, and multiplicity, will offer new insights into (mini-jet induced) background correlations and offer invaluable information needed to improve the accuracy of event generators, such as PYTHIA [13, 14]. As will be shown, this advancement can significantly extend the $k_{\rm T}$ reach of interferometry analyses in general.

This paper presents two-particle correlation functions (CFs) as a function of the pair relative three-momentum $q=\sqrt{\left(p_{1}-p_{2}\right)^{i}\left(p_{1}-p_{2}\right)_{i}}$ and the source radius parameter for different intervals of $dN_{\textrm{ch}}/d\eta$ and $k_{\rm T}$ for jet-like and spherical event topologies. In particular, the $k_{\rm T}$ dependence of the radii in spherical events is investigated since small background correlations in these events allows for the study of possible signs of collectivity in pp collisions.

2 Experimental setup and data selection

Approximately $5\times 10^{8}$ pp collisions at $\sqrt{s}=7$ TeV were analyzed, which were recorded by the ALICE experiment at the LHC [15, 16] during the 2010 running period.

The main detectors used for this analysis are: the Inner Tracking System (ITS) [17], the Time Projection Chamber (TPC) [18], the Time-Of-Flight detector (TOF) [19], and the V0 [20]. The ITS is a six-layer cylindrical silicon detector used for precise vertex and track reconstruction close to the interaction point. It provides full azimuthal coverage and spans the pseudorapidity range $\left|\eta\right|<0.9$. The TPC is the main tracking detector in ALICE and measures the specific ionization energy loss of particles in the TPC gas for particle identification (PID). It covers the whole azimuth and provides a radial coverage of 159 possible space points for tracks. It fully covers the $\left|\eta\right|<0.9$ range while extending out to $\left|\eta\right|<1.5$ with a smaller number of potentially reconstructed space points. The TOF uses multigap resistive plate chambers to measure particle arrival time and thus particle velocity. It extends the PID capabilities to the intermediate $p_{\textrm{T}}$ range where the pion, proton, and kaon energy loss signals are similar in the TPC. The V0 detectors are used for triggering on collision events. They are composed of two small-angle scintillator arrays, located at 340 cm and $-90$ cm from the nominal interaction point along the beam line. The minimum-bias trigger, which is used in this analysis, requires at least one hit in the V0 or either of the two first layers of the ITS in coincidence with two beam bunches crossing in the ALICE interaction region, which is measured by a beam-pickup system. An offline event selection is applied to reject beam-halo induced events and beam-gas collisions.

Accepted events have their primary vertex reconstructed within $\pm 8$ cm from the center of the detector along the beam line in order to ensure uniform tracking performance. Charged particle tracks are reconstructed with the ITS and TPC detectors, requiring that each TPC track segment is reconstructed from at least 70 out of the 159 possible space points. To guarantee that mainly primary particles are selected it is required that the track has its Distance of Closest Approach (DCA) to the primary vertex smaller than $(0.0182+0.35\cdot p^{-1.01}_{\textrm{T}})$ cm in the transverse plane, with $p_{\textrm{T}}$ in GeV/c, and 0.2 cm in the longitudinal direction. Tracks with a kink topology in the TPC, indicating weak decays of charged kaons, are rejected. Two-track effects such as merging and splitting are minimized using pion pair selection criteria as described in [7] and are known to be negligible in this $p_{\mathrm{T}}$ range for $q$ greater than about 50 MeV/c, which is much less than the expected width of the Bose-Einstein correlation peak.

3 Analysis technique

The interferometry analysis was performed using pions with pseudorapidity $\left|\eta\right|<1.2$ and transverse momentum $0.13<p_{\mathrm{T}}{}<4.0$ GeV/c. Pions were identified by their specific ionization energy loss in the TPC as well as the measured pion arrival time in the TOF detector. The PID selection criteria are the same as described in [7]. They are optimized to maximize efficiency while producing a high-purity of the pion sample of about $99$% for $p_{\rm T}<2.5$ GeV/c. The $p_{\mathrm{T}}$ resolution is about 1% or better in the relevant $p_{\mathrm{T}}$ range.

Transverse sphericity is calculated by using all charged tracks with $\left|\eta\right|<0.8$ and $p_{\mathrm{T}}{}>0.5$ GeV/c. In order to avoid a bias from the boost along the beam axis [12], the event shape is calculated only in the transverse plane. The transverse sphericity matrix $S_{\textrm{XY}}$ is defined as

[TABLE]

where $i$ runs over all charged particle tracks in the event. By using the transverse sphericity matrix eigenvalues $\lambda_{1}$ and $\lambda_{2}$ [11], the transverse sphericity is computed as

[TABLE]

It is a bounded scalar observable that is sensitive to the event shape, and in particular particle collimation. An event with only one hard scattering will in general produce a jet-like distribution that yields low sphericity while multiple soft scatterings are expected to yield high sphericity events. Events with several independent hard scatterings can also yield higher sphericity as each (mini-)jet axis is oriented randomly. Transverse sphericity is known to be correlated with the number of hard parton-parton interactions in an event [11]. In this work jet-like events with $S_{\textrm{T}}<0.3$ and spherical events with $S_{\textrm{T}}>0.7$ are analyzed, which comprise 18% and 28% of the total minimum-bias data set, respectively.

The resolution in $S_{\rm T}$ due to finite track reconstruction efficiency is found to be better than 0.1 based on Monte-Carlo (MC) simulations with the PYTHIA 6.4 Perugia-0 tune [13, 14], for both low- and high-sphericity events in any multiplicity interval. No significant effect from the finite track momentum resolution was observed in simulations.

The multiplicity estimator $N_{\rm ch}^{\rm rec}$ is defined as the number of reconstructed charged-particle tracks that enter the interferometry analysis. The intervals and their corresponding corrected $\left<{\rm d}N_{\rm ch}/{\rm d}\eta\right>$ for both sphericity selections are shown in Table 1.

3.1 Two-pion correlation function analysis

The one-dimensional femtoscopic analysis presented in this paper was performed using the invariant momentum difference q, which corresponds to the magnitude of the relative three-momentum in the pair rest frame (PRF). The measured CFs are defined as the ratio of the $q$ distributions for same-event $(A)$ and mixed-event $(B)$ pion pairs times a normalization factor $(\xi)$ [3],

[TABLE]

For the event mixing, pools of eight events of similar multiplicity and sphericity are formed. In addition, it is also required that events in a mixed event pool have their vertex positions within 2 cm from each other in the beam direction. The mixed event distributions were then made by pairing up pions from different events in a mixed event pool. Identical selection criteria are applied to the same-event and mixed-event pion pairs, and both $A(q)$ and $B(q)$ are constructed in the same $S_{\rm T}$ interval.

Both distributions are normalized in the range $0.7<q<0.8$ GeV/c, which is well outside the relevant quantum statistical (QS) domain ($q\propto 1/R\approx 0.3$ GeV/c) and below the onset of the high-q rise associated with energy and momentum conservation.

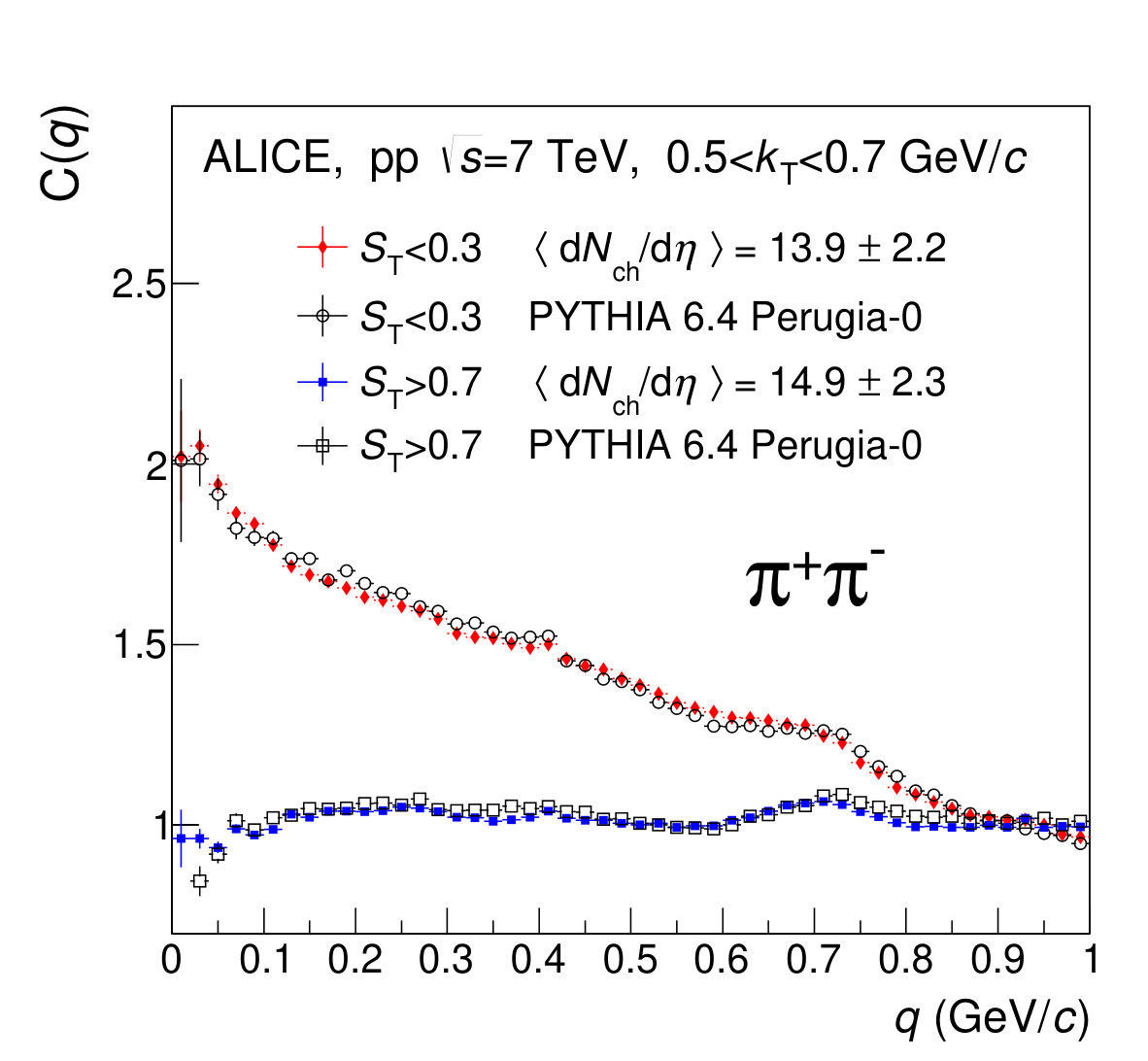

Figure 1 shows good agreement between the measured correlation functions for opposite-sign pion pairs in pp collisions at $\sqrt{s}=7$ TeV and PYTHIA simulations, which include the ALICE detector response, for spherical and jet-like events at similar multiplicity. Opposite-sign CFs do not include Bose-Einstein correlations but do include backgrounds, such as those induced by mini-jets, which are also found in same-sign pair analyses [7]. They also show features due to two-body decays like $\textrm{K}^{0}_{\rm S}$ and $\rho\rightarrow\pi^{+}\pi^{-}$ at about $412$ and $723$ MeV/c in $q$ respectively, and a wide three-body decay peak from $\omega\rightarrow\pi^{+}\pi^{-}\pi^{0}$.

The $C(q)$ in spherical events are relatively flat at unity, while the low $S_{\rm T}$ CFs exhibit a very pronounced slope. This finding supports previous assumptions about the mini-jet origin of background correlations in interferometry analyses [7] and demonstrates that PYTHIA describes two-pion correlations well in the absence of Bose-Einstein correlations.

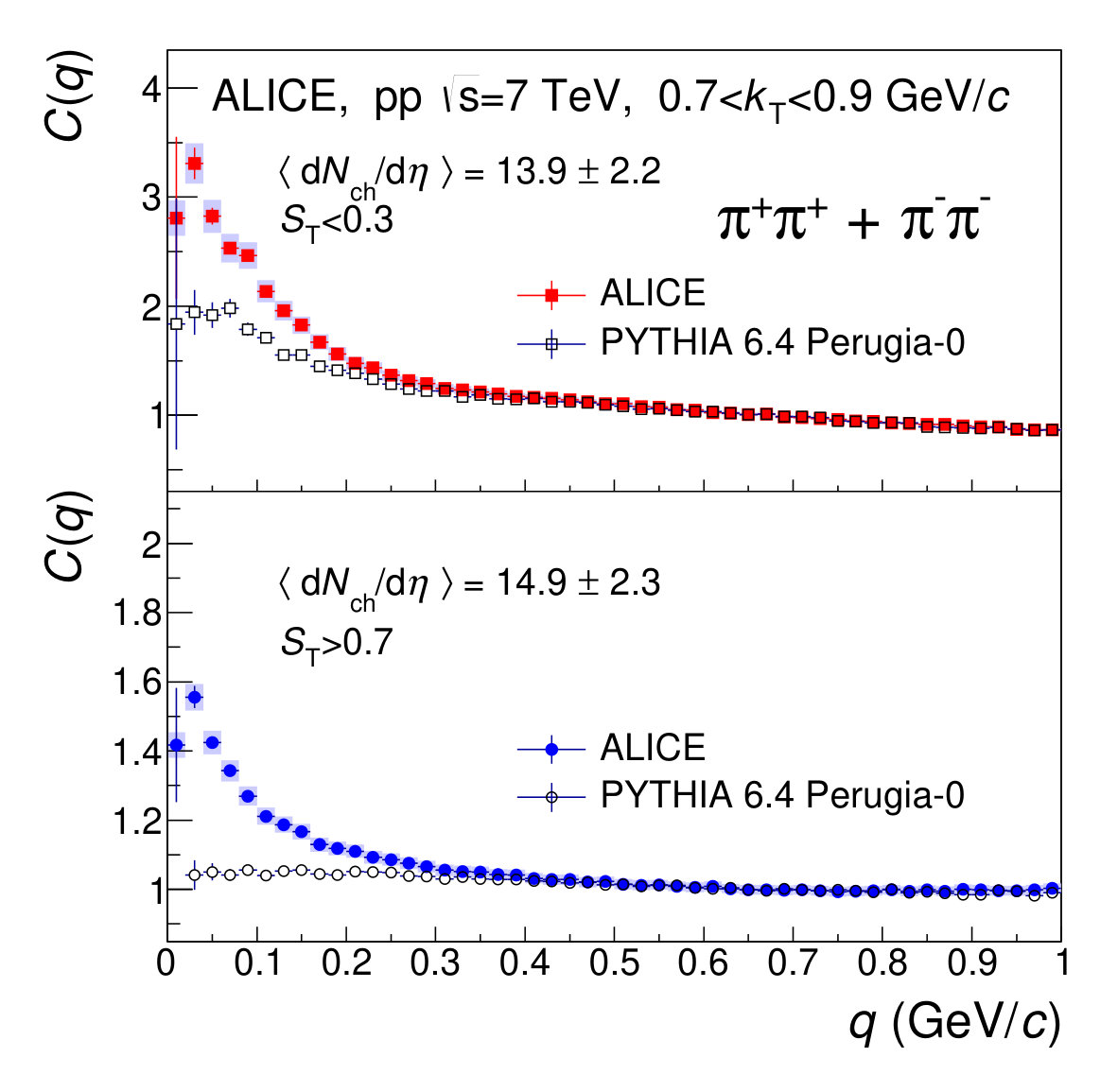

Figure 2 shows a comparison of CFs for same-sign pion pairs from data and PYTHIA simulations for the two sphericity intervals at similar reconstructed multiplicity. The MC includes neither quantum-statistical correlations nor final-state interactions (FSI).

Similar to the opposite-sign CF at $S_{T}>0.7$ shown in Fig. 1, the spherical-event same-sign CF is rather flat outside the QS correlation region ($q<0.5$ GeV/c). This indicates that the background is small in spherical events for same-sign pairs.The shape of the same-sign $C(q)$ in spherical events is compatible with the expectation from Bose-Einstein correlations. There are no novel features like peaks or depressions and the correlation function does not extend outside the theoretically predicted values $1\leq C(q)\leq 2$. On the other hand, for jet-like events, the CF exhibits a pronounced slope over the full $q$ range, indicating the presence of background. The CF shape is well described by PYTHIA outside the QS correlation region. Moreover, it is observed that the large-$q$ correlation increases with $k_{\rm T}$ and decreases with multiplicity, which is consistent with previous findings in  [7]. These results suggest that the primary source of background correlations in two-pion femtoscopic analyses is related to semi-hard scattering processes which predominantly populate jet-like event topologies.

To extract the source size from the measured correlation functions, background correlations are corrected with simulated CFs $(C_{\rm{MC}}(q))$. This procedure assumes that the signal and background factorize and was used in a similar way by other experiments [4, 10]. The method also resembles [21] where the background signal is not extracted from MC simulations but fitted in the measured opposite-sign correlations and then removed out via the fitting procedure in the same-sign analysis. In the case of our analysis this approach showed to be unstable.

The simulations used for the corrections include the ALICE detector response and are analyzed exactly the same as the data. The corrected correlation function $\widetilde{C}(q)$ can then be expressed as

[TABLE]

where $C_{\rm BE+FSI}$ and $C_{\rm ES}$ are contributions coming from Bose-Einstein correlations with FSI effects and event shape dependent backgrounds, respectively. The corrected CFs, $\widetilde{C}(q)$, are obtained separately for spherical and jet-like events. The femtoscopic correlations are then determined using

[TABLE]

as in [22], where $f_{\rm c}^{2}$ is the pair fraction from the core of the particle-emission source [23], $K(q)$ is the FSI correlation and $C^{\rm QS}(q)$ is the extracted QS correlation. The $K(q)$ factor is well known and calculated using the two-pion FSI wave functions [24] that include Coulomb and strong interactions. The values of $f_{\rm c}^{2}$ are estimated from EPOS-LHC MC model [25], which is known to reproduce a variety of LHC measurements. The deviation of $f_{\rm c}^{2}$ from unity quantifies the degree of dilution caused by pions from long-lived resonances and weak decays. This effect is suppressed by the track selection used. In previous measurements [9], $f_{\rm c}^{2}$ showed little dependence on $k_{\rm T}$ up to $0.7$ GeV/c and calculations using EPOS-LHC agreed with this observation at even larger values of $k_{\rm T}$. At all $k_{\rm T}$, the final value of $f_{\rm c}^{2}$ depended on the track selection, leading to larger values of $f_{\rm c}^{2}$ in cases where a tighter DCA selection was used [26]. In this analysis, the $f_{\rm c}^{2}$ is fixed to 0.85 which corresponds to its $k_{\rm T}$-averaged value. Finally, a fit is applied to the extracted $C^{\rm QS}(q)$ correlations in order to determine the femtoscopic radii.

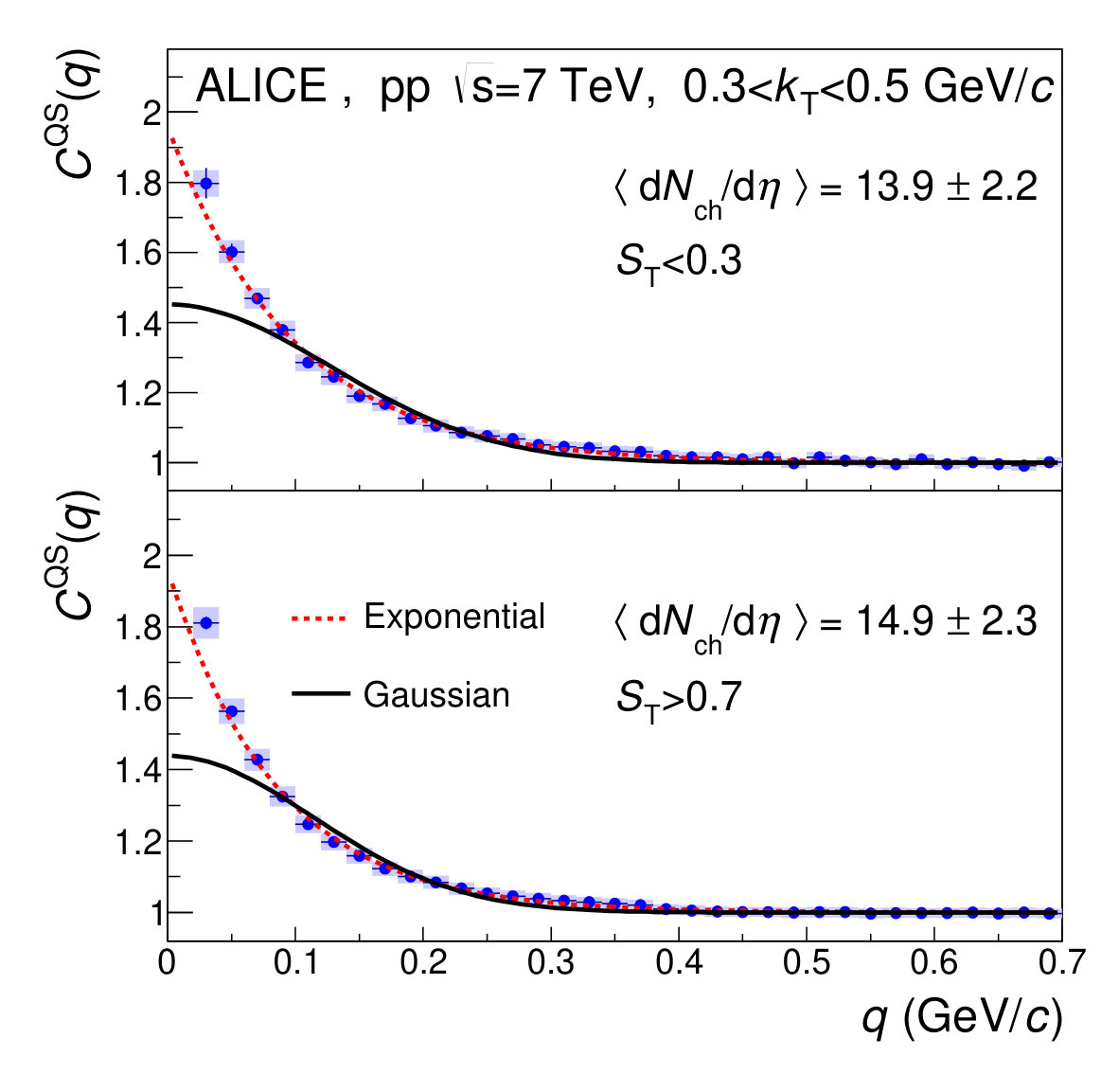

In past analyses [27], it was observed that a Gaussian form of $C^{\rm QS}(q)$ does not describe the observed one-dimensional CFs over the full $q$ range. Previous analyses at the LHC showed that this remains the case at much higher collision energy  [4, 5]. Hence, a Levy fit is performed, employing a free parameter $\alpha$ in the exponent, where $\alpha=2$ corresponds to a Gaussian distribution. Figure 3 shows the fits of $C^{\rm QS}(q)$ with Gaussian and exponential functional forms, and it is observed that the 1D CFs are better described by $\alpha=1$ corresponding to an exponential distribution. Therefore, femtoscopic radii are extracted assuming an exponential shape:

[TABLE]

In the fitting procedure, $\lambda$ was first treated as a fit parameter and showed negligible $k_{\rm T}$ dependence. The mean value of $\lambda$ was then obtained for each sphericity interval and fixed for the final fitting. Since the expected dilution from long-lived resonance decays and weak decays is explicitly removed in Eq. 5, the $\lambda$ parameter is expected to be consistent with unity in the case of fully chaotic emission and exponential 1D correlation functions. At $k_{T}<0.7$ GeV/c, the mean value of $\lambda$ is 0.97 for spherical and 1.0 for jet-like events, with small deviations consistent with statistical fluctuation in each individual measurement.

To extract radii the correlation functions are fit with the same functional form for each $k_{\rm T}$ interval while fixing $\lambda$ to the aforementioned mean values. No additional normalization factors are used in fitting $C^{\rm QS}(q)$.

A previous sphericity-integrated measurement [10], using a significantly different fitting procedure and thus having an alternative interpretation of the $\lambda$ parameter to the one used in this paper, observed a stronger $k_{\rm T}$ dependence of both the radii and $\lambda$ parameters. Considering the different parameterizations used in [26], model calculations and previous measurements [26], it is unlikely that there exists such a significant change in the fraction of long-lived emitters or pion coherence to explain such a strong decrease of $\lambda$ with $k_{\rm T}$.

3.2 Systematic uncertainty

Analyses were performed using data from different data-taking periods with varying experimental conditions (e.g. detector operating conditions, polarity of the magnetic field in the apparatus, etc.) and showed negligible differences in the observed radii. Similarly, a 100% increase in the number of events that are used in the mixing procedure also produced negligible differences in the measured radii. Separate analyses for positively and negatively charged pions, which, at LHC energies, are expected to give identical results, gave less than 0.2% differences in measured radii.

Regarding more substantial uncertainties in the measured radii a distinction was made between point-by-point uncorrelated and correlated sources of systematic uncertainty. It was observed that there are two significant sources of uncorrelated systematic uncertainty, the first one being variations in the tracking procedure, and the second one being variations in the CF fit range. The uncorrelated uncertainty due to the tracking procedure is evaluated by using an alternative track selection for the analysis, in which only the TPC is used to reconstruct tracks as in [7], and is estimated to be up to $10$% on the measured radii. Concerning the uncertainty due to the fit range selection, in this analysis $q<0.7$ GeV/c was used as the default fit range while $q<0.4$ GeV/c and $q<1.0$ GeV/c were the variations. A difference in radii of up to 5% is observed in this case with the smaller fit range always having a larger influence on the change of radii, as is expected.

In this analysis, the correlated uncertainties in the measured radii are shown to be larger than the uncorrelated ones and are estimated by varying $f_{c}^{2}$, sphericity ranges and Monte Carlo generators. A variation in $f_{c}^{2}$ of $\pm 0.05$ produced a $5$–$10$% uncertainty, with the largest deviation being observed in the highest $N_{\rm ch}$ and $k_{\rm T}$ bin. The variation of the sphericity range, which was varied by $\pm 0.05$, contributed up to 10% in the systematic uncertainty. The leading source of correlated uncertainty, which shows a difference in the radii of up to 15% depending on the $k_{\rm T}$ and multiplicity bin, is the choice of Monte Carlo generators for the background correlations. In this analysis we used PYTHIA as the default and PHOJET [28] as the variation. As is expected, the spherical event results are less effected by this variation than the jet-like event ones.

4 Results

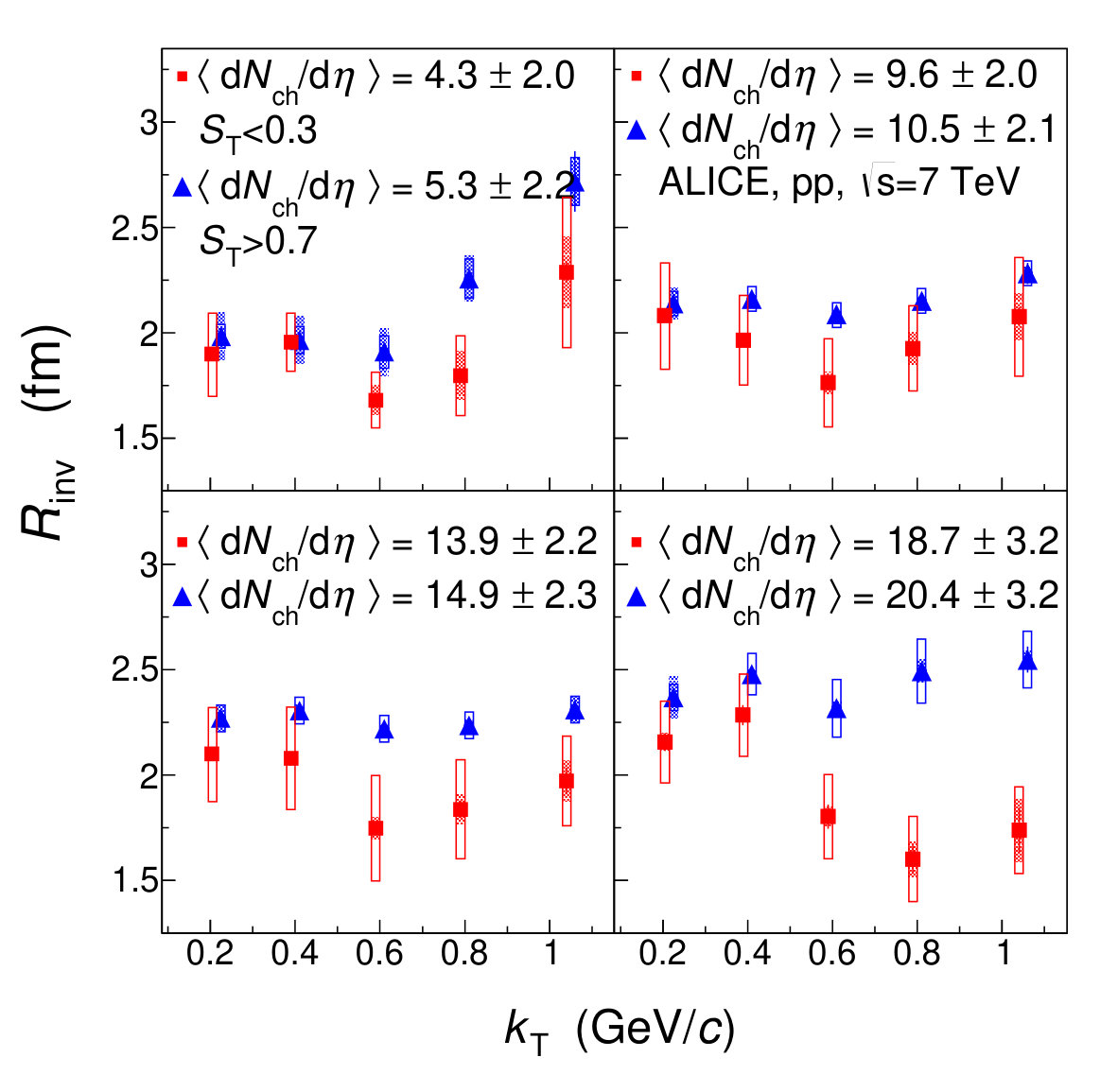

Figure 4 shows the measured $R_{\textrm{inv}}$ as a function of pair $k_{\rm T}$ for spherical and jet-like events in different multiplicity intervals. In comparison to previously observed 1D radii [7], the multiplicity- and $k_{\rm T}$-dependence observed in the event shape dependent analysis show both similarities and significant differences depending on the sphericity selection. In spherical events the dependence of the radii on $k_{\rm T}$ is well described by a constant. As is expected, the fitted constant radius increases with multiplicity from $1.971\pm 0.006\textrm{ (stat.)}\pm 0.106\textrm{ (sys.)}$ fm in the lowest multiplicity bin to $2.410\pm 0.007\textrm{ (stat.)}\pm 0.050\textrm{ (sys.)}$ fm at the highest multiplicity. On the other hand, similar to previous sphericity-integrated results, the jet-like radius dependence on $k_{\rm T}$ is not well described by a 0th-order polynomial ($\chi^{2}/N_{\textrm{dof}}$ is larger than 10), however a 1st-order polynomial does manage to describe the data better. The constant of this fit is $1.97\pm 0.01\textrm{ (stat.)}\pm 0.11\textrm{ (sys.)}$ fm at lowest multiplicity and increases to $2.40\pm 0.05\textrm{ (stat.)}\pm 0.05\textrm{ (sys.)}$ fm at highest multiplicity. The slope parameter is observed to be negative except for the lowest multiplicity bin where it is consistent with zero. For higher multiplicities the difference from a zero slope is observed as a 3$\sigma$, 7.3$\sigma$ and 4.1$\sigma$ effect consecutively.

In spherical events the overall size of the system grows with increasing event multiplicity. Such a trend has been observed in all previous measurements in proton-proton and heavy-ion collisions. Spherical events are expected to contain multiple scatterings, so a growth of system size with multiplicity is naturally expected. On the other hand, jet-like events are typically dominated by a single interaction with a large momentum transfer and subsequent fragmentation into (mini-)jets where most of particle production occurs.

Our data suggest that the hard scattering process has a non-trivial space-time structure which is consistent with some theoretical predictions [29]. It is not possible to provide a more direct interpretation of the results, because the modeling of the space-time structure of the fragmentation process is largely neglected in current Monte-Carlo codes such as PYTHIA and PHOJET.

The $k_{\rm T}$ dependence of $R_{inv}$ in jet-like events is much less explored theoretically, due to the reasons given above. Therefore, our measurements present a pioneering insight into the space-time characteristics of fragmentation. It is observed that for higher multiplicity ranges the $k_{\rm T}$ dependence has a non-zero slope, for example $-0.52\pm 0.05\textrm{ (stat.)}\pm 0.05\textrm{ (sys.)}$ fm/(GeV/c) for the second highest multiplicity selection, obtained from a linear fit to the radii, taking into account all sources of systematic uncertainties. These results raise an interesting question on the origin of the $k_{\rm T}$ dependence in minimum bias 1D measurements by ALICE [7], especially if considered together with the lack of such a decrease in spherical events. It is confirmed that by averaging the radii from spherical, jet-like and intermediate events ($0.3<S_{\rm T}<0.7$, not shown in this work) it is possible to reproduce the dependence observed in the sphericity-integrated analysis. The fact that in a differential measurement the slope is most prominent in jet-like events suggests that it is this category of events that might be the dominant source of the non-zero $k_{\rm T}$ slope in the minimum-bias data set as well.

The development of a Monte-Carlo code that fully incorporates the space-time structure of proton-proton collisions and the fragmentation process would be highly desirable, a candidate for such an event generator would be EPOS [25]. The predictions of such a model, as a function of event sphericity, should then be carefully compared with existing and future data on pion Bose-Einstein correlations. Further improvements in the modeling of experimental transverse sphericity distributions is also desirable.

In a three-dimensional analysis of femtoscopic radii in the Longitudinally Co-Moving System (LCMS), which is the reference system where pair longitudinal momentum vanishes, with the Pratt-Bertsch decomposition of the momentum difference, where the “long” direction is along the beam, “out” is along pair transverse momentum and “side” is perpendicular to the other two, a decreasing trend with $k_{\rm T}$ is interpreted as evidence of hydrodynamic collectivity [30]. This reasoning has also been applied to small systems [25], therefore this dependence is a critical test of the interpretation of spherical and jet-like events presented above. However, it was shown that the $k_{\rm T}$ dependence in the PRF is additionally influenced by the boost factor between the LCMS and the PRF [31, 32]. Therefore, in this work we are not able to draw conclusions about collectivity in pp collisions based on the $k_{\rm T}$ dependence observed in Fig. 4.

5 Summary

In summary, the measured pp collisions at $\sqrt{s}=7$ TeV have been classified into sub-samples with high (“spherical”) and low (“jet-like”) sphericity and source radii have been extracted for both. An exponential fit function, as opposed to a Gaussian, was shown to better describe the observed 1D correlation functions for both sphericity ranges. A significant suppression of non-femtoscopic correlations was observed in “spherical” events, effectively doubling the $k_{\rm T}$ range of femtoscopic analyses for this sample. Substantial background correlations remained in the “jet-like” sample, which is consistent with the hypothesis that the main source of these correlations is mini-jets. PYTHIA and PHOJET describe this background, making an effective background removal procedure feasible. As a consequence, radii for jet-like events have been extracted for the first time. They tend to be smaller in comparison to source radii of spherical events, which may be a consequence of lower average multiplicities, and show a decrease with $k_{\rm T}$, resembling the trend observed also in minimum-bias analyses. The extracted radii in spherical events show an increase in the system size with multiplicity, in agreement with previous measurements and model expectations. They are also observed to have a flat trend in $k_{\rm T}$, which differs from the $k_{\rm T}$ dependence that was previously observed in 1D minimum-bias analyses [4, 5, 6, 7, 8, 9, 10]. This suggests that the observed slope in minimum-bias events could be arising from the lower part of the transverse sphericity spectrum in pp collisions. This is novel and unique information on the space-time characteristics of the fragmentation process. Future investigations will require more advanced modeling of the space-time properties of particle production in Monte-Carlo codes, and a comparison of such theoretical predictions to a three-dimensional pion femtoscopy measurement performed differentially in transverse sphericity.
