DAFE-FD: Density Aware Feature Enrichment for Face Detection

TL;DR

This paper introduces a density-aware feature enrichment method for face detection that improves small face detection by integrating a density map estimation module to enhance feature maps, complementing anchor-based strategies.

Contribution

It proposes a novel density map estimation module to enrich feature maps, improving small face detection performance in conjunction with existing anchor-based methods.

Findings

Improved detection accuracy on WIDER, FDDB, and Pascal-Faces datasets.

Effective enhancement of small face detection performance.

Complementary to existing anchor design strategies.

Abstract

Recent research on face detection, which is focused primarily on improving accuracy of detecting smaller faces, attempt to develop new anchor design strategies to facilitate increased overlap between anchor boxes and ground truth faces of smaller sizes. In this work, we approach the problem of small face detection with the motivation of enriching the feature maps using a density map estimation module. This module, inspired by recent crowd counting/density estimation techniques, performs the task of estimating the per pixel density of people/faces present in the image. Output of this module is employed to accentuate the feature maps from the backbone network using a feature enrichment module before being used for detecting smaller faces. The proposed approach can be used to complement recent anchor-design based novel methods to further improve their results. Experiments conducted on different datasets such as WIDER, FDDB and Pascal-Faces demonstrate the effectiveness of the proposed approach.

Figures

Tables

Table 1. Table 1: Anchor scales and feature strides for different detectors.

Detector	Input from	Stride	Anchor scales	Anchor sizes
$D_1$	DEM	4	1	16
$D_2$	$FF{M}_1$	8	1.5 2	24 32
$D_3$	$FF{M}_2$	16	4 8	64 128
$D_4$	conv5 max-pool	32	16 32	256 512

Table 2. Table 2: Ablation study Results (AP) on WIDER [ 60 ] validation.

Category	Mehthod	Easy	Medium	Hard
Baseline	Baseline	91.0	89.9	80.6
Context	Baseline + Context [32]	91.6	90.2	81.8
	Baseline + CAM	91.9	90.6	82.4
Density estimator	Baseline + CAM + DEM (add)	92.0	90.6	82.3
	Baseline + CAM + DEM (concat)	92.0	90.6	82.4
	Baseline + CAM + DEM (FEM) (${\lambda }_d=0$)	92.1	90.6	82.5
	Baseline + CAM + DEM (FEM) (${\lambda }_d=1$)	92.4	90.8	83.2

Table 3. Table 3: Comparison of results (AP) on WIDER [ 60 ] validation.

Method	Easy	Medium	Hard
CMS-RCNN [69]	89.9	87.4	62.9
HR-VGG16 + Pyramid [17]	86.2	84.4	74.9
HR-ResNet101 + Pyramid [17]	92.5	91.0	80.6
SSH [32]	91.9	90.7	81.4
SSH + Pyramid [32]	93.1	92.1	84.5
Face-MagNet [44]	92.0	91.3	85.0
S3FD + Pyramid [65]	93.7	92.4	85.2
DAFE-FD (ours)	92.4	90.8	83.2
DAFE-FD + Pyramid (ours)	93.4	92.2	85.2

Table 4. Table 4: Comparison of results (AP) on WIDER [ 60 ] test.

Method	Easy	Medium	Hard
LDCF+[33]	79.7	77.2	56.4
MT-CNN [64]	85.1	82.0	60.7
CMS-RCNN [69]	89.9	87.4	62.9
HR-VGG16 + Pyramid [17]	86.2	84.4	74.9
HR-ResNet101 + Pyramid [17]	92.5	91.0	80.6
SSH + Pyramid [32]	92.7	91.5	84.4
Face-MagNet [44]	91.2	90.5	84.4
S3FD + Pyramid [65]	92.8	91.3	84.0
DAFE-FD + Pyramid (ours)	92.5	91.4	84.8

Equations

$$L_{cls}=\sum _{m=1}^4\frac{1}{N_m^c}\sum _{iϵA_m}{l}_{ce}(p_i,p_i^{\prime })$$

$$L_{box}=\sum _{m=1}^4\frac{1}{N_m^r}\sum _{iϵA_m}{p}_i{l}_{reg}(t_i,t_i^{\prime }),$$

Full text

1 Introduction

Face detection is an important step in many computer vision related tasks such as face alignment [39, 56], face tracking [55], expression analysis [52], recognition and verification [51], synthesis [8, 54]. Several challenges are encountered in face detection such as variations in pose, illumination, scale etc. Earlier CNN-based methods [53, 50, 70, 30], although mostly successful in handling variations in pose and illumination, performed poorly when detecting smaller faces. Recent methods [32, 65, 29, 67], based on CNN-based object detection frameworks such as Faster-RCNN or SSD, have focused particularly on smaller faces and have demonstrated promising results. In order to detect wide range of scales, these methods propose a two-pronged approach: (i) multi-scale detection and (ii) new anchor design strategies. In case of multi-scale detection, detectors are placed on different conv layers of the backbone network (VGG-16 [46] or ResNet [13]) to improve the discrepancies between object sizes and receptive fields.

Although this approach provided significant improvements over the earlier single-scale methods, it is not capable of detecting extremely small sized faces (of the order  $15\times 15$). This stems from the fact that these methods are anchor-based approaches where detections are performed by classifying a pre-defined set of anchors generated by tiling a set of boxes with different scales and aspect rations on the image. While such approaches are relatively more robust in complicated scenes and provide computational advantages since inference time is independent of number of objects/faces (for single shot methods), their performance degrades significantly when used on smaller sized objects. The degradation is primarily due to a low overlap of ground truth boxes with the pre-defined anchor boxes and a mismatch between receptive fields of the feature maps and the smaller objects [65]. In order to overcome these drawbacks, recent methods have attempted to develop new anchor design strategies that involve intelligent selection of anchor scales and improved anchor matching strategy [32, 65].

While these recent methods address the drawbacks of anchor design or perform multi-scale detection, they do not emphasize on enhancing the feature maps for improving detection rates of small faces. To overcome this, we infuse information from crowd density maps to enrich the feature maps for addressing the problem of small face detection. Crowd density maps, originally used for counting in crowded scenarios, contain location information which can be exploited for improving detector performance. These density maps are especially helpful in the case of small faces, where traditional anchor-based classification loss may not be sufficient. Hence, we use density map based loss to provide additional supervision. Previous work [42, 41] have demonstrated considerable improvements by incorporating crowd density maps for applications like tracking. In this work, we propose to improve the feature maps by employing a density estimator module that performs the task of estimating the per pixel count of number of faces in the image. Fig. 1(a) illustrates sample density estimation results using [66] along with the corresponding ground-truth. Fig. 1(b) illustrates sample detection results by using the proposed density enrichment module into the detection network.

In the recent past, several CNN-based counting approaches [48, 66, 43, 47, 49] have demonstrated a dramatic improvement in error rate across various datasets [19, 63, 66]. It is important to note that these datasets consist of images with wide range of scales of people including extremely tiny faces/heads. Considering the success of density estimation based counting approaches especially in images containing extremely small faces, we propose to leverage such techniques for the purpose of detecting smaller faces. Specifically, we incorporate a density estimator module whose output is used to enrich the features of the backbone network particularly for detecting small faces. This is in part inspired by earlier work that use segmentation or attention for improving detection performance [14, 3, 67]. For fusing information from this module, we employ a feature enrichment module (FEM). In Section 3.3, we discuss why simple feature fusion techniques such as concatenation or addition do not suffice and explain the need for a specific fusion technique (FEM). Through various experiments on different datasets [60, 20, 57], we demonstrate the effectiveness of the proposed approach. Furthermore, we present the results of ablation study to verify the improvements obtained using different modules. Note that the proposed method is complementary to the new anchor design strategies and hence, it can be used in conjunction with improved anchor designs to further improve the performance.

2 Related Work

**Face Detection. **Early methods [53, 50, 4] for face detection were based on hand-crafted representations and complicated feature extraction techniques [22, 30, 58, 7, 70, 57]. Recent advances in CNNs for various computer vision tasks has enabled dramatic improvement in the performance of face detection systems [10, 6]. Initial work on CNN-based face detection involved either cascaded architectures [64, 23, 36, 59] or multi-task training of related tasks such as face detection, landmark detection and alignment [37, 38]. More recently, the success of anchor-based detection approaches for generic object detection [40, 27] has inspired researchers to follow similar strategies in face detection. Although, these approaches were able to obtain impressive detection rates on datasets like Pascal-Faces [57] and FDDB [20], the introduction of WIDER dataset [60] and UFDD dataset [31] exposed the lack of robustness of these methods to large variations in scales and weather-based degradations.

Most recent research [11, 1, 61, 68] in face detection has involved developing novel strategies to build detectors that are robust to scale variation while efficiently detecting small-sized faces. Some methods incorporate feature maps from multiple layers similar to [69, 17], while other methods develop new anchor design strategies [65, 32]. More recently, Najibi et al. [32] and Zhang et al. [65] proposed single shot detectors that provided significant improvements while maintaining good computational efficiency.

While these methods are effective, they do not specifically focus on improving the feature maps for detecting small faces. We aim to fill in this gap by enriching the feature maps from conv layers before being fed to the detectors. The problem of wide variation in scales is commonly found in crowd counting tasks where face/head sizes can be extremely tiny. The presence of tiny faces further exacerbates the problem of occlusion. This problem is usually tackled in the crowd counting research by performing a density map regression based on the input images. Inspired by the success of the recent CNN-based crowd counting methods, we aim to leverage such techniques to improve small face detection.

**Crowd Counting. **Zhang et al. [66] proposed a single image-based method that involved multi-column network to extract features at different scales. By utilizing filters with receptive fields of different sizes, the features learned by each column CNN are adaptive to variations in people/head size due to perspective effect or image resolution. Onoro-Rubio and López-Sastre in [34] addressed the scale issue by proposing a scale aware counting model called Hydra CNN to estimate the object density maps. Sam et al. [43] trained a Switching-CNN network to automatically choose the most optimal regressor among several independent regressors for a particular input patch. More recently, Sindagi and Patel [48] proposed Contextual Pyramid CNN (CP-CNN), where they demonstrated significant improvements by fusing local and global context through classification networks.

3 Proposed method

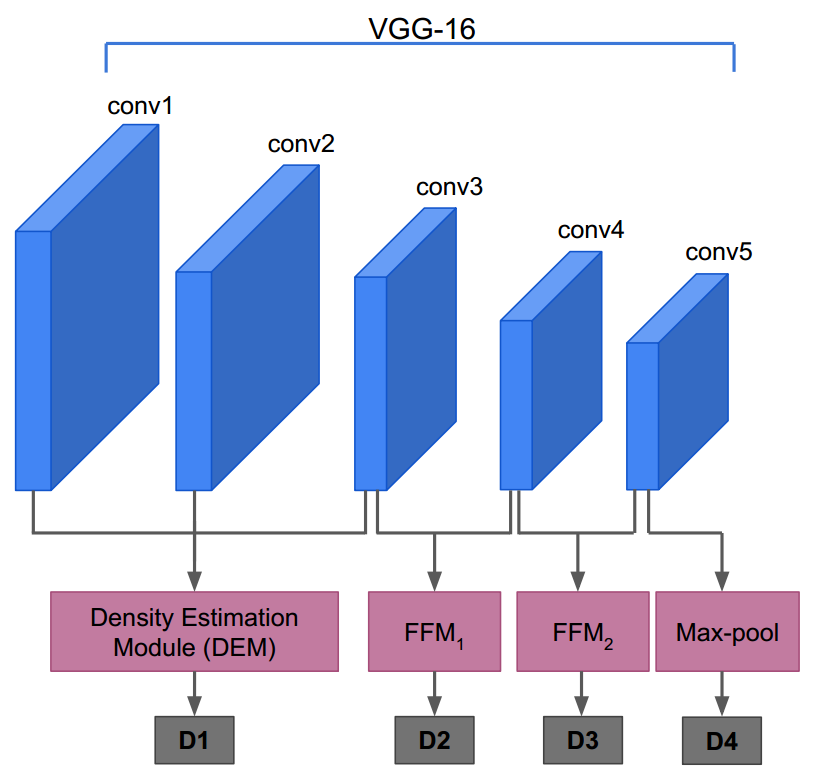

The proposed network architecture, shown in Fig. 2, is a single stage detector based on VGG-16 architecture. The base network is built on Region Proposal Network (RPN) [13], which is a fully convolutional single stage network and takes an image of any size as input. However, unlike RPN that uses a single detector on conv5 layer, we use multiple detectors ($D_{1}$,$D_{2}$,$D_{3}$ and $D_{4}$) on multiple conv layers [5]. These detectors, owing to the different receptive fields of the different conv layers, are better suited to handle various scales of objects, thereby improving the robustness of the network to different scales of faces present in the input image. However, in contrast to [5] that places the detectors on the conv layers of the base-network, we instead place the detectors on feature maps fused from multiple conv layers. In order to combine the feature maps, we employ a simple Feature Fusion Module (FFM) that effectively leverages semantic information present in different conv layers. Further, each detector consists of a Context Aggregation Module (CAM) followed by two sibling sub-networks: classification and a bounding box regression layer. The classification layer produces a score that represents the probability of finding a face defined by a specific anchor-box at a particular location on the image (similar to [13]). The set of anchor boxes are formed similar to [13]. The bounding box regression layer computes the offsets with respect to the anchor boxes. These offsets are used to calculate the bounding-box co-ordinates of the predicted face.

Most importantly, the proposed network consists of a Density Estimator Module (DEM) that is the primary contribution of this work. This module predicts the density map associated with a particular input image and is incorporated into the detection network with the motivation of enriching the feature maps from conv layers before being used for small face detection. Recent methods [32, 65] employ new anchor design strategies to improve the detection of smaller faces and the feature maps are learned only through classification and bounding box regression loss, however, no specific emphasis is laid on the enhancement of feature maps. Considering this deficit, we propose to enrich the feature maps through an additional loss function from the density estimator module. This is also, partly, motivated by several earlier work [12, 24] that have employed multi-task learning to improve detection or classification performance. DEM is inspired by the success of recent CNN-based methods [63, 34, 48, 66, 43] for crowd counting which involve counting people in crowded images through density map regression. Furthermore, we propose a new fusion mechanism called Feature Enrichment Module to seamlessly combine the feature maps from conv layer of the base network with the output of DEM.

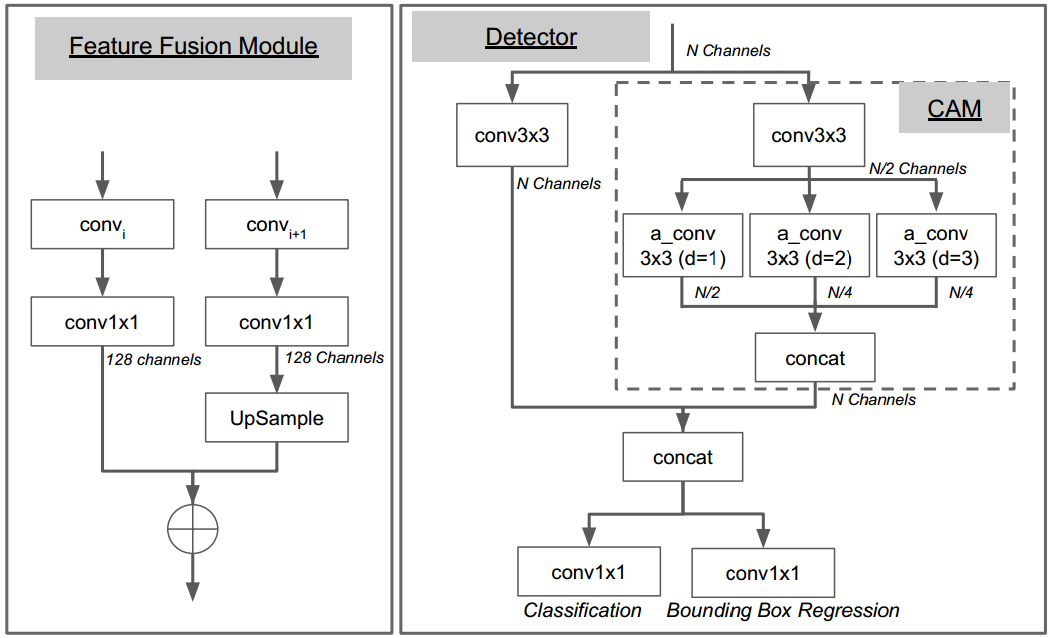

3.1 Feature Fusion Module (FFM)

Recent multi-scale object detection networks [26, 5] use multiple detectors on different conv layers. Although this technique provides considerable robustness to different scales, however, the detectors do not have access to feature maps from higher conv layers which have important semantic information. In order to leverage this high-level information, we employ a feature fusion module which takes input from $i^{th}$ and ${i+1}^{th}$ conv layers and combines them as shown in Fig. 3(a). First, the dimensionality of the feature maps of both conv layers is first reduced to 128 channels using 1$\times$1 convolution. Since the dim-reduced feature maps from ${i+1}^{th}$ conv layer have lower resolution, they are upsampled using bilinear interpolation and then added to the dim-reduced feature maps from $i^{th}$ conv layer. This is similar to [32], however, we extend this idea to add additional fusion modules to improve the performance. The proposed network has two fusion modules $FFM_{1}$ and $FFM_{2}$. $FFM_{1}$ fuses feature maps from conv3 and conv4, whereas $FFM_{2}$ fuses feature maps from conv4 and conv5.

3.2 Multi-scale detectors

Multi-scale detection approaches [26, 5], that use multiple detectors on top of different conv layers, are known to introduce considerable robustness to scale variations and often perform as well as single scale detectors based on multi-image pyramid, thus providing additional advantage of computational efficiency. By adding detectors on earlier conv layers, these methods are able to match the receptive field sizes of the layers with objects of smaller sizes, thereby increasing the overlap between the anchor boxes and ground-truth boxes. Based on this idea, we add detectors $D_{1}$, $D_{2}$, $D_{3}$ and $D_{4}$. However, different from these earlier approaches that directly feed the output of conv layers to the detectors, we employ a different strategy as shown in Fig. 2. $D_{1}$ receives features enriched by DEM, whereas $D_{2}$ and $D_{3}$ are placed on top of $FFM_{1}$ and $FFM_{2}$ respectively. $D_{4}$ is placed directly on top of max-pooled version of conv5. The details of the feature strides and anchor scales are shown in Table 1. Each detector is constructed as shown in Fig. 3(b).

Additionally, each detector is equipped with a Context Aggregation Module (shown in Fig. 3 (b)) that integrates context information surrounding candidate bounding boxes. Context information has been used in several earlier work [69, 32] to improve the performance of detection systems. Zhu et al. [69] concatenated features pooled from larger windows and demonstrated significant improvement. Najibi et al. [32] used additional 5$\times$5 and 7$\times$7 convolutional filters to increase the receptive field size, in a way, imitating the strategy of pooling features from larger windows. While they achieved appreciable improvements, the use of large filter sizes results in more computations. Hence, we replace these large filters with atrous convolutions of size 3$\times$3 [35, 18, 35] and different dilation factors. With the help of atrous convolutions, we are able to enlarge the receptive field size with minimal increase in computations.

3.3 Density Estimator Module

Recent crowd counting methods [63, 34, 48, 66, 43], that employ CNN-based density estimation techniques, have demonstrated promising results in complex scenarios. These techniques perform the task of counting people by estimating the density maps which represent the per pixel count of people in the image (as shown in Fig. 1). For training, the ground-truth density map ($D$)for an input image is calculated using $D(x)=\sum_{{x_{g}\in S}}\mathcal{N}(x-x_{g},\sigma)$, where $\sigma$ is scale parameter of 2D Gaussian kernel and $S$ is the set of all points at which people are located. Most crowd counting datasets provide 2d location of people in the input images as annotations. Fig. 1 illustrates a few sample input and ground-truth density map pairs along with corresponding density map estimated using a recent technique [48]. It can be observed that, in spite of heavy occlusions and presence of extremely small scales, these recent techniques are able to estimate high quality density maps and count with reasonably low error.

While the success of these methods is attributed mostly to the use of advanced CNN architectures, reformulating the problem of counting as a density map regression also played an important role in their success. As compared to the earlier detection-based counting approaches [15, 21], these recent methods are able to achieve success due to the reformulation. By reformulating, these methods are able to avoid the problems of occlusion and tiny scales by letting the network take care of such variations. In this work, we explore the use of density estimation to incorporate robustness towards occlusion and tiny scales in the face detection network. In part, this contribution is also inspired by recent methods [12, 24, 38] that learn multiple related tasks using multi-task learning. These methods have demonstrated considerable gains in performance when they train their network to perform additional auxiliary tasks.

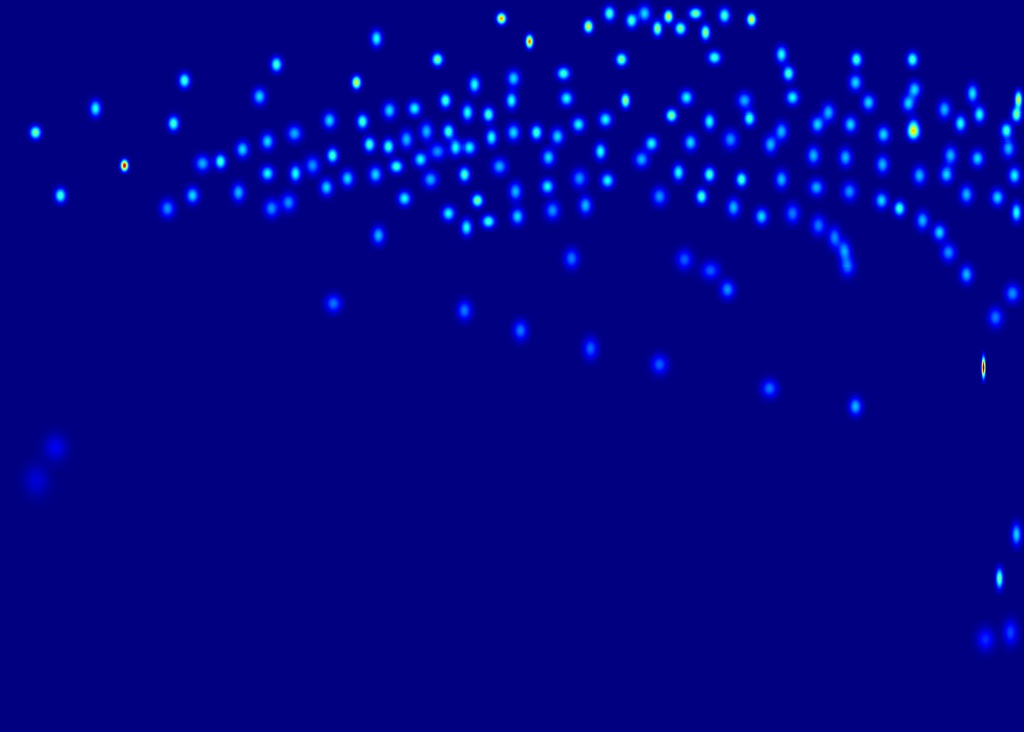

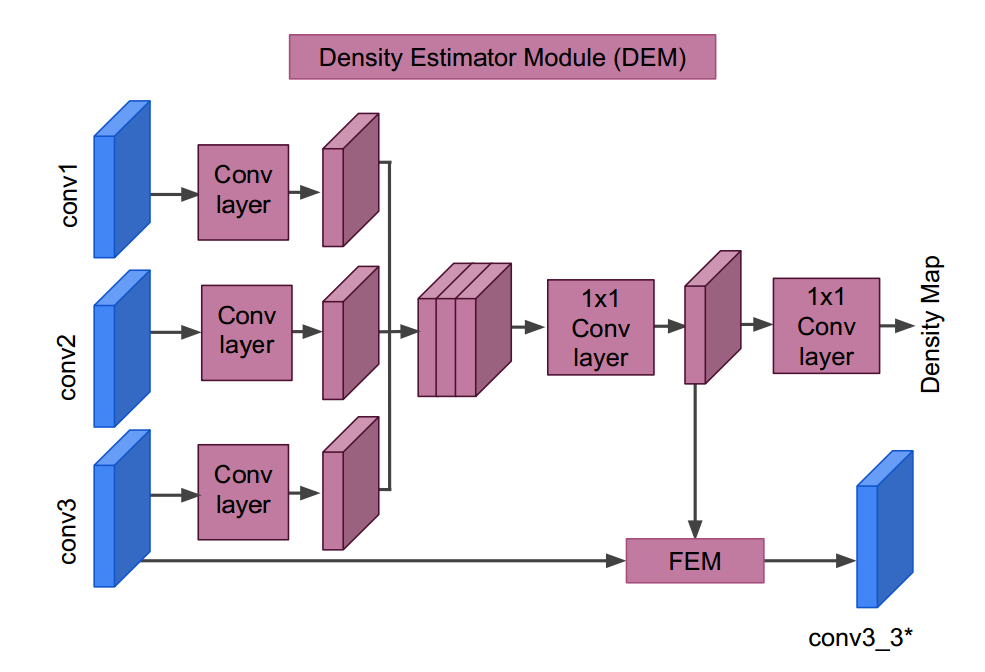

To incorporate the task of density estimation in the detection network, we include a density estimator module. Recent crowd counting and density estimation approaches [66, 43, 48, 2] are based on multi-scale and multi-column networks, where the input image is processed by different CNN columns with varied receptive field sizes. The use of different columns results in increased robustness towards scale variations. Motivated by these approaches, we construct the density estimator module as shown in Fig. 2(b). Instead of processing the input images through different networks as in [66], we use feature maps from the base network, thereby minimizing the computations. Our strategy is to mimic the multi column networks structures [66] by considering feature maps conv1, conv2 and conv3 layers of VGG-16, which correspond to different receptive field sizes. DEM first downsamples the feature maps from conv1 and conv2 layers using max-pooling to match the size of feature maps from conv3 layer. After resampling, the dimensionality of the feature maps is reduced to minimize computations and memory requirement, followed by additional convolutions and concatenation. The concatenated feature maps are processed by 1$\times$1 conv layer to produce the final density map. Following loss function is used to obtain the network weights: $L_{den}=\frac{1}{N}\sum_{i=1}^{N}\|F_{d}(X_{i},\Theta)-D_{i}\|_{2},$ where, $N$ is number of training samples, $X_{i}$ is the $i$th input image, $F_{d}(X_{i},\Theta)$ is the estimated density, $D_{i}$ is the $i$th ground-truth density and $\Theta$ corresponds to network weights.

Feature Enrichment Module. We use the output of DEM to enhance the feature maps from conv3 layer in order to improve detection rates of smaller faces. Since the detector on conv3 has the smallest scale and is responsible for detecting the smaller faces, we choose to fuse information from DEM into conv3 feature maps. Various fusion techniques, such as feature concatenation or multiplication or addition, are available to incorporate information from DEM into the face detector network. However, these methods are not necessarily effective. Since the feature maps produced by DEM are used for density estimation, they have largely different range as compared to feature maps corresponding to conv layers from the detection network and hence, they cannot be directly fused with feature maps from conv3 layer through simple techniques such as addition or concatenation. As pointed out in [28], this problem is commonly encountered in networks that attempt to combine feature maps from different conv layers [27]. Liu et al. [28] introduce a L2-normalization based scaling technique to overcome this problem. Although this method is successfully used in different works [69], it did not perform promisingly in our case for the following reasons. First, the range of the feature maps from DEM is vastly different from that of conv3 feature maps and this gap is significantly wider as compared to other problems [69] where [28] has worked successfully. Second, the intermediate feature maps from the DEM have significantly low number of channels and hence, their dimensionality needs to increased to match that of feature maps from conv3 layer in order to perform a addition or multiplication based fusion.

Based on these considerations, we propose a simple Feature Enrichment Module (FEM) that avoids the challenges discussed above. Instead of using intermediate feature maps from DEM, we directly employ its density map output. The feature maps ($f_{3}$) from conv3 of the base-network are modified using the estimated density map as follows: $f_{3}=f_{3}+\alpha f_{d}^{\prime},$ where, $\alpha$ is a learnable scaling factor and $f_{d}^{\prime}$ is $f_{d}$ replicated 256 times to match the dimensionality of conv3 feature maps. Fig. 4 illustrates feature maps from conv3 layer before and after enrichment. It can be easily observed from this figure that the features at the location of small faces get enhanced while those at other locations get suppressed.

3.4 Loss function

The weights of the proposed network are learned my minimizing the following multi-task loss function: $L=L_{cls}+\lambda_{b}L_{box}+\lambda_{d}L_{den},$ where, $L_{cls}$ is face classification loss, $L_{box}$ is bounding-box regression loss and $L_{den}$ is density estimation loss. $L_{cls}$ and $L_{box}$ are defined as follows:

[TABLE]

where, $l_{ce}$ is standard cross entropy error, $m$ indexes over the four detectors $D_{1}$-$D_{4}$, $A_{m}$ are the set of anchors in detector $D_{m}$, $p_{i}$ and $p_{i}^{\prime}$ are ground-truth and predicted labels respectively for the $i^{th}$ anchor box, $N^{c}_{m}$ is the number of anchors selected in the detector $D_{m}$ and is used to normalize the classification loss, $l_{reg}$ is bounding box regression loss for each positively labelled anchor box. Similar to [13], the regression space is parametrized with a log-space shift and a scale invariant translation. Smooth $l_{1}$ loss is used as $l_{reg}$. In this new space, $t_{i}$ is the regression target and $t_{i}^{\prime}$ is predicted co-ordinates. $N_{m}^{r}$ is the number of positively labelled anchor boxes that are selected for the computing the loss and is used to normalize the bounding box loss. $\lambda_{b}$ and $\lambda_{d}$ are scaling factors to balance the loss function.

3.5 Training

Training details. The network is trained on a single GPU using stochastic gradient descent (momentum = 0.9 and weight decay = 0.0005) for 120$k$ iterations. The learning rate is initially set to 0.001 and is dropped by a factor of 10 at 100$k$ and 115$k$ iterations. Anchor boxes are generated using the scales shown in Table 1 with a base anchor size of 16 pixels. Anchor boxes are labelled positively if their overlap (intersection over union) with ground truth boxes is greater than 0.5 and are negatively labelled if the overlap is below 0.3. A total of 256 anchor boxes per detector are selected for each image to compute the loss. The selection is performed using online hard example mining (OHEM) technique [45], where negatively labelled anchors with highest scores and positively labelled with lowest scores are selected. Such a selection procedure results in faster and stable training as compared to random selection [45]. The ground-truth density maps for training DEM are obtained using the method described in Section 3.3. The face annotations provided by the datasets are used to compute the points where faces are located and hence, no extra annotations are required. For inference, 1000 best scoring anchors from each detector are selected as detections, followed by a non maximal suppression (NMS) with a threshold of 0.3.

Dataset details. The network is trained using WIDER dataset [60] which consists of 32,203 images with 393,703 annotated faces. The dataset presents a variety of challenges such as wide variations in scale and difficult occlusions. It is divided into training, validation and test set using a 40:10:50 ratio. For evaluation purpose, the dataset has been further divided into three categories: Easy, Medium and Hard. The detector performance is measured using mean average precision (mAP) with a intersection over union (IoU) threshold of 0.5.

4 Experiments and Results

In this section, we discuss details of the experiments and results on different datasets. Additionally, we present the results of an ablative study on WIDER validation set to explain the effect of different modules present in the proposed network.

4.1 WIDER

As discussed earlier, WIDER dataset consists of validation and test splits. We use the validation set to perform an ablative study to explain the effects of different modules in the proposed network. For this study, we use a single scale of the input image (no multi-image pyramid) similar to [32]. In addition, comparison of results on validation and test set with recent methods is presented.

Ablation study. To understand the effects of different modules in the proposed network, we experimented with 3 broad configurations as shown in Table 2. The results of these configurations are analyzed below:

(i) Baseline: This configuration uses VGG-16 as the base-network along with feature fusion module and 4 detectors $D_{1}$-$D_{4}$. Results of this network is considered as baseline performance and through addition of different modules, we demonstrate the improvements with respect to this baseline.

(ii) Baseline with context: Earlier work [32, 69] have already demonstrated the importance of incorporating context in the detection network. Similar observations are made in our experiments. By using a context processing module similar to [32], an improvement of 1.2% in the mean average precision (mAP) score for hard faces is obtained. Further, the use of atrous based context aggregation increased the mAP score by another 0.6% resulting in an overall improvement of 1.8%.

(iii) Baseline with context and DEM. In this case, we analyze the effect of incorporating DEM into the detection network. First, we experimented with different ways of integrating the feature maps from DEM into detection network through feature addition and concatenation, where the feature maps from the penultimate layer of DEM are expanded through 1$\times$1 convolutions to match the dimensionality of conv3 feature maps, followed by addition/multiplication of these two feature maps. It can be observed from Table 2, that these two configurations do not result in any improvement of the mAP scores. This is primarily due to vast difference in the scales of the feature maps (as discussed in Section 3.3).

Next, we added the feature enrichment module (FEM) to enhance the conv3 feature maps. This resulted in an overall improvement of 0.8% in mAP score for hard faces as compared to the baseline with context (CAM), thus demonstrating the significance of the proposed feature enrichment module and density estimator. Furthermore, in order to ensure that the improvements obtained are due to density estimation loss, we conducted another experiment with $\lambda_{d}=0$ and no changes with respect to the baseline with CAM configuration was observed.

Comparison with other methods. We compare the results of the proposed method with recent state-of-the-art methods such as SSH [32], Face-MagNet [44], S3FD [65], HR [17], CMS-RCNN [69], MT-CNN [64], LDCF [33], Faceness [59] and Multiscale Cascaded CNN [60]. For the validation set, the results of the proposed method are obtained using single-scale inference as well as image-pyramid based reference (as shown in Table 4). It can be observed that DAFE-FD using single-scale inference achieves superior results as compared to HR that is based on image pyramid. Furthermore, DAFE-FD (single-scale) achieves better results as compared to SSH-single-scale (recent best method) in all the subsets of WIDER dataset. Specifically, an improvement of 1.8% in case of “hard” set is obtained. Further improvements are attained by using pyramid-based inference and the proposed method is able to outperform SSH-pyramid and achieve comparable results with respect to S3FD. It is important to note that S3FD is based on single-shot detection approach and it involves extra detectors and feature maps from conv6 and conv7 layers in addition to the use of data augmentation based on multi-scale cropping and photometric distortion [16]. In spite of these additional factors in case of S3FD, DAFE-FD achieves comparable performance with respect to S3FD on the validation set, while obtaining better results on the test set as described below.

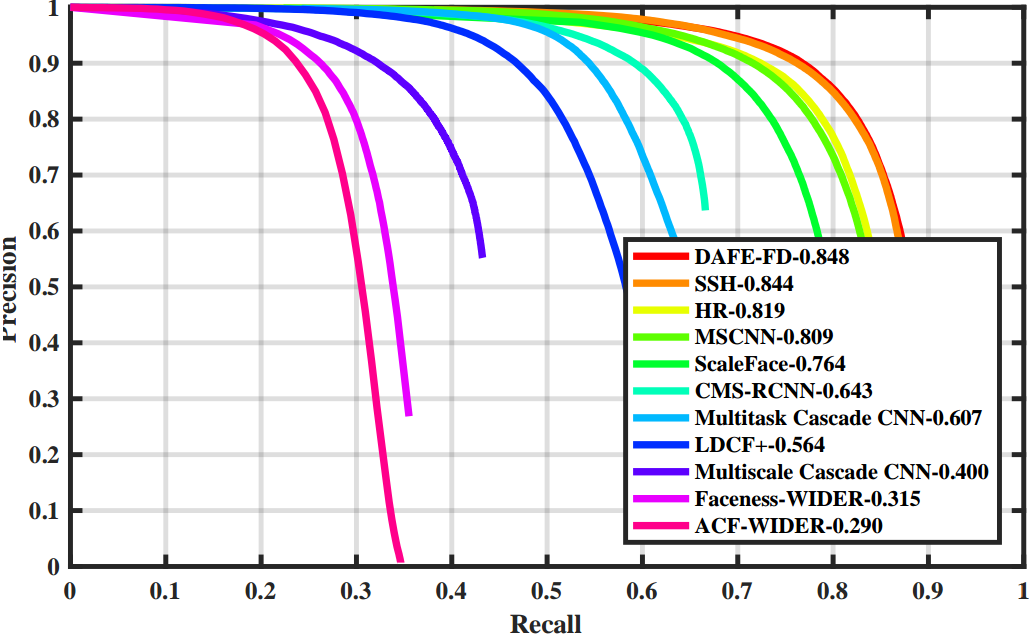

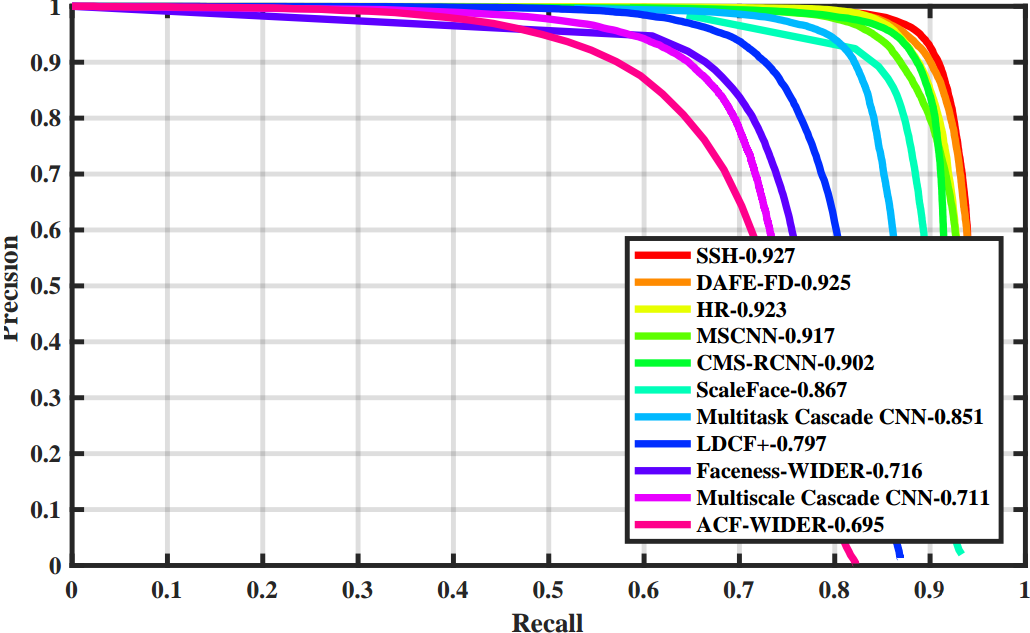

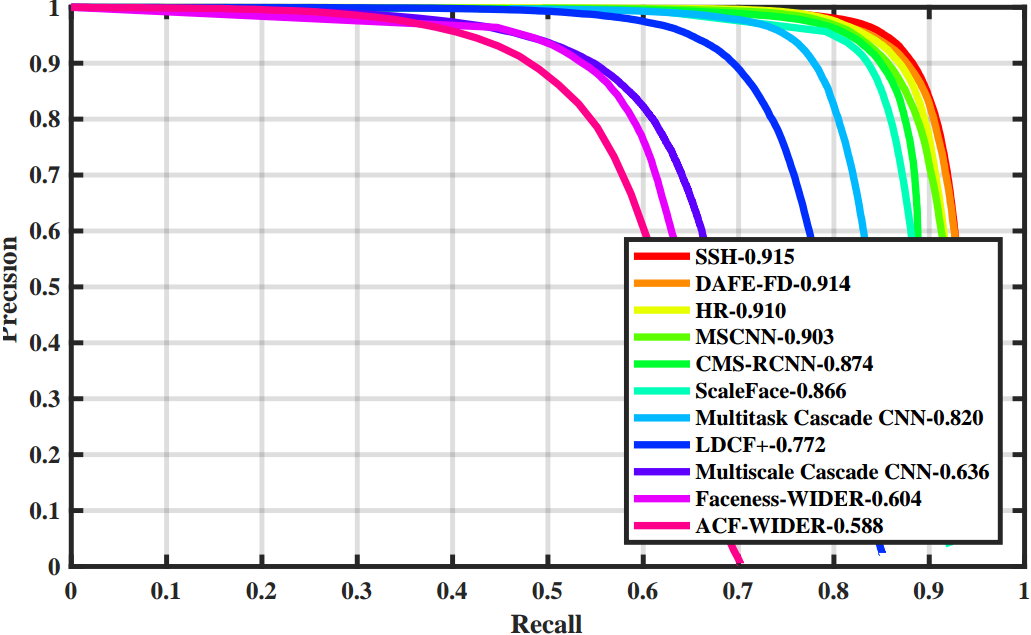

The average precision scores of the proposed method on the test set of WIDER dataset are shown in Table 4 and the corresponding precision-recall curves are shown in Fig. 5. It can be clearly observed that DAFE-FD outperforms existing state-of-the-art methods on the “hard” subset while achieving comparable or better performance on the other subsets. Detection results are shown in Fig. 6. More results are provided in the supplementary material.

4.2 FDDB

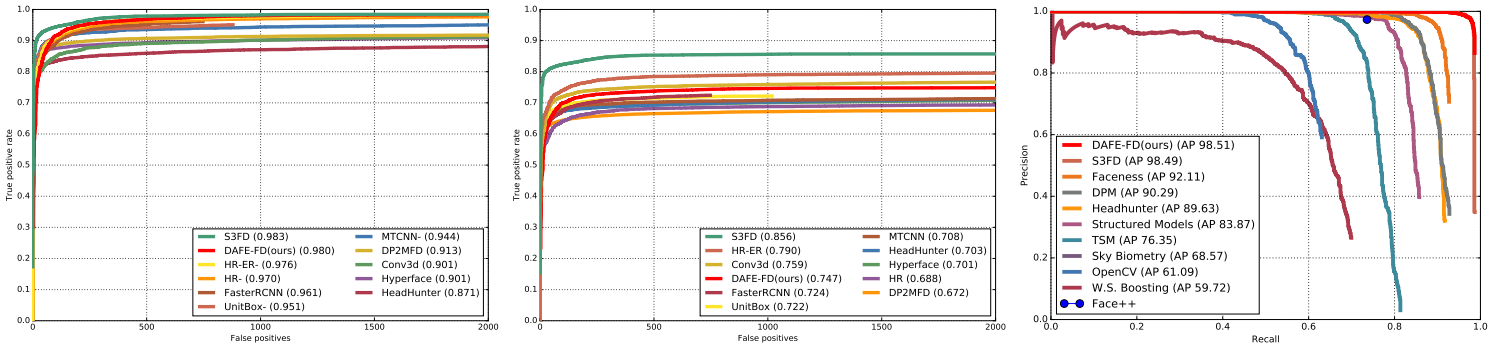

This dataset consists of 2,845 images with a total of 5,171 annotated faces. Fig. 7 (a) and (b) shows comparison of ROC curves for different methods ( S3FD[65], HR/HR-ER [17], Faster RCNN, UnitBox [62], MT-CNN [64], D2MFD [37], Conv3D [25], Hyperface [38] and Headhunter [30]) with the proposed method in discrete and continuous mode respectively. We use rectangular bounding boxes for evaluation as opposed to HR, S3FD and Conv3D that use elliptical regression to reduce localization error. Also, in contrast to HR that is trained on FDDB, we do not use images in FDDB for training purpose. In spite of lacking these additional features, DAFE-FD achieves consistently better performance in case of discrete scores and is comparable to other methods in case of continuous scores. Although S3FD obtains slightly better performance, it is important to consider that the authors manually annotated several unlabelled faces in the FDDB dataset which results in increased performance.

4.3 Pascal Faces

This dataset [57] consists of 851 images with a total of 1,355 labelled faces and it is a subset of the PASCAL person layout dataset [9]. Fig. 7(c) shows the comparison of precision-recall curves on this dataset for different methods with the proposed method. The proposed DAFE-FD method outperforms existing methods such as S3FD [65], Faceness [59], DPM [70], Headhunter [30] and many others.

4.4 Computational Time

Since the proposed method is a single stage detector, it performs nearly as fast as recent state-of-the-art detectors. The inference speed is measured using Titan X (Pascal) with cuDNN. In case of FDDB/PASCAL dataset, the average computational time required by DAFE-FD is  50 msec/image for a resolution of 400$\times$800, thus achieving a real time processing frame rate. In case of WIDER dataset, the inference time is  190 msec/image and is measured for single-scale with a resolution of 1200$\times$1600. In order to understand the computational overhead introduced by the density estimator module, we measured the inference speed of DAFE-FD without DEM (Baseline (ii) in Section 4.1 ) to be  178 msec/image. Thus, it can be noted that the use of density estimator modules results in minimal computational overhead while achieving increased performance.

5 Conclusions

We proposed a feature enrichment technique to improve the performance of small face detection. In contrast to existing methods that employ new strategies to improve anchor design, we instead focus on enriching the feature maps directly which is inspired by crowd counting/density estimation techniques that estimate the per pixel density of people/faces present in an image. Experiments conducted on different datasets, such as WIDER, Pascal-faces and FDDB, demonstrate considerable gains in performance due to the use of proposed density enrichment module. Additionally, the proposed method is complementary to recent improvements in anchor designs and hence, it can be used to obtain further improvements.
