Constant Mean Curvature Surfaces For The Bessel Equation

TL;DR

This paper constructs a family of constant mean curvature surfaces in three-dimensional space derived from the Bessel equation, expanding the understanding of geometric structures related to special functions.

Contribution

It introduces a novel method to generate constant mean curvature surfaces using solutions to the Bessel equation, linking differential equations with geometric surface theory.

Findings

Constructed explicit immersions with constant mean curvature

Connected Bessel equation solutions to geometric surface models

Provided new examples of CMC surfaces from special functions

Abstract

In this note we construct a family of immersions with constant mean curvature of the twice-punctured Riemann sphere into R^3 from the Bessel equation.

Figures

Equations

$$\{\begin{array}{l}\mathrm{d}\Phi =\Phi \xi \\ \Phi (z_0)={\Phi }_0.\end{array}$$

$$\tau :\log z\mapsto \log z+2\pi i.$$

$$M=({\tau }^{\ast }\Phi ){\Phi }^{-1}.$$

$$M$$

$${M|}_{\lambda =1}$$

$${{\partial }_{\lambda }M|}_{\lambda =1}$$

$$\xi =\left(\begin{array}{cc}0& \nu (z,\lambda )\\ \rho (z,\lambda )& 0\end{array}\right)dz.$$

$$\left(\begin{array}{cc}{y}_1^{\prime }/\nu & y_1\\ y_2^{\prime }/\nu & y_2\end{array}\right)$$

$$y^{\prime \prime }-\frac{{\nu }^{\prime }}{\nu }{y}^{\prime }-\rho \nu y=0.$$

$$z^2{y}^{\prime \prime }+z{y}^{\prime }+(z^2-{\alpha }^2)y=0.$$

$$y^{\prime \prime }+\frac{1}{z}{y}^{\prime }+\left(1-\frac{{\alpha }^2}{z^2}\right)y=0.$$

$$\nu :=\frac{1}{z}\text{and}\rho :=-z+\frac{{\alpha }^2}{z}.$$

$$A=\left(\begin{array}{cc}c& a{\lambda }^{-1}+\bar{b}\\ \bar{a}\lambda +b& -c\end{array}\right),$$

$$\xi =A\frac{dz}{z}+\mathcal{O}(z^0)dz$$

$${\xi }_c=\left(\begin{array}{cc}0& {\lambda }^{-1}\\ \lambda Q_t& 0\end{array}\right)dz,$$

$$\xi =\left(\begin{array}{cc}0& 1/z\\ -z+{\alpha }^2/z& 0\end{array}\right)dz.$$

$$g_1=\left(\begin{array}{cc}(1/z{)}^{1/2}& 0\\ 0& (1/z{)}^{-1/2}\end{array}\right),g_2=\left(\begin{array}{cc}1& 0\\ \frac{1}{2z}& 1\end{array}\right).$$

$$\xi =\left(\begin{array}{cc}0& 1\\ -1+\frac{-1+4{\alpha }^2}{4z^2}& 0\end{array}\right)dz.$$

$$A\frac{dz}{z}+\mathcal{O}(z^0)dz,\text{where}A=\left(\begin{array}{cc}0& a{\lambda }^{-1}+b\\ a\lambda +b& 0\end{array}\right)$$

$$g_{1c}=\left(\begin{array}{cc}{z}^{1/2}& 0\\ 0& z^{-1/2}\end{array}\right),g_{2c}=\left(\begin{array}{cc}1& 0\\ -\frac{1}{2}\lambda & a+b\lambda \end{array}\right).$$

$$M=\exp (2\pi iA)=\cos (2\pi \mu )\text{mathbbm}1+\frac{1}{\mu }\sin (2\pi \mu )A,$$

$${\mu }^2=a^2+b^2+ab({\lambda }^{-1}+\lambda ).$$

$${\xi }_{\lambda }=\xi (z,\lambda ),$$

$${\Phi }_{\lambda }=\Phi (z,\lambda ),$$

$$F_{\lambda }=F(z,\lambda ).$$

$${\xi }_{1/\lambda }$$

$$G^{-1}{\xi }_{\lambda }G$$

$$\mathrm{d}\left(\overline{{\sigma }^{\ast }{\Phi }_{1/\bar{\lambda }}}\right)=\left(\overline{{\sigma }^{\ast }{\Phi }_{1/\bar{\lambda }}}\right)\left({\xi }_{\lambda }.G\right).$$

$$\mathrm{d}\left({\Phi }_{\lambda }G\right)=\left({\Phi }_{\lambda }G\right)\left({\xi }_{\lambda }.G\right),$$

$$R{\Phi }_{\lambda }=\overline{{\sigma }^{\ast }{\Phi }_{1/\bar{\lambda }}}{G}^{-1},$$

$$\overline{{\sigma }^{\ast }{F}_{1/\bar{\lambda }}}\overline{{\sigma }^{\ast }{B}_{1/\bar{\lambda }}}=\overline{{\sigma }^{\ast }{\Phi }_{1/\bar{\lambda }}}=R{\Phi }_{\lambda }G=RFU{U}^{-1}BG.$$

$$\overline{{\sigma }^{\ast }{F}_{1/\bar{\lambda }}}=RFU.$$

$$\breve{f}$$

Full text

Mathematics Subject Classification. 53A10.

Introduction

The generalised Weierstrass representation due to Dorfmeister, Pedit and Wu [3] can be used to construct locally conformal constant mean curvature ($\mathrm{CMC}$) immersions in Euclidean $3$-space from a holomorphic 1-form $\xi$ on a Riemann surface $\Sigma$. Several examples of $\mathrm{CMC}\;$surfaces have been made using these techniques by Dorfmeister, Wu [4], Haak [2], Kilian, McIntosh, Schmitt [6], Kobayashi, Rossmann [5] and Traizet [11], among others. Also, more recently [12], Traizet uses an opening nodes method in the generalised Weierstrass representation set-up to obtain embedded $\mathrm{CMC}\;$surfaces with Delaunay ends, with arbitrary genus and number of ends.

In the spirit of [7], our aim is to employ a second order differential equation, the Bessel equation, to find a new family of cylinders with constant mean curvature. This family possess one asymptotically Delaunay end and one irregular end, corresponding respectively to the regular and irregular singularities in the $\mathrm{ODE}$. The first step in the construction of $\mathrm{CMC}\;$surfaces is to write down a suitable potential $\xi$. That one of the ends of the surfaces is asymptotic to half Delaunay surface follows from the fact that at this end $\xi$ is a perturbation of the potential of a Delaunay surface [8]. Since $\Sigma$ is the twice-punctured Riemann sphere, it is enough to guarantee closing conditions at the Delaunay end in order to solve the period problem.

In section 1 we outline the constructing method for $\mathrm{CMC}\;$surfaces, due to [3]. The section 2 has as purpose introducing the Bessel equation in our recipe for surfaces with constant mean curvature, along with a brief explanation of its features. Section 3 recalls the very well-known theory regarding $\mathrm{CMC}\;$surfaces with Delaunay ends and perturbations of Delaunay potentials (see [8] and [5], among others). In the main section in this note, 4, we write down the potential that constructs $\mathrm{CMC}\;$cylinders via the Bessel equation and put together in theorem 1 the different ingredients for the construction. Finally, in section 5 we prove the existence of a reflectional symmetry in the $\mathrm{CMC}\;$cylinders that we have constructed. Graphics in figures 1 and 2 were produced with CMCLab [10].

1. The generalised Weierstrass representation

Let us briefly recall the generalized Weierstrass representation [3] to set the notation. We refer the reader to [5] for details on this method, which comprises the following steps:

1. (i)

On a connected Riemann surface $\Sigma$, let $\xi$ be a holomorphic 1-form, called potential, with values in the loop algebra of maps $\mathbb{S}^{1}\to\mathfrak{sl}_{2}(\mathbb{C})$. The potential $\xi$ has to have a simple pole in its upper right entry in the loop parameter $\lambda$ at $\lambda=0$, and has no other poles for $\lambda<1$. Moreover, the upper-right entry of $\xi$ is non-zero on $\Sigma$. Let $\Phi$ be a solution of

[TABLE] 2. (ii)

Let $\Phi=F\,B$ be the point-wise Iwasawa factorization on the universal cover $\widetilde{\Sigma}$. 3. (iii)

Then, the Sym-Bobenko formula $f:=\mathrm{Sym}[F_{\lambda}]=\left(\partial_{\lambda}F\right)F^{-1}$ gives an associated family of conformal $\mathrm{CMC}\;$immersions $\widetilde{\Sigma}\to\mathfrak{su}_{2}\cong\mathbb{R}^{3}$.

If $g$ is a map on $\Sigma$ with values in a positive loop group of $\mathrm{SL}_{2}(\mathbb{C})$, then $\xi.g$ is again a potential. The gauge action is defined by $\xi.g:=g^{-1}\xi g+g^{-1}\mathrm{d}g$. If $\mathrm{d}\Phi=\Phi\,\xi$, then $\Phi g$ solves $\mathrm{d}\Psi=\Psi(\xi.g)$.

Now let $\Sigma=\mathbb{C}^{*}$ be the twice-punctured Riemann sphere. Let $\Delta$ denote the group of deck transformations of the universal cover $\widetilde{\Sigma}$, that is, $\Delta=\mathbb{Z}$ and $\widetilde{\Sigma}=\mathbb{C}$. The group of deck transformations $\Delta$ is generated by

[TABLE]

Let $\xi$ be a holomorphic potential on $\Sigma$. Let $\Phi$ be a solution of $\mathrm{d}\Phi=\Phi\xi$. Since $\Sigma$ is not simply connected, in general $\Phi$ is only defined on $\widetilde{\Sigma}$. Let $\tau$ be a loop around the puncture $z=0$, we define the monodromy matrix $M$ of $\Phi$ along $\tau$ by

[TABLE]

In order to construct $\mathrm{CMC}\;$cylinders, the sufficient closing conditions for the monodromy that ensure that the immersion is well-defined are (see [5]):

[TABLE]

Since $\Sigma=\mathbb{C}^{*}$, the monodromy group is infinite cyclic. Thus the fundamental group of the twice-punctured Riemann sphere has $1$ generator and we only need to solve the monodromy problem (1.4) for the loop $\tau$ around the puncture $z=0$.

2. The Bessel equation

In this section we show how the Bessel equation constructs $\mathrm{CMC}\;$surfaces with two ends. We start by prescribing this $\mathrm{ODE}\;$in the first step (1.1) of the Weierstrass recipe [3] and then we point out the relevant features of this differential equation for the purpose of our work, namely, we describe its singularities’ behaviour.

Let us consider without loss of generality a potential $\xi$ of the form

[TABLE]

The strategy to associate a scalar second order $\mathrm{ODE}\;$to our constructing algorithm is illustrated in the following

Lemma 1**.**

Solutions of $\mathrm{d}\Phi=\Phi\xi$ are of the form

[TABLE]

where $y_{1}$ and $y_{2}$ are a fundamental system of the scalar $\mathrm{ODE}\;$

[TABLE]

By means of lemma 1, we can choose functions $\nu$ and $\rho$ in the potential (2.1) so that the Bessel equation becomes the associated $\mathrm{ODE}\;$(2.3) in the initial value problem (1.1).

The Bessel equation [1] is the linear second-order $\mathrm{ODE}\;$given by

[TABLE]

Equivalently, dividing through by $z^{2}$,

[TABLE]

The paramater $\alpha$ is an arbitrary complex number. This equation has one regular singularity at $z=0$ and one irregular singularity of rank $2$ at $\infty$ (see [9]), and for this reason the Bessel equation does not belong to the class of Fuchsian equations. Each of these punctures will correspond to one end on the $\mathrm{CMC}\;$surface; the regular singularity generates a regular end (asymptotic to a Delaunay surface) while the irregular singularity generates an irregular end.

Consider again the off-diagonal potential in (2.1) and let us choose functions

[TABLE]

Plugging $\nu$ and $\rho$ into equation 2.3, one obtains the Bessel equation and, in particular, prescribes this $\mathrm{ODE}\;$in the algorithm for $\mathrm{CMC}\;$surfaces seen in section 1.

3. The $z^{A}P$ Lemma and perturbations at a simple pole

Consider a differential equation $\mathrm{d}\Phi=\Phi\xi$ for which the potential can be written as $\xi=A{dz\over z-z_{k}}+\mathcal{O}(z^{0})\;dz$, that is, it has a simple pole at $z=z_{k}$. A basic result in $\mathrm{ODE}\;$theory can be extended to the context of loops. This is known as the $z^{A}P$ lemma (see [8, Lemma 2.3]) and states that under certain conditions on the eigenvalues of $A$, there exists a solution of the form $\Phi=Cz^{A}P=C\exp\left(A\log{z}\right)P$, where $P$ extends holomorphically to $z=z_{k}$ and $C$ is in the loop group of $\mathrm{SL}_{2}(\mathbb{C})$.

Lemma 2**.**

[5*, Lemma 14]** Let $A:\mathbb{C}^{*}\to\mathfrak{sl}_{2}(\mathbb{C})$ be an analytic map with non-constant eigenvalues $\pm\mu(\lambda)$. Let $\xi=A(\lambda)dz/z+\mathcal{O}(z^{0})dz$ in a neighbourhood of $z=0$.

Let $M:\mathbb{C}^{*}\to\mathrm{SL}_{2}(\mathbb{C})$ be a monodromy of $\xi$ associated to a once-wrapped closed curve around $z=0$. Then $\operatorname{tr}M=2\cos(2\pi\mu)$ on $\mathbb{C}^{*}$.*

A Delaunay residue is a meromorphic $\mathfrak{sl}_{2}(\mathbb{C})$-valued map of the form

[TABLE]

with $a,b\in\mathbb{C}^{*}$ and $c\in\mathbb{R}$. Any Delaunay surface in $\mathbb{R}^{3}$, up to rigid motion, can be derived [6] from an off-diagonal Delaunay residue (3.1) with $a,b\in\mathbb{R}^{*}$ satisfying the closing condition $a+b=1/2$, so that the resulting surface’s necksize depends on $ab$: when $ab>0$, the surface is an unduloid, when $ab<0$, it is a nodoid, and when $a=b$, it is a round cylinder (see for instance [8]). On the other hand, a perturbation of a Delaunay potential is a potential of the form

[TABLE]

where $A$ is as in (3.1). That a $\mathrm{CMC}\;$end obtained from a perturbation of a Delaunay potential is asymptotic to a half-Delaunay surface is proven in [8, Theorem 5.9]. We will use this result in the next section.

4. Constructing $\mathrm{CMC}\;$ cylinders

Constructing $\mathrm{CMC}\;$surfaces with two ends via the Bessel equation is in the following two steps:

• •

Write down a potential on $\mathbb{C}^{*}$ which prescribes the Bessel equation as associated $\mathrm{ODE}\;$and which is locally gauge-equivalent to a perturbation of a Delaunay potential at $z=0$ (definition 1).

• •

Show that the monodromy representation $M$ is unitary in $\mathbb{S}^{1}$ (section 4.3).

4.1. Cylinder potential

In this part the potential which will be used to produce cylinders with one irregular end and one asymptotic Delaunay end is defined. Near the puncture $z=0$ the potential is a local perturbation of a Delaunay potential via gauge equivalence.

Definition 1**.**

Let $\Sigma=\mathbb{C}^{*}$ and let $r\in(-\infty,1)\setminus\{0\}$. Define the $\mathfrak{sl}_{2}(\mathbb{C})$-valued cylinder potential by

[TABLE]

where $Q_{t}=\left(-\frac{r}{4z^{2}}t-1\right)$ and $t:=-{1\over 4}\lambda^{-1}(\lambda-1)^{2}$, for all $\lambda\in\mathbb{S}^{1}$.

Remark 1**.**

Note that if $\lambda=1$, then $t=0$ and the potential (4.1) becomes holomorphic so the monodromy $M(\lambda=1)=\mathbbm{1}$. Hence, equation 1.4b and equation 1.4c of the monodromy problem are automatically solved.

4.2. Local gauge

In this part we use the theory of gauging to see that the potential in section 2 with associated $\mathrm{ODE}\;$the Bessel equation, is equivalent to the potential defined in 1. Then, it is shown that the double pole of the potential in (4.1) can be gauged to a simple pole with Delaunay residue.

Consider the potential $\xi$ introduced in section 2, namely

[TABLE]

Note that for

[TABLE]

the gauge $\xi.(g_{1}g_{2})$ gives

[TABLE]

Putting $\alpha:=\frac{1}{2}\sqrt{1-rt}$ (note that the parameter $\alpha$ depends on $\lambda$) and gauging by $\Lambda=\operatorname{diag}(\lambda^{1/2},\lambda^{-1/2})$ we obtain the constructing potential $\xi_{c}$ from definition 1.

Lemma 3**.**

Let $\xi_{c}$ a potential as in (4.1). Then there exists a neighbourhood $U$ of $z=0$ and a positive gauge $g$ such that the expansion of $\xi_{c}.g$ is

[TABLE]

for some $a,b\in\mathbb{R}$ with $a+b=1/2$.

Proof.

Let

[TABLE]

Taking the real values $a=\frac{1}{4}\left(1+\sqrt{1-r}\right)$ and $b=\frac{1}{4}\left(1-\sqrt{1-r}\right)$, then $\xi_{c}.(g_{1c}g_{2c})$ has a simple pole at $z=0$ and is of the form (4.5). Therefore, $g=g_{1c}g_{2c}$ is the required gauge. ∎

4.3. Unitary monodromy on the twice-puncture Riemann sphere

Since the fundamental group of the twice-punctured Riemann sphere has only $1$ generator, we just need to solve the monodromy problem (1.4) at $z=0$. Recall that, with our choice of potential (4.1), (1.4b) and (1.4c) of the monodromy problem are already solved.

For $\Phi_{0}=\mathbbm{1}$ and $z_{0}=1$, consider a solution $\Phi$ of (1.1) for $\xi=A$ with $A$ as in lemma 3, that is, satisfying that $a,b\in\mathbb{R}$ and $a+b=1/2$. Then $\Phi=z^{A}$ and the monodromy is given by

[TABLE]

where it holds for the eigenvalues that

[TABLE]

Thus, since $a+b=1/2$, $M$ is unitary for all $\lambda\in\mathbb{S}^{1}$ and then also (1.4a) is solved. The immersion will be well defined.

4.4. Main theorem

Theorem 1**.**

Let $\Sigma=\mathbb{C}^{*}$ and let $r\in(-\infty,1)\setminus\{0\}$. Then, there exists a conformal $\mathrm{CMC}\;$immersion $f:\Sigma\to\mathbb{R}^{3}$ with one end which is asymptotic to half Delaunay surface and one irregular end.

Proof.

Let $\xi_{c}$ be a cylinder potential as in definition 1. A solution $\Phi$ of (1.1) for $\xi_{c}$, $\Phi_{0}=\mathbbm{1}$ and $z_{0}=1$ can be found with the $z^{A}P$ lemma [5]. Let $M$ be the monodromy of $\Phi$ at the puncture $z=0$. By the remarks in section 4.3, $M$ is unitary and the monodromy problem (1.4) at $z=0$ is solved. Then, the general Weierstrass representation [3] constructs a $\mathrm{CMC}\;$immersion $f$ in $\mathbb{R}^{3}$ which has two ends corresponding to the singularities from the Bessel equation - the $\mathrm{ODE}\;$associated to $\mathrm{d}\Phi=\Phi\xi_{c}$. By lemma 3, the potential is locally gauge-equivalent to a Delaunay potential and thus, by the asymptotics theorem of [8], the end at $z=0$ is asymptotic to half Delaunay surface. ∎

5. Symmetry

In this last part, we explore some symmetries appearing in the surfaces constructed in section 4. We prove that these symmetries in the resultant surfaces can be tracked to the level of the potentials, which are transformed under automorphisms on the domain.

A transformation $\phi$ is an involution if $\phi^{2}=\operatorname{id}$ but $\phi\neq\operatorname{id}$. The following proposition holds for elements of $\mathrm{Iso}(\mathbb{R}^{3})$ that are involutions.

Proposition 1**.**

The involutory isometries are the reflections and the half-turns (rotations by $\pi$).

In what follows, to lighten notation, we may denote the dependence on $\lambda$ with a subscript, that is,

[TABLE]

5.1. Cylinders with one reflection

Consider the orientation reversing automorphism of $\Sigma$ given by $\sigma(z)=\bar{z}$. It defines a symmetry that reflects the domain across the real axis. We prove the following

Theorem 2**.**

Consider a potential $\xi$ that generates via the Weierstrass representation a $\mathrm{CMC}\;$family of immersions $f$. Suppose that $\xi$ satisfies the symmetries

[TABLE]

where $G=\operatorname{diag}(1/\lambda,\lambda)$. Then, the induced immersion $\breve{f}=\mathrm{Sym}\left[\overline{\sigma^{*}F_{1/\bar{\lambda}}}\right]$ possesses reflective symmetry by a plane.

Proof.

Let $\Phi_{\lambda}$ be the solution of $\mathrm{d}\Phi_{\lambda}=\Phi_{\lambda}\xi_{\lambda}$, $\Phi_{\lambda}(z_{0})=\Phi_{0}$, with $z_{0}\in\Sigma$ and $\Phi_{0}$ diagonal. Naturally, the transformation $\overline{\sigma^{*}\Phi_{1/\bar{\lambda}}}$ defines a solution to the differential equation $\;\mathrm{d}\left(\overline{\sigma^{*}\Phi_{1/\bar{\lambda}}}\right)=\left(\overline{\sigma^{*}\Phi_{1/\bar{\lambda}}}\right)\left(\overline{\sigma^{*}\xi_{1/\bar{\lambda}}}\right)$, which in view of (5.2) reads as

[TABLE]

Since this $\mathrm{ODE}\;$is also solved by $\Phi_{\lambda}G$, i.e.

[TABLE]

both solutions only differ by a matrix $R$ in the loop group of $\mathrm{SL}_{2}(\mathbb{C})$. Hence, $\Phi_{\lambda}$ has the symmetry

[TABLE]

for some $z$-independent $R$.

Evaluation at the fixed point $1$ of $\sigma$, using equation 5.5, yields $R=\overline{\Phi_{0}(1/\bar{\lambda})}G^{-1}\Phi_{0}(\lambda)^{-1}$. Since $\Phi_{0}$ is diagonal, then by a simple calculation one gets that $R$ is unitary for all $\lambda\in\mathbb{S}^{1}$.

Let us write the Iwasawa splitting $\Phi_{\lambda}=FB$. When Iwasawa decomposing the solution $\overline{\sigma^{*}\Phi_{1/\bar{\lambda}}}$ a unitary term $U$ must be introduced, obtaining

[TABLE]

The uniqueness of this splitting allows us to identify unitary and positive parts respectively, obtaining that

[TABLE]

This implies that, using the generalised Weierstrass representation, $\overline{\sigma^{*}\xi_{1/\bar{\lambda}}}$ produces on the one hand the family of immersions given by plugging $\overline{\sigma^{*}F_{1/\bar{\lambda}}}$ in the Sym-Bobenko formula and on the other hand the one obtained using $RFU$. Consequently, these two surfaces coincide.

At the level of the immersion, the symmetry (5.7) of the unitary frame appears in the Sym-Bobenko formula $\breve{f}=\mathrm{Sym}\left[\overline{\sigma^{*}F_{1/\bar{\lambda}}}\right]$ as follows:

[TABLE]

It is left to prove that this symmetry is a reflection. To do so, we show that the transformation is an involution. It is easy to check that each of the symmetries seen so far remain the same if we ‘reapply’ the transformations done in (5.2) and used throughout this proof. Let us denote by $\breve{\breve{f}}=\mathrm{Sym}\left[\overline{\sigma^{*}\left(\overline{\sigma^{*}F_{1/\bar{\lambda}}}\right)_{1/\bar{\lambda}}}\right]$ the resultant immersion of applying again those transformations, and by ′ the derivative with respect to $\partial_{\lambda}$. Then,

[TABLE]

An easy computation yields that $\bar{R}_{1/\bar{\lambda}}R=\mathbbm{1}$. Hence, derivating in this equation, one also gets that

[TABLE]

Putting together equation 5.9 and equation 5.10, we manage to derive that $\breve{\breve{f}}=\left(\partial_{\lambda}F\right)F^{-1}=\mathrm{Sym}[F_{\lambda}]=f$. That is, this symmetry is an involution. Since, it is also orientation reversing, by proposition 1, this symmetry must be a reflection. ∎

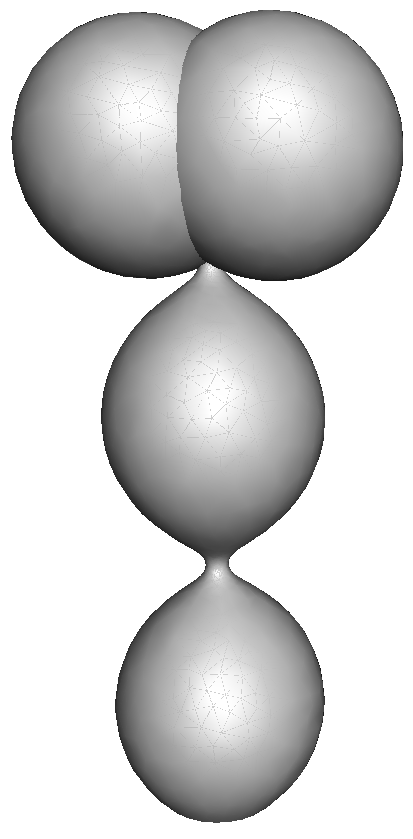

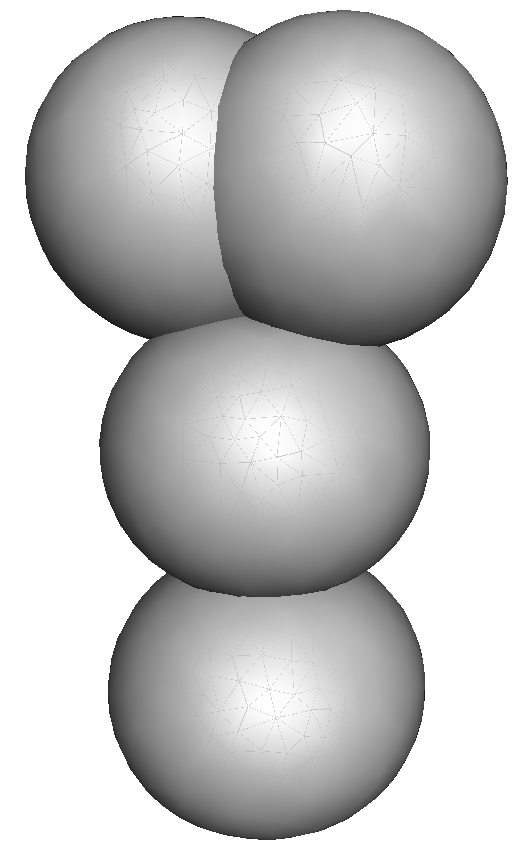

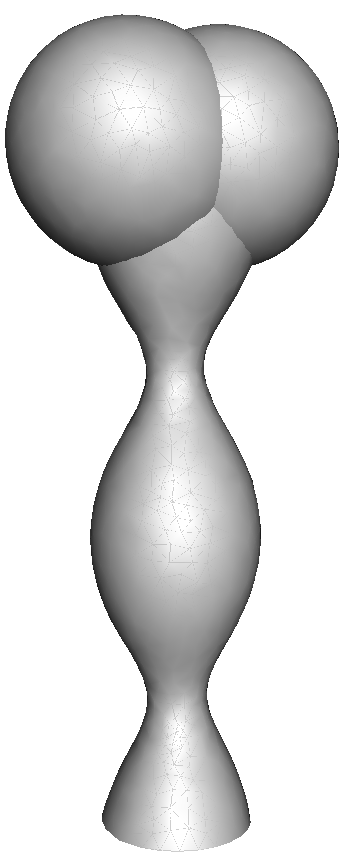

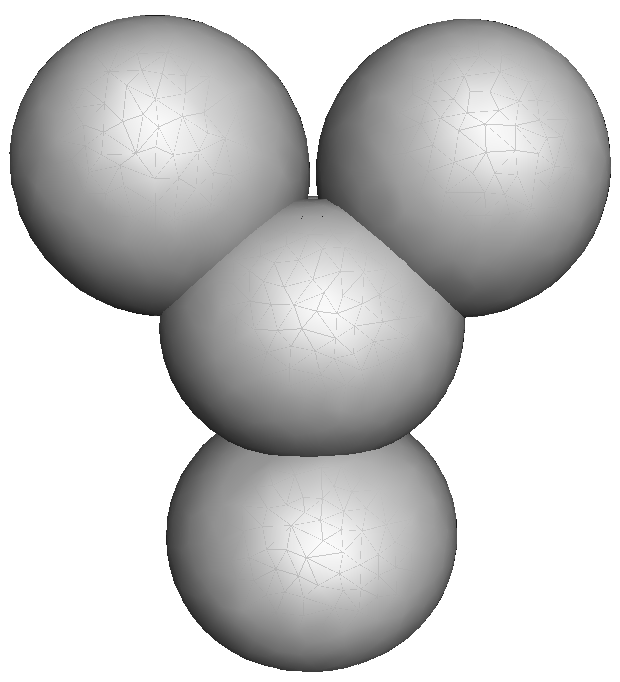

Using theorem 2, since the constructing potential (4.1) satisfies the relations in (5.2), the resulting surfaces in figures 1 and 2 have a reflectional symmetry fixing their ends.
