Measurements As First-class Artifacts

TL;DR

This paper introduces MAFIA, a set of reusable primitives for network measurement tasks on programmable switches, enabling flexible, concise, and hardware-compatible measurement code without expert knowledge.

Contribution

The paper presents MAFIA, a novel framework of primitives that simplifies and unifies network measurement task implementation on programmable switches.

Findings

MAFIA primitives enable concise measurement task expression.

Compiled MAFIA code is comparable to manual P4 code in size and resource usage.

MAFIA is applicable on current hardware without requiring low-level expertise.

Abstract

The emergence of programmable switches has sparked a significant amount of work on new techniques to perform more powerful measurement tasks, for instance, to obtain fine-grained traffic and performance statistics. Previous work has focused on the efficiency of these measurements alone and has neglected flexibility, resulting in solutions that are hard to reuse or repurpose and that often overlap in functionality or goals. In this paper, we propose the use of a set of reusable primitive building blocks that can be composed to express measurement tasks in a concise and simple way. We describe the rationale for the design of our primitives, that we have named MAFIA (Measurements As FIrst-class Artifacts), and using several examples we illustrate how they can be combined to realize a comprehensive range of network measurement tasks. Writing MAFIA code does not require expert knowledge of low-level switch architecture details. Using a prototype implementation of MAFIA, we demonstrate the applicability of our approach and show that the use of our primitives results in compiled code that is comparable in size and resource usage with manually written specialized P4 code and can be run in current hardware.

Figures

Tables

Table 1. TABLE I: Measurements scenarios: Legacy vs SDN.

	WHAT	WHERE Legacy SDN	WHEN Legacy SDN	HOW Legacy SDN
Traffic Eng.	Traffic Matrix; Flow size distribution; Changes; Anomalies; Heavy Hitters.		Always	SNMP; NetFlow; sFlow Counters; Samples; Sketches
Performance	Volume; Throughput; Latency/Jitter; Queue Length; Packet Loss.	Online; Network Wide	Always; QoS/SLA Violation	SNMP; NetFlow; sFlow Counters; Probes; Samples; Bloom filters; Sketches
Verification	Network Invariants; Routing Policies.			Config. Analysis - Tags;
Troubleshooting	Packet Loss; Network Invariants; Routing Policies.		On-demand (after issue notification)	ping; tracert; iperf; SNMP; Log Analysis Counters; Tags; Bloom filters;
Security	DDoS; Superspreaders; Intrusion Detection.	Network Wide	Always	IDS SNMP; NetFlow; sFlow Counters; Sketches; Samples

Table 2. TABLE II: Measurement primitives & API.

Primitive	API	P4 Implementation
		Tables	Actions	LoC
Match	match(conditional)	1	builtin	9
Tag	tag(header_field, expr)	1	1	9
Sample	duplicate(stream)	1	1	22
	collect(endpoint)	1	S	S
Timestamp	timestamp(t)	1	2	10
Counter	set, reset	1	4	12
BloomFilter	membership: {insert, test, reset, init}.	1	$O\left(H\right)$	$O\left(H\right)$
	counting: {set, reset, init, all, any, sum, avg, min, max}	1	$O\left(H\right)$	$O\left(H\right)$
Sketch	pcsa/hll: {update, test, reset}	$O\left(H\right)$	$O\left(H\right)$	$O\left(H\right)$
	count-min: {set, reset, sum, avg, min, max}	1	$O\left(H\right)$	$O\left(H\right)$
	store: {set, reset, all, any, sum, avg, min, max}	1	$O\left(H\right)$	$O\left(H\right)$
Window	window	(variable)

Table 3. TABLE III: Use cases.

		P4 LoC
Measurement		(Manual)	(Compiler)
Use case	API: Primitives		raw	opt.
Flow volume and duration	3 $\times$ Match; 3 $\times$ Counter HashMap; 2 $\times$ Timestamp HashMap;	121	185	146 ($+20\%$)
Approximate flow volume	1 $\times$ Match; 1 $\times$ Sketch (count-min)	107	120	120 ($+12\%$)
Flow cardinality	1 $\times$ Match; 1 $\times$ Sketch (PCSA)	86	92	92 ($+6\%$)
Flow cardinality	1 $\times$ Match; 1 $\times$ Sketch (HyperLogLog)	96	102	102 ($+2\%$)
Counter thresholds	5 $\times$ Match; 2 $\times$ Counter HashMap; 2 $\times$ Sample	139	193	170 ($+22\%$)
Stochastic sampling	2 $\times$ Match; 1 $\times$ Tag; 1 $\times$ Sample;	103	126	118 ($+14\%$)
Deterministic sampling	5 $\times$ Match; 3 $\times$ Counter HashMap; 1 $\times$ Tag; 1 $\times$ Sample;	131	207	167 ($+27\%$)
Postcard generation	2 $\times$ Match; 4 $\times$ Tag; 1 $\times$ Sample;	94	121	101 ($+7\%$)
Trajectory encoding	5 $\times$ Match; 1 $\times$ BloomFilter; 1 $\times$ Timestamp+HashMap ; 6 $\times$ Tag; 1 $\times$ Sample; 1 $\times$ Counter;	244	299	260 ($+6\%$)
Two-phase heavy hitter	4 $\times$ Match; 1 $\times$ Counter; 1 $\times$ Counters HashMap; 1 $\times$ Sketch (count-min); 1 $\times$ BloomFilter;	261	345	281 ($+8\%$)
Top-k congested flows	3 $\times$ Match; 1 $\times$ Counter; 2 $\times$ Sketch (count-min); 3 $\times$ Tag;	198	240	204 ($+3\%$)
Path changes	3 $\times$ Match; 1 $\times$ Sketch (count-min); 1 $\times$ Sketch; 1 $\times$ BloomFilter; 1 $\times$ Tag;	325	389	345 ($+6\%$)
Path change latency	2 $\times$ Match; 1 $\times$ Timestamp; 1 $\times$ Sample; 1 $\times$ Tag;	38	44	41 ($+8\%$)

Table 4. TABLE IV: Resource requirements of use-cases.

Measurement	Pipeline depth	Pipeline width	Num. Atoms	Banzai Atom Type
Flow volume and duration	4	4	11	Sub
Approximate flow volume	4	5	18	RAW
Flow cardinality	3	3	6	RW
Flow cardinality	3	2	4	RW
Counter thresholds	5	2	9	If-Else-RAW
Stochastic sampling	3	1	3	If-Else-RAW
Deterministic sampling	6	2	8	Pairs
Postcard generation	1	5	5	RW
Trajectory encoding	6	3	8	RW
Two-phase heavy hitter	8	12	41	If-Else-RAW
Top-k congested flows	9	6	38	If-Else-RAW
Path changes	9	13	49	If-Else-RAW
Path change latency	4	2	5	RW

Table 5. TABLE V: Measurement use cases specification using our primitive-based API (1/4)

	Bib.	Implementation with Primitives API
Flow volume and duration	[11, 38, 15, 12, 39, 40, 41]	⬇ flowid = Key(ip.src,ip.dest,tcp.src,tcp.dest,ip.proto) now_ts = Timestamp(); byte_counter = HashMap(key=flowid, size=1024, type=Counter(width=32)); packet_counter = HashMap(key=flowid, size=1024, type=Counter(width=32)); start_ts = HashMap(key=flowid, size=1024, type=Timestamp()); flow_duration = HashMap(key=flowid, size=1024, type=Counter(width=32)); pkts $\gg$ ( byte_counter.set(byte_counter + pkt.size) $+$ packet_counter.set( packet_counter + 1) ) $+$ ( ( match(start_ts == 0) $\gg$ timestamp(start_ts) ) $+$ ( match(start_ts != 0) $\gg$ timestamp(now_ts) $\gg$ flow_duration.set(now_ts - start_ts)) ) )
Approximate flow volume (Count-Min Sketch)	[41, 13, 36, 24, 42]	⬇ flowid = Key(ip.src,ip.dest,tcp.src,tcp.dest,ip.proto) flow_size = Sketch(alg=”countmin”, nhash=4, key=flowid, size=256, width=32); pkts $\gg$ flow_size.set(flow_size + pkt.size)
Flow cardinality (PCSA Sketch)	[13, 33]	⬇ flowid = Key(ip.src,ip.dest,tcp.src,tcp.dest,ip.proto) num_flows = Sketch(alg=”pcsa”,key=flowid,nhash=1,size=128); pkts $\gg$ num_flows.update()
Flow cardinality (HyperLogLog Sketch)	[24, 34]	⬇ flowid = Key(ip.src,ip.dest,tcp.src,tcp.dest,ip.proto) num_flows = Sketch(alg=”hyperloglog”,key=flowid,nhash=1,size=256); pkts $\gg$ num_flows.update()
Counter thresholds	[41]	⬇ flowid = Key(ip.src,ip.dest,tcp.src,tcp.dest,ip.proto) byte_counter = HashMap(key=flowid, size=1024, type=Counter(width=32)); packet_counter = HashMap(key=flowid, size=1024, type=Counter(width=32)); pkts $\gg$ packet_counter.set(packet_counter + 1) $\gg$ match(packet_counter > PACKET_THRESHOLD) $\gg$ duplicate(pkts_exceeded) pkts $\gg$ byte_counter.set(byte_counter + pkt.size) $\gg$ match(byte_counter > BYTE_THRESHOLD) $\gg$ duplicate(bytes_exceeded) pkts_exceeded $\gg$ collect(COLLECTOR) bytes_exceeded $\gg$ collect(COLLECTOR)

Table 6. TABLE VI: Measurement use cases specification using our primitive-based API (2/4)

	Bib.	Implementation with Primitives API
Stochastic Sampling	[43, 16, 44]	⬇ pkts $\gg$ match(random([0:100]) < SamplingRatio) $\gg$ duplicate(samples) ) samples $\gg$ collect(COLLECTOR)
Deterministic Sampling	[43]	⬇ flowid = Key(ip.src,ip.dest,tcp.src,tcp.dest,ip.proto) n = HashMap(key=flowid, size=1024, type=Counter(width=32)) m = HashMap(key=flowid, size=1024, type=Counter(width=32)) delta = HashMap(key=flowid, size=1024, type=Counter(width=32)) pkts $\gg$ ( ( match(delta < SKIP) $\gg$ delta.add(1) ) $+$ ( match(delta >= SKIP && m < NUM_SAMPLES) $\gg$ m.set(m + 1)) $\gg$ duplicate(samples) ) $+$ ( n.set(n + 1) $\gg$ match(n >= NUM_PACKETS) $\gg$ n.reset() $\gg$ m.reset() $\gg$ delta.reset() ) ) samples $\gg$ collect(COLLECTOR)
Postcard generation	[22]	⬇ pkts $\gg$ duplicate(postcards) postcards $\gg$ tag(ipv4.checksum, pkt.input_port) $\gg$ tag(ipv4.identification, pkt.output_port) $\gg$ tag(ipv4.tos, switchid) $\gg$ collect(COLLECTOR)
Trajectory encoding	[26]	⬇ //code executed at ingress switch now = Timestamp() ; flowid = key(ip.src,ip.dest,tcp.src,tcp.dest,ip.proto) verify_time = HashMap(key=flowid, size=1024, type=Timestamp()) ; pkts $\gg$ timestamp(now) $\gg$ match( verify_time - now > THRESHOLD) $\gg$ timestamp(verify_time) $\gg$ tag(ipv4.tos, switch.id) $\gg$ tag(ipv4.identification, pkt.input_port) $\gg$ tag(pkt.ipv4.tos, pkt.ipv4.tos|0x1) //code executed at intermediate switch location = key(pkt.input_port, switch.id, pkt.output_port) trajectory = BloomFilter(alg=”membership”, nhash=4, key=location, size=16); pkts $\gg$ match(pkt.ipv4.tos & 0x1 == 0x1) $\gg$ trajectory.insert() $\gg$ tag(ipv4.checksum, ipv4.checksum | trajectory.read())) $\gg$ trajectory.reset() //code executed at egress switch pkts $\gg$ match(pkt.ipv4.tos & 0x1 == 0x1) $\gg$ tag(ipv4.identification, pkt.output_port) $\gg$ tag(ipv4.tos, switch.id) $\gg$ duplicate(reports) reports $\gg$ collect(COLLECTOR)

Table 7. TABLE VII: Measurement use cases specification using our primitive-based API (3/4)

	Bib.	Implementation with Primitives API
Two-phase heavy hitters		⬇ flowid = Key(ip.src,ip.dest,tcp.src,tcp.dest,ip.proto) total = Counter(width=32) nbytes = Sketch(alg=”count-min”,nhash=4,key=flowid,size=256,width=32) hh = BloomFilter(alg=”membership”,key=flowid,nhash=4,size=64) hh_bytes = HashMap(key=flowid,size=1024,type=Counter(width=32)) window(mment_interval) pkts $\gg$ match(pkt.input_port == PORT) $\gg$ total.set(total + pkt.size) $\gg$ ( ( match(!hh.test()) $\gg$ nbytes.set(nbytes + pkt.size) $\gg$ match(nbytes.min() / total > THRESHOLD) $\gg$ hh.insert() $\gg$ hh_bytes.set(nbytes.min()) $\gg$ duplicate(hh_alarms) ) $+$ ( match(hh.test()) $\gg$ hh_bytes.set(hh_bytes + pkt.size) ) ) hh_alarms $\gg$ tag(ipv4.checksum, nbytes.min()) $\gg$ collect(CONTROLLER) // Control traffic to retrieve heavy hitters volume. ctrl $\gg$ match(pkt.request == HH_VOLUME) $\gg$ duplicate(get_hh_volume) get_hh_volume $\gg$ tag(pkt.hh_volume, hh_bytes) $\gg$ collect(CONTROLLER)
Top-k Congested Flows		⬇ // Code executed at first hop: pkts $\gg$ tag(ipv4.tos, ipv4.tos | 0x1) $\gg$ tag(ipv4.id, pkt.in_queue_length)) // Code executed at intermediate hops: q_len = Counter(width=32); pkts $\gg$ match(ipv4.tos & 0x1 == 0x1) $\gg$ q_len.set(ipv4.id + pkt.in_queue_length) $\gg$ tag(ipv4.id, q_len) // Code executed at last hop: flowid = Key(ip.src,ip.dest,tcp.src,tcp.dest,ip.proto) total_pkts = Sketch(alg=”countmin”,key=flowid,nhash=4,size=1024,w=32) path_q_len = Sketch(alg=”countmin”,key=flowid,nhash=4,size=1024,w=32) pkts.window(5s) $\gg$ match(ipv4.tos & 0x1 == 0x1) $\gg$ total_pkts.set(total_pkts + 1) $\gg$ path_q_len.set(path_q_len + ipv4.id)
Path Changes		⬇ // Code to be executed at intermediate switches location = Key(pkt.input_port, switch.id, pkt.output_port) location_bf = BloomFilter( alg=”membership”,key=location,nhash=4,size=32) pkts $\gg$ location_bf.init(ipv4.checksum) $\gg$ trajectory.set() $\gg$ tag(ipv4.checksum, ipv4.checksum | location_bf) $\gg$ location_bf.reset() // Code to be executed at the packet’s last hop flowid = Key(ip.src,ip.dest,tcp.src,tcp.dest,ip.proto) paths_sketch = Sketch( alg=”store”,key=flowid,nhash=4,size=256,width=16) n_change_sketch = Sketch( alg=”countmin”,key=flowid,nhash=4,key=flowid,size=256) pkts.window(10 $\times$ RTT) $\gg$ match(!paths_sketch.any(ipv4.checksum)) $\gg$ paths_sketch.set(ipv4.checksum) $\gg$ n_change_sketch.set(n_change_sketch + 1)

Table 8. TABLE VIII: Measurement use cases specification using our primitive-based API (4/4)

	Bib.	Implementation with Primitives API
Path Change Latency		⬇ // Code to be executed on all switches updating rules change_ts = Timestamp(); l_clock = Counter(width=8); pkts $\gg$ match(segway_header.msg == GoodToMove) $\gg$ l_clock.set(max(l_clock + 1, segway_header.ts)) $\gg$ tag(segway_header.ts, l_clock) $\gg$ duplicate(end_of_update) end_of_update $\gg$ timestamp(change_ts) $\gg$ tag(segway_header.time, change_ts) $\gg$ tag(segway_header.ts, l_clock) $\gg$ collect(SEGWAY_CONTROLLER)

Full text

In this paper, we propose the use of a set of reusable primitive building blocks that can be composed to express measurement tasks in a concise and simple way. We describe the rationale for the design of our primitives, that we have named MAFIA (Measurements As FIrst-class Artifacts), and using several examples we illustrate how they can be combined to realize a comprehensive range of network measurement tasks. Writing MAFIA code does not require expert knowledge of low-level switch architecture details. Using a prototype implementation of MAFIA, we demonstrate the applicability of our approach and show that the use of our primitives results in compiled code that is comparable in size and resource usage with manually written specialized P4 code, and can be run in current hardware.

I Introduction

Historically, network measurement’s evolution paralleled the growth of the Internet but at a much slower pace. SNMP, ping, and traceroute constituted the bulk of measurement-related aids for a long time. The introduction of SDN has led to significant work on various aspects of programmable network infrastructures. An SDN controller can dynamically install and modify switch rules, enforce high-level operator policies and gather statistics. Starting from the original white paper[1] various aspects of SDN (and particularly OpenFlow[2]) have been examined in depth. Unfortunately, measurement, a well-understood requirement for the Internet, with a long body of developed work for over two decades, appears to have been an afterthought in SDN’s development. In fact, [1] mentions security a dozen times (rightfully so) but the words measurement or metrics do not appear in it.

Given measurement’s importance in network operation and management, there has been a flurry of work on exploiting SDN features and programmable switches to perform more powerful measurement tasks. Beyond OpenFlow, proposals like OpenState [3] and switch programmability as in P4 [4] have enabled richer, customizable in-network processing that can implement measurements for fine-grained traffic and network performance statistics [5, 6, 7]. Most of the recent work in this area focuses on efficiently mapping measurement tasks on programmable forwarding elements. Efficiency is key as current programmable switch chips have limited computational and memory resources [8, 5, 7, 9].

An important requirement that has not been addressed in prior work is flexibility and extensibility in supporting a variety of measurement tasks; instead we have ad-hoc solutions proposed for specific measurements. In spite of advances in programmable data planes, it is not possible without significant effort to combine, reuse or repurpose existing solutions although they may partly overlap in functionality or goals.

We instead argue for supporting flexible measurement through a set of reusable building blocks (primitives) that take advantage of novel features of programmable forwarding elements and span most of the commonly performed measurement tasks. We identify a set of such primitives that network operators can use to express measurement tasks in a concise and simple way. Further, they are reusable as complex tasks can be expressed by composing a few calls to a subset of our measurement primitives.

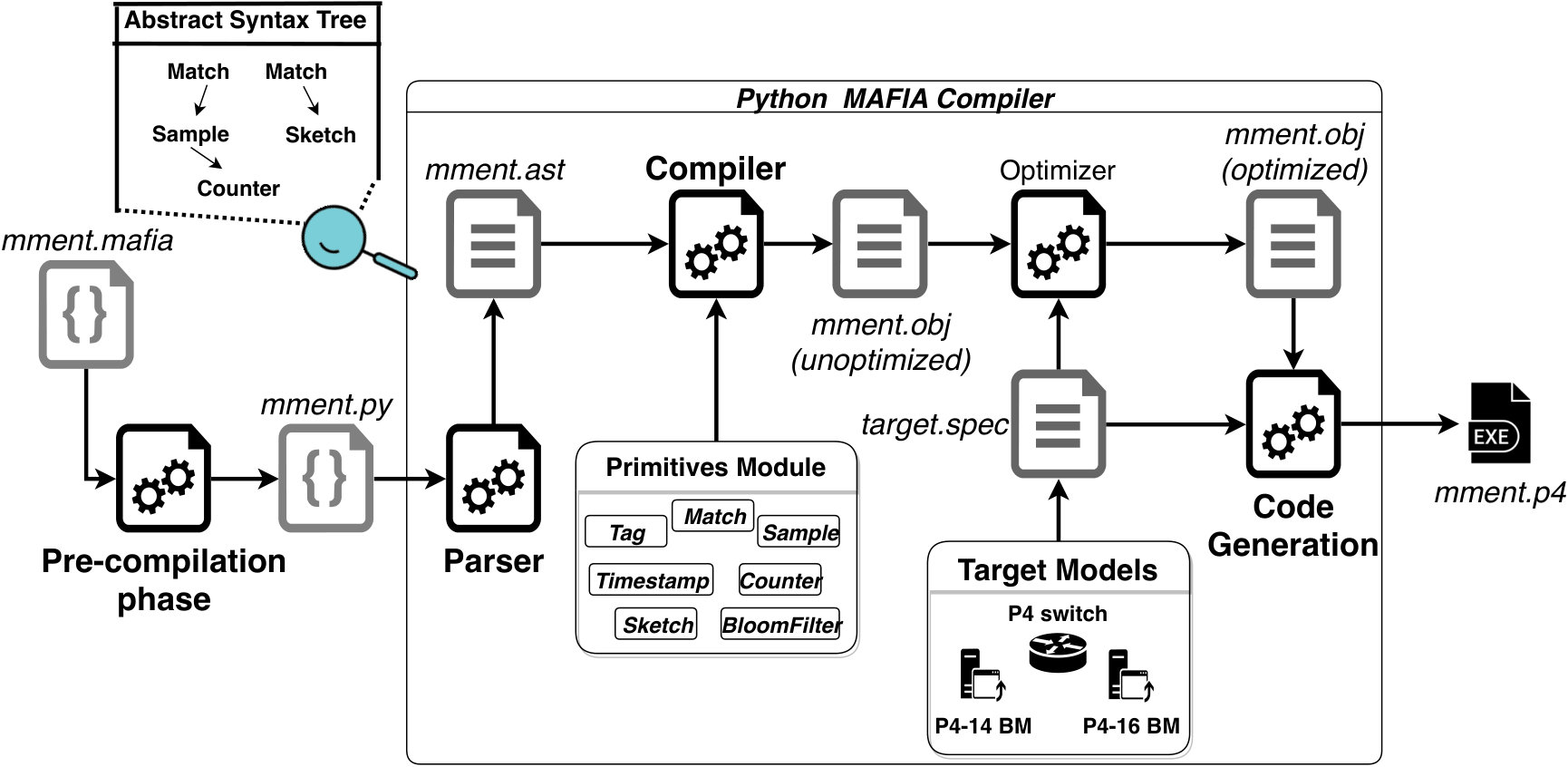

We define our approach as Measurements As FIrst-class Artifacts, or MAFIA for short. Concretely, we instantiate our ideas as an API that provides an abstraction over measurement primitives that execute at line rate in the data plane. We remark that our primary target is network operators, who are not proficient data plane programmers, yet they desire to quickly address performance-, security- and troubleshooting-related measurement needs. As such, our goal is not satisfied by and is orthogonal to data plane programming languages like P4. These technologies are an enabler for MAFIA but remain fundamentally lower-level approaches.

Our work is informed by the large number of legacy measurements that have been carried out routinely in large and small networks as well as new ones in the SDN milieu. We identify the primitives for measurement on the basis of their breadth of applicability and the ability for maximal reuse (i.e., a good implementation can yield rich dividends in a broad set of contexts). We are driven by four key considerations inherent in measurement [10]: what, where, when, and how. We validate our idea by showing that several key known SDN measurements and some new ones can be built by composing our abstractions. Our primitives can be used to answer questions ranging from network-wide traffic characteristics (e.g., flow size distributions, identifying heavy hitters [11, 12, 13, 14], to fine-grained monitoring of properties of flows and switches (throughput, latency, loss, etc.) [15, 16, 17, 18, 19], to verification (traffic behavior matching operator’s intent) [20], to debugging (e.g., troubleshooting root causes of performance problems or switch/controller misbehavior) [21, 22], and various security aspects (e.g., anomalies, DDoS, malicious activity) [13, 14].
