Spatial separation of pyrrole and pyrrole-water clusters

TL;DR

This paper demonstrates a method to spatially separate pyrrole and pyrrole-water clusters from other species in a supersonic beam, achieving high purity and low rotational temperatures supported by experimental and simulation data.

Contribution

The study introduces a technique for effectively separating pyrrole-water clusters with high purity from a molecular beam, supported by experimental validation and simulations.

Findings

Achieved ~100% purity of pyrrole-water clusters

Obtained rotational temperatures of 0.8 K and 0.4 K for different beam components

Validated experimental results with quantitative simulations

Abstract

We demonstrate the spatial separation of pyrrole and pyrrole(H$_2$O) clusters from the other atomic and molecular species in a supersonically-expanded beam of pyrrole and traces of water seeded in high-pressure helium gas. The experimental results are quantitatively supported by simulations. The obtained pyrrole(H$_2$O) cluster beam has a purity of ~100 %. The extracted rotational temperature of pyrrole and pyrrole(H$_2$O) from the original supersonic expansion is $T_\text{rot}=0.8\pm0.2$ K, whereas the temperature of the deflected, pure-pyrrole(H$_2$O) part of the molecular beam corresponds to $T_\text{rot}\approx0.4$ K.

Figures

Full text

††journal: arXiv

url]https://www.controlled-molecule-imaging.org/

1 Introduction

Studies of solvation effects of biologically relevant aromatic molecules provide details on the influence of the molecule’s local environment on its function and on the nature of molecular interactions, as well as insights into the functions of complex biological systems [1]. Prototypical model chromophores such as imidazole and pyrrole were used to build synthetic polyamide ligands for the recognition of the Watson–Crick base pairs in the DNA minor groove [2]. Furthermore, pyrrole is a model of tryptophan’s indole chromophore, one of the strongest near-UV absorbers in proteins. Similarly, pyrrole is responsible for the photoconversion mechanism in the phytochrome enzyme [3] and it is a promising building block for organic dye-sensitized solar cells [4] as well as biological sensors [5].

A key reason for the intriguing photophysics of the above-mentioned chromophores is the excited ${}^{1}\pi\sigma^{*}$ state, which is repulsive along the N-H-stretching coordinate [6, 7, 8]. The photophysics and photochemistry of these molecules is fairly sensitive to the environment [9]. In a bottom-up approach, spectroscopic and theoretical investigations were performed for micro-solvated clusters to get fundamental insights into their photophysical and photochemical properties [10, 11, 7]. Recently performed experiments have provided evidence for ultrafast intermolecular relaxation processes in electronically-excited microsolvated tetrahydrofuran-water [12] and indole-water [13] clusters. This reflects one of the proposed efficient mechanisms for radiation damage processes of biomolecules via auto-ionization caused by secondary electrons [14]. Time-resolved experiments, such as photoion and photoelectron spectroscopy, aiming at the investigation of the photophysics and photochemistry of pyrrole, were performed to study the dynamics of H elimination from the N-H site of the molecule mediated by the excitation of the ${}^{1}\pi\sigma^{*}$ state [15, 16, 17, 7].

For $\text{pyrrole}(\text{H}_{2}\text{O})$ clusters theoretical calculations predict that an electron is transferred across the hydrogen bond without photodissociation of the pyrrole moiety [8, 9]. Hence, detailed investigations of the photophysics of $\text{pyrrole}(\text{H}_{2}\text{O})$, and their comparison with the existing observations for $\text{indole}(\text{H}_{2}\text{O})$ [11, 7], promises to unravel these fundamental processes in the intermolecular interactions as well as the radiation damage of biological systems.

Advanced experiments aiming at unraveling these ultrafast dynamics often rely on pure samples of the individual species. Such controlled samples were previously exploited in investigations of the photophysics of indole [18] and $\text{indole}(\text{H}_{2}\text{O})$ clusters [13] following site-specific soft x-ray ionization and are even amenable to coherent-x-ray-diffraction studies [19]. These experiments relied on the spatial separation of individual species by the electrostatic deflector [20], which was previously demonstrated for the separation of $\text{indole}(\text{H}_{2}\text{O})$ from indole [21, 20, 22].

Here, we demonstrate the spatial separation of pyrrole, a sub unit of indole and tryptophan, and the microsolvated $\text{pyrrole}(\text{H}_{2}\text{O})$ cluster. The structure of pyrrole and $\text{pyrrole}(\text{H}_{2}\text{O})$ was studied using microwave spectroscopy [23, 24] and it was concluded that the singly-hydrogen-bonded $\text{pyrrole}(\text{H}_{2}\text{O})$ cluster has a well defined structure, with the water attached to the N-H site of pyrrole [23, 8].

2 Experimental setup

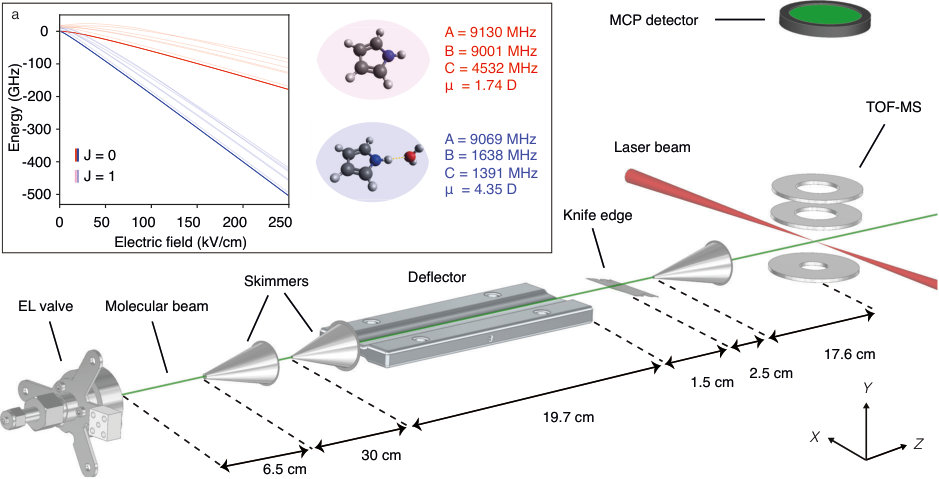

A schematic representation of the experimental setup is shown in Figure 1 . An Even-Lavie valve [25] was used to generate a pulsed molecular beam by supersonic expansion of a few millibar of pyrrole (Sigma Aldrich, $>98$ %) and traces of water seeded in $\mathord{\sim}80$ bar of helium into vacuum. The valve was operated at a repetition rate of 250 Hz and was heated to $65\,^{\circ}{}\text{C}$. The expanded molecular beam was then skimmed twice using conical skimmers (Beam Dynamics, model 50.8, $\varnothing=3.0$ mm & model 40.5, $\varnothing=1.5$ mm), which were placed at distances of 6.5 cm and 30.2 cm downstream the nozzle, respectively. An inhomogeneous electric field created by the so-called $b$-type deflector [26] was used to disperse the molecular beam according to the species’ effective-dipole-moment-to-mass ratio [20, 27, 28]. The molecular beam was cut by a vertically adjustable knife edge placed 1.5 cm downstream of the exit of the deflector, which allowed for an improved separation of all species present in the molecular beam [22]. The experiments were conducted by placing the knife edge at a height where it cut off the undeflected (0 kV applied on deflector electrodes) molecular beam at the center of the vertical column density profile. The molecular beam was further skimmed by a conical skimmer (Beam Dynamics, model 50.8 with $\varnothing=1.5$ mm) placed 4 cm downstream of the exit of the deflector. The transverse positions of the valve, skimmers, and the deflector were adjustable using motorized translation stages. A laser pulse with a duration of $\mathord{\sim}30$ fs, a wavelength centered at 800 nm, focused to $\varnothing\approx 50~{}\text{\textmu{m}}$, and directed perpendicular to the molecular beam ionized molecules in the extraction region of a time-of-flight mass-spectrometer (TOF-MS) placed 17.6 cm downstream of the last skimmer. The peak intensity of the laser pulse was $\mathord{\sim}2\times 10^{14}$ W/cm2. The ions generated due to the strong-field ionization were detected using a micro-channel plate (MCP), operated in single-shot readout.

3 Results and discussions

Figure 1 a shows the structure, rotational constants [23, 24], permanent dipole moment [23, 24], and the Stark energies of pyrrole (red curves) and $\text{pyrrole}(\text{H}_{2}\text{O})$ (blue curves) for the $J=0,1$ rotational states. The Stark energies were calculated using CMIstark [29] within the rigid-rotor approximation, as justified by previous experimental and theoretical work on the $\text{indole}(\text{H}_{2}\text{O})$ cluster [21, 30]. Pyrrole has a $\mathord{\sim}64$ % smaller Stark-energy shift than $\text{pyrrole}(\text{H}_{2}\text{O})$ for the $J=0$ rotational state at an electric field strength of $E\approx 200$ kV/cm. This enabled full spatial separation of $\text{pyrrole}(\text{H}_{2}\text{O})$ from pyrrole in a cold molecular beam using the electrostatic deflector.

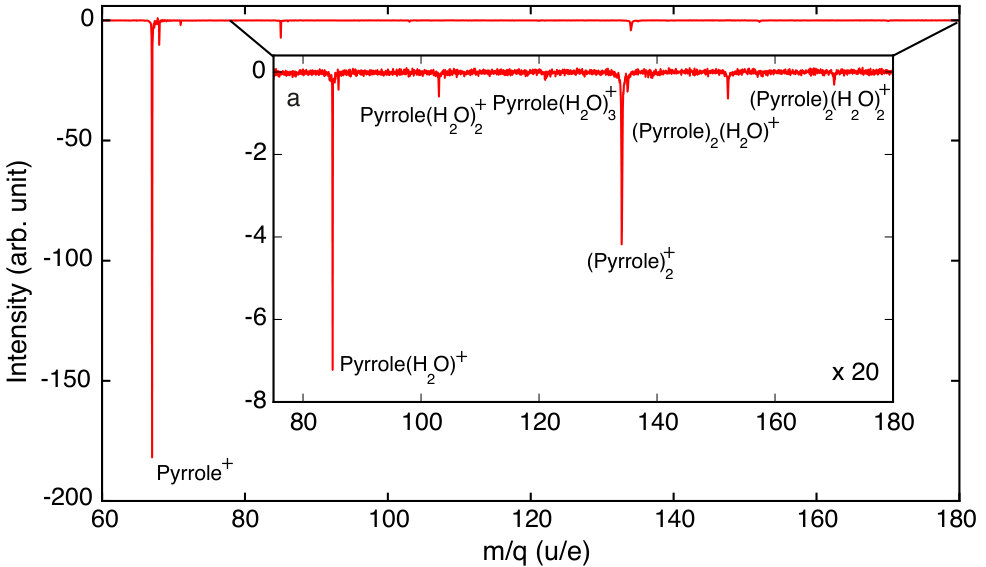

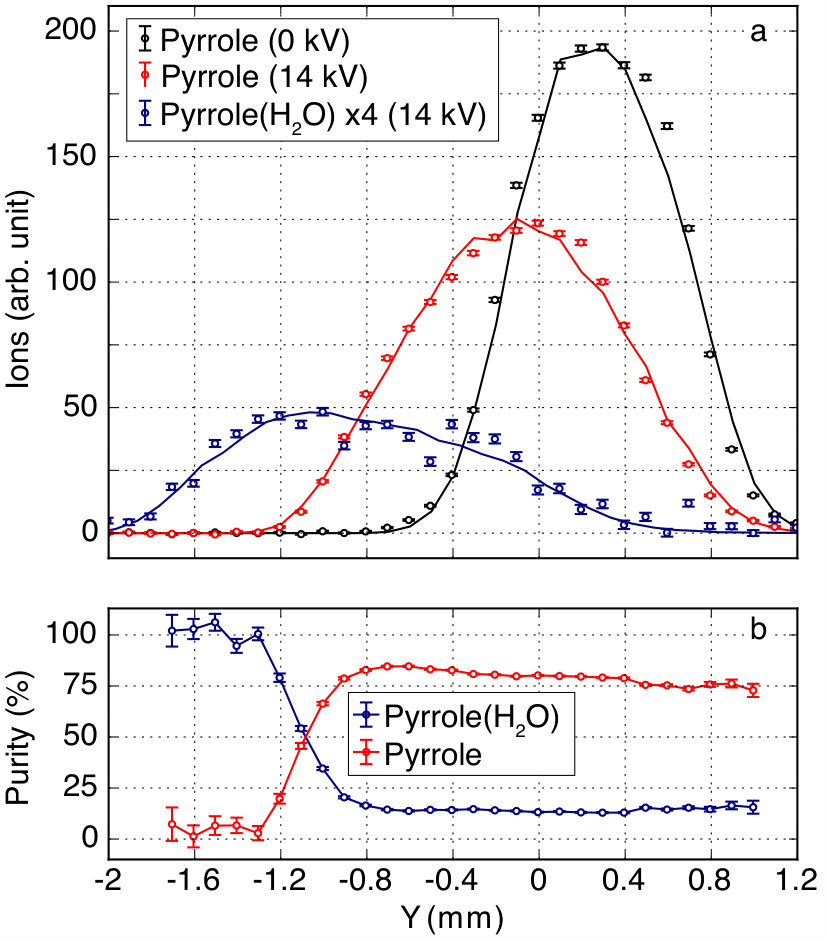

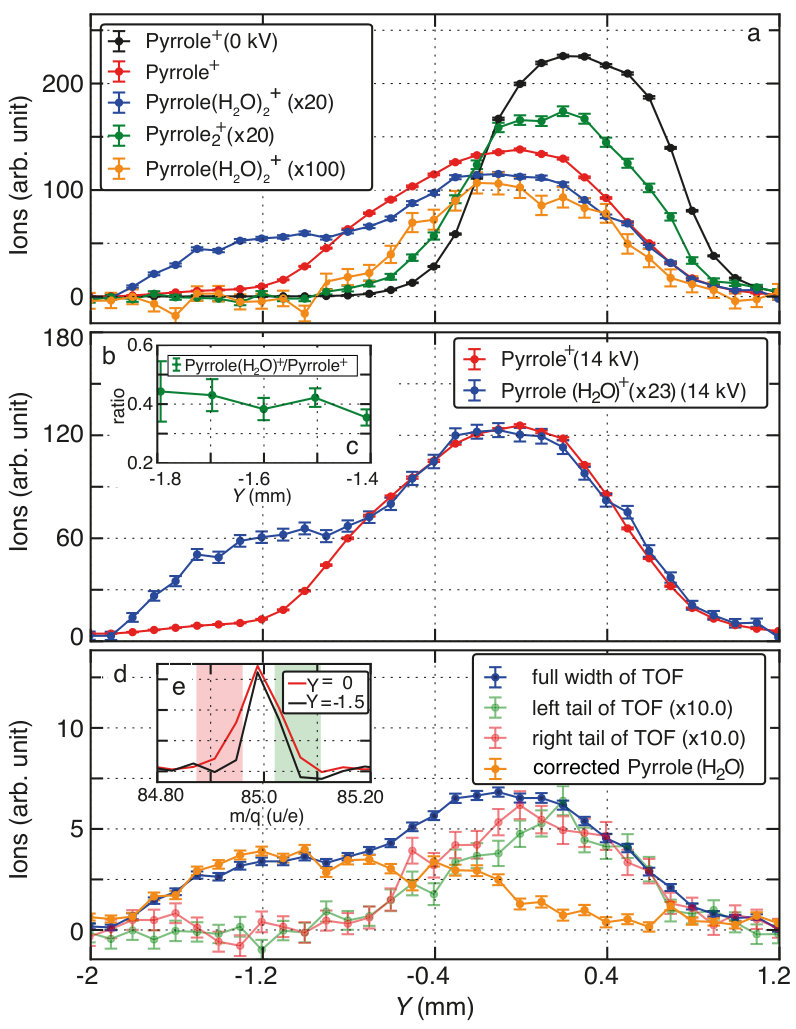

The molecular beam species underwent fragmentation following the strong-field-ionization process. Hence contributions of ionic fragments from larger clusters in specific mass gates were observed in our spectra. A $\mathord{\sim}28$ % probability of $\text{pyrrole}(\text{H}_{2}\text{O})$ fragmenting into pyrrole+ was experimentally obtained for our specific laser pulse properties. A detailed description of the fragmentation ratios and utilized mass gates for the specific ion signals is presented in the Supplementary Information. The fragmentation-corrected vertical column density profile for undeflected pyrrole is shown as black dots in Figure 2 a. The undeflected profiles of $\text{pyrrole}(\text{H}_{2}\text{O})$ and other species in the TOF-MS spectra had similar shapes and are not shown. In addition, the fragmentation corrected deflection profiles of both, pyrrole (red dots) and $\text{pyrrole}(\text{H}_{2}\text{O})$ (blue dots), are shown for voltages of $\pm 7$ kV applied across the deflector. All quantum states are strong-field seeking at the relevant electric field strengths experienced by the investigated molecules and clusters inside the deflector. Therefore, all species are deflected downward, in the negative $Y$ direction [26]. The experimental deflection profile of $\text{pyrrole}(\text{H}_{2}\text{O})$ shows the strongest deflection, down to $Y=-1.8$ mm, whereas pyrrole was only deflected down to $Y=-1.2$ mm. Significant deflection of $\text{H}_{2}\text{O}$ is not expected due to its small effective dipole moment [31]. Larger cluster species, e. g., $\text{pyrrole}(\text{H}_{2}\text{O})_{2}$ and $(\text{pyrrole})_{2}$, are also deflected less then pyrrole and $\text{pyrrole}(\text{H}_{2}\text{O})$; these deflection profiles are shown and discussed in the Supplementary Information.

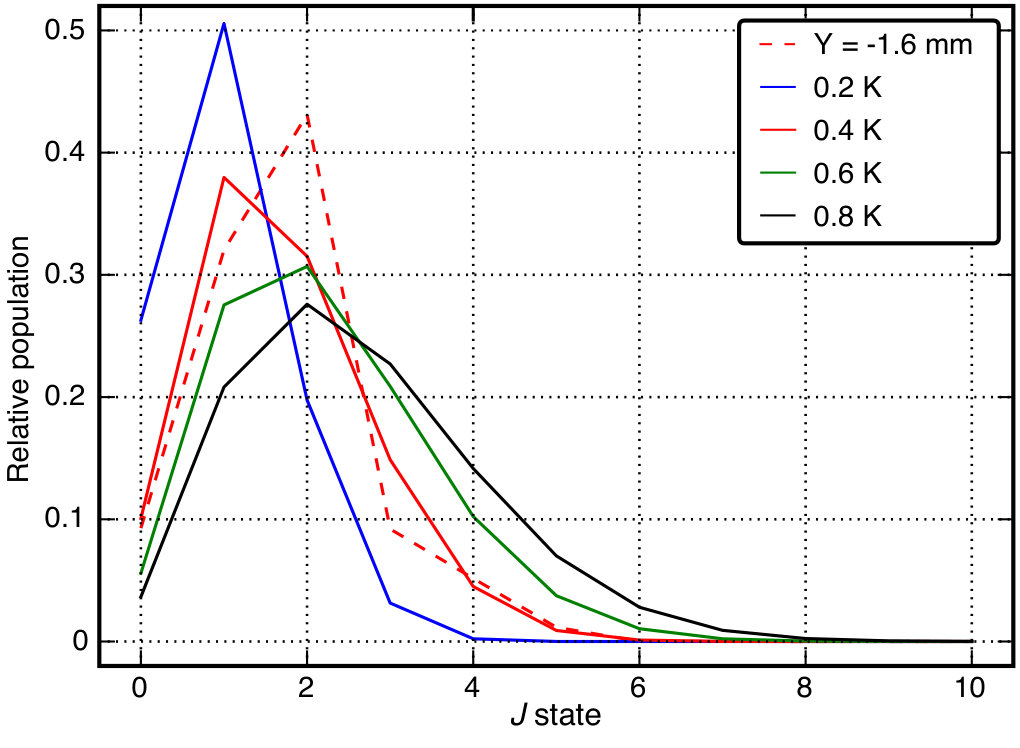

The solid lines in Figure 2 a are simulated profiles obtained from the results of Monte-Carlo trajectory calculations that take into account the geometrical constraints of the mechanical apertures in the experimental setup [27]. These simulated deflection profiles of pyrrole and $\text{pyrrole}(\text{H}_{2}\text{O})$ matched the experimental data assuming an initial rotational temperature of the molecular beam entering the deflector of $T_{\text{rot}}=0.8\pm~{}0.2$ K. In the deflected part of the beam at $Y=-1.6$ mm the relative populations of the rotational states of $\text{pyrrole}(\text{H}_{2}\text{O})$ were determined from the simulations. Although this rotational-state distribution is non-thermal, it approximately corresponds to a thermal distribution of $0.4$ K, see Supplementary Information. This indicates that an ensemble of very cold molecules is generated using the deflector [32, 33] and that ultracold ensembles, even of isolated well-defined molecular clusters, can be generated in the most deflected part of a dispersed molecular beam.

The purities of pyrrole and $\text{pyrrole}(\text{H}_{2}\text{O})$, as defined by the ratio of the specific signals to the sum of signals of all other species observed is shown in Figure 2 b, see Supplementary Information for details of the analysis. This demonstrates that a molecular beam of $\text{pyrrole}(\text{H}_{2}\text{O})$ with a purity of $\mathord{\sim}100$ % was produced at vertical positions $-1.8~{}\text{mm}<Y<-1.3~{}\text{mm}$. The column density profile of helium is not shown here, but is expected to be only slightly broader than the undeflected (0 kV) profile of the molecular species, owing to its lighter mass. Furthermore, helium is expected to be only marginally deflected by a few µm due to its small polarizability [26]. Hence, the extracted pure molecular beam of $\text{pyrrole}(\text{H}_{2}\text{O})$ should also be free from helium gas at $Y<-1$ mm.

4 Conclusion

We demonstrated the spatial separation of the $\text{pyrrole}(\text{H}_{2}\text{O})$ cluster in a molecular beam, i. e., from pyrrole, water, larger clusters, and the seed gas. A purity of $\mathord{\sim}100$ % of $\text{pyrrole}(\text{H}_{2}\text{O})$ was obtained in the most deflected part of the molecular beam. Simulated deflection profiles were in excellent agreement with the experiment. They yielded a rotational temperature of $T_{\text{rot}}=0.8\pm 0.2$ K in the initial molecular beam for both, pyrrole and $\text{pyrrole}(\text{H}_{2}\text{O})$, and of $T_{\text{rot}}\approx 0.4$ K in the deflected pure $\text{pyrrole}(\text{H}_{2}\text{O})$ beam.

These pure beams of $\text{pyrrole}(\text{H}_{2}\text{O})$ provide a crucial ingredient for photophysics studies aiming at time-resolved hydrogen bond formation/dissociation dynamics, e. g., in ultrafast laser pump and x-ray probe experiments. Further interesting aspects will be the control of the orientation in the laboratory frame by laser aligning or mixed-field orienting $\text{pyrrole}(\text{H}_{2}\text{O})$ clusters [32, 34, 30]. The separated pure species are also ideally suited for experiments to image the structure and dynamics of the $\text{pyrrole}(\text{H}_{2}\text{O})$ complex in the molecular frame, e. g., through molecular-frame photoelectron angular distributions (MFPADs), gas-phase x-ray diffraction, or laser-induced electron diffraction (LIED) experiments [35, 36, 19, 37, 38].
