Achlys : Towards a framework for distributed storage and generic computing applications for wireless IoT edge networks with Lasp on GRiSP

TL;DR

Achlys is a prototype framework that extends edge computing capabilities to wireless IoT sensor nodes, enabling reliable storage and computation directly on devices without relying on gateways or cloud services.

Contribution

The paper introduces Achlys, a novel edge node implementation based on Lasp on GRiSP, providing resilient, consistent storage and processing at the farthest IoT network nodes.

Findings

Achlys enables direct storage and computation on wireless sensor nodes.

The framework demonstrates resilience and consistency in edge IoT environments.

Potential use cases include managing IoT ecosystems without gateways.

Abstract

Internet of Things (IoT) has gained substantial attention over the past years. And the main discussion has been how to process the amount of data that it generates which has lead to the edge computing paradigm. Wether it is called fog1, edge or mist, the principle remains that cloud services must become available closer to clients. This documents presents ongoing work on future edge systems that are built to provide steadfast IoT services to users by bringing storage and processing power closer to peripheral parts of networks. Designing such infrastructures is becoming much more challenging as the number of IoT devices keeps growing. Production grade deployments have to meet very high performance requirements, and end-to-end solutions involve significant investments. In this paper, we aim at providing a solution to extend the range of the edge model to the very farthest nodes in the network. Specifically, we focus on providing reliable storage and computation capabilities immediately on wireless IoT sensor nodes. This extended edge model will allow end users to manage their IoT ecosystem without forcibly relying on gateways or Internet provider solutions. In this document, we introduce Achlys, a prototype implementation of an edge node that is a concrete port of the Lasp programming library on the GRiSP Erlang embedded system. This way, we aim at addressing the need for a general purpose edge that is both resilient and consistent in terms of storage and network. Finally, we study example use cases that could take advantage of integrating the Achlys framework and discuss future work for the latter.

Figures

Tables

Table 1. TABLE I: Generic task model API functions.

Function	Arguments	Description
add_task	{Name, Targets, Fun}	Adds the task tuple {Name, Targets, Fun} to the tasks CRDT
remove_task	Name	Removes the task named Name from the tasks CRDT
start_task	Name	Starts the task named Name
find_and_start_task	nil	Fetches any available task from the tasks CRDT and executes it
start_all_tasks	nil	Starts all tasks in the tasks CRDT

Full text

I Introduction

The edge computing paradigm has been widely accepted as an important concept for sustainability of future Cloud Service Providers (CSPs) and Mobile Network Operators (MNOs) [1, 2]. It is well acknowledged by both enterprise and academia as a valid approach and is actively under research [3, 4, 5]. Newer and more performant infrastructures are continuously elaborated both by CSPs and MNOs [6]. Concurrently, IoT devices are getting closer to being actually ubiquitous, i.e., closer to Mark Weiser’s idea of hundreds of wireless computing devices per person. This is already true in some scenarios, e.g., airplanes generate around 10 TB of data every 30 minutes. Such cases require very responsive and robust systems for sensor data processing, and could not rely on remote hosts for it, even if these are close to the edge. Since the Internet of Things is rapidly expanding and devices are becoming more powerful, IoT applications are putting severe strain on cloud providers. The edge computing paradigm is one way to solve this problem by distributing the workload in a more sustainable way across the whole network. With this paradigm, computational and storage resources move closer to the edge and IoT applications are able to preserve their QoS. Tasks that were previously done in the cloud are now be delegated to intermediates between datacenters and IoT edge networks. Existing designs are enabling this by bridging edge networks with intermediate gateways[7]. However, it is generally considered that the sensor and actuator networks themselves, such as traditional Wireless Sensor Networks (WSNs), are too limited and unreliable to do their own management. Thus even in recent distributed sensor and IoT networks, a gateway node or a cloud connection is necessary, which adds a single point of failure and increases infrastructure complexity. If such a point is unable to provide its service, network management becomes impossible and sensor data cannot be retrieved anymore. And if gateways need to be permanently available, even short intervals of downtime can disrupt the entire system. A recent survey has portrayed the full landscape of emerging paradigms that strive towards the edge and fog principles[8]. It describes a few designs that share common goals with Achlys, such as mist computing and suggests that such architectures are a best fit for systems that require autonomous behavior, ability for distributed processing directly on IoT devices, little or no Internet connectivity and privacy preservation.

I-A The Achlys framework

This paper presents Achlys, a framework that directly addresses the problem of general-purpose edge computing. Achlys increases the resilience of sensor/actuator edge networks so that they are able to reliably execute application tasks directly on the edge nodes themselves. Achlys provides reliable decentralized communication, storage, and computation abilities, by leveraging CRDTs (Conflict-Free Replicated Data Types) and hybrid gossip algorithms. This lowers cost, reduces dependencies, and simplifies maintenance. Our system has no single point of failure. Achlys consists of three parts: GRiSP embedded system boards111grisp.org, a Lasp CRDT-based key/value store, and the Partisan hybrid gossip-based communication component. Experimental releases and source code are available at ikopest.me, and can be deployed on GRiSP boards or run in an Erlang test shell.

Achlys adds a task model to Lasp, which allows applications to be written by storing both their code and results directly inside Lasp. In this way, applications are as resilient as Lasp itself. The task model was first developed as part of a master’s thesis [9]. Application code is replicated automatically by Lasp on all nodes. From the developer’s viewpoint, Achlys applications are written in a similar way as applications written for transactional databases. The developer mindset is that the Lasp database always contains correct data. Application tasks can be executed at any time on any node by the task model. On every node, the task model periodically reads tasks from Lasp and executes them. An executing task reads data from Lasp, computes the updated data using node-specific sensor information, actuates node-specific actuators, and stores both the updated data and an updated task in Lasp. Because of the convergence properties of CRDTs, the same task can be executed more than once on different nodes without affecting correctness. This is a necessary condition for resilience, to keep running despite node failures and node turnover.

We choose GRiSP because it directly implements Erlang on the bare hardware, which simplifies system development, and because it directly supports Pmod sensors and actuators and has built-in wireless connectivity. Computation and storage abilities of GRiSP are limited, but adequate for many management tasks (in fact, with the current GRiSP infrastructure, our system is comparable to state-of-the-art laptops released just before the year 2000). Our current system is a prototype that is able to run applications on networks of GRiSP boards. With this system we are in the process of implementing and evaluating a proof-of-concept application of Achlys to precision agriculture, in collaboration with Gluk Advice BV, as part of the LightKone European H2020 research project.

I-B Motivating example

We motivate this work with an example related to the precision agriculture use case we are developing. We envision a scenario where a farmer has decided to equip his farms with a Subsurface Drip Irrigation system. Despite that it is one of the most efficient precision irrigation technologies, it remains difficult to have sufficiently precise information about moisture levels, so as to make optimal use of the very expensive irrigation infrastructure. Inadequate irrigation can be extremely detrimental for production levels, as well as water supplies.

We propose a Self-Sufficient Precision Agriculture Management System for Irrigation in order to allow the farmer to efficiently irrigate his farms. In addition to productivity gains, we intend to offer a solution that is near zeroconfig, i.e., it is able to configure itself with no intervention needed by the farmer. Finally, we want to provide a system that manages itself and requires little to no maintenance. It is possible to connect to the system, but this is only used for setting policy and is not needed for day-to-day running. The system’s management mechanisms are autonomous, independent of any third-party providers.

Currently, the farmer’s irrigation system distributes water across the entire zone that is equipped with tubes delivering water to plantations when the farmer activates a pump. Since moisture levels can vary significantly inside a single farm, uniform irrigation can be detrimental as some parts will not receive enough water while in other parts water is wasted and irrigation is above the optimal levels. Our system is made of a set of distributed edge nodes that sense moisture levels and actuate on activation or deactivation of underground irrigation tubes. The farm is divided into sectors whose moisture levels are measured by an edge node, and irrigation is adjusted accordingly. Our solution activates the main irrigation pump and valves when necessary, and controls the water flow such that once sufficient moisture is achieved, actuators shut down the water flow of that sector while irrigation continues in other sectors. Irrigation decisions are made by an online optimization algorithm that runs continuously on the edge nodes themselves. The system thus provides completely autonomous basic management, without the need for any kind of Internet connection or computer. The system continuously optimizes its operation to provide adequate irrigation with minimal cost, and reconfigures itself whenever it detects a change in configuration.

It is possible to change the irrigation policy by connecting a PC node to the edge network. This way, we extend the basic autonomous system with additional features that allow the farmer to use cloud infrastructures such as storage or high computational power when it is desired. For example, the edge nodes could be asked to measure how much water their sector has consumed based on temperatures during that period, and compute some metrics locally that could be extracted from the edge cluster and stored in the cloud at the end of each month. Learning processes applied to that data could again allow farmers to adjust the system behavior with their computer to gain in efficiency.

I-C Common challenges

In contrast to core cloud datacenters, edge networks are composed of large numbers of heterogeneous devices. Due to the highly dynamic and unpredictable nature of edge network topologies, nodes can also be temporarily isolated from the network. For these reasons, implementing desirable features such as reliable computation and storage directly on edge IoT networks is particularly complex. Possible solutions are proposed by industry actors such as 5G operators and CSPs, and are generally based on Points of Presence (POPs) located near client nodes and available through gateways. In addition, edge applications must be implemented to manage the limited resources of IoT nodes. Therefore efficient deployments at the edge require an adequate load balancing mechanism that ensures that there is no overload on any node.

An important goal of edge computing is to offload efficiently the core of the network. Since there are several intermediary entities between cloud datacenters and IoT devices such as servers or smaller datacenters, optimal offloading would be achieved if components of each layer are able to process some requests autonomously and only rely on higher level nodes when necessary. Therefore, edge nodes should also strive for maximum independence, and take advantage of computational and storage resources of IoT devices to complement the edge POP solutions.

Moreover, if edge computing extends the traditional cloud computing paradigm only up to peripheral POPs, it makes IoT nodes highly dependent on connectivity and exposes single points of failure. We suggest that the edge paradigm can be implemented in a way that allows offloading of the core at any level in the global network, even in the most peripheral parts. If IoT devices are able to provide some basic functionality, then higher level devices can rely on them to reduce their own workload. And the edge paradigm could therefore maximize the global offloading since it would distribute the load over all the parts of the edge that are able to perform tasks such as computations or data storage in a reliable way accordingly to their hardware resources.

However, despite being standardized to some extent[10, 11], a global production ready end-to-end solution has not yet been deployed at scales coming close to those of traditional cloud architectures. There are still many engineering and practical considerations that must be addressed. In this regard, the LightKone H2020 European Project aims at providing a novel approach for general purpose computations at the edge. LightKone directly addresses the added complexity due to heterogeneity of IoT devices, which makes a general purpose computation model at the edge very attractive.

I-D Structure of the article

The remainder of this article is structured as follows. Section II gives a brief overview of current edge computing state of the art and some key enabling technologies for Achlys. Section III gives a structural overview of Achlys followed by use case examples in Section IV. Finally, Section V gives conclusions about the current state and future evolution of Achlys.

II Contributions

In this section, we briefly discuss the contribution of the Achlys application framework in relationship with the global edge computing paradigm.

II-A Fault tolerance

Ensuring fault tolerance is an essential part for generic edge computing[12]. In order to fit the vision of the LightKone project, Achlys strives to guarantee this property. This implies that Achlys must be able to continue functioning even in case of system failure. These failures can be, but are not limited to :

• •

Network partition or intermittent communication : a node or a set of nodes that are isolated from the rest of the network must be able to run and to preserve interoperability with other nodes when the network is repaired.

• •

Hardware failure or offline operation : if a hardware component becomes dysfunctional or goes offline (to save power), it should be contained so that the application preserve a maximum amount of features.

II-B Task model

Achlys provides a general purpose task model solution using Erlang higher-order functions. Since Erlang functions are just values (i.e., constants), they can be copied over a network like any other constant. Using this ability, Achlys is able to provide programmers with an API that allows them to easily disseminate generic tasks in a cluster and be able to retrieve the results if desired. As handling heterogeneity is a highly complex task for smart services at the edge[13, 14, 15], the Achlys prototype can also use this ability to make the task model homogeneous, despite heterogeneity of the infrastructure. This is compatible with a larger vision of future Internet, in which physical components will be virtualized[16, 17, 18]

II-C Data consistency at the edge

Conflict resolution is one of the central problems of distributed and decentralized applications, and is the subject of extensive research[19, 20, 21, 22]. For example, when multiple actors modify the same data entity across a network partition, what should be done when the partition is repaired? CRDTs (Conflict-Free Replicated Data Types) provide a solution to this problem. They are mathematically designed to provide consistent replication with very weak synchronization between replicas: only eventual replica-to-replica communication is needed. The Lasp library uses a wide range of CRDT types for its data storage. To the developer, Lasp looks like a replicated distributed key/value store that runs directly on the IoT network. Section III-C gives more information on Lasp and CRDTs.

III Overview of the system design

We now present a more detailed description of the Achlys system, an Erlang222erlang.org implementation of a framework that combines the power of $\delta$-CRDTs[22] in the Lasp store[23, 24], the Partisan communication component[25], and the GRiSP Runtime software. It provides application developers a way to build resilient distributed edge IoT applications. We leverage hybrid gossiping and the use of CRDTs in order to propose a platform that is able to provide reliable services directly on edge nodes, which are able to function autonomously even when no gateway or Internet access is available.

III-A GRiSP base

The GRiSP base board is the embedded system used to deploy Achlys networks in the current experimental phase. Its main advantage over other hardware is that it has sufficient resources[26] to run relevant Erlang applications, that is333 For full specifications please refer to grisp.org. :

• •

Microcontroller : Atmel SAM V71, including :

• –

ARM Cortex M7 CPU clocked at 300MHz

• –

64 MBytes of SDRAM

• –

A MicroSD socket

• •

802.11b/g/n wireless antenna

• •

SPI, GPIO, 1-Wire and UART interfaces

III-B GRiSP

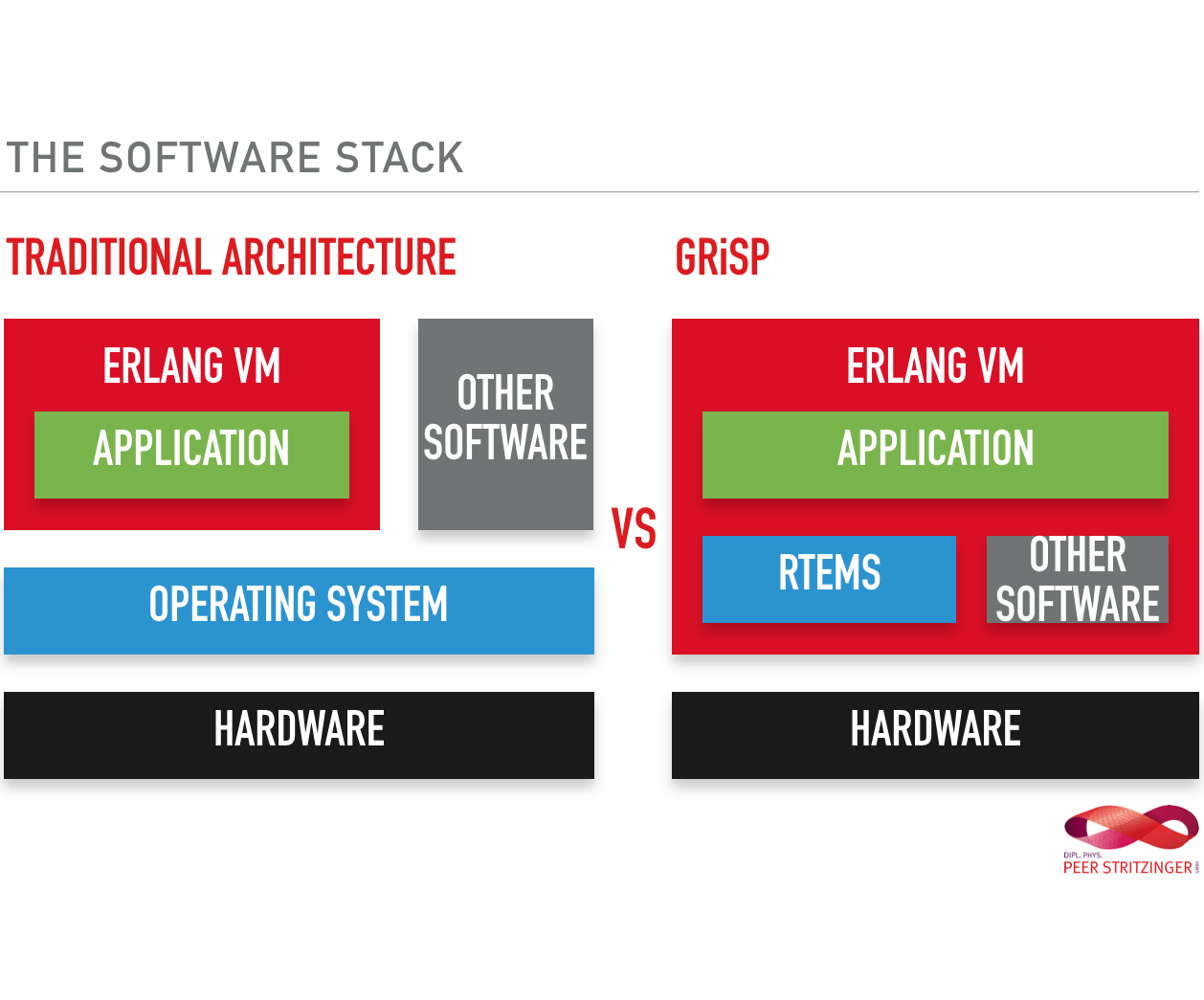

Figure 1 depicts how the GRiSP architecture is designed. The RTEMS444rtems.org (RTOS-like set of libraries) component is embedded inside the Erlang VM and makes it truly run on bare metal. Achlys greatly benefits from this unique design since it allows a much more direct interaction with the GRiSP base hardware. The GRiSP board directly supports Digilent Pmod555digilentinc.com modules. The latter offer a very wide range of sensing and actuating features that can be accessed at application level in Erlang. It is not necessary to write drivers in C in order to add new hardware features to extend the range of functionalities.

III-C Lasp

Lasp is a key part of the Achlys framework for both storage and computation. It provides both replicated data and computation, and guarantees that values will eventually converge on all nodes[23, 24]. Since our GRiSP boards run Erlang directly on bare metal, Lasp is a suitable option for consistency as it runs directly in Erlang[24]. The Lasp port to GRiSP was initiated in a master’s thesis at UCL[9]. Lasp supports various CRDTs including sets, counters and registers, all of which do consistent conflict resolution. For instance, a GCounter is a counter type that can only be incremented, and when all the operations performed on individual nodes converge, the entire cluster will see the same value, i.e., the sum of all increments of the counter across all nodes. This is a very simple example; more complex examples such as sets and dictionaries are also part of Lasp, which allow both adding and removing of elements with the same convergence property. Achlys is thus able to handle concurrent modifications and guarantee that all nodes are eventually consistent, just as on cloud storage services. This works even on nodes with limited resources and intermittent connectivity. The only effect of node failures and intermittent connectivity is to slow down the convergence. CRDTs in Lasp are implemented using additional metadata that allows each operation at each node to be taken into consideration. In fact, the Lasp library uses an efficient implementation of CRDTs called delta-based dissemination mode, which propagates only delta-mutators[27, 22], i.e., update operations, instead of the full state, to achieve consistency. This uses significantly less traffic between nodes than a naive implementation that propagates the full state.

III-D Partisan

Partisan[25] is the communication component used by Lasp to disseminate information between nodes. It provides a highly resilient alternative communication layer used instead of the default distributed Erlang communication. This layer combines the HyParView[28] membership and Plumtree[29] broadcast algorithms, to ensure both connectivity and communication, even in extremely dynamic and unreliable environments. Both algorithms use the hybrid gossip approach. Hybrid gossip is a sweet spot that combines the efficiency of standard distributed algorithms (e.g., spanning tree broadcast in Plumtree) with the resilience of gossip. For example, in the case of Plumtree, the gossip algorithm is used to repair the spanning tree.

Partisan comes with a set of configurable peer service modules that are each suited for different types of networks. Since the HyParView manager ensures reliable communication in networks with high attrition rates such as edge clusters, it is used in our configuration by default. But it can easily be adjusted to match other types of topologies, and also enables hosts that can be members of multiple clusters to use the optimal peer service. This makes it suitable for clusters of IoT nodes that are able to communicate with each other despite unreliable networks, but also to be able to communicate with other cluster types such as star or mesh topologies where reliable communication does not require the same amount of effort. Partisan is therefore flexible as well as resilient, and we are still able to configure edge nodes to communicate with servers, reliable clients or gateways without overhead that would be generated using HyParView in stable networks.

III-E Example Achlys network

Figure 2 shows a conceptual overview of a WSN setup of Achlys nodes that highlights several elements :

• •

The bottom layer consists of functions $temp_{1,2}(\Delta,m)$,$p(\Delta,m)$ that represent input streams of data based on environment variables measured by the nodes, in this example temperatures and pressure.

• •

The physical topology reflects the real world configuration of the nodes where each edge implies that the two vertices are able to establish radio communication.

• •

The virtual overlay that we are able to build using Partisan. Achlys provides functions to clusterize GRiSP nodes through Partisan and therefore partitions such as shown by dotted blue lines are abstracted away by the eventual consistency and partition tolerance properties. Physically isolated parts of the network keep functioning, and seamlessly recover once the links are reestablished.

III-F Local aggregation

The vast majority of raw IoT sensor data is usually very short-lived inside systems and ultimately leads to unnecessary storage. Hence in Achlys we introduce configurable parameters for aggregation of sensor data. This way programmers can still benefit from distributed storage but also take advantage of local memory or MicroSD cards to aggregate raw measurements and propagate mean values. The network loads and global storage volume are thus decreased and overall scalability is improved.

III-G Generic task model

Achlys provides developers the ability to embed Erlang higher-order functions through a simple API as shown in Table I. This allows building applications using replicated higher-order functions. Each node receives tasks and can locally decide based on load-balancing information and destination targeting information if it needs to execute it.

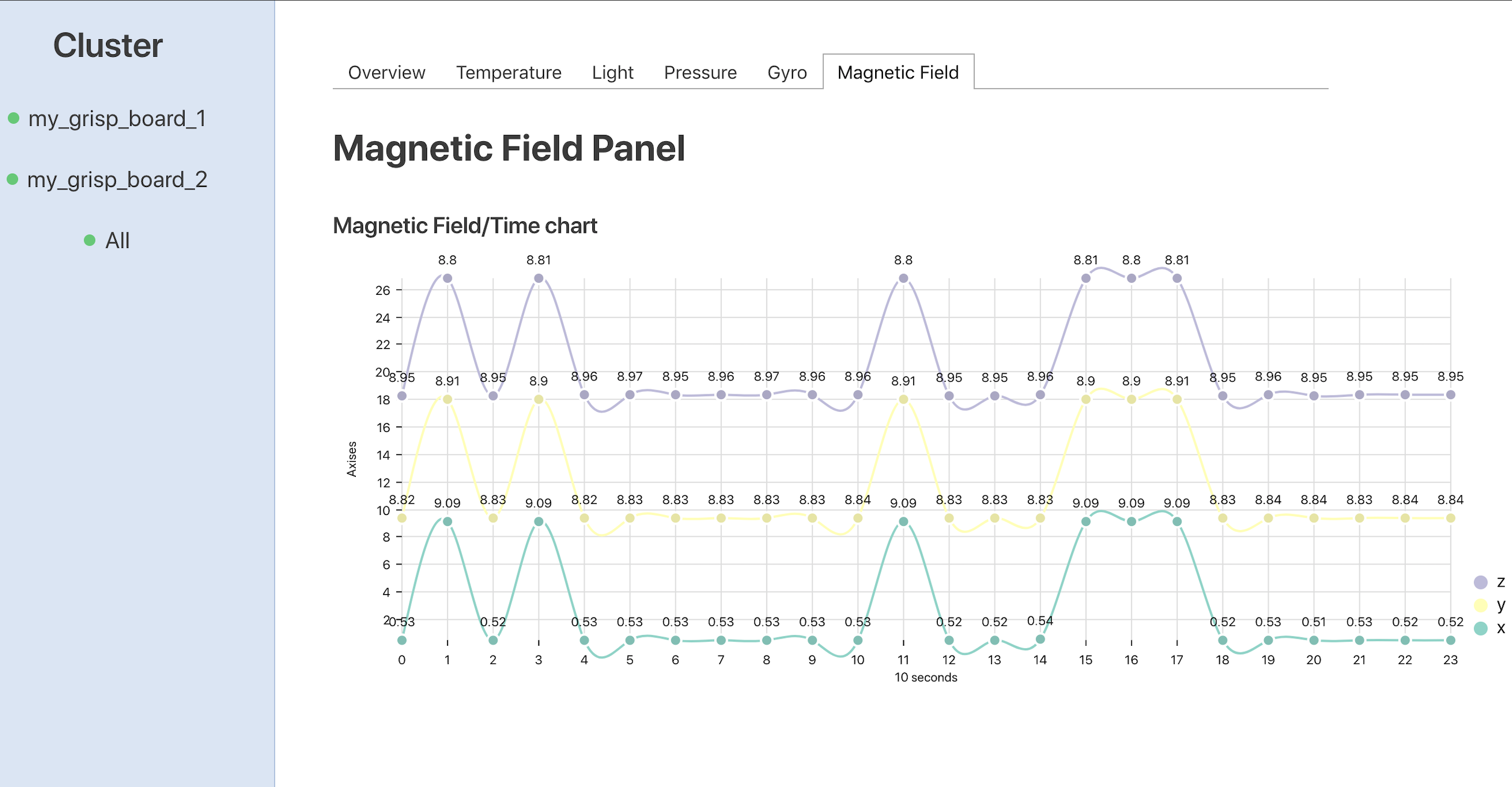

We used this model to generate replicated meteorological sensor data aggregations via generic functions supplied with specific tasks. A live dashboard of the currently converged view of the data was built and run on a laptop connected to the GRiSP sensor network. As long as that web client host was able to reach any node in the network, it could output its live view of the distributed storage.

IV Additional use cases

IV-A Live IoT sensor dashboard

Since our framework is implemented in Erlang, it is also possible to integrate it in Elixir666elixir-lang.org applications. Elixir is a programming language that is built on top of the Erlang runtime system and adds several very popular web development features. This makes it possible to implement a web server that runs only at the edge and that can interact with an entire Achlys cluster as soon as a single node is reachable. Our previous work has already allowed us to display a minimal version of this use case implementation in the context of the LightKone project. Figure 3 gives a screenshot of a live display of recorded magnetic field data recorded with Digilent Pmod_NAV modules attached to GRiSP boards in the cluster.

Achlys allows the live monitoring to be accessed from any edge node and it is guaranteed that the distributed database will be consistent regardless of the physical location as long as there is eventually a connection. This use case is a good display of the modular designs that can be implemented with Achlys. We can run isolated applications on IoT networks, add or remove nodes, and easily implement other types of custom nodes that will automatically work the existing cluster. For live monitoring of environmental variables with IoT actuators, the self-configuring and autonomous execution can be a starting point, and users are free to perform predictive analysis and machine learning y bridging the cluster with the cloud computing services. Once the learning process yields a new set of rules, the users can propagate them to all the network nodes and it will become autonomous again.

IV-B Internet of Battlefield Things

The U.S. Army Research Laboratory has announced an entire new research program dedicated uniquely to IoT devices[30]. It is focused on deriving the new theoretical models and systems that will bring the key advantages in military conflicts of the following decades. The IoBT researchers display a very strong interest in some properties that are not considered in edge computing IoT architectures designed for commercial use. The authors describe the IoBT network as dynamic and ubiquitous with a high degree of pervasiveness, and self-awareness and self-configuration of networks are explicitly stated as requirements. Based on the described areas of interest in IoBT, we imagine the use case of Achlys nodes in forward deployments of ground infrantry squads. These deployments can lead groups to be isolated in remote areas where no means of communication with remote operators is possible. During nights, the surroundings must be constantly watched and soldiers need to spread across areas they are exposed to higher risks once alone. If soldiers were to be equipped with a set of Achlys nodes, they would be able to maintain their cluster membership even with all the crew members on the terrain, and since the sensors can immediately produce data that can indicate distress such as heat or trembling, the real-time threat analysis can be immediately be propagated to all the members in the area. In urban combat scenarios, this is particularly desirable as individuals are often in buildings or confined spaces where they cannot see each other while Achlys would be able to propagate alarms to all the reachable members. And during all missions Achlys nodes would record success metrics, environmental variables, and network topology changes that would be stored during entire operations, and once groups return to bases they all provide the data to nodes with high computing capacities that can make predictive analysis that would be used again in future deployments and could easily be passed between units if they are in communication range. We have observed that the key features of Achlys that provide reliable communication and storage correspond to numerous requirements of IoBT since they must remain operational regardless of their environment.

V Conclusion

We introduce Achlys, a framework for general purpose edge computing that runs directly on sensor/actuator networks with unreliable nodes, intermittent communication, and limited computation and storage resources. Our current Achlys prototype is written in Erlang and runs on a wireless ad hoc network of GRiSP sensor/actuator boards. Achlys uses the Lasp and Partisan libraries to provide reliable storage, computation, and communication. Lasp is a distributed key/value store based on CRDTs, which is used both for storage (with efficient $\delta$-CRDTs) and as dynamic management tool to allow dissemination of general-purpose computing functions inside the network. Partisan is a communication component that provides highly resilient broadcast and connectivity for dynamic networks with intermittent connectivity, by using the Plumtree and HyParView hybrid gossip algorithms.

Because it is written in Erlang, Achlys can also be used on any infrastructure based on the Erlang runtime. For example, it can be used on scalable web servers written in Elixir, because Elixir interoperates seamlessly with Erlang. Our experiments show encouraging results and validate the feasibility of our IoT edge computing model. This allows us to focus on improving efficiency and usability aspects of Achlys. In particular, further engineering work will be dedicated to minimize the resource usage of the framework and its dependencies. We intend to provide a framework that supports applications on embedded systems in actual deployments, and thus storage, computation and memory requirements of Achlys need to be carefully managed. Techniques for compact storage will be investigated such that we increase the amount of information that is passed through CRDTs while keeping the size identical. Furthermore, other optimizations in terms of networking and self-adaptation will be done in order to elaborate more intelligent clustering mechanisms. This will be reported in further work and measurements of efficiency and resilience with fine-grained adjustments of Partisan’s parameters will help us implement a context-aware networking behavior for Achlys, reducing unnecessary bandwidth usage and connections. Finally, in order to reduce application size, we will study if unused modules can be excluded from the releases deployed on the embedded systems, and if compression features that are available through Erlang compiler flags can preserve the features of Achlys while leaving more space for applications developed on top. While we will keep improving Achlys, it will also be used for proof-of-concept implementations of use case scenarios in edge computing, and in particular for precision agriculture.

Acknowledgment

This work is partially funded by the LightKone European H2020 project under Grant Agreement 732505. The authors would like to thank Giorgos Kostopoulos of Gluk Advice BV for information on precision agriculture.
