Progress in the Global Modeling of the Galactic Magnetic Field

TL;DR

This paper reviews and improves models of the Galactic Magnetic Field using observational data, analyzing how these variations affect cosmic ray propagation within the Galaxy.

Contribution

It introduces new variations of the Jansson & Farrar (2012) GMF model and assesses their impact on cosmic ray propagation using comprehensive observational constraints.

Findings

Model variations significantly influence cosmic ray trajectories.

Updated models better fit all-sky rotation measure data.

Impacts on understanding of cosmic ray sources and propagation.

Abstract

We discuss the global modeling of the properties of the Galactic Magnetic Field (GMF). Several improvements and variations of the model of the GMF from Jansson & Farrar (2012) (JF12) are investigated in an analysis constrained by all-sky rotation measures of extragalactic sources and polarized and unpolarized synchrotron emission data from WMAP and Planck. We present the impact of the investigated model variations on the propagation of ultrahigh-energy cosmic rays in the Galaxy.

Figures

Equations

$$B(r_0)=\sum _{i=1}^n{B}_i\cos \left(m_i({\varphi }_0-{\varphi }_i^{\ast })\right)$$

$$\mathbf{B}(r,\varphi )=\left(\sin \alpha ,\cos \alpha ,0\right)\frac{r_0}{r}B(r_0).$$

$$h(r)=h_0{e}^{\frac{r}{r_h}}$$

$$B_z(r,\varphi ,z)=B_r(r,\varphi ,z)\frac{z}{r_h}.$$

$${\partial }_t\mathbf{B}=\nabla \times (\mathbf{v}\times \mathbf{B})-\underset{=0\mathrm{for}\sigma \to \infty }{\underbrace{\nabla \times \eta (\nabla \times \mathbf{B})}}$$

$${\partial }_t\mathbf{B}=\nabla \times (\mathbf{v}\times \mathbf{B})=\left(\begin{array}{c}-\frac{v}{r}{\partial }_{\varphi }{B}_r\\ {\partial }_z(v{B}_z)+{\partial }_r(v{B}_r)\\ -\frac{v}{r}{\partial }_{\varphi }{B}_z\end{array}\right)$$

$$B_{\varphi }(t)=\left(B_z{\partial }_{z}v+r{B}_r{\partial }_r\omega \right)t,$$

$$\mathrm{RM}={\mathrm{RM}}^0\left(1+\frac{2}{3}\kappa \frac{⟨b^2⟩}{{\overline{B}}^2+⟨b^2⟩}\right),$$

Full text

1 Introduction

Magnetic fields are a major constituent of the interstellar medium of galaxies. Their energy density in the Galactic plane is about $0.5\,\!{\text{\ e\kern-0.70007ptV}}/\text{cm}^{3}$ and thus comparable to the energy density of cosmic rays (0.8-$1.0\,\!{\text{\ e\kern-0.70007ptV}}/\text{cm}^{3}$ [1]) and interstellar radiation fields (star light and CMB, each contributing about $0.25\,\!{\text{\ e\kern-0.70007ptV}}/\text{cm}^{3}$). The Galactic magnetic field (GMF) plays therefore an important role for the transport and energy loss of Galactic cosmic rays. Furthermore, it is a major nuisance for the study of the origin of ultrahigh-energy cosmic rays as it deflects the arrival directions of extragalactic charged particles on their way through the Galaxy to Earth. The origin of the large-scale GMF is still not fully understood, but it is widely assumed that it is produced by the transfer of mechanical into magnetic energy via the dynamo mechanism (see e.g. [2]).

Different observational tracers of the GMF are summarized in [3]. In the following we focus on

(a) Multi-frequency observations of the Faraday rotation of extragalactic radio sources. The corresponding rotation measures (RMs) are proportional to the integral of the magnetic field parallel to the line of sight weighted with the density of thermal electrons of the warm ionized medium of the Galaxy.

(b) Measurements of the polarized synchrotron emission of cosmic-ray electrons. The total polarized intensity (PI) is proportional to the integral of the ordered component of the magnetic field perpendicular to the line of sight and weighted by the density of cosmic-ray electrons. The direction of the transverse magnetic field component can be inferred from the Stokes parameters Q and U.

(c) Measurements of the total (polarized and unpolarized) synchrotron intensity I, which gives a measure of the line-of-sight integral of the product of cosmic-ray electron density and total magnetic field strength (perpendicular coherent field and unordered, random magnetic field).

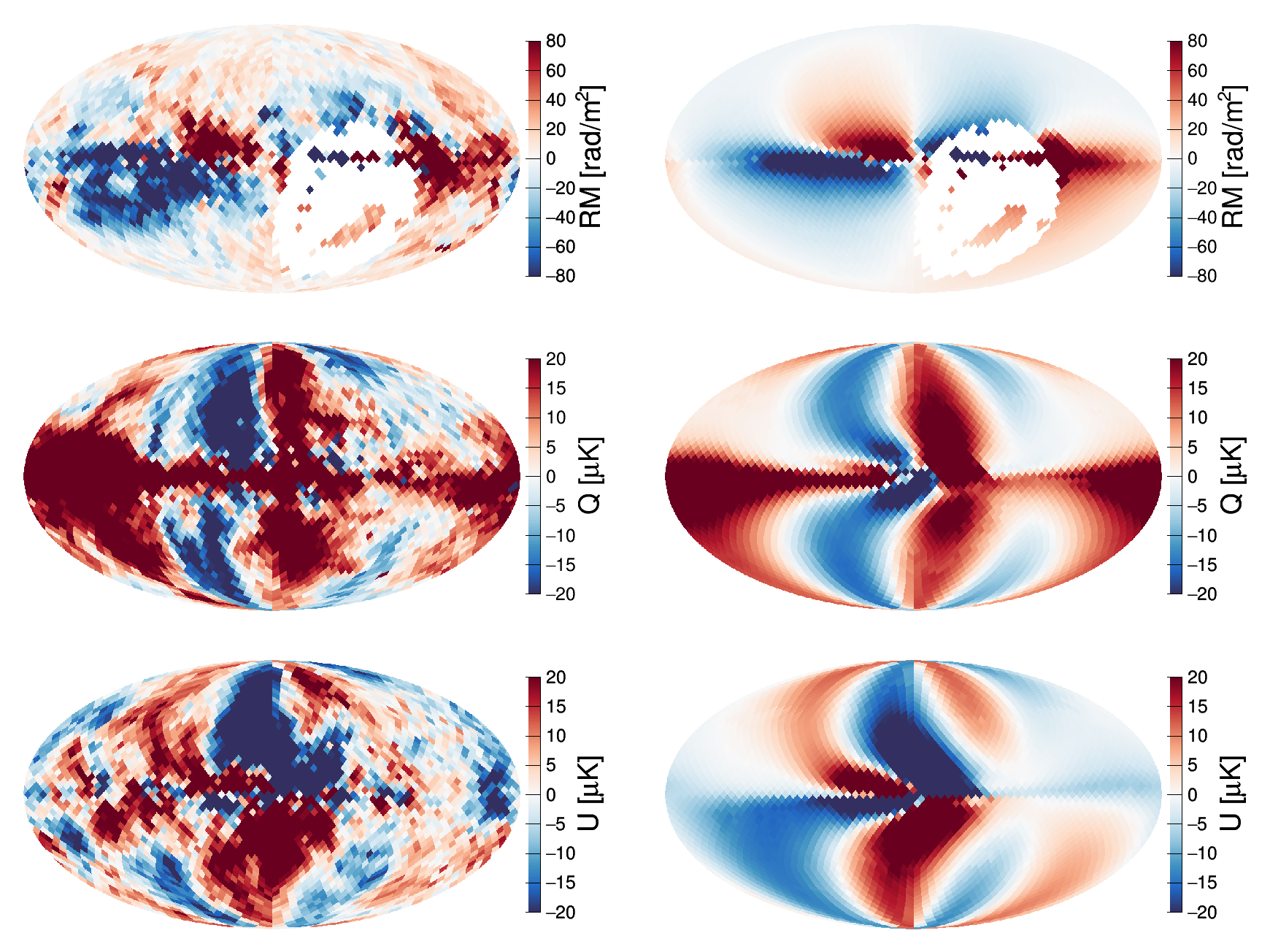

The most complete attempt to determine the global structure of the Galactic magnetic field (GMF) from these observations is the model of Jansson & Farrar [4, 5] (JF12). In this model, the GMF is described by a superposition of three divergence-free large-scale regular components: a spiral disk field, a toroidal halo field and a poloidal field (“X-field”). In addition, there is a turbulent field model whose disk component is following the same spiral structure as the regular component and whose extended halo field strength is modeled as a Gaussian in height the Galactic disk and as an exponential in Galactic radius. Account is taken of the possibility of the turbulent field having a preferred direction through a striation parameter. The parameters of the model are derived by minimizing the $\chi^{2}$ between synthetic sky maps of RM, Q, U and I and the observations.

In the following we will describe our ongoing work to improve the JF12 model and to study uncertainties in determination of its parameters. Further information about the model fitting and calculation of simulated sky maps can be found in [6].

2 Variations and Improvements of the JF12 Model of the Large-Scale GMF

2.1 Smooth Spiral Field

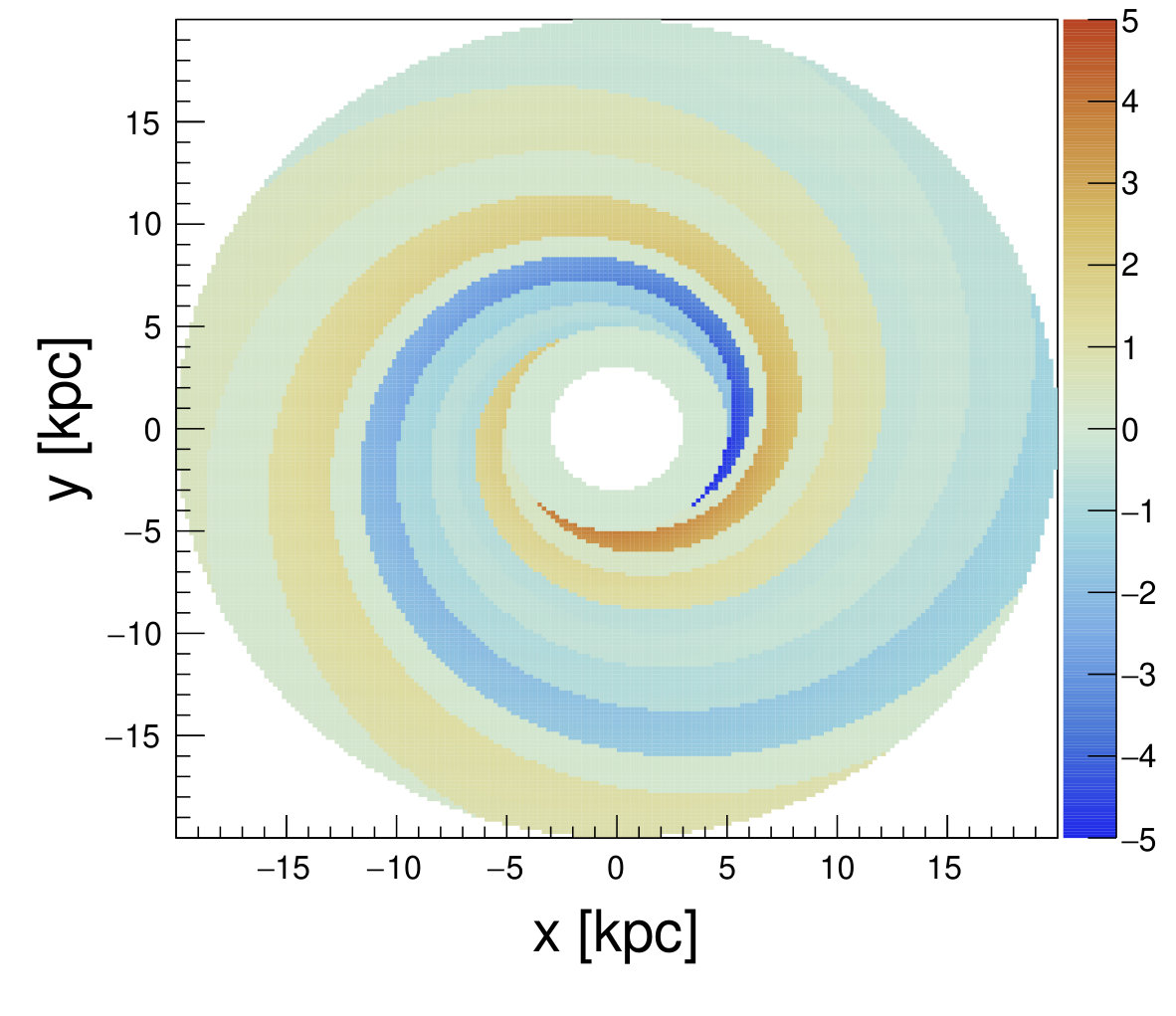

The spiral model of JF12 follows [7] to describe the disk field as a logarithmic spiral with pitch angle $\alpha$ ($r=r_{0}\exp\left((\phi-\phi_{0})\tan\alpha\right)$ and distinct spiral segments (cf. upper left panel in Fig. 1). These segments introduce discontinuities of the magnetic field when passing from one spiral to the next, moreover the arm geometry was not allowed to vary in the JF12 fitting. To achieve a smoother transition between arm- and intra-arm regions and facilitate fitting the arm geometry, we instead decompose the magnetic field strength at reference radius $r_{0}$ into modes $m_{i}$ with phase $\phi^{*}_{i}$:

[TABLE]

with which the magnetic field at $(r,\phi)$ is given by

[TABLE]

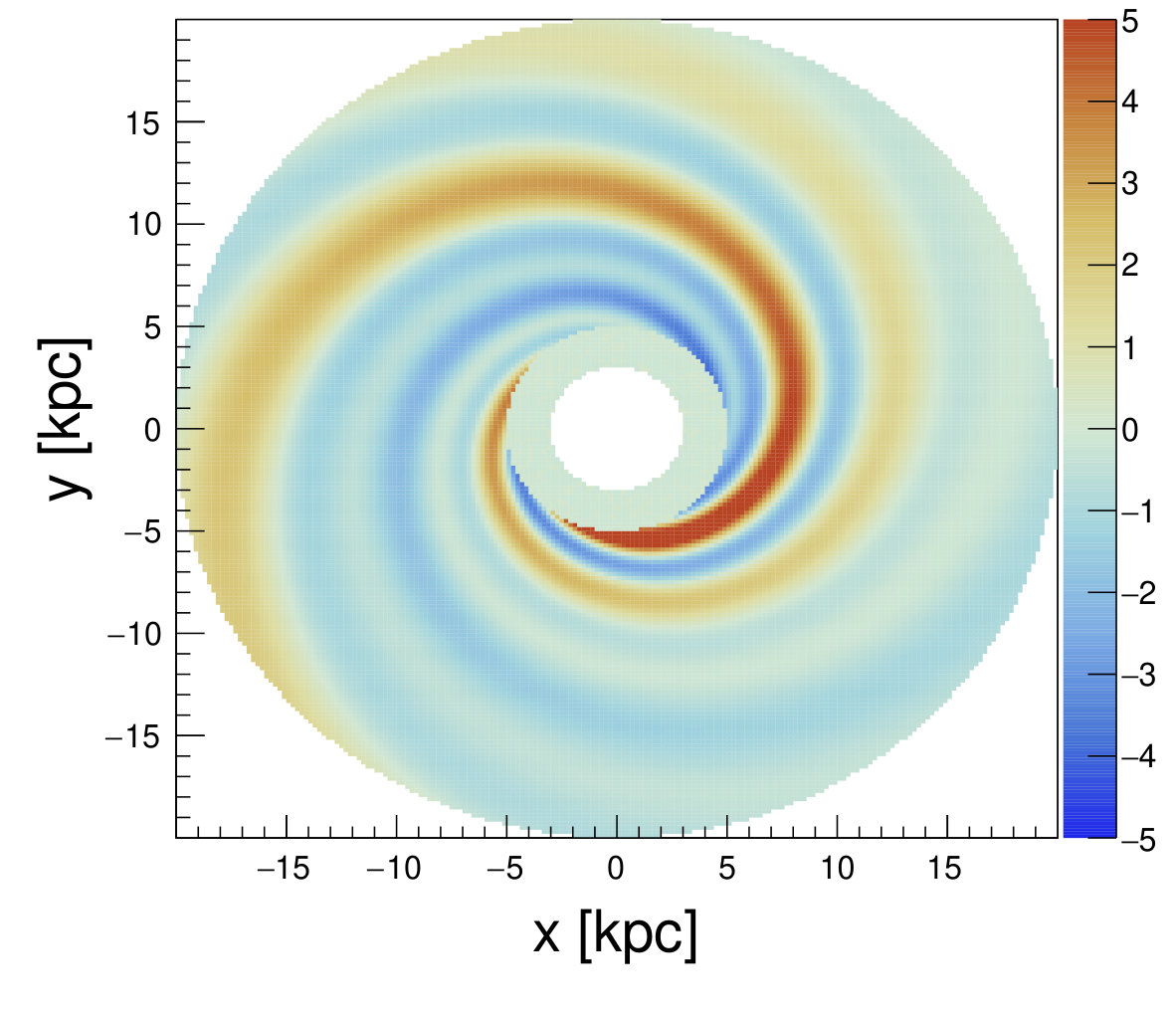

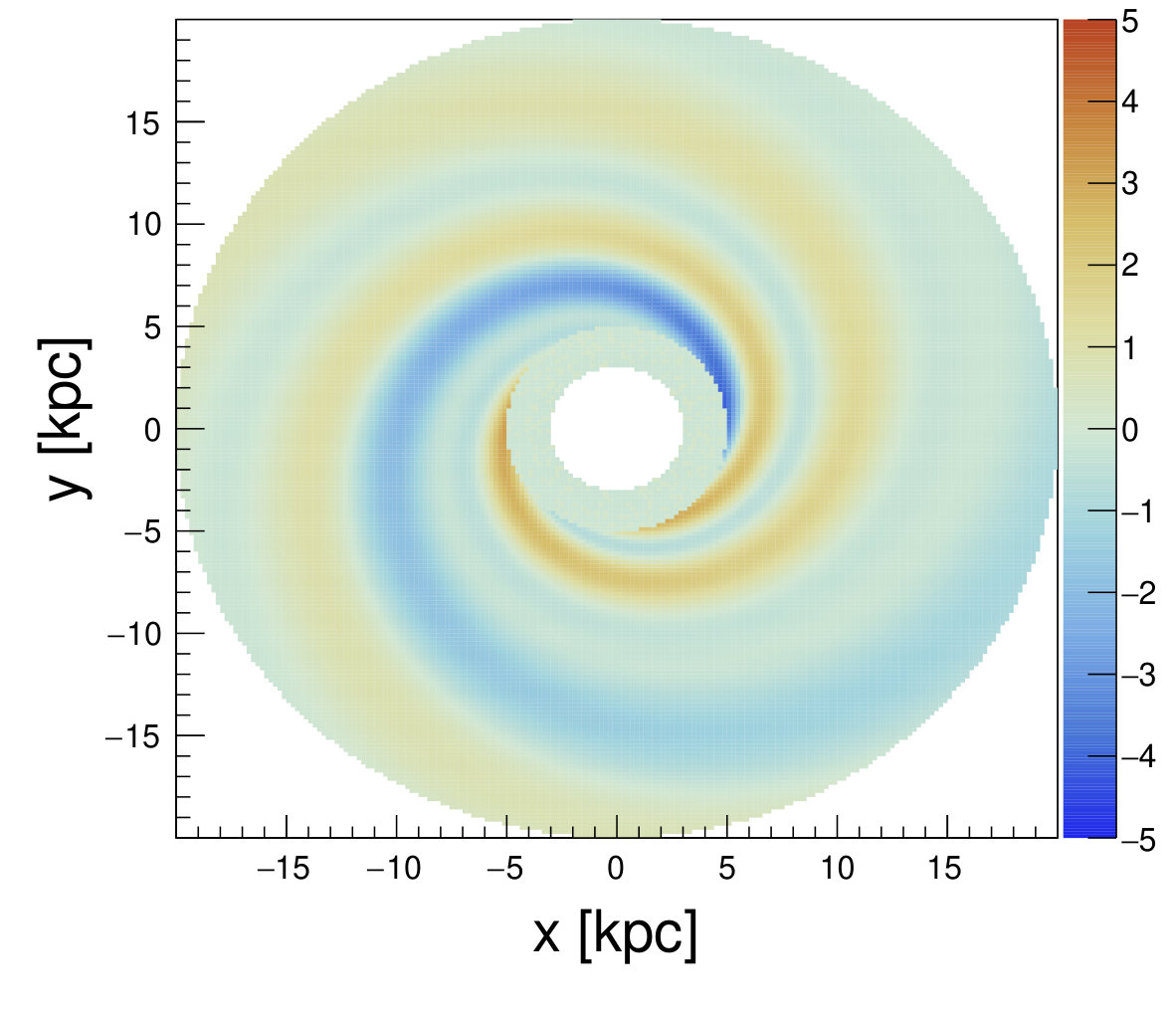

A spiral with three modes (upper right panel of Fig. 1) improves the fit quality with respect to the baseline model with a discontinuous spiral by $\Delta\chi^{2}=166$ (the baseline model has $\chi^{2}/\text{ndf}=7292/6585$). Four modes yields an additional improvement of $\Delta\chi^{2}=18$ (lower panel of Fig. 1). Adding more modes does not improve the fit significantly. The pitch angle of the logarithmic spiral is a free parameter of the fit and we obtain $\alpha=(13.4\pm 0.7)^{\circ}$ and $(14\pm 0.5)^{\circ}$ for $n=3$ and $4$ respectively, i.e. the pitch angle of the magnetic field is similar to but not the same as that of other probes of the spiral arms (see e.g. [8]) in accordance of observations of magnetic fields in nearby galaxies [9]. Further refinements of the JF12 spiral model are underway taking also into account rotation measures from Galactic pulsars with known distances (see also [10]).

2.2 Flaring Disk Field

Observations of the distribution of Hi, CO and stars are compatible with an exponential increase of the vertical scale height $h$ of the Galactic disk [11], with increasing distance from the Galactic center:

[TABLE]

with $h_{0}=0.13$ kpc and $r_{h}=9.22$ kpc for Hi [12]. Adopting the same behavior for the vertical scale height of the disk field induces a vertical component:

[TABLE]

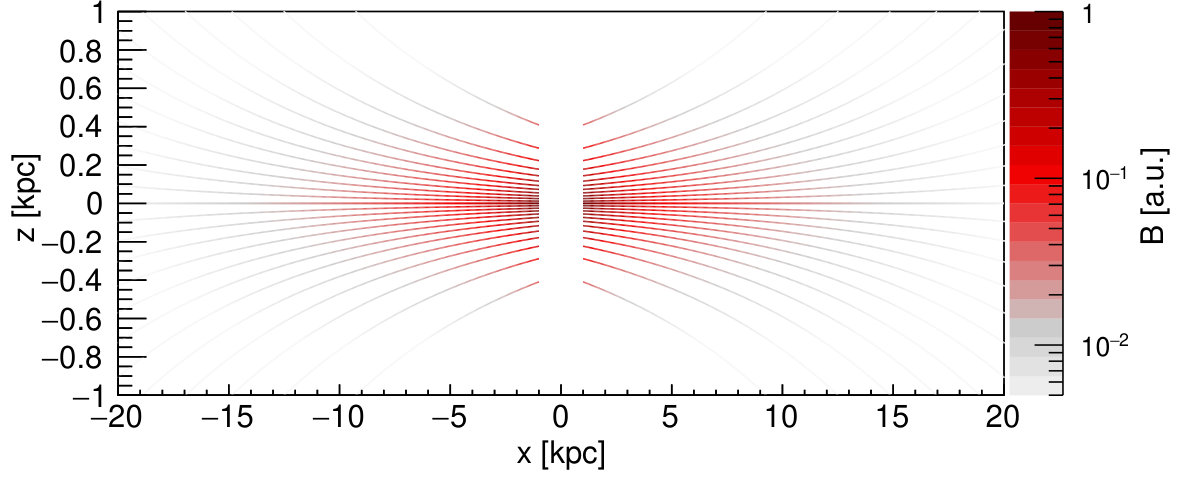

An illustration of a flaring radial disk field ($B_{r}(r,\phi,z)\leavevmode\nobreak\ 1/r$) is shown in Fig. 2. Applying the flaring to the JF12 model with a freely floating radial scale $r_{h}$ converges to very large values of $r_{h}$, i.e. our preliminary conclusion is that the data does not support a strong flaring of the magnetic disk field, but further studies are needed for a definite conclusion.

2.3 Galactic Warp

It is well known that the Galaxy disk is not perfectly planar but considerably warped, possibly caused by the gravitational pull of the Magellanic clouds on the Milky Way. Adding the Galactic warp from [13] to our model, changes the fit quality by only $\Delta\chi^{2}=8$, and therefore it can be concluded that the current data is not very sensitive to the warp. However, the warp changes the low-latitude magnetic field towards the outer Galaxy and is therefore important for the backtracking of UHECRs in this direction.

2.4 Twisted X-Field

As noted in [15], the directions of the toroidal halo components derived in the JF12 model (in the same direction as the Galaxyâs rotation in the south and opposite to it the north) are the directions which would result from differential rotation of the poloidal component. In the JF12 model the toroidal and poloidal components were fitted independently, but if indeed the toroidal component is produced from the poloidal by differential rotation, there is a more detailed relationship between the radial and vertical behavior of their field strengths.

Consider an X-field that is dragged along with the rotation of the Galaxy. The MHD evolution of a magnetic field is [16]

[TABLE]

where the “frozen-in condition” applies for infinite conductivity (magnetic diffusivity $\eta\rightarrow 0$ when $\sigma\rightarrow\infty$). Under these conditions and for a purely azimuthal rotation

[TABLE]

Thus for a magnetic field that is poloidal and azimuthally symmetric at $t=0$, $B_{\phi}$ (only) evolves with time:

[TABLE]

where we introduced the angular velocity ${\bm{\omega}}=\omega\,{\bf e}_{\phi}=\frac{v}{r}\,{\bf e}_{\phi}$ and used the solenoidality of the poloidal field.

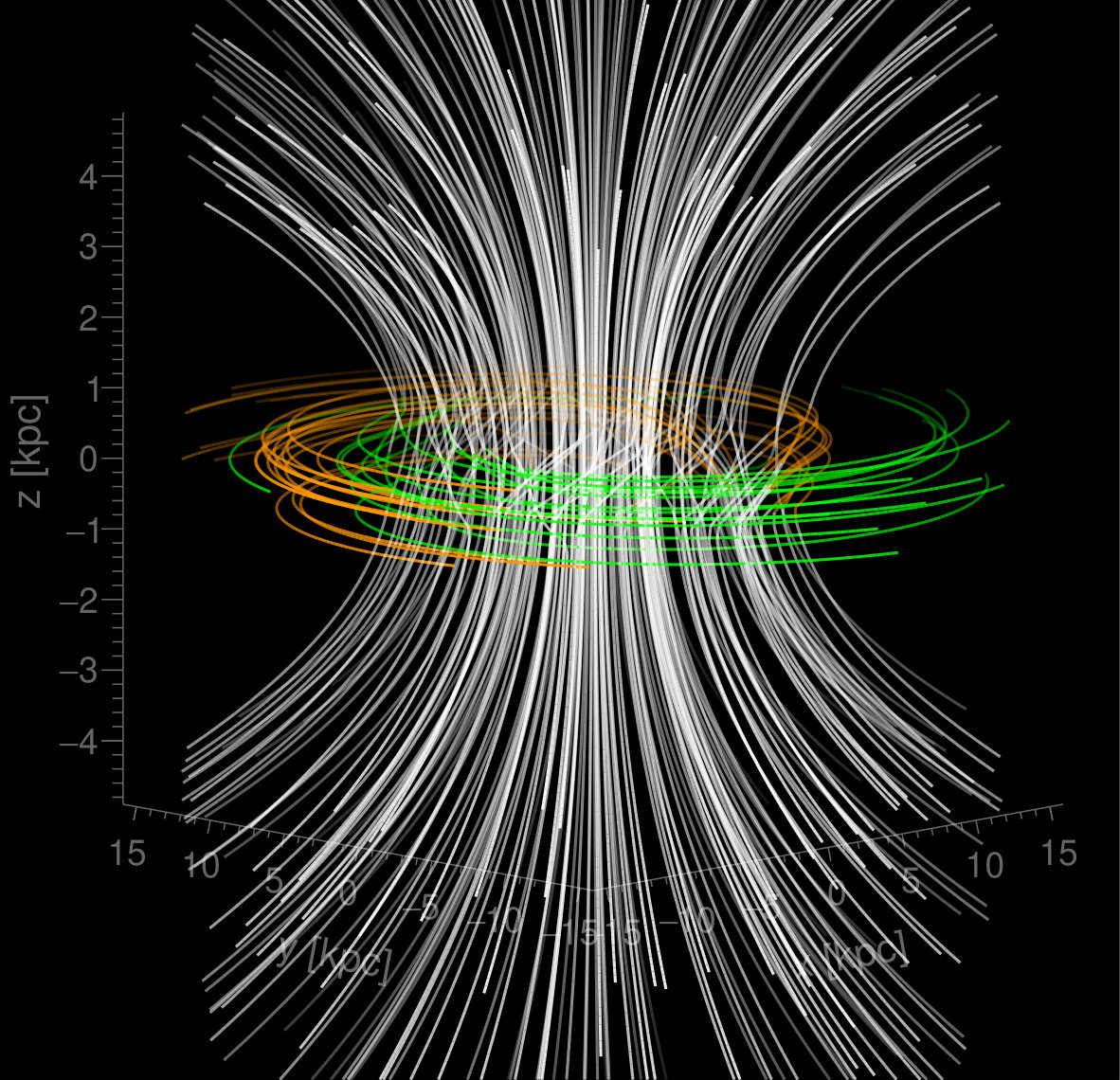

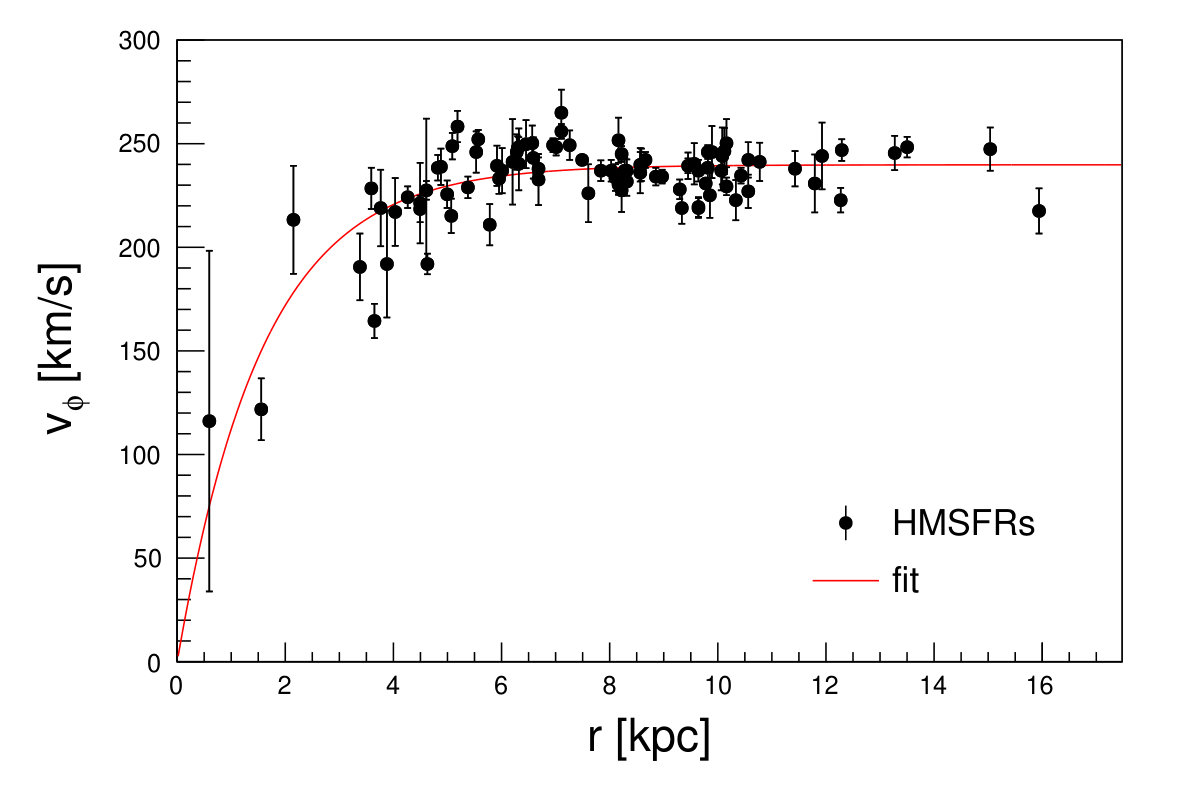

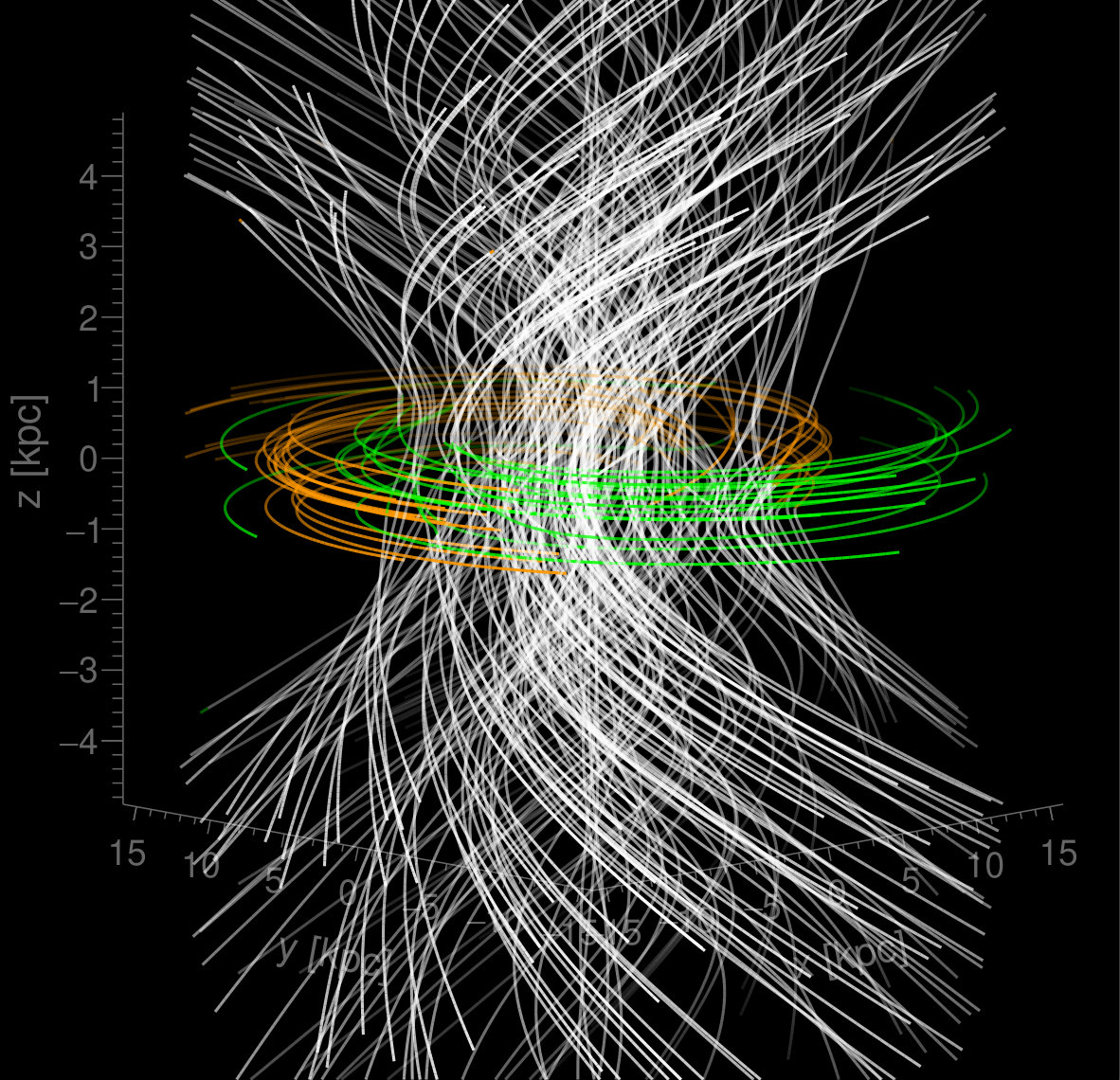

Eq. (7) can be applied to evolve any type of poloidal field. For definiteness, we tested this ansatz by evolving the smooth poloidal field model of type “C” from [17]. For the Galactic rotation curve we used a fit to the high-mass starforming regions with parallax measurements from [8] (see top right panel of Fig. 3) and for the vertical velocity gradient we assume a constant value inspired by simulations [18] and constrain it within two sigma of the value of (22$\pm$6) (km/s)/kpc as observed close to the Galactic midplane [19]. The resulting sky maps of RM, Q and U of the un-twisted model and the evolved model ($t=70$ Myr) are shown in the left and middle panel of Fig. 3. In contrast to the conclusions of [20], we find a good description of the overall structure of data from the combined effect of radial and vertical shear, in particular the anti-symmetric pattern of the rotation measures and the tilted pattern of Q and U within the Solar circle. (The analytics underlying the contrary conclusion of [20] are not apparent to us.) In a future work we will discuss the magnitude and physical origin of the effective winding time $\approx 70$ Myr.

2.5 Thermal Electron Model

A large-scale model of the density of thermal electrons in the Galaxy ($n_{e}$) is needed to predict the rotation measures for a given magnetic field configuration. The spatial distribution of $n_{e}$ can be estimated using dispersion measures of Galactic pulsars and scattering measures of Galactic and extragalactic sources. We have tested the impact of two different models for the thermal electron densities: NE2001 [21] with the updated scale height of the thick disk from [22] (used in JF12), and YMW17 [23]. The newer YMW17 model benefits from more available dispersion measures from pulsars with measured distances, but the more important difference between the two models is their particular parametric choices for the model components, such as for instance the thickness and pitch angles of the spiral arms. Both models give a similar good description of the observed dispersion measures of pulsars. The main difference between the models for inferring the magnetic fields is the different electron density in the halo. A larger magnetic field strength in the halo is inferred using YMW17 due to the lower density of electrons at large Galactic height in this model. The fitted field strengths for the toroidal and poloidal components are about a factor two larger than if derived using NE2001.

In addition to studying the influence of the warm ionized medium on the GMF modeling, we also tested the effect of adding the large-scale hot ionized medium from [24] to the calculation of RMs. No significant change of the inferred GMF was found in this case.

2.6 Correlation of $n_{e}$ and $B$

In the baseline fit for the parameters of the GMF the magnetic field and thermal electron density are taken to be uncorrelated. However, as pointed out in [25], pressure equilibrium between the ISM plasma and the magnetic field can lead to an anti-correlation between the two quantities, leading to an underestimation of the magnetic field inferred from RMs. By contrast, compression leads to an enhancement of both magnetic field and gas density and results in a positive correlation of the two quantities, leading to an overestimation of the magnetic field inferred from RMs if this is not taken into account.

An approximate relation between the uncorrelated rotation measure ${\rm RM}^{0}$ and the one observed in the presence of correlations was derived in [25] and reads as

[TABLE]

where ${b}$ and ${\overline{B}}$ denote the random and coherent magnetic field strength, respectively, and $\kappa=-1$ for pressure equilibrium and $\kappa=1$ for compression.

To study the effect of the two extreme cases $\kappa=\pm 1$, we implemented a combined fit of the random and coherent field strength. As expected, very different coherent magnetic field strengths are inferred for the two cases of $\kappa=\pm 1$. The total energy of the coherent magnetic field in the Galaxy is $4\times 10^{55}$ erg for $\kappa=-1$ and $4\times 10^{54}$ erg for $\kappa=+1$. Under the standard assumption of no correlation ($\kappa=0$), the coherent energy is $1\times 10^{55}$ erg. It is worthwhile noting that these are upper bounds on the effects of a possible $n_{e}$-$B$ correlation, because a) the assumed correlation coefficients are at the extreme values and b) the synchrotron product used in the comparison is the baseline one from WMAP7 without a spinning dust component, whose inferred random magnetic field is largest (cf. Sec. 2.8).

2.7 Cosmic-Ray Electrons

The density and spectrum of cosmic-ray electrons depends in two ways on the Galactic magnetic field: Firstly, the GMF determines the diffusion of the electrons from their sources through the Galaxy and, secondly, synchrotron losses in the GMF are the main cause of electron cooling apart from inverse Compton scattering above $\sim 10$ GeV. The JF12 fits used a two-dimensional $n_{\rm cre}$ model from a GalProp simulation with a uniform isotropic diffusion coefficient within a cylindrical volume of 4 kpc height. We have tested the three variants of the cosmic-ray electron densities used in [26], which are updated versions of the calculations described in [27] and [28]. The vertical extent of the diffusion volume of these simulations is 4 kpc and 10 kpc respectively. The inferred field strengths of the coherent GMF are relatively insensitive to these changes, because of the flexibility in the fit to adjust the relative scale between the RMs and the polarized intensity by changing the amount of striated fields, i.e. aligned anisotropic random fields that contribute to the polarized intensity, but not to the rotation measures. Further studies concerning the impact of cosmic-ray electrons are under investigation, in particular the effect of using a more detailed three-dimensional source distribution of relativistic electrons and interstellar radiation fields.

2.8 Synchrotron Data Products

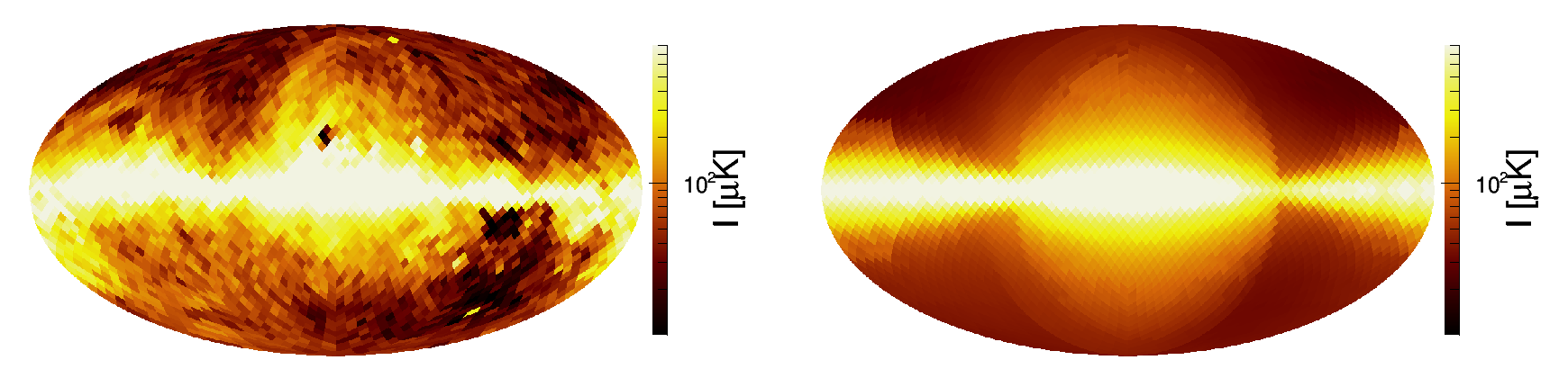

The parameters of the original JF12 model were inferred by using the 7-year WMAP synchrotron maps [14]. We have investigated the impact on the GMF fit, of using new synchrotron products provided in the 9-year final WMAP data release [29] and the Planck 2015 data release [30]. These products differ in the constraints applied to the measured Galactic microwave emission data to extract the synchrotron component. WMAP7 and the “base” model of WMAP9 fit the data with a sum of synchrotron, free-free and dust emission. All other models include a spinning dust component to describe the “anomalous microwave emission”. Moreover, different constraints to the spectral index of the synchrotron emission are applied in different products to extrapolate the prior from the low-frequency intensity map at 408 MHz [31].

Only small differences in the inferred coherent magnetic field are found for the various products on the polarized emission. However, as already noted in [26], the different treatment of the anomalous microwave emission in the models used for the different synchrotron products strongly affects the estimated total synchrotron intensities, and thus the random magnetic field component. This difference leads to a reduction of random field strength, by up to a factor of four in the disk, relative to JF12. Efforts to better determine the synchrotron component are ongoing.

3 Effect on UHECR Propagation

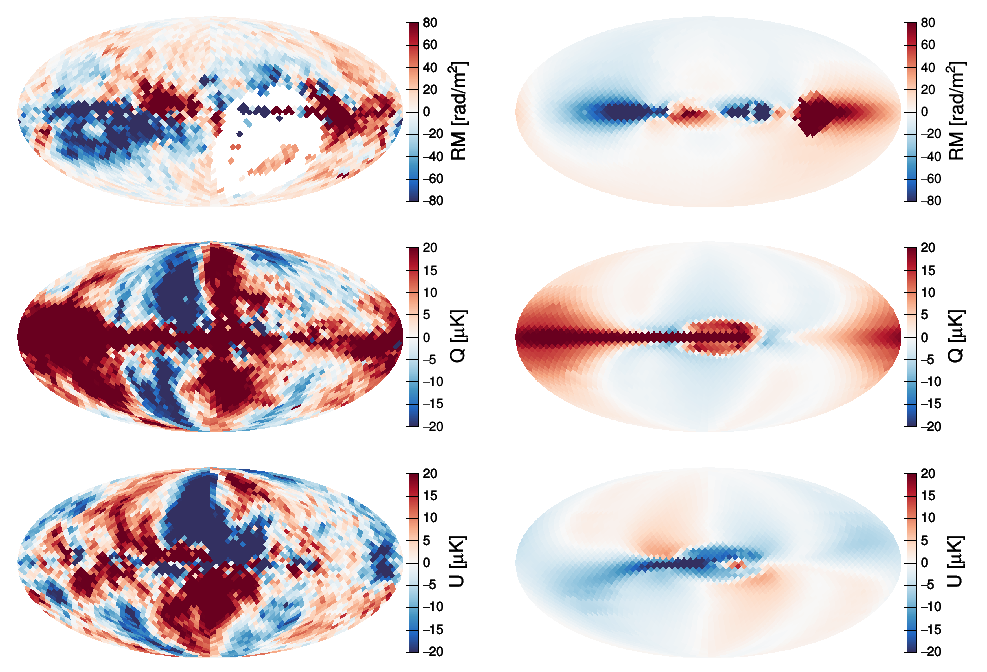

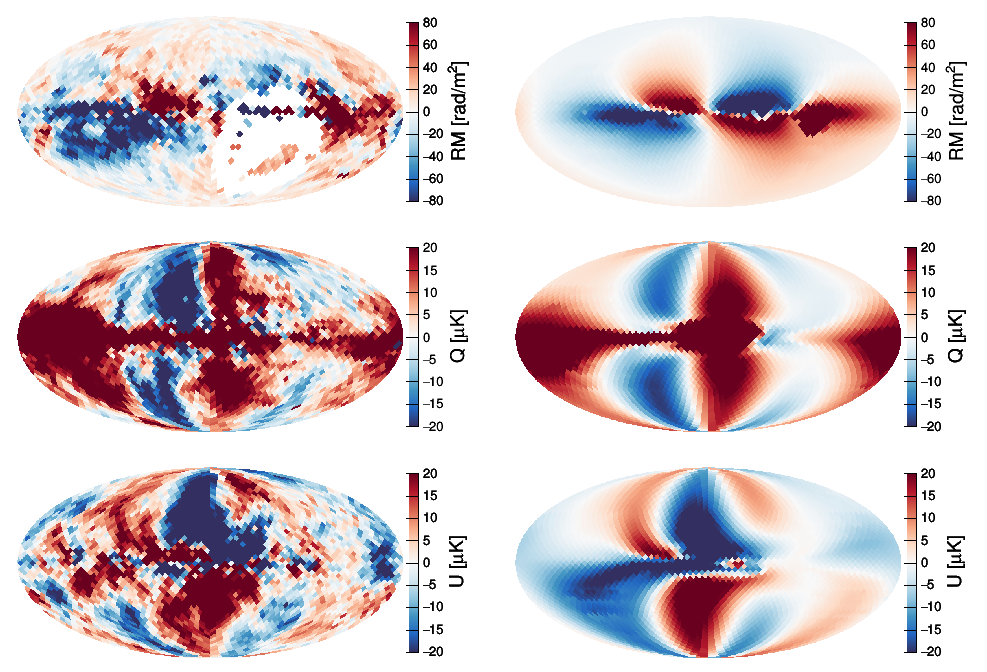

The variations and improvements described in the last section lead to different models of the GMF that all describe the RM, Q, U and I data well and can thus be regarded as currently-viable descriptions of the large-scale structure of the GMF. In total we constructed 20 variations of the JF12 model (see Tab. 1 in [6] for more details) and studied the impact of these models on the propagation of ultrahigh-energy cosmic rays in the Galaxy by backtracking charged particles from Earth to the edge of the Galaxy. The results are shown in Fig. 4 for particle rigidities $R\geq 20$ EV (rigidity = energy/charge). As can be seen, the deflections predicted by different models are mostly confined within well-defined regions on the sky. If the variations studied in this work were bracketing the extreme possibilities for the large-scale configuration of the GMF, then one could use these results to construct a correction for the spatially varying average deflection based on all models and apply it to the arrival directions of UHECRs together with the uncertainty given by the spread of different model prediction. However, the variations studied here are most probably not exhaustive and thus give only a lower limit on the current uncertainty of the inferred arrival direction of cosmic rays at the edge of the the Galaxy. Nevertheless, in era of high-statistics data from the Pierre Auger Observatory and Telescope Array, the time seems ripe to use our current knowledge of the large-scale structure of the GMF to enhance studies of correlations between astrophysical sources and the arrival directions of cosmic rays (see also [32]).

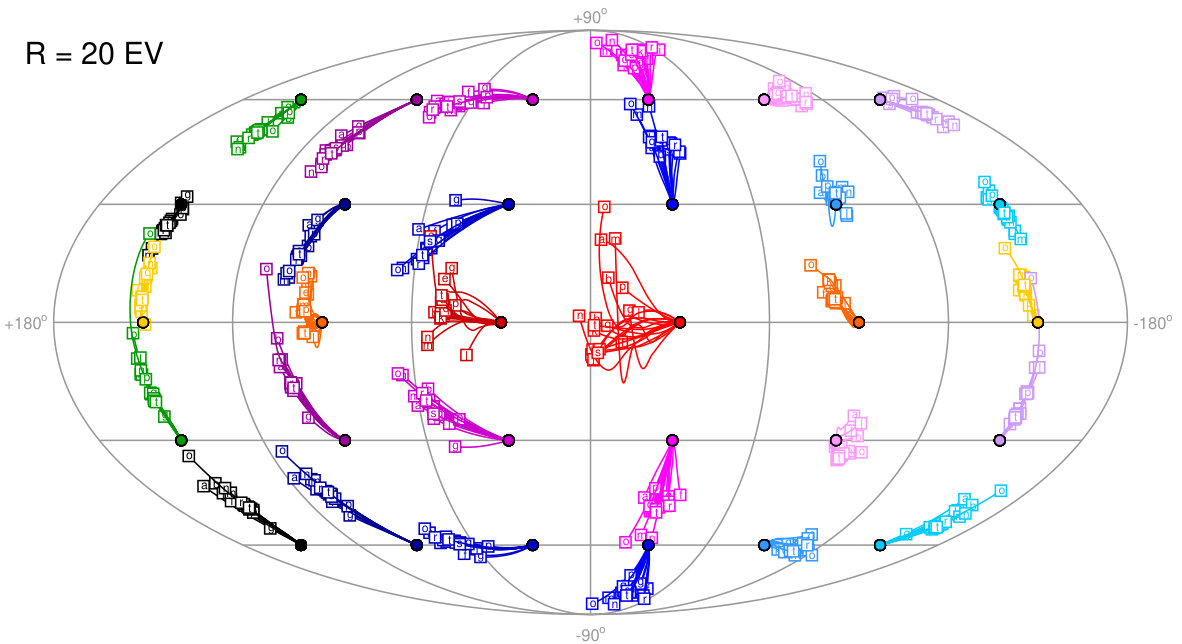

In this context it is also worthwhile noting that not all extragalactic sources can be observed at Earth, because there exists no trajectory through the GMF that would allow a charge particle of certain rigidity to reach Earth from that direction [15, 33, 34]. This effect can be conveniently described by the magnification factor [35, 15] of the flux arriving from a particular direction. Sky maps of the magnification factor can be constructed by performing many backtrackings from Earth on a fine isotropic angular grid and counting the number of trajectories leading from each extragalactic arrival direction to Earth [15, 33, 34]. The obtained magnification map satisfies Liouville’s theorem, since an isotropic flux of extragalactic cosmic rays will always lead to an isotropic flux at Earth by construction.

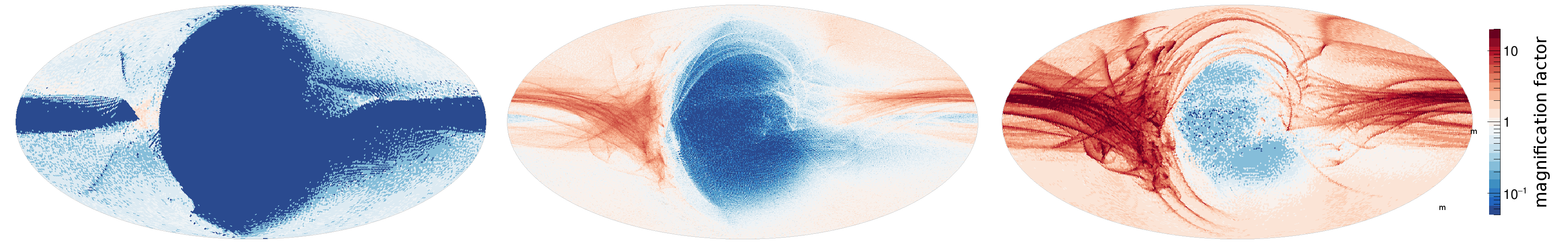

The minimum, average and maximum magnification factors of the 20 coherent GMF models studied in this work are shown in Fig. 5 for $R=$ 10 EV. As can be seen, the the GMF optics can cause magnification or demagnification of the extragalactic flux received at Earth. Especially for sources behind and below the Galactic center (as seen from Earth), the 20 model variations predict unanimously a large demagnification of the flux arriving at Earth (blue region in the right panel of Fig. 5). This is a general consequence of the poloidal component of the coherent field [33, 34] which is quite strong in the central region of the galaxy and persistently present in all 20 GMF models.

4 Summary

In these proceedings we have reported on progress in modeling the large-scale structure of the coherent and random magnetic field of the Galaxy. In addition to introducing new parametric models for the large-scale structure of the coherent GMF, we have studied the uncertainties of the underlying model assumptions inherent in the analysis as sketched in Fig. 6.

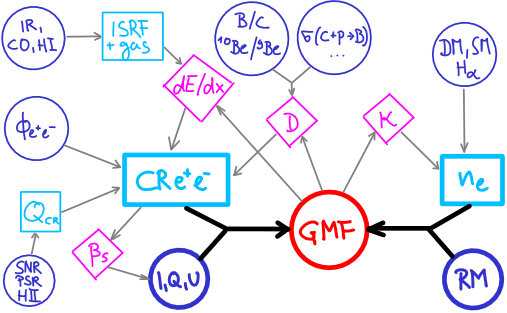

In the first level of inference, the GMF is estimated from Q,U&I and RM data (thick blue circles), using models of the thermal and cosmic-ray electron density (thick azure boxes). These models depend on further data (blue circles: DM, SM and Hα for $n_{e}$ and electron+positron fluxes at Earth, $\Phi_{e^{+}e^{-}}$, for $n_{\rm cre}$). The interpretation of RM relies on an assumption about the correlation of $n_{e}$ and $B$, which introduces a feedback loop into the inference process (magenta $\kappa$ diamond). Another feedback loop is added by energy loss of cosmic-ray electrons in the Galaxy, $\text{d}E/\text{d}x$, which is in part due to synchrotron cooling in the GMF. Further model-dependencies of the energy loss are introduced by interstellar radiation fields (inverse Compton) and gas (ionization). In addition, a model of the spacial distribution of cosmic-ray sources, $Q_{\text{CR}}$, (based on sparse data on SNRs and their tracers), is needed to calculate three-dimensional density of cosmic-ray electrons. Even the data itself is not free of model assumptions, as some of the the estimates of the synchrotron emission Q,U&I use the spectral index of synchrotron radiation $\beta_{S}$, which in turn depends on the energy spectrum of cosmic-ray electrons. The diffusion coefficient $D$ and its energy dependence is a direct effect of the GMF and in principle the diffusion coefficient could be self-consistently derived for any model of the GMF. However, usually $D$ is estimated from data on the secondary to primary ratios of the fluxes of cosmic-ray nuclei (e.g. B/C and ${}^{10}\text{Be}/^{9}\text{Be}$ given fragmentation cross sections $\sigma$ in collisions of cosmic-ray nuclei with protons and helium of the ISM).

The 20 model variations presented here constitute a to-our-knowledge unique attempt to quantify the uncertainties of large-scale models of the GMF. Although our study does not necessarily cover the full range of models compatible with the data, our preliminary conclusion is that the derived GMF models vary significantly, but that for a typical application such as the backtracking of ultrahigh-energy cosmic rays, the data constrains the models enough to encourage further studies of the possibility of deriving GMF models with a realistic uncertainty.
