Cosmology from the Chinese Space Station Optical Survey (CSS-OS)

TL;DR

The CSS-OS survey will significantly improve constraints on dark matter and dark energy by combining weak lensing and galaxy clustering data, surpassing current surveys in precision.

Contribution

This work presents the first detailed forecast of cosmological constraints from CSS-OS, including systematics and joint analyses, highlighting its potential for cosmology.

Findings

CSS-OS can improve cosmological parameter constraints by up to an order of magnitude.

Joint analysis of WL, galaxy clustering, and galaxy-galaxy lensing enhances constraints.

Systematic effects are considered, providing realistic forecasts.

Abstract

The Chinese Space Station Optical Survey (CSS-OS) is a planned full sky survey operated by the Chinese Space Station Telescope (CSST). It can simultaneously perform the photometric imaging and spectroscopic slitless surveys, and will probe weak and strong gravitational lensing, galaxy clustering, individual galaxies and galaxy clusters, active galactic nucleus (AGNs), and so on. It aims to explore the properties of dark matter and dark energy and other important cosmological problems. In this work, we focus on two main CSS-OS scientific goals, i.e. the weak gravitational lensing (WL) and galaxy clustering surveys. We generate the mock CSS-OS data based on the observational COSMOS and zCOSMOS catalogs. We investigate the constraints on the cosmological parameters from the CSS-OS using the Markov Chain Monte Carlo (MCMC) method. The intrinsic alignments, galaxy bias, velocity dispersion, and systematics from instrumental effects in the CSST WL and galaxy clustering surveys are also included, and their impacts on the constraint results are discussed. We find that the CSS-OS can improve the constraints on the cosmological parameters by a factor of a few (even one order of magnitude in the optimistic case), compared to the current WL and galaxy clustering surveys. The constraints can be further enhanced when performing joint analysis with the WL, galaxy clustering, and galaxy-galaxy lensing data. Therefore, the CSS-OS is expected to be a powerful survey for exploring the Universe. Since some assumptions may be still optimistic and simple, it is possible that the results from the real survey could be worse. We will study these issues in details with the help of simulations in the future.

Figures

Tables

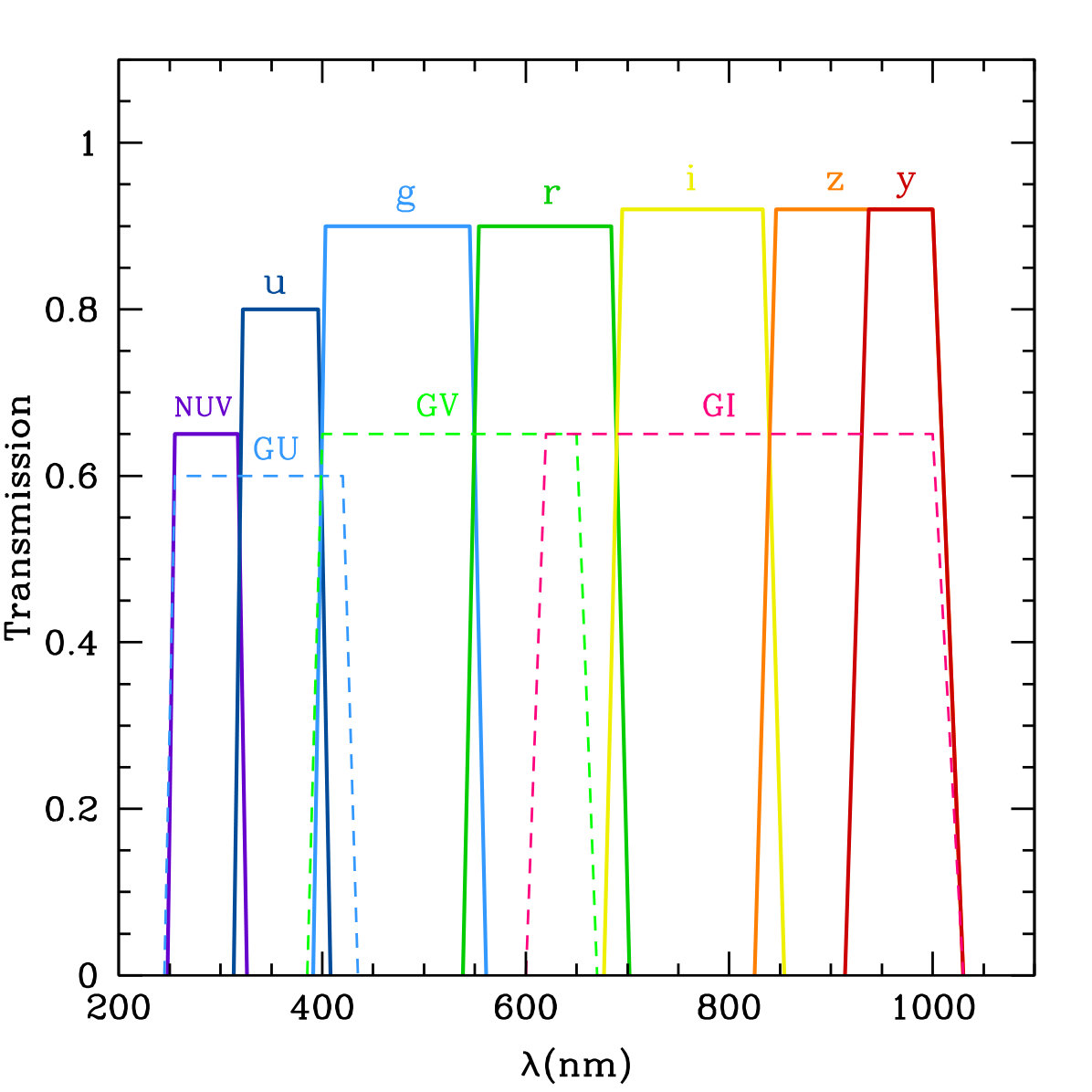

Table 1. Table 1 Designed and assumed parameters of the CSST photometric and spectroscopic surveys.

Survey Characteristics
Telescope	2 m primary, off-axis TMA, orbit $\sim$ 400 km, duration $\sim$ 10 yrs
Survey mode	Photometric imaging + slitless spectroscopic joint survey
Wide survey	15000 deg2 ($\left|b\right|\gtrsim$20∘) + 2500 deg2 (20∘)
Deep survey	400 deg2 (selected areas)
Field of view	$\gtrsim$ 1.1 deg2
Photometric wide survey
Bands	$NUV$	$u$	$g$	$r$	$i$	$z^{\ast }$	$y^{\ast }$
Wavelength (${\lambda }_{-90}-{\lambda }_{+90}$ nm)	$255-317$	$322-396$	$403-545$	$554-684$	$695-833$	$846-1000$	$937-1000$
Exposure time	$150$ s $\times 4$	$150$ s $\times 2$	$150$ s $\times 2$	$150$ s $\times 2$	$150$ s $\times 2$	$150$ s $\times 2$	$150$ s $\times 4$
Sensitivity (point/extendeda)	$25.4/24.2$	$25.4/24.2$	$26.3/25.1$	$26.0/24.8$	$25.9/24.6$	$25.2/24.1$	$24.4/23.2$
PSF size ($\le R_{\mathrm{EE80}}$/FWHMb)	${0.15}^{\prime \prime }/{0.20}^{\prime \prime }$	${0.15}^{\prime \prime }/{0.20}^{\prime \prime }$	${0.15}^{\prime \prime }/{0.20}^{\prime \prime }$	${0.15}^{\prime \prime }/{0.20}^{\prime \prime }$	${0.16}^{\prime \prime }/{0.21}^{\prime \prime }$	${0.18}^{\prime \prime }/{0.24}^{\prime \prime }$	${0.18}^{\prime \prime }/{0.24}^{\prime \prime }$
Spectroscopic wide survey (gratings)
Bands	$GU$		$GV$		$G{I}^{\ast }$
Wavelength (${\lambda }_{-90}-{\lambda }_{+90}$ nm)	$255-420$		$400-650$		$620-1000$
Exposure time	$150$ s $\times 4$		$150$ s $\times 4$		$150$ s $\times 4$
Sensitivityc [mag / (erg$/$s$/$cm${}_{}{}^2)$]	$20.5$ / $1.0\times {10}^{-15}$		$21.0$ / $4.0\times {10}^{-16}$		$21.0$ / $2.6\times {10}^{-16}$
Spectral resolution $R$ d	$\ge 200$		$\ge 200$		$\ge 200$

Table 2. Table 2 The fiducial values and ranges of the free parameters in the model.

Parameter	fiducial value	flat prior
	Cosmology
${\Omega }_m$	0.3	(0, 1)
${\Omega }_b$	0.05	(0, 0.1)
${\sigma }_8$	0.8	(0.4, 1)
$n_s$	0.96	(0.9, 1)
$w_0$	-1	(-5, 5)
$w_a$	0	(-10, 10)
$h$	0.7	(0, 1)
	Intrinsic alignment
$A_{\mathrm{IA}}$	-1	(-5, 5)
${\eta }_{\mathrm{IA}}$	0	(-5, 5)
	Galaxy bias
$b_g^a$	(1.15, 1.45, 1.75, 2.05, 2.35)	(0, 4)
	Velocity dispersion
${\sigma }_{v0}^a$	(6.09, 4.83, 4.0, 3.41, 2.98)	(0, 10)
	Photo-$z$ calibration
$\Delta z_i$	(0, 0, 0, 0)	(-0.1, 0.1)
${\log }_{10}\left(s_z^i\right)$	(0, 0, 0, 0)	(-0.1, 0.1)
	Shear calibration
$m_i$	(0, 0, 0, 0)	(-0.1, 0.1)

Equations

$$n_i(z)={\int }_{z_{\mathrm{p},\mathrm{l}}^i}^{z_{\mathrm{p},\mathrm{u}}^i}\mathrm{d}{z}_{\mathrm{p}}n(z)p(z_{\mathrm{p}}|z),$$

$$p(z_{\mathrm{p}}|z)=\frac{1}{\sqrt{2\pi }{\sigma }_z}\exp \left[-\frac{(z-z_{\mathrm{p}}-\Delta z{)}^2}{2{\sigma }_z^2}\right],$$

$$n_i(z)=\frac{1}{2}n(z)\left[\mathrm{erf}(x_{\mathrm{u}}^i)-\mathrm{erf}(x_{\mathrm{l}}^i)\right],$$

$$x_{u/l}^i=\left(z_{\mathrm{p},u/l}^i-z+\Delta z\right)/\sqrt{2}{\sigma }_z.$$

$${\tilde{C}}_{\gamma }^{ij}(\ell )=(1+m_i)(1+m_j)C_{\gamma }^{ij}(\ell )+{\delta }_{ij}\frac{{\sigma }_{\gamma }^2}{{\bar{n}}_i}+N_{\mathrm{add}}^{ij}(\ell ),$$

$$C_{\gamma }^{ij}(\ell )=P_{\kappa }^{ij}(\ell )+C_{\mathrm{II}}^{ij}(\ell )+C_{\mathrm{GI}}^{ij}(\ell ).$$

$$P_{\kappa }^{ij}(\ell )={\int }_0^{{\chi }_{\mathrm{H}}}\mathrm{d}\chi \frac{q_i(\chi )q_j(\chi )}{r^2(\chi )}{P}_{\mathrm{m}}\left(\frac{\ell +1/2}{r(\chi )},\chi \right),$$

$$q_i(\chi )=\frac{3{\Omega }_{\mathrm{m}}{H}_0^2}{2c^2}\frac{r(\chi )}{a(\chi )}{\int }_{\chi }^{{\chi }_{\mathrm{H}}}\mathrm{d}{\chi }^{\prime }{n}_i({\chi }^{\prime })\frac{r({\chi }^{\prime }-\chi )}{r({\chi }^{\prime })},$$

$$C_{\mathrm{II}}^{ij}(\ell )={\int }_0^{{\chi }_{\mathrm{H}}}\mathrm{d}\chi \frac{n_i(\chi )n_j(\chi )F_i(\chi )F_j(\chi )}{r^2(\chi )}{P}_{\mathrm{m}}\left(\frac{\ell +1/2}{r(\chi )},\chi \right),$$

$$C_{\mathrm{GI}}^{ij}(\ell )$$

$$F_i(\chi )=-A_{\mathrm{IA}}{C}_1{\rho }_{\mathrm{c}}\frac{{\Omega }_{\mathrm{m}}}{D(\chi )}{\left(\frac{1+z}{1+z_0}\right)}^{{\eta }_{\mathrm{IA}}}{\left(\frac{L_i}{L_0}\right)}^{{\beta }_{\mathrm{IA}}},$$

$$\mathrm{Cov}\left[{\tilde{C}}_{\gamma }^{ij}(\ell ),{\tilde{C}}_{\gamma }^{mn}({\ell }^{\prime })\right]$$

$$P_g^{(\mathrm{s})}(k,\mu )=\sum _{\ell }{P}_{\ell }^g(k){\mathcal{L}}_{\ell }(\mu ),$$

$$P_{\ell }^g(k)=\frac{2\ell +1}{2{\alpha }_{\perp }^2{\alpha }_{\parallel }}{\int }_{-1}^1\mathrm{d}\mu P_g^{(\mathrm{s})}(k^{\prime },{\mu }^{\prime }){\mathcal{L}}_{\ell }(\mu ).$$

$$P_g^{(\mathrm{s})}(k^{\prime },{\mu }^{\prime })=P_g(k^{\prime })(1+\beta {\mu }^{\prime 2}{)}^2\mathcal{D}(k^{\prime },{\mu }^{\prime }),$$

$$\mathcal{D}(k^{\prime },{\mu }^{\prime })=\exp \left[-{\left(k^{\prime }{\mu }^{\prime }{\sigma }_{\mathrm{D}}\right)}^2\right].$$

$${\tilde{P}}_{\ell }^{g,a}(k)=P_{\ell }^{g,a}(k)+\frac{1}{{\bar{n}}_g^a}+N_{\mathrm{sys}}^{g,a},$$

$${\sigma }_{P_{\ell }^g}^a(k)=2\pi \sqrt{\frac{1}{V_{\mathrm{S}}^a{k}^2\Delta k}}{\tilde{P}}_{\ell }^{g,a}(k),$$

$$V_{\mathrm{eff}}^{\ell ,a}(k)\equiv {\left[1+\frac{1}{{\bar{n}}_g^a{P}_{\ell }^{g,a}(k)}+\frac{N_{\mathrm{sys}}^{g,a}}{P_{\ell }^{g,a}(k)}\right]}^{-2}{V}_{\mathrm{S}}^a.$$

$$C_g^{ab}(\ell )={\int }_0^{{\chi }_{\mathrm{H}}}\mathrm{d}\chi \frac{b_g^2(k,\chi ){\hat{n}}_g^a(\chi ){\hat{n}}_g^b(\chi )}{r^2(\chi )}{P}_{\mathrm{m}}\left(\frac{\ell +1/2}{r(\chi )},\chi \right),$$

$${\tilde{C}}_g^{ab}(\ell )=C_g^{ab}(\ell )+\frac{{\delta }_{ab}}{{\bar{n}}_g^{\prime a}}+N_{\mathrm{sys}}^{\prime g,ab}(\ell ),$$

$$C_{g\gamma }^{ai}(\ell )=C_{g\kappa }^{ai}(\ell )+C_{g\mathrm{I}}^{ai}(\ell ),$$

$$C_{g\kappa }^{ai}(\ell )={\int }_0^{{\chi }_{\mathrm{H}}}\mathrm{d}\chi \frac{b_g(k,\chi ){\hat{n}}_g^a(\chi )q_i(\chi )}{r^2(\chi )}{P}_{\mathrm{m}}\left(\frac{\ell +1/2}{r(\chi )},\chi \right),$$

$$C_{g\mathrm{I}}^{ai}(\ell )={\int }_0^{{\chi }_{\mathrm{H}}}\mathrm{d}\chi \frac{b_g(k,\chi ){\hat{n}}_g^a(\chi )n_i(\chi )F_i(\chi )}{r^2(\chi )}{P}_{\mathrm{m}}\left(\frac{\ell +1/2}{r(\chi )},\chi \right).$$

$$\mathrm{Cov}\left[C_{g\gamma }^{ai}(\ell ),C_{g\gamma }^{bj}({\ell }^{\prime })\right]$$

$$r_{ai}(\ell )=\frac{C_{g\kappa }^{ai}(\ell )}{\sqrt{C_g^{aa}(\ell )P_{\kappa }^{ii}(\ell )}}.$$

$${\chi }^2=\sum _{i,j}^N\left(C_{\mathrm{mock}}^i-C_{\mathrm{th}}^i\right){\mathrm{Cov}}_{ij}^{-1}\left(C_{\mathrm{mock}}^j-C_{\mathrm{th}}^j\right),$$

Full text

1. Introduction

Understanding the nature of dark matter and dark energy, and formation and evolution of the cosmic large-scale structure (LSS) is essential for the study of cosmology. A number of powerful observational tools, such as weak gravitational lensing (WL) (e.g. Kaiser, 1992, 1998), baryon acoustic oscillations (BAO) (e.g. Eisenstein, 2005; Eisenstein et al., 2005), and redshift-space distortion (RSD) (e.g. Jackson, 1972; Kaiser, 1987), have been applied for solving these issues. A few Stage IV ground- and space-borne telescopes, e.g. the Large Synoptic Survey Telescope (LSST)111https://www.lsst.org/ (Ivezic et al., 2008; Abell et al., 2009), $Euclid$ space telescope222https://www.euclid-ec.org/ (Laureijs et al., 2011), and Wide Field Infrared Survey Telescope (WFIRST)333https://wfirst.gsfc.nasa.gov/, have been planned to perform these measurements. These powerful surveys are expected to make great improvements on related scientific objectives. The Chinese Space Station Optical Survey (CSS-OS) is another this kind of sky survey.

The CSS-OS is a major science project established by the space application system of the China Manned Space Program, which will be performed by the Chinese Space Station Telescope (CSST) (Zhan, 2011, 2018; Cao et al., 2018). The CSST is a 2-meter space telescope in the same orbit of the China Manned Space Station, and is planned to be launched at the end of 2022. The CSS-OS will cover 17500 deg2 sky area in about ten years with field of view $1.1$ deg2. It will simultaneously perform both photometric imaging and slitless grating spectroscopic surveys with high spatial resolution $\sim 0.15^{\prime\prime}$ (80% energy concentration region) and wide wavelength coverage. There are seven photometric imaging bands and three spectroscopic bands covering 255-1000 nm (see Table 1 and Figure 1). A few important cosmological and astronomical objectives will be explored by the CSS-OS, such as the properties of dark matter and dark energy, cosmic large-scale structure, galaxy formation and evolution, galaxy clusters, active galactic nucleus (AGNs), etc. Comparing to other next generation surveys, the CSS-OS has several advantages, such as wider wavelength coverage, larger number of filters, smaller spatial resolution, better image quality, simultaneous photo+spec performance. Therefore, the CSS-OS is expected to be a powerful survey for probing the Universe, which is comparable and even more robust in some aspects than other Stage IV surveys (Zhan, 2011).

In this work, we predict the measurements of weak lensing and galaxy clustering for the CSS-OS, and investigate the constraint accuracy of the cosmological parameters. We make use of two catalogs from the real observations, i.e. COSMOS and zCOSMOS surveys, as the mock catalogs for the CSST photometric and spectroscopic surveys, respectively. These two catalogs have similar magnitude limits as the CSS-OS, and can well represent the CSST observations. For the weak lensing survey, we derive the galaxy redshift distribution from the mock catalog, and divide it into several photometric redshift (photo-$z$) bins to calculate the auto and cross convergence power spectra. The galaxy intrinsic alignments and systematics (multiplicative and additive) due to point spread function, photometry offsets, instrumental noise, etc., are included when estimating the errors. We also evaluate the redshift-space galaxy clustering power spectra in the CSST spectroscopic survey with slitless gratings. The multipole power spectra are calculated in the spectroscopic redshift (spec-$z$) bins, and the effects of frequency resolution, galaxy bias, velocity dispersion, and systematic errors are considered in the error estimate. Then we compute the observed CSS-OS angular cross power spectra of the weak lensing and galaxy clustering, i.e. galaxy-galaxy lensing power spectra. The mock data of weak lensing, galaxy clustering, and their cross correlation are used in the constraints on the cosmological parameters. The Markov Chain Monte Carlo (MCMC) technique is adopted to illustrate the probability distributions of the parameters.

The paper is organized as follows: the weak lensing, galaxy clustering, and galaxy-galaxy lensing power spectra surveys are discussed in Section 2, 3, and 4, respectively. In section 5, we show the details of fitting process using the MCMC method. The constraint results are shown in Section 6. We finally summarize the conclusions in Section 7. Throughout the paper, we assume the flat $\Lambda$CDM cosmology with $\Omega_{\rm m}=0.3$, $\Omega_{\rm b}=0.05$, $\sigma_{8}=0.8$, $n_{\rm s}=0.96$, and $h=0.7$ as the fiducial model.

2. Weak lensing survey

The CSS-OS covers 17500 deg2 survey area in the photometric imaging survey with survey depth $i\simeq 26$ AB magnitude (5$\sigma$ detection for point sources)(Cao et al., 2018). It has seven filters, i.e. $NUV$, $u$, $g$, $r$, $i$, $z$, and $y$ bands, which covers the wavelength range 255-1000 nm (see Figure 1). The point spread function (PSF) of the CSS-OS is designed to be as small as 0.15” within 80% energy concentration, and it requires the maximum PSF ellipticity is less than 0.15 at any position of the field of view (FoV), and the average value is less than 0.05. Hence it is expected to obtain excellent galaxy shape measurements for the weak lensing study. In this section, we discuss the predicated galaxy redshift distribution and shear power spectra for the CSS-OS.

2.1. Galaxy photometric redshift distribution

Following Cao et al. (2018), we adopt a galaxy redshift distribution $n(z)$ derived from the COSMOS catalog for the CSS-OS photometric survey (Capak et al., 2007; Ilbert et al., 2009). This catalog contains about 220,000 galaxies in 2 deg2, and has similar magnitude limit as the CSS-OS with $i\leq 25.2$ for galaxy observation. Although the survey area of the CSS-OS is much larger, it can represent the redshift and magnitude distributions, and galaxy types observed by the CSS-OS. The CSS-OS redshift distribution derived from this catalog is shown in dotted line in Figure 2. We can find that the redshift distribution has a peak around $z=0.6$, and can extend to $z\sim 4$.

In order to extract more information from the weak lensing data, we divide the redshift range into different photo-$z$ tomographic bins, and study the auto and cross power spectra of these bins. As shown in Figure 2, for instance, we divide the redshift range into four photo-$z$ bins (gray vertical lines). The first three bins has equal interval with $\Delta_{z}=0.6$, and the last bin occupies the rest of the redshift range of redshift distribution444There are several binning strategies can be adopted in the weak lensing tomographic studies, such as equal binning, $\Delta_{z}\sim 1+z$ binning, etc. We find that the results would not be sensitive to the binning strategy, as long as there is not much difference (in one order of magnitude) of the average source number densities between the bins.. Note that the fitting results of the cosmological parameters also depends on the number of photo-$z$ bins (e.g. Huterer, 2002). Under the assumptions of the systematics as discussed in Section 2.2, we find that although more number of bins may further improve the constraint results, the improvement is not much significant (averagely a factor of $\sim$1.3 and $\sim$1.5 on the standard deviations of cosmological parameters for the five and six photo-$z$ bins cases, respectively). Considering the purpose of this work, a four-bin division is adequate for our study. More number of bins can be used in the real data analysis, which may help to improve the constraints on the cosmological parameters.

The real galaxy redshift distribution in the $i$th photo-z bin can be expressed as (e.g. Ma et al., 2006)

[TABLE]

where $z_{\rm p,l}^{i}$ and $z_{\rm p,u}^{i}$ are the lower and upper limits of the $i$th photo-$z$ bin, $n(z)$ is the total redshift distribution, and $p(z_{\rm p}|z)$ is the photo-$z$ distribution function given the real redshift $z$. We assume it takes the form as

[TABLE]

where ${\Delta z}$ and $\sigma_{z}$ are the redshift bias and scatter, respectively, which vary as functions of redshift. In this work, we assume that they are constants in different photo-$z$ bins, and treat them as free parameters when fitting the data. Then the $n_{i}(z)$ in Eq. (1) can be reduced to

[TABLE]

where ${\rm erf}(x)$ is the error function, and

[TABLE]

Note that we always have $n(z)=\sum_{i}n_{i}(z)$, no matter what form $n_{i}(z)$ takes.

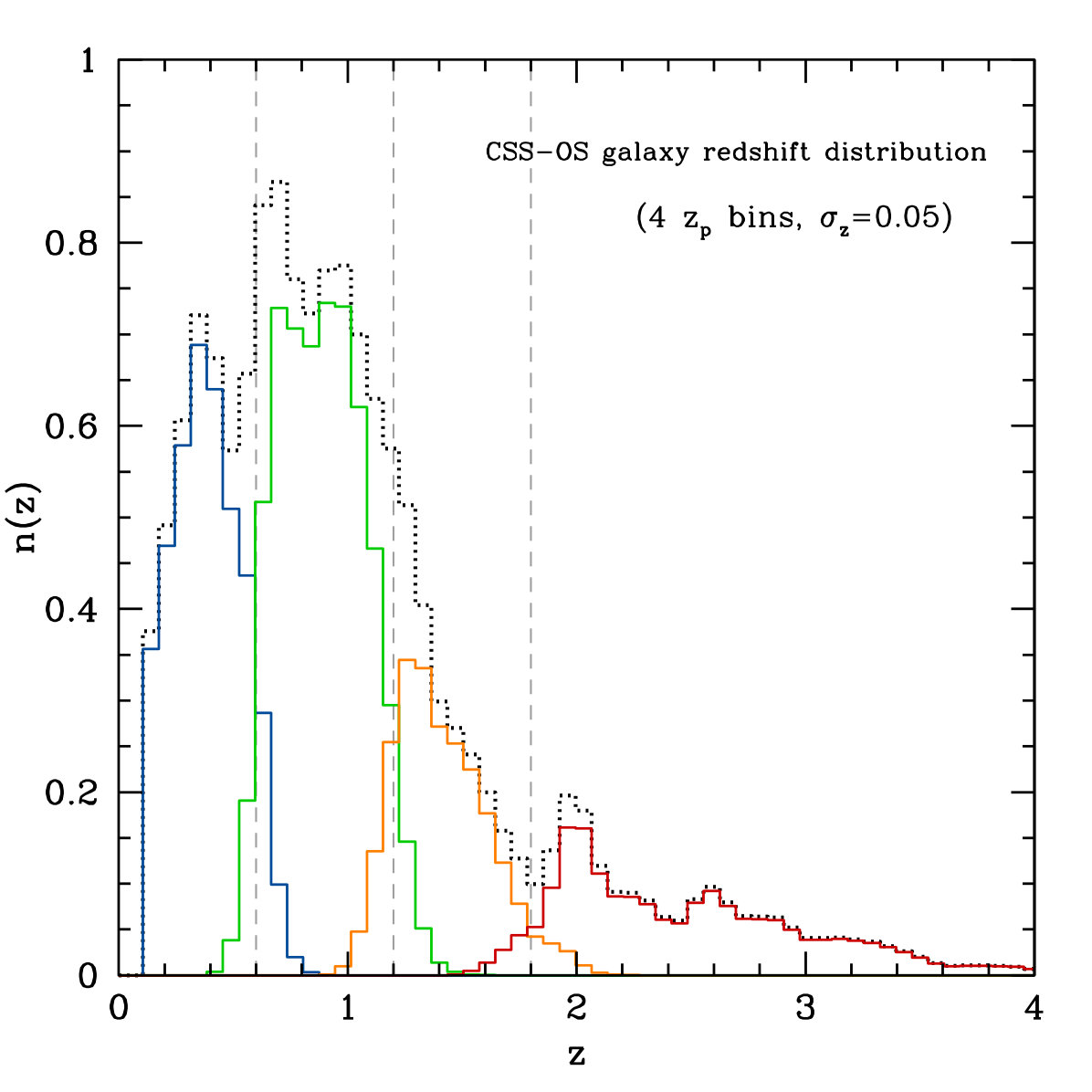

In Figure 2, the solid blue, green, orange, and red lines show the $n_{i}(z)$ for the four photo-$z$ bins with ${\Delta z}=0$ and $\sigma_{z}=0.05$. In the COSMOS catalog, we find that there are about 208,000 galaxies with $\sigma_{z}\leq 0.05$, which take about 95% of the whole sample (Cao et al., 2018). This number can be used, as a reference, to estimate the galaxy number density in the CSS-OS weak lensing survey. We will adopt the $n_{i}(z)$ shown in Figure 2 and the estimated number density in the following WL discussion.

2.2. Shear power spectra

Considering intrinsic alignments and systematics, the measured shear power spectrum at a given multipole $\ell$ for the $i$th and $j$th tomographic bins can be estimated by (e.g. Huterer et al., 2006; Amara & Refregier, 2008)

[TABLE]

where $C_{\gamma}^{ij}(\ell)$ is named as signal power spectrum, which is composed of three components (e.g. Hildebrandt et al., 2016; Troxel et al., 2017; Joudaki et al., 2017)

[TABLE]

Here $P_{\kappa}^{ij}(\ell)$ is the convergence power spectrum, which is the desired galaxy shear power spectrum for cosmological analysis. The $C_{\rm II}^{ij}(\ell)$ and $C_{\rm IG}^{ij}(\ell)$ are Intrinsic-Intrinsic (II), and Gravitational-Intrinsic (GI) power spectra, respectively. They are accounting for the intrinsic galaxy alignment effects, that “II” denotes the correlation of the intrinsic ellipticities between neighbouring galaxies, and “GI” means the correlation between the intrinsic ellipticity of a foreground galaxy and the gravitational shear of a background galaxy (see e.g. Joachimi et al., 2016). Assuming Limber and flat-sky approximations (Limber, 1954), we have

[TABLE]

where $\chi$ is the comoving radial distance, $\chi_{\rm H}=\chi(z=5)$ denotes the horizon distance, and $r(\chi)$ is the comoving angular diameter distance. $P_{\rm m}$ is the matter power spectrum, which is calculated by the halo model (Cooray & Sheth, 2002). $q_{i}(\chi)$ is the lensing weighting function in the $i$th tomographic bin

[TABLE]

where $H_{0}=100\,h$ is the Hubble constant, $c$ is the speed of light, $a=1/(1+z)$ is the scale factor. $n_{i}(\chi)$ is the normalized source galaxy distribution of the $i$th tomographic bin, and $\int n_{i}(\chi){\rm d}\chi=1$. The intrinsic-intrinsic and gravitational-intrinsic power spectra are given by

[TABLE]

and

[TABLE]

Here $F_{i}(\chi)$ is written as

[TABLE]

where $C_{1}=5\times 10^{-14}\ h^{-2}M_{\sun}^{-1}{\rm Mpc}^{3}$, $\rho_{\rm c}$ is the present critical density, $D(\chi)$ is the linear growth factor normalized to unity at $z=0$, and $z_{0}=0.6$ and $L_{0}$ are pivot redshift and luminosity, respectively. $A_{\rm IA}$, $\eta_{\rm IA}$, and $\beta_{\rm IA}$ are free parameters in this model. For simplicity, we fix $\beta_{\rm IA}=0$ here, i.e. we do not consider luminosity dependence, since the change of the average luminosity can be ignored across different tomographic bins (Hildebrandt et al., 2016; Joudaki et al., 2017). The fiducial values of $A_{\rm IA}$ and $\eta_{\rm IA}$ are set to be -1 and 0, respectively, when producing mock data.

In the shot-noise term $N^{\rm shot}_{\gamma}$ of Eq. (5), $\sigma^{2}_{\gamma}=0.04$ is the shear variance per component caused by intrinsic ellipticity and measurement error, and $\bar{n}_{i}$ is the average galaxy number density in a given tomographic bin per steradian. According to the mock CSS-OS catalog, we assume $\sim 100,000$ galaxies with $\sigma_{z}\leq 0.05$ per deg2 (with $\sim 9.0\%$ outlier fraction) can be observed by the CSS-OS. This corresponds to a total density $\sim$28 arcmin*-2*, and $\bar{n}_{i}=7.9$, 11.5, 4.6, and 3.7 $\rm arcmin^{-2}$ for the four redshift bins. Note that the number density estimated here can be smaller in the real observations, considering the complicated instrumental and astrophysical uncertainties. We need to perform realistic simulations to evaluate these effects in the future work.

Besides, we also consider the systematic errors in the CSS-OS weak lensing measurements. In Eq. (5), $m_{i}$ accounts for the effect of the multiplicative error in the $i$th redshift bin, which is averaged over all directions and galaxies in that bin. We assume it varies independently in different tomographic bins, and treat it as a free parameter in a given photo-$z$ bin in the fitting process (Troxel et al., 2017). We set $m_{i}=0$ as fiducial value in each bin when generating mock data.

The $N^{ij}_{\rm add}$ in Eq. (5) is the additive error, which can be generated by the anisotropy of the PSF (Huterer et al., 2006). In principle, $N^{ij}_{\rm add}(\ell)$ could vary at different scales and in different redshift bins, and also can appear in the correlations between bins (Huterer et al., 2006; Amara & Refregier, 2008; Amara et al., 2010). For simplicity, we adopt an average constant $\bar{N}_{\rm add}$ over all scales of all auto and cross shear power spectra for different tomographic bins (Zhan, 2006). Based on the estimates of STEP (the Shear Testing Programme) and GREAT10 (the Gravitational Lensing Accuracy Testing 2010), the $\bar{N}_{\rm add}$ can be controlled within $10^{-10}$ with $S/N\sim 10$ in the Stage IV weak lensing surveys (Heymans et al., 2006; Massey et al., 2007; Kitching et al., 2012; Massey et al., 2013). We find that the $S/N$ of most CSS-OS galaxies is around 7 for the most important $g$, $r$, and $i$ bands (Cao et al., 2018). Although the $\bar{N}_{\rm add}$ are expected to achieve $\sim 10^{-10}$ when adding up the flux of all seven CSST imaging bands, we would take a conservative estimate with $\bar{N}_{\rm add}=10^{-9}$ as a moderate value in this work. We will discuss $\bar{N}_{\rm add}=10^{-8}$ and $10^{-10}$ as pessimistic and optimistic cases.

The covariance matrix of the shear power spectra can be estimated by (Hu & Jain, 2004; Huterer et al., 2006; Joachimi et al., 2008)

[TABLE]

where $\widetilde{C}^{ij}_{\gamma}(\ell)$ is the observed shear power spectrum given by Eq. (5), and $f_{\rm sky}$ is the sky coverage fraction of the survey. The CSS-OS can cover 17500 deg2, but after removing masked area (covering image defects, reflections, ghosts, etc.), we assume an effective area of $\sim 15000$ deg2 can be used in the data analysis (Hildebrandt et al., 2016; Troxel et al., 2017; Abbott et al., 2017).

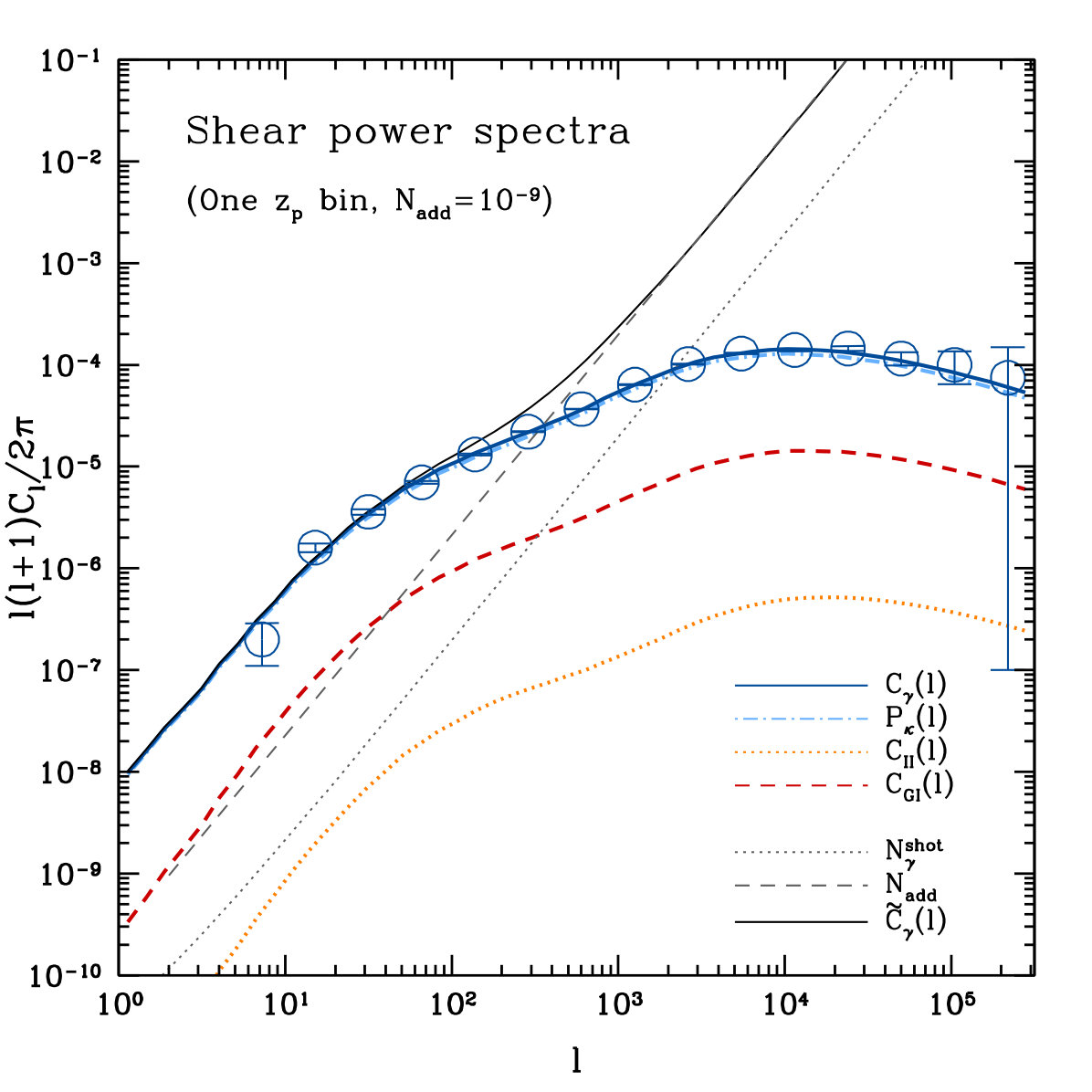

In Figure 3, we show the power spectra discussed above for the one photo-$z$ bin case (i.e. no tomographic bins). We assume that the shot-noise and additive terms can be eliminated in the data analysis555When fitting the real data, the shot-noise and additive terms can be fitted as free parameters in each tomographic bin in the fitting process. It could make the constraint results looser on the cosmological parameters than assuming eliminable case, since more parameters are included., and thus the mock data points of the $C_{\gamma}^{ij}$ can be derived as shown in blue circles with error bars. A random Gaussian distribution derived from the covariance matrix is added to each data point. The $C_{\gamma}^{ij}$ for the four photo-$z$ bins are shown in Figure 4. To avoid the non-linear effects, we only take account of the data at $\ell<3000$.

3. Galaxy clustering survey

In addition to the photometric imaging survey, the CSS-OS also can simultaneously perform the spectroscopic survey using slitless gratings. The CSST spectroscopic survey covers the same survey area (17500 deg2) and similar wavelength range (255-1000 nm) as the photometric imaging survey. It contains three bands, i.e. $GU$, $GV$, and $GI$ (see Figure 1), with AB magnitude $5\sigma$ limit $\sim$21 mag per resolution element for point sources with spectral resolution $R\geq 200$ (see Table 1). In this section, we will discuss the galaxy clustering power spectrum with the effect of redshift-space distortion (RSD) measured by the CSST spectroscopic survey.

3.1. Galaxy spectroscopic redshift distribution

We adopt the zCOSMOS catalog (DR3 release) to simulate the CSST spectroscopic survey result. The zCOSMOS redshift survey observes in the COSMOS field using the VIMOS spectrograph mounted at the Melipal Unit Telescope of the VLT (Lilly et al., 2007, 2009). It covers 1.7 deg2 with a magnitude limit $I_{\rm AB}\simeq 22.5$, which is close to survey depth of the CSS-OS. The spectral coverage is 5550-9450 $\rm\AA$ with a spectral resolution $R\sim 600$. There are about 20,000 sources in this catalog, and after selecting high-quality data suggested by the zCOSMOS team, we obtain about 16,600 sources (80% of the total) with reliable spectroscopic redshifts.

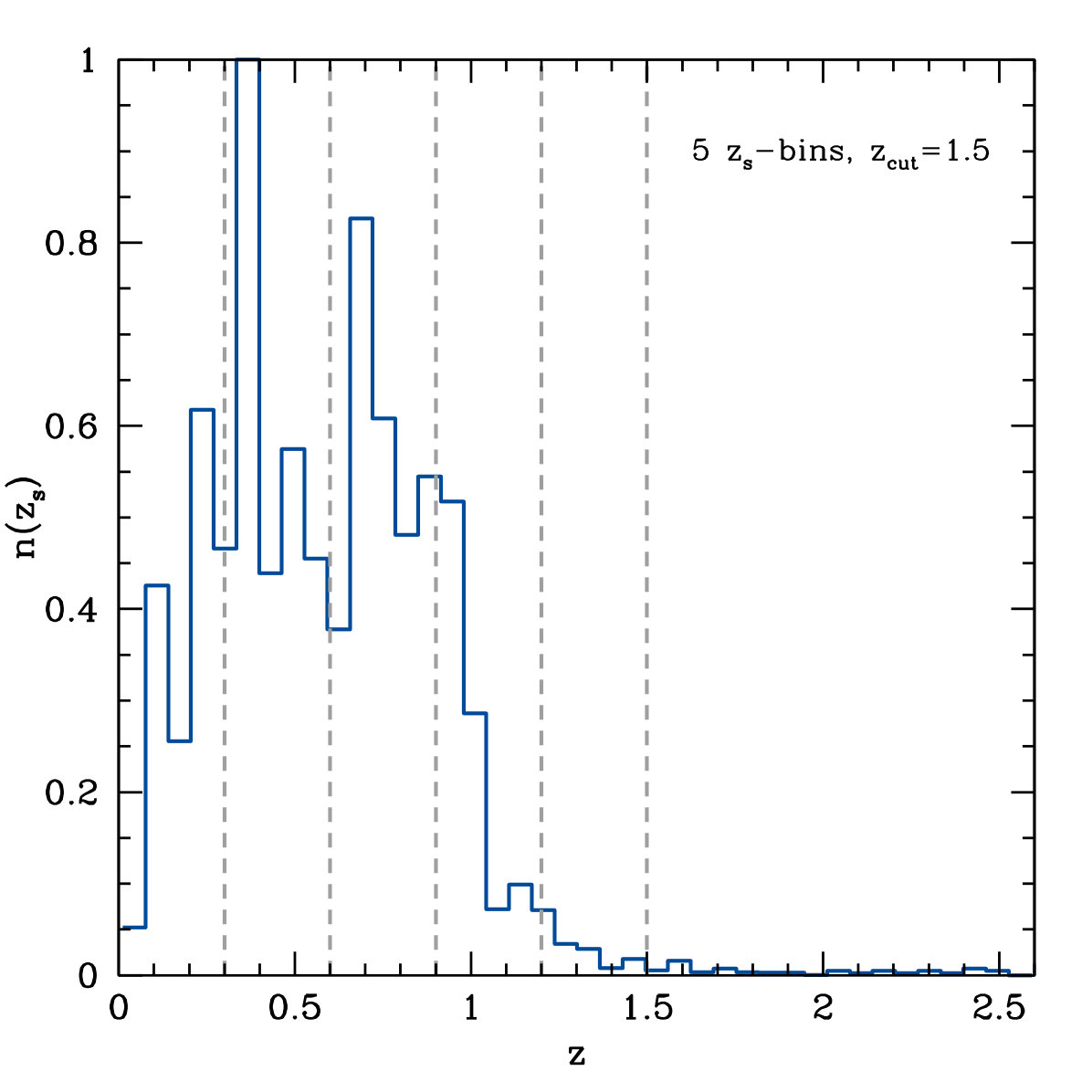

The redshift distribution of this mock CSST spectroscopic catalog is shown in Figure 5. We can see that it has a peak at $z=0.3-0.4$, and can extend to $z\sim 2.5$. Since there are not many galaxies at high redshifts, we only consider the sources at $z<1.5$ in the galaxy clustering analysis ($\sim 40$ galaxies are out of this range). In order to study the evolution of the equation of state of dark energy and other cosmological parameters, we divide the redshift range into five tomographic bins with $\Delta_{z}=0.3$ assuming no spec-$z$ outliers for simplicity. The galaxy number fraction in the five spectroscopic bins are 0.17, 0.37, 0.35, 0.10, and 0.01, respectively. Note that more number of redshift bins can be used in the real data analysis, depending on the number density of observed galaxies.

3.2. Redshift-space galaxy power spectrum

The redshift-space galaxy power spectrum in ($k$, $\mu$) dimensions can be measured by the CSST spectroscopic survey, which can be expanded in Legendre polynomials (Taylor & Hamilton, 1996; Ballinger et al., 1996)

[TABLE]

where (s) denotes the redshift space, $\mu=k_{\parallel}/k$ is the cosine of the angle between the direction of wavenumber $k$ and the line of sight, $\mathcal{L}_{\ell}(\mu)$ is the Legendre polynomials that only the first few non-vanishing orders $\ell=(0,2,4)$ are considered in the linear regime, and $P^{g}_{\ell}(k)$ is the multipole moments of the power spectrum. Considering the Alcock-Paczynski effect (Alcock & Paczynski, 1979), the galaxy multipole power spectra are given by

[TABLE]

Here $\alpha_{\perp}=D_{\rm A}(z)/D^{\rm fid}_{\rm A}(z)$ and $\alpha_{\parallel}=H^{\rm fid}(z)/H(z)$ are the scaling factors in the transverse and radial directions, respectively, and the superscript “fid” means the quantities in the fiducial cosmology. The $k^{\prime}=\sqrt{k^{\prime 2}_{\parallel}+k^{\prime 2}_{\perp}}$ and $\mu^{\prime}=k^{\prime}_{\parallel}/k^{\prime}$ are the apparent wavenumber and cosine of angle, where $k^{\prime}_{\parallel}=k_{\parallel}/\alpha_{\parallel}$ and $k^{\prime}_{\perp}=k_{\perp}/\alpha_{\perp}$. Assuming there is no peculiar velocity bias, the apparent redshift-space galaxy power spectrum can be written as

[TABLE]

where $P_{g}(k^{\prime})=b_{g}^{2}\,P_{\rm m}(k^{\prime})$ is the apparent real-space galaxy power spectrum, $b_{g}$ is the galaxy bias, $P_{\rm m}$ is the matter power spectrum, and $\beta=f/b_{g}$ where $f={\rm d\,ln}D(a)/{\rm d\,ln}\,a$ is the growth rate. $\mathcal{D}(k^{\prime},\mu^{\prime})$ is the damping term at small scales, which is given by

[TABLE]

Here $\sigma^{2}_{\rm D}=\sigma_{v}^{2}+\sigma_{R}^{2}$, where $\sigma_{v}=\sigma_{v0}/(1+z)$ is the velocity dispersion (Scoccimarro, 2004; Taruya et al., 2010), and we assume $\sigma_{v0}=7$ ${\rm Mpc}/h$ for the measurements of emission line galaxies in the CSS-OS (Blake et al., 2016; Joudaki et al., 2017). It will be set as a free parameter in the fitting process. The $\sigma_{R}=c\,\sigma_{z}/H(z)$ is the smearing factor for the small scales below the spectral resolution of spectroscopic surveys, where $H(z)$ is the Hubble parameter, and $\sigma_{z}=(1+z)\sigma^{0}_{z}$ (Wang et al., 2009). Based on the instrumental design of the CSST, we set $\sigma^{0}_{z}=0.002$ as the accuracy of the spectral calibration. Note that this accuracy could be larger in the real observation, and we need to run simulations in the future for further confirmation.

After adding the shot-noise term and systematics, we obtain the total multipole power spectra of the $a$th spec-$z$ bin

[TABLE]

where $\bar{n}_{g}^{a}$ is the galaxy number density in the $a$th spec-$z$ bin. We take an average value $\bar{n}_{g}^{a}$ in a given redshift bin, and find that $\bar{n}_{g,\rm ori}^{a}=3.4\times 10^{-2}$, $1.1\times 10^{-2}$, $5.5\times 10^{-3}$, $1.2\times 10^{-3}$ $({\rm Mpc}/h)^{-3}$, and $7.9\times 10^{-5}$ from the mock CSS-OS catalog for the five spec-$z$ bins, respectively. Besides, we consider an effective redshift factor $f^{z_{s}}_{\rm eff}$ to account for the fraction of galaxies that can achieve the required accuracy of the CSS-OS spec-$z$ calibration with $\sigma^{0}_{z}=0.002$ in the slitless grating observations (Wang et al., 2010). We assume the fraction decreases as the redshift increases, i.e. $f^{z_{\rm s}}_{\rm eff}=f^{z_{\rm s},0}_{\rm eff}/(1+z)$, where we set $f^{z_{\rm s},0}_{\rm eff}=0.3$, 0.5, and 0.7, respectively, as the pessimistic, moderate, and optimistic cases. So the final number density in the $a$th spec-$z$ bin should be $\bar{n}_{g}^{a}=f^{z_{s},a}_{{\rm eff}}\,\bar{n}_{g,\rm ori}^{a}$. The systematics $N^{g}_{{\rm sys}}$ due to instrumentation effects of the CSST slitless gratings are assumed to be a constant in different tomographic bins, or it can be seen as the average value $\bar{N}^{g}_{\rm sys}$ over all redshift bins and scales. Combining the three assumptions of $f^{z_{\rm s},0}_{\rm eff}$, we jointly assume three values, i.e. $\bar{N}^{g}_{\rm sys}=10^{5}$, $5\times 10^{4}$, and $10^{4}$ $({\rm Mpc}/h)^{3}$, as pessimistic, moderate, and optimistic cases in the CSST galaxy clustering surveys.

The errors of the multipole power spectra in the $a$th bin are then given by

[TABLE]

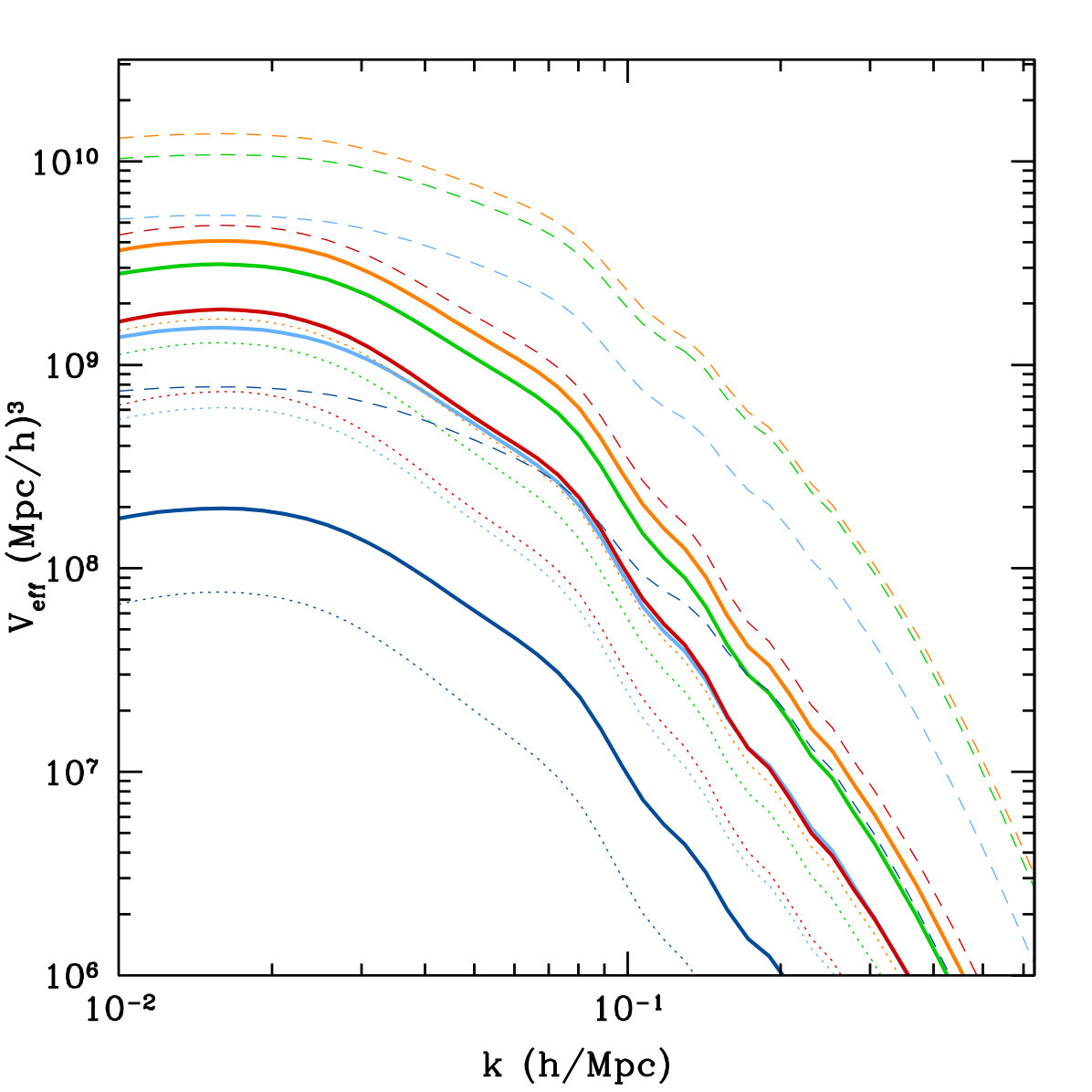

where $V^{a}_{\rm S}$ is the survey volume of the $a$th bin. We assume a $15000$ deg2 sky coverage for the galaxy clustering spectroscopic survey, which is the same as the photometric imaging survey area used in the weak lensing, after masking the area with bad measurements. For a constant $n_{g}$ in a given redshift bin, the corresponding effective survey volume for a multipole component of power spectrum can be defined as

[TABLE]

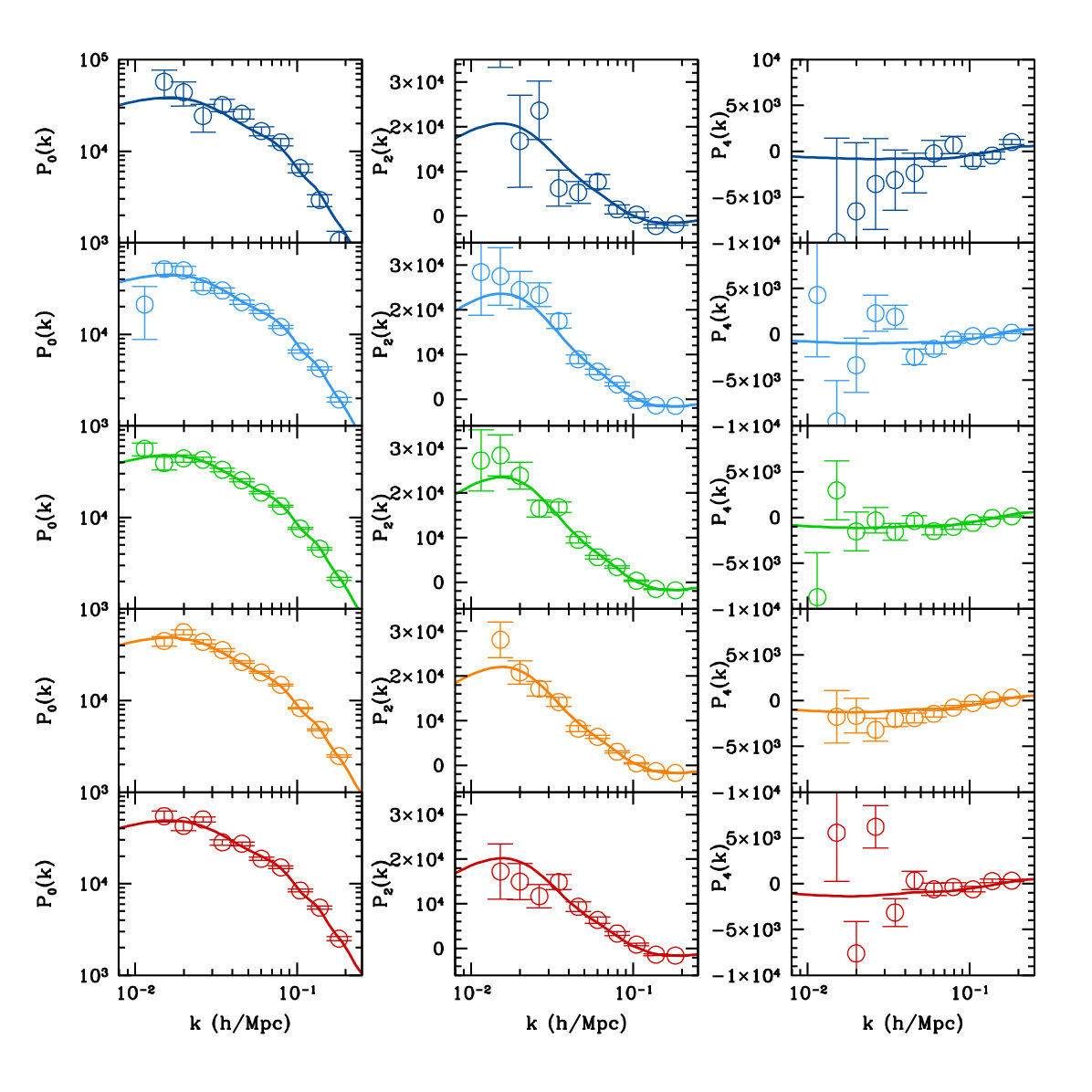

In Figure 6, we show the mock multipole power spectra $P_{0}^{g}$, $P_{2}^{g}$, and $P_{4}^{g}$. In order to avoid the non-linear effect, we only consider the data at $k<0.2$ $h/{\rm Mpc}$. The errors of the mock data are generated by assuming $f^{z_{s},0}_{\rm eff}=0.5$ and $\bar{N}^{g}_{\rm sys}=5\times 10^{4}$ $({\rm Mpc}/h)^{3}$. In Figure 7, the $V_{\rm eff}$ of the $P_{0}^{g}$ for each redshift bin are shown. The dashed, solid, and dotted curves are for the optimistic, moderate, and pessimistic cases.

In addition to the redshift-space power spectrum, the CSS-OS three-dimensional (3-d) galaxy clustering data also can be analyzed using other methods, such as topology (Park & Kim, 2010), tomographic Alcock-Paczynski (Li et al., 2016) and 3-point correlation function (Takada & Jain, 2003), that can extract more cosmological information. We will discuss these methods in the future work.

4. Galaxy-galaxy lensing survey

We can also cross-correlate the WL and galaxy clustering surveys to get galaxy-galaxy lensing power spectra for the photo-$z$ and spec-$z$ bins in the CSS-OS. This can help us to derive more cosmological information.

4.1. Angular galaxy power spectrum

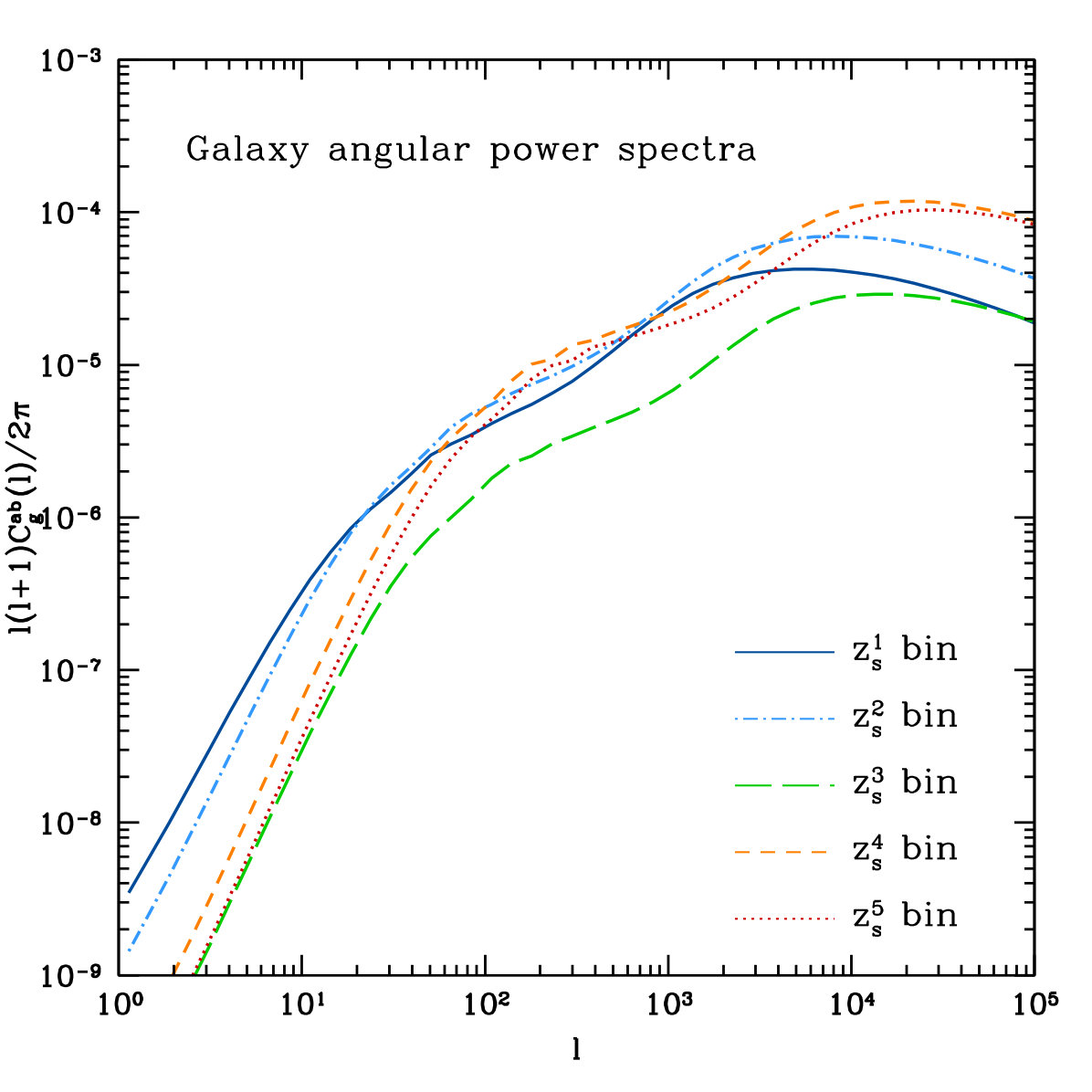

We first consider the two-dimensional (2-d) angular galaxy power spectrum for the $a$th and $b$th spec-$z$ bins, which can be derived from the 3-d galaxy power spectrum by assuming Limber approximation (Limber, 1954; Kaiser, 1992; Hu & Jain, 2004)

[TABLE]

where $b_{g}(k,\chi)$ is the galaxy bias, which depends on the scales and redshifts. For simplicity, we assume it is a constant at different scales and only varies as a function of redshift $b_{g}(z)$ when producing mock data. $\hat{n}^{a}_{g}(\chi)$ is the normalized galaxy redshift distribution for the $a$th spec-$z$ bin, that we have $\int\hat{n}^{a}_{g}(\chi){\rm d}\chi=1$. Incorporating the shot-noise term and systematics, the total angular galaxy power spectrum can be written as

[TABLE]

where $\bar{n}^{\prime a}_{g}$ is the average galaxy number density in the $a$th spec-$z$ bin per steradian, and it is found to be $0.46$, $1.0$, $0.94$, $0.29$, and $0.02$ arcmin*-2* for the five bins ($\sim$ 2.7 arcmin*-2* totaly), respectively. $N^{\prime\,g,\,ab}_{\rm sys}(\ell)$ is the systematic noise for the angular galaxy power spectrum, and we assume it is a constant for different scales and redshift bins. We find that the result is not sensitive to the $N^{\prime\,g}_{\rm sys}$ as long as it is less than $10^{-8}$, i.e. the shot-noise term (the second term) in Eq. (21) is relatively large and dominant.

Note that the cross power spectra vanish in the spectroscopic surveys (e.g. the case we discuss here), since there is no overlapping region between spec-$z$ bins. However, for the photometric surveys, both the auto and cross angular galaxy power spectra are important, and can be used to calibrate the galaxy bias and redshift distributions when cooperating with the weak lensing survey (Hu & Jain, 2004; Zhan, 2006). The CSS-OS also can probe the angular galaxy power spectrum in the photometric imaging survey, and we will discuss it in our future work. In Figure 8, we show the 2-d angular galaxy power spectra for the five spec-$z$ bins.

4.2. Galaxy-galaxy lensing power spectrum

Then we can calculate the angular galaxy-galaxy lensing power spectrum, i.e. cross-correlating the galaxy clustering and weak lensing surveys, of the $a$th galaxy spec-$z$ bin and the $i$th photo-$z$ bin. Considering the intrinsic alignment effect, it can be expressed as (Joudaki et al., 2017)

[TABLE]

where the $C_{g\kappa}^{ai}$ and $C_{g{\rm I}}^{ai}$ are given by

[TABLE]

and

[TABLE]

The covariance matrix for the galaxy-galaxy lensing power spectra is given by (Hu & Jain, 2004)

[TABLE]

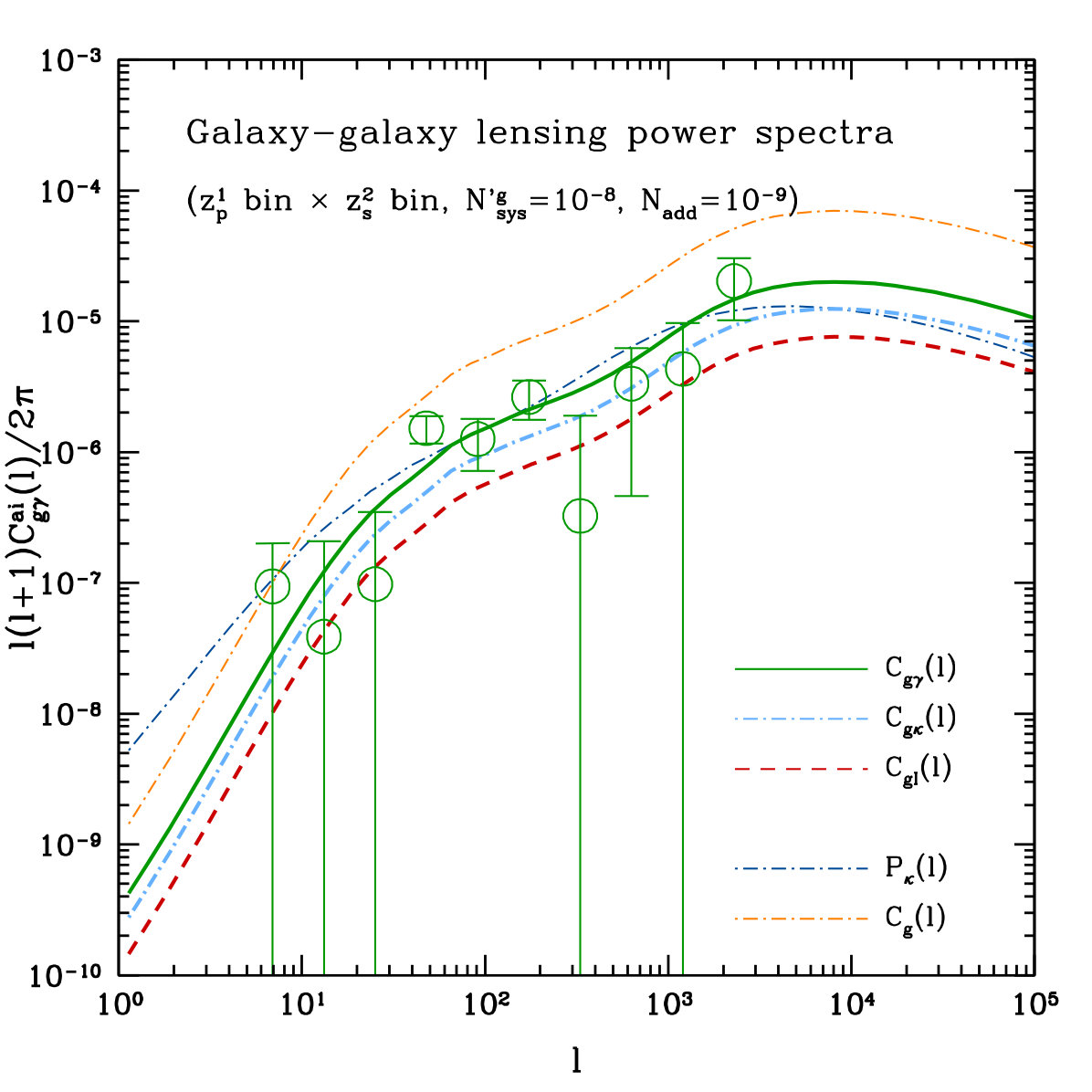

In Figure 9, we show the mock galaxy-galaxy lensing power spectra for the first photo-$z$ and second spec-$z$ bins. The green solid, light blue dash-dotted, red dashed curves denote the total, galaxy-galaxy lensing, and galaxy-Intrinsic power spectra, respectively. For comparison, the corresponding convergence (dark blue dash-dotted) and angular galaxy (orange dashed-dotted) power spectra are also shown. The data points with error bars are obtained by assuming $\bar{N}_{\rm add}=10^{-9}$ and $N^{\prime\,g}_{\rm sys}=10^{-8}$.

We can define the coefficients of the cross power spectra of weak lensing and galaxy clustering between the photometric and spectroscopic redshift bins, which is given by

[TABLE]

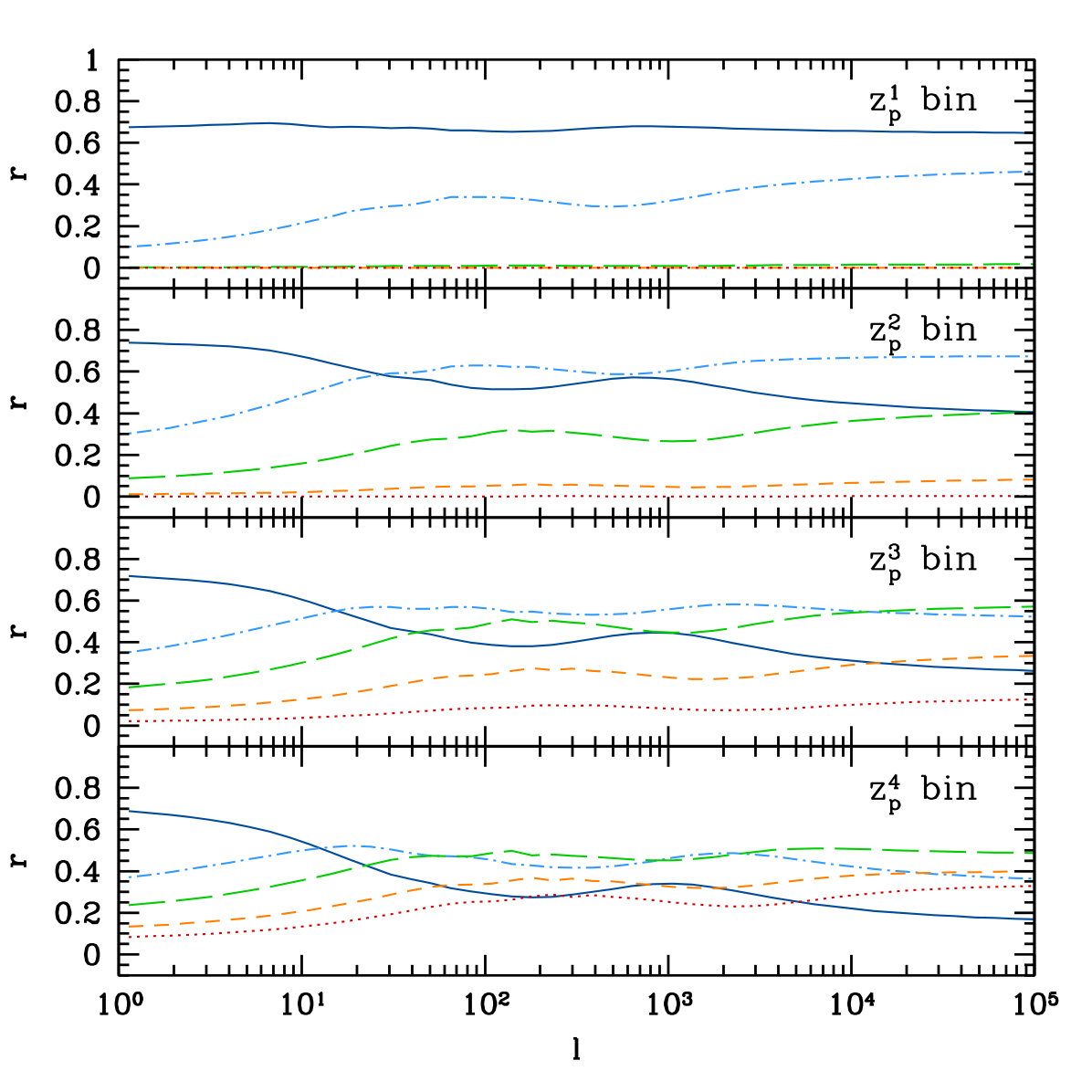

In Figure 10, we calculate the coefficients of the cross power spectra for the four photometric and five spectroscopic bins. For instance, in the top panel, we find that the $z_{\rm p}^{1}$ bin only have significant correlations with the $z_{\rm s}^{1}$ and $z_{\rm s}^{2}$ bins, since they cover similar redshift range (see Figure 2 and 5).

5. Fitting the mock data

When generating the mock data, we assume the flat $\Lambda$CDM cosmology with the equation of state (EoS) of dark energy $w=-1$. In order to explore the constraint of the CSS-OS on the evolution of the dark energy EoS, we adopt the $w$CDM model with $w=w_{0}+w_{a}(1-a)$ when fitting the mock data. The HMcode is used to calculate the non-linear matter power spectrum for the $w$CDM model (Mead et al., 2015, 2016). The cosmological and systematical parameters for the weak lensing, galaxy clustering, and galaxy-galaxy lensing power spectra in the fitting process are shown in Table 2. In the joint constraint case of the CSST WL and galaxy clustering surveys with four photo-$z$ bins and five spec-$z$ bins, we totally have 31 free parameters in the model.

The fiducial value of photo-$z$ bias $\Delta z$ is set to be zero for each photo-$z$ bin, since the outlier fraction in the photo-$z$ fitting is ignored. Note that our method is actually not quite sensitive to the fiducial value of $\Delta z$, that is because we treat it as a free parameter in the fitting process. The fiducial values of $b_{g}$ for the five bins are obtained by $b_{g}=b_{0}(1+z_{\rm c})^{b_{1}}$, where $b_{0}=1$ and $b_{1}=1$ with the central redshifts of the five spec-$z$ bins $z_{\rm c}=0.15$, 0.45, 0.75, 1.05, and 1.35, respectively. The fiducial galaxy velocity dispersion for the five spec-$z$ bins is assumed as $\sigma_{v}=\sigma_{v,0}/(1+z_{\rm c})$ where $\sigma_{v,0}=7$ ${\rm Mpc}/h$. $s^{i}_{z}$ is the stretch factor that adjusts the width of the $n_{i}(z)$ in a given photo-$z$ bin, which can equally change the redshift variance $\sigma_{z}$. We set the fiducial values of $\Delta z_{i}$, ${\rm log_{10}}(s^{i}_{z})$, and $m_{i}$ to be 0 in the four photometric bins.

The $\chi^{2}$ statistic method is adopted to fit the mock data, which is defined by

[TABLE]

where $C_{\rm mock}^{i}$ is the mock data, and $C_{\rm th}^{i}$ is the theoretical power spectrum of the $i$th redshift bin. Covij is the corresponding covariance matrix. The total $\chi^{2}$ for joint surveys of the WL and galaxy clustering is given by $\chi^{2}_{\rm tot}=\chi^{2}_{g}+\chi^{2}_{\gamma}+\chi^{2}_{g\gamma}$, where $\chi^{2}_{g}$, $\chi^{2}_{\gamma}$, and $\chi^{2}_{g\gamma}$ are the chi-squares for the galaxy clustering, WL, and galaxy-galaxy lensing power spectra, respectively. The likelihood function then can be calculated by $\mathcal{L}\sim{\rm exp}(-\chi^{2}/2)$.

We make use of the Markov Chain Monte Carlo (MCMC) technique to constrain the free parameters in the model. The Metropolis-Hastings algorithm is adopted to find the accepting probability of new chain points (Metropolis et al., 1953; Hastings, 1970). The proposal density matrix is estimated by a Gaussian sampler with adaptive step size (Doran & Muller, 2004). We assume flat priors for the parameters as shown in Table 2. We run sixteen parallel chains for each case of systematical assumption, and obtain about 100,000 points for one chain after reaching the convergence criterion (Gelman & Rubin, 1992). After the burn-in and thinning processes, we combine all chains together and obtain about 10,000 chain points to illustrate one-dimensional (1-d) and 2-d probability distribution functions (PDFs) of the free parameters.

6. Constraint results

In this section, we show the constraint results of the cosmological and systematical parameters using the CSS-OS mock data. We compare the results in different cases for the cosmological parameters, and discuss the impact of the systematics on the constraint results.

6.1. Constraints on cosmological parameters

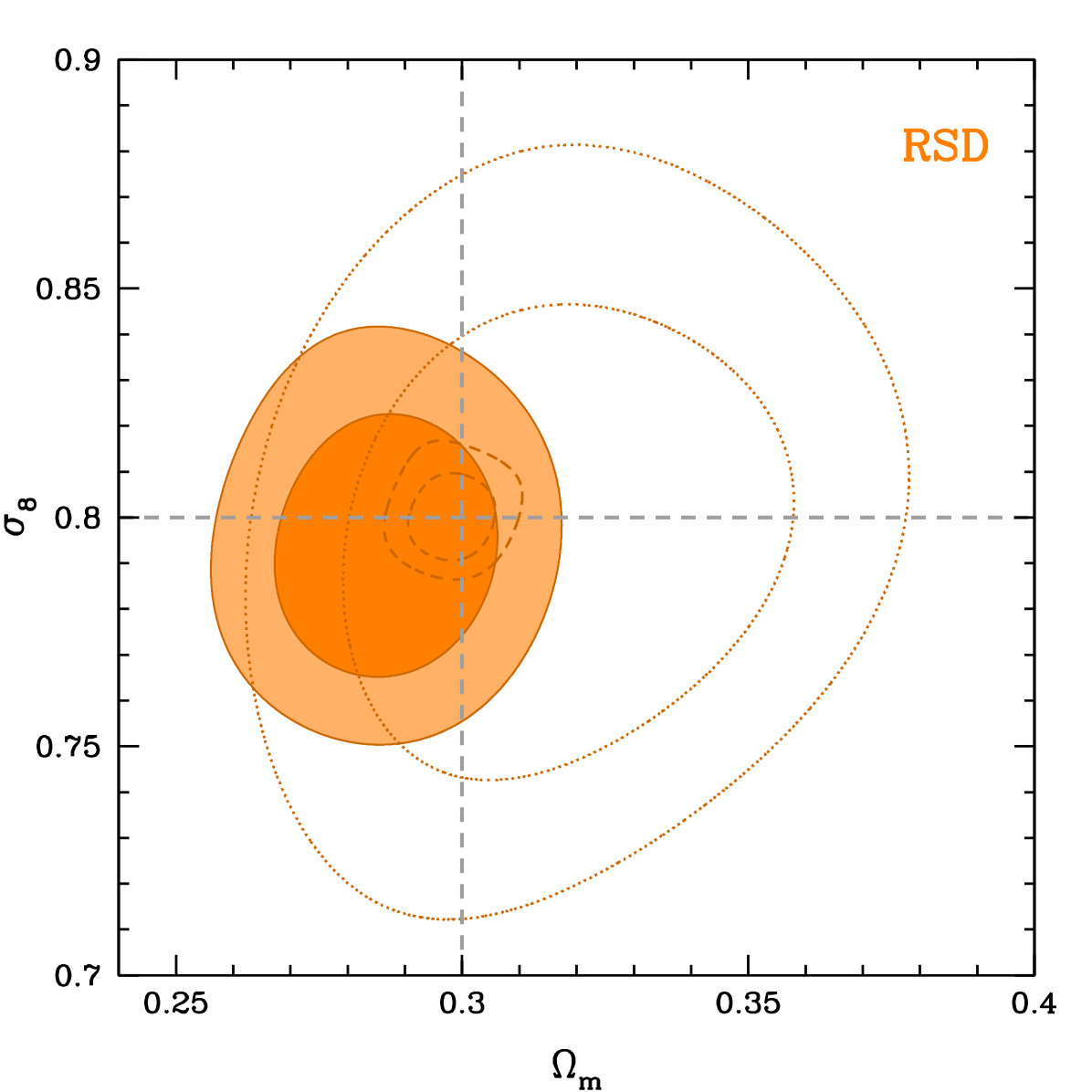

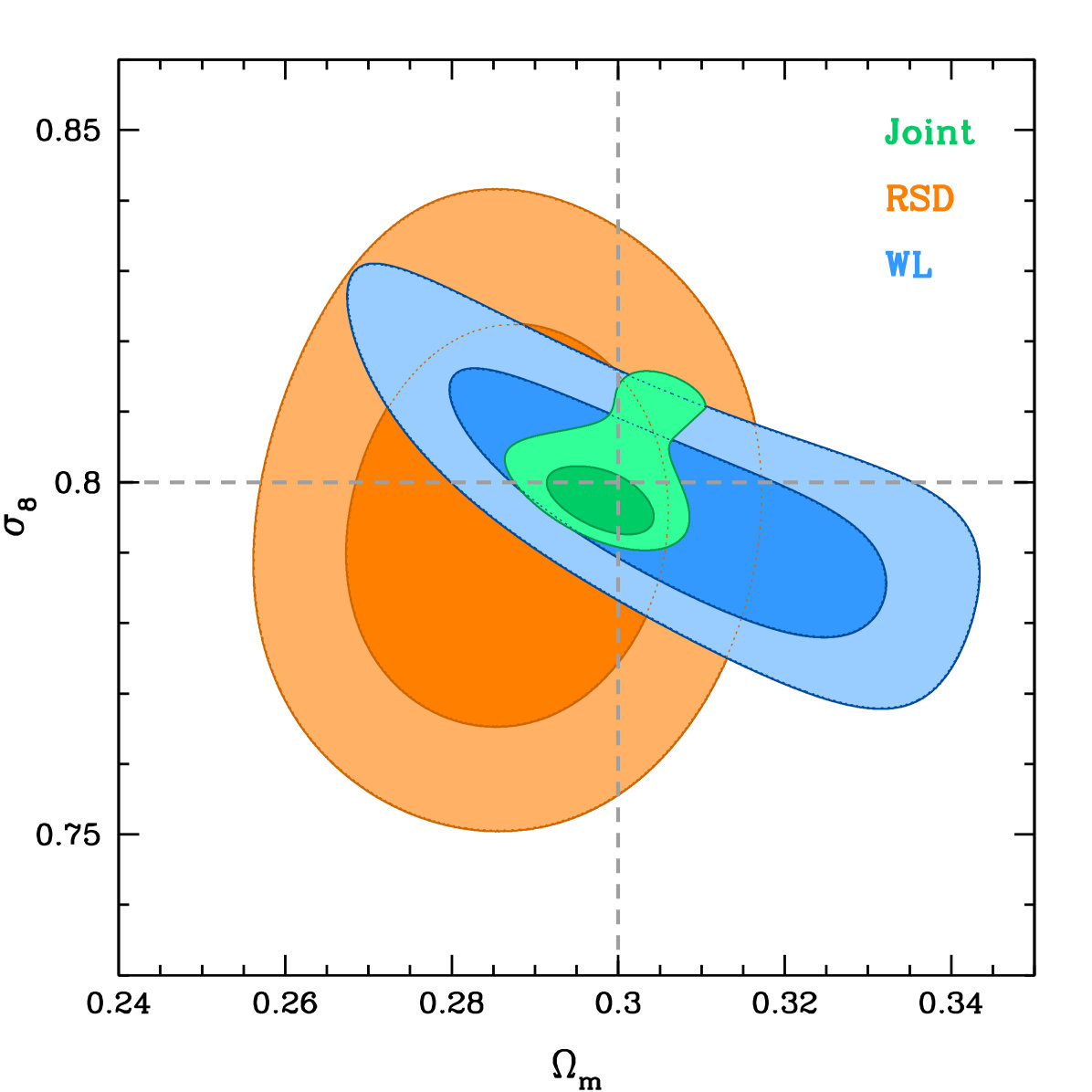

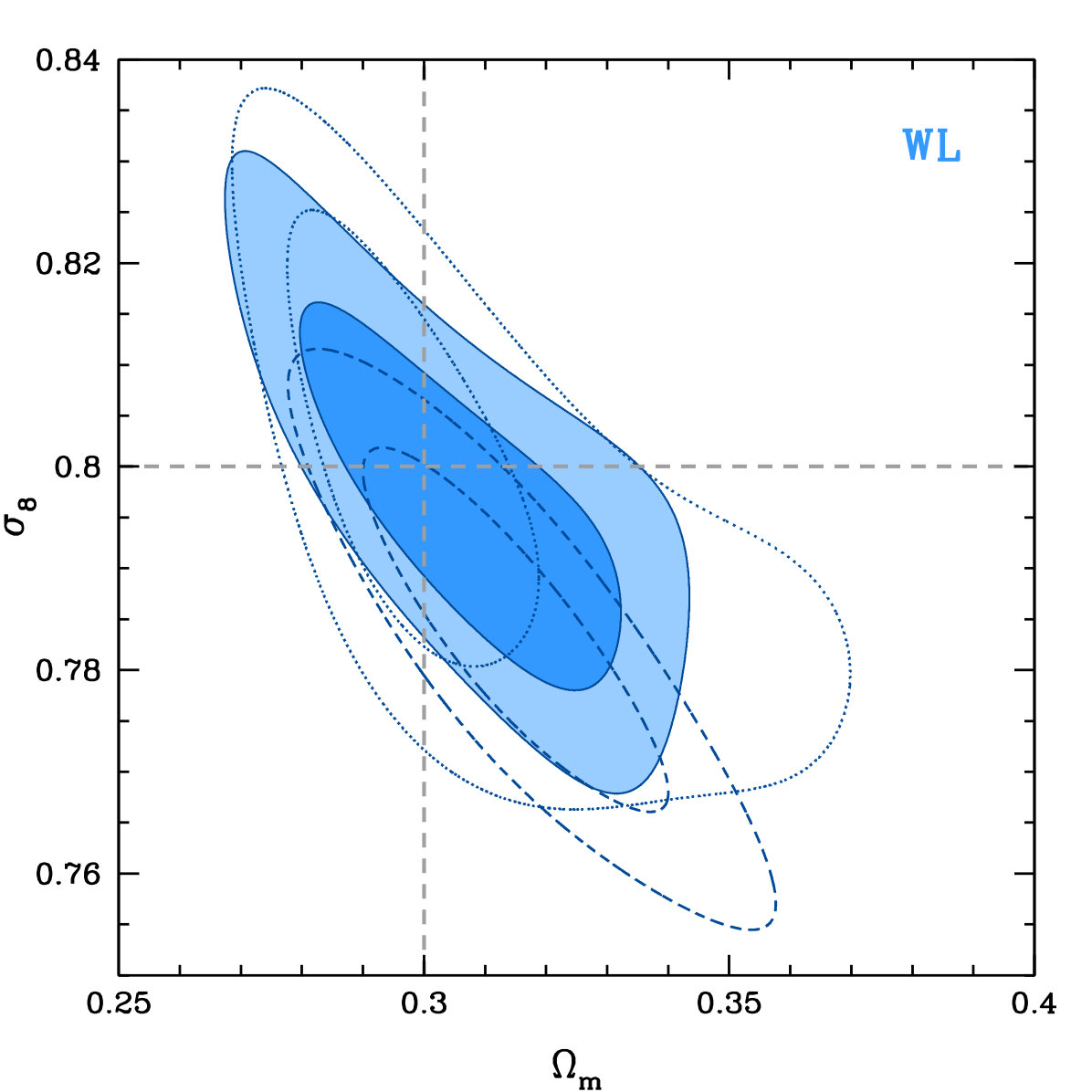

In Figure 11, the fitting results of $\Omega_{\rm m}$ vs. $\sigma_{8}$ and $w_{0}$ vs. $w_{a}$ have been shown. We explore three cases, i.e. the moderate, optimistic, and pessimistic assumptions (in solid, dashed, and dotted curves), about the systematics of the CSST WL and galaxy clustering surveys. The top, middle, and bottom panels show the constraint results from the WL, galaxy clustering, and joint (WL+galaxy clustering+galaxy-galaxy lensing) surveys, respectively. The gray lines show the fiducial values of the parameters.

For the CSST WL survey, we find that $\Omega_{\rm m}=0.304^{+0.009}_{-0.008}$, $\sigma_{8}=0.796^{+0.010}_{-0.010}$, $w_{0}=-1.003^{+0.025}_{-0.021}$, $w_{a}=-0.013^{+0.078}_{-0.073}$ in $1\sigma$ confidence level (C.L.) for the moderate systematic case with $\bar{N}_{\rm add}=10^{-9}$. We also show the constraint results of $\Omega_{\rm m}$ vs. $S_{8}\equiv\sigma_{8}(\Omega_{m}/0.3)^{0.5}$ in Figure 12. We find that $S_{8}=0.801^{+0.009}_{-0.008}$ in the moderate case (solid lines). This constraint result of the cosmological parameters is averagely improved by a factor of $\sim 6$ than that from the Dark Energy Survey (DES) and Kilo Degree Survey (KiDS) (Hildebrandt et al., 2016; Troxel et al., 2017). The improvement can be even larger in the optimistic case ($\bar{N}_{\rm add}=10^{-10}$), and at least a factor of $\sim 3$ in the pessimistic case ($\bar{N}_{\rm add}=10^{-8}$). This enhancement is due to several advantages of the CSST WL survey, e.g the large survey area (17500 deg2), excellent image quality (small and regular PSF)666We should note that there are a number of factors can affect the PSF shape in the real observation, coming from the optical system (e.g. optical alignment and thermal stability) and the pointing and steering stability of the telescope. Thus the PSF shape can change in flight, and it could affect the relevant shape measurements in the weak lensing survey and make the systematics larger. Hence, we need to calibrate it to the stated accuracy in the orbit. We will discuss this in details in the future work., and accurate photo-$z$ calibration, which can efficiently suppress both statistical and systematical errors.

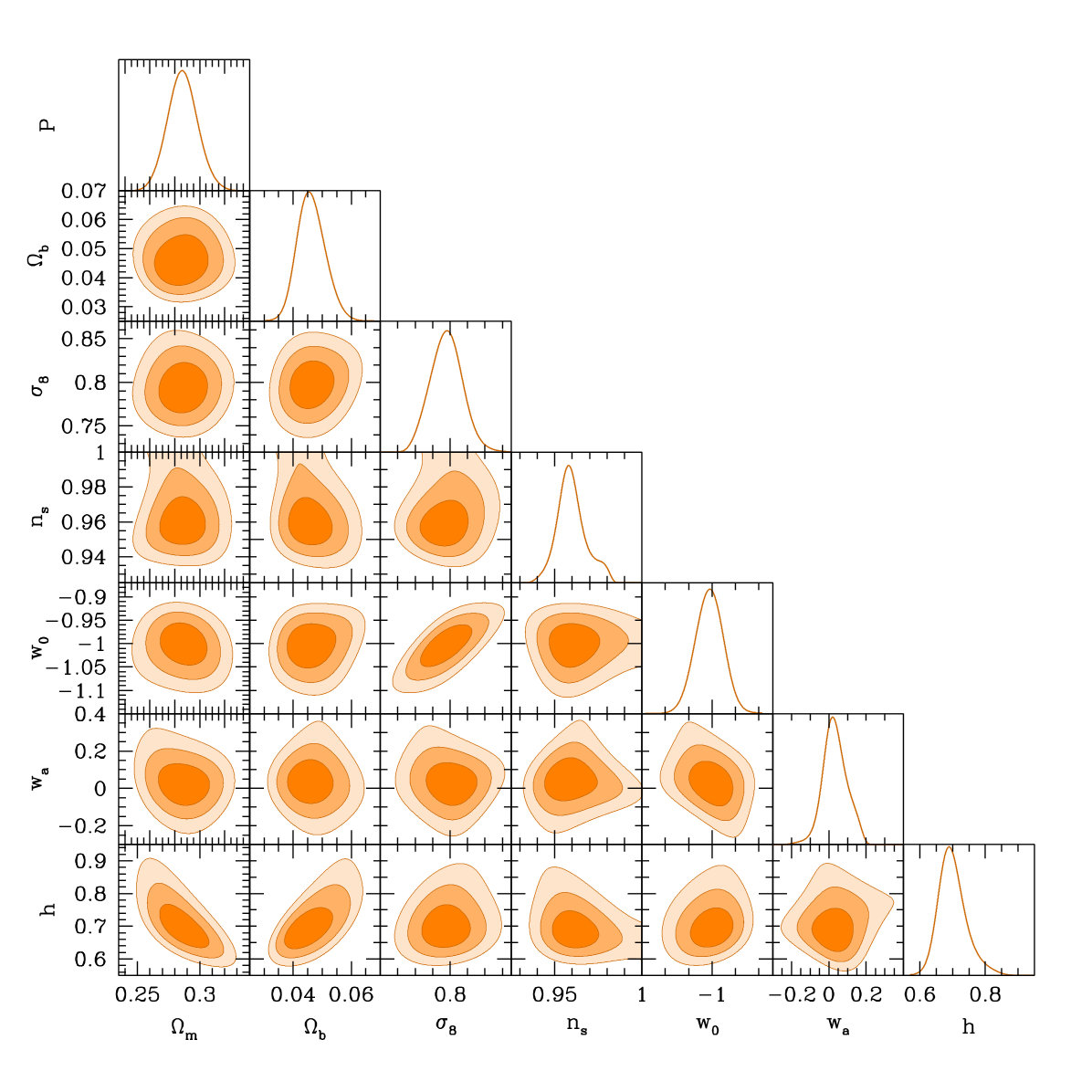

In the CSST galaxy clustering survey, we find that $\Omega_{\rm m}=0.286^{+0.012}_{-0.012}$, $\sigma_{8}=0.796^{+0.017}_{-0.019}$, $w_{0}=-1.005^{+0.029}_{-0.031}$, $w_{a}=0.021^{+0.061}_{-0.050}$ in $1\sigma$ C.L. for the moderate systematic case ($f^{z_{\rm s},0}_{\rm eff}=0.5$ and $\bar{N}^{g}_{\rm sys}=5\times 10^{4}$ $({\rm Mpc}/h)^{3}$). This leads to a factor of $\sim 5$ improvement at least compared to the current galaxy clustering surveys, such as the SDSS-III Baryon Oscillation Spectroscopic Survey (BOSS) , WiggleZ, 2-degree Field Lensing Survey (2dFLenS), etc. (Zhao et al., 2016; Wang et al., 2016; Blake et al., 2016; Hinton et al., 2017). The constraint results could be better or worse with an average factor of 2-3 in the optimistic ($f^{z_{\rm s},0}_{\rm eff}=0.7$ and $\bar{N}^{g}_{\rm sys}=1\times 10^{4}$ $({\rm Mpc}/h)^{3}$) and pessimistic ($f^{z_{\rm s},0}_{\rm eff}=0.3$ and $\bar{N}^{g}_{\rm sys}=1\times 10^{5}$ $({\rm Mpc}/h)^{3}$) cases. The improvement is mainly caused by that the CSST spectroscopic survey has deep magnitude limit (see Table 1) and large effective survey volume (see Figure 7).

Since the CSST photometric and spectroscopic surveys are planned to perform simultaneously and cover the same sky area, their joint constraint would be convenient and powerful, which gives $\Omega_{\rm m}=0.304^{+0.003}_{-0.010}$, $\sigma_{8}=0.803^{+0.005}_{-0.008}$, $w_{0}=-0.996^{+0.010}_{-0.023}$, $w_{a}=0.044^{+0.034}_{-0.038}$ in $1\sigma$ C.L. for the moderate systematic case. For the optimistic and pessimistic cases, the constraints can be tighter or looser by a factor of $\sim 1.3$ and $1.7$, respectively. Comparing to current similar joint fitting results, e.g. KiDS-450+2dFLenS (Joudaki et al., 2017), we find that the CSST joint survey can enhance the constraints of the cosmological parameters by one order of magnitude when assuming the moderate systematics.

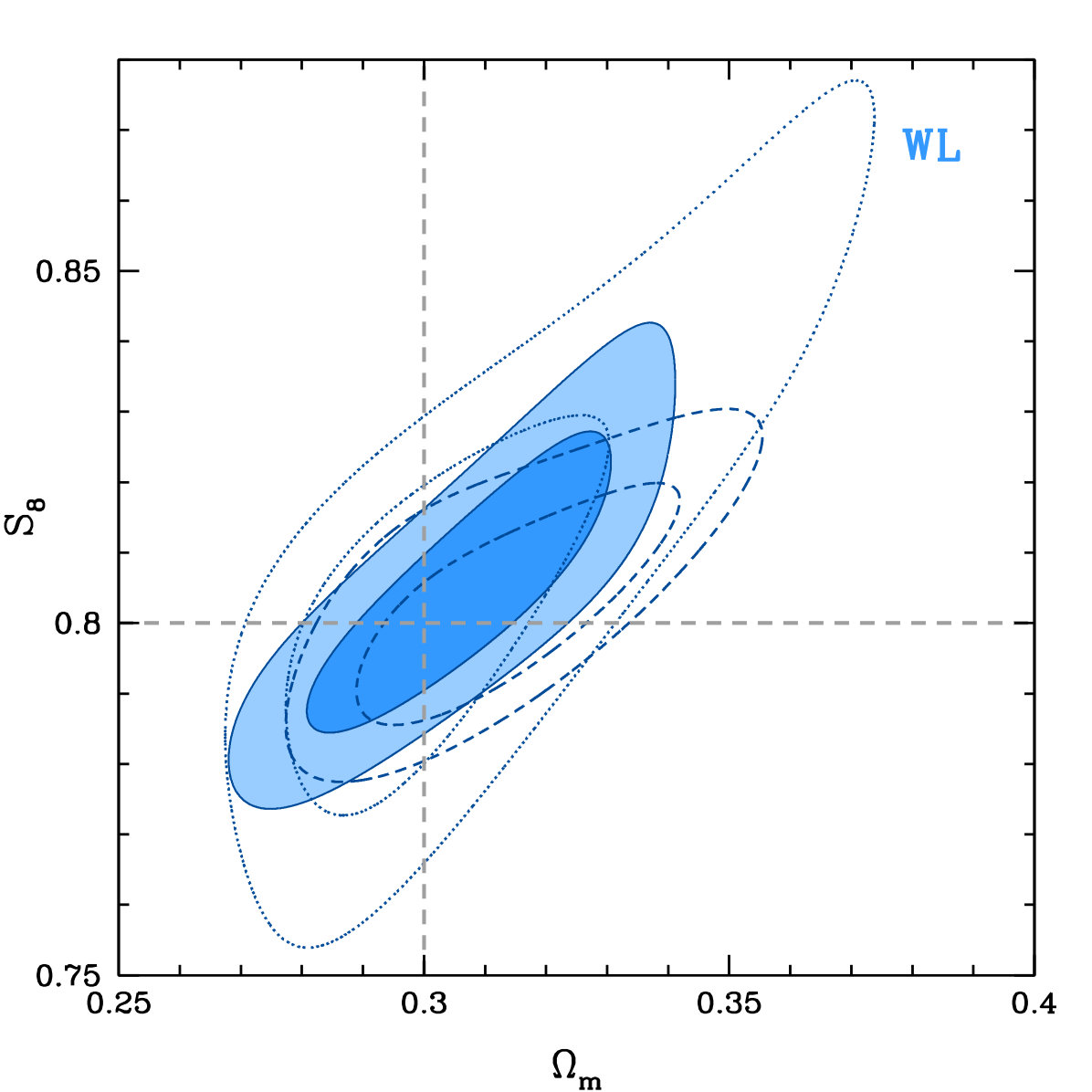

Since the systematics have been included in the analysis, fitting biases with respect to the best-fits appear in the constraint results according to the fiducial values of the cosmological parameters (gray dashed lines), especially for the moderate and pessimistic cases. By comparing the results of the three systematical assumptions, we find that well-controlled systematics not only can shrink the probability contours but also efficiently suppress the fitting biases of the cosmological parameters (see dashed contours in each survey). Besides, it seems that the fitting biases are relatively larger or more apparent in the joint constraint results (e.g. see the result of $w_{a}$). It means that better controlling of the systematics may be required in the CSS-OS joint fits. The detailed discussion of the systematical parameters can be found in the next section.

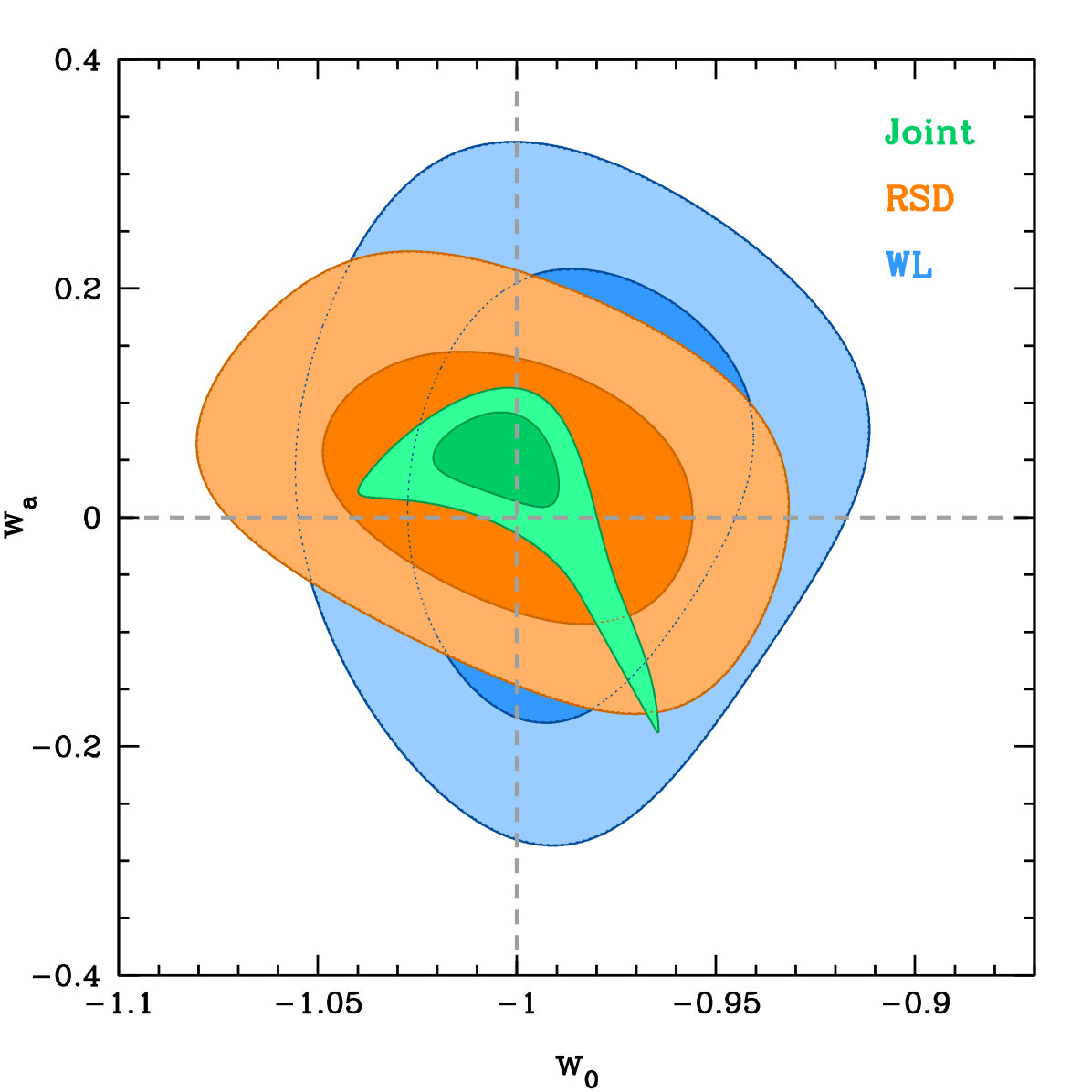

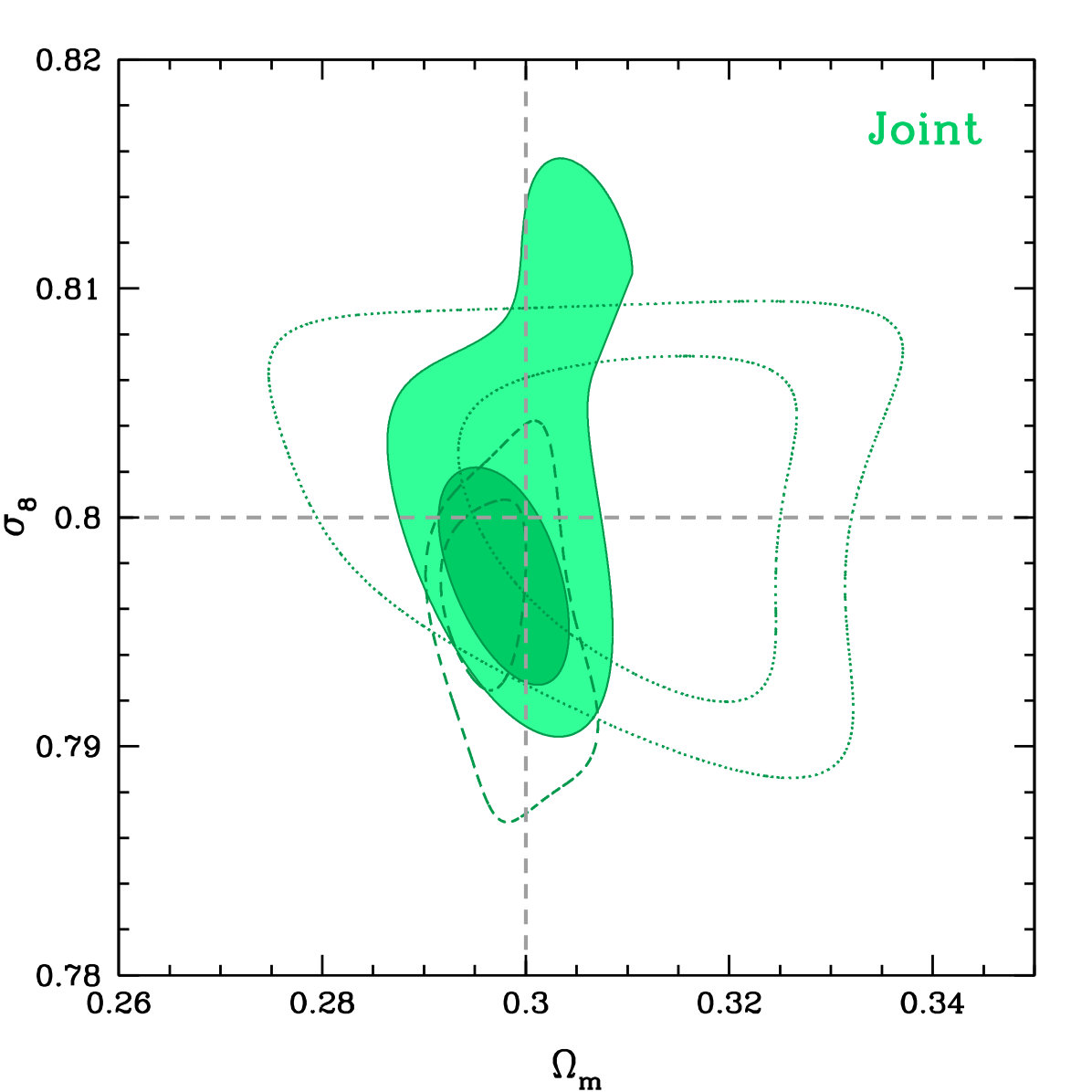

In Figure 13, we show the comparison of the results from the WL, galaxy clustering, and joint surveys. As can be seen, the CSST WL and galaxy clustering surveys have similar constraint strength on $\Omega_{\rm m}$. On the other hand, the WL is more powerful to constrain $\sigma_{8}$ than the galaxy clustering by a factor of $\sim$2, since the WL survey explores 2-d power spectra integrating over large redshift range. On the other hand, the CSST galaxy clustering survey can provide comparable or even a bit more stringent fitting results on $w_{0}$ and $w_{a}$ than the WL survey. The joint CSST surveys of WL+galaxy clustering+galaxy-galaxy lensing can further improve the fitting results, which give at least $\sim 2\sigma$ enhancement on the constraints of cosmological parameters, compared to the WL only or galaxy clustering only survey.

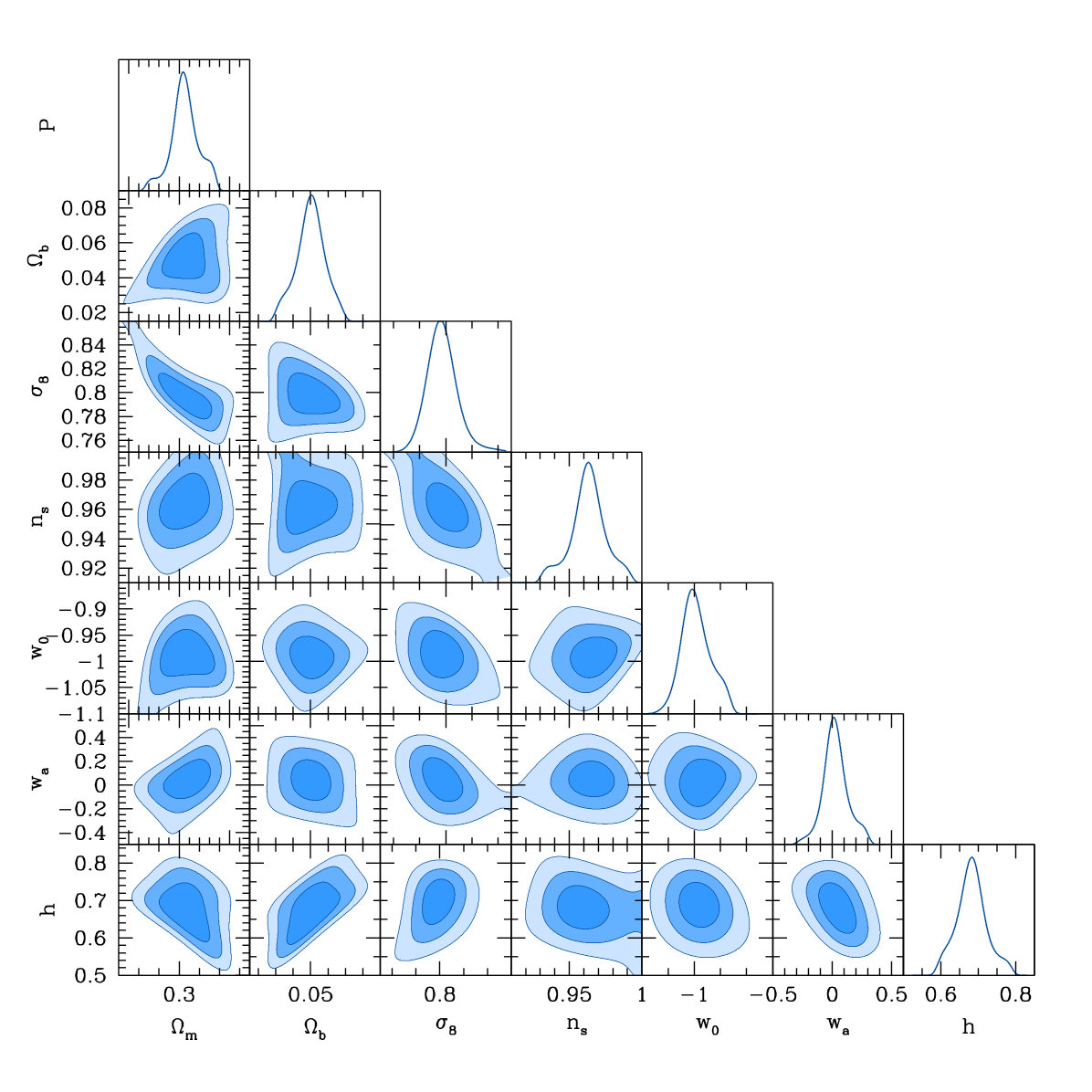

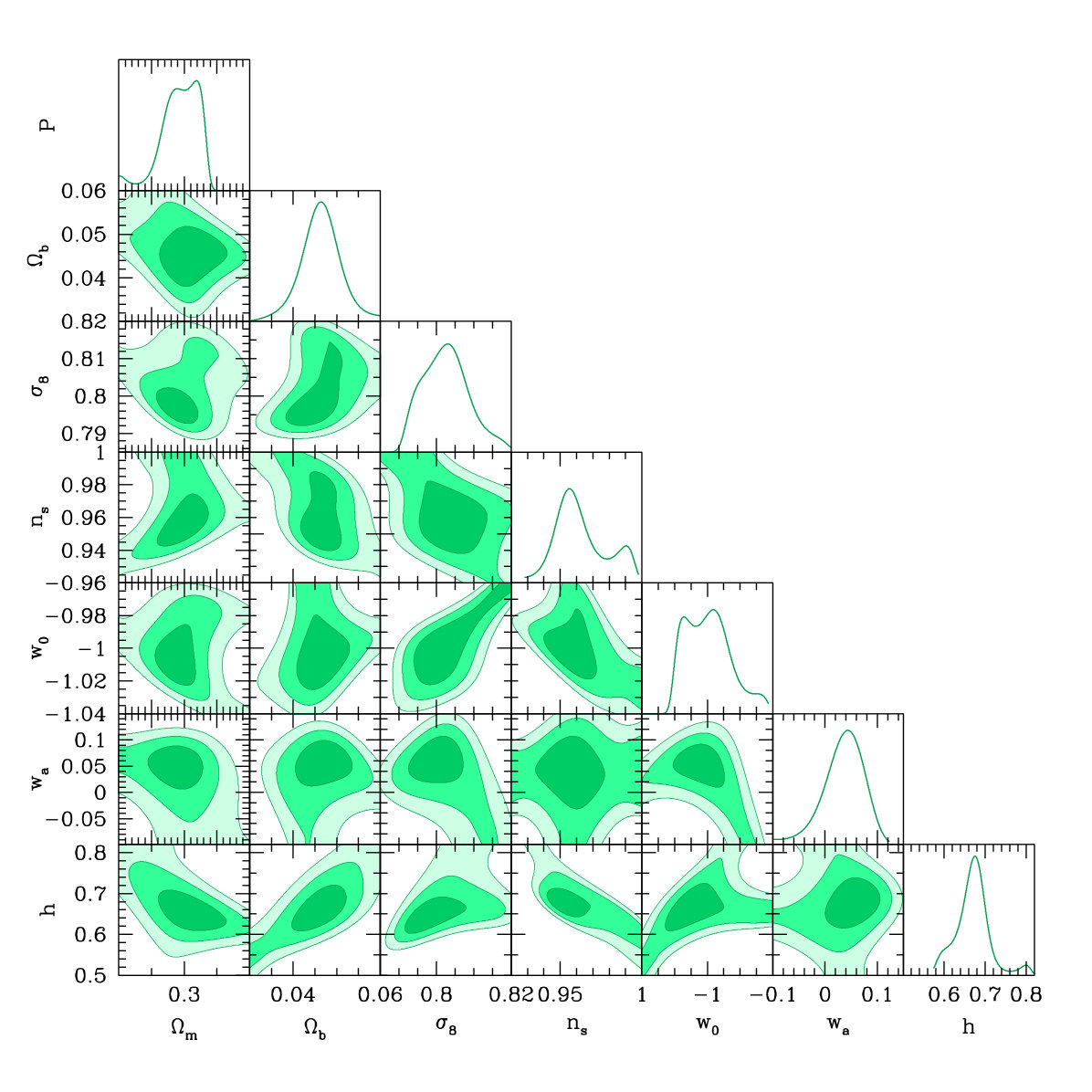

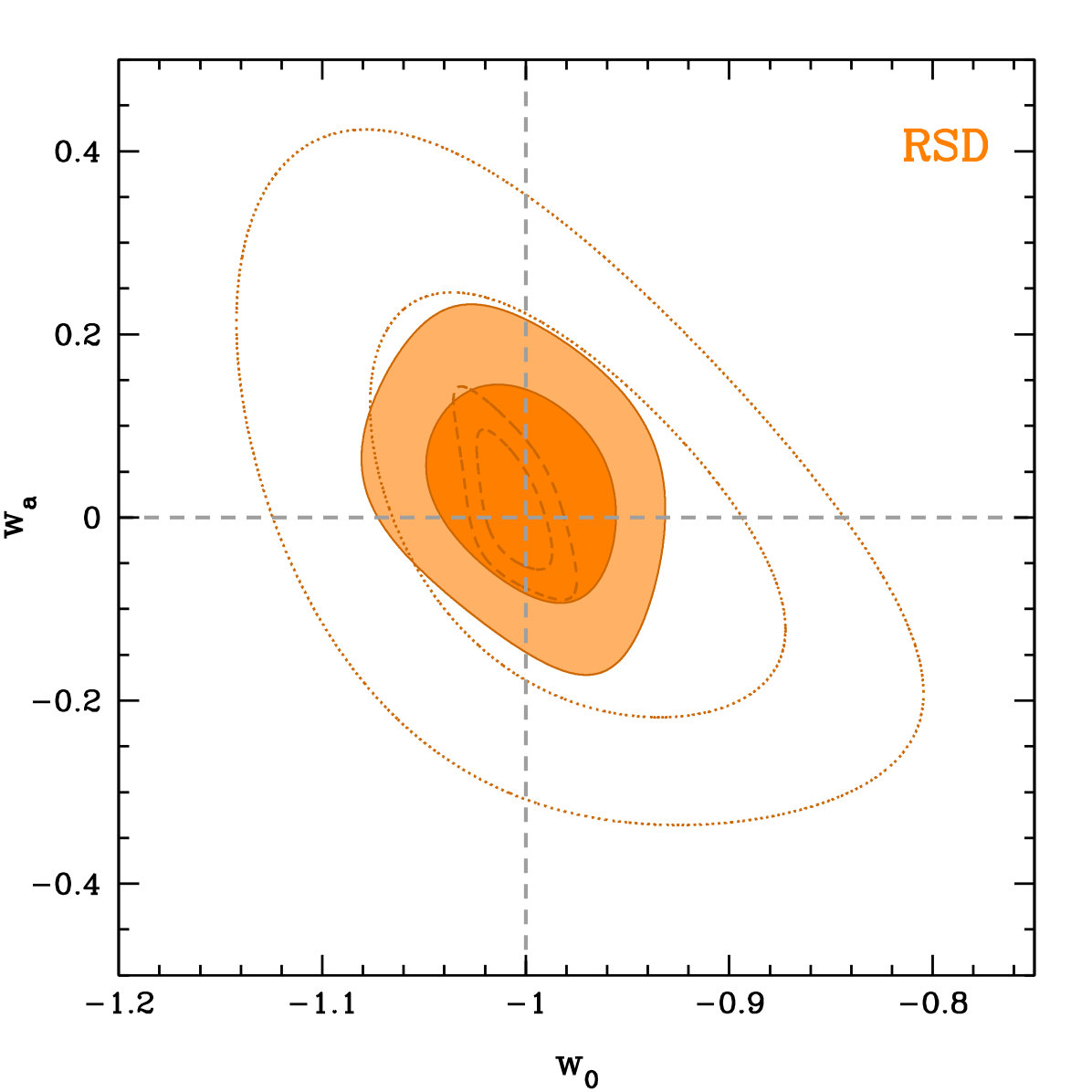

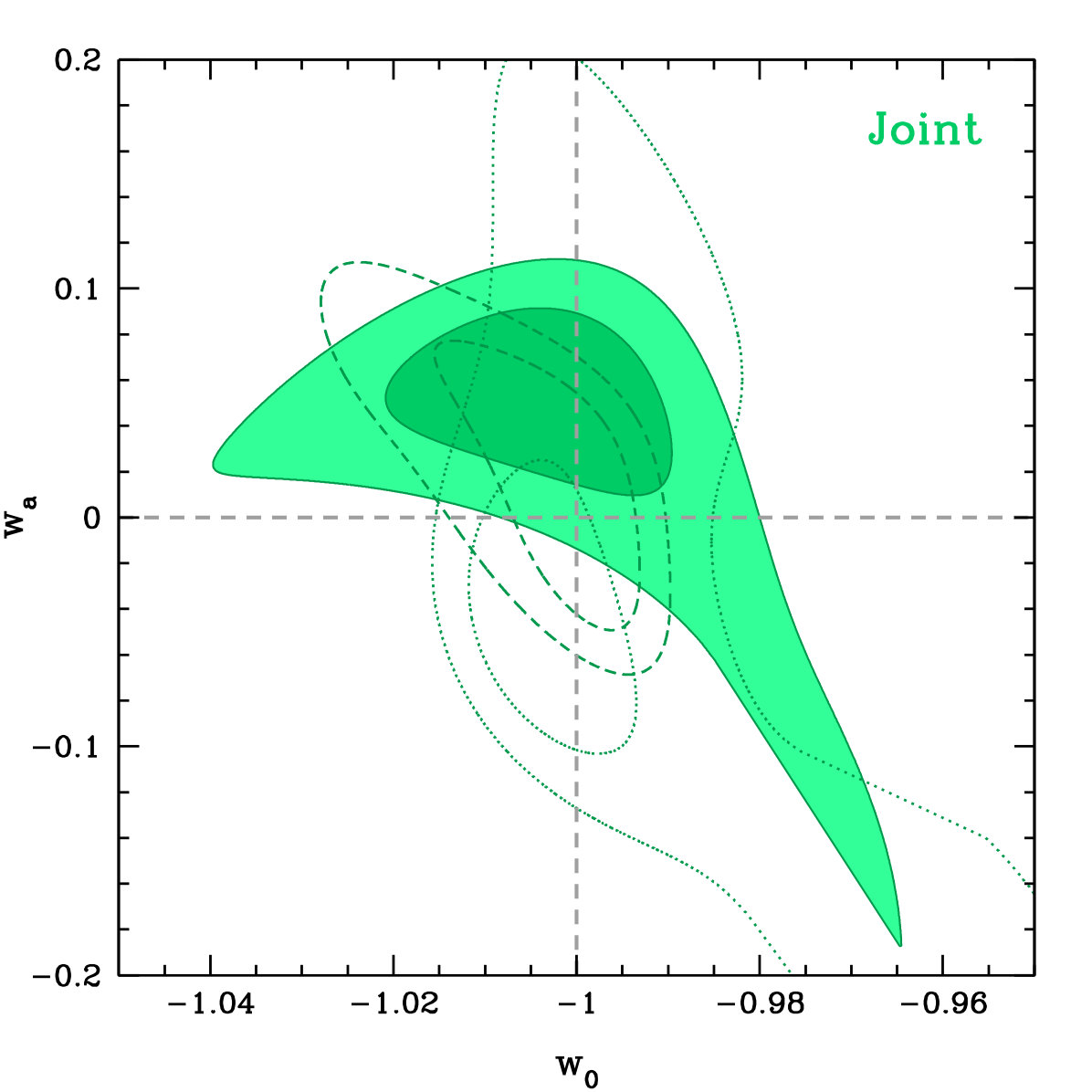

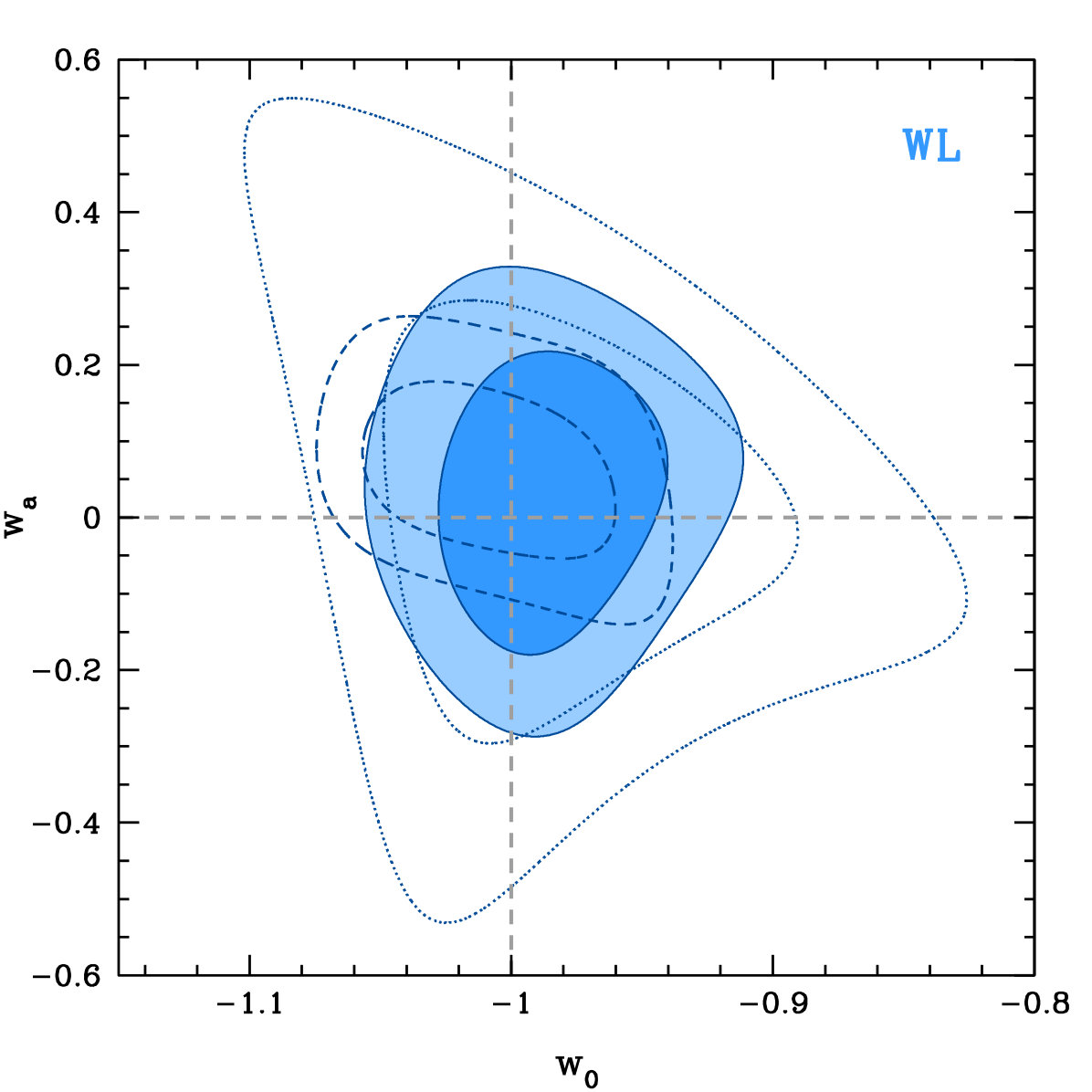

The constraint results of all cosmological parameters with the mild assumption of the systematics for the WL, galaxy clustering, and joint surveys can be found in Appendix.

6.2. Constraints on systematical parameters

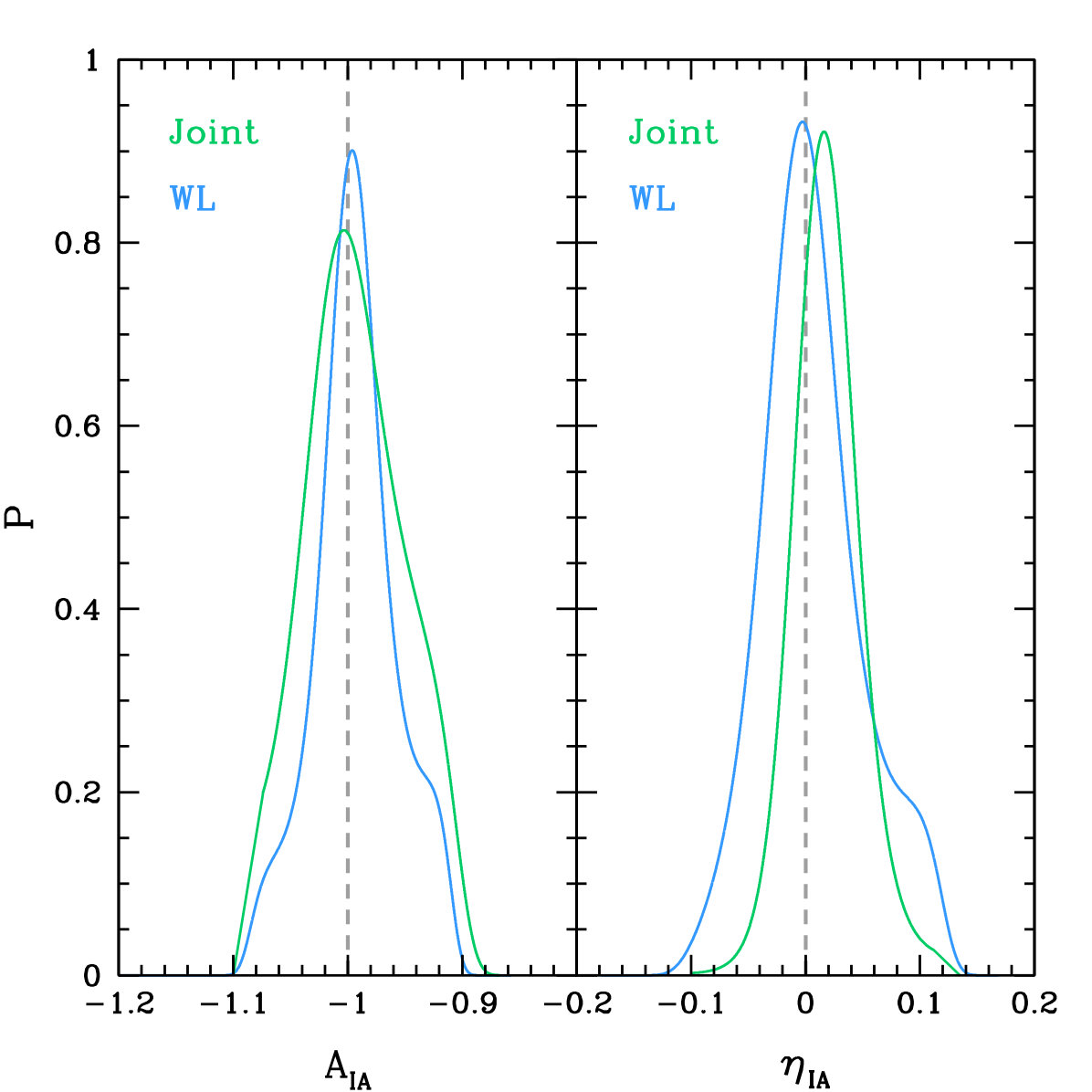

In Figure 14, the 1-d PDFs of the intrinsic alignment parameters $A_{\rm IA}$ and $\eta_{\rm IA}$ are shown for the WL (in blue curves) and joint (in green curves) surveys. We can find that there is no significant improvement on the constraint of $A_{\rm IA}$ for the joint constraints, while a factor of $\sim 1.3$ tighter for $\eta_{\rm IA}$ compared to the WL survey. This indicates that the joint fitting can be helpful to extract the redshift evolution effect of intrinsic alignment.

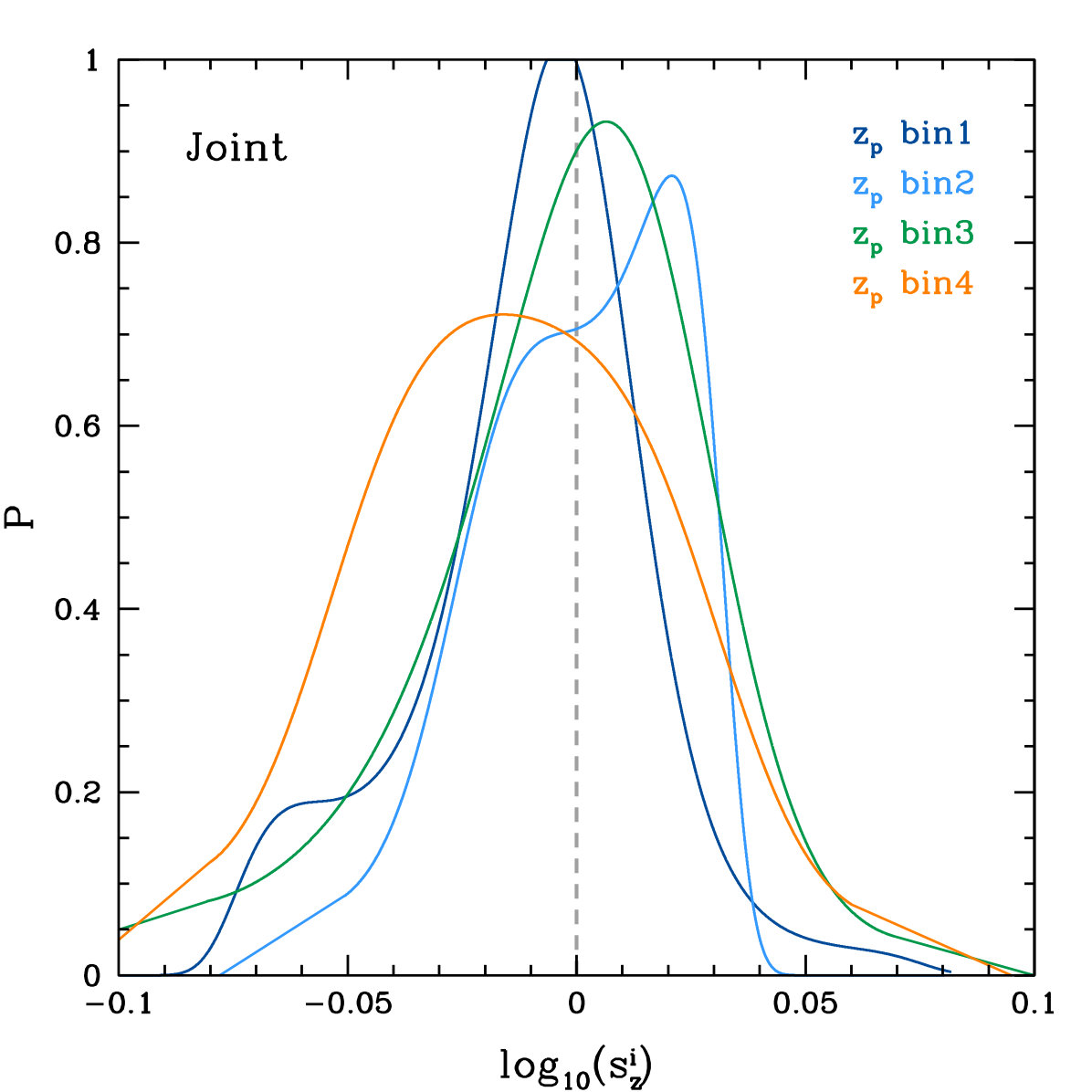

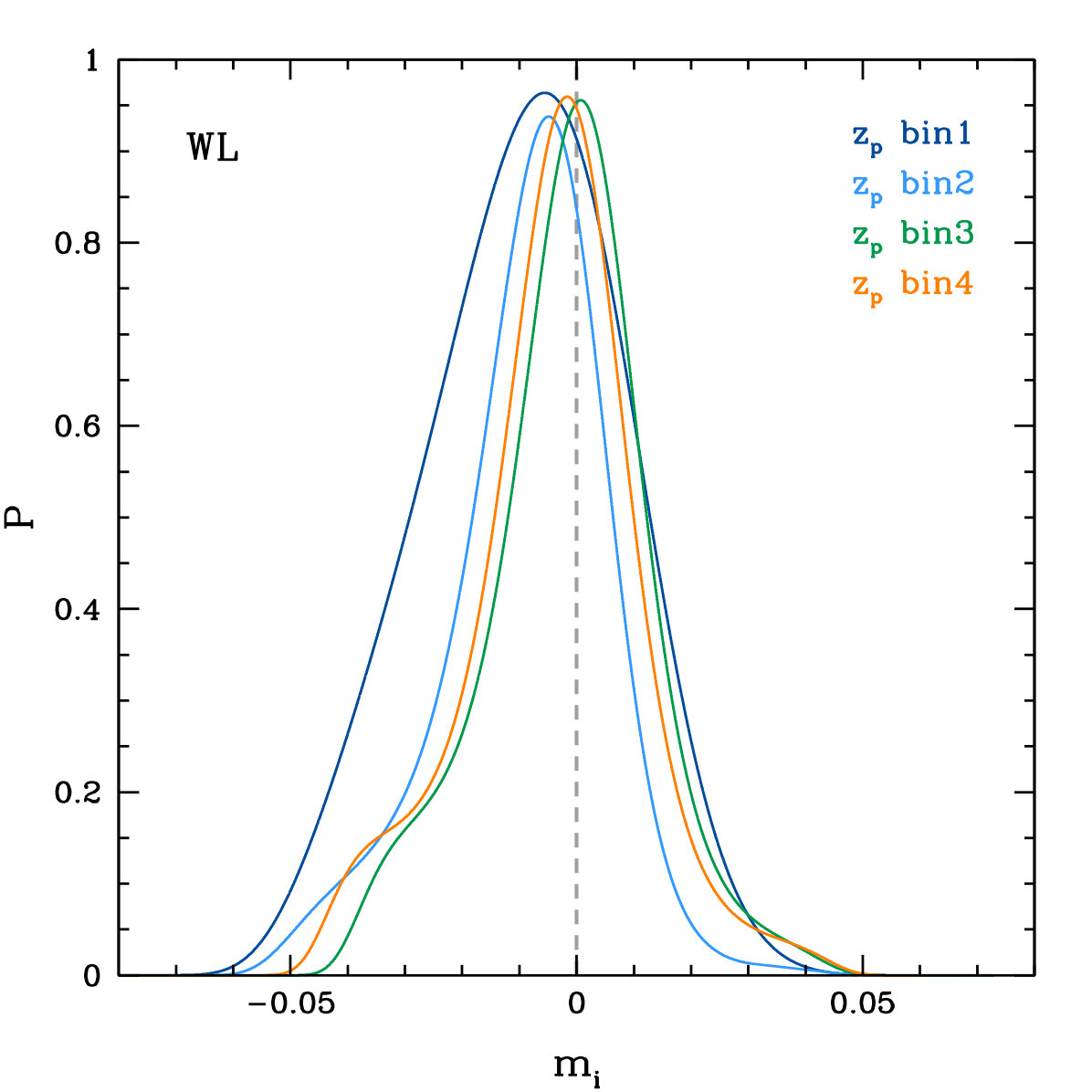

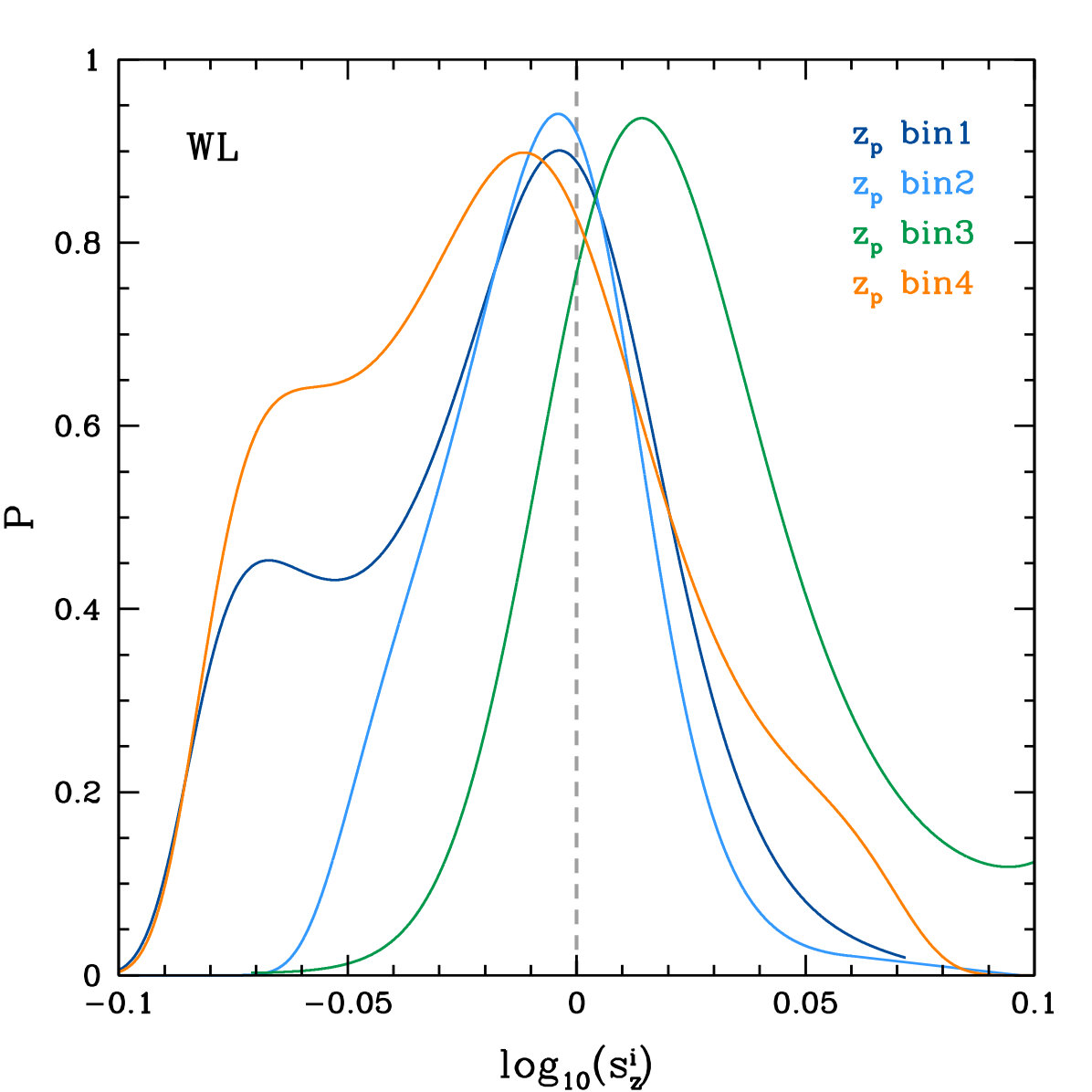

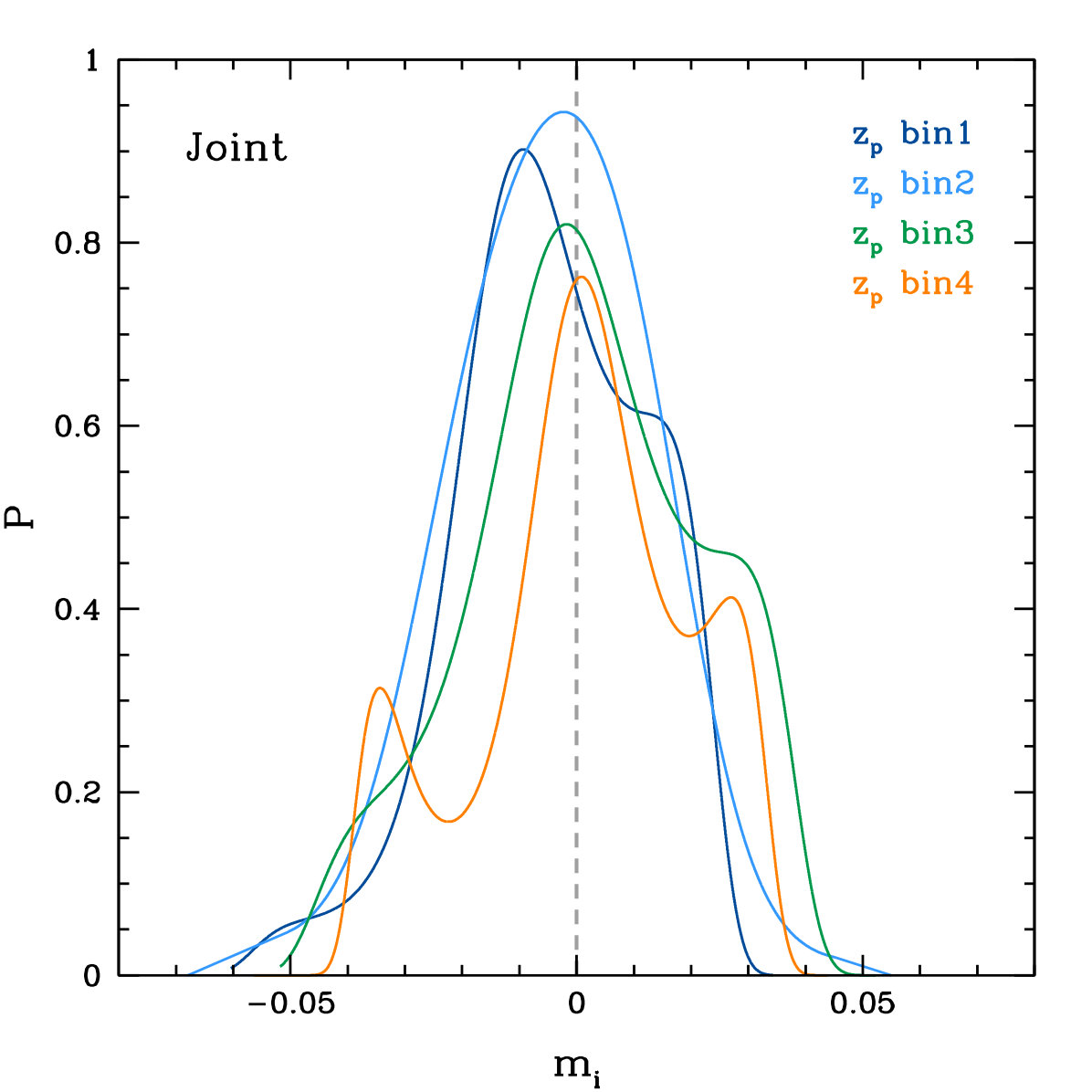

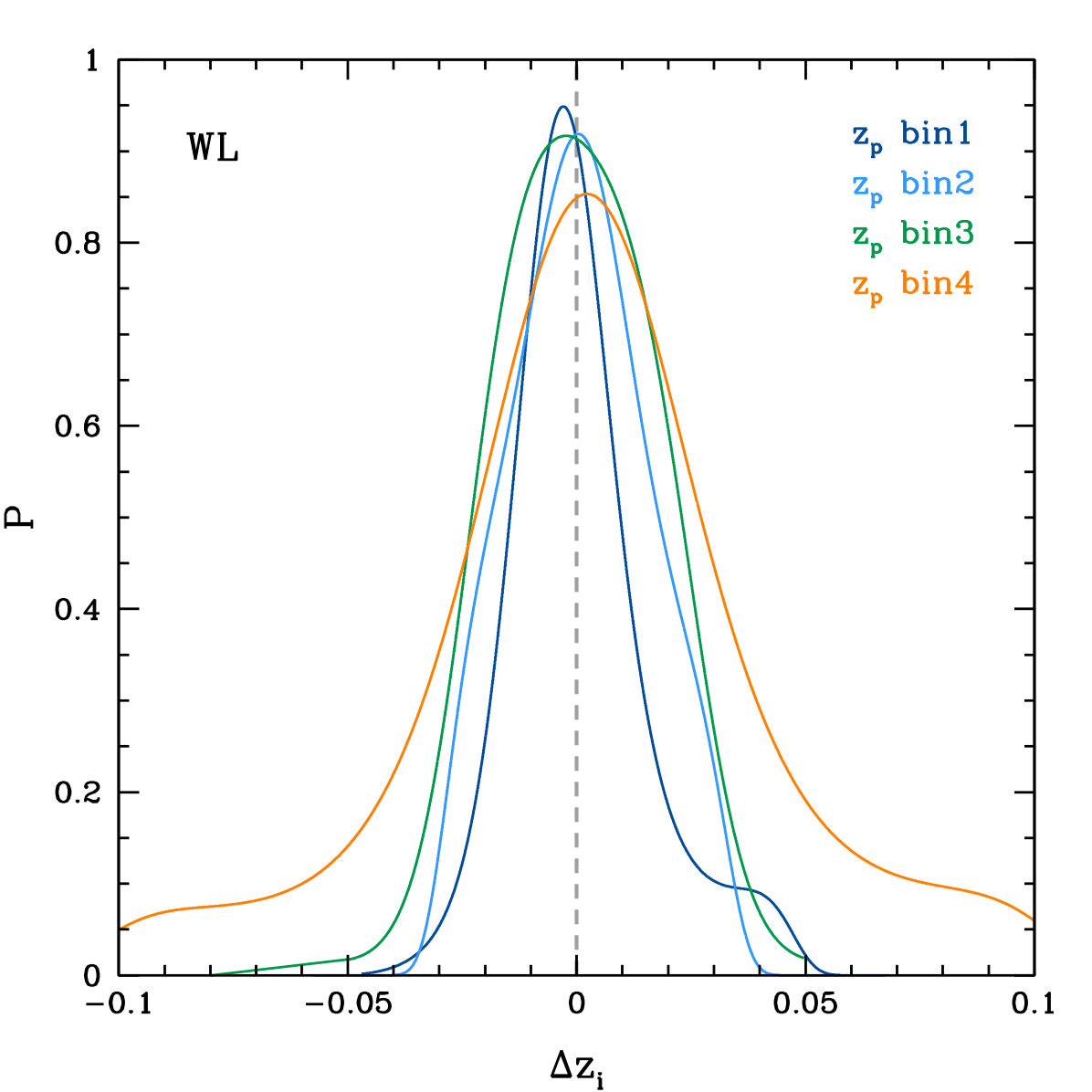

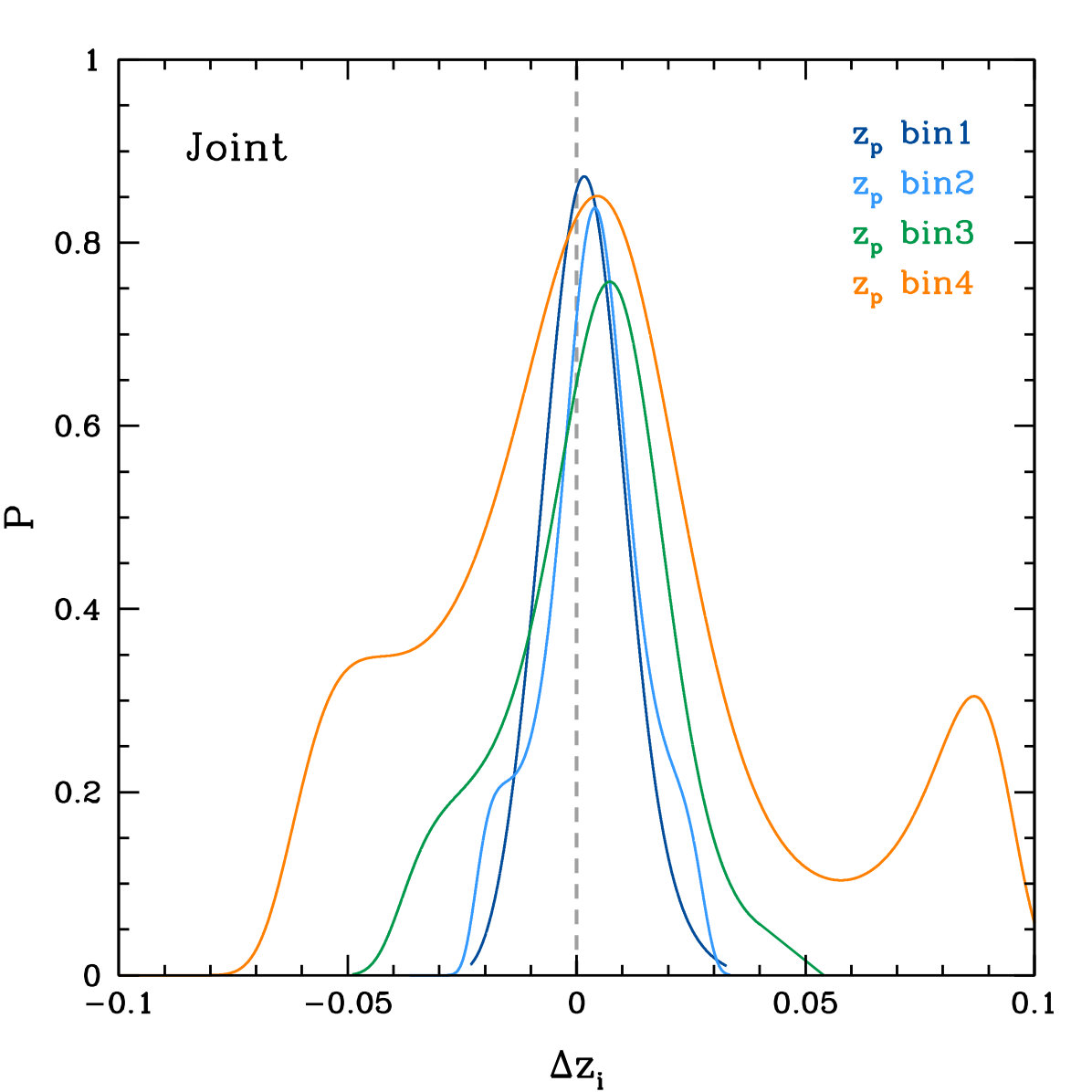

The 1-d PDFs of the redshift calibration bias $\Delta z_{i}$, stretch factor $s_{z}^{i}$, and multiplicative error $m_{i}$, are shown in Figure 15. The top and bottom panels show the results from the WL and joint surveys, respectively. We can see that the best-fits of the WL systematic parameters are close to their fiducial values (in 1$\sigma$ C.L.), that means our fitting process can correctly extract the systematics as free parameters. This is also useful to reduce the effect of the systematics on the constraints of cosmological parameters, and can help suppressing the fitting biases (see Figure 11). In order to retain small fitting biases of the cosmological parameters (keeping the fiducial values in 1$\sigma$ C.L.), as shown in the top panels of Figure 15, we need to control the systematical parameters in 1$\sigma$ C.L. of their PDFs at least. This requires $|\Delta z_{i}|<0.02$, $|{\rm log_{10}}(s_{z}^{i})|<0.05$ (about 10%)777The stretch factor of the redshift distribution has less effect compared to the redshift bias, which has not been considered in the current WL data analysis (e.g. see Hildebrandt et al., 2016; Troxel et al., 2017)., and $|m_{i}|<0.02$ for the CSST WL survey. When performing the joint fitting, the constraint results of the systematics can be improved by a factor of $\sim 1.5$, which implies that it is helpful to include other surveys (here the galaxy clustering survey) to eliminate the WL systematics in the fitting process.

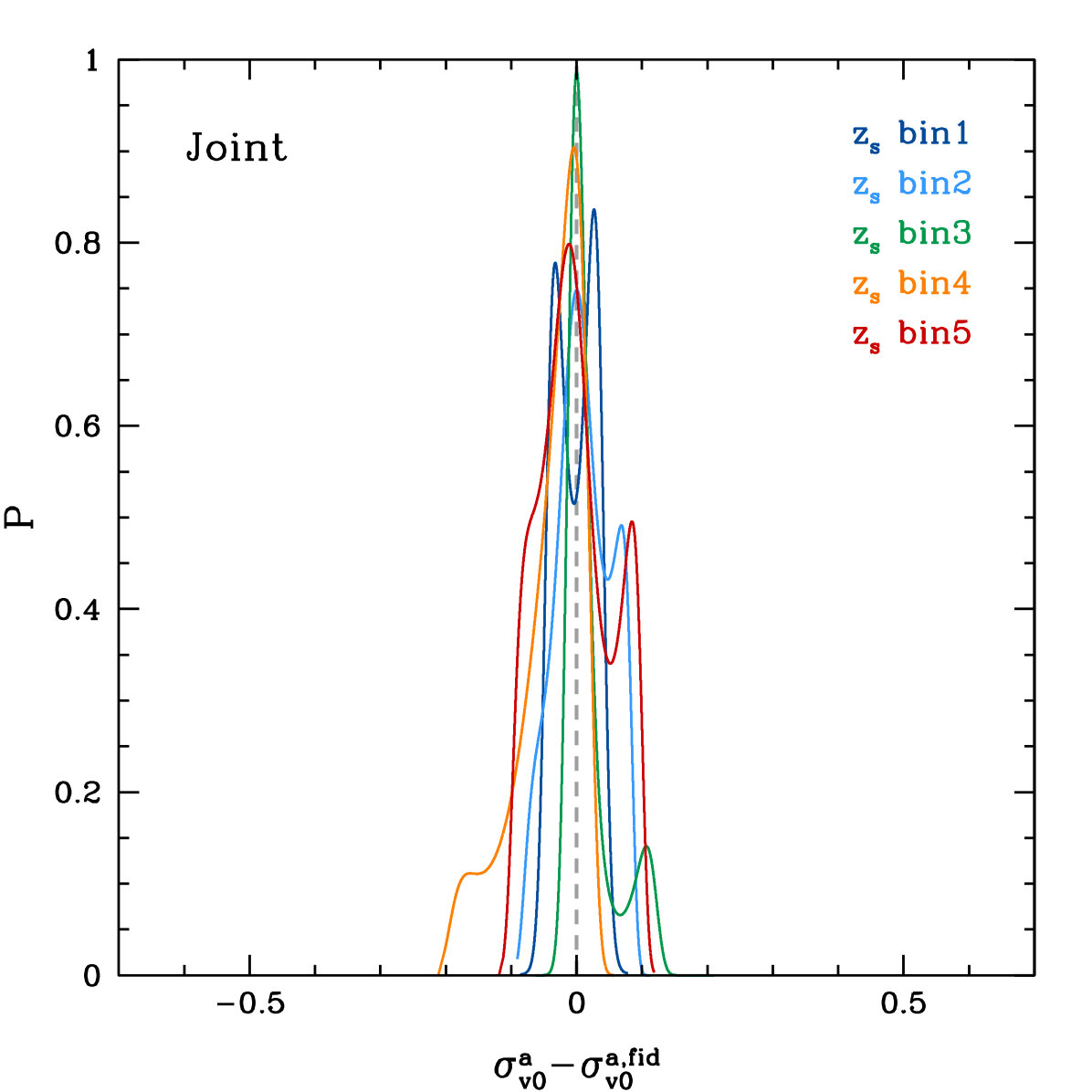

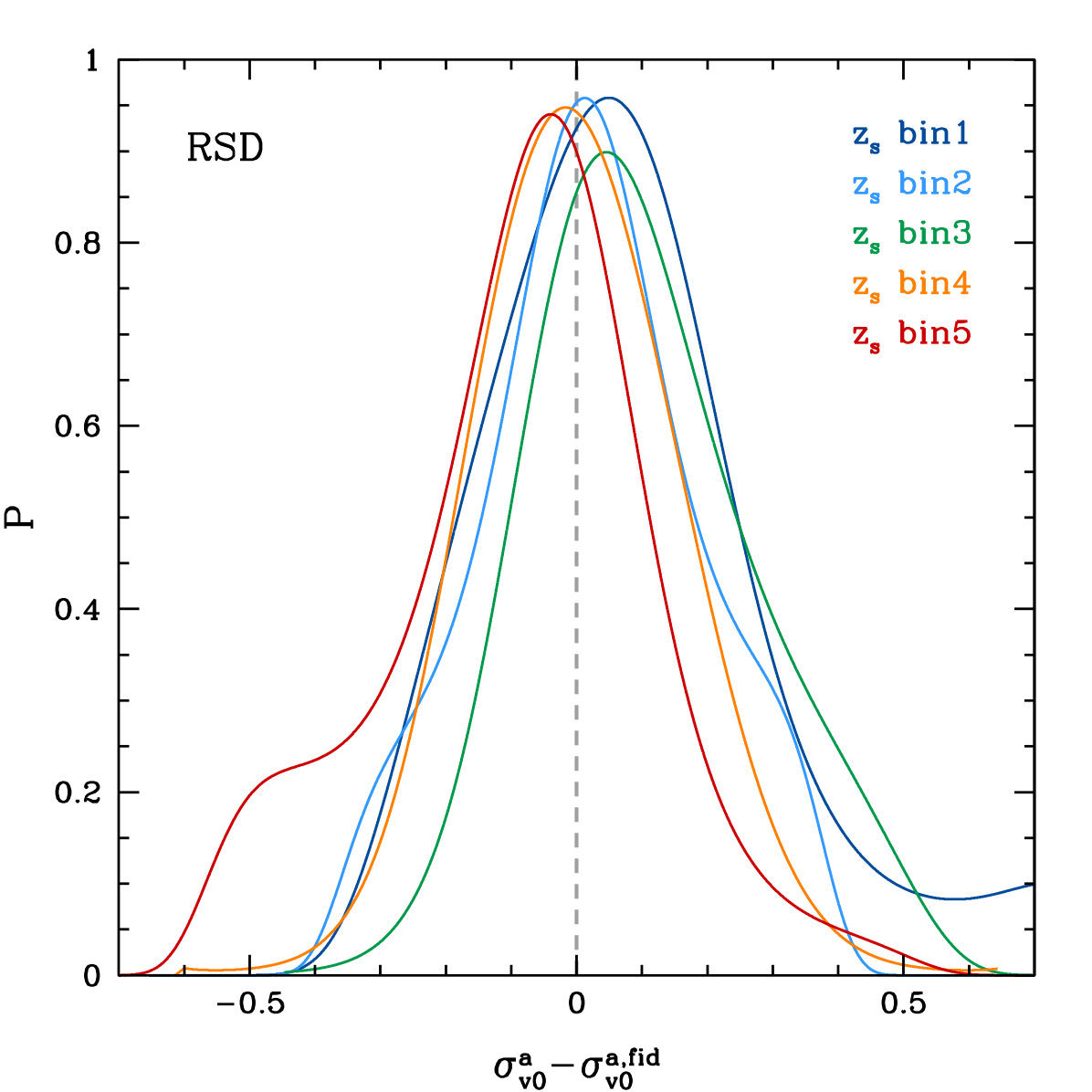

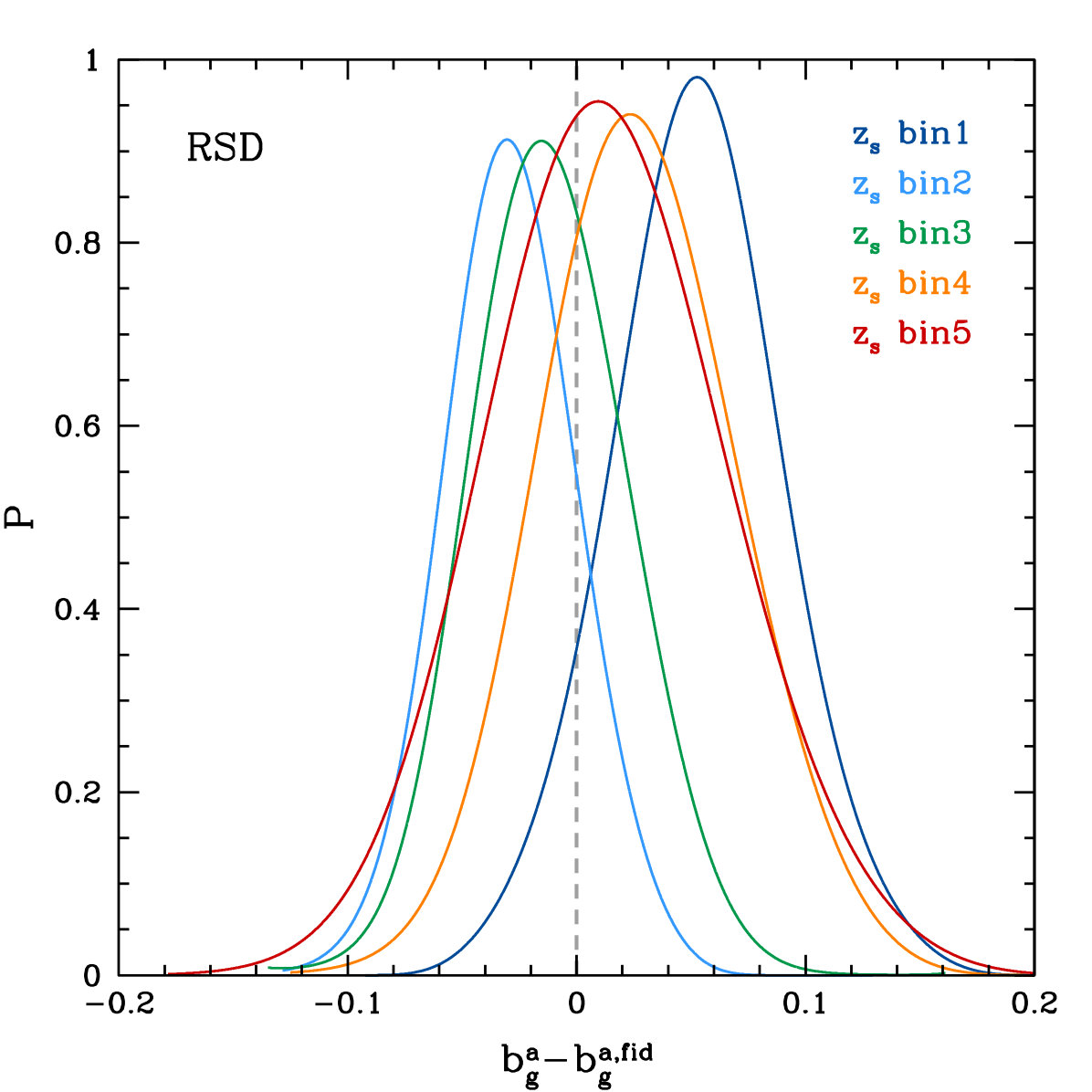

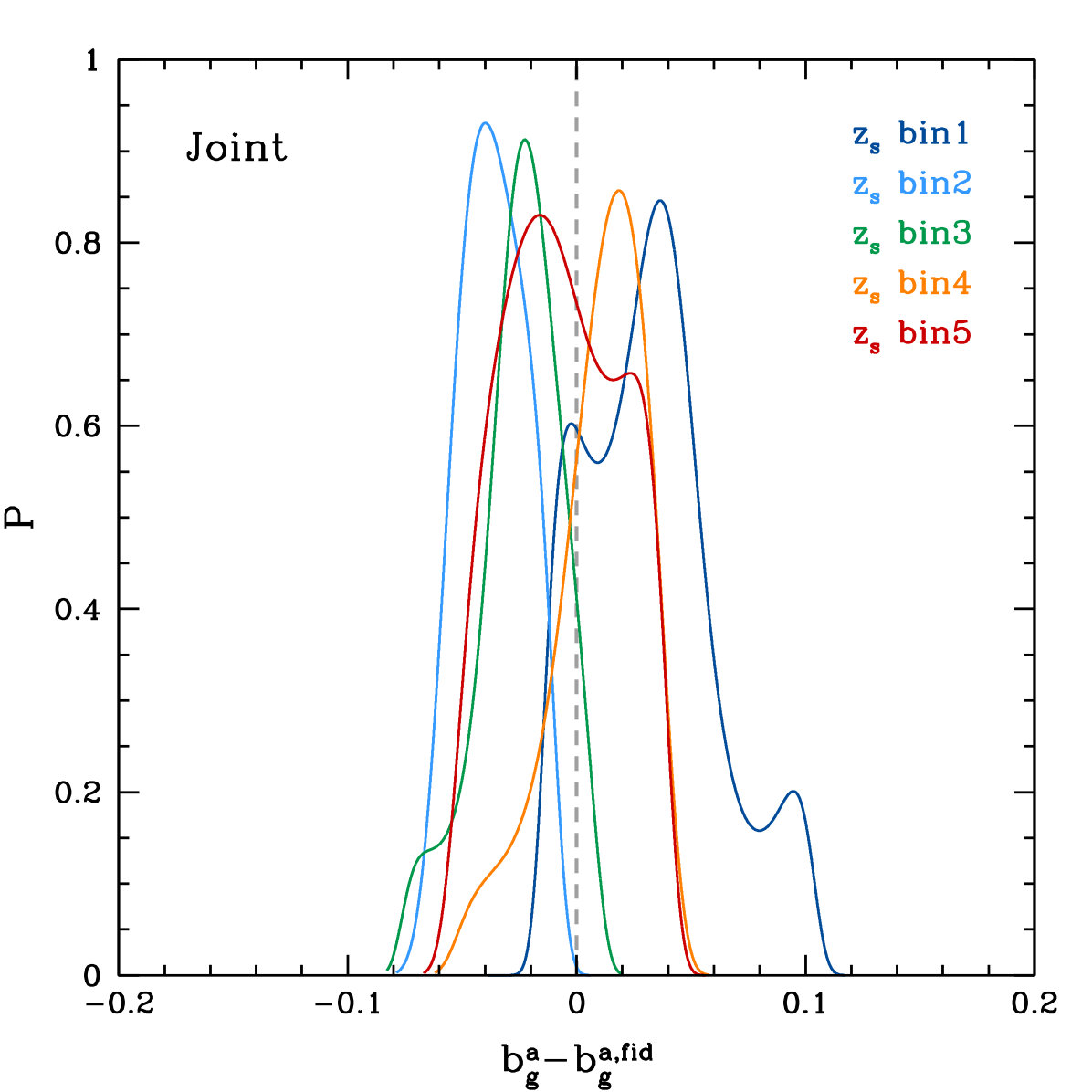

In Figure 16, the 1-d PDFs of galaxy bias $b_{g}$ and velocity dispersion $\sigma_{v0}$ assuming the moderate systematics for the five spec-$z$ bins are shown. For the galaxy clustering survey (top panels), we find that the dispersions of the best-fits of $b_{g}$ and $\sigma_{v0}$ from the fiducial values are within $\pm$0.1, and the $1\sigma$ ranges 0.03-0.05 for $b_{g}$ and 0.1-0.2 for $\sigma_{v0}$. The dispersions and uncertainties of $b_{g}$ and $\sigma_{v0}$ can be further suppressed in the joint fitting (bottom panel), especially for $\sigma_{v0}$. We find that the dispersions of $b_{g}$ and $\sigma_{v0}$ can be restricted within $\pm$0.05, and the $1\sigma$ within 0.01-0.02 for $b_{g}$ and 0.02-0.06 for $\sigma_{v0}$ (a factor of $\sim$2 and $\sim 4$ improvement, respectively.). It indicates that the CSS-OS can provide accurate constraints on the galaxy bias and velocity dispersion.

7. summary and discussion

In this work, we predict the measurements of the CSS-OS on the weak gravitational lensing and galaxy clustering, and explore the constraints on the cosmological parameters with the systematics. We make use of two catalogs, i.e. COSMOS and zCOSMOS catalogs, to simulate the CSST photometric imaging and slitless spectroscopic surveys. We find that the peaks of galaxy redshift distributions are around 0.6 and 0.3 for the CSST photometric and spectroscopic surveys, respectively.

We divide the photometric redshift distribution into four bins, and calculate the auto and cross convergence power spectra of these photo-$z$ bins. The effect of intrinsic alignment, and multiplicative and additive errors are included when generating the mock WL data. In addition to the photometric WL survey, the CSST can simultaneously perform spectroscopic survey to illustrate clustering of galaxies. We compute the galaxy redshift-space power spectra in five spec-$z$ bins, and obtain the mock data of the multipole power spectra, i.e. $P_{0}^{g}$, $P_{2}^{g}$, and $P_{4}^{g}$. We consider a number of effects when estimating the errors, such as the frequency resolution of the slitless grating, the effective redshift factor accounting for the fraction of galaxies that can achieve the required redshift accuracy in the slitless observations, and the systematic error due to the instrument effect. The cross correlations of the CSST WL and galaxy clustering surveys, i.e. galaxy-galaxy lensing power spectra, are also explored, which can be helpful to further suppress the uncertainties in the joint surveys.

After obtaining the CSS-OS mock data, the MCMC technique is adopted to constrain the cosmological and systematical parameters. We study and compare three cases with different assumptions about the systematics of the WL and galaxy clustering surveys, i.e. the pessimistic, moderate, and optimistic cases, in the constraint process. We find that the CSST WL and galaxy clustering surveys can provide a factor of a few (and optimistically even one order of magnitude) improvement about the cosmological parameters, compared to the current corresponding surveys. The constraints can be further enhanced by $\sim 2\sigma$ in the joint fitting process (WL+galaxy clustering+galaxy-galaxy lensing). We should note that the constraints can be worse in the real survey, since some assumptions made in this work may be simple and optimistic, and more details and uncertainties need to be further considered in future realistic simulations to derive more realistic result.

The CSS-OS also could provide good fitting about the intrinsic alignment and systematics (in the redshift and shape calibrations) in the WL survey, and galaxy bias and velocity dispersion in the galaxy clustering survey. The joint constraint can further improve the results by a factor of $\sim$2-4. Particularly, the systematics should be well controlled to avoid large fitting bias on the cosmological parameters in the WL survey, which requires redshift bias $|\Delta z_{i}|<0.02$, the redshift stretching scale (or the uncertainty of the redshift variance) $s_{z}^{i}<10\%$, and the multiplicative error $|m_{i}|<0.02$.

Besides the WL and redshift-space 3-d galaxy clustering surveys discussed above, the CSS-OS also can perform 2-d angular galaxy clustering photometric survey, strong gravitational lensing survey, galaxy cluster survey, etc. These surveys can offer more valuable information about dark matter and dark energy, the evolution of the LSS, and other important issues in cosmology. Therefore, we can expect that the CSS-OS will be a powerful space sky survey for the studies of our Universe.
