Transmission coefficients in compound-nucleus reaction theory

TL;DR

This paper reviews statistical reaction theory and evaluates a recent proposed modification to the cross section formula, concluding that standard methods remain preferable for compound nucleus reaction calculations.

Contribution

It clarifies the main concepts of statistical reaction theory and assesses a recent modification, reaffirming the validity of traditional cross section formulas.

Findings

Standard cross section formulas are still preferred.

The recent modification does not significantly improve practical calculations.

The paper clarifies the assumptions behind statistical reaction theory.

Abstract

A recent article (D.A. Brown, et al., Phys. Rev. C98 024616 (2018)) rproposed a modification of the cross section formula used in practical calculations of compound nucleus reactions. We discuss the main concepts and approximations of statistical reaction theory and conclude that the standard practical implementations of the cross section formula remain the preferred choice.

Figures

a, where the ratio of the cross section computed using $f_{c}$ in Eq. ([15](#S0.E15)) to the cross section calculated in the GOE theory is compared with a similar ratio but using the standard formula for the WFC in which $f_{c}=T_{c}$. We observe that this ratio is close to $1$ for the standard choice of variables $f_{c}=T_{c}$ (solid black circles). This is not surprising since the particular parameterization of the WFC was obtained by fitting such ratios. If we use $f_{c}$ as in Eq. ([15](#S0.E15)), we obtain the higher cross section ratios shown in solid red circles, indicating deviations f

a, where the ratio of the cross section computed using $f_{c}$ in Eq. ([15](#S0.E15)) to the cross section calculated in the GOE theory is compared with a similar ratio but using the standard formula for the WFC in which $f_{c}=T_{c}$. We observe that this ratio is close to $1$ for the standard choice of variables $f_{c}=T_{c}$ (solid black circles). This is not surprising since the particular parameterization of the WFC was obtained by fitting such ratios. If we use $f_{c}$ as in Eq. ([15](#S0.E15)), we obtain the higher cross section ratios shown in solid red circles, indicating deviations f

Equations

$${\bar{\sigma }}_{c,c^{\prime }}={\sigma }_0\overline{|{\delta }_{c,c^{\prime }}-S_{c,c^{\prime }}{|}^2},$$

$$S=\frac{1-iK}{1+iK},$$

$$K=\pi W^T\frac{1}{E-H}W.$$

$${\gamma }_{\mu c}=\sqrt{2\pi }{W}_{\mu c}.$$

$$x_c=\frac{\pi }{2D}⟨{\gamma }_c^2⟩,$$

$$⟨{\gamma }_c^2⟩=\frac{1}{N}\sum _{\mu }{\gamma }_{\mu c}^2.$$

$$⟨S_{c,c^{\prime }}⟩={\delta }_{c,c^{\prime }}\frac{1-x_c}{1+x_c}.$$

$$T_c=1-|⟨S_{c,c}⟩{|}^2.$$

$$T_c=\frac{4x_c}{(1+x_c{)}^2}.$$

$${\bar{\sigma }}_{ab}^{\mathrm{HF}}={\sigma }_0\frac{T_a{T}_b}{{\sum }_c{T}_c}.$$

$${\bar{\sigma }}_{ab}={\bar{\sigma }}_{ab}^{\mathrm{HF}}{\mathcal{W}}_{ab}.$$

$$\frac{⟨{\Gamma }_c⟩}{D}\approx \frac{2}{\pi }{x}_c.$$

$${\bar{\sigma }}_{ab}^{\mathrm{mod}}={\sigma }_0\frac{T_a{f}_b}{{\sum }_c{f}_c}{\mathcal{W}}_{ab}(\vec{f}).$$

$${\mathcal{W}}_{ab}(\vec{f})=\left(1+{\delta }_{ab}\frac{2}{{\nu }_a}\right){\int }_0^{\infty }dz\prod _c{\left(1+\frac{2f_{c}z}{{\nu }_c{\sum }_{c^{\prime }}{f}_c^{\prime }}\right)}^{-{\delta }_{ac}-{\delta }_{bc}-{\nu }_c/2},$$

$$f_c=\frac{T_c}{\sqrt{1-T_c}}$$

Full text

Although statistical reaction theory has played a prominent role in nuclear physics since its beginnings in the 1930s, it has only come to maturity in the 1980s with the development and analytic solution we85 ; mi10 of the statistical model based on the Gaussian orthogonal ensemble (GOE) description of the underlying compound nucleus Hamiltonian. We shall refer to this model as the GOE theory of compound nucleus reactions. The analytic solution for the average compound-nucleus reaction cross section in the GOE theory requires the evaluation of a complicated three-dimensional integral that depends on the parameters of the model, and in practice simplified formulas are often implemented. The most common such simplified treatment is the Hauser-Feshbach plus width-fluctuation-correction formula, discussed in detail below.

Ref. br18 proposed a modification to this formula but did not test its performance with respect to the underlying GOE theory. In this work, we benchmark both the standard and modified formulas against the GOE theory. We find that the standard formula is in good agreement with the GOE theory, while the modified formula deviates from the GOE theory at larger values of the coupling parameters.

The average compound-nucleus reaction cross section $\bar{\sigma}_{c,c^{\prime}}$ to scatter from channel $c$ to channel $c^{\prime}$ can be expressed in terms of the fluctuating part of the $S$-matrix

[TABLE]

where $\sigma_{0}=\pi g_{c}/k_{c}^{2}$ is the maximum inelastic cross section for incoming relative momentum $k_{c}$ in a two-body entrance channel $c$, and $g_{c}$ is a statistical spin factor in this channel. We assume $N$ internal states described by an hermitean Hamiltonian $H$ coupled to $\Lambda$ open channels. The coupling constants $W_{\mu,c}$ between the internal states $\mu$ $(1\leq\mu\leq N)$ and channels $c$ $(1\leq c\leq\Lambda)$ form an $N\times\Lambda$ real matrix $W$. The unitary $S$ matrix is expressed in terms of an hermitean $K$ matrix

[TABLE]

where the $K$ matrix is given by

[TABLE]

In the GOE theory, $H$ is chosen to be a random matrix that belongs to the GOE and the average over energy is replaced by an average over the ensemble. Expressed in the basis of eigenstates $\mu$ of $H$, the coupling amplitudes $W_{\mu c}$ are characterized by channel-dependent Gaussian distributions in the limit of large $N$. We define the partial width amplitude of an eigenstate $\mu$ to decay into a channel $c$ by

[TABLE]

A dimensionless coupling parameter $x_{c}$ in channel $c$ is defined by

[TABLE]

where $D$ is the mean level spacing in the middle of the GOE spectrum, and $\langle\gamma_{c}^{2}\rangle$ is the mean square partial width amplitude in channel $c$

[TABLE]

The ensemble-average $S$-matrix elements can be expressed in terms of $x_{c}$ (see Eq. (65) in Sec. V of Ref. mi10 )

[TABLE]

The physical parameters are the transmission coefficients defined by

[TABLE]

We note that in the presence of direct reactions, the average $S$ matrix is not diagonal and the transmission coefficient in channel $c$ is usually approximated by $T_{c}=1-\sum_{c^{\prime}}|\langle S_{c,c^{\prime}}\rangle|^{2}$. A rigorous method to treat the effect of direct reactions is to use the Engelbrecht Weidenmüller transform en73 .

Using Eq. (7), we have

[TABLE]

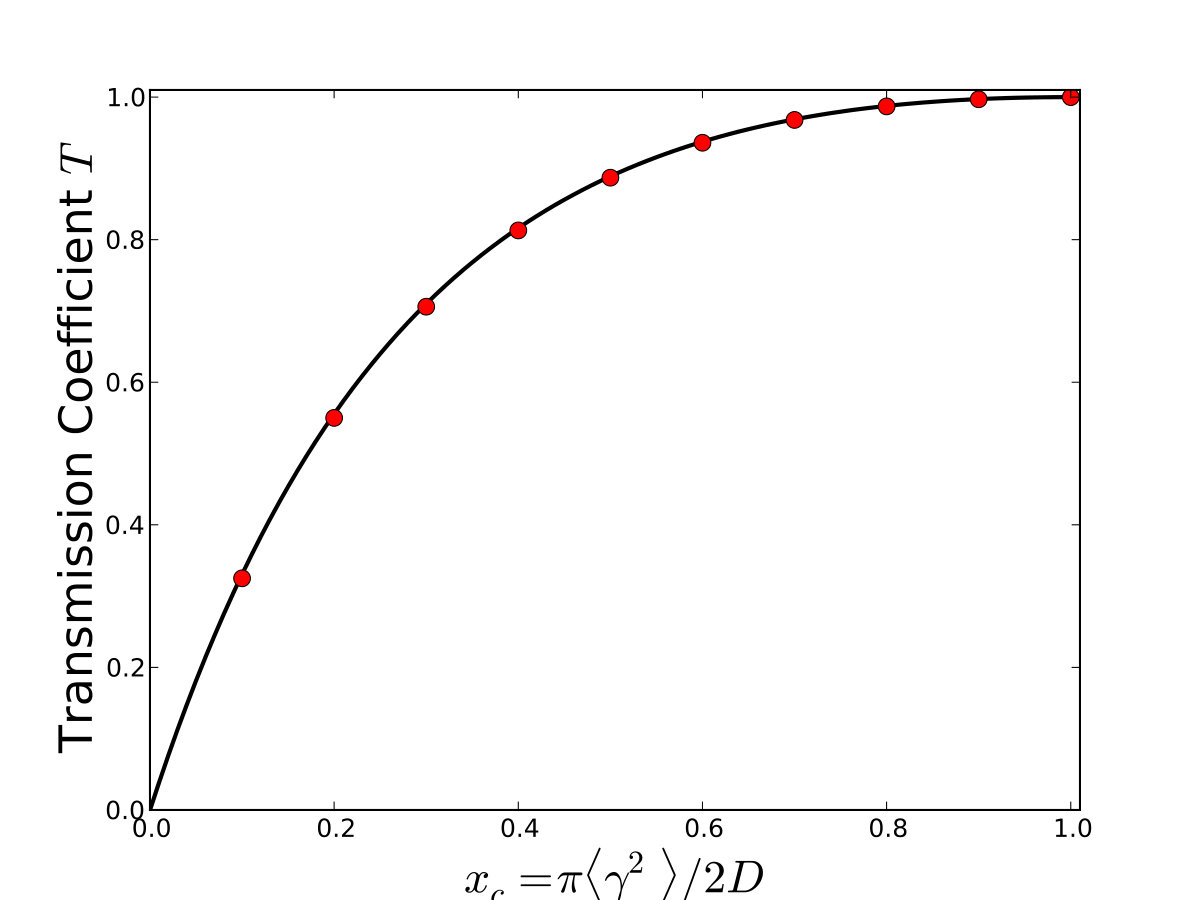

Relations (7) and (9) hold for any values of the coupling parameters $x_{c}$. Thus the GOE theory is highly constrained; the complete structure of the average $S$-matrix elements at a fixed energy is determined by the the transmission coefficients $T_{c}$. Given the set of $T_{c}$, the average compound-nucleus reaction cross sections can be expressed in closed form by the three-dimensional integral derived in Ref. we85 . Alternatively, these cross sections can be calculated numerically by sampling the Hamiltonian matrix $H$ from the GOE and using Eqs. (3), (2), and (1) as was done in Refs. ka14 ; ka15 . This latter approach is demonstrated in Fig. 1, which shows the incoming channel transmission coefficient $T_{c}$ for a reaction with six equivalent channels as a function of $x_{c}$. The numerical results obtained by sampling $H$ from the GOE (solid circles) are in excellent agreement with the analytic expression (9) (solid line).

However, the main practical codes implementing statistical reaction theory follow the historical development of the theory and compute compound-nucleus reaction cross sections in two steps mo75 . The first step is to evaluate the Hauser-Feshbach (HF) formula for the average cross sections or branching ratios, assuming that the relative decay probability in each channel is proportional to $T_{c}$

[TABLE]

The average partial decay widths $\langle\Gamma_{c}\rangle$ may also be used as the input parameters (instead of $T_{c}$), but as discussed below, this is more indirect approach. In the second step in constructing the practical formula, the HF cross section is corrected by a factor ${\cal W}_{ab}$, known as the width-fluctuation correction (WFC)

[TABLE]

Since the complete GOE theory depends only on the parameters $x_{c}$ (or alternatively $T_{c}$), the WFC factor ${\cal W}_{ab}$ can be calculated in terms of these parameters (e.g., using the triple integral formula of Ref. we85 ). A particularly accurate approximation to ${\cal W}_{ab}$ is Moldauer’s formula mo80 with a particular parametrization of the number of degrees of freedom $\nu_{c}$ in channel $c$ in terms of the transmission coefficients (see, e.g., Ref. ka14 ).

In Ref. br18 , the average partial widths of the resonances $\langle\Gamma_{c}\rangle$ were taken as the parameters of the statistical theory. In principle, these partial widths can be calculated from the pole expansion of the $S$ matrix, and the total width can be determined by the imaginary part of the $S$-matrix poles $E_{\mu}$ in the complex energy plane, $\Gamma_{\mu}=-{\rm Im\,}E_{\mu}/2$. In the weak-coupling limit where $x_{c}$ are small in all channels, the relation between $\langle\Gamma_{c}\rangle$ and $x_{c}$ is

[TABLE]

As discussed in Ref. br18 , average partial widths can be measured in the unresolved resonance region where Eq. (12) no longer holds. It would be useful to relate the average partial widths to the transmission coefficients in order to test optical model parameterizations of the latter. This will be addressed in the framework of the GOE theory in future work. Here we use the parameters $x_{c}$ defined by Eqs. (4) and (6), or alternatively $T_{c}$, as the independent parameters of the statistical theory.

Ref. br18 proposed a modification of the HF+WFC formula (11) by replacing $T_{c}$ in Moldauer’s formula by a certain function $f_{c}$ of $T_{c}$. The proposed formula has the structure

[TABLE]

Here $\vec{f}=(f_{1},\ldots,f_{\Lambda})$ and

[TABLE]

where $\nu_{c}$ is the number of degrees of freedom in channel $c$. In particular, the authors of Ref. br18 find that the choice

[TABLE]

permits a better agreement with experiment in one of the reactions they studied.

To determine whether this modified formula provides better fits to cross sections of the statistical GOE theory when the coupling parameters $x_{c}$ vary between the weak coupling limit $x_{c}\ll 1$ and $x_{c}=1$, we consider a two-channel compound nucleus reaction with similar parameters to Example C of Ref. ka14 . In our calculation we use the same definition of the WFC as in Refs. ka14 ; br18 .

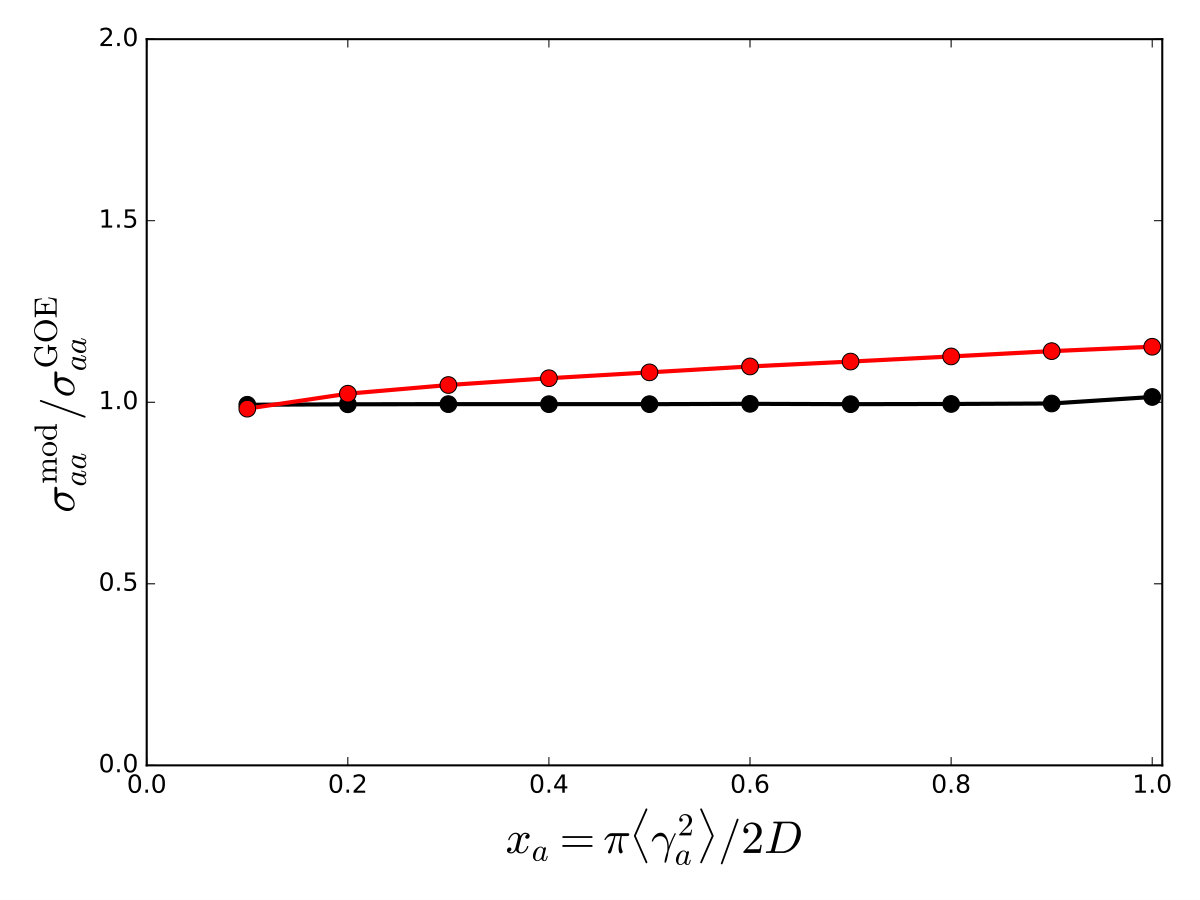

We first vary the transmission coefficient $T_{a}$ in one channel from zero to one, setting $T_{b}=0.26$ in the second channel. The results are shown in Fig. 2a, where the ratio of the cross section computed using $f_{c}$ in Eq. (15) to the cross section calculated in the GOE theory is compared with a similar ratio but using the standard formula for the WFC in which $f_{c}=T_{c}$. We observe that this ratio is close to $1$ for the standard choice of variables $f_{c}=T_{c}$ (solid black circles). This is not surprising since the particular parameterization of the WFC was obtained by fitting such ratios. If we use $f_{c}$ as in Eq. (15), we obtain the higher cross section ratios shown in solid red circles, indicating deviations from the GOE theory as $x_{a}$ increases from its value at $x_{a}=0.1$.

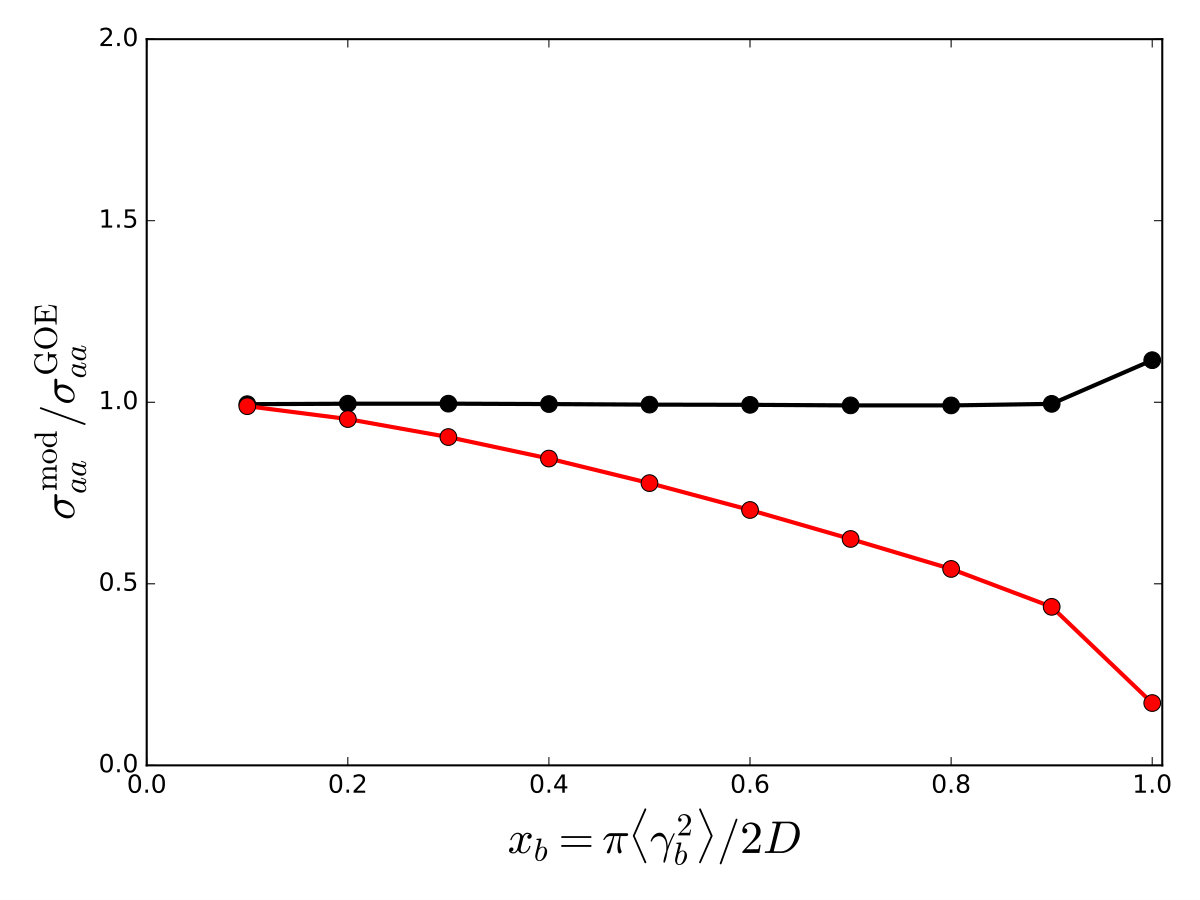

Next, we make a similar comparison by varying $T_{b}$ while setting $T_{a}=0.39$. The results are shown in Fig. 2b. Again, the standard choice $f_{c}=T_{c}$ gives very good agreement with the GOE theory, while the choice in Eq. (15) leads a reduction in the ratio at higher values of $x_{b}$. Thus choosing a different parametrization for $f_{c}$ does not improve the fits without making a compensating change in the parametrization of the WFC factor $\cal W$.

We close with some remarks on the superradiance phenomenon. In statistical reaction theory, superradiance refers to the development of broad resonances with simple structure for $x_{c}>1$. However, these resonances do not affect the average cross sections of the statistical theory mi10 . From Eq. (9), we see that the transmission coefficients $T_{c}$ (9) are invariant the transformation $x_{c}\to 1/x_{c}$. Since the analytic solution of the GOE theory depends only on $T_{c}$, changing from $x_{c}<1$ to $1/x_{c}$ at which superradiance occurs does not change the GOE theory cross section.

In conclusion, we advocate using the statistical GOE theory as far a possible in analyzing compound-nucleus reaction cross sections.
