Cosmic Censorship Upheld in Spheroidal Collapse of Collisionless Matter

TL;DR

This study demonstrates that spheroidal collapse of collisionless matter in general relativity results in black hole formation and gravitational radiation, upholding the cosmic censorship conjecture and challenging earlier claims of naked singularities.

Contribution

Revisits previous spheroidal collapse scenarios with different coordinates and parameters, showing all cases lead to black holes, thus supporting cosmic censorship.

Findings

All configurations studied form black holes with apparent horizons.

Proper horizon circumferences do not exceed hoop conjecture bounds.

Strong gravitational radiation emitted during collapse, up to high luminosities.

Abstract

We study the collapse of spheroidal configurations of collisionless particles in full general relativity. This setup was originally considered by Shapiro and Teukolsky (1991), where it was found that prolate configurations with a sufficiently large semimajor axis gave rise to diverging curvature, but no apparent horizon. This was taken as evidence for the formation of a naked singularity, in violation of cosmic censorship. We revisit such configurations using different coordinates/slicing, and considering a range of values for the semimajor axis and eccentricity of the initial matter distribution, and find that the final state in all cases studied is a black hole plus gravitational radiation. Though initially distorted, the proper circumferences of the apparent horizons that are found do not significantly exceed the hoop conjecture bound. Configurations with a larger semimajor axis can produce strong gravitational radiation, with luminosities up to $P_{\rm GW}\sim 2\times 10^{-3}c^5/G$.

Figures

Full text

Introduction.—Unhalted, gravitational collapse in Einstein’s theory of general relativity will lead to the formation of singularities where the theory breaks down. Remarkably, it is conjectured that if one excludes regions hidden from far away observers by black hole horizons, Einstein’s theory generically retains its ability to predict the evolution of spacetime. This behavior is referred to as cosmic censorship Penrose (1969). (Here, we refer specifically to the weak cosmic censorship conjecture.) Violations of cosmic censorship have been shown to occur in the fine-tuned configurations of critical collapse Choptuik (1993), as well as in spacetimes with dimension higher than four Lehner and Pretorius (2010); Figueras et al. (2016, 2017). However, for more generic initial data in 3+1 dimensions, cosmic censorship has shown to hold in the numerous cases where it has been studied Wald (1997).

One possible exception to cosmic censorship is the work of Shapiro and Teukolsky Shapiro and Teukolsky (1991) following the collapse of prolate configurations of collisionless particles. In that work, one configuration was found to exhibit a blowup in the spacetime curvature in two spindle regions lying outside the collapsing matter, an indication this was not due to just a shell crossing singularity in the matter. 111A formal statement of the cosmic censorship conjecture requires some “suitability” condition be placed on the matter fields, which could exclude singularities such as fluid shocks or matter shell crossings that could occur even without gravity Wald (1997). Here, following Shapiro and Teukolsky (1991), we consider collisionless matter, which can develop caustics, but do not consider such caustics as violations of cosmic censorship. No apparent horizon was found before the simulation became unreliable and could no longer be evolved, and this, along with the lack of turn around of null geodesics in the vicinity of the blowup, was taken as evidence that this was a naked singularity, in violation of cosmic censorship. However, since the calculation could not be continued past the blowup, the possibility of the spacetime containing an event horizon that would hide the final stages of gravitational collapse was not conclusively ruled out. In particular, the absence of an apparent horizon in some gauge does not rule out an event horizon. In fact, one can slice a Schwarzschild spacetime in a way that approaches the singularity without containing outer trapped surfaces Wald and Iyer (1991).

The study of such prolate configurations as candidates for violating cosmic censorship was motivated by Thorne’s hoop conjecture Thorne (1972). Though lacking a precise formulation, the hoop conjecture roughly states that a black hole will form if and only if some mass $M$ can be localized in a region whose circumference in every direction satisfies $\mathcal{C}\lesssim 4\pi M$. (Here and throughout we use geometric units with $G=c=1$.) For example, the collapse of an infinite cylindrical distribution of matter will not a form a black hole (but will form a singularity) Thorne (1972). The hoop conjecture can be violated in the presence of negative energy, for example, by cylindrical black holes in anti-de Sitter spacetimes Lemos (1995, 1998), or due to a scalar field with negative potential East et al. (2017), where arbitrarily elongated black holes can be formed, but seems to be robust otherwise. Hence the motivation to study the collapse of very prolate distributions of matter which (at least initially) lie outside the hoop conjecture bound to form a black hole Nakamura et al. (1988). (See Ref. Andreasson (2012) for an analytic proof of black hole formation in a spherical symmetric collisionless matter configuration.)

Despite follow-up work by numerous authors, including relaxing the requirement of axisymmetry and using higher resolution Shibata (1999); Yoo et al. (2017), utilizing excision to the causal future of the curvature blowup Okounkova (2016), and extending to 5 dimensional spacetimes Yamada and Shinkai (2011), the question of whether the configurations studied in Ref. Shapiro and Teukolsky (1991) violate cosmic censorship has remained unanswered. Here, we revisit the problem, using somewhat different methods that allow us to rescue cosmic censorship and determine the ultimate fate of such spacetimes. We show that the final state is in fact a black hole with, in some cases significant, gravitational radiation.

Methodology.—We consider the same family of initial conditions as in Ref. Shapiro and Teukolsky (1991), consisting of a prolate spheroidal distribution of collisionless matter, initially at rest, that is axisymmetric and has no angular momentum. This family is parameterized by a semimajor axis length $b$ (in units of the total mass $M$), and eccentricity $e=\sqrt{1-a^{2}/b^{2}}$ (where $a$ is in the equatorial radius). In the Newtonian limit, the spheriods have homogeneous density. At $t=0$, the spatial metric is conformally flat $\gamma_{ij}=\Psi^{4}\delta_{ij}$ and the extrinsic curvature is zero $K_{ij}=0$. See Refs. Nakamura et al. (1988); Yoo et al. (2017) for further details on the initial data.

In this work, we focus on very prolate cases. In Ref. Shapiro and Teukolsky (1991), the cases considered were $e=0.9$ with $b/M=2$ (prompt collapse to a black hole) and $b/M=10$ (candidate for cosmic censorship violation). Here we consider a number of cases with $e=0.9$ and $2\leq b/M\leq 20$. We also consider one case with larger eccentricity, namely $b/M=10$ with $e=0.95$.

We evolve the Einstein-Vlasov equations describing a distribution of collisionless matter coupled to gravity using the methods of Ref. Pretorius and East (2018) for evolving massive particles. For gauge conditions at $t=0$, we choose the lapse to be $\alpha=\Psi^{-4}$ and the shift to be zero $\beta^{i}=0$. However, we carry out the initial part of the evolution in harmonic gauge. Around the time of collapse, we transition to a damped harmonic gauge Lindblom and Szilagyi (2009); Choptuik and Pretorius (2010) (specifically the $p=1/4$ version used in Ref. East and Pretorius (2013)), which we find helps control the strong oscillations in the coordinate shape of the black hole as it settles down. In contrast, in Ref. Shapiro and Teukolsky (1991), maximal slicing and isotropic spatial coordinates were used.

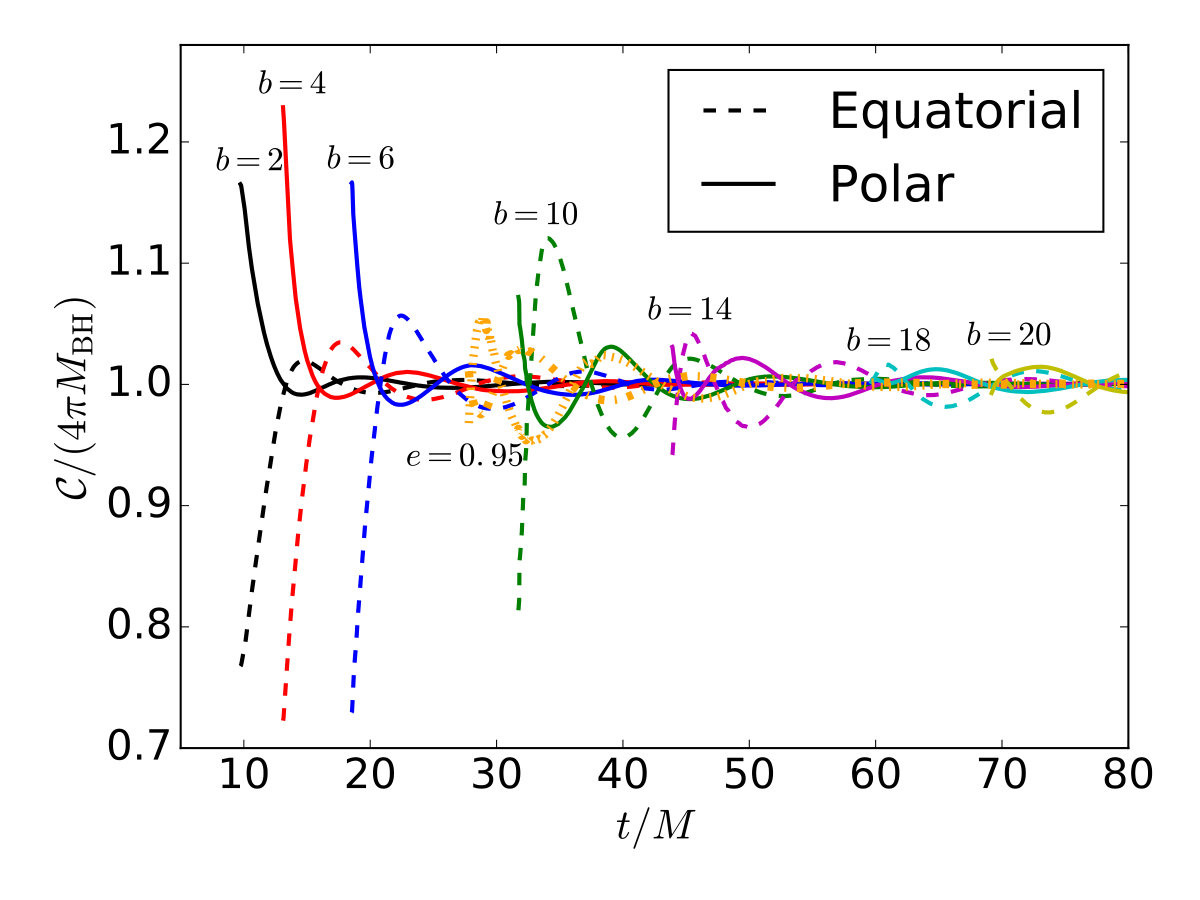

We search for apparent horizons—outermost marginally outer trapped surfaces—using a flow method Pretorius (2005). Once found, we track the evolution of the horizon, measuring several properties including its area—from which a mass $M_{\rm BH}$ can be calculated—and its proper circumferences in the polar and equatorial directions, $\mathcal{C}_{\rm p}$ and $\mathcal{C}_{\rm eq}$. In the following, we use black hole to refer to the apparent horizon, though for all cases we track the apparent horizon to sufficiently late times that it should become a good approximation for a time slice of the event horizon. The gravitational radiation is measured by calculating the Newman-Penrose scalar $\psi_{4}$. We also compute the Kretschmann scalar, obtained from contracting the Riemann tensor with itself $I=R^{abcd}R_{abcd}$, as well as the matter density, computed from the stress-energy tensor $\rho=-T^{a}_{a}$.

We restrict to axisymmetry, which allows us to use a computational domain with two spatial dimensions. Most results presented below are obtained using $N=1.6\times 10^{6}$ particles and an adaptive mesh refinement simulation grid where the finest resolution is $dx\approx 0.02M$ (for $b/M\leq 12$ and $e\leq 0.9$) or $dx\approx 0.01M$ (otherwise). For select cases, we also perform resolution studies to establish convergence using $0.75\times$ and $1.5\times$ the grid resolution, and $0.75^{4}\times$ and $1.5^{4}\times$ as many particles. Details on numerical convergence can be found in the appendix.

Results.— Our main result is that we are able to evolve all cases considered here until they settle towards a final state, which we find to be a black hole containing all the matter, along with gravitational radiation. Configurations with smaller values of $b$ (or larger values of eccentricity, in the case with $e=0.95$) form black holes more promptly, while those with larger values take longer to collapse—both perpendicular to the symmetry axis, and along the symmetry axis. In Fig. 1, we show the polar and equatorial circumferences of the apparent horizon, beginning when one is first found, for a number of cases. The matter configuration has collapsed sufficiently that the values are not more than $\sim 25\%$ above $4\pi M_{\rm BH}$, and thus not in serious violation of the approximate inequality of the hoop conjecture. (Though we note that, since our horizon finding algorithm relies on having a sufficiently good guess for the shape, we cannot exclude the existence of a more distorted horizon at earlier times.) After formation, the horizons then exhibit damped oscillations between being prolate and oblate as they ring down towards a stationary state.

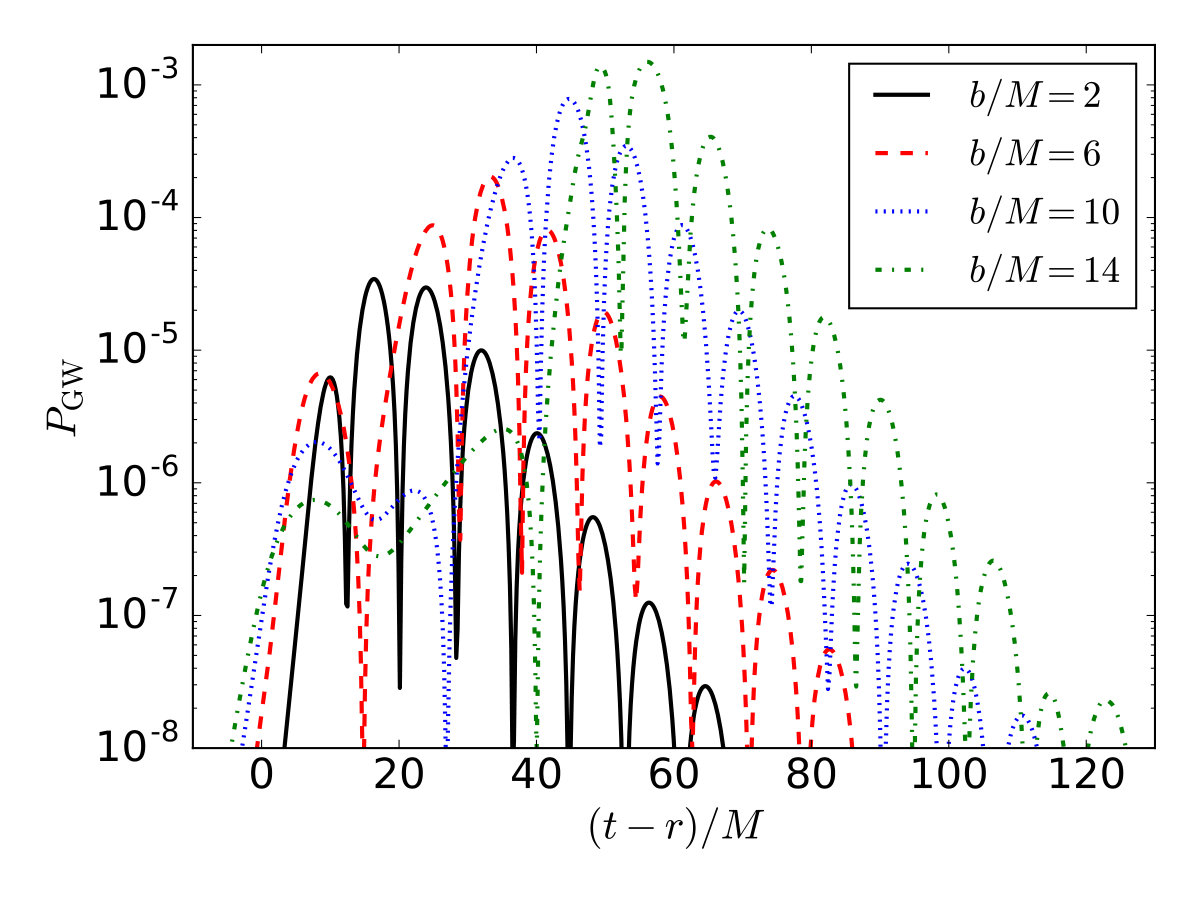

All the matter ends up in the black hole for every case studied here. However, a non-negligible amount of energy is radiated away in gravitational radiation. In Fig. 2, we show the gravitational wave power for select cases. The power peaks around the time of black hole formation—reaching as high as $P_{\rm GW}\sim 0.002$ in some cases—and then dies away exponentially, again showing the characteristic quasinormal mode ringing.

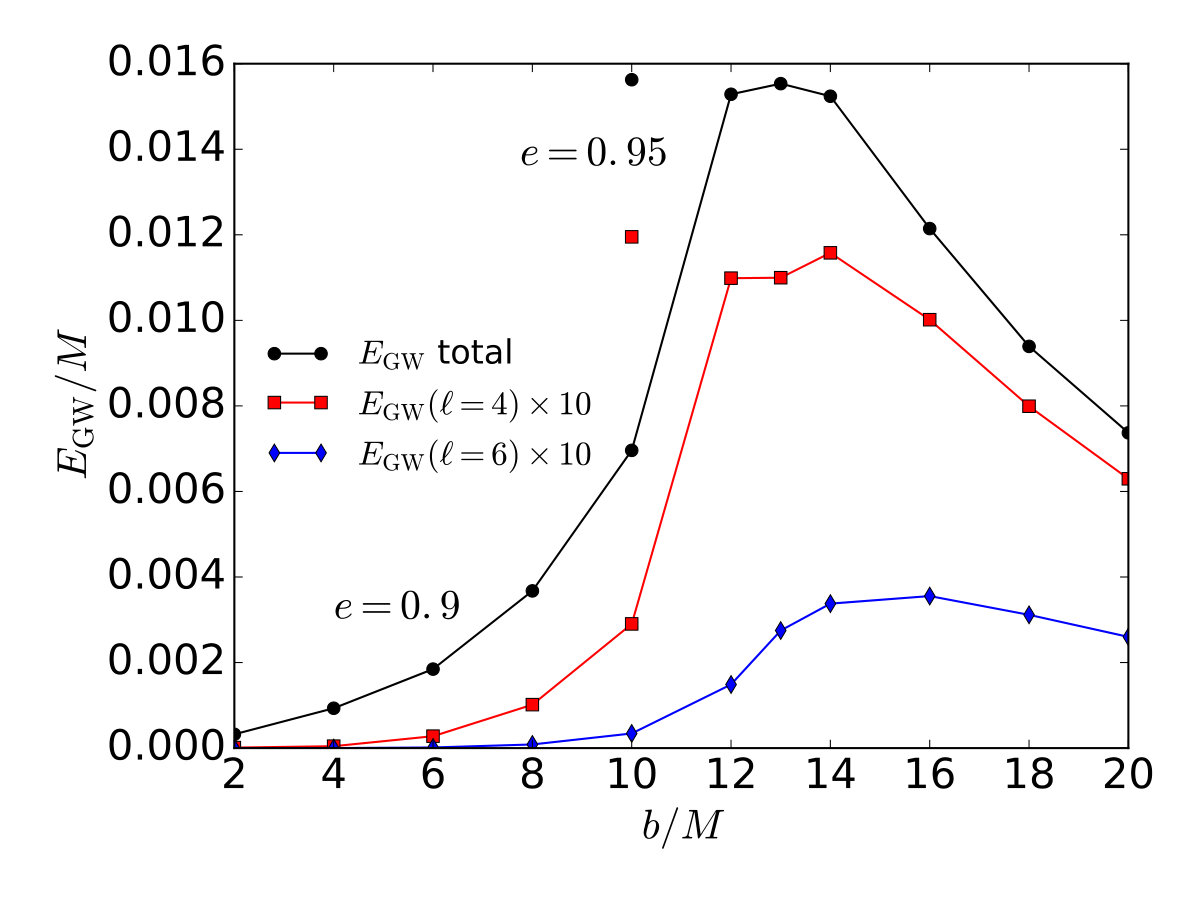

We also show the total energy in gravitational radiation as function of the semimajor axis length in Fig. 3. Cases with smaller values of $b/M$ are already close to being black holes at the initial time and do not emit significant radiation. For $e=0.9$, this is maximized at $b/M\sim 12$–$14$, with $E_{\rm GW}\sim 0.015M$. A similar amount of energy is radiated for $b=10$ and $e=0.95$. The difference from the total mass $M-E_{\rm GW}$ matches the measured mass of the black hole at late times to better than $0.2\%$ for all cases. The amount of gravitational radiation is significant for an axisymmetric spacetime. For comparison, an equal mass head-on collision of two black holes falling from rest releases $0.06\%$ in gravitational radiation Sperhake et al. (2011), while an ultrarelativistic collision releases $15\%$ of the total mass in gravitational waves, and has a peak luminosity of $P_{\rm GW}\sim 0.01$ East and Pretorius (2013); Sperhake et al. (2008).

Most of the gravitational wave energy is due to the $\ell=2$ angular component, but in Fig. 3, we also show the subdominant contributions from the $\ell=4$ and 6 components. (The odd $\ell$ components are suppressed by the symmetry of the initial data, though we do not explicitly enforce the equatorial symmetry in the placement of particles, nor during evolution.)

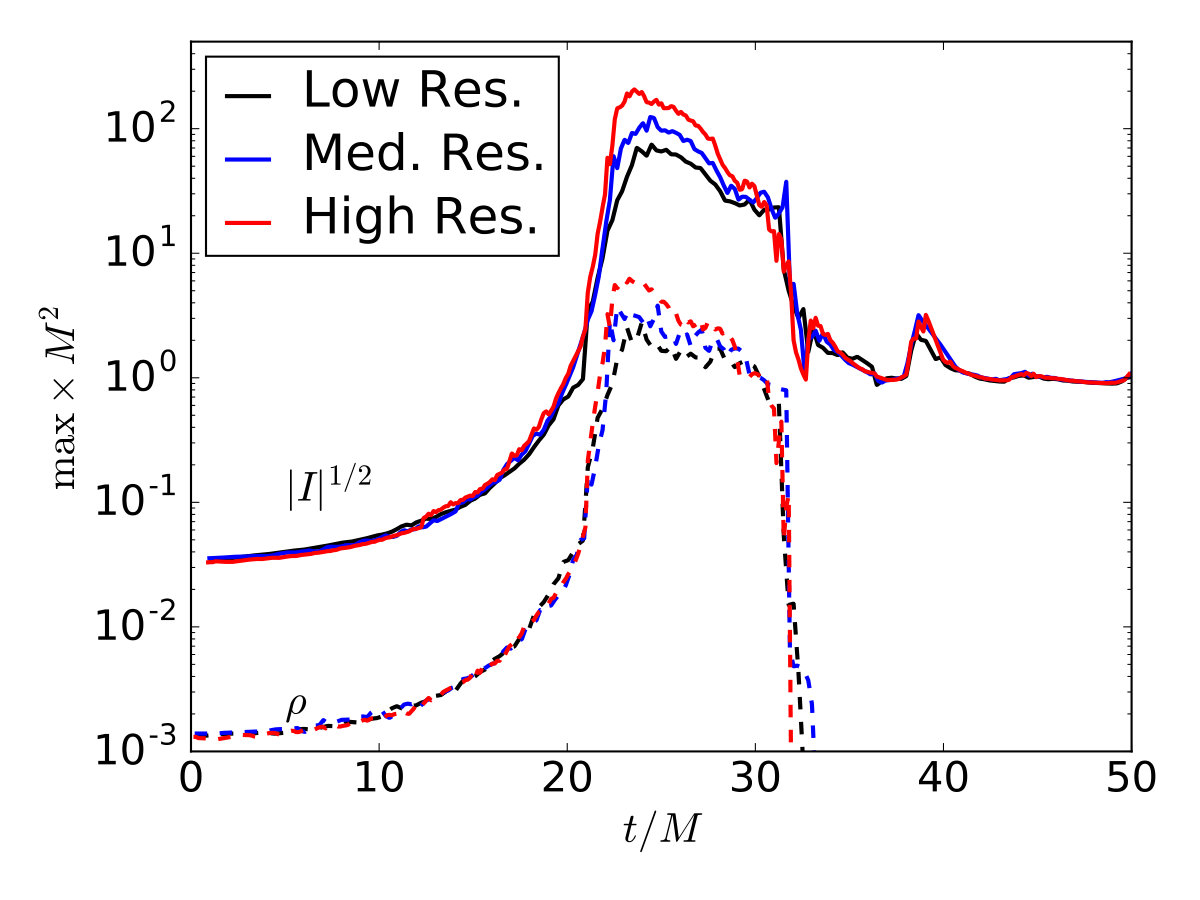

Focusing on the $b/M=10$, $e=0.9$ case considered in Ref. Shapiro and Teukolsky (1991), we also find a blowup in the curvature around the same time. As shown in Fig. 4, the maximum value obtained at blowup increases with resolution. However, in contrast to Ref. Shapiro and Teukolsky (1991), we find that the maximum in $I$ always occur in a region where the matter density is nonzero (this was also found in Ref. Yoo et al. (2017)), and in fact tracks the blowup in density, as shown in Fig. 4. This indicates that this is just due to the development of caustics in the matter (see, e.g., Ref. Giblin et al. (2018)).

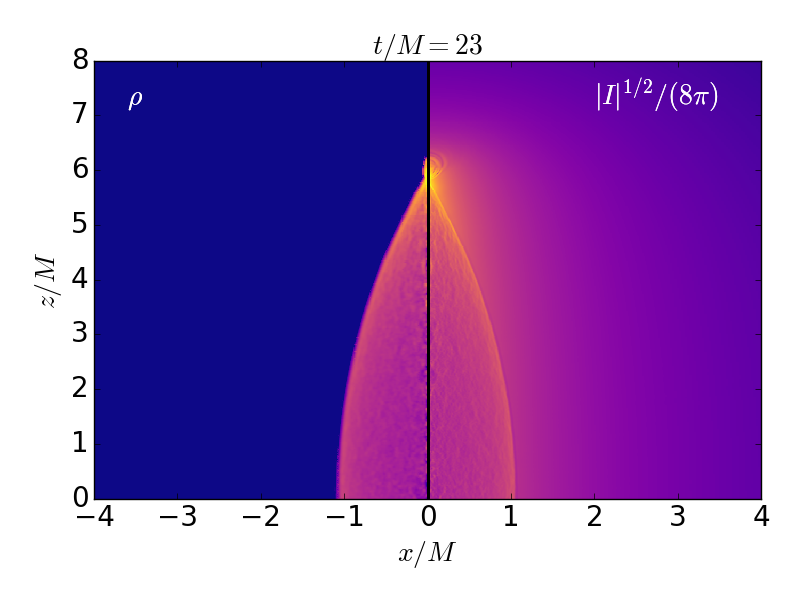

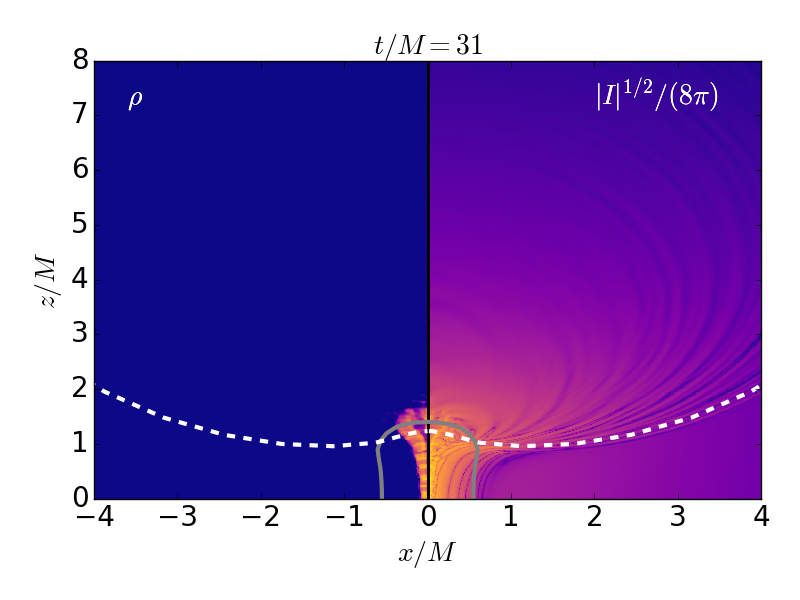

This is further illustrated in Fig. 5 where we show snapshots of both the matter density and curvature. By integrating null geodesics outward from the caustic to the wave zone, we have explicitly checked that the caustic is “visible” at null infinity. We are able to continue the calculation past the formation of the caustic (which is mild, e.g., compared to the singularity associated with trapped surfaces). The matter continues rapidly collapsing, and a short time later an apparent horizon is found which envelops all the matter and the region of higher curvature. The curvature outside quickly approaches the value of an isolated black hole.

Conclusion.—We have followed the relativistic collapse of very prolate spheroidal configurations of matter, revisiting a scenario originally studied in Ref. Shapiro and Teukolsky (1991), and put forth as evidence against cosmic censorship. With our different choice of slicing and coordinates, we do not find a blowup of curvature peaked outside the matter region as in Ref. Shapiro and Teukolsky (1991), and we are able to follow the evolution through to the asymptotic end state. We see that a black hole does form, swallowing the matter, and censoring the interior singularity.

The original motivation for investigating this scenario for possible violations of cosmic censorship was that it seemingly pitted the hoop conjecture, which dictates that sufficiently elongated matter configurations should not form black hole horizons, against the generic tendency of unhalted relativistic collapse to form singularities. We find here that the spacetime dynamics unfolds in such a way that, even in the case of collisionless particles, the matter collapses to where it can be surrounded by a horizon that is not too elongated. Thus, neither the hoop conjecture, nor cosmic censorship appear to be violated. This rapid and violent collapse does, however, leave its imprint in the strong gravitational radiation, which for some cases is comparable to a quasicircular binary black hole merger in peak luminosity and the fraction of the total mass of the spacetime.

Acknowledgements.—I thank Maria Okounkova and Frans Pretorius for stimulating discussions. This research was supported in part by Perimeter Institute for Theoretical Physics. Research at Perimeter Institute is supported by the Government of Canada through the Department of Innovation, Science and Economic Development Canada and by the Province of Ontario through the Ministry of Economic Development, Job Creation and Trade. Computational resources were provided by the Symmetry cluster at Perimeter Institute and the Perseus cluster at Princeton University.

Appendix A Numerical convergence

We study the collapse of spheroidal distributions of collisionless particles using the code described in Pretorius and East (2018). The massive particles follow geodesics on the evolving spacetime, and contribute to the stress-energy tensor used to evolve Einstein’s equations. Though the metric and geodesics are evolved using fourth order accurate methods, the stress-energy calculation is only second order accurate, which sets the overall accuracy of the solution. We use adaptive mesh refinement, with the grid structures determined by truncation error estimates. When performing a convergence study, we adjust the truncation error threshold to be consistent with the expected second order convergence in the grid resolution and (as described in Pretorius and East (2018)) increase the number of particles by the fourth power of the increase in the linear resolution.

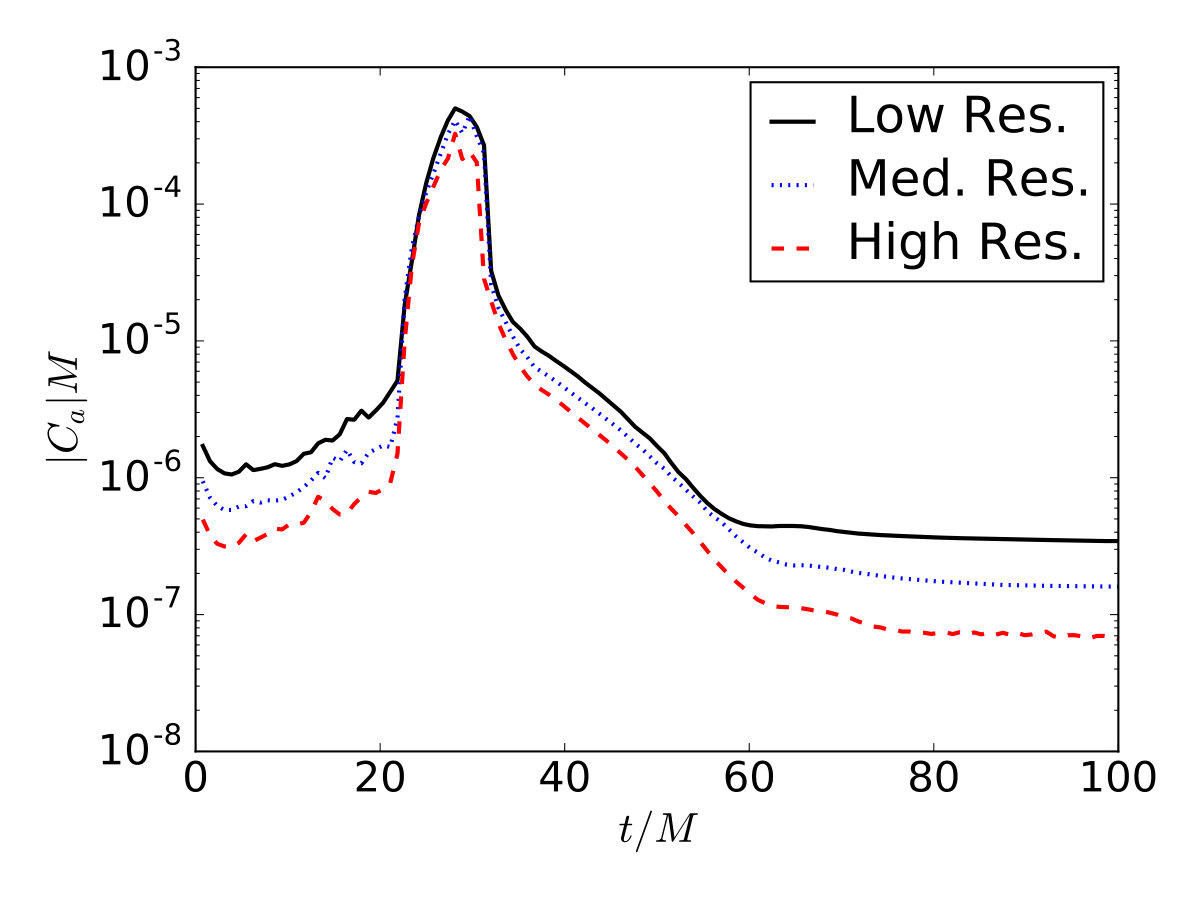

In Fig. 6, we demonstrate the convergence of the Einstein constraints for an example case with $b/M=10$ and $e=0.9$. During the initial and final stages of evolution, the rate of convergence is close to second order, as expected (with the number of particles also increased to give this scaling). Around the time the density blows up due to shell crossing (as described in the main text), the convergence is closer to first order, though this quickly improves as an apparent horizon is found (the interior of which is excluded from this calculation).

Comparing the total energy in gravitational waves for the different resolutions in this case, we estimate that the error in the dominant $\ell=2$ contribution is sub-percent for the medium resolution. The error in the very sub-dominant $\ell=4$ and 6 components (see Fig. 3) is larger, approximately $2\%$ and $30\%$, respectively.

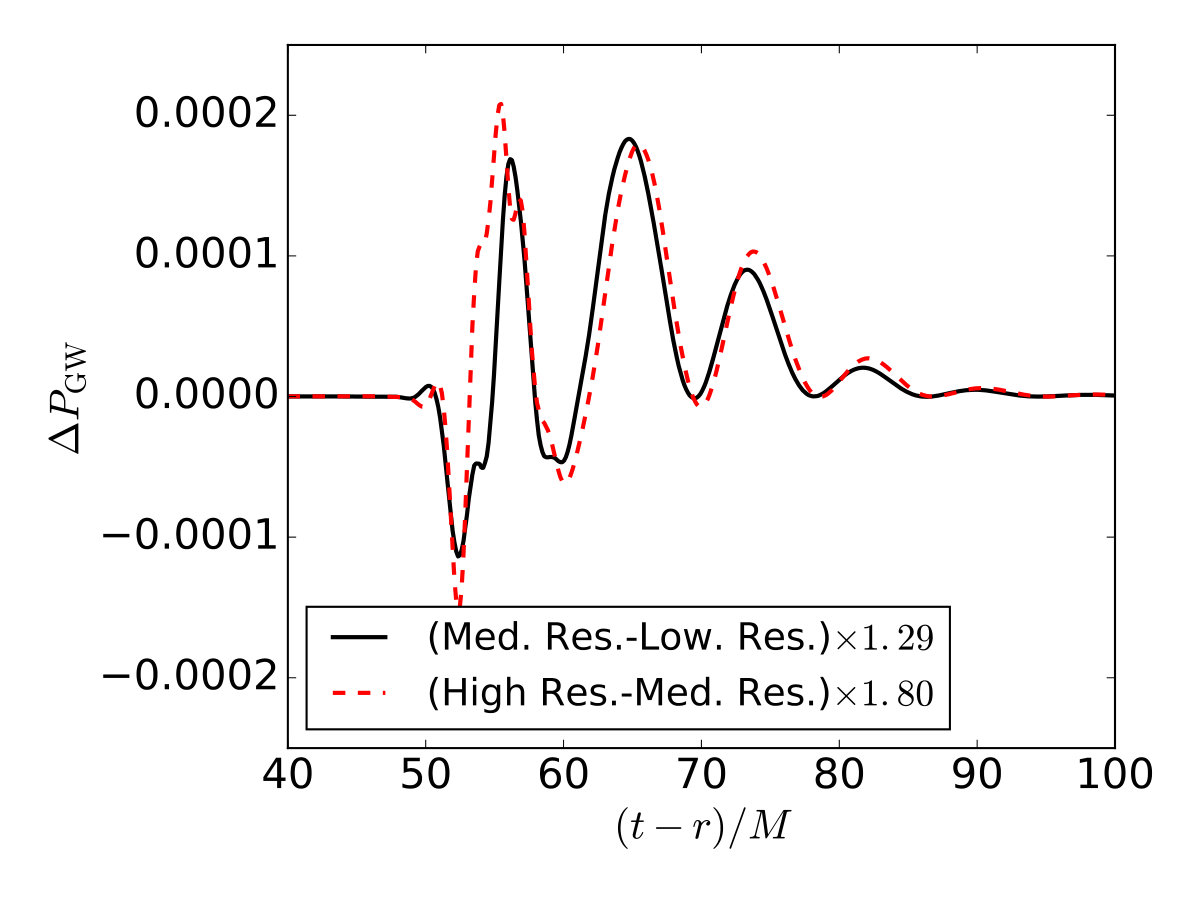

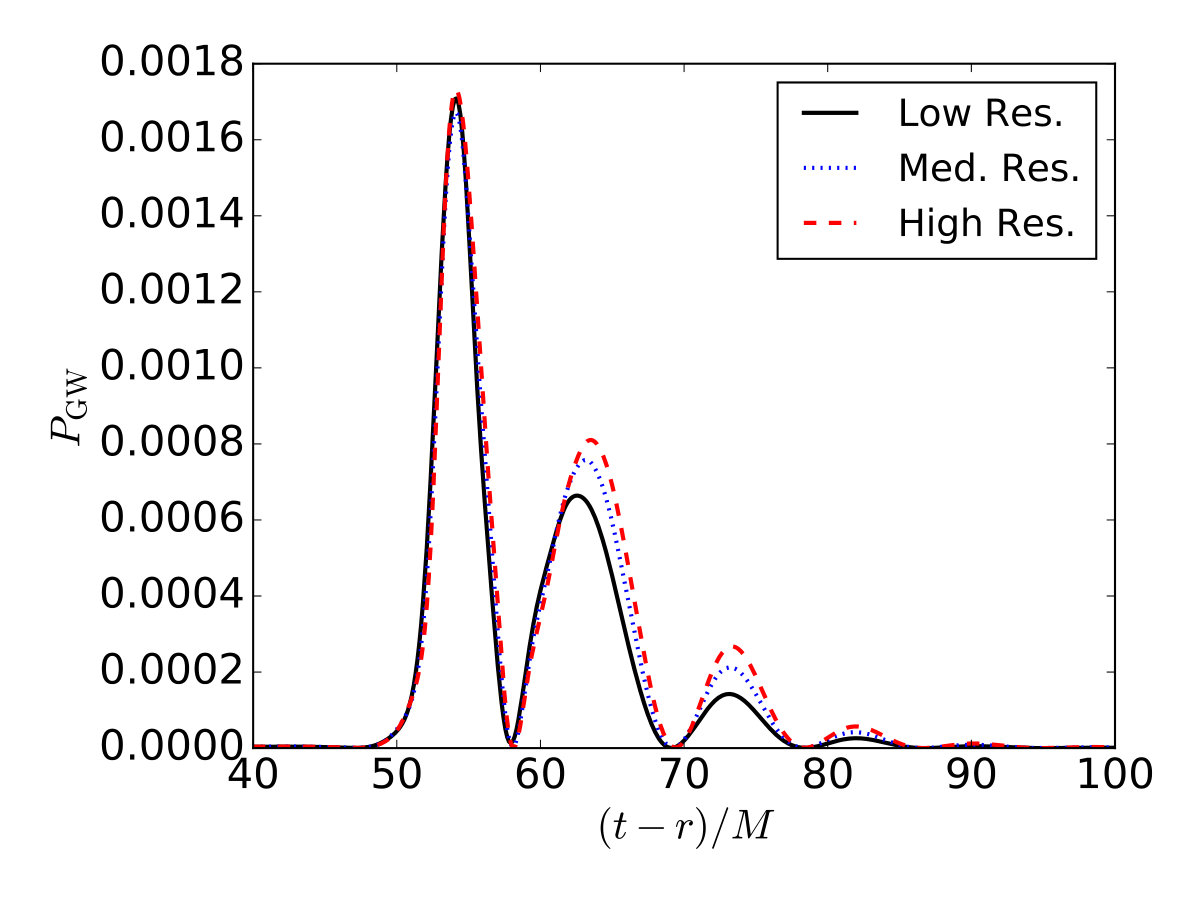

We show the dependence of the gravitational wave luminosity on resolution for the $b/M=16$ case in Fig. 7. The convergence in this quantity is consistent with between first and second order convergence. For this case, this error in the total energy in gravitational waves is larger, approximately $16\%$ for the medium resolution.
