The MUSE Atlas of Disks (MAD): Resolving Star Formation Rates and Gas Metallicities on < 100pc Scales

TL;DR

This study uses high-resolution MUSE observations to analyze ionized gas properties, star formation rates, and metallicity gradients in 38 nearby disk galaxies at <100 pc scales, revealing local relations and inside-out growth patterns.

Contribution

It provides the first detailed analysis of resolved gas metallicities and star formation rates on <100 pc scales, disentangling HII regions from diffuse gas and confirming local origins of key galactic relations.

Findings

Metallicity decreases with radius in galaxy disks.

HII regions have higher metallicity than diffuse ionized gas.

Resolved mass-metallicity and star formation relations are local and independent of total stellar mass.

Abstract

We study the physical properties of the ionized gas in local disks using the sample of 38 nearby $\sim10^{8.5-11.2}$M$_\odot$ Star-Forming Main Sequence (SFMS) galaxies observed so far as part of the MUSE Atlas of Disks (MAD). Specifically, we use all strong emission lines in the MUSE wavelength range 4650-9300 \AA\ to investigate the resolved ionized gas properties on $\sim$100 pc scales. This spatial resolution enables us to disentangle HII regions from the Diffuse Ionized Gas (DIG) in the computation of gas metallicities and Star Formation Rates (SFRs) of star forming regions. The gas metallicities generally decrease with radius. The metallicity of the HII regions is on average $\sim$0.1 dex higher than that of the DIG, but the metallicity radial gradient in both components is similar. The mean metallicities within the inner galaxy cores correlate with the total stellar mass of the galaxies. On our <100 pc scales, we find two correlations previously reported at kpc scales: a spatially resolved Mass-Metallicity Relation (RMZR) and a spatially resolved SFMS (RSFMS). We find no secondary dependency of the RMZR with the SFR density. We find that both resolved relations have a local origin, as they do not depend on the total stellar mass. The observational results of this paper are consistent with the inside-out scenario for the growth of galactic disks.

Figures

Tables

Table 1. Table 1: Global properties of the 38 MAD galaxies studied in this paper, ordered by total stellar mass. Column I) Galaxy name. Column II) Morphological classification from The Third Reference Catalogue of Bright Galaxies (RC3; de Vaucouleurs et al. 1991 ). Columns III) and IV) Galaxy redshift and adopted values of the distances, from the NASA/IPAC Extragalactic Database (NED). Column V) Effective radius in arcsec, obtained from 2-D decomposition to photometric images (procedure explained in MAD1). Columns VI) and VII) Total stellar mass and star formation rate (SFR), computed from Spectral Energy Distribution (SED) fitting (details given in MAD1). Column VIII) Average gas metallicity inside 0.5 R e subscript 𝑅 e R_{\rm e} . Columns IX) and X) Metallicity gradient for all the regions computed when normalizing the galactocentric distance by R e subscript 𝑅 e R_{\rm e} and by physical distance, respectively.

Galaxy name	Morphology	z	$D$	$R_e$	log(M⋆)	SFR		$▽Z_{\mathrm{gas}}$	$▽Z_{\mathrm{gas}}$
			(Mpc)	(")	log(M☉)	($M_{☉}$ yr-1)	(dex)	(dex/Re)	(dex/kpc)
NGC 4030	SA(s)bc	0.004887	29.9	31.8	11.18	11.08	9.00 $\pm$ 0.07	-0.13 $\pm$ 0.01	-0.03 $\pm$ 0.01
NGC 3521	SAB(rs)bc	0.002672	14.2	61.7	11.15	2.98	8.85 $\pm$ 0.06	-0.09 $\pm$ 0.02	-0.02 $\pm$ 0.01
NGC 3256	pec	0.009354	38.4	26.6	11.14	3.10	8.77 $\pm$ 0.09	-0.04 $\pm$ 0.04	-0.01 $\pm$ 0.01
NGC 4603	SA(s)c?	0.008647	32.8	44.7	11.10	0.65	8.82 $\pm$ 0.10	-0.17 $\pm$ 0.04	-0.02 $\pm$ 0.01
NGC 3393	(R’)SB(rs)a?	0.012509	55.2	21.1	11.09	7.06	8.86 $\pm$ 0.02	0.04 $\pm$ 0.02	0.01 $\pm$ 0.01
NGC 1097	SB(s)b	0.004240	16.0	55.1	11.07	4.66	8.99 $\pm$ 0.08	-0.07 $\pm$ 0.08	-0.03 $\pm$ 0.01
NGC 289	SB(rs)bc	0.005434	24.8	27.0	11.00	3.58	8.93 $\pm$ 0.11	-0.09 $\pm$ 0.03	-0.03 $\pm$ 0.01
NGC 4593	(R)SB(rs)b	0.009000	25.6	63.3	10.95	4.10	8.94 $\pm$ 0.14	-0.38 $\pm$ 0.01	-0.01 $\pm$ 0.02
IC 2560	(R’)SB(r)b?	0.009757	32.2	37.8	10.89	3.76	8.81 $\pm$ 0.11	-0.05 $\pm$ 0.04	-0.01 $\pm$ 0.01
NGC 5643	SAB(rs)c	0.003999	17.4	60.7	10.84	1.46	8.82 $\pm$ 0.11	-0.25 $\pm$ 0.12	-0.06 $\pm$ 0.03
NGC 3081	(R)SAB0/a(r)	0.007976	33.4	18.9	10.83	1.47	8.97 $\pm$ 0.08	-0.08 $\pm$ 0.01	-0.02 $\pm$ 0.01
NGC 4941	(R)SAB(r)ab?	0.003696	15.2	64.7	10.80	3.01	8.93 $\pm$ 0.13	-0.22 $\pm$ 0.02	-0.06 $\pm$ 0.02
NGC 5806	SAB(s)b	0.004533	26.8	27.2	10.70	3.61	8.84 $\pm$ 0.07	-0.04 $\pm$ 0.02	0.00 $\pm$ 0.01
NGC 3783	(R’)SB(r)ab	0.009730	40.0	27.7	10.61	6.93	8.82 $\pm$ 0.06	-0.04 $\pm$ 0.01	-0.01 $\pm$ 0.01
NGC 5334	SB(rs)c?	0.004623	32.2	51.2	10.55	2.45	8.64 $\pm$ 0.11	-0.30 $\pm$ 0.03	-0.05 $\pm$ 0.01
NGC 7162	SA(s)c	0.007720	38.5	18.0	10.42	1.73	8.76 $\pm$ 0.06	-0.11 $\pm$ 0.01	-0.03 $\pm$ 0.01
NGC 1084	SA(s)c	0.004693	20.9	23.8	10.40	3.69	8.69 $\pm$ 0.05	-0.11 $\pm$ 0.01	-0.05 $\pm$ 0.01
NGC 1309	SA(s)bc?	0.007125	31.2	20.3	10.37	2.41	8.57 $\pm$ 0.04	-0.11 $\pm$ 0.01	-0.04 $\pm$ 0.01
NGC 5584	SAB(rs)cd	0.005464	22.5	63.5	10.34	1.29	8.49 $\pm$ 0.10	-0.31 $\pm$ 0.03	-0.05 $\pm$ 0.01
NGC 4900	SB(rs)c	0.003201	21.6	35.4	10.24	1.00	8.67 $\pm$ 0.08	-0.15 $\pm$ 0.02	-0.04 $\pm$ 0.01
NGC 7496	SB(s)b	0.005365	11.9	66.6	10.19	1.80	8.71 $\pm$ 0.10	-0.17 $\pm$ 0.04	-0.05 $\pm$ 0.01
NGC 7552	(R’)SB(s)ab	0.005500	14.8	26.0	10.19	0.59	8.93 $\pm$ 0.13	-0.12 $\pm$ 0.03	-0.06 $\pm$ 0.02
NGC 1512	SB(r)a	0.002995	12.0	63.3	10.18	1.67	8.79 $\pm$ 0.06	-	-0.03 $\pm$ 0.01
NGC 7421	SB(rs)bc	0.005979	25.4	29.6	10.09	2.03	8.81 $\pm$ 0.12	-0.18 $\pm$ 0.02	-0.05 $\pm$ 0.01
ESO 498-G5	SAB(s)bc pec	0.008049	32.8	19.8	10.02	0.56	8.78 $\pm$ 0.09	-0.02 $\pm$ 0.02	0.00 $\pm$ 0.01
NGC 1042	SAB(rs)cd	0.004573	15.0	63.7	9.83	2.41	8.76 $\pm$ 0.12	-0.14 $\pm$ 0.01	-0.03 $\pm$ 0.02
IC 5273	SB(rs)cd?	0.004312	15.6	33.8	9.82	0.83	8.46 $\pm$ 0.08	-0.13 $\pm$ 0.01	-0.04 $\pm$ 0.01
NGC 1483	SB(s)bc?	0.003833	24.4	19.0	9.81	0.43	8.27 $\pm$ 0.09	-0.10 $\pm$ 0.01	-0.05 $\pm$ 0.01
NGC 2835	SB(rs)c	0.002955	8.8	57.4	9.80	0.38	8.64 $\pm$ 0.10	-0.27 $\pm$ 0.03	-0.08 $\pm$ 0.01
PGC 3853	SAB(rs)d	0.003652	11.3	73.1	9.78	0.35	8.57 $\pm$ 0.10	-0.31 $\pm$ 0.01	-0.06 $\pm$ 0.02
NGC 337	SB(s)d	0.005490	18.9	24.6	9.77	0.57	8.36 $\pm$ 0.08	-0.12 $\pm$ 0.01	-0.05 $\pm$ 0.01
NGC 4592	SA(s)dm?	0.003566	11.7	37.9	9.68	0.31	8.15 $\pm$ 0.08	-0.06 $\pm$ 0.01	-0.03 $\pm$ 0.01
NGC 4790	SB(rs)c?	0.004483	16.9	17.7	9.60	0.39	8.47 $\pm$ 0.08	-0.09 $\pm$ 0.01	-0.04 $\pm$ 0.01
NGC 3513	SB(rs)c	0.003983	7.8	55.4	9.37	0.21	8.46 $\pm$ 0.09	-0.29 $\pm$ 0.06	-0.13 $\pm$ 0.01
NGC 2104	SB(s)m pec	0.003873	18.0	16.5	9.21	0.24	8.25 $\pm$ 0.07	-0.08 $\pm$ 0.01	-0.05 $\pm$ 0.01
NGC 4980	SAB(rs)a pec?	0.004767	16.8	13.0	9.00	0.18	8.15 $\pm$ 0.10	-0.06 $\pm$ 0.01	-0.05 $\pm$ 0.01
NGC 4517A	SB(rs)dm?	0.005087	8.7	46.8	8.50	0.10	8.27 $\pm$ 0.12	-0.15 $\pm$ 0.10	-0.13 $\pm$ 0.01
ESO 499-G37	SAB(s)d?	0.003186	18.3	18.3	8.47	0.14	8.00 $\pm$ 0.14	-0.01 $\pm$ 0.02	0.00 $\pm$ 0.01

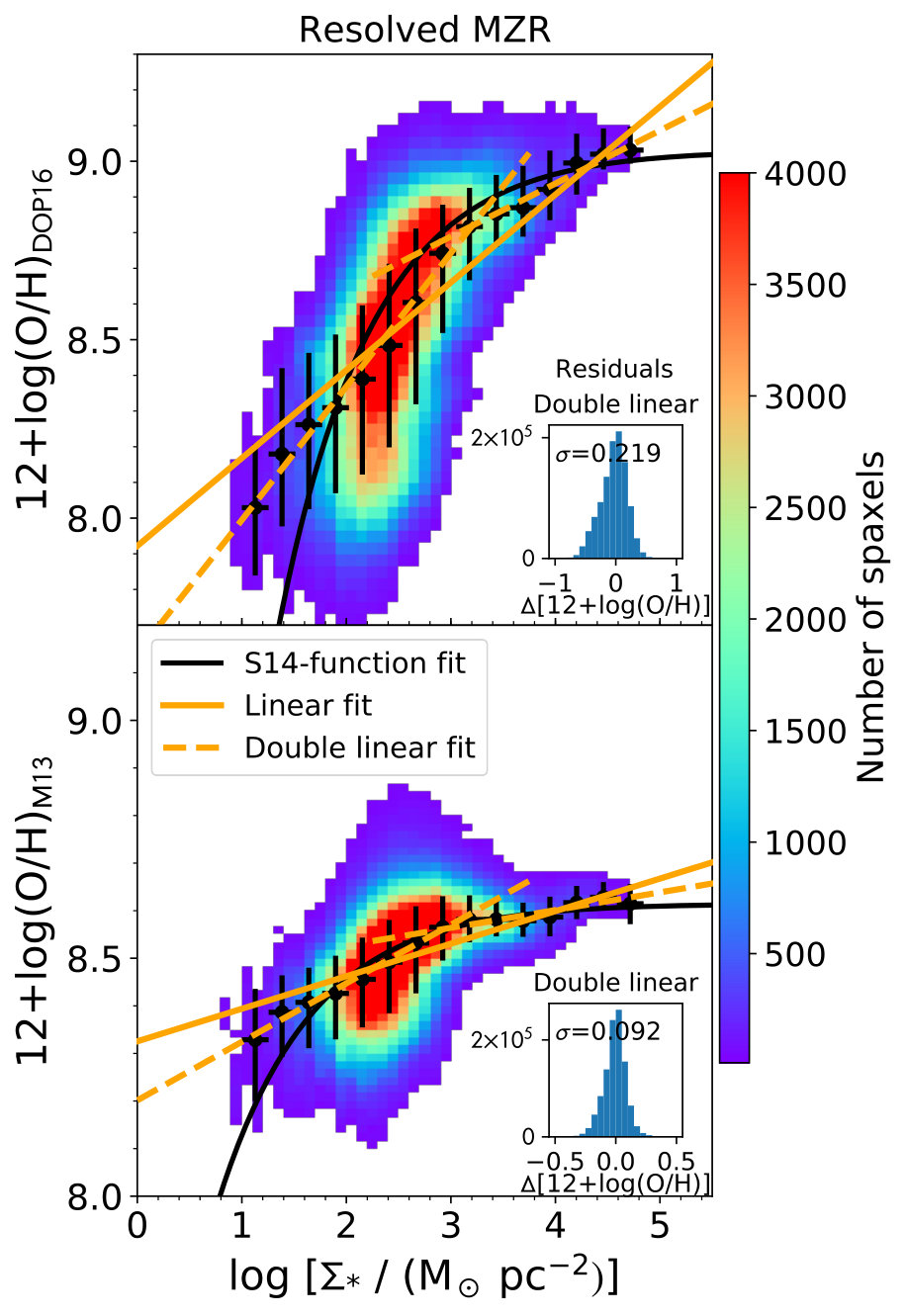

Table 2. Table 2: Best fits to the RMZR using three different functions: (i) linear fit y=mx+n , (ii) fit using the S14-function y = a + b ​ ( x − c ) ​ e − ( x − c ) 𝑦 𝑎 𝑏 𝑥 𝑐 superscript 𝑒 𝑥 c y=a+b(x-c)e^{-(x-{\rm c})} and (iii) double linear fit, performing two linear fits before and after 10 3 ​ M ☉ / pc 2 superscript 10 3 subscript 𝑀 ☉ superscript pc 2 10^{3}M_{\sun}/{\rm pc}^{2} . The fits have been done using both DOP16 and M13 metallicity calibrators. The scatter has been measured as the standard deviation of the residuals after subtracting the best fit to the data.

		DOP16	M13
Linear y=mx+n
	m(dex/log${\Sigma }_{\ast }$)	0.25 $\pm$ 0.02	0.07 $\pm$ 0.01
	n(dex)	7.92 $\pm$ 0.07	8.33 $\pm$ 0.03
Residuals	$\sigma$(dex)	0.227	0.096
${\chi }^2$		4.526	2.846
$p-$value		0.033	0.092
S14-function $y=a+b\left(x-c\right)e^{-\left(x-c\right)}$
	a(dex)	9.03 $\pm$ 0.05	8.61 $\pm$ 0.05
	b(dex/log${\Sigma }_{\ast }$)	0.000 $\pm$ 0.001	0.000 $\pm$ 0.001
	c(dex)	10.00 $\pm$ 16.04	10.00 $\pm$ 16.04
Residuals	$\sigma$(dex)	0.283	0.108
${\chi }^2$		3.215	1.331
$p-$value		0.200	0.514
Double Linear y=mx+n
x< ${10}^3{M}_{☉}/{\mathrm{pc}}^2$	m(dex/log${\Sigma }_{\ast }$)	0.37 $\pm$ 0.02	0.12 $\pm$ 0.01
	n(dex)	7.62 $\pm$ 0.04	8.20 $\pm$ 0.01
x> ${10}^3{M}_{☉}/{\mathrm{pc}}^2$	m(dex/log${\Sigma }_{\ast }$)	0.15 $\pm$ 0.01	0.04 $\pm$ 0.01
	n(dex)	8.34 $\pm$ 0.06	8.45 $\pm$ 0.04
Residuals	$\sigma$(dex)	0.219	0.092
${\chi }^2$		0.416	1.411
$p-$value		0.937	0.703

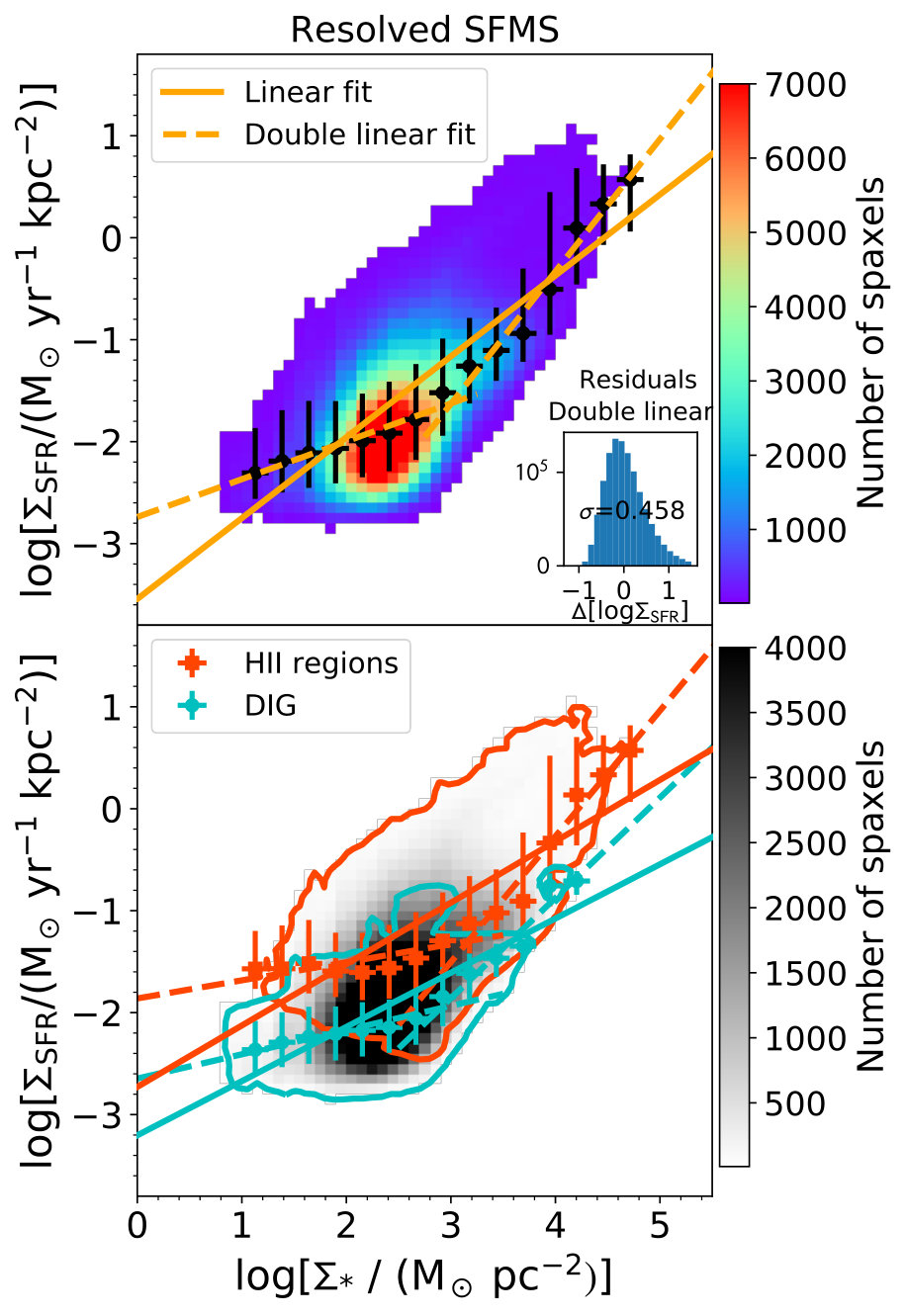

Table 3. Table 3: Best fits to the resolved SFMS using two different functions: (i) linear fit using the equation y=mx+n , (ii) double linear fits before and after 10 3 ​ M ☉ / pc 2 superscript 10 3 subscript 𝑀 ☉ superscript pc 2 10^{3}M_{\sun}/{\rm pc}^{2} . The scatter has been measured as the standard deviation of the residuals after subtracting the best fit to the data.

Linear y=mx+n
	m(dex/log${\Sigma }_{\ast }$)	0.79 $\pm$ 0.07
	n(dex/log${\Sigma }_{\mathrm{SFR}}$)	-3.54 $\pm$ 0.20
Residuals	$\sigma$(dex/log${\Sigma }_{\mathrm{SFR}}$)	0.472
${\chi }^2$		6.424
$p-$value		0.011
Double Linear y=mx+n
x< ${10}^3{M}_{☉}/{\mathrm{pc}}^2$	m(dex/log${\Sigma }_{\ast }$)	0.37 $\pm$ 0.04
	n(dex/log${\Sigma }_{\mathrm{SFR}}$)	-2.74 $\pm$ 0.08
x> ${10}^3{M}_{☉}/{\mathrm{pc}}^2$	m(dex/log${\Sigma }_{\ast }$)	1.30 $\pm$ 0.09
	n(dex/log${\Sigma }_{\mathrm{SFR}}$)	-5.52 $\pm$ 0.35
Residuals	$\sigma$(dex/log${\Sigma }_{\mathrm{SFR}}$)	0.458
${\chi }^2$		0.604
$p-$value		0.895

Equations

$$G(x)=\frac{F_{\lambda }}{\sqrt{2\pi }{\sigma }_{\lambda }}\exp \left(-\frac{(x-{\lambda }_c{)}^2}{2{\sigma }_{\lambda }^2}\right),$$

$${\sigma }_{\lambda }=\sqrt{{\sigma }_{target}^2+{\sigma }_{LSF}^2},$$

$$E(B-V)=\frac{2.5}{k(\mathrm{H}\beta )-k(\mathrm{H}\alpha )}\log \left\{\frac{(\mathrm{H}\alpha /\mathrm{H}\beta {)}_{\mathrm{obs}}}{(\mathrm{H}\alpha /\mathrm{H}\beta {)}_{\mathrm{theo}}}\right\},$$

$$F_{\lambda ,corr}=F_{\lambda ,obs}10^{0.4A_{\lambda }}=F_{\lambda ,obs}10^{0.4E(B-V)k(\lambda )}.$$

$$\mathrm{SFR}[M_{\text{sun}}{\mathrm{yr}}^{-1}]=10^{-41.27}\times L(\mathrm{H}{\alpha }_{\mathrm{corr}})[erg{s}^{-1}]$$

$$\begin{array}{rl}F(\mathrm{H}\alpha )& =F(\mathrm{H}\alpha {)}_{\mathrm{HII}}+F(\mathrm{H}\alpha {)}_{\mathrm{DIG}}\\ & =C_{\mathrm{HII}}F(\mathrm{H}\alpha )+C_{\mathrm{DIG}}F(\mathrm{H}\alpha ),\end{array}$$

$$d_1=|{\vec{d}}_1|=d({\mathrm{P}}_1,f(x))=d((x_1,y_1),f(x))=$$

$$=\sqrt{(x_1-x{)}^2+\{y_1-[0.61/(x-0.05)+1.3]{\}}^2}.$$

$$40000x^4-40000x_1{x}^3-6000x^3+6000x^2{x}_1+300x^2$$

$$-300x{x}_1-31725x+5x_1+24400y_{1}x$$

$$-1220y_1-13298=0.$$

$$d_1=d(((x_1,y_1),(x_0,y_0))=$$

$$=\sqrt{(x_1-x_0{)}^2+\{y_1-[0.61/(x_0-0.05)+1.3]{\}}^2}$$

$${\eta }_{\mathrm{SF}}=-0.5-d_1.$$

$$d_2=|{\vec{d}}_2|=d({\mathrm{P}}_2,g(x))=d((x_2,y_2),g(x))=$$

$$=\sqrt{(x_2-x{)}^2+\{y_2-[0.61/(x-0.47)+1.19]{\}}^2}$$

$$D(d_2)/dx=0$$

$$1000000x^4-1000000x_2{x}^3-1410000x^3+1410000x^2{x}_2$$

$$+662700x^2-662700x{x}_2-829723x+103823x_2$$

$$+610000y_{2}x-286700y_2-30927=0.$$

$${\eta }_{\mathrm{AGN}}=0.5+d_2.$$

$${\eta }_{\mathrm{INTER}}=-0.5+\frac{d_1}{d_1+d_2}=0.5-\frac{d_2}{d_1+d_2}$$

Full text

The gas metallicities generally decrease with radius. The metallicity of the Hii regions is on average $\sim$0.1 dex higher than that of the DIG, but the metallicity radial gradient in both components is similar. The mean metallicities within the inner galaxy cores correlate with the total stellar mass of the galaxies. On our < 100 pc scales, we find two correlations previously reported at kpc scales: a spatially resolved Mass-Metallicity Relation (RMZR) and a spatially resolved SFMS (RSFMS). We find no secondary dependency of the RMZR with the SFR density. We find that both resolved relations have a local origin, as they do not depend on the total stellar mass. The observational results of this paper are consistent with the inside-out scenario for the growth of galactic disks.

††pubyear: 2019††pagerange: The MUSE Atlas of Disks (MAD): Resolving Star Formation Rates and Gas Metallicities on $<100pc$ Scales††thanks: Based on observations obtained at the Very Large Telescope (VLT) of the European Southern Observatory, Paranal, Chile (ESO Programme IDs 095.B-0532, 096.B-0309, 097.B-0165, 098.B-0551 and 099.B-0242.)–LABEL:lastpage

1 Introduction

The emission line spectrum emitted by ionized gas is the observational key to the properties of not only the ionized gas in galaxies, but also of the massive young stellar population that has recently formed inside galactic disks, as the line fluxes are a direct tracer of the properties of the Hii regions that are ionized by such population. Also, far from and in-between Hii regions, Diffuse Ionized Gas (DIG; also known as warm ionized medium, WIM) adds further information about the global gas-stellar cycle that is globally sustained within galactic disks. The DIG is warm ($\sim$104K), ionized, low density (0.1 cm*-3*) gas with low ionization parameter that can extend 1 kpc or more above the disk plane (see Mathis 2000 and Haffner et al. 2009 for reviews). Most of the ionized gas in a galaxy is in the form of DIG (Walterbos, 1998). This gas component is understood to be ionized by stars (O, B and hot evolved stars) in the disk whose Lyman continuum photons travel large path lengths (non-local sources of ionization), and its emission is superimposed on that coming from the local ionization inside Hii regions (Mathis 1986, 2000; Domgorgen & Mathis 1994; Sembach et al. 2000; Wood & Mathis 2004; Wood et al. 2010). This component can be pushed above the galactic disk by superbubbles created by supernova events (e.g., Wood et al. 2010). Weilbacher et al. (2018) recently found that the UV photons leaked by the Hii regions in the Antennae can explain the ionization of the DIG there.

The metallicity of the gas phase (referred to as $Z_{\rm gas}\equiv 12+{\rm log(O/H)}$, oxygen abundance or metallicity throughout this paper) is a product of the whole formation and evolutionary history of a galaxy. Oxygen is synthesized in high-mass stars and can be released into the interstellar medium (ISM) via supernova explosions or into the circumgalactic medium through galactic outflows. In addition, pristine metal-poor gas may accrete during the evolution of the galaxy (see e.g. Sánchez Almeida et al. 2014 and references therein), changing the metallicity of a galaxy but also triggering star formation (SF) which would enrich the galactic disk. On global galactic scales, the relationship between total galaxy stellar mass and total gas metallicity (i.e., the mass-metallicity relation, MZR), is well established over a wide range of galaxy masses (e.g., Lequeux et al. 1979; Tremonti et al. 2004; Lee et al. 2006; Kewley & Ellison 2008; Zhao et al. 2010) . The MZR has been shown to evolve with redshift (e.g., Savaglio et al. 2005; Maier et al. 2006; Erb et al. 2006; Maiolino et al. 2008; Onodera et al. 2016).

Although still controversial (Barrera-Ballesteros et al. 2017; Sánchez et al. 2017, 2018), it has also been argued that the total star-formation rate (SFR) is a second parameter in the MZR (with SFR being anti-correlated with gas metallicity), and that possibly the three-parameter relation of mass, gas metallicity and SFR is universal at all epochs (Ellison et al. 2008; Mannucci et al. 2010; Lara-López et al. 2010). This so-called “Fundamental Metallicity Relation” (FMR) is well explained by self-regulated ’bathtub’ galaxy evolution models (e.g., Bouché et al. 2010; Lilly et al. 2013). Lilly et al. (2013) showed that the FMR emerges naturally in their ’regulator’ model, due to the fact that the evolution of the specific star formation rate, sSFR, closely follows the specific accretion rate of dark matter halos. However, other ’regulator’ models identify different parameters as the key driver of the internal galactic (semi)equilibrium (e.g., Finlator & Davé 2008; Davé et al. 2012; Forbes et al. 2014). Studying the relationship between $Z_{\rm gas}$, $M_{\star}$ and SFR is important to understand the relative importance of different physical parameters in establishing the physical balance within galactic disks (Lilly et al. 2013; Ma et al. 2016).

Important details are coming from the novel Integral Field Unit spectrographs (IFUs), which are enabling the study of the existence and properties of MZR- and FMR-equivalent relationships on resolved local scales within individual galaxies. The resolved spectra enable us not only to disentangle Hii regions from DIG emission, and gas with SF excitation properties from gas that is excited by shocks and/or AGNs, but also to understand whether the global MZR, FMR and SFMS relations emerge from averaging the local contributions to the total mass, metallicity and SFR. Several IFU surveys such as the Calar Alto Legacy Integral Field Area (CALIFA, Sánchez et al. 2012a), Mapping Nearby Galaxies at Apache Point Observatory (MaNGA, Bundy et al. 2015), SAMI Galaxy Survey (Croom et al., 2012) and others have investigated the relation between stellar surface mass density ($\Sigma_{\star}$), SFR surface density and gas metallicity resolved on kpc scales within galaxies (e.g., Rosales-Ortega et al. 2012; Barrera-Ballesteros et al. 2016; Barrera-Ballesteros et al. 2017; Sánchez et al. 2017, 2018). While Rosales-Ortega et al. 2012 find a local FMR, Sánchez et al. 2013; Barrera-Ballesteros et al. 2017 and Sánchez et al. 2017, 2018 find a lack of a secondary relation between the MZR and the SFR at one effective radius ($R_{e}$). Using IFU data, Cano-Díaz et al. (2016); Hsieh et al. (2017) and Medling et al. (2018) among others have studied the relationship between $\Sigma_{\star}$ and $\Sigma_{{\rm H}\alpha}$ (or $\Sigma_{\rm SFR}$) on kpc scales, finding a resolved SFMS (RSFMS) relation at these kpc scales.

The availability of spatially-resolved information for the ionized gas component of galactic disks also enables more detailed determination of the radial profiles of oxygen abundances within galaxies, i.e., of gas metallicity gradients within the disks. Their shape, together with the azimuthal variations around the radial gradients, add crucial information on the past chemical enrichment histories of the whole galaxies and their main structural components such as bulges, bars and disks. The above-mentioned IFU surveys, which disentangle the ionized gas within galaxies on kpc-sized scales, have shown that negative gas metallicity gradients, i.e., outward-decreasing metallicity profiles, are quite common in the local Universe (e.g., Sánchez et al. 2012b, 2014; Sánchez-Menguiano et al. 2018). Importantly, however, the precise shape of these gradients depends on the specific metallicity calibrator that is adopted to convert line fluxes into oxygen abundances (e.g., Sánchez-Menguiano et al. 2016, 2018; Vogt et al. 2017).

The overall result of widespread negative gas metallicity gradients is not very surprising, given that inward gas flows over the lifetime of a galaxy would almost inevitably cause radial metallicity gradients like those observed (e.g.; Lacey & Fall 1985). Such negative gradients are also however consistent with an inside-out formation scenario of the disks, which is reasonable to expect for cosmological reasons (e.g.; White & Frenk 1991; Mo et al. 1998). Other processes such as secular evolution, radial migration and merging can also occur over cosmic time; in general, their global effect seems to be in the direction of flattening these profiles within a large radial extent (e.g., Vila-Costas & Edmunds (1992a); Zaritsky et al. 1994; Martin & Roy 1994, 1995; Friedli et al. 1994; Friedli & Benz 1995; Vilchez & Esteban 1996; Roy & Walsh 1997; Portinari & Chiosi 2000; Cavichia et al. 2014; Marino et al. 2012, 2016).

The Multi Unit Spectroscopic Explorer (MUSE, Bacon et al. 2010) spectrograph on the Very Large Telescope (VLT) of the European Southern Observatory (ESO) is opening a new avenue of studies of far and near galactic populations. In particular, MUSE, within its field-of-view (FoV) of 1 arcmin2, delivers higher combination of spatial and spectral resolutions than any other current instrument. Targeting a sample of $\sim$50 disk galaxies that are close enough to be dissected by MUSE at an average spatial resolution of $\sim 100$ pc or less, our MUSE Atlas of Disks (MAD) survey (Carollo et al., in prep.) provides a new view of the local disk population on the small physical scales that are relevant for probing the physical conditions on which gas and stars directly affect each other and thus the physical origin of the global state of galactic disks. The MAD sample covers the galaxy mass range between $10^{8.5}$ M⊙ and $10^{11}$ M⊙ and traces, within this range, the so-called ’Star Forming Main Sequence’ relation between total stellar mass and total SFR (SFMS; Noeske et al. 2007; Daddi et al. 2007; Elbaz et al. 2007; Peng et al. 2010; Tomczak et al. 2016).

In this paper we focus our attention on the physical properties of the ionized gas inside the 38 MAD galaxies observed and analysed so far, with emphasis on the gas metallicity and SFR of both Hii and DIG components. Companion articles will present other aspects of the MAD survey, including its specifications and goals (MAD1; Carollo et al. in prep.), the main properties of stellar and gas kinematics across the SFMS (MAD3; den Brok et al. in prep) and the analysis of the stellar continuum and line absorption spectra for stellar ages, abundances and abundance ratios determinations (MAD4; Onodera et al. in prep). More specifically, exploiting the unprecedented $<100$pc resolution of the MAD data, in this paper we separate the emission of Hii and DIG regions and give an overview of the SFRs and metallicities of the star-forming regions at our sub-kpc scales. We also study the relations between surface stellar mass density, gas metallicity and surface SFR density separately for the Hii regions and for the surrounding DIG to understand how the chemical enrichment happens at these local scales and across the SFMS.

This paper is organized as follows. Sect. 2 describes the MAD sample that we use in this study and the basic data reduction; Sect. 3 describes the analysis performed on MUSE data in order to obtain the line flux diagnostics on which we base this study, including correction for dust effects. Sect. 4 presents the basic diagnostics. The results are presented in Sect. 5 and discussed in Sect. 6. We summarize in Sect. 7. In Appendix A we provide additional information on the individual galaxies and show their flux and derived-diagnostic maps; the latter are available for download together with the reduced MUSE cubes111https://www.mad.astro.ethz.ch/data-products. Throughout this paper, we adopt a $H_{0}=73\pm 5~{}\mathrm{km~{}s^{-1}~{}Mpc^{-1}}$ and $1\arcsec$ corresponds to $\approx 50~{}\mathrm{pc}$ at a distance of 10 Mpc.

2 MAD data

2.1 The sample

We analyse 38 galaxies, out of which 36 were observed during the MAD Guaranteed Time Observations (GTO) runs conducted between April 2015 and September 2017, plus NGC 337 from the MUSE Commissioning Programme 60.A-9100(C) and NGC 1097 from 097.B-0640(A). These 36 constitute all the MAD observations before the AO was mounted on the VLT. A detailed table with the properties of the MAD galaxies and description of their observations is presented in MAD1. In Table 1 we present some of the global properties of the 38 galaxies studied in this paper. Briefly, these galaxies are nearby ($z<0.013$), spiral galaxies with inclination < 70$\degr$ and stellar masses between 108.5 and 1011.2 $M_{\sun}$, which lie in the $z=0$ SFMS. They show a variety of structural components (bars, star forming rings, AGN, bulges and pseudo-bulges).

2.2 Observations

The datacubes studied in this paper have the MUSE spatial sampling of 0$\aas@@fstack{\prime\prime}$2 and spectral sampling of 1.25 Å. These MAD galaxies were observed with the Wide Field (i.e., FoV of 1 arcmin2) and nominal modes (i.e. wavelength range from 4650 to 9300 Å) for one hour on target, with seeing values between 0$\aas@@fstack{\prime\prime}$4 and 0$\aas@@fstack{\prime\prime}$9. Offset sky observations were taken before or after the target observations in order to subtract the sky. With one pointing per galaxy (targeting the central 1 arcmin2), the spatial coverage varies from 0.3 to 4  $R_{e}$ (from 3 to 15 kpc on physical scale).

2.3 Data reduction

The details of the basic data reduction are fully described in MAD1. Briefly, the data were reduced using the MUSE pipeline (Weilbacher et al., 2012). This initial basic reduction step includes bias and dark subtraction, flat fielding, wavelength calibration and drizzling of the different IFU slices into one final datacube for each individual exposure. Each of the individual datacubes were then aligned, sky-subtracted with the Zurich Atmosphere Purge (zap, Soto et al. 2016) algorithm, median-combined using a 10$\sigma$ clipping algorithm to remove cosmic rays until finally obtaining one single MUSE datacube per galaxy.

3 Fits to emission lines: Methodology

The MUSE spectral coverage includes several strong emission lines including H$\beta$, [Oiii]$\lambda$4959, [Oiii]$\lambda$5007, [Nii]$\lambda$6548, H$\alpha$, [Nii]$\lambda$6583, [Sii]$\lambda$6717 and [Sii]$\lambda$6731. The MUSE spectra of a number of galaxies (in some spatial regions) also show weaker emission lines. The analysis of these additional lines will be reported in forthcoming papers.

We correct each spectrum for Milky Way extinction using the $E(B-V)$ values from NED. These values are obtained from the Schlafly & Finkbeiner (2011) recalibration of the Schlegel et al. (1998) dust map. This recalibration assumes a Fitzpatrick (1999) reddening law with RV = 3.1.

3.1 Subtraction of the stellar continuum

We removed the contribution of the stellar components from the spectra in order to obtain pure emission-line spectra (assuming that contamination to the continuum from nebular emission can be neglected, see e.g., Byler et al. 2017; MAD4). The continuum-fitting procedure is explained in detail in MAD4. Briefly, the stellar continuum was computed by performing full spectral fitting to each spectrum using the pPXF package (Cappellari & Emsellem, 2004) with the ELODIE stellar libraries (Le Borgne et al., 2004) between Z=0.004 and Z=0.1 and ages between 1 Myr and 13 Gyr. To increase the accuracy of the continuum fits, the 2-D spectra were tessellated using the Voronoi adaptive binning package of Cappellari & Copin (2003) so as to achieve a signal-to-noise ratio (S/N) of 50 in each Voronoi cell in the wavelength range 5650-5750 Å (i.e., a region without emission lines).

The best-fit stellar continuum determined for each cell was subtracted, after rescaling in flux, from the total spectrum in each spaxel encompassed within that cell; resulting in a pure emission line spectrum for each spaxel. This step assumes that the stellar properties are identical for each spaxel within a Voronoi cell, which is not necessarily true; it is however a good compromise that avoids fitting the stellar continua to poor S/N data, which would lead to unreliable results.

3.2 Determination of the Stellar Mass Surface Density

We use in this paper the stellar mass surface density maps, $\Sigma_{\star}$, derived by fitting stellar population models to the stellar continuum spectra of our galaxies; details about these fits are provided in MAD1 and MAD4. Briefly, a second continuum fitting was performed on the stellar Voronoi tessellation (S/N=50 on the continuum) in order to get ages, metallicities and $\Sigma_{\star}$. This second pPXF run was done using the stellar templates from miles (Sánchez-Blázquez et al., 2006). A discussion of the robustness of pPXF when obtaining these stellar properties can be found in Ge et al. (2018) and MAD4.

Then, we transform the resulting $\Sigma_{\star}$ map to a spaxel-by-spaxel map, assuming that the continuum is the same at each stellar Voronoi bin.

3.3 Emission line fitting

The Voronoi tessellation performed on the stellar continuum is not ideal for constructing 2-D maps of the emission line signal. First, the regions where the stellar continuum is brightest may not coincide with the Hii regions or generally with regions of high emission line flux. Second, the Voronoi binning based on the stellar continuum may lead to dilution of the emission line flux within a cell; important but weak emission lines may disappear within a stellar Voronoi bin.

We therefore performed the study of the emission line features in a spaxel by spaxel basis, masking those where the S/N $<$ 3 in all the studied lines. Taking into account the data from all the galaxies in this paper, the total number of spaxels are $\sim$1330000, with a median physical scale of 20 pc. In each spaxel, the emission spectrum may have contributions from several physical sources of emission such as narrow and/or broad AGN emission, inflows and or outflows that give rise to blue-/red-shifted lines relative to the bulk disk emission, and so on. We see, at some physical locations, clear double components in at least four of our 38 galaxies, namely NGC 3256 (a merger relic, de Vaucouleurs 1956), NGC 5643 (a Seyfert-2 galaxy, Condon et al. 1998), NGC 7496 and NGC 7552 (LIRG, Sanders et al. 2003). We nevertheless assumed in the current analysis that each line is well described by a single Gaussian profile. The use of multiple-component decompositions of the emission line spectra is postponed to future papers.

The MUSE Line Spread Function (LSF, i.e., the shape of a line in the spectral domain) varies with wavelength. Although ESO provides a tabulated non-parametric profile of the MUSE LSF, we measured the variations of the LSF in our own lamp observations as well as in our sky frames in order to achieve a more accurate description of the LSF for our data. Our LSF analysis is presented in MAD3; here we take into account this correction when computing the emission line fluxes for our analysis. Specifically, we fit our emission lines with a Gaussian:

[TABLE]

where $F_{\mathrm{\lambda}}$ is the emission line flux, $\lambda_{c}$ is the position of the peak of the line, $x$ is the central wavelength and $\sigma_{\lambda}$ is:

[TABLE]

where $\sigma_{LSF}$ is the contribution to the instrumental broadening per wavelength due to the LSF.

To obtain the pure emission line fluxes, we simultaneously fitted two independent groups of emission lines. Specifically, we fit H$\beta$ and H$\alpha$ together and, in the other group, we performed a simultaneous fit to the [Oiii]$\lambda$4959, [Oiii]$\lambda$5007, Hei$\lambda$5876, [Oi]$\lambda$6300, [Nii]$\lambda$6548, [Nii]$\lambda$6583, [Sii]$\lambda$6717, [Sii]$\lambda$6731 lines. The fits were carried out by assuming identical velocities and velocity dispersions for each line inside each of the groups. In the following we focus on the analysis of the emission line diagnostics based on line fluxes and flux ratios, in order to investigate the SF, ionization and metallicity properties of the ionized gas.

3.4 Uncertainties on emission line fluxes

In order to assess the uncertainty in the emission line fluxes, we estimate the errors in the fitting code plus residuals due to continuum subtraction imperfections.

First, we use 100,000 simulated spectra of a Gaussian emission line to test our fits to the observed spectra. Specifically, we create 1000 simulated spectra for each value of S/N between 1 and 100 (in S/N steps of 1), and fit the resulting spectra using both the same software and approach used for our observed spectra. The errors on the uncertainties of the emission line flux reach about 10% in the low S/N$\lesssim$3 regime, decreasing to about 2% for higher S/N values.

Second, systematic errors due to uncertainties in the continuum subtraction must be added to the error budget. Pessimistic errors for the H$\alpha$ flux estimates can be inferred by considering the maximum stellar absorption Equivalent Width, which are $\sim 50$Å for the youngest regions (higher than the corrections proposed for the granada models; González Delgado et al. 2005). To place empirical limits on the incorrect stellar continuum subtraction on our emission line flux estimates, we perform a simple test on our observed spectra. Specifically we extract four “extreme" stellar absorption spectra from the four corners of the stellar age versus stellar metallicity plane that includes all stellar spaxels for the whole galaxy sample (5 and 95% of the cumulative distribution function of both age and metallicity distributions; see MAD4 for details). We then represent those “extreme" spectra covered by our sample through Single Stellar Population models with age and metallicity values close to those spectra; the four templates combine ages of 1.6 and 12.00 Gyr with metallicities of Z=0.0004 and Z=0.1, respectively.

We then subtract from each total spectrum in each of the four age-metallicity corners not only its optimal stellar continuum spectrum but also the other three age-metallicity combinations, i.e., also the “maximally inaccurate" stellar continua. We calculate the emission line fluxes from the four resulting spectra, and compare the distribution of line fluxes produced by the four continuum subtractions. From this test we estimate that stellar continuum subtraction errors produce uncertainties on the H$\alpha$ and H$\beta$ fluxes of order 4% for S/N=10, decreasing to 2% for S/N=20 and 1% for S/N=40. We take these conservative errors as fiducial systematic errors arising from a possibly incorrect continuum subtraction from our spectra.

3.5 Dust correction and dust-corrected emission line flux maps

We computed our 2-D fiducial dust corrections with the colour excess $E(B-V)$ using the determined values of the Balmer decrement assuming case B recombination. The theoretical ratio $(\mathrm{H}\alpha/\mathrm{H}\beta)_{\mathrm{theo}}$ depends on the temperature and density; here we adopt a fiducial $T=10^{4}$ K and $n=10^{2}$ cm*-3*, which gives $(\mathrm{H}\alpha/\mathrm{H}\beta)_{\mathrm{theo}}=2.86$ (Osterbrock & Ferland, 2006). The colour-excess $E(B-V)$ is then given by:

[TABLE]

where $k(\lambda)$ is the value from the Milky Way extinction curve by Cardelli et al. (1989) and O’Donnell (1994) with $R_{V}=3.1$. Spaxels with unphysical ratios of H$\alpha$/H$\beta<2$ were assumed to have zero dust attenuation (i.e., their Balmer decrement was set to zero, e.g. Groves et al. 2012).

We then corrected all emission line flux maps using these dust-correction maps as follows:

[TABLE]

These dust-corrected emission line flux maps were then used to compute the gas diagnostic maps analysed in this paper. The dust-corrected line emission flux maps and the dust correction maps of each galaxy are presented in Appendix A .

4 Diagnostics of ionized gas at MAD resolution

The high spatial resolution of the MUSE data enables us to handle two key issues that are of importance in the determination of the SFR densities and gas metallicities inside disk galaxies. Specifically, we are able to $(i)$ compute SFRs and gas metallicities largely unaffected by contamination from regions of non-thermal emission; and $(ii)$ establish the relative contributions to the SFR of compact Hii regions and the diffuse component, as well as the separate contributions of these components to gas metallicities. Previous 2-D spectroscopic surveys have looked into these issues as well, e.g., CALIFA, MaNGA and SAMI (Croom et al., 2012); but the $\sim 10$ times higher spatial resolution of the MAD data boosts the ability to disentangle the different components, in addition to providing information on scales that are still largely unexplored in terms of a systematic study as a function of the location on the SFMS.

4.1 Resolved BPT diagrams

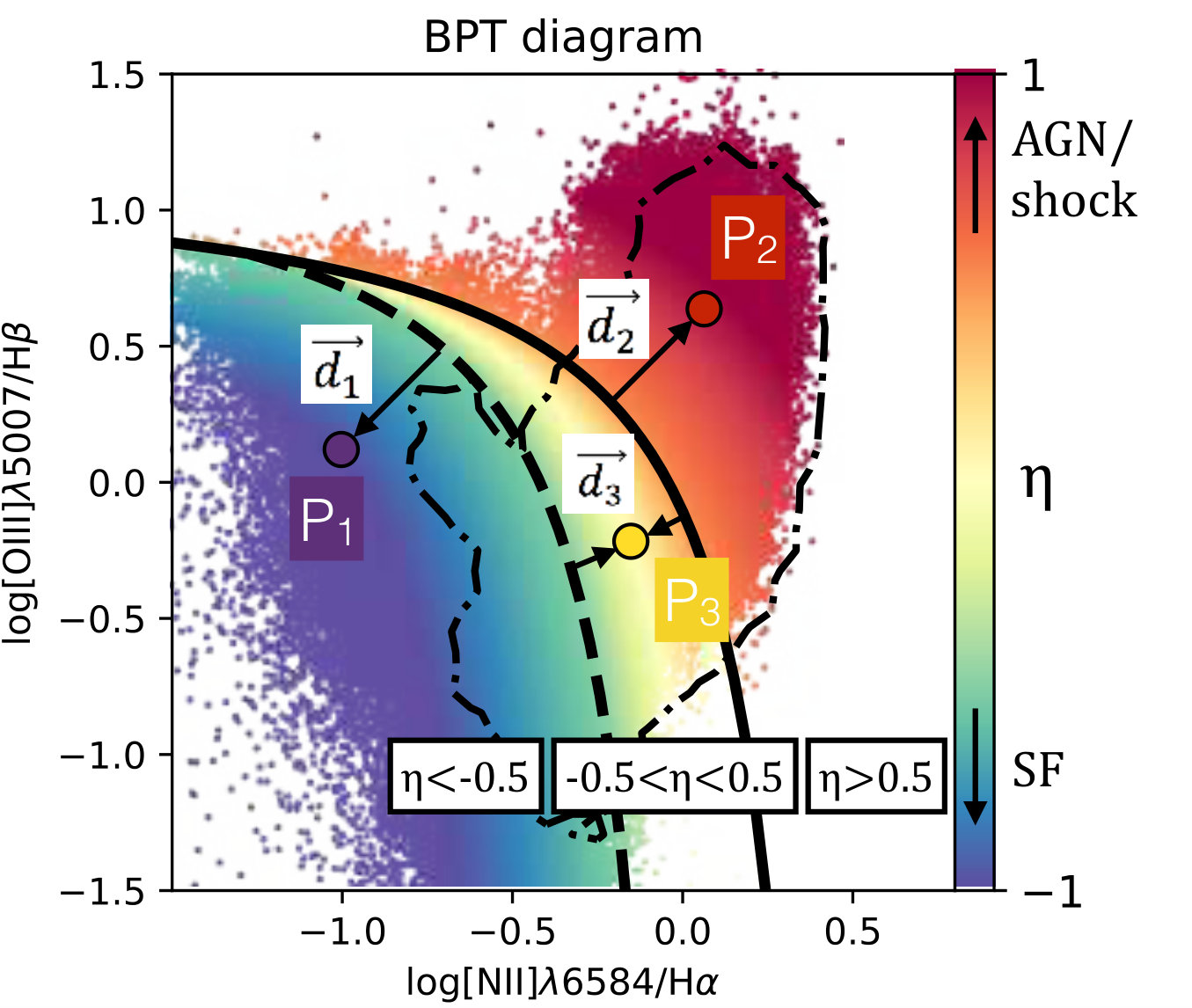

We use the well-known [Oiii]/H$\beta$ vs [Nii]/H$\alpha$ Baldwin, Phillips & Terlevich (hereafter BPT; Baldwin et al. 1981) diagram to identify regions within the galaxies that are ionized by UV radiation from newly born stars (regions of star-formation – hereafter, the SF gas) and regions that are ionized by AGN-emitted radiation, shocks or AGB stars. In these diagrams (e.g., Fig 1), the upper, solid line is the photoionization model of Kewley et al. (2001) which defines the upper envelope of the region of parameter space occupied by extreme starbursts; this line is a conservative boundary between SF gas and AGN/shocks. The lower, dashed line shows an equivalent but empirical demarcation derived by Kauffmann et al. (2003). The area of BPT parameter space that lies between these two lines is regarded as identifying regions of gaseous emission with an intermediate ionization spectrum.

It is also well known that the equivalent width (EW) is an extra proxy to constrain the possible ionization source of the ionized gas, restricting the SF regions to those with EW(H$\alpha$) > 6 Å (e.g., Cid Fernandes et al. 2011; Sánchez et al. 2014; Barrera-Ballesteros et al. 2016; Belfiore et al. 2017). The EW(H$\alpha$) is measured by dividing the H$\alpha$ intensity by the flux density of the underlying continuum of the emission-line-free spectra, computed as the mean flux density of two windows of 30 Å wide and centered at $\pm$60 Å from the observed H$\alpha$ wavelength. The spaxels with EW(H$\alpha$) < 6 Å are presented in Fig. 1 as those inside the dash-dotted area. The ratio between all the spaxels with EW(H$\alpha$) < 6 Å  and all the spaxels under the empirical SF demarcation of the BPT is 4%. Although this ratio is lower than 2% for 24 out of 38 galaxies, it is significant for some galaxies such as NGC 3521 (23%), IC5273 (11%) or NGC 4941 (8%).

To obtain a single-valued continuous parameter that conveys the location of each spaxel on its galaxy’s BPT diagram, we define the variable $\eta$ as either $(i)$ the inward-pointing orthogonal distance from the dashed line, identifying SF gas; or $(ii)$ the outward-pointing orthogonal distance from the solid line, identifying AGN/shocked-ionized gas; or $(iii)$ the inward- or outward-pointing orthogonal distance from the $\eta=0$ line, taken to be the line which splits vertically the intermediate region of the BPT diagram in half. $\eta$ is normalized such that $\eta$ for SF gas is $\eta\leq-0.5$, for AGN/shock-ionized gas is $\eta\geq+0.5$ and the intermediate region has $-0.5<\eta<+0.5$. A detailed explanation of how the parameter $\eta$ is computed can be found in Appendix B.

The variable $\eta$ is presented throughout the paper with a continuous colour map starting from blue in the SF regions, going to yellow for the intermediate regions and finishing in red for the regions ionized by AGN/shocks/AGB stars, as shown in Fig. 1. The individual BPT diagrams for each of the galaxies are shown in panel e) of the figures in Appendix A. The 2D maps showing the EW and resolved BPT properties of the individual galaxies, using the local values of $\eta$, are presented in panel f) of the figures in Appendix A.

The dominant ionization mechanism in most spaxels is star formation, except for some galaxies with clear AGN/shock emission in the central (e.g., NGC 4941 or NGC 5643) or bar regions (e.g., NGC 289, NGC 1042, NGC 1512, NGC 4603, 5806 or NGC 7421), where intermediate ionization spectra in between the SF and AGN/shock regions are found. Furthermore, there is a relationship between the gas ionization mechanism and the substructure, e.g, star-forming rings in NGC 1097, NGC 1512, NGC 3081, NGC 5806 and NGC 7552, or the intermediate ionization in the interarm regions of NGC 289 and NGC 4030.

Here we use the knowledge of the resolved EW and BPT properties of the galaxies to exclude the non-thermal gas spaxels when estimating gas metallicities and SFR; the calibrations may break down when using gas ionized by hard radiation fields such as from AGNs or shocks (see Sect. 4.4).

4.2 Distributions of star formation rates

In regions of SF, the H$\alpha$ line traces emission from massive young stars and thus the very recent SF occurring on timescales $<$ 20 Myr. H$\alpha$ is less sensitive to dust attenuation than the UV (although dust effects on H$\alpha$ are not entirely negligible, e.g., Cardelli et al. 1989, Erroz-Ferrer et al. 2013).

To measure the local SFR density in each spaxel, we first corrected the measured H$\alpha$ flux for dust extinction using the methodology explained in Sect. 3.5. Second, we converted this flux into an H$\alpha$ luminosity using the distance $D$ (Table 1) and the equation $L(\mathrm{H}\alpha_{\rm corr})=4\pi D^{2}F(\mathrm{H}\alpha_{\rm corr})$. The H$\alpha$ luminosity is then converted into a SFR using the calibration from Hao et al. (2011):

[TABLE]

This equation assumes a Kroupa (2001) stellar IMF with a mass range of 0.1-100 $M_{\odot}$, an electron temperature of $T_{\rm e}=10^{4}$ K and electron density $n_{\rm e}=100$ cm*-3*. Variations in $T_{\rm e}$ from 5000 to 20000 K would result in a variation of the calibration coefficient ($10^{-41.27}$) of $\approx$15%. Variations of $n_{\rm e}=100-10^{6}$ cm*-3* would result in variations in the calibration coefficient below 1% (Osterbrock & Ferland, 2006). This calibration also assumes that over timescales $>$ 6 Myr, star formation remains constant, and no information about the previous star formation history is given (see Kennicutt & Evans 2012 and references therein). Some of these assumptions may break down when studying resolved SFR (i.e., $\Sigma$SFR) maps for a number of reasons: (i) an incomplete sampling of the IMF, especially at regions of low ($\lesssim$0.01 $M_{\sun}$ yr*-1*) SFRs; (ii) the assumption that the star formation remains constant may not be true when the spatial resolution encloses single young clusters; (iii) the spatial resolution may be smaller than the Strömgren diameter of the Hii regions. We refer to Weilbacher & Fritze-v. Alvensleben (2001) for a thorough modelling showing the effects which have an impact on the ratio between L(H$\alpha$) and SFR. The main consequence of an incomplete sampling of the IMF would typically be a suppressed H$\alpha$ flux (e.g. Lee et al. 2009; Fumagalli et al. 2011) and thus an underestimate of the SFR. A variable star formation history can lead to both a lower and higher conversion factor between H$\alpha$ luminosity and SFR which is likely to add some scatter in the relations below, especially for the DIG. As discussed above, there are regions in our galaxies which are not ionized by young stars, but from nuclear activity, shocks or post-AGB stars. We therefore restrict our SFR calculations to the SF regions (obtained from the BPT diagram).

Keeping these caveats in mind, we present the resolved H$\alpha$-based SFR maps in panel (d) of the figures in Appendix A. The strong patchiness of the SFR maps reflects the highly inhomogeneous distribution of the H$\alpha$ emission, which is highly concentrated in the Hii regions across the disks. The maps show nuclear SF rings in NGC 1097, NGC 1512, NGC 3081, NGC 5806 and NGC 7552; inner SF rings in NGC 3783, NGC 4941 and IC 2560; and outer SF rings in NGC 3081 and NGC 5806, most of those previously identified in Comerón et al. (2010, 2014). As also discussed in e.g. Erroz-Ferrer et al. (2015) (and references therein), some bars in our sample show enhanced star-formation while others do not; it is unclear whether this is entirely due to the presence/absence of gas or also to different gas conditions in similarly gas-rich galaxies.

4.3 Identification of the Diffuse Ionized Gas

There are two ways to identify the DIG emission in our data: (i) using an H$\alpha$ flux threshold to isolate the Hii regions, and identifying the remaining gas as the DIG (as done e.g., by Marino et al. 2013 for the CALIFA sample, using the HIIexplorer package presented in Sánchez et al. 2012b that identifies the Hii regions); or (ii) following the method developed in Blanc et al. (2009) to compute the fraction of flux coming from DIG and from Hii regions. The idea behind this method is that the observed H$\alpha$ flux ($F({\rm H}\alpha)$) includes the emission from both Hii regions and the surrounding DIG. Here we follow the method by Blanc et al. (2009).

Quantitatively, we compute the fraction of $F({\rm H}\alpha)$ coming from Hii regions ($C_{\rm HII}$) and from DIG ($C_{\rm DIG}$) following:

[TABLE]

where $C_{\rm HII}=1-C_{\rm DIG}$. We refer the reader to Blanc et al. (2009) and Kaplan et al. (2016) for a full description of the method. Briefly, we use $F({\rm H}\alpha)$ (distinguishing between the bright Hii regions and the lower, diffuse emission) and the ratio [Sii]/H$\alpha$, which is observed to be different in the Hii regions vs DIG of the Milky Way (Madsen et al., 2006). This method yields: (i) for each galaxy, a threshold value $F({\rm H}\alpha)_{0}$ below which all the $F({\rm H}\alpha)$ comes from DIG; (ii) for each region, $C_{\rm HII}$ and $C_{\rm DIG}$. The DIG is then defined as those regions with $F({\rm H}\alpha)<F({\rm H}\alpha)_{0}$ and significant contribution from the DIG (i.e., $C_{\rm HII}<0.6$). The forthcoming results in this paper do not change when a value of $C_{\rm HII}<0.5$ or $C_{\rm HII}<0.7$ is chosen. In order to compare the properties of the DIG and Hii regions, we restrict our study to the DIG that is located in the SF part of the BPT diagram. Panel (h) of the figures in Appendix A shows in red the spatial location of the DIG, coinciding with the low-flux, diffuse ${\rm H}\alpha$ emission.

4.4 Resolved gas-phase metallicities

The gas-phase metallicity $Z_{\rm gas}$ is an important diagnostic for constraining the past star-formation and assembly histories of galaxies, and the origin of their gas components. Several calibrations -either empirical, theoretical or hybrid- have been proposed over the years to derive gas metallicities from emission line fluxes. We refer to the recent studies by Barrera-Ballesteros et al. (2017) and Sánchez et al. (2017, 2018) for a detailed comparison between metallicity calibrators.

In our work we explored a number of calibrations, to understand their impact on our results. Specifically we applied to our data: (a) the Marino et al. (2013) (M13 hereafter) fully empirical calibration, based on the O3N2 indicator, $\mathrm{O3N2}\equiv\log\frac{[{\rm OIII}]\lambda 5007}{\mathrm{H}\beta}\frac{\mathrm{H}\alpha}{[{\rm NII}]\lambda 6584}$; (b) the calibration of Pettini & Pagel 2004, which uses the O3N2 indicator and is based on a hybrid combination of oxygen measurements in galaxies and photoionization models; and (c) the calibration of Dopita et al. (2016) (DOP16 hereafter). This calibration was inferred from photo-ionization models and requires only the H$\alpha$, [Nii] and [Sii] emission lines to infer the oxygen abundance. Since both calibrators have been derived for regions where the ionizing mechanism is SF, we exclusively consider SF-only spaxels (i.e., excluding spaxels with an AGN or shock spectrum).

There are indeed differences between the calibrations. The absolute metallicity values may differ: for the same O3N2 ratio, PP04 delivers systematically higher metallicities than M13 due to the photoionization models used in PP04. The M13 calibration covers a smaller dynamical range than DOP16. Consequently, as expected, the standard deviations using M13 calibration are lower than those in DOP16 due to the smaller dynamical range of the former. We present some results of these tests in Fig. 2 where we show the average metallicity inside 0.5 $R_{e}$, using the DOP16 and M13 calibrations, plotted as a function of the total stellar mass and colour-coded by the average SFR density inside 0.5$R_{e}$. With both calibrations, there is a positive correlation between the average $Z_{\rm gas}$ within 0.5$R_{e}$ and the total stellar mass $M_{\star}$ (i.e., the MZR holds when the average metallicity inside 0.5$R_{e}$ is used instead of the metallicity of the entire galaxy in our reduced sample galaxies, see e.g., Sánchez et al. 2017 for a study of the MZR using a large set of metallicity calibrators for a set of 734 galaxies). The slopes of the relation are respectively $\alpha=0.31\pm 0.03$ dex/log$M_{\sun}$ using the DOP16 calibration, and $\alpha=0.18\pm 0.03$ dex/log$M_{\sun}$ up to $10^{10}M_{\sun}$ using M13. However, we note that M13 reaches a plateau metallicity for $M_{\star}\gtrsim 10^{10}M_{\sun}$. This is not the case for the DOP16 calibration, which covers a larger dynamic range than the M13 calibration.

Although the DOP16 calibration depends on the N/O ratio, we adopt it as our fiducial calibration because it reproduces super-solar oxygen abundances. Fig. 2 shows that the mass-metallicity relation inside 0.5 $R_{e}$ holds not only when the total SF gas is taken into account, but also when either only the Hii regions or only the DIG components are considered. Note that we see no clear trend of the average SFR density with either total stellar mass or gas metallicity inside 0.5 $R_{e}$.

5 Results

5.1 Gas Metallicities: Comparison between Diffuse Gas and Hii regions

Exploiting the high spatial resolution of the MAD data, we study the distinct contributions from the Hii regions and DIG to the properties of the SF gas in SFMS disks. We discuss the differences in chemical enrichment that we detect in these two components of the ISM.

5.1.1 Emission line ratios in Hii regions and Diffuse Ionized Gas

The typical size of an Hii region is between few tenths of pc to $\sim$200 pc (Kennicutt et al. 1984; Garay & Lizano 1999; Kim & Koo 2001; Hunt & Hirashita 2009); the resolution of the MAD data therefore makes it possible to identify and isolate a substantial fraction of Hii regions from the surrounding DIG, although few Hii regions may remain unresolved. As noted in the previous section, it is important to use only the star-forming gas when applying certain calibrations. Kewley & Dopita (2002); Kewley & Ellison (2008) and Yuan et al. (2012) excluded contaminated (non-SF) regions when lacking the spatial resolution required to avoid computing incorrect gas metallicities with some calibrations. Hence we study here the emission line ratios of Hii regions and DIG of the SF regions only, distinguished using the methodology explained in Sect. 4.3.

The ionization source for DIG and Hii regions may be different (Mathis 2000; Haffner et al. 2009). If so, we may expect the gas properties to differ in these regions. In order to explore this issue, we present in Fig. 3 the ratios of the dust-corrected emission line fluxes of [Oiii]/H$\beta$, [Nii]/H$\alpha$, [Sii]/H$\alpha$, O3N2 and [Sii]$\lambda$6717/[Sii]$\lambda$6731 for both Hii regions and DIG. Thanks to the great spatial resolution of our data, it is possible to measure the median emission line fluxes at very low and high values of $\Sigma_{\star}$ ($10^{0.5}$ and $10^{5}$ M⊙ pc*-2* respectively). The first two rows show the difference in BPT ionization between Hii regions and DIG. Since we study the Hii regions and DIG that are in the SF area of the BPT diagram and show EW(H$\alpha$)>6 Å, we expect that both the [Oiii]/H$\beta$ and [Nii]/H$\alpha$ ratios are similar for both components. The third row in the figure shows the [Sii]/H$\alpha$ ratio, which is almost constant with $\Sigma_{\star}$ for both Hii regions and DIG. The median value for this ratio in Hii regions is, as expected, systematically lower than in the DIG (given the way the DIG is identified). The fourth row of the figure shows the O3N2 ratio. We observe a correlation between O3N2 and $\Sigma_{\star}$, i.e., a resolved MZR on the local scales of MAD. Note that the ratio [Sii]$\lambda$6717/[Sii]$\lambda$6731, a tracer of the electron density, is similar for the Hii regions and DIG, although with larger variation for the latter.

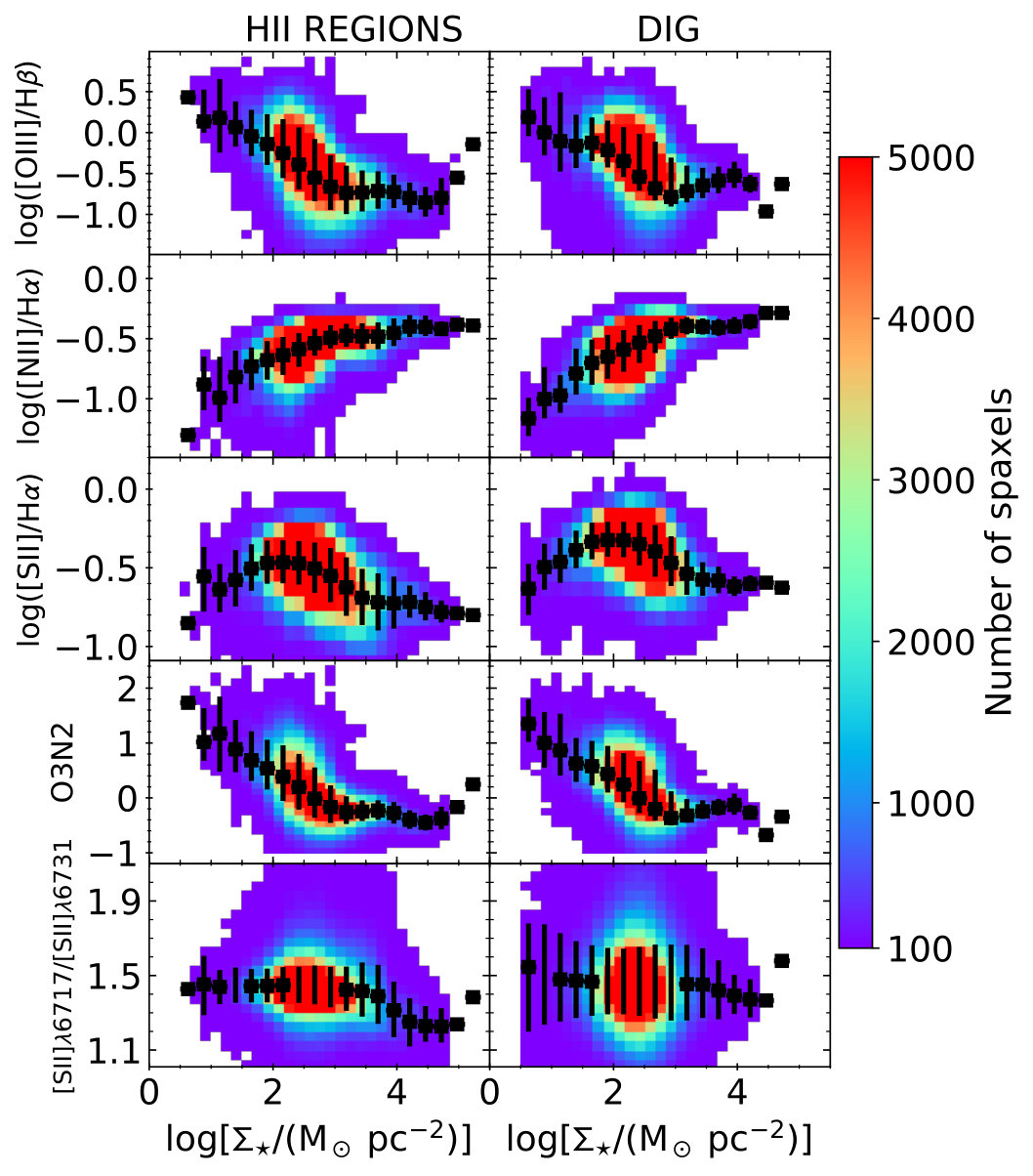

Overall the emission line ratios in the DIG are similar than those found in Hii regions, i.e., the range of BPT, $Z_{\rm gas}$ and $n_{e}$ properties. This is in part inherited from the restriction to study SF-only regions and from the constraints on the [Sii]/H$\alpha$ ratio that are applied to define and identify the DIG.

5.1.2 Metallicity Radial Gradients

The prediction from an inside-out formation scenario (e.g.; White & Frenk 1991; Mo et al. 1998), where the stars in the central parts are formed before the stars in the outer parts, is that the metallicity decreases with galactocentric radius (i.e., a negative gradient). Non-interacting galaxies show, in general, negative gas metallicity gradients (Searle, 1971), and, at least in some studies, the slope of this gradient has been found not to depend strongly on galaxy properties (e.g., Zaritsky et al. 1994; Sánchez et al. 2014; Ho et al. 2015). Other studies (e.g., Belfiore et al. 2017) however find that the metallicity gradient steepens with stellar mass. Carton et al. (2015) found a correlation between the metallicity gradients and the gas content of 50 isolated, late-type galaxies. Interacting galaxies seem to have flatter metallicity gradients than isolated galaxies, likely because of gas flows induced by the mergers (Vila-Costas & Edmunds 1992a; Krabbe et al. 2008, 2011, Rupke et al. 2010, Kewley et al. 2010, Rosa et al. 2014 and Torres-Flores et al. 2014). Recently, using IFU data, Sánchez et al. (2012b, 2014), Kaplan et al. (2016) and Sánchez-Menguiano et al. (2018) have found that barred and unbarred spirals show similar metallicity gradients, in contrast with some previous studies based on long-slit data (e.g., Vila-Costas & Edmunds 1992b; Martin & Roy 1994; Zaritsky et al. 1994; Dutil & Roy 1999; Henry & Worthey 1999).

To fairly explore the metallicity radial profiles in galaxies with different radial coverage and of different sizes/masses, the galactocentric distances are normalized to the half-light radius (listed in Table 1). The galactocentric distance has been binned in units of 0.3 $R/R_{e}$, and the median metallicity for each bin is shown in Fig. 4. Note that no gradient is measured for NGC 1512, as its radial extent does not reach 0.6 $R/R_{e}$. We computed the gradient $\alpha$ to be the slope of the fitted line to the median points up to the probed radius. We note that the qualitative trends that we report do not change when using the galactocentric distance in physical units (kpc).

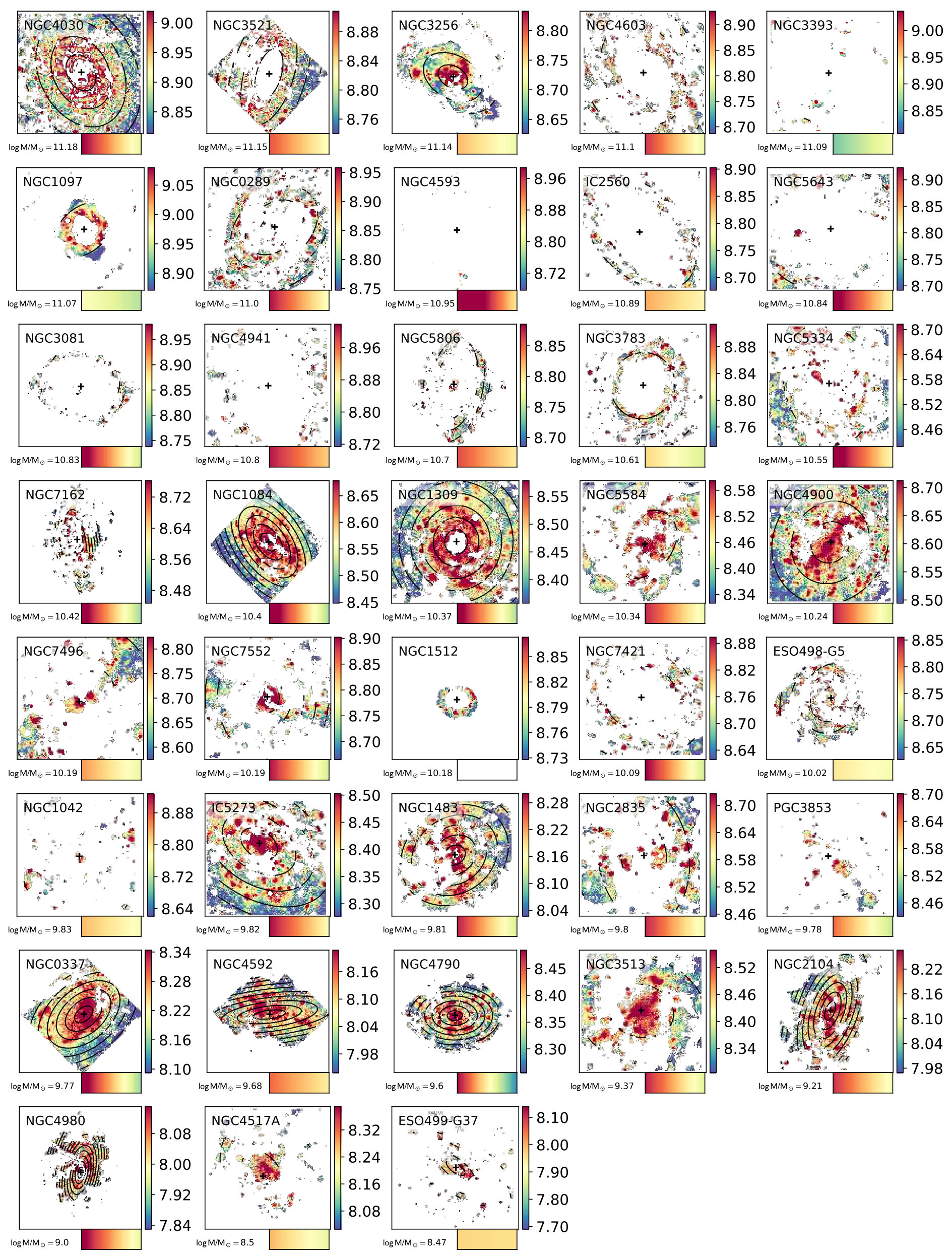

MAD spatial resolution enables us to study the gas metallicity profiles of Hii regions and DIG separately. To this aim we compare, for every galaxy, the metallicity gradient that results when using Hii-regions only spaxels (pink open squares in Fig. 4) to the gradient that results when using DIG regions (black circles in the figure). We only consider (and compute a median value for) radial bins in which the number of spaxels covered by SF regions is at least 10% of all spaxels in that radial bin.

The metallicity gradients that we measure in the inner SF regions of disks are mostly negative (29 out 37 cases) or flat (8 out 37 cases). Outward-decreasing metallicities, i.e., negative gradients, are consistent with a disk evolution following the classical inside-out scenario. Flat metallicity gradients, also reported by other authors (e.g., Marino et al. 2012; Marino et al. 2016), point towards scenarios that include the presence of bars, changes in the SF histories or coincidence with the corotation radius.

When comparing the gas metallicity profiles of Hii regions and DIG separately (Fig. 4), we find that their metallicity gradients are similar. However, the median values of the gas metallicity in each radial bin are higher for the Hii regions than for the DIG regions by $\sim$0.1 dex on average. Fig. 4 is colour-coded by the $\Sigma_{\rm SFR}$: we note that, at any given radius, regions of lower metallicity have lower median SFR density.

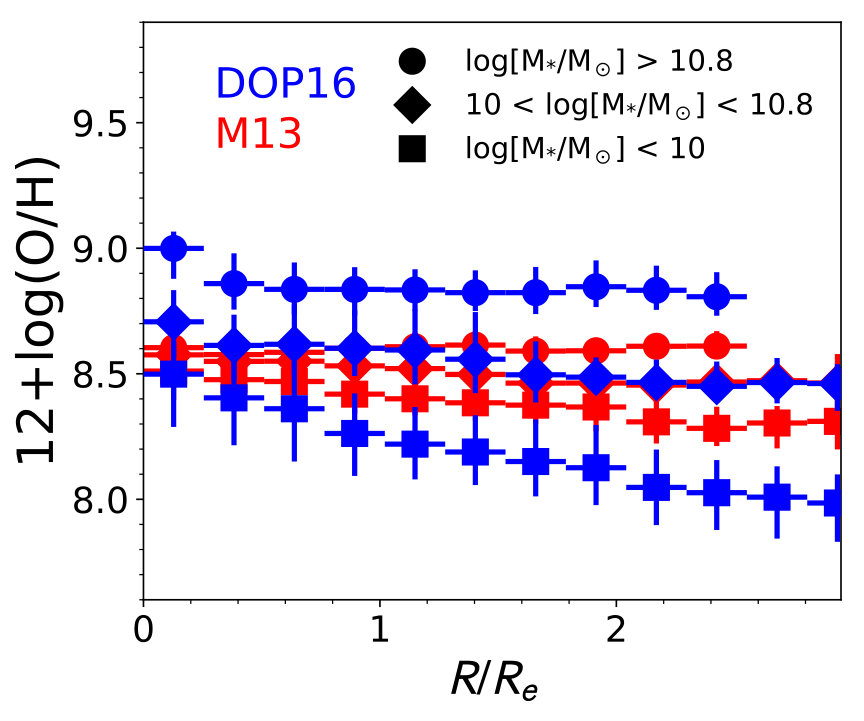

Fig. 5 shows the metallicity gradients as a function of the total stellar mass for our three analyses: SF (no AGN/shock ionization) regions, Hii regions and DIG. We find that the gradients hardly change between Hii regions and DIG, we observe no dependence on stellar mass in any of the panels of Fig. 5. We use this figure to also show the impact of the adopted metallicity calibration on the measured gradients. Specifically, for the SF-only gas, we show the comparison between metallicity gradients measured with our fiducial calibration and with the M13 calibration. The M13 calibration yields substantially shallower metallicity gradients, and occasionally even positive metallicity gradients (in some high-mass galaxies), due to a drop in metallicity in the inner 0.5$R_{e}$. Sánchez-Menguiano et al. (2018) also reported a drop in metallicity in the inner 0.5Re when using M13, not found when using the DOP16 calibration (see their Appendix C). Our aforementioned results regarding the metallicity gradients of Hii regions are consistent with those of Sánchez-Menguiano et al. (2018), although their sample is three times as large and has in some cases larger spatial coverage.

Fig. 6 shows the radial metallicity profiles of the SF regions dividing the sample in three mass bins with a roughly similar number of galaxies per bin: low-mass galaxies ($M_{\star}\,<\,10^{10}\,M_{\sun}$), intermediate-mass galaxies ($10^{10}\,M_{\sun}\,<\,M_{\star}\,<\,10^{10.8}\,M_{\sun}$) and high-mass galaxies ($M_{\star}\,>10^{10.8}\,M_{\sun}$). Both DOP16 and M13 calibrations have been used to compute the metallicities. At fixed galactocentric distance, the median metallicity values increase with increasing total mass (at all radii for both metallicity calibrators). It is evident, however, that the shape of these profiles depends on the adopted calibration: the metallicity profiles decrease for all mass bins for our fiducial calibration DOP16, whereas for M13 they are much flatter, even rising for the high-mass bin.

Significant information concerning the enrichment histories of galactic disks that is lost when computing the azimuthal averages that produce the metallicity gradients; this produces the scatter in each radial bin that is shown in the previous figures, which is on average $\sim 0.2$ dex. This typical scatter that we find across our sample has also been reported for studies of individual galaxies based on data of similar resolution to ours, e.g., in HCG 91c by Vogt et al. (2017). The gradients result from averaging at any given radius substantially different metallicities in Hii regions, DIG, spiral arms, bars, non-gravitational (inflow/outflow) components, galactic rings, and other small-scale substructure which stands out in the 2D maps. As the DIG have lower metallicities than the Hii regions, the median metallicities reported in the radial (azimuthally-averaged) gradients are in between the two extremes produced by these two gas components. In general, morphological substructure stands out clearly in the 2D metallicity maps: the nuclear rings in NGC 5806 and NGC 7552 have very different metallicity than their surroundings; the Hii regions in the spiral arms in NGC 289 and NGC 4030 have different metallicity compared to the interarm regions. The latter may result from inflow of low-metallicity gas along the arms, either from the diffuse circum-galactic medium or due to the accretion of a low-metallicity satellite; alternatively, we may be seeing an increase in metallicity due to enhanced star-formation in the gas-compression zones generated by the spiral arms. In general however the Hii regions have typical metallicities that are higher than those found in the interarm regions. In Appendix A, we describe the results for each individual galaxy, relating the scatter and features in the metallicity maps to the other gas diagnostics presented in this paper. In Appendix C we compare the 2D metallicity distribution with its azimuthally-averaged metallicity gradient.

5.2 The spatially resolved Mass-Metallicity relation on $\sim$100 pc scales

An important question is whether the global relationships reported above arise from local ones. The high-spatial-resolution MAD data enable to explore relationships between local physical properties such as local SFR, local metallicities or $\Sigma_{\star}$.

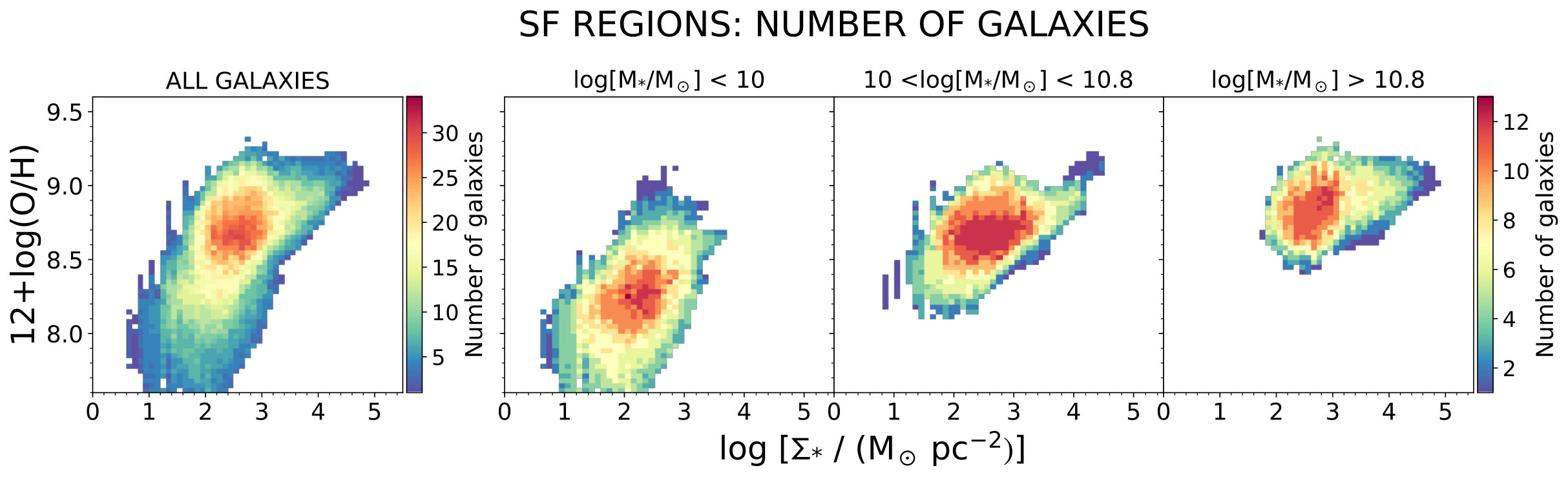

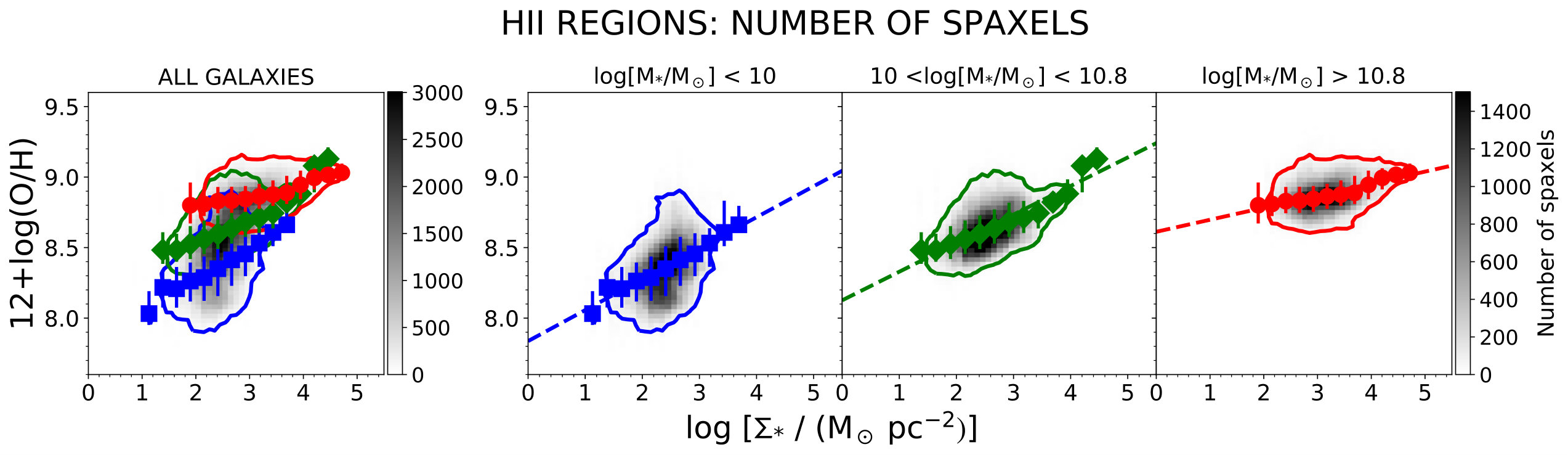

In Fig. 7 we present the distribution of the oxygen abundance as function of $\Sigma_{\star}$ for all the SF spaxels provided by our sample galaxies. The oxygen abundances are derived using DOP16 (top) and M13 (bottom) calibrations. This figure is based on the $\sim$  1070000 SF spaxels out of the $\sim$  1330000 spaxels from the entire sample of 38 galaxies. The number of spaxels in each x-y bin is represented by a colour scale. These plots show a clear relationship between $\Sigma_{\star}$ and $Z_{\rm gas}$, i.e., a resolved MZR (RMZR) for $\sim$ 100 pc local scales. Specifically, $Z_{\rm gas}$ increases with increasing $\Sigma_{\star}$ up to a stellar surface mass density of $\sim 10^{3}M_{\sun}/{\rm pc}^{2}$. Interestingly, $Z_{\rm gas}$ continues to increase beyond this threshold value, but more gently than at lower $\Sigma_{\star}$. Using the M13 calibration instead of our fiducial DOP16 calibration produces a more dramatic flattening of the relation above $\sim 10^{3}M_{\sun}/{\rm pc}^{2}$. In contrast, with the DOP16 the RMZR keeps increasing up to the highest stellar surface mass densities that we probe with our data. With our smaller spatial scales, we extend the RMZR to $\Sigma_{\star}$ of $\sim 10^{5}M_{\sun}/{\rm pc}^{2}$, i.e., one and 1.5 magnitude(s) higher than those reached with MaNGA and CALIFA, respectively.

In order to explain the shape of the RMZR, we search for a mathematical formula which can reproduce both the linear behaviour at lower $\Sigma_{\star}$ and the flattening (asymptotic behaviour) at higher $\Sigma_{\star}$. We fit the median metallicity values inside each bin of $\Sigma_{\star}$ using three different approaches: (i) a linear function based on two free variables, i.e. slope and y-intercept, (ii) a three-variable function, $y=a+b(x-c)e^{-(x-c)}$ (Sánchez et al., 2014), S14-function thereafter and (iii) double linear function for the two regimes below and above the $\sim 10^{3}M_{\sun}/{\rm pc}^{2}$ threshold which comprises four free variables. The threshold at $\sim 10^{3}M_{\sun}/{\rm pc}^{2}$ has been calculated as the optimal value that describes the break in the two linear regimes. In Table 2 the coefficients of the fitted functions for both DOP16 and M13 calibrations are summarized. The residuals are computed as $\Delta{\rm 12+log(O/H)}=y-\overline{y}$ for all y (metallicity) values from all the SF spaxels. We compute the scatter of the RMZR as the standard deviation of the residuals after subtracting the fitted relations to the RMZR. The distribution of the residuals as well as the scatter in this distribution are presented in a subplot inside Fig. 7.

In order to assess which function represents the data better, we analyse the residuals, $\chi^{2}$ and $p$-value of the aforementioned fits. From Table 2 we see that the double linear fit presents less scatter than the others for both metallicity calibrators. Additionally, the $\chi^{2}$ for the double linear fit is also the lower one for both metallicity calibrators. Even if $\chi^{2}$ determines the goodness of the fits, including more degrees of freedom (more free variables) to our fitted functions may result in a lower $\chi^{2}$ parameter. Thus we study the $p$-value to see the significance of our results, finding that the higher $p$-value corresponds to the double linear function for both metallicity calibrators, confirming that this function represents the data distribution better than the other two. In any case, both the double linear fit and the S14 functions can explain the saturation in metallicity at the highest densities. This saturation has been suggested to be consequence of the maximum yield of oxygen in spiral galaxies (Pilyugin et al., 2007), low specific SFR in the inner regions of the galaxies or efficiency of cooling in high-metallicity and low-temperature Hii regions (Rosales-Ortega et al., 2012).

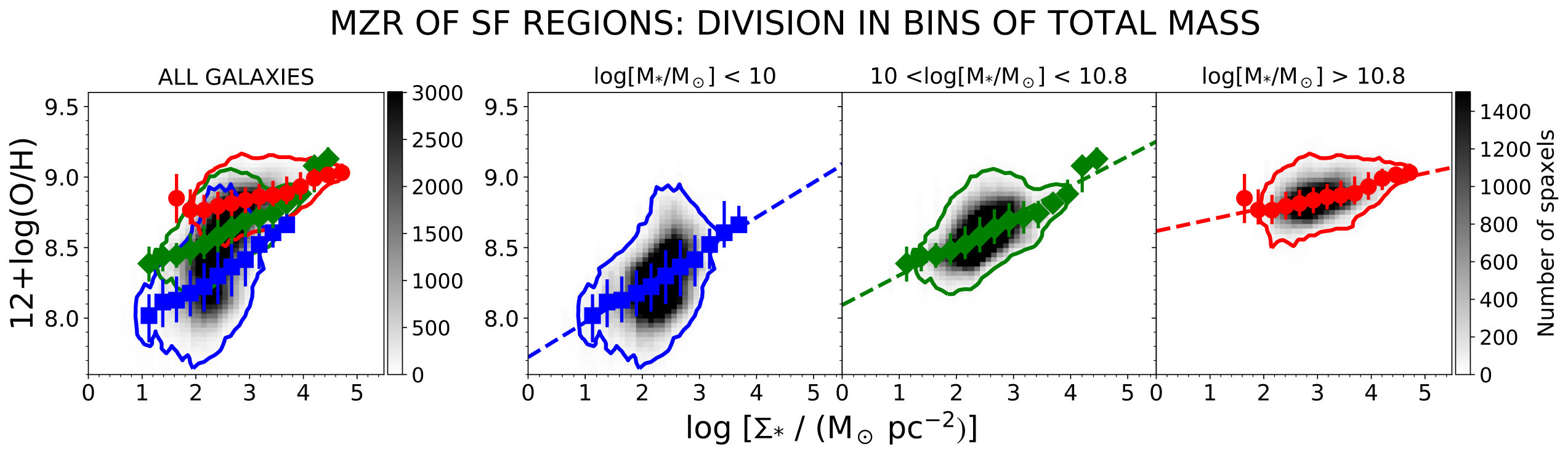

In order to understand the physical interpretation of the chosen formula, we divide the galaxies of our sample in three mass bins with a roughly similar number of galaxies per bin. The second, third and fourth panels of Fig. 8 show the $\Sigma_{\star}$ vs $Z_{\rm gas}$ relation respectively for the lower (< $10^{10}M_{\sun}$), intermediate ($10^{10}M_{\sun}<M_{\star}<10^{10.8}M_{\sun}$) and high (> $10^{10.8}M_{\sun}$) stellar mass bins. For each mass bin, we use a different colour for the contour of the RMZR relation; the contours enclose the loci where the data-points lie: we use blue for the low-mass galaxies, green for the intermediate-mass and red for the more massive galaxies. These contours are superimposed in the left-most panel (i.e., the one containing the whole sample of 38 galaxies) using the same colour-coding. Specifically, the slope of the RMZR relation is rather steep in the lowest mass bin and flattens substantially towards the higher masses (slopes $\alpha=0.25\pm 0.01,0.21\pm 0.01$ and $0.08\pm 0.01$ for the low-, intermediate- and high-mass bins, respectively). Contrary to the behaviour of considering all the spaxels from all the galaxies, the median metallicities at each $\Sigma_{\star}$ of the three mass bins are very well fitted by a line, and no threshold in $\Sigma_{\star}$ is found. This points toward a scenario where the maximum oxygen yield that produces the saturation at high densities depends on the total stellar mass, and the saturation observed is the result of combining all the stellar mass bins in the same plot. In other words, the double linear fit is the best formula which fits to the data and shows the saturation at high masses. However, a single linear correlation explains the RMZR at each bin of total stellar mass.

We also note that a wide range of $Z_{\rm gas}$ is measured at a given $\Sigma_{\star}$ from the right plots of Fig. 8: at fixed values of surface mass density which are found in galaxies of all masses in our sample, the range in metallicities measured within the disks slightly increases with the total stellar mass of the galaxies. For example, at a surface mass density of $10^{2.5}M_{\sun}/{\rm pc}^{2}$, the lowest stellar mass bin has gas metallicities within the range 7.8<$Z_{\rm gas}$<8.9, the intermediate-mass galaxies have a range 8.3<$Z_{\rm gas}$<9.1, and the most massive bin a range of 8.4<$Z_{\rm gas}$<9.3. This does not imply, however, that the metal enrichment has a global origin rather than a local one, as denser (less dense) regions are found in more (less) massive galaxies. The dependence of the RMZR with the total stellar mass will be discussed in Sect. 6.

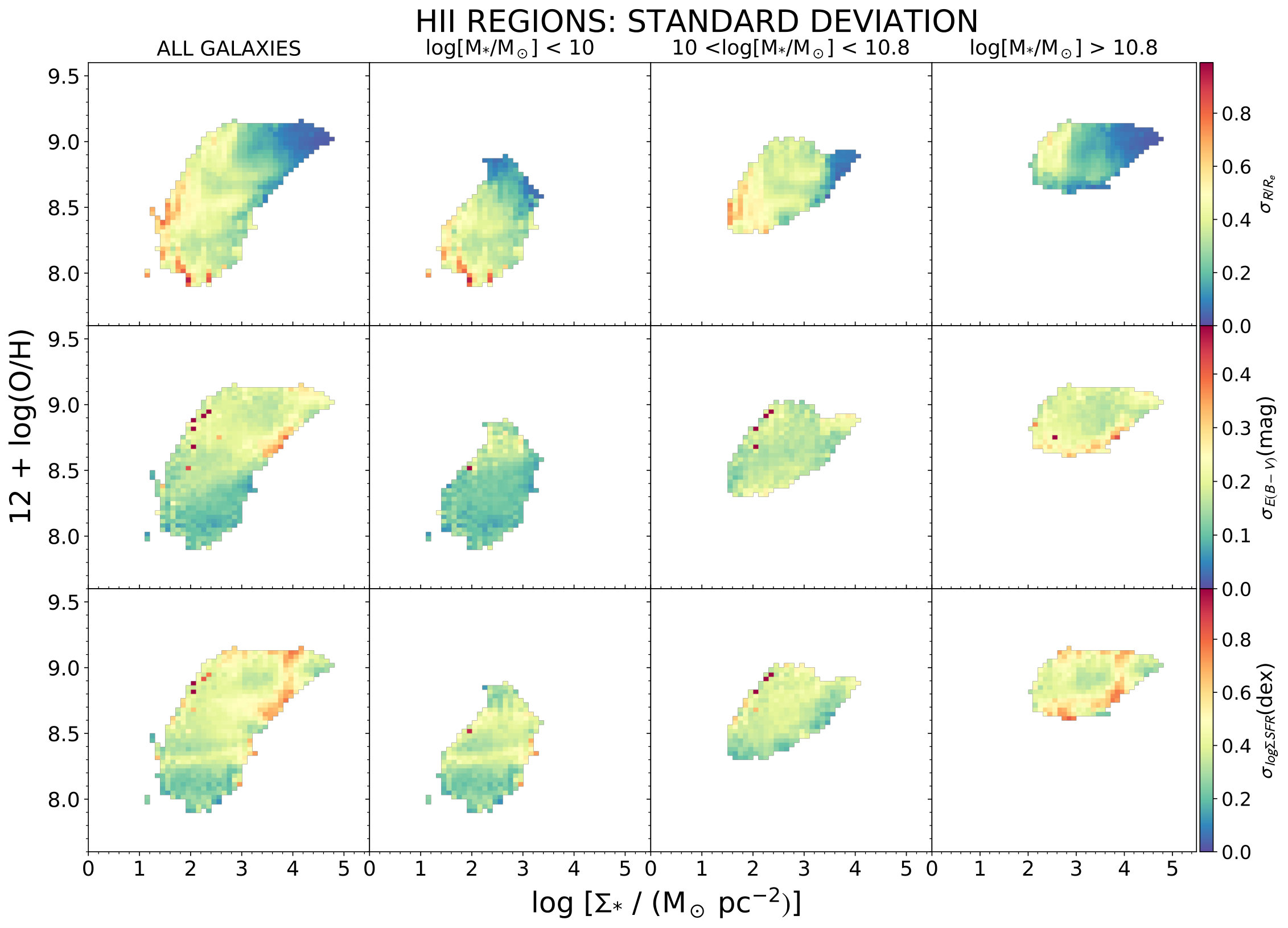

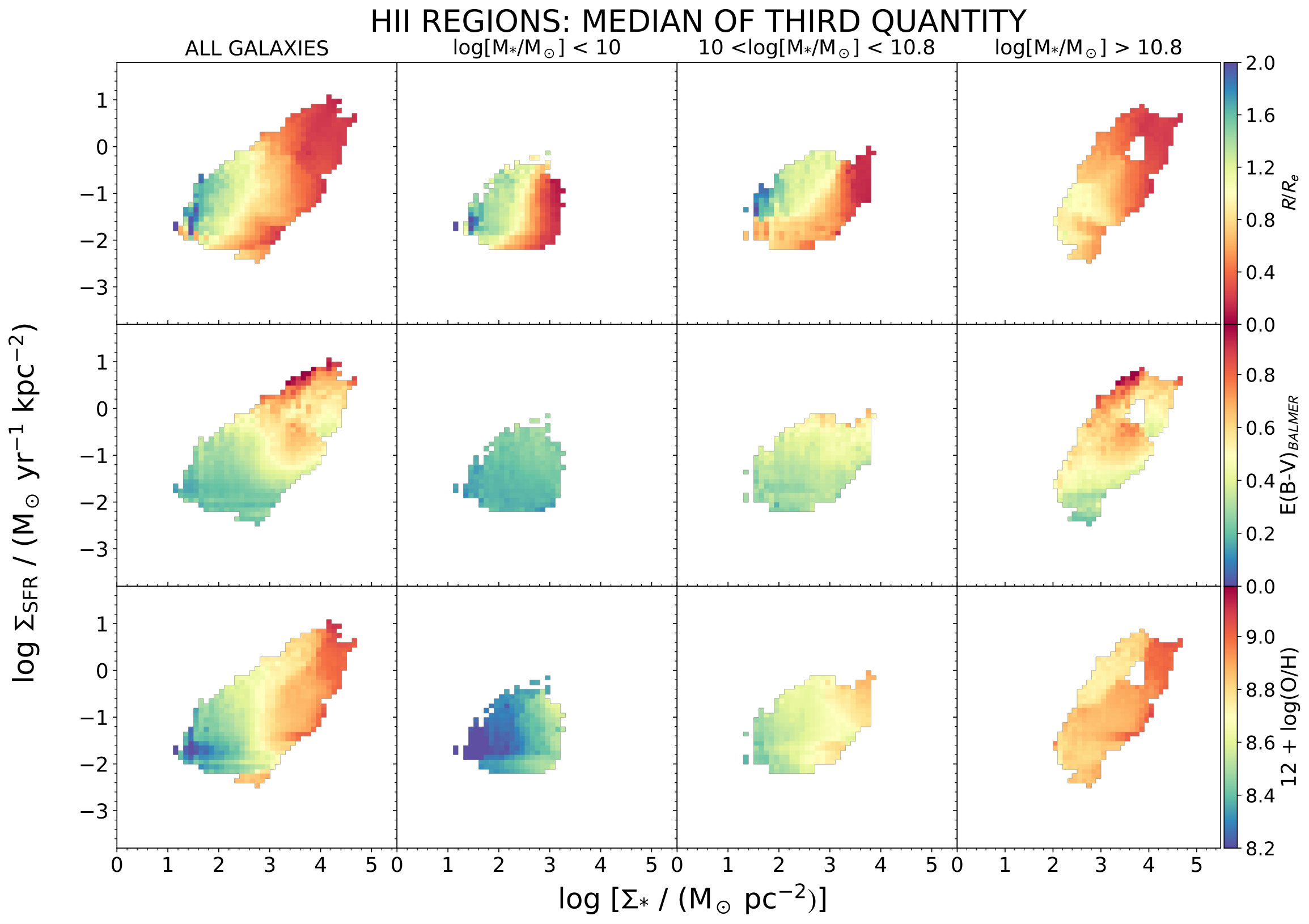

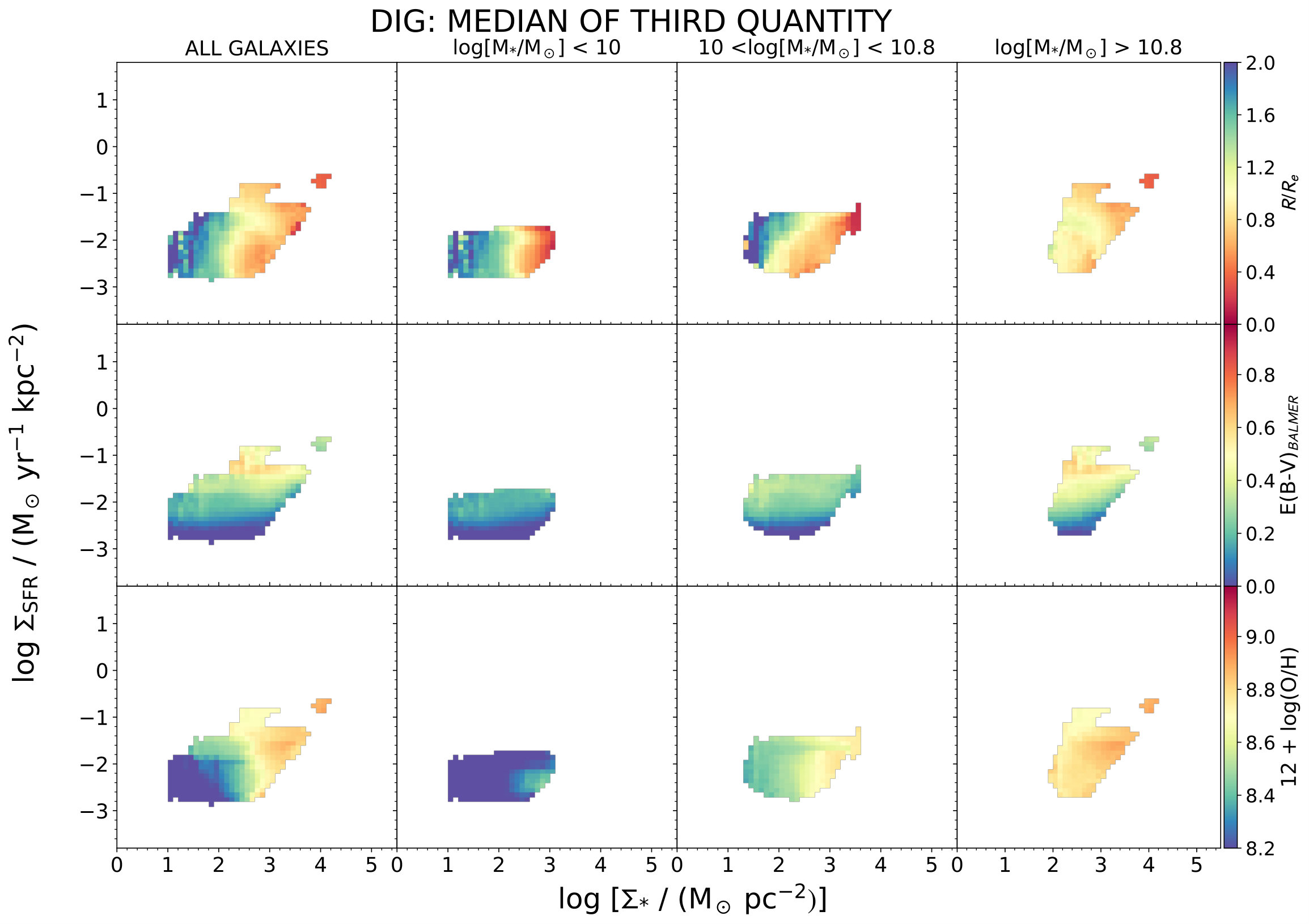

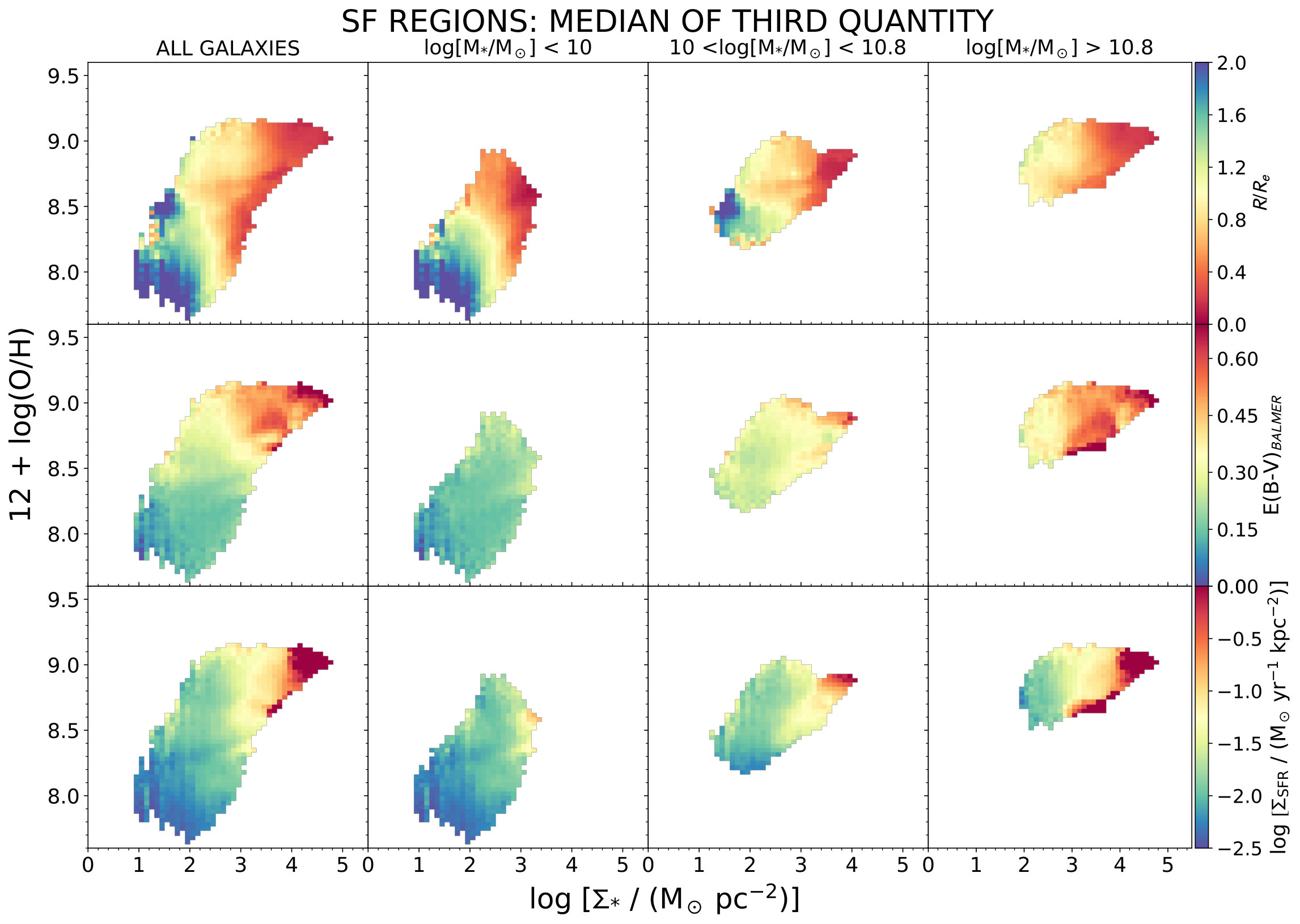

We furthermore explore how other important parameters depend on $\Sigma_{\star}$ and $Z_{\rm gas}$ by adopting a “supergalaxy view" in Fig. 9. By “supergalaxy view" we mean a diagnostic diagram in which, at each (x,y) point, the value of the third variable (colour-coded) represents the median of the distribution of values of that third variable obtained from the spaxels with those specific (x,y) values. We present two complementary figures in Appendix D, which show respectively the standard deviation $\sigma$ of the distribution of values for the third (colour-coded) parameter, and the number of galaxies contributing to each x-y bin. These complementary figures are important to establish how meaningful and statistically-representative the median values are in each (x,y) location of the diagrams.

The four parameters that we consider are, from top to bottom of the figure, galactocentric distance (normalized by the effective radius), $E(B-V)$ computed from the Balmer decrement measured in our spectra and $\Sigma_{\rm SFR}$. The top row of Fig. 9 shows how galactocentric distance (normalized by the effective radius) varies with $Z_{\rm gas}$ and $\Sigma_{\star}$. As expected from an inside-out scenario, $\Sigma_{\star}$ of the disks decreases with increasing galactocentric distance (the median position of denser spaxels -high $\Sigma_{*}$- is at low galactocentric distance, i.e., the central regions). In the three panels showing the different mass bins, denser regions are found in the more massive galaxies and vice versa. The middle row shows the variation of the dust extinction with $Z_{\rm gas}$ and $\Sigma_{\star}$. Garn & Best (2010) and Zahid et al. (2012) found that globally, dust extinction increases with SFR, metallicity and stellar mass, but as stellar mass is the dominant factor, the relationships between dust and metallicity or SFR and extinction and SFR are secondary effects (Garn & Best, 2010). We find locally that, when all the galaxies are included, $E(B-V)$ increases with increasing $\Sigma_{\star}$ and increasing $Z_{\rm gas}$. However, the different mass bins show that $E(B-V)$ does not strongly correlate with $\Sigma_{\star}$ or $Z_{\rm gas}$ but increases with the total stellar mass at a given $\Sigma_{\star}$.

The last row shows the dependence of $\Sigma_{\rm SFR}$ with $Z_{\rm gas}$ and $\Sigma_{\star}$. When considering all masses together, we find a complex dependence of $\Sigma_{\rm SFR}$ with $Z_{\rm gas}$ and $\Sigma_{\star}$. As expected from the intrinsic local relation between $\Sigma_{\star}$ and $\Sigma_{\rm SFR}$ (RSFMS, see following section), low SFR densities are found in regions of low $Z_{\rm gas}$ and high SFR densities are found in regions of high metallicities, but a wide range of $\Sigma_{\rm SFR}$ is found at intermediate metallicities and $\Sigma_{\star}$. For intermediate-mass galaxies, $\Sigma_{\rm SFR}$ increases with $\Sigma_{\star}$ and $Z_{\rm gas}$. For low and high-mass galaxies; however, there is not a clear correlation between $\Sigma_{\rm SFR}$ and $Z_{\rm gas}$ at fixed $\Sigma_{\star}$. It is therefore important to further discuss the secondary dependence of the RMZR with $\Sigma_{\rm SFR}$ (Sect. 6).

5.3 The stellar mass density versus SFR density relation on MAD scales

As discussed in the introduction, the almost linear correlation between total $M_{\star}$ and total SFR, i.e., the so-called SFMS, is well known at low (e.g Brinchmann et al. 2004; Renzini & Peng 2015) and high redshifts (e.g., Noeske et al. 2007; Daddi et al. 2007; Wuyts et al. 2013; Tacchella et al. 2015). Here we address the question of whether this relation holds on the $\sim$100 pc scales probed by MAD, when looking at the individual regions inside disk galaxies, i.e. a resolved SFMS. We first focus on the relationship for all the SF regions in the top panel of Fig. 10, where the colour-coding shows the number of spaxels in each x-y bin. We find that $\Sigma_{\rm SFR}$ is positively correlated with $\Sigma_{\star}$ when considering all galaxies together, although showing some scatter. This correlation spans five orders of magnitude in $\Sigma_{\star}$ and four in $\Sigma_{\rm SFR}$. Just as we observed in the RMZR, the local $\Sigma_{\rm SFR}$-$\Sigma_{\star}$ relation is characterized by a break around $10^{3}M_{\odot}/{\rm pc}^{2}$ above and below which the relation is steeper and flatter. As in the previous subsection, we use different functions to fit the median values of $\Sigma_{\rm SFR}$ in bins of $\Sigma_{\star}$: (i) single linear fit and (ii) two linear fits before and after the threshold at $\Sigma_{\star}$ =10${}^{3}\,M_{\sun}\,{\rm pc^{-2}}$. Table 3 collects the slopes, intercepts and scatter for each function. A double linear fit reduces the scatter again, although not significantly with respect to the single linear one. The $\chi^{2}$ is lower and the $p$-value is higher for the double-linear fit, which shows that it is a better fit than the single-linear. We note a sharp cut at lower $\Sigma_{\rm SFR}$, which may cause the relation to flatten at lower values of $\Sigma_{\star}$. Taking into account a possible incompleteness of our sample at lower values of $\Sigma_{\rm SFR}$, the single line fit represents better the contours of the distribution.

Cano-Díaz et al. (2016) found a RSFMS using SF regions of galaxies of all morphological types from the CALIFA sample (0.5-1.5 kpc spatial resolution). They found a slope of $\gamma=d$ log($\Sigma_{\star})/d$ log($\Sigma_{{\rm H}\alpha}))=0.72\pm 0.04$ and zeropoint of -7.63 (in units of log($M_{\sun}yr^{-1}kpc^{-2}$)]. Our results at higher spatial resolution agree, finding a slope of $\gamma=0.714\pm 0.064$ and a zeropoint of -7.564 in their units. Using MaNGA ($\sim$1 kpc spatial resolution) data for star-forming regions in star-forming galaxies, Hsieh et al. (2017) found a slope of $\gamma=d$ log($\Sigma_{\star})/d$ log($\Sigma_{{\rm H}\alpha}))=0.715\pm 0.001$ and zeropoint of 33.204 erg s*-1* kpc*-2*. In our data at higher spatial resolution we find a slope of $\gamma=0.714\pm 0.064$ and a zeropoint of 33.704 erg s*-1* kpc*-2*. The aforementioned results indicate that the relationship between $\Sigma_{\star}$ and $\Sigma_{\rm SFR}$ remains unchanged for star-forming regions over several order of magnitudes of spatial scales, from kpc scales down to the $\sim$100 pc scales probed with MUSE in the MAD galaxies.

The bottom panel of Fig. 10 shows the RSFMS distinguishing the Hii regions (red contours) and DIG (cyan contours) over the SFMS for all the SF spaxels, now grey colour-coded. We perform the same fits to the distinct components (Hii regions and DIG), finding similar slopes for both single and double linear fits. The median $\Sigma_{\rm SFR}$ values for the Hii regions have higher $\Sigma_{\rm SFR}$ on average (i.e., higher $y$-intercept on the fits). In other words, we find a “retired” RSFMS for the DIG component. As our study focuses on the regions ionized by hot/young stars, this result helps to understand the origin of the DIG at sub-kpc scales and agrees with Weilbacher et al. (2018), where they found that the leaking UV photons from Hii regions can explain the ionization of the DIG. Our study cannot rule out the possibility that the hot old stars can ionize part of the DIG because we do not study the LINER-like ionized regions. In this regard, Hsieh et al. (2017) found a “retired" RSFMS for the LINER spaxels in their SF galaxies.

When dividing the sample into stellar mass bins (Fig. 11), the $\Sigma_{\rm SFR}$-$\Sigma_{\star}$ relations of the respective bins nearly coincide. The break in the $\Sigma_{\rm SFR}$-$\Sigma_{\star}$ relation moves between $10^{3}$ and $10^{4}M_{\odot}/{\rm pc}^{2}$ with increasing total stellar mass . As a result, the slopes of the relation do increase with total mass ($\gamma=0.612\pm 0.108$ for the low-mass galaxies, $0.762\pm 0.118$ for galaxies with intermediate stellar masses and $0.906\pm 0.068$ for the high-mass galaxies), but this variation is small compared to the 3 orders of magnitude variation in $\Sigma_{\rm SFR}$ over the range of $\Sigma_{\star}$. We note however that the scatter in $\Sigma_{\rm SFR}$ at a constant $\Sigma_{\star}$ is quite large; this scatter does not change substantially across the range of total stellar mass that we sample (with the exception of the very centres of intermediate and high-mass galaxies, most likely due to the superposition of bulge and disk data). Sect. 6 will further study whether the RSFMS has a local or global origin.

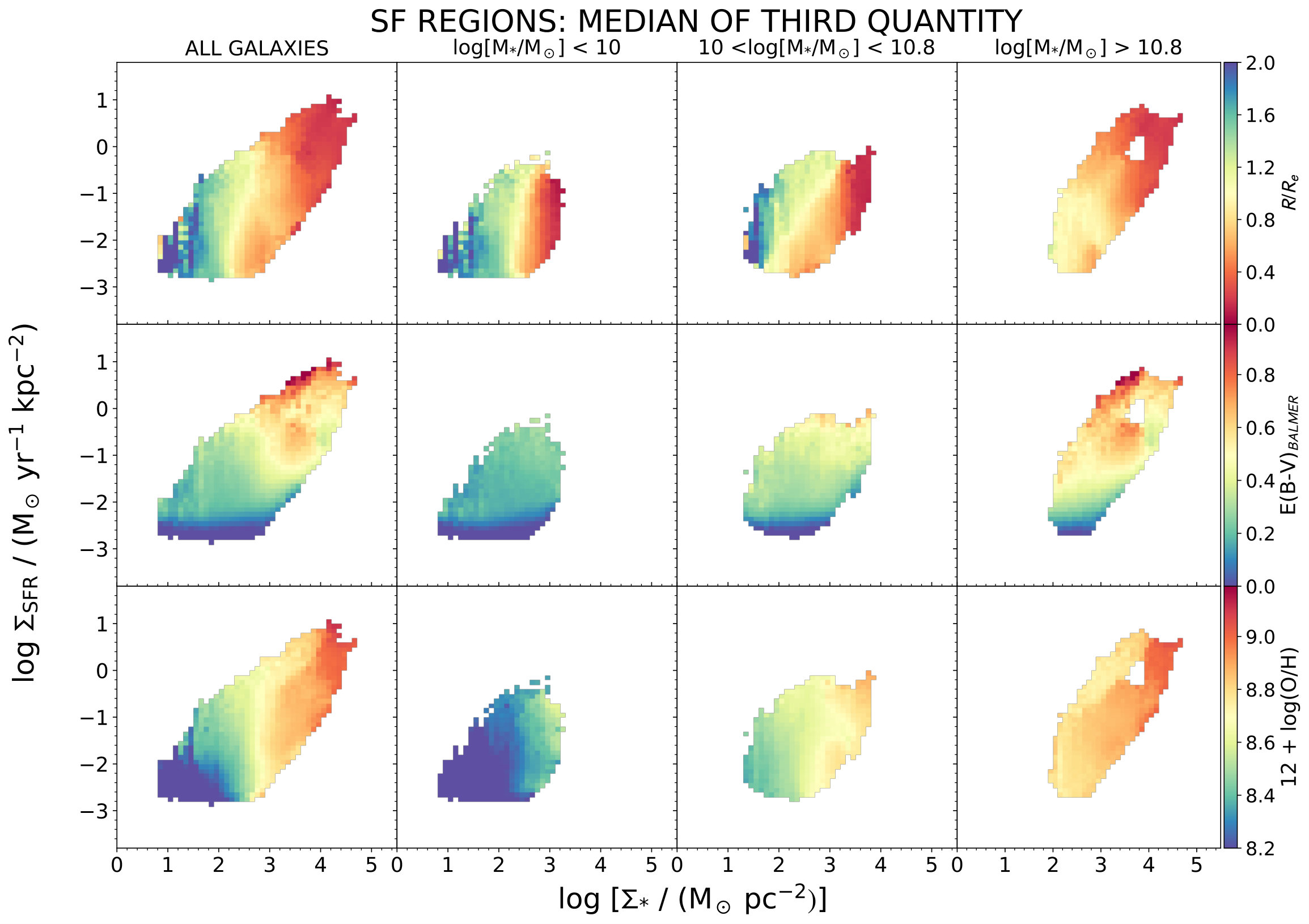

We investigate the $\Sigma_{\rm SFR}$-$\Sigma_{\star}$ relation further by mapping the dependence of third parameters on this relation. These are the same as those analysed in the previous section and are represented by the colour coding in Fig. 12. Galactocentric distance does not vary significantly with $\Sigma_{\rm SFR}$ but increases with decreasing $\Sigma_{\star}$ as expected from an inside-out scenario. This is true in all stellar mass bins, indicating that $\Sigma_{\star}$ is directly correlated with the galactocentric distance regardless of the value of total stellar mass. Dust extinction increases with increasing $\Sigma_{\rm SFR}$ but does not depend on $\Sigma_{*}$. This indicates that the apparent correlation between dust extinction and $\Sigma_{\star}$ observed in the RMZR (middle row of Fig. 9) is a consequence of the correlation between $\Sigma_{\star}$ and $\Sigma_{\rm SFR}$. Thus dust extinction follows SFR and does not seem to depend on either $\Sigma_{\star}$ or metallicity. Finally, the last row shows the variation of gas metallicity with $\Sigma_{\star}$ and $\Sigma_{\rm SFR}$: the only correlations seem to be between $\Sigma_{\star}$ and $Z_{\rm gas}$ and between $\Sigma_{\star}$ and $\Sigma_{\rm SFR}$, but not between $\Sigma_{\rm SFR}$ and $Z_{\rm gas}$. At fixed $\Sigma_{\star}$, the metallicity does not vary with $\Sigma_{\rm SFR}$. These results agree with an scenario in which the dust is formed with newly born stars, irrespectively of the amount (mass) of stars or the local metal enrichment.

6 Discussion

6.1 Resolved relations: local or global origin?

First we explore the possible dependence of the local gas metallicity with the global stellar mass. As found in Sect. 5.1.2, the inner-disk gas metallicities that we measure at a given (normalized) galactocentric distance increase with the total stellar mass of the galaxies. Fig. 8 showed that the local enrichment varies with $\Sigma_{\star}$ and the total stellar mass of the galaxies. It is therefore important to understand whether this local enrichment varies due to $\Sigma_{\star}$, total stellar mass or both.

To do so, we study the behaviour of the residuals from the RMZR as a function of the total mass of the galaxy. The median residuals in bins of total stellar mass are computed and presented in the left panel of Fig. 13 for the three performed fits: single linear, double linear and S14-function. From this figure we see that (i) M13 calibration shows lower residuals due to the lower range in metallicities of the calibrator, (ii) the S14-function fit delivers larger residuals than the single linear and double linear fits for both metallicity calibrators, specially for the low mass galaxies and (iii) the residuals are within the metallicity calibration uncertainties except for the low mass galaxies. The residuals using the linear and double linear fits do not depend on the total stellar mass. However, the bad fits on the lower $\Sigma_{\star}$ data using the S-14 function deliver high residuals for the low mass galaxies. We thus conclude that the RMZR does not depend on the total stellar mass, as the residuals when adopting a linear/double linear function do not depend on the total stellar mass. The chemical enrichment occurs at local scales (<100 pc), also observed at larger spatial resolution (e.g., at 1-2 kpc, Barrera-Ballesteros et al. 2016).

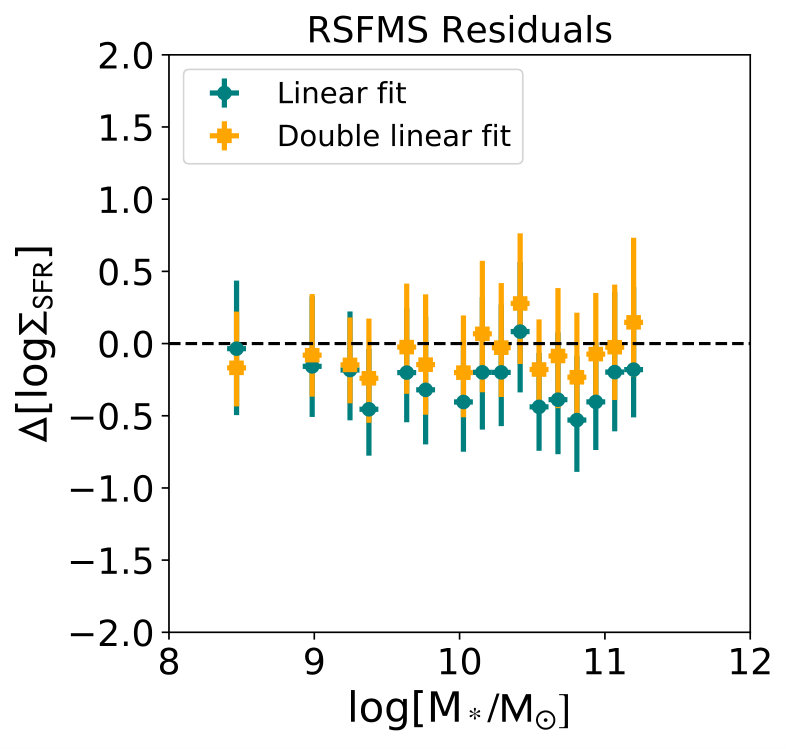

Similarly, it is important to determine whether the RSFMS has a local or global origin. Fig. 11 already showed that the shape of the RSFMS barely changed with increasing total stellar mass. Analogously to the study of the residuals of the RMZR, we now analyze the residuals from the RSFMS as a function of the total stellar mass. Fig. 14 confirms that the resolved SFMS does not depend on the total stellar mass, as the residuals of this relation do not depend on the total stellar mass.

6.2 Secondary dependence of the RMZR with the SFR

In global terms, the total SFR has been suggested to be a second parameter on the global MZR (e.g., Ellison et al. 2008; Mannucci et al. 2010; Lara-López et al. 2010). Neither MaNGA (Barrera-Ballesteros et al., 2017), CALIFA (Sánchez et al., 2017) nor SAMI Sánchez et al. (2018) have found the corresponding second relation relation in their IFU data. This discrepancy between global and resolved studies is an important matter of study. Equally important is to find the physical scenario that can describe our collection of results.

First, the bottom left panel of Fig. 9 showed a complex relationship between the RMZR and $\Sigma_{\rm SFR}$: $\Sigma_{\rm SFR}$ increases with both increasing $Z_{\rm gas}$ and $\Sigma_{\star}$. Second, the RSFMS (Fig. 10) revealed increasing $\Sigma_{\rm SFR}$ with $\Sigma_{\star}$. It is therefore unclear whether the relationship seen in Fig. 9 between the RMZR and $\Sigma_{\rm SFR}$ is due to the RSFMS or due to the SFR as a secondary parameter in the RMZR.

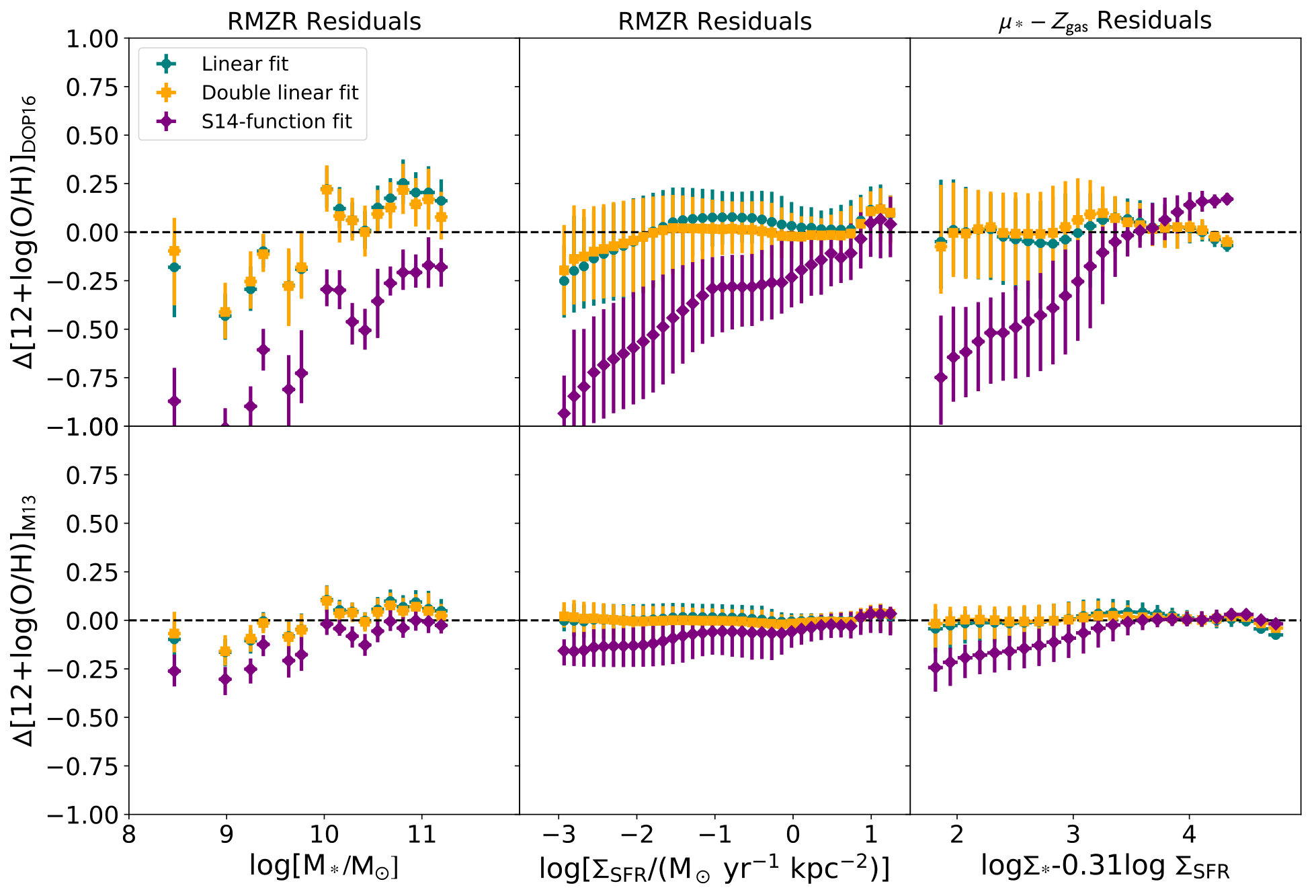

As in the previous subsection, the analysis of the residuals clarifies the existence of this possible dependence. The second column of Fig. 13 shows the behaviour of the residuals of the RMZR as a function of $\Sigma_{\rm SFR}$. We see that the residuals do not correlate with $\Sigma_{\rm SFR}$. We also define $\mu_{*}$=log$\Sigma_{\star}$-$\alpha$log $\Sigma_{\rm SFR}$ (Mannucci et al., 2010) as a possible quantity to minimize the scatter in the RMZR relation. Therefore we explore the $\mu_{\star}$-$Z_{\rm gas}$ relation, fitting it using three different functions (single linear, double linear and S14-function), and study the residuals (third column of Fig. 13). The minimum scatter in the residuals was found for $\alpha=0.31$ and are $\sigma_{\rm DOP16}=$0.237, 0.234 and 0.286 dex and $\sigma_{\rm M13}=$0.094, 0.092 and 0.108 dex for the single linear, double linear and S14-function fits respectively. These residuals are larger than those of the original RMZR, confirming that there is no secondary dependence of the RMZR with the $\Sigma_{\rm SFR}$. Additionally, the unclear relationship between RMZR and $\Sigma_{\rm SFR}$ may well be due to a re-scaling of the stellar-mass axis (as suggested in Barrera-Ballesteros et al. 2017).

We thus conclude that there are local (<100 pc) $\Sigma_{\star}$-$Z_{\rm gas}$ and $\Sigma_{\star}$-$\Sigma_{\rm SFR}$ relations for SF regions in galaxies which lie in the SFMS. This result, where less-dense regions are less chemically evolved than the denser regions (which tend to reside in the centres of galaxies), is consistent with an inside-out growth (i.e., the central regions form earlier and are denser than the outer regions). The global MZR thus emerges from the local one, and the local enrichment does not depend on the total stellar mass. In other words, the chemical enrichment is dominated by local processes (Rosales-Ortega et al. 2012; Sánchez et al. 2014; Barrera-Ballesteros et al. 2016; Barrera-Ballesteros et al. 2017). The local SFR seems to depend only on the local potential, being directly correlated with the local $\Sigma_{\star}$ on top of which the local star formation is taking place, but this relation is independent of the total stellar mass. Dust attenuation appears to follow SFR alone. It is independent of local metallicity, $\Sigma_{\star}$ and total stellar mass.

7 Conclusions

We have presented the first results for the 38 star-forming disk galaxies along the $z=0$ SFMS that have been observed so far in the MAD survey. The novelty of MAD is the ability to probe the emission line fluxes on spatial scales of $\sim$100 pc. After correcting the emission line fluxes from dust extinction using the local Balmer decrements measured in the MUSE spectra, we have computed the relevant emission line ratios required to measure accurate SFR, BPT diagrams, diffuse ionized gas components and gas metallicities. To parametrize the local BPT properties within the disks we defined a continuous variable $\eta$ that unambiguously identifies the location of the spectrum on the BPT diagram, and thus the source of the gas ionization. Our main conclusions are as follows:

There is a correlation between the mean gas metallicity inside 0.5 $R_{e}$ and the total stellar mass (mass-metallicity relation). This correlation holds for all star forming components, i.e., when Hii regions and DIG are considered separately. 2. 2.

Adopting as our fiducial gas metallicity calibrator the theoretically-based parameter introduced by DOP16, we find a universal trend for negative gas metallicity gradients in the inner regions of the local disks which are sampled in our MAD data. This result is consistent with the cosmologically-motivated inside-out scenario for the growth of galactic disks, although it is not a sufficient condition to prove such a scenario. Radially-declining metallicities, i.e., negative metallicity gradients, are found also when separately considering Hii regions and the DIG. Outside 0.5 $R_{e}$, the metallicity decreases with radius more rapidly for low mass galaxies than for high-mass galaxies. 3. 3.

The 2D gas metallicity distributions reveal a large amount of structure and scatter at any galactocentric radius, which is lost when deriving the azimuthal averages to produce the gradients. Generally, the Hii regions are on average $\sim 0.2$ dex more metal enriched than the DIG at any radius. 4. 4.

We find that the RMZR holds at the $\sim$100 pc scales sampled by MAD for about four orders of magnitude in $\Sigma_{\star}$ and over a broad range of metallicities, 7.8<$Z_{gas}$<9.3. The relation flattens above a threshold of $\Sigma_{\star}\gtrsim\,10^{3}\,M_{\sun}{\rm pc}^{-2}$, although $Z_{\rm gas}$ continues increasing for increasing $\Sigma_{\star}$ with a shallower slope. We find that the global MZR arise from the local MZR at these scales (RMZR), as the residuals of the RMZR do not depend on the total stellar mass. We find that there is no secondary dependence of the RMZR with the $\Sigma_{\rm SFR}$, as introducing this as a secondary parameter does not reduce the scatter of the RMZR. 5. 5.

We find a correlation between $\Sigma_{\star}$ and $\Sigma_{\rm SFR}$ on the explored $\sim$100 pc scales, spanning five orders of magnitude in $\Sigma_{\star}$ and four in $\Sigma_{\rm SFR}$. This relation holds for both Hii regions and DIG, being the $\Sigma_{\rm SFR}$ in the Hii regions $\sim$1 dex higher than that of the DIG (we find a “retired" RSFMS for the DIG). The slope of this relation depends only weakly with total stellar mass. The residuals of the resolved SFMS do not correlate with the total stellar mass. 6. 6.

Dust extinction seems to follow $\Sigma_{\rm SFR}$ only. It is independent of $\Sigma_{\star}$ and metallicity.

Acknowledgements

We thank Amanda Bluck for her useful comments during the preparation of this manuscript. We thank the referee for their comments, which improved the quality of the paper. This work is based on observations taken at ESO/VLT in Paranal and we would like to thank the ESO staff for their assistance and support during the MUSE GTO campaigns. We acknowledge the usage of the HyperLeda database (http://leda.univ-lyon1.fr). This research has made use of the NASA/IPAC Extragalactic Database (NED) which is operated by JPL, Caltech, under contract with NASA. SEF and CMC acknowledge support from the Swiss National Science Foundation. AMI acknowledges support from the Spanish MINECO through project AYA2015-68217-P. JS acknowledges VICI grant 639.043.409 from the Netherlands Organization for Scientific Research (NWO). V.P.D. is supported by STFC Consolidated grant ST/M000877/1 and acknowledges the personal support of George Lake, and of the Pauli Center for Theoretical Studies, which is supported by the Swiss National Science Foundation (SNF), the University of Zürich, and ETH Zürich during a sabbatical visit in 2017.

SUPPORTING INFORMATION

Additional Supporting Information may be found in the online version of this article:

Appendix A. Notes on individual galaxies

Appendix B. Determination of the BPT-parameter $\eta$

Appendix C. Beyond the radial gradients: 2D metallicity distributions

Appendix D. Complementary figures to the resolved Mass-Metallicity relation

Appendix E. Complementary figures to the resolved Mass-SFR relation

Appendix A Notes on individual galaxies

In one page per galaxy, the maps of the emission line fluxes and gas diagnostics analysed in this paper are presented, together with notes on each individual galaxy.

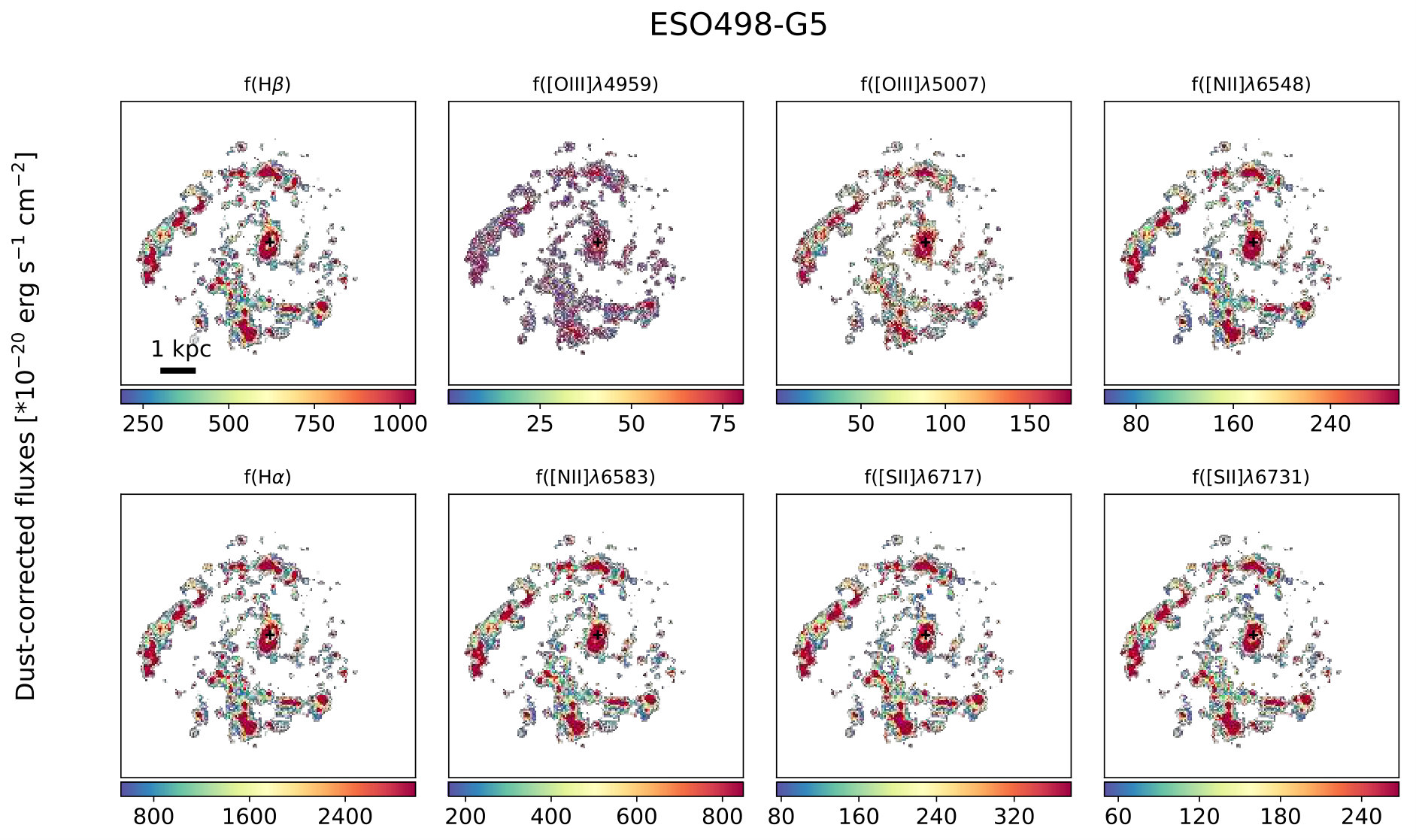

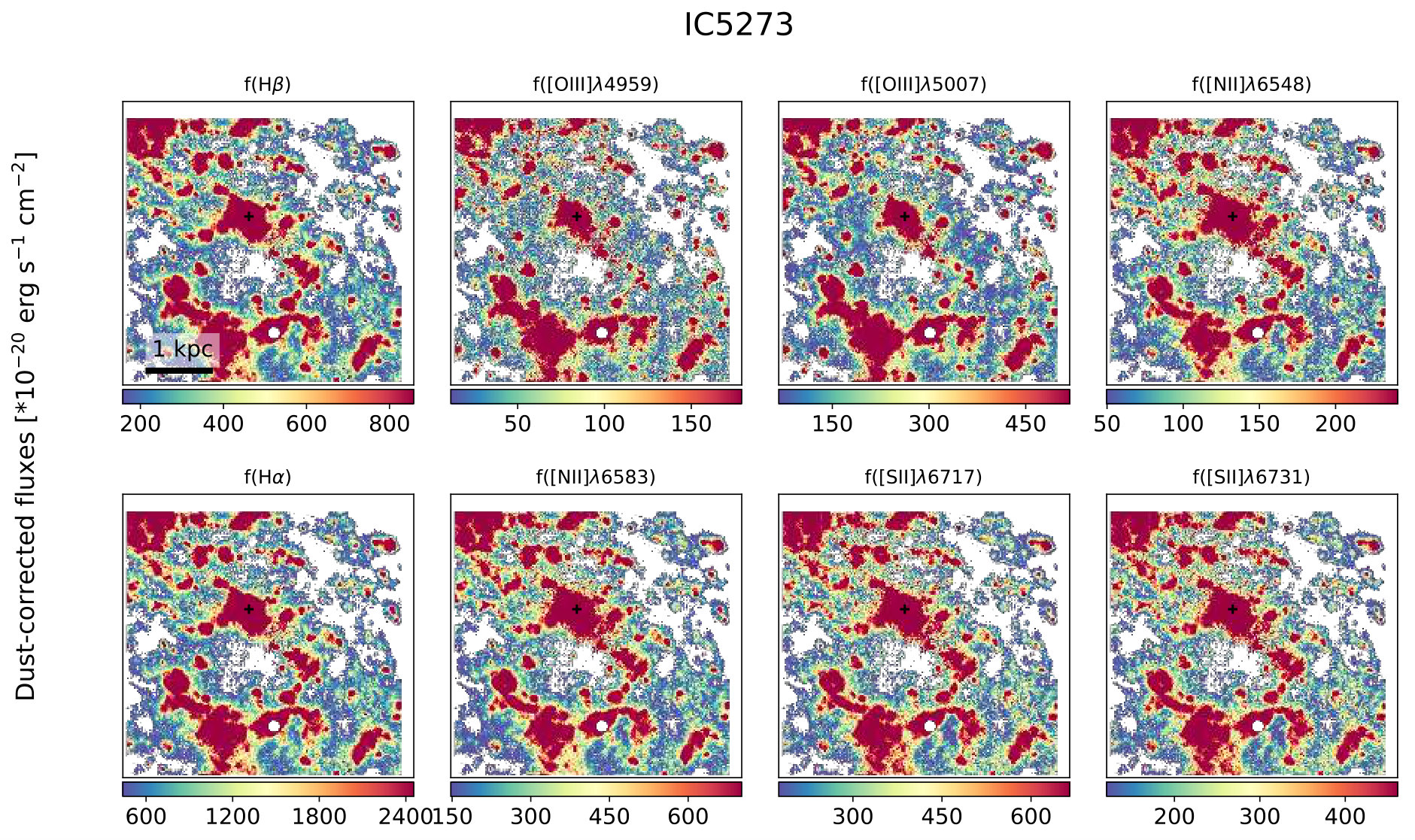

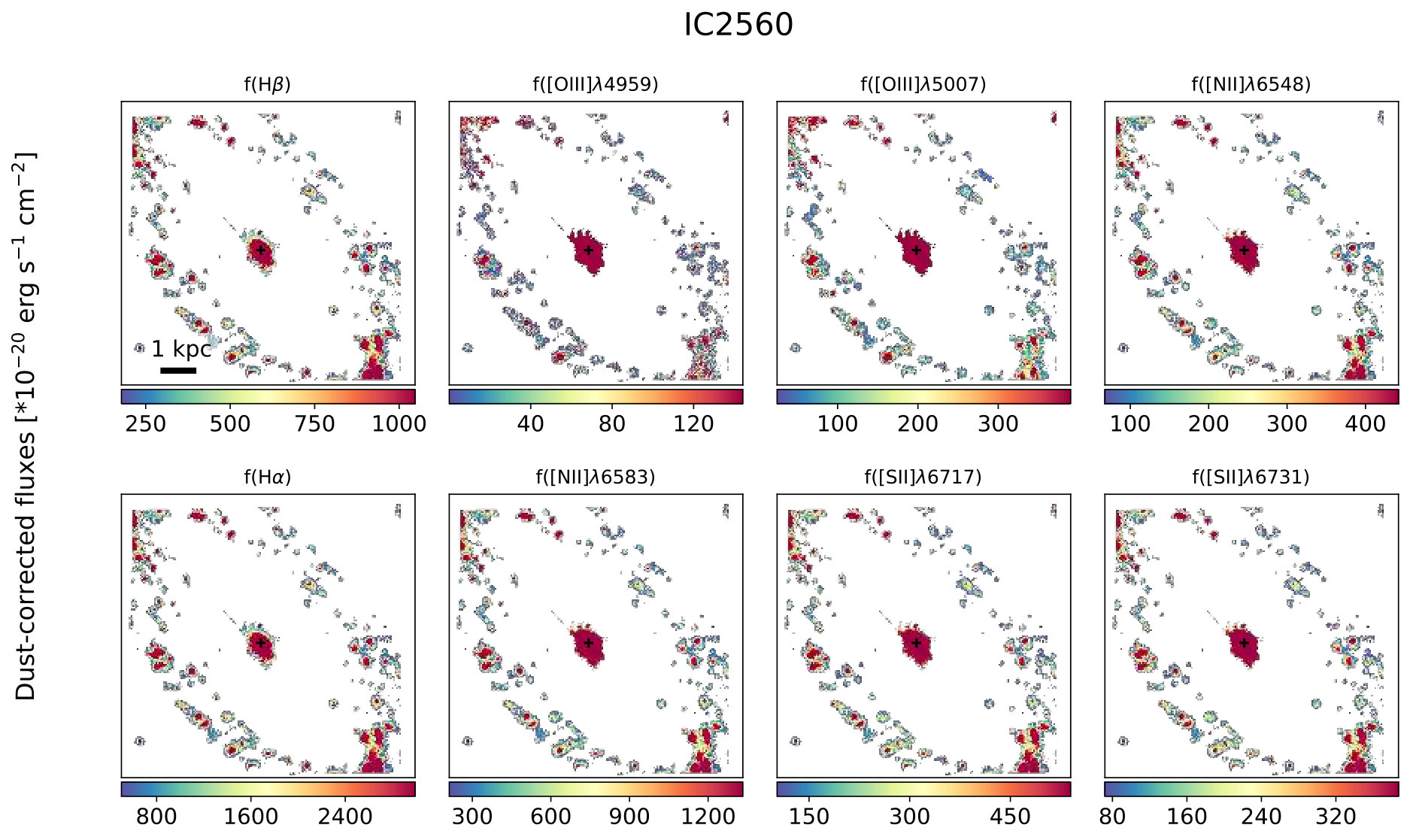

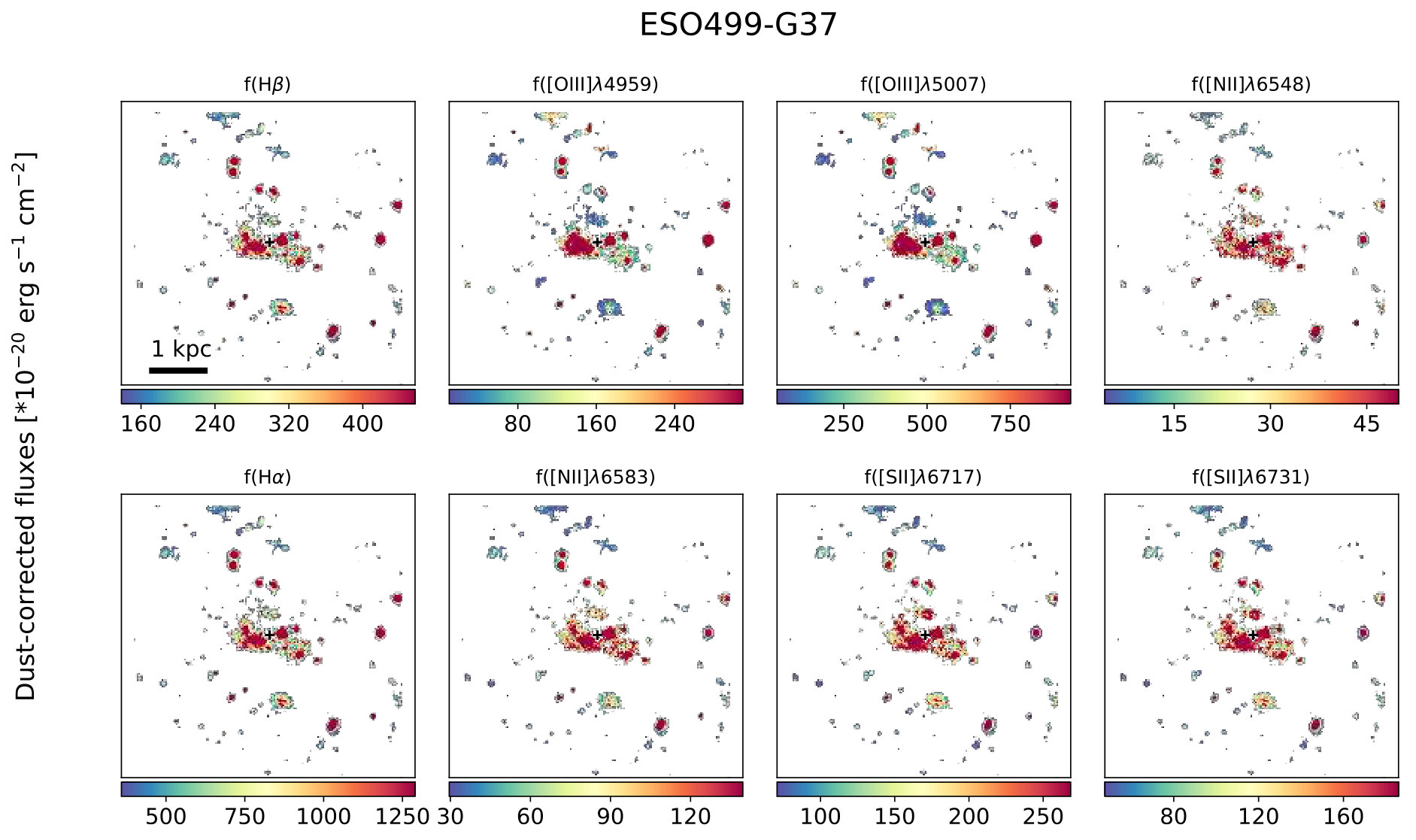

The top eight maps show the dust-corrected emission line fluxes from the strong lines, in units of $\times 10^{-20}$ erg s*-1* cm*-2*. From left to right and top to bottom, the presented emission lines are: H$\beta$, [Oiii]$\lambda$4959, [Oiii]$\lambda$5007, [Nii]$\lambda$6548, H$\alpha$, [Nii]$\lambda$6583, [Sii]$\lambda$6717 and [Sii]$\lambda$6731.

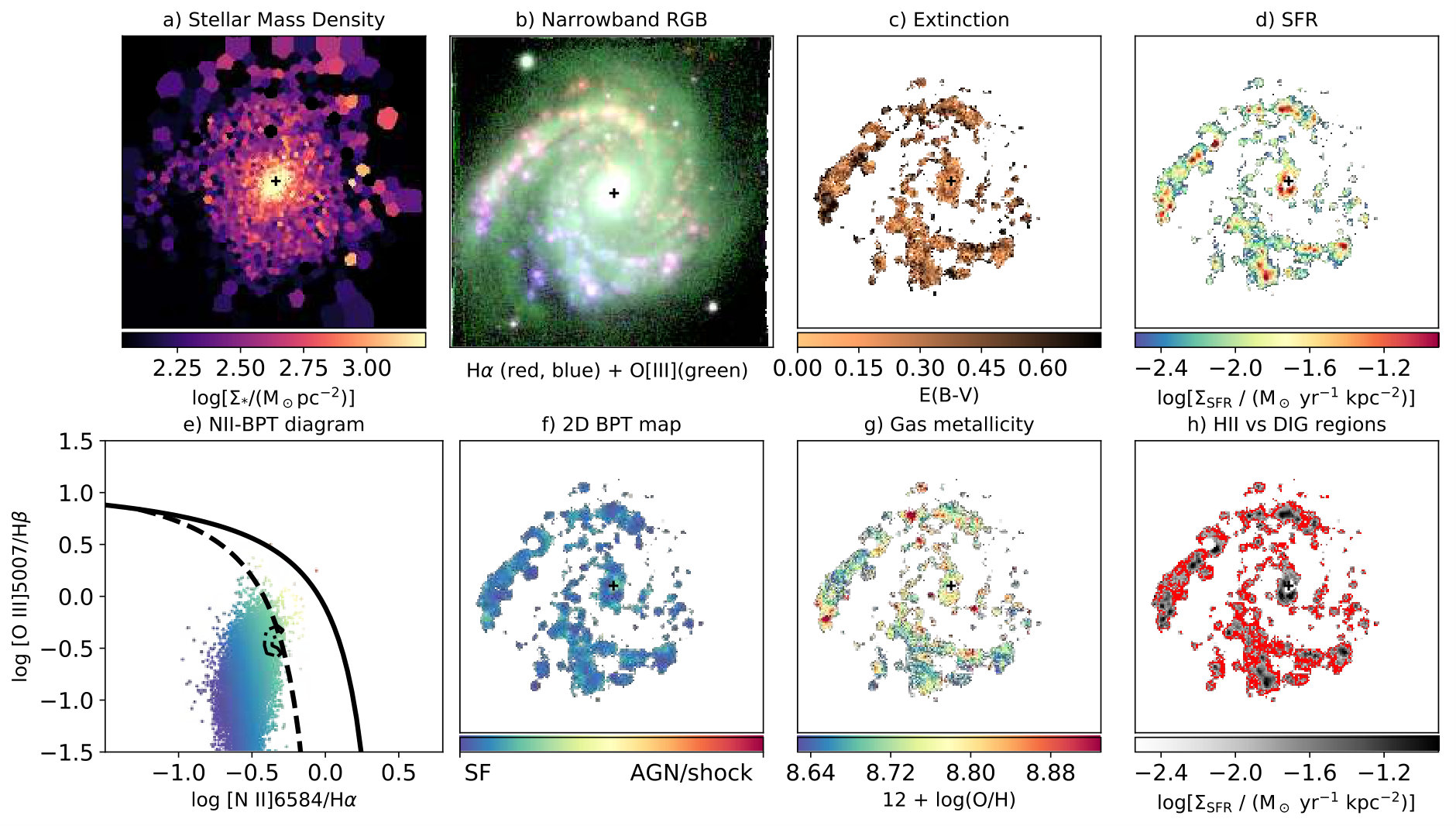

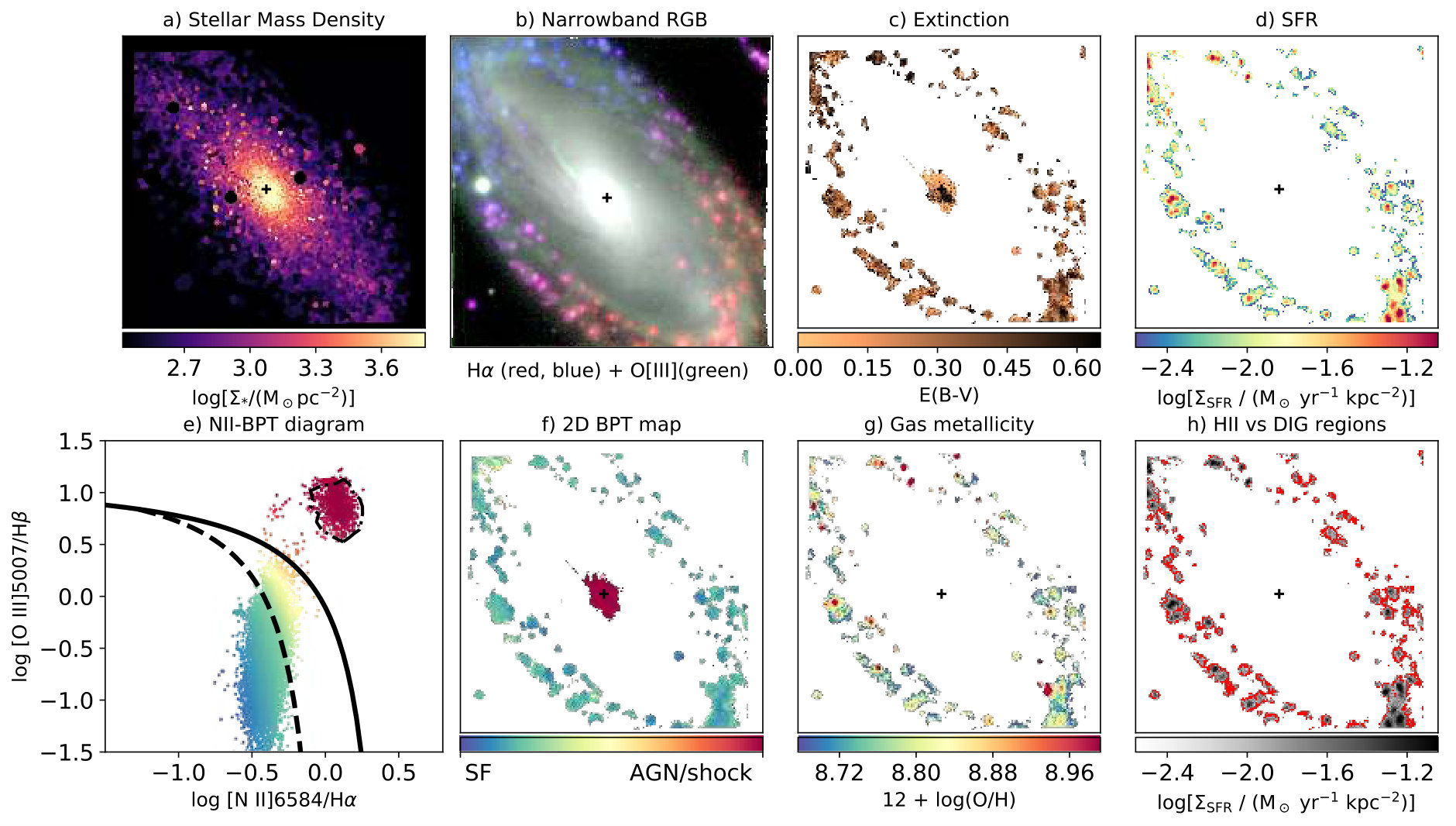

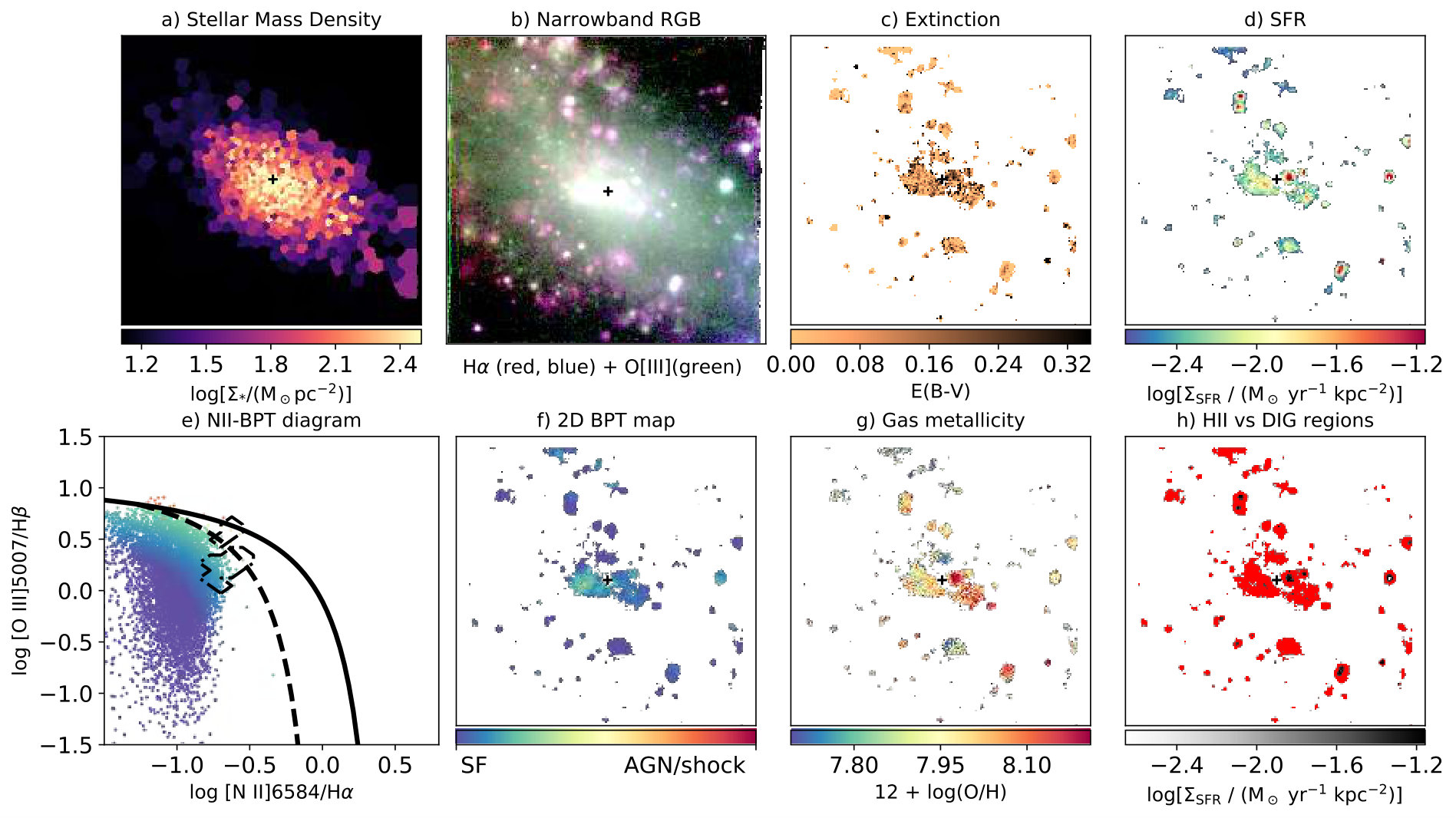

The bottom eight maps show all the diagnostics studied in this paper: a) Stellar mass surface density map. b) Colour-composite RGB image created using narrowband images centred on H$\alpha$ (from red to blue according to the velocity at each spaxel) and [Oiii] (green). c) Extinction map computed via the Balmer decrement using the H$\alpha$/H$\beta$ ratio from our spectra. d) SFR surface density map of the SF regions derived from the dust-corrected H$\alpha$ flux. e) Nii-BPT diagram. Each point corresponds to one spaxel, colour coded by the BPT-parameter $\eta$. f) 2-D BPT map of the galaxy, colour-coded as in e. g) Gas metallicity map of the SF regions derived using the DOP16 calibration. h) In greyscale, the dust-corrected SFR surface density. In red, the position of the diffuse ionized gas (DIG).

In all the maps, the foreground stars and the spaxels that do not have a S/N of 3 in all the studied lines have been masked. For NGC3783 and NGC4593, the central parts where the broad lines due to the AGN emission resulted in a failure of the fitting code have been also masked. For each galaxy, all the maps have the same orientation (North is up and East is left). The physical scale (1 kpc) is presented in the top left panel.

Appendix B Determination of the BPT-parameter $\eta$

For a point P${}_{1}=(x_{1},y_{1}$) in the SF region of the BPT (see Fig. 1), we compute the distance $d_{1}$ between the point P1 and the dashed curve described by equation $f(x)=0.61/(x-0.05)+1.3$) as:

[TABLE]

The minimum distance would correspond to the solution $D(d_{1})/dx=0$, or equivalently, the solution to:

[TABLE]

Out of the four roots of eq. 8, we discard the imaginary solutions and keep the solution that leads to the minimum, positive $d_{1}$. This solution $(x_{0})$ would correspond to the $x$-value of the point $(x_{0},y_{0})$ which is on the curve described by equation $f(x)$ and is closest to P1, so finally

[TABLE]

and according to our definition of $\eta$:

[TABLE]

Similarly for the AGN/shock region of the BPT diagram, the distance $d_{2}$ between the point P${}_{2}=(x_{2},y_{2})$ and the solid curve described by equation $g(x)=0.61/(x-0.47)+1.19$), is:

[TABLE]

with the minimum when

[TABLE]

and according to our definition of $\eta$:

[TABLE]

As for the intermediate region, we can compute the distance from the point $\mathrm{P}_{3}=(x_{3},y_{3})$ to both the SF and AGN curves as $d_{1}=d(\mathrm{P}_{3},f(x))$ and $d_{2}=d(\mathrm{P}_{3},g(x))$. Following our definition of the continuous variable $\eta_{\rm INTER}\in(-0.5,0.5)$, we compute $|\vec{d}_{3}|$ as the minimum of $d_{1}$ and $d_{2}$, normalized by the sum $d_{1}+d_{2}$. This yields:

[TABLE]

Appendix C Beyond the radial gradients: 2D metallicity distributions

The 2D metallicity maps shown in Fig. 53 explain the origin of the scatter in metallicity for the 38 galaxies presented in this paper. For an easy comparison, this figure also shows, for each galaxy, its azimuthally-averaged metallicity gradient a colour-coded strip plotted at the bottom of the 2D maps (using the same colour scheme as the 2-D map).

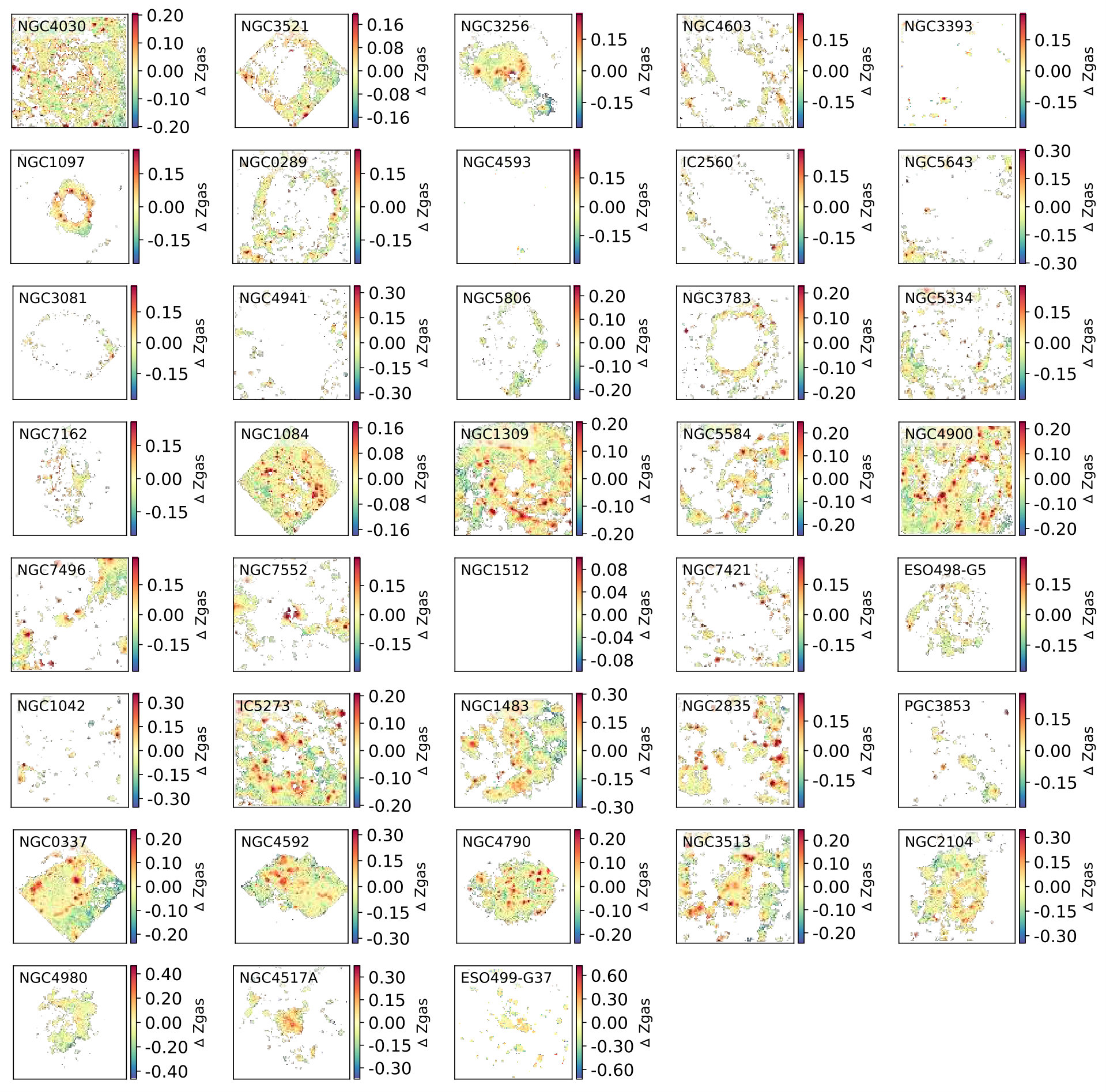

To further highlight the gas metallicity variations that are ubiquitously present in galactic disks at any given radius, we present in Fig. 54 “residual” maps generated by subtracting, from our 2D gas metallicity maps, the 2D maps generated from the measured metallicity gradients assuming azimuthally symmetric metallicity distributions. It is clear from those residual maps that the largest deviations from the linear fit (i.e., from the gradients) are usually found in the Hii regions.

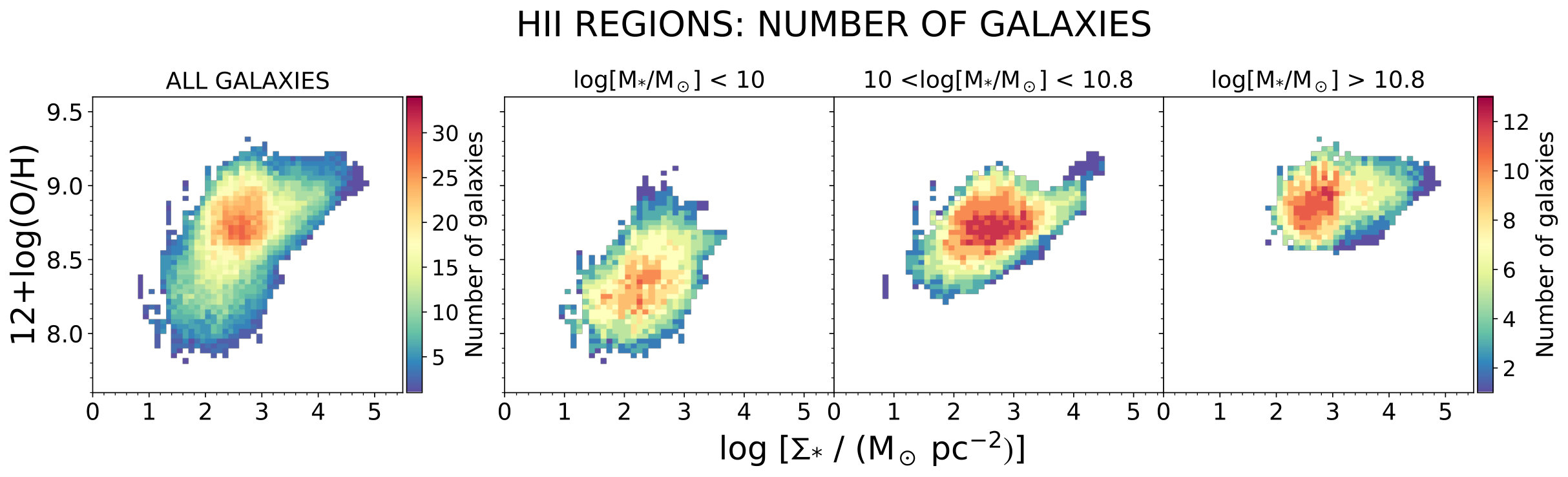

Appendix D Complementary Figures to the Resolved mass-metallicity relation

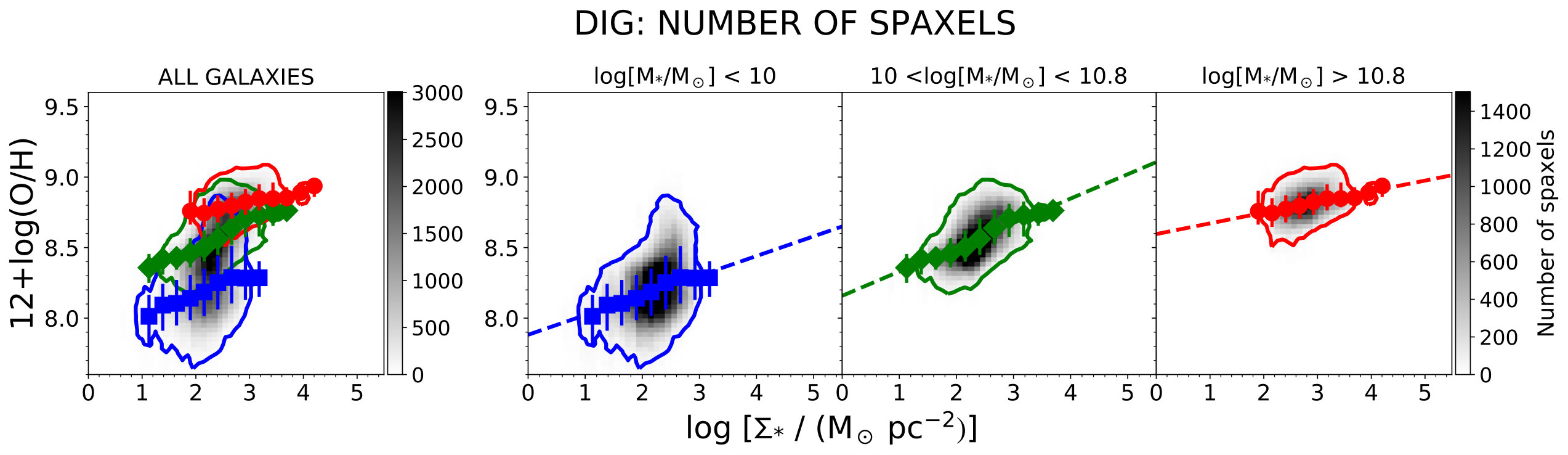

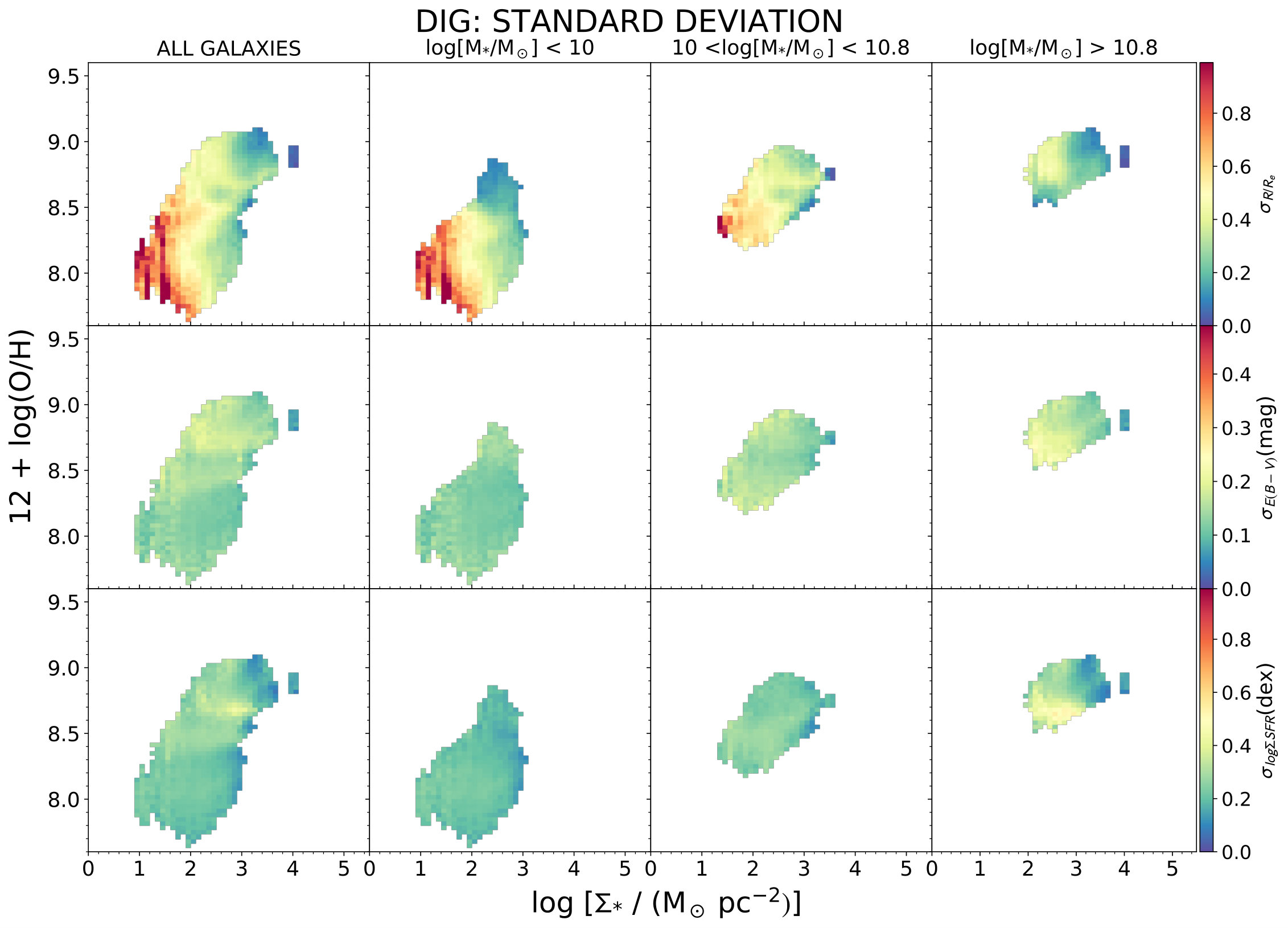

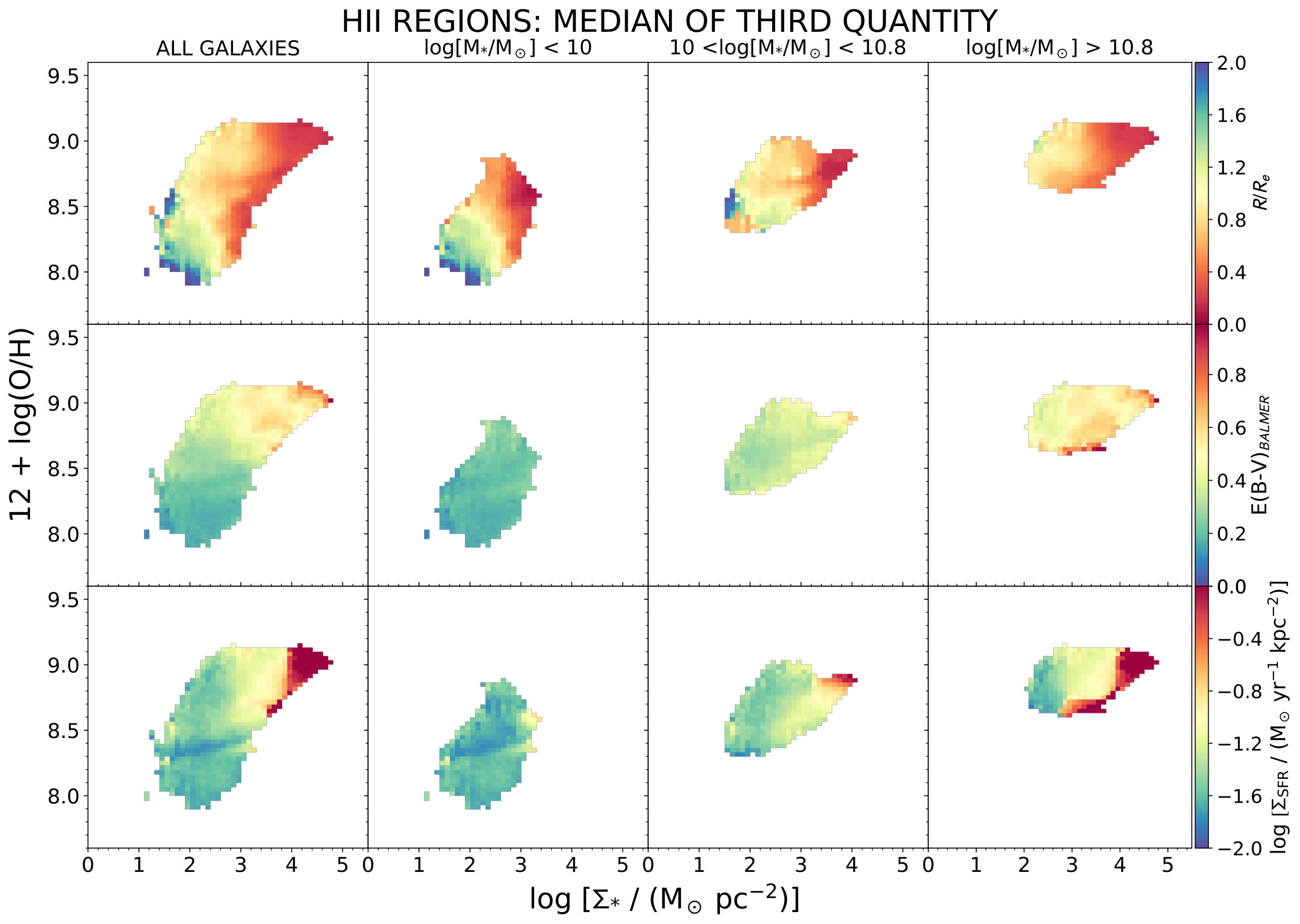

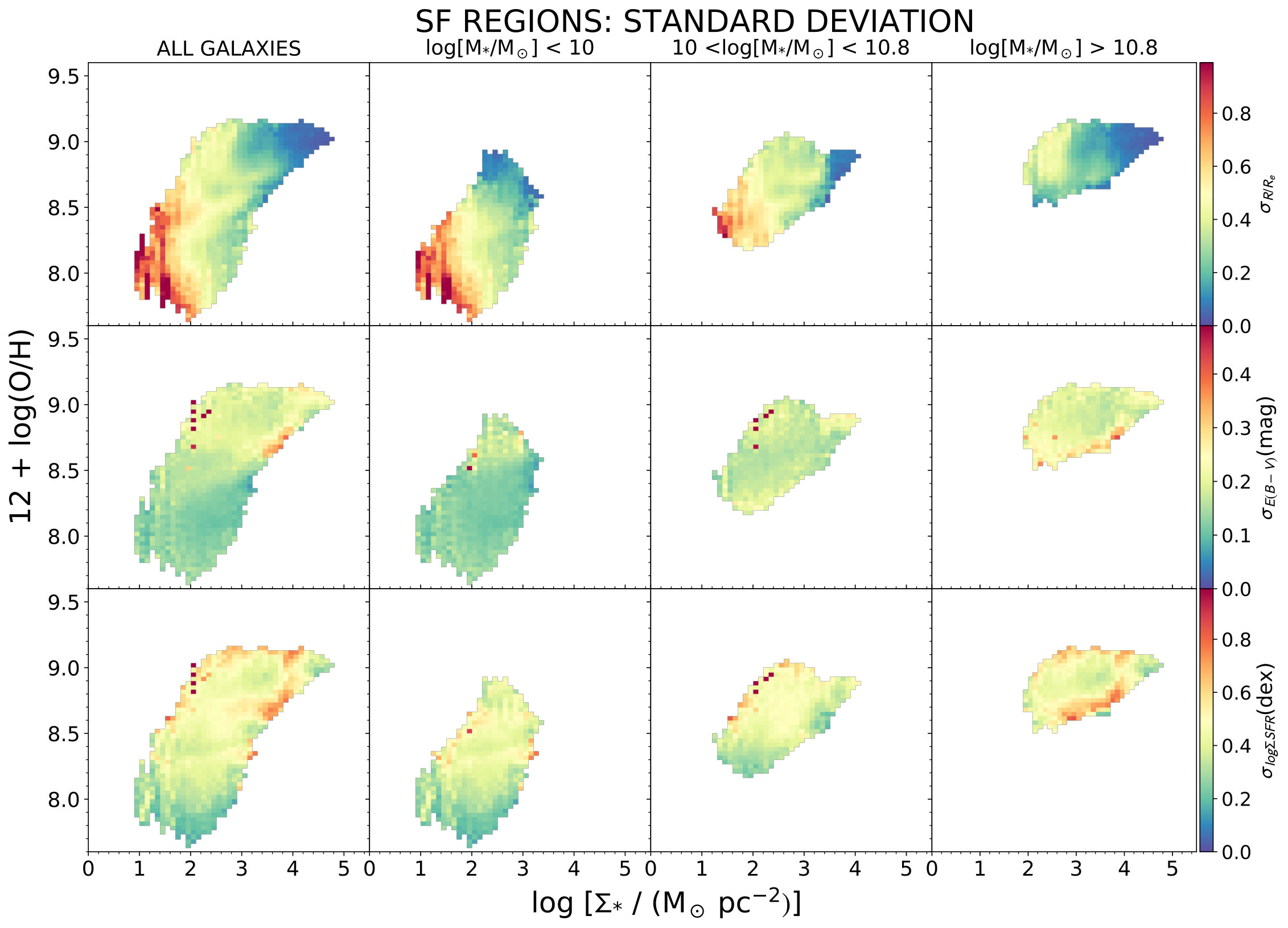

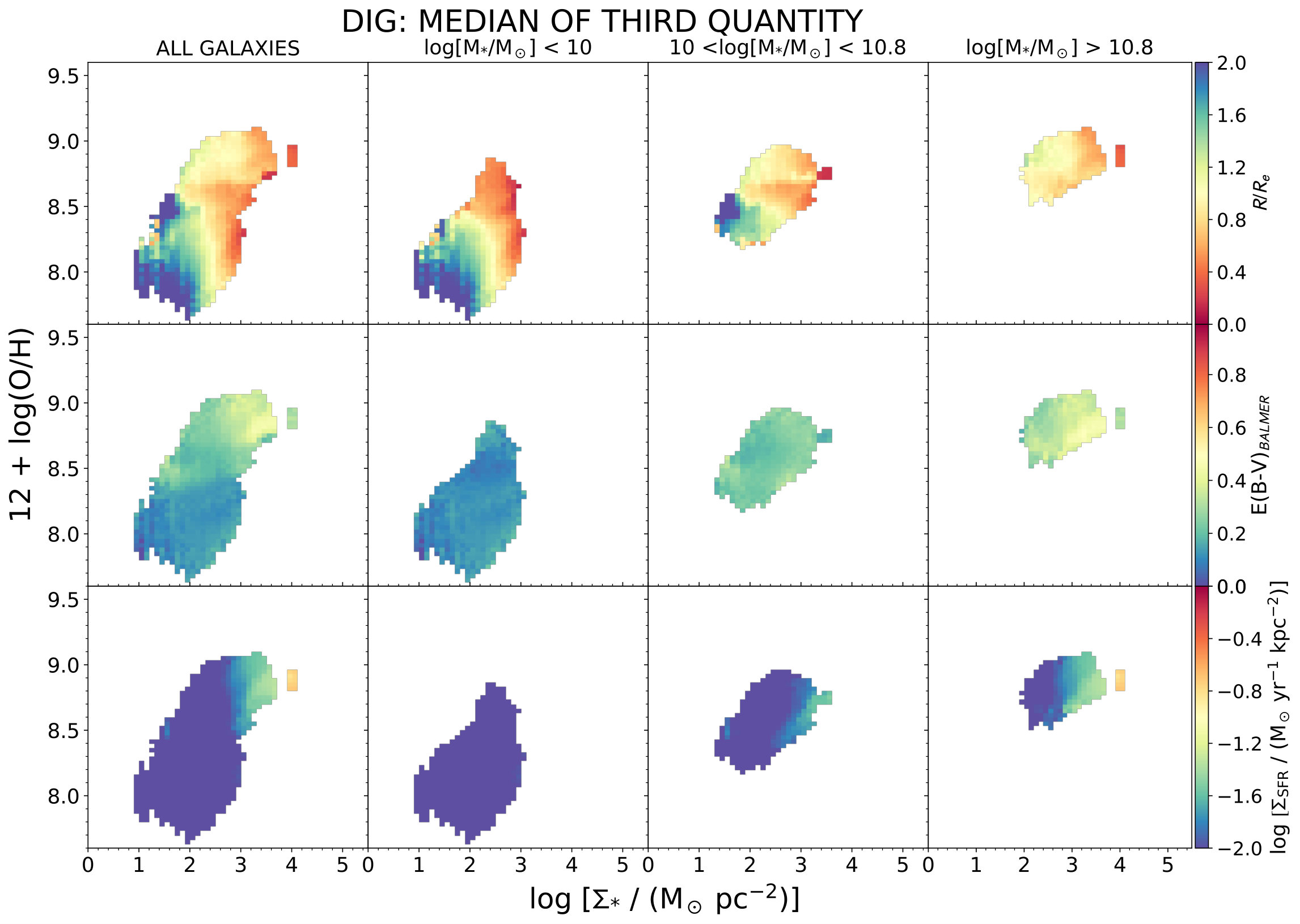

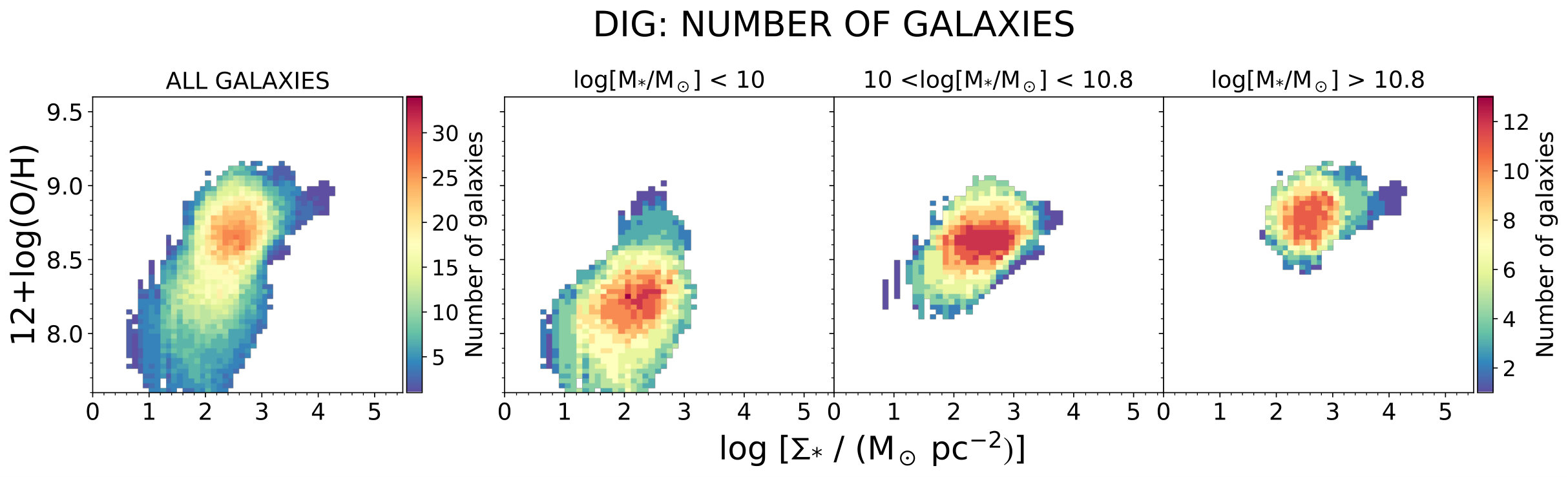

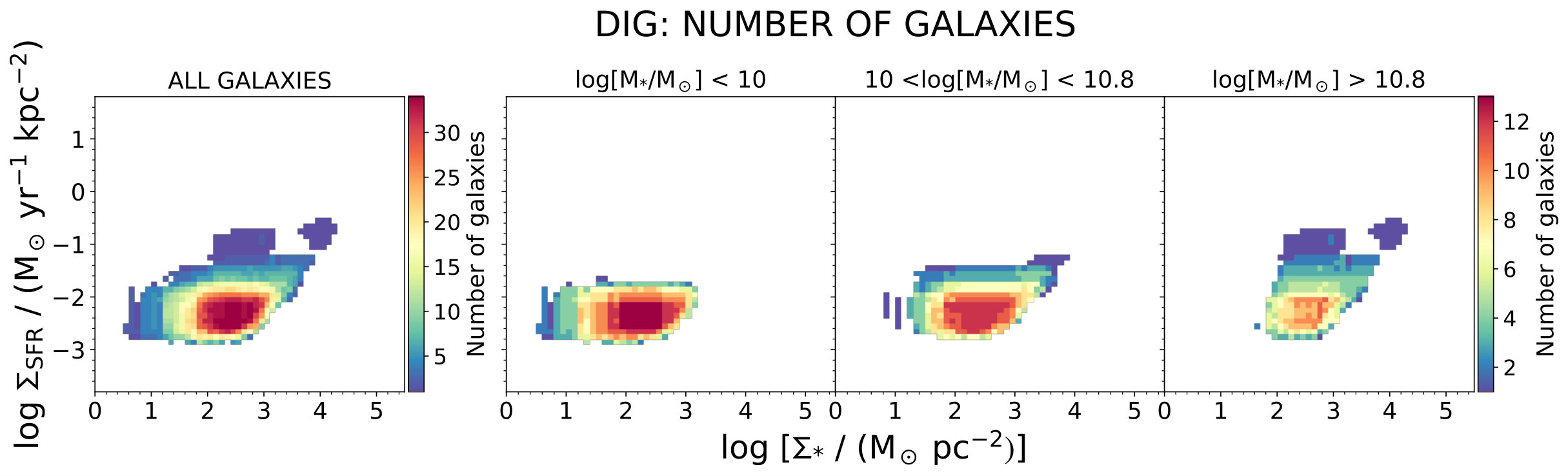

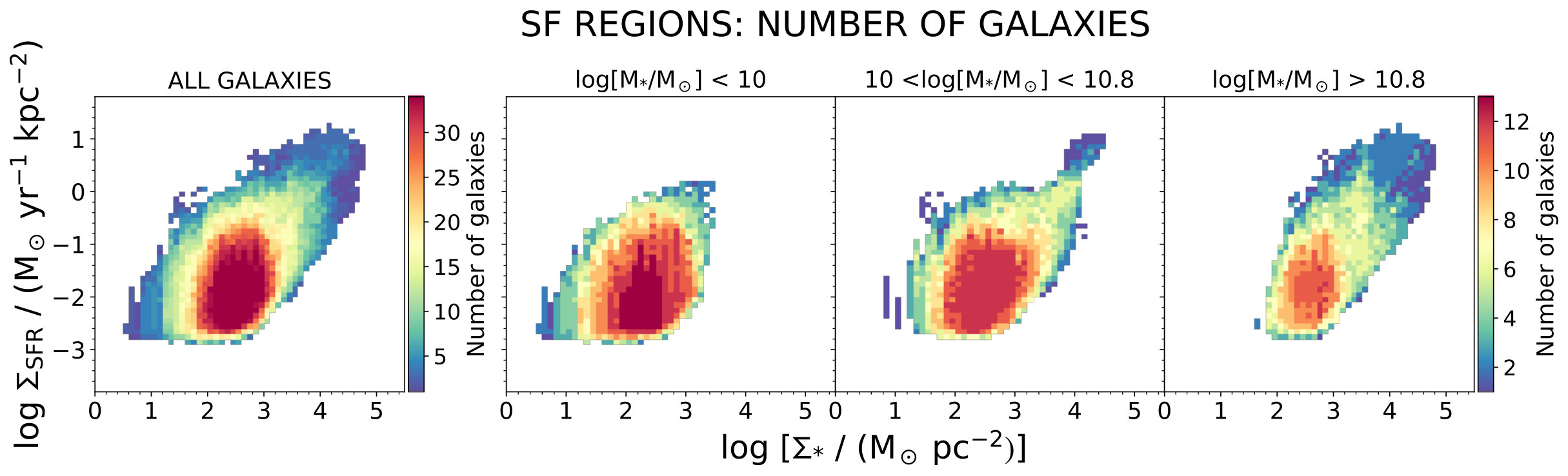

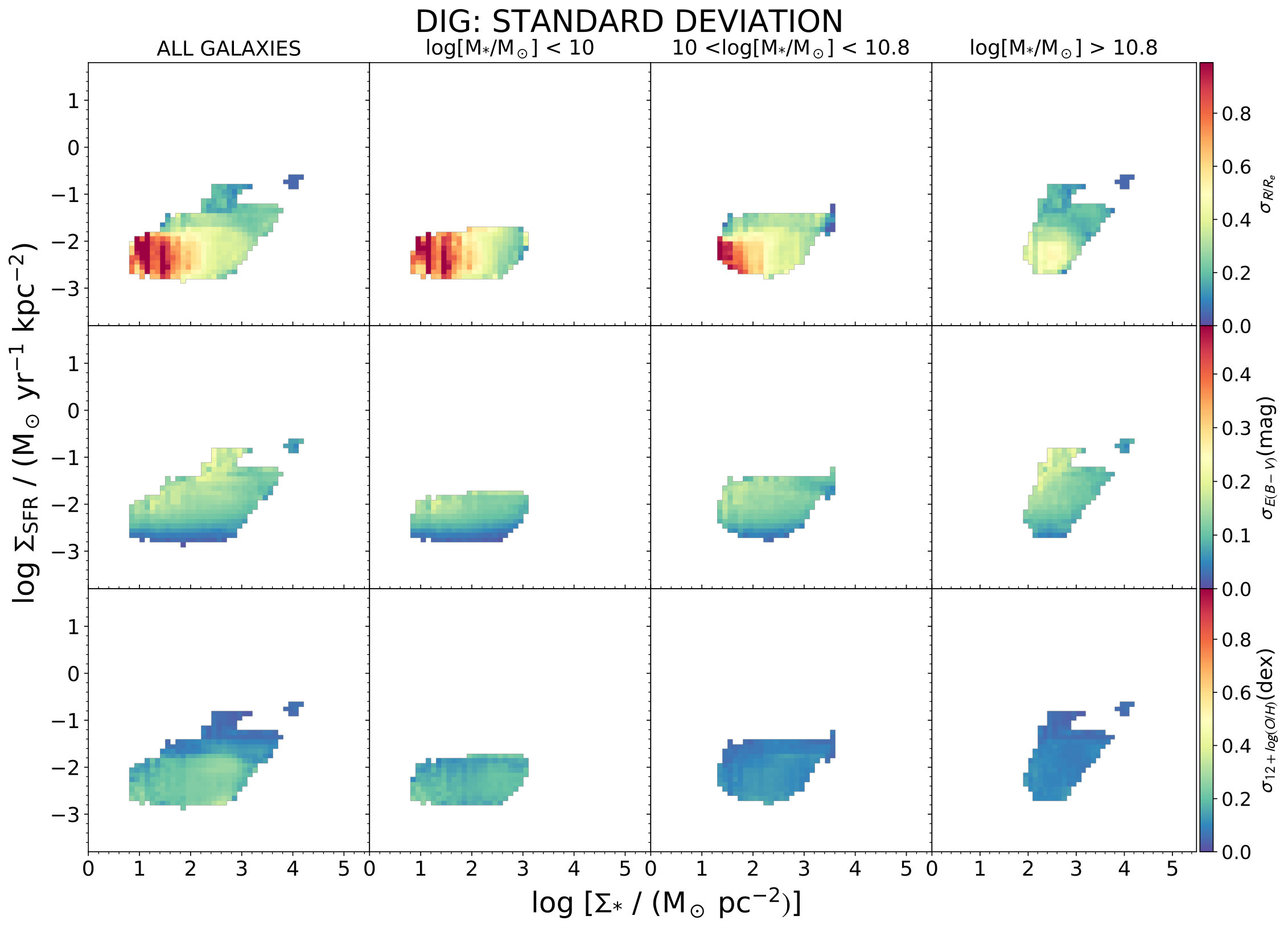

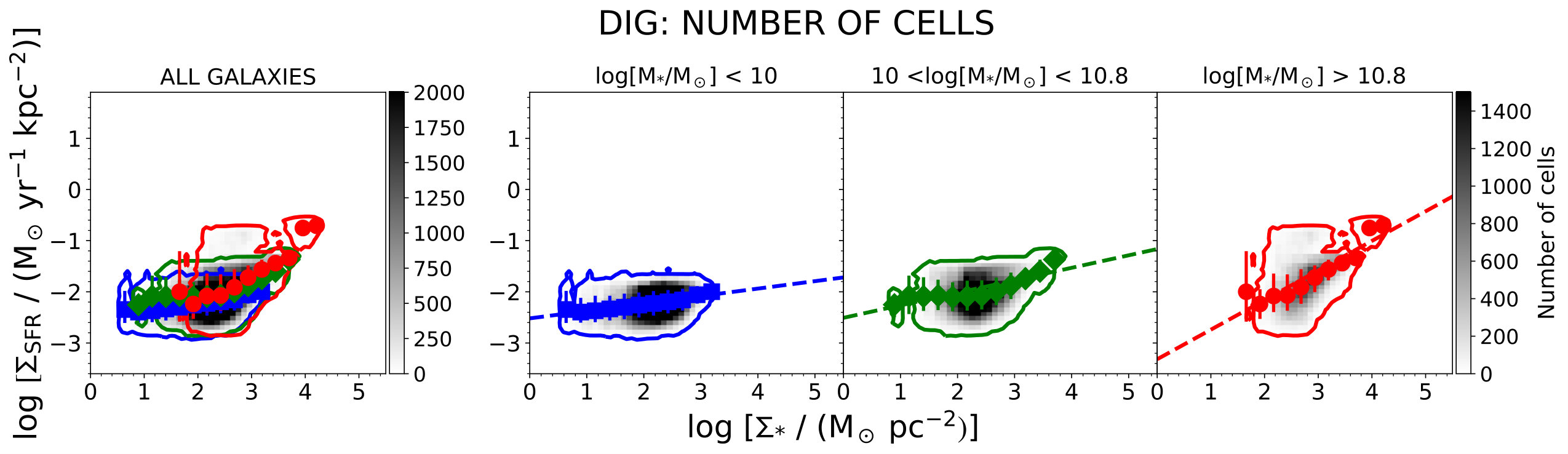

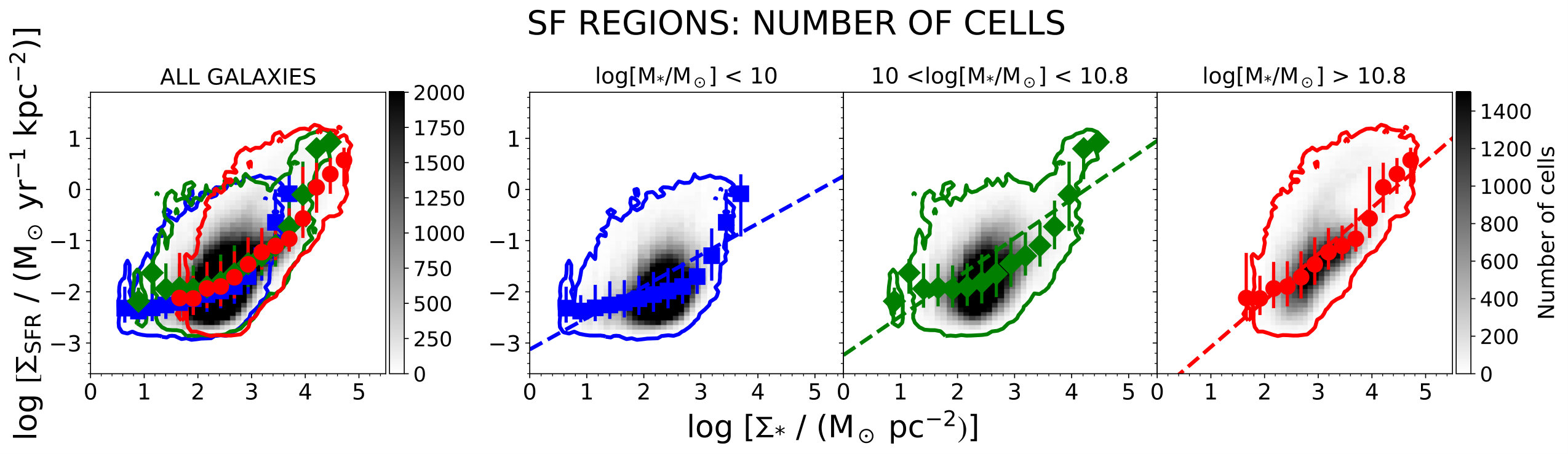

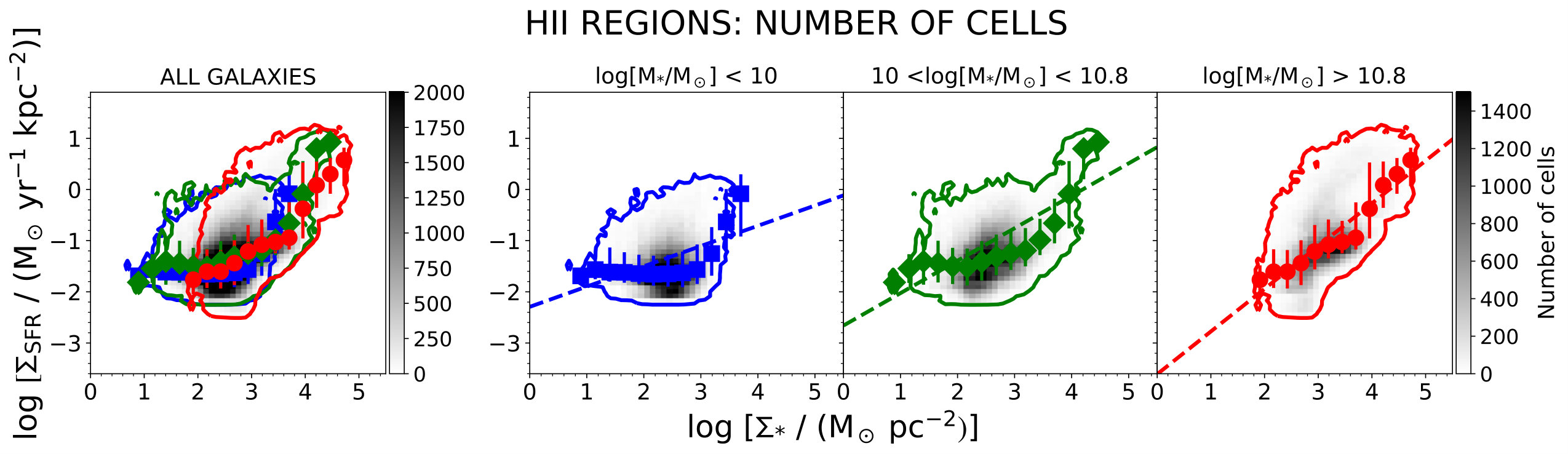

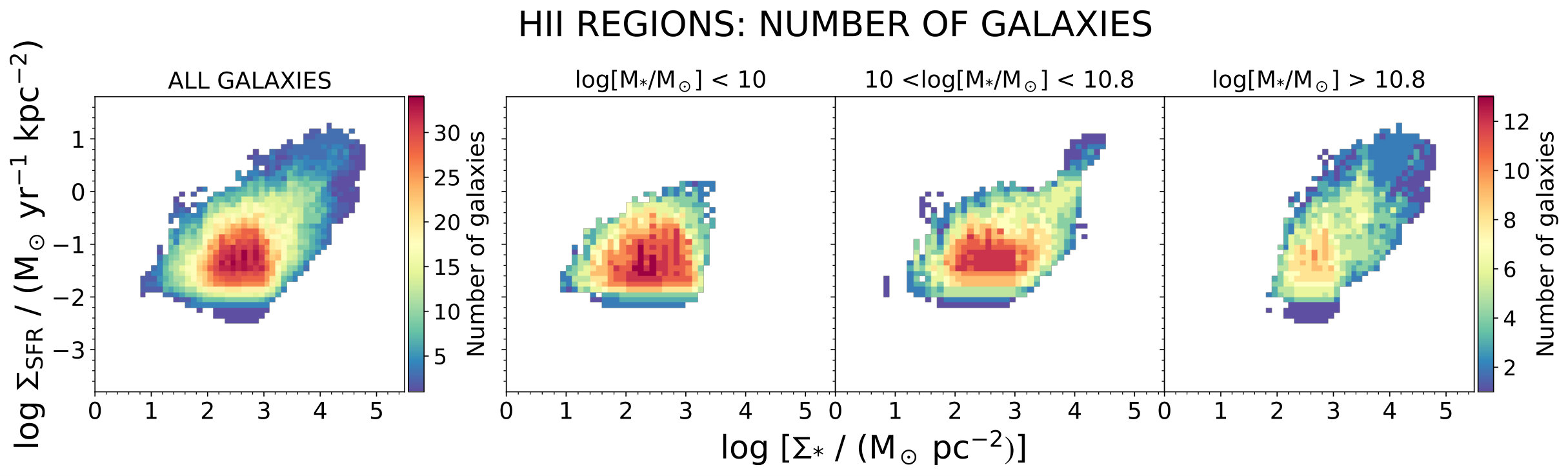

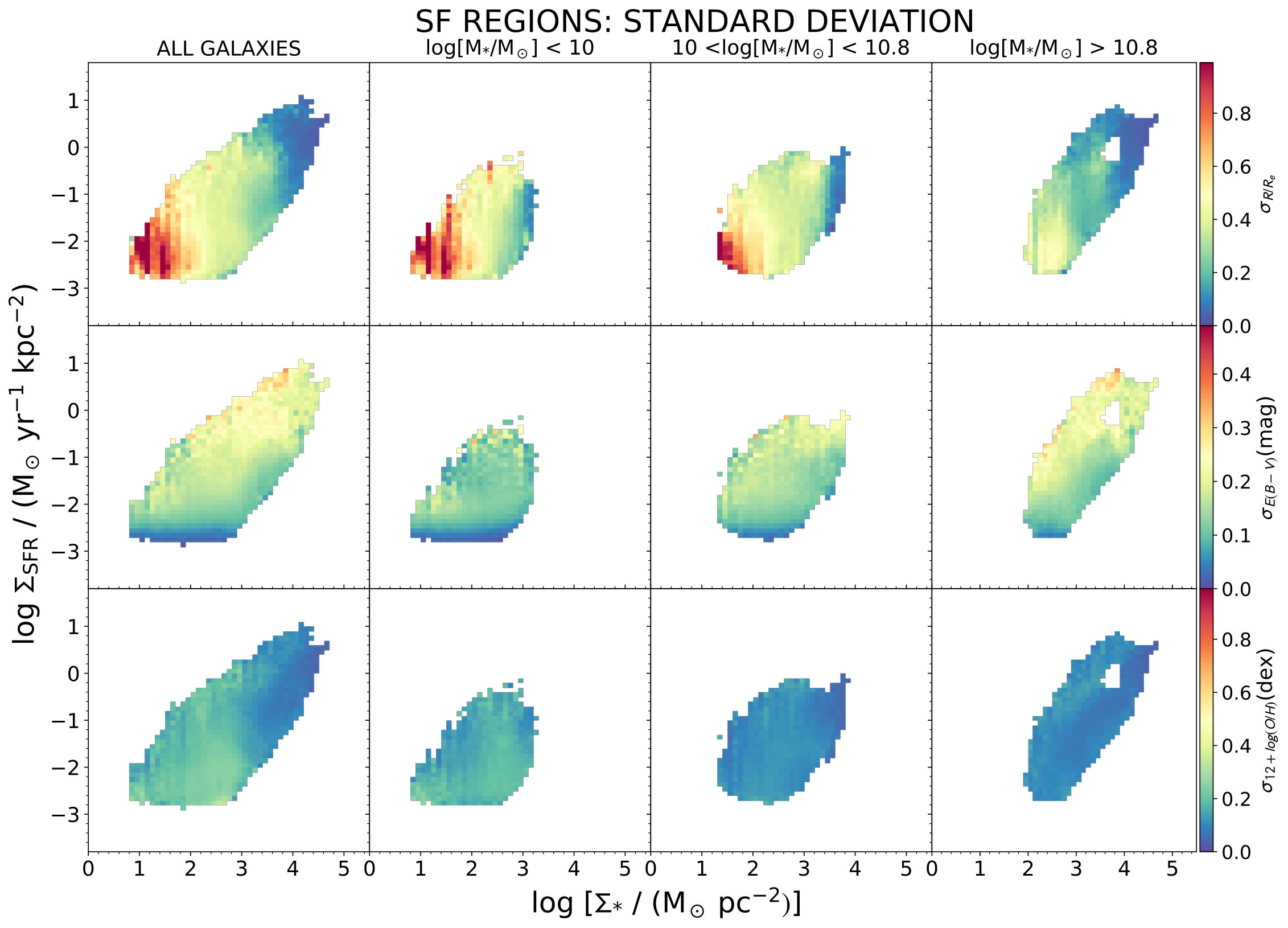

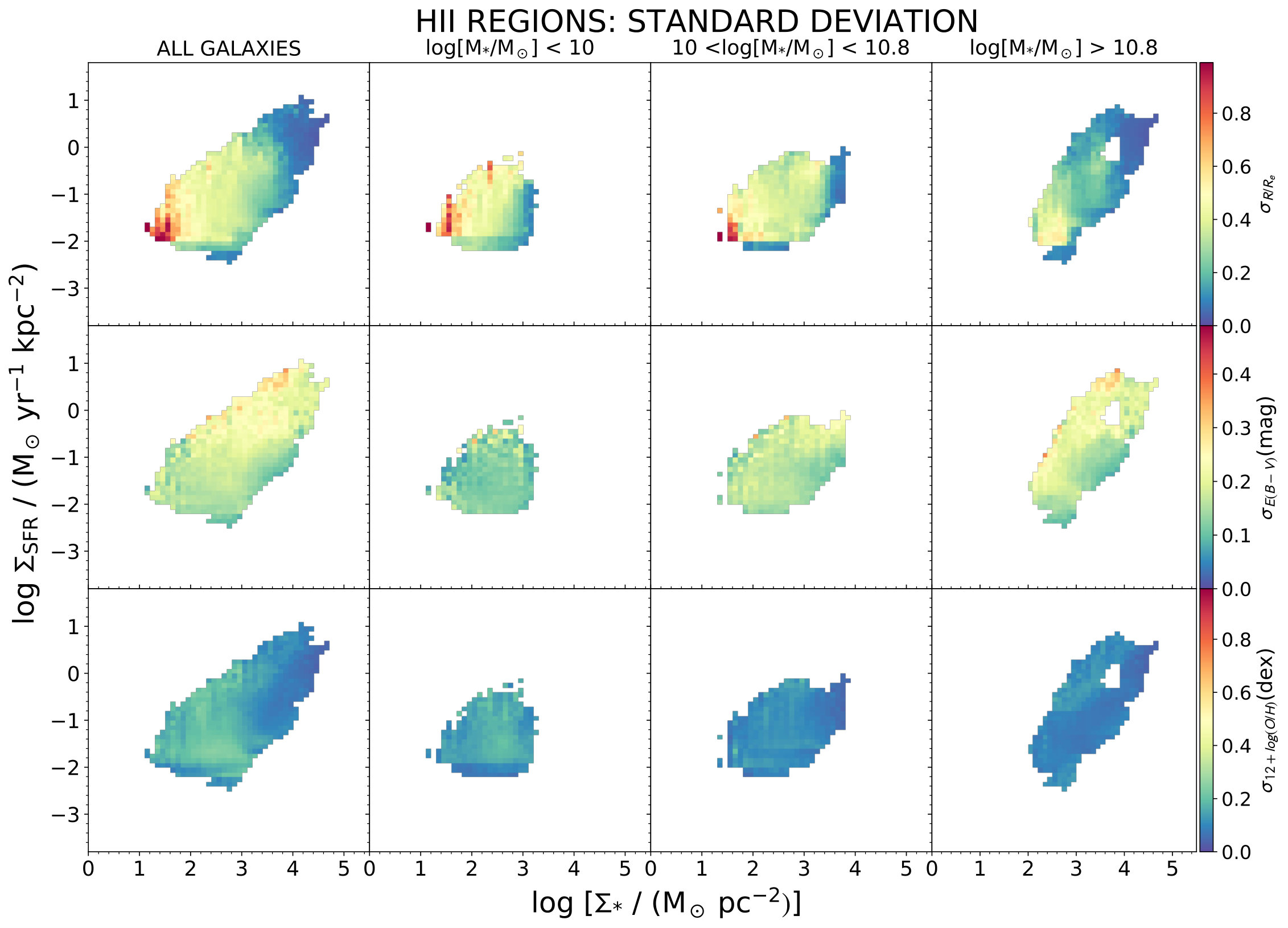

Appendix E Complementary Figures to the Resolved mass-SFR relation
