A Model-Predictive Control Method for Coordinating Virtual Power Plants and Packetized Resources, with Hardware-in-the-Loop Validation

TL;DR

This paper presents a model-predictive control approach for coordinating virtual power plants and packetized energy resources, validated through hardware-in-the-loop simulation, improving system response and avoiding capacity saturation.

Contribution

It introduces a novel bi-level control scheme with MPC for energy-constrained DERs, validated on a cyber-physical platform, enhancing VPP dispatch strategies.

Findings

MPC outperforms AGC in system dynamics.

Accounting for energy states prevents capacity saturation.

Hardware-in-the-loop validation confirms effectiveness.

Abstract

In this paper, we employ a bi-level control system to react to disturbances and balance power mismatch by coordinating distributed energy resources (DERs) under packetized energy management. Packetized energy management (PEM) is a novel bottom-up asynchronous and randomizing coordination paradigm for DERs that guarantees quality of service, autonomy, and privacy to the end-user. A hardware-in-the-loop (HIL) simulation of a cyber-physical system consisting of PEM enabled DERs, flexible virtual power plants (VPPs) and transmission grid is developed in this work. A predictive, energy-constrained dispatch of aggregated PEM-enabled DERs is formulated, implemented, and validated on the HIL cyber-physical platform. The energy state of VPPs, composed of a fleet of diverse DERs distributed in the grid, depending upon the distinct real-time usage of these devices. The experimental results demonstrate that the existing control schemes, such as AGC, dispatch VPPs without regard to their energy state, which leads to unexpected capacity saturation. By accounting for, the energy states of VPPs, model-predictive control (MPC) can optimally dispatch conventional generators and VPPs to overcome disturbances while avoiding undesired capacity saturation. The results show the improvement in dynamics by using MPC over conventional AGC and droop for a system with energy-constrained resource

Figures

Equations

$$J^{\ast }=$$

$$\displaystyle\mathmakebox[\widthof{$\underset{\displaystyle\phantom{P_{G},P_{\text{ch}},P_{\text{dis}}}}{\mathrm{min}}$}][c]{\mathmakebox[\widthof{$\mathrm{min}$}][l]{\mathrm{\kern 0.90005pts.t.}}}$$

$$P_{\text{ch},i}[l]-P_{\text{dis},i}[l]+P_{L,i}^f[l]+\sum _{j\in {\Omega }_i^N}{f}_{ij}[l]=\sum _{z\in {\Omega }_i^G}{P}_{G,z}[l],$$

$$f_{ij}[l]=b_{ij}({\theta }_i[l]-{\theta }_j[l]),$$

$$-\overline{f_{ij}}\le f_{ij}[l]\le \overline{f_{ij}},$$

$$\underline{P_{G,i}}\le P_{G,i}[l]\le \overline{P_{G,i}},$$

$$-T_s{R}_{G,i}\le P_{G,i}[l+1]-P_{G,i}[l]\le T_s{R}_{G,i},$$

$$0\le P_{\text{ch},i}[l]\le \overline{P_{\text{ch},i}},$$

$$0\le P_{\text{dis},i}[l]\le \overline{P_{\text{dis},i}},$$

$$-T_s{R}_{\text{ch},i}\le P_{\text{ch},i}[l+1]-P_{\text{ch},i}[l]\le T_s{R}_{\text{ch},i},$$

$$-T_s{R}_{\text{dis},i}\le P_{\text{dis},i}[l+1]-P_{\text{dis},i}[l]\le T_s{R}_{\text{dis},i},$$

$$\displaystyle\mkern-48.0muS_{i}[l+1]=S_{i}[l]+T_{s}\bigg{(}\eta_{\text{ch},i}P_{\text{ch},i}[l]-\eta_{\text{dis},i}^{-1}P_{\text{dis},i}[l]\bigg{)},$$

$$\underline{S_i}\le S_i[l]\le \overline{S_i}$$

Full text

I Introduction

The drive to reduce greenhouse gas emissions and declining capital costs are precipitating rapid increases in wind and solar generation capacity. Despite their low emissions profile, wind and solar power supplies vary rapidly in time, motivating the need for additional balancing resources [1].

Since some peaking power plants may take more than an hour to bring online, during times of extensive peak usage, direct load control (i.e., load shedding) has been employed to ensure the security of the power system [2]. However, the internet-connected distributed energy resources (DERs) are flexible in power demand and can be coordinated to provide ancillary services to the grid [3]. Although the main idea underlying modern demand coordination has existed for decades [4], the infrastructure required for load coordination is still in early stages, but developing rapidly [5, 3, 6]. Packetized energy managment (PEM) introduced previously by the authors [5, 7], is one such load coordination scheme. PEM leverages protocols used to manage data packets in communication networks to regulate the aggregate power consumption of DERs. More specifically, as in digital communication systems that break data into packets before transmission, PEM enables load control devices to consume energy in the form of ”energy packets” which devices request periodically using a carefully designed randomized control policy. In PEM, the load coordinator only needs to know the aggregate power consumption and aggregate requests from the packetized-load to provide ancillary services to the grid. The energy-packet mechanism of PEM, therefore, provides a significant advantage in terms of communication overhead, over state-estimation based approaches, that require an entire histogram of states, which is addressed through observer design. Furthermore, controller complexity decreases in PEM, since the load coordinator only responds to individual requests depending upon the available flexibility as compared to more complex controllers. By leveraging protocols that are similar to TCP/IP, PEM inherits certain properties with regard to providing statistically uniform access to the grid. PEM guarantees the quality of service (QoS) for individual DERs in the entire population through its unique opt-out mechanism. The mean-field approaches, on the other hand, ensure QoS in the mean sense of the population where individual DERs might violate the QoS [3]. This work describes how aggregated PEM resources can be coordinated in real-time and demonstrates the applicability of the method to practical power systems applications and the role of cyber-physical systems (CPS).

Historically, balancing authorities maintain real-time supply/demand balance through automatic generation control (AGC) and load-frequency control (LFC) by implementing PI controllers in steam turbine generator systems to ensure power system operation at nominal frequency [8]. As the amount and distribution of controllable resources increases, determining an appropriate response to unscheduled events (e.g. power imbalances due to prediction error) is more challenging for the grid operators who need new tools for decision making.

An increasing number of researchers [9, 10] and industry groups [11] are employing virtual power plants (VPPs) to aggregate groups of DERs and then dispatch those resources into energy markets, such as frequency regulation/AGC. VPPs are formed from aggregation of flexible resources which are limited in power and energy. Since PI-control-based AGC does not take energy state estimation of VPPs into account, it may overuse the offered flexibility in short period of time (greedy) which leads to the sudden saturation of VPPs (i.e. cannot provide any more flexibility). To overcome this phenomenon, model-predictive control (MPC) can be employed. MPC is a multi-input, multi-output (MIMO), optimization-based, predictive control technique that considers system constraints explicitly [12]. MPC strategies have previously been applied in power systems for optimal coordination of controllable loads, load shedding, capacity switching, tap-changer operation, etc. The main purpose of those strategies is contingency management, voltage stability, thermal control of transmission lines, and energy management [13, 14, 15]. In this work, an MPC scheme is employed to track a secure, economically-optimal reference trajectory of generators and VPPs while responding to power imbalances and satisfying physical constraints of the power system. For frequency regulation in the power system under high penetration of renewables, MPC has several advantages over PI controllers including robustness of the system against disturbance and uncertainty [16].

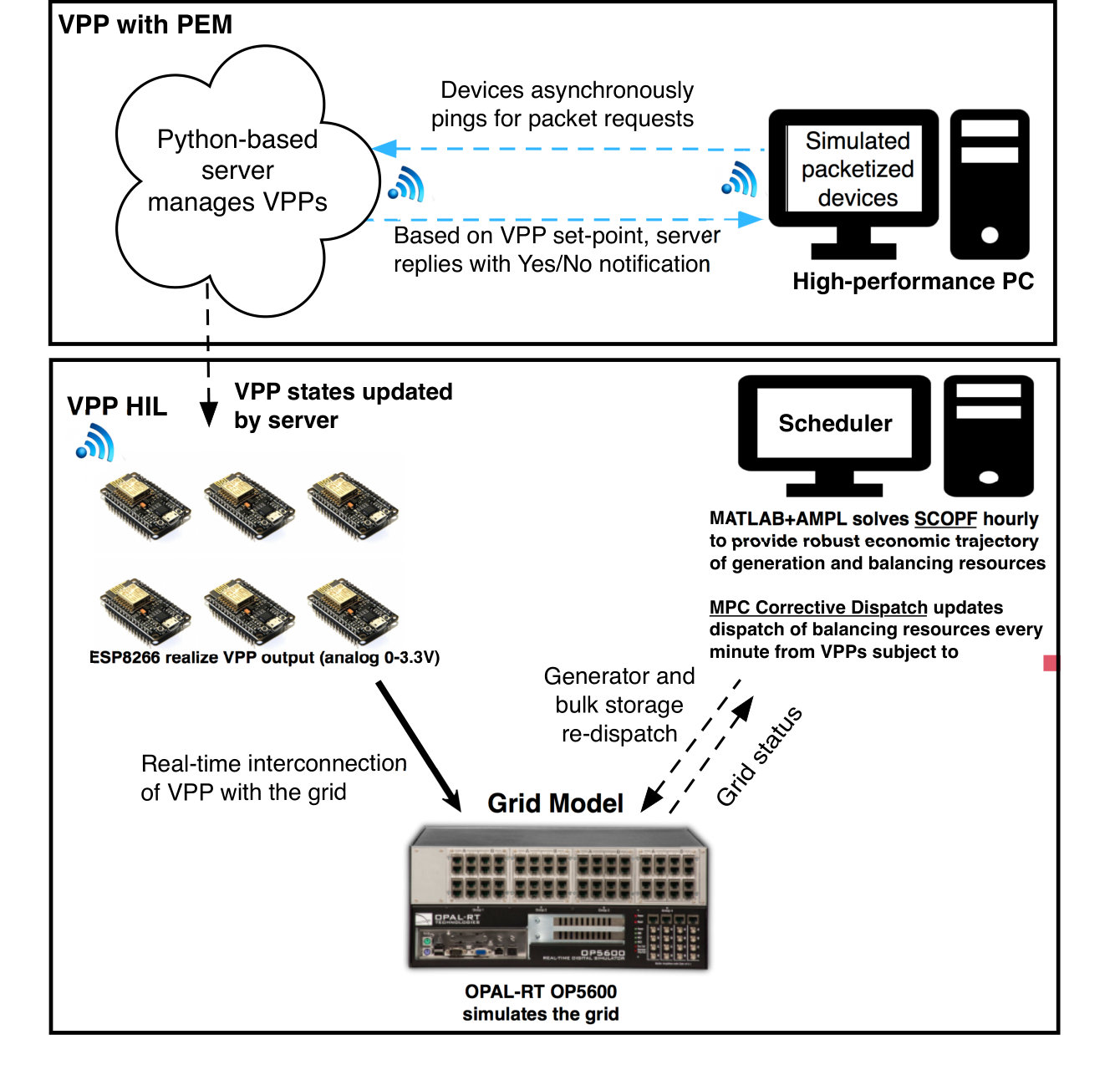

This paper demonstrates the benefit that MPC has on dispatching resources with limited energy supply. An HIL platform is developed that consists of a transmission grid, MPC corrective dispatch scheme and PEM-enabled DERs emulated on a high-performance PC that requests packets of energy from the aggregator. The VPPs are physically realized in a micro-controller that connects the DERs to the grid via analog signals. The experimental results demonstrate the effectiveness of the MPC in a real-time CPS, thereby validating the ability of a VPP to track challenging signals under such control.

The remainder of the paper is organized as follows. Section II details Packetized Energy Management of DERs. In Section III, we demonstrate our cyber-physical validation platform. Section IV gives an overview of the system operational and control. Implementation results are provided in Section V and Section VI concludes the paper.

II Packetized energy management of DERs

Packetized energy management is a bottom-up DER coordination scheme in which the DERs submit randomized requests of energy packets. The VPP accepts or rejects these requests based on the available flexibility. The DERs considered in this work are thermostatically controlled loads (TCLs) and energy storage systems (ESS).

The PEM-enabled DERs are designed to operate in one of the four following logical states: (i) charge (ii) discharge (iii) off (iv) opt-out. The first three states (charge, discharge, off) are associated with the normal PEM operation whereas the fourth OPT-OUT state ensures quality of service (QoS). A DER in OFF stochastically requests a charge packet or a discharge packet. If a charge packet is accepted, the DER changes state from OFF to CHARGE and consumes power for a specific time interval $\delta_{c}$. If a discharge packet is requested and consequently accepted, the DER transitions from OFF to DISCHARGE state and discharges power into the system for a fixed time $\delta_{d}$. After completing a charge or discharge packet, the device automatically transitions to OFF mode and this process of stochastically requesting charge/discharge packets repeats. PEM aims to maintain the DER’s state within minimum and maximum operating bounds. PEM provides QoS guarantees by enabling the devices to opt out of the packetizing behavior when the energy state goes outside of allowable upper and lower limits.

III Cyber-Physical Layout

The smart grid paradigm [17] is largely about the transformation of power systems into full cyber-physical systems that enable bidirectional flows of energy and communications. CPS are of vital importance to the grid, especially when increasing the presence of renewable generation and smart devices, improving control [18], and adding resiliency to the system [19]. The validation of CPS require accurate models of both cyber and physical sub-systems (e.g. HIL systems communicating with one another over realistic communication protocols). In order to validate the proposed demand-side CPS scheme, a real-time HIL platform is developed consisting of a transmission system and packetized load. The OP5600 real-time digital simulator from OPAL-RT is used to simulate the HIL cyber-physical system. The OP5600 has a multi-core processor along with digital and analog I/O with the capability of interfacing to a network of PCs in order to simulate large models in real-time111Herein, real-time refers to timescales on the order of tens of milliseconds.. The RT-Lab software allows the communication between a host PC and the target (OP5600) simulator such that a real-time physical model can run on the simulator while the controller would run on the PC where an operator could make adjustments when necessary.

“ePHASORSIM” is a tool developed by OPAL-RT to offer dynamic simulation of power systems in order to conduct power system studies and test control schemes. A grid is modeled with a standard positive-sequence equivalent single-phase constant-power AC model in ePHASORSIM, based on the Vermont Electric Power Company (VELCO) transmission system to be run in real time on the OP5600. RT-LAB and ePHASORSIM can be interfaced extremely easily with MathWorks’ Simulink, which is used to develop the controls for the power system. The OPAL-RT blockset for Simulink allows a section of the Simulink block diagram to be run in real time on the OP5600 and the controls can be run asynchronously on the PC with the ability to accept user inputs when necessary. ESP8266 microchips were used to emulate VPP interconnections to the grid in real time. ESP8266 communicate with the cloud server over WIFI, while the server is being hosted on a Linux machine. Fig. 1 shows an overview of the cyber-physical platform used in this study.

IV Energy aware dispatch of diverse energy

resources

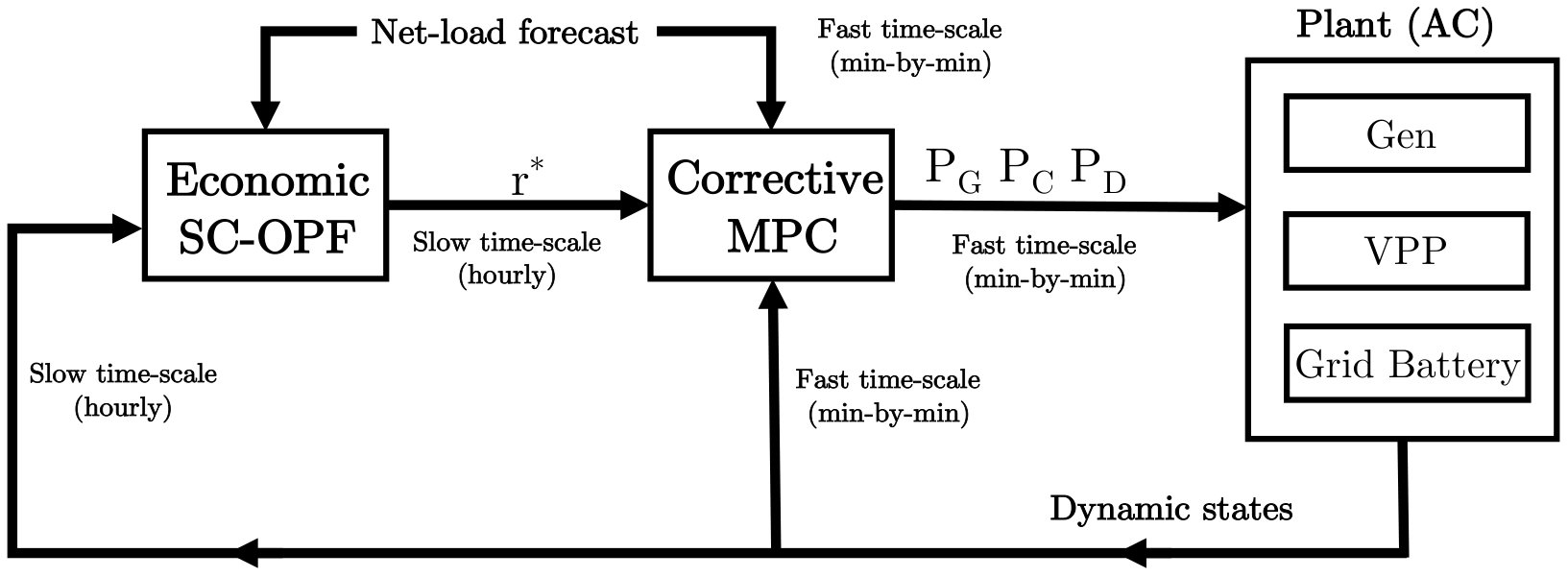

Security constrained optimal power flow (SCOPF) enables grid operators to implement economic schedules for generators, flexible loads and importing power into the area for a number of hours. However, the volatility and intermittent characteristic of net-loads (i.e., demand minus renewables) results in forecast error and power imbalances. Since grid operators may pay high penalties for rescheduling generators or importing power through tie lines to balance supply and demand [20], power mismatches can be balanced by controlling flexible resources. This suggests a bi-level control strategy where the first level is in charge of economic scheduling and its outputs are used as a reference input to the second level which is in charge of dispatching generators and VPPs to balance the system against any disturbance. An overview of the proposed control system is provided in Fig. 2.

IV-A AGC

In the power system, safety of the electrical equipment and quality of delivered power is dependant on nominal system frequency. Therefore, the frequency should be controlled and monitored regularly and any mismatches in generation and consumption shall be corrected through load frequency control (LFC) [21]. Traditionally, the primary frequency regulation (speed-droop) on each generator stabilizes the power system with a steady-state frequency deviation from the desired system frequency depending on the droop characteristic and frequency sensitivity. A linear combination of frequency errors and change in imported power through tie lines from their scheduled contract basis is used as an error signal called area control error (ACE). AGC acts as a secondary control using an integral controller that sends out control signals to generators and VPPs to reduce ACE to zero in steady state. For the purposes of this work, only two areas are used for simplicity, while being effective enough to demonstrate the flow of power between different areas. The first area represents a small balancing authority (control area), and the second represents the aggregate dynamics of the external system. One machine exists in the external area and has a large inertia and capacity to emulate the properties of the rest of the interconnected power system.

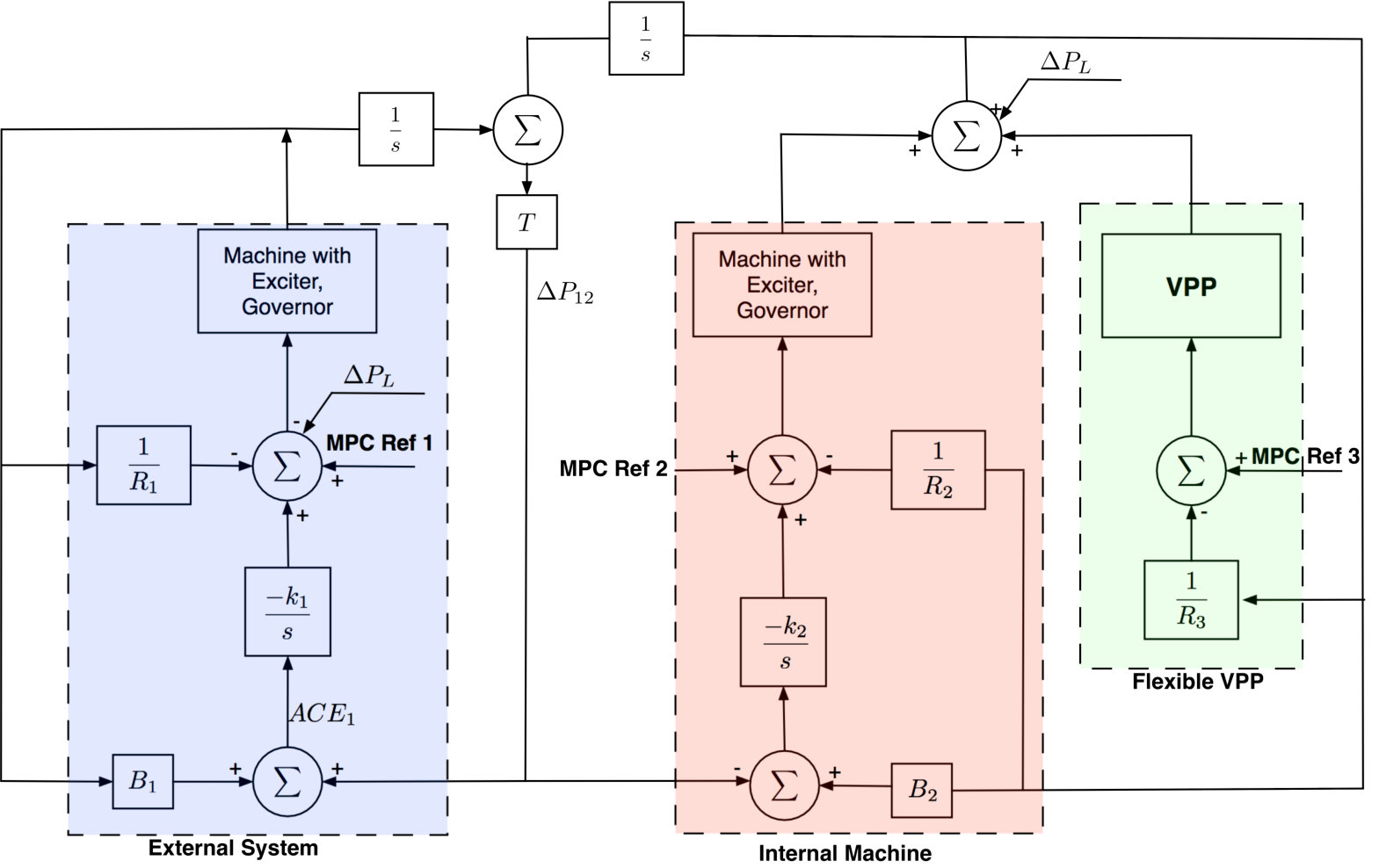

Fig. 3 shows the control diagram for the system modeled in this paper, which is an adapted version of the diagram from [8]. The interaction between the internal and external areas involved are shown. The external machine, one of the internal machines, and the VPPs assist in AGC/ACE, while all of these generation sources are equipped for primary frequency regulation.

IV-B Model predictive control for power system

Unlike conventional generators, VPPs (synthetic reserves) are energy-constrained and should be utilized considering their available flexibility. Aforementioned primary and secondary frequency controllers do not take energy states of the VPPs into account. Therefore, VPPs may reach their energy capacity limits (saturate) unexpectedly and cannot provide balancing power anymore. As a result, conventional generators must be rescheduled to provide the required balancing services, which can be expensive, or even infeasible leading to a reliability risk.

As an advanced control technique, MPC forms an alternative to the PI controllers in frequency regulation which uses a mathematical model of the power system based on the current and future information and constraints to find the optimal control actions with respect to the defined objective. Unlike a PI controller, MPC dispatches resources (generators and VPPs) at each time step considering current states and forecasted conditions while handling the energy constraints of the flexible resources. The results of this work show that the MPC is more suitable for frequency regulation and dispatching energy-constrained resources compared to the PI controllers [22]. The MPC scheme can be summarized as follows:

Controller uses measured/estimated initial states to solve an open-loop optimal control problem for $M$ steps, which is known as prediction horizon, taking into account current and future constraints. This gives a sequence of optimal open loop control actions and predict output. 2. 2.

Apply receding horizon control so that only the first instance of the control sequence is given as the input to the plant. 3. 3.

Measure the actual system state after applying the first control action. 4. 4.

Go to step $1$.

We consider a transmission system model comprising of $N_{b}$ buses, $N_{l}$ lines, $N_{G}$ generators, $N_{L}$ loads and $N_{B}$ VPPs. Parameters $\Omega_{i}^{N}$ and $\Omega_{i}^{G}$ refer to a set of all buses connected to bus $i$ and set of all generators at bus $i$ respectively. Since MPC relies on a linear model of the actual system, the dynamic model of the system is discretized by forward Euler method with sample time $T_{s}$. The MPC optimization is defined to minimize the cost of the deviation of generator outputs from the scheduled set-points $P_{G,i}^{r}$ considering deviation cost $c_{G,i}$

[TABLE]

where (1b) imposes Kirchhoff’s laws, implying that the net flow into a bus must equal the net flow out of that bus. Power flows on the line connecting bus $i$ and $j$ that are determined by (1c) must be within the power carrying capacity of the transmission line $\overline{f_{ij}}$ as shown in (1d). Generators may inject power, $P_{G}$ and loads may consume power $P_{L}$ at each node $i$. Each conventional generator is described by its production state, which must be within generator upper and lower limits, $\overline{P_{G}}$ and $\underline{P_{G}}$, as shown in (1e). Furthermore, due to the thermal nature of the generators, their ramp rates are limited to up and down limits, $R_{G}$, as shown in (1f). The responsive VPPs overcome limitations of generator ramping rates. Non-negative scalar $P_{\text{ch}}$ and $P_{\text{dis}}$ represent charging and discharging power of a VPP. The charging and discharging efficiencies are denoted by $\eta_{\text{ch}}$ and $\eta_{\text{dis}}$. Charging and discharging power and SOC of the VPPs are subject to constraints (1g), (1h) and (1l) where $\overline{P_{\text{ch}}}$, $\overline{P_{\text{dis}}}$, $\overline{S}$, and $\underline{S}$ represent maximum charging and discharging power and the maximum and minimum energy capacity of VPP, respectively. In general, coordination schemes do not offer instant control over all DERs in a fleet, but are subject to separate internal control, actuation, and communication loops [23]. These cyber-physical control considerations manifest themselves as ramp-rate limits on the charging ($R_{\text{ch}}$) and discharging ($R_{\text{dis}}$) of VPPs as shown in (1i) and (1j). The dynamic of the VPP’s SOC is shown in (1k).

V Results

The section experimentally demonstrates that energy-aware dispatch of flexible VPPs enhances the AGC performance. The details of the test-setup are as follows. The transmission system consisting of 161 buses, 223 transmission lines and three generating units, is set up in ePHASORSIM and supplies a total load of 609 MW consisting of approximately $50\%$ renewable generation and remaining load is supplied from one external and two internal machines and generators. The flexibility is provided by two VPPs consisting of one bulk battery and one HIL VPP. The HIL VPP consists of real packetized-enabled DERs emulated on a high-performance PC, that requests the VPP (server) for packets of energy through web-sockets. The VPP obtains balancing signals from the grid operator and accepts/rejects the packets based on the available flexibility. ESP8266 is the physical realization of VPP that obtains the VPP’s state from the server and sends it to the grid through an analog interface.

V-A Capacity saturation of VPP

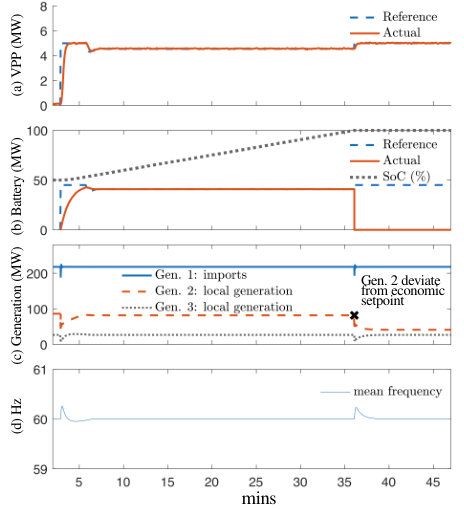

The HIL VPP and grid scale battery providing grid services are energy-limited and ignoring their energy capacity results in inferior AGC performance. The effect of their capacity on the ancillary services provided to the grid is demonstrated in Fig. 4. The capacity of the battery is $45$ MWh. Fig. 4 shows that the load reduces by $50$ MW resulting in excess generation and both battery and VPP take up $45$ MW and $5$ MW respectively, of this excess generation. The battery is initially $50\%$ charged, as shown in Fig. 4 (b). After $t\approx 36$ mins, in Fig. 4 (b), the battery saturates and can no longer provide ancillary services to the grid. The power output of Gen. 2 is therefore reduced to account for the loss of $45$ MW and the system deviates from its scheduled generation (Fig. 4 (c)) in order to keep the system stable (Fig. 4 (d)).

V-B MPC with capacity saturation

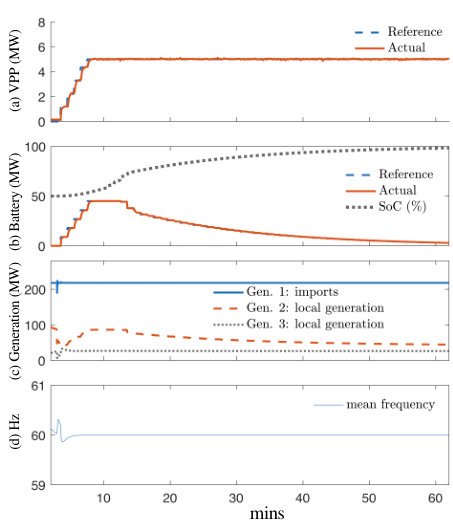

The proposed energy aware scheme improves the performance by explicitly accounting for the energy limits of the flexible resources. Fig. 5 shows a load change $\Delta P_{L}=50$ MW that results in the HIL VPP and the battery providing the remaining slack. MPC keeps track of the current state of charge of the HIL VPP and the battery (Fig. 5 (a) and (b)) and after $t\approx 13$ mins, gradually reduces the set-points of the battery to avoid saturation as shown, in Fig. 5 (b). The HIL VPP and the battery can therefore supply ancillary services to the grid for over $60$ mins.

VI Discussion/Conclusion

This paper presents a hardware-in-the-loop implementation of PEM-based cyber-physical platform and demonstrates that aggregated PEM-enabled DERs can provide ancillary services to the grid. The system consists of emulated DERs, an aggregator realized as real live webserver, and a transmission system developed from the real data provided by VELCO. The experimental studies carried out in this work show that conventional control schemes (i.e. AGC and droop) do not take into account the state of charge of VPPs while providing ancillary services to the grid that leads to capacity saturation of the VPPs. As a result, the VPP can no longer support the requested flexibility and cause a disturbance in the grid because the generators have to ramp-up quickly to ensure stability. Conventional schemes are therefore greedy in managing flexible resources and leads to capacity saturation and unwanted disturbances. Model predictive control (MPC) responds to the unexpected disturbances by dispatching resources depending upon the hourly load forecast as well as minute-by-minute dispatch in a receding horizon. MPC is shown to proactively vary the consumption of flexible resources depending upon the SOC, which utilizes these resources for a longer time than the base case with AGC. The generators therefore operate as close as possible to their optimal limits for a much longer time.

Acknowledgment

The authors would like to extend thanks to Bernadette Ferndandez and Chris Root of VELCO for providing actual transmission and bus data for the Vermont system to help provide a more realistic study.
