Measurement of the $t\bar{t}Z$ and $t\bar{t}W$ cross sections in proton-proton collisions at $\sqrt{s}=13$ TeV with the ATLAS detector

TL;DR

This paper reports precise measurements of the production cross sections of top-quark pairs with W and Z bosons at 13 TeV, using the ATLAS detector, confirming Standard Model predictions and constraining new physics effects.

Contribution

First simultaneous measurement of $t\bar{t}Z$ and $t\bar{t}W$ cross sections at 13 TeV with detailed event categorization and constraints on effective field theory operators.

Findings

Measured $t\bar{t}Z$ cross section: 0.95 pb with uncertainties.

Measured $t\bar{t}W$ cross section: 0.87 pb with uncertainties.

Results agree with Standard Model predictions.

Abstract

A measurement of the associated production of a top-quark pair ($t\bar{t}$) with a vector boson ($W$, $Z$) in proton-proton collisions at a center-of-mass energy of 13 TeV is presented, using $36.1$ fb$^{-1}$ of integrated luminosity collected by the ATLAS detector at the Large Hadron Collider. Events are selected in channels with two same- or opposite-sign leptons (electrons or muons), three leptons or four leptons, and each channel is further divided into multiple regions to maximize the sensitivity of the measurement. The $t\bar{t}Z$ and $t\bar{t}W$ production cross sections are simultaneously measured using a combined fit to all regions. The best-fit values of the production cross sections are $\sigma_{t\bar{t}Z} = 0.95 \pm 0.08_{\mathrm{stat.}} \pm 0.10_{\mathrm{syst.}}$ pb and $\sigma_{t\bar{t}W} = 0.87 \pm 0.13_{\mathrm{stat.}} \pm 0.14_{\mathrm{syst.}}$ pb in agreement with the Standard Model predictions. The measurement of the $t\bar{t}Z$ cross section is used to set constraints on effective field theory operators which modify the $t\bar{t}Z$ vertex.

Figures

Tables

Table 1. Table 1: List of t ​ t ¯ ​ W 𝑡 ¯ 𝑡 𝑊 t\bar{t}W and t ​ t ¯ ​ Z 𝑡 ¯ 𝑡 𝑍 t\bar{t}Z decay modes and analysis channels targeting them. The symbols b 𝑏 b and ν 𝜈 \nu denote a bottom quark or antiquark and neutrino or antineutrino, respectively, with charge conjugation implied.

Process	$t\overline{t}$ decay	Boson decay	Channel
$t\overline{t}W$	$\left({\ell }^{\pm }\nu b\right)\left(q\overline{q}b\right)$	${\ell }^{\pm }\nu$	SS dilepton
	$\left({\ell }^{\pm }\nu b\right)\left({\ell }^{\mp }\nu b\right)$	${\ell }^{\pm }\nu$	Trilepton
$t\overline{t}Z$	$\left(q\overline{q}b\right)\left(q\overline{q}b\right)$	${\ell }^{+}{\ell }^{-}$	OS dilepton
	$\left({\ell }^{\pm }\nu b\right)\left(q\overline{q}b\right)$	${\ell }^{+}{\ell }^{-}$	Trilepton
	$\left({\ell }^{\pm }\nu b\right)\left({\ell }^{\mp }\nu b\right)$	${\ell }^{+}{\ell }^{-}$	Tetralepton

Table 2. Table 2: Summary of the event selection requirements in the OS dilepton signal regions.

Variable	2$\ell$-Z-6j1b	2$\ell$-Z-5j2b	2$\ell$-Z-6j2b
Leptons	$=2$, same flavor and opposite sign
$m_{\ell \ell }$	$10\mathrm{GeV}$
$p_{\text{T}}$ (leading lepton)	$>$$30\mathrm{GeV}$
$p_{\text{T}}$ (subleading lepton)	$>$$15\mathrm{GeV}$
$n_{b\text{-tags}}$	1	$\ge 2$	$\ge 2$
$n_{\text{jets}}$	$\ge 6$	5	$\ge 6$

Table 3. Table 3: Summary of the event selection requirements in the SS dilepton signal regions.

Requirement	$2\ell$-SS(p,m)-$1b$	$2e$-SS(p,m)-$2b$	$e\mu$-SS(p,m)-$2b$	$2\mu$-SS(p,m)-$2b$
$n_{b\text{-tags}}$	=1	$\ge 2$	$\ge 2$	$\ge 2$
$E_{\text{T}}^{\text{miss}}$	$>40$ GeV	$>40$ GeV	$>40$ GeV	$>20$ GeV
$H_{\text{T}}$	$>240$ GeV
$p_{\text{T}}$ (leading lepton)	$>27$ GeV
$p_{\text{T}}$ (subleading lepton)	$>27$ GeV
$n_{\mathrm{jets}}$	$\ge 4$	$\ge 4$	$\ge 4$	$\ge 2$
$Z$ veto	$\left|m_{\ell \ell }-m_Z\right|>10\mathrm{GeV}$ in the $2e$ and $2\mu$ regions

Table 4. Table 4: Summary of event selection requirements in the trilepton signal regions targeting the t ​ t ¯ ​ Z 𝑡 ¯ 𝑡 𝑍 t\bar{t}Z process.

Variable	3$\ell$-Z-1b4j	3$\ell$-Z-2b3j	3$\ell$-Z-2b4j	3$\ell$-noZ-2b4j
Leading lepton	$p_{\text{T}}>27\mathrm{GeV}$
Other leptons	$p_{\text{T}}>20\mathrm{GeV}$
Sum of lepton charges	$\pm 1$
$Z$ requirement (OSSF pair)				$\left|m_{\ell \ell }-m_Z\right|>10\mathrm{GeV}$
$n_{\text{jets}}$	$\ge 4$	$3$	$\ge 4$	$\ge 4$
$n_{b\text{-tags}}$	$1$	$\ge 2$	$\ge 2$	$\ge 2$

Table 5. Table 5: Summary of event selection requirements in the trilepton signal regions targeting the t ​ t ¯ ​ W 𝑡 ¯ 𝑡 𝑊 t\bar{t}W process.

Variable	3$\ell$p-noZ-2b2j	3$\ell$m-noZ-2b2j	3$\ell$p-noZ-1b2j	3$\ell$m-noZ-1b2j
All leptons	$p_{\text{T}}>27\mathrm{GeV}$
$Z$ veto (OSSF pair)	$\left|m_{\ell \ell }-m_Z\right|>10\mathrm{GeV}$
$n_{\mathrm{jets}}$	2 or 3
$H_{\text{T}}$	–		$>240$ GeV
Sum of lepton charges	+1	–1	+1	–1
$n_{b\text{-tags}}$	$\ge 2$	$\ge 2$	$1$	$1$

Table 6. Table 6: Definitions of the four signal regions in the tetralepton channel.

Region	$Z_2$ leptons	$p_{\text{T4}}$	$p_{\text{T34}}$		$\left|m_{Z_2}-m_Z\right|$	$E_{\text{T}}^{\text{miss}}$		$n_{b\text{-tags}}$
4$\ell$-DF-1b	$e^{\pm }{\mu }^{\mp }$	–	$>35\text{GeV}$		–	–		1
4$\ell$-DF-2b	$e^{\pm }{\mu }^{\mp }$	$>10\text{GeV}$	–		–	–		$\ge 2$
4$\ell$-SF-1b	$e^{\pm }{e}^{\mp },{\mu }^{\pm }{\mu }^{\mp }$	–	$>25\text{GeV}$	\ldelim{22ex	$>10\text{GeV}$	$>40\text{GeV}$ $>80\text{GeV}$	\rdelim}22ex	1
4$\ell$-SF-2b	$e^{\pm }{e}^{\mp },{\mu }^{\pm }{\mu }^{\mp }$	$>10\text{GeV}$	–	\ldelim{22ex	$>10\text{GeV}$	- $>40\text{GeV}$	\rdelim}22ex	$\ge 2$

Table 7. Table 7: Measured signal strengths of t ​ t ¯ ​ Z 𝑡 ¯ 𝑡 𝑍 t\bar{t}Z and t ​ t ¯ ​ W 𝑡 ¯ 𝑡 𝑊 t\bar{t}W for different fit configurations and the combined fit. The uncertainties include statistical and systematic components.

Fit configuration	${\mu }_{t\overline{t}Z}$	${\mu }_{t\overline{t}W}$
Combined	1.08 $\pm$ 0.14	1.44 $\pm$ 0.32
$2\ell$-OS	0.73 $\pm$ 0.28	–
$3\ell$ $t\overline{t}Z$	1.08 $\pm$ 0.18	–
$2\ell$-SS and $3\ell$ $t\overline{t}W$	–	1.41 $\pm$ 0.33
$4\ell$	1.21 $\pm$ 0.29	–

Table 8. Table 8: List of relative uncertainties in the measured cross sections of the t ​ t ¯ ​ Z 𝑡 ¯ 𝑡 𝑍 t\bar{t}Z and t ​ t ¯ ​ W 𝑡 ¯ 𝑡 𝑊 t\bar{t}W processes from the fit, grouped in categories. All uncertainties are symmetrized. The sum in quadrature may not be equal to the total due to correlations between uncertainties introduced by the fit.

Uncertainty	${\sigma }_{t\overline{t}Z}$	${\sigma }_{t\overline{t}W}$
Luminosity	2.9$\%$	4.5$\%$
Simulated sample statistics	2.0$\%$	5.3$\%$
Data-driven background statistics	2.5$\%$	6.3$\%$
JES/JER	1.9$\%$	4.1$\%$
Flavor tagging	4.2$\%$	3.7$\%$
Other object-related	3.7$\%$	2.5$\%$
Data-driven background normalization	3.2$\%$	3.9$\%$
Modeling of backgrounds from simulation	5.3$\%$	2.6$\%$
Background cross sections	2.3$\%$	4.9$\%$
Fake leptons and charge misID	1.8$\%$	5.7$\%$
$t\overline{t}Z$ modeling	4.9$\%$	0.7$\%$
$t\overline{t}W$ modeling	0.3$\%$	8.5$\%$
Total systematic	10$\%$	16$\%$
Statistical	8.4$\%$	15$\%$
Total	13$\%$	22$\%$

Table 9. Table 9: Effective field theory operators considered and their form in terms of SM fields. The notation of Ref.  [ 85 ] is used.

Operator	Expression
${𝒪}_{\varphi Q}^{\left(3\right)}$	$\left({\varphi }^{†}i{\overleftrightarrow{D}}_{\mu }^I\varphi \right)\left(\overline{Q}{\gamma }^{\mu }{\tau }^{I}Q\right)$
${𝒪}_{\varphi Q}^{\left(1\right)}$	$\left({\varphi }^{†}i{\overleftrightarrow{D}}_{\mu }\varphi \right)\left(\overline{Q}{\gamma }^{\mu }Q\right)$
${𝒪}_{\varphi t}$	$\left({\varphi }^{†}i{\overleftrightarrow{D}}_{\mu }\varphi \right)\left(\overline{t}{\gamma }^{\mu }t\right)$
${𝒪}_{tW}$	$\left(\overline{Q}{\sigma }^{\mu \nu }{\tau }^{I}t\right)\tilde{\varphi }{W}_{\mu \nu }^I$
${𝒪}_{tB}$	$\left(\overline{Q}{\sigma }^{\mu \nu }t\right)\tilde{\varphi }{B}_{\mu \nu }$

Table 10. Table 10: The expected and observed 68% and 95% confidence intervals, which include the value 0 0 , for 𝒞 i / Λ 2 subscript 𝒞 𝑖 superscript Λ 2 \mathcal{C}_{i}/\Lambda^{2} for the EFT coefficients 𝒞 ϕ ​ Q ( 3 ) superscript subscript 𝒞 italic-ϕ 𝑄 3 \mathcal{C}_{\phi Q}^{(3)} , 𝒞 ϕ ​ t subscript 𝒞 italic-ϕ 𝑡 \mathcal{C}_{\phi t} , 𝒞 t ​ B subscript 𝒞 𝑡 𝐵 \mathcal{C}_{tB} and 𝒞 t ​ W subscript 𝒞 𝑡 𝑊 \mathcal{C}_{tW} . The intervals for 𝒞 ϕ ​ Q ( 3 ) superscript subscript 𝒞 italic-ϕ 𝑄 3 \mathcal{C}_{\phi Q}^{(3)} are derived setting 𝒞 ϕ ​ Q ( 1 ) superscript subscript 𝒞 italic-ϕ 𝑄 1 \mathcal{C}_{\phi Q}^{(1)} to zero; the measurement is sensitive to the difference 𝒞 ϕ ​ Q ( 3 ) − 𝒞 ϕ ​ Q ( 1 ) superscript subscript 𝒞 italic-ϕ 𝑄 3 superscript subscript 𝒞 italic-ϕ 𝑄 1 \mathcal{C}_{\phi Q}^{(3)}-\mathcal{C}_{\phi Q}^{(1)} . All results are obtained by varying one coefficient at the time and are given in units of 1 / TeV 2 . 1 superscript TeV 2 1/{\text{Te\kern-1.00006ptV}}^{2}. Previous indirect 68% CL constraints [ 88 ] are also quoted. The previous direct constraints at 95% CL are obtained from Ref.  [ 10 ] for 𝒞 ϕ ​ t subscript 𝒞 italic-ϕ 𝑡 \mathcal{C}_{\phi t} and 𝒞 t ​ B subscript 𝒞 𝑡 𝐵 \mathcal{C}_{tB} and from Refs.  [ 89 , 90 ] for 𝒞 ϕ ​ Q ( 3 ) superscript subscript 𝒞 italic-ϕ 𝑄 3 \mathcal{C}_{\phi Q}^{(3)} and 𝒞 t ​ W subscript 𝒞 𝑡 𝑊 \mathcal{C}_{tW} , using Ref.  [ 83 ] to translate the measurements into limits on the coefficients. Limits from fits for the EFT coefficients with only the linear term are also shown.

Coefficients	${𝒞}_{\varphi Q}^{\left(3\right)}/{\Lambda }^2$	${𝒞}_{\varphi t}/{\Lambda }^2$	${𝒞}_{tB}/{\Lambda }^2$	${𝒞}_{tW}/{\Lambda }^2$
Previous indirect constraints at 68% CL	[–4.7, 0.7]	[–0.1, 3.7]	[–0.5, 10]	[–1.6, 0.8]
Previous direct constraints at 95% CL	[–1.3, 1.3]	[–9.7, 8.3]	[–6.9, 4.6]	[–0.2, 0.7]
Expected limit at 68% CL	[–2.1, 1.9]	[–3.8, 2.7]	[–2.9, 3.0]	[–1.8, 1.9]
Expected limit at 95% CL	[–4.5, 3.6]	[–23, 4.9]	[–4.2, 4.3]	[–2.6, 2.6]
Observed limit at 68% CL	[–1.0, 2.7]	[–2.0, 3.5]	[–3.7, 3.5]	[–2.2, 2.1]
Observed limit at 95% CL	[–3.3, 4.2]	[–25, 5.5]	[–5.0, 5.0]	[–2.9, 2.9]
Expected limit at 68% CL (linear)	[–1.9, 2.0]	[–3.0, 3.2]	–	–
Expected limit at 95% CL (linear)	[–3.7, 4.0]	[–5.8, 6.3]	–	–
Observed limit at 68% CL (linear)	[–1.0, 2.9]	[–1.8, 4.4]	–	–
Observed limit at 95% CL (linear)	[–2.9, 4.9]	[–4.8, 7.5]	–	–

Table 11. Table 11: The definitions and ranking of input variables for the BDT in the OS dilepton analysis. Jets and leptons are ordered in descending order of p T subscript 𝑝 T p_{\text{T}} . Only the first eight jets are considered when calculating the input variables.

	Ranking
Definition	6j1b	5j2b	6j2b
$p_{\text{T}}$ of the lepton pair	8	11	8
$p_{\text{T}}$ of the fourth jet	6	12	6
$p_{\text{T}}$ of the fifth jet	–	14	–
$p_{\text{T}}$ of the sixth jet	9	–	11
$\Delta R_{\eta }$ between the two leptons	7	8	12
Number of jet pairs with mass within a window of 30 GeV around 85 GeV	4	6	4
Number of three-jet combinations (containing exactly one $b$-tagged jet) compatible with a top quark () and ()	–	–	17
Invariant mass of the two jets with the smallest $\Delta R_{\eta }$	13	7	14
Invariant mass of the two untagged jets with the highest $p_{\text{T}}$	15	13	–
Invariant mass of the two jets with the highest value of the $b$-tagging discriminant	–	10	9
Scalar sum of $p_{\text{T}}$ divided by the sum of energy of all jets	2	1	2
Average $\Delta R_{\eta }$ of all jet pairs	5	4	5
Maximum invariant mass of a lepton and the $b$-tagged jet with the smallest $\Delta R_{\eta }$	14	–	13
First Fox–Wolfram moment built from jets and leptons	3	2	1
Sum of jet $p_{\text{T}}$, using up to six jets	12	5	10
$\eta$ of dilepton system	1	3	3
Sum of the two closest two-jet invariant masses from ${\mathrm{jjj}}_1$ and ${\mathrm{jjj}}_2$ divided by two	10	–	15
$\Delta R_{\eta }$ between two jets with the highest value of the $b$-tagging discriminant in the event	–	9	7
$p_{\text{T}}$ of the $b$-tagged jet with the highest $p_{\text{T}}$	11	–	16

Equations

$${\sigma }_{\text{tot},i}={\sigma }_{\text{SM}}+\frac{{\mathcal{C}}_i}{(\Lambda /1\text{TeV}{)}^2}{\sigma }_i^{(1)}+\frac{{\mathcal{C}}_i^2}{(\Lambda /1\text{TeV}{)}^4}{\sigma }_{ii}^{(2)}.$$

Full text

\AtlasTitle

Measurement of the $t\bar{t}Z$ and $t\bar{t}W$ cross sections in proton–proton collisions at $\sqrt{s}=13$ TeV with the ATLAS detector \AtlasAbstractA measurement of the associated production of a top-quark pair ($t\bar{t}$) with a vector boson ($W$, $Z$) in proton–proton collisions at a center-of-mass energy of 13 TeV is presented, using $36.1$ fb*-1* of integrated luminosity collected by the ATLAS detector at the Large Hadron Collider. Events are selected in channels with two same- or opposite-sign leptons (electrons or muons), three leptons or four leptons, and each channel is further divided into multiple regions to maximize the sensitivity of the measurement. The $t\bar{t}Z$ and $t\bar{t}W$ production cross sections are simultaneously measured using a combined fit to all regions. The best-fit values of the production cross sections are $\sigma_{t\bar{t}Z}=0.95\pm 0.08_{\mathrm{stat.}}\pm 0.10_{\mathrm{syst.}}\,\mathrm{pb}$ and $\sigma_{t\bar{t}W}=0.87\pm 0.13_{\mathrm{stat.}}\pm 0.14_{\mathrm{syst.}}\,\mathrm{pb}$ in agreement with the Standard Model predictions. The measurement of the $t\bar{t}Z$ cross section is used to set constraints on effective field theory operators which modify the $t\bar{t}Z$ vertex.

\PreprintIdNumberCERN-EP-2018-331 \AtlasDate \arXivId1901.03584 \AtlasDOI10.1103/PhysRevD.99.072009 \AtlasJournalRefPhys. Rev. D 99 (2019) 072009

1 Introduction

Properties of the top quark have been explored by the Large Hadron Collider (LHC) and previous collider experiments in great detail. The production cross sections of top-quark pairs and single top quarks, as well as the top-quark mass, spin correlations and $W$ boson helicity fractions have all been measured. Other properties of the top quark are now becoming accessible, owing to the large center-of-mass energy and luminosity at the LHC. These include its coupling to the Higgs boson and electroweak neutral-current couplings, accessed by measurements of pair-produced top quarks in association with a Higgs boson [1, 2, 3, 4] or a photon [5, 6, 7, 8].

Measurements of top-quark pairs in association with a $Z$ or $W$ boson ($t\bar{t}Z$ and $t\bar{t}W$) provide a direct probe of the weak couplings of the top quark [9, 10, 11]. These couplings may be modified in the presence of physics beyond the Standard Model (BSM). Any deviations from the SM predictions due to BSM effects can be parameterized in a model-independent way using the framework of the Standard Model Effective Field Theory (SMEFT) [12, 13, 14]. If no deviations are observed, measurements of the $t\bar{t}Z$ and $t\bar{t}W$ production cross sections, $\sigma_{t\bar{t}Z}$ and $\sigma_{t\bar{t}W}$, can be used to set constraints on the weak couplings of the top quark in the SMEFT context. The $t\bar{t}Z$ and $t\bar{t}W$ processes were observed by ATLAS [15, 16] and CMS [17, 18], with measured cross sections compatible with the SM prediction. At $13\text{\,}\mathrm{TeV}$, ATLAS analysed $3.2\text{\,}{\mathrm{fb}}^{-1}$ of data using the same-sign dimuon, trilepton and tetralepton channels, and measured $\sigma_{t\bar{t}Z}=0.9\pm 0.3$ pb and $\sigma_{t\bar{t}W}=1.5\pm 0.8$ pb, while CMS analysed $35.9\text{\,}{\mathrm{fb}}^{-1}$ and measured $0.99^{+0.15}_{-0.13}$ pb and $0.77^{+0.18}_{-0.16}$ pb, respectively.

The production of $t\bar{t}Z$ and $t\bar{t}W$ is often an important background in searches involving final states with multiple leptons and $b$-quarks. These processes also constitute an important background in measurements of the associated production of the Higgs boson with top quarks.

This paper presents measurements of the $t\bar{t}Z$ and $t\bar{t}W$ cross sections using proton–proton ($pp$) collision data at a center-of mass energy $\sqrt{s}=13\,\text{Te\kern-1.00006ptV}$ corresponding to an integrated luminosity of 36.1\,\mbox{fb{}^{-1}}, collected by the ATLAS detector in 2015 and 2016. The final states of top-quark pairs produced in association with a $Z$ or a $W$ boson contain up to four isolated, prompt leptons.111In this paper, lepton is used to denote electron or muon, and prompt lepton is used to denote a lepton produced in a $Z$ or $W$ boson decay, or in the decay of a $\tau$-lepton which arises from a $Z$ or $W$ boson decay. In this analysis, events with two opposite-sign (OS) or same-sign (SS) leptons, three leptons or four leptons are considered. The dominant backgrounds in these four channels are $Z$+jets and $t\bar{t}$, events with non-prompt or misidentified leptons, $WZ$, and $ZZ$ production, respectively. An interpretation of the $t\bar{t}Z$ cross-section measurement in the SMEFT framework is also performed.

2 The ATLAS detector

The ATLAS detector [19] consists of three main subsystems: an inner tracking system, electromagnetic (EM) and hadronic calorimeters, and a muon spectrometer (MS). The inner detector (ID) consists of a high-granularity silicon pixel detector, including the insertable B-layer [20, 21], which is the innermost layer of the tracking system, and a silicon microstrip tracker, together providing precision tracking in the pseudorapidity222ATLAS uses a right-handed coordinate system with its origin at the nominal interaction point (IP) in the center of the detector and the $z$-axis along the beam pipe. The $x$-axis points from the IP to the center of the LHC ring, and the $y$-axis points upward. Cylindrical coordinates $(r,\phi)$ are used in the transverse plane, $\phi$ being the azimuthal angle around the $z$-axis. The pseudorapidity is defined in terms of the polar angle $\theta$ as $\eta=-\ln\tan(\theta/2)$. range $|\eta|<2.5$, followed by a transition radiation tracker covering $|\eta|<2.0$. All these systems are immersed in a $2\text{\,}\mathrm{T}$ magnetic field provided by a thin superconducting solenoid. The EM sampling calorimeter uses lead and liquid argon (LAr) and is divided into barrel ($|\eta|<1.475$) and endcap ($1.375<|\eta|<3.2$) regions. Hadronic calorimetry is provided by a steel/scintillator-tile calorimeter, segmented into three barrel structures, in the range $|\eta|<1.7$, and by two copper/LAr hadronic endcap calorimeters that cover the region $1.5<|\eta|<3.2$. The solid angle coverage is completed with forward copper/LAr and tungsten/LAr calorimeter modules, optimized for EM and hadronic measurements, respectively, covering the region $3.1<|\eta|<4.9$. The muon spectrometer measures the deflection of muons in the range $|\eta|<2.7$ using multiple layers of high-precision tracking chambers located in toroidal magnetic fields. The field integral of the toroids ranges between $2.0\text{\,}\mathrm{T}\mathrm{m}$ and $6.0\text{\,}\mathrm{T}\mathrm{m}$ for most of the detector. The muon spectrometer is also instrumented with separate trigger chambers covering $|\eta|<2.4$. A two-level trigger system [22], using custom hardware followed by a software-based trigger level, is used to reduce the event rate to an average of around $1\text{\,}\mathrm{k}\mathrm{H}\mathrm{z}$ for offline storage.

3 Data and simulated event samples

The data were collected with the ATLAS detector during 2015 and 2016 at a proton–proton ($pp$) collision energy of $13\text{\,}\mathrm{TeV}$. The bunch spacing was $25\text{\,}\mathrm{n}\mathrm{s}$ and the mean number of interactions per bunch crossing was 14 (25) in 2015 (2016). With strict data-quality requirements, the integrated luminosity considered corresponds to 36.1\,\mbox{fb{}^{-1}} [23, 24].

Monte Carlo (MC) simulation samples are used to model the expected signal and background distributions in the different control, validation and signal regions described below. The heavy-flavor hadron decays involving $b$- and $c$-quarks, particularly important in this measurement, were modeled using EvtGen [25] v1.2.0, except for those processes modeled using the Sherpa [26] generator, as described below. In all samples the top-quark mass was set to $172.5\,\text{Ge\kern-1.00006ptV},$ and the Higgs boson mass was set to $125\,\text{Ge\kern-1.00006ptV}$. The response of the detector to stable333A particle is considered stable if $c\tau\geq 1$ cm. particles was emulated by a dedicated simulation [27] based either fully on Geant [28], or on a faster simulation [29] using a parameterized calorimeter response and Geant for other detector systems. To account for additional $pp$ interactions from the same and nearby bunch crossings (pileup), minimum-bias interactions generated using Pythia v8.186 [30], referred to as Pythia 8 in the following, with the A2 [31] set of tuned MC parameters (A2 tune) were superimposed on the hard-scattering events.

Simulated events were corrected using per-event weights to describe the distribution of the average number of interactions per proton bunch-crossing as observed in data. All samples were processed through the same reconstruction software as used for the data. Simulated events were corrected so that the object identification, reconstruction and trigger efficiencies, energy scales and energy resolutions match those determined from data control samples.

The associated production of a top-quark pair with one or two vector bosons was generated at next-to-leading order (NLO) with MadGraph5_aMC@NLO [32] (referred to in the following as MG5_aMC) version 2.3.2 interfaced to Pythia 8. The cross sections for the $t\bar{t}Z$ and $t\bar{t}W$ processes at $13\text{\,}\mathrm{TeV}$, computed including NLO QCD and electroweak corrections using MG5_aMC, are $\sigma_{t\bar{t}Z}=0.88\,\text{pb}$ and $\sigma_{t\bar{t}W}=0.60\,\text{pb}$ with an uncertainty of $\sim\!\!12\%$ [33, 32, 34]. The uncertainty is primarily due to higher-order QCD corrections, estimated by varying the renormalization ($\mu_{\textsc{r}}$) and factorization ($\mu_{\textsc{f}}$) scales. The $\gamma^{*}$ contribution and the $Z/\gamma^{*}$ interference were included in the $t\bar{t}Z$ samples, with the dilepton invariant mass ($m_{\ell\ell}$) required to be above 5 GeV. The NNPDF2​.​3NLO parton distribution function (PDF) set [35] was used in the matrix-element (ME) computation. The A14 [36] set of tuned MC parameters (A14 tune) was used together with the NNPDF2​.​3LO PDF set [37] in the parton shower.

The $t$-channel production of a single top quark in association with a $Z$ boson ($tZ$) was generated at leading order (LO) using MG5_aMC v2.2.3 interfaced to Pythia v6.427 [38], referred to as Pythia 6 in the following, with the CTEQ6L1 [39] PDF set and the Perugia2012 [40] set of tuned MC parameters at NLO in QCD. The four-flavor scheme was used in the generation, and the sample was normalized using the cross section computed at NLO in QCD using MG5_aMC.

The production of a single top quark together with a $W$ and a $Z$ boson ($tWZ$) was generated with MG5_aMC v2.3.3 using the NNPDF3​.​0NLO PDF set [35]. The generation was performed at NLO in QCD using the five-flavor scheme. Diagrams containing a top-quark pair were removed to avoid overlap with the $t\bar{t}Z$ process. The parton shower was modeled by Pythia 8 with the A14 tune. The sample was normalized using the NLO cross section obtained from the generator.

Events containing $Z$ or $W$ bosons with associated jets were simulated using the Sherpa 2.2.1 event generator. The matrix-element calculation was performed using Comix [41] and OpenLoops [42] for up to two partons at NLO and four partons at LO, and merged with the Sherpa parton shower [43] according to the ME+PS@NLO prescription [44]. The NNPDF3​.​0NNLO PDF set was used in conjunction with dedicated parton-shower tuning developed by the Sherpa authors. The $Z/W$ + jets samples were normalized to next-to-next-to-leading-order (NNLO) QCD cross sections for $Z/W$ production calculated by the FEWZ program [45].

Diboson processes with four charged leptons ($4\ell$), three charged leptons and one neutrino ($\ell\ell\ell\nu$) or two charged leptons and two neutrinos ($\ell\ell\nu\nu$) were simulated using the Sherpa 2.1.1 generator. The matrix elements included all diagrams with four electroweak vertices. They were calculated including up to three partons at LO, and the CT10 PDF set [46] was used in conjunction with a dedicated parton-shower tune developed by the Sherpa authors. The invariant mass of any two opposite-sign, same-flavor (OSSF) leptons was required to be greater than $5\text{\,}\mathrm{GeV}$ in the generated events.

The production of three massive vector bosons with subsequent leptonic decays of all three bosons was modeled at LO with the Sherpa 2.1.1 generator and the CT10 PDF set. Up to two additional partons were included in the matrix element at LO and the full NLO accuracy was used for the inclusive process.

Electroweak processes involving the vector-boson scattering (VBS) diagram and producing two same-sign leptons, two neutrinos and two partons were modeled using Sherpa 2.1.1 at LO accuracy and the CT10 PDF set. Processes of orders four and six in the electroweak coupling constant were considered, and up to one additional parton was included in the matrix element. Other VBS processes are found to be negligible in the analysis regions considered.

The Powheg-Box [47, 48, 49, 50] v2 generator with the NNPDF3.0NLO PDF set was used for the generation of $t\bar{t}$ events. The parton shower and the underlying event were simulated using Pythia 8 with the NNPDF2.3LO PDF set and the corresponding A14 tune. The $h_{\mathrm{damp}}$ parameter, which controls the transverse momentum of the first gluon emission beyond the Born configuration, was set to 1.5 times the top-quark mass. The $t\bar{t}$ samples were normalized to the NNLO cross-section predictions, including soft-gluon resummation to next-to-next-to-leading-logarithm order, as calculated with the Top++2.0 [51] program.

Electroweak $s$-channel and $t$-channel single-top-quark events, and $Wt$ final states, were generated with Powheg-Box v1, and the parton shower modeled by Pythia v6.428. The CT10 PDF set was used for $s$-channel production and $Wt$ events, while for $t$-channel production the four-flavor scheme was used for the NLO matrix element calculations together with the fixed four-flavor PDF set CT10f4. Diagram removal was employed to remove the overlap between $t\bar{t}$ and $Wt$ production [52]. The single-top-quark samples were normalized to the cross sections computed at NLO reported in Refs. [53, 54] for the $s$- and $t$-channels and at NLO with next-to-next-to-leading-logarithm soft-gluon corrections for $Wt$ production [55].

Samples of $t\bar{t}$ events produced in association with a Higgs boson ($t\bar{t}H$) were generated using NLO matrix elements in MG5_aMC with the NNPDF3​.​0NLO PDF set and interfaced to Pythia 8 for the modeling of the parton shower. Higgs boson production via gluon–gluon fusion (ggF) and vector-boson fusion (VBF) was generated using the Powheg-Box v2 generator with the CT10 PDF set. The parton shower and underlying event were simulated using Pythia 8 with the CTEQ6L1 PDF set and AZNLO tune. Higgs boson production with a vector boson was generated at LO using Pythia 8 with the NNPDF2​.​3LO PDF. All Higgs boson samples were normalized using theoretical calculations presented in Ref. [34].

The SM production of three and four top quarks was generated at LO with MG5_aMC+Pythia 8, using the A14 tune together with the NNPDF2​.​3LO PDF set. The samples were normalized using cross sections computed at NLO [56, 57].

The events with a $Z$ or $W$ boson in association with a photon were simulated with up to three partons at LO using Sherpa 2.1.1 (ME+PS mode) and the CT10 PDF set. They were normalized to the LO cross section obtained from the generator. The $t\bar{t}\gamma$ process was generated at LO with MG5_aMC+Pythia 8, using the A14 tune together with the NNPDF2​.​3LO PDF set and normalized to the NLO cross section. Events in the $t\bar{t}$ sample with radiated photons of high transverse momentum were vetoed to avoid overlap with those from the $t\bar{t}\gamma$ sample.

4 Object reconstruction

Electron candidates [58] are reconstructed from energy deposits (clusters) in the EM calorimeter that are associated with reconstructed tracks in the ID. Electrons are required to pass the ‘medium’ likelihood identification requirements described in Ref. [58]. In the SS dilepton channel, the ‘tight’ likelihood requirement is used instead. The electrons are also required to have transverse momentum $p_{\text{T}}>7\,\text{Ge\kern-1.00006ptV}$ and $|\eta_{\text{cluster}}|<2.47$, where $\eta_{\text{cluster}}$ is the pseudorapidity of the calorimeter energy deposit associated with the electron candidate. Candidates in the EM calorimeter barrel/endcap transition region $1.37<|\eta_{\text{cluster}}|<1.52$ are excluded.

Muon candidates are reconstructed from a fit to track segments in the various layers of the muon spectrometer, matched with tracks identified in the inner detector. Muons are required to have $p_{\text{T}}>7\,\text{Ge\kern-1.00006ptV}$ and $|\eta|<2.5$ and to pass the ‘medium’ identification requirements defined in Ref. [59]. The ‘medium’ criteria include requirements on the numbers of hits in the ID and MS as well as a compatibility requirement between momentum measurements in the ID and MS. They provide a high efficiency and purity of selected muons. Electron candidates sharing a track with a muon candidate are removed.

To reduce the background due to non-prompt leptons from hadron decays, photon conversions or jets misidentified as leptons (labeled as “fake leptons” throughout this paper), electron and muon candidates are required to be isolated. In the OS dilepton and the tetralepton channels, as well as in those trilepton regions that target the $t\bar{t}Z$ process, the total sum of the track transverse momenta in a surrounding cone of size $\Delta R_{\eta}\equiv\sqrt{(\Delta\eta)^{2}+(\Delta\phi)^{2}}=\min(10\,\text{Ge\kern-1.00006ptV}/p_{\text{T}},r_{e,\mu})$, excluding the track of the candidate, is required to be less than 6% of the candidate $p_{\text{T}}$, where $r_{e}=0.2$ and $r_{\mu}=0.3$. In addition, the sum of the cluster transverse energies in the calorimeter within a cone of size $\Delta R_{\eta}=0.2$ around any electron candidate, excluding energy deposits of the candidate itself, is required to be less than 6% of the candidate $p_{\text{T}}$.

In the SS dilepton channel and those trilepton regions targeting the $t\bar{t}W$ process, where the fake-lepton background is particularly important, tighter isolation requirements are imposed on candidate leptons. A multivariate discriminant is built to distinguish prompt leptons from leptons arising from heavy-hadron decays inside jets [1]. The discriminant uses information from charged-particle tracks in a cone around the lepton candidate. Jets are reconstructed from these tracks to obtain a track-jet, and the discriminant is constructed from information such as the angular distance between the lepton and the track-jet, the number of tracks in the track-jet and the ratio of the lepton candidate $p_{\text{T}}$ to the track-jet $p_{\text{T}}$. The rejection factor obtained for leptons from $b$-hadron decays is about 20, while the prompt-lepton efficiency is about 85% (80%) for $p_{\text{T}}\sim$20\text{,}\mathrm{GeV}$$ and reaches a plateau of $\sim 98\%$ (96%) for muons (electrons) at high $p_{\text{T}}$. Simulated events are corrected to account for differences in the prompt-lepton tagging discriminant between data and simulation.

Another important background in the SS dilepton channel arises from electrons with misidentified charge. To suppress this background, another multivariate discriminant is used, which takes as inputs various track and cluster properties of the electron candidates [1]. The discriminant provides a 95% efficiency for electrons with correct charge reconstruction while achieving a rejection factor of $\sim 17$ for electrons with misidentified charge that pass the ‘tight’ likelihood identification requirement. Correction factors are applied to selected electrons to match the efficiency of the discriminant in simulation to that measured in data.

For both the electrons and muons, the longitudinal impact parameter of the associated track relative to the primary vertex,444A primary vertex candidate is defined as a vertex with at least two associated tracks, consistent with the beam collision region. The vertex candidate with the largest sum of squared transverse momenta of its associated tracks is taken as the primary vertex. $z_{0}$, is required to satisfy $|z_{0}\sin\theta|<0.5$ mm. The significance of the transverse impact parameter $d_{0}$ is required to satisfy $|d_{0}|/\sigma(d_{0})<5$ for electrons and $|d_{0}|/\sigma(d_{0})<3$ for muons, where $\sigma(d_{0})$ is the uncertainty in $d_{0}$.

Jets are reconstructed using the anti-$k_{t}$ algorithm [60, 61] with radius parameter $R=0.4$, starting from topological energy clusters in the calorimeters [62]. The effect of pileup on jet energies is accounted for by a jet-area-based correction [63] and the energy resolution of the jets is improved by using global sequential corrections [64]. Jets are calibrated to the hadronic energy scale using energy- and pseudorapidity-dependent calibration factors derived from data. Jets are accepted if they fulfill the requirements $p_{\text{T}}>25\,\text{Ge\kern-1.00006ptV}$ and $|\eta|<2.5$. To reduce the contribution from jets associated with pileup, jets with $p_{\text{T}}<60\,\text{Ge\kern-1.00006ptV}$ and $|\eta|<2.4$ are required to satisfy pileup rejection criteria (JVT), based on a multivariate combination of track-based variables [65].

Jets are tagged as likely to contain $b$-hadrons ($b$-tagged) with a multivariate discriminant making use of the long lifetime, large decay multiplicity, hard fragmentation and high mass of $b$-hadrons [66]. For the working point used in this analysis, the average efficiency for correctly tagging a $b$-jet is approximately $77\%$, as determined in simulated $t\bar{t}$ events. In simulation, the tagging algorithm gives a rejection factor of $134$ against light-quark and gluon jets, and $6.2$ against charm-quark jets. The $b$-tagging efficiency and mistagging rates in simulation are corrected to reproduce those in data [66].

The missing transverse momentum $\mathbf{p}^{\text{miss}}_{\text{T}}$, with magnitude $E_{\text{T}}^{\text{miss}}$, is a measure of the transverse momentum imbalance due to particles escaping detection. It is computed [67] as the negative sum of the transverse momenta of all electrons, muons and jets and an additional soft term. The soft term is constructed from all tracks that are associated with the primary vertex but not with any lepton or jet. In this way, the $E_{\text{T}}^{\text{miss}}$ is adjusted for the best calibration of the jets and the other identified objects, while maintaining pileup independence in the soft term [67, 68].

To prevent double-counting of electron energy deposits as jets, the closest jet within $\Delta R_{y}=0.2$ of a reconstructed electron is removed, where $\Delta R_{y}\equiv\sqrt{(\Delta y)^{2}+(\Delta\phi)^{2}}$ and $y$ is the rapidity of the electron. If the nearest jet surviving the above criterion is within $\Delta R_{y}=0.4$ of an electron, the electron is discarded to ensure that selected electrons are sufficiently separated from nearby jet activity. To reduce the background from muons originating from heavy-flavor particle decays inside jets, muons are removed if they are separated from the nearest jet by $\Delta R_{y}<0.4$. However, if this jet has fewer than three associated tracks, the muon is kept and the jet is removed instead; this ensures that high-energy muons undergoing significant energy loss in the calorimeter are retained.

5 Event selection and background estimation

Table 1 lists the analysis channels and the targeted decay modes of the $t\bar{t}Z$ and $t\bar{t}W$ processes. Each channel is divided into multiple analysis regions in order to enhance the sensitivity to the signal. Simultaneous fits to the signal regions and dedicated control regions are performed to extract the cross sections for $t\bar{t}Z$ and $t\bar{t}W$ production.

Only events collected using single-electron or single-muon triggers are accepted. Events are required to have at least one reconstructed primary vertex. In all regions considered, at least one reconstructed lepton with $p_{\text{T}}>27\,\text{Ge\kern-1.00006ptV}$ is required to match ($\Delta R_{\eta}<0.15$) a lepton with the same flavor reconstructed by the trigger algorithm. Four channels are defined: same-sign dilepton, opposite-sign dilepton, trilepton and tetralepton.

The shapes of background distributions containing prompt leptons are modeled by simulation. The normalizations for the $WZ$ and $ZZ$ processes, as well as the production of a $Z$ boson in association with heavy-flavor (HF) jets, are taken from data control regions as defined in this section and which are included in the fit discussed in Section 7. The yields in these data control regions are extrapolated to the signal regions using simulation. Systematic uncertainties in the extrapolation are taken into account in the overall uncertainty in the background estimate.

The contribution from events containing an electron with misidentified charge (referred to as “charge-flip” in the following) is estimated from data. The charge-flip probability is extracted in events containing a pair of electrons with $m_{\ell\ell}$ close to the $Z$ boson mass. It is parameterized in $p_{\text{T}}$ and $\eta$ and is found to range from around 0.01% to 2%, increasing with $p_{\text{T}}$ and $\eta$, for electrons passing the identification and isolation criteria applied in the SS dilepton channel. The probability is extracted by maximizing a likelihood which relates the number of events in which the two electrons have the same charge to the total number of observed events. The background contribution from events other than charge-flip electrons in the same-sign region is estimated from a sideband of the $m_{\ell\ell}$ distribution and subtracted before performing the likelihood fit.

The charge-flip background contribution in any SS dilepton region is estimated by constructing a control region with identical requirements, but without any requirement on the lepton charge, and applying the appropriate charge-flip probabilities.

Background sources involving one or more fake leptons are modeled using data events from dedicated regions. For the SS dilepton ($2\ell$-SS) and trilepton channels the fake-lepton background is estimated using the matrix method [69]. The matrix method makes use of events with the same selection as the region of interest, but for which the electron identification criteria are relaxed to the ‘loose’ likelihood requirement of Ref. [58], and neither electrons nor muons are required to be isolated. These leptons are referred to as loose leptons, whereas leptons satisfying the full set of identification and isolation criteria of Section 4 are referred to as tight leptons. The fake-lepton background in any region of interest is obtained from the aforementioned events using efficiencies for prompt and fake leptons to satisfy the tight criteria.

The lepton efficiencies are extracted in control regions with a likelihood fit, by using the model of the matrix method, and assuming that the number of events with two fake leptons is negligible. The control regions are defined in dilepton events, separately for events with exactly one $b$-tagged jet and $\geq 2\,b$-tagged jets. The prompt lepton efficiencies are measured in inclusive OSSF events, while fake-lepton efficiencies are measured in events with same-sign leptons. Both the prompt and fake-lepton efficiencies are parameterized as a function of the lepton $p_{\text{T}}$. The measurement of fake-lepton efficiencies is performed after subtracting the estimated contribution from charge-flip events. Contributions from processes with two prompt same-sign leptons or one real lepton and a photon conversion (arising mainly from $t\bar{t}\gamma$ production) are estimated from simulation and are also subtracted. The prompt and fake-lepton efficiencies are extracted separately for the regions targeting $t\bar{t}Z$ and those targeting $t\bar{t}W$, due to the different lepton isolation requirements applied in the two sets of regions.

In the tetralepton channel, the matrix method is not used due to the small number of events in data with four selected leptons. Instead, the contribution from backgrounds containing fake leptons is estimated from simulation and corrected with scale factors determined in control regions. The contributions from events containing a photon conversion (denoted by $\gamma+X$) in the SS dilepton and trilepton channels are estimated from simulation and scaled with these correction factors, obtained separately for lepton type and origin.

5.1 Opposite-sign dilepton analysis

The OS dilepton analysis targets the $t\bar{t}Z$ process, where both top quarks decay hadronically and the $Z$ boson decays to a pair of leptons (electrons or muons). Events are required to have exactly two OSSF leptons. Events with additional isolated leptons are rejected. The invariant mass of the lepton pair is required to be in the $Z$ boson mass window, $|m_{\ell\ell}-m_{Z}|<$10\text{,}\mathrm{GeV}$$. The leading (subleading) lepton is required to have a transverse momentum of at least 30 (15) GeV.

The OS dilepton analysis is affected by large backgrounds from $Z$+jets or $t\bar{t}$ production, both characterized by the presence of two leptons. In order to improve the signal-to-background ratio and constrain these backgrounds from data, three separate analysis regions are considered, depending on the number of jets ($n_{\text{jets}}$) and number of $b$-tagged jets ($n_{b\text{-tags}}$): 2$\ell$-Z-5j2b, 2$\ell$-Z-6j1b and 2$\ell$-Z-6j2b. The signal region requirements are summarized in Table 2. In signal region 2$\ell$-Z-5j2b, exactly five jets are required, of which at least two must be $b$-tagged. In 2$\ell$-Z-6j1b (2$\ell$-Z-6j2b), at least six jets are required with exactly one (at least two) being $b$-tagged jets.

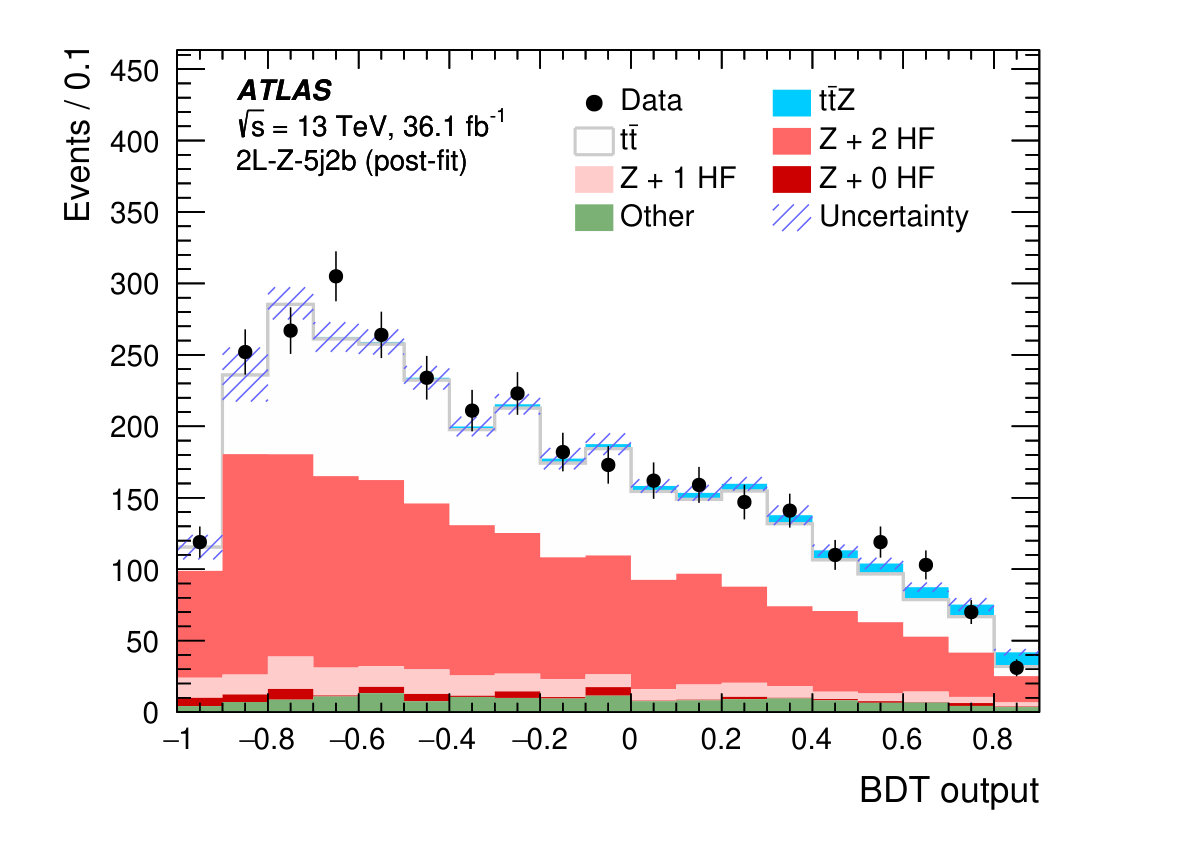

In order to separate signal from background, boosted decision trees (BDTs) are used. The BDTs are constructed and trained separately for each region against all the contributing backgrounds, using as input 15, 14 and 17 variables for 2$\ell$-Z-6j1b, 2$\ell$-Z-5j2b and 2$\ell$-Z-6j2b, respectively. Fourteen of the variables are common to the three regions. The details of the variables used are given in Table 11 in the Appendix. In all three regions, the variables with the largest discriminative power are found to be:

• •

the $\eta$ of the dilepton system,

• •

the scalar sum of transverse momenta of all jets divided by the sum of their energies,

• •

the first Fox–Wolfram moment $H_{1}$ [70].

Each of the signal regions is further divided into 19 equal-size bins of the BDT distribution. To avoid relying on simulation for the normalization of $Z$+HF jet production, the $Z$+jets background is constrained by using events with low values of the BDT discriminant. The simulated $Z$+jets background is split into three components, $Z$+0HF, $Z$+1HF and $Z$+2HF, depending on the number of reconstructed jets which are matched to a generator-level $b$- or $c$-hadron (heavy-flavor, or HF jets). The normalization factors of the $Z$+1HF and $Z$+2HF components of the $Z$+jets background are determined from the fit to data, as described in Section 7, while the normalization of the $Z$+0HF component is taken from simulation.

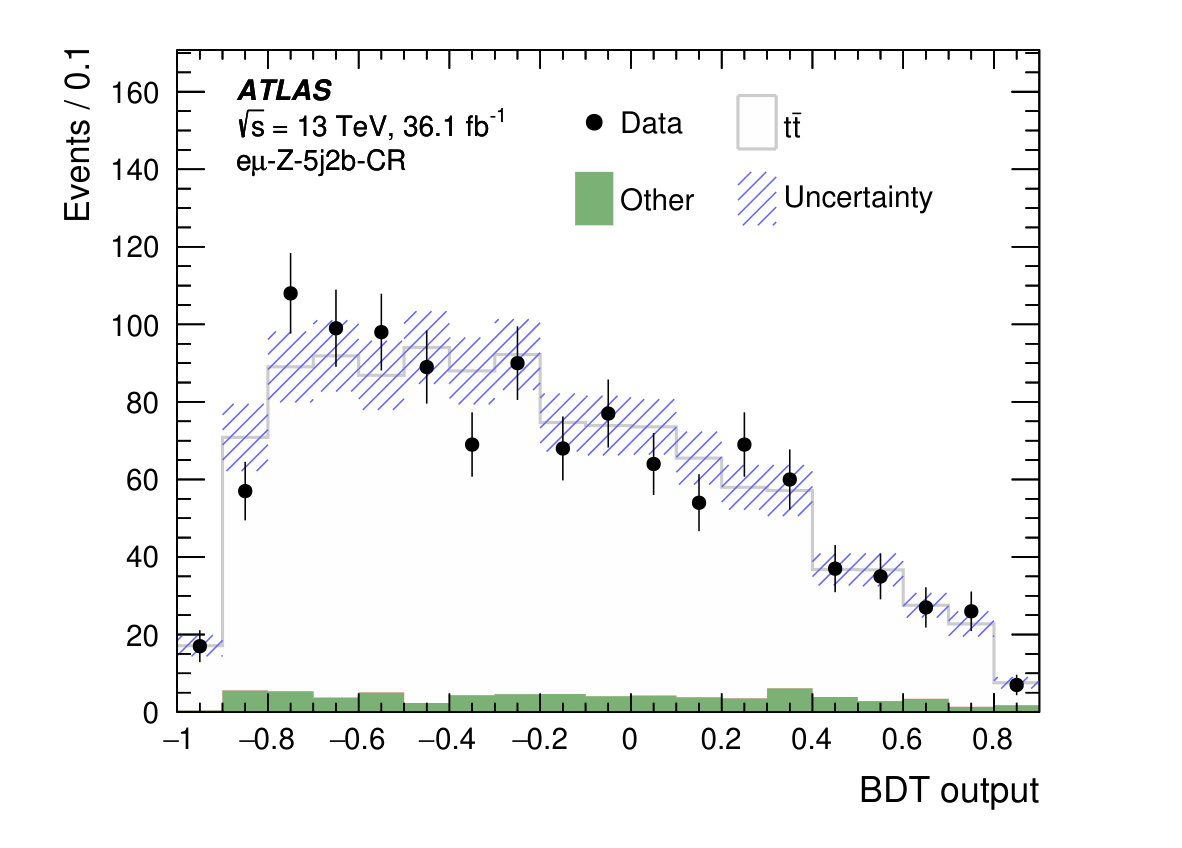

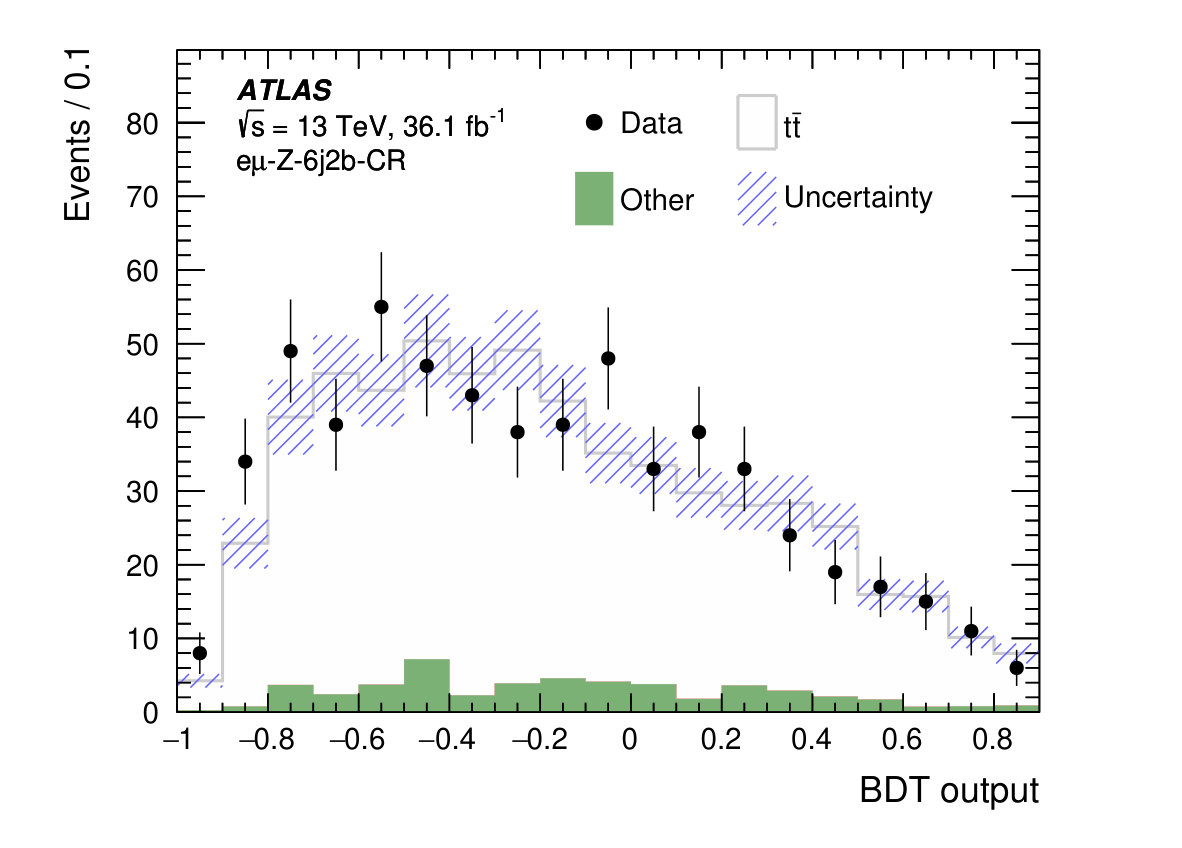

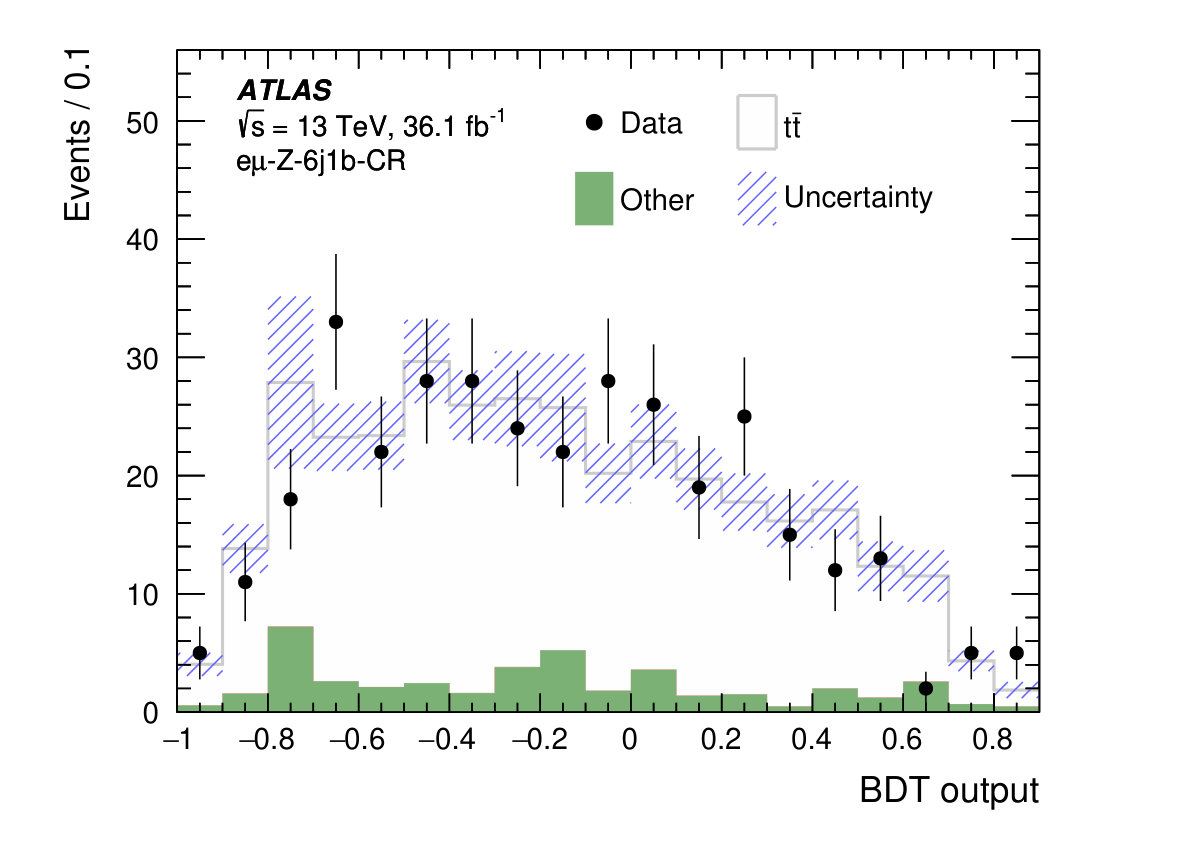

A data-driven method is used to estimate the $t\bar{t}$ background in the OS dilepton signal regions. Control regions are defined which are identical to the signal regions, except that the requirement of two leptons with the same flavor and opposite sign is replaced by the requirement of two leptons with different flavors and opposite sign. In this manner, three regions enriched in $t\bar{t}$ background are obtained. The number of $t\bar{t}$ events in each same-flavor dilepton region is estimated from corresponding opposite-flavor regions, corrected for non-$t\bar{t}$ backgrounds and differences in contributions from leptonic $\tau$-lepton decays. This procedure is applied to each bin of the distribution under consideration. Figure 1 shows the BDT distributions for the $t\bar{t}$ control regions. Agreement between the data and the expectation is observed.

5.2 Same-sign dilepton analysis

The SS dilepton signal regions target the $t\bar{t}W$ process. Events are required to have two lepton candidates with the same sign and $p_{\text{T}}>27\,\text{Ge\kern-1.00006ptV}$. The scalar sum of the $p_{\text{T}}$ of selected leptons and jets, $H_{\text{T}}$, is required to be above $240\,\text{Ge\kern-1.00006ptV}$. Events containing additional loose leptons (with $p_{\text{T}}>7\,\text{Ge\kern-1.00006ptV}$) are vetoed. Twelve signal regions are defined in total, categorized by the number of $b$-tagged jets (one or $\geq 2$) as well as the charge and the flavor of the selected leptons. The signal regions are denoted by $2\ell$-SSp-$1b$, $2\ell$-SSm-$1b$, $2\ell$-SSp-$2b$ and $2\ell$-SSm-$2b$, where “p” or “m” indicates the charge of the selected leptons. Considering separate signal regions for positive and negative charges of the leptons increases the sensitivity of the analysis since $t\bar{t}W$ events are preferentially produced with positively charged $W$ bosons, while the fake-lepton background and other processes such as $t\bar{t}Z$ and $t\bar{t}H$ are expected to be charge symmetric.

The event selection requirements in the SS dilepton regions are summarized in Table 3. The presence of at least four jets and $E_{\text{T}}^{\text{miss}}>40\,\text{Ge\kern-1.00006ptV}$ is required in all signal regions except $2\mu$-SSp-$2b$ and $2\mu$-SSm-$2b$. In these regions, the $E_{\text{T}}^{\text{miss}}$ requirement is loosened to $E_{\text{T}}^{\text{miss}}>20\,\text{Ge\kern-1.00006ptV}$, and at least two jets are required. In the $2e$ and $2\mu$ signal regions, events containing a pair of leptons whose invariant mass is within $10\,\text{Ge\kern-1.00006ptV}$ of the $Z$ boson mass are vetoed.

The control regions used to measure the fake-lepton efficiencies, as explained at the beginning of this section, are defined to be orthogonal to the SS dilepton signal regions: either the $E_{\text{T}}^{\text{miss}}$, $H_{\text{T}}$ or jet multiplicity requirements of the signal regions are not satisfied. The $t\bar{t}W$ signal contribution in the control regions where both leptons satisfy the “tight” criteria is found to be non-negligible. To enhance the sensitivity of the analysis, the latter regions are also included in the final fit used to measure the $t\bar{t}W$ cross section, as discussed in Section 7. These six regions are further split according to the charge of the leptons, and the resulting twelve regions are denoted by $2\ell$-SS(p,m)-$(1,2)b$-CR, following the same notation as for the signal regions defined above. In each control region, both leptons are required to have $p_{\text{T}}>27\,\text{Ge\kern-1.00006ptV}$, and at least one (two) jets are required in the $1b$ ($2b$) regions. In addition, events containing a pair of leptons whose invariant mass is compatible with the $Z$ boson mass are vetoed. The largest contamination from $t\bar{t}W$ is found to be $25\%$, in the region 2$\mu$-SSp$2b$-CR.

The dominant background in the $2\ell$-SS signal regions arises from events containing fake leptons. Backgrounds from the production of prompt leptons with correctly identified charge come primarily from $t\bar{t}H$ and $WZ$ production. The charge-flip background is also significant in signal regions with two electrons. In regions with two muons, this background is negligible as the probability of misidentifying the charge of a muon in the relevant $p_{\text{T}}$ range is very small. To validate the charge-flip background, a validation region called 2$e$-SS-1b-VR is constructed similarly to the $2e$-SS signal regions, except that the number of jets is required to be between one and three, to ensure orthogonality with the signal regions. The requirement on $H_{\text{T}}$ is also removed, exactly one jet is required to be $b$-tagged, and the invariant mass of the lepton pair is required to be greater than 15 GeV. The distributions of $m_{\ell\ell}$ and the leading lepton $p_{\text{T}}$ are shown in Figure 2, demonstrating good modeling of the charge-flip background.

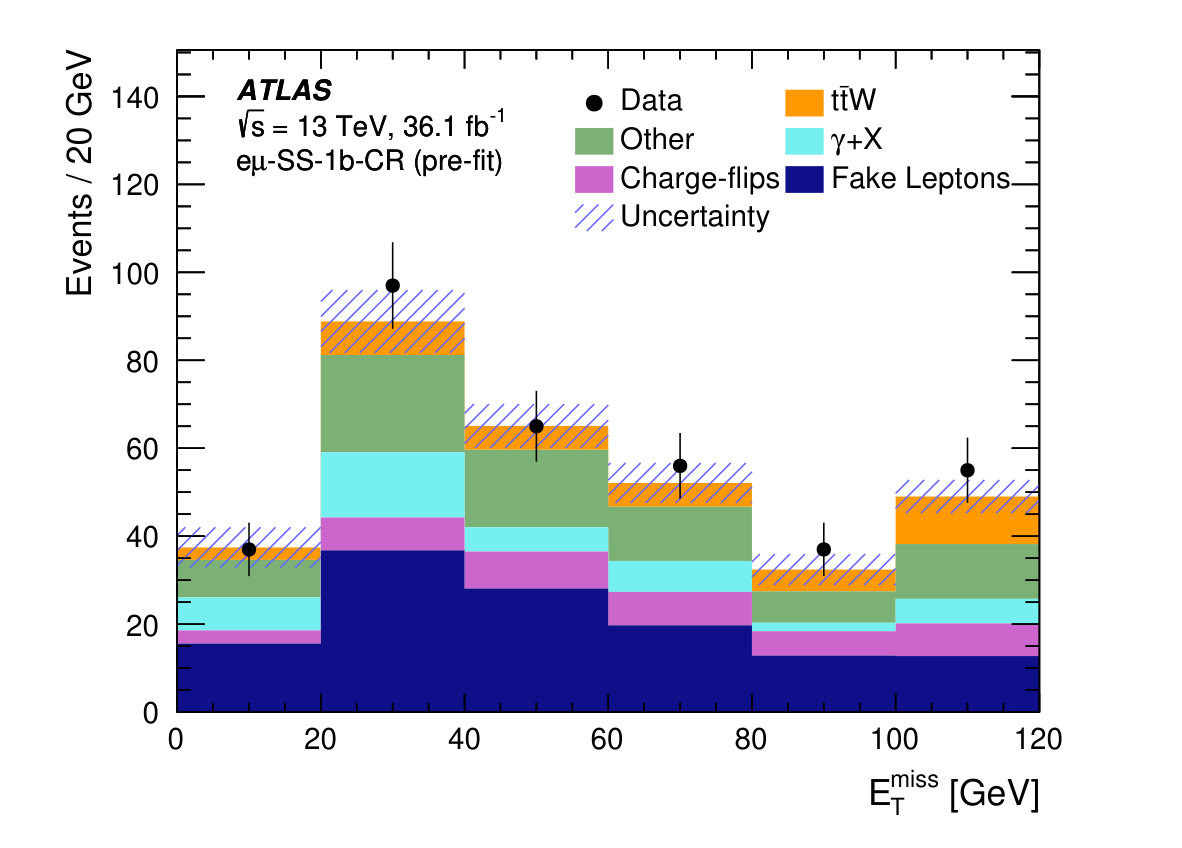

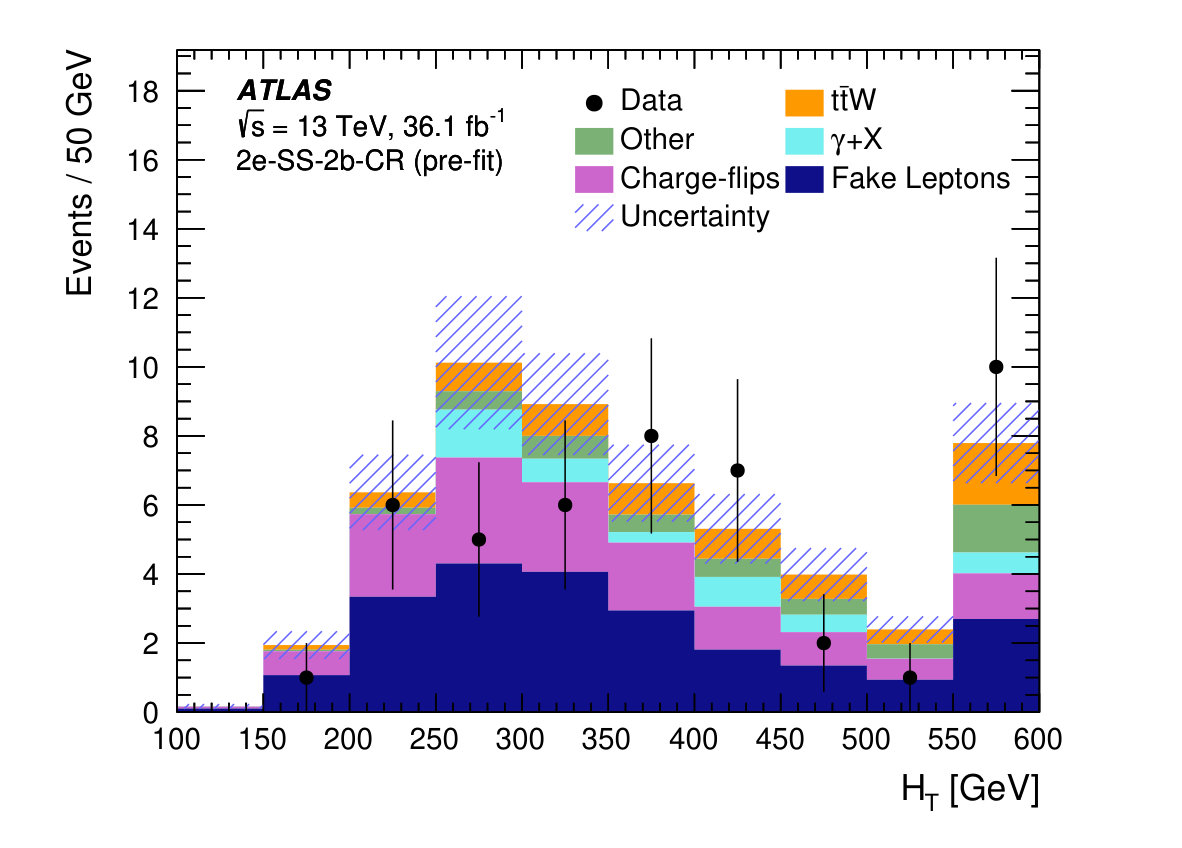

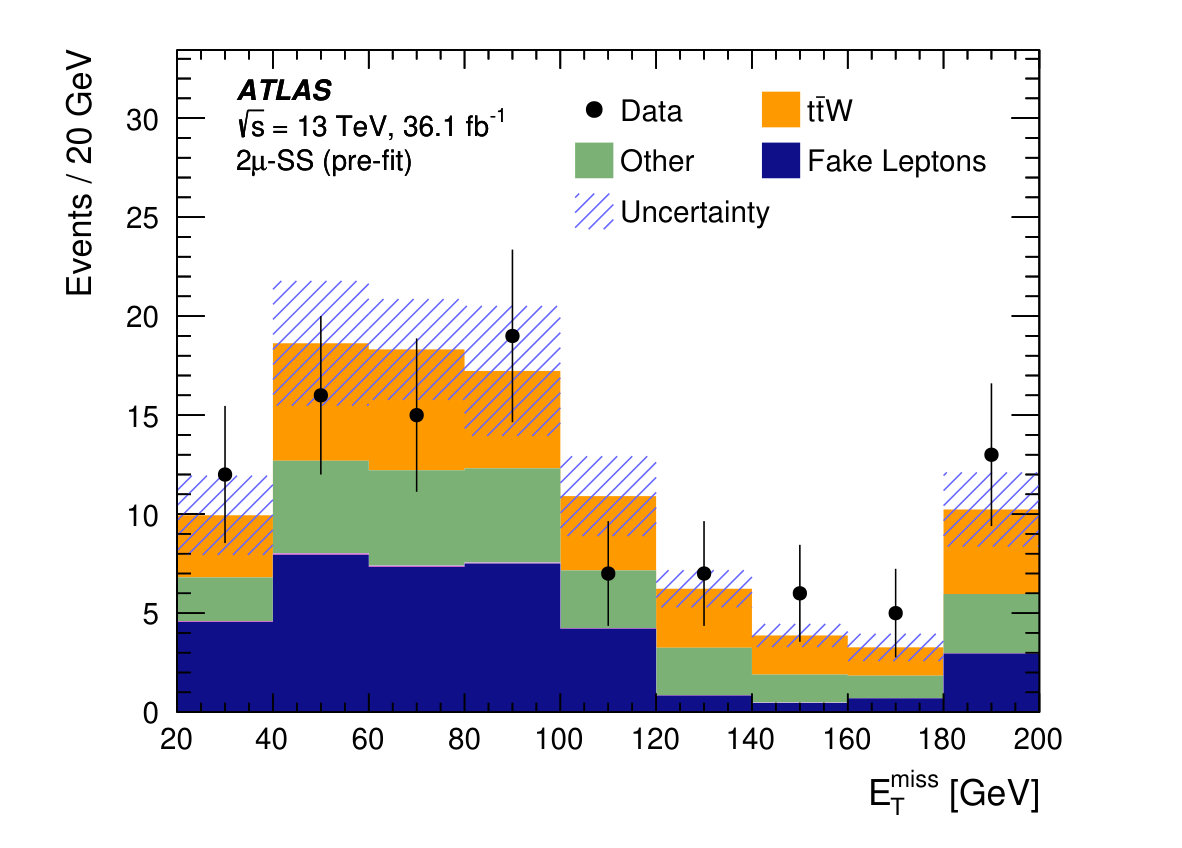

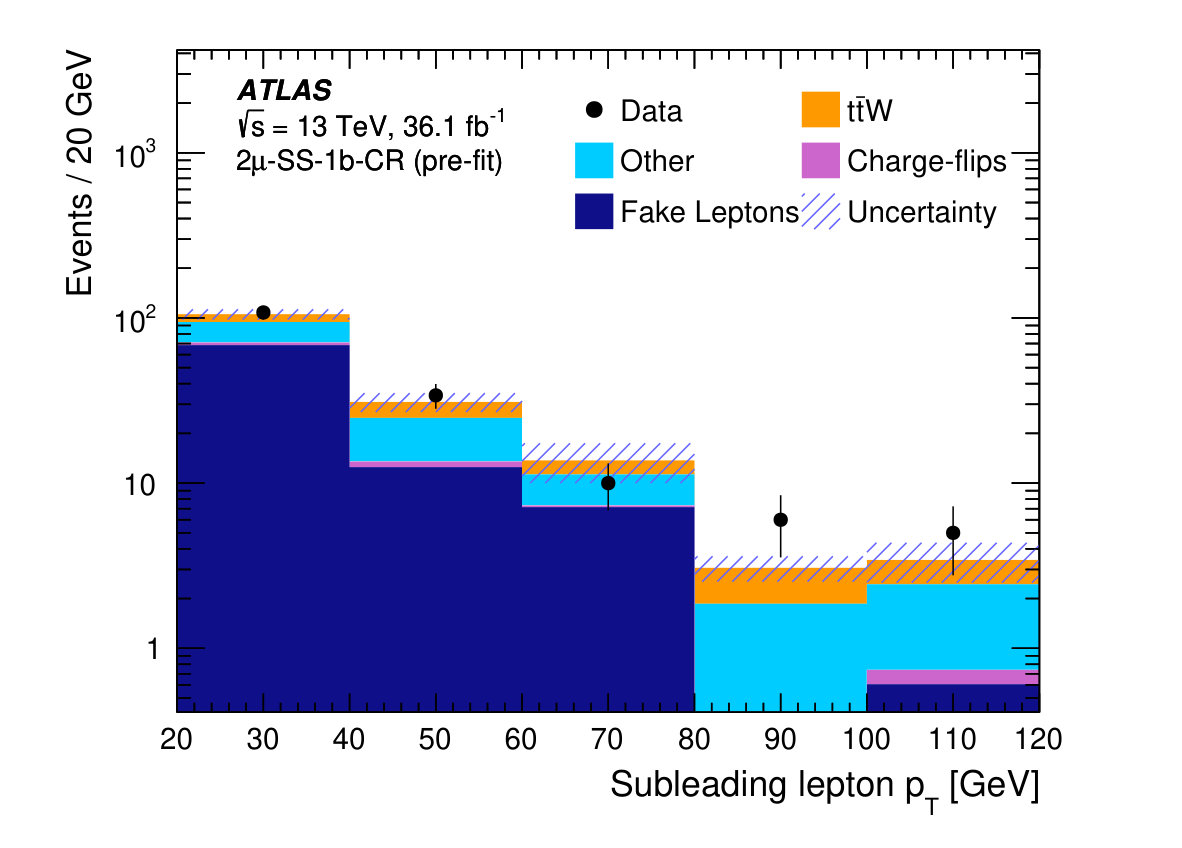

Figure 3 shows the distributions of $H_{\text{T}}$, $E_{\text{T}}^{\text{miss}}$ and the subleading lepton $p_{\text{T}}$, for the control regions $2e$-SS-$2b$-CR, $e\mu$-SS-$1b$-CR and $2\mu$-SS-$1b$-CR. The data and the expectation agree well, demonstrating the validity of the description of the fake-lepton background determined by the matrix method.

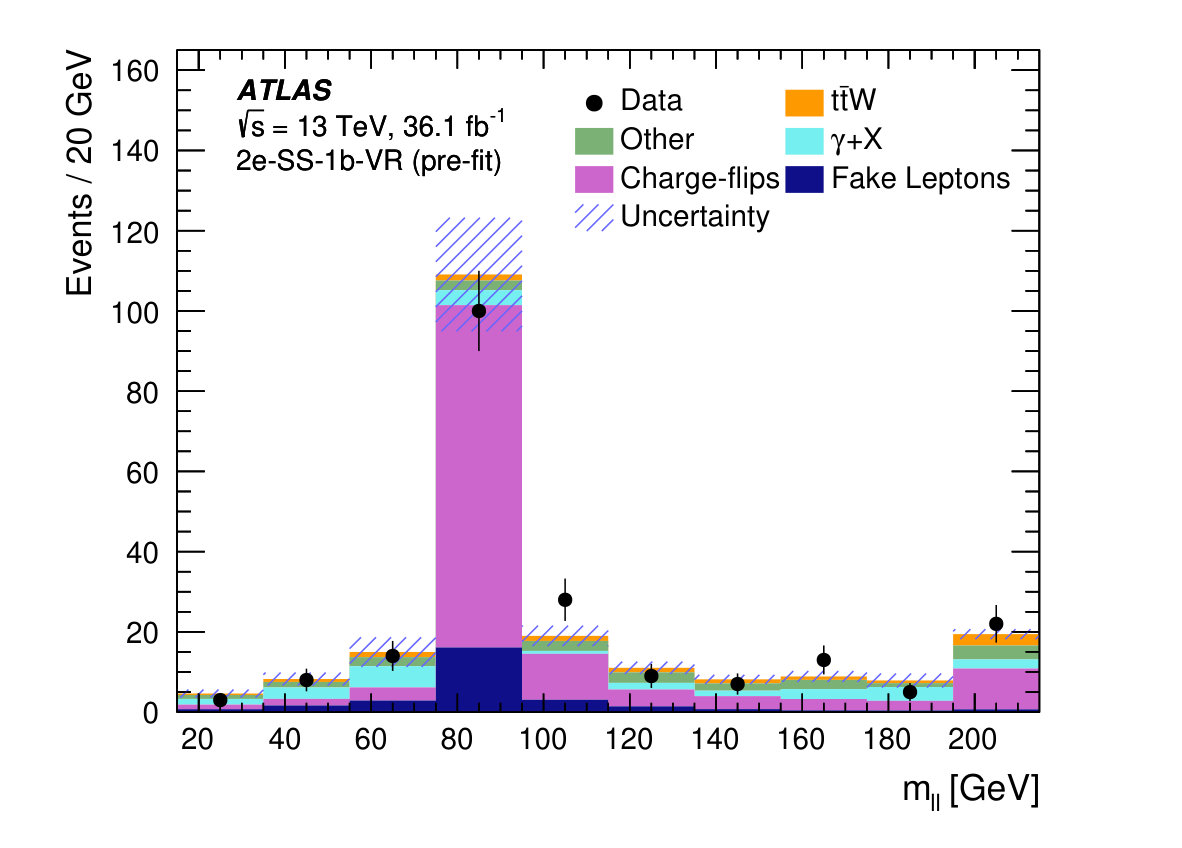

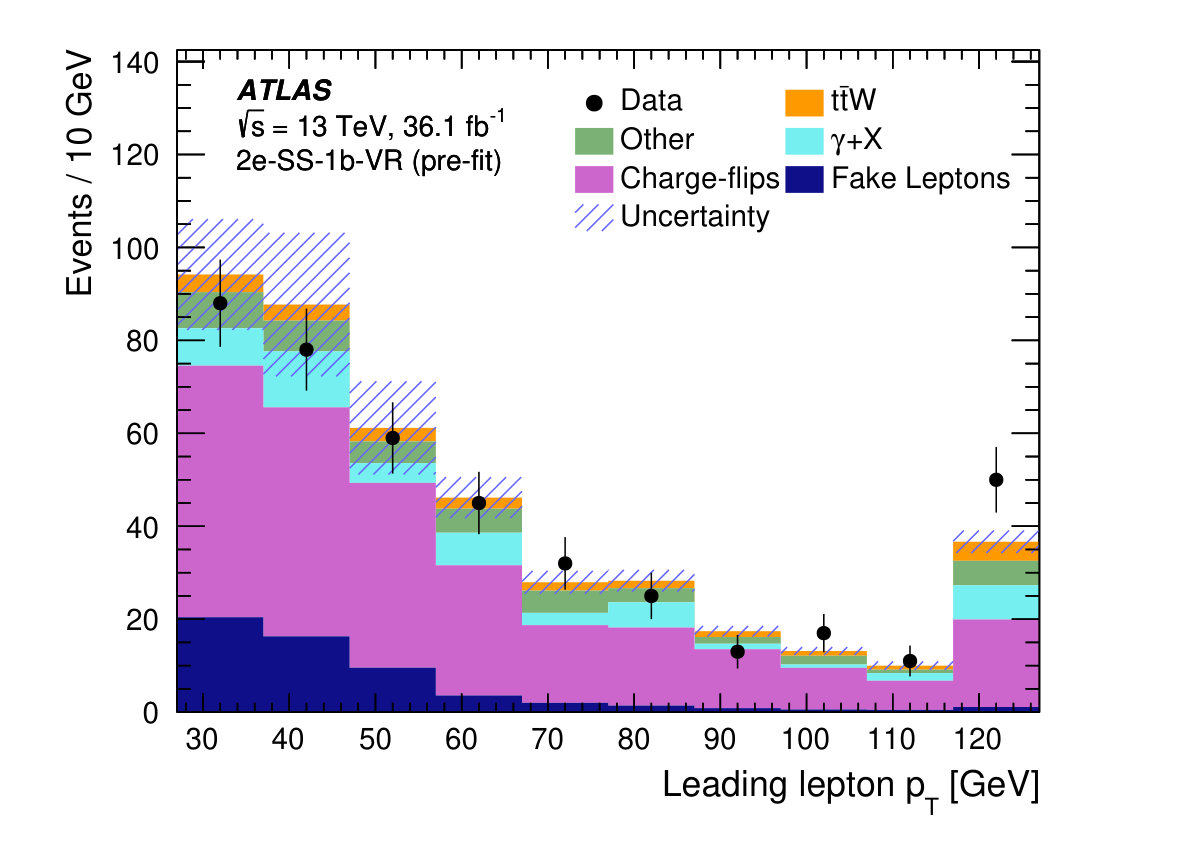

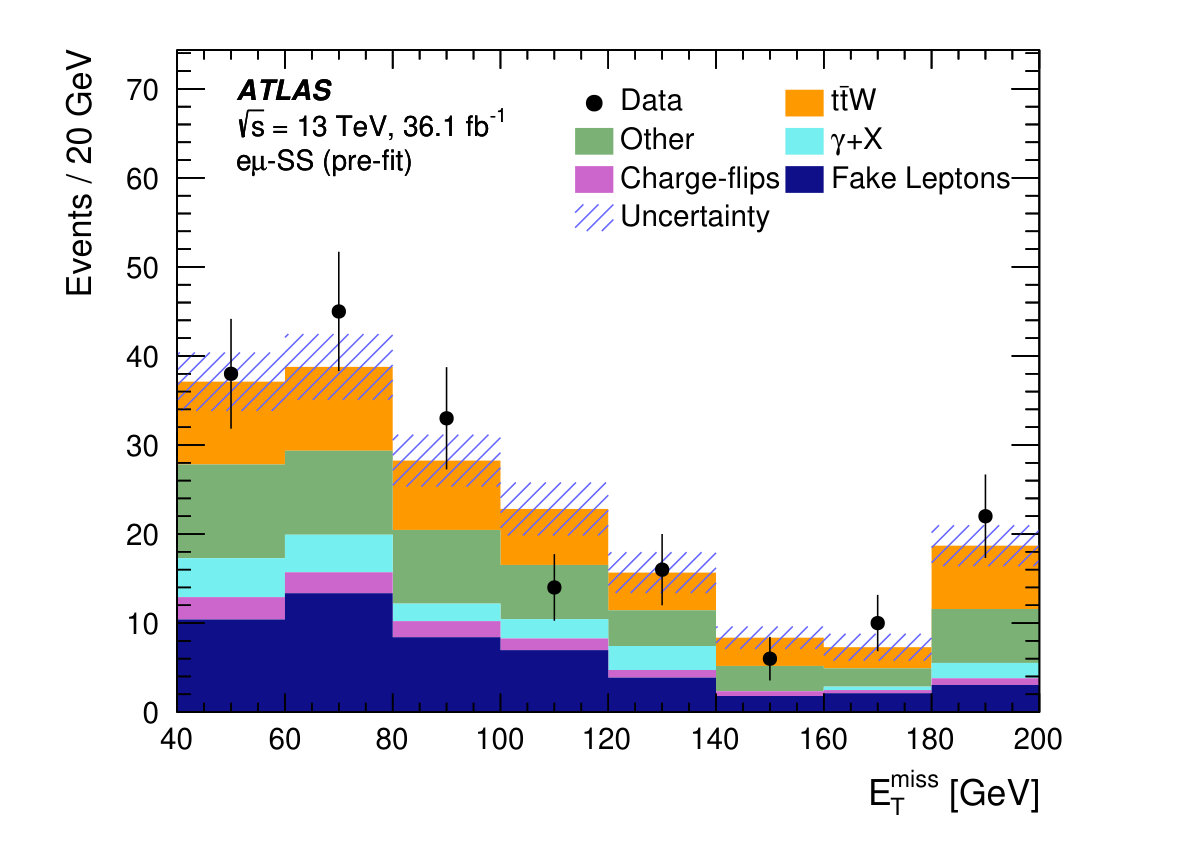

To facilitate comparisons of data with the expectation, three regions $2e$-SS, $e\mu$-SS and $2\mu$-SS are formed by combining all the same-sign signal regions corresponding to a given lepton flavor combination. The distributions of $E_{\text{T}}^{\text{miss}}$ and the number of jets for these three regions are shown in Figure 4.

5.3 Trilepton analysis

Eight signal regions with exactly three leptons are considered, four of them targeting the $t\bar{t}Z$ and four targeting the $t\bar{t}W$ process, as defined in Tables 4 and 5, respectively. The regions are divided into two groups depending on whether or not a pair of OSSF leptons with invariant mass within $10\,\text{Ge\kern-1.00006ptV}$ of the $Z$ boson mass is present. The signal regions are further categorized according to jet and $b$-tagged jet multiplicities.

The four signal regions in the first group are sensitive to $t\bar{t}Z$. In the 3$\ell$-Z-1b4j region, at least four jets are required, exactly one of which is $b$-tagged. In the 3$\ell$-Z-2b3j region, exactly three jets with at least two $b$-tagged jets are required. In the 3$\ell$-Z-2b4j region, at least four jets are required, of which at least two are $b$-tagged. In the 3$\ell$-noZ-2b4j region, targeting events with an off-shell $Z^{*}$ or $\gamma^{*}$, at least four jets are required, of which at least two are $b$-tagged; no OSSF lepton pair is allowed in the $Z$ boson mass window. The sum of the lepton charges must be $\pm$1.

The remaining four trilepton signal regions target the $t\bar{t}W$ process. These regions require two or three jets and veto events that contain an OSSF pair of leptons whose invariant mass is within $10\,\text{Ge\kern-1.00006ptV}$ of the $Z$ boson mass. In the first two regions, 3$\ell$p-noZ-2b2j and 3$\ell$m-noZ-2b2j, at least two jets are required to be $b$-tagged. In the other two regions, 3$\ell$p-noZ-1b2j and 3$\ell$m-noZ-1b2j, exactly one jet is required to be $b$-tagged. The sum of lepton charges is required to be +1 (–1) in 3$\ell$p-noZ-2b2j and 3$\ell$p-noZ-1b2j (3$\ell$m-noZ-2b2j and 3$\ell$m-noZ-1b2j). In regions 3$\ell$p-noZ-1b2j and 3$\ell$m-noZ-1b2j, $H_{\text{T}}>240\,\text{Ge\kern-1.00006ptV}$ is also required. The signal region definitions for the trilepton channel are summarized in Tables 4 and 5 for the signal regions targeting $t\bar{t}Z$ and $t\bar{t}W$, respectively.

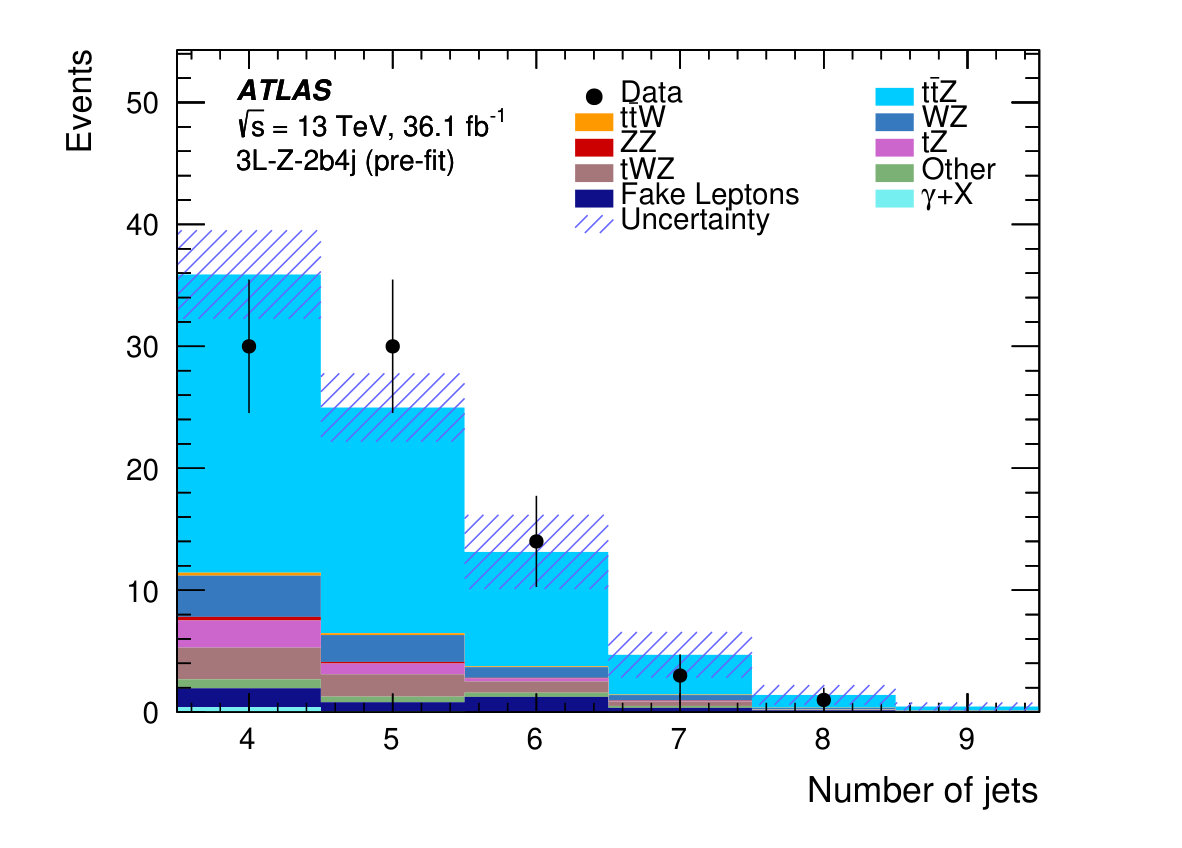

The dominant backgrounds in the 3$\ell$-Z-1b4j, 3$\ell$-Z-2b3j and 3$\ell$-Z-2b4j signal regions arise from diboson production, the production of a single top quark in association with a $Z$ boson ($tZ$ and $tWZ$) and $Z$+jets production with a fake lepton.

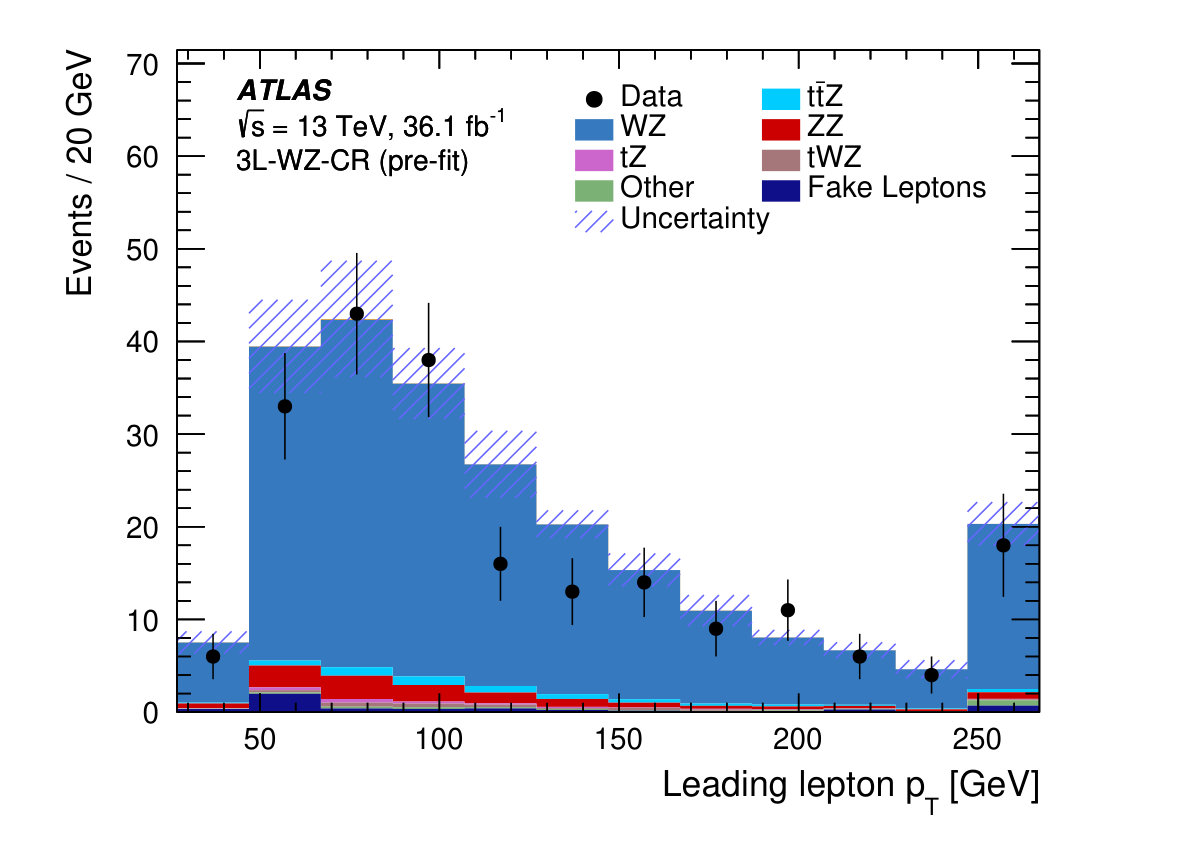

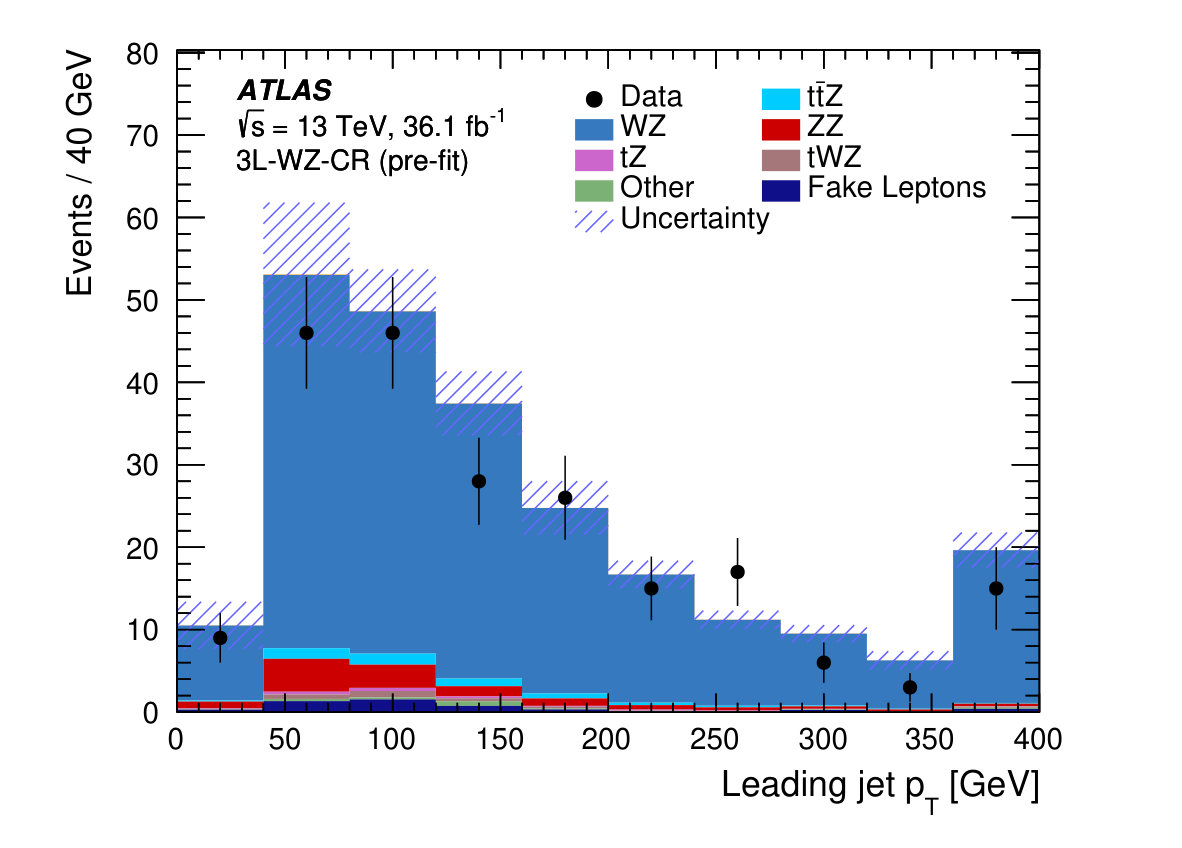

A control region is used to determine the normalization of the $WZ$+jets background in data. Exactly three leptons are required, at least one pair of which must be an OSSF pair with an invariant mass within $10\,\text{Ge\kern-1.00006ptV}$ of the $Z$ boson mass. There must be exactly three jets, none of which pass the $b$-tagging requirement. This region is referred to as 3$\ell$-WZ-CR and it is included in the fit. Distributions comparing data with SM predictions in 3$\ell$-WZ-CR  are shown in Figure 5, demonstrating good modeling of the $WZ$ background.

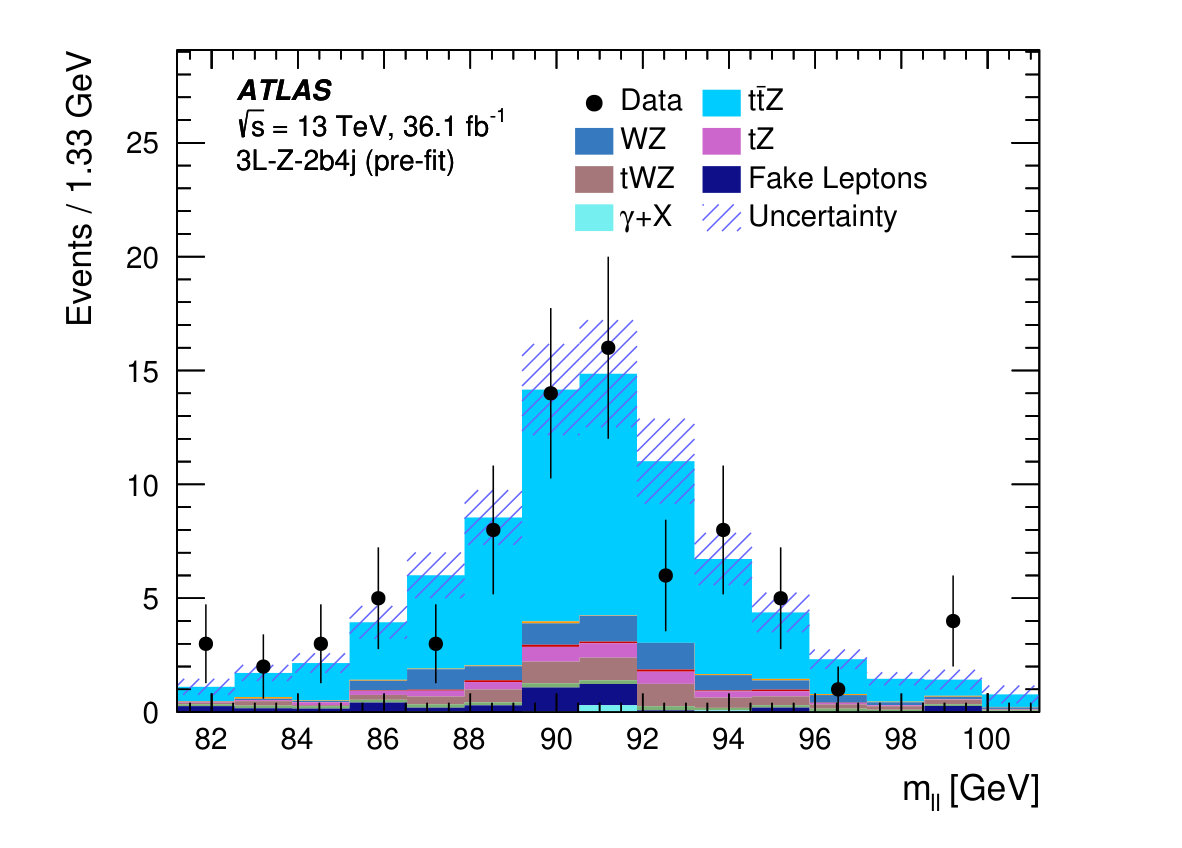

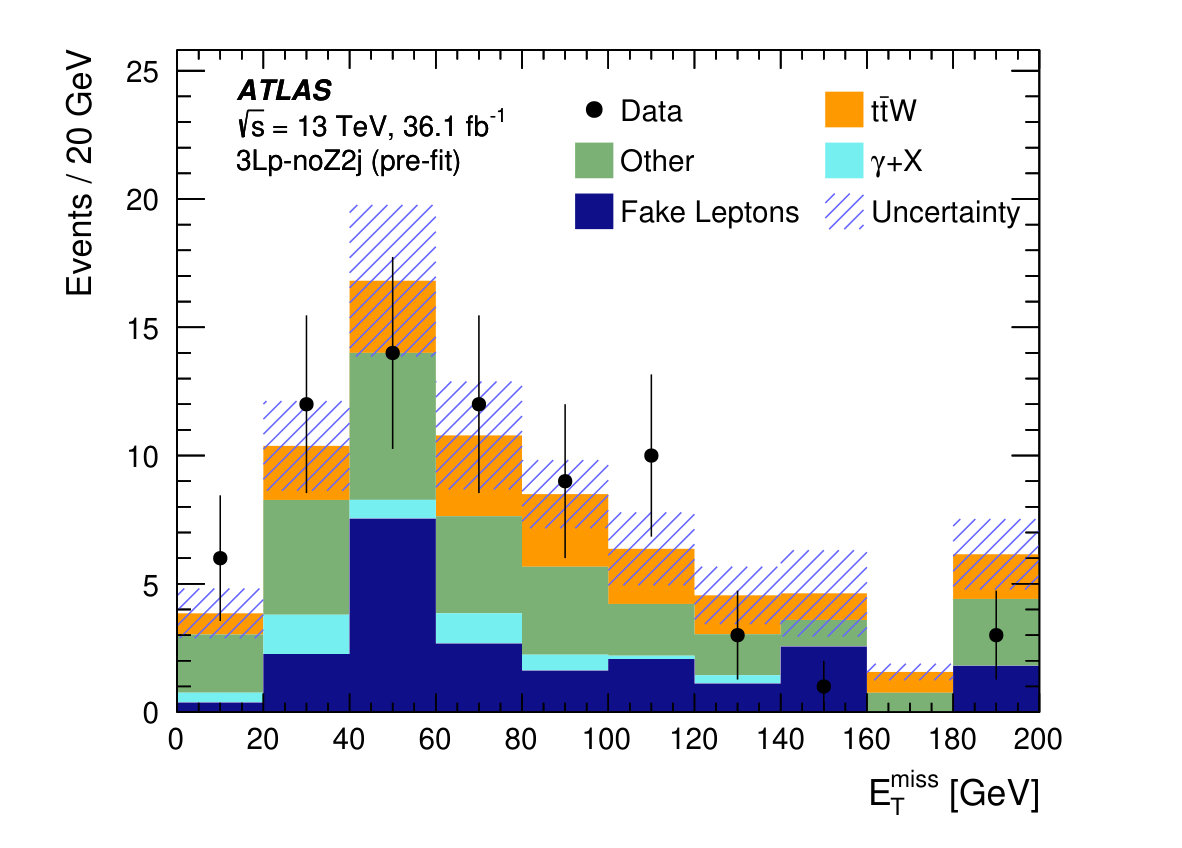

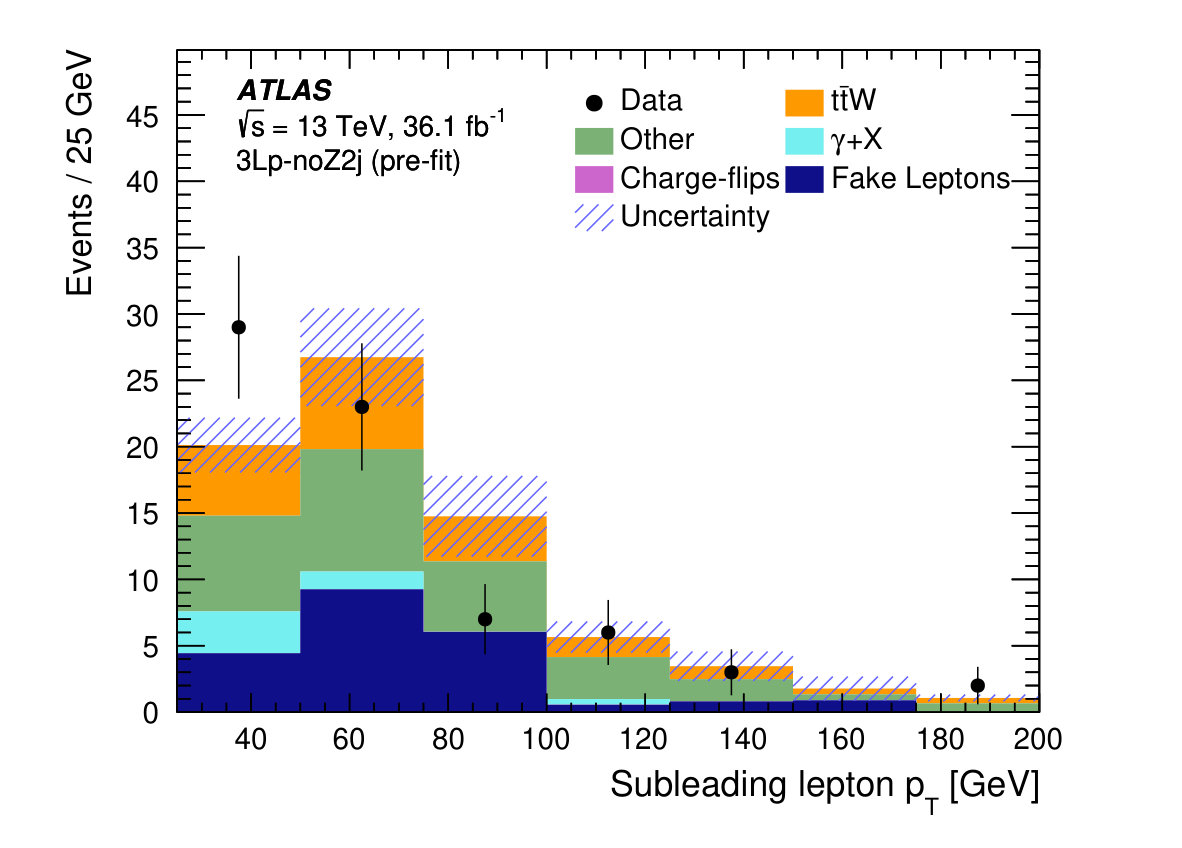

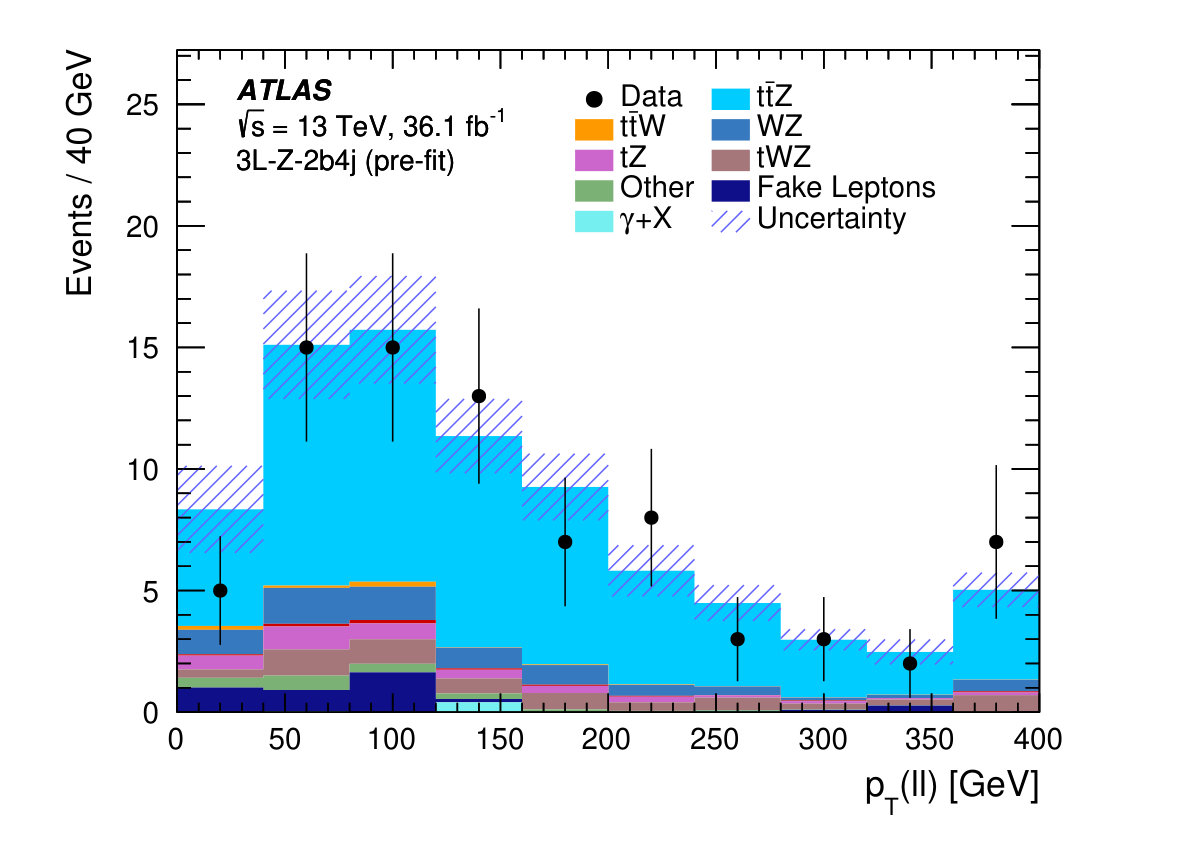

Figure 6 shows the leading lepton $p_{\text{T}}$ and $E_{\text{T}}^{\text{miss}}$ for events belonging to any of the four trilepton regions targeting $t\bar{t}W$. Distributions of the number of jets, the $p_{\text{T}}$ and mass of the reconstructed $Z$ boson candidate in the signal region most sensitive to $t\bar{t}Z$, 3$\ell$-Z-2b4j, are shown in Figure 7.

5.4 Tetralepton analysis

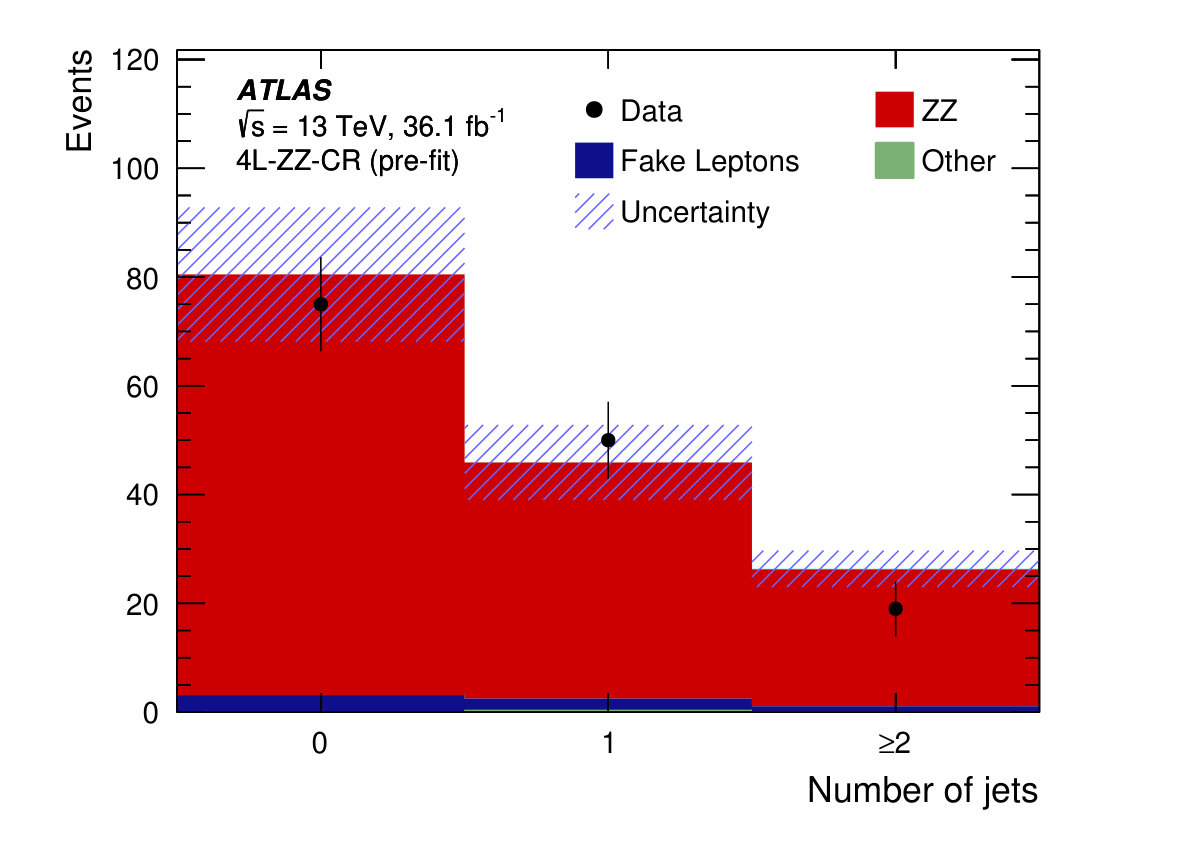

The tetralepton channel targets the $t\bar{t}Z$ process for the case where both $W$ bosons, resulting from top-quark decays, and the $Z$ boson decay leptonically. Events with two pairs of opposite-sign leptons are selected, and at least one pair must have the same flavor. The OSSF lepton pair with reconstructed invariant mass closest to $m_{Z}$ is attributed to the $Z$ boson decay and denoted in the following by $Z_{1}$. The two remaining leptons are used to define $Z_{2}$. The signal region definitions for the tetralepton channel are summarized in Table 6. Four signal regions are defined according to the relative flavor of the two $Z_{2}$ leptons, different flavor (DF) or same flavor (SF), and the number of $b$-tagged jets: one, or at least two ($1b$, $2b$). The signal regions are thus 4$\ell$-DF-1b, 4$\ell$-DF-2b, 4$\ell$-SF-1b and 4$\ell$-SF-2b.

In the same-flavor regions, requirements on $E_{\text{T}}^{\text{miss}}$ are applied to suppress the $ZZ$ background. In the 4$\ell$-SF-1b signal region, the $E_{\text{T}}^{\text{miss}}$ is required to be greater than 80 GeV (40 GeV) for events with $|m_{Z_{2}}-m_{Z}|<10$ GeV ($|m_{Z_{2}}-m_{Z}|>10$ GeV). In the 4$\ell$-SF-2b signal region, a requirement of $E_{\text{T}}^{\text{miss}}>40$ GeV is applied for events with $|m_{Z_{2}}-m_{Z}|<10$ GeV.

To suppress events with fake leptons in the 1-$b$-tag multiplicity regions, additional requirements on the scalar sum of the transverse momenta of the third and fourth leptons ($p_{\text{T34}}$) are imposed. In the 4$\ell$-SF-1b and 4$\ell$-DF-1b  regions, events are required to satisfy $p_{\text{T34}}>$25\text{,}\text{Ge\kern-1.00006ptV} and $p_{\text{T34}}>$35\text{\,}\text{Ge\kern-1.00006ptV}, respectively, while in the other regions all leptons are required to satisfy $p_{\text{T}}>$10\text{,}\mathrm{GeV}$$.

A control region used to determine the $ZZ$ normalization, referred to as 4$\ell$-ZZ-CR, is included in the fit and is defined to have exactly four reconstructed leptons, a $Z_{2}$ pair with OSSF leptons, the value of both $m_{Z_{1}}$ and $m_{Z_{2}}$ within $10\,\text{Ge\kern-1.00006ptV}$ of the mass of the $Z$ boson, and $20\,\text{Ge\kern-1.00006ptV}<E_{\text{T}}^{\text{miss}}<40\,\text{Ge\kern-1.00006ptV}$. The leading lepton $p_{\text{T}}$ and the jet multiplicity in this control region are shown in Figure 8, and good agreement is seen between data and prediction.

The contribution from backgrounds containing fake leptons is estimated from simulation and corrected with scale factors determined in two control regions: one region enriched in $t\bar{t}$ events and one region enriched in $Z$+jets events. The scale factors are extracted and applied separately for electron and muon fake-lepton candidates, and for leptons arising from heavy-flavor hadrons and other sources. Therefore, a total of four scale factors are determined. The scale factors are applied to all MC simulation events with fewer than four prompt leptons according to the number, flavor and origin of the fake leptons. It is verified that the scale factors for different generators used in the simulation are consistent with each other.

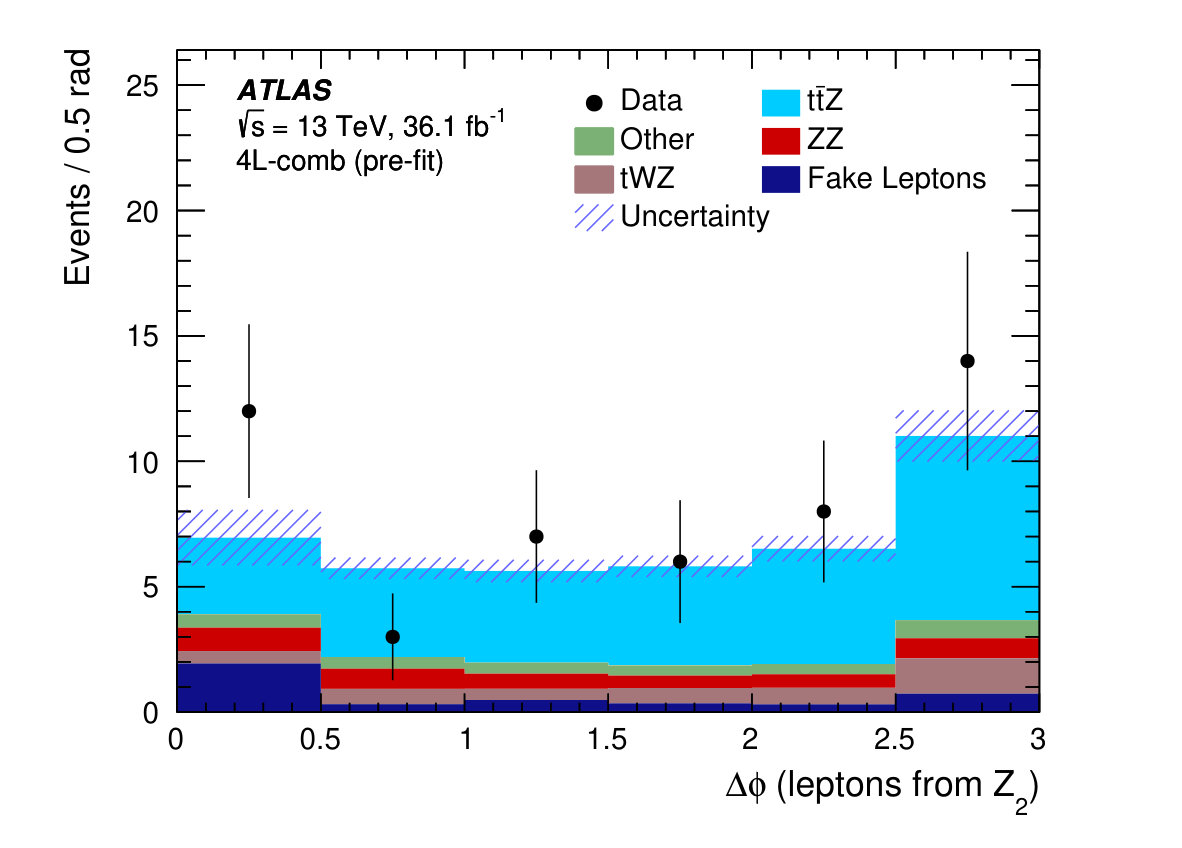

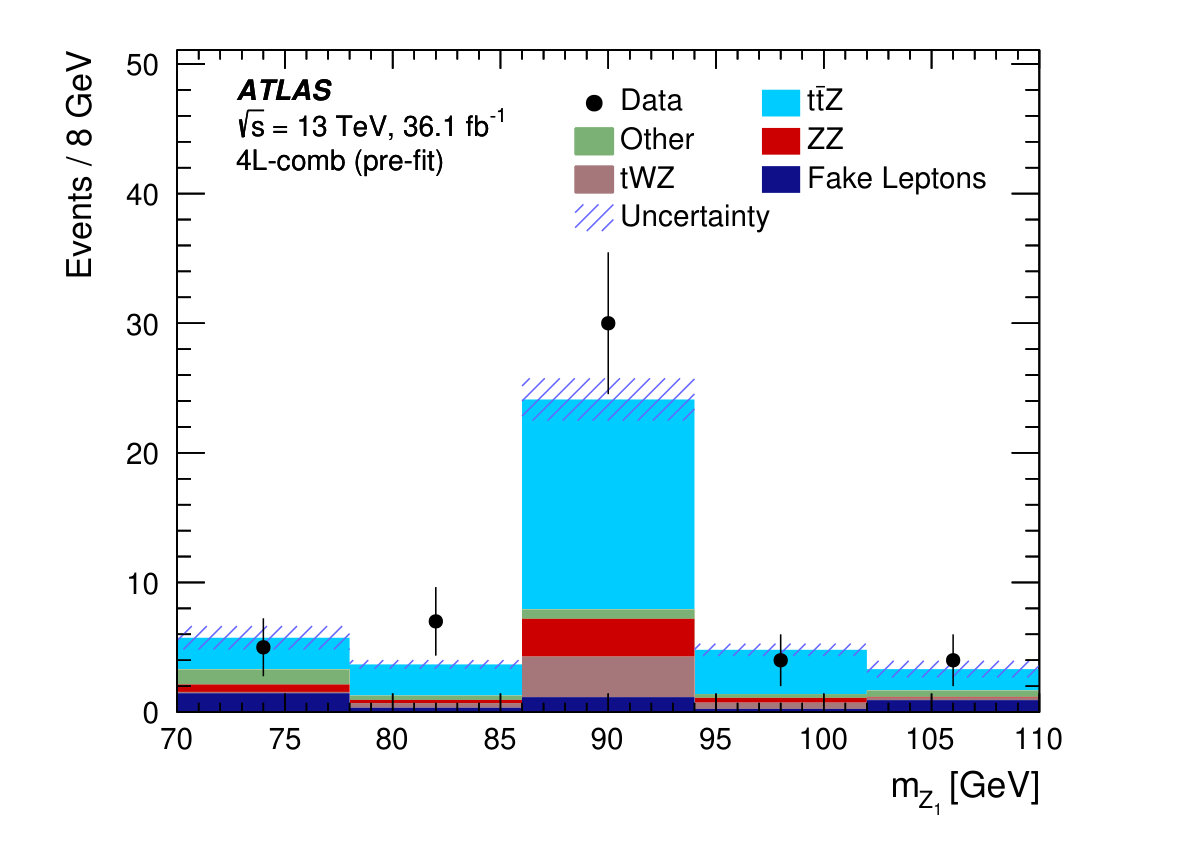

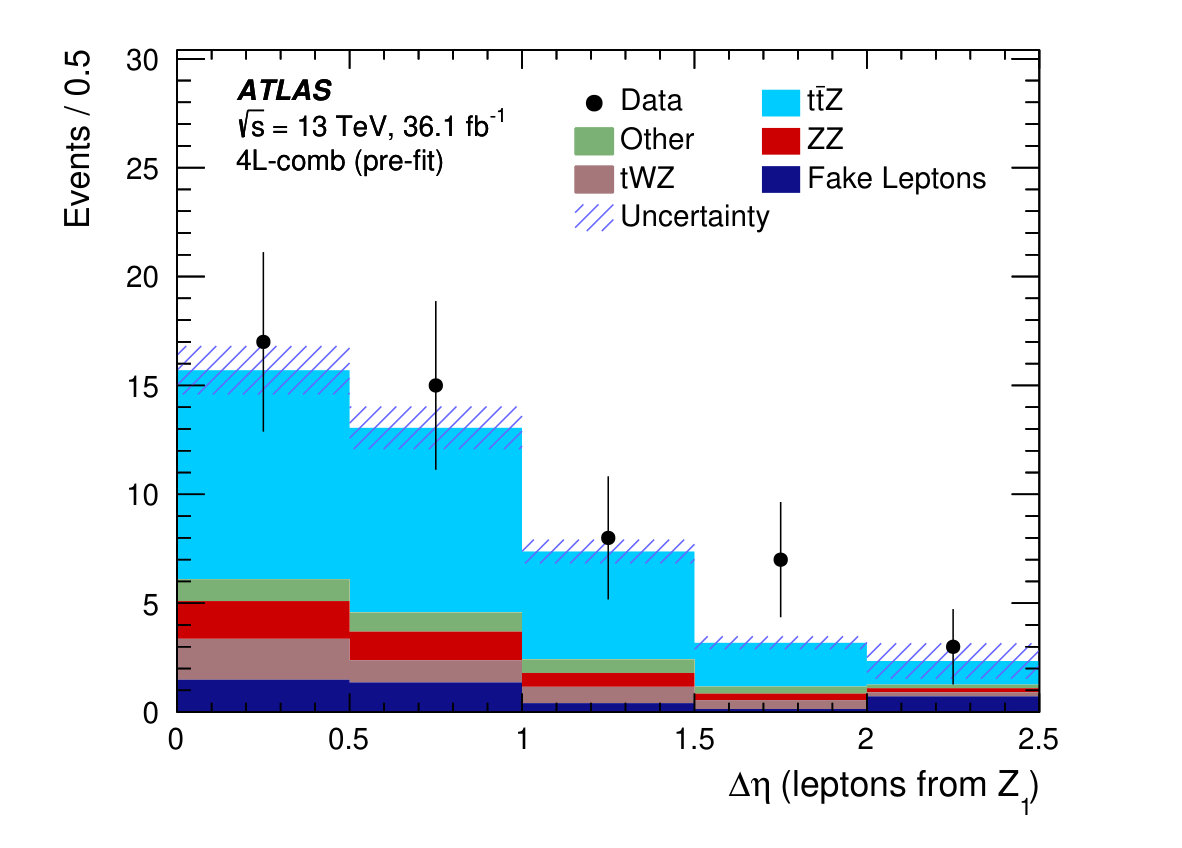

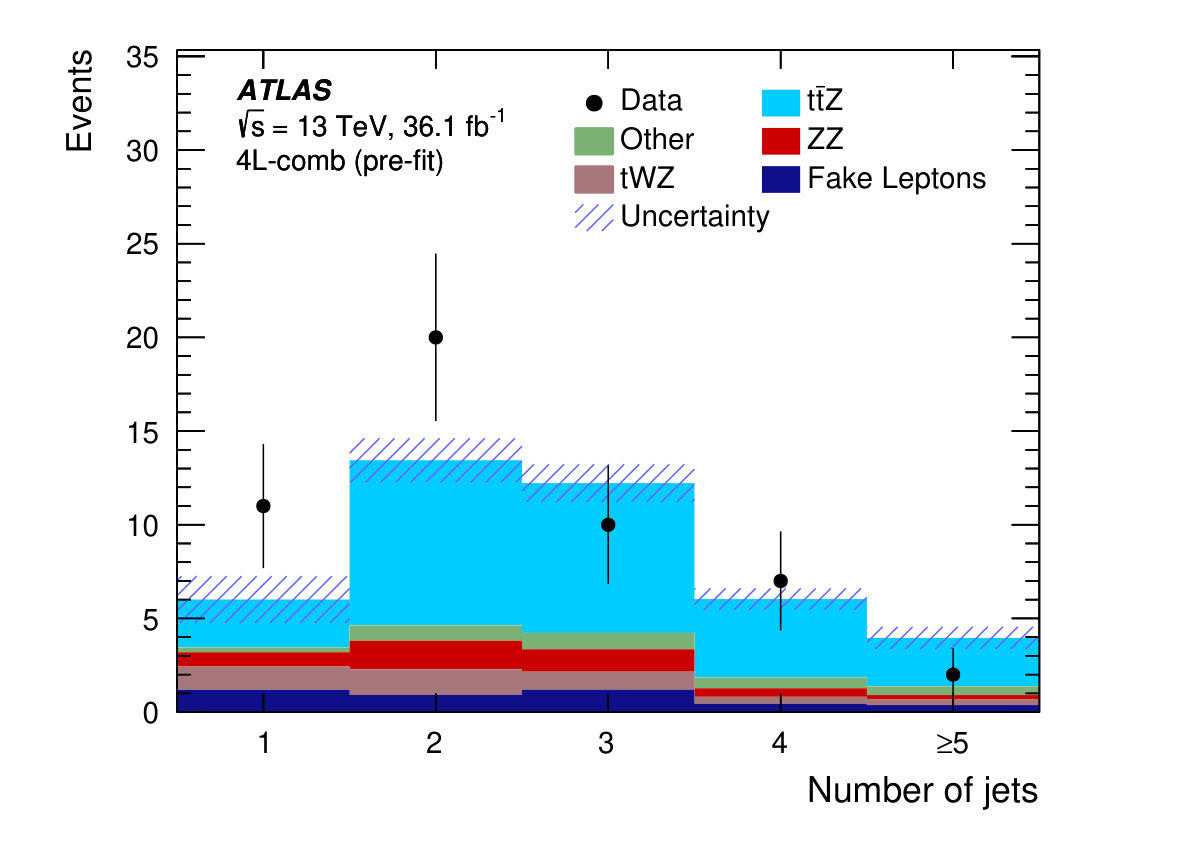

Figure 9 compares the data with the expected distributions for all four signal regions combined, showing good agreement between data and expectation.

6 Systematic uncertainties

The signal and background yields in each signal and control region may be affected by several sources of systematic uncertainty. These are implemented as nuisance parameters in the fit, explained in Section 7, are constrained by Gaussian probability density functions and are described in the following subsections.

6.1 Luminosity

The uncertainty in the integrated luminosity of the dataset is 2.1%. It is derived, following a methodology similar to that detailed in Ref. [23], and using the LUCID-2 detector for the baseline luminosity measurements [24], from a calibration of the luminosity scale using $x$–$y$ beam-separation scans. This systematic uncertainty affects all processes modeled using Monte Carlo simulations, apart from $Z$+1HF, $Z$+2HF, $WZ$ and $ZZ$, whose normalizations are taken from data control regions.

6.2 Uncertainties associated with reconstructed objects

Uncertainties associated with the lepton selection arise from the trigger, reconstruction, identification and isolation efficiencies, and lepton momentum scale and resolution [71, 72, 73, 59].

Uncertainties associated with the jet selection arise from the jet energy scale (JES), the JVT requirement and the jet energy resolution (JER). The JES and its uncertainty are derived by combining information from test-beam data, collision data and simulation [64]. The uncertainties in the JER and JVT have a significant effect at low jet $p_{\text{T}}$.

The efficiency of the flavor-tagging algorithm is measured for each jet flavor using control samples in data and in simulation. From these measurements, correction factors are derived to correct the tagging rates in the simulation. In the case of $b$-jets, correction factors and their uncertainties are estimated from data using dileptonic $t\bar{t}$ events [66]. In the case of $c$-jets, they are derived using jets from $W$ boson decays in $t\bar{t}$ events [74]. In the case of light-flavor jets, correction factors are derived using dijet events [75]. Sources of uncertainty affecting the $b$- and $c$-tagging efficiencies are considered as a function of jet $p_{\text{T}}$, including bin-to-bin correlations [76]. The uncertainty in the efficiency for tagging light-flavor jets depends on the jet $p_{\text{T}}$ and on $\eta$. These systematic uncertainties are taken as uncorrelated between $b$-jets, $c$-jets, and light-flavor jets. An additional uncertainty is assigned to account for the extrapolation of the $b$-tagging efficiency measurement from the $p_{\text{T}}$ region used to determine the correction factors to regions with higher transverse momentum.

The treatment of the uncertainties associated with reconstructed objects is common to all analysis channels, and thus these are considered as fully correlated among different analysis regions.

6.3 Uncertainties in the signal modeling

Four sources of systematic uncertainties in the theoretical predictions of the $t\bar{t}Z$ and $t\bar{t}W$ processes are considered. These signal modeling uncertainties are treated as uncorrelated between the two processes, and correlated among channels. Taking instead the uncertainties as correlated between the two processes has a negligible impact on the results. Acceptance effects due to the choice of scale and PDF in the nominal MG5_aMC+Pythia 8 (A14 tune) sample are considered. The renormalization and factorization scales $\mu_{\textsc{r}}=\mu_{\textsc{f}}$ are varied simultaneously by factors $2.0$ and $0.5$. In addition, the effects of a set of variations in the tune parameters (A14 eigentune variations), sensitive to initial- and final-state radiation, multiple parton interactions and color reconnection, are evaluated [36]. Studies performed at particle level show that the largest impact comes from variations in initial-state radiation [77]. The systematic uncertainty due to the choice of generator for the $t\bar{t}Z$ and $t\bar{t}W$ acceptance is estimated by comparing the nominal sample with one generated with Sherpa v2.2. The Sherpa sample uses the LO matrix element with up to one (two) additional parton(s) included in the matrix element calculation for $t\bar{t}Z$ ($t\bar{t}W$) and merged with the Sherpa parton shower [43] using the ME+PS@LO prescription. The NNPDF3​.​0NLO PDF set is used in conjunction with a dedicated parton-shower tune developed by the Sherpa authors.

6.4 Uncertainties in the background modeling

The $Z$+jets process is, together with $t\bar{t}$ production, the dominant background in the OS dilepton channel. Its normalization is extracted from data as described in Section 5.1, but the shape of the BDT distribution is obtained from simulation. To assess the systematic uncertainty in the shape, the renormalization, factorization and resummation scales used in the MC generation are varied by a factor of two with respect to the nominal values.

The normalization and shape of the $t\bar{t}$ background in the OS dilepton channel is obtained using the data-driven method detailed in Section 5.1. A systematic uncertainty arises from the factor used to obtain $t\bar{t}$ background yields in the same-flavor signal regions from corresponding opposite-flavor dilepton control regions. The uncertainty is due to the finite size of the samples of simulated events used, and the difference between the values of the factor obtained with the nominal Powheg-Box ​+Pythia 8 sample and an alternative sample generated using MG5_aMC+Pythia 8. The total uncertainty in the factor is found to be 3%.

In the trilepton regions sensitive to $t\bar{t}Z$, the normalization of the $WZ$ background is treated as a free parameter in the fit used to extract the $t\bar{t}Z$ and $t\bar{t}W$ signals. The uncertainty in the extrapolation of the $WZ$ background estimate from the control region to signal regions with specific jet and $b$-tag multiplicities is evaluated by comparing predictions obtained by varying the renormalization, factorization and resummation scales used in MC generation. The uncertainties vary from 30% to 50%, depending on the signal region.

The normalization of the $ZZ$ background is treated as a free parameter in the fit. An additional uncertainty arises from the extrapolation from the 4$\ell$-ZZ-CR  control region to the signal regions. It is assessed by varying the renormalization, factorization and resummation scales used in MC generation, and found to be in the range 20–40%.

The uncertainty in the $t\bar{t}H$ background is evaluated by varying the factorization and renormalization scales up and down by a factor of two with respect to the nominal values. It is found to be around 10%.

An overall normalization uncertainty of 30% is assigned to the $tZ$ background, motivated by the measurements of this process presented in Refs. [78, 79]. An additional uncertainty affecting the distribution of this background as a function of jet and $b$-tagged jet multiplicities is evaluated by varying the factorization and renormalization scales, as well as the amount of radiation in the Perugia2012 parton-shower tune.

An uncertainty of $10\%$ is assigned to the $tWZ$ background cross section, resulting from different prescriptions for removing the interference with the $t\bar{t}Z$ process. The shape uncertainty is evaluated by varying the factorization and renormalization scales up and down by a factor of two with respect to the nominal value.

For other prompt-lepton backgrounds, uncertainties of 20% are assigned to the normalizations of the $WH$ and $ZH$ processes, based on calculations from Ref. [34]. An uncertainty of 50% is considered for triboson and same-sign $WW$ processes.

A 10% uncertainty is applied to the charge-flip background, resulting from uncertainties in the charge-flip rates extracted from a control sample as described in Section 5.

A 30% uncertainty is assigned to the contribution from events with two prompt leptons or one prompt lepton and a photon conversion in the control regions used to measure the fake-lepton efficiency. In the SS dilepton channel regions and trilepton regions targeting $t\bar{t}W$, there are 22 nuisance parameters corresponding to the statistical uncertainty in the measurement of the fake-lepton efficiencies. One nuisance parameter is used for each $p_{\text{T}}$ bin used in the measurement of the fake-lepton efficiencies. For fake-lepton efficiencies in events with one (at least two) $b$-tagged jet(s), seven (four) bins are used, and there is one nuisance parameter for each of the two lepton flavors. In the trilepton signal regions targeting $t\bar{t}Z$, where the fake-lepton background is less important, a simplified description of the fake-lepton uncertainties is used, with one nuisance parameter for each of the two lepton flavors. These nuisance parameters correspond to the maximum of the up and down shifts of the fake-lepton efficiencies resulting from statistical uncertainties and the prompt lepton background subtraction in the control regions used to measure the fake-lepton efficiency. The uncertainties in the fake-lepton background in the $t\bar{t}Z$ and $t\bar{t}W$ analysis regions are considered to be uncorrelated, due to the different lepton selection requirements used in the two sets of regions.

Uncertainties in scale factors applied to the fake-lepton background are taken into account in the fake-lepton background yield in the tetralepton channel and the $t\bar{t}\gamma$ background contribution in the trilepton and $2\ell$-SS channels. These uncertainties are associated with reconstructed objects and the limited sizes of control regions in which the scale factors are obtained. The scale factors have uncertainties between 10% and 50%, depending on the fake-lepton flavor and source. The $2\ell$-SS and trilepton fake-lepton systematic uncertainties from the matrix method are assumed to be uncorrelated with the systematic uncertainties in the fake-lepton scale factors.

7 Results

The signal strengths $\mu_{t\bar{t}Z}$ and $\mu_{t\bar{t}W}$, defined as the ratios of the measured values of the inclusive production cross sections to the corresponding SM predictions discussed in Section 3, are extracted simultaneously using a binned maximum-likelihood fit to the numbers of events in the dilepton, trilepton and tetralepton signal and control regions. In the OS dilepton channel signal regions 2$\ell$-Z-6j1b, 2$\ell$-Z-5j2b and 2$\ell$-Z-6j2b, the BDT output distribution is fitted. In the SS dilepton channel, the twelve signal regions $2\ell$-SSp-$1b$, $2\ell$-SSm-$1b$, $2\ell$-SSp-$2b$ and $2\ell$-SSm-$2b$ are fitted together with the twelve control regions $2\ell$-SSp-$1b$-CR, $2\ell$-SSm-$1b$-CR, $2\ell$-SSp-$2b$-CR and $2\ell$-SSm-$2b$-CR defined in Section 5. The contribution from the $t\bar{t}W$ signal in the SS dilepton control regions is taken into account in the fit. The dependence of the fake-lepton background in these regions on the $t\bar{t}W$ signal strength is also taken into account. In the trilepton channel, the eight signal regions described in Section 5 are included in the fit, as is the 3$\ell$-WZ-CR control region. Finally, in the tetralepton channel, the four signal regions 4$\ell$-DF-1b, 4$\ell$-DF-2b, 4$\ell$-SF-1b and 4$\ell$-SF-2b and the control region 4$\ell$-ZZ-CR are included in the fit.

The fit is based on the profile-likelihood technique, where systematic uncertainties are included in the fit as nuisance parameters constrained by Gaussian functions. None of the uncertainty parameters are found to be significantly constrained or pulled in the fit. The calculation of confidence intervals and hypothesis testing is performed using a modified frequentist method as implemented in RooStats [80, 81].

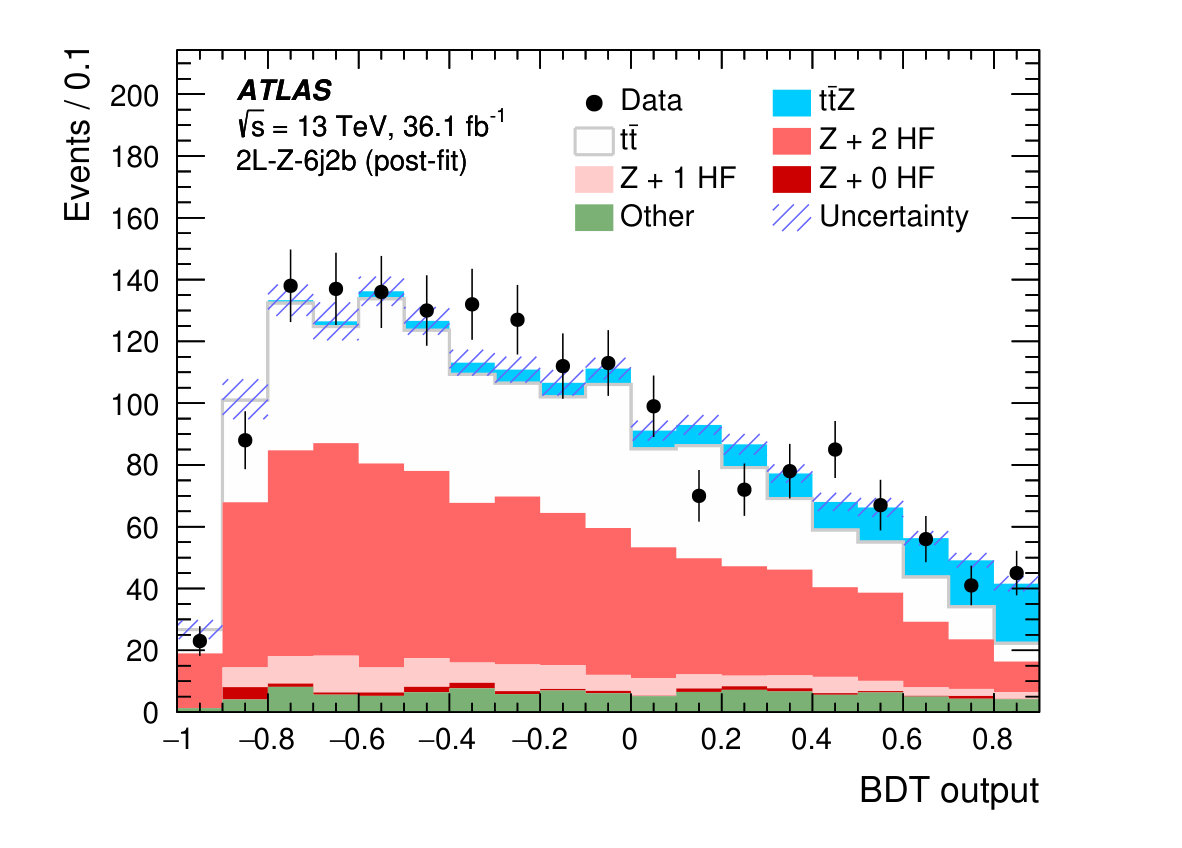

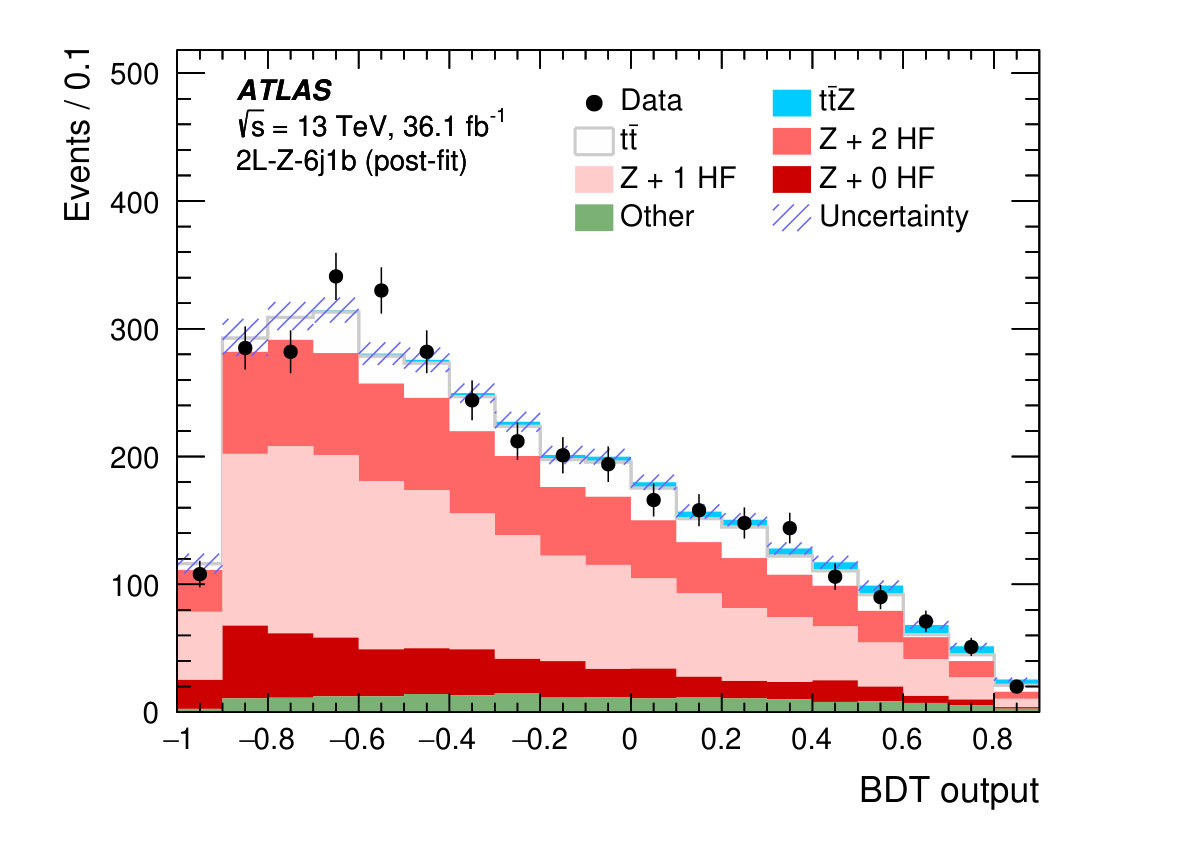

Figure 10 shows the BDT output distribution in signal regions 2$\ell$-Z-6j1b, 2$\ell$-Z-5j2b and 2$\ell$-Z-6j2b after performing the fit. Figures 11 and 12 summarize the comparison between data and the post-fit signal and background yields for regions sensitive to $t\bar{t}Z$ and $t\bar{t}W$ production, together with the relevant control regions. In all cases, good agreement between observed values and the expectation is seen. The normalization corrections for the $WZ$ and $ZZ$ backgrounds with respect to the predictions are obtained from the fits as described in Section 5 and found to be compatible with unity: $0.91\pm 0.10$ for the $WZ$ background and $1.11\pm 0.17$ for the $ZZ$ background. The normalizations of the $Z$+1HF and $Z$+2HF backgrounds are mainly constrained in the low BDT output bins of the OS dilepton channel signal regions, where the signal contamination is low. Their values are found to be $1.19\pm 0.25$ and $1.09\pm 0.13$, respectively.

In addition to the combined fit described above, fits in individual channels are performed. The $t\bar{t}Z$ signal strength is extracted through fits to the opposite-sign dilepton regions alone, to the trilepton channel regions alone and to the tetralepton channel signal regions alone. The $t\bar{t}W$ signal strength is extracted using the four trilepton signal regions targeting $t\bar{t}W$ and the same-sign dilepton regions considered in the combined fit. The measured values of the signal strengths $\mu_{t\bar{t}Z}$ and $\mu_{t\bar{t}W}$ are reported in Table 7 for each channel separately and for the combined fit. Agreement is observed for the measured values between all the different fit configurations.

The measured signal strengths from the combined fit and their uncertainties are converted to inclusive cross-section measurements using the signal simulation described in Section 3 and the central values of the theoretical predictions. The results are: $\sigma_{t\bar{t}Z}=0.95\;\!\pm\;\!0.08_{\text{stat.}}\;\!\pm\;\!0.10_{\text{syst.}}\,\text{pb}=0.95\;\!\pm\;\!0.13\,\text{pb}$ and $\sigma_{t\bar{t}W}=0.87\;\!\pm\;\!0.13_{\text{stat.}}\;\!\pm\;\!0.14_{\text{syst.}}\,\text{pb}=0.87\;\!\pm\;\!0.19\,\text{pb}$. Figure 13 shows a comparison of the fit results with theoretical predictions, $\sigma^{\textrm{th}}_{t\bar{t}Z}=0.88^{+0.09}_{-0.11}$ pb and $\sigma^{\textrm{th}}_{t\bar{t}W}=0.60^{+0.08}_{-0.07}$ pb, demonstrating good agreement between the measured and predicted cross sections.

For the $t\bar{t}Z$ process, both the observed and the expected significances are found to be much larger than five standard deviations. For the $t\bar{t}W$ process, an excess of events over the expected background-only hypothesis is found with an observed (expected) significance of $4.3$ ($3.4$) standard deviations. The significance values are computed using the asymptotic approximation described in Ref. [82].

Table 8 shows the uncertainties in the measured $t\bar{t}Z$ and $t\bar{t}W$ cross sections, grouped in categories, along with the total uncertainties. For both processes, the precision of the measurement is affected by statistical and systematic uncertainties in similar proportions. For the $t\bar{t}Z$ determination, the dominant systematic uncertainty sources are the modeling of the backgrounds and of the signal. For the $t\bar{t}W$ determination, the dominant systematic uncertainty sources are the modeling of the signal and the limited amount of data available in the control regions and simulated event samples.

8 Interpretation

The effective field theory (EFT) framework provides a model-independent approach to the parameterization of possible deviations from the SM predictions. In this framework, effects due to BSM physics are described by adding additional operators of dimension six or higher to the SM Lagrangian. Each EFT operator $\mathcal{O}_{i}$ is associated with a Wilson coefficient $C_{i}$, and the operators enter the modified Lagrangian in the form $(C_{i}/\Lambda^{2})\mathcal{O}_{i}$, where $\Lambda$ is the characteristic energy scale of the BSM physics.

The complete set of independent, gauge-invariant and baryon-number conserving EFT operators at dimension six contains 59 different operators [83, 84]. In the present analysis, five of these operators are considered, all of which modify the $ttZ$ vertex: $\mathcal{O}_{\phi Q}^{(3)}$, $\mathcal{O}_{\phi Q}^{(1)}$, $\mathcal{O}_{\phi t}$, $\mathcal{O}_{tW}$, $\mathcal{O}_{tB}$. The operators are defined in Table 9, following Ref. [85]. The first two operators enter the $ttZ$ vertex as a linear combination, such that the measurement is sensitive to the difference $\mathcal{C}_{\phi Q}^{(3)}-\mathcal{C}_{\phi Q}^{(1)}$. For this paper, the effect of this combination is evaluated by varying $\mathcal{C}_{\phi Q}^{(3)}$ with $\mathcal{C}_{\phi Q}^{(1)}$ set to zero.

Considering only one EFT operator at a time, any observable, such as the $t\bar{t}Z$ event rate in a certain signal region, can be expressed as a quadratic function of the coefficient $C_{i}$:

[TABLE]

The term linear in $C_{i}$ on the right-hand side of Eq. (1) results from the interference of the BSM operators with the SM. For $\mathcal{C}_{i}/\Lambda^{2}$ of order $1\leavevmode\nobreak\ \text{Te\kern-1.00006ptV}^{-2}$, the interference term dominates in Eq. (1) for $\mathcal{O}_{\phi Q}^{(3)}$ and $\mathcal{O}_{\phi t}$, while the quadratic term dominates for $\mathcal{O}_{tW}$ and $\mathcal{O}_{tB}$.

The values of $\sigma_{i}^{(1)}$ and $\sigma_{ii}^{(2)}$ are computed using simulated event samples generated with MG5_aMC interfaced to Pythia 8 [86, 87, 11]. The computation is performed at NLO, separately for all trilepton and tetralepton signal regions. The detector reconstruction efficiency is verified to be compatible between SM $t\bar{t}Z$ samples and samples with non-zero values of $C_{i}$, for ranges of $C_{i}$ considered here.

A fit is then performed to extract $\mathcal{C}_{i}/\Lambda^{2}$. The fit is similar to the one described in Section 7, except that only the four trilepton and four tetralepton signal regions targeting $t\bar{t}Z$ are used and a normalization uncertainty of 12%, corresponding to the uncertainty in the NLO cross-section computation, is applied to the SM $t\bar{t}Z$ prediction. Uncertainties resulting from the limited sizes of MC samples used to derive the values of $\sigma_{i}^{(1)}$ and $\sigma_{ii}^{(2)}$ are propagated to the measured values of $\mathcal{C}_{i}/\Lambda^{2}$.

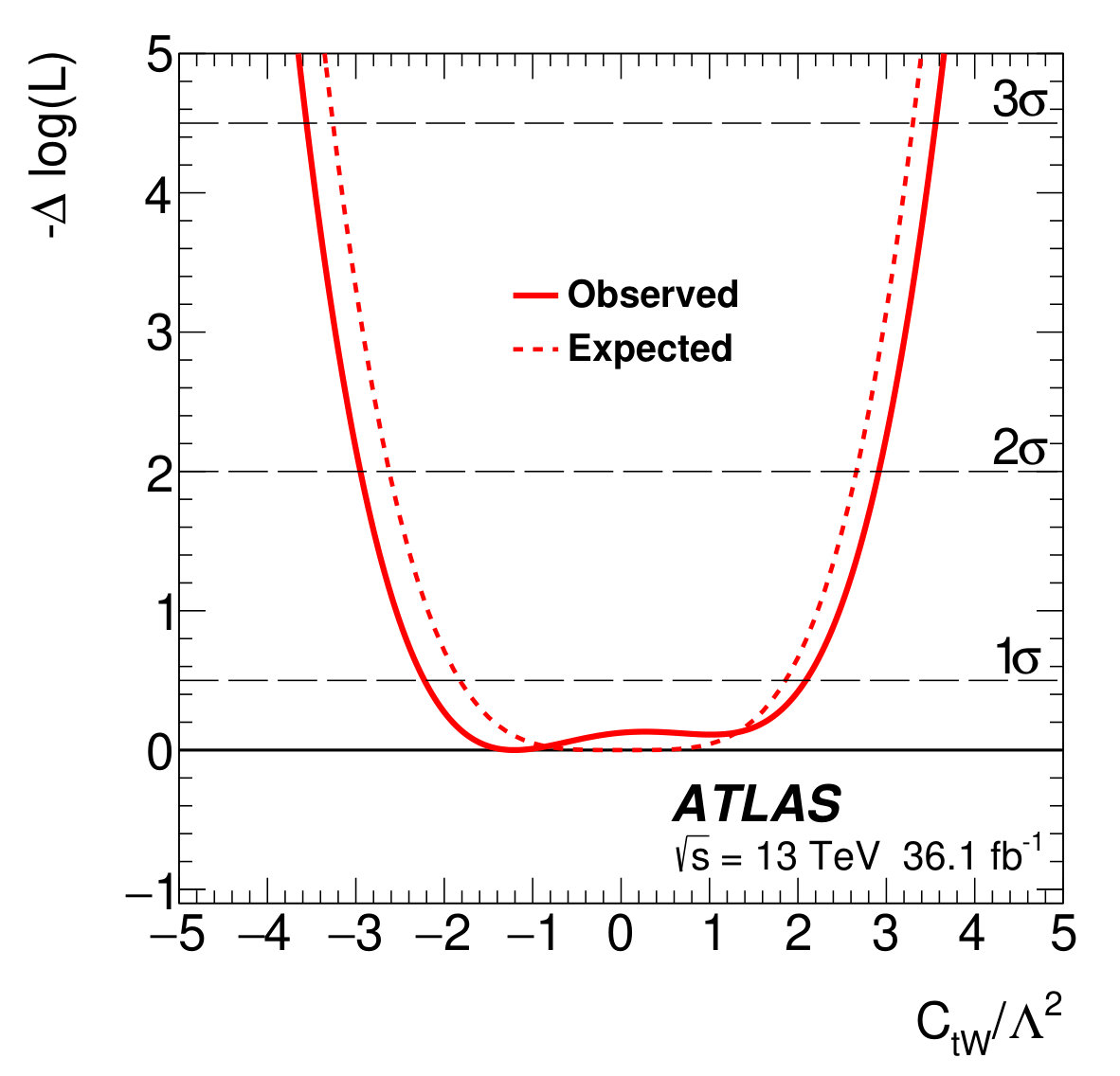

The profile-likelihood test statistic is defined as $-\Delta\log(L)=\log({\cal{L}}(\hat{C}_{i})/{\cal{L}}(C_{i}))$, where ${\cal{L}}$ is the profile likelihood as a function of the Wilson coefficient $C_{i}$, and $\hat{C}_{i}$ is the best-fit value of $C_{i}$. Approximate confidence intervals for the Wilson coefficients are computed using the formula $-\Delta\log(L)=\varepsilon$, where the threshold $\varepsilon$ is set to 0.5 and $1.92$ for the 68% ($1\sigma$) and 95% confidence levels (CL), respectively.

The confidence intervals for $C_{i}$ are computed considering only the minimum of $\lambda(C_{i})$ near $C_{i}=0$. For coefficient $\mathcal{C}_{\phi Q}^{(3)}$ ($\mathcal{C}_{\phi t}$), another, deeper minimum exists for negative values of $C_{i}\sim 30\leavevmode\nobreak\ (20)$, which is excluded by previous constraints. The 68% and 95% confidence intervals are shown in Table 10, together with previous constraints on the EFT coefficients obtained from Refs. [88, 10, 89, 90]. The lower boundary of the 95% confidence interval for $\mathcal{C}_{\phi t}$ is at large negative values, which are excluded by indirect constraints. The $t\bar{t}Z$ measurement provides competitive constraints for positive $\mathcal{C}_{\phi t}$ values. The full likelihood scans are shown in Figure 14 in the Appendix.

The fits are repeated while assuming that the quadratic terms are zero, and the results of these fits are also reported in Table 10. For $\mathcal{C}_{tW}$ and $\mathcal{C}_{tB}$, where the quadratic terms dominate, the fits do not converge. Compared with the nominal fits for $\mathcal{C}_{\phi Q}^{(3)}$ and $\mathcal{C}_{\phi t}$, the limits shift to larger values, consistent with removing a positive term from the prediction. The most notable change is the improvement in the lower limit for $\mathcal{C}_{\phi t}$ at 95% CL, as the second minimum disappears when a linear expression is assumed.

9 Conclusion

Measurements of the production cross sections of a top-quark pair in association with a $Z$ or $W$ boson using 36.1\,\mbox{fb{}^{-1}} of data collected by the ATLAS detector in $\sqrt{s}=13\,\text{Te\kern-1.00006ptV}$ $pp$ collisions at the LHC are presented. Final states with two same- or opposite-sign leptons, three leptons or four leptons are analyzed. The $t\bar{t}Z$ and $t\bar{t}W$ production cross sections are determined to be $\sigma_{t\bar{t}Z}=0.95\pm 0.08_{\text{stat.}}\pm 0.10_{\text{syst.}}\,\text{pb}=0.95\pm 0.13\,\text{pb}$ and $\sigma_{t\bar{t}W}=0.87\pm 0.13_{\text{stat.}}\pm 0.14_{\text{syst.}}\,\text{pb}=0.87\pm 0.19\,\text{pb}$. The measured values are consistent with the SM predictions. The measurements are used to derive confidence intervals for the Wilson coefficients of dimension-6 effective field theory operators involving the top quark and the $Z$ boson.

Acknowledgments

We thank CERN for the very successful operation of the LHC, as well as the support staff from our institutions without whom ATLAS could not be operated efficiently.

We acknowledge the support of ANPCyT, Argentina; YerPhI, Armenia; ARC, Australia; BMWFW and FWF, Austria; ANAS, Azerbaijan; SSTC, Belarus; CNPq and FAPESP, Brazil; NSERC, NRC and CFI, Canada; CERN; CONICYT, Chile; CAS, MOST and NSFC, China; COLCIENCIAS, Colombia; MSMT CR, MPO CR and VSC CR, Czech Republic; DNRF and DNSRC, Denmark; IN2P3-CNRS, CEA-DRF/IRFU, France; SRNSFG, Georgia; BMBF, HGF, and MPG, Germany; GSRT, Greece; RGC, Hong Kong SAR, China; ISF and Benoziyo Center, Israel; INFN, Italy; MEXT and JSPS, Japan; CNRST, Morocco; NWO, Netherlands; RCN, Norway; MNiSW and NCN, Poland; FCT, Portugal; MNE/IFA, Romania; MES of Russia and NRC KI, Russian Federation; JINR; MESTD, Serbia; MSSR, Slovakia; ARRS and MIZŠ, Slovenia; DST/NRF, South Africa; MINECO, Spain; SRC and Wallenberg Foundation, Sweden; SERI, SNSF and Cantons of Bern and Geneva, Switzerland; MOST, Taiwan; TAEK, Turkey; STFC, United Kingdom; DOE and NSF, United States of America. In addition, individual groups and members have received support from BCKDF, CANARIE, CRC and Compute Canada, Canada; COST, ERC, ERDF, Horizon 2020, and Marie Skłodowska-Curie Actions, European Union; Investissements d’ Avenir Labex and Idex, ANR, France; DFG and AvH Foundation, Germany; Herakleitos, Thales and Aristeia programmes co-financed by EU-ESF and the Greek NSRF, Greece; BSF-NSF and GIF, Israel; CERCA Programme Generalitat de Catalunya, Spain; The Royal Society and Leverhulme Trust, United Kingdom.

The crucial computing support from all WLCG partners is acknowledged gratefully, in particular from CERN, the ATLAS Tier-1 facilities at TRIUMF (Canada), NDGF (Denmark, Norway, Sweden), CC-IN2P3 (France), KIT/GridKA (Germany), INFN-CNAF (Italy), NL-T1 (Netherlands), PIC (Spain), ASGC (Taiwan), RAL (UK) and BNL (USA), the Tier-2 facilities worldwide and large non-WLCG resource providers. Major contributors of computing resources are listed in Ref. [91].

Appendix

The ATLAS Collaboration

M. Aaboud${}^{\textrm{\scriptsize 34d}}$, G. Aad${}^{\textrm{\scriptsize 99}}$, B. Abbott${}^{\textrm{\scriptsize 125}}$, D.C. Abbott${}^{\textrm{\scriptsize 100}}$, O. Abdinov${}^{\textrm{\scriptsize 13,*}}$, B. Abeloos${}^{\textrm{\scriptsize 129}}$, D.K. Abhayasinghe${}^{\textrm{\scriptsize 91}}$, S.H. Abidi${}^{\textrm{\scriptsize 164}}$, O.S. AbouZeid${}^{\textrm{\scriptsize 39}}$, N.L. Abraham${}^{\textrm{\scriptsize 153}}$, H. Abramowicz${}^{\textrm{\scriptsize 158}}$, H. Abreu${}^{\textrm{\scriptsize 157}}$, Y. Abulaiti${}^{\textrm{\scriptsize 6}}$, B.S. Acharya${}^{\textrm{\scriptsize 64a,64b,p}}$, S. Adachi${}^{\textrm{\scriptsize 160}}$, L. Adam${}^{\textrm{\scriptsize 97}}$, L. Adamczyk${}^{\textrm{\scriptsize 81a}}$, L. Adamek${}^{\textrm{\scriptsize 164}}$, J. Adelman${}^{\textrm{\scriptsize 119}}$, M. Adersberger${}^{\textrm{\scriptsize 112}}$, A. Adiguzel${}^{\textrm{\scriptsize 12c,ai}}$, T. Adye${}^{\textrm{\scriptsize 141}}$, A.A. Affolder${}^{\textrm{\scriptsize 143}}$, Y. Afik${}^{\textrm{\scriptsize 157}}$, C. Agheorghiesei${}^{\textrm{\scriptsize 27c}}$, J.A. Aguilar-Saavedra${}^{\textrm{\scriptsize 137f,137a,ah}}$, F. Ahmadov${}^{\textrm{\scriptsize 77,af}}$, G. Aielli${}^{\textrm{\scriptsize 71a,71b}}$, S. Akatsuka${}^{\textrm{\scriptsize 83}}$, T.P.A. Åkesson${}^{\textrm{\scriptsize 94}}$, E. Akilli${}^{\textrm{\scriptsize 52}}$, A.V. Akimov${}^{\textrm{\scriptsize 108}}$, G.L. Alberghi${}^{\textrm{\scriptsize 23b,23a}}$, J. Albert${}^{\textrm{\scriptsize 173}}$, P. Albicocco${}^{\textrm{\scriptsize 49}}$, M.J. Alconada Verzini${}^{\textrm{\scriptsize 86}}$, S. Alderweireldt${}^{\textrm{\scriptsize 117}}$, M. Aleksa${}^{\textrm{\scriptsize 35}}$, I.N. Aleksandrov${}^{\textrm{\scriptsize 77}}$, C. Alexa${}^{\textrm{\scriptsize 27b}}$, D. Alexandre${}^{\textrm{\scriptsize 19}}$, T. Alexopoulos${}^{\textrm{\scriptsize 10}}$, M. Alhroob${}^{\textrm{\scriptsize 125}}$, B. Ali${}^{\textrm{\scriptsize 139}}$, G. Alimonti${}^{\textrm{\scriptsize 66a}}$, J. Alison${}^{\textrm{\scriptsize 36}}$, S.P. Alkire${}^{\textrm{\scriptsize 145}}$, C. Allaire${}^{\textrm{\scriptsize 129}}$, B.M.M. Allbrooke${}^{\textrm{\scriptsize 153}}$, B.W. Allen${}^{\textrm{\scriptsize 128}}$, P.P. Allport${}^{\textrm{\scriptsize 21}}$, A. Aloisio${}^{\textrm{\scriptsize 67a,67b}}$, A. Alonso${}^{\textrm{\scriptsize 39}}$, F. Alonso${}^{\textrm{\scriptsize 86}}$, C. Alpigiani${}^{\textrm{\scriptsize 145}}$, A.A. Alshehri${}^{\textrm{\scriptsize 55}}$, M.I. Alstaty${}^{\textrm{\scriptsize 99}}$, B. Alvarez Gonzalez${}^{\textrm{\scriptsize 35}}$, D. Álvarez Piqueras${}^{\textrm{\scriptsize 171}}$, M.G. Alviggi${}^{\textrm{\scriptsize 67a,67b}}$, B.T. Amadio${}^{\textrm{\scriptsize 18}}$, Y. Amaral Coutinho${}^{\textrm{\scriptsize 78b}}$, A. Ambler${}^{\textrm{\scriptsize 101}}$, L. Ambroz${}^{\textrm{\scriptsize 132}}$, C. Amelung${}^{\textrm{\scriptsize 26}}$, D. Amidei${}^{\textrm{\scriptsize 103}}$, S.P. Amor Dos Santos${}^{\textrm{\scriptsize 137a,137c}}$, S. Amoroso${}^{\textrm{\scriptsize 44}}$, C.S. Amrouche${}^{\textrm{\scriptsize 52}}$, F. An${}^{\textrm{\scriptsize 76}}$, C. Anastopoulos${}^{\textrm{\scriptsize 146}}$, L.S. Ancu${}^{\textrm{\scriptsize 52}}$, N. Andari${}^{\textrm{\scriptsize 142}}$, T. Andeen${}^{\textrm{\scriptsize 11}}$, C.F. Anders${}^{\textrm{\scriptsize 59b}}$, J.K. Anders${}^{\textrm{\scriptsize 20}}$, K.J. Anderson${}^{\textrm{\scriptsize 36}}$, A. Andreazza${}^{\textrm{\scriptsize 66a,66b}}$, V. Andrei${}^{\textrm{\scriptsize 59a}}$, C.R. Anelli${}^{\textrm{\scriptsize 173}}$, S. Angelidakis${}^{\textrm{\scriptsize 37}}$, I. Angelozzi${}^{\textrm{\scriptsize 118}}$, A. Angerami${}^{\textrm{\scriptsize 38}}$, A.V. Anisenkov${}^{\textrm{\scriptsize 120b,120a}}$, A. Annovi${}^{\textrm{\scriptsize 69a}}$, C. Antel${}^{\textrm{\scriptsize 59a}}$, M.T. Anthony${}^{\textrm{\scriptsize 146}}$, M. Antonelli${}^{\textrm{\scriptsize 49}}$, D.J.A. Antrim${}^{\textrm{\scriptsize 168}}$, F. Anulli${}^{\textrm{\scriptsize 70a}}$, M. Aoki${}^{\textrm{\scriptsize 79}}$, J.A. Aparisi Pozo${}^{\textrm{\scriptsize 171}}$, L. Aperio Bella${}^{\textrm{\scriptsize 35}}$, G. Arabidze${}^{\textrm{\scriptsize 104}}$, J.P. Araque${}^{\textrm{\scriptsize 137a}}$, V. Araujo Ferraz${}^{\textrm{\scriptsize 78b}}$, R. Araujo Pereira${}^{\textrm{\scriptsize 78b}}$, A.T.H. Arce${}^{\textrm{\scriptsize 47}}$, R.E. Ardell${}^{\textrm{\scriptsize 91}}$, F.A. Arduh${}^{\textrm{\scriptsize 86}}$, J-F. Arguin${}^{\textrm{\scriptsize 107}}$, S. Argyropoulos${}^{\textrm{\scriptsize 75}}$, J.-H. Arling${}^{\textrm{\scriptsize 44}}$, A.J. Armbruster${}^{\textrm{\scriptsize 35}}$, L.J. Armitage${}^{\textrm{\scriptsize 90}}$, A. Armstrong${}^{\textrm{\scriptsize 168}}$, O. Arnaez${}^{\textrm{\scriptsize 164}}$, H. Arnold${}^{\textrm{\scriptsize 118}}$, M. Arratia${}^{\textrm{\scriptsize 31}}$, O. Arslan${}^{\textrm{\scriptsize 24}}$, A. Artamonov${}^{\textrm{\scriptsize 109,*}}$, G. Artoni${}^{\textrm{\scriptsize 132}}$, S. Artz${}^{\textrm{\scriptsize 97}}$, S. Asai${}^{\textrm{\scriptsize 160}}$, N. Asbah${}^{\textrm{\scriptsize 57}}$, E.M. Asimakopoulou${}^{\textrm{\scriptsize 169}}$, L. Asquith${}^{\textrm{\scriptsize 153}}$, K. Assamagan${}^{\textrm{\scriptsize 29}}$, R. Astalos${}^{\textrm{\scriptsize 28a}}$, R.J. Atkin${}^{\textrm{\scriptsize 32a}}$, M. Atkinson${}^{\textrm{\scriptsize 170}}$, N.B. Atlay${}^{\textrm{\scriptsize 148}}$, K. Augsten${}^{\textrm{\scriptsize 139}}$, G. Avolio${}^{\textrm{\scriptsize 35}}$, R. Avramidou${}^{\textrm{\scriptsize 58a}}$, M.K. Ayoub${}^{\textrm{\scriptsize 15a}}$, A.M. Azoulay${}^{\textrm{\scriptsize 165b}}$, G. Azuelos${}^{\textrm{\scriptsize 107,aw}}$, A.E. Baas${}^{\textrm{\scriptsize 59a}}$, M.J. Baca${}^{\textrm{\scriptsize 21}}$, H. Bachacou${}^{\textrm{\scriptsize 142}}$, K. Bachas${}^{\textrm{\scriptsize 65a,65b}}$, M. Backes${}^{\textrm{\scriptsize 132}}$, P. Bagnaia${}^{\textrm{\scriptsize 70a,70b}}$, M. Bahmani${}^{\textrm{\scriptsize 82}}$, H. Bahrasemani${}^{\textrm{\scriptsize 149}}$, A.J. Bailey${}^{\textrm{\scriptsize 171}}$, V.R. Bailey${}^{\textrm{\scriptsize 170}}$, J.T. Baines${}^{\textrm{\scriptsize 141}}$, M. Bajic${}^{\textrm{\scriptsize 39}}$, C. Bakalis${}^{\textrm{\scriptsize 10}}$, O.K. Baker${}^{\textrm{\scriptsize 180}}$, P.J. Bakker${}^{\textrm{\scriptsize 118}}$, D. Bakshi Gupta${}^{\textrm{\scriptsize 8}}$, S. Balaji${}^{\textrm{\scriptsize 154}}$, E.M. Baldin${}^{\textrm{\scriptsize 120b,120a}}$, P. Balek${}^{\textrm{\scriptsize 177}}$, F. Balli${}^{\textrm{\scriptsize 142}}$, W.K. Balunas${}^{\textrm{\scriptsize 134}}$, J. Balz${}^{\textrm{\scriptsize 97}}$, E. Banas${}^{\textrm{\scriptsize 82}}$, A. Bandyopadhyay${}^{\textrm{\scriptsize 24}}$, S. Banerjee${}^{\textrm{\scriptsize 178,l}}$, A.A.E. Bannoura${}^{\textrm{\scriptsize 179}}$, L. Barak${}^{\textrm{\scriptsize 158}}$, W.M. Barbe${}^{\textrm{\scriptsize 37}}$, E.L. Barberio${}^{\textrm{\scriptsize 102}}$, D. Barberis${}^{\textrm{\scriptsize 53b,53a}}$, M. Barbero${}^{\textrm{\scriptsize 99}}$, T. Barillari${}^{\textrm{\scriptsize 113}}$, M-S. Barisits${}^{\textrm{\scriptsize 35}}$, J. Barkeloo${}^{\textrm{\scriptsize 128}}$, T. Barklow${}^{\textrm{\scriptsize 150}}$, R. Barnea${}^{\textrm{\scriptsize 157}}$, S.L. Barnes${}^{\textrm{\scriptsize 58c}}$, B.M. Barnett${}^{\textrm{\scriptsize 141}}$, R.M. Barnett${}^{\textrm{\scriptsize 18}}$, Z. Barnovska-Blenessy${}^{\textrm{\scriptsize 58a}}$, A. Baroncelli${}^{\textrm{\scriptsize 72a}}$, G. Barone${}^{\textrm{\scriptsize 29}}$, A.J. Barr${}^{\textrm{\scriptsize 132}}$, L. Barranco Navarro${}^{\textrm{\scriptsize 171}}$, F. Barreiro${}^{\textrm{\scriptsize 96}}$, J. Barreiro Guimarães da Costa${}^{\textrm{\scriptsize 15a}}$, R. Bartoldus${}^{\textrm{\scriptsize 150}}$, A.E. Barton${}^{\textrm{\scriptsize 87}}$, P. Bartos${}^{\textrm{\scriptsize 28a}}$, A. Basalaev${}^{\textrm{\scriptsize 135}}$, A. Bassalat${}^{\textrm{\scriptsize 129}}$, R.L. Bates${}^{\textrm{\scriptsize 55}}$, S.J. Batista${}^{\textrm{\scriptsize 164}}$, S. Batlamous${}^{\textrm{\scriptsize 34e}}$, J.R. Batley${}^{\textrm{\scriptsize 31}}$, M. Battaglia${}^{\textrm{\scriptsize 143}}$, M. Bauce${}^{\textrm{\scriptsize 70a,70b}}$, F. Bauer${}^{\textrm{\scriptsize 142}}$, K.T. Bauer${}^{\textrm{\scriptsize 168}}$, H.S. Bawa${}^{\textrm{\scriptsize 150}}$, J.B. Beacham${}^{\textrm{\scriptsize 123}}$, T. Beau${}^{\textrm{\scriptsize 133}}$, P.H. Beauchemin${}^{\textrm{\scriptsize 167}}$, P. Bechtle${}^{\textrm{\scriptsize 24}}$, H.C. Beck${}^{\textrm{\scriptsize 51}}$, H.P. Beck${}^{\textrm{\scriptsize 20,s}}$, K. Becker${}^{\textrm{\scriptsize 50}}$, M. Becker${}^{\textrm{\scriptsize 97}}$, C. Becot${}^{\textrm{\scriptsize 44}}$, A. Beddall${}^{\textrm{\scriptsize 12d}}$, A.J. Beddall${}^{\textrm{\scriptsize 12a}}$, V.A. Bednyakov${}^{\textrm{\scriptsize 77}}$, M. Bedognetti${}^{\textrm{\scriptsize 118}}$, C.P. Bee${}^{\textrm{\scriptsize 152}}$, T.A. Beermann${}^{\textrm{\scriptsize 74}}$, M. Begalli${}^{\textrm{\scriptsize 78b}}$, M. Begel${}^{\textrm{\scriptsize 29}}$, A. Behera${}^{\textrm{\scriptsize 152}}$, J.K. Behr${}^{\textrm{\scriptsize 44}}$, F. Beisiegel${}^{\textrm{\scriptsize 24}}$, A.S. Bell${}^{\textrm{\scriptsize 92}}$, G. Bella${}^{\textrm{\scriptsize 158}}$, L. Bellagamba${}^{\textrm{\scriptsize 23b}}$, A. Bellerive${}^{\textrm{\scriptsize 33}}$, M. Bellomo${}^{\textrm{\scriptsize 157}}$, P. Bellos${}^{\textrm{\scriptsize 9}}$, K. Belotskiy${}^{\textrm{\scriptsize 110}}$, N.L. Belyaev${}^{\textrm{\scriptsize 110}}$, O. Benary${}^{\textrm{\scriptsize 158,*}}$, D. Benchekroun${}^{\textrm{\scriptsize 34a}}$, M. Bender${}^{\textrm{\scriptsize 112}}$, N. Benekos${}^{\textrm{\scriptsize 10}}$, Y. Benhammou${}^{\textrm{\scriptsize 158}}$, E. Benhar Noccioli${}^{\textrm{\scriptsize 180}}$, J. Benitez${}^{\textrm{\scriptsize 75}}$, D.P. Benjamin${}^{\textrm{\scriptsize 6}}$, M. Benoit${}^{\textrm{\scriptsize 52}}$, J.R. Bensinger${}^{\textrm{\scriptsize 26}}$, S. Bentvelsen${}^{\textrm{\scriptsize 118}}$, L. Beresford${}^{\textrm{\scriptsize 132}}$, M. Beretta${}^{\textrm{\scriptsize 49}}$, D. Berge${}^{\textrm{\scriptsize 44}}$, E. Bergeaas Kuutmann${}^{\textrm{\scriptsize 169}}$, N. Berger${}^{\textrm{\scriptsize 5}}$, B. Bergmann${}^{\textrm{\scriptsize 139}}$, L.J. Bergsten${}^{\textrm{\scriptsize 26}}$, J. Beringer${}^{\textrm{\scriptsize 18}}$, S. Berlendis${}^{\textrm{\scriptsize 7}}$, N.R. Bernard${}^{\textrm{\scriptsize 100}}$, G. Bernardi${}^{\textrm{\scriptsize 133}}$, C. Bernius${}^{\textrm{\scriptsize 150}}$, F.U. Bernlochner${}^{\textrm{\scriptsize 24}}$, T. Berry${}^{\textrm{\scriptsize 91}}$, P. Berta${}^{\textrm{\scriptsize 97}}$, C. Bertella${}^{\textrm{\scriptsize 15a}}$, G. Bertoli${}^{\textrm{\scriptsize 43a,43b}}$, I.A. Bertram${}^{\textrm{\scriptsize 87}}$, G.J. Besjes${}^{\textrm{\scriptsize 39}}$, O. Bessidskaia Bylund${}^{\textrm{\scriptsize 179}}$, M. Bessner${}^{\textrm{\scriptsize 44}}$, N. Besson${}^{\textrm{\scriptsize 142}}$, A. Bethani${}^{\textrm{\scriptsize 98}}$, S. Bethke${}^{\textrm{\scriptsize 113}}$, A. Betti${}^{\textrm{\scriptsize 24}}$, A.J. Bevan${}^{\textrm{\scriptsize 90}}$, J. Beyer${}^{\textrm{\scriptsize 113}}$, R. Bi${}^{\textrm{\scriptsize 136}}$, R.M. Bianchi${}^{\textrm{\scriptsize 136}}$, O. Biebel${}^{\textrm{\scriptsize 112}}$, D. Biedermann${}^{\textrm{\scriptsize 19}}$, R. Bielski${}^{\textrm{\scriptsize 35}}$, K. Bierwagen${}^{\textrm{\scriptsize 97}}$, N.V. Biesuz${}^{\textrm{\scriptsize 69a,69b}}$, M. Biglietti${}^{\textrm{\scriptsize 72a}}$, T.R.V. Billoud${}^{\textrm{\scriptsize 107}}$, M. Bindi${}^{\textrm{\scriptsize 51}}$, A. Bingul${}^{\textrm{\scriptsize 12d}}$, C. Bini${}^{\textrm{\scriptsize 70a,70b}}$, S. Biondi${}^{\textrm{\scriptsize 23b,23a}}$, M. Birman${}^{\textrm{\scriptsize 177}}$, T. Bisanz${}^{\textrm{\scriptsize 51}}$, J.P. Biswal${}^{\textrm{\scriptsize 158}}$, C. Bittrich${}^{\textrm{\scriptsize 46}}$, D.M. Bjergaard${}^{\textrm{\scriptsize 47}}$, J.E. Black${}^{\textrm{\scriptsize 150}}$, K.M. Black${}^{\textrm{\scriptsize 25}}$, T. Blazek${}^{\textrm{\scriptsize 28a}}$, I. Bloch${}^{\textrm{\scriptsize 44}}$, C. Blocker${}^{\textrm{\scriptsize 26}}$, A. Blue${}^{\textrm{\scriptsize 55}}$, U. Blumenschein${}^{\textrm{\scriptsize 90}}$, Dr. Blunier${}^{\textrm{\scriptsize 144a}}$, G.J. Bobbink${}^{\textrm{\scriptsize 118}}$, V.S. Bobrovnikov${}^{\textrm{\scriptsize 120b,120a}}$, S.S. Bocchetta${}^{\textrm{\scriptsize 94}}$, A. Bocci${}^{\textrm{\scriptsize 47}}$, D. Boerner${}^{\textrm{\scriptsize 179}}$, D. Bogavac${}^{\textrm{\scriptsize 112}}$, A.G. Bogdanchikov${}^{\textrm{\scriptsize 120b,120a}}$, C. Bohm${}^{\textrm{\scriptsize 43a}}$, V. Boisvert${}^{\textrm{\scriptsize 91}}$, P. Bokan${}^{\textrm{\scriptsize 51,169}}$, T. Bold${}^{\textrm{\scriptsize 81a}}$, A.S. Boldyrev${}^{\textrm{\scriptsize 111}}$, A.E. Bolz${}^{\textrm{\scriptsize 59b}}$, M. Bomben${}^{\textrm{\scriptsize 133}}$, M. Bona${}^{\textrm{\scriptsize 90}}$, J.S. Bonilla${}^{\textrm{\scriptsize 128}}$, M. Boonekamp${}^{\textrm{\scriptsize 142}}$, H.M. Borecka-Bielska${}^{\textrm{\scriptsize 88}}$, A. Borisov${}^{\textrm{\scriptsize 121}}$, G. Borissov${}^{\textrm{\scriptsize 87}}$, J. Bortfeldt${}^{\textrm{\scriptsize 35}}$, D. Bortoletto${}^{\textrm{\scriptsize 132}}$, V. Bortolotto${}^{\textrm{\scriptsize 71a,71b}}$, D. Boscherini${}^{\textrm{\scriptsize 23b}}$, M. Bosman${}^{\textrm{\scriptsize 14}}$, J.D. Bossio Sola${}^{\textrm{\scriptsize 30}}$, K. Bouaouda${}^{\textrm{\scriptsize 34a}}$, J. Boudreau${}^{\textrm{\scriptsize 136}}$, E.V. Bouhova-Thacker${}^{\textrm{\scriptsize 87}}$, D. Boumediene${}^{\textrm{\scriptsize 37}}$, C. Bourdarios${}^{\textrm{\scriptsize 129}}$, S.K. Boutle${}^{\textrm{\scriptsize 55}}$, A. Boveia${}^{\textrm{\scriptsize 123}}$, J. Boyd${}^{\textrm{\scriptsize 35}}$, D. Boye${}^{\textrm{\scriptsize 32b,aq}}$, I.R. Boyko${}^{\textrm{\scriptsize 77}}$, A.J. Bozson${}^{\textrm{\scriptsize 91}}$, J. Bracinik${}^{\textrm{\scriptsize 21}}$, N. Brahimi${}^{\textrm{\scriptsize 99}}$, A. Brandt${}^{\textrm{\scriptsize 8}}$, G. Brandt${}^{\textrm{\scriptsize 179}}$, O. Brandt${}^{\textrm{\scriptsize 59a}}$, F. Braren${}^{\textrm{\scriptsize 44}}$, U. Bratzler${}^{\textrm{\scriptsize 161}}$, B. Brau${}^{\textrm{\scriptsize 100}}$, J.E. Brau${}^{\textrm{\scriptsize 128}}$, W.D. Breaden Madden${}^{\textrm{\scriptsize 55}}$, K. Brendlinger${}^{\textrm{\scriptsize 44}}$, L. Brenner${}^{\textrm{\scriptsize 44}}$, R. Brenner${}^{\textrm{\scriptsize 169}}$, S. Bressler${}^{\textrm{\scriptsize 177}}$, B. Brickwedde${}^{\textrm{\scriptsize 97}}$, D.L. Briglin${}^{\textrm{\scriptsize 21}}$, D. Britton${}^{\textrm{\scriptsize 55}}$, D. Britzger${}^{\textrm{\scriptsize 113}}$, I. Brock${}^{\textrm{\scriptsize 24}}$, R. Brock${}^{\textrm{\scriptsize 104}}$, G. Brooijmans${}^{\textrm{\scriptsize 38}}$, T. Brooks${}^{\textrm{\scriptsize 91}}$, W.K. Brooks${}^{\textrm{\scriptsize 144b}}$, E. Brost${}^{\textrm{\scriptsize 119}}$, J.H Broughton${}^{\textrm{\scriptsize 21}}$, P.A. Bruckman de Renstrom${}^{\textrm{\scriptsize 82}}$, D. Bruncko${}^{\textrm{\scriptsize 28b}}$, A. Bruni${}^{\textrm{\scriptsize 23b}}$, G. Bruni${}^{\textrm{\scriptsize 23b}}$, L.S. Bruni${}^{\textrm{\scriptsize 118}}$, S. Bruno${}^{\textrm{\scriptsize 71a,71b}}$, B.H. Brunt${}^{\textrm{\scriptsize 31}}$, M. Bruschi${}^{\textrm{\scriptsize 23b}}$, N. Bruscino${}^{\textrm{\scriptsize 136}}$, P. Bryant${}^{\textrm{\scriptsize 36}}$, L. Bryngemark${}^{\textrm{\scriptsize 94}}$, T. Buanes${}^{\textrm{\scriptsize 17}}$, Q. Buat${}^{\textrm{\scriptsize 35}}$, P. Buchholz${}^{\textrm{\scriptsize 148}}$, A.G. Buckley${}^{\textrm{\scriptsize 55}}$, I.A. Budagov${}^{\textrm{\scriptsize 77}}$, M.K. Bugge${}^{\textrm{\scriptsize 131}}$, F. Bührer${}^{\textrm{\scriptsize 50}}$, O. Bulekov${}^{\textrm{\scriptsize 110}}$, D. Bullock${}^{\textrm{\scriptsize 8}}$, T.J. Burch${}^{\textrm{\scriptsize 119}}$, S. Burdin${}^{\textrm{\scriptsize 88}}$, C.D. Burgard${}^{\textrm{\scriptsize 118}}$, A.M. Burger${}^{\textrm{\scriptsize 5}}$, B. Burghgrave${}^{\textrm{\scriptsize 8}}$, K. Burka${}^{\textrm{\scriptsize 82}}$, S. Burke${}^{\textrm{\scriptsize 141}}$, I. Burmeister${}^{\textrm{\scriptsize 45}}$, J.T.P. Burr${}^{\textrm{\scriptsize 132}}$, V. Büscher${}^{\textrm{\scriptsize 97}}$, E. Buschmann${}^{\textrm{\scriptsize 51}}$, P. Bussey${}^{\textrm{\scriptsize 55}}$, J.M. Butler${}^{\textrm{\scriptsize 25}}$, C.M. Buttar${}^{\textrm{\scriptsize 55}}$, J.M. Butterworth${}^{\textrm{\scriptsize 92}}$, P. Butti${}^{\textrm{\scriptsize 35}}$, W. Buttinger${}^{\textrm{\scriptsize 35}}$, A. Buzatu${}^{\textrm{\scriptsize 155}}$, A.R. Buzykaev${}^{\textrm{\scriptsize 120b,120a}}$, G. Cabras${}^{\textrm{\scriptsize 23b,23a}}$, S. Cabrera Urbán${}^{\textrm{\scriptsize 171}}$, D. Caforio${}^{\textrm{\scriptsize 139}}$, H. Cai${}^{\textrm{\scriptsize 170}}$, V.M.M. Cairo${}^{\textrm{\scriptsize 2}}$, O. Cakir${}^{\textrm{\scriptsize 4a}}$, N. Calace${}^{\textrm{\scriptsize 35}}$, P. Calafiura${}^{\textrm{\scriptsize 18}}$, A. Calandri${}^{\textrm{\scriptsize 99}}$, G. Calderini${}^{\textrm{\scriptsize 133}}$, P. Calfayan${}^{\textrm{\scriptsize 63}}$, G. Callea${}^{\textrm{\scriptsize 55}}$, L.P. Caloba${}^{\textrm{\scriptsize 78b}}$, S. Calvente Lopez${}^{\textrm{\scriptsize 96}}$, D. Calvet${}^{\textrm{\scriptsize 37}}$, S. Calvet${}^{\textrm{\scriptsize 37}}$, T.P. Calvet${}^{\textrm{\scriptsize 152}}$, M. Calvetti${}^{\textrm{\scriptsize 69a,69b}}$, R. Camacho Toro${}^{\textrm{\scriptsize 133}}$, S. Camarda${}^{\textrm{\scriptsize 35}}$, D. Camarero Munoz${}^{\textrm{\scriptsize 96}}$, P. Camarri${}^{\textrm{\scriptsize 71a,71b}}$, D. Cameron${}^{\textrm{\scriptsize 131}}$, R. Caminal Armadans${}^{\textrm{\scriptsize 100}}$, C. Camincher${}^{\textrm{\scriptsize 35}}$, S. Campana${}^{\textrm{\scriptsize 35}}$, M. Campanelli${}^{\textrm{\scriptsize 92}}$, A. Camplani${}^{\textrm{\scriptsize 39}}$, A. Campoverde${}^{\textrm{\scriptsize 148}}$, V. Canale${}^{\textrm{\scriptsize 67a,67b}}$, M. Cano Bret${}^{\textrm{\scriptsize 58c}}$, J. Cantero${}^{\textrm{\scriptsize 126}}$, T. Cao${}^{\textrm{\scriptsize 158}}$, Y. Cao${}^{\textrm{\scriptsize 170}}$, M.D.M. Capeans Garrido${}^{\textrm{\scriptsize 35}}$, I. Caprini${}^{\textrm{\scriptsize 27b}}$, M. Caprini${}^{\textrm{\scriptsize 27b}}$, M. Capua${}^{\textrm{\scriptsize 40b,40a}}$, R.M. Carbone${}^{\textrm{\scriptsize 38}}$, R. Cardarelli${}^{\textrm{\scriptsize 71a}}$, F.C. Cardillo${}^{\textrm{\scriptsize 146}}$, I. Carli${}^{\textrm{\scriptsize 140}}$, T. Carli${}^{\textrm{\scriptsize 35}}$, G. Carlino${}^{\textrm{\scriptsize 67a}}$, B.T. Carlson${}^{\textrm{\scriptsize 136}}$, L. Carminati${}^{\textrm{\scriptsize 66a,66b}}$, R.M.D. Carney${}^{\textrm{\scriptsize 43a,43b}}$, S. Caron${}^{\textrm{\scriptsize 117}}$, E. Carquin${}^{\textrm{\scriptsize 144b}}$, S. Carrá${}^{\textrm{\scriptsize 66a,66b}}$, J.W.S. Carter${}^{\textrm{\scriptsize 164}}$, D. Casadei${}^{\textrm{\scriptsize 32b}}$, M.P. Casado${}^{\textrm{\scriptsize 14,g}}$, A.F. Casha${}^{\textrm{\scriptsize 164}}$, D.W. Casper${}^{\textrm{\scriptsize 168}}$, R. Castelijn${}^{\textrm{\scriptsize 118}}$, F.L. Castillo${}^{\textrm{\scriptsize 171}}$, V. Castillo Gimenez${}^{\textrm{\scriptsize 171}}$, N.F. Castro${}^{\textrm{\scriptsize 137a,137e}}$, A. Catinaccio${}^{\textrm{\scriptsize 35}}$, J.R. Catmore${}^{\textrm{\scriptsize 131}}$, A. Cattai${}^{\textrm{\scriptsize 35}}$, J. Caudron${}^{\textrm{\scriptsize 24}}$, V. Cavaliere${}^{\textrm{\scriptsize 29}}$, E. Cavallaro${}^{\textrm{\scriptsize 14}}$, D. Cavalli${}^{\textrm{\scriptsize 66a}}$, M. Cavalli-Sforza${}^{\textrm{\scriptsize 14}}$, V. Cavasinni${}^{\textrm{\scriptsize 69a,69b}}$, E. Celebi${}^{\textrm{\scriptsize 12b}}$, F. Ceradini${}^{\textrm{\scriptsize 72a,72b}}$, L. Cerda Alberich${}^{\textrm{\scriptsize 171}}$, A.S. Cerqueira${}^{\textrm{\scriptsize 78a}}$, A. Cerri${}^{\textrm{\scriptsize 153}}$, L. Cerrito${}^{\textrm{\scriptsize 71a,71b}}$, F. Cerutti${}^{\textrm{\scriptsize 18}}$, A. Cervelli${}^{\textrm{\scriptsize 23b,23a}}$, S.A. Cetin${}^{\textrm{\scriptsize 12b}}$, A. Chafaq${}^{\textrm{\scriptsize 34a}}$, D. Chakraborty${}^{\textrm{\scriptsize 119}}$, S.K. Chan${}^{\textrm{\scriptsize 57}}$, W.S. Chan${}^{\textrm{\scriptsize 118}}$, W.Y. Chan${}^{\textrm{\scriptsize 88}}$, J.D. Chapman${}^{\textrm{\scriptsize 31}}$, B. Chargeishvili${}^{\textrm{\scriptsize 156b}}$, D.G. Charlton${}^{\textrm{\scriptsize 21}}$, C.C. Chau${}^{\textrm{\scriptsize 33}}$, C.A. Chavez Barajas${}^{\textrm{\scriptsize 153}}$, S. Che${}^{\textrm{\scriptsize 123}}$, A. Chegwidden${}^{\textrm{\scriptsize 104}}$, S. Chekanov${}^{\textrm{\scriptsize 6}}$, S.V. Chekulaev${}^{\textrm{\scriptsize 165a}}$, G.A. Chelkov${}^{\textrm{\scriptsize 77,av}}$, M.A. Chelstowska${}^{\textrm{\scriptsize 35}}$, B. Chen${}^{\textrm{\scriptsize 76}}$, C. Chen${}^{\textrm{\scriptsize 58a}}$, C.H. Chen${}^{\textrm{\scriptsize 76}}$, H. Chen${}^{\textrm{\scriptsize 29}}$, J. Chen${}^{\textrm{\scriptsize 58a}}$, J. Chen${}^{\textrm{\scriptsize 38}}$, S. Chen${}^{\textrm{\scriptsize 134}}$, S.J. Chen${}^{\textrm{\scriptsize 15c}}$, X. Chen${}^{\textrm{\scriptsize 15b,au}}$, Y. Chen${}^{\textrm{\scriptsize 80}}$, Y-H. Chen${}^{\textrm{\scriptsize 44}}$, H.C. Cheng${}^{\textrm{\scriptsize 61a}}$, H.J. Cheng${}^{\textrm{\scriptsize 15d}}$, A. Cheplakov${}^{\textrm{\scriptsize 77}}$, E. Cheremushkina${}^{\textrm{\scriptsize 121}}$, R. Cherkaoui El Moursli${}^{\textrm{\scriptsize 34e}}$, E. Cheu${}^{\textrm{\scriptsize 7}}$, K. Cheung${}^{\textrm{\scriptsize 62}}$, T.J.A. Chevalérias${}^{\textrm{\scriptsize 142}}$, L. Chevalier${}^{\textrm{\scriptsize 142}}$, V. Chiarella${}^{\textrm{\scriptsize 49}}$, G. Chiarelli${}^{\textrm{\scriptsize 69a}}$, G. Chiodini${}^{\textrm{\scriptsize 65a}}$, A.S. Chisholm${}^{\textrm{\scriptsize 35,21}}$, A. Chitan${}^{\textrm{\scriptsize 27b}}$, I. Chiu${}^{\textrm{\scriptsize 160}}$, Y.H. Chiu${}^{\textrm{\scriptsize 173}}$, M.V. Chizhov${}^{\textrm{\scriptsize 77}}$, K. Choi${}^{\textrm{\scriptsize 63}}$, A.R. Chomont${}^{\textrm{\scriptsize 129}}$, S. Chouridou${}^{\textrm{\scriptsize 159}}$, Y.S. Chow${}^{\textrm{\scriptsize 118}}$, V. Christodoulou${}^{\textrm{\scriptsize 92}}$, M.C. Chu${}^{\textrm{\scriptsize 61a}}$, J. Chudoba${}^{\textrm{\scriptsize 138}}$, A.J. Chuinard${}^{\textrm{\scriptsize 101}}$, J.J. Chwastowski${}^{\textrm{\scriptsize 82}}$, L. Chytka${}^{\textrm{\scriptsize 127}}$, D. Cinca${}^{\textrm{\scriptsize 45}}$, V. Cindro${}^{\textrm{\scriptsize 89}}$, I.A. Cioară${}^{\textrm{\scriptsize 24}}$, A. Ciocio${}^{\textrm{\scriptsize 18}}$, F. Cirotto${}^{\textrm{\scriptsize 67a,67b}}$, Z.H. Citron${}^{\textrm{\scriptsize 177}}$, M. Citterio${}^{\textrm{\scriptsize 66a}}$, A. Clark${}^{\textrm{\scriptsize 52}}$, M.R. Clark${}^{\textrm{\scriptsize 38}}$, P.J. Clark${}^{\textrm{\scriptsize 48}}$, C. Clement${}^{\textrm{\scriptsize 43a,43b}}$, Y. Coadou${}^{\textrm{\scriptsize 99}}$, M. Cobal${}^{\textrm{\scriptsize 64a,64c}}$, A. Coccaro${}^{\textrm{\scriptsize 53b}}$, J. Cochran${}^{\textrm{\scriptsize 76}}$, H. Cohen${}^{\textrm{\scriptsize 158}}$, A.E.C. Coimbra${}^{\textrm{\scriptsize 177}}$, L. Colasurdo${}^{\textrm{\scriptsize 117}}$, B. Cole${}^{\textrm{\scriptsize 38}}$, A.P. Colijn${}^{\textrm{\scriptsize 118}}$, J. Collot${}^{\textrm{\scriptsize 56}}$, P. Conde Muiño${}^{\textrm{\scriptsize 137a,i}}$, E. Coniavitis${}^{\textrm{\scriptsize 50}}$, S.H. Connell${}^{\textrm{\scriptsize 32b}}$, I.A. Connelly${}^{\textrm{\scriptsize 98}}$, S. Constantinescu${}^{\textrm{\scriptsize 27b}}$, F. Conventi${}^{\textrm{\scriptsize 67a,ax}}$, A.M. Cooper-Sarkar${}^{\textrm{\scriptsize 132}}$, F. Cormier${}^{\textrm{\scriptsize 172}}$, K.J.R. Cormier${}^{\textrm{\scriptsize 164}}$, L.D. Corpe${}^{\textrm{\scriptsize 92}}$, M. Corradi${}^{\textrm{\scriptsize 70a,70b}}$, E.E. Corrigan${}^{\textrm{\scriptsize 94}}$, F. Corriveau${}^{\textrm{\scriptsize 101,ad}}$, A. Cortes-Gonzalez${}^{\textrm{\scriptsize 35}}$, M.J. Costa${}^{\textrm{\scriptsize 171}}$, F. Costanza${}^{\textrm{\scriptsize 5}}$, D. Costanzo${}^{\textrm{\scriptsize 146}}$, G. Cottin${}^{\textrm{\scriptsize 31}}$, G. Cowan${}^{\textrm{\scriptsize 91}}$, J.W. Cowley${}^{\textrm{\scriptsize 31}}$, B.E. Cox${}^{\textrm{\scriptsize 98}}$, J. Crane${}^{\textrm{\scriptsize 98}}$, K. Cranmer${}^{\textrm{\scriptsize 122}}$, S.J. Crawley${}^{\textrm{\scriptsize 55}}$, R.A. Creager${}^{\textrm{\scriptsize 134}}$, G. Cree${}^{\textrm{\scriptsize 33}}$, S. Crépé-Renaudin${}^{\textrm{\scriptsize 56}}$, F. Crescioli${}^{\textrm{\scriptsize 133}}$, M. Cristinziani${}^{\textrm{\scriptsize 24}}$, V. Croft${}^{\textrm{\scriptsize 122}}$, G. Crosetti${}^{\textrm{\scriptsize 40b,40a}}$, A. Cueto${}^{\textrm{\scriptsize 96}}$, T. Cuhadar Donszelmann${}^{\textrm{\scriptsize 146}}$, A.R. Cukierman${}^{\textrm{\scriptsize 150}}$, S. Czekierda${}^{\textrm{\scriptsize 82}}$, P. Czodrowski${}^{\textrm{\scriptsize 35}}$, M.J. Da Cunha Sargedas De Sousa${}^{\textrm{\scriptsize 58b}}$, C. Da Via${}^{\textrm{\scriptsize 98}}$, W. Dabrowski${}^{\textrm{\scriptsize 81a}}$, T. Dado${}^{\textrm{\scriptsize 28a,y}}$, S. Dahbi${}^{\textrm{\scriptsize 34e}}$, T. Dai${}^{\textrm{\scriptsize 103}}$, F. Dallaire${}^{\textrm{\scriptsize 107}}$, C. Dallapiccola${}^{\textrm{\scriptsize 100}}$, M. Dam${}^{\textrm{\scriptsize 39}}$, G. D’amen${}^{\textrm{\scriptsize 23b,23a}}$, J. Damp${}^{\textrm{\scriptsize 97}}$, J.R. Dandoy${}^{\textrm{\scriptsize 134}}$, M.F. Daneri${}^{\textrm{\scriptsize 30}}$, N.P. Dang${}^{\textrm{\scriptsize 178,l}}$, N.D Dann${}^{\textrm{\scriptsize 98}}$, M. Danninger${}^{\textrm{\scriptsize 172}}$, V. Dao${}^{\textrm{\scriptsize 35}}$, G. Darbo${}^{\textrm{\scriptsize 53b}}$, S. Darmora${}^{\textrm{\scriptsize 8}}$, O. Dartsi${}^{\textrm{\scriptsize 5}}$, A. Dattagupta${}^{\textrm{\scriptsize 128}}$, T. Daubney${}^{\textrm{\scriptsize 44}}$, S. D’Auria${}^{\textrm{\scriptsize 66a,66b}}$, W. Davey${}^{\textrm{\scriptsize 24}}$, C. David${}^{\textrm{\scriptsize 44}}$, T. Davidek${}^{\textrm{\scriptsize 140}}$, D.R. Davis${}^{\textrm{\scriptsize 47}}$, E. Dawe${}^{\textrm{\scriptsize 102}}$, I. Dawson${}^{\textrm{\scriptsize 146}}$, K. De${}^{\textrm{\scriptsize 8}}$, R. De Asmundis${}^{\textrm{\scriptsize 67a}}$, A. De Benedetti${}^{\textrm{\scriptsize 125}}$, M. De Beurs${}^{\textrm{\scriptsize 118}}$, S. De Castro${}^{\textrm{\scriptsize 23b,23a}}$, S. De Cecco${}^{\textrm{\scriptsize 70a,70b}}$, N. De Groot${}^{\textrm{\scriptsize 117}}$, P. de Jong${}^{\textrm{\scriptsize 118}}$, H. De la Torre${}^{\textrm{\scriptsize 104}}$, F. De Lorenzi${}^{\textrm{\scriptsize 76}}$, A. De Maria${}^{\textrm{\scriptsize 69a,69b}}$, D. De Pedis${}^{\textrm{\scriptsize 70a}}$, A. De Salvo${}^{\textrm{\scriptsize 70a}}$, U. De Sanctis${}^{\textrm{\scriptsize 71a,71b}}$, M. De Santis${}^{\textrm{\scriptsize 71a,71b}}$, A. De Santo${}^{\textrm{\scriptsize 153}}$, K. De Vasconcelos Corga${}^{\textrm{\scriptsize 99}}$, J.B. De Vivie De Regie${}^{\textrm{\scriptsize 129}}$, C. Debenedetti${}^{\textrm{\scriptsize 143}}$, D.V. Dedovich${}^{\textrm{\scriptsize 77}}$, N. Dehghanian${}^{\textrm{\scriptsize 3}}$, M. Del Gaudio${}^{\textrm{\scriptsize 40b,40a}}$, J. Del Peso${}^{\textrm{\scriptsize 96}}$, Y. Delabat Diaz${}^{\textrm{\scriptsize 44}}$, D. Delgove${}^{\textrm{\scriptsize 129}}$, F. Deliot${}^{\textrm{\scriptsize 142}}$, C.M. Delitzsch${}^{\textrm{\scriptsize 7}}$, M. Della Pietra${}^{\textrm{\scriptsize 67a,67b}}$, D. Della Volpe${}^{\textrm{\scriptsize 52}}$, A. Dell’Acqua${}^{\textrm{\scriptsize 35}}$, L. Dell’Asta${}^{\textrm{\scriptsize 25}}$, M. Delmastro${}^{\textrm{\scriptsize 5}}$, C. Delporte${}^{\textrm{\scriptsize 129}}$, P.A. Delsart${}^{\textrm{\scriptsize 56}}$, D.A. DeMarco${}^{\textrm{\scriptsize 164}}$, S. Demers${}^{\textrm{\scriptsize 180}}$, M. Demichev${}^{\textrm{\scriptsize 77}}$, S.P. Denisov${}^{\textrm{\scriptsize 121}}$, D. Denysiuk${}^{\textrm{\scriptsize 118}}$, L. D’Eramo${}^{\textrm{\scriptsize 133}}$, D. Derendarz${}^{\textrm{\scriptsize 82}}$, J.E. Derkaoui${}^{\textrm{\scriptsize 34d}}$, F. Derue${}^{\textrm{\scriptsize 133}}$, P. Dervan${}^{\textrm{\scriptsize 88}}$, K. Desch${}^{\textrm{\scriptsize 24}}$, C. Deterre${}^{\textrm{\scriptsize 44}}$, K. Dette${}^{\textrm{\scriptsize 164}}$, M.R. Devesa${}^{\textrm{\scriptsize 30}}$, P.O. Deviveiros${}^{\textrm{\scriptsize 35}}$, A. Dewhurst${}^{\textrm{\scriptsize 141}}$, S. Dhaliwal${}^{\textrm{\scriptsize 26}}$, F.A. Di Bello${}^{\textrm{\scriptsize 52}}$, A. Di Ciaccio${}^{\textrm{\scriptsize 71a,71b}}$, L. Di Ciaccio${}^{\textrm{\scriptsize 5}}$, W.K. Di Clemente${}^{\textrm{\scriptsize 134}}$, C. Di Donato${}^{\textrm{\scriptsize 67a,67b}}$, A. Di Girolamo${}^{\textrm{\scriptsize 35}}$, G. Di Gregorio${}^{\textrm{\scriptsize 69a,69b}}$, B. Di Micco${}^{\textrm{\scriptsize 72a,72b}}$, R. Di Nardo${}^{\textrm{\scriptsize 100}}$, K.F. Di Petrillo${}^{\textrm{\scriptsize 57}}$, R. Di Sipio${}^{\textrm{\scriptsize 164}}$, D. Di Valentino${}^{\textrm{\scriptsize 33}}$, C. Diaconu${}^{\textrm{\scriptsize 99}}$, M. Diamond${}^{\textrm{\scriptsize 164}}$, F.A. Dias${}^{\textrm{\scriptsize 39}}$, T. Dias Do Vale${}^{\textrm{\scriptsize 137a}}$, M.A. Diaz${}^{\textrm{\scriptsize 144a}}$, J. Dickinson${}^{\textrm{\scriptsize 18}}$, E.B. Diehl${}^{\textrm{\scriptsize 103}}$, J. Dietrich${}^{\textrm{\scriptsize 19}}$, S. Díez Cornell${}^{\textrm{\scriptsize 44}}$, A. Dimitrievska${}^{\textrm{\scriptsize 18}}$, J. Dingfelder${}^{\textrm{\scriptsize 24}}$, F. Dittus${}^{\textrm{\scriptsize 35}}$, F. Djama${}^{\textrm{\scriptsize 99}}$, T. Djobava${}^{\textrm{\scriptsize 156b}}$, J.I. Djuvsland${}^{\textrm{\scriptsize 17}}$, M.A.B. Do Vale${}^{\textrm{\scriptsize 78c}}$, M. Dobre${}^{\textrm{\scriptsize 27b}}$, D. Dodsworth${}^{\textrm{\scriptsize 26}}$, C. Doglioni${}^{\textrm{\scriptsize 94}}$, J. Dolejsi${}^{\textrm{\scriptsize 140}}$, Z. Dolezal${}^{\textrm{\scriptsize 140}}$, M. Donadelli${}^{\textrm{\scriptsize 78d}}$, J. Donini${}^{\textrm{\scriptsize 37}}$, A. D’onofrio${}^{\textrm{\scriptsize 90}}$, M. D’Onofrio${}^{\textrm{\scriptsize 88}}$, J. Dopke${}^{\textrm{\scriptsize 141}}$, A. Doria${}^{\textrm{\scriptsize 67a}}$, M.T. Dova${}^{\textrm{\scriptsize 86}}$, A.T. Doyle${}^{\textrm{\scriptsize 55}}$, E. Drechsler${}^{\textrm{\scriptsize 149}}$, E. Dreyer${}^{\textrm{\scriptsize 149}}$, T. Dreyer${}^{\textrm{\scriptsize 51}}$, Y. Du${}^{\textrm{\scriptsize 58b}}$, F. Dubinin${}^{\textrm{\scriptsize 108}}$, M. Dubovsky${}^{\textrm{\scriptsize 28a}}$, A. Dubreuil${}^{\textrm{\scriptsize 52}}$, E. Duchovni${}^{\textrm{\scriptsize 177}}$, G. Duckeck${}^{\textrm{\scriptsize 112}}$, A. Ducourthial${}^{\textrm{\scriptsize 133}}$, O.A. Ducu${}^{\textrm{\scriptsize 107,x}}$, D. Duda${}^{\textrm{\scriptsize 113}}$, A. Dudarev${}^{\textrm{\scriptsize 35}}$, A.C. Dudder${}^{\textrm{\scriptsize 97}}$, E.M. Duffield${}^{\textrm{\scriptsize 18}}$, L. Duflot${}^{\textrm{\scriptsize 129}}$, M. Dührssen${}^{\textrm{\scriptsize 35}}$, C. Dülsen${}^{\textrm{\scriptsize 179}}$, M. Dumancic${}^{\textrm{\scriptsize 177}}$, A.E. Dumitriu${}^{\textrm{\scriptsize 27b,e}}$, A.K. Duncan${}^{\textrm{\scriptsize 55}}$, M. Dunford${}^{\textrm{\scriptsize 59a}}$, A. Duperrin${}^{\textrm{\scriptsize 99}}$, H. Duran Yildiz${}^{\textrm{\scriptsize 4a}}$, M. Düren${}^{\textrm{\scriptsize 54}}$, A. Durglishvili${}^{\textrm{\scriptsize 156b}}$, D. Duschinger${}^{\textrm{\scriptsize 46}}$, B. Dutta${}^{\textrm{\scriptsize 44}}$, D. Duvnjak${}^{\textrm{\scriptsize 1}}$, G. Dyckes${}^{\textrm{\scriptsize 134}}$, M. Dyndal${}^{\textrm{\scriptsize 44}}$, S. Dysch${}^{\textrm{\scriptsize 98}}$, B.S. Dziedzic${}^{\textrm{\scriptsize 82}}$, K.M. Ecker${}^{\textrm{\scriptsize 113}}$, R.C. Edgar${}^{\textrm{\scriptsize 103}}$, T. Eifert${}^{\textrm{\scriptsize 35}}$, G. Eigen${}^{\textrm{\scriptsize 17}}$, K. Einsweiler${}^{\textrm{\scriptsize 18}}$, T. Ekelof${}^{\textrm{\scriptsize 169}}$, M. El Kacimi${}^{\textrm{\scriptsize 34c}}$, R. El Kosseifi${}^{\textrm{\scriptsize 99}}$, V. Ellajosyula${}^{\textrm{\scriptsize 99}}$, M. Ellert${}^{\textrm{\scriptsize 169}}$, F. Ellinghaus${}^{\textrm{\scriptsize 179}}$, A.A. Elliot${}^{\textrm{\scriptsize 90}}$, N. Ellis${}^{\textrm{\scriptsize 35}}$, J. Elmsheuser${}^{\textrm{\scriptsize 29}}$, M. Elsing${}^{\textrm{\scriptsize 35}}$, D. Emeliyanov${}^{\textrm{\scriptsize 141}}$, A. Emerman${}^{\textrm{\scriptsize 38}}$, Y. Enari${}^{\textrm{\scriptsize 160}}$, J.S. Ennis${}^{\textrm{\scriptsize 175}}$, M.B. Epland${}^{\textrm{\scriptsize 47}}$, J. Erdmann${}^{\textrm{\scriptsize 45}}$, A. Ereditato${}^{\textrm{\scriptsize 20}}$, S. Errede${}^{\textrm{\scriptsize 170}}$, M. Escalier${}^{\textrm{\scriptsize 129}}$, C. Escobar${}^{\textrm{\scriptsize 171}}$, O. Estrada Pastor${}^{\textrm{\scriptsize 171}}$, A.I. Etienvre${}^{\textrm{\scriptsize 142}}$, E. Etzion${}^{\textrm{\scriptsize 158}}$, H. Evans${}^{\textrm{\scriptsize 63}}$, A. Ezhilov${}^{\textrm{\scriptsize 135}}$, M. Ezzi${}^{\textrm{\scriptsize 34e}}$, F. Fabbri${}^{\textrm{\scriptsize 55}}$, L. Fabbri${}^{\textrm{\scriptsize 23b,23a}}$, V. Fabiani${}^{\textrm{\scriptsize 117}}$, G. Facini${}^{\textrm{\scriptsize 92}}$, R.M. Faisca Rodrigues Pereira${}^{\textrm{\scriptsize 137a}}$, R.M. Fakhrutdinov${}^{\textrm{\scriptsize 121}}$, S. Falciano${}^{\textrm{\scriptsize 70a}}$, P.J. Falke${}^{\textrm{\scriptsize 5}}$, S. Falke${}^{\textrm{\scriptsize 5}}$, J. Faltova${}^{\textrm{\scriptsize 140}}$, Y. Fang${}^{\textrm{\scriptsize 15a}}$, M. Fanti${}^{\textrm{\scriptsize 66a,66b}}$, A. Farbin${}^{\textrm{\scriptsize 8}}$, A. Farilla${}^{\textrm{\scriptsize 72a}}$, E.M. Farina${}^{\textrm{\scriptsize 68a,68b}}$, T. Farooque${}^{\textrm{\scriptsize 104}}$, S. Farrell${}^{\textrm{\scriptsize 18}}$, S.M. Farrington${}^{\textrm{\scriptsize 175}}$, P. Farthouat${}^{\textrm{\scriptsize 35}}$, F. Fassi${}^{\textrm{\scriptsize 34e}}$, P. Fassnacht${}^{\textrm{\scriptsize 35}}$, D. Fassouliotis${}^{\textrm{\scriptsize 9}}$, M. Faucci Giannelli${}^{\textrm{\scriptsize 48}}$, W.J. Fawcett${}^{\textrm{\scriptsize 31}}$, L. Fayard${}^{\textrm{\scriptsize 129}}$, O.L. Fedin${}^{\textrm{\scriptsize 135,q}}$, W. Fedorko${}^{\textrm{\scriptsize 172}}$, M. Feickert${}^{\textrm{\scriptsize 41}}$, S. Feigl${}^{\textrm{\scriptsize 131}}$, L. Feligioni${}^{\textrm{\scriptsize 99}}$, C. Feng${}^{\textrm{\scriptsize 58b}}$, E.J. Feng${}^{\textrm{\scriptsize 35}}$, M. Feng${}^{\textrm{\scriptsize 47}}$, M.J. Fenton${}^{\textrm{\scriptsize 55}}$, A.B. Fenyuk${}^{\textrm{\scriptsize 121}}$, J. Ferrando${}^{\textrm{\scriptsize 44}}$, A. Ferrari${}^{\textrm{\scriptsize 169}}$, P. Ferrari${}^{\textrm{\scriptsize 118}}$, R. Ferrari${}^{\textrm{\scriptsize 68a}}$, D.E. Ferreira de Lima${}^{\textrm{\scriptsize 59b}}$, A. Ferrer${}^{\textrm{\scriptsize 171}}$, D. Ferrere${}^{\textrm{\scriptsize 52}}$, C. Ferretti${}^{\textrm{\scriptsize 103}}$, F. Fiedler${}^{\textrm{\scriptsize 97}}$, A. Filipčič${}^{\textrm{\scriptsize 89}}$, F. Filthaut${}^{\textrm{\scriptsize 117}}$, K.D. Finelli${}^{\textrm{\scriptsize 25}}$, M.C.N. Fiolhais${}^{\textrm{\scriptsize 137a,137c,a}}$, L. Fiorini${}^{\textrm{\scriptsize 171}}$, C. Fischer${}^{\textrm{\scriptsize 14}}$, W.C. Fisher${}^{\textrm{\scriptsize 104}}$, N. Flaschel${}^{\textrm{\scriptsize 44}}$, I. Fleck${}^{\textrm{\scriptsize 148}}$, P. Fleischmann${}^{\textrm{\scriptsize 103}}$, R.R.M. Fletcher${}^{\textrm{\scriptsize 134}}$, T. Flick${}^{\textrm{\scriptsize 179}}$, B.M. Flierl${}^{\textrm{\scriptsize 112}}$, L.M. Flores${}^{\textrm{\scriptsize 134}}$, L.R. Flores Castillo${}^{\textrm{\scriptsize 61a}}$, F.M. Follega${}^{\textrm{\scriptsize 73a,73b}}$, N. Fomin${}^{\textrm{\scriptsize 17}}$, G.T. Forcolin${}^{\textrm{\scriptsize 73a,73b}}$, A. Formica${}^{\textrm{\scriptsize 142}}$, F.A. Förster${}^{\textrm{\scriptsize 14}}$, A.C. Forti${}^{\textrm{\scriptsize 98}}$, A.G. Foster${}^{\textrm{\scriptsize 21}}$, D. Fournier${}^{\textrm{\scriptsize 129}}$, H. Fox${}^{\textrm{\scriptsize 87}}$, S. Fracchia${}^{\textrm{\scriptsize 146}}$, P. Francavilla${}^{\textrm{\scriptsize 69a,69b}}$, M. Franchini${}^{\textrm{\scriptsize 23b,23a}}$, S. Franchino${}^{\textrm{\scriptsize 59a}}$, D. Francis${}^{\textrm{\scriptsize 35}}$, L. Franconi${}^{\textrm{\scriptsize 143}}$, M. Franklin${}^{\textrm{\scriptsize 57}}$, M. Frate${}^{\textrm{\scriptsize 168}}$, A.N. Fray${}^{\textrm{\scriptsize 90}}$, D. Freeborn${}^{\textrm{\scriptsize 92}}$, B. Freund${}^{\textrm{\scriptsize 107}}$, W.S. Freund${}^{\textrm{\scriptsize 78b}}$, E.M. Freundlich${}^{\textrm{\scriptsize 45}}$, D.C. Frizzell${}^{\textrm{\scriptsize 125}}$, D. Froidevaux${}^{\textrm{\scriptsize 35}}$, J.A. Frost${}^{\textrm{\scriptsize 132}}$, C. Fukunaga${}^{\textrm{\scriptsize 161}}$, E. Fullana Torregrosa${}^{\textrm{\scriptsize 171}}$, E. Fumagalli${}^{\textrm{\scriptsize 53b,53a}}$, T. Fusayasu${}^{\textrm{\scriptsize 114}}$, J. Fuster${}^{\textrm{\scriptsize 171}}$, O. Gabizon${}^{\textrm{\scriptsize 157}}$, A. Gabrielli${}^{\textrm{\scriptsize 23b,23a}}$, A. Gabrielli${}^{\textrm{\scriptsize 18}}$, G.P. Gach${}^{\textrm{\scriptsize 81a}}$, S. Gadatsch${}^{\textrm{\scriptsize 52}}$, P. Gadow${}^{\textrm{\scriptsize 113}}$, G. Gagliardi${}^{\textrm{\scriptsize 53b,53a}}$, L.G. Gagnon${}^{\textrm{\scriptsize 107}}$, C. Galea${}^{\textrm{\scriptsize 27b}}$, B. Galhardo${}^{\textrm{\scriptsize 137a,137c}}$, E.J. Gallas${}^{\textrm{\scriptsize 132}}$, B.J. Gallop${}^{\textrm{\scriptsize 141}}$, P. Gallus${}^{\textrm{\scriptsize 139}}$, G. Galster${}^{\textrm{\scriptsize 39}}$, R. Gamboa Goni${}^{\textrm{\scriptsize 90}}$, K.K. Gan${}^{\textrm{\scriptsize 123}}$, S. Ganguly${}^{\textrm{\scriptsize 177}}$, J. Gao${}^{\textrm{\scriptsize 58a}}$, Y. Gao${}^{\textrm{\scriptsize 88}}$, Y.S. Gao${}^{\textrm{\scriptsize 150,n}}$, C. García${}^{\textrm{\scriptsize 171}}$, J.E. García Navarro${}^{\textrm{\scriptsize 171}}$, J.A. García Pascual${}^{\textrm{\scriptsize 15a}}$, C. Garcia-Argos${}^{\textrm{\scriptsize 50}}$, M. Garcia-Sciveres${}^{\textrm{\scriptsize 18}}$, R.W. Gardner${}^{\textrm{\scriptsize 36}}$, N. Garelli${}^{\textrm{\scriptsize 150}}$, S. Gargiulo${}^{\textrm{\scriptsize 50}}$, V. Garonne${}^{\textrm{\scriptsize 131}}$, K. Gasnikova${}^{\textrm{\scriptsize 44}}$, A. Gaudiello${}^{\textrm{\scriptsize 53b,53a}}$, G. Gaudio${}^{\textrm{\scriptsize 68a}}$, I.L. Gavrilenko${}^{\textrm{\scriptsize 108}}$, A. Gavrilyuk${}^{\textrm{\scriptsize 109}}$, C. Gay${}^{\textrm{\scriptsize 172}}$, G. Gaycken${}^{\textrm{\scriptsize 24}}$, E.N. Gazis${}^{\textrm{\scriptsize 10}}$, C.N.P. Gee${}^{\textrm{\scriptsize 141}}$, J. Geisen${}^{\textrm{\scriptsize 51}}$, M. Geisen${}^{\textrm{\scriptsize 97}}$, M.P. Geisler${}^{\textrm{\scriptsize 59a}}$, C. Gemme${}^{\textrm{\scriptsize 53b}}$, M.H. Genest${}^{\textrm{\scriptsize 56}}$, C. Geng${}^{\textrm{\scriptsize 103}}$, S. Gentile${}^{\textrm{\scriptsize 70a,70b}}$, S. George${}^{\textrm{\scriptsize 91}}$, D. Gerbaudo${}^{\textrm{\scriptsize 14}}$, G. Gessner${}^{\textrm{\scriptsize 45}}$, S. Ghasemi${}^{\textrm{\scriptsize 148}}$, M. Ghasemi Bostanabad${}^{\textrm{\scriptsize 173}}$, M. Ghneimat${}^{\textrm{\scriptsize 24}}$, B. Giacobbe${}^{\textrm{\scriptsize 23b}}$, S. Giagu${}^{\textrm{\scriptsize 70a,70b}}$, N. Giangiacomi${}^{\textrm{\scriptsize 23b,23a}}$, P. Giannetti${}^{\textrm{\scriptsize 69a}}$, A. Giannini${}^{\textrm{\scriptsize 67a,67b}}$, S.M. Gibson${}^{\textrm{\scriptsize 91}}$, M. Gignac${}^{\textrm{\scriptsize 143}}$, D. Gillberg${}^{\textrm{\scriptsize 33}}$, G. Gilles${}^{\textrm{\scriptsize 179}}$, D.M. Gingrich${}^{\textrm{\scriptsize 3,aw}}$, M.P. Giordani${}^{\textrm{\scriptsize 64a,64c}}$, F.M. Giorgi${}^{\textrm{\scriptsize 23b}}$, P.F. Giraud${}^{\textrm{\scriptsize 142}}$, P. Giromini${}^{\textrm{\scriptsize 57}}$, G. Giugliarelli${}^{\textrm{\scriptsize 64a,64c}}$, D. Giugni${}^{\textrm{\scriptsize 66a}}$, F. Giuli${}^{\textrm{\scriptsize 132}}$, M. Giulini${}^{\textrm{\scriptsize 59b}}$, S. Gkaitatzis${}^{\textrm{\scriptsize 159}}$, I. Gkialas${}^{\textrm{\scriptsize 9,k}}$, E.L. Gkougkousis${}^{\textrm{\scriptsize 14}}$, P. Gkountoumis${}^{\textrm{\scriptsize 10}}$, L.K. Gladilin${}^{\textrm{\scriptsize 111}}$, C. Glasman${}^{\textrm{\scriptsize 96}}$, J. Glatzer${}^{\textrm{\scriptsize 14}}$, P.C.F. Glaysher${}^{\textrm{\scriptsize 44}}$, A. Glazov${}^{\textrm{\scriptsize 44}}$, M. Goblirsch-Kolb${}^{\textrm{\scriptsize 26}}$, J. Godlewski${}^{\textrm{\scriptsize 82}}$, S. Goldfarb${}^{\textrm{\scriptsize 102}}$, T. Golling${}^{\textrm{\scriptsize 52}}$, D. Golubkov${}^{\textrm{\scriptsize 121}}$, A. Gomes${}^{\textrm{\scriptsize 137a,137b}}$, R. Goncalves Gama${}^{\textrm{\scriptsize 51}}$, R. Gonçalo${}^{\textrm{\scriptsize 137a}}$, G. Gonella${}^{\textrm{\scriptsize 50}}$, L. Gonella${}^{\textrm{\scriptsize 21}}$, A. Gongadze${}^{\textrm{\scriptsize 77}}$, F. Gonnella${}^{\textrm{\scriptsize 21}}$, J.L. Gonski${}^{\textrm{\scriptsize 57}}$, S. González de la Hoz${}^{\textrm{\scriptsize 171}}$, S. Gonzalez-Sevilla${}^{\textrm{\scriptsize 52}}$, L. Goossens${}^{\textrm{\scriptsize 35}}$, P.A. Gorbounov${}^{\textrm{\scriptsize 109}}$, H.A. Gordon${}^{\textrm{\scriptsize 29}}$, B. Gorini${}^{\textrm{\scriptsize 35}}$, E. Gorini${}^{\textrm{\scriptsize 65a,65b}}$, A. Gorišek${}^{\textrm{\scriptsize 89}}$, A.T. Goshaw${}^{\textrm{\scriptsize 47}}$, C. Gössling${}^{\textrm{\scriptsize 45}}$, M.I. Gostkin${}^{\textrm{\scriptsize 77}}$, C.A. Gottardo${}^{\textrm{\scriptsize 24}}$, C.R. Goudet${}^{\textrm{\scriptsize 129}}$, D. Goujdami${}^{\textrm{\scriptsize 34c}}$, A.G. Goussiou${}^{\textrm{\scriptsize 145}}$, N. Govender${}^{\textrm{\scriptsize 32b,c}}$, C. Goy${}^{\textrm{\scriptsize 5}}$, E. Gozani${}^{\textrm{\scriptsize 157}}$, I. Grabowska-Bold${}^{\textrm{\scriptsize 81a}}$, P.O.J. Gradin${}^{\textrm{\scriptsize 169}}$, E.C. Graham${}^{\textrm{\scriptsize 88}}$, J. Gramling${}^{\textrm{\scriptsize 168}}$, E. Gramstad${}^{\textrm{\scriptsize 131}}$, S. Grancagnolo${}^{\textrm{\scriptsize 19}}$, V. Gratchev${}^{\textrm{\scriptsize 135}}$, P.M. Gravila${}^{\textrm{\scriptsize 27f}}$, F.G. Gravili${}^{\textrm{\scriptsize 65a,65b}}$, C. Gray${}^{\textrm{\scriptsize 55}}$, H.M. Gray${}^{\textrm{\scriptsize 18}}$, Z.D. Greenwood${}^{\textrm{\scriptsize 93,al}}$, C. Grefe${}^{\textrm{\scriptsize 24}}$, K. Gregersen${}^{\textrm{\scriptsize 94}}$, I.M. Gregor${}^{\textrm{\scriptsize 44}}$, P. Grenier${}^{\textrm{\scriptsize 150}}$, K. Grevtsov${}^{\textrm{\scriptsize 44}}$, N.A. Grieser${}^{\textrm{\scriptsize 125}}$, J. Griffiths${}^{\textrm{\scriptsize 8}}$, A.A. Grillo${}^{\textrm{\scriptsize 143}}$, K. Grimm${}^{\textrm{\scriptsize 150,b}}$, S. Grinstein${}^{\textrm{\scriptsize 14,z}}$, Ph. Gris${}^{\textrm{\scriptsize 37}}$, J.-F. Grivaz${}^{\textrm{\scriptsize 129}}$, S. Groh${}^{\textrm{\scriptsize 97}}$, E. Gross${}^{\textrm{\scriptsize 177}}$, J. Grosse-Knetter${}^{\textrm{\scriptsize 51}}$, G.C. Grossi${}^{\textrm{\scriptsize 93}}$, Z.J. Grout${}^{\textrm{\scriptsize 92}}$, C. Grud${}^{\textrm{\scriptsize 103}}$, A. Grummer${}^{\textrm{\scriptsize 116}}$, L. Guan${}^{\textrm{\scriptsize 103}}$, W. Guan${}^{\textrm{\scriptsize 178}}$, J. Guenther${}^{\textrm{\scriptsize 35}}$, A. Guerguichon${}^{\textrm{\scriptsize 129}}$, F. Guescini${}^{\textrm{\scriptsize 165a}}$, D. Guest${}^{\textrm{\scriptsize 168}}$, R. Gugel${}^{\textrm{\scriptsize 50}}$, B. Gui${}^{\textrm{\scriptsize 123}}$, T. Guillemin${}^{\textrm{\scriptsize 5}}$, S. Guindon${}^{\textrm{\scriptsize 35}}$, U. Gul${}^{\textrm{\scriptsize 55}}$, J. Guo${}^{\textrm{\scriptsize 58c}}$, W. Guo${}^{\textrm{\scriptsize 103}}$, Y. Guo${}^{\textrm{\scriptsize 58a,t}}$, Z. Guo${}^{\textrm{\scriptsize 99}}$, R. Gupta${}^{\textrm{\scriptsize 44}}$, S. Gurbuz${}^{\textrm{\scriptsize 12c}}$, G. Gustavino${}^{\textrm{\scriptsize 125}}$, P. Gutierrez${}^{\textrm{\scriptsize 125}}$, C. Gutschow${}^{\textrm{\scriptsize 92}}$, C. Guyot${}^{\textrm{\scriptsize 142}}$, M.P. Guzik${}^{\textrm{\scriptsize 81a}}$, C. Gwenlan${}^{\textrm{\scriptsize 132}}$, C.B. Gwilliam${}^{\textrm{\scriptsize 88}}$, A. Haas${}^{\textrm{\scriptsize 122}}$, C. Haber${}^{\textrm{\scriptsize 18}}$, H.K. Hadavand${}^{\textrm{\scriptsize 8}}$, N. Haddad${}^{\textrm{\scriptsize 34e}}$, A. Hadef${}^{\textrm{\scriptsize 58a}}$, S. Hageböck${}^{\textrm{\scriptsize 24}}$, M. Hagihara${}^{\textrm{\scriptsize 166}}$, M. Haleem${}^{\textrm{\scriptsize 174}}$, J. Haley${}^{\textrm{\scriptsize 126}}$, G. Halladjian${}^{\textrm{\scriptsize 104}}$, G.D. Hallewell${}^{\textrm{\scriptsize 99}}$, K. Hamacher${}^{\textrm{\scriptsize 179}}$, P. Hamal${}^{\textrm{\scriptsize 127}}$, K. Hamano${}^{\textrm{\scriptsize 173}}$, A. Hamilton${}^{\textrm{\scriptsize 32a}}$, G.N. Hamity${}^{\textrm{\scriptsize 146}}$, K. Han${}^{\textrm{\scriptsize 58a,ak}}$, L. Han${}^{\textrm{\scriptsize 58a}}$, S. Han${}^{\textrm{\scriptsize 15d}}$, K. Hanagaki${}^{\textrm{\scriptsize 79,v}}$, M. Hance${}^{\textrm{\scriptsize 143}}$, D.M. Handl${}^{\textrm{\scriptsize 112}}$, B. Haney${}^{\textrm{\scriptsize 134}}$, R. Hankache${}^{\textrm{\scriptsize 133}}$, P. Hanke${}^{\textrm{\scriptsize 59a}}$, E. Hansen${}^{\textrm{\scriptsize 94}}$, J.B. Hansen${}^{\textrm{\scriptsize 39}}$, J.D. Hansen${}^{\textrm{\scriptsize 39}}$, M.C. Hansen${}^{\textrm{\scriptsize 24}}$, P.H. Hansen${}^{\textrm{\scriptsize 39}}$, K. Hara${}^{\textrm{\scriptsize 166}}$, A.S. Hard${}^{\textrm{\scriptsize 178}}$, T. Harenberg${}^{\textrm{\scriptsize 179}}$, S. Harkusha${}^{\textrm{\scriptsize 105}}$, P.F. Harrison${}^{\textrm{\scriptsize 175}}$, N.M. Hartmann${}^{\textrm{\scriptsize 112}}$, Y. Hasegawa${}^{\textrm{\scriptsize 147}}$, A. Hasib${}^{\textrm{\scriptsize 48}}$, S. Hassani${}^{\textrm{\scriptsize 142}}$, S. Haug${}^{\textrm{\scriptsize 20}}$, R. Hauser${}^{\textrm{\scriptsize 104}}$, L. Hauswald${}^{\textrm{\scriptsize 46}}$, L.B. Havener${}^{\textrm{\scriptsize 38}}$, M. Havranek${}^{\textrm{\scriptsize 139}}$, C.M. Hawkes${}^{\textrm{\scriptsize 21}}$, R.J. Hawkings${}^{\textrm{\scriptsize 35}}$, D. Hayden${}^{\textrm{\scriptsize 104}}$, C. Hayes${}^{\textrm{\scriptsize 152}}$, C.P. Hays${}^{\textrm{\scriptsize 132}}$, J.M. Hays${}^{\textrm{\scriptsize 90}}$, H.S. Hayward${}^{\textrm{\scriptsize 88}}$, S.J. Haywood${}^{\textrm{\scriptsize 141}}$, F. He${}^{\textrm{\scriptsize 58a}}$, M.P. Heath${}^{\textrm{\scriptsize 48}}$, V. Hedberg${}^{\textrm{\scriptsize 94}}$, L. Heelan${}^{\textrm{\scriptsize 8}}$, S. Heer${}^{\textrm{\scriptsize 24}}$, K.K. Heidegger${}^{\textrm{\scriptsize 50}}$, J. Heilman${}^{\textrm{\scriptsize 33}}$, S. Heim${}^{\textrm{\scriptsize 44}}$, T. Heim${}^{\textrm{\scriptsize 18}}$, B. Heinemann${}^{\textrm{\scriptsize 44,ar}}$, J.J. Heinrich${}^{\textrm{\scriptsize 112}}$, L. Heinrich${}^{\textrm{\scriptsize 122}}$, C. Heinz${}^{\textrm{\scriptsize 54}}$, J. Hejbal${}^{\textrm{\scriptsize 138}}$, L. Helary${}^{\textrm{\scriptsize 35}}$, A. Held${}^{\textrm{\scriptsize 172}}$, S. Hellesund${}^{\textrm{\scriptsize 131}}$, C.M. Helling${}^{\textrm{\scriptsize 143}}$, S. Hellman${}^{\textrm{\scriptsize 43a,43b}}$, C. Helsens${}^{\textrm{\scriptsize 35}}$, R.C.W. Henderson${}^{\textrm{\scriptsize 87}}$, Y. Heng${}^{\textrm{\scriptsize 178}}$, S. Henkelmann${}^{\textrm{\scriptsize 172}}$, A.M. Henriques Correia${}^{\textrm{\scriptsize 35}}$, G.H. Herbert${}^{\textrm{\scriptsize 19}}$, H. Herde${}^{\textrm{\scriptsize 26}}$, V. Herget${}^{\textrm{\scriptsize 174}}$, Y. Hernández Jiménez${}^{\textrm{\scriptsize 32c}}$, H. Herr${}^{\textrm{\scriptsize 97}}$, M.G. Herrmann${}^{\textrm{\scriptsize 112}}$, T. Herrmann${}^{\textrm{\scriptsize 46}}$, G. Herten${}^{\textrm{\scriptsize 50}}$, R. Hertenberger${}^{\textrm{\scriptsize 112}}$, L. Hervas${}^{\textrm{\scriptsize 35}}$, T.C. Herwig${}^{\textrm{\scriptsize 134}}$, G.G. Hesketh${}^{\textrm{\scriptsize 92}}$, N.P. Hessey${}^{\textrm{\scriptsize 165a}}$, A. Higashida${}^{\textrm{\scriptsize 160}}$, S. Higashino${}^{\textrm{\scriptsize 79}}$, E. Higón-Rodriguez${}^{\textrm{\scriptsize 171}}$, K. Hildebrand${}^{\textrm{\scriptsize 36}}$, E. Hill${}^{\textrm{\scriptsize 173}}$, J.C. Hill${}^{\textrm{\scriptsize 31}}$, K.K. Hill${}^{\textrm{\scriptsize 29}}$, K.H. Hiller${}^{\textrm{\scriptsize 44}}$, S.J. Hillier${}^{\textrm{\scriptsize 21}}$, M. Hils${}^{\textrm{\scriptsize 46}}$, I. Hinchliffe${}^{\textrm{\scriptsize 18}}$, F. Hinterkeuser${}^{\textrm{\scriptsize 24}}$, M. Hirose${}^{\textrm{\scriptsize 130}}$, D. Hirschbuehl${}^{\textrm{\scriptsize 179}}$, B. Hiti${}^{\textrm{\scriptsize 89}}$, O. Hladik${}^{\textrm{\scriptsize 138}}$, D.R. Hlaluku${}^{\textrm{\scriptsize 32c}}$, X. Hoad${}^{\textrm{\scriptsize 48}}$, J. Hobbs${}^{\textrm{\scriptsize 152}}$, N. Hod${}^{\textrm{\scriptsize 165a}}$, M.C. Hodgkinson${}^{\textrm{\scriptsize 146}}$, A. Hoecker${}^{\textrm{\scriptsize 35}}$, M.R. Hoeferkamp${}^{\textrm{\scriptsize 116}}$, F. Hoenig${}^{\textrm{\scriptsize 112}}$, D. Hohn${}^{\textrm{\scriptsize 50}}$, D. Hohov${}^{\textrm{\scriptsize 129}}$, T.R. Holmes${}^{\textrm{\scriptsize 36}}$, M. Holzbock${}^{\textrm{\scriptsize 112}}$, M. Homann${}^{\textrm{\scriptsize 45}}$, B.H. Hommels${}^{\textrm{\scriptsize 31}}$, S. Honda${}^{\textrm{\scriptsize 166}}$, T. Honda${}^{\textrm{\scriptsize 79}}$, T.M. Hong${}^{\textrm{\scriptsize 136}}$, A. Hönle${}^{\textrm{\scriptsize 113}}$, B.H. Hooberman${}^{\textrm{\scriptsize 170}}$, W.H. Hopkins${}^{\textrm{\scriptsize 128}}$, Y. Horii${}^{\textrm{\scriptsize 115}}$, P. Horn${}^{\textrm{\scriptsize 46}}$, A.J. Horton${}^{\textrm{\scriptsize 149}}$, L.A. Horyn${}^{\textrm{\scriptsize 36}}$, J-Y. Hostachy${}^{\textrm{\scriptsize 56}}$, A. Hostiuc${}^{\textrm{\scriptsize 145}}$, S. Hou${}^{\textrm{\scriptsize 155}}$, A. Hoummada${}^{\textrm{\scriptsize 34a}}$, J. Howarth${}^{\textrm{\scriptsize 98}}$, J. Hoya${}^{\textrm{\scriptsize 86}}$, M. Hrabovsky${}^{\textrm{\scriptsize 127}}$, J. Hrdinka${}^{\textrm{\scriptsize 35}}$, I. Hristova${}^{\textrm{\scriptsize 19}}$, J. Hrivnac${}^{\textrm{\scriptsize 129}}$, A. Hrynevich${}^{\textrm{\scriptsize 106}}$, T. Hryn’ova${}^{\textrm{\scriptsize 5}}$, P.J. Hsu${}^{\textrm{\scriptsize 62}}$, S.-C. Hsu${}^{\textrm{\scriptsize 145}}$, Q. Hu${}^{\textrm{\scriptsize 29}}$, S. Hu${}^{\textrm{\scriptsize 58c}}$, Y. Huang${}^{\textrm{\scriptsize 15a}}$, Z. Hubacek${}^{\textrm{\scriptsize 139}}$, F. Hubaut${}^{\textrm{\scriptsize 99}}$, M. Huebner${}^{\textrm{\scriptsize 24}}$, F. Huegging${}^{\textrm{\scriptsize 24}}$, T.B. Huffman${}^{\textrm{\scriptsize 132}}$, M. Huhtinen${}^{\textrm{\scriptsize 35}}$, R.F.H. Hunter${}^{\textrm{\scriptsize 33}}$, P. Huo${}^{\textrm{\scriptsize 152}}$, A.M. Hupe${}^{\textrm{\scriptsize 33}}$, N. Huseynov${}^{\textrm{\scriptsize 77,af}}$, J. Huston${}^{\textrm{\scriptsize 104}}$, J. Huth${}^{\textrm{\scriptsize 57}}$, R. Hyneman${}^{\textrm{\scriptsize 103}}$, G. Iacobucci${}^{\textrm{\scriptsize 52}}$, G. Iakovidis${}^{\textrm{\scriptsize 29}}$, I. Ibragimov${}^{\textrm{\scriptsize 148}}$, L. Iconomidou-Fayard${}^{\textrm{\scriptsize 129}}$, Z. Idrissi${}^{\textrm{\scriptsize 34e}}$, P. Iengo${}^{\textrm{\scriptsize 35}}$, R. Ignazzi${}^{\textrm{\scriptsize 39}}$, O. Igonkina${}^{\textrm{\scriptsize 118,ab}}$, R. Iguchi${}^{\textrm{\scriptsize 160}}$, T. Iizawa${}^{\textrm{\scriptsize 52}}$, Y. Ikegami${}^{\textrm{\scriptsize 79}}$, M. Ikeno${}^{\textrm{\scriptsize 79}}$, D. Iliadis${}^{\textrm{\scriptsize 159}}$, N. Ilic${}^{\textrm{\scriptsize 117}}$, F. Iltzsche${}^{\textrm{\scriptsize 46}}$, G. Introzzi${}^{\textrm{\scriptsize 68a,68b}}$, M. Iodice${}^{\textrm{\scriptsize 72a}}$, K. Iordanidou${}^{\textrm{\scriptsize 38}}$, V. Ippolito${}^{\textrm{\scriptsize 70a,70b}}$, M.F. Isacson${}^{\textrm{\scriptsize 169}}$, N. Ishijima${}^{\textrm{\scriptsize 130}}$, M. Ishino${}^{\textrm{\scriptsize 160}}$, M. Ishitsuka${}^{\textrm{\scriptsize 162}}$, W. Islam${}^{\textrm{\scriptsize 126}}$, C. Issever${}^{\textrm{\scriptsize 132}}$, S. Istin${}^{\textrm{\scriptsize 157}}$, F. Ito${}^{\textrm{\scriptsize 166}}$, J.M. Iturbe Ponce${}^{\textrm{\scriptsize 61a}}$, R. Iuppa${}^{\textrm{\scriptsize 73a,73b}}$, A. Ivina${}^{\textrm{\scriptsize 177}}$, H. Iwasaki${}^{\textrm{\scriptsize 79}}$, J.M. Izen${}^{\textrm{\scriptsize 42}}$, V. Izzo${}^{\textrm{\scriptsize 67a}}$, P. Jacka${}^{\textrm{\scriptsize 138}}$, P. Jackson${}^{\textrm{\scriptsize 1}}$, R.M. Jacobs${}^{\textrm{\scriptsize 24}}$, V. Jain${}^{\textrm{\scriptsize 2}}$, G. Jäkel${}^{\textrm{\scriptsize 179}}$, K.B. Jakobi${}^{\textrm{\scriptsize 97}}$, K. Jakobs${}^{\textrm{\scriptsize 50}}$, S. Jakobsen${}^{\textrm{\scriptsize 74}}$, T. Jakoubek${}^{\textrm{\scriptsize 138}}$, D.O. Jamin${}^{\textrm{\scriptsize 126}}$, R. Jansky${}^{\textrm{\scriptsize 52}}$, J. Janssen${}^{\textrm{\scriptsize 24}}$, M. Janus${}^{\textrm{\scriptsize 51}}$, P.A. Janus${}^{\textrm{\scriptsize 81a}}$, G. Jarlskog${}^{\textrm{\scriptsize 94}}$, N. Javadov${}^{\textrm{\scriptsize 77,af}}$, T. Javůrek${}^{\textrm{\scriptsize 35}}$, M. Javurkova${}^{\textrm{\scriptsize 50}}$, F. Jeanneau${}^{\textrm{\scriptsize 142}}$, L. Jeanty${}^{\textrm{\scriptsize 18}}$, J. Jejelava${}^{\textrm{\scriptsize 156a,ag}}$, A. Jelinskas${}^{\textrm{\scriptsize 175}}$, P. Jenni${}^{\textrm{\scriptsize 50,d}}$, J. Jeong${}^{\textrm{\scriptsize 44}}$, N. Jeong${}^{\textrm{\scriptsize 44}}$, S. Jézéquel${}^{\textrm{\scriptsize 5}}$, H. Ji${}^{\textrm{\scriptsize 178}}$, J. Jia${}^{\textrm{\scriptsize 152}}$, H. Jiang${}^{\textrm{\scriptsize 76}}$, Y. Jiang${}^{\textrm{\scriptsize 58a}}$, Z. Jiang${}^{\textrm{\scriptsize 150,r}}$, S. Jiggins${}^{\textrm{\scriptsize 50}}$, F.A. Jimenez Morales${}^{\textrm{\scriptsize 37}}$, J. Jimenez Pena${}^{\textrm{\scriptsize 171}}$, S. Jin${}^{\textrm{\scriptsize 15c}}$, A. Jinaru${}^{\textrm{\scriptsize 27b}}$, O. Jinnouchi${}^{\textrm{\scriptsize 162}}$, H. Jivan${}^{\textrm{\scriptsize 32c}}$, P. Johansson${}^{\textrm{\scriptsize 146}}$, K.A. Johns${}^{\textrm{\scriptsize 7}}$, C.A. Johnson${}^{\textrm{\scriptsize 63}}$, K. Jon-And${}^{\textrm{\scriptsize 43a,43b}}$, R.W.L. Jones${}^{\textrm{\scriptsize 87}}$, S.D. Jones${}^{\textrm{\scriptsize 153}}$, S. Jones${}^{\textrm{\scriptsize 7}}$, T.J. Jones${}^{\textrm{\scriptsize 88}}$, J. Jongmanns${}^{\textrm{\scriptsize 59a}}$, P.M. Jorge${}^{\textrm{\scriptsize 137a,137b}}$, J. Jovicevic${}^{\textrm{\scriptsize 165a}}$, X. Ju${}^{\textrm{\scriptsize 18}}$, J.J. Junggeburth${}^{\textrm{\scriptsize 113}}$, A. Juste Rozas${}^{\textrm{\scriptsize 14,z}}$, A. Kaczmarska${}^{\textrm{\scriptsize 82}}$, M. Kado${}^{\textrm{\scriptsize 129}}$, H. Kagan${}^{\textrm{\scriptsize 123}}$, M. Kagan${}^{\textrm{\scriptsize 150}}$, T. Kaji${}^{\textrm{\scriptsize 176}}$, E. Kajomovitz${}^{\textrm{\scriptsize 157}}$, C.W. Kalderon${}^{\textrm{\scriptsize 94}}$, A. Kaluza${}^{\textrm{\scriptsize 97}}$, S. Kama${}^{\textrm{\scriptsize 41}}$, A. Kamenshchikov${}^{\textrm{\scriptsize 121}}$, L. Kanjir${}^{\textrm{\scriptsize 89}}$, Y. Kano${}^{\textrm{\scriptsize 160}}$, V.A. Kantserov${}^{\textrm{\scriptsize 110}}$, J. Kanzaki${}^{\textrm{\scriptsize 79}}$, L.S. Kaplan${}^{\textrm{\scriptsize 178}}$, D. Kar${}^{\textrm{\scriptsize 32c}}$, M.J. Kareem${}^{\textrm{\scriptsize 165b}}$, E. Karentzos${}^{\textrm{\scriptsize 10}}$, S.N. Karpov${}^{\textrm{\scriptsize 77}}$, Z.M. Karpova${}^{\textrm{\scriptsize 77}}$, V. Kartvelishvili${}^{\textrm{\scriptsize 87}}$, A.N. Karyukhin${}^{\textrm{\scriptsize 121}}$, L. Kashif${}^{\textrm{\scriptsize 178}}$, R.D. Kass${}^{\textrm{\scriptsize 123}}$, A. Kastanas${}^{\textrm{\scriptsize 43a,43b}}$, Y. Kataoka${}^{\textrm{\scriptsize 160}}$, C. Kato${}^{\textrm{\scriptsize 58d,58c}}$, J. Katzy${}^{\textrm{\scriptsize 44}}$, K. Kawade${}^{\textrm{\scriptsize 80}}$, K. Kawagoe${}^{\textrm{\scriptsize 85}}$, T. Kawaguchi${}^{\textrm{\scriptsize 115}}$, T. Kawamoto${}^{\textrm{\scriptsize 160}}$, G. Kawamura${}^{\textrm{\scriptsize 51}}$, E.F. Kay${}^{\textrm{\scriptsize 88}}$, V.F. Kazanin${}^{\textrm{\scriptsize 120b,120a}}$, R. Keeler${}^{\textrm{\scriptsize 173}}$, R. Kehoe${}^{\textrm{\scriptsize 41}}$, J.S. Keller${}^{\textrm{\scriptsize 33}}$, E. Kellermann${}^{\textrm{\scriptsize 94}}$, J.J. Kempster${}^{\textrm{\scriptsize 21}}$, J. Kendrick${}^{\textrm{\scriptsize 21}}$, O. Kepka${}^{\textrm{\scriptsize 138}}$, S. Kersten${}^{\textrm{\scriptsize 179}}$, B.P. Kerševan${}^{\textrm{\scriptsize 89}}$, S. Ketabchi Haghighat${}^{\textrm{\scriptsize 164}}$, R.A. Keyes${}^{\textrm{\scriptsize 101}}$, M. Khader${}^{\textrm{\scriptsize 170}}$, F. Khalil-Zada${}^{\textrm{\scriptsize 13}}$, A. Khanov${}^{\textrm{\scriptsize 126}}$, A.G. Kharlamov${}^{\textrm{\scriptsize 120b,120a}}$, T. Kharlamova${}^{\textrm{\scriptsize 120b,120a}}$, E.E. Khoda${}^{\textrm{\scriptsize 172}}$, A. Khodinov${}^{\textrm{\scriptsize 163}}$, T.J. Khoo${}^{\textrm{\scriptsize 52}}$, E. Khramov${}^{\textrm{\scriptsize 77}}$, J. Khubua${}^{\textrm{\scriptsize 156b}}$, S. Kido${}^{\textrm{\scriptsize 80}}$, M. Kiehn${}^{\textrm{\scriptsize 52}}$, C.R. Kilby${}^{\textrm{\scriptsize 91}}$, Y.K. Kim${}^{\textrm{\scriptsize 36}}$, N. Kimura${}^{\textrm{\scriptsize 64a,64c}}$, O.M. Kind${}^{\textrm{\scriptsize 19}}$, B.T. King${}^{\textrm{\scriptsize 88}}$, D. Kirchmeier${}^{\textrm{\scriptsize 46}}$, J. Kirk${}^{\textrm{\scriptsize 141}}$, A.E. Kiryunin${}^{\textrm{\scriptsize 113}}$, T. Kishimoto${}^{\textrm{\scriptsize 160}}$, D. Kisielewska${}^{\textrm{\scriptsize 81a}}$, V. Kitali${}^{\textrm{\scriptsize 44}}$, O. Kivernyk${}^{\textrm{\scriptsize 5}}$, E. Kladiva${}^{\textrm{\scriptsize 28b,*}}$, T. Klapdor-Kleingrothaus${}^{\textrm{\scriptsize 50}}$, M.H. Klein${}^{\textrm{\scriptsize 103}}$, M. Klein${}^{\textrm{\scriptsize 88}}$, U. Klein${}^{\textrm{\scriptsize 88}}$, K. Kleinknecht${}^{\textrm{\scriptsize 97}}$, P. Klimek${}^{\textrm{\scriptsize 119}}$, A. Klimentov${}^{\textrm{\scriptsize 29}}$, T. Klingl${}^{\textrm{\scriptsize 24}}$, T. Klioutchnikova${}^{\textrm{\scriptsize 35}}$, F.F. Klitzner${}^{\textrm{\scriptsize 112}}$, P. Kluit${}^{\textrm{\scriptsize 118}}$, S. Kluth${}^{\textrm{\scriptsize 113}}$, E. Kneringer${}^{\textrm{\scriptsize 74}}$, E.B.F.G. Knoops${}^{\textrm{\scriptsize 99}}$, A. Knue${}^{\textrm{\scriptsize 50}}$, A. Kobayashi${}^{\textrm{\scriptsize 160}}$, D. Kobayashi${}^{\textrm{\scriptsize 85}}$, T. Kobayashi${}^{\textrm{\scriptsize 160}}$, M. Kobel${}^{\textrm{\scriptsize 46}}$, M. Kocian${}^{\textrm{\scriptsize 150}}$, P. Kodys${}^{\textrm{\scriptsize 140}}$, P.T. Koenig${}^{\textrm{\scriptsize 24}}$, T. Koffas${}^{\textrm{\scriptsize 33}}$, E. Koffeman${}^{\textrm{\scriptsize 118}}$, N.M. Köhler${}^{\textrm{\scriptsize 113}}$, T. Koi${}^{\textrm{\scriptsize 150}}$, M. Kolb${}^{\textrm{\scriptsize 59b}}$, I. Koletsou${}^{\textrm{\scriptsize 5}}$, T. Kondo${}^{\textrm{\scriptsize 79}}$, N. Kondrashova${}^{\textrm{\scriptsize 58c}}$, K. Köneke${}^{\textrm{\scriptsize 50}}$, A.C. König${}^{\textrm{\scriptsize 117}}$, T. Kono${}^{\textrm{\scriptsize 79}}$, R. Konoplich${}^{\textrm{\scriptsize 122,an}}$, V. Konstantinides${}^{\textrm{\scriptsize 92}}$, N. Konstantinidis${}^{\textrm{\scriptsize 92}}$, B. Konya${}^{\textrm{\scriptsize 94}}$, R. Kopeliansky${}^{\textrm{\scriptsize 63}}$, S. Koperny${}^{\textrm{\scriptsize 81a}}$, K. Korcyl${}^{\textrm{\scriptsize 82}}$, K. Kordas${}^{\textrm{\scriptsize 159}}$, G. Koren${}^{\textrm{\scriptsize 158}}$, A. Korn${}^{\textrm{\scriptsize 92}}$, I. Korolkov${}^{\textrm{\scriptsize 14}}$, E.V. Korolkova${}^{\textrm{\scriptsize 146}}$, N. Korotkova${}^{\textrm{\scriptsize 111}}$, O. Kortner${}^{\textrm{\scriptsize 113}}$, S. Kortner${}^{\textrm{\scriptsize 113}}$, T. Kosek${}^{\textrm{\scriptsize 140}}$, V.V. Kostyukhin${}^{\textrm{\scriptsize 24}}$, A. Kotwal${}^{\textrm{\scriptsize 47}}$, A. Koulouris${}^{\textrm{\scriptsize 10}}$, A. Kourkoumeli-Charalampidi${}^{\textrm{\scriptsize 68a,68b}}$, C. Kourkoumelis${}^{\textrm{\scriptsize 9}}$, E. Kourlitis${}^{\textrm{\scriptsize 146}}$, V. Kouskoura${}^{\textrm{\scriptsize 29}}$, A.B. Kowalewska${}^{\textrm{\scriptsize 82}}$, R. Kowalewski${}^{\textrm{\scriptsize 173}}$, T.Z. Kowalski${}^{\textrm{\scriptsize 81a}}$, C. Kozakai${}^{\textrm{\scriptsize 160}}$, W. Kozanecki${}^{\textrm{\scriptsize 142}}$, A.S. Kozhin${}^{\textrm{\scriptsize 121}}$, V.A. Kramarenko${}^{\textrm{\scriptsize 111}}$, G. Kramberger${}^{\textrm{\scriptsize 89}}$, D. Krasnopevtsev${}^{\textrm{\scriptsize 58a}}$, M.W. Krasny${}^{\textrm{\scriptsize 133}}$, A. Krasznahorkay${}^{\textrm{\scriptsize 35}}$, D. Krauss${}^{\textrm{\scriptsize 113}}$, J.A. Kremer${}^{\textrm{\scriptsize 81a}}$, J. Kretzschmar${}^{\textrm{\scriptsize 88}}$, P. Krieger${}^{\textrm{\scriptsize 164}}$, K. Krizka${}^{\textrm{\scriptsize 18}}$, K. Kroeninger${}^{\textrm{\scriptsize 45}}$, H. Kroha${}^{\textrm{\scriptsize 113}}$, J. Kroll${}^{\textrm{\scriptsize 138}}$, J. Kroll${}^{\textrm{\scriptsize 134}}$, J. Krstic${}^{\textrm{\scriptsize 16}}$, U. Kruchonak${}^{\textrm{\scriptsize 77}}$, H. Krüger${}^{\textrm{\scriptsize 24}}$, N. Krumnack${}^{\textrm{\scriptsize 76}}$, M.C. Kruse${}^{\textrm{\scriptsize 47}}$, T. Kubota${}^{\textrm{\scriptsize 102}}$, S. Kuday${}^{\textrm{\scriptsize 4b}}$, J.T. Kuechler${}^{\textrm{\scriptsize 179}}$, S. Kuehn${}^{\textrm{\scriptsize 35}}$, A. Kugel${}^{\textrm{\scriptsize 59a}}$, T. Kuhl${}^{\textrm{\scriptsize 44}}$, V. Kukhtin${}^{\textrm{\scriptsize 77}}$, R. Kukla${}^{\textrm{\scriptsize 99}}$, Y. Kulchitsky${}^{\textrm{\scriptsize 105,aj}}$, S. Kuleshov${}^{\textrm{\scriptsize 144b}}$, Y.P. Kulinich${}^{\textrm{\scriptsize 170}}$, M. Kuna${}^{\textrm{\scriptsize 56}}$, T. Kunigo${}^{\textrm{\scriptsize 83}}$, A. Kupco${}^{\textrm{\scriptsize 138}}$, T. Kupfer${}^{\textrm{\scriptsize 45}}$, O. Kuprash${}^{\textrm{\scriptsize 158}}$, H. Kurashige${}^{\textrm{\scriptsize 80}}$, L.L. Kurchaninov${}^{\textrm{\scriptsize 165a}}$, Y.A. Kurochkin${}^{\textrm{\scriptsize 105}}$, A. Kurova${}^{\textrm{\scriptsize 110}}$, M.G. Kurth${}^{\textrm{\scriptsize 15d}}$, E.S. Kuwertz${}^{\textrm{\scriptsize 35}}$, M. Kuze${}^{\textrm{\scriptsize 162}}$, J. Kvita${}^{\textrm{\scriptsize 127}}$, T. Kwan${}^{\textrm{\scriptsize 101}}$, A. La Rosa${}^{\textrm{\scriptsize 113}}$, J.L. La Rosa Navarro${}^{\textrm{\scriptsize 78d}}$, L. La Rotonda${}^{\textrm{\scriptsize 40b,40a}}$, F. La Ruffa${}^{\textrm{\scriptsize 40b,40a}}$, C. Lacasta${}^{\textrm{\scriptsize 171}}$, F. Lacava${}^{\textrm{\scriptsize 70a,70b}}$, J. Lacey${}^{\textrm{\scriptsize 44}}$, D.P.J. Lack${}^{\textrm{\scriptsize 98}}$, H. Lacker${}^{\textrm{\scriptsize 19}}$, D. Lacour${}^{\textrm{\scriptsize 133}}$, E. Ladygin${}^{\textrm{\scriptsize 77}}$, R. Lafaye${}^{\textrm{\scriptsize 5}}$, B. Laforge${}^{\textrm{\scriptsize 133}}$, T. Lagouri${}^{\textrm{\scriptsize 32c}}$, S. Lai${}^{\textrm{\scriptsize 51}}$, S. Lammers${}^{\textrm{\scriptsize 63}}$, W. Lampl${}^{\textrm{\scriptsize 7}}$, E. Lançon${}^{\textrm{\scriptsize 29}}$, U. Landgraf${}^{\textrm{\scriptsize 50}}$, M.P.J. Landon${}^{\textrm{\scriptsize 90}}$, M.C. Lanfermann${}^{\textrm{\scriptsize 52}}$, V.S. Lang${}^{\textrm{\scriptsize 44}}$, J.C. Lange${}^{\textrm{\scriptsize 51}}$, R.J. Langenberg${}^{\textrm{\scriptsize 35}}$, A.J. Lankford${}^{\textrm{\scriptsize 168}}$, F. Lanni${}^{\textrm{\scriptsize 29}}$, K. Lantzsch${}^{\textrm{\scriptsize 24}}$, A. Lanza${}^{\textrm{\scriptsize 68a}}$, A. Lapertosa${}^{\textrm{\scriptsize 53b,53a}}$, S. Laplace${}^{\textrm{\scriptsize 133}}$, J.F. Laporte${}^{\textrm{\scriptsize 142}}$, T. Lari${}^{\textrm{\scriptsize 66a}}$, F. Lasagni Manghi${}^{\textrm{\scriptsize 23b,23a}}$, M. Lassnig${}^{\textrm{\scriptsize 35}}$, T.S. Lau${}^{\textrm{\scriptsize 61a}}$, A. Laudrain${}^{\textrm{\scriptsize 129}}$, M. Lavorgna${}^{\textrm{\scriptsize 67a,67b}}$, M. Lazzaroni${}^{\textrm{\scriptsize 66a,66b}}$, B. Le${}^{\textrm{\scriptsize 102}}$, O. Le Dortz${}^{\textrm{\scriptsize 133}}$, E. Le Guirriec${}^{\textrm{\scriptsize 99}}$, E.P. Le Quilleuc${}^{\textrm{\scriptsize 142}}$, M. LeBlanc${}^{\textrm{\scriptsize 7}}$, T. LeCompte${}^{\textrm{\scriptsize 6}}$, F. Ledroit-Guillon${}^{\textrm{\scriptsize 56}}$, C.A. Lee${}^{\textrm{\scriptsize 29}}$, G.R. Lee${}^{\textrm{\scriptsize 144a}}$, L. Lee${}^{\textrm{\scriptsize 57}}$, S.C. Lee${}^{\textrm{\scriptsize 155}}$, B. Lefebvre${}^{\textrm{\scriptsize 101}}$, M. Lefebvre${}^{\textrm{\scriptsize 173}}$, F. Legger${}^{\textrm{\scriptsize 112}}$, C. Leggett${}^{\textrm{\scriptsize 18}}$, K. Lehmann${}^{\textrm{\scriptsize 149}}$, N. Lehmann${}^{\textrm{\scriptsize 179}}$, G. Lehmann Miotto${}^{\textrm{\scriptsize 35}}$, W.A. Leight${}^{\textrm{\scriptsize 44}}$, A. Leisos${}^{\textrm{\scriptsize 159,w}}$, M.A.L. Leite${}^{\textrm{\scriptsize 78d}}$, R. Leitner${}^{\textrm{\scriptsize 140}}$, D. Lellouch${}^{\textrm{\scriptsize 177}}$, K.J.C. Leney${}^{\textrm{\scriptsize 92}}$, T. Lenz${}^{\textrm{\scriptsize 24}}$, B. Lenzi${}^{\textrm{\scriptsize 35}}$, R. Leone${}^{\textrm{\scriptsize 7}}$, S. Leone${}^{\textrm{\scriptsize 69a}}$, C. Leonidopoulos${}^{\textrm{\scriptsize 48}}$, G. Lerner${}^{\textrm{\scriptsize 153}}$, C. Leroy${}^{\textrm{\scriptsize 107}}$, R. Les${}^{\textrm{\scriptsize 164}}$, A.A.J. Lesage${}^{\textrm{\scriptsize 142}}$, C.G. Lester${}^{\textrm{\scriptsize 31}}$, M. Levchenko${}^{\textrm{\scriptsize 135}}$, J. Levêque${}^{\textrm{\scriptsize 5}}$, D. Levin${}^{\textrm{\scriptsize 103}}$, L.J. Levinson${}^{\textrm{\scriptsize 177}}$, D. Lewis${}^{\textrm{\scriptsize 90}}$, B. Li${}^{\textrm{\scriptsize 15b}}$, B. Li${}^{\textrm{\scriptsize 103}}$, C-Q. Li${}^{\textrm{\scriptsize 58a,am}}$, H. Li${}^{\textrm{\scriptsize 58a}}$, H. Li${}^{\textrm{\scriptsize 58b}}$, K. Li${}^{\textrm{\scriptsize 150}}$, L. Li${}^{\textrm{\scriptsize 58c}}$, M. Li${}^{\textrm{\scriptsize 15a}}$, Q. Li${}^{\textrm{\scriptsize 15d}}$, Q.Y. Li${}^{\textrm{\scriptsize 58a}}$, S. Li${}^{\textrm{\scriptsize 58d,58c}}$, X. Li${}^{\textrm{\scriptsize 58c}}$, Y. Li${}^{\textrm{\scriptsize 148}}$, Z. Liang${}^{\textrm{\scriptsize 15a}}$, B. Liberti${}^{\textrm{\scriptsize 71a}}$, A. Liblong${}^{\textrm{\scriptsize 164}}$, K. Lie${}^{\textrm{\scriptsize 61c}}$, S. Liem${}^{\textrm{\scriptsize 118}}$, A. Limosani${}^{\textrm{\scriptsize 154}}$, C.Y. Lin${}^{\textrm{\scriptsize 31}}$, K. Lin${}^{\textrm{\scriptsize 104}}$, T.H. Lin${}^{\textrm{\scriptsize 97}}$, R.A. Linck${}^{\textrm{\scriptsize 63}}$, J.H. Lindon${}^{\textrm{\scriptsize 21}}$, B.E. Lindquist${}^{\textrm{\scriptsize 152}}$, A.L. Lionti${}^{\textrm{\scriptsize 52}}$, E. Lipeles${}^{\textrm{\scriptsize 134}}$, A. Lipniacka${}^{\textrm{\scriptsize 17}}$, M. Lisovyi${}^{\textrm{\scriptsize 59b}}$, T.M. Liss${}^{\textrm{\scriptsize 170,at}}$, A. Lister${}^{\textrm{\scriptsize 172}}$, A.M. Litke${}^{\textrm{\scriptsize 143}}$, J.D. Little${}^{\textrm{\scriptsize 8}}$, B. Liu${}^{\textrm{\scriptsize 76}}$, B.L Liu${}^{\textrm{\scriptsize 6}}$, H.B. Liu${}^{\textrm{\scriptsize 29}}$, H. Liu${}^{\textrm{\scriptsize 103}}$, J.B. Liu${}^{\textrm{\scriptsize 58a}}$, J.K.K. Liu${}^{\textrm{\scriptsize 132}}$, K. Liu${}^{\textrm{\scriptsize 133}}$, M. Liu${}^{\textrm{\scriptsize 58a}}$, P. Liu${}^{\textrm{\scriptsize 18}}$, Y. Liu${}^{\textrm{\scriptsize 15a}}$, Y.L. Liu${}^{\textrm{\scriptsize 58a}}$, Y.W. Liu${}^{\textrm{\scriptsize 58a}}$, M. Livan${}^{\textrm{\scriptsize 68a,68b}}$, A. Lleres${}^{\textrm{\scriptsize 56}}$, J. Llorente Merino${}^{\textrm{\scriptsize 15a}}$, S.L. Lloyd${}^{\textrm{\scriptsize 90}}$, C.Y. Lo${}^{\textrm{\scriptsize 61b}}$, F. Lo Sterzo${}^{\textrm{\scriptsize 41}}$, E.M. Lobodzinska${}^{\textrm{\scriptsize 44}}$, P. Loch${}^{\textrm{\scriptsize 7}}$, T. Lohse${}^{\textrm{\scriptsize 19}}$, K. Lohwasser${}^{\textrm{\scriptsize 146}}$, M. Lokajicek${}^{\textrm{\scriptsize 138}}$, J.D. Long${}^{\textrm{\scriptsize 170}}$, R.E. Long${}^{\textrm{\scriptsize 87}}$, L. Longo${}^{\textrm{\scriptsize 65a,65b}}$, K.A. Looper${}^{\textrm{\scriptsize 123}}$, J.A. Lopez${}^{\textrm{\scriptsize 144b}}$, I. Lopez Paz${}^{\textrm{\scriptsize 98}}$, A. Lopez Solis${}^{\textrm{\scriptsize 146}}$, J. Lorenz${}^{\textrm{\scriptsize 112}}$, N. Lorenzo Martinez${}^{\textrm{\scriptsize 5}}$, M. Losada${}^{\textrm{\scriptsize 22}}$, P.J. Lösel${}^{\textrm{\scriptsize 112}}$, A. Lösle${}^{\textrm{\scriptsize 50}}$, X. Lou${}^{\textrm{\scriptsize 44}}$, X. Lou${}^{\textrm{\scriptsize 15a}}$, A. Lounis${}^{\textrm{\scriptsize 129}}$, J. Love${}^{\textrm{\scriptsize 6}}$, P.A. Love${}^{\textrm{\scriptsize 87}}$, J.J. Lozano Bahilo${}^{\textrm{\scriptsize 171}}$, H. Lu${}^{\textrm{\scriptsize 61a}}$, M. Lu${}^{\textrm{\scriptsize 58a}}$, Y.J. Lu${}^{\textrm{\scriptsize 62}}$, H.J. Lubatti${}^{\textrm{\scriptsize 145}}$, C. Luci${}^{\textrm{\scriptsize 70a,70b}}$, A. Lucotte${}^{\textrm{\scriptsize 56}}$, C. Luedtke${}^{\textrm{\scriptsize 50}}$, F. Luehring${}^{\textrm{\scriptsize 63}}$, I. Luise${}^{\textrm{\scriptsize 133}}$, L. Luminari${}^{\textrm{\scriptsize 70a}}$, B. Lund-Jensen${}^{\textrm{\scriptsize 151}}$, M.S. Lutz${}^{\textrm{\scriptsize 100}}$, P.M. Luzi${}^{\textrm{\scriptsize 133}}$, D. Lynn${}^{\textrm{\scriptsize 29}}$, R. Lysak${}^{\textrm{\scriptsize 138}}$, E. Lytken${}^{\textrm{\scriptsize 94}}$, F. Lyu${}^{\textrm{\scriptsize 15a}}$, V. Lyubushkin${}^{\textrm{\scriptsize 77}}$, T. Lyubushkina${}^{\textrm{\scriptsize 77}}$, H. Ma${}^{\textrm{\scriptsize 29}}$, L.L. Ma${}^{\textrm{\scriptsize 58b}}$, Y. Ma${}^{\textrm{\scriptsize 58b}}$, G. Maccarrone${}^{\textrm{\scriptsize 49}}$, A. Macchiolo${}^{\textrm{\scriptsize 113}}$, C.M. Macdonald${}^{\textrm{\scriptsize 146}}$, J. Machado Miguens${}^{\textrm{\scriptsize 134,137b}}$, D. Madaffari${}^{\textrm{\scriptsize 171}}$, R. Madar${}^{\textrm{\scriptsize 37}}$, W.F. Mader${}^{\textrm{\scriptsize 46}}$, N. Madysa${}^{\textrm{\scriptsize 46}}$, J. Maeda${}^{\textrm{\scriptsize 80}}$, K. Maekawa${}^{\textrm{\scriptsize 160}}$, S. Maeland${}^{\textrm{\scriptsize 17}}$, T. Maeno${}^{\textrm{\scriptsize 29}}$, M. Maerker${}^{\textrm{\scriptsize 46}}$, A.S. Maevskiy${}^{\textrm{\scriptsize 111}}$, V. Magerl${}^{\textrm{\scriptsize 50}}$, D.J. Mahon${}^{\textrm{\scriptsize 38}}$, C. Maidantchik${}^{\textrm{\scriptsize 78b}}$, T. Maier${}^{\textrm{\scriptsize 112}}$, A. Maio${}^{\textrm{\scriptsize 137a,137b,137d}}$, O. Majersky${}^{\textrm{\scriptsize 28a}}$, S. Majewski${}^{\textrm{\scriptsize 128}}$, Y. Makida${}^{\textrm{\scriptsize 79}}$, N. Makovec${}^{\textrm{\scriptsize 129}}$, B. Malaescu${}^{\textrm{\scriptsize 133}}$, Pa. Malecki${}^{\textrm{\scriptsize 82}}$, V.P. Maleev${}^{\textrm{\scriptsize 135}}$, F. Malek${}^{\textrm{\scriptsize 56}}$, U. Mallik${}^{\textrm{\scriptsize 75}}$, D. Malon${}^{\textrm{\scriptsize 6}}$, C. Malone${}^{\textrm{\scriptsize 31}}$, S. Maltezos${}^{\textrm{\scriptsize 10}}$, S. Malyukov${}^{\textrm{\scriptsize 35}}$, J. Mamuzic${}^{\textrm{\scriptsize 171}}$, G. Mancini${}^{\textrm{\scriptsize 49}}$, I. Mandić${}^{\textrm{\scriptsize 89}}$, J. Maneira${}^{\textrm{\scriptsize 137a}}$, L. Manhaes de Andrade Filho${}^{\textrm{\scriptsize 78a}}$, J. Manjarres Ramos${}^{\textrm{\scriptsize 46}}$, K.H. Mankinen${}^{\textrm{\scriptsize 94}}$, A. Mann${}^{\textrm{\scriptsize 112}}$, A. Manousos${}^{\textrm{\scriptsize 74}}$, B. Mansoulie${}^{\textrm{\scriptsize 142}}$, S. Manzoni${}^{\textrm{\scriptsize 66a,66b}}$, A. Marantis${}^{\textrm{\scriptsize 159}}$, G. Marceca${}^{\textrm{\scriptsize 30}}$, L. March${}^{\textrm{\scriptsize 52}}$, L. Marchese${}^{\textrm{\scriptsize 132}}$, G. Marchiori${}^{\textrm{\scriptsize 133}}$, M. Marcisovsky${}^{\textrm{\scriptsize 138}}$, C. Marcon${}^{\textrm{\scriptsize 94}}$, C.A. Marin Tobon${}^{\textrm{\scriptsize 35}}$, M. Marjanovic${}^{\textrm{\scriptsize 37}}$, F. Marroquim${}^{\textrm{\scriptsize 78b}}$, Z. Marshall${}^{\textrm{\scriptsize 18}}$, M.U.F Martensson${}^{\textrm{\scriptsize 169}}$, S. Marti-Garcia${}^{\textrm{\scriptsize 171}}$, C.B. Martin${}^{\textrm{\scriptsize 123}}$, T.A. Martin${}^{\textrm{\scriptsize 175}}$, V.J. Martin${}^{\textrm{\scriptsize 48}}$, B. Martin dit Latour${}^{\textrm{\scriptsize 17}}$, M. Martinez${}^{\textrm{\scriptsize 14,z}}$, V.I. Martinez Outschoorn${}^{\textrm{\scriptsize 100}}$, S. Martin-Haugh${}^{\textrm{\scriptsize 141}}$, V.S. Martoiu${}^{\textrm{\scriptsize 27b}}$, A.C. Martyniuk${}^{\textrm{\scriptsize 92}}$, A. Marzin${}^{\textrm{\scriptsize 35}}$, L. Masetti${}^{\textrm{\scriptsize 97}}$, T. Mashimo${}^{\textrm{\scriptsize 160}}$, R. Mashinistov${}^{\textrm{\scriptsize 108}}$, J. Masik${}^{\textrm{\scriptsize 98}}$, A.L. Maslennikov${}^{\textrm{\scriptsize 120b,120a}}$, L.H. Mason${}^{\textrm{\scriptsize 102}}$, L. Massa${}^{\textrm{\scriptsize 71a,71b}}$, P. Massarotti${}^{\textrm{\scriptsize 67a,67b}}$, P. Mastrandrea${}^{\textrm{\scriptsize 152}}$, A. Mastroberardino${}^{\textrm{\scriptsize 40b,40a}}$, T. Masubuchi${}^{\textrm{\scriptsize 160}}$, P. Mättig${}^{\textrm{\scriptsize 24}}$, J. Maurer${}^{\textrm{\scriptsize 27b}}$, B. Maček${}^{\textrm{\scriptsize 89}}$, S.J. Maxfield${}^{\textrm{\scriptsize 88}}$, D.A. Maximov${}^{\textrm{\scriptsize 120b,120a}}$, R. Mazini${}^{\textrm{\scriptsize 155}}$, I. Maznas${}^{\textrm{\scriptsize 159}}$, S.M. Mazza${}^{\textrm{\scriptsize 143}}$, S.P. Mc Kee${}^{\textrm{\scriptsize 103}}$, A. McCarn${}^{\textrm{\scriptsize 41}}$, T.G. McCarthy${}^{\textrm{\scriptsize 113}}$, L.I. McClymont${}^{\textrm{\scriptsize 92}}$, W.P. McCormack${}^{\textrm{\scriptsize 18}}$, E.F. McDonald${}^{\textrm{\scriptsize 102}}$, J.A. Mcfayden${}^{\textrm{\scriptsize 35}}$, G. Mchedlidze${}^{\textrm{\scriptsize 51}}$, M.A. McKay${}^{\textrm{\scriptsize 41}}$, K.D. McLean${}^{\textrm{\scriptsize 173}}$, S.J. McMahon${}^{\textrm{\scriptsize 141}}$, P.C. McNamara${}^{\textrm{\scriptsize 102}}$, C.J. McNicol${}^{\textrm{\scriptsize 175}}$, R.A. McPherson${}^{\textrm{\scriptsize 173,ad}}$, J.E. Mdhluli${}^{\textrm{\scriptsize 32c}}$, Z.A. Meadows${}^{\textrm{\scriptsize 100}}$, S. Meehan${}^{\textrm{\scriptsize 145}}$, T.M. Megy${}^{\textrm{\scriptsize 50}}$, S. Mehlhase${}^{\textrm{\scriptsize 112}}$, A. Mehta${}^{\textrm{\scriptsize 88}}$, T. Meideck${}^{\textrm{\scriptsize 56}}$, B. Meirose${}^{\textrm{\scriptsize 42}}$, D. Melini${}^{\textrm{\scriptsize 171,h}}$, B.R. Mellado Garcia${}^{\textrm{\scriptsize 32c}}$, J.D. Mellenthin${}^{\textrm{\scriptsize 51}}$, M. Melo${}^{\textrm{\scriptsize 28a}}$, F. Meloni${}^{\textrm{\scriptsize 44}}$, A. Melzer${}^{\textrm{\scriptsize 24}}$, S.B. Menary${}^{\textrm{\scriptsize 98}}$, E.D. Mendes Gouveia${}^{\textrm{\scriptsize 137a}}$, L. Meng${}^{\textrm{\scriptsize 88}}$, X.T. Meng${}^{\textrm{\scriptsize 103}}$, S. Menke${}^{\textrm{\scriptsize 113}}$, E. Meoni${}^{\textrm{\scriptsize 40b,40a}}$, S. Mergelmeyer${}^{\textrm{\scriptsize 19}}$, S.A.M. Merkt${}^{\textrm{\scriptsize 136}}$, C. Merlassino${}^{\textrm{\scriptsize 20}}$, P. Mermod${}^{\textrm{\scriptsize 52}}$, L. Merola${}^{\textrm{\scriptsize 67a,67b}}$, C. Meroni${}^{\textrm{\scriptsize 66a}}$, F.S. Merritt${}^{\textrm{\scriptsize 36}}$, A. Messina${}^{\textrm{\scriptsize 70a,70b}}$, J. Metcalfe${}^{\textrm{\scriptsize 6}}$, A.S. Mete${}^{\textrm{\scriptsize 168}}$, C. Meyer${}^{\textrm{\scriptsize 63}}$, J. Meyer${}^{\textrm{\scriptsize 157}}$, J-P. Meyer${}^{\textrm{\scriptsize 142}}$, H. Meyer Zu Theenhausen${}^{\textrm{\scriptsize 59a}}$, F. Miano${}^{\textrm{\scriptsize 153}}$, R.P. Middleton${}^{\textrm{\scriptsize 141}}$, L. Mijović${}^{\textrm{\scriptsize 48}}$, G. Mikenberg${}^{\textrm{\scriptsize 177}}$, M. Mikestikova${}^{\textrm{\scriptsize 138}}$, M. Mikuž${}^{\textrm{\scriptsize 89}}$, M. Milesi${}^{\textrm{\scriptsize 102}}$, A. Milic${}^{\textrm{\scriptsize 164}}$, D.A. Millar${}^{\textrm{\scriptsize 90}}$, D.W. Miller${}^{\textrm{\scriptsize 36}}$, A. Milov${}^{\textrm{\scriptsize 177}}$, D.A. Milstead${}^{\textrm{\scriptsize 43a,43b}}$, R.A. Mina${}^{\textrm{\scriptsize 150,r}}$, A.A. Minaenko${}^{\textrm{\scriptsize 121}}$, M. Miñano Moya${}^{\textrm{\scriptsize 171}}$, I.A. Minashvili${}^{\textrm{\scriptsize 156b}}$, A.I. Mincer${}^{\textrm{\scriptsize 122}}$, B. Mindur${}^{\textrm{\scriptsize 81a}}$, M. Mineev${}^{\textrm{\scriptsize 77}}$, Y. Minegishi${}^{\textrm{\scriptsize 160}}$, Y. Ming${}^{\textrm{\scriptsize 178}}$, L.M. Mir${}^{\textrm{\scriptsize 14}}$, A. Mirto${}^{\textrm{\scriptsize 65a,65b}}$, K.P. Mistry${}^{\textrm{\scriptsize 134}}$, T. Mitani${}^{\textrm{\scriptsize 176}}$, J. Mitrevski${}^{\textrm{\scriptsize 112}}$, V.A. Mitsou${}^{\textrm{\scriptsize 171}}$, M. Mittal${}^{\textrm{\scriptsize 58c}}$, A. Miucci${}^{\textrm{\scriptsize 20}}$, P.S. Miyagawa${}^{\textrm{\scriptsize 146}}$, A. Mizukami${}^{\textrm{\scriptsize 79}}$, J.U. Mjörnmark${}^{\textrm{\scriptsize 94}}$, T. Mkrtchyan${}^{\textrm{\scriptsize 181}}$, M. Mlynarikova${}^{\textrm{\scriptsize 140}}$, T. Moa${}^{\textrm{\scriptsize 43a,43b}}$, K. Mochizuki${}^{\textrm{\scriptsize 107}}$, P. Mogg${}^{\textrm{\scriptsize 50}}$, S. Mohapatra${}^{\textrm{\scriptsize 38}}$, S. Molander${}^{\textrm{\scriptsize 43a,43b}}$, R. Moles-Valls${}^{\textrm{\scriptsize 24}}$, M.C. Mondragon${}^{\textrm{\scriptsize 104}}$, K. Mönig${}^{\textrm{\scriptsize 44}}$, J. Monk${}^{\textrm{\scriptsize 39}}$, E. Monnier${}^{\textrm{\scriptsize 99}}$, A. Montalbano${}^{\textrm{\scriptsize 149}}$, J. Montejo Berlingen${}^{\textrm{\scriptsize 35}}$, F. Monticelli${}^{\textrm{\scriptsize 86}}$, S. Monzani${}^{\textrm{\scriptsize 66a}}$, N. Morange${}^{\textrm{\scriptsize 129}}$, D. Moreno${}^{\textrm{\scriptsize 22}}$, M. Moreno Llácer${}^{\textrm{\scriptsize 35}}$, P. Morettini${}^{\textrm{\scriptsize 53b}}$, M. Morgenstern${}^{\textrm{\scriptsize 118}}$, S. Morgenstern${}^{\textrm{\scriptsize 46}}$, D. Mori${}^{\textrm{\scriptsize 149}}$, M. Morii${}^{\textrm{\scriptsize 57}}$, M. Morinaga${}^{\textrm{\scriptsize 176}}$, V. Morisbak${}^{\textrm{\scriptsize 131}}$, A.K. Morley${}^{\textrm{\scriptsize 35}}$, G. Mornacchi${}^{\textrm{\scriptsize 35}}$, A.P. Morris${}^{\textrm{\scriptsize 92}}$, J.D. Morris${}^{\textrm{\scriptsize 90}}$, L. Morvaj${}^{\textrm{\scriptsize 152}}$, P. Moschovakos${}^{\textrm{\scriptsize 10}}$, M. Mosidze${}^{\textrm{\scriptsize 156b}}$, H.J. Moss${}^{\textrm{\scriptsize 146}}$, J. Moss${}^{\textrm{\scriptsize 150,o}}$, K. Motohashi${}^{\textrm{\scriptsize 162}}$, R. Mount${}^{\textrm{\scriptsize 150}}$, E. Mountricha${}^{\textrm{\scriptsize 35}}$, E.J.W. Moyse${}^{\textrm{\scriptsize 100}}$, S. Muanza${}^{\textrm{\scriptsize 99}}$, F. Mueller${}^{\textrm{\scriptsize 113}}$, J. Mueller${}^{\textrm{\scriptsize 136}}$, R.S.P. Mueller${}^{\textrm{\scriptsize 112}}$, D. Muenstermann${}^{\textrm{\scriptsize 87}}$, G.A. Mullier${}^{\textrm{\scriptsize 94}}$, F.J. Munoz Sanchez${}^{\textrm{\scriptsize 98}}$, P. Murin${}^{\textrm{\scriptsize 28b}}$, W.J. Murray${}^{\textrm{\scriptsize 175,141}}$, A. Murrone${}^{\textrm{\scriptsize 66a,66b}}$, M. Muškinja${}^{\textrm{\scriptsize 89}}$, C. Mwewa${}^{\textrm{\scriptsize 32a}}$, A.G. Myagkov${}^{\textrm{\scriptsize 121,ao}}$, J. Myers${}^{\textrm{\scriptsize 128}}$, M. Myska${}^{\textrm{\scriptsize 139}}$, B.P. Nachman${}^{\textrm{\scriptsize 18}}$, O. Nackenhorst${}^{\textrm{\scriptsize 45}}$, K. Nagai${}^{\textrm{\scriptsize 132}}$, K. Nagano${}^{\textrm{\scriptsize 79}}$, Y. Nagasaka${}^{\textrm{\scriptsize 60}}$, M. Nagel${}^{\textrm{\scriptsize 50}}$, E. Nagy${}^{\textrm{\scriptsize 99}}$, A.M. Nairz${}^{\textrm{\scriptsize 35}}$, Y. Nakahama${}^{\textrm{\scriptsize 115}}$, K. Nakamura${}^{\textrm{\scriptsize 79}}$, T. Nakamura${}^{\textrm{\scriptsize 160}}$, I. Nakano${}^{\textrm{\scriptsize 124}}$, H. Nanjo${}^{\textrm{\scriptsize 130}}$, F. Napolitano${}^{\textrm{\scriptsize 59a}}$, R.F. Naranjo Garcia${}^{\textrm{\scriptsize 44}}$, R. Narayan${}^{\textrm{\scriptsize 11}}$, D.I. Narrias Villar${}^{\textrm{\scriptsize 59a}}$, I. Naryshkin${}^{\textrm{\scriptsize 135}}$, T. Naumann${}^{\textrm{\scriptsize 44}}$, G. Navarro${}^{\textrm{\scriptsize 22}}$, R. Nayyar${}^{\textrm{\scriptsize 7}}$, H.A. Neal${}^{\textrm{\scriptsize 103,*}}$, P.Y. Nechaeva${}^{\textrm{\scriptsize 108}}$, T.J. Neep${}^{\textrm{\scriptsize 142}}$, A. Negri${}^{\textrm{\scriptsize 68a,68b}}$, M. Negrini${}^{\textrm{\scriptsize 23b}}$, S. Nektarijevic${}^{\textrm{\scriptsize 117}}$, C. Nellist${}^{\textrm{\scriptsize 51}}$, M.E. Nelson${}^{\textrm{\scriptsize 132}}$, S. Nemecek${}^{\textrm{\scriptsize 138}}$, P. Nemethy${}^{\textrm{\scriptsize 122}}$, M. Nessi${}^{\textrm{\scriptsize 35,f}}$, M.S. Neubauer${}^{\textrm{\scriptsize 170}}$, M. Neumann${}^{\textrm{\scriptsize 179}}$, P.R. Newman${}^{\textrm{\scriptsize 21}}$, T.Y. Ng${}^{\textrm{\scriptsize 61c}}$, Y.S. Ng${}^{\textrm{\scriptsize 19}}$, Y.W.Y. Ng${}^{\textrm{\scriptsize 168}}$, H.D.N. Nguyen${}^{\textrm{\scriptsize 99}}$, T. Nguyen Manh${}^{\textrm{\scriptsize 107}}$, E. Nibigira${}^{\textrm{\scriptsize 37}}$, R.B. Nickerson${}^{\textrm{\scriptsize 132}}$, R. Nicolaidou${}^{\textrm{\scriptsize 142}}$, D.S. Nielsen${}^{\textrm{\scriptsize 39}}$, J. Nielsen${}^{\textrm{\scriptsize 143}}$, N. Nikiforou${}^{\textrm{\scriptsize 11}}$, V. Nikolaenko${}^{\textrm{\scriptsize 121,ao}}$, I. Nikolic-Audit${}^{\textrm{\scriptsize 133}}$, K. Nikolopoulos${}^{\textrm{\scriptsize 21}}$, P. Nilsson${}^{\textrm{\scriptsize 29}}$, H.R. Nindhito${}^{\textrm{\scriptsize 52}}$, Y. Ninomiya${}^{\textrm{\scriptsize 79}}$, A. Nisati${}^{\textrm{\scriptsize 70a}}$, N. Nishu${}^{\textrm{\scriptsize 58c}}$, R. Nisius${}^{\textrm{\scriptsize 113}}$, I. Nitsche${}^{\textrm{\scriptsize 45}}$, T. Nitta${}^{\textrm{\scriptsize 176}}$, T. Nobe${}^{\textrm{\scriptsize 160}}$, Y. Noguchi${}^{\textrm{\scriptsize 83}}$, M. Nomachi${}^{\textrm{\scriptsize 130}}$, I. Nomidis${}^{\textrm{\scriptsize 133}}$, M.A. Nomura${}^{\textrm{\scriptsize 29}}$, T. Nooney${}^{\textrm{\scriptsize 90}}$, M. Nordberg${}^{\textrm{\scriptsize 35}}$, N. Norjoharuddeen${}^{\textrm{\scriptsize 132}}$, T. Novak${}^{\textrm{\scriptsize 89}}$, O. Novgorodova${}^{\textrm{\scriptsize 46}}$, R. Novotny${}^{\textrm{\scriptsize 139}}$, L. Nozka${}^{\textrm{\scriptsize 127}}$, K. Ntekas${}^{\textrm{\scriptsize 168}}$, E. Nurse${}^{\textrm{\scriptsize 92}}$, F. Nuti${}^{\textrm{\scriptsize 102}}$, F.G. Oakham${}^{\textrm{\scriptsize 33,aw}}$, H. Oberlack${}^{\textrm{\scriptsize 113}}$, J. Ocariz${}^{\textrm{\scriptsize 133}}$, A. Ochi${}^{\textrm{\scriptsize 80}}$, I. Ochoa${}^{\textrm{\scriptsize 38}}$, J.P. Ochoa-Ricoux${}^{\textrm{\scriptsize 144a}}$, K. O’Connor${}^{\textrm{\scriptsize 26}}$, S. Oda${}^{\textrm{\scriptsize 85}}$, S. Odaka${}^{\textrm{\scriptsize 79}}$, S. Oerdek${}^{\textrm{\scriptsize 51}}$, A. Oh${}^{\textrm{\scriptsize 98}}$, S.H. Oh${}^{\textrm{\scriptsize 47}}$, C.C. Ohm${}^{\textrm{\scriptsize 151}}$, H. Oide${}^{\textrm{\scriptsize 53b,53a}}$, M.L. Ojeda${}^{\textrm{\scriptsize 164}}$, H. Okawa${}^{\textrm{\scriptsize 166}}$, Y. Okazaki${}^{\textrm{\scriptsize 83}}$, Y. Okumura${}^{\textrm{\scriptsize 160}}$, T. Okuyama${}^{\textrm{\scriptsize 79}}$, A. Olariu${}^{\textrm{\scriptsize 27b}}$, L.F. Oleiro Seabra${}^{\textrm{\scriptsize 137a}}$, S.A. Olivares Pino${}^{\textrm{\scriptsize 144a}}$, D. Oliveira Damazio${}^{\textrm{\scriptsize 29}}$, J.L. Oliver${}^{\textrm{\scriptsize 1}}$, M.J.R. Olsson${}^{\textrm{\scriptsize 36}}$, A. Olszewski${}^{\textrm{\scriptsize 82}}$, J. Olszowska${}^{\textrm{\scriptsize 82}}$, D.C. O’Neil${}^{\textrm{\scriptsize 149}}$, A. Onofre${}^{\textrm{\scriptsize 137a,137e}}$, K. Onogi${}^{\textrm{\scriptsize 115}}$, P.U.E. Onyisi${}^{\textrm{\scriptsize 11}}$, H. Oppen${}^{\textrm{\scriptsize 131}}$, M.J. Oreglia${}^{\textrm{\scriptsize 36}}$, G.E. Orellana${}^{\textrm{\scriptsize 86}}$, Y. Oren${}^{\textrm{\scriptsize 158}}$, D. Orestano${}^{\textrm{\scriptsize 72a,72b}}$, E.C. Orgill${}^{\textrm{\scriptsize 98}}$, N. Orlando${}^{\textrm{\scriptsize 61b}}$, A.A. O’Rourke${}^{\textrm{\scriptsize 44}}$, R.S. Orr${}^{\textrm{\scriptsize 164}}$, B. Osculati${}^{\textrm{\scriptsize 53b,53a,*}}$, V. O’Shea${}^{\textrm{\scriptsize 55}}$, R. Ospanov${}^{\textrm{\scriptsize 58a}}$, G. Otero y Garzon${}^{\textrm{\scriptsize 30}}$, H. Otono${}^{\textrm{\scriptsize 85}}$, M. Ouchrif${}^{\textrm{\scriptsize 34d}}$, F. Ould-Saada${}^{\textrm{\scriptsize 131}}$, A. Ouraou${}^{\textrm{\scriptsize 142}}$, Q. Ouyang${}^{\textrm{\scriptsize 15a}}$, M. Owen${}^{\textrm{\scriptsize 55}}$, R.E. Owen${}^{\textrm{\scriptsize 21}}$, V.E. Ozcan${}^{\textrm{\scriptsize 12c}}$, N. Ozturk${}^{\textrm{\scriptsize 8}}$, J. Pacalt${}^{\textrm{\scriptsize 127}}$, H.A. Pacey${}^{\textrm{\scriptsize 31}}$, K. Pachal${}^{\textrm{\scriptsize 149}}$, A. Pacheco Pages${}^{\textrm{\scriptsize 14}}$, L. Pacheco Rodriguez${}^{\textrm{\scriptsize 142}}$, C. Padilla Aranda${}^{\textrm{\scriptsize 14}}$, S. Pagan Griso${}^{\textrm{\scriptsize 18}}$, M. Paganini${}^{\textrm{\scriptsize 180}}$, G. Palacino${}^{\textrm{\scriptsize 63}}$, S. Palazzo${}^{\textrm{\scriptsize 48}}$, S. Palestini${}^{\textrm{\scriptsize 35}}$, M. Palka${}^{\textrm{\scriptsize 81b}}$, D. Pallin${}^{\textrm{\scriptsize 37}}$, I. Panagoulias${}^{\textrm{\scriptsize 10}}$, C.E. Pandini${}^{\textrm{\scriptsize 35}}$, J.G. Panduro Vazquez${}^{\textrm{\scriptsize 91}}$, P. Pani${}^{\textrm{\scriptsize 35}}$, G. Panizzo${}^{\textrm{\scriptsize 64a,64c}}$, L. Paolozzi${}^{\textrm{\scriptsize 52}}$, T.D. Papadopoulou${}^{\textrm{\scriptsize 10}}$, K. Papageorgiou${}^{\textrm{\scriptsize 9,k}}$, A. Paramonov${}^{\textrm{\scriptsize 6}}$, D. Paredes Hernandez${}^{\textrm{\scriptsize 61b}}$, S.R. Paredes Saenz${}^{\textrm{\scriptsize 132}}$, B. Parida${}^{\textrm{\scriptsize 163}}$, T.H. Park${}^{\textrm{\scriptsize 33}}$, A.J. Parker${}^{\textrm{\scriptsize 87}}$, K.A. Parker${}^{\textrm{\scriptsize 44}}$, M.A. Parker${}^{\textrm{\scriptsize 31}}$, F. Parodi${}^{\textrm{\scriptsize 53b,53a}}$, J.A. Parsons${}^{\textrm{\scriptsize 38}}$, U. Parzefall${}^{\textrm{\scriptsize 50}}$, V.R. Pascuzzi${}^{\textrm{\scriptsize 164}}$, J.M.P. Pasner${}^{\textrm{\scriptsize 143}}$, E. Pasqualucci${}^{\textrm{\scriptsize 70a}}$, S. Passaggio${}^{\textrm{\scriptsize 53b}}$, F. Pastore${}^{\textrm{\scriptsize 91}}$, P. Pasuwan${}^{\textrm{\scriptsize 43a,43b}}$, S. Pataraia${}^{\textrm{\scriptsize 97}}$, J.R. Pater${}^{\textrm{\scriptsize 98}}$, A. Pathak${}^{\textrm{\scriptsize 178,l}}$, T. Pauly${}^{\textrm{\scriptsize 35}}$, B. Pearson${}^{\textrm{\scriptsize 113}}$, M. Pedersen${}^{\textrm{\scriptsize 131}}$, L. Pedraza Diaz${}^{\textrm{\scriptsize 117}}$, R. Pedro${}^{\textrm{\scriptsize 137a,137b}}$, S.V. Peleganchuk${}^{\textrm{\scriptsize 120b,120a}}$, O. Penc${}^{\textrm{\scriptsize 138}}$, C. Peng${}^{\textrm{\scriptsize 15d}}$, H. Peng${}^{\textrm{\scriptsize 58a}}$, B.S. Peralva${}^{\textrm{\scriptsize 78a}}$, M.M. Perego${}^{\textrm{\scriptsize 129}}$, A.P. Pereira Peixoto${}^{\textrm{\scriptsize 137a}}$, D.V. Perepelitsa${}^{\textrm{\scriptsize 29}}$, F. Peri${}^{\textrm{\scriptsize 19}}$, L. Perini${}^{\textrm{\scriptsize 66a,66b}}$, H. Pernegger${}^{\textrm{\scriptsize 35}}$, S. Perrella${}^{\textrm{\scriptsize 67a,67b}}$, V.D. Peshekhonov${}^{\textrm{\scriptsize 77,*}}$, K. Peters${}^{\textrm{\scriptsize 44}}$, R.F.Y. Peters${}^{\textrm{\scriptsize 98}}$, B.A. Petersen${}^{\textrm{\scriptsize 35}}$, T.C. Petersen${}^{\textrm{\scriptsize 39}}$, E. Petit${}^{\textrm{\scriptsize 56}}$, A. Petridis${}^{\textrm{\scriptsize 1}}$, C. Petridou${}^{\textrm{\scriptsize 159}}$, P. Petroff${}^{\textrm{\scriptsize 129}}$, M. Petrov${}^{\textrm{\scriptsize 132}}$, F. Petrucci${}^{\textrm{\scriptsize 72a,72b}}$, M. Pettee${}^{\textrm{\scriptsize 180}}$, N.E. Pettersson${}^{\textrm{\scriptsize 100}}$, A. Peyaud${}^{\textrm{\scriptsize 142}}$, R. Pezoa${}^{\textrm{\scriptsize 144b}}$, T. Pham${}^{\textrm{\scriptsize 102}}$, F.H. Phillips${}^{\textrm{\scriptsize 104}}$, P.W. Phillips${}^{\textrm{\scriptsize 141}}$, M.W. Phipps${}^{\textrm{\scriptsize 170}}$, G. Piacquadio${}^{\textrm{\scriptsize 152}}$, E. Pianori${}^{\textrm{\scriptsize 18}}$, A. Picazio${}^{\textrm{\scriptsize 100}}$, R.H. Pickles${}^{\textrm{\scriptsize 98}}$, R. Piegaia${}^{\textrm{\scriptsize 30}}$, J.E. Pilcher${}^{\textrm{\scriptsize 36}}$, A.D. Pilkington${}^{\textrm{\scriptsize 98}}$, M. Pinamonti${}^{\textrm{\scriptsize 71a,71b}}$, J.L. Pinfold${}^{\textrm{\scriptsize 3}}$, M. Pitt${}^{\textrm{\scriptsize 177}}$, L. Pizzimento${}^{\textrm{\scriptsize 71a,71b}}$, M.-A. Pleier${}^{\textrm{\scriptsize 29}}$, V. Pleskot${}^{\textrm{\scriptsize 140}}$, E. Plotnikova${}^{\textrm{\scriptsize 77}}$, D. Pluth${}^{\textrm{\scriptsize 76}}$, P. Podberezko${}^{\textrm{\scriptsize 120b,120a}}$, R. Poettgen${}^{\textrm{\scriptsize 94}}$, R. Poggi${}^{\textrm{\scriptsize 52}}$, L. Poggioli${}^{\textrm{\scriptsize 129}}$, I. Pogrebnyak${}^{\textrm{\scriptsize 104}}$, D. Pohl${}^{\textrm{\scriptsize 24}}$, I. Pokharel${}^{\textrm{\scriptsize 51}}$, G. Polesello${}^{\textrm{\scriptsize 68a}}$, A. Poley${}^{\textrm{\scriptsize 18}}$, A. Policicchio${}^{\textrm{\scriptsize 70a,70b}}$, R. Polifka${}^{\textrm{\scriptsize 35}}$, A. Polini${}^{\textrm{\scriptsize 23b}}$, C.S. Pollard${}^{\textrm{\scriptsize 44}}$, V. Polychronakos${}^{\textrm{\scriptsize 29}}$, D. Ponomarenko${}^{\textrm{\scriptsize 110}}$, L. Pontecorvo${}^{\textrm{\scriptsize 35}}$, G.A. Popeneciu${}^{\textrm{\scriptsize 27d}}$, D.M. Portillo Quintero${}^{\textrm{\scriptsize 133}}$, S. Pospisil${}^{\textrm{\scriptsize 139}}$, K. Potamianos${}^{\textrm{\scriptsize 44}}$, I.N. Potrap${}^{\textrm{\scriptsize 77}}$, C.J. Potter${}^{\textrm{\scriptsize 31}}$, H. Potti${}^{\textrm{\scriptsize 11}}$, T. Poulsen${}^{\textrm{\scriptsize 94}}$, J. Poveda${}^{\textrm{\scriptsize 35}}$, T.D. Powell${}^{\textrm{\scriptsize 146}}$, M.E. Pozo Astigarraga${}^{\textrm{\scriptsize 35}}$, P. Pralavorio${}^{\textrm{\scriptsize 99}}$, S. Prell${}^{\textrm{\scriptsize 76}}$, D. Price${}^{\textrm{\scriptsize 98}}$, M. Primavera${}^{\textrm{\scriptsize 65a}}$, S. Prince${}^{\textrm{\scriptsize 101}}$, M.L. Proffitt${}^{\textrm{\scriptsize 145}}$, N. Proklova${}^{\textrm{\scriptsize 110}}$, K. Prokofiev${}^{\textrm{\scriptsize 61c}}$, F. Prokoshin${}^{\textrm{\scriptsize 144b}}$, S. Protopopescu${}^{\textrm{\scriptsize 29}}$, J. Proudfoot${}^{\textrm{\scriptsize 6}}$, M. Przybycien${}^{\textrm{\scriptsize 81a}}$, A. Puri${}^{\textrm{\scriptsize 170}}$, P. Puzo${}^{\textrm{\scriptsize 129}}$, J. Qian${}^{\textrm{\scriptsize 103}}$, Y. Qin${}^{\textrm{\scriptsize 98}}$, A. Quadt${}^{\textrm{\scriptsize 51}}$, M. Queitsch-Maitland${}^{\textrm{\scriptsize 44}}$, A. Qureshi${}^{\textrm{\scriptsize 1}}$, P. Rados${}^{\textrm{\scriptsize 102}}$, F. Ragusa${}^{\textrm{\scriptsize 66a,66b}}$, G. Rahal${}^{\textrm{\scriptsize 95}}$, J.A. Raine${}^{\textrm{\scriptsize 52}}$, S. Rajagopalan${}^{\textrm{\scriptsize 29}}$, A. Ramirez Morales${}^{\textrm{\scriptsize 90}}$, K. Ran${}^{\textrm{\scriptsize 15a}}$, T. Rashid${}^{\textrm{\scriptsize 129}}$, S. Raspopov${}^{\textrm{\scriptsize 5}}$, M.G. Ratti${}^{\textrm{\scriptsize 66a,66b}}$, D.M. Rauch${}^{\textrm{\scriptsize 44}}$, F. Rauscher${}^{\textrm{\scriptsize 112}}$, S. Rave${}^{\textrm{\scriptsize 97}}$, B. Ravina${}^{\textrm{\scriptsize 146}}$, I. Ravinovich${}^{\textrm{\scriptsize 177}}$, J.H. Rawling${}^{\textrm{\scriptsize 98}}$, M. Raymond${}^{\textrm{\scriptsize 35}}$, A.L. Read${}^{\textrm{\scriptsize 131}}$, N.P. Readioff${}^{\textrm{\scriptsize 56}}$, M. Reale${}^{\textrm{\scriptsize 65a,65b}}$, D.M. Rebuzzi${}^{\textrm{\scriptsize 68a,68b}}$, A. Redelbach${}^{\textrm{\scriptsize 174}}$, G. Redlinger${}^{\textrm{\scriptsize 29}}$, R. Reece${}^{\textrm{\scriptsize 143}}$, R.G. Reed${}^{\textrm{\scriptsize 32c}}$, K. Reeves${}^{\textrm{\scriptsize 42}}$, L. Rehnisch${}^{\textrm{\scriptsize 19}}$, J. Reichert${}^{\textrm{\scriptsize 134}}$, D. Reikher${}^{\textrm{\scriptsize 158}}$, A. Reiss${}^{\textrm{\scriptsize 97}}$, A. Rej${}^{\textrm{\scriptsize 148}}$, C. Rembser${}^{\textrm{\scriptsize 35}}$, H. Ren${}^{\textrm{\scriptsize 15d}}$, M. Rescigno${}^{\textrm{\scriptsize 70a}}$, S. Resconi${}^{\textrm{\scriptsize 66a}}$, E.D. Resseguie${}^{\textrm{\scriptsize 134}}$, S. Rettie${}^{\textrm{\scriptsize 172}}$, E. Reynolds${}^{\textrm{\scriptsize 21}}$, O.L. Rezanova${}^{\textrm{\scriptsize 120b,120a}}$, P. Reznicek${}^{\textrm{\scriptsize 140}}$, E. Ricci${}^{\textrm{\scriptsize 73a,73b}}$, R. Richter${}^{\textrm{\scriptsize 113}}$, S. Richter${}^{\textrm{\scriptsize 44}}$, E. Richter-Was${}^{\textrm{\scriptsize 81b}}$, O. Ricken${}^{\textrm{\scriptsize 24}}$, M. Ridel${}^{\textrm{\scriptsize 133}}$, P. Rieck${}^{\textrm{\scriptsize 113}}$, C.J. Riegel${}^{\textrm{\scriptsize 179}}$, O. Rifki${}^{\textrm{\scriptsize 44}}$, M. Rijssenbeek${}^{\textrm{\scriptsize 152}}$, A. Rimoldi${}^{\textrm{\scriptsize 68a,68b}}$, M. Rimoldi${}^{\textrm{\scriptsize 20}}$, L. Rinaldi${}^{\textrm{\scriptsize 23b}}$, G. Ripellino${}^{\textrm{\scriptsize 151}}$, B. Ristić${}^{\textrm{\scriptsize 87}}$, E. Ritsch${}^{\textrm{\scriptsize 35}}$, I. Riu${}^{\textrm{\scriptsize 14}}$, J.C. Rivera Vergara${}^{\textrm{\scriptsize 144a}}$, F. Rizatdinova${}^{\textrm{\scriptsize 126}}$, E. Rizvi${}^{\textrm{\scriptsize 90}}$, C. Rizzi${}^{\textrm{\scriptsize 14}}$, R.T. Roberts${}^{\textrm{\scriptsize 98}}$, S.H. Robertson${}^{\textrm{\scriptsize 101,ad}}$, D. Robinson${}^{\textrm{\scriptsize 31}}$, J.E.M. Robinson${}^{\textrm{\scriptsize 44}}$, A. Robson${}^{\textrm{\scriptsize 55}}$, E. Rocco${}^{\textrm{\scriptsize 97}}$, C. Roda${}^{\textrm{\scriptsize 69a,69b}}$, Y. Rodina${}^{\textrm{\scriptsize 99}}$, S. Rodriguez Bosca${}^{\textrm{\scriptsize 171}}$, A. Rodriguez Perez${}^{\textrm{\scriptsize 14}}$, D. Rodriguez Rodriguez${}^{\textrm{\scriptsize 171}}$, A.M. Rodríguez Vera${}^{\textrm{\scriptsize 165b}}$, S. Roe${}^{\textrm{\scriptsize 35}}$, C.S. Rogan${}^{\textrm{\scriptsize 57}}$, O. Røhne${}^{\textrm{\scriptsize 131}}$, R. Röhrig${}^{\textrm{\scriptsize 113}}$, C.P.A. Roland${}^{\textrm{\scriptsize 63}}$, J. Roloff${}^{\textrm{\scriptsize 57}}$, A. Romaniouk${}^{\textrm{\scriptsize 110}}$, M. Romano${}^{\textrm{\scriptsize 23b,23a}}$, N. Rompotis${}^{\textrm{\scriptsize 88}}$, M. Ronzani${}^{\textrm{\scriptsize 122}}$, L. Roos${}^{\textrm{\scriptsize 133}}$, S. Rosati${}^{\textrm{\scriptsize 70a}}$, K. Rosbach${}^{\textrm{\scriptsize 50}}$, N-A. Rosien${}^{\textrm{\scriptsize 51}}$, B.J. Rosser${}^{\textrm{\scriptsize 134}}$, E. Rossi${}^{\textrm{\scriptsize 44}}$, E. Rossi${}^{\textrm{\scriptsize 72a,72b}}$, E. Rossi${}^{\textrm{\scriptsize 67a,67b}}$, L.P. Rossi${}^{\textrm{\scriptsize 53b}}$, L. Rossini${}^{\textrm{\scriptsize 66a,66b}}$, J.H.N. Rosten${}^{\textrm{\scriptsize 31}}$, R. Rosten${}^{\textrm{\scriptsize 14}}$, M. Rotaru${}^{\textrm{\scriptsize 27b}}$, J. Rothberg${}^{\textrm{\scriptsize 145}}$, D. Rousseau${}^{\textrm{\scriptsize 129}}$, D. Roy${}^{\textrm{\scriptsize 32c}}$, A. Rozanov${}^{\textrm{\scriptsize 99}}$, Y. Rozen${}^{\textrm{\scriptsize 157}}$, X. Ruan${}^{\textrm{\scriptsize 32c}}$, F. Rubbo${}^{\textrm{\scriptsize 150}}$, F. Rühr${}^{\textrm{\scriptsize 50}}$, A. Ruiz-Martinez${}^{\textrm{\scriptsize 171}}$, Z. Rurikova${}^{\textrm{\scriptsize 50}}$, N.A. Rusakovich${}^{\textrm{\scriptsize 77}}$, H.L. Russell${}^{\textrm{\scriptsize 101}}$, J.P. Rutherfoord${}^{\textrm{\scriptsize 7}}$, E.M. Rüttinger${}^{\textrm{\scriptsize 44,m}}$, Y.F. Ryabov${}^{\textrm{\scriptsize 135}}$, M. Rybar${}^{\textrm{\scriptsize 38}}$, G. Rybkin${}^{\textrm{\scriptsize 129}}$, S. Ryu${}^{\textrm{\scriptsize 6}}$, A. Ryzhov${}^{\textrm{\scriptsize 121}}$, G.F. Rzehorz${}^{\textrm{\scriptsize 51}}$, P. Sabatini${}^{\textrm{\scriptsize 51}}$, G. Sabato${}^{\textrm{\scriptsize 118}}$, S. Sacerdoti${}^{\textrm{\scriptsize 129}}$, H.F-W. Sadrozinski${}^{\textrm{\scriptsize 143}}$, R. Sadykov${}^{\textrm{\scriptsize 77}}$, F. Safai Tehrani${}^{\textrm{\scriptsize 70a}}$, P. Saha${}^{\textrm{\scriptsize 119}}$, M. Sahinsoy${}^{\textrm{\scriptsize 59a}}$, A. Sahu${}^{\textrm{\scriptsize 179}}$, M. Saimpert${}^{\textrm{\scriptsize 44}}$, M. Saito${}^{\textrm{\scriptsize 160}}$, T. Saito${}^{\textrm{\scriptsize 160}}$, H. Sakamoto${}^{\textrm{\scriptsize 160}}$, A. Sakharov${}^{\textrm{\scriptsize 122,an}}$, D. Salamani${}^{\textrm{\scriptsize 52}}$, G. Salamanna${}^{\textrm{\scriptsize 72a,72b}}$, J.E. Salazar Loyola${}^{\textrm{\scriptsize 144b}}$, P.H. Sales De Bruin${}^{\textrm{\scriptsize 169}}$, D. Salihagic${}^{\textrm{\scriptsize 113,*}}$, A. Salnikov${}^{\textrm{\scriptsize 150}}$, J. Salt${}^{\textrm{\scriptsize 171}}$, D. Salvatore${}^{\textrm{\scriptsize 40b,40a}}$, F. Salvatore${}^{\textrm{\scriptsize 153}}$, A. Salvucci${}^{\textrm{\scriptsize 61a,61b,61c}}$, A. Salzburger${}^{\textrm{\scriptsize 35}}$, J. Samarati${}^{\textrm{\scriptsize 35}}$, D. Sammel${}^{\textrm{\scriptsize 50}}$, D. Sampsonidis${}^{\textrm{\scriptsize 159}}$, D. Sampsonidou${}^{\textrm{\scriptsize 159}}$, J. Sánchez${}^{\textrm{\scriptsize 171}}$, A. Sanchez Pineda${}^{\textrm{\scriptsize 64a,64c}}$, H. Sandaker${}^{\textrm{\scriptsize 131}}$, C.O. Sander${}^{\textrm{\scriptsize 44}}$, M. Sandhoff${}^{\textrm{\scriptsize 179}}$, C. Sandoval${}^{\textrm{\scriptsize 22}}$, D.P.C. Sankey${}^{\textrm{\scriptsize 141}}$, M. Sannino${}^{\textrm{\scriptsize 53b,53a}}$, Y. Sano${}^{\textrm{\scriptsize 115}}$, A. Sansoni${}^{\textrm{\scriptsize 49}}$, C. Santoni${}^{\textrm{\scriptsize 37}}$, H. Santos${}^{\textrm{\scriptsize 137a}}$, I. Santoyo Castillo${}^{\textrm{\scriptsize 153}}$, A. Santra${}^{\textrm{\scriptsize 171}}$, A. Sapronov${}^{\textrm{\scriptsize 77}}$, J.G. Saraiva${}^{\textrm{\scriptsize 137a,137d}}$, O. Sasaki${}^{\textrm{\scriptsize 79}}$, K. Sato${}^{\textrm{\scriptsize 166}}$, E. Sauvan${}^{\textrm{\scriptsize 5}}$, P. Savard${}^{\textrm{\scriptsize 164,aw}}$, N. Savic${}^{\textrm{\scriptsize 113}}$, R. Sawada${}^{\textrm{\scriptsize 160}}$, C. Sawyer${}^{\textrm{\scriptsize 141}}$, L. Sawyer${}^{\textrm{\scriptsize 93,al}}$, C. Sbarra${}^{\textrm{\scriptsize 23b}}$, A. Sbrizzi${}^{\textrm{\scriptsize 23a}}$, T. Scanlon${}^{\textrm{\scriptsize 92}}$, J. Schaarschmidt${}^{\textrm{\scriptsize 145}}$, P. Schacht${}^{\textrm{\scriptsize 113}}$, B.M. Schachtner${}^{\textrm{\scriptsize 112}}$, D. Schaefer${}^{\textrm{\scriptsize 36}}$, L. Schaefer${}^{\textrm{\scriptsize 134}}$, J. Schaeffer${}^{\textrm{\scriptsize 97}}$, S. Schaepe${}^{\textrm{\scriptsize 35}}$, U. Schäfer${}^{\textrm{\scriptsize 97}}$, A.C. Schaffer${}^{\textrm{\scriptsize 129}}$, D. Schaile${}^{\textrm{\scriptsize 112}}$, R.D. Schamberger${}^{\textrm{\scriptsize 152}}$, N. Scharmberg${}^{\textrm{\scriptsize 98}}$, V.A. Schegelsky${}^{\textrm{\scriptsize 135}}$, D. Scheirich${}^{\textrm{\scriptsize 140}}$, F. Schenck${}^{\textrm{\scriptsize 19}}$, M. Schernau${}^{\textrm{\scriptsize 168}}$, C. Schiavi${}^{\textrm{\scriptsize 53b,53a}}$, S. Schier${}^{\textrm{\scriptsize 143}}$, L.K. Schildgen${}^{\textrm{\scriptsize 24}}$, Z.M. Schillaci${}^{\textrm{\scriptsize 26}}$, E.J. Schioppa${}^{\textrm{\scriptsize 35}}$, M. Schioppa${}^{\textrm{\scriptsize 40b,40a}}$, K.E. Schleicher${}^{\textrm{\scriptsize 50}}$, S. Schlenker${}^{\textrm{\scriptsize 35}}$, K.R. Schmidt-Sommerfeld${}^{\textrm{\scriptsize 113}}$, K. Schmieden${}^{\textrm{\scriptsize 35}}$, C. Schmitt${}^{\textrm{\scriptsize 97}}$, S. Schmitt${}^{\textrm{\scriptsize 44}}$, S. Schmitz${}^{\textrm{\scriptsize 97}}$, J.C. Schmoeckel${}^{\textrm{\scriptsize 44}}$, U. Schnoor${}^{\textrm{\scriptsize 50}}$, L. Schoeffel${}^{\textrm{\scriptsize 142}}$, A. Schoening${}^{\textrm{\scriptsize 59b}}$, E. Schopf${}^{\textrm{\scriptsize 132}}$, M. Schott${}^{\textrm{\scriptsize 97}}$, J.F.P. Schouwenberg${}^{\textrm{\scriptsize 117}}$, J. Schovancova${}^{\textrm{\scriptsize 35}}$, S. Schramm${}^{\textrm{\scriptsize 52}}$, A. Schulte${}^{\textrm{\scriptsize 97}}$, H-C. Schultz-Coulon${}^{\textrm{\scriptsize 59a}}$, M. Schumacher${}^{\textrm{\scriptsize 50}}$, B.A. Schumm${}^{\textrm{\scriptsize 143}}$, Ph. Schune${}^{\textrm{\scriptsize 142}}$, A. Schwartzman${}^{\textrm{\scriptsize 150}}$, T.A. Schwarz${}^{\textrm{\scriptsize 103}}$, Ph. Schwemling${}^{\textrm{\scriptsize 142}}$, R. Schwienhorst${}^{\textrm{\scriptsize 104}}$, A. Sciandra${}^{\textrm{\scriptsize 24}}$, G. Sciolla${}^{\textrm{\scriptsize 26}}$, M. Scornajenghi${}^{\textrm{\scriptsize 40b,40a}}$, F. Scuri${}^{\textrm{\scriptsize 69a}}$, F. Scutti${}^{\textrm{\scriptsize 102}}$, L.M. Scyboz${}^{\textrm{\scriptsize 113}}$, C.D. Sebastiani${}^{\textrm{\scriptsize 70a,70b}}$, P. Seema${}^{\textrm{\scriptsize 19}}$, S.C. Seidel${}^{\textrm{\scriptsize 116}}$, A. Seiden${}^{\textrm{\scriptsize 143}}$, T. Seiss${}^{\textrm{\scriptsize 36}}$, J.M. Seixas${}^{\textrm{\scriptsize 78b}}$, G. Sekhniaidze${}^{\textrm{\scriptsize 67a}}$, K. Sekhon${}^{\textrm{\scriptsize 103}}$, S.J. Sekula${}^{\textrm{\scriptsize 41}}$, N. Semprini-Cesari${}^{\textrm{\scriptsize 23b,23a}}$, S. Sen${}^{\textrm{\scriptsize 47}}$, S. Senkin${}^{\textrm{\scriptsize 37}}$, C. Serfon${}^{\textrm{\scriptsize 131}}$, L. Serin${}^{\textrm{\scriptsize 129}}$, L. Serkin${}^{\textrm{\scriptsize 64a,64b}}$, M. Sessa${}^{\textrm{\scriptsize 58a}}$, H. Severini${}^{\textrm{\scriptsize 125}}$, F. Sforza${}^{\textrm{\scriptsize 167}}$, A. Sfyrla${}^{\textrm{\scriptsize 52}}$, E. Shabalina${}^{\textrm{\scriptsize 51}}$, J.D. Shahinian${}^{\textrm{\scriptsize 143}}$, N.W. Shaikh${}^{\textrm{\scriptsize 43a,43b}}$, D. Shaked Renous${}^{\textrm{\scriptsize 177}}$, L.Y. Shan${}^{\textrm{\scriptsize 15a}}$, R. Shang${}^{\textrm{\scriptsize 170}}$, J.T. Shank${}^{\textrm{\scriptsize 25}}$, M. Shapiro${}^{\textrm{\scriptsize 18}}$, A.S. Sharma${}^{\textrm{\scriptsize 1}}$, A. Sharma${}^{\textrm{\scriptsize 132}}$, P.B. Shatalov${}^{\textrm{\scriptsize 109}}$, K. Shaw${}^{\textrm{\scriptsize 153}}$, S.M. Shaw${}^{\textrm{\scriptsize 98}}$, A. Shcherbakova${}^{\textrm{\scriptsize 135}}$, Y. Shen${}^{\textrm{\scriptsize 125}}$, N. Sherafati${}^{\textrm{\scriptsize 33}}$, A.D. Sherman${}^{\textrm{\scriptsize 25}}$, P. Sherwood${}^{\textrm{\scriptsize 92}}$, L. Shi${}^{\textrm{\scriptsize 155,as}}$, S. Shimizu${}^{\textrm{\scriptsize 79}}$, C.O. Shimmin${}^{\textrm{\scriptsize 180}}$, Y. Shimogama${}^{\textrm{\scriptsize 176}}$, M. Shimojima${}^{\textrm{\scriptsize 114}}$, I.P.J. Shipsey${}^{\textrm{\scriptsize 132}}$, S. Shirabe${}^{\textrm{\scriptsize 85}}$, M. Shiyakova${}^{\textrm{\scriptsize 77}}$, J. Shlomi${}^{\textrm{\scriptsize 177}}$, A. Shmeleva${}^{\textrm{\scriptsize 108}}$, D. Shoaleh Saadi${}^{\textrm{\scriptsize 107}}$, M.J. Shochet${}^{\textrm{\scriptsize 36}}$, S. Shojaii${}^{\textrm{\scriptsize 102}}$, D.R. Shope${}^{\textrm{\scriptsize 125}}$, S. Shrestha${}^{\textrm{\scriptsize 123}}$, E. Shulga${}^{\textrm{\scriptsize 110}}$, P. Sicho${}^{\textrm{\scriptsize 138}}$, A.M. Sickles${}^{\textrm{\scriptsize 170}}$, P.E. Sidebo${}^{\textrm{\scriptsize 151}}$, E. Sideras Haddad${}^{\textrm{\scriptsize 32c}}$, O. Sidiropoulou${}^{\textrm{\scriptsize 35}}$, A. Sidoti${}^{\textrm{\scriptsize 23b,23a}}$, F. Siegert${}^{\textrm{\scriptsize 46}}$, Dj. Sijacki${}^{\textrm{\scriptsize 16}}$, J. Silva${}^{\textrm{\scriptsize 137a}}$, M. Silva Jr.${}^{\textrm{\scriptsize 178}}$, M.V. Silva Oliveira${}^{\textrm{\scriptsize 78a}}$, S.B. Silverstein${}^{\textrm{\scriptsize 43a}}$, S. Simion${}^{\textrm{\scriptsize 129}}$, E. Simioni${}^{\textrm{\scriptsize 97}}$, M. Simon${}^{\textrm{\scriptsize 97}}$, R. Simoniello${}^{\textrm{\scriptsize 97}}$, P. Sinervo${}^{\textrm{\scriptsize 164}}$, N.B. Sinev${}^{\textrm{\scriptsize 128}}$, M. Sioli${}^{\textrm{\scriptsize 23b,23a}}$, I. Siral${}^{\textrm{\scriptsize 103}}$, S.Yu. Sivoklokov${}^{\textrm{\scriptsize 111}}$, J. Sjölin${}^{\textrm{\scriptsize 43a,43b}}$, P. Skubic${}^{\textrm{\scriptsize 125}}$, M. Slater${}^{\textrm{\scriptsize 21}}$, T. Slavicek${}^{\textrm{\scriptsize 139}}$, M. Slawinska${}^{\textrm{\scriptsize 82}}$, K. Sliwa${}^{\textrm{\scriptsize 167}}$, R. Slovak${}^{\textrm{\scriptsize 140}}$, V. Smakhtin${}^{\textrm{\scriptsize 177}}$, B.H. Smart${}^{\textrm{\scriptsize 5}}$, J. Smiesko${}^{\textrm{\scriptsize 28a}}$, N. Smirnov${}^{\textrm{\scriptsize 110}}$, S.Yu. Smirnov${}^{\textrm{\scriptsize 110}}$, Y. Smirnov${}^{\textrm{\scriptsize 110}}$, L.N. Smirnova${}^{\textrm{\scriptsize 111}}$, O. Smirnova${}^{\textrm{\scriptsize 94}}$, J.W. Smith${}^{\textrm{\scriptsize 51}}$, M. Smizanska${}^{\textrm{\scriptsize 87}}$, K. Smolek${}^{\textrm{\scriptsize 139}}$, A. Smykiewicz${}^{\textrm{\scriptsize 82}}$, A.A. Snesarev${}^{\textrm{\scriptsize 108}}$, I.M. Snyder${}^{\textrm{\scriptsize 128}}$, S. Snyder${}^{\textrm{\scriptsize 29}}$, R. Sobie${}^{\textrm{\scriptsize 173,ad}}$, A.M. Soffa${}^{\textrm{\scriptsize 168}}$, A. Soffer${}^{\textrm{\scriptsize 158}}$, A. Søgaard${}^{\textrm{\scriptsize 48}}$, F. Sohns${}^{\textrm{\scriptsize 51}}$, G. Sokhrannyi${}^{\textrm{\scriptsize 89}}$, C.A. Solans Sanchez${}^{\textrm{\scriptsize 35}}$, M. Solar${}^{\textrm{\scriptsize 139}}$, E.Yu. Soldatov${}^{\textrm{\scriptsize 110}}$, U. Soldevila${}^{\textrm{\scriptsize 171}}$, A.A. Solodkov${}^{\textrm{\scriptsize 121}}$, A. Soloshenko${}^{\textrm{\scriptsize 77}}$, O.V. Solovyanov${}^{\textrm{\scriptsize 121}}$, V. Solovyev${}^{\textrm{\scriptsize 135}}$, P. Sommer${}^{\textrm{\scriptsize 146}}$, H. Son${}^{\textrm{\scriptsize 167}}$, W. Song${}^{\textrm{\scriptsize 141}}$, W.Y. Song${}^{\textrm{\scriptsize 165b}}$, A. Sopczak${}^{\textrm{\scriptsize 139}}$, F. Sopkova${}^{\textrm{\scriptsize 28b}}$, C.L. Sotiropoulou${}^{\textrm{\scriptsize 69a,69b}}$, S. Sottocornola${}^{\textrm{\scriptsize 68a,68b}}$, R. Soualah${}^{\textrm{\scriptsize 64a,64c,j}}$, A.M. Soukharev${}^{\textrm{\scriptsize 120b,120a}}$, D. South${}^{\textrm{\scriptsize 44}}$, S. Spagnolo${}^{\textrm{\scriptsize 65a,65b}}$, M. Spalla${}^{\textrm{\scriptsize 113}}$, M. Spangenberg${}^{\textrm{\scriptsize 175}}$, F. Spanò${}^{\textrm{\scriptsize 91}}$, D. Sperlich${}^{\textrm{\scriptsize 19}}$, T.M. Spieker${}^{\textrm{\scriptsize 59a}}$, R. Spighi${}^{\textrm{\scriptsize 23b}}$, G. Spigo${}^{\textrm{\scriptsize 35}}$, L.A. Spiller${}^{\textrm{\scriptsize 102}}$, D.P. Spiteri${}^{\textrm{\scriptsize 55}}$, M. Spousta${}^{\textrm{\scriptsize 140}}$, A. Stabile${}^{\textrm{\scriptsize 66a,66b}}$, R. Stamen${}^{\textrm{\scriptsize 59a}}$, S. Stamm${}^{\textrm{\scriptsize 19}}$, E. Stanecka${}^{\textrm{\scriptsize 82}}$, R.W. Stanek${}^{\textrm{\scriptsize 6}}$, C. Stanescu${}^{\textrm{\scriptsize 72a}}$, B. Stanislaus${}^{\textrm{\scriptsize 132}}$, M.M. Stanitzki${}^{\textrm{\scriptsize 44}}$, B. Stapf${}^{\textrm{\scriptsize 118}}$, E.A. Starchenko${}^{\textrm{\scriptsize 121}}$, G.H. Stark${}^{\textrm{\scriptsize 143}}$, J. Stark${}^{\textrm{\scriptsize 56}}$, S.H Stark${}^{\textrm{\scriptsize 39}}$, P. Staroba${}^{\textrm{\scriptsize 138}}$, P. Starovoitov${}^{\textrm{\scriptsize 59a}}$, S. Stärz${}^{\textrm{\scriptsize 101}}$, R. Staszewski${}^{\textrm{\scriptsize 82}}$, M. Stegler${}^{\textrm{\scriptsize 44}}$, P. Steinberg${}^{\textrm{\scriptsize 29}}$, B. Stelzer${}^{\textrm{\scriptsize 149}}$, H.J. Stelzer${}^{\textrm{\scriptsize 35}}$, O. Stelzer-Chilton${}^{\textrm{\scriptsize 165a}}$, H. Stenzel${}^{\textrm{\scriptsize 54}}$, T.J. Stevenson${}^{\textrm{\scriptsize 153}}$, G.A. Stewart${}^{\textrm{\scriptsize 35}}$, M.C. Stockton${}^{\textrm{\scriptsize 35}}$, G. Stoicea${}^{\textrm{\scriptsize 27b}}$, P. Stolte${}^{\textrm{\scriptsize 51}}$, S. Stonjek${}^{\textrm{\scriptsize 113}}$, A. Straessner${}^{\textrm{\scriptsize 46}}$, J. Strandberg${}^{\textrm{\scriptsize 151}}$, S. Strandberg${}^{\textrm{\scriptsize 43a,43b}}$, M. Strauss${}^{\textrm{\scriptsize 125}}$, P. Strizenec${}^{\textrm{\scriptsize 28b}}$, R. Ströhmer${}^{\textrm{\scriptsize 174}}$, D.M. Strom${}^{\textrm{\scriptsize 128}}$, R. Stroynowski${}^{\textrm{\scriptsize 41}}$, A. Strubig${}^{\textrm{\scriptsize 48}}$, S.A. Stucci${}^{\textrm{\scriptsize 29}}$, B. Stugu${}^{\textrm{\scriptsize 17}}$, J. Stupak${}^{\textrm{\scriptsize 125}}$, N.A. Styles${}^{\textrm{\scriptsize 44}}$, D. Su${}^{\textrm{\scriptsize 150}}$, J. Su${}^{\textrm{\scriptsize 136}}$, S. Suchek${}^{\textrm{\scriptsize 59a}}$, Y. Sugaya${}^{\textrm{\scriptsize 130}}$, M. Suk${}^{\textrm{\scriptsize 139}}$, V.V. Sulin${}^{\textrm{\scriptsize 108}}$, M.J. Sullivan${}^{\textrm{\scriptsize 88}}$, D.M.S. Sultan${}^{\textrm{\scriptsize 52}}$, S. Sultansoy${}^{\textrm{\scriptsize 4c}}$, T. Sumida${}^{\textrm{\scriptsize 83}}$, S. Sun${}^{\textrm{\scriptsize 103}}$, X. Sun${}^{\textrm{\scriptsize 3}}$, K. Suruliz${}^{\textrm{\scriptsize 153}}$, C.J.E. Suster${}^{\textrm{\scriptsize 154}}$, M.R. Sutton${}^{\textrm{\scriptsize 153}}$, S. Suzuki${}^{\textrm{\scriptsize 79}}$, M. Svatos${}^{\textrm{\scriptsize 138}}$, M. Swiatlowski${}^{\textrm{\scriptsize 36}}$, S.P. Swift${}^{\textrm{\scriptsize 2}}$, A. Sydorenko${}^{\textrm{\scriptsize 97}}$, I. Sykora${}^{\textrm{\scriptsize 28a}}$, M. Sykora${}^{\textrm{\scriptsize 140}}$, T. Sykora${}^{\textrm{\scriptsize 140}}$, D. Ta${}^{\textrm{\scriptsize 97}}$, K. Tackmann${}^{\textrm{\scriptsize 44,aa}}$, J. Taenzer${}^{\textrm{\scriptsize 158}}$, A. Taffard${}^{\textrm{\scriptsize 168}}$, R. Tafirout${}^{\textrm{\scriptsize 165a}}$, E. Tahirovic${}^{\textrm{\scriptsize 90}}$, N. Taiblum${}^{\textrm{\scriptsize 158}}$, H. Takai${}^{\textrm{\scriptsize 29}}$, R. Takashima${}^{\textrm{\scriptsize 84}}$, E.H. Takasugi${}^{\textrm{\scriptsize 113}}$, K. Takeda${}^{\textrm{\scriptsize 80}}$, T. Takeshita${}^{\textrm{\scriptsize 147}}$, Y. Takubo${}^{\textrm{\scriptsize 79}}$, M. Talby${}^{\textrm{\scriptsize 99}}$, A.A. Talyshev${}^{\textrm{\scriptsize 120b,120a}}$, J. Tanaka${}^{\textrm{\scriptsize 160}}$, M. Tanaka${}^{\textrm{\scriptsize 162}}$, R. Tanaka${}^{\textrm{\scriptsize 129}}$, B.B. Tannenwald${}^{\textrm{\scriptsize 123}}$, S. Tapia Araya${}^{\textrm{\scriptsize 170}}$, S. Tapprogge${}^{\textrm{\scriptsize 97}}$, A. Tarek Abouelfadl Mohamed${}^{\textrm{\scriptsize 133}}$, S. Tarem${}^{\textrm{\scriptsize 157}}$, G. Tarna${}^{\textrm{\scriptsize 27b,e}}$, G.F. Tartarelli${}^{\textrm{\scriptsize 66a}}$, P. Tas${}^{\textrm{\scriptsize 140}}$, M. Tasevsky${}^{\textrm{\scriptsize 138}}$, T. Tashiro${}^{\textrm{\scriptsize 83}}$, E. Tassi${}^{\textrm{\scriptsize 40b,40a}}$, A. Tavares Delgado${}^{\textrm{\scriptsize 137a,137b}}$, Y. Tayalati${}^{\textrm{\scriptsize 34e}}$, A.J. Taylor${}^{\textrm{\scriptsize 48}}$, G.N. Taylor${}^{\textrm{\scriptsize 102}}$, P.T.E. Taylor${}^{\textrm{\scriptsize 102}}$, W. Taylor${}^{\textrm{\scriptsize 165b}}$, A.S. Tee${}^{\textrm{\scriptsize 87}}$, R. Teixeira De Lima${}^{\textrm{\scriptsize 150}}$, P. Teixeira-Dias${}^{\textrm{\scriptsize 91}}$, H. Ten Kate${}^{\textrm{\scriptsize 35}}$, J.J. Teoh${}^{\textrm{\scriptsize 118}}$, S. Terada${}^{\textrm{\scriptsize 79}}$, K. Terashi${}^{\textrm{\scriptsize 160}}$, J. Terron${}^{\textrm{\scriptsize 96}}$, S. Terzo${}^{\textrm{\scriptsize 14}}$, M. Testa${}^{\textrm{\scriptsize 49}}$, R.J. Teuscher${}^{\textrm{\scriptsize 164,ad}}$, S.J. Thais${}^{\textrm{\scriptsize 180}}$, T. Theveneaux-Pelzer${}^{\textrm{\scriptsize 44}}$, F. Thiele${}^{\textrm{\scriptsize 39}}$, D.W. Thomas${}^{\textrm{\scriptsize 91}}$, J.P. Thomas${}^{\textrm{\scriptsize 21}}$, A.S. Thompson${}^{\textrm{\scriptsize 55}}$, P.D. Thompson${}^{\textrm{\scriptsize 21}}$, L.A. Thomsen${}^{\textrm{\scriptsize 180}}$, E. Thomson${}^{\textrm{\scriptsize 134}}$, Y. Tian${}^{\textrm{\scriptsize 38}}$, R.E. Ticse Torres${}^{\textrm{\scriptsize 51}}$, V.O. Tikhomirov${}^{\textrm{\scriptsize 108,ap}}$, Yu.A. Tikhonov${}^{\textrm{\scriptsize 120b,120a}}$, S. Timoshenko${}^{\textrm{\scriptsize 110}}$, P. Tipton${}^{\textrm{\scriptsize 180}}$, S. Tisserant${}^{\textrm{\scriptsize 99}}$, K. Todome${}^{\textrm{\scriptsize 162}}$, S. Todorova-Nova${}^{\textrm{\scriptsize 5}}$, S. Todt${}^{\textrm{\scriptsize 46}}$, J. Tojo${}^{\textrm{\scriptsize 85}}$, S. Tokár${}^{\textrm{\scriptsize 28a}}$, K. Tokushuku${}^{\textrm{\scriptsize 79}}$, E. Tolley${}^{\textrm{\scriptsize 123}}$, K.G. Tomiwa${}^{\textrm{\scriptsize 32c}}$, M. Tomoto${}^{\textrm{\scriptsize 115}}$, L. Tompkins${}^{\textrm{\scriptsize 150,r}}$, K. Toms${}^{\textrm{\scriptsize 116}}$, B. Tong${}^{\textrm{\scriptsize 57}}$, P. Tornambe${}^{\textrm{\scriptsize 50}}$, E. Torrence${}^{\textrm{\scriptsize 128}}$, H. Torres${}^{\textrm{\scriptsize 46}}$, E. Torró Pastor${}^{\textrm{\scriptsize 145}}$, C. Tosciri${}^{\textrm{\scriptsize 132}}$, J. Toth${}^{\textrm{\scriptsize 99,ac}}$, F. Touchard${}^{\textrm{\scriptsize 99}}$, D.R. Tovey${}^{\textrm{\scriptsize 146}}$, C.J. Treado${}^{\textrm{\scriptsize 122}}$, T. Trefzger${}^{\textrm{\scriptsize 174}}$, F. Tresoldi${}^{\textrm{\scriptsize 153}}$, A. Tricoli${}^{\textrm{\scriptsize 29}}$, I.M. Trigger${}^{\textrm{\scriptsize 165a}}$, S. Trincaz-Duvoid${}^{\textrm{\scriptsize 133}}$, W. Trischuk${}^{\textrm{\scriptsize 164}}$, B. Trocmé${}^{\textrm{\scriptsize 56}}$, A. Trofymov${}^{\textrm{\scriptsize 129}}$, C. Troncon${}^{\textrm{\scriptsize 66a}}$, M. Trovatelli${}^{\textrm{\scriptsize 173}}$, F. Trovato${}^{\textrm{\scriptsize 153}}$, L. Truong${}^{\textrm{\scriptsize 32b}}$, M. Trzebinski${}^{\textrm{\scriptsize 82}}$, A. Trzupek${}^{\textrm{\scriptsize 82}}$, F. Tsai${}^{\textrm{\scriptsize 44}}$, J.C-L. Tseng${}^{\textrm{\scriptsize 132}}$, P.V. Tsiareshka${}^{\textrm{\scriptsize 105,aj}}$, A. Tsirigotis${}^{\textrm{\scriptsize 159}}$, N. Tsirintanis${}^{\textrm{\scriptsize 9}}$, V. Tsiskaridze${}^{\textrm{\scriptsize 152}}$, E.G. Tskhadadze${}^{\textrm{\scriptsize 156a}}$, I.I. Tsukerman${}^{\textrm{\scriptsize 109}}$, V. Tsulaia${}^{\textrm{\scriptsize 18}}$, S. Tsuno${}^{\textrm{\scriptsize 79}}$, D. Tsybychev${}^{\textrm{\scriptsize 152,163}}$, Y. Tu${}^{\textrm{\scriptsize 61b}}$, A. Tudorache${}^{\textrm{\scriptsize 27b}}$, V. Tudorache${}^{\textrm{\scriptsize 27b}}$, T.T. Tulbure${}^{\textrm{\scriptsize 27a}}$, A.N. Tuna${}^{\textrm{\scriptsize 57}}$, S. Turchikhin${}^{\textrm{\scriptsize 77}}$, D. Turgeman${}^{\textrm{\scriptsize 177}}$, I. Turk Cakir${}^{\textrm{\scriptsize 4b,u}}$, R.J. Turner${}^{\textrm{\scriptsize 21}}$, R.T. Turra${}^{\textrm{\scriptsize 66a}}$, P.M. Tuts${}^{\textrm{\scriptsize 38}}$, S Tzamarias${}^{\textrm{\scriptsize 159}}$, E. Tzovara${}^{\textrm{\scriptsize 97}}$, G. Ucchielli${}^{\textrm{\scriptsize 45}}$, I. Ueda${}^{\textrm{\scriptsize 79}}$, M. Ughetto${}^{\textrm{\scriptsize 43a,43b}}$, F. Ukegawa${}^{\textrm{\scriptsize 166}}$, G. Unal${}^{\textrm{\scriptsize 35}}$, A. Undrus${}^{\textrm{\scriptsize 29}}$, G. Unel${}^{\textrm{\scriptsize 168}}$, F.C. Ungaro${}^{\textrm{\scriptsize 102}}$, Y. Unno${}^{\textrm{\scriptsize 79}}$, K. Uno${}^{\textrm{\scriptsize 160}}$, J. Urban${}^{\textrm{\scriptsize 28b}}$, P. Urquijo${}^{\textrm{\scriptsize 102}}$, G. Usai${}^{\textrm{\scriptsize 8}}$, J. Usui${}^{\textrm{\scriptsize 79}}$, L. Vacavant${}^{\textrm{\scriptsize 99}}$, V. Vacek${}^{\textrm{\scriptsize 139}}$, B. Vachon${}^{\textrm{\scriptsize 101}}$, K.O.H. Vadla${}^{\textrm{\scriptsize 131}}$, A. Vaidya${}^{\textrm{\scriptsize 92}}$, C. Valderanis${}^{\textrm{\scriptsize 112}}$, E. Valdes Santurio${}^{\textrm{\scriptsize 43a,43b}}$, M. Valente${}^{\textrm{\scriptsize 52}}$, S. Valentinetti${}^{\textrm{\scriptsize 23b,23a}}$, A. Valero${}^{\textrm{\scriptsize 171}}$, L. Valéry${}^{\textrm{\scriptsize 44}}$, R.A. Vallance${}^{\textrm{\scriptsize 21}}$, A. Vallier${}^{\textrm{\scriptsize 5}}$, J.A. Valls Ferrer${}^{\textrm{\scriptsize 171}}$, T.R. Van Daalen${}^{\textrm{\scriptsize 14}}$, H. Van der Graaf${}^{\textrm{\scriptsize 118}}$, P. Van Gemmeren${}^{\textrm{\scriptsize 6}}$, I. Van Vulpen${}^{\textrm{\scriptsize 118}}$, M. Vanadia${}^{\textrm{\scriptsize 71a,71b}}$, W. Vandelli${}^{\textrm{\scriptsize 35}}$, A. Vaniachine${}^{\textrm{\scriptsize 163}}$, P. Vankov${}^{\textrm{\scriptsize 118}}$, R. Vari${}^{\textrm{\scriptsize 70a}}$, E.W. Varnes${}^{\textrm{\scriptsize 7}}$, C. Varni${}^{\textrm{\scriptsize 53b,53a}}$, T. Varol${}^{\textrm{\scriptsize 41}}$, D. Varouchas${}^{\textrm{\scriptsize 129}}$, K.E. Varvell${}^{\textrm{\scriptsize 154}}$, G.A. Vasquez${}^{\textrm{\scriptsize 144b}}$, J.G. Vasquez${}^{\textrm{\scriptsize 180}}$, F. Vazeille${}^{\textrm{\scriptsize 37}}$, D. Vazquez Furelos${}^{\textrm{\scriptsize 14}}$, T. Vazquez Schroeder${}^{\textrm{\scriptsize 35}}$, J. Veatch${}^{\textrm{\scriptsize 51}}$, V. Vecchio${}^{\textrm{\scriptsize 72a,72b}}$, L.M. Veloce${}^{\textrm{\scriptsize 164}}$, F. Veloso${}^{\textrm{\scriptsize 137a,137c}}$, S. Veneziano${}^{\textrm{\scriptsize 70a}}$, A. Ventura${}^{\textrm{\scriptsize 65a,65b}}$, N. Venturi${}^{\textrm{\scriptsize 35}}$, V. Vercesi${}^{\textrm{\scriptsize 68a}}$, M. Verducci${}^{\textrm{\scriptsize 72a,72b}}$, C.M. Vergel Infante${}^{\textrm{\scriptsize 76}}$, C. Vergis${}^{\textrm{\scriptsize 24}}$, W. Verkerke${}^{\textrm{\scriptsize 118}}$, A.T. Vermeulen${}^{\textrm{\scriptsize 118}}$, J.C. Vermeulen${}^{\textrm{\scriptsize 118}}$, M.C. Vetterli${}^{\textrm{\scriptsize 149,aw}}$, N. Viaux Maira${}^{\textrm{\scriptsize 144b}}$, M. Vicente Barreto Pinto${}^{\textrm{\scriptsize 52}}$, I. Vichou${}^{\textrm{\scriptsize 170,*}}$, T. Vickey${}^{\textrm{\scriptsize 146}}$, O.E. Vickey Boeriu${}^{\textrm{\scriptsize 146}}$, G.H.A. Viehhauser${}^{\textrm{\scriptsize 132}}$, S. Viel${}^{\textrm{\scriptsize 18}}$, L. Vigani${}^{\textrm{\scriptsize 132}}$, M. Villa${}^{\textrm{\scriptsize 23b,23a}}$, M. Villaplana Perez${}^{\textrm{\scriptsize 66a,66b}}$, E. Vilucchi${}^{\textrm{\scriptsize 49}}$, M.G. Vincter${}^{\textrm{\scriptsize 33}}$, V.B. Vinogradov${}^{\textrm{\scriptsize 77}}$, A. Vishwakarma${}^{\textrm{\scriptsize 44}}$, C. Vittori${}^{\textrm{\scriptsize 23b,23a}}$, I. Vivarelli${}^{\textrm{\scriptsize 153}}$, S. Vlachos${}^{\textrm{\scriptsize 10}}$, M. Vogel${}^{\textrm{\scriptsize 179}}$, P. Vokac${}^{\textrm{\scriptsize 139}}$, G. Volpi${}^{\textrm{\scriptsize 14}}$, S.E. von Buddenbrock${}^{\textrm{\scriptsize 32c}}$, E. Von Toerne${}^{\textrm{\scriptsize 24}}$, V. Vorobel${}^{\textrm{\scriptsize 140}}$, K. Vorobev${}^{\textrm{\scriptsize 110}}$, M. Vos${}^{\textrm{\scriptsize 171}}$, J.H. Vossebeld${}^{\textrm{\scriptsize 88}}$, N. Vranjes${}^{\textrm{\scriptsize 16}}$, M. Vranjes Milosavljevic${}^{\textrm{\scriptsize 16}}$, V. Vrba${}^{\textrm{\scriptsize 139}}$, M. Vreeswijk${}^{\textrm{\scriptsize 118}}$, T. Šfiligoj${}^{\textrm{\scriptsize 89}}$, R. Vuillermet${}^{\textrm{\scriptsize 35}}$, I. Vukotic${}^{\textrm{\scriptsize 36}}$, T. Ženiš${}^{\textrm{\scriptsize 28a}}$, L. Živković${}^{\textrm{\scriptsize 16}}$, P. Wagner${}^{\textrm{\scriptsize 24}}$, W. Wagner${}^{\textrm{\scriptsize 179}}$, J. Wagner-Kuhr${}^{\textrm{\scriptsize 112}}$, H. Wahlberg${}^{\textrm{\scriptsize 86}}$, S. Wahrmund${}^{\textrm{\scriptsize 46}}$, K. Wakamiya${}^{\textrm{\scriptsize 80}}$, V.M. Walbrecht${}^{\textrm{\scriptsize 113}}$, J. Walder${}^{\textrm{\scriptsize 87}}$, R. Walker${}^{\textrm{\scriptsize 112}}$, S.D. Walker${}^{\textrm{\scriptsize 91}}$, W. Walkowiak${}^{\textrm{\scriptsize 148}}$, V. Wallangen${}^{\textrm{\scriptsize 43a,43b}}$, A.M. Wang${}^{\textrm{\scriptsize 57}}$, C. Wang${}^{\textrm{\scriptsize 58b}}$, F. Wang${}^{\textrm{\scriptsize 178}}$, H. Wang${}^{\textrm{\scriptsize 18}}$, H. Wang${}^{\textrm{\scriptsize 3}}$, J. Wang${}^{\textrm{\scriptsize 154}}$, J. Wang${}^{\textrm{\scriptsize 59b}}$, P. Wang${}^{\textrm{\scriptsize 41}}$, Q. Wang${}^{\textrm{\scriptsize 125}}$, R.-J. Wang${}^{\textrm{\scriptsize 133}}$, R. Wang${}^{\textrm{\scriptsize 58a}}$, R. Wang${}^{\textrm{\scriptsize 6}}$, S.M. Wang${}^{\textrm{\scriptsize 155}}$, W.T. Wang${}^{\textrm{\scriptsize 58a}}$, W. Wang${}^{\textrm{\scriptsize 15c,ae}}$, W.X. Wang${}^{\textrm{\scriptsize 58a,ae}}$, Y. Wang${}^{\textrm{\scriptsize 58a,am}}$, Z. Wang${}^{\textrm{\scriptsize 58c}}$, C. Wanotayaroj${}^{\textrm{\scriptsize 44}}$, A. Warburton${}^{\textrm{\scriptsize 101}}$, C.P. Ward${}^{\textrm{\scriptsize 31}}$, D.R. Wardrope${}^{\textrm{\scriptsize 92}}$, A. Washbrook${}^{\textrm{\scriptsize 48}}$, P.M. Watkins${}^{\textrm{\scriptsize 21}}$, A.T. Watson${}^{\textrm{\scriptsize 21}}$, M.F. Watson${}^{\textrm{\scriptsize 21}}$, G. Watts${}^{\textrm{\scriptsize 145}}$, S. Watts${}^{\textrm{\scriptsize 98}}$, B.M. Waugh${}^{\textrm{\scriptsize 92}}$, A.F. Webb${}^{\textrm{\scriptsize 11}}$, S. Webb${}^{\textrm{\scriptsize 97}}$, C. Weber${}^{\textrm{\scriptsize 180}}$, M.S. Weber${}^{\textrm{\scriptsize 20}}$, S.A. Weber${}^{\textrm{\scriptsize 33}}$, S.M. Weber${}^{\textrm{\scriptsize 59a}}$, A.R. Weidberg${}^{\textrm{\scriptsize 132}}$, J. Weingarten${}^{\textrm{\scriptsize 45}}$, M. Weirich${}^{\textrm{\scriptsize 97}}$, C. Weiser${}^{\textrm{\scriptsize 50}}$, P.S. Wells${}^{\textrm{\scriptsize 35}}$, T. Wenaus${}^{\textrm{\scriptsize 29}}$, T. Wengler${}^{\textrm{\scriptsize 35}}$, S. Wenig${}^{\textrm{\scriptsize 35}}$, N. Wermes${}^{\textrm{\scriptsize 24}}$, M.D. Werner${}^{\textrm{\scriptsize 76}}$, P. Werner${}^{\textrm{\scriptsize 35}}$, M. Wessels${}^{\textrm{\scriptsize 59a}}$, T.D. Weston${}^{\textrm{\scriptsize 20}}$, K. Whalen${}^{\textrm{\scriptsize 128}}$, N.L. Whallon${}^{\textrm{\scriptsize 145}}$, A.M. Wharton${}^{\textrm{\scriptsize 87}}$, A.S. White${}^{\textrm{\scriptsize 103}}$, A. White${}^{\textrm{\scriptsize 8}}$, M.J. White${}^{\textrm{\scriptsize 1}}$, R. White${}^{\textrm{\scriptsize 144b}}$, D. Whiteson${}^{\textrm{\scriptsize 168}}$, B.W. Whitmore${}^{\textrm{\scriptsize 87}}$, F.J. Wickens${}^{\textrm{\scriptsize 141}}$, W. Wiedenmann${}^{\textrm{\scriptsize 178}}$, M. Wielers${}^{\textrm{\scriptsize 141}}$, C. Wiglesworth${}^{\textrm{\scriptsize 39}}$, L.A.M. Wiik-Fuchs${}^{\textrm{\scriptsize 50}}$, F. Wilk${}^{\textrm{\scriptsize 98}}$, H.G. Wilkens${}^{\textrm{\scriptsize 35}}$, L.J. Wilkins${}^{\textrm{\scriptsize 91}}$, H.H. Williams${}^{\textrm{\scriptsize 134}}$, S. Williams${}^{\textrm{\scriptsize 31}}$, C. Willis${}^{\textrm{\scriptsize 104}}$, S. Willocq${}^{\textrm{\scriptsize 100}}$, J.A. Wilson${}^{\textrm{\scriptsize 21}}$, I. Wingerter-Seez${}^{\textrm{\scriptsize 5}}$, E. Winkels${}^{\textrm{\scriptsize 153}}$, F. Winklmeier${}^{\textrm{\scriptsize 128}}$, O.J. Winston${}^{\textrm{\scriptsize 153}}$, B.T. Winter${}^{\textrm{\scriptsize 50}}$, M. Wittgen${}^{\textrm{\scriptsize 150}}$, M. Wobisch${}^{\textrm{\scriptsize 93}}$, A. Wolf${}^{\textrm{\scriptsize 97}}$, T.M.H. Wolf${}^{\textrm{\scriptsize 118}}$, R. Wolff${}^{\textrm{\scriptsize 99}}$, J. Wollrath${}^{\textrm{\scriptsize 50}}$, M.W. Wolter${}^{\textrm{\scriptsize 82}}$, H. Wolters${}^{\textrm{\scriptsize 137a,137c}}$, V.W.S. Wong${}^{\textrm{\scriptsize 172}}$, N.L. Woods${}^{\textrm{\scriptsize 143}}$, S.D. Worm${}^{\textrm{\scriptsize 21}}$, B.K. Wosiek${}^{\textrm{\scriptsize 82}}$, K.W. Woźniak${}^{\textrm{\scriptsize 82}}$, K. Wraight${}^{\textrm{\scriptsize 55}}$, M. Wu${}^{\textrm{\scriptsize 36}}$, S.L. Wu${}^{\textrm{\scriptsize 178}}$, X. Wu${}^{\textrm{\scriptsize 52}}$, Y. Wu${}^{\textrm{\scriptsize 58a}}$, T.R. Wyatt${}^{\textrm{\scriptsize 98}}$, B.M. Wynne${}^{\textrm{\scriptsize 48}}$, S. Xella${}^{\textrm{\scriptsize 39}}$, Z. Xi${}^{\textrm{\scriptsize 103}}$, L. Xia${}^{\textrm{\scriptsize 175}}$, D. Xu${}^{\textrm{\scriptsize 15a}}$, H. Xu${}^{\textrm{\scriptsize 58a,e}}$, L. Xu${}^{\textrm{\scriptsize 29}}$, T. Xu${}^{\textrm{\scriptsize 142}}$, W. Xu${}^{\textrm{\scriptsize 103}}$, Z. Xu${}^{\textrm{\scriptsize 150}}$, B. Yabsley${}^{\textrm{\scriptsize 154}}$, S. Yacoob${}^{\textrm{\scriptsize 32a}}$, K. Yajima${}^{\textrm{\scriptsize 130}}$, D.P. Yallup${}^{\textrm{\scriptsize 92}}$, D. Yamaguchi${}^{\textrm{\scriptsize 162}}$, Y. Yamaguchi${}^{\textrm{\scriptsize 162}}$, A. Yamamoto${}^{\textrm{\scriptsize 79}}$, T. Yamanaka${}^{\textrm{\scriptsize 160}}$, F. Yamane${}^{\textrm{\scriptsize 80}}$, M. Yamatani${}^{\textrm{\scriptsize 160}}$, T. Yamazaki${}^{\textrm{\scriptsize 160}}$, Y. Yamazaki${}^{\textrm{\scriptsize 80}}$, Z. Yan${}^{\textrm{\scriptsize 25}}$, H.J. Yang${}^{\textrm{\scriptsize 58c,58d}}$, H.T. Yang${}^{\textrm{\scriptsize 18}}$, S. Yang${}^{\textrm{\scriptsize 75}}$, Y. Yang${}^{\textrm{\scriptsize 160}}$, Z. Yang${}^{\textrm{\scriptsize 17}}$, W-M. Yao${}^{\textrm{\scriptsize 18}}$, Y.C. Yap${}^{\textrm{\scriptsize 44}}$, Y. Yasu${}^{\textrm{\scriptsize 79}}$, E. Yatsenko${}^{\textrm{\scriptsize 58c,58d}}$, J. Ye${}^{\textrm{\scriptsize 41}}$, S. Ye${}^{\textrm{\scriptsize 29}}$, I. Yeletskikh${}^{\textrm{\scriptsize 77}}$, E. Yigitbasi${}^{\textrm{\scriptsize 25}}$, E. Yildirim${}^{\textrm{\scriptsize 97}}$, K. Yorita${}^{\textrm{\scriptsize 176}}$, K. Yoshihara${}^{\textrm{\scriptsize 134}}$, C.J.S. Young${}^{\textrm{\scriptsize 35}}$, C. Young${}^{\textrm{\scriptsize 150}}$, J. Yu${}^{\textrm{\scriptsize 8}}$, J. Yu${}^{\textrm{\scriptsize 76}}$, X. Yue${}^{\textrm{\scriptsize 59a}}$, S.P.Y. Yuen${}^{\textrm{\scriptsize 24}}$, B. Zabinski${}^{\textrm{\scriptsize 82}}$, G. Zacharis${}^{\textrm{\scriptsize 10}}$, E. Zaffaroni${}^{\textrm{\scriptsize 52}}$, R. Zaidan${}^{\textrm{\scriptsize 14}}$, A.M. Zaitsev${}^{\textrm{\scriptsize 121,ao}}$, T. Zakareishvili${}^{\textrm{\scriptsize 156b}}$, N. Zakharchuk${}^{\textrm{\scriptsize 33}}$, S. Zambito${}^{\textrm{\scriptsize 57}}$, D. Zanzi${}^{\textrm{\scriptsize 35}}$, D.R. Zaripovas${}^{\textrm{\scriptsize 55}}$, S.V. Zeißner${}^{\textrm{\scriptsize 45}}$, C. Zeitnitz${}^{\textrm{\scriptsize 179}}$, G. Zemaityte${}^{\textrm{\scriptsize 132}}$, J.C. Zeng${}^{\textrm{\scriptsize 170}}$, Q. Zeng${}^{\textrm{\scriptsize 150}}$, O. Zenin${}^{\textrm{\scriptsize 121}}$, D. Zerwas${}^{\textrm{\scriptsize 129}}$, M. Zgubič${}^{\textrm{\scriptsize 132}}$, D.F. Zhang${}^{\textrm{\scriptsize 58b}}$, D. Zhang${}^{\textrm{\scriptsize 103}}$, F. Zhang${}^{\textrm{\scriptsize 178}}$, G. Zhang${}^{\textrm{\scriptsize 58a}}$, G. Zhang${}^{\textrm{\scriptsize 15b}}$, H. Zhang${}^{\textrm{\scriptsize 15c}}$, J. Zhang${}^{\textrm{\scriptsize 6}}$, L. Zhang${}^{\textrm{\scriptsize 15c}}$, L. Zhang${}^{\textrm{\scriptsize 58a}}$, M. Zhang${}^{\textrm{\scriptsize 170}}$, P. Zhang${}^{\textrm{\scriptsize 15c}}$, R. Zhang${}^{\textrm{\scriptsize 58a}}$, R. Zhang${}^{\textrm{\scriptsize 24}}$, X. Zhang${}^{\textrm{\scriptsize 58b}}$, Y. Zhang${}^{\textrm{\scriptsize 15d}}$, Z. Zhang${}^{\textrm{\scriptsize 129}}$, P. Zhao${}^{\textrm{\scriptsize 47}}$, Y. Zhao${}^{\textrm{\scriptsize 58b,129,ak}}$, Z. Zhao${}^{\textrm{\scriptsize 58a}}$, A. Zhemchugov${}^{\textrm{\scriptsize 77}}$, Z. Zheng${}^{\textrm{\scriptsize 103}}$, D. Zhong${}^{\textrm{\scriptsize 170}}$, B. Zhou${}^{\textrm{\scriptsize 103}}$, C. Zhou${}^{\textrm{\scriptsize 178}}$, M.S. Zhou${}^{\textrm{\scriptsize 15d}}$, M. Zhou${}^{\textrm{\scriptsize 152}}$, N. Zhou${}^{\textrm{\scriptsize 58c}}$, Y. Zhou${}^{\textrm{\scriptsize 7}}$, C.G. Zhu${}^{\textrm{\scriptsize 58b}}$, H.L. Zhu${}^{\textrm{\scriptsize 58a}}$, H. Zhu${}^{\textrm{\scriptsize 15a}}$, J. Zhu${}^{\textrm{\scriptsize 103}}$, Y. Zhu${}^{\textrm{\scriptsize 58a}}$, X. Zhuang${}^{\textrm{\scriptsize 15a}}$, K. Zhukov${}^{\textrm{\scriptsize 108}}$, V. Zhulanov${}^{\textrm{\scriptsize 120b,120a}}$, A. Zibell${}^{\textrm{\scriptsize 174}}$, D. Zieminska${}^{\textrm{\scriptsize 63}}$, N.I. Zimine${}^{\textrm{\scriptsize 77}}$, S. Zimmermann${}^{\textrm{\scriptsize 50}}$, Z. Zinonos${}^{\textrm{\scriptsize 113}}$, M. Ziolkowski${}^{\textrm{\scriptsize 148}}$, G. Zobernig${}^{\textrm{\scriptsize 178}}$, A. Zoccoli${}^{\textrm{\scriptsize 23b,23a}}$, K. Zoch${}^{\textrm{\scriptsize 51}}$, T.G. Zorbas${}^{\textrm{\scriptsize 146}}$, R. Zou${}^{\textrm{\scriptsize 36}}$, M. Zur Nedden${}^{\textrm{\scriptsize 19}}$, L. Zwalinski${}^{\textrm{\scriptsize 35}}$.

1Department of Physics, University of Adelaide, Adelaide; Australia.

2Physics Department, SUNY Albany, Albany NY; United States of America.

3Department of Physics, University of Alberta, Edmonton AB; Canada.

4*(a)Department of Physics, Ankara University, Ankara;(b)Istanbul Aydin University, Istanbul;(c)*Division of Physics, TOBB University of Economics and Technology, Ankara; Turkey.

5LAPP, Université Grenoble Alpes, Université Savoie Mont Blanc, CNRS/IN2P3, Annecy; France.

6High Energy Physics Division, Argonne National Laboratory, Argonne IL; United States of America.

7Department of Physics, University of Arizona, Tucson AZ; United States of America.

8Department of Physics, University of Texas at Arlington, Arlington TX; United States of America.

9Physics Department, National and Kapodistrian University of Athens, Athens; Greece.

10Physics Department, National Technical University of Athens, Zografou; Greece.

11Department of Physics, University of Texas at Austin, Austin TX; United States of America.

12*(a)Bahcesehir University, Faculty of Engineering and Natural Sciences, Istanbul;(b)Istanbul Bilgi University, Faculty of Engineering and Natural Sciences, Istanbul;(c)Department of Physics, Bogazici University, Istanbul;(d)*Department of Physics Engineering, Gaziantep University, Gaziantep; Turkey.

13Institute of Physics, Azerbaijan Academy of Sciences, Baku; Azerbaijan.

14Institut de Física d’Altes Energies (IFAE), Barcelona Institute of Science and Technology, Barcelona; Spain.

15*(a)Institute of High Energy Physics, Chinese Academy of Sciences, Beijing;(b)Physics Department, Tsinghua University, Beijing;(c)Department of Physics, Nanjing University, Nanjing;(d)*University of Chinese Academy of Science (UCAS), Beijing; China.

16Institute of Physics, University of Belgrade, Belgrade; Serbia.

17Department for Physics and Technology, University of Bergen, Bergen; Norway.

18Physics Division, Lawrence Berkeley National Laboratory and University of California, Berkeley CA; United States of America.

19Institut für Physik, Humboldt Universität zu Berlin, Berlin; Germany.

20Albert Einstein Center for Fundamental Physics and Laboratory for High Energy Physics, University of Bern, Bern; Switzerland.

21School of Physics and Astronomy, University of Birmingham, Birmingham; United Kingdom.

22Centro de Investigaciónes, Universidad Antonio Nariño, Bogota; Colombia.

23*(a)Dipartimento di Fisica e Astronomia, Università di Bologna, Bologna;(b)*INFN Sezione di Bologna; Italy.

24Physikalisches Institut, Universität Bonn, Bonn; Germany.

25Department of Physics, Boston University, Boston MA; United States of America.

26Department of Physics, Brandeis University, Waltham MA; United States of America.

27*(a)Transilvania University of Brasov, Brasov;(b)Horia Hulubei National Institute of Physics and Nuclear Engineering, Bucharest;(c)Department of Physics, Alexandru Ioan Cuza University of Iasi, Iasi;(d)National Institute for Research and Development of Isotopic and Molecular Technologies, Physics Department, Cluj-Napoca;(e)University Politehnica Bucharest, Bucharest;(f)*West University in Timisoara, Timisoara; Romania.

28*(a)Faculty of Mathematics, Physics and Informatics, Comenius University, Bratislava;(b)*Department of Subnuclear Physics, Institute of Experimental Physics of the Slovak Academy of Sciences, Kosice; Slovak Republic.

29Physics Department, Brookhaven National Laboratory, Upton NY; United States of America.

30Departamento de Física, Universidad de Buenos Aires, Buenos Aires; Argentina.

31Cavendish Laboratory, University of Cambridge, Cambridge; United Kingdom.

32*(a)Department of Physics, University of Cape Town, Cape Town;(b)Department of Mechanical Engineering Science, University of Johannesburg, Johannesburg;(c)*School of Physics, University of the Witwatersrand, Johannesburg; South Africa.

33Department of Physics, Carleton University, Ottawa ON; Canada.

34*(a)Faculté des Sciences Ain Chock, Réseau Universitaire de Physique des Hautes Energies - Université Hassan II, Casablanca;(b)Centre National de l’Energie des Sciences Techniques Nucleaires (CNESTEN), Rabat;(c)Faculté des Sciences Semlalia, Université Cadi Ayyad, LPHEA-Marrakech;(d)Faculté des Sciences, Université Mohamed Premier and LPTPM, Oujda;(e)*Faculté des sciences, Université Mohammed V, Rabat; Morocco.

35CERN, Geneva; Switzerland.

36Enrico Fermi Institute, University of Chicago, Chicago IL; United States of America.

37LPC, Université Clermont Auvergne, CNRS/IN2P3, Clermont-Ferrand; France.

38Nevis Laboratory, Columbia University, Irvington NY; United States of America.

39Niels Bohr Institute, University of Copenhagen, Copenhagen; Denmark.

40*(a)Dipartimento di Fisica, Università della Calabria, Rende;(b)*INFN Gruppo Collegato di Cosenza, Laboratori Nazionali di Frascati; Italy.

41Physics Department, Southern Methodist University, Dallas TX; United States of America.

42Physics Department, University of Texas at Dallas, Richardson TX; United States of America.

43*(a)Department of Physics, Stockholm University;(b)*Oskar Klein Centre, Stockholm; Sweden.

44Deutsches Elektronen-Synchrotron DESY, Hamburg and Zeuthen; Germany.

45Lehrstuhl für Experimentelle Physik IV, Technische Universität Dortmund, Dortmund; Germany.

46Institut für Kern- und Teilchenphysik, Technische Universität Dresden, Dresden; Germany.

47Department of Physics, Duke University, Durham NC; United States of America.

48SUPA - School of Physics and Astronomy, University of Edinburgh, Edinburgh; United Kingdom.

49INFN e Laboratori Nazionali di Frascati, Frascati; Italy.

50Physikalisches Institut, Albert-Ludwigs-Universität Freiburg, Freiburg; Germany.

51II. Physikalisches Institut, Georg-August-Universität Göttingen, Göttingen; Germany.

52Département de Physique Nucléaire et Corpusculaire, Université de Genève, Genève; Switzerland.

53*(a)Dipartimento di Fisica, Università di Genova, Genova;(b)*INFN Sezione di Genova; Italy.

54II. Physikalisches Institut, Justus-Liebig-Universität Giessen, Giessen; Germany.

55SUPA - School of Physics and Astronomy, University of Glasgow, Glasgow; United Kingdom.

56LPSC, Université Grenoble Alpes, CNRS/IN2P3, Grenoble INP, Grenoble; France.

57Laboratory for Particle Physics and Cosmology, Harvard University, Cambridge MA; United States of America.

58*(a)Department of Modern Physics and State Key Laboratory of Particle Detection and Electronics, University of Science and Technology of China, Hefei;(b)Institute of Frontier and Interdisciplinary Science and Key Laboratory of Particle Physics and Particle Irradiation (MOE), Shandong University, Qingdao;(c)School of Physics and Astronomy, Shanghai Jiao Tong University, KLPPAC-MoE, SKLPPC, Shanghai;(d)*Tsung-Dao Lee Institute, Shanghai; China.

59*(a)Kirchhoff-Institut für Physik, Ruprecht-Karls-Universität Heidelberg, Heidelberg;(b)*Physikalisches Institut, Ruprecht-Karls-Universität Heidelberg, Heidelberg; Germany.

60Faculty of Applied Information Science, Hiroshima Institute of Technology, Hiroshima; Japan.

61*(a)Department of Physics, Chinese University of Hong Kong, Shatin, N.T., Hong Kong;(b)Department of Physics, University of Hong Kong, Hong Kong;(c)*Department of Physics and Institute for Advanced Study, Hong Kong University of Science and Technology, Clear Water Bay, Kowloon, Hong Kong; China.

62Department of Physics, National Tsing Hua University, Hsinchu; Taiwan.

63Department of Physics, Indiana University, Bloomington IN; United States of America.

64*(a)INFN Gruppo Collegato di Udine, Sezione di Trieste, Udine;(b)ICTP, Trieste;(c)*Dipartimento di Chimica, Fisica e Ambiente, Università di Udine, Udine; Italy.

65*(a)INFN Sezione di Lecce;(b)*Dipartimento di Matematica e Fisica, Università del Salento, Lecce; Italy.

66*(a)INFN Sezione di Milano;(b)*Dipartimento di Fisica, Università di Milano, Milano; Italy.

67*(a)INFN Sezione di Napoli;(b)*Dipartimento di Fisica, Università di Napoli, Napoli; Italy.

68*(a)INFN Sezione di Pavia;(b)*Dipartimento di Fisica, Università di Pavia, Pavia; Italy.

69*(a)INFN Sezione di Pisa;(b)*Dipartimento di Fisica E. Fermi, Università di Pisa, Pisa; Italy.

70*(a)INFN Sezione di Roma;(b)*Dipartimento di Fisica, Sapienza Università di Roma, Roma; Italy.

71*(a)INFN Sezione di Roma Tor Vergata;(b)*Dipartimento di Fisica, Università di Roma Tor Vergata, Roma; Italy.

72*(a)INFN Sezione di Roma Tre;(b)*Dipartimento di Matematica e Fisica, Università Roma Tre, Roma; Italy.

73*(a)INFN-TIFPA;(b)*Università degli Studi di Trento, Trento; Italy.

74Institut für Astro- und Teilchenphysik, Leopold-Franzens-Universität, Innsbruck; Austria.

75University of Iowa, Iowa City IA; United States of America.

76Department of Physics and Astronomy, Iowa State University, Ames IA; United States of America.

77Joint Institute for Nuclear Research, Dubna; Russia.

78*(a)Departamento de Engenharia Elétrica, Universidade Federal de Juiz de Fora (UFJF), Juiz de Fora;(b)Universidade Federal do Rio De Janeiro COPPE/EE/IF, Rio de Janeiro;(c)Universidade Federal de São João del Rei (UFSJ), São João del Rei;(d)*Instituto de Física, Universidade de São Paulo, São Paulo; Brazil.

79KEK, High Energy Accelerator Research Organization, Tsukuba; Japan.

80Graduate School of Science, Kobe University, Kobe; Japan.

81*(a)AGH University of Science and Technology, Faculty of Physics and Applied Computer Science, Krakow;(b)*Marian Smoluchowski Institute of Physics, Jagiellonian University, Krakow; Poland.

82Institute of Nuclear Physics Polish Academy of Sciences, Krakow; Poland.

83Faculty of Science, Kyoto University, Kyoto; Japan.

84Kyoto University of Education, Kyoto; Japan.

85Research Center for Advanced Particle Physics and Department of Physics, Kyushu University, Fukuoka ; Japan.

86Instituto de Física La Plata, Universidad Nacional de La Plata and CONICET, La Plata; Argentina.

87Physics Department, Lancaster University, Lancaster; United Kingdom.

88Oliver Lodge Laboratory, University of Liverpool, Liverpool; United Kingdom.

89Department of Experimental Particle Physics, Jožef Stefan Institute and Department of Physics, University of Ljubljana, Ljubljana; Slovenia.

90School of Physics and Astronomy, Queen Mary University of London, London; United Kingdom.

91Department of Physics, Royal Holloway University of London, Egham; United Kingdom.

92Department of Physics and Astronomy, University College London, London; United Kingdom.

93Louisiana Tech University, Ruston LA; United States of America.

94Fysiska institutionen, Lunds universitet, Lund; Sweden.

95Centre de Calcul de l’Institut National de Physique Nucléaire et de Physique des Particules (IN2P3), Villeurbanne; France.

96Departamento de Física Teorica C-15 and CIAFF, Universidad Autónoma de Madrid, Madrid; Spain.

97Institut für Physik, Universität Mainz, Mainz; Germany.

98School of Physics and Astronomy, University of Manchester, Manchester; United Kingdom.

99CPPM, Aix-Marseille Université, CNRS/IN2P3, Marseille; France.

100Department of Physics, University of Massachusetts, Amherst MA; United States of America.

101Department of Physics, McGill University, Montreal QC; Canada.

102School of Physics, University of Melbourne, Victoria; Australia.

103Department of Physics, University of Michigan, Ann Arbor MI; United States of America.

104Department of Physics and Astronomy, Michigan State University, East Lansing MI; United States of America.

105B.I. Stepanov Institute of Physics, National Academy of Sciences of Belarus, Minsk; Belarus.

106Research Institute for Nuclear Problems of Byelorussian State University, Minsk; Belarus.

107Group of Particle Physics, University of Montreal, Montreal QC; Canada.

108P.N. Lebedev Physical Institute of the Russian Academy of Sciences, Moscow; Russia.

109Institute for Theoretical and Experimental Physics of the National Research Centre Kurchatov Institute, Moscow; Russia.

110National Research Nuclear University MEPhI, Moscow; Russia.

111D.V. Skobeltsyn Institute of Nuclear Physics, M.V. Lomonosov Moscow State University, Moscow; Russia.

112Fakultät für Physik, Ludwig-Maximilians-Universität München, München; Germany.

113Max-Planck-Institut für Physik (Werner-Heisenberg-Institut), München; Germany.

114Nagasaki Institute of Applied Science, Nagasaki; Japan.

115Graduate School of Science and Kobayashi-Maskawa Institute, Nagoya University, Nagoya; Japan.

116Department of Physics and Astronomy, University of New Mexico, Albuquerque NM; United States of America.

117Institute for Mathematics, Astrophysics and Particle Physics, Radboud University Nijmegen/Nikhef, Nijmegen; Netherlands.

118Nikhef National Institute for Subatomic Physics and University of Amsterdam, Amsterdam; Netherlands.

119Department of Physics, Northern Illinois University, DeKalb IL; United States of America.

120*(a)Budker Institute of Nuclear Physics and NSU, SB RAS, Novosibirsk;(b)*Novosibirsk State University Novosibirsk; Russia.

121Institute for High Energy Physics of the National Research Centre Kurchatov Institute, Protvino; Russia.

122Department of Physics, New York University, New York NY; United States of America.

123Ohio State University, Columbus OH; United States of America.

124Faculty of Science, Okayama University, Okayama; Japan.

125Homer L. Dodge Department of Physics and Astronomy, University of Oklahoma, Norman OK; United States of America.

126Department of Physics, Oklahoma State University, Stillwater OK; United States of America.

127Palacký University, RCPTM, Joint Laboratory of Optics, Olomouc; Czech Republic.

128Center for High Energy Physics, University of Oregon, Eugene OR; United States of America.

129LAL, Université Paris-Sud, CNRS/IN2P3, Université Paris-Saclay, Orsay; France.

130Graduate School of Science, Osaka University, Osaka; Japan.

131Department of Physics, University of Oslo, Oslo; Norway.

132Department of Physics, Oxford University, Oxford; United Kingdom.

133LPNHE, Sorbonne Université, Paris Diderot Sorbonne Paris Cité, CNRS/IN2P3, Paris; France.

134Department of Physics, University of Pennsylvania, Philadelphia PA; United States of America.

135Konstantinov Nuclear Physics Institute of National Research Centre "Kurchatov Institute", PNPI, St. Petersburg; Russia.

136Department of Physics and Astronomy, University of Pittsburgh, Pittsburgh PA; United States of America.

137*(a)Laboratório de Instrumentação e Física Experimental de Partículas - LIP;(b)Departamento de Física, Faculdade de Ciências, Universidade de Lisboa, Lisboa;(c)Departamento de Física, Universidade de Coimbra, Coimbra;(d)Centro de Física Nuclear da Universidade de Lisboa, Lisboa;(e)Departamento de Física, Universidade do Minho, Braga;(f)Departamento de Física Teorica y del Cosmos, Universidad de Granada, Granada (Spain);(g)*Dep Física and CEFITEC of Faculdade de Ciências e Tecnologia, Universidade Nova de Lisboa, Caparica; Portugal.

138Institute of Physics of the Czech Academy of Sciences, Prague; Czech Republic.

139Czech Technical University in Prague, Prague; Czech Republic.

140Charles University, Faculty of Mathematics and Physics, Prague; Czech Republic.

141Particle Physics Department, Rutherford Appleton Laboratory, Didcot; United Kingdom.

142IRFU, CEA, Université Paris-Saclay, Gif-sur-Yvette; France.

143Santa Cruz Institute for Particle Physics, University of California Santa Cruz, Santa Cruz CA; United States of America.

144*(a)Departamento de Física, Pontificia Universidad Católica de Chile, Santiago;(b)*Departamento de Física, Universidad Técnica Federico Santa María, Valparaíso; Chile.

145Department of Physics, University of Washington, Seattle WA; United States of America.

146Department of Physics and Astronomy, University of Sheffield, Sheffield; United Kingdom.

147Department of Physics, Shinshu University, Nagano; Japan.

148Department Physik, Universität Siegen, Siegen; Germany.

149Department of Physics, Simon Fraser University, Burnaby BC; Canada.

150SLAC National Accelerator Laboratory, Stanford CA; United States of America.

151Physics Department, Royal Institute of Technology, Stockholm; Sweden.

152Departments of Physics and Astronomy, Stony Brook University, Stony Brook NY; United States of America.

153Department of Physics and Astronomy, University of Sussex, Brighton; United Kingdom.

154School of Physics, University of Sydney, Sydney; Australia.

155Institute of Physics, Academia Sinica, Taipei; Taiwan.

156*(a)E. Andronikashvili Institute of Physics, Iv. Javakhishvili Tbilisi State University, Tbilisi;(b)*High Energy Physics Institute, Tbilisi State University, Tbilisi; Georgia.

157Department of Physics, Technion, Israel Institute of Technology, Haifa; Israel.

158Raymond and Beverly Sackler School of Physics and Astronomy, Tel Aviv University, Tel Aviv; Israel.

159Department of Physics, Aristotle University of Thessaloniki, Thessaloniki; Greece.

160International Center for Elementary Particle Physics and Department of Physics, University of Tokyo, Tokyo; Japan.

161Graduate School of Science and Technology, Tokyo Metropolitan University, Tokyo; Japan.

162Department of Physics, Tokyo Institute of Technology, Tokyo; Japan.

163Tomsk State University, Tomsk; Russia.

164Department of Physics, University of Toronto, Toronto ON; Canada.

165*(a)TRIUMF, Vancouver BC;(b)*Department of Physics and Astronomy, York University, Toronto ON; Canada.

166Division of Physics and Tomonaga Center for the History of the Universe, Faculty of Pure and Applied Sciences, University of Tsukuba, Tsukuba; Japan.

167Department of Physics and Astronomy, Tufts University, Medford MA; United States of America.

168Department of Physics and Astronomy, University of California Irvine, Irvine CA; United States of America.

169Department of Physics and Astronomy, University of Uppsala, Uppsala; Sweden.

170Department of Physics, University of Illinois, Urbana IL; United States of America.

171Instituto de Física Corpuscular (IFIC), Centro Mixto Universidad de Valencia - CSIC, Valencia; Spain.

172Department of Physics, University of British Columbia, Vancouver BC; Canada.

173Department of Physics and Astronomy, University of Victoria, Victoria BC; Canada.

174Fakultät für Physik und Astronomie, Julius-Maximilians-Universität Würzburg, Würzburg; Germany.

175Department of Physics, University of Warwick, Coventry; United Kingdom.

176Waseda University, Tokyo; Japan.

177Department of Particle Physics, Weizmann Institute of Science, Rehovot; Israel.

178Department of Physics, University of Wisconsin, Madison WI; United States of America.

179Fakultät für Mathematik und Naturwissenschaften, Fachgruppe Physik, Bergische Universität Wuppertal, Wuppertal; Germany.

180Department of Physics, Yale University, New Haven CT; United States of America.

181Yerevan Physics Institute, Yerevan; Armenia.

a Also at Borough of Manhattan Community College, City University of New York, NY; United States of America.

b Also at California State University, East Bay; United States of America.

c Also at Centre for High Performance Computing, CSIR Campus, Rosebank, Cape Town; South Africa.

d Also at CERN, Geneva; Switzerland.

e Also at CPPM, Aix-Marseille Université, CNRS/IN2P3, Marseille; France.

f Also at Département de Physique Nucléaire et Corpusculaire, Université de Genève, Genève; Switzerland.

g Also at Departament de Fisica de la Universitat Autonoma de Barcelona, Barcelona; Spain.

h Also at Departamento de Física Teorica y del Cosmos, Universidad de Granada, Granada (Spain); Spain.

i Also at Departamento de Física, Instituto Superior Técnico, Universidade de Lisboa, Lisboa; Portugal.

j Also at Department of Applied Physics and Astronomy, University of Sharjah, Sharjah; United Arab Emirates.

k Also at Department of Financial and Management Engineering, University of the Aegean, Chios; Greece.

l Also at Department of Physics and Astronomy, University of Louisville, Louisville, KY; United States of America.

m Also at Department of Physics and Astronomy, University of Sheffield, Sheffield; United Kingdom.

n Also at Department of Physics, California State University, Fresno CA; United States of America.

o Also at Department of Physics, California State University, Sacramento CA; United States of America.

p Also at Department of Physics, King’s College London, London; United Kingdom.

q Also at Department of Physics, St. Petersburg State Polytechnical University, St. Petersburg; Russia.

r Also at Department of Physics, Stanford University; United States of America.

s Also at Department of Physics, University of Fribourg, Fribourg; Switzerland.

t Also at Department of Physics, University of Michigan, Ann Arbor MI; United States of America.

u Also at Giresun University, Faculty of Engineering, Giresun; Turkey.

v Also at Graduate School of Science, Osaka University, Osaka; Japan.

w Also at Hellenic Open University, Patras; Greece.

x Also at Horia Hulubei National Institute of Physics and Nuclear Engineering, Bucharest; Romania.

y Also at II. Physikalisches Institut, Georg-August-Universität Göttingen, Göttingen; Germany.

z Also at Institucio Catalana de Recerca i Estudis Avancats, ICREA, Barcelona; Spain.

aa Also at Institut für Experimentalphysik, Universität Hamburg, Hamburg; Germany.

ab Also at Institute for Mathematics, Astrophysics and Particle Physics, Radboud University Nijmegen/Nikhef, Nijmegen; Netherlands.

ac Also at Institute for Particle and Nuclear Physics, Wigner Research Centre for Physics, Budapest; Hungary.

ad Also at Institute of Particle Physics (IPP); Canada.

ae Also at Institute of Physics, Academia Sinica, Taipei; Taiwan.

af Also at Institute of Physics, Azerbaijan Academy of Sciences, Baku; Azerbaijan.

ag Also at Institute of Theoretical Physics, Ilia State University, Tbilisi; Georgia.

ah Also at Instituto de Física Teórica de la Universidad Autónoma de Madrid; Spain.

ai Also at Istanbul University, Dept. of Physics, Istanbul; Turkey.

aj Also at Joint Institute for Nuclear Research, Dubna; Russia.

ak Also at LAL, Université Paris-Sud, CNRS/IN2P3, Université Paris-Saclay, Orsay; France.

al Also at Louisiana Tech University, Ruston LA; United States of America.

am Also at LPNHE, Sorbonne Université, Paris Diderot Sorbonne Paris Cité, CNRS/IN2P3, Paris; France.

an Also at Manhattan College, New York NY; United States of America.

ao Also at Moscow Institute of Physics and Technology State University, Dolgoprudny; Russia.

ap Also at National Research Nuclear University MEPhI, Moscow; Russia.

aq Also at Physics Dept, University of South Africa, Pretoria; South Africa.

ar Also at Physikalisches Institut, Albert-Ludwigs-Universität Freiburg, Freiburg; Germany.

as Also at School of Physics, Sun Yat-sen University, Guangzhou; China.

at Also at The City College of New York, New York NY; United States of America.

au Also at The Collaborative Innovation Center of Quantum Matter (CICQM), Beijing; China.

av Also at Tomsk State University, Tomsk, and Moscow Institute of Physics and Technology State University, Dolgoprudny; Russia.

aw Also at TRIUMF, Vancouver BC; Canada.

ax Also at Universita di Napoli Parthenope, Napoli; Italy.

∗ Deceased
