Predicted MOND velocity dispersions for a catalog of ultra-diffuse galaxies in group environments

TL;DR

This paper predicts the velocity dispersions of 22 ultra-diffuse galaxies in group environments under MOND, considering the External Field Effect, to test the theory with future observations.

Contribution

It provides the first a priori MOND velocity dispersion predictions for a sample of ultra-diffuse galaxies, including the effects of the External Field Effect.

Findings

In 17 out of 22 cases, the External Field Effect significantly influences velocity dispersion predictions.

The predictions account for variations in mass-to-light ratio and galaxy distance.

The results set the stage for future observational tests of MOND in galaxy groups.

Abstract

The possibility that ultra-diffuse galaxies lacking dark matter has recently stimulated interest to check the validity of Modified Newton Dynamics (MOND) predictions on the scale of such galaxies. It has been shown that the External Field Effect (EFE) induced by the close-by galaxy can suppress the velocity dispersion of these systems, so that they appear almost dark matter free in the Newtonian context. Here, following up on this, we are making a priori predictions for the velocity dispersion of 22 ultra-diffuse galaxies in the nearby Universe. This sample can be used to test MOND and the EFE with future follow-up measurements. We construct a catalog of nearby ultra-diffuse galaxies in galaxy group environments, and set upper and lower limits for the possible velocity dispersion allowed in MOND, taking into account possible variations in the mass-to-light ratio of the dwarf and in the distance to the galaxy group. The prediction for the velocity dispersion is made as a function of the three dimensional separation of the dwarf to its host. In 17 out of 22 cases, the EFE plays a crucial role in the prediction.

Figures

Tables

Table 1. Table 1: A list of nearby ultra-diffuse galaxies within galaxy groups.

Name	RA	dec	$m_V$	${\mu }_{\mathrm{eff},V}$	$r_{\mathrm{eff}}$	${\Delta }_{proj}$	$\left(m-M\right)$	$L_{\odot }$	ref
	J2000	J2000	mag	mag arcsec-2	kpc	kpc	mag	106
NGC 7814-DGSAT-2	00:03:06.9	$+$16:18:30.8	17.9	26.9	2.29	47	31.02	30.1	Henkel et al. (2017)
NGC 7814-DGSAT-7	00:00:44.0	$+$15:27:14.3	18.7	27.0	1.49	258	31.02	14.4	Henkel et al. (2017)
NGC 1052-DF4	02:39:15.1	$-$08:06:58.6	16.5	25.1	1.60	165	31.51	171.8	Cohen et al. (2018)
NGC 1052-DF1	02:40:04.6	$-$08:26:44.4	18.2	27.4	2.51	109	31.51	35.9	Cohen et al. (2018)
NGC 1052-DF2	02:41:46.8	$-$08:24:09.3	16.2	25.1	2.06	79	31.51	226.5	Cohen et al. (2018)
NGC 1084-DF1	02:42:38.0	$-$07:20:16.3	16.2	24.7	1.63	280	31.34	193.8	Cohen et al. (2018)
NGC 2683-DGSAT-1	08:52:47.8	$+$33:47:33.1	14.7	26.5	4.10	68	30.05	234.5	Javanmardi et al. (2016)
NGC 2683-DGSAT-2	08:55:23.3	$+$33:33:32.4	16.3	25.8	1.39	105	30.05	53.7	Javanmardi et al. (2016)
M96-DF6	10:46:53.1	$+$12:44:33.5	16.6	27.0	2.11	172	30.15	44.9	Cohen et al. (2018)
dw1055+11	10:55:43.5	$+$11:58:05.0	16.9	26.7	1.78	411	30.15	34.0	Müller et al. (2018)
dw1117+15	11:17:02.1	$+$15:10:17.0	17.4	27.4	2.04	398	30.15	21.5	Müller et al. (2018)
NGC 3625-DGSAT-2	11:21:22.9	$+$57:34:50.1	20.3	26.9	1.54	151	32.86	18.0	Henkel et al. (2017)
NGC 3625-DGSAT-4	11:21:40.8	$+$57 24 37.0	18.5	26.3	2.17	263	32.86	94.6	Henkel et al. (2017)
NGC 3625-DGSAT-3	11:22:12.0	$+$58:02:11.9	19.0	25.5	1.48	221	32.86	59.7	Henkel et al. (2017)
NGC 3669-DGSAT-2	11:24:48.3	$+$57:37:58.0	20.0	26.2	1.86	93	33.17	31.4	Henkel et al. (2017)
NGC 3669-DGSAT-3	11:26:38.8	$+$57:41:19.1	18.3	26.9	3.91	123	33.17	150.4	Henkel et al. (2017)
NGC 4594-DGSAT-1	12:39:55.1	$-$11:44:38.4	16.2	26.1	1.67	24	30.12	62.8	Javanmardi et al. (2016)
CenA-MM-Dw1	13:30:14.3	$-$41:53:34.8	14.2	25.4	1.82	92	27.84	48.9	Crnojević et al. (2018)
M101-DF5	14:04:28.1	$+$55:37:00.0	17.7	27.7	4.90	342	32.16	103.0	Merritt et al. (2016)
M101-DF7	14:05:47.5	$+$55:07:57.3	20.1	28.4	2.60	112	32.16	11.3	Merritt et al. (2016)
M101-DF4	14:07:33.8	$+$54:42:39.2	18.5	27.6	3.60	140	32.16	49.3	Merritt et al. (2016)
M101-DF6	14:08:18.7	$+$55:11:30.6	19.8	27.5	2.90	117	32.16	14.9	Merritt et al. (2016)

Table 2. Table 2: The predicted velocity dispersions.

Name	${\sigma }_{typical}$	${\sigma }_{min}$	${\sigma }_{max}$
	km s-1	km s-1	km s-1
NGC 7814-DGSAT-2	4.6	3.0	16.2
NGC 7814-DGSAT-7	7.4	4.9	13.5
NGC 1052-DF4	17.3	9.2∗	23.4
NGC 1052-DF1	6.8	3.7∗	15.8
NGC 1052-DF21	15.3	10.2	25.1
NGC 1084-DF1	19.8	16.6	24.1
NGC 2683-DGSAT-1	10.9	7.0	27.4
NGC 2683-DGSAT-2	10.1	6.7	19.0
M 96-DF6	8.7	5.6	16.5
dw1055+11	10.5	7.4	15.4
dw1117+15	8.5	5.7	13.7
NGC 3625-DGSAT-22	9.6	7.0	13.7
	6.1	4.0	11.0
NGC 3625-DGSAT-4	16.5	13.9	20.7
NGC 3625-DGSAT-3	14.7	12.4	18.5
NGC 3669-DGSAT-2	11.7	9.8	16.0
NGC 3669-DGSAT-3	17.3	14.5	23.7
NGC 4594-DGSAT-1	5.1	3.5	21.5
Cen A-MM-Dw1	9.6	6.3	17.1
M 101-DF5	13.9	6.6∗	20.8
M 101-DF6	5.1	3.2	12.8
M 101-DF4	8.4	5.6	17.3
M 101-DF7	4.6	2.9	12.0

Equations

$$\nabla \cdot \left[\mathbf{g}\mu \left(\frac{g}{a_0}\right)\right]=4\pi G\rho ,\mu (x)=\frac{x}{1+x},$$

$$\mathbf{g}={\mathbf{g}}_{ex}-\nabla \varphi ,$$

$$\sigma_{iso}=\Bigg{(}\frac{4}{81}GMa_{0}\Bigg{)}^{1/4},$$

$$\displaystyle(g+g_{ex})\,\mu\Bigg{(}\frac{g+g_{ex}}{a_{o}}\Bigg{)}=g_{N,1/2}+g_{ex}\,\mu\Bigg{(}\frac{g_{ex}}{a_{0}}\Bigg{)},$$

$$g_{N,1/2}=\frac{GM}{2r_{1/2}^2},$$

$$G_{renorm}=G\cdot (g/g_{N,1/2}).$$

$$\sigma =\sqrt{\frac{0.5M{G}_{renorm}}{3r_{1/2}}},$$

Full text

1 Introduction

In recent years, the number of newly discovered ultra-diffuse galaxies (UDGs) in the nearby Universe has exploded. While it has long been known that this special type of galaxy exists in galaxy clusters environments (e.g., Sandage & Binggeli, 1984; Impey et al., 1988), the discovery of UDGs in nearby galaxy groups (e.g., Crnojević et al., 2014; Merritt et al., 2016; Cohen et al., 2018) has brought new insights, as well as opportunities to better study these systems. Today, UDGs have been defined by their low surface brightness of $>25$ mag arcsec*-2* in the $V$-band, and large radial extent, with projected half-light radii $r_{\rm eff}>1.5$ kpc (van Dokkum et al., 2015). In morphology, they are not distinguishable from normal dwarf galaxies and appear both as early and late type galaxies (Sandage & Binggeli, 1984). Their formation is still under intense debate with different proposed formation mechanisms. For example it has been argued that these galaxies are failed Milky Way type galaxies (van Dokkum et al., 2015; Yozin & Bekki, 2015), just normal dwarf galaxies affected by stellar feedback, quenching, and outflows (Amorisco & Loeb, 2016; Di Cintio et al., 2017; Chan et al., 2018), or rather a mixed bag of objects (Toloba et al., 2018).

Recently, the UDG NGC 1052-DF2, a putative member of the NGC 1052 galaxy group (Cohen et al., 2018), located at 20 Mpc, has caught some attention, following the announcement by van Dokkum et al. (2018) that this galaxy is apparently lacking dark matter. This result was inferred from the velocity dispersion of ten bright globular clusters associated with this galaxy. Using a biweight estimator, van Dokkum et al. (2018) derived a velocity dispersion of only $\sigma_{vel}=3.2$ km s*-1* with a 90% upper limit of $\sigma_{vel}=10.5$ km s*-1*, which is consistent with the baryonic matter of this galaxy alone. Following a more conservative approach, Martin et al. (2018) obtained a value of $\sigma_{vel}=9.2$ km s*-1*, with a 90% upper limit of $\sigma_{vel}=17.2$ km s*-1*. While the globular cluster population can be used as a tracer for the mass of the system (Toloba et al., 2018), ultimately, the velocity dispersion of the stellar body should be used. For example, in the Fornax dwarf spheroidal, where both estimates are available, there is a strong discrepancy between the two values (Laporte et al., 2018). We note that, for NGC 1052-DF2 a stellar velocity dispersion has recently been measured using IFU observations with VLT+MUSE (Emsellem et al., 2018; Fensch et al., 2018).

The apparent lack of dark matter in a dwarf galaxy could have some challenging consequences for alternative gravity scenarios such as Modified Newton Dynamics (MOND, Milgrom 1983), as previously investigated by, e.g., Gentile et al. (2007, 2012); Lelli et al. (2015). The argument is that, in MOND, the baryonic matter alone gives the high observed velocities in galaxies, and notably the flat rotation curves in spirals. This argument was indeed brought up by van Dokkum et al. (2018) in the case of NGC 1052-DF2. This simple assessment, however, is only true if the galaxy resides in relative isolation, that is, if no other galaxy is nearby. In the case that there is another gravitational potential close by, its environmental effect has to be taken into account when estimating the internal velocity dispersion, a phenomenon exclusively appearing in MOND. This so-called external field effect (EFE) arises from the non-linearity of the MONDian Poisson equation (Bekenstein & Milgrom, 1984).

The EFE can ultimately lower the velocity dispersion of a system, or in other words, make it Newtonian. Because this EFE appears only in MOND, and not within the standard model of cosmology, it is a highly intriguing feature to test and distinguish these paradigms. For a thorough discussion of the EFE and its consequences, see e.g. Haghi et al. (2016); Thomas et al. (2018); the Supplementary Materials of Kroupa et al. (2018); or the extensive review of MOND (Famaey & McGaugh, 2012).

For the Andromeda dwarf galaxies in the Local Group, it has been realized that this EFE plays a crucial role, allowing MOND to successfully predict the velocity dispersion of those dwarfs (McGaugh & Milgrom, 2013a, b). For the “feeble-giant” Crater-II (Torrealba et al., 2016), an ultra-faint dwarf galaxy satellite of the Milky Way, a very low velocity dispersion has been predicted due to the EFE (McGaugh, 2016) and subsequently measured (Caldwell et al., 2017). Several more predictions of velocity dispersions for the ultra-faint dwarf galaxies around the Milky Way (Pawlowski & McGaugh, 2014; Pawlowski et al., 2015; Cortés & Hernandez, 2017) now await follow-up measurements. Taking the EFE into account for NGC 1052-DF2, the expected velocity dispersion was estimated to be $\sigma_{vel}\simeq 14$ km s*-1*, consistently estimated by two independent teams (Famaey et al., 2018; Kroupa et al., 2018). While the former used an analytic expression to get this results, the latter invoked an N-body integrator (Londrillo & Nipoti, 2009) to get this estimate, thereby validating the analytic estimate. This result alleviates the claim that NGC 1052-DF2 could falsify MOND, but shows that UDGs are an excellent testbed to study the impact of the EFE. Following up on this previous work, we hereby make a priori predictions for the velocity dispersion of two dozen UDGs in the nearby Universe, thus making MOND and its EFE falsifiable in a currently less-explored regime than that of spiral galaxies. Interestingly, Milgrom (2018a, b) has recently extended the succesful predictions of MOND to the regime of the internal dynamics of galaxy groups themselves.

The paper is organized as follows: In Section 2 we discuss how the velocity dispersion can be predicted in MOND, in Section 3 we present a catalog of nearby UDGs in galaxy group environments, in Section 4 we predict the velocity dispersion for the UDG catalog, and in Section 5 we present a brief discussion and estimation on how these values can be measured. Finally, we give our summary and conclusions in Section 6.

2 The External Field Effect calculation

The Poisson equation of MOND reads, with Famaey & Binney (2005) interpolating function:

[TABLE]

where ${\mathbf{g}}$ is the gravitational acceleration vector, $\rho$ the baryonic density, and $a_{0}=1.2\times 10^{-13}$ km s*-2* (Begeman et al., 1991) is the MOND acceleration constant marking the transition from the Newtonian to the deep-MOND regime. The fact that $\mu<1$ when in the regime of low acceleration ($g<a_{0}$), in which NGC 1052-DF2 clearly is, would suggest that such galaxies should always display a ‘phantom’ dark matter behaviour, i.e. a dark matter behavior when interpreted in the context of Newtonian dynamics.

However, when the galaxy is not isolated, one should take into account the EFE, such that

[TABLE]

where ${\mathbf{g}_{ex}}$ is the gravitational field from the neighbouring galaxies, and $\phi$ the internal MOND potential.

In a MONDian universe, the velocity dispersion of an isolated spherical and isotropic system in the low acceleration regime is easily calculated from its baryonic mass $M$ alone (e.g., McGaugh & Milgrom, 2013a):

[TABLE]

where M is the total baryonic mass. This formula applies when the total acceleration (internal plus external acceleration) is well bellow $a_{0}$, i.e. $g+g_{ex}<a_{0}$.

When the internal acceleration is larger than the external, $g_{ex}<g<a_{0}$, then we can apply the given formula for the isolated case. However, if $g<g_{ex}<a_{0}$ the object is quasi-Newtonian, where Newton’s law of Gravity applies with a renormalization of the gravitational constant $G$ (McGaugh & Milgrom, 2013a; Famaey et al., 2018). The external acceleration can be approximated by $g_{e}=v_{rot}^{2}/D$, where $v_{rot}$ is the rotation curve of the external galaxy and $D$ is the separation between the two objects. Using Eq. 59 of Famaey & McGaugh (2012), one can estimate the MOND acceleration $g$ at the half-light radius with:

[TABLE]

with

[TABLE]

where $\mu(x)=x/(1+x)$ is the simple interpolation function (Famaey & Binney, 2005), and $g_{N,1/2}$ is the Newtonian internal field for the mass embedded within the 3D deprojected half light radius ($r_{1/2}=4/3\,r_{\rm eff}$). The expression solved for $g$ is rather long, so we refrain from showing it here and refer to the footnote 34 of Famaey & McGaugh (2012), where it is explicitly given. We can now estimate the true velocity dispersion of the system, corrected for the external field. Having estimated $g$, we can calculate the renormalization of the gravitational constant with

[TABLE]

Finally, we can use the mass estimator in Wolf et al. (2010) Eq. 2 to calculate the velocity dispersion:

[TABLE]

where $0.5M$ corresponds to the mass embedded within $r_{1/2}$. This cooking recipe to calculate the velocity dispersion in the quasi-Newtonian regime is discussed in more detail in Famaey et al. (2018), who used it to successfully derive the MONDian value for NGC 1052-DF2 to be between 8.9 and 19.0 km s*-1* depending on the interpolating function, stellar mass-to-light ratio, and three-dimensional distance to the host. Note that the latest measured velocity dispersion value, using deep MUSE IFU observations (Emsellem et al., 2018) for the stellar body of NGC 1052-DF2 is $\sigma_{stellar}=18.8$ km s*-1*, and for the globular cluster and planetary nebulae population associated to this galaxy is $\sigma_{GC,PN}=10.5$ km s*-1* – which are well within the allowed MONDian range for this system.

3 A catalog of nearby ultra-diffuse galaxies

3.1 Data

Several independent teams have taken up the effort to search for nearby low-surface brightness galaxies in group (e.g., Merritt et al., 2014; Carlin et al., 2016; Javanmardi et al., 2016; Bennet et al., 2017; Müller et al., 2015, 2017a; Mihos et al., 2018) and cluster (e.g. Mihos et al., 2015; van der Burg et al., 2016; Mihos et al., 2017; Venhola et al., 2017; Eigenthaler et al., 2018) environments. While most detections in these surveys correspond to the regime of the normal dwarf galaxies, also several UDGs have been discovered, based on their integrated light profiles. Up to now, no compilation of these objects exists. Therefore we have collected UDGs from the literature – mainly selecting objects with half-light radius $r_{\rm eff}$ estimates larger than 1.5 kpc (including those objects with very close values to 1.5 kpc, e.g. NGC 7814-DGSAT-7 with $r_{\rm eff}=1.49$ kpc) and residing in a galaxy group environment based on their projected position in the sky. Therefore we exclude UDGs residing in clusters, because in these environments too many things can affect the velocity dispersion of the UDGs. Also, we only consider galaxies in the nearby Universe ($z<0.01$). While going further would indeed increase the sample (Greco et al., 2018), the galaxy’s association to a certain galaxy group becomes more difficult to estimate.

In Table 1, we present our sample of nearby UDGs within galaxy group environments. We have compiled the relevant data needed to estimate the velocity dispersion in MOND (see Section 2). For this, we need the total luminosity of the galaxy $L_{\odot}$, the half-light radius $r_{\rm eff}$, and the projected separation to the host galaxy $\Delta_{proj}$. When missing, we have derived values from the published data, e.g. the mean surface brightness from the apparent magnitude and the half-light radius, the luminosity in solar units from the absolute magnitude, and the projected separation simply from the coordinates. We have transformed the apparent magnitudes into solar luminosities by using $L_{\odot}=10^{0.4\,(m_{\odot}-m+DM)}$, where $m_{\odot}=4.83$ mag is the solar apparent magnitude in the $V$ band, $m$ is the apparent magnitude of the UDG, and $DM$ is the distance modulus to the host.

We also need the rotation curve of the host galaxies to estimate their gravitational influence. In our sample, galaxies with an asymptotic circular velocity measurement are: NGC 1052 ($v_{rot}=210$ km s*-1*, van Gorkom et al. 1986), M96 ($v_{rot}=$240 km s*-1*, Moiseev et al. 2004), NGC 3628 ($v_{rot}=$213 km s*-1*, Wilding et al. 1993) NGC 1084 ($v_{rot}=140$ km s*-1*, Burbidge et al. 1963), NGC 2683 ($v_{rot}=215$ km s*-1*, Casertano & van Gorkom 1991), NGC 4594/M 104 ($v_{rot}=350$ km s*-1*, Faber et al. 1977), NGC 7814 ($v_{rot}=215$ km s*-1*, Fraternali et al. 2011). From there, the external field at the position of the UDG can be estimated directly from the centripetal acceleration.

For elliptical galaxies where no rotation curve data is available, we converted the $K$ band luminosity using a Mass-to-Light ($M/L$) ratio of 0.8 (de Blok et al., 2008) to get the total stellar mass. From there, the gravitational field at the distance of the UDG can be estimated in the context of MOND. This was the case for Cen A ($K=-23.9$ mag), NGC 3625 ($K=-21.9$ mag), NGC 3669 ($K=-22.3$ mag), NGC 7814 ($K=-24.0$ mag), NGC 5485 ($K=-23.8$ mag), NGC 3384 ($K=-23.4$ mag), M 105 ($K=-23.9$ mag), NGC 5475 ($K=-22.8$ mag), and NGC 3619 ($K=-24.0$ mag) using the photometry by the Two Micron All Sky Survey (2MASS, Skrutskie et al., 2006) and a distance modulus given in Table 1.

Finally, for one face-on spiral galaxy (NGC 1042), no rotation curve was available. Therefore we first converted again its $K$ band luminosity using a Mass-to-Light ($M/L$) ratio of 0.8 to get the stellar mass of the system. Then, we estimated the additional total gas mass with Eq. 2 from Di Cintio & Lelli (2016) and added this to the stellar mass to get the total baryonic mass, and estimate the MOND external field at the position of the UDG from there.

Because galaxy group environments can host several large galaxies ($M_{V}<-19$ mag) we have to be careful to select the influencing galaxy when calculating the MONDian velocity dispersion of the UDG. If there is a bright galaxy apart from the dominant galaxy in the group – which is mostly indicated by the group’s name – close to the UDG we have to re-evaluate the MONDian velocity dispersion for those systems. A precise evaluation of the EFE as a function of the 3D position of the UDG in the group should then be performed using a numerical Poisson solver. In the present paper, we present an order of magnitude of the effect on the velocity dispersion by considering the EFE associated to each bright galaxy separately.

3.2 Individual galaxy groups

We now have a closer look at the different galaxy groups and evaluate the impact of their different bright galaxies onto the UDGs.

NGC 1052 group: This galaxy group consists of three bright galaxies, the dominant elliptical galaxy NGC 1052, the face-on spiral galaxy NGC 1042, and the edge-on spiral galaxy NGC 1035. While NGC 1052-DF2 is only affected by the dominant elliptical, we note that NGC 1052-DF1 is at a separation of only 28 kpc from NGC 1042, which indeed has a major impact on the predicted velocity dispersion. On the other hand, NGC 1052-DF4 is separated by only 21 kpc from NGC 1035.

NGC 1084 group: To the north-east of the NGC 1052 group, a single spiral galaxy – NGC 1084 – resides well in isolation, bringing no additional complications to our calculations for NGC 1084-DF1.

M 96/Leo-I group: This group consists of 7 bright galaxies (see e.g. Fig. 1 in Müller et al. 2018) at a mean distance of 10.7 Mpc. Of those, the two elliptical galaxies M 105 and NGC 3384 have separations of 53 kpc and 67 kpc from M 96-DF6, respectively. The large spiral galaxy M 96 has a projected separation of 172 kpc. This UDG sits almost at the center of this massive group, complicating accurate predictions. Fortunately, for M 96-DF6, HST distance measurements are available ($D=10.2\pm 0.3$ Mpc Cohen et al., 2018), indicating that this UDG is at the nominal distance of M 96 ($D=10.4\pm 0.3$ Mpc Karachentsev et al., 2013), and farther separated from M 105 ($D=11.3\pm 0.1$ Mpc Karachentsev et al., 2013) and NGC 3384 ($D=9.4\pm 0.1$ Mpc Karachentsev et al., 2013). Farther outside of this galaxy assembly resides dw1055+11.

Leo-Triplet: The Leo-Triplet is sometimes considered as part of the Leo-I group, based on their same velocity and distance measurements. However, they are well separated on-sky into two distinct associations (Müller et al., 2018). The dominant edge-on spiral galaxy NGC 3628 is also the closest galaxy to the UDG dw1117+15, which is almost 2 degrees to the north of the system.

Cen A group: Cen A is the closest elliptical galaxy in the nearby universe and is the dominant galaxy in the Cen A group (Müller et al., 2017a). Because the distances to Cen A and Cen A-MM-dw1 are well established with high-precision tip of the red giant branch measurements (Rejkuba, 2004; Crnojević et al., 2018), no confusion is expected for their association.

NGC 5485 group: Several surveys have targeted the nearby M 101 group of galaxies and announced the discovery of new dwarf galaxy members (Merritt et al., 2014; Müller et al., 2017b; Bennet et al., 2017). Within its projected virial radius, reside the two massive elliptical galaxies – NGC 5485 and NGC 5473 with similar mass estimates – at a distance of 27 Mpc. Some of the putative M 101 members have recently been identified as background UDG members of the NGC 5485 group by their non-detected red giant branch star population in HST observations (Merritt et al., 2016). Many more candidates await distance measurements and can potentially be UDG members of the NGC 5485 group as well. While M 101-DF4, M 101-DF6, and M 101-DF7 are in projection closer to NGC 5485 such that it is reasonable to use this galaxy as the major external field provider, the case of M 101-DF5 is less clear. It has an on-sky separation of 44 arcmin to NGC 5485, and only 10 arcmin and 23 arcmin to the other nearby galaxies NGC 5475 and NGC 5443, respectively. These two galaxies have the same systemic velocity measurement as the NGC 5485 group, which could indicate that M 101-DF5 could be associated to these these two galaxies, and not to NGC 5485 itself. We therefore consider two cases for M 101-DF5, a) one case where it resides within NGC 5485 external field, and b) another where it resides within NGC 5475 external field.

NGC 2683 group: This galaxy group is made up of one large spiral galaxy and resides in isolation, making the predictions for NGC 2683-DGSAT-1 and NGC 2683-DGSAT-2 straightforward.

NGC 4594/M 104 group: This famous galaxy group with the M 104 (the Sombrero galaxy) in its heart is again, very isolated, making the prediction for NGC 4594-DGSAT-1 straightforward.

NGC 3625 group: The isolated spiral galaxy NGC 3625 is in projection very close to the shell galaxy NGC 3619, and the elliptical galaxy NGC 3613 which are well separated in velocity space from NGC 3625. It is therefore difficult to disentangle the membership of the UDGs between those groups. If NGC 3625-DGSAT-2 is a NGC 3625 member, the external field of NGC 3625 is almost negligible, however, if it is associated to NGC 3619 ($D=25\pm 1.8$ Mpc), it is deep in the quasi-Newtonian regime. For the other two UDGs in this region (NGC 3625-DGSAT-3, NGC 3625-DGSAT-4), the separation to NGC 3619 is too large to be strongly affect by the EFE.

NGC 3669 group: The isolated spiral galaxy NGC 3669 is to the east of the NGC 3625 and NGC 3619 groups. However, their separation is too large for major confusions, allowing straightforward predictions for NGC 3669-DGSAT-2 and NGC 3669-DGSAT-3.

NGC 7184 group: This group again is well isolated, with the spiral galaxy NGC 7184 at its center, making the predictions for NGC 7814-DGSAT-2 and .NGC 7814-DGSAT-7 straightforward.

4 Predicted velocity dispersions

For all galaxies of Table 1 we have first calculated whether the external field dominates the dynamics or not. To make a distinction between the isolated and the quasi-Newtonian regimes we estimate the fraction $g/g_{ex}$ as a function of the three dimensional separation of the UDG to its main host (or to various possible hosts), up to one Megaparsec. We can safely assume that, when the internal acceleration is less than twice the external one, the EFE will play a role. In this case, we thus use the $\sigma$ as previously derived by including the EFE in Eqs. 4-7. Above this value of the internal to external field ratio, the galaxy can be assumed to be isolated, therefore $\sigma_{iso}$ applies as in Eq. 3.

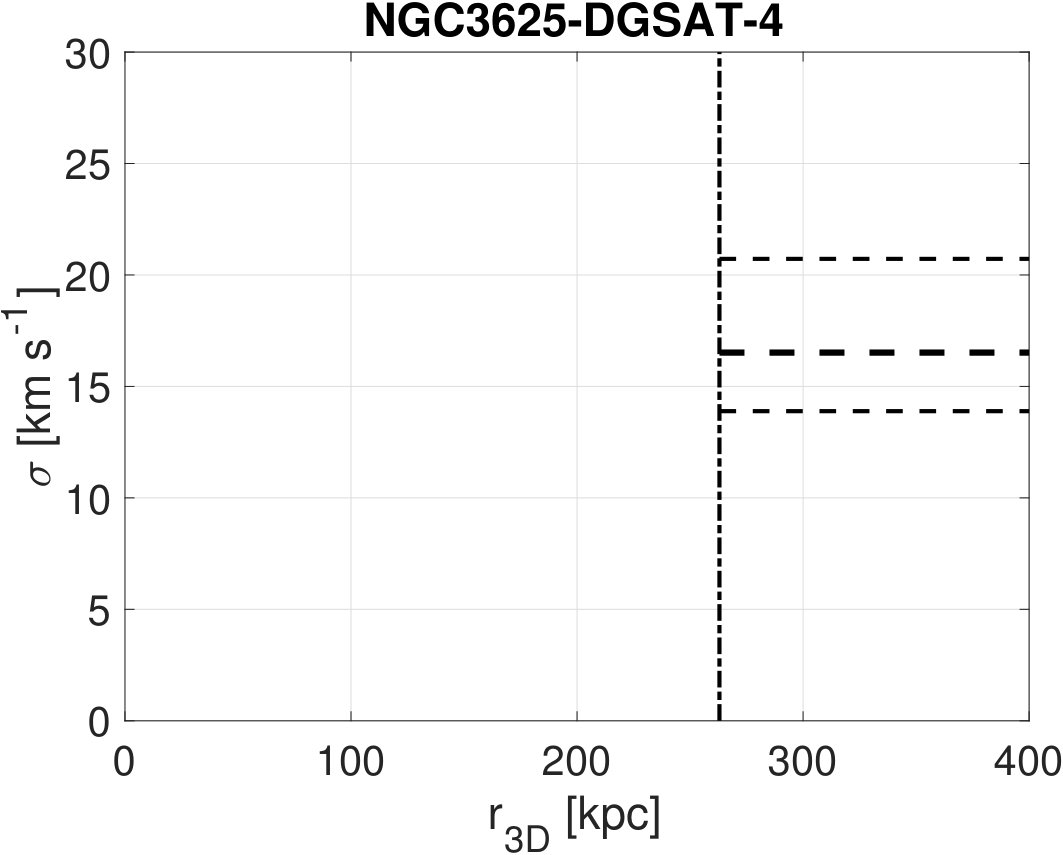

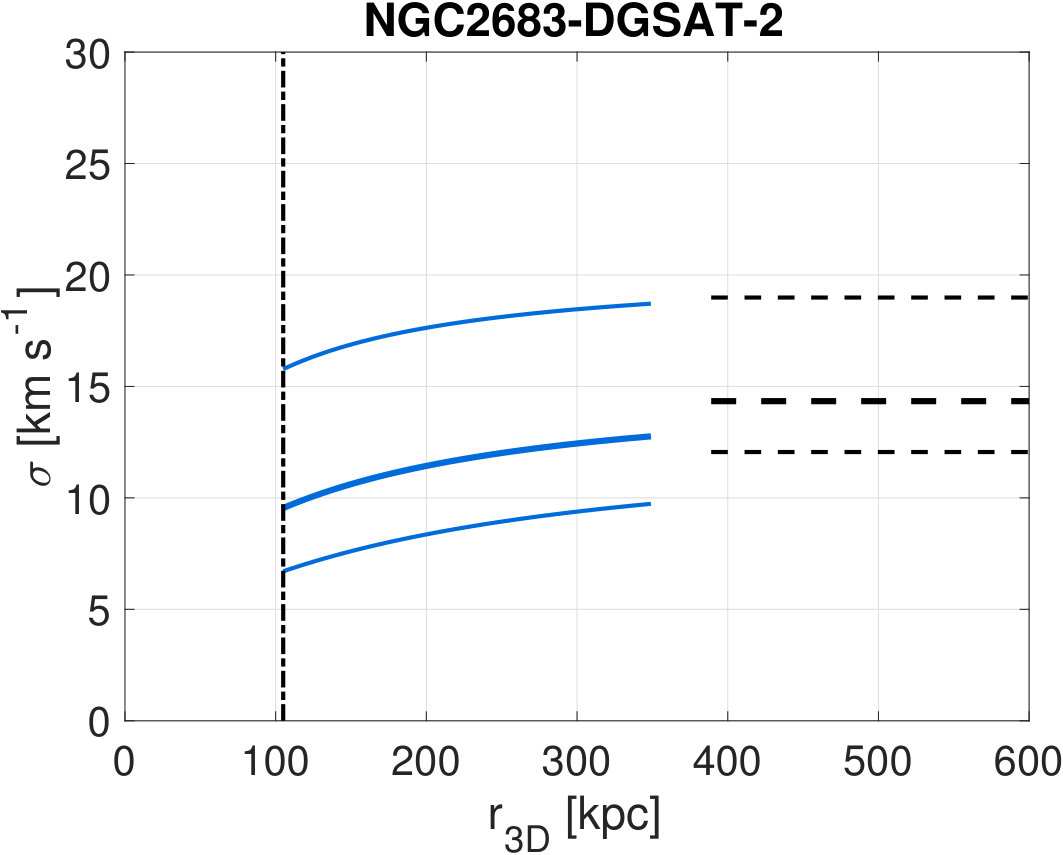

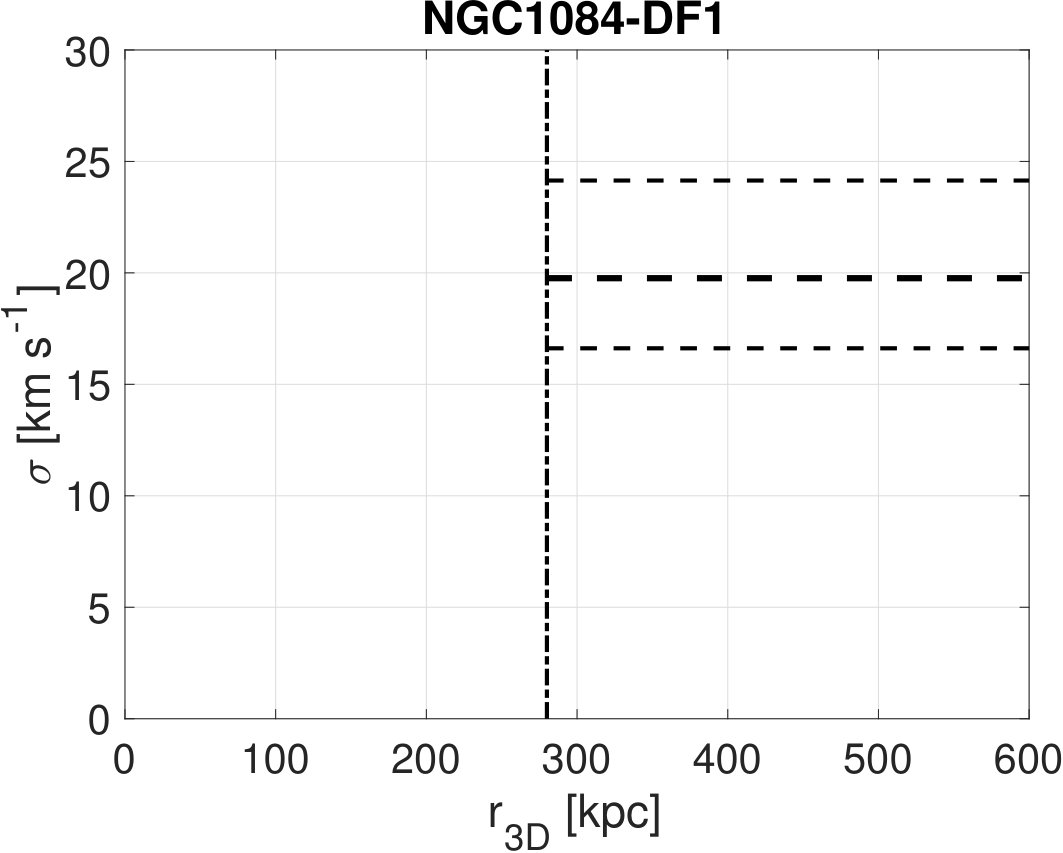

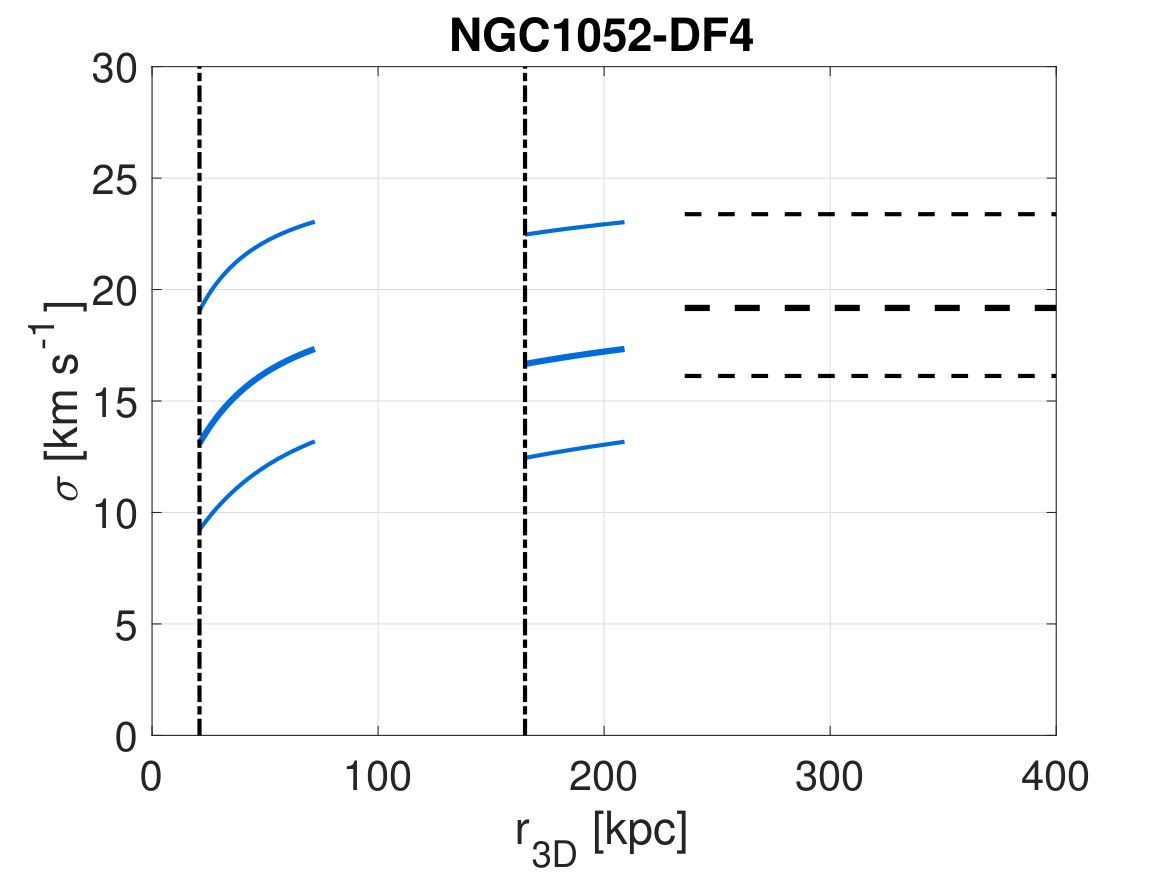

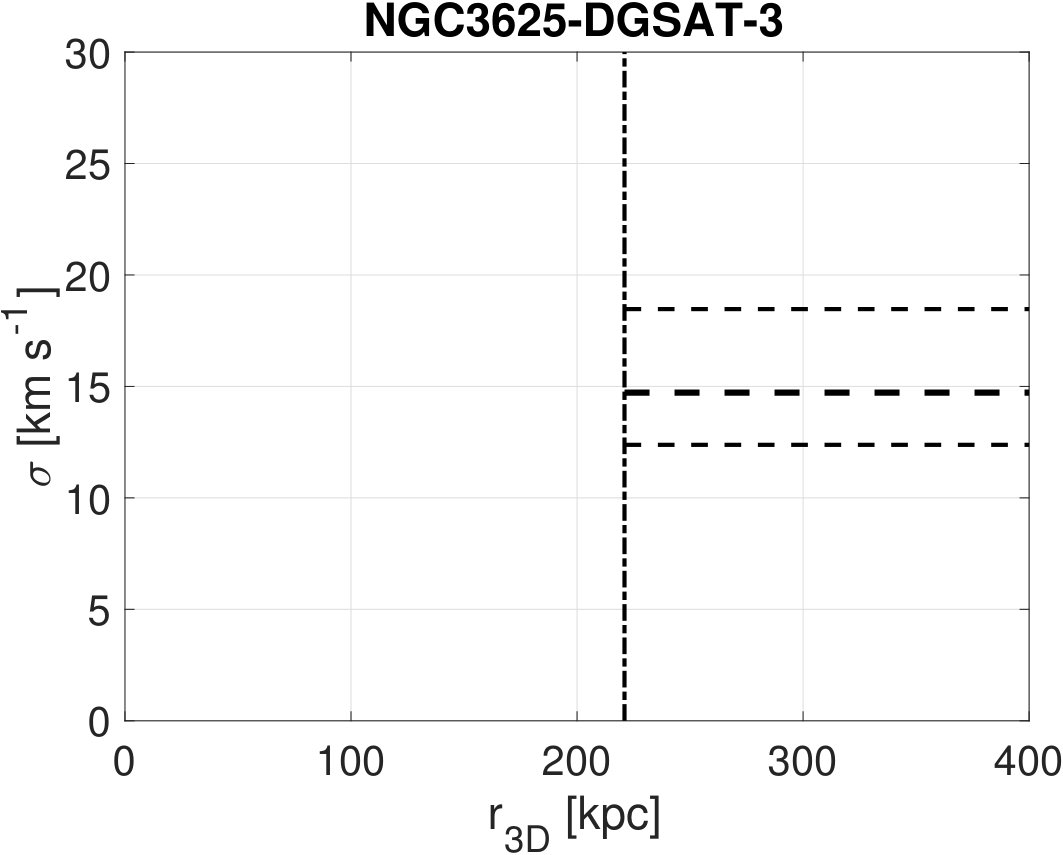

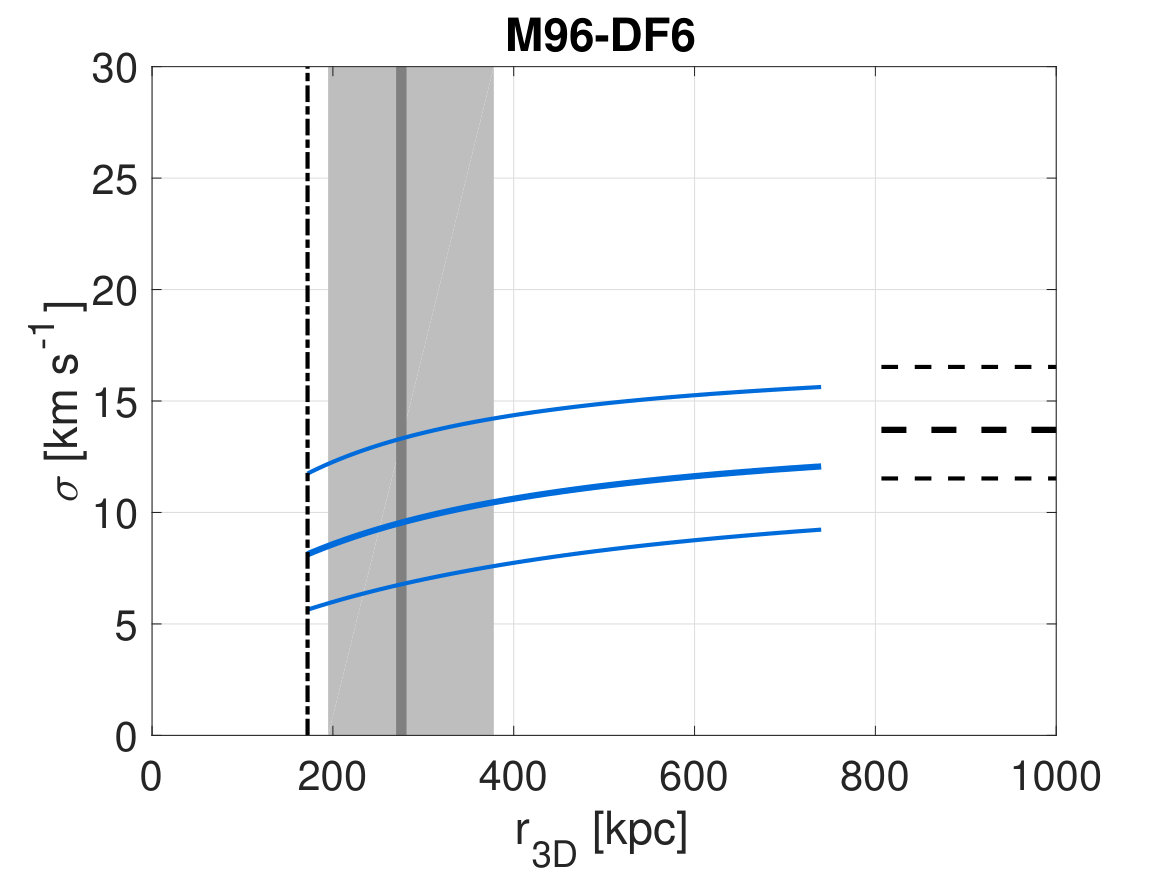

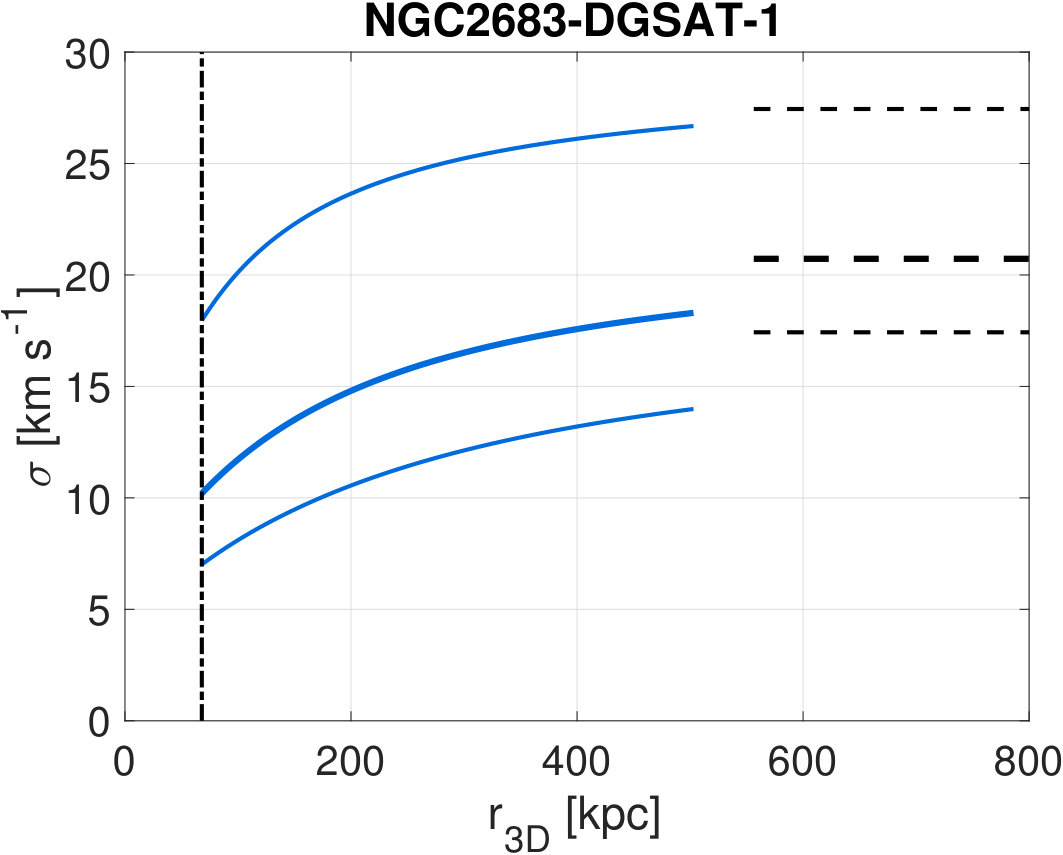

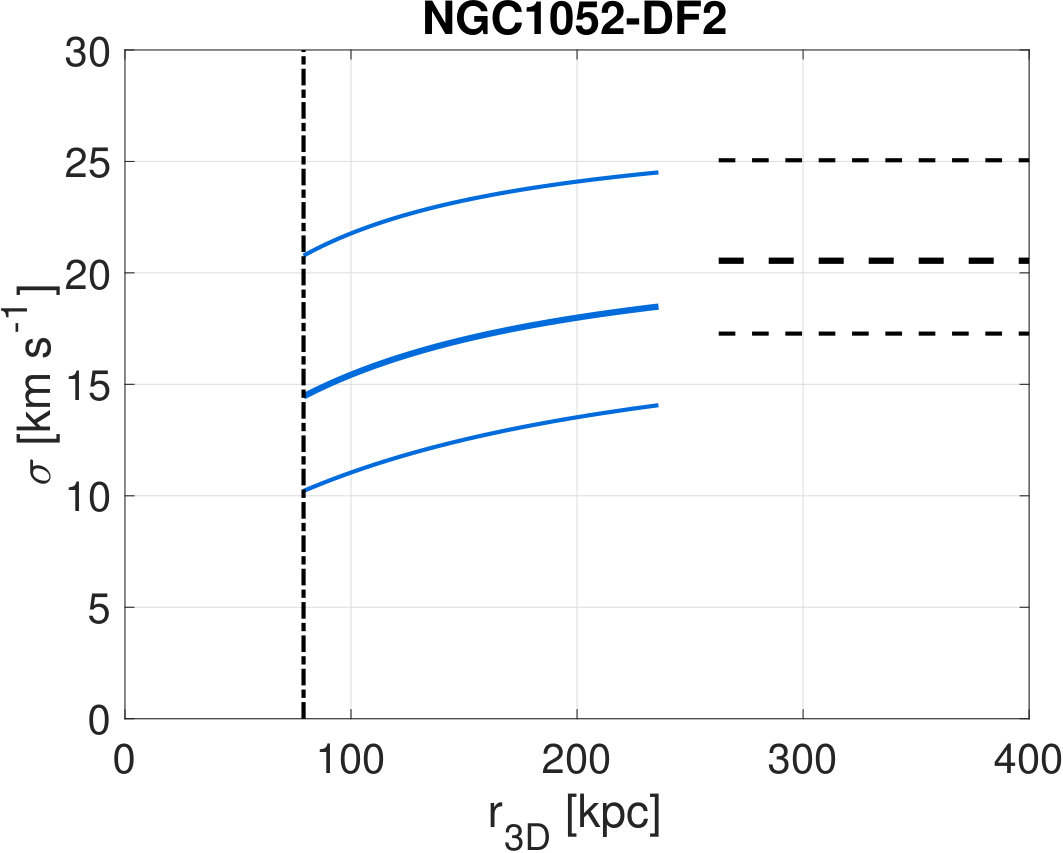

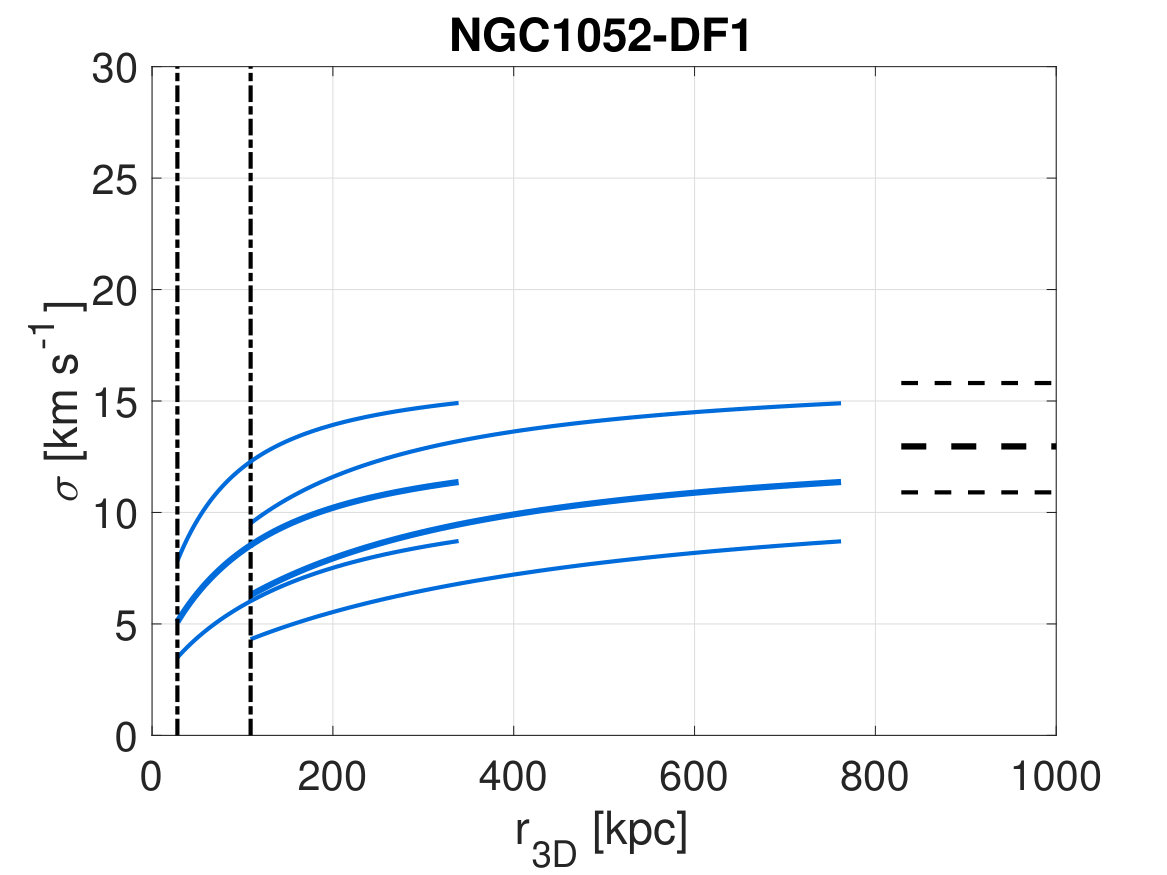

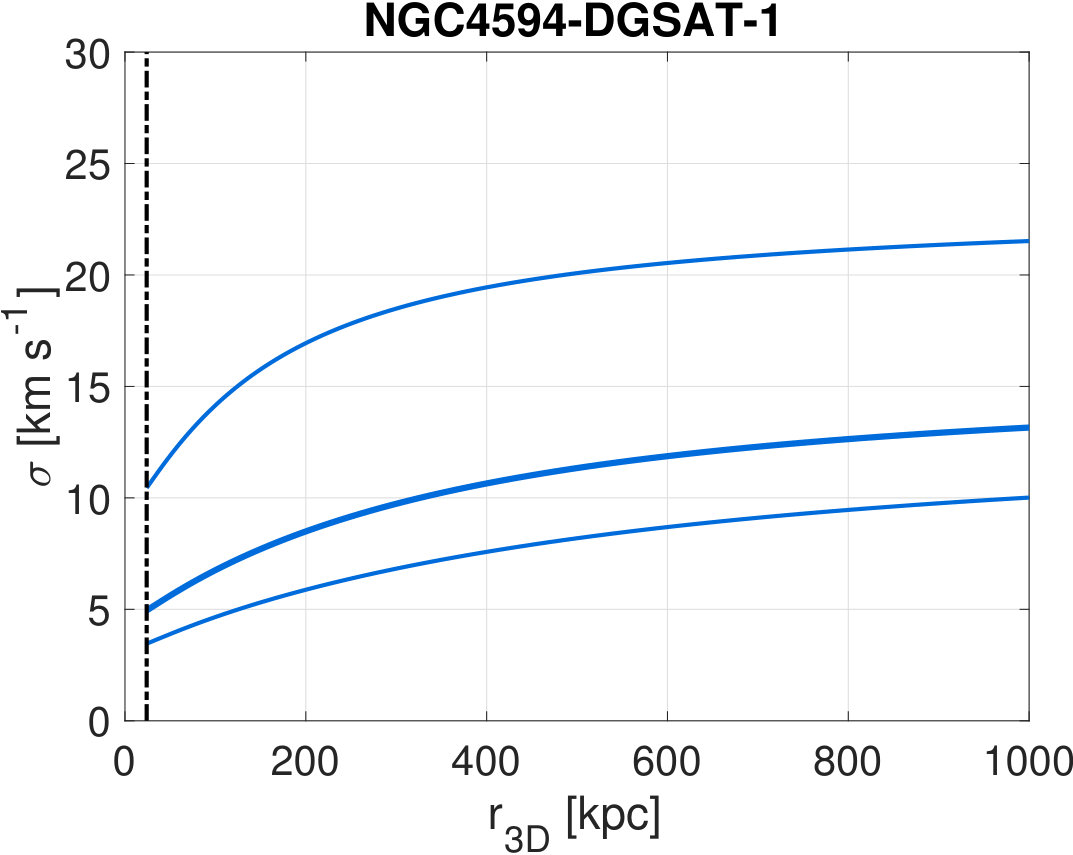

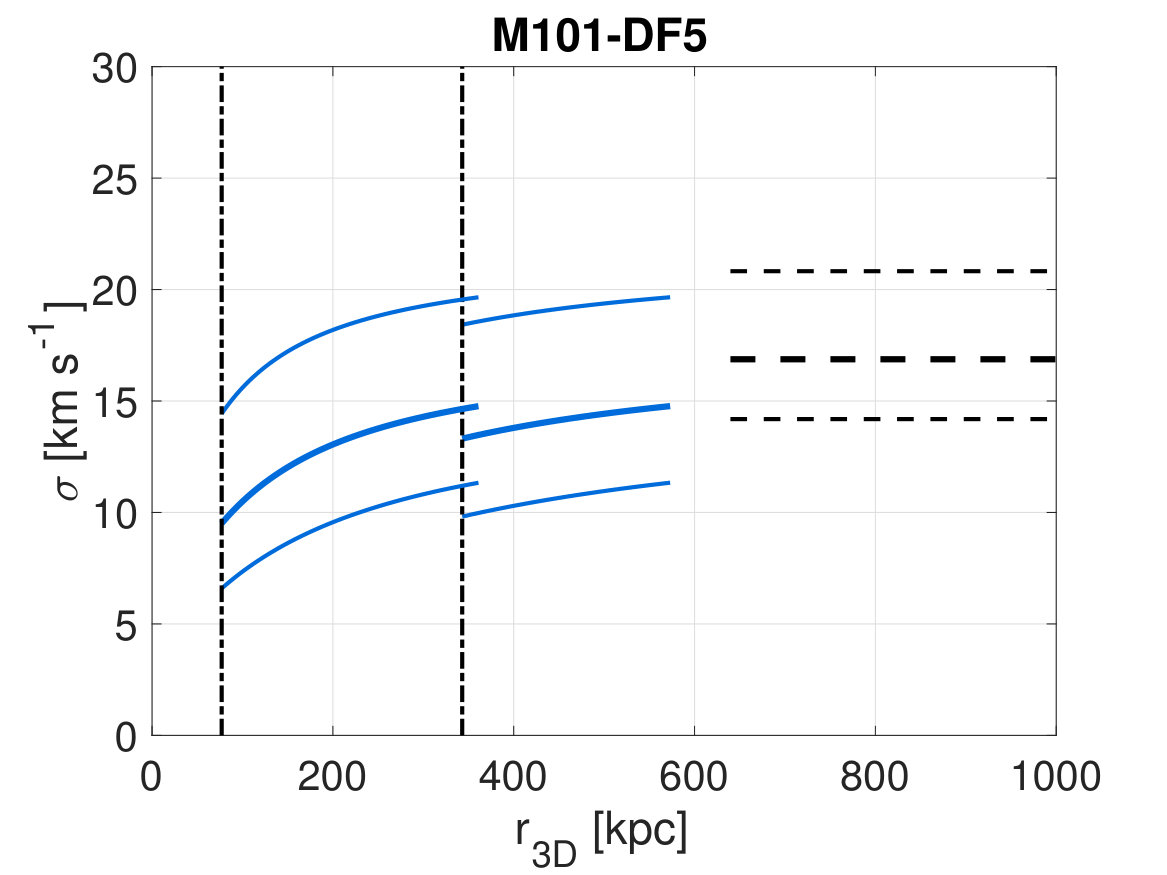

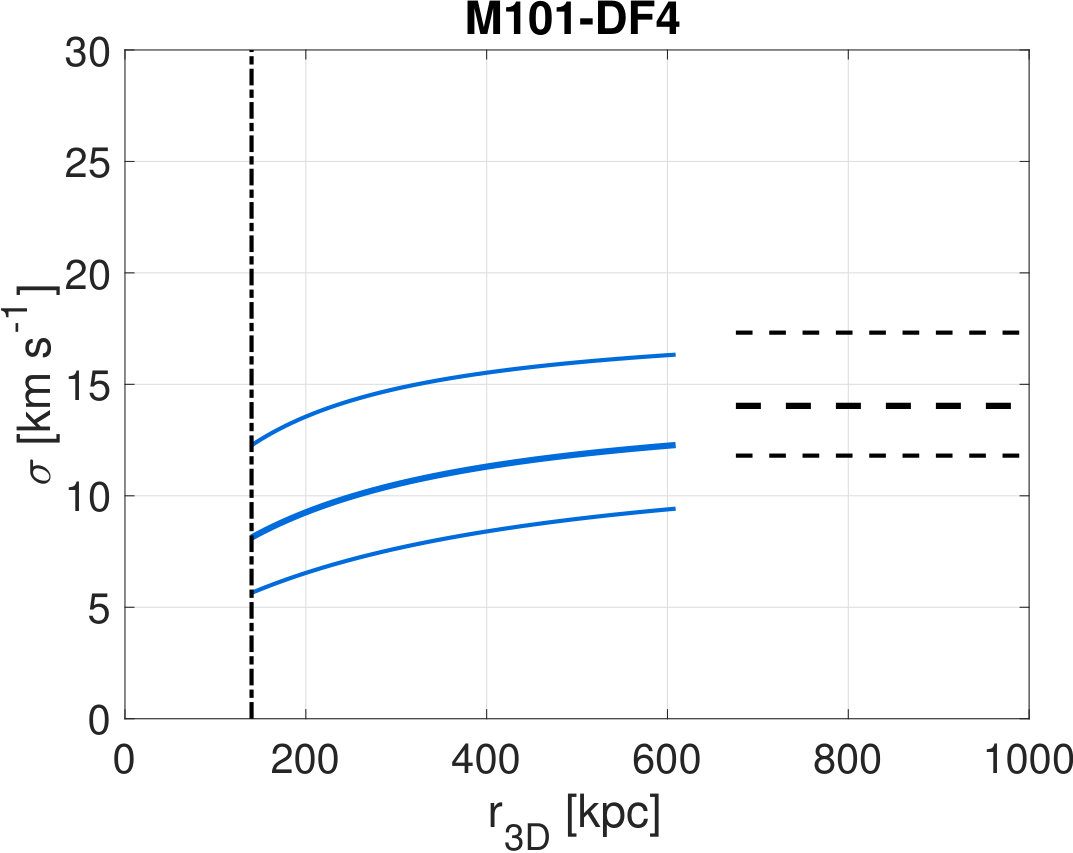

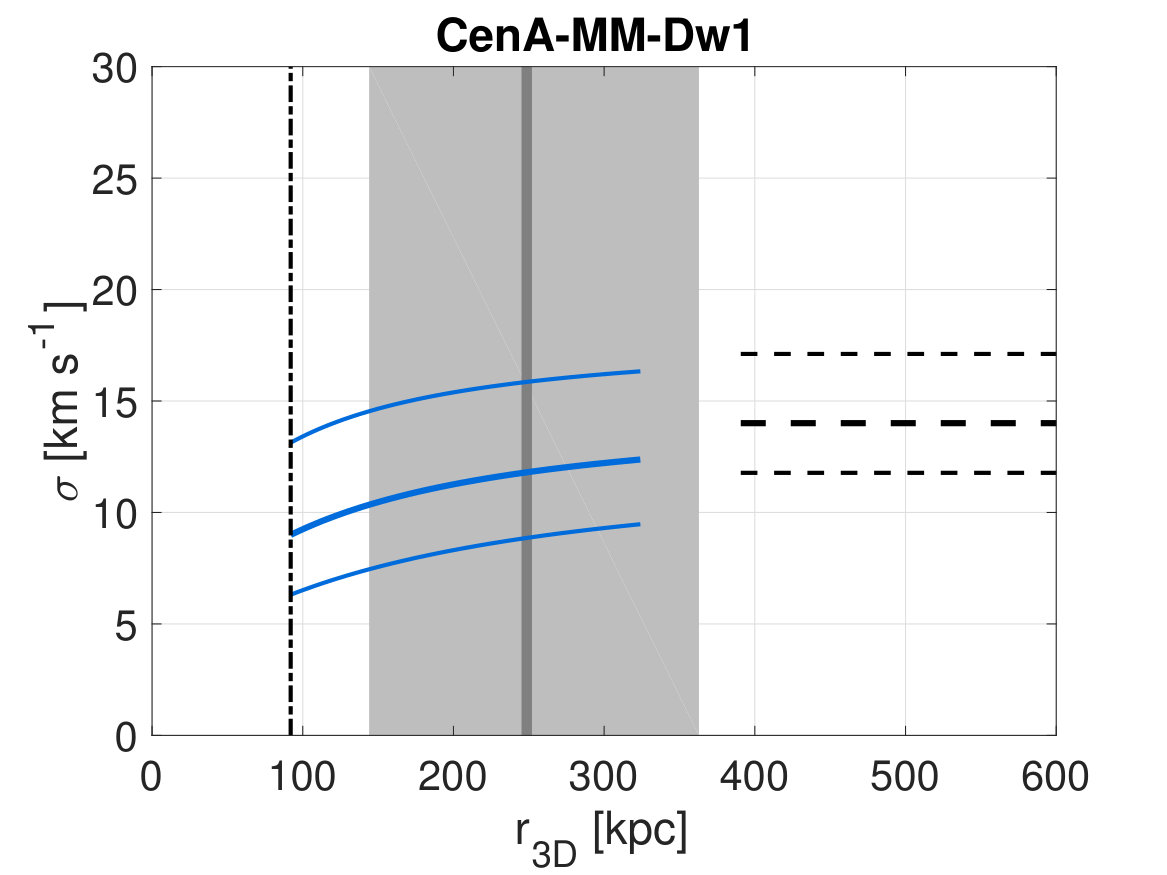

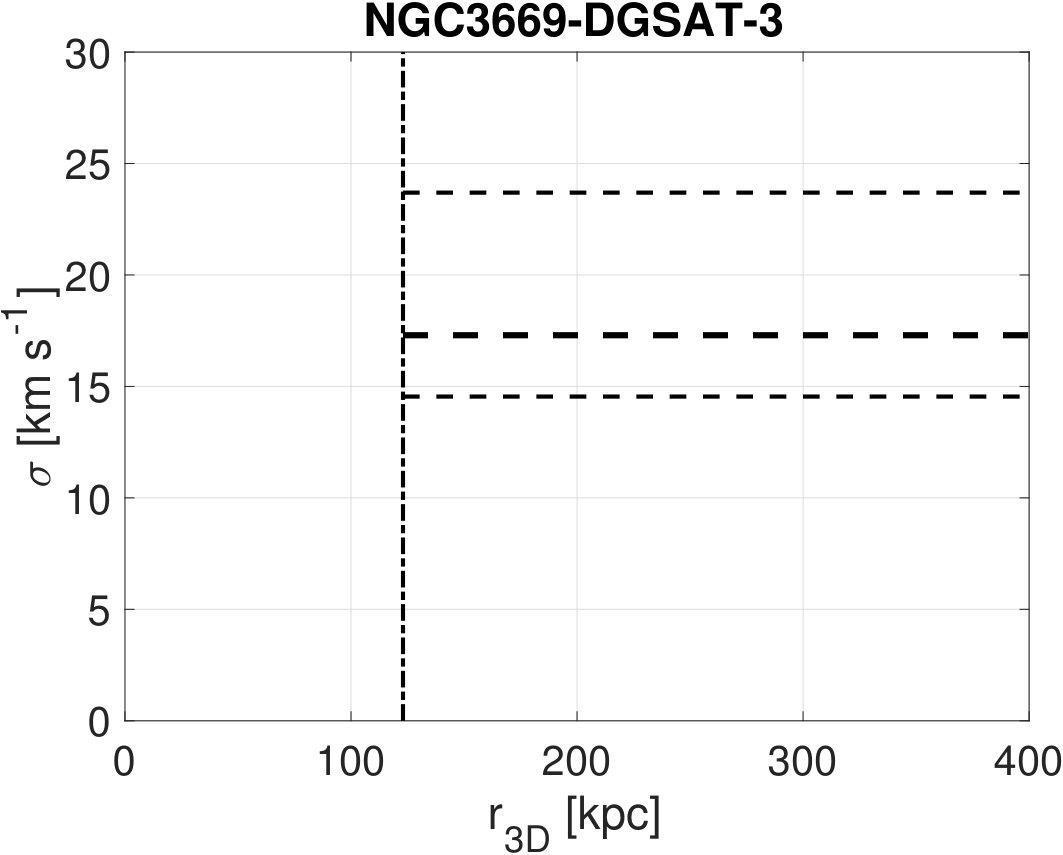

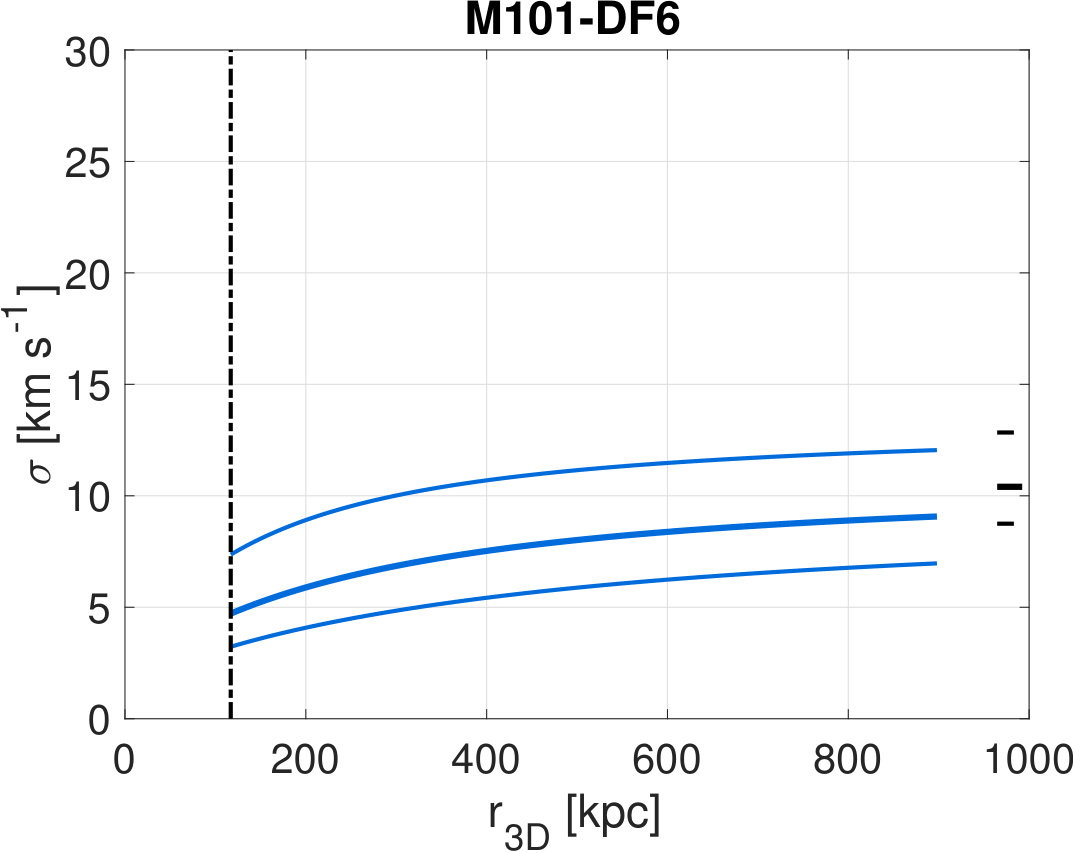

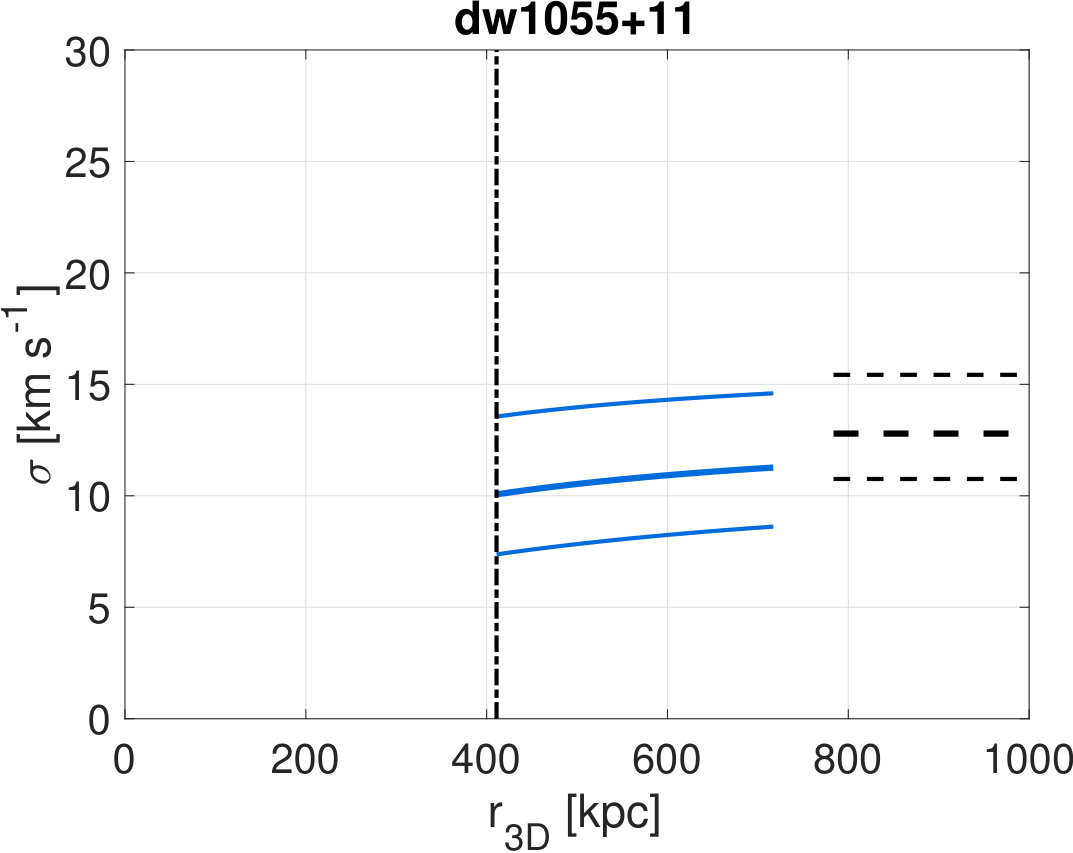

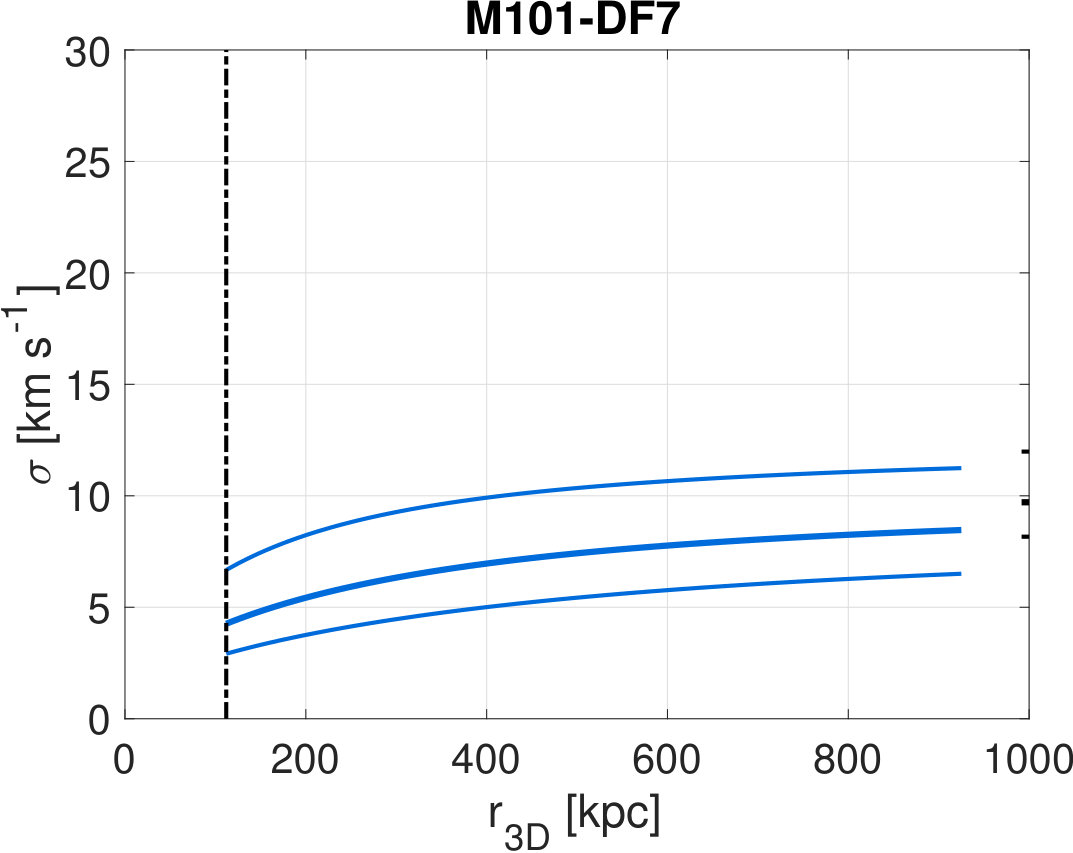

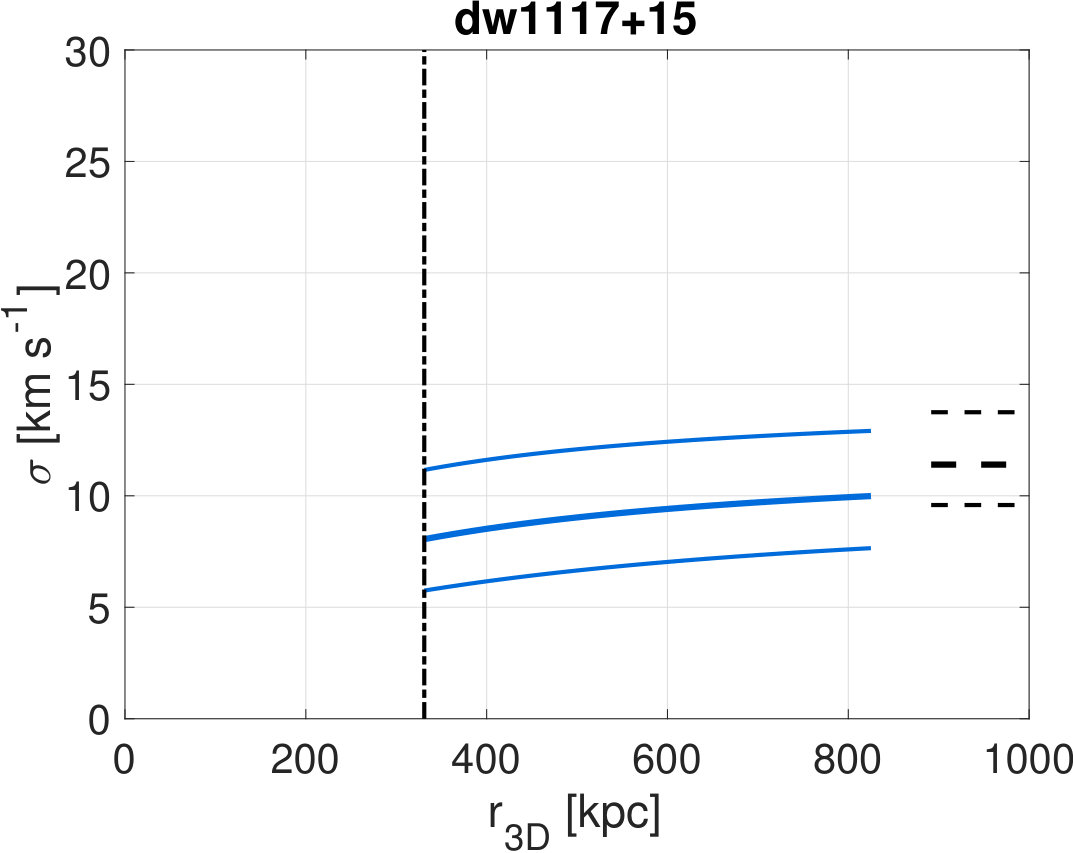

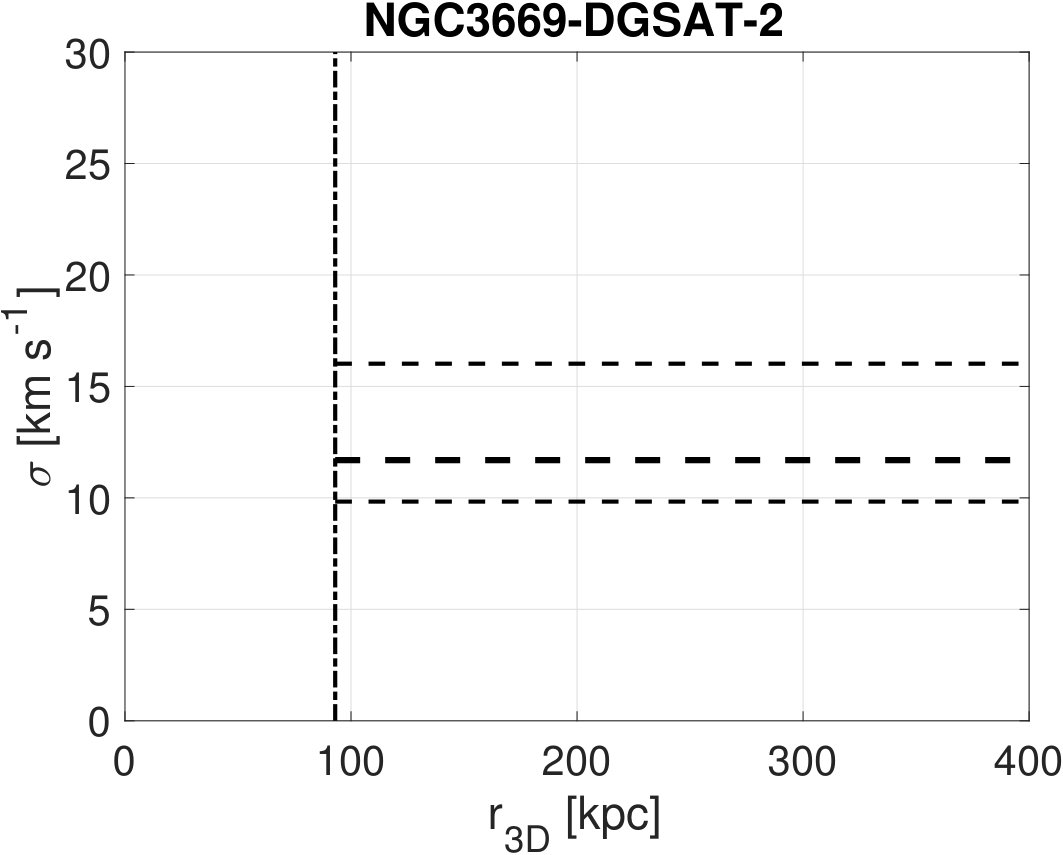

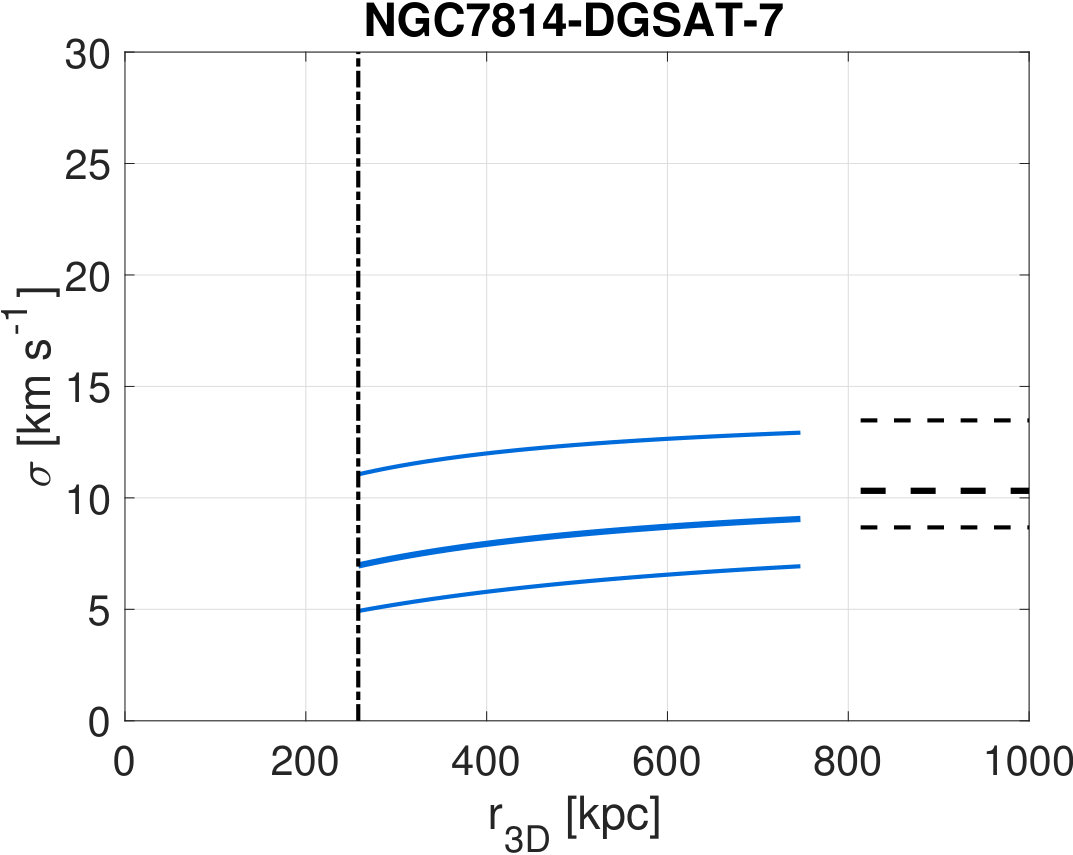

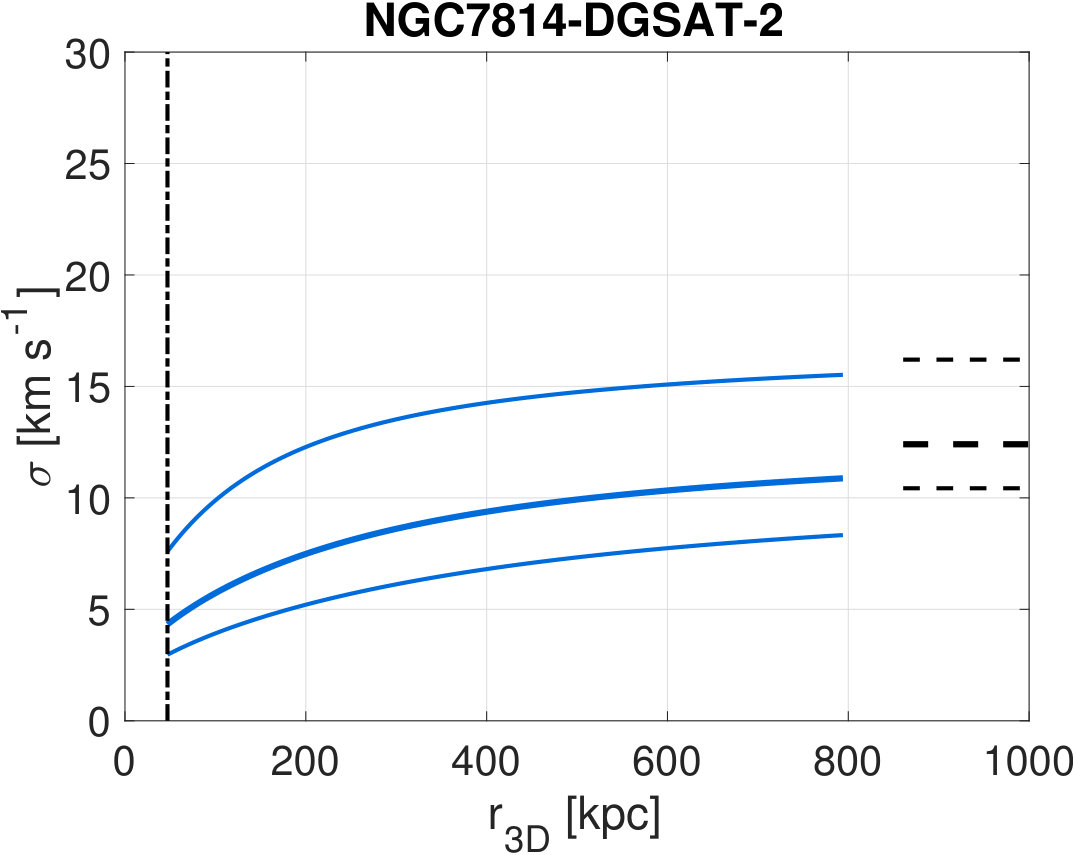

In Figure 1 we show the predictions for the 18 UDGs in our sample which have one clear host. The curves start at the projected separation of the UDG to its host. We derive upper and lower limits for the curves as follows: for every UDG, we vary the $V$-band $M/L$ ratio between 1 and 4, as well as take into account the distance uncertainty to the host. We also allow the mass of the host to vary by $\pm 20$ percent. The lower limit is therefore given by a $V$ band $M/L=1$, a distance to the host at its lowest limit (making the UDG less luminous), and the $+20$ percent upper limit for the host mass, whilst the upper limit is given by a $V$ band $M/L=4$, the upper limit for the host galaxy system distance (making the UDG more luminous), and the $-20$ percent lower limit for the host mass. We also give a typical estimate in between those two curves, with $M/L=2$ and the literature values for the distance and mass (or rotational velocity) of the host. We have simplified the Figures by using the transition $g/g_{ex}=2$ for the typical case also for the transition for the lower and upper limits. Correctly we would need to take into account that in the lower case, the EFE will have a larger range until the UDG reaches the regime of isolation. We also left a gap between the $\sigma$ estimation including the EFE and the isolated case. This is caused by the fact that we would need to carefully interpolate between the two regimes, which is not the focus of this work.

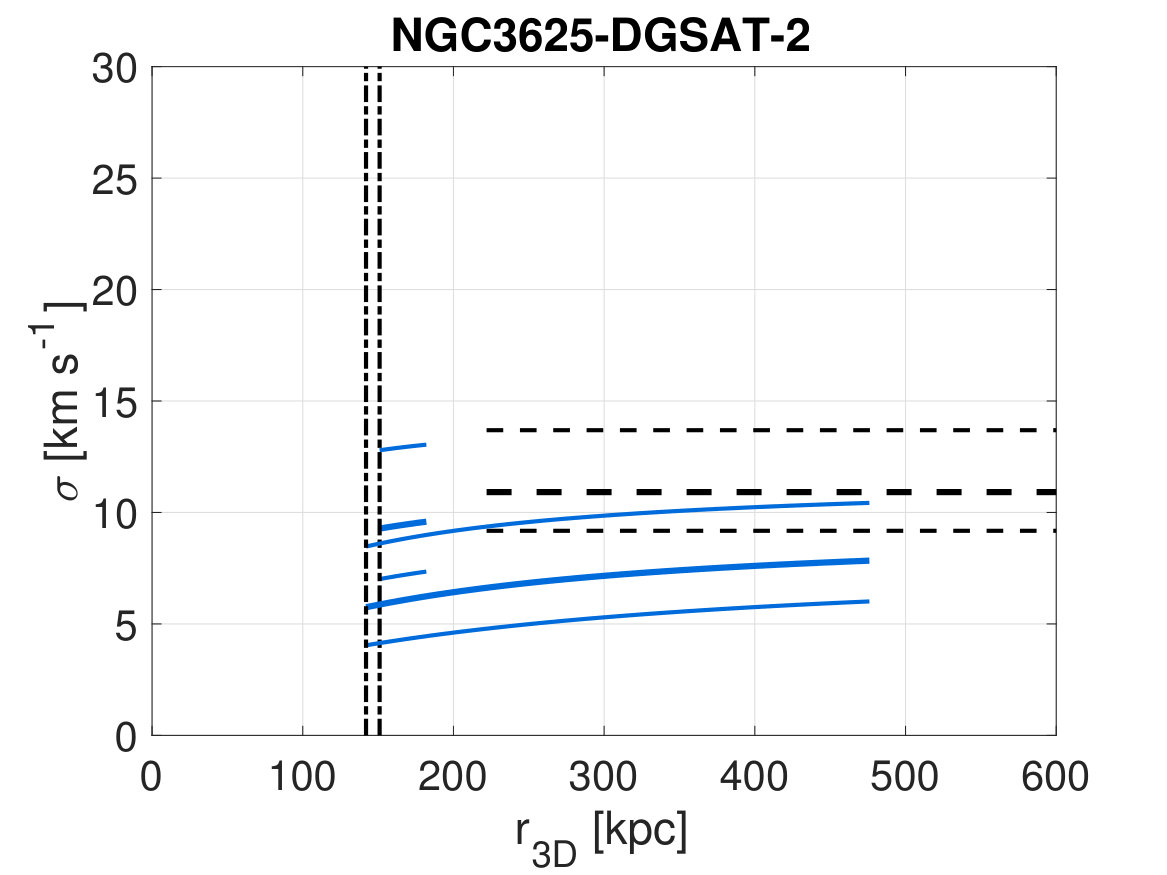

For 4 UDGs in our catalog, the host dominating the EFE is ambiguous. For NGC 3625-DGSAT-2 the two possible host galaxies are not even within the same group and have therefore different nominal distances. For the others, to make a precise prediction, one would need to use a numerical Poisson solver as a function of the full 3D configuration of the galaxy group. To give an idea of the range of possible predictions, we provide in Fig. 2 the predictions as a function of the separation to each potential host galaxy separately.

In Table 1 we present the minimal and maximal allowed values for the velocity dispersion, as well as a typical value for the UDG, if it has a $V$ band $M/L$ ratio of 2 (which is typical for old dwarf galaxies) and has a physical distance of $\sqrt{3/2}\cdot\Delta_{proj}$. This distance simply assumes that the depth along the line-of-sight is the same as the on-sky separation.

For 17 of our 22 UDGs, we note that the EFE was indeed important to consider and will effectively lower the stellar velocity dispersion of the galaxy for most of its possible 3D separations.

5 Discussion

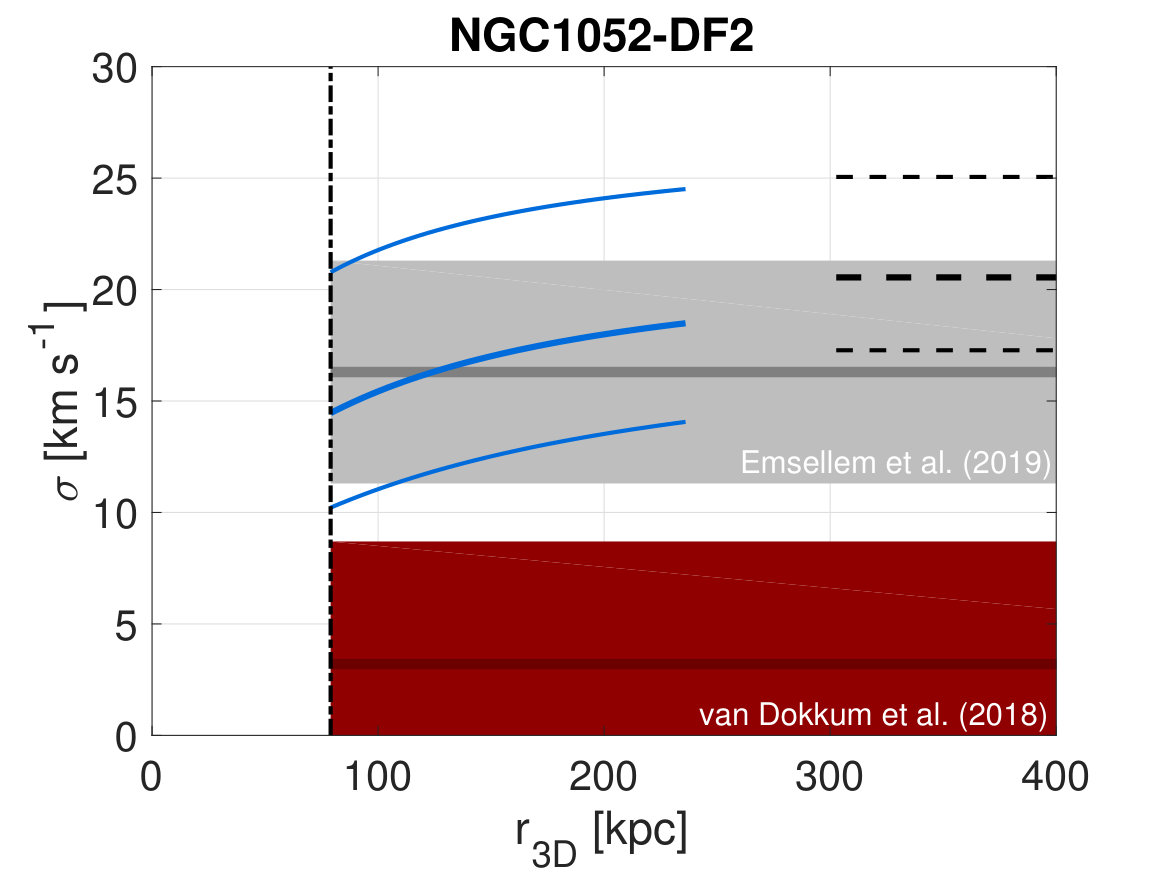

The discovery of the UDG NGC 1052-DF2 with its spectroscopic follow-up observations opened up a novel opportunity to study MOND and the EFE in this class of galaxies. In Figure 3 we present the MONDian calculation for this galaxy, this time including the $\sigma$ measurements by van Dokkum et al. (2018) and Emsellem et al. (2018). The former gave a velocity dispersion of $\sigma=3.2_{-3.2}^{+5.5}$ km s*-1* (shown in red in Figure 3), using globular clusters as tracer of the stellar body of the system. It is apparent that such a low value for the velocity dispersion would indeed be an outlier in MOND (to be more precise, a $2\sigma$ outlier, see Figure 1 in Kroupa et al. 2018). Emsellem et al. (2018), using precise IFU spectroscopy – obtained with MUSE mounted at the Very Large Telescope – directly derived a stellar velocity dispersion of $\sigma=16.3_{-5.0}^{+5.0}$ km s*-1* (shown in grey in Figure 3). This value is in excellent agreement with the MONDian estimates made here and in previous studies (Kroupa et al., 2018; Famaey et al., 2018). Additionally, Emsellem et al. (2018) found two more globular clusters and three Planetary Nebulae. Using them, and updated velocities for five previously known globular clusters, they derive a velocity dispersion of $\sigma=10.5_{-2.2}^{+4.0}$ km s*-1*, which is at the lower limit of allowed values in MOND (see Table 4).

Assuming that the stellar velocity dispersion $\sigma=16.3$ km s*-1* is the true value for this system, and that we live in a MONDian universe, NGC 1052-DF2 is then most likely at a physical separation of 124 kpc to its host NGC 1052, considering the external field. This does make insofar sense, that this is a typical radial separation of a satellite to its host. However, NGC 1052-DF2’s systemic velocity is off by 300 km s*-1*, which could indicate that this galaxy is not a bound member of the NGC 1052 group. Only precise distance measurements can tell whether this galaxy indeed belongs to the group, or whether it is a field galaxy in the fore-or background. In the latter case, an estimate with the corresponding distance would be needed to check the validity of MOND.

The MUSE observations are indeed an encouraging prospect for future studies of these UDGs. At these low-surface brightness levels, it is possible to get an estimate of the velocity dispersion under ten hours of observation time, which is expensive but certainly doable. Other today’s available facilities which potentially can conduct such studies are KCWI installed at Keck and Megara at the Gran Canaria Telescope. In the future, the next-generation telescopes like the ELT will certainly be able to conduct such measurements in short times for a large sample of galaxies.

We refrain here from making any predictions of the velocity dispersion of the UDGs in terms of the standard $\Lambda$CDM framework. In principle, we could collect the dark matter halos in high-resolution simulations for the satellite galaxies, given the observed luminosity and construct a range of possible values for the velocity dispersion. However, the origin of UDGs is still not understood. If they are failed Milky Way type galaxies, they will possess a large dark matter halo to begin with, and on the other hand, if they origin from dwarf galaxies, they will reside in smaller dark matter halos. This huge range of possibilities makes it unfeasible to make a prediction of the velocity dispersion in the standard context.

We note that two of the UDGs within our sample – Cen A-MM-Dw1 and M 96-DF6 – already have precise distance measurements available (Crnojević et al., 2018; Cohen et al., 2018). The three dimensional separation between Cen A and Cen A-MM-dw1 is $249$ kpc with a distance uncertainty for Cen A-MM-dw1 of $\pm 120$ kpc. This galaxy resides at a separation where the EFE plays a role. In Figure 1 we indicate the measured as well as the allowed $1\sigma$ separations derived from the errors. Assuming that Cen-A-MM-Dw1 follows our typical estimates, it should have a velocity dispersion of $\sigma=11.8_{-1.5}^{+2.2}$ km s*-1*. The upper limit is given by the isolated case. For M 96-DF6, the three dimensional separation between M 96 and M 96-DF6 is 276 kpc, with a distance uncertainty for M 96-DF6 of $\pm 300$ kpc. This gives a typical MONDian velocity dispersion of $\sigma=9.5_{-1.0}^{+1.0}$ km s*-1*. For these estimates, we have not varied the distance to the host. Once taken into account, this will additionally increase the allowed interval for the velocity dispersion.

With the updated velocity dispersion for NGC 1052-DF2 at hand, within the $\Lambda$CDM paradigm it is possible to estimate the total mass (dark matter + baryonic mass) with equation 2 given in Wolf et al. (2010). With a stellar velocity dispersion of $\sigma=16.3$ km s*-1* we get a mass within $r_{1/2}$ of $5.08\times 10^{8}$ M⊙. With an absolute magnitude of $-15.3$ mag in the $V$ band the galaxy has a total baryonic mass of $2.27\times 10^{8}$ M⊙ (using a $M/L=2$ and a $V$ band magnitude of 4.83 for the Sun), leading to a dynamical to visible mass ratio of 4.5 within the half-light radius. This rough estimate is well in agreement with Local Group dwarfs in the corresponding luminosity regime (see McConnachie 2012). Therefore, the observed velocity dispersion of NGC 1052-DF2 is not peculiar, and hence comfortable in both paradigms, the $\Lambda$CDM standard model of cosmology and the alternative gravity paradigm (MOND).

If NGC 1052-DF2 cannot help us to distinguish between MOND and $\Lambda$CDM, are there other galaxies in our sample which do? The most affected galaxy in terms of the EFE in our sample – max($\sigma_{iso}/\sigma_{typical}$) – is NGC 4594-DGSAT-1. Let us make a gedankenexperiment, where we live in a MONDian universe, but fail to realize that, and thus describe it in terms of Newtonian dynamics. Assume that the calculated typical velocity dispersion correctly describes the UDGs, and thus that NGC 4594-DGSAT-1 has a typical velocity dispersion of $\sigma=5.8$ km s*-1*. Now our Newtonian observers have exactly measured this value to infinite precision, and using it with Wolf et al. (2010) they will derive a mass within $r_{1/2}$ of $5.0\times 10^{7}$ M⊙. The mass of the baryonic content of the galaxy inferred from the light is $6\times 10^{7}$ M⊙, giving a dynamical to visible mass ratio within $r_{1/2}$ of only 1.7, and hence a dynamical mass-to-light ratio $M_{dyn}/L$ of 3.4. For a galaxy with $M_{V}=-13.9$ mag this is similar to Milky Way dwarf satellite Leo-I (Mateo et al., 2008), sitting at the lower end of the luminosity-$M_{dyn}/L$ relation (see Figure 11 in McConnachie 2012). However, if the lowest possible value in MOND was measured, i.e. $\sigma_{min}=3.5$ km s*-1*, the Newtonian observers would derive a $M_{dyn}/L$ ratio of only 1.2, clearly too small for primordial dwarf galaxies in $\Lambda$CDM. This simple gedankenexperiment shows that we can in principle distinguish between primordial dwarf galaxies in the $\Lambda$CDM framework and the MOND predictions for the cases where the UDG is strongly affected by the EFE and high-precision distance and velocity dispersions measurements are available. Let us note that such a situation has already happened for some Andromeda dwarfs (McGaugh & Milgrom, 2013a, b) and Crater-II (McGaugh, 2016). As these previous examples show, such an observation would of course not falsify $\Lambda$CDM, but would pose interesting challenges to it. In terms of falsifying MOND with such objects, as discussed in Famaey et al. (2018), an issue could always be whether the internal dynamics of a UDG on an eccentric orbit have time to come into equilibrium with the continually changing external field. Hence, once an interesting object challenging MOND is found, elucidating this issue would necessitate more involved simulations.

On the other hand, to tentatively falsify MOND, it would be well worth to follow-up some of the UDGs for which we have shown that the EFE plays a minor role, or no role at all. In that case, when their velocity dispersion is measured to be lower than the MOND prediction for the isolated case, then there is not much room in MOND for those velocity dispersions to vary (assuming that the values used for the predictions like the distance and luminosity are correct). This is in contrast to the ultra-faint dwarf galaxies in the Milky Way, which MOND tidal effects would certainly bring out of equilibrium, complicating any comparison between observations and predictions (McGaugh & Wolf, 2010; Fattahi et al., 2018; Read et al., 2018).

6 Summary and conclusion

Ultra-diffuse galaxies are puzzling objects for cosmology. While they resemble galaxies like the Milky Way in size, they are as faint and feeble as dwarf galaxies. In MOND – when they are close to a large galaxy – they can be affected by its external field effect, making them quasi-Newtonian. This EFE – unique to MOND – will lower the velocity dispersion of these systems, when compared to isolation. We have compiled a catalog of UDGs in group environments in the nearby universe to predict their velocity dispersions. We used an analytic expression to include the external field in our calculations and derived velocity dispersions as function of the true three dimensional separation of the UDGs from their host. When the internal accelerations of the UDGs overrule the external effects, we present the prediction based on simple MOND formula for isolated objects. By varying the Mass-to-Light ratio of the UDG, as well as the distance to its putative host, we give upper and lower limits allowed from MOND. Future observations of these UDGs can therefore test the validity of MOND and test the external field effect.

Two of our UDGs – Cen A-MM-Dw1 and M 96-DF6 – have high-precision distance measurements with the HST. In these cases, we have calculated the three dimensional distances to their host and made a more narrow prediction of the expected velocity dispersion in MOND, assuming that they follow a typical $M/L$ ratio of 2. For Cen A-MM-Dw1 we expect a velocity dispersion of $\sigma=11.8_{-1.5}^{+2.2}$ km s*-1*, and for M 96-DF6 a velocity dispersion of $\sigma=9.5_{-1.0}^{+1.0}$ km s*-1*.

For NGC 1052-DF2 high-precision IFU data have become available, taken with VLT+MUSE. This is the first time the stellar velocity dispersion itself of an UDG has been measured. We compared this new measurement to the MOND prediction, already made in Famaey et al. (2018); Kroupa et al. (2018), and find excellent agreement. This is an encouraging prospect, as it shows that testing our predictions is feasible with today’s instruments.

As a last caveat, we should mention that the predictions made here make rather simple assumptions, such as no strong anisotropy, no rotation on the sky, as well as an analytic MOND estimate with only one interpolating function and with an implicitly small eccentricity for the UDG orbit. As discussed in Famaey et al. (2018), a UDG on a very eccentric orbit with a continually changing external field could display a lower velocity dispersion than the prediction made here. Hence, once an interesting object challenging MOND is found, elucidating this issue would necessitate more involved simulations.

Acknowledgements.

O.M. thanks the Swiss National Science Foundation for financial support. We thank the referee for their useful and constructive report.
