Robust Change Captioning

TL;DR

This paper introduces DUDA, a novel model for robust change captioning that effectively distinguishes relevant scene changes from distractors, localizes changes, and generates accurate descriptions, validated on a new dataset and existing benchmarks.

Contribution

The paper presents a new Dual Dynamic Attention Model (DUDA) for change captioning, along with a novel CLEVR-Change dataset to evaluate robustness against distractors.

Findings

DUDA outperforms baselines in change captioning and localization.

The model achieves state-of-the-art results on Spot-the-Diff dataset.

DUDA effectively handles distractors and various change types.

Abstract

Describing what has changed in a scene can be useful to a user, but only if generated text focuses on what is semantically relevant. It is thus important to distinguish distractors (e.g. a viewpoint change) from relevant changes (e.g. an object has moved). We present a novel Dual Dynamic Attention Model (DUDA) to perform robust Change Captioning. Our model learns to distinguish distractors from semantic changes, localize the changes via Dual Attention over "before" and "after" images, and accurately describe them in natural language via Dynamic Speaker, by adaptively focusing on the necessary visual inputs (e.g. "before" or "after" image). To study the problem in depth, we collect a CLEVR-Change dataset, built off the CLEVR engine, with 5 types of scene changes. We benchmark a number of baselines on our dataset, and systematically study different change types and robustness to distractors. We show the superiority of our DUDA model in terms of both change captioning and localization. We also show that our approach is general, obtaining state-of-the-art results on the recent realistic Spot-the-Diff dataset which has no distractors.

Figures

Tables

Table 1. Table 1: CLEVR-Change Dataset statistics: number of image pairs, captions, and bounding boxes for each change type: DISTRACTOR (DI), COLOR (C), TEXTURE (T), ADD (A), DROP (D), MOVE (M).

	DI	C	T	A	D	M	All
# Img Pairs	$39,803$	$79,58$	$7,963$	$7,966$	$79,61$	$79,55$	$79,606$
# Captions	$199,015$	$58,850$	$58,946$	$59,198$	$58,843$	$588,83$	$493,735$
# Bboxes	-	$15,916$	$15,926$	$7,966$	$7,961$	$15,910$	$64,679$

Table 2. Table 2: Change Captioning evaluation on our CLEVR-Change Dataset. Our proposed model outperforms all baselines on BLEU-4 (B), CIDEr (C), METEOR (M), and SPICE (S) in each setting (i.e. Total, Scene Change, Distractor).

	Total				Scene Change				Distractor
Approach	B	C	M	S	B	C	M	S	B	C	M	S
Capt-Pix-Diff	30.2	75.9	23.7	17.1	21.9	36.2	17.7	7.9	43.4	98.2	38.9	26.3
Capt-Rep-Diff	33.5	87.9	26.7	19.0	26.0	51.8	21.1	10.1	49.4	105.3	41.7	27.8
Capt-Att	42.7	106.4	32.1	23.2	38.3	87.2	27.9	18.0	53.5	106.6	43.2	28.4
Capt-Dual-Att	43.5	108.5	32.7	23.4	38.5	89.8	28.5	18.2	56.3	108.9	44.0	28.7
DUDA (Ours)	47.3	112.3	33.9	24.5	42.9	94.6	29.7	19.9	59.8	110.8	45.2	29.1

Table 3. Table 3: A Detailed breakdown of Change Captioning evaluation on our CLEVR-Change Dataset by change types: Color (C), Texture (T), Add (A), Drop (D), Move (M), and Distractor (DI).

	CIDEr						METEOR						SPICE
Approach	C	T	A	D	M	DI	C	T	A	D	M	DI	C	T	A	D	M	DI
Capt-Pix-Diff	4.2	16.1	30.1	27.1	18.0	98.2	7.4	16.0	24.4	20.9	18.2	38.9	1.3	6.8	11.4	10.6	9.2	26.3
Capt-Rep-Diff	44.5	21.9	50.1	49.7	26.5	105.3	19.2	18.2	25.7	23.5	18.9	41.7	8.2	8.8	12.1	12.0	9.6	27.8
Capt-Att	112.1	75.9	91.5	98.4	49.6	106.6	30.5	25.4	30.2	31.2	22.2	43.2	17.9	16.3	19.0	22.3	14.5	28.4
Capt-Dual-Att	115.8	82.7	85.7	103.0	52.6	108.9	32.1	26.7	29.5	31.7	22.4	44.0	19.8	17.6	16.9	21.9	14.7	28.7
DUDA (Ours)	120.4	86.7	108.2	103.4	56.4	110.8	32.8	27.3	33.4	31.4	23.5	45.2	21.2	18.3	22.4	22.2	15.4	29.1

Table 4. Table 4: Pointing game accuracy results. We report per change-type performance (Color (C), Texture (T), Add (A), Drop (D), Move (M)) as well as the total performance. The numbers are in %.

	C	T	A	D	M	Total
Capt-Att	46.68	57.90	22.84	47.80	17.57	39.37
Capt-Dual-Att	40.97	46.55	54.33	45.67	19.89	39.35
DUDA (Ours)	54.52	65.75	48.68	50.06	22.77	48.10

Table 5. Table 5: We evaluate our approach on the Spot-the-Diff dataset  [ 25 ] . * We report results averaged over two runs,for DDLA  [ 25 ] , we use the two sets of results reported by the authors. See text for details.

Approach	B	C	M	R
DDLA* [25]	0.081	0.340	0.115	0.283
DUDA*	0.081	0.325	0.118	0.291

Table 6. Table 6: For each change type we construct a few templates, based on which the change part of the caption is obtained.

Type	Templates
COLOR	… changed to …
	… turned …
	… became …
TEXTURE	… changed to …
	… turned …
	… became …
ADD	… has appeared.
	… has been newly placed.
	… has been added.
DROP	… has disappeared.
	… is missing.
	… is gone.
	… is no longer there.
MOVE	… moved.
	… is in a different location.
	… changed its location.
DISTRACTOR	no change was made.
	the scene is the same as before.
	the two scenes seem identical.

Equations

$$X_{\text{diff}}=X_{\text{aft}}-X_{\text{bef}}$$

$$X_{\text{bef}}^{\prime }=[X_{\text{bef}};X_{\text{diff}}],X_{\text{aft}}^{\prime }=[X_{\text{aft}};X_{\text{diff}}]$$

$$a_{\text{bef}}=\sigma ({\text{conv}}_2(\text{ReLU}({\text{conv}}_1(X_{\text{bef}}^{\prime }))))$$

$$a_{\text{aft}}=\sigma ({\text{conv}}_2(\text{ReLU}({\text{conv}}_1(X_{\text{aft}}^{\prime }))))$$

$$l_{\text{bef}}=\sum _{H,W}{a}_{\text{bef}}\odot X_{\text{bef}},l_{\text{bef}}\in {\mathbb{R}}^C$$

$$l_{\text{aft}}=\sum _{H,W}{a}_{\text{aft}}\odot X_{\text{aft}},l_{\text{aft}}\in {\mathbb{R}}^C$$

$$l_{\text{dyn}}^{(t)}=\sum _i{\alpha }_i^{(t)}{l}_i$$

$$v=\text{ReLU}(W_{d_1}[l_{\text{bef}};l_{\text{diff}};l_{\text{aft}}]+b_{d_1})$$

$$u^{(t)}=[v;h_c^{(t-1)}]$$

$$h_d^{(t)}={\text{LSTM}}_d(h_d^{(t)}|u^{(t)},h_d^{(0:t-1)})$$

$${\alpha }^{(t)}\sim \text{Softmax}(W_{d_2}{h}_d^{(t)}+b_{d_2})$$

$$x^{(t-1)}=E\text{mathbbm}{1}_{w_{t-1}}$$

$$c^{(t)}=[x^{(t-1)};l_{\text{dyn}}^{(t)}]$$

$$h_c^{(t)}={\text{LSTM}}_c(h_c^{(t)}|c^{(t)},h_c^{(0:t-1)})$$

$$w_t\sim \text{Softmax}(W_c{h}_c^{(t)}+b_c)$$

$$L_{XE}(\theta )=-\sum _{t=1}^T\log (p_{\theta }(w_t^{\ast }|w_1^{\ast },\dots ,w_{t-1}^{\ast }))$$

$$L(\theta )=L_{XE}+{\lambda }_{L_1}{L}_1-{\lambda }_{ent}{L}_{ent}$$

Full text

1 Introduction

We live in a dynamic world where things change all the time. Change detection in images is a long-standing research problem, with applications in a variety of domains such as facility monitoring, medical imaging, and aerial photography [17, 47, 51]. A key challenge in change detection is to distinguish the relevant changes from the irrelevant ones [50] since the former are those that should likely trigger a notification. Existing systems aim to sense or localize a change, but typically do not convey detailed semantic content. This is an important limitation for a realistic application, where analysts would benefit from such knowledge, helping them to better understand and judge the significance of the change. Alerting a user on every detected difference likely will lead to a frustrated operator; moreover, it is desirable to have a change detection system that does not output a binary indicator of change/no-change, but instead outputs a concise description of what has changed, and where.

Expressing image content in natural language is an active area of Artificial Intelligence research, with numerous approaches to image captioning having been recently proposed [3, 12, 38, 60]. These methods have the benefit of conveying visual content to human users in a concise and natural way. They can be especially useful, when tailored to a specific task or objective, such as e.g. explaining the model’s predictions [20, 45] or generating non-ambiguous referring expressions for specific image regions [40, 62].

In this work we investigate robust Change Captioning, where an important scene change has to be identified and conveyed using natural language in the presence of distractors (where only an illumination or viewpoint change occurred). We aim to generate detailed and informative descriptions that refer to the changed objects in complex scenes (see Figure 1).

To distinguish an irrelevant distractor from an actual change (e.g. an object moved), one needs to “compare” the two images and find correspondences and disagreements. We propose a Dual Dynamic Attention Model (DUDA) that learns to localize the changes via a specialized attention mechanism. It consists of two components: Dual Attention that predicts a separate spatial attention for each image in the “before”/“after” pair, and a Dynamic Speaker that generates a change description by semantically modulating focus among the visual features relayed from the Dual Attention. Both components are neural networks that are trained jointly with only caption-level supervision, i.e. no information about the change location is used during training.

In order to study Change Captioning in the presence of distractors, we build a CLEVR-Change Dataset. We rely on the image generation engine by [26], which allows us to produce complex compositional scenes. We create pairs of “before” and “after” images with: (a) only illumination/viewpoint change (distractors), and (b) illumination/viewpoint change combined with a scene change. We consider 5 scene change types (color/material change, adding/dropping/moving an object), and collect almost 80K image pairs. We augment the image pairs with automatically generated change captions (see Figure 3). Note that in the recently proposed Spot-the-Diff dataset [25], the task also is to generate change captions for a pair of images. However, their problem statement is different from ours in that: 1) they assume a change in each image pair while our goal is to be robust to distractors, 2) the images are aligned (no viewpoint shift), 3) change localization can not be evaluated as ground-truth is not available in [25].

We first evaluate our novel DUDA model on the CLEVR-Change dataset, and compare it to a number of baselines, including a naive pixel-difference captioning baseline. We show that our approach outperforms the baselines in terms of change caption correctness as well as change localization. The most challenging change types to describe are object movement and texture change, while movement is also the hardest to localize. We also show that our approach is general, applying it to the Spot-the-Diff dataset [25]. Given the same visual inputs as [25], our model matches or outperforms their approach.

2 Related Work

Here we discuss prior work on change detection, task-specific image captioning, and attention mechanism.

Change detection One popular domain for image-based change detection is aerial imagery [35, 54, 63], where changes can be linked to disaster response scenarios (e.g. damage detection) [17] or monitoring of land cover dynamics [29, 55]. Prior approaches often rely on unsupervised methods for change detection, e.g. image differencing, due to high cost of obtaining ground-truth annotations [9]. Notably, [17] propose a semi-supervised approach with human in the loop, relying on a hierarchical shape representation.

Another prominent domain is street scenes [1, 28]. Notably, [51] propose a Panoramic Change Detection Dataset, built off Google Street View panoramic images. In their follow-up work, [52] propose an approach to change detection which relies on dense optical flow to address the difference in viewpoints between the images. In a recent work, [43] rely on 3D models to identify scene changes by re-projecting images on one another. Another line of work targets change detection in video, e.g. using a popular CDnet benchnmark [16, 59], where background subtraction is a successful strategy [8]. Instead of relying on costly pixel-level video annotation, [30] propose a weakly supervised approach, which estimates pixel-level labels with a CRF.

Other works address a more subtle, fine-grained change detection, where an object may change its appearance over time, e.g. for the purpose of a valuable object monitoring [14, 24]. To tackle this problem, [53] estimate a dense flow field between images to address viewpoint differences.

Our DUDA model relies on an attention mechanism rather than pixel-level difference or flow. Besides, our task is not only to detect the changes, but also to describe them in natural language, going beyond the discussed prior works.

Task-specific caption generation While most image captioning works focus on a generic task of obtaining image relevant descriptions [3, 12, 58], some recent works explore pragmatic or “task-specific” captions. Some focus on generating textual explanations for deep models’ predictions [19, 20, 45]. Others aim to generate a discriminative caption for an image or image region, to disambiguate it from a distractor [4, 10, 40, 39, 56, 62]. This is relevant to our work, as part of the change caption serves as a referring expression to put an object in context of the other objects. However, our primary focus is to correctly describe the scene changes.

The most related to ours is the work of [25], who also address the task of change captioning for a pair of images. While we aim to distinguish distractors from relevant changes, they assume there is always a change between the two images. Next, their pixel-difference based approach assumes that the images are aligned, while we tackle viewpoint change between images. Finally, we systematically study different change types in our new CLEVR-Change Dataset. We show that our approach generalizes to their Spot-the-Diff dataset in subsection 5.3.

Attention in image captioning Attention mechanism [6] over the visual features was first used for image captioning by [60]. Multiple works have since adopted and extended this approach [15, 36, 48], including performing attention over object detections [3]. Our DUDA model relies on two forms of attention: spatial Dual Attention used to localize changes between two images, and semantic attention, used by our Dynamic Speaker to adaptively focus on “before”, “after” or “difference” visual representations.

3 Dual Dynamic Attention Model (DUDA)

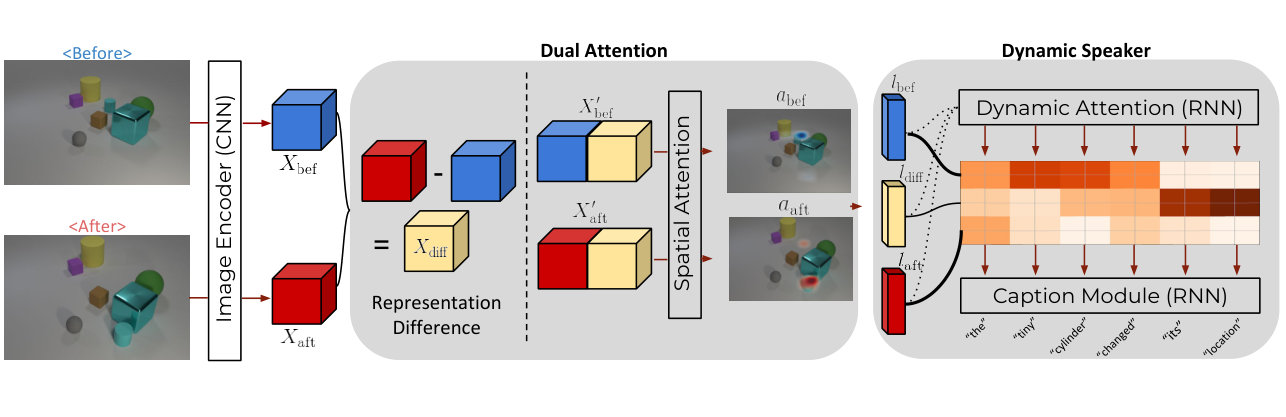

We propose a Dual Dynamic Attention Model (DUDA) for change detection and captioning. Given a pair of “before” and “after” images ($I_{\text{bef}}$ and $I_{\text{aft}}$, respectively), our model first detects whether a scene change has happened, and if so, locates the change on both $I_{\text{bef}}$ and $I_{\text{aft}}$. The model then generates a sentence that not only correctly describes the change, but also is spatially and temporally grounded in the image pair. To this end, our model includes a Dual Attention (localization) component, followed by a Dynamic Speaker component to generate change descriptions. An overview of our model is shown in Figure 2.

We describe the implementation details of our Dual Attention in subsection 3.1, and our Dynamic Speaker in subsection 3.2. In subsection 3.3, we detail our training procedure for jointly optimizing both components using change captions as the only supervision.

3.1 Dual Attention

Our Dual Attention acts as a change localizer between $I_{\text{bef}}$ and $I_{\text{aft}}$. Formally, it is a function $f_{\text{loc}}(X_{\text{bef}},X_{\text{aft}};\theta_{\text{loc}})=(l_{\text{bef}},l_{\text{aft}})$ parameterized by $\theta_{\text{loc}}$ that takes $X_{\text{bef}}$ and $X_{\text{aft}}$ as inputs, and outputs feature representations $l_{\text{bef}}$ and $l_{\text{aft}}$ that encode the change manifested in the input pairs. In our implementation, $X_{\text{bef}},X_{\text{aft}}\in\mathbb{R}^{C\times H\times W}$ are image features of $I_{\text{bef}},I_{\text{aft}}$, respectively, encoded by a pretrained ResNet [18].

We first subtract $X_{\text{bef}}$ from $X_{\text{aft}}$ in order to capture semantic difference in the representation space. The resulting tensor $X_{\text{diff}}$ is concatenated with both $X_{\text{bef}}$ and $X_{\text{aft}}$ which are then used to generate two separate spatial attention maps $a_{\text{bef}},a_{\text{aft}}\in\mathbb{R}^{1\times H\times W}$. Following [41], we utilize elementwise sigmoid instead of softmax for computing our attention maps to avoid introducing any form of global normalization. Finally, $a_{\text{bef}}$ and $a_{\text{aft}}$ are applied to the input features to do a weighted-sum pooling over the spatial dimensions:

[TABLE]

where $[;]$, conv, $\sigma$, and $\odot$ indicate concatenation, convolutional layer, elementwise sigmoid, and elementwise multiplication, respectively. See Figure 2 for the visualization of Dual Attention component.

This particular architectural design allows the system to attend to images differently depending on the type of a change and the amount of a viewpoint shift, which is a capability crucial for our task. For instance, to correctly describe that an object has moved, the model needs to localize and match the moved object in both images; having single attention that locates the object only in one of the images is likely to cause confusion between e.g. moving vs. adding an object. Even if there is an attribute change (e.g. color) which does not involve object displacement, single attention might not be enough to correctly localize the changed object under a viewpoint shift. Unlike  [61, 42, 37, 31, 45], DUDA utilizes Dual Attention to process multiple visual inputs separately and thereby addresses Change Captioning in the presence of distractors.

3.2 Dynamic Speaker

Our Dynamic Speaker is based on the following intuition: in order to successfully describe a change, the model should not only learn where to look in each image (spatial attention, predicted by the Dual Attention), but also when to look at each image (semantic attention, here). Ideally, we would like the model to exhibit dynamic reasoning, where it learns when to focus on “before” ($l_{\text{bef}}$), “after” ($l_{\text{aft}}$), or “difference” feature ($l_{\text{diff}}=l_{\text{aft}}-l_{\text{bef}}$) as it generates a sequence of words. For example, it is necessary to look at the “after” feature ($l_{\text{aft}}$) when referring to a new object added to a scene. Figure 2 illustrates this behaviour.

To this end, our Dynamic Speaker predicts an attention $\alpha_{i}^{(t)}$ over the visual features $l_{i}$’s at each time step $t$, and obtains the dynamically attended feature $l_{\text{dyn}}^{(t)}$:

[TABLE]

where $i\in(\text{bef},\text{diff},\text{aft})$. We use the attentional Recurrent Neural Network [5] to model this formulation.

Our Dynamic Speaker consists of two modules, namely the dynamic attention module and the caption module. Both are recurrent models based on LSTM [21]. At each time step $t$, the LSTM decoder in the dynamic attention module takes as input the previous hidden state of the caption module $h_{c}^{(t-1)}$ and some latent projection $v$ of the visual features $l_{\text{bef}}$, $l_{\text{diff}}$, and $l_{\text{aft}}$ to predict attention weights $\alpha_{i}^{(t)}$:

[TABLE]

[TABLE]

[TABLE]

[TABLE]

where $h_{d}^{(t)}$ and $h_{c}^{(t)}$ are LSTM outputs at decoder time step $t$ for dynamic attention module and caption module, respectively, and $W_{d_{1}}$, $b_{d_{1}}$, $W_{d_{2}}$, and $b_{d_{2}}$ are learnable parameters. Using the attention weights predicted from Equation (11), the dynamically attended feature $l_{\text{dyn}}^{(t)}$ is obtained according to Equation (7). Finally, $l_{\text{dyn}}^{(t)}$ and the embedding of the previous word $w_{t-1}$ (ground-truth word during training, predicted word during inference) are input to the LSTM decoder of the caption module to begin generating distributions over the next word:

[TABLE]

[TABLE]

[TABLE]

[TABLE]

where $\mathbbm{1}_{w_{t-1}}$ is a one-hot encoding of the word $w_{t-1}$, $E$ is an embedding layer, and $W_{c}$, $b_{c}$ are learned parameters.

3.3 Joint Training

We jointly train the Dual Attention and the Dynamic Speaker end-to-end by maximizing the likelihood of the observed word sequence. Let $\theta$ denote all the parameters in DUDA. For a target ground-truth sequence ($w_{1}^{*},\dots,w_{T}^{*}$), the objective is to minimize the cross entropy loss:

[TABLE]

where $p_{\theta}(w_{t}|w_{1},\dots,w_{t-1})$ is given by Equation (15). Similar to [41], we apply $L_{1}$ regularization to the spatial attention masks generated by our Dual Attention in order to minimize unnecessary activations. We also use an entropy regularization over the attention weights generated by our Dynamic Speaker to encourage exploration in using visual features. The final loss function we optimize is as follows:

[TABLE]

where $L_{1}$ and $L_{ent}$ are $L_{1}$ and entropy regularization, respectively, and $\lambda_{L_{1}}$ and $\lambda_{ent}$ are hyperparameters. Note, that the Dual Attention component receives no direct supervision for change localization. The only available supervision is obtained through the Dynamic Speaker, which then directs the Dual Attention towards discovering the change.

4 CLEVR-Change Dataset

Given a lack of an appropriate dataset to study Change Captioning in the presence of distractors, we build the CLEVR-Change Dataset, based on the CLEVR engine [26]. We choose CLEVR, inspired by many works that use it to build diagnostic datasets for various vision and language tasks, e.g. visual question answering [26], referring expression comprehension [22, 34], text-to-image generation [13] or visual dialog [33]. As Change Captioning is an emerging task we believe our dataset can complement existing datasets, e.g. [25], which is small, always assumes the presence of a change and lacks localization ground-truth.

First, we generate random scenes with multiple objects in them, which serve as “before” images. Note, that in domains such as satellite imagery [35, 54, 63] or surveillance/street scenes [1, 28, 43], typical distractors include changes in camera position/zoom or illumination. Motivated by these applications we approach distractor construction accordingly. For each “before” image we create two “after” images. In the first one, we change the camera position leading to a different angle, zoom, and/or illumination. We have a specific allowed range for the transformation parameters: for each $(x,y,z)$ camera location, we randomly sample a number from the range between $-2.0$ and $2.0$, and jitter the original coordinates by the sampled amount. In the second “after” image, we additionally introduce a scene change. We consider the following types of scene changes: (a) an object’s color is changed, (b) an object’s texture is changed, (c) a new object is added, (d) an existing object is dropped, (e) an existing object is moved. In the following we refer to these as: COLOR, TEXTURE, ADD, DROP, MOVE, and DISTRACTOR for no scene change. In total, we generate $39,803$ “before” images with respectively $79,606$ “after” images. We make sure that the number of data points for each scene change type is balanced. The dataset is split into $67,660$, $3,976$, and $7,970$ training/validation/test image pairs, respectively.

In addition to generating the “before” and “after” scenes, we generate natural language change captions. Each caption is automatically constructed from two parts: the referring part (e.g. “A large blue sphere to the left of a red object”) and the change part (e.g. “has appeared”). Note that for all the change types except ADD, the referring expression is generated based on the “before” image, while for ADD, the “after” image is used. To get the change part, we construct a set of change specific templates (e.g. “X has been added”, “X is no longer there”, “no change was made” see supplemental for details).

Finally, we obtain spatial locations of where each scene change took place, so that we can evaluate the correctness of change localization. Specifically, we obtain bounding boxes for all the objects affected by a change, either in one image or in both (“before”/“after”), depending on the change type. The overall dataset statistics are shown in Table 1, and some examples of distractors vs. scene changes with their descriptions and bounding boxes are shown in Figure 3.

5 Experiments

In this section, we evaluate our DUDA model on the Change Captioning task against a number of baselines. First, we present quantitative results for the ablations and discuss their implications on our new CLEVR-Change Dataset. We also provide qualitative analysis of the generated captions, examine attention weights predicted by DUDA, and assess its robustness to viewpoint shift. Finally, we test the general effectiveness of our approach on the Spot-the-Diff [25], a realistic dataset with no distractors.

5.1 Experimental setup

Here, we detail our experimental setup in terms of implementation and evaluation schemes.

Implementation Details. Similar to [23, 27, 49], we use ResNet-101 [18] pretrained on ImageNet [11] to extract visual features from the images. We use features from the convolutional layer right before the global average pooling, obtaining features with dimensionality of $1024$ x $14$ x $14$. The LSTMs used in the Dynamic Speaker have a hidden state dimension of $512$. The word embedding layer is trained from scratch and each word is represented by a $300$-dim vector. We train our model for $40$ epochs using the Adam Optimizer [32] with a learning rate of $0.001$ and a batch size of $128$. The hyperparameters for the regularization terms are $\lambda_{L_{1}}=2.5e^{-03}$ and $\lambda_{ent}=0.0001$. Our model is implemented using PyTorch [46], and our code and dataset will be made publicly available.

Evaluation. To evaluate change captioning, we rely on BLEU-4 [44], METEOR [7], CIDEr [57], and SPICE [2] metrics which measure overall sentence fluency and similarity to ground-truth. For change localization, we rely on the Pointing Game evaluation [64]. We use bilinear interpolation to upsample the attention maps to the original image size, and check whether the point with the highest activation “falls” in the ground-truth bounding box.

5.2 Results on CLEVR-Change Dataset

Pixel vs. representation difference [25] utilize pixel difference information when generating change captions under the assumption that the images are aligned. To obtain insights into whether a similar approach can still be effective when a camera position changes, we introduce the following baselines: Capt-Pix-Diff is a model that directly utilizes pixel-wise difference in the RGB space between “before” and “after” images. We use pyramid reduce downsampling on the RGB difference to match the spatial resolution of the ResNet features. The downsampled tensor is concatenated with the ResNet features on which we apply a series of convolutions and max-pooling. The resulting feature, which combines “before”, “after”, and “pixel difference” information, is input to an LSTM for sentence generation. On the other hand, Capt-Rep-Diff relies on representation difference (i.e. $X_{\text{diff}}$) instead of pixel difference. A series of convolutions and max-pooling are applied to the representation difference and then input to an LSTM decoder. As shown in the first two rows of Table 2, Capt-Rep-Diff outperforms Capt-Pix-Diff in all settings, indicating that representation difference is more informative than pixel difference when comparing scenes under viewpoint shift. We believe this is because visual representations are more semantic by nature, and each activation in the representation has a larger receptive field that allows the difference operation to be less sensitive to the camera shift. As a result, we deliberately use representation difference in all subsequent experiments.

Role of localization To understand the importance of localization for change description, we compare models with and without spatial attention mechanism. Capt-Att is an extension of Capt-Rep-Diff which learns a single spatial attention which is applied to both “after” and “before” features. The attended features are subtracted and input to an LSTM decoder. We observe that Capt-Att significantly outperforms Capt-Rep-Diff, indicating that the capacity to explicitly localize the change has a high impact on the caption quality in general. Note, that the improvements are more pronounced for scene changes (i.e. C, T, A, D, M) than for distractors (DI), see  Table 3, which is intuitive since the localization ability matters most when there actually is a scene change.

Single attention vs. dual attention Using multiple spatial attentions has been shown to be useful for many purposes including multi-step/hierarchical reasoning [61, 42, 37] and model interpretability [31, 45]. To this extent, we train a model that deploys Dual Attention and evaluate its application to Change Captioning in the presence of distractors. Capt-Dual-Att is an extension of Capt-Att which learns two separate spatial attentions for the pair of images. Compared to Capt-Att, Capt-Dual-Att achieves higher performance overall according to Table 2. However, the improvements are limited in the sense that the margin of increase is small and not all change types improve (see Table 3). A similar issue can be seen in the Pointing Game results in Table 4. We speculate that without a proper inductive bias, it is difficult to learn how to utilize two spatial attentions effectively; a more complex speaker that enforces the usage of multiple visual signals might be required.

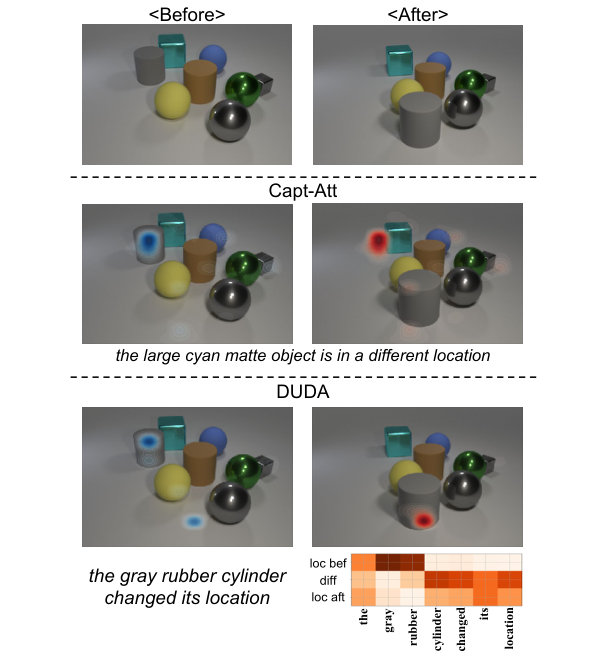

Dual + dynamic attention Our final model with the Dynamic Speaker outperforms all previously discussed baselines not only in captioning (Table 2, Table 3) but also in localization (Table 4), supporting our intuition above. In Figure 4, we compare results from Capt-Att and DUDA. We observe that a single spatial attention used in Capt-Att cannot locate and associate the moved object in “before” and “after” images, thus confusing the properties of the target object (i.e. large cyan matte). On the other hand, our model is able to locate and match the target object in both scenes via Dual Attention, and discover that the object has moved. Moreover, it can be seen that our Dynamic Speaker predicts the attention weights that reveal some reasoning capacity of our model, where it first focuses on the “before” when addressing the changed object and gradually shifts attention to “diff” and “after” when mentioning the change.

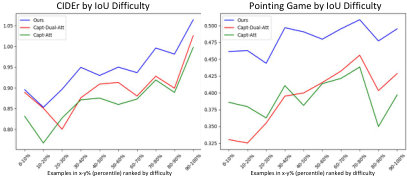

Measuring robustness to viewpoint shift

The experiments above demonstrate the general effectiveness of our model in tackling the Change Captioning task. We now further validate the robustness of our model to viewpoint shift. To measure the amount of viewpoint shift for a pair of images, we use the following heuristics: for each object in the scene, excluding the changed object, we compute the IoU of the object’s bounding boxes across the image pair. We assume the more the camera changes its position, the less the bounding boxes will overlap. We compute the mean of these IoUs and sort the test examples based on this (lower IoU means higher difficulty). The performance breakdown in terms of change captioning and localization is shown in Figure 5. Our model outperforms the baselines on both tasks, including the more difficult samples (to the left). We see that both captioning and localization performance degrades for the baselines and our model (although less so) as viewpoint shift increases, indicating that it is an important challenge to be addressed on our dataset.

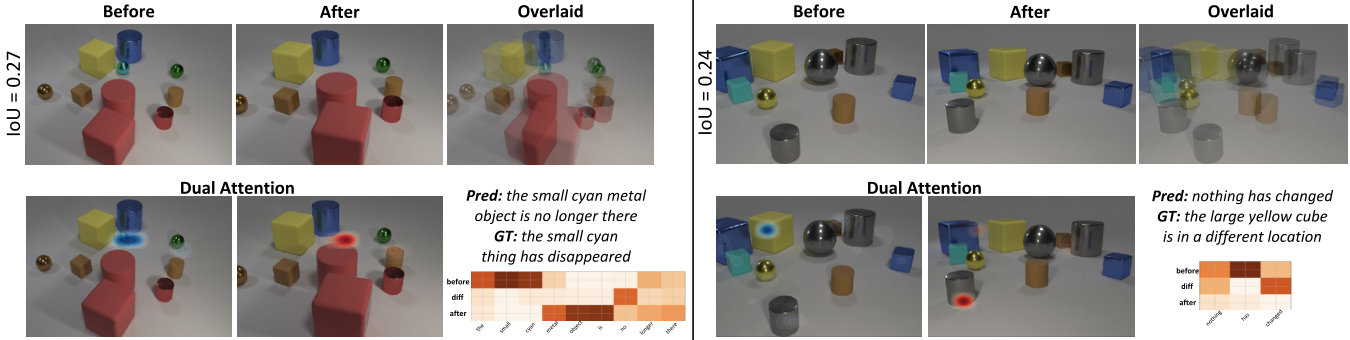

Figure 6 illustrates two examples with large viewpoint changes, as measured by IoU. The overlaid images show that the scale and location of the objects may change significantly. The left example is a success, where DUDA is able to tell that the object has disappeared. Interestingly, in this case, it rarely attends to the “difference” feature. The right example illustrates a failure, where DUDA predicts that no change has occured, as a viewpoint shift makes it difficult to relate objects between the two scenes. Overall, we find that most often the semantic changes are confused with the distractors (no change) rather than among themselves, while MOVE suffers from such confusion the most.

5.3 Results on Spot-the-Diff Dataset

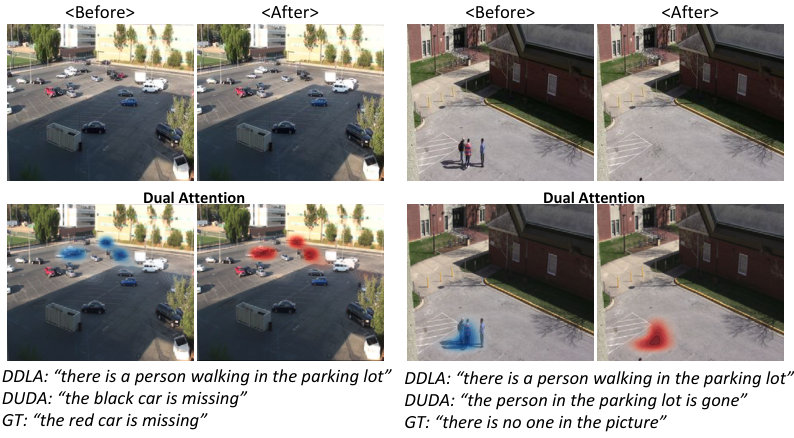

We also evaluate our DUDA model on the recent Spot-the-Diff dataset [25] with real images and human-provided descriptions. This dataset features mostly well aligned image pairs from surveillance cameras, with one or more changes between the images (no distractors). We evaluate our model in a single change setting, i.e. we generate a single change description, and use all the available human descriptions as references, as suggested by [25].

We present our results in Table 5. The DDLA approach of [25] relies on precomputed spatial clusters, obtained using pixel-wise difference between two images, assuming that the images are aligned. For a fair comparison we rely on the same information: we extract visual features from both “before” and “after” images using the spatial clusters. We apply Dual Attention over the extracted features to learn which clusters should be relayed to the Dynamic Speaker. The rest of our approach is unchanged. As can be seen from Table 5, DUDA matches or outperforms DDLA on most metrics. We present qualitative comparison in Figure 7. As can be seen from the examples, our DUDA model can attend to the right cluster and describe changes corresponding to the localized cluster.

Despite the usage of natural images and human descriptions, the Spot-the-Diff dataset is not the definitive test for robust change captioning as it does not consider the presence of distractors. That is, one does not have to establish whether the change occurred as there is always a change between each pair of images, and the images are mostly well-aligned. We advocate for a more practical setting of robust change captioning, where determining whether the change is by itself relevant is an important part of the problem.

6 Conclusion

In this work, we address robust Change Captioning in the setting that includes distractors. We propose the novel Dual Dynamic Attention Model to jointly localize and describe changes between images. Our dynamic attention scheme is superior to the baselines and its visualization provides an interpretable view on the change caption generation mechanism. Our model is robust to distractors in the sense that it can distinguish relevant scene changes from illumination/viewpoint changes. Our CLEVR-Change Dataset is a new benchmark, where many challenges need to be addressed, e.g. establishing correspondences between the objects in the presence of viewpoint shift, resolving ambiguities and correctly referring to objects in complex scenes, and localizing the changes in the scene amidst viewpoint shifts. Our findings inform us of important challenges in domains like street scenes, e.g. “linking” the moved objects in before/after images, as also noted in [25]. Our results on Spot-the-Diff are complementary to those we have obtained on the larger CLEVR-Change dataset. While Spot-the-Diff is based on real images, there are minimal or no distractor cases in the dataset. This suggests that valuable future work will be to collect real-image datasets with images undergoing significant semantic and distractor changes.

Acknowledgements

This work was in part supported by the US DoD and the Berkeley Artificial Intelligence Research (BAIR) Lab.

Supplementary Material

In this supplementary material, we provide an analysis of the performance of our Dual Dynamic Attention Model (DUDA) in terms of what change types get confused the most. We also provide additional details on how CLEVR-Change Dataset was collected, especially how change descriptions were generated, and how the data distribution in terms of difficulty measured by IoU looks like given the introduced random jitters in camera position.

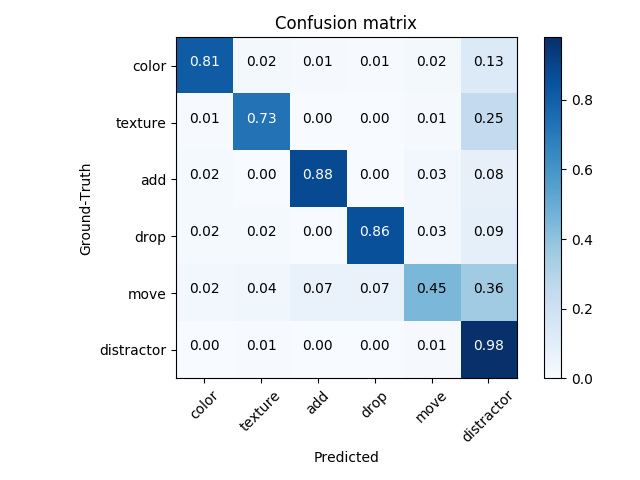

Appendix A Confusion Matrix of Change Types

In order to analyze the behavior of our method on different change types, we parse the sentences generated by our model and categorize the type of change that is detected based on the parsed results. We compare that to the ground-truth change type information, and plot the confusion matrix in Figure 8. As we have already shown (Table 3 in the main paper), the most challenging change types are TEXTURE ($73\%$ accuracy) and MOVE ($45\%$ accuracy), which are most often confused with the DISTRACTOR changes. It is interesting to note that for all change types most of the confusion comes from misidentifying scene changes as DISTRACTORs, and that such confusion is the most severe for MOVE. This is intuitive in the sense that in order to correctly distinguish MOVE from DISTRACTOR, the model has to spatially relate every other object in the scene whereas for other scene change types the changes are relatively salient and do not necessarily require understanding the spatial relationships between the objects. Moreover, MOVE is also confused with ADD and DROP, as it may be difficult to correctly establish a correspondence between all the objects in “before” and “after” scenes. Overall, the substantial amount of confusion with the DISTRACTORs demonstrates the difficulty of our problem statement, as opposed to always assuming that a scene change is present.

Appendix B Additional Details on CLEVR-Change Dataset

In this section, we provide details on how the captions are generated in our CLEVR-Change Dataset and how the random camera position shifts manifest themselves in the dataset distribution. Having access to all the object information in a CLEVR-rendered scene, we can easily generate multiple different sentences describing a particular change by using templates listed in Table 6. For instance once the images are generated with the desired change (e.g. COLOR), we identify the changed object in the before or after images, and extract its locations and attributes which are used to generate a referring expression (e.g. the red metallic cube that is to the left of a big sphere). This phrase is then combined with a randomly selected template followed by a description of how it has changed (i.e. … changed to yellow).

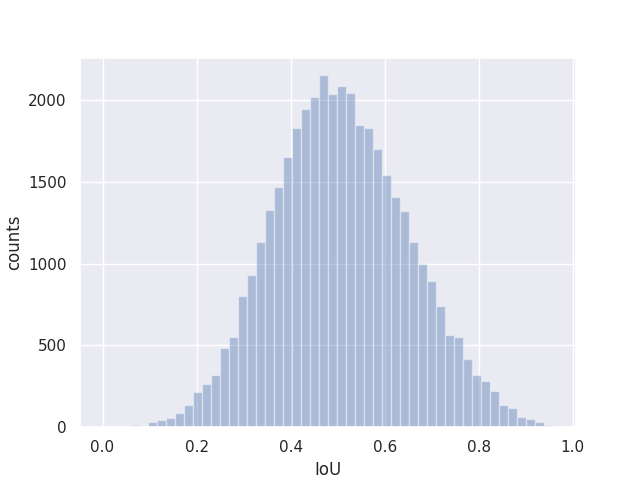

In section 4 of the main paper, it is described that different viewpoint and illumination are introduced via a random shift in camera ($x$, $y$, $z$) location ranging between -2.0 to 2.0 in coordinate points. As a way to understand how this translates to an actual difference between before and after images, we plot a histogram of the entire dataset based on the IoU heuristics explained in the main paper. As can be seen from Figure 10, the random camera jitters form a reasonable distribution of data points in terms of viewpoint shift difficulty. To better illustrate what the IoU means, we provide relatively difficult (i.e. low IoU of $0.17$ - $0.18$) and easy (i.e. high IoU of $0.81$ - $0.92$) examples in Figure 9. We notice that depending on the viewpoint shift, the task can become significantly difficult even for a simple scene. For instance in the top-left example of Figure 9, where there are only three objects, we see that it becomes hard to localize the changed object as it escapes the scene due to significant camera movement. On the other hand, for a more complex scene like the bottom-left example, localizing change is easier with a small viewpoint shift.
