High entropy oxides: An emerging prospect for magnetic rare earth - transition metal perovskites

TL;DR

This paper explores the magnetic properties of high entropy rare earth-transition metal perovskites, revealing predominant antiferromagnetism and potential for discovering novel magnetic phenomena in these complex, disordered materials.

Contribution

It provides the first investigation of magnetic behavior in high entropy rare earth-transition metal perovskites, combining experimental magnetometry and spectroscopy to understand their magnetic interactions.

Findings

Predominant antiferromagnetic behavior observed

Small ferromagnetic contributions possibly from clusters

Potential for discovering new magnetic phenomena

Abstract

It has been shown that oxide ceramics containing multiple transition and/or rare-earth elements in equimolar ratios have a strong tendency to crystallize in simple single phase structures, stabilized by the high configurational entropy. In analogy to the metallic alloy systems, these oxides are denoted high entropy oxides (HEOs). The HEO concept allows to access hitherto uncharted areas in the multi-element phase diagram. Among the already realized structures there is the highly complex class of rare earth - transition element perovskites. This fascinating class of materials generated by applying the innovative concept of high entropy stabilization provides a new and manyfold research space with promise of discoveries of unprecedented properties and phenomena. The present study provides a first investigation of the magnetic properties of selected compounds of this novel class of materials. Comprehensive studies by DC and AC magnetometry are combined with element specific spectroscopy in order to understand the interplay between magnetic exchange and the high degree of chemical disorder in the systems. We observe a predominant antiferromagnetic behavior in the single phase materials, combined with a small ferromagnetic contribution possibly stemming from small ferromagnetic clusters or configurations in the antiferromagnetic matrix. In the long term perspective it is proposed to screen the properties of this family of compounds with high throughput methods, including combined experimental and theoretical approaches.

Figures

Full text

I Introduction

High entropy oxides (HEOs) represent a new class of oxide systems that have already attracted significant research interest since their recent discovery 1. The key point of the high entropy stabilization concept is the combination of a large number of cations (usually five or more) in solid solution in equiatomic proportions, which often results in the formation of a single phase structure, overcoming the usual enthalpy driven phase separation usually encountered in heavily doped systems2. In this way, single phase compounds with compositions in the center of a complex phase diagram can be produced, which are seldom studied. Such compounds, stabilized by configurational entropy, will be increasingly stable with increasing temperature. Several compositions and elemental combinations each resulting in different crystal structures, such as rocksalt, fluorite, spinels and perovskite, have been stabilized using the HEO concept1; 3; 4; 5; 6.

In many of the studied cases (such as rocksalt1; 7, flourite8 and perovskite type HEOs9) it is well understood that the large configurational entropy of the systems dominates the Gibbs free energy of formation and eventually compensates any positive enthalpic contributions. The configurational entropy of a system increases with the number of different elements distributed over the cation lattice site and it attains a maximum when all the constituent elements are present in equiatomic amounts1. Apart from the interesting structural ramifications, this distinct design concept may also allow for the fine adjustment of the functional properties. Some examples of already reported tailorable properties in the HEOs are high room temperature Li*+* conductivity10, catalytic properties11, colossal dielectric constants7, superior capacity retention capabilities12, narrow and adjustable band gaps3, to name a few. However, as the field of HEOs is at its early stage many of the material characteristics still wait to be investigated. One of such yet unexplored fields is the magnetism of HEOs, where so far only a single study exists. This study however focuses on the magnetic interaction of a rocksalt HEO with a magnetic layer in a thin film heterostructure, rather than on the intrinsic magnetic properties of the HEO compound 13.

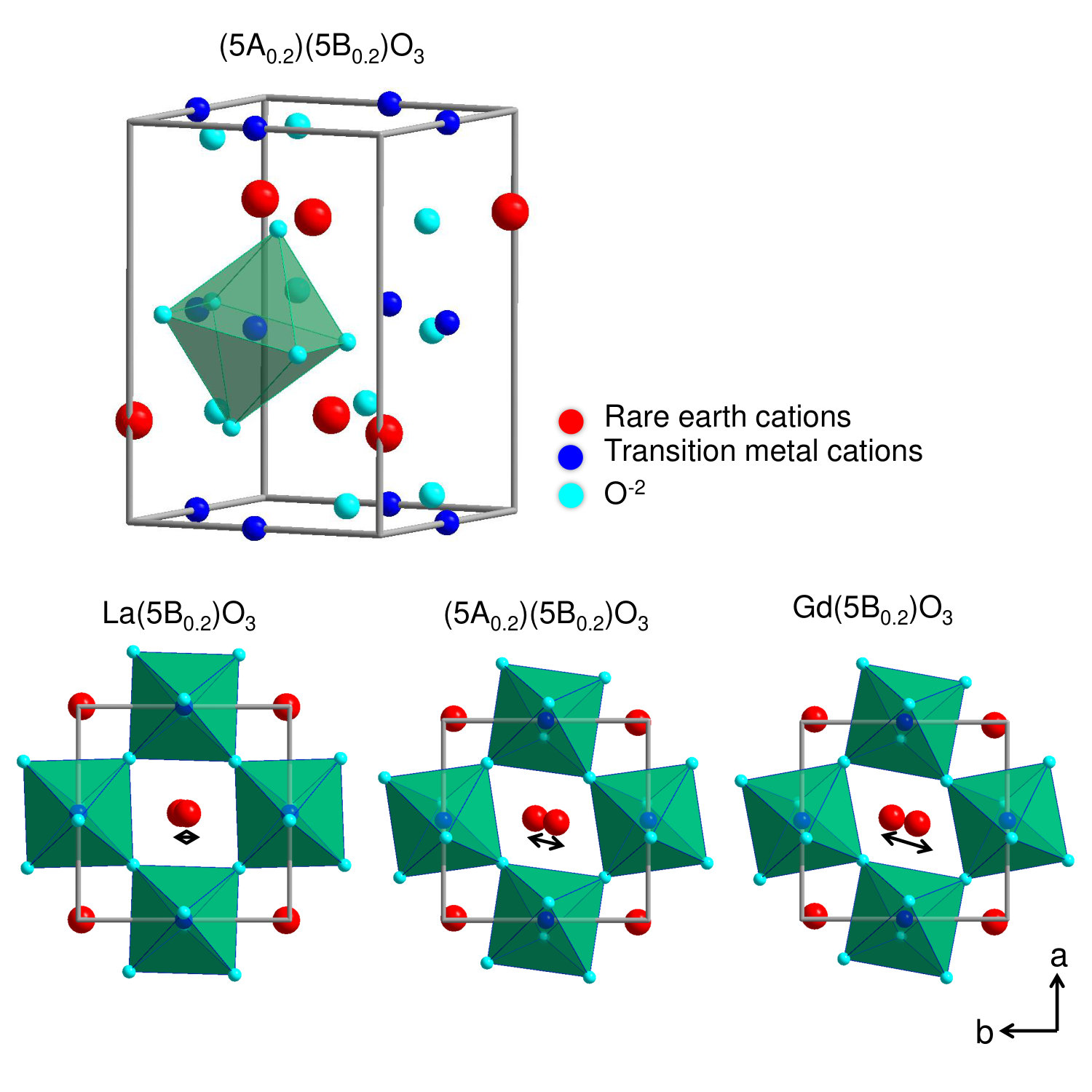

Comparing the different HEO parent oxides structures, one can see that perovskites, with the general formula ABO3, form one of the most complex and recognized class of oxide materials, see Fig.1 for illustration. Amongst perovskites, rare earth and transition metal based oxides have been by far the most extensively studied systems over the last few decades due to their unique properties, from both a fundamental as well as an application point of view. Here, A represents any number of different rare earth ions (RE), and B any number of different transition metal ions (TM). Mixing REs on the A site and/or TMs on the B site allows for adjustment of structural and therefore possibly also functional properties over a wide range. The rich choice of promising characteristics and complex physics found in the parent perovskite compounds, such as e.g., multiferroic effects14, catalytic activity15, electronic16, electrochemical and related transport properties17; 18, make them promising candidates for a broad range of engineering applications.

Many of the interesting properties in the perovskites in general are directly related to their crystal structure. Crystal structure stability in perovskites is largely governed by the Goldschmidt’s tolerance factor, which is a function of the constituents ionic radii19. Hence, tailoring the properties for desired applications often starts by altering the cationic radii, realized either by doping or substitution of specific cations. Fig. 1 showcases the different degree of octahedral tilting for three representative compounds with different tolerance factor.

However, doping or substitutional approaches very often have the limitation in a sense that only relatively small levels of doping can be achieved, due to either the presence of phase boundaries leading to a different structure with undesired properties or phase segregation according to the equilibrium thermodynamics20; 21.

In this study, the magnetic properties of RE - TM based high entropy perovskites are investigated. Magnetic properties of conventional RE - TM perovskites (ABO3) have been a major research interest for almost half a century22; 23. The interlink between their magnetic properties and crystal structure has been extremely important as any type of structural changes, such as lattice distortion or tilting of the BO6 octahedra (see Fig. 1), have often shown a decisive impact on material properties. In this case study the observed unique magnetic properties of the perovskite based high entropy oxides (PE-HEO) mainly originate from the presence of multinary TM cations, as they govern magnetic exchange at finite temperatures. A combination of careful magnetometry and Mössbauer spectroscopy experiments has been used to unravel their complex magnetic behavior, dominated by competing antiferromagnetic (AFM) and ferromagnetic (FM) interactions in the TM sublattice. Despite the large number of constituent ions the effect of cationic radii, as measured by changes in the Goldschmidt’s tolerance factor, on the magnetic ordering temperature of the compounds has also been observed.

II Experimental details

II.1 Synthesis and structural characterization

PE-HEOs were synthesized by using the nebulized spray pyrolysis (NSP) method. This is an aerosol based synthesis technique in which the decomposition of the precursor solution at elevated temperature leads to the formation of the desired phase 24. This phase can either be the final product, or in some cases an intermediate phase which is then given further heat treatments. In this study the aqueous precursor solutions are mixtures in the appropriate concentrations of the corresponding nitrate salts of the constituent cations. The temperature of the hot wall reactor was maintained at 1050 *∘*C during the synthesis. The as-synthesized powders were additionally heat treated at 1200 *∘*C for 2 hours in air, in order to achieve the final single PE-HEO phase. The detailed description of the synthesis procedure is reported elsewhere 9. Five of the systems investigated, have a single RE A-site cation and mixed (TM) B-site cations, namely,

• Gd(Co0.2Cr0.2Fe0.2Mn0.2Ni0.2)O3,
• La(Co0.2Cr0.2Fe0.2Mn0.2Ni0.2)O3,
• Nd(Co0.2Cr0.2Fe0.2Mn0.2Ni0.2)O3,
• Sm(Co0.2Cr0.2Fe0.2Mn0.2Ni0.2)O3,
• Y(Co0.2Cr0.2Fe0.2Mn0.2Ni0.2)O3.

In addition, a 10 equiatomic cationic system,

• (Gd0.2La0.2Nd0.2Sm0.2Y0.2)

(Co0.2Cr0.2Fe0.2Mn0.2Ni0.2)O3

which features also a mixed RE A-site was also studied. In the sections below, we will denote the mixed A-site (Gd0.2La0.2Nd0.2Sm0.2Y0.2) by (5A0.2) and use (5B0.2) for the mixed B-site (Co0.2Cr0.2Fe0.2Mn0.2Ni0.2).

Powder X-ray diffraction (XRD) patterns were recorded using a Bruker D8 diffractometer with Bragg-Brentano geometry using Cu-K$\alpha$ radiation with a Ni filter. Rietveld analysis of the XRD patterns, performed using TOPAS 5 refinement software, confirmed that 4 out of 6 systems studied, crystallize into a single phase, pure orthorhombic ($Pbnm$) structure, which includes the chemically complex decanary system9. Transmission electron microscopy studies evidence a homogeneous distribution of the multiple elements9. Two systems, Sm(5B0.2)O3 and Y(5B0.2)O3, show in addition small amounts of non-perovskite type secondary phases (1.7 wt.% Sm2O3 and 3.2 wt.% Y2O3, 2.1 wt.% NiO respectively). Both of these minority phases have no implications for the analysis of the magnetic properties presented in the following, as they either are paramagnetic in the entire temperature regime or have an AFM transition temperature above the temperature regime investigated here. Structural details of all these systems are tabulated in the Supplementary Information Table S1.

II.2 Magnetic and Mössbauer characterization

Magnetic characterization was performed using a Quantum Design MPMS3 Superconducting Quantum Interference Device (SQUID) vibrating sample magnetometer (VSM). After the sample mass was carefully determined the samples were mounted in the dedicated Quantum Design powder sample holders and subsequent magnetization measurements were done in VSM mode. Temperature dependent measurements were performed following a zero-field cooled (ZFC) - field cooled (FC) protocol: The sample was cooled in zero magnetic field down to 2 K. Then the external field $\upmu_{0}H$ was applied and the magnetization then measured during warming up to 400 K (ZFC branch). Subsequently, the magnetization was measured with the magnetic field applied from 400 K to 2 K (FC branch). Magnetic field dependent $M$($\upmu_{0}H$) measurements were also performed after cooling in zero magnetic field. In addition, some measurements were performed after deliberately cooling in a magnetic field denoted $\upmu_{0}H_{\mathrm{FC}}$, which is highlighted in the respective figures and text.

57Fe Mössbauer spectroscopy (MS) was carried out employing a 57Co:Rh source. Samples were measured in transmission geometry using a triangular sweep of the velocity scale. In-field measurements were realized with the magnetic field parallel to the $\gamma$ radiation. As it is conventionally done, all center shifts are given relative to $\alpha$-Fe at room temperature.

III Results and discussion

This section is divided into two parts: Section III.1 presents results of detailed DC and AC magnetometry measurements as well as Mössbauer measurements of the La(5B0.2)O3 compound. In this material, it is possible to study the physics of the magnetic exchange interaction in the B site sublattice independently of the RE lattice, as La3+ carries no magnetic moment. The magnetic exchange interactions in these oxide systems are generally governed by indirect interactions. The most common interaction present here is the superexchange interaction 25, which couples the spins of two neighboring TM ions via hybridization with the oxygen orbitals. This B-O-B coupling can be effectively AFM or FM, depending on the geometrical characteristics of the bond (90 or 180 ∘) and the electronic configuration of the two coupled TM ions as summarized in the Kannamori-Goodenough rules 26; 27.

Although AFM ordering dominates for most of the B1x+-O2--B2y+ couples, with $x,y$ being their respective oxidation states, there exist also combinations where a FM interaction prevails, such as e.g. Fe3+-O2--Cr3+ or Ni2+-O2--Mn4+ 27. The occurrence of the latter couple is for example observed in the ternary oxide LaNi1-xMnxO3 leading to FM long range order28 and can be present also in the HEO compounds as a local charge compensation mechanism. We consider the compounds to be fully oxidized and stochiometric, due to the high temperature annealing in air. Additionally, the occurrence of the double exchange mechanism, which is a delocalized kinetic exchange via the oxygen observed in multivalent manganites 29 leads to FM order. The La(5B0.2)O3 PE-HEO provides thus the possibility to study these competing exchange interactions in detail. Moreover La(5B0.2)O3 has a Goldschmidt tolerance factor (see section II.1) which is closest to 1. Thus it is the least distorted crystal lattice and so it makes a natural starting point for the compositional sample series discussed in the next section of the manuscript.

Section III.2 presents and discusses the results of magnetization measurements of the entire series A(Co0.2Cr0.2Fe0.2Mn0.2Ni0.2)O3 (A=Gd, La, Nd, Sm, Y, (5A0.2)) hence including the decenary system denoted (5A0.2)(5B0.2)O3 and puts the findings of Sec. III.1 in the context of the structural series.

III.1 La(Co0.2Cr0.2Fe0.2Mn0.2Ni0.2)O3

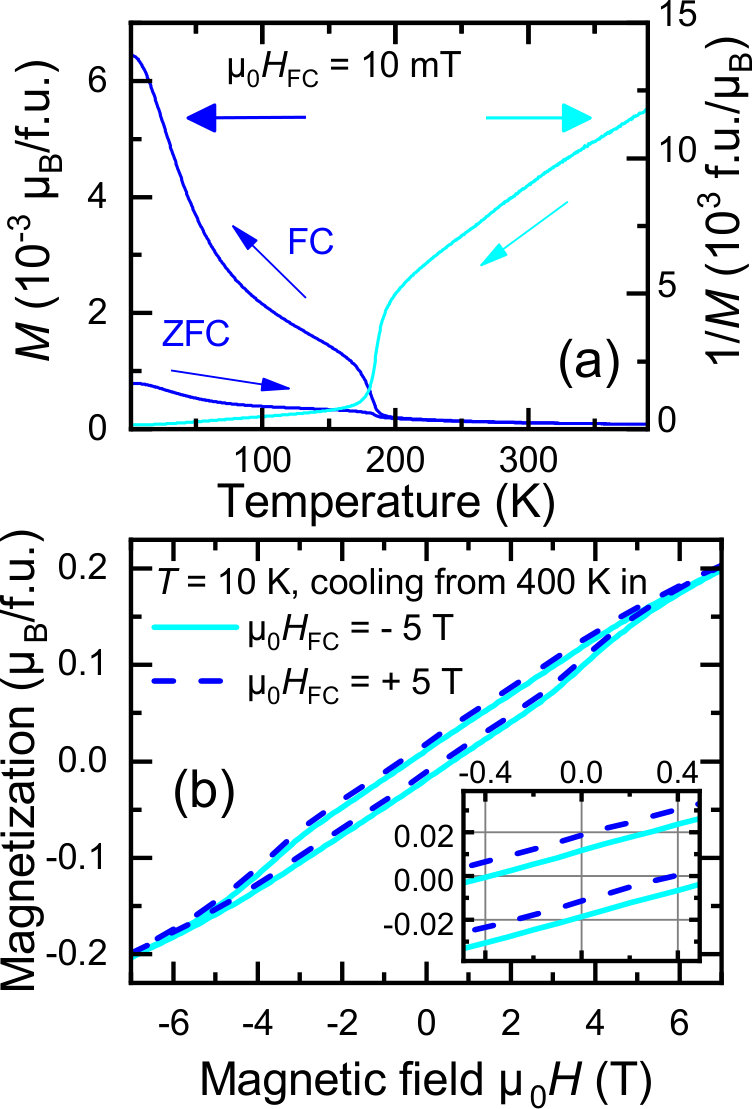

Fig. 2 presents (a) temperature dependent magnetization $M$($T$) (in $\upmu_{0}H=10$ mT) and its inverse as well as (b) magnetic field dependent measurements at 10 K. The $M(T)$ behavior provides clear evidence for a magnetic phase transition at $T_{\mathrm{N}}=185$ K, moreover the large differences between the ZFC and FC branches indicate the presence of large magnetic anisotropy. The inverse susceptibility also shows a clear magnetic transition and in addition a strong deviation from linear behavior at high temperatures above the transition. The latter is an indication of magnetic correlations existing even above the transition temperature prohibiting the extraction of the (average) effective paramagnetic moment $\mu_{\mathrm{eff}}$ from the linear part. The presence of these correlations is reasonable as the magnitude of the magnetic superexchange interactions of e.g., Fe-O-Fe23, Cr-O-Cr30; 31 or Fe-O-Cr32 couples is quite large.

Low temperature hysteresis measurements $M(\upmu_{0}H)$ after FC in $\upmu_{0}H_{\mathrm{FC}}$=$\pm$5 T (Fig. 2(b)) are nearly linear up to the highest attainable magnetic field of $\upmu_{0}H=7$ T and show no sign of saturation. However, the presence of a opening of the hysteresis indicates that some magnetic moments or a projection of the magnetic moment stays aligned at zero magnetic field (remnant magnetization). Interestingly, this opening of the hysteresis curve extends even up to high magnetic field, resulting in a considerably large coercive field $\upmu_{0}H_{\mathrm{C}}$=3.6 T of the ferromagnetic part of the curve at 10 K, which is again a sign of strong magnetic anisotropies present in the sample. In fact, measuring the samples at $T<10$ K results in so called minor loops, hence the accessible magnetic field is not sufficient to reverse the magnetization completely (see additional data in the supplementary material). This observation shows that the coercive field $\upmu_{0}H_{\mathrm{C}}$, which is already large at 10 K, is steeply increasing with further decreasing the temperature.

$M(\upmu_{0}H)$ curves measured after FC in $\pm$ 5 T, presented in Fig. 2(b), show an obvious field offset from the center seemingly in both horizontal and vertical directions. Analyzing the derivative of the entire curve (see supplementary material) shows that the FM part of the curve is not shifted along the field axis, as it would be expected for an exchange bias effect. However the vertical exchange bias (VEB) is real and amounts to a relative size of 25% with respect to the remnant magnetization.

The VEB is known to be a possible result of uncompensated spins in AFM materials 33, which align during FC giving a net magnetic moment, but which cannot be reoriented at low temperatures by the magnetic field due to their strong coupling to the AFM lattice. However in the PE-HEOs, we have additionally a precondition for competing FM and AFM exchange interactions, because e.g., the Fe-O-Cr or also mixed valence pairs are coupling ferromagnetically. Assuming a simple binomial distribution one obtains a probability of about 10% for finding more than e.g., three Cr3+ ions as nearest neighbors of one Fe3+ ion. These ensembles can act as small FM clusters in the AFM matrix, which get frozen and locked during FC. However the coupling to the surrounding AFM matrix results in a strong frustration and probably non-collinear arrangement of these magnetic moments at low temperatures. Moreover the exchange coupling with the AFM matrix also explains the extraordinarily large coercive fields of the FM component at low temperatures (see supplementary materials, opening of the hysteresis up to nearly 7 T).

The VEB effect has been further studied as function of temperature from which the sample was cooled in the magnetic field, here denoted $T_{\mathrm{FC}}$. The VEB is largest when the magnetic field is applied above the magnetic transition, reaching a relative value of 25%. Yet when the field is applied below the transition temperature one expect that the effect is directly vanishing, however what happens instead is, that the value of EB reduces gradually down to 8% when field cooling from 15 K to 10 K only.

This unusual behavior reflects the fact that the strength and sign of the magnetic exchange interaction varies drastically between the parent compounds. E.g. in LaFeO3, $T_{\mathrm{N}}$ is 740 K 23; LaCrO3 is 290 K 30; 31. In LaMnO3, antiferromagnetically coupled FM planes order below 100 K 34, while LaNiO3 and LaCoO3 are paramagnetic down to lowest temperatures 35; 36. Therefore the strength of the magnetic exchange and with that the magnetic correlations can be locally different, depending on the local elemental composition. This would tentatively explain a distribution of magnetic transition temperatures on a local scale.

The latter argument on mixed ionic bonds, e.g. magnetic exchange interactions also sheds some light on the underlying mechanism leading to the VEB behavior. These competing magnetic exchange interactions will necessarily create magnetic frustration on a very local scale. But in the present case, judging from the $M$($\upmu_{0}H$) curves, AFM coupling still prevails. To support this conclusion, the magnetic transition was investigated with AC SQUID magnetometry (see Fig. 3 and the Supplementary material). Such a study helps to distinguish between AFM, FM, ferrimagnetic and a possible spin-glass-like frustrated configuration by comparing the frequency dependent magnetic response of the material. This investigation yields no significant effect of either the driving frequency or the amplitude of the oscillating field, which thus excludes(see supporting information) (i) a magnetic spin glass state as well as (ii) a purely ferrimagnetic state. Instead, the featureless appearance of $m^{\prime\prime}$ across the transition points towards a predominant AFM coupling 37. This observation is not in contradiction to the postulated model of small FM clusters embedded in the matrix as they are a minor component and exchange coupled to the AFM matrix.

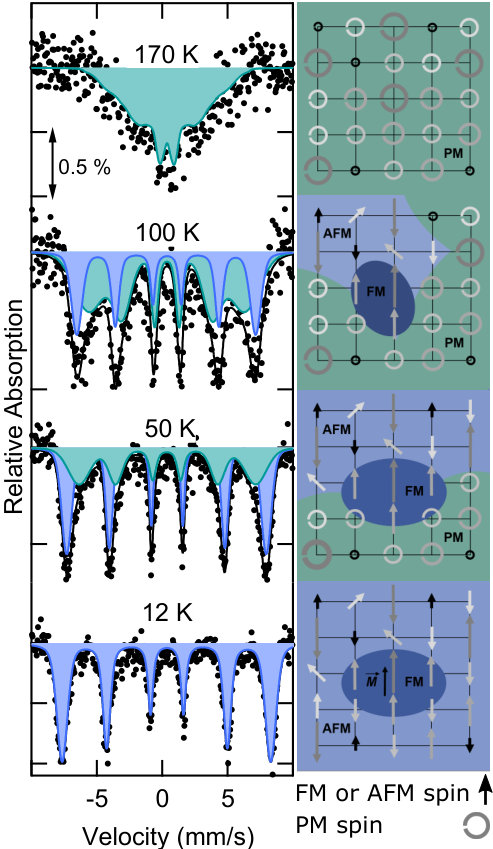

The magnetometry presented above already provides valuable insights into the magnetic properties of PE-HEOs. However, a local element-specific view, as it is possible with 57Fe Mössbauer spectroscopy, will help to underpin the above considerations. Spectra were measured from ambient temperature across the magnetic transition down to 12 K and selected measurements are shown in Fig. 4. At room temperature a quadrupole doublet is observed typical for octahedrally coordinated Fe3+ (not shown), while at 12 K a magnetic splitting is observed with an average hyperfine field $B_{\mathrm{HF}}$ of 49 T. The considerable value of the average $B_{\mathrm{HF}}$ provides evidence for a large local magnetic moment on the order of several $\upmu_{B}$, which is typical of Fe3+. 57Fe Mössbauer spectroscopy differs from magnetization in that the measured hyperfine field $B_{\mathrm{HF}}$ is independent of direction: the moment orientation with respect to the gamma ray direction only enters into the relative line intensities and not the line separation.

The broadening of the absorption lines can be well fitted with a Gaussian distribution with a width of 2 T, representing the chemical disorder around the Fe sites. However the broadening is small compared to other (only) ternary compounds in which Fe has been substituted by e.g. Co, Mn, and/or Cr 38; 39; 40, which show a broad distribution of hyperfine parameters or even separate individual environments. The small broadening clearly shows that the local environment of Fe is surprisingly well-defined, despite the disordered nature of the material. This comparison with ternary compounds directly shows that the HEO approach allows for the stabilization of single phase materials in the center of complex multi-element phase diagrams, which are otherwise not accessible.

Mössbauer spectra measured in a magnetic field of 5 T parallel to the $\gamma$ beam at 4.3 K (see spectrum in the Supplementary material), show a partial reorientation of the hyperfine fields towards a perpendicular arrangement with respect to the magnetic field (the area ratio of absorption lines is 3:3:1). Such a behavior is typical of an AFM or canted AFM system. In conclusion the observed small magnetization originates either from a canted AFM arrangement, locally uncompensated spins or small FM clusters or both.

A spectrum measured directly below the magnetic transition temperature at 170 K clearly shows dynamic relaxation of the magnetic moments on the time scale of the Mössbauer experiment (e.g. onset of paramagnetism PM) and is therefore not fitted. A detailed analysis of the spectra measured at 50 and 100 K leads to the conclusion that two subspectra are required to represent the data: One spectrum with large hyperfine splitting and well defined line width, i.e. a similar broadening then observed at 12 K. The second subspectrum shows large broadening and a collapsing magnetic hyperfine field111For simplicity we here represent this dynamic subcomponent with Gaussian broadened Lorentzian sextets. This latter component can be directly attributed to areas of the sample in which magnetic order is dynamic on the timescale of the Mössbauer measurement ($\tau\approx 10^{-9}$ s) at the respective temperature. Magnetic relaxation does not alter the subspectrum area, only its shape. While at 170 K the entire spectrum is dynamic, the spectral area ratio of the dynamic component decreases from 60 to 40% when cooling from 100 K to 50 K, while only one well defined sextet is sufficient to represent the data at 12 K.

Summarizing the results on the purely TM based magnetism in La(5B0.2)O3 one can state that below 185 K magnetic ordering sets in gradually. The complex magnetic state is also responsible for the peculiar occurrence of VEB in this structurally single phase system. In order to observe VEB it is necessary that small ferromagnetically coupling clusters start to order at higher temperatures and are locked into the gradually ordering AFM matrix. The proposed evolution of the magnetic structure is illustrated in the sketch in Fig. 4.

This intricate magnetic behavior makes the system interesting and unique. Further studies employing wide and small angle neutron scattering for identfying local fluctuations of the magnetization and the magnetic structure, X-ray magnetic dichroism for the element specific temperature evolution of the magnetic moments, and possibly also local nuclear spectroscopic techniques, such as nuclear forward scattering, may help in describing in full the magnetic structure of this complex system.

III.2 A(Co0.2Cr0.2Fe0.2Mn0.2Ni0.2)O3

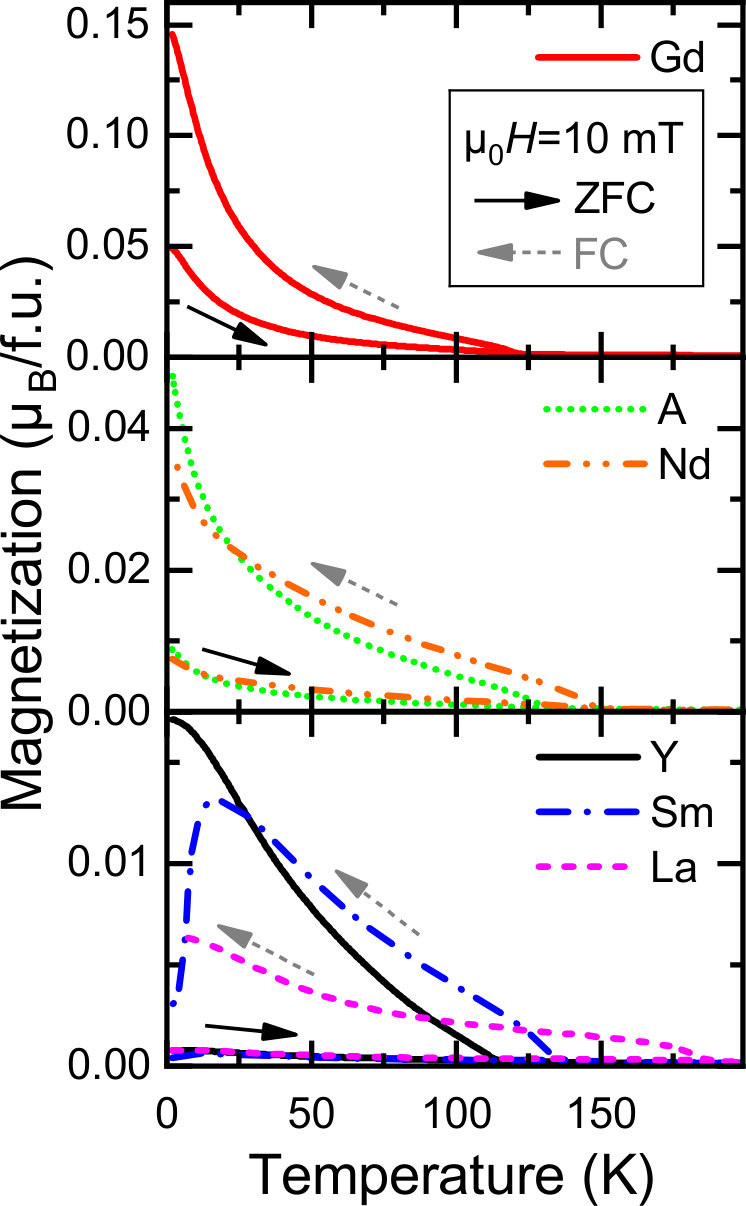

Samples A(Co0.2Cr0.2Fe0.2Mn0.2Ni0.2)O3 with A=Gd, La, Nd, Sm, Y or 5A0.2 have been characterized by magnetometry. Temperature dependent ZFC and FC curves are presented in Fig. 5. These have been grouped according to their magnitude. The magnetic transition temperatures (here denoted as Néel temperatures $T_{\mathrm{N}}$) are plotted as a function of the Goldschmidt tolerance factor in Fig. 6.

All the $M$($T$) curves clearly indicate magnetic ordering transitions, which are in the temperature range from 110 to 180 K. All samples, with exception of the Sm compound, show a continuous increase in $M$($T$) with decreasing temperature. In the compounds with magnetic REs ions (Gd, Nd, 5A0.2), their large magnetic moment becomes visible at low temperatures. The Sm(5B0.2)O3 compound however, shows a decrease of the magnetization towards low temperatures, leading nearly to a magnetization reversal. A similar behavior has also been observed in SmFeO3 42 and has been attributed to long-range ordering of Sm3+ spins, which couple antiferromagnetically to the canted magnetic moment of the Fe3+ ion. A drop in the magnetization is also observed in orthochromites at low temperatures, which in this case has been related to a spin-reorientation transition of the antiferromagnetically coupled Cr spins 43. What exactly is happening in case of the Sm(5B0.2)O3 compound is not straightforwardly deducible from general principles. In order to get a more detailed physical picture, the spin structures need to be fully resolved and element specific magnetic moments deduced.

What can also be noticed when comparing the two compounds with no magnetic moment on the RE site, namely, Y and La, is that the difference between FC and ZFC is much larger for the Y compound, also the magnetization reached after FC is a factor of three times larger. This is again an interesting finding as it illustrates the importance of the structural features for the magnetic properties, as the RE magnetism plays no role. The first observation can be interpreted as an indication of larger magnetic anisotropy in the structurally more distorted Y compound, which might be a reasonable explanation since locally the TM octahedra are strongly anisotropic themselves. This might in turns result in a locally large anisotropy. The underlying reason for the second observation remains unclear as it is directly linked to the open question about the origin of the observed net magnetization, whether stemming from a frustrated system, locally uncompensated ferrimagnetic spins or small ferromagnetic clusters.

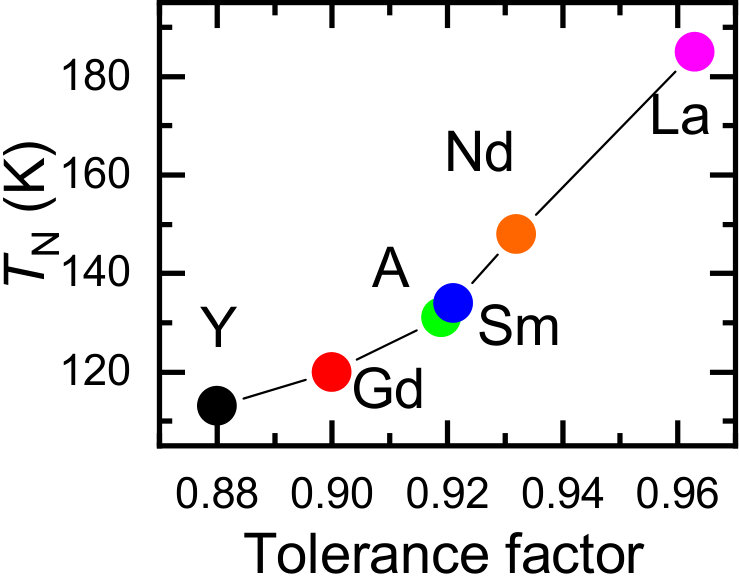

An interesting finding is that the magnetic transition temperatures for the six compounds are directly correlated to their Goldschmidts tolerance factor (see Fig. 6). This factor is a measure of the distortion of the crystal lattice for different RE ions and is strongly related to the B-O-B bond angle, decreasing with decreasing tolerance factor. A direct correlation of magnetic transition temperatures to structural and electronic characteristics has also been found in the RE-orthoferrites 44; 45, RE-orthochromites 46 and RE-orthomanganites 47. However a simple geometric relation to the bond angles is only found in the ferrites while in the chromites and maganites also other orbital overlap integrals need to be considered due to the different electron configuration of the cations46. Thus it is interesting that also in the chemically disordered lattice of the high entropy oxides, in which ions with different electronic configuration magnetically interact, such a continuous structural dependency is observed.

IV Conclusion

The first comprehensive study on the magnetic properties of RE and TM based perovskite type high entropy oxides is presented. Compounds with intermixed B-site (five TM elements) and single element A-sites (RE elements) as well as a compound with five different RE elements on the A-sites were investigated (decenary compound). It was found that the magnetic properties of these novel compounds 9 can only be explained by the presence of competing magnetic exchange interactions within the TM cation sublattice. Detailed investigations by magnetometry and element specific Mössbauer spectroscopy evidence a complex magnetic state, which is mainly dominated by AF interactions. However a large degree of magnetic frustration is found due to the high degree of disorder and competing FM and AF interactions. It is proposed that the sign of the magnetic exchange interactions locally alternates, leading to small FM clusters within the predominantly AF matrix. This nanoscale magnetic feature may be responsible for the vertical exchange bias of about 25% of the remnant magnetization. Considering the chemical disorder, we find it surprising that the magnetic ordering temperature of the compounds is directly controlled by the size of the RE ion (Goldschmidt tolerance factor). This correlation can be utilized to provide a method for fine adjusting of the magnetic transition temperatures in these compounds.

The concept of high entropy multi-element oxides allows for stabilization of compounds and structures beyond the doping regime, not accessible otherwise and which can feature unprecedented novel properties. It is anticipated that also other physical properties, such as dielectric or magneto-transport properties will be tailored with great freedom. Understanding the underlying mechanisms of the properties of these multi-element materials will need joint efforts of experimental and theoretical scientists. The vast multidimensional research space will require the use of experimental and theoretical high throughput methods, such as adapted combinatoric synthesis methods 48; 49 and high throughput ab-initio calculations employing the appropriate choice of descriptors 50 in order to identify promising candidates for applications. Many other outstanding physical properties are expected considering that the class of parent compounds is known for their spectacular properties, among them ferroelectricity and giant magnetocapacitance 51, multiferroic order 14, colossal magneto resistance 52 or magnetocaloric 53 properties.

Acknowledgements.

We acknowledge funding by financial support from the Helmholtz Association and the Deutsche Forschungsgemeinschaft (DFG) project HA 1344/43-1 and WE 2623/14-1. We acknowledge discussion with O. Clemens (TU Darmstadt).
