Fair Algorithms for Clustering

TL;DR

This paper introduces a flexible, fair clustering algorithm that handles multiple protected groups, various norms, and overlapping group memberships, improving fairness without significantly sacrificing clustering quality.

Contribution

It generalizes previous work by allowing user-defined fairness parameters, multiple group memberships, and arbitrary -norm objectives, with an efficient transformation of solutions.

Findings

Algorithm performs better in practice than theoretical guarantees.

Handles overlapping protected groups effectively.

Works across different clustering objectives like k-means and k-median.

Abstract

We study the problem of finding low-cost Fair Clusterings in data where each data point may belong to many protected groups. Our work significantly generalizes the seminal work of Chierichetti et.al. (NIPS 2017) as follows. - We allow the user to specify the parameters that define fair representation. More precisely, these parameters define the maximum over- and minimum under-representation of any group in any cluster. - Our clustering algorithm works on any $\ell_p$-norm objective (e.g. $k$-means, $k$-median, and $k$-center). Indeed, our algorithm transforms any vanilla clustering solution into a fair one incurring only a slight loss in quality. - Our algorithm also allows individuals to lie in multiple protected groups. In other words, we do not need the protected groups to partition the data and we can maintain fairness across different groups simultaneously. Our experiments show that on established data sets, our algorithm performs much better in practice than what our theoretical results suggest.

Figures

Tables

Table 1. Table 1 : For each dataset, the coordinates are the numeric attributes used to determined the position of each record in the Euclidean space. The sensitive attributes determines protected groups.

Dataset	Coordinates	Sensitive attributes	Protected groups
bank	age, balance, duration	marital	married, single, divorced
		default	yes, no
census	age, education-num,	sex	female, male
	final-weight, capital-gain,	race	Amer-ind, asian-pac-isl,
	hours-per-week		black, other, white
creditcard	age, bill-amt 1 — 6,	marriage	married, single, other, null
	limit-bal, pay-amt 1 — 6	education	7 groups
census1990	dAncstry1, dAncstry2, iAvail,	dAge	$8$ groups
	iCitizen, iClass, dDepart, iFertil,	iSex	female, male
	iDisabl1, iDisabl2, iEnglish,
	iFeb55, dHispanic, dHour89

Table 2. Table 2 : The maximum additive violation across a range of δ 𝛿 \delta of our algorithm compared to vanilla k 𝑘 k -means. For each δ 𝛿 \delta , we take maximum over k 𝑘 k , for k ∈ [ 2 , 10 ] 𝑘 2 10 k\in[2,10] on all datasets.

$\delta$	0.01	0.05	0.1	0.2	0.3	0.4	0.5	Vanilla ($\delta =0.2$)
bank	1.45	1.17	1.39	1.54	1.19	1.15	1.03	21.99
census	1.44	1.53	1.89	1.08	1.18	0.97	1.03	773.19
creditcard	3.02	2.32	2.11	2.29	2.03	1.63	1.03	192.01

Table 3. Table 3 : Comparison of our clustering cost with [ 12 ] and [ 25 ] for k 𝑘 k -median ( k = 20 𝑘 20 k=20 ).

Dataset	Ours	Backurs et al. [12]	Chierichetti et al. [25]
bank	$2.43\times {\mathrm{𝟏𝟎}}^{\mathrm{𝟓}}$	$6.03\times {10}^5$	$5.55\times {10}^5$
census	$4.24\times {\mathrm{𝟏𝟎}}^{\mathrm{𝟔}}$	$24.1\times {10}^6$	$36.5\times {10}^6$

Table 4. Table 4 : Runtime of our algorithm on subsampled data from census1990   for k 𝑘 k -means ( k = 3 𝑘 3 k=3 ).

Number of sampled points	10K	50K	100K	200K	300K	400K	500K
Time (sec)	4.04	33.35	91.15	248.11	714.73	1202.89	1776.51

Equations

$$\displaystyle\Big{|}\{v\in C_{i}:\phi(v)=f\}\Big{|}$$

$$\beta_{i}\cdot\Big{|}\{v\in C:\phi(v)=f\}\Big{|}-\lambda\leq\Big{|}\{v\in C_{i}:\phi(v)=f\}\Big{|}\leq\alpha_{i}\cdot\Big{|}\{v\in C:\phi(v)=f\}\Big{|}+\lambda$$

$$d(v,f^{\prime })=d(v,\mathsf{nrst}(f^{\ast }))\le d(v,f^{\ast })+d(f^{\ast },\mathsf{nrst}(f^{\ast }))\le d(v,f^{\ast })+d(f^{\ast },f)\le 2d(v,f^{\ast })+d(v,f)$$

$${\mathcal{L}}_p(S;{\varphi }^{\prime })={\mathcal{L}}_p(\overrightarrow{d^{\prime }})\le 2{\mathcal{L}}_p(\vec{d})+{\mathcal{L}}_p(\overrightarrow{d^{\ast }})=2{\mathcal{L}}_p(S^{\ast };{\varphi }^{\ast })+{\mathcal{L}}_p(S;\varphi )$$

$$\mathsf{LP}:=\min$$

$${\beta }_i\sum _{v\in C}{x}_{v,f}\le$$

$$\sum _{f\in S}{x}_{v,f}=1$$

$${\overline{T}}_{f,i}\le \lceil {\alpha }_i{T}_f\rceil +2\Delta +1\le {\alpha }_i\lfloor T_f\rfloor +2\Delta +2\le {\alpha }_i({\overline{T}}_f+2\Delta +1)+2\Delta +2\le {\alpha }_i{\overline{T}}_f+(4\Delta +3),$$

$$LP2:=\min$$

$$\lfloor T_f\rfloor \le \sum _{v\in C}{x}_{v,f}\le \lceil T_f\rceil$$

$$\lfloor T_{f,i}\rfloor \le \sum _{v\in C_i}{x}_{v,f}\le \lceil T_{f,i}\rceil$$

$$\sum _{f\in S}{x}_{v,f}=1$$

$$LP3:=\min$$

$$\sum _{f\in S}{x}_{v,f}=1$$

$$x_{v,f}\le y_f$$

$$\sum _{f\in S}{y}_f\le k$$

$$\sum _{v\in C_i}{x}_{v,f}\le {\alpha }_i\sum _{v\in C}{x}_{v,f}+\lambda$$

$$\sum _{v\in C_i}{x}_{v,f}\ge {\beta }_i\sum _{v\in C}{x}_{v,f}-\lambda$$

Full text

• •

We allow the user to specify the parameters that define fair representation. More precisely, these parameters define the maximum over- and minimum under-representation of any group in any cluster.

• •

Our clustering algorithm works on any $\ell_{p}$-norm objective (e.g. $k$-means, $k$-median, and $k$-center). Indeed, our algorithm transforms any vanilla clustering solution into a fair one incurring only a slight loss in quality.

• •

Our algorithm also allows individuals to lie in multiple protected groups. In other words, we do not need the protected groups to partition the data and we can maintain fairness across different groups simultaneously.

Our experiments show that on established data sets, our algorithm performs much better in practice than what our theoretical results suggest.

1 Introduction

Many important decisions today are made by machine learning algorithms. These range from showing advertisements to customers [59, 31], to awarding home loans [47, 56], to predicting recidivism [10, 32, 27]. It is important to ensure that such algorithms are fair and are not biased towards or against some specific groups in the population. A considerable amount of work [46, 68, 25, 45, 20, 67, 66] addressing this issue has emerged in the recent years.

Our paper considers fair algorithms for clustering. Clustering is a fundamental unsupervised learning problem where one wants to partition a given data-set. In machine learning, clustering is often used for feature generation and enhancement as well. It is thus important to consider the bias and unfairness issues when inspecting the quality of clusters. The question of fairness in clustering was first asked in the beautiful paper of Chierichetti et al. [25] with subsequent generalizations by Rösner and Schmidt [60].

In this paper, we give a much more generalized and tunable notion of fairness in clustering than that in [25, 60]. Our main result is that any solution for a wide suite of vanilla clustering objectives can be transformed into fair solutions in our notion with only a slight loss in quality by a simple algorithm. *

Many works in fairness [20, 25, 60, 19] work within the disparate impact (DI) doctrine [36]. Broadly speaking, the doctrine posits that any “protected class” must have approximately equal representation in the decisions taken (by an algorithm). Although the DI doctrine is a law [1, 35] in the United States, violating the DI doctrine is by itself not illegal [5]; it is illegal only if the violation cannot be justified by the decision maker. In the clustering setting, this translates to the following algorithmic question : what is the loss in quality of the clustering when all protected classes are required to have approximately equal representation in the clusters returned?

Motivated thus, Chierichetti et al. [25], and later Rösner and Schmidt [60], model the set of points as partitioned into $\ell$ colors, and the color proportion of each returned cluster should be similar to that in the original data. There are three shortcomings of these papers: (a) the fairness constraint was too stringent and brittle, (b) good algorithms were given only for the $k$-center objective, and (c) the color classes weren’t allowed to overlap. We remark that the last restriction is limiting since an individual can lie in multiple protected classes (consider an African-American senior woman). In our work we address all these concerns: we allow the user to specify the fairness constraints, we give simple algorithms with provable theoretical guarantees for a large suite of objective functions, and we allow overlapping protected classes.

Our fairness notion. We propose a model which extends the model of [25] to have $\ell\geq 2$ groups of people which are allowed to overlap. For each group $i$, we have two parameters $\beta_{i},\alpha_{i}\in[0,1]$. Motivated by the DI doctrine, we deem a clustering solution fair if each cluster satisfies two properties: (a) restricted dominance (RD), which asserts that the fraction of people from group $i$ in any cluster is at most $\alpha_{i}$, and (b) minority protection (MP), which asserts that the fraction of people from group $i$ in any cluster is at least $\beta_{i}$. Note that we allow $\beta_{i},\alpha_{i}$’s to be arbitrary parameters, and furthermore, they can differ across different groups. This allows our model to provide a lot of flexibility to users. For instance, our model easily captures the notions defined by [25] and [60].

We allow our protected groups to overlap. Nevertheless, the quality of our solutions depend on the amount of overlap. We define $\Delta$ (similar to [20]) to be the maximum number of groups a single individual can be a part of. This parameter, as we argued above, is usually not $1$, but can be assumed to be a small constant depending on the application.

Our results. Despite the generality of our model, we show that in a black-box fashion, we can get fair algorithms for any $\ell_{p}$-norm objective (this includes, $k$-center, $k$-median, and the widely used $k$-means objective) if we allow for very small additive violations to the fairness constraint. We show that given any $\rho$-approximation algorithm ${\cal A}$ for a given objective which could be returning widely unfair clusters, we can return a solution which is a $(\rho+2)$-approximation to the best clustering which satisfies the fairness constraints (Theorem 1). Our solution, however, can violate both the RD and MP property additively by $4\Delta+3$. This is negligible if the clusters are large, and our empirical results show this almost never exceeds $3$. Further in our experiments, our cost is at most 15% more than optimum, which is a much better factor compared to $(\rho+2)$.

The black-box feature of our result is useful also in comparing the performance of any particular algorithm ${\cal A}$. This helps if one wishes to justify the property of an algorithm one might be already using. Our results can be interpreted to give a way to convert any clustering algorithm to its fair version. Indeed, our method is very simple – we use the solution returned by ${\cal A}$ to define a fair assignment problem and show that this problem has a good optimal solution. The fair assignment problem is then solved via iterative rounding which leads to the small additive violations. In the case of $\Delta=1$ (disjoint groups), we can get a simpler, one-iteration rounding algorithm.

Finally, we show that our simple approach also leads to algorithms for a related clustering problem. In many clustering applications involving anonymity and privacy [4, 60], one requires the size of the cluster to be at least a certain size $L$. We show that given any $\rho$-approximation for the vanilla clustering problem in any $\ell_{p}$ norm, we can get a $(\rho+2)$-approximation for the lower bounded clustering problem in $O(2^{k}\mathrm{poly}(n))$ time (Theorem 2). Thus, our algorithm is a fixed-parameter tractable (FPT) approximation algorithm and in particular, armed with the recent result of Cohen-Addad et al. [28], implies a $3.736$-factor approximation algorithm for the lower bounded $k$-median problem in $k^{O(k)}\mathrm{poly}(n)$ time. To put this in perspective, in polynomial time one can only get a large $O(1)$-approximation (see footnote 9). Furthermore, for higher norms, no constant factor approximations are known.555For the special case of Euclidean $k$-means, there are PTASes in [30, 15] with run times exponential in $k$.

Comparison with recent works. In a very recent independent and concurrent work, Schmidt et al. [61] consider the fair $k$-means problem in the streaming model with a notion of fairness similar to ours. However, their results crucially assume that the underlying metric space is Euclidean. Their main contributions are defining “fair coresets” and showing how to compute them in a streaming setting, resulting in significant reduction in the input size. Although their coreset construction algorithm works with arbitrary number of groups, their fair $k$-means algorithms assume there are only two disjoint groups of equal size. Even for this, Schmidt et al. [61] give an $(5.5\rho+1)$-approximation, given any $\rho$-approximation for the vanilla $k$-means problem; the reader should compare with our $(\rho+2)$-approximation. Backurs et al. [12] consider the problem of designing scalable algorithm for the fair k-median problem in the Euclidean space. The notion of fairness is balance, as defined by Chierichetti et al. [25], and hence works only for two disjoint groups. Their approximation ratio is $O_{r,b}(d\log n)$ where $r$ and $b$ are fairness parameters, and $d$ is the dimension of the Euclidean space. In contrast, our fair $k$-means and $k$-median algorithms works in any metric space, with arbitrary number of overlapping groups.

In another independent and parallel work, Bercea et al. [14] consider a fairness model that is similar to ours. They give a similar, but arguably more complicated algorithm for a variety of clustering objectives. Ahmadian et al. [6] study the k-center objective with only restricted dominance (RD) type constraints and give bi-criteria approximations. In comparison, we emphasize on a simple, yet powerful unifying framework that can handle any $\ell_{p}$-norm objective. None of the above works handle overlapping groups.

1.1 Other related works

Fairness in algorithm design has received a lot of attention lately [17, 55, 34, 36, 46, 68, 25, 45, 20, 67, 66, 20, 19, 29, 50, 37]. Our work falls in the category of designing fair algorithms, and as mentioned, we concentrate on the notion of disparate impact. Feldman et al. [36] and Zafar et al. [67] study the fair classification problem under this notion. Celis et al. in  [20], Celis et al. in [19], and Chierichetti et al. in [26] study respectively the fair ranking problem, the multiwinner voting problem, and the matroid optimization problem; All of these works model fairness through disparate impact. Chierichetti et al. in [25] first addresses disparate impact for clustering problems in the presence of two groups, Rösner and Schmidt [60] generalizes it to more than two groups.

Chen et al. [24] define a notion of proportionally fair clustering where all possible groups of reasonably large size are entitled to choose a center for themselves. This work builds on the assumption that sometimes the task of identifying protected group itself is untenable. Kleindessner et al. in [51] study the problem of enforcing fair representation in the data points chosen as cluster center. This problem can also be posed as a matroid center problem. Kleindessner et al. in [52] extends the fairness notion to graph spectral clustering problems. Celis et al. in [18] proposes a meta algorithm for the classification problem under a large class of fairness constraints with respect to multiple non-disjoint protected groups.

Clustering is a ubiquitous problem and has been extensively studied in diverse communities (see [3] for a recent survey). We focus on the work done in the algorithms and optimization community for clustering problems under $\ell_{p}$ norms. The $p=\{1,2,\infty\}$ norms, that is the $k$-median, $k$-means, and $k$-center problems respectively, have been extensively studied. The $k$-center problem has a $2$-approximation [40, 38] and it is NP-hard to do better [41]. A suite of algorithms [23, 44, 22, 13, 54] for the $k$-median problem has culminated in a $2.676$-approximation [16], and is still an active area of research. For $k$-means, the best algorithm is a $9+\varepsilon$-approximation due to Ahmadian et al. [7]. For the general $p$-norm, most of the $k$-median algorithms imply a constant approximation.

Capacitated clustering is similar to fair clustering in that in both, the assignment is not implied by the set of centers opened. We already mentioned the results for lower bounded clustering. One can also look at upper bounded clustering where every cluster is at most a size $U$. The (upper-bounded) capacitated $k$-median problem is one of the few classic problems remaining for which we do not know $O(1)$-approximations, and neither we know of a good hardness. The capacitated $k$-center problem has a $6$-approximation [48]. Recently, an FPT algorithm was designed by [2]; They show a $7+\varepsilon$-approximation for the upper bounded capacitated $k$-median problem which runs in time $O(f(k)\cdot\mathrm{poly}(n))$ where $f(k)\sim k^{O(k)}$. It is instructive to compare this with our result on lower bounded $k$-median problem.

2 Preliminaries

Let $C$ be a set of points (whom we also call “clients”) we want to cluster. Let these points be embedded in a metric space $({\cal X},d)$. We let $F\subseteq{\cal X}$ be the set of possible cluster center locations (whom we also call “facilities”). Note $F$ and $C$ needn’t be disjoint, and indeed $F$ could be equal to $C$. For a set $S\subseteq{\cal X}$ and a point $x\in{\cal X}$, we use $d(x,S)$ to denote $\min_{y\in S}d(x,y)$. For an integer $n$, we use $[n]$ to denote the set $\{1,2,\ldots,n\}$.

Given the metric space $({\cal X},d)$ and an integer parameter $k$, in the Vanilla $(k,p)$-Clustering problem the objective is to (a) “open” a subset $S\subseteq F$ of at most $k$ facilities, and (b) find an assignment $\phi:C\to S$ of clients to open facilities so as to minimize \mathcal{L}_{p}(S;\phi):=\Big{(}\sum_{v\in C}d(v,\phi(v))^{p}\Big{)}^{\frac{1}{p}}. Indeed, in this vanilla version with no fairness considerations, every point $v\in C$ would be assigned to the closest center in $S$. The case of $p=\{1,2,\infty\}$, the $k$-median, $k$-means, and $k$-center problems respectively, have been extensively studied in the literature [40, 38, 23, 44, 22, 13, 54, 16, 7]. Given an instance ${\cal I}$ of the Vanilla $(k,p)$-Clustering problem, we use $\operatorname{OPT}_{\mathsf{vnll}}({\cal I})$ to denote its optimal value.

The next definition formalizes the fair clustering problem which is the main focus of this paper.

Definition 1** (Fair $(k,p)$-Clustering Problem).**

In the fair version of the clustering problem, one is additionally given $\ell$ many (not necessarily disjoint) groups of $C$, namely $C_{1},C_{2},\ldots,C_{\ell}$. We use $\Delta$ to denote the maximum number of groups a single client $v\in C$ can belong to; so if the $C_{j}$’s were disjoint we would have $\Delta=1$. One is also given two fairness vectors $\vec{\alpha},\vec{\beta}\in[0,1]^{\ell}$.

The objective is to (a) open a subset of facilities $S\subseteq F$ of at most $k$ facilities, and (b) find an assignment $\phi:C\to S$ of clients to the open facilities so as to minimize $\mathcal{L}_{p}(S;\phi)$, where $\phi$ satisfies the following fairness constraints.

[TABLE]

The assignment $\phi$ defines a cluster $\{v:\phi(v)=f\}$ around every open facility $f\in S$. As explained in the Introduction, eq. RD is the restricted dominance property which upper bounds the ratio of any group’s participation in a cluster, and eq. MP is the minority protection property which lower bounds this ratio to protect against under-representation. Due to these fairness constraints, we can no longer assume $\phi(v)$ is the nearest open facility in $S$ to $v$. Indeed, we use the tuple $(S,\phi)$ to denote a fair-clustering solution.

We use $\operatorname{OPT}_{\mathsf{fair}}({\cal I})$ to denote the optimal value of any instance ${\cal I}$ of the Fair $(k,p)$-Clustering problem. Since ${\cal I}$ is also an instance of the vanilla problem, and since every fair solution is also a vanilla solution (but not necessarily vice versa) we get $\operatorname{OPT}_{\mathsf{vnll}}({\cal I})\leq\operatorname{OPT}_{\mathsf{fair}}({\cal I})$ for any ${\cal I}$.

A fair clustering solution $(S,\phi)$ has $\lambda$-additive violation, if the eq. RD and eq. MP constraints are satisfied upto $\pm\lambda$-violation. More precisely, for any $f\in S$ and for any group $i\in[\ell]$, we have

[TABLE]

Our main result is the following.

Theorem 1**.**

Given a $\operatorname{\rho}$-approximate algorithm ${\cal A}$ for the Vanilla $(k,p)$-Clustering problem, we can return a $(\operatorname{\rho}+2)$-approximate solution $(S,\phi)$ with $(4\Delta+3)$-additive violation for the Fair $(k,p)$-Clustering problem.

In particular, we get $O(1)$-factor approximations to the Fair $(k,p)$-Clustering problem with $O(\Delta)$ additive violation, for any $\ell_{p}$ norm666We cannot find an explicit reference for a vanilla $O(1)$-approximation for general $\ell_{p}$ norms, but it is not too hard to see that many $k$-median algorithms such as those of [23] and [44] imply $O(1)$-approximations for any norm. The only explicit mention of the $p$-norm clustering we could find was the paper [39]; this shows that local search gives a $\Theta(p)$ approximation.. Furthermore, for the important special case of $\Delta=1$, our additive violation is at most $+3$.

Our technique also implies algorithms for the lower bounded $k$-clustering problem. In this, there is no fairness constraint; rather, the constraint is that if a facility is opened, at least $L$ clients must be assigned to it. In this problem also, a client need not be assigned to its nearest open facility. The problem has been studied in the facility location version and (large) $O(1)$-factor algorithms are known. We can easily get the following.

Theorem 2**.**

Given a $\operatorname{\rho}$-approximate algorithm ${\cal A}$ for the Vanilla $(k,p)$-Clustering problem that runs in time $T$, there is a $(\operatorname{\rho}+2)$-approximation algorithm for the LB-$(k,p)$-Clustering problem that runs in time $O(T+2^{k}\cdot\mathrm{poly}(n))$.

In particular, armed with the recent result of Cohen-Addad et al. [28], implies a $3.736$-factor approximation algorithm for the lower bounded $k$-median problem in $k^{O(k)}\mathrm{poly}(n)$ time.

3 Algorithm for the Fair $(k,p)$-Clustering problem

Our algorithm is a simple two step procedure. First, we solve the Vanilla $(k,p)$-Clustering problem using some algorithm ${\cal A}$, and fix the centers $S$ opened by ${\cal A}$. Then, we solve a fair reassignment problem, called Fair $p$-Assignment problem, on the same set of facilities to get assignment $\phi$. We return $(S,\phi)$ as our fair solution.

Definition 2** (Fair $p$-Assignment Problem).**

In this problem, we are given the original set of clients $C$ and a set $S\subseteq F$ with $|S|=k$. The objective is to find the assignment $\phi:C\to S$ such that (a) the constraints eq. RD and eq. MP are satisfied, and (b) $\mathcal{L}_{p}(S;\phi)$ is minimized among all such satisfying assignments.

Given an instance ${\cal J}$ of the Fair $p$-Assignment problem, we let $\operatorname{OPT}_{\mathsf{asgn}}({\cal J})$ denote its optimum value. Clearly, given any instance ${\cal I}$ of the Fair $(k,p)$-Clustering problem, if $S^{*}$ is the optimal subset for ${\cal I}$ and ${\cal J}$ is the instance of Fair $p$-Assignment defined by $S^{*}$, then $\operatorname{OPT}_{\mathsf{fair}}({\cal I})=\operatorname{OPT}_{\mathsf{asgn}}({\cal J})$. A $\lambda$-violating algorithm for the Fair $p$-Assignment problem is allowed to incur $\lambda$-additive violation to the fairness constraints.

We present our algorithmic template for the Fair $(k,p)$-Clustering problem in Algorithm 1. This template uses the FairAssignment procedure ( Algorithm 2) as a subroutine.

3.1 Reducing Fair $(k,p)$-Clustering to Fair $p$-Assignment

In this section we present a simple reduction from the Fair $(k,p)$-Clustering problem to the Fair $p$-Assignment problem that uses a Vanilla $(k,p)$-Clustering solver as a black-box.

Theorem 3**.**

Given a $\operatorname{\rho}$-approximate algorithm ${\cal A}$ for the Vanilla $(k,p)$-Clustering problem and a $\operatorname{\lambda}$-violating algorithm $\mathcal{B}$ for the Fair $p$-Assignment problem, there is a $(\operatorname{\rho}+2)$- approximation algorithm for the Fair $(k,p)$-Clustering problem with $\lambda$-additive violation.

Proof.

Given instance ${\cal I}$ of the Fair $(k,p)$-Clustering problem, we run ${\cal A}$ on ${\cal I}$ to get a (not-necessarily fair) solution $(S,\phi)$. We are guaranteed $\mathcal{L}_{p}(S;\phi)\leq\rho\cdot\operatorname{OPT}_{\mathsf{vnll}}({\cal I})\leq\rho\cdot\operatorname{OPT}_{\mathsf{fair}}({\cal I})$. Let ${\cal J}$ be the instance of Fair $p$-Assignment obtained by taking $S$ as the set of facilities. We run algorithm $\mathcal{B}$ on ${\cal J}$ to get a $\operatorname{\lambda}$-violating solution $\hat{\phi}$. We return $(S,\hat{\phi})$.

By definition of $\operatorname{\lambda}$-violating solutions, we get that $(S,\hat{\phi})$ satisfies eq. V and that $\mathcal{L}_{p}(S,\hat{\phi})\leq\operatorname{OPT}_{\mathsf{asgn}}({\cal J})$. The proof of the theorem follows from the lemma below. ∎

Lemma 4**.**

$\operatorname{OPT}_{\mathsf{asgn}}({\cal J})\leq\left(\rho+2\right)\cdot\operatorname{OPT}_{\mathsf{fair}}({\cal I})$.

Proof.

Suppose the optimal solution of ${\cal I}$ is $(S^{*},\phi^{*})$ with $\mathcal{L}_{p}(S^{*};\phi^{*})=\operatorname{OPT}_{\mathsf{fair}}({\cal I})$. Recall $(S,\phi)$ is the solution returned by the $\rho$-approximate algorithm ${\cal A}$. We describe the existence of an assignment $\phi^{\prime}:C\to S$ such that $\phi^{\prime}$ satisfies eq. RD and eq. MP, and $\mathcal{L}_{p}(S;\phi^{\prime})\leq(\rho+2)\cdot\operatorname{OPT}_{\mathsf{fair}}({\cal I})$. Since $\phi^{\prime}$ is a feasible solution of ${\cal J}$, the lemma follows. For every $f^{*}\in S^{*}$, define $\mathsf{nrst}(f^{*}):=\arg\min_{f\in S}d(f,f^{*})$ be the closest facility in $S$ to $f^{*}$. For every client $v\in C$, define $\phi^{\prime}(v):=\mathsf{nrst}(\phi^{*}(v))$ The following two claims prove the lemma. ∎

Claim 5**.**

$\phi^{\prime}$ satisfies eq. RD and eq. MP

Proof.

For any facility $f^{*}\in S^{*}$, let $C(f^{*}):=\{v:\phi^{*}(v)=f^{*}\}$. The $C(f^{*})$’s partition $C$. For any $i\in[\ell]$, let $C_{i}(f^{*}):=C(f^{*})\cap C_{i}$. Since $(S^{*};\phi^{*})$ is a feasible solution satisfying the fairness constraints, we get that for every $f^{*}\in S^{*}$ and for every $i\in[\ell]$, $\beta_{i}\leq\frac{|C_{i}(f^{*})|}{|C(f^{*})|}\leq\alpha_{i}$.

For any facility $f\in S$, let $N(f):=\{f^{*}\in S^{*}:\mathsf{nrst}(f^{*})=f\}$ be all the facilities in $S^{*}$ for which $f$ is the nearest facility. Note that the clients $\{v\in C:\phi^{\prime}(v)=f\}$ are precisely $\dot{\cup}_{f^{*}\in N(f)}C(f^{*})$. Similarly, for any $i\in[\ell]$, we have $\{v\in C_{i}:\phi^{\prime}(v)=f\}$ is precisely $\dot{\cup}_{f^{*}\in N(f)}C_{i}(f^{*})$. Therefore, $\frac{|\{v\in C_{i}:\phi^{\prime}(v)=f\}|}{|\{v\in C:\phi^{\prime}(v)=f\}|}=\frac{\sum_{f^{*}\in N(f)}|C_{i}(f^{*})|}{\sum_{f^{*}\in N(f)}|C(f^{*})|}\in[\beta_{i},\alpha_{i}]$ since the second summation is between $\min_{f^{*}\in N(f)}|C_{i}(f^{*})|/|C(f^{*})|$ and $\max_{f^{*}\in N(f)}|C_{i}(f^{*})|/|C(f^{*})|$, and both these are in $[\beta_{i},\alpha_{i}]$. ∎

Claim 6**.**

$\mathcal{L}_{p}(S;\phi^{\prime})\leq(\rho+2)\operatorname{OPT}_{\mathsf{fair}}({\cal I})$.

Proof.

Fix a client $v\in C$. For the sake of brevity, let: $f=\phi(v)$, $f^{\prime}=\phi^{\prime}(v)$, and $f^{*}=\phi^{*}(v)$. We have

[TABLE]

The first and third follows from triangle inequality while the second follows from the definition of $\mathsf{nrst}$. Therefore, if we define the assignment cost vectors corresponding to $\phi$, $\phi^{\prime}$, and $\phi^{*}$ as $\vec{d}=\{d(v,\phi):v\in C\}$, $\vec{d^{\prime}}=\{d(v,\phi^{\prime}):v\in C\}$, and $\vec{d^{*}}=\{d(v,\phi^{*}):v\in C\}$ respectively, the above equation implies $\vec{d^{\prime}}\leq 2\vec{d}+\vec{d^{*}}$. Now note that the $\mathcal{L}_{p}$ is a monotone norm on these vectors, and therefore,

[TABLE]

The proof is complete by noting $\mathcal{L}_{p}(S^{*};\phi^{*})=\operatorname{OPT}_{\mathsf{fair}}({\cal I})$ and $\mathcal{L}_{p}(S;\phi)\leq\rho\cdot\operatorname{OPT}_{\mathsf{fair}}({\cal I})$. ∎

3.2 Algorithm for the Fair $p$-Assignment problem

To complete the proof of Theorem 1, we need to give an algorithm for the Fair $p$-Assignment problem. We present this in Algorithm 2. The following theorem then establishes our main result.

Theorem 7**.**

There exists a $(4\Delta+3)$-violating algorithm for the Fair $p$-Assignment problem.

Proof.

Fix an instance ${\cal J}$ of the problem. We start by writing a natural LP-relaxation777This makes sense only for finite $p$. See Remark 1.

[TABLE]

Claim 8**.**

$\mathsf{LP}\leq\operatorname{OPT}_{\mathsf{asgn}}({\cal J})^{p}$.

Proof.

Given an optimal solution $\phi^{*}$ of ${\cal J}$, set $x_{v,f}=1$ iff $\phi^{*}(v)=f$. This trivially satisfies the fairness conditions. Observe $\mathcal{L}_{p}(S;\phi^{*})^{p}$ is precisely the objective cost. ∎

Let $x^{\star}$ be an optimum solution to the above LP. Note that $x^{\star}$ could have many coordinates fractional. In Algorithm 2, we iteratively round $x^{\star}$ to an integral solution with the same or better value, but which violates the fairness constraints by at most $4\Delta+3$. Our algorithm effectively simulates an algorithm for minimum degree-bounded matroid basis problem (MBDMB henceforth) due to Király et al. [49]. In this problem one is given a matroid $M=(X,{\cal I})$, costs on elements in $X$, a hypergraph $H=(X,{\cal E})$, and functions $f:{\cal E}\to\mathbb{R}$ and $g:{\cal E}\to\mathbb{R}$ such that $f(e)\leq g(e)$ for all $e\in{\cal E}$. The objective is to find the minimum cost basis $B\subseteq X$ such that for all $e\in{\cal E}$, $f(e)\leq|B\cap e|\leq g(e)$. We state the main result in Király et al [49] below.

Theorem 9** (Paraphrasing of Theorem 1 in  [49]).**

There exists a polynomial time algorithm that outputs a basis $B$ of cost at most $\operatorname{OPT}$, such that $f(e)-2\Delta_{H}+1\leq|B\cap e|\leq g(e)+2\Delta_{H}-1$ for each edge $e\in{\cal E}$ of the hypergraph, where $\Delta_{H}=max_{v\in X}|\{e\in E_{H}:v\in e\}|$ is the maximum degree of a vertex in the hypergraph $H$, and $\operatorname{OPT}$ is the cost of the natural LP relaxation.

To complete the proof of the main theorem, we first construct an instance of the MBDMB problem using $x^{\star}$. Then we appeal to Theorem 9 to argue about the quality of our algorithm.

Let $E$ be the set of $(v,f)$ pairs with $x^{\star}_{v,f}>0$. For a point $v\in C$, let $E_{v}$ denote the set of edges in $E$ incident on $v$. Define $\mathcal{F}:=\{F\subseteq E:|F\cap E_{v}|\leq 1~{}~{}\forall v\in C\}$ to be collection of edges which “hit” every client at most once. The pair $M=(E,\mathcal{F})$ is a well known combinatorial object called a (partition) matroid. For each element $(v,f)$ of this matroid $M$, we denotes its cost to be $c(v,f):=d(v,f)^{p}$.

Next we define a hypergraph $H=(E,{\cal E})$. For each $f\in S$ and $i\in[\ell]$, let $E_{f,i}\subseteq E$ consisting of pairs $(v,f)\in E$ for $v\in C_{i}$. Let $E_{f}:=\cup_{i=1}^{\ell}E_{f,i}$. Each of these $E_{f,i}$’s and $E_{f}$’s are added to the collection of hyperedges ${\cal E}$. Next, let $T_{f}:=\sum_{v\in C}x^{\star}_{v,f}$ be the total fractional assignment on $f$. Similarly, for all $i\in[\ell]$, define $T_{f,i}:=\sum_{v\in C_{i}}x^{\star}_{v,f}$. Note that, both $T_{f}$ and $T_{f,i}$ can be fractional. For every $e\in E_{f,i}$, we define $f(e):=\lfloor T_{f,i}\rfloor$ and $g(e)=\lceil T_{f,i}\rceil$. For each $e\in E_{f}$, we denote $f(e)=\lfloor T_{f}\rfloor$ and $g(e)=\lceil T_{f}\rceil$. This completes the construction of the MBDMB instance.

Now we can apply Theorem 9 to obtain a basis $B$ of matroid $M$ with the properties mentioned. Note that for our hypergraph $\Delta_{H}\leq\Delta+1$ where $\Delta$ is the maximum number of groups a client can be in. This is because every pair $(v,f)$ belongs to $E_{f}$ and $E_{f,i}$’s for all $C_{i}$’s containing $v$. Also note that any basis corresponds to an assignment $\phi:C\to S$ of all clients. Furthermore, the cost of the basis is precisely $\mathcal{L}_{p}(S;\phi)^{p}$. Since this cost is $\leq\mathsf{LP}\leq\operatorname{OPT}_{\mathsf{fair}}({\cal J})^{p}$, we get that $\mathcal{L}_{p}(S;\phi)\leq\operatorname{OPT}_{\mathsf{fair}}({\cal J})$. We now need to argue about the violation.

Fix a server $f$ and a client group $C_{i}$. Let $\overline{T}_{f}$ and $\overline{T}_{f,i}$ denote the number of clients assigned to $f$ and the number of clients from $C_{i}$ that are assigned to $f$ respectively (by the integral assignment). Then, by Theorem 9, $\lfloor T_{f}\rfloor-2\Delta-1\leq\overline{T}_{f}\leq\lceil T_{f}\rceil+2\Delta+1$ and $\lfloor T_{f,i}\rfloor-2\Delta-1\leq\overline{T}_{f,i}\leq\lceil T_{f,i}\rceil+2\Delta+1$ (using $\Delta_{H}\leq\Delta+1$). Now consider eq. RD. Since, $T_{f,i}\leq\alpha_{i}T_{f}$ (as the LP solution is feasible),

[TABLE]

where the second and last inequality follows as $\alpha_{i}\leq 1$. We can similarly argue about eq. MP. This completes the proof of Theorem 7.∎

However, rather than constructing an MBDMB instance explicitly, we write a natural LP-relaxation more suitable to the task — this is given in eq. 2. For the sake of completeness, we give the details of our algorithm in algorithm 2.

[TABLE]

Remark 1**.**

For the case of $p=\infty$, the objective function of eq. LP doesn’t make sense. Instead, one proceeds as follows. We begin with a guess $G$ of $\operatorname{OPT}_{\mathsf{asgn}}({\cal J})$; we set $x_{v,f}=0$ for all pairs with $d(v,f)>G$. We then check if eqs. 1a and 1b have a feasible solution. If they do not, then our guess $G$ is infeasible (too small). If they do, then the proof given above returns an assignment which violates eqs. RD and MP by additive $4\Delta+3$, and satisfies $d(v,\phi(v))\leq G$ for all $v\in C$.

Remark 2**.**

When $\Delta=1$, that is, the $C_{i}$’s are disjoint, we can get an improved $+3$ additive violation (instead of $+7$). Instead of using Theorem 9, we use the generalized assignment problem (GAP) rounding technique by Shmoys and Tardos [62] to achieve this.

Remark 3**.**

Is having a bicriteria approximation necessary? We do not know. The nub is the Fair $p$-Assignment problem. It is not hard to show that deciding whether a $\lambda$-violating solution exists with $\lambda=0$ under the given definition is NP-hard. 888A simple reduction from the 3D-matching problem. However, an algorithm with $\lambda=0$ and cost within a constant factor of $\operatorname{OPT}_{\mathsf{asgn}}({\cal J})$ is not ruled out. This is an interesting open question.

4 Lower-bounded clustering

In this section we show a simple application of our technique which solves the lower bounded clustering problem. The problem arises when, for example, one wants to ensure anonymity [4] and is called “private clustering” in [60]. For the $p=\infty$ norm, that is the lower bounded $k$-center problem, there is a $3$-approximation known [4] for the problem. For the $p=1$ norm, that is the lower bounded $k$-median problem, there are $O(1)$-approximation algorithms999Actually, the papers of [63, 8] consider the facility location version without any constraints on the number of facilities. A later paper by Ahmadian and Swamy [9] mentions that these algorithms imply $O(1)$-approximations for the $k$-median version. The constant is not specified. [63, 8] although the constants are large. In contrast, we show simple algorithms with much better constants in $O(2^{k}\mathrm{poly}(n))$ time.

Definition 3** (LB-$(k,p)$-Clustering).**

The input is a Vanilla $(k,p)$-Clustering instance, and an integer $L\in[|C|]$. The objective is to open a set of facilities $S\in\mathcal{F}$ with $|S|\leq k$, and find an assignment function $\phi:C\rightarrow{S}$ of clients to the opened facilities so that (a) $\mathcal{L}_{p}(S;\phi)$ is minimized, and (b) for every $f\in S$, we have $|\{v\in C:\phi(v)=f\}|\geq L$.

See 2 Using the best known polynomial time algorithm for the $k$-median problem due to Byrka et al. [16] and best known FPT-algorithm due to Cohen-Addad et al. [28], we get the following corollary.

Theorem 10**.**

There is a $4.676$-factor approximation algorithm for the lower bounded $k$-median running in $O(2^{k}\cdot\mathrm{poly}(n))$ time. There is a $3.736$-factor approximation algorithm for lower bounded $k$-median running in time $k^{O(k)}\mathrm{poly}(n)$ time.

Remark 4**.**

As in the case of fair clustering, Theorem 2 holds even when there are more general constraints on the centers. Therefore, for instance, in $O(2^{k}\mathrm{poly}(n))$ time, we can get a $34$-approximation for the lower bounded knapsack median problem due to the knapsack median result [64], and a $5$-approximation for the lower bounded center problem even when the total weight of the centers is at most a bound and the set of centers need be an independent set of a matroid [21].

Proof of Theorem 2.

The proof is nearly identical to that of Theorem 3. Given an instance ${\cal I}$ of the LB-$(k,p)$-Clustering problem, we first run algorithm ${\cal A}$ to get $(S,\phi)$ with the property $\mathcal{L}_{p}(S;\phi)\leq\rho\cdot\operatorname{OPT}_{\mathsf{vnll}}({\cal I})\leq\rho\cdot\operatorname{OPT}_{\mathsf{lbnd}}({\cal I})$.

Now we construct $2^{k}$ instances of the $b$-matching problem with lower bounds. For every subset $T\subseteq S$ we construct a complete bipartite graph on $(C\cup T)$ with cost of edge $c(v,f):=d(v,f)^{p}$ for all $v\in C,f\in T$. There is a lower bound of $1$ on every $v\in C$ and $L$ on every $f\in T$. We find a minimum cost matching satisfying these. Given a matching $M$, the assignment is the natural one: $\phi(v)=f$ if $(v,f)\in M$. We return the assignment $\hat{\phi}$ of minimum cost among these $2^{k}$ possibilities. Note that $\mathcal{L}_{p}(T;\hat{\phi})$ equals the $(1/p)$th power of the cost of this matching.

To analyze the above algorithm, we need to show the existence of some subset $T\subseteq S$ such that the minimum cost lower bounded matching $M$ has $c(M)^{1/p}\leq(\rho+2)\operatorname{OPT}_{\mathsf{lbnd}}({\cal I})$. The proof is very similar to the proof of Lemma 4. Suppose $(S^{*},\rho^{*})$ is the optimal solution for ${\cal I}$ of cost $\operatorname{OPT}_{\mathsf{lbnd}}({\cal I})$. For any $f^{*}\in S^{*}$, define $\mathsf{nrst}(f^{*})$ to be its closest facility in $S$. Let $T:=\{f\in S:\exists f^{*}\in S^{*}\text{s.t. }f=\mathsf{nrst}(f^{*})\}$; by definition $T\subseteq S$. Define the matching where for each $v\in C$ we match $v$ to $\mathsf{nrst}(\phi^{*}(v))\in T$. As in the proof of Lemma 4, one can show that $d(v,\mathsf{nrst}(\phi^{*}(v)))\leq 2d(v,\phi^{*}(v))+d(v,\phi(v))$. Thus, the $1/p$th power of the cost of the matching is at most $(\rho+2)\cdot\operatorname{OPT}_{\mathsf{lbnd}}({\cal I})$. Furthermore, for every $f\in T$, the number of clients assigned to it is at least the number of clients assigned to an $f^{*}$ with $\mathsf{nrst}(f^{*})=f$. This is $\geq L$. ∎

Remark 5**.**

Finally, we mention that the above prove easily generalizes for the notion of strong privacy proposed by Rösner and Schmidt [60]. In this, the client set is partitioned into groups $C_{1},\ldots,C_{\ell}$, and the goal is to assign clients to open facilities such that for every facility the number of clients from a group $C_{i}$ is at least $L_{i}$. We can generalize Theorem 2 to get a $(\rho+2)$-approximation algorithm for this problem running in $O(2^{k}\mathrm{poly}(n))$ time whenever there was a $\rho$-approximation possible for the vanilla clustering version.

5 Experiments

In this section, we perform empirical evaluation of our algorithm. Based on our experiments, we report five key findings:

• •

Vanilla clustering algorithms are quite unfair even when measured against relaxed settings of $\alpha$ and $\beta$. In contrast, our algorithm’s additive violation is almost always less than 3, even with $\Delta=2$, across a wide range of parameters (see section 5.1).

• •

The cost of our fair clustering is at most 15% more than (unfair) vanilla cost for $k\leq 10$ as in fig. 3. In fact, we see (in  fig. 4) that our algorithm’s cost is very close to the absolute best fair clustering that allows additive violations! Furthermore, our results for $k$-median significantly improve over the costs reported in Chierichetti et al. [25] and Backurs et al. [12] (see Table 3 ).

• •

For the case of overlapping protected groups ($\Delta>1$), enforcing fairness with respect to one sensitive attribute (say gender) can lead to unfairness with respect to another (say race). This empirical evidence stresses the importance of considering $\Delta>1$ (see fig. 2 in Section 5.3).

• •

In section 5.4, we provide experiments to gauge the running time of our algorithm in practice on large datasets. Even though the focus of this paper is not optimizing the running time, we observe that our algorithm for the k-means objective finds a fair solution for the census1990  dataset with 500K points and 13 features in less than 30 minutes (see Table 4).

• •

Finally, we study how the cost of our fair clustering algorithm changes with the strictness of the fairness conditions. This enables the user to figure out the trade-offs between fairness and utility and make an informed decision about which threshold to choose (see Section 5.5).

Settings. We implement our algorithm in Python 3.6 and run all our experiments on a Macbook Air with a 1.8 GHz Intel Core i5 Processor and 8 GB 1600 MHz DDR3 memory. We use CPLEX[43] for solving LP’s. Our codes are available on GitHub101010https://github.com/nicolasjulioflores/fair_algorithms_for_clustering for public use.

Datasets. We use four datasets from the UCI repository [33]: 111111https://archive.ics.uci.edu/ml/datasets/

(1) bank[65]with 4,521 points, corresponding to phone calls from a marketing campaign by a Portuguese banking institution.

(2) census[53]with 32,561 points, representing information about individuals extracted from the 1994 US census .

(3) creditcard[42]with 30,000 points, related to information on credit card holders from a certain credit card in Taiwan.

(4) census1990[57]with 2,458,285 points, taken from the 1990 US Census, which we use for run time analysis.

For each of the datasets, we select a set of numerical attributes to represent the records in the Euclidean space. We also choose two sensitive attributes for each dataset (e.g. sex and race for census ) and create protected groups based on their values.  Table 1 contains a more detailed description of the datasets and our features.

Measurements. For any clustering, we mainly focus on two metrics. One is the cost of fairness, that is, the ratio of the objective values of the fair clustering over the vanilla clustering. The other is balance, the measure of unfairness. To define balance, we generalize the notion found by Chierichetti et al. [25], We define two intermediate values $r_{i}$, the representation of group $i$ in the dataset and $r_{i}(f)$, the representation of group $i$ in cluster $f$ as $r_{i}:={|C_{i}|}/{|C|}$ and $r_{i}(f):={|C_{i}(f)|}/{|C(f)|}$. Using these two values, balance is defined as $\operatorname{balance}(f):=\min\{r_{i}/r_{i}(f),r_{i}(f)/r_{i}\}~{}~{}\forall i\in[\ell]$. Although in theory the values of $\alpha$, $\beta$ for a given group $i$ can be set arbitrarily, in practice they are best set with respect to $r_{i}$, the ratio of the group in the dataset. Furthermore, to reduce the degrees of freedom, we parameterize $\beta$ and $\alpha$ by a single variable $\delta$ such that $\beta_{i}=r_{i}(1-\delta)$ and $\alpha_{i}=r_{i}/(1-\delta)$. Thus, we can interpret $\delta$ as how loose our fairness condition is. This is because $\delta=0$ corresponds to each group in each cluster having exactly the same ratio as that group in the dataset, and $\delta=1$ corresponds to no fairness constraints at all. For all of the experiments, we set $\delta=0.2$ (corresponding to the common interpretation of the $80\%$-rule of DI doctrine), and use $\Delta=2$, unless otherwise specified.

Algorithms. For vanilla $k$-center, we use a $2$-approx. algorithm due to Gonzalez [38]. For vanilla $k$-median, we use the single-swap $5$-approx. algorithm by Arya et al. [13], augment it with the $D$-sampling procedure by [11] for initial center section, and take the best out of $5$ trials. For $k$-means, we use the $k$-means++ implementation of [58].

5.1 Fairness comparison with vanilla clustering

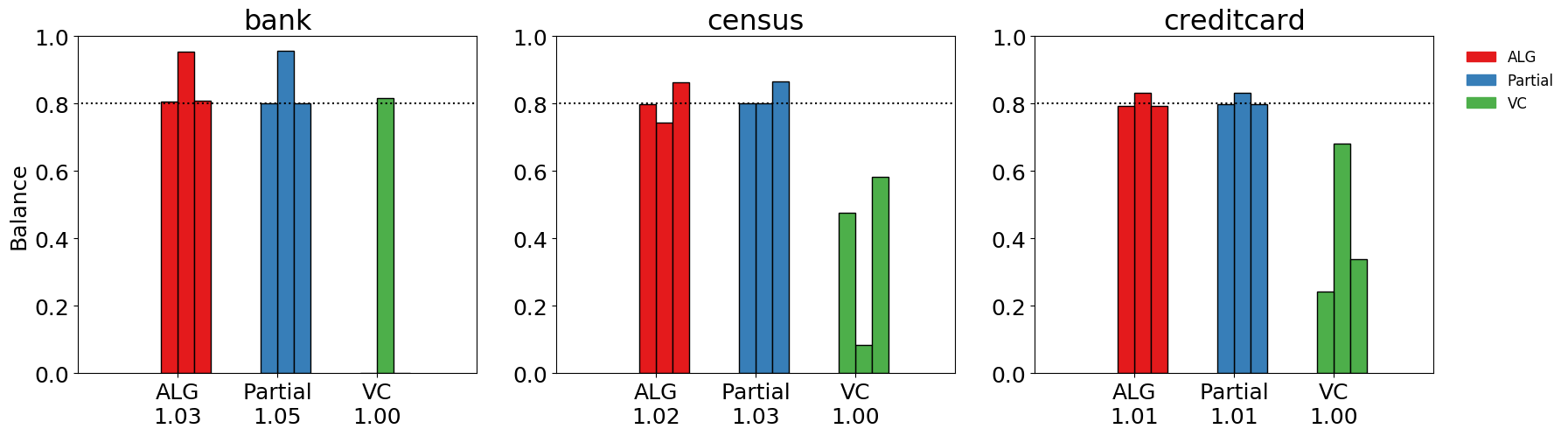

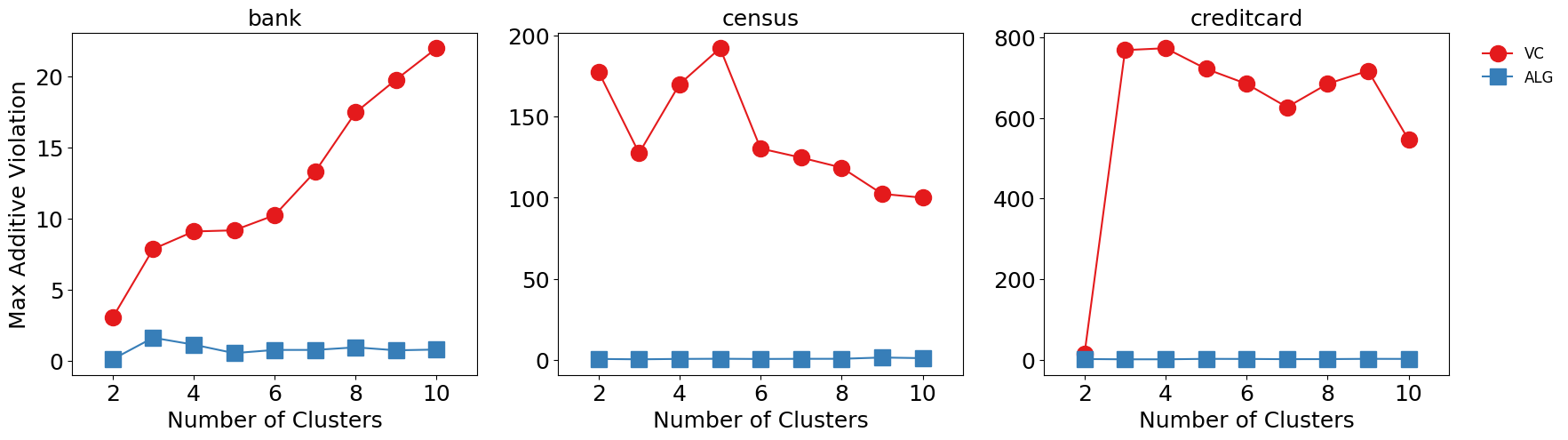

In fig. 1 we motivate our discussion of fairness by demonstrating the unfairness of vanilla clustering and fairness of our algorithm. On the $x$-axis, we compare three solutions: (1) our algorithm (labelled “ALG”), (2) fractional solution to the Fair $p$-Assignment LP in  Equation 1 (labelled “Partial”), and (3) vanilla $k$-means (labelled “VC”). Below these labels, we record the cost of fairness. We set $\delta=0.2$ and $k=4$. Along the $y$ axis, we plot the balance metric defined above for the three largest clusters for each of these clustering. The dotted line at $0.8$ is the goal balance for $\delta=0.2$. The lowest balance for any cluster for our algorithm is $0.75$ (for census ), whereas vanilla can be as bad as [math] (for bank ); “partial” is, of course, always fair (at least $0.8$).

We observe that the maximum additive violation of our algorithm is only $3$ (much better than our theoretical bound of $4\Delta+3)$), for a large range of values of $\delta$ and $k$, whereas vanilla $k$-means can be unfair by quite a large margin. (see fig. 2 below and Table 2).

5.2 Cost analysis

We evaluate the cost of our algorithm for $k$-means objective with respect to the vanilla clustering cost. Figure 3 shows that the cost of our algorithm for $k\leq 10$ is at most 15% more than the vanilla cost for all datasets. Interestingly, for creditcard , even though the vanilla solution is extremely unfair as demonstrated earlier, cost of fairness is at most 6% which indicates that the vanilla centers are in the “right place”.

Our results in Table 3 confirm that we outperform [25] and [12] in terms of cost. To match [25] and [12], we sub-sample bank and census to 1000 and 600 respectively, declared only one sensitive attribute for each (i.e. marital for bank and sex for census ), and tune the fairness parameters to enforce a balance of $0.5$. The data in table 3 is from [12] which is only available for $k$-median and $k=20$.

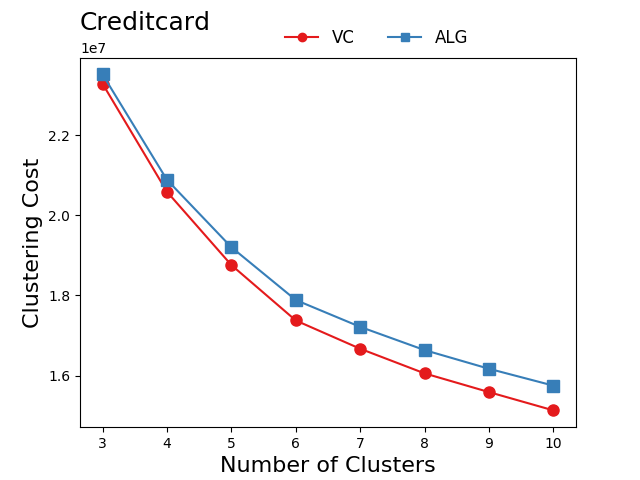

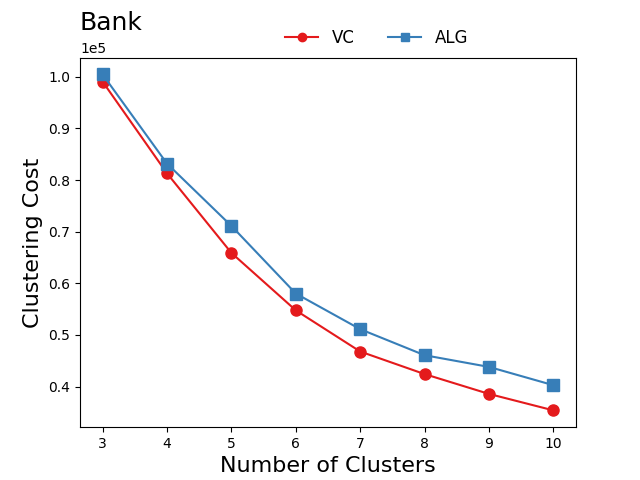

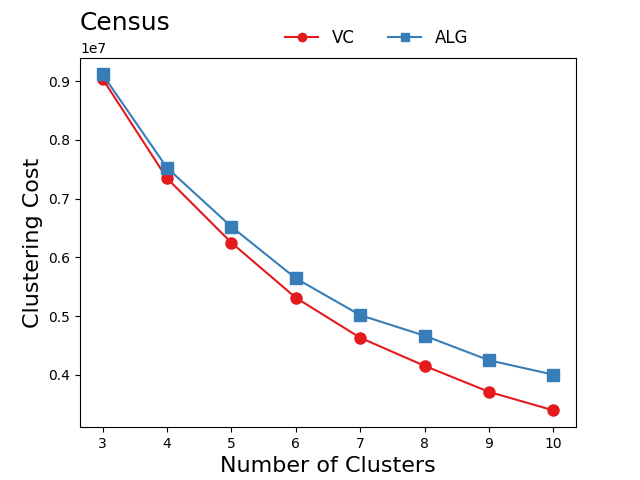

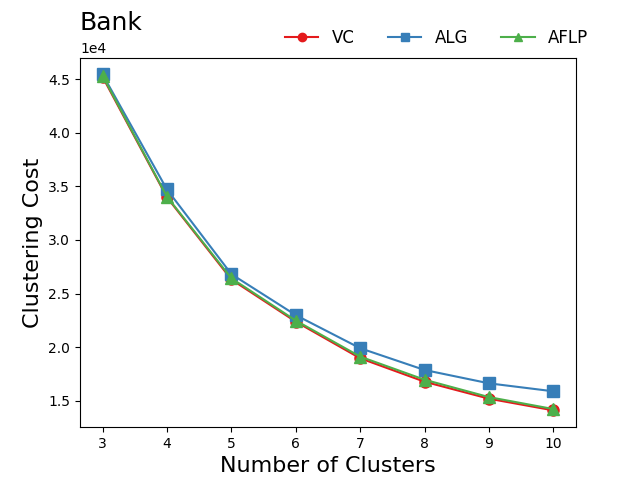

Next, we evaluate the cost of our algorithm for $k$-means objective with respect to the vanilla clustering cost and the almost fair LP cost. The almost fair LP (eq. 3) is an LP relaxation of Fair $(k,p)$-Clustering, with variables for choosing the centers, except that we allow for a $\lambda$ additive violation in fairness. The cost of this LP is a lower-bound on the cost of any fair clustering that violates fairness by at most an additive factor of $\lambda$.

[TABLE]

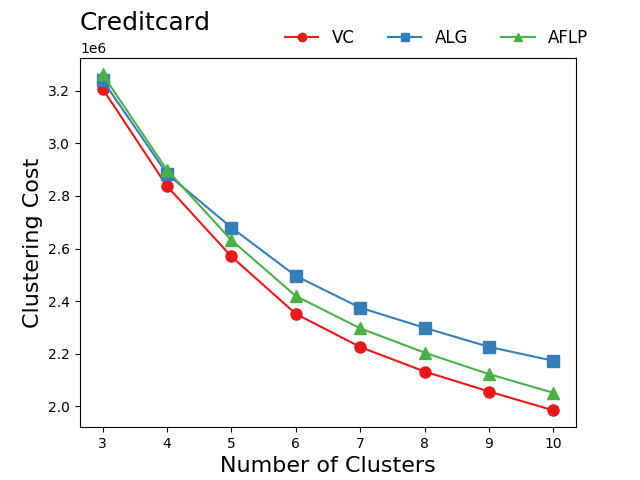

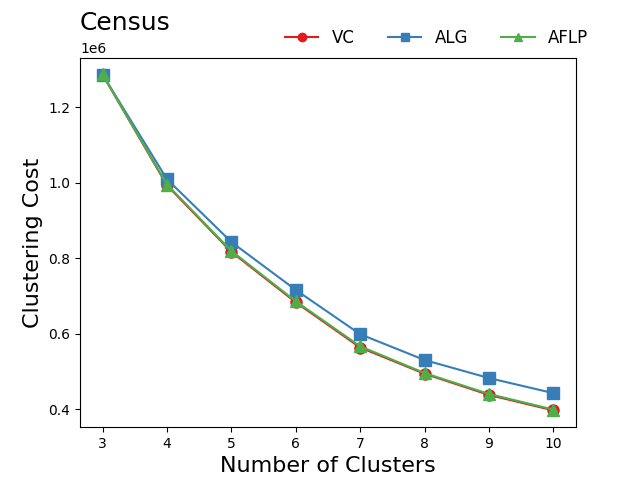

In fig. 4 we compare the cost of our algorithm with a lower-bound on the absolute best cost of any clustering that has the same amount of violation as ours. To be more precise, for any dataset we set $\lambda$ according to the maximum violation of our algorithm reported in table 2 for $\delta=0.2$ (e.g. $\lambda$ is $1.54$ for bank , $1.08$ for census , and $2.29$ for creditcard ). Then, we solve the almost fair LP for that $\lambda$ and compare its cost with our algorithm’s cost over that dataset.

Since solving the almost fair LP on the whole data is infeasible (in terms of running time), we sub-sample bank , census , and creditcard to 1000, 600 and 600 points respectively, and report the average costs over 10 trials. Also, we only consider one sensitive attribute, namely marital for bank , sex for census and education for creditcard to further simplify the LP and decrease the running time. fig. 3 shows that the cost of our algorithm is very close to the almost fair LP cost (at most 15% more). Note that, since the cost of almost fair LP is a lower bound on the cost of Fair $(k,p)$-Clustering problem, we conclude that our cost is at most 15% more than optimum in practice, which is much better than the proved $(\rho+2)$ factor in theorem 1.

5.3 The case of $\Delta>1$

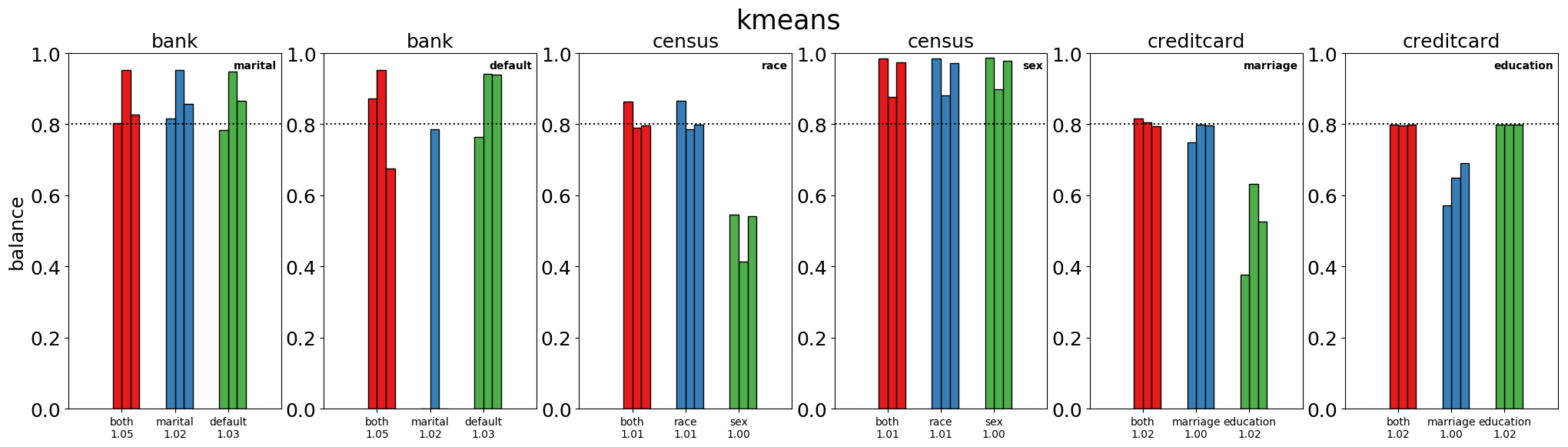

In this section, we demonstrate the importance of considering $\Delta>1$ by showing that enforcing fairness with respect to one attribute (say gender) may lead to significant unfairness with respect to another attribute (say race). In Figure 5, we have two plots for each dataset. In each plot, we compare three clustering: (1) Our algorithm with $\Delta=2$ (labelled “both”); (2) and (3) Our algorithm with $\Delta=1$ with protected groups defined by the attribute on $x$-axis label. We set $\delta=0.2$ and $k=4$. The clustering objective is $k$-means. Along $y$-axis, we measure the balance metric for the three largest clusters for each of these clustering. In each plot we only measure the balance for the attribute written in bold in the top right corner.

In datasets, such as bank , we see that fairness with respect to only the marital attribute leads to a large amount of unfairness in the default attribute. The fairest solution along both attributes is when they are both considered by our algorithm ($\Delta=2$). Interestingly, there are datasets where fairness by one attribute is all that is needed. On the census dataset, fairness by race leads to a fair solution on sex, but fairness by sex leads to large amount of unfairness in race.

Finally, our results strongly suggest that finding a fair solution for two attributes is often only slightly more expensive (in terms of the clustering objective) than finding a fair solution for only one attribute.

5.4 Run time analysis

In this paper, we focus on providing a framework and do not emphasize on run time optimization. Nevertheless, we note that our algorithm for the k-means objective finds a fair solution for the census1990  dataset with 500K points and 13 features in less than 30 minutes (see Table 4). Even though our approach is based on iterative rounding method, in practice CPLEX solution to $\mathsf{LP}$ (eq. 1) is more than 99% integral for each of our experiments. Hence, we never have to solve more than two or three LP. Also the number of variables in subsequent LPs are significantly small. In contrast, if we attempt to frame $\mathsf{LP}$ (eq. 1) as an integer program instead, the CPLEX solver fails to find a solution in under an hour even with 40K points.

5.5 Tuning the fairness parameters

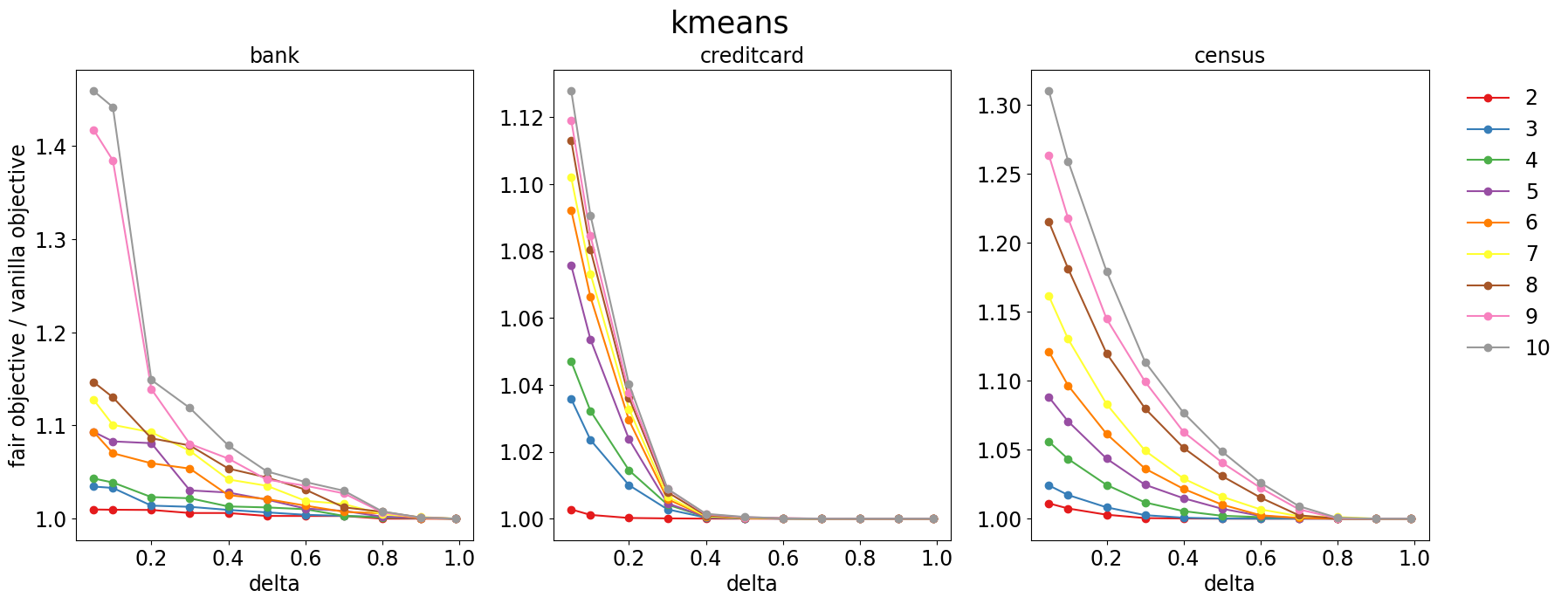

In Figure 6, we demonstrate the ability to tune the strictness of the fairness criteria by manipulating the parameter $\delta$. As $\delta$ approaches $1$, the ratio between the fair objective and original vanilla objective decreases to $1$. This suggests that the fair solution has recapitulated the vanilla clustering because our bounds are lax enough to do so.
