Spin-orbit driven band inversion in bilayer graphene by van der Waals proximity effect

TL;DR

This paper demonstrates that van der Waals proximity to a transition metal dichalcogenide induces strong spin-orbit coupling in bilayer graphene, leading to a band-inverted phase with potential topological properties.

Contribution

It introduces a method to engineer Kane-Mele SOC in bilayer graphene via layer-selective proximity effect, resulting in a new phase consistent with SOC-driven band inversion.

Findings

SOC induces a gapped, incompressible phase at charge neutrality.

The phase exhibits a conductivity of about e^2/h, suppressed by small magnetic fields.

Evidence suggests the presence of helical edge states protected by spin symmetry.

Abstract

Spin orbit coupling (SOC) is the key to realizing time-reversal invariant topological phases of matter. Famously, SOC was predicted by Kane and Mele to stabilize a quantum spin Hall insulator; however, the weak intrinsic SOC in monolayer graphene has precluded experimental observation. Here, we exploit a layer-selective proximity effect---achieved via van der Waals contact to a semiconducting transition metal dichalcogenide--to engineer Kane-Mele SOC in ultra-clean \textit{bilayer} graphene. Using high-resolution capacitance measurements to probe the bulk electronic compressibility, we find that SOC leads to the formation of a distinct incompressible, gapped phase at charge neutrality. The experimental data agrees quantitatively with a simple theoretical model in which the new phase results from SOC-driven band inversion. In contrast to Kane-Mele SOC in monolayer graphene, the inverted phase is not expected to be a time reversal invariant topological insulator, despite being separated from conventional band insulators by electric field tuned phase transitions where crystal symmetry mandates that the bulk gap must close. Electrical transport measurements, conspicuously, reveal that the inverted phase has a conductivity $\sim e^2/h$, which is suppressed by exceptionally small in-plane magnetic fields. The high conductivity and anomalous magnetoresistance are consistent with theoretical models that predict helical edge states within the inversted phase, that are protected from backscattering by an emergent spin symmetry that remains robust even for large Rashba SOC. Our results pave the way for proximity engineering of strong topological insulators as well as correlated quantum phases in the strong spin-orbit regime in graphene heterostructures.

Figures

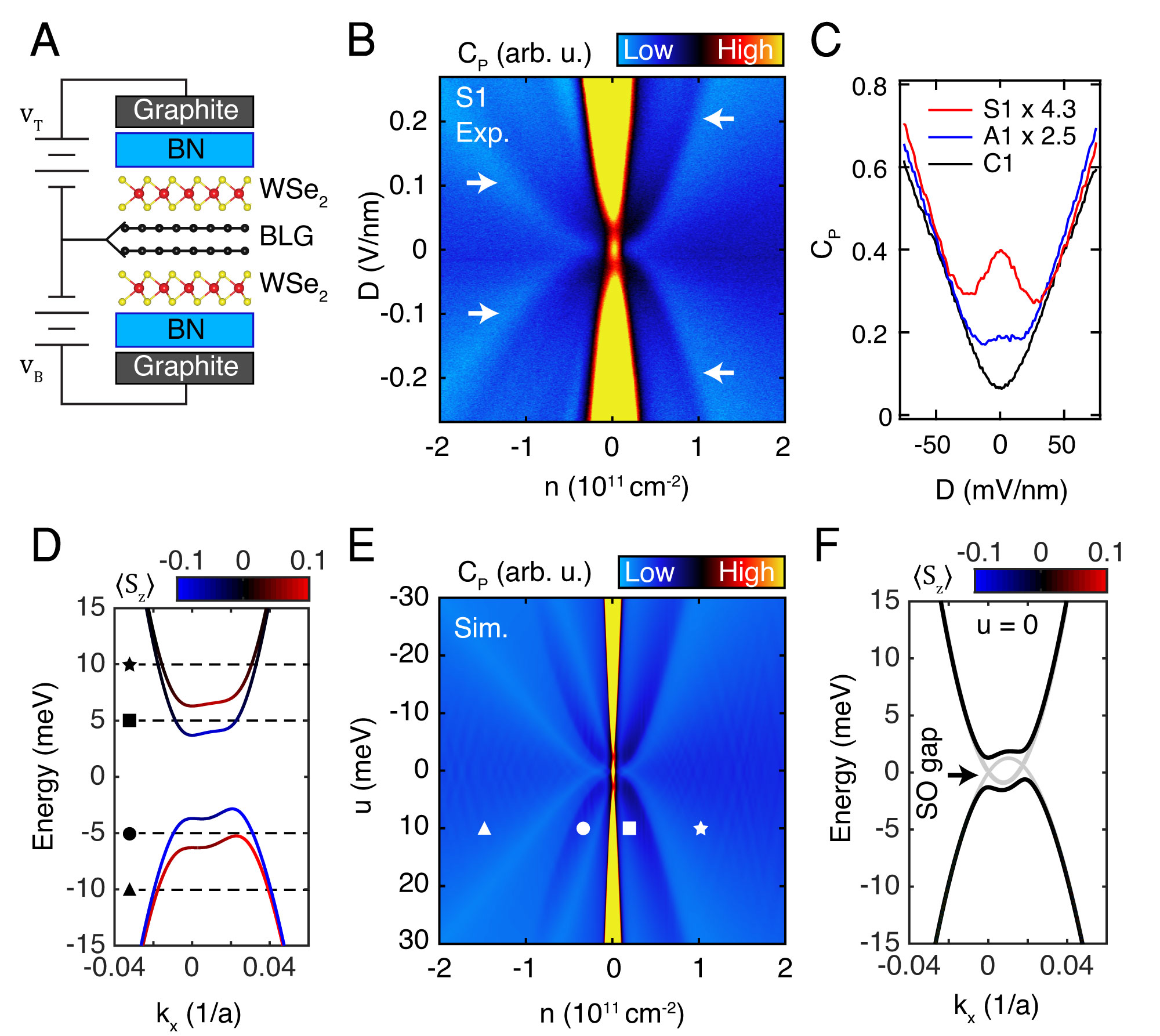

F). Due to the $2\pi$-Berry phase of the $\hat{H}_{\text{BLG}}$, however, the resulting inverted phase (IP) is not predicted to be a strong topological insulator and the observed incompressible phase near $n,D=0$ is not expected to have edge states protected by time-reversal symmetry. The IP is nevertheless topologically distinct from the high-$u$ BIs within this model; they differ in the polarization of the insulators’ Wannier orbitals, which are pinned to one of three high-symmetry positions within the BLG unit cell[zaletel_gate-tunable_2019 ](#bib.bib22); [SI ](#bib.bib26). Theoretically, t

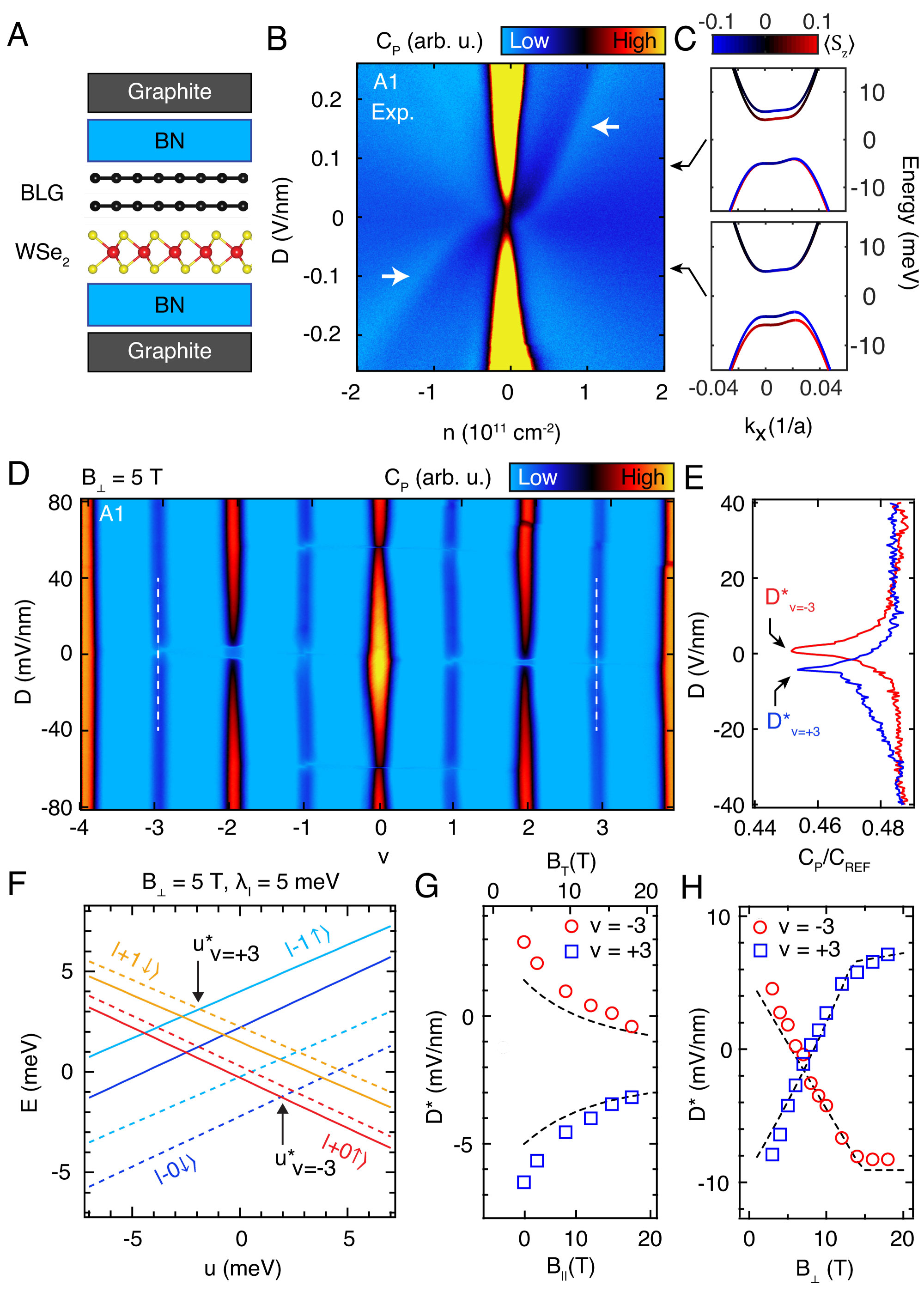

E) provides a direct comparison of the energy for LLs on opposite layers (and thus opposite valleys), and can be extracted with high precision (Fig. 2E). Fig. 2F shows the single particle energy spectrum of the octet LL with asymmetric Ising SOC[SI ](#bib.bib26). While the Coulomb interaction changes the order in which these levels fill for $-3<\nu<3$, it plays no role in determining which LL fills first ($\nu=-3$) or last ($\nu=3$)[hunt_direct_2017 ](#bib.bib29). We thus focus on the observed behavior of $D^{*}_{\nu=\pm 3}$, which can be simply related to $u^{*}_{\nu=\pm 3}$ calculated from o

C) reproduce the bulk gap from the continuum model, but additionally feature states localized on the edge of the ribbon that approach $E=0$ at the $K$, $K^{\prime}$, and $M$ points in the Brillouin zone. Closer inspection reveals that while the $M$ point (Fig. 3C, top inset) edge states are gapped even in the absence of Rashba SOC, the states near the K and K’ points (Fig. 3C, bottom inset) are indeed gapless and helical. Simulations[zaletel_gate-tunable_2019 ](#bib.bib22) show that the helical edge states are remarkably robust to Rashba SOC: the edge gap is strongly suppressed by interlayer h

Equations

$$\hat{H}={\hat{H}}_{\text{BLG}}+\frac{{\lambda }_{\text{I}}}{2}{\sigma }_z{s}_z{\tau }_z+\frac{u}{2}{\sigma }_z,$$

$$C_p(\mu ,u)=\frac{c}{c+\nu (\mu ,u)},$$

$$\displaystyle\mathcal{H}_{0}=\left(\begin{array}[]{cccc}\frac{u}{2}&v_{0}\pi^{\dagger}&-v_{4}\pi^{\dagger}&-v_{3}\pi\\ v_{0}\pi&\frac{u}{2}+\Delta^{\prime}&\gamma_{1}&-v_{4}\pi^{\dagger}\\ -v_{4}\pi&\gamma_{1}&-\frac{u}{2}+\Delta^{\prime}&v_{0}\pi^{\dagger}\\ -v_{3}\pi^{\dagger}&-v_{4}\pi&v_{0}\pi&-\frac{u}{2}\end{array}\right),$$

$$\pi =\hslash (\xi k_x+i{k}_y),{\pi }^{†}=\hslash (\xi k_x-i{k}_y),v_i=\frac{\sqrt{3}a}{2\hslash }{\gamma }_i.$$

$$\delta {\mathcal{H}}_i=\frac{{\lambda }_i}{2}\xi {\mathbf{s}}_z+\frac{{\lambda }_{R,i}}{2}\left(\xi {\mathbf{\sigma }}_x{\mathbf{s}}_y-{\mathbf{\sigma }}_y{\mathbf{s}}_x\right)$$

$$\nu (\mu )=\frac{1}{4{\pi }^2}\frac{S_k}{N}\sum _{\vec{k},j}\delta ({ϵ}_{\vec{k},j}-\mu ),$$

$$\delta ({ϵ}_{\vec{k},j}-\mu )\approx \frac{\gamma }{\pi }\frac{1}{({ϵ}_{\vec{k},j}-\mu {)}^2+{\gamma }^2}.$$

$$en(\mu ,u)=c\mu +{\int }_0^{\mu }d\tilde{\mu }\nu (\tilde{\mu },u)$$

$${\mathcal{H}}_{B_{\parallel }}={\mu }_B{B}_{\parallel }{\mathbf{s}}_x$$

$${\mathcal{H}}_{B_{\perp }}={\mu }_B{B}_{\perp }{\mathbf{s}}_z.$$

$${\mathcal{H}}_i^{AB}=\frac{{\Delta }_{AB,i}}{2}{\mathbf{\sigma }}_z.$$

Full text

Depending on microscopic symmetry, spin orbit coupling (SOC) in graphene can take several forms, leading in turn to different electronic states at charge neutrality. In the absence of SOC, the low energy electronic structure of monolayer graphene is described by Dirac equations in two inequivalent valleys centered at the two momenta $K$ and $K^{\prime}$ of the hexagonal Brillouin zone. SOC, along with other perturbations that break the equivalence of the two valleys or two carbon sublattices, can be written with the aid of three sets of Pauli matrices, $\hat{\sigma}_{i}$, $\hat{\tau}_{i}$ and $\hat{s}_{i}$, which operate on the space of the carbon sublattices within the graphene unit cell, the K and K’ valleys, and the physical electron spin, respectively. If the full symmetry of the graphene crystal is preserved, the only symmetry-allowed SOC term at low energies is the Kane-Mele (KM) termkane_quantum_2005 , $H_{\text{KM}}=\frac{\lambda_{\text{KM}}}{2}\sigma_{z}\tau_{z}s_{z}$. However, additional terms can arise when experimental substrates break lattice symmetries; these include the Rashba SOC, $H_{\text{R}}=\lambda_{\text{R}}\left(\sigma_{x}\tau_{z}s_{y}-\sigma_{y}s_{x}\right)$, and the so-called Ising SOC, $H_{\text{I}}=\lambda_{\text{I}}\tau_{z}s_{z}$. In monolayer graphene, only the intrinsic $\lambda_{\text{KM}}$ term leads to a topological phasekane_quantum_2005 ; yang_tunable_2016 . Moreover, this topological phase requires $\lambda_{\text{R}}<\lambda_{\text{KM}}$kane_quantum_2005 , a physically unrealisticmin_intrinsic_2006 ; huertas-hernando_spin-orbit_2006 ; yao_spin-orbit_2007 scenario given the measured value $\lambda_{\text{KM}}\approx$40 $\mu$eVsichau_intrinsic_2017 .

Proximity effects between two dimensional crystals provide a tool for engineering electronic structures that do not occur naturally within a single material. First principles calculations indicate gmitra_graphene_2015 ; gmitra_proximity_2017 that heterostructures of graphene and transition metal dichalcogenide semiconductors such as tungsten diselenide (WSe2) may endow graphene electrons with a SOC strength of several meV—two orders of magnitude larger than the intrinsic KM SOCsichau_intrinsic_2017 and sufficient, in principle, to enable observation of new topological phasesgmitra_trivial_2016 . Numerous experimental efforts have reported signatures of enhanced SOC in graphene-transition metal dichalcogenide (TMD) heterostructures. However, most rely on measurements of either spin relaxationavsar_spinorbit_2014 ; dankert_electrical_2017 ; ghiasi_large_2017 ; omar_spin_2018 ; benitez_strongly_2018 or weak antilocalizationwang_strong_2015 ; wang_origin_2016 ; yang_tunable_2016 ; yang_strong_2017 ; volkl_magnetotransport_2017 ; wakamura_strong_2018 ; zihlmann_large_2018 , neither of which can distinguish between bulk or defect mediated SOC. One studywang_origin_2016 of quantum oscillations found evidence for Rashba SOC within graphene band electrons of BLG, but neither Ising SOC nor a $\lambda_{\textrm{KM}}$-driven topological phasekane_quantum_2005 have been reported.

Here we explore the effects of proximity-induced SOC van der Waals heterostructures built around bilayer graphene (BLG)-tungsten diselenide (WSe2) interfaces (see Materials and Methods). In constrast to monolayer graphene, the electronic spectrum of BLG features a quadratic band touching at charge neutrality. An applied perpendicular electric displacement field, $D$, drives the system to a layer polarized band insulator in which wavefunctions are strongly polarized on the low energy layer, making BLG an ideal tool for probing short-range van der Waals proximity effects. To access subtle features within the electronic structure, we use hexagonal boron nitride (hBN) gate dielectricsdean_boron_2010 and single crystal graphite (G) top- and bottom-gate electrodes, which reduce charge inhomogeneityzibrov_tunable_2017 while simultaneously allowing independent control over the charge carrier density, $n$, and $D$ (see Fig. 1A). We measure the penetration field capacitance, $C_{P}$, which is inversely related to the bulk electronic compressibilitySI . Fig. 1B shows $C_{P}$ as a function of $n$ and $D$ measured in a BLG flake symmetrically encapsulated in WSe2. The most prominent features of the data are incompressible states at $n\sim 0$ associated with layer-polarized band insulators (BIs), which deepen as $|D|$ increases and are characteristic of BLG. However, WSe2 encapsulation also produces features associated with proximity-induced SOC. First, four weak $C_{P}$ minima appear at finite $n$ (indicated by arrows in Fig. 1B), whose positions depend strongly on $D$. Second, an additional incompressible phase is observed at charge neutrality near $D=0$, separated from the BIs by points of high compressibility. We observe the incompressible state in two devices, S1 and S2, that are symmetrically encapsulated in WSe2 but it does not appear in either hBN-encapsulated device C1 or in devices A1 and A2 that are asymmetrically encapsulated in hBN and WSe2 (Figs. 1C and S3).

Both experimental features can be captured by a continuum model of BLGSI with the sole addition of an Ising SOC term having equal magnitude—but opposite sign—on the two carbon layers (Fig. 1D-F). The opposite sign is consistent with 3D inversion symmetry. Fig. 1E shows simulated $C_{P}$ from this model, in which the only free parameters are the strength of the SOC ($\lambda_{\text{I}}=2.6$ meV) and the out-of-plane dielectric constant of the BLG ($\epsilon^{\perp}_{\text{BLG}}=4.3$). The latter is used to relate the experimentally measured $D$ to the the interlayer potential difference $u=-\frac{d}{\epsilon^{\perp}_{\text{BLG}}}D$ which enters the theoretical model (here $d=.33$ nm is the BLG interlayer separation). At finite $u$, Ising SOC splits the normally spin-degenerate conduction and valence bands in bilayer graphene (Fig. 1D). The $C_{P}$ minima arise from the high compressibility associated with the edge of the higher (lower) conduction (valence) band. These band edges appear at finite density after the first bands have already begun filling (Fig. 1D-E).

The $C_{P}$ maximum observed near $n,D=0$ can be understood by noting that within a two-band model of BLG, layer and carbon sublattice are equivalentmccann_landau-level_2006 . As a result, Ising SOC with opposite signs on opposite layers is equivalent to a single SOC term proportional to $\sigma_{z}$, precisely reproducing the Kane-Mele SOCkane_quantum_2005 . The two-band Hamiltonian of WSe2 encapsulated BLG is thus

[TABLE]

where $\hat{H}_{\text{BLG}}$ describes BLG in the absence of either SOC or electric fields, and $\sigma^{z}$ indexes the two low energy carbon atoms, or equivalently, layer.

Within this model, the SOC inverts the bands for $|u|<|\lambda_{\text{I}}|$, opening a gap even at $u=0$ (Fig. 1F). Due to the $2\pi$-Berry phase of the $\hat{H}_{\text{BLG}}$, however, the resulting inverted phase (IP) is not predicted to be a strong topological insulator and the observed incompressible phase near $n,D=0$ is not expected to have edge states protected by time-reversal symmetry. The IP is nevertheless topologically distinct from the high-$u$ BIs within this model; they differ in the polarization of the insulators’ Wannier orbitals, which are pinned to one of three high-symmetry positions within the BLG unit cellzaletel_gate-tunable_2019 ; SI . Theoretically, this distinction guarantees a gap closing between the IP and BIs, consistent with the compressible $C_{P}$ minima experimentally.

Proximity induced SOC arises from overlaps between atomic orbitals, so is only expected to occur for the BLG layer in direct contact with the WSe2. Fig. 2A shows a schematic representation of an asymmetric heterostructure in which WSe2 is in contact with only the bottom layer. In contrast to the symmetric devices, $C_{P}$-minima appear in device A1 only for electrons for $D<0$ and only for holes for $D>0$ (Fig. 2B). Note that in isolated BLG, all thermodynamic features should respect $D\leftrightarrow-D$ symmetry, suggesting that the asymmetric $C_{P}$ minima are caused by coupling between the BLG and other elements in the heterostructure. Theoretical simulations (Figs. 2C and S3) confirm that when SOC is induced only on the layer proximate to the WSe2, the spin splitting is restricted to the conduction (for $D>0$) or valence (for $D<0$), consistent with the experimental dataSI .

The nature of the induced SOC can be precisely validated using the unique properties of BLG in a quantizing perpendicular magnetic field ($B_{\perp}$), where the energy spectrum is described by highly degenerate Landau Levels (LLs). Twofold quasi-degeneracies of the inequivalent valleys ($\xi=\pm 1$), spin projections ($s=\pm 1$), and the lowest two orbital ($N=0,1$ ) LLsmccann_landau-level_2006 combine to form an octet LL spanning $\nu\in(-4,4)$, where $\nu=2\pi\ell_{B}^{2}n$ denotes the LL filling factor. The degeneracy between individual octet sublevels $|\xi Ns\rangle$ is lifted by small intrinsic level splittings that include the Zeeman effect (lifting the spin degeneracy), interlayer potential $u$ (lifting the valley degeneracy through the near-perfect equivalence of valley and layer polarization in the lowest LLs mccann_landau-level_2006 ) and band structure effects that distinguish the two orbitals. If disorder is sufficiently low, these splittings tend to fully polarize the electron system into one or more of the $|\xi Ns\rangle$, which manifests experimentally as incompressible phases at all integer $\nu$. As shown in Fig. 2D, this signature is present in WSe2 supported samples, which show signs of full lifting of the octet degeneracy for $B_{\perp}\gtrsim 2$ T. Notably, the higher $B_{\perp}$ phenomenology of our samples suggests that WSe2 is comparable to hBNdean_boron_2010 as a substrate for high quality graphene heterostructures, with Coulomb driven states with fractional Hall conductivity observed in compressibility (see. Fig. S6-S7).

Three features make the octets LL a precision probe of SOC. First, the small scale of the intrinsic splittings allows even few-meV scale SOCgmitra_graphene_2015 to rearrange the LL filling sequencekhoo_tunable_2018 . Second, the octet LL is entirely insensitive to Rashba SOCkhoo_tunable_2018 , allowing a direct measurement of the Ising SOCkhoo_tunable_2018 . Finally, a broad set of $D$-field tuned phase transitions are observed throughout the zero-energy LL, corresponding to transitions between states with differing layer polarizations. The critical displacement field, $D^{*}$, required to effect these transitions (Fig. 2E) provides a direct comparison of the energy for LLs on opposite layers (and thus opposite valleys), and can be extracted with high precision (Fig. 2E). Fig. 2F shows the single particle energy spectrum of the octet LL with asymmetric Ising SOCSI . While the Coulomb interaction changes the order in which these levels fill for $-3<\nu<3$, it plays no role in determining which LL fills first ($\nu=-3$) or last ($\nu=3$)hunt_direct_2017 . We thus focus on the observed behavior of $D^{*}_{\nu=\pm 3}$, which can be simply related to $u^{*}_{\nu=\pm 3}$ calculated from our theoretical modelSI . The spin structure of the LLs is readily probed by varying the in-plane magnetic field $B_{\parallel}$ at fixed $B_{\perp}$, which varies the Zeeman energy but leaves orbital energy scales fixed. In hBN encapsulated devices, $D^{*}_{\nu=\pm 3}$ is observed to be independent from $B_{\parallel}$ (Fig. S4), consistent with theoretical expectation that the transition occurs between ground states of identical spin. A strikingly different dependence is observed in device A1 (Fig. 2D); now $D^{*}_{\nu=\pm 3}$ is a strong function of $B_{\parallel}$ indicating that the transition is between ground states with different spin. As shown in the figure, the observed behavior is quantitatively consistent with our model of Ising SOC on the WSe2 proximal layer, under the stipulations that $\lambda_{\text{I}}$ be larger in magnitude than the Zeeman energy due to the applied magnetic field ($\lambda_{\text{I}}>E_{Z}$) and that the sign of $\lambda_{\text{I}}$ be chosen to cancel, rather then add, to the $B_{\perp}$-proportioal part of the Zeeman splitting in the affected valley. Under these conditions, the level structure near $\nu=\pm 3$ is inverted, leading to the observed behavior in $B_{\parallel}$ (see Fig. S5). Moreover, $\lambda_{\text{I}}$ can now be directly extracted from the dependence of $D^{*}_{\nu=\pm 3}$ on $B_{\perp}$khoo_tunable_2018 , in the absence of $B_{\parallel}$: because the effective Zeeman splitting arising from the SOC is oriented out of plane, an out-of-plane extrinsic Zeeman splitting will precisely cancel it when $2E_{Z}=2g\mu_{B}B_{\perp}=\lambda_{\text{I}}$. Fig. 2E shows $D^{*}_{\nu\pm 3}$ for $B_{\parallel}=0$. The two curves cross at $B_{\perp}\approx 7.4$ T from which it follows that $\lambda_{\text{I}}=1.7$ meV (see Fig. S9 for a similar analysis in device A2, resulting in $\lambda_{\text{I}}=2.0$ meV). This value is in reasonable agreement with ab initio calculationsgmitra_trivial_2016 predicting $\lambda_{\text{I}}=1.19$ meV for similar device geometries.

In summary, to account for the bulk thermodynamic measurements of TMD-encapsulated BLG it is necessary to include Ising SOC $\lambda_{\textrm{I}}$ on the layers proximate to the TMD, with equal and opposite values in the case of symmetric-encapsulation. However, our bulk measurements do not quantitatively constrain the Rashba SOC $\lambda_{\textrm{R}}$. This is because the effect of $\lambda_{\textrm{R}}$ on the low-energy band structure of BLG is highly suppressed by the large inter-layer hybridization scale $\gamma_{1}$, and hence has a negligible effect on both the LL structurekhoo_tunable_2018 and the zero magnetic field compressibilityzaletel_gate-tunable_2019 . Previous experimental works largely focusing on monolayer devices have suggested a wide range of values for $\lambda_{\textrm{R}}$ between 0 and 15 meV yang_strong_2017 ; wang_origin_2016 ; omar_spin_2018 ; volkl_magnetotransport_2017 ; garcia_spin_2018 . Despite its small influence on the bulk, theoretically the Rashba SOC plays a critical role in the edge state spectrum of our BLG Hamiltonian, Eq. 1. For $\lambda_{\text{R}}=0$, $s_{z}$ is conserved, and the edge is predicted to host two pairs of counter-propagating, spin filtered modes with a quantized conductance (and spin Hall effect) of $4\frac{e^{2}}{h}$gmitra_trivial_2016 ; zaletel_gate-tunable_2019 . When $\lambda_{\text{R}}\neq 0$, however, $s_{z}$ symmetry is weakly broken and backscattering is expected.

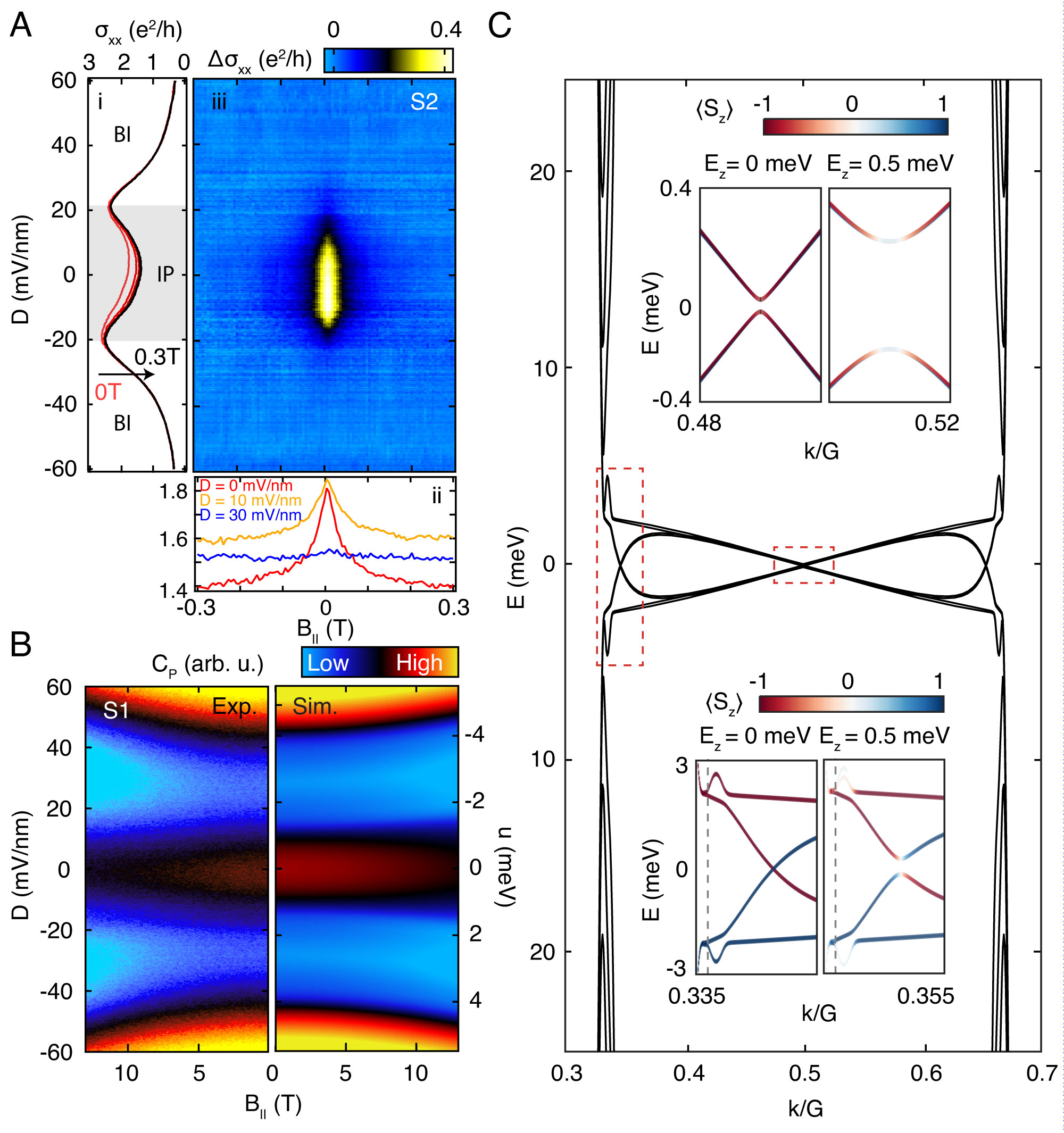

In order to explore the possibility of edge state transport experimentally, we measure the longitudinal resistance ($R_{xx}=1/\sigma_{xx}$) as a function of $D$ and $n$ at $B_{T}=0$ for a symmetrically encapsulated device (S2) fabricated with transport contacts. The IP is readily evident (Figs. 3A(i) and S9B), but is not a strong insulator, showing a finite four-terminal conductivity $\sigma_{xx}\gtrsim e^{2}/h$ at low temperatures. Such behavior is consistent with transport via edge states with a finite transmission coefficient, as might be expected for a finite length helical edge in which backscattering is suppressed but not completely forbidden. However, it is also consistent with bulk conduction through a mesoscopically disordered sample.

To disambiguate these two scenarios, we study the response of $\sigma_{xx}$ to a small in-plane magnetic field, $B_{\parallel}$, which breaks $\sigma_{z}$ conservation. $B_{\parallel}$ is expected to rapidly localize spin-filtered edge states while having a minimal effect on the bulk energy spectrum when $E_{Z}<\lambda_{\text{I}}$ (i.e. $B_{\parallel}<10-20$ T for $\lambda_{\text{I}}\sim$ 1-2meV). Indeed, the IP shows strong in-plane magneto-resistance at exceptionally small values of $B_{\parallel}$, as shown in Figs. 3A(i-iii), a response that is completely absent in the BI phases. This is in contrast with $C_{P}$ measurements of the bulk, which show no detectable dependence on $B_{\parallel}$ at low fields and a high field response that is well accounted for in our theoretical model (Fig. 3B).

To explore the plausibility of edge state transport in the IP, we perform numerical simulations of the band structure for a finite width BLG ribbonSI . The resulting energy levels (Fig. 3C) reproduce the bulk gap from the continuum model, but additionally feature states localized on the edge of the ribbon that approach $E=0$ at the $K$, $K^{\prime}$, and $M$ points in the Brillouin zone. Closer inspection reveals that while the $M$ point (Fig. 3C, top inset) edge states are gapped even in the absence of Rashba SOC, the states near the K and K’ points (Fig. 3C, bottom inset) are indeed gapless and helical. Simulationszaletel_gate-tunable_2019 show that the helical edge states are remarkably robust to Rashba SOC: the edge gap is strongly suppressed by interlayer hopping terms in the BLG band structure, so that the anticipated gap is $\Delta_{edge}\propto\lambda_{\text{R}}^{2}/\gamma_{1}\approx.25$ meV even for $\lambda_{\text{R}}=10$ meV, near the largest values reported in the literaturewang_origin_2016 . In contrast, the helical edge states are highly sensitive to finite $B_{\parallel}$ (Fig. 3C, right panels of top and bottom insets), developing an energy gap directly proportional to the Zeeman energy $\Delta_{edge}\approx g\mu_{B}B_{\parallel}\approx.1$ meV $\times B_{\parallel}/\text{T}$.

These considerations are qualitatively consistent with the observed in-plane magnetoresistance anomaly. However, we note that the fine structure of the edge states is highly sensitive to choice of theoretical parameters, and ignores electron-electron interactions which may play a significant role. Our experimental magnetoresistance data saturate at a rather low resistance value, well below $h/e^{2}$, possibly indicating residual bulk conductance. It bears noting that the weak edge transport is understood to be a consequence of the accidental approximate $s_{z}$-conservation in this system. However, recent theoretical workzaletel_gate-tunable_2019 argues that the same fabrication technique implemented with ABC trilayer graphene—where the SOC gaps a cubic band touching with $3\pi$ Berry phase—results in a strong topological insulator with time-reversal symmetry protected edge states. Notably, the multi-layer graphene/WSe2 platform generically allows for gate tunable transitions between topological and trivial insulating states, a long-standing milestone in the quest for reconfigurable topological circuits.

Acknowledgments:

Experimental work at UCSB was supported by the ARO under award MURI W911NF-16-1-0361. DR, JH acknowledge support by the U.S. Department of Energy, DE-SC0016703 for synthesis of WSe2 crystals. KW and TT acknowledge support from the Elemental Strategy Initiative conducted by the MEXT, Japan and and the CREST (JPMJCR15F3), JST. MZ was supported by the Director, Office of Science, Office of Basic Energy Sciences, Materials Sciences and Engineering Division of the U.S. Department of Energy under contract no. DE-AC02-05-CH11231 (van der Waals heterostructures program, KCWF16)AFY acknowledges the support of the David and Lucile Packard Foundation and and Alfred. P. Sloan Foundation. JOI acknowledges the support of the Netherlands Organization for Scientific Research (NWO) through the Rubicon grant, project number 680-50-1225/2474. JYK acknowledges support by the National Science Scholarship from the Agency for Science, Technology and Research (A*STAR). A portion of this work was performed at the National High Magnetic Field Laboratory, which is supported by National Science Foundation Cooperative Agreement No. DMR-1644779 and the State of Florida. Measurements made use of a dilution refrigerator funded through the Major Research Instrumentation program of the U.S. National Science Foundation under award no. DMR-1531389, and the MRL Shared Experimental Facilities, which are supported by the MRSEC Program of the U.S. National Science Foundation under Award No. DMR-1720256.

Author Contributions:

JOI, XC, and HZ fabricated the devices. JOI, XC, EMS, and AFY performed the measurements. JYK, CL, and MZ performed the theoretical simulations. JOI, XC, JYK, CL, MZ and AFY analyzed the data. DR and JH grew the WSe2 crystals used in devices A1, S1, and A2/S2. TT and KW grew the hBN crystals used in all devices. JOI and AFY wrote the paper in consultation with XC, JYK, CL, MZ.

Materials and Methods:

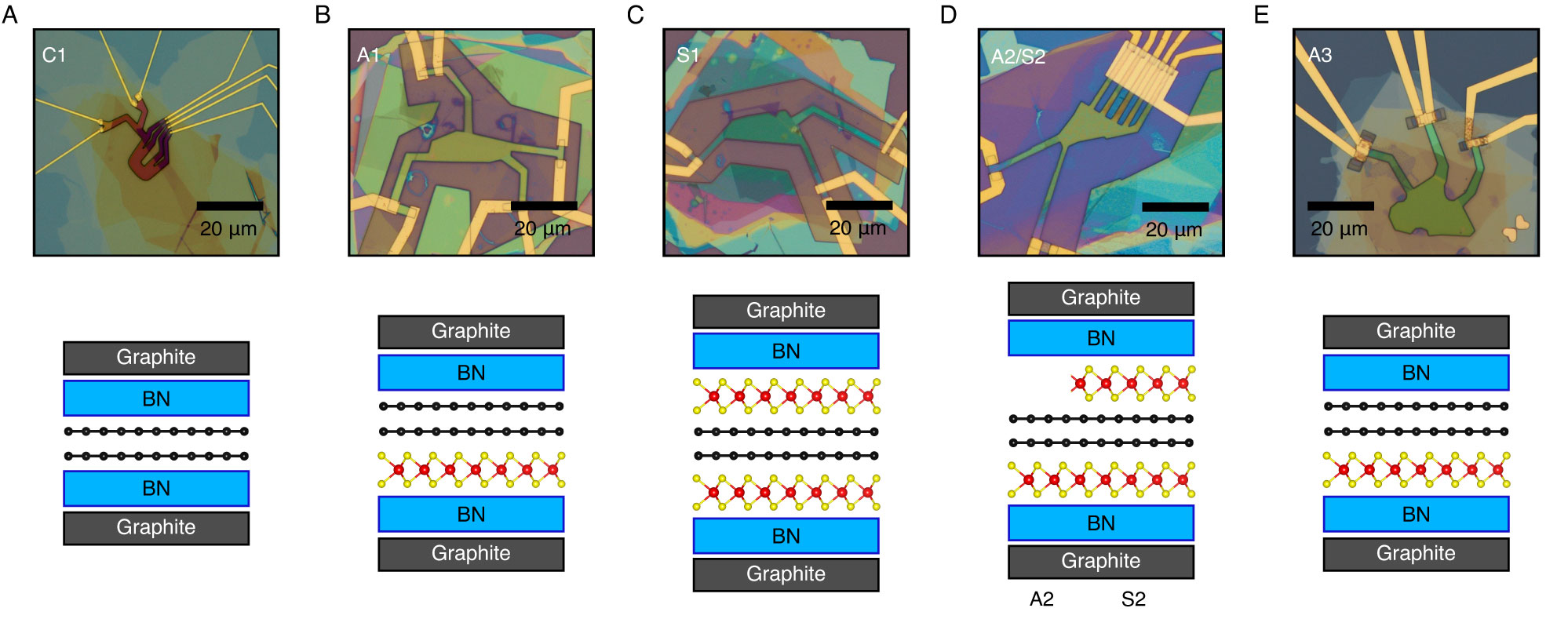

Five bilayer graphene van der Waals heterostructure devices (labeled C1, A1, S1, A2/S2, A3) were fabricated and studied in this work, as shown Fig. S1. All devices were fabricated using a stacking and transfer method based on van der Waals adhesionwang_one-dimensional_2013 . Contact to the bilayer graphene was achieved using $\sim 10$ nm thick graphite flakes. All devices made use of single crystal hexagonal boron nitride gate dielectricsdean_boron_2010 and graphite gateszibrov_tunable_2017 , which in combination are known to minimize extrinsic charge disorder. Devices A1, S1, and A2/S2 were fabricated using WSe2 crystals grown by a flux methodgustafsson_ambipolar_2018 , while device A3 was fabricated using WSe2 from a commercial source (2Dsemiconductors.com). A mixture of CHF3 and O2 was used to dry etch the stacks to define the device area and create connections to the bilayer graphene and top and bottom gates. Electrical contact was made to the edges of the exposed graphite flakes using a three layer metal film of Cr/Pd/Au (3nm/15nm/80nm).

Penetration field capacitance measurements were performed on all devices and additional connections were patterned in device A2/S2 in order to perform electrical transport. With the exception of device A2/S2, all devices had characteristics corresponding to uniform encapsulation on each facet by either hBN or WSe2, depending on the device configuration. Device A2/S2 showed two sets of LL phase transitions in the zero-energy LL, consistent with the device having one asymmetric portion (A2) and one symmetric portion (S2). Extended data from this device is presented in Fig. S9.

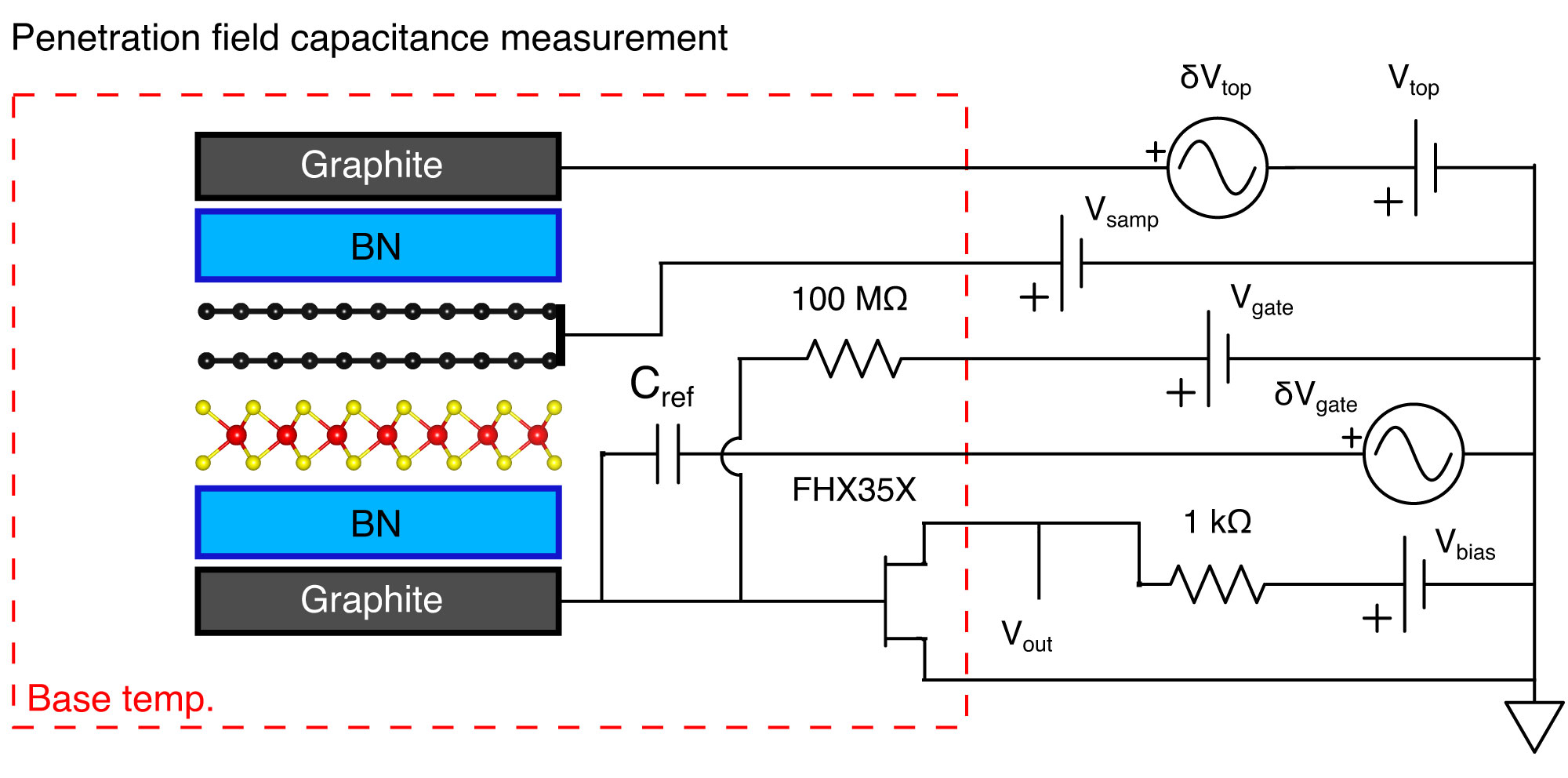

Small changes in device capacitance are measured using a low temperature capacitance bridgeashoori_single-electron_1992 which effectively disconnects the device capacitance from the large capacitance of the cryostat cabling, see Fig. S2. $C_{P}$ is a measure of the capacitance between the top and bottom gates and its magnitude is high when the bilayer graphene is incompressible (gapped) and low when it is compressible (conducting). $C_{P}$ is measured by applying a fixed AC excitation (17-33 kHz) to the top gate ($\delta V_{top}$) and the phase and amplitude of a second AC excitation with the same frequency is adjusted and applied to a standard reference capacitor ($C_{\text{ref}}$) on the low temperature amplifier in order to balance the capacitance bridge. A commercial high electron mobility transistor (FHX35X) transforms the small sample impedance to a 1 k$\Omega$ output impedance roughly translating to a (power) gain of $\sim$1000. $V_{top}$ and $V_{samp}$ (at a fixed $V_{gate}$) are swept in order to adjust charge density $n=c_{T}v_{T}+c_{B}v_{B}$ and displacement field $D=(c_{T}v_{T}-c_{B}v_{B})/(2\epsilon_{0})$.

All measurements were performed within the electronic band-gap of WSe2. Charge accumulation in the WSe2 layers is evident in capacitance measurements at high densities and manifests as apparent negative signals in $C_{P}$ as charge carriers are transferred from bilayer graphene to the opposite facet of the WSe2 substrates.

I Supplementary materials

S1 Device fabrication and measurement

Five bilayer graphene van der Waals heterostructure devices (labeled C1, A1, S1, A2/S2, A3) were fabricated and studied in this work, as shown Fig. S1. All devices were fabricated using a stacking and transfer method based on van der Waals adhesion[31]. Contact to the bilayer graphene was achieved using $\sim 10$ nm thick graphite flakes. All devices made use of single crystal hexagonal boron nitride gate dielectrics[24] and graphite gates[25], which in combination are known to minimize extrinsic charge disorder. Devices A1, S1, and S2/S2 were fabricated using WSe2 crystals grown by a flux method[32], while device A3 was fabricated using WSe2 from a commercial source (2Dsemiconductors.com). A mixture of CHF3 and O2 was used to dry etch the stacks to define the device area and create connections to the bilayer graphene and top and bottom gates. Electrical contact was made to the edges of the exposed graphite flakes using a three layer metal film of Cr/Pd/Au (3nm/15nm/80nm).

Penetration field capacitance measurements were performed on all devices and additional connections were patterned in device A2/S2 in order to perform electrical transport. With the exception of device A2/S2, all devices had characteristics corresponding to uniform encapsulation on each facet by either hBN or WSe2, depending on the device configuration. Device A2/S2 showed two sets of LL phase transitions in the zero-energy LL, consistent with the device having one asymmetric portion (A2) and one symmetric portion (S2). Extended data from this device is presented in Fig. S9.

Small changes in device capacitance are measured using a low temperature capacitance bridge[33] which effectively disconnects the device capacitance from the large capacitance of the cryostat cabling, see Fig. S2. $C_{P}$ is a measure of the capacitance between the top and bottom gates and its magnitude is high when the bilayer graphene is incompressible (gapped) and low when it is compressible (conducting). $C_{P}$ is measured by applying a fixed AC excitation (17-33 kHz) to the top gate ($\delta V_{top}$) and the phase and amplitude of a second AC excitation with the same frequency is adjusted and applied to a standard reference capacitor ($C_{\text{ref}}$) on the low temperature amplifier in order to balance the capacitance bridge. A commercial high electron mobility transistor (FHX35X) transforms the small sample impedance to a 1 k$\Omega$ output impedance roughly translating to a (power) gain of $\sim$1000. $V_{top}$ and $V_{samp}$ (at a fixed $V_{gate}$) are swept in order to adjust charge density $n=c_{T}v_{T}+c_{B}v_{B}$ and displacement field $D=(c_{T}v_{T}-c_{B}v_{B})/(2\epsilon_{0})$.

All measurements were performed within the electronic band-gap of WSe2. Charge accumulation in the WSe2 layers is evident in capacitance measurements at high densities and manifests as apparent negative signals in $C_{P}$ as charge carriers are transferred from bilayer graphene to the opposite facet of the WSe2 substrates.

S2 Comparison of experimental data and numerical simulations at $B=0$ for varying $\lambda_{\text{R}}$

In order to determine what type of spin-orbit symmetry breaking terms are present in the symmetric device, we analyze the band structure and simulated capacitance $C_{P}$ for a one sided device in further detail. As discussed in the main text, the band structure and in turn the system for the symmetric device are almost completely insensitive to the value of the Rashba SOC under the assumption of equal and opposite Rashba coupling in the top and bottom layer. To circumvent this peculiar property we focus on the one-sided device, which does not exhibit similar insensitivity to Rashba SOC due to its asymmetric construction.

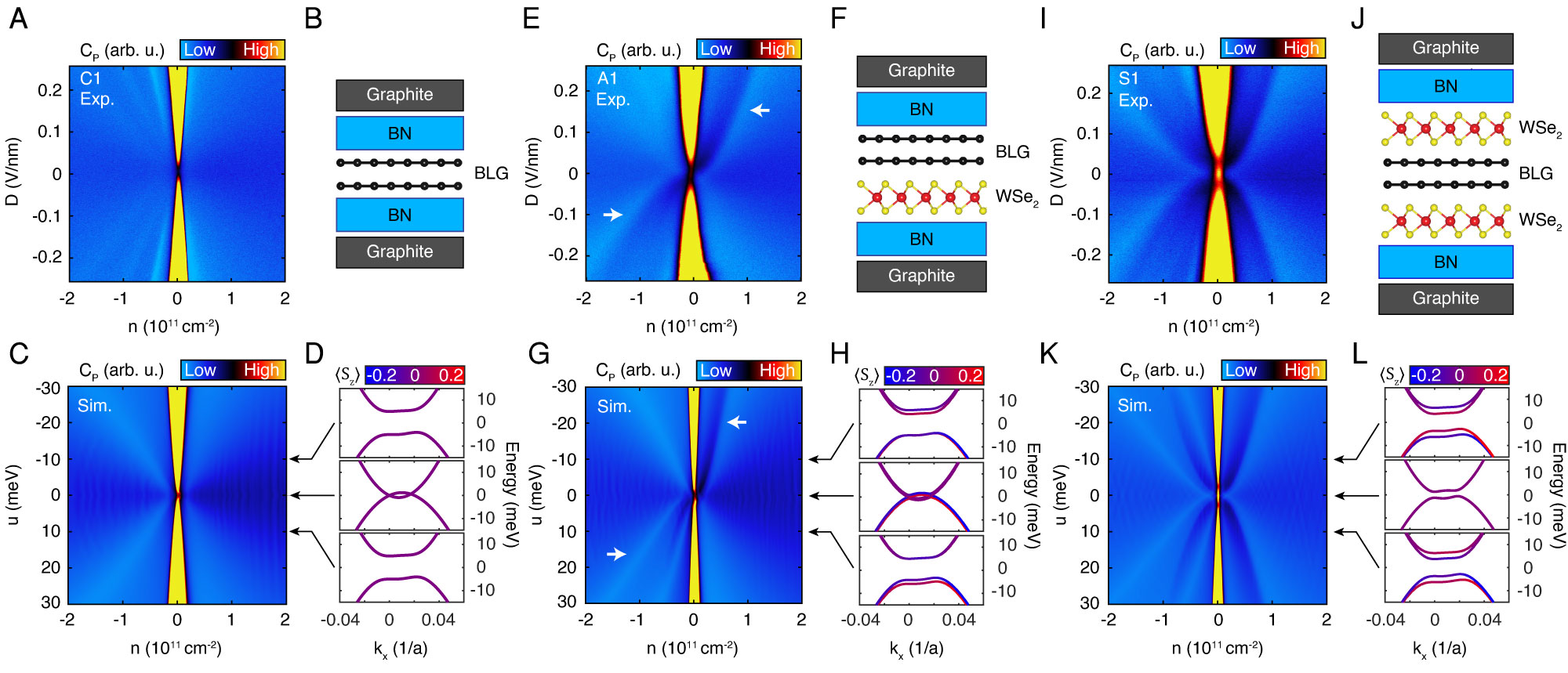

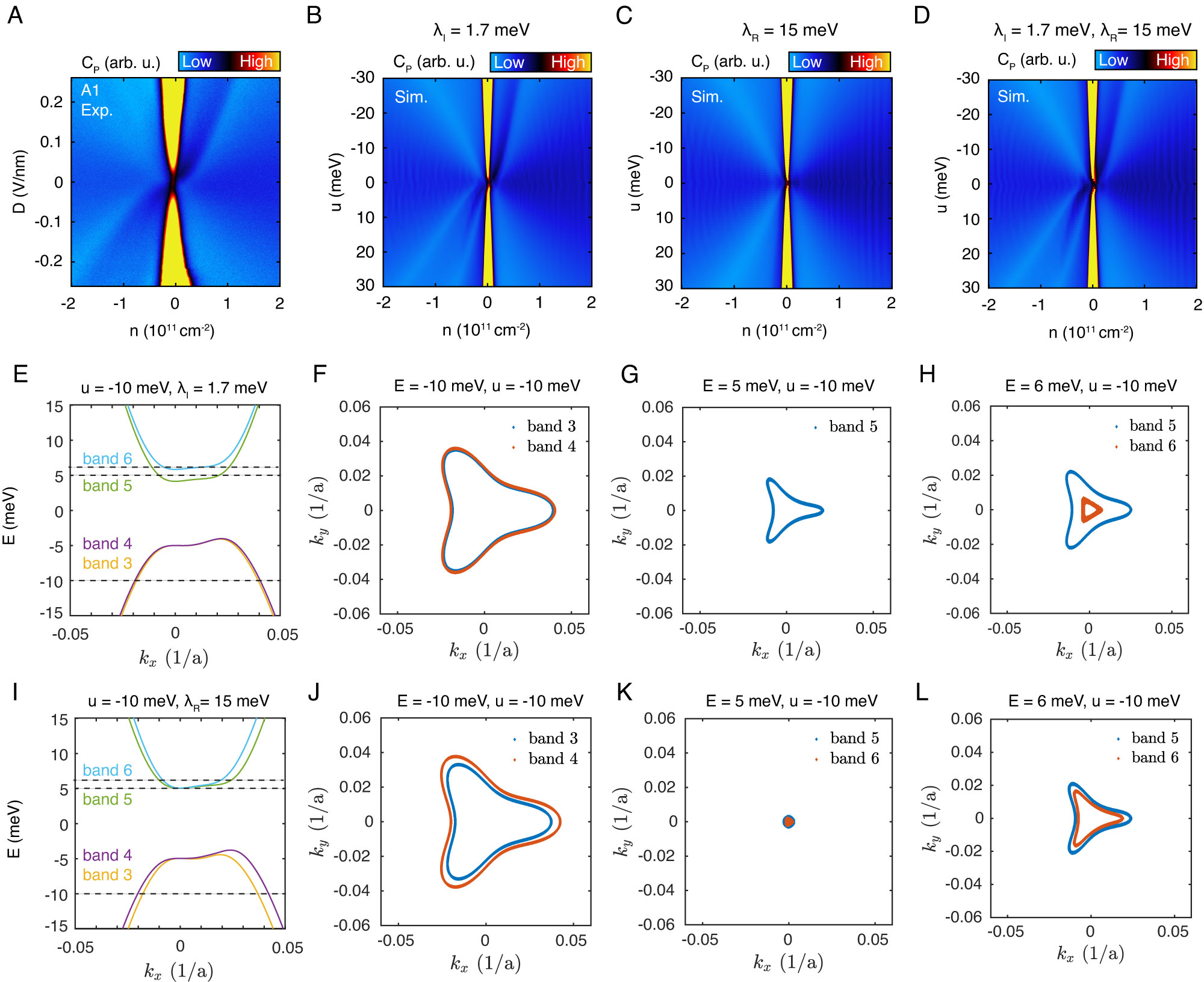

The measured capacitance for the one sided device is shown in Fig. S4A. In addition to the symmetric gapped regions due to the applied interlayer potential (as also seen in the control device, C1), we observe two clearly defined asymmetric features (indicated with white arrows on the Fig. S4) present in the $u>0,n<0$ and $u<0,n>0$ regions. Each feature consists of two line-like “dips” in capacitance. By definition, minima in $C_{P}$ correspond to maxima of density of compressibility. A maximum of compressibility in turn suggests an extremum of the band structure (van Hove singularities). With this understanding in mind we consider three separate device simulations

a pure Ising SOC system: a non-zero Ising coupling, zero Rashba coupling (Fig. S4B), 2. 2.

a pure Rashba SOC system: a zero Ising coupling, non-zero Rashba coupling (Fig. S4C), 3. 3.

a mixed system: a non-zero Ising coupling, non-zero Rashba coupling (Fig. S4D).

Corresponding band structures for the pure Ising (Fig. S4E-H) and pure Rashba (Fig. S4I-L) devices are shown in the the panels below the capacitance simulations. We clearly see that neither Rashba nor Ising term lead to formation of a local minimum of the bandstructure. The Ising SOC together with interlayer potential causes an energy splitting of either conduction or valence bands (Fig. S4E), whilst the Rashba SOC causes primarily splittings in momenta (Fig. S4I). Of these two effects only the splitting in energy will lead to two van Hove singularities as seen in the experimental map Fig. S4A. This is further exemplified by the energy contours plots of the two systems (Fig. S4F-H and Fig. S4J-L), which show a clear difference between bandstructures for the pure Ising and pure Rashba devices. We note however that a mixed system (both a non-zero Ising and Rashba term) cannot be excluded based on this analysis as the capacitance of the mixed system possesses all qualitative features of a pure Ising device as shown in Fig. S4D.

S3 $\nu=\pm 3$ phase transitions in the control device C1 and comparison with A1

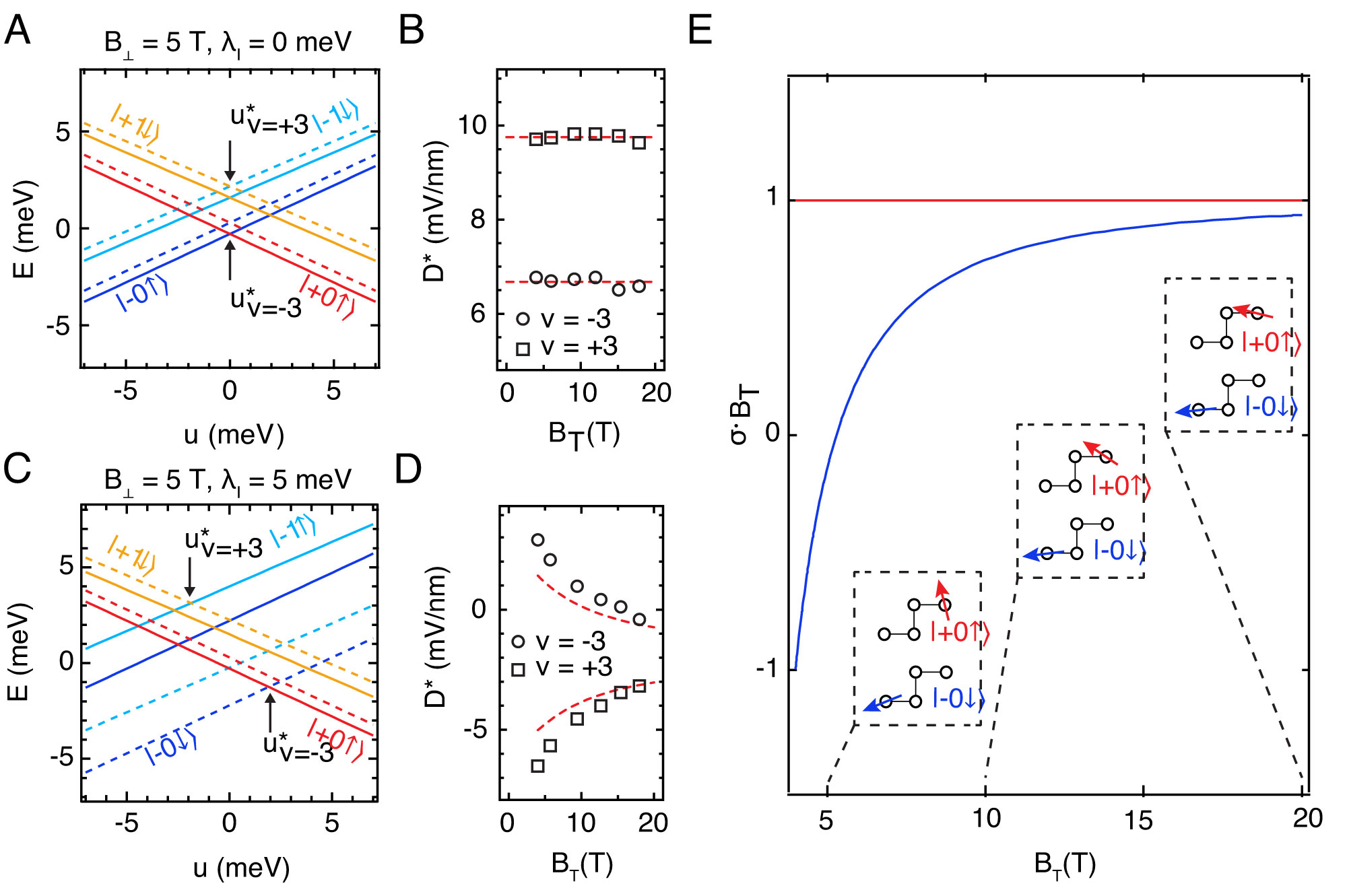

In the control device, C1, we do not expect to observe a Zeeman dependence of $D^{*}_{\nu=\pm 3}$ as the transitions occur between states with the same spin orientation. Fig. S5A shows the Landau level spectrum at $B=5$ T for bilayer graphene without SOC. The level transitions at $u^{*}_{\nu=-3}$ are between $|-0\uparrow\rangle$ and $|+0\uparrow\rangle$. The applied magnetic field simply moves these two states down in energy, shifting the energy at which the transition occurs but keeping it pinned to $u=0$ meV. This can be readily seen for the control device, C1, in the extracted $D^{*}$ from measurements of $C_{P}$, see Fig. S5B. $D^{*}$ is constant across the measurable field range. Note that offsets from $u^{*}=0$ are possible due to differing on-site energies within the BLG unit cell, which can arise from coupling to the hBN substrate, but that these offsets do not influence the spin degree of freedom. This is in contrast with the asymmetric device with a layer specific SOC. Fig. S5C shows the calculated Landau level spectrum for bilayer graphene now with an Ising SOC of $\lambda_{\text{I}}=5$ meV. The level transitions for both $\nu=-3$ and $\nu=+3$ have been shifted away from $u=0$ meV as a result of the rearrangement of the states on the bottom layer. Not only has the transition shifted from zero but the transitions now occur between states with opposite spin orientation. Application of a magnetic field acts to shift the levels in opposite directions, thereby changing the $u^{*}$ at which the transition occurs. This is again readily observed in the data for an asymmetric device, A1, shown in Fig. S5D. $D^{*}_{\nu=\pm 3}$ moves to lower $D$ larger magnetic fields. An illustration of the canting of the spin in the spin orbit coupled layer in an asymmetric device is shown in Fig. S5E. As the in-plane field is increased the spin in the proximitized layer cants toward the total magnetic field vector.

S4 High field $C_{P}$ measurements, fractional quantum hall and Chern insulator states

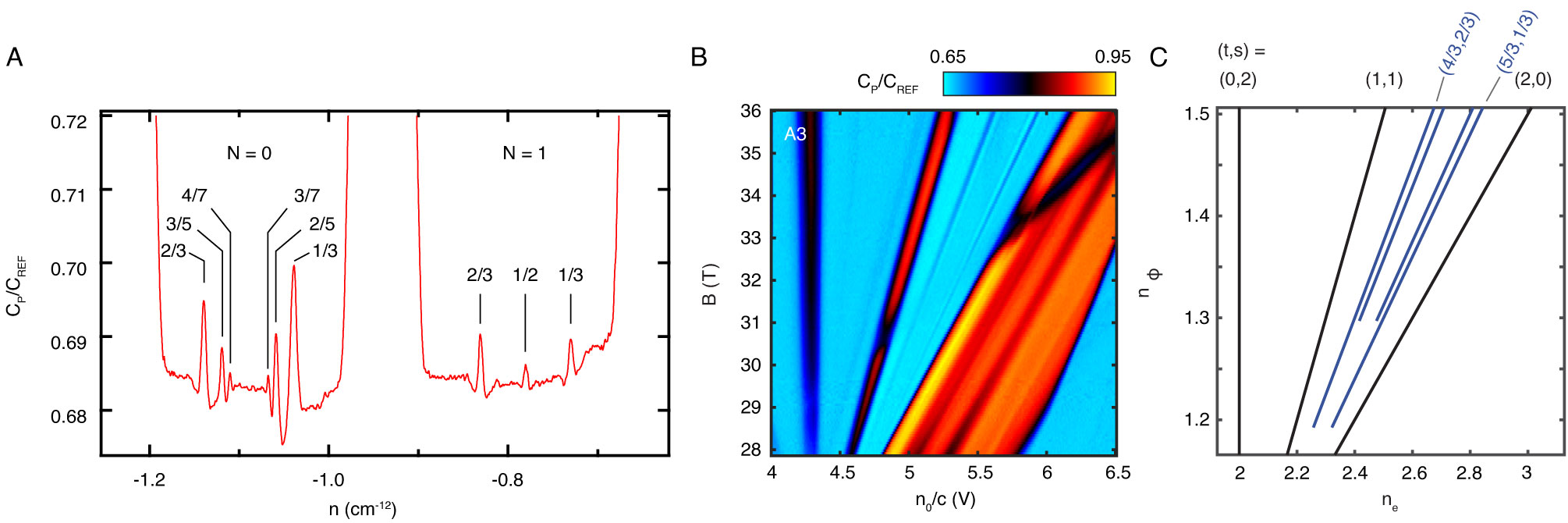

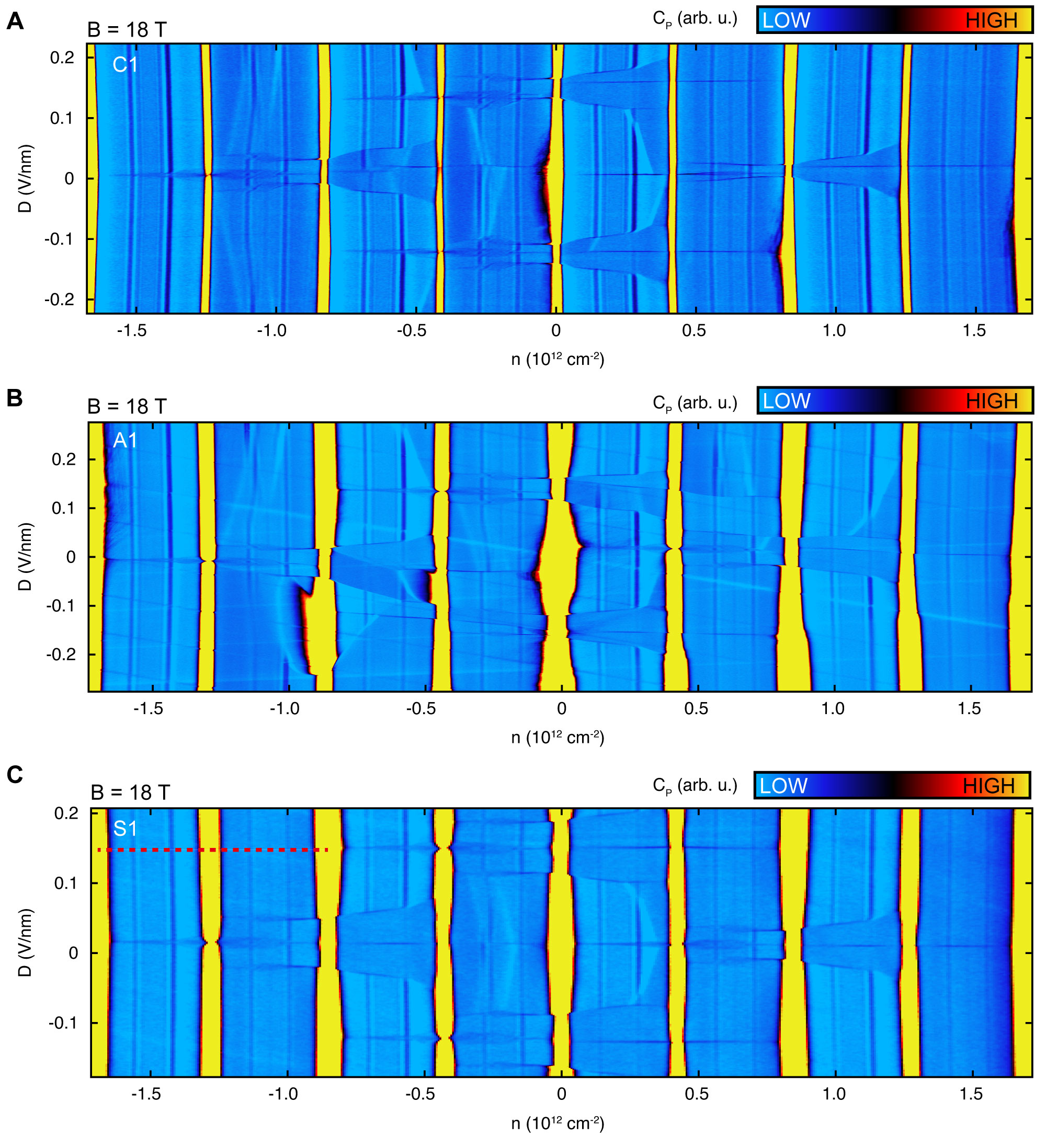

At higher magnetic fields we observe fractional quantum hall and Chern insulator states which are a testament to the quality of the heterostructures even with the incorporation of WSe2. Fig. S6 shows $C_{P}$ measurements of the zero-energy Landau level for devices C1(Fig. S6A), A1(Fig. S6B), and S1(Fig. S6C) taken at 18 T. In the control device, incompressible states are observed at integer and fractional fillings consistent with our previous findings[25]. Remarkably, the the same is true for A1 and S1 where the same filling sequences are observed. The red dashed line in Fig. S6C shows the location of the high resolution $C_{P}$ linecut shown in Fig. S7A where fractional states are clearly observed. In device A3, fabricated with commercially obtained WSe2, we observe fractional Chern insulator states at even higher fields[34]. Fig. S7B shows $C_{P}$ as a function of nominal charge density $n_{0}/c$, where $c$ is the geometric capacitance, and $B_{\perp}$. Fig. S7C shows a schematic of the insulating states observed in Fig. S7B. Fractional Chern insulating states at 1/3, 2/5, 3/5, 2/3rds filling are observed within the Chern band defined between (t,s) = (1,1) and (2,0) (black lines).

S5 Asymmetries in $\nu\neq\pm 3$ LL crossings

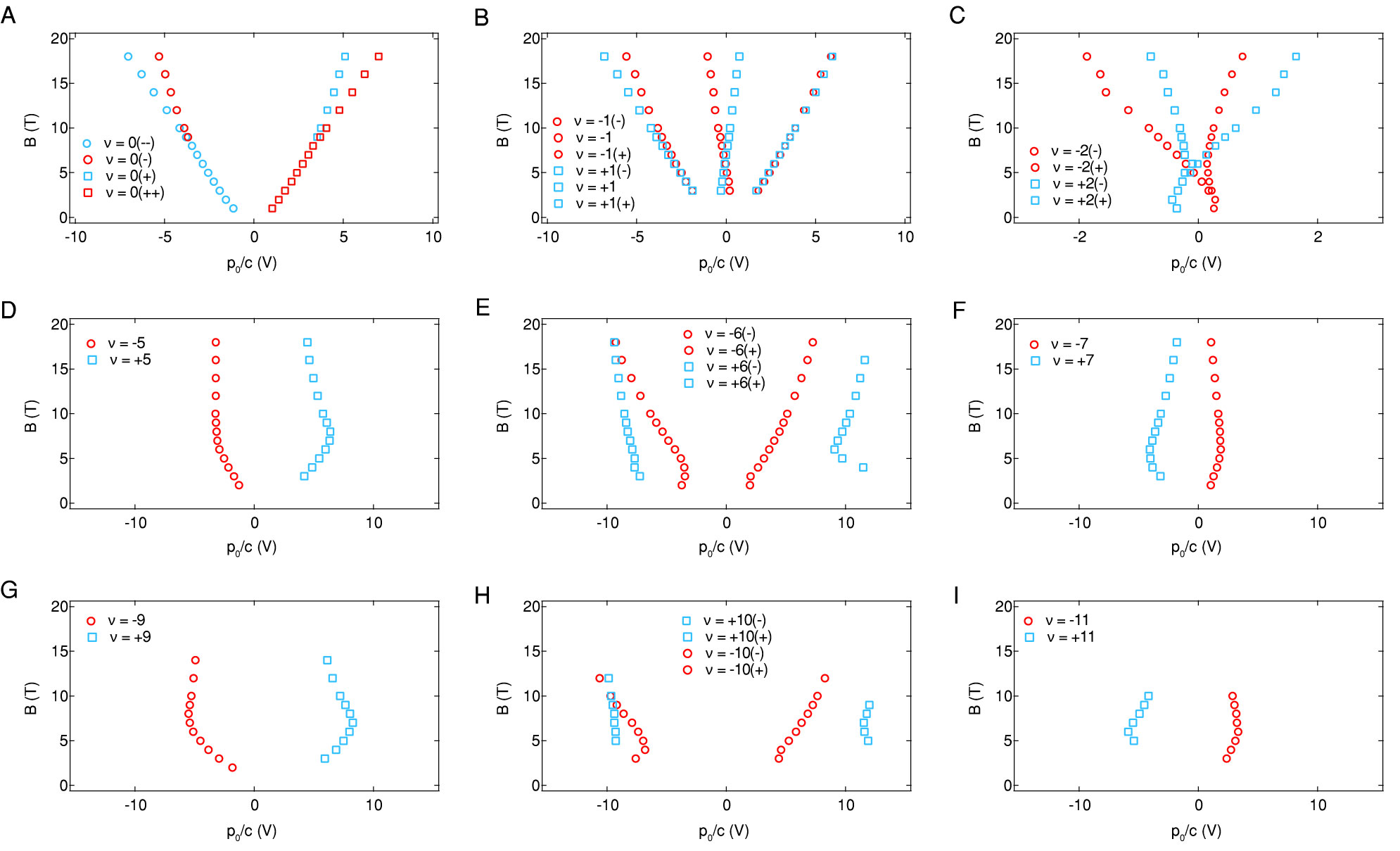

In addition to the crossing observed between Landau level coincidences for $\nu=\pm 3$ for device A1, we also observe similar crossings at the same critical magnetic field, defined by the strength of $\lambda_{\text{I}}$, for $\nu=\pm 1$ (Fig. S8B) and $\nu=\pm 2$ (Fig. S8C). While the dependence of these crossings on magnetic field is similar to the $\nu=\pm 3$ case, interactions become important for these level crossings and their full evolution is outside the scope of our single particle theoretical model. The excited state Landau levels ($N=\pm 1$ Fig. S8D-E) and ($N=\pm 2$ Fig. S8G-I) additionally show strong asymmetries away from zero displacement field and nonlinear dependence on magnetic field due to the proximity induced SOC.

S6 High in-plane magnetic field response and data from device A2/S2

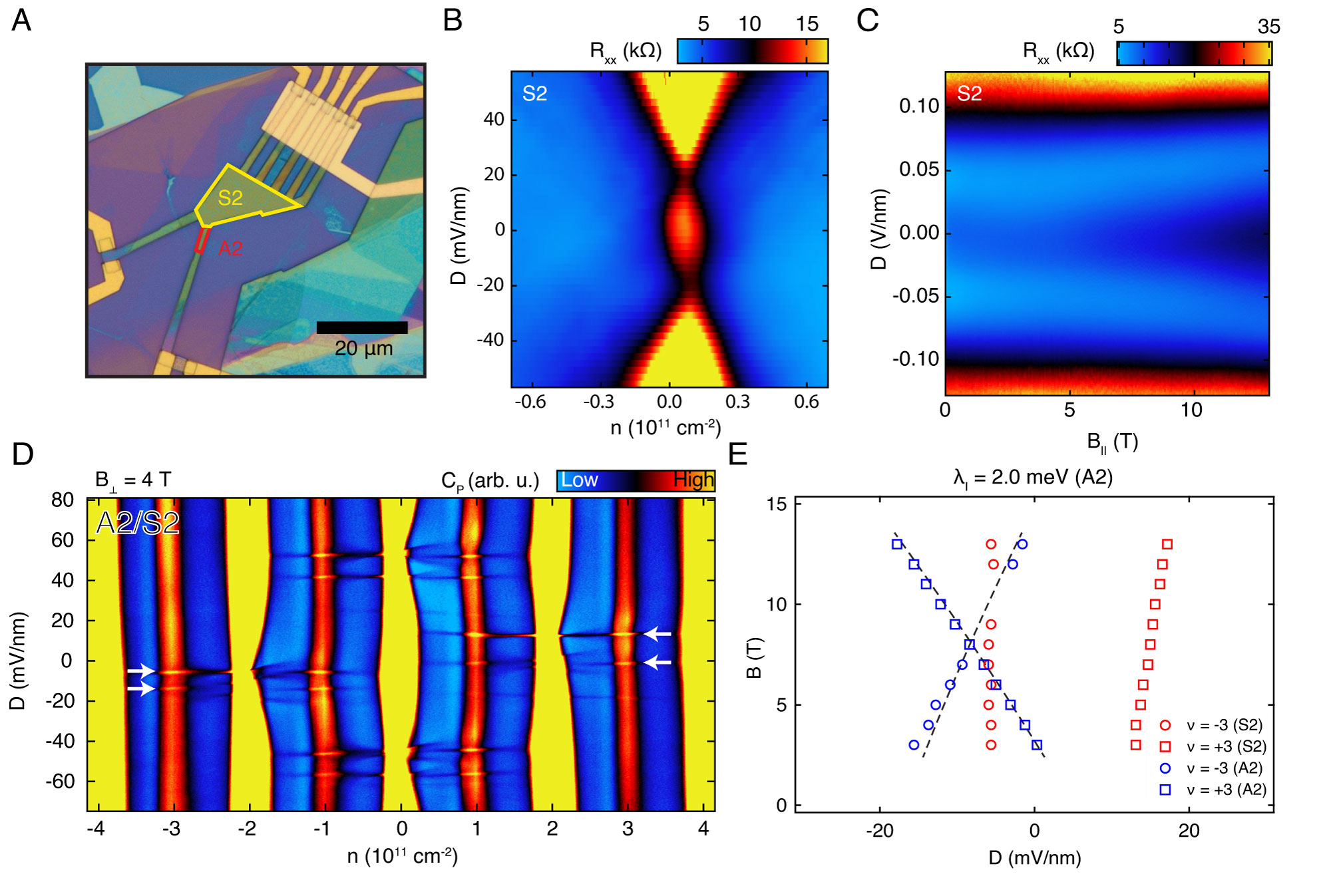

Device A2/S2 (Fig. 3A and Fig. S9) was fabricated with the intention of producing a symmetric device. However, capacitance measurements and post-facto optical microscopy show a misalignment in one region (indicated in Fig. S9A, resulting in a small area of the device in which only one facet of the BLG is in contact with WSe2. Capacitance measurements, which are sensitive to areal averages of density of states, indeed detect twice the normal number of phase transitions (Fig. S9D), which show features characteristic, respectively, of both symmetric and asymmetric devices S1 and A1. In particular, one set of phase transitions shows the characteristic crossing of the $D^{*}_{\nu\pm 3}$ transitions in finite field, resulting in a measured $\lambda_{\text{I}}=2.0$ meV (Fig. S9E). Transport measurements are performed on the side of the device that is completely encapsulated which shows clearly the inverted phase at zero field (Fig. S9B) and the high in-plane field response (Fig. S9C) that was determined in device S1 with magnetocapacitance measurements.

S7 Simulations of $C_{P}$ at $B_{\perp}=0$

In this section we describe briefly the procedure used to simulate the bulk measurements of the capacitance $C_{p}$. As discussed in the main text, capacitance $C_{P}$ is a probe of density of states. This is expressed through the relation,

[TABLE]

where we introduced a notation $\nu(\mu,u)$ for the density of states of the bilayer system at a chemical potential $\mu$ with an interlayer potential $u$ applied between the two layers. Here $c$ is a sample dependent geometric capacitance as described in the main text.

To compute the density of states $\nu(\mu,u)$, for small values of chemical and interlayer potential, we use an effective continuum model valid near the Dirac points (the $K_{\pm}$ valleys), which is expressed in the $(A1,B1,A2,B2)$ basis as [29, 35, 36]

[TABLE]

Here, $a=2.46\,\text{\AA}$ is the monolayer graphene lattice constant, the sign factor $\xi=\pm 1$ serves as the valley index corresponding to the valley wave vectors $\vec{K}_{\pm}=(\pm\frac{4\pi}{3a},0)$. The wavevector $\vec{k}=(k_{x},k_{y})$ is measured relative to $\vec{K}_{\pm}$. The hopping parameters are denoted by: $\gamma_{0}=2.61$ eV for the interlayer nearest neighbor hopping, $\gamma_{1}=0.361$ eV for the interlayer coupling between orbitals on the dimer sites B1 and A2, $\gamma_{3}=0.283$ eV for the trigonal warping, and $\gamma_{4}=0.138$ eV for the interlayer coupling between dimer and non-dimer orbitals A1 and A2 or B1 and B2. The parameter $\Delta^{\prime}=0.015$ eV describes the energy difference between dimer and non-dimer sites. The interlayer bias is given by $u=V_{2}-V_{1}=-\frac{d\epsilon_{0}}{\epsilon_{BLG}}D$ where $V_{i}$ is the potential on layer $i=1,2$ and $d$, $\epsilon_{0},\epsilon_{BLG},D$ were defined in the main text.

We include the additional symmetry breaking terms, the interfacially-induced Ising and Rashba SOC, by adding layer-specific spin-orbit Hamiltonians $\delta\mathcal{H}_{i}$[28]

[TABLE]

to the total Hamiltonian of the system $\mathcal{H}=\mathcal{H}_{0}+\sum_{i=1,2}\delta\mathcal{H}_{i}$. Here $i=1,2$ again labels the layers, $\lambda_{i}$ and $\lambda_{R,i}$ are the Ising and Rashba spin-orbit couplings in the layer $i$. The Pauli matrices $\bm{\sigma}_{i}$ and $\bm{s}_{i}$ denote the sublattice and spin degrees of freedom.

The explicit calculation of the density of states is done by discretizing the momentum $\vec{k}$ on a lattice, diagonalizing the total Hamiltonian $\mathcal{H}$ and then evaluating a sum

[TABLE]

where $N=\sum_{\vec{k}}1$ is the total number of momentum points in the Brillouin zone with area $S_{k}$. The index $j$ runs over all energy bands, each with single-particle energy $\epsilon_{\vec{k},j}$, and hence the valley/spin degeneracy is included explicitly in this summation. To overcome numerical artifacts due to a finite discretization of the momentum $\vec{k}$, we soften the delta function in the above summation with a Lorentzian as

[TABLE]

For all simulations plotted in the text we chose $\gamma=0.12$ meV, which required a $k$ spacing of $10^{-3}$ 1/$a$ to ensure lack of ringing artifacts.

In order to convert from a simulated parameter space $(\mu,u)$ to the experimentally accessible one $(n(\mu,u),u)$ we evaluate the charge density through a relation[29]

[TABLE]

and then plot the capacitance $C_{p}$ as a function of charge density $n(\mu,u)$ and interlayer potential $u$ as shown in Fig. 1 in the main text and the supplemental figures.

This analysis readily extends itself to include an in-plane magnetic field $B_{\parallel}$ as done in Fig. 3 in the main text. We incorporate the field dependence only via the Zeeman splitting term (without loss of generality we take $B_{\parallel}$ along the $x$-axis)

[TABLE]

where $\mu_{B}=5.796\times 10^{-5}$ eV/T. A system with magnetic field is then characterized by a Hamiltonian $\mathcal{H}=\mathcal{H}_{0}+\sum_{i=1,2}\delta\mathcal{H}_{i}+\mathcal{H}_{B_{\parallel}}$ and the procedure followed to obtain the capacitance maps in in-plane magnetic field is then identical to the one without magnetic field applied.

S8 Landau Level Calculations

Here we show how the zero Landau level (ZLL) spectra are calculated for one-sided devices A1-A3. The approach is detailed in Ref. [28] and in this section we briefly summarize the procedure and elaborate on additional modifications required to produce experimental fits.

In the absence of magnetic field, the Hamiltonian of a one-sided device is given by $\mathcal{H}=\mathcal{H}_{0}+\delta\mathcal{H}_{1}$. This Hamiltonian can be extended to the case of large perpendicular magnetic field by introducing spin-resolved Landau level creation and annihilation operators, as well as introducing the Zeeman splitting term in the perpendicular direction,

[TABLE]

When $\gamma_{3}=0$, by careful construction of the ansatz, the system decouples into subspaces labelled by the valley index $\xi$, as well as the largest Landau level index present within each subspace $n$. The Hamiltonian of the full system can therefore be written as a direct sum of the subspace-specific Hamiltonians, $\mathcal{H}=\bigoplus_{\xi,n}\mathcal{H}_{\xi,n}$. The ZLLs are then given by the eight smallest eigenvalues of $\mathcal{H}$, which comprises the eigenvalues of $H_{\xi,0}$ (two), the two smallest eigenvalues of $H_{\xi,1}$ (four), and the smallest eigenvalue of $H_{\xi,2}$ (two).

In this work, we introduce two additional modifications to fit experimental data as follows:

Sublattice asymmetry. This is due to on-site potential differences between the four different sublattice sites of BLG, which we model by adding to $\mathcal{H}$ the layer specific Hamiltonians

[TABLE]

Once again $i$ labels the layers. These terms appear in the diagonal entries so that while each of the Landau levels are shifted, no mixing is introduced.

The parameters $(\Delta_{AB,1},\Delta_{AB,2})$ used for fitting are $(0.44,0)$meV for Fig. 2(G-H) in the main text, and $(57.3,-50)$meV for Fig.S8(E) in the supplementary material. 2. 2.

In-plane magnetic field. This effect is included by adding the Zeeman splitting term given $\mathcal{H}_{B_{\parallel}}$ given in Eq. S11. However, it introduces mixing across all the subspaces of different $n$ but with $\xi$. Its leading corrections are captured by introducing the in-plane Zeeman term only to the components spanned by the ZLL eigenstates in the $\gamma_{4}=0$ limit. These are $\left\{|A1s,0\rangle,|A1s,1\rangle,|A2s,0\rangle\right\}$ for $\xi=+$, and $\left\{|B2s,0\rangle,|B1s,0\rangle,|B2s,1\rangle\right\}$ for $\xi=-$, so that the leading corrections of the in-plane $B$-field are captured by solving for the eigenvalues of the truncated system $\mathcal{H}\simeq\bigoplus_{\xi,n=0,1,2}\mathcal{H}_{\xi,n}$.

The values of interlayer potential $u$, or equivalently the displacement field $D$, at which the two most negative (positive) ZLLs cross can then be extracted at each given value of applied magnetic field ${\bf B}=(B_{\parallel},B_{\perp})$ to obtain the crossing plots for $\nu=-3(+3)$.

Finally, we note that while the $\gamma_{3}$ parameter introduces mixing between the ZLLs and the higher LLs, the effect is extremely weak such that the ZLL spectrum remains essentially unchanged. We verified that this is indeed the case and therefore neglect it completely in the ZLL calculations as in previous work[29].

S9 Edge state calculations

The edge spectra shown in Fig. 3 were obtained by diagonalizing a tight-binding model of a zig€-zag edge strip of width $W=1000$ for the lowest 32 states. Tight binding parameters are $t_{0}=-2.6,t_{1}=0.36,t_{3}=0.28$ (in eV) taken from the notation and valyes of Ref. 35. We implemented SOC using the minimal hoppings required to reproduce the continuum Ising (next-nearest neighbor hopping) and Rashba (nearest neighbor hopping) couplings. In the insets, color denotes the spin $\langle s^{z}\rangle$, and data is only shown for states with position localized to $\langle\hat{y}\rangle<\frac{3}{4}W$. The SOC was chosen to be completely layer asymmetric (preserving the 3D inversion symmetry) with $\lambda_{\textrm{I}}=5$meV and $\lambda_{\textrm{R}}=15$meV. The Rashba coupling does open up an edge gap, but it is undetectable on this scale because it is suppressed by powers of $g/t_{1}$ where $g$ are small couplings like $\lambda_{\textrm{R}}$ and $D$. We have verified that the edge gap does grow continually as $\lambda_{R}$ is increased to physically unrealistic values.

Note that these spectra neglect the particle-hole breaking hopping $t_{4}=\sim 0.14$eV. This term changes neither the connectivity of the edge states nor the magnitude of their gaps, but it does alter their dispersion. In the a tight-binding model we use here, in which hoppings are abruptly terminated at the edge, the resulting edge dispersion has a Fermi surface with compensated electron and hole pockets. It is not clear whether these would persist in more realistic models, a useful direction for future ab-initio calculations.
