Spectroscopy of Dwarf Stars Around the North Celestial Pole

TL;DR

This study provides high-resolution spectroscopic parameters for bright dwarf stars near the North Celestial Pole, aiding stellar characterization for upcoming space missions like TESS and PLATO, and confirms their galactic disk membership and metallicity gradients.

Contribution

First spectroscopic atmospheric parameters for 73% of these stars, enhancing stellar data for exoplanet research and galactic structure studies.

Findings

Most stars are in the thin disk of the Milky Way.

Derived metallicity gradients support inside-out disk formation models.

Results are consistent with recent spectral studies.

Abstract

New space missions (e.g., NASA-TESS and ESA-PLATO) will perform an analysis of bright stars in large fields of the celestial sphere searching for extraterrestrial planets. Asteroseismic observations will search for exoplanet-hosting stars with solar-like oscillations. In order to achieve all the goals, a full characterization of the stellar objects is important. However, accurate atmospheric parameters are available for less than 30% of bright dwarf stars of the solar neighborhood. In this study we observed high-resolution (R = 60,000) spectra for all bright (V < 8 mag) and cooler than F5 spectral class dwarf stars in the northern-most field of the celestial sphere with radius of 20{\deg} from the {\alpha}(2000) = 161$^\circ$03 and {\delta}(2000) = 86$^\circ$60 that is a center of one of the preliminary ESO-PLATO fields. Spectroscopic atmospheric parameters were determined for 140 slowly rotating stars, for 73% of them for the first time. The majority (83%) of the investigated stars are in the TESS object lists and all of them are in the preliminary PLATO field. Our results have no systematic differences when compared with other recent studies. Comparing our results for 39 stars with previous high-resolution spectral determinations, we find only a 7 $\pm$ 73 K difference in effective temperatures, 0.02 $\pm$ 0.09 in log g, and -0.02 $\pm$ 0.09 dex in metallicities. We also determined basic kinematic and orbital parameters for this sample of stars. From the kinematical point of view, almost all our stars belong to the thin disk substructure of the Milky Way. The derived galactocentric metallicity gradient is -0.066 $\pm$ 0.024 dex/kpc (2.5{\sigma} significance) and the vertical metallicity gradient is -0.102 $\pm$ 0.099 dex/kpc (1{\sigma} significance) that comply with the latest inside-out thin disk formation models, including those with stellar migration taken into account.

Figures

Tables

Table 1. Table 1: Sample table of a summary of observations.

Tycho2 ID	TESS ID (TIC-5)	Date and UTC time	Exposure time (s)	RA* (h:m:s)	DEC* (${}_{}{}^{\circ }:_{}^{\prime }:"$)	S/N
TYC 4634-2068-1	288183829	2016-06-23 01:35:49.755	1200	14:48:6.16	+82:27:4.565	87
TYC 4634-2068-1	288183829	2017-02-07 04:54:41.028	2400	14:49:5.702	+82:25:23.522	87
TYC 4615-1144-1	401497601	2016-08-25 03:14:50.853	2400	01:01:0.882	+83:11:2.74	48
TYC 4615-1144-1	401497601	2016-09-07 03:37:47.693	2400	01:00:57.999	+83:11:0.075	48
TYC 4615-1144-1	401497601	2016-10-18 00:09:01.201	2400	01:01:5.135	+83:11:23.529	48

Table 2. Table 2: Sample table of the kinematic properties of the observed stars.

Tycho2 ID	$U_{\mathrm{LRS}}$	$V_{\mathrm{LRS}}$	$W_{\mathrm{LRS}}$	$R_{\mathrm{mean}}$	$z_{\max }$	$e$	$TD/D$	$V_{\mathrm{rad}}$	${\sigma }_{V_{\mathrm{rad}}}$	FWHM${}_{V_{\mathrm{rad}}}$
TYC 4634-2068-1	$-67.70$	23.45	19.42	9.14	0.37	0.24	0.11	$-7.5$	3.3	7.7
TYC 4615-1144-1	5.00	2.14	$-14.92$	7.81	0.23	0.04	0.01	$-7.4$	3.5	8.2

Table 3. Table 3: Errors due to the uncertain continuum placement and equivalent width measurement. Based on the Monte Carlo simulations.

	S/N=25	S/N=50	S/N=75
TYC 4573-1916-1
$T_{\mathrm{eff}}=6153$ K, $\log g=4.01$, $\left[\mathrm{Fe}/H\right]=-0.07$
${\sigma }_{T_{\mathrm{eff}}}$	37	31	28
${\sigma }_{\log g}$	0.08	0.08	0.08
${\sigma }_{\left[\mathrm{Fe}/H\right]}$	0.02	0.02	0.01
${\sigma }_{v_t}$	0.08	0.07	0.04
Sun∗
$T_{\mathrm{eff}}=5779$ K, $\log g=4.49$, $\left[\mathrm{Fe}/H\right]=-0.03$
${\sigma }_{T_{\mathrm{eff}}}$	52	36	35
${\sigma }_{\log g}$	0.10	0.08	0.07
${\sigma }_{\left[\mathrm{Fe}/H\right]}$	0.06	0.01	0.01
${\sigma }_{v_t}$	0.10	0.08	0.06

Table 4. Table 4: Sample table of the atmospehric parameters of the programme stars.

Tycho2 ID	$T_{\mathrm{eff}}$	${\sigma }_{T_{\mathrm{eff}}}$	$\log g$	${\sigma }_{\log g}$	$\left[\mathrm{Fe}/H\right]$	${\sigma }_{\left[\mathrm{Fe}/H\right]}$	$v_t$	${\sigma }_{v_t}$
	K	K					km s-1	km s-1
TYC 4141-1496-1	6353	54	4.24	0.35	0.01	0.08	1.39	0.24
TYC 4141-589-1	6711	93	4.18	0.36	$-0.10$	0.12	1.76	0.34
TYC 4160-145-1	6042	31	3.77	0.22	0.10	0.08	1.33	0.24

Full text

Galaxy: solar neighborhood – stars: atmospheres

††journal: PASP

1 Introduction

Stars that are in a close proximity to our Solar system are the ones that can be studied in detail using good quality of astrometric, photometric and spectroscopic measurements. In the era of new planetary search space missions (e.g. NASA-TESS or ESA-PLATO) bright stars in the Solar neighborhood become even more important to investigate. If a planetary system is found around a bright nearby star it gets a large attention from many astrophysical perspectives. A full asteroseismic characterisation of a star is possible if its main atmospheric parameters are known.

It could be thought that cool bright main sequence stars in the Solar neighborhood should have been carefully studied, however, only about 30% of F5 and cooler dwarfs with magnitudes $V<$ 8 mag have been studied spectroscopically. This is very unfortunate for asteroseismic and planetary studies. For example, stellar parameters and precise elemental abundances are key constraints in reducing degeneracy in the interior structure models and inspecting the mantle composition of exoplanets (Weiss et al. 2013; Dorn et al. 2015; Dorn et al. 2017). The precise and accurate atmospheric physical and chemical parameters of stars are required in order to produce trustworthy results. Therefore, ground-based support for space missions is very important.

Large spectroscopic surveys have a great input in studying properties of Solar environment and far beyond, however their observational strategies usually exclude most of the bright nearby stars. For example, surveys like Gaia-ESO (Gilmore et al., 2012) or APOGEE (Majewski et al., 2017) cover limited fractions of the sky and exclude bright nearby stars. Such surveys like GALAH (De Silva et al. 2015), 4MOST (de Jong et al. 2011), and WEAVE (Dalton et al. 2016) will cover huge fractions of the sky, however will be generally concentrating on stars fainter than $V$=12 mag.

Large telescopes cannot pay much attention in surveying nearby bright stars, leaving the study of Solar neighborhood mainly to archival data (cf. Adibekyan et al. 2012, Worley et al. 2012, 2016; De Pascale et al. 2014), however all these samples cover only a small fraction of the sky. Such spectroscopic surveys of stars in the Solar neighborhood like Allende Prieto et al. (2004) who studied in a high-resolution mode all stars up to $V$=6.5 mag around the Sun (nearest 15 pc) are very rare.

The metllicity gradients of the disk are important tools in studying the Galactic disk formation. Usually, this task lies on large spectroscopic surveys (e.g. Coşkunoǧlu et al. 2012; Boeche et al. 2013; Cheng et al. 2012; Duong et al. 2018). The Solar proximity stars are not well spread to provide meaningful vertical or radial gradients. However, kinematic and orbital computations show the statistical positions of these stars during their movement around the Galaxy. The orbital parameters such as the mean galactocentric distance show the original spatial distribution of the presently neighboring stars and can be studied in the context of metallicity gradients (e.g. Anders et al. 2014; Boeche et al. 2013).

Therefore, bright ($V<$ 8 mag) stars are perfect objects for small and intermediate size telescopes that have high-resolution spectrographs installed. A high-resolution spectrograph (Jurgenson et al. 2014, 2016) that is installed at the Molėtai Astronomical Observatory of the Institute of Theoretical Physics and Astronomy, Vilnius University (ITPA VU) on the largest telescope in the northern Europe gives us a chance to provide an input in understanding of stars located in the Solar vicinity towards the northern celestial pole.

Hence, in 2016 we started a Spectroscopic and Photometric Survey of the Northern Sky (SPFOT) that aims to provide a detailed chemical composition from high-resolution spectra and photometric variability data for bright stars in the northern sky. This is the first phase of the spectroscopic part of the effort where we describe characteristics of F5 and cooler main sequence bright ($V<8$ mag) stars that are located towards the northern celestial pole in a sky-field with radius of 20 degrees. The majority (83%) of the observed targets are included in the TESS catalogs and have TESS designated IDs. The field of our first observational phase partly coincide with the TESS continuous viewing zone and one of the possible PLATO fields (Miglio et al. 2017).

In Section 2, we outline the information about the selected field and the strategy of target selection. Section 3 describes observations and data reduction procedures. In Section 4, we describe our methods of analysis and possible uncertainties. In Section 5, we present the determined atmospheric and kinematic parameters of stars and compare them with determinations reported in the literature. Finally, Section 6 summarizes the results and foresees the future work.

2 Target selection

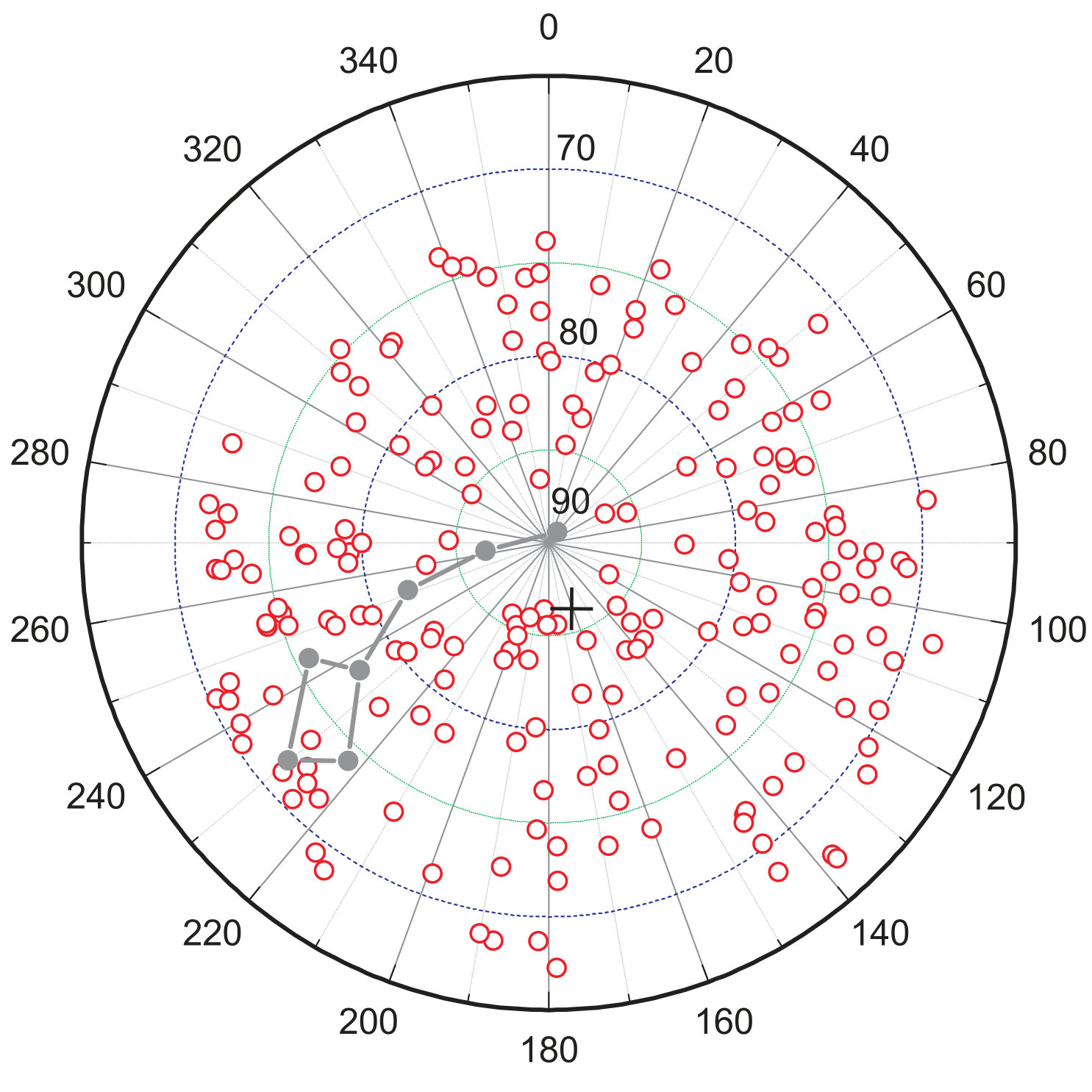

An initial list of 1163 stars was compiled from the TYCHO-2 catalog (Høg et al., 2000) as follows. We searched the catalogue considering two main criteria. Firstly, we approximated the shape of the field to a disk with the radius of 20 degrees around the centre of the field. Northern celestial pole is very close to the centre of one of the possible PLATO fields (Rauer et al. 2014; Rauer et al. 2016) thus we centered our observations accordingly (20 degrees around $\alpha$(2000) = 161.03552∘ and $\delta$(2000) = 86.60225∘). Secondly, we limited a number of stars by setting the visual magnitude $V<8$ mag, thus adjusting our research to the strategies of space missions and the best performance of the telescope.

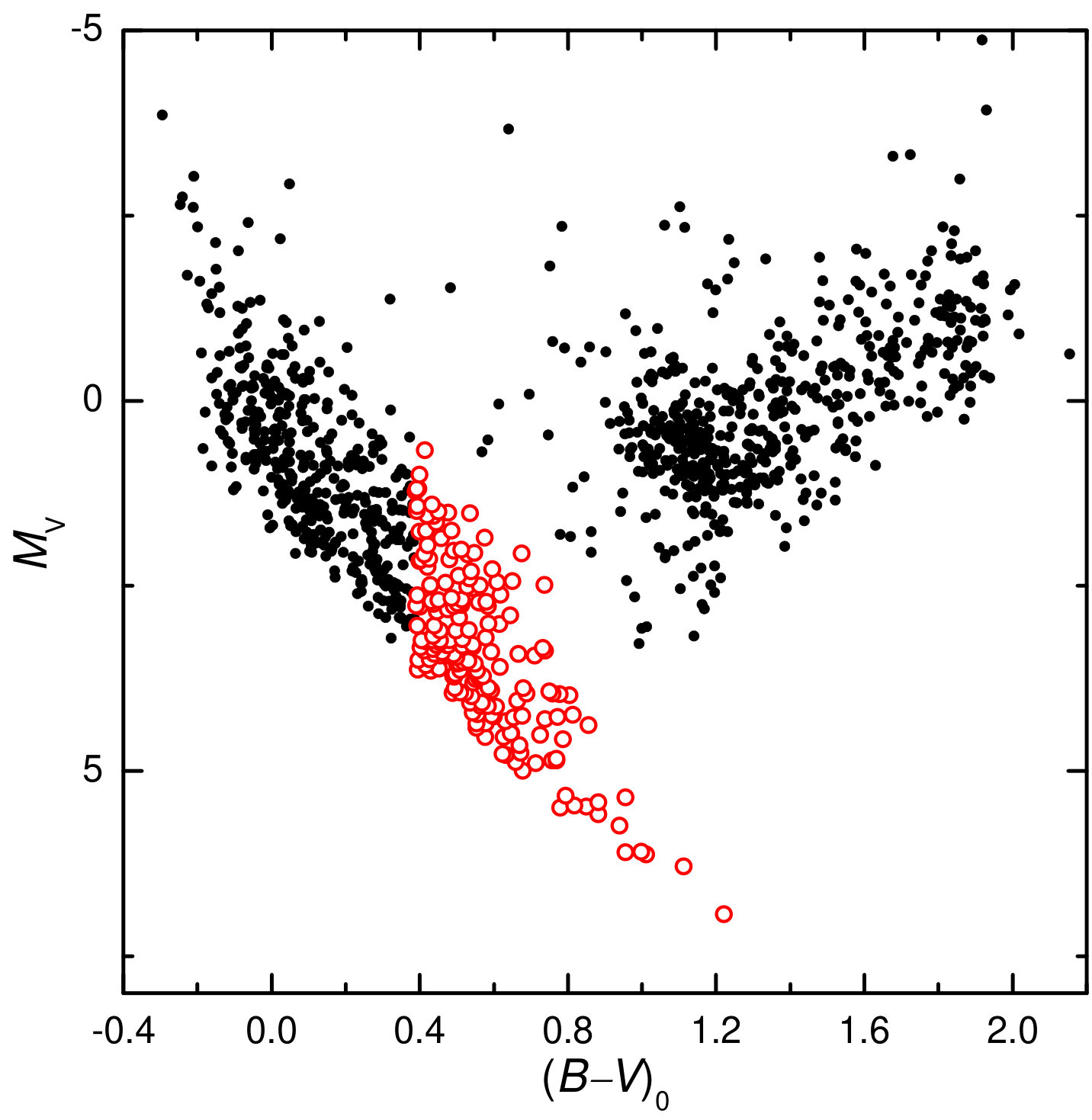

Then we constructed a colour–magnitude diagram (CMD). For this purpose, we computed ${\rm(}B-V{\rm)}_{0}$ and $M_{V}$. Due to the large size of our field, it was difficult to investigate the extinction law abnormalities. Thus, according to the mean extinction law we adopted the $R=3.1$ value as an average for the whole field (e.g. Fitzpatrick 1999). The $E_{B-V}$ values were calculated using the model of large-scale visual interstellar extinction by Hakkila et al. (1997). The parallaxes required for the stellar distance calculations were gathered from the HIPPARCOS Catalog (Perryman et al. 1997). We have selected to observe 6500 K and cooler main sequence and sub-giant stars. It complies with the observational strategies of TESS and PLATO. The majority of the stars in the Solar neighborhood are more metal rich than $-0.5$ dex (c.f. Allende Prieto et al. 2004). Using ${\rm[Fe/H]}=-0.5$ inside the color index and temperature relations by (Alonso et al., 1996) we found that $T_{\rm eff}$ $\approx$ 6500 K corresponds to ${\rm(}B-V{\rm)}\approx 0.39$. Therefore, we have constructed a color-magnitude diagram for all selected 1163 stars in the field (see Figure 1). We chose only dwarf and subgiant stars with ($B-V$) $>$ 0.39 (red circles in Figure 1) as our targets. The target list consists of 213 objects, and we have observed all of them. Positions of the observed stars in a celestial sphere are shown in Figure 2.

3 Observations

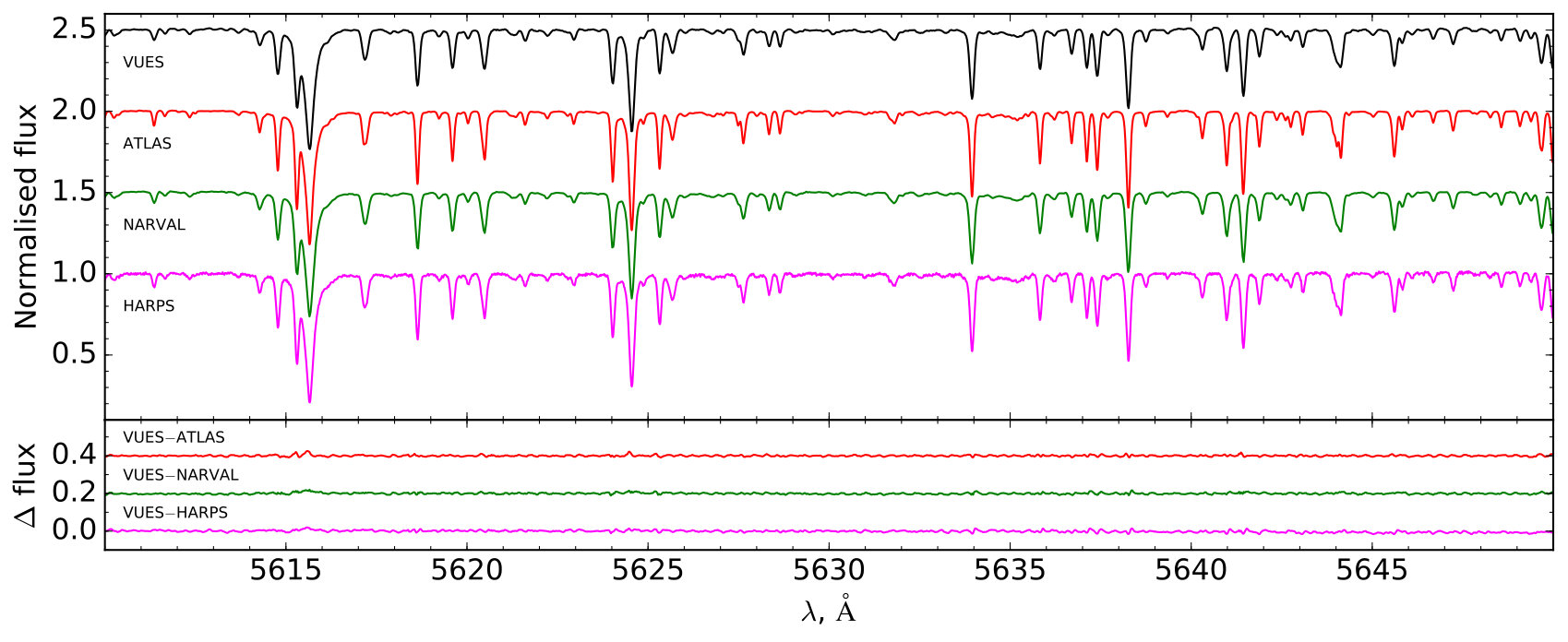

The programme stars were observed with the Vilnius University Echelle Spectrograph (VUES) designed and constructed at the Exoplanet Laboratory of the Yale University (Jurgenson et al. 2014, 2016) and mounted on the f/12 1.65 meter Ritchey-Chretien telescope at the Molėtai Astronomical Observatory of the Institute of Theoretical Physics and Astronomy, Vilnius University. The VUES is designed to observe spectra in the 4 000 to 8 800 Å wavelength range with three spectral resolution modes ($R$ = 30 000, 45 000, and 60 000). Figure 3 shows an example of solar spectra obtained with the VUES ($R$ = 60 000) and several other well known spectrographs (upper panel), the lower panel shows flux differences between the VUES and other spectrographs.

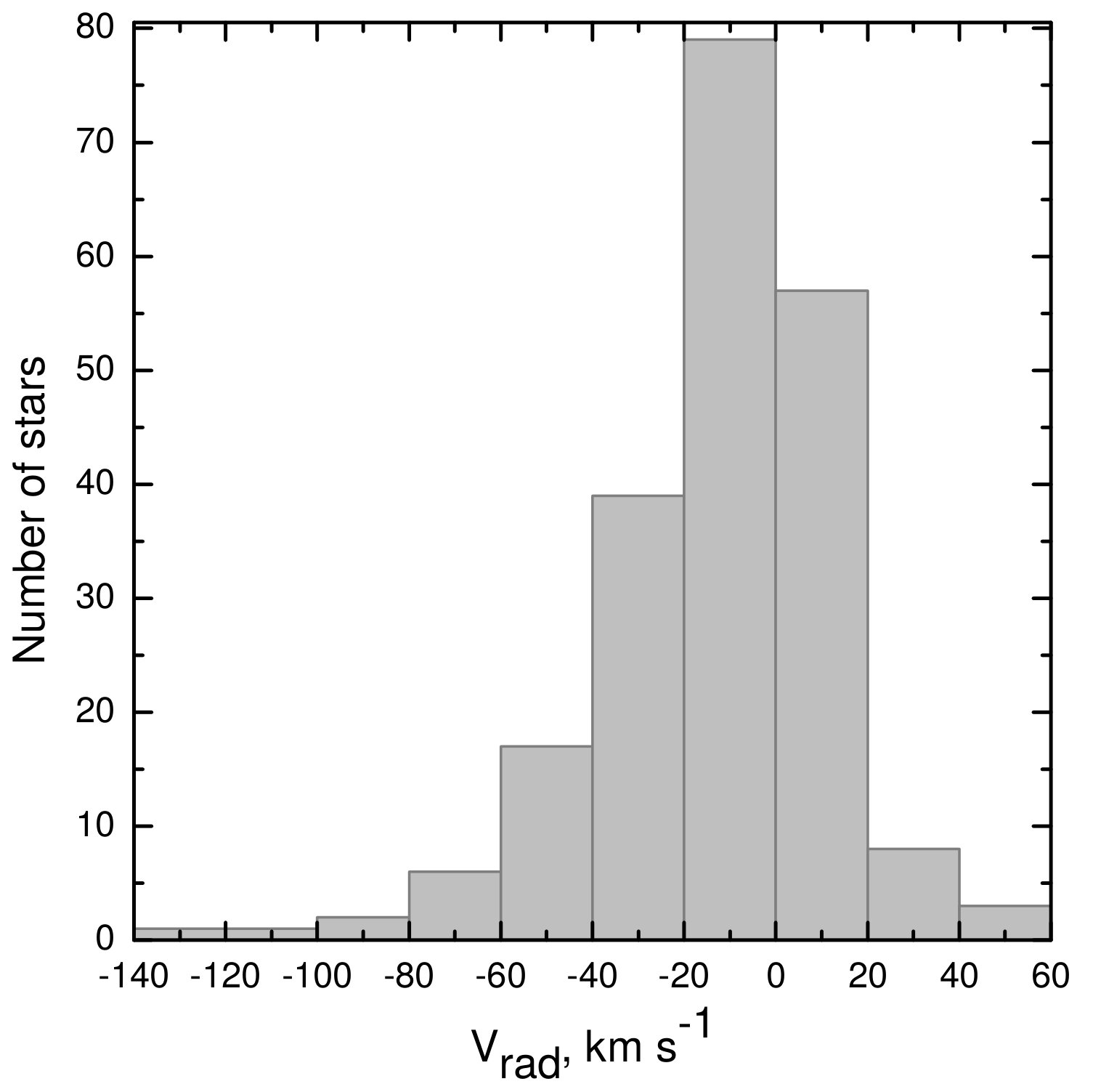

During an observational period of 2016–2017 we obtained 365 spectra of 213 stars. For stars that were observed several times, their spectra were combined in order to increase a signal-to-noise ratio. A sample of the observation log is provided in Table LABEL:tab:observations. Bias, flat field, and calibration lamp measurements were acquired every evening before observing stellar spectra. We used a quartz lamp for the flat fielding and the ThAr spectra for the wavelength calibration. The data were reduced and calibrated following standard reduction procedures which included a subtraction of the bias frame, correction for flat field, extraction of orders, wavelength calibration, and a cosmic rays removal (Jurgenson et al. 2016).

4 Method of Analysis

4.1 Radial velocity determination and identification of double-line binaries and fast-rotating stars

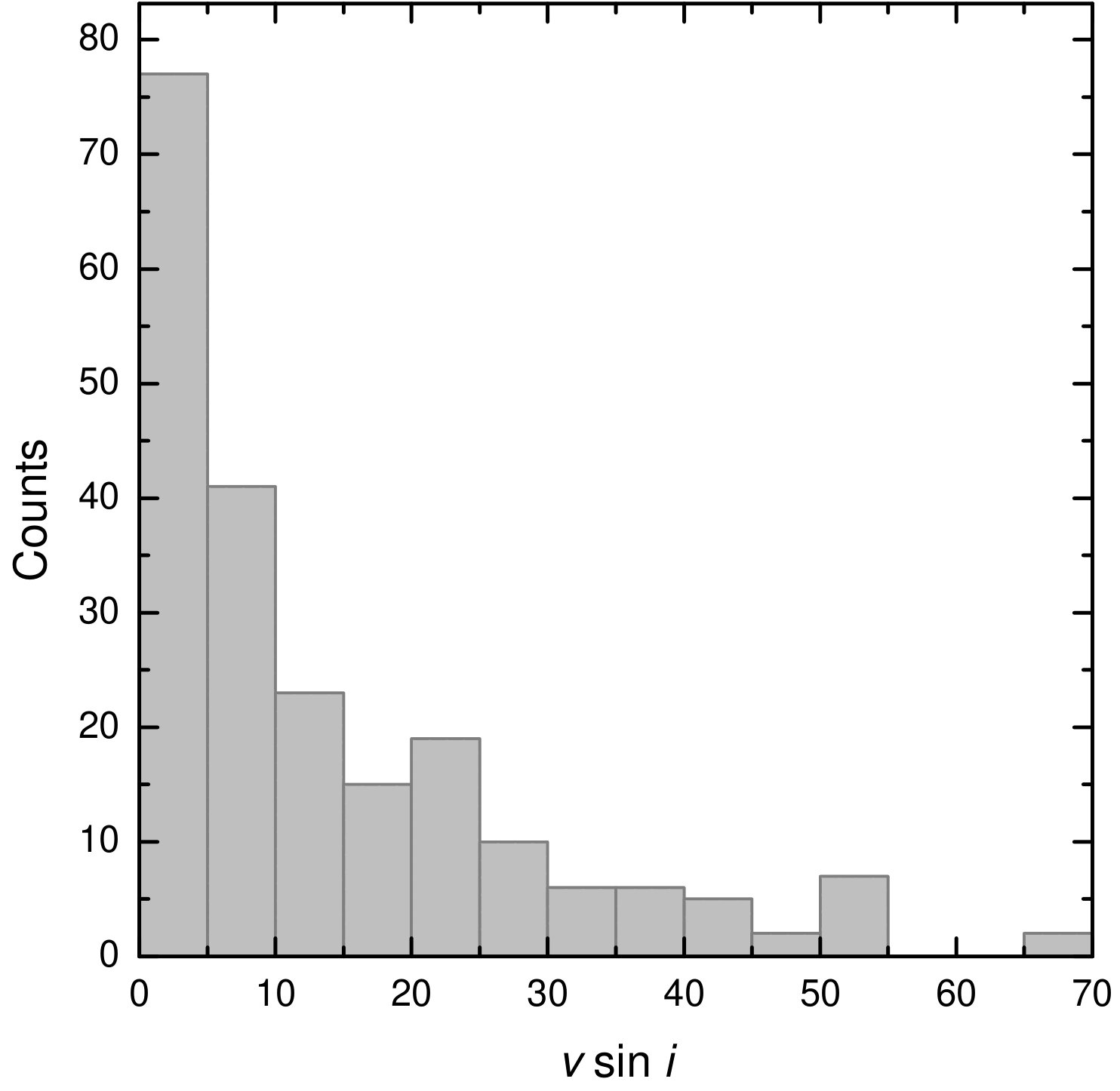

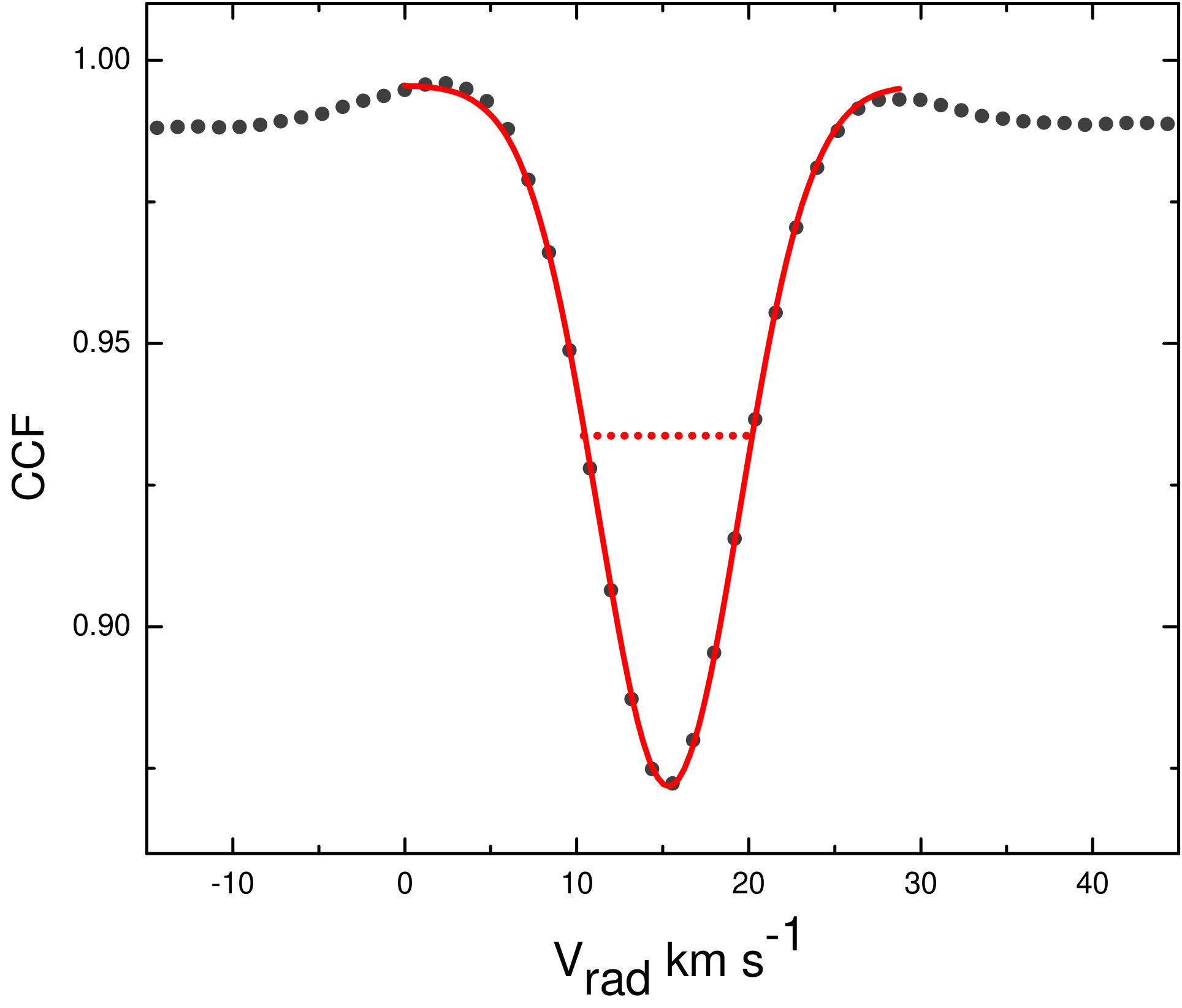

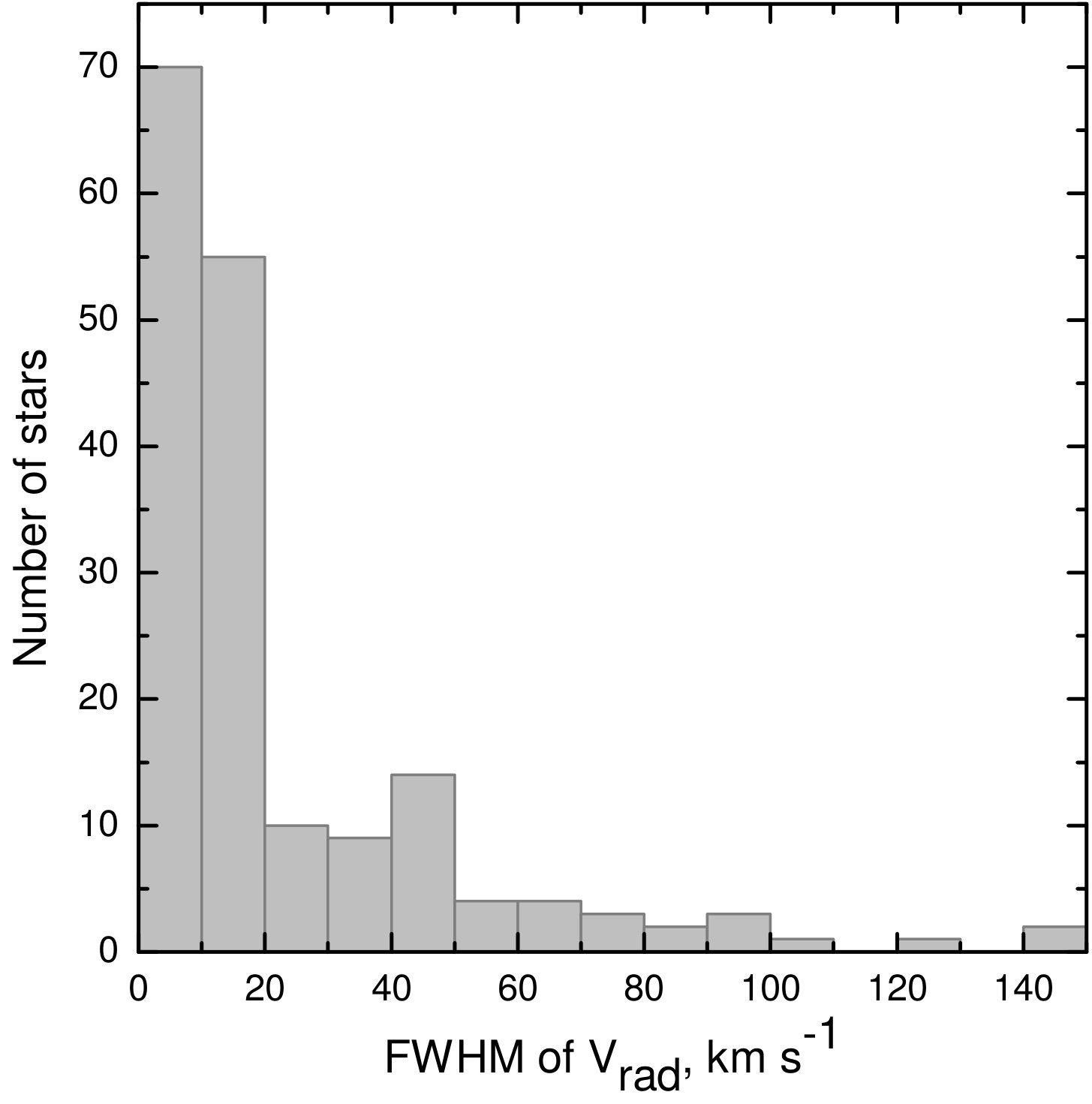

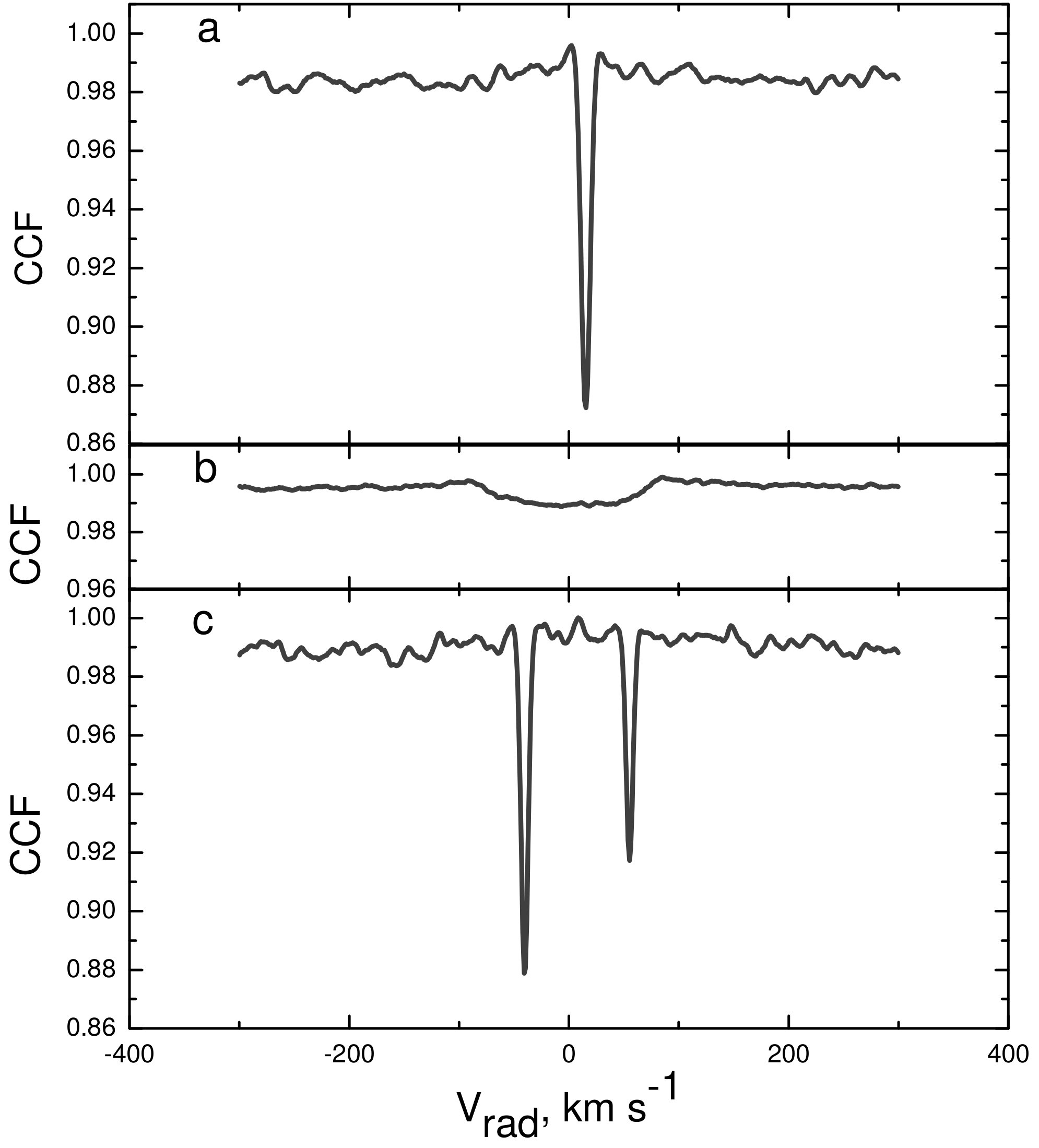

Since the target selection was done using only the photometric indices, a number of fast-rotating stars or spectroscopic double-line binaries were expected in the target list. Therefore, we performed a simple cross-correlation of spectra with a mask based on the atomic line list in order to detect double-line binaries and compute radial velocities. The line list for the mask was combined by the Gaia-ESO survey line list group (Heiter et al. 2015a). It is composed of 1341 atomic transitions for 35 chemical elements. For each spectrum a cross-correlation function (CCF) ranging from $-300$ to +300 km s*-1* was calculated in radial velocity steps of $\Delta$Vrad=1.2 km s*-1*. Figure 4 shows the CCF corresponding to the fit for three spectra: a slow rotating single-line star, a fast rotator and a double-line binary. After the visual inspection, we have omitted 15 stars that have double-line features in their spectra. Eight of them are known spectroscopic binaries: HD 223778, HD 94686, HD 166865, HD 110533, HD 166866, HD 205234, HD 195850, HD 209942 (Pourbaix et al. 2004; Nordström et al. 2004). For other stars Gaussian fits were made in order to determine a minimum of the profile, and hence the radial velocity as it is shown in Figure 5. Figure 6 is a histogram of the radial velocities calculated for the 213 stars. The majority of the spectra have radial velocities between $-40$ and +20 km s*-1*.

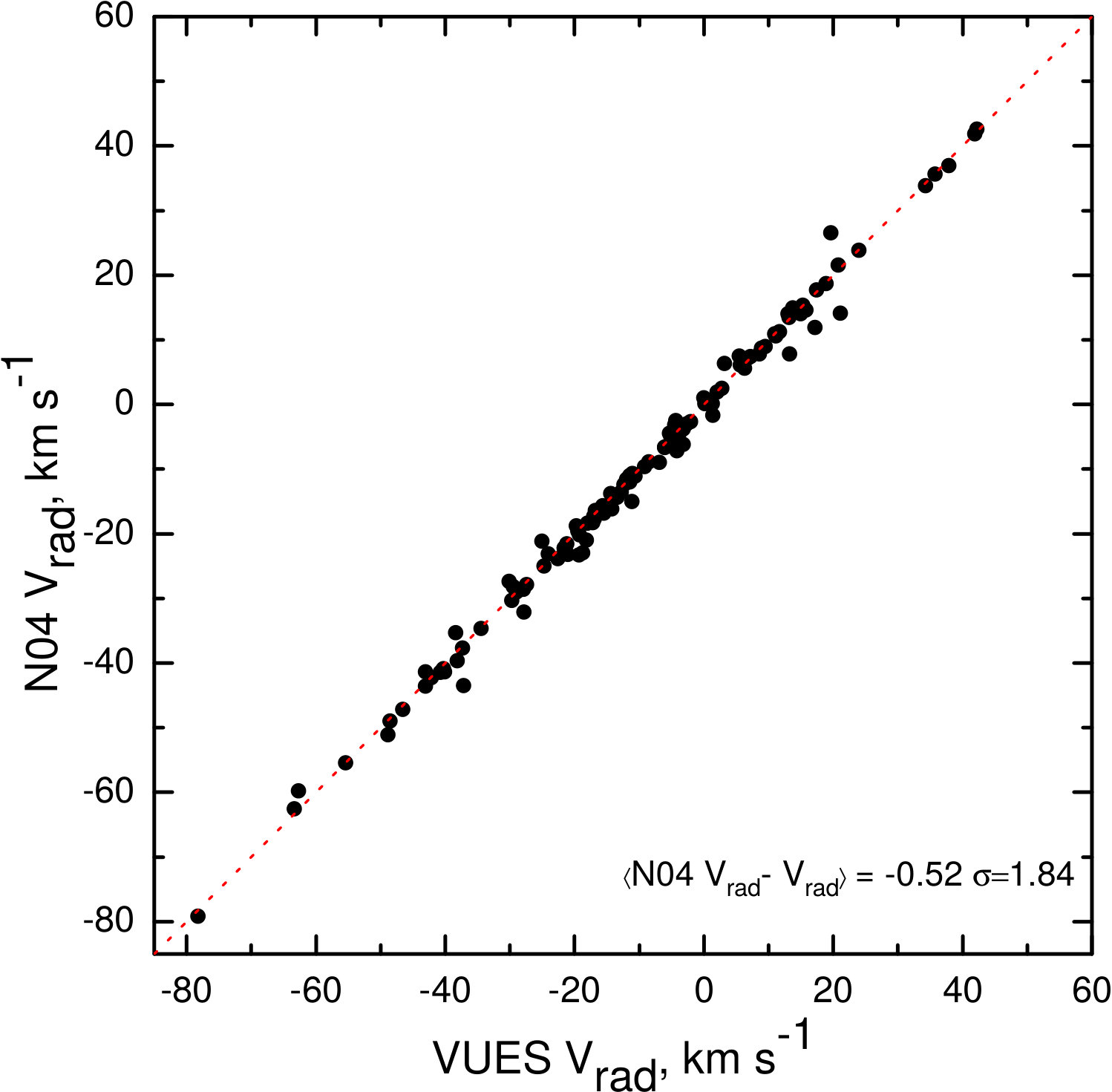

Within our dataset, we found 139 stars in common with the Nordström et al. (2004) study. Their radial velocity data were obtained with the photoelectric cross correlation spectrometers CORAVEL (Baranne et al. 1979; Mayor 1985). In Figure 7, we show a comparison of the Nordström et al. (2004) radial velocity values with those determined in our study. The mean and standard deviation of differences between the two sets is $\langle\Delta V_{rad}\rangle=0.48\pm 1.5$ km s*-1*. Figure 8 displays a histogram of the FWHM of the CCF (the red dotted line in Figure 5). It shows that the majority of spectra returned a FWHM of less than 20 km s*-1*. This FWHM indirectly reflects the rotational velocity of a star that broadens the observed spectral features depending on the value of the rotational velocity. It was not possible to measure equivalent widths of lines for 51 stars with a satisfactory quality because of the broad and blended lines. All these fast-rotating stars show the FWHM of the CCF larger than 25 km s*-1*. Nordström et al. (2004) have derived $v$sin$i$ for 28 of our 57 fast-rotating stars and for 96 of our 140 slow-rotating stars. Based on that catalog, 28 of our fast-rotating stars rotate from 19 to 70 km s*-1*, while other 96 stars rotate up to 15 km s*-1*.

Therefore we have excluded 16 stars that have double-line features in their spectra and 57 fast-rotating stars. A comprehensive analysis of these stars will be carried out in a separate work. The final sample consists of 140 slow-rotating stars, and the atmospheric parameters are provided in this paper for all of them.

4.2 Kinematic properties

Kinematic values for our stars were calculated using the python based package for galactic-dynamics calculations Galpy 222http://github.com/jobovy/galpy by Bovy (2015). A sample of kinematic parameters is presented in Table LABEL:tab:kinematics. Paralaxes, proper motions and coordinates required for the space velocities and galactic position calculations were taken from the TGAS (The Tycho-Gaia Astrometric Solution) catalogue (Michalik et al., 2015). The radial velocities of programme stars were determined in this work. To relate the calculated parameters to the Sun, we have used the solar distance from the Galactic plane $z_{\odot}=0.02$ kpc (Joshi, 2007). The Sun’s motion components relative to the local standart of rest ($U_{\odot}$, $V_{\odot}$, $W_{\odot}$) = (11.10, 12.24, 7.25) km s*-1* were adopted from Schönrich et al. (2010). The orbital parameters were calculated using the default potential (MWPotential2014) consisting of a bulge, disk and NFW halo (see Bovy 2015) and the integration time of 5 Gyrs. The rotational velocity of the disk at the Sun’s Galactocentric radius in MWPotential2014 is fixed to $V_{\rm c}=$220 km s*-1* that is adopted from the APOGEE spectroscopic survey data by Bovy et al. 2012 ($V_{\rm c}=$218$\pm$6 km s*-1*). The value $V_{\rm c}=$220 km s*-1* is also recommended by the International Astronomical Union (IAU) (Kerr & Lynden-Bell 1986). However, there are still debates whether it needs to be revised upward to around $V_{\rm c}=$236 km s*-1* (Kawata et al. 2018), to $V_{\rm c}=$240 km s*-1* (Reid & Dame 2016), or even up to $V_{\rm c}=$250 km s*-1* and more (Reid et al. 2009; Schönrich 2012).

4.3 Determination of atmospheric parameters

We used a pipeline of analysis that was constantly used for the Gaia-ESO survey computations by the Vilnius node. It is described in Smiljanic et al. (2014), here we note the most important information.

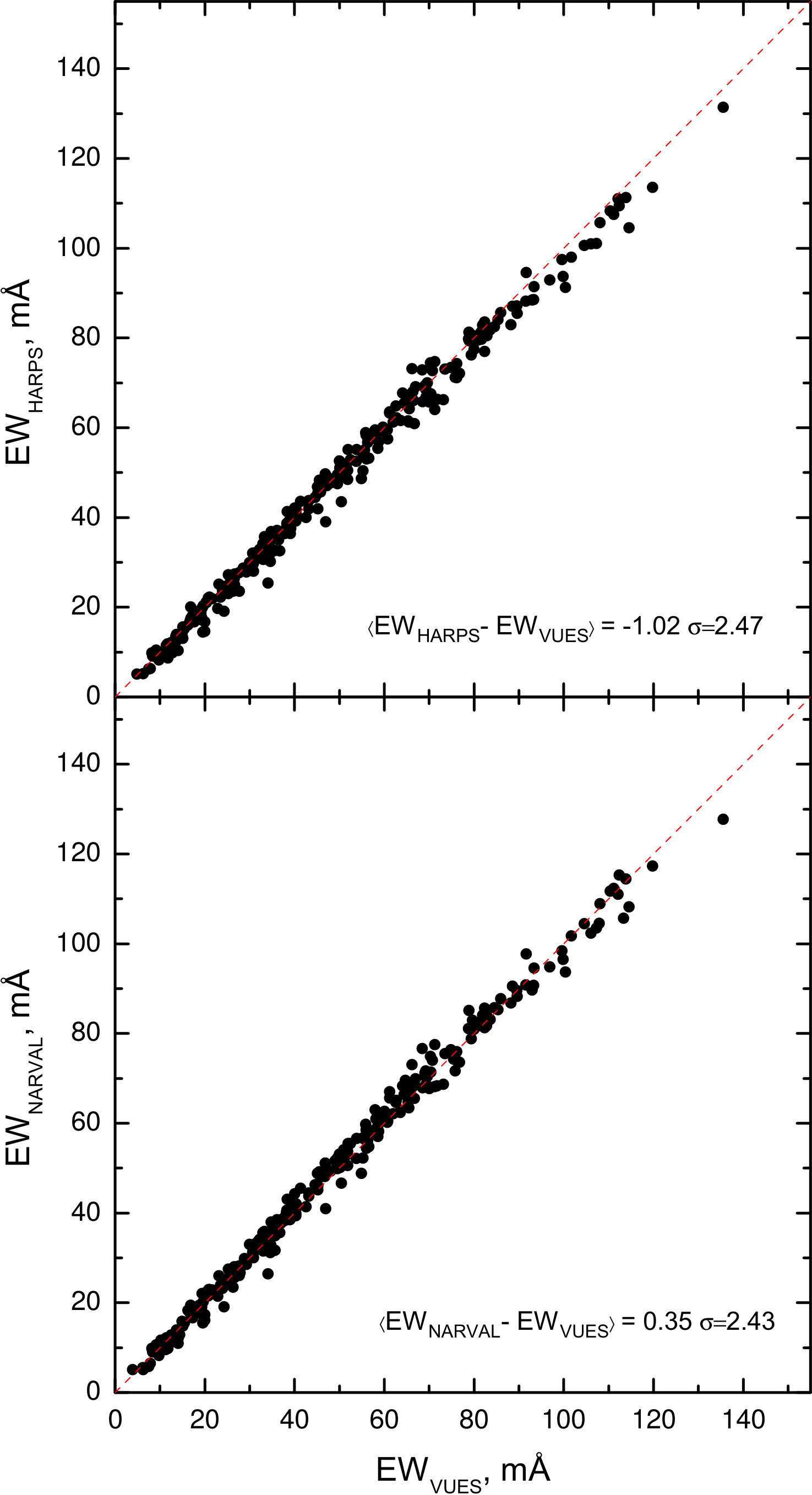

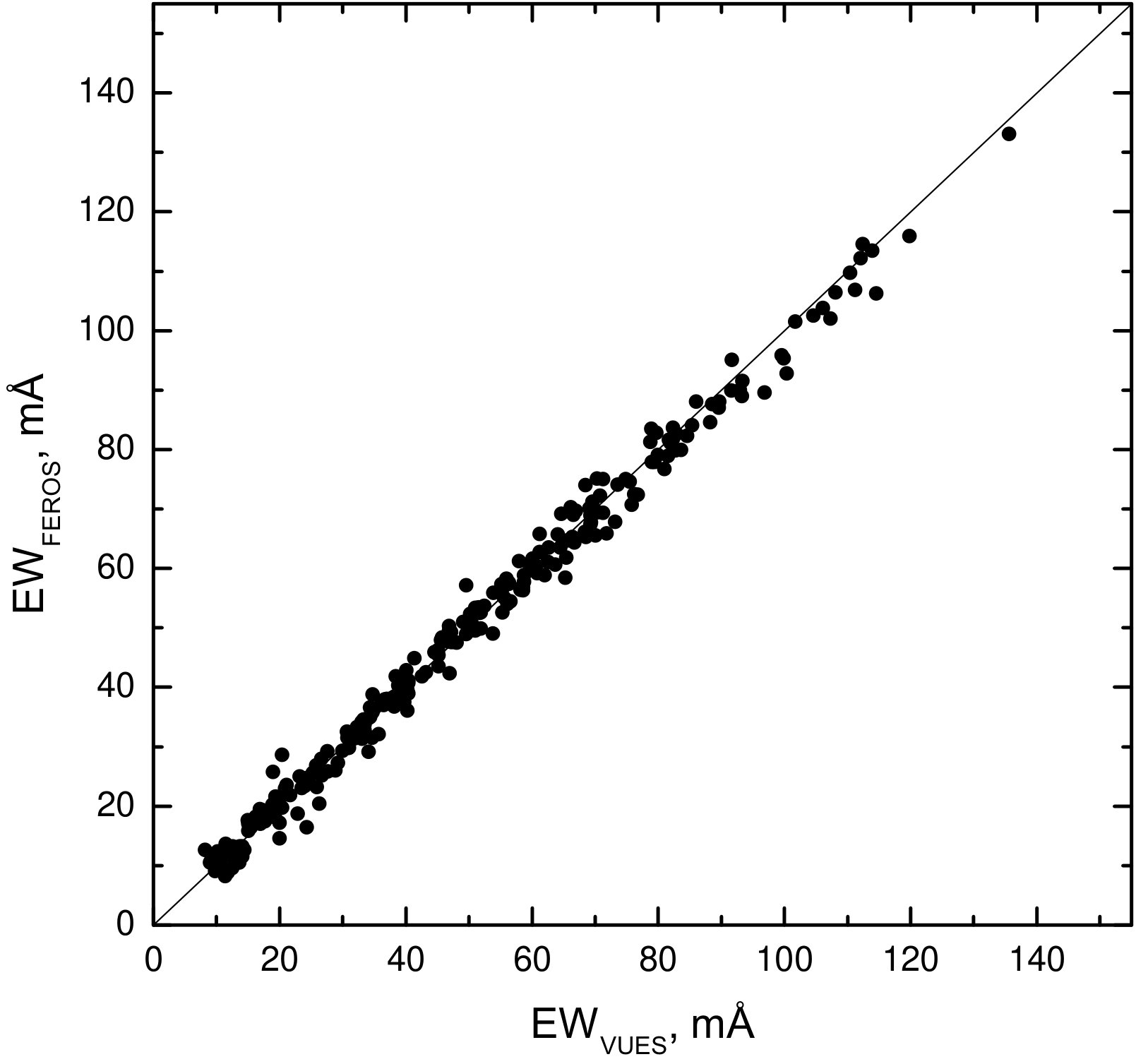

pa Stellar atmospheric parameters were determined using traditional equivalent width (EW) based methods. EWs were measured using the DAOSPEC (Stetson & Pancino 2008) software. Figure 9 show a comparison of EWs measured for the solar Fe I lines from the VUES spectra and the HARPS and NARVAL spectra, respectively. The EWs measured from spectra of these spectrographs agree very well.

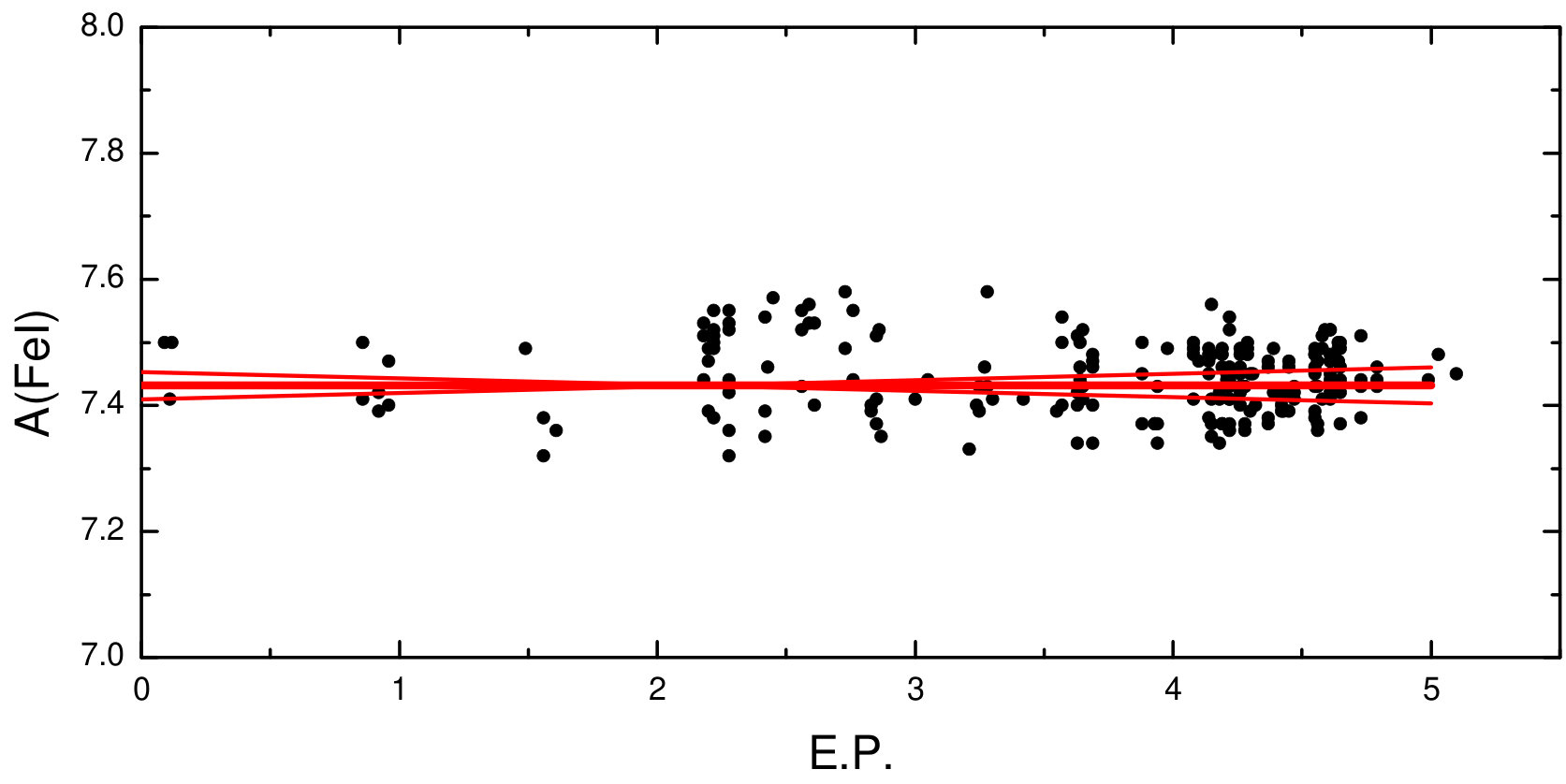

Effective temperatures were determined by minimizing a slope of abundances obtained from Fe I lines with respect to the excitation potential. Surface gravities were determined by forcing the measured Fe I and Fe II lines to yield the same iron abundance. Microturbulent velocities were determined by forcing Fe I abundances to be independent of the EWs of the lines. A custom wrapper software was developed to measure EWs, and compute the main atmospheric parameters and abundances automatically.

The Fe I and Fe II linelist (299 lines) was taken from Sousa et al. (2008) with . The stellar atmospheric parameters were computed using the 10-th version of the MOOG code (Sneden 1973) using a grid of MARCS stellar atmosphere models (Gustafsson et al. 2008). The final interpolated model in the WEBMARCS format for MOOG was calculated using a modified interpolation software, provided together with the MARCS models.

The pipeline performs an iterative sequence of abundance calculations in order to minimize the abundance dependency on the line excitation potential, [Fe I/Fe II] and $\sigma$([Fe I/H]). It is done by employing the Nelder-Mead method (Nelder & Mead 1965). Every resulting abundance for every single line that departed from the mean value by more than 2 $\sigma$ was flagged as an outlier.

4.4 Error estimation for the atmospheric parameters

Using these previously described techniques, we also estimated the different sources of possible uncertainties raising in deriving stellar atmospheric parameters. Typically there are multiple sources of uncertainties, some of which affect single lines independently (e.g. random errors of the line fitting or continuum placement) as well as errors of the employed method, which are mainly associated with the uncertain linear regression fit or the atomic parameters.

First, we studied the errors that might be caused by a possible incorrect continuum placement. There are several ways to evaluate these errors. One is to perform the Monte Carlo simulations, selecting a statistically significant set of spectra and adding a noise artificially. This simulation can show the sensitivity of the method to noises and continuum placement. Another way is to follow the line-to-line scatter.

If there is a statistically significant number of lines for a given element, the scatter informs about the combined effect of the erroneous continuum placements, equivalent width measurements, and uncertain atomic parameters for different lines.

For the Monte Carlo simulations, we took spectra of two stars that are most typical for the sample: TYC 4573-1916-1 ($T_{\rm eff}$=6153 K, log $g$=4.01, [Fe/H]=$-0.07$) and the Sun ($T_{\rm eff}$=5779 K, log $g$=4.49, [Fe/H]=$-0.03$)333We note that the Solar values of our method ($T_{\rm eff}$=5779$\pm 24$ K, log $g$=4.49$\pm 0.12$, [Fe/H]=$-0.03\pm$0.04) were computed while analysing the Solar spectrum of VUES the same way as any other star in the programme. The values are very close to the nominal Solar values declared in 2015 by the IAU resolution B3 ($T_{\rm eff}$=5772.0 K, log $g~{}=~{}4.438068$, Prša et al. 2016) or the Gaia benchmark star solution ($T_{\rm eff}$=5771 K, log $g$=4.4380, Heiter et al. 2015b). Both Heiter et al. (2015b) and Prša et al. (2016) studies benefit from very precise methods that are independent of spectroscopy and atmospheric models and reach errors in $T_{\rm eff}$ and log $g$ up to 1 K and 0.0002 cm s*-1*, respectively. Similarly, the metallicity value could be slightly off 0.0 dex in different methods (e.g. Table 2 in Jofré et al. 2014).. The spectra of these bright stars have a signal-to-noise ratio (SNR) of more than 200 per pixel. In order to investigate a possible noise influence, we degraded these spectra with a white Gaussian noise to the SNR equal to 25, 50, and 75 per pixel. We then generated 100 spectra for each SNR value, remeasured equivalent widths and derived the corresponding 100 atmospheric parameters for each SNR. In that way, we determined sensitivity of our atmospheric parameters to the SNR. These uncertainties are provided in a form of the standard deviations in Table LABEL:tab:montecarlo.

However, this kind of error estimation is only robust when there are many lines. We were able to use 92–252 Fe I and 7–32 Fe II lines in the analysis. The line-to-line scatter of Fe I and Fe II abundances was propagated to the uncertainties of atmospheric parameters as follows:

• •

The uncertainty for the effective temperatures was estimated by obtaining the boundary temperature values of the possible satisfactory parameter space, using the error of the linear regression fit to the Fe I abundances.

• •

The uncertainty of the surface gravity was obtained searching for the boundary values of log $g$ according to the standard deviations of abundances from the Fe I and Fe II lines.

• •

The uncertainty of the microturbulent velocity was obtained by employing the error of the standard deviation of the neutral iron abundances.

• •

The [Fe/H] standard deviation ($\sigma$[Fe I/H]) was adopted as the metallicity uncertainty.

These uncertainties are provided for every star in Table LABEL:tab:results as well.

5 Stellar parameters

5.1 Atmospheric parameters

We have determined values of effective temperature, surface gravity, metallicity, microturbulent velocity, and radial velocity with their corresponding uncertainties for 140 stars and the sample of results is listed in Table LABEL:tab:results. The final stellar parameters are shown in the ($T_{\rm eff}$, ${\rm log}\,g$)-diagram with color-coded metallicity (Figure 10). Also we plotted stellar evolutionary tracks in the background (Girardi et al. 2000) with masses between 0.7 and 1.9 $M_{\odot}$ and the initial metallicity $Z_{\rm ini}$=0.019. Majority of the investigated stars have masses between 0.9 and 1.5 $M_{\odot}$. Distributions of the determined $T_{\rm eff}$, ${\rm log}\,g$, and [Fe/H] are shown in Figure 11.

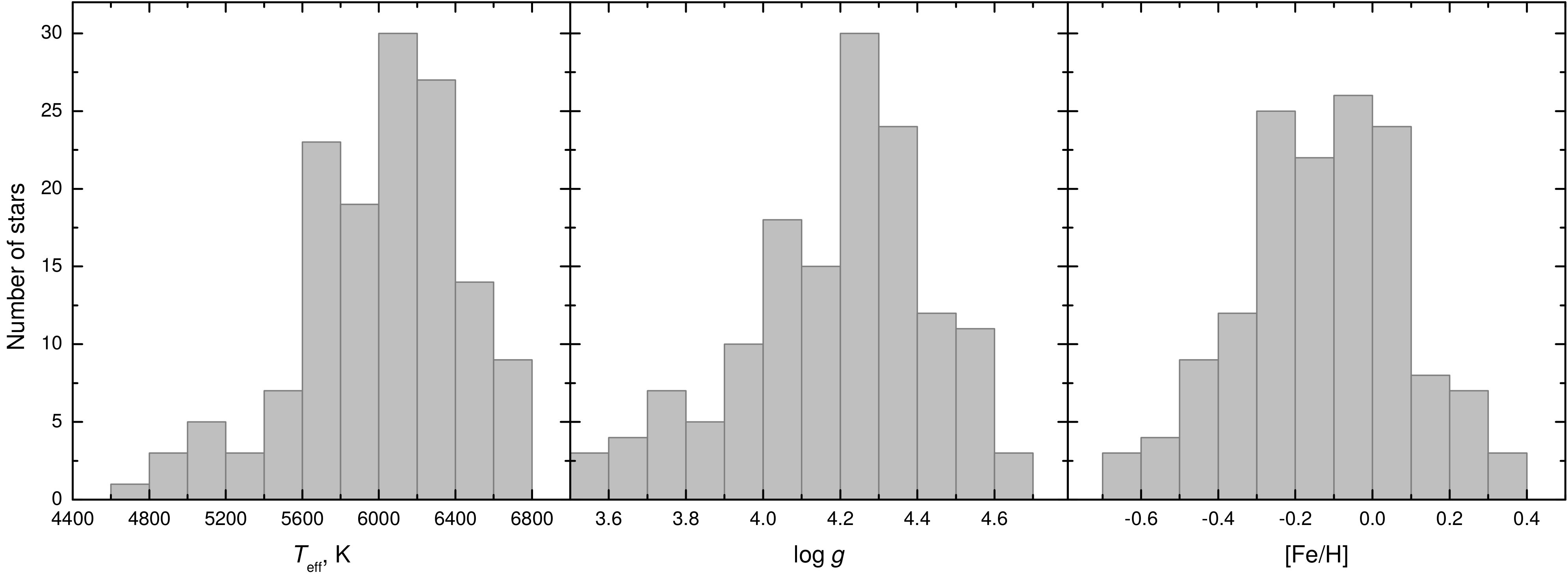

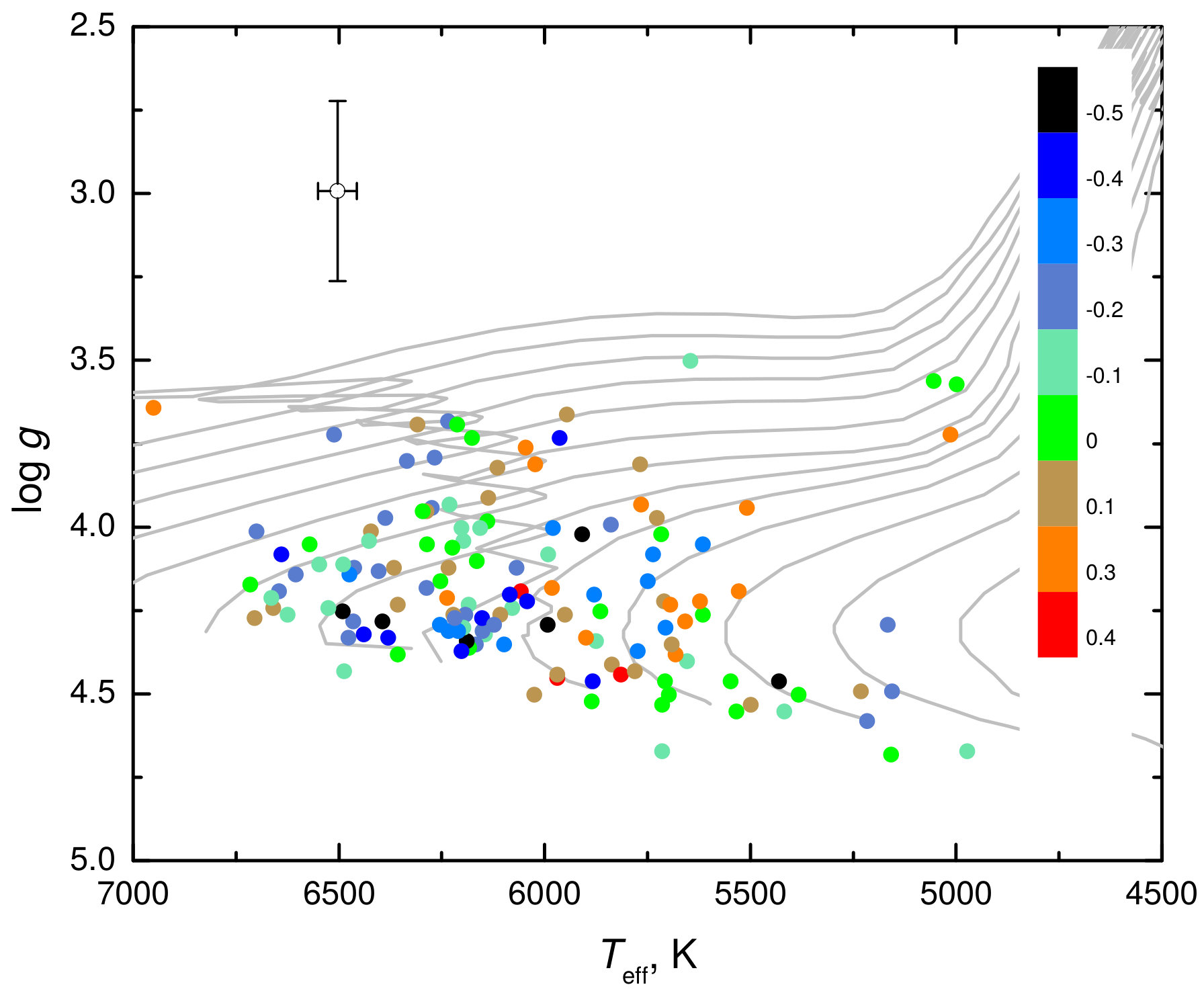

The determined $T_{\rm eff}$ span from 4700 K to 6950 K (Figure 11a) with a peak at 6100 K, ${\rm log}\,g$ range from 3.5 to 4.7 (Figure 11b) peaking at 4.3, and [Fe/H] are from $-0.7$ to +0.4 dex (Figure 11) with majority of stars being of solar metallicity.

Several studies in the literature have derived stellar parameters for some stars of our sample. Hence, we collected those results and compared them with the ones obtained in our study. In the $fe\_h$ catalogue of the SIMBAD database and the PASTEL catalog (Soubiran et al. 2010) we found spectroscopic parameters for 39 common stars (27% of our sample). It was not possible to find a significant number of atmospheric parameters from a single uniform spectroscopic study. Thus we selected the $T_{\rm eff}$, ${\rm log}~{}g$, and [Fe/H] spectroscopic determinations which are relatively recent: Galeev et al. (2004); Delgado Mena et al. (2015); Mishenina et al. (2012); Mishenina et al. (2013); Guillout et al. (2009); Gonzalez et al. (2010); Takeda et al. (2007); Takeda (2007); Prugniel et al. (2011); Ramírez et al. (2013); Fuhrmann (2008); Feltzing & Gustafsson (1998); Fuhrmann (2004); Chen et al. (2000); Gray et al. (2003); Valenti & Fischer (2005). This sample of 39 stars we call the spectroscopic comparison sample.

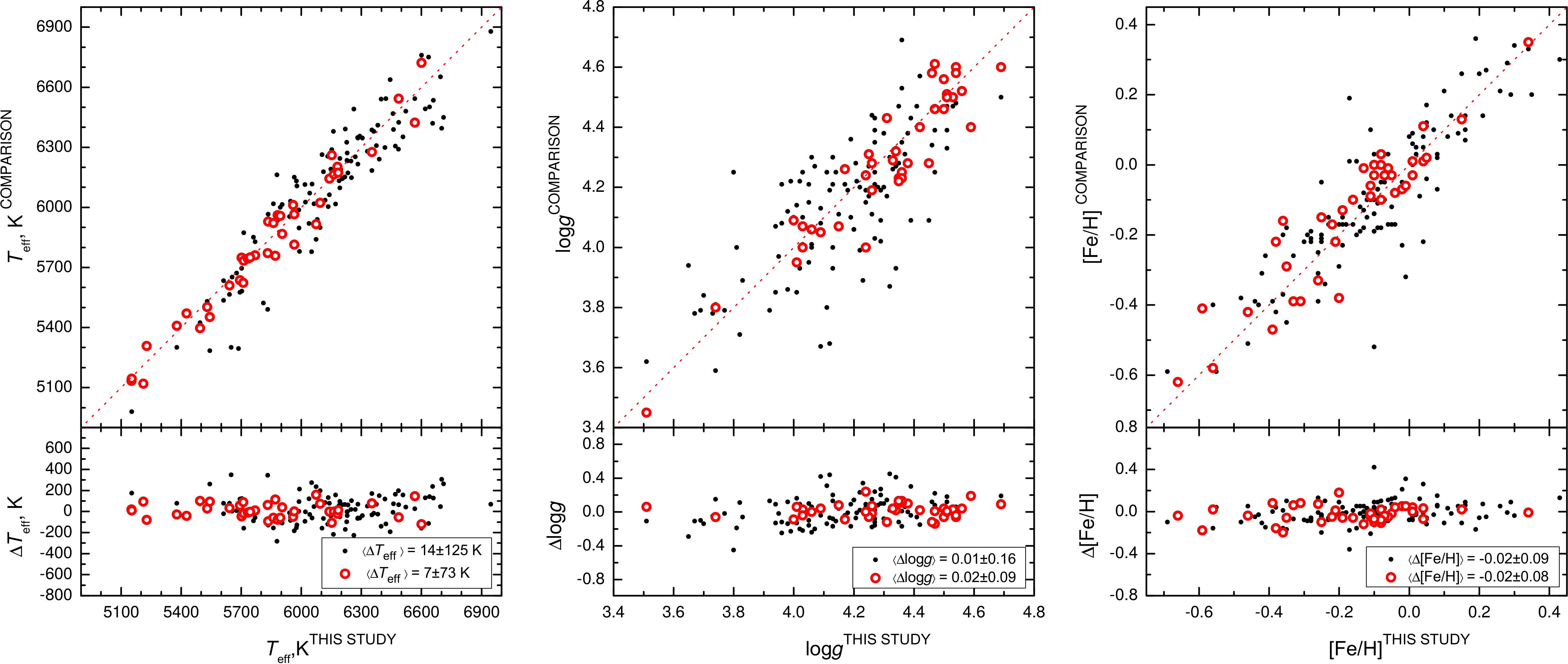

Figure 12 shows a comparison between $T_{\rm eff}$, ${\rm log}~{}g$, [Fe/H] values of our sample and the spectroscopic comparison sample of 39 stars (red circles). Another so called photometric comparison sample of 119 stars (black dots) was selected from the study by Casagrande et al. (2011). The effective temperatures in this work are based on the infrared flux method and should be quite accurate.

Effective temperature consistency between our sample and the spectroscopic comparison sample of 39 stars is quite good ($\langle\Delta T_{\rm eff}\rangle$=14$\pm$73 K). The photometric comparison sample is consistent with our results as well ($\langle\Delta T_{\rm eff}\rangle=14\pm$125 K). The identical mean difference between photometric and spectroscopic determinations, $T_{\rm eff}=13\pm 95$ K, was found by Casagrande et al. (2011) using their sample of 1522 stars.

Surface gravities are consistent with both photometric ($\langle\Delta{\rm log}~{}g\rangle=0.01\pm$0.16) and spectroscopic ($\langle\Delta{\rm log}~{}g\rangle=0.02\pm 0.09$) comparison samples.

Metallicities show the same negligible bias ($\langle\Delta{\rm[Fe/H]}\rangle=-0.02\pm 0.09$ dex) for both spectroscopic and photometric comparison samples. The metallicity distribution in our sample of stars meets the one typically observed in the solar neigborhood. For example, Allende Prieto et al. (2004) found $\langle{\rm[Fe/H]}\rangle=-0.11\pm 0.18$ which is identical to our value $\langle{\rm[Fe/H]}\rangle=-0.11\pm 0.20$.

5.2 Kinematic parameters

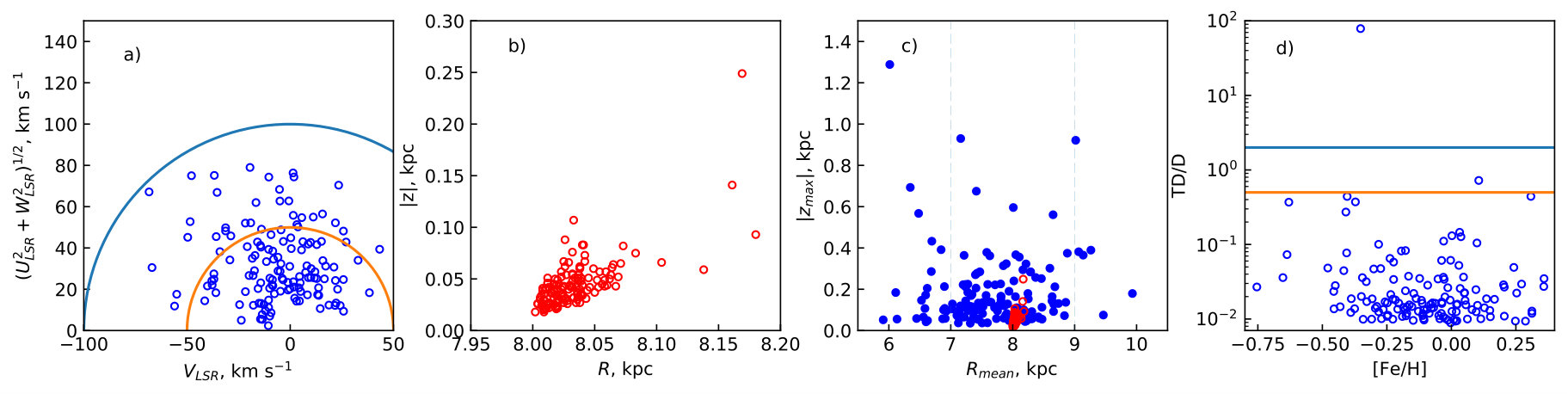

In Figure 13 we present the kinematical distribution of sample stars. According to the distribution of stars in the Toomre diagramme (the plane $a$ in Figure 13), our sample stars are well confined inside $v_{\rm tot}=100$ km s-1, however, most of them are clearly inside $v_{\rm tot}=50$ km s-1 ($v_{\rm tot}=(U_{\rm LSR}+V_{\rm LSR}+W_{\rm LSR})^{\rm 1/2)}$). Currently all these stars are well confined close (distances up to 0.366 kpc) to the Sun (see plane $b$ in Figure 13). In the $R_{\rm mean}$ vs. $z_{\rm max}$ plane our sample stars have mean galactocentric distances from 6 to 10 kpc and vertical distances up to 1.3 kpc (the plane $c$ in Figure 13). The plane $d$ in Figure 13 shows the thick-to-thin disk probability ratios (TD/D) versus metallicity, computed the same way as in Bensby et al. (2003); Bensby et al. (2014), who show that stars with TD/D $>$ 2 are potential thick disk stars, stars with TD/D $<$ 0.5 potentially belong to the thin disk, and stars with 0.5 $<$ TD/D $<$ 2.0 are called ”in-between stars”.

There are 28 stars in our sample that are kinematically hot visitor stars from the inner ($R_{\rm mean}<$7 kpc, 22 stars) and outer ($R_{\rm mean}>$9 kpc, 6 stars) Galactic regions that are passing through the Solar neighborhood (7$<R_{\rm gc}<$9 kpc, Carigi 2015; Rojas-Arriagada et al. 2016) on highly eccentric orbits (see plane $c$ in Figure 13). The velocity dispersions of the sample stars are $\sigma_{\rm U}=32$ km s-1, $\sigma_{\rm V}=21$ km s-1 and $\sigma_{\rm W}=14$ km s-1, that are very close to the characteristic velocity dispersions (see Bensby et al. 2014) of the thin disk. All of our sample stars are confined inside the $v_{\rm tot}=100$ km s-1 according to the Toomre diagramme, and only two of our sample stars have TD/D higher than 0.5, thus we can expect that our sample of stars is a characteristic thin disk sample. The contamination from the thick disk should be very small.

5.3 Spatial metallicity distribution of sample stars

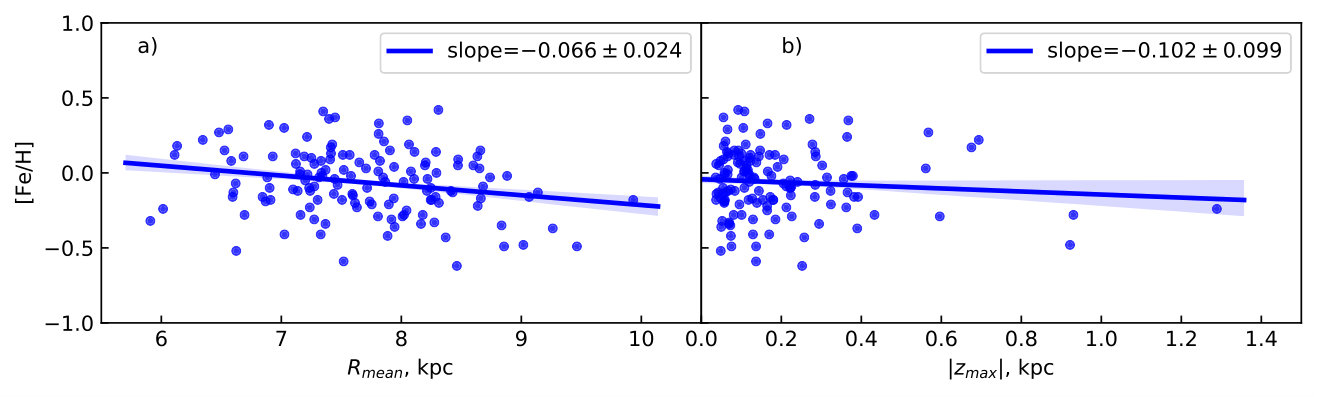

In Figure 14 we present a metallicty distribution in the Galactic disk according to $R_{\rm mean}$ and $|z_{\rm max}|$ where the solid line is a fit to the data with the $\pm$1$\sigma$ confidence bands shown as the shaded ares. A slope of the fit of the radial distribution is $-0.066\pm 0.024$ dex kpc*-1*, thus the radial metallicity gradient of our data is significant by about 2.5 $\sigma$. The vertical distribution is $-0.102\pm 0.099$ dex kpc*-1*, thus the vertical metallicity gradient is slightly negative, but significance of the slope is low, only 1 $\sigma$.

The radial chemical gradients of the thin disk have been studied in a number of papers during the recent years that have used different selection criteria to purify a thin disk population from thick disk memebers. The RAVE survey (Coşkunoǧlu et al. 2012, Bilir et al. 2012) provided metallicity gradients separately for giant and dwarf stars for most probable thin-disk stars and found $-0.033\pm 0.007$ dex kpc*-1*. Boeche et al. (2013) found the metallicity gradient to be $-0.065\pm 0.003$ dex kpc*-1* for the most probable thin disk sample. A very similar result was also found in the SEGUE survey (Cheng et al. 2012), a slope of $-0.066\pm 0.037$ dex kpc*-1* for their sample which was dominated by the thin-disk stars. The Gaia-ESO survey delivered similar gradients in a number of papers: $-0.045\pm 0.009$ dex kpc*-1* by Mikolaitis et al. (2014), $-0.058\pm 0.008$ dex kpc*-1* by Recio-Blanco et al. (2014) and $-0.068\pm 0.016$ dex kpc*-1* by Bergemann et al. (2014). Anders et al. (2014) in their study of the APOGEE survey found radial gradients for their HQ and Gold samples to be $-0.066\pm 0.006$ dex kpc*-1* and $-0.074\pm 0.01$ dex kpc*-1*, respectively. The same authors repeat similar gradients for samples dominated by thin disk stars in Anders et al. (2017). Also results from cepheids should be mentioned. Cepheid variables are younger than 200 Myr and are clearly thin disk stars. Their radial gradients span from $-0.029$ dex kpc*-1* (Andrievsky et al. 2002) to $-0.052\pm 0.003$ dex kpc*-1* (Lemasle et al. 2008; Pedicelli et al. 2009).

From all this information we see that differences in metallicity galactocentric gradients can be significant. The reason could be in strategy of building a sample. The results of our sample mostly agree within errors with Bergemann et al. (2014), Cheng et al. (2012), Boeche et al. (2013), and Anders et al. (2014). However, we note that all above-mentioned studies, except Anders et al. (2014), computed the gradients according to a current stellar position. Anders et al. (2014) gradients are computed according to a median Galactocentric distance, specifically attributing their study to stars that compose the current Solar neighborhood, thus their results should be more clearly comparable to ours. In general, the chemical gradients of the Galactic disk with respect to $R_{\rm mean}$ or $|z_{\rm max}|$ have been rarely studied before.

The vertical metallicity gradient derived by Bilir et al. (2012) in the thin disk is $-0.109\pm 0.008$ dex kpc*-1*. Boeche et al. (2013) observed a slow metallicity decrease in the range $0.0<|z_{\rm max}|<1.0$, where the thin disk is dominant. According to the results by Duong et al. (2018), the thin disk exhibits a steep negative vertical metallicity gradient, $-0.18\pm 0.01$ dex kpc*-1*. Our results are in broad agreement with the abovementioned studies, however, we note, that gradients of Bilir et al. (2012) and Duong et al. (2018) are computed according to current stellar positions while ours is according to $z_{\rm max}$.

The formation of the Galactic disk is beyond the main scope of this study. But we must mention that even if we study a small sample of stars that are located to quite a narrow direction of the Galaxy, we still can sense the Galactic disk formation history. The observed radial and vertical stellar abundance distributions are results of the Galactic disk formation processes and can be compared with thin disk evolutionary models. Our elemental abundance radial gradients agree with the models of Cescutti et al. (2007), which assumed an inside-out build-up of the disk on a time-scale of 7 Gyr in the solar neighborhood (see Matteucci & Francois (1989); Cescutti et al. (2007); Pilkington et al. (2012)). On the other hand, it is interesting to note that Haywood et al. (2013) advocated an outside-in formation of the disk that also should create the negative metallicity gradients in the thin disk. Our results broadly agree with the model by Toyouchi & Chiba (2018), who studied the gas infall, re-accretion of out-flowing gas, and radial migration of disk stars, as well as with the thin-disk chemical evolution models by Minchev et al. (2013, 2014), which modelled an inside-out disk formation including stellar migration, triggered by mergers in the early epochs and afterwards by secular processes of the Galactic bar and spiral arms.

6 Summary

This paper is the first data release of the Spectroscopic and Photometric Survey of the Northern Sky (SPFOT) that aims to provide a detailed chemical composition from high-resolution spectra and photometric variability data for bright stars in the northern sky using telescopes of the Molėtai Astronomical Observatory, Vilnius University.

We have observed high-resolution spectra for all 213 photometrically selected 6500 K and cooler dwarfs with magnitudes up to $V=8$ mag in the field with radius of 20 degrees towards the northern celestial pole. This region of the sky is very important since it will be intensively studied by the NASA TESS mission (Ricker et al. 2015; Sullivan et al. 2015) which is an important test-bench for the PLATO 2.0 space mission.

We determined spectroscopic atmospheric parameters for 140 slowly rotating stars (for 73% of the stars spectroscopic parameters were determined for the first time). Our results have no systematic differences when compared with other recent studies. Other 73 stars, of the sample of 213, were either fast rotators or double-line binaries and will be analyzed later using different techniques.

We also determined a number of kinematic parameters that confirmed that almost all of the investigated stars belong to the kinematic thin disk. We employed the mean radial and maximal vertical distances and confirmed that metallicity spatial distributions of bright dwarfs located towards the northern celestial pole comply with the latest inside-out thin disk formation models, including those with migration taken into account.

Having in mind that only 30% of bright ($V<8$ mag) FGK main sequence stars have spectroscopic determinations of atmospheric parameters, we emphasize the importance of high-resolution spectral analysis of bright stars, especially for the ’hot’-regions of the sky such as the TESS continuous viewing zones (Sharma et al. 2017), $Kepler$ and $K2$ fields (Molenda-Żakowicz et al. 2017; Niemczura et al. 2017; Petigura et al. 2017), and the PLATO fields (Miglio et al. 2017).

We thank the anonymous referee for comments and suggestions, which helped to improve this Paper significantly. This research has made use of the SIMBAD database and NASA’s Astrophysics Data System (operated at CDS, Strasbourg, France), and was funded by the grant from the Research Council of Lithuania (LAT-08/2016).
