Anomalies of upper critical field in the spinel superconductor LiTi$_2$O$_{4-\delta}$

TL;DR

This study investigates how oxygen impurities affect the upper critical field in LiTi$_2$O$_{4-\delta}$ superconductors, revealing a significant increase in $B_{c2}$ that exceeds the Pauli limit, linked to spin-orbit interactions.

Contribution

It demonstrates that oxygen impurities induce a remarkable increase in $B_{c2}$ in LiTi$_2$O$_{4-\delta}$, suggesting a new mechanism involving spin-orbit interaction for enhancing superconductor performance.

Findings

$B_{c2}$ increases with oxygen content.

$B_{c2}$ exceeds the Pauli limit in oxygen-rich samples.

Spin-orbit interaction is proposed as the cause.

Abstract

High-field electrical transport and point-contact tunneling spectroscopy were used to investigate superconducting properties of the unique spinel oxide, LiTi$_2$O$_{4-\delta}$ films with various oxygen content. We find that the upper critical field $B_\mathrm{c2}$ gradually increases as more oxygen impurities are brought into the samples by carefully tuning the deposition atmosphere. It is striking that although the superconducting transition temperature and energy gap are almost unchanged, an astonishing isotropic $B_\mathrm{c2}$ up to $\sim$ 26 Tesla is observed in oxygen-rich sample, which is doubled compared to the anoxic sample and breaks the Pauli limit. Such anomalies of $B_\mathrm{c2}$ were rarely reported in other three dimensional superconductors. Combined with all the anomalies, three dimensional spin-orbit interaction induced by tiny oxygen impurities is naturally proposed to account for the remarkable enhancement of $B_\mathrm{c2}$ in oxygen-rich LiTi$_2$O$_{4-\delta}$ films. Such mechanism could be general and therefore provides ideas for optimizing practical superconductors with higher $B_\mathrm{c2}$.

Figures

Equations

$$H_{\mathrm{soc}}={\lambda }_{\mathrm{soc}}(\nabla V\times \text{k})\cdot \mathbf{\sigma },$$

$$B_{\mathrm{eff}}=B+⟨B_{\mathrm{soc}}⟩,$$

Full text

In conventional Bardeen-Cooper-Schrieffer (BCS) superconductors, time reversal and spatial inversion symmetries are essential to the formation of Cooper pairs. An external field $B$ violates the time reversal symmetry in a superconductor, thereby may break the Cooper pairsSaint-James et al. (1969). Superconductivity will be completely destroyed when $B$ reaches an upper critical field $B_{\mathrm{c2}}$ for type-II superconductors. The underlying mechanisms that dominate and effectively increase $B_{\mathrm{c2}}$ intrigue intensive interests in condensed matter physics. Generally, $B_{\mathrm{c2}}$ is determined by orbital pair-breaking for conventional superconductors since spin susceptibility goes to zero at low temperaturesSohn et al. (2018). In this case, $B_{\mathrm{c2}}$ can be enhanced by several factors that suppress orbital pair-breaking, such as narrow bandsHolczer et al. (1991), short mean free pathFischer (1978), and strong electron-phonon couplingOrlando et al. (1979). Alternatively, spin flip induced by $B$ will dominate $B_{\mathrm{c2}}$ when orbital effect is eliminated such as ultrathin BeAdams et al. (1998) and Al filmsTedrow and Meservey (1982) whose dimensionality is reduced. No matter which of aforementioned effects happens, $B_{\mathrm{c2}}$ is not expected to break the Clogston-Chandrasekhar limitClogston (1962); Chandrasekhar (1962) or the Pauli paramagnetic limit $B_{\mathrm{P}}$, where $B_{\mathrm{P}}=1.84T_{\mathrm{c}}$ (in units of Tesla) for conventional superconductors and $T_{\mathrm{c}}$ is the superconducting transition temperature.

The upper critical field $B_{\mathrm{c2}}$ can be further enhanced and even exceed $B_{\mathrm{P}}$ with some unconventional mechanisms where spin paramagnetism is crucial in the superconducting state, such as Fulde-Ferrell-Larkin-Ovchinnikov statesMatsuda and Shimahara (2007), spin triplet pairingHuy et al. (2007); Aoki and Flouquet (2012) and spin-orbit interactionHerranz et al. (2015); Lu et al. (2015); Sohn et al. (2018). In particular, spin-orbit interaction can be divided into two effects, i.e. spin-orbit coupling (SOC) and spin-orbit scattering (SOS). In the former case, the effect of spin flip can be weakened by locking spin parallel or perpendicular to in-plane due to Rashba SOCHerranz et al. (2015) or Zeeman SOCLu et al. (2015); Sohn et al. (2018), respectively. As for SOS, spin-flip scattering will mix the different spin states and lead to a finite Pauli paramagnetism even at zero temperature thus enhancing $B_{\mathrm{c2}}$Maki and Tsuneto (1964). Generally, the effects of spin-orbit interaction are prominent in low dimensional materials with non-centrosymmetric lattice structure. As a result, it is rare to see the breaking of Pauli limit in conventional superconductors with centrosymmetry.

LiTi2O4-δ is a centrosymmetric conventional superconductor with highly nontrivial spin-orbit structureJin et al. (2015). For ideal LiTi2O4 structure, the valence of Ti is 3.5+ with low $d$-orbital filling and Jahn-Teller distortions, implying that large orbital freedom exists in this systemSatpathy and Martin (1987). Orbital order and spin-orbit scattering are unveiled in the anoxic films where amounts of ordering oxygen vacancies have been explicatedJin et al. (2015); He et al. (2017). As the vacancies are gradually filled by introducing oxygen atoms, the orbital order is suppressed locally and spin-orbit scattering is enhanced at low temperaturesJia et al. (2018). Therefore, studying the evolution of $B_{\mathrm{c2}}$ of LiTi2O4-δ with various oxygen content may disclose some mechanisms of the spin-orbit interaction in centrosymmetric superconductors.

In this letter, we present systematic transport measurements and point-contact tunneling spectroscopy study of LiTi2O4-δ films with various oxygen content. For oxygen-rich samples, a significantly enhanced $B_{\mathrm{c2}}$ up to $26$ T at low temperatures is observed. Such doubled $B_{\mathrm{c2}}$, compared with anoxic samples, is isotropic. Intriguingly, superconducting energy gap and $T_{\mathrm{c}}$ are almost the same for all samples. Temperature-dependent $B_{\mathrm{c2}}$ can be well fitted by the Werthamer-Helfand-Hohenberg (WHH) theory considering spin paramagnetism and spin-orbit scatteringWerthamer et al. (1966), yet it leads to an underestimation of relaxation time for oxygen-rich samples. Here we consider the three dimensional spin-orbit interaction induced by oxygen impurities, which is beyond the WHH theory, thereby giving an universal understanding of the enhancement of $B_{\mathrm{c2}}$ and other anomalies.

High-quality LiTi2O4-δ thin films were epitaxially grown on MgAl2O4 (001) substrates by pulsed laser deposition under various oxygen pressures from basic vacuum ($<1\times 10^{-6}$ Torr) to $\sim 5\times 10^{-6}$ TorrJia et al. (2018). The temperature- and field-dependence of resistance were measured by a standard four-probe method in PPMS-$16$T, and steady high magnetic field facility with field up to $33$ T. Point-contact measurements were performed by employing a homemade probe using Pt/Ir tips. The differential conductance $\mathrm{d}I/\mathrm{d}V$ is measured by standard lock-in technique in quasi-four-probe configuration.

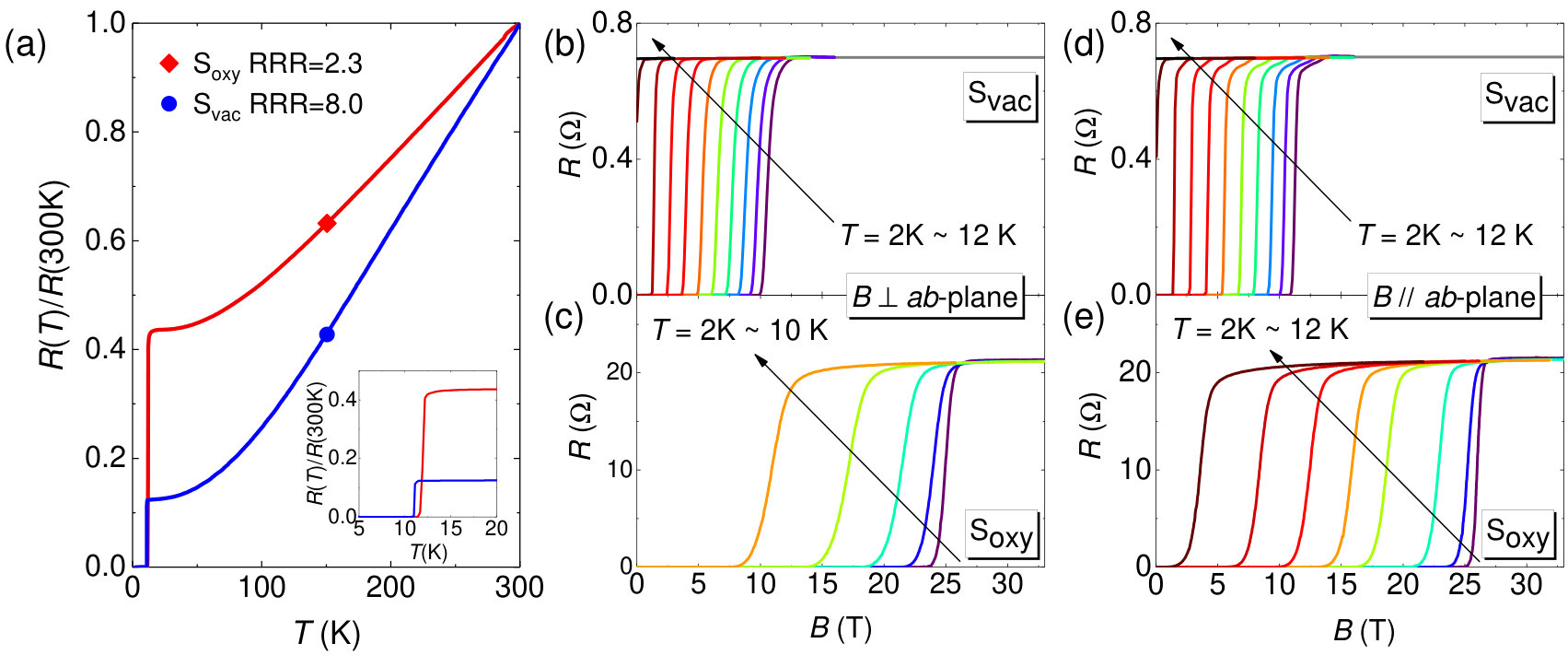

Fig. 1 (a) shows the resistance versus temperature curves of Soxy and Svac, deposited under oxygen pressure $\sim 5\times 10^{-6}$ Torr and basic vacuum, respectively. Both samples display similar $T_{\mathrm{c}}$ of $11.5\pm 0.5$ K with narrow transition widths. However, the residual resistance ratio (RRR), defined by room temperature resistance over resistance at $20$ K, shows remarkable difference, i.e. $8.0$ for Svac and $2.3$ for Soxy. These results are consistent with our previous reportJia et al. (2018). The magnetic field-dependent resistance $R(B)$ isotherms of Svac and Soxy with field perpendicular to the $ab$-plane of films are shown in Fig. 1 (b) and (c), respectively. It is intriguing that $B_{\mathrm{c2}}$ of Soxy is prominently enhanced compared with that of Svac. In addition, the enhancement of $B_{\mathrm{c2}}$ is also observed when the magnetic field is parallel to the $ab$-plane, as shown in Fig. 1 (d) and (e).

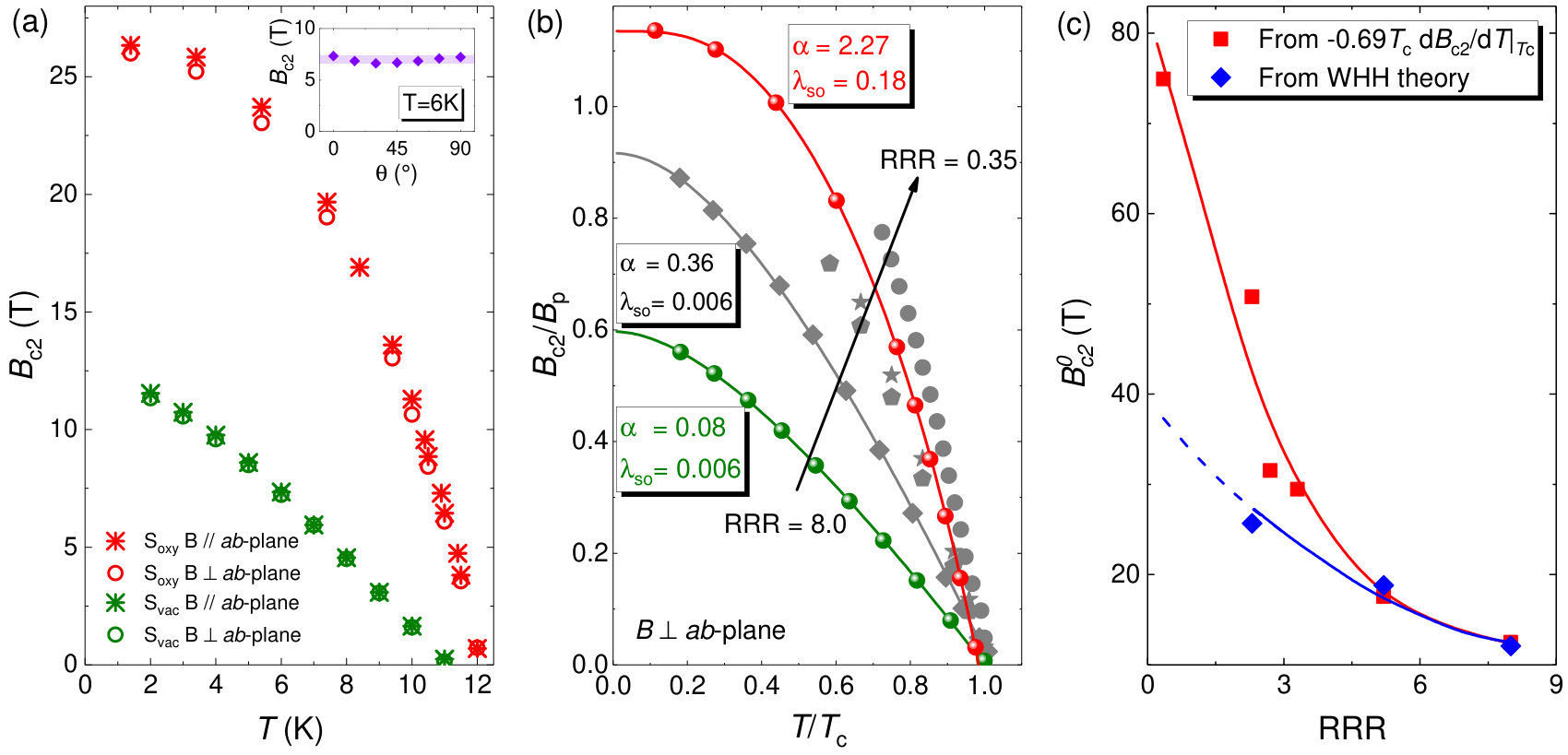

In order to quantitatively study the enhancement of $B_{\mathrm{c2}}$, we extract the temperature-dependent $B_{\mathrm{c2}}$ of Svac and Soxy with field parallel and perpendicular to $ab$-plane, as shown in Fig. 2 (a). The value of $B_{\mathrm{c2}}$ is evaluated at $90\%$ of the resistance transition relative to the normal state resistance. It is found that the $B_{\mathrm{c2}}$ of Soxy at $2$ K is $\sim 26.0$ T, more than doubled compared to that of Svac ($\sim 11.3$ T). Furthermore, the $B_{\mathrm{c2}}$ of LiTi2O4-δ is isotropic, which is confirmed by angle-dependent magnetoresistance measurements of Svac, as shown in the inset of Fig. 2 (a). To get further insight into the isotropic enhancement of $B_{\mathrm{c2}}$, we choose RRR as a good quantity to distinguish different samples since RRR monotonically decreases with increasing the oxygen pressureJia et al. (2018). Fig . 2 (b) shows normalized temperature ($T/T_{\mathrm{c}}$) dependence of $B_{\mathrm{c2}}/B_{\mathrm{P}}$ for samples with different RRR. Obviously, $B_{\mathrm{c2}}/B_{\mathrm{P}}$ gradually increases as RRR decreases, and the $B_{\mathrm{c2}}$ of Soxy exceeds $B_{\mathrm{P}}$ at low temperatures. Typically, $B_{\mathrm{c2}}/B_{\mathrm{P}}$ versus $T/T_{\mathrm{c}}$ of three selected samples with much different RRR (i.e. $8.0$, $5.2$, and $2.3$) are fitted by the WHH theoryWerthamer et al. (1966). The theoretical fits match well with experimental data, considering Maki parameter $\alpha$ and spin-orbit scattering parameter $\lambda_{\mathrm{so}}$Maki (1964); Werthamer et al. (1966). $\alpha$ and $\lambda_{\mathrm{so}}$ are approximately zero in the case of large RRR and increase with decreasing RRR, tempting us to consider spin paramagnetism and spin-orbit scattering for the enhancement of $B_{\mathrm{c2}}$. The zero-temperature upper critical field $B_{\mathrm{c2}}^{0}$ extrapolated from the WHH fitting is shown in Fig. 2 (c). In addition, a widely used formula which considers orbital effect only, $B_{\mathrm{c2}}^{0}=-0.69T_{\mathrm{c}}(\mathrm{d}B_{\mathrm{c2}}/\mathrm{d}T)|_{T_{\mathrm{c}}}$, is also employed to estimate $B_{\mathrm{c2}}^{0}$, as shown in Fig. 2 (c). The difference in $B_{\mathrm{c2}}^{0}$ by these two methods is small for samples with large RRR, while it becomes more and more prominent as RRR decreases, suggesting again that effects other than the orbital depairing should be considered for the $B_{\mathrm{c2}}$ anomalies.

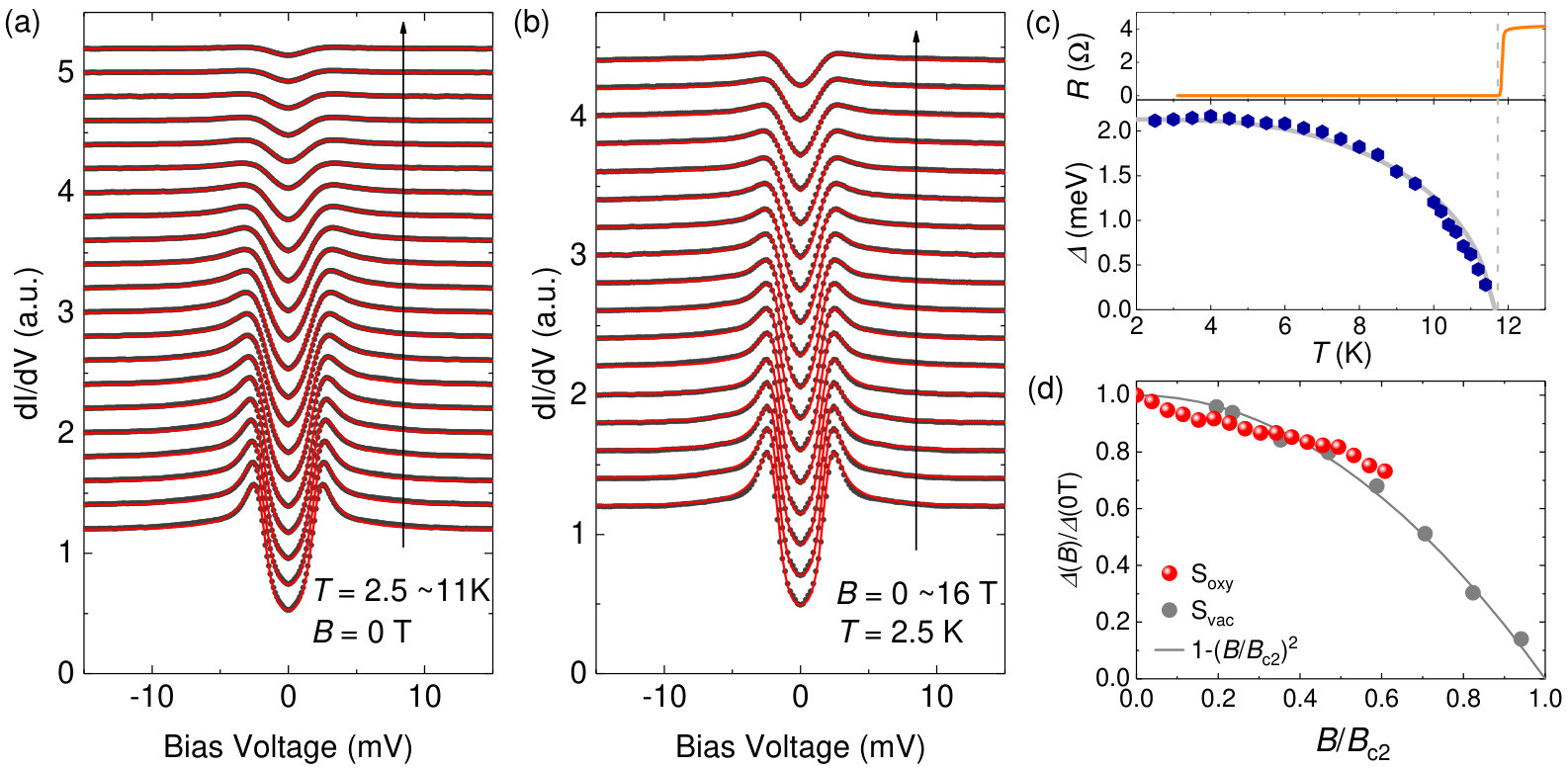

To further clarify the key factors that lead to anomalies of $B_{\mathrm{c2}}$, we carried out point-contact tunneling spectroscopy measurements for S${}_{\mathrm{oxy}}^{\prime}$ whose RRR $=3.4$. Fig. 3 (a) and (b) display the normalized temperature- and field-dependent tunneling spectra respectively, with $B$ perpendicular to $ab$-plane. The differential conductance spectra clearly show a pair of superconducting coherence peaks, which are still robust against field up to $16$ T at $2.5$ K. All the spectra are fitted well with the framework of Blonder-Tinkham-Klapwijk (BTK) modelJin et al. (2015). The temperature-dependent superconducting energy gap $\Delta(T)$ obtained from the BTK fits, agrees well with BCS theory and $2\Delta/k_{\mathrm{B}}T_{\mathrm{c}}=4.2$ where $k_{\mathrm{B}}$ is the Boltzmann constant, as shown in the bottom panel of Fig. 3 (c). Compared with Svac, $2\Delta/k_{\mathrm{B}}T_{\mathrm{c}}$ of S${}_{\mathrm{oxy}}^{\prime}$ is nearly unchangedJin et al. (2015); He et al. (2017), indicating that the electron-phonon coupling remains the same. However, the normalized field-dependent energy gap $\Delta(B)/\Delta(0)$ of S${}_{\mathrm{oxy}}^{\prime}$ versus $B$ deviates from the relation, $\Delta(B)/\Delta(0)=1-(B/B_{\mathrm{c2}})^{2}$, which is discovered in SvacJin et al. (2015), as shown in Fig. 3 (d). This unusual behavior of $\Delta(B)$ suggests that orbital order is suppressed while spin-orbit scattering might be enhanced in S${}_{\mathrm{oxy}}^{\prime}$, coinciding with our previous workJia et al. (2018).

Now let’s turn to discuss the mechanisms behind the enhancement of $B_{\mathrm{c2}}$ for LiTi2O4-δ films. As mentioned above, $B_{\mathrm{c2}}$ can be improved by suppressing orbital and/or spin depairing effects. It seems that orbital effect is crucial since $\alpha$, as a key factor to characterize the orbital contributionMaki (1964), is significantly enhanced in Soxy. According to the WHH theory, $\alpha=3\hbar/(4E_{\mathrm{F}}\tau)$, where $\hbar$, $E_{\mathrm{F}}$ and $\tau$ are the reduced Planck constant, Fermi energy and relaxation time respectively. We can obtain $\tau=1.4\times 10^{-14}$ s for Svac, which is self-consistent with the result derived from electrical transport, i.e. $\tau=l/v_{F}=1.3\times 10^{-14}$ s, where $l$ is mean free path and $v_{\mathrm{F}}$ is Fermi velocityJin et al. (2015). However, the excellent fitting of Soxy provides an underestimation of $\tau$ ($=5\times 10^{-16}$ s) if we assume the Fermi energy is constant, since such $\tau$ is even smaller than the lower limit $\tau_{\mathrm{min}}$ ($=c/v_{\mathrm{F}}=6.1\times 10^{-15}$ s, where $c$ is the out-of-plane lattice constant), restricted by the Mott-Ioffe-Regel limitHussey et al. (2004); Jia et al. (2018). Such confliction can be reconciled in case of a reduced $E_{\mathrm{F}}^{oxy}\sim E_{\mathrm{F}}^{vac}/8$, where the label $oxy$ and $vac$ stand for Soxy and Svac, respectively. It is surprising that tiny amount of oxygen defects can induce such remarkable change in Fermi energy unless the occurrence of Fermi surface reconstruction or Lifshitz transition and formation of small Fermi pockets, like in cupratesMatsui et al. (2007). We expect that such variation of Fermi energy should have influence on density of states thereby tuning $T_{\mathrm{c}}$ and $\Delta$, which is not observed in our work. Besides, some effects beyond the WHH theory such as dimensionality and strong electron-phonon coupling can also be easily ruled out since the thickness of samples ($>70$ nm) is much larger than the lattice constant and $2\Delta/(k_{\mathrm{B}}T_{\mathrm{c}})$ is almost unchanged for all samples.

Alternatively, the anomalies of $B_{\mathrm{c2}}$ may be attributed to some factors that suppress spin flip, such as SOC and SOS. Zeeman SOC and Rashba SOC are not the case of LiTi2O4-δ because of the centrosymmetric lattice structure and isotropic $B_{\mathrm{c2}}$Lu et al. (2015); Sohn et al. (2018). SOS is a candidate to understand the enhancement of $B_{\mathrm{c2}}$. Nevertheless, the values of $\lambda_{\mathrm{so}}$ derived from the WHH fitting are too small to induce such large enhancement compared with other systemsFischer (1978). It should be emphasized that $s$-wave scattering is assumed in the WHH theory, while other factors like the details of spin-orbit interaction are ignoredWerthamer et al. (1966); Rieck et al. (1991), which may also play an essential role in the anomalies of $B_{\mathrm{c2}}$. In order to clarify this issue, we consider the connection between the crystal structures and spin-orbit interaction in three configurations, i.e. ideal LiTi2O4 structure (see Fig. 4 (a)), existence of long range ordered oxygen vacancies (Svac, see Fig. 4 (b)) and the case where these vacancies are partially filled by oxygen atoms (Soxy, see Fig. 4 (c)). Since it is impossible to take into account oxygen impurities with random distribution in band structure calculations, we would like to discuss it phenomenologically. For the ideal LiTi2O4 structure, Jahn-Teller distortions with Q2 and Q3 modes exist homogeneouslyLonguethiggins et al. (1958). In this case, the compression of TiO6 octahedron dominates, and $t_{2g}$ orbits split into higher two-fold degenerate $d_{zx}$/$d_{yz}$ and lower non-degenerate $d_{xy}$Khomskii and Mizokawa (2005) (see Fig. 4 (d)). If long range ordered oxygen vacancies exist (Svac), such distortion will be stabilized, and orbital-related state is expected to form, which is indeed observed in Svac Jin et al. (2015); Jia et al. (2018). Here on the single octahedron the orbital moment of the conduction electron quenches out.

However, spin-orbit interaction should be taken into account even if only one oxygen vacancy is filled since the gradient of local electrical potential $V$ cannot be neglected. In general, the Hamiltonian term of SOC can be expressed as

[TABLE]

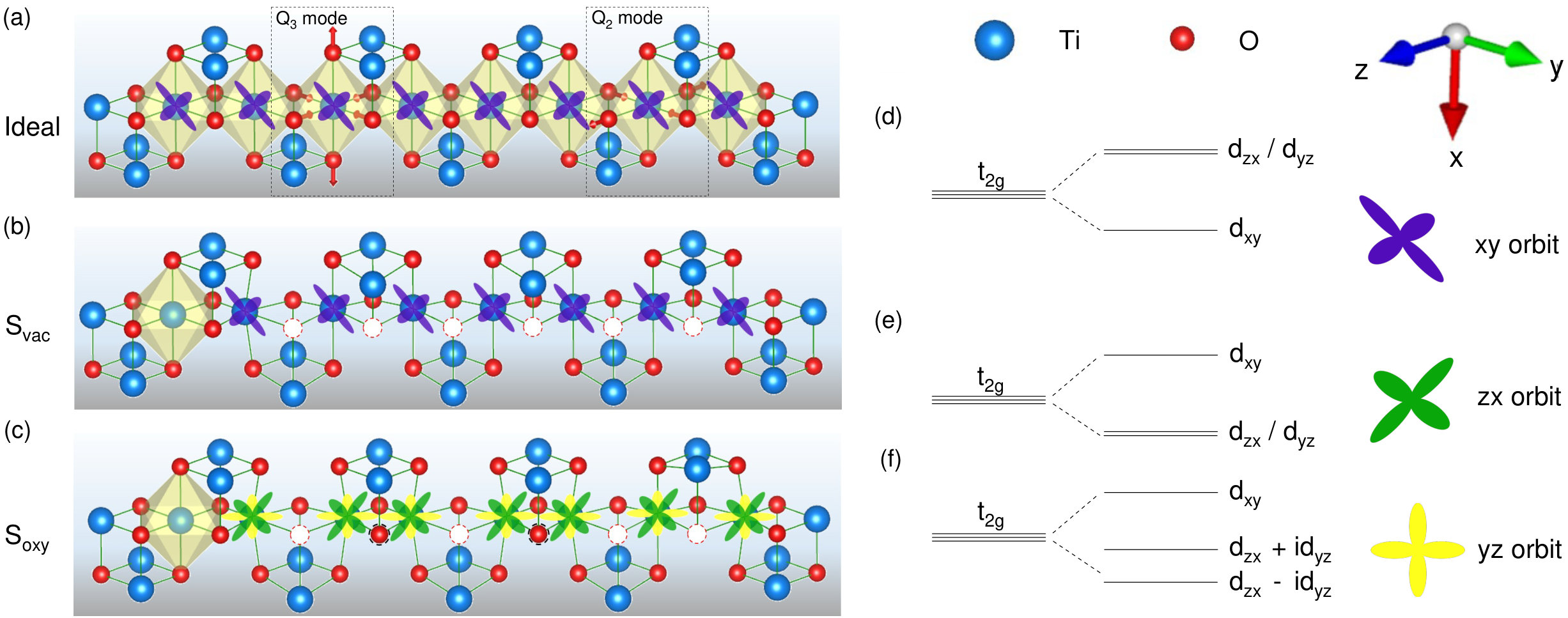

where $\lambda_{\mathrm{soc}}$ is the spin-orbit coupling constant, k is the momentum of the conduction electron, $\bm{\sigma}$ is the Pauli matrix. It is well known that $\lambda_{\mathrm{soc}}$ strongly increases with the atomic number Z, i.e. $\lambda_{\mathrm{soc}}\sim\mathrm{Z}^{4}$Watkins et al. (2003). In this case, the energy scale of SOC is comparable to that of Jahn-Teller distortionsWatkins et al. (2003); Haverkort et al. (2005). Therefore, the SOC competes with the Jahn-Teller effect and leads to a reversal of orbital splitting, i.e. higher non-degenerate $d_{xy}$ and lower two-fold degenerate $d_{zx}$/$d_{yz}$Bersuker (2006)(see Fig. 4 (e)). Typically, the SOC overbears the types of Jahn-Teller distortion, and further splits two-fold degenerate $d_{zx}$/$d_{yz}$ into $d_{zx}+id_{yz}$ and $d_{zx}-id_{yz}$ (see Fig. 4 (f)), consequently generating an orbital moment quantum number $l=\pm 1$. As a result, when an external magnetic field $B$ is applied, the effective field $B_{\mathrm{eff}}$ is given by

[TABLE]

where $\langle B_{\mathrm{soc}}\rangle$ is the average value of the generated SOC field. Since $\langle B_{\mathrm{soc}}\rangle$ is negative due to the opposite orientations of orbital moment and spinMizokawa and Fujimori (1996); Meijer et al. (1999), the external field is weakened and thus the $B_{\mathrm{c2}}$ is enhanced. The similar situation with the orbital moment orientations has been discussed in another Ti oxide compound LaTiO3, which has a similar ordering of orbital energiesMizokawa and Fujimori (1996); Meijer et al. (1999). Besides, momentum-dependent spin-orbit scattering may also contribute to such enhancement of $B_{\mathrm{c2}}$Neuringer and Shapira (1966). As shown long ago by Boiko and Rashba, it is very important for magnetic susceptibility and other magnetic properties of materials with spin-orbit interactionBoiko and Rashba (1960).

Other anomalies can be well understood in this framework. Firstly, due to the nonselective distribution of oxygen impurities, such interaction is isotropic in average, leading to an isotropic $B_{\mathrm{c2}}$. Secondly, such spin-orbit interaction has no effect on the thermodynamics of a superconductor, especially $T_{\mathrm{c}}$, pointed out by Gor′kov and RusinovGor*′*kov and Rusinov (1964), which is consistent with our results. Thirdly, the deviation from $\Delta(B)\sim-B^{2}$ in Soxy indicates the suppression of orbital order via the randomly oriented and distributed orbital moments, therewith the enhanced spin-orbit interaction.

Overall, by a systematic transport and point-contact tunneling spectroscopy measurements of the LiTi2O4-δ films we find an astonishing enhancement of the $B_{\mathrm{c2}}$, that breaks the Pauli limit and meanwhile remains isotropic. Such anomalies are rarely observed in superconductors with cubic structure, yet the breaking of the Pauli limit is frequently reported in (quasi) two dimensional non-centrosymmetric superconducting materials but with an anisotropic $B_{\mathrm{c2}}$. Moreover, oxygen impurities, giving rise to higher residual resistivity, do not make obvious influence on $T_{\mathrm{c}}$ and $\Delta$. In combination with our previous work on this systemJin et al. (2015); Jia et al. (2018), we conclude that the three dimensional spin-orbit interaction induced by oxygen impurities is essential to the significant isotropic enhancement of $B_{\mathrm{c2}}$. The effects of oxygen impurities could be general in oxides, thus providing us new clues to generate other exotic phenomena such as Ising superconductivityLu et al. (2015); Zhou et al. (2016), topological nontrivial state due to band inversionKusmartsev and Tsvelik (1985); Pesin and Balents (2010); Galitski and Spielman (2013), vortex phase transition from liquid to solidRykov et al. (1999). In addition, our achievements pave a promising path to optimize practical superconductors with higher upper critical filed.

We thank X. Zhang, X. Y. Jiang, D. Li, J. S. Zhang, A. Kusmartsev for fruitful discussions and E. I. Rashba for useful comments and indicating the Ref.Boiko and Rashba (1960). This work was supported by the National Key Basic Research Program of China (2015CB921000, 2017YFA0303003, 2017YFA0302902 and 2018YFB0704102), the National Natural Science Foundation of China (11674374 and 11804378), the Key Research Program of Frontier Sciences, CAS (QYZDB-SSW-SLH008 and QYZDY-SSW-SLH001), the Key Research Program of the Chinese Academy of Sciences (XDPB01). The work of F.V.K. was supported by the Government of the Russian Federation through the ITMO Professorship Program. A portion of this work was performed on the Steady High Magnetic Field Facilities, High Magnetic Field Laboratory, CAS.
