Secondary eclipses of WASP-18b -- Near Infrared observations with the Anglo Australian Telescope, the Magellan Clay Telescope and the LCOGT network

TL;DR

This study presents new near-infrared eclipse observations of the hot Jupiter WASP-18b, resolving previous conflicting atmospheric models by incorporating haze effects and updated radiative transfer modeling.

Contribution

It provides new eclipse measurements and a refined atmospheric model for WASP-18b, challenging previous claims of extreme metallicity and highlighting haze impacts.

Findings

Measured eclipse depths at Ks and z' bands.

Refined atmospheric model without extreme metallicity.

Haze particles larger than 0.2 μm may explain flux discrepancies.

Abstract

We present new eclipse observations for one of the hottest "hot Jupiters" WASP-18b, for which previously published data from HST WFC3 and Spitzer have led to radically conflicting conclusions about the composition of this planet's atmosphere. We measure eclipse depths of $0.15\pm0.02\%$ at $Ks$ and $0.07\pm0.01\%$ at $z'$ bands. Using the VSTAR line-by-line radiative transfer code and both these new observations with previously published data, we derive a new model of the planetary atmosphere. We have varied both the metallicity and C/O ratio in our modelling, and find no need for the extreme metallicity suggested by Sheppard et al.(2017). Our best fitting models slightly underestimate the emission at $z'$ band and overestimate the observed flux at $Ks$-band. To explain these discrepancies, we examine the impact on the planetary emission spectrum of the presence of several types of hazes which could form on the night-side of the planet. Our $Ks$ band eclipse flux measurement is lower than expected from clear atmosphere models and this could be explained by a haze particles larger than 0.2 $\mu$m with the optical properties of Al$_{2}$O$_{3}$, CaTiO$_{3}$ or MgSiO$_{3}$. We find that $z'$ band measurements are important for understanding the contribution of photochemical hazes with particles smaller than 0.1 $\mu$m at the top of the atmosphere.

Figures

Tables

Table 1. Table 1: Table of the observations

Facility	Date	Type	band	Number	Cadence	Exposure	Median
	(UT)			of Exps	(s)	Time (s)	FWHM (pix)
AAT+IRIS2	2014-09-05	Secondary	$Ks$	95	120a	5	19
AAT+IRIS2	2015-09-27	Secondary	$Ks$	3832	2.6	2	7
LCOGT 1 m+Sinistro (CTIO)	2015-11-02	Secondary	$z^{\prime }$	201	79	40	38
LCOGT 1 m+Sinistro (CTIO)	2015-11-04	Secondary	$z^{\prime }$	163	79	40	27
LCOGT 1 m+Sinistro (CTIO)	2015-11-11	Primary	$r^{\prime }$	185	49	10	37
LCOGT 1 m+Sinistro (CTIO)	2015-11-12	Primary	$r^{\prime }$	260	49	10	53
LCOGT 1 m+Sinistro (CTIO)	2015-11-19	Secondary	$z^{\prime }$	202	79	40	37
LCOGT 1 m+Sinistro (CTIO)	2015-11-20	Secondary	$z^{\prime }$	158	79	40	53
Magellan+LDSS3	2016-09-17	Secondary	$z^{\prime }$	431	45	10	220

Table 2. Table 2: Global fitting parameters including photometric jitter terms

Parameter	Value
MCMC jump parameters
Period (d)	$0.94145180\left(45\right)$
$T_0$ (BJD-TDB)	$2455084.7948\pm 0.0011$
$\left(R_p+R_{\star }\right)/a$	$0.3049\pm 0.0058$
$R_p/R_{\star }$	$0.09868\pm 0.00093$
$i$ ${(}^{\circ })$	$85.6\pm 1.1$
$e\cos \omega$	$0.0002\pm 0.0016$
$S_p/S_{\star }$ $z^{\prime }$-band	$0.070\pm 0.010$
$S_p/S_{\star }$ $Ks$-band	$0.153\pm 0.015$
$s_{AATKs\mathrm{\hspace{0.17em}20140905}}$	$0.00108\pm 0.00011$
$s_{AATKs\mathrm{\hspace{0.17em}20150927}}$	$0.00409\pm 0.00051$
$s_{LCO{z}^{\prime }\mathrm{\hspace{0.17em}20151102}}$	$0.00145\pm 0.00082$
$s_{LCO{z}^{\prime }\mathrm{\hspace{0.17em}20151104}}$	$0.00140\pm 0.00093$
$s_{LCO{z}^{\prime }\mathrm{\hspace{0.17em}20151111}Primary}$	$0.00290\pm 0.00016$
$s_{LCO{z}^{\prime }\mathrm{\hspace{0.17em}20151112}Primary}$	$0.00201\pm 0.00097$
$s_{LCO{z}^{\prime }\mathrm{\hspace{0.17em}20151119}}$	$0.00135\pm 0.00080$
$s_{LCO{z}^{\prime }\mathrm{\hspace{0.17em}20151120}}$	$0.00130\pm 0.00088$
$s_{Magellan{z}^{\prime }\mathrm{\hspace{0.17em}20151120}}$	$0.00116\pm 0.00043$
Derived eclipse depths
$F_p/F_{\star }$ $z^{\prime }$-band (%)	$0.0682\pm 0.0099$
$F_p/F_{\star }$ $Ks$-band (%)	$0.149\pm 0.014$

Table 3. Table 3: Best fit parameters from independent analyses of each transit

	Period (d)	$T_0$ (BJD-TDB)	$\left(R_p+R_{\star }\right)/a$	$R_p/R_{\star }$	inc (∘)	$e\cos \omega$	$S_p/S_{\star }$	Detrending
								parameters
AAT $Ks$ 20140905	$0.9414519\left(4\right)$	$2455084.79293\left(9\right)$	$0.302\pm 0.009$	$0.097\pm 0.001$	$84\pm 2$	$0.004\pm 0.005$	$0.14\pm 0.03$	$t$
AAT $Ks$ 20150927	$0.9414519\left(4\right)$	$2455084.79293\left(9\right)$	$0.311\pm 0.007$	$0.097\pm 0.001$	$86\pm 1$	$0.004\pm 0.003$	$0.17\pm 0.02$	$t,y$
LCOGT $Z$ 20151102	$0.9414518\left(4\right)$	$2455084.79293\left(9\right)$	$0.306\pm 0.009$	$0.097\pm 0.001$	$85\pm 2$	$-0.004\pm 0.03$	$0.07\pm 0.03$	$t$
LCOGT $Z$ 20151104	$0.9414518\left(5\right)$	$2455084.79292\left(9\right)$	$0.304\pm 0.009$	$0.097\pm 0.001$	$85\pm 2$	$-0.001\pm 0.006$	$0.06\pm 0.03$	$t$
LCOGT $Z$ 20151119	$0.9414518\left(4\right)$	$2455084.79293\left(9\right)$	$0.306\pm 0.009$	$0.097\pm 0.001$	$85\pm 2$	$-0.03\pm 0.05$	$0.03\pm 0.03$	$t$
LCOGT $Z$ 20151120	$0.9414518\left(4\right)$	$2455084.79294\left(9\right)$	$0.307\pm 0.009$	$0.097\pm 0.001$	$85\pm 2$	$-{0.01}_{-0.02}^{+0.05}$	$0.05\pm 0.05$	$t$
Magellan $Z$ 20160917	$0.9414518\left(4\right)$	$2455084.79293\left(8\right)$	$0.298\pm 0.008$	$0.097\pm 0.001$	$83\pm 1$	$-0.003\pm 0.002$	$0.143\pm 0.005$	$t,f$

Equations

$$\ln \mathcal{L}=-\frac{n}{2}\ln (2\pi )-\frac{1}{2}{\chi }^2-\frac{1}{2}\sum _{i=0}^{i=n}\ln ({\sigma }_{\mathrm{lc}}^2+s_{\mathrm{lc}}^2),$$

Full text

††pagerange: Secondary eclipses of WASP-18b – Near Infrared observations with the Anglo Australian Telescope, the Magellan Clay Telescope and the LCOGT network–Secondary eclipses of WASP-18b – Near Infrared observations with the Anglo Australian Telescope, the Magellan Clay Telescope and the LCOGT network††pubyear: 2015

1 Introduction

WASP-18b is a massive, hot Jupiter in a very short-period orbit around an F6V star (Hellier et al., 2009). Although a handful of planetary systems with orbital periods of under a day are known, WASP-18b is the only high-mass example (i.e. more than 10 Jupiter masses) of such a system. This makes it a good candidate for study of potentially expected strong tidal interactions with the parent star (Wilkins et al., 2017). Such interactions should lead to mass loss and orbital instability, resulting in a relatively short life span of the planet. Indeed, the shortening of its orbital period may be detectable within just a few years.

WASP-18b’s very strong stellar irradiation is also expected to influence its atmospheric structure leading to an inverted thermal profile with high stratospheric temperatures (Fortney et al., 2008) – a mechanism that may contribute to the observed inflated radii of many hot Jupiters (Baraffe, Chabrier & Barman, 2010). Models of the planetary spectrum for WASP-18b (Nymeyer et al., 2011) show a slightly better fit to the planet’s day-side spectrum for atmosphere profiles with temperature inversion as a function of pressure, compared to models without such an inversion.

WASP-18b was discovered as a primary transiting system, and its orbital properties have been characterised by Southworth et al. (2009) from monitoring observations in the V band at the 1.5m Danish Telescope at ESO’s La Silla Observatory. The first observations of the WASP-18b’s secondary eclipses were obtained with the IRAC camera on the Spitzer telescope (Nymeyer et al., 2011)., with brightness temperatures in the four spectral channels of IRAC (3.6, 4.5, 5.8, 8.0 $\mu$m) above 3000 K making WASP-18b one of the most irradiated hot Jupiters.

New HST observations with the Wide Field Camera (WFC3) have been published independently by both Sheppard et al. (2017) and Arcangeli et al. (2018). The models of atmospheric composition derived by these studies, however, are radically different, requiring either extremely high metallicities of $C/H=283$S*⊙* and $C/O=1$ (Sheppard et al., 2017), or Solar values for both parameters (Arcangeli et al., 2018). It is worth noting the latter group considered a more sophisticated model that included opacity sources due to thermal ionisation and dissociation of atmospheric species that are important at high temperatures (Parmentier et al., 2018).

The modelling of exoplanetary atmospheres remains challenging. Currently it is impossible to acquire simultaneous data across a wide spectral range, and this, in turn, makes it impossible to resolve many model degeneracies. For example, a time-dependent radiative transfer model (Iro & Maxted, 2013) proposed to examine heat transfer efficiency in WASP-18b shows differences in spectra observed at different phases when compared with static averaged models. The planetary rotation period, often difficult to estimate, will influence the speed of equatorial winds and these transfer heat from the sub-stellar (i.e. star-facing) region. This will tend to level out the planetary fluxes measured in different orbital phases.

In addition most atmospheric retrieval models for hot Jupiters is done using simplified chemical assumptions that ignore photochemical processes (like the photodissociation of water), which may change the expected levels of molecular absorption of H2O in observed spectra (Kopparapu, Kasting & Zahnle, 2012). Further complexity in modelling of such atmospheres is the suggested presence of hazes or clouds that appear to fit the observed transit data (the best known example of which is HD 189733b – McCullough et al., 2014; Pont et al., 2013). The types of hazes that could form at the top layers of a hot Jupiter’s atmosphere are discussed by Marley et al. (2013) and Sing et al. (2016). Models that include hazes in the radiative transfer solutions, require the availability of optical property data for the refractory particles that could survive in such hot atmospheres. For the hottest hot Jupiters (like WASP-18b) the condensation temperature of the most refractory chemicals are lower than the blackbody temperature of the planet. Therefore it is not clear if any clouds or hazes can be formed and long-lived in the planetary atmosphere of WASP-18b. Modelling by Parmentier et al. (2016) suggest that a fraction of the planet’s day side, along the western terminator could remain covered by condensate clouds even in high equilibrium temperatures. Similarly the results of the 3-D dynamical models for other highly irradiated, hot Jupiter, WASP-121b (Kempton, Bean & Parmentier, 2017) suggest that any condensation that would occur on the dark side of the planet would be destroyed relatively quickly during circulation toward the sub-stellar regions of the atmosphere, however the photochemical hazes formed on the day side could be transported and survive in all regions of the planet.

Here we examine models with (potentially transient) hazes of different composition and opacity. The models are constrained by our new observations of WASP-18b eclipses at $K_{s}$ and $z^{\prime}$ bands, which attempt to fill in the gaps in previously observed spectral regions (Section 2). We improve these constraints for the modelled spectra by combining our data with previously published observations. Accurate $K_{s}$ and $z^{\prime}$ band depths extend the coverage of emission spectrum on both sides of the range accessible to the WFC3 camera. Both measurements can provide a signature of the presence of condensate clouds and photochemical hazes in the atmosphere, as discussed later. Furthermore, observations in these two bands can be particularly useful in the statistical studies on hot Jupiters, when the distribution of $K_{s}$ and $z^{\prime}$ band observations for similar planets, becomes a useful guide to promote in-depth characterisation by space-based facilities.

In Section 4.1 we derive the best fitting model of the emission spectrum with the Versatile Software for Transfer of Atmospheric Radiation (VSTAR) (Bailey & Kedziora-Chudczer, 2012). Our atmosphere model includes many opacity sources omitted in Sheppard et al. (2017). Finally we focus our discussion on the different types of hazes that could be present, at least intermittently, in the atmosphere of WASP-18b. We model the emission spectrum with the addition of hazes with different optical depths and particle sizes to examine features in different parts of the mid- and far-infrared spectrum (Section4.2) that will be soon accessible to observations with the James Webb Space Telescope (JWST).

2 Observations and analysis

We obtained a series of secondary eclipse observations of WASP-18b at multiple near-infrared wavelengths, including 4 epochs of $z^{\prime}$ band eclipses from the Las Cumbres Observatory Global Telescope (LCOGT) 1 m network, 1 epoch of $z^{\prime}$ band data from the 6.5 m Magellan Clay telescope at Las Campanas Observatory (LCO), and 2 epochs of $Ks$ band eclipses from the 3.9 m Anglo-Australian Telescope (AAT). We also observed 2 epochs of $r^{\prime}$ band primary transits with LCOGT used in the analysis discussed below. The observations are summarised in Table 1.

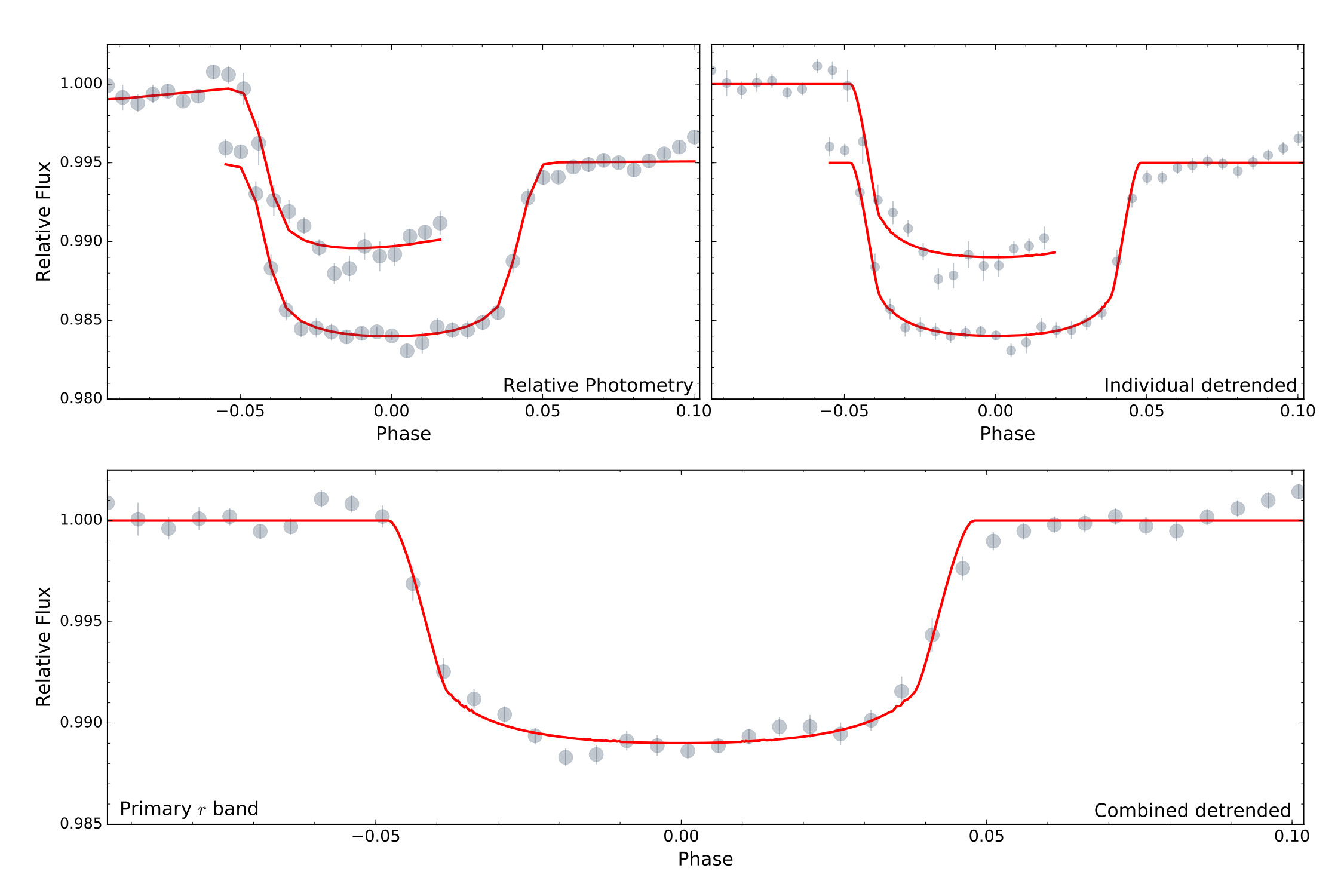

Primary transits were observed on 2015-11-11 (partial) and 2015-11-12 (full) with the LCOGT 1 m network, from Cerro Tololo Inter-American Observatory (CTIO), Chile. The observations were obtained with the $4\text{K}\times 4\text{K}$ Sinistro cameras, using a Fairchild CCD-486 back-illuminated detector with a field of view of $26^{\prime}\times 26^{\prime}$ at $0.389^{\prime\prime}/\text{pixel}$. The observations were performed in the $r^{\prime}$ photometric band with exposure times of 10 s. In each case, the telescope was highly defocused, yielding point-spread-functions with full width at half maxima of 30-40 pixels. The primary transit light curves are shown in Figure 1.

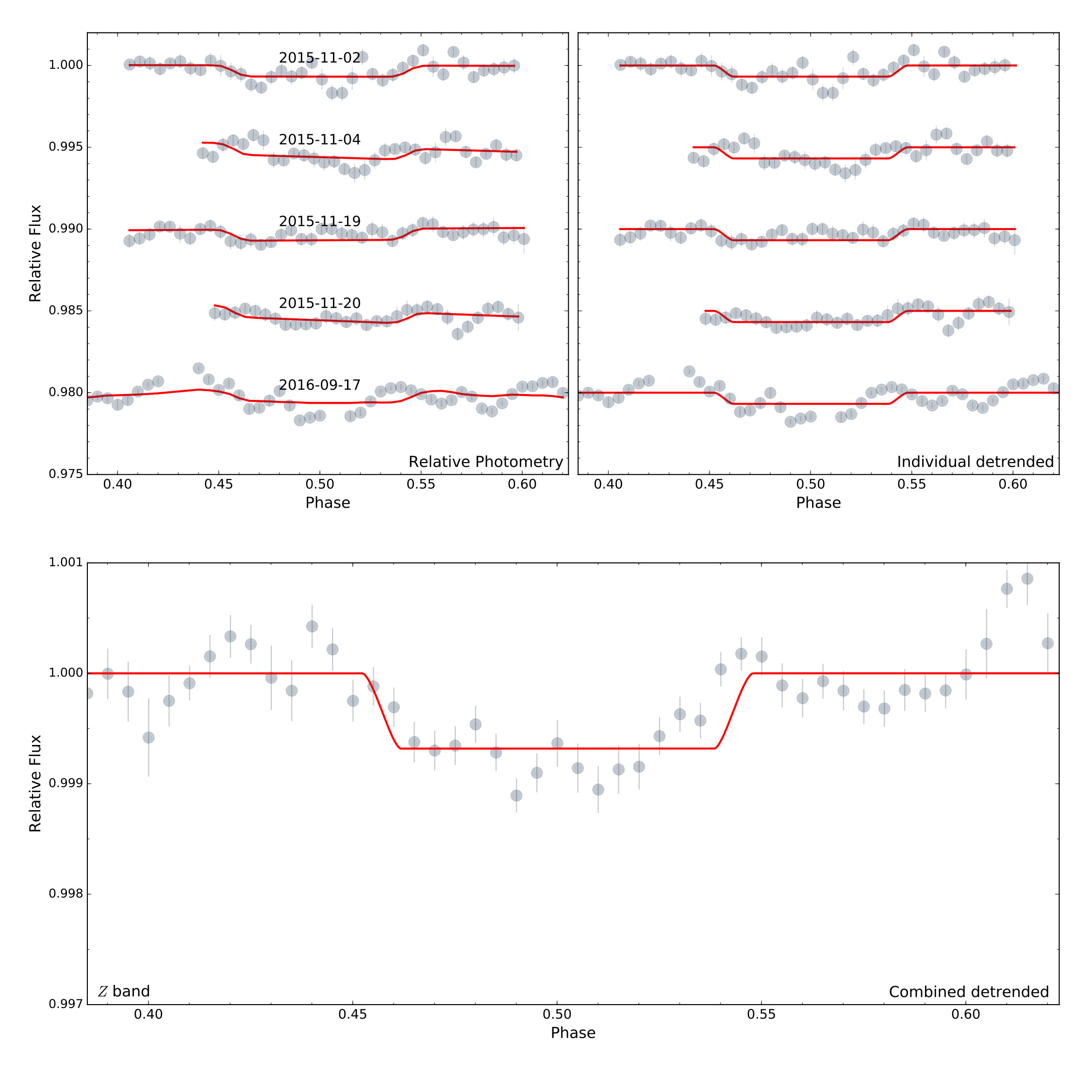

Four full secondary eclipses WASP-18b were also observed with the 1 m LCOGT telescope at CTIO in the $z^{\prime}$ band with the Sinistro cameras, on 2015-11-02, 2015-11-04, 2015-11-19 and 2015-11-20. As for the primary transit observations, the eclipse sequences were performed with the telescope defocused, but with longer exposure times of 40 s.

Bias subtraction and flat fielding were performed automatically by the LCOGT pipeline, and photometry of the target star and selected reference stars were extracted from these frames. First, we solve for the astrometric solution of each frame to derive the centroids of extraction. Aperture photometry is then performed using the fitsh package (Pál, 2012) over six fixed aperture sizes. The background flux is estimated by the median flux within an annulus surrounding the photometric aperture.

One additional $z^{\prime}$ band secondary eclipse was observed with the 6.5 m Magellan Clay telescope at LCO on 2016-09-17 with the Low Dispersion Survey Spectrograph 3 (LDSS3) instrument. LDSS3 uses a S3-171 $2\,K\times 4\,K$ red-sensitive detector, with a circular field-of-view of $6^{\prime}.4$ in diameter and a pixel scale of $0.189^{\prime\prime}\,\mathrm{pixel}^{-1}$. A total of 431 observations were obtained with a 10 s exposure time and the target severely defocused to a full width half maximum of $\sim 200$ pixels. The observations were bias subtracted, and then flat fielded with twilight sky frames. Photometry from target and reference stars are extracted using fitsh, as for the LCOGT observations. The $z^{\prime}$ band secondary eclipses from LCOGT and LSDSS3 are shown in Figure 2.

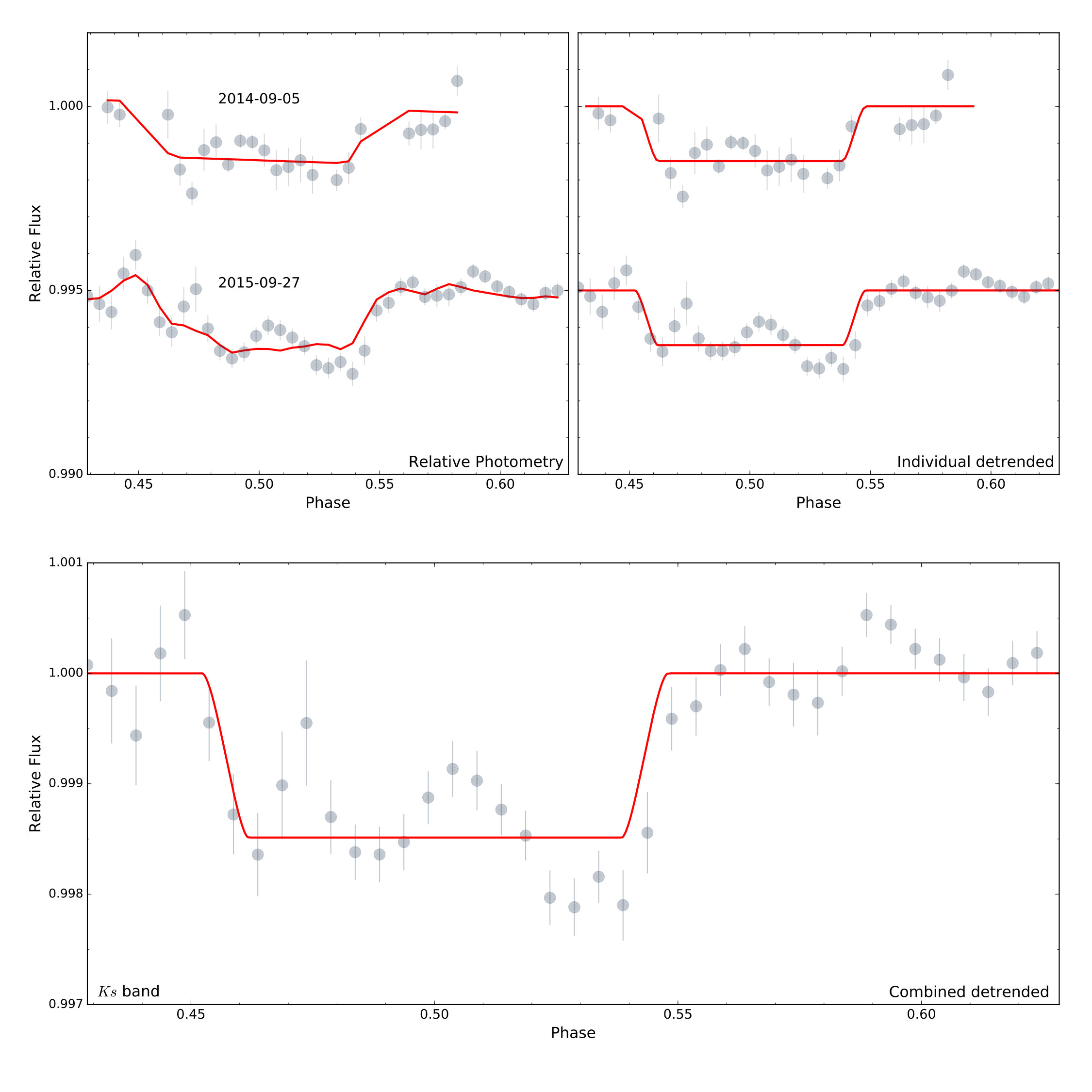

Near-infrared secondary eclipses were observed with the IRIS2 camera on the 3.9 m AAT, at Siding Spring Observatory, Australia. IRIS2 is a $1\text{K}\times 1\text{K}$ infrared camera employing a HAWAII-1 HgCdTe infrared detector with four readout quadrants, and records in double-read mode. The IRIS2 installed on the AAT yields a $7^{\prime}.7\times 7^{\prime}.7$ field of view and a plate scale of $0.4488^{\prime\prime}\,\mathrm{pixel}^{-1}$.

The observing strategy and data reduction for the IRIS2 observations are laid out in Zhou et al. (2014) and Zhou et al. (2015). Each eclipse sequence is observed in guided “stare” mode. The observer checks for tracking drifts in the science frames every $\sim 10$ minutes by solving the astrometry, and inputs manual tracking adjustments as necessary. As a result, the centroid of the target star remains on the same pixel throughout each observation sequence. Dark subtraction is performed on each science exposure. A master sky frame is assembled from sets of offset exposures that bracket each exposure sequence, and this is used to provide a flat-field for the science frames. Aperture photometry for the target star and selected reference stars is then performed on the reduced frames following the same procedure as for LCOGT observations. The IRIS2 $Ks$ band secondary eclipses are shown in Figure 3.

3 Light curve analysis and modelling

3.1 Global fit

We perform a global fit of all our observations, including the LCOGT primary transits, as well as LCOGT and Magellan $z^{\prime}$ band and AAT+IRIS2 $Ks$ band secondary eclipses data. The light curve modelling process largely follows that described in Zhou et al. (2014) and Zhou et al. (2015). The transits and eclipse are modelled with the JKTEBOP (Popper & Etzel, 1981; Southworth, Maxted & Smalley, 2004) implementation of the EBOP model (Nelson & Davis, 1972). The free parameters governing the transit geometry are the planet-star radius ratio $R_{p}/R_{\star}$, normalised orbital distance $(R_{p}+R_{\star})/a$, inclination $i$, orbital period $P$ and transit centre timing $T_{0}$. The parameters governing the secondary eclipse are the surface brightness ratios $S_{p}/S_{\star}$ and the eccentricity parameter $e\cos\omega$ (which dictates the phase of the eclipse).

In addition, we allow for simultaneous de-trending of the light curve against a combination of the external parameters: target star pixel position ($X$, $Y$) , airmass $a$, background flux $b$, target star FWHM $f$, and a linear time trend $t$. The combination of external parameters for each data set is determined from independent fits to each individual data set that minimise the Bayesian Information Criterion (BIC) of the model (see Section 3.2). This allows us to model systematic trends in the light curve due to atmospheric and instrumental variations. To account for underestimated per-point photometric uncertainties in the light curves, we also include a separate photometric jitter term to each light curve, such that the log likelihood $\ln\mathcal{L}$ is calculate as,

[TABLE]

where $n$ is the number of points per light curve, $\sigma_{\mathrm{lc}}$ is the photometric per point uncertainty, and $s_{\mathrm{lc}}$ is the photometric jitter term.

These parameters and associated uncertainties are explored via an Markov-chain Monte Carlo analysis, using the emcee Affine Invariant Ensemble sampler (Foreman-Mackey et al., 2013). Tight Gaussian priors are placed on the transit parameters $R_{p}/R_{\star}$, $(R_{p}+R_{\star})/a$, $i$, $P$, and $T_{0}$ from literature system values (Southworth et al., 2009). The derived parameters are presented in Table 2.

3.2 Independent analysis of each eclipse dataset

We also fit each of the eclipse data sets independently to check for self-consistency in our observations. The light curve fitting procedure is similar to that described in Section 3.1 and Zhou et al. (2015). The eclipse is modelled with the JKTEBOP (Popper & Etzel, 1981; Southworth, Maxted & Smalley, 2004) implementation of the Nelson & Davis (1972) model. In each case, the free parameters are the surface brightness ratios $S_{p}/S_{\star}$ and the eccentricity parameter $e\cos w$ that governs the phase of the eclipse. In order to propagate the uncertainties of the planet parameters, the transit geometry parameters are also included in the analysis, including planet-star radius ratio $R_{p}/R_{\star}$, normalised orbital distance $(R_{p}+R_{\star})/a$, inclination $i$, orbital period $P$, and transit centre timing $T_{0}$, but constrained by tight Gaussian priors based on their literature values (Southworth et al., 2009). In addition, we allow for simultaneous de-trending any combination of the external parameters $X$, $Y$ target star pixel position, airmass $a$, background flux $b$, target star FWHM $f$, and a linear time trend $t$.

To choose the right set of de-trending models, we minimise the BIC for the best fit parameters. For the 2014-09-25 AAT $Ks$ data set, the eclipse depth is larger if the airmass term is not included in the model (which yields a smaller BIC). We find no large dependence between eclipse depth and de-trending model selection for all other datasets. The derived parameters for each eclipse data set from the independent analysis are presented in Table 3.

Tidal decay of the orbital period has been predicted for short period Jovian planets (e.g. Maciejewski et al., 2016). Birkby et al. (2014) predicted the orbital period of WASP-18b should shorten by $\sim 6$ minutes over a 10 year timescale, whilst recent refinements of the transit ephemeris by Wilkins et al. (2017) failed to find any convincing evidence of orbital decay. We make use of our LCOGT primary transits to search for evidence of tidal decay in WASP-18b. We independently fit for the primary transits from LCOGT via the Mandel & Agol (2002) model, with a fixed orbital period adopted from Southworth et al. (2009), and derive a transit centroid time of $\mathrm{TDB-BJD}=2457338.63043\pm 0.00040$. The transit time is consistent with a linear propagation of the ephemeris from Southworth et al. (2009), and with no appreciable orbital decay.

4 Planetary Atmosphere Modelling

WASP-18b is separated by only 0.02047 AU from its F-type host star with $T_{\mathrm{e}ff}=6368$ K (Torres et al., 2012), which gives a predicted average equilibrium temperature for the planet of just $T_{\mathrm{e}q}=2410$ K. Dayside observations obtained by Nymeyer et al. (2011) with the IRAC camera on Spitzer, however, are broadly consistent with a blackbody spectrum of $T_{\mathrm{r}ad}=3200$ K, which is well above the temperature derived from the expected average dayside insolation. This suggests that majority of the radiation we observe from the planet is received from a region near the sub-stellar point, with a limited (or even absent) energy redistribution (Mollière et al., 2017). The lack of significant offset (within 10o error margin) between maximum in the thermal phase curve and the time of mid-eclipse in the measurement of phase curve amplitude from the full orbit at 3.6 and 4.5 $\mu$m (Maxted et al., 2013) also supports the idea of very inefficient redistribution of heat and a low albedo for the planetary atmosphere.

In hot Jupiters, CO and H2O molecules are expected to be the primary sources of atmospheric opacity as revealed by prominent absorption features in infrared spectra. The 4.5 $\mu$m band coincides with strong CO absorption, but the IRAC data in this band for WASP-18b appears to be excessive when compared with the flux measured with other IRAC channels. This was recognised as a possibly revealing the existence of a thermal inversion in the atmosphere of WASP-18b. Thermal inversions had previously been proposed to exist in the atmospheres of the hottest of hot-Jupiters (e.g. HD 209458b, Burrows et al., 2007). The nature of the absorbers causing such inversions is still debated, with TiO and VO proposed by Fortney et al. (2006) and the sulphuric products of photochemistry suggested by Zahnle et al. (2009). The relatively low level of stellar activity in the WASP-18 host star suggests that any inversion layer formed in the planetary atmosphere will not be easily destroyed by a high intensity stellar UV flux (Knutson, Howard & Isaacson, 2010).

However, the observational uncertainties of the Spitzer data permit a reasonably good fit to the spectrum with an atmospheric profile that did not include an inversion, but instead a very gradual increase in temperature with increasing pressure and resulted in shallow absorption features (Nymeyer et al., 2011). Such a model requires a significantly different chemical composition of the atmosphere. Indeed Madhusudhan (2012) showed that atmospheres without requiring inversion and C/O ratios above Solar can yield spectra with very shallow absorption features of oxygen-bearing species like water, as well as strong absorption bands of CO, that fit the spectra of many hot Jupiters. For WASP-18b, the model without inversion predicts rather higher fluxes observed in the near-infrared, which were found to be inconsistent with recently published observations from HST/WFC3 (Arcangeli et al., 2018; Sheppard et al., 2017) over the spectral range 1.12-1.65 $\mu$m. Our observations extend the coverage of near-infrared spectroscopy for WASP-18b from below 1$\mu$m to 2.1$\mu$m.

4.1 VSTAR atmosphere models

We used the line-by-line radiative-transfer code VSTAR (Bailey & Kedziora-Chudczer, 2012) to obtain an independent fit to combined WASP-18b spectral data by testing a wide range of atmospheric pressure and temperature (P-T) profiles, both with, and without, inversions. We created plane-parallel atmosphere models with 44 layers, and derived the atmospheric composition for each layer using the Ionization and Chemical Equilibrium (ICE) package of VSTAR under the assumption of thermochemical equilibrium and an assumed metallicity and the C/O ratio for the atmosphere. This package accesses a database of 143 compounds in gaseous and condensate phases to derive the abundances of chemical ingredients in terms of mixing ratios for specified molecules that are likely to exist in atmospheres of hot Jupiters. We included the line absorption of 16 molecular and atomic species in the atmosphere of WASP-18b: H2O, CO, CH4, CO2, C2H2, HCN, TiO, VO, Na, K, Rb, Cs, CaH, CrH, MgH, and FeH. The chemical model includes the thermal dissociation of species such as H2O and H2 in the upper atmosphere, which was shown by Parmentier et al. (2018) to be an important effect in ultra hot Jupiters.

Following a procedure described in Zhou et al. (2014) we perform multiple-scattering, radiative-transfer calculations for each layer of the atmosphere on a grid of wave numbers with a specified spectral resolution. A final spectrum is formed by calculating opacity due to molecules and atomic species listed in the comprehensive data base of spectral lines (Bailey & Kedziora-Chudczer, 2012). Additional sources of opacity included in the model are Rayleigh scattering by H, He and H2 in the atmosphere, collisionally induced absorption due to H2-H2 and H2-He and the free-free and bound-free absorption from H, H*-* and H${}_{2}^{-}$. The references for the database of absorbers used in our models are listed in Table 2 of Zhou et al. (2013). The spectrum of the WASP-18 star is derived from the STScI stellar atmosphere models (Castelli & Kurucz, 2004).

As mentioned previously the modelling of HST/WFC3 observations led to two different interpretations of atmospheric structure and composition as presented by Arcangeli et al. (2018) and Sheppard et al. (2017). Although both models require strong thermal inversion in the upper atmosphere, Sheppard et al. (2017) needed a strong reduction in temperature at 1 bar to explain the presumed observation of CO in absorption at 1.6 $\mu$m and in emission at 4.5 $\mu$m. Most strikingly their model also requires an unusually high metallicity for C ($C/H=283\times[C/H]_{\odot}$) with an enhanced $C/O$ ratio compared to Solar. It is not clear how such a high discrepancy between the planetary and stellar metallicity (Torres et al., 2012) could be achieved in the evolutionary scenario of WASP-18b.

We tested a variety of simplified pressure-temperature (P-T) profiles, both with and without inversion, and could not fit simultaneously the anomalous Spitzer data point observed at 4.5 $\mu$m and the $Ks$-band observations. A $\chi^{2}$-minimisation was used to fit simultaneously both the previously published data from IRAC/Spitzer, WFC3/HST and our new data presented here. We found a best-fit model with an inversion in the P-T profile at the level of 0.9 bar, assuming Solar metallicity and a Solar $C/O$ ratio. This fit is a reasonable match to observations below the $Ks$-band, but is less so for the Spitzer data in the far-infrared that include the anomalously high flux observed at 4.5 $\mu$m. However our fit does provides a match for all four Spitzer data points within their 1-sigma measurement uncertainties. We also tested models with $C/O$ ratios between 0.4 and 1.0 while varying atmospheric profiles, and found that the best fitting models matching data in one specific region of the spectrum, would produce discrepancies in other parts of the spectrum with no significant improvement in $\chi^{2}$. Clearly more data is needed to resolve this degeneracy in the models. Since we found no compelling reason for a $C/O$ ratio different from Solar , we consider only such a model (presented in Figure 4) in our further discussion.

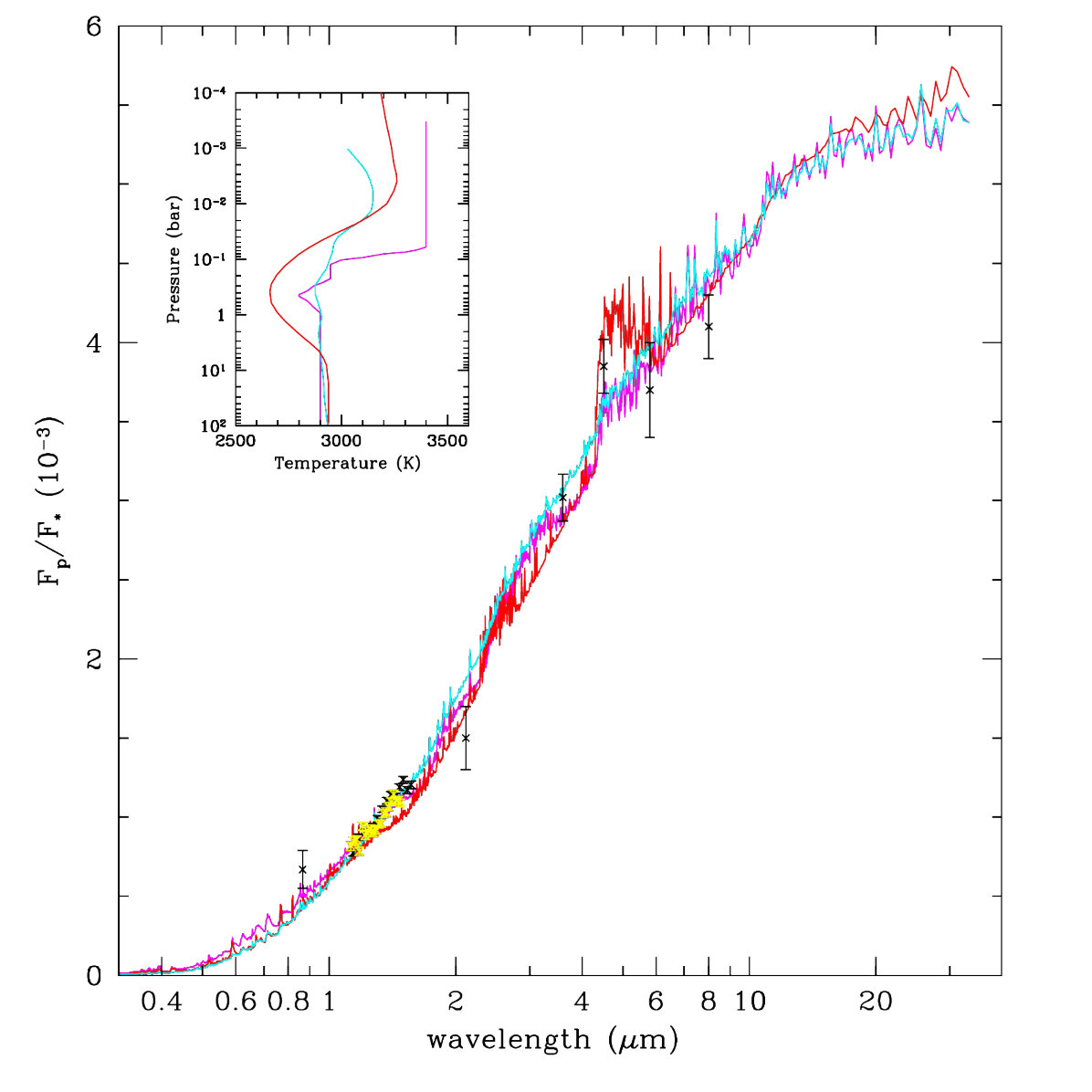

In Figure 4, two other models are shown derived using the P-T profiles of Arcangeli et al. (2018) and Sheppard et al. (2017). Here we assumed the metallicity and $C/O$ ratios published by both these groups. The difference in our approach was to derive atmospheric composition using the ICE package for the 16 atmospheric constituents and the same opacity sources as used in our best fitting model. In this way we allow for variation of mixing ratios of atmospheric species as a function of pressure in these two models, which makes a comparison of all these models more meaningful. The resulting spectrum with the P-T profile, high metallicity and C/O ratio from Sheppard et al. (2017) underestimates the flux measured within the HST/WFC3 range. While this model provides a better fit at 4.5 $\mu$m and to the $Ks$-band data from the AAT, our model is statistically more consistent with the results from Arcangeli et al. (2018) including a marginally better agreement with our observations in $z^{\prime}$-band. This is to be expected since both our models used a more complete set of opacity sources and assume Solar metallicity.

Both papers present slightly different analyses and resulting data from the same HST observations. Perhaps not surprisingly we find that the Arcangeli et al. (2018) model (which was constructed using just the shorter wavelength range of the HST data) produces a slightly better fit than our model, if we calculate $\chi^{2}$ over just this limited short wavelength range. However our model represents a better fit when the full extent of the HST data from Sheppard et al. (2017) is considered. Although our P-T profiles are similar at pressures below 0.1 bar, we require significantly lower temperatures in the range between 0.1 and 1 bar to deliver a better agreement with our flux measurement in the $Ks$-band. Our best fitting model requires also much higher temperatures at the top of the atmosphere for a closer match to the 4.5 $\mu$m Spitzer data point.

4.2 VSTAR Models with haze opacity

The observed spectra of exoplanets can be strongly affected by both scattering and absorption due to the presence of condensates in their atmospheres. Formation of hazes and clouds has been suggested to explain transit data for hot Jupiters that show almost featureless spectra with absorption increasing towards blue in the visible, masking the expected absorption from alkali metals and molecular bands. This absorption exceeds that expected from Rayleigh scattering in clear atmospheres (e.g. in HD 189733b, Pont et al., 2008, 2013).

Sing et al. (2016) analysed transmission spectra of a large sample of hot Jupiters and found them exhibiting a wide range of diverse atmospheres from clear to cloudy. One recognised effect of hazes formed at the top of the atmosphere in transmission spectra is a reduction in the depth of any features due to atomic and molecular absorption.

On the other hand, secondary eclipse spectra are a combination of both reflected light and planetary thermal emission. The presence of clouds and/or hazes can manifest itself as an increase in the planetary albedo at visible and near-infrared wavelengths (Sudarsky, Burrows & Hubeny, 2003). Currently measured albedos for all hot Jupiters (Demory et al., 2011; Bailey, 2014) appear to be low (with a notable exception of Kepler-7 b). Theoretical considerations also suggest that a high stellar irradiation could prevent a planet from forming clouds similar to these which cause high albedos of the Solar system planets. Only the most refractory species with the highest condensation temperatures – e.g. corundum (Al2O3), iron (Fe) and enstitate (MgSiO3) along with few other molecules – could form clouds in the upper layers of such hot atmospheres. Such condensates have also been suggested as responsible for dust formation in the atmospheres of L-type brown dwarfs Morley et al. (2014).

Particles that form clouds or hazes absorb in different parts of the spectrum, but most typically in the mid-infrared where the molecular vibrational modes are present. These absorption features depend on the optical properties, size, distribution, shape and opacities of the cloud or haze.

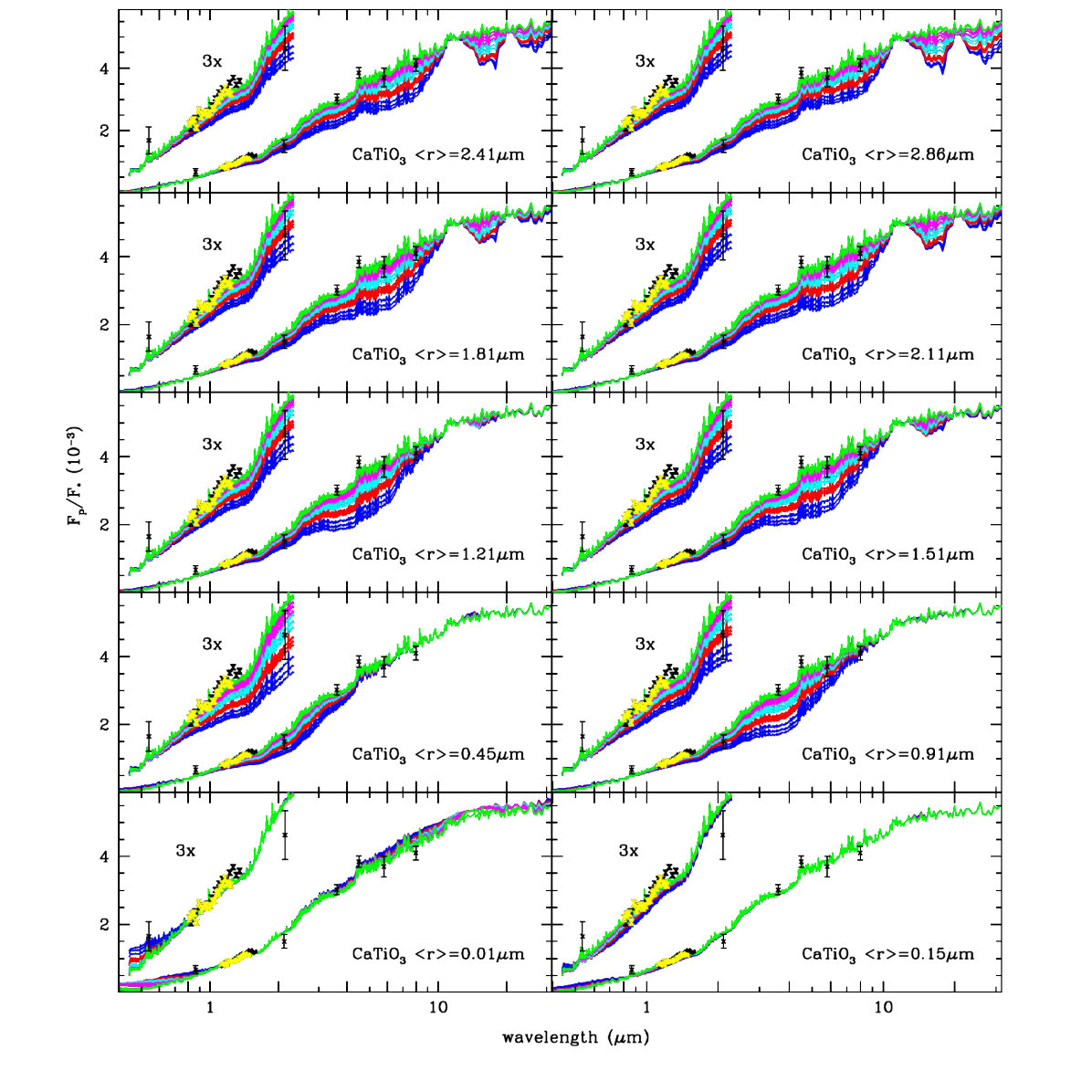

We calculated these reflection and absorption effects in the emission spectra for four selected types of condensate in the atmosphere of WASP-18b (Figures 5, 7, 8 and  6). Currently there are no known species that condense at the temperatures derived for the substellar point of this planet’s atmosphere, especially if the presence of thermal inversion is required at pressures lower than 0.1 bar. However significantly lower temperatures are predicted for the night side of WASP-18b in the time dependent radiative transfer solutions of Iro & Maxted (2013). They derive thermal profiles, which show up to a 50% difference in temperature at 0.1 bar between the night- and day-sides. It is not inconceivable that condensation occurs in cooler, night-side temperatures and that clouds are distributed via atmospheric circulation beyond the terminator (Showman & Polvani, 2011; Showman, Lewis & Fortney, 2015), where they gradually evaporate. Any hazes formed via photochemical processes could potentially persist in hotter conditions of the dayside. All this could lead to dynamic and possibly highly variable conditions in the atmosphere of an (at least partially) cloud-covered planet. Parmentier et al. (2016) estimates the effective cloud coverage at the dayside for the most refractory condensates suggested for hot Jupiters in the temperature range between 1000 to 2200 K. We considered the top four species discussed in that paper, for which the effective cloud coverage at the dayside was above 0.1 at the highest temperatures modelled there (see Figure 13 in Parmentier et al., 2016).

In the models presented here we placed a hypothetical haze at a pressure of 0.1 mbar, and varied its optical depth at 1.0 $\mu$m, and the mean size of its particles using a power law distribution with an effective variance of $v_{eff}=0.02$. The VSTAR code calculations of the emergent fluxes are calculated using Mie theory applied to spherically symmetric particles (Mishchenko, Travis & Lacis, 2002). To calculate models for different cloud molecules, we used the complex refractive indices provided in Kitzmann & Heng (2018) and Wakeford & Sing (2015). In the panels of Figures 5, 6, 7 and  8 the emission spectra for ten different sizes of cloud particles between $<r>$ = 0.01 and 2.86 $\mu$m are presented. Each panel shows 15 colour-coded spectra calculated with different optical depths of the cloud between $\tau$=0.001 (in green) to 1 (blue).111The colour scheme is applied as follows. We plot 3 spectra in each colour: green, magenta, cyan, red and blue with progressively higher optical depths. So the green spectra correspond to low optical depths, while magenta, cyan, red - to increasingly higher optical depths, and blue spectra represent the highest values. By examining all four plots it is immediately apparent that observations in the near-infrared (like those taken with HST) are relatively insensitive to the presence of any clouds within investigated range of parameters for optical depth and particle size.

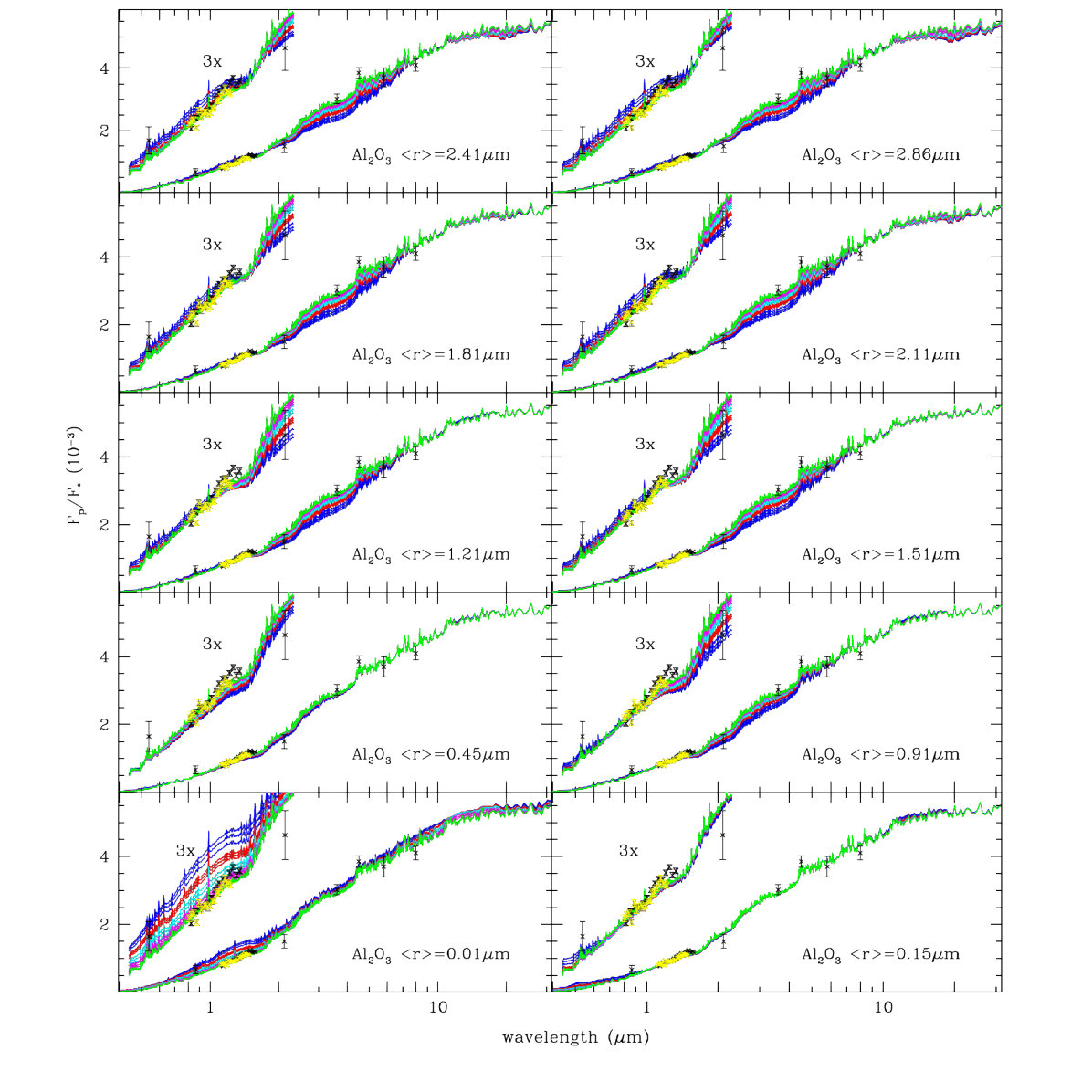

Figure 5 shows impact on emission spectra of the presence of Al2O3 clouds. As expected, modelled spectra show increased reflectivity that extends well into the near-infrared region for the smallest particles. Absorption features extending across the mid-infrared, and increasing with opacity of the cloud, seems to be the most significant impact of Al2O3 clouds on these emission spectra. New observations, at higher precision than current Spitzer data, in this region could potentially discern between optically thin and optically thick Al2O3 clouds. The currently available data fit best to models of the former case. It is worth noting that the presence of optically thick cloud could be helpful in explaining the lower observed flux in the $Ks$ band and increased emission in $z^{\prime}$ band compared with that predicted by clear atmosphere models. We also included models for spectra affected by clouds of perovskie (CaTiO3) which show a characteristic absorption structure in the far-infrared region for large particles and high opacities, while increasing reflectivity of the planet in the visible spectrum for small particles (Figure 6).

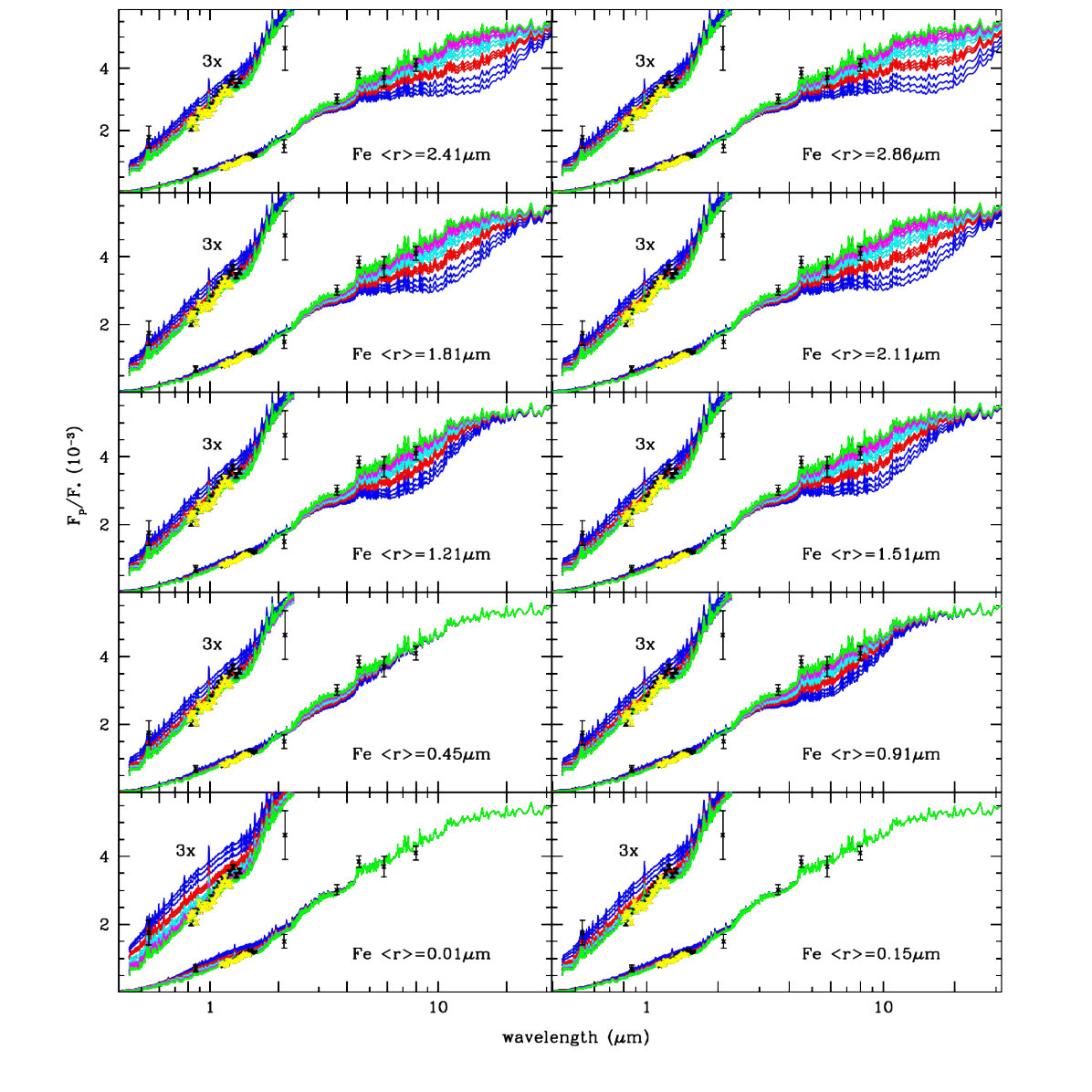

Iron condensates affect the spectra in a manner similar to Al2O3 clouds for the smallest particles (Figure 7). While the increased optical depth causes much deeper absorption in the mid- and far-infrared region, and increased reflectivity in $z^{\prime}$ band region, it leaves $Ks$ band largely unaffected.

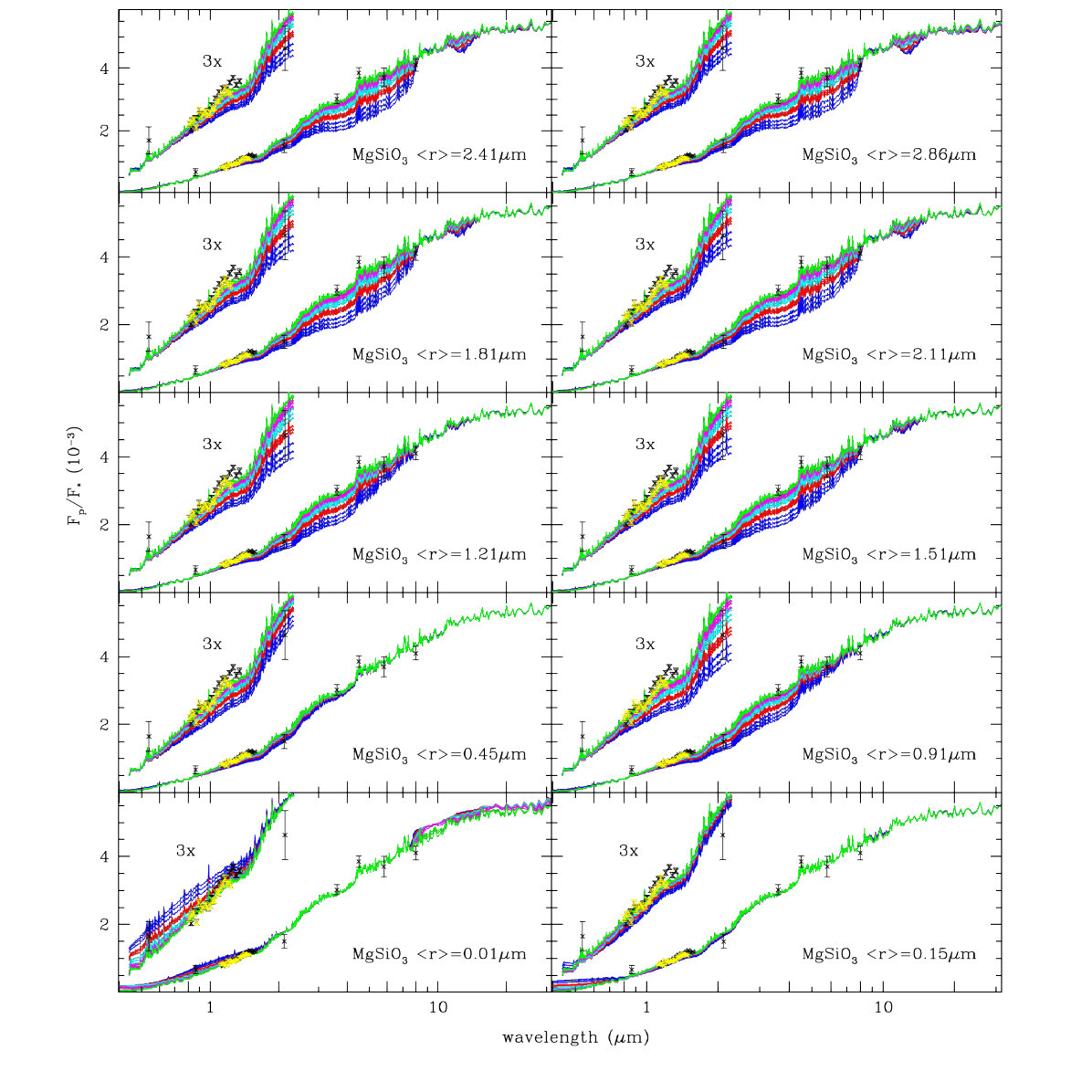

Modelled spectra with clouds composed of enstatite particles with mean sizes larger than 0.5 $\mu$m (Figure 8) show broad absorption features in the same regions of the near- and mid-infrared as seen for Al2O3 clouds.

We find the emission in $z^{\prime}$-band to be sensitive to the increased opacity of hazes made from the particles smaller than 0.15 $\mu$m. The $z^{\prime}$-band seems to be of limited value as a diagnostic of cloudiness in the planet as both increased opacity and increased particle size affects that region only slightly in comparison to the near- and mid-infrared spectra.

5 Discussion

Currently available data for the hot Jupiter WASP-18b, are not sufficient to derive a unique model for its atmosphere and to resolve degeneracies that arise when we attempt to model too many unknown parameters, such as the detailed thermal profile, chemical composition and the structure of condensates. Our cloudy models are derived for a simple, one layer cloud using a single, specific temperature profile of the atmosphere with Solar metallicity and C/O ratio, without addressing any non-equilibrium processes that could have effects on the atmospheric composition and chemistry (for example on the abundance of CO and CH4). We have not discussed formation processes for such clouds, which can be reviewed in Marley et al. (2013). We have also neglected the feedback of cloud formation on the P-T profile.

We present plausible models for the WASP-18b emission spectra with the opacities from clouds and hazes made from some of the most refractory species. These are given as the examples of effects that can make interpretation of data challenging. We found that a model with inversion in the upper layers of the atmosphere fits best all the data currently available. However the fact that these multi-wavelength observations were not obtained simultaneously makes any such models flawed, if the variability due to changes in cloud opacity or cloud cover are significant. It is still debated if any condensates can survive in the atmosphere of objects as hot as WASP-18b. One potentially viable location for the formation of such clouds is the night side of the planet, where temperatures are expected to drop significantly enough to allow the condensation of the most refractory compounds (such as corundum and solid iron). Any condensates would have to be transported to the dayside of the planet by equatorial super-rotating winds developed in tidally locked hot Jupiters (Showman & Polvani, 2011; Showman, Lewis & Fortney, 2015).

The observation of planetary albedos can provide clues as to the presence of any haze composed of small particles (as has been implied for HD 189733b Pont et al., 2013). In addition to phase curve measurements from Maxted et al. (2013), our polarimetry observations with the High Precision Polarimeter (HIPPI) will provide independent limits on the planetary albedo of WASP-18b (Bott et al. submitted to AJ). As our models show, the most significant effect of clouds on planetary emission spectra can be seen at mid- and far-infrared wavelengths. This is a region which JWST will make accessible. Two JWST instruments, NIRSPEC (0.6-5$\mu$m) and MIRI (5-28$\mu$m), will be able to provide suitable spectra with adjustable resolution. Mollière et al. (2017) estimate that just four repeated observations of WASP-18b with NIRSPEC will be able to distinguish between very similar spectra that require thermal inversion, as opposed to the elevated $C/O$ ratio in their model without clouds. Our examples show that the effects of clouds will make the analysis of JWST data more complex, but that the simultaneous coverage of mid- and far-infrared wavelengths will provide necessary information to understand any potential variability of the emission spectrum due to clouds. Partially cloudy models have already been developed (Parmentier et al., 2016) and the combination of eclipse data in the visible, together with the improved spectral coverage from JWST, will be crucial to understanding the composition and the dynamics of atmospheres in the most irradiated planets.

6 Conclusions

We present new observations of WASP-18b eclipses and transits with ground-based telescopes (the AAT, Magellan and LCOGT) which complement previous observations from space telescopes (HST and Spitzer). Previously published models show that it has been a challenge to understand the observed data with a consistent composition for the WASP-18b atmosphere.

Our observations over a broadened near-infrared baseline seem to overestimate emission at $z^{\prime}$-band compared with clear atmosphere models derived from the HST data, and also to underestimate $Ks$-band emission expected in the model of Arcangeli et al. (2018). On the other hand, we also could not reproduce an exact match for the HST data with the parameters published by Sheppard et al. (2017), which is less problematic, because their model did not include important contributors to atmospheric opacity, such as H*-* and the effects of water dissociation. We applied simple cloud models to our best fit model to show the possible effects of varied cloud particle sizes and opacities in different parts of the spectrum. It is plausible that the lower flux in $Ks$-band could be a result of the absorbing, high altitude haze composed of particles with relatively large sizes. Such particles could be uplifted in the hot atmosphere, which is expected to show vigorous mixing. Such clouds could also explain increased reflectivity in the $z^{\prime}$-band as seen in Figure 5.

Ground-based broadband observations can generally act as precursors to more detailed characterisation by HST and Spitzer, and understanding how they match with the eventual space-based observations is key to placing these precursors into context. For example the deep $z^{\prime}$-band eclipses of KELT-1b (Siverd et al., 2012) raised questions on the heat redistribution on the brown dwarf, eventually leading to the a phase curve by Spitzer/IRAC (Beatty et al., 2014, 2018).

Given the current questions regarding the longevity of HST and Spitzer, it is increasingly important to use the benchmark systems like WASP-18b, to guide the interpretation of future ground-based broadband secondary eclipse observations.
