Control of Spin Diffusion and Suppression of the Hanle Effect by the Coexistence of Spin and Valley Hall Effects

TL;DR

This paper explores how the coexistence of spin and valley Hall effects in two-dimensional materials can control spin diffusion and suppress the Hanle effect, offering insights into spin-valley interactions and potential device applications.

Contribution

It introduces a model demonstrating the emergence of a spin and valley polarized neutral current and explains the suppression of the Hanle effect in such systems.

Findings

Emergence of a spin and valley polarized neutral current

Control of spin density via valley Hall effect tuning

Suppression of the Hanle effect in Hall bar devices

Abstract

In addition to spin, electrons in many materials possess an additional pseudo-spin degree of freedom known as 'valley'. In materials where the spin and valley degrees of freedom are weakly coupled, they can be both excited and controlled independently. In this work, we study a model describing the interplay of the spin and valley Hall effects in such two-dimensional materials. We demonstrate the emergence of an additional longitudinal neutral current that is both spin and valley polarized. The additional neutral current allows to control the spin density by tuning the magnitude of the valley Hall effect. In addition, the interplay of the two effects can suppress the Hanle effect, that is, the oscillation of the nonlocal resistance of a Hall bar device with in-plane magnetic field. The latter observation provides a possible explanation for the absence of the Hanle effect in a number of recent experiments. Our work opens also the possibility to engineer the conversion between the valley and spin degrees of freedom in two-dimensional materials.

Figures

Equations

$$\mathcal{D}{\partial }_i{N}^{\mu }-{\sigma }_D{E}_i^{\mu }=\left[-{\delta }_{\nu }^{\mu }{\delta }_{ij}+{\left(R_H\right)}_{\nu }^{\mu }{ϵ}_{ij}\right]J_j^{\nu }.$$

$$R_H=\left[\begin{array}{cccc}0& 0& {\omega }_v\tau & {\omega }_s\tau \\ 0& 0& {\omega }_s\tau & {\omega }_v\tau \\ {\omega }_v\tau & {\omega }_s\tau & 0& 0\\ {\omega }_s\tau & {\omega }_v\tau & 0& 0\end{array}\right]\begin{array}{c}c\\ sv\\ v\\ s\end{array}$$

$$J_i^{\mu }=-{\left(D_{ij}\right)}_{\nu }^{\mu }{\partial }_j{N}^{\nu }+{\left({\sigma }_{ij}\right)}_{\nu }^{\mu }{E}_j^{\nu }.$$

$$D_0={\mathcal{D}}_r\left[\begin{array}{cccc}1& \eta & 0& 0\\ \eta & 1& 0& 0\\ 0& 0& 1& \eta \\ 0& 0& \eta & 1\end{array}\right],$$

$$D_H={\mathcal{D}}_r\left[\begin{array}{cccc}0& 0& {\theta }_v& {\theta }_s\\ 0& 0& {\theta }_s& {\theta }_v\\ {\theta }_v& {\theta }_s& 0& 0\\ {\theta }_s& {\theta }_v& 0& 0\end{array}\right],$$

$${\mathcal{D}}_r=\mathcal{D}\frac{1+({\omega }_v\tau {)}^2+({\omega }_s\tau {)}^2}{[1+({\omega }_v\tau {)}^2+({\omega }_s\tau {)}^2{]}^2-4{\omega }_s{\omega }_v{\tau }^2}.$$

$$\eta =-\frac{2({\omega }_v\tau )({\omega }_s\tau )}{1+({\omega }_v\tau {)}^2+({\omega }_s\tau {)}^2}.$$

$${\theta }_v$$

$${\theta }_s$$

$$\left[{\left(D_0\right)}_{\nu }^{\mu }{\nabla }^2-\frac{{\delta }_{\nu }^{\mu }}{{\tau }^{\nu }}\right]N^{\nu }=S^{\mu }.$$

$$S^{\mu }={ϵ}_{ij}\left[-{\partial }_i{\left(D_H\right)}_{\nu }^{\mu }{\partial }_j{N}^{\nu }+{\partial }_i{\left({\sigma }_H\right)}_{\nu }^{\mu }{E}_j^{\nu }\right].$$

$${\nabla }^2{N}^{\mu }-{\mathcal{M}}_{\nu }^{\mu }{N}^{\nu }=0,$$

$${\mathcal{M}}_{\nu }^{\mu }=\frac{1}{1-{\eta }^2}\left[\begin{array}{cc}{\ell }_v^{-2}& -\eta {\ell }_s^{-2}\\ -\eta {\ell }_v^{-2}& {\ell }_s^{-2}\end{array}\right]\begin{array}{c}v\\ s\end{array}.$$

$$N^{\mu }(x)$$

$${\mathcal{F}}_a(k)$$

$$R_{nl}\left(x,H\right)=\frac{1}{I}\left[\Phi \left(x,-\frac{w}{2},H\right)-\Phi \left(x,\frac{w}{2},H\right)\right]$$

$${\dot{n}}_{\mathbf{k}}+{\mathbf{v}}^{\mathbf{k}}\cdot {\nabla }_{\mathbf{r}}{n}_{\mathbf{k}}+{\mathbf{F}}_{\mathbf{k}}\cdot {\nabla }_{\mathbf{k}}{n}_{\mathbf{k}}+i{\omega }_L\left[n_{\mathbf{k}},\mathbf{s}\cdot \mathbf{m}\right]={\mathcal{I}}_r\left[n_{\mathbf{k}}\right].$$

$${\mathbf{F}}_{\mathbf{k}}={\mathbf{F}}_{\mathbf{k}}^l+{\mathbf{F}}_{\mathbf{k}}^s+{\mathbf{F}}_{\mathbf{k}}^v,$$

$${\mathbf{F}}_{\mathbf{k}}^l$$

$${\mathbf{F}}_{\mathbf{k}}^s$$

$${\mathbf{F}}_{\mathbf{k}}^v$$

$$n_{\mathbf{k}}(\mathbf{r},t)=n^0\left[{ϵ}_k-{\mu }_F-{\gamma }_{\nu }({\mu }^{\nu }\left(\mathbf{r},t\right)+{\mathbf{v}}^{\nu }\left(\mathbf{r},t\right)\cdot \mathbf{k})\right].$$

$$\delta n_{\mathbf{k}}(\mathbf{r},t)\simeq {\gamma }_{\nu }\left[{\mu }^{\nu }\left(\mathbf{r},t\right)+{\mathbf{v}}^{\nu }\left(\mathbf{r},t\right)\cdot \mathbf{k}\right]{\left[-{\partial }_{ϵ}{n}_{ϵ}^0\right]}_{ϵ={\mu }_F},$$

$${\nabla }_{\mathbf{k}}\delta n_{\mathbf{k}}(\mathbf{r},t)\simeq {\gamma }_{\nu }{\mathbf{v}}^{\nu }\left(\mathbf{r},t\right){\left[-{\partial }_{ϵ}{n}_{ϵ}^0\right]}_{ϵ={\mu }_F}.$$

$$\delta {\dot{n}}_{\mathbf{k}}+{\mathbf{v}}^{\mathbf{k}}\cdot {\nabla }_{\mathbf{r}}\delta n_{\mathbf{k}}+e\left(\mathbf{E}+{\mathbf{v}}^{\mathbf{k}}\times \mathbf{B}\right)\cdot {\nabla }_{\mathbf{k}}{n}_{\mathbf{k}}^0+{\mathbf{F}}_{\mathbf{k}}^s\cdot {\nabla }_{\mathbf{k}}\delta n_{\mathbf{k}}+{\mathbf{F}}_{\mathbf{k}}^v\cdot {\nabla }_{\mathbf{k}}\delta n_{\mathbf{k}}+i{\omega }_L\left[\delta n_{\mathbf{k}},\mathbf{s}\cdot \mathbf{m}\right]={\mathcal{I}}_r\left[\delta n_{\mathbf{k}}\right],$$

$${\mathbf{F}}_{\mathbf{k}}^s\cdot {\nabla }_{\mathbf{k}}{n}_{\mathbf{k}}^0\propto (\hat{\mathbf{k}}\times \hat{z})\cdot \hat{\mathbf{k}}$$

$${\mathbf{F}}_k^v\cdot {\nabla }_{\mathbf{k}}{n}_{\mathbf{k}}^0\propto (\hat{\mathbf{k}}\times \hat{z})\cdot \hat{\mathbf{k}}$$

$$H_0[\mathbf{k}-{\hat{\tau }}_z\mathcal{A}(\mathbf{r})]$$

$$+{\hat{\sigma }}_y(k_y-{\hat{\tau }}_z{\mathcal{A}}_y)].$$

$$\mathcal{A}(\mathbf{r})=({\mathcal{A}}_x,{\mathcal{A}}_y)=\frac{\beta }{ae}\left(u_{xx}-u_{yy},-2u_{xy}\right),$$

$$u_{ij}=\frac{1}{2}({\partial }_i{u}_j+{\partial }_j{u}_i),$$

$${\hat{\tau }}_z{\mathcal{B}}_v={\hat{\tau }}_z\nabla \times \mathcal{A}(\mathbf{r})={\hat{\tau }}_z({\partial }_x{\mathcal{A}}_y-{\partial }_y{\mathcal{A}}_x)\hat{\mathbf{z}}.$$

$$V(\mathbf{r})=({\mathcal{V}}_c{\hat{s}}_o{\hat{\tau }}_o{\hat{\sigma }}_o+{\mathcal{V}}_s{\hat{s}}_z{\hat{\tau }}_z{\hat{\sigma }}_z)R^2\delta \left(\mathbf{r}\right).$$

Full text

Introduction: Spin-orbitronics  Xiao et al. (2010); Sinova et al. (2015); Nagaosa et al. (2010); Sinova et al. (2004); Huertas-Hernando et al. (2006) and valleytronics  Xu et al. (2014); Cao et al. (2012); Rycerz et al. (2007); Sie et al. (2015) aim at manipulating internal degrees of freedom of Bloch electrons, which can have applications in low-energy consumption electronics and quantum computation. Some two-dimensional (2D) materials such as transition metal dichalcogenides (TMD)  Zhu et al. (2011); Zhang et al. (2014) are known to exhibit large spin-orbit coupling (SOC), whilst for others like graphene, it has been predicted that SOC can be enhanced by means of decoration with various types of absorbates Neto and Guinea (2009); Gmitra et al. (2013); Irmer et al. (2015); Ding et al. (2011) or by proximity to a substrate such as a TMD material Gmitra and Fabian (2015); Wang et al. (2015a); Cummings et al. (2017); Garcia et al. (2017). Both intrinsic and extrinsic SOC can lead to the spin Hall effect (SHE), i.e. the generation of a spin current perpendicular to the applied electric field.

In many 2D materials Bloch electrons are endowed with an additional pseudo-spin degree of freedom known as ‘valley’. The latter is related to the existence of independent high symmetry points in the Brillouin zone where the band structure exhibits degenerate Dirac points or extrema Katsnelson (2012); Castro Neto et al. (2009); Nebel (2013); Schaibley et al. (2016). Analogous to the SHE, these systems are capable of exhibiting the so-called valley Hall effect (VHE) Xiao et al. (2007); Gorbachev et al. (2014); Beconcini et al. (2016); Zhang et al. (2017), i.e. the appearance of a transverse valley-polarized bulk current in response to the application of an external electric field. Indeed, symmetry considerations imply that spin and valley are coupled in materials with broken spin-rotation and/or inversion symmetry. As such, 2D materials and van der Walls heterostructures have emerged as some of the most promising platforms to investigate this interesting interplay of spintronics and valleytronics. While spin and valley currents are electrically neutral, both currents carry angular momentum. In pristine graphene where SOC is negligible, valley current carries orbital angular momentum while spin current carries spin angular momentum. In the opposite limit, in TMDs, for which the spin-momentum locking SOC is strong, there is often no distinction between the two.

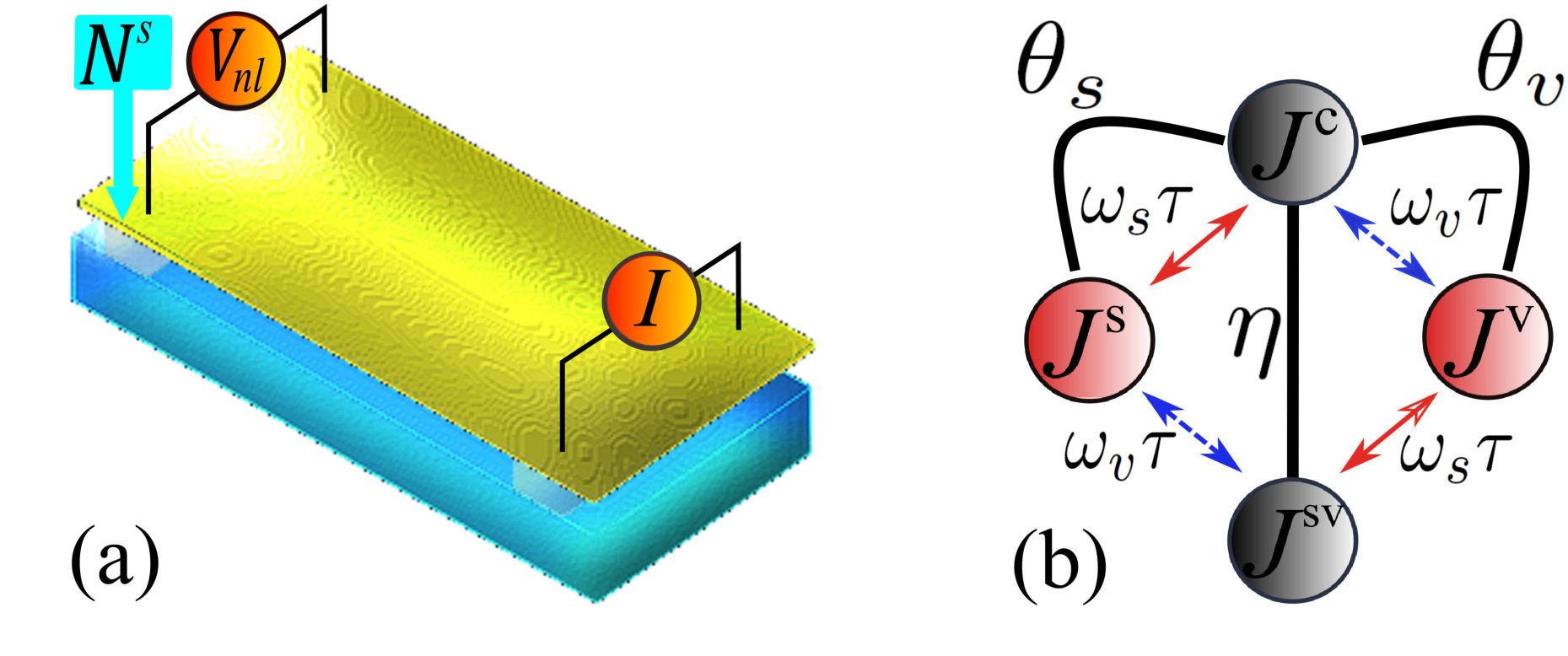

Being electrically neutral, direct detection of spin and valley currents is not possible and their existence must be inferred by indirect means such as nonlocal transport measurements performed on a Hall bar device as depicted in Fig. 1(a). In this setup, spin/valley currents are generated by driving an electric current between the two opposite right hand side contacts of the device. The neutral (spin/valley) currents diffuse in the transverse direction to the applied electric current (field), leading to a charge accumulation and a nonlocal voltage on the left hand side of the device. The nonlocal resistance (NLR) is defined as the ratio of the nonlocal voltage, $V_{nl}$ to the external current applied to the device, $I$. Using this setup, the VHE has been experimentally observed in devices made by depositing monolayer graphene on hexagonal boron nitride (hBN) Gorbachev et al. (2014), bilayer graphene in a perpendicular displacement field Shimazaki et al. (2015), as well as optically pumped TMDs Mak et al. (2014); Lee et al. (2016); Zeng et al. (2012); Lee et al. (2017). Likewise, the SHE has been experimentally observed in graphene decorated with absorbates Balakrishnan et al. (2014, 2013); Weeks et al. (2011); Ma et al. (2012) and graphene-TMDs heterostructures Avsar et al. (2014); Safeer et al. (2018); Benítez et al. (2018).

In connection to the observation of the SHE, the Hanle effect (HE), i.e. the modulation of the NLR as a function of an in-plane magnetic field is considered to be the hallmark of the existence of spin currents Balakrishnan et al. (2014, 2013); Huang et al. (2017a); Abanin et al. (2009). However, the absence of HE in some experiments in which a large enhancement of the NLR was observed Völkl et al. (2018); Kaverzin and van Wees (2015); Wang et al. (2015b) hints at the existence of additional contributions to the NLR that are insensitive to the magnetic field. One candidate that can contribute to the NLR is a valley current, which, as we have shown elsewhere Zhang et al. (2017), can arise from a modest amount of nonuniform strain present in the Hall bar device.

Previous theoretical studies of nonlocal transport have focused either on the VHE Beconcini et al. (2016); Zhang et al. (2017); Song and Vignale (2018) or the SHE Abanin et al. (2009); Huang et al. (2017a). Building upon and largely extending earlier work, here we study the interplay between the two effects. In connection to the experiments described above, we show that this interplay can have nontrivial consequences for the spin transport in 2D materials. For instance, we find that spin density along the Hall bar can be modulated by the coupling between spin and valley currents, which can be controlled by the application of a nonuniform strain to the device Zhang et al. (2017). This provides an exciting link between spintronics and straintronics Guinea et al. (2010); Vozmediano et al. (2010); Amorim et al. (2016); Cazalilla et al. (2014). In addition, we find that the HE may be strongly suppressed by the interplay with the VHE, and even absent under some circumstances. This finding can reconcile the apparently contradictory experimental results of various groups Kaverzin and van Wees (2015); Avsar et al. (2015); Wang et al. (2015b), some of which have observed a large enhancement of the NLR but failed to observe the HE Kaverzin and van Wees (2015); Wang et al. (2015b). Thus, the study reported here can be useful in guiding future studies of nonlocal transport in graphene, TMDs, and other 2D materials.

Theory: We shall work in the diffusive regime where $k_{F}\ell\gg 1$, $k_{F}$ being the Fermi momentum of the electrons and $\ell$ the elastic mean-free path. This is the relevant regime to the devices that are experimentally studied (e.g. Refs. Balakrishnan et al. (2014, 2013); Kaverzin and van Wees (2015); Avsar et al. (2015); Wang et al. (2015b)). In this regime, the transport of spin and valley degrees of freedom can be described by a set of diffusive equations. The latter can be derived microscopically from the Boltzmann equationHuang et al. (2016a); Zhang et al. (2017); Huang et al. (2017a) or the Kubo formalism Burkov et al. (2004); Burkov and Hawthorn (2010). In the steady state, the diffusion equations describing diffusion of spin and valley take the following generic structure:

[TABLE]

In the above set of equations, we have used the convention that repeated indices are summed over. The Latin indices correspond to the spatial component of the current, or field, i.e. $\{i,j\}\in\{x,y\}$ and $\epsilon_{ij}$ is the antisymmetric 2D Levi-Civita tensor. The Greek indices of the currents, $\boldsymbol{J}^{\mu}$, and densities, $N^{\mu}$, take values from the set $\{c,sv,v,s\}$. The latter stands for for charge ($c$), spin-valley ($sv$), valley ($v$), and spin ($s$) current (density) respectively. Note that the spin-valley current $\boldsymbol{J}^{sv}$ and density $N^{sv}$ must be included in the above hydrodynamic description as they can be excited when the spin splitting energy is much smaller than $\hbar/\tau$, where $\tau$ is the elastic scattering time.

The left hand side of Eq. (1) contains the driving terms that result from spatial non-uniformity of the densities $\propto\mathbf{\partial}_{i}N^{\mu}$ and the generalized electric fields $\propto E_{i}^{\mu}$ (to describe real devices, we shall set $E_{i}^{\mu}=0$ for all $\mu\neq c$). The Drude conductivity $\sigma_{D}=ne^{2}\tau/m$ and the diffusion constant $\mathcal{D}=v_{F}^{2}\tau/2$, which for the sake of simplicity we shall assume to be equal for all types of currents. The right hand side of Eq. (1) describes the effective Lorentz forces as well as current relaxation. We shall assume the relaxation rates for all currents are the same and equal to the Drude relaxation time $\tau$ (which is related to the mean-free path by $\ell=v_{F}\tau$ where $v_{F}$ is the Fermi velocity). This, together with the assumption of equal diffusion coefficients can be relaxed, and will not alter our conclusions qualitatively. Next, we introduce the coupling between different currents via the Hall resistivity matrix $R_{H}$ which describes both SHE and VHE. The latter couples the charge ($c$, 1st row) and spin-valley currents ($sv$, 2nd row) to valley ($v$, 3rd row) and spin ($s$, 4th row) currents:

[TABLE]

The SHE (VHE) can be regarded as emerging from an effective spin (valley) dependent Lorentz force Shen (2005); Huang et al. (2016b); Mak et al. (2014); Zhang et al. (2017). In $R_{H}$, the magnitude of such forces are parameterized by the “cyclotron” frequencies $\omega_{s}$ and $\omega_{v}$, for spin and valley, respectively. These forces can have their origin in intrinsic or extrinsic SOC for the SHE Sinova et al. (2015), and in nonuniform strain Zhang et al. (2017) or skew scattering with impurities in gapped (monolayer/bilayer) graphene (valley) Ando (2015); Ishizuka and Nagaosa (2017). In the latter case, we neglect intrinsic Berry-curvature contributions to the valley current, as they are subdominant in the limit where impurities are dilute Ishizuka and Nagaosa (2017). Note that when the valley and spin Hall effects coexist, the effective Lorentz force driving the VHE (SHE) current will act on the spin (valley) current. This is described by the additional entries in the $R_{H}$ which are not present when only the SHE or the VHE exist in the material (see Fig. 1(b)).

In order to describe spin-valley transport with the above equations, we invert the resistivity matrix $R_{H}$ in the right hand side of Eq. (1) and solve for the currents $J_{i}^{\mu}$:

[TABLE]

Note that the diffusion matrix is a rank-$2$ tensor in the Latin indices $i,j$, and therefore it can be split into a symmetric ($\propto\delta_{ij}$) and antisymmetric ($\propto\epsilon_{ij}$) part according to $D_{ij}=D_{0}\delta_{ij}+D_{H}\epsilon_{ij}$, where

[TABLE]

[TABLE]

[TABLE]

Similarly, a decomposition of conductivity matrix as $\sigma_{ij}=\sigma_{0}\delta_{ij}+\sigma_{H}\epsilon_{ij}$ can be obtained by replacing in the above expressions the diffusion constant $\mathcal{D}$ with the Drude conductivity $\sigma_{D}$. Note that the diffusion equation (3) involves an off-diagonal diffusion coefficient (cf. Eqs. 4 to 6) and conductivity, which reduces to the well known limits. Thus, it yields the spin diffusion equations for a 2D electron gas Raimondi et al. (2012); Huang et al. (2016b) when the second and third rows and columns of the diffusion matrix $D$ vanish. However, when the entries of the second and fourth rows and columns of $D$ vanish, Eq. (3) describes the diffusion of valley polarization.

In order to understand some of the important consequences of the coupling of spin and valley Hall effect, let us first solve Eq. (3) in the spatial uniform case where $\partial_{j}N^{\mu}=0$. The ratios of the induced current (spin-valley $\boldsymbol{J}^{sv}$, valley $\boldsymbol{J}^{v}$, spin current $\boldsymbol{J}^{s}$) over charge current $\boldsymbol{J}^{c}$ are the figures of merit for the various effects and they are denoted respectively as $\eta,\theta_{s},\theta_{v}$; in particular, $\theta_{s}$ and $\theta_{v}$ are the spin Hall and valley Hall angles; $\eta$ describes the conversion efficiency of the electric current to the spin-valley current, and it is given by the following expression:

[TABLE]

Note that $\eta$ is proportional to the product of $\omega_{v}\tau$ and $\omega_{c}\tau$, meaning it is not zero provided that both SHE and VHE coexist. As shown in Fig. 1(b), the generation of the spin-valley current is a two-stage process requiring the generation of a spin (valley) current from driving electric current via the SHE (VHE). The resulting transverse current is then again deflected by the effective Lorentz force that causes the VHE (SHE) resulting in a longitudinal spin-valley current. The factor of two in Eq. (7) stems from the two possible routes by which this spin-valley conversion can take place: charge to spin to spin-valley and charge to valley to spin-valley (see Fig. 1(b)).

Furthermore, due to the spin-valley interplay, the valley ($\theta_{v}$) and spin Hall ($\theta_{s}$) angles are modified as follows:

[TABLE]

As expected, the spin (valley) Hall angle reduces to the familiar form $\theta_{s}=\omega_{s}\tau$ ($\theta_{v}=\omega_{v}\tau$) only when $\eta\propto\omega_{s}\omega_{v}=0$. However, in general $\theta_{s}$ ($\theta_{v}$) deviates from their “bare” values due to the interplay of the spin and valley Hall effects. In typical spintronic materials, $\omega_{s}\tau\ll 1$ Sinova et al. (2015). However, nonuniform strain in graphene  Zhang et al. (2017), for instance, can yield large values of the (bare) Hall angles for which $\left|\omega_{v}\tau\right|\sim 1$. In this case, $\left|\theta_{s}\right|\sim\left|\omega_{s}\tau\right|^{3}\ll 1$ implying that the spin current will be strongly suppressed.

Control of spin diffusion by means of strain: Next, we study the consequences of the interplay between spin and valley Hall effects for the spin transport. We first derive the drift-diffusion equations by supplementing Eq. (1) with the steady-state continuity equations for the currents, i.e. $\partial_{i}J_{i}^{\mu}=-\delta^{\mu}_{\nu}/\tau^{\nu}N^{\nu}$, where the limit $\tau^{\mu}\to+\infty$ for $\mu=c$ must be taken since the electric current is strictly conserved. Hence,

[TABLE]

In the above equations, $\tau^{\mu}$ are the relaxation times of the various currents. We have also assumed that spin-charge conversion mechanisms like the Edelstein effect or the direct magneto-electric coupling Raimondi et al. (2012); Huang et al. (2017a) can be neglected in a first approximation. $S^{\mu}$ is a source term given by

[TABLE]

Note that $S^{\mu}$ vanishes in the bulk of the Hall bar device, and it is only nonzero wherever $D_{H}$ and $\sigma_{H}$ are discontinuous, i.e. at the boundary. Thus, away from the boundaries, $D_{H}$ and $\sigma_{H}$ become homogeneous and Eq. (10) can be written as follows:

[TABLE]

where

[TABLE]

Only spin and valley densities are considered in the above equations because they are the only responses in the transverse direction to the applied electric field. In this expression, $\ell_{v}=\sqrt{\mathcal{D}_{r}\tau^{v}}$ ($\ell_{s}=\sqrt{\mathcal{D}_{r}\tau^{s}}$) is valley (spin) relaxation length and $\mathcal{D}_{r}$ is the (renormalized) diffusion constant (cf. Eq. 6). Note that the off-diagonal term $\eta$ mixes the spin and valley densities. Eq. (12) are solved by diagonalizing the diffusion matrix, such that $\mathcal{M}^{\mu}_{\nu}|\boldsymbol{\hat{e}}^{\nu}_{a}\rangle=\mathcal{L}_{a}^{-2}|\boldsymbol{\hat{e}}^{\mu}_{a}\rangle$, where $\mathcal{L}_{a}$ ($a=1,2$) corresponds to the diffusion length of the eigenmode $|\boldsymbol{\hat{e}}^{\mu}_{a}\rangle$.

In order to illustrate the properties of the solution to the above diffusion equations, we consider a non-uniformly strained graphene device decorated with absorbates that locally induce SOC. As mentioned above, this system can be relevant to the experiments reported in Refs. Wang et al. (2015b); Kaverzin and van Wees (2015). In the long wave-length limit, the effect of nonuniform strain can be described by a out-of-plane (orbital) pseudo-magnetic field, which takes opposite signs at opposite valleys Guinea et al. (2010); Vozmediano et al. (2010); Zhang et al. (2017). In earlier work, we have shown that modest amounts of nonuniform strain can lead to a sizable VHE Zhang et al. (2017). In addition, skew scattering with the absorbates induces the SHE Ferreira et al. (2014); Balakrishnan et al. (2014); Yang et al. (2016); Huang et al. (2016b). Thus, in this system both VHE and SHE coexist and the spin and valley transport is described by Eq. (12), whose solution we shall analyze in what follows.

For the sake the simplicity, we take the Hall bar to be an infinitely long conducting channel of width $w$ Abanin et al. (2009); Beconcini et al. (2016); SM . The solution of the coupled diffusion equations is simplified by setting $N^{c}(\boldsymbol{r})=0$, which results from assuming the complete screening of the electric field inside the metal. Thus, the electrostatic potential $\Phi\left(\boldsymbol{r}\right)$ obeys the Laplace equation, i.e. $\nabla^{2}\Phi\left(\boldsymbol{r}\right)=0$. Using the appropriate boundary conditions Beconcini et al. (2016); Zhang et al. (2017), the valley and spin densities, at the edge ($y=\pm w/2$), are given by the following expression:

[TABLE]

with $a,b=(1,2)$. $\mu=v,s$ correspond to valley and spin densities, respectively. $\kappa_{a}=\sqrt{k^{2}+\mathcal{L}_{a}^{-2}}$ and $\Theta_{a}^{2}=\left[\boldsymbol{\hat{e}}^{\mu}_{a}\theta_{\mu}\right][(\boldsymbol{\hat{e}}^{-1})_{a}^{\nu}\theta_{\nu}]$.

Using the above results, we show in what follows that the spin polarization diffusing in the Hall bar can be controlled by the application of nonuniform strain. In Fig. 2(a), we plot the spin polarization $N^{s}(x,y)$ (taking $x=2\,\mu$m and $y=0.25\,\mu$m) as a function of the $\omega_{v}\tau$, which is determined by the strength of the pseudo-magnetic field induced by the nonuniform strength applied to device Zhang et al. (2017). Interestingly, the spin polarization does not vanish even when the strain is tuned to make the effective spin Hall angle (cf. Eq. (9)) $\theta_{s}=0$ (see red circle in the inset of Fig. 2(a)). This is a dramatic consequence of the coupling between the SHE and VHE, whose strength is measured by $\eta$ (cf. Eq. (7)). Due to this coupling, the valley density accumulation induced by VHE can be converted to spin density. Note that if we solve the diffusion equations by ignoring the spin-valley coupling (i.e. by artificially setting the parameter $\eta=0$) the behavior of the spin polarization (red line in Fig. 2(a)) would be very different.

Suppression of the Hanle effect: Finally, we show that the interplay between the SHE and VHE can lead to the suppression of the HE. As mentioned above, the quantity of experimental interest is the NLR of the Hall bar measured at distance $x$ from the current injection point. The HE results in the appearance of an oscillatory component in the NLR as a function of the external magnetic field $H$ applied in the plane of the device. The oscillation is the result of the precession of the electron spins in the external magnetic field $H$.

By solving the coupled diffusion and Laplace equations, the NLR can be obtained from:

[TABLE]

where $\Phi(x,y,H)$ is the electrostatic potential for an in-plane magnetic field $H$. In the absence of both SHE and VHE, the NLR is given by the van der Paw law: $R_{nl}^{0}\simeq\frac{4}{\pi\sigma^{c}}e^{-\left|x\right|/\mathcal{L}_{0}},$ for $|x|\gg\mathcal{L}_{0}=w/\pi$. However, experimentally it is found Balakrishnan et al. (2014, 2013); Huang et al. (2017a); Kaverzin and van Wees (2015) that the NLR is greatly enhanced with respect to the Ohmic signal. When the spin-diffusion length $\ell_{s}$ is shorter than the valley-diffusion length, $\ell_{v}$, a suppression of the HE is expected. This is because the valley currents, which diffuse much farther and therefore will yield the dominant contribution to $R_{nl}(x,H)$, are completely insensitive to the in-plane magnetic field. Strikingly, we find that for $\ell_{v}$ and $\ell_{s}$ take comparable values, the HE can be suppressed by a moderate amount of nonuniform strain present in the device.

In order to compute $R_{nl}(x,H)$ we add to the diffusion equations (10), a Zeeman term, which induces precession. A sufficiently strong magnetic field $\boldsymbol{H}\propto\mathbf{\hat{y}}$ converts the out-of-plane spin polarization, $N^{s}(x)$, into an in-plane spin polarization (along the $x$-direction). Since the nonlocal voltage is determined by the magnitude $N^{s}(x)$ at the location the voltage probes (see SM ), this results in the NLR developing an oscillatory component. When the SHE and VHE coexist, describing precession requires that we account for the diffusion of the components of the spin and spin-valley densities in the plane perpendicular to $\boldsymbol{H}$. The solution of the resulting diffusion equations becomes more involved and the details are provided in SM . Here we focus on the discussion of the result for the NLR, which is shown in Fig. 2(b,c).

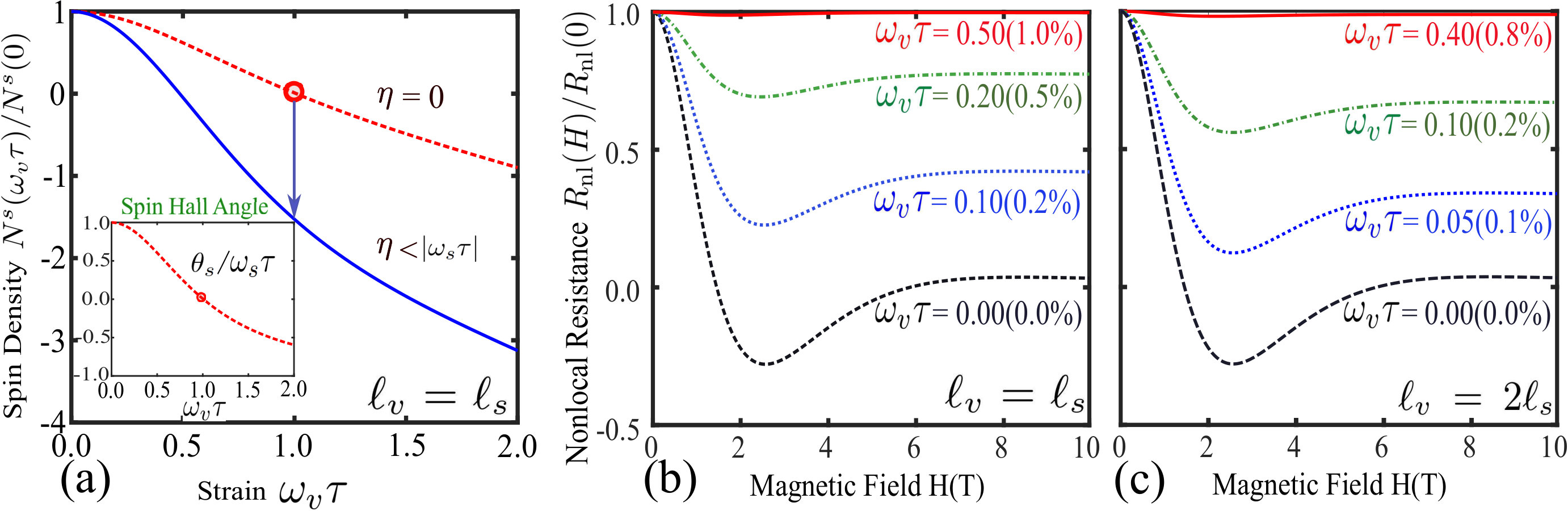

In Fig. 2(b), the NLR versus the applied magnetic field $H$ has been plotted for $\ell_{v}=\ell_{s}$. Setting $\omega_{v}\tau=0$, we recover the result obtained by Abanin et al. Abanin et al. (2009), showing the characteristic oscillatory component in $R_{nl}(x,H)$ associated with the HE. By applying an increasing amount of nonuniform strain to the Hall bar (i.e. increasing $\omega_{v}\tau$), the amplitude of the oscillatory component in the NLR is suppressed and almost disappears for $\omega_{v}\tau\sim 0.5$, which, for typical experimental parameters Kaverzin and van Wees (2015), corresponds to a nonuniform (uniaxial) strain of $\approx 1\%$ applied to a Hall bar $0.5\>\mu$m wide. Thus, the suppression of the HE happens due to the competition between the spin and valley Hall effects. As mentioned above, when $\omega_{v}\tau\sim 1$, the spin Hall angle $\theta_{s}$ (cf. Eq. 9) is strongly reduced, see Eq. (9). Since the magnitude of $\theta_{s}$ determines the HE, the existence of a sizable VHE resulting from strain can suppress the HE. For larger valley diffusion length ($\ell_{v}=2\ell_{s}$), the suppression of the HE becomes even more obvious and happens for smaller amount of strain, as shown in Fig. 2(c). In SM we show that the suppression of the HE is not affected by charging the carrier density or sign. Notice that the moderate amounts of strain considered here could be unintentionally introduced during the process of device fabrication. Thus, our findings are relevant for the interpretation of some of the nonlocal transport measurements in graphene decorated with hydrogen Wang et al. (2015b) and gold adatoms Kaverzin and van Wees (2015), where a large enhancement of the NLR was detected without HE.

Before concluding, it is worth commenting on other possible causes for the suppression of the HE. Indeed, suppression of the effect may also arise from a sizable spin-valley locking such as the one present in the band structure of TMDs Suzuki et al. (2014). Effectively, this type of spin-valley locking can be described as a Zeeman coupling to an out-of-plane magnetic field which takes opposite signs at opposite valleys. However, in graphene devices, such type of spin-valley would require breaking the sublattice symmetry, which can be induced by either the substrate or the absorbates decorating the device. However, such a strong sublattice symmetry breaking was not experimentally observed Kaverzin and van Wees (2015).

Summary and outlook- We have explored a number of important consequences of the coexistence of spin and valley Hall effects in a two-dimensional material: We have shown the latter leads to the emergence of neutral longitudinal spin and valley polarized current. Furthermore, we have shown the spin polarization diffusing in the material can be controlled by means of nonuniform strain. Finally, we have shown the Hanle effect in response to an in-plane magnetic field can be strongly suppressed due to the competition of the two effects. We believe the suppression of the Hanle effect noticed here will shed light on experimental controversies concerning the origin of the enhancement of the nonlocal resistance in various types of graphene devices  Balakrishnan et al. (2013, 2014); Kaverzin and van Wees (2015); Avsar et al. (2015); Wang et al. (2015b). The theory presented here can also be extended in various other directions, such as accounting for other spin-charge conversion mechanisms beyond the SHE (such as the inverse spin-galvanic effect) and a weak spin-valley (Zeeman) coupling, which is present in hybrid graphene-TMD structures. Both effects are expected to be important when spatial inversion symmetry is broken.

*Acknowledgments-*This work is supported by the Ministry of Science and Technology (Taiwan) under contract number NSC 102- 2112-M-007-024-MY5 (MAC and CH), the Spanish Ministerio de Economia y Competitividad (MINECO) through Project No. FIS2014-55987-P and FIS2017-82804-P (XP and CL), and Taiwan’s National Center of Theoretical Sciences (MAC and CL). We thank F. Guinea, A. Kaverzin, and R. Stephen for useful discussions.

I Supplement Materials of Control of Spin Diffusion and Suppression of the Hanle Effect by the Coexistence of Spin and Valley Hall Effects

I Kinetic theory

I.1 Boltzmann equation

In this subsection, we introduce a quantum Boltzmann equation (QBE) capable of describing a system in which both spin (SHE) and valley Hall (VHE) effects co-exist:

[TABLE]

In the above expression, the function $n_{\boldsymbol{k}}$ is the density-matrix distribution function of the carriers (electrons or holes) in the Bloch state characterized by (crystal) momentum $\boldsymbol{k}$. Thus, it is a $4\times 4$ matrix in spin-valley space. The force $\boldsymbol{F}$ driving the carrier motion can be split into three terms:

[TABLE]

where

[TABLE]

The $F^{l}_{\boldsymbol{k}}$ is the electromagnetic Lorentz force due to external (in-plane) electric and (out-of-plane) magnetic fields ($\boldsymbol{E}\perp\boldsymbol{\hat{z}}$ and $\boldsymbol{B}\parallel\boldsymbol{\hat{z}}$, respectively). While $F^{s/v}_{\boldsymbol{k}}$ are the effective (Lorentz-like) forces for effective (out-of-plane) spin/valley magnetic field ($\boldsymbol{\mathcal{B}}_{s}\parallel\boldsymbol{\hat{z}}$ and $\boldsymbol{\mathcal{B}}_{v}\parallel\boldsymbol{\hat{z}}$, respectively), from which the SHE and VHE originate. In Eq. (A.3), $e(<0)$ is the charge of the electron, $\boldsymbol{v}^{\boldsymbol{k}}=\hbar^{-1}\nabla_{\boldsymbol{k}}\epsilon_{\boldsymbol{k}}$ is the velocity of electron with (crystal) momentum $\boldsymbol{k}$, and $\epsilon_{\boldsymbol{k}}$ is the band dispersion. We assume that there is no Berry curvature in the band and therefore anomalous velocity vanishes. $\hat{s}_{a}$, $\hat{\tau}_{a}$ $\left(a=o,x,y,z\right)$ are Pauli matrices describing the spin and valley (pseudo-spin), respectively. The matrix $s_{o}$ ($\tau_{o}$) corresponds to the spin (valley) unit matrix.

The magnitude of the SHE (VHE) has been parameterized in the above equations by the effective spin (valley) magnetic field $\hat{s}_{z}\boldsymbol{\mathcal{B}}_{s}$ ($\hat{\tau}_{z}\boldsymbol{\mathcal{B}}_{v}$), which points in opposite directions for electrons of different spins (valleys). The last term of the left hand side of Eq. (A.1) describes spin precession with a Larmor frequency $\omega_{L}=\textsl{g}\mu_{B}H/\hbar$, which is proportional to the magnitude of the total applied (Zeeman) magnetic field $\boldsymbol{H}$ (g is the gyromagnetic factor and $\mu_{B}$ is the Bohr magneton). In Eq. (A.1), $\boldsymbol{m}=\boldsymbol{H}/H$ denotes the direction of the total magnetic field and $\boldsymbol{B}$ in Eq. (A.3) denotes the component of the magnetic field perpendicular to the plane of the material. In what follows, we shall assume that the external magnetic field (when present) is applied in the plane of the 2D system, which means $\boldsymbol{B}=0$ and therefore the magnetic field part of Lorentz force $\boldsymbol{F}^{B}_{\boldsymbol{k}}=0$.

On the right hand side of Eq. (A.1) $\mathcal{I}_{r}\left[n_{\boldsymbol{k}}\right]$ is the (dissipative) collision integral. Strictly speaking, the force terms proportional to $\boldsymbol{F}^{s/v}_{\boldsymbol{k}}$ can arise from the collision integral as a result of skew scattering (see Sec. I.3 below and e.g. Refs. Huang et al. (2016b); Zhang et al. (2017)). Alternatively, a weak uniform (i.e. intrinsic) Rasbha-type SOC can also give rise to a Lorentz-like force term like $\boldsymbol{F}^{s}_{\boldsymbol{k}}$ in the QBE Raimondi et al. (2012); Huang et al. (2017b). Furthermore, nonuniform strain can give rise to a force like $\boldsymbol{F}^{v}_{\boldsymbol{k}}$ (see below, Sec. I.3, and Zhang et al. (2017)).

I.2 Linearized Boltzmann equation

For small applied electric field, $\boldsymbol{E}$, the solution to the QBE (A.1), can be obtained by using the following ansatz for electron density-matrix distribution function:

[TABLE]

In the above equation, $n^{0}(\epsilon)$ is Fermi-Dirac distribution at the absolute temperature $T$ and global chemical potential $\mu_{F}$. The convention of summing over repeated Greek indices like $\nu$ has been used, with matrix $\gamma_{\nu}$ belonging to the set of $4\times 4$ matrices $\{\hat{s}_{o},\hat{s}_{z}\}\otimes\{\hat{\tau}_{o},\hat{\tau}_{z}\}=\{\hat{s}_{o}\hat{\tau}_{o},\hat{s}_{o}\hat{\tau}_{z},\hat{s}_{z}\hat{\tau}_{o},\hat{s}_{z}\hat{\tau}_{z}\}$, which are a set of $4\times 4$ matrices in spin-valley space. The index $\nu$ runs over the combinations for charge ($c=oo$), spin-valley ($sv=zz$), valley ($v=oz$) and spin ($s=zo$) indices. The fields $\boldsymbol{v}^{\nu}(\boldsymbol{r},t)$ and $\mu^{\nu}\left(\boldsymbol{r},t\right)$ correspond to the drift velocity of the electron fluid and the local chemical potential, respectively. Both are proportional to applied electric field, i.e., $|\boldsymbol{v}^{\nu}(\boldsymbol{r},t)|\propto|\boldsymbol{E}|$ and $\mu^{\nu}\left(\boldsymbol{r},t\right)\propto|\boldsymbol{E}|$. To linear order in $\boldsymbol{v}^{\nu}(\boldsymbol{r},t)$ and $\mu^{\nu}\left(\boldsymbol{r},t\right)$, the deviation of distribution function from its equilibrium, $\delta n_{\boldsymbol{k}}=n_{\boldsymbol{k}}-n_{k}^{0}$ reads:

[TABLE]

with $\nu=(c,sv,v,s)$. Hence,

[TABLE]

Thus, to linear order in $\boldsymbol{E}$, linearization of QBE yields:

[TABLE]

where we have used:

[TABLE]

together with the vanishing of the collision integral for the equilibrium distribution $n^{0}_{k}$.

I.3 Example of a microscopic model

The above linearized QBE can be obtained for various types of microscopic models. In this subsection, we study an instance of much experimental interest describing a monolayer of graphene subject to nonuniform strain and decorated with adatoms. The latter induce spin-orbit coupling (SOC) by proximity to the graphene layer. For the sake of simplicity, the spatial dependence of SOC is approximated by a Dirac delta potential (but more complicated dependence will not alter our results qualitatively Ferreira et al. (2014)). The spin-dependence corresponds to the so-called Kane-Mele SOC, which is known to lead to extrinsic SHE Huang et al. (2016b); Ferreira et al. (2014).

I.3.1 Pseudo-magnetic field in strained graphene

Within the $\boldsymbol{k}\cdot\boldsymbol{p}$ approximation to the band structure of graphene (see e.g. Katsnelson (2012)), nonuniform (shear) strain can be described as a pseudo-gauge field which takes opposite signs at opposite valleys  (see e.g. Guinea et al. (2010); Vozmediano et al. (2010); Katsnelson (2012); Amorim et al. (2016)):

[TABLE]

In the above expression $v_{F}$ is the Fermi velocity and $\sigma_{x},\sigma_{y}$ are the Pauli matrices describing the sublattice pseudo-spin. The pseudo-gauge $\boldsymbol{\mathcal{A}}(\boldsymbol{r})$ field which describes the (strain-induced) local displacement of the Dirac points at the two valleys is given by the following expression:

[TABLE]

where $\beta=\tfrac{d\log t}{d\log a}\simeq 2$, $t$ being the nearest neighbor hopping amplitude, $a$ is the carbon-carbon distance, and

[TABLE]

is strain tensor. Note that, since $u_{ij}$ is invariant (i.e. even) under time-reversal (TR) and $\hat{\tau}_{z}\boldsymbol{\mathcal{A}}(\boldsymbol{r})$ even under TR (recall that $\tau_{z}\to-\tau_{z}$ under TR). This is different from a real magnetic field, for which the gauge field is odd under TR.

The pseudo-magnetic field that determines the valley Lorentz-like force, $\boldsymbol{F}^{v}_{\boldsymbol{k}}$ can be obtained from the standard expression:

[TABLE]

Thus, as mentioned above, the pseudo-magnetic field $\hat{\tau}_{z}\boldsymbol{\mathcal{B}}_{v}$ induced by nonuniform strain has opposite signs at opposite valleys as required by the fact that strain does not break TR invariance. In what follows, for the sake of simplicity, we shall assume that the pseudo-magnetic field $\hat{\tau}_{z}\boldsymbol{\mathcal{B}}_{v}$ is spatially uniform, which requires particular configurations of nonuniform strain Guinea et al. (2010); Amorim et al. (2016); Zhang et al. (2017). Thus, we have shown how strain can give rise to an effective Lorentz-like force $\boldsymbol{F}^{v}_{\boldsymbol{k}}$, which drives the VHE (alternatively, this force can emerge from skew scattering with scalar impurities in bands with nonzero Berry curvature Ishizuka and Nagaosa (2017)). Via the semi-classical equations of motion Zhang et al. (2014), the latter will enter the QBE in (A.1).

I.3.2 Adatom-induced SHE

The spin transport properties of graphene can be modified by the presence of adatom impurities Weeks et al. (2011); Ferreira et al. (2014); Yang et al. (2016); Huang et al. (2016b). In the dilute impurity limit, the dominant mechanism for the spin-charge conversion via the extrinsic SHE is skew scattering Nagaosa et al. (2010), which effectively gives rise to a spin-dependent Lorentz-like force Huang et al. (2016b).

Within the $\boldsymbol{k}\cdot\boldsymbol{p}$ theory, the potential for a single-impurity takes the following form:

[TABLE]

In the above expression, $R$ is a length scale of the order of the impurity radius. We shall assume that $R\gg a$, that is, much larger than the inter-carbon separation so that inter-valley scattering can be safely neglected Basko (2008) but $R\lesssim 10$ nm, so that the potential can be approximated by a Dirac $\delta$-function. This approximation should be a good description of a monolayer of graphene decorated by adatom clusters Ferreira et al. (2014); Balakrishnan et al. (2013). Hence, upon solving the scattering problem, the on-shell $T$-matrix projected on the carrier band can be obtained and reads:

[TABLE]

The functions $t_{c}(k)$ and $t_{s}(k)$ depend on momentum $k$ of the incoming electron and the impurity potential parameters, i.e. $\mathcal{V}_{c},\mathcal{V}_{s}$, in our model. See e.g. Refs.Huang et al. (2016a) and Zhang et al. (2017) for the detailed expressions of these functions.

The effect of impurities is described by the collision integral $\mathcal{I}\left[\delta n_{\boldsymbol{k}}\right]$. The complete form of the latter (which includes the dissipative $\mathcal{I}_{r}[\delta n_{\boldsymbol{k}}]$ introduced in Eq. A.1) has been derived in Ref. Huang et al. (2016a), extending earlier work of Kohn and Luttinger in order to account for the effects of disorder on the electron internal degrees of freedom such as spin and valley pseudo-spin. To leading order in the density of impurities, $n_{\mathrm{i}}$, the collision integral reads:

[TABLE]

which is determined by the scattering data of a single scatterer. Using the above ansatz, Eq. (A.7), the collision integral (A.18) reduces to:

[TABLE]

where

[TABLE]

[TABLE]

Substituting Eqs. (I.3.2) and (A.21) into Eq. (A.18), the collision integral takes the following form:

[TABLE]

where

[TABLE]

The above collision integral can be rewritten as

[TABLE]

with

[TABLE]

Thus, as anticipated in Sec. I.1 (cf. Eqs. (A.1) and (A.4)), an effective Lorentz-like force driving the SHE emerges from skew scattering with adatom impurities. This Lorentz-like force term needs to be factored out of the collision integral, and the remaining terms are grouped in the dissipative part of the the collision integral, $\mathcal{I}_{r}\left[n_{\boldsymbol{k}}\right]$, which we introduced in Eq. (A.1), See Sec. I.1 .

II Diffusion equations

In order to derive the diffusion equations that we have employed in the main text, let us first consider the simpler case where there is no applied magnetic field and therefore the Larmor frequency vanishes, i.e. $\omega_{L}=0$ in Eq. (A.9).

First of all, let us the define currents and generalized polarization densities as follows:

[TABLE]

At zero temperature, $J^{\nu}_{i}$ and $N^{\nu}$ reduce to:

[TABLE]

where $\nu_{F}=k_{F}^{2}/\left(\pi\mu_{F}\right)$ is the total density of states at the Fermi energy $\mu_{F}=\hbar v_{F}k_{F}$ at zero temperature, where $k_{F}$ is the Fermi momentum.

II.1 Continuity and constitutive equations

The constitutive and continuity equations in steady state, can be obtained by tracing the linearized QBE (A.9), i.e. by taking $\sum_{\boldsymbol{k}}e\boldsymbol{v}^{\boldsymbol{k}}\text{Tr}\left[\gamma^{\mu}\mathrm{QBE}\right]$ for the constitutive equations and $\sum_{\boldsymbol{k}}e\text{Tr}\left[\gamma^{\mu}\mathrm{QBE}\right]$) for the continuity relations, respectively. The latter procedures yield the following expressions:

[TABLE]

[TABLE]

Here $\mathcal{D}=v^{2}_{F}\tau/2$ is diffusion constant and $\sigma_{D}=ne^{2}\tau/m$ ($n$ is carrier density and $m$ is mass) is Drude conductivity. In the above expression, repeated indices are summed and $\epsilon_{ij}$ is the antisymmetric 2D Levi-Civita tensor ($i,j=x,y$). The Greek superscripts of the currents $\boldsymbol{J}^{\mu}$ and the densities $N^{\mu}$ take values over the set $\{c,sv,v,s\}$, which stand for for charge, spin-valley, valley, and spin currents (densities), respectively. The coupling between spin and valley currents naturally leads to the existence of spin and valley polarized currents that are longitudinal, i.e. have the same direction as charge current $\boldsymbol{J}^{c}$(external electric field $\boldsymbol{E}^{c}=\boldsymbol{E}$). On the other hand, the spin and valley currents are transverse, i.e. perpendicular to $\boldsymbol{J}^{c}$ ($\boldsymbol{E}$).

The left hand side of Eq. (A.31) contains the driving forces for the currents, which are the results of spatial nonuniformity of the densities $\propto\boldsymbol{\nabla}N^{\mu}$ and the application of the generalized electric fields $\boldsymbol{E}^{\mu}$ (in order to describe real devices, we shall set $\boldsymbol{E}^{\mu}=0$ for all $\mu\neq c$). The right hand side of Eq. (A.31) describes the effective Lorentz forces as well as current relaxation. The relaxation rates for all currents are the same and equal to the Drude relaxation time $\tau$ (which is related to the mean-free path by $\ell=v_{F}\tau$ where $v_{F}$ is the Fermi velocity). The Hall resistivity matrix $R_{H}$ describes SHE and VHE, and couples longitudinal charge and spin-valley currents to transverse spin and valley currents:

[TABLE]

The magnitude of the SHE and VHE has been parameterized in the above equations by the effective “cyclotron” frequencies

[TABLE]

The latter arise from effective Lorentz forces that deflect the electrons (according to their spin and valley orientations, respectively).

In order to describe spin-valley transport with the above equations, we need to invert the resistivity matrix $R_{H}$ and solve Eq. (A.31) for the currents $J_{i}^{\mu}$, which yields the following set of equations:

[TABLE]

Note that the diffusion matrix is a rank-$2$ tensor in the Latin indices $i,j$, and therefore it can be split into a symmetric ($\propto\delta_{ij}$) and antisymmetric ($\propto\epsilon_{ij}$) part according to $D_{ij}=D_{0}\delta_{ij}+D_{H}\epsilon_{ij}$, where

[TABLE]

[TABLE]

[TABLE]

Similarly, a decomposition of conductivity matrix as $\sigma_{ij}=\sigma_{0}\delta_{ij}+\sigma_{H}\epsilon_{ij}$ can be obtained by replacing in the above expressions the diffusion constant $\mathcal{D}$ with the Drude conductivity $\sigma_{D}$. (See exact expressions for $\eta,\theta_{v},\theta_{s}$ in manuscript. )

II.2 Diffusion of spin and valley polarization

Next, we derive the drift-diffusion equations for the spin and valley polarizations. To this end, we supplement the constitutive relations in Eq. (A.31) with the steady state phenomenological continuity equations,

[TABLE]

where we take $\tau^{c}\to+\infty$ since the charge current is strictly conserved. In the above expressions, $\tau^{\mu}$ are phenomenological relaxation times which need to be ad hoc in the present derivation, but whose existence can be rigorously derived in a more complete treatment Huang et al. (2016a); Zhang et al. (2017). Hence, we arrive at the following set of diffusion equations:

[TABLE]

where the source term is given by

[TABLE]

In deriving the above diffusion equations, we used $\epsilon_{ij}\partial_{i}\partial_{j}N^{\mu}=0$ and that the generalized electric field is curl and divergence-free, i.e. $\epsilon_{ij}\partial_{i}E_{j}^{\mu}=0$ and $\partial_{i}E_{i}^{\mu}=0$, that is, we have neglected any relativistic corrections to the electrodynamics.

Note that the source term on the right hand side of (A.41) takes a non-zero values only at the boundary of the device. In other words, it describes the driving force for the electron diffusion arising from the abrupt change of the Hall angle at the device boundaries Beconcini et al. (2016). However, in the bulk the above set of differential equations (A.41), becomes a homogeneous one:

[TABLE]

where

[TABLE]

Here $\mu,\nu\in\{v,s\}$ denote the transverse valley (spin) response, with diffusion lengths $\ell_{v}=\sqrt{\mathcal{D}_{r}\tau^{v}}$ ($\ell_{s}=\sqrt{\mathcal{D}_{r}\tau^{s}}$). The choice where $\mu,\nu=\{c,sv\}$ corresponds to the longitudinal charge (spin-valley) response, which decouples from transverse modes and will be omitted in what follows. The parameter $\eta$, which arises from the interplay of SHE and VHE, mixes the valley and spin responses.

As described in the main text, in order to solve Eq. (A.43), we first need to diagonalize the matrix $\mathcal{M}$ and therefore obtain the eigenvalues and eigenvectors. Thus, in what follows we shall assume this has been carried out, so that $\mathcal{L}_{a}^{-2}|\boldsymbol{\hat{e}}^{\mu}_{a}\rangle=\mathcal{M}^{\mu}_{\nu}|\boldsymbol{\hat{e}}^{\nu}_{a}\rangle$, where $\mathcal{L}_{a}$ is the eigenvalue, which corresponds to the diffusion length for the eigenmode $|\boldsymbol{\hat{e}}^{\mu}_{a}\rangle$.

Next, following Beconcini et al. Beconcini et al. (2016), we solve the diffusion equation for a Hall bar device geometry, assuming the latter to be an infinitely long metallic channel of width $w$ contacted by noninvasive current and voltage probes (see Fig. 1(a) in the manuscript). We shall assume the complete screening of the electric field in the bulk of device, which amounts to take charge density into zero, i.e., $N^{c}\left(\boldsymbol{r}\right)=0.$ Hence, the electrostatic potential, $\Phi\left(\boldsymbol{r}\right)$ obeys the Laplace equation:

[TABLE]

The Laplace equation (A.45) and the above system of partial differential equations (A.43), need to be supplemented by the following boundary conditions (BCs):

[TABLE]

for $\nu=v,s$. $I$ is charge current injected on right hand side of Hall bar device. Finally, in order to solve the problem posed by Eq. (A.43) and Eq. (A.45), we use Fourier transformation along the infinitely long channel direction, $x$. Thus, using (A.36), the BCs approximately become:

[TABLE]

where the sum over the repeated index $\nu$ in the expression above runs over the set $\{s,v\}$ only. $\sigma^{c}$ is charge conductivity. In addition,

[TABLE]

By “approximately”, we mean that we omit the boundary contributions of the longitudinal modes $N^{c}$ and $N^{sv}$ in Eq. (A.36) by setting $N^{c},N^{sv}=0$ and $\eta=0$. Including them, merely leads to a small correction to the diffusion length of the spin and valley eigenmodes.

In order to solve the above system of 2nd order differential equations, i.e. Eq. (A.43), we first turn it into a 1st order set of equations by defining $N_{\nu}^{\prime}\left(k,y\right)=\partial_{y}N^{\nu}\left(k,y\right)$, rendering (A.43) to the form:

[TABLE]

Let $\mathcal{L}_{a}^{-2}$ and $|\boldsymbol{\hat{e}}^{\mu}_{a}\rangle$ are the eigenvalues and eigenvectors of diffusion matrix, respectively. Hence,

[TABLE]

with $\kappa_{a}=\sqrt{k^{2}+\mathcal{L}_{a}^{-2}}$. Therefore, $\pm\kappa_{a}$ is the eigenvalue of the matrix of (A.50) with eigenvector

[TABLE]

Considering the symmetry of BCs in (A.48) and (A.49), the solution of the above system of differential can be solved by the following ansatz:

[TABLE]

[TABLE]

Substitution of these ansatz into the BCs, Eq. (A.48) and (A.49) yields:

[TABLE]

[TABLE]

From Eq. (A.56), it is found that

[TABLE]

Hence, upon substitution of this result into Eq. (A.55), we obtain:

[TABLE]

where

[TABLE]

[TABLE]

Hence,

[TABLE]

for the generalized polarization densities and

[TABLE]

for the electrostatic potential.

III Nonlocal Resistance

In this section, we compute the nonlocal resistance (NLR) in the absence of magnetic field, which is defined as

[TABLE]

Substituting the electrostatic potential (A.62) into (A.63), we obtain the following integral form for the NLR:

[TABLE]

with $R_{\mathrm{xx}}=1/\sigma^{c}$. The above result for the NLR can be expanded as follows

[TABLE]

with $\boldsymbol{a}^{n}=(a_{1},a_{2},\cdots,a_{n})$. The expression for $\mathcal{R}_{\boldsymbol{a}^{n}}\left(x\right)$ is given by:

[TABLE]

Next, we obtain asymptotic expressions for the various terms in the above expansion. For $n=0$, $\mathcal{R}^{0}\left(x\right)$ reduces to the Ohmic NLR:

[TABLE]

Explicitly, it is van der Paw resistance, which behaves as $\mathcal{R}_{\mathrm{vdP}}\simeq\frac{4}{\pi}e^{-\left|x\right|/\mathcal{L}_{0}}$ for $\left|x\right|\gg w$ where $\mathcal{L}_{0}=w/\pi$. At large $\left|x\right|$, and for $w\ll\ell_{\nu}$, the $n=1$ term is $\mathcal{R}^{1}=\sum_{a}\mathcal{R}_{a}^{1},$ where

[TABLE]

In earlier work Zhang et al. (2017), we showed that a modest nonuniform strain can result in rather large valley Hall angles $\theta_{v}\sim 1$. Thus, in order to accurately describe the NLR we need to consider high order terms in the expansion, i.e. those with $n>1$. But we here just pick out terms $\mathcal{R}_{\boldsymbol{a}^{n}}$ with same eigenmode $a_{\imath}=a$ i.e., $R_{nl}/R_{\mathrm{xx}}\simeq\mathcal{R}^{0}+\sum_{a}\mathcal{R}^{a}$, being

[TABLE]

where $\mathcal{L}^{r}_{a}=\sqrt{1+\Theta_{a}^{2}}\mathcal{L}_{a}$ is renormalized decay lengths of each eigenmode Zhang et al. (2017). Finally, we obtain total NLR $R_{nl}/R_{\mathrm{xx}}=\mathcal{R}^{0}+\delta\mathcal{R}_{nl}$

[TABLE]

The first term is the Ohmic contribution, $\mathcal{R}^{0}$, and the second term contains the sum of the exponentially decaying contributions for each eigenmode, $\mathcal{R}^{a}$. Near the current injection point ($\left|x\right|\lesssim\mathcal{L}_{0}$), $R_{nl}$ is dominated by the ohmic contribution, $\mathcal{R}^{0}$, which will become negligible at sufficiently large distances (i.e. for $\left|x\right|\gg\mathcal{L}_{0}$).

Here we focus on the behavior of $R_{nl}$, when contribution of the eigenmodes of the diffusion equation dominate over the Ohmic contribution, i.e. when $\delta\mathcal{R}_{nl}\gg\mathcal{R}^{0}$.

IV Suppression of the Hanle effect

In this section, we provide the details of the derivation and solution of the diffusion equations in the presence of an in-plane magnetic field. Note that the Larmor frequency $\omega_{L}\ll\mu_{F}$, where $\mu_{F}$ is the Fermi level. The in-plane magnetic field, which we shall take parallel to the direction of the electric field applied to the device, induces precession of the spin-degree of freedom, whilst the valley is not affected. This mixes the out-of-plane spin component along $z$ with the spin in-plane components along the $x$ and $y$ axes. Thus, our ansatz for the density-matrix distribution function in the QBE must be now expanded in terms of $\gamma_{\nu}$ matrices taken from the larger set $\{\hat{s}_{o}\hat{\tau}_{o},\hat{s}_{o}\hat{\tau}_{z},\hat{s}_{x}\hat{\tau}_{o},\hat{s}_{y}\hat{\tau}_{o},\hat{s}_{z}\hat{\tau}_{o},\hat{s}_{x}\hat{\tau}_{z},\hat{s}_{y}\hat{\tau}_{z},\hat{s}_{z}\hat{\tau}_{z}\}$.

In order to simplify the calculations described below, the deviation of the distribution function from equilibrium, i.e. $\delta n_{\boldsymbol{k}}=n_{\boldsymbol{k}}-n_{\boldsymbol{k}}^{0}$, will be slit into two parts, $\delta n_{\boldsymbol{k}}=\delta n_{\boldsymbol{k}}^{+}+\delta n_{\boldsymbol{k}}^{-}$, with

[TABLE]

[TABLE]

where $\mathrm{i}\in\left\{c,sv,v,s\right\}$ and $\mathrm{j}\in\left\{xo,yo,xz,yz\right\}$.

The form of the collision integral (A.18) is determined by the ansatz for density matrix $\delta n_{\boldsymbol{k}}$, which in turn follows from the forms of the $T$-matrix ($\propto\{\hat{s}_{o},\hat{s}_{z}\}$), the pseudo-magnetic field arising from nonuniform strain ($\propto\{\hat{\tau}_{o},\hat{\tau}_{z}\}$), and the (Zeeman) magnetic field ($\{\hat{s}_{o},\hat{s}_{y}\}$). To compute the collision integral, it is convenient to also split the $T$-matrix into two parts, i.e., $T_{\boldsymbol{k}\boldsymbol{p}}=T_{\boldsymbol{k}\boldsymbol{p}}^{o}+T_{\boldsymbol{k}\boldsymbol{p}}^{z}$, with

[TABLE]

which obey:

[TABLE]

where $\left[A,B\right]_{\pm}=AB\pm BA$. Next, using the above ansatz, the collision integral (A.18) reduces to:

[TABLE]

Hence,

[TABLE]

[TABLE]

[TABLE]

In addition, we need to compute the differences and sums:

[TABLE]

[TABLE]

[TABLE]

Substituting Eqs. (IV)-(IV) into the collision integral (A.79), the explicit form of the collision integral is split into three contributions: $\mathcal{I}\left[\delta n_{\boldsymbol{k}}\right]=\mathcal{I}^{+}\left[\delta n_{\boldsymbol{k}}\right]+\mathcal{I}^{0}\left[\delta n_{\boldsymbol{k}}\right]+\mathcal{I}^{-}\left[\delta n_{\boldsymbol{k}}\right]$, with

[TABLE]

[TABLE]

[TABLE]

where $\mathrm{i}=\left(c,sv,v,s\right)$, $\mathrm{j}=\left(xo,yo,xz,yz\right)$ and we define other two kinds of relaxation times to describe the collision of electrons:

[TABLE]

Notice that, in the presence of an in-plane magnetic field the term $\mathcal{I}^{0}\left[\delta n_{\boldsymbol{k}}\right]$ in the colission integral introduces an additional relaxation time, $\tau_{s,xy}(k)$.

In addition to spin (spin-valley) current, the in-plane magnetic field couples the out-of-plane and in-plane components of the spin current, $\boldsymbol{J}^{xo}$ and $\boldsymbol{J}^{yo}$ (spin-valley currents, $\boldsymbol{J}^{xz}$ and $\boldsymbol{J}^{yz}$). Here we take the magnetic field to be parallel to the applied electric field, i.e. $\boldsymbol{H}\parallel\boldsymbol{\hat{y}}$, and thus the following generalized density $N$ and current $\boldsymbol{J}$ appear in our diffusion equations:

[TABLE]

[TABLE]

where we have divided the longitudinal and transverse modes. Let us first focus on the continuity equations. In the steady state, they read:

[TABLE]

which is obtained by tracing the linearized QBE, i.e. taking $\frac{g_{s}g_{v}}{4}\sum_{\boldsymbol{k}}e\text{Tr}\left[\gamma^{\mu}\left(\text{QBE}\right)\right]$. In the above expression

[TABLE]

[TABLE]

The matrix $\tau^{-1}_{sr}$ describes the spin relaxation for spin polarized in the $x$-$y$ plane. In our microscopic model, $s_{z}$ is a good quantum number and there is no relaxation. The second term describes the spin precession induced by an in-plane magnetic field in $y$-axis direction. We parameterize the strength of the in-plane magnetic field $H$ by the Larmor frequency $\omega_{L}=\textsl{g}\mu_{B}H/\hbar$.

The constitutive relations for the generalized currents, $J^{\mu}_{i}$ is given by following equations:

[TABLE]

where

[TABLE]

For the sake of simplicity, we have assumed that the relaxation rates for all currents are the same and equal to Drude relaxation time ($\tilde{\tau}\simeq\tau$) (See expressions for $\tilde{\tau}$ in Eq. (A.90) for $i=(xo,yo,xz,yz)$ and $\tau$ in Eq. (A.24) for $i=(c,sv,v,s)$. Thus, we take $\mathcal{D}=v^{2}_{F}\tau/2$ ($\sigma_{D}=ne^{2}\tau/m$) to be the same for all types of currents. These assumptions can be relaxed, and will not alter our conclusions qualitatively. $R_{H}$ is the coupling matrix that couples the different currents with each other due to the local impurities and the strain pseudo-magnetic field.

Solving the constitutive equations (A.96) for the currents $J^{\mu}_{i}$ we obtain:

[TABLE]

As pointed out in the main text, the diffusion matrix is a rank-$2$ tensor in the space indices $i,j=x,y$, and therefore it can be split into a symmetric ($\propto\delta_{ij}$) and antisymmetric ($\propto\epsilon_{ij}$) parts according to $D_{ij}=D_{0}\delta_{ij}+D_{H}\epsilon_{ij}$ where

[TABLE]

[TABLE]

$\mathcal{D}_{r},\eta_{\mu},\theta_{\mu}$ are rather complicated functions of $\omega_{v}\tau,\omega_{s}\tau$ and $\omega_{L}\tau$, and are not given here. Similarly, the conductivity matrix can be obtained by replacing the diffusion constant $\mathcal{D}$ with the Drude conductivity $\sigma_{D}$.

In the presence of an in-plane magnetic field, the system response consists of eight types of currents. Recall that the magnetic field acts only as a Zeeman term that induces precession, and does not introduce a Lorentz force (i.e. $\boldsymbol{F}^{B}_{\boldsymbol{k}}=0$ in Eq. (A.9), as mentioned above). Accounting (phenomenologically) for spin relaxation, the constitutive and continuity equations in the presence of the magnetic field read:

[TABLE]

[TABLE]

where

[TABLE]

[TABLE]

Substituting continuity equations (A.102) into the divergence of constitutive equations (A.101), the diffusion equations away from the boundaries take again a form similar to Eq. (A.43),

[TABLE]

However, this time the diffusion matrix is $4\times 4$ in order to accommodate the additional response modes introduced by the precession term:

[TABLE]

The eigenvalues of the above diffusion matrix are

[TABLE]

with

[TABLE]

Hence, following the same procedure to find the solution as in the case with $H=0$, we arrive at the following result for the NLR:

[TABLE]

where we sum over four transverse eigenmodes $\{v,s,xo,yz\}$ in the denominator of the above integral. The above equation is the basis of the analysis about the suppression of the Hanle effect described in the main text.

IV.1 Carrier concentration dependence

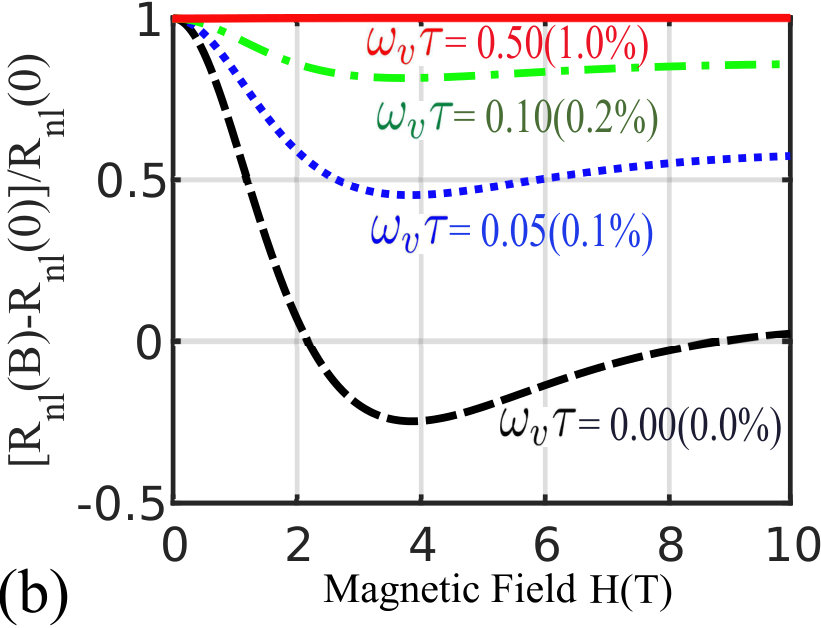

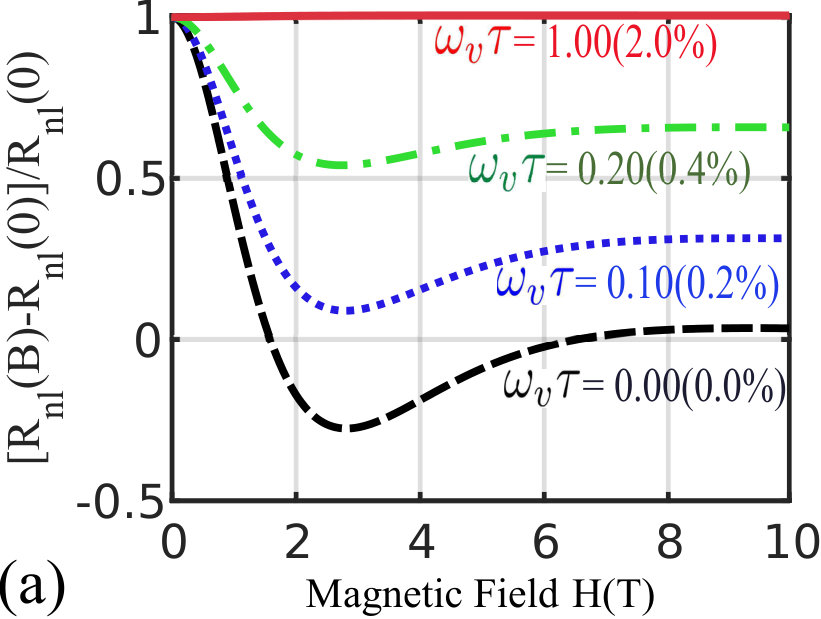

Fig. 3 shows the NLR, $R_{nl}(x,H)$ normalized to its value at zero in-plane magnetic field, $R_{nl}(x,H=0)$ versus $H$, for different chemical potentials [(a) $\mu_{F}=0.15$ eV and (b) $\mu_{F}=-0.10$ eV]. As noticed in the main text, by setting $\omega_{v}\tau=0$, the result of Abanin el al. Abanin et al. (2009) is recovered. In this case, the diffusion lengths of the (spin) eigenmodes, $\ell_{s\pm}=(\ell_{s}^{-2}\pm i\ell_{L}^{-2})^{-1/2}$ become complex (with imaginary part $\ell_{L}^{-2}\propto H$), which leads to the development of an oscillatory component in the NLR (Hanle effect). Upon increasing the amount of nonuniform strain, we find that the oscillating part of the NLR is suppressed and even disappears for strains of the order of $\sim 1\%$. This shows that our result concerning the suppression of the Hanle effect for nonuniform strain of the order of a few percents maximum is robust against the change of the carrier density and sign.
