Constraints on the curvature power spectrum from primordial black hole evaporation

TL;DR

This paper derives upper limits on the primordial curvature power spectrum based on the non-detection of sub-solar mass black holes, considering Hawking radiation effects and various early universe scenarios.

Contribution

It provides new constraints on the amplitude of primordial perturbations across all scales, especially in the low mass PBH regime, accounting for different cosmic histories.

Findings

Upper bounds on the variance of density perturbations for any reheating temperature.

Constraints applicable to models generating low-mass primordial black holes.

Implications for inflationary models producing PBHs.

Abstract

We estimate the maximum allowed amplitude for the power spectrum of the primordial curvature perturbations, ${\cal P_R}(k)$, on all scales from the absence of any detection signals of sub-solar mass black holes. In particular we analyze the constraints on the PBHs and we focus on the low mass limit where the Hawking radiation is expected to significantly influence the big bang observables, considering also different early cosmic histories. We derive the upper bounds for the variance of density perturbations, $\sigma(M)$, for any possible reheating temperature as well as for the cosmological scenario of a scalar condensate domination. We expect our results to have considerable implications for models designed to generate PBHs, especially in the low mass range, and provide additional constraints to a large class of inflationary models.

Figures

Equations

$$T_{\text{BH}}=1.06\frac{M_{\text{Pl}}^2}{M_{}}\simeq \left(\frac{10^{13}\text{g}}{M_{}}\right)\text{GeV},$$

$$\tau (M_{})\simeq 4\times 10^{11}{\left(\frac{M_{}}{10^{13}\text{g}}\right)}^3\text{s},$$

$$f_{\text{PBH}}^{\text{(RD)}}\propto \sqrt{{\mathcal{P}}_{\mathcal{R}}}{e}^{-{\delta }_c^2/{\mathcal{P}}_{\mathcal{R}}},f_{\text{PBH}}^{\text{(MD)}}\propto {{\mathcal{P}}_{\mathcal{R}}}^{5/2}.$$

$$k_{\text{RD}}(M)\propto M^{-1/2},k_{\text{MD}}(M,T_{\text{rh}})\propto M^{-1/3}{T}_{\text{rh}}^{1/3}.$$

$$f_{\text{PBH}}(M)\,=\,\left(\frac{\beta_{\text{}}(M)}{7.3\times 10^{-15}}\right)\,\left(\frac{\Omega_{\text{DM}}h^{2}}{0.12}\right)^{-1}\Big{(}\frac{\gamma_{\text{R}}}{0.2}\Big{)}^{\frac{3}{2}}\left(\frac{g_{*}}{106.75}\right)^{-\frac{1}{4}}\left(\frac{M}{10^{20}\text{g}}\right)^{-1/2}\,,$$

$${\beta }^{\prime }(M)=6.5\times 10^{-21}{f}_{\text{PBH}}{\left(\frac{M}{10^{10}\text{g}}\right)}^{1/2}$$

$${\beta }^{\prime }(M)\equiv {\gamma }_{\text{R}}^{3/2}{\left(\frac{g_{\ast }}{106.75}\right)}^{-1/4}\beta (M)$$

$${\beta }^{\prime }(M)<{\mathbf{C}}_{\mathbf{M}}\equiv {\beta }_{\text{RD, max}}^{\prime }(M).$$

$$\displaystyle f^{(\text{MD})}_{\text{PBH}}(M)=\,\left(\frac{\beta_{\text{MD}}(M)}{2.1\times 10^{-14}}\right)\,\left(\frac{\Omega_{\text{DM}}h^{2}}{0.12}\right)^{-1}\Big{(}\frac{\gamma_{\text{M}}}{0.1}\Big{)}^{\frac{3}{2}}\left(\frac{g_{*}(T_{\text{rh}})}{106.75}\right)^{-\frac{1}{4}}\left(\frac{M}{10^{20}\text{g}}\right)^{-1/2}\,\left(\frac{k}{k_{\text{rh}}}\right)^{-3/2}$$

$${\gamma }_{\text{M}}^{3/2}{\left(\frac{g_{\ast }}{106.75}\right)}^{-1/4}{\beta }_{\text{MD}}(M)=6.5\times 10^{-21}{f}_{\text{PBH}}^{\text{(MD)}}{\left(\frac{M}{10^{10}\text{g}}\right)}^{1/2}{\left(\frac{k}{k_{\text{rh}}}\right)}^{-3/2}.$$

$$f_{\text{PBH}}^{\text{(MD)}}=1.6\times 10^{19}{\gamma }_{\text{M}}{\beta }_{\text{MD}}(M)\left(\frac{T_{\text{rh}}}{10^{10}\text{GeV}}\right).$$

$${\beta }_{\text{MD}}^{\prime }(M)\equiv {\gamma }_{\text{M}}{\beta }_{\text{MD}}(M)$$

$${\beta }_{\text{MD}}^{\prime }(M)<9.8{\left(\frac{T_{\text{rh}}}{10^{10}\text{GeV}}\right)}^{-1}{\left(\frac{M}{10^{10}\text{g}}\right)}^{-1/2}{\mathbf{C}}_{\mathbf{M}}\equiv {\beta }_{\text{MD, max}}^{\prime }(M,T_{\text{rh}}).$$

$$H_{\text{end}}>1.33\times 10^4\text{GeV}{\left(\frac{M_{}/{\gamma }_{\text{R}}}{10^{10}\text{g}}\right)}^{-1}$$

$$M>M_{\text{end}}\text{or}{k}_{\text{end}}>k.$$

$$k_{\text{end}}=k_{\text{rh}}{e}^{{\tilde{N}}_{\text{rh}}/2},k_{\text{rh}}=k_{\text{0.05}}{e}^{\Delta {\tilde{N}}_{0.05}^{\text{(RD)}}}{\left(\frac{g_{\ast }(T_{\text{rh}})}{g_{\ast }(T_{0.05})}\right)}^{-1/6}$$

$$N_{0.05}+\ln {\left(\frac{H_{\text{end}}}{H_{0.05}}\right)}_{\text{INF}}=\frac{1}{2}{\tilde{N}}_{\text{rh}}+\Delta {\tilde{N}}_{0.05}^{\text{(RD)}}-\ln {\left(\frac{g_{\ast }(T_{\text{rh}})}{g_{\ast }(T_{0.05})}\right)}^{1/6}$$

$$N_{0.05}=67-\ln \left(\frac{k_{0.05}}{a_0{H}_0}\right)+\frac{1}{4}\ln \left(\frac{V_{0.05}^2}{M_{\text{Pl}}^4{\rho }_{\text{end}}}\right)+\frac{1-3{\bar{w}}_{\text{rh}}}{12(1+{\bar{w}}_{\text{rh}})}\ln \frac{{\rho }_{\text{rh}}}{{\rho }_{\text{end}}}-\frac{1}{12}\ln \left(g_{\ast }\right).$$

$$N_{0.05}+\ln {\left(\frac{H_{\text{end}}}{H_{0.05}}\right)}_{\text{INF}}=40.1+\frac{1}{2}\ln \left(\frac{H_{\text{end}}}{\text{GeV}}\right)-\frac{1}{4}{\tilde{N}}_{\text{rh}}-\frac{1}{12}\ln \left(g_{\ast }\right)$$

$${\tilde{N}}_{\text{rh}}(T_{\text{rh}},H_{\text{end}},g_{\ast })=-\frac{4}{3}\ln \left[{\left(\frac{{\pi }^2{g}_{\ast }}{90}\right)}^{1/4}\frac{T_{\text{rh}}}{(H_{\text{end}}{M}_{\text{Pl}}{)}^{1/2}}\right].$$

$$k_{\text{end}}(T_{\text{rh}},H_{\text{end}})\simeq k_{0.05}{e}^{40.1}{\left(\frac{H_{\text{end}}}{\text{GeV}}\right)}^{1/3}{\left[{\left(\frac{{\pi }^2}{90}\right)}^{1/4}\frac{T_{\text{rh}}}{(\text{GeV}{M}_{\text{Pl}}{)}^{1/2}}\right]}^{1/3}$$

$$k_{\text{rh}}(T_{\text{rh}},g_{\ast })\simeq k_{0.05}{e}^{40.1}{\left(\frac{{\pi }^2}{90}\right)}^{1/4}\frac{T_{\text{rh}}}{(\text{GeV}{M}_{\text{Pl}}{)}^{1/2}}{g}_{\ast }^{1/6}(T_{\text{rh}})$$

$$k_{\text{MD}}=k_{\text{end}}{\left(\frac{4\pi M_{\text{Pl}}^2}{H_{\text{end}}}\right)}^{1/3}{\left(\frac{M}{{\gamma }_{\text{M}}}\right)}^{-1/3},\text{for}{k}_{\text{MD}}>k_{\text{rh}}.$$

$$k_{\text{MD}}(M,T_{\text{rh}})=7.1\times 10^{17}{\text{Mpc}}^{-1}{\gamma }_{\text{M}}^{1/3}{\left(\frac{M}{10^{10}\text{g}}\right)}^{-1/3}{\left(\frac{T_{\text{rh}}}{10^{10}\text{GeV}}\right)}^{1/3}.$$

$$M_{\text{rh}}=4\pi {\left(\frac{{\pi }^2{g}_{\ast }}{90}\right)}^{-1/2}\frac{M_{\text{Pl}}^3}{T_{\text{rh}}^2}=9.5\times 10^{11}\text{g}{\left(\frac{T_{\text{rh}}}{10^{10}\text{GeV}}\right)}^{-2}{\left(\frac{g_{\ast }(T_{\text{rh}})}{106.75}\right)}^{-1/2}.$$

$$k_{\text{RD}}=k_{\text{rh}}{\left(\frac{M/{\gamma }_{\text{R}}}{M_{\text{rh}}}\right)}^{-1/2}{\left(\frac{g_{\ast }}{g_{\ast }(T_{\text{rh}})}\right)}^{-1/12},\text{for}{k}_{\text{RD}}<k_{\text{rh}},$$

$$k_{\text{RD}}(M)=1.8\times 10^{18}{\text{Mpc}}^{-1}{\gamma }_{\text{R}}^{1/2}{\left(\frac{M}{10^{10}\text{g}}\right)}^{-1/2}{\left(\frac{g_{\ast }}{106.75}\right)}^{-1/12}.$$

$$k(M,T_{\text{rh}},g_{\ast })=\{\begin{array}{l}{k}_{\text{MD}}(M,T_{\text{rh}}),\text{for}k>k_{\text{rh}}\\ \\ k_{\text{RD}}(M,g_{\ast }),\text{for}k<k_{\text{rh}}\end{array}$$

$$T(M)=9.7\times 10^{10}\text{GeV}{\gamma }_{\text{R}}^{1/2}{\left(\frac{M}{10^{10}\text{g}}\right)}^{-1/2}{\left(\frac{g_{\ast }}{106.75}\right)}^{-1/4}.$$

$$T_{\text{bbn}}\equiv 4.3\times 10^{10}\text{GeV}{\gamma }_{\text{R}}^{1/2}{\left(\frac{g_{\ast }}{106.75}\right)}^{-1/4}.$$

Full text

**Constraints on the curvature power spectrum from primordial black hole evaporation

**

Ioannis Dalianisa

a* Physics Division, National Technical University of Athens

15780 Zografou Campus, Athens, Greece*

dalianis@mail.ntua.gr

Abstract

We estimate the maximum allowed amplitude for the power spectrum of the primordial curvature perturbations, ${\cal P_{R}}(k)$, on all scales from the absence of any detection signal of sub-solar mass black holes. In particular we analyze the constraints on the PBHs and we focus on the low mass limit where the Hawking radiation is expected to significantly influence the big bang observables, considering also different early cosmic histories. We derive the upper bounds for the variance of density perturbations, $\sigma(M)$, for any possible reheating temperature as well as for the cosmological scenario of a scalar condensate domination. We expect our results to have considerable implications for models designed to generate PBHs, especially in the low mass range, and provide additional constraints to a large class of inflationary models.

1 Introduction

The primordial power spectrum of the comoving curvature perturbations ${\cal P_{R}}(k)$ has been precisely measured by the CMB probes in the range of scales between $k\sim 10^{-3}$ Mpc*-1* and 1 Mpc*-1*. In smaller scales the ${\cal P_{R}}(k)$ is poorly and indirectly constrained by observations of nonlinear structures. The relevant limits are very weak coming mainly from the mass fraction of the universe, $\beta(M)$, that collapsed and formed primordial black holes (PBH) of mass $M$. Black holes affect dynamical systems and cause microlensing events and so a bound on the $\beta(M)$ value is obtained. The Hawking prediction [1, 2] that black holes radiate thermally with temperature

[TABLE]

and evaporate after a timescale

[TABLE]

provides us with additional bounds on $\beta(M)$ for small mass PBHs from the absence of any evidence for black hole evaporation. Consequently, ${\cal P_{R}}(k)$ bounds in the smallest range of scales can be obtained. In the inflationary framework the measurement of the ${\cal P_{R}}(k)$ can be regarded as an insight into the microscopic dynamics of the field(s) that dominated the energy density of the early universe and generated the primordial perturbations. The purpose of this paper is to make use of the limits on $\beta(M)$ coming primarily from the CMB and BBN observables to constrain the variance of the density perturbations and therefore, the cosmological scenarios, such as inflation, designed to trigger PBH formation.

PBHs form from the collapse of large-amplitude inhomogeneities [3, 4, 5, 6, 7]. In order to decouple from the background expansion it has to be $GM/R\sim 1$, for a region of mass $M$ over a scale $R$. This can be achieved if the power spectrum ${\cal P_{R}}(k)$ is enhanced at a scale $R^{-1}\sim k$, characteristic of the PBH mass, by many orders of magnitude. Large wavenumbers yield light PBH which if they have mass $M\lesssim 10^{15}$ g evaporate at timescales less than the age of the universe. PBHs with $M>10^{15}$ g would still survive today and would be dynamically cold component of the dark matter in galactic structures. To distinguish between the nonevaporated and the evaporated PBH we label the mass and the characteristic wavenumber of the former with a dark dot subscript, i.e. $M_{\bullet}$, $k_{\bullet}$ respectively.

The formation of a primordial black hole of mass similar to the black holes detected by LIGO[8], $M_{\bullet}\sim 30M_{\odot}$ requires ${\cal P_{R}}(10^{10}\,\text{Mpc}^{-1})\sim 10^{-2}$. Similar values for the ${\cal P_{R}}(k)$ are required for the formation of lighter primordial black holes that, although lack observational support, are well motivated dark matter candidates. Actually, it is the low mass window, $M_{\bullet}\ll M_{\odot}$, the most promising one for explaining the dark matter in the galaxies, according to the current observational constraints. Several inflation models that achieve the required ${\cal P_{R}}(k)$ enhancement have been proposed the last years [9, 10, 11, 12, 13, 14, 15, 17, 16, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29] putting forward new ideas and elaborating further earlier works [30, 31, 32, 33, 34, 35]. The shape of the ${\cal P_{R}}(k)$ at small scales is mainly constrained at a scale $k_{\bullet}$ where the abundance of the nonevaporated PBHs maximizes. The aim of this work is to stress that, depending on the postinflationary expansion history, the shape of the ${\cal P_{R}}(k)$ at smaller scales $k\gg k_{\bullet}$ is crucial to affirm the viability of a model designed to generate dark matter PBHs.

Large values for the ${\cal P_{R}}(k)$ at small scales may generate short-lived PBH that, although absent from the cosmic structures today, evaporate in the early universe leaving potentially observable signatures. The thermal emission of black holes affects the BBN [36, 6, 38, 39, 40, 41, 42, 43] in the mass range $10^{9}-10^{13}$ g and bounds on the fraction of the universe mass that collapses into black holes, $\beta(M)$ are induced. In addition, the diffuse extragalactic $\gamma$-ray background put constraints on the mass range $10^{14}-10^{17}$ g [44, 45, 46, 47, 48]. The most stringent constraint on the mean number density of the short-lived PBHs comes from the CMB anisotropy damping [6] which limits the $\beta(M)\lesssim 10^{-29}$ [49] in the mass range $10^{13}-10^{14}$ g. In Ref.[43] these constraints are outlined and further references can be found therein.

Our investigation is focused on the $\beta(M)$ bounds for $M\ll 10^{15}$ g it will be shown that extra important constraints can be put on the ${\cal P_{R}}(k)$. From a different perspective these constraints can be viewed also as an insight into the unknown cosmic history of the early universe if a measurement of the ${\cal P_{R}}(k)$ on small scales is made possible. Apparently, the key relation is the one that connects the power spectrum ${\cal P_{R}}(k)$ and the $\beta(M)$. The knowledge of the $\beta(M)$ can constrain the ${\cal P_{R}}(k)$ only if one assumes a model for the PBH formation. In the following analysis we assume spherical symmetric Gaussian primordial perturbations and that the PBHs form on the high $\sigma$-tail according to the Press-Schechter formalism [50]. We consider gravitational collapse during radiation era as well as during presureless matter era taking into account spin effects. This is actually a distinct ingredient of this work. We follow the monochromatic mass spectrum approximation and assume a one-to-one correspondence between the scale of perturbation and the mass of PBHs. We do not consider possible impacts on the power spectrum from non-Gaussianities [51, 52] and quantum diffusion effects [53, 54, 55, 56].

The main result of this work is the derivation of upper bounds for the variance of comoving density contrast at horizon entry $\sigma(M)$ on all scales for different reheating temperatures and cosmological scenarios and translate these bounds onto $P_{\cal R}(k)$ bounds. In particular, we derive the upper bound for the $\sigma(M)$ in order that the CMB and BBN observables remain intact for any possible reheating temperature. These bounds are the most stringent ones for promptly evaporating PBHs. Most of our analysis is general regardless the mechanism that generates the perturbation spectrum. We implicitly assume that it is inflation behind the $P_{\cal R}(k)$ generation, however, we do not specify the inflaton dynamics apart from the energy scale that inflation ends.

Large-amplitude inhomogeneities are necessary for the PBH formation however, the formation rate may significantly increase [57, 58] if the equation of state of the background energy density, $w$, becomes soft or zero. This is a rather plausible scenario for PBHs that form not long after the end of the inflationary phase where the inflaton coherent oscillations result in an early matter domination era. Other scenarios, such a modulus domination that is natural in several extensions of the Standard Model of particle physics, also result in an early non-thermal phase.

The most important implications for the PBH formation models of such an early matter domination era is that the variance of the density perturbations, which determines the $\beta(M)$, can be smaller for a fixed PBH abundance. To be explicit let us express in a qualitative level how the relic abundance of the PBHs depends on the cosmic era that the collapse takes place. It is

[TABLE]

The expression on the left hand side is for collapse during radiation and on the right hand side for spinless collapse during matter era. Thus, an overdensity is more probable to collapse during matter era for ${\cal P_{R}}\ll 1$. Since the power spectrum is expressed in terms of the wavenumber $k$ whereas the fractional PBH abundance, $f_{\text{PBH}}$, is expressed in terms of the PBH mass $M$, the $k=k(M)$ relation is required in order to connect the $f_{\text{PBH}}(M)$ and the ${\cal P_{R}}(k)$. During matter era the horizon size grows with a different rate and the relation between the mass $M$ contained in the comoving Hubble radius of size $k^{-1}=(aH)^{-1}$ is different from that of a radiation era. In particular the $k(M)$ relation has the following scaling during radiation and matter eras respectively,

[TABLE]

For the matter era there is the extra dependence on the reheating temperature.

Given these relations, in this work, we will transform the observational upper bounds on the PBH yield, $Y_{\text{PBH}}$, that is the PBH number density-over-entropy with mass $M$ into upper bounds on the power spectrum ${\cal P_{R}}(k)$. This requires two computational steps. The first step is to specify the maximum value for the $\beta(M)$ from the yield, something that is possible only after the reheating temperature is known. The second step is to go from the $\beta(M)$ to the variance $\sigma(M)$. This is a more elaborated step since the size of the $\beta$ depends on the variance of the density perturbations in a different way if the collapse takes place in a background with or without pressure. Also, if there is thermal pressure the collapse is effectively instantaneous whereas, if the there is no pressure the collapse has a duration determined by a critical $\sigma$ value. Moreover, in matter era the amplitude of the variance determines whether the PBH formation-rate is affected by angular momentum effects. Taking all these into account, we derive the maximum value allowed by observations for the ${\cal P_{R}}(k)$ on all scales.

The recent works [59, 60] have also examined the ${\cal P_{R}}(k)$ constraints on all scales in a similar context. In this work we present new results and elucidate different questions. In particular, we complement part of their analysis by including the spin effects for gravitational collapse, that are crucial and change considerably the corresponding bounds on the variance $\sigma(M)$ and the power spectrum ${\cal P_{R}}(k)$. We also derive the constraints on the PBH production scenarios for any reheating temperature and in addition we examine the scenario of a non-thermal phase due to a modulus field. Finally, we estimate constraints for the spectral index value of the tail of the power spectrum with respect to the reheating temperature and estimate the maximum allowed value for the power spectrum taking into account the BBN and CMB constraints along with the $f_{\text{PBH}}$ bounds.

The structure of the paper is the following. In section 2 we discuss the observational bounds on the mass fraction of the universe that collapses into PBH, $\beta(M)$, introducing the $\beta(M)$ constraints for the early matter domination (eMD) era in addition to those for the radiation domination (RD) era. In section 3 we derive the expressions that relate the PBH mass and the comoving horizon scale for different cosmic histories, that we generalize in section 7. In section 4 we derive the principle results of this work, that is the upper bound for the variance of the density perturbations for any reheating temperature. In section 5 we estimate the maximum possible amplitude for the power spectrum, ${\cal P_{R}}_{\text{max}}$, with respect to the reheating temperature considering constraints both on the PBH dark matter abundance and the Hawking radiation. In section 6 we examine the cosmological scenario of an intermediate non-thermal phase due to modulus condensate domination. In section 7 we present the full power spectrum constraints and briefly discuss additional constraints that apply at larger scales. We conclude in section 8 where we outline and discuss the implications of the constraints derived in this work for the inflationary models. In Appendix we assume a particular morphology for the ${\cal P_{R}}(k)$ for large wavenumbers and illustrate the tension with the big bang observables that a wide power spectrum peak may generate.

2 The $\beta$ bound for PBH formation during radiation and matter domination eras

2.1 Radiation domination era

A PBH with mass $M$ forms during a radiation dominated (RD) era if a preexisting overdensity with wavelength $k^{-1}$ enters the horizon after the reheating of the universe. The PBH mass is equal to $\gamma M_{\text{hor}}$ where $M_{\text{hor}}$ is the horizon mass and $\gamma$ a numerical factor which depends on the details of gravitational collapse. This consideration is regarded as the conventional one for PBH formation, for a different recent suggestion see Ref. [61]. The present ratio of the abundance of PBHs with mass $M$ over the total dark matter (DM) abundance, $f_{\text{PBH}}(M)\equiv{\Omega_{\text{PBH}}(M)}/{\Omega_{\text{DM}}}$, can be expressed as

[TABLE]

where we took again the effective degrees of freedom $g_{*}$ and $g_{s}$ approximately equal. We also wrote the numerical factor $\gamma$ during RD as $\gamma_{\text{R}}$ in order to distinguish it from that during eMD, labeled $\gamma_{\text{M}}$, since their values are expected to be different. The observational constraints put upon the PBH dark matter fraction $f_{\text{PBH}}(M)$ an upper bound $f_{\text{max}}$. However for evaporating PBH it is more meaningful to use the $\beta(M)$ instead,

[TABLE]

where we defined

[TABLE]

and took $\Omega_{\text{DM}}h^{2}=0.12$111We do not assume that the dark matter is necessarily composed of PBHs.. The observational upper bound on $f_{\text{PBH}}(M)$ which from Eq. (6) is translated into an upper bound on $\beta(M)$ that we call $\boldsymbol{C_{M}}$,

[TABLE]

The evaporation of the PBH formed will not affect the cosmological observables if the constraint (8) is satisfied. The constraint line $\boldsymbol{C_{M}}$ is depicted in Fig. 1, following the results of Ref. [43].

The inequality (6) is written in terms of the black holes lifetime and yield as $\beta^{\prime}(\tau)<5.3\times 10^{21}(\tau/s)^{1/2}Y_{\text{PBH}}$. For lifetime $\tau<10^{2}$ seconds there are limits on the amount of the thermal radiation from the PBHs evaporation due to the production of entropy, that may be in conflict with the cosmological photon-to-baryon ratio, [62], dark matter, e.g. the lightest supersymmetric particle, or Planck-mass remnants [64, 65, 63, 66], labeled entropy, DM (with dotted-dashed line due to model dependence of this constraint) and Planck respectively in our figures. These ultra light PBHs give interesting constraints or might explain the entire dark matter in the universe, see [66] for a recent work. In the following analysis we will focus on PBHs with larger lifetimes since the presence of such PBHs might be in conflict with the BBN and CMB observables implying that the $\beta(M)$ has to be particularly suppressed. For $\tau=10^{2}-10^{7}s$, that corresponds to $M=10^{10}-10^{12}$ g, hadrodissociation processes become important and the debris deuterons and nonthermally produced 6Li constrain the $\beta(M)$; for $\tau=10^{7}-10^{12}$ s, that corresponds to $M=10^{12}-10^{13}$ g, photodissociation processes overproduce 3He and D and put strong constraints on $\beta(M)$ [44, 45, 46, 47, 48]. In addition, the heat produced by PBHs evaporation after the time of recombination may damp small-scale CMB anisotropies contrary to observations. The electrons and positron scatter off the the CMB photons and heat the surrounding matter. The small scale CMB anisotropies will remain intact by the PBHs evaporation if $\beta^{\prime}(M)\lesssim 3\times 10^{-30}(M/10^{13}\text{g})^{3.1}$ for $2.5\times 10^{13}\lesssim M\lesssim 2.4\times 10^{14}$ [67, 49, 43]. This is stronger than all the other available limits on the $\beta^{\prime}(M)$. In the next sections we will utilize the BBN bound and CMB (monochromatic) bounds $\beta^{\prime}(5\times 10^{10}\text{g})<10^{-24}$ and $\beta^{\prime}(2.5\times 10^{13}\text{g})<5\times 10^{-29}$ respectively, to derive the stringent constraints on the variance of the density perturbations on small scales.

Apart from the constraints on evaporated PBHs, that is the primary interest of this work, there are numerous constraints on PBHs present in the late universe, which are the most commonly applied. In the late universe, the PBH evaporation rate is constrained from the extra galactic gamma-ray background [44, 45, 46, 47, 48]. Black holes of mass above $10^{17}$g are subject to gravitational lensing constraints [68, 70, 69], labeled with Subaru HSC, MACHOS, EROS OGLE in the plots. The recent results of Ref. [71] remove the femtolensing constraints and we accordingly updated the plots. Also, black holes influence the trajectory and the dynamics of other astrophysial objects such as neutron stars and white dwarfs [72, 73, 74, 75, 76] that constrain the abundance of light black holes, labeled WD. The CMB constrains the PBH with mass above $10^{33}$g because the accretion of gas and the associated emission of radiation during the recombination epoch could affect the CMB anisotropies [77]. Recently it has been claimed that the CMB bounds on massive PBHs may be relaxed due to uncertainties in the modeling of the relevant physical processes [78, 79, 80]. Finally, there are indirect constraints from the pulsar timing array experiments on the gravitational waves (GW2*) associated with the formation of relatively massive PBHs at the epoch of horizon entry222The mass range that the GW2* constraint applies has been revised over the last years. Here, the analysis and plots were done following Ref.[43].. Notably, a very severe constraint, $\beta(M)\lesssim 10^{-52}$, on the mass band $10^{2}-10^{4}M_{\odot}$ comes from pulsar timing data since the large scalar perturbations which are necessary to produce the PBHs also generate second-order tensor perturbations [81]. GW can constrain a larger window of PBHs mass. Bounds from GW are very interesting but we do not examine them further since they apply on the large mass window of PBHs, beyond the scope of this work. Only for comparison with the other observational constraints we include only the GW2 bound of Ref. [81] (before erratum) and add a brief discussion on secondary GW in section 8. We note finally that 21 cm observations [82] could potentially provide a stronger constraint in the mass range around $10^{14}$ g, with $\beta^{\prime}(M)<3\times 10^{-29}(M/10^{14}\text{g})^{7/2}$ for $M>10^{14}\text{g}$ but such limits do not exist at present. The combined upper bounds on $\beta^{\prime}(M)$ and $f_{\text{PBH}}$ are collectively depicted in Fig. 1.

2.2 Matter domination era

If the PBH form during the stage of oscillation of the inflaton field, i.e. matter domination (eMD) era, the corresponding wavelength $k^{-1}$ enters the horizon before the complete decay of the inflaton and it is

[TABLE]

The extra factor $\left({k}/{k_{\text{rh}}}\right)^{-3/2}$ accounts for the different redshift of the energy density of the the matter dominated universe compared to the radiation dominated universe. This scenario in the realistic framework of the inflationary $\alpha$-attractors has been examined in Ref. [27]. In this case we find that

[TABLE]

As we will show in the Section 3, it is $k/k_{\text{rh}}\propto\gamma^{1/3}_{\text{M}}g^{-1/6}_{*}T_{\text{rh}}^{-2/3}M^{-1/3}$, and the PBH dark matter fraction is written as,

[TABLE]

The $f_{\text{PBH}}^{\text{(MD)}}$ value has to be below the observational bound $f_{\text{max}}$ and, on the same footing with the definition (7), we define for the matter domination era,

[TABLE]

which is independent of thermal degrees of freedom $g_{*}$ as it should. The corresponding observational bound on $\beta^{\prime}(M)$ in terms of the $\boldsymbol{C_{M}}$ reads,

[TABLE]

Hence, for $k_{\text{rh}}<k$, or equivalently $M/\gamma_{\text{R}}<M_{\text{rh}}$, where $M_{\text{rh}}$ the horizon mass at the end of reheating, the maximum mass fraction of the universe allowed to collapsed into PBH is temperature dependent, see Fig. 2.

In the inflationary framework the upper bound on $\beta^{\prime}(M)$ is effective only if the formation of PBH with mass $M$ is possible. The horizon mass right after inflation is $M_{\text{end}}=4\pi M^{2}_{\text{Pl}}/H_{\text{end}}$ and the bounds are meaningful for PBH with masses $M>\gamma_{\text{}}\,M_{\text{end}}$, that is for

[TABLE]

The above inequality yields a lower bound for the inflation energy scale. A PBH with mass $M$ will form due to superhorizon perturbation if the corresponding wavelength $k^{-1}$ is larger than the horizon distance at the end of inflation. Thus a different way to write the condition (14) is

[TABLE]

In the following we will find the expression $k(M)$ in order to recast the $\beta^{\prime}(M)$ bound into $\sigma(k)$ and put the constraints onto the power spectrum. This requires to determine the evolution of the cosmic horizon during RD and eMD eras.

3 The relation between the PBH mass and the horizon scale

The relation between the mass $M$ contained in the comoving horizon of size $k^{-1}$ is required in order to specify the PBH mass generated at that scale. This relation is also necessary in order to make contact of the $\beta(M)$ bounds with the power spectrum of the comoving curvature perturbation ${\cal P_{R}}(k)$. In a radiation dominated universe the mass contained in the horizon of size $k^{-1}$ is $M_{\text{hor}}(k)\simeq M_{\text{rh}}\left(k/k_{\text{rh}}\right)^{-2}$, where $M_{\text{rh}}$ the horizon mass at the time of the reheating of the universe. In the following we will determine the scales $k_{\text{end}}$ and $k_{\text{rh}}$. It is

[TABLE]

where, for clarity, we labeled $k_{0.05}$ the Planck pivot scale $k_{*}=0.05$ Mpc${}^{-1}\equiv k_{0.05}$ on the CMB sky [83]. $\tilde{N}_{\text{rh}}$ are the efolds that take place after inflation until the onset of the RD phase and $\Delta\tilde{N}_{\text{RD}}$ are the efolds that take place from the onset of the continuous RD phase until the reentry epoch of the scale $k^{-1}_{0.05}$. At that time the thermal degrees of freedom are $g_{*}(T_{0.05})$. In the case that an additional pressureless non-thermal phase that last for $\tilde{N}_{X}$ efolds follows the reheating of the universe the $k_{\text{rh}}$, given by Eq. (16), is further displaced $e^{\tilde{N}_{X}/2}$ times.

The $\tilde{N}_{\text{rh}}$ and $\Delta\tilde{N}_{0.05}^{\text{(RD)}}$ are related with the inflationary dynamics by the expression

[TABLE]

In following sections we will consider the scenario of an early cosmic era dominated by a scalar-condensate with zero effective equation of state and the extra $\tilde{N}_{X}$ the e-folds have to be taken into account.

The number of e-folds during inflation $N_{0.05}$ are analyzed as [84, 85, 83],

[TABLE]

The measured value ${\cal P_{R}}=V_{0.05}/(24\pi^{2}\epsilon_{0.05}M^{4}_{\text{Pl}})=2.2\times 10^{-9}$ gives that $\ln(V^{1/4}_{0.05}M^{-1}_{\text{Pl}}/\sqrt{3})=-4.2+1/4\ln(\epsilon_{0.05})$, and $\ln(k_{0.05}/(a_{0}H_{0}))\simeq 5.4$. For $\bar{w}_{\text{rh}}=0$ and recalling that $H_{0.05}$ is written in terms of the inflationary observable $r_{0.05}$ as $H_{0.05}(r)=8.38\times 10^{13}\,\text{GeV}\times$ $\sqrt{{r_{0.05}}/{0.1}}$ we attain

[TABLE]

Now, the $\tilde{N}_{\text{rh}}$ is related to the reheating temperature as $\rho_{\text{rh}}\,=\,\rho_{\text{end}}\,e^{-3\tilde{N}_{\text{rh}}}\,=\,\pi^{2}g_{*}T^{4}_{\text{rh}}/30\,$ thus

[TABLE]

One sees that $T_{\text{rh}}$ maximizes when $\tilde{N}_{\text{rh}}=0$ and $H_{\text{end}}$ is maximum. From Eq. (16) and (17) we obtain the wavenumber that corresponds to the horizon mass at the end of inflation,

[TABLE]

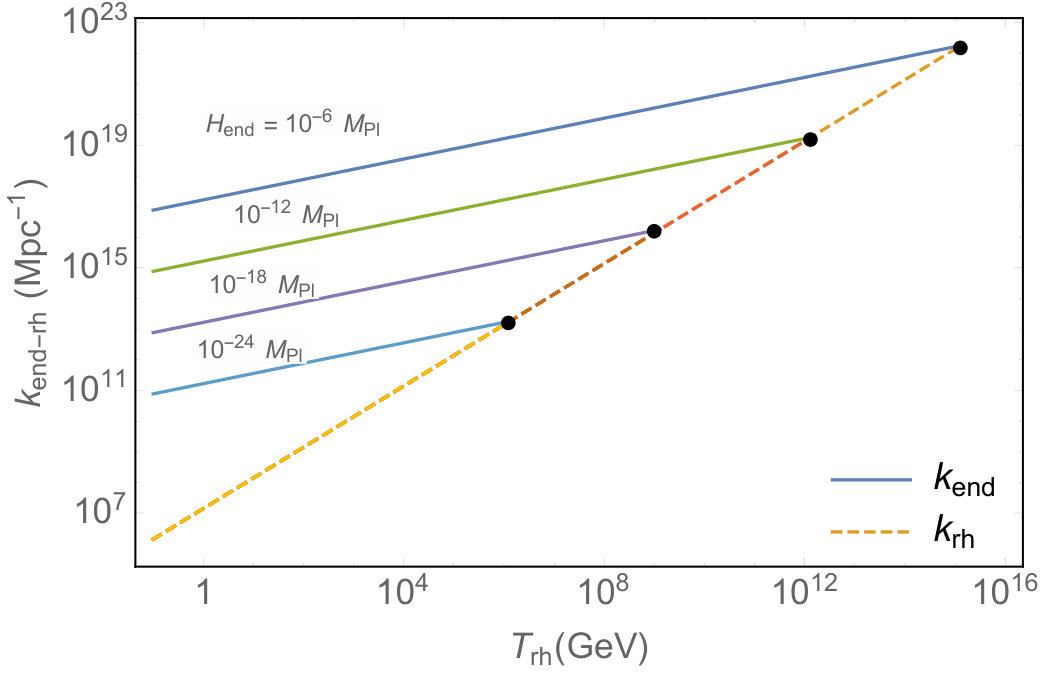

Accordingly we obtain the horizon wavenumber $k_{\text{rh}}=k_{\text{end}}e^{-\frac{1}{2}\tilde{N}_{\text{rh}}}$ at the moment of reheating, $\Gamma_{\text{inf}}=H$,

[TABLE]

During the matter domination, the relation between the the scale $k^{-1}_{\text{MD}}$ and the horizon mass $M/\gamma_{M}$ is

[TABLE]

Utilizing the relation (21) and after normalizing the PBH mass, the reheating temperature and the relativistic degrees of freedom we obtain for $N_{X}=0$,

[TABLE]

After the completion of reheating the universe is in a thermal equilibrium state with temperature $T_{\text{rh}}$ and the radiation domination phase commends. The horizon mass at that stage is $M_{\text{rh}}=M_{\text{hor}}(T_{\text{rh}},g_{*})$,

[TABLE]

During the RD era the relation between the scale $k^{-1}_{\text{RD}}$ and the horizon mass $M/\gamma_{\text{R}}$ is

[TABLE]

where we substituted the expression for $k_{\text{rh}}$. Plugging in numbers we obtain

[TABLE]

Collectively we write the PBH mass $M$ and the horizon scale relation,

[TABLE]

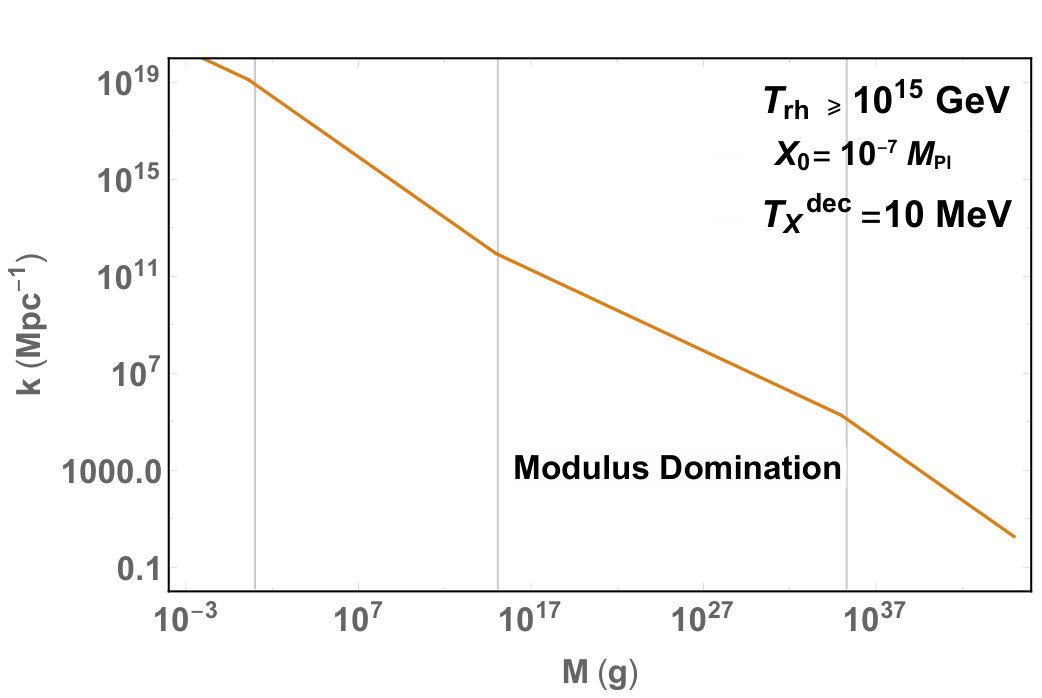

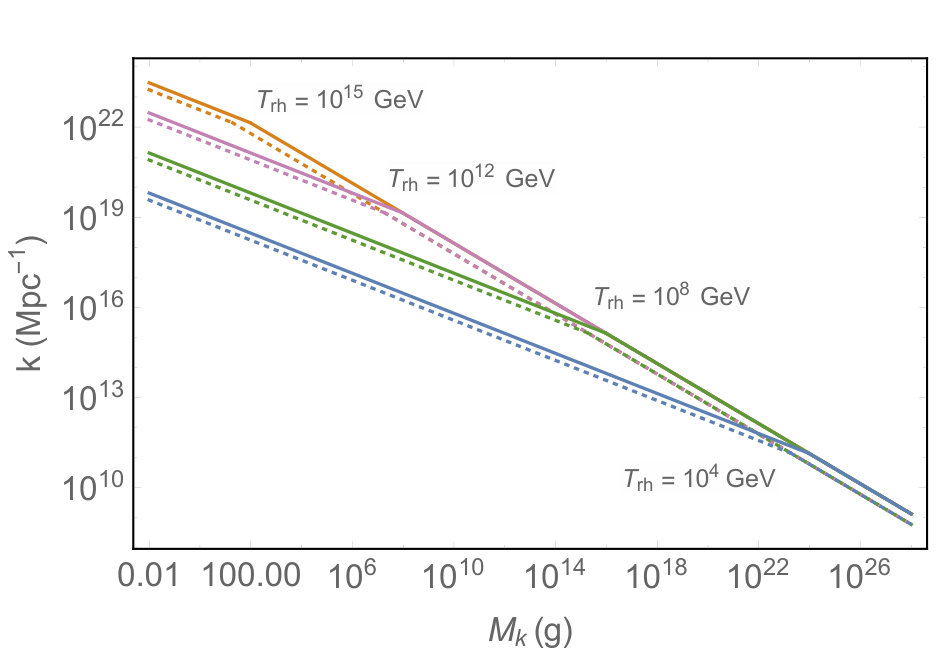

For a range of reheating temperatures the $k=k(M)$ relation is depicted in Fig. 3. This is a necessary relation in order someone to apply the $\beta(M)$ constraints onto an inflationary model that yields a particular ${\cal P_{R}}(k)$. Throughout this paper we assume a one-to-one correspondence between the scale of perturbation and the mass of the PBHs. Our analysis is supported by the findings of the Refs. [86, 87] that the typical mass of the PBHs is about the horizon mass at the moment of formation. Nevertheless, the work of [87] points out that a tiny amount of black holes are created at the low-mass tail of the near-critical collapse. This finding is rather interesting, nevertheless in the current analysis we omit possible effects from PBHs in the low-mass tail.

The transition from matter to radiation

A key quantity is the moment that the transition from the matter domination to radiation takes place. If it happens instantaneously then the horizon mass at the transition epoch is equal to $M_{\text{rh}}$. But, the decay of the inflaton condensate is not an instantaneous process. It happens with a decay rate $\Gamma_{\text{inf}}$ and the completion is usually defined at the moment that $H=\Gamma_{\text{inf}}$. However radiation is gradually generated by the partial inflaton decay implies that the transition from eMD to RD may take place either before or after the moment $H=\Gamma_{\text{inf}}$.

Let us define the moment of the transition as $H_{\text{tr}}=\Gamma_{\text{inf}}/\alpha$. Then the efolds that take place from the end of inflation until the transition epoch are $N_{\text{tr}}=N_{\text{rh}}+\frac{2}{3}\,\ln\alpha$. Also, the wavenumber at the transition is $k_{\text{tr}}=\alpha^{-1/3}k_{\text{rh}}$ and the horizon mass, $M_{\text{tr}}=\alpha^{2/3}\,M_{\text{rh}}$. The moment of the transition might be when the energy density of the universe is equally partitioned between the inflaton condensate and the entropy produced by the inflaton decay, or when the probability for PBH formation coincides for the two production mechanisms [88]. In the first case it is $\alpha>1$ since about 21$\%$ of the (comoving) energy density of the inflaton condensate has been extracted at reheat time [89], thus $N_{\text{tr}}>N_{\text{rh}}$. In the second case it is $\alpha<1$ and $N_{\text{tr}}\simeq 90\%\,N_{\text{rh}}<N_{\text{rh}}$ [88]. For clarity and simplicity, in the following analysis we approximate $N_{\text{tr}}=N_{\text{rh}}$, $k_{\text{tr}}=k_{\text{rh}}$ and $M_{\text{tr}}=M_{\text{rh}}$.

4 The upper bounds for the variance of the density perturbation

PBH formation is possible during the early stages of the Universe when superhorizon fluctuations in the curvature of spacetime cross into the horizon and collapse under their own self-gravitation. We will assume the approximation that the mass distribution of the PBH formed is contracted about the horizon mass. In the heated universe the PBHs are expected to form with mass $M=\gamma_{\text{R}}M_{\text{hor}}$ when the cosmic temperature is

[TABLE]

For $M=5\times 10^{10}$ g we define the BBN critical temperature where PBHs of that mass form,

[TABLE]

PBHs with such a mass emit a flux of Hawking thermal radiation in a timescale $\tau(M)$ which might alter the BBN observables. Respectively, for $M=2.5\times 10^{13}$ g we define the CMB critical temperature,

[TABLE]

that PBHs with lifetime $\tau(M)$, characteristic of the CMB physics timescale, form.

4.1 Radiation domination era

The $\beta^{\prime}(M)<\boldsymbol{C_{M}}$ bound applies for PBH with mass $M>\gamma_{\text{R}}M_{\text{hor}}(T_{\text{rh}})$, or equivalently for scales $k^{-1}$ that enter after the completion of the reheating phase, i.e. $k<k_{\text{rh}}$. From Eq. (22) this is recast into the condition for the reheating temperature,

[TABLE]

For that large reheating temperatures the mass fraction $\beta^{\prime}$ of the universe that collapses into PBH has to be smaller than $\boldsymbol{C_{M}}$,

[TABLE]

We have assumed that the fluctuations at horizon crossing are Gaussian with variance $\sigma(M)$. A black hole forms if the density contrast at horizon crossing $k=aH$ exceeds a critical value $\delta_{c}$. The value of $\delta_{c}$ varies in the literature, e.g. $\delta_{c}=1/3$ or 0.45 are used which means that black holes form only from the tail of the density fluctuation distribution and the overdense regions are likely to be spherical. In the comoving gauge Ref. [90] finds that

[TABLE]

For $w=1/3$ it is $\delta_{c}=0.41$. We note that different values for $\delta_{c}$ are cited in the literature, see also [86, 91, 92, 93]. The numerical value of the $\gamma_{\text{M}}$ is unknown. It depends on the details of gravitational collapse. Simple analytical calculation suggests that it is $\gamma_{\text{R}}\sim 0.2$ [5]. Critical phenomena, such as the reduction of pressure could reduce the $\gamma_{\text{M}}$ value [94, 95]. In our analysis we leave the $\gamma$ numerical values unspecified and for clarity in some expressions we will normalize the $\gamma_{\text{R}}$ with $0.2$ and the $\gamma_{\text{M}}$ with 0.1.

BBN and CMB constraints

The $\beta(M)$ depends very mildly on the degrees of freedom thus for simplicity and without cost in accuracy we assume below that $g_{*}=106.75$. For $|\ln(\boldsymbol{C_{M}}/\sqrt{\gamma_{\text{R}}})/|\gg|\ln(\sigma/\delta_{c})|$ the (33) rewrites

[TABLE]

For $M\simeq 5\times 10^{10}$ g the BBN constraint is $\boldsymbol{C_{M}}\simeq 10^{-24}$ and for $M\simeq 2.5\times 10^{13}$ g the CMB constraint is $\boldsymbol{C_{M}}\simeq 5\times 10^{-29}$, hence we can obtain the $\sigma(5\times 10^{10}\text{g})$ and the $\sigma(2.5\times 10^{13}\text{g})$ bound respectively. Using the expression (27) the constraints read in the momentum space,

[TABLE]

for $T_{\text{rh}}>4.3\times 10^{10}\,\gamma_{\text{R}}^{1/2}$ GeV, and

[TABLE]

for $T_{\text{rh}}>2.2\times 10^{9}\,\gamma_{\text{R}}^{1/2}$ GeV respectively.

Numerically we find that the approximation (35) differs from the exact only about 0.1$\%$. In the next section, where the gravitational collapse during eMD era will be examined, we will see that the constraints (36) and (37) apply also for smaller reheating temperatures -about two orders of magnitude smaller- due to the finite time required for the gravitational collapse.

The above constraints on the variance of perturbations can be applied on the power spectrum of the primordial comoving curvature perturbations. An explicit constraint on ${\cal P_{R}}$ can be found only if the ${\cal P_{R}}$ is known in a range of momenta $k$. Also, one has to consider a window function to smooth the density contrast. During RD the relation between the variance of the comoving density contrast and the ${\cal P_{R}}$ reads

[TABLE]

where $W(z)$ represents the Fourier transformed function of the Gaussian window, $W(z)=e^{-z^{2}/2}$. For an order of magnitude estimation we can approximate $\sigma\sim(4/9){\cal P_{R}}^{1/2}$ and the constraints on the power spectrum read in momentum space ${\cal P_{R}}(k)\lesssim{\cal O}(10^{-3})$. Increasing the $\delta_{c}$ value the bounds become weaker, for example for $\delta_{c}=0.5$ the bounds on ${\cal P_{R}}$ are relaxed 1.5 times.

4.2 Matter domination era

A presureless matter domination era is naturally realized in the early universe due to the coherent oscillations of the inflaton or other scalar fields. During matter era the Jeans pressure is negligible and scalar perturbations, that would be minor in the radiation domination era, can grow linearly with the scalar factor and lead to PBH formation. If the reheating temperature is

[TABLE]

then the formation rate of PBH with mass less than $\gamma_{\text{R}}M_{\text{rh}}$ might change drastically. In addition the PBH abundance formed during eMD era scales differently with time. For scales $k$ that enter during early matter domination the bound is $\beta^{\prime}_{\text{MD}}(M_{\text{}})\,<\,\gamma_{\text{M}}^{-1/2}(g_{*}/106.75)^{1/4}\left({k}/{k_{\text{rh}}}\right)^{3/2}\,\boldsymbol{C_{M}}$, and in terms of $M$ and $T_{\text{rh}}$ is recast into

[TABLE]

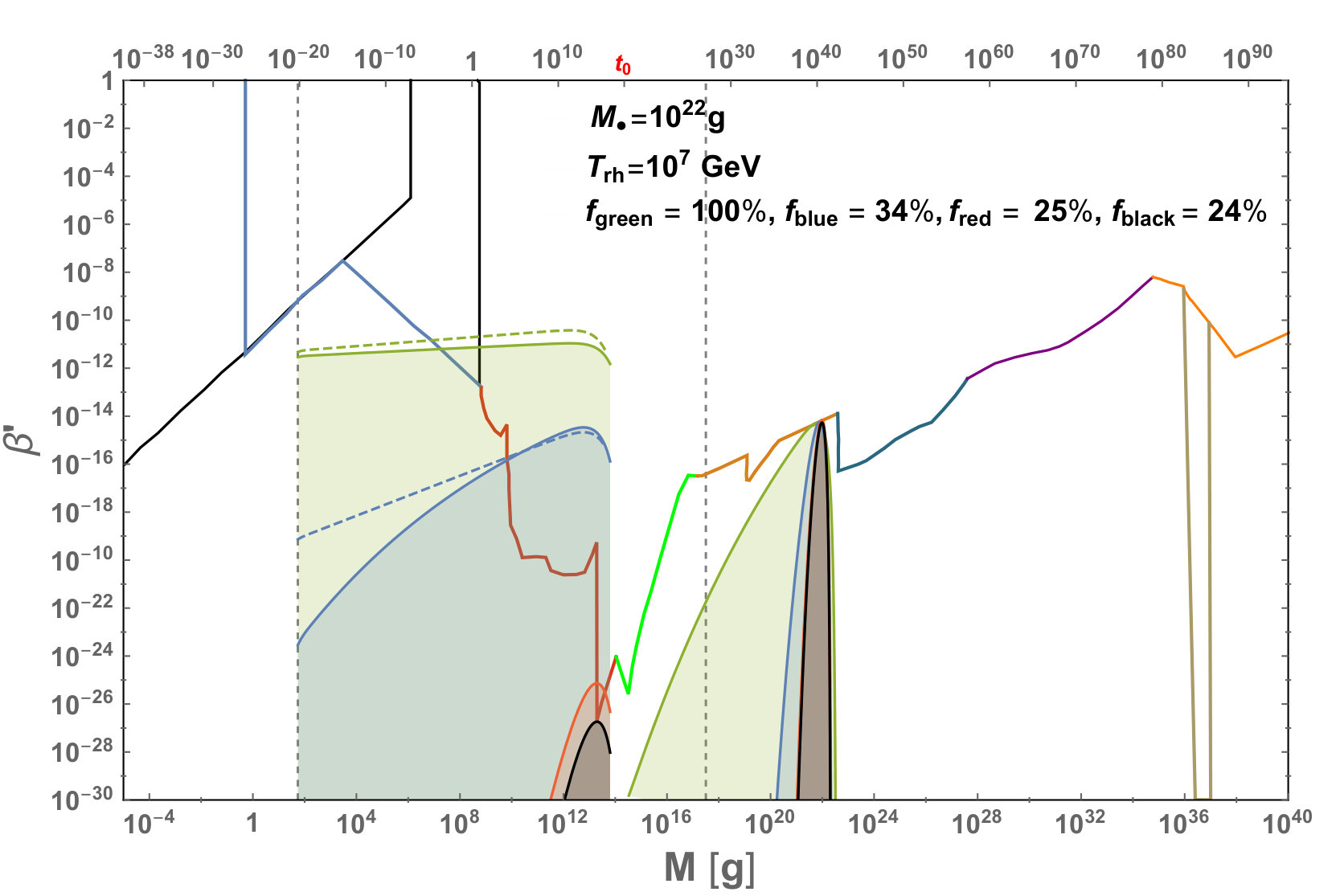

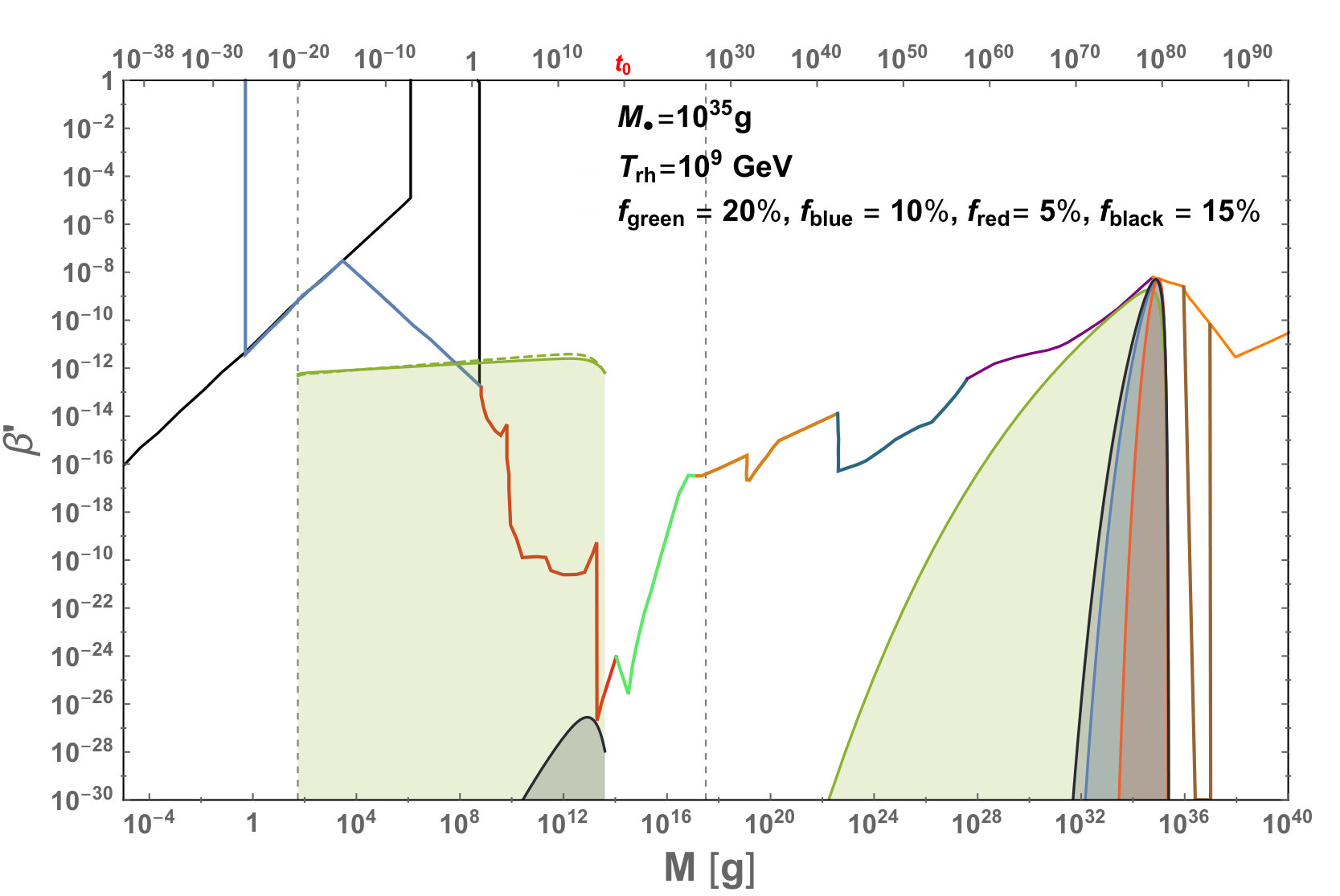

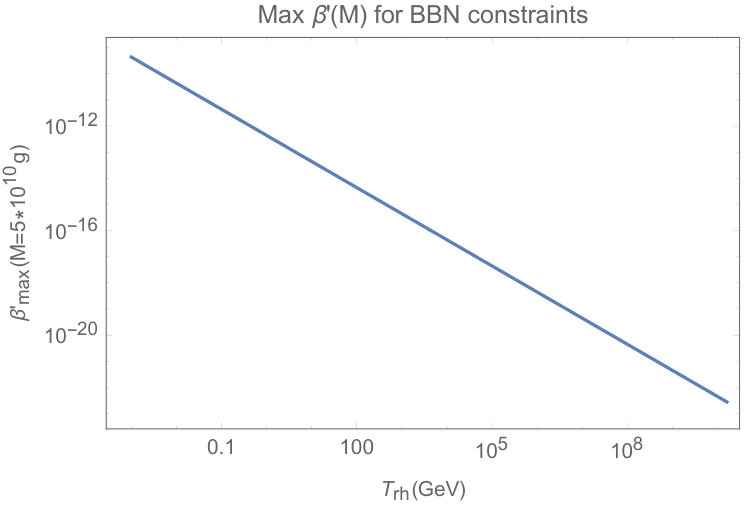

The $\beta^{\prime}_{\text{MD}}(M)$ constraint is depicted in Fig. 2.

PBHs formed during a pressureless matter dominated (MD) era has been considered in Ref. [94, 95, 97, 98, 99]. Employing the results of Ref. [57] for spinless gravitational collapse during eMD era the formation rate, which depends on the fraction of the regions which are sufficiently spherically symmetric, is given by

[TABLE]

We comment that in Ref. [94, 95] an additional suppression factor $\sigma^{3/2}$, refined also in Ref. [96], is included to take into account inhomogeneity effects that we do not consider here, following Ref. [57]. The PBH production rate in the eMD era is larger than that in the RD era for $\sigma\lesssim 0.05$ whereas for larger variance, due to the absence of relativistic pressure, the nonspherical effects suppress the PBH formation rate in eMD eras[57]. From Eq. (41) we attain a relation that relates the variance of the comoving density contrast $\sigma(M)$ to the observational bound $\boldsymbol{C_{M}}$,

[TABLE]

The PBH production rate is modified when the collapsing region has spin. The angular momentum suppresses the formation rate which now reads333The erratum of [58] has been taken into account. [58],

[TABLE]

Benchmark values are $q_{c}=\sqrt{2}$, $f_{q}\sim 1$ and ${\cal I}$ is a parameter of order unity [58]. According to [58] this expression applies for $\sigma(M)\lesssim 0.005\equiv\sigma_{\text{thr}}$, whereas the equation $\beta_{\text{MD}}(M)\,\simeq\,0.056\,\sigma^{5}(M_{\text{}})$ applies for $0.005\lesssim\sigma(M)\lesssim 0.2$.

The finite duration of the PBH formation

An additional critical parameter is the duration of the gravitational collapse. PBH formation is strongly suppressed by a centrifugal force and it completes, that is to enter into the nonlinear regime, only if the eMD era lasts sufficiently long. According to [58] the finite duration of the PBH formation can be neglected if the reheating time $t_{\text{rh}}$ satisfies

[TABLE]

where $t$ is the time of the horizon entry of the scale $k^{-1}$. In terms of wavenumbers and temperatures the above condition rewrites respectively,

[TABLE]

where $T$ the temperature that the scale $k^{-1}$ enters the horizon. If these conditions are not fulfilled then the time duration for the overdensity to grow and enter the nonlinear regime is not adequate. Due to the fact that the collapse does not happen instantaneously after the horizon crossing the formation rate (43) applies only for the scales $k$ that experience a variance of the comoving density contrast at horizon entry that is larger than

[TABLE]

In terms of temperature this translates into $\sigma>5/2\,{\cal I}^{-1}(T_{\text{rh}}/T)^{2}$. If $\sigma<\sigma_{\text{cr}}$ we will consider that the formation rate is that of the radiation era and in our numerics we will choose ${\cal I}=1$.

BBN and CMB constraints

The constraints on the variance during eMD apply only for those perturbations that have enough time to gravitationally collapse during the reheating era, since the collapsing process is not instantaneous. For a given scale $k^{-1}$ and variance $\sigma(k)$ there is a maximum reheating temperature that the collapse is realized during the eMD era. For PBHs to form during eMD with masses, $M_{\text{bbn}},M_{\text{cmb}}$, associated with the BBN and CMB constraints, respectively, it has to be

[TABLE]

Otherwise, the upper bound on the variance should be determined by the RD era dynamics since we expect the relativistic pressure at times $\Gamma^{-1}_{\text{inf}}$ to cause a bounce on the ongoing collapsing process. Thus, the constraints on the variance of the density perturbations given by Eq. (36) and (37) apply respectively for $T_{\text{rh}}>T_{\text{bbn}}^{\text{(MD)}}$ and $T_{\text{rh}}>T_{\text{cmb}}^{\text{(MD)}}$. The CMB constraint, as will be discussed below, is the stringent one except if the reheating temperature is in the window

[TABLE]

For such reheating temperatures the PBH that form during eMD influence the BBN but not the CMB observables.

The eMD variance of the comoving density contrast at horizon entry is constrained by the BBN and CMB observables for $T_{\text{rh}}<T_{\text{bbn}}^{\text{(MD)}}$ and $T_{\text{rh}}<T_{\text{cmb}}^{\text{(MD)}}$ respectively at the scales,

[TABLE]

In order to recast the mass fraction $\beta(M)$ constraints into constraints on the variance $\sigma(M)$ we have to solve the inequality

[TABLE]

However, an analytic solution can be found only for the case of spinless gravitational collapse. For the spinning case any analytic approximation is not accurate enough and numerical solutions have to be pursued. It is actually the spin effects that determine the maximum value for the variance $\sigma$ and cannot be ignored.

Let us first calculate the constraints on the variance of the comoving density contrast for the spinless collapse approximation, i.e. for $\sigma>0.005$. It is

[TABLE]

One sees that for the BBN constraint it is $\sigma>0.005$ for $T_{\text{rh}}\lesssim 3$ GeV. In fact, for reheating temperatures $T_{\text{rh}}<T_{\text{cmb}}^{\text{(MD)}}$ the CMB constraint is always the stringent one and there the spin effects (that we discuss right after) determine the maximum allowed variance, $\sigma_{\text{max}}$, see the right panel of Fig. 5. Hence, the bounds (52) and (53) should be seen only as indicative ones.

Turning now to the PBH formation rate considering spin effects, dictated by Eq. (43), one has to solve numerically the inequality (40) in order to derive upper bounds for the variance of the density perturbations. After fitting the numerical solution we find the BBN and CMB constraints for the variance,

$\displaystyle\left.\sigma(5\times 10^{10}\text{g})\right|_{\text{+spin}}\,\lesssim\,\text{Exp}\left[\right.$ $\displaystyle-4.74-0.23\,\ln\frac{T_{\text{rh}}}{\text{GeV}}+8.4\times 10^{-3}\,\left(\ln\frac{T_{\text{rh}}}{\text{GeV}}\right)^{2}$

(54)

\displaystyle\left.-1.5\times 10^{-4}\,\left(\ln\frac{T_{\text{rh}}}{\text{GeV}}\right)^{3}\right]\,\quad\quad\quad\quad\quad\quad\quad{\color[rgb]{1,0,0}\definecolor[named]{pgfstrokecolor}{rgb}{1,0,0}\text{(BBN)}}\,

for $T_{\text{rh}}<T_{\text{bbn}}^{\text{(MD)}}$ and,

$\displaystyle\left.\sigma(2.5\times 10^{13}\text{g})\right|_{\text{+spin}}\,\lesssim\,\text{Exp}\left[\right.$ $\displaystyle-6.67-0.098\,\ln\frac{T_{\text{rh}}}{\text{GeV}}+2.4\times 10^{-3}\,\left(\ln\frac{T_{\text{rh}}}{\text{GeV}}\right)^{2}$

(55)

\displaystyle\left.-4\times 10^{-5}\,\left(\ln\frac{T_{\text{rh}}}{\text{GeV}}\right)^{3}\right]\quad\quad\quad\quad\quad\quad\quad\quad{\color[rgb]{1,0,0}\definecolor[named]{pgfstrokecolor}{rgb}{1,0,0}\text{(CMB)}}\,

for $T_{\text{rh}}<T_{\text{cmb}}^{\text{(MD)}}$. The Eq. (49) translates them into the $k$-space.

Compared to the spinless case, these bounds are weaker but they are the effective ones for the matter domination era regardless the reheating temperature. They are depicted in Fig. 5. Collectively, the upper bounds on $\sigma(M)$ for any PBH mass $M$, written also in the momentum space, considering collapse during RD era and during eMD era with and without spin effects, are presented in Fig. 4.

Now that we derived the expressions (54) and (55) for the temperature dependent variance we can estimate the $T_{\text{bbn}}^{\text{(MD)}}$ and $T_{\text{cmb}}^{\text{(MD)}}$ from Eq. (47). Plugging in the the upper bound value for the $\sigma_{\text{MD}}(M)$ for spinning collapse we find the values,

[TABLE]

After rewritting the Eq. (47), we can also find the maximum reheating temperature value that a PBH with arbitrary mass $M$ forms during matter domination era. This is found after solving the equation

[TABLE]

where $T(M)$ is given by Eq. (29). We numerically solve this equation to find the $\sigma$ and the mass of the transition from eMD collapse to RD collapse for particular reheating temperatures and make the plots in Fig. 4, as well as in Fig. 9 and 10 presented in the following sections. In these figures the dashed lines in the region of transition from eMD to RD give the upper bound for $\sigma(M)$ if the collapse had been instantaneous.

Plugging in benchmark values, e.g, $\gamma_{\text{M}}=0.1$, and assuming $T_{\text{rh}}=T_{\text{cmb}}^{\text{(MD)}}\simeq 10^{7}$ GeV where the bounds become stringent, we get $\sigma(4.6\times 10^{17}\,k_{0.05})<9\times 10^{-4}$ for the BBN and $\sigma(1.4\times 10^{17}\,k_{0.05})<4\times 10^{-4}$ for the CMB. The constraints on the variance of the comoving density contrast can be applied on the power spectrum if there is an explicit form of the ${\cal P_{R}}$ at hand. In a matter domination era the relation between the variance and the ${\cal P_{R}}$ reads

[TABLE]

For an order of magnitude estimation we can approximate $\sigma\sim(2/5){\cal P_{R}}^{1/2}$ and for $\gamma_{\text{M}}=0.1$ and $T_{\text{rh}}=10^{7}$ GeV the constraints on the power spectrum read in momentum space, ${\cal P_{R}}(4.6\times 10^{17}\,k_{0.05})\lesssim{\cal O}(6\times 10^{-6})$ and ${\cal P_{R}}(1.4\times 10^{17}\,k_{0.05})\lesssim{\cal O}(10^{-6})$ for the BBN and CMB respectively. In Appendix we derive constraints on the ${\cal P_{R}}$ and the reheating temperature assuming a particular but representative enough form for the power spectrum.

In summary, the constraints (37) and the (54), (55) can be seen as width constraints for the power spectrum peak, that any inflationary model has to satisfy.

5 The maximum value for the ${\cal P_{R}}(k)$

In this section, the maximum value for the ${\cal P_{R}}(k)$ will be determined considering both the constraints from nonevaporated PBHs, with mass $M_{\bullet}$, and evaporated PBHs, with mass $M$. We will see that in general cases with intermediate or low reheating temperature the evaporated PBHs pose the stringent constraints on the ${\cal P_{R}}(k)$ amplitude.

5.1 Critical reheating temperatures

If the universe is reheated right after the formation of a PBH with mass $M_{\bullet}$ then we call this reheating temperature $M_{\bullet}$-critical and we label it $T^{\text{(MD)}}_{\bullet}$. In a matter domination universe, contrary to the radiation dominated case, the black hole formation is not instantaneous. After the reentry of the overdensity with wavenumber $k$ a finite time for the collapse is required. It is

[TABLE]

where $T_{\bullet}$ the temperature that the scale $k^{-1}_{\bullet}$ enters the Hubble horizon. Let us consider four interesting and representative mass examples of PBHs (see also Appendix). The critical temperatures read

[TABLE]

The numerical value of the $T^{\text{(MD)}}_{\bullet}$ depends on the variance of the density perturbation at the scale $k_{\bullet}\equiv k(M_{\bullet})$. Assuming the maximum allowed $\sigma_{\text{MD}}(M,T_{\text{rh}})$, we find after solving the algebraic equation (59) for $\sigma_{\text{MD}}$ given by Eq. (42) -spin effects can be ignored here- that, $T^{\text{(MD)}}_{\bullet}=2.1\times 10^{5}$ GeV, $3.2\times 10^{3}$ GeV, $2.9$ GeV and $6\times 10^{-3}$ GeV for PBH masses $M_{\bullet}=10^{18}$g, $10^{22}$g, $10^{29}$g and $10^{35}$g respectively.

5.2 The maximum ${\cal P_{R}}(k)$ amplitude

For the general definition

[TABLE]

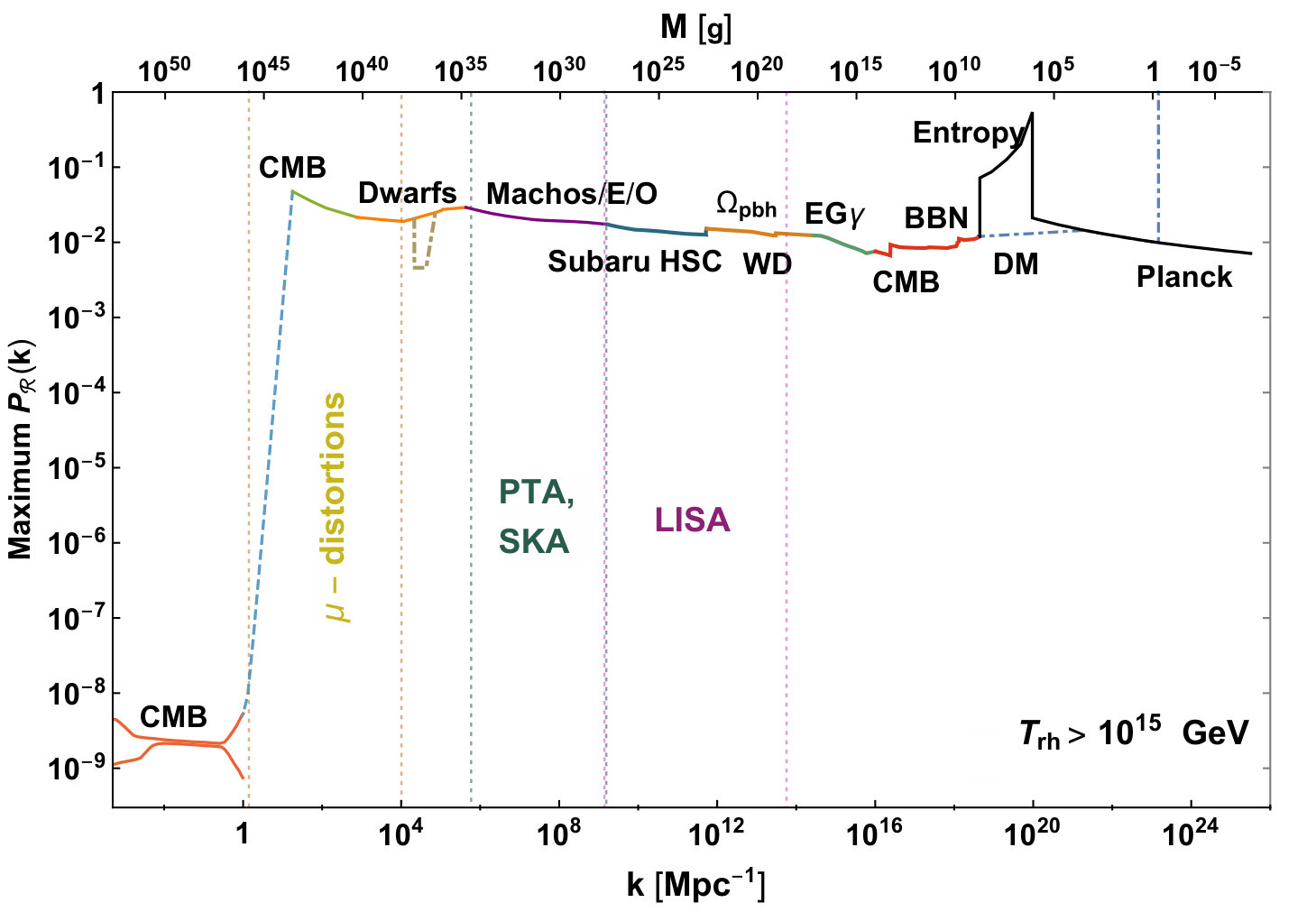

the maximum amplitude of the power spectrum of the comoving curvature perturbation is ${\cal P_{R}}_{\text{max}}={\cal P_{R}}(k)\left[f(k)\right]^{-1}$. The $f(k)$ is a function that describes the ${\cal P_{R}}(k)$ shape for $k>k_{\text{peak}}$. We consider that DM PBHs from at $k_{\text{peak}}=k_{\bullet}$. For the variance of the comoving density contrast $\sigma^{2}(k)=\theta^{2}\,{\cal P_{R}}(k)$ the general constraints on $\sigma_{\text{max}}(k)$ obtained in the previous sections can be applied on the power spectrum maximum amplitude,

[TABLE]

where we assumed that the PBHs mass distribution is mainly monochromatic. For a power spectrum ${\cal P_{R}}(k)$ designed to trigger a sizable PBH formation the ${\cal P_{R}}_{\text{max}}$ is bounded by the dynamical constraints on the nonevaporated PBHs, i.e. the fractional abundance $f_{\text{PBH}}$ must not violate the bounds depicted in the right panel of Fig. 1. Nevertheless, the evaporating PBH puts additional bounds on the ${\cal P_{R}}_{\text{max}}$ for a fixed form of the power spectrum tail, that is a fixed $f(k)$. In particular, the maximum amplitude of the power spectrum has to satisfy the constraints

$\displaystyle{\cal P_{R}}_{\text{max}}\,\leq\,\text{Min}\left\{\frac{\sigma^{2}_{\text{max}}(k_{\bullet})}{\theta^{2}}\,\,,\,\frac{\sigma^{2}_{\text{max}}(k_{\text{bbn}})}{\theta^{2}}\,\left[f(k_{\text{bbn}})\right]^{-1}\right\}\,$

(62)

for $T^{\text{(MD)}}_{\text{cmb}}\,\,\lesssim T_{\text{rh}}\,\,\lesssim\,T^{\text{(MD)}}_{\text{bbn}}\,$ and

$\displaystyle{\cal P_{R}}_{\text{max}}\,\leq\,\text{Min}\left\{\frac{\sigma^{2}_{\text{max}}(k_{\bullet})}{\theta^{2}}\,\,,\,\frac{\sigma^{2}_{\text{max}}(k_{\text{cmb}})}{\theta^{2}}\,\left[f(k_{\text{cmb}})\right]^{-1}\right\}\,$

(63)

for $T_{\text{rh}}\lesssim\,T^{\text{(MD)}}_{\text{cmb}}$.

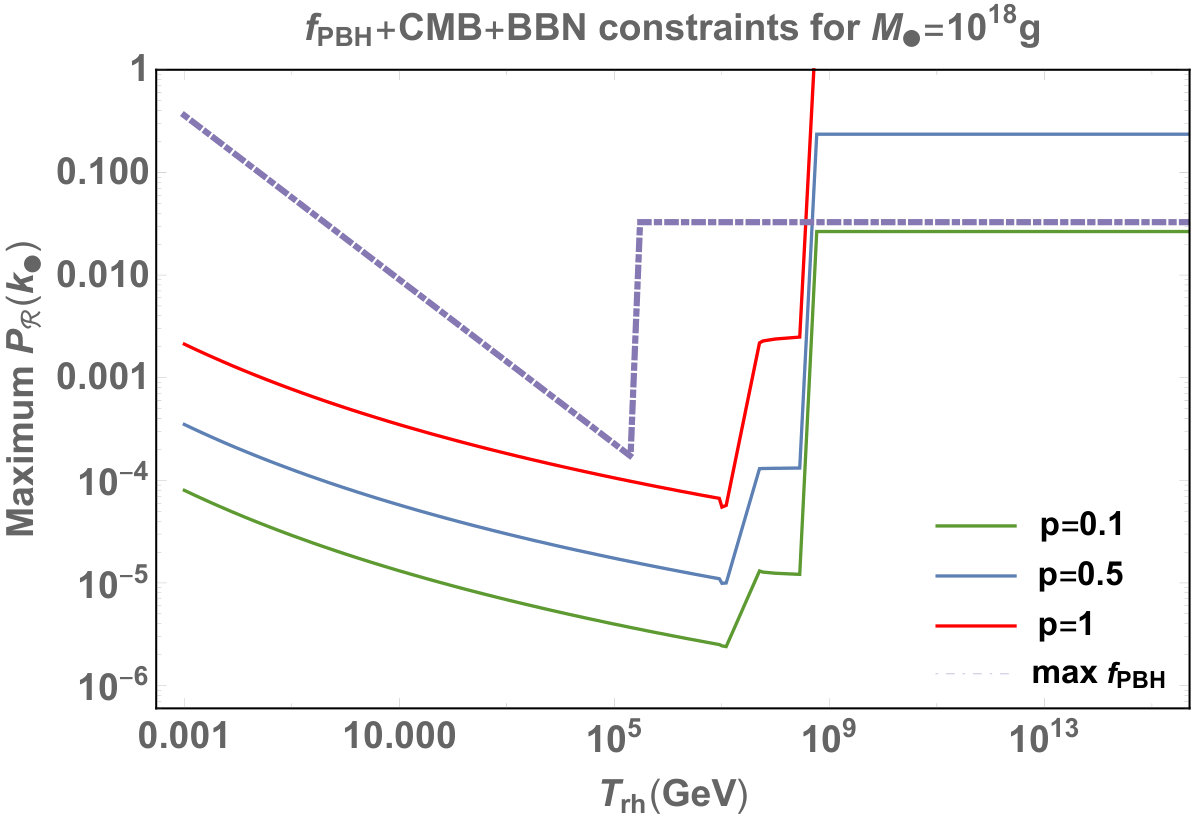

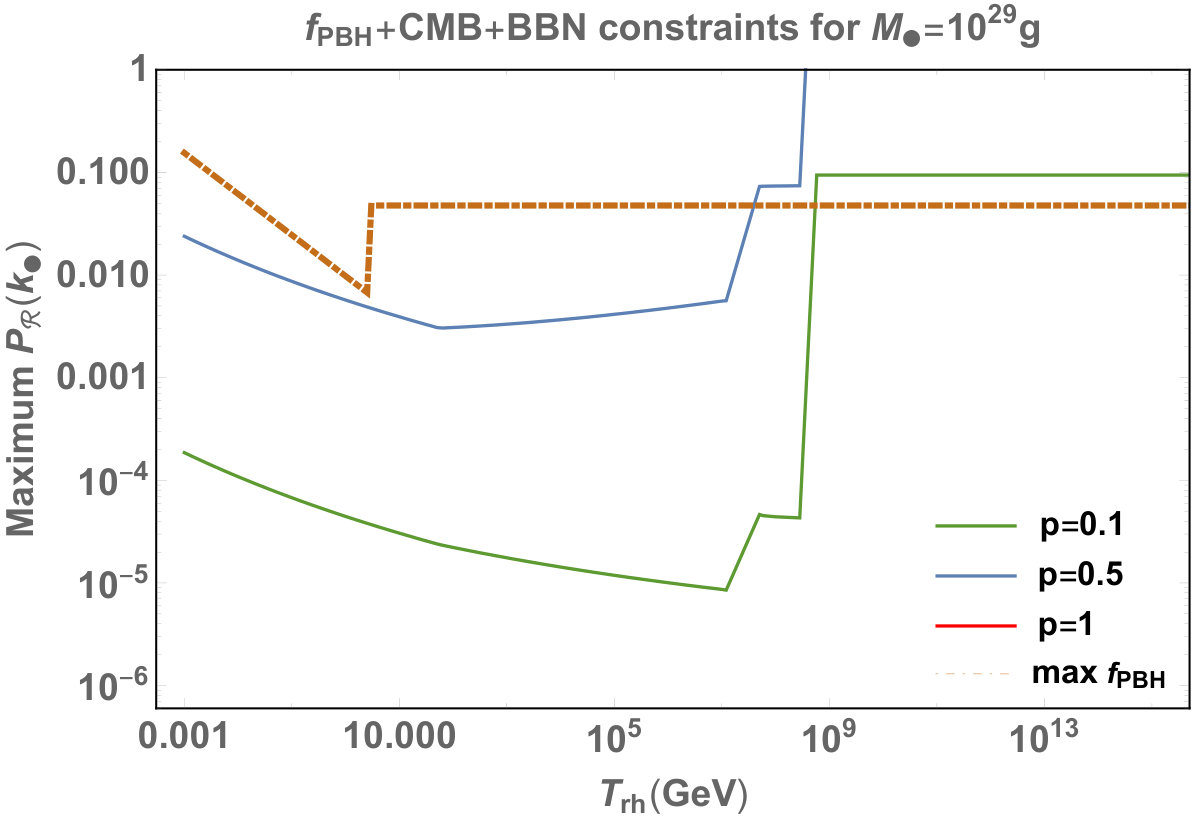

For $f(k)=(k/k_{\bullet})^{-p}$, that we exemplify in Appendix, it is $\theta^{2}=1/2\,(2/5)^{2}\,\Gamma\left(2-\frac{p}{2}\right)$. The ratio $k/k_{\bullet}$ depends on the reheating temperature. According to the expressions (24) and (27) it is

[TABLE]

where $\eta\equiv 5\times 10^{4}\gamma^{-1/2}_{\text{R}}\gamma^{1/3}_{\text{M}}(g_{\bullet}/106.75)^{1/12}$ and $k^{-1}$ identified either as the CMB or the BBN scale. $T_{k}$ is the temperature that the $k^{-1}$ scales enters the horizon. In the Fig. 6 the ${\sigma^{2}_{\text{max}}(k_{\bullet}(T_{\text{rh}}))}/{\theta^{2}}\,\left[f(k_{\bullet}(T_{\text{rh}}))\right]^{-1}$ bound is depicted with dot-dashed lines and the combined CMB and BBN bound, ${\sigma^{2}_{\text{max}}(k(T_{\text{rh}}))}/{\theta^{2}}\,\left[f(k(T_{\text{rh}}))\right]^{-1}$, with solid lines. The CMB+BBN bound depends both on the maximum value of the power spectrum and on the form of the power spectrum tail. We depict in Fig. 6 three different ${\cal P_{R}}(k)$ slopes with green, blue and black color respectively, see also Appendix where constraints on the this sort of ${\cal P_{R}}(k)$ are further exemplified.

6 Two-reheating stages

A generic prediction of beyond the Standard Model physics is the existence of additional scalar fields. These scalars under general initial conditions predict an epoch of early matter domination following inflation. The mass and decay rate of these scalars vary. For example, in the stringy and supersymmetric frameworks there are scalars, collectively called moduli, that decay gravitationally and their mass is determined by the scale of the symmetry breaking. A gravitationally decaying scalar $X$ with mass $m_{X}$ reheats the universe at $T^{\text{dec}}_{X}\sim 4\text{MeV}(m_{X}/10^{5}\text{GeV})^{3/2}$. The production of entropy by the modulus dilutes the thermal plasma $\Delta_{X}$ times,

[TABLE]

where $T_{X}^{\text{dom}}$ the temperature that the scalars dominated the energy density of the universe and $T_{X}^{\text{dec}}$ the late reheating temperature.

The fractional PBH abundance formed during a modulus domination era reads

[TABLE]

where

[TABLE]

and

[TABLE]

for $k_{X}^{\text{dec}}<k_{X}<k_{X}^{\text{dom}}$. The $\tilde{N}_{X}$ are the efolds of modulus-condensate domination, $\tilde{N}_{X}=\frac{4}{3}\ln(\Delta_{X}\,g^{1/4}_{\text{dom}}/g^{1/4}_{\text{dec}})$, and it is $k_{X}^{\text{dom}}=e^{\tilde{N}_{X}/2}k_{X}^{\text{dec}}$ hence $k_{X}^{\text{dom}}\simeq\Delta_{X}^{2/3}\,k_{X}^{\text{dec}}$.

Also, we can define the $k$-dependent ”dilution” size444Strictly speaking this is not a dilution. It accounts for the absence of expansion effects on the PBH abundance during the modulus domination., $\Delta_{k}\,\equiv\,\left({k}/{k_{X}^{\text{dec}}}\right)^{3/2}$ . Due to the modulus domination the abundance of PBH formed at scales $k>k_{X}^{\text{dom}}$ are diluted $\Delta_{X}$ times while the abundance of PBH formed at scales $k$ during the modulus domination era are partially ”diluted” $\Delta_{k}$ times. The horizon masses at the scales are $k_{X}^{\text{dec}}$ and $k_{X}^{\text{dom}}$ are respectively,

[TABLE]

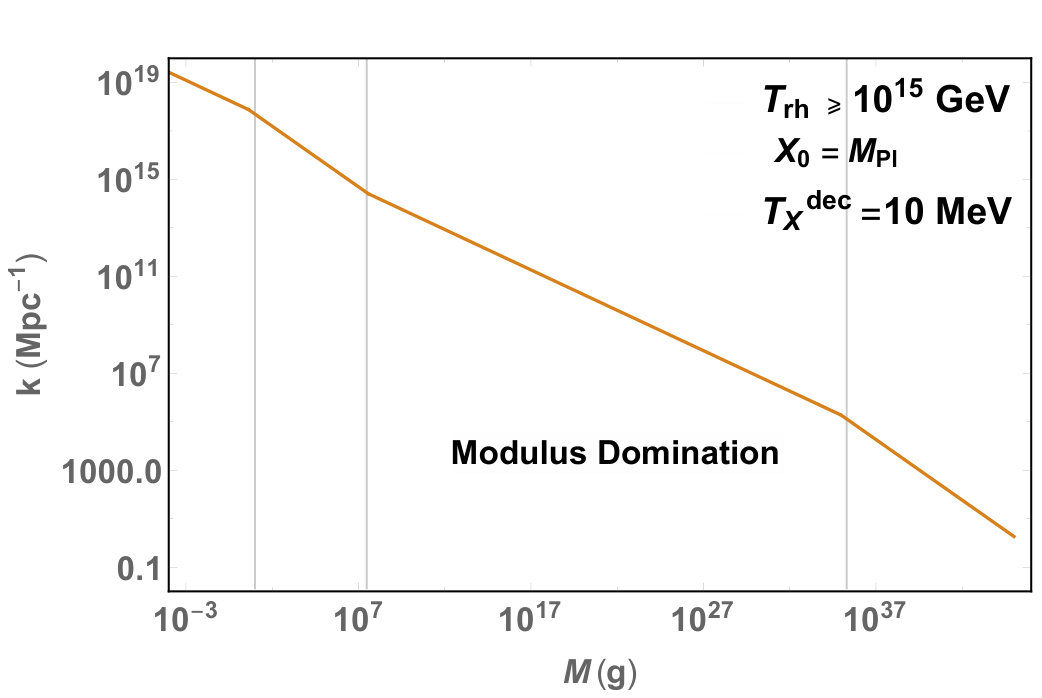

For the entire postinflationary phase the PBH mass $M$ and the horizon scale $k^{-1}$ are related as

[TABLE]

where $M_{\text{dec}}\equiv M_{\text{hor}}(T_{X}^{\text{dec}},g_{*})$ and $g_{\text{dec}}\equiv g_{*}(T_{X}^{\text{dec}})$.

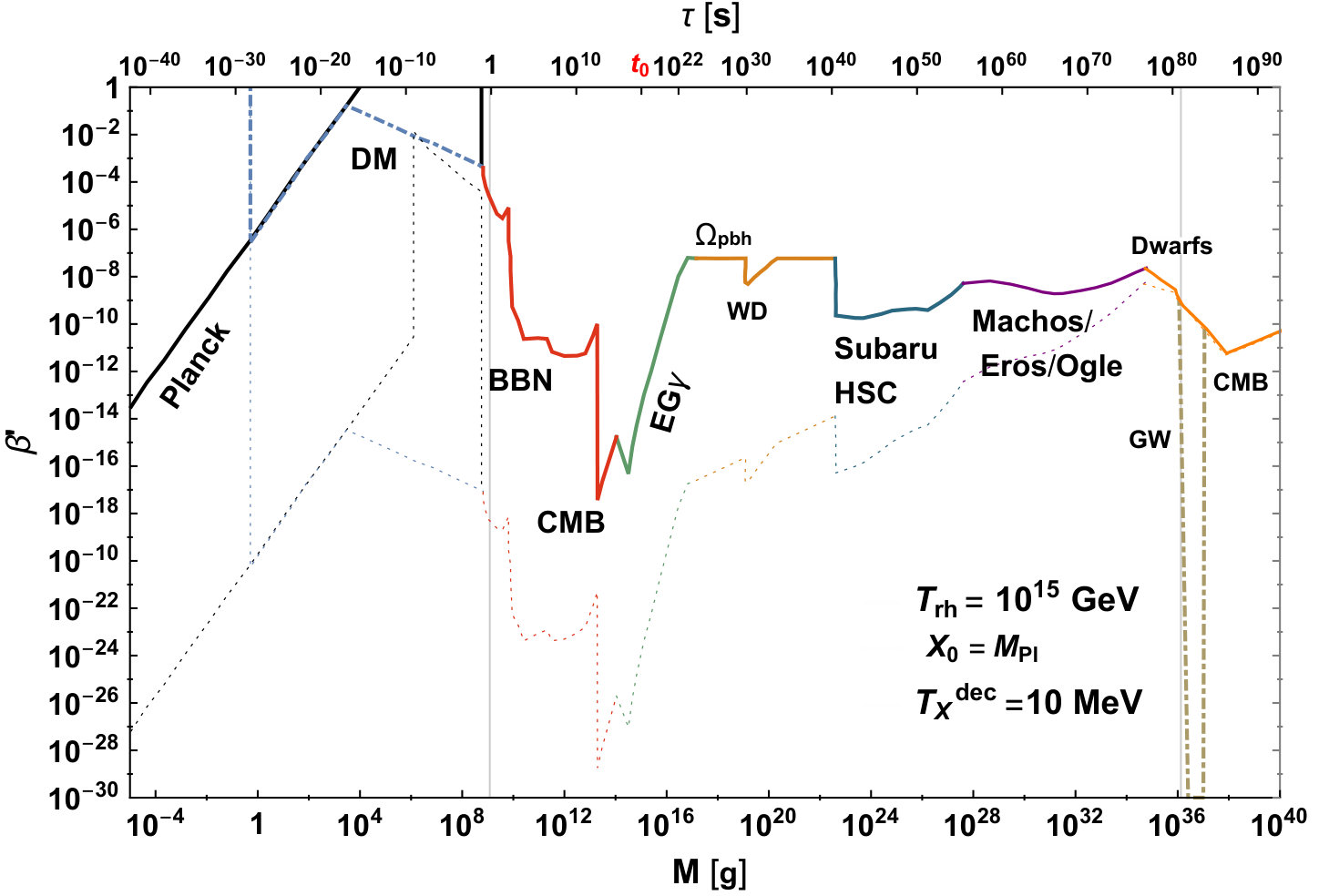

We assume that the scalar $X$ decays just before the BBN nucleosynthesis, thus we assume $M_{X}\sim 10^{5}$ GeV and gravitational interactions. We let the free parameter to be the $\Delta_{X}$, or equivalently, the $T_{X}^{\text{dom}}$. To make the distinction clear, we also assume that the inflaton field decays fast with $T_{\text{rh}}\sim 10^{15}$ GeV, though a late decaying inflaton together with a modulus domination era is also an interesting possibility. The corresponding bounds on the $\beta^{\prime}(M)$ read

[TABLE]

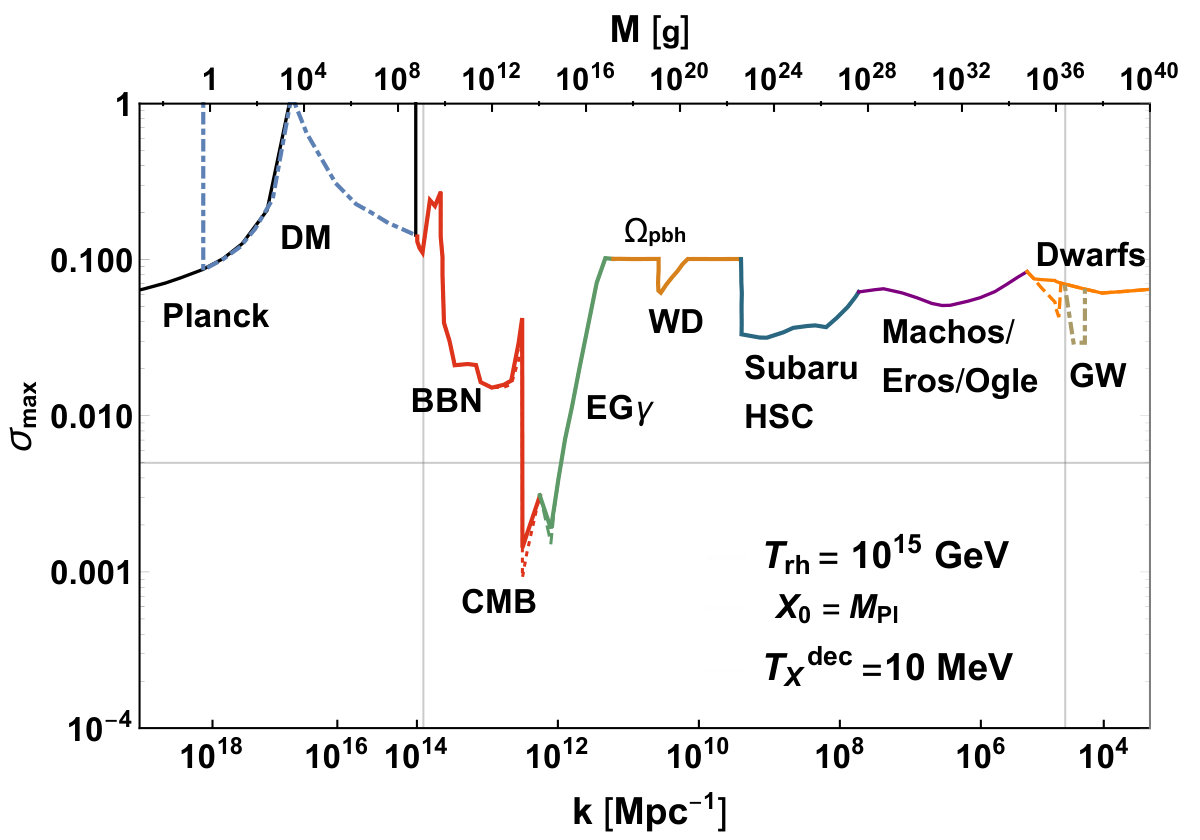

The bound on $\beta(M)$ can be translated into a bound on the variance $\sigma$. For $M_{\text{hor}}(T_{X}^{\text{dom}})<M/\gamma_{\text{M}}<M_{\text{hor}}(T_{X}^{\text{dec}})$ the $\sigma$ is given by the theory of pressureless gravitational collapse. For $M/\gamma_{\text{R}}<M_{\text{hor}}(T_{X}^{\text{dom}})$ the universe is radiation dominated and the bound on $\beta^{\prime}_{\text{RD}}(M)$, given by Eq. (8), is relaxed $\Delta_{X}$ times. This relaxation is passed to the corresponding $\sigma_{\text{RD}}(M)$ bound according to the Eq. (33). For a late decaying modulus field dominates the energey density for $T_{X}^{\text{dom}}<T_{\text{cmb}}$ the maximum value for $\sigma$, during the pressureless modulus-condensate domination era, is above the threshold value $\sigma_{\text{thr}}=0.005$. Hence one can employ the results of Ref. [57] that give the formation rate for spinless gravitational collapse, $\beta_{\text{MD}}(M_{\text{}})\,\simeq\,0.056\,\sigma^{5}(M_{\text{}})\,$, and the bound on the variance during the modulus domination era reads,

[TABLE]

Benchmark values for the $T_{X}^{\text{dom}}$ are determined by the initial value of the modulus potential. Assuming the simple quadratic potential for the modulus field $V(X)=m^{2}_{X}X^{2}/2$ then, for $m_{X}\sim 10^{5}$ GeV, it is the initial displacement $X_{0}$ from the zero temperature minimum that determines the $T_{X}^{\text{dom}}$. The initial displacement of the modulus field is model dependent. For our analysis we assume two distinct cases, a fist with the maximum possible initial displacement (to avoid a late inflationary phase) $X_{0}\sim M_{\text{Pl}}$, and a second with an intermediate initial displacement, $X_{0}\sim 10^{-7}M_{\text{Pl}}$. In both cases we assume that the effective mass of the modulus during inflation is larger than the Hubble scale so that the spectrum of the de-Sitter fluctuations is not transferred to the modulus field, that could otherwise act as a curvaton field. For these $X_{0}$ values we get respectively,

$T_{X}^{\text{dom}}\simeq 5\times 10^{11}\,\text{ GeV}$ and $\Delta_{X}\simeq 5\times 10^{13}$ for $X_{0}\sim M_{\text{Pl}}$ 2. 2.

$T_{X}^{\text{dom}}\simeq 10^{8}\,\text{GeV}$ and $\Delta_{X}=10^{10}$ for $X_{0}\sim 10^{-7}M_{\text{Pl}}$.

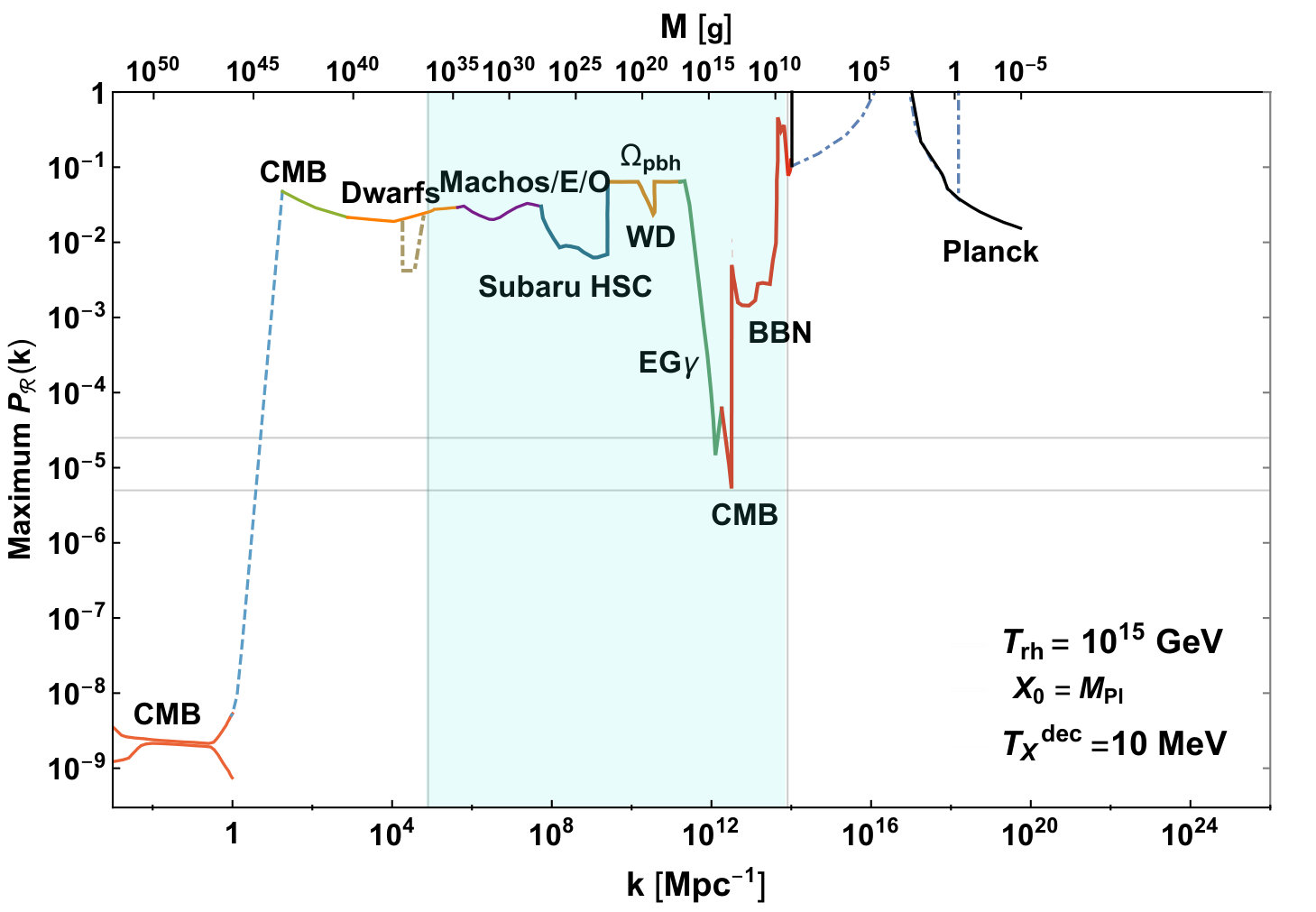

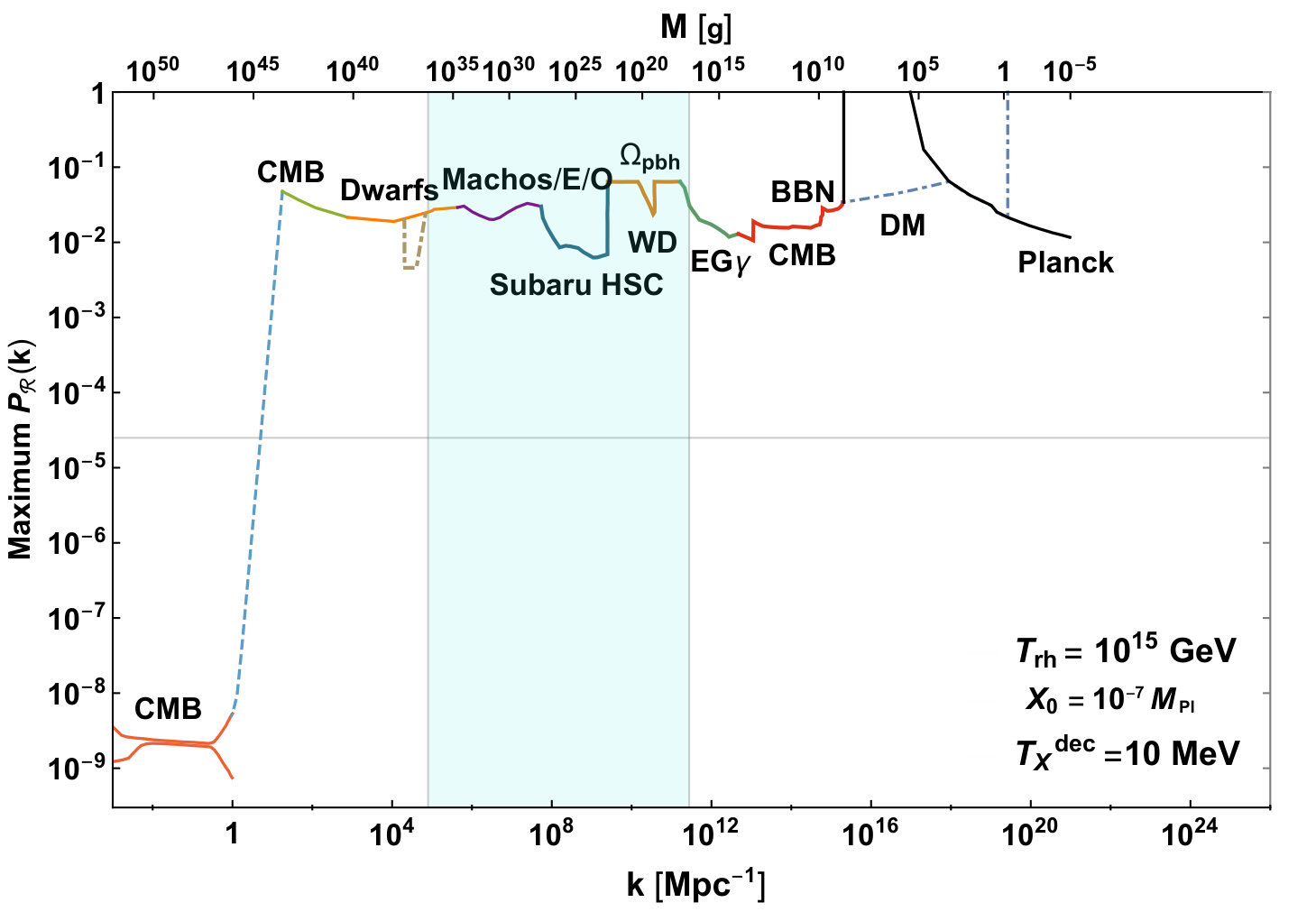

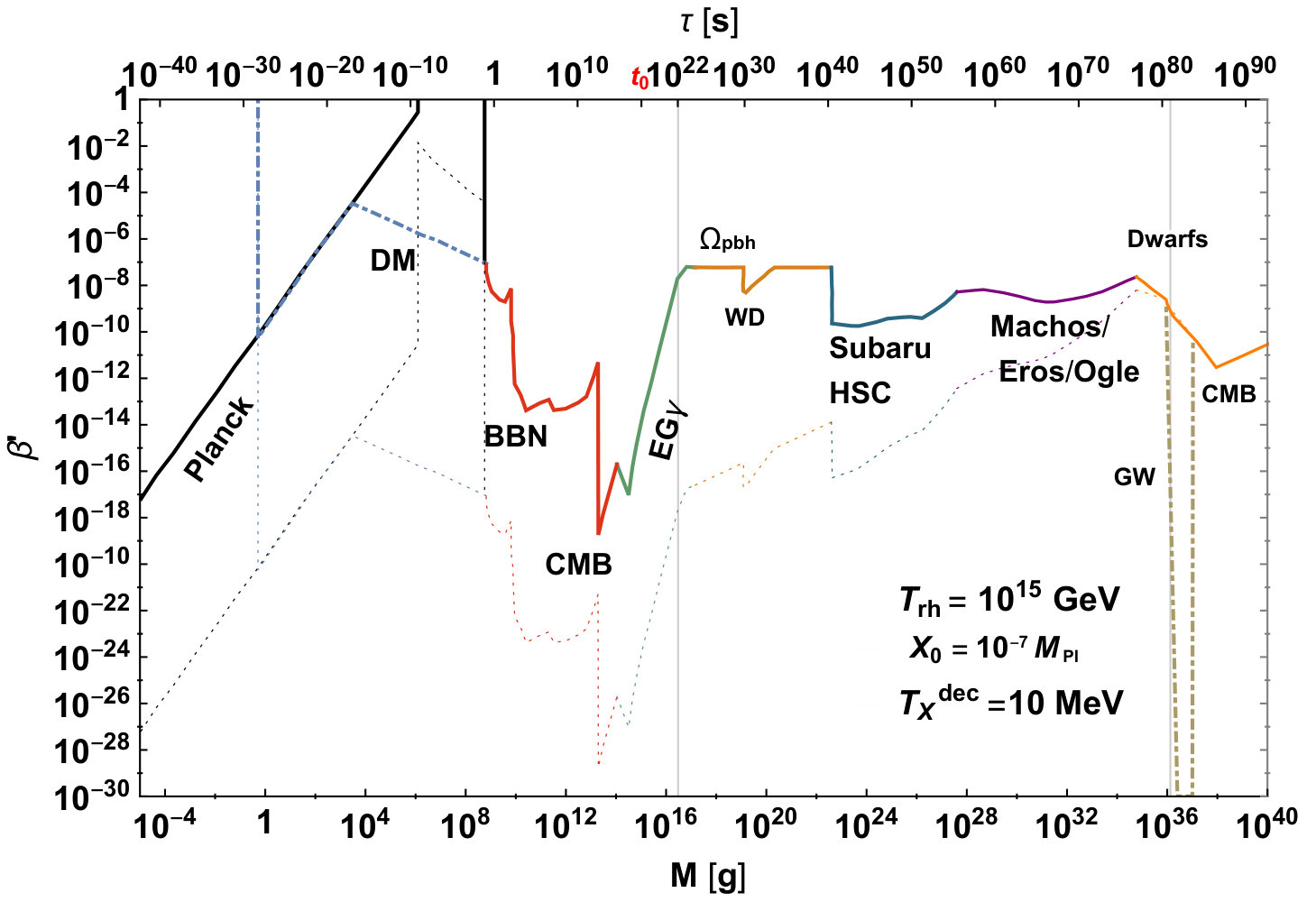

For these two benchmark cases the horizon mass at the time of the modulus decay is $M_{\text{hor}}(T_{X}^{\text{dec}}=10\text{MeV})\simeq 3\times 10^{36}$ g, and at the time the modulus dominates the energy density is $M_{\text{hor}}(T_{X}^{\text{dom}}=5\times 10^{11}\text{GeV})\simeq 4\times 10^{8}$g and $M_{\text{hor}}(T_{X}^{\text{dom}}=10^{8}\text{GeV})\simeq 10^{20}$g, respectively.

7 Constraints on the primordial power spectrum on all scales

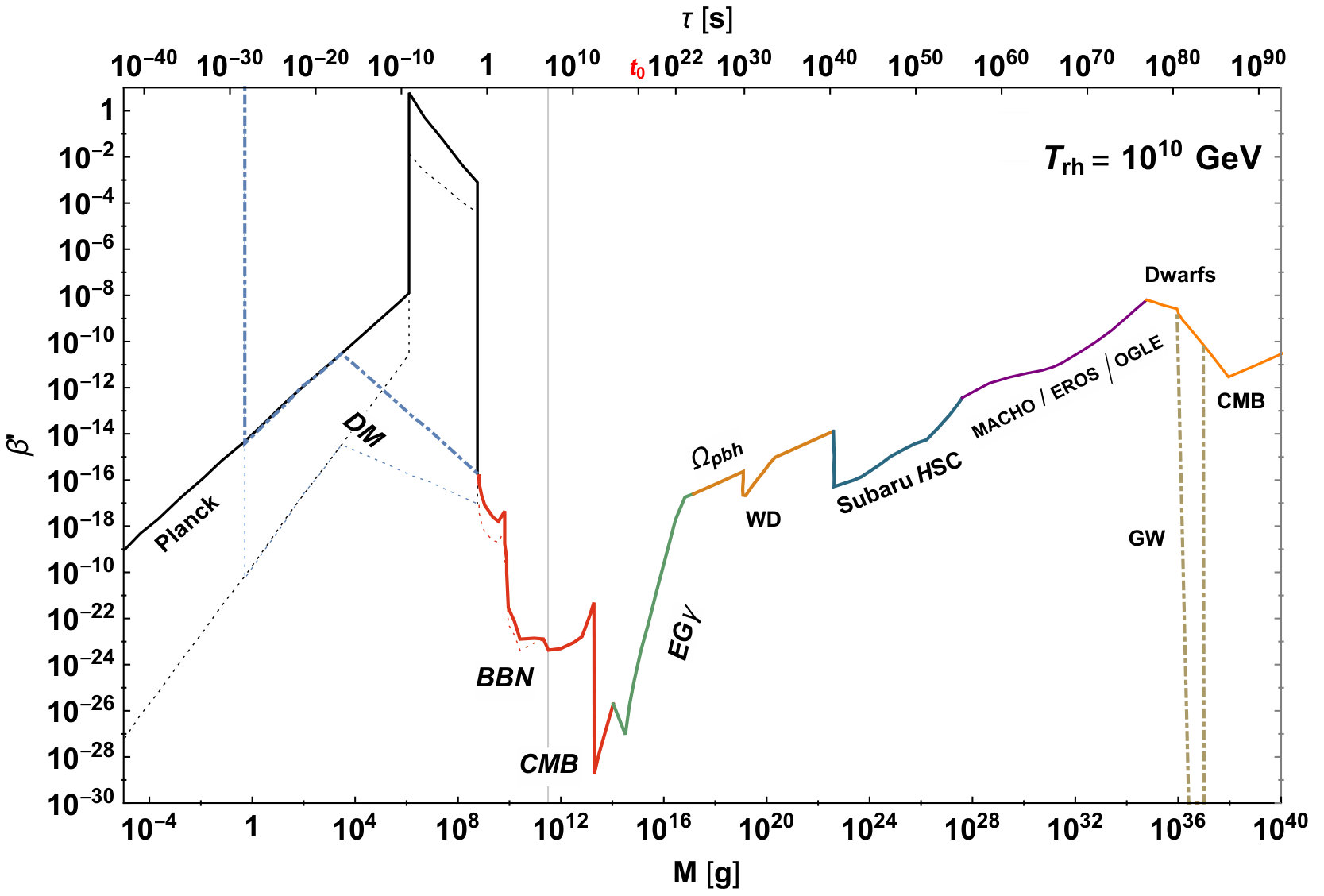

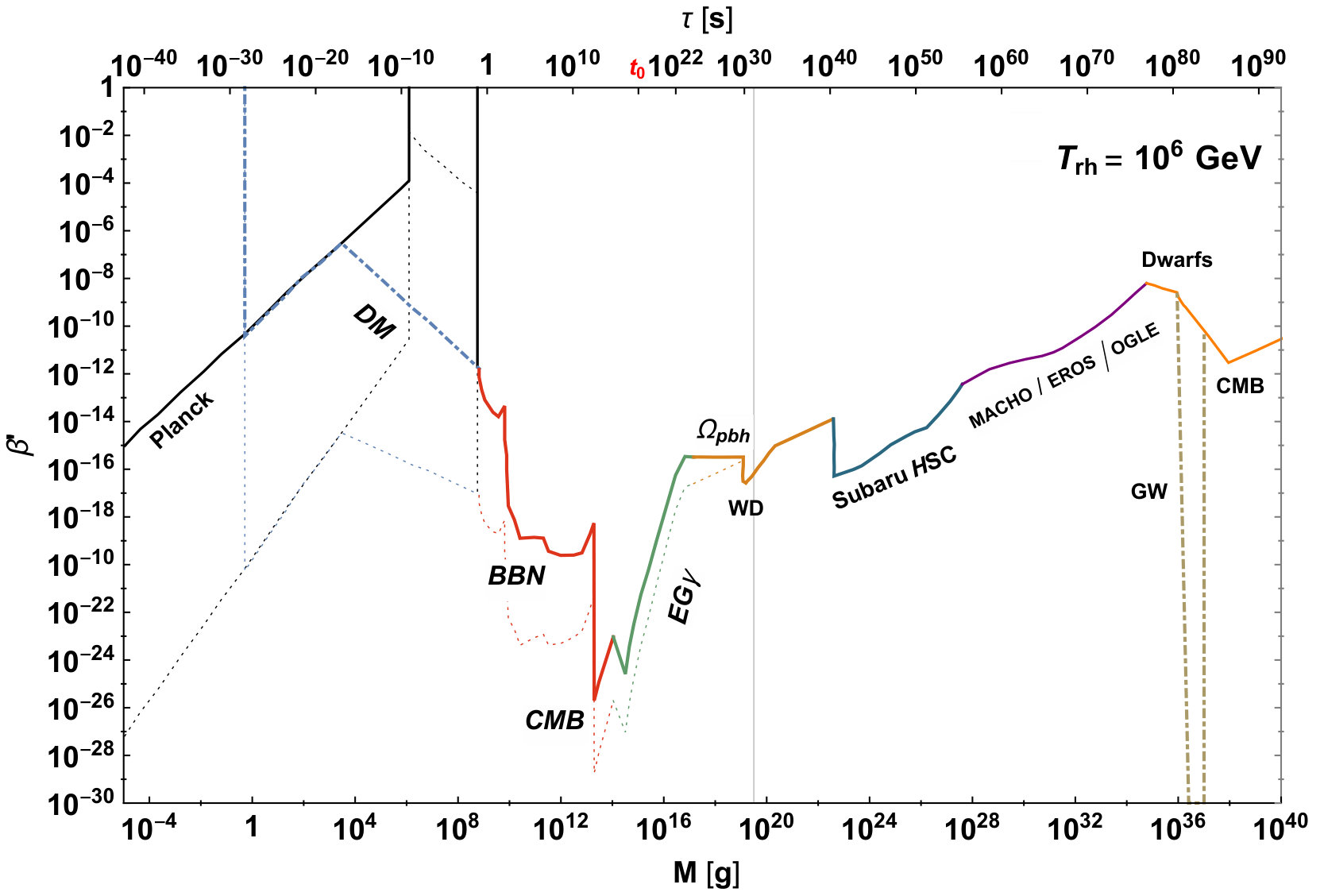

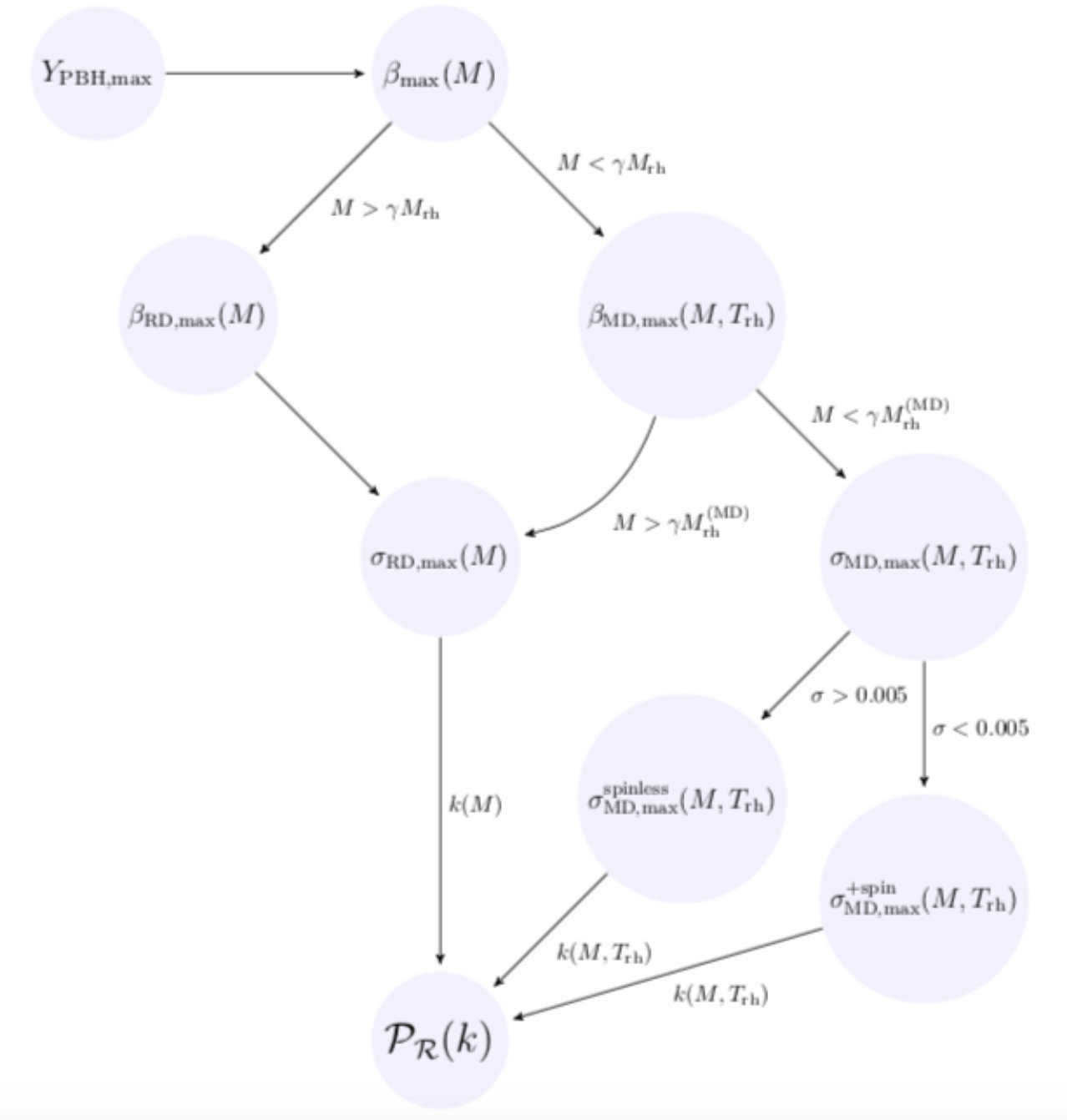

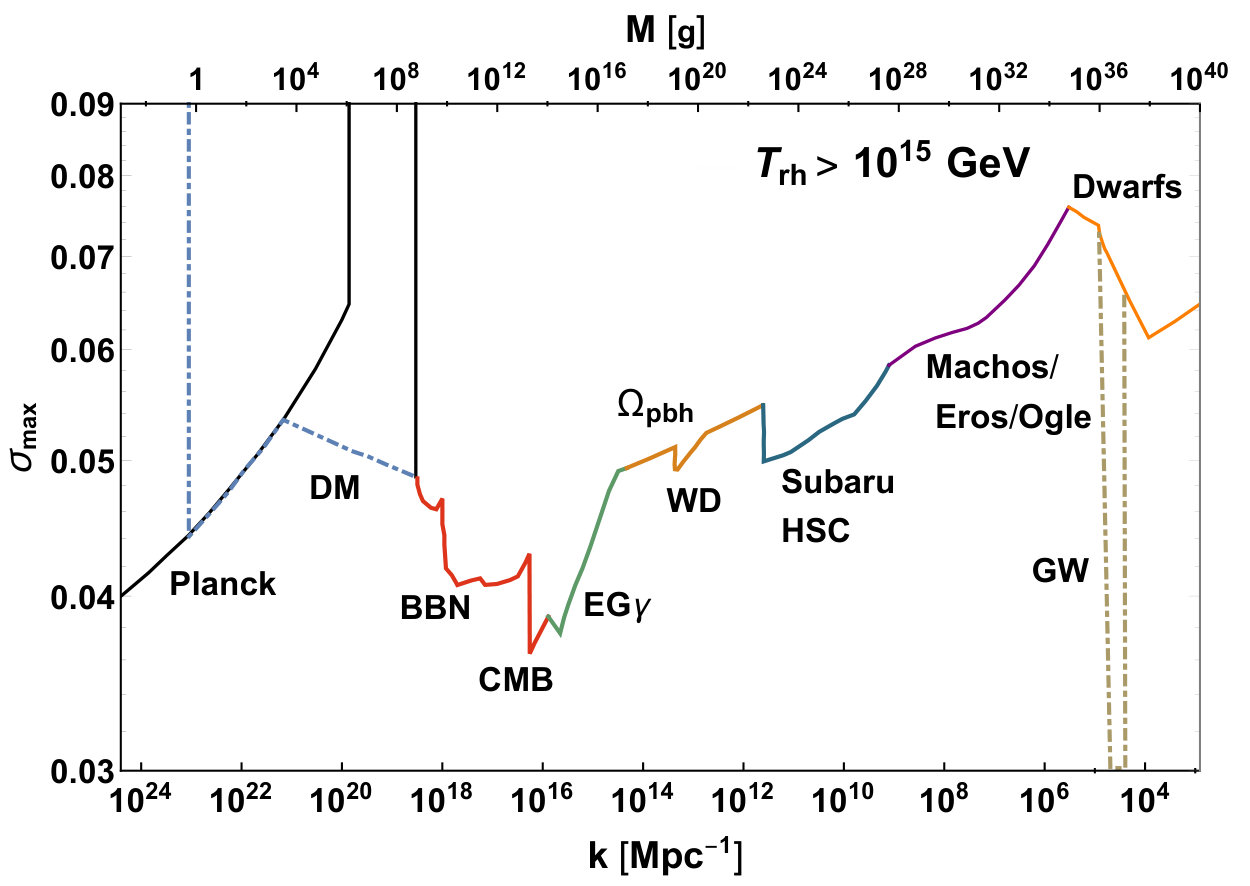

The bounds obtained from evaporating and unevaporating PBH constrain the power spectrum over 45 decades of mass, whereas the CMB direct measurements span only 5 decades. The analysis method followed here to obtain the bounds is illustrated in Fig. 11. In Fig. 10 the upper bounds for the power spectrum of the comoving curvature perturbation are depicted after the assumption that ${\cal P_{R}}(k)\simeq(9/4)^{2}\sigma^{2}(k)$ for a RD era and ${\cal P_{R}}(k)\simeq(5/2)^{2}\sigma^{2}(k)$ for a eMD era. Each panel corresponds to a different cosmic history. Scenarios with reheating temperatures, $T_{\text{rh}}>10^{15}$ and $T_{\text{rh}}=10^{7},10^{2},10^{-2}$ GeV as well as scenarios with an intermediate non-thermal phase due to a scalar condensate domination have been examined. For $T_{\text{rh}}\simeq T^{\text{(MD)}}_{\text{cmb}}\simeq 10^{7}$ GeV the constraint on the power spectrum is the stringent one after the direct $\Delta T/T$ observational constraint at $k\sim 0.05$ Mpc*-1* [83]. At that scale, that corresponds to the horizon mass $2.5\times 10^{13}\text{g}/\gamma_{\text{M}}$, the power spectrum of the comoving curvature perturbation has to be ${\cal P_{R}}(k)\lesssim 9\times 10^{-7}$.

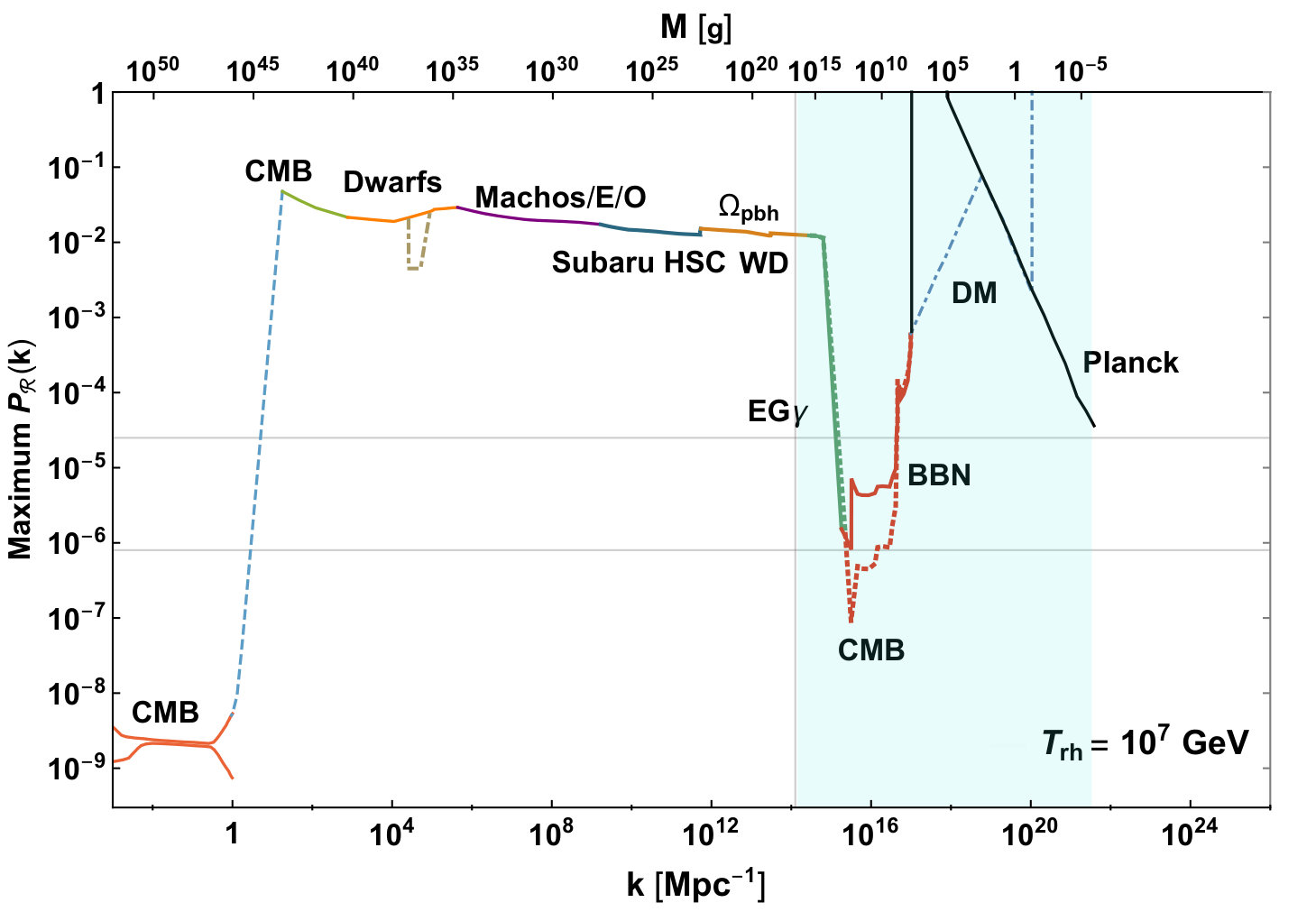

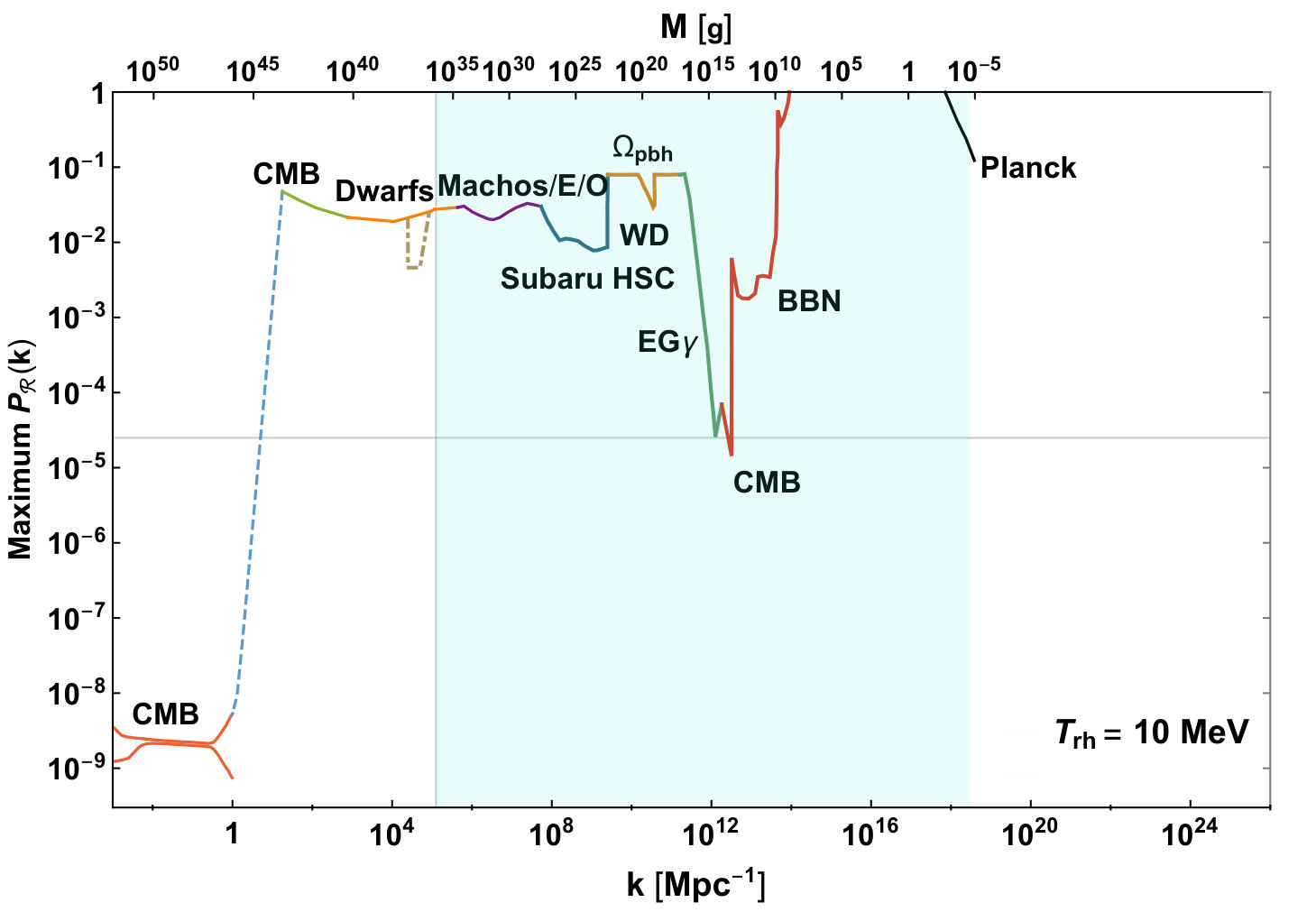

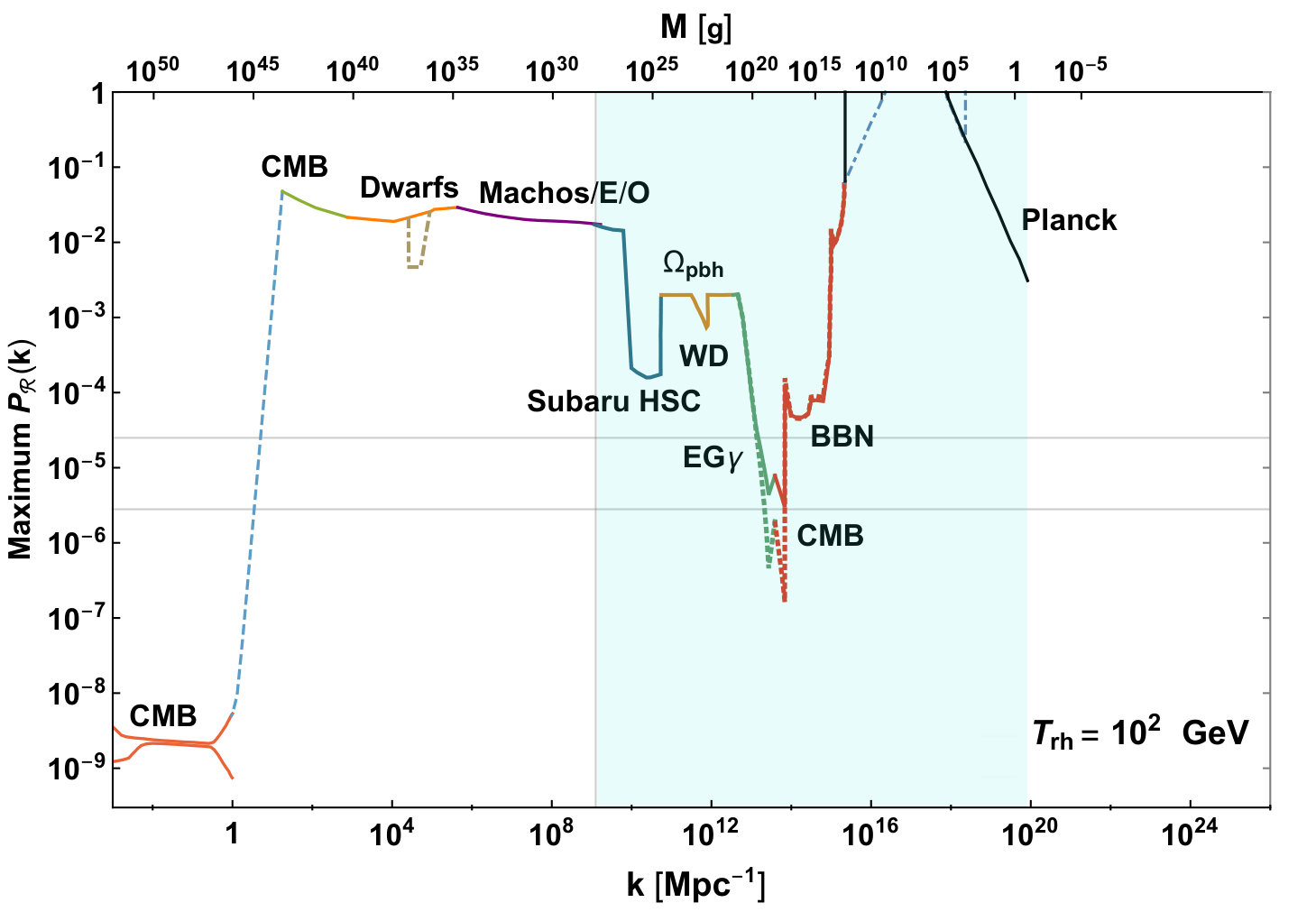

In Fig. 10 the observational constraints, e.g. the CMB constraint, is located in different position in the $k$-space, albeit the position of the constraints on the axis of mass remains the same. This is either due to the different reheating temperatures or due to a postinflationary non-thermal phase. In the Fig. 10 we also included the Planck 2018 constraints on the power spectrum [83]. As in the previous figures, the constraint associated with GWs is depicted with dotted-dashed lines because it is partial and included only as reference. Moreover, in the right upper panel of Fig. 10 we have added the $k$-range where future observational probes, that we briefly outline below, can constrain further and significantly the power spectrum amplitude.

7.1 Additional constraints on the primordial power spectrum

Apart from the direct constraints coming from nonevaporated PBH the power spectrum at large scales can be constrained by other effects. PBH generation requires large density perturbations that in turn source the generation of gravitational waves, see Ref. [100] for a review. Scalar perturbations and tensor perturbations are coupled beyond the linear order [101, 102] and hence the induced gravitational waves are also stochastic. These gravitational waves are produced at the horizon crossing of the scalar perturbations, hence simultaneously with the potential PBH generation, and their frequency is related with the PBH mass as $f_{\text{GW}}\simeq 7\times 10^{-9}\gamma^{1/2}_{\text{}}(M_{\bullet}/M_{\odot})^{-1/2}$ Hz. The amount of the gravitational waves depends on the type and the amplitude of the curvature power spectrum. Low frequency gravitational waves are severely constrained by the pulsar timing experiments [103, 81] whereas, higher frequencies will be subject to future observational probes, see e.g. [104, 105]. An interesting scenario is that PBHs with mass $10^{-12}M_{\odot}$ can comprise most of the dark matter in the universe and in such a case their production is associated with a mHz gravitational wave signal that can be tested by LISA [106, 107, 108].

In addition due to the Silk damping, that is the erase of acoustic oscillations of $k^{-1}$ that falls within the photon diffusion scale, energy is transferred to the background homogeneous plasma [109]. Depending on the redshift $z>10^{3}$ that the damping occurs there exist two types of CMB distortions, the $\mu$-distortion at scales $50$ Mpc${}^{-1}\lesssim k\lesssim 10^{4}$ Mpc*-1* and $y$-distortion on larger scales. So far $\mu$-type spectral distortion of the CMB has not be detected and for Gaussian primordial density perturbations PBHs in the mass range $2\times 10^{4}M_{\odot}\lesssim M_{\bullet}\lesssim 2\times 10^{13}M_{\odot}$ are excluded. Smaller scales, that correspond to PBH masses $M_{\bullet}\lesssim 2\times 10^{4}M_{\odot}$ are still possible to be probed by the measurement of the baryon-to-photon ratio and put constraints on the power spectrum amplitude [110, 111]. We comment that if the scalar perturbations are non-Gaussian then the constraints on the ${\cal P_{R}}(k)$ change [113, 112]. In such a case, the $\mu$-distortion as well the bounds from the stochastic gravitational wave background can weaken depending on the degree of the non-Gaussianity of the primordial perturbations.

The $\mu$ and $y$ type distortions of the CMB black body spectrum as well as the secondary stochastic gravitational waves usually correspond to very large PBH masses and the interest of this work is mainly on PBH with short lifetime, $M_{\bullet}\ll M_{\odot}$, and the ${\cal P_{R}}(k)$ features at large wavenumbers. We neither examine here the implications for the ${\cal P_{R}}(k)$ due to the $\mu$ and $y$ type distortions nor due to stochastic gravitational waves, see e.g. [114] for a recent work. We do not examine implications on the power spectrum of ultracompact minihalos of dark matter [115], or from the decay of metastable vacua [116, 117, 119] either. Following Ref. [43] we included only the GW constraint, $\beta(M)\lesssim 10^{-52}$, on the mass band $10^{2}-10^{4}M_{\odot}$ that comes from pulsar timing data due to the generation second-order tensor perturbations [81]. Also for comparison, in the upper right panel of Fig. 10, where a net radiation dominated phase is presented, we add with dotted lines the $k$-range where the $\mu$-distortion constraints apply and the range that will be probed by gravitational wave antennas LISA and Square Kilometre Array (SKA), as well as pulsar time arrays (PTA) that can search for secondary gravitational waves.

8 Conclusions

The gravitational observation of black hole mergers by LIGO offers us an unprecedented piece of information about the dark sector of the universe. This direct observation of black holes motivated the cosmologists to explain the LIGO events by PBHs [80] as well as to investigate the scenario that lighter PBHs may comprise a significant fraction of the dark matter in the universe. Since this sort of dark matter candidates originate from the primordial density perturbations, the presence or the absence of PBHs provides us with an indirect insight into the spectrum of the primordial density perturbation far beyond the scales directly accessible in the CMB.

In this work we focused on PBH scenarios with masses smaller than $10^{15}$ g which, if ever generated, will have evaporated by now. These PBHs, although absent from our galaxies, are expected to have interesting cosmological implications for the mechanisms that generate the ${\cal P_{R}}(k)$ as well for the details of the early cosmic history. We have shown that models designed to produce PBH dark matter with mass $M_{\bullet}>10^{17}$g have to pass strict constraints in scales significant smaller where ephemeral PBHs form with mass $M\ll M_{\bullet}$. In addition, these constraints are much sensitive to the reheating temperature of the universe. In particular, we investigated the implication of the evaporating PBHs on the variance of the density perturbations for different reheating temperatures and in scenarios where the early universe has been dominated by a modulus scalar field, see Fig. 4 and Fig. 9. We explicitly examined the reheating temperature constraints in scenarios with PBH dark matter in four different mass scales: asteroid mass range, $M_{\bullet}\sim 10^{18}$g, lunar mass range, $M_{\bullet}\sim 10^{22}$g, planet mass range $M_{\bullet}\sim 10^{29}$g, and the LIGO mass range (also called intermediate black hole mass range ) $M_{\bullet}\sim 10^{35}$g, see Fig. 12 in Appendix and Fig. 6.

The main result of this work is that the variance of the density perturbations generated by any inflationary model has to satisfy a specific constraint in the large $k$ limit of the spectrum. Additionally to the dynamical constraints for the nonevaporated PBH relics, we found the $\sigma(k)$ constraint given by the Eq. (37) for reheating temperatures $T_{\text{rh}}\,\gtrsim T_{\text{bbn}}^{\text{(MD)}}$, the constraint given by Eq. (54) for $T_{\text{cmb}}^{\text{(eMD)}}\,\,\,\lesssim T_{\text{rh}}<T_{\text{bbn}}^{\text{(MD)}},$ and the constraint given by Eq. (55) for $T_{\text{rh}}\lesssim T_{\text{cmb}}^{\text{(MD)}}$, where $T_{\text{bbn}}^{\text{(MD)}}\simeq 4\times 10^{8}$ GeV and $T_{\text{cmb}}^{\text{(MD)}}\simeq 10^{7}$ GeV. The combined constraints with respect to the reheating temperature are depicted in Fig. 5.

We conclude that significant power in the large $k$-limit might be in conflict with the observations. Mechanisms that generate PBH relics with asteroid or lunar mass scale are required, by the derived bounds on evaporating PBHs, to have a very narrow ${\cal P_{R}}(k)$ peak, see Appendix for details. Remarkably, these mass windows are rather interesting because the relic PBHs can explain the entire dark matter found in the galaxies. For heavier PBH relics there is more freedom however, since the ${\cal P_{R}}(k)$ amplitude maximizes closer to the Planck pivot scale $k_{0.05}\equiv 0.05$ Mpc*-1* where the spectrum is tightly constrained [83], these scenarios are often in conflict by the spectral index value and running. As expected, the most strict observational constraints on the power spectrum come actually from the CMB anisotropies at the scale $k_{0.05}$. Next to this constraint it is usually found to be the CMB bound from PBH evaporation at the $k=k(2.5\times 10^{13}\text{g},T)$. It stringent for $T_{\text{rh}}=T_{\text{cmb}}^{\text{(MD)}}\sim 10^{7}$ GeV, where the power spectrum of the comoving curvature perturbation has to be ${\cal P_{R}}(k)\lesssim 10^{-6}$.

The derived constraints on $\sigma(k\gg k_{0.05})$, translated into constraints on the spectral index value of the power spectrum tail (see Appendix) constrain the inflation models and have considerable implications for the inflationary model building in general. Models that generate a blue-tilted spectrum or a broad peak at large $k$ are severely constrained. Running mass inflation models can realize a blue-tilted spectrum and are required to have an appropriately balanced running and running of the running of the spectral index, see Ref. [118] for an investigation of viable ${\cal P_{R}}(k)$ for varying $T_{\text{rh}}$. Double inflation, inflaton-curvaton models or inflection point models that yield a significant power at large wavenumbers of the ${\cal P_{R}}(k)$ might also be in conflict with the derived constraints, in particular if the reheating temperature is low. Summarizing, an inflationary model is ruled out if the power spectrum ${\cal P_{R}}(k)$ violates the bounds dictated by Eq. (37), (54) and (55), that can be seen as width constraints of the power spectrum peak.

The results of this work show that the PBHs can be regarded as a powerful tool to probe the primordial fluctuations on much smaller scales and give us insights into the dynamics that generated the seeds of the cosmic structure, even if PBHs do not comprise the observed dark matter in the universe.

Acknowledgments

I would like to thank Antonio Riotto and Jun’ichi Yokoyama for their comments. This work is supported by the IKY Scholarship Programs for Strengthening Post Doctoral Research, co-financed by the European Social Fund ESF and the Greek government.

Appendix A Parametrizing the morphology of the $P_{\cal R}(k)$

In the main text of this paper, we computed upper bounds for the variance of the comoving density contrast without specifying the power spectrum -with the exception of the Fig. 6. In Appendix we assume a particular morphology for the power spectrum of the comoving curvature perturbation in order to illustrate the sort of the power spectra that are compatible with the constraints derived in this work. For simplicity, we omit possible critical collapse effects and assume the horizon-mass approximation for the PBHs mass function. In this regard, the bounds that we derive are conservative since critical effects are expected to increase the PBHs abundance in the low mass tail [87, 78] that we focus on.

We recall that the comoving curvature perturbation, ${\cal R}_{k}$, is related to the metric perturbations $\Phi(k)$ for modes $k$ outside the horizon via the relation

[TABLE]

where the metric in the longitudinal gauge reads, $ds^{2}=-(1+2\Phi)dt^{2}+a^{2}(t)(1-2\Phi)dx^{2}$. Typical inflationary scalar perturbations are well approximated by the expansion

[TABLE]

where $k_{0.05}=0.05$ Mpc*-1* is the pivot scale used by the Planck collaboration [83] and $n_{s}$ the scalar spectral index. If the running of the spectral index $d\ln n_{s}/d\ln k$ and the running of the running are nonzero the power spectrum amplitude may increase significantly at smaller scales. The enhancement of the power spectrum with amplitude ${\cal P_{R}}_{\text{max}}$ can generate PBHs at the scale $k_{\bullet}$, identified with the $k_{\text{peak}}$.

We focus on the power spectrum tail since it is this part of the spectrum that is relevant to the PBH evaporation constraints. A general description if ${\cal P_{R}}(k)={\cal P_{R}}(k_{\text{peak}})\,f(k)$ for $k>k_{\text{peak}}$. Let us parametrize the tail of the power spectrum by the function $f(k)=\left({k}/{k_{\text{peak}}}\right)^{s(k,p,\alpha)}$ where $s(k,p,\alpha)\equiv{-p\left(\log\frac{k}{k_{\text{peak}}}\right)^{\alpha-1}}$. For the values $\alpha=1$ or $\alpha=2$ this parametrization describes well a large class of power spectra designed to generate PBH, e.g inflationary models with inflection point. In the following we will examine analytically the simplest $\alpha=1$ case,

[TABLE]

where ${\cal P_{R}}_{\text{max}}\equiv{\cal P_{R}}(k_{\text{peak}})$. The power $p$ can be viewed as the spectral index of the power spectrum tail, $p\equiv 1-n_{s}^{\text{(tail)}}$.

A.1 Radiation domination

In the approximation that the inflation stage is instantaneously followed by a thermal radiation dominated epoch it is $k_{\text{rh}}=k_{\text{end}}$. The variance of the perturbation during RD era that instantaneously follows inflation is given by

[TABLE]

The integration gives

[TABLE]

where we took into account that $\Gamma\left(2-\frac{p}{2},\,\frac{k^{2}_{\text{peak}}}{k^{2}}\right)\gg\Gamma\left(2-\frac{p}{2},\,\frac{k^{2}_{\text{end}}}{k^{2}}\right)$. For $k>k_{\text{peak}}$ the incomplete Gamma function can be expanded and the variance is approximated as

[TABLE]

After keeping the leading terms the variance squared reads,

[TABLE]

A.1.1 Constraints on the power spectrum tail

The constraint (35) can be now applied on the power spectrum and reads for the BBN and CMB respectively

[TABLE]

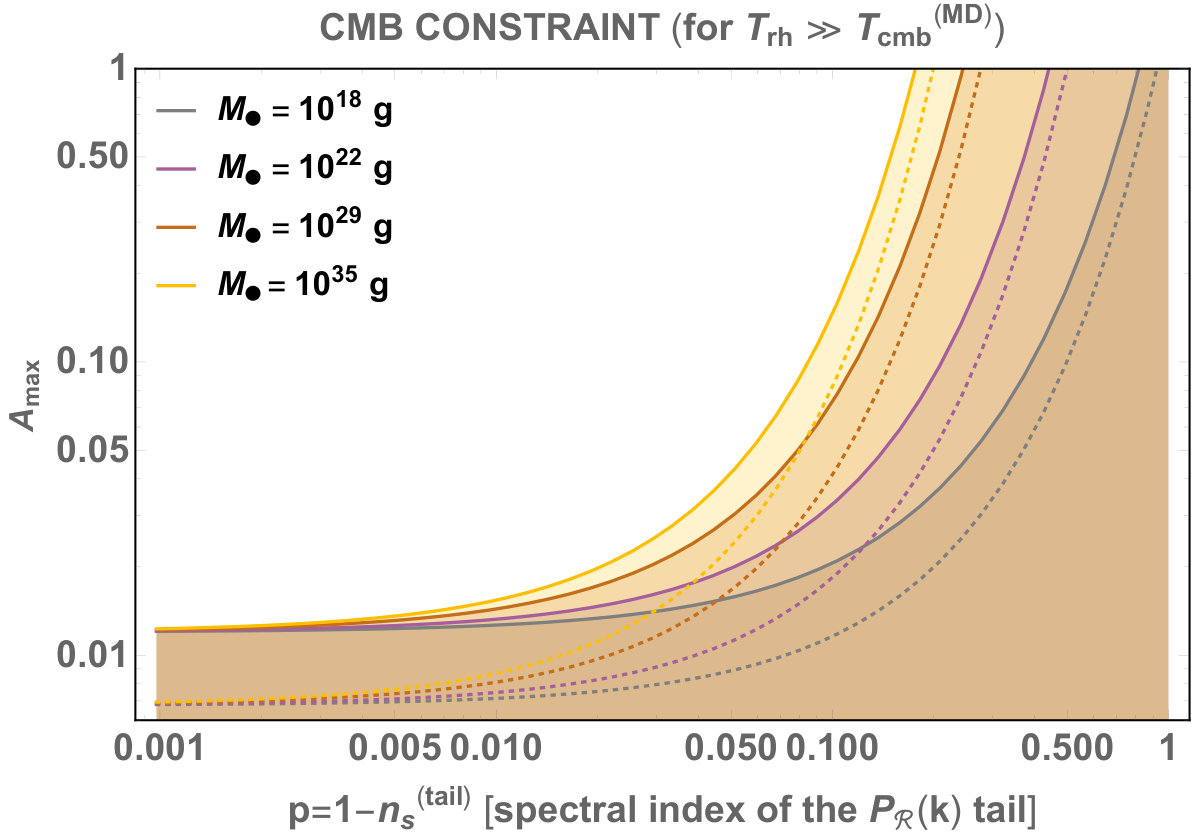

These upper bounds, ${\cal P_{R}}_{\text{bound}}$, constrain the power spectrum maximum amplitude ${\cal P_{R}}_{\text{max}}$ and the power $p$ at a particular scale. It is ${\cal P_{R}}(M)={\cal P_{R}}_{\text{max}}(M/M_{\bullet})^{p/2}$ for $M<M_{\bullet}$, thus we get

[TABLE]

where $M_{\bullet}$ is the characteristic relic PBH mass that an inflationary model predicts. Scenarios with flat power spectra, $p\sim 0$, that generate a significant amount of PBH relics are ruled out. The stringent constraint is for the CMB, which for benchmark values $\gamma_{\text{R}}=0.2$, $\delta_{c}=0.41$, reads

[TABLE]

A.2 Matter domination

Let us assume that after inflation reheating follows that lasts $N_{\text{rh}}$ e-folds of expansion, then the (75) rewrites, ${\cal P_{R}}(k\geq k_{\text{rh}})={\cal P_{R}}(k_{\text{rh}})\left({k}/{k_{\text{rh}}}\right)^{-p}\,.$ The variance of the comoving density contrast during early matter domination is

[TABLE]

Also here the integration, after taking into account that $\Gamma\left(2-\frac{p}{2},\,\frac{k^{2}_{\text{rh}}}{k^{2}}\right)\gg\Gamma\left(2-\frac{p}{2},\,\frac{k^{2}_{\text{end}}}{k^{2}}\right)$ and expanding the incomplete Gamma function, gives the variance squared that at leading order,

[TABLE]

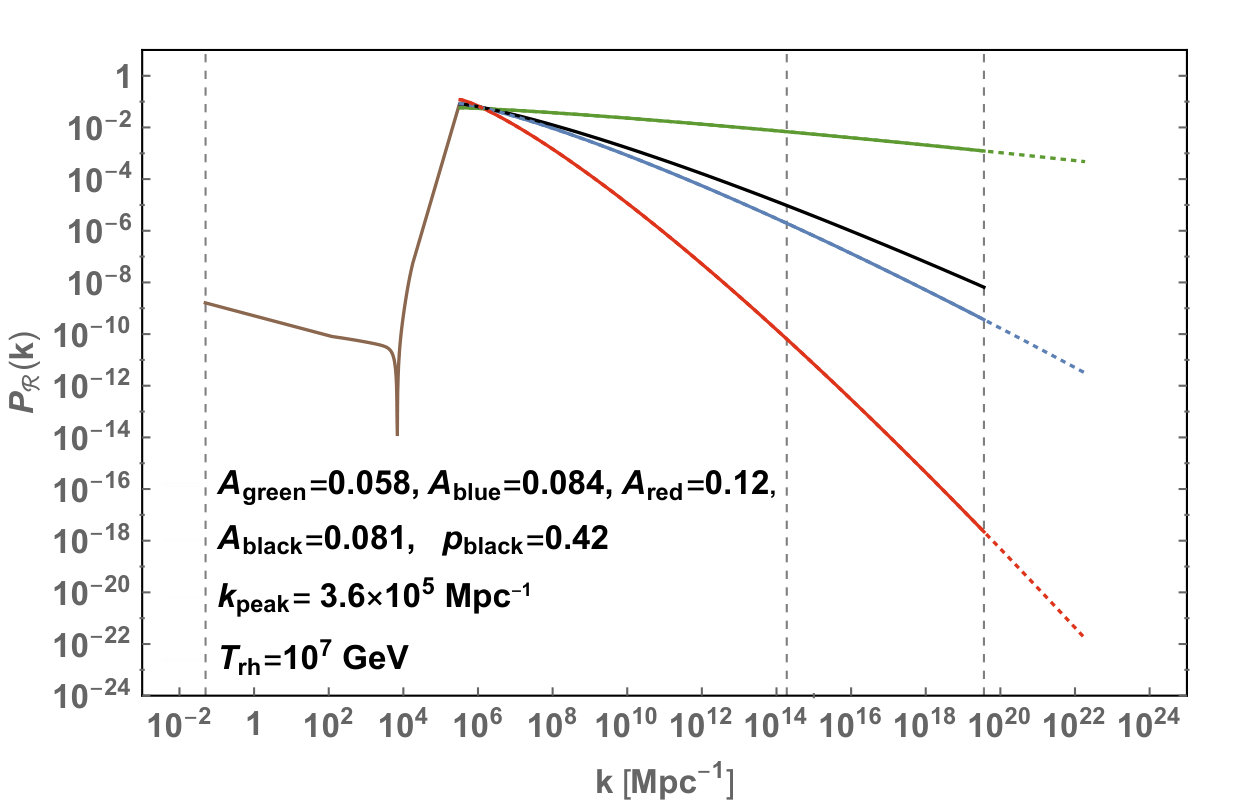

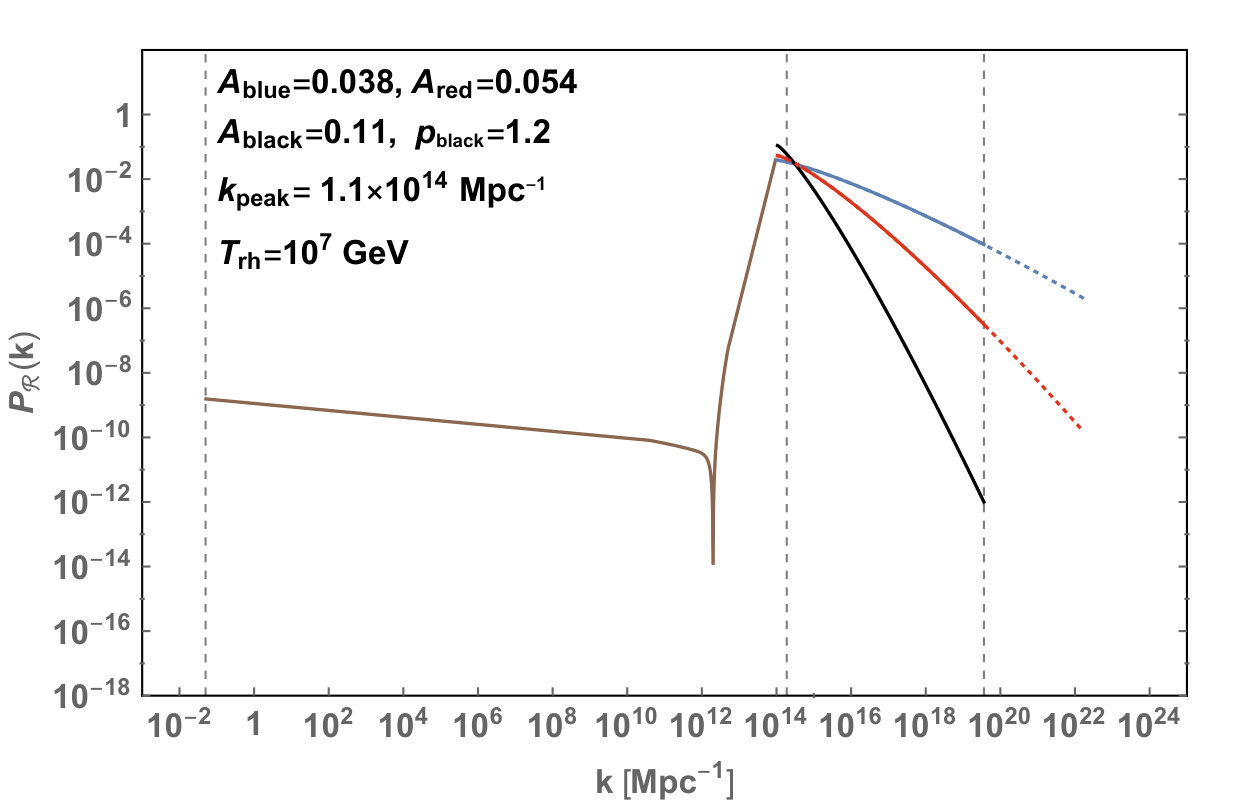

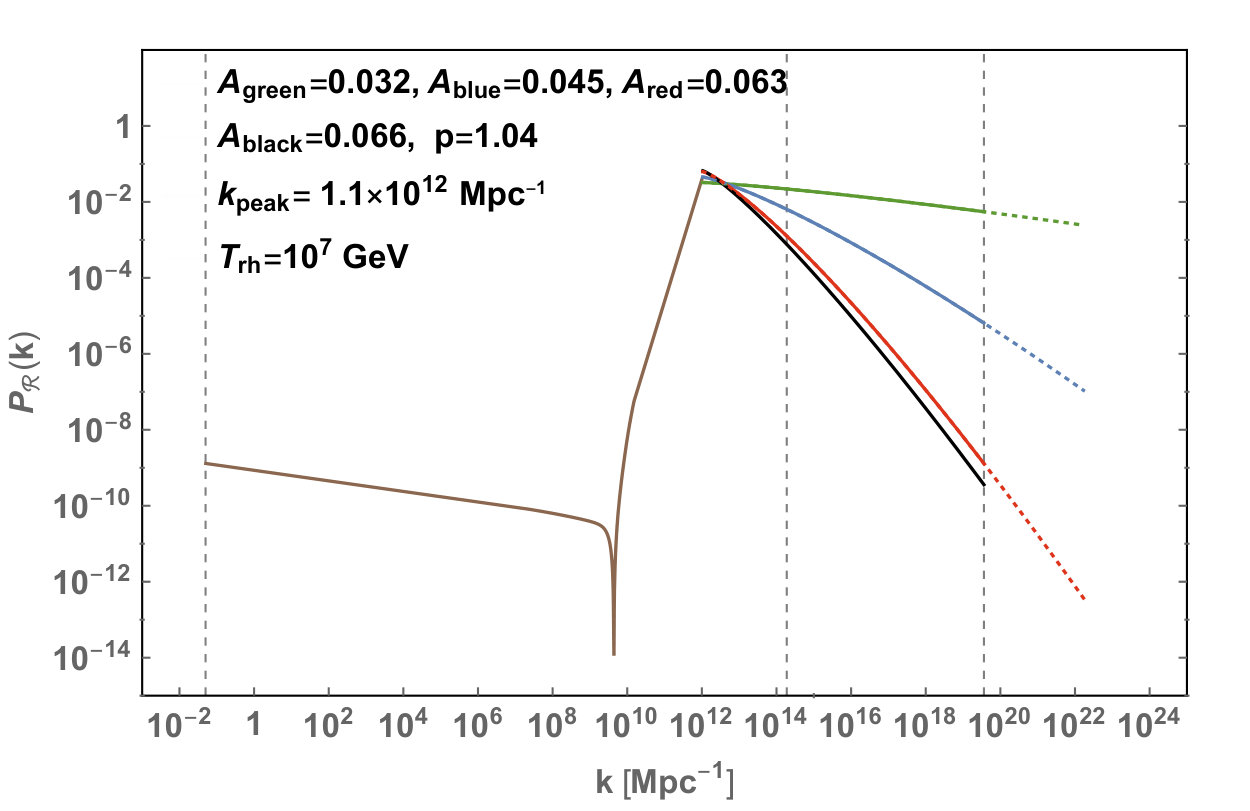

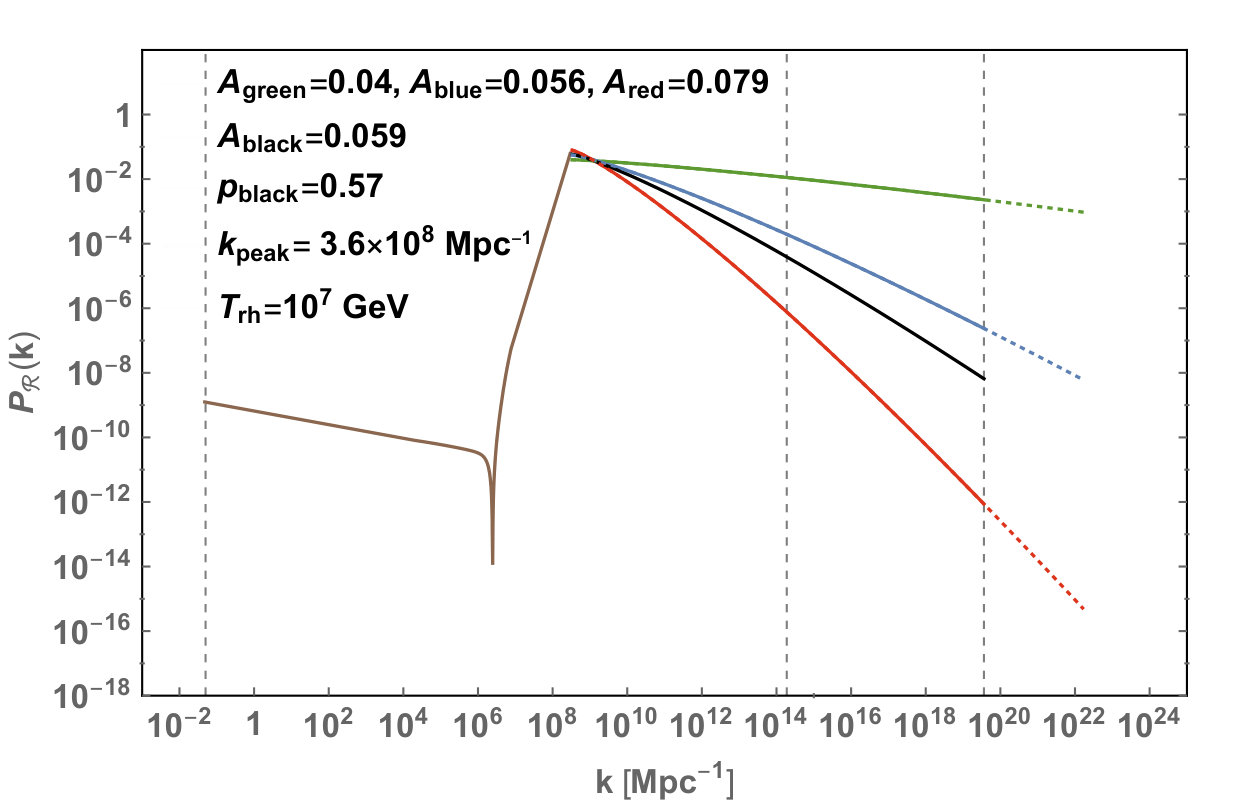

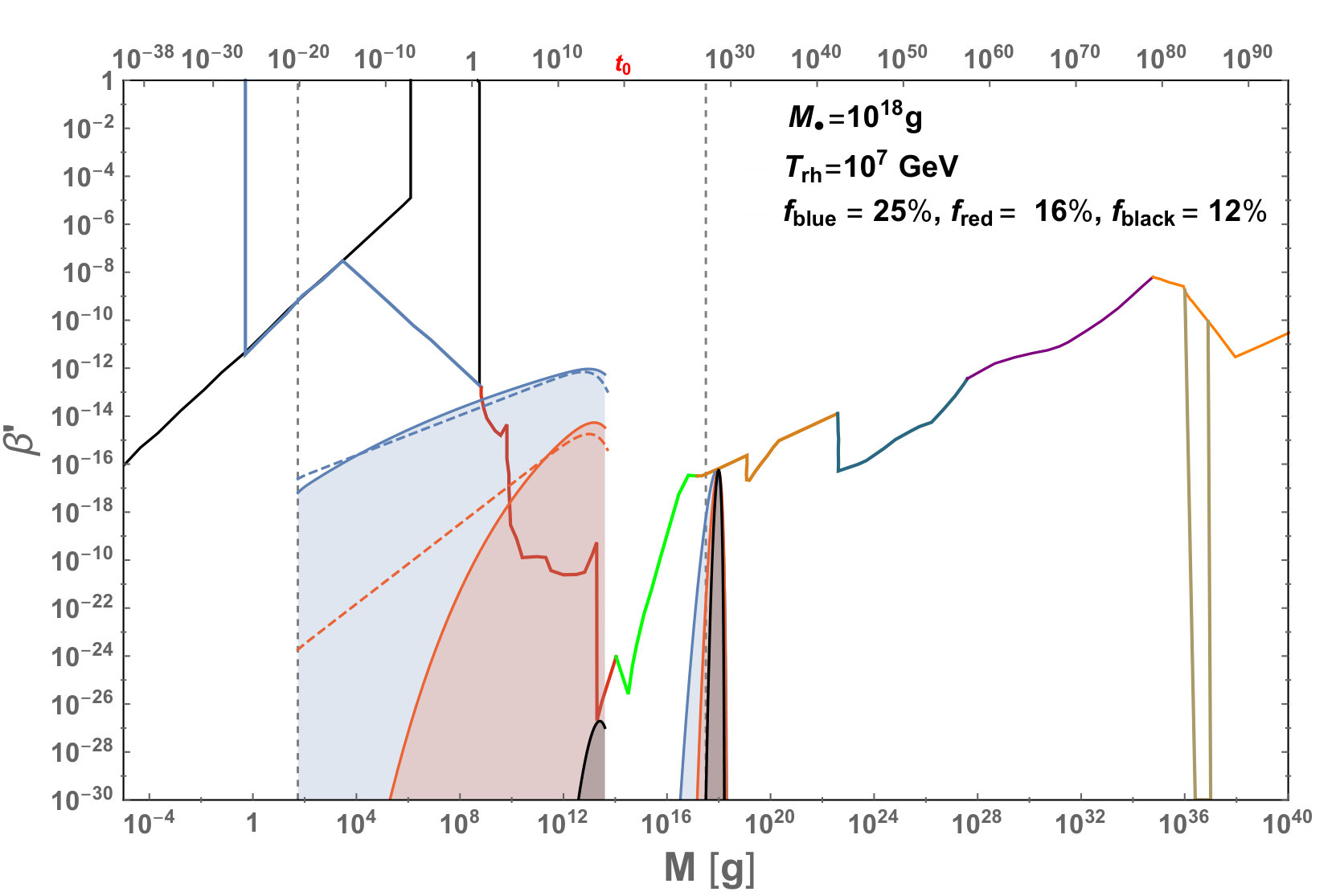

In the Fig. 12 power spectra that generate four representative relic PBH masses $M_{\bullet}=10^{18}$g, $10^{22}$g, $10^{29}$g and $10^{35}$g are depicted for three different tails with steepness, $p=0.1$ (in green), $p=0.5$ (in blue) and $p=1$ (in red). In black the less steep allowed slope is depicted, the critical slope, that separates the allowed from the disallowed power spectra. The reheating temperature is chosen to be $T_{\text{rh}}=10^{7}$ GeV where the CMB constraints are the stringent ones and the role of the evaporating PBHs on the inflationary model selection is more manifest. On the plots, the total PBH fractional density $f_{\text{PBH, tot}}=\int_{M}\,d\ln M\,f_{\text{PBH}}(M)$ is also computed. We have assumed a one-to-one correspondence between the wavenumber $k$ of the perturbations and the PBHs masses.

A.2.1 Constraints on the power spectrum tail and the reheating temperature

Let us derive here a bound on the reheating temperature, associated with the slope of the ${\cal P_{R}}(k)$.

The power spectrum value at the time of reheating, ${\cal P_{R}}(k_{\text{rh}})$ depends on the reheating temperature, and we can pursue further the implications of the constraint (40), that we rewrite it here as

[TABLE]

where $\sigma(M)$ is given by Eq. (85) and $\sigma_{\text{max}}$ given by the observational constraints (independent of the ${\cal P_{R}}(k)$ form). It is $\sigma(k)=\theta\,{\cal P_{R}}^{1/2}(k_{\text{rh}})\,(k/k_{\text{rh}})^{-p/2}$ and the power of the comoving curvature perturbations that reentrer the horizon at the time of reheating is

[TABLE]

Substituting the ratio $k/k_{\text{rh}}$ from Eq. (22) and (28) and neglecting the finite time of the gravitational collapse we get the constraint on the reheating temperature,

[TABLE]

where $\xi$ is given by the expression,

[TABLE]

In the approximation of the spinless collapse the $\sigma_{\text{MD,max}}(M,T_{\text{rh}},\gamma_{\text{M}})$ is explicitly calculated, see Eq. (42), and the reheating temperature is constrained to be

[TABLE]

In fact spin effects cannot be neglected at the mass range relevant to the CMB observables and one has to solve numerically the (88). Numerics show that, qualitatively, a similar behavior to the condition (90) is found.

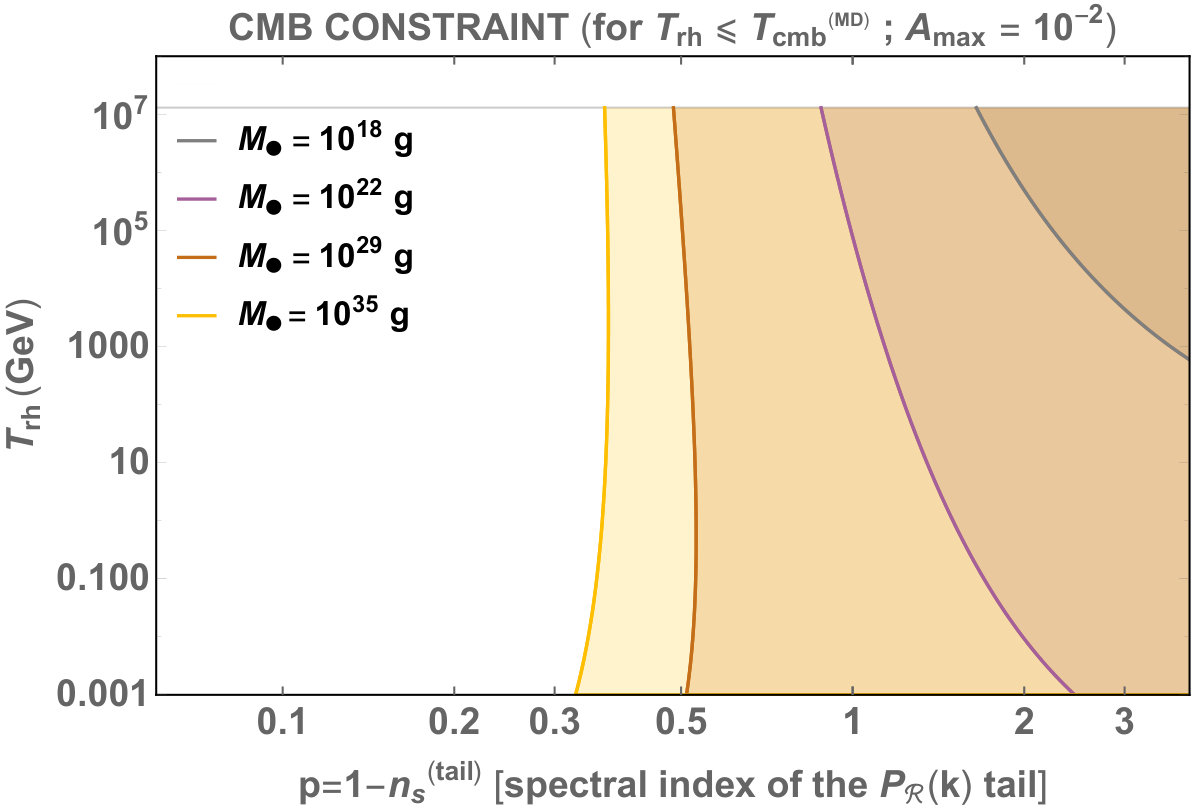

Flat or not steep power spectrum tails are ruled out for any reheating temperature $T_{\text{rh}}\lesssim T^{\text{(MD)}}_{\text{cmb}}\sim 10^{7}$ GeV. The constraints are stringent for light PBH dark matter. As illustrated in 12, PBH with mass $M_{\bullet}=10^{18}$ g are allowed to be generated in a sizable amount only if the ${\cal P_{R}}(k)$ slope parameter is particularly large, $p\gtrsim 1.9$ and for $M_{\bullet}=10^{22}$ g only if $p\gtrsim 1$. This means that the power spectrum must have the shape of a narrow peak in order to generate PBHs in accordance with the observational constraints. For $M_{\bullet}=10^{29}$ g and $M_{\bullet}=10^{35}$ g the bounds on the power spectrum tail are weaker but still considerable: unless $p\gtrsim 0.6$ and $p\gtrsim 0.4$ respectively the CMB anisotropy observables alter.
