Broadband reduction of quantum radiation pressure noise via squeezed light injection

TL;DR

This paper demonstrates the reduction of quantum radiation pressure noise in an optomechanical cavity at room temperature by injecting squeezed light, achieving a 1.2 dB noise floor reduction, relevant for gravitational wave detection.

Contribution

It experimentally shows quantum radiation pressure noise reduction using squeezed light in a microresonator-based optomechanical system at room temperature.

Findings

Achieved 1.2 dB reduction in measurement noise floor.

Demonstrated QRPN reduction at frequencies relevant to gravitational wave detectors.

Used squeezed light generated from a degenerate optical parametric oscillator.

Abstract

We present the reduction and manipulation of quantum radiation pressure noise (QRPN) in an optomechanical cavity with the injection of squeezed light. The optomechanical system consists of a high-reflectivity single-crystal microresonator which serves as one mirror of a Fabry-Perot cavity. The experiment is performed at room temperature and is QRPN dominated between 10 kHz and 50 kHz, frequencies relevant to gravitational wave observatories. We observed a reduction of 1.2 dB in the measurement noise floor with the injection of amplitude squeezed light generated from a below-threshold degenerate optical parametric oscillator. This experiment is a crucial step in realizing the reduction of QRPN for future interferometric gravitational wave detectors and improving their sensitivity.

Figures

Full text

Introduction

Effects due to quantum mechanics are becoming significantly important in the precision measurement of continuous variables. As the precision of an observable increases, a back action effect governed by the Heisenberg uncertainty principle results in a increased uncertainly in the conjugate variable. This can be observed in optomechanical systems where the mechanical motion of an oscillator is coupled to an optical cavity mode Optomechanics , such as gravitational wave (GW) interferometers. Increasing the laser drive power lowers the photon counting uncertainty and reduces shot noise. The increased power, however, results in an increase in the back action effect in the form of quantum radiation pressure noise (QRPN) Caves_1980 ; Braginsky_book .

When GW detectors such as the Advanced Laser Interferometer Gravitational Wave Observatory (LIGO) LIGO , Advanced Virgo VIRGO , and KAGRA KAGRA , reach their design sensitivity, quantum noise will be the dominant noise source across most of the detection band, with QRPN dominating at low frequencies between 10 Hz and 100 Hz. This quantum noise arises from vacuum fluctuations which couple to the interferometer via the dark readout port. The injection of squeezed vacuum into the interferometer dark port allows the quantum noise to be manipulated Caves1981 . Squeezed injection has been demonstrated to reduce the shot noise level of previous generation of GW detectors at both LIGO Hanford LIGO_SQZ , and GEO-600 GEO_SQZ , and is currently being implemented in current GW detectors. Other QRPN mitigation techniques such as variational readout Kimble , conditional squeezing Yiqiu , and the use of negative mass systems Negative_mass , have also been proposed to improve the low frequency sensitivity of GW detectors.

As GW detectors approach their design sensitivity, it is important study the effects of QRPN to help decide which QRPN reduction technique to employ. The effects and manipulation of QRPN has only been recently observed on tabletop experiments Purdy ; Teufel ; Clark_QRPN_SQZ ; Purdy_room_T ; Sudhir ; Cripe_QRPN as it is typically dominated by mechanical thermal noise and other classical noise sources such as seismic vibrations. However, many of the previous observations of QRPN were made in high frequencies (MHz-GHz), around the mechanical resonance, and thus are not fully applicable for GW detectors which will be QRPN dominated over a large frequency band away from the mechanical resonance. A measurement of QRPN away from the mechanical resonance of the oscillator and at frequencies in the GW band has only recently been performed Cripe_QRPN .

Here, we investigate the injection of squeezed light in a QRPN limited optomechanical system, and report the reduction and manipulation of broadband QRPN away from the mechanical resonance and at frequencies relevant to gravitational wave detectors. Our experiment utilizes low-loss single-crystal microresonators with low structural noise property for the effects of QRPN to be observed at room temperature.

The experiment

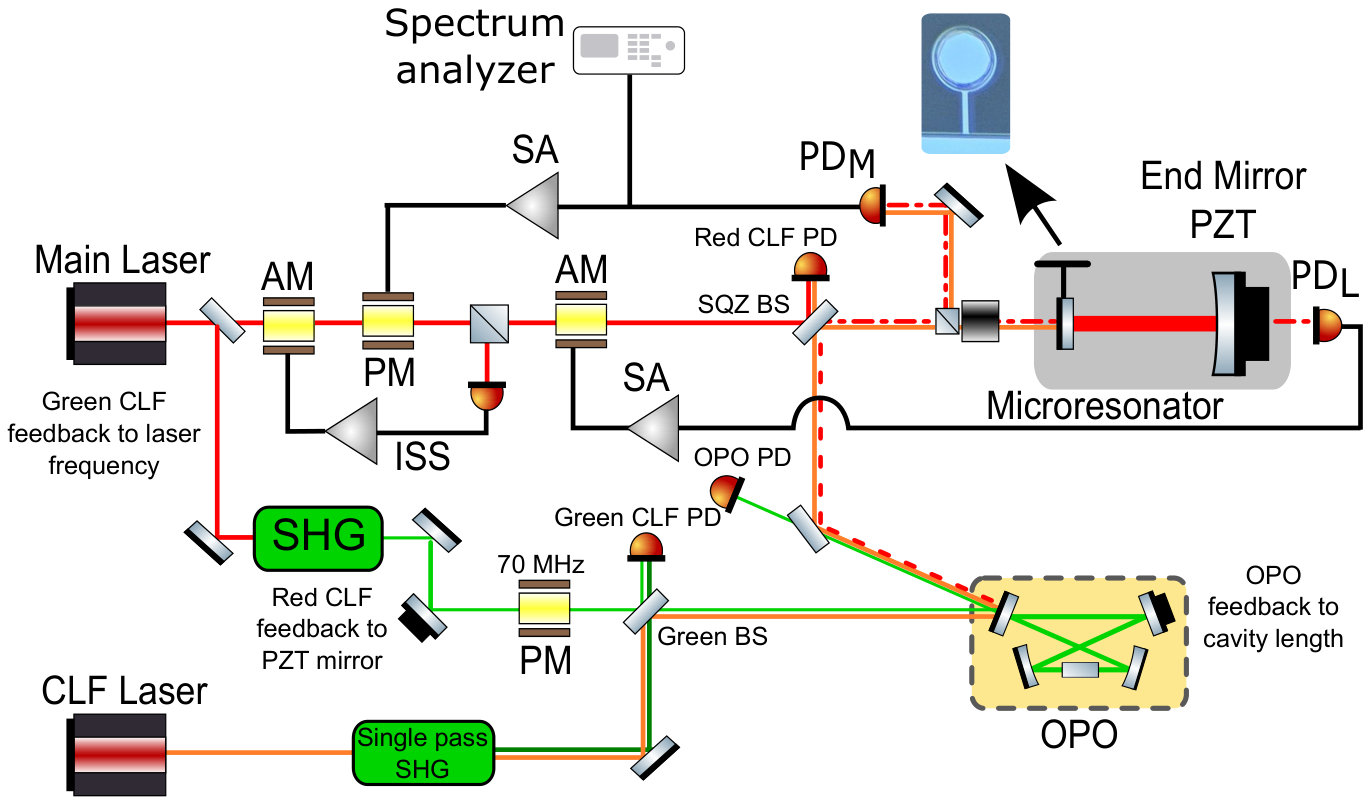

Figure 1 shows the schematic of the experiment. The optomechanical system is a Fabry-Perot cavity with a micro-mechanical oscillator as one of the end mirrors. The system is installed on a suspended breadboard inside a vacuum chamber at $10^{-7}$ Torr in order to provide passive seismic and acoustic isolation. The microresonator consist of a roughly 70-$\mu$m diameter mirror pad suspended from a single crystal GaAs cantilever with a thickness of 220-nm, width of 8-$\mu$m, and a length of 55-$\mu$m. The mirror pad is made up of 23 pairs of quarter-wave optical thickness GaAs/Al0.92Ga0.08As layers for a transmission of T = 250 ppm and exhibits both low optical losses and a high mechanical quality factor cole08 ; cole12 ; cole13 ; cole14 ; Singh_PRL . The microresonator has a mass of 50 ng, a natural mechanical frequency of $\Omega_{m}=2\pi\times 876$ Hz, and a measured mechanical quality factor of $Q_{m}=16000$ at room temperature Cripe_QRPN . The cavity has a length of slightly less than 1 cm, a finesse of $\mathcal{F}=13000$ and linewidth (HWHM) of $2\pi\times 500$ kHz.

The optomechanical cavity is operated blue-detuned from a 1064 nm Nd:YAG laser which results in a strong optical spring effect. The optical spring self-locks the cavity for frequencies below the optical spring resonance, however the phase lag due to the finite cavity response results in a anti-damping force, rendering the system unstable 13 ; 17 . The optical spring effect is stabilized by monitoring the cavity reflection and transmission field, and providing active feedback around the optical spring frequency to the laser power and frequency via an electro-optic amplitude modulator (AM) and phase modulator (PM) Cripe_RPL ; Cripe_QRPN . In the final measurement configuration, only the reflected light and PM feedback loop is used to lock the cavity at a detuning of about 0.6 linewidths, with the optical spring pushing the mechanical resonance frequency above 100 kHz.

The squeezed vacuum state is generated from a sub-threshold degenerate optical parametric oscillator (OPO) via the parametric down conversion process. The OPO is a doubly resonant bow tie cavity with a nonlinear crystal made of periodically poled potassium titanyl phosphate (PPKTP) embedded within the cavity. The OPO is pumped by light tapped from the main laser that has been frequency-doubled to 532 nm via a second harmonic generation (SHG) cavity, and is kept on resonance with the pump light via a Pound-Drever-Hall locking scheme Drever1983 . Squeezed light is injected into the cavity by combining the main laser field with a squeezed vacuum state via an asymmetric 97:3 beamsplitter. Spatial mode mismatch is filtered out by passing the combined field through a short optical fiber before the optomechanical cavity. An intensity stabilization servo (ISS) is used to suppress the main laser intensity noise down below shot noise level.

The control of the squeezed ellipse phase with respect to the main laser is achieved with a coherent locking scheme Chua11 ; Henning which utilizes a coherent locking field (CLF) laser frequency shifted from the main laser by 12.5 MHz. The frequency difference between the two lasers is maintained by up-converting a small portion of the CLF laser to 532 nm and phase locking the 25 MHz beat note between the up-converted field and the OPO pump field. The unconverted (1064nm) CLF beam co-propagates with the squeezed vacuum field and is phase locked with the main laser after the asymmetric beamsplitter at 12.5 MHz. Engaging both the CLF phase locks allows the squeezed ellipse to the track the phase of the main laser field. Rotation of the squeezed ellipse between the amplitude and phase quadrature is achieved by changing the demodulation phase between the two CLF phase locks.

Results

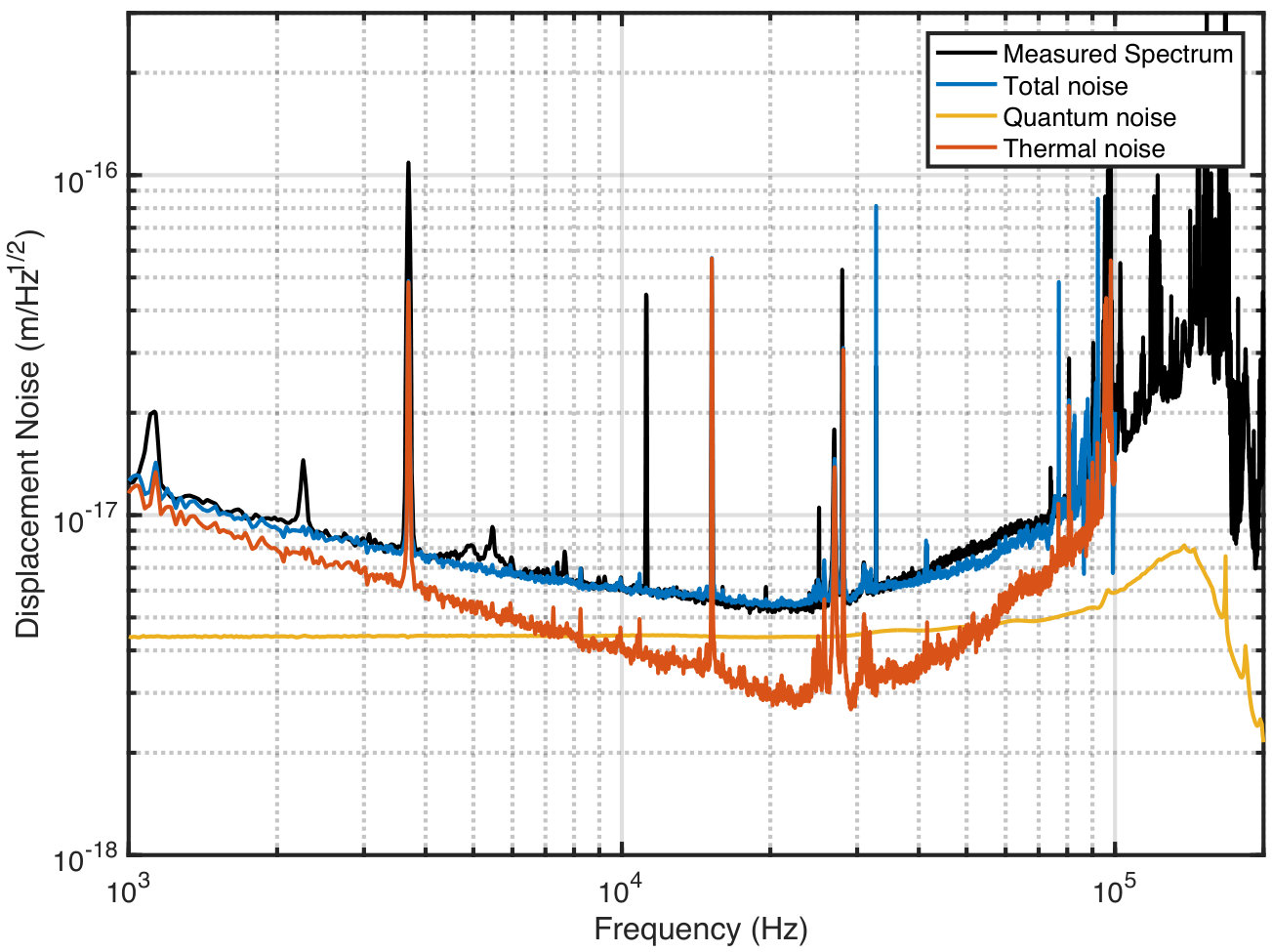

Figure 2 shows the displacement spectral density measured at the reflection port of the cavity with 220 mW of circulating power. The broad peak at 150 kHz is due to the mechanical fundamental frequency being shifted up by the optical spring effect Cripe_RPL . The dominant noise source below 10 kHz is the thermal noise of the microresonator which follows a structural damping model between 200 Hz to 30 kHz, and falls off as $1/f^{1/2}$ compared to QRPN Cripe_QRPN . With 220 mW of circulating power, QRPN is dominant noise source between 10 kHz and 50 kHz. The excess thermal noise above 30 kHz is believed to be related to thermoelastic damping.

The spectrum is calibrated by measuring the transfer function from the main laser piezo to the cavity reflection port. The laser piezo actuates on the main laser frequency and has been calibrated separately. The transfer function measures the closed loop response of the system, and undoes the effect of both the electronic feedback and the optical spring response. The optical spring effect is reintroduced in the spectrum by measuring separately the optical spring frequency and cavity detuning. A 11.2 kHz dither tone on the cavity length is used to produce a calibration line, shown in the inset of Figure 3, to ensure the calibration is constant between all the measurements.

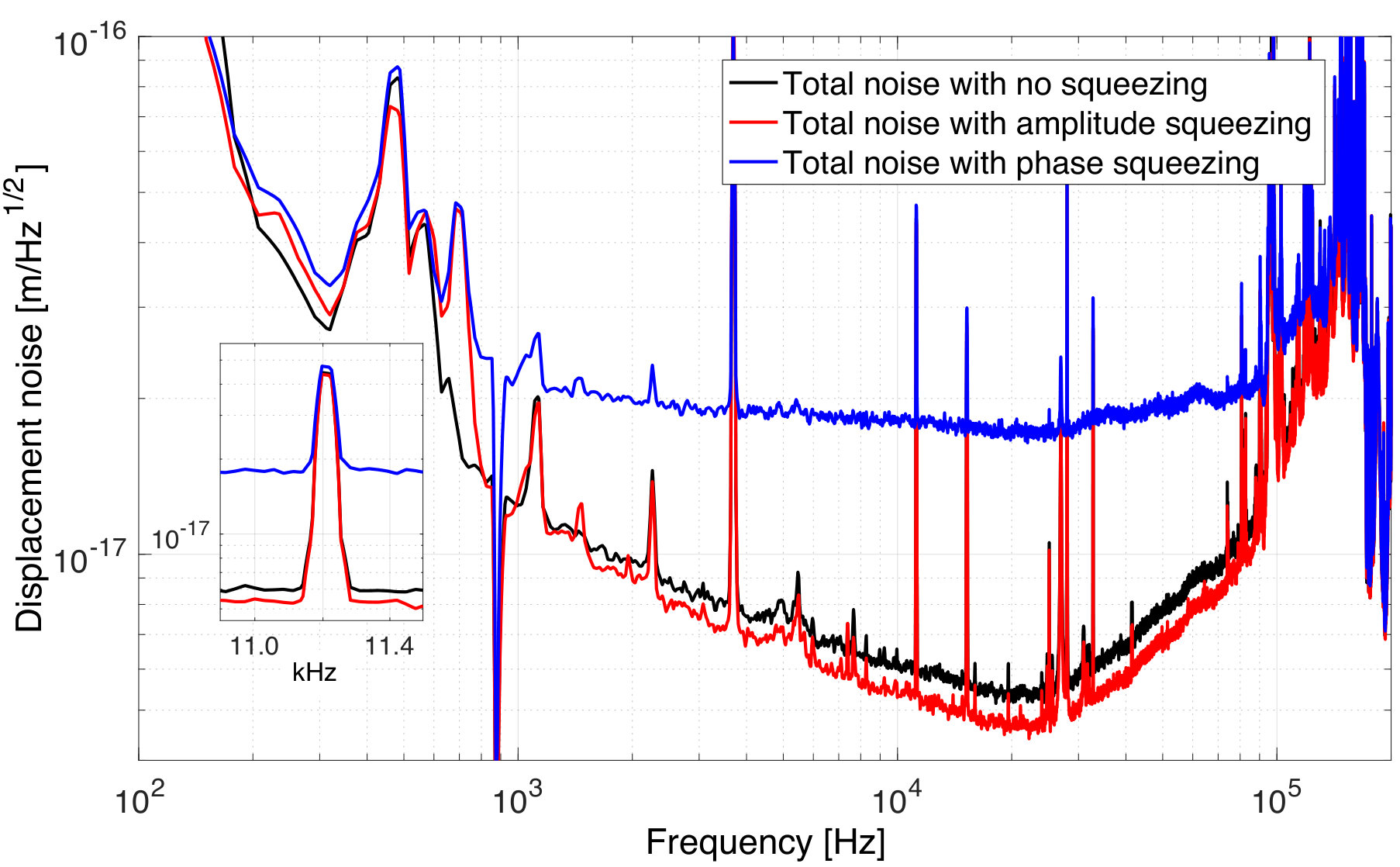

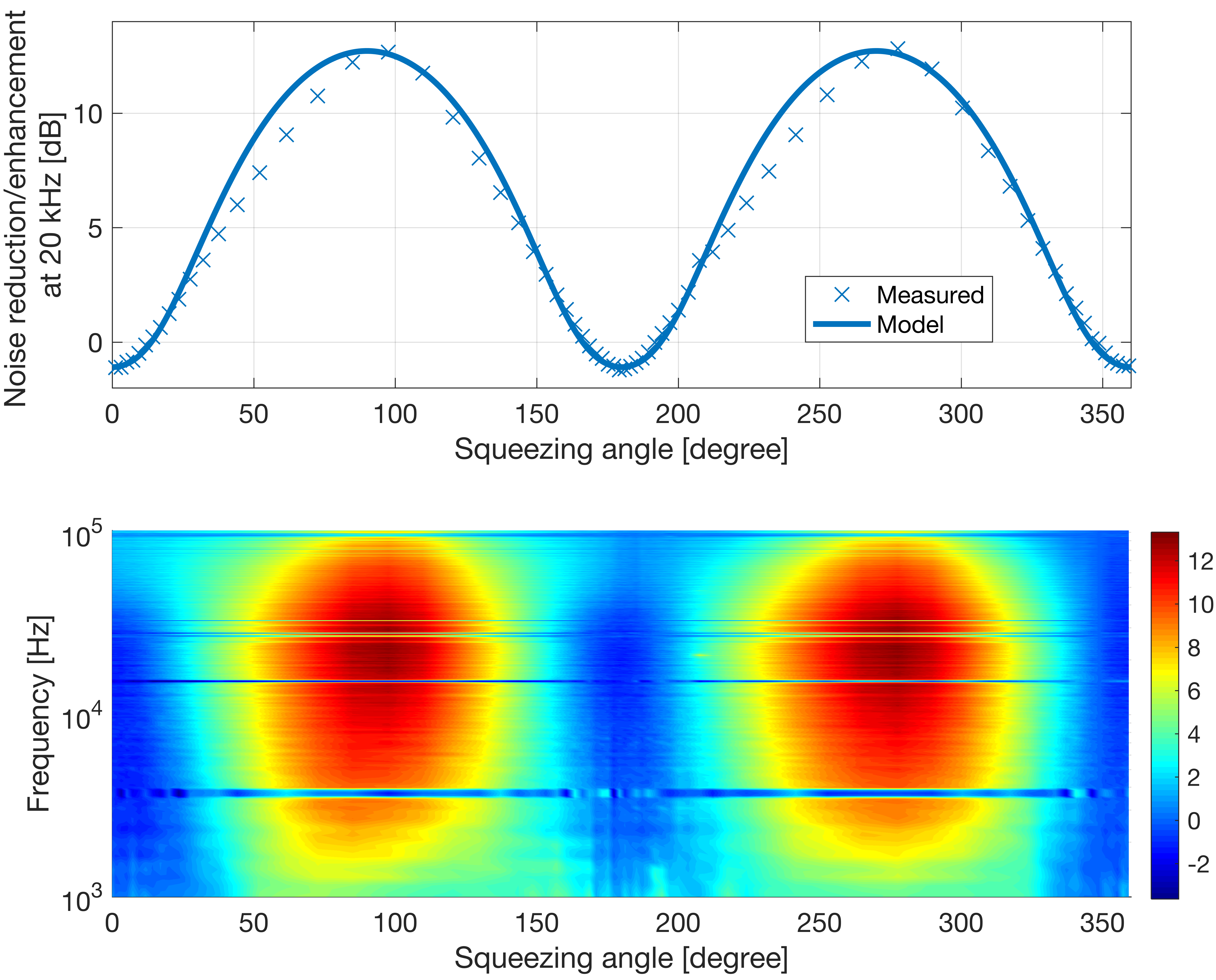

In order to manipulate the QRPN, bright squeezed light is injected into the cavity, which affects the measured displacement spectrum as shown in Figure 3. With the injection of amplitude squeezed light, we observe a reduction of the total noise floor at frequencies where QRPN is dominant, with a maximum reduction of 1.2 dB at around 20 kHz. Even though thermal noise is the dominant noise source below 10 kHz, QRPN is still a major contributor to the total noise and the reduction in noise due to squeezed light injection remains visible below 2 kHz. By changing the relative phase between the two CLF locks, we are able to rotate the squeezing ellipse to produce phase squeezed light resulting in an increase of the total noise by 12.6 dB at 20 kHz. The flat and broadband nature of the increase is indicative of the quantum noise being manipulated. Figure 4 shows the noise reduction and enhancement at 20 kHz and across the measurement spectrum.

The amount of observed reduction in noise is currently limited by the collective losses of the system, which degrades the squeezed state by mixing it with uncorrelated vacuum fields. These losses include the OPO cavity escape efficiency, optical propagation loss from the OPO to the photodetector, mode matching efficiency of the squeezed field to the optomechanical cavity, and the photodiode quantum efficiency. The optical propagation loss was measured to be 47%, which was predominately due to optical fiber launching efficiency, and diffraction losses at the cantilever mirror. The OPO escape efficiency, a measure of the the OPO out-coupling efficiency had a measured value of 97%, mode matching efficiency to the optomechanical cavity was 80%, and the photodiode quantum efficiency was 97%. This resulted in a total loss efficiency of 40%, which is in agreement with the measured amplitude and phase squeezing level.

Conclusion

We present the reduction of quantum radiation pressure noise of a microresonator far from the mechanical resonance frequency over a broad frequency range via the injection of squeezed light. This provides useful insight in reducing the radiation pressure forces of future gravitational wave observatories in order to improve its sensitivity and detection range. Moreover, a radiation pressure noise limited optomechanical system provides a useful testbed for other QRPN reduction proposals Braginsky547 ; Braginsky_speedmeter ; Kimble ; Harms ; FD_SQZ ; Glasgow_speedmeter and quantum-enhanced displacement sensing Giovannetti1330 .

With the optomechanical system at room temperature, the standard quantum limit (SQL) is currently within a factor of five away, with the system predominately dominated by thermal noise. By cryogenically cooling the system, this paves the way in reaching the SQL Braginsky_SQL , and measuring sub-SQL sensitivity with non-classical states of light.
