Bimetric cosmology is compatible with local tests of gravity

TL;DR

This paper challenges previous claims by demonstrating that bimetric gravity models can be consistent with both cosmological expansion and local gravity tests, providing counterexamples to earlier conclusions.

Contribution

The authors refute prior assertions by Kenna-Allison et al., showing that bimetric gravity can be compatible with local tests and cosmological observations through simple counterexamples.

Findings

Counterexamples show bimetric gravity can match cosmological and local gravity tests

Previous claims of incompatibility are not universally valid

Bimetric models remain viable for cosmology and gravity tests

Abstract

Recently, Kenna-Allison et.al. claimed that bimetric gravity cannot give rise to a viable cosmological expansion history while at the same time being compatible with local gravity tests. In this note we review that claim and combine various results from the literature to provide several simple counter examples. We conclude that the results of Kenna-Allison et.al. cannot hold in general.

Figures

Equations

$$S=\frac{m_g^2}{2}\int {\text{d}}^{4}x\left(\sqrt{-g}R(g)+{\alpha }^2\sqrt{-f}R(f)\right)$$

$$-m^2{m}_g^2\int {\text{d}}^{4}xV(g,f)+\int {\text{d}}^{4}x\sqrt{-g}{\mathcal{L}}_{\text{m}}(g,\Phi ),$$

$$V(g,f)=\sqrt{-g}\sum _{n=0}^4{\beta }_n{e}_n\left(\sqrt{g^{-1}f}\right),$$

$$G_{\mu \nu }^g+m^2{V}_{\mu \nu }^g=$$

$${\alpha }^2{G}_{\mu \nu }^f+m^2{V}_{\mu \nu }^f=$$

$$T_{\mu \nu }=\frac{-2}{\sqrt{-g}}\frac{\delta \sqrt{-g}{\mathcal{L}}_{\text{m}}}{\delta g^{\mu \nu }}.$$

$$\displaystyle{\alpha^{2}}\big{(}c\beta_{0}+3c^{2}\beta_{1}+3c^{3}\beta_{2}+c^{4}\beta_{3}\big{)}$$

$$={\beta }_1+3c{\beta }_2+3c^2{\beta }_3+c^3{\beta }_4.$$

$$g_{\mu \nu }={\bar{g}}_{\mu \nu }+\delta g_{\mu \nu },f_{\mu \nu }={\bar{f}}_{\mu \nu }+\delta f_{\mu \nu }.$$

$$m_{\text{FP}}^2=m^2\frac{1+{\alpha }^2{c}^2}{{\alpha }^2{c}^2}c({\beta }_1+2{\beta }_{2}c+{\beta }_3{c}^2).$$

$$\delta g_{\mu \nu }\propto \delta G_{\mu \nu }-{\alpha }^2\delta M_{\mu \nu },$$

$$\delta f_{\mu \nu }\propto \delta M_{\mu \nu }+c^2\delta G_{\mu \nu },$$

$$V(r)=-\frac{1}{m_{\text{Pl}}^2}\left(\frac{1}{r}+\frac{4{\alpha }^2{c}^2}{3}\frac{e^{-m_{\text{FP}}r}}{r}\right),$$

$$\frac{4{\alpha }^2}{3}{e}^{-m_{\text{FP}}r}\lesssim 10^{-9}.$$

$$m_{\text{crit}}\simeq 2.6\text{eV},$$

$$r_V={\left(\frac{r_S}{m_{\text{FP}}^2}\right)}^{1/3}$$

$$\frac{r}{r_V}\lesssim 10^{-3}.$$

$$\alpha \lesssim 10^{-5},$$

$$H^2=F(\rho ).$$

$$H^2=\frac{\rho }{3m_{\text{Pl}}^2}-\frac{2{\beta }_1^2}{3{\beta }_2}{m}^2+\mathcal{O}({\alpha }^2).$$

$$m_{\mathrm{FP}}^2=m^2(1+{\alpha }^{-2}{c}^{-2})(c{\beta }_1+2c^2{\beta }_2)\sim \frac{m^2}{{\alpha }^2},$$

$$m_{\mathrm{FP}}\gg H_0.$$

$$m_{\text{FP}}\simeq H_0.$$

$$H\simeq m_{\text{FP}},$$

Full text

I Introduction

Ghost-free bimetric gravity is an extension of general relativity (GR) which describes the nonlinear interactions of a massive spin-2 field in a dynamical gravitational background Hassan and Rosen (2012a); Hassan et al. (2013). In contrast to its cousin massive gravity de Rham et al. (2011), it contains a massless spin-2 mode that mediates a long-range force and it possesses a smooth GR limit111An important additional point to consider is the Cauchy problem, which is known to be well-posed in GR, but still the subject of ongoing work within bimetric theory Kocic (2018a, b); Kocic et al. (2019); Torsello et al. (2019)..

In the linear theory of a massive spin-2 field coupled to a source, the zero-mass limit is discontinuous van Dam and Veltman (1970); Zakharov (1970). For a single massive graviton, this discontinuity is in conflict with observations but can be cured by nonlinear interactions, a feature known as the Vainshtein mechanism Vainshtein (1972). In massive gravity, without the massless spin-2 mode, this mechanism is absolutely crucial for the phenomenological viability of the theory. In bimetric theory, the situation is fundamentally different since the gravitational interaction is mediated by a combination of the massive and the massless spin-2 mode. For large spin-2 masses, bimetric gravity passes all local gravity tests due to the strong Yukawa suppression of the massive graviton mode in the gravitational potential in Newtonian approximation. In addition, the coupling of the massive spin-2 mode to matter can be made arbitrarily small, in which case the gravitational force is effectively mediated purely by the massless field. As a consequence, bimetric theory does not necessarily require a working Vainshtein mechanism in order to be in agreement with observational data.

Furthermore, bimetric theory can give rise to cosmological solutions with accelerated expansion even in the absence of vacuum energy Comelli et al. (2012a); Volkov (2012); von Strauss et al. (2012). These self-accelerating solutions require the mass scale which is associated to the breaking of independent diffeomorphisms of the two metrics to be on the order of the Hubble scale. This scale is not necessarily identical to the Fierz-Pauli mass of the massive spin-2 mode since the latter depends on a different parameter combination. In particular, the spin-2 mass also involves the parameter which controls the coupling of the massive spin-2 mode to the matter source.

The authors of Ref. Kenna-Allison et al. (2018) claimed that in bimetric theory it is not possible to bring a viable cosmological expansion history in agreement with local gravity tests. Implicitly, their argument involved two steps: (1) The assumption that local gravity tests can only be passed if the Vainshtein mechanism is at work, and (2) a working Vainshtein mechanism can be shown to contradict a viable background cosmology due to incompatible requirements on the parameters of the theory.

In the following we invalidate both of these steps in the argument by giving explicit counter-examples.

II Short review of bimetric gravity

We start by presenting the action of ghost-free bimetric theory for two metric tensors $g$ and $f$ Hassan and Rosen (2012a, b),222For a review on bimetric gravity, see Ref. Schmidt-May and von Strauss (2016).

[TABLE]

where $m_{g}$ is the bare Planck mass of the metric $g$ and $\alpha$ measures the ratio to the bare Planck mass of $f$. $R(\bullet)$ denotes the Ricci curvature scalar for each metric. The two metric tensors interact via the potential,

[TABLE]

where $e_{n}$ denotes the $n$-th elementary symmetric polynomial of the matrix argument. The constants $\beta_{n}$ are free parameters of the theory, and $\beta_{0}$ and $\beta_{4}$ parametrize the bare cosmological constants for $g$ and $f$, respectively333Ref. Kenna-Allison et al. (2018) refers to $\alpha_{0}$ as the bare cosmological constant, which is incorrect, since matter loops renormalize $\beta_{0}$. For an explicit confirmation of this, see equation (2.12) of Ref. de Rham et al. (2015). The parameter $\alpha_{0}$ is a combination of all five $\beta_{n}$ and the exact relations between the two parametrizations can be found, for instance, in Ref. Hassan et al. (2013)..

Varying the action with respect to $g$ and $f$ yields two sets of modified Einstein equations,

[TABLE]

where $G^{g}$ and $G^{f}$ are the Einstein tensors of $g$ and $f$, respectively. The terms $V^{g,f}$ arising from variation of the potential were derived in Ref. Hassan and Rosen (2011, 2012a). Finally, the stress-energy tensor of matter is defined as,

[TABLE]

III Mass eigenstates and gravitational force

Bimetric gravity has a well defined mass spectrum around proportional backgrounds, where the metrics are conformally related as $\bar{f}=c^{2}\bar{g}$ with the real constant $c$, determined by Hassan et al. (2013),

[TABLE]

We consider small fluctuations around that background,

[TABLE]

Plugging this ansatz into the Einstein equations and keeping only terms up to linear order in the fluctuations, one finds that a massless spin-$2$ field, $\delta G_{\mu\nu}$, and a massive spin-$2$ field, $\delta M_{\mu\nu}$ propagate on the proportional background Hassan and Rosen (2012a); Hassan et al. (2013). The massive mode has a Fierz-Pauli mass,

[TABLE]

The original metric fluctuations are linear combinations of both mass eigenstates,

[TABLE]

where we omitted the overall normalization.

When $\alpha\ll 1$, the fluctuation of the physical metric $g_{\mu\nu}$ is almost aligned with the massless excitation. Since matter fields couple to the metric perturbations $\delta g_{\mu\nu}$, we expect to recover GR for $\alpha\ll 1$ Akrami et al. (2015). Clearly, in this parameter region there is no conflict with current observational data.

For instance, let us consider a spherically symmetric background Babichev and Crisostomi (2013); Comelli et al. (2012b); Enander and Mortsell (2015); Enander and Mörtsell (2013); Babichev et al. (2016). The contribution to the Newtonian potential coming from the massless mode is a Coulomb-like term, $\sim r^{-1}$, proportional to the inverse distance between the source and the test particle, while the massive mode contributes a Yukawa-term $\sim e^{-m_{\text{FP}}r}/r$. Hence, from eq. (8a) it follows that the coupling $\frac{1}{m_{g}^{2}}\delta g_{\mu\nu}T^{\mu\nu}$ will produce the following linearized gravitational potential,

[TABLE]

where the physical Planck mass is $m_{\text{Pl}}^{2}=m_{g}^{2}(1+\alpha^{2}c^{2})$ Hassan et al. (2013). Whenever the first term in the gravitational potential dominates over the second one, the solution behaves approximately like GR and does not require a Vainshtein mechanism. We can thus identify two parameter régimes in which GR is restored,

• 1.)

$\alpha c\ll 1$,

• 2.)

$m_{\text{FP}}\gg\ell^{-1}$,

where $\ell$ is the typical length scale of the system (e.g. $\ell\simeq$ 1 AU for the Solar System).

IV Example: Solar System

In this section, we demonstrate the general results discussed in the previous section in an explicit example: the Solar System. For concreteness, we derive numerical values for the Sun as central source of the gravitational potential. Not all Solar System tests are based on this scenario, so our arguments here should be viewed as qualitative. A detailed quantitative analysis is left for future work. Our findings are summarised in fig. 1 and fig. 2.

IV.1 Yukawa suppression

At the scale of $1\,\text{AU}\simeq 1.5\times 10^{13}\,\text{cm}$, deviations from the inverse square law for the gravitational force are constrained to be $\lesssim 10^{-9}$ Will (2014). We aim at providing the most conservative constraints on the bimetric parameters. Hence, we use this bound (which is the most stringent one) on deviations for any distance from the Sun. Comparing the two contributions in (9), this requires444In this section, we absorb $c$ into $\alpha$ for simplicity. Reinserting $c$ does not change any of our findings.,

[TABLE]

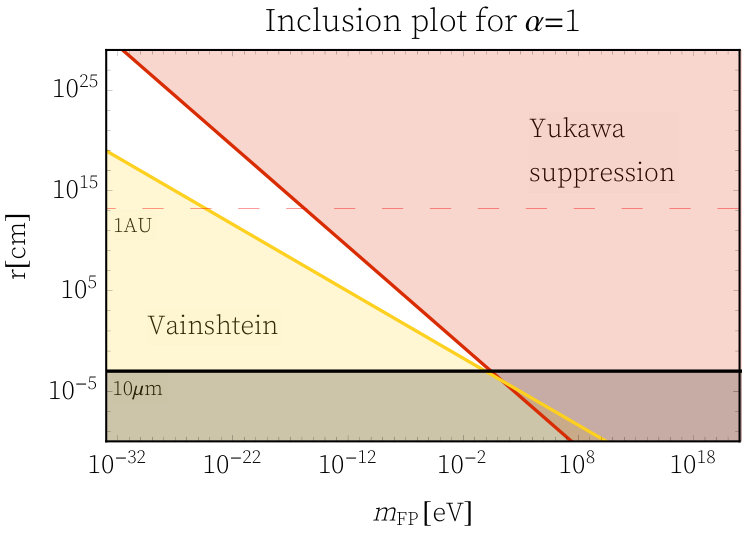

Deviations due to the massive mode are arbitrarily small in both the previously identified parameter limits. The red line in fig. 1 represents the bound eq. 10 for the case $\alpha=1$. Therefore, in the red-shaded region, the Yukawa-like term in the gravitational potential is always smaller than all observational bounds. A value for $\alpha$ smaller than unity makes the deviations even smaller.

Local gravity tests inside the Solar System provide strong constraints on deviations from GR down to scales of $\sim 10\,\mu\text{m}$ Will (2014). As a very rough estimate, we use eq. 10 to define a critical spin-2 mass (for $\alpha\simeq 1$),

[TABLE]

above which no deviations from GR are detectable via observations in the Solar System. This is indicated by the black-shaded region in fig. 1.

For $m_{\text{FP}}\gg m_{\text{crit}}$ and in the red-shaded region of effective Yukawa suppression, the Vainshtein mechanism is certainly not needed to restore GR.

IV.2 Vainshtein regime

Close to the source, nonlinear terms become as important as the linear ones in a way, such that GR is restored. This is the well-known Vainshtein mechanism Vainshtein (1972) and it is active within a sphere defined by the Vainshtein radius,

[TABLE]

around an object of mass $M$ with Schwarzschild radius $r_{S}=(1+\alpha^{2})M/m_{\text{Pl}}^{2}$ Babichev and Crisostomi (2013); Babichev et al. (2016). Even though the expression derived in Ref. Kenna-Allison et al. (2018) seems to differ by a numerical factor (which is not manifestly positive) from (12), the scale is the same as long as the parameters satisfy $\beta_{n}\sim\mathcal{O}(1)$.555We emphasize that the value for the Vainshtein radius is derived assuming $r<m_{\text{FP}}^{-1}$. For the Solar System, this is not an issue since the intersection of the lines corresponding to $r_{V}$ and $m_{\text{FP}}^{-1}$ lies close to the observable threshold of $\sim 10\,\mu\text{m}$. The region where $m_{\text{FP}}^{-1}\sim r_{V}$ should be treated more carefully, but can definitely be brought in agreement with data by making $\alpha$ small.

Well inside the Vainshtein radius, deviations from the inverse-square law of the gravitational force scale like $(r/r_{V})^{3}$ Babichev and Crisostomi (2013); Enander and Mortsell (2015) and hence, in order to satisfy (10), we require (for $\alpha\simeq 1$),

[TABLE]

Choosing a solar mass object $M=M_{\odot}$ defines the orange line in fig. 1 as a rough estimate for the threshold of an effective Vainshtein mechanism. Consequently, well inside the yellow-shaded region, the gravitational force is certainly indistinguishable from GR for any bimetric parameters.

IV.3 Constraints on the spin-2 coupling

Only in the region left white in fig. 1, significant deviations from GR could occur. However, we still have the free parameter $\alpha$, which we can use to suppress the extra term in the Newtonian potential. The most stringent bound comes from close to the Vainshtein radius, where the observational bound (10) requires,

[TABLE]

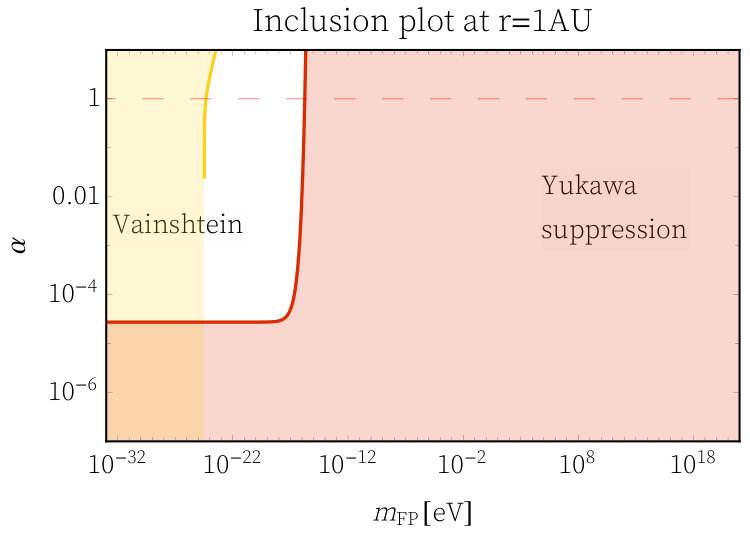

see also fig. 2. Then, for any mass of the spin-2, deviations from the GR prediction are undetectable with current experimental precision.

For very small spin-2 masses, the Vainshtein radius of the Sun becomes larger than the Solar System itself. As a conservative estimate, evaluating eq. 13 at $r=100\,\text{AU}$ implies $m_{\text{FP}}\lesssim 5\times 10^{-28}\text{eV}$. For smaller spin-2 masses the Kuiper belt is well inside the Vainshtein sphere and the Solar System does not constrain $\alpha$ to be small.

We conclude this section by stressing the following points: For a large spin-2 mass, $m_{\text{FP}}\gg m_{\text{crit}}$, the Vainshtein mechanism is not necessary for the theory to pass all Solar System tests since the Yukawa suppression of the contribution from the massive mode is too large. For very small masses, the Vainshtein mechanism has to be (and is) active. These results hold for any value of $\alpha\lesssim 1$. Only for intermediate spin-2 masses the parameter $\alpha$ has to satisfy the bound (14).

V Gravitational waves and galactic tests

Constraints from gravitational waves were derived in Ref. Max et al. (2017), excluding a small region of the parameter space: Within the spin-$2$ mass range of $10^{-22}$ to $10^{-21}\text{eV}$, the ratio of the Planck masses has to satisfy $\alpha\lesssim 0.3$. For a spin-$2$ mass outside that range, gravitational wave observations do not constrain $\alpha$ to be small.

On galactic scales, observations of galactic velocity dispersions and gravitational lensing can be used to constrain the bimetric parameters Enander and Mörtsell (2013). For $m_{\text{FP}}\simeq H_{0}$ and for a galaxy of mass $M=10^{12}M_{\odot}$, deviations from GR predictions are expected to be on the order of $(r/r_{\mathrm{V}})^{3}\simeq 2\times 10^{-13}$ Enander and Mortsell (2015), which is within the observational bounds by a factor of $4\times 10^{-12}$ Schwab et al. (2010); Sjors and Mortsell (2013). Data from cluster lensing requires $\alpha\lesssim 0.7$ for a spin-$2$ mass range of $10^{-30}$ to $10^{-28}\text{eV}$ Platscher et al. (2018), where neither the Vainshtein mechanism nor the Yukawa suppression restore GR on the length scales relevant to observations. Outside of this range, $\alpha$ is not constrained to be small since it is not needed to restore GR.

For a combined exclusion plot with galactic and extragalactic constraints as well as bounds from gravitational wave detection on the bimetric parameters, see fig. 9 in Ref. Platscher et al. (2018).666Note that $\alpha=\tan\theta$ in the notation of Ref. Platscher et al. (2018) and their plot is linear in $\theta$. We conclude that tests of the gravitational law outside the Solar System do not provide constraints on the bimetric parameter space in the region where $\alpha\lesssim 0.1$. Thus the most stringent bounds on bimetric gravity are those from the Solar System, discussed in the previous section.

VI Bimetric cosmologies

The equations of motion of bimetric gravity evaluated on a homogeneous and isotropic ansatz for both metrics give two sets of equations that can be combined into one modified Friedmann equation of the general form,

[TABLE]

Here $H=\dot{a}/a$ is the Hubble function of the physical scale factor $a(t)$ inside the physical metric $g_{\mu\nu}$ and $\rho$ is the matter energy density, i.e., the 00-component of the perfect fluid source $T^{\mu}_{~{}\nu}$.

In the following, we will assume that all $\beta_{n}$ parameters, are of order unity and the mass scale $m$ (not necessarily $m_{\mathrm{FP}}$) is of order $H_{0}$. For concreteness we will consider a simple bimetric model with parameters $\beta_{0}=\beta_{3}=\beta_{4}=0$. All of our findings straightforwardly generalize to models with generic $\mathcal{O}(1)$ values for all $\beta_{n}$.

VI.1 Large mass region

In Ref. Akrami et al. (2015) it was shown that for $\alpha\ll 1$, the Friedmann equation (15) can be approximated by the simple form,

[TABLE]

The Fierz-Pauli mass in eq. (7), defined at the de Sitter point is,

[TABLE]

where we have used that $c=-\frac{\beta_{1}}{3\beta_{2}}+\mathcal{O}(\alpha^{2})\sim\mathcal{O}(1)$ which follows from the background equation (III). Clearly $\alpha\ll 1$ implies that,

[TABLE]

This shows that we can easily be in the parameter regime where no Vainshtein mechanism is needed and at the same time have a valid background cosmology that matches exactly that of GR with cosmological constant $\Lambda=2m^{2}\beta_{1}^{2}/{\left|\beta_{2}\right|}$. In fact, the approximation in eq. (16) is valid up to the scale $H\sim m_{\mathrm{FP}}$ Akrami et al. (2015). By making the spin-2 mass large, we can thus push back the deviations from GR to arbitrary early times. Explicitly, already for a spin-$2$ mass of $m_{\text{FP}}\simeq 0.4\,\text{eV}$ the background expansion in this simple model follows (almost) exactly the $\Lambda$CDM prediction until the CMB. At earlier times, when $H>m_{\mathrm{FP}}$, we expect GR to be recovered by nonlinear effects, as we shall discuss further below. Moreover, the cosmological evolution at early times is dominated by the matter density $\rho$ von Strauss et al. (2012) and will therefore anyway follow almost exactly the evolution predicted by the $\Lambda$CDM model.

VI.2 Small mass region

Now, we consider the parameter region, where $\alpha\simeq 1$. With our assumption $\beta_{n}\sim\mathcal{O}(1)$, this implies

[TABLE]

This parameter region has received a lot of attention in the literature, see e.g. Ref. Comelli et al. (2012a); Volkov (2012); von Strauss et al. (2012); Akrami et al. (2013); Könnig et al. (2014a). In Ref. Akrami et al. (2013) various models with $\alpha=1$ were compared to observations, many of which give a good fit to data while still allowing for testable deviations from the standard $\Lambda$CDM scenario. The crucial point is that this parameter region is not in conflict with a successful Vainshtein mechanism around spherically symmetric sources. For a spin-2 mass on the order of the Hubble rate today, the Vainshtein radius of the sun is $r_{V}\simeq 10^{22}\,\text{cm}$, which is on the order of the size of the Milky Way. Hence, no constraints on $\alpha$ exist for such a tiny spin-2 mass. Lensing constraints do not provide bounds on the value of $\alpha$ for small spin-2 masses either Platscher et al. (2018), see section V. The only caveat here is that the effective Planck mass in cosmological solutions must be matched with Newton’s constant in the gravitational force law, which may (mildly) constrain one of the $\beta_{n}$ parameters.

VI.3 Cosmological perturbations

Although bimetric gravity gives rise to a viable expansion history while passing all local gravity tests in both these parameter regions, the cosmological perturbations behave differently from GR. In particular, the FLRW background is not always stable against scalar fluctuations during the entire expansion history due to a gradient instability Comelli et al. (2012c); Khosravi et al. (2012); Berg et al. (2012); Fasiello and Tolley (2013); Comelli et al. (2014); De Felice et al. (2014); Solomon et al. (2014); Lagos and Ferreira (2014); Könnig and Amendola (2014); Könnig et al. (2014b); Enander et al. (2015); Könnig (2015). Ref. Akrami et al. (2015) showed that for times earlier than,

[TABLE]

the instability sets in. Thus, by making the spin-2 mass large (which is equivalent to $\alpha\ll 1$ in our parametrization), the instabilities can be pushed to arbitrarily early times.

Naïvely, these results seem to disfavour the parameter region with small spin-2 mass Könnig and Amendola (2014). However, precisely when the Hubble rate exaggerates the spin-2 mass, the inset of the gradient instability simply implies that nonlinear effects become as important as linear ones, invalidating linear perturbation theory. The results of Ref. Mortsell and Enander (2015); Aoki et al. (2015) suggest that these nonlinear effects are in fact not problematic but instead restore GR at early times through the Vainshtein mechanism.

VII Conclusion

We have discussed on general grounds why bimetric theory for a large range of parameter values can give rise to a viable cosmology while at the same time passing all other tests of the gravitational force law.

In particular, we demonstrated explicitly that for a weak coupling of the massive spin-2 mode to matter and a large spin-2 mass, bimetric theory becomes essentially indistinguishable from GR in cosmological solutions and on all distance scales in the galaxy.

We emphasize once more that this is in sharp contrast to massive gravity, which can be obtained as a parameter limit in bimetric gravity by sending $\alpha\rightarrow\infty$ and which requires the Vainshtein mechanism. For a summary of the much stronger constraints on massive gravity, see Ref. de Rham et al. (2017).

We also showed that even in the different regime of small spin-2 mass and Planck scale coupling for the massive spin-2, bimetric theory is compatible with all available observational data.

The assumptions in our explicit examples may seem restrictive. The theory has enough free parameters to achieve a large spin-2 mass even when $\alpha\simeq 1$ and conversely, a small spin-2 mass $m_{\text{FP}}\simeq H_{0}$ although $\alpha\ll 1$. These more general models, which require values for the $\beta_{n}$ parameters different from $\mathcal{O}(1)$, have several branches of solutions and the expressions can be lengthy. It would be interesting to study the resulting phenomenology, which we leave for future work. It is possible that the results of Ref. Kenna-Allison et al. (2018) apply to these parameter regions. Nevertheless, the examples we presented here clearly show that they do not hold in general.

We conclude that bimetric cosmologies are certainly not incompatible with local gravity tests.

Acknowledgments

This work is supported by a grant from the Max-Planck-Society.
