Tidal effects away from the equatorial plane in Kerr backgrounds

TL;DR

This paper investigates how tidal disruption limits for stars in Kerr black hole orbits vary with orbital inclination, revealing significant differences from equatorial cases especially near the black hole.

Contribution

It provides a numerical analysis of the Roche limit for stars in inclined Kerr orbits, highlighting the dependence on orbit type and stellar equation of state.

Findings

Roche limit varies strongly with orbit inclination

Significant differences from equatorial orbit results near the black hole

Dependence on the star's equation of state is demonstrated

Abstract

We study tidal effects on self-gravitating Newtonian stars rotating around a Kerr black hole in stable circular orbits away from the equatorial plane. Such cases are exemplified by a non-vanishing Carter's constant. Here, we calculate the tidal disruption limit (Roche limit) of the star numerically, in Fermi normal coordinates. The Roche limit is found to depend strongly on the choice of the orbit, and differs significantly from the equatorial plane result as one approaches nearly polar orbits. As expected, this difference is large when the star is close to the black hole (near to the innermost stable circular orbit) and becomes smaller when the star is far from it. We also discuss the dependence of the Roche limit on the equation of state of the star, taking two specific parameter values as examples.

Figures

Equations

$$d{s}^2=-\left(1-\frac{2Mr}{\Sigma }\right)d{t}^2-\frac{4Mra{\sin }^2\theta }{\Sigma }dtd\varphi +\frac{\Sigma }{\Delta }d{r}^2+\Sigma d{\theta }^2+\left(r^2+a^2+\frac{2Mr{a}^2{\sin }^2\theta }{\Sigma }\right){\sin }^2\theta d{\varphi }^2$$

$$\Sigma \frac{dt}{d\tau }$$

$${\Sigma }^2{\left(\frac{dr}{d\tau }\right)}^2$$

$${\Sigma }^2{\left(\frac{d\theta }{d\tau }\right)}^2$$

$$\Sigma \frac{d\varphi }{d\tau }$$

$$E^{pro}(r)=\frac{r^{3/2}-2M{r}^{1/2}+a\sqrt{M}}{r^{3/4}(r^{3/2}-3M{r}^{1/2}+2a\sqrt{M}{)}^{1/2}},L^{pro}(r)=\frac{\sqrt{M}(r^2+a^2-2a\sqrt{Mr})}{r^{3/4}(r^{3/2}-3M{r}^{1/2}+2a\sqrt{M}{)}^{1/2}}$$

$$E^{ret}(r)=\frac{r^{3/2}-2M{r}^{1/2}-a\sqrt{M}}{r^{3/4}(r^{3/2}-3M{r}^{1/2}-2a\sqrt{M}{)}^{1/2}},L^{ret}(r)=-\frac{\sqrt{M}(r^2+a^2+2a\sqrt{Mr})}{r^{3/4}(r^{3/2}-3M{r}^{1/2}-2a\sqrt{M}{)}^{1/2}}$$

$$E(r,L)=\frac{a^2{L}^2(r-M)+r{\Delta }^2}{aLM(r^2-a^2)\pm \Delta \sqrt{r^5(r-3M)+a^{4}r(r+M)+a^2{r}^2(L^2-2Mr+2r^2)}}$$

$$Q(r,L)=\frac{{\left[(a^2+r^2)E(r,L)-aL\right]}^2}{\Delta }-\left[r^2+a^2{E}^2(r,L)-2aLE(r,L)+L^2\right]$$

$$\cos i=\frac{L}{\sqrt{L^2+Q}}$$

$${\theta }_{inc}=\frac{\pi }{2}-D{\theta }_{min}$$

$$\rho \frac{\partial v_i}{\partial \tau }+\rho v^j\frac{\partial v_i}{\partial x^j}=-\frac{\partial P}{\partial x^i}-\rho \frac{\partial (\varphi +{\varphi }_{\text{tidal}})}{\partial x^i}+\rho \left[v^j\left(\frac{\partial A_j}{\partial x^i}-\frac{\partial A_i}{\partial x^j}\right)-\frac{\partial A_i}{\partial \tau }\right]$$

$${\varphi }_{\text{tidal}}$$

$$C_{ij}=R_{0i0j},C_{ijk}=R_{0\left(i|0|j;k\right)},C_{ijkl}=R_{0\left(i|0|j;kl\right)},B_{ijk}=R_{k\left(ij\right)0}$$

$$A_i=\frac{2}{3}{B}_{ijk}{x}^i{x}^j$$

$${\nabla }^2\varphi =4\pi \rho$$

$${\tilde{x}}^1=x^1\cos \Psi +x^3\sin \Psi ,{\tilde{x}}^2=x^2,{\tilde{x}}^3=-x^1\sin \Psi +x^3\cos \Psi$$

$$v^i=\Omega [-\{x^3-x_c\sin \Psi \},0,\{x^1-x_c\cos \Psi \}]$$

$$\frac{{\Omega }^2}{2}\left[({\tilde{x}}^1-x_g{)}^2+({\tilde{x}}^3{)}^2\right]+\frac{d\Omega }{d\tau }{\tilde{x}}^3{x}_c=h+\varphi +{\varphi }_{\text{tidal}}+{\varphi }_{\text{mag}}+C$$

$$\Omega =\frac{d\Psi }{d\tau }=\frac{\sqrt{K}}{\Sigma }\left(\frac{E(r^2+a^2)-aL}{r^2+K}+\frac{a(L-aE{\sin }^2\theta )}{K-a^2{\cos }^2\theta }\right)$$

$$P=\kappa {\rho }^{\Gamma },\text{where}\Gamma =1+\frac{1}{n},\text{so that},h=\kappa (n+1){\rho }^{\frac{1}{n}}$$

$${\nabla }_q^2\bar{\varphi }=4\pi \rho$$

$$\frac{{\Omega }^2}{2}{p}^2\left[(q^1-q_g{)}^2+(q^3{)}^2\right]+p^2\frac{d\Omega }{d\tau }{q}^3{q}_c=h(\rho )+p^2\left(\bar{\varphi }+{\bar{\varphi }}_{\text{tidal}}+{\bar{\varphi }}_{\text{mag}}\right)+C$$

$$q^2=\frac{a\cos (\theta )}{r\sqrt{\frac{K-a^2{\cos }^2(\theta )}{K+r^2}}}{q}^1$$

$$R_0={\left[\frac{(1+n)\kappa {\rho }_c^{(1-n)/n}}{4\pi }\right]}^{\frac{1}{2}}{\xi }_1$$

$${(\hat{r}\cdot {\nabla }_q\rho )|}_{(q_s^1,q_s^2,0)}=0$$

Full text

1 Introduction

Black holes (BHs) are known to be the most compact objects of our universe. The gravitational field around their vicinity is so large that they can tidally disrupt compact objects such as neutron stars, white dwarfs etc. Tidal disruptions of stars produce some of the most fascinating astrophysical phenomena related to BHs. In fact, stellar objects that are tidally disrupted by black holes form the principal ingredients of accretion disks around them. This process may also give rise to a plethora of interesting phenomena with observational signatures, such as the creation of high energy gamma-ray bursts, formation of ultraviolet flare of a characteristic light-curve (see e.g [1],[2]) etc. Excellent reviews on the formation of gamma-ray bursts from BH-white dwarf mergers and BH-neutron star mergers can be found in [3] and [4], respectively (see also [5]).

Recent discoveries of gravitational waves by binary BH mergers and binary neutron star mergers have also put the issue of tidal disruptions in the frontier of the study of black hole physics. If one can detect gravitational waves from tidal disruption events of neutron stars by BHs, it might help us to understand different features of BHs, as well as to constrain the neutron star equation of state. As a result, theoretical studies of tidal disruption of stars by BHs continue to be important in their own right.

The literature on the subject of tidal disruptions of stellar objects in the Newtonian and post-Newtonian approximation of gravity is, by now, vast (see e.g [1],[6],[7],[8], [9], etc.). However, to study tidal effects near a BH, we will need to take into account the full general relativistic effects on the stars. In this context too, there are several well known studies that exist in the literature (see [10],[11],[12],[13], etc.). In [11] and [12], the tidal potential was calculated by using the geodesic deviation equation. On the other hand, Ishii, Shibata and Mino [13], evaluated this potential directly by using the tidal metric or the $tt$-component of the Kerr metric expressed in terms of Fermi Normal Coordinates (FNCs) following Manasse and Misner [14].

Recall that a coordinate system describing a locally inertial frame which can be parallel-transported along the entire time-like geodesic of the star’s motion is known as a Fermi Normal Coordinate system. In this paper, we will mostly use the methodology of Ishii, Shibata and Mino [13]. We consider a compact star with a polytropic equation of state rotating around a Kerr BH in stable circular orbits. The orbital radius of the star around the BH is $r$, and the average radius of the star (only due to its self gravity) is taken to be $R_{0}$. In the tidal approximation, we assume that $R_{0}<r$, and therefore the tidal potential on the star by the BH is expanded up to, say, fourth order in $R_{0}/r$. It is known that the third and fourth order terms play significant roles when $R_{0}/r>0.1$ [13] and will be important for us. We will also incorporate the gravito-magnetic effects in addition to the tidal potential to obtain the tidal disruption limit or Roche limit of the star. In [13], the analysis was confined to stable circular motion of the star on the equatorial plane. In this paper, we generalize this by including the circular motion of the star for non-equatorial planes too, with the equatorial plane results arising as a limiting case. The assumption that we make here is that the star itself does not deform the Kerr background, i.e back-reaction effects are neglected.

The motivation for this study is two fold. Apart from being theoretically interesting, note that stellar orbits away from the equatorial plane are more realistic compared to the ones confined to that plane, since the Kerr BH possesses cylindrical symmetry. Indeed, this might have significant relevance in futuristic analyses of gravitational waves arising out of mergers of black holes and compact stars. As we will see in sequel, our results indicate that there might be important differences on the nature of tidal disruptions of celestial objects off the equatorial plane, compared to the ones on it. Secondly, it is of interest to study the deformation of stars due to gravity, in planes away from the equator. As we will see, there is a non-trivial effect that arises here in the context of the Kerr BH, namely that (up to the order of approximation that we consider) the deformation of the star is not towards the black hole, but along a direction that varies with the angular inclination of the orbit. As we will show, this can be explained by taking into account the net gravitational force on the stellar object.

We mention at this point that the technical difficulty in the study of tidal forces in non-equatorial circular orbits in the Kerr BH backgrounds arises due to the presence of a non-zero Carter’s constant. However, such orbits have been discussed in many works (see, e.g [15], [16],[17],[18]). Studying tidal effects in such orbits in Fermi normal coordinates involves a consistant numerical analysis, taking into account the various relevant parameters that appear. This is the study that we undertake in this paper.

The paper is arranged in the following order. In Section-2, we review the characteristics of circular trajectories of massive objects (treated as effective point particles) in the background of Kerr BHs. This section is further divided into two sub-sections. Section-2.1 gives a brief description of stable circular orbits on the equatorial plane, whereas in Section-2.2, we give a description of non-equatorial circular orbits, the inclination angle of the orbit with respect to the equatorial plane, relations between different constants of motion, etc. In Section-3, which is the main part of this paper, we discuss tidal effects in non-equatorial planes. This section is again divided into three subsections. Section-3.1 deals with the formulation of the problem. The hydrodynamic equation of the fluid star, expansion of the tidal potential up to fourth order in Fermi Normal Coordinates, and the two coupled equations that constitute the mathematical statement of the problem are described in this subsection. This is followed by Section-3.2, where we convert the relevant equations into dimensionless ones, describe the numerical routine used in our analysis, define the Roche limit of the star etc. After that we present the main results of our numerical computations, and discuss them in Section-3.3. We conclude our study with a summary and discussion in Section-4.

2 Circular Trajectories of massive objects in Kerr black hole

The metric of the Kerr space-time in Boyer-Lindquist coordinates is well known, and is given by

[TABLE]

where $\Sigma=r^{2}+a^{2}\cos^{2}\theta$ and $\Delta=r^{2}+a^{2}-2Mr$. Integration of geodesic equations for this metric gives [19]

[TABLE]

Here, the quantities $E$ and $L$ represent the energy and the $z$-component of angular momentum (per unit rest-mass) respectively, and $Q$ represents the Carter constant (per unit rest-mass squared). These remain conserved along a specific geodesic. Let us now review the properties of stable circular orbits on and off the equatorial plane.

2.1 Stable circular orbits : equatorial plane

If an object starts moving on the equatorial plane of the Kerr BH and remains on the same plane throughout, its orbits will always have $\theta=\frac{\pi}{2}$ and $\dot{\theta}=0$. From the third relation of Eq.(2), this gives $Q=0$. So the value of Carter’s constant for the equatorial orbits is zero, which is a necessary condition for the orbits to be confined on the equatorial plane. Again, in case of circular orbits, the velocity as well as the acceleration along the radial direction must vanish. This implies, for circular orbits, $\frac{dr}{d\tau}=R(r)=0$ and $\frac{d^{2}r}{d\tau^{2}}=\frac{dR(r)}{dr}=0$. The solution of this set of equations defines $E(r)$ and $L(r)$ for both stable and unstable equatorial circular orbits. In case of stable orbits $R^{\prime\prime}(r)<0$ and in case of unstable orbits $R^{\prime\prime}(r)>0$. For the stable case, one obtains [19],[16]

[TABLE]

[TABLE]

where “pro” and “ret” stand for prograde (co-rotating) orbits and retrograde (counter-rotating) orbits, respectively.

2.2 Stable circular orbits : away from the equatorial plane

We will now discuss some known results on off-equatorial circular orbits for massive objects in the Kerr BH background, that will be relevant for our analysis below. For such non-equatorial orbits, Carter’s constant, $Q\neq 0$. To obtain the stable orbits on different planes for some fixed $r$, we will follow an algorithm that is clearly described in [16].

Start with the prograde equatorial orbit which we specify as the most stable orbit. Calculate the values of $E^{pro}$ and $L^{pro}$ for a given $r$ using Eq.(3). In this case, $Q=0$.

• 2.

The inclination of the orbit is now changed by gradually decreasing the value of $L$, keeping the value of $r$ fixed. Out of the three constants of motion ($E,L,Q$), only one is varied independently. The other two can be expressed as a function of the independent one. It is convenient to vary $L$ independently and express $E$ and $Q$ as functions of $L$, for a fixed r. To obtain the analytical forms of $E(r,L)$ and $Q(r,L)$, we need to solve the same set of equations, $R(r)=R^{\prime}(r)=0$. The solution yields [16],[17]

[TABLE]

[TABLE]

The above $E(r,L)$ has two solutions corresponding to the ‘$+$’ and ‘$-$’ signs in the denominator of Eq.(5). Depending on the given value of $r$, only one of them is physically relevant. The expression within the square root in the denominator of Eq.(5) goes to zero at some value of $r$ ($={\mathcal{R}}(a)$, say). For $r<{\mathcal{R}}(a)$, the ‘$-$’ sign is valid and for $r>{\mathcal{R}}(a)$, the ‘$+$’ sign is physical; (in general, ${\mathcal{R}}(a)$ is found to be close to $2M$) [17].

• 3.

A circular orbit is therefore determined completely by specifying the values of $r$ and $L$. The radius of the orbit is fixed by $r$ and the orbit is ascertained by $L$, which specifies by how much it is inclined with respect to the equatorial plane. As described in [16],[17],[18], this inclination angle can be defined by

[TABLE]

where $i\in[0,\pi]$. Here, $i<\frac{\pi}{2}$ representing co-rotational motion and $i>\frac{\pi}{2}$ representing counter-rotation. Another useful description of the inclination angle is [20],

[TABLE]

where $\theta_{min}$ represents the minimum angle of $\theta$ obtained during the orbital motion [15] and $D=\pm 1$, ($+1$ for prograde orbits and $-1$ for retrograde motion). The value of $\theta_{inc}$ ranges from [math] to $\frac{\pi}{2}$ for prograde motion and from $\frac{\pi}{2}$ to $\pi$ for retrograde orbits. We can easily find the conversion relations between $i$ and $\theta_{inc}$, and it shows that the difference between $i$ and $\theta_{inc}$ is small, matching exactly for $a=0$.

• 4.

For the fixed $r$, the decrement of the value of $L$ is carried on until either it equals the value of $L^{ret}$ (as per the second expression of Eq.(4)) maintaining the required stability condition $R^{\prime\prime}<0$, or it reaches a specific value $L^{mb}$ corresponding to $R^{\prime\prime}(r)=0$. The retrograde equatorial orbit with $L^{ret}$ is identified as the least stable orbit. On the other hand, orbits with $L^{mb}$ corresponding to $R^{\prime\prime}(r)=0$ are called marginally bound stable orbits. Further decrease in the value of $L$ than $L^{mb}$ results in $R^{\prime\prime}(r)>0$ which represents unstable circular orbits. Since we are interested only in stable circular orbits, we will not consider such unstable ones.

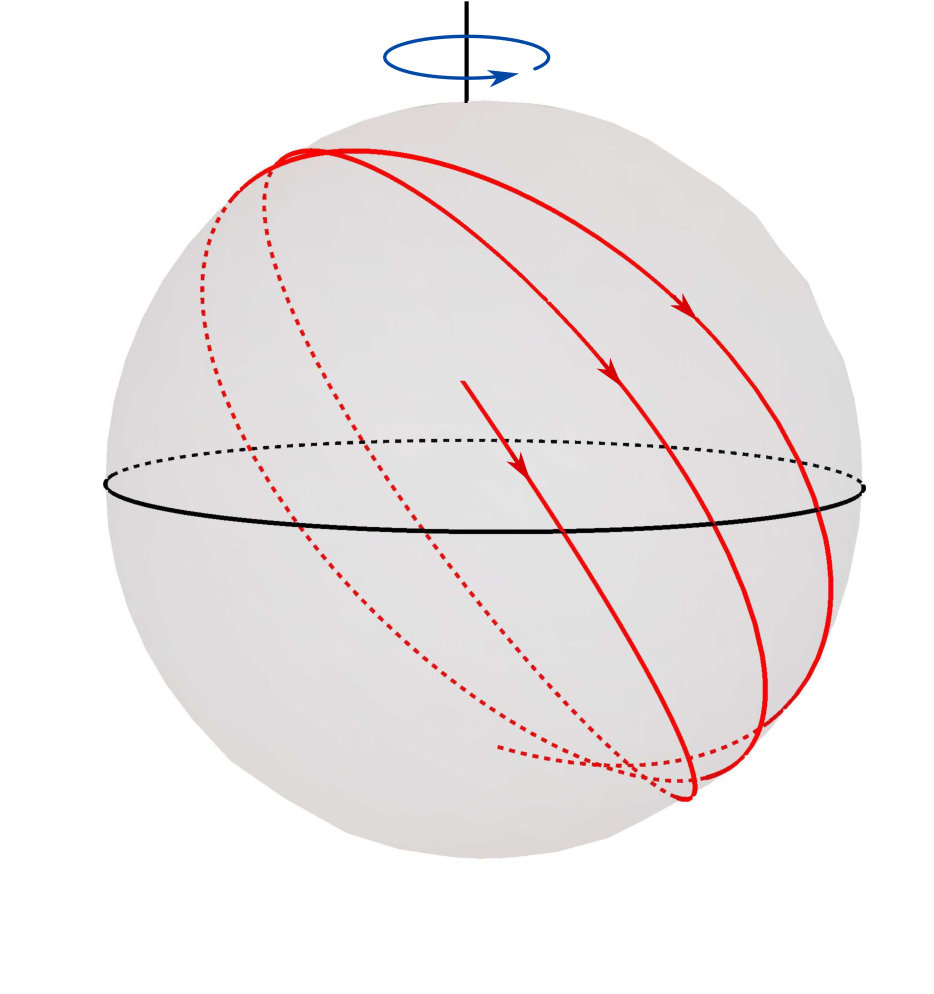

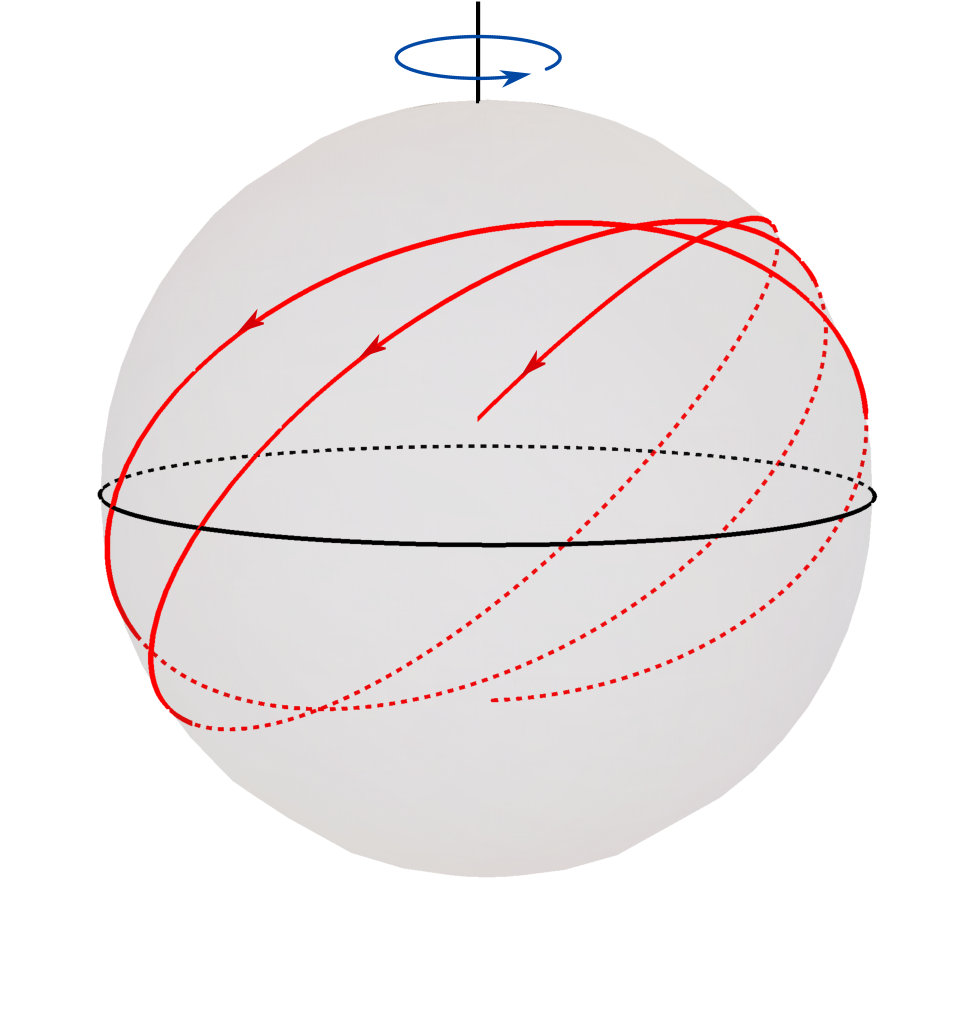

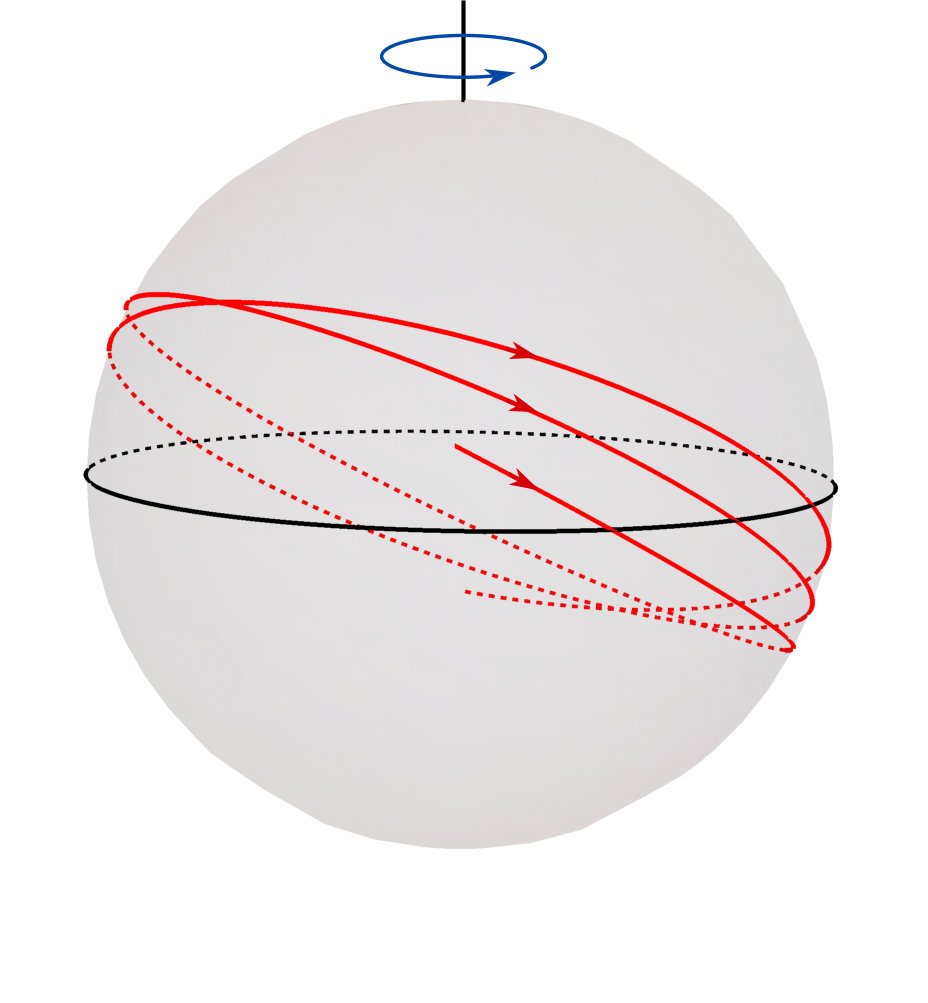

Figure 1 shows some representative non-equatorial, circular orbits for different values of the parameters. All the plots are drawn for $r=9$ (in units of $G=c=1$) for illustration, as for this radius, both the prograde ($L>0$) as well as retrograde ($L<0$) stable orbits are possible. The inclination angles of the orbits ($\theta_{inc}$), with respect to equatorial plane, are chosen to be different for the three plots drawn in figures 1(a), 1(b) and 1(c), with $\theta_{inc}=\frac{\pi}{6},\frac{\pi}{3}~{}{\rm and}~{}\frac{3\pi}{4}$ respectively. The direction of rotation of the Kerr background is shown by a blue arrow-head on top of each sphere and the rotation of the stars on the surface of each sphere is directed along red arrow-heads in the circular orbits. From the direction of the arrow-heads, it is clear that the orbits with $\theta_{inc}=\frac{\pi}{6}$ and $\frac{\pi}{3}$ represent prograde orbits, whereas $\theta_{inc}=\frac{3\pi}{4}$ indicates a retrograde orbit.

For convenience, let us now summarize the recipe of obtaining non-equatorial, stable, circular orbits in the Kerr background. First, we fix the radius ($r$) of the orbit, and find out $E^{pro}$ and $L^{pro}$ for the equatorial plane. Then we decrease the value of $L$ which changes the inclination of the orbit, and find out $E(r,L)$ and $Q(r,L)$ corresponding to that plane, subject to the condition, $R^{\prime\prime}(r)<0$. Therefore, $L$ is lowered until either it attains the value of $L^{ret}$ corresponding to the retrograde orbit on the equatorial plane, or we obtain $L^{mb}$ corresponding to $R^{\prime\prime}(r)=0$. The orbits with $R^{\prime\prime}(r)=0$ represent marginally bound stable orbits, so that values of $L$ less than $L^{mb}$ satisfying $R^{\prime\prime}(r)>0$ produce unstable orbits.

3 Tidal Effects in Non-equatorial Orbits

Let us consider a star rotating around a Kerr BH in a stable, circular trajectory. We want to find out the tidal disruption limit of the star due to the influence of the BH. As mentioned, we will follow the formalism developed in [13], and the formulae which do not need modifications in our calculation will be referred to from that paper.

3.1 Formulation

Let us write the hydrodynamic equation of the fluid star in FNC as

[TABLE]

where $\rho$ is the fluid density, $v^{i}$ is the three-velocity of the fluid ($\frac{dx^{i}}{d\tau}$), $P$ is the fluid pressure, $A_{i}$ is a vector potential associated with the gravito-magnetic force [21], $\phi$ is the Newtonian self-gravitational potential of the star, and $\phi_{\text{tidal}}$ is the tidal potential produced by the Kerr BH. In terms of FNC {$x^{0}(=\tau),x^{1},x^{2},x^{3}$}, $\phi_{\text{tidal}}$ is given by [13]

[TABLE]

where we have defined

[TABLE]

The vector potential $A_{i}$ is defined as

[TABLE]

Here, the symbols ‘;’ and ‘,’ in between the indices of $R,g,$ etc. have the usual meaning as the covariant derivative and the ordinary (partial) derivative respectively. Moreover, $R_{0\left(i|m|j;kl\right)}$ indicates a summation over all the permutations of the indices $i,j,k$ and $l$, keeping $m$ fixed at its position and then division by the total number of such permutations. The gravito-magnetic term in the hydrodynamic equation (Eq.(9)) is important as the magnitude of this term becomes as large as the fourth order terms in $\phi_{\text{tidal}}$ for the co-rotational velocity field of the star. The potential due to the self-gravity of the star ($\phi$) satisfies the Poisson’s equation of Newtonian gravity, given by

[TABLE]

where $\rho$ is the mass density profile of the star. We are considering a co-rotational star which is static in the tilde frame defined as

[TABLE]

where, the angle $\Psi$ is associated with the parallel transportation of the Fermi normal frame (Eqs.(113)-(116) and Eqs.(121)-(124) of [13]). In the tilde frame, fluid velocity is zero. But in the Fermi Normal frame, it is given by111We note that there is a possible typographic error in the expression of $v^{i}$ in Eq.(167) of [13]. An extra $\Omega$ should be multiplied in front of the square bracket in the right hand side of that equation. We have written the expression inclusive of this factor.

[TABLE]

where $\Omega=d\Psi/d\tau$ and $x_{c}$ is a correction term which arises due to the fact that in the tilde frame, in presence of the third order term of the tidal potential or the gravito-magnetic effects, the center of mass of the star is deviated from the origin. By examining the magnitudes of the components of the tidal tensors (Eq.(11)) it can be understood that, in the tilde frame, the $\tilde{x}^{3}$ component of the position vector of the center of mass of the star is small enough to be neglected compared to the $\tilde{x}^{1}$ and $\tilde{x}^{2}$ components. It suggests that the center of mass is shifted from origin mostly in the $\tilde{x}^{1}-\tilde{x}^{2}$ plane. Moreover, since the tilde frame is rotating about the $x^{2}$ axis of the Fermi Normal frame, the $\tilde{x}^{2}$ component does not appear in the velocity expression (Eq.(15)). Therefore, only the $\tilde{x}^{1}$ component has been considered as $x_{c}$.

Now, substituting for $v^{i}$ in Eq.(9), integrating it, and then transforming to $\tilde{x}^{i}$, the hydrodynamic equation becomes

[TABLE]

where $x_{g}=2x_{c}$, $C$ is an integration constant, $\phi_{\text{mag}}$ is the scalar potential due to gravito-magnetic effects arising from the term involving $A_{i}$ (computed from the last term on the right hand side of eq.(9)), and $h=\int\frac{dP}{\rho}$. The correction term $x_{c}$ may depend on $\theta$ for nonequatorial circular orbits but the dependence being too small, the term including $\frac{dx_{c}}{d\theta}$ has been neglected. It is important to note that there is an extra term in Eq.(16) involving $d\Omega/d\tau$ which is absent in the corresponding equation of [13] (Eq.(168) of that paper). This is because $\Omega$ ($=d\Psi/d\tau$) depends only on $r$ for equatorial orbits, and for non-equatorial orbits, it depends on both $r$ and $\theta$. So in case of circular motion in an equatorial orbit, it is a constant. For circular non-equatorial orbits, $\Omega=\Omega(\theta)$, or $d\Omega/d\tau=(d\Omega/d\theta)\dot{\theta}$. The exact expression for $d\Psi/d\tau$ is given by (Eq.(126) of [13])

[TABLE]

where $K=(L-aE)^{2}+Q$ is a constant, known as the modified Carter’s constant. Equations (13) and (16) constitute the basic equations for our analysis.

3.2 Methodology

We start with the polytropic equation of state for the star given as

[TABLE]

where $\kappa$ is called polytropic constant and $n$ is the polytropic index. Eqs.(13) and (16) are solved together numerically as coupled equations. To obtain numerical convergence, we convert the equations into dimensionless ones. Therefore, writing the coordinates as $\tilde{x}^{i}=pq^{i}$, where $p$ is a constant with dimension of length and $q^{i}$’s are dimensionless coordinates, Eqs.(13) and (16) respectively become

[TABLE]

[TABLE]

where $\nabla_{q}$ is the Laplacian operator in terms of $q^{i}$ coordinates, $q_{g}=p^{-1}x_{g}$, $\bar{\phi}=p^{-2}\phi$, $\bar{\phi}_{\text{tidal}}=p^{-2}\phi_{\text{tidal}}$, and $\bar{\phi}_{\text{mag}}=p^{-2}\phi_{\text{mag}}$. The numerical recipe to obtain the tidal disruption limit or Roche limit of the star is [13]

Consider a spherically-symmetric density profile, $\rho(q^{i})$, of the polytrope as a trial function, with a specific value of $n$ or $\Gamma$. This is a solution of the corresponding Lane-Emden equation for the given value of $n$. In the coordinate system ($\tilde{x}^{1},\tilde{x}^{2},\tilde{x}^{3}$) or ($q^{1},q^{2},q^{3}$), the $r$-direction (i.e. the BH direction) varies with the angular position($\theta$) of the star as

[TABLE]

and it is exactly aligned with the $q^{1}$-direction on the equatorial plane.

• 2.

Put $\rho$ in the right hand side of Poisson’s equation (19), and solve it numerically to obtain $\bar{\phi}$. We use the cyclic reduction method to solve the corresponding matrix equations using Dirichlet boundary conditions. Moreover, we consider a cubic volume with $101\times 101\times 101$ grid points to obtain the solution. The cubic boundary is set at 50 grid points away from the center grid point. The size of the star is assumed to be smaller than the size of the cube so that on the surface of the star, the potential can be approximated to $-\int_{0}^{R_{0}}\frac{\rho~{}d^{3}q}{r_{q}}$, where $r_{q}$ is the radial distance from the center, and $R_{0}$ is the average radius of the star. Since $\rho$ is anyway zero outside the star, we can re-write the integral as $-\int_{cube}\frac{\rho~{}d^{3}q}{r_{q}}$ to simplify the computation [22].

• 3.

The next step is to find out different constants of the problem using the recently obtained $\bar{\phi}$. There are seven free constants to be determined, namely $M,~{}a,~{}\kappa,~{}p,~{}q_{g},~{}C$ and $\rho_{c}$(central density of the star). All the calculations are performed in units, $c=G=M=1$. This fixes the value of $a$ to be chosen in the range $-1\leq a\leq 1$. The value of $\kappa$ is determined from the average radius ($R_{0}$) of the star following the relation

[TABLE]

where $\xi_{1}$ is the Lane-Emden parameter at the surface (with known values $\pi$, $6.89685$ for $n=1$ and $3$, respectively). So the remaining three constants are $p,~{}q_{g}$ and $C$. The central density ($\rho_{c}$) of the star is chosen to be a maximum, i.e. $\left.\rho\right|_{(0,0,0)}=\rho_{c}$ and $\left.\frac{\partial\rho}{\partial q^{1}}\right|_{(0,0,0)}=0$. Moreover, the stellar surface is fixed at $(q_{s}^{1},q_{s}^{2},0)$ along the $r$-direction such that $\left.\rho\right|_{(q_{s}^{1},q_{s}^{2},0)}=0$, where $q_{s}^{1}$ and $q_{s}^{2}$ satisfy Eq.(21). These three conditions together determine $q_{g}$, $C$ and $p$. On the equatorial plane, $(q_{s}^{1},q_{s}^{2},0)$ is considered at 40 grid points away from the center on the $q^{1}$ axis. For a non-equatorial position, $(q_{s}^{1},q_{s}^{2},0)$ is chosen at the same distance but along the $r$-direction and an appropriate (nearest) grid point is used for numerical convergence.

• 4.

Once all the constants are determined, a new density profile is evaluated from $h(\rho)$ using Eq.(20).

• 5.

Now substitute this new density profile into the r.h.s. of Eq.(19) and obtain an updated $\bar{\phi}$.

We continue steps $2$ – $5$ repeatedly until sufficient convergence is obtained. Now, the Roche limit is determined from a critical value of the central density. We start the numerical computation with a sufficiently large $\rho_{c}$, and gradually decrease it to smaller values until we obtain the critical value ($\rho_{\text{crit}}$) for which the star just remains in a stable configuration. This is the condition when the binding self-gravity of the star is just enough to balance the disruptive tidal effects at the surface. At this limit, the star surface at ($q_{s}^{1},q_{s}^{2},0$) begins to form a cusp. Therefore, at Roche limit [22]

[TABLE]

where $\hat{r}$ is the unit vector in the $r$-direction. Beyond the Roche limit, i.e., stars with $\rho_{c}<\rho_{\text{crit}}$ are tidally disrupted and the corresponding density contours at the surface start to break. Then $\rho_{\text{crit}}$ is used to define a dimensionless quantity, $\xi_{\text{crit}}=\frac{\Omega^{2}}{\pi\rho_{\text{crit}}}$ (following [12], this is the ratio of the tidal force to the force due to self gravity at the tidal disruption limit). Therefore, stars with $\xi<\xi_{\text{crit}}$ will be stable against tidal disruption.

3.3 Results and Analysis

In this subsection, we describe the numerical results of tidal effects away from the equatorial plane in the Kerr BH background. Here, all the calculations are performed in units $c=G=M=1$. We have chosen $a=0.9$ throughout our analysis. We have calculated $\xi_{\text{crit}}$ for two values of $n$, viz. $n=1$ and $3$, which correspond to $\Gamma=2$ and $\frac{4}{3}$ respectively. It is worth pointing out that $n=1$ corresponds to a highly magnetized white dwarf, whereas $n=3$ corresponds to the white dwarf equation of state with relativistic degenerate electrons, without a magnetic field.

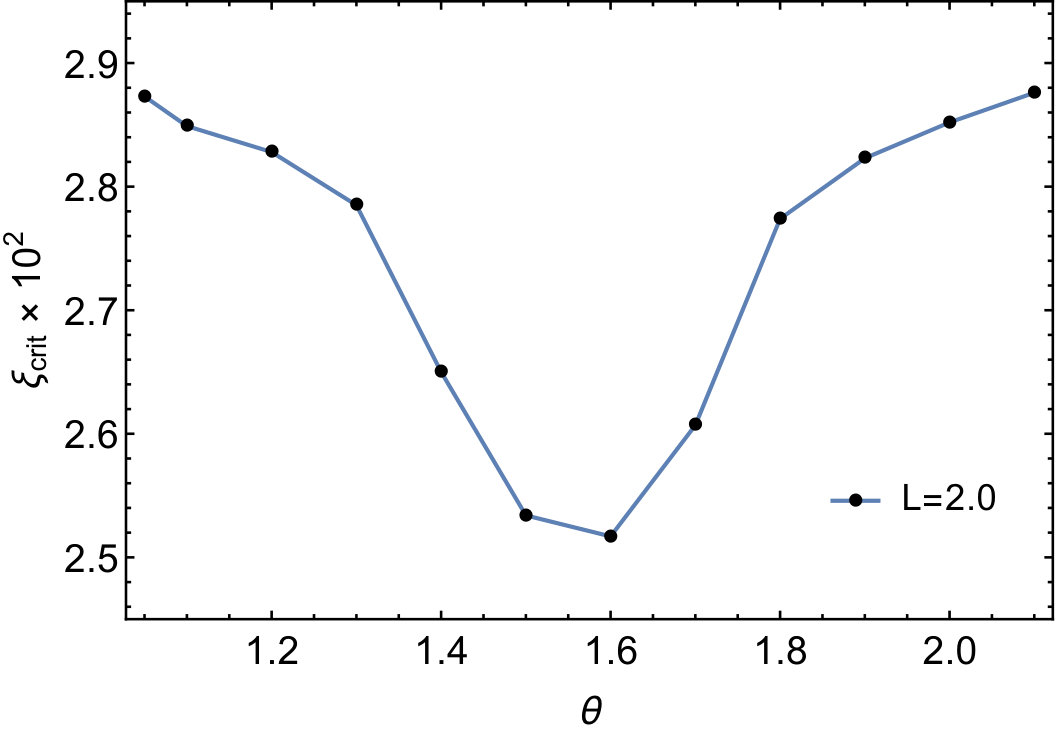

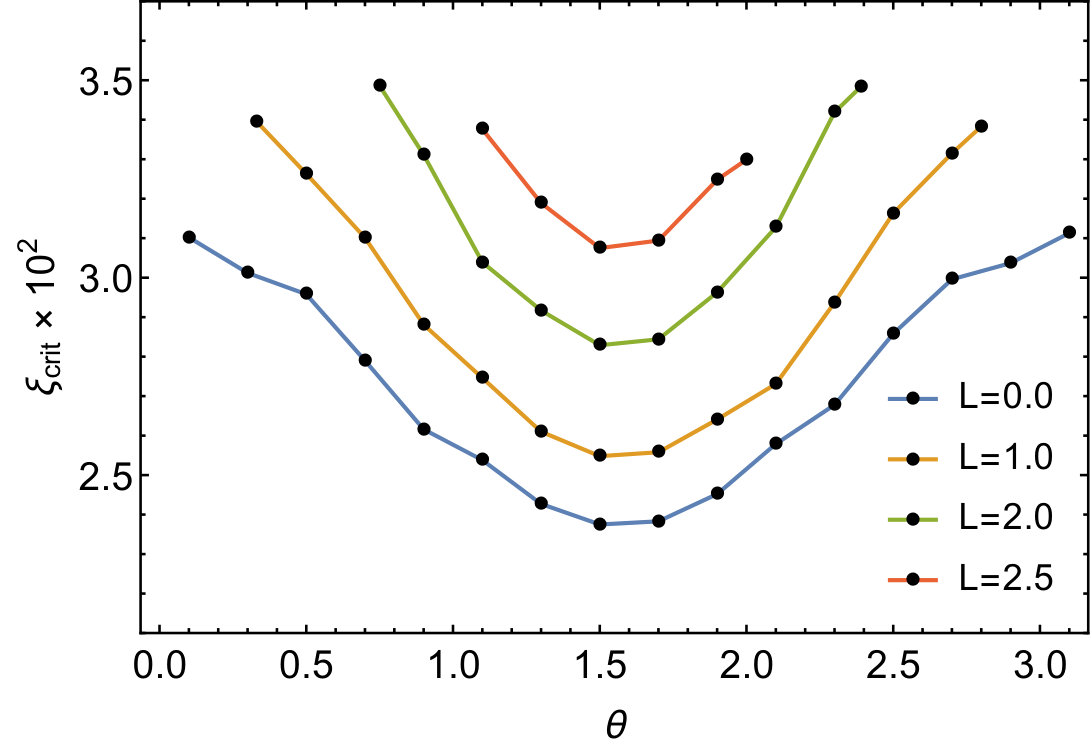

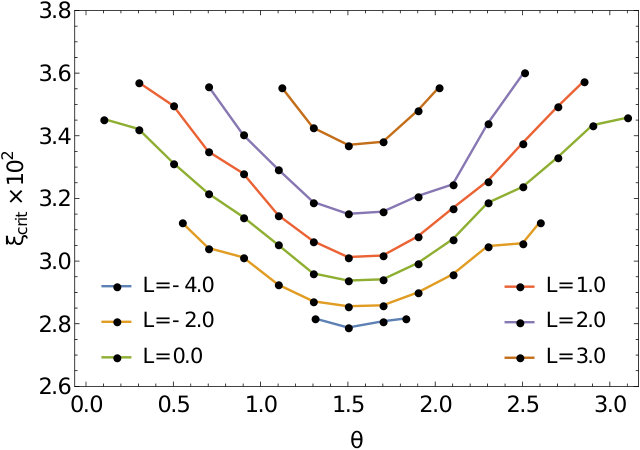

Figure (2) shows the variation of $\xi_{\text{crit}}$ as a function of $\theta$ for different values of $r$ and $L$. The allowed range of $L$ depends on $r$ for circular orbits to be stable. In case of $r=3,6$ and $9$, it is found that, $1.8278\leq L\leq 2.1883$, $-0.5889\leq L\leq 2.7943$ and $-4.1699\leq L\leq 3.3047$ respectively. The negative values of $L$ represent retrograde orbits, and the positive values stand for prograde orbits. Again, the values of $\theta$ are also bounded for a specific $L$. When the value of $L$ equals either $L^{pro}$ or $L^{ret}$ (if possible), i.e. on the equatorial plane, we know $\theta=\pi/2$. As the value of $L$ deviates from its equatorial value, the allowed range of $\theta$ starts broadening with an increase of the difference between $\theta_{max}$ and $\theta_{min}$. For orbits having inclination angles ($\theta_{inc}$) nearly equal to $\pi/2$ with respect to equator, $\theta$ ranges from [math] to $\pi/2$.

From Fig.(2) we observe that $\xi_{\text{crit}}$, for a fixed $L$, has a higher value at $\theta_{min}$ or $\theta_{max}$, and is minimum at $\theta=\pi/2$. Moreover, as we increase the value of $L$ from $L^{ret}$ to $L^{pro}$, the magnitude of $\xi_{\text{crit}}$ increases. Therefore, co-rotating stars are more stable than the corresponding counter-rotating ones, and on a particular orbit, stability is maximum at the two extreme points of their orbits (at $\theta_{min}$ or $\theta_{max}$), while it is minimum at the equator.

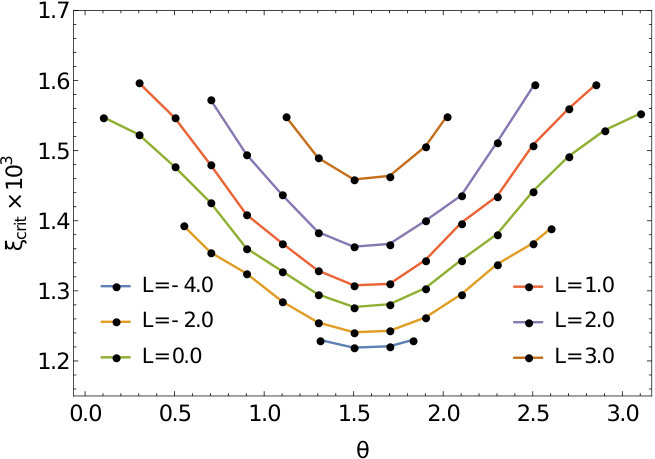

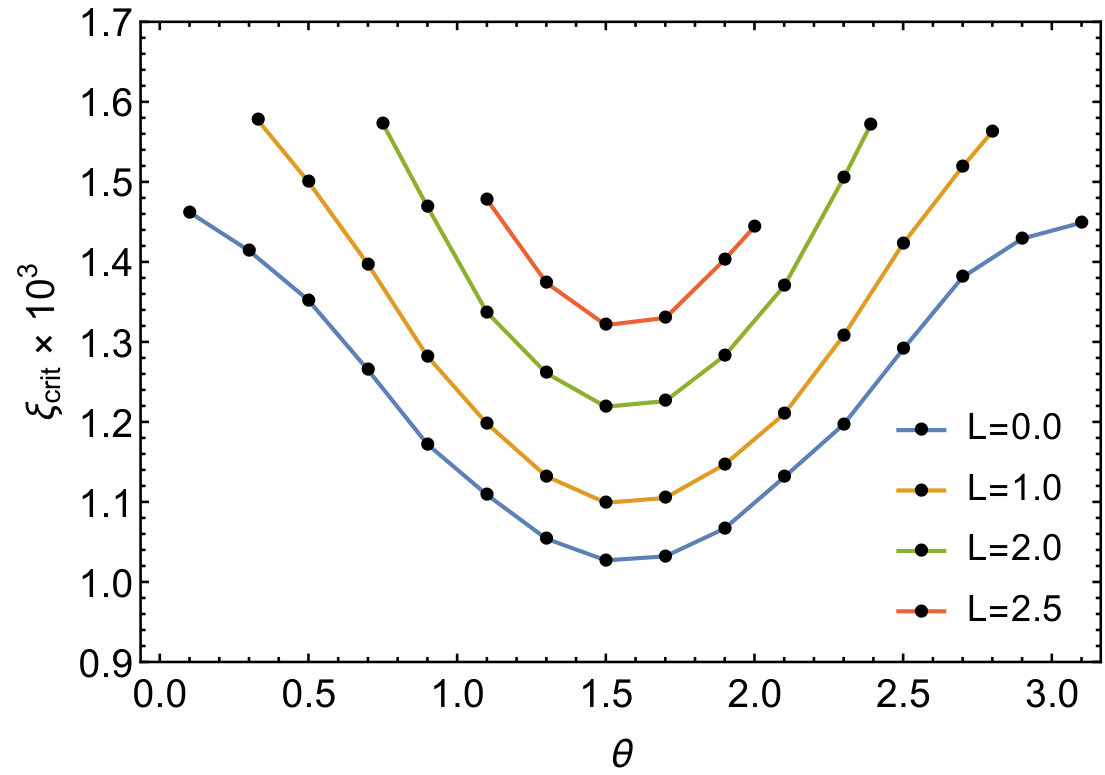

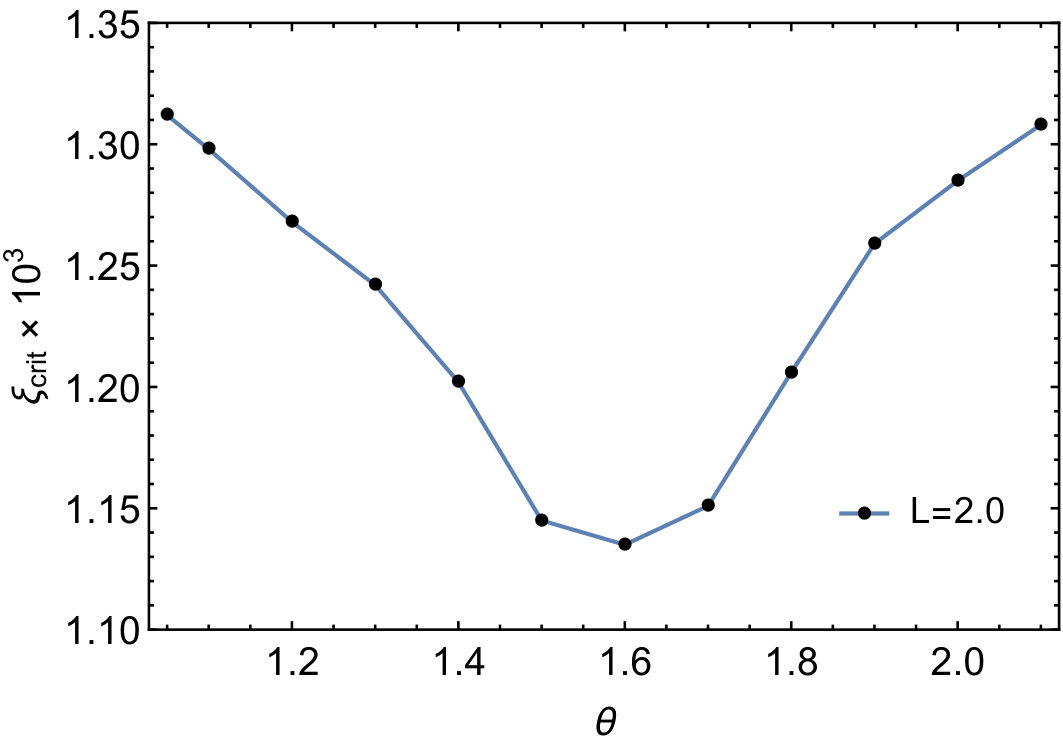

Figure (3) shows similar plots for $n=3$, taking the same values of $L$ and $\theta$ as above. The nature of the plots are almost similar to the $n=1$ case, which indicates that the $\xi_{\text{crit}}-\theta$ behavior is a generic feature of the orbits of the stars, and it does not depend on the equation of state parameter of stars. An important point to note here is that the magnitudes of $\xi_{\text{crit}}$ for $n=1$ case is approximately $20$ times larger than the corresponding magnitudes for $n=3$ case.

Therefore, we see that $\xi_{\text{crit}}$ is sensitive to the equation of state of the star, and a star with higher $n$ is less stable against tidal disruption than a star with lower $n$. This is also in agreement with the equatorial plane analysis of [13].

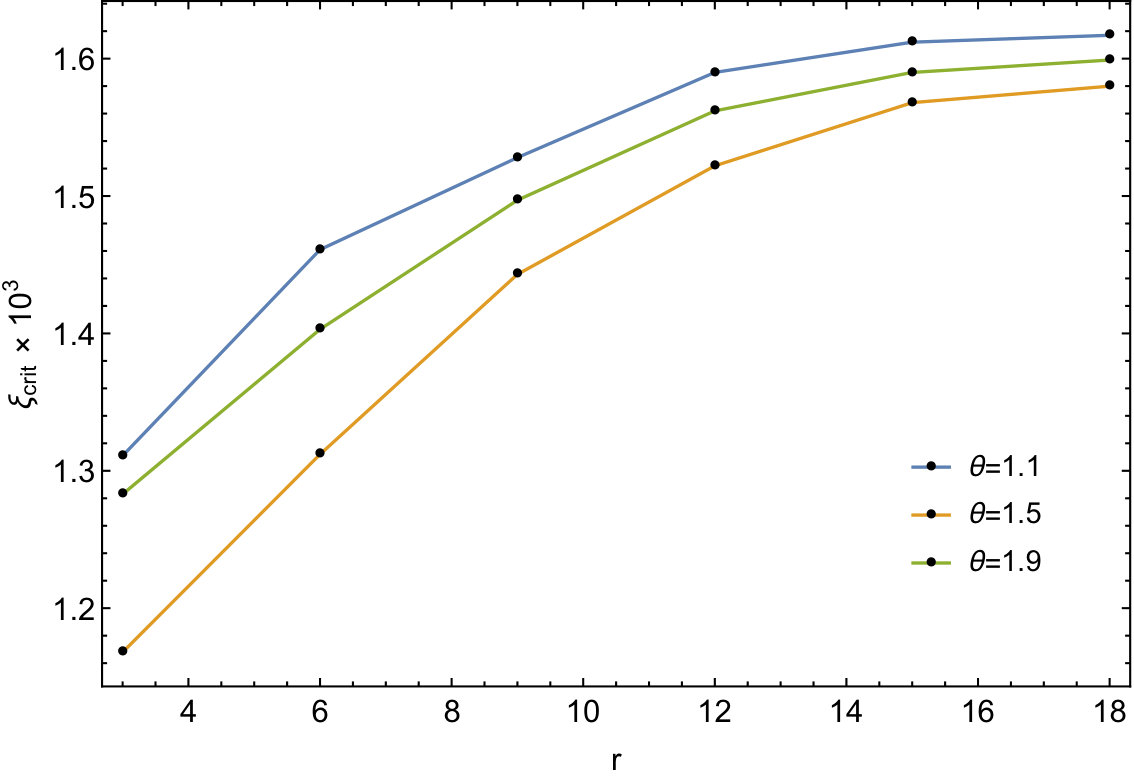

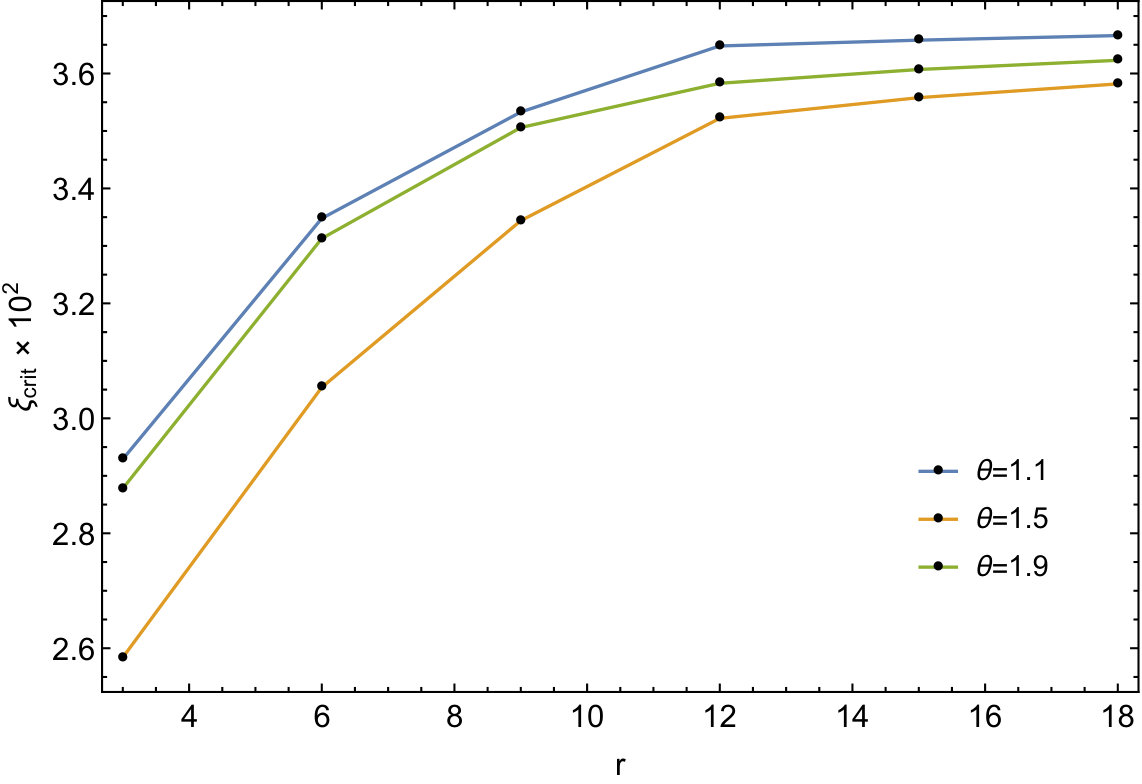

Next, in Fig.(4), we have shown how $\xi_{\text{crit}}$ varies with $r$ for a given inclination angle $\theta_{inc}$, i.e., on a fixed orbit. For simplicity, we have chosen a plane having $\theta_{inc}=\pi/6$, and on the same plane, we consider three different angular positions, $\theta=1.1,1.5$ and $1.9$ to obtain the plots. From this figure it is again clear that $\xi_{\text{crit}}$ has the lowest value on the equator i.e., $\theta=\pi/2$ and increases as the star moves away from the equator towards the extreme points of its orbit, i.e., the turning points on a specific orbit. The difference of Roche limit at various angles on a fixed orbit is more prominent when the star is closer to the BH and it reduces as $r$ increases. Therefore, stars which are far away from the BH will remain fairly stable against tidal disruption for any orbit they rotate on. And as the star-BH distance reduces, stars (with the same mass and stellar radius) on or near the equatorial plane will start getting disrupted more easily than those off the equatorial plane.

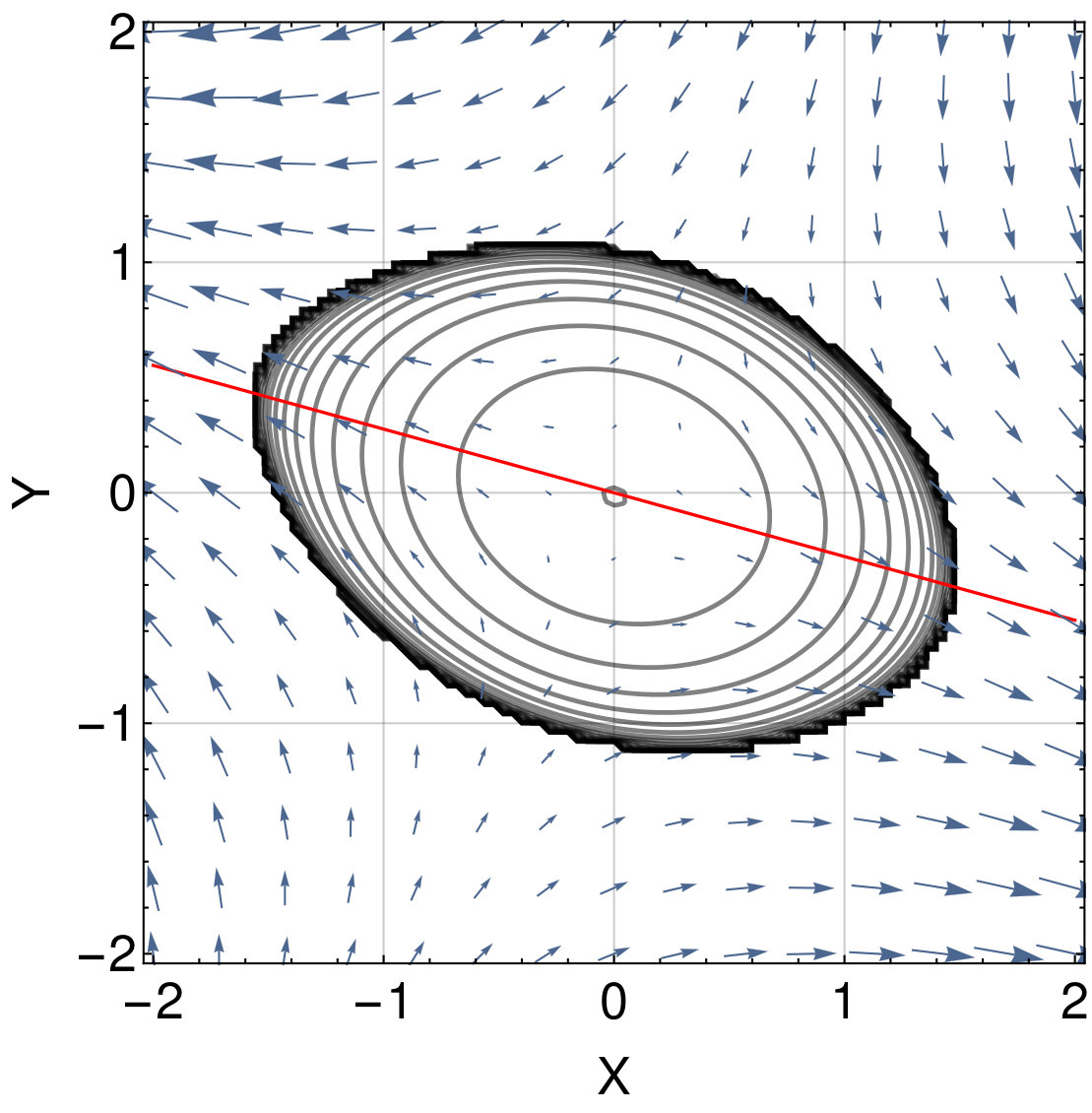

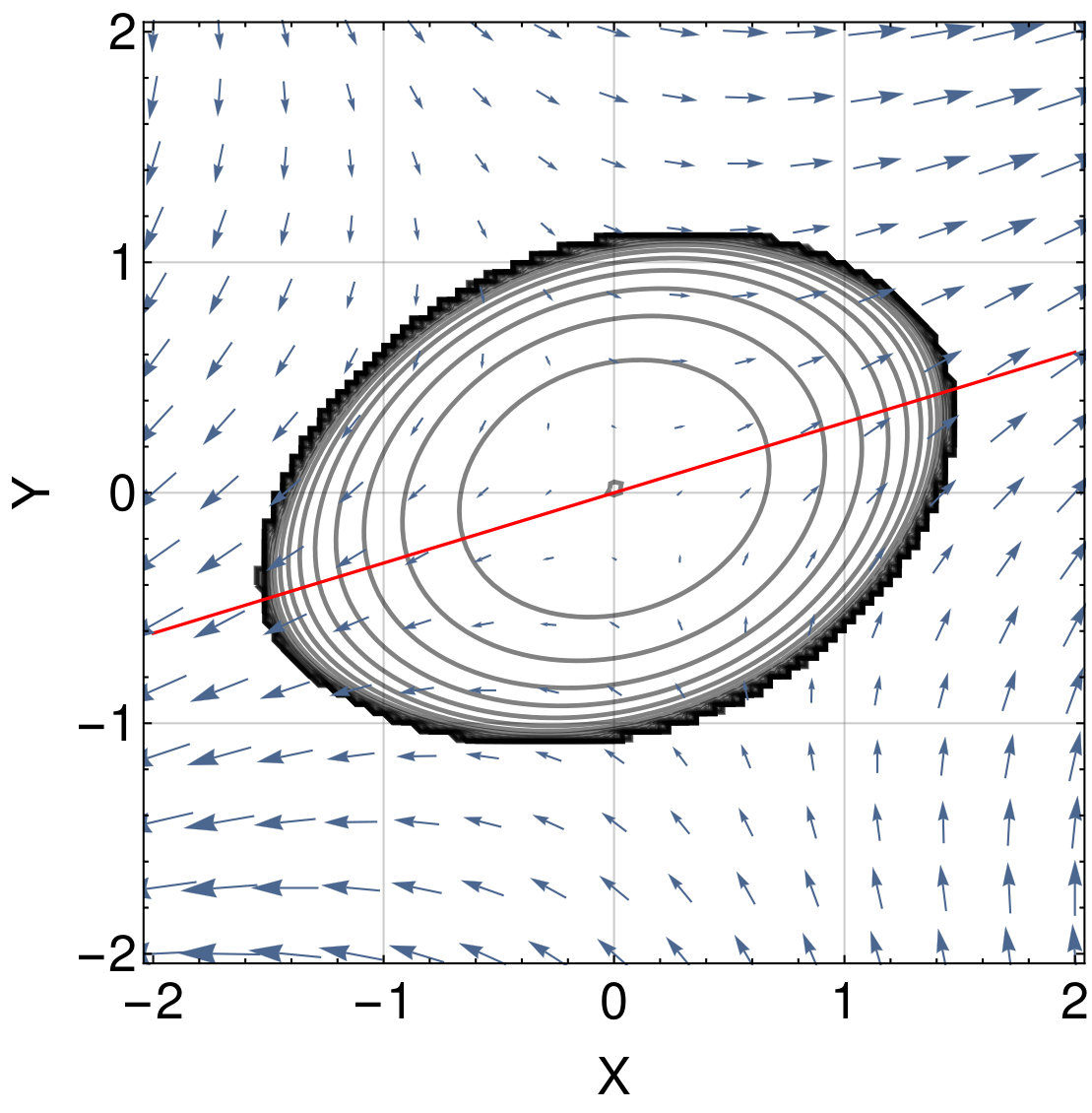

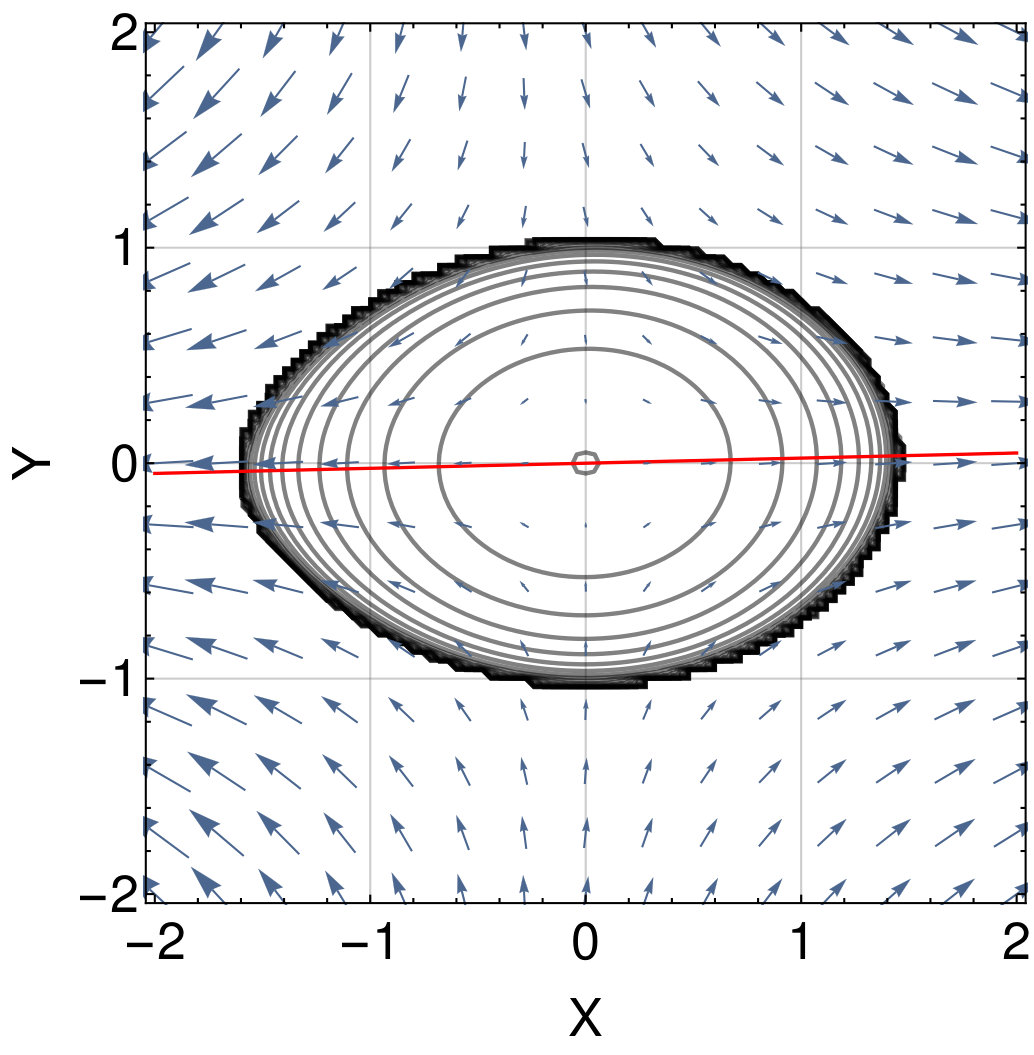

Now we will briefly comment on the density profile of the star near the tidal disruption. Figure (5) shows the density contour plots of the star in $\tilde{x}^{1}-\tilde{x}^{2}$ plane plus the resultant force field (tidal and gravito-magnetic) at the critical limit of tidal disruption, i.e. at Roche limit. The plots are obtained for parameter values $M=1.0$, $a=0.9$, $r=6.0$, $L=1.0$ and $n=1$. The density plots show that due to tidal effects a spherical star gets distorted making its structure asymmetric. As described in [13], on the equatorial plane, this asymmetry is introduced by the third and fourth order terms in tidal approximation which is what we also find.

An important feature of the tidal effects for non-equatorial orbits is its line of maximum deformation. This points downward in the upper hemisphere and upward in the lower hemisphere following the $r$-direction, as seen from figs.(5(a), 5(c)) for $n=1$ and from figs.(6(a), 6(c)) for $n=3$. In these figures, the arrows indicate the magnitude and direction of the total force field (due to tidal and gravito-magnetic effects). The star is deformed in accordance with the force field. Note that, the exact line of maximum deformation deviates from the $r$-direction slightly for off-equatorial positions of the star. This might be due to the fact that the kerr geometry is not spherically symmetric.

The direction of this maximum deformation varies with the angular position ($\theta$) of the star and the corresponding tilt in the density plots can be observed only if we look on the $\tilde{x}^{1}-\tilde{x}^{2}$ plane through the $\tilde{x}^{3}$-axis. Whereas, it is exactly aligned with the $\tilde{x}^{1}$-direction on the equatorial plane, i.e., for $\theta=\pi/2$. In the $\tilde{x}^{1}-\tilde{x}^{3}$ plane, we will always see the star to be deformed along the $\tilde{x}^{1}$-direction only. We can also note that the deviation of the center of mass of the star from the origin is visible for $n=1$ and it is mostly along $\tilde{x}^{2}$ axis.

It is necessary to mention that for the co-rotational velocity field (eq.(15)) we have considered here, the gravito-magnetic force field can be greater in magnitude than that of tidal force field as we choose circular orbits with smaller $r$ values. As a result the total force field can deform the star in such a way that the cusp forms on the other side of the star surface which is away from the black hole.

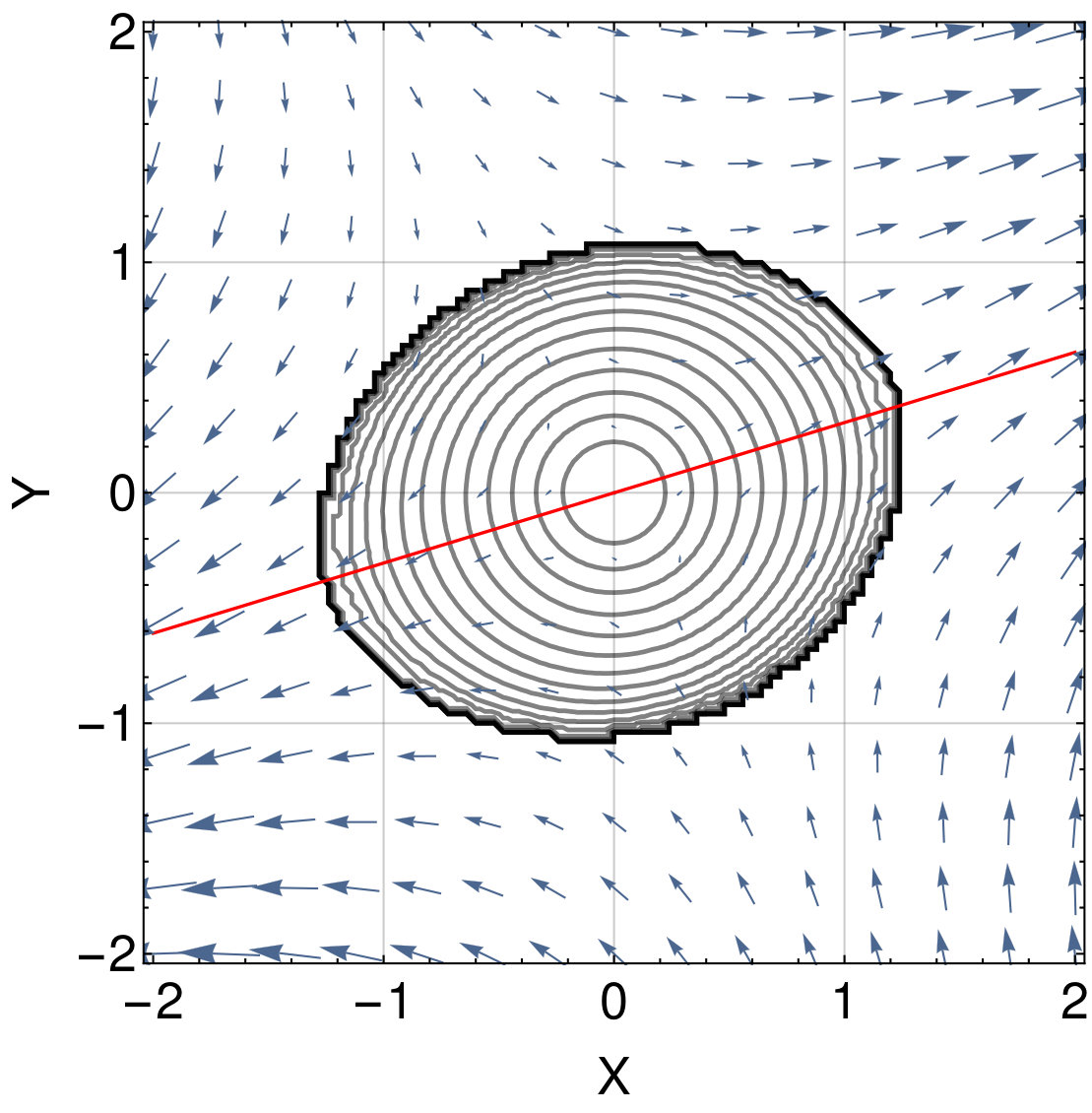

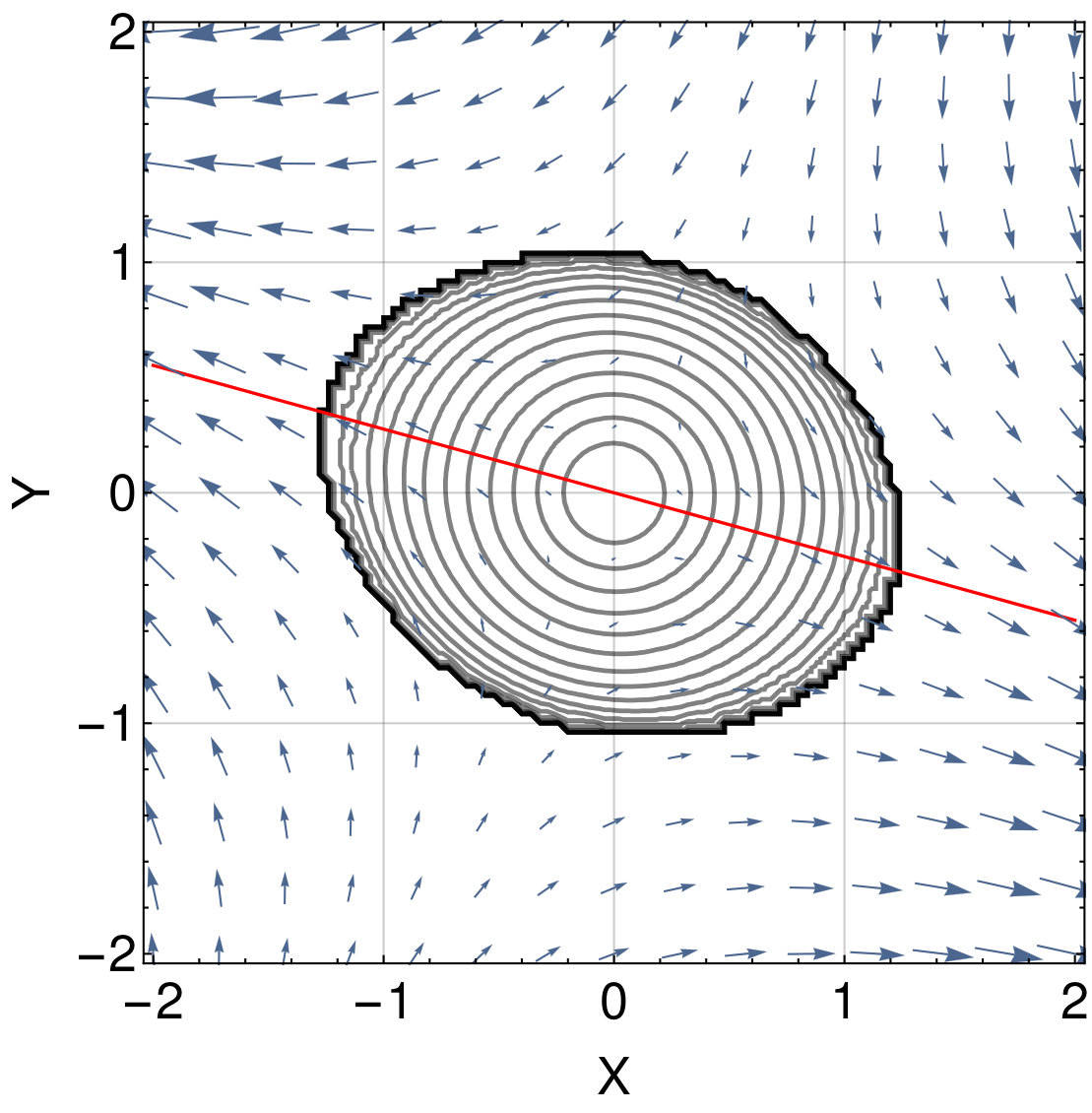

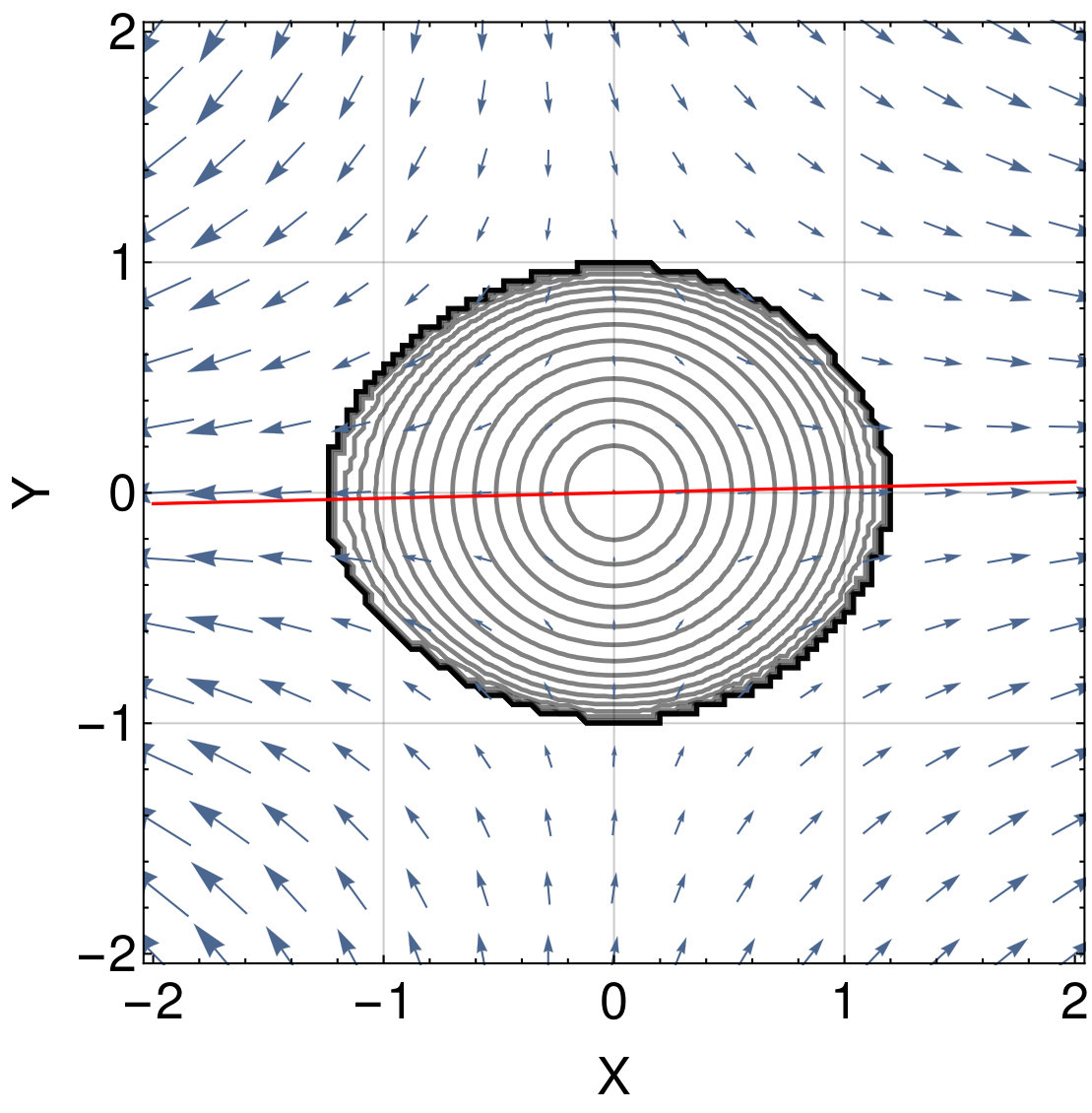

In figure (6), we have shown the density contour plots (plus the resultant force field as before) for $n=3$ in the $\tilde{x}^{1}-\tilde{x}^{2}$ plane, taking the same values of other parameters as for the case $n=1$. The nature of the plots and the characteristic behavior of tidal force for non-equatorial orbits, as discussed in the previous case, are also found to be similar like the $n=1$ case. The only significant difference between the two cases is the fact that the amount of deformation of the stars is less for $n=3$ than that of $n=1$ for the same degree of tidal effects. Therefore, stars with higher equation of state parameter will have much stronger resistance against its deformation in shape before finally getting tidally disrupted completely.

4 Summary and Discussion

In this paper, we have carried out an analysis of tidal effects on celestial objects in stable circular orbits away from the equatorial plane, in Kerr black hole backgrounds. Our analysis is numerical, and involves incorporating constraints on such orbits in a Fermi normal coordinate system, where we have closely followed the related work reported in [13] for equatorial circular orbits.

Our results show that there might be significant differences in the nature of tidal disruptions of stellar objects in circular orbits off the equatorial plane, compared to those on it. In particular, we have seen that stars in pro-grade orbits are more stable against tidal disruptions than their retro-grade counterparts, and that stability in off-equatorial orbits is maximum at the two extreme points of the orbit, and minimum at the equator. We have further seen that the numerical value of the tidal disruption limit depends strongly on the equation of state for orbits away from the equatorial plane, and can vary by an order of magnitude, depending on the polytropic index. Finally, we have seen that the density contours are deformed along a direction that varies with the angular position of the star. The line of maximum deformation is slightly deviated from the $r$-direction and is exactly aligned along $r$ on the equatorial plane. As we have explained, this pheonomenon occurs due to the combination of forces from tidal and gravito-magnetic effects.

It will be interesting to extend this analysis further to (slowly) rotating stars. It is well known that rotation introduces anisotropy in the stellar structure, and it will be interesting to see how such anisotropy is affected by tidal effects. Such an analysis might be substantially more complicated to perform compared to what has been reported here, but will nonetheless be an important issue for further research.
