Divide and color representations for threshold Gaussian and stable vectors

TL;DR

This paper investigates when thresholded Gaussian and stable vectors produce divide and color processes, revealing dimension-dependent behaviors, threshold effects, and a phase transition at stability index 1/2.

Contribution

It characterizes conditions under which threshold processes from Gaussian and stable vectors are divide and color, highlighting new phase transition phenomena and dimension-specific results.

Findings

Gaussian free fields yield DC processes at zero threshold

For Gaussian vectors with nonnegative covariances, DC property holds for n=3 but not for n=4

Stable vectors exhibit a phase transition at stability index 1/2

Abstract

We study the question of when a (\{0,1\})-valued threshold process associated to a mean zero Gaussian or a symmetric stable vector corresponds to a {\it divide and color (DC) process}. This means that the process corresponding to fixing a threshold level $h$ and letting a 1 correspond to the variable being larger than $h$ arises from a random partition of the index set followed by coloring {\it all} elements in each partition element 1 or 0 with probabilities $p$ and $1-p$, independently for different partition elements. While it turns out that all discrete Gaussian free fields yield a DC process when the threshold is zero, for general $n$-dimensional mean zero, variance one Gaussian vectors with nonnegative covariances, this is true in general when $n=3$ but is false for $n=4$. The behavior is quite different depending on whether the threshold level $h$ is zero or not and we show that there is no general monotonicity in $h$ in either direction. We also show that all constant variance discrete Gaussian free fields with a finite number of variables yield DC processes for large thresholds. In the stable case, for the simplest nontrivial symmetric stable vector with three variables, we obtain a phase transition in the stability exponent $\alpha$ at the surprising value of $1/2$; if the index of stability is larger than $1/2$, then the process yields a DC process for large $h$ while if the index of stability is smaller than $1/2$, then this is not the case.

Figures

Equations

$$X_i^h:=I(X_i>h)$$

$$1^T{A}^{-1}(1)=\frac{(1+a_{23}-a_{12}-a_{13})(1-a_{23})}{\det A}$$

$$1+2\underset{i<j}{\min }{a}_{ij}>\sum _{i<j}{a}_{ij}.$$

$$\{\begin{array}{l}{X}_1=a{S}_1+(1-a^{\alpha }{)}^{1/\alpha }{S}_2\\ X_2=-a{S}_1+(1-a^{\alpha }{)}^{1/\alpha }{S}_2.\end{array}$$

$$2{\int }_{{\mathbb{S}}^{n-1}}({\mathbf{x}}^{(2)}\vee 0{)}^{\alpha }d\Lambda (\mathbf{x})<1$$

$$X_i=a{S}_0+(1-a^{\alpha }{)}^{1/\alpha }{S}_i$$

$$\{\begin{array}{l}{X}_1:=a{S}_1+b{S}_2+b{S}_4+a{S}_5+(1-2a^{\alpha }-2b^{\alpha }{)}^{1/\alpha }{S}_7\\ X_2:=a{S}_2+b{S}_3+b{S}_5+a{S}_6+(1-2a^{\alpha }-2b^{\alpha }{)}^{1/\alpha }{S}_7\\ X_3:=b{S}_1+a{S}_3+a{S}_4+b{S}_6+(1-2a^{\alpha }-2b^{\alpha }{)}^{1/\alpha }{S}_7.\end{array}$$

$$\sum _{1\le i\le n}{X}^i\stackrel{\mathcal{D}}{=}{a}_{n}X+b_n.$$

$$\exp \left(-{\sigma }^{\alpha }|\theta {|}^{\alpha }(1-i\beta (\mathrm{sgn}\theta )\tan (\pi \alpha /2))+i\mu \theta \right).$$

$$f(\theta )=\exp (-{\int }_{{\mathbb{S}}^{d-1}}|\theta \cdot \mathbf{x}{|}^{\alpha }d\Lambda (\mathbf{x}))$$

$$X=A(Y_1,\dots ,Y_m)$$

$$f_X(\mathbf{x})$$

$$f(\sigma )$$

$$A=\left(\begin{array}{ccc}1& a& a\\ a& 1& a^2-\epsilon \\ a& a^2-\epsilon & 1\end{array}\right)$$

$$A^{-1}=\frac{1}{1-a^2-\epsilon }\left(\begin{array}{ccc}1+a^2-\epsilon & -a& -a\\ -a& \frac{1-a^2}{1-a^2+\epsilon }& \frac{\epsilon }{1-a^2+\epsilon }\\ -a& \frac{\epsilon }{1-a^2+\epsilon }& \frac{1-a^2}{1-a^2+\epsilon }\end{array}\right)$$

$$A^{-1}(i,j)=\{\begin{array}{ll}\frac{1+(n-2)a}{(1+(n-1)a)(1-a)}& \text{ if }i=j\\ \frac{-a}{(1+(n-1)a)(1-a)}& \text{ otherwise.}\end{array}$$

$$A_0^{-1}(i,j)=\{\begin{array}{ll}\frac{1+(n-1)a}{1-a}& \text{ if }i=j=0\\ \frac{1}{1-a}& \text{ if }i=j>0\\ \frac{-\sqrt{a}}{1-a}& \text{ if }i>j=0\\ \frac{-\sqrt{a}}{1-a}& \text{ if }j>i=0\\ 0& \text{ otherwise}.\end{array}$$

$$Z_t=e^{-t}{W}_{e^{2t}}$$

$$\bigl{(}Z_{\log(1/a)},Z_{2\log(1/a)},\ldots,Z_{n\log(1/a)}\bigr{)}$$

$$Y_{i+1}=a{Y}_i+(1-a^{\alpha }{)}^{1/\alpha }{S}_{i+1}^{1/2}{B}_1^{(i+1)}.$$

$$Y_t=a{Y}_i+(1-a^{\alpha }{)}^{1/\alpha }{S}_{i+1}^{1/2}{B}_{t-i}^{(i+1)}.$$

$$X_1:=a{S}_0+(1-a^{\alpha }{)}^{1/\alpha }{S}_i.$$

$$X:=(X_i{)}_{1\le i\le n}:=({\mathbf{x}}_i\cdot W{)}_{1\le i\le n},$$

$$I_1=[0,{\theta }_1],I_2=[{\theta }_1,{\theta }_2],\dots ,I_k=[{\theta }_{k-1},{\theta }_k],\dots ,I_{n+1}=[{\theta }_n,\pi /2]$$

$$\left\{I_k^{\theta }:k\in \{1,\dots ,n+1\},\theta \in \{0,\pi /2,\pi ,3\pi /2\}\right\}$$

$$\mathrm{Cov}(Y_i,Y_j)=\frac{q_{ij}}{4}$$

$$P(Y_i=Y_j=1)=\frac{1}{4}+\frac{q_{ij}}{4}.$$

$$1-q_{ij}=\frac{|{\theta }_j-{\theta }_i|}{\pi /2}$$

$$P(X_i^0=X_j^0=1)=\frac{1}{2}-\frac{|{\theta }_j-{\theta }_i|}{2\pi }.$$

$$P(X_i^0=X_j^0=1)=\frac{1}{2}-\frac{\arccos a_{ij}}{2\pi }.$$

Full text

While it turns out that all discrete Gaussian free fields yield a DC process when the threshold is zero, for general $n$-dimensional mean zero, variance one Gaussian vectors with nonnegative covariances, this is true in general when $n=3$ but is false for $n=4$.

The behavior is quite different depending on whether the threshold level $h$ is zero or not and we show that there is no general monotonicity in $h$ in either direction. We also show that all constant variance discrete Gaussian free fields with a finite number of variables yield DC processes for large thresholds.

In the stable case, for the simplest nontrivial symmetric stable vector with three variables, we obtain a phase transition in the stability exponent $\alpha$ at the surprising value of $1/2$; if the index of stability is larger than $1/2$, then the process yields a DC process for large $h$ while if the index of stability is smaller than $1/2$, then this is not the case.

Keywords and phrases. Divide and color representations, threshold Gaussian vectors, threshold stable vectors.

MSC 2010 subject classifications. Primary 60G15, 60G52

1. 1 Introduction, notation, summary of results and background

2. 1.1 Introduction

3. 1.2 Notation and some standard assumptions

4. 1.3 Description of results

5. 1.4 Background on symmetric stable vectors

6. 2 Stieltjes matrices and discrete Gaussian free fields

7. 2.1 Inverse Stieltjes covariance matrices give rise to color processes for $h=0$

8. 3 An alternative embedding proof for tree-indexed Gaussian Markov chains which extends to the stable case

9. 3.1 The Gaussian case

10. 3.2 The stable case

11. 4 A geometric approach to Gaussian vectors

12. 4.1 The geometric picture of a Gaussian vector

13. 4.2 Gaussian vectors canonically indexed by the circle

14. 4.3 A general obstruction for having a color representation for $h\neq 0$

15. 4.4 A four-dimensional Gaussian exhibiting a non-trivial phase transition

16. 4.5 A four-dimensional Gaussian with nonnegative correlations whose zero threshold has no color representation

17. 4.6 An extension to the stable case

18. 5 Results for large thresholds and the discrete Gaussian free field

19. 5.1 An obstruction for large $h$

20. 5.2 Discrete Gaussian free fields and large thresholds

21. 6 General results for small and large thresholds for $n=3$ in the Gaussian case

22. 6.1 $h$ small

23. 6.2 $h$ large

24. 7 Large threshold results for stable vectors with emphasis on the $n=3$ case

25. 7.1 Two-dimensional stable vectors and nonnegative correlations

26. 7.2 $h$ large and a phase transition in the stability exponent

1 Introduction, notation, summary of results and background

1.1 Introduction

A very simple mechanism for constructing random variables with a (positive) dependency structure is the so-called divide and color model introduced in its general form in [15] but having already arisen in many different contexts.

Definition 1.1**.**

A $\{0,1\}$-valued process $X\coloneqq(X_{i})_{i\in S}$ is a divide and color model or color process if $X$ can be generated as follows. First choose a random partition $\pi$ of $S$ according to some arbitrary distribution, and then independently of this and independently for different partition elements in the random partition, assign, with probability $p$, all the variables in a partition element the value $1$ and with probability $1-p$ assign all the variables the value [math]. This final $\{0,1\}$-valued process is then called the color process associated to $\pi$ and $p$. We also say that $(\pi,p)$ is a color representation of $X$.

As detailed in [15], many processes in probability theory are color processes; examples are the Ising model with zero external field, the fuzzy Potts model with zero external field, the stationary distributions for the voter Model and random walk in random scenery.

While certainly the distribution of the color process determines $p$, it in fact does not determine the distribution of $\pi$. This was seen in small cases in [15], and this lack of uniqueness was completely determined in [7].

Since the dependency mechanism in a color process is so simple, it seems natural to ask which $\{0,1\}$-valued processes fall into this context. We mention that it is trivial to see that any color process has nonnegative pairwise correlations and so this is a trivial necessary condition. In this paper, our main goal is to study the question of which threshold Gaussian and threshold stable processes fall into this context. More precisely, in the Gaussian situation, we ask the following question. Given a set of random variables $(X_{i})_{i\in I}$ which is jointly Gaussian with mean zero, and given $h\in\mathbb{R}$, is the $\{0,1\}$-valued process $(X^{h}_{i})_{i\in I}$ defined by

[TABLE]

a color process? In the stable situation, we simply replace the Gaussian assumption by $(X_{i})_{i\in I}$ having a symmetric stable distribution. (We will review the necessary background concerning stable distributions in Subsection 1.4.) For the very special case that $I$ is infinite, $h=0$ and the process is exchangeable, this question was answered positively, both in the Gaussian and stable cases, in [15]. The set of threshold stable vectors is a much richer class than the set of threshold Gaussian vectors. As such, it is reasonable to study both classes.

Since all the marginals in a color process are necessarily equal, if $h\neq 0$, then a necessary condition in the Gaussian case for $(X^{h}_{i})_{i\in I}$ to be a color process is that all the $X_{i}$’s have the same variance. Therefore, when considering $h\neq 0$, we will assume that all the $(X_{i})$’s have variance one. However, it will be convenient not to make this latter assumption when considering $h=0$. For the stable case, we will simply assume that all the marginals are the same.

It has been seen in [15] that $p=1/2$ and $p\neq 1/2$ (corresponding to $h=0$ and $h\neq 0$ in the Gaussian setting) behave very differently generally speaking. This was also seen in [3] and we will continue to see this here.

We finally note that the questions looked at here significantly differ from those studied in [15]. In the latter paper, one looked at what types of behavior (ergodic, stochastic domination, etc.) color processes possess while in the present paper, we analyze which random vectors (primarily among threshold Gaussian and threshold stable vectors) are in fact color processes.

1.2 Notation and some standard assumptions

Given a set $S$, we let $\mathcal{B}_{S}$ denote the collection of partitions of the set $S$. We denote $\{1,2,3,\ldots,n\}$ by $[n]$ and if $S=[n]$, we write $\mathcal{B}_{n}$ for $\mathcal{B}_{S}$. $|\mathcal{B}_{n}|$ is called the $n$th Bell number. We denote by $\mathcal{P}_{n}$ the set of partitions of the integer $n$.

A random partition of $[n]$ yields a probability vector $q=\{q_{\sigma}\}_{\sigma\in\mathcal{B}_{n}}\in\mathbb{R}^{\mathcal{B}_{n}}$. Similarly, a random $\{0,1\}$-valued vector $(X_{1},\ldots,X_{n})$ yields a probability vector $\nu=\{\nu_{\rho}\}_{\rho\in\{0,1\}^{n}}\in\mathbb{R}^{\{0,1\}^{n}}$. The definition of a color process yields immediately, for each $n$ and $p\in[0,1]$, an affine map $\Phi_{n,p}$ from random partitions of $[n]$, i.e., from probability vectors $q=\{q_{\sigma}\}_{\sigma\in\mathcal{B}_{n}}$ to probability vectors $\nu=\{\nu_{\rho}\}_{\rho\in\{0,1\}^{n}}$. This map naturally extends to a linear mapping $A_{n,p}$ from $\mathbb{R}^{\mathcal{B}_{n}}$ to $\mathbb{R}^{\{0,1\}^{n}}$. The image of $A_{n,p}$ was determined in [7]. Loosely speaking, for $p\neq 1/2$, the image is the set of signed measures with marginal $p$, and, for $p=1/2$, the image is the set of signed measures which have a $\{0,1\}$-symmetry. In many cases, we will have a signed measure mapping to our given process and the work involves showing that this signed measure is in fact a probability measure, telling us that the process is a DC process. A signed measure mapping to a given process in this way is called a formal solution, or a signed color representation.

While perhaps not standard terminology, we call a Gaussian vector standard if each marginal has mean zero and variance one.

Standing assumption.

Whenever we consider a Gaussian or symmetric stable vector, we will assume it is nondegenerate in the sense that for all $i\neq j$, $P(X_{i}\neq X_{j})=1$.

Some further notation which we will use is the following.

$\nu_{x_{1},\ldots,x_{n}}$** or $\nu(x_{1},\ldots,x_{n})$**

.

will denote the probability that $\{X_{1}=x_{1},\ldots,X_{n}=x_{n}\}$ for a $\{0,1\}$-valued process $(X_{1},\ldots,X_{n})$.

$\nu_{(x_{1},\ldots,x_{n})}(h)$** or $\nu_{h}(x_{1},\ldots,x_{n})$ **

.

will denote, given a Gaussian or stable vector $(X_{1},\ldots,X_{n})$, the probability that the $h$-threshold process is equal to $(x_{1},\ldots,x_{n})$; i.e., the probability that $P(X_{i}^{h}=x_{i};\,i\in[n])$. We use $\nu_{h}$ to denote the corresponding probability measure on $\{0,1\}^{n}$.

$q_{13,2}$

.

as an illustration, will denote, given a random partition with $n=3$, the probability that $1$ and $3$ are in the same partition and $2$ is in its own partition.

If we have a partition of a set of more than three elements, $q_{13,2}$ will then mean the above but with regard to the induced (marginal) random partition of $\{1,2,3\}$.

$N(0,A)$

.

will denote a Gaussian vector with mean zero and covariance matrix $A$.

When a threshold $h\not=0$ we will in general only state results for $h>0$. However, since $X^{h}=(X^{h}_{i})_{i}=1-X^{-h}$, the analogous results for $h>0$ follows.

1.3 Description of results

In Section 2, we present positive results concerning the question of the existence of a color representation for the threshold zero case for discrete Gaussian free fields and more generally for Gaussian vectors whose covariance matrices are so-called inverse Stieltjes, meaning that the off-diagonal elements of the inverse covariance matrix are nonpositive. This essentially follows from the known fact that the distribution of the signs of a discrete Gaussian free field (DGFF), conditioned on their absolute values, is that of an Ising Model with nonnegative interaction constants depending on the conditioned absolute values. The latter fact has been observed in [11]. However, it turns out that a threshold zero Gaussian process can be a color process even if its covariance matrix is not inverse Stieltjes. We also relate the class of inverse Stieltjes vectors with the set of tree-indexed Gaussian Markov chains.

In Section 3, we provide an alternative proof that threshold zero tree-indexed Gaussian Markov chains are color processes using the Ornstein-Uhlenbeck process. This proof has the advantage that the method leads to our first result for stable vectors, namely that a threshold zero tree-indexed symmetric stable Markov chain is also a color process; in this case, we use subordinators.

In Section 4, we view our Gaussian vectors from a more geometric perspective and obtain a number of negative (and some positive) results for thresholds $h\neq 0$. In this section, we will obtain our first example where we have a nontrivial phase transition in $h$. This will be elaborated on in more detail in Theorem 4.8 but we state perhaps what is the main import of that result.

Theorem 1.2**.**

There exists a four-dimensional standard Gaussian vector $X$ so that $X^{h}$ is a color process for small positive $h$ but is not a color process for large $h$.

Remark 1.3*.*

Given the above it is natural to ponder over the possible monotonicity properties in $h$. Proposition 4.5 implies that there is no three-dimensional Gaussian vector with such a phase transition among those that are not fully supported, while simulations indicate that there is also no fully supported three-dimensional Gaussian vector with such a phase transition. On the other hand, Corollary 6.6(iii) tells us that there are three-dimensional Gaussian vectors which are not color processes for small $h$ but are color processes for large $h$. This together with the previous result rules out any type of monotonicity, in either direction. Perhaps however monotonicity holds (in one direction) for fully supported vectors.

Returning to the threshold zero case, we recall that Proposition 2.12 in [15] implies that for any three-dimensional Gaussian vector with nonnegative correlations, the corresponding zero threshold process is a color process. Our next result says that this is not necessarily the case for four-dimensional Gaussian vectors.

Theorem 1.4**.**

There exists a four-dimensional standard Gaussian vector $X$ with nonnegative correlations so that $X^{0}$ is not a color process. $X$ can be taken to either be fully supported or not.

In Subsection 4.6, we extend the study of the example given in the proof of the previous theorem to the stable case.

In Section 5, we consider the large $h$ Gaussian case. We show that any Gaussian vector which is not fully supported does not have a color representation for large $h$; see Corollary 5.3. On the other hand, we have the following.

Theorem 1.5**.**

If $X\coloneqq(X_{1},X_{2},\ldots,X_{n})$ is a discrete Gaussian free field which is standard Gaussian, then $X^{h}$ is a color process for all sufficiently large $h$.

For the definition of the discrete Gaussian free field see, for example, [4]. We do not know if there is any DGFF $X$ with constant variance for which $X^{h}$ is not a color process for some $h$.

In Section 6, we obtain detailed results concerning the existence of a color representation when the threshold $h\to 0$ and when $h\to\infty$ in the general Gaussian case when $n=3$. In the fully supported case, we have the following result which gives an exact characterization of which Gaussian vectors have a color representation for large $h$. Note that if two of the covariances are zero, then we trivially have a color representation for all $h$.

Theorem 1.6**.**

Let $X$ be a fully supported three-dimensional standard Gaussian vector with covariance matrix $A=(a_{ij})$ satisfying $Cov(X_{i},X_{j})=a_{ij}\in[0,1)$ for $1\leq i<j\leq 3$. If $a_{ij}>0$ for all $i<j$, then $X^{h}$ has a color representation for sufficiently large $h$ if and only if one of the following (nonoverlapping) conditions holds.

1. (i)

$\mathbf{1}^{T}A^{-1}>\mathbf{0}$** 2. (ii)

$\min_{i}\mathbf{1}^{T}A^{-1}(i)=0$** 3. (iii)

$\min_{i}\mathbf{1}^{T}A^{-1}(i)<0$* and $\mathbf{1}^{T}A^{-1}\mathbf{1}<2$.*

Furthermore, if exactly one of the covariances is equal to zero, then $X^{h}$ does not have a color representation for large $h$.

The assumption in (i) of Theorem 1.6, i.e.  that $\mathbf{1}^{T}A^{-1}>\mathbf{0}$, is sometimes called the Savage condition (with respect to the vector $\mathbf{1}=(1,1,\ldots,1)$). When $A=(a_{ij})$ is the covariance matrix of a (nontrivial) two-dimensional standard Gaussian vector, then $\mathbf{1}^{T}A^{-1}(1)=\mathbf{1}^{T}A^{-1}(2)=(1+a_{12})^{-1}>0$, and hence the Savage condition always holds in this case. If $A=(a_{ij})$ is the covariance matrix of a three-dimensional standard Gaussian vector, then one can show that

[TABLE]

and it follows that the Savage condition holds if and only if

[TABLE]

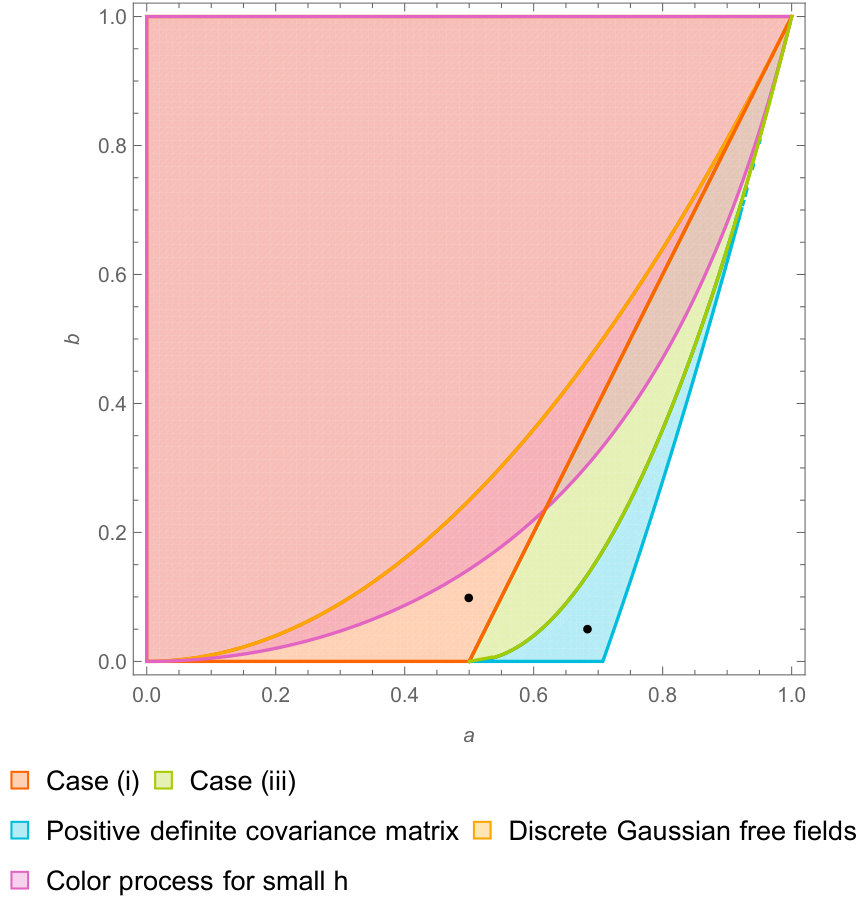

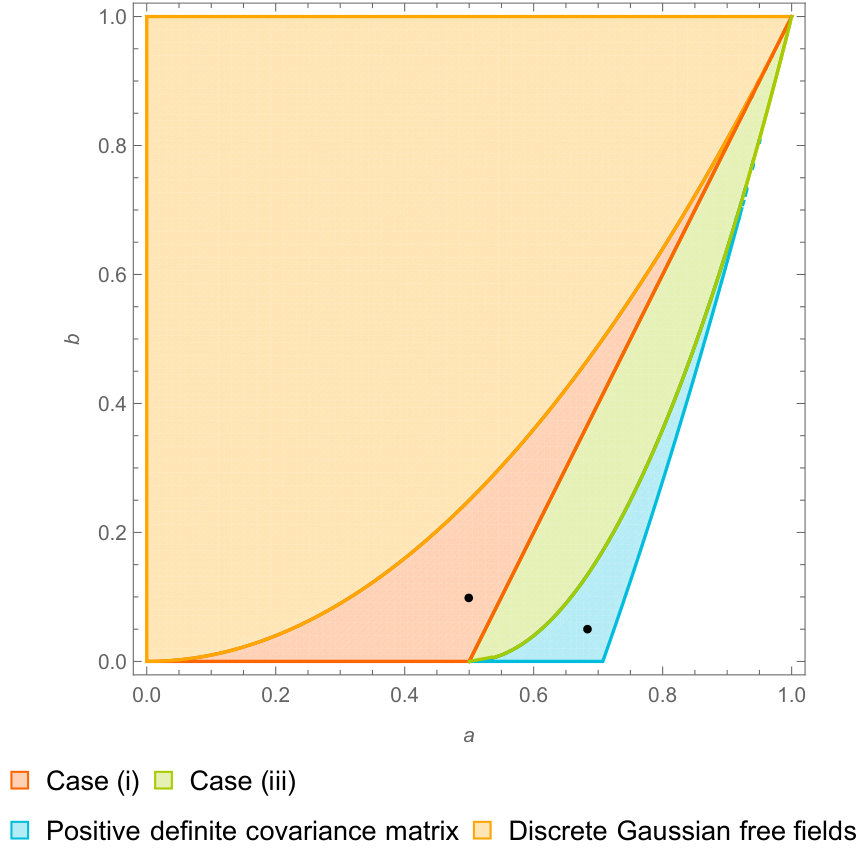

When $\mathbf{1}^{T}A^{-1}\geq\mathbf{0}$, we will refer to this as the weak Savage condition. This for example holds for all discrete Gaussian free fields.

The rest of the results we describe in this section concern the stable (non-Gaussian) case. In Section 7, we first look at the case $n=2$. While it is trivial that having a color representation is equivalent to having a nonnegative correlation when $n=2$, in the stable case it is not obvious, even when $n=2$, which spectral measures yield a threshold vector with a nonnegative correlation. This contrasts with the Gaussian case where nonnegative correlation in the threshold process is simply equivalent to the Gaussian vector having a nonnegative correlation.

We first mention, in this regard, that Theorem 4.6.1 (and its proof) and Theorem 4.4.1 in [13] (see also (4.4.2) on p. 188 there) yield the following fact where $S_{\alpha}(1,0,0)$ denotes the standard one-dimensional symmetric $\alpha$-stable distribution with scale one; see the next subsection for precise definitions. For $\alpha\in(0,2)$, if $X$ is a symmetric 2-dimensional $\alpha$-stable random vector with marginals $S_{\alpha}(1,0,0)$ spectral measure $\Lambda$, then (1) if $\Lambda$ has support only in the first and third quadrants, then $X_{1}^{h}$ and $X_{2}^{h}$ are nonnegatively correlated for all $h\in\mathbb{R}$ (and hence the threshold process is a color process) and (2) if $\Lambda$ has some support strictly inside the first quadrant, then $X_{1}^{h}$ and $X_{2}^{h}$ have strictly positive correlation for all sufficiently large $h$ (and hence the threshold process is a color process for large $h$).

The following natural example shows that one does not need to have the spectral measure supported only in the first and third quadrants in order for the threshold process always to be a color process.

Proposition 1.7**.**

Let $S_{1},S_{2}\sim S_{\alpha}(1,0,0)$ be independent and let $a\in(0,1)$. Set

[TABLE]

(This ensures that $X_{1},X_{2}\sim S_{\alpha}(1,0,0)$.) Then the following are equivalent.

1. (i)

$a\leq 2^{-1/\alpha}$** 2. (ii)

$X^{0}$* is a color process.* 3. (iii)

$X^{h}$* is a color process for all $h$.*

We now study the question of the existence of a color representation in the symmetric stable case when $h\to\infty$. Our first result shows that there is a fairly large class for which the answer is affirmative and here the method of proof comes from that used in Theorem 1.5.

Theorem 1.8**.**

Let $X$ be a symmetric stable distribution with marginals $S_{\alpha}(1,0,0)$ whose spectral measure has some support properly inside each orthant. Furthermore, assume that

[TABLE]

where $\mathbf{x}^{(2)}$ denotes the second largest coordinate of the vector $\mathbf{x}$. Then $X^{h}$ is a color process for all sufficiently large $h$.

The integral condition in (3) will hold for example if the spectral measure is supported sufficiently close to the coordinate axes.

Next, we surprisingly obtain, in the simplest nontrivial stable vector with $n=3$, a certain phase transition in the stability exponent where the critical point is $\alpha=1/2$. We state it here although relevant definitions will be given later on.

Theorem 1.9**.**

Let $\alpha\in(0,2)$ and let $S_{0}$, $S_{1}$, $S_{2}$, $S_{3}$ be i.i.d. each with distribution $S_{\alpha}(1,0,0)$. Furthermore, let $a\in(0,1)$ and for $i=1,2,3$, define

[TABLE]

and $X_{\alpha}\coloneqq(X_{1},X_{2},X_{3})$. ($X_{\alpha}$ is then a symmetric $\alpha$-stable vector which is invariant under permutations; it is one of the simplest such vectors other than an i.i.d. process.)

1. (i)

If $\alpha>1/2$, then $X^{h}$ is a color process for all sufficiently large $h$. 2. (ii)

If $\alpha<1/2$, then $X^{h}$ is not a color process for any sufficiently large $h$.

The critical value of $1/2$ above was independent of the parameter $a$, as long as $a\in(0,1)$. If we however move to a family which has two parameters, but is still $\{0,1\}$-symmetric and permutation transitive, we can obtain a phase transition at any point in $(0,2)$.

Theorem 1.10**.**

Let $a,b\in(0,1)$ satisfy $2a^{2}+2b^{2}<1$. Let $c_{1}=c_{1}(a,b)\in(0,2)$ be the unique solution to $2a^{c_{1}}+2b^{c_{1}}=1$ and $c_{2}=c_{2}(a,b):=\log{2}/|\log a-\log b|\in(0,\infty]$.

For $\alpha\in(c_{1},2)$, let $S_{1}$, $S_{2}$, …, $S_{7}$ be i.i.d. with $S_{1}\sim S_{\alpha}(1,0,0)$ and define

[TABLE]

Then $X_{\alpha}\coloneqq(X_{1},X_{2},X_{3})$ is a symmetric $\alpha$-stable vector which is invariant under all permutations, and the following holds.

1. (i)

If $c_{2}\leq c_{1}$, then, for all $\alpha\in(c_{1},2)$, $X_{\alpha}^{h}$ is a color process for all sufficiently large $h$. 2. (ii)

If $c_{2}\geq 2$, then, for all $\alpha\in(c_{1},2)$, $X_{\alpha}^{h}$ is not a color process for any sufficiently large $h$. 3. (iii)

If $c_{2}\in(c_{1},2)$, then, for all $\alpha\in(c_{1},c_{2})$, $X_{\alpha}^{h}$ is not a color process for any sufficiently large $h$ while for all $\alpha\in(c_{2},2)$, $X_{\alpha}^{h}$ is a color process for all sufficiently large $h$.

In particular, for any $\alpha_{c}\in(0,2)$ and $\epsilon<\alpha_{c}$, we can choose $a$ and $b$ so that $c_{1}=\epsilon$ and $c_{2}=\alpha_{c}$, in which case $X_{\alpha}$ is defined for all $\alpha\in(\epsilon,2)$ and where the question of whether the large $h$ threshold is a color process has a phase transition at $\alpha_{c}$.

Remark 1.11*.*

The case $a>b=0$, which is not included in Theorem 1.10, corresponds to the fully symmetric case studied in Theorem 1.9.

1.4 Background on symmetric stable vectors

We refer the reader to [13] for the theory of stable distributions and will just present here the background needed for our results.

Definition 1.12**.**

A random vector $X\coloneqq(X_{i})_{1\leq i\leq d}$ in $\mathbb{R}^{d}$ has a stable distribution if for all $n$, there exist $a_{n}>0$ and $b_{n}$ so that if $(X^{1},\ldots,X^{n})$ are $n$ i.i.d. copies of $X$, then

[TABLE]

It is known that for any stable vector, there exists $\alpha\in(0,2]$ so that $a_{n}=n^{1/\alpha}$. The Gaussian case corresponds to $\alpha=2$. Ignoring constant random variables, a stable random variable (i.e., with $d=1$ above) has four parameters, (1) $\alpha\in(0,2]$ which is called the stability exponent, (2) $\beta\in[-1,1]$ which is called the asymmetry parameter, (3) $\sigma$ which is a scale parameter and (4) $\mu$ which is a shift parameter. When $\alpha=2$, there is no $\beta$ parameter, $\mu$ corresponds to the mean and $\sigma$ corresponds to the standard deviation divided by $\sqrt{2}$, an irrelevant scaling. The distribution of this random variable is denoted by $S_{\alpha}(\sigma,\beta,\mu)$. More precisely, $S_{\alpha}(\sigma,\beta,\mu)$ is defined by its characteristic function $f(\theta)$, which, for $\alpha\neq 1$ is

[TABLE]

See [13] for the formula when $\alpha=1$. One should be careful and keep in mind that different authors use different parameterizations for the family of stable distributions. Throughout this paper, we will only consider symmetric stable random variables corresponding to $\beta=\mu=0$ and sometimes often assume $\sigma=1$. The above then simplifies to a random variable having distribution $S_{\alpha}(\sigma,0,0)$ which means its characteristic function is $f(\theta)=e^{-\sigma^{\alpha}|\theta|^{\alpha}}$. In the symmetric case, this formula is also valid for $\alpha=1$.

Finally, a random vector in $\mathbb{R}^{d}$ has a symmetric stable distribution with stability exponent $\alpha$ if and only if its characteristic function $f(\theta)$ has the form

[TABLE]

for some finite measure $\Lambda$ on $\mathbb{S}^{d-1}$ which is invariant under $\mathbf{x}\mapsto-\mathbf{x}$. $\Lambda$ is called the spectral measure corresponding to the $\alpha$-stable vector. For $\alpha\in(0,2)$ fixed, different $\Lambda$’s yield different distributions. This is not true for $\alpha=2$.

In a number of cases, we will have a symmetric $\alpha$-stable vector $X\coloneqq(X_{1},\ldots,X_{d})$ which is obtained by having

[TABLE]

where $A$ is a $d\times m$ matrix and $Y=(Y_{1},\dots,Y_{m})$ are i.i.d. random variables with distribution $S_{\alpha}(1,0,0)$. In such a case, there is a simple formula for the spectral measure $\Lambda$ for $X$. Consider the columns of $A$ as elements of $\mathbb{R}^{d}$, denoted by $\mathbf{x}_{1},\ldots,\mathbf{x}_{m}$. Then $\Lambda$ is obtained by placing, for each $i\in[m]$, a mass of weight ${\|\mathbf{x}_{i}\|_{2}^{\alpha}}/{2}$ at $\pm\mathbf{x}_{i}/\|\mathbf{x}_{i}\|_{2}$. See p. 69 in [13].

2 Stieltjes matrices and discrete Gaussian free fields

2.1 Inverse Stieltjes covariance matrices give rise to color processes for $h=0$

Definition 2.1**.**

A Stieltjes matrix is a symmetric positive definite matrix with non-positive off-diagonal elements.

We will see later that the following result implies that for all discrete Gaussian free fields $X$, $X^{0}$ is a color process.

Theorem 2.2**.**

If $X\sim N(0,A)$ and $A^{-1}$ is a Stieltjes matrix, then $X^{0}$ is a color process.

In [11], it was observed that the signs of a discrete Gaussian free field is an average of ferromagnetic Ising Models; that argument extends to the case of a Stieltjes matrix which is given below.

Proof.

Note first that as $(b_{ij})\coloneqq A^{-1}$ is a Stieltjes matrix, we have that $b_{ij}\leq 0$ whenever $i\not=j$. This implies in particular that if $f_{X}$ is the probability density function of $X$, then

[TABLE]

Now for each $i$, define $\sigma_{i}\coloneqq\operatorname{sgn}X_{i}$ so that $X_{i}=|X_{i}|\sigma_{i}$. Then the conditional probability density function of $(\sigma_{i})$ given $|X_{1}|=y_{1}$, $|X_{2}|=y_{2}$, …, $|X_{n}|=y_{n}$ satisfies

[TABLE]

This is a ferromagnetic Ising model with parameters $\beta_{ij}=-b_{ij}y_{i}y_{j}\geq 0$ and no external field. It is well known that the (Fortuin Kastelyn) random cluster model yields a color representation for the Ising model after we identify $-1$ with [math]. Since an average of color processes is a color process, we are done. ∎

Remark 2.3*.*

The proof of Theorem 2.2 does not apply to other threshold levels. With nonzero thresholds, this argument would lead to Ising model with a varying external field. The marginals of this (conditioned) process are not in general equal, which precludes it from being a color process, and even if the marginals were equal, there is no known color representation in this case in general.

We end this subsection by pointing out that there are fully supported Gaussian vectors whose threshold zero processes are color processes but whose inverse covariance matrix is not a Stieltjes matrix.

To see this, let $a\in(0,1)$ and $\varepsilon\in(0,1)$. Then the matrix

[TABLE]

has eigenvalues $1-a^{2}+\varepsilon$ and $\frac{2+a^{2}-\varepsilon\pm\sqrt{8a^{2}+(a^{2}-\varepsilon)^{2}}}{2}$. Hence $A$ is positive definite if $\varepsilon<1-a^{2}$. Moreover, we have

[TABLE]

Hence, $A$ is not an inverse Stieltjes matrix for any $\varepsilon>0$, since for any $\varepsilon>0$ we have that $A^{-1}(2,3)>0$. Consequently, if $0<\varepsilon<1-a^{2}$, then $A$ is symmetric, positive and positive definite but not an inverse Stieltjes matrix. Finally, the fact that the threshold zero process is a color process follows from Proposition 2.12 in [15] which states that for $n=3$, any $\{0,1\}$-symmetric process with nonnegative pairwise correlations is a color process.

A very important class of Gaussian vectors that have $A^{-1}$ being a Stieltjes matrix are discrete Gaussian free fields with a finite number of variables. Another example are so-called tree-indexed Gaussian Markov chains. A Gaussian Markov chain with parameter $a\in[0,1]$ has state space $S=\mathbb{R}$ and is described by $s\mapsto as+(1-a^{2})^{{1}/{2}}W$ where $W$ is a standard normal random variable; this is reversible with respect the distribution of $W$. From this, one can construct tree-indexed Gaussian Markov chains (see e.g. [2]).

We end this subsection by discussing a simple Gaussian vector and show that different points of view can lead to very different color representations. To this end, consider the fully symmetric multivariate normal $X\coloneqq(X_{1},X_{2},\ldots,X_{n})$ with covariance matrix $A=(a_{ij})$ where $a_{ij}=a\in(0,1)$ for $i\not=j$ and $a_{ii}=1$ for all $i$. It is easy to check that

[TABLE]

Since this is a Stieltjes matrix, $X^{0}$ is a color process by Theorem 2.2 and moreover, by the proof, the resulting color representation has full support. (The fact that this particular example is a color process is also covered by Section 3.5 in [15] using a different method.)

Now suppose we would add a variable $X_{0}$ with $a_{00}=1$ and $a_{i0}=\sqrt{a}$ for all $i\in\{1,2,\ldots,n\}$. One can check that this defines a Gaussian vector $(X_{0},X_{1},X_{2},\ldots,X_{n})$ and it is easy to check that this is a tree-indexed Gaussian Markov chain where the tree is a vertex with $n$ edges coming out. If we let $A_{0}$ be the covariance matrix of $Y\coloneqq(X_{0},X_{1},X_{2},\ldots,X_{n})$, then its inverse is given by

[TABLE]

Being a Stieltjes matrix, $Y^{0}$ has a color representation by Theorem 2.2 and the proof yields that if we restrict the resulting color representation of $Y^{0}$ to $\{1,2,\ldots,n\}$, the representation is supported on partitions with at most one non-singleton cluster. In particular, this implies that when $n=4$, these color representations will assign different probabilities to the partition $(12,34)$, and hence the representations are distinct.

3 An alternative embedding proof for tree-indexed Gaussian

Markov chains which extends to the stable case

The purpose of this section is twofold: first to give an alternative proof of the fact established earlier that tree-indexed Gaussian Markov chains are color processes and then to use a variant of this alternative method to obtain a result in the context of stable random variables.

3.1 The Gaussian case

Alternative proof that the threshold zero of a tree-indexed Markov chain

is a color process.

We give this proof only for a path where the correlations between successive variables are the same value $a$. The extension to the tree case and varying correlations is analogous.

To show that $X\coloneqq(X_{1},X_{2},\ldots,X_{n})$ has a color representation for any $n\geq 1$, we want to construct, on some probability space, a random partition $\pi$ of $[n]$ and random variables $Y=(Y_{1},Y_{2},\ldots,Y_{n})$ so that

1. (i)

$X$ and $Y$ have the same distribution (which implies that their corresponding sign processes have the same distribution) and 2. (ii)

$(Y^{0},\pi)$ is a color process (for $p=1/2$) with its color representation.

To do this, let $(Z_{t})$ be the so-called Ornstein-Uhlenbeck (OU) process defined by

[TABLE]

where $(W_{t})_{t\geq 0}$ is a standard Brownian motion. It is well known and immediate to check that $Z_{t}\sim N(0,1)$ for any $t\in\mathbb{R}$ and that $\operatorname{Cov}(Z_{s},Z_{t})=e^{-|s-t|}$ for any $s,t\in\mathbb{R}$.

Now, given $n$, consider the random vector $Y$ given by

[TABLE]

and consider the random partition $\pi$ of $\{1,2,\ldots,n\}$ given by $i\sim j$ if $Z_{t}$ does not hit zero between times $i\log(1/a)$ and $j\log(1/a)$.

It is immediate from the Markovian structure of both vectors and the covariances in the OU process that (i) holds. Next, (ii) is clear using the reflection principle (which uses the strong Markov property) and the fact that the hitting time of 0 is a stopping time. ∎

Remark 3.1*.*

This argument (also) does not work for any threshold other than zero. For it to work, one would need that for $h>0$ and any time $t\geq 0$, the probability that an OU process started at $h$ is larger than $h$ at time $t$ is equal to the unconditioned probability. This however does not hold.

Remark 3.2*.*

In [10], the author studies a similar construction as the construction above for discrete Gaussian free fields. More precisely, the author shows that one can obtain a color representation for a DGFF $X$ as follows. Given $X$, for each pair of adjacent vertices he adds a Brownian bridge with length determined by their coupling constant. Two vertices are then put in the same partition element if the corresponding Brownian bridge does not hit zero. Since DGFF’s have no stable analogue, this does not generalize to any class of stable distributions.

3.2 The stable case

We now obtain our first result for stable vectors. Given $\alpha\in(0,2)$ and $a\in(0,1)$, let $U$ have distribution $S_{\alpha}(1,0,0)$ and consider the Markov chain on $\mathbb{R}$ given by $s\mapsto as+(1-a^{\alpha})^{1/\alpha}U$. It is straightforward to check that $U$ is a stationary distribution for this Markov chain. Hence, given a tree $T$ and a designated root, we obtain a tree-indexed $\alpha$-stable Markov chain on $T$. Interestingly, unlike the Gaussian case, this process depends on the chosen root as this Markov Chain is not reversible. In particular, if $(X_{0},X_{1})$ are two consecutive times for this Markov chain started in stationarity, then $(X_{0},X_{1})$ and $(X_{1},X_{0})$ have different distributions; one can see this by looking at the two spectral measures.

Proposition 3.3**.**

Fix $\alpha\in(0,2)$, $a\in(0,1)$, a tree $T$ with designated root $\rho$ and consider the corresponding tree-indexed $\alpha$-stable Markov chain $X$ on $T$. Then $X^{0}$ is a color process.

Proof.

We give the proof only for a path and with $\rho$ being the start of the path. The extension to the tree case is analogous. As in the previous proof, we want to construct, on some probability space, a random partition $\pi$ of $[n]$ and random variables $Y=(Y_{1},Y_{2},\ldots,Y_{n})$ so that

1. (i)

$(X_{1},\ldots,X_{n})$ and $Y$ have the same distribution, and 2. (ii)

$(Y^{0},\pi)$ is a color process (for $p=1/2$) with its color representation.

We first recall (see Proposition 1.3.1 in [13], p.20) that if a standard Brownian motion $(B_{t})_{t\geq 0}$ and $S\sim S_{\alpha/2}(2\cos({\pi\alpha}/{4})^{{2}/{\alpha}},1,0)$ are independent, then $S^{{1}/{2}}B_{1}\sim S_{\alpha}(1,0,0).$ The random variable $S$ is an example of a so-called subordinator.

Now let $Y_{1},S_{2},\ldots,S_{n},(B_{t}^{(2)})_{t\geq 0},\ldots,(B_{t}^{(n)})_{t\geq 0}$ be independent with $Y_{1}\sim S_{\alpha}(1,0,0)$, each $S_{i}\overset{\mathcal{D}}{=}S$, where $S$ is as above and each $(B_{t}^{(i)})_{t\geq 0}$ being a standard Brownian motion.

Define $Y_{i}$ for $i\in\{2,\ldots,n\}$ inductively by

[TABLE]

It is clear from the above discussion that (i) holds.

Now we extend this process to all times $t\in[1,n]$ as follows. Let, for $t\in(i,i+1)$,

[TABLE]

Note that $(Y_{t})$ is left-continuous and has jumps exactly at the integers. Note also that this process never jumps over the $x$-axis.

Next, considering the random partition $\pi$ of $\{1,2,\ldots,n\}$ given by $i\sim j$ if $Y_{t}$ does not hit zero between times $i$ and $j$. Again using the reflection principle, properties of Brownian motion and the fact that $(Y_{t})$ never jumps over the $x$-axis it is clear that (ii) holds. ∎

We apply this to a particular symmetric, fully symmetric stable $n$-dimensional vector. To this end, let $S_{0}$, $S_{1}$, …, $S_{n}$ be i.i.d. each having distribution $S_{\alpha}(1,0,0)$ and for $i=1,2,\ldots,n$ let

[TABLE]

We claim that $(X^{0}_{1},X^{0}_{2},\ldots,X^{0}_{n})$ is a color process. To see this, consider Proposition 3.3 with a homogeneous $n$-ary tree and $\alpha$ and $a$ being as above. By that proposition, the threshold zero process for the corresponding tree-indexed Markov chain is a color process.

4 A geometric approach to Gaussian vectors

4.1 The geometric picture of a Gaussian vector

In this section we switch to a more geometric perspective and view a mean zero $n$-dimensional Gaussian vector as the values of a certain random function at a set of $n$ points in $\mathbb{R}^{k}$ for some $k$. This alternative description is completely well known. More precisely, let $k\geq 1$, $\mathbf{x}_{1},\ldots,\mathbf{x}_{n}\in\mathbb{R}^{k}$, and $W\sim N(0,I_{k})$ be a standard normal distribution in $\mathbb{R}^{k}$. If we now let

[TABLE]

then $X$ is a Gaussian vector with mean zero and covariances $\operatorname{Cov}(X_{i},X_{j})=\mathbf{x}_{i}\cdot\mathbf{x}_{j}$. Note that $X_{i}$ having variance one corresponds to $\mathbf{x}_{i}$ being on the unit sphere $\mathbb{S}^{k-1}$ in $\mathbb{R}^{k}$. The above representation can always be achieved with $k=n$. Such a representation can be achieved, up to rotations, in $\mathbb{R}^{k}$ if and only if $X$ lives on a $k$-dimensional subspace of $\mathbb{R}^{n}$. We say that $X$ has dimension $k$ if $k$ is the smallest integer where one has this representation up to rotations. When we have $\mathbf{x}_{1},\ldots,\mathbf{x}_{n}\in\mathbb{R}^{k}$ as above, without loss of generality, we will always assume that $\mathbf{x}_{1},\ldots,\mathbf{x}_{n}$ spans $\mathbb{R}^{k}$ so that the dimension of $X$ is $k$.

Now given a standard Gaussian vector $X\coloneqq(X_{i})_{1\leq i\leq n}$ (recall this means the marginals have mean zero and variance one) and $h\in\mathbb{R}$, let $(X^{h}_{i})_{1\leq i\leq n}$ be, as before, the threshold process defined by ${X^{h}_{i}}\coloneqq I(X_{i}>h)$. It will be useful to have a simple way to generate $(X^{h}_{i})_{1\leq i\leq n}$ which can be done as follows. Assume that $X$ is $k$-dimensional with variances all being one. We take $n$ points $\mathbf{x}_{1},\mathbf{x}_{2},\ldots,\mathbf{x}_{n}$ on $\mathbb{S}^{k-1}$ corresponding to $(X_{i})_{1\leq i\leq n}$ as described above. Let $Z\sim N(0,I_{k})$. It is well known that when $Z$ is written in polar coordinates $(r,\theta)$ with $r\geq 0$ and $\theta\in\mathbb{S}^{k-1}$, then $r$ and $\theta$ are independent with $\theta$ uniform on $\mathbb{S}^{k-1}$ and $r$ having the distribution of the square root of a $\chi$-squared distribution with $k$ degrees of freedom. We then have that $X^{h}_{i}=1$ if and only if $\mathbf{x}_{i}\cdot Z>h$. Note that $\{\mathbf{x}:\mathbf{x}\cdot Z=h\}$ is a random hyperplane $H_{h}$ in $\mathbb{R}^{k}$ perpendicular to $\theta(Z)$ and so $X^{h}$ is equal to one for points on $\mathbb{S}^{k-1}$ which lie on one side of $H_{h}$ and zero for points lying on the other side. Note that when $h=0$, the hyperplane goes through the origin and it is the points on the same side as $\theta(Z)$ that get value one; in particular, when $h=0$, the value of $X^{h}_{i}$ only depends on $\theta(Z)$ and not on $r(Z)$. However, when $h>0$, the hyperplane $H_{h}$ can go through any point of the one-sided infinite line from the origin going through $\theta(Z)$. In particular, $H_{h}$ might not intersect $\mathbb{S}^{k-1}$ at all; this would correspond exactly to $r(Z)<h$.

4.2 Gaussian vectors canonically indexed by the circle

Proposition 4.1**.**

Consider $n$ points $\mathbf{x}_{1},\ldots,\mathbf{x}_{n}$ on $\mathbb{S}^{1}$ satisfying $\mathbf{x}_{i}\cdot\mathbf{x}_{j}\geq 0$ for all $i,j$; this is equivalent to the correlations $a_{ij}$ of the corresponding Gaussian process $X$ being nonnegative. Then $X^{0}$ is a color process.

Proof.

Using the nonnegative correlations, it is easy to check that the $n$ points ${\{\mathbf{x}_{1},\mathbf{x}_{2},\ldots,\mathbf{x}_{n}\}\subseteq\mathbb{S}^{1}}$ must lie on an arc of length at most $\pi/2$. Since the distribution of a Gaussian process is invariant under rotations, we may assume that the $n$ points lie on the arc $0\leq\theta\leq\pi/2$. Hence we can assume that $\mathbf{x}_{j}=e^{i\theta_{j}}$ with $0\leq\theta_{1}<\theta_{2}<\ldots<\theta_{n}\leq\pi/2$.

We will couple $X^{0}$ with a color process together with its color representation in such a way that $X^{0}$ and the color process match exactly. We first show how one uniform point $U$ on $\mathbb{S}^{1}$ generates a color process together with its color representation. Let

[TABLE]

noting that the first and last arcs might be trivial. Letting $I_{k}^{\theta}$ be $I_{k}$ rotated counterclockwise by $\theta$, we note that

[TABLE]

partitions $\mathbb{S}^{1}$. Now for $k=1,\ldots,n+1$, if $U$ falls in $I^{0}_{k}\cup I^{\frac{\pi}{2}}_{k}\cup I^{\pi}_{k}\cup I^{\frac{3\pi}{2}}_{k}$, we partition $\{\mathbf{x}_{1},\mathbf{x}_{2},\ldots,\mathbf{x}_{n}\}$ into the two sets $J_{1}\coloneqq\{\mathbf{x}_{1},\ldots,\mathbf{x}_{k-1}\}$ and $J_{2}\coloneqq\{\mathbf{x}_{k},\ldots,\mathbf{x}_{n}\}$ with the obvious caveat when $k\in\{1,n+1\}$. Next we color $J_{1}$ and $J_{2}$ as follows. If $U$ is in $[0,\pi/2]$, we color each cluster 1, if $U$ is in $[\pi/2,\pi]$, we color $J_{1}$ 0 and $J_{2}$ 1, if $U$ is in $[\pi,3\pi/2]$, we color each cluster 0 and if $U$ is in $[3\pi/2,2\pi]$, we color $J_{1}$ 1 and $J_{2}$ 0. This clearly yields a color process (with $p=1/2$) together with its color representation. Finally observe that this color process is exactly $X^{0}$ if we use $U$ for $\theta(Z)$. ∎

Remark 4.2*.*

It is easy to see that the threshold zero-process here is such that it is constant with probability at least $1/2$. Hence the proof of Theorem 1.2 in [7] also yields it is a color process. Moreover, the color representation obtained there can be checked to be the same as the one given above. The description of the color representation given in the present section will however be useful when dealing with the case $h\neq 0$ as in Proposition 4.5.

Remark 4.3*.*

For any color process $(Y_{i})$ with $p=1/2$, for any $i$ and $j$ it is clear that

[TABLE]

and that

[TABLE]

In the case of Proposition 4.1, it is clear that

[TABLE]

and hence that

[TABLE]

Since $|\theta_{j}-\theta_{i}|=\arccos a_{ij}$ it follows that

[TABLE]

This is of course one of many ways to derive this last expression which is known as Sheppard’s formula (see [14]).

This discussion also leads to the formula

[TABLE]

The proof of the following elementary lemma, based on inclusion-exclusion, is left to the reader.

Lemma 4.4**.**

If $X\coloneqq(X_{1},X_{2},X_{3})$ is $\{0,1\}$-symmetric, then

[TABLE]

In particular, using (7), if $X$ corresponds to threshold zero for a mean zero Gaussian vector, the above is equal to

[TABLE]

Proposition 4.5**.**

Consider $n$ points $\mathbf{x}_{1},\ldots,\mathbf{x}_{n}$ on $\mathbb{S}^{1}$ satisfying $\mathbf{x}_{i}\cdot\mathbf{x}_{j}\geq 0$ for all $i,j$. Then $X^{h}$ does not have a color representation for any $h\not=0$, $n\geq 3$.

Proof.

It suffices to prove this for $h>0$ and $n=3$. Since $h>0$, it is clear from the construction of $X^{h}$ described in (4) that $(0,1,0)$ has positive probability but that $(1,0,1)$ has probability zero. However, it is immediate that no color process can have this property. ∎

4.3 A general obstruction for having a color representation for $h\neq 0$

By symmetry, we can assume $h>0$.

The following is precisely a higher dimensional analogue of Proposition 4.5. The latter is the special case $n=3$ together with the fact that any three points on the circle are in general position.

Theorem 4.6**.**

The standard Gaussian process $X$ associated to $n$ points $\mathbf{x}_{1},\ldots,\mathbf{x}_{n}\in\mathbb{S}^{n-2}$ in general position (equivalently not contained in an $(n-2)$-dimensional hyperplane) is such that $X^{h}$ is not a color process for any $h>0$.

More generally, if $X\coloneqq(X_{1},X_{2},\ldots,X_{n})$ is a random vector such that

• •

$(X_{1},X_{2},\ldots,X_{n-1})$* is fully supported on $\mathbb{R}^{n-1}$*

• •

there is $(a_{1},a_{2},\ldots,a_{n})\in\mathbb{R}^{n}\backslash\{0\}$ such that a.s.

[TABLE]

and

[TABLE]

then $X^{h}$ is not a color process for any $h>0$.

Remark 4.7*.*

Any $n$-dimensional standard Gaussian vector which is not fully dimensional can be represented by points on $\mathbb{S}^{n-2}$. When the $n$ points are not in general position, which can only happen if $n\geq 4$, in which case the above result is not applicable, we will see in Corollary 5.3 that nonetheless $X^{h}$ is not a color process for large $h$. Perhaps the simplest example of a four-dimensional Gaussian vector which is not fully dimensional but does not correspond to points on $\mathbb{S}^{2}$ in general position appears in Figure 3. In the next subsection, we will see in Theorem 4.8 that this case will lead us to an important example for which we will have a phase transition.

Proof of Theorem 4.6.

We will first observe that the second statement implies the first. One can order the $n$ points $\mathbf{x}_{1},\ldots,\mathbf{x}_{n}\in\mathbb{S}^{n-2}$ in general position such that the first $n-1$ points are linearly independent. This implies that the corresponding Gaussian vector $X=(X_{1},\ldots,X_{n})$ satisfies the first condition. Next, since $\mathbf{x}_{1},\ldots,\mathbf{x}_{n}$ are linearly dependent (as they sit inside $\mathbb{R}^{n-1}$) there exists $(a_{1},a_{2},\ldots,a_{n})\in\mathbb{R}^{n}\backslash\{0\}$ such that

[TABLE]

which implies (12). Finally (13) must hold since $\mathbf{x}_{1},\ldots,\mathbf{x}_{n}$ are in general position.

For the second statement, note first that we can assume that $|a_{i}|>0$ for $i=1,2,\ldots,n$ since we can remove the $X_{i}$’s for which $a_{i}=0$. If $a_{j}>0$ for all $j$ (with a similar argument if $a_{j}<0$ for all $j$), then for all $h>0$, $\nu_{1^{n}}(h)=0$ in which case there clearly cannot be any color representation. We hence assume that there are both positive and negative values among the $a_{j}$’s. Furthermore since $\sum_{i=1}^{n}a_{i}X_{i}=0$ and $(X_{1},X_{2},\ldots,X_{n-1})$ is fully supported, for any $i$, if we define $I_{i}=\{1,2,\ldots,n\}\backslash\{i\}$, then the vector $(X_{j})_{j\in I_{i}}$ is fully supported. This implies in particular that we, possibly after reordering the random variables and changing all the signs, can assume that

[TABLE]

and that $a_{n}>0$.

Fix now $h>0$. Now define the binary string $\rho$ by $\rho(i)=I(a_{i}<0)$ and let $\mathcal{E}$ be the event that

[TABLE]

Since $(X_{1},X_{2},\ldots,X_{n-1})$ is fully supported, the probability of the event $\mathcal{E}$ is strictly positive. Since

[TABLE]

this implies that on $\mathcal{E}$,

[TABLE]

which in particular implies that $\nu_{\rho}=0$.

On the other hand, since $(X_{1},X_{2},\ldots,X_{n-1})$ is fully supported, the event

[TABLE]

has strictly positive probability for any $\alpha\in(0,1)$ and $\beta\in(1,\infty)$. On this event we have that

[TABLE]

Since

[TABLE]

it follows that $X_{n}>h$ if $\alpha$ and $\beta$ are both sufficiently close to one. In particular, this implies that $\nu_{1-\rho}>0$. Since $\nu_{\rho}=0$ but $\nu_{1-\rho}>0$, it follows that $X^{h}$ cannot have a color representation. ∎

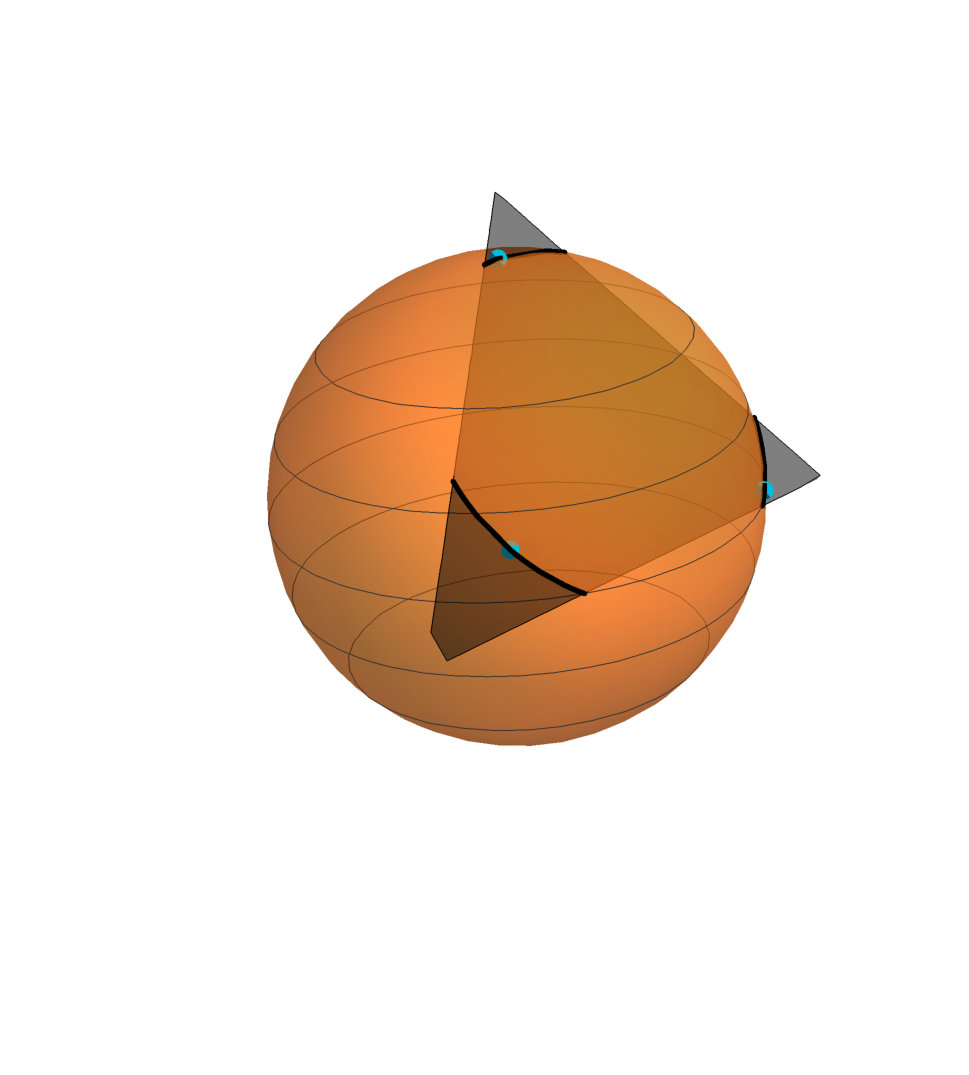

4.4 A four-dimensional Gaussian exhibiting a non-trivial phase transition

In this subsection we will study an example, corresponding to four points on $\mathbb{S}^{2}$, for which the existence of a color representation for positive $h$ is not ruled out by Theorem 4.6. To this end, let $\theta\in(0,\pi/2]$ and define $\mathbf{x}_{1},\mathbf{x}_{2},\mathbf{x}_{3},\mathbf{x}_{4}\in\mathbb{S}^{2}$ by

[TABLE]

and for $i=1,2,3,4$, let $X_{i}=\mathbf{x}_{i}\cdot W$, where $W\sim N(0,I_{3})$. Then $X\sim N(0,A)$ for

[TABLE]

Geometrically, this corresponds to having four points in a square on a 2-sphere at the same latitude, and it follows easily that

[TABLE]

Note that $A$ has nonnegative entries if and only if $\theta\leq\pi/4$.

The following theorem implies Theorem 1.2.

Theorem 4.8**.**

Let $X^{\theta}$ be a Gaussian vector with covariance matrix given by (14). Then

1. (i)

$X^{\theta,0}$* is a color process for all $\theta\in(0,\pi/4]$,* 2. (ii)

there is $\theta_{0}>0$ such that for all $\theta<\theta_{0}$, there exists $h_{\theta}>0$ such that $X^{\theta,h}$ is a color process for all $h\in(0,h_{\theta})$. 3. (iii)

for all $\theta\in(0,\pi/4)$, there is $h_{\theta}>0$ such that $X^{\theta,h}$ has no color representation for any $h>h_{\theta}$.

Lemma 4.9**.**

Let $X^{\theta}$ be a Gaussian vector with covariance matrix given by (14). Then for all $h$, $X^{\theta,h}$ has a color representation if and only if there is a color representation of $(X^{\theta,h}_{1},X^{\theta,h}_{2},X^{\theta,h}_{3})$ which satisfies

[TABLE]

Proof.

Fix $h\geq 0$ and assume first that there is a color representation $(q_{\sigma})$ (the dependence on $h$ will be suppressed) of $(\nu^{h}_{\rho})$. Since the distribution of $X^{\theta}$ is invariant under the action of the dihedral group, we can assume that $(q_{\sigma})$ also is. Note that it follows from (15) that $\nu_{0101}=0$ , and hence $\nu_{010\cdot}=\nu_{0100}$. In particular, this implies that

[TABLE]

and using this, we obtain (using the assumed symmetry)

[TABLE]

Since this is a color representation by assumption, $q_{\sigma}\geq 0$ for all $\sigma$, which is equivalent to (16). This proves the necessity in the first part of the lemma.

To see that we also have sufficiency, let $q=(q_{123},q_{12,3},q_{13,2},q_{1,23},q_{1,2,3})$ be a color representation of $(X_{1}^{\theta,h},X_{2}^{\theta,h},X_{3}^{\theta,h})$ which satisfies the inequalities in (16). Define $q_{\sigma}$ for $\sigma\in\mathcal{B}_{4}$ by (17) and (18) and extend to all partitions by making it invariant under the dihedral group. Since (16) holds, $q_{\sigma}\geq 0$ for all $\sigma\in\mathcal{P}_{4}$. Also, one checks that they sum to one and the projection onto $\{1,2,3\}$ is $q$ above. Using the fact that $\nu_{010\cdot}=\nu_{0100}$, one can check that the probability of any configuration is determined by the three–dimensional marginals. From here, one verifies that this yields a color representation of $X^{\theta,h}$, as desired. ∎

Proof of Theorem 4.8.

To see that (i) holds, let $h=0$. We will apply Lemma 4.9. Then one easily verifies that the process $(X^{\theta,0}_{1},X^{\theta,0}_{2},X^{\theta,0}_{3})$ has a signed color representation given by

[TABLE]

for some free variable $t\in\mathbb{R}$. This will give a color representation for all $t$ which is such that $q_{\sigma}\geq 0$ for all $\sigma\in\mathcal{B}_{3}$. Using (7) and (11), one easily verifies that in a Gaussian setting, the set of equations above can equivalently be written as

[TABLE]

Rearranging, we see that these are all nonnegative if and only if

[TABLE]

In our specific example, we have that

[TABLE]

and hence (19) simplifies to

[TABLE]

Similarly, we can rewrite (16) as

[TABLE]

If we put these sets of inequalities together, and use that $\theta\in(0,\pi/4]$, we obtain the following necessary and sufficient condition for the existence of such a $t$:

[TABLE]

Here it is easy to verify that

[TABLE]

and that

[TABLE]

and hence to see that we can always pick $t$ so that the above inequalities hold it suffices to show that

[TABLE]

for all $\theta\in(0,\pi/4]$. To this end, note first that we can rewrite the inequality above as

[TABLE]

This can be verified to hold for all $\theta\in(0,\pi/4]$ by verifying that the left hand side is increasing in $\theta$ for $\theta\in(0,\pi/4]$ and noting that

[TABLE]

The desired conclusion now follows.

To see that (ii) holds, note first that by Theorem 6.1 and a computation, the value of the free parameter $t$ corresponding to the limit of $h\to 0$ is given by

[TABLE]

Using the proof of (i), it follows that it suffices to show that

[TABLE]

for all sufficiently small $\theta$. To this end, note first that at $\theta=0$ the first expression is equal to $-1/2$ while the second and third expression are both equal to zero, and hence the first inequality is strict for all sufficiently small $\theta$. To compare the last two expressions, one verifies that the derivatives of these two expressions at $\theta=0$ are given by [math] and $4-2\sqrt{2}$ respectvely, and hence (ii) is established.

Finally, (iii) follows from Corollary 5.3. ∎

4.5 A four-dimensional Gaussian with nonnegative correlations

whose zero threshold has no color representation

In this subsection, we study a particular example which will in particular yield a proof of Theorem 1.4; see (ii) and (iii) below.

Theorem 4.10**.**

Let $(X_{1},X_{2},\ldots,X_{n-1})$ be a fully symmetric multivariate mean zero variance one Gaussian random vector with pairwise correlation $a\in[0,1)$, and let

[TABLE]

ensuring that $X_{n}$ has mean zero and variance one. In addition, nonnegative pairwise correlations is immediate to check. If $X^{a}\coloneqq(X_{1},X_{2},\ldots,X_{n})$, then the following hold.

1. (i)

When $n=3$, $X^{a,0}$ is a color process for any $a\in[0,1)$. 2. (ii)

When $n\geq 4$ and $a$ is sufficiently close to zero (or zero), $X^{a,0}$ is not a color process. 3. (iii)

For $n\geq 4$, there exists a fully supported multivariate mean zero variance one Gaussian random variable $X$ with nonnegative correlations for which $X^{0}$ is not a color process. 4. (iv)

When $n\geq 4$ and $a$ is sufficiently close to one, $X^{a,0}$ is a color process. 5. (v)

For any $n\geq 3$, $a\in[0,1)$ and $h>0$, $X^{a,h}$ is not a color process.

Proof.

(i). The claim for $n=3$ follows immediately from Proposition 4.1 or Proposition 2.12 in [15].

(ii). We first consider $n\geq 4$ and $a=0$ and obtain the result in this case. If $X^{0}$ is a color process, then it must be the case that the color representation gives weight $1/(n-1)$ to each of the $n-1$ partitions which consist of all singletons except $n$ is in a block of size 2. This is because (1) since $X_{1},X_{2},\dots,X_{n-1}$ are independent, none of $1,2,\ldots,n-1$ can ever be in the same cluster, (2) if $n$ is in its own cluster with positive probability, then $\nu_{0^{n-1}1}>0$ which contradicts the fact that $X_{1},X_{2},\ldots,X_{n-1}$ all negative and $X_{n}$ positive is impossible and (3) symmetry. On the other hand, by (9), each of the above partition elements must have value $1-\frac{2\arccos\frac{1}{\sqrt{n-1}}}{\pi}$. The conclusion is that if it is a color process, then

[TABLE]

This is true for $n=3$ (as it must be) but we show this is false for all $n\geq 4$. Rearranging, this is equivalent to

[TABLE]

Now consider the two functions $f(x)=\pi x^{2}/2$ and $g(x)=\arcsin x$ for $x\in[0,1]$. Then we clearly have $f(0)=g(0)$ and $f(1)=g(1)$. Moreover, one can easily check that both functions are continuously differentiable, that their first derivatives agree only at $x=\sqrt{\frac{1}{2}\pm\frac{\sqrt{\pi^{2}-4}}{2\pi}}$ (i.e. at $x\approx 0.338247$ and $x\approx 0.941057$) and that $f^{\prime}(0)=0<1=g^{\prime}(0)$ and $f^{\prime}(1)=\pi<\infty=g^{\prime}(1)$. This easily implies that $\{x:f(x)>g(x)\}$ is of the form $(b,1)$. Hence we need only check that (20) fails for $n=4$ with the left side being larger. However, this is immediate to check. Finally, to obtain the result for small $a$ depending on $n$, one just uses the fact that the set of color processes is closed.

(iii). Fix $n\geq 4$, take $a=0$ and replace $X_{n}$ by $X^{\prime}_{n}\coloneqq\epsilon Z+(1-\epsilon^{2})^{{1}/{2}}X_{n}$ where $Z$ is another standard Gaussian independent of everything else. Then for every $\epsilon>0$, the resulting vector $X$ is fully supported with nonnegative correlations. However, for small $\epsilon$, $X^{0}$ cannot be a color process since the color processes are closed and the limit as $\epsilon\rightarrow 0$ is not a color process by (ii).

For (iv), note that by the proof of Theorem 1.2 in [7], a sufficient condition for a $\{0,1\}$-symmetric process to be a color process is that $\nu_{0^{n}}\geq 1/4$. In our case, we clearly have that for any $n$, $\nu_{0^{n}}\to{1}/{2}$ as $a\to 1$, and hence the desired conclusion follows.

Finally for (v), with $n\geq 3$, $a\in[0,1)$ and $h>0$, this follows immediately from Theorem 4.6. ∎

4.6 An extension to the stable case

In this subsection, we explain to which extent the results in the previous subsection can be carried out for the stable case. We assume now that $X_{1}$, $X_{2}$, …, $X_{n-1}$ are i.i.d. each with distribution $S_{\alpha}(1,0,0)$ for some $\alpha\in(0,2)$ and we let

[TABLE]

and $X\coloneqq(X_{1},X_{2},\ldots,X_{n})$.

Proposition 2.12 in [15] implies, as before, that when $n=3$, $X^{0}$ is a color process (the $\{0,1\}$-symmetry is obvious and the nonnegative correlations being an easy consequence of Harris’ inequality). Concerning whether $X^{h}$ can be a color process for some $n\geq 3$ and $h>0$, Theorem 4.6 implies that it cannot be except perhaps when $\alpha=1$. For $n\geq 4$ it seems, by using similar arguments and Mathematica, that $X^{0}$ is a color process for at most one value of $\alpha$.

5 Results for large thresholds

and the discrete Gaussian free field

In the first subsection of this section, we show that non-fully supported Gaussian vectors do not have color representations for large $h$. On the other hand, in the second subsection, we give the proof of Theorem 1.5 that discrete Gaussian free fields have color representations for large $h$.

5.1 An obstruction for large $h$

We first deal with the case $n=2$, where we have the following easy result.

Proposition 5.1**.**

*Let $X\coloneqq(X_{1},X_{2})$ be a standard Gaussian vector with

$\operatorname{Cov}(X_{1},X_{2})\in[0,1)$. Then $X^{h}$ has a (unique) color representation $(q_{\sigma})_{\sigma\in\mathcal{B}_{2}}$ for all $h\in\mathbb{R}$ and $\lim_{h\to\infty}q_{12}(h)=0$.*

This result essentially follows from Theorem 2.1 in [5] (see also Lemma 5.10 here) but we include a proof sketch here.

Proof of Proposition 5.1.

Note first that since $n=2$, the nonnegative correlation immediately implies that $X^{h}$ has a color representation for all $h\in\mathbb{R}$, and hence we need only show that $\lim_{h\to\infty}q_{12}(h)=0$. Since it can be easily checked that

[TABLE]

we need to show that

[TABLE]

this however is straighforward. ∎

The previous result immediately implies the following.

Corollary 5.2**.**

If $X\coloneqq(X_{1},X_{2},\ldots,X_{n})$ is a standard Gaussian vector with $\operatorname{Cov}(X_{i},X_{j})\in[0,1)$ for all $i<j$ and $X^{h}$ has a color representation $(q_{\sigma})_{\sigma\in\mathcal{B}_{n}}$ for arbitrarily large $h$, then

[TABLE]

Interestingly, this gives the following negative result when $X$ is not fully dimensional.

Corollary 5.3**.**

*Let $(X_{1},X_{2},\ldots,X_{n})$ be a standard Gaussian vector with

$\operatorname{Cov}(X_{i},X_{j})\in[0,1)$ for all $i<j$. If $X$ is not fully supported, then for all sufficiently large $h$, $X^{h}$ is not a color process.*

Proof.

Since $X$ is not fully dimensional, there must exist a linear relationship between the variables. As a result, there must exist $\rho\in\{0,1\}^{n}$ so that for all $h>0$, $\nu_{\rho}(h)=0$. Hence, if there is a color representation $(q_{\sigma}(h))$ for some $h$, it must satisfy $q_{1,2,\ldots,n}(h)=0$. The desired conclusion now follows from Corollary 5.2. ∎

5.2 Discrete Gaussian free fields and large thresholds

In this section, our main goal will be to prove Theorem 1.5. Note that all our random vectors in this section will be fully supported which we know is anyway necessary in view of Corollary 5.3.

Before we continue, we remind the reader that a Gaussian vector $X\sim N(0,A)$ is a discrete Gaussian free field if and only if

1. (i)

$A$ is a block matrix with strictly positive blocks, 2. (ii)

$A$ is an inverse Stieltjes matrix, 3. (iii)

$A$ satisfies the weak Savage condition, i.e. $\mathbf{1}^{T}A^{-1}\geq\mathbf{0}$, and 4. (iv)

for at least one row $i$ in each block of $A$, $\mathbf{1}^{T}A^{-1}(i)>0$.

This correspondence will be used throughout this whole section.

We first note the following corollaries of Theorem 1.5.

Corollary 5.4**.**

Let $a\in(0,1)$ and let $X\coloneqq(X_{1},X_{2},\ldots,X_{n})$ be a standard Gaussian vector with $\operatorname{Cov}(X_{i},X_{j})=a$ for all $i<j$. Then $X^{h}$ is a color process for all sufficiently large $h$.

Proof.

Let $A$ be the covariance matrix of $X$. Then one verifies that for $i,j\in[n]$ we have

[TABLE]

Consequently, $A$ is an inverse Stieltjes matrix. Moreover, for all $j\in[n]$ we have that

[TABLE]

and hence $\mathbf{1}^{T}A^{-1}>\mathbf{0}$. Applying Theorem 1.5, the desired conclusion follows. ∎

Corollary 5.5**.**

Let $a\in(0,1)$ and let $X\coloneqq(X_{1},X_{2},\ldots,X_{n})$ be a standard Gaussian vector with $\operatorname{Cov}(X_{i},X_{j})=a^{|i-j|}$ for all $i,j\in[n]$, yielding a Markov chain. Then $X^{h}$ is a color process for all sufficiently large $h$.

Proof.

Let $A$ be the covariance matrix of $X$. Then one verifies that for $i,j\in[n]$ we have

[TABLE]

Consequently, $A$ is an inverse Stieltjes matrix. Moreover, for all $j\in[n]$ we have that

[TABLE]

and hence $\mathbf{1}^{T}A^{-1}>\mathbf{0}$. Applying Theorem 1.5, the desired conclusion follows. ∎

We now state and prove a few lemmas that will be needed in the proof of Theorem 1.5. The first of these will give sufficient conditions for $X^{h}$ to be a color process for large $h$ in terms of the decay of the tails of $\nu(1^{S})$ for sets $S$. As usual, $\ll$ means the relevant ratio goes to zero and $\asymp$ means things are "equal up to constants".

Lemma 5.6** (Theorem 1.6 in [7]).**

Let $(\nu_{p})_{p\in(0,1)}$ be a family of probability measures on $\{0,1\}^{n}$. Assume that $\nu_{p}$ has marginals $p\delta_{1}+(1-p)\delta_{0}$ and that for all $S\subseteq[n]$ with $|S|\geq 2$ and all $k\in S$, as $p\to 0$, we have that

[TABLE]

and

[TABLE]

Then $X_{p}\sim\nu_{p}$ is a color process for all sufficiently small $p>0$.

Lemma 5.7**.**

Let $X\coloneqq(X_{1},X_{2},\ldots,X_{n})$ be a standard Gaussian vector with strictly positive, positive definite covariance matrix $A$. Assume further that $A$ is an inverse Stieltjes matrix and that $\mathbf{1}^{T}A^{-1}\geq\mathbf{0}$. Then for each $S\subseteq[n]$, the covariance matrix $A_{S}$ of $X_{S}\coloneqq(X_{i})_{i\in S}$ is a strictly positive, positive definite inverse Stieltjes matrix with $\mathbf{1}^{T}A_{S}^{-1}\geq\mathbf{0}$.

Remark 5.8*.*

The main part of the proof of this lemma consists of showing that if the weak Savage condition holds for a matrix $A$ which is an inverse Stieltjes matrix, then the weak Savage condition will also hold for any principal submatrix. Without the additional assumption that $A$ is an inverse Stieltjes matrix, this will not be true. To see this, take e.g.

[TABLE]

One can verify that $A$ is a positive definite matrix for which the Savage condition holds, but that the Savage condition does not hold for the principal submatrix corresponding to the first three rows and columns.

Remark 5.9*.*

Lemma 5.7 essentially proves that if $X$ is a DGFF, then for any $S\subseteq[n]$, $X_{S}\coloneqq(X_{i})_{i\in S}$ is also a DGFF.

Proof of Lemma 5.7.

By induction, it suffices to show that the conclusion of the lemma holds for $S$ of the form $[n]\backslash\{k\}$ for some $k\in[n]$. To this end, fix $k\in[n]$. Clearly, $A_{[n]\backslash\{k\}}$ is a positive and positive definite matrix. By a lemma on page 328 in [12], $A_{[n]\backslash\{k\}}$ is also an inverse Stieltjes matrix. Next, let $(b_{ij})\coloneqq A^{-1}$. Since $A$ is positive definite, so is $A^{-1}$, and hence $b_{kk}=e_{k}^{T}A^{-1}e_{k}>0$. Next, since $b_{kk}>0$, for $i,j\in[n]\backslash\{k\}$, it is well known that

[TABLE]

and hence for $j\neq k$

[TABLE]

Since $b_{jk}\leq 0$, $b_{kk}>0$ and $\mathbf{1}^{T}A^{-1}(k)\geq 0$ , we obtain the inequality

[TABLE]

Since this holds for all $j\neq k$, the desired conclusion follows. ∎

The following lemma follows from special cases of Theorems 2.1 and 2.2 in [5] and Theorem 3.1 in [9]. This will be needed here and also in the proofs of some lemmas which will be used in the proof of Theorem 1.6.

Lemma 5.10**.**

Let $X$ be a fully supported $n$-dimensional standard Gaussian vector with positive definite covariance matrix $A=(a_{ij})$. If the vector $\alpha\coloneqq\mathbf{1}^{T}A^{-1}$ has no zero component, then as $h\to\infty$ one has that

[TABLE]

Furthermore if $\mathbf{1}^{T}A^{-1}(1)=0$ , then

[TABLE]

We note that if $n=3$, then assuming $\alpha(1)\leq\alpha(2)\leq\alpha(3)$, then it is immediate to check that $\alpha(2)$ and $\alpha(3)$ are strictly positive, while $\alpha(1)$ can be negative, zero or positive.

Lemma 5.11**.**

Let $X\coloneqq(X_{1},X_{2},\ldots,X_{n})$ be a standard Gaussian vector with strictly positive, positive definite covariance matrix $A$ which is an inverse Stieltjes matrix and satisfies $\mathbf{1}^{T}A^{-1}\geq\mathbf{0}$. Then for any $S\subseteq[n]$ with $|S|\geq 2$ and $k\in S$, as $h\to\infty$, we have

[TABLE]

Proof.

Let $S\subseteq[n]$ and define $X_{S}\coloneqq(X_{i})_{i\in S}$. Let $A_{S}$ be the covariance matrix of $X_{S}$. By Lemma 5.7, the matrix $A_{S}$ is a strictly positive, positive definite inverse Stieltjes matrix which satisfies $\mathbf{1}^{T}A^{-1}_{S}\geq\mathbf{0}$. To simplify notation, let $(a_{ij}^{(S)})\coloneqq A_{S}$ and $(b_{ij}^{(S)})\coloneqq A_{S}^{-1}$ . The rest of the proof of this lemma will be divided into several steps

Step 1.

Fix $S\subseteq[n]$ with $|S|\geq 2$ and $k\in S$. In this step, we will prove the inequality

[TABLE]

or equivalently

[TABLE]

To this end, note first that since $(b_{ij}^{(S)})$ is the inverse of $(a_{ij}^{(S)})$, we have that

[TABLE]

Since $X$ is a standard Gaussian vector, we have that $a_{kk}^{(S)}=1$ and that $a_{ki}^{(S)}<1$ if $i\in S\backslash\{k\}$. Moreover, since $A_{S}$ is a positive definite inverse Stieltjes matrix by Lemma 5.7, we have that $b_{kk}^{(S)}>0$ and that $b_{ji}^{(S)}\leq 0$ for $i\not=j$. In addition, since $a_{ij}^{(S)}>0$ for all $i,j\in S$, we also obtain that

[TABLE]

Combining these observations, we have

[TABLE]

Since $\sum_{i\in S}b_{ki}^{(S)}=\mathbf{1}^{T}A_{S}^{-1}(k)\geq 0$, it follows that

[TABLE]

This implies in particular that

[TABLE]

with equality if and only if $\mathbf{1}^{T}A_{S}^{-1}(k)=0$. This last equation, together with (28) implies (26), as desired.

Step 2.

In this step, we will prove that for all $S\subseteq[n]$ with $|S|\geq 2$ and $k\in S$, we have

[TABLE]

with the first inequality being strict if and only if $\mathbf{1}^{T}A^{-1}_{S}(k)>0$. To this end, note first that since $A$ is positive definite, so is $A_{S}$ and $A_{S\backslash\{k\}}$. So, as before, $b_{kk}^{(S)}=e_{k}^{T}A_{S}^{-1}e_{k}>0$ and if $i,j\in S\backslash\{k\}$ then

[TABLE]

Using this, we obtain

[TABLE]

and

[TABLE]

Recalling that $b_{kk}^{(S)}>0$ and using the conclusion of Step 1, (29) follows, which concludes Step 2.

Step 3.

For $S\subseteq[n]$, define $J_{S}\coloneqq\{j\in S\colon\mathbf{1}^{T}A_{S}^{-1}(j)=0\}$. Note that since $A_{S}$ is positive definite, we have that $\mathbf{1}^{T}A^{-1}_{S}\mathbf{1}>0$ and hence $J_{S}\not=S$. In this step, we show that the following hold for any sets $S^{\prime}\subseteq S\subseteq[n]$.

1. (i)

If $i\in J_{S}$, then $J_{S\backslash\{i\}}=J_{S}\backslash\{i\}.$ 2. (ii)

$|S\backslash J_{S}|\geq 2.$ 3. (iii)

$J_{S^{\prime}}\subseteq J_{S}.$ 4. (iv)

$\mathbf{1}^{T}A^{-1}_{(S\backslash J_{S})\backslash S^{\prime}}>\mathbf{0}.$ 5. (v)

The set $\{T\subseteq[n]\backslash S\colon T\subseteq J_{S\cup T}\}$ is a power set of some set.

To see that (i) holds, note first that by (24), for any set $S\subseteq[n]$ and any distinct $i,j\in S$ we have that

[TABLE]

From this (i) immediately follows.

For (ii), one first checks that if $S$ has 2 elements, then $J_{S}=\emptyset$. For larger $S$, we argue by induction. Take $i\in J_{S}$. By induction, $(S\backslash\{i\})\backslash(J_{S\backslash\{i\}})\geq 2$ which by (i) implies $(S\backslash\{i\})\backslash(J_{S}\backslash\{i\})\geq 2$, which yields the result for $S$.

Next, by Lemma 5.7, $A_{S}$ is an inverse Stieltjes matrix which satisfies $\mathbf{1}^{T}A^{-1}_{S}\geq\mathbf{0}$. In particular, this implies that $b^{(S)}_{ji}\leq 0$ and $\mathbf{1}^{T}A_{S}^{-1}(i)\geq 0$, and hence it follows from (31) that

[TABLE]

(iii) follows.

Next, (iv) follows easily from (iii).

We will now show that (v) holds. To simplify notation, let

[TABLE]

It suffices to show that if $T_{1},T_{2}\in\mathcal{Z}_{S}$ and $i\in T_{1}$, then

1. (a)

$T_{1}\backslash\{i\}\in\mathcal{Z}_{S}$ 2. (b)

$T_{2}\cup\{i\}\in\mathcal{Z}_{S}$.

To see that (a) holds, fix $T_{1}\in\mathcal{Z}_{S}$ and $i\in T_{1}$. By the definition of $\mathcal{Z}_{S}$, this implies that $T_{1}\subseteq J_{S\cup T_{1}}$, and hence $T_{1}\backslash\{i\}\subseteq J_{S\cup T_{1}}\backslash\{i\}$. Since $i\in T_{1}\subseteq J_{S\cup T_{1}}$ we have $i\in J_{S\cup T_{1}}$, and hence by (i) we have $J_{S\cup T_{1}}\backslash\{i\}=J_{S\cup T_{1}\backslash\{i\}}$. Combining these observations, we obtain $T_{1}\backslash\{i\}\subseteq J_{S\cup T_{1}\backslash\{i\}}$, and hence $T_{1}\backslash\{i\}\in\mathcal{Z}_{S}$ as desired. This concludes the proof of (a).

To see that (b) holds, fix $T_{1},T_{2}\in\mathcal{Z}_{2}$ and $i\in T_{1}$. By the definition of $\mathcal{Z}_{S}$, we have $T_{1}\subseteq J_{S\cup T_{1}}$ and $T_{2}\subseteq J_{S\cup T_{2}}$. Since $T_{1}\subseteq J_{S\cup T_{1}}$, by applying (i) several times, we obtain

[TABLE]

Since $i\in T_{1}\subseteq J_{S\cup T_{1}}$, this implies in particular that $i\in J_{S\cup\{i\}}$. By (iii), we have that $J_{S\cup\{i\}}\cup J_{S\cup T_{2}}\subseteq J_{S\cup T_{2}\cup\{i\}}$. Since $i\in J_{S\cup\{i\}}$ and $T_{2}\subseteq J_{S\cup T_{2}}$, it follows $T_{2}\cup\{i\}\subseteq J_{S\cup T_{2}\cup\{i\}}$, and hence $T_{2}\cup\{i\}\in\mathcal{Z}_{S}$ as desired.

Step 4.

In this step, we will now show that for any $S\subseteq[n]$ with $|S|\geq 2$ and $k\in S$, as $h\to\infty$, we have that

[TABLE]

To this end, fix $S\subseteq[n]$ and let $J_{S}$ be as in Step 3. By Step 2, for any $k\in S\backslash J_{S}$, we have that

[TABLE]

Since this trivially holds for $k\in J_{S}$, it follows that these inequalities in fact hold for all $k\in S$. Now fix $k\in S$. By Step 3 (iv) we have that $\mathbf{1}^{T}A_{S\backslash J_{S}}^{-1}>\mathbf{0}$ and $\mathbf{1}^{T}A_{S\backslash(J_{S}\cup\{k\})}^{-1}>\mathbf{0}$, and hence by applying the first part of Lemma 5.10 and using (33), it follows that as $h\to\infty$, we have

[TABLE]

Applying the second part of Lemma 5.10 several times together with Step 3 (iii), we see that

[TABLE]

Using this, it follows that as $h\to\infty$,

[TABLE]

and hence the desired conclusion holds.

Step 5.

In this step, we show that for each $S\subseteq[n]$ with $|S|\geq 2$, as $h\to\infty$, we have that

[TABLE]

To this end, fix $S\subseteq[n]$. By an inclusion-exclusion argument, we see that

[TABLE]

For each $T\subseteq[n]\backslash S$, let $J_{S\cup T}$ be as in Step 3. By (34) applied to $S\cup T$, it follows that

[TABLE]

Now note that by (30) and Step 3 (iii), we have that

[TABLE]

(29) and induction now implies that

[TABLE]

with equality if and only if $T\subseteq J_{S\cup T}$. Since by Step 3 (iv) we have that $\mathbf{1}^{T}A^{-1}_{(S\cup T)\backslash J_{S\cup T}}>\mathbf{0}$, if we combine these observations and apply Lemma 5.10, it follows that

[TABLE]

By Step 3 (v), the set $\{T\subseteq[n]\backslash S\colon T\subseteq J_{S\cup T}\}$ is a power set of some set $S_{0}$. Using this, it follows that

[TABLE]

and hence (35) holds.

Since Step 4 and Step 5 together give the conclusions of the lemma, this concludes the proof. ∎

Remark 5.12*.*

If we assumed Savage instead of weak Savage, the proof could be somewhat shortened.

We are now ready to give the proof of Theorem 1.5.

Proof of Theorem 1.5.

The covariance matrix for a discrete Gaussian free field is a block matrix with each block satisfying the assumptions of Lemma 5.11. Hence, restricting to a block, we have that for all $S$ within this block with $|S|\geq 2$ and for $k\in S$, we have that

[TABLE]

The second condition in Lemma 5.6 trivially holds and hence applying this lemma, we obtain conclude that for large $h$, the threshold Gaussian corresponding to this fixed block is a color process. Since the full process is independent over the different blocks, we easily obtain the desired result for the full process. ∎

6 General results for small and large thresholds for $n=3$ in the Gaussian

case

When $Y$ is a $\{0,1\}$-valued 3-dimensional random vector, and $\nu$ is the corresponding probability measure, we know from Theorem 2.1(C) in [15] (see also Theorem 1.4 in [7]) that $Y$ has a unique signed color representation $(q_{\sigma})_{\sigma\in\mathcal{B}_{3}}$. It is easy to verify that this representation is given by

[TABLE]

This implies in particular that $Y$ has a color representation if and only if $(q_{\sigma})_{\sigma\in\mathcal{B}_{3}}$ is non-negative.

6.1 $h$ small

Our next result describes the behavior of $(q_{\sigma})_{\sigma\in\mathcal{B}_{3}}$ when $Y=X^{h}$ for a Gaussian vector $X$, and $h>0$ is small.

Theorem 6.1**.**

Let $X$ be a three-dimensional standard Gaussian vector with covariance matrix $A=(a_{ij})$ and $\theta_{ij}\coloneqq\arccos a_{ij}$. Further, let $(\nu_{\rho}(h))_{\rho\in\{0,1\}^{3}}$ be the probability measure corresponding to $X^{h}$ and let $(q_{\sigma})_{\sigma\in\mathcal{B}_{n}}$ be given by (36). Then

[TABLE]

Proof.

This proof will be divided into two steps.

Step 1.

In this step, we will prove that

[TABLE]

To this end, note first that by (36),

[TABLE]

Since $\nu_{\rho}$ is differentiable at zero, it follows that

[TABLE]

Similarly, again using (36), one has that

[TABLE]

If we can show that

[TABLE]

then (38) will follow using symmetry and the fact that $\sum q_{\sigma}=1$. To see that (39) holds, let $f$ be the probability density function of $(X_{1},X_{2})$ and note that $\nu_{0}^{\prime}(x)$ is the marginal density of both $X_{1}$ and $X_{2}$. Then for any $h_{1},h_{2}\in\mathbb{R}$ we have that

[TABLE]

Differentiating with respect to $h_{1}$ in the same way and then setting $h_{1}=h_{2}=0$, it follows that

[TABLE]

By symmetry, the two summands are each equal to $1/2$, and hence $\nu_{00\cdot}^{\prime}(0)=\nu_{0}^{\prime}(0)$ as desired. The other equalities follow by an analogous argument.

Step 2.

To obtain (37) from (38), note first that by an analogous argument as above, one obtains in general that

[TABLE]

Using basic facts about Gaussian vectors, one has that $(X_{2},X_{3})\mid X_{1}=0$ is a Gaussian vector with correlation

[TABLE]

Using (7), it follows that

[TABLE]

and hence, by symmetry, we obtain

[TABLE]

Now recall that for any $\alpha,\beta\in[-1,1]$ we have that

[TABLE]

and hence if $\alpha,\beta\in[-1,1]$ satisfies $\alpha+\beta\geq 0$ and $\alpha\beta-\sqrt{1-\alpha^{2}}\sqrt{1-\beta^{2}}+\gamma\leq 0$, then

[TABLE]

Now let

[TABLE]

Using that as $A$ is positive definite, then $a_{12}\leq a_{13}a_{23}+\sqrt{(1-a_{13}^{2})(1-a_{23}^{2})}$, it follows that we indeed have that $\alpha+\beta\geq 0$. Moreover, with some work, one verifies that

[TABLE]

and that

[TABLE]

This implies in particular that

[TABLE]

Combining this with (11) and (38), the desired conclusion follows.

∎

Remark 6.2*.*

For the first part of the proof, one can also apply Theorem 1.7 in [7], but since this does not significantly shorten the proof, we find the current proof more clear.

We now apply Theorem 6.1 to a few examples.

Corollary 6.3**.**

Let $a\in(0,1)$ and let $X\coloneqq(X_{1},X_{2},X_{3})$ be a standard Gaussian vector with $\operatorname{Cov}(X_{1},X_{2})=\operatorname{Cov}(X_{1},X_{3})=\operatorname{Cov}(X_{2},X_{3})=a$. Then $X^{h}$ is a color process for all sufficiently small $h$.

Proof.

Note first that by using Theorem 6.1, after a computation, we obtain

[TABLE]

It suffices to show that the above limits are positive. Since $\arccos x\in(0,\pi)$ for all $x\in(-1,1)$ and $\arccos x$ is strictly decreasing in $x$, it follows that the first of these is strictly positive whenever

[TABLE]

By rearranging, one easily sees this to be true whenever $a\in(0,1)$. Next, since $\pi-\arccos x=\arccos(-x)$ for all $x\in(0,1)$ it follows that the second limit is strictly positive whenever

[TABLE]

which clearly holds for all $a\in(0,1)$. To see that $X^{h}$ has a color representation for all sufficiently small $h>0$, it thus only remains to show that $\lim_{h\to 0}q_{123}(h)>0$. To this end, first note that this is equivalent to that

[TABLE]

It is easy to verify that we get equality when $a=0$, and hence it would be enough to show that the left hand side is strictly decreasing in $a$. If we differentiate the left hand side one we obtain, after a detailed computation, that

[TABLE]

which is clearly negative for all $a\in(0,1)$. From this the desired conclusion follows. ∎

Corollary 6.4**.**

Let $a\in(0,1)$ and let $X\coloneqq(X_{1},X_{2},X_{3})$ be a standard Gaussian vector with $\operatorname{Cov}(X_{1},X_{2})=\operatorname{Cov}(X_{2},X_{3})=a$ and $\operatorname{Cov}(X_{1},X_{3})=a^{2}$. Then $X^{h}$ is a color process for all sufficiently small $h$.

Remark 6.5*.*

With $X=(X_{1},X_{2},X_{3})$ defined as a above, $X$ is a Markov chain.

Proof of Corollary 6.4.

Note first that by using Theorem 6.1, after a computation, we obtain

[TABLE]

It suffices to show that the above limits are positive. By using the fact that $\pi-\arccos x=\arccos(-x)$ for all $x\in(-1,1)$ and the fact that arccosine is a strictly decreasing function, one easily verifies that the first, second and fourth of these are strictly positive for all $a\in(0,1)$. To see that the third limit is strictly positive for $a\in(0,1)$, we differentiate this limit with respect to $a$ to obtain

[TABLE]

This expression can be equal to zero if and only if

[TABLE]

Squaring both sides and simplifying, we see that this is equivalent to that

[TABLE]

which in turn is equivalent to that

[TABLE]

This equation clearly has exactly one solution in $(0,1)$. Hence in particular, there can be only one maxima or minima in $(0,1)$. Since $\lim_{h\to 0}q_{13,2}(h)(a)$ is continuous in $a$ for all $a\in[0,1]$, $\lim_{h\to 0}q_{13,2}(h)(0)=\lim_{h\to 0}q_{13,2}(h)(1)=0$ and one easily verifies that $\lim_{h\to 0}q_{13,2}(h)(0.5)>0$ it follows that $\lim_{h\to 0}q_{13,2}(h)(a)>0$ for all $a\in(0,1)$.

Finally, one easily verifies that the derivative of $\lim_{h\to 0}q_{123}(h)(a)$ with respect to $a$ is given by

[TABLE]

which has no zeros in $(0,1)$. Since $\lim_{h\to 0}q_{123}(h)(0)=0$, $\lim_{h\to 0}q_{123}(h)(1)=1$ and $\lim_{h\to 0}q_{123}(h)(a)$ is continuous in $a$, it must be strictly increasing in $a$ in $(0,1)$, and hence it follows that $\lim_{h\to 0}q_{123}(h)(a)>0$ for all $a\in(0,1)$. ∎

6.2 $h$ large

Before proving Theorem 1.6, we start off by giving some interesting applications of it.

Corollary 6.6**.**

For each case below, there is at least one Gaussian vector $X$ with non-negative correlations which satisfies it.

1. (i)

$X^{h}$* has a color representation for all sufficiently large $h$ and for all sufficiently small $h>0$.* 2. (ii)

$X^{h}$* has no color representation for any sufficiently large $h$ nor for any sufficiently small $h>0$.* 3. (iii)

$X^{h}$* has a color representation for all sufficiently large $h$ but not for any sufficiently small $h>0$.* 4. (iv)

$X^{h}$* has a color representation for all sufficiently small $h$ but not for any sufficiently large $h$.*

In particular, the property of $X^{h}$ being a color process for a fixed $X$ is not monotone in $h$ (in either direction) for $h>0$.

Proof.

.

1. (i)

Of course one can take an i.i.d. process here. A more interesting example is as follows. Let $X$ be a three-dimensional standard Gaussian vector with $\operatorname{Cov}(X_{1},X_{2})=\operatorname{Cov}(X_{1},X_{3})=\operatorname{Cov}(X_{2},X_{3})=a\in(0,1)$. By combining Corollary 6.3 and Theorem 1.6(i), it follows that $X^{h}$ has a color representation for both sufficiently small and sufficiently large $h>0$. 2. (ii)

Let $X$ be a three-dimensional Gaussian vector with $\operatorname{Cov}(X_{1},X_{2})=0.05$, $\operatorname{Cov}(X_{1},X_{3})=\operatorname{Cov}(X_{2},X_{3})=0.6825$. One can verify that this corresponds to a positive definite covariance matrix. Using Theorem 6.1, one verifies that $\lim_{h\to 0}q_{12,3}(h)\approx-0.05$ and hence $X^{h}$ does not have a color representation for any sufficiently small $h$. Using Theorem 1.6, it follows that $X^{h}$ does not either have a color representation for large $h$. 3. (iii)

Let $X$ be a three-dimensional standard Gaussian vector with $\operatorname{Cov}(X_{1},X_{2})=0.1$, $\operatorname{Cov}(X_{1},X_{3})=\operatorname{Cov}(X_{2},X_{3})=0.5$. One can verify that this corresponds to a positive definite covariance matrix. Now by Theorem 6.1, the limit $\lim_{h\to 0}q_{12,3}(h)\approx-0.016$ and hence $X^{h}$ does not have a color representation for any sufficiently small $h>0$. Next, since the Savage condition (2) holds, we have that $X^{h}$ has a color representation for all sufficiently large $h$ by Theorem 1.6. 4. (iv)

This follows immediately from Theorem 4.8.

∎

Example 6.7**.**

It is illuminating to look at the subset of the set of three-dimensional standard Gaussians for which at least two of the covariances are equal. So, we let $X_{a,b}=(X_{1},X_{2},X_{3})$ be a standard Gaussian vector with covariance matrix

[TABLE]

for some $a,b\in(0,1)$. One can verify that $A$ is positive definite exactly when $2a^{2}<1+b$. Applying Theorem 1.6, one can check that $X_{a,b}^{h}$ is a color process for all sufficiently large $h$ if and only if either $2a-1\leq b$ or $(2a-1)^{2}<b$ (note both of these inequalities imply that $2a^{2}<1+b$). Cases (i) and (ii) correspond to the first inequality holding and Case (iii) corresponds to the first inequality failing and the second inequality holding. For a fixed $h$, the set of parameters which yield a color process for threshold $h$ is a closed set. However the set of parameters which yield a color process for sufficiently large $h$ is not a closed set; for example, $a=.1$ and $b=\epsilon$ belongs to this set for every $\epsilon>0$ but not for $\epsilon=0$.

In Figure 4, we first draw the regions corresponding to the various cases in Theorem 1.6 and the region corresponding to having a positive definite covariance matrix. In the second picture, we superimpose the region corresponding to all choices of $a$ and $b$ for which $X^{h}_{a,b}$ has a color representation for all $h$ which are sufficiently close to zero. Interestingly, this figure suggests that if $X_{a,b}^{h}$ is a color process for $h$ close to zero, then $X^{h}_{a,b}$ is also a color process for $h$ sufficiently large. Moreover, the region corresponding to the set of $a$ and $b$ for which $X_{a,b}^{h}$ has a color representation for $h$ close to zero intersects both the regions corresponding to Cases (i) and (iii).

We now proceed with the proof of Theorem 1.6.

Lemma 6.8**.**

Let $X\coloneqq(X_{1},X_{2})$ be a fully supported standard Gaussian vector with covariance matrix $A=(a_{ij})$. Then $\nu_{11}(h)\ll\nu_{1}(h)$ and if $a_{12}>0$, then $\nu_{1}(h)^{2}\ll\nu_{11}(h).$

Proof.

We have that $\mathbf{1}^{T}A^{-1}=\left((1+a_{12})^{-1},(1+a_{12})^{-1}\right)>\mathbf{0}$ and hence Lemma 5.10 implies that

[TABLE]

Since $p_{1}(h)\asymp h^{-1}\cdot\exp\left(-{h^{2}}/{2}\right),$ $p_{1}(h)^{2}\asymp h^{-2}\cdot\exp\left(-{h^{2}}\right)$ and $a_{12}<1$ by the fully supported assumption, the result easily follows. ∎

Lemma 6.9**.**

Let $X$ be a fully supported $3$-dimensional standard Gaussian vector with covariance matrix $A=(a_{ij})$. If $a_{ij}\in[0,1)$ for all $i<j$, then

[TABLE]

Proof.

For $i<j$, let $A_{ij}$ be the covariance matrix of $(X_{i},X_{j})$. Then

[TABLE]

and hence Lemma 5.10 implies that

[TABLE]

and so

[TABLE]

In particular, this implies that the desired conclusion follows if we can show that

[TABLE]

However, since $a_{ij}\in[0,1)$ for all $i<j$ we have that

[TABLE]

∎

Lemma 6.10**.**

Let $X$ be a fully supported $3$-dimensional standard Gaussian vector with covariance matrix $A=(a_{ij})$. If $\mathbf{1}^{T}A^{-1}>\mathbf{0}$ and at most one of the covariances $a_{ij}$ is equal to zero, then

[TABLE]

Proof.

We first show that the second of the two inequalities holds. First, since $\mathbf{1}^{T}A^{-1}>\mathbf{0}$ by assumption, we have that

[TABLE]

Since

[TABLE]

(40) implies

[TABLE]

for all $i<j$. However since $h^{-3}\ll h^{-2}$, it follows that we then must have that

[TABLE]

This shows that the second inequality in (42) holds.

Next, to show that the first of the two inequalities in (42) holds, we will show that

[TABLE]

for all $i<j$, since if this holds, then (41) and (43) immediately imply the desired conclusion. To this end, using (1), one first verifies that$\mathbf{1}^{T}A^{-1}>\mathbf{0}$ is equivalent to

[TABLE]

Similarly, (44) can be shown to be equivalent to

[TABLE]

If $a_{ij}=0$ for exactly one of the covariances, then one easily verifies that (46) holds when (45) holds. Now instead assume that $a_{ij}>0$ for all $i>j$. If we think of $a_{12}>0$ as being fixed, then (46) holds for all $a_{13}$ and $a_{23}$ in the interior of the ellipse $E$ given by

[TABLE]

One verifies that the boundary of $E$ passes through the origin and the points $(0,1-a_{12}^{2})$, $(1-a_{12}^{2},0)$, $(a_{12},1)$ and $(1,a_{12})$. Since we are assuming the Savage condition (2), any possible $a_{13})$ and $a_{23})$ under consideration necessarily lies in the region $R$ given by

[TABLE]

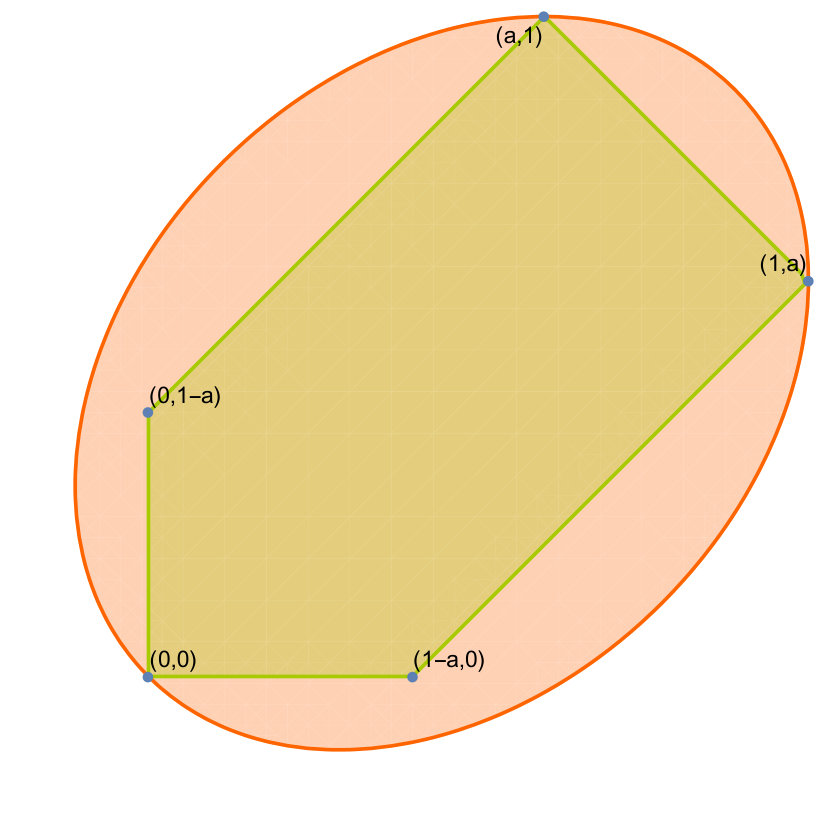

Hence we need only show that $R\subseteq E$. (See Figure 5.)

To see this containment, note that $R$ is a polygon with vertices given by $(0,0)$, $(0,1-a_{12})$, $(1-a_{12},0)$, $(1,a_{12})$ and $(a_{12},1)$. We already know that the first, fourth and fifth of these vertices lie on the boundary of $E$ while one easily checks that the other two lie inside $E$. Since $E$ is convex, and $R$ is a polygon, it follows that $R\subseteq E$. ∎

We are now ready to give the proof of Theorem 1.6. We remark that in the proof, Case 1 and Case 2 can alternatively be proven, using the lemmas in this section, by appealing to Lemma 5.6.

Proof of Theorem 1.6.

For each $h>0$, let $(q_{\sigma}(h))_{\sigma\in\mathcal{B}_{3}}$ be given by (36). Using inclusion-exclusion, we see that for any $h>0$ we have that

[TABLE]

[TABLE]

and

[TABLE]

This implies that there is a color representation for large $h$ if and only if for all large $h$ we have that

[TABLE]

[TABLE]

and

[TABLE]

We will check when (47), (48) and (49) hold for large $h$ by comparing the decay rate of the various tails.

Before we do this, note that by (1), one has that $\mathbf{1}^{T}A^{-1}(1)\leq 0$ exactly when $1+a_{23}\leq a_{12}+a_{13}$. If this holds, then clearly $a_{23}=\min_{i<j}(a_{ij})$ and hence $\nu_{\cdot 11}(h)=\min(\{\nu_{11\cdot}(h),\nu_{1\cdot 1}(h),\nu_{\cdot 11}(h)\})$.

Without loss of generality, we assume that $0\leq a_{23}\leq a_{13}\leq a_{12}$ and that $a_{12}>0$, since the case $a_{12}=a_{13}=a_{23}=0$ is trivial. Note that this assumption implies by (1) that

[TABLE]

with the largest two terms being positive.

We now claim that (47) holds for all sufficiently large $h$, without making any additional assumptions on $A$. To see this, note that Lemma 6.8 implies that

[TABLE]

and hence (47) holds for all large $h$.

We now divide into four cases.

Case 1.

Assume that $\mathbf{1}^{T}A^{-1}(1)>\mathbf{0}$ and $a_{23}>0$. We will show that both (48) and (49) hold in this case without any further assumptions. To this end, note first that since $a_{23}>0$, Lemma 6.8 implies that $\nu_{1}(h)^{2}\ll\nu_{\cdot 11}(h)$. Moreover, since $\mathbf{1}^{T}A^{-1}(1)=\min_{i\in[3]}\mathbf{1}^{T}A^{-1}(i)>0$ implies that $\mathbf{1}^{T}A^{-1}>\mathbf{0}$, Lemma 6.10 gives

[TABLE]

Combining these observations, we obtain

[TABLE]

and hence (48) holds. Similarly, we obtain

[TABLE]

establishing (49). This concludes the proof of (i).

Case 2.

Assume that $\mathbf{1}^{T}A^{-1}(1)=0$ and $a_{23}>0$. We will show that (48) and (49) both hold in this case. To this end, note first that since $\mathbf{1}^{T}A^{-1}(1)=0$, Lemma 5.10 implies that $\nu_{111}(h)\sim\nu_{\cdot 11}(h)/2$ and, since $a_{23}>0$, Lemma 6.8 implies that $\nu_{\cdot 11}(h)\gg\nu_{1}(h)^{2}$. This implies in particular that

[TABLE]

and hence (48) holds for all sufficiently large $h$. Next, using Lemma 6.9, we obtain

[TABLE]

and hence (49) holds for all sufficiently large $h$ in this case. This finishes the proof of (ii).

Case 3.

Assume that $\mathbf{1}^{T}A^{-1}(1)<0$. By Lemma 5.10, we have that $\nu_{111}(h)\sim\nu_{\cdot 11}(h)$. Using this, one easily checks that (49) holds by the same argument as in Case 2, and hence it remains only to check when (48) holds. To this end, note first that if we use the assumption that $a_{23}\leq a_{13}\leq a_{12}$, then (48) is equivalent to

[TABLE]

Since $a_{ij}<1$ for all $i<j$, Lemma 6.8 implies that

[TABLE]

Therefore, by Lemma 5.10, we see that if $\mathbf{1}^{T}A^{-1}\mathbf{1}<2$ holds, then $\nu_{011}(h)\gg\nu_{1}(h)^{2}$ yielding (50). On the other hand, if $\mathbf{1}^{T}A^{-1}\mathbf{1}\geq 2$ holds, then $\nu_{011}(h)\ll\nu_{1}(h)^{2}$ in which case (50) fails.

Case 4

Assume now that $a_{23}=0$, i.e. that $X_{2}$ and $X_{3}$ are independent. Note that if $a_{13}=a_{23}=0$, then there is a color representation by Proposition 5.1, and hence we can assume that $a_{13}>0$. Now note that since $X_{2}$ and $X_{3}$ are independent by assumption, if $X^{h}$ has a color representation $(q_{\sigma}(h))$ for some $h$, it must satisfy $q_{1,23}(h)=q_{123}(h)=0$. Using the general formula for these expressions, we obtain that

[TABLE]

and

[TABLE]

Using that $\nu_{\cdot 11}(h)=\nu_{1}(h)^{2}$ by assumption, we see that these equations are both equivalent to that

[TABLE]

We will show that (51) does not hold for any large $h$. To this end, note first that if $\mathbf{1}^{T}A^{-1}>\mathbf{0}$ and $a_{12},a_{13}>0$, then by Lemma 6.10 we have that

[TABLE]

and hence (51) cannot hold, implying that there can be no color representation for any large $h$ in this case.

Next, if $\mathbf{1}^{T}A^{-1}(1)=0$, then using Lemma 5.10 we get that

[TABLE]

Using Lemma 6.8 and the assumption that $a_{12},a_{13}<1$, it follows that

[TABLE]

and hence (51) cannot hold, implying that there can be no color representation for any large $h$ in this case.

Finally, if $\mathbf{1}^{T}A^{-1}(1)<0$ then we can use Case 3. Observing that if $a_{23}=0$, then $\det A>0$ implies that $a_{12}^{2}+a_{13}^{2}<1$, we have that

[TABLE]

implying in particular that there can be no color representation. ∎

7 Large threshold results for stable vectors with emphasis on the $n=3$

case

7.1 Two-dimensional stable vectors and nonnegative correlations

In this subsection, we give a proof of Proposition 1.7.

Proof of Proposition 1.7.

We may stick to $h\geq 0$ throughout. Since for $n=2$, being a color process is trivially equivalent to having nonnegative correlations, we can immediately replace (ii) by $X^{0}$ has nonnegative correlations and (iii) by $X^{h}$ has nonnegative correlations for all $h$. It is elementary to check that $X^{h}_{1}$ and $X^{h}_{2}$ have nonnegative correlation if and only if

[TABLE]

When $h=0$ and $a=2^{-1/\alpha}$, we have that

[TABLE]

and

[TABLE]

Hence we get equality in (52) in this case. Now note that the left hand side of (52) is strictly decreasing in $a$. This implies that when $h=0$, we get nonnegative correlations if and only if $a\leq 2^{-1/\alpha}$, establishing the equivalence of (i) and (ii).

We now show that (ii) implies (iii). To see this, note first that since the left hand side of (52) is strictly decreasing in $a$, it suffices to show that (52) holds for all $h\geq 0$ when $a=2^{-1/\alpha}$. To this end, note first that in this case, we have that

[TABLE]

Now observe that

[TABLE]

and that

[TABLE]

Putting these observations together, we obtain

[TABLE]

In particular, we get nonnegative correlations if and only if

[TABLE]

Rearranging, we see that this is equivalent to

[TABLE]

which will hold for all $h\geq 0$ since $P(S_{1}\geq h)-P(S_{1}\geq h)^{2}$ is decreasing in $h$ for all $h\geq 0$. This establishes (iii). ∎

7.2 $h$ large and a phase transition in the stability exponent

In this subsection we will look at what happens when $X$ is a symmetric multivariate stable random variable with index $\alpha<2$ and marginals $S_{\alpha}(1,0,0)$, and the threshold $h>0$ is large. The fact that stable distributions have fat tails for $\alpha<2$ will result in behavior that is radically different from the Gaussian case. We will obtain various results, perhaps the most interesting being a phase transition in $\alpha$ at $\alpha=1/2$; this is Theorem 1.9.

Proof sketch of Theorem 1.8.

We show that the assumptions of Lemma 5.6 hold. First Theorem 1.1 in [6], with $k=1$, implies that (22) holds. Next, a computation using the same theorem shows that the last condition in Lemma 5.6 holds if (3) holds. ∎

We will now apply Theorem 1.1 in [6] to a stable version of a Markov chain.

Corollary 7.1**.**

Let $\alpha\in(0,2)$ and let $S_{1}$, $S_{2}$ and $S_{3}$ be i.i.d. with $S_{1}\sim S_{\alpha}(1,0,0)$. Furthermore, let $a\in(0,1)$ and define $X_{1}\coloneqq S_{1}$ and $X_{2}$ and $X_{3}$ by

[TABLE]

Then $X^{h}$ is a color process for all sufficiently large $h$.

Remark 7.2*.*

The random vector $X$ defined by this corollary is a stable Markov chain. We have already seen a Gaussian analogoue of this result.

Proof of Corollary 7.1.

Clearly $(X_{1},X_{2},X_{3})$ is a three-dimensional symmetric $\alpha$-stable random vector whose marginals are $S_{\alpha}(1,0,0)$. If we let $A$ be given by

[TABLE]

then

[TABLE]

It follows that for each $\mathbf{x}\in\operatorname{supp}(\Lambda)$, exactly one of $\pm(2\Lambda(\mathbf{x}))^{1/\alpha}\mathbf{x}$ is a column in $A$. Moreover, each column of $A$ corresponds to a pair of points in the support of $\Lambda$ in this way. To simplify notation, for $\mathbf{x}\in\operatorname{supp}(\Lambda)$ we write $\hat{\mathbf{x}}\coloneqq(2\Lambda(\mathbf{x}))^{1/\alpha}\mathbf{x}$. Using Theorem 1.1 in [6] with $n=3$ and $k=1$, one easily verifies that this implies that

[TABLE]

and similarly that

[TABLE]

Combining this with (36) we obtain

[TABLE]

From this it follows that $X^{h}$ has a color representation for all sufficiently large $h$ if $q_{13,2}(h)$ is non-negative for large $h$. By (36), $q_{13,2}(h)$ is given by

[TABLE]

Here the denominator is strictly positive for all $h>0$, and we know from (53) that $\nu_{010}(h)=(1-a^{\alpha})^{2}\nu_{1}(h)+o(\nu_{1}(h))$. Hence it is sufficient to show that

[TABLE]

To see this, we again apply Theorem 1.1 in [6] to obtain

[TABLE]

which is the desired conclusion. ∎

We can now prove Theorem 1.9 which is a stable version of the example in the proof of (i) of Corollary 6.6.

Proof of Theorem 1.9.

We start a little more generally. Let $\alpha\in(0,2)$ and let $S_{0}$, $S_{1}$, …, $S_{n}$ be i.i.d. with $S_{0}\sim S_{\alpha}(1,0,0)$. Furthermore, let $a\in(0,1)$ and for $i=1,2,\ldots,n$, define

[TABLE]

Note first that for any $n\geq 1$, $(X_{1},X_{2},\ldots,X_{n})$ is clearly an $n$-dimensional symmetric $\alpha$-stable random vector whose marginals have distribution $S_{\alpha}(1,0,0)$. Moreover, for any $n\geq 2$, if we let $A$ be the $n\times(n+1)$ matrix defined by

[TABLE]

then

[TABLE]

It follows that for each $\mathbf{x}\in\operatorname{supp}(\Lambda)$, exactly one of $\pm(2\Lambda(\mathbf{x}))^{1/\alpha}\mathbf{x}$ is a column in $A$. Moreover, each column of $A$ corresponds to a pair of points in the support of $\Lambda$ in this way. To simplify notation, for $\mathbf{x}\in\operatorname{supp}(\Lambda)$ we write $\hat{\mathbf{x}}\coloneqq(2\Lambda(\mathbf{x}))^{1/\alpha}\mathbf{x}$. Using Theorem 1.1 in [6], one easily verifies that it follows that

[TABLE]

Returning to the case $n=3$, let, for $h>0$, $(q_{123}(h),q_{12,3}(h),q_{13,2}(h),q_{1,23}(h),q_{1,2,3}(h))$ be given by (36). Then, symmetry and inclusion-exclusion, we have that

[TABLE]

and hence $\lim_{h\to\infty}q_{1,2,3}(h)=1-a^{\alpha}.$ Similarly, one sees that

[TABLE]

and hence $\lim_{h\to\infty}q_{123}(h)=a^{\alpha}$. Since the solution is permutation invariant, it follows that we have a color representation for all sufficiently large $h$ if and only if $q_{12,3}(h)\geq 0$ for all sufficiently large $h$. To see when this happens, note first that by symmetry, $\nu_{101}+\nu_{010}=\nu_{011}+\nu_{010}=\nu_{01\cdot}$ and hence, using (36), it follows that

[TABLE]

The denominator is strictly positive for all large $h$ and by (54) we have that

[TABLE]

The question is now how $\lim_{h\to\infty}\nu_{110}(h)/\nu_{1}(h)^{2}$ compares with $1-a^{\alpha}$. Using Proposition 4.9 in [6], it follows that

[TABLE]

From this it immediately follows that $X^{h}$ has a color representation for all sufficiently large $h$ if $\alpha\in[1,2)$. When $\alpha\in(0,1)$, then $X^{h}$ has a color representation for all sufficiently large $h$ if

[TABLE]

and has no color representation for any large $h$ if

[TABLE]

This expression is strictly positive for all $\alpha\in(0,1)$ and equal to 1 if $\alpha=1/2$. Furthermore, it is equal to

[TABLE]

where the last equality follows by using the Legendre Duplication Formula (see [1], 6.1.18, p. 256). We claim that this expression is strictly increasing in $\alpha$. If we can show this, the conclusion of the theorem will follow since we get equality at $\alpha=1/2.$ To see this, recall first that $\Gamma^{\prime}(\alpha)=\Gamma(\alpha)\psi(\alpha)$, where $\psi$ is the so-called digamma function. It follows that the derivative of the expression above is equal to

[TABLE]

Since the first term is equal to our original integral, it is clearly strictly larger than zero. Moreover, an integral representation of $\psi$ given in [1] (see 6.3.21, p. 259) implies that $\psi(x)$ is strictly increasing in $x$ for $x>0$. It follows that the second term is strictly larger than

[TABLE]

Using the values of the digamma function at $1/2$ and 1 (see [1], 6.3.2 and 6.3.3, p. 258), this last expression is 0. This finishes the proof. ∎

We next give the proof of Theorem 1.10.

Proof of Theorem 1.10.

Clearly $(X_{1},X_{2},X_{3})$ is a three-dimensional symmetric $\alpha$-stable random vector whose marginals are $S_{\alpha}(1,0,0)$.

If we define $c=c(\alpha,a,b)\coloneqq(1-2a^{\alpha}-2b^{\alpha})^{1/\alpha}$ and let $A$ be given by

[TABLE]

then

[TABLE]

It follows that for each $\mathbf{x}\in\operatorname{supp}(\Lambda)$, exactly one of $\pm(2\Lambda(\mathbf{x}))^{1/\alpha}\mathbf{x}$ is a column in $A$. Moreover, each column of $A$ corresponds to a pair of points in the support of $\Lambda$ in this way. To simplify notation, for $\mathbf{x}\in\operatorname{supp}(\Lambda)$ we write $\hat{\mathbf{x}}\coloneqq(2\Lambda(\mathbf{x}))^{1/\alpha}\mathbf{x}$. Using Theorem 1.1 in [6], we get that

[TABLE]

Similarly, we obtain

[TABLE]

Using (36), it follows that

[TABLE]

and as $q_{1,2,3}(h)=1-q_{123}(h)-q_{12,3}(h)-q_{13,2}(h)-q_{1,23}(h)$ for $h\in\mathbb{R}$, we also obtain

[TABLE]

Since $a,b\in(0,1)$ and $2a^{\alpha}+2b^{\alpha}<1$ (as $\alpha>c_{1}$), it follows that all of the limits in (57) lie in $(0,1)$ for any $\alpha\in(0,1)$.

Let $g(\alpha)=\max(\{a,b\})^{\alpha}-2\min(\{a,b\})^{\alpha}$ for $\alpha\in(0,\infty)$. If $a=b$, then $c_{2}=\infty$ and $g(\alpha)=\max(\{a,b\})^{\alpha}-2\min(\{a,b\})^{\alpha}$ is negative for all $\alpha$ and the claim holds. If $a\neq b$, then it is easy to check that $c_{2}$ is the unique zero of $g(\alpha)$ on $(0,\infty)$ and that $g$ is negative (positive) to the left (right) of $c_{2}$. This immediately leads to all of the claims. ∎

Acknowledgements

We thank Enkelejd Hashorva for providing some references. We also thank the referees for useful comments both on an earlier version and on the present version of this paper. We are in particular grateful to one anonymous referee for providing a simpler proof of Step 3 (v) in the proof of Lemma 5.11. The first author acknowledges support from the European Research Council, grant no. 682537. The second author acknowledges the support of the Swedish Research Council, grant no. 2016-03835 and the Knut and Alice Wallenberg Foundation, grant no. 2012.0067.
