Forecasting [C II] line-intensity mapping measurements between the end of reionization and the epoch of galaxy assembly

TL;DR

This paper forecasts [C II] line-intensity mapping signals from redshift 4 to 8, combining simulations and empirical models, and assesses their detectability with upcoming instruments, highlighting the need for advanced surveys beyond reionization.

Contribution

It integrates recent high-redshift [C II] simulations with empirical galaxy-halo models to predict auto power spectra and evaluate future observational prospects.

Findings

[C II] should be detectable up to z~6 with upcoming surveys.

Detecting [C II] beyond reionization requires more advanced survey capabilities.

Predicted signals are consistent with current models and sensitivities.

Abstract

We combine recent simulation work on the SFR--[C II] correlation at high redshift with empirical modeling of the galaxy--halo connection (via UniverseMachine) to forecast [C II] auto power spectra from $z\sim4$ to $z\sim8$. We compare these to sensitivities realistically expected from various instruments expected to come on-line in the next decade. If the predictions of our model are correct, [C II] should be detectable up to $z\sim6$ in this generation of surveys, but detecting [C II] past the end of reionization will require a generational leap in line-intensity survey capabilities.

Figures

Tables

Table 1. Table 1: Simulation and experimental parameters used for signal and sensitivity forecasts in this work.

$z$	Frequencies	Lightcone	${\sigma }_{\mathrm{pix}}$			$N_{\mathrm{pix}}$			${\sigma }_{\mathrm{pix}}{t}_{\mathrm{pix}}^{-1/2}$ per beam
		size	CCAT-p	CONCERTO	TIME	CCAT-paaCCAT-prime instrumental details mean that the number of spatial pixels alone does not inform $t_{\mathrm{pix}}$ as in the other surveys—see main text (Section 2.3).	CONCERTO	TIME	CCAT-p	CONCERTO	TIME
	(GHz)	(arcsec)	(MJy sr-1 s1/2)						(Jy sr-1)
3.7	428–388	180	2.8	$\cdots$	$\cdots$	1004	$\cdots$	$\cdots$	$2.2\times {10}^4$	$\cdots$	$\cdots$
4.5	365–325	165	1.7	18.	$\cdots$	1004	1500	$\cdots$	$1.2\times {10}^4$	$4.7\times {10}^4$	$\cdots$
6.0	290–250	150	0.86	11.	11.	1004	3000	32	$6.2\times {10}^3$	$1.8\times {10}^4$	$1.6\times {10}^4$
7.4	240–212	135	0.70	7.5	5.2	1004	3000	32	$3.9\times {10}^3$	$8.0\times {10}^3$	$5.7\times {10}^3$

Table 2. Table 2: Mean map intensities calculated through both simulations (median and 90% sample interval) and an analytic halo mass function (HMF) fit with different minimum emitting halo masses.

Redshift	$⟨I_{\nu }⟩$ (Jy sr-1)
	90% interval	Analytic, $M_{\mathrm{vir},\min }=\cdots$
	from simulations	${10}^{10}{M}_{\odot }$	${10}^9{M}_{\odot }$
3.7	${924.2}_{-54.1}^{+35.1}$	865.0	870.3
4.5	${339.2}_{-9.7}^{+14.5}$	308.4	315.6
6.0	${64.74}_{-2.33}^{+3.08}$	63.48	73.42
7.4	${16.58}_{-0.69}^{+0.66}$	17.55	27.81

Table 3. Table 3: Total signal-to-noise ratio summed over all scales up to k = 1 𝑘 1 k=1 Mpc -1 , and number of hours required to obtain a signal-to-noise ratio of 1 in a k 𝑘 k -bin centred at k = 0.026 𝑘 0.026 k=0.026 Mpc -1 of width Δ ​ k = 0.035 Δ 𝑘 0.035 \Delta k=0.035 Mpc -1 , for all experiments considered in this work. We show the mean all- k 𝑘 k S / N S N \mathrm{S/N} and median required survey time (rounded up to two significant figures) across all lightcones.

Experiment	Nominal	$S/N$ across all $k$				Survey time required for $S/N=1$
	survey time					at $k=0.026\pm 0.0175$ Mpc-1
	(hours)					(hours)
		$z=3.7$	$z=4.5$	$z=6.0$	$z=7.4$	$z=3.7$	$z=4.5$	$z=6.0$	$z=7.4$
CCAT-p	4000	37	24	3	0.21	870	2100	17000	130000
CONCERTO	1200	$\cdots$	21	4	0.23	$\cdots$	1500	7500	59000
TIME	1000	$\cdots$	$\cdots$	1	0.12	$\cdots$	$\cdots$	6700	28000

Table 4. Table 4: Instrumental parameters and approximate sensitivities for all experiments at 250 GHz.

Experiment	Spectrometer	$N_{\text{pix}}$	$N_{\text{spec,eff}}$	$D$	${\delta }_{\nu }$	$\Delta \nu$	${\mathrm{BW}}_{\text{det}}$ for NEP	approx. NEP	approx. NEFD	approx. ${\sigma }_{\mathrm{pix}}$
	architecture			(m)	(GHz)	(GHz)	(GHz)	(aW Hz-1/2)	(mJy s1/2)	(MJy sr-1 s1/2)
CCAT-p	Fabry-Perot	1004	20	6	2.5	210	2.5	15	69	1.0
CONCERTO	Martin-Puplett	3000	3000	12	1.5	160	160	120	230	14
TIME	Grating	32	32	12	1.9	96	1.9	51	160	9.5

Table 5. Table 5: Optimal survey areas for detection of the [C II] P ​ ( k ) 𝑃 𝑘 P(k) in a k 𝑘 k -bin centred at k = 0.026 𝑘 0.026 k=0.026 Mpc -1 with width Δ ​ k = 0.035 Δ 𝑘 0.035 \Delta k=0.035 , calculated using the equations given in  Appendix C .

Redshift	$P\left(k=0.026{\text{ Mpc}}^{-1}\right)$	$R\left(z\right)$	$\alpha \left(z\right)$	${\Omega }_{\text{surv,opt1}}$			${\Omega }_{\text{surv,opt2}}$		${\theta }_{\text{surv,opt2}}$
				CCAT-p	CONCERTO	TIME	$P/{\sigma }_P=1$	$P/{\sigma }_P=3$	$P/{\sigma }_P=1$
	(Jy2 sr-2 Mpc3)	(Mpc)	(Mpc3 hr sr-1)	(deg2)		(arcmin2)	(deg2)		(arcmin)
3.7	$8.1\times {10}^{10}$	7100	$1.3\times {10}^{-4}$	5.7	$\cdots$	$\cdots$	1.2	11.	75.
4.5	$1.0\times {10}^{10}$	7700	$1.6\times {10}^{-4}$	2.0	0.81	$\cdots$	0.95	8.6	63.
6.0	$4.0\times {10}^8$	8500	$2.1\times {10}^{-4}$	0.20	0.098	$5.5\times 0.5$	0.69	6.2	51.
7.9	$3.0\times {10}^7$	9000	$2.9\times {10}^{-4}$	0.027	0.021	$2.3\times 0.5$	0.81	7.2	62.

Equations

$$\log \left(\frac{L_{\mathrm{line}}}{L_{\odot }}\right)=\alpha \log \left(\frac{\mathrm{SFR}}{M_{\odot }{\mathrm{yr}}^{-1}}\right)+\beta .$$

$${\sigma }_P(k)=\frac{P(k)+P_n}{\sqrt{N_m(k)}},$$

$$P_n=\frac{{\sigma }_{\mathrm{pix}}^2}{t_{\mathrm{pix}}}{V}_{\mathrm{vox}},$$

$$t_{\mathrm{pix}}=\frac{N_{\mathrm{pix}}{t}_{\mathrm{surv}}}{{\Omega }_{\mathrm{surv}}/{\Omega }_{\mathrm{pix}}},$$

$$S/N={\left[\sum _i{\left(\frac{P(k_i)W(k_i)}{{\sigma }_P(k_i)}\right)}^2\right]}^{1/2},$$

$$N_m(k)=\frac{1}{2}\frac{4\pi k^2\Delta k}{(2\pi {)}^3/V_{\mathrm{surv}}}=\frac{k^2\Delta k{V}_{\mathrm{surv}}}{4{\pi }^2},$$

$$N_{m,2D}(k)=\frac{1}{2}\frac{2\pi k\Delta k}{(2\pi {)}^2/A_{\mathrm{surv}}}=\frac{k\Delta k{A}_{\mathrm{surv}}}{4\pi }.$$

$$N_m(k)=\frac{\min (k,k_{{\delta }_{\nu }})k\Delta k{V}_{\mathrm{surv}}}{4{\pi }^2}.$$

$$A_{\mathrm{shell}}\approx \{\begin{array}{ll}4\arcsin (k_{{\delta }_{\nu }}/k)k\Delta k& (k>k_{{\delta }_{\nu }})\\ 2\pi k\Delta k& (k<k_{{\delta }_{\nu }})\end{array}.$$

$$N_{m,2D}(k)=\{\begin{array}{ll}(2{\pi }^2{)}^{-1}\arcsin (k_{{\delta }_{\nu }}/k)k\Delta k{A}_{\mathrm{surv}}& (k>k_{{\delta }_{\nu }})\\ (4\pi {)}^{-1}k\Delta k{A}_{\mathrm{surv}}& (k<k_{{\delta }_{\nu }})\end{array}.$$

$$\mathrm{NEFD}=\frac{\mathrm{NEP}}{{\eta }_c{\eta }_t{A}_e{e}^{-{\tau }_{\nu }A}{\delta }_{\nu }}.$$

$${\sigma }_P\approx \frac{k{T}_0}{\sqrt{\mathrm{BW}\cdot \tau }}\cdot \mathrm{BW},$$

$$\mathrm{NEP}\approx 0.62{\text{ aW Hz}}^{-1/2}\left(\frac{T_0}{K}\right)\sqrt{\frac{{\mathrm{BW}}_{\text{det}}}{\mathrm{GHz}}}.$$

$${\sigma }_{\mathrm{pix}}=\frac{\mathrm{NEFD}}{{\Omega }_{\mathrm{beam}}}=\frac{\mathrm{NEP}}{\eta (\pi D^2/4){\delta }_{\nu }{\Omega }_{\mathrm{beam}}}.$$

$$P(k)=P_n=\frac{{\sigma }_{\text{pix}}^2}{t_{\text{pix}}}{V}_{\text{vox}}=\frac{{\sigma }_{\text{pix}}^2}{t_{\text{pix,nom}}}\frac{t_{\text{pix,nom}}}{t_{\text{pix}}}\alpha (z){\Omega }_{\text{pix}}{\delta }_{\nu }=\frac{{\sigma }_{\text{pix}}^2}{t_{\text{pix,nom}}}\frac{{\Omega }_{\text{surv}}}{{\Omega }_{\text{surv,nom}}}\alpha (z){\Omega }_{\text{pix}}{\delta }_{\nu },$$

$${\Omega }_{\text{surv,opt1}}=\frac{P(k)}{\alpha (z)}\cdot \frac{{\Omega }_{\text{surv,nom}}/{\Omega }_{\text{pix}}}{{\sigma }_{\text{pix}}^2{t}_{\text{pix,nom}}^{-1}{\delta }_{\nu }}.$$

$${\Omega }_{\text{surv,opt2}}={\left(\frac{4\pi P(k)}{{\sigma }_P(k)}\right)}^2(\alpha (z)\Delta {\nu }_{\text{surv}}{k}^2\Delta k{)}^{-1}.$$

$${\theta }_{\text{surv,opt2}}=\pi {\left(\frac{4P(k)}{{\sigma }_P(k)}\right)}^2(\beta (z)\Delta {\nu }_{\text{surv}}k\Delta k{)}^{-1}.$$

Full text

galaxies: high-redshift – galaxies: statistics – radio lines: galaxies

††software: hmf (Murray et al., 2013); Matplotlib (Hunter, 2007); Astropy, a community-developed core Python package for astronomy (Astropy Collaboration et al., 2013); WebPlotDigitizer (https://automeris.io/WebPlotDigitizer).

1 Introduction

Line-intensity mapping promises unprecedented statistical measurements of high-redshift galaxies—in particular the faint galaxies that dominate luminous activity at high redshift—using emission lines to trace these galaxies in aggregate (for a general overview of the experimental landscape, see Kovetz et al., 2017). The [C II] 157.7 $\mu$m line in particular is a promising choice for its brightness—as bright as 1–2% of the bolometric far-infrared luminosity of individual low- and high-redshift galaxies—and its role as a tracer of diffuse gas and star-formation activity in the interstellar medium (Casey et al., 2014). Work on this technique is abundant in recent literature, both in signal forecasting (Gong et al., 2012; Uzgil et al., 2014; Silva et al., 2015; Yue et al., 2015; Serra et al., 2016; Dumitru et al., 2019), and in the design of observational programmes including TIME111https://cosmology.caltech.edu/projects/TIME (Crites et al., 2014), CONCERTO222https://people.lam.fr/lagache.guilaine/CONCERTO.html (Lagache, 2018), and CCAT-prime333http://www.ccatobservatory.org (Stacey et al., 2018).

All of this work relies to varying degrees on the assumption that [C II] emission correlates with star-formation rate (SFR), and on an assumption about the form of this relationship. Previous work (in signal forecasting in particular) has relied on either local SFR–[C II] calibrations (e.g. Spinoglio et al. 2012 as used in Serra et al. 2016; see also De Looze et al. 2014, Herrera-Camus et al. 2015 for other local data) or simulations targeting $z>6$ galaxies (e.g. Vallini et al. 2015, as used in Yue et al. 2015). The recent work of Lagache et al. (2018) connects high-redshift simulations to a comprehensive body of observations down to $z\sim 4$, simulating [C II] galaxies at $z=4$–8 with a modeling approach consistently motivated across the entire redshift range. With proposed observations targeting [C II] emission at various redshifts within a broad range of $z=3$–$14$, a consistently motivated broad- and high-redshift SFR–[C II] relation, as presented in Lagache et al. (2018), is necessary for signal forecasting work.

Another component of [C II] signal forecasting and interpretation, either through analytic halo models or numerical simulations (often only with dark matter), is the galaxy–halo connection (as reviewed in Wechsler & Tinker 2018). This relates the properties of dark matter halos, readily identified in large cosmological simulations, to those of galaxies, readily observed in large-sky surveys. The recent work of Behroozi et al. (2019) explores such connections using empirical modeling; specifically a forward-modeling framework dubbed UniverseMachine that uses accretion histories of individual halos with a minimal, flexible galaxy model to track star-formation rates and histories for individual galaxies. The resulting data release includes a catalog of halos with a self-consistent model of the evolution of individual galaxy and host halo properties, with an improved treatment of quenching in massive galaxies compared to previous works. The UniverseMachine halo catalog thus reflects a particularly detailed treatment based on current measurements of the full diversity and stochasticity of galaxy star-formation histories for halos at a given virial mass and redshift, which is necessary when considering emission lines—like [C II]—tied to star-formation activity.

Here we present signal forecasts for CCAT-prime, CONCERTO, and TIME, and for which we use the UniverseMachine Early Data Release (EDR) of simulated halo catalogues from Behroozi et al. (2019) with the Lagache et al. (2018) calibration based on the reasoning discussed above. Our simulations specifically explore the expected [C II] power spectrum and its detectability from the epoch of galaxy assembly ($z\sim 3$) to the denouement of the epoch of reionization ($z\sim 8$). Note that Dumitru et al. (2019) are the first to use the Lagache et al. (2018) calibration for the purpose of [C II] signal forecasting, but do so only for $z\gtrsim 6$; our work covers a more extensive redshift range to encapsulate coverage anticipated from CCAT-prime in particular ($z=3.5$–$8.1$). The paper is structured as follows: in Section 2 we introduce our methods for simulating [C II] observations and how they diverge from current observations. We then present the expected signal in Section 3, and present our conclusions in Section 4.

Where necessary, we assume base-10 logarithms, and the same $\Lambda$CDM cosmology as Behroozi et al. (2019): $\Omega_{m}=0.307$, $\Omega_{\Lambda}=0.693$, $H_{0}=100h$ km s*-1* Mpc*-1* with $h=0.678$, $\sigma_{8}=0.823$, and $n_{s}=0.96$, all of which should be consistent with the so-called Planck15 cosmology from Planck Collaboration et al. (2016). Distances carry an implicit $h^{-1}$ dependence throughout, which propagates through masses (all based on virial masses $\propto h^{-1}$) and volume densities ($\propto h^{3}$).

2 Methods

2.1 Experimental Context

We consider three experiments designed to probe [C II] at high redshift:

• •

The Epoch of Reionization Spectrometer (EoR-Spec) on CCAT-prime (or CCAT-p) is designed for [C II] line-intensity mapping, covering observing frequencies of $\nu_{\mathrm{obs}}=210$–420 GHz in two bands, altogether covering $z=3.5$–$8.1$. For this paper, we assume a Phase I instrument with a single dichroic TES bolometer array over 1004 spatial positions occupying one-third of the image plane of one instrument module (of up to seven possible), and a modest resolving power of $R=100$ or a frequency resolution of $\delta_{\nu}\approx\nu_{\mathrm{obs}}/100$ throughout the observing bands. The nominal survey programme covers 2 deg2 over 4000 hours.444Note that the concept for EoR-Spec at first light has evolved during the review of this paper; we refer those interested to Choi et al. (2019) for updated first-light EoR-Spec instrumental and survey parameters.

• •

CONCERTO (the CarbON C II line in post-rEionization and ReionizaTiOn epoch project) is expected to deploy two arrays of spectrometer pixels with channels of $\delta_{\nu}=1.5$ GHz, with one array observing in 125–300 GHz and the other in 200–360 GHz (or redshift ranges of 5.3–14 and 4.3–8.5). The nominal programme is a survey of 1.4 deg2 over 1200 hours.

• •

TIME (the Tomographic Ionized-carbon Mapping Experiment) is a $R\sim 150$ grating spectrometer planning to survey a one-beam-wide $78^{\prime}\times 0.5^{\prime}$ (or $1.3\times 0.0083$ deg2) slice of sky over 1000 hours (Crites et al. 2014; see also the TIME subsection of Kovetz et al. 2017, whose parameters in part supercede that of Crites et al. 2014). The spectrometer operates over two bands spanning 183–230 GHz and 230–326 GHz (or redshift ranges spanning 7.3–9.4 and 4.8–7.3). We simplify the resolving power into an optimistic, constant figure of $\delta_{\nu}=1.5$ GHz for the lower-frequency band and 1.9 GHz for the higher-frequency band.

These experiments represent a wide array of state-of-the-art but proven technologies. EoR-Spec on CCAT-p (which we will often refer to simply as CCAT-p in this work) is an evolution of previous spectrometers using Fabry-Perot interferometers (FPI) like SPIFI (Bradford et al., 2002; Oberst et al., 2011). CONCERTO will use arrays of kinetic inductance detectors (KID) evolved from NIKA (Adam et al., 2014) and NIKA2 (Adam et al., 2018). TIME inherits the novel waveguide grating spectrometer architecture of Z-Spec (Bradford et al., 2004). Each of these technology sets represents a different approach to enabling a compact, broadband, background-limited, low- to medium-resolution ($R\gtrsim 100$) direct-detection spectrometer.

The experiments also represent a range of survey strategies, ranging from TIME’s deep line-scan strategy spanning a volume only one beam wide, to CCAT-p’s wide-field survey enabled by a degree-scale field of view. Far from being redundant, these three experiments will complement each other in their scope and analysis techniques. However, we are interested in the fundamental ability of each one to achieve a detection of the [C II] power spectrum.

2.2 Line Emission Model

The N-body (dark matter only) cosmological simulation at the base of the UniverseMachine EDR is the Bolshoi-Planck simulation (Klypin et al., 2016; Rodríguez-Puebla et al., 2016), a periodic box $250h^{-1}$ Mpc on each side with $2048^{3}$ particles of mass $1.6\times 10^{8}h^{-1}\,M_{\odot}$. The mass resolution is good enough to resolve a complete sample of halos down to $\sim 10^{10}\,M_{\odot}$; the halo catalogs are incomplete below this mass, which has implications for signal amplitude that we discuss at the end of this section.

We generate sets of 42 lightcones at four different redshift ranges, populated with Bolshoi-Planck dark matter halos with star-formation rates derived from UniverseMachine, and fully covering the extents outlined in Table 1. (We generate 58 extra lightcones at the highest redshift of $z\sim 7.4$ for a total of 100 lightcones.) CCAT-p has the widest expected spectral coverage of all the instruments we consider, so its coverage influences our choice of redshifts; the CONCERTO and TIME spectral coverages reach the three and two lowest-frequency simulated bands. We use the $250h^{-1}$ Mpc size of Bolshoi-Planck as an approximate limit for the angular sizes of our lightcones, which are indicated in Table 1. In calculating sensitivities for each experiment, on the other hand, we assume the full expected survey area (but still only the simulated range of frequencies indicated in Table 1).

We assign each halo in the lightcones a luminosity based solely on its star-formation rate555The UniverseMachine EDR assigns an ‘observed’ SFR to each halo in addition to the ‘true’ SFR, with the former accounting for common observational systematics that result in inaccurate recovery of the latter in real-world data. Lagache et al. (2018) largely take SFR values from their semi-analytic model at face value for their SFR–[C II] relation; they consider observed SFR values incorporating UV attenuation at one point but this does not appear to result in any systematic offset. Therefore, we use the ‘true’ SFR instead of the ‘observed’ SFR in this work. and cosmological redshift (we ignore peculiar velocities and redshift-space distortions throughout). We impose a minimum emitter halo mass of $10^{10}\,M_{\odot}$, and for halos above this mass, we use a power-law SFR–[C II] luminosity relation:

[TABLE]

Lagache et al. (2018) find a redshift-dependent mean relation with $\alpha=1.4-0.07z$ and $\beta=7.1-0.07z$. We assume 0.5 dex scatter on the SFR–[C II] relation, based on the 0.5–0.6 dex dispersion that Lagache et al. (2018) find. The middle panels of Figure 1 illustrate the mean halo mass–SFR relation and the mean halo mass–[C II] luminosity relation at the simulated redshifts, including the quenched fractions prescribed by Behroozi et al. (2019)666A close inspection of Figure 1 shows that quenching is not the sole reason for the luminosity ultimately declining with higher halo mass, although it contributes significantly. The Behroozi et al. (2019) model assumes not only that the star-formation efficiency peaks at a certain halo mass, but is actually boosted around this mass, so the SFR and thus [C II] luminosity declines slightly as the boost disappears.. As the figure shows, our mean relation compares favorably to the best-fit model from Padmanabhan (2019), which comes from relying on abundance matching at $z\sim 0$ against the Hemmati et al. (2017) luminosity function and inferring redshift evolution based on constraints from Pullen et al. (2018) on integrated [C II] emission at $z\sim 2.6$. Note that Padmanabhan (2019) finds that current observations only allow constraints down to $M_{\text{vir}}=10^{11}\,M_{\odot}$, and Lagache et al. (2018) state that their average relation describes [C II] luminosities down to $10^{7}\,L_{\odot}$.

Note again that the mean SFR–[C II] relation in Lagache et al. (2018) derives from simulations of high-redshift galaxies using semi-analytic modeling (G.A.S.; updated from Cousin et al. 2015a, b, 2016) and a photoionization code (CLOUDY; Ferland et al. 2017), rather than observations of local galaxy samples as in Spinoglio et al. (2012) (a synthesis of data from Brauher et al. 2008), De Looze et al. (2014) and Herrera-Camus et al. (2015). As Lagache et al. (2018) note, analysis of line observations plus heating and attenuation effects from the cosmic microwave background suggest that high-$z$ [C II] emission is dominated by ionized carbon in photo-dominated regions (PDR), rather than neutral gas as appears to be the case in local star-forming galaxies. By combining G.A.S. modeling of galaxy formation history with CLOUDY modeling of the PDR in each galaxy, Lagache et al. (2018) should represent a state-of-the-art understanding of [C II] emission at high redshift.

At $z\sim 6$, the Lagache et al. (2018) SFR–[C II] relation takes $\alpha=0.98$ and $\beta=6.68$. The local calibrations by comparison would assign luminosities 2–10 times higher at a given SFR. For Herrera-Camus et al. (2015), $\alpha=0.967$ and $\beta=7.65$; for De Looze et al. (2014), $\alpha=0.99$ and $\beta=6.92$ (based on the entire literature sample); and $\alpha=0.89$ and $\beta=7.27$ for Spinoglio et al. (2012) (converting the original $L_{\text{IR}}$–[C II] relation to a SFR–[C II] one by taking $L_{\text{IR}}/L_{\odot}=10^{10}\,\operatorname{SFR}/(M_{\odot}\text{ yr}^{-1})$)777The relation used in Serra et al. (2016) does not take into account the erratum issued for Spinoglio et al. (2012) correcting IR luminosities up by a factor of $1.8$ (Spinoglio et al., 2014); the resulting change in the inferred $L_{\text{IR}}$–[C II] relation would move $\beta$ down to 7.04..

We use limlam_mocker888https://github.com/georgestein/limlam_mocker/ to generate line-intensity cubes and power spectra for each lightcone using this model. Doing this requires defining a grid of volume elements or voxels, each taking up a solid angle and frequency interval within the mocked line-intensity cube. We use the frequencies and lightcone sizes in Table 1 and create an intensity cube of $450^{3}$ voxels999None of the three surveys could produce a grid of $450^{3}$ well-resolved voxels with the specified angular sizes. However, this part of the work requires accurate forecasting of the signal more than faithful mocking of observations for each survey. We consider survey limitations in Section 2.3.. All halo luminosities are binned per voxel, and the [C II] luminosity per voxel $L_{\text{vox}}$ is converted into an intensity $I_{\nu}=L_{\text{vox}}/(4\pi D_{L}^{2}\Omega_{\text{pix}}\delta_{\nu})$ by dividing by the voxel frequency interval $\delta_{\nu}$, voxel solid angle $\Omega_{\text{pix}}$, and $4\pi D_{L}^{2}$ given the luminosity distance $D_{L}$ from the observer to the voxel. We can then calculate both the mean map intensity $\left\langle{I_{\nu}}\right\rangle$ from the simulated intensity cube, presented in Section 3.1, and the spherically averaged, comoving 3D power spectrum $P(k)$, which we present as the main signal in Section 3.2. The latter is obtained from the full 3D power spectrum $P(\mathbf{k})$ of the intensity cube in comoving space, averaged in spherical $k$-shells.

Given that analysis of recent observations points to star formation arising in $z\gtrsim 6$ galaxies with halo masses as low as several $10^{9}\,M_{\odot}$ (Finlator et al., 2017), the minimum emitter halo mass of $10^{10}\,M_{\odot}$ imposed in these simulations is potentially too high, but is forced by the Bolshoi-Planck mass resolution, which results in halo incompleteness below $\sim 10^{10}\,M_{\odot}$. However, analytic calculations of $\left\langle{I_{\nu}}\right\rangle$ are not subject to the same limits. To gauge the effects of the halo mass function and the minimum emitter halo mass, we make analytic estimates of $\left\langle{I_{\nu}}\right\rangle$ at each redshift using the above model with a halo mass function (HMF) fit at each redshift that should predict the correct abundances of halos with masses $\lesssim 10^{10}\,M_{\odot}$. In the process, we also calculate the expected contribution to the mean intensity from different mass bins. We present these results alongside the simulation results (for total $\left\langle{I_{\nu}}\right\rangle$ only) in Section 3.1.

2.3 Sensitivity Estimates

We follow the formalism of Li et al. (2016) and quantify the uncertainty in $P(k)$ as

[TABLE]

which is the total observed power spectrum—signal $P(k)$ plus noise $P_{n}$—divided by the number of Fourier modes $N_{m}(k)$ available for averaging near that given $k$. We detail the calculation of $N_{m}(k)$ in Appendix A.

We calculate $P_{n}$ from instrumental noise only. If our survey volume is observed uniformly so that each volume element (or voxel) of some comoving volume $V_{\mathrm{vox}}$ has been observed for some integration time $t_{\mathrm{pix}}$, then

[TABLE]

where $\sigma_{\mathrm{pix}}$ is the sensitivity per instrumental pixel per spectral element, and $\sigma_{\mathrm{pix}}t_{\mathrm{pix}}^{-1/2}$ the final survey sensitivity per voxel (the equivalent of $\sigma_{n}$ in Appendix C of Li et al. 2016). We show $\sigma_{\mathrm{pix}}$ in Table 1 for each survey, quantified as noise-equivalent intensity/input (NEI), as well as the number of instrumental pixels expected (per band). We explain the figures for each survey in more detail below.

• •

For CCAT-p, we use figures for $\sigma_{\mathrm{pix}}t_{\mathrm{pix}}^{-1/2}$ per beam for a single EoR-Spec array given by the collaboration (G. Stacey, private communication). Each array will have 1004 spatial beams sensitive to two polarisations (which are folded into the $\sigma_{\mathrm{pix}}$ given), but instrumental details mean that only a fraction of the total spectral coverage can be instantaneously observed and the FPI must step across multiple settings to sample the full bandwidth, which slightly complicates the calculation of $t_{\mathrm{pix}}$. However, broadly speaking, the results are equivalent to taking $N_{\mathrm{pix}}$ to be 1004 spatial beams times a factor $\ll 1$ which depends on the observing frequency, for an effective count of around 20.

• •

CONCERTO will have an array of 1500 pixels for each band, for a total of 3000 pixels in the 200–300 GHz overlap between the two bands (G. Lagache, private communication). The overlap excludes $z=4.5$ but includes our two highest simulated redshifts. We use the noise-equivalent flux density (NEFD) given in Serra et al. (2016) of 155 mJy s1/2 and divide by the beam solid angle to obtain the NEI.

We wish to make clear a few caveats around this NEFD value. The most important caveat is that only one value is given with no frequency dependence. In reality, atmospheric opacity is far greater at 325–365 GHz compared to below 300 GHz, so we expect higher NEFD near 345 GHz versus at lower frequencies. Another caveat worth noting is that Serra et al. (2016) actually consider the NEFD divided by $\sqrt{N_{\text{pix}}}$; however, this is still used as if it were merely the NEFD per pixel, since their expression for $t_{\text{pix}}$ also includes a factor of $N_{\text{pix}}$. That said, we show in Appendix B that the 155 mJy s1/2 figure is in principle not unreasonable as a NEFD per pixel for CONCERTO. Note, though, that while Dumitru et al. (2019) use the same NEFD while referring to the NIKA2 sensitivities demonstrated in Adam et al. (2018), our calculations in Appendix B make far more optimistic assumptions about system efficiency and emissivity than NIKA2 operating conditions would indicate. (We also still end up with somewhat higher estimated noise, but within a factor of order unity of the figures provided by the CONCERTO team.)

Ultimately, for the purposes of this work, we will use the 155 mJy s1/2 figure as is at all frequencies, and we leave a re-examination of CONCERTO sensitivities for future work from the CONCERTO team or others.

• •

For TIME, we use the median of the range quoted for operation at the Arizona Radio Observatory (ARO) assuming 3 mm precipitable water vapour (TIME Collaboration, private communication). Crites et al. (2014) also indicate that the TIME experiment will have 32 spectrometers (16 per polarisation).

Converting between NEFD and NEI requires knowledge of the beam width, quantified as the full width at half maximum (FWHM). Since TIME and CONCERTO are both to operate on 12-metre telescopes, we assume that the beams for both instruments have a diffraction-limited FWHM of $1.22\lambda/(12\text{ m})$, ranging from $17^{\prime\prime}$ to $31^{\prime\prime}$ throughout the full spectral range. (Sun et al. 2018 and Dumitru et al. 2019 assume similarly for TIME and CONCERTO.) For the CCAT-p beam FWHM, we use figures provided by the collaboration of $(37^{\prime\prime},39^{\prime\prime},46^{\prime\prime},53^{\prime\prime})$ at $(408,345,280,214)$ GHz.

For CONCERTO and TIME, which should have simultaneous uniform coverage of all frequency channels within each band by virtue of their architectures, we take $t_{\mathrm{pix}}$ to be simply the integration time per pixel:

[TABLE]

which is to say the total survey time multiplied by the number of instrumental pixels, divided by the number of map pixels (the ratio of the survey solid angle to the pixel solid angle). For CCAT-p, as noted above, the instantaneous spectral coverage and thus the calculation of $t_{\mathrm{pix}}$ is more complex, and $\sigma_{\mathrm{pix}}t_{\mathrm{pix}}^{-1/2}$ is presented per beam. We present the same in Table 1 for CONCERTO and TIME, using $\Omega_{\text{pix}}=\Omega_{\text{beam}}$.

The only input left for $P_{n}$ is the comoving volume per voxel. Since $V_{\mathrm{vox}}\propto\Omega_{\mathrm{pix}}\delta_{\nu}$, this cancels out the $\Omega_{\mathrm{pix}}$ dependence of $t_{\mathrm{pix}}$ and the $\delta_{\nu}^{-1/2}$ dependence of $\sigma_{\text{pix}}$ (see Appendix B for a detailed explanation) when calculating $P_{n}$, which thus does not depend on the voxel extent in any dimension. The $\sigma_{\mathrm{pix}}t_{\mathrm{pix}}^{-1/2}$ obtained for all experiments is per beam, so we take $V_{\mathrm{vox}}$ to be the comoving volume within a solid angle of $\Omega_{\mathrm{beam}}$ and a frequency interval of $\delta_{\nu}$.

Having calculated $P_{n}$ and thus $\sigma_{P}(k)$ for each experiment, we must finally consider attenuation of the observed power spectrum at high wavenumber $k$ due to the finite beam size of each telescope. This attenuation $W(k)$ of the signal results in an effective sensitivity limit of $\sigma_{P}(k)/W(k)$. Appendix C.3 of Li et al. (2016) details an analytic calculation of $W(k)$, but we make an analogous numerical calculation in this work based on the expected voxel grid for each experiment. For this calculation only, we assume map pixel widths of $15^{\prime\prime}$ for CCAT-p and $5^{\prime\prime}$ for the other experiments. Once the pixel width is finer than the standard deviation of the Gaussian beam profile (FWHM$/2.355$), the degree of angular oversampling makes little difference in the numerical calculations and resulting $W(k)$.

3 Results and discussion

3.1 Mean map intensity

Table 2 shows the mean map intensity both from our simulated survey volumes and from the expected contributions from halos based on analytic calculations. The latter uses the best-fit model from Behroozi et al. (2019) with the HMF of Sheth et al. (2001), modified to fit the HMF values provided in the Behroozi et al. (2019) EDR at each redshift. For the HMF, setting $A=0.62-0.071z+0.0039z^{2}$ and $a=0.96-0.072z+0.0058z^{2}$—instead of the original redshift-independent values of $A\approx 0.322$ and $a=0.707$ from Sheth et al. (2001)—provides an adequate description of the actual HMF down to $M_{\text{vir}}=10^{10}\,M_{\odot}$ at the redshifts considered here (as we illustrate in the uppermost panel of Figure 1). Since the best-fit model prescribes average star-formation rates and quenched fractions as functions of the halo maximum circular velocity at peak historical virial mass $v_{M_{\mathrm{peak}}}$, rather than of virial mass, we use the relation given in Appendix E2 of Behroozi et al. (2019) to convert the model relations into functions of virial mass101010We do modify the exponent in Equation E2 from 3 to 0.3, which is necessary for a reasonable approximation to the halo mass–SFR relation observed in the simulation.. This mass–$v_{M_{\mathrm{peak}}}$ relation is inexact (with Behroozi et al. 2019 indicating scatter of $\sim 0.1$ dex), meaning $\sim 10\%$ discrepancies between our numerical results and analytic results for $\left\langle{I_{\nu}}\right\rangle$ should not be surprising. Indeed, any discrepancies between analytic and simulated results in Table 2 are within this expectation.

The lowermost panel of Figure 1 shows the expected relative contribution of different halo mass ranges to $\left\langle{I_{\nu}}\right\rangle$. At $z=5.8$ and below, the slope of the halo mass–[C II] relation is steep enough compared to the slope of the HMF that a majority of $\left\langle{I_{\nu}}\right\rangle$ comes from halos of masses $\gtrsim 10^{11}\,M_{\odot}$. Lowering the minimum emitting halo mass to $10^{9}\,M_{\odot}$ (with a simple extrapolation below $10^{10}\,M_{\odot}$) thus has little effect on the analytically estimated $\left\langle{I_{\nu}}\right\rangle$ below $z\sim 6$, increasing only by 0.6% at $z=3.7$, 2.3% at $z=4.5$, and 15.6% at $z=6.0$.

By $z=7.4$, however, halos with $M_{\text{vir}}\lesssim 10^{11}\,M_{\odot}$ contribute a majority of the average signal, and lowering the cut to $10^{9}\,M_{\odot}$ would allow more low-mass halos to contribute, increasing the analytically calculated mean [C II] intensity by a factor of 1.6. This roughly translates to an increase in the power spectrum ($P(k)\sim\left\langle{I_{\nu}}\right\rangle^{2}$) by a factor of 3. The analytic $\left\langle{I_{\nu}}\right\rangle$ with $M_{\mathrm{vir,min}}=10^{10}\,M_{\odot}$ is within 10% of the numerically simulated mean intensity, so our $P(k)$ forecast may indeed be too low by a factor of 3 due to an overly high cutoff mass.

Whether lowering the cutoff halo mass below $10^{10}\,M_{\odot}$ is well-motivated is unclear. As noted above, Finlator et al. (2017) does find evidence for unsuppressed star-formation activity in $z\gtrsim 6$ halos with masses below $10^{10}\,M_{\odot}$, but the evidence is not strong at $z=8$ and not very strong at $z=7$, and $z\sim 7.4$ is the only redshift at which a lower cutoff significantly affects $\left\langle{I_{\nu}}\right\rangle$ in Table 2. We discuss the cutoff further in the next section, although we find that even a factor-of-3 increase in the signal at $z\sim 7.4$ will require greatly upgraded surveys to distinguish or detect.

3.2 Power spectra and comparison to previous work

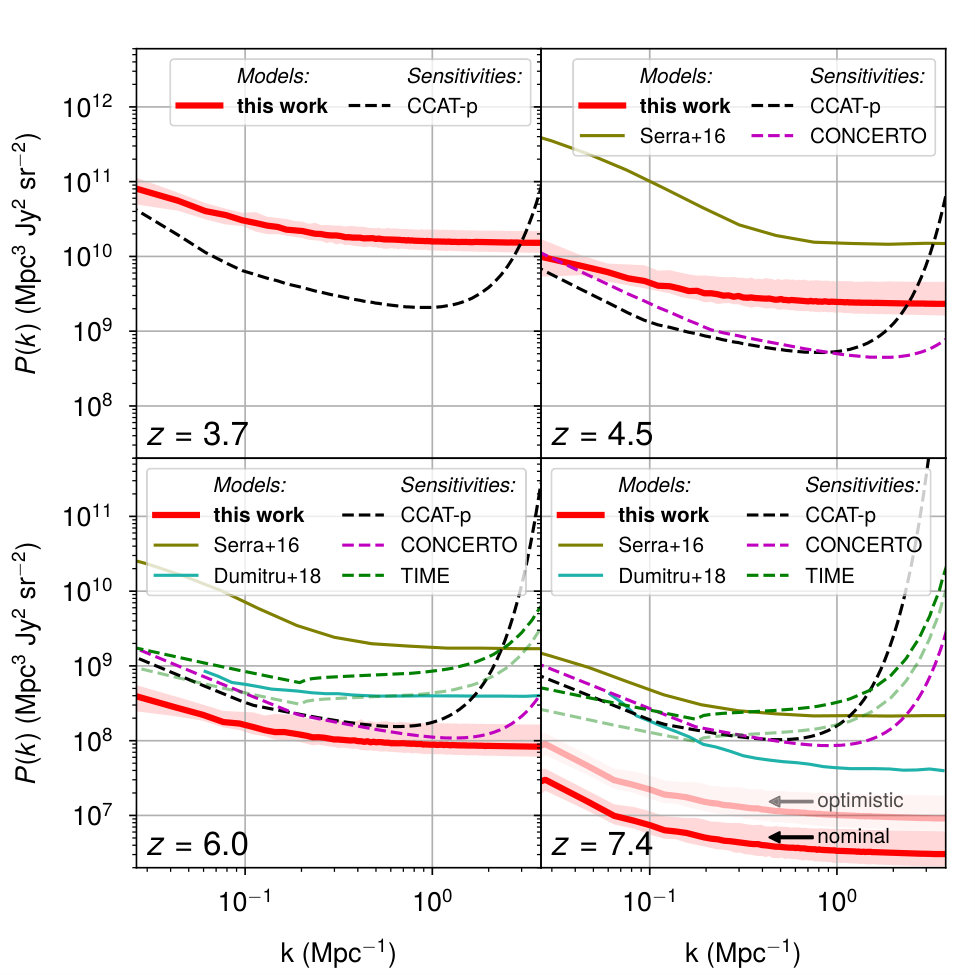

We show the $P(k)$ values calculated from the simulations in Figure 2. Our forecast signal level appears to drop an order of magnitude or so with each increase in observed redshift. However, in light of the analytic checks of Section 3.1, we consider the possibility that the decline in $P(k)$ between $z=6.0$ and $z=7.4$ depends on the choice of cutoff halo mass. If halos below our chosen cutoff of $10^{10}\,M_{\odot}$ emit in [C II], our simulated $P(k)$ at $z=7.4$ may be an underestimate by a factor of several. Therefore, we also show an ‘optimistic’ forecast at $z=7.4$ alongside the fiducial one in Figure 2 by multiplying the fiducial $P(k)$ by a factor of 3 (suggested by the comparison to analytic calculations in Table 2).

We put our predictions in the context of previous work by plotting them together with $P(k)$ from Serra et al. (2016) (which claims agreement with Gong et al. 2012) and Dumitru et al. (2019)111111Throughout this work, we use results provided by Dumitru (private communication) which differ from the initial preprint but should be reflected in the final published work of Dumitru et al. (2019). In particular, the $P(k)$ values have been revised slightly downwards from the initial preprint, and the cosmic SFR density revised slightly upwards (particularly near $z=6$)., interpolated or extrapolated in redshift as necessary (as the approximate evolution of $P(k)$ with redshift at each $k$ is apparent in both works). Serra et al. (2016) use measurements of the cosmic infrared background anisotropies with a halo model to constrain a halo mass–infrared luminosity relation, and combine this with the local $L_{\text{IR}}$–[C II] relation of Spinoglio et al. (2012) to relate halo mass to [C II] luminosity and thus enable an analytic calculation of $P(k)$. Given our discussion about the difference between local SFR–[C II] calibrations and the relation from Lagache et al. (2018) being as large as 1 dex at $z\sim 6$, we find it unsurprising that the $P(k)$ values of Serra et al. (2016) are almost 2 dex higher than our predictions.

The work of Dumitru et al. (2019) is more similar to ours in comparison, assigning [C II] luminosities to halos identified in cosmological simulations to directly simulate cubes of [C II] intensity, and using Lagache et al. (2018) for the SFR–[C II] scaling relation in their model. Given these similarities, the discrepancy between our prediction and theirs is more surprising at first glance. However, the model of Dumitru et al. (2019) prescribes star-formation rates that are simply proportional to halo mass, does not model a quiescent galaxy population, and results in a somewhat higher cosmic star-formation rate density at $z\sim 6$ compared to UniverseMachine. These differences between the halo mass–SFR relations of the two models help explain the factor-of-4 difference we see between our forecast $P(k)$ and the extrapolation from the results of Dumitru et al. (2019) at $z\sim 6$.

At $z\sim 7$–8, the two models result in a more similar cosmic SFR density, but still prescribe SFR in halos in substantively different ways. Additionally, the minimum halo mass of $2.3\times 10^{8}h^{-1}\,M_{\odot}=3.4\times 10^{8}\,M_{\odot}$ in the simulations that Dumitru et al. (2019) use (with no additional cutoff imposed for [C II] emission) becomes a more significant source of discrepancy at these highest redshifts. We have stated above that a lower cutoff halo mass in our simulations could increase our forecast $P(k)$ by a factor of 3, but this is merely a zeroth-order estimate. A perfectly fair comparison at these highest redshifts against the results of Dumitru et al. (2019) would require deploying the UniverseMachine framework on a simulation fine enough to allow resolution of halos with $M_{\text{vir}}=10^{9}\,M_{\odot}$. This would enable [C II] simulations that incorporates a more complete halo population, although it is an entirely open question as to how well-justified it would be either to set a lower cutoff mass or to extrapolate the $M_{\text{vir}}$–[C II] relation so far below $10^{11}\,M_{\odot}$ in halo mass or $10^{7}\,L_{\odot}$ in line luminosity. We leave this for possible future work.

Finally, while we do not explicitly plot $P(k)$ from Padmanabhan (2019) to compare, there is broad agreement here with that work, with our $P(k)$ below the best-fit model but still within the associated uncertainties. This is to be expected given the level of agreement in the [C II] luminosity prescription between our model and that of Padmanabhan (2019) already shown in Figure 1.

3.3 Detectability of power spectra

Between our work and previous work considered in Section 3.2, predictions for the [C II] signal span a range of several orders of magnitude, unconstrained by any observational data. An improved understanding of [C II] emission and its connection to star-formation activity at high redshift would be made possible with a $P(k)$ detection or even an upper limit that could exclude the more optimistic models. To consider the ability of near-future surveys to do this, we return to the sensitivities considered in Section 2.3.

We plot the expected sensitivities of CCAT-p, TIME, and CONCERTO in Figure 2 given the $P(k)$ obtained in this work, accounting for the expected signal attenuation $W(k)$ due to beam smoothing; we plot the noise in Figure 2 as $\sigma_{P}(k)/W(k)$. Table 3 reports the expected total signal-to-noise ratio over all modes up to $k=1$ Mpc*-1*, calculated as

[TABLE]

summing over all $k$-bins with central values $k_{i}<1$ Mpc*-1*.

Note the slope of the sensitivity curves at low $k$ for CCAT-p and CONCERTO. For the lowest redshifts, the signal is large enough for sample variance to be a significant if not dominant component of $\sigma_{P}(k)$. Therefore, at the low-$k$ end, where $P(k)\sim k^{-1}$ and $1/\sqrt{N_{m}(k)}\sim k^{-1}$, $\sigma_{P}(k)\sim k^{-2}$. At higher redshifts, where instrumental noise dominates $\sigma_{P}$, $P_{n}\sim k^{0}$ but $1/\sqrt{N_{m}(k)}\sim k^{-1}$ still, so $\sigma_{P}(k)\sim k^{-1}$. A similar argument holds for TIME at the redshifts it observes, except $1/\sqrt{N_{m}(k)}\sim k^{-1/2}$ at low $k$ (see Appendix A).

More importantly, there is a discontinuity in the slope of all sensitivity curves, at $k\sim 0.1$–0.3 Mpc*-1*. This fact stems from the limited spectral resolution of all instruments, which significantly affects the growth of $N_{m}(k)$ beyond a specific $k$ as line-of-sight modes become inaccessible (again, see Appendix A). The effect is particularly severe for TIME’s line-scan survey strategy, as it targets only one angular dimension.

Nonetheless, a detection of the [C II] signal at $z\sim 6$ as predicted here is within reach. TIME is at a disadvantage due to the relatively limited $N_{m}(k)$ it probes, but as it is expected to deploy first out of the three surveys, it will at minimum set bleeding-edge upper limits on the $z\sim 6$ [C II] auto spectrum, and an extended campaign with deeper mapping could yield a tentative detection. For instance, if deployed on a high-quality Atacama site, TIME would be capable of approximately twice the mapping speed it could achieve at the ARO, which translates to half the noise power spectrum after the same survey time (TIME collaboration, private communication). Such a deployment may be realised, for example, on the proposed Leighton Chajnantor Telescope (LCT), a refurbishment and move of the Caltech Submillimeter Observatory (CSO) from Mauna Kea to the Chajnantor plateau.121212See the slide set from Sunil Golwala’s Jan 2019 seminar given to the Caltech Far-IR Science Interest Group, available at time of writing at https://fir-sig.ipac.caltech.edu/system/media_files/binaries/29/original/190115GolwalaLCTIRSIGWeb.pdf. Either in isolation or in combination with the ARO deployment, a 1000-hour survey with TIME at the LCT is extremely competitive against the other surveys presented here.

To be more exact about necessary extensions to survey times for a detection of $P(k)$ at small $k$, Table 3 also shows how much time would be required to achieve a signal-to-noise of unity at a $k$-bin centred at $k=0.026$ Mpc*-1* of width $\Delta k=0.035$ Mpc*-1*. (The corresponding total all-k $\mathrm{S/N}$ varies, and is especially lower for TIME due to its shallower sensitivity limit curve.) Optimisation of survey areas can also increase $t_{\mathrm{pix}}$ and improve sensitivity, but depending on the criteria the optimal survey areas at $z\sim 6$ are too small for the instruments considered (see Appendix C).

Table 3 also shows that surveys would need to be unrealistically lengthy to detect the expected signal at $z\sim 8$. This comes with the caveat from the end of Section 3.1 that the predicted $P(k)$ at $z\sim 8$ is likely too low. However, even if $P(k)$ here is too conservative by an order of magnitude, none of the surveys above would be sensitive enough to even reach a signal-to-noise ratio of 1 with their fiducial survey programmes, and all would require 5–10 times greater time on sky for an all-$k$ signal-to-noise of 2–4. TIME at ARO is more competitive at this redshift range than at $z\sim 6$, with map noise expected to be several times better than either CCAT-p or CONCERTO. However, the line-scan strategy limits relative detectability of $P(k)$ for $k\gtrsim 10^{-1}$ Mpc*-1* and thus total signal-to-noise across the scales considered here.

A second generation of [C II] line-intensity surveys might attain a fully three-dimensional, wide-field detection (i.e. over $\gtrsim 1$ deg2), potentially even through a significant upgrade to an existing instrument or extension of an existing survey. Sensitivities must improve over the immediate generation by at least an order of magnitude, however. This would enable a more confident detection of our forecast signal at $z\sim 6$ in addition to a tentative detection at $z\sim 8$.

In view of this, we note the significant upgrade potential for EoR-Spec on CCAT-p. The Phase I instrument assumed here only occupies one-third of one instrument module, when in fact the overall Prime-Cam design (i.e., the first-light instrument design for CCAT-p) can accommodate up to seven instrument modules (Vavagiakis et al., 2018). An upgraded EoR-Spec configuration—or a more aggressive first-light configuration—would use two fully occupied instrument modules for six times the field of view and six times the mapping speed. Note also that the seven-module Prime-Cam design does not entirely fill the CCAT-p telescope’s field of view, which could accommodate as many as 19 modules (Stacey et al., 2018). Such ‘Phase II’ extensions of the EoR-Spec array by factors of 6–18 would provide the generational leap that may enable a detection of the [C II] at $z\sim 7.4$ (given the more optimistic version of our prediction).

TIME also has a clear path forward from what we present here. In addition to potential deployment at another telescope like the LCT, one way to increase sensitivity may be to make use of more space by moving from a grating spectrometer to a more compact architecture. The on-chip spectrometer technology to be deployed in SuperSpec (Shirokoff et al., 2014) provides a potential technology path. Once SuperSpec successfully demonstrates this technology in the field, future work should consider what may be possible with hundreds or thousands of SuperSpec-style pixels instead of the 16 considered here for TIME.

4 Conclusions

We have simulated the [C II] signal that three near-future experiments will attempt to observe, and the results indicate promising prospects for [C II] detections at $z\lesssim 6$. If foregrounds like Galactic dust and lower-redshift emission in other lines can be overcome, these experiments promise to significantly improve our understanding of high-redshift galaxies from the end of reionization onwards.

While the signal will be weaker at $z\sim 8$, the upcoming generation of [C II] intensity mappers should still be able to set interesting limits on [C II] in the epoch of reionization. Furthermore, their $z\lesssim 6$ results will distinguish between the wide range of high-redshift [C II] predictions that currently exist. There is also ample scope for further simulation studies, for example by deploying the UniverseMachine framework on higher-resolution simulations to better anticipate the effect of lower-mass halos on the signal. All such future theoretical and observational study will work in tandem to significantly narrow the model space in a way that guides the next generation of wide-field [C II] surveyors.

We thank Guilaine Lagache and Matthieu Bethermin for communications regarding the survey and instrument parameters for CONCERTO; Gordon Stacey, Dominik Riechers, Michael Niemack, and other members of the CCAT-p science working group for detailed discussions about EoR-Spec; and members of the TIME collaboration including Lorenzo Moncelsi, C. Matt Bradford, and Jonathan Hunacek for similar communications on TIME. We further thank Peter Behroozi for communications about the UniverseMachine EDR, as well as useful comments on this work; Sebastian Dumitru for communications about his work including revisions to Dumitru et al. (2019) in preparation; and Hamsa Padmanabhan for insightful communications on [C II] forecasts, including her work while it was still in preparation. We would like to acknowledge the organizers and participants of the ‘Cosmological Signals from Cosmic Dawn to the Present’ workshop held at the Aspen Center for Physics, which is supported by National Science Foundation grant PHY-1607611. Finally, we thank the anonymous referee for thoughtful comments and suggestions that improved the paper. This research made use of NASA’s Astrophysics Data System Bibliographic Services.

Appendix A The Number of Fourier Modes in a Given Wavenumber Bin

The analytic expression of $N_{m}(k)$ is different for TIME versus CCAT-p or CONCERTO, simply because of the line-scan nature of the survey. Normally, we discretise the Fourier space in cells of $(2\pi)^{3}/V_{\mathrm{surv}}$ and divide this into the volume of the Fourier shell corresponding to the range $(k,k+\Delta k)$:

[TABLE]

where the factor of $1/2$ comes in from the fact that the Fourier transform is of all real numbers and thus only half of the modes in the full 3D Fourier shell are independent.

However, in the case of TIME, we effectively work in a 2D Fourier space, ignoring the shortest dimension. Thus, we only get a circular slice of this shell, of area $2\pi k\Delta k$, with a resolution of $(2\pi)^{2}$ divided by the comoving area $A_{\mathrm{surv}}$ of the survey:

[TABLE]

Furthermore, the limited frequency resolution of all experiments means that beyond a cutoff $k_{\delta_{\nu}}$ (given by $\pi$ divided by the comoving voxel length along the line of sight), $N_{m}$ will grow by one less power of $k$. Quantitatively speaking, the surface area of a spherical segment truncated at two parallel planes, one intersecting the centre of the sphere and one separated from it by $k_{\delta_{\nu}}$, is given by $2\pi k_{\delta_{\nu}}k$. So for $k>k_{\delta_{\nu}}$, the total $V_{\mathrm{shell}}$ is twice this times $\Delta k$, or $4\pi k_{\delta_{\nu}}k\,\Delta k$. Thus, in the 3D case,

[TABLE]

For TIME, the area of the $k$-shell is

[TABLE]

Then

[TABLE]

Appendix B Details of Noise-equivalent Quantities

This section of the appendix considers in further detail the quantities related to the sensitivity per sky pixel $\sigma_{\text{pix}}$ for each experiment, which in turn informs the instrumental noise power spectrum $P_{n}$ in Section 2.3. We first consider Section B.1 the expressions that allow calculation of $\sigma_{\text{pix}}$ from lower-level noise-equivalent quantities. Then, after recapping relevant parameters for each experiment considered in the main text, we show in Section B.2 that we can reproduce the quantities claimed for each experiment with minimal assumptions.

B.1 Basic Expressions

The noise-equivalent flux density (NEFD) is effectively the noise per beam, and is given by system efficiencies, instrumental bandwidth, telescope aperture, and the total noise-equivalent power (NEP). Equation A8 of Gong et al. (2012) gives a dimensionally incorrect expression for the NEFD, so we refer to Equation 7.41 from Walker (2015), presented below with a minor change in notation:

[TABLE]

Here $A_{e}$ is the effective aperture of the telescope, while $\delta_{\nu}$ is the bandwidth of the observation (the spectrometer channel bandwidth in this case). The NEP itself depends on frequency and detector bandwidth, and in background-limited operation at the frequencies considered in this work, we adapt Equation 46 of Zmuidzinas (2003), which provides an approximate expression for background-limited power uncertainty if the Rayleigh-Jeans temperature $T_{0}$ of the background radiation is known:

[TABLE]

where $\operatorname{BW}_{\text{det}}$ is the bandwidth seen by the detector, and $\tau$ the integration time. By convention, this quantity is the NEP when we refer this uncertainty to a 1 Hz post-detection bandwidth, or $\tau=0.5$ seconds. Then we find

[TABLE]

Note that $\operatorname{BW}_{\text{det}}$ is not necessarily equal to the bandwidth used in Equation B1—a grating spectrometer or Fabry-Perot interferometer will only expose each detector to the bandwidth per channel (so that the NEFD scales as $\delta_{\nu}^{-1/2}$), but detectors behind a Fourier-transform spectrometer must see the entire instrumental bandwidth (so that the NEFD scales as $\delta_{\nu}^{-1}$).

We define the aperture efficiency $\eta_{A}\equiv A_{e}/(\pi D^{2}/4)$, where $D$ is the dish diameter, and then $\eta\equiv\eta_{c}\eta_{t}\eta_{A}e^{-\tau_{\nu}A}$, to encapsulate the end-to-end optical coupling efficiency, including atmospheric attenuation.

The NEP is usually taken to be the power incident across the solid angle projected from the detector to the sky (see Equation 7.38 of Walker, 2015, for instance). Therefore, to get the sensitivity per pixel $\sigma_{\mathrm{pix}}$ as noise-equivalent intensity (NEI), we divide the NEFD by the beam solid angle $\Omega_{\mathrm{beam}}=\mathrm{FWHM}^{2}\cdot\pi/(4\ln{2})$ (which the dependence of the NEFD on $A_{e}$ broadly cancels out):

[TABLE]

This expression, together with Equation B4, allow us to re-derive the sensitivities considered in Section 2.3 from scratch assuming background-limited operation.

B.2 Approximate Expected Noise-equivalent Quantities for All Experiments

We now recap the basic design of each experiment considered in the main text, considering various trade-offs involved in each.

• •

TIME uses a grating spectrometer. The size of the grating limits the number of beams on sky, but all pixels integrate simultaneously on all frequencies, and each detector only sees the light corresponding to the width of the spectral bin.

• •

CCAT-p uses a Fabry–Perot interferometer (FPI), which effectively acts as a narrow-band filter in front of the detectors. This means that the detectors only see the light corresponding to the width of the spectral bin, as in a grating spectrometer, but the FPI must scan through the different spectral bins. Therefore, at some point, there is a penalty proportional to $N_{\text{chan}}$ (the number of spectral bins) on the final map noise, as each detector spends only $\sim 1/N_{\text{chan}}$ of its time integrating in a given spectral bin.

• •

CONCERTO uses a Fourier-transform spectrometer (FTS), and specifically a Martin–Puplett interferometer (MPI). The relevant detail is that an interferometer in front of the camera scans through different time delays, so that each detector records an interferogram that can then be Fourier-transformed into a spectrum. As a result, each detector must see the entire bandwidth of the instrument rather than the bandwidth of the spectral bin. Unlike the FPI, despite the fact that there is a scan in time delay, the pixels do effectively integrate down on all frequency channels as the scan proceeds, so no $N_{\text{chan}}$ penalty applies.

For the purposes of this discussion, we consider all experiments only at 250 GHz, summarising the relevant parameters in the first several columns of Table 4. We assume a diffraction-limited beam for all experiments, with a FWHM of 50 arcsec for $D=6$ m and 25 arcsec for $D=12$ m at 250 GHz. (Note that this assumption is acceptable even for CCAT-p, as its beam FWHM approaches the diffraction limit at lower frequencies.)

Calculating the NEP and NEFD requires not only the instrument parameters, but also assumed values for the background Rayleigh-Jeans temperature $T_{0}$ and the end-to-end optical efficiency of the system $\eta$. We assume that for all experiments, a detector couples to 30% of the source emission, so that $\eta=0.3$ for dual-polarisation pixels (as in CCAT-p and CONCERTO) and $\eta=0.15$ for single-polarisation spectrometers (which are what are counted up for TIME). We also assume that $T_{0}$ is given by 300 K times a system emissivity of 5% for CCAT-p and CONCERTO, or 20% for TIME (as it is at a significantly less dry site than the others, with much lower atmospheric transmission). Then $T_{0}=15$ K for CCAT-p and CONCERTO, and 60 K for TIME.

We show the resulting approximate NEP and NEFD, as well as $\sigma_{\mathrm{pix}}$ (the NEI), in the final several columns of Table 4. The results match the figures provided by each collaboration to within a factor of 2. Although these approximate calculations are highly dependent on our assumptions and ignore many complexities surrounding direct-detection spectrometer noise, they do show that all claimed figures for the sensitivity per pixel are facially at sensible ranges.

In any case, based on $\sigma_{\mathrm{pix}}$ alone, CONCERTO and TIME appear to be at a significant disadvantage relative to CCAT-p, respectively due to the increased NEP from the FTS architecture (which sets $\operatorname{BW}_{\text{det}}$ equal to $\Delta\nu$ rather than $\delta_{\nu}$) and the atmospheric conditions at ARO (reflected in our estimates in the higher background temperature). However, recall that CCAT-p uses a scanning spectrometer, with the FPI transmitting two colours at once to the dichroic TES array. Therefore, with $\approx 100$ spectral bins in the entire band and only two bins seen by the spectrometer at any given time, there is a fifty-fold penalty incurred in the integration time per pixel. We encapsulate this in Table 4 by borrowing a notation from Padmanabhan (2019) and noting the effective count of spectrometers $N_{\text{spec,eff}}$ with full simultaneous frequency coverage across the entire instrument band, which is simply equal to $N_{\mathrm{pix}}$ for CONCERTO and TIME, but is $N_{\mathrm{pix}}/50$ for CCAT-p. Thus $N_{\text{spec,eff}}$ takes the place of $N_{\mathrm{pix}}$ in Equation 4 for CCAT-p alone. Since the final survey sensitivity is given by $\sigma_{\mathrm{pix}}t_{\mathrm{pix}}^{-1/2}\propto\sigma_{\mathrm{pix}}N_{\text{spec,eff}}^{-1/2}/\Omega_{\text{surv}}$, the large spectrometer count of CONCERTO and the small survey area of TIME compensate for their relatively high $\sigma_{\text{pix}}$, which is how the final map noise ends up around the same order of magnitude for all experiments (as shown in Table 1 in the main text).

Appendix C Optimisation of Survey Area

We consider two possible ways to optimise survey area based on sensitivity requirements at a given $k$:

• •

Fixing all parameters (including survey time), we set $\Omega_{\text{surv}}$ to the value that sets the sample variance contribution to $\sigma_{P}$ equal to that of instrumental noise. This is the approach described in Appendix D of Li et al. (2016).

• •

Fixing only a desired signal-to-noise ratio at a given $k$-bin with width $\Delta k$, and fixing the total spectrometer bandwidth of the survey, we set $\Omega_{\text{surv}}$ to the value that minimises the $t_{\text{surv}}$ required. This is also described in Karoumpis et al. in prep.

Given a nominal survey area $\Omega_{\text{surv,nom}}$ and time per pixel $t_{\text{pix,nom}}$, the first way requires us to set

[TABLE]

where, using $R(z)$ to denote the comoving distance to redshift $z$, $\alpha(z)\equiv[cR(z)^{2}/H(z)](1+z)^{2}/\nu_{\text{rest}}$ is the conversion from data cube volumes (in units of solid angle times frequency) to comoving volumes at redshift $z$ (so for instance, $V_{\text{vox}}=\alpha(z)\Omega_{\text{pix}}\delta_{\nu}$).

Solving for $\Omega_{\text{surv}}$, we find

[TABLE]

As in the calculation of $P_{n}$, note that since $t_{\text{pix,nom}}\propto\Omega_{\text{pix}}$ the end result $\Omega_{\text{surv,opt1}}$ is independent of map pixel size.

Meanwhile, the latter approach yields

[TABLE]

This method is useful as the optimal area is independent of the signal and of most instrumental details, but the instrumental details are necessary to derive the corresponding $t_{\text{surv}}$, which has no guarantee of being reasonable (especially for high $P/\sigma_{P}$).

Since the above uses $N_{m}(k)$ for the 3D case, the calculation cannot be repeated verbatim for the optimal survey extent $\theta_{\text{surv}}$ for a line-scan survey like TIME. If we define $\beta(z)\equiv\alpha(z)/R(z)$ so that $A_{\text{surv}}=\beta(z)\theta_{\text{surv}}\Delta\nu_{\text{surv}}$,

[TABLE]

Table 5 shows optimal survey areas for all surveys. For all calculations, we assume $k=0.026$ Mpc*-1* (before the kink in $N_{m}(k)$) and $\Delta k=0.035$. As in the main text, we take $\Delta\nu_{\text{surv}}=40$ GHz except at $z=7.9$ where we assume 28 GHz.

It is important to compare the results to the instrumental field of view for each survey. Any optimal areas smaller than or even almost equal to these numbers should be considered unrealistic, as observing in stare modes is impractical at these frequencies for sensitive imaging (Kovács, 2008).

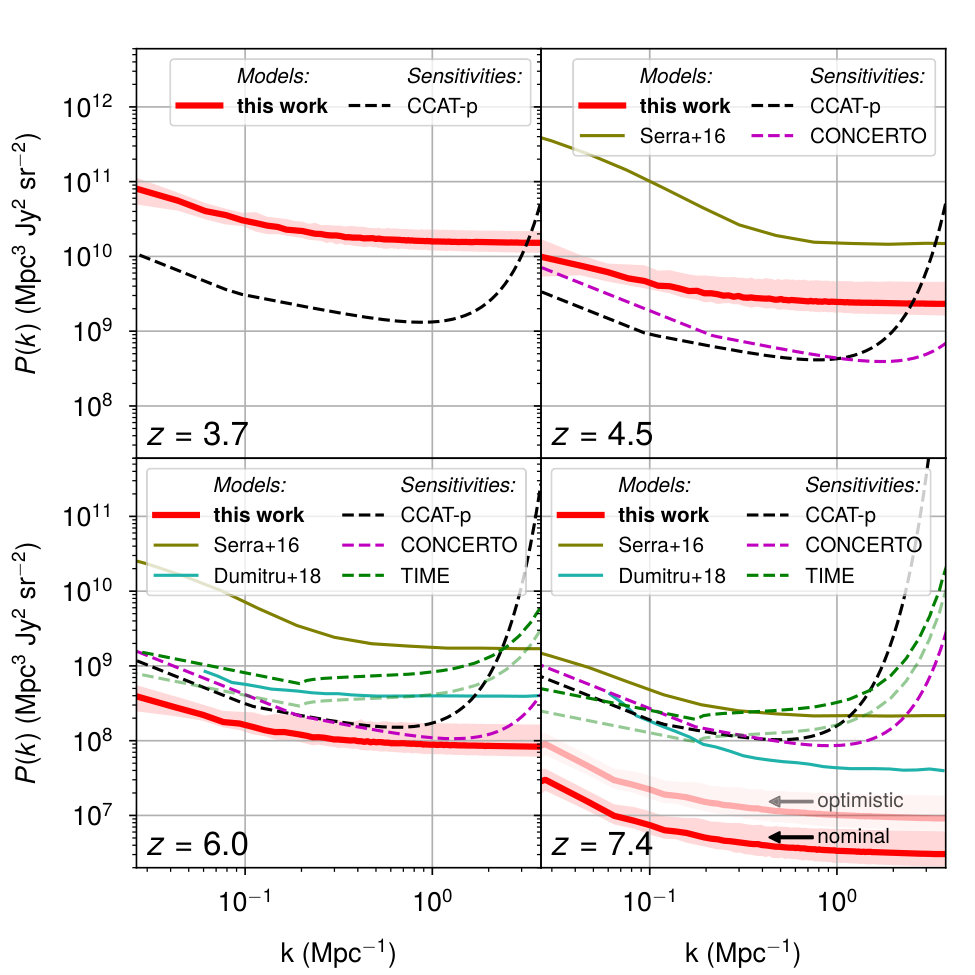

Appendix D Radiometric Sensitivities of Surveys, Excluding Sample Variance

The sensitivity curves of Figure 2 account for both thermal instrumental noise and sample variance based on the fiducial model. While sample variance only significantly affects sensitivities for the lower two redshifts, this point may not be clear on a casual inspection of Figure 2. We therefore show in Figure 3 a version of the same figure where the sensitivity curves exclude sample variance.
