Vierbein interactions with antisymmetric components

TL;DR

This paper introduces a new gravitational theory with two interacting vierbein fields, incorporating antisymmetric components as dynamical fields, and analyzes its degrees of freedom and stability.

Contribution

It extends previous vierbein formulations by promoting antisymmetric components to dynamical fields with a kinetic term, inspired by ghost-free massive gravity and bimetric theories.

Findings

The theory describes interactions of massless and massive spin-2 fields with an antisymmetric tensor.

The model is free of extra degrees of freedom and potential pathologies.

The antisymmetric tensor exhibits a tachyonic mass pole around symmetric backgrounds.

Abstract

In this work we propose a new gravitational setup formulated in terms of two interacting vierbein fields. The theory is the fully diffeomorphism and local Lorentz invariant extension of a previous construction which involved a fixed reference vierbein. Certain vierbein components can be shifted by local Lorentz transformations and do not enter the associated metric tensors. We parameterize these components by an antisymmetric tensor field and give them a kinetic term in the action, thereby promoting them to dynamical variables. In addition, the action contains two Einstein-Hilbert terms and an interaction potential whose form is inspired by ghost-free massive gravity and bimetric theory. The resulting theory describes the interactions of a massless spin-2, a massive spin-2 and an antisymmetric tensor field. It can be generalized to the case of multiple massive spin-2 fields and multiple antisymmetric tensor fields. The absence of additional and potentially pathological degrees of freedom is verified in an ADM analysis. However, the antisymmetric tensor fluctuation around the maximally symmetric background solution has a tachyonic mass pole.

Figures

Equations

$$S_{\mathrm{gB}}=m_g^2\int {\mathrm{d}}^{4}x\sqrt{g}[R(g)-2\Lambda ]-\frac{m_B^2}{2\cdot 3!}\int {\mathrm{d}}^{4}x\sqrt{g}{H}_{\mu \nu \rho }{H}^{\mu \nu \rho },$$

$$g_{\mu \nu }$$

$$B_{\mu \nu }$$

$${\mathcal{E}}_a^{\mu }\equiv \frac{\delta S_{\mathrm{gB}}}{\delta e_{\mu }^a}=2{\eta }_{ab}{e^b}_{\nu }{\mathcal{G}}^{\mu \nu }+2{\eta }_{ab}{\tilde{e}}^b{}_{\nu }{\mathcal{B}}^{\mu \nu }=0.$$

$${\mathcal{G}}^{\mu \nu }={\mathcal{G}}^{\nu \mu }$$

$${\mathcal{B}}^{\mu \nu }=-{\mathcal{B}}^{\nu \mu }$$

$$-$$

$${\mathcal{E}}_a^{\mu }=2{\eta }_{ab}{e^b}_{\nu }{\mathcal{G}}^{\mu \nu }+2{\eta }_{ab}{\tilde{e}}^b{}_{\nu }{\mathcal{B}}^{\mu \nu }+{\mathcal{V}}_a^{\mu }=0.$$

$${\mathcal{B}}^{\mu \nu }-({\tilde{P}}^{-1}{)}_{\rho \sigma }{}^{ab}{\tilde{e}}_a^{\mu }{\tilde{e}}_b^{\nu }{e}_c^{\rho }{\eta }^{cd}{\mathcal{V}}_d^{\sigma }$$

$${\mathcal{G}}^{\mu \nu }+({\tilde{P}}^{-1}{)}_{\rho \sigma }{}^{ab}{\tilde{e}}_a^{\mu }{e}_b^{\nu }{e}_c^{\rho }{\eta }^{cd}{\mathcal{V}}_d^{\sigma }+\frac{1}{2}{e}_a^{\mu }{\eta }^{ab}{\mathcal{V}}_b^{\nu }$$

$$f_{\mu \nu }\equiv {{\tilde{e}}_{\mu }}^a{\eta }_{ab}{{\tilde{e}}^b}_{\nu }.$$

$$S_{\mathrm{m}}$$

$${\mathcal{E}}_a^{\mu }$$

$${\tilde{\mathcal{E}}}_a^{\mu }$$

$$\displaystyle\mathcal{F}^{\mu\nu}=\mathcal{F}^{\nu\mu}\equiv R^{\mu\nu}(f)-\frac{1}{2}\Big{(}R(f)-2\tilde{\Lambda}\Big{)}f^{\mu\nu}\,,$$

$$\alpha \equiv \frac{m_f}{m_g}.$$

$$2{\eta }^{ab}{e}^{[\mu }{}_a{\mathcal{E}}_b^{\nu ]}=0,2{\eta }^{ab}{\tilde{e}}^{[\mu }{}_a{\tilde{\mathcal{E}}}_b^{\nu ]}=0,$$

$${\mathcal{B}}^{\mu \nu }-({\tilde{P}}^{-1}{)}_{\rho \sigma }{}^{ab}{\tilde{e}}_a^{\mu }{\tilde{e}}_b^{\nu }{e}_c^{\rho }{\eta }^{cd}{\mathcal{V}}_d^{\sigma }$$

$${\mathcal{G}}^{\mu \nu }+({\tilde{P}}^{-1}{)}_{\rho \sigma }{}^{ab}{\tilde{e}}_a^{\mu }{e}_b^{\nu }{e}_c^{\rho }{\eta }^{cd}{\mathcal{V}}_d^{\sigma }+\frac{1}{2}{e}_a^{\mu }{\eta }^{ab}{\mathcal{V}}_b^{\nu }$$

$${\mathcal{F}}^{\mu \nu }+({\tilde{P}}^{-1}{)}_{\rho \sigma }{}^{ab}{e}_a^{\mu }{\tilde{e}}_b^{\nu }{\tilde{e}}_c^{\rho }{\eta }^{cd}{\tilde{\mathcal{V}}}_d^{\sigma }+\frac{1}{2}{\tilde{e}}_a^{\mu }{\eta }^{ab}{\tilde{\mathcal{V}}}_b^{\nu }$$

$${\Delta }_{\omega }{e}_{\mu }^a={\eta }^{ab}{\omega }_{bc}{e}_{\mu }^c,{\Delta }_{\omega }{\tilde{e}}_{\mu }^a={\eta }^{ab}{\omega }_{bc}{\tilde{e}}_{\mu }^c,$$

$${\Delta }_{\xi }{e}_{\mu }^a={\xi }^{\rho }{\nabla }_{\rho }{e}_{\mu }^a+e_{\rho }^a{\nabla }_{\mu }{\xi }^{\rho },{\Delta }_{\xi }{\tilde{e}}_{\mu }^a={\xi }^{\rho }{\tilde{\nabla }}_{\rho }{\tilde{e}}_{\mu }^a+{\tilde{e}}_{\rho }^a{\tilde{\nabla }}_{\mu }{\xi }^{\rho }.$$

$${\Delta }_{\xi }{\tilde{e}}_{\mu }^a={\xi }^{\rho }{\partial }_{\rho }{\tilde{e}}_{\mu }^a+{\tilde{e}}_{\rho }^a{\partial }_{\mu }{\xi }^{\rho }-{\xi }^{\rho }{\tilde{\Gamma }}_{\rho \mu }^{\sigma }{\tilde{e}}_{\sigma }^a+{\tilde{e}}_{\rho }^a{\tilde{\Gamma }}_{\mu \sigma }^{\rho }{\xi }^{\sigma }={\xi }^{\rho }{\partial }_{\rho }{\tilde{e}}_{\mu }^a+{\tilde{e}}_{\rho }^a{\partial }_{\mu }{\xi }^{\rho },$$

$${\Delta }_{\xi }{\tilde{e}}_{\mu }^a={\xi }^{\rho }{\nabla }_{\rho }{\tilde{e}}_{\mu }^a+{\tilde{e}}_{\rho }^a{\nabla }_{\mu }{\xi }^{\rho },$$

$${\Delta }_{\xi }{B}_{\mu \nu }={\xi }^{\rho }{\nabla }_{\rho }{B}_{\mu \nu }+B_{\mu \rho }{\nabla }_{\nu }{\xi }^{\rho }+B_{\rho \nu }{\nabla }_{\mu }{\xi }^{\rho },$$

$$B_{\mu \nu }=0,R_{\mu \nu }(g)={\Lambda }_g{g}_{\mu \nu },R_{\mu \nu }(c^{2}g)={\Lambda }_f{g}_{\mu \nu }.$$

$${\Lambda }_g$$

$${\Lambda }_f$$

$${\Lambda }_g={\Lambda }_f,$$

$$e_{\mu }^a={\bar{e}}_{\mu }^a+\delta e_{\mu }^a,{\tilde{e}}_{\mu }^a=c{\bar{e}}_{\mu }^a+\delta {\tilde{e}}_{\mu }^a.$$

$$\delta g_{\mu \nu }$$

$$\delta B_{\mu \nu }$$

$$\displaystyle\mathcal{E}_{\mu\nu}^{~{}~{}\rho\sigma}m_{\rho\sigma}-\Lambda_{g}\big{(}m_{\mu\nu}-\tfrac{1}{2}m_{\rho\sigma}\bar{g}^{\rho\sigma}\bar{g}_{\mu\nu}\big{)}-\tfrac{m_{\mathrm{FP}}^{2}}{2}\big{(}m_{\mu\nu}-m_{\rho\sigma}\bar{g}^{\rho\sigma}\bar{g}_{\mu\nu}\big{)}$$

$$\displaystyle\mathcal{E}_{\mu\nu}^{~{}~{}\rho\sigma}l_{\rho\sigma}-\Lambda_{g}\big{(}l_{\mu\nu}-\tfrac{1}{2}l_{\rho\sigma}\bar{g}^{\rho\sigma}\bar{g}_{\mu\nu}\big{)}$$

Full text

MPP-2018-297

1 Introduction

The construction of classically consistent field theories is an on-going challenge which becomes disproportionately more complicated with increasing spin of the involved fields. The set of consistent interactions for fields up to spin-1 in flat space is reasonably well-understood but, when including gravity, the non-linearities of gravitational interactions and the spin-2 nature of the gravitational field always introduce further complexity. For a recent review on the programme of building new field theories in the presence of gravity, see Ref. Heisenberg:2018vsk .

A well-known example for a general class of consistent field theories including gravity is the Horndeski action, which contains the most general scalar (i.e. spin-0) interactions with second-order equations of motion Horndeski:1974wa . The action has been generalized to the “beyond Horndeski” class, which, despite its higher-order equations, does not give rise to Ostrogradski instabilities that would threaten the theory’s consistency Gleyzes:2014dya ; Gleyzes:2014qga . A recent further generalization of the consistent setup is the so-called “DHOST” (degenerate higher-order scalar-tensor) theory Langlois:2015cwa ; BenAchour:2016fzp . Examples for nonlinear vector (i.e. spin-1) interactions whose particular structure is chosen to avoid instabilities are standard Yang-Mills actions for massless fields Yang:1954ek , and the more recently constructed generalized Proca actions for a self-interacting massive field Tasinato:2014eka ; Heisenberg:2014rta .

In the spin-2 case, the Einstein-Hilbert action for general relativity (GR) delivers the nonlinear self-interactions for the massless field. The mass term that can be added to this theory has a very particular structure which is fixed by the absence of the Boulware-Deser ghost instability Boulware:1973my . The nonlinear theory for massive gravity was constructed and shown to be ghost-free only a few years ago deRham:2010kj ; Hassan:2011hr ; Hassan:2011tf . Formulating the action requires the introduction of a reference or fiducial metric tensor. This second metric can be promoted to a dynamical field, resulting in a classically consistent bimetric theory, which describes the nonlinear interactions of a massless and a massive spin-2 field Hassan:2011zd . The setup of consistent spin-2 interactions can also be generalized to the case of multiple massive fields Hinterbichler:2012cn . For reviews on massive gravity and bimetric theory, see Ref. Hinterbichler:2011tt ; deRham:2014zqa and Schmidt-May:2015vnx , respectively.

The structure of the allowed massive spin-2 interactions assumes a remarkably simple form when written in terms of the vierbein fields related to the two metrics Hinterbichler:2012cn . Moreover, the most general set of consistent interactions among multiple massive spin-2 fields actually requires the vierbein formulation Hassan:2018mcw . This is not particularly astonishing since there is an example for this situation already in GR, where couplings to fermionic fields can only be expressed using the vierbein field.

The vierbein $e^{a}_{~{}\mu}$, related to the corresponding metric via $g_{\mu\nu}=e^{a}_{~{}\mu}\eta_{ab}e^{b}_{~{}\nu}$, has 16 independent components. Only 10 of these show up in the metric tensor since the latter is invariant under local Lorentz transformations, $e^{a}_{~{}\mu}\mapsto\Lambda^{a}_{~{}c}e^{c}_{~{}\mu}$ with $\Lambda^{a}_{~{}c}\eta_{ab}\Lambda^{b}_{~{}d}=\eta_{cd}$. In GR, the remaining 6 components are pure gauge and hence unphysical. Massive gravity and bimetric theory in vierbein formulation a priori contain these Lorentz components as dynamical fields, but they are required to vanish by the equations of motion. This property ensures the existence of an equivalent formulation in terms of metric tensors Deffayet:2012zc . Moreover, as was shown in Ref. deRham:2015cha , the vanishing of the 6 additional Lorentz components is crucial for the consistency of the theory. It is also related to the possibility of having causal propagation Hassan:2017ugh .111In this paper we will not address the issue of causality. The term “consistent” refers to the absence of ghost instabilities. For work on causal propagation in massive spin-2 theories in the framework of scattering amplitudes see Ref. Hinterbichler:2017qyt ; Bonifacio:2017nnt ; deRham:2017zjm ; deRham:2017xox ; deRham:2018qqo .

Interestingly, the consistency problem of non-vanishing Lorentz components can be overcome by giving them a kinetic term.222The idea of making the Lorentz components dynamical in massive gravity was first mentioned in Ref. Gabadadze:2013ria . At the linearized level, their dynamics are discussed in the context of teleparallel theories in section 4.6 of Ortin:2004ms . This was demonstrated explicitly in Ref. Markou:2018wxo for the case of a fixed reference frame field ${\tilde{e}}^{a}_{~{}\mu}$ (i.e. for the massive gravity case). The resulting theory describes the nonlinear interactions of a massive spin-2 with a massive antisymmetric tensor field. No additional degrees of freedom, which could potentially give rise to instabilities, enter at the nonlinear level. The structure of the resulting action is interesting because it involves the antisymmetric tensor combination $B_{\mu\nu}=e^{a}_{~{}\mu}\eta_{ab}{\tilde{e}}^{b}_{~{}\nu}-{\tilde{e}}^{a}_{~{}\mu}\eta_{ab}e^{b}_{~{}\nu}$. The mass pole of its fluctuation around maximally symmetric backgrounds is tachyonic, indicating the instability of this vacuum solution.

Antisymmetric tensor fields, first considered in Ref. Ogievetsky:1967ij ; Kalb:1974yc , are objects of interests in supergravity theories, and thus in low-energy effective descriptions of string theory. Together with the graviton and the dilaton, they make up the massless bosonic excitations of the string. In $D=4$ spacetime dimensions, antisymmetric tensors are dual to a scalar in the massless and to a vector in the massive case (see e.g. Smailagic:2001ch ), but in higher dimensions the duality does not necessarily relate them to lower-spin fields.

In this work we will build on the results of Ref. Markou:2018wxo and extend the setup by giving dynamics to the frame field ${\tilde{e}}^{a}_{~{}\mu}$.

Summary of results

We demonstrate that the action proposed in Ref. Markou:2018wxo can be generalized to a fully dynamical theory for two interacting vierbein fields $e^{a}_{~{}\mu}$ and ${\tilde{e}}^{a}_{~{}\mu}$. The result is a ghost-free bimetric action in vierbein formulation with dynamical Lorentz components which we parameterize in terms of the antisymmetric components $B_{\mu\nu}=e^{a}_{~{}\mu}\eta_{ab}{\tilde{e}}^{b}_{~{}\nu}-{\tilde{e}}^{a}_{~{}\mu}\eta_{ab}e^{b}_{~{}\nu}$. The action is manifestly invariant under local Lorentz transformations and diffeomorphisms. The number of propagating degrees of freedom in this new setup is $2+5+3$, corresponding to a massless spin-2, a massive spin-2 and a massive antisymmetric tensor. This is verified both at the linear and at the fully nonlinear level. The mass of the antisymmetric fluctuation around the maximally symmetric background is again tachyonic, implying that the bimetric vacuum of the extended theory is unstable. We then show how to further generalize the setup to the case of $\mathcal{N}$ interacting vierbeine and their independent antisymmetric components which are packaged into $(\mathcal{N}-1)$ antisymmetric tensor fields.

Conventions

We work with metric signature $(-,+,+,+)$ in 4 spacetime dimensions for definiteness, but all of our results generalize to arbitrary dimension. Spacetime indices are denoted by Greek letters $\mu,\nu$, Lorentz indices by Latin letters $a,b$. Indices are raised and lowered by $g_{\mu\nu}$ and the inverse $g^{\mu\nu}$ on its curvatures and on objects related to the antisymmetric tensor. Indices on curvatures of $f_{\mu\nu}$ are raised and lowered with $f_{\mu\nu}$ and its inverse $f^{\mu\nu}$. Lorentz indices are raised and lowered with $\eta_{ab}$ and its inverse $\eta^{ab}$. Brackets denoting symmetrization and antisymmetrization of indices are defined as $T_{\mu\nu}=T_{(\mu\nu)}+T_{[\mu\nu]}$ with $T_{(\mu\nu)}=\frac{1}{2}(T_{\mu\nu}+T_{\nu\mu})$ and $T_{[\mu\nu]}=\frac{1}{2}(T_{\mu\nu}-T_{\nu\mu})$.

2 Review of gravity with antisymmetric components

Here we briefly review the results of Ref. Markou:2018wxo , discussing first the massless case before adding the mass term.

2.1 Massless fields

The action for a massless antisymmetric tensor field $B_{\mu\nu}$ minimally coupled to a massless metric $g_{\mu\nu}$ is,

[TABLE]

where $H_{\mu\nu\rho}=3\nabla_{[\mu}B_{\nu\rho]}$ is the 2-form field strength. We have included a Planck mass $m_{g}$ for $g_{\mu\nu}$ and also a mass scale $m_{B}$ for $B_{\mu\nu}$, such that both tensor fields are dimensionless.333Note that our convention here slightly differs from the one in Ref. Markou:2018wxo , where $B_{\mu\nu}$ had mass dimension 1.

In Ref. Markou:2018wxo , we repackaged the 10+6 components contained in the tensor fields into the vierbein $e^{a}_{~{}\mu}$. This was achieved by making the following identifications,

[TABLE]

where the auxiliary vierbein ${\tilde{e}}^{a}_{~{}\mu}$ defines a fixed reference frame. For instance, one could take ${\tilde{e}}^{a}_{~{}\mu}=\delta^{a}_{~{}\mu}$. The symmetric field $g_{\mu\nu}$ is the spacetime metric with ordinary relation to the dynamical tetrad. It is invariant under local Lorentz transformations $e^{a}_{~{}\mu}\mapsto\Lambda^{a}_{~{}b}e^{b}_{~{}\mu}$ with $\Lambda^{a}_{~{}b}\eta_{ac}\Lambda^{c}_{~{}d}=\eta_{bd}$ and therefore depends on only 10 of the 16 components in $e^{a}_{~{}\mu}$. The remaining 6 components enter the antisymmetric tensor $B_{\mu\nu}$.

The equations of motion for the vierbein following from the above action read,

[TABLE]

Here we have defined,

[TABLE]

which correspond to the variations of the action with respect to the tensor fields. In the tensor formulation, $\mathcal{G}^{\mu\nu}$ and $\mathcal{B}^{\mu\nu}$ vanish separately. In fact, this is also the case in the vierbein formulation, as can be seen by looking at the antisymmetric combination of equations, $2\eta^{ab}e^{[\mu}{}_{a}\mathcal{E}^{\nu]}_{b}=0$, which implies $\mathcal{B}^{\mu\nu}=0$. Hence the vierbein and tensor formulations of the massless theory are equivalent.

2.2 Massive fields

Inspired by ghost-free massive gravity deRham:2010kj ; Hassan:2011hr ; Hassan:2011tf ; Hinterbichler:2012cn , Ref. Markou:2018wxo added the following interaction term $S_{V}$ for the vierbein $e^{a}_{~{}\mu}$ to the massless action,

[TABLE]

It was shown in a nonlinear ADM analysis that these interactions make both the fields $g_{\mu\nu}$ and $B_{\mu\nu}$ massive without introducing additional degrees of freedom. The action with this mass term propagates 5+3 degrees of freedom, corresponding to a massive spin-2 and a massive antisymmetric tensor (which is dual to a massive vector in $D=4$). The latter is a tachyon at the linearized level.

Denoting the variation of the mass term by $\mathcal{V}_{a}^{~{}\mu}\equiv-\frac{1}{m_{g}^{2}\det e}\frac{\delta S_{V}}{\delta e^{a}_{~{}\mu}}$, the vierbein equations of motion now assume the form,

[TABLE]

These equations can still be separated into a symmetric and an antisymmetric part which read,

[TABLE]

Here, $\tilde{P}^{-1}$ denotes the inverse of the operator $\tilde{P}^{\mu\nu}{}_{ab}\equiv 2e^{[\mu}{}_{[a}{\tilde{e}}^{\nu]}{}_{b]}$ which is invertible on the space of antisymmetric matrices.

3 Dynamical reference frame

The vierbein action with potential (5) explicitly breaks diffeomorphism and local Lorentz invariance, due to the presence of the fixed reference frame ${\tilde{e}}^{a}_{~{}\mu}$. For various reasons it is desirable to restore these symmetries, which can be achieved by introducing dynamics for the reference vierbein ${\tilde{e}}^{a}_{~{}\mu}$, as we shall do in the following.

3.1 Action and equations

The reference vierbein defines a second metric tensor,

[TABLE]

We can make it dynamical by augmenting the massive action by an Einstein-Hilbert term for $f_{\mu\nu}$. The full theory thus reads,

[TABLE]

For $B_{\mu\nu}=0$, it reduces to ghost-free bimetric theory in vierbein formulation Hassan:2011zd ; Hinterbichler:2012cn . For $B_{\mu\nu}\neq 0$ it is not obvious that the kinetic term for the antisymmetric components does not re-introduce the Boulware-Deser ghost. It is not obvious either that the dynamics for ${\tilde{e}}^{a}_{~{}\mu}$ do not destroy the consistency of the model with fixed reference frame. In appendix A we perform a 3+1 split of the fields and explicitly show that the number of propagating degrees of freedom is $2+5+3$, corresponding to a massless spin-2, a massive spin-2 and a massive antisymmetric field. The Boulware-Deser ghost is removed by a constraint, just like in ghost-free bimetric theory.

The action could in principle contain other ghosts, hidden in the kinetic terms for $g_{\mu\nu}$, $f_{\mu\nu}$ and $B_{\mu\nu}$. In the following we show that the equations of motion can again be separated in a way that preserves the kinetic structures with respect to the massless theory. This implies the absence of kinetic mixing introduced by the mass term, which is promising for the consistency of the theory.

Defining $\tilde{\mathcal{V}}_{a}^{~{}\mu}\equiv-\frac{1}{m_{f}^{2}\det{\tilde{e}}}\frac{\delta S_{V}}{\delta{\tilde{e}}^{a}_{~{}\mu}}$ and using again $\mathcal{V}_{a}^{~{}\mu}=-\frac{1}{m_{g}^{2}\det e}\frac{\delta S_{V}}{\delta e^{a}_{~{}\mu}}$, the equations of motions for $e^{a}_{~{}\mu}$ and ${\tilde{e}}^{a}_{~{}\mu}$, respectively, read,

[TABLE]

Here, in addition to (4) we have used the definitions,444On curvatures of the metric $f_{\mu\nu}$, we raise indices with the inverse metric $f^{\mu\nu}$.

[TABLE]

and,

[TABLE]

Using exactly the same arguments as in the case with non-dynamical ${\tilde{e}}^{a}_{~{}\mu}$, it is easy to show that either of the antisymmetric combinations of equations,

[TABLE]

implies,

[TABLE]

The fact that the two equations in (13) are equivalent is a direct consequence of the invariance of the action under diagonal local Lorentz transformations, which we shall discuss below. Plugging the expressions for $\mathcal{B}^{\mu\nu}$ back into the full equations, we obtain,

[TABLE]

where $\tilde{P}^{\mu\nu}{}_{ab}\equiv 2e^{[\mu}{}_{[a}{\tilde{e}}^{\nu]}{}_{b]}$ is the same invertible operator as before.

The vierbein equations in (10) thus separate into one set of antisymmetric components, corresponding to either of the two equivalent expressions in (13), and two sets of symmetric components in (15). The kinetic structures are exactly those of the massless theory.

3.2 Local symmetries

The action in (9) is invariant under the following symmetry transformations.

• •

Local Lorentz transformations which infinitesimally transform the vierbeine as,

[TABLE]

with $\omega_{bc}=-\omega_{cb}$. The transformation is diagonal since the gauge parameters $\omega_{bc}$ are the same for both fields. This is an obvious symmetry: In both metrics as well as in the antisymmetric tensor all Lorentz indices are contracted with the invariant tensor $\eta_{ab}$ while in the interaction potential they are contracted with the invariant tensor $\epsilon_{abcd}$.

• •

Diffeomorphisms which infinitesimally transform the vierbeine as,

[TABLE]

These transformations correspond to the diagonal subgroup of the diff $\times$ diff symmetry which is broken by the mass term and the kinetic term for $B_{\mu\nu}$. In fact the covariant derivatives in the transformations can be taken to be with respect to either metric since the Christoffel symbols of the two terms cancel each other out,

[TABLE]

where we have used $\tilde{\Gamma}^{\sigma}_{\rho\mu}=\tilde{\Gamma}^{\sigma}_{\mu\rho}$. Hence we can also write the transformation of ${\tilde{e}}^{a}_{~{}\mu}$ as,

[TABLE]

which is the proper transformation of a vector under diffeomorphisms of the metric $g_{\mu\nu}$ compatible with $\nabla$. It then follows that the combination $e^{~{}a}_{\mu}\eta_{ab}{\tilde{e}}^{b}_{~{}\nu}$ as well as its symmetric and antisymmetric parts transform as tensors under the diagonal diffeomorphisms. Thus we have the desired transformation property of $B_{\mu\nu}$,

[TABLE]

which can of course also be verified explicitly using (17). The action is therefore invariant under the diagonal diffeomorphism transformations of the vierbeine.

3.3 Linear theory

We will now derive the spectrum of linear perturbations around maximally symmetric backgrounds. These solutions are obtained by making the ansatz ${\tilde{e}}^{a}_{~{}\mu}=ce^{a}_{~{}\mu}$, for which the equations reduce to,

[TABLE]

Here we have defined the background curvatures,

[TABLE]

Since $R_{\mu\nu}(g)=R_{\mu\nu}(c^{2}g)$, we obtain the background condition,

[TABLE]

which is a polynomial equation in $c$ whose roots fully determine the background solution. Next, we consider linear perturbations around the proportional backgrounds,

[TABLE]

These can be combined into the three linear fluctuations of the tensor fields,

[TABLE]

It is then straightforward to show that the linearized equations of motions can be diagonalized into the following three equations,

[TABLE]

where we have defined,

[TABLE]

The linearized Einstein tensor in terms of the covariant derivative $\bar{\nabla}_{\mu}$ compatible with the background metric $\bar{g}_{\mu\nu}$ is given by,

[TABLE]

[TABLE]

We note that these two masses are related by $m_{b}^{2}=-\frac{\alpha^{2}m_{g}^{2}}{3m_{B}^{2}(1+\alpha^{2}c^{2})}m_{\mathrm{FP}}^{2}$. The linearized spectrum described by (26) consists of one massless spin-2, one massive spin-2 and one massive antisymmetric field with a tachyonic mass pole (at least for $c^{2}>0$).555We thank James Bonifacio for pointing this out. The number of propagating degrees of freedom is therefore $2+5+3=10$. In appendix A we confirm that the number of degrees of freedom is the same in the nonlinear theory.

4 Generalization to multiple vierbeine

In this section we further generalize the bigravity theory with antisymmetric components to the case of $\mathcal{N}$ dynamical vierbein fields ${(e_{I})_{\mu}}^{a}$ with $I=1,\ldots,\mathcal{N}$. We define the respective metric tensors as $(g_{I})_{\mu\nu}={(e_{I})_{\mu}}^{a}\eta_{ab}{(e_{I})^{b}}_{\nu}$.

4.1 General structure

Ghost-free multi-vierbein theories contain the $\mathcal{N}$ Einstein-Hilbert kinetic terms,

[TABLE]

For $\mathcal{N}$ vierbein fields there exist $\frac{1}{2}\mathcal{N}(\mathcal{N}-1)$ antisymmetric tensor combinations of the form $\eta_{ab}{(e_{I})_{[\mu}}^{a}(e_{J})_{\nu]}{}^{b}$ with $I\neq J$. Since the $\mathcal{N}$ vierbeine contain $6\mathcal{N}$ Lorentz components, only $\mathcal{N}$ of the antisymmetric tensors can be taken to be independent. Furthermore, the overall Lorentz invariance of the multi-vierbein actions will render one combination unphysical. We can thus choose $(\mathcal{N}-1)$ independent combinations to define $(\mathcal{N}-1)$ antisymmetric tensor fields. The most convenient choice of these combinations depends on the types of couplings present in the multi-vierbein action. We will discuss several explicit examples below. The kinetic terms for the antisymmetric components in the action read,

[TABLE]

with $(H_{I})_{\mu\nu\rho}=3\nabla_{[\mu}(B_{I})_{\nu\rho]}$ and where $g_{\mu\nu}$ is one metric which has picked out of the $\mathcal{N}$ symmetric fields $(g_{I})_{\mu\nu}$. Moreover, the action will contain a potential,

[TABLE]

and thus have the total form $S=S_{g}+S_{B}+S_{\mathrm{int}}$.

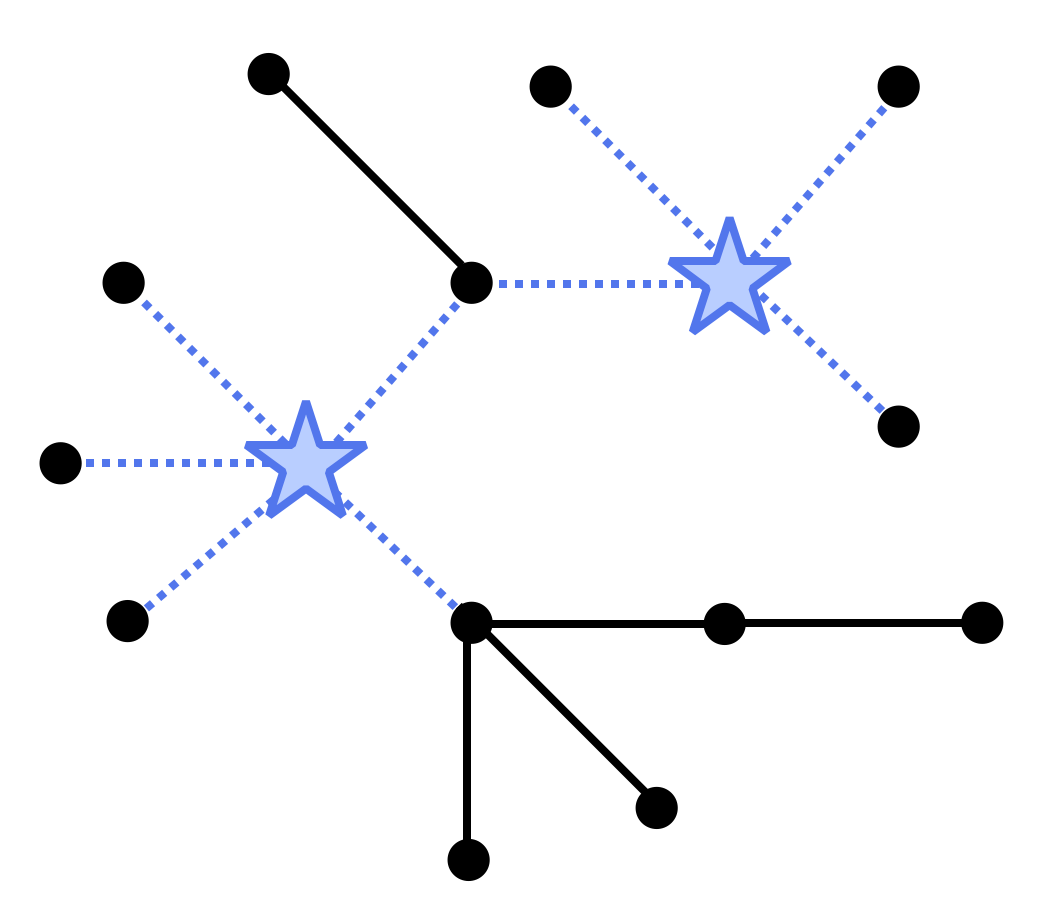

The interactions among the vierbein fields can now have two distinct forms: They can be pairwise couplings Hinterbichler:2012cn , corresponding to multiple copies of the bigravity case, or they can consist of determinant vertices Hassan:2018mcw , which are genuine multi spin-2 interactions involving more than just two vierbeine in one vertex. The pairwise couplings further split up into two categories: The center coupling, where one vierbein in the center interacts with all other vierbeine, and the chain coupling, in which each vierbein (except for the two at the ends of the chain) interacts with exactly two neighbours. The two distinct types of pairwise interaction graphs are displayed in Fig. 1; the left panel of Fig. 2 shows the determinant vertex.

The most general vierbein theory contains all these couplings. The only two restrictions are that the graph of vierbein interactions can never be closed into a loop and that no two vierbeine can share more than one determinant vertex. An example for such a graph is displayed in the right panel of Fig. 2. In the following we discuss giving dynamics to the antisymmetric components for the different types of couplings one by one.

4.2 Pairwise couplings

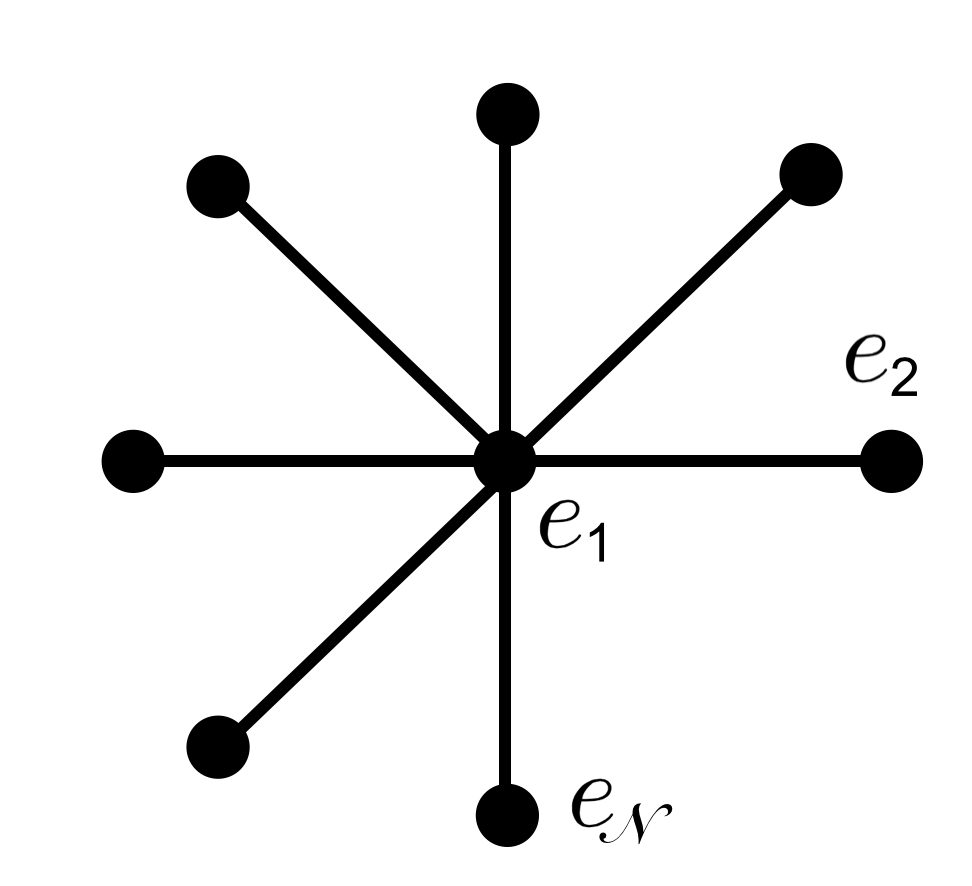

4.2.1 Center coupling

Denoting the three interaction terms in (5) by $V(e,{\tilde{e}}\,;b_{n})$, the center coupling is a sum of pairwise vierbein interactions of the form,

[TABLE]

The vierbein ${(e_{1})_{\mu}}^{a}$ is in the center of the interaction graph and couples directly to all other vierbeine, which do not have any direct interactions among themselves, cf. the left panel of Fig. 1. In this case, we define the set of $(\mathcal{N}-1)$ antisymmetric tensors as,

[TABLE]

for $I=2,\ldots,\mathcal{N}$. These fields are given $(\mathcal{N}-1)$ kinetic terms which can be covariantized independently using any of the metrics $(g_{I})_{\mu\nu}$. A straightforward generalization of the ADM analysis in appendix A then verifies that the number of propagating degrees of freedom in this theory is $2+5(\mathcal{N}-1)+3(\mathcal{N}-1)$, corresponding to one massless spin-2, $(\mathcal{N}-1)$ massive spin-2 and $(\mathcal{N}-1)$ massive antisymmetric tensor fields.

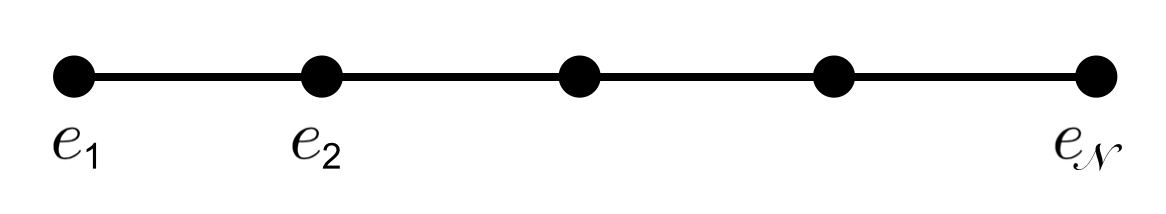

4.2.2 Chain coupling

The chain coupling is also a sum of pairwise vierbein interactions,

[TABLE]

The vierbeine ${(e_{1})_{\mu}}^{a}$ and ${(e_{\mathcal{N}})_{\mu}}^{a}$ sit on the ends of the chain, in which any other vierbein interacts with its two neighbours only. In this case, we define,

[TABLE]

for $I=2,\ldots,\mathcal{N}$, and give kinetic terms to these $(\mathcal{N}-1)$ antisymmetric tensors. Again each of these kinetic terms can be covariantized with any of the metrics $(g_{I})_{\mu\nu}$. As in the case of the center coupling, the propagating degrees of freedom are one massless spin-2, $(\mathcal{N}-1)$ massive spin-2 and $(\mathcal{N}-1)$ massive antisymmetric tensor fields.

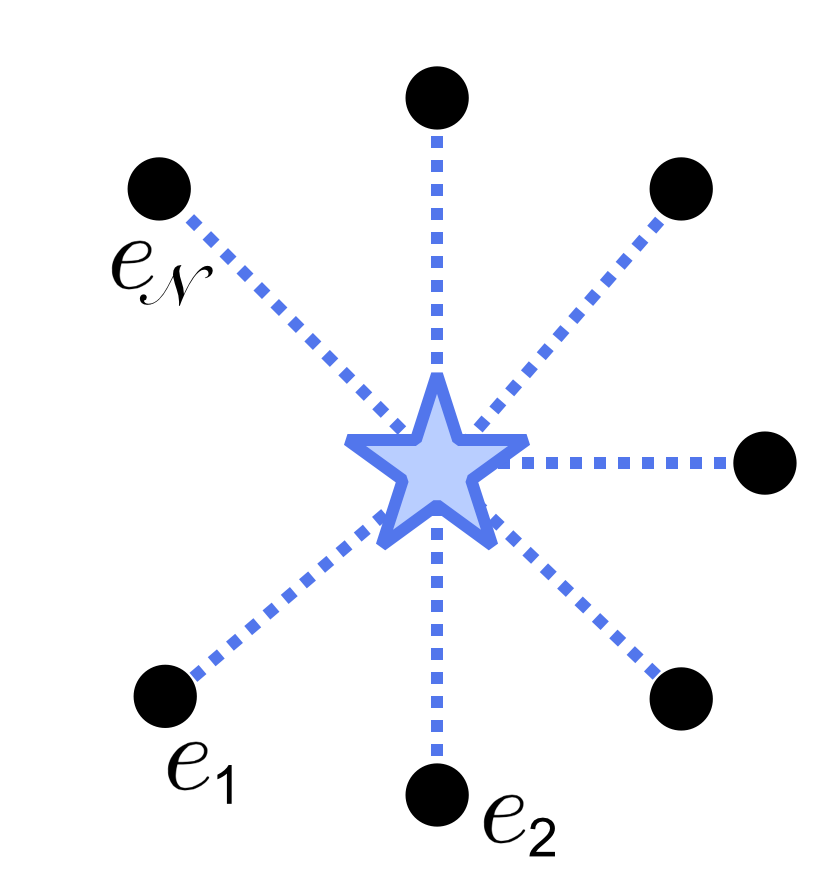

4.3 Determinant vertex

The genuine multiple vierbein interactions are of the following form,

[TABLE]

In contract to the pairwise interactions, in this coupling each vierbein interacts with all other $(\mathcal{N}-1)$ fields. We can now pick any vierbein, for instance ${(e_{1})_{\mu}}^{a}$ and define the $(\mathcal{N}-1)$ independent antisymmetric tensors as,

[TABLE]

for $I=2,\ldots,\mathcal{N}$. Their covariant kinetic terms can again be written using any of the metrics $(g_{I})_{\mu\nu}$. Since the determinant vertex is also of a totally antisymmetric structure, its 3+1 form will be a generalization of eq. (47). The ADM analysis therefore generalizes exactly as in the case of pairwise interactions and the degrees of freedom are again one massless spin-2, $(\mathcal{N}-1)$ massive spin-2 and $(\mathcal{N}-1)$ massive antisymmetric tensor fields.

5 Discussion

We have generalized the massive gravity theory with dynamical antisymmetric components proposed in Ref. Markou:2018wxo to the case with a dynamical reference frame ${\tilde{e}}^{a}_{~{}\mu}$. The difference of the model with fixed reference frame and the fully dynamical setup is similar to the difference of massive gravity with a fixed fiducial metric and bimetric theory with two dynamical tensor fields. In particular, the theory proposed in this work is both local Lorentz and diffeomorphism invariant. The setup with fixed reference vierbein can be obtained from the fully dynamical theory by taking the limit $m_{f}\rightarrow\infty$, while keeping all other parameters fixed.

Maximally symmetric background solutions (i.e. solutions that are invariant under the isometry groups ISO(3,1), SO(4,1) or SO(4,2)) require the vanishing of the antisymmetric components, $B_{\mu\nu}=0$. As we saw, their fluctuations are tachyonic and hence the corresponding vacua are unstable. It would be interesting to see whether this is also the case for other physically relevant solutions, such as spherically symmetric or homogeneous and isotropic backgrounds. In any case, the fluctuations of the massive antisymmetric tensor will introduce nontrivial effects into the perturbation theory around such backgrounds. Whether the nonlinear Hamiltonian is bounded from below is an open question.

Matter can be coupled to the theory in at least three different ways without exciting additional degrees of freedom in the gravitational sector:

• (i)

through a minimal coupling to the vierbein $e^{a}_{~{}\mu}$,

• (ii)

through a minimal coupling to the vierbein ${\tilde{e}}^{a}_{~{}\mu}$,

• (iii)

through a minimal coupling to a linear combination $e^{a}_{~{}\mu}+a{\tilde{e}}^{a}_{~{}\mu}$ with an arbitrary coefficient $a$.

All these couplings will be linear in the lapse and shifts functions of the two vierbeine and therefore not destroy the constraint structure discussed in appendix A.

Interestingly, option (iii) for the matter coupling (which was suggested for bimetric theory in Ref. Noller:2014sta ; Hinterbichler:2015yaa ) also opens up the possibility of defining the gravitational theory in a more symmetric way. Instead of coupling the kinetic term for the $B_{\mu\nu}$ field to the metric $g_{\mu\nu}$ of the vierbein $e^{a}_{~{}\mu}$, we can couple it to the metric built from the linear combination of vierbeine, $G_{\mu\nu}=(e^{a}_{~{}\mu}+a{\tilde{e}}^{a}_{~{}\mu})\eta_{ab}(e^{b}_{~{}\nu}+a{\tilde{e}}^{b}_{~{}\nu})$. The analysis in appendix A can be applied to this case with only minor modifications, which implies that the number of propagating degrees of freedom is again the same. Hence, we obtain another ghost-free action by replacing the metric $g_{\mu\nu}$ in the kinetic term for $B_{\mu\nu}$ in (9) by the metric $G_{\mu\nu}$.

Since the massive $B_{\mu\nu}$ field is dual to a massive vector in $D=4$, it would be interesting to see whether there exists a dual formulation of our setup. This would deliver an equivalent action, possibly formulated in terms of the Lorentz invariant components of the vierbeine (i.e. the corresponding metric tensors $g_{\mu\nu}$ and $f_{\mu\nu}$) and a massive vector field $A_{\mu}$. The dualization of the vierbein potential may thus produce new types of interactions for massless and massive spin-2 with massive vector fields, possibly relating our work to generalized Proca theories Tasinato:2014eka ; Heisenberg:2014rta .

General relativity (GR) and its interpretation in terms of Riemannian geometry are a prime example of the interplay between geometric structures and fundamental physics. Understanding the underlying geometry of any theory which includes gravity is thus crucial. For example, the geometry of string theory and its web of dualities gives rise to interesting new mathematical structures such as the extended space of Double Field Theory Siegel:1993xq ; Siegel:1993th ; Hull:2009mi which is related to generalized geometry Gualtieri:2003dx ; Hitchin:2004ut and Born geometry Freidel:2017yuv ; Freidel:2018tkj . Interestingly, all these setups with intimate relation to quantum gravity contain an antisymmetric structure in addition to the metric. Another example is Hermitian gravity Chamseddine:2000zu ; Chamseddine:2012gh ; Chamseddine:2010rv which proposes a Hermitian geometry for an extension of GR and also includes an antisymmetric tensor field. The underlying geometric structures of massive spin-2 theories still need to be constructed and understood in detail. The extension by an antisymmetric field as presented in this work may provide a first step in this direction.

Acknowledgements.

We are grateful to James Bonifacio for very valuable comments on the draft. This work is supported by a grant from the Max-Planck-Society.

Appendix A ADM analysis

This appendix contains an ADM constraint analysis and a degree of freedom counting in ADM variables for the vierbeine Arnowitt:1962hi .

A.1 The 3+1 parametrization

We parameterize the general vierbein $e^{a}_{~{}\mu}$ as a Lorentz transformation of a gauge-fixed vierbein $E^{a}_{~{}\mu}$,

[TABLE]

where

[TABLE]

Here $\alpha,\beta=1,2,3$ are spatial Lorentz and $i,j=1,2,3$ are spatial coordinate indices. Moreover, the Lorentz rotations sit entirely in $E^{\beta}_{~{}i}$, such that we can write

[TABLE]

for some gauge-fixed $\bar{E}^{\alpha}_{~{}i}$ with 6 independent components and $R^{\mathrm{T}}=R^{-1}$. The second vierbein is parameterized as,

[TABLE]

which does not require its own set of Lorentz parameters. They can be shifted into $e^{a}_{~{}\mu}$ because the action is invariant under diagonal local Lorentz transformations. Thus ${{\varphi}}^{\alpha}_{~{}i}$ has only 6 independent components.

The ADM expressions for the vierbeine induces the 3+1 split for the antisymmetric tensor defined by $B_{\mu\nu}=2\eta_{ab}{\tilde{e}}^{a}_{~{}[\mu}e^{b}_{~{}\nu]}$. The result is,

[TABLE]

In particular, $B_{0i}$ is linear in the lapses and shifts while $B_{ij}$ is independent of them.

A.2 Kinetic terms

The 3+1 splits for the Einstein-Hilbert terms written in terms of the vierbeine are of the form Deser:1976ay (see also Peldan:1993hi ),

[TABLE]

where $\bar{\Pi}_{\alpha}^{~{}i}$ and $\tilde{\Pi}_{\alpha}^{~{}i}$ are the canonical momenta conjugate to the spatial vierbein components ${\bar{E}}^{\alpha}_{~{}i}$ and ${{\varphi}}^{\alpha}_{~{}i}$, respectively. The kinetic terms for $g_{\mu\nu}$ and $f_{\mu\nu}$ are linear in $N$, $N^{i}$, $L$ and $L^{i}$ since the constraint contributions $\mathcal{C}^{(e)}$, $\mathcal{C}^{(e)}_{i}$, $\mathcal{C}^{({\tilde{e}})}$ and $\mathcal{C}^{({\tilde{e}})}_{i}$ do not depend on the lapse and shift functions. The precise form of the constraints will not be needed in the following.

The antisymmetric tensor is split into its components $B_{0i}$ and $B_{ij}$, for which we insert the expressions in (43a). As was shown in Ref. Markou:2018wxo , the kinetic term for $B_{\mu\nu}$ then possesses the following form,

[TABLE]

where $\Pi^{mn}$ is the canonical momentum conjugate to ${B}_{mn}$ and $\Xi^{kl,ij,pq}\equiv\gamma^{lk}\gamma^{pi}\gamma^{qj}+\gamma^{lj}\gamma^{pk}\gamma^{qi}+\gamma^{li}\gamma^{pj}\gamma^{qk}$. This can be rewritten as,

[TABLE]

where none of the constraint contributions $\mathcal{C}^{(B)}$, $\mathcal{C}^{(B)}_{i}$, $\tilde{\mathcal{C}}^{(B)}$ and $\tilde{\mathcal{C}}^{(B)}_{i}$ depend on the lapses and shifts. As we argued in Ref. Markou:2018wxo , a field redefinition can relate the 3 dynamical components ${B}_{ij}$ to the 3 Lorentz rotation parameters in $R^{\alpha}_{~{}\beta}$.

A.3 Interaction potential

As was first shown in Ref. Hinterbichler:2012cn and reviewed in detail in Ref. Markou:2018wxo , the antisymmetric structure of the potential $V$ ensures its linearity in the $e^{a}_{~{}0}$ and ${\tilde{e}}^{a}_{~{}0}$ components of the vierbeine. This in turn implies that the potential is linear in the lapse and shift functions of both $e^{a}_{~{}\mu}$ and ${\tilde{e}}^{a}_{~{}\mu}$. Hence we can write,

[TABLE]

where $\mathcal{C}^{(V)}$, $\mathcal{C}^{(V)}_{i}$, $\tilde{\mathcal{C}}^{(V)}$ and $\tilde{\mathcal{C}}^{(V)}_{i}$ are functions of the remaining ADM variables alone.

A.4 Full action

Putting together the results for the two kinetic terms and the mass potential, the whole action assumes the form,

[TABLE]

where the $\mathcal{C}$ and $\mathcal{C}_{i}$, $\tilde{\mathcal{C}}$ and $\tilde{\mathcal{C}}_{i}$ contain the contributions from (44), (47) and (46) which do not depend on $N$, $N^{i}$, $L$ and $L^{i}$.

The equations for $v^{\alpha}$ can now be solved for the components of one of the shift vectors, say $L_{i}$. This gives a solution for $L_{i}$ which is linear in $N$, $L$ and $N^{i}$. The $L_{i}$ equations can be solved for $v^{\alpha}$ and imply $\tilde{\mathcal{C}}_{i}=0$. Thus, after solving the constraints for $L_{i}$ and $v^{\alpha}$, the action is of the form

[TABLE]

where the remaining constraints $\mathcal{C}$, $\mathcal{C}_{i}$ and $\tilde{\mathcal{C}}$ are functions of ${\bar{E}}^{\alpha}_{~{}j}$, ${\varphi}^{\alpha}_{~{}j}$, ${B}_{ij}$ and their canonical momenta.

The equations for $N$, $N^{i}$ and $L$ impose 5 constraints on the dynamical variables ${\bar{E}}^{\alpha}_{~{}j}$, ${\varphi}^{\alpha}_{~{}j}$, ${B}_{ij}$ (or $R^{\alpha}_{~{}\beta}$). The number of propagating degrees of freedom is thus expected to be $6+6+3-5=10$, corresponding to a massless spin-2 (2), a massive spin-2 (5) and a massive $B_{\mu\nu}$ field (3).

The shift constraint $\mathcal{C}_{i}$ together with a combination of the lapse constraints $\mathcal{C}$ and $\tilde{\mathcal{C}}$ will generate the diagonal diffeomorphism symmetry of the action. The remaining combination of lapse constraints only removes a full degree of freedom if it gives rise to a secondary constraint. We do not explicitly verify these expected features here. For pure bimetric theory, they were confirmed in Ref. Hassan:2011ea ; Hassan:2018mbl .
