Schroedinger Correspondence Applied to Crystals

TL;DR

This paper discusses Schroedinger's 1926 work on wave packets in harmonic oscillators, highlighting a novel correspondence principle that links quantum states to classical motion, with applications to harmonic solids.

Contribution

It extends Schroedinger's correspondence principle to N-dimensional harmonic oscillators, offering a new approach to analyze harmonic solids and anharmonic effects.

Findings

Schroedinger's wave packets follow classical equations of motion.

The correspondence principle applies to multi-dimensional oscillators.

Potential applications to anharmonic corrections in solids.

Abstract

In 1926, E. Schroedinger published a paper solving his new time dependent wave equation for a displaced ground state in a harmonic oscillator (now called a coherent state). He showed that the parameters describing the mean position and mean momentum of the wave packet obey the equations of motion of the classical oscillator while retaining its width. This was a qualitatively new kind of correspondence principle, differing from those leading up to quantum mechanics. Schroedinger surely knew that this correspondence would extend to an N-dimensional harmonic oscillator. This Schroedinger Correspondence Principle is an extremely intuitive and powerful way to approach many aspects of harmonic solids including anharmonic corrections.

Figures

Equations

$$\psi (q,0)=\exp \left[i\frac{A_0}{\hslash }(q-q_0{)}^2+\frac{i}{\hslash }{p}_0(q-q_0)+\frac{i}{\hslash }{s}_0\right]$$

$$\psi (q,t)=\exp \left[i\frac{A_t}{\hslash }(q-q_t{)}^2+\frac{i}{\hslash }{p}_t(q-q_t)+\frac{i}{\hslash }{s}_t\right].$$

$$p_t$$

$$q_t$$

$$s_t=s_0+\frac{1}{2}[p_t{q}_t-p_0{q}_0-\omega t].$$

$${\psi }_t(\mathbf{q})$$

$$\frac{d}{dt}{\mathbf{q}}_t$$

$$\frac{d}{dt}{\mathbf{p}}_t$$

$${\mathbf{A}}_t$$

$$\displaystyle{\frac{d}{dt}}\left(\begin{array}[]{c}{\bm{P}_{Z}}\\ {\bm{Z}}\end{array}\right)$$

$${\dot{s}}_t$$

$$s_t$$

$${\left[{\mathbf{V}}^{\prime \prime }\right]}_{ij}=\frac{{\partial }^{2}H}{\partial q_i\partial q_j}$$

$$\displaystyle\left(\begin{array}[]{c}{\bm{P}_{\bm{Z}_{t}}}\\ {\bm{Z}_{t}}\end{array}\right)$$

$${\frac{d{{\bm{M}}(t)}}{dt}}=\,\left(\begin{array}[]{cc}{\bm{0}}&{-{\bm{V}^{\prime\prime}}{(t)}}\\ {\bm{m}^{-1}}&{\bm{0}}\end{array}\right){\bm{M}}(t).$$

$$\mathbf{M}(t)$$

$$\psi (x,y)=\exp [$$

$$+{\mu }_t(x-x_t)(y-y_t)+i{\varphi }_t].$$

$${\mathcal{R}}_{+}H({\theta }_1,{\theta }_2,\dots ,{\theta }_N)=H({\theta }_N,{\theta }_1,\dots ,{\theta }_{N-1}){\mathcal{R}}_{+}=H({\theta }_1,{\theta }_2,\dots ,{\theta }_N){\mathcal{R}}_{+}$$

$${\mathcal{R}}_{+}H{\mathcal{R}}_{+}^{-1}{\mathcal{R}}_{+}\psi (\mathbf{\chi })=H\left[{\mathcal{R}}_{+}\psi (\mathbf{\chi })\right]=E\left[{\mathcal{R}}_{+}\psi (\mathbf{\chi })\right]$$

$${\mathcal{R}}_{+}^p\psi (\mathbf{\chi })=e^{ip{k}_{m}a}\psi (\mathbf{\chi }).$$

$$H=\frac{1}{2m{R}^2}\sum _{\ell =1}^N{L}_{\ell }^2+\sum _{\ell =1}^{N-1}\frac{1}{2}\kappa R^2({\theta }_{\ell +1}-{\theta }_{\ell }{)}^2,$$

$$H=-\frac{{\hslash }^2}{2m{R}^2}\sum _{\ell =1}^N\frac{{\partial }^2}{\partial {\theta }_{\ell }^2}+\sum _{\ell =1}^{N-1}\frac{1}{2}\kappa R^2({\theta }_{\ell +1}-{\theta }_{\ell }{)}^2.$$

$${\chi }_n=\frac{R}{\sqrt{N}}\sum _{\ell =1}^N{e}^{ia{k}_n\ell }{\theta }_{\ell }=\frac{R}{\sqrt{N}}\sum _{\ell =1}^N{e}^{i2\pi n\ell /N}{\theta }_{\ell },$$

$${\theta }_{\ell }=\frac{1}{R\sqrt{N}}\sum _{n=-b_N}^{b_N}{e}^{-ia{k}_n\ell }{\chi }_n=\frac{1}{R\sqrt{N}}\sum _{n=-b_N}^{b_N}{e}^{-i2\pi n\ell /N}{\chi }_n.$$

$$H=\sum _{n=-b_N}^{b_N}\frac{1}{2m}{p}_{{\xi }_n}^2+\sum _{n=b_N}^{b_N}\frac{1}{2}m{\omega }_n^2{\xi }_n^2$$

$$L=\sum _{\ell =1}^{N}m{R}^2{\dot{\theta }}_{\ell }=\sqrt{N}mR{\dot{\xi }}_0\equiv M{R}^2\dot{\Theta }$$

$$\hat{L}=\sum _{\ell =1}^N{\hat{L}}_{\ell }=-i\hslash \sum _{\ell =1}^N\frac{\partial }{\partial {\theta }_{\ell }}=-i\hslash \frac{\partial }{\partial \Theta }.$$

$$H=-\sum _{n=b_N}^{b_N}\frac{{\hslash }^2}{2m}\frac{{\partial }^2}{\partial {\xi }_n^2}+\sum _{n=b_N}^{b_N}\frac{1}{2}m{\omega }_n^2{\xi }_n^2$$

$$\frac{{\hslash }^2}{2m}\frac{{\partial }^2}{\partial {\xi }_0^2}=\frac{{\hslash }^2}{2M{R}^2}\frac{{\partial }^2}{\partial {\Theta }^2}$$

$$|K,\mathbf{\eta }⟩=e^{iK\Theta }\prod _{\begin{array}{c}n=-b_N\\ n\ne 0\end{array}}^{b_N}|{\eta }_n⟩$$

$$⟨{\xi }_n|{\eta }_n⟩=\frac{1}{\sqrt{2^{{\eta }_n}{\eta }_n!}}{\left(\frac{m{\omega }_n}{\pi \hslash }\right)}^{1/4}{e}^{-\frac{m{\omega }_n{\xi }_n^2}{2\hslash }}{H}_{{\eta }_n}\left(\sqrt{\frac{m{\omega }_n}{\hslash }}{\xi }_n\right).$$

$$|0,0⟩=e^{i0\Theta }\prod _{n=-b_N}^{b_N}|0_n⟩$$

Full text

\SectionNumbersOn

Chem]Department of Chemistry and Chemical Biology, Harvard University, Cambridge, MA 02138 \alsoaffiliation[Phys]Department of Physics, Harvard University, Cambridge, MA 02138

Chem]Department of Chemistry and Chemical Biology, Harvard University, Cambridge, MA 02138

1 Introduction

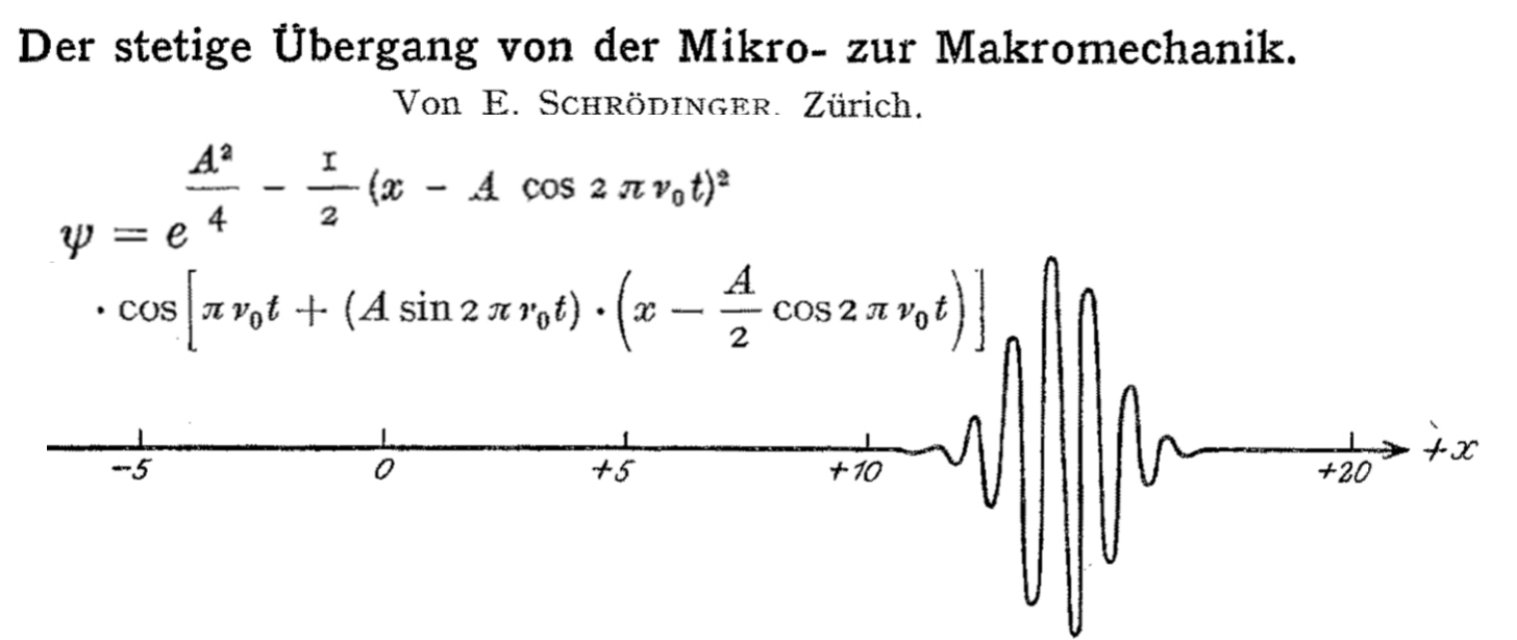

In 1926 Schrödinger made the connection between the dynamics of a displaced quantum ground state Gaussian wave packet in a harmonic oscillator and classical motion in the same harmonic oscillator1 (see figure 1). The mean position of the Gaussian (its guiding position center) and the mean momentum (its guiding momentum center) follows classical harmonic oscillator equations of motion, while the width of the Gaussian remains stationary if it initially was a displaced (in position or momentum or both) ground state. This classic “coherent state” dynamics is now very well known2. Specifically, for a harmonic oscillator with Hamiltonian $H=p^{2}/2m+\frac{1}{2}m\omega^{2}q^{2}$ , a Gaussian wave packet that beginning as

[TABLE]

becomes, under time evolution,

[TABLE]

where

[TABLE]

(i.e. classical motion for the guiding trajectory ($q_{t},\,p_{t}$)) and if $\,A_{0}=im\omega/2$ then $A_{t}=A_{0}$. The phase then obeys

[TABLE]

More general “squeezed state” time dependent solutions apply if the Gaussian spread of the initial wave packet is a narrower or broader Gaussian than is the ground state of the same oscillator. In this case, the Gaussian “breathes,” becoming wider and narrower twice per period of the harmonic oscillator. Arbitrary time dependent harmonic potentials have exact solutions in terms of Gaussians and their parameters, which are always classical in nature. Here we can exploit the coherent state solutions.

Any imaginable classical motion of a harmonic solid must have a quantum analog, according to Schrödinger correspondence. Each normal mode of a finite crystal, no matter what the size, is a one dimensional oscillator, with frequencies and “classical” parameters appropriate to the initial conditions. For example, below we will consider the interesting events after an atom in a crystal is kicked by a $\gamma$ ray photon in the Mössbauer effect.

In the case of a general Gaussian in a general, N-dimensional time dependent quadratic form potential, the governing equations are 2

[TABLE]

where ${\bm{A}}_{t}$ is an N$\times$N-dimensional matrix for N coordinates, and ${\bm{q}},\,{\bm{q}_{t}},\,{\bm{p}_{t}}$ are N-dimensional vectors, that obey

[TABLE]

or,

[TABLE]

${\bm{V}^{\prime\prime}}$ and ${\bm{m}^{-1}}$ are N-dimensional matrices of mixed second derivatives of the Hamiltonian with respect to position and momentum coordinates, respectively. That is,

[TABLE]

and so forth. Also

[TABLE]

where from equation (15) and equation (23) we have

[TABLE]

${\bm{M}}(t)$ is the stability matrix,

[TABLE]

where ${\bm{m}}_{11}=\partial{\bm{p}}_{t}/\partial{\bm{p}}_{0}|_{{\bm{q}}_{0}}$, ${\bm{m}}_{12}=\partial{\bm{p}}_{t}/\partial q_{0}|_{{\bm{p}}_{0}}$, ${\bm{m}}_{21}=\partial{\bm{q}}_{t}/\partial{\bm{p}}_{0}|_{{\bm{q}}_{0}}$, and ${\bm{m}}_{22}=\partial{\bm{q}}_{t}/\partial{\bm{q}}_{0}|_{{\bm{q}}_{0}}$.

These solutions apply even if different and independent harmonic oscillator degrees of freedom are correlated in the Gaussian, as in the Hamiltonian $H=p_{x}^{2}/2m+p_{y}^{2}/2m+m\omega_{x}^{2}x^{2}/2+m\omega_{y}^{2}y^{2}/2$ with

[TABLE]

Similar equations follow for time dependent Gaussians multiplied by Hermite polynomials, i.e. wave packet solutions corresponding to displaced excited harmonic oscillator states.

For our purposes, considering a harmonic crystal in its ground state with all its separable normal modes (nominally phonons, but see below), and disturbances of this lattice of various sorts, it will be possible to consider time dependent, independent oscillators for each normal mode degree of freedom.

Starting with a laboratory coordinate for each atom in a solid, supposed to be free floating as on the space shuttle, we have $3N-6$ internal, normal coordinates and 6 zero frequency modes that arise from translational and rotational symmetry of the whole. As we will be pointing out in subsequent publications, the zero frequency “external” modes are ignored at one’s peril, because conceptual problems can arise which can lead to ambiguity and fundamental flaws in understanding.

2 Phonon momentum and wave vector

First we establish the notion of phonon mechanical momentum $\vec{p}$ and phonon pseudomomentum $\hbar\vec{k}$, with phonon wave vector $\vec{k}$. The pseudomomentum and mechanical momentum are independent, as will be justified in the following. We will see that phonon mechanical momentum $\vec{p}$ belongs to the center of mass translation of the whole crystal, whereas phonon wave vector $\vec{k}$ gives a pseudomomentum $\hbar\vec{k}$ that can be independent of $\vec{p}$ and is not a mechanical momentum.

It must be emphasized, although obvious, that phonons are “of a piece” with the lattice. They are parasitic and cannot exist outside the lattice. In his well known textbook Kittel 3 states “. . . a phonon really carries zero momentum….” Kittel was using the word phonon to mean a crystal normal mode, not a corpuscle, just as in quantum electrodynamics, where the word photon is sometimes used for a singly occupied cavity mode. Ashcroft and Mermin4 clarified the role of corpuscles, stating “Usually the language of normal modes is replaced by a corpuscular description…”, adding that the concept of a phonon is deliberately analogous to that of a photon.

The understanding of phonon pseudomomentum vs. mechanical momentum is star-crossed at best. The problem is traceable to the tradition of suppressing the role of whole crystal momentum, usually by eliminating it before equation 1 so to speak, by writing interactions in internal coordinates. Writing that pseudomomentum is sometimes called “crystal momentum”, Kittel calls the momentum confusion a “delicate point” in a footnote, stating

…. Thus in an ${\rm H}_{2}$ molecule the internuclear vibrational coordinate ${\bm{r}}_{1}-{\bm{r}}_{2}$ is a relative coordinate and does not carry linear momentum; the center of mass coordinate $({{\bm{r}}_{1}+{\bm{r}}_{2}})/{2}$ corresponds to the uniform mode and can carry linear momentum.

Strangely, Kittel goes on to assign the “uniform mode” carrying momentum to the internal $K=0$ phonon mode, i.e. the infinite wavelength mode of an infinite crystal. Since he, like almost all authorities, has long since abandoned the crystal center of mass translation, the $K=0$ mode is the best thing left on the shelf so to speak, but it is not correct. This mode only has the right flavor; the correct assignment is to the $\omega=0$ normal mode, an assignment that is correct for a finite crystal. No internal mode can correctly describe the overall rigid translation of the crystal, which had just been highlighted by Kittel’s ${\rm H}_{2}$ example, which required only 2 atoms!

Nonetheless Kittel clearly understood the essential momentum carrying role of the center of mass. He did not assign a wavefunction to this mode, which is actually $\exp[i\vec{K}\cdot\vec{X}]$, where $\vec{X}$ is the center of mass of the crystal, for which $\vec{K}\neq 0$ in general. We call the momentum carrying external modes “$K$” modes, in honor of Prof. Charles Kittel, age 102 as of this writing. We note that three rotational degrees of freedom are also K modes. It does not matter if the crystal is attached to a lab bench, etc.; momentum conservation is still maintained and the attachment normally has no effect on internal crystal dynamics.

3 Definitions

It helps to put some objects in what we call the foreground, and the remainder of the whole crystal is the background. An electron and/or a phonon may be a foreground object for example. A neutron passing through a crystal is a foreground object. Foreground objects may have mechanical or pseudo momentum, and so too may the background. The momentum of the system, i.e. foreground plus background, must be conserved.

Mechanical linear momentum of an object is defined classically as the sum of masses times Cartesian velocities of the object’s constituent particles, and quantum mechanically as the sum over the particle momentum operators $-i\hbar\partial/\partial x_{j}$. The conservation of this momentum for the totality of objects is a consequence of translational invariance of the total Hamiltonian and its dynamics. Similar statement are made about angular momentum. We will see that phonon mechanical momentum can alternately be assigned to the crystal center of mass momentum or to a localized corpuscle.

Phonon pseudomomentum is a consequence of Hamiltonian symmetry under cyclic particle re-labeling. It need not be conserved if cyclic particle re-labeling is not a symmetry, as when a defect is present. Phonon pseudomomentum is conserved under phonon-phonon interactions even with anharmonicity.

Electron pseudomomentum is a consequence of Hamiltonian symmetry under electron translation by primitive lattice vectors for a fixed lattice. The pseudomomentum acknowledges that mechanical momentum must undulate in energy conserving motion in a periodic potential, replacing mechanical momentum which is not conserved with a pseudomomentum that is conserved.

Crystal pseudomomentum applies when considering an electron or other particle as a foreground object as distinct from the rest of the crystal, i.e. the background. Then, as the foreground object is held fixed while the background is translated, an undulating potential is again experienced, implying a background crystal pseudomomentum. In elastic defect electron scattering in a crystal, the electron and the crystal exchange pseudomomenta.

Total momentum results from translational symmetry of the whole. The total momentum $P$ is the sum of the electron pseudomomentum $\hbar k$ and crystal pseudomomentun $\hbar K$: $P=\hbar K+\hbar k$. This is especially apparent if the electron entered from outside the crystal: total mechanical momentum of crystal + electron is conserved, but the total momentum is the sum of two pseudomomenta while the electron is inside the crystal.

Symmetry and phonon pseudomomentum What symmetry gives rise to phonon pseudomomentum? It is not best thought of as a translational symmetry. Continuous translational symmetry gives rise to ordinary total momentum and is a symmetry possessed by a finite crystal residing in free space. The system Hamiltonian is the same under any free translation; it gives rise to system center of mass momentum conservation. Translation of the system that happens to be by a lattice translation vector is nothing special; the Hamiltonian is the same even if the translation is not a lattice vector. Classical particle shift symmetry is a more appropriate symmetry: we replace atoms with their neighbors in a toroidal geometry, as in $x_{n}\to x_{n+1}$, with $x_{N}\to x_{1}$.

For a circular ring of identical atoms with identical forces between them, labeled by their angle $\theta_{i}$ on the ring, the invariance of Hamiltonian under the operator ${\cal R}_{+}$ can be written

[TABLE]

i.e. $\theta_{i}\to\theta_{i-1}$, and ${\cal R}_{+}H=H{\cal R}_{+}$. There is also the inverse operator with the reverse replacement, and a finite cyclic group. This is a permutation symmetry of labels, after which operation the Hamiltonian reads the same. Cyclic atom replacement requiring ${\cal R}_{+}H=H{\cal R}_{+}$ is certainly not a continuous translation symmetry and it cannot generate a traditional momentum. The Schrödinger equation satisfies

[TABLE]

with ${\bm{\chi}}=(\theta_{1},\theta_{2},\dots,\theta_{N})$, which implies that eigenfunctions of $H$ are or can be chosen (if they are degenerate) to be eigenfunctions of ${\cal R}_{+}$. With the mod $N$ condition,

[TABLE]

where $m$ and $p$ are integers, which implies a pseudomomentum $k_{m}=2\pi m/Na$ where $a$ is the distance between neighbors.

However, this momentum is only defined within multiples of a reciprocal lattice vector, since $k_{m}\to k_{m}+2\pi M/a$ does not change the phase factor $e^{ik_{m}a}$. Thus, in any manipulations we may want to adjust $k$ to put it in the first Brillouin zone by adding multiples of reciprocal lattice vectors. This is optional because other Brillouin zones are just copies of the first one.

If some atoms or bonds differ in some way, ${\cal R}_{+}H\neq H{\cal R}_{+}$ and atom shift symmetry is broken. Phonon wave vector or pseudomomentum will not be conserved.

The conservation of phonon pseudomomentum for a collection of phonons works like the conservation of mechanical momentum: the sum of the momenta must be conserved, although individual momenta may change if the crystal is anharmonic, causing phonons to interact.

4 Line of Atoms

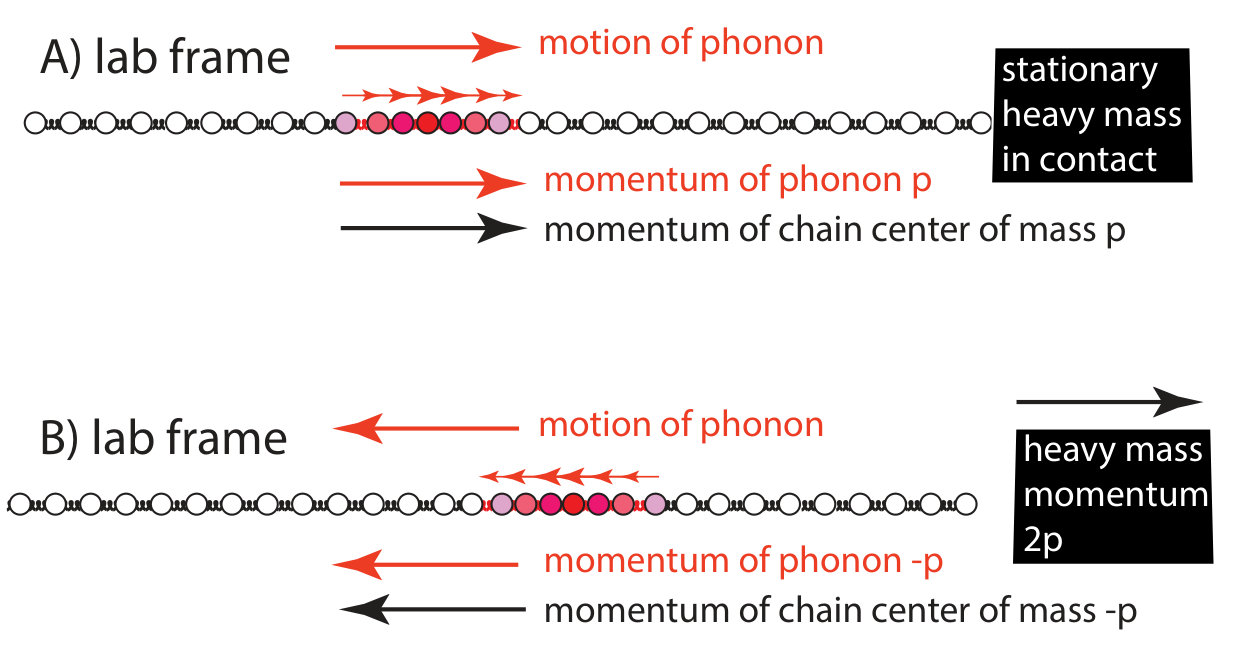

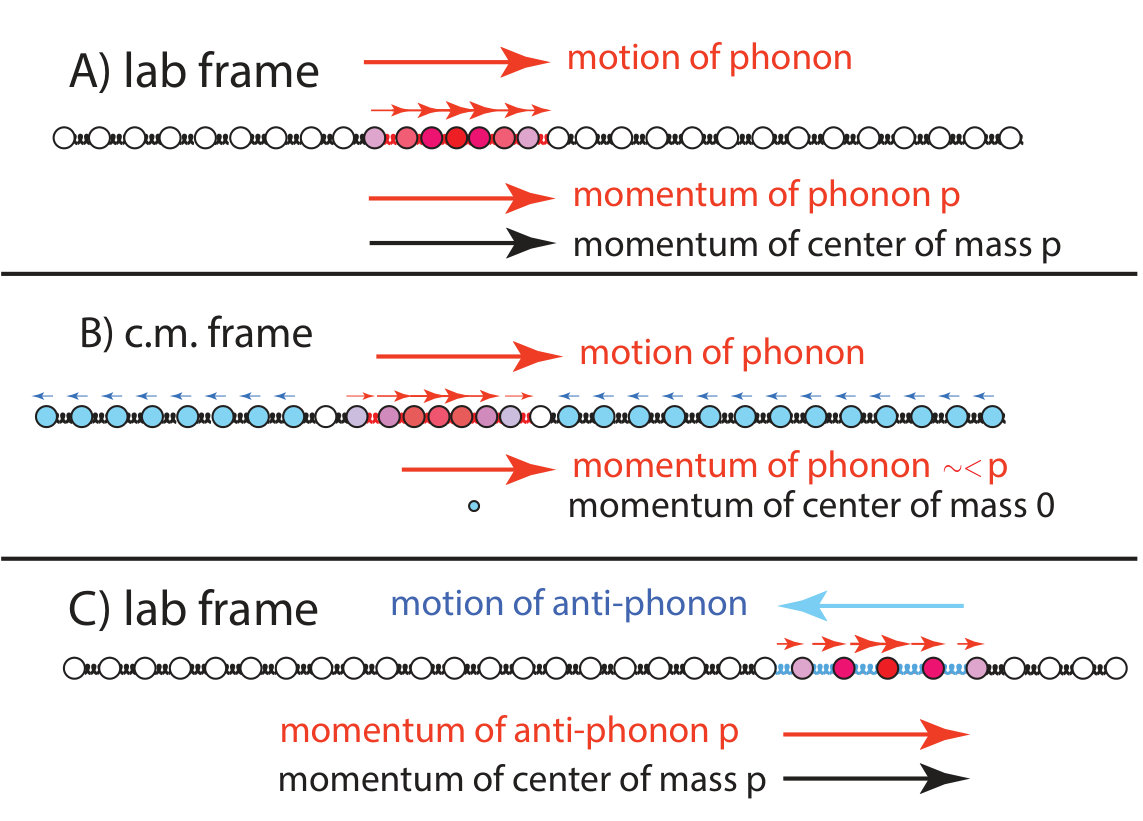

Figure 2 begins the exercise of Schrödinger correspondence to an interesting many body situation.

We now consider an N-atom 1D classical harmonic chain of atoms (1D crystal), and by Schrödinger correspondence a quantum chain.

A line or chain of harmonically connected atoms with free ends can be described in the lab or center of mass frame. If the chain is initially at rest in the lab frame and the left end atom is transiently forced left to right, a corpuscle of energy and momentum is caused to travel down the chain. The system center of mass momentum will have received a boost. In panels A and C of figure 2 we describe the chain in the lab frame. Panel B shows motion in the center of mass frame, describable entirely in terms of “internal” nonon coordinates, none of which carries any momentum. There can be phonon corpuscles with local momentum density traveling along the chain. A moment’s reflection reveals that any such momentum belongs to the center of mass of the chain; it is often a matter of taste whether the momentum is thought of as belonging to the phonon or to the center of mass.

In the lab frame used in panels A and C, there is positive center of mass momentum carried by the K mode. All of this momentum is attributable to the corpuscle. This remains true after the corpuscle reflects from the end to become an anti-corpuscle or antiphonon of lower than background mass density. The corpuscle’s momentum still points to the right, now in opposition to its motion toward the left. Both before and after the collision with the free end, the corpuscle is responsible for the center of mass momentum, which cannot change in the absence of external forces. When the anticorpuscle collides with the left end, it reflects as a corpuscle again. The scenario corresponds roughly to an air pressure pulse in a tube with both ends open, apart from the part of the pulse that is radiated from the tube ends.

The foreground (corpuscle) momentum and the background momentum are different in the two frames. The corpuscle in B has a momentum slightly lower than in A and C. This difference vanishes in the limit of a large chain, since the drift velocity of the non-corpuscle masses is proportional to the inverse of the chain length. The time between passes of the corpuscle is proportional to the chain length. The displacement of atoms as the corpuscle passes by is independent of chain length. Over time, the atoms do not drift right or left in the center of mass frame.

The corpuscle in the lab frame chain has mechanical momentum $p$ that can be calculated in the usual way by adding all the velocities of the masses comprising it. If a large free mass is just touching the right hand chain member, then very nearly (and exactly as the large mass approaches infinite mass) momentum $2p$ is imparted to the heavy mass, as the corpuscle arrives(figure 3). With the heavy mass present, the corpuscle now recoils as a positive mass density pulse, with reversed momentum. The heavy mass behaves just as if it had been struck by a particle of momentum $p$ and it acquires momentum $2p$. The total momentum of the chain plus heavy mass remains fixed.

If the chain is pushed to the right followed quickly by an opposite pull, a wave of compression followed by rarefaction is sent down the chain. The two parts together, if carefully balanced, have cancelling, net zero momentum, even though they may be traveling briskly down the chain. Energy is nonetheless being propagated in this composite phonon. The pushing and pulling could be done periodically, apart from fading in and out, creating a well defined phonon pseudomomentum for a phonon with no mechanical momentum. Because of Schrödinger correspondence, we can take any classical scenarios quite seriously quantum mechanically. If so, we have learned that phonons can have mechanical momentum or not, quite apart from their pseudomomentum. We apply the Schrödinger correspondence explicitly to the ring of atoms considered next.

5 Ring of Atoms

A chain of atoms connected to itself as in a circle (Born-von Karman boundary conditions) is a well known model. Ashcroft and Mermin choose these conditions on an N-atom chain for convenience, stating “for if N is large, and we are not interested in end effects, then the precise way in which the ends are treated is immaterial.” 4 We disagree with this seemingly benign statement, for it hides once again the role of the total momentum or here, the angular momentum. The zero frequency angular momentum mode gets no mention in their treatment.

To be specific, an N atom chain slides frictionlessly on a rigid ring confined to the plane. Each atom is linked by harmonic springs (figure 4) to its neighbors. We issue a warning that although this model has rotational symmetry and well defined angular momentum, it has not been set free to flex or translate as a whole, so its physics is realistic only for 1D motion along the ring. If for example an atom in the ring were to emit a $\gamma$ ray into the 2D plane, momentum would not be conserved.

We form N normal modes in the usual way. One of these modes has zero frequency or no restoring force. In that mode, all the atoms move in unison around the ring. It is the only mode that can carry angular momentum.

The kinetic energy is that of $N$ atoms each of mass $m$ in a free sliding heavy rigid ring of radius $R$. There are $N$ angles required to specify the positions of the atoms, which interact by harmonic potentials with a Hamiltonian given as

[TABLE]

which is quantized as

[TABLE]

The normal modes $\chi_{k}$ that diagonalize the force matrix can be written down by symmetry, for N atoms on a ring of radius $R$, as

[TABLE]

[TABLE]

with $n:-(N-1)/2,\cdots,0,\cdots,(N-1)/2$, $b_{N}=(N-1)/2$, $a=2\pi R/N$ and $k_{n}=2n\pi/Na$ with normal frequency $\omega_{n}=2\sqrt{\kappa/m}\sin\left|\frac{k_{n}a}{2}\right|=2\sqrt{\kappa/m}\sin\left|\frac{n\pi}{N}\right|$.

We wish to use real valued normal modes $\xi_{k}$. The $\chi_{0}$ mode is already real, so we define $\xi_{0}\equiv\chi_{0}$. We take two real linear combinations of the degenerate modes $\chi_{n}$ and $\chi_{-n}$ to make two standing waves, one a cosine $\xi_{n}=\frac{\chi_{n}+\chi_{-n}}{\sqrt{2}}=\frac{R}{\sqrt{N/2}}\sum\limits_{\ell=1}^{N}\cos(2\pi n\ell/N)\theta_{\ell},n:[-b_{N},-1]$ and one a sine $\xi_{n}=\frac{\chi_{n}-\chi_{-n}}{\sqrt{2}i}=\frac{R}{\sqrt{N/2}}\sum\limits_{\ell=1}^{N}\sin(2\pi n\ell/N)\theta_{\ell},n:[1,b_{N}]$. The Hamiltonian becomes, in the normal coordinates,

[TABLE]

with normal frequency $\omega_{n}=2\sqrt{\kappa/m}\sin\left|\frac{k_{n}a}{2}\right|=2\sqrt{\kappa/m}\sin\left|\frac{n\pi}{N}\right|$. The coordinate $\xi_{0}$ stands out as having no restoring force. It is the K mode, a measure of the overall rotation of the atoms of the ring; its conjugate momentum is proportional to the angular momentum.

Classically, the total angular momentum reads

[TABLE]

and $M=\sum_{\ell}m$, and $\Theta=\sum_{\ell}\theta_{\ell}/N$. The angular momentum of the ring is the sum of the angular momenta of the atoms. The angular momentum operator for the ring of $N$ atoms with angle $\theta_{\ell}$ and of mass $m$ and a ring of radius $R$ is

[TABLE]

To quantize this system, we take Hamiltonian in normal coordinates (for N odd)

[TABLE]

where

[TABLE]

An eigenstate of the chain reads, with angular momentum $\hbar K$ in the (zero frequency) rotational mode, and $\eta_{n}$ quanta in the $n$th mode, etc.,

[TABLE]

where

[TABLE]

Any $\eta_{n}=1$ means a singly occupied “nonon” mode (we are reserving the term “phonon” for corpuscles, as per standard usage). The angular momentum $\hbar K$ with $K$ an integer owes its existence to the K mode free rotation, independent of the nonon modes, which carry no momentum. This is obvious if we apply the total angular momentum operator $\hat{L}=-i\hbar\partial/\partial{\Theta}$ to the wavefunction of equation 38, we get $\hbar K$, independent of the internal nonon quantum numbers. Since the function must be the same for $\Theta$ and $\Theta+2\pi$, $K$ must be an integer, and the angular momentum is quantized to $L=\hbar K$. Occupation of any phonon of coordinate $\xi_{n}$ and wavenumber $k_{n},n\neq 0$ contributes no angular momentum, i.e. no mechanical momentum, in spite of superficial appearances (equation 32).

We are not particularly interested in the restriction of allowable angular momenta due to the finite number N of atoms in the ring. Rather we take the macroscopic limit of a huge moment of inertia and large N. Then angular momentum becomes in effect a continuum and we approach the idealization of a large crystal.

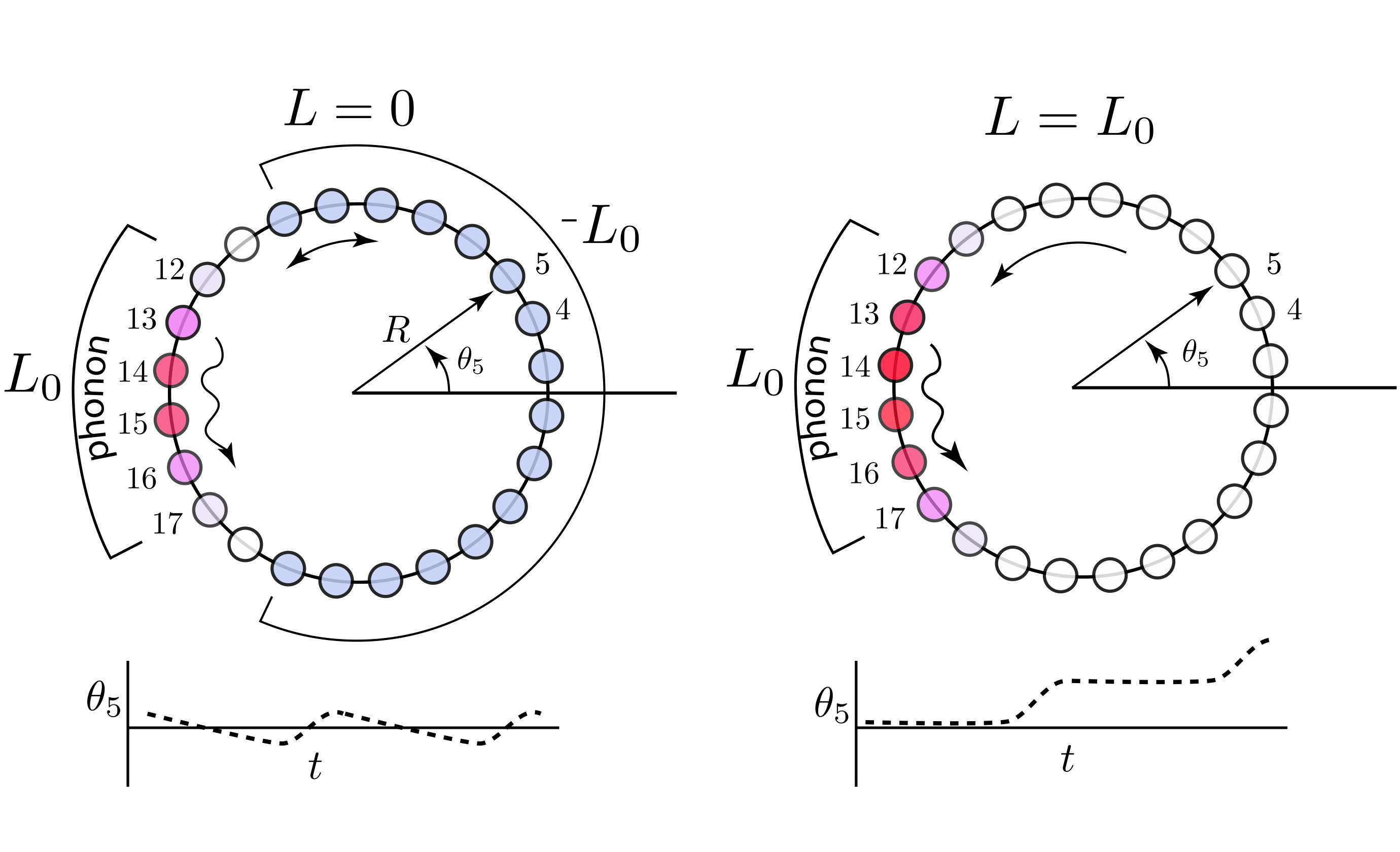

There are several ways to make a spatially localized phonon wave packet. Perhaps the simplest is to use Schrödinger correspondence. Starting with a 0 Kelvin ground state,

[TABLE]

we apply a momentum boost to a group of adjacent atoms of the form

[TABLE]

imparting angular momentum $p_{\ell}=\hbar K\nu\cdot\exp[-\alpha(\ell-\ell_{0})^{2}]$ to the $\ell^{th}$ atom, creating

[TABLE]

where $|\bm{\eta}\rangle$ is shorthand for $|\bm{\eta}\rangle=\prod\limits_{\begin{subarray}{c}n=-b_{N}\\ n\neq 0\end{subarray}}^{b_{N}}|\eta_{n}\rangle.$ The parameter $\nu$ is chosen so that $\sum_{\ell}p_{l}=\hbar K$. The boosted state imparts momentum to each atom, maximizing at the atom $\ell=\ell_{0}$. The angular momentum imparted to the center of mass is definite:

[TABLE]

The situation just described corresponds to figure 4, right. A group of atoms has been given a real, mechanical momentum and collectively they have contributed to the total (mechanical) angular momentum. Phonon momentum In building a localized phonon, any mechanical momentum it possesses accrues to the center of mass momentum and/or angular momentum. However there is a practical sense in which the momentum may be associated with the phonon itself. Indeed we have just created a phonon with mechanical momentum that is attributable to a local disturbance.

This works by analogy with the standard particle in the box problem, where the sinusoidal eigenfunctions have no momentum, but are a complete set. As such, they can be used in superposition to create a nearly Gaussian wave packet for example with nonvanishing momentum inside the box. The sleight-of-hand here is that translational symmetry is missing in the usual particle in the box problem, and so there is no momentum conservation. Putting the particle in a real box with walls having mass restores translational symmetry. Box + particle states of zero total momentum can be used to construct a particle with considerable local momentum, with the surrounding box having canceling momentum. In the case of phonons, we can create states with local momentum in the lattice using only nonons each with no momentum, but the background or remainder of the lattice will have slow opposite drift, exactly as in figures 2 B and  4 A. Indeed by Schrödinger correspondence, exactly the same thing happens quantum mechanically.

This is easily arranged by applying a total momentum reverse boost to the momentum change of the atom by atom boost, i.e.

[TABLE]

This wavefunction has no total momentum, but atom by atom inspection with the operators

[TABLE]

reveals a group of atoms near $\ell=\ell_{0}$ with collective net momentum. The sum over all atoms gives zero momentum. This exactly corresponds to figure 4, left.

The phonon in figure 4 does not have a very well defined pseudomomentum, because it is a pulse with no modulation. Phonon pseudomomentum How can a spatially localized phonon be created, with a well defined pseudomomentum, near the atom labeled by $\ell_{0}$? We can use a linear superposition of one quantum nonons of nearby $k_{n}$, a narrow range of states of nearby pseudomomentum. We will create a state with no total angular momentum (because angular momentum is conserved, and none of the nonons have any) but well defined pseudomomentum.

Apart from normalization, we take

[TABLE]

or

[TABLE]

The parameter $k_{n}$ controls the average pseudomomentum of the result; the phonon is centered on the site $\ell_{0}$. The result is described as:

[TABLE]

which leaves atoms with labels far from $\ell_{0}$ unaltered, but acts like $\xi_{n}$ near $\ell=\ell_{0}$. $\xi_{n,\alpha,\ell_{0}}$ is a compromise between Fourier extremes of fixed position and fixed wave vector. This phonon involves only singly occupied nonon modes, by construction.

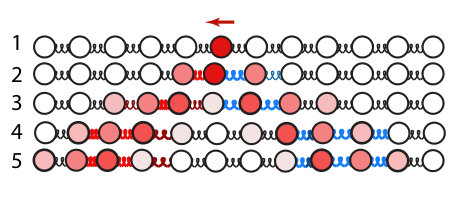

Phonon-phonon interaction

Since there is no real, mechanical momentum associated with the pseudomomentum, there is no concern about momentum conservation when phonons interact due to anharmonicities or impurities. Energy must be conserved in any case. For anharmonicities that are uniform throughout the crystal and intrinsic to the atomic interactions, atom shift symmetry exists and total pseudomomentum conservation applies. For example, if the energy dispersion is sufficiently linear in the long wavelength acoustic region, two phonons may interact anharmonically to give two new phonons

[TABLE]

where $n+n^{\prime}=m+m^{\prime}$.

6 Time evolution of a Mössbauer-like kick

The showpiece of many body elastic quantum transitions is certainly Mössbauer emission, which features a demonstrably purely elastic component: no internal lattice phonon occupations change in a large block of material, despite a sharp kick to one of its atoms. Only the K-mode is affected in this fraction of elastic events.

The sample mass is normally so large that the energy (due to momentum conservation) exchanged in a 0-phonon process is truly infinitesimal. A sample of the nuclear ground state of 57Fe placed nearby will hungrily soak up any such $\gamma$-ray with an enormous resonant cross section. So narrow is the Mössbauer line that moving the nearby sample at a millimeter per second or less relative to the emitter can Doppler shift the resonance absorption line more than its intrinsic linewidth and let the radiation pass through the sample unhindered, as detected by a counter. There can be little doubt: some of the emission is totally elastic, it is not just “quasi-elastic”.

The remainder of the $\gamma$-ray emission by the same nucleus in the same surroundings gives a broad continuum of mostly lower energy due to phonon production for cold samples. Warmer samples also reveal phonon destruction events. Each emission event, whether totally elastic or not, must be accompanied by recoil of the sample with exactly the opposite momentum of the $\gamma$ ray. There is no escape from whole sample recoil even if phonons are created in the emission. Phonon momentum simply and instantly adds to the sample bulk momentum, as discussed above.

The beginnings (although not a proof) of the quantum effect responsible for the ultranarrow Mössbauer line can be seen in a one dimensional oscillator, essentially an Einstein model of a solid (figure 5). A quantum coherent state wave packet unquestionably oscillates in classical fashion (i.e. Schrödinger correspondence) after a kick due to $\gamma$ ray emission. However if the wave packet energy is measured, it may be found to be lying quietly in its ground state. The cross section for resonant re-absorption by another nearby 57Fe is large, and within about a nanosecond the energy of the $\gamma$ ray (and thus the lattice energy change) can me measured.

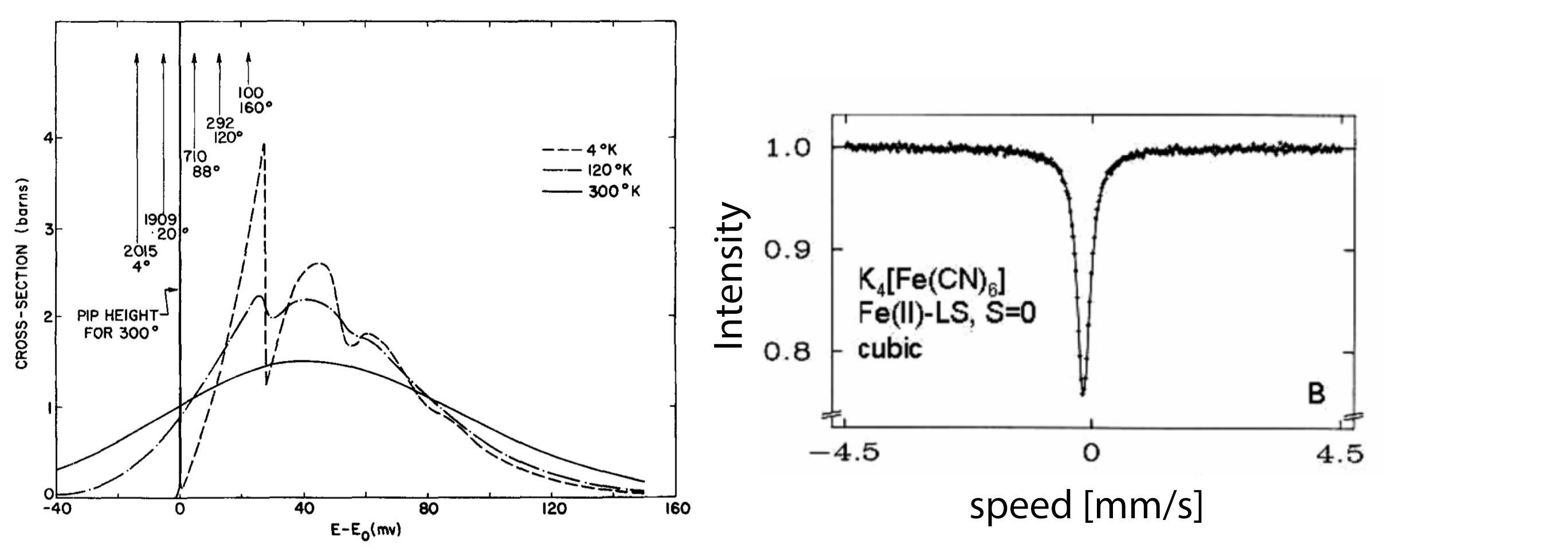

The spectrum of energies of the $\gamma$-rays looks like that in figure 6, left.

Discussions of “Mössbauer spectroscopy” often summarize this beautiful physics only briefly, and rather tend to focus on something admittedly more practical: the technique of using tiny shifts of the nuclear resonance energy to probe the chemical environments of the unstable nucleus. This is detected (figure 6) by shifts in the resonant Doppler speeds often well under a mm/s, and possible multiple resonance lines. The shifts reflect electric and magnetic field effects on the nuclear energy level, modulated again by the surroundings of the nucleus and therefore a very useful probe. This is the business end of Mössbauer spectroscopy, and it deserves the attention it gets. But for present purposes, it is the phonon-less recoil that concerns us. This recoil can involve any of the six degrees of freedom of 0 frequency K modes.

In addition to the ultra narrow phonon-less Mössbauer line, there is a broad continuum of $\gamma$ ray emission that is of lower energy because a phonon (or more than one) has been deposited in the crystal. If so, there are internal agents set loose in the crystal, a phonon or phonons. Again, the whole crystal momentum has jumped by an equal and opposite amount to the $\gamma$ ray. That amount is slightly lower in magnitude for the inelastic component- the $\gamma$ ray is slightly lower frequency if phonons have been created.

The wave vector of the momentum to be deposited is about $70$ Å*-1*. Sometimes this is deposited into total crystal recoil without a phonon, i.e. the Mössbauser line. If a phonon is created, it need not be responsible for all the recoil momentum. Indeed, the momentum can be divided between background recoil and phonons (if we choose to put them in the foreground), the sum of which is total system recoil momentum, which is exactly equal and opposite to the photon momentum, now very slightly reduced due to the energy deposited in phonons.

The Mössbauer effect continues to surprise. For example, a clever way of partitioning the $\gamma$ ray emission into pulses was proposed in reference 6.

The proper derivation of the Mössbauer $\gamma$ ray spectrum is given by Maradudin7. Here we will examine an ersatz Mössbauer kick, by providing an instantaneous momentum boost to a single atom. The exact momentum supplied to the system is therefore given, whereas it varies somewhat in $\gamma$ ray emission according to whether or not a phonon or phonons accompany the emission.

Suppose $\psi_{n,\alpha,\theta_{0}}({\bm{\xi}})$ is a lattice that just got a momentum kick $\hbar k$ to an atom at position $\ell_{m}$, what happens under time evolution? We take phonons to be absent initially, and suppose no initial center of mass momentum. The initial many body wavefunction is then (apart from normalization)

[TABLE]

Each ground state nonon mode simply evolves with a phase factor appropriate to its energy, but all these phase factors add in the exponent and nothing but an overall phase develops. This is another way to say that the ground state is stationary. After the $\ell^{th}$ atom gets its kick at $t=0$, it becomes

[TABLE]

We can ask the following questions now and as time evolves:

1. What is the momentum of the center of mass?

2. What is the time evolution of the many body wavefunction?

3. Where is the momentum located on the chain?

4. What is the probability that the kick produced no phonons? (i.e. was elastic)

5. What is the distribution of other phonon probabilities?

Only the answers to 2) and 3) will depend on time if the system is not further disturbed. We now address these questions in turn.

(1) The momentum delivered to one atom was $\hbar k$. Since there was no center of mass momentum to begin with, we had better find the momentum of the center of mass is now also $\hbar k$. The atom with coordinate $\theta_{\ell_{0}}$ is expanded as

[TABLE]

where $\xi_{0}=\frac{R}{\sqrt{N}}\sum\limits_{j=1}^{N}\theta_{j}.$ The center of mass coordinate for $N$ identical masses along a line at positions $\theta_{j}$ is

[TABLE]

The wavefunction equation 47 at $t=0$ with the kick $e^{ikR\theta_{\ell}}$ has the term $e^{ik\frac{1}{\sqrt{N}}\xi_{0}}=e^{ik\Theta}$ proving that the center of mass acquired the correct momentum.

(2) To find the time evolution of the many body system, we use Schrödinger correspondence and the equations

[TABLE]

where $k_{n}=k\ U_{\ell n}$ and the wavefunction evolves as

[TABLE]

We won’t bother to specify the overall phase here.

(3) To ask where in the chain does the momentum density lie, we need to examine the atomic momentum operators

[TABLE]

At $t=0$, equation 47 reveals of course that the (real) momentum resides locally on the $\ell^{th}$ atom. We want to discuss the situation as time evolves.

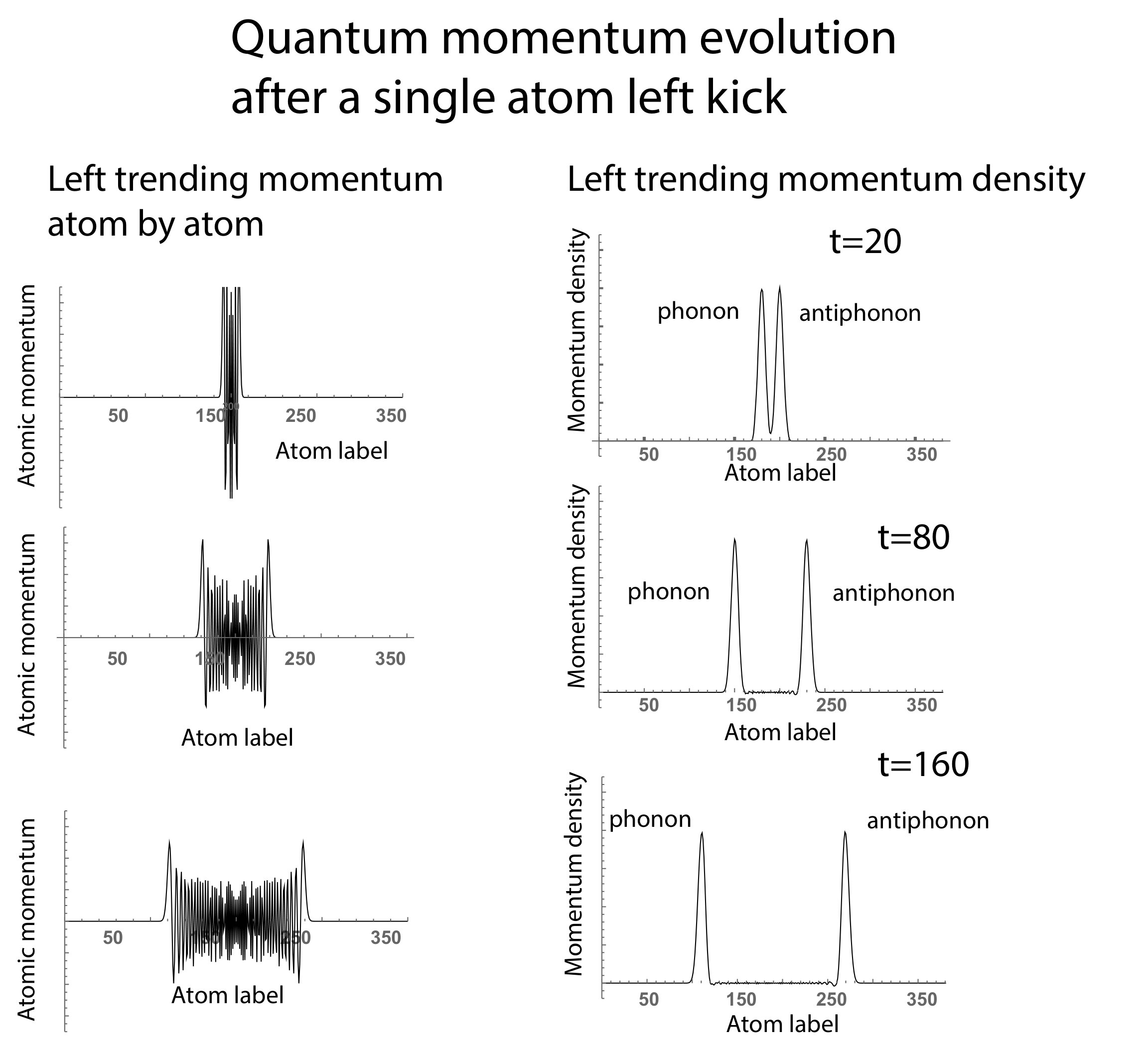

We apply the momentum operator for each atom separately and plot the results atom-by-atom (figure 8, left column) or averaged over a range of neighboring atoms (figure 8, right column) to get a momentum density. Here the central atom was kicked to the left and the positive values are left heading momenta. Note that the phonon, anti-phonon narrative is confirmed. This is not a semiclassical result of some sort; by Schrödinger correspondence, it is the exact result.

The group velocity of the phonon is $v_{g}\approx\delta\omega/\delta k\approx a\sqrt{\kappa/m}$ at long wavelengths.

Schrödinger correspondence and the classical mechanics of the chain informs us that the kick produces a phonon-antiphonon pair (figure 7). The phonon and the antiphonon travel in opposite directions, departing the site of the kick, but carrying the same momentum. This is certainly different than the standard picture of a “phonon” heading off in one direction, carrying all the momentum. The classical reason for the pair production is clear from figure 7, and by Schrödinger correspondence it is clear that the classical picture is extremely relevant to the quantum evolution.

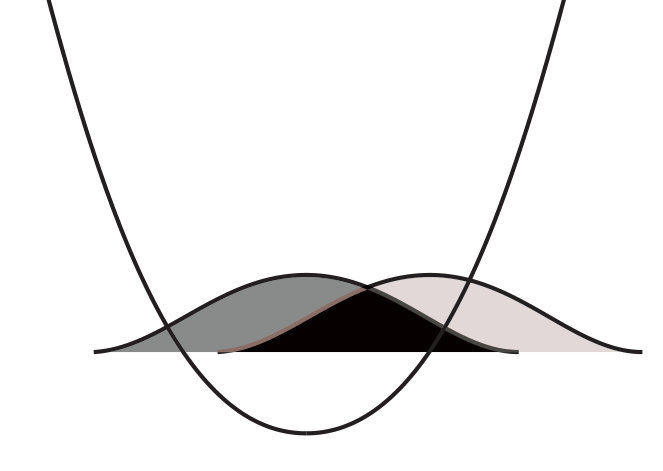

(4) What is the probability that the kick produced no phonons? This is given by the square amplitude, in the case of an initial quiescent ring, as

[TABLE]

The elastic fraction $e^{-2W}$ is called a Debye Waller factor and is clearly related to the root mean square dispersion of the impacted atom. This result carries over to finite temperature. The finite elastic fraction for Mössbauer emission in a 3D solid at finite temperature is affirmed by the fact that sub angstrom resolution of atoms in STM scans of surfaces is possible. It would not be if the root mean squared position dispersion of an atom were large.

(5) The elastic zero phonon line is flanked by a density of inelastic processes that have an energy sprectrum given by the Fourier transform of the autocorrelation of the kicked state:

[TABLE]

where $|\phi\rangle=e^{ikR\theta_{\ell}}|\psi_{0}({\bm{\xi}})\rangle$ and $|\phi(t)\rangle=e^{-iHt/\hbar}|\phi\rangle.$ The autocorrelation $\langle\phi|\phi(t)\rangle$ is evaluated using equation 51 and straightforward Gaussian integrals, but its Fourier transform is problematic and it is best evaluated numerically.

7 Indirect transitions in solids

We have seen that phonon wave vector and phonon pseudomomentum can be unrelated. Of course a dispersion relation holds between phonon wave vector (and pseudomomentum) and phonon energy, i.e. $E=\hbar\omega(\vec{k})$. However in some important situations, such as indirect interband transitions in solids, phonon pseudomomentum has to cancel electron pseudomomentum changes in order to keep pseudomomentum conserved. Electron pseudomomentum (pseudo because of the periodic lattice potential) is closely related to mechanical momentum. An electron has a life outside of the crystal and with enough pseudomomentum it can escape the crystal with definite mechanical momentum. The renormalization of electron momentum inside a crystal is akin to the changes of refractive index and light speed in a crystal.

Indirect transitions require that an electron pseudomomentum change be matched by opposite pseudomomentum associated with a phonon. How does this happen, if the connections between phonon wave vector and momentum are so loose?

Raman scattering in polyacetylene is one of the clearest examples, with a solid experimental foundation dating back at least to the 1980’s. However the unusual Raman spectrum of polyacetylene was not understood until recently. An indirect transition was found responsible for the mysterious side band that shifts with incident laser frequency8. Starting in the equilibrium ground state, a UV photon promotes a valence band electron resonantly to the conduction band. Normally, given the $k\approx 0$ nature of the photon, the electron would share the same conduction band and valence band quasimomenta. In this elastic scenario, no phonons would be involved. In a minority of cases the promotion is accompanied by the production or destruction of a phonon. This is known because when a photon is finally emitted it can be red (Stokes) or blue (anti-Stokes) shifted by a phonon energy, as is fundamental to Raman scattering. The phonon needs either to be at $k=0$ in an optical mode (in which case the Bloch electron does not change momentum) or to have twice the wave vector of the electron, which has its momentum reversed in going from valence to conduction bands. The exactly reverse momentum of the electron preserves its energy, assisting an otherwise difficult energy-momentum matching exchange. The final step, elastic backscattering of the electron by an edge, defect, or impurity, makes the electron able to emit a Raman photon to the hole. The wave vector of the electron was initially fixed by the energy and momentum matching requirements of the photoabsorption, including the instantaneous production of a phonon, courtesy of the coordinate dependence of the electronic transition moment. This is also the scenario leading to the Raman D line in graphene, which indeed requires impurities to perform the last elastic backscattering step and thus “light up” the D line9.

The energy-momentum requirements on this resonant absorption event are strict. However the electronic transition moment has a component that is constant and another that oscillates at wave vector $2\vec{k}$8, facilitating the $k\to-k$ electron quasimomentum reversal and birth of the $2k$ phonon. The whole process takes place resonantly; the electronic energy change is slightly reduced from the photon energy to pay for the phonon energy.

Just as a Mössbauer event can transfer momentum to the crystal elastically, it seems plausible that the electron could have its momentum reversed elastically, with the background lattice providing the momentum compensation. The background takes the momentum in any case, and any such elastically born electron, if backscattered, would emit a photon hidden in the Rayleigh emission. If this is happening, it would be buried in the elastic Rayleigh emission and become very difficult to detect.

{acknowledgement}

EJH thanks W.P. Reinhardt for many consultations going back 50 years, including his first exposure to the ring of atoms problem, which appeared in his thesis under Prof. Reinhardt10. The authors thank Prof. E. Kaxiras for valuable consultations regarding this research. We also thank Siddharth Venkat and Vaibhav Mohanty for informative discussions. .
