Cluster radioactivity of $^{294}_{118}$Og$_{176}$

TL;DR

This paper predicts that cluster radioactivity is the dominant decay mode for the superheavy nucleus $^{294}_{118}$Og$_{176}$, using a comprehensive theoretical model that accounts for quantum tunneling and stochastic dynamics.

Contribution

It introduces a robust theoretical prediction that cluster radioactivity dominates fission in $^{294}_{118}$Og$_{176}$, considering various model parameters and decay dynamics.

Findings

Cluster radioactivity is predicted to be the main decay mode.

Prediction is robust across different model assumptions.

Theoretical approach includes quantum tunneling and stochastic effects.

Abstract

According to theory, cluster radioactivity becomes an important decay mode in superheavy nuclei. In this work, we predict that the strongly-asymmetric fission, or cluster emission, is in fact the dominant fission channel for $^{294}_{118}$Og$_{176}$, which is currently the heaviest synthetic isotope known. Our theoretical approach incorporates important features of fission dynamics, including quantum tunneling and stochastic dynamics up to scission. We show that, despite appreciable differences in static fission properties such as fission barriers and spontaneous fission lifetimes, the prediction of cluster radioactivity in $^{294}_{118}$Og$_{176}$ is robust with respect to the details of calculations, including the choice of energy density functional, collective inertia, and the strength of the dissipation term.

Figures

Tables

Table 1. Table 1: Top: Mesh sizes used for the discretization of the potential energy surface. Bottom: Step sizes used in the calculation of the non-perturbative inertia ℳ A superscript ℳ A \mathcal{M}^{\rm A} .

	WKB region				Langevin region
	$\Delta Q_{20}$	$\Delta Q_{22}$	$\Delta Q_{30}$	$\Delta {\lambda }_2$	$\Delta Q_{20}$	$\Delta Q_{30}$
	(b)	(b)	(b3/2)	(MeV)	(b)	(b3/2)
UNEDF1HFB	6	3	3	0.05	4	2
SkM*	4	-	2	0.05	4	2
D1S	4	-	2.5	-	4	2.5
UNEDF1HFB	6	3	3	0.05	0.001	0.001
SkM*	4	-	2	0.05	0.001	0.001
D1S	0.1	-	0.1	-	0.1	0.1

Equations

$$S(L)=\frac{1}{\hslash }{\int }_{s_{\mathrm{in}}}^{s_{\mathrm{out}}}\sqrt{2\mathcal{M}(s)\left(V(s)-E_0\right)}ds,$$

$$\frac{d{p}_i}{dt}=$$

$$-{\eta }_{ij}{\left({\mathcal{M}}^{-1}\right)}_{jk}{p}_k+g_{ij}{\Gamma }_j(t),$$

$$\frac{d{q}_i}{dt}=$$

Full text

Introduction – The region of superheavy nuclei ($Z\geq 104$) is one of the frontiers of modern nuclear physics. The heavy-ion fusion experiments have been able to push the boundaries of the nuclear chart all the way to ${}^{294}_{118}$Og176 Oganessian et al. (2006, 2012); Brewer et al. (2018), and new efforts are underway to increase production rates of superheavy systems Dmitriev et al. (2016); Oganessian and Dmitriev (2016); Hofmann et al. (2016); Roberto and Rykaczewski (2018). Due to the large number of nucleons, these nuclei push the limits of nuclear structure models and are expected to answer key questions pertaining to nuclear and atomic physics, astrophysics, and chemistry Düllmann and Block (2018); Jerabek et al. (2018); Nazarewicz (2018); Giuliani et al. (2019). For instance, since the liquid drop model predicts vanishing fission barriers for superheavy elements due to the strong Coulomb repulsion, shell effects become absolutely essential and spontaneous fission ends up governing the lifetimes of many of these new systems Heßberger (2017); Baran et al. (2015). The fission of superheavy elements may also play an important role in the astrophysical r process, by placing an endpoint on neutron capture and through the fission cycling Giuliani et al. (2018).

In the superheavy research enterprise, theory plays a critical role by guiding experiments, interpreting their results, and making predictions in the regions that cannot be reached experimentally Nazarewicz (2018); Giuliani et al. (2019) because of huge proton and neutron numbers involved. In these extreme regions, it is important to use models of spontaneous (or low-energy) fission rooted firmly in many-body quantum mechanics. To this end, microscopic models based on density functional theory (DFT) where collective dynamics is decoupled from underlying intrinsic excitations offer a path which is computationally tractable, while still maintaining a direct link to the underlying quantum many-body problem Schunck and Robledo (2016). These models can be used to predict observables such as half-lives Erler et al. (2012); Staszczak et al. (2013); Giuliani and Robledo (2013); Giuliani et al. (2014); Schunck and Robledo (2016); Lemaître et al. (2018); Rodríguez-Guzmán and Robledo (2018) and primary fragment yields Sadhukhan et al. (2016); Warda et al. (2018); Regnier et al. (2016, 2019) within the same theoretical framework.

In this work, we discuss an exotic form of cold highly-asymmetric fission, known in the literature as cluster radioactivity or cluster emission Sandulescu et al. (1980); Poenaru et al. (1986); Royer et al. (1998), which we predict is the dominant form of fission in the superheavy isotope ${}^{294}_{118}$Og176. Cluster emission, an intermediate process between $\alpha$ decay and conventional fission with fragments of more comparable masses, occurs when a parent nucleus decays into a large fragment near doubly-magic ${}^{208}_{\hphantom{2}82}$Pb126 and a lighter cluster. It has been observed experimentally in actinides, starting with the ${}^{223}_{\hphantom{2}88}$Ra\rightarrow$${}^{209}_{\hphantom{2}82}Pb + ${}^{14}_{\hphantom{1}6}$C decay Rose and Jones (1983). It is always a rare event with a small branching ratio Poenaru and Greiner (2010). From the theoretical point of view, half-life calculations based on semiempirical models predict cluster radioactivity to be the dominant decay channel of several superheavy nuclei Poenaru et al. (2011, 2012, 2013, 2015); Poenaru and Gherghescu (2018); Santhosh and Nithya (2018); Zhang and Wang (2018). Similar predictions have been obtained by more microscopic calculations using nuclear DFT framework Warda and Robledo (2011); Warda et al. (2018). However, so far no determination of fission yields has been made that explicitly demonstrates the emergence of cluster radioactivity in superheavy elements, either theoretically or experimentally. In this paper, which extends the discussion of recent Ref. Warda et al. (2018) to fission yields, we calculate spontaneous fission yields of ${}^{294}_{118}$Og176 and explicitly predict for the first time that cluster emission is dramatically enhanced to the point that it becomes the primary spontaneous fission channel.

Our paper is organized as follows. First, we briefly sketch the microscopic DFT+Langevin framework used to calculate fission fragment distributions. We then compute the spontaneous fission characteristics of ${}^{294}_{118}$Og176. Finally, we study the robustness of our fission yield predictions with respect to different energy density functionals (EDFs), collective spaces, collective inertias, and dissipation.

Model – We calculate fission fragment distributions following the approach described in Ref.Sadhukhan et al. (2016), which may be divided into two stages. In the first stage, we use the semiclassical WKB approximation to model spontaneous fission as quantum tunneling through a multidimensional potential energy surface (PES) characterized by $N$ collective coordinates $\mathbf{q}\equiv(q_{1},\ldots,q_{N})$. In our implementation of the WKB approximation, the most-probable tunneling path $\left.L(s)\right|_{s_{\rm in}}^{s_{\rm out}}$ in the collective space is found via minimization of the collective action

[TABLE]

where $s$ is the curvilinear coordinate along the path $L$, $\mathcal{M}(s)$ is the collective inertia Sadhukhan et al. (2013) and $V(s)$ is the potential energy along $L(s)$. $E_{0}$ stands for the collective ground-state energy. The dynamic programming method Baran et al. (1981) is employed to determine the path $L(s)$. The calculation is repeated for different outer turning points, and each of these points is then assigned an exit probability $P(s_{\rm out})=[1+\exp{(2S)}]^{-1}$ Baran (1978).

In the second stage, fission trajectories begin from the outer turning line and then evolve along the PES according to the Langevin equations:

[TABLE]

where $p_{i}$ is the collective momentum conjugate to $q_{i}$. The dissipation tensor $\eta_{ij}$ is related to the random force strength $g_{ij}$ via the fluctuation-dissipation theorem, and $\Gamma_{j}(t)$ is a Gaussian-distributed, time-dependent stochastic variable. All trajectories ending at a particular scission configuration are weighted with the appropriate $P(s_{\rm out})$. These scission configurations were defined based on the expectation value of the neck operator $Q_{N}=e^{-{(z-z_{n})^{2}}/{a_{n}^{2}}}$, setting $a_{n}=1$ fm and with $z_{n}$, taken to be the point in the nucleus with the lowest density, describing the position of the neck. We defined our scission line differently for each functional that was used, with the value $Q_{N}=7$ for UNEDF1HFB and SkM* and $Q_{N}=9$ for D1S. Particle number fluctuations in the neck at or near the scission line were accounted for by convoluting our Langevin yields with a Gaussian function of width $\sigma_{A}=6$ for $A$ and $\sigma_{Z}=4$ for $Z$.

The key ingredients in these calculations, $V$ and $\mathcal{M}$, are calculated self-consistently by solving the Hartree-Fock-Bogoliubov equations employing Skyrme and Gogny EDFs. To evaluate the robustness of our results with respect to different inputs, we perform calculations using three distinct EDFs: UNEDF1HFBSchunck et al. (2015), a Skyrme functional which was optimized to data for spherical and deformed nuclei, including fission isomers; SkM* Bartel et al. (1982), another Skyrme functional designed for fission barriers and surface energy; and D1S Berger et al. (1989), a parametrization of the finite-range Gogny interaction fitted on fission barriers of actinides.

In self-consistent fission models, the lowest multipole moments characterizing nuclear shape deformations are usually selected as collective coordinates. The remaining shape degrees of freedom are, in principle, decided through the energy minimization. In the present work, axial quadrupole moment $Q_{20}$, triaxial quadrupole moment $Q_{22}$, and axial octupole moment $Q_{30}$ are considered as collective coordinates since the fission dynamics associated with fragment-yield distributions is mostly confined within this deformation space. Additionally, pairing correlations have a strong impact on the spontaneous fission half-lives calculated via action minimization Sadhukhan et al. (2014); Giuliani et al. (2014); Zhao et al. (2016). It is taken into account through the coordinate $\lambda_{2}$ representing dynamic pairing fluctuations Sadhukhan et al. (2014). To obtain $S(L)$, a dimensionless collective space is introduced as in Ref. Sadhukhan et al. (2014).

To balance computational speed with complexity, we used a different collective space for each functional. The most detailed calculation was carried out using UNEDF1HFB in a four dimensional space $(Q_{20},Q_{22},Q_{30},\lambda_{2})$. Calculations were performed using the symmetry-unrestricted DFT solver HFODD Schunck et al. (2017). To assure good convergence, we used the 1500 lowest single particle levels corresponding to 30 stretched harmonic oscillator shells.

The analysis of the four-dimensional (4D) PES showed that $Q_{30}$ remains negligible through the first saddle point (up to at least $Q_{20}=100$ b), and that $Q_{22}$ and $\lambda_{2}$ are unimportant beyond the outer turning-point hyper-surface. This allowed us to simplify calculations with other functionals. The SkM* calculations were performed in a piecewise space ($(Q_{20},Q_{22},\lambda_{2})$ up to the fission isomer, $(Q_{20},Q_{30},\lambda_{2})$ from fission isomer to outer turning points, and $(Q_{20},Q_{30})$ beyond the outer turning-point line) with the same pairing properties as given in Mcdonnell et al. (2014); Sadhukhan et al. (2013, 2014), and the same HFODD basis as in UNEDF1HFB calculations. The PES connection at the fission isomer assumed $Q_{22}=Q_{30}=0$, with $Q_{20}$ and $\lambda_{2}$ continued smoothly, as in Sadhukhan et al. (2016). In the case of Gogny D1S calculations, a two-dimensional collective space described by coordinates $(Q_{20},Q_{30})$ was used within the DFT solver HFBaxial Rob , where the stretched harmonic oscillator basis corresponding to 17 harmonic oscillator shells was optimized for each $(Q_{20},Q_{30})$ value. Each PES was interpolated from a discrete, uniform grid, the spacing of which is shown in the upper half of Table 1.

Several approximations are commonly used to compute the collective inertia, which describes the tendency of the nucleus to resist configuration changes. The most accurate prescription available to date is obtained from non-perturbative cranking approximation to the adiabatic time-dependent Hartree-Fock-Bogoliubov (ATDHFB) inertia ($\mathcal{M}^{\rm A}$) Baran et al. (2011). On the other hand, perturbative expressions prioritize computational simplicity by sacrificing details of the level crossing dynamics, which results in a smoothed-out collective inertia. We also performed calculations using both the perturbative cranking ATDHFB inertia ($\mathcal{M}^{\rm AP}$) Baran et al. (2011) and the perturbative GCM inertia ($\mathcal{M}^{\rm GCM}$) Schunck and Robledo (2016), which has the same structure as $\mathcal{M}^{\rm AP}$ but with an absolute magnitude quenched by a factor 1.5 Giuliani and Robledo (2018). In UNEDF1HFB and SkM* the derivatives were computed by means of the Lagrange three-point formula for unequally spaced points (see Ref. Baran et al. (2011)), while first order finite difference formulas were used for D1S (see Ref. Giuliani and Robledo (2018)). A summary of the step sizes used in the calculation of $\mathcal{M}^{\rm A}$ for each collective variable and region of the PES is given in the lower half of Table 1.

In this work, we set the dissipation strength $\eta_{ij}$ as an adjustable parameter rather than using some of the common prescriptions Usang et al. (2017); Ishizuka et al. (2017), which have not yet been adapted to DFT inputs. We examined the sensitivity of our calculations to $\eta_{ij}$ by varying it around the baseline value used in Sadhukhan et al. (2016): $\bm{\eta}_{0}\equiv\left(\eta_{22},\eta_{23},\eta_{33}\right)\equiv(50\hbar,5\hbar,40\hbar)$.

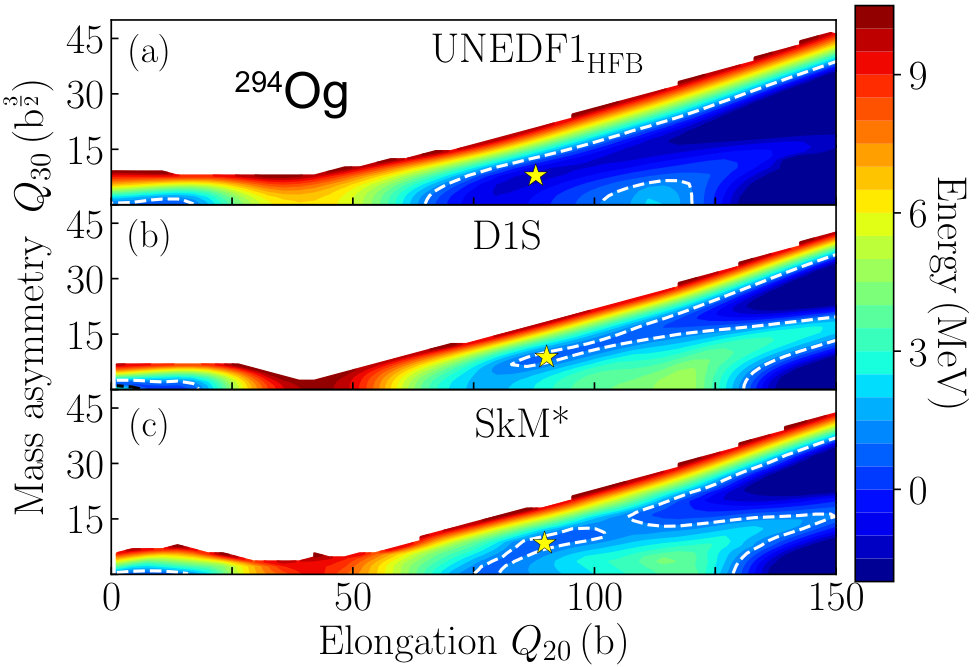

Results – We first compare in Fig. 1 the two-dimensional PESs in the $(Q_{20},Q_{30})$ plane for the functionals UNEDF1HFB, D1S, and SkM*. There we notice that the overall topology of the PES is roughly similar in all models, with a symmetric saddle point occurring around $Q_{20}\approx 40$ b, a second barrier beginning around $Q_{20}\approx 100-120$ b along the symmetric fission path, the presence of local minima at large deformations, a deep valley that leads to an highly-asymmetric split, and the secondary less-asymmetric fission valley that emerges at large elongations.

But there are differences as well, such as the height of the first saddle point, the depth of the highly-asymmetric fission valley, and the height of the ridge separating the two fission valleys. As a result, the outer turning points are pushed to larger elongations in D1S and SkM* as compared to UNEDF1HFB. These differences in the PES topology strongly affect the predicted spontaneous fission half-lives $\tau_{\mathrm{SF}}$, which in the case of UNEDF1HFB, SkM* and D1S are $9.1\times 10^{-9}\,$s, $4.0\times 10^{-5}\,$s and $3.2\times 10^{-2}\,$s, respectively (see also Staszczak et al. (2013); Baran et al. (2015) for a detailed discussion of half-lives). These large variations of $\tau_{\mathrm{SF}}$ reflect the well-known exponential sensitivity of spontaneous fission half-lives to changes in the quantities entering the collective action (1). The $\tau_{\mathrm{SF}}$ predictions of UNEDF1HFB and, to a lesser degree, SkM* are incompatible with experiment, as 294Og is known to decay by $\alpha$-decay with a half-life of 0.58 ms Brewer et al. (2018). This observation could in fact also apply to the D1S results, since the D1S calculations were performed in a smaller collective space leading to overestimation of the half-lives Giuliani et al. (2014); Sadhukhan et al. (2014). It is to be noted that while half-lives are very sensitive to details of the calculations, the models used in this study are very consistent with each other and with experiment when it comes to global observables, such as alpha-decay energies, deformations, and radii Heenen et al. (2015); Giuliani et al. (2019). As demonstrated below, spontaneous-fission mass and charge yields are also robustly predicted.

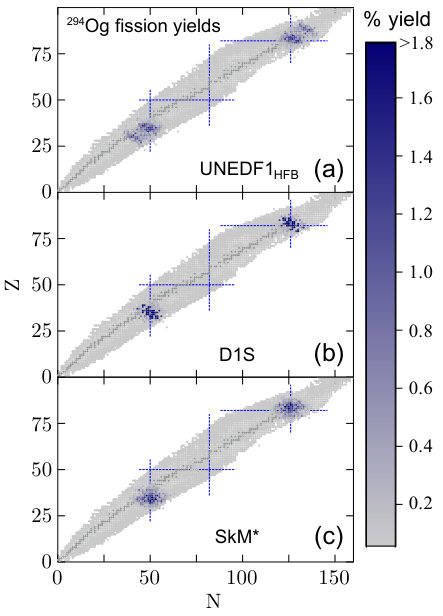

Despite the strong variations in the predicted $\tau_{\textrm{SF}}$, we see in Fig. 2 that the predicted fission yields are in fact rather independent of the EDF choice. Namely, all three functionals predict a heavy fragment in the neighborhood of ${}^{208}_{\hphantom{2}82}$Pb126 and a light fragment near ${}^{86}_{36}$Kr50.

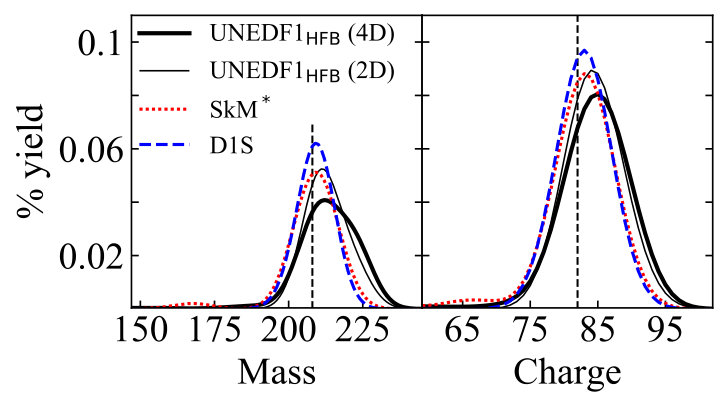

The sensitivity to the different inputs are shown in Fig. 3 through one-dimensional projections onto the fragment mass and charge. The top panels of Fig. 3 shows again that all three functionals predict highly-asymmetric fission with the heavy fragment centered at or around ${}^{208}_{\hphantom{2}82}$Pb126. While the peaks corresponding to the D1S and SkM* functionals overlap quite well, the UNEDF1HFB distributions (both in 2D and 4D space) are broader and shifted slightly towards more asymmetric splits. This may be related to the relative flatness of the UNEDF1HFB PES compared to the others, which makes it more susceptible to large fluctuations. The secondary tiny peak around ${}^{126}_{\hphantom{1}54}$Xe72 predicted by SkM*, associated with the more symmetric fission valley of Fig. 1(c) is clearly seen. For D1S and UNEDF1HFB, the yield distributions do not show a tail at lower masses/charges. As discussed below, this can be associated with both the collective inertia and the energy ridge (particularly pronounced for D1S), both effectively separating the two fission valleys.

The impact of the choice of collective inertia on the fission yield distributions is illustrated in the middle panels of Fig. 3. While recent time-dependent DFT work on induced fission has played down the role of collective inertia Bulgac et al. (2018) outside the barrier, it was emphasized in Ref. Sadhukhan et al. (2016) that the tunneling phase of spontaneous fission was highly sensitive to it. This may explain the fine deviations observed in Fig. 3. The yields corresponding to $\mathcal{M}^{\rm AP}$ and $\mathcal{M}^{\rm GCM}$ overlap and both are shifted towards more asymmetric splits compared to $\mathcal{M}^{\rm A}$. This suggests that it is the topology of the collective inertia, rather than its absolute magnitude, which affects the shape of the fission yields. In particular, we find that the smoothness of the perturbative inertia allows fluctuations to diffuse the yield to more extreme fragment configurations.

The bottom panels of Fig. 3 show the effect of varying the strength of the dissipation tensor. This parameter has a noticeable impact on the yields, particularly on the tails and the yields associated with the more-symmetric channel. The results corresponding to $\bm{\eta}=\bm{\eta}_{0},0.5\bm{\eta}_{0}$, and $2\bm{\eta}_{0}$ are very close. This is consistent with findings of Refs. Randrup et al. (2011); Sierk (2017); Sadhukhan et al. (2017), which found that the yield distributions are not very sensitive to the precise value of the dissipation tensor. In general, irrespective of the choice of energy density functional, we found a rather similar pattern of yield distributions with respect to the inertia tensor and the dissipation strength. Only at the extreme limits of constant inertia and no dissipation do we see an increase of the symmetric peak in the predicted yields. However, as discussed in Sadhukhan et al. (2013, 2014); Aritomo et al. (2014); Sierk (2017); Sadhukhan et al. (2017), such choices are not realistic. For this reason, we have not included them in the figure and mention them only for the sake of completeness.

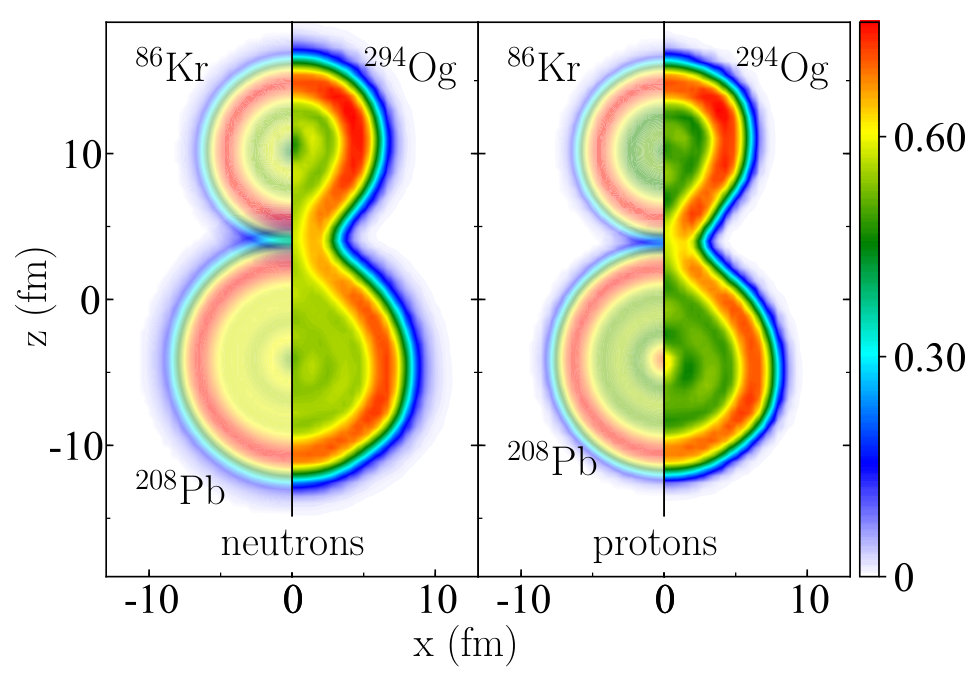

Finally, to better understand the formation of the most-probable fission fragments, we studied the nucleon localization functions Zhang et al. (2016); Sadhukhan et al. (2017) along the cluster-decay path. As shown in Fig. 4, by comparing the ${}^{294}_{118}$Og176 localizations with those calculated for spherical ${}^{208}_{\hphantom{2}82}$Pb126 and ${}^{86}_{36}$Kr50, we found that both the lead prefragment and the $N\approx 50$ neutrons belonging to krypton are well-localized. This result highlights the importance of shell structure along the fission path in determining the most probable fragment configuration in fissioning nuclei. It is interesting to note that the neutron localizations in the highly elongated configurations of ${}^{294}_{118}$Og176 shown in the left panels of Fig. 4 have much more structure than the ground-state localizations, which are close to the Fermi-gas limit Jerabek et al. (2018). Indeed, the single-particle level density is very high in ${}^{294}_{118}$Og176, which is not the case for the prefragments.

Conclusions – In this paper, which reinforces the results of Ref. Warda et al. (2018), we predict that the dominant spontaneous fission mode of ${}^{294}_{118}$Og176 will be a highly-asymmetric cluster emission sharply centered around doubly-magic ${}^{208}_{\hphantom{2}82}$Pb126 and magic ${}^{86}_{36}$Kr50. We have shown that this prediction is fairly robust with respect to the choice of input parameters, such as energy density functional, collective inertia, and dissipation tensor. In particular, we emphasize that differences in barrier heights predicted by different EDFs do not affect the calculated fission yields. We confirmed the implicit assumption of Sadhukhan et al. (2016), that 4D calculations do not necessarily offer an improved description of the tunneling compared to a well-chosen 3D description, and we argue for a hierarchy of ingredients necessary for a Langevin description of low-energy fission.

The search for cluster emission has already begun Brewer et al. (2018). Since, as demonstrated in this work, an asymmetric fission of ${}^{294}_{118}$Og176 is expected to be strongly enhanced thus providing a strong experimental trigger, we are optimistic that the next generation of experiments, perhaps involving an ionization chamber Brewer et al. (2018), will find experimental evidence of cluster radioactivity of ${}^{294}_{118}$Og176.

I Acknowledgements

This work was supported by the U.S. Department of Energy under Award Numbers DOE-DE-NA0002847 (NNSA, the Stewardship Science Academic Alliances program), DE-SC0013365 (Office of Science), and DE-SC0018083 (Office of Science, NUCLEI SciDAC-4 collaboration). as well as by the Office of Science, Office of Workforce Development for Teachers and Scientists, Office of Science Graduate Student Research (SCGSR) program. The SCGSR program is administered by the Oak Ridge Institute for Science and Education (ORISE) for the DOE. ORISE is managed by ORAU under contract number DE-SC0014664. This work was also partly performed under the auspices of the US Department of Energy by the Lawrence Livermore National Laboratory under Contract DE-AC52-07NA27344. Computing support came from the Lawrence Livermore National Laboratory (LLNL) Institutional Computing Grand Challenge program.
