Quenched disorder in the contact process on bipartite sublattices

TL;DR

This paper investigates how different types of quenched disorder affect the phase behavior of the contact process on bipartite lattices, revealing that symmetric disorder destroys sublattice ordering while asymmetric disorder preserves a phase transition.

Contribution

It provides a comparative analysis of symmetric and asymmetric quenched disorder effects on the contact process with bipartite sublattices, combining mean field and Monte Carlo methods.

Findings

Symmetric disorder eliminates the active asymmetric phase.

Asymmetric disorder maintains a phase transition between absorbing and active asymmetric phases.

The universality class depends on the less disordered sublattice.

Abstract

We study the effects of distinct types of quenched disorder in the contact process (CP) with a competitive dynamics on bipartite sublattices. In the model, the particle creation depends on its first and second neighbors and the extinction increases according to the local density. The clean (without disorder) model exhibits three phases: inactive (absorbing), active symmetric and active asymmetric, where the latter exhibits distinct sublattice densities. These phases are separated by continuous transitions; the phase diagram is reentrant. By performing mean field analysis and Monte Carlo simulations we show that symmetric disorder destroys the sublattice ordering and therefore the active asymmetric phase is not present. On the other hand, for asymmetric disorder (each sublattice presenting a distinct dilution rate) the phase transition occurs between the absorbing and the active asymmetric phases. The universality class of this transition is governed by the less disordered sublattice.

Figures

Equations

$$\frac{d{\rho }_A}{dt}=-\left[1+\mu q^2{\rho }_B^2\right]{\rho }_A+({\lambda }_1{\rho }_B+{\lambda }_2{\rho }_A)(1-{\Gamma }_A-{\rho }_A)$$

$$\frac{d{\rho }_B}{dt}=-\left[1+\mu q^2{\rho }_A^2\right]{\rho }_B+({\lambda }_1{\rho }_A+{\lambda }_2{\rho }_B)(1-{\Gamma }_B-{\rho }_B).$$

$$\rho =\frac{1}{2k}\left[\sqrt{{\left(\frac{{\lambda }_1+{\lambda }_2}{2}\right)}^2+4k\left[({\lambda }_1+{\lambda }_2)(1-\Gamma )-1\right]}-\frac{{\lambda }_1+{\lambda }_2}{2}\right]$$

$$\varphi =\sqrt{\frac{-\left[({\lambda }_2-{\lambda }_1)(1-\Gamma )-1-{\lambda }_2\rho -k{\rho }^2\right]}{k}}.$$

$$n(t)\sim \ln (t/t_0{)}^{\theta }$$

$$P_s\sim \ln (t/t_0{)}^{-\delta }.$$

$$n\sim P_s^{-\delta /\theta }$$

$$\ln \tau \sim L^{\psi },$$

$$\rho (t)\sim t^{-2/z^{\prime }}$$

$$z^{\prime }\sim |{\lambda }_2-{\lambda }_{2,c}{|}^{-\psi {\nu }_{\perp }},$$

Full text

Contact process, disordered systems, symmetry-breaking, absorbing state, nonequilibrium phase transitions

I Introduction

In nonequilibrium systems, an absorbing-state phase transition occurs when a control parameter such as a creation or annihilation rate is varied, and the system undergoes a phase transition from a fluctuating state to a frozen state, with no fluctuations (the “absorbing” state). Absorbing-state phase transitions have attracted considerable interest in recent years since they are related to the description of several phenomena such as population dynamics, epidemic spreading, chemical reactions, and others marro ; hinrichsen ; odor04 ; henkel . During the last decade, several experimental realizations,e.g., in turbulent liquid crystals take07 , driven suspensions pine , superconducting vortices okuma and open quantum systems quantum have highlighted the importance of this kind of phase transition.

In analogy with equilibrium phase transitions goldenfeld , it is expected that the critical phase transitions into absorbing states belong to a finite number of universality classes odor04 . However, a complete classification of these nonequilibrium classes is still lacking. In general, absorbing-state transitions in models with short-range interactions and lacking a conserved quantity or symmetry beyond translational invariance belong to the directed percolation (DP) universality class gras-jans . On the other hand, models presenting two absorbing states linked by particle-hole symmetry are known fall in the voter model universality class voter . There are also models that are free of absorbing states but cannot achieve thermal equilibrium because their transition rates violate the detailed balance. An example is the majority vote model majority . In its ordered phase a $Z_{2}$ symmetry is spontaneously broken, leading to Ising-like behavior for spatial dimensions $d\geq 2$.

A few years ago, a spatially structured model that suffers a phase transition to a single absorbing state and also exhibit a broken-symmetry phase was proposed cpsl . The model is based in a contact process (CP), where, besides the standard particle creation and annihilation dynamics, one includes a creation between second neighbors sites and an annihilation proportional to the local density. This results, in addition to the usual absorbing and active (symmetric) phases, in an unusual active asymmetric phase in which the distinct sublattices are unequally populated. A spontaneous symmetry breaking characterizes the reentrant phase transition between the symmetric and asymmetric phases. Mean-field theory (MFT) and simulations revealed the absorbing phase transition belongs to the directed percolation (DP) class, whereas the transitions between active phases fall into the Ising universality class, as expected from symmetry considerations. The symmetry-breaking phase transition was proven to be robust for different sublattice interactions salete and low diffusion particle rates cpsld .

The inclusion of disorder can affect the critical behavior of nonequilibrium phase transitions dramatically. In real systems, quenched disorder is observed in the form of impurities and defects hinrichsen1 , whereas in a regular lattice it can be included in the forms of random deletion of sites or bonds noest ; adr-dic ; vojta06 or random spatial variation of the control parameter durrett ; salinas08 . According to the Harris’ criterion harris , quenched disorder is a relevant perturbation, from the field-theoretical point of view, if $d\nu_{\perp}<2$, where $d$ is the dimensionality and $\nu_{\perp}$ is the correlation length exponent of the pure model. In these cases, quenched uncorrelated randomness induces the emergence of rare regions, typically located $\lambda_{c}(0)<\lambda<\lambda_{c}$, the $\lambda_{c}(0)$ and $\lambda_{c}$ being the critical point for the pure and disorder models, respectively. Although globally the whole system is constrained in the subcritical phase, local supercritical regions emerge due to the presence of the disorder. The lifetime of such “active rare regions” grows exponentially with the domain size, usually leading to a slow dynamics, characterized for nonuniversal exponents toward the extinction for some interval of the control parameter below criticality. This behavior characterizes a Griffiths phase (GP), and was verified in DP models with uncorrelated disorder irrespective to the disorder strength oliveira ; vojta09 . In addition, it was shown this behavior corresponds to the universality class of the random transverse Ising model oliveira ; vojta09 . However, some kinds of correlated disorder do not alter the critical behavior oliveira2 ; oliveira3 ; vojtaprl .

In this work, we provide a step further by investigating the effects of quenched disorder in the phase diagram of the contact processes on sublattices. Following the Harris’criterium, disorder should be relevant for the absorbing phase transition, since $\nu_{\perp}$ = 0.734(4), for $d=2$ in the clean system oliveira . On the other hand, for the symmetry breaking phase transition, the Harris criterion is inconclusive, because it corresponds to a marginal case ($\nu=1$ for the pure Ising model in $d=2$) puli . Here, we study distinct kinds of disorder, (i) a random homogeneous (ii) inhomogeneous deletion of sites, in which the disorder strength is different in each sublattice. Interesting, we show, through mean-field analysis and Monte Carlo simulations, that each one of the above disorder prescriptions yields completely different outcomes.

The remainder of this paper is organized as follows. In the next section we review the model and analyze its mean-field theory. In Sec. III we present and discuss our simulation results; Sec. IV is to summarize our conclusions.

II Model and Mean-Field Theory

Consider a stochastic interacting particle system, defined on a square lattice of linear size $L$, where each site can be either occupied by a particle or empty. Each particle creates a new particle in one of its first-neighbor sites with rate $\lambda_{1}$, and in one of its second-neighbor sites with rate $\lambda_{2}$. Note that in such bipartite sublattice, $\lambda_{1}$ is the creation rate in the opposite sublattice, whereas $\lambda_{2}$ is the rate in the same sublattice as the replicating particle. Therefore, unequal sublattice occupancies are favored if $\lambda_{2}>\lambda_{1}$. An occupied site is emptied at a rate of unity (independent of its neighboring sites). In addition to the intrinsic annihilation rate of unity, an “inhibition term” proportional to the local density is included in the dynamics. As a consequence of this term, if the occupation fraction $\rho_{A}$ of sublattice $A$ is much larger than that of sublattice $B$, for instance, then any particles created in sublattice $B$ will die out quickly, stabilizing the unequal sublattice occupancies.

In order to typify the model properties, we evaluate the macroscopic particle densities of each sublattice $A$ and $B$ given by $\rho_{A}$ and $\rho_{B}$, respectively. In the absorbing (AB) and active symmetric (AS) phases, $\rho_{A}=\rho_{B}=0$ and $\rho_{A}=\rho_{B}\neq 0$, respectively. Hence, $\rho=\rho_{A}+\rho_{B}$ is a reliable order parameter for absorbing phase transitions. Conversely, for the active asymmetric (AA) phase, it is convenient to calculate the difference of sublattice occupation by $\phi=|\rho_{A}-\rho_{B}|$, since $\phi$ distinguishes from the AS phase, where $\phi=0$.

The disorder is introduced by means of a fraction $\Gamma$ of random deletion of sites. We shall consider two cases: the symmetric and asymmetric, in which the sublattice remotion is equal ($\Gamma_{A}=\Gamma_{B}$) and different ($\Gamma_{A}\neq\Gamma_{B}$), respectively. In both cases, the disorder is quenched in space and time, i.e, its position or strength does not change during the evolution of the process. In order to achieve a qualitative portrait of the phase diagram, we begin by employing the one-site mean-field theory (MFT). For a lattice with coordination number $q$, it results in following coupled equations

[TABLE]

and

[TABLE]

Let us first consider that the disorder is homogeneously distributed in both sublattices, i.e., $\Gamma_{A}=\Gamma_{B}=\Gamma$. In this case, one derives explicit solutions for the densities as

[TABLE]

and

[TABLE]

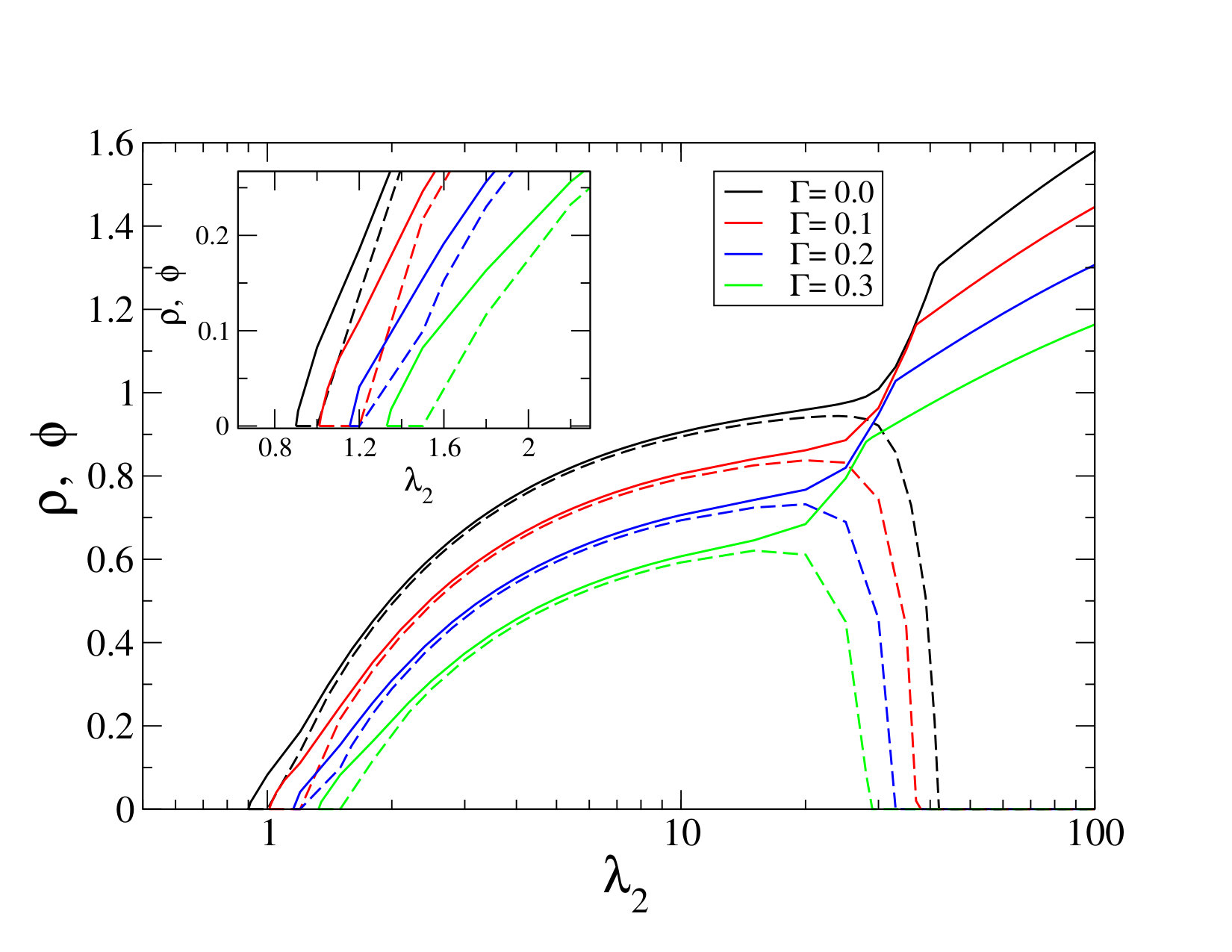

The mean-field densities $\rho$ and $\phi$, are plotted as function of $\lambda_{2}$, for distinct values of disorder and fixed $\lambda_{1}=0.1$ in Fig.1. For all fractions of disorder, the system undergoes a phase transition to the absorbing state at the threshold $\lambda_{2}=\lambda_{2,c}^{ABS}(\Gamma)$, with $\rho=0$, to the active symmetric phase, where $\rho>0$ and $\phi=0$. Note the phase transition moves for larger values of $\lambda_{2}$ when increasing the disorder, as expected. A further increase of $\lambda_{2}$ gives rise to the AS-AA and AA-AS phase transitions at $\lambda_{2}=\lambda_{2,c}^{I}(\Gamma)$ and $\lambda_{2}=\lambda_{2,c}^{II}(\Gamma)$, respectively.

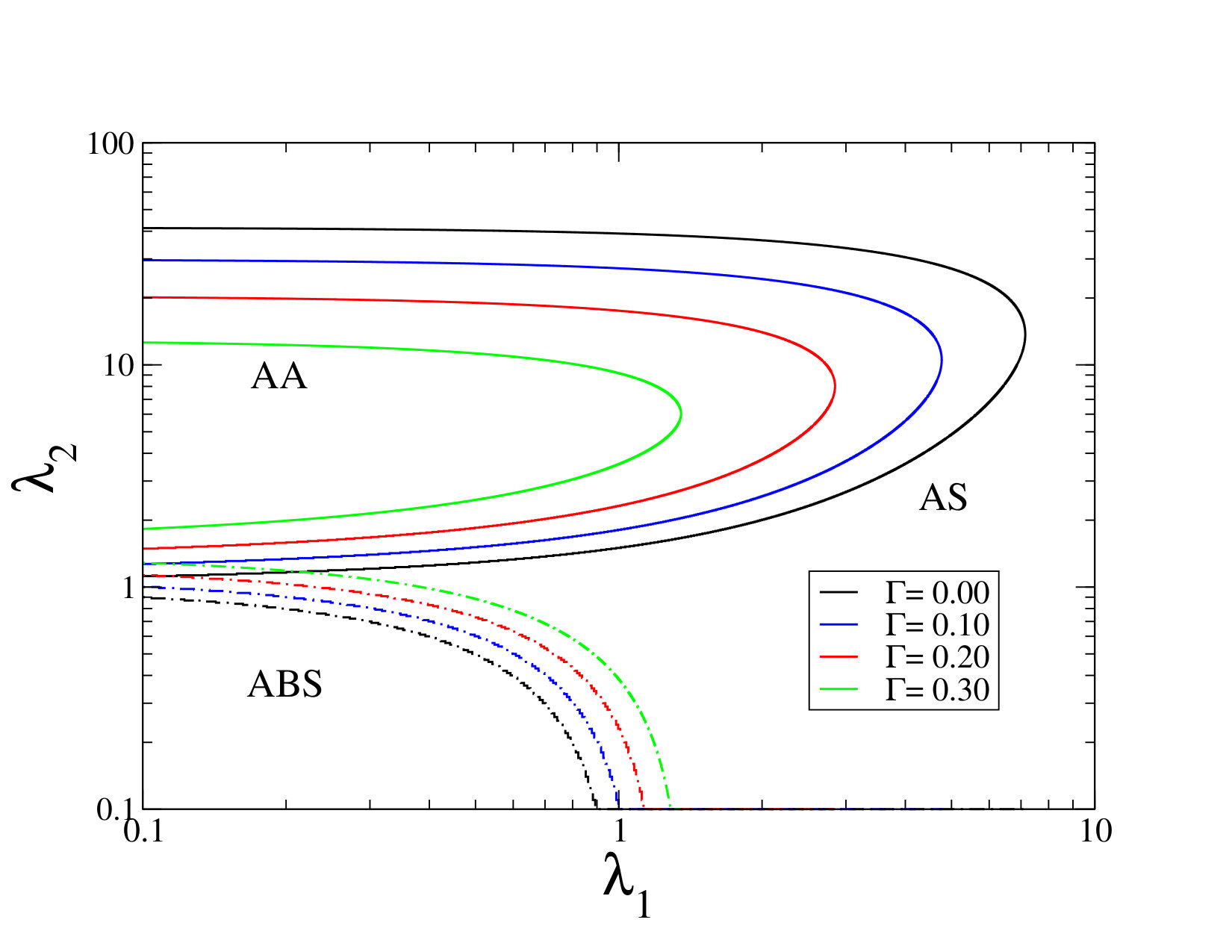

The phase diagram for distinct values of $\Gamma$ is shown in Fig. 2. The increase of $\Gamma$ enlarges the absorbing phase and then the AB-AS phase transition moves for larger values of $\lambda_{2,c}^{ABS}$. In the active phase, the phase diagram is reentrant, and we note the size of the AA phase is reduced when the disorder increases.

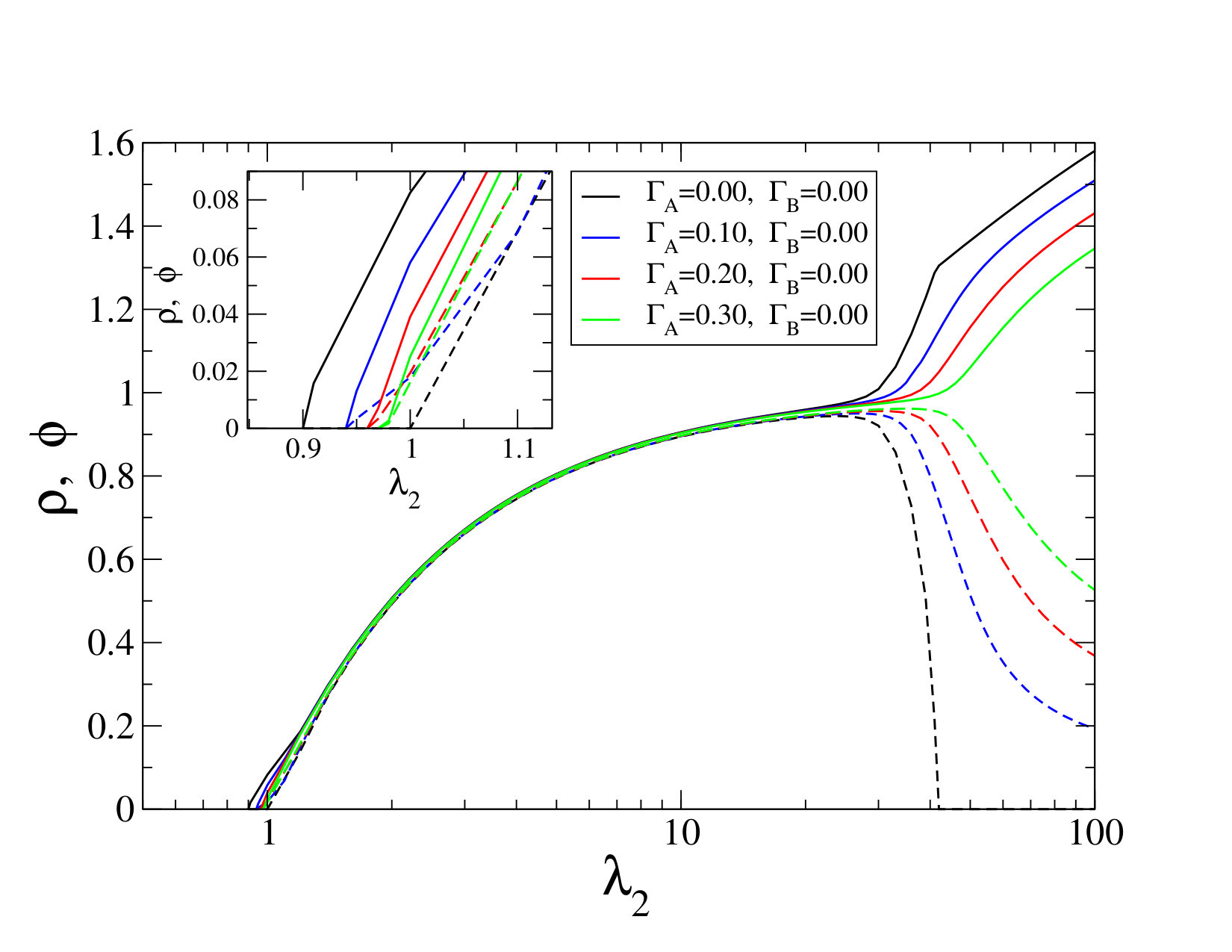

The asymmetric disorder case, $\Gamma_{A}\neq\Gamma_{B}$, is shown in Fig. 3. MFT indicates the suppression of the AS phase, signed by a smooth change of both of $\rho$ and $\phi$ at the same $\lambda_{2,c}$. The AS phase is not stable for any value of $\lambda_{2}$, so that $\phi$ does not vanish for finite values of $\lambda_{2}$. So, the phase diagram only presents two phases: the absorbing phase and the active symmetric phase separated by a continuous phase transition.

In the next section, we compare the results from MFT with those evaluated from numerical simulations.

III Results and Discussion

III.1 Methods

We performed extensive Monte Carlo simulations of the model on square lattices with periodic boundaries. The simulation scheme is as follows. First, a site is selected at random. If the site is occupied, it creates a particle at one of its first neighbors with a probability $p_{1}=\lambda_{1}/W$ or at one of its second neighbors with a probability $p_{2}=\lambda_{2}/W$. Here, $W=(1+\lambda_{1}+\lambda_{2}+\mu n_{1}^{2})$ is the sum of the rates of all possible events. With a complementary probability $1-(p_{1}+p_{2})$, the site is vacated. To improve the efficiency, we choose the sites from a list containing the currently $N_{occ}$ occupied sites; accordingly, the time is incremented by $\Delta t=1/N_{occ}$ after each event. For simulations in the subcritical and critical absorbing regime, we sample the quasi-stationary (QS) regime using the simulation method detailed in qssim . In order to draw a comparison with the results from MFT, in all cases we take $\mu=2.0$.

III.2 Symmetric disorder

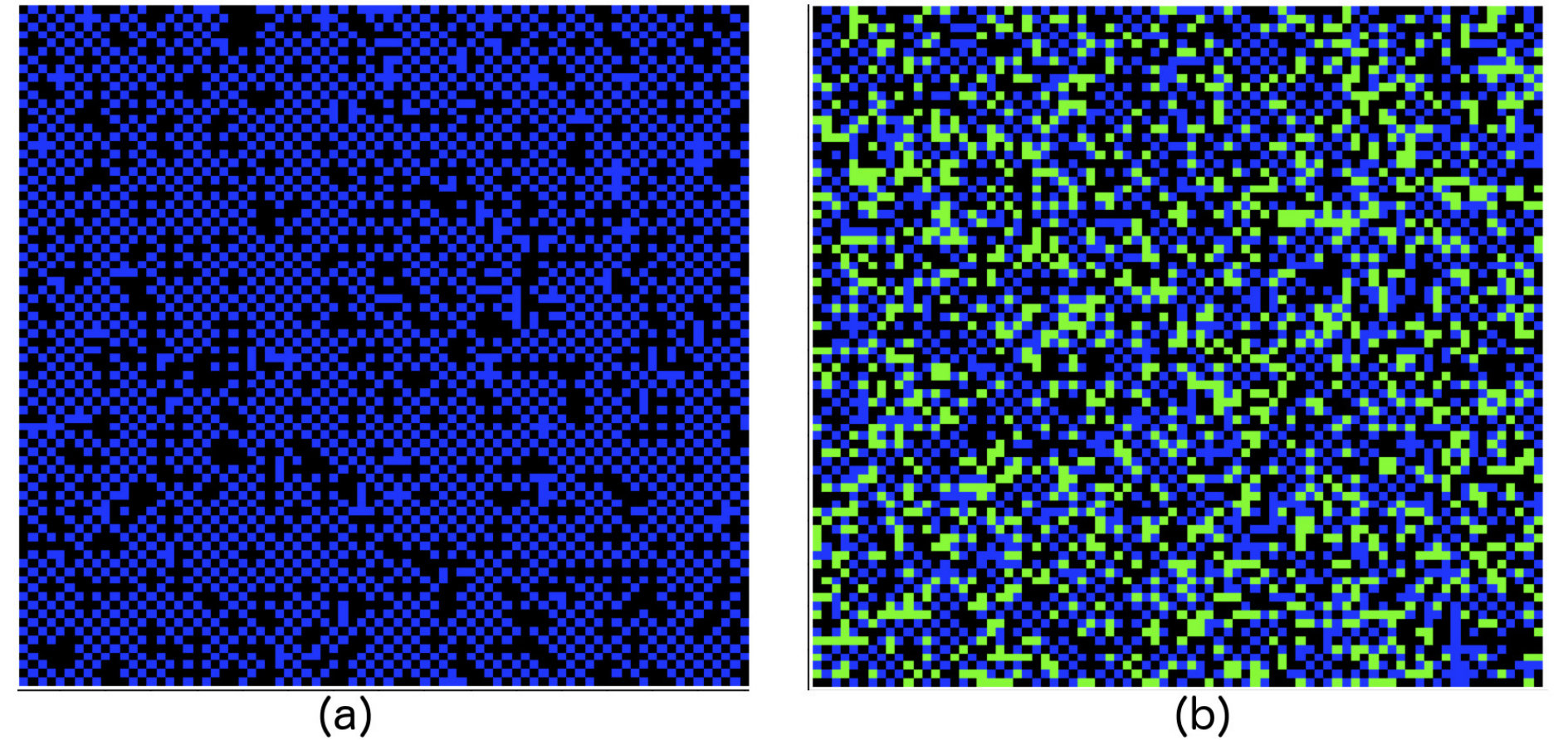

We begin by analysing the symmetric case, where $\Gamma_{A}=\Gamma_{B}=\Gamma$. In Fig. 4, we show typical configurations observed on the bipartite lattice for $\lambda_{1}=0.1$ and $\lambda_{2}=0.1$, for clean $\Gamma=0$ and disordered system $\Gamma=0.2$.

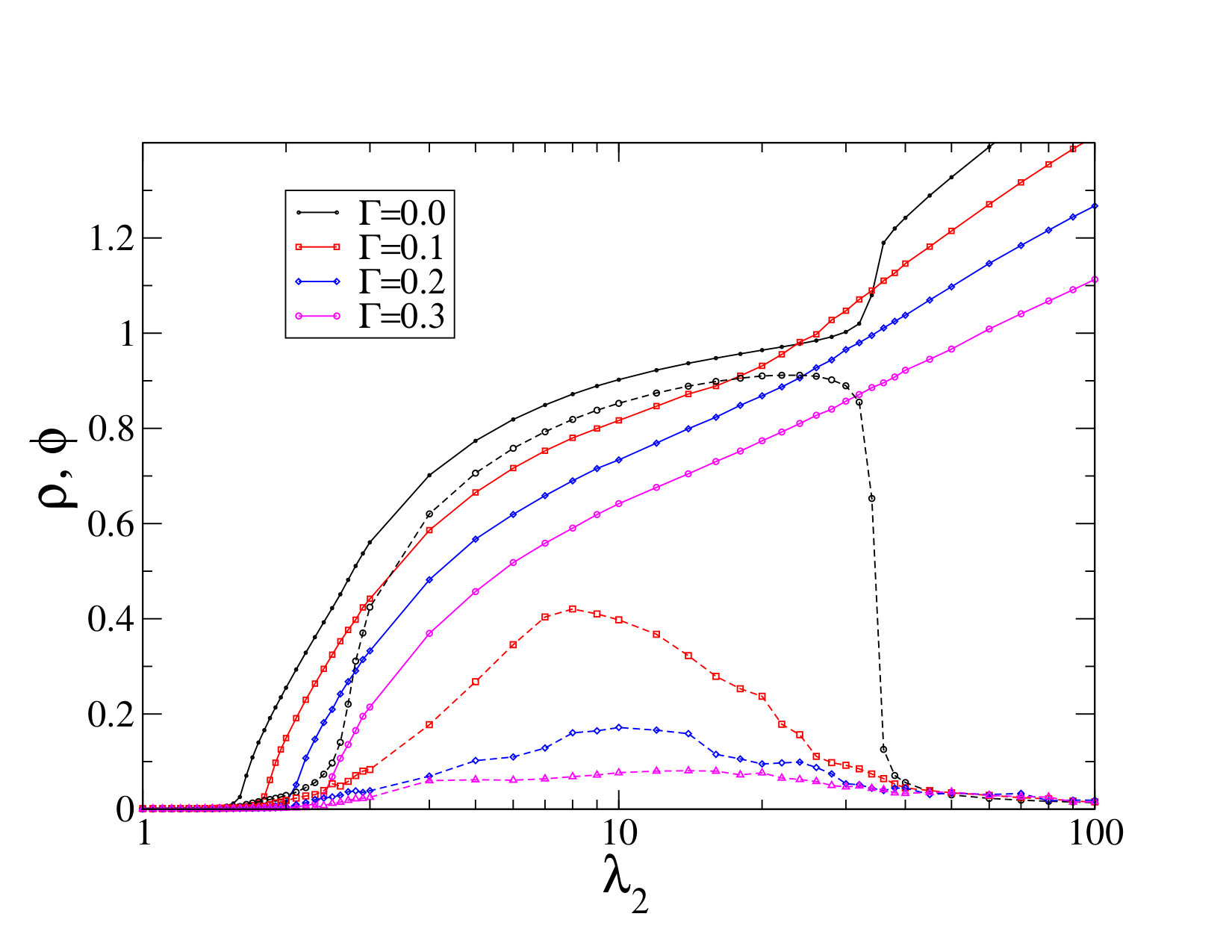

Figure 5 shows the densities of $\rho$ and $\phi$ on a square lattice with linear system size $L=80$. As expected, the absorbing phase transition occurs at a higher value of $\lambda_{2}$ when disorder is introduced. We also observe that increasing the fraction of disorder reduces the possibility of an AA phase, since the values of $\phi$ reduces when we increase the fraction of disorder.

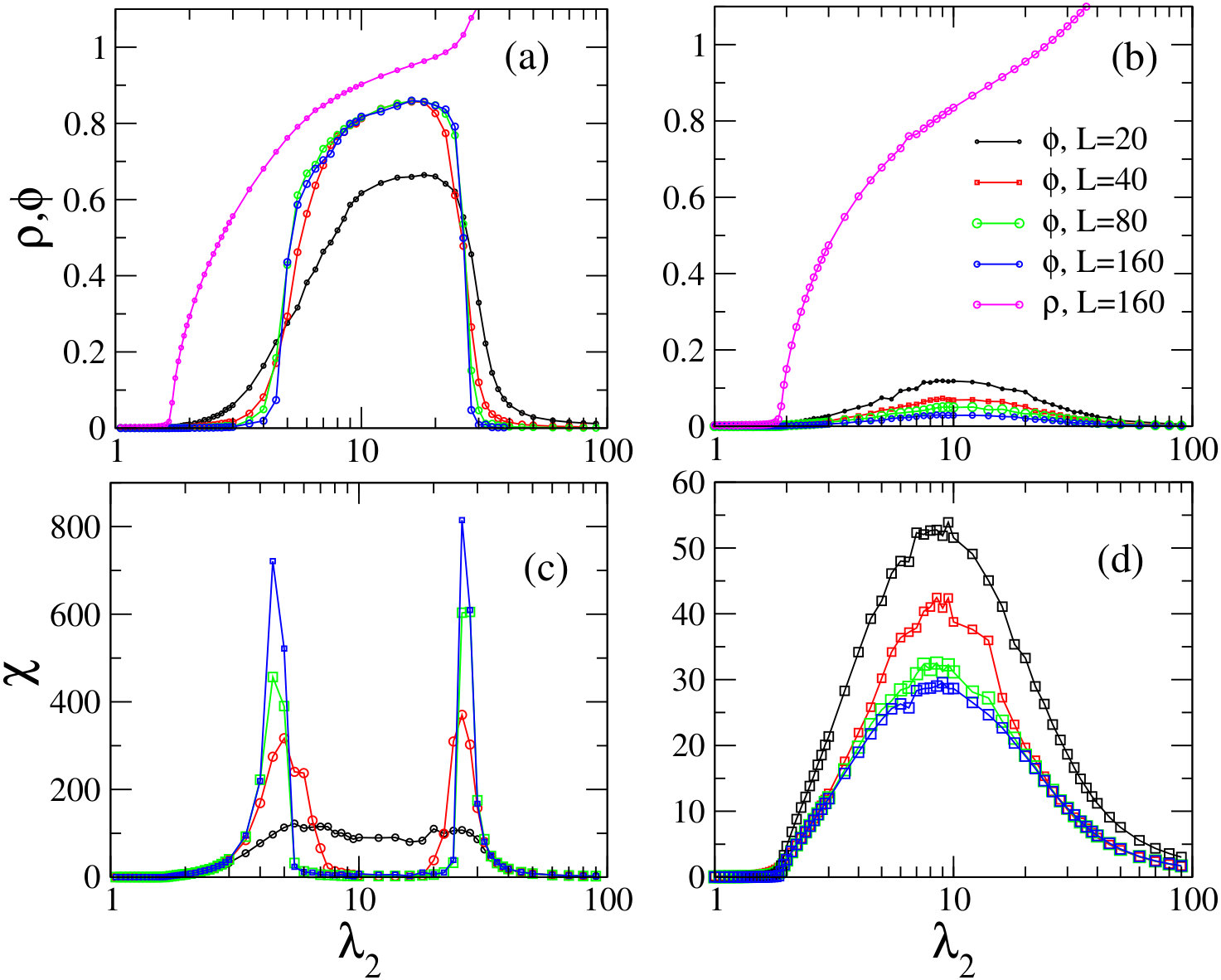

In order to clarify the effects of disorder on the stability of the AA phase, we analyze the dependence of the order parameter $\phi$ with the linear system size $L$. In Fig. 6, we compare the clean model with the disordered system, with $\Gamma=0.1$. Panels (a) and (b) show the order parameter $\rho$ and $\phi$ versus $\lambda_{2}$ for distinct systems sizes. While for the clean version the the AA phase and the reentrant phase transition are observed for all system sizes (see panel (a)), the disordered system shows a remarkably different picture, in which the sublattice occupations become equivalent for large $L$. Therefore, we conclude that $\phi$ vanishes when $L\to\infty$ and the AA phase is suppressed by the disorder. Such behavior is reinforced by analyzing the order parameter variance $\chi=L^{2}(\langle\phi^{2}\rangle-\langle\phi\rangle^{2})$, as shown in panels $(c)$ (clean) and $(d)$ (disordered). In contrast to the clean system, in which $\chi$ diverges nearby the transitions AB-AA and AA-AB as $L\to\infty$, no divergence is verified in such case. So, in contrast to the MFT predictions, we observe that symmetric disorder forbids the stability of AA phase and therefore the disordered system does not show symmetry breaking.

Now, let us characterize the absorbing phase transition in the disordered system. For locating the critical creation rate $\lambda_{2,c}$, we study the time evolution of the number of active particles $n(t)$ starting from an initial configuration the simulation with one pair of neighboring active particles. The critical value $\lambda_{2,c}$ can be estimated as the threshold $\lambda_{2}$ separating asymptotic growth from the decay towards the absorbing phase.

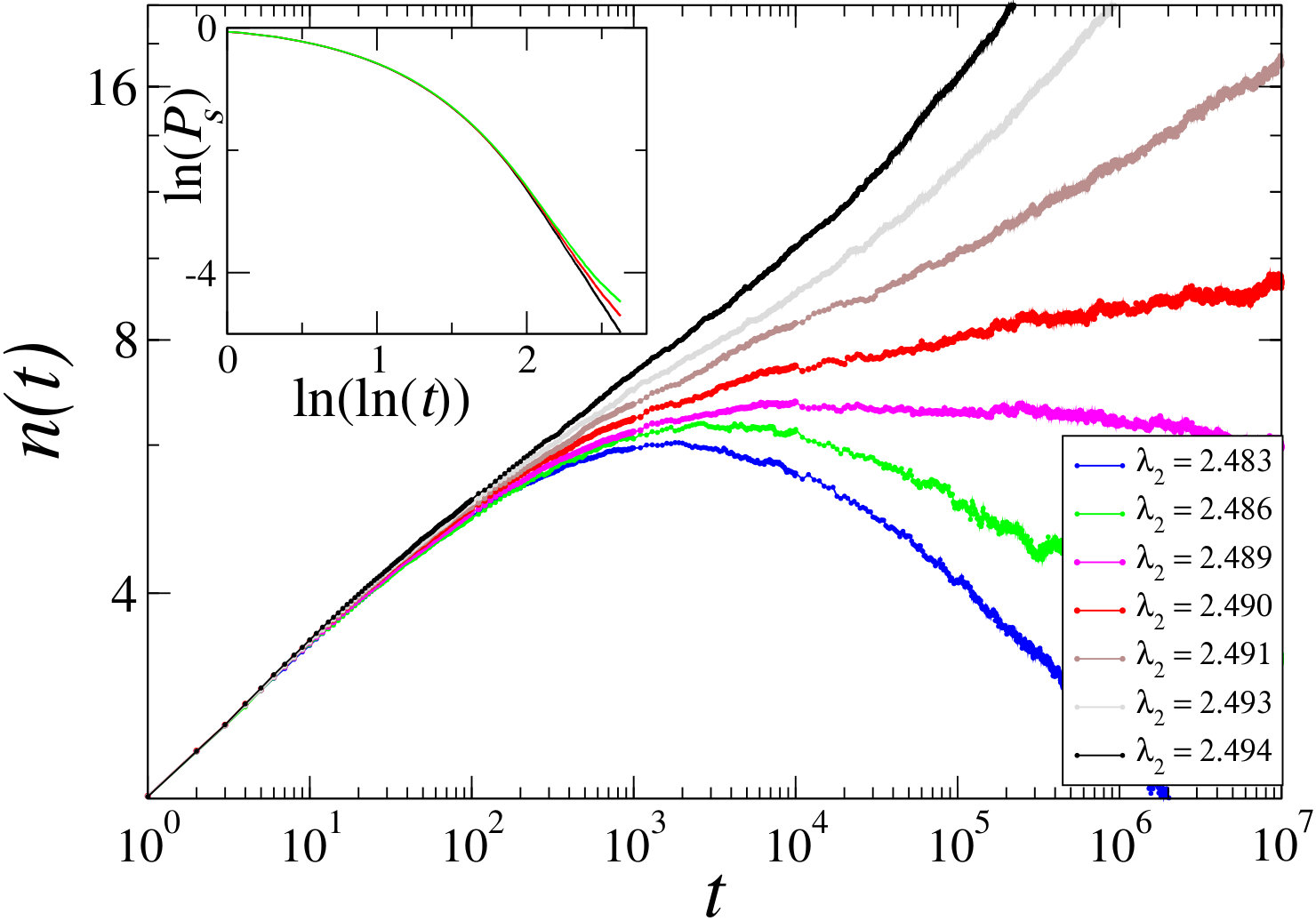

Figure 7 exemplifies the results for $\Gamma=0.3$ in which $\lambda_{2,c}=2.490(1)$. We observe that, analogously to the diluted CP, the critical behavior presents activated dynamic scaling, with

[TABLE]

and with the survival probability

[TABLE]

From the data in Fig.7, we estimate $\ln(t_{0})=3.0(5)$, and $\theta=0.21(4)$, in agreement with the value $\theta=0.15(3)$, obtained in vojta09 . From the data shown in the inset of Fig. 7, we find $\delta=2.1(3)$, very close to the value $\delta=1.9(2)$ observed for the usual CP with random dilution, indicating that critical behavior of the disordered model belongs to the universality class of the diluted CP vojta09 ; hada .

Combining the activated scaling relations for $n(t)$ and $P_{s}(t)$, eqs. (5) and (6), we find that

[TABLE]

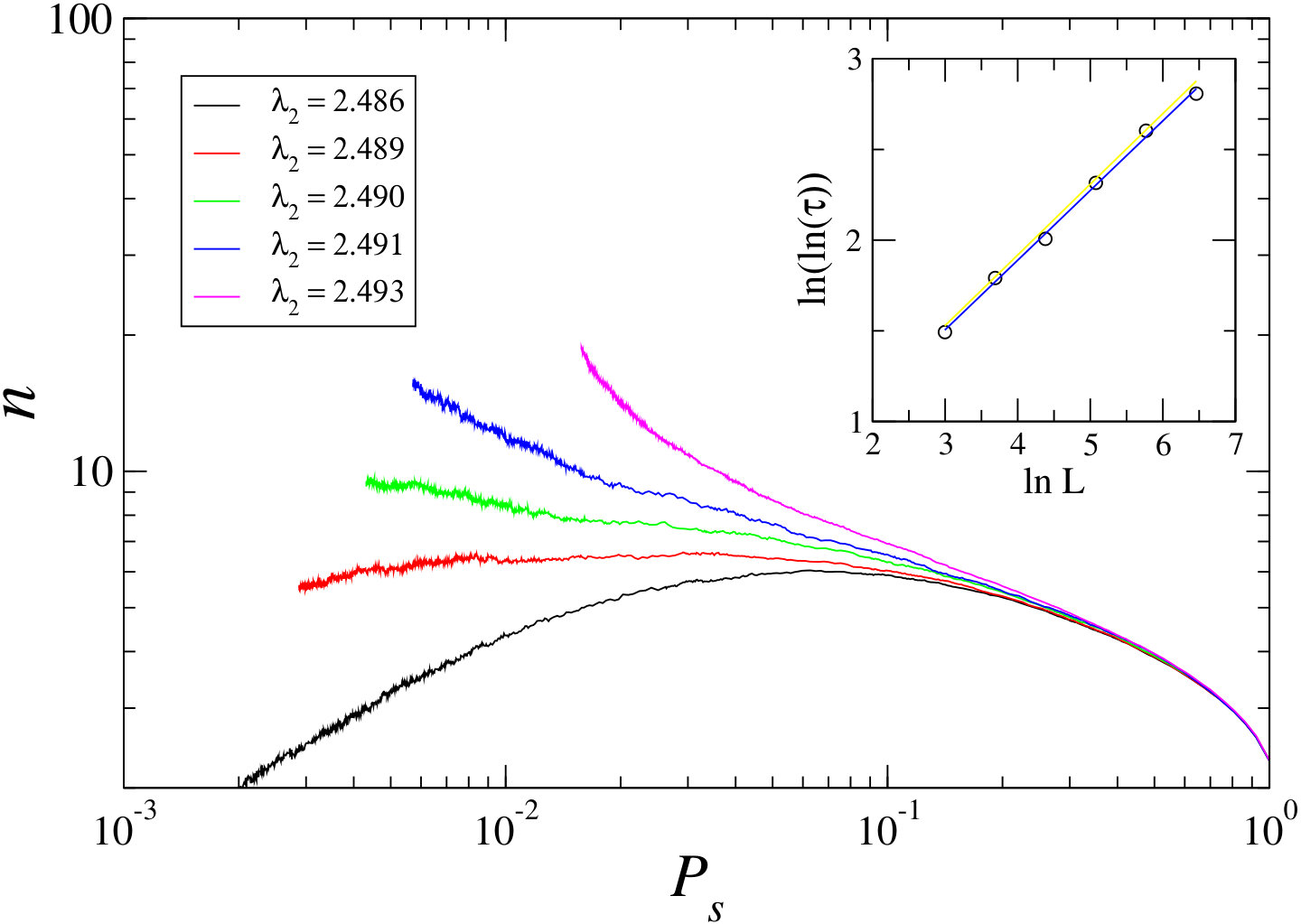

at criticality. This relation does not depend on $t_{0}$, and is useful to check our estimate of the critical point. In Fig.8, we plot $n$ as function of $P_{s}$, and observe a power law that at $\lambda_{2}=2.490$, while the curves for $\lambda_{2}=2.491$ ($\lambda_{2}=2.489$) veers up (down), thus confirming the accuracy of our estimate for the critical point. At criticality, we found the exponent ratio $\delta/\theta=0.09(2)$, in coherence with with the values of $\delta$ and $\theta$ obtained from the data in Fig.7. This value is also in agreement with the value $\delta/\theta=0.075(5)$ obtained for the diluted contact process in hada .

In the active-dynamical scenario, the lifetime of the process follows

[TABLE]

where $\psi$ is a universal exponent. From the data in the inset of Fig 8, we found $\psi=0.44(5)$, close to the value $\psi=0.51(6)$ obtained for the diluted CP vojta09 .

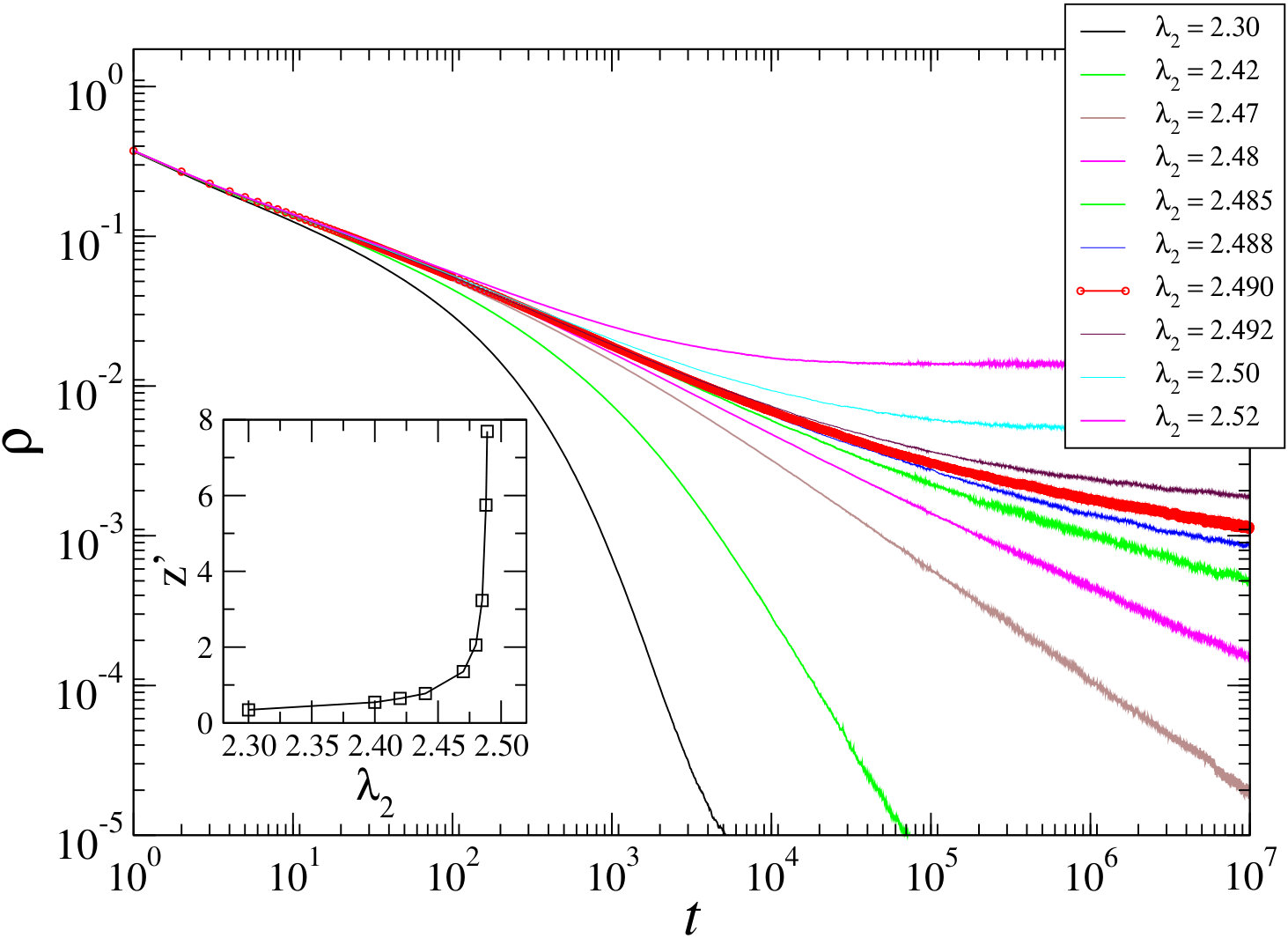

Finally, another important effect that disorder can induce in absorbing phase transitions is the emergence of Griffiths phases. A Griffiths phase is a region inside the subcritical phase where the long-time decay of $\rho$ towards the extinction is algebraic (with non-universal exponents), rather than exponential. In Fig.9, we present results from initial decay simulations, where the system starts its dynamics from a fully occupied lattice. We observe the existence of a range of values of $\lambda_{2}$ in the subcritical regime where the long-time behavior of the density decays as a power law,

[TABLE]

with the non-universal dynamical exponents $z^{\prime}$ following

[TABLE]

where $\lambda_{2,c}$ is the critical value of the control parameter $\lambda_{2}$ vojta09 . In the inset of Fig. 9 we observe that $z^{\prime}$ diverges when $\lambda_{2}$ approaches $\lambda_{2,c}=2.490$. From these data, we obtain $\psi\nu_{\perp}=0.60(1)$, in good agreement with the value $\psi\nu_{\perp}\approx 0.61$ reported in vojta09 for the diluted CP.

In resume, our results for the effects of symmetric disorder are in agreement with the predictions from the Harris criterium, since $\nu_{\perp}$ = 0.734(4), for $d=2$ in the clean system, and therefore the disorder is relevant for the absorbing phase transition oliveira . Similar trends have been observed for lower values of $\Gamma$, although larger crossover times toward the infinite-random behavior are expected in such cases oliveira ; vojta09 .

III.3 Asymmetric disorder

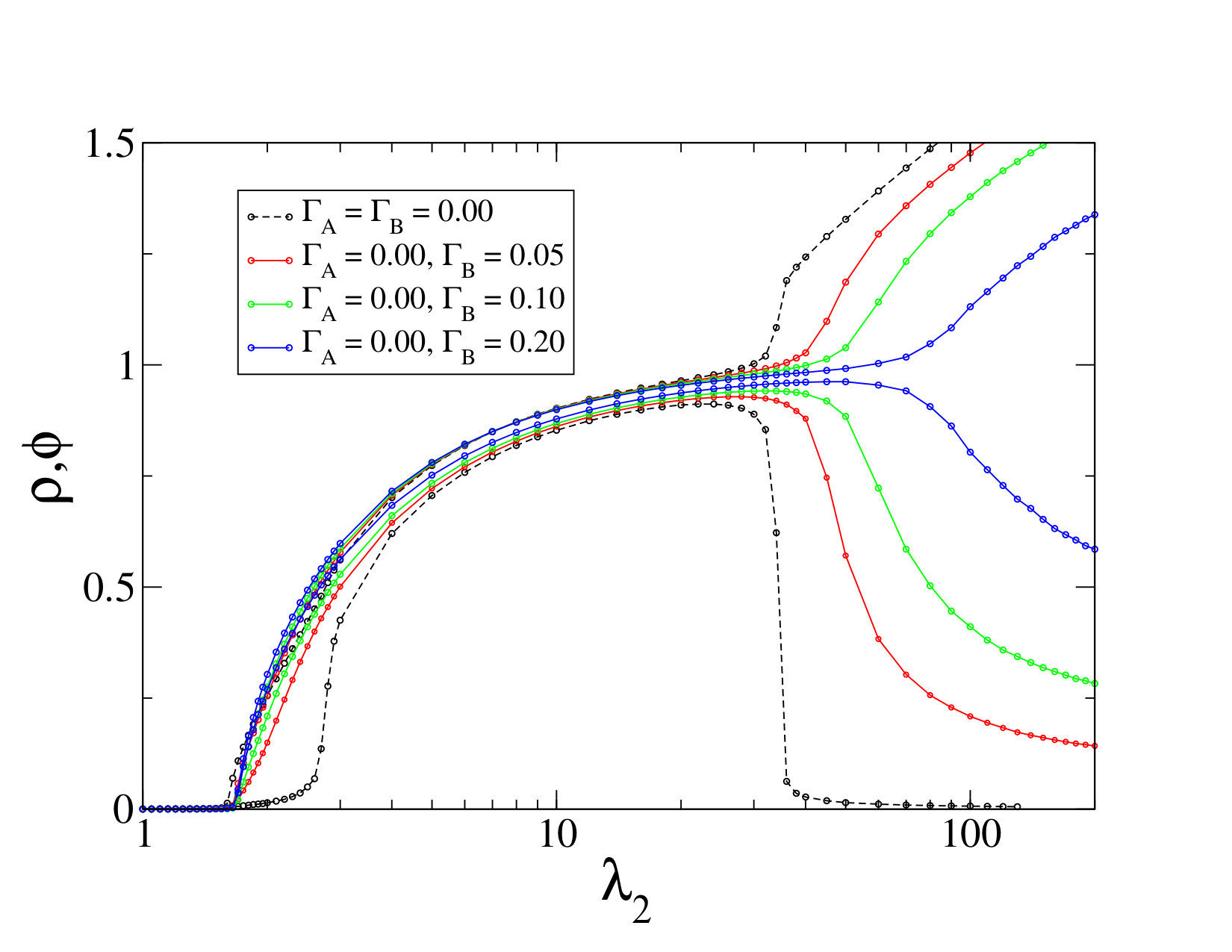

Now, we investigate the effects of asymmetric disorder in which disorder strengths is different in each sublattice. This is exemplified in Fig. 10 for $\Gamma_{1}=0$ and distinct values of $\Gamma_{2}$. We note that even a very small asymmetric disorder ($\Gamma_{2}=0.05$), the AS phase is suppressed and only less disordered sublattice is populated. Therefore, only a phase transition between the inactive and the asymmetric phase is presented, whose critical behavior is ruled by the less disordered sublattice. In all these cases, we observe that at criticality, $\rho\sim L^{-\beta/\nu_{\perp}}$ and the lifetime $\tau\sim L^{-z}$. For example, for $\Gamma_{2}=0.2$, shown in Fig 11, we find $\beta/\nu_{\perp}=0.81(2)$ and $z=1.75(3)$, in agreement with the DP values $\beta/\nu_{\perp}=0.797(3)$ and $z=1.7674(6)$. The inset shows the moment ratios of the order parameter, $m=\langle\rho\rangle^{2}/\langle\rho^{2}\rangle$ goes to a universal value $m=1.33(1)$ at criticality, in comparison to the known DP value $m=1.3264(5)$ cpsl .

III.4 Phase diagrams

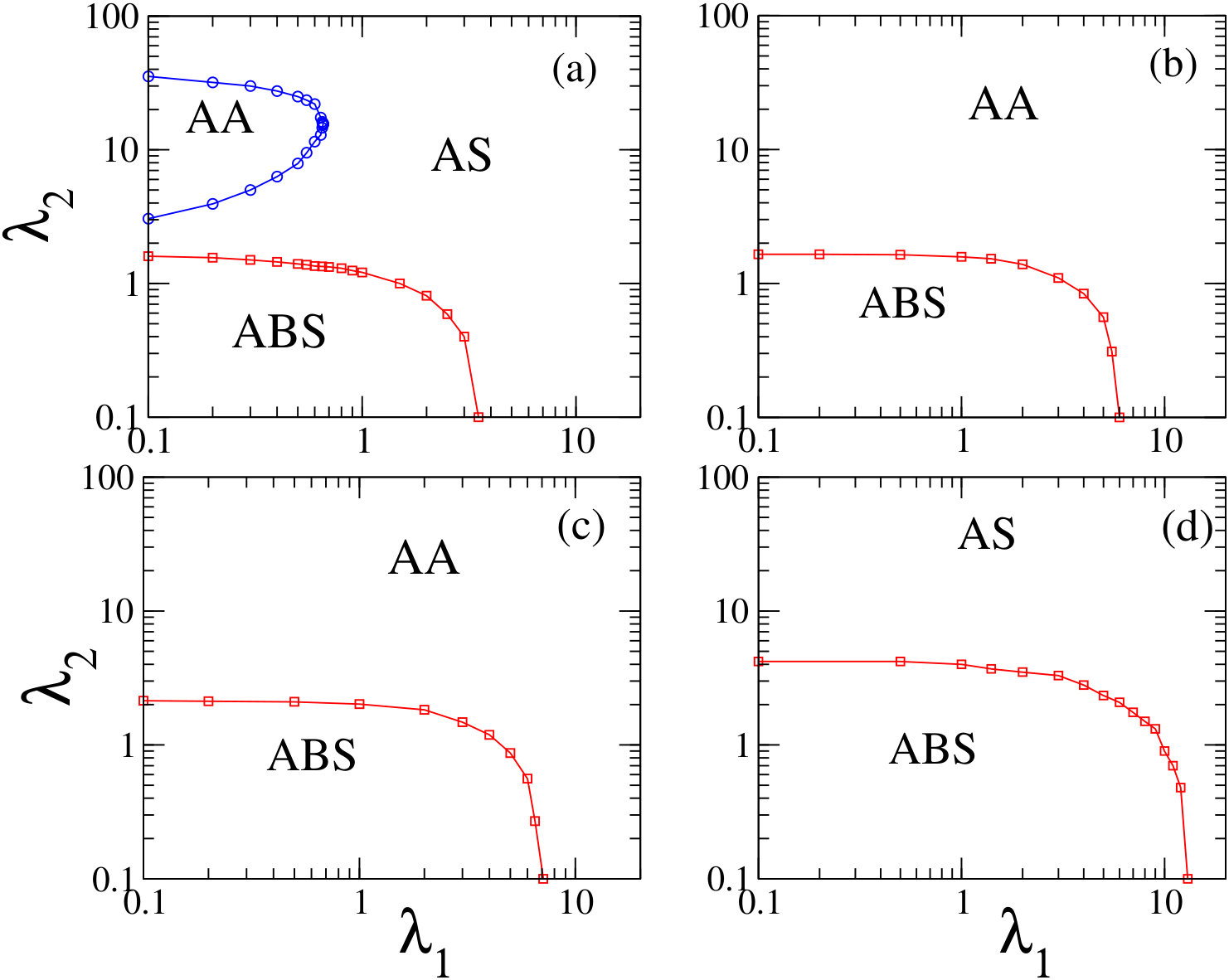

Our simulation results for the effects of disorder are resumed in the phase diagrams shown in Fig.12. In (a), the clean system exhibits, besides the absorbing phase, a reentrant active asymmetric phase (with $\phi>0$) inside the active symmetric phase. In cpsl , it was shown that the active-absorbing phase belongs to the DP universality class, while the AA-AS symmetry-breaking phase transition is Ising-like.

The effects of asymmetric disorder in the phase diagram are shown in Fig.12 (b) and (c). We note that the AS phase vanishes, and there are only two phases, the absorbing and the AA phase. The universality class of the transition between these phases is governed by the less disordered sublattice. So, while in the case (b), the phase transition belongs to the DP universality class, in the case (c) it belongs to the universality class of the diluted CP.

Finally, if the disorder is symmetric, as in case (d), we note that the AA phase vanishes, and the absorbing-AS phase transition belongs to the class of the diluted CP. This system exhibits activated scaling and Griffiths phases as shown in detail in section III.B.

IV Conclusions

In this work, we have investigated the effects of quenched disorder in the phase diagram of the competitive contact processes on sublattices. Through mean-field analysis and Monte Carlo simulations, we have studied distinct types of disorder, (i) a random homogeneous deletion of sites (ii) an asymmetrical disorder, in which the disorder strength is different in each sublattice. Interesting, each one of the above disorder prescriptions yields completely different outcomes.

We observe that in the case (i), the disorder destroys the asymmetric active phase, and therefore, the symmetry-breaking phase transition. So, there are only two phases, the absorbing and the active (symmetric) phases. The absorbing-active phase transition exhibited belongs to the universality class of the disordered contact process. Effects related to an infinite randomness fixed point are observed, such as activated dynamics and Griffiths phases in the subcritical regime.

A distinct behavior is observed if each sublattice has a different disorder strength. In such case, the symmetrical active phase is not stable, and we observe a phase transition directly from the active asymmetric phase to the absorbing phase. The critical behavior in this case is governed by the sublattice with less disorder, for instance, if one of the sublattices has no disorder, then the phase transition will fall in the DP class.

A natural extension of the present work would be the study of the effects of temporal disorder temp0 ; temp1 ; temp2 ; temp3 on the robustness of the symmetry-breaking phase transition, and in its the critical behavior. It is important to mention that, besides the theoretical interest in the field of nonequilibrium phase transitions, suppression of activity at the nearest neighbors of active sites resembles biological lateral inhibition, known to be important in the visual system of many animals brain . Also, our work can be useful to understand the effects of heterogeneities in extended systems showing checkerboard pattern distributions such as mutually exclusive species co-occurrences eco .

Acknowledgments

This work was supported by CNPq and FAPEMIG, Brazil.
