Magnetic field induced intermediate quantum spin-liquid with a spinon Fermi surface

TL;DR

This study identifies an intermediate gapless quantum spin-liquid phase with a spinon Fermi surface in the Kitaev model under a magnetic field, using DMRG to analyze its properties and phase transitions.

Contribution

It provides the first detailed characterization of a gapless U(1) quantum spin-liquid with a spinon Fermi surface induced by magnetic field in the Kitaev model.

Findings

Identification of a gapless U(1) QSL with a spinon Fermi surface

Observation of power-law decay in spin-spin correlations in the intermediate phase

Determination of phase transitions at specific magnetic field strengths

Abstract

The Kitaev model with an applied magnetic field in the $H||[111]$ direction shows two transitions: from a non-abelian gapped quantum spin liquid (QSL) to a gapless QSL at $H_{c1} \simeq 0.2K$ and a second transition at a higher field $H_{c2} \simeq 0.35K$ to a gapped partially polarized phase, where $K$ is the strength of the Kitaev exchange interaction. We identify the intermediate phase to be a gapless U(1) QSL and determine the spin structure function $S({\bf k}) $ and the Fermi surface $\epsilon_F^S({\bf k})$ of the gapless spinons using the density matrix renormalization group (DMRG) method for large honeycomb clusters. Further calculations of static spin-spin correlations, magnetization, spin susceptibility, and finite temperature specific heat and entropy, corroborate the gapped and gapless nature of the different field-dependent phases. In the intermediate phase, the spin-spin correlations decay as a power law with distance, indicative of a gapless phase.

Figures

Equations

$$H_K=K\sum _{\gamma =x,y,z}\sum _{⟨ij{⟩}_{\gamma }}{S}_i^{\gamma }{S}_j^{\gamma }-\sum _i\mathbf{H}\cdot {\mathbf{S}}_i$$

$$\begin{array}{rl}{S}^{tot}& =\sum _{i,j}⟨{\mathbf{S}}_i\cdot {\mathbf{S}}_j⟩\\ M_{1,1,1}& =\frac{1}{N}\sum _i⟨S_i^x⟩+⟨S_i^y⟩+⟨S_i^z⟩\\ M_{\bar{1},\bar{1},1}& =\frac{1}{N}\sum _i-⟨S_i^x⟩-⟨S_i^y⟩+⟨S_i^z⟩\\ M_{1,\bar{1},1}& =\frac{1}{N}\sum _i⟨S_i^x⟩-⟨S_i^y⟩+⟨S_i^z⟩\end{array}$$

$$\begin{array}{rl}C(R)& =\frac{1}{N_R}\sum _{R=|i-j|}⟨{\mathbf{S}}_i\cdot {\mathbf{S}}_j⟩-⟨{\mathbf{S}}_i⟩\cdot ⟨{\mathbf{S}}_j⟩\end{array}$$

$$\begin{array}{rl}{C}_v& =\frac{\partial }{\partial T}E(T)\\ S(T)& ={\int }_0^{T}d{T}^{\prime }\frac{C_v(T^{\prime })}{T^{\prime }}\end{array}$$

$$S_{tot}(\mathbf{k})=\frac{1}{L^{2}}\sum_{i,j}e^{-i\mathbf{k}\cdot\mathbf{r_{ij}}}\big{[}\langle{{\mathbf{S}_{i}}\cdot{\mathbf{S}_{j}}}\rangle-\langle\mathbf{S}_{i}\rangle\cdot\langle\mathbf{S}_{j}\rangle\big{]}$$

$$S_{tr}(\mathbf{k})=\frac{1}{L^{2}}\sum_{\kappa}\sum_{(i,j)_{\kappa}}e^{-i\mathbf{k}\cdot\mathbf{r_{ij}}}\big{[}\langle{{\mathbf{S}_{i}}\cdot{\mathbf{S}_{j}}}\rangle-\langle\mathbf{S}_{i}\rangle\cdot\langle\mathbf{S}_{j}\rangle\big{]}$$

$$S^{\gamma\gamma^{\prime}}(i,j,\omega)=\frac{-1}{\pi}\operatorname{Im}\big{[}\langle\psi_{0}|{\delta S}^{\gamma}_{i}\ \frac{1}{\omega-H+E_{g}+i\eta}\ {\delta S}^{\gamma^{\prime}}_{j}|\psi_{0}\rangle\big{]},$$

$${\delta S}_i^{\gamma }=S_i^{\gamma }-⟨S_i^{\gamma }⟩,$$

$$\begin{array}{rl}{S}_{tot}(k,\omega )& =\frac{1}{L^2}\sum _{i,j}{e}^{-ik(i-j)}\sum _{\gamma }{S}^{\gamma \gamma }(i,j,\omega ).\end{array}$$

Full text

The inspired exact solution of the Kitaev model on a two-dimensional honeycomb lattice with bond dependent spin exchange interaction Kitaev1 (Eq. 1) has emerged as a paradigmatic model for quantum spin liquids (QSL). For equal bond interactions ($K$), the ground state of the Kitaev model is known to be a topologically non-trivial gapless QSL with fractionalized excitations. The multiple ground state degeneracy reflects the topology of the lattice manifold (2-fold degeneracy on a cylinder and 4-fold degeneracy on a torus). The promise of utilizing fractionalized excitations for applications in robust quantum computing Kitaev1 ; Blents1 ; ZhouRMP ; knollethesis ; knolle2 has led to considerable excitement and activity in the field from diverse directions, all the way from fundamental developments to applications. Upon breaking time-reversal symmetry (TRS), for example by applying a magnetic field, the exact solvability of the Kitaev model is lost but perturbatively it can be shown that the Kitaev gapless QSL becomes a gapped QSL phase with non-abelian anyonic excitations Kitaev1 .

In order to realize the exotic properties of the Kitaev model, there has been keen interest to discover Kitaev physics in materials. To this end, Mott insulators with magnetic frustration and large spin-orbit coupling have been proposed Khaliullin1 , leading to the discovery of $\alpha$-RuCl3 and A2IrO3 (A = Na, Li). These are candidate QSL materials with the desired honeycomb geometry. Although given additional interactions beyond the Kitaev interaction in materials, there is still controversy about the regimes where Kitaev physics can be accessed chun2015 ; Feng1 ; Taylor1 ; Banerjee2017 ; Winter2017 ; Simon2017 . Additionally, triangular and Kagome lattice with spin frustration has also been proposed as a candidate for a QSL Misguich1 ; Imada2002 ; Motrunich2005 ; Saito1 ; YSLee1 ; Subir2 ; PLee1 . In this context, organics such as $\kappa$-(BEDT-TTF)2Cu2(CN)3 Shimizu1 and EtMe3Sb[Pd(dmit)2]2 Itou1 , the transition metal dichalcogenides 1T-TaS2 PLee1 and a large family of rare-earth dichalcogenides AReX2 (A = alkali or monovalent ions, Re = rare earth, X = O, S, Se) LiuChineseLett have been explored. Remarkably, recent NMR and thermal Hall conductivity experiments on $\alpha$-RuCl3 demonstrate that one can drive the magnetically ordered phase into a QSL phase using an external magnetic field Matsuda1 ; Martin1 . To this end, various numerical tools were used to explore the possible QSL phases in the models relevant to candidate honeycomb materials with an external magnetic field Wolter1 ; BNormand1 ; Gordon1 ; Hongchen1 ; takikawa1 .

In this article, we theoretically address the question: What is the fate of the Kitaev QSL with increasing magnetic field (see Eq. 1), beyond the perturbative limit? Previous studies, using a variety of numerical methods hickey2018gapless ; Ronquillo2018 ; Fliang1 ; Gohlke2018 , have pushed the Kitaev model solution to larger magnetic fields outside the perturbative regime. At high magnetic fields, one would expect a polarized phase. What is surprising is the discovery of an intermediate phase sandwiched between the gapped QSL at low fields and the polarized phase at high fields when a uniform magnetic field is applied along the $[111]$ direction (Fig. 1c). The main question we focus on is: What is the nature of this intermediate phase? A study based on exact diagonalization on small clusters claims to get an intermediate QSL phase with a stable spinon Fermi surface hickey2018gapless . An independent analysis based on the central charge and symmetry arguments also deduce a spinon Fermi surface Yming2018field ; YinHe2018 . In this article, we present exact calculations of the spin structure factor $S({\bf k})$ on large systems and reconstruct the spinon Fermi surface $\epsilon_{F}^{S}({\bf k})$ in the intermediate phase, details of which are distinct from other recent proposals. These are the primary significant new results of this work.

I Model and Method

We consider the Kitaev model on a honeycomb lattice in the presence of an external magnetic field along the $[111]$ direction. The model Hamiltonian is defined as

[TABLE]

where $\gamma=x,y,z$ is the nearest neighbor bond index of each site, and $S^{\gamma}$ is the $\gamma$ projection of spin-$1/2$ degrees of freedom on each site. The first term is the Kitaev model where $K=1$ eV, and the second term represents Zeeman field with a uniform magnetic field $\mathbf{H}$ (in units of $K$) applied in the $[111]$ direction. This model is solved using DMRG and Lanczos on a lattice with $L_{1}\times L_{2}$ number of unit cells (u.c.) and with $2$ sites per u.c. labeled as $A$ or $B$ (the total number of sites equals $2L_{1}L_{2}$ - see Fig. 3a). All DMRG simulations are performed with fixed $L_{1}=16$ and cylindrical boundary conditions using upto $1200$ DMRG states per block, ensuring the truncation error $\leq 5\times 10^{-6}$ for $L_{2}\leq 5$ ($\leq 10$ sites in $\mathbf{a_{2}}$ direction) within the two-site grand canonical DMRG WhiteDMRG1 ; WhiteDMRG2 ; WhiteWFT ; Springerbook1 ; alvarez0209 ; alvaez3 ; Schollwock1 ; Schollwock2 . Additionally, we also use finite temperature Lanczos method (FTLM) for calculations of specific heat and thermodynamic entropy at finite temperatures $T$ (in units of $K$) on small clusters Springerbook1 ; Prelovsek1 . The supplemental material presents definitions of all observables and convergence analysis of DMRG and FTLM calculations.

II Results

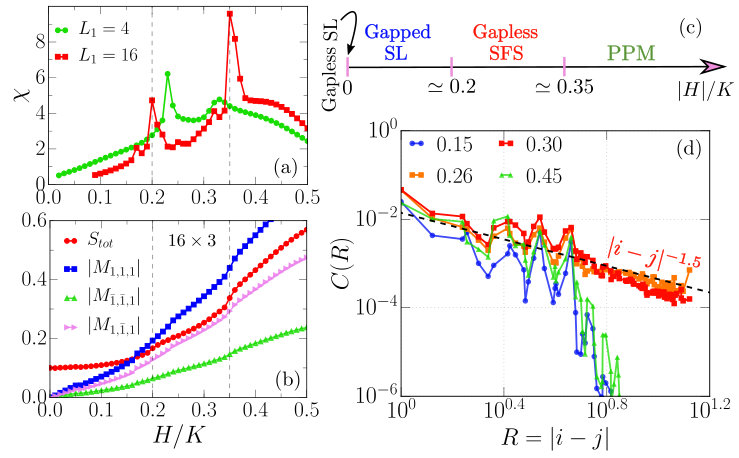

We begin with the magnetic and thermodynamic properties of the model. Figure 1 shows the spin susceptibility ($\chi=\partial S_{tot}/\partial H$), and various measures of magnetization as a function of field strength $H$. The clear two-peak structure of $\chi$ demonstrate the presence of two phase transitions at finite field strengths. The corresponding magnetization also shows kinks at the critical fields $H\simeq 0.2$ and $0.35$ (dashed lines in Figs. 1a and 1b). The zero field limit is known to be a QSL with a gapless energy spectrum and $4$-fold topological ground-state degeneracy that is associated with a symmetry protected topological phase Kitaev1 . At finite fields $H\lesssim 0.2$, the ground-state is $2$-fold degenerate on a cylinder and the energy spectrum becomes gapped Kitaev1 ; Fliang1 . The gapped phase is also understood to be a $p+ip$ state of the emergent fermions. For high fields $H\gtrsim 0.35$, we find a partially polarized magnetic phase (PPM) phase, where the magnetization monotonically increases toward its saturation value ($M_{111}=1.5$) in the trivially field polarized product state. Remarkably, the two peak structure of $\chi$ indicates that an intermediate phase is sandwiched between the gapped Kitaev QSL and polarized phases (Fig. 1c).

What are the properties of the intermediate phase? We study the decay of spin-spin correlations $C(R)$ shown as a function of the distance $R$ between the two spins in (Fig. 1d). As expected, in the gapped non-abelian QSL phase ($H=0.15$) the $C(R)$ decays exponentially, consistent with a finite gap to flux excitationsKnolle1 ; knollethesis ; Gohlke2018 ; hickey2018gapless . In the PPM phase, the behavior of $C(R)$ is consistent with an exponential decay due to short ranged spin-spin correlations arising from the energy cost for a spin-flip that is proportional to $H$. However, in the intermediate regime, the behavior of $C(R)\propto R^{-m}$ is approximate fit as a power law with $m=1.5$ shown by the dashed black line in Figure 1d. The supplementary material show more detained fitting analysis of $C(R)$, where $m$ is weakly dependent on the field in the intermediate phase.

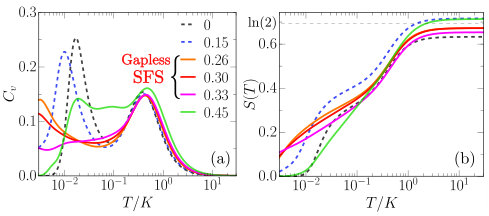

We provide further evidence of the gapless nature of excitations in Figure 2 through the temperature-dependent specific heat $C_{v}(T)$ and the thermodynamic entropy $S(T)$. We capture the characteristic two peak structure of $C_{v}$ and two ‘hump’ structure in the entropy at zero field. As expected, $S$ saturates to ${\rm ln}(2)$ at large temperatures for all field values. The two peak/hump feature is also found in the gapped QSL phase ($H=0.15$), where low temperature peak/hump shifts to even lower temperatures compared to $H=0$. The behavior of the low temperature $S(T)$ and $C_{v}(T)$ is consistent with a gapped spectrum both at low and high fields. However in the intermediate phase, the peak at low $T/K$ is suppressed leading to an algebraic behavior that is distinct compared to both gapped phases. In fact, the low temperature $C_{v}$ at $H=0.33$ show linear behavior in temperature (shown in supplemental material with a linear temperature scale) that is consistent with a gapless phase. As the FTLM is limited to small system sizes, severe size effects prevent us from obtaining an exact dependence of $C_{v}$ on temperature, and therefore we only discuss the qualitative trends. The analysis of the statistical error in calculations of $C_{v}$ and $S$ is also shown in the supplemental, along with $C_{v}$ at low temperatures. Finally with increasing $H$ across $H_{c2}\simeq 0.35$ into the PPM phase ($H=0.45$), the two peaks in $C_{v}$ merge, and similarly only one hump feature is visible in the entropy.

We also analyze the low temperature ‘missing’ part of the entropy ($S_{low}$) resulting from finite size effects (shown in the supplemental material). The $H=0$ and gapped phases have a quadratic increase in $S_{low}$ with temperature. On the contrary, the intermediate phase shows almost a linear behavior of $S_{low}$ at low temperatures. This is consistent with our earlier arguments of gapless nature of the intermediate phase. To summarize, we observe the following features in the intermediate phase: (1) a slow power-law decay of the $C(R)$ (Fig.1d) that is indicative of a gapless phase, and (2) a $C_{v}(T)$ consistent with linear behavior at low $T$ indicating a presence of itinerant emergent fermions. All of this evidence taken together provide strong evidence for an intermediate phase that is indeed gapless. Additionally, recently calculated $T=0$ spin dynamics on small systems also show a continuum in energy suggesting that the intermediate phases is indeed a $U(1)$ gapless QSL hickey2018gapless . In fact, such gapless spin-liquid phase on a triangular lattice was recently shown to have stable spinon Fermi surface PLee2 ; Motrunich2 . Therefore, it is likely that even in our case, on a honeycomb lattice, we may have a spinon Fermi surface as discussed before.

In order to explore this possibility, we calculate the spin structure factor along various cuts of the Brillouin zone (BZ) in Figures 3. For two-sites per unit cell ($A$ and $B$), we define structure factor using Fourier transform of inter and intra sublattice spin-spin correlations. The calculation of (trace) $S_{tr}(\mathbf{k})$ is performed using only intra-sublattice correlations while (total) $S_{tot}(\mathbf{k})$ sums over both inter- and intra-sublattice correlations (see supplemental material). Note that the sublattice $A$ and $B$ are located on different positions within a unit cell (unlike orbitals), and therefore $S_{tot}(\mathbf{k})$ must be considered in the extended BZ scheme (Fig. 3b-3d) while the $S_{tr}(\mathbf{k})$ may be considered only using the $1^{st}$ BZ (Fig. 3e). In short, $S_{tr}(\Gamma)=S_{tr}(\Gamma_{e})$ , but $S_{tot}(\Gamma)\neq S_{tot}(\Gamma_{e})$ where $\Gamma$ and $\Gamma_{e}$ refer to high symmetry points in the first and extended Brillouin zones respectively, labeled in Fig. 3b. We shall use subscript ‘e’ to distinguish between high symmetry points of the extended BZ versus the $1^{st}$ BZ.

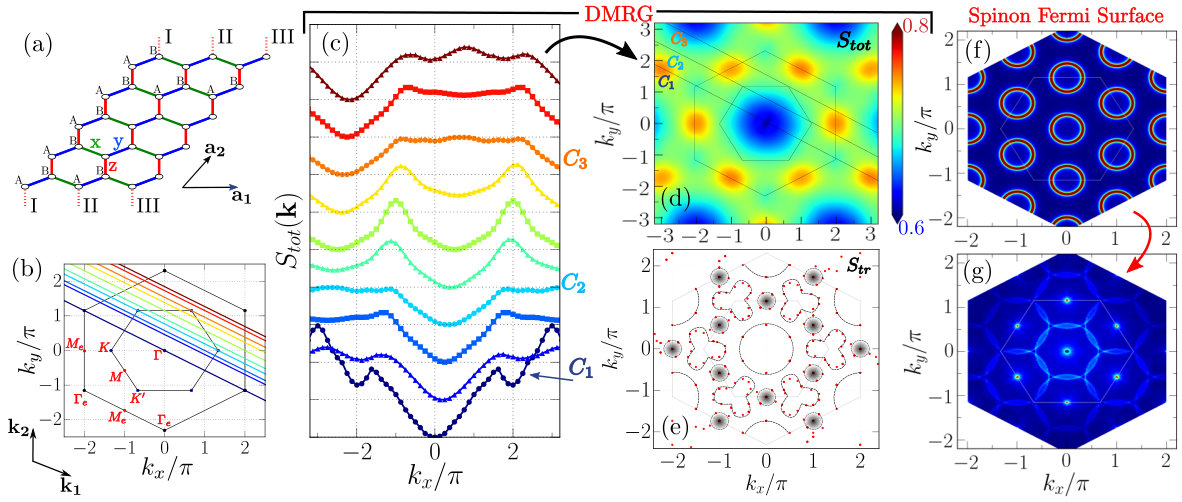

In Figure 3c-3d, we show cuts and contour of the $S_{tot}(\mathbf{k})$ at fixed $H=0.3K$ in the intermediate phase (see supplemental for cuts of the $S_{tr}(\mathbf{k}$)). There is suppression of intensity round the $\Gamma$ point and peaks around the $M_{e}$ points. The cuts between $C_{2}$ and $C_{3}$ pass through two $M_{e}$ points showing robust peaks visible in Fig. 3c (green curve). $S_{tot}(\mathbf{k})$ at all the $M_{e}$ points are distinctly visible as high intensity red circles in Fig. 3d. Apart from the total spin structure factor $S_{tot}(\mathbf{k})$, we also analyze the peak locations of the trace spin structure factor $S_{tr}(\mathbf{k})$ that respects symmetries within the $1^{st}$ BZ. Figure 3e show large peaks at the $M$ points of the $1^{st}$ BZ with ‘soft’ peaks around the $K$ and $K^{\prime}$ points forming $3$-petal shaped patterns, and peaks around $\Gamma$ forming a circle. In fact, comparing Figures 3d and 3e, it can be observed that the dominant peaks at the $M$ points in $S_{tr}(\mathbf{k})$ simply shifts to the $M_{e}$ points when considering the $S_{tot}(\mathbf{k})$ that also retains the inter-sublattice correlations.

Given the information provided by $S_{tot}(\mathbf{k})$ and $S_{tr}(\mathbf{k})$ , we propose the corresponding spinon Fermi surface (SFS) $\epsilon^{S}_{F}(\mathbf{k})$ with pockets around $\Gamma$ and $M$ points of the BZ (Fig. 3f). Using the spinon spectral function, defined by $A(\mathbf{k},\omega)=\delta(\omega-\epsilon^{S}_{F}(\mathbf{k}))$, we construct the scattering function in Fig. 3g, ${\cal F}({\bf{k}})\sim\sum_{\mathbf{q}}A(\mathbf{q},\omega=0)A(\mathbf{q}+\mathbf{k},\omega=0)$, that picks up the momentum transfer ${\bf k}$ from ${\bf q}$ to ${\bf q+k}$ scattering across the Fermi surface with energy transfer $\omega=0$. The inter-pocket scattering $\Gamma\leftrightarrow M$ and $M\leftrightarrow M$ across the FS (Fig. 3f) leads to a large joint density of states with momentum transfer ${\bf k}=M$ that results in peaks at the $M$ points (Fig. 3g), consistent with our DMRG calculations of $S_{tr}(\mathbf{k})$ in the intermediate phase (Fig. 3e). Other large circular features in ${\cal F}({\bf{k}})$ arise from similar scattering processes, for example, a spinon with momentum $\mathbf{q}$ around the $\Gamma$ pocket can scatter to all $\mathbf{q+k}$ points within the pockets at the $M$ points. The combination of these large circular features leads to the 3-petal patterns also found in $S_{tr}(\mathbf{k})$ at the $K/K^{\prime}$ points (Fig. 3e). In summary, our proposed spinon Fermi surface is able to qualitatively capture even subtle features of the $S_{tr}(\mathbf{k})$ in the intermediate phase providing strong evidence for a QSL with a spinon Fermi surface shown in Fig. 3f.

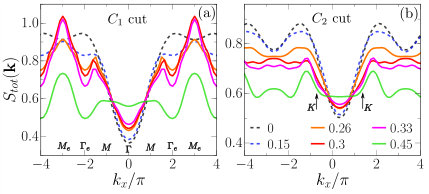

We next turn to the effect of a magnetic field on the spin structure factor. Figure 4 shows $S_{tot}(\mathbf{k})$ for $C_{1}$ cut and $C_{2}$ cut at various field strengths $H$. Note that for zero fields gapless and $H\lesssim 0.2$ gapped QSL phases, there is a broad feature that is consistent with short-ranged correlations, established by an exponential decay of spin-spin correlations in real-space (Fig. 1c). Our result is also consistent with previous calculations of peaks in the dynamical structure factor $S_{tot}(\mathbf{k},\omega)$ arising from plaquette flux and Majorana excitations Gohlke2018 that upon integrating $S_{tot}(\mathbf{k})=\int_{0}^{\infty}d\omega S_{tot}(\mathbf{k},\omega)$, give the broad feature in Figure 4.

The intermediate phase with long-range correlations shows robust peaks at $M_{e}$ (Fig. 4a). Additionally, Figure 4b demonstrates that the plateau at momentum point $K$ monotonically decreases with an increasing magnetic field. On the other hand, $S_{tot}(\mathbf{k}=M_{e})$ increase with the field, reaching its maximum value in the intermediate phase, and decreasing again upon transitioning into PPM phase. All peaks get suppressed in the PPM phase, as expected, because of shorter ranged spin-spin correlations (Fig. 1d). Overall, the combined results of Figures 3-4 show that the dominant peaks of the spin structure factor $S(\mathbf{k})$ at the $M$ points exist only in the intermediate gapless phase.

III Discussion

There have been several reports of the value of the central charge $c$ in the intermediate region, using which they have deduced the SFS Yming2018field ; Gohlke2018 ; YinHe2018 . However, it appears to be very difficult to obtain a reliable value for $c$ unambiguously in a gapless phase using DMRG. Ref. Yming2018field propose $c=1,0$ using $L_{2}=3,4$ (respectively), Ref. Gohlke2018 finds a $c=4$ using $L_{2}=5$, Ref. YinHe2018 calculate $c=1,2$ using $L_{2}=2,3$ (respectively) using DMRG. Based on the central charge arguments, the spinon FS was argued to have pockets around the $K/K^{\prime}$ and $\Gamma$ points of the first BZ Yming2018field ; YinHe2018 . This clearly differs from our proposal of the spinon FS with pockets around $\Gamma$ and $M$ points; our results are also consistent with the exact diagonalization results of the dynamical structure factor on small clusters hickey2018gapless . We further emphasize that the total $S(\mathbf{k})$ must respect the symmetries within the extended BZ because of two atoms in the unit cell at different locations for a honeycomb lattice (Fig. 3a), a point that appears to have been ignored in the literature.

We note that the $S(\mathbf{k})$ surfaces shown in Figure 3d-3e cannot result from tight-binding model with uniform hopping on a honeycomb lattice (the graphene problem). This is because any scattering $K\leftrightarrow K^{\prime}$ will only lead to $S(\mathbf{k})$ with peaks at the $K$ and $K^{\prime}$ points, not present in our DMRG calculations of $S(\mathbf{k})$ in the intermediate phase. In order to have peaks at the $M$ point in $S(\mathbf{k})$, as we have found in our calculations, there must be pockets around the $M$ points of the spinon FS. Note that all of the $6$ $M$ points in the BZ are related by $C_{3}$ rotation and momentum translation symmetries, and therefore must be identical. Such a spinon FS with $M\leftrightarrow M$ scattering will produce a peak with momentum transfer around the $M$ point in $S(\mathbf{k})$. Moreover, the size of pockets on the spinon FS are picked such that more subtle ‘three-petal’ shaped patterns around the $K/K^{\prime}$ points (Fig. 3e) are also captured in ${\cal F}({\bf{k}})$ (Fig. 3g). In the graphene problem, the Dirac points at the $K/K^{\prime}$ are protected by inversion and time reversal symmetry. However, the magnetic field breaks time-reversal symmetry allowing for the possibility of shifting the pocket positions away from the $K/K^{\prime}$ points. Additionally, we expect the largest scattering contribution to occur between a particle and hole pocket. In summary, we propose a spinon Fermi surface with two bands, creating Fermi pockets at the $\Gamma$ point and $M$ with opposite particle and hole character (Fig. 3f).

The procedure described above for the reconstruction of the spinon Fermi surface relies on the assumption that the $\omega-$integrated $S_{tot}(\mathbf{k})\simeq S_{tot}(\mathbf{k},\omega=0)$ is well described by the dynamical correlations at low energies, also used previously to propose a spinon Fermi surface in 1T-TaS2 PLee2 . In the Kitaev model (at zero field) indeed most of the weight in $S_{tot}(\mathbf{k},\omega)$ is concentrated at small $\omega$ knollethesis . We test this assumption in the new QSL phase by calculating the numerically challenging dynamical spin structure factor NoceraKrylov ; WhiteCorrVec at low energies $S_{tot}(\mathbf{k},\omega=0)$ on $8\times 3$ unit cell ($48$ sites) cluster. We find that the dynamical spin structure factor also shows peaks at the $M$ points for $\omega=0$ (see supplemental), justifying our method to reconstruct the spinon Fermi surface.

We expect the emergent neutral fermions that form a Fermi surface in the gapless QSL phase to show quantum oscillations in a magnetic field, similar to observations of quantum oscillations in SmB6, a topological Kondo insulator SmB6_1 ; SmB6_2 ; SmB6_3 . Going forward, it would also be useful to dope the different classes of Mott insulators that could harbor quantum spin liquid ground states in order to explore the emergent superconducting phases Subir1 .

IV Conclusion

Our most significant finding is that of an intermediate gapless quantum spin liquid with a spinon Fermi surface, sandwiched between the well known gapped non-abelian Kitaev spin liquid at low magnetic fields and a partially polarized phase at high magnetic fields, studied here for a field along [111] direction. The two quantum phase transitions are revealed by kinks in the magnetization and peaks in the susceptibility. The gapless nature of the intermediate phase $0.2\lesssim H\lesssim 0.35$ is indicated by the slow power law decay of spin-spin correlations as opposed to an exponential decay in the other two phases. The temperature dependence of the thermodynamic quantities, specific heat and entropy, also corroborate the gapless nature of this intermediate phase.

Finally, using large-scale DMRG and detailed analysis along many cuts of the spin structure factor $S(\mathbf{k})$ in momentum space, we propose a spinon Fermi surface in the intermediate phase with pockets at the $\Gamma$ and $M$ points with opposite particle-hole character. We expect our findings to encourage the search for quantum spin liquids in materials with Kitaev interactions via spectroscopy and thermodynamic measurements.

V Acknowledgements

We would like to thank Kyungmin Lee, and David C. Ronquillo for their helpful comments and discussions. We also thank Gonzalo Alvarez for help with DMRG++ open source code developed at the Oak Ridge National Laboratory. N.D.P. and N.T. acknowledge support from DOE grant DE-FG02-07ER46423. Computations were performed using Unity cluster at the Ohio State University and the Ohio supercomputer OSC1987 .

VI Operators and Observables

In this section, we define all the observables that are used in the main text. Figure 1 contains results of spin susceptibility, various measures of magnetization, and real-space decay of the spin-spin correlation. The magnetization can be defined in two ways: (1) measure of the total spin of the ground-state $S_{tot}$ or (2) using an average of local spin moments that becomes finite with a finite magnetic field.

[TABLE]

where $S^{\gamma}_{i}=\frac{1}{2}\sigma^{\gamma}_{i}$ with $\gamma=x,y,z$ and $N$ is the total number of sites. Figure 1d also show real space spin-spin correlations at fixed distance $R$ that is defined as

[TABLE]

where $N_{R}$ is the total number of neighbors at distance $R$ (summed over each site). In the main text, we also perform calculations of specific heat ($C_{v}$) and entropy ($S$) as a function of temperature $T/K$. These calculations are performed using finite temperature Lanczos method (FTLM) on a $3\times 3$ ($18$ sites) clusters. The details of the algorithm can be found in reference Prelovsek1 ; Springerbook1 .

[TABLE]

where $E(T)$ is the thermal average energy calculated using $450$ number of Lanczos states. For each parameter $H/K$ (see main text), the $E(T)$ is calculated using 50 different Lanczos runs starting with a random initial state. For each run, $C_{v}$ and $S$ are also calculated, and are averaged over $50$ random FTLM runs.

Finally, the main contribution comes from calculations of $S(\mathbf{k})$ using ground state finite DMRG. Note that a unit cell of honeycomb lattice has $2$ sites, located at different positions, that belong to sublattices $A$ and $B$. Therefore, we have define two different $S(\mathbf{k})$: (1) total $S_{tot}(\mathbf{k})$ that is Fourier transform considering all sites irrespective of the sublattice index, and (2) trace $S_{tr}(\mathbf{k})$ that considers only intra-sublattice spin-spin correlations. These are defined as

[TABLE]

and

[TABLE]

where $\kappa$ is the sublattice index limiting the sum $i$ and $j$ such that both sites belong to the sublattice $\kappa$. Note that $S_{tot}(\mathbf{k})$ is periodic w.r.t. an extended Brillouin zone (BZ) because there are two sites in the unit cell located at physically different locations. However, the spinon Fermi surface (SFS) must be periodic w.r.t. $1^{st}$ BZ. Therefore, to develop intuition w.r.t. the first BZ, we also calculate $S_{tr}(\mathbf{k})$.

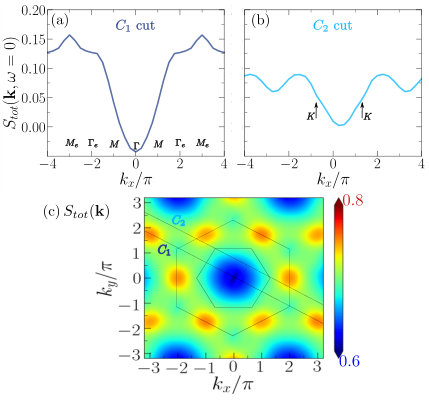

We also show calculations of the dynamical spin structure factor at fixed energy transfer $\omega=0$. In general, the real-space dynamical spin-spin correlation between two sites $i$ and $j$ is defined as

[TABLE]

where $|\psi_{0}\rangle$ represents the ground-state, $\omega$ is the energy transfer to the system, $\eta$ is the arbitrary broadening parameter, $E_{g}$ is the ground-state energy, and $\gamma$/$\gamma^{\prime}$ are the $x,y,z$ projections of the spin matrices. The $\delta S^{\gamma}$ is defined as

[TABLE]

where we subtract the ground-state expectation value in order to calculate only the dynamical spin fluctuations. These dynamical correlators are calculated using DMRG within the correction-vector formulation in Krylov space NoceraKrylov ; WhiteCorrVec . In general, these functions are Fourier transformed into the crystal momentum domain to calculate the momentum-energy resolved spectra that is relevant to experiments:

[TABLE]

Note that within DMRG, the site $j$ is fixed to the center of the lattice ($d=L/2-1$) to reduce the edge effects and computational cost, and therefore the Fourier transform is modified accordingly. We do not restrict the sum over the site index $i$ in order to measure the total (as opposed to the trace) spin dynamical structure factor.

VII Additional Results

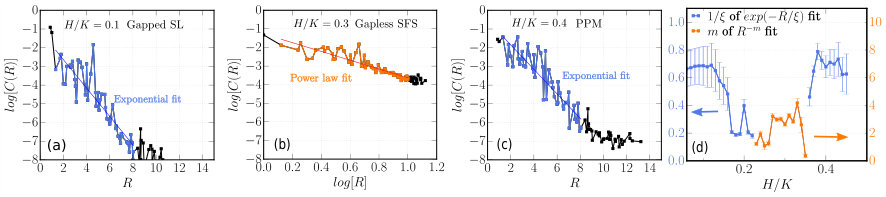

In this section, we show additional supporting results and various calculations performed to ensure the quality of the presented results. Figure S1 show various fits performed on the $C(R)$ in order to extract the decay parameter as a power in power-law decay or the exponent in the exponential decay. In order to perform the fitting we first linearize the data by using $log(C(R))$ vs. $R$ curves for the exponential fit and $log(C(R))$ vs. $log(R)$ for the power law fits. To have reliable fitting, we also disregard the $C(R)$ contributions coming from the boundaries, and fit the data only using the central region of $R$. Decay of the intermediate phase at $H=0.3$ (Fig. S1b) is visibly slower than that of the gapped $H/K=0.1$ (Fig. S1a) and PPM $H=0.4$ phase (Fig. S1c). The collected decay parameters are explicitly plotted in Fig. S1d where error bars are obtained by averaging over many different central regions of the lattice. The blue curves are the inverse correlation length of an exponential fits performed for the gapped QSL ($H\lesssim 0.2K$) and PPM phase ($H\gtrsim 0.35$), while the orange curve is power $m$ of power law fits of the intermediate phase. It is clear from the Fig. S1 that decay in the intermediate phase is significantly slower than other phases, suggesting of a phase without a spin-gap.

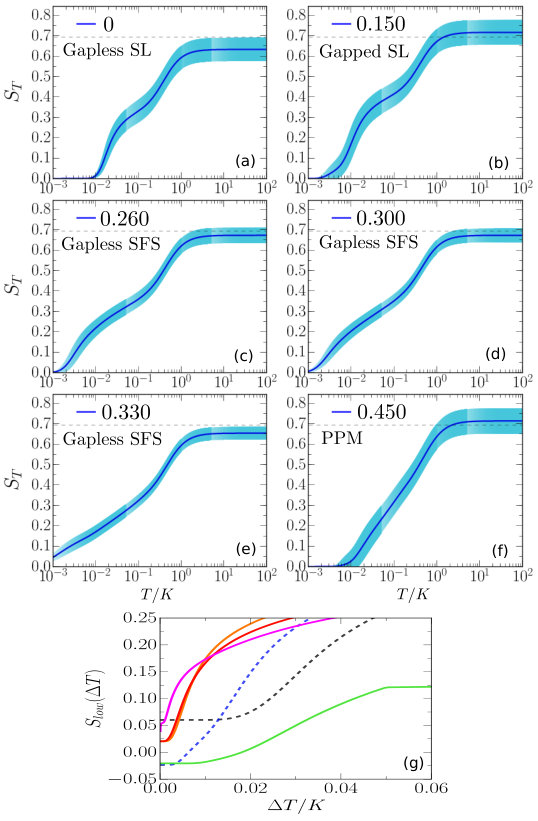

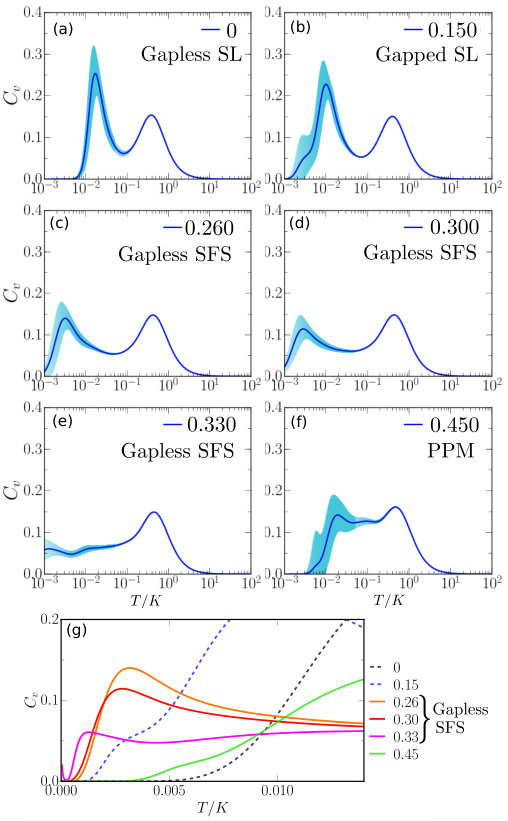

In Fig. 2 of the main text, we also presents results of specific heat $C_{v}$ and entropy $S$. These calculations are done using finite temperature Lanczos method. Lanczos is an iterative procedure that returns $M$ set of eigenstates of the Hamiltonian ($M<<N_{H}$ where $N_{H}$ is the full Hilbert space) where states corresponding to the lowest and highest eigen-values are well converged but the intermediate states are only approximated. This approximated states contribute errors in calculations of finite temperature quantities that requires information about the full eigen-value spectrum. FTLM controls this error by averaging over many FTLM runs starting with a different random initial state  Springerbook1 ; Prelovsek1 . In Figure S2 and Figure S3, we show the error (one standard deviation of $50$ independent runs) resulting from such averaging procedure. Note that error in $C_{v}$ calculation is almost zero at high temperatures, but the intermediate to low temperature has finite error shown by shaded blue region. Note that because we use finite $3\times 3$ honeycomb cylindrical clusters, our results at low temperature are severely effected by finite size effect (finite-size gap in particular). In order to understand the low temperature behavior of $C_{v}$, we also show $C_{v}$ in linear scale at low $T/K$ (Fig. S2g). In Fig. S2a-S2f, we show data only for $T/K>10^{-3}$, although results below $T/K\lesssim 10^{-2}$ may be significantly plagued by finite size effects and should be understood only as qualitative trends. Similar to $C_{v}$, we also show error in calculations of entropy in Figure S3. However, reliability of our results is evident looking at the high temperature entropy $S$ correctly converging to ${\rm ln}(2)$ for all phases (as expected for spin systems). To further understand the error arising from finite size effects, we show $S_{low}$, the missing part of entropy, as a function of temperature. $S_{low}$ clearly show a quadratic behavior in temperature for gapped and PPM phase, while the gapless phase has a distinct behavior in $S_{low}$ at low temperatures resembling almost a linear increase with $T/K$.

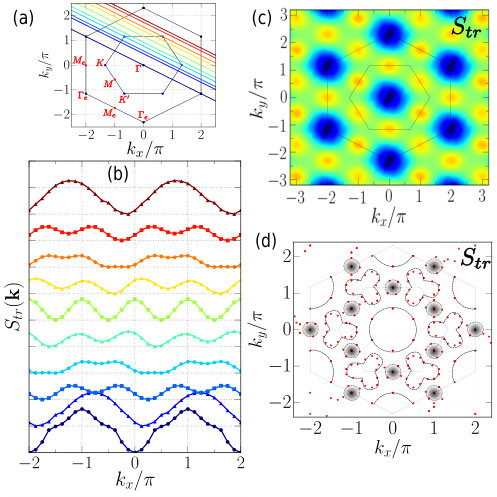

For completeness, Figure S4 show cuts of the $S_{tr}(\mathbf{k})$ , the peak locations of the $S_{tr}(\mathbf{k})$ and the corresponding contour plot. The lowest dark-blue cut shown in Fig. S4b show robust peaks at the $M$ points ($k_{x}=\pi$), and in turn these peaks at $M$ points are also visible in the contour plot as red circles and the grey circles in the plot of peak locations (Fig. S4c-S4d). The 3-petal shaped patterns around the $K/K^{\prime}$ points are not clearly visible in the contour plot as they are over-shadowed by the large peaks at the $3$ neighboring $M$ points.

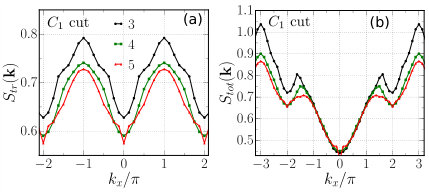

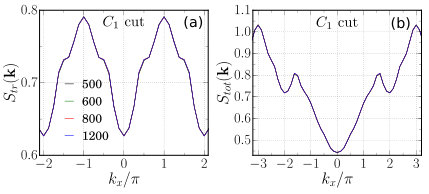

To check the quality of presented data, we also show scaling of the presented observable in the main text. We first show scaling of the spin structure factor with increasing number of states using $16\times 3$ cylinders (Figure S5). The results do not change with increasing the number of DMRG states, and therefore we demonstrate that results of $S(\mathbf{k})$ are well converged even using only $500$ DMRG states. Finally, Figure S6 show $S(\mathbf{k})$ for increasing lattice size in the $L_{2}$ direction while using fixed $L_{1}=16$ and $H/K=0.3$. It is not surprising that $S(\mathbf{k})$ peaks are renormalized with increasing system size. However, we show that peaks at the $M$ ($k_{x}/\pi=\pm 1$) and $M_{e}$ ($k_{x}/\pi=\pm 3$) points of the $1^{st}$ and extended BZ remain robust in all systems. Therefore, we expect that these dominant peaks at $M$ points will remain a $2D$ extension of the Honeycomb lattice used within DMRG.

In the main text, we used the $S_{tot}(\mathbf{k})$ and $S_{tr}(\mathbf{k})$ in order to reconstruct the Fermi surface using the scattering arguments across the Fermi surface. Scattering arguments on the FS imply that there is no energy transfer to the system, as these scatterings occur at a fixed energy, and therefore one should calculate the $S(\mathbf{k},\omega=0)$ to reconstruct a FS. However, we have made an assumption that peaks in the static structure factor ‘mostly’ result from the low energy scattering across the spinon FS, i.e. $S(\mathbf{k})\simeq S(\mathbf{k},\omega=0)$. Figure S7 show that indeed this is not a bad assumption. Figure S7a-S7b show $S_{tot}(\mathbf{k},\omega=0)$ cuts $C_{1}$ and $C_{2}$. Comparing the results of $S_{tot}(\mathbf{k})\simeq S(\mathbf{k},\omega=0)$ (Fig S7a-S7b) with the static $S_{tot}(\mathbf{k})$ (Fig S7c) clearly show that the high intensity peaks (red circles) of $S_{tot}(\mathbf{k})$ match almost exactly with the peaks found the dynamical response. These results further supports our conjectured Fermi surface that is show in the main text.
