Ptychographic characterization of polymer compound refractive lenses manufactured by additive technology

TL;DR

This paper demonstrates the use of two-photon polymerization lithography to manufacture and characterize high-precision polymer compound refractive lenses with complex geometries for X-ray applications.

Contribution

It introduces a novel application of two-photon lithography for fabricating and analyzing polymer CRLs with detailed characterization of their structures.

Findings

Successful fabrication of polymer CRLs with high geometric accuracy

Effective characterization methods for polymer CRLs

Potential for advanced X-ray lens applications

Abstract

The recent success in the development of high precision printing techniques allows one to manufacture free-standing polymer structures of high quality. Two-photon polymerization lithography is a mask-less technique with down to 100 {\mu}m resolution that provides full geometric freedom. It has recently been applied to the nanofabrication of X-ray compound refractive lenses (CRLs). In this article we report on the characterization of two sets of CRLs of different design produced by two-photon polymerization induced lithography.

Figures

Equations

$$f=R/(2N\delta ),$$

$$d_{\text{mbox}diff}=0.75\frac{\lambda }{2\text{mbox}NA},$$

Full text

OCIS codes: (340.0340) X-ray optics; (220.3630) Lenses; (220.3740) Lithography.

References and links

• [1]

A. Snigirev, V. Kohn, I. Snigireva, and B. Lengeler, “A compound refractive lens for focusing high energy x-rays,” Nature 384, 49 (1996).

• [2]

M. Lyubomirskiy and C. G. Schroer, “Refractive Lenses for Microscopy and Nanoanalysis,” Synchr. Rad. News 29, 21–26 (2016).

• [3]

C. G. Schroer, M. Kuhlmann, B. Lengeler, T. F. Günzler, O. Kurapova, B. Benner, C. Rau, A. S. Simionovici, A. Snigirev, and I. Snigireva, “Beryllium parabolic refractive x-ray lenses,” Proc. SPIE 4783, 10–18 (2002).

• [4]

A. Schropp, R. Hoppe, J. Patommel, F. Seiboth, F. Uhlén, U. Vogt, H. J. Lee, B. Nagler, E. C. Galtier, U. Zastrau, B. Arnold, P. Heimann, J. B. Hastings, and C. G. Schroer, “Scanning coherent x-ray microscopy as a tool for XFEL nanobeam characterization,” Proc. SPIE 8849, 88490R-1 – 88490R-08 (2013).

• [5]

F. Seiboth, A. Schropp, M. Scholz, F. Wittwer, C. Rödel, M. Wünsche, T. Ullsperger, S. Nolte, J. Rahomäki, K. Parfeniukas, S. Giakoumidis, U. Vogt, U. Wagner, C. Rau, U. Boesenberg, J. Garrevoet, G. Falkenberg, E. C. Galtier, H. J. Lee, B. Nagler, and C. G. Schroer, “Perfect X-ray focusing via fitting corrective glasses to aberrated optics,” Nature Commun. 8, 14623 (2017).

• [6]

C. G. Schroer, O. Kurapova, J. Patommel, P. Boye, J. Feldkamp, B. Lengeler, M. Burghammer, C. Riekel, L. Vincze, A. van der Hart, and M. Küchler, “Hard X-Ray Nanoprobe based on Refractive X-Ray Lenses,” AIP Conf. Proc. 879, 1295–1298 (2006).

• [7]

C. G. Schroer, P. Boye, J. M. Feldkamp, J. Patommel, D. Samberg, A. Schropp, A. Schwab, S. Stephan, G. Falkenberg, G. Wellenreuther, and N. Reimers, “Hard X-ray Nanoprobe at Beamline P06 at PETRA III,” Nucl. Instrum. Meth. A 616, 93–97 (2010).

• [8]

H. Simons, F. Stöhr, J. Michael-Lindhard, F. Jensen, O. Hansen, C. Detlefs, and H. F. Poulsen, “Full-field hard x-ray microscopy with interdigitated silicon lenses,” Opt. Commun. 359, 460–464 (2016).

• [9]

C. G. Schroer and B. Lengeler, “Focusing Hard X Rays to Nanometer Dimensions by Adiabatically Focusing Lenses,” Phys. Rev. Lett. 94, 054802 (2005).

• [10]

J. Patommel, S. Klare, R. Hoppe, S. Ritter, D. Samberg, F. Wittwer, A. Jahn, K. Richter, C. Wenzel, J. W. Bartha, M. Scholz, F. Seiboth, U. Boesenberg, G. Falkenberg, and C. G. Schroer, “Focusing Hard X Rays Beyond the Critical Angle of Total Reflection by Adiabatically Focusing Lenses,” Appl. Phys. Lett. 110, 101103 (2017).

• [11]

A. K. Petrov, V. O. Bessonov, K. A. Abrashitova, N. G. Kokareva, K. R. Safronov, A. A. Barannikov, P. A. Ershov, N. B. Klimova, I. I. Lyatun, V. A. Yunkin, M. Polikarpov, I. Snigireva, A. A. Fedyanin, and A. Snigirev, “Polymer X-ray refractive nano-lenses fabricated by additive technology,” Opt. Express 25, 14173–14181 (2017).

• [12]

T. dos Santos Rolo, S. Reich, D. Karpov, S. Gasilov, D. Kunka, E. Fohtung, T. Baumbach, and A. Plech, “A Shack-Hartmann Sensor for Single-Shot Multi-Contrast Imaging with Hard X-rays,” Appl. Sci. 8 (2018).

• [13]

J. Fischer and M. Wegener, “Three-dimensional optical laser lithography beyond the diffraction limit,” Laser Photonics Rev. 7, 22–44 (2013).

• [14]

A. Schropp, P. Boye, J. M. Feldkamp, R. Hoppe, J. Patommel, D. Samberg, S. Stephan, K. Giewekemeyer, R. N. Wilke, T. Salditt, J. Gulden, A. P. Mancuso, I. A. Vartanyants, E. Weckert, S. Schöder, M. Burghammer, and C. G. Schroer, “Hard x-ray nanobeam characterization by coherent diffraction microscopy,” Appl. Phys. Lett. 96, 091102 (2010).

• [15]

C. M. Kewish, P. Thibault, M. Dierolf, O. Bunk, A. Menzel, J. Vila-Comamala, K. Jefimovs, and F. Pfeiffer, “Ptychographic characterization of the wavefield in the focus of reflective hard X-ray optics,” Ultramicroscopy 110, 325–329 (2010).

• [16]

C. M. Kewish, M. Guizar-Sicairos, C. Liu, J. Qian, B. Shi, C. Benson, A. M. Khounsary, J. Vila-Comamala, O. Bunk, J. R. Fienup, A. T. Macrander, and L. Assoufid, “Reconstruction of an astigmatic hard X-ray beam alignment of K-B mirrors from ptychographic coherent diffraction data,” Opt. Express 18, 23420–23427 (2010).

• [17]

S. Hönig, R. Hoppe, J. Patommel, A. Schropp, S. Stephan, S. Schöder, M. Burghammer, and C. G. Schroer, “Full optical characterization of coherent x-ray nanobeams by ptychographic imaging,” Opt. Express 19, 16325–16329 (2011).

• [18]

J. Vila-Comamala, A. Diaz, M. Guizar-Sicairos, A. Mantion, C. M. Kewish, A. Menzel, O. Bunk, and C. David, “Characterization of high-resolution diffractive X-ray optics by ptychographic coherent diffractive imaging,” Opt. Express 19, 21333–21344 (2011).

• [19]

A. Kubec, S. Braun, S. Niese, P. Krüger, J. Patommel, M. Hecker, A. Leson, and C. G. Schroer, “Ptychography with mulitlayer Laue lenses,” J. Synchrotron Rad. 21, 1122–1127 (2014).

• [20]

F. Seiboth, M. Scholz, J. Patommel, R. Hoppe, F. Wittwer, J. Reinhardt, J. Seidel, M. Knaut, A. Jahn, K. Richter, J. W. Bartha, G. Falkenberg, and C. G. Schroer, “Hard x-ray nanofocusing by refractive lenses of constant thickness,” Appl. Phys. Lett. 105, 131110 (2014).

• [21]

A. J. Morgan, M. Prasciolu, A. Andrejczuk, J. Krzywinski, A. Meents, D. Pennicard, H. Graafsma, A. Barty, R. J. Bean, M. Barthelmess, D. Oberthuer, O. Yefanov, A. Aquila, H. N. Chapman, and S. Bajt, “High numerical aperture multilayer Laue lenses,” Sci. Rep. 5, 09892 (2015).

• [22]

B. Lengeler, C. G. Schroer, B. Benner, A. Gerhardus, T. F. Günzler, M. Kuhlmann, J. Meyer, and C. Zimprich, “Parabolic refractive X-ray lenses,” J. Synchrotron Rad. 9, 119–124 (2002).

1 Introduction

X-ray lenses are relatively young optical devices – the very first experiment on focusing of X-rays by refractive lens was reported only two decades ago [1]. Since then, X-ray lenses experienced a rapid progress and are now widely used at synchrotron radiation sources around the world [2]. They are made of many different materials, such as Be, Al, Si, SU-8, or Diamond. The most popular lens type is the doubly-curved rotationally parabolic Be lens [3]. They combine a large physical aperture with a high transmission and can deliver a high flux to the sample. Their best reported resolution is in the order of $100\text{\,}\mathrm{nm}$ [4, 5]. Despite the high flux, these lenses are not very popular for nanoprobe applications due to their limited resolution and the presence of aberrations [5].

Higher spatial resolutions have been achieved with Si planar lenses, so-called nanofocusing lenses (NFLs), which are manufactured by planar structuring of silicon. Focal spot sizes on the order of $50\text{\,}\mathrm{nm}$ and below are achieved routinely. NFLs are used in X-ray scanning and even full-field microscopes at PETRA III and ESRF [6, 7, 8]. The record resolution of $18\text{\,}\mathrm{nm}$ was achieved with adiabatically focusing lenses [9, 10]. Despite the high resolution Si NFLs have a drawback: their relatively high absorption is limiting the total flux in the nanobeam, moreover the technologically limited depth of etching narrows the physical aperture of the lens, which reduces the total flux in the focus due to the crossed geometry.

Two-photon polymerization induced lithography has attracted increasing attention in particular due to the possibility to manufacture lenses out of amorphous materials with very high three-dimensional shape accuracy. Several groups have already reported X-ray compound refractive lenses (CRLs) manufactured by two-photon absorption lithography [11, 12]. So far, the quality and performance of those lenses have not assessed experimentally. In this article we report on the ptychographic characterization of two lens sets, one stacked vertically like a tower, the other stacked horizontally like a train, manufactured by two-photon absorption lithography.

2 Compound refractive lens (CRL) manufacturing

Two-photon absorption lithography is based on nonlinear absorption in the focal volume. The threshold character of the polymerization process provides $100\text{\,}\mathrm{nm}$ scale resolution, while the nonlinear character of absorption ensures transparency of out-of-focus material and controllable intensity within focal volume. To provide sufficient intensity values (above the threshold) ultrashort IR lasers and high-numerical-aperture objectives are used. The materials that are implemented for this lithographic technique include amorphous epoxy resists (SU-8), acrylate resists (IP series from Nanoscribe), and hybrid organic-inorganic resists (ORMOCOMP, SZ 2080).

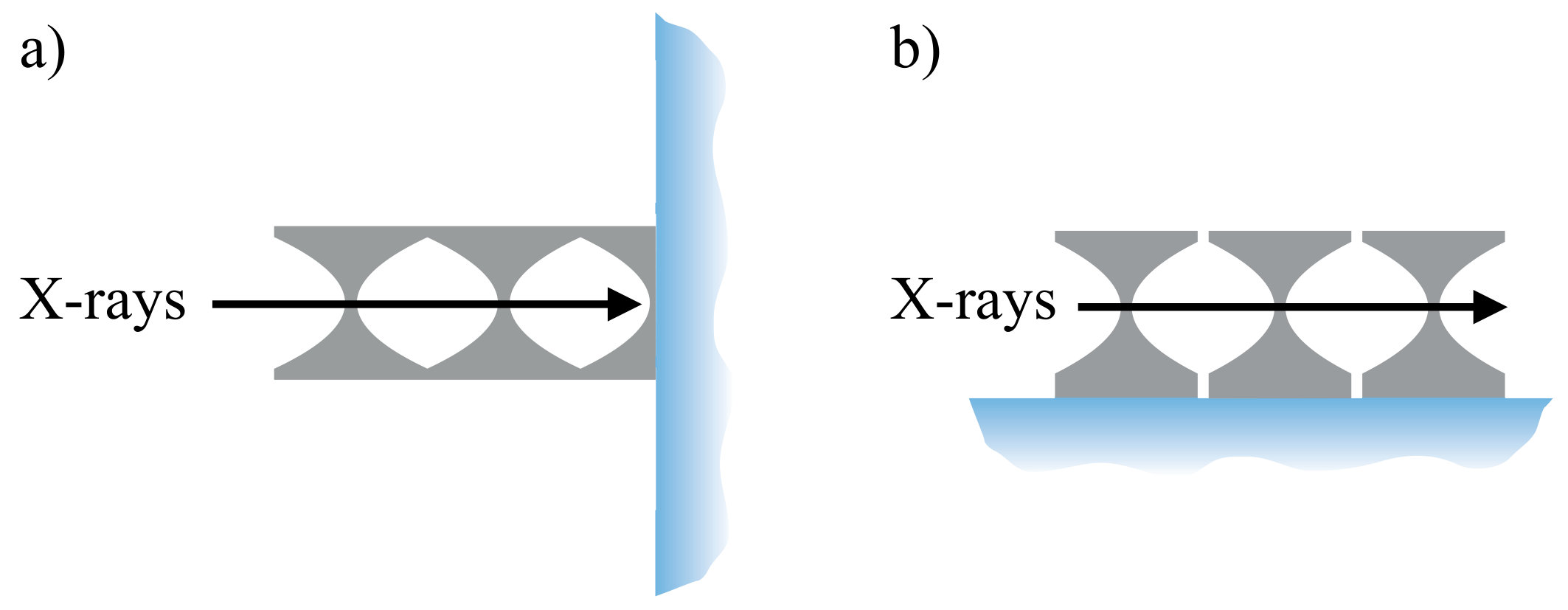

In general, there are two geometries to print CRLs on a substrate: as a lens tower where the optical axis is perpendicular to the substrate (Fig. 1 (a) – vertical orientation) and as a lens train where the optical axis is parallel to the substrate (Fig. 1 (b) – horizontal orientation). We have manufactured and tested lenses of both types.

2.1 Compound refractive lenses in vertical or tower design

In the vertical geometry with the optical axis perpendicular to the substrate [cf. Fig. 1(a)], the optical axis of the lens can be aligned with that of the laser exposure system. This is advantageous because the printing voxel is anisotropic, with the extent along the optical axis about $2.5$ times the lateral extent, depending on the objective [13]. Consequently, in this configuration one can write the curvatures in the two focusing directions with the same resolution and local crosslinking strain characteristics. This is expected to lead to minimized astigmatism.

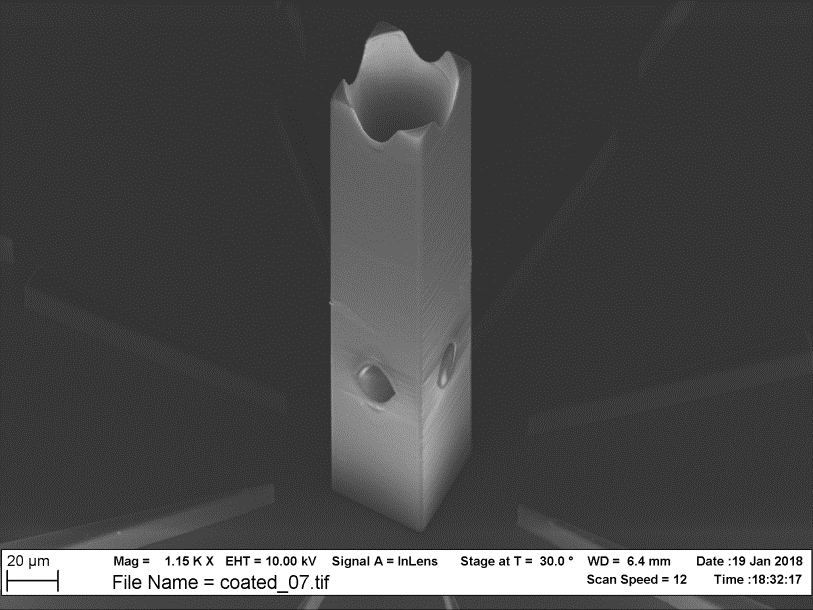

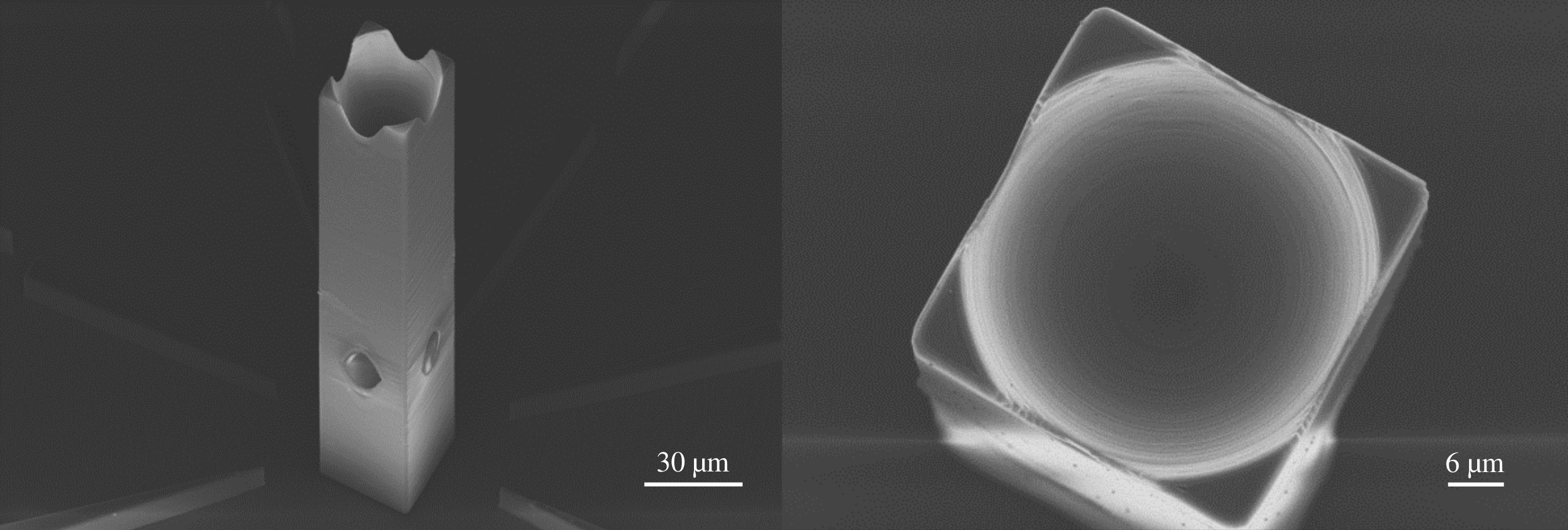

The lens structures with this geometry were fabricated using a Nanoscribe Photonic Professional GT at the Laboratory of Micro- and Nanotechnology of the Paul Scherrer Institute (PSI). We used the Nanoscribe IP-S resist in dip-in lithography mode, with a $25\times$ objective ($\mbox{NA}=0.8$). The lateral voxel displacement was effectuated by the system’s mirror galvanometer system, providing maximum writing speed, while a piezo motor was used for displacement along the optical axis. The piezo travel range sets a limit of $300\text{\,}\mathrm{\SIUnitSymbolMicro m}$ on the length of the CRL, which could be extended to the $\mathrm{mm}$ range with stitching in $z$ direction using the mechanical microscope stage. Both hatching and slicing of the lens geometry for exposure were performed with a spacing of only $100\text{\,}\mathrm{nm}$, which is significantly less than the voxel size, to minimize surface roughness. Furthermore, the vertical geometry requires a high X-ray transmission substrate, in this case a $250\text{\,}\mathrm{nm}$ thick $\text{Si}_{\text{3}}\text{N}_{\text{4}}$ membrane.

To estimate the refractive index decrement, we use the chemical composition of the main constituent, the acrylate resin ($\text{C}_{\text{14}}\text{H}_{\text{18}}\text{O}_{\text{7}}$), and a density of $1.2\text{\,}\mathrm{g}\text{\,}{\mathrm{cm}}^{-3}$, which is $2\text{\,}\mathrm{\char 37\relax}$ higher than the uncrosslinked resin density. Using these parameters, we obtain a refractive index decrement of $3.94\text{\times}{10}^{-6}$ at $8.2\text{\,}\mathrm{keV}$ photon energy. The parabola apex radius $R$ was chosen as $3\text{\,}\mathrm{\SIUnitSymbolMicro m}$ and the aperture of the lens was a square with $42\text{\,}\mathrm{\SIUnitSymbolMicro m}$ edge length. This geometry allows three curved surfaces to be printed within the range of the piezo scanner without making use of stitching with the mechanical microscope stage; see Fig. 2 for scanning electron microscope images of the resulting structure. The rotational paraboloid of the lens has to be cut on at least one side to allow the developer liquid access to the whole geometry, resulting in a square aperture with rounded edges.

2.2 Compound refractive lenses in horizontal or train design

For this design, the ORMOCOMP photoresist from Micro Resist Technology GmbH was used for microfabrication. The molecular formula is $\text{C}_{\text{21}}\text{S}\text{O}_{\text{8}}\text{Si}\text{H}_{\text{36}}$. The density of cross linked polymer material is estimated to be $1.22\text{\,}\mathrm{g}\text{\,}{\mathrm{cm}}^{-3}$. The exposure of the resist was performed from top to bottom in a cell containing uncrosslinked photoresist. The thickness of the cell was approximately $120\text{\,}\mathrm{\SIUnitSymbolMicro m}$ and was controlled by two pieces of adhesive tape (Fig. 3, top).

A fast steering mirror provided the beam-waist movement within the sample plane ($XY$) with the accuracy of $3\text{\,}\mathrm{nm}$ in the field of $150\text{\,}\mathrm{\SIUnitSymbolMicro m}$ $\times$ $150\text{\,}\mathrm{\SIUnitSymbolMicro m}$ and a piezoelectric stage moved the laser beam waist in a perpendicular direction ($Z$) with the accuracy of $5\text{\,}\mathrm{nm}$ in the travel range of $200\text{\,}\mathrm{\SIUnitSymbolMicro m}$. High-aperture oil-immersion objective ($\mbox{NA}=1.4$) focused radiation from Vitara Coherent Ti:sapphire femtosecond laser ($800\text{\,}\mathrm{nm}$, $80\text{\,}\mathrm{MHz}$, $50\text{\,}\mathrm{fs}$). The exposure parameters — average power of incident radiation and beam waist speed — were $26\text{\,}\mathrm{mW}$ and $1200\text{\,}\mathrm{\SIUnitSymbolMicro m}\text{\,}{\mathrm{s}}^{-1}$, respectively.

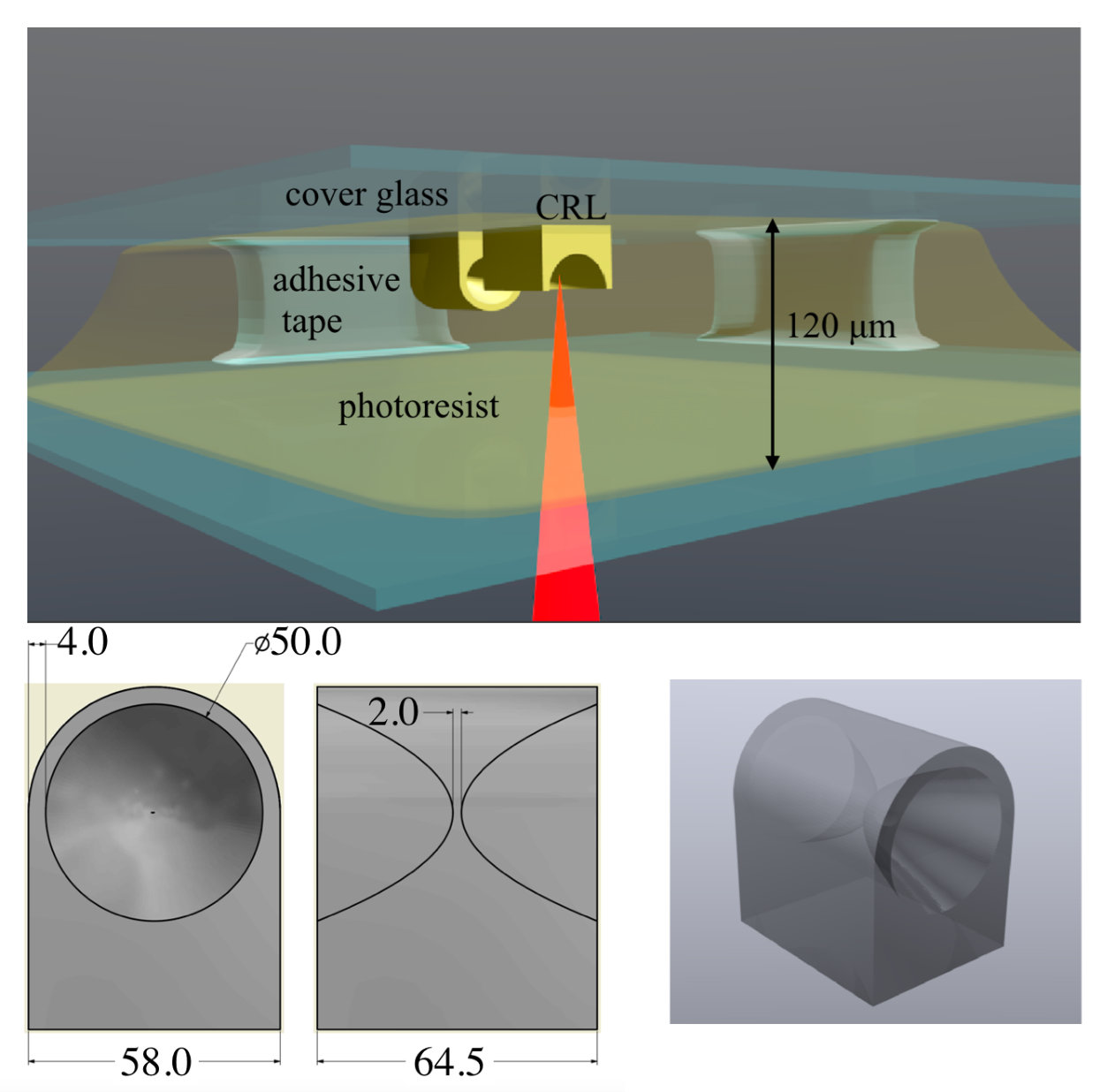

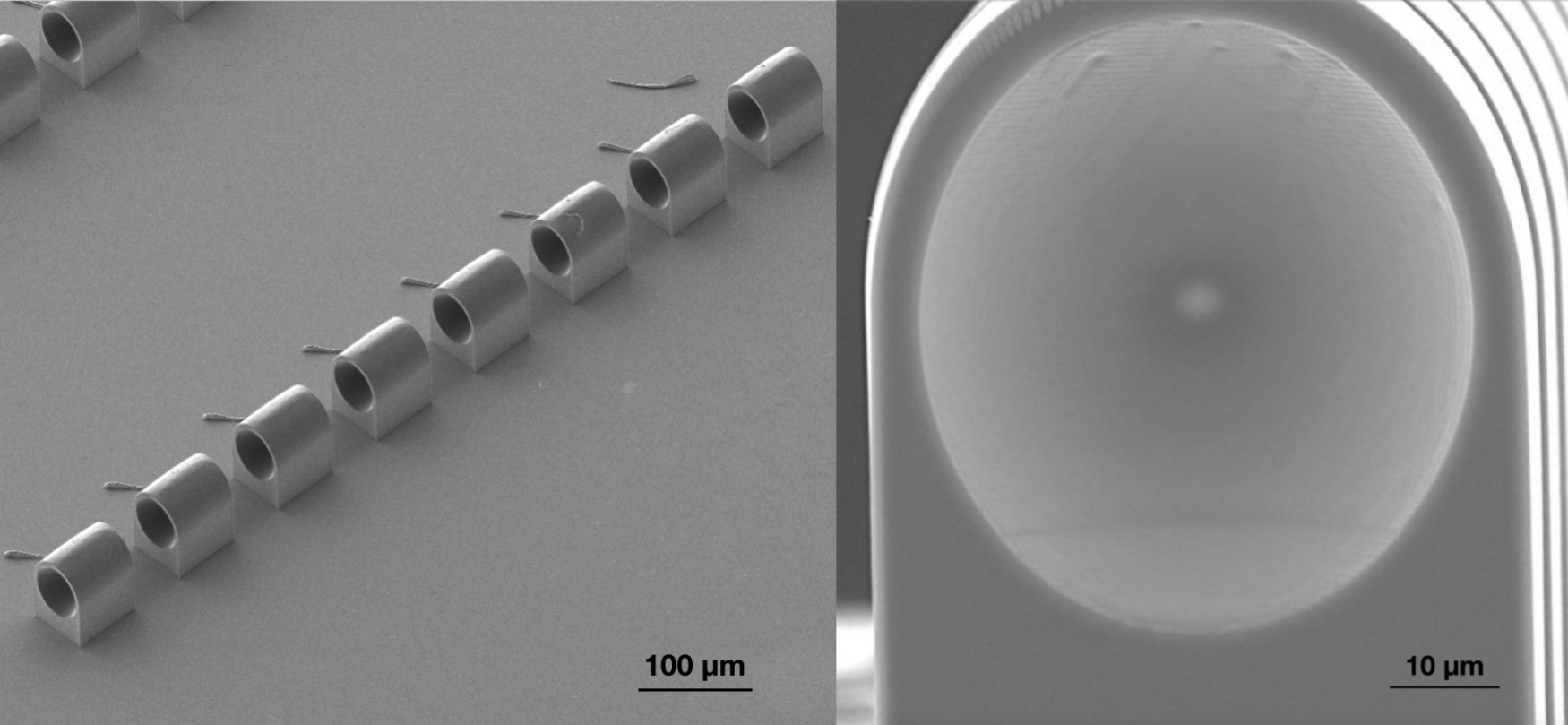

The printing process was conducted in a layer-by-layer manner with linear infill and 3 perimeters. To provide better mechanical stability and enhanced adhesion to the substrate first $50$ layers were printed with $200\text{\,}\mathrm{nm}$ slicing and hatching distances. The remaining layers had the slicing and hatching distances of $250\text{\,}\mathrm{nm}$.

Finite values of field of view and of the working distance of focusing objective imposed limitations on CRL geometry. The aperture of individual lens was $R_{0}=$50\text{,}\mathrm{\SIUnitSymbolMicro m}, and the radius of curvature of parabolic profile was $R=$10\text{\,}\mathrm{\SIUnitSymbolMicro m} (Fig. 3, bottom). Two sets of horizontally stacked CRLs were manufactured. They comprised of $8$ and $9$ individual lenses printed in a row. The distance between individual lenses was chosen to be $120\text{\,}\mathrm{\SIUnitSymbolMicro m}$ in order to minimize the proximity effect.

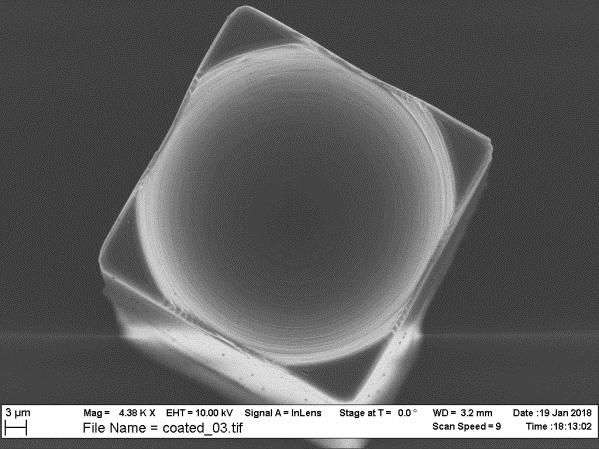

The CRLs were characterized by scanning electron microscopy (SEM). The SEM images show that individual lenses suffer from slight ellipticity. The difference between minor and major axis was approximately $10\text{\,}\mathrm{\char 37\relax}$. A horizontal defect is also observable in the lower part of the entrance aperture [see Fig. 4(right)].

3 X-ray optical characterization of the Lenses

Consequently even if the object is out of focus, it is possible to propagate the reconstructed wavefield numerically to the focal plane and characterize the focal spot. To date ptychography has proven to be a robust technique and is a standard technique for optics characterization [14, 15, 16, 17, 18, 4, 19, 20, 21, 10].

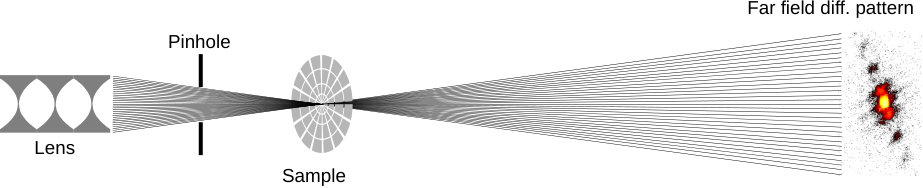

The principal experimental scheme is depicted in Fig. 5. A double crystal Si-(111) monochromator was used to select the desired X-ray energy of $8.2\text{\,}\mathrm{keV}$ at I13-1 and $9.0\text{\,}\mathrm{keV}$ at P06. In order to cut-off undesired higher harmonics a pair of total reflection mirrors was used. Lenses were aligned in the beam using translation and rotation stages. Downstream of the lenses and close to their focal plane a two-dimensional resolution test chart (Siemens star) manufactured by NTT-AT was placed. Air scattering downstream of the sample was suppressed by a Helium filled flight tube at I13-1 and an evacuated tube at P06. The distance between source and lens position was around $200\text{\,}\mathrm{m}$ at I13-1 and around $98\text{\,}\mathrm{m}$ at P06.

According to the well known X-ray lens equation [1], a thin compound lens focuses a parallel beam at a distance

[TABLE]

where $f$ is the focal length and $N$ is the number of doubly-curved lenses in a stack. The refractive index in the X-ray range is typically written in the form $n=1-\delta+i\beta$, where $\delta$ is the refractive index decrement (real part) and $\beta$ describes the attenuation inside the material. The size of the focal spot can be estimated as a convolution of the demagnified geometrical image of the source and the Airy disc, whose width for refractive optics is given by[22]

[TABLE]

where $\mbox{NA}=D_{\mbox{\footnotesize{eff}}}/2f$ is the numerical aperture, $D_{\mbox{\footnotesize{eff}}}$ is the effective aperture, and $\lambda$ is the wavelength of the incident radiation [22].

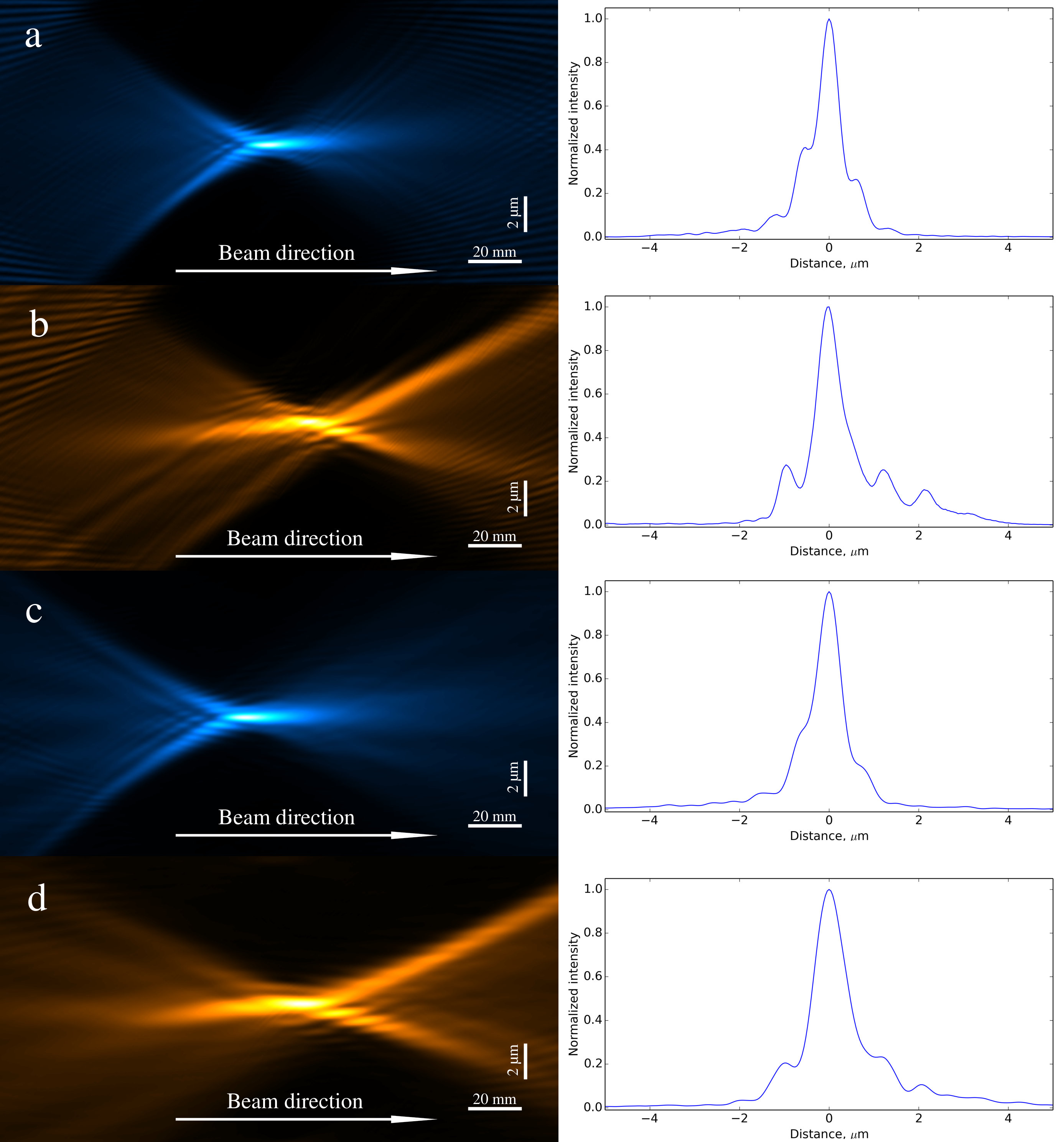

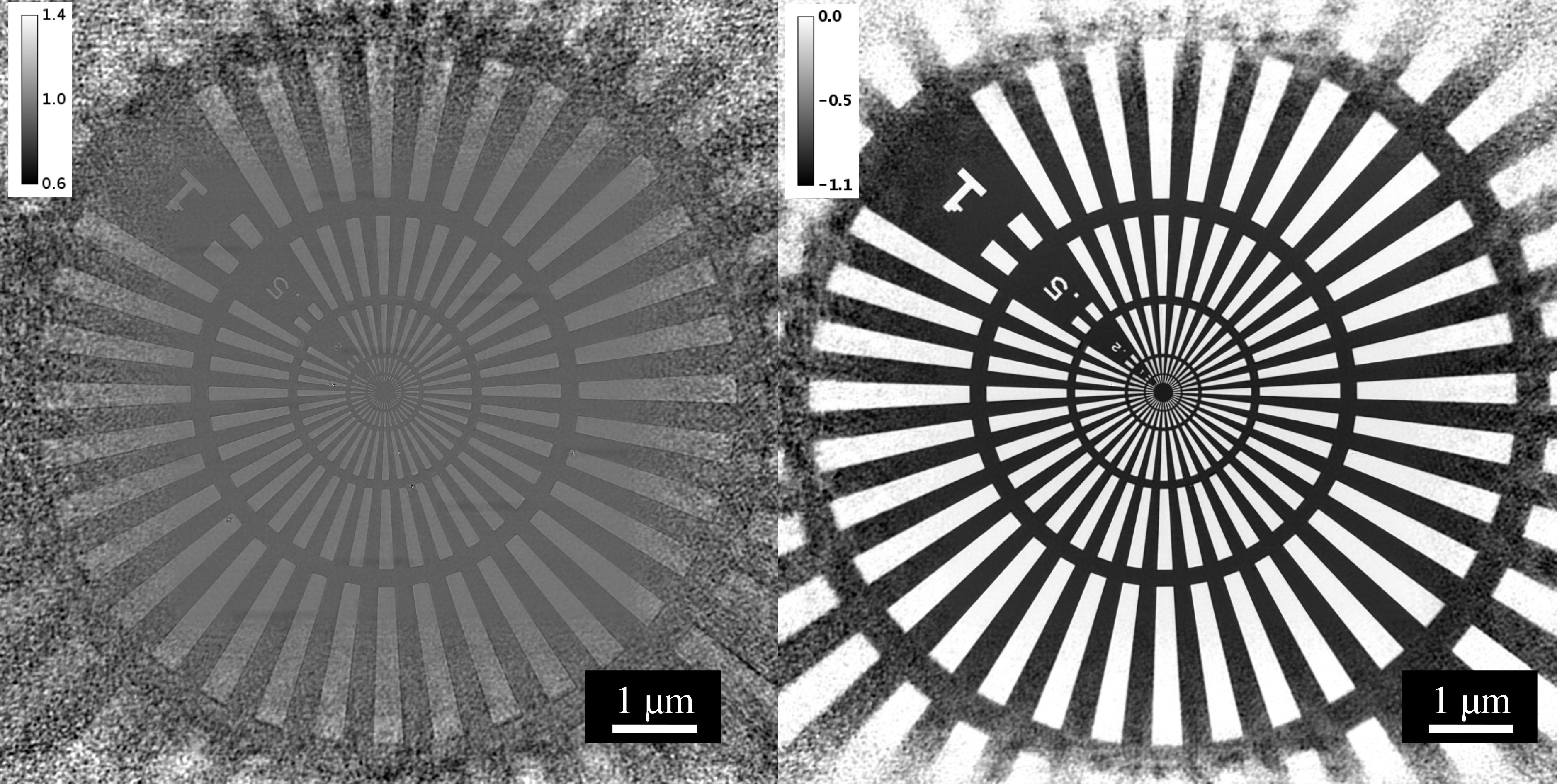

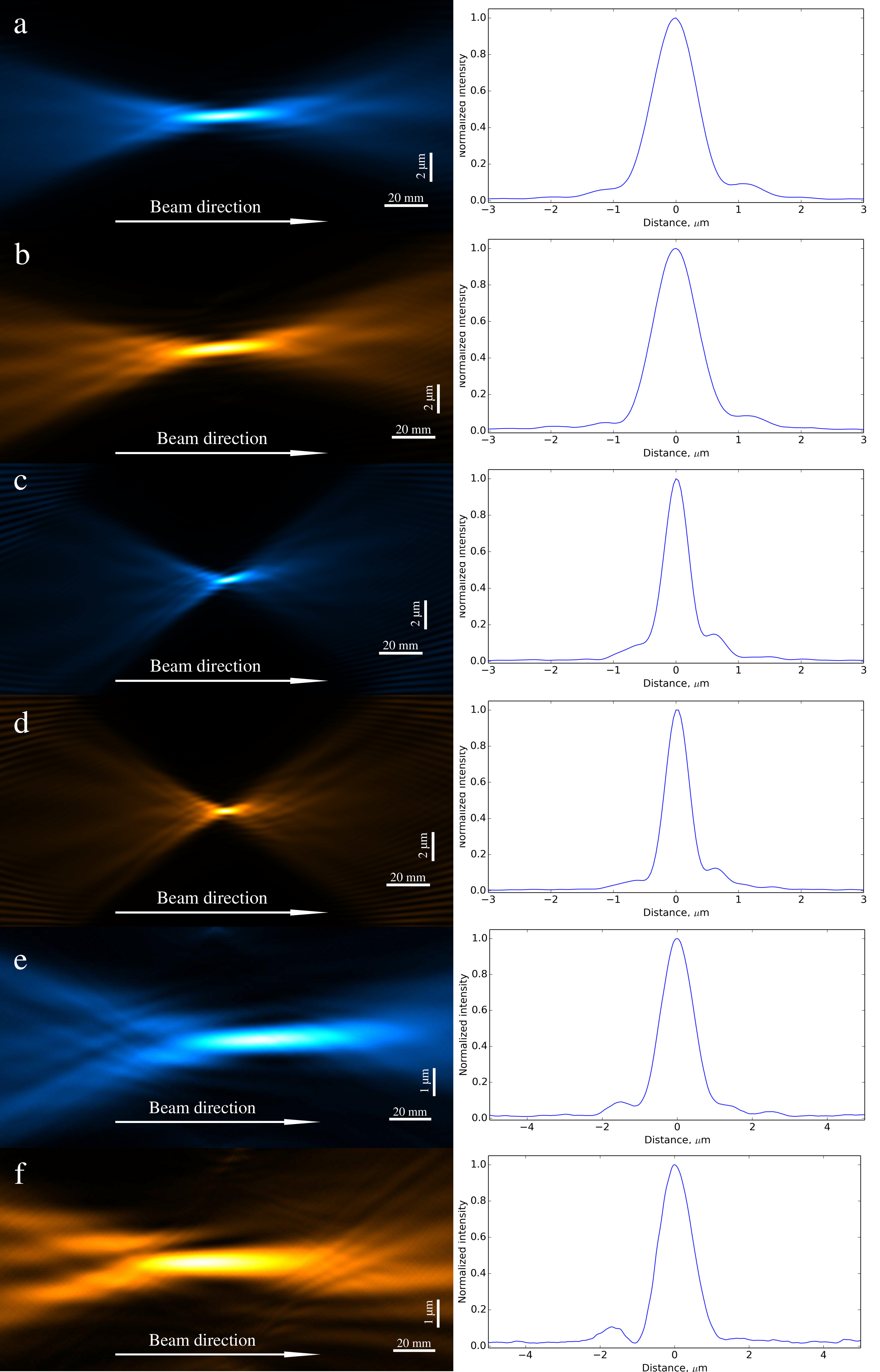

In order to characterize the beam produced by the lenses, the test pattern was scanned in the estimated focal plane. Fig. 6 shows an example of the reconstructed phase and amplitude of the test object from one of the scans.

3.1 Characterization of CRLs in tower design

In the first step we have characterized a single free-standing CRL. The test pattern was placed at a lens focal distance of $f=$240\text{,}\mathrm{mm} downstream from the lens, which is three orders of magnitude smaller than the distance to the source. Thus, the image distance of the source approximately coincides with the focal length. Figures [7](#S3.F7) (a) and (b) show the beam profiles in the horizontal and vertical planes, respectively, together with their cross sections through the focus. The latter were generated by numerical propagation of the wave field reconstructed via ptychography into the focal plane. The full-width at half maximum (FWHM) focal spot size is $d=$820\pm 3.\text{\,}\mathrm{nm} as compared to the theoretically expected one of $d=$680\text{,}\mathrm{nm}$$. The mismatching could be caused by deviations of the lens profile from ideal parabolic shape.

By reducing the focal length, the numerical aperture and be increased, reducing the focal spot size. This is achieved by combining two CRLs with tower design. The test sample was placed into the focus at the reduced distance of $f=$120\text{,}\mathrm{mm}. Figures [7](#S3.F7) (c) and (d) contain the beam profiles in horizontal and vertical planes, respectively, and the corresponding cross sections of the beam. The size of the focal spot (FWHM) is $d=$490\pm 2.\text{\,}\mathrm{nm}, which is slightly larger than theoretically expected $d=$420\text{,}\mathrm{nm}$$. The mismatching could be caused by deviations of the lens profile from ideal parabolic shape.

In addition we have performed a test of the second set of lenses with similar parameters at the beamline P06 at PETRA III. Figures 7 (e) and (d) show the beam profiles in the horizontal and vertical plane, respectively, and their cross sections of the beam produced by two doubly-curved lenses with curvature of $R=$2.5\text{,}\mathrm{\SIUnitSymbolMicro m}. The lenses showed a similar performance as the first set. The size of the focal spot was $d=$1015\pm 4.\text{\,}\mathrm{nm} (FWHM) while the theoretically expected one is $d=$980\text{,}\mathrm{nm}$$.

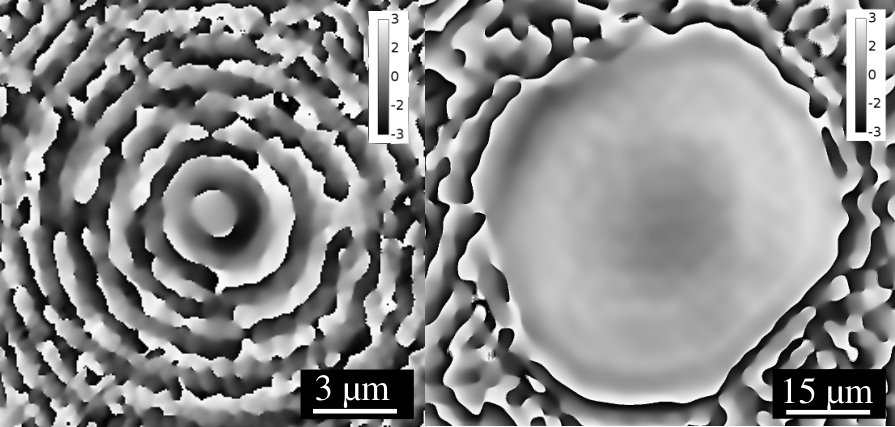

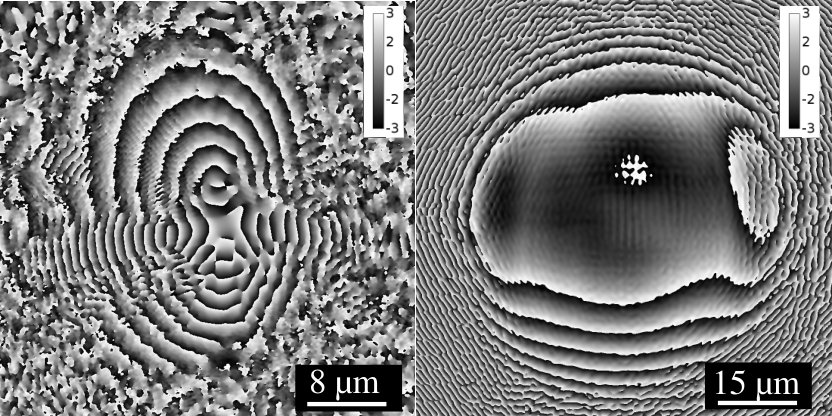

The results obtained for vertically arranged lenses showed that they are almost devoid of spherical aberrations. The phase profile of the focus (Fig. 8 (a)) as well as phase profile of the lens exit plane (Fig. 8 (b)) is completely symmetrical which confirms the absence of astigmatism of the focal spot. A slight mismatching of measured focal spot size with calculations could be induced by shrinking of the lens material during developing process. With knowledge of the degree of shrinkage future lenses can be pre-corrected by stretching of the model.

3.2 Characterization of CRLs in train design

Two lens stacks comprised of 9 and 8 individual lenses were studied ($9$-CRL and $8$-CRL respectively). The theoretical values for the focal lengths of the lenses are $f=$137\text{,}\mathrm{mm} for 9-CRL and $f=$154\text{\,}\mathrm{mm} for $8$-CRL.

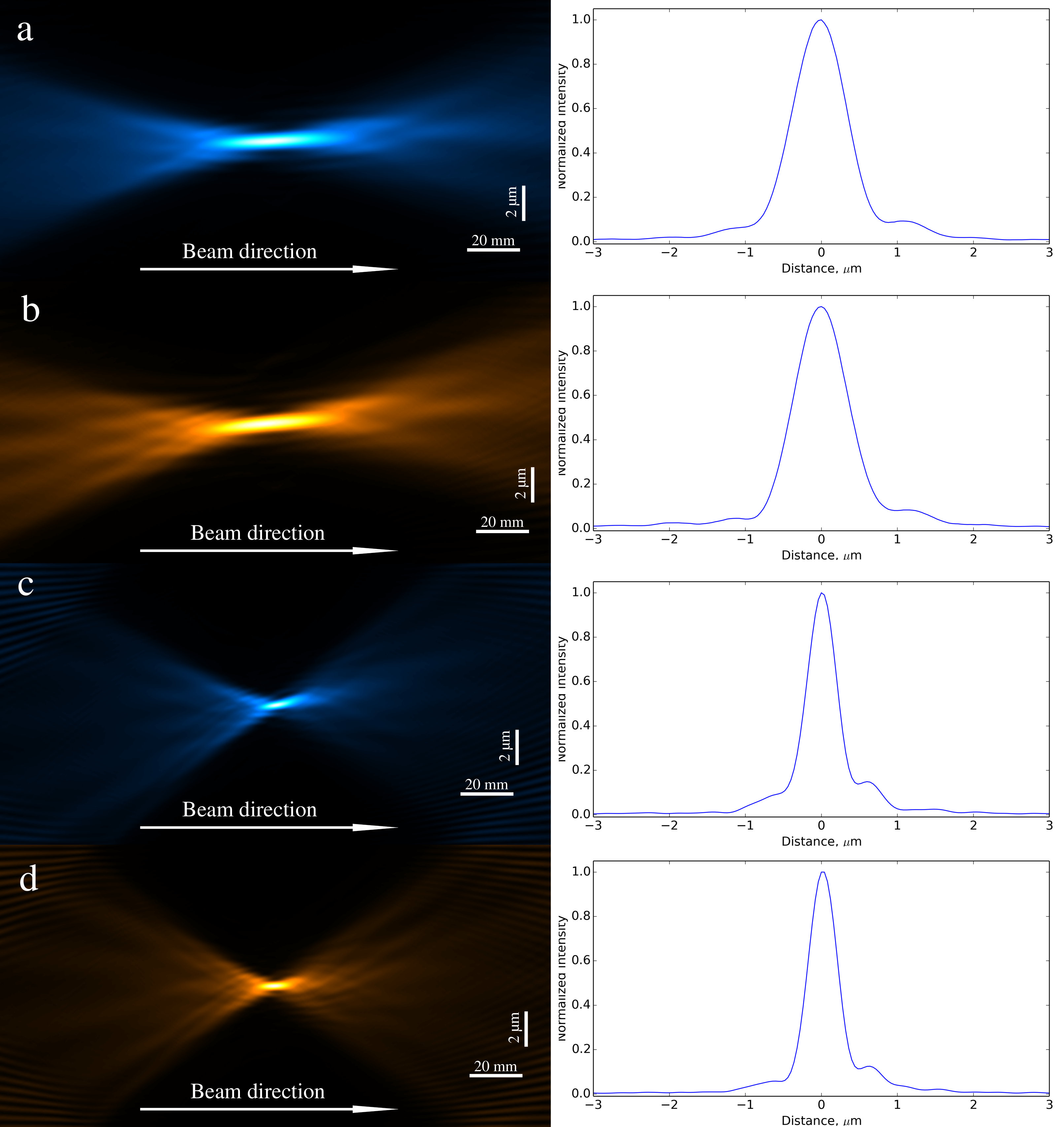

Figures 9 (a) and (b) show beam profiles in horizontal and vertical directions, respectively, and their cross sections, generated by $9$-CRL. Side lobes upstream of the focal spot on the horizontal profile and downstream of the focus on the vertical profile indicate the presence of spherical aberrations. Moreover it is directly confirmed by the mismatching of the focus positions on the vertical and the horizontal beam profiles. The measured size of the focal spot is $d=$560\pm 17.\text{,}\mathrm{nm}$\times$800\pm 17.\text{,}\mathrm{nm} (FWHM) in horizontal and vertical directions, respectively. The theoretically expected size is $d=$330\text{\,}\mathrm{nm}. The focal points in both directions do not coincide, and the lenses show a pronounced astigmatism.
