Effectiveness of Hierarchical Softmax in Large Scale Classification Tasks

TL;DR

This paper evaluates the efficiency of Hierarchical Softmax in large-scale classification tasks, comparing it with traditional Softmax on LSHTC datasets, and finds that Hierarchical Softmax's performance declines as class numbers grow.

Contribution

The study provides an empirical comparison of Softmax and Hierarchical Softmax on large datasets, highlighting the limitations of Hierarchical Softmax in high-class scenarios.

Findings

Hierarchical Softmax is computationally efficient for large-scale data.

Performance of Hierarchical Softmax degrades with increasing number of classes.

Traditional Softmax maintains better accuracy on large class sets.

Abstract

Typically, Softmax is used in the final layer of a neural network to get a probability distribution for output classes. But the main problem with Softmax is that it is computationally expensive for large scale data sets with large number of possible outputs. To approximate class probability efficiently on such large scale data sets we can use Hierarchical Softmax. LSHTC datasets were used to study the performance of the Hierarchical Softmax. LSHTC datasets have large number of categories. In this paper we evaluate and report the performance of normal Softmax Vs Hierarchical Softmax on LSHTC datasets. This evaluation used macro f1 score as a performance measure. The observation was that the performance of Hierarchical Softmax degrades as the number of classes increase.

Figures

Tables

Table 1. TABLE I: Hyper Parameter Values used for Fasttext

Hyper Parameter Name	Hyper Parameter Value
dim (dimension for word)	200
epoch	100
lr (learning rate)	0.25
loss (loss function)	hs

Table 2. TABLE II: Results obtained for various top n labels data set

Top n labels	avg labels per doc	labels predicted per doc
10	1.2	1
100	1.4	1
1000	1.9	2
10000	2.4	2

Table 3. TABLE III: Scores obtained for various top n labels using H ​ i ​ e ​ r ​ a ​ r ​ c ​ h ​ i ​ c ​ a ​ l ​ S ​ o ​ f ​ t ​ m ​ a ​ x 𝐻 𝑖 𝑒 𝑟 𝑎 𝑟 𝑐 ℎ 𝑖 𝑐 𝑎 𝑙 𝑆 𝑜 𝑓 𝑡 𝑚 𝑎 𝑥 Hierarchical\ Softmax

Top n labels	macro precision	macro recall	macro f1
10	0.77	0.45	0.54
100	0.51	0.30	0.35
1000	0.34	0.34	0.32
10000	0.25	0.22	0.21

Table 4. TABLE IV: Scores obtained for various top n labels using S ​ o ​ f ​ t ​ m ​ a ​ x 𝑆 𝑜 𝑓 𝑡 𝑚 𝑎 𝑥 Softmax

Top n labels	macro precision	macro recall	macro f1
10	0.82	0.48	0.58
100	0.69	0.40	0.47
1000	0.55	0.46	0.47
10000	0.49	0.37	0.38

Table 5. TABLE V: Training times for models when H ​ i ​ e ​ r ​ a ​ r ​ c ​ h ​ i ​ c ​ a ​ l ​ S ​ o ​ f ​ t ​ m ​ a ​ x 𝐻 𝑖 𝑒 𝑟 𝑎 𝑟 𝑐 ℎ 𝑖 𝑐 𝑎 𝑙 𝑆 𝑜 𝑓 𝑡 𝑚 𝑎 𝑥 Hierarchical\ Softmax and S ​ o ​ f ​ t ​ m ​ a ​ x 𝑆 𝑜 𝑓 𝑡 𝑚 𝑎 𝑥 Softmax are used

Top n labels	$HierarchicalSoftmax$	$Softmax$
10	1 min	1 min
100	1 min	5 min
1000	2 min	51 min
10000	5 min	15 Hr 11 min

Equations

$$S_i=\frac{e^{a_i}}{{\sum }_{j=1}^N{e}^{a_j}}$$

$$Softmax([1,2,3,4])=[0.03,0.08,0.24,0.64]$$

$$p(w=w_O)=\prod _{j=1}^{L(w)-1}\sigma \left([[n(w,j+1)=ch(n(w,j))]]\cdot v_{n(w,j)}^{\prime T}h\right)$$

$$\llbracket x\rrbracket=\begin{cases}1&$if $x$ is true$;\\ -1&otherwise.\end{cases}$$

$$p(n,left)=\sigma \left(v_n^{\prime T}\cdot h\right)$$

$$p(n,right)=1-\sigma \left(v_n^{\prime T}\cdot h\right)=\sigma \left(-v_n^{\prime T}\cdot h\right)$$

$$p(w_2=w_O)$$

$$\cdot p(n(w_2,3),right)$$

$$=\sigma \left(v_{n(w_2,1)}^{\prime T}h\right)\cdot \sigma \left(v_{n(w_2,2)}^{\prime T}h\right)$$

$$\cdot \sigma \left(-v_{n(w_2,3)}^{\prime T}h\right)$$

$$\sum _{i=1}^{V}p(w_i=w_O)=1$$

$$label,label,label...feat:value...feat:value$$

$$545,328:118:2$$

$$\_\_label\_\_545\_\_label\_\_32w8w18$$

$$MaF=\frac{2\ast MaP\ast MaR}{MaP+MaR}$$

$$MaP=\frac{{\sum }_{i=1}^{|C|}\frac{t{p}_{c_i}}{t{p}_{c_i}+f{p}_{c_i}}}{|C|}$$

$$MaR=\frac{{\sum }_{i=1}^{|C|}\frac{t{p}_{c_i}}{t{p}_{c_i}+f{n}_{c_i}}}{|C|}$$

Full text

I INTRODUCTION

Classification is the problem of finding to which of a set of labels a new instance belongs, on the basis of a training data set containing instances whose label membership is already known. Supervised in the Figure 1 refers to the fact that the instances of training set have their label already known.

A simple example would be like classifying fruits to a type based on past fruits dimension data. Suppose, say we want to find if a fruit is apple (or) banana based on the height of the fruit. And assume our previous data suggests that fruits that were apples had their height in range of $9-11$ cm and that of banana was in range $13-20$ cm. Learning on above data is supervised because fruits that had height in range of $9-11$ cm were apples and between $13-20$ cm were bananas. Hence, our data is labelled. Our learning algorithm could be as simple as to see the new fruit’s height and then check under which fruit’s height range it falls. So, using the above learning algorithm on our training data (with labels) we make a predictive model which can be used to classify new instances. Suppose, say our new fruit (new data) which is to be classified has a height of $14$ cm, we simply classify that as a banana (prediction).

Loss Function, also known as objective function is a evaluation measure of the model, typically lower the loss value better the model is . There are variety of loss functions such as cross entropy, hinge, mean squared error etc. Each loss function has its own pros and cons. The chosen loss function not only determines the model performance but also the run time and complexity.** Activation functions **typically take some set of inputs and map them into a non-linear space. Activation functions can also give us a probability distribution (i.e., the sum of probabilities of all nodes in the final layer is 1) for the final layer in a neural network. Some examples for activation functions are $Softmax,Sigmoid,Tanh$ etc. Generally, In deep learning $Softmax$ is used as an activation function on the final layer to return class probabilities for prediction purposes.

Text Classification is the task of assigning predefined categories to free-text documents. An example would be like classifying whether an email is spam or not. Similar to the above fruit classification we can train a supervised learning algorithm on a corpus of labelled emails (emails which are already categorized as Spam or not Spam) to make a prediction model which then can be used to predict new emails as they arrive either as Spam or not Spam. In Multi-class classification there are more than two categories available and the new instance can belong to only one of those categories. An example would be like classifying whether a fruit is an apple (or) a mango (or) a banana. In Multi-label classification an instance can belong to more than one category at the same time. An example would be like a document may be about politics, sports and religion at the same time.

In Large Scale Classification Tasks, we try to classify million (or) more instances into thousands (or) more categories which may be both multi-class and multi-label in nature. Example: Classifying the category of a Wikipedia document could be both multi-class and multi-label task.

In this paper, our main contributions are, (1) We prepare custom datasets with various distinct category sizes n(=10,100,1000,10000) from LSHTC data sets[1] as explained in the Section III. (2) We trained Fasttext models to compare the performance of $Hierarchical\ Softmax$ Vs $Softmax$ in on these data sets using macro f1-score as an evaluation metric. (3) We report our observations and findings in the Section. IV.

II Large Scale Classification

Large Scale Classification, typically involves dealing with millions of documents and thousands of categories. One such task is Large Scale Hierarchical Text Classification (LSHTC). In this paper, we used the data set corresponding to 4th edition of the Large Scale Hierarchical Text Classification (LSHTC) Challenge [2] for evaluating the performance of using $Hierarchical\ Softmax$ as activation function instead of plain $Softmax$. The LSHTC Challenge is a hierarchical text classification competition, using very large datasets. The challenge is based on a large dataset created from Wikipedia. The dataset is multi-class, multi-label and hierarchical.

FastText [3] is an open-source, free, lightweight library that allows users to learn text representations and text classifiers. Also, FastText provides an implementation of $Hierarchical\ Softmax$ based activation function for text classification purposes [4]. We used implementation of FastText for conducting the experiments in this paper.

II-A Softmax

$Softmax$ [5] function takes an N-dimensional vector of arbitrary real values and produces another N-dimensional vector with real values in the range $(0,1)$ that add up to $1$, i.e., $Softmax$ turns the N-dimensional vector into a probability distribution which can be used for prediction purposes.

Mathematical formula:

[TABLE]

here, $S_{i}$ is the $Softmax$ output for $i^{th}$ value in our input vector of size N. Our Input vector is $[a_{1},a_{2},......a_{N}]$.

$S_{i}$ is always positive i.e., $S_{i}>0$ because of exponents. As the numerator appears in the denominator summed up with some other positive numbers, $S_{i}$ $<$ 1. Hence, this property enables us to derive a probability distribution for the classes in a classification. Typically, the $Softmax$ is used along with the cross-entropy loss function in a neural network based classifier.

[TABLE]

Equation 2 shows an example of applying $Softmax$ function on a four element input vector. The order of elements by relative size is preserved, and they add up to $1$. Intuitively, the $Softmax$ activation function is a soft version of the maximum function.

For large numbers (positive or negative), computing $Softmax$ may cause numeric instability due to the exponentiation. To handle this we can normalize the input vector. For detailed description on how $Softmax$ is used in learning vector representation for words, refer to continuous bag-of-word model (CBOW) introduced in [6] and skip-gram model introduced in [7]. For further details on how the parameter learning takes place in word2vec, refer [8].

A key problem in using $Softmax$ for Large Scale Classification is that computation becomes expensive because of the normalizing sum in the denominator term of the Equation 1. This not only affects the forward pass, but also slows down the back propagation. To solve this problem, an intuition is to limit the number of output vectors that must be updated per training instance. One way to avoid this problem is to use $Hierarchical\ Softmax$.

II-B Hierarchical Softmax

$Hierarchical\ Softmax$ is an efficient way of computing $Softmax$ [9]. Binary trees are used to represent all categories in the output dictionary $(V)$ in this model. The leaf units of this binary tree represent the categories in the output dictionary $(V)$. For each leaf unit we have a unique path from the root and the probability of a category is estimated using this path. As it is a binary tree it is obvious that there are $(V-1)$ intermediate nodes. Here, the inner nodes represent internal parameters $(probability$ $mass)$. Each intermediate node explicitly represents the relative probabilities of its child nodes. The idea behind decomposing the output layer to a binary tree was to reduce the complexity to obtain probability distribution from $O(V)$ to $O(\log(V)).$ Below Figure 2 is an example of Hierarchical binary tree (figure is from [8]):

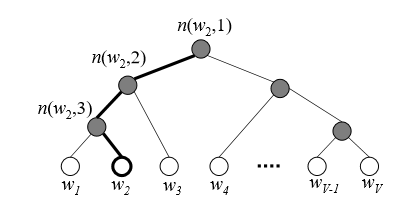

The leaf nodes represent the categories and the inner nodes represent probability mass. The highlighted nodes and edges make a path from root to the above example leaf node $w_{2}$. Here, length of the path $L(w_{2})$= 4. $n(w,j)$ means the $j^{th}$ node on the path from root to a leaf node $w$. In $Hierarchical\ Softmax$ model, each of the $(V-1)$ intermediate node has an output vector $v^{\prime}_{n(w,j)}$ instead of output vector representation for words. And the probability of a category $w$ being the output class will be as follows:

[TABLE]

here, $w_{O}$ is the actual output category. $\sigma$ is the sigmoid function. $\llbracket x\rrbracket$: is a special function defined as:

[TABLE]

$h$ is the output of the hidden layer. $v^{\prime}_{n(w,j)}$ is the vector representation of the intermediate node $n(w,j)$ and $ch(n(w,j))$ is the left child of $n(w,j)$.

Probabilities at each intermediate node in the path from root to the output category are required to compute the probability of the output category. To achieve this, at each intermediate node we must assign the probabilities for going right and going left.

We define the probability of going left at an intermediate node $n$ as follows:

[TABLE]

And the probability of going right at the same node $n$ will obviously be:

[TABLE]

We can calculate the probability for the category $w_{2}$ in the Figure 2 as follows:

[TABLE]

For the detailed description on how the vector representations for the inner nodes are learned, refer [8].

We can also check that sum of calculated probabilities for all the words in the vocabulary add up to $1$, which is the intuition for using $Softmax$ in the first place, but $Hierarchical\ Softmax$ does this in a faster manner.

[TABLE]

$Hierarchical\ Softmax$ is a well-defined multinomial distribution among all output categories. This implies that the cost for computing the loss function and its gradient will be proportional to the number of nodes $(V)$ in the intermediate path between root node and the output node, which on average is no greater than $\log(V)$. The performance also depends on the Hierarchical tree structure used, having said that binary Huffman tree [6] [4] is expected to optimize tree for faster training.

II-C Evaluation

LSHTC used macro f1 score as the performance metric for the evaluation criterion. To make our study comparable to their evaluation, we used the same macro f1 score as our performance metric. The description of the macro f1 score is detailed in the method subsection III-B.

III Experimental Setup

As mentioned in previous sections, we used the labeled data available in LSHTC for conducting the experiments in this paper. The entire process of creating custom data sets for top n labels where, n(=10,100,1000,10000) is described in method subsection III-B below. So, for four different values of n, four separate data sets were created from the LSHTC labeled data set. The specifications of the machine used for this experiment are as follows:

• •

CPU : Intel® Xeon® Processor E5-2650 v4 30M Cache, 2.20 GHz, 12 Cores, 24 Threads

• •

RAM : 250 GB

• •

OS : CentOS 7

III-A Dataset

The LSHTC [1] labeled data was in preprocessed form. This LSHTC is a multi-class and multi-label problem. This data set has $3,25,056$ categories to be exact and $23,65,437$ instances of labeled data is available. The format of each data file follows the libSVM format. Each line corresponds to a sparse document vector and has the following format:

[TABLE]

label is an integer and corresponds to the category to which the document vector belongs. Each document vector may belong to more than one category. The pair $feat:value$ corresponds to a non-zero feature with index $feat$ and value $value$.** feat **is an integer representing a term and value is a double that corresponds to the weight (tf) of the term in the document. For example:

[TABLE]

corresponds to a document vector whose features are all zeros except feature number $8$ (with value $1$) and feature number $18$ (with value $2$). This document vector belongs to categories $545$ and $32$. Each feature number is associated to a stemmed word.

III-B Method

We used Fasttext for the text classification process with the following hyper parameters:

here, hs is $Hierarchical\ Softmax$.

The hierarchy file provided in LSHTC was not used. The labeled data available in LSHTC data set was split into $70\%$ for training and $30\%$ for testing (data was shuffled before splitting). The macro f1 score was used as performance measure. The evaluation was done for top n labels each time (n=10,100,1000,10000). The top n signifies the top n labels occurring in the LSHTC training data.

By default FastText predicts one label per sample. But, we can predict more labels per sample by giving a number as an attribute to FastText’s predict function.

As LSHTC is a multi class and multi label problem, we had to decide how many labels to predict for each sample. For this we calculated the average number of labels per doc from the LSHTC training file for each n. So, the evaluation is done for n values of 10,100,1000,10000 by following the below steps:

1. Find the top n labels occurring in the LSHTC labeled data.

2. Based on the above top n labels, create a new file which has samples for only those classes from the LSHTC labeled data. If a doc has a label from top n labels and other labels not from top n labels then, instead of discarding the doc, only the labels which are not in top n are discarded and we keep the doc to get as many number of samples for the training process. Here, we strip the term frequencies from the instances and prepend $feat$ with ’w’ to treat it as a word (as discussed in data set sub section III-A) to prepare the input data in FastText format. For example, consider

[TABLE]

we will format this instance as follows:

[TABLE]

3. After creating the new data, we find the number of average labels available for each doc and use the rounded number of that average as an argument for predict method of FastText, say it is x.

4. The new data is then shuffled and split into $70\%$ train set and $30\%$ test set.

5. Now we use FastText to train on $70\%$ of the data using the hyper parameters shown in Table I.

6. We then predict x labels per doc (x is from step 3) using fasttext.

7. For evaluation we use macro f1 score ($MaF$) as follows:

[TABLE]

Here, $MaP$ is macro precision and $MaR$ is macro recall.

[TABLE]

[TABLE]

where, C is set of classes, $tp_{c_{i}},fn_{c_{i}}$and $fp_{c_{i}}$ are the true positives, false negatives and false positives respectively for class $c_{i}$. The above process is repeated for each value of n.

IV Results

The following tables show the results obtained for various top n labels in LSHTC training data. All macro precision, macro recall, macro f1 scores in the Tables III and IV are rounded to two decimal places.

Based on top n(=10,100,1000,10000) labels, data sets for each n are created separately as mentioned in the method sub section III-B. Average labels per doc are calculated from created data set (different for each of top n labels). Labels predicted per doc is the number of labels we are predicting (using fasttext predict option) for each doc in test set of our created data set (different for each of top n labels). The macro precision, macro recall, macro f1 scores are calculated as described in the method sub section III-B. The Figure 3 below, shows how the macro f1 score (for top n labels) varies when $Hierarchical\ Softmax$ and $Softmax$ are used on the final layer of a neural network. We can also see that the macro f1 score decreases as the number of labels increase.

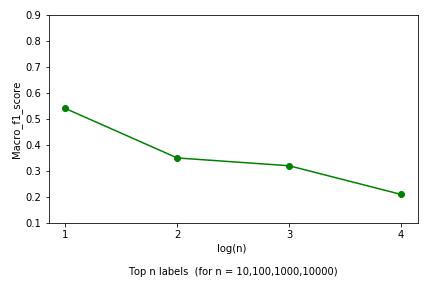

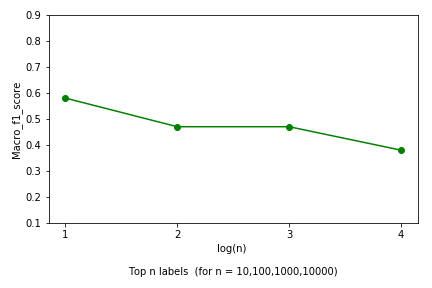

In the Figure 3 above, we used the $\log_{10}$ scale for the top n classes because as the size of the labels grows the fall in the macro f1 score was increasing and it was not intuitive enough to view on scale where n ranges from $10$ to $10000$, hence the graph was plotted with $\log_{10}(n)$ on the $x-axis$ and with the macro f1 score on the $y-axis$.

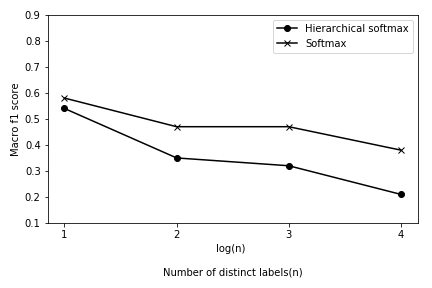

From Tables III, IV and V, It is evident that $Hierarchical\ Softmax$ indeed improves training speed when compared to $Softmax$, but at the cost of being less accurate.

V Conclusion

In this paper, we compared the performance of $Hierarchical\ Softmax$ and $Softmax$ in large scale classification tasks on LSHTC data. Our conclusions are as follows: (1) $Softmax$ performs better when compared to $Hierarchical\ Softmax$ in large scale classification tasks. (2) $Hierarchical\ Softmax$ is indeed faster when compared to $Softmax$ in training a model.

In our future work, we will expand our study in the following areas: (1) Evaluate using a data set that is in raw text form and not in pre-processed form. (2) Use better model to find the optimal number of labels to predict per doc instead of simple averaging based approach. (3) Combine FastText embeddings with a Recurrent Neural Network (RNN) to treat the hierarchical classification as a sequence prediction problem.
