Is the unusual near-threshold potential behavior in elastic scattering of weakly bound nuclei a precision error?

TL;DR

This paper provides a rigorous uncertainty quantification for elastic scattering of weakly bound nuclei near the Coulomb barrier, confirming the Coulomb threshold anomaly and addressing previous conflicting analyses.

Contribution

It introduces a novel uncertainty quantification method for optical model potentials in elastic scattering near the Coulomb barrier.

Findings

Uncertainty estimates are consistent with the Coulomb threshold anomaly.

The analysis contrasts with previous studies suggesting different behaviors.

Physical constraints improve the reliability of the optical model analysis.

Abstract

We present the first example of a rigorous uncertainty quantification on elastic Nucleus-Nucleus scattering at energies near the Coulomb barrier. Experimental data has been analyzed using an energy dependent effective optical model potential with physical constraints imposed. We confirm the compatibility of these uncertainties with the well known Coulomb threshold anomaly, explained in terms of a dispersive relation, and contrast our results with previous analyses that suggest otherwise.

Figures

Tables

Table 1. Table 1: χ 2 superscript 𝜒 2 \chi^{2} per number of degrees of freedom after adjusting the OMP parameters to two different Nucleus-Nucleus elastic scattering reactions. For each reaction three different types of analyses are made. A completely unconstrained fit, a fit where the OMP is enforced to be attractive and a fit where the strength coefficients at energies below the Coulomb barrier are made to be small via penalty functions like the one shown in Eq.( 4 )

	${\chi }^2$/d.o.f.
Reaction	6Li + 209Bi	6He + 208Pb
Number of data	227	246
Unconstrained	1.32	0.79
Attractive OMP	1.35	0.79
Small strengths	1.38	0.80

Table 2. Table 2: Parameters necessary for the calculation of the energy dependence Δ ​ V ​ ( E ) Δ 𝑉 𝐸 \Delta V(E) in the real part of the optical potential as outlined in section 3.4 of Ref.  [ 10 ] . All values are in units of MeV

Parameter	6Li + 209Bi	6He + 208Pb
$V_0$	6.5	2.00
$W_0$	5.6	1.05
$E_1$	24.0	13.5
$E_2$	26.5	19.0

Equations

$$\Delta V(E)=\frac{\mathcal{P}}{\pi }{\int }_0^{\infty }\frac{W(E^{\prime })}{E^{\prime }-E}d{E}^{\prime },$$

$$V(r,E)$$

$$W(r,E)$$

$${\tilde{\chi }}^2={\chi }^2+\frac{(p-p_0{)}^2}{(\Delta p{)}^2},$$

$$\Delta V(E)=\frac{W_0}{\pi }\left({ϵ}_1\ln |{ϵ}_1|-{ϵ}_2\ln |{ϵ}_2|\right),$$

Full text

††journal: Physics Letters B

1 Introduction

The reactions of weakly-bound stable and unstable nuclei have been extensively investigated for several decades. Special attention has been devoted to reactions at low energies close to the Coulomb barrier, where these reactions are primarily dominated by fusion, and direct reactions in which non-elastic scattering occurs. The energy dependence of the effective nuclear potential between projectile and target around Coulomb barrier is an important information, which has been widely studied theoretically and experimentally.

From a theoretical point of view, the nuclear part of the optical model potential (OMP), can be written as $U(E)=V(E)+iW(E)$. Causality considerations and microscopic theory relate the energy dependence of the real and imaginary part of the OMP through a dispersive relation that results in $V(E)=V_{0}(E)+\Delta V(E)$. The term $V_{0}(E)$ exhibits a slow and smooth dependence on the energy, while the term $\Delta V(E)$ depends upon $W(E^{\prime})$ at all energies $E^{\prime}$,

[TABLE]

where $\mathcal{P}$ is Cauchy principal value. This relation was first introduced by Feshbach [1, 2] from a microscopic point of view and later investigated by Cornwall and Ruderman [3] through causality relations.

On the other hand, the energy dependence of the optical potential was first experimentally found by Lipperheide and Schmidt [4]. Later in mid-1980s [5, 6, 7] a strong energy dependence of the potential at energies close the Coulomb barrier was discovered. The imaginary potential decreases rapidly with the effective closure of the nonelastic channels when the energy is reduced to below the barrier and the real potential shows an “anomalous” variation around the barrier [8, 9, 10]. Therefore, the barrier acts as a natural “threshold” for processes involving the action of the nuclear force. This behavior is commonly referred to as the Threshold Anomaly (TA).

However, it was later suggested that the near-threshold potential behavior for weakly-bound nuclei, such as 6Li, may be different compared to tightly-bound nuclei. The imaginary part of the effective potential increases or remains constant as the bombarding energy decreases towards the Coulomb barrier (see Ref. [11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31]), an effect which has been termed as Breakup Threshold Anomaly (BTA) . Recently, an abnormal threshold anomaly was reported to be found for the exotic nuclear system 6He + 209Bi [32], in which the authors concluded that the dispersion relation of Eq.(1) is not applicable for this system.

For a heavy-ion nuclear reaction, the OMP parameters are usually extracted by fitting experimental elastic scattering data. At energies close to and below the Coulomb barrier, the elastic scattering cross section is close to the Rutherford cross section, therefore the nuclear part of the OMP is mainly hidden. For reactions induced by unstable nuclei, the situation becomes even worse due to technical limitations in the intensity and/or the phase-space qualities of radioactive ion beams. In view of these facts, large uncertainties are introduced when extracting the parameters of OMP by directly fitting the data. Furthermore, the analyses presented in Refs. [32, 33, 26, 14, 18] may be over-fitted to the data as suggested by their $\chi^{2}/{\rm d.o.f.}\ll 1$. In order to reduce the effect of these large uncertainties on the determination of the OMP parameters, we propose that physical constraints be imposed on the model used to analyze the data.

In addition, it should be noted that most previous analyses may be underestimating the error bar in the OMP parameters in two ways. First, the OMP parameters at one energy are determined independently from all other energies, that is a fit is made for each energy at which experimental data is available keeping any common parameters fixed. Second, on each fit a linear correlation between the fitting parameters is assumed. In fact a large number of optical potentials are adjusted using codes relying on the MINUIT package of function minimization and error analysis. As stated on the corresponding manual “errors based on the Minuit error matrix take account of all the parameter correlations, but not the non-linearities” [34]. However, due to the dispersive relation of Eq.(1), we expect the correlations between the coefficients of the real and imaginary parts to have significant non-linearities specially between different energies. To avoid underestimating the uncertainties we perform a fit of all energy dependent and independent parameters simultaneously to data at all available energies and do not assume linear correlations by employing a Monte-Carlo technique as described below.

In this Letter we present a proper extraction of the OMP parameters for weakly-bound nuclei induced reaction. As a result the OMP energy dependence is found to exhibit the usual near-threshold potential behavior (i.e. TA) and the model obtained describes the experimental with $\chi^{2}/{\rm d.o.f.}\simeq 1$, indicating agreement between theory and experiment within experimental uncertainties.

2 Data analysis

For the purposes of this work we analyze elastic scattering data from two weakly-bound systems, 6Li + 209Bi [23] and 6He + 208Pb [35, 36, 37, 38]. In both cases we use an OMP to describe the nuclear part of the Nucleus-Nucleus interaction. The real and imaginary parts of the OMP consist of a Woods-Saxon potential with energy independent range and diffuseness parameters along with energy dependent strength coefficients, i.e.111For simplicity, we assume potentials are local and only consider central parts.

[TABLE]

The scattering amplitude was calculated by solving the Schrödinger equation using the modified Numerov method outlined in Ref. [39]. The results were verified for accuracy by comparing with calculations made with the computer code FRESCO [40].

In a first step the parameters in the OMP were adjusted using the usual least squares procedure. In particular, the $\chi^{2}$ function was minimized using the Levenberg-Marquardt method outlined in [41]. An advantage of this method is that a first order approximation to the Hessian matrix is obtained which allows estimating the parameter uncertainty through the co-variance matrix, assuming a multivariate normal distribution. In order to ensure a sound quantification of uncertainties we applied the self-consistent $3\sigma$ criterion to the experimental data in order to identify and exclude statistically inconsistent data points. This method has been successfully used in the context of analyzing $pp$, $np$ and $\pi\pi$ scattering data [42, 43].

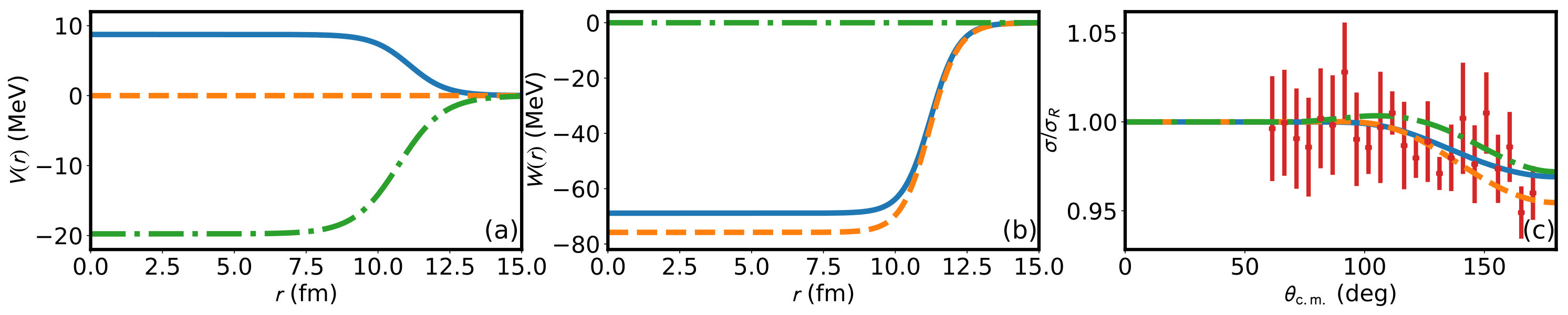

After the initial $\chi^{2}$ minimization the obtained co-variance matrix indicates that, as expected, statistical uncertainties in the OMP parameters are rather large in particular at low energies. These large uncertainties are reflected in the calculated scattering amplitude being rather insensitive to the OMP parameters. A clear example of this insensitivity can be seen in Fig. 1. Three substantially different OMPs for the 6Li + 209Bi reaction at $E_{\rm LAB}=24$ MeV result in very similar cross sections, all of them compatible with experimental data. Notice that the OMP represented by blue solid line even has a repulsive real part, instead of the expected attractive interaction. To deal with these large uncertainties we impose additional constraints to the OMP parameters based on physical principles. In a second least squares analysis of the data we simply impose that the OMP must be an attractive interaction (i.e. that $V_{E}$ and $W_{E}$ are positive numbers). For a third least squares analysis we impose the additional constraint of the strength coefficients at energies below the Coulomb barrier being small compared to the strength at higher energies. The reasoning of this being that, like in the case of tightly-bound nuclei, as the energy goes below the Coulomb barrier there is no need for the imaginary part of the OMP to absorb the inelastic channels that are already closed. To impose small strength coefficients at low energy we modify the usual $\chi^{2}$ by adding terms that penalize large values of the corresponding parameters. These penalty terms can be expressed as

[TABLE]

where $p$ is one of the OMP parameters, $p_{0}$ is some small central value and $\Delta p$ is the expected variation range for $p$. The effect of adding this penalty function is that in order to minimize the modified $\tilde{\chi}^{2}$, the parameter $p$ needs to be close to the small central value $p_{0}$. While imposing such penalty function might seem completely arbitrary, this type of constraint is the frequentist equivalent of using a Gaussian prior in Bayesian statistics. The use of priors is a common and justified practice in Bayesian parameter estimation [44].

To properly quantify the statistical uncertainty that propagates from the experimental data to the OMP parameters through the $\chi^{2}$ minimization we make use of simple a Monte-Carlo technique. For every experimental data point $O_{i}$ with error bar $\sigma_{i}$ we make the substitution $O_{i}\rightarrow O_{i}+\mathcal{N}(0,\sigma_{i})$, where $\mathcal{N}(0,\sigma_{i})$ are random variates with a normal distribution, and readjust the OMP parameters by minimizing the resulting $\chi^{2}$ function. We repeat this process until we have a sufficiently large number of samples for the OMP parameters222In practice we obtain 1000 samples, although a smaller number might already give a robust estimation of the parameters distribution. This method relies on the assumption that the residuals in the $\chi^{2}$ function follow the standard normal distribution; this assumption has been stringently verified for every least squares analysis on this work using the hypothesis testing method described in [45]. As mentioned earlier, we opt for this method of uncertainty quantification over the usual co-variance matrix since the latter assumes linear correlations between the OMP parameters but from Eq.(1) we in fact expect non linear correlations which could result in underestimated error bars. Furthermore, the co-variance matrix as a representation of the uncertainties and correlations between the model parameters assumes small errors from the start, which Fig. 1 already shows not to be the case. The Monte-Carlo method automatically extracts a sample of the parameters distribution without assuming any kind of theoretical distribution for them. The same method, sometimes called parametric bootstrap [46], has been used successfully to estimate uncertainties in ab initio calculations of the binding energy of light nuclei [47, 48, 49] and in the analysis of Compton scattering data [50].

3 Results and discussion

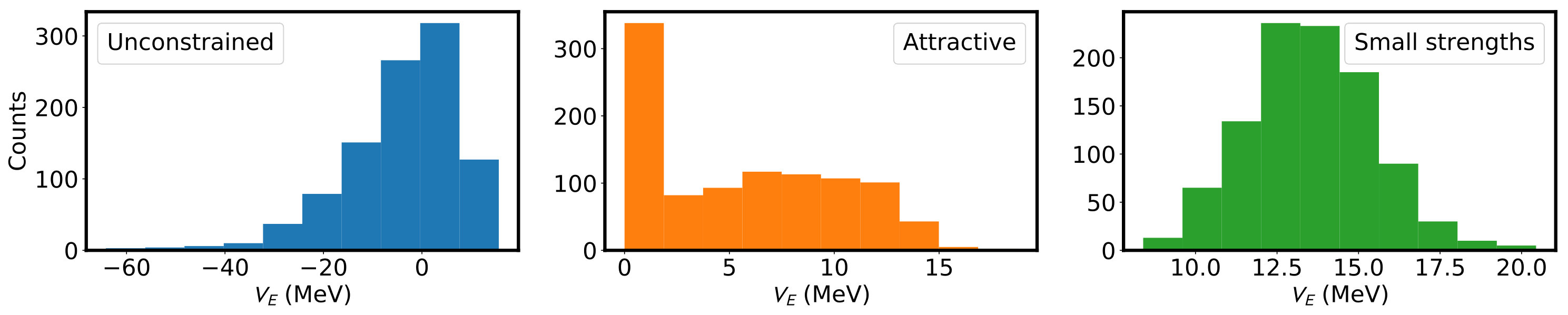

Our results are summarized in tables 1 and 2, along with figures 2 and 3. Table 1 shows the $\chi^{2}$ per number of degrees of freedom for each of the three OMP fits to the 6Li+209Bi and 6He+208Pb experimental scattering data. For the interested reader, an additional table in the supplementary material gives the resulting parameters of the potential constrained to have small strengths coefficients in the imaginary part at energies below the Coulomb barrier. Given the number of data and parameters in each reaction, the total $\chi^{2}/{\rm d.o.f.}$ obtained agrees with the expected value of $1$ at a level between two and three sigmas. Furthermore, the values in the table show that imposing the physical restrictions of attractive OMP first, and small strengths at energies below the Coulomb barrier later, has little to no effect on the average discrepancies between theoretical model and experimental data. That is, the three types of analyses reproduce the experimental data equally well, as expected from the three vastly different potentials in figure 1. However, the imposition of constraints based on physical expectations of the OMP does have an effect on the uncertainty of the potential parameters by reducing the region in hyper-parameter space that can be explored when the Monte-Carlo analysis is performed. This effect is clearly reflected in Fig. 2 which shows a histogram for the strength parameter $V_{E}$ at $E=26.0$ MeV, resulting from the Monte-Carlo sampling analyzing the 6Li + 209Bi data. The resulting parameters in the unconstrained analysis cover a large range of values, most of them corresponding to a repulsive potential. As physical constraints are imposed on the analysis the range covered by the resulting parameters gets reduced. It is noteworthy that the constraint of small strength coefficients is imposed on the imaginary part of the potential only, yet this has a clear effect of constraining the real part as well.

For each reaction, the result of the Monte-Carlo analysis described earlier is a collection of 1000 OMPs with the physical constraint of small strengths at energies below the Coulomb barrier imposed. While the parameters obtained differ from one fit to another, the description of the experimental data by every OMP is statistically equivalent. This collection of potentials allows identifying the radius at which the potential changes the least, also known as the sensitivity radius $r_{s}$. As it is customary, we present the energy dependence of the OMP at the sensitivity radius, selecting $r_{s}=10.15$ fm for the 6Li + 209Bi reaction and $r_{s}=10.6$ fm for the 6He + 208Pb reaction333Of course the position of $r_{s}$ can be different for the real and imaginary part of the potential and for each energy. In practice we take the average of all the sensitivity radii, which are mostly spread between 8 and 12 fm. For reassurance we checked that the same type of energy dependence can be observed at different values of $r_{s}$. Fig. 3 shows the results of the Monte-Carlo analysis in the form of box and whisker plots. The size of the box represents the inter-quartile range ($IQR$) of the 1000 OMPs, the horizontal line indicates the position of the median and the end points of the whiskers give the position of the first element in the sample that has a distance to the end of the box of least $1.5IQR$. Elements farther away from the endpoints are called flyers and are not shown in these figures. We opt for this graphical representation of the data, in lieu of the usual error bar, to emphasize the sometimes asymmetric nature of the distribution of the resulting sample. For reference we also show, as an orange dot, the potential obtained from the $\chi^{2}$ minimization.

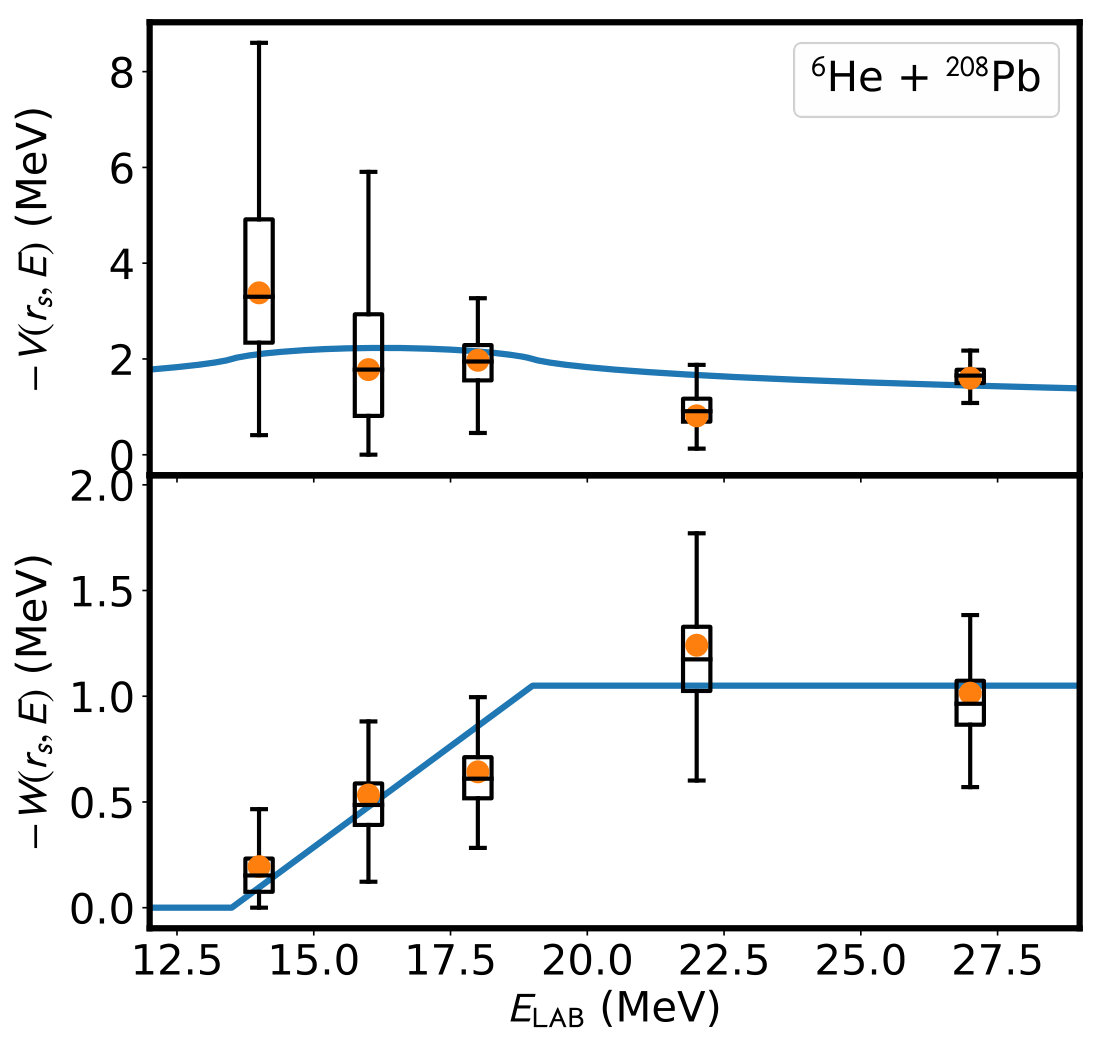

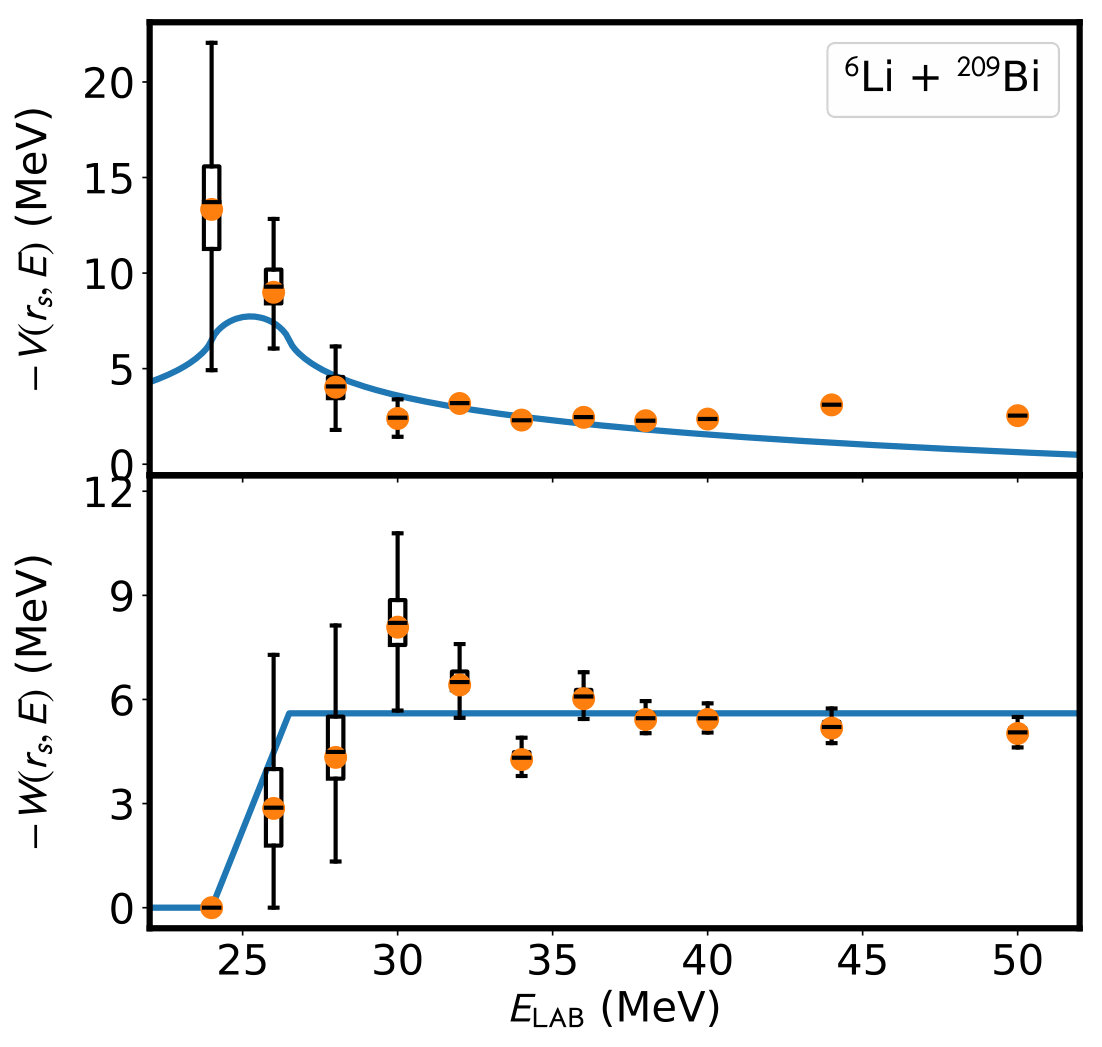

The energy dependence of the imaginary part of the OMP is parametrized with a linear approximation at low energies. Following the prescription outlined in section 3.4 of Ref. [10] we assume that $|W(E)|$ rises from zero, at an energy $E_{1}$, to a certain value $W_{0}$, at another energy $E_{2}$, to then remain constant. This linear dependence is shown in Fig. 3 as a blue solid line in the bottom panels. Using Eq. (1) one can calculate the energy dependence of the real part which can then be added to a constant value $V_{0}$. The actual calculation was done using the analytic expression

[TABLE]

where $\epsilon_{i}=(E-E_{i})/(E_{2}-E_{1})$. For a derivation of this expression see section 3.4 of Ref. [10]. The result from the dispersion relation is shown as a blue solid line in the top panels. The values for $W_{0}$, $V_{0}$, $E_{1}$, and $E_{2}$, which were chosen to show agreement between the dispersion relation and the Monte-Carlo analysis presented as the box and whiskers plots, are presented in table 2.

It should be mentioned that the main reason for the agreement with the dispersive relation is the imposition physical constraints, in this case small strength coefficients at energies below the Coulomb barrier as shown in Eq. (4). While the use of Monte-Carlo techniques allow for a rigorous and sound propagation of the experimental uncertainty into the OMP parameters, additional physical information is required for the imaginary part of the potential to decrease with decreasing energy. Previous analyses of elastic Nucleus Nucleus scattering with weakly-bound nucleus have used Monte-Carlo methods to calculate the uncertainty in OMP parameters but found similar results to analyses with the usual co-variance matrix [51, 52]. Such analyses did not include restrictions on the imaginary part of the potential.

The analysis presented here shows that, within properly quantified uncertainties and with physically motivated constraints, the usual near threshold behavior (TA) of the OMP is found to be consistent with elastic scattering data for the 6Li + 209Bi and 6He + 208Pb reactions. This finding is in contrast to the BTA found in earlier works, which was explained in Refs. [11, 53] by the influence of the breakup reaction. According to this explanation, the imaginary part of OMP increases continuously with decreasing energy below the barrier due to the assumption that the coupling to the breakup channels in these systems continues to be important even at energies below the barrier. However, such explanation fails to account for the fact that the large breakup coupling effects may cause a large suppression in the fusion cross section [54]. The imaginary potential accounts for the channels leaving the ground states, which include breakup and fusion channels. Therefore, we expect no significant increase in the imaginary potential at energies below the Coulomb barrier. In general, we expect the potential energy dependence to be an universal phenomenon within the barrier-energy region. In other words, even for weakly-bound exotic system, we expect the energy dependence of the optical potential to be similar to the one in tightly-bound systems.

4 Summary and conclusions

We have studied the problem of near-threshold potential behavior of weakly-bound nucleus induced reactions using 6Li+209Bi and 6He+208Pb as case studies. We have implemented a new method to extract the OMP parameters. The extracted potentials can reproduce the experimental data with $\chi^{2}/{\rm d.o.f.}\simeq 1$.

For the energy below the Coulomb barrier region, the nuclear force is mostly hidden by the Coulomb interaction resulting in large experimental uncertainties. Rigorous uncertainty quantification of elastic scattering data with a physical constraint of the imaginary part of the OMP decreasing when the collision energy goes below the Coulomb barrier are needed to extract the OMP from the data. By using these, the real part exhibits the usual near-threshold behavior (TA) in weakly-bound projectile induced reactions contrary to the findings in the other works. In addition we show that the extracted optical potential verifies the dispersive relation.

Although the studies presented here have been restricted to the 6Li and 6He projectiles, we believe that the conclusions can be directly extrapolated to other weakly-bound nuclei, such as 7Li or 9Be. A detailed study with different projectile with various targets is in progress.

Acknowledgments

We are grateful to Daniel Phillips, Antonio Moro, Charlotte Elster, and Enrique Ruiz Arriola for a critical reading of the manuscript and many insightful comments on this work. This work has been partially supported by the National Science Foundation under contract. No. NSF-PHY-1520972 with Ohio University, and of the U.S. Department of Energy under Contract No. DE-FG02-93ER40756 with Ohio University. This research used resources of the National Energy Research Scientific Computing Center (NERSC), a U.S. Department of Energy Office of Science User Facility operated under Contract No. DE-AC02-05CH11231.
