ALMA Detection of Extended Millimeter Halos in the HD 32297 and HD 61005 Debris Disks

TL;DR

This study uses ALMA observations to reveal extended millimeter-sized grain halos in the debris disks of HD 32297 and HD 61005, providing new insights into their structure and composition.

Contribution

First high-resolution ALMA images of these debris disks at millimeter wavelengths, showing extended halos of large grains and gas, with detailed modeling of their structure.

Findings

Disks have a two-component structure with a planetesimal belt and an extended halo.

Halos extend to hundreds of AU, containing millimeter-sized grains.

Detection of CO gas co-located with dust in HD 32297.

Abstract

We present ALMA 1.3 mm (230 GHz) observations of the HD 32297 and HD 61005 debris disks, two of the most iconic debris disks due to their dramatic swept-back wings seen in scattered light images. These observations achieve sensitivities of 14 and 13 $\mu$Jy beam$^{-1}$ for HD 32297 and HD 61005, respectively, and provide the highest resolution images of these two systems at millimeter wavelengths to date. By adopting a MCMC modeling approach, we determine that both disks are best described by a two-component model consisting of a broad ($\Delta R/R> 0.4$) planetesimal belt with a rising surface density gradient, and a steeply falling outer halo aligned with the scattered light disk. The inner and outer edges of the planetesimal belt are located at $78.5\pm8.1$ AU and $122\pm3$ AU for HD 32297, and $41.9\pm0.9$ AU and $67.0\pm0.5$ AU for HD 61005. The halos extend to $440\pm32$ AU and $188\pm8$ AU, respectively. We also detect $^{12}$CO J$=2-1$ gas emission from HD 32297 co-located with the dust continuum. These new ALMA images provide observational evidence that larger, millimeter-sized grains may also populate the extended halos of these two disks previously thought to only be composed of small, micron-sized grains. We discuss the implications of these results for potential shaping and sculpting mechanisms of asymmetric debris disks.

Figures

Tables

Table 1. Table 1: ALMA Observations

Target	Observation	# of	Projected	Precipitable Water	Time on
	Date	Antennas	Baselines (m)	Vapor (mm)	Target (min)
HD 32297	2016 Jan 1	36	$15-310$	1.26	22.2
	2016 Jun 21	36	$15-704$	1.15	44.4
HD 61005	2013 Dec 4${}^{\text{a}}$	27	$12-330$	2.99	49.0
	2014 Mar 20${}^{\text{a}}$	31	$12-335$	0.79	26.6
	2016 Jun 18	36	$15-650$	0.73	44.4

Table 2. Table 2: Best-fit Model Parameters

Parameter	Description	HD 32297	HD 61005
		Best-fit	Best-fit
$F_{\text{belt}}$	Planetesimal belt flux density [mJy]	$3.04\pm 0.21$	$4.82\pm 0.29$
$F_{\text{halo}}$	Halo flux density [mJy]	$0.63\pm 0.26$	$1.54\pm 0.48$
$R_{\text{in}}$	Planetesimal belt inner edge [AU]	$78.5\pm 8.1$	$41.9\pm 0.9$
$R_{\text{halo}}$	Planetesimal belt outer edge and disk halo inner edge [AU]	$122\pm 3$	$67.0\pm 0.5$
$R_{\text{out}}$	Halo outer edge [AU]	$440\pm 32$	$188\pm 8$
$x_1$	Planetesimal belt power law gradient	$2.23\pm 0.61$	$2.87\pm 0.19$
$x_2$	Halo power law gradient	$-6.20\pm 0.30$	$-5.52\pm 0.14$
$i$	Disk inclination [$°$]	$83.6{(+4.6,-0.4)}^{\text{a}}$	$85.6\pm 0.1$
$PA$	Disk position angle [$°$]	$47.9\pm 0.2$	$70.3\pm 0.1$

Equations

$$M_{\text{CO}}=\frac{4\pi }{h{\nu }_{21}}\frac{F_{21}m{d}^2}{A_{21}{x}_2}$$

$${\tau }_{\nu }=\frac{d^2{F}_{21}}{A_{21}\Delta \nu \Delta A}\left(\frac{x_1}{x_2}{B}_{12}-B_{21}\right)$$

Full text

circumstellar matter — stars: individual (HD 32297, HD 61005) — submillimeter: planetary systems

††slugcomment: Accepted to ApJ: October 26, 2018

1 Introduction

Debris disks are often seen as a sign of previous successful planet formation in a system (see recent reviews including Hughes et al., 2018; Wyatt, 2018). Planetesimals, larger bodies leftover from the planet formation process, collide within these disks and grind down into smaller and smaller dust grains that are observable via scattered light or thermal emission. It is expected that any interior planets should interact with this dusty material, sculpting it through gravitational perturbations. In a few systems, we can link the geometry and location of a dust belt back to known planets. For example, the presence of a giant planet was inferred from a warp in the $\beta$ Pictoris debris disk and later confirmed through direct imaging (Mouillet et al., 1997; Lagrange et al., 2010). Given the known interactions, we could potentially use the observed structure of debris disks to place constraints on the orbits and masses of exoplanets that would otherwise be undetectable with current methods. The HR 8799 system with four directly imaged planets between two dust belts offers a template case (e.g., Su et al., 2009); Wilner et al. (2018) use the location of the outer disk’s inner edge determined from millimeter observations to place a constraint on the mass of the outermost directly imaged planet. In both $\beta$ Pictoris and HR 8799, the planet mass estimates derived from disk structure provide a separate check on limits derived from luminosity evolution, atmospheric modeling, and dynamical stability (Lagrange et al., 2009; Currie et al., 2011). Unfortunately, this seemingly simple picture is complicated since structure in debris disks can be created through alternative, non-planetary mechanisms including stellar flybys, interactions with the interstellar medium (ISM, e.g., Artymowicz & Clampin, 1997), recent massive collisions (e.g., Mazoyer et al., 2014), or instabilities from dust and gas interactions (e.g., Lyra & Kuchner, 2013).

Scattered light imaging has revealed a population of edge-on debris disks that exhibit dramatic asymmetric structures including bowed disk midplanes (e.g., ‘wings’ such as HD 32297 and HD 61005) and extensions (e.g., ‘needles’ such as HD 15115). To date, the dominant mechanism at work shaping these systems remains the subject of debate. The leading theories involve interactions between disk material and either the ISM or an interior giant planet. In the first scenario, ram pressure from interstellar gas can remove bound or unbound grains from the disk (Debes et al., 2009; Maness et al., 2009). On the other hand, an eccentric ($e>0.2$) giant planet orbiting within the disk can secularly perturb a narrow ring of parent bodies producing small dust grains that are thrown outwards via stellar radiation pressure (Esposito et al., 2016; Lee & Chiang, 2016). A planet could also directly perturb grains over many orbits, forcing them to have high eccentricities and inclinations (Maness et al., 2009).

Since they both show wing-like features in scattered light observations, the HD 32297 (A5V, $<30$ Myr, $133\pm 1$ pc) and HD 61005 (G8V, 40 Myr, $36.56^{+0.03}_{-0.06}$ pc, nicknamed ‘The Moth’) debris disks are a useful pair to explore the mechanisms responsible for shaping asymmetric debris disks. We note that the recent Gaia Data Release 2 (Gaia Collaboration et al., 2016, 2018) gives an updated distance for the HD 32297 system of 133 pc compared with the Hipparcos result of 112 pc (Perryman et al., 1997). The difference between the Gaia and Hipparcos distances is smaller for HD 61005 with values of 36.6 and 34.5 pc, respectively. Both of these disks were first resolved in scattered light at 1.1 $\mu$m with HST NICMOS (Schneider et al., 2005; Hines et al., 2007), and have been subsequently imaged at millimeter wavelengths with low angular resolution (Maness et al., 2008; Ricarte et al., 2013; Steele et al., 2016). We know that the small grains that dominate scattered light observations are more easily affected by non-gravitational forces such as stellar radiation and winds. Larger, millimeter-sized grains are expected to be less affected by these interactions, and therefore more reliably trace the underlying planetesimal distribution in these disks. Indeed, interactions with the ISM will preferentially strip small grains from the disk, but are unable to affect larger grains. Thus, high resolution observations at millimeter wavelengths are especially critical to our understanding of the physical mechanisms shaping the structure of these asymmetric debris disks.

Here, we present new observations from the Atacama Large Millimeter/submillimeter Array (ALMA) with the highest angular resolution to date of both the HD 32297 and HD 61005 debris disks. Our new ALMA images reveal that despite differences in spectral type, both systems are best described by a two-component structure with (1) a parent body belt, and (2) an outer halo coincident with the scattered light disk. In Section 2, we present the details of our observations. In Section 3, we discuss the structure of the millimeter continuum emission for both disks (3.1), the modeling approach we take to characterize the observed visibilities (3.2), and the detection of 12CO J$=2-1$ emission from the HD 32297 system (3.3). In Section 4, we compare our best-fit models to previous work (4.1). We also explore the significance of our results in the context of debris disk shaping (4.2) and stirring (4.3) mechanisms, and the origin of gas in debris disks (4.4). Finally, in Section 5, we present our conclusions.

2 Observations

We observed both the HD 32297 and HD 61005 systems with ALMA in Band 6 (1.3 mm, 230 GHz, #2015.1.00633.S, PI: Alycia Weinberger). For HD 32297, ALMA executed two scheduling blocks (SBs) in Cycle 3 with 36 antennas in two configurations: (1) a 40-minute SB (22 minutes on-source) with baselines of $15-310$ m on 2016 January 1, and (2) a 68-minute SB (44 minutes on-source) with baselines of $15-704$ m on 2016 June 21. For HD 61005, compact observations (baseline lengths of $12-335$ m) were taken previously in ALMA Cycle 1 (2012.1.00437.S, PI: David Rodriguez) on 2013 December 4 and 2014 March 20 with 27 and 31 antennas in the array, respectively. Analysis of these lower resolution observations was presented in Olofsson et al. (2016). ALMA executed an additional 68-minute SB (44 minutes on-source) in Cycle 3 with 36 antennas in the array and baselines extending to 650 m on 2016 June 18. Additional details (including precipitable water vapor and time on source) for all of these observations are listed in Table 1.

The correlator for our new ALMA observations was set-up to maximize sensitivity to continuum dust emission. For HD 32297, we also covered the 12CO J$=2-1$ line at 230.538 GHz with low spectral resolution (1.3 km s*-1*). We used four basebands centered at 215.5, 217.5, 230.538, and 232.538 GHz, and two polarizations (XX and YY). The baseband targeting the 12CO line had 3840 channels with a bandwith of 1.875 GHz. The three basebands targeting only continuum emission included 128 channels with a bandwidth of 2 GHz. The previous ALMA observations of HD 61005 included four basebands centered at 213, 215, 228, and 230.5 GHz. The first three basebands targeted continuum emission with 128 channels and 2 GHz bandwidth, while the last baseband targeted the 12CO J$=2-1$ line using 3840 channels and a bandwidth of 1 GHz. Since no CO emission was detected in the earlier ALMA observations, we did not include the 12CO line in our more extended observations of HD 61005, and included only four continuum basebands with a bandwidth of 2 GHz each centered at 224, 226, 240, and 242 GHz, in both the XX and YY polarizations.

All of the raw data sets were calibrated with the ALMA pipeline using the CASA package (version 4.7.2). For HD 32297, observations of J0510+1800 were used for both bandpass and flux calibration. Observations of J0502+0609 were used to account for time-dependent gain variations due to instrumental and atmospheric effects. For HD 61005, observations of J0538-4405 were used for bandpass and flux calibration, while observations of J0747-3310 were used for gain calibration. The systematic uncertainty for absolute flux calibration is estimated to be $<10\%$. Visibility weights from ALMA are known to be inaccurate when reduced in versions of CASA prior to 4.4 (Ott & Kern, 2017). This is not expected to be a problem with these data given that they were reduced using a more recent version of CASA. However, to be safe, we used the statwt task in CASA to recalculate the data weights according to their true scatter such that the weights are consistent with $1/\sigma^{2}$, where $\sigma$ is the per-channel noise of the data, before proceeding with our analysis. The calibrated visibilities were averaged in 30 second intervals to reduce the total size of the measurement sets, resulting in a total number of visibility points of 591,384 and 613,038 for HD 32297 and HD 61005, respectively. To analyze the 12CO line emission from HD 32297, the continuum level was subtracted from the spectral window containing the line. Both continuum and line images were generated using the multi-frequency synthesis CLEAN algorithm in the CASA package.

3 Results and Analysis

3.1 Continuum Emission

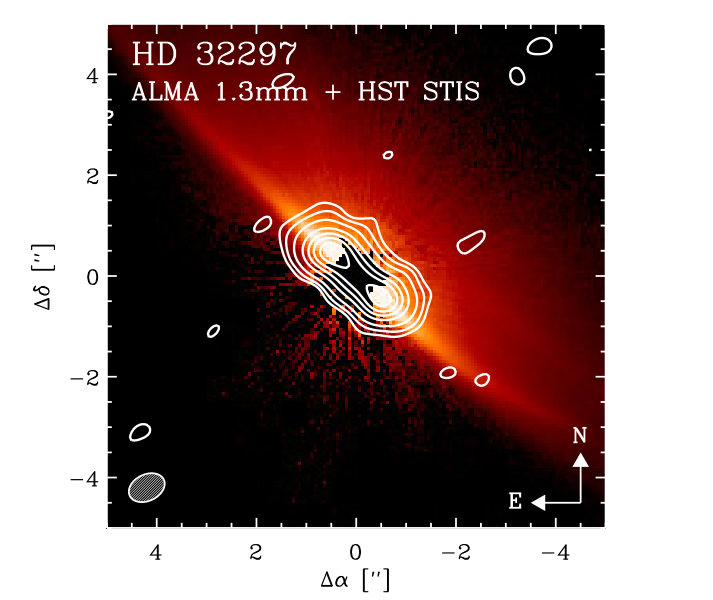

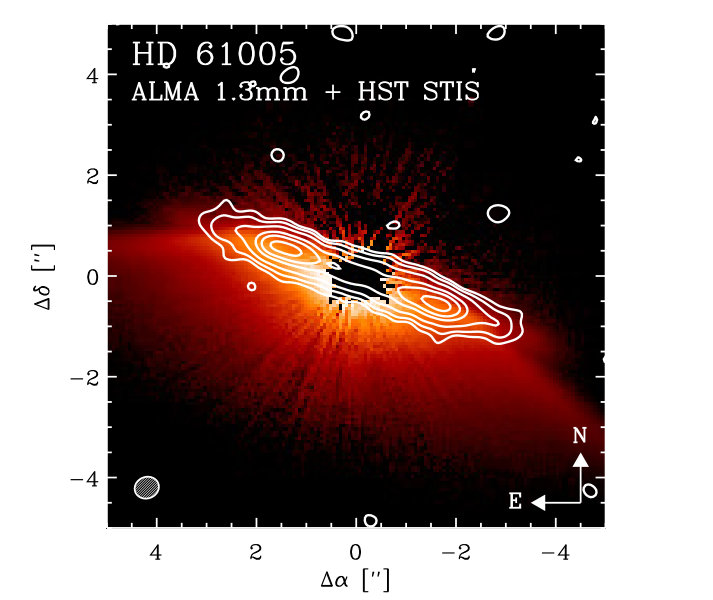

Figure 1 shows our new ALMA 1.3 mm continuum images of HD 32297 (left) and HD 61005 (right) overlaid as contours on the previous Hubble Space Telescope (HST) STIS coronagraphic images of optical scattered light from Schneider et al. (2014). With robust $=0.5$ weighting, the synthesized beam size is $0\farcs 76\times 0\farcs 51$ (100 AU $\times$ 68 AU at 133 pc, position angle $=-65\arcdeg$) and the rms noise is 14 $\mu$Jy beam*-1* for HD 32297. For HD 61005, the synthesized beam size is $0\farcs 49\times 0\farcs 43$ (18 AU $\times$ 16 AU at 36.6 pc, position angle $=-71\arcdeg$) and the rms is comparable, 13 $\mu$Jy beam*-1*.

For both sources, the millimeter continuum emission aligns well with the orientation of the disk major axis seen in the scattered light images. The HST images for these two disks are characterized by broad, wing-like structures extending to the northwest and southeast of the disk major axis for HD 32297 and HD 61005, respectively. While we do not detect such large wing structures for either source in our ALMA images, both do show indications of some extended emission (seen in the $3-12\sigma$ contours) beyond the disk ansae (the bright peaks seen on either side of the star that are characteristic of limb brightening from an edge-on, optically thin disk), which we interpret as an outer halo.

The presence of significant millimeter emission at large stellocentric distances is atypical for debris disks, most of which appear sharply truncated at an outer radius. For HD 61005, the extended halo emission matches well with the outer scattered light that is along the disk midplane. The structure of the halo is somewhat less apparent by-eye for HD 32297, given its much larger distance (113 pc compared to 36.6 pc for HD 61005) and thus lower resolution. Despite this, these new ALMA images indicate that both the HD 32297 and HD 61005 debris disks are best characterized by a two component model with (1) a planetesimal belt characteristic of most millimeter observations of debris disks and (2) an additional outer halo extending $\sim 2\arcsec-4\arcsec$ radially.

3.2 Continuum Modeling Approach and Results

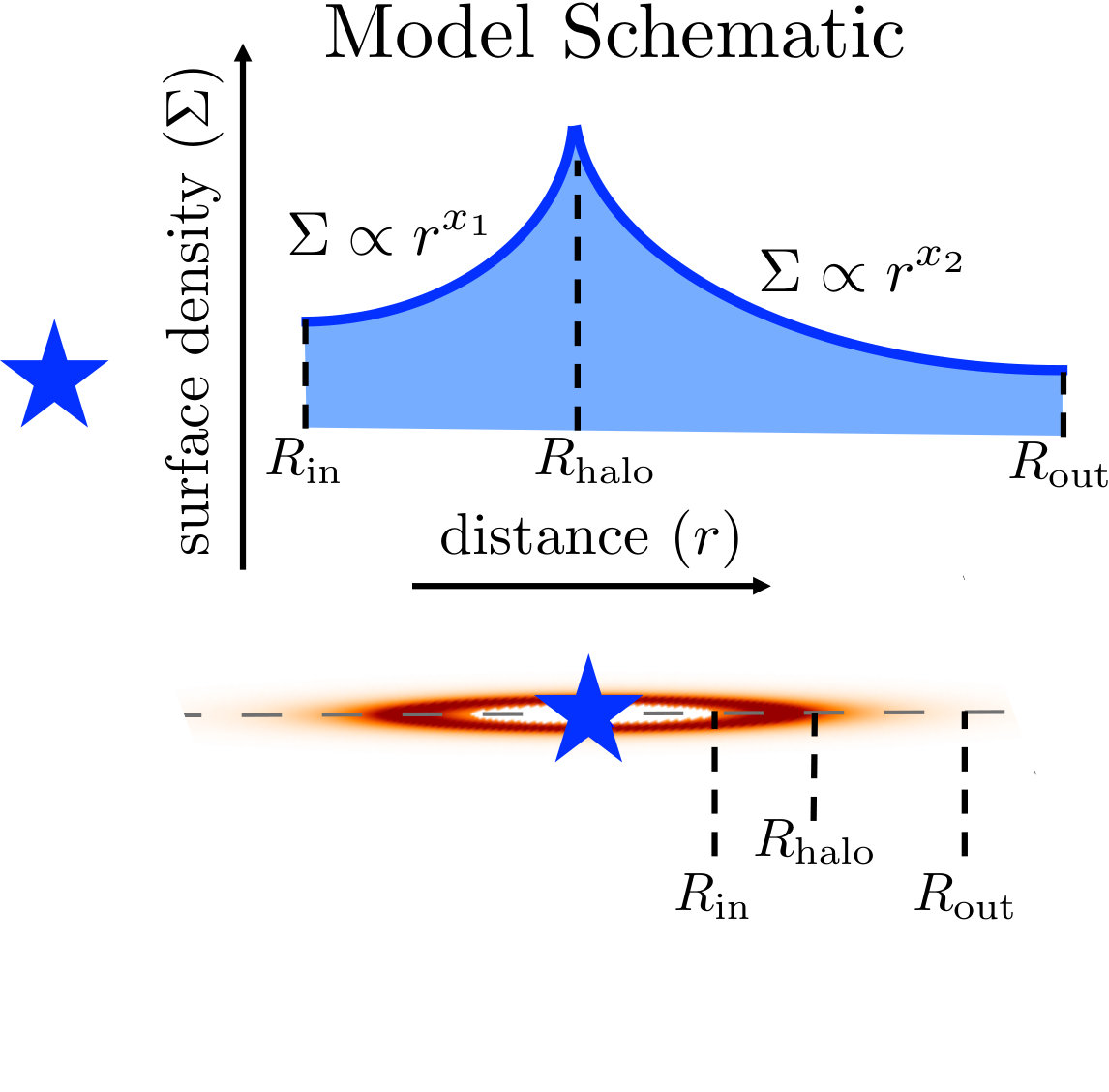

We model the ALMA 1.3 mm continuum observations of both HD 32297 and HD 61005 with an optically thin, geometrically flat, axisymmetric belt model. In order to draw comparisons between the two systems and because their scattered light and millimeter images show similar structures, we adopt the same model for both disks. Model fits with only a single power law or Gaussian belt component (as we have used previously for other debris disks including AU Mic and $\epsilon$ Eridani, see MacGregor et al., 2013, 2015) left significant residuals, most notably in the outer regions of the disk beyond the ansae. We interpret these residuals as evidence for an outer halo component not accounted for by simple models with symmetric inner and outer edges. Motivated by this apparent two-component structure of the ALMA continuum images (Figure 1) of HD 32297 and HD 61005, we adopt a parametric model with a radial temperature profile, $T\propto r^{-0.5}$, and a surface density profile described by a broken power law with $\Sigma\propto r^{x_{1}}$ for $R_{\text{in}}<r<R_{\text{halo}}$ (within the planetesimal belt) and $\Sigma\propto r^{x_{2}}$ for $R_{\text{halo}}<r<R_{\text{out}}$ (within the halo). A schematic of the model surface density distribution is shown in Figure 2.

In our model fits, the inner radius of the planetesimal belt, $R_{\text{in}}$, outer radius of the planetesimal belt or inner radius of the ‘halo’, $R_{\text{halo}}$, and outer radius of the halo, $R_{\text{out}}$, are all free parameters. We fit for the flux of the planetesimal belt, $F_{\text{belt}}$, and halo component, $F_{\text{halo}}$, independently, with the total flux density normalized to $F_{\text{tot}}=F_{\text{belt}}+F_{\text{halo}}=\int I_{\nu}d\Omega$. We assume that the surface density profile of both components is continuous such that $\Sigma_{\text{belt}}=\Sigma_{\text{halo}}$ at $R_{\text{halo}}$. It is possible that the surface density profile could instead be discontinuous, which we do not consider here. Adding a discontinuity introduces an additional model parameter, and the continuous model fits demonstrate that this is not necessary. In addition, we fit for the belt geometry, namely the inclination, $i$, and position angle, $PA$. Although we explored more complicated models that allowed for different surface density profiles, gaps between the belt and halo components, or multiple rings, they did not yield substantially different results. In principle, other two-component parametric profiles, such as an asymmetric Gaussian, could be fitted to these data. We choose a broken power law as the simplest model justified by the sensitivity and resolution of our current dataset.

To obtain best-fit values and uncertainties for all parameters, we adopt our previously described approach (e.g., MacGregor et al., 2013) and fit directly to the millimeter visibilities within a Markov Chain Monte Carlo (MCMC) framework making use of the emcee package (Foreman-Mackey et al., 2013). We compute synthetic visibilities for each model using the python package vis_sample111vis_sample is publicly available at https://github.com/AstroChem/vis_sample or in the Anaconda Cloud at https://anaconda.org/rloomis/vis_sample., and then calculate a $\chi^{2}$ likelihood function, $\text{ln}\mathcal{L}=-\chi^{2}/2$ to compare with the data. In order to fully explore the posterior probability distribution of the data conditioned on the model, we use $10^{6}$ iterations (100 walkers and 10,000 steps each). To check for convergence, we compute the Gelman-Rubin statistic (Gelman & Rubin, 1992) and ensure that $\hat{R}<1.1$ for all model parameters. We assume uniform priors, with limits that ensure each model is physical: $F_{\text{belt}}$, $F_{\text{halo}}$, $F_{\text{tot}}>0$ and $0<R_{\text{in}}<R_{\text{halo}}<R_{\text{out}}$.

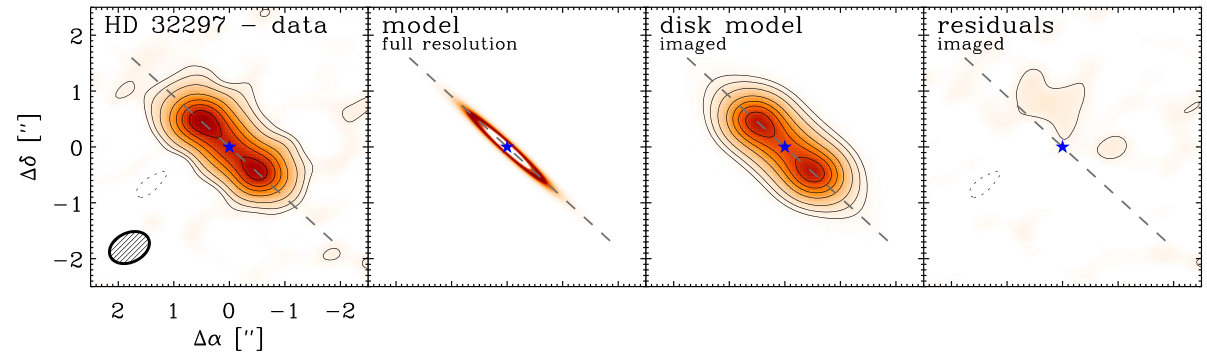

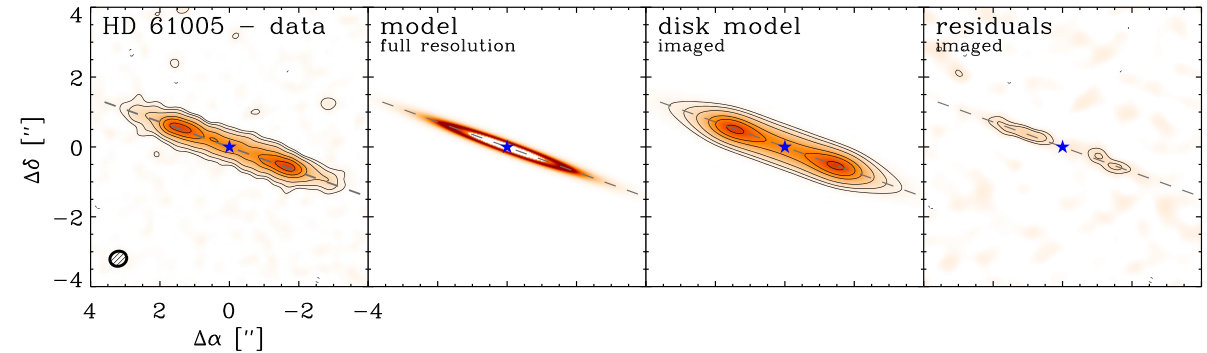

The best-fit parameter values and uncertainties for our model fits to the ALMA data of both HD 32297 and HD 61005 are presented in Table 2. Both models provide reasonably good fits to the data with reduced $\chi^{2}$ values of 1.32 and 1.61, respectively. Figure 2 shows the ALMA 1.3 mm continuum image, the best-fit model at full resolution (pixel scale of $0\farcs 03=$ 4 AU for HD 32297 and 1 AU for HD 61005), the best-fit model imaged like the data with no noise, and the resulting imaged residual visibilities for HD 32297 (top) and HD 61005 (bottom). Although the best-fit models reproduce the bulk structure of both sources, some significant residuals are clearly seen. For HD 32297, a $4\sigma$ residual peak is present on the northwest side of the disk major axis, on the same side as the swept-back wings seen in scattered light images. We have chosen not to fit for vertical structure, given the moderate resolution of both datasets; there is no evidence that either disk is resolved in the vertical direction. However, we note that given this choice, the residual emission from HD 32297 probably biases our model fits, pulling the best-fit value for the outer radius further away from the star (see Section 4.1.1 for further discussion). For HD 61005, residual emission ($\sim 4\sigma$) is evident along the disk major axis between the disk ansae and the central star, with an $8\sigma$ peak located $\sim 0\farcs 5$ northeast of the stellar location (and present in all individual observations). We cannot yet confirm whether this peak is also evident in scattered light images, since it lies at the edge of the HST STIS inner working angle ($\sim 0\farcs 4\sim 14$ AU). Both GPI and SPHERE have a small enough inner working angle to provide a direct comparison, and indeed, published SPHERE images show evidence for a brightness asymmetry (Olofsson et al., 2016). Since residual emission is seen on both sides of the disk, one possibility is that this system contains an inner ring at $\sim 18$ AU ($0.\!\!^{\prime\prime}5$ at a distance of 36.6 pc) that remains unresolved in our observations. Multiple groups have modeled the spectral energy distribution (SED) of HD 61005, and concluded that there is strong evidence for an additional warm component in the system (e.g., Morales et al., 2011; Ballering et al., 2013; Ricarte et al., 2013; Chen et al., 2014; Olofsson et al., 2016). As of yet, we do not have direct imaging evidence for this claimed inner belt. Additional observations with higher resolution at both millimeter and near-infrared wavelengths are needed to confirm the nature of this residual feature seen in our new ALMA image.

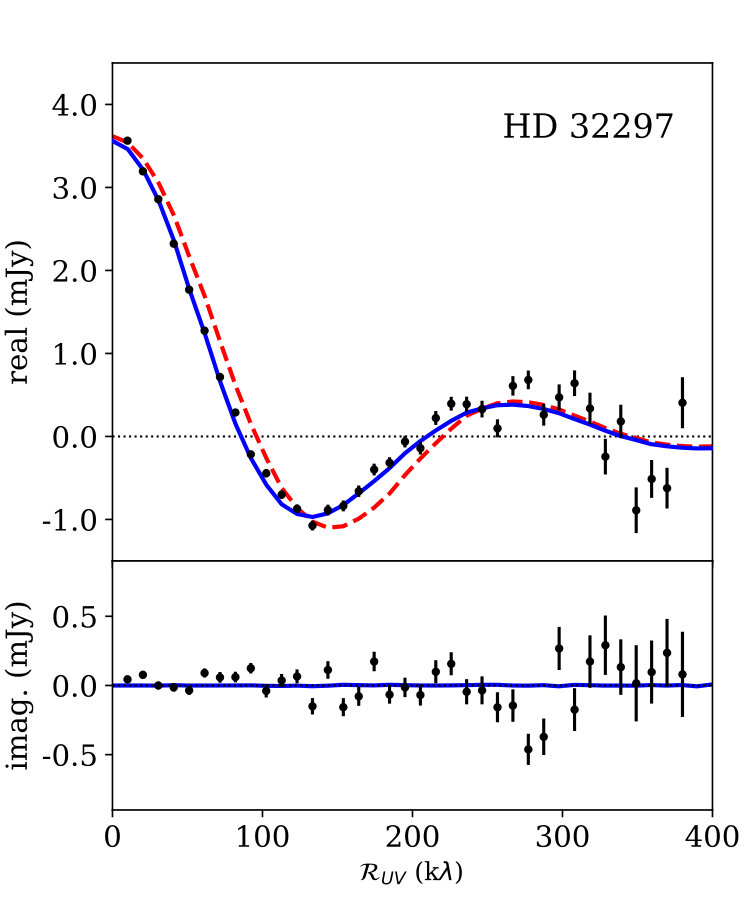

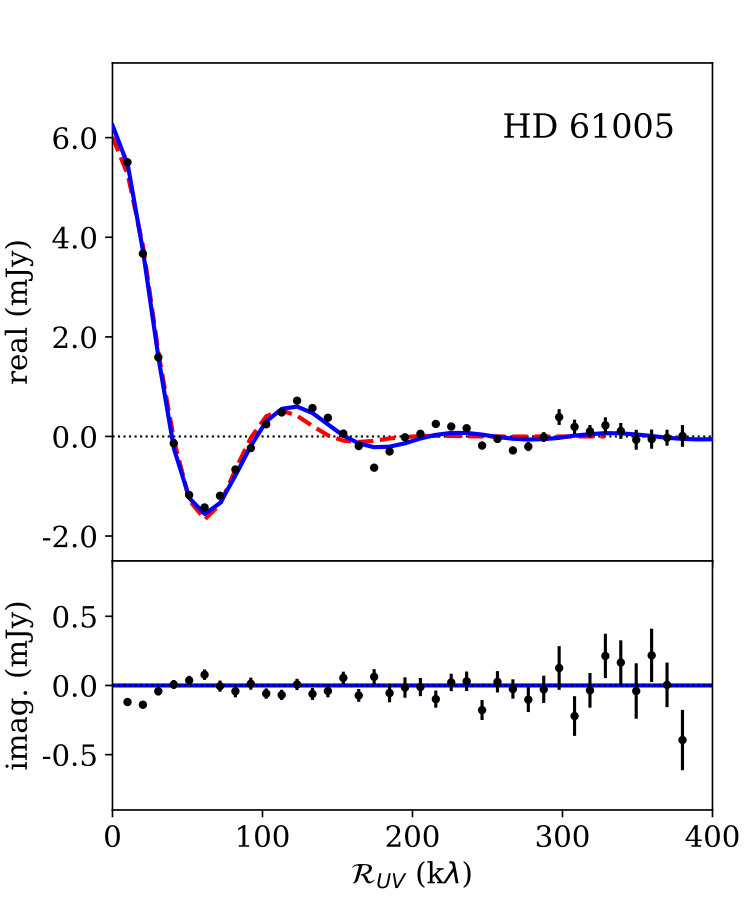

We can also examine the quality of our model fits by looking at the deprojected visibilities. Figure 3 shows the real (top) and imaginary (bottom) 1.3 mm visibilities deprojected using the disk geometry obtained from our model fits and averaged in concentric annular bins of $10$ k$\lambda$ in deprojected $(u,v)$ distance ($\mathcal{R}_{UV}$) for HD 32297 (left) and HD 61005 (right). The best-fit broken power law models (solid blue line) agree very well with the data for $R_{UV}<150$ k$\lambda$, showing the characteristic peak and null of an annular belt of emission. The data diverge from the models slightly at larger $(u,v)$ spacings, which could indicate the need for a more complicated, non-axisymmetric emission model. For comparison, a Gaussian model fit to the data is shown as the dashed red line. By eye, this simple model provides a poor fit to the real visibilities (especially in the first null and second peak of the visibility function from $50-250$ k$\lambda$), further motivating the need to include an additional component. The imaginary visibilities provide the best probe of non-axisymmetric structure (see discussion in MacGregor et al., 2015). In the case of an axisymmetric belt, the imaginary visibilities are expected to be uniformly zero. For both HD 32297 and HD 61005, the imaginary visibilities instead show some low-amplitude structure that again hints at non-axisymmetric disk structure not resolved by our current observations.

3.3 12CO Emission

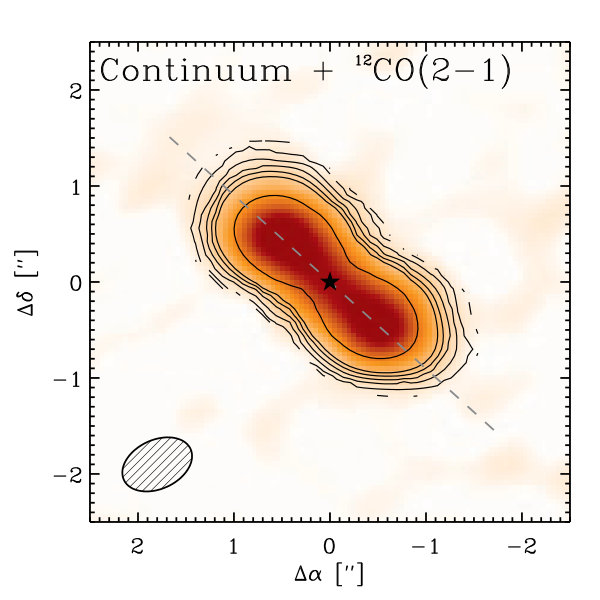

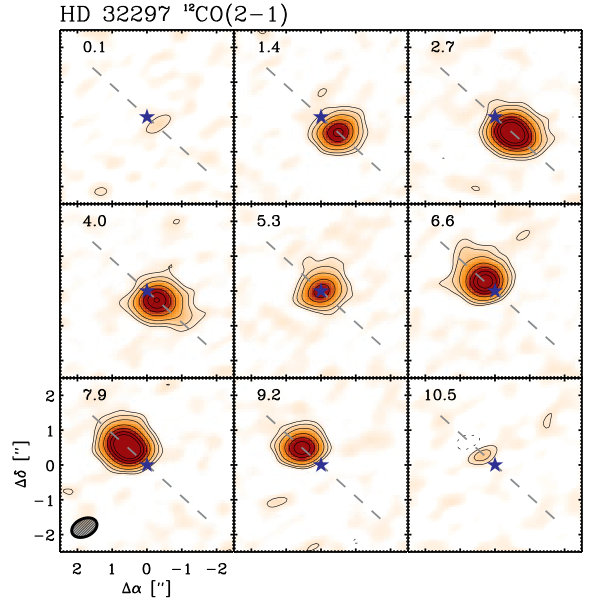

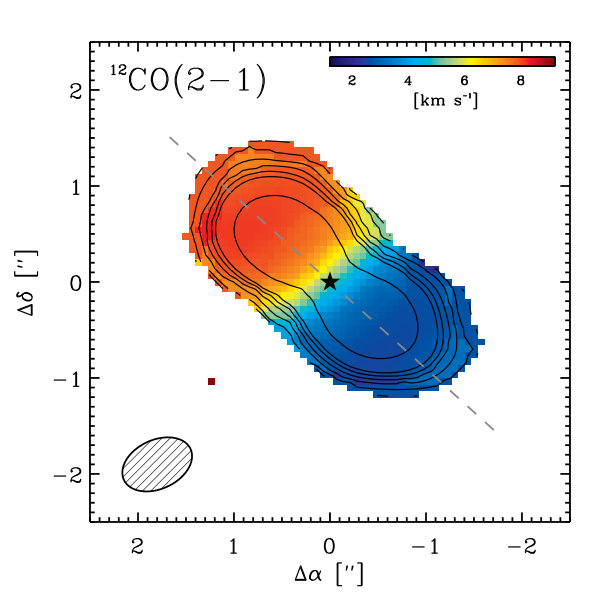

In addition to continuum dust emission, we also detect 12CO J$=2-1$ gas emission from the HD 32297 system. Figure 4 displays the moment (left) and channel maps (right), both of which show a clear velocity gradient that is indicative of rotation around the central star. In the moment maps, the velocity-integrated intensity (0th moment) has been overlaid as contours on the intensity-weighted velocity (1st moment). The central velocity in the barycentric frame is $20.6\pm 0.3$ km s*-1*, consistent with the measured stellar radial velocity of $\sim 23$ km s*-1* (Torres et al., 2006). Converting to the LSRK frame, which accounts for the peculiar motion of the Sun, yields a central velocity of $5.3\pm 0.1$ km s*-1*. The channel maps show only the central nine channels in which emission is clearly detected above $3\sigma$. The rms noise with robust $=0.5$ weighting is 1.0 mJy beam*-1*. The peak and integrated intensity are $0.28\pm 0.003$ Jy beam*-1* and $1.02\pm 0.01$ Jy km s${}^{-1}=7.91\pm 0.08\times 10^{-21}$ W m*-2*, respectively, determined over the region above $3\sigma$ in the 0th moment map. No 12CO emission was detected from HD 61005 in the earlier Cycle 1 data, and Olofsson et al. (2016) placed an upper limit on the CO gas mass assuming Local Thermodynamic Equilibrium (LTE) of $7.7\times 10^{-7}$ $M_{\oplus}$ (scaled to the new Gaia distance, see Section 1) for optically thin gas using these archival observations. In contrast, Kral et al. (2017) predict a CO mass for HD 61005 in non-LTE of $1.8\times 10^{-6}$ $M_{\oplus}$.

For HD 32297, we can calculate the total mass of CO probed by the $J=2-1$ line transition (noted by the subscript 21 in the following equation) for optically thin line emission in LTE:

[TABLE]

Here, $F_{21}=7.91\times 10^{-21}$ W m2 is the integrated flux density of the line, $m$ is the mass of the CO molecule, $d=133$ pc is the distance to the source, $h$ is Planck’s constant, $\nu_{21}=230.538$ GHz is the rest frequency of the line, $A_{21}=6.91\times 10^{-7}$ s*-1* is the Einstein A coefficient (Müller et al., 2005), and $x_{2}=\frac{N_{2}}{N_{\text{tot}}}$ is the fractional level population of the $J=2$ rotational level ($N_{2}$) relative to the total CO population ($N_{\text{tot}}$) evaluated at a characteristic temperature of 30 K. This approach yields a total CO mass of $M_{\text{CO}}=4.32\times 10^{-4}~{}M_{\oplus}$. If the CO were primordial and therefore accompanied by H2, and assuming the canonical CO/H2 ratio of $10^{-4}$ typical for the ISM, the total mass of molecular hydrogen in HD 32297 would be $\sim 4.3$ $M_{\oplus}$.

We have made two significant assumptions in our analysis of the 12CO emission from the HD 32297 debris disk, which may need to be reevaluated: (1) the gas is optically thin and (2) the disk is in LTE. We can estimate the optical depth of the $J=2-1$ line from the 3-D data cube following Matrà et al. (2017) and again assuming LTE:

[TABLE]

where $d$ is the distance, $F_{21}$ is the same as above, $\Delta\nu$ is the line width, $\Delta A$ is the area of the emission on the sky along the line of sight (equivalent to the area of the $0\farcs 76\times 0\farcs 51$ synthesized beam), $x_{1}$ and $x_{2}$ are the fractional populations of the lower and upper transition levels, and $A_{21}$, $B_{12}$, and $B_{21}$ are the Einstein coefficients. To determine the fractional level populations, we assume a kinetic temperature of 30 K, appropriate for a belt at $\sim 80$ AU. From this calculation, we obtain a peak optical depth of $0.3$, reasonably consistent with optically thin emission. However, previous observations of gas in debris disks derive low excitation temperatures (e.g. Kóspál et al., 2013; Flaherty et al., 2016; Hughes et al., 2017), suggesting that the assumption of LTE might not be appropriate. For non-LTE, a detailed radiative transfer model (e.g., the Line Modeling Engine or LIME, Brinch & Hogerheijde, 2010) would be required to obtain accurate gas masses.

4 Discussion

We have made new high resolution maps at millimeter wavelengths of the HD 32297 and HD 61005 debris disks with ALMA at 1.3 mm (230 GHz). These two systems are notable for the dramatic swept-back wings evident in scattered light images. Surprisingly, our new ALMA images hint at a more extended disk structure in millimeter emission that aligns with the scattered light wings. Model fitting directly to the millimeter visibilities confirms that both disks are best described by a two-component structure with (1) a planetesimal belt, typical of debris disks observed at millimeter wavelengths, and (2) an extended outer halo, previously unseen in other millimeter images of these two systems with lower resolution. Single-component models with either a power law or Gaussian surface brightness profile leave significant residuals in the outer regions of the disk. Here, we compare our new observations to previous imaging studies, and discuss the implications for the origin of the halo component and stirring mechanisms. Given our detection of 12CO J$=2-1$ emission from HD 32297, we also consider the properties of gas in debris disks.

4.1 Comparison to Previous Observations

To place our new ALMA results into context, we compare our best-fit model structure and geometry for the HD 32297 and HD 61005 debris disks with previous imaging studies at shorter wavelengths. Optical scattered light observations trace small, micron-sized grains rather than the larger, millimeter-sized grains we expect to dominate emission at ALMA wavelengths. Comparing the disk geometry at these complementary wavelengths reveals the distribution of grain sizes within these disks. In all of our model fitting, we have adopted the new Gaia distances (discussed in Section 1). Thus, for the purposes of making a consistent comparison between our ALMA results and previous scattered light observations which assumed the Hipparcos distance, we have scaled all previous determinations of radii for both disks to the new Gaia distances.

4.1.1 HD 32297

Our model fits place strong constraints on the radial location of the HD 32297 debris disk. We note, however, that given the presence of residuals from the best-fit model (see Figure 2, it is likely that our quoted uncertainties are underestimates. The inner edge of the planetesimal belt is located at $78.5\pm 8.1$ AU with an outer edge at $122\pm 3$ AU. Esposito et al. (2014) detect a break in the surface brightness profile of the disk at $\sim 134$ AU in 1.6 and 2.2 $\mu$m Keck NIRC2 images. Also using Keck NIRC2 coronagraphic imaging, Currie et al. (2012) see a similar break at $\sim 130$ AU albeit with a more complicated surface brightness profile interior. Debes et al. (2009) again find a break in HST images, but with an asymmetric radial location of 109 and 134 AU on the NE and SW sides of the disk, respectively. In the ‘birth ring’ picture of debris disks, where small grains are produced through the collisional erosion of large planetesimals, we expect the outer edge of the planetesimal belt as traced by millimeter grains to line up with the break observed in the scattered light observations (e.g., Wilner et al., 2011). For HD 32297, there is good agreement between the outer edge of the planetesimal belt at 122 AU as seen by ALMA and the scattered light break observed by multiple telescopes at $\sim 134$ AU. Fits to the spectral energy distribution (SED) in the far-infrared confirm this radial structure, with a best-fit model that includes a cold dust ring centered at 134 AU (Donaldson et al., 2013).

Previous scattered light observations provide less information on the inner edge of the disk, mostly due to resolution challenges and large inner working angles. Moerchen et al. (2007) note evidence for a dust depletion interior to $\sim 85$ AU in mid-infrared observations at 11.7 and 18.3 $\mu$m. Fitzgerald et al. (2007) find that the 11.2 $\mu$m emission exhibits a bi-lobed structure characteristic of a disk with an inner edge at $\sim 73$ AU. Both of these inner edge locations are not well constrained with mid-infrared resolution of $\sim 30-50$ AU at the distance of HD 32297, but the results are nonetheless similar to our best-fit model inner edge of $\sim 79$ AU. Currie et al. (2012) note a plateau in the surface brightness profile of the disk in Keck/NIRC2 imaging, which they interpret as evidence for two dust populations: (1) located between $\sim 55-85$ AU and (2) truncated at $\sim 133$ AU. The radial locations of these two dust belts coincide with the inner edge of the planetesimal component and outer halo in our ALMA model fits. HD 32297 was also imaged in the early days of CARMA at 1.3 mm (Maness et al., 2008). Combining these low resolution millimeter images with Spitzer MIPS photometry, Maness et al. (2008) determine an inner edge location of $85^{+20}_{-10}$ AU, and also find evidence for two or three distinct grain populations within the disk. Thus, the geometry of the main planetesimal belt is consistent across scattered light and millimeter wavelength imaging.

Beyond the outer edge of the planetesimal belt at $122$ AU, the millimeter halo component extends to $440\pm 32$ AU as determined from our ALMA observations. As discussed in Section 3.2, these fits could be influenced by the residual emission on the NW side of the disk since we do not account for vertical structure in our models. The uncertainty on this value is already quite large due to the low surface brightness in the outer regions of the disk in our model. The degeneracy between fitting for an emission gradient and the outer radius of a power law disk model is well known (e.g., Mundy et al., 1996). The first HST images of the HD 32297 disk showed scattered light emission from a nearly edge-on disk out to $\sim 480$ AU (Schneider et al., 2005) and nebulosity that extends out to $\sim 2040$ AU, deviating from the midplane disk axis by $\sim 15\arcdeg$ on each side (Kalas, 2005). Using new HST/STIS broadband optical coronagraphy, Schneider et al. (2014) find a similar extent of $\sim 1890$ AU for the disk. It is clear that the scattered light emission from small grains has a much larger radial extent and deviation from the midplane axis than the millimeter emission probed by ALMA.

The millimeter disk geometry is in relatively good agreement with previous measurements of the midplane disk geometry from scattered light observations. Our best-fit inclination and position angle are $83\fdg 6(+4\fdg 6,-0\fdg 4)$ and $47\fdg 9\pm 0\fdg 2$, respectively. Schneider et al. (2014) find a position angle of $47\fdg 5\pm 1\fdg 0$ from HST images, nearly identical to our result. Previous determinations of the disk inclination range from $\sim 80\arcdeg$ (Kalas, 2005) to $\sim 88\arcdeg$ (Boccaletti et al., 2012), overlapping with our result. However, more recent scattered light images have preferred inclinations closer to $\sim 88\arcdeg$ (e.g., Boccaletti et al., 2012; Currie et al., 2012), on the upper end of this range. We attribute this discrepancy to the $4\sigma$ residuals on the northwest side of the disk major axis seen in Figure 2. Our model fits favor lower inclinations in order to try and match this excess emission, and the asymmetric uncertainty on our reported best-fit inclination accounts for this discrepancy. From a simple $\chi^{2}$ analysis in the image plane, we estimate an additional $5\%$ uncertainty towards higher inclinations, consistent with scattered light determinations. If we subtract a model with a higher inclination (i.e., $88\arcdeg$), we are left with larger residuals on the northwest side of the disk in excess of $8\sigma$, while no additional residuals are produced on the southeast side of the disk. This finding indicates that there is significant millimeter emission towards the northwest of the disk major axis coincident with the extended scattered light wings that our current symmetric model does not account for (first discussed in Section 3.2).

4.1.2 HD 61005

The best-fit model to the ALMA millimeter emission for HD 61005 has a planetesimal belt with an inner edge of $41.9\pm 0.9$ AU and an outer edge of $67.0\pm 0.5$ AU. Again, we note that the uncertainties quoted here are likely underestimates given the significant residuals from the best-fit model (see Figure 2). Gemini Planet Imager (GPI) total intensity observations at 1.6 $\mu$m probed down to projected separations of $<10$ AU, revealing a sharp disk inner edge at $\sim 50$ AU (Esposito et al., 2016), in agreement with the inner edge determined by ALMA of $\sim 42$ AU. Using complementary Keck NIRC2 angular differential imaging of the disk at $1.2-2.3$ $\mu$m, Esposito et al. (2016) note asymmetric breaks in the disk surface brightness profile beyond 55 and 65 AU on the NE and SW sides of the disk, respectively. As with HD 32297, the coincidence of the break observed in the scattered light surface brightness profile and the outer edge of the planetesimal belt determined by ALMA supports the conclusion that the observed small grains are produced through a collisional cascade occurring within a birth ring of planetesimals.

In contrast to HD 32297, the HD 61005 system has been observed multiple times at millimeter wavelengths. Ricarte et al. (2013) first resolved the disk with the Submillimeter Array (SMA), and determined an inner edge for the disk of $71\pm 2$ AU. A new analysis of the same SMA data by Steele et al. (2016) yielded a consistent result of $75.4^{+3.0}_{-4.7}$ AU. Olofsson et al. (2016) fit models to the low resolution ALMA data included in this work (2012.1.00437.S, PI: David Rodriguez), and obtain a similar value for the disk reference radius of $70.6^{+6.1}_{-8.7}$ AU. Both of the SMA determinations place the inner disk edge farther out than our best-fit result, likely due to differences in model formulation and to the low angular resolution of these observations. The reference radius determined by Olofsson et al. (2016) indicates the location of a power law break in the disk model, and is thus most comparable to our planetesimal outer belt edge of $\sim 67$ AU. None of these previous millimeter images show any indication of the extended wing structures seen in scattered light observations.

The halo component, as newly detected by the higher resolution ALMA observations presented here, extends from the outer edge of the planetesimal belt at $67$ AU to $188\pm 8$ AU. Esposito et al. (2016) detect swept-back wings with a deflection angle of $\sim 22\arcdeg$ in the KECK NIRC2 images, but they are outside of the GPI field of view. The wings extend from $\sim 62$ to 135 AU on the NE side of the disk, and from $\sim 67$ to 143 AU on the SW side. Buenzli et al. (2010) detect emission out to $\sim 150$ AU with VLT/NACO, and HST images show extended emission at distances of $\gtrsim 200$ AU from the star (Hines et al., 2007; Schneider et al., 2014). While the ALMA emission does not exhibit the significant deflection seen in scattered light observations, the extent of the halo component is similar at both wavelengths. The geometry of the planetesimal belt is also in good agreement. We determine a best-fit inclination of $85\fdg 6\pm 0\fdg 1$ and position angle of $70\fdg 3\pm 0\fdg 1$. Schneider et al. (2014) determine a nearly identical inclination and position angle for the disk major axis of $85\fdg 1$ and $70\fdg 3$, respectively.

4.2 On the Origin of the Millimeter Halo Component

Since the wing-like structures of the HD 32297 and HD 61005 debris disks have previously only been seen in scattered light images, discussions of their origin have centered on mechanisms that affect predominantly small, micron-sized grains. The millimeter-sized grains that dominate emission at ALMA wavelengths are expected to closely trace the location of the parent bodies in the disk. Thus, we have typically assumed that these large grains should not populate extended halos. Few previous observations have challenged this assumption, with the exception of Marino et al. (2016) who detected low-level extended emission from HD 181327, a face-on debris disk, which they interpreted as either a halo or unresolved second ring. If the population of larger grains in HD 32297 and HD 61005 can be more extended, as our new ALMA observations suggest, the mechanisms invoked to produce the morphology of these disks must be re-evaluated. In this section, we present several potential mechanisms and discuss their applicability to millimeter grains.

It is possible that the millimeter emission detected in the halo components of HD 32297 and HD 61005 could result from an abundance of micron-sized grains instead of millimeter-sized grains. To assess the likelihood of this scenario, we can estimate the mass of small grains needed in the halo to account for the observed millimeter flux. For optically thin dust emission, the dust mass is $M_{\text{dust}}=F_{\nu}D^{2}/(\kappa_{\nu}B_{\nu}(T_{\text{dust}}))$, where $F_{\nu}$ is the flux density, $D$ is the distance (133 pc for HD 32297, 36.6 pc for HD 61005), $\kappa_{\nu}$ is the dust opacity, and $B_{\nu}$ is the Planck function at the dust temperature, $T_{\text{dust}}$. The main source of uncertainty in this calculation is the dust opacity. For millimeter-sized grains, a commonly used value in the literature is $\kappa_{\nu}=2.3$ cm2 g*-1* at 1.3 mm (Beckwith et al., 1990). In comparison, Pollack et al. (1994) determine a dust opacity of $7.9\times 10^{-3}$ cm2 g*-1* for their 300 $\mu$m radius composite (50%) grains and $4.4\times 10^{-3}$ cm2 g*-1* for 3 $\mu$m grains with the same composition, several orders of magnitude smaller. In order to be able to compare to literature values for other debris disk systems, we adopt the typical value of $2.3$ cm2 g*-1* in our calculations for millimeter-sized grains in the planetesimal belt, and $1.3$ cm2 g*-1* for micron-sized grains in the halo, determined using the same ratio between small and large grains as the Pollack et al. (1994) values. These values are similar to those shown in Andrews (2015) for grains that are a mixture of amorphous silicates, carbon, and vacuum with a filling factor of 0.5. We note, however, that if we instead used the Pollack et al. (1994) values, our calculated dust masses would be significantly higher.

To obtain an estimate for the dust temperature, we assume radiative equilibrium and use the radial location from our best-fit models. Since small grains are likely hotter than the balckbody equilibrium temperature, we adopt a simplified emission efficiency, $Q_{\lambda}=1-e^{-}(\frac{\lambda}{2\pi a})^{-\beta}$, where $a$ is the grain size and $\beta$ is the power law index of grain emission efficiency at long wavelengths which we assume to be 0.7, comparable with measurements from other disks around main sequence stars (Williams et al., 2004). For HD 32297, the best fit inner edge of the planetesimal belt is $78.5\pm 8.1$ AU and the start of the halo component is $122\pm 3$ AU, which gives dust temperatures of $\sim 47$ K and $\sim 38$ K for each component, respectively. The total flux density of the HD 32297 planetesimal belt is $3.04\pm 0.21$ mJy, which yields a total mass of millimeter-sized grains of $0.57\pm 0.07$ $M_{\oplus}$. The halo component has a total flux density of $0.63\pm 0.26$ mJy and a total mass of micron-sized grains of $0.29\pm 0.06$ $M_{\oplus}$. For HD 61005, the planetesimal belt inner edge is at $41.9\pm 0.9$ AU and the halo component starts at $67.0\pm 0.5$ AU, implying dust temperatures of $\sim 37$ K and $\sim 29$ K, respectively. The total flux density of the planetesimal belt is $4.82\pm 0.29$ mJy yielding a total mass of millimeter-sized grains of $0.088\pm 0.010$ $M_{\oplus}$, and the total flux density of the halo is $1.54\pm 0.48$ mJy for a mass of micron-sized grains of $0.070\pm 0.012$ $M_{\oplus}$. We can then calculate the ratio of halo dust mass to planetesimal belt dust mass to be $0.51$ and $0.79$ for HD 32297 and HD 61005, respectively, a significant fraction for both systems.

Recent work has shown that such high opacities may be unrealistic for micron-sized astro-silicate grains in the Rayleigh regime (Kataoka et al., 2014). If we assume a much lower opacity of $10^{-3}$ cm2 g*-1*, the implied mass fraction of the halo compared to the planetesimal belt is instead $800$ and $500$ for HD 32297 and HD 61005, respectively. Mass ratios of $0.5-800$ (the full span of the opacity values we have considered here) are highly unphysical, and inconsistent with collisional evolution models. Thus, it is unlikely that a large enough mass of such grains will build up to explain the observed millimeter fluxes, disfavoring any proposed mechanisms that operate preferentially on small grains. A population of larger bodies with longer collisional lifetimes and higher opacities is needed in the halo of both disks.

One mechanism that operates predominantly on small grains and that has been discussed extensively in the literature (e.g., Artymowicz & Clampin, 1997; Debes et al., 2009; Maness et al., 2009; Pástor, 2017) is interactions with the local interstellar medium (ISM), in which disk grains interact with gas in an ISM cloud, and are subsequently blown out due to gas drag or ram pressure stripping. Millimeter grains are not expected to feel a significant effect from interactions with the ISM. If the grains are highly porous as indicated for some debris disks (e.g., AU Mic, Graham et al., 2007), it is possible that ISM interactions could still play a role, but further investigation would be required to better evaluate this scenario. It has also been suggested that the observed halos could result from a density enhancement of small grains due to a recent massive collision, as has been invoked previously to explain asymmetric structure in the HD 15115 (Mazoyer et al., 2014) and $\beta$ Pictoris (Dent et al., 2014) debris disks. Such an event would likely produce an asymmetric distribution of small grains and is expected to be transient (lasting for $\sim 1000$ orbits or a few Myr at a radius of $\sim 50$ AU, Jackson et al., 2014), neither of which is characteristic of the HD 32297 and HD 61005 systems.

Interactions with massive planets are often invoked to explain observed disk structures, including asymmetries, warps, and offsets, and are able to sculpt both small and large grains. To date, there are no detected planets in either the HD 32297 or HD 61005 systems. However, scattered light imaging of both disks shows brightness asymmetries that could be indicative of eccentric structure. Currie et al. (2012) report that the southwest side of the HD 32297 debris disk is $50-100\%$ brighter than the northeast side in Keck/NIRC2 coronagraphic images, which is mirrored in the early CARMA image at 1.3 mm (Maness et al., 2008). HST NICMOS and ACS observations of HD 61005 also show a brightness asymmetry, with the northeast side of the disk nearly twice as bright as the southwest (Hines et al., 2007). VLT NaCo (Buenzli et al., 2010) and SPHERE (Olofsson et al., 2016) observations of HD 61005 show an offset of the disk center to the west of the stellar position along the disk major axis giving an eccentricity for the disk of $e=0.045\pm 0.015$ and $e\sim 0.1$, respectively. The significant residuals that we see in our new ALMA observations (see Section 3.2 for discussion) further support the claim that the HD 61005 debris disk may be asymmetric. These ALMA observations do not detect the central star or any asymmetry between the two disk ansae for either HD 32297 and HD 61005, which would be required to place strong constraints on any disk eccentricity. Without detecting the star, we cannot determine whether there is an offset between the stellar position and the disk centroid. Without detecting a brightness asymmetry, we cannot make any claims of pericenter or apocenter glow. In an eccentric disk, the pericenter side of the disk is closer to the star and as a result glows more brightly at shorter wavelengths producing pericenter glow. At longer (millimeter and radio) wavelengths, the apocenter side of the disk appears brighter due to a surface density enhancement (Pan et al., 2016; MacGregor et al., 2017). We did not attempt to model such a brightness asymmetry here, because it is not apparent in the residuals resulting from our simpler model. In principle, the argument of pericenter is unconstrained by these observations; the pericenter of the disk could be located along the observed disk major axis or be projected along the line of sight.

To date, multiple models of secular perturbation by a planet have been proposed to explain the unusual morphology of the HD 32297 and HD 61005 debris disks. Esposito et al. (2016) consider a planet interior to the HD 61005 disk with an eccentricity of at least $0.2$, are able to produce models that exhibit the same features as scattered light observations. A range of possible semi-major axes and masses are allowed, from an Earth-mass planet farther from the star at 35 AU to a Jupiter-mass planet close-in at 5 AU. Lee & Chiang (2016) construct a more generalized debris disk model in which a possibly eccentric planet secularly perturbs a narrow ring of parent bodies producing small dust grains that are thrown outwards via stellar radiation pressure. The resulting scattered light disk morphology depends on several factors, including the planet eccentricity, disk inclination, and whether or not the dust grains are on apsidally aligned orbits. By varying these parameters, they are able to qualitatively reproduce the observed morphologies of both HD 32297 and HD 61005. To produce the ‘moth’-like shape of HD 61005, a highly eccentric planet ($e\sim 0.7$) is needed along with grains on orbits that are apsidally aligned with the parent ring and with their apoastra directed towards the observer. The double wings of HD 32297 can be produced by a similar model, but with dust grains only launched at the parent body periastra. Both of these models treat only the small grains that dominate scattered light images, but their results could be extended in order to compare to millimeter images. Maness et al. (2009) discuss a slightly different process by which a planet could perturb the orbits of disk grains over time, slowly forcing them to have high orbital eccentricities and inclinations. It is also possible that an exterior planet could be responsible for sculpting these systems. In the models of Thebault et al. (2014), a planet exterior to an initially narrow ring produces a population of large grains outside of the planet’s orbit. Although these grains are eventually removed from the system, their lifetime is long enough to contribute to the optical depth of the disk at large radii.

Our new ALMA observations indicate that millimeter-sized grains are present in the halos of the HD 32297 and HD 61005 debris disks. Since many of the previously proposed mechanisms operate predominantly on small grains, it is likely that interactions with planetary perturbers play a role in generating the wing structures seen at both optical and millimeter wavelengths. In the case of HD 32297, the high mass of gas within the disk may also contribute to the dynamics of the system. Ultimately, observations with higher angular resolution will reveal any asymmetric structure or disk centroid offsets that might be indicative of planetary sculpting in these disks. If an eccentric interior planet really is responsible for shaping these systems, we would expect to see additional substructure in the inner regions of the disk as a result of its gravitational interaction with disk material.

4.3 Constraints on Stirring Mechanisms from the Surface Density Gradient

Our model fits constrain the disk radial surface density profile, $\Sigma\propto r^{x}$, with power law index $x_{1}$ within the planetesimal belt and $x_{2}$ for the halo. Both HD 32297 and HD 61005 exhibit a rising surface density profile for the planetesimal belt with $x_{1}=2.23\pm 0.61$ and $2.87\pm 0.19$, respectively. The surface density falls off steeply in the halo as $x_{2}=-6.20\pm 0.30$ for HD 32297 and $-5.52\pm 0.14$ for HD 61005. Resolved millimeter observations have placed constraints on the surface density gradients of a handful of other debris disks. Notably, a growing population exhibit rising surface density gradients (e.g., AU Mic and $\epsilon$ Eridani, see MacGregor et al., 2015, 2013). Intriguingly, many of these disks appear radially broad like HD 32297 and HD 61005, which have fractional widths ($\Delta R/R$) of $0.43\pm 0.04$ and $0.46\pm 0.01$, respectively. For AU Mic, $\Delta R/R=1.28^{+0.13}_{-0.01}$, and for $\epsilon$ Eridani, $\Delta R/R=0.31^{+0.09}_{-0.13}$. In comparison, the fractional width of the confined Fomalhaut debris disk is only $0.10\pm 0.01$ (MacGregor et al., 2017). Some of these systems may in fact exhibit more complicated radial structures. ALMA observations of the HD 107146 debris disk also indicate a rising surface density gradient, but with multiple concentric rings (Ricci et al., 2015).

Measuring the surface density gradient of debris disks could provide a key observational constraint on the mechanisms operating in these systems to incite collisions. One possibility is that debris disks are ‘planet-stirred’ through the gravitational influence of giant planets interior to the disk (Mustill & Wyatt, 2009). Kenyon & Bromley (2002, 2008) discuss an alternative ‘self-stirred’ model in which Pluto-sized bodies (radii $\sim 1000$ km) are produced on the inner edge of the disk and trigger a collisional cascade. The growth time in a disk is proportional to $P/\Sigma$, where $P\propto r^{3/2}$ and $\Sigma$ is the initial surface density. If the initial surface density decreases with radius, as is expected in a primordial disk, the growth time is shorter on the inner edge of the disk. For a disk with total dust mass comparable to HD 32297 and HD 61005, these models predict timescales of tens of Myr to form large bodies on the inner edge of a disk at tens of AU. On the outer edge of the disk ($>100$ AU), the timescale is much longer, $\gtrsim 1$ Gyr. Kennedy & Wyatt (2010) predict the resulting surface density profile in such a ‘self-stirred’ disk, finding $\Sigma\propto r^{+7/3}$. The ages of HD 32297 and HD 61005 are estimated to be $\sim 30-40$ Myr. At face value, this could allow enough time for larger bodies to form near the inner edge of the HD 61005 disk at $\sim 42$ AU, but is not entirely consistent for HD 32297 with an inner edge nearly twice as far from the star at $\sim 79$AU.

There a few ways to solve this slight discrepancy in timescales. The age of the HD 32297 system is not well-constrained. Although stellar kinematics and the high disk luminosity suggest a young age ($\sim 10-20$ Myr), evolutionary tracks allow from ages up to $\sim 500$ Myr (Rodigas et al., 2014), which may provide more time to form large bodies on the inner edge of the disk. In addition, recent work by Krivov & Booth (2018) considers the possibility that smaller (a few km to $\sim 200$ km in size) planetesimals could effectively stir debris disks. Such bodies form much more rapidly in protoplanetary disks through pebble concentration than larger Pluto-sized bodies. If large bodies are in fact not needed to incite collisions in debris disks, both the HD 32297 and HD 61005 debris disks could be self-stirred.

Of course, it is possible that an entirely different stirring mechanism may be at work in the gas-rich HD 32297 disk. There is some similarity between the surface density profile of this system and 49 Ceti, a comparable $\sim$40 Myr-old gas-rich debris disk. Resolved ALMA observations of this disk are well-fit with a surface density profile that rises with a power law index of $1.44$ in the inner part of the disk between 7 and 68 AU, and then falls off with an index of $-2.5$ out to 215 AU (Hughes et al., 2017). High resolution (sub)millimeter observations of a larger population of gas-rich debris disks are needed to better understand the stirring mechanisms in these systems.

4.4 Gas in the HD 32297 Debris Disk

The HD 32297 system is one of three CO-rich debris disks around $30-40$ Myr-old A-type stars, a group which also includes HD 21997 (A3V, 69.6 pc) and 49 Ceti (A1V, 57.1 pc). Our measured ALMA flux density makes HD 32297 one of the most CO-rich debris disks observed, comparable in integrated line flux to HD 21997 (Kóspál et al., 2013) and $1.5\times$ that of 49 Ceti (Hughes et al., 2017), after accounting for their different distances (see Moór et al., 2017). All three of these systems have a dust belt detected in addition to the observed gas emission. Although, for HD 21997, the gas disk appears to have an inner radius closer to the central star than the dust. In HD 32297, the dust and gas seem to be co-located, implying that both are likely created through collisions between the same planetesimals. To illustrate this, Figure 5 (left) shows the ALMA 12CO J$=2-1$ emission overlaid as contours on the 1.3 mm continuum emission. Unlike the other two systems, HD 32297 is the only one to display millimeter gas and dust emission from an extended halo component. HD 32297 also has the latest spectral type of the group at A5V–A6V (often misquoted in the literature as A0V, see Debes et al., 2009, for further discussion) with a mass of $\sim 1.7$ $M_{\odot}$ and luminosity of $\sim 8$ $L_{\odot}$, more comparable to the somewhat younger and more gas-poor $\beta$ Pictoris system (A6V, 19.8 pc, 23 Myr).

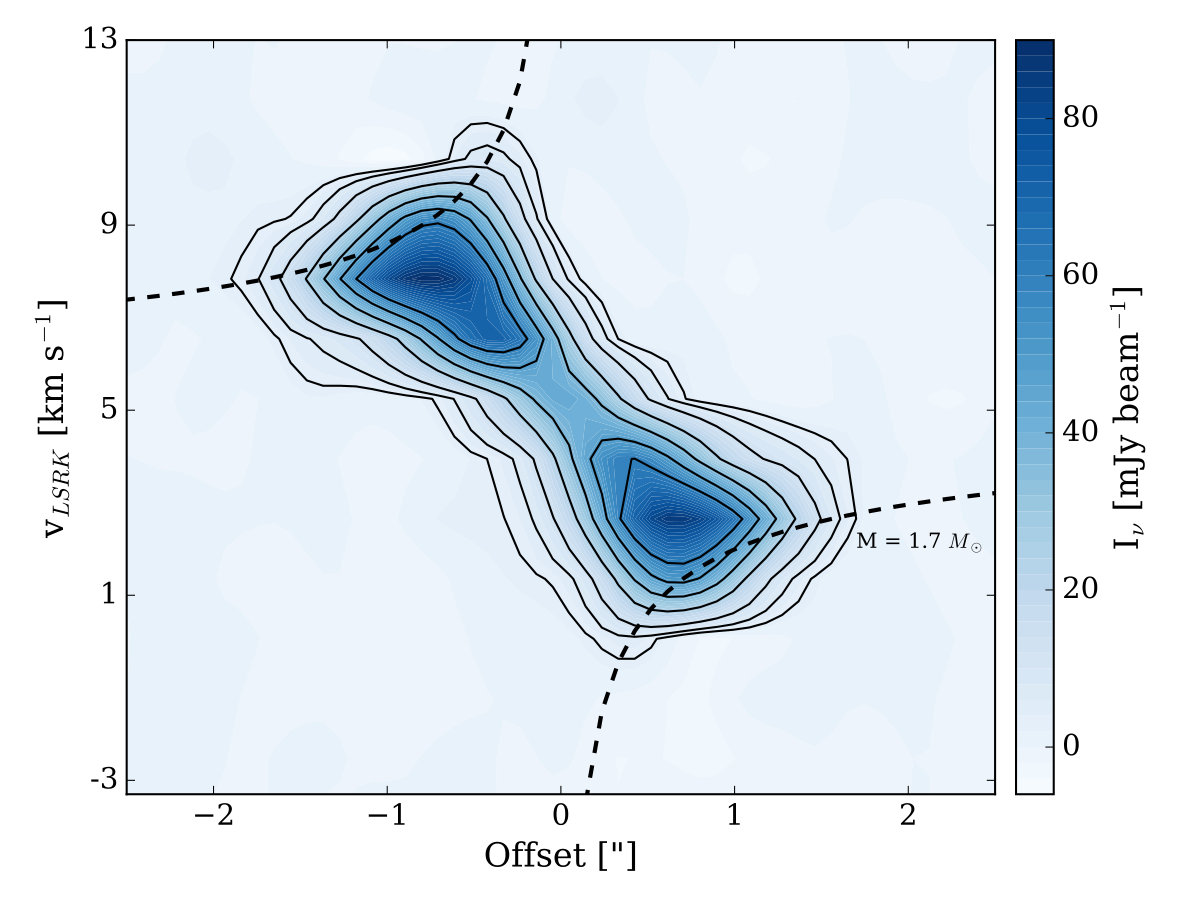

Figure 5 (right) shows the position-velocity diagram for the CO emission observed by ALMA. For reference, the expected Keplerian rotation curve is overlaid as a black dashed line, assuming a stellar mass of $1.7$ $M_{\odot}$, typical for an A5V–A6V star, and an inclination of $83\fdg 6$, the best-fit from our continuum modeling. By eye, the rotation velocity of the gas at the peak locations appears to be $\pm 2.5$ km s*-1* from the systemic velocity, below the $\pm 4.4$ km s*-1* that is expected from Keplerian rotation for a ring at $\sim 80$ AU (using a higher inclination of $\sim 88\arcdeg$, as suggested by scattered light observations, makes the fit even worse). Although suggestive, this result is marginal given the low spectral resolution of our data. With a channel width of only 1.3 km s*-1*, the observed velocity difference is only $\sim 2\sigma$. Intriguingly, sub-Keplerian rotation is also seen in the $\beta$ Pictoris debris disk. By modeling CI and CII emission, (Cataldi et al., 2018) derive a dynamical mass of 0.8 $M_{\odot}$, significantly below the assumed stellar mass of 1.75 $M_{\odot}$ (Crifo et al., 1997) but comparable to the dynamical mass derived from Na I emission (Olofsson et al., 2001).

One explanation for sub-Keplerian rotation in debris disks could be radiation pressure, which acts opposite to a star’s gravity, making the star appear less massive. Mid to late A-type stars like HD 32297, however, do not emit significant UV radiation at the absorption wavelengths of CO, so this effect is likely have a negligible direct effect on neutral molecules. In the $\beta$ Pictoris disk, CO is quickly converted to C and O through photodissociation on timescales of $\sim 50$ years. Fernández et al. (2006) suggest that these ionized species, which are directly affected by radiation pressure, are coupled into a single fluid through Coulomb interactions. As a result, neutral molecules like CO could also become coupled and experience indirect braking due to radiation pressure. Given their similar spectral types, it is possible a similar explanation could be invoked in the case of HD 32297. An alternative explanation was originally presented in Weidenschilling (1977), where a pressure gradient in a gas disk causes the gas to rotate more slowly than the free orbital velocity. The deviation of the gas velocity from the Keplerian orbital velocity, $v_{k}$, is given by $\Delta v=v_{k}-v_{g}\approx-(\Delta g/2g)v_{k}$, where $g=v_{k}^{2}/r$ is the central gravity and $\Delta g=-nRT/\mu r$ is the residual gravity in a reference frame rotating with the gas. Here, $n$ is the power law index of pressure, $P=P_{0}(r/r_{0})^{-n}$, which we take to be 3, $R$ is the gas constant, $T$ is the gas temperature, and $\mu$ is the mean molecular weight. Given the expected stellar mass ($1.7$ $M_{\odot}$), gas temperature (30 K), and radius of the HD 32297 debris disk, we estimate the magnitude of this effect to be $\sim 0.1-0.5$ km s*-1*, not large enough to account for the $\sim 2$ km s*-1* observed difference in orbital velocity. We note, however, that modifying the pressure gradient and mean molecular weight to account for a primordial or secondary origin of the gas could change this calculation significantly. Although we do not discuss them at length here, two other possible explanations for the observed sub-Keplerian rotation of the gas could include non-uniform self-absorption or a stellar dynamical mass that disagrees with pre-main sequence models.

Circumstellar gas has been detected previously from the HD 32297 system. Redfield (2007) observed absorption from the Na I D doublet (5895.9242 and 5889.9510 Å) with a column density of logN${}_{\text{NaI}}\sim 11.4$, the strongest Na I absorption measured toward any nearby debris disk. A $3.7\sigma$ detection of [CII] emission at 158 $\mu$m was also made with the Herschel PACS Spectrometer (Donaldson et al., 2013). Most recently, Greaves et al. (2016) detected 12CO J$=2-1$ and tentatively J=$3-2$ emission with JCMT SCUBA-2 (taken several years earlier in 2013). Their measured integrated intensity for 12CO J$=2-1$ is $3.7\pm 0.4\times 10^{-21}$ W m*-2*, giving a total CO mass of $1.3\times 10^{-3}~{}M_{\oplus}$. This result is $5\times$ ($7\sigma$) higher than our measured ALMA integrated intensity for the same transition of $7.91\pm 0.08\times 10^{-21}$ W m*-2* with corresponding CO mass of $4.32\times 10^{-4}~{}M_{\oplus}$. The difference between these two measurements could easily stem from the lower signal-to-noise and resolution of the earlier JCMT observations. However, Greaves et al. (2016) also found a higher velocity for the gas, which implies a $2\times$ difference in the inner radius of the gas. Given this, the CO production rate and location in the HD 32297 disk could be variable on the $\sim 3$ year timescale between these two observations, with a higher production rate in 2013, although this would be challenging to explain given that the time between observations is much shorter than the orbital timescale for the system.

Given the relative wealth of gas detections from the HD 32297 debris disk, it is clear that this system offers us a unique opportunity to explore the properties of gas in main sequence circumstellar disks. By combining our determinations of the total gas mass ($4.3\times 10^{-3}~{}M_{\oplus}$ for CO and $4.3~{}M_{\oplus}$ for H2, calculated by assuming an ISM-like CO/H2 ratio of $10^{-4}$ expected only for a primordial system, see Section 3.3) and the total dust mass ($0.72\pm 0.13~{}M_{\oplus}$, Section 4.2), we can calculate the gas-to-dust ratio for the HD 32297 debris disk to be $6\times 10^{-4}$ if CO dominates the gas mass (possibly higher if the gas is non-LTE, but still $<1$) or $6$ if H2 is present in the disk. As expected for an evolved system, the result assuming a primordial disk is significantly below the canonical value for the ISM of $\sim 100$ (Bohlin et al., 1978), but is comparable to recent values determined from surveys of protoplanetary disks in much younger star forming regions (e.g., Ansdell et al., 2016; Miotello et al., 2017). Both results are also comparable to 49 Ceti, which has a gas to dust-ratio of either $0.008$ or $6$, depending on whether CO or H2 makes the largest contribution to the gas mass, respectively (Hughes et al., 2017). Kóspál et al. (2013) calculate a much higher gas-to-dust ratio for HD 21997 of $300-700$. This difference points to a hybrid scenario for HD 21997, where some primordial gas remains in the system, but dust is generated through secondary collisions between planetesimals. For 49 Ceti and HD 32297, where the dust and gas are co-located, it seems more likely that both are created through secondary collisions between icy planetesimals. Indeed, Kral et al. (2017) show that the mass of CO gas detected around HD 32297 is completely consistent with a secondary origin when considering non-LTE. If this is the case, it may be illustrative to compare the CO-to-dust ratio in HD 32297 with Solar System comets; recent results from the Philae lander suggest that Comet 67P/Churyumov-Gerasimenko is more dust than ice with a volumetric ice-to-dust ratio of $0.4-2.6$ (Kofman et al., 2015). Additional observations with higher spectral resolution will be critical to confirm the origin of the gas in the HD 32297 system, as well as to examine the somewhat confusing gas dynamics and whether or not the CO production rate is indeed variable.

5 Conclusions

We present new ALMA observations of the HD 32297 and HD 61005 debris disks at 1.3 mm (230 GHz). These images give us the highest angular resolution view to date of these two edge-on systems at millimeter wavelengths. To analyze these data, we adopt an MCMC approach and fit directly to the millimeter visibilities. The main results of this analysis are as follows.

The 1.3 mm continuum emission from HD 32297 and HD 61005 is best described by a two-component power law model that includes both a planetesimal belt and an additional outer halo. Simpler models with either a single power law or Gaussian leave significant residuals in the outer regions of the disk. For HD 32297, the inner edge of the planetesimal belt is located at $78.5\pm 8.1$ AU with an outer edge at $122\pm 3$ AU, and a halo out to $440\pm 32$ AU. For HD 61005, the planetesimal belt extends between $41.9\pm 0.9$ AU and $67.0\pm 0.5$ AU, with a halo out to $188\pm 8$ AU. Although the best-fit models provide reasonably good fits to the data for both disks, we note some significant residuals at the $4-8\sigma$ level that could indicate additional asymmetric substructure not resolved by our current observations and likely make our quoted uncertainties underestimates. 2. 2.

Our ALMA observations detect millimeter emission from an extended halo component in a debris disk. Previously, the halos of the HD 32297 and HD 61005 debris disks were only seen in scattered light observations, implying that they were populated by small, micron-sized grains easily removed by interactions with the ISM or an interior planet. If, instead, millimeter grains are also present in these halos, we must reevaluate how such structures are created. Since interactions with the ISM are only expected to affect small grains, these new observations favor sculpting via planetary perturbations. It is also likely that the presence of gas in a disk, as is the case for HD 32297, will have an effect on the system’s dynamics, since outflowing gas can entrain grains. 3. 3.

For both HD 32297 and HD 61005, the planetesimal belt component has a rising surface density gradient with power law indices of $x_{1}=2.23\pm 0.61$ and $2.87\pm 0.19$, respectively. Similar to other systems that exhibit rising surface density gradients (e.g., AU Mic and $\epsilon$ Eridani), both belts are broad with fractional widths, $\Delta R/R>0.4$. These results contribute to a growing population of broad debris disks that exhibit rising surface density gradients, consistent with predictions of ‘self-stirred’ models for debris disks where ongoing formation of small bodies at the inner edge of the disk triggers a collisional cascade. 4. 4.

We detect 12CO J$=2-1$ emission from the HD 32297 debris disk co-located with the dust continuum emission. The integrated intensity is $7.91\pm 0.08\times 10^{-21}$ W m*-2*. Assuming that the gas is optically thin and in LTE, this flux implies a total CO mass of $4.32\times 10^{-4}~{}M_{\oplus}$, comparable to or more massive than other CO-rich debris disks. Intriguingly, the measured ALMA integrated intensity is a factor of $5\times$ lower than previous measurements for the same system (Greaves et al., 2016). Although this difference could stem from the lower signal-to-noise and resolution of the earlier observations, it could also suggest variability in the CO production rate in this system. In addition, the CO gas appears to exhibit sub-Keplerian rotation, although the significance of this result is unclear given the low spectral resolution of our data (channel width of 1.3 km s*-1*).

The ALMA observations presented here provide new insights into the structure and dynamics of the HD 32297 and HD 61005 debris disks. Ultimately, millimeter observations with higher angular and spectral resolution are required to confirm the dominant mechanism responsible for sculpting these systems. A detection of additional substructure in either disk could reveal the presence and influence of a giant interior or exterior planet.

The authors thank David Rodriguez for leading the Cycle 1 ALMA proposal to observe HD 32297, Ian Czekala for helpful discussions regarding the HD 32297 gas detection, Gaspard Duchêne for helpful discussions regarding the inclination of HD 32297, and the anonymous referee for comments that improved the clarity of the manuscript. M.A.M. acknowledges support from a National Science Foundation Astronomy and Astrophysics Postdoctoral Fellowship under Award No. AST-1701406. A.M.H. acknowledges support from NSF grant AST-1412647. This paper makes use of the following ALMA data: ADS/JAO.ALMA #2015.1.00633.S and #2012.1.00437.S. ALMA is a partnership of ESO (representing its member states), NSF (USA) and NINS (Japan), together with NRC (Canada) and NSC and ASIAA (Taiwan) and KASI (Republic of Korea), in cooperation with the Republic of Chile. The Joint ALMA Observatory is operated by ESO, AUI/NRAO and NAOJ. The National Radio Astronomy Observatory is a facility of the National Science Foundation operated under cooperative agreement by Associated Universities, Inc. This work has also made use of data from the European Space Agency (ESA) mission Gaia (https://www.cosmos.esa.int/gaia), processed by the Gaia Data Processing and Analysis Consortium (DPAC, https://www.cosmos.esa.int/web/gaia/dpac/consortium). Funding for the DPAC has been provided by national institutions, in particular the institutions participating in the Gaia Multilateral Agreement.
