Diversity of Galaxy Dust Attenuation Curves Drives the Scatter in the IRX-beta Relation

TL;DR

This study reveals that the diversity in dust attenuation curves, especially their slopes, primarily causes the scatter in the IRX-beta relation for galaxies, and fixing these parameters reduces the scatter significantly.

Contribution

It demonstrates that the IRX-beta scatter is driven by variations in dust attenuation curves, particularly their slopes, and links this to optical opacity and galaxy properties.

Findings

Attenuation curve slope is the main driver of IRX-beta scatter.

Fixing attenuation curve parameters eliminates the scatter.

Average IRX-beta relation remains valid for SFR correction with minimal error.

Abstract

We study the drivers of the scatter in the IRX-beta relation using 23,000 low-redshift galaxies from the GALEX-SDSS-WISE Legacy Catalog 2 (GSWLC-2). For each galaxy we derive, using CIGALE and the SED+LIR fitting technique, the slope of the dust attenuation curve and the strength of the UV bump, plus many other galaxy parameters. We find that the IRX-beta scatter is driven entirely by a wide range of attenuation curves - primarily their slopes. Once the slope and the UV bump are fixed, the scatter in the IRX-beta vanishes. The question of the IRX-beta scatter is the direct manifestation of a more fundamental question of the diversity of dust attenuation curves. The predominant role of the attenuation curve is the consequence of a narrow range of intrinsic UV slopes of star-forming galaxies. Galaxies with different specific SFRs or population ages do not show strong trends in the IRX-beta diagram because their attenuation curves are, on average, similar. Similarly, there is no shift in the IRX-beta locus between starbursts and normal star-forming galaxies, both types having, on average, steep attenuation curves. Optical opacity is identified as the strongest determinant of the attenuation curve slope, and consequently the IRX-beta diversity. Despite the scatter, the use of an average IRX-beta relation is justified to correct SFRs, adding a random error of <~0.15 dex. The form of the local correspondence between IRX-beta and attenuation curves is maintained at high redshift as long as the evolution of the intrinsic UV slopes stays within a few tenths.

Figures

Equations

$${\beta }_{\mathrm{GLX}}$$

$${\beta }_{\mathrm{cont}}$$

$${\beta }_{C94}$$

$$\log \mathrm{sSFR}$$

$$\eta$$

$$\delta$$

$$A_{\mathrm{FUV}}$$

Full text

††slugcomment:

1. Introduction

Determination of a galaxy’s star formation rate (SFR) is a critical task for the study of galaxy evolution. Many SFR indicators have been proposed and utilized over the years (Kennicutt, 1998; Kennicutt & Evans, 2012), but two classes of methods stand out as the most practical over a wide range of redshifts: 1) SFRs based on the nebular line emission (Kennicutt, 1983) and 2) SFRs based on the stellar continuum emission (Larson & Tinsley, 1978). However, both classes of methods are critically limited by our ability to correct for the effects of dust, which require both the knowledge of the dust attenuation law and the knowledge of the intrinsic unattenuated spectral energy distribution (SED). These limitations have been already recognized in Pettini et al. (1998), and have not yet been fully overcome.

Line emission method typically utilizes H$\alpha$ luminosity (less frequently [OII]3727) of very young stars ($<10$ Myr) still embedded in molecular clouds and HII regions. The H$\alpha$ luminosity must be corrected for dust emission, which is usually accomplished by observing H$\beta$, which gives the correction to H$\alpha$ luminosity via the Balmer decrement plus an appropriate attenuation or extinction curve. Many studies use Milky Way extinction curve (e.g., Cardelli et al. 1989) to correct for the dust affecting emission lines. The correction will depend on the relative attenuation curve between H$\beta$ and H$\alpha$ wavelengths, i.e., it is not sensitive to the shape of the assumed curve at shorter wavelengths. Getting both H$\alpha$ and H$\beta$ requires spectroscopic observations, which limits the samples with available data. Pa$\alpha$, an emission line in the near-IR, is much less affected by the dust and represents a better alternative to $\rm{H}\alpha$ (e.g., Calzetti et al. 2007), but the observed samples are relatively small. Furthermore, emission line fluxes need to be corrected for aperture (fiber) or slit losses.

There are several closely related methods that use continuum emission to derive SFR, either arising from direct stellar emission, or from the emission of dust heated by relatively young ($<100$ Myr) stars. Traditionally, the continuum methods are implemented as: (a) the ultraviolet (UV) method, (b) the infrared (IR) method, (c) the UV+IR method, (d) the SED fitting (stellar emission) and (e) the energy-balance SED fitting (stellar plus dust emission). The UV method obtains the SFR from the far-UV (FUV) luminosity and the UV color, from which the dust correction in the FUV is derived by assuming some correlation between FUV attenuation ($A_{\rm FUV}$) and the UV color. For star-forming galaxies, the FUV attenuation is directly related to the ratio of IR luminosity to FUV luminosity, i.e., the IR excess (IRX, Meurer et al. 1999; Gordon et al. 2000). Thus the accuracy of the UV method is predicated on there being a relatively tight and universal relation between IRX and UV color, or, alternatively, IRX and the UV spectral slope ($\beta$; $f_{\lambda}(\lambda)\propto\lambda^{\beta}$), the so called IRX-$\beta$ relation (Meurer et al., 1995, 1999). Correcting the rest-frame UV luminosities with the UV method is employed at high redshift where IR information is very limited or non existent (e.g., Reddy & Steidel 2009; Bouwens et al. 2009).

Next, in the IR method, the estimate of the SFR is based on the light absorbed by the dust and reemitted in the thermal IR. It assumes that all emission from young stars is processed by dust and that the contribution of older populations is small (Kennicutt, 1998). Its refinement, the UV+IR method (e.g., Elbaz et al. 2007; Daddi et al. 2007; Reddy et al. 2012) combines the observed (attenuated) SFR in the UV with the obscured SFR in the IR, but still requires dust heating by older stars to be small in order not to bias the answer, or else, it needs to be accounted for (Buat et al., 2011; Boquien et al., 2016). Standard SED fitting (Conroy, 2013) of just the stellar emission (e.g., Papovich et al. 2001; Shapley et al. 2005; Salim et al. 2007) is essentially the unabridged version of the plain UV method, but with multiple bands constraining the SFR. The SED fitting essentially derives dust-corrected SFRs also via a relation between UV color and FUV attenuation, but the relation is present implicitly in the models and is typically implemented via dust attenuation curve(s) and not an explicit IRX-$\beta$ relation. Finally, the energy-balance SED fitting (Burgarella et al., 2005; da Cunha et al., 2008) directly includes IR in constraining the SFR, which also helps to constrain the parameters of the attenuation curve (assuming it was not fixed in the fitting), while correctly attributing the IR emission to dust heating from both young and old stars. (Burgarella et al., 2005; Noll et al., 2009; Boquien et al., 2012, 2016; Leja et al., 2017; Salim et al., 2018).

In the absence of IR data, many high-redshift studies rely on the UV method, and thus need to assume some IRX-$\beta$ relation, or, equivalently, an $A_{\rm FUV}$-$\beta$ relation. The relationship between the FUV attenuation (or IR excess) and the UV spectral slope was originally studied based on $\sim 60$ relatively compact local starbursts (and blue compact dwarfs) by Meurer et al. (1999), drawn from the UV spectral atlas of Kinney et al. (1993), produced with International Ultraviolet Explorer (IUE), and with IR luminosities derived from Infrared Astronomical Satellite (IRAS) observations. Meurer et al. (1999) found that these starbursts obey a relatively tight IRX-$\beta$ relation. The existence of a relation lend credence to using applying it to higher-redshift samples ($z\gtrsim 1$), especially because the local starbursts may share many of the characteristics of young galaxies at high redshift.

The possibility that the IRX-$\beta$ relation could be universal and relatively tight for non-starbursting galaxies was challenged by Kong et al. (2004), who found that including normal galaxies (observed by IUE and several other early UV satellites) introduced an additional scatter and a possible shift with respect to the starburst relation of Meurer et al. (1999). Moreover, Kong et al. (2004) have suggested that the offset and the additional scatter may be due to a wide range of older stellar populations found in normal star-forming galaxies, with offsets correlating with the stellar population age.

Possible non-universality of the IRX-$\beta$ relation was indicated in numerous subsequent studies (e.g., Buat et al. 2005; Seibert et al. 2005; Gil de Paz et al. 2007; Dale et al. 2009; Takeuchi et al. 2010; Grasha et al. 2013), which utilized much larger sets of observations of more normal galaxies acquired by Galaxy Evolution Explorer (GALEX) in its two UV bands (FUV and NUV), and compared the resulting IRX-$\beta$ distributions of points to the starburst relations of Meurer et al. (1999) and Kong et al. (2004), finding offsets. However, remeasuring of Meurer et al. (1999) galaxies using GALEX revealed that IUE missed a large fraction of FUV emission (Overzier et al., 2011; Takeuchi et al., 2012; Casey et al., 2014) biasing the original starburst relation with respect to the one obtained by GALEXfor the same starburst galaxies. Nevertheless, the question of the drivers of the large scatter in the IRX-$\beta$ relation (the so called second parameter in that relation) remained.

Following Kong et al. (2004), much attention was paid on investigating the role of the age, or age-related metrics, on the dispersion in the IRX-$\beta$, both empirically (Burgarella et al., 2005; Seibert et al., 2005; Panuzzo et al., 2007; Johnson et al., 2007; Boquien et al., 2009; Grasha et al., 2013) and using radiative transfer modeling (Popping et al., 2017; Safarzadeh et al., 2017; Narayanan et al., 2018). Factors other than the age were explored as well, such as the variations in the intrinsic UV slope (Boquien et al., 2012) and the role of the dust type and/or the geometry Witt & Gordon 2000; Bell et al. 2002; Inoue et al. 2006; Thilker et al. 2007; Panuzzo et al. 2007; Popping et al. 2017; Safarzadeh et al. 2017; Narayanan et al. 2018. Both the dust type and the geometry affect the resulting attenuation curve–the attenuation as a function of wavelength normalized by attenuation at some wavelength, usually $V$ band.

The role of the attenuation curve in driving the scatter in the IRX-$\beta$ plane has been explicitly studied in Burgarella et al. (2005); Boquien et al. (2009, 2012); Buat et al. (2012), or is sometimes implicitly assumed to be a factor, especially in high-redshift studies (e.g., Meurer et al. 1995; Siana et al. 2009; Salmon et al. 2016; Bouwens et al. 2016; Reddy et al. 2018; Cullen et al. 2017; McLure et al. 2018). However, its precise role is difficult to establish because measuring the attenuation curve for individual galaxies represents a major challenge (e.g., Kriek & Conroy 2013; Salmon et al. 2016; Leja et al. 2017; Salim et al. 2018; Buat et al. 2018.

IR observations from Spitzer allowed the study of the IRX-$\beta$ relation to be carried out out to $z\gtrsim 1$, for IR luminous galaxies (Noll et al., 2009; Reddy et al., 2010; Murphy et al., 2011; Buat et al., 2012) and strongly lensed sources (Siana et al., 2009; Pope et al., 2017), again suggesting a large spread in the IRX-$\beta$ plane. These redshifts were subsequently explored at longer wavelengths with Herschel (Nordon et al., 2013). At even higher redshifts ($z\gtrsim 3$), some studies using Herschel and ALMA suggest a stronger evolution in the IRX-$\beta$ relation (Capak et al., 2015; Bouwens et al., 2016; Barisic et al., 2017), but the question of how IR luminosity is measured start to arise as well (Lee et al., 2012; Faisst et al., 2017; Cullen et al., 2017; Ferrara et al., 2017). Recently, efforts were made to derive an average IRX-$\beta$ relation for general population of high-redshift ($z\gtrsim 2$) galaxies using the stacking of Herschel, SCUBA-2 or ALMA observations at longer wavelengths (e.g., Heinis et al. 2013; Pannella et al. 2015; Bouwens et al. 2016; Forrest et al. 2016; Álvarez-Márquez et al. 2016; Bourne et al. 2017; Fudamoto et al. 2017; Reddy et al. 2018; McLure et al. 2018; Koprowski et al. 2018), but the question of the drivers of the scatter, which appears to be present at all redshifts, remains a fundamental one.

Our approach in addressing the issue of the IRX-$\beta$ scatter is that using very large samples of local galaxies with robustly determined galaxy parameters can help inform the underlying mechanisms that may be valid regardless of the redshift. Recently, we have constructed GALEX-SDSS-WISE Legacy Catalog (GSWLC, Salim et al. 2016), a catalog of physical parameters of galaxies obtained using Bayesian SED fitting. GSWLC is drawn from SDSS spectroscopic survey, with UV observations from GALEX, and mid-IR observations from WISE, containing altogether 700,000 optically selected galaxies. In a recent update of the catalog (GSWLC-2, Salim et al. 2018), the IR luminosity was used to constrain the parameters of the dust attenuation curve for individual galaxies. This important additional information allows us to systematically explore, in the present work, a range of different galaxy properties as potential drivers of the IRX-$\beta$ scatter of entire galaxies.

The paper is organized as follows. Section 2 provides the summary of the sample and the data. In Section 3 we describe the derivation of galaxy parameters, and the methodology for selecting the fiducial IRX-$\beta$ relation. In Section 4 we present the results of the systematic investigation of the drivers of the scatter, using non-parametric approach. In Section 5 we introduce new parameterization useful for studying the trends in the IRX-$\beta$ plane. Recipes that include extensions of the IRX-$\beta$ relation are presented in Section 6. The results are discussed in Section 7 and summarized in Section 8. Throughout this work we assume WMAP7 flat cosmology ($H_{0}=70.4$ km s*-1* Mpc*-1*, $\Omega_{m}=0.272$).

2. Sample and data

In this work we use the deep UV photometry catalog from GALEX-SDSS-WISE Legacy Catalog 2 (GSWLC-D2). GSWLC is a publicly available catalog of SED fitting parameters derived by combining GALEX, SDSS and WISE photometry.111http://pages.iu.edu/s̃alims/gswlc GSWLC-1 (Salim et al., 2016) and GSWLC-2 (Salim et al., 2018) share the sample, but the latter performs energy-balance SED+LIR fitting. The GSWLC sample includes all galaxies from the SDSS DR10 spectroscopic surveys such that $0.01<z<0.30$ and $r_{\rm petro}<18.0$, as long as they fall within the GALEX coverage. Because GALEX observations have a very wide range of exposure times, separate samples are defined for shallow (all-sky; GSWLC-A), medium-deep (GSWLC-M) and deep (GSWLC-D) UV observations. Details of sample construction and matching are given in Salim et al. (2016).

While the GSWLC-D2 catalog is the smallest of the three, covering 7% of SDSS footprint, it has the highest quality of UV photometry, with the UV exposure time of at least 4000 s, and hence provides the most reliable UV slope ($\beta$), which is why we choose it as the sample for this study. GSWLC-D2 contains 48,401 galaxies, which reduces to 47,672 after the exclusion of type 1 AGN (QSO-like spectra) and objects with poor ($\chi^{2}_{r}>30$) SED fits. Next we require that both the FUV and NUV are detected at $>3\sigma$, which leaves 25,791 objects. This cut mostly removes early-type, passive galaxies, which are not the focus of the study, considering that their FUV attenuation does not follow the tight relation with IRX as it does for the star-forming galaxies (Cortese et al., 2008; Viaene et al., 2016). Furthermore, we require mid-IR detection in either 12 $\mu{\rm m}$ or 22 $\mu{\rm m}$, which results in 23,175 galaxies, which we refer to as “all” galaxies. In addition, we use the Baldwin et al. (1981) (BPT) emission-line diagram to select star-forming (SF) galaxies, as described in Salim et al. (2018). More accurately, we exclude 5501 galaxies on the AGN branch and 5585 galaxies with weak lines (S/N of H$\alpha$ flux $<10$) to get the “star-forming” (SF) sample of 12,089 galaxies. The star-forming sample encompasses the main sequence and extends down to log sSFR$\approx-11$. Selecting the SF sample based on the SDSS fiber spectroscopy may miss galaxies that have the bulk of their SF outside of the $3"$ fiber (typically, early-type galaxies in the green valley, Salim & Rich 2010), but such galaxies are relatively rare (see Fig. 8 in Salim et al. 2016). Alternatively, we could have selected galaxies with specific SFR (sSFR) above some threshold, regardless of the BPT class, and this would not have affected the results at all.

We use the GALEX pipeline photometry with the application of some corrections, as described in Salim et al. (2018). For optical photometry we use SDSS $ugriz$ modelMag measurements. Finally, we use the unWISE forced photometry of Lang et al. (2016) for fluxes at 12 $\mu{\rm m}$ and 22 $\mu{\rm m}$.

3. Methodology

3.1. Derivation of galaxy parameters

All galaxy parameters employed in this work are derived using Code Investigating GALaxy Emission (CIGALE, Noll et al. 2009; Boquien et al. 2018) by applying the SED+LIR fitting, a variant of the energy-balance SED fittingSalim et al. (2018) . Specifically, we use CIGALE Version 0.11, but with custom modifications, some of which were implemented in 0.12 and 2018.1 versions of the code. Energy-balance SED fitting (da Cunha et al., 2008; Noll et al., 2009) requires that the energy absorbed by the dust in the UV to the near-infrared should match the luminosity emitted by the dust, i.e., the total IR luminosity, $L_{\rm IR}$. Energy-balance SED fitting codes typically fit both the stellar and IR SED, with a number of parameters required to specify both. In the SED+LIR fitting, the IR luminosity is determined separately, and is then used as a constraint in the broadband SED fitting, without the need to fit the IR SED. The main advantage of the SED+LIR method compared to UV/optical+IR SED fitting is that the model library for the SED fitting is not inflated by all of the parameter combinations needed to model the IR SED, allowing for faster fitting and/or allowing for other parameters, e.g., the attenuation curve, to be left free.

IR luminosities to be used in the SED+LIR fitting are derived in a two-step process. We first use luminosity-dependent templates of Chary & Elbaz (2001) together with 22 $\mu{\rm m}$ flux (or 12 $\mu{\rm m}$, if not detected at 22 $\mu{\rm m}$) to get an estimate of the IR luminosity. We these estimates we apply empirically derived corrections (as a function of $L_{\rm IR}$ and $L_{\rm IR}/M_{*}$) constructed to reproduce IR luminosities of galaxies with the far-IR coverage from the Herschel-ATLAS survey (Valiante et al., 2016). This two-step method results in IR luminosities that have a remarkable accuracy of $\sim 0.1$ dex, and show no systematic differences with respect to Herschel luminosities over the entire $8.8<\log L_{\rm IR}<11.8$ range. The $L_{\rm IR}/M_{*}$-dependent correction eliminates deviations of Chary & Elbaz (2001) templates reported for starbursting galaxies (Overzier et al., 2011). Details are given in Salim et al. (2018). We have also checked whether the energy balance assumption is valid for different viewing geometries. We looked at the difference between the observed IR luminosity and the dust-absorbed luminosity estimated from the SED fitting without IR constraints, as a function of galaxy inclination, and find no systematic difference greater than 0.04 dex.

The use of the IR luminosity allows the dust attenuation curve to be relatively well constrained when its parameters are left free in the SED fitting. Following Noll et al. (2009), the attenuation curve is parameterized with a power-law slope deviation from the Calzetti et al. (2000) curve ($\delta$), to which the UV bump feature is added having an amplitude $B$. As discussed in Salim et al. (2018), the modification of the slope and the addition of the UV bump is carried out on $E(B-V)$ normalized Calzetti et al. (2000) curve. Attenuation curve slopes are allowed to vary from $\delta=-1.2$, which is steeper than even the SMC extinction curve, to $\delta=0.4$, somewhat shallower than the Calzetti curve. The amplitude of the UV bump, centered at 2175 Å, can vary between $B=-2$ and $B=6$, twice as strong as the MW bump. Since the amplitude of the bump is not constrained with great accuracy, the inclusion of negative values is meant to offset the posterior bias (Buat et al., 2012; Salmon et al., 2016). Typical error on the curve slope determination is 0.17, and 1.3 on the bump amplitude (both for the star-forming sample).

The attenuation curves described above are not effective curves. The above attenuation curves, of the same slope and the same bump strength, are applied separately to young and old populations, but with old population suffering a fraction of the attenuation that affects young stars still enshrouded in birth clouds, following the distinction introduced in Charlot & Fall (2000)222Note that the original Charlot & Fall 2000 implementation is based on pure power-law attenuation curves with no allowance for the UV bump.. In the nominal run, using the dust module dustatten_calzleit, this fraction is fixed at the default value of 0.44, which we confirm to be close to the average value when the fraction of attenuation affecting older population is actually allowed to vary.333Note that the module dustatt_modified_starburst, introduced in CIGALE v2018.1, does not contain the age-dependent implementation of attenuation curves affecting the stellar continuum in order to accurately reproduce the original implementation of Calzetti et al. (1994) curve as an effective curve, but maintaining the ability to modify the slope and add the UV bump. The split between the young and the old population (i.e., the birth cloud dispersal time) is fixed at 10 Myr, the value that fits the great majority of galaxies. Assuming the same intrinsic shapes for attenuation curves of both populations is a simplification, driven by the lack of a consensus regarding the appropriate curve for the young population (birth clouds) and the difficulty of constraining it from the SED fitting (Lo Faro et al., 2017). Consequently, the results of the study are not sensitive to the details regarding the curve of the young population.

It should be pointed out that applying the same intrinsic attenuation curve (same $A_{\lambda}/A_{V}$) to young and old populations, but with different normalizations, as we do here, changes the effective attenuation curve. Specifically, in our implementation the power-law exponent of the slope of the effective curve is on average $\sim 0.2$ steeper than the slope of the intrinsic curve, with some 0.1 scatter around that average. We obtain the above offset by performing the SED fitting in which the attenuation curve is treated as an effective curve, without the age-dependent split, and comparing the resulting slopes with the ones from the age-dependent model. In this paper, however, when we refer to the slope of the attenuation curve, we mean the slope deviations from the Calzetti curve implemented as intrinsic attenuation curves of the two populations. We have found that applying the modified Calzetti curve without the old/young split, so that the input and effective curves are one and the same, results in poorer quality of the fits, presumably because such age-insensitive application is less physical.

The SED fitting is based on stellar population models of Bruzual & Charlot (2003), with a Chabrier IMF (Chabrier, 2003) and four stellar metallicities (0.004, 0.008, 0.02 and 0.05). We model star-formation histories as two components (a 10-Gyr old exponentially declining component, and a more recent burst of varying strength and constant SFR). We include the contribution of nebular emission lines and nebular continuum. Details on model assumptions and SED fitting are given in Salim et al. (2016, 2018).

3.2. IRX-$\beta$ parameters and the fiducial relation

The IRX is defined as the ratio of the total IR luminosity to the rest-frame FUV luminosity in GALEX bandpass.444Furthermore, IRX is defined as just the ratio, following Meurer et al. (1999). Originally, in Meurer et al. (1995), IRX was defined as the logarithm of the ratio. Note, however, that both of these studies define IRX using the far-IR luminosity, unlike most subsequent studies that use total IR luminosity. We determine IRX from the SED fitting, with the typical uncertainty of 0.10 dex. We have verified that the models fully cover the parameter space of observations and that no systematic biases are present between model and observed values. The UV slope is defined following the original methodology of Calzetti et al. (1994), as the linear fit to rest-frame fluxes from 10 windows spanning the range from 1268 to 2580 Å. The windows were selected to avoid absorption features that may affect the derivation of the slope, as well as to exclude the UV bump, or at least its central portion (1950-2400 Å). Typical error of the UV slope, determined via the SED fitting that includes the nebular continuum contribution, is 0.14. We designate the UV slope determined from spectral windows as $\beta_{\rm C94}$, to differentiate it from slopes derived in other ways, for example, from GALEX FUV and NUV photometry ($\beta_{\rm GLX}\equiv 2.29({\rm FUV}-{\rm NUV})-2$), which, in the case of low-redshift studies is often based on observed (non rest-frame) magnitudes. From our sample we get the relationship between the two definitions of the slope to be, depending on the redshift:

[TABLE]

For $\beta=-1$, the average for the sample, the difference between the values of two slopes is 0.16 in the case of $z<0.3$, reducing to 0.05 for $z<0.05$, in the sense that $\beta_{\rm GLX}$ is higher. Redshift dependence exists because $\beta_{\rm C94}$ is measured on rest-frame spectrum whereas $\beta_{\rm GLX}$ in low-redshift studies is often determined from observed-frame UV color, which will differ from the rest-frame UV color due to the Ly$\alpha$ contribution (e.g., Shim & Chary 2013), and the fact that the UV spectrum is not a perfect power law. The dispersion around the relations is 0.20 and 0.16, respectively, and is driven by galaxies having a range of UV bump strengths, coupled with the fact that the UV bump affects $\beta_{\rm GLX}$ much more than it does $\beta_{\rm C94}$.

Some high-redshift studies derive the UV slope based on the FUV region alone (1200-1800 Å). Such $\beta$ will typically be higher (shallower) than the 10-window slope we use here, the difference being $\sim 0.3$ at $\beta\sim-1$ (Calzetti, 2001; Reddy et al., 2018), but note that the difference is not constant—it increases with $\beta$. A similar significant difference also exists between the slope obtained from a single continuous window covering $1268\leq\lambda\leq 2580$Årange ($\beta_{\rm cont}$, e.g., McLure et al. 2018) as opposed to the slope that uses 10 windows in this same range. Using our sample we derive:

[TABLE]

Now the difference at $\beta\sim-1$ is 0.34. This underscores that care must be exercised in comparing the results of studies that measure the UV slope in different ways (Reddy et al., 2018).

For the purposes of describing how different sample cuts lead to different distribution of datapoints in the IRX-$\beta$ plane, we will be introducing a fiducial IRX-$\beta$ relation. Figure 1 displays three previously published relations, all principally based on the local starburst sample of Meurer et al. (1999). The Meurer et al. (1999) relation is based on 57 starburst galaxies whose UV spectra were observed by IUE. They use the Calzetti et al. (1994) methodology to measure UV slopes, but because not all spectra had the near-UV region observed (corresponding to the tenth window), Meurer et al. (1999) determined the UV slopes of all galaxies using 9 far-UV windows and then adjusting the result to what would have been determined with all windows using a constant offset. Importantly, the IRX in Meurer et al. (1999) was defined using the far-IR luminosity (40–120 $\mu$m), whereas most consequent studies define IRX based on the total IR luminosity (1–1000 $\mu$m). The correction factor between them is 1.75 (Calzetti et al. 2000, rather than 1.4 reported in Meurer et al. 1999, the difference coming from adding the sub-mm tail to far-IR bandpass, i.e., 40–1000 $\mu$m), and has been applied throughout. Meurer et al. (1999) relation adjusted to total IR luminosity is plotted in Figure 1, and it appears not to coincide with the mean locus of our sample, being too high (or too red).

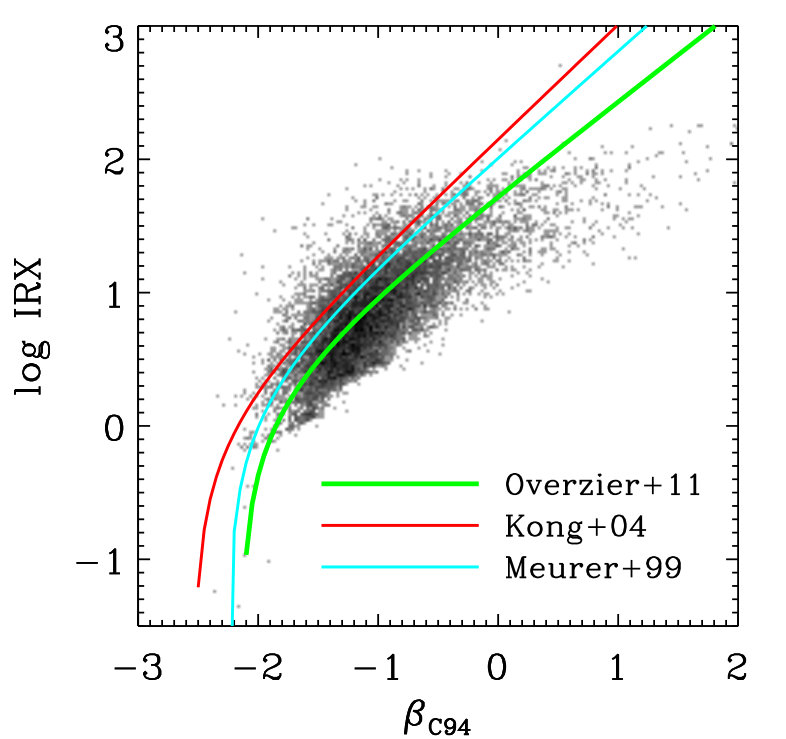

Kong et al. (2004) rederive the IRX-$\beta$ relationship using essentially the same sample as Meurer et al. (1999), so it is also away from the main locus of our data points (Figure 1). Note that Kong et al. (2004) provide their relation in terms of $\beta_{\rm GLX}$, which we convert to $\beta_{\rm C94}$ using the relation from their Fig. A1, which yields a similar correction as our Eq. 1. Kong et al. (2004) and Meurer et al. (1999) relations differ mostly in terms of the $\beta_{\rm min}$ asymptote. There are very few points in these samples with log IRX$<0$ to allow $\beta_{\rm min}$ to be well established. Our more extensive data suggest $\beta_{\rm min}\approx-2.2$, a value closer to the minimum slope in the Meurer et al. (1999) relation. Studies that have performed detailed UV photometry of nearby galaxies, which includes many low-metallicity, nearly dust-free dwarfs (Gil de Paz et al., 2007; Dale et al., 2009), never find galaxies with colors bluer than FUV$-$NUV$=-0.05$, which corresponds to $\beta_{\rm GLX}=-2.1$, or $\beta_{\rm C94}=-2.3$. Note that our models include SEDs with intrinsic UV slopes $\beta_{0,{\rm min}}=-2.56$ (corresponding to 1/20 $Z_{\odot}$ and young ($<100$ Myr) burst), but only 0.2% of star-forming galaxies are fit by models with $\beta_{0,\rm C94}<-2.5$.

In both the Kong et al. (2004) and Meurer et al. (1999) analyses, the FUV flux comes from IUE measurements in $10^{\prime\prime}\times 20^{\prime\prime}$ apertures, whereas the IR luminosity comes from IRAS measurements that encompass entire galaxies. This inconsistence was not considered critical by Meurer et al. (1999) because it was assumed that most of the total UV flux was confined to $10^{\prime\prime}\times 20^{\prime\prime}$ aperture because the starburst are typically compact and galaxies with large optical diameters (but only if greater than $240^{\prime\prime}$) were explicitly excluded from the sample. However, Overzier et al. (2011) measured the UV fluxes of the large fraction of Meurer et al. (1999) sample using integrated photometry from GALEX, and found that the IUE measurements missed $\sim 1/2$ of the UV flux. Similar analysis and results were obtained by Takeuchi et al. (2012), and by Casey et al. (2014). The latter study performed new measurements of both starbursts and normal galaxies. The IRX-$\beta$ relation re-derived by Overzier et al. (2011) is shown in Figure 1 (where their rest-frame $\beta_{\rm GLX}$ was converted to $\beta_{\rm C94}$ using Eq. 2). The bottomline is that Meurer et al. (1999) and Kong et al. (2004) relation should not be used with modern total UV flux measurements, but rather their updated versions. Our dataset is on average well described by the Overzier et al. (2011) relation, and we adopt it as our fiducial relation. The agreement is present despite the fact that our sample is mostly not composed of starbursts, which we will discuss in Section 4.1.

green

4. Results

In this section we search for parameters that may govern the scatter in the IRX-$\beta$ plane. The search is first performed in a visual manner, and is parameterized afterwards. The visual method consists of plotting, on IRX-$\beta$ diagrams, the slices of data having low, median and high values of some parameter, and looking at the tightness and the shifts/trends in distribution of points. To determine what constitutes low/median/high values for, e.g., log sSFR, we construct the distribution of that parameter and find values that correspond to the 5th percentile, the median, and the 95th percentile of the distribution. For log sSFR, the corresponding low/median/high values are $-10.61$, $-10.02$ and $-9.47$ in units of $M_{\odot}{\rm yr}^{-1}$. Slices have a width that we take to be 1/9 of the 90 percentile range of the distribution. In the case of sSFR, each slice is 0.13 dex wide, so, for example, the median slice covers $-10.08<\log{\rm sSFR}<-9.95$. In case of a uniform distribution each bin would contain exactly 10% of all data points. For a normal distribution the median bin will contain 15% of data points, whereas the low/high bins will contain approximately 4%.

A parameter that affects the scatter in the IRX-$\beta$ plane would yield a much narrower distribution of points when individual slices are plotted, compared to the full distribution of points in the IRX-$\beta$ plane, plus the locus of points would shift considerably when going from the low percentile to the high percentile slice. The analysis in subsequent sections pertains to the star-forming sample. We separately discuss passive galaxies in Section 4.4.

4.1. Galaxy parameters related to star formation and population age

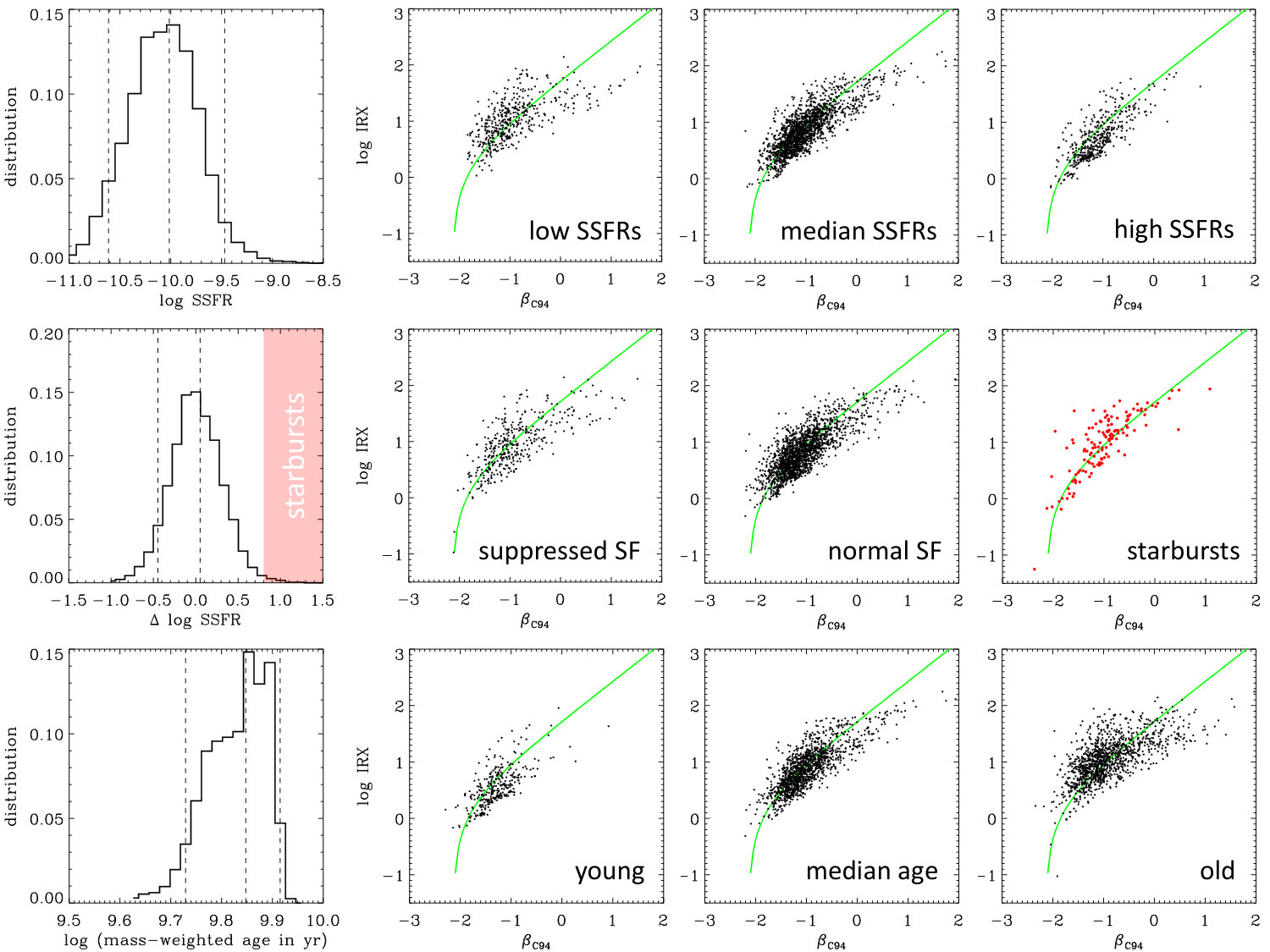

We start the analysis by exploring three parameters that are related to stellar population age (Figure 2), following the original hypothesis by Kong et al. (2004). The upper left panel of Figure 2 shows the distribution of the specific SFRs in the sample, spanning some 2 dex. SFRs represent averages over 100 Myr. The distribution has a median and a peak at log sSFR$\sim-10$, with 5th and 95th percentiles some 0.5 dex below and above it. The three panels to the right show where the points selected to have low, median and high sSFR lie on the IRX-$\beta$ plane. Selecting the data by sSFR does not reduce the scatter in the relation appreciably, and there is only a slight shift downwards in the locus of points.

Considering that the star-forming sequence of sSFR vs. stellar mass is tilted (e.g., Salim et al. 2007), galaxies with higher sSFR will also tend to be less massive, and vice versa. Thus, a better way to distinguish galaxies by their level of activity is to look at the relative sSFRs, i.e., the offset of sSFR with respect to the mean sSFR-$M_{*}$ relation. A robust linear fit to the relation using the current star-forming sample gives:

[TABLE]

Selecting galaxies around 5th and 50th percentile by relative sSFR, i.e., galaxies with suppressed and with normal SF still does not produce any tightening in the IRX-$\beta$ distribution, nor systematic shifts of points (Figure 2, middle row). The 95th percentile selected galaxies lie 0.5 dex above the main sequence, which is not as high as the IUE starbursts of Calzetti et al. (1994) and Meurer et al. (1999), which lie between 0.5 and 1.5 dex above the main sequence (based on the analysis performed for Salim et al. 2018). Therefore, in this one case we replace the 95 percentile slice with the selection that includes all galaxies with $\Delta$log sSFR$>0.8$ dex. There are 125 such galaxies in our sample (1% of all star formers) and their average offset from the main sequence is 1.0 dex, same as for the IUE starbursts. Their IRX-$\beta$ distribution is shown in the right panel of the middle row of Figure 2. We do not see that starbursts have an offset in the IRX-$\beta$ distribution with respect to normal or even quiescent star-formers, though the scatter is somewhat smaller, i agreement with the original IUE results of a relatively tight relation. Altogether, neither the sSFR nor the relative sSFR drive the scatter. The similarity between how normal and starbursting galaxies are distributed in the IRX-$\beta$ plane explains why the IRX-$\beta$ relations derived from local starburst samples (but using total GALEX photometry) describe the average locus of general population of star-forming galaxies so well (Fig. 1).

Kong et al. (2004), based on their modeling, proposed that galaxies occupy different locations in the IRX-$\beta$ plane according to their birthrate parameter ($b$), i.e., that $b$ governs the scatter. Birthrate parameter is defined as the ratio of the current SFR to the past-averaged one. The latter is the ratio of the total stellar mass produced over galaxy’s history (the integral of SFR) divided by the total age of the galaxy. However, the total age of a galaxy, i.e., the time since the commencement of any SF in a galaxy, is not a particularly meaningful or even measurable quantity, and one may as well assume that all galaxies have the same total age. In that case, the birthrate becomes equivalent to sSFR. Indeed, birthrate parameter has been replaced in recent literature by sSFR, which we have shown not to control the scatter.

Finally, we explore the role of the stellar population age, determined here as the stellar-mass weighted age, and spanning the range in our star-forming sample from 4.5 to 8.5 Gyr, with the peak towards older systems (lower left panel of Figure 2). Selecting subsamples with younger, median and older ages and showing their IRX-$\beta$ distributions reveals a slight trend whereby older galaxies tend to shift upwards, but again the large scatter remains. In the most favorable case, the stellar population age may only weekly affect the IRX-$\beta$ distribution.

4.2. Galaxy parameters related to dust attenuation

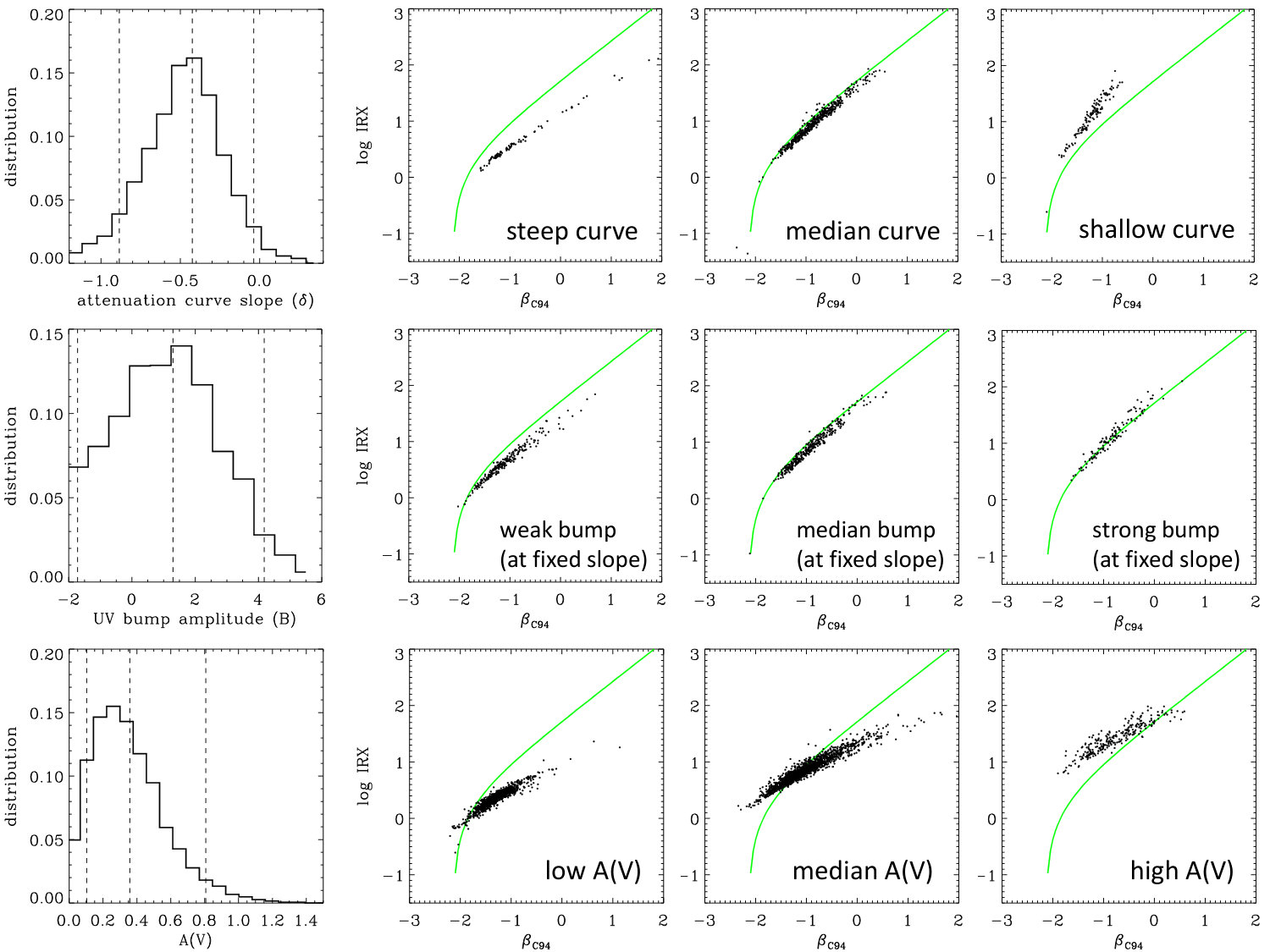

In Figure 3 we explore the role of dust attenuation parameters on IRX-$\beta$ (still for the star-forming sample), starting with the slope of the dust attenuation curve, parameterized as the power-law deviation from the Calzetti curve. While the UV slope is calculated over wavelength ranges such that the bulk of the UV bump is excluded, we find that the bump is nevertheless wide enough to affect the UV slope. For this reason we explore the role of the slope and of the bump on the IRX-$\beta$ independently from one another, by restricting the other parameter to a small range of values.

The upper row of panels in Figure 3 shows in the first panel the distribution of the slopes (with the bump amplitude restricted to $1<B<3$, 1/4 of the full possible range), followed by IRX-$\beta$ panels in which the points were selected to have steep, typical and shallow slopes. We point out that the range of slopes is quite broad, from shallower than the Calzetti curve to steeper than the SMC curve (Salim et al., 2018). Selecting the subsamples by the steepness of the slope results in dramatic reduction in scatter, with different attenuation curve slopes occupying distinctly different regions of the IRX-$\beta$ plane. As a matter of fact, the scatter essentially vanishes by selecting galaxies within even narrower ranges of slopes (and UV bump amplitudes). Different attenuation slopes correspond to different tilts in the IRX-$\beta$ point distribution, which we will use as a basis of new parameterization in Section 5. Galaxies with steeper attenuation curve slopes tend to lie below the Overzier et al. (2011) relation, whereas the galaxies with shallow slopes (similar to the Calzetti curve slope or MW curve) tend to lie above the Overzier et al. (2011) relation.

In the middle row of panels in Figure 3 we keep the attenuation curve within a restricted range ($-0.5<\delta<-0.3$) and explore any additional trends due to the varying strength of the UV bump. The distribution in the IRX-$\beta$ plane is tight because of the restricted range of attenuation curve slopes. Plotting the galaxies with weak, median and strong bump reveals a moderate shift in the locus. The bump apparently does systematically affect the measurement of the UV slope, even when it was derived over the 10 windows. Specifically, we find that for each unit of amplitude of the bump, the UV slope is shifted by $d\beta_{\rm C94}/dB=-0.064$.

Altogether, the conclusion is that the shape of the attenuation curve, primarily its slope, is the principal driver of the scatter in the IRX-$\beta$ diagram. Consequently, the question of what drives the IRX-$\beta$ scatter becomes the derivative of the question of what drives the diversity of slopes of the attenuation curve. Salim et al. (2018) has focused on the latter question and found that the principal connection exists between the attenuation curve slope and the optical opacity (e.g., $A_{V}$), with more transparent galaxies having steeper slopes, presumably because the wavelength-dependent scattering dominates over the absorption (Chevallard et al., 2013). Radiative transfer modeling also shows the connection between the attenuation curve slope and optical opacity (Witt & Gordon, 2000; Pierini et al., 2004; Seon & Draine, 2016). The bottom panels of Figure 3 explicitly explore how selecting galaxies by $A_{V}$ translates to the IRX-$\beta$ plane. The distribution of points is relatively narrow, though not as narrow as for the attenuation slope, and the galaxies with different $A_{V}$ tend to have a similar tilt offset from one another, unlike the changing tilt when varying the attenuation curve slope. Thus, while related, the two factors, dust attenuation curve slope and $A_{V}$, are not equivalent. We shall return to the connection between the dust attenuation curves and $A_{V}$ in Section 7.

Our sample contains very few ULIRGs as they are intrinsically rare. Local ULIRGs tend to span $1.5<\log{\rm IRX}<3$ (Howell et al., 2010), whereas in our sample log IRX does not exceed 2. In light of our results, the special location of ULIRGs in the IRX-$\beta$ plane (Goldader et al., 2002; Buat et al., 2005; Reddy et al., 2010; Penner et al., 2012; Oteo et al., 2013; Casey et al., 2014) may not require a separate explanation. High values of IRX are due to high opacities, but their dispersal along $\beta$ should still be the result of the diversities of attenuation curve slopes (Lo Faro et al., 2017). High optical opacities of ULIRGs implies shallow attenuation curves, which are located mostly to the left of the mean relation, as confirmed in the actual data (e.g., Goldader et al. 2002; Howell et al. 2010).

4.3. Other galaxy parameters

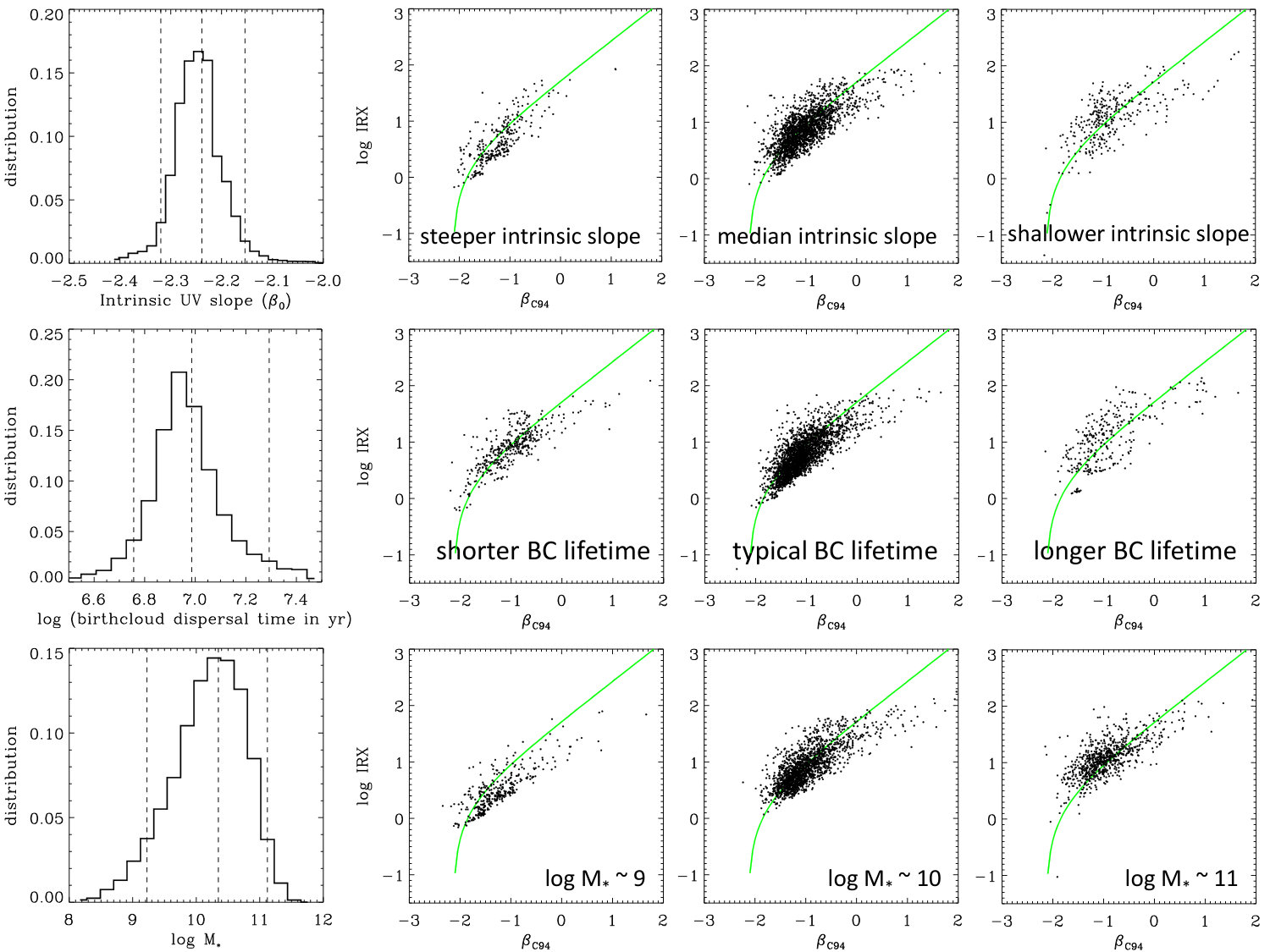

Other parameters that have been proposed to affect the IRX-$\beta$ include: (1) the intrinsic UV slope (Boquien et al., 2012), which is sensitive to SF history, but, as we will see, also on the stellar metallicity, (2) the stellar mass (e.g., Álvarez-Márquez et al. 2016), (3) the lifetime of birth clouds and (4) the fraction of dust absorbed in birth clouds (Charlot & Fall, 2000), as well as (5) the galaxy inclination (Wang et al., 2018).

The intrinsic UV slope $\beta_{0}$ is the slope that one would observe in the absence of dust. We determine it from the SED fitting with the same 10-window methodology used for $\beta_{\rm C94}$. The upper left panel of Figure 4 shows that the distribution of intrinsic slopes of star-forming galaxies is rather narrow, with 5 and 95 percentile values lying within 0.1 of the median at $\beta_{0}=-2.24$. Selecting the galaxies that span that range produces only a slight shift in the locus of points, with the scatter that is similar to the scatter of the full sample. Distribution of intrinsic slopes extends to less steep values (up to $\beta_{0}\sim-1$) only when passive galaxies (log sSFR$<-11$) are included, which will be discussed in Section 4.4.

Following Charlot & Fall (2000), our default SED fitting assumes that birth clouds, which suffer higher attenuation than ambient ISM, disperse after 10 Myr. However, Charlot & Fall (2000) have showed model tracks with different values of birth cloud dispersal time showing a shift in the IRX-$\beta$ plane. We thus produce a separate run where we allow the split between young and old stars (i.e., birth cloud dispersal time) to span a range from 3 to 30 Myr. The middle left panel of Figure 4 shows that the distribution is indeed highly peaked at 10 Myr, and furthermore that selecting galaxies by shorter and longer dispersal times does not reduce the scatter nor produce trends in the IRX-$\beta$ plane.

Similarly, in our nominal SED run we keep the ratio of the $V$-band attenuation affecting older stars (those which left the birth clouds) to be some fixed fraction of the attenuation affecting young stars. Again, the modeling of Charlot & Fall (2000) suggested that allowing this fraction to vary may lead to trends in the IRX-$\beta$ plane, so we produce a run where the ratio is not fixed. Selecting the galaxies with low ratio necessarily selects galaxies with low $A_{V}$, which restricts them to low IRX values. Otherwise, there is no clear trend for the different values of the old to young attenuation ratio, and we do not present the associated plots.

We also examined (but do not present) the IRX-$\beta$ plots for galaxies selected to have different inclinations, measured as $b/a$ axis ratios. Highly inclined edge-on galaxies ($0.2<b/a<0.3$) do tend to lie in the IRX-$\beta$ diagram somewhat above the face-on galaxies ($b/a>0.9$), and to exhibit a larger scatter in IRX. Similar trends have been recently seen at $z\sim 1.5$ by Wang et al. (2018). Salim et al. (2018) have shown that edge-on galaxies tend to have somewhat shallower attenuation curves than the face-on galaxies, and that the difference in attenuation curve slopes is entirely due to the higher average dust content, i.e., greater $A_{V}$, of edge-on galaxies. Once $A_{V}$ is accounted for by fixing it, the dependence goes away.

Finally, we look at the IRX-$\beta$ dependence on the stellar mass (bottom row of Figure 4. Selecting the slices of data around the 5th, 50th and 95th percentile roughly corresponds to galaxies with masses around $\log M_{*}=9$, 10 and 11. While the substantial scatter in these mass-selected slices remains, the shift in the locus is more pronounced than for any of the non-dust parameters that we have considered. The mass dependence of similar magnitude was previously reported in a $z\sim 3$ sample, from a stacking analysis of Álvarez-Márquez et al. (2016), which motivated them to suggest that the IRX$-M*$ relation should be combined with IRX-$\beta$. The dependence of the slope of the attenuation curves on $M_{*}$ was discussed in Salim et al. (2018), and, as in the case of inclination, it was shown that this dependence is entirely due to the more-massive galaxies having higher $A_{V}$, a parameter that most strongly drives the slopes of the attenuation curves. We revisit this analysis in the context of IRX-$\beta$ in Section 5.

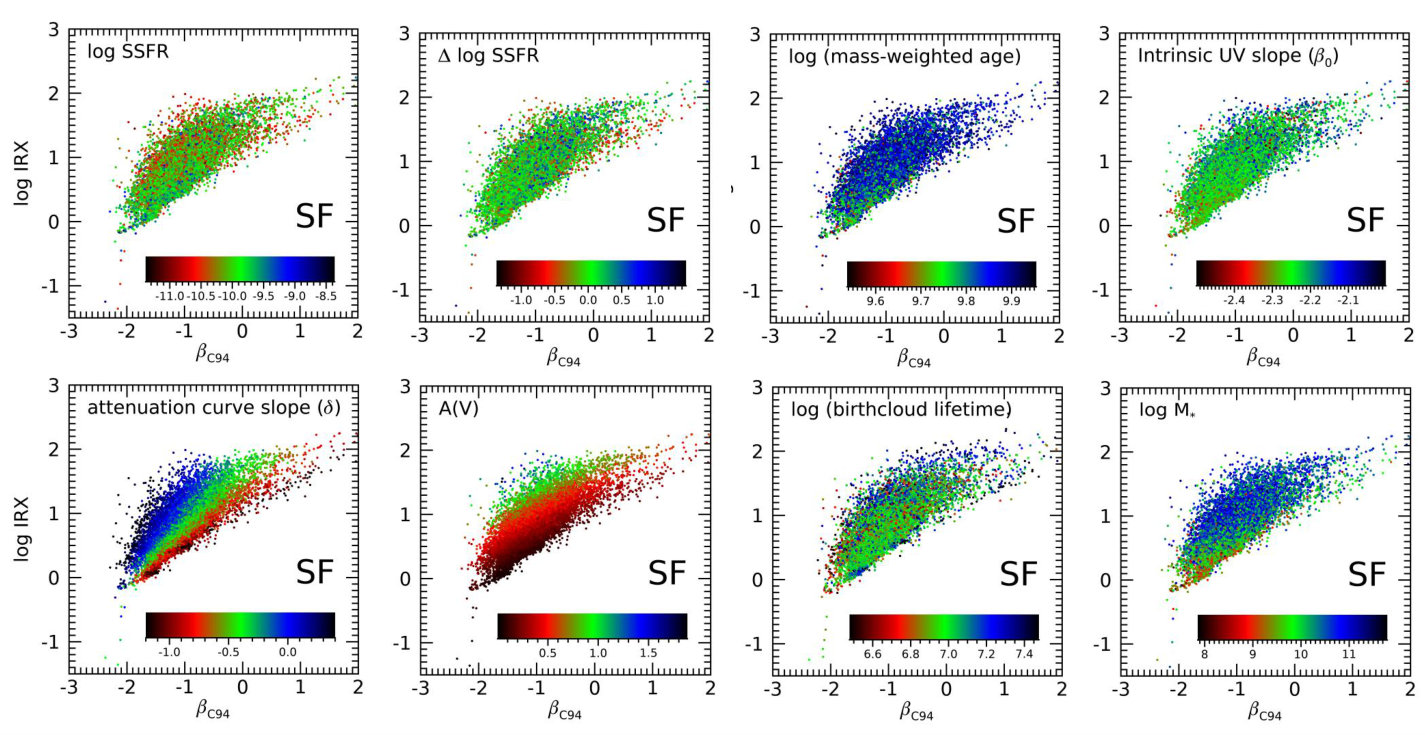

An alternative way of showing the relationship between IRX-$\beta$ and the various parameters is to color-code the datapoints according to the value of the parameter (Figure 5). The strongest trend is with respect to the slope of the attenuation curve, followed by the trend with respect to $A_{V}$. Other trends exist as well (most notably with respect to the stellar mass), but are small compared to the galaxy-to-galaxy scatter.

4.4. Passive galaxies

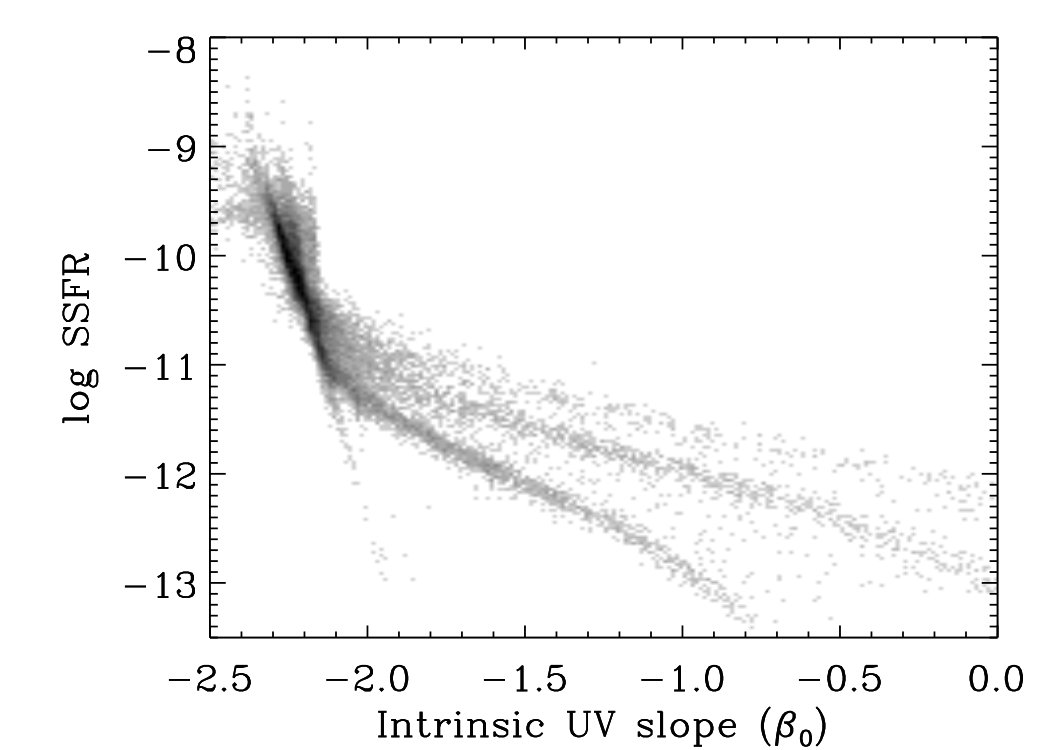

In Figure 4 we have shown that the range of intrinsic UV slopes ($\beta_{0}$) is quite small ($\sim 0.2$) and therefore cannot have a significant role in driving the scatter in the IRX-$\beta$ relation. This is because in our analysis so far we have focused on star-forming galaxies, the type of galaxies for which the IRX-$\beta$ is expected to be useful. Our full sample, however, does include passive galaxies ($-13<\log{\rm sSFR}<-11$), with the data needed to place them on the IRX-$\beta$ plot. We first show, in Figure 6, the relationship between the specific SFR and the intrinsic UV slope for the full sample (star forming and passive), which confirms that actively star-forming galaxies have a small range of $\beta_{0}$. The range becomes much wider (towards shallower values of $\beta_{0}$) for passive galaxies, extending all the way to $\beta_{0}\approx 0$. In addition to the sSFR, the intrinsic UV slope of passive galaxies depends very strongly on the stellar metallicity, with metal-poor galaxies having shallower intrinsic UV slopes (higher $\beta_{0}$).

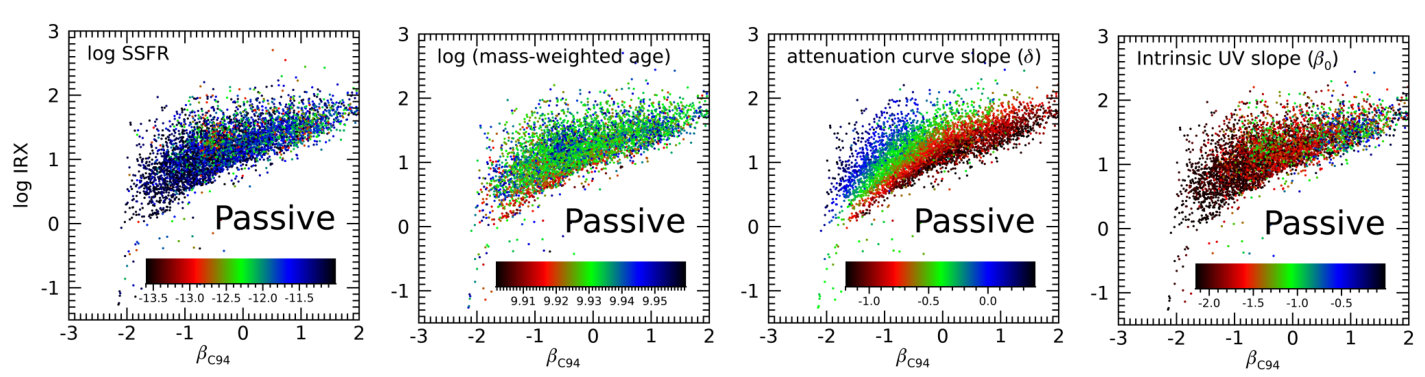

In Figure 7 we use color-coded values to look at the role of several select parameters in driving the IRX-$\beta$ scatter of 5180 passive galaxies. The galaxies are selected to have log sSFR$<-11$, regardless of their BPT diagram classification First, we notice that the overall distribution of the points is not too dissimilar to that of the actively star-forming galaxies. Next, it is again the slope of the attenuation curve that presents the strongest trend. Stratification according to $\beta_{0}$ is present only in the sense that the observed slope must be shallower than the intrinsic slope ($\beta_{\rm C94}>\beta_{0}$), but for any given intrinsic slope the distribution of points to the right of that value is quite broad.

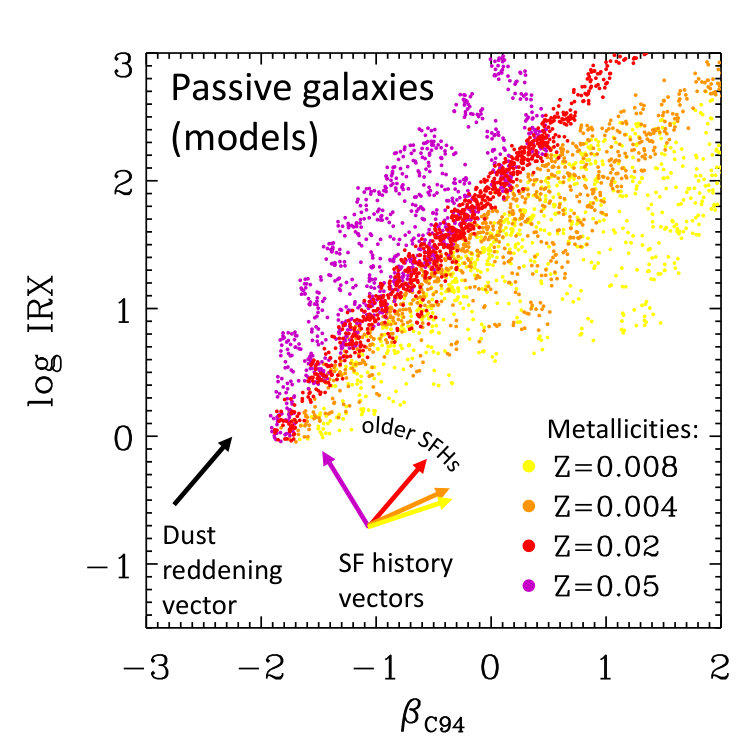

This empirical result that even passive galaxies strongly segregate in the IRX-$\beta$ plane by the slope of the attenuation curve is surprising, given that the wide range of intrinsic UV slopes should largely smear the correlation. To understand the root causes behind this result we turn to stellar population models. In Figure 8, we show model IRX-$\beta$ values for galaxies spanning a range of passive star-formation histories (log sSFR$<-11$) and having various attenuations, but assuming a fixed dust attenuation curve ($\delta=-0.4$, $B=1$). As expected, the points disperse widely, driven by a large range in $\beta_{0}$. The points do not just shift along $\beta$ for older galaxies, but also move up, because the IRX will include the increased contribution from the dust heating of older stars. Furthermore, the direction in which the points corresponding to shallower $\beta_{0}$ disperse is highly dependent on the stellar metallicity. For super-solar metallicity ($Z=0.05$) the older galaxies even get bluer in the UV, perhaps because of the metal line blanketing of turn-off stars in the NUV. The great majority of passive galaxies in our sample have near-solar metallicity ($Z=0.02$). For solar metallicity the direction of the spread due to stellar population being older (red arrow) matches almost exactly the dust attenuation vector. This effectively means that the wide range of $\beta_{0}$ will not lead to an additional scatter. This fortuitous alignment will preserve the tight correlation between the IRX-$\beta$ point distribution and the slope of the dust attenuation curve.

It should be pointed out that for passive galaxies the relationship between $A_{\rm FUV}$ and IRX becomes strongly dependent on the population age, because of the dust heating from old stars (Cortese et al., 2008), so the derivation of $A_{\rm FUV}$ becomes uncertain from IRX alone, and it is better to base the SFR corrections on the methods that do not involve IR emission or use full SED fitting.

5. New IRX-$\beta$ parameterization

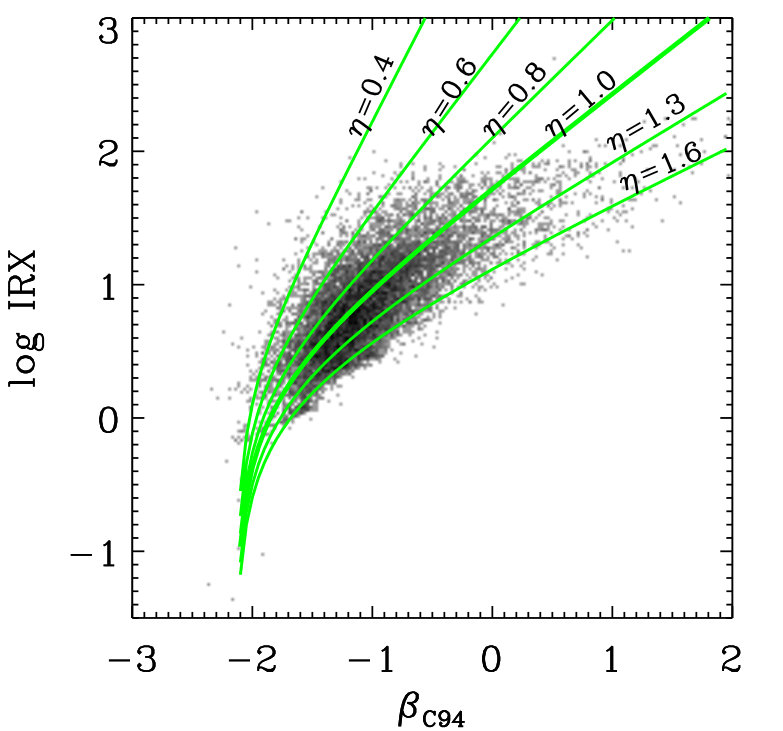

Informed by the results presented in the previous section, whereby the scatter in the IRX-$\beta$ plane essentially vanishes by fixing the dust attenuation curve, in this section we introduce new parameterization of IRX-$\beta$ values, to serve two purposes: allowing the slope of the attenuation curve to be measured directly from IRX and $\beta$ values, and allowing the investigation of more subtle trends in the IRX-$\beta$ scatter and, consequently, the dust attenuation curve.

Looking at the upper panels of Figure 3, we see that different attenuation curve slopes select objects having a different tilt with respect to the Overzier et al. (2011) relation. The change of the tilt of an IRX-$\beta$ relation, without the change of $\beta_{\rm min}$, can be accomplished by scaling its exponent. Specifically, we scale the exponent of Overzier et al. (2011) IRX-$\beta$ relation ($0.78\beta_{\rm GLX}+1.54=0.4A_{\rm FUV}$) by $1/\eta$. Figure 9 shows a family of curves produced by different $\eta$ parameters. Points above (steeper than) the Overzier et al. (2011) relation have $\eta<1$. Most data points lie within $0.4<\eta<1.6$ range. Thus, we can describe the entire IRX-$\beta$ distribution using one parameter that informs us how much each galaxy deviates from the fiducial IRX-$\beta$ relation.

The value of parameter $\eta$ of any IRX-$\beta$ data point will be:

[TABLE]

where $\beta_{\rm GLX}$ featured in Overzier et al. (2011) was converted to $\beta_{\rm C94}$ using Equation 1.

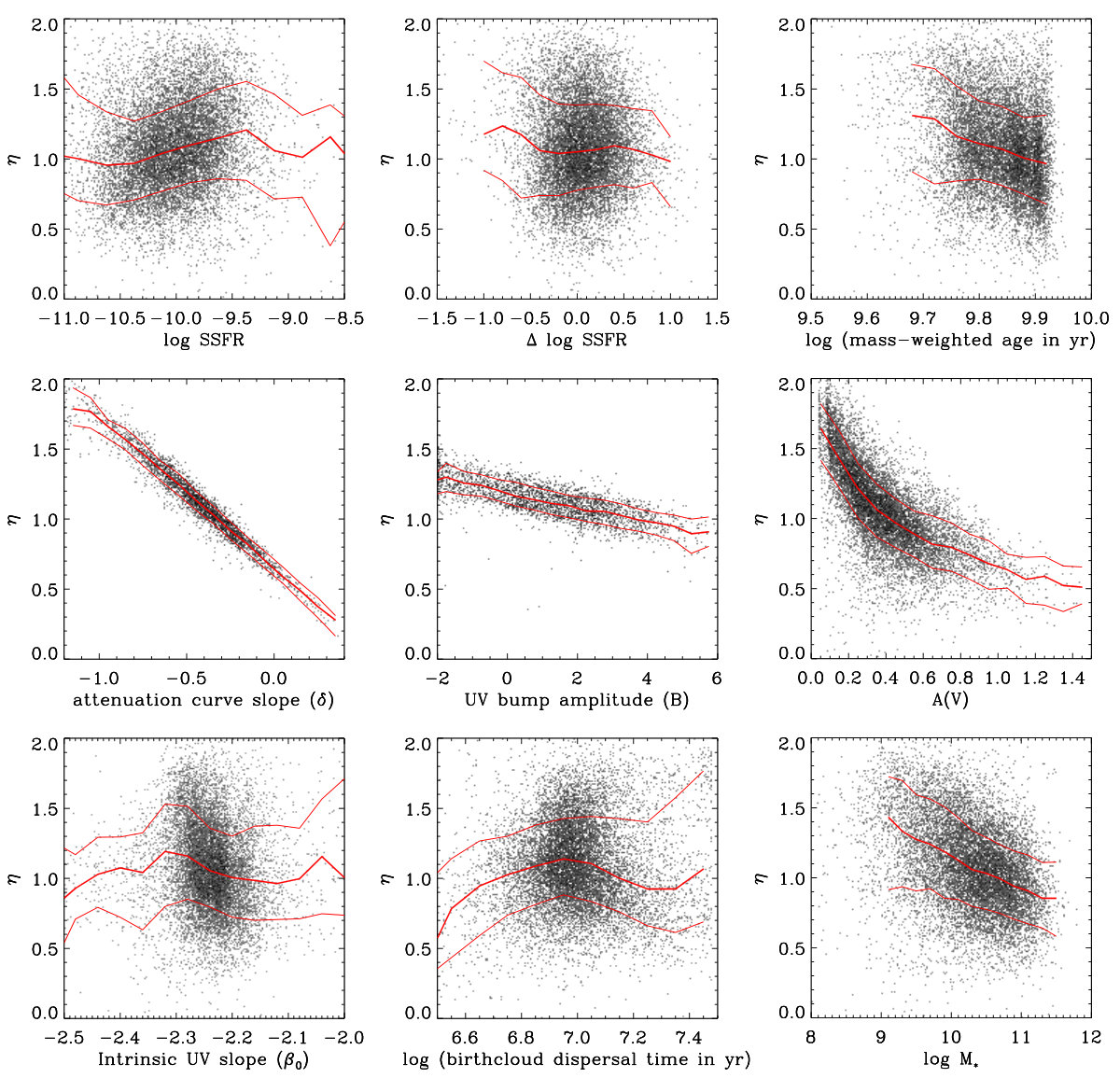

Figure 10 shows the dependence of $\eta$ on different galaxy parameters discussed in Section 4. As expected, and as desired, the strongest trend of the tilt $\eta$, with the least amount of scatter, is with respect to the dust attenuation curve $\delta$. The tight correlation means that the slope of the attenuation curve (expressed as its departure from the curve of the Calzetti slope) can be determined directly from IRX-$\beta$ using a simple linear relation:

[TABLE]

where the coefficients were determined based on a robust bisector fit, and without placing any restrictions on the UV bump amplitude. The scatter around the relation is 0.12, driven almost entirely by the effect of varying UV bump amplitude on $\beta_{\rm C94}$. The scatter is restricted to this value also because of the correlation between the slope and the UV bump amplitude (Kriek & Conroy, 2013; Salim et al., 2018). We underscore the fact that the slope $\delta$ corresponds to intrinsic curves in age-dependent application of the modified Calzetti curve. The slope of an effective attenuation curve will be $\delta_{\rm eff}=\delta-0.20$.

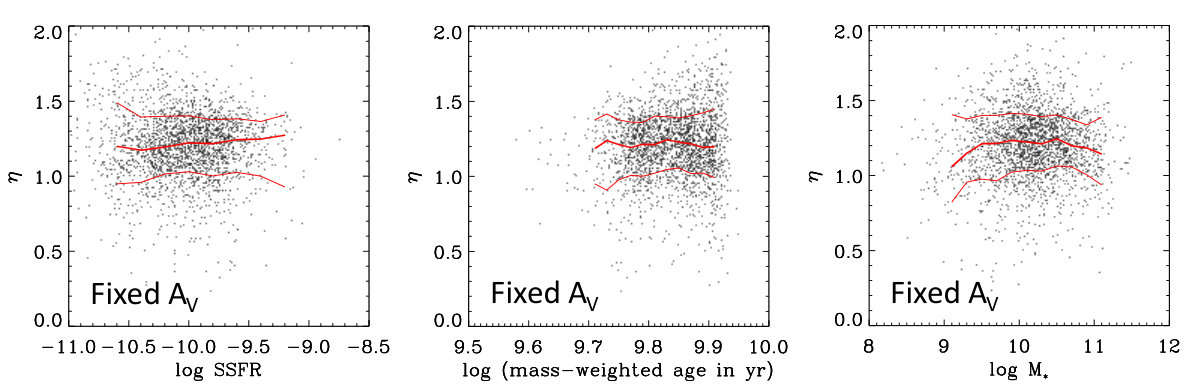

Figure 10 also allows us to investigate, in more detail than it was possible from Figures 2-5, any subtle effects that different parameters may have on the locus and the scatter of data points in the IRX-$beta$ plane. The advantage of the new parameterization compared to the parameterization using the perpendicular distance from a fiducial relation (Kong et al., 2004), is that the tilt directly informs us about the trends in the dust attenuation curve. The strong trend of $\eta$ vs. $A_{V}$ was already discussed in the context of the optical opacity being a strong driver of the dust attenuation curve, and will be discussed more in Section 7. There is a weaker trend of $\eta$ as a function of sSFR as well as the function of the average stellar population age and the stellar mass. However, neither of these trends are primary. They go entirely away once $A_{V}$ is fixed, as shown in Figure 11, where the optical opacity is restricted to values $0.2<A_{V}<0.3$. Thus, the trend of $\eta$ with respect to the stellar mass is entirely the result of the well-known underlying trend between $M_{*}$ and $A_{V}$. Simular explanation holds for a relatively weak trend of $\eta$ with inclination (plot not shown), which also disappears when $A_{V}$ is accounted for.

We conclude that different global galaxy properties may in some cases correspond to somewhat different attenuation curves (albeit with quite large scatter), but what drives the variety of attenuation curves is fundamentally due to the differences in optical opacity, which itself depends on the amount of dust and dust geometry. This conclusion is further born out by performing a linear regression of $\eta$ against other parameters and finding that only $A_{V}$ reduces the scatter substantially and independently from other parameters.

6. Dust correction recipe and the impact of scatter on SFR

determination

The relatively large scatter in the IRX-$\beta$ relation may appear to bring into question its utility for deriving dust-corrected SFRs. To determine the impact of the scatter, we compare the SFRs and sSFRs that would have been derived using several popular IRX-$\beta$-related recipes and the accurate SFRs from the SED+LIR fitting. We focus on star-forming galaxies and specifically look at the Overzier et al. (2011) relation that we have used throughout the paper and two $A_{\rm FUV}$-(FUV$-$NUV) relations: one from Salim et al. (2007) (Eq. 5) and another from Hao et al. (2011). We find that these (s)SFRs have a random scatter of between 0.14 and 0.18 dex with respect to the (s)SFRs from the SED+LIR fitting, with little or no zero point offset, and only a mild non-linearity (tilt). We conclude that the use of a fixed, but nevertheless appropriate IRX-$\beta$ or $A_{\rm FUV}$-(FUV$-$NUV) relation does not render the derived SFRs useless, just adds a random error of some 0.15 dex. This assessment is based on our sample, which is a mix of galaxies spanning a range of UV slopes $-2\lesssim\beta\lesssim 1$. Beyond $z=4$, typical galaxies that one detects in deep surveys have only blue UV slopes, $\beta\lesssim-1$ (Overzier et al., 2008; Bouwens et al., 2009), which is the combined effect of lower UV luminosities and the lower dust content for galaxies of fixed luminosity. The joint effect of this evolution is that the derivations of the SFR will be less affected by the dispersion in the IRX-$\beta$. Restricting the above exercise to $\beta<-1.5$, the added uncertainty due to scatter becomes 0.12 dex.

Our results show that truly accurate SFR correction is only possible if the dust attenuation curve is known. If it is not, i.e., when IR data are not available, the IRX-$\beta$ or $A_{\rm FUV}$-$\beta$ could potentially be expanded to include a dependence on some observable paramater(s) that can hopefully serve as a proxy for the attenuation curve. Of the various observable parameters that we considered, the one with the strongest correlation with the dust attenuation curve is the stellar mass (Figure 10), because of its correlation with $A_{V}$, which in turn drives the slope of the curve. Including the stellar mass in the dust correction recipe, such as suggested by Álvarez-Márquez et al. (2016), can make the correction somewhat more accurate. We perform a linear regression and find the following relation:

[TABLE]

The scatter about the relation is 0.39 mag, somewhat better than when the mass term is ignored (0.41 mag). The exact benefit will depend on the mass distribution of the sample. It should be pointed out that the $A_{\rm FUV}$-$M_{*}$ relation (i.e., IRX-$M_{*}$) alone is considerably inferior to the $A_{\rm FUV}$-$\beta$ relation, with 0.67 mag of scatter. Another possibility to refine the estimate of SFR dust correction is to try to use the nebular attenuation, e.g., the Balmer decrement (BD), even though it is a rather rough proxy for the stellar continuum attenuation (see Fig. 12 in Salim et al. 2018). Including the Balmer optical depth (based on SDSS spectroscopy) provides somewhat tighter correlation than including the stellar mass:

[TABLE]

where $\tau_{\rm Bal}$ is the Balmer optical depth ($\tau_{\rm Bal}=\ln({\rm BD}/2.86)$) and the scatter around the relation is 0.36 mag, a 20% reduction in variance with respect to a relation that depends on $\beta$ alone. As in the case of the stellar mass, the Balmer optical depth alone is only poorly correlated with $A_{\rm FUV}$, with the scatter of 0.59 mag. A relation that would include both the stellar mass and the Balmer optical depth (in addition to $\beta$) has almost no additional benefit because of the mutual correlations.

The above recipes should be largely redshift-independent out to $z\sim 3$, since there does not appear to be much evolution in the average IRX-$\beta$ relation out to that redshift (Álvarez-Márquez et al., 2016), assuming unbiased sample selection. If SFRs are being determined from the SED fitting, which is preferable to the above recipes because it takes into account all of the available information, the diversity of attenuation curves can be taken into account by applying in the SED fitting code the mass-dependent attenuation curves provided in Salim et al. (2018).

7. Discussion

7.1. Do normal galaxies follow a different IRX-$\beta$ relation

from starbursts?

Kong et al. (2004) originally suggested that starbursts and normal star-formers follow different IRX-$\beta$ relations, both based on the observations and on the IRX-$\beta$ modeling. Empirically, they have shown that normal SF galaxies tend to be to the right of starbursts (redder UV color at fixed IRX) and that the offset may correlate with the age-sensitive D4000 index. We do not find any such trend, which, in the context of our results, means that the two populations have on average similar attenuation curves, as has also shown directly in Salim et al. (2018). In Kong et al. (2004), UV observations of starbursts come entirely from IUE sample without aperture corrections, whereas their SF sample consists of IUE observations that have been aperture-corrected, or of observations from UV facilities with larger apertures. Discrepant UV measurements could systematically offset the IRX value because the IR luminosity in all cases comes from integrated IRAS measurements. However, the possibility that the age may lead to trends in IRX-$\beta$ has additionally been supported by Kong et al. (2004) modeling, showing that the offset from the starburst relation is correlated with the birthrate parameter (akin to sSFR, see Section 4.1). In light of the results from the current study, that it is the attenuation curve that ultimately matters, it could be that the trend with the birthrate parameter is the consequence of the assumed attenuation model in Kong et al. (2004), the two-component young/old populations model of Charlot & Fall (2000), where the attenuation slope is strongly dependent on the population age. Dependence on age is strong in Charlot & Fall (2000) type models because the underlying extinction curve is fixed. Once it is allowed to vary, as is likely the case in reality, the age becomes a minor factor (Popping et al., 2017). Indeed, like the current study, many other studies that tried to find the dependence on the birthrate parameter, or other age indicator, did not meet with success (e.g., Burgarella et al. 2005; Seibert et al. 2005; Panuzzo et al. 2007; Johnson et al. 2007).

Despite not finding the dependence on the birthrate parameter within their sample, Panuzzo et al. (2007) nevertheless show a large offset between their entire sample (with UV measurements from GALEX) and the Meurer et al. (1999) starburst relation derived from IUE-observed starbursts. Similar offset between normal star formers and the line describing starbursts, was presented in many other studies (Buat et al., 2005; Seibert et al., 2005; Gil de Paz et al., 2007; Takeuchi et al., 2010). At face value these results indicate that starbursts are somehow different, despite the lack of a trend involving the birthrate parameter (the value of which should be much higher in starbursts than in the normal galaxies). The resolution to this issue has been found by Overzier et al. (2011) and Takeuchi et al. (2012) (and confirmed later by Casey et al. 2014), who have remeasured the UV fluxes of the original IUE starburst sample but now using GALEX images, and have found that the total FUV (and NUV) flux is 2-3$\times$ greater than what has been measured in the small aperture of IUE. The flux loss makes IRX lower, shifting the starburst relation upwards. The possibility of a systematic aperture bias was already suggested by Cortese et al. (2006), Gil de Paz et al. (2007) and Boissier et al. (2007). The rederived starburst relations of Overzier et al. (2011) and Takeuchi et al. (2012) are shifted downward with respect to the IUE-based relations (IRX decreases because $L_{\rm FUV}$ increases) and essentially eliminate the offset between starbursting and normal star-forming galaxies (e.g., grey squares compared to cyan triangles in the left panel of Fig. 3 of Overzier et al. 2011). The IUE flux loss does not affect much the measurement of the UV slope or the UV color. According to Takeuchi et al. 2012, the change in $\beta$ measured in a small aperture versus a large aperture, is $\sim 0.1$. In summary, measuring starbursts and normal star-forming galaxies in a consistent way removes the offset, which we confirm here (Fig. 2, middle row). The use of the relations based on IUE measurements, primarily the Meurer et al. (1999) and Kong et al. (2004) relations with modern UV measurements should be avoided.

Is it nevertheless possible that just the central starbursts follow a different relation from the one based on integrated UV measurements? To answer this question one would have to measure the IR luminosity in the same small aperture as the UV flux, which IRAS could not do. This was made possible to some extent by Takeuchi et al. (2012), using the AKARI IR data. The results (their Figs. 10 and 11) demonstrate that there is not much difference in the IRX-$\beta$ locus of the central and the integrated measurements of starbursts, thus preserving the similarity of starbursts and normal galaxies in terms of their IRX-$\beta$, and, consequently, their attenuation curves.

7.2. Dust attenuation curve as the driver of the IRX-$\beta$

scatter that itself depends on other factors

The result that the scatter in the IRX-$\beta$ relation is driven entirely by the diversity of attenuation curves may seem at odds with numerous studies that have discussed, or have identified, other factors, or a combination of factors that may or may not include the attenuation curve. This difference is only apparent. Our analysis shows that those “other” factors may have their affect on the IRX-$\beta$ relation, but fundamentally through their effect on the attenuation curve. Therefore, the IRX-$\beta$ scatter is simply the manifestations of the differences in attenuation curves, facilitated by the fact that the intrinsic UV slopes ($\beta_{0}$) of star-forming galaxies span a small range, much smaller than the range of observed UV slopes (upper left panel of Fig. 4 and Fig. 6). The narrow range of intrinsic UV slopes is expected in relatively continuous SF histories (Leitherer et al., 1999; Calzetti, 2001) that characterize integrated galaxy light. Indeed, we find that the models predict that the range of $\beta_{0}$ remains narrow even if there is a strong, quickly decaying recent burst, as long as it lies on top of a non-negligible continuous SFR, which, in the local universe and for integrated light of galaxies is always present. We have redone the entire analysis with an expanded model grid that includes young, quickly decaying bursts and the results have remained unchanged: the scatter in the IRX-$\beta$ plane vanishes once the attenuation curve is fixed, because the range of $\beta_{0}$ stays narrow.

Our results may not hold to individual star-forming regions within galaxies (e.g., Gordon et al. 2004; Calzetti et al. 2005; Thilker et al. 2007; Muñoz-Mateos et al. 2009; Boquien et al. 2009, 2012) where the star-formation histories may be more similar to an instantaneous burst that plummets to zero SFR. How similar the SF history of a SF region may be to an instantaneous burst probably also depends on how small the measured region is. In cases where the SF ceases completely after a brief burst, the effects of aging will lead to a significant reddening of both the intrinsic UV slopes (Leitherer et al., 1999; Calzetti, 2001) and also of the UV-optical colors. Furthermore, the effects of dust-star geometry may be different for SF regions than when considering entire galaxies, complicating the interpretation.

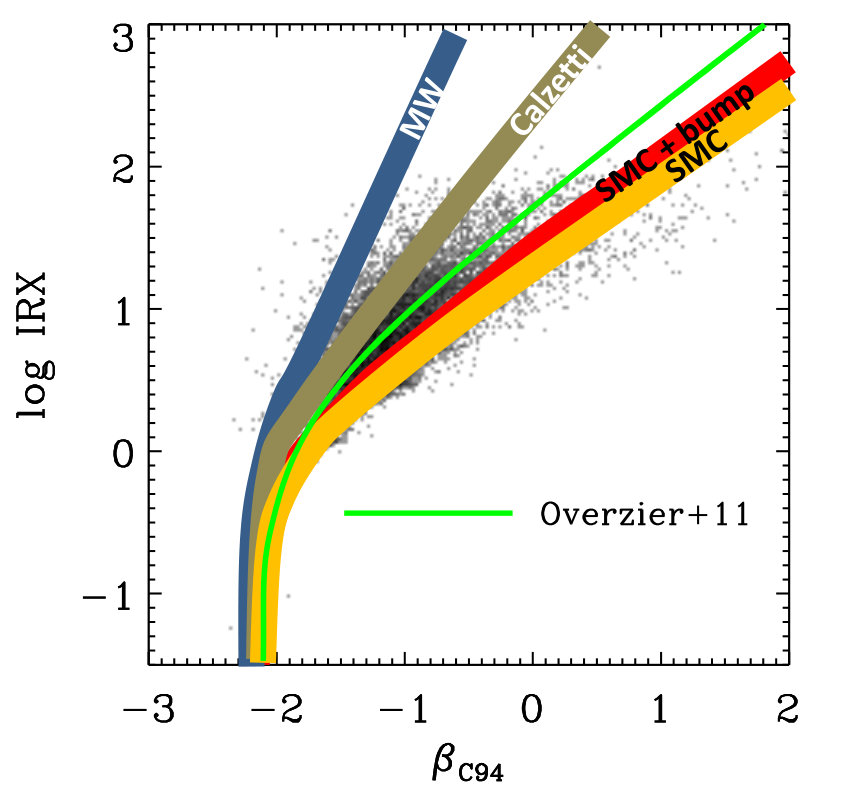

Returning to integrated light og galaxies, we illustrate the ultimate role of the attenuation curves by the following example. Several studies have pointed out the principal role of dust grain distribution (i.e., the dust type), in driving the IRX-$\beta$ scatter (e.g., Panuzzo et al. 2007; Popping et al. 2017; Safarzadeh et al. 2017). The attenuation curve is the end result of the intrinsic extinction curve, which depends on the dust properties (Weingartner & Draine, 2001), and of the relative distribution of dust and stars of one or multiple populations (the geometry). We do not know much about the extinction curves (dust types) of galaxies other than the ones where we can probe the line of sight to individual reddened stars (i.e., the MW, LMC and SMC), and even in these galaxies there is much variation along different lines of sight. Furthermore, even the fixed extinction curve will result in very different attenuation curves depending on the dust-star geometry (e.g., Panuzzo et al. 2007; Popping et al. 2017; Narayanan et al. 2018). However, the point we wish to make is that how the resulting attenuation curve arose (different dust type or geometry) does not change the fact that there is a very close connection between the resulting attenuation curve and the IRX-$\beta$ locus. Conceptually speaking, the role of the geometry and the dust types are the questions that pertain directly to the attenuation curve, and only by extension to IRX-$\beta$. The question of the diversity of attenuation curves is more fundamental that its manifestation in IRX-$\beta$, both because the former is more general, as it pertains to a broader wavelength range, and also because in the UV region the effect of changing the attenuation curve slope and changing the UV bump strength will be somewhat degenerate (see also Mao et al. 2014). Thus it is preferable to investigate the questions relating to the diversity of attenuation curves directly, rather than via IRX-$\beta$, which should primarily be used as a tool to estimate FUV dust correction.

What can we say about the drivers of the variation in attenuation curves that manifests as IRX-$\beta$ scatter? Of the parameters that we studied here, it is the optical opacity ($A_{V}$) that matters the the most. Other, weaker, trends (with age, sSFR or stellar mass) vanish once $A_{V}$ is fixed, demonstrating that these trends not primary but operate via their correlation with $A_{V}$. That the optical opacity is strongly related to dust attenuation slope has been shown using GSWLC-M2 dataset in Salim et al. (2018), and was also obtained as a result in radiative transfer models (Witt & Gordon, 2000; Pierini et al., 2004; Chevallard et al., 2013; Seon & Draine, 2016; Narayanan et al., 2018). It appears to be the consequence of the changing contributions of scattering (which is strongly wavelength dependent) and absorption (which is not), the former being dominant in low-opacity galaxies. The relationship between the dust attenuation curve and $A_{V}$ does have an intrinsic scatter, since, at the minimum there must be galaxy to galaxy differences in dust type. It appears that for a given dust mass the geometry, including the turbulence (Seon & Draine, 2016) or the covering fraction of dust, just change $A_{V}$ (Popping et al., 2017), so they again may not represent independent factors that determine the shape of the attenuation curve. Similarly, galaxy inclination may increase the observed $A_{V}$ from its intrinsic (face-on) value, but the resulting relationship between observed $A_{V}$ and the attenuation curve will be the same as for the face-on galaxy with that higher value being its intrinsic $A_{V}$ (Chevallard et al., 2013; Salim et al., 2018). In other words, galaxies with different ages, of varying amount of turbulence, inclination, etc. affect attenuation curve and IRX-$\beta$ scatter through $A_{V}$ and not independently from it.

7.3. IRX-$\beta$ relation at higher redshifts

Most low-redshift studies that explore the role of the attenuation curve in driving the IRX-$\beta$ scatter, consider it as one of the posible factor whose significance with respect to other factors needs to be established (e.g., Burgarella et al. 2005; Boquien et al. 2012; Mao et al. 2014). We started by following such approach in this study, but after establishing that the IRX-$\beta$ scatter is simply the manifestation of the diversity of attenuation curves, we switched to considering what other factors affect both the IRX-$\beta$ and the attenuation curve. Interestingly, in many high-redshift studies the close connection between the attenuation law and the IRX-$\beta$ is taken for granted, and the IRX-$\beta$ is then naturally considered as a tool to learn about the dust attenuation curve (Siana et al. 2009 as an early example of such an approach). For example, Salmon et al. (2016) present relatively narrow loci of model points in the IRX-$\beta$ plane corresponding to different attenuation and extinction curves. Different tracks clearly cover a wide range in the IRX-$\beta$ plane, in itself suggesting the dominant role of attenuation curves in driving the scatter. Indeed, the authors consider these tracks to be the “observational basis” for constraining the attenuation curves. Similar attitude is present in other high-redshift studies (e.g., Lo Faro et al. 2017; Reddy et al. 2018; McLure et al. 2018). Cullen et al. (2017) explicitly state that for a constant $\beta_{0}$ there exists a simple mapping between the effective attenuation curve and the $A_{\rm FUV}$-$\beta$ relation.

When high-redshift studies have concerns regarding the close connection between the IRX-$\beta$ plot and the attenuation curve, it is primarily because of the possible uncertainty regarding the values of the intrinsic UV slopes of young galaxies (Buat et al., 2012), since the form of the correspondence between the IRX-$\beta$ point distribution and attenuation curves relies on knowing the intrinsic UV slope. Reddy et al. (2018) argue that the typical intrinsic UV slope at $z\sim 2$ is $\beta_{0}=-2.62$, in line with the predictions of BPASS models (Stanway et al., 2016), in contrast to what is assumed (and measured) at low redshift, where $\beta_{0}$ does not go below $-2.3$ even for extreme metal-poor and essentially dust-free starbursts such as I Zw 18 (Gil de Paz et al., 2007), and is typically much higher (Fig. 4, upper left). Our nominal models based on Bruzual & Charlot (2003) allow $\beta_{0,{\rm min}}=-2.56$ for low metallicity objects with recent bursts, but very few objects, including local starbursts, approach such low value locally. Our preliminary analysis of the CANDELS sample at $z\sim 2$ yields median $\beta_{0}=-2.36$, just 0.12 bluer than locally. Simulated galaxies at $z\sim 5$ have a similar average $\beta_{0}=-2.4$, with the small scatter of 0.05 (Cullen et al., 2017).

In light of the view of a close connection between the IRX-$\beta$ point distribution and the attenuation curve, we present the IRX-$\beta$ diagram on which we superimpose the loci corresponding to several extinction/attenuation curves (Figure 12). Specifically, we show the track corresponding to the MW extinction curve (Cardelli et al. 1989 with O’Donnell 1994 update), the Calzetti et al. (2000) curve, and the SMC (Prevot et al., 1984) curve. Even though the MW and the Calzetti curves have similar overall slopes (in $A_{\lambda}/A_{V}$ formulation), the presence of a strong bump in the MW curve results in a different locus in the IRX-$\beta$ with respect to the Calzetti curve. We have determined the location of the tracks by forcing the above curves in our SED fitting with CIGALE and appropriate modifications to the dust module. We implemented the attenuation curves in two ways, treating each curve as an effective attenuation curve, and as intrinsic attenuation curves in in age-dependent implementation (the adopted method in this paper). The two application results in slight shifts, (especially for the MW curve) which are encompassed by the width of the colored lines in Figure 12. Note that some papers differ in the placement of these curves. In particular, the SMC track is sometimes shown to lie below our SMC track. The observed IRX-$\beta$ values in the local universe span the range of these fiducial curves, in broad agreement with the analysis of attenuation curves in Salim et al. (2018). It is worth noting that the inferences from interpreting IRX-$\beta$ in terms of canonical extinction curves are limited, since we do not expect attenuation curves to look like Milky Way’s or SMC’s extinction curve, except by chance. Indeed, the results from Salim et al. (2018) suggests that attenuation curves that look like MW (shallow strong bump) or SMC (steep, no bump) curves are not typical. In Salim et al. (2018) we have shown that a typical curve of a low-redshift galaxy has a slope almost as steep as the SMC slope, but also featuring a modest bump. Indeed, if we were to add a bump to the SMC curve (with strength $B=2.5$), SMC’s locus would shift towards the Overzier et al. (2011) relation and closer to the middle of the observed points. This shift due to the bump, albeit small, emphasizes the point that direct determination of an attenuation curve from multiband photometry that straddles the bump will be more powerful than deriving the attenuation curve from the IRX-$\beta$. The latter is subject to the degeneracy introduced by the presence of the UV bump, which affects even the $\beta_{\rm C94}$ slope designed to minimize the influence of the bump region.

The tracks shown in Figure 12) are calculated for our local sample. Any evolution towards bluer intrinsic UV slopes at higher redshifts will be reflected in the shift of these curves to the left, by $\Delta\beta_{0}$, which is currently uncertain, but is probably no more than a few tenths. In such case, the form of the correspondence between the IRX-$\beta$ and the attenuation curves will mostly be similar.

8. Summary

We summarize our findings as follows:

The general population of low-redshift galaxies exhibits a relatively large scatter in the IRX-$\beta$ plane. 2. 2.

The scatter in the IRX-$\beta$ diagram of star-forming galaxies is driven entirely by the diversity of dust attenuation curves (primarily their slopes, and to lesser degree the varying strength of their UV bumps). 3. 3.

Consequently, the question of the IRX-$\beta$ scatter of star-fromning galaxies becomes derivative of the question of the variations in the shapes of dust attenuation curves. The latter appears to primarily depend on the optical opacity ($A_{V}$, Seon & Draine 2016; Salim et al. 2018), and presumably the intrinsic variations in dust type, i.e., grain size distribution (Weingartner & Draine, 2001). 4. 4.

The fundamental reason why the dust attenuation curve is the driver of the scatter in the IRX-$\beta$ diagram is because star-forming galaxies (log sSFR$>-10.5$) have a relatively small range of intrinsic (dust-free) UV slopes (90% are within 0.1 of $\beta=-2.24$). 5. 5.

The position of a star-forming galaxy on the IRX-$\beta$ diagram is the result only of the shape of the dust attenuation curve and dust opacity, all other factors being indirect, i.e., affecting these two. 6. 6.

Galaxies of different population ages or different sSFR (whether absolute, or relative to the main sequence), have, on average, very similar dust attenuation curves and, consequently, similar IRX-$\beta$ distributions. 7. 7.

Similarly, the starbursting galaxies and normal star-forming galaxies exhibit no significant shift in average IRX-$\beta$ relations, and are both well described by Overzier et al. (2011) relation. Previously reported shift can be explained by the known, factor of 2–3, aperture loss of the FUV flux that affects the commonly-used local starburst relations derived from $\it IUE$ data. 8. 8.

Passive galaxies (log sSFR$<-11$) have much redder intrinsic UV slopes ($-2<\beta_{0}<0$) than star-forming galaxies, which are furthermore strongly dependent on the stellar metallicity. Nevertheless, the IRX-$\beta$ scatter for passive galaxies of fixed dust attenuation curve slope is not much increased with respect to the star-forming galaxies due to a fortuitous fact that for solar-like metallicities the SF history vector and the attenuation vector are parallel. Therefore, the dust attenuation curve effectively remains the principal driver of the IRX-$\beta$ scatter for passive galaxies as well. 9. 9.

As a consequence of the above points, the IRX-$\beta$ diagram can be used as a direct tool to determine the slope of the attenuation curve for star-forming galaxies in the UV region (e.g., using Eq. 7). However, the UV slope $\beta$ suffers from some degeneracy between the attenuation curve slope and UV bump strength, so it is preferable and more comprehensive to base attenuation curve determinations on the full SED fitting, especially the one that includes IR SED or IR luminosity as a constraint. 10. 10.

The placement of attenuation curve tracks on the IRX-$\beta$ diagram will shift to the left for galaxies at high redshift ($1<z<5$), to account for their bluer intrinsic UV slopes, by the value that is currently uncertain, but may be as low as $\Delta\beta=-0.1$ (a negligible change) or as high as $-0.4$ (a moderate change). 11. 11.

Ignoring the scatter in the IRX-$\beta$ relation by using a single, fixed relation to correct UV SFRs introduces a random error of 0.15 dex to be added in quadrature to other sources of SFR errors. 12. 12.

We provide relations that allow the IRX-$\beta$ relation to be moderately improved (20% reduction in variance) by including the dependence on the stellar mass (Álvarez-Márquez et al., 2016), or on the Balmer decrement. The IRX-$M_{*}$ relation alone is considerably inferior to the IRX-$\beta$ relation (0.7 mag of scatter in $A_{\rm FUV}$ vs. 0.4 mag).

While many studies have explored the role of attenuation curve on the IRX-$\beta$ relation, our principal contribution is in showing that the two aspects, when considering entire galaxies, are fundamentally connected owing to a very small range of intrinsic UV slopes in star-forming galaxies. This result should help the field more efficiently focus on the more fundamental question, what shapes the dust attenuation curve, for which significant advances, both observational and theoretical, are being made. To that end, the new IRX-$\beta$ parameterization that we introduce in this paper, which can be used to directly estimate the slope of the attenuation curve, can also be useful.

We are grateful to Véronique Buat and the reviewer for many helpful and thought-provoking comments. The construction of GSWLC was funded through NASA ADAP award NNX12AE06G. MB acknowledges support from FONDECYT regular grant 1170618. Funding for SDSS-III has been provided by the Alfred P. Sloan Foundation, the Participating Institutions, the National Science Foundation, and the U.S. Department of Energy Office of Science. The SDSS-III web site is http://www.sdss3.org/. Based on observations made with the NASA Galaxy Evolution Explorer. GALEX is operated for NASA by the California Institute of Technology under NASA contract NAS5-98034. This publication makes use of data products from the Wide-field Infrared Survey Explorer, which is a joint project of the University of California, Los Angeles, and the Jet Propulsion Laboratory/California Institute of Technology, funded by the National Aeronautics and Space Administration.
