A new investigation of half-lives for the decay modes of $^{50}$V

TL;DR

This study measures the half-life of a rare decay mode of $^{50}$V with high precision and sets new lower limits, advancing understanding of its decay properties and testing theoretical models.

Contribution

It provides the most precise measurement of the electron capture half-life and establishes a new lower limit for the $eta$-decay, improving previous constraints.

Findings

Half-life for electron capture measured as 2.67 x 10^{17} yr.

Lower limit for $eta$-decay set at 1.9 x 10^{19} yr.

Measurement sensitivity aligns with theoretical predictions.

Abstract

A new search for the decay modes of the 4-fold forbidden non-unique decay of $^{50}$V has been performed at the Gran Sasso Underground Laboratory (LNGS). In total an exposure of 197 kg $\times$ d has been accumulated. The half-life for the electron capture into the first excited state of $^{50}$Ti has been measured with the highest precision to date as $2.67_{-0.18}^{+0.16} \times 10^{17}$ yr (68% C.I.) in which systematics uncertainties dominate. The search for the $\beta$-decay into the first excited state of $^{50}$Cr resulted in a lower limit of ${1.9} \times 10^{19}$ yr (90% C.I.), which is an improvement of almost one order of magnitude compared to existing results. The sensitivity of the new measurement is now in the region of theoretical predictions.

Figures

Tables

Table 1. Table 1: Measurements of 50 V decays in the last 45 years.

Mass	Time	$T_{1/2}^{EC}$	$T_{1/2}^{{\beta }^{-}}$	Ref., year
[g]	[d]	[${10}^{17}$ yr]	[${10}^{17}$ yr]
4000	48.88	$>8.8$	$>7.0$	pap77 , 1977
4250	135.5	${1.5}_{-0.7}^{+0.3}$	$>4.3$	alb84 , 1984
100.6	8.054	${1.2}_{-0.4}^{+0.8}$	$>1.2$	sim85 , 1985
337.5	46.21	$2.05\pm 0.49$	${8.2}_{-3.1}^{+13.1}$	sim89 , 1989
255.8	97.8	$2.29\pm 0.25$	$>15$	dom11 , 2011

Table 2. Table 2: Concentration of impurities in the vanadium sample before and after purification with electron beam melting (EBM). Values are given in units of 10 -6  g/g with estimated uncertainty on the level of 30 %.

Element	Before	After
	EBM	EBM
Cr	850	7
K	130	1.7
Al	120	11
Cu	100	18
Fe	70	10
P	70	0.5
Cl	42	4
Si	17	17
Ca	13	5
Ni	8	5
Mg	4	0.7
Ti	3.5	1
Na	3	0.4
Zn	1.6	1
Mn	1.5	0.11

Table 3. Table 3: Concentration of Th 232 superscript Th 232 {}^{232}\rm Th and U 238 superscript U 238 {}^{238}\rm U in the vanadium sample before purification obtained by HR-ICP-MS measurements with and without chromatographic extraction (EXC) of the analyses. The concentrations are given in units of 10 -9  g/g. The estimated relative uncertainties are 30%.

Isotope	Without EXC	With EXC
${}_{}{}^{232}\mathrm{Th}$	0.5	0.025
${}_{}{}^{238}U$	0.5	0.35

Table 4. Table 4: The isotopic composition of the vanadium sample in comparison with literature values ber11 .

Isotope	Abundance in %	Abundance in %
	from ber11	from our samples
50V	0.250 $\pm$ 0.004	0.239 $\pm$ 0.012
51V	99.750 $\pm$ 0.004	99.761 $\pm$ 0.050

Table 5. Table 5: The activity of radionuclides in the vanadium samples before and after purification, obtained by ULB-HPGe measurements. The measurement times are 35.3 d and 240.6 d, respectively. Upper limits are given with 90% C.L., and the expanded standard uncertainties with k=1.

Parent nuclide	A [mBq/kg]	A [mBq/kg]
	before	after
${}_{}{}^{228}\mathrm{Ra}$ (${}_{}{}^{232}\mathrm{Th}$)	$41.3\pm 1.8$	$0.6\pm 0.1$
${}_{}{}^{228}\mathrm{Th}$ (${}_{}{}^{232}\mathrm{Th}$)	$19.8\pm 0.8$	$0.4\pm 0.1$
${}_{}{}^{226}\mathrm{Ra}$ (${}_{}{}^{238}U$)	$14.5\pm 0.6$	$0.45\pm 0.05$
${}_{}{}^{234}\mathrm{Th}$ (${}_{}{}^{238}U$)		$6\pm 2$
${}_{}{}^{234m}\mathrm{Pa}$ (${}_{}{}^{238}U$)		$10\pm 3$
${}_{}{}^{235}U$	$4.2\pm 0.7$	$0.8\pm 0.1$
${}_{}{}^{40}K$	$3460\pm 170$	$7\pm 1$
${}_{}{}^{60}\mathrm{Co}$	$0.8\pm 0.3$
${}_{}{}^{137}\mathrm{Cs}$		$0.06\pm 0.02$

Table 6. Table 6: Background γ 𝛾 \gamma -lines in the β − superscript 𝛽 \beta^{-} -decay mode fit window with prior constrained based on more prominent background γ 𝛾 \gamma -lines in their respective decay sub-chain. Note that the secular equilibrium of the U 238 superscript U 238 {}^{238}\rm U decay chain is broken.

Nuclide	$E$ [keV]	$p_{\mathrm{emit}}$ [%]	prior counts	constraining $\gamma$-line
${}_{}{}^{238}U$ chain
${}_{}{}^{234m}\mathrm{Pa}$	785.96	0.0544	$2.9\pm 0.7$	${}_{}{}^{234m}\mathrm{Pa}$
${}_{}{}^{234m}\mathrm{Pa}$	785.4	0.317	$15.9\pm 4.0$	${}_{}{}^{234m}\mathrm{Pa}$
${}_{}{}^{214}\mathrm{Bi}$	768.36	4.89	$4.3\pm 1.0$	${}_{}{}^{214}\mathrm{Bi}$
${}_{}{}^{214}\mathrm{Pb}$	785.96	1.06	$1.1\pm 0.3$	${}_{}{}^{214}\mathrm{Bi}$
${}_{}{}^{232}\mathrm{Th}$ chain
${}_{}{}^{228}\mathrm{Ac}$	794.95	4.25	$7.5\pm 1.5$	${}_{}{}^{208}\mathrm{Tl}$ + ${}_{}{}^{228}\mathrm{Ac}$
${}_{}{}^{228}\mathrm{Ac}$	772.29	1.49	$2.5\pm 0.5$	${}_{}{}^{208}\mathrm{Tl}$ + ${}_{}{}^{228}\mathrm{Ac}$
${}_{}{}^{212}\mathrm{Bi}$	785.96	1.102	$1.9\pm 0.4$	${}_{}{}^{208}\mathrm{Tl}$ + ${}_{}{}^{228}\mathrm{Ac}$

Table 7. Table 7: Uncertainty budget for the EC half-life measurement.

Uncertainty	fraction in $T_{1/2}$
Isotopic abundance ${}_{}{}^{50}V$	1.6%
Vanadium concentration	0.1%
Sample mass	0.01%
Detection efficiency	5.0%
Subtotal	5.3%
Statistics and energy scale	3.5%
Fit total	6.3%

Equations

$$s=\ln 2\cdot \frac{1}{T_{1/2}}\cdot ϵ\cdot N_A\cdot T\cdot m\cdot f\cdot \frac{1}{M},$$

$$\mathcal{L}(\mathbf{p}|\mathbf{n})=\prod _i\frac{{\lambda }_i(\mathbf{p}{)}^{n_i}}{n_i!}{e}^{-{\lambda }_i(\mathbf{p})},$$

$${\lambda }_i(\mathbf{p})$$

$$\mathcal{P}(E|\mathbf{p})$$

$$T_{1/2}(\beta^{-})>\rm\mbox{$1.9\,\rm{x}\,10^{19}$}~{}yr\ (90\%\ C.I.)\ .$$

$$T_{1/2}(\rm EC)=\mbox{$2.67_{-0.18}^{+0.16}\,\rm{x}\,10^{17}$}~{}yr\ (68\%\ C.I.)\ .$$

Full text

PACS: 13.15,13.20Eb,14.60.Pq,14.60.St

I Introduction

The search for extremely rare events like dark matter, nucleon decays or neutrino-less double beta decay is a wide spread activity in particle astrophysics and for the search of physics beyond the Standard Model of particle physics. These experiments are typically located underground to reduce backgrounds from cosmic rays with further reduction of background by using materials with low radioactive contaminations. As an example in this way the neutrino-accompanied double beta decay ($2\nu\beta\beta$-decay) has been observed for almost a dozen isotopes whose half-life are in the region of 1018-24 yr.

Having achieved such a sensitivity, it is an obvious step also to study other very long-living nuclides, which are typically highly forbidden beta-decays and electron captures (EC). It turns out that in extremely highly forbidden decays like 48Ca and 96Zr single $\beta$-decay and 2$\nu\beta\beta$ - decay compete with each other. For 96Zr the $\beta$-decay half-life is calculated at $2.4\times 10^{20}$ yr hei07 . The 2$\nu\beta\beta$ half-life has been measured by NEMO-3 to be $T_{1/2}=2.35\pm 0.14\rm(syst.)\pm 0.16(stat.)\times 10^{19}$ yr arg10 . Single $\beta$-decay has been searched for and a lower limit of $T_{1/2}>2.4\times 10^{19}$ yr has been given fin16 . A similar case can be made for 48Ca: The 2$\nu\beta\beta$ decay has been measured as $T_{1/2}=6.4^{+0.7}_{-0.6}\rm(stat.)^{+1.2}_{-0.9}(syst.)\times 10^{19}$ yr by NEMO-3 arn16 . A half-life limit of the $\beta$-decay to the corresponding $5^{+}$ excited state of ${}^{48}\mathrm{Ti}$ results in a lower limit of $T_{1/2}>2.5\times 10^{20}$ yr bak02 . These results slightly indicate that indeed 2$\nu\beta\beta$ - decay is more likely than $\beta$-decay.

The next group of nuclides, with one unit of spin change less, are 4-fold forbidden non-unique decays ($\Delta I^{\Delta\pi}=4^{+}$) and contain isotopes like 113Cd, 115In and ${}^{50}\rm V$, the latter being explored in this paper.

The isotope 50V is quite unique in the sense that in contrast to 113Cd and 115In the ground state transition is even higher-forbidden, leaving only 4-fold forbidden non-unique decay modes into the first excited state of 50Cr and 50Ti, both characterized as 6${}^{+}\rightarrow 2^{+}$ transitions. The ground state transitions to both isotopes are even 6-fold forbidden non-unique decays. The decay scheme is shown in Fig. 1.

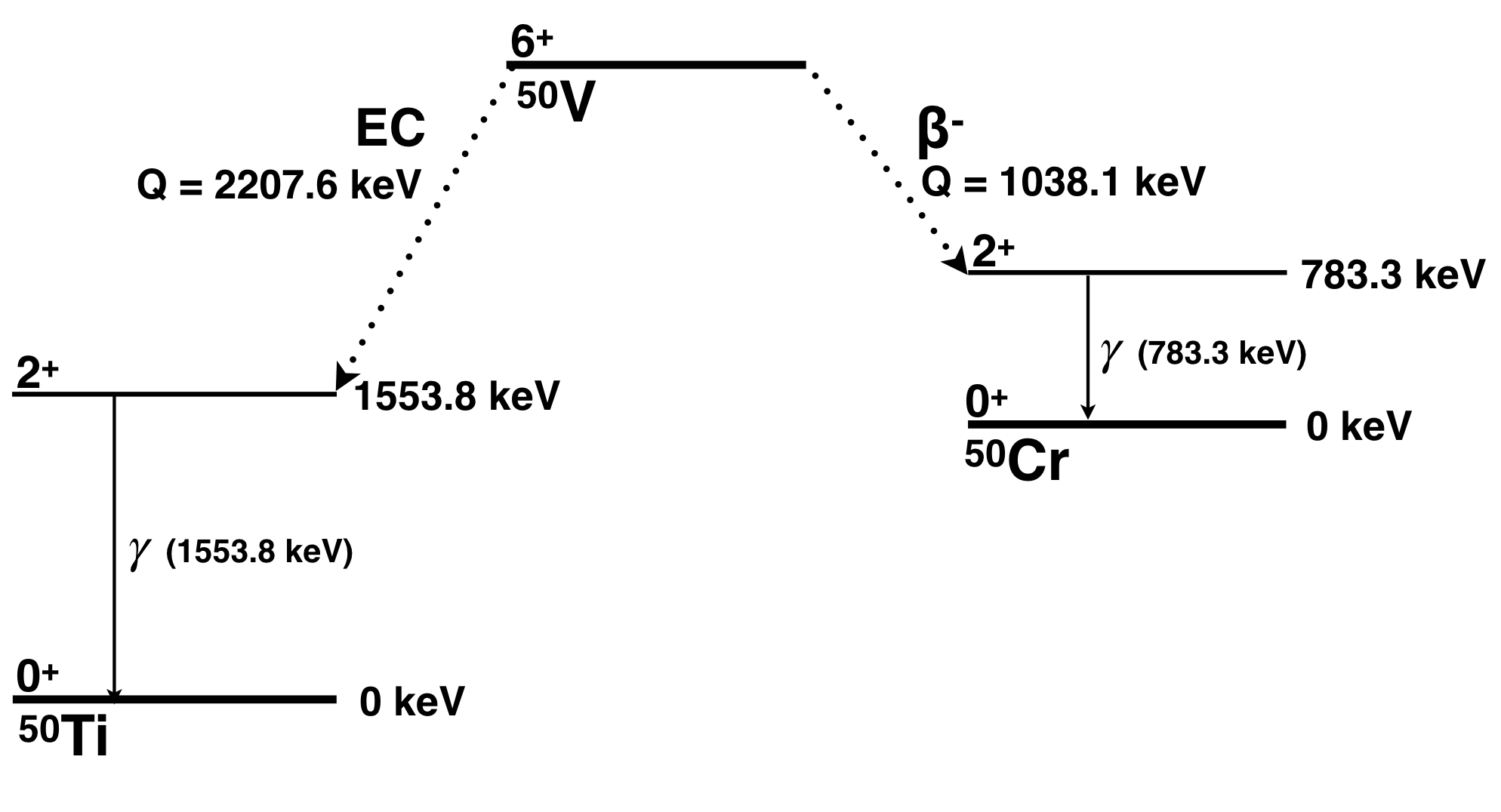

The Q-value for the $\beta$-decay into 50Cr is (1038.06 $\pm$ 0.30) keV and for electron capture (EC) into 50Ti it is (2207.6 $\pm$ 0.4) keV, respectively hua17 . There is only one excited state in each daughter nucleus which can be populated. The corresponding $\gamma$-lines to search for are 1553.77 keV for EC into the first excited state of 50Ti and 783.29 keV for the $\beta$-decay into the first excited state of 50Cr , respectively. The photon emission probability of both E2 transitions is 1 (with a negligible uncertainty).

The history of attempts to observe the decay of 50V is quite special and lasting for more than 60 years where several potential detections were proven wrong by newer, more sensitive experiments. This pattern repeated several times hei55 ; glo57 ; bau58 ; mcn61 ; wat62 ; son66 ; pap77 ; alb84 ; sim85 ; sim89 . Furthermore, the deduced half-life is different in different articles, while uncertainties claimed were typically well beyond 20%. The measurements within the last 45 years are compiled in Tab. 1. A first clear observation of the EC-branch decay to 50Ti has been reported by dom11 . In the meantime a first theoretical nuclear shell model calculation has been performed for the $\beta^{-}$-decay mode which predicts a half-life value of about $2\times 10^{19}$ yr haa14 .

The aim of this paper is to perform a high statistics measurement of the EC-branch decay to 50Ti and improve and explore the $\beta$-decay branch of the 50V decay taking advantage of the most sophisticated low background detector system based on HPGe-detectors in one of the deepest underground laboratories available.

II Experimental Setup

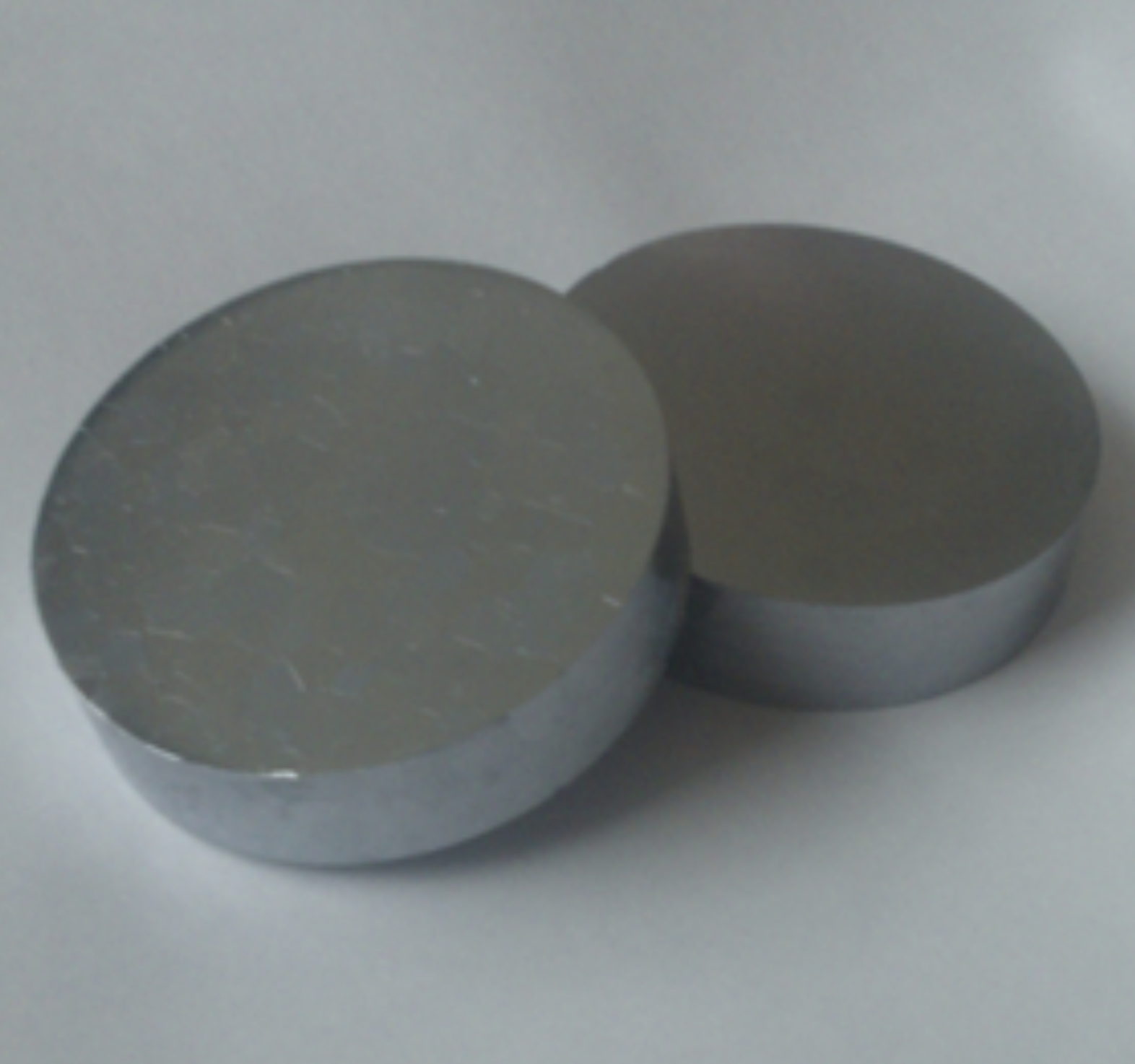

The vanadium sample was produced from vanadium flakes by multifold electron beam melting (EBM) under high vacuum as described in detail in azh01 . Vanadium with an initial purity grade of 97 wt% was used as starting material. The small flakes of vanadium metal were compressed into tablets with a dimension of 30$\times$10 mm (d$\times$h) and about 35 g of mass each. The EBM purification process produced ingots with a diameter of about 45 mm, which were later cut into discs of about $40\times 10$ mm (d$\times$h).

II.1 Chemical purity of the vanadium sample

In order to determine the residual impurities and their concentration and to evaluate the efficiency of the refining process, several analyses have been performed. A general comparative analysis of elemental impurities in the vanadium before and after purification was carried out by laser mass-spectrometry. Two samples of vanadium in form of small plates $5\times 5\times 3$ mm3, with chemically cleaned surfaces were analyzed.

The results are shown in Tab. 2. As can be seen, the EBM refining method is rather effective for elements that have a high separation factor at the typical temperature for the vanadium refining process of 2400 K. For example, the Cr concentration was reduced by two orders of magnitude, whereas K was reduced 75 times. On the other hand, for some elements (e.g. Ni, Si) almost no purification occurred. More details can be found in reference bob14 , where the separation coefficients $\alpha_{i}$ for the main impurity elements in vanadium were determined and investigated.

The gas-forming impurities were also removed with high efficiency by the EBM process. The outgassing of the vanadium samples was measured before, and after purification using an MX7203 mass spectrometer azh06 , within a temperature range from 25*∘C to 800∘* C. Four main components are released from the vanadium samples during the thermal desorption, H2O, CO, N2 and CO2. The intensity of outgassing for the sample after refining is five times less than for the starting metal. Overall, the concentration of oxygen was reduced from $(700\pm 100)\times 10^{-6}$ g/g in the initial vanadium flakes to $(170\pm 20)\times 10^{-6}$ g/g, which is the dominant impurity in the refined metal sample. The outgassing impurities as well as the total impurity of the vanadium sample are the lowest achieved so far. The vanadium purity is well determined with ($99.97\pm 0.01$) wt% which allows to reduce the mass uncertainty in the analysis.

The concentrations of ${}^{232}\rm Th$ and ${}^{238}\rm U$ were measured by High Resolution Inductively Coupled Plasma Mass Spectrometry (HR-ICP-MS), with a Thermo Fisher Scientific ELEMENT2 instrument. The sample was dissolved in acid solution and diluted for the measurement. A semi-quantitative analysis was performed, i.e. the instrument was calibrated based on a single reference standard solution of ${}^{232}\rm Th$ and ${}^{238}\rm U$. The results are shown in Tab. 3. The signal for ${}^{238}\rm U$ was close to background, which means that the calculated concentration for this isotope (in the first column of Tab. 3) is affected by a large relative uncertainty (30%).

In order to have a more sensitive measurement of ${}^{232}\rm Th$ and ${}^{238}\rm U$, another analysis of vanadium was performed, extracting and pre-concentrating the analytes. Chromatographic extraction columns (EXC) packed with U/TEVA® resins (Triskem International, France) were used for the selective extraction of thorium and uranium from vanadium after dissolution. As shown in Tab. 3, the obtained results agree with those obtained from the first analysis. The reliability of the extraction procedure was confirmed by a recovery test: 80% recovery was found for both elements.

Additional ICP-MS measurements were carried out to confirm the isotopic composition of the vanadium sample which could differ from the literature value e.g. through extraction from different geological deposits. The measured isotopic abundances are shown in Tab. 4 and are consistent with the literature values. Hence, we have no evidence that the vanadium sample has an altered isotopic abundance and we proceed using the more precise literature value in the analysis.

II.2 Radiopurity of the vanadium sample

The initial and the purified metal sample were measured by means of $\gamma$-ray spectrometry with ultra-low background high purity germanium (ULB-HPGe) detectors. The measurements were done in the STELLA (SubTerranean Low Level Assay) facility deep underground in the Gran Sasso National Laboratories of the INFN (Italy), details can be found in [17-21]. The sample of initial vanadium with a mass of 987.9 g in form of small metallic flakes was placed in a polypropylene container in Marinelli geometry (GA-MA Associates, type 141G), above the end cap of the ULB-HPGe detector. This initial sample was measured for 35.3 d. After the purification by EBM, the vanadium was in the form of cylindrical ingots as shown in Fig. 2. The ingots were cut into 10 disks and machined on the outside in order to obtain discs with equal diameter of 40 mm. A total sample mass of 818.5 g was obtained. The surface of the machined vanadium disks was purified by etching with 0.1M HNO3. Each single disk was sealed in a plastic bag. The measurement geometry of the final sample is shown in Fig. 3 and was optimize to yield the best detection efficiency and lowest self-absorption. The two largest disks (111.50 g and 115.60 g) are lying on top of the inner part of a Marinelli beaker (type 141G), and the others are hung 87.5 mm from top of the outer wall on its inside around the endcap (75.95 g, 75.15 g, 75.14 g, 66.55 g, 73.80 g, 72.31 g, 76.45 g, and 76.02 g). The detection efficiencies for the full energy peaks in the sample-detector arrangement were obtained using the Monte-Carlo simulation code MaGe bos11 , based on the GEANT4 software package.

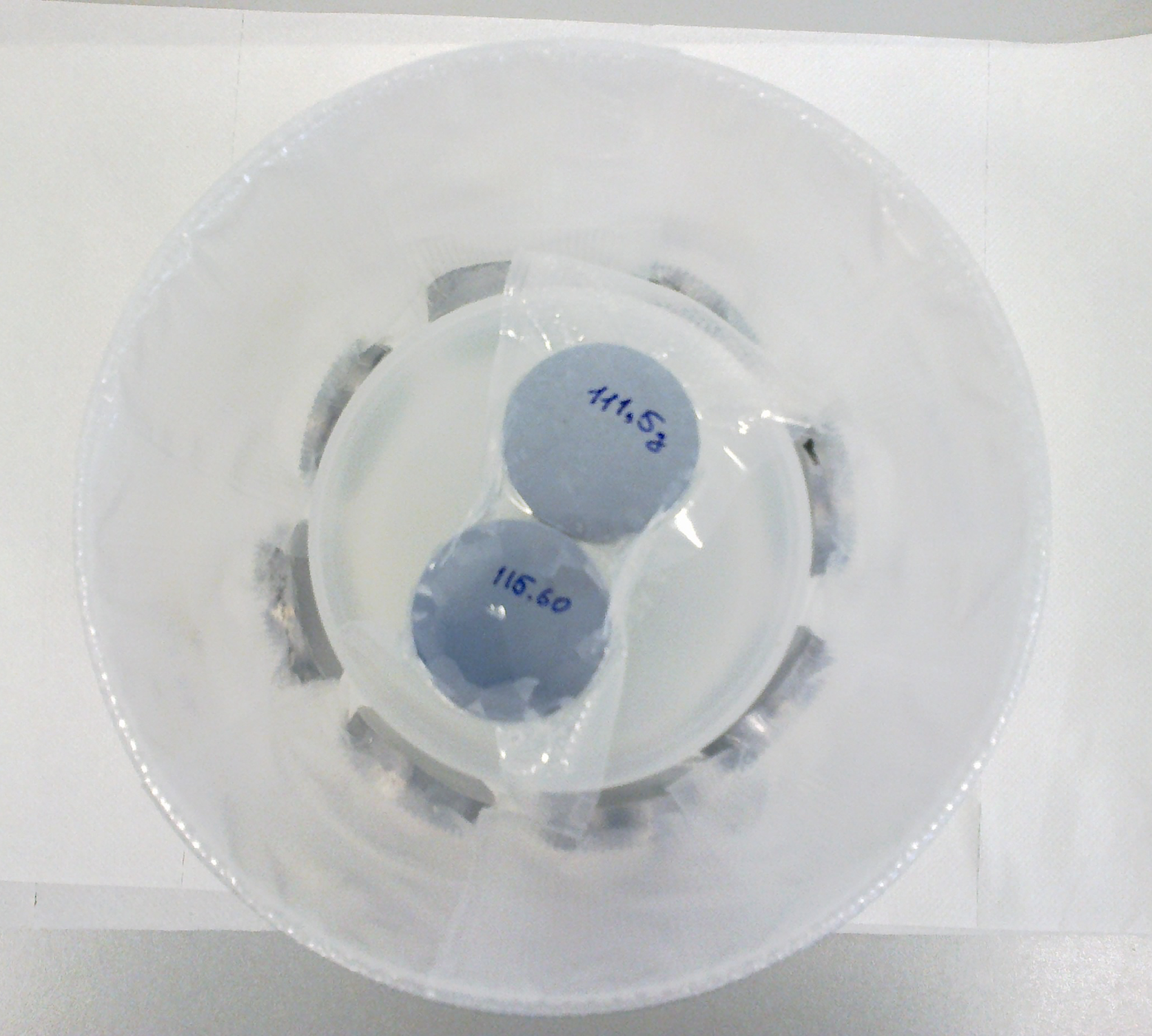

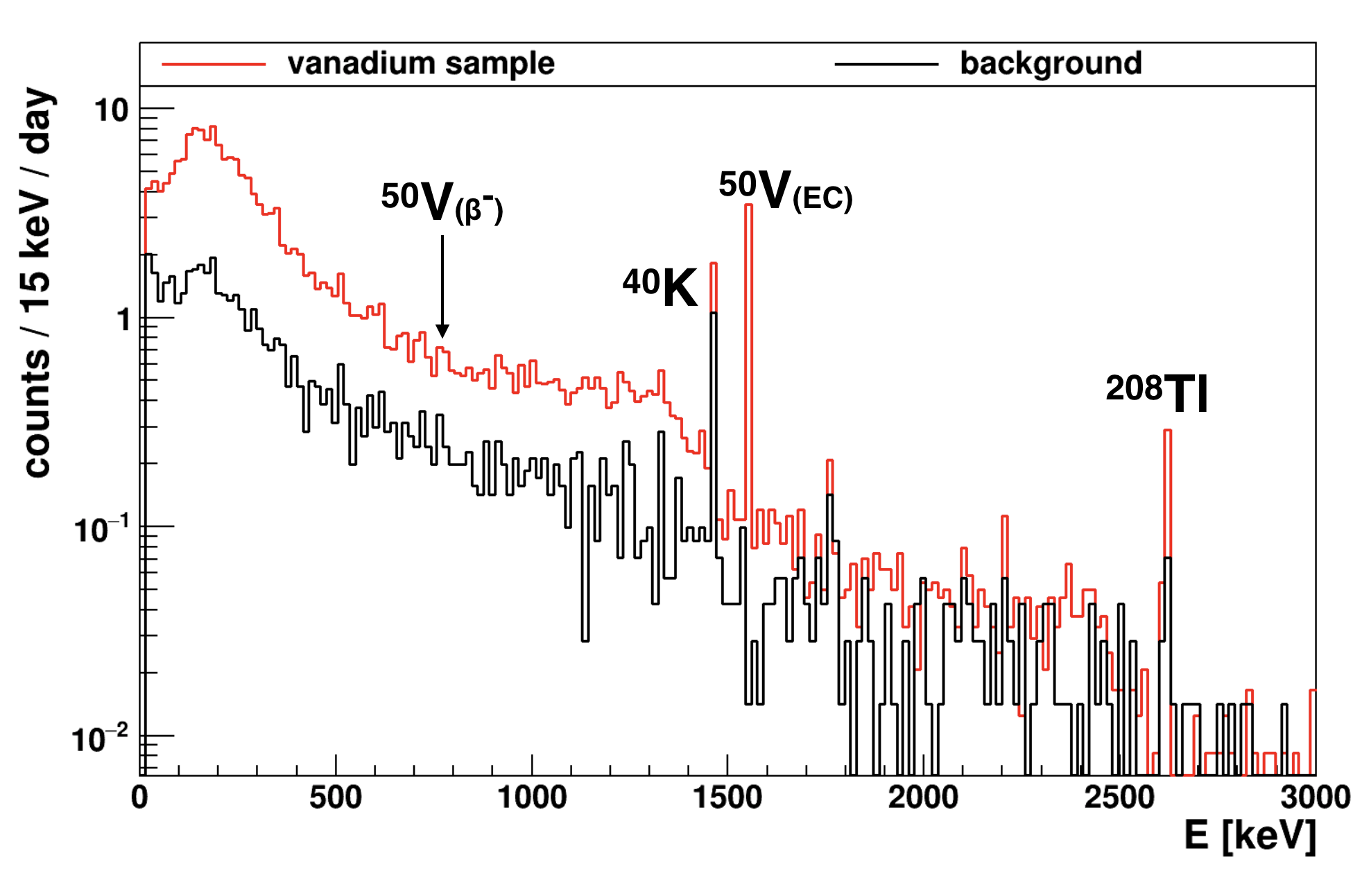

The vanadium discs were measured after purification with an ULB-HPGe detector for 240.6 d. The spectrum is shown in Fig. 5 together with a 70.3 d background spectrum. The 1553.77 keV peak from the ${}^{50}\rm V$ EC decay mode is clearly visible and the most prominent feature in the source spectrum. Compton features of this $\gamma$-ray dominate the background below the peak.

The measured activities of typical background isotopes before and after purification are given in Tab. 5. In both cases all observed peaks other than the one from ${}^{50}\rm V$ EC are due to $\gamma$-rays of the naturally occurring radioactivity coming from the U and Th chains, 40K, from cosmogenic activation, 60Co, and from man-made radioactivity, 137Cs. As can be seen in Tab. 5, there is a significant reduction of the counting rate for all radionuclides after the purification. The activity of 40K was reduced by a factor of 500. There has been also a significant reduction for the ${}^{238}\rm U$ and ${}^{232}\rm Th$ daughter nuclides, by a factor of 30 and 50, respectively. The background index in the region of interest for the 50V $\beta$-decay (783.29 keV) is reduced from 1.78 cts/(keV$\cdot$kg$\cdot$d) to 0.038 cts/(keV$\cdot$kg$\cdot$d), which enhances the experimental sensitivity by a factor of 7. In vicinity of the 1553.77 keV $\gamma$-line that is emitted in case of the ${}^{50}\rm V$ EC, the background rate has been reduced from 0.172 cts/(keV$\cdot$kg$\cdot$d) to 0.00597 cts/(keV$\cdot$kg$\cdot$d), which improves the sensitivity by a factor of 5. A comparison between ICP-MS measurements and $\gamma$-ray spectrometry for the vanadium samples before the purification shows that the secular equilibrium in both natural decay chains, uranium and thorium, was broken. This disequilibrium remains also in the $\gamma$-ray spectrometry results after the purification.

III Analysis

The search is separated in two parts investigating the $\beta^{-}$ and EC decay mode independently. The analysis is based on single $\gamma$-line peak fits at 783.29 keV and 1553.77 keV, respectively, including a semi-empiric background model. The model is composed of a linear function in $\pm 20$ keV around the peak of interest and known background $\gamma$-lines within this region. Where possible, the strength of these background $\gamma$-lines is constrained from more dominant $\gamma$-lines elsewhere in the spectrum via prior information in a Bayesian concept.

The signal counts $s$ in the peak of interest is connected with the half-life $T_{1/2}$ of the decay mode as

[TABLE]

where $\epsilon$ is the full energy detection efficiency, $N_{A}$ is the Avogadro constant, $T$ is the live-time (240.6 d), $m$ is the mass of the vanadium-sample (818.5 g), $f$ is the natural isotopic abundance of ${}^{50}\rm V$ (0.25%) and $M$ the molar mass of natural vanadium (50.94). The Bayesian Analysis Toolkit (BAT) Caldwell:2009kh is used to perform a maximum posterior fit. The likelihood $\mathcal{L}$ is defined as the product of the Poisson probabilities over each bin $i$ for observing $n_{i}$ events while expecting $\lambda_{i}$ events:

[TABLE]

where n denotes the data and p the set of floating parameters. $\lambda_{i}$ is taken as the integral of the extended p.d.f. $\mathcal{P}$ in this bin

[TABLE]

where $\Delta E_{i}$ is the bin width. The counts in the fit region used to construct $\mathcal{P}$ are expected from (1) the Gaussian signal peak, (2) the linear background and (3) a set of background peaks:

[TABLE]

The first row is describing the signal peak with the energy resolution $\sigma$ and the $\gamma$-line energy $E_{0}$ as the mean of the Gaussian. The second row is describing the linear background with the two parameters $B$ and $C$. The third row is describing the $k$ background $\gamma$-lines with the strength of the peak $b_{k}$. The specific background $\gamma$-lines in the $\beta^{-}$ and EC mode fit are described further below.

Each free parameter in the fit has a prior associated. The prior for the inverse half-life $(T_{1/2})^{-1}$ is flat. Priors for energy resolution, peak position and detection efficiencies are Gaussian, centred around the mean values of these parameters. The width of these Gaussians are the uncertainty of the parameter values. This naturally includes the systematic uncertainty into the fit result.

The uncertainty of the peak positions are set to 0.1 keV. The energy scale and resolution is routinely determined using reference point sources including ${}^{228}\rm Th$ and ${}^{152}\rm Eu$. The main $\gamma$-lines of these radionuclides are fitted by a Gaussian distribution and the energy resolution is interpolated by a quadratic function. A resolution of $\sigma=0.99$ keV was determined at 1553.77 keV with an estimated uncertainty of 5%. In the Bayesian framework, the posterior information of the resolution parameter in the fit to the prominent 1553.77 keV $\gamma$-line can be used to update the knowledge of the detector resolution with in-situ data. A posterior resolution of $\sigma=0.92\pm 0.02$ keV was determined which is used together with the standard calibration to inform the resolution prior for the $\beta$-decay mode fit. A $\sigma$ of $0.73\pm 0.02$ keV is used as prior on the resolution for the peak search at 783.29 keV.

The full energy peak detection efficiencies are determined with Geant4 MC simulations tuned to a calibration standard in the same geometry as the vanadium sample. They are 2.69% at 783.29 keV and 1.94% at 1553.77 keV. A 5.0% uncertainty is assumed based on intercomparison tests and quality checks for single $\gamma$-ray emitters. Systematic uncertainties on the measured sample mass (0.01%), the isotopic abundance (1.6%), the vanadium concentration in the sample (0.01%) enter the fit in the same way as the detection efficiency and yield a combined uncertainty on the efficiency parameter as 5.3%.

The posterior probability distribution is calculated from the likelihood and prior probabilities with BAT. The maximum of the posterior is the best fit. The posterior is marginalized for $(T_{1/2})^{-1}$ which is used to determine the 1$\sigma$ uncertainties defined as the smallest connected 68% probability region in the distribution. In case the probability distribution significantly includes zero, a lower half-life limit is set with the 90% quantile of the marginalized $(T_{1/2})^{-1}$ distribution equivalent to the 90% credibility interval (C.I.).

III.1 Analysis of $\beta$-decay mode

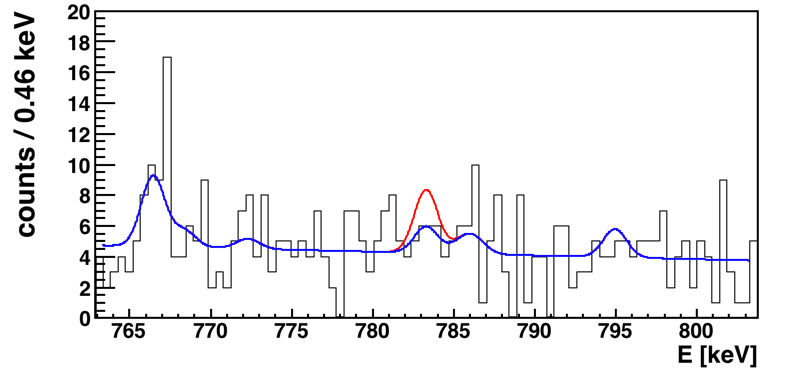

The fit is performed in the range between 763.3 and 803.3 keV. Seven known background $\gamma$-lines are included in the fit even if they are not clearly visible in the spectrum. The selection is based on an emission probability above 1% or if the expected count rate is larger than 1 count in the dataset. The background $\gamma$-lines are outlined in Tab. 6.

The equilibrium of the ${}^{238}\rm U$ decay chain was found to be broken at ${}^{226}\rm Ra$. The $\gamma$-line of ${}^{234m}\rm Pa$ at 1001.0 keV (0.84%) has $37.2\pm 9.1$ counts which was used together with their respective detection efficiencies to constrain the ${}^{234m}\rm Pa$ $\gamma$-lines at 785.96 and 785.4 keV. For the lower ${}^{238}\rm U$ chain, the 609.3 keV $\gamma$-line from ${}^{214}\rm Bi$ (45.5%) with $45.2\pm 10.3$ count was used to constrain the 768.36 and 785.96 keV $\gamma$-lines from ${}^{214}\rm Bi$ and ${}^{214}\rm Pb$, respectively.

For the ${}^{232}\rm Th$ chain, the average expectation from the 583.2 keV $\gamma$-lines from ${}^{208}\rm Tl$ (30.6%) with $52.1\pm 10.0$ counts and from the 911.2 keV $\gamma$-line from ${}^{228}\rm Ac$ (25.8%) with $51.2\pm 9.9$ counts was used to constrain the 794.95, 772.29 and 785.96 keV $\gamma$-lines in the fit.

The best fit yields a positive signal at T_{1/2}^{-1}=\mbox{2.27,\rm{x},10^{-20}} yr*-1* or $4.4\,\rm{x}\,10^{19}$ yr which is distinct from the background only hypothesis or 0 yr*-1* by 1.2$\sigma$. Hence, no significant signal is observed and the 90% quantile of the marginalized $T_{1/2}^{-1}$ distribution yields $5.37\,\rm{x}\,10^{-20}$ yr*-1*. This translates into a lower half-life limit of

[TABLE]

The background below the peak is obtained from fit parameter B in Eq. III as $0.038\pm 0.002$ cts/kg/d. The fit function is shown in Fig. 5 set to the best fit values (blue) and to the 90% limit of the signal process (red). Systematic uncertainties are included in the result but are negligible compared to the limit of low counting statistics. Fixing the peak position, resolution and efficiency priors to their nominal values and repeating the fit without systematic uncertainty changes the limit by $<0.2$%. Choosing flat priors for the background $\gamma$-lines instead of Gaussian constraints changes the limit by 4.1%.

This result is about one order of magnitude better than the one in dom11 and approaches the theoretical prediction of $2\times 10^{19}$ yr in haa14 . The obtained improvement is due to a factor of 7.9 more exposure and a factor of 3.2 lower background level. The analysis method differs with a full spectral fit compared to a counting method. The energy resolution and detection efficiency is similar in both searches. Also note that the limit in dom11 is based on a 95% confidence level (C.L.) whereas this result quotes a 90% credibility interval (C.I.).

III.2 Analysis of electron capture mode

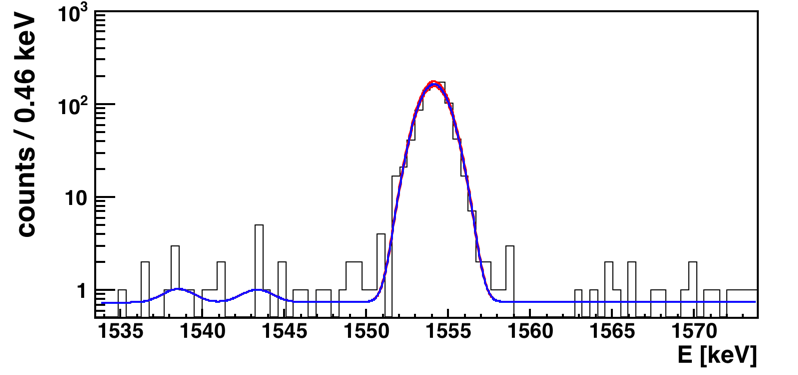

The EC $\gamma$-line at 1553.77 keV is clearly visible in the spectrum. The fit range is chosen between 1533.8 and 1573.8 keV including two background $\gamma$-lines from ${}^{214}\rm Bi$ at 1538.5 keV (0.40%) and at 1543.3 keV (0.30%). Constraints for these $\gamma$-lines are again taken from the 1764.5 keV $\gamma$-line from ${}^{214}\rm Bi$ ($32.7\pm 6.6$ counts) resulting in an expectation of $1.4\pm 0.3$ and $1.3\pm 0.3$ counts, respectively. The expectation varies from the one based on the 609.3 keV $\gamma$-line by about a factor of 5 which is likely due to ${}^{238}\rm U$ background components in different locations which is not completely modeled in the MC. This would result in different attenuation ratios between the two $\gamma$-lines in data and MC. Thus, the expectation is taken from the 1764.5 keV $\gamma$-line which is closer in energy to the ROI.

A $\gamma$-line from ${}^{234m}\rm Pa$ 1553.75 (0.00821%) overlapping with the signal peak region was constrained with the more prominent $\gamma$-line at 1001.0 keV to 0.3 counts and thus neglected.

The fit finds a best fit value at $2.67\,\rm{x}\,10^{17}$ yr. The largest connected 68% interval in the marginalized $T_{1/2}^{-1}$ distribution is $[2.49-2.83]\,\rm{x}\,10^{17}$ yr and taken as the uncertainty coming from the fit combining the statistical and systematic uncertainties naturally:

[TABLE]

This uncertainty is 6.4% of the best fit value and is dominated by the systematic contributions to the efficiency parameter as outlined in the uncertainty budget in Tab. 7. Switching off these systematic uncertainties in the fit, a range of $[2.58-2.76]\,\rm{x}\,10^{17}$ yr is obtained which is about 3.4% coming from statistics and energy scale combined. Changing the Gaussian priors for the background peaks to flat priors has no noticeable effect.

The measured half-life is about 14% higher and a factor 1.4 more precise compared to $2.29\pm 0.25\,\rm{x}\,10^{17}$ yr previously reported in dom11 . Both measurement agree within uncertainties.

IV Conclusions

The 4-fold non-unique forbidden $\beta$-decay and electron capture of ${}^{50}\rm V$ have been investigated with a state of the art ultra low background HPGe setup at LNGS, Italy. The half-life of the EC mode has been determined with unprecedented precision as $2.67_{-0.18}^{+0.16}\,\rm{x}\,10^{17}$ yr (68% C.I.). The improvement could be achieved with about 10 times higher peak counts compared to a previous measurement which renders the statistical uncertainty subdominant compared to systematic uncertainties. Future improvement can only be expected with a more sophisticated detector calibration or a detector setup with detection efficiency close to 1.

The half-life limit on the $\beta$-decay mode has been improved by more than an order of magnitude to $1.9\,\rm{x}\,10^{19}$ yr (90% C.I.). The improvement was mainly possible due to a successful purification of the vanadium sample with electron beam melting in combination with the ultra low background detector deep underground. A longer measurement time and more sample mass compared the the previous best measurement also improved the limit. The half-life limit of the $\beta$-decay mode is at the point of theoretical predictions at $2.0\,\rm{x}\,10^{19}$ yr. Even a modest improvement of the half-life sensitivity will either discover the decay or constrain nuclear model calculations. Further improvements with the setup at hand can be achieved with longer measuring time, more sample mass or enrichment. A significant decrease of the background for the $\beta$-decay search is not easily feasible since the region around 783.3 keV is already dominated by the Compton features of the 1553.8 keV $\gamma$-line coming from the EC mode of the same isotope. A conceptually different detector setup with active Compton detection would be required to reduce the background further.

Indeed, an approach using vanadium-based (YVO4) crystals as cryogenic scintillating bolometers is discussed in Pattavina:2018 . First results of the crystal characterization show excellent bolometric performance and light output. An innovative approach for an efficient detection of the characteristic de-excitation $\gamma$-rays following the ${}^{50}\rm V$ $\beta$-decay using triple-coincidences which yields experimental half-life sensitivities at the level of $10^{20}$ yr is proposed as well. Therefore, the production of high radiopurity YVO4 crystals from EBM purified vanadium which are operated as scintillating bolometers, read out with auxiliary light detectors and surrounded by TeO2 bolometers as Compton vetoes are considered as our further steps.
