Correlation Functions on the Half-BPS Wilson Loop: Perturbation and Hexagonalization

TL;DR

This paper computes correlation functions of protected operators on the 1/2-BPS Wilson loop in N=4 SYM at weak coupling, confirming results with localization and proposing an integrability-based hexagonalization approach involving boundary states.

Contribution

It introduces a novel method to compute Wilson loop correlators using hexagonalization with boundary states, extending integrability techniques to Wilson loop contexts.

Findings

Perturbative one-loop calculations match localization results.

Conjecture that correlators can be computed via hexagon boundary state contractions.

Predictions for large-charge asymptotics of structure constants.

Abstract

We compute correlation functions of protected primaries on the $1/2$-BPS Wilson loop in ${\cal N}$ = 4 super Yang-Mills theory at weak coupling. We first perform direct perturbative computation at one loop in the planar limit and present explicit formulae for general two-, three- and four-point functions. The results for two- and three-point functions as well as four-point functions in special kinematics are in perfect agreement with the localization computation performed in arXiv:1802.05201. We then analyze the results in view of the integrability-based approach called "hexagonalization", which was introduced previously to study the correlation functions in the absence of the Wilson loop. In this approach, one decomposes the correlator into fundamental building blocks called "hexagons", and glues them back together by summing over the intermediate states. Through the comparison, we conjecture that the correlation functions on the Wilson loop can be computed by contracting hexagons with boundary states, where each boundary state represents a segment of the Wilson loop. As a byproduct, we make predictions for the large-charge asymptotics of the structure constants on the Wilson loop. Along the way, we refine the conjecture for the integrability-based approach to the general non-BPS structure constants on the Wilson loop, proposed originally in arXiv:1706.02989.

Figures

Equations

$$\mathcal{W}=\frac{1}{N}\mathrm{Tr}\left[\mathrm{P}\exp {\oint }_{\mathcal{C}}\left(i{A}_{\mu }{\dot{x}}^{\mu }+{\Phi }_6|\dot{x}|\right)ds\right],$$

$$⟨\mathcal{W}[{\mathcal{O}}_1(x_1)\cdots {\mathcal{O}}_n(x_n)]⟩\equiv ⟨\frac{1}{N}\mathrm{Tr}\left[\mathrm{P}\left({\mathcal{O}}_1(x_1)\cdots {\mathcal{O}}_n(x_n)e^{{\oint }_{\mathcal{C}}\left(i{A}_{\mu }{\dot{x}}^{\mu }+{\Phi }_6|\dot{x}|\right)ds}\right)\right]⟩,$$

$${\mathcal{O}}_m(x_m)=(Y_m\cdot \Phi {)}^{L_m}(x_m),$$

$$⟨⟨{\mathcal{O}}_1(x_1)\cdots {\mathcal{O}}_n(x_n)⟩⟩\equiv \frac{⟨\mathcal{W}[{\mathcal{O}}_1(x_1)\cdots {\mathcal{O}}_n(x_n)]⟩}{⟨\mathcal{W}⟩}.$$

$$⟨\mathcal{W}{⟩}_{\mathrm{circle}}=\frac{2}{\sqrt{\lambda }}{I}_1(\sqrt{\lambda }),$$

$$⟨⟨{\mathcal{O}}_1(x_1){\mathcal{O}}_2(x_2)⟩⟩$$

$$\frac{⟨⟨{\mathcal{O}}_1(x_1){\mathcal{O}}_2(x_2){\mathcal{O}}_3(x_3)⟩⟩}{\sqrt{n_{L_1}{n}_{L_2}{n}_{L_3}}}$$

$${d_{ij}|}_{\text{straight line}}=\frac{Y_i\cdot Y_j}{x_{ij}^2},x_{ij}^2\equiv |x_i-x_j{|}^2.$$

$${d_{ij}|}_{\mathrm{circle}}=\frac{Y_i\cdot Y_j}{(2\sin \frac{{\tau }_i-{\tau }_j}{2}{)}^2},$$

$$\frac{⟨⟨{\mathcal{O}}_1(x_1){\mathcal{O}}_2(x_2){\mathcal{O}}_3(x_3){\mathcal{O}}_4(x_4)⟩⟩}{\sqrt{n_{L_1}{n}_{L_2}{n}_{L_3}{n}_{L_4}}}\equiv \frac{G_{L_1,L_2,L_3,L_4}}{N},$$

$$G_{L_1,L_2,L_3,L_4}=d_{12}^{\frac{L_1+L_2}{2}}{d}_{34}^{\frac{L_3+L_4}{2}}{\left(\frac{d_{24}}{d_{14}}\right)}^{\frac{L_2-L_1}{2}}{\left(\frac{d_{13}}{d_{14}}\right)}^{\frac{L_3-L_4}{2}}{g}_{L_1,L_2,L_3,L_4}(\chi ,\alpha ,\bar{\alpha }).$$

$$\frac{x_{12}^2{x}_{34}^2}{x_{13}^2{x}_{24}^2}={\chi }^2,$$

$$\frac{(Y_1\cdot Y_2)(Y_3\cdot Y_4)}{(Y_1\cdot Y_3)(Y_2\cdot Y_4)}=\alpha \bar{\alpha },$$

$$\{2134\}:\chi \in [-\infty ,0],\{1234\}:\chi \in [0,1],\{1324\}:\chi \in [1,\infty ],$$

$$\mathtt{Hexagonalization}=\frac{⟨\mathcal{W}[{\mathcal{O}}_1\cdots {\mathcal{O}}_m]{⟩}_{\mathrm{circle}}}{{\prod }_{k=1}^m\sqrt{⟨\mathcal{W}[{\mathcal{O}}_k{\mathcal{O}}_k]{⟩}_{\mathrm{circle}}^{\prime }}},$$

$$\mathtt{Hexagonalization}={\left(⟨\mathcal{W}{⟩}_{\mathrm{circle}}\right)}^{\frac{2-m}{2}}\frac{⟨⟨{\mathcal{O}}_1\cdots {\mathcal{O}}_m⟩⟩}{\sqrt{{\prod }_{k=1}^m{n}_k}}.$$

$$C_{L_1,L_2,L_3}\stackrel{L_k\to \infty }{\sim }(⟨\mathcal{W}{⟩}_{\mathrm{circle}}{)}^{\frac{1}{2}}={\left(\frac{2I_1(\sqrt{\lambda })}{\sqrt{\lambda }}\right)}^{\frac{1}{2}}.$$

$$\Phi (z,\bar{z})=\frac{x_{13}^2{x}_{24}^2}{{\pi }^2}\int \frac{d^4{x}_5}{x_{15}^2{x}_{25}^2{x}_{35}^2{x}_{45}^2},$$

$$z\bar{z}=\frac{x_{12}^2{x}_{34}^2}{x_{13}^2{x}_{24}^2},(1-z)(1-\bar{z})=\frac{x_{14}^2{x}_{23}^2}{x_{13}^2{x}_{24}^2}.$$

$$\Phi (z,\bar{z})=\frac{2{\mathrm{Li}}_2(z)-2{\mathrm{Li}}_2(\bar{z})+\log z\bar{z}\log \frac{1-z}{1-\bar{z}}}{z-\bar{z}}.$$

$${\mathcal{Y}}_{123}=\int \frac{d^4{x}_5}{x_{15}^2{x}_{25}^2{x}_{35}^2}.$$

$${\mathcal{Y}}_{123}=\underset{x_4\to \infty }{\lim }{x}_4^2\int \frac{d^4{x}_5}{x_{15}^2{x}_{25}^2{x}_{35}^2{x}_{45}^2}=\frac{{\pi }^2\Phi (z^{\prime },{\bar{z}}^{\prime })}{x_{13}^2},$$

$$z^{\prime }{\bar{z}}^{\prime }=\frac{x_{12}^2}{x_{13}^2},(1-z^{\prime })(1-{\bar{z}}^{\prime })=\frac{x_{23}^2}{x_{13}^2}.$$

$$\Phi (\chi ,\chi )$$

$${\mathcal{Y}}_{123}$$

$$\Phi (1-\chi )=\Phi (\chi ),\Phi \left(\frac{1}{\chi }\right)={\chi }^2\Phi (\chi ),\Phi \left(\frac{\chi }{\chi -1}\right)=(1-\chi {)}^2\Phi (\chi ).$$

$$g=\frac{\sqrt{\lambda }}{4\pi }.$$

$${\mathsf{S}}_{12}=-4g^2\left(\log \frac{|x_{12}|}{ϵ}+1\right){\bar{d}}_{12}$$

$${\mathsf{G}}_{12|34}=\frac{g^2}{2}{\bar{d}}_{12}{\bar{d}}_{34}\Phi (\chi )\left({\chi }^2-2\chi \right)+{\mathsf{C}}_{[12][34]},$$

$${\mathsf{Q}}_{1234}=\frac{g^2}{2}\Phi (\chi )\left[2{\bar{d}}_{13}{\bar{d}}_{24}-(1-\chi {)}^2{\bar{d}}_{23}{\bar{d}}_{14}-{\chi }^2{\bar{d}}_{12}{\bar{d}}_{34}\right],$$

$${\mathsf{C}}_{[12][34]}\equiv$$

$$\frac{\left(x_{13}^2-x_{23}^2\right){\mathcal{Y}}_{123}-\left(x_{14}^2-x_{24}^2\right){\mathcal{Y}}_{124}+\left(x_{13}^2-x_{14}^2\right){\mathcal{Y}}_{134}-\left(x_{23}^2-x_{24}^2\right){\mathcal{Y}}_{234}}{{\pi }^2}.$$

$${\mathsf{c}}_{123}{\bar{d}}_{12}{\bar{d}}_{23}\equiv \frac{1}{4}\left({\mathsf{S}}_{12}{\bar{d}}_{23}+{\bar{d}}_{12}{\mathsf{S}}_{23}\right)+{\mathsf{G}}_{12|23}+{\mathsf{Q}}_{1223}.$$

Full text

1. 1 Introduction and Summary

2. 1.1 Correlators on the $1/2$-BPS Wilson loop

3. 1.2 Outline of the paper and brief summary of the results

4. 2 Perturbation I: Two-and Three-Point Functions

5. 2.1 Building blocks

6. 2.2 Two- and three-point functions

7. 3 Pertubation II: Four-Point Functions

8. 3.1 General structure of tree-level contractions

9. 3.2 One-loop correction to the bulk diagrams

10. 3.3 One-loop correction to the boundary diagrams

11. 3.4 Final results and comparison with localization

12. 4 Hexagonalization

13. 4.1 Proposal

14. 4.2 A puzzle and a resolution

15. 4.3 Prediction for multi-particle contributions

16. 5 Non-BPS Structure Constants

17. 6 Conclusion

18. A Action and Propagators

1 Introduction and Summary

The idea of reformulating gauge theories as string theory dates back at least to an early attempt by Polyakov [1] in which he tried to re-interpret the gauge theories by treating the color-electric fluxes, or equivalently the Wilson loops, as fundamental degrees of freedom. A closely-related idea was explored at around the same time by Migdal and Makeenko who wrote down the Schwinger-Dyson equation for the Wilson loop, known as the loop equation [2, 3].

The scene has changed dramatically after the discovery of the AdS/CFT correspondence [4]. It provided the first concrete example of the equivalence between gauge and string theories and gave a clear physical meaning to ’t Hooft’s planar expansion [5]: Namely, the two-dimensional surfaces that appear in the ’t Hooft expansion are interpreted as the worldsheets of physical strings living in anti-de-Sitter space. Besides being a conceptual breakthrough, the correspondence led to new computational tools since it enabled us to analyze the higher-dimensional gauge theories using the techniques of the two-dimensional field theories. The most notable success in this regard is the application of integrability to $\mathcal{N}=4$ supersymmetric Yang-Mills theory (SYM) in four dimensions [6, 7]. As a result of relentless efforts in the past fifteen years, the integrability of the worldsheet was applied successfully to the computation of the spectrum [8, 9, 10, 11], the scattering amplitudes [12], the structure constants [13], and the four- [14, 15, 16, 17] and higher-point correlators [17, 18] in the planar limit and their first nonplanar corrections [19, 20, 21, 22].

In this paper, we analyze quantities that might help us make connections between these old and new stories. More specifically, we study the correlation functions of operator insertions on the Wilson loop at weak coupling. On the one hand, they can be viewed as simple generalization of standard correlation functions of local operators and are likely to be amenable to the integrability machinery as we discuss in this paper. On the other hand, the operator insertions on the Wilson loop describe the local deformation of the loop and are therefore closely tied to the loop equation. Although what we will achieve in this paper is perhaps less than the first step, we hope that our study will pave the way towards the future developments and help to clarify the relation between the old ideas, such as the loop equation, and the modern viewpoint on the gauge-string duality.

1.1 Correlators on the $1/2$-BPS Wilson loop

Having explained the underlying motivation, let us now describe more in detail the contents of this paper. Our target is the simplest but perhaps the most basic of all possible correlators on the Wilson loops; the correlators of protected primaries on the $1/2$-BPS Wilson loop in $\mathcal{N}=4$ SYM. The $1/2$-BPS Wilson loop is a supersymmetric generalization of the ordinary Wilson loop which preserves the largest amount of supersymmetries. It couples to a scalar as well as to a gauge field and takes the form,

[TABLE]

where the contour $\mathcal{C}$ can be a circle or a straight line. It has several distinctive features as compared to other Wilson loops. First, thanks to the coupling to the scalar, it is manifestly UV-finite. Second, because it preserves a large amount of supersymmetries, its expectation value can be computed by the supersymmetric localization [23, 24, 25]. Third, since its contour is circular or a straight line, it preserves the SL$(2,R)$ subgroup of the full conformal group and therefore can be regarded as a one-dimensional conformal defect [26, 27, 28]. This last point provides an incentive to study the correlators of operator insertions,

[TABLE]

since they are the most natural observables of this defect CFT. Such defect correlation functions111For other related works which analyzed the $1/2$-BPS Wilson loop in $\mathcal{N}=4$ SYM from the defect CFT perspective, see [29, 30, 31, 32]. For the analysis on the non-supersymmetric Wilson loops (from the defect CFT and from integrability), see [33, 34, 35]. were studied in detail at strong coupling by analyzing the fluctuations around a classical string configuration in AdS2 [36] while at weak coupling they were studied using the deformation of the Wilson loop in [37, 38]. The spectrum, or equivalently the two-point functions, of operator insertions were computed from integrability in [39, 40, 41]222It was later reformulated in an elegant way by the Quantum Spectral Curve [42].. The focus of this paper is on the three- and four-point functions, and in particular on the special operator insertions

[TABLE]

where $Y_{m}$ is a five-dimensional null vector and $Y\cdot\Phi$ signifies the inner product $\sum_{\mu=1}^{5}Y^{\mu}\Phi_{\mu}$. Owing to the supersymmetries, the dimensions of these operators are tree-level exact while their three- and four-point functions do depend on the coupling constant.

Precisely speaking, to make contact with the defect CFT data, we should consider the normalized correlator which is obtained by dividing the correlator by the expectation value of the Wilson loop as

[TABLE]

For the straight-line Wilson loop, this manipulation is trivial since the expectation value of the Wilson loop is unity while for the circular Wilson loop it involves the division by the planar expectation value [23, 24],

[TABLE]

with $\lambda$ being the ‘t Hooft coupling constant $\lambda\equiv g_{\rm YM}^{2}N$. The spacetime dependence of these correlators is constrained by the SL$(2,R)$ invariance. For instance, the two- and the three-point functions are given by

[TABLE]

where $N$ is the rank of the gauge group, $L_{ij|k}\equiv L_{i}+L_{j}-L_{k}$ and $d_{ij}$ is the free-field Wick contraction which takes the following form for the straight-line Wilson loop:

[TABLE]

The quantity $c_{L_{1},L_{2},L_{3}}$ is the structure constant of the defect CFT while $n_{L}$ is the normalization of the two-point function, which can be set to unity by rescaling the operators333The protected primaries can be obtained by taking the OPE of single-scalar insertions $\Phi_{i}$ $(i\neq 6)$, which are in the same supermultiplet as the displacement operator and have canonical normalization. Therefore it is possible to attribute certain physical meaning to the normalization $n_{L}$ (see for instance [31]). However, we will not advocate this point of view in this paper.. For the circular Wilson loop, one just needs to replace $d_{ij}$ with

[TABLE]

where $\tau_{i}$ parameterizes the position of the insertion on the circle and ranges from [math] to $2\pi$. Note that the two expressions (7) and (8) are related by the conformal transformation.

On the other hand, the four-point function

[TABLE]

is a nontrivial function of the cross ratios. To see this explicitly, we strip off the space-time (and the R-symmetry) dependence from $G_{L_{1},L_{2},L_{3},L_{4}}$ as

[TABLE]

Then, the remaining quantity $g_{L_{1},L_{2},L_{3},L_{4}}$ depends only on the cross ratios, defined by444Here we presented the definition for the straight-line Wilson loop. For the circular Wilson loop, one needs to replace $x_{ij}^{2}$ with $(2\sin\frac{\tau_{i}-\tau_{j}}{2})^{2}$.

[TABLE]

Let us now make one important remark: In one-dimensional (defect) CFTs, one should be careful about the ordering of the operators since the correlators with different orderings are not related by a simple analytic continuation even in the Euclidean kinematics. This is in marked contrast to the higher-dimensional CFTs in which one can continuously move one operator around another to reach a different configuration. In terms of the conformal cross ratio, the different orderings correspond to different ranges of $\chi$ as555These are all possible orderings in the presence of the parity invariance.

[TABLE]

where $\{ijkl\}$ signifies the correlator with the operator ordering $\mathcal{O}_{i}\mathcal{O}_{j}\mathcal{O}_{k}\mathcal{O}_{l}$. Thus the above statement translates to the fact that the correlators with different values of $\chi$ are not simply related by the analytic continuation. In the rest of this paper, to avoid any possible confusion arising from this point, we always consider the correlators in the ordering $\{1234\}$. In other words, we always assume that the cross ratio $\chi$ takes the value between [math] and $1$.

1.2 Outline of the paper and brief summary of the results

In section 2, we compute two-, three- and four-point functions at one loop from perturbation theory. To simplify the analysis, we consider the correlators on the straight line. As explained above, such correlators have direct relation to the defect CFT data, see (51) and (86) for final results. The results for the three-point functions are in perfect agreement with the exact results obtained previously by localization [31] while the results for the four-point functions are new except in special kinematics in which they correctly reduce to the results from localization in [31].

In section 4, we examine these results from the point of view of integrability. In particular, we compare the results with the general expectation in the ‘‘hexagonalization’’ approach [17]: The basic idea of the hexagonalization is to view the correlator as a worldsheet of string and decompose it into smaller hexagonal patches called hexagons [13]. After the decomposition, one computes the contribution from each hexagon using integrability and glues them back together by summing over the intermediate states that appear on the glued edges (see figure 1). Through the comparison, we conjecture that the three-point function on the Wilson loop can be decomposed into one hexagon and three boundary states (see figure 2), where the relevant boundary state was determined in the study of the spectrum on the Wilson loop [40, 41]. The idea of computing the three-point functions on the Wilson loop from hexagons was proposed originally in [43]. However, our analysis suggests the necessity of the refinement of the proposal [43], which we will describe shortly.

We also analyze the four-point function in a similar fashion; namely we propose that it can be computed by gluing two hexagons and four boundary states and multiplying a nontrivial cross-ratio-dependent weight factor, which was first determined in the study of correlators of single-trace operators in [17].

One interesting (and perhaps peculiar) outcome of our analysis is that the integrability computation does not seem to correspond to the normalized correlator $\langle\!\langle\ast\rangle\!\rangle$. It rather corresponds to the ratio of the correlators on the circular Wilson loop,

[TABLE]

where $\langle\mathcal{W}[\mathcal{O}_{k}\mathcal{O}_{k}]\rangle_{\rm circle}^{\prime}$ denotes the space-time independent part of the two-point function on the circular loop; namely $\langle\mathcal{W}[\mathcal{O}_{k}\mathcal{O}_{k}]\rangle_{\rm circle}^{\prime}=n_{L_{k}}\times\langle\mathcal{W}\rangle_{\rm circle}$. In terms of normalized correlators, the conjecture (13) can be rewritten as

[TABLE]

Although we do not have a strong argument as to why the hexagonalization computes the correlators on the circle rather than the normalized correlators, we show that this conjecture is consistent with the one-loop three- and four-point functions we compute. Furthermore, it is supported by the comparison with the localization results at higher loops. In addition, we show that the conjecture leads to the following large-charge asymptotics for the structure constant on the Wilson loop,

[TABLE]

Based on this observation, in section 5 we present a refined version of the conjecture on the hexagon formalism for the non-BPS structure constants on the $1/2$-BPS Wilson loop, which was given originally in [43]. Finally in section 6, we conclude and comment on future directions. Several appendices are included to explain technical details.

2 Perturbation I: Two-and Three-Point Functions

In this section, we describe our one-loop computation of three- and four-point functions.

2.1 Building blocks

Before analyzing the correlators, it is useful to collect the results of various diagrams that appear in the computation.

Conformal Integrals

Before analyzing individual diagrams, let us first list the relevant conformal integrals. The most important one is the one-loop conformal integral which is defined by

[TABLE]

where $z$ and $\bar{z}$ are the conformal cross ratios given by

[TABLE]

The integral can be evaluated explicitly and we get

[TABLE]

Another important integral is the three-point conformal integral defined by

[TABLE]

Using the fact that the three-point integral can be obtained as a limit of the four-point integral, we can compute this integral as

[TABLE]

with

[TABLE]

In the computation of correlators on the Wilson loop, all the points lie on a single line. In such a case, these conformal integrals simplify to

[TABLE]

where $\chi$ is the one-dimensional conformal cross ratio defined by (11). In what follows, we often denote $\Phi(\chi,\chi)$ simply by $\Phi(\chi)$. The integral $\Phi(\chi)$ satisfies the following identities (see for instance [17])

[TABLE]

Bulk Diagrams

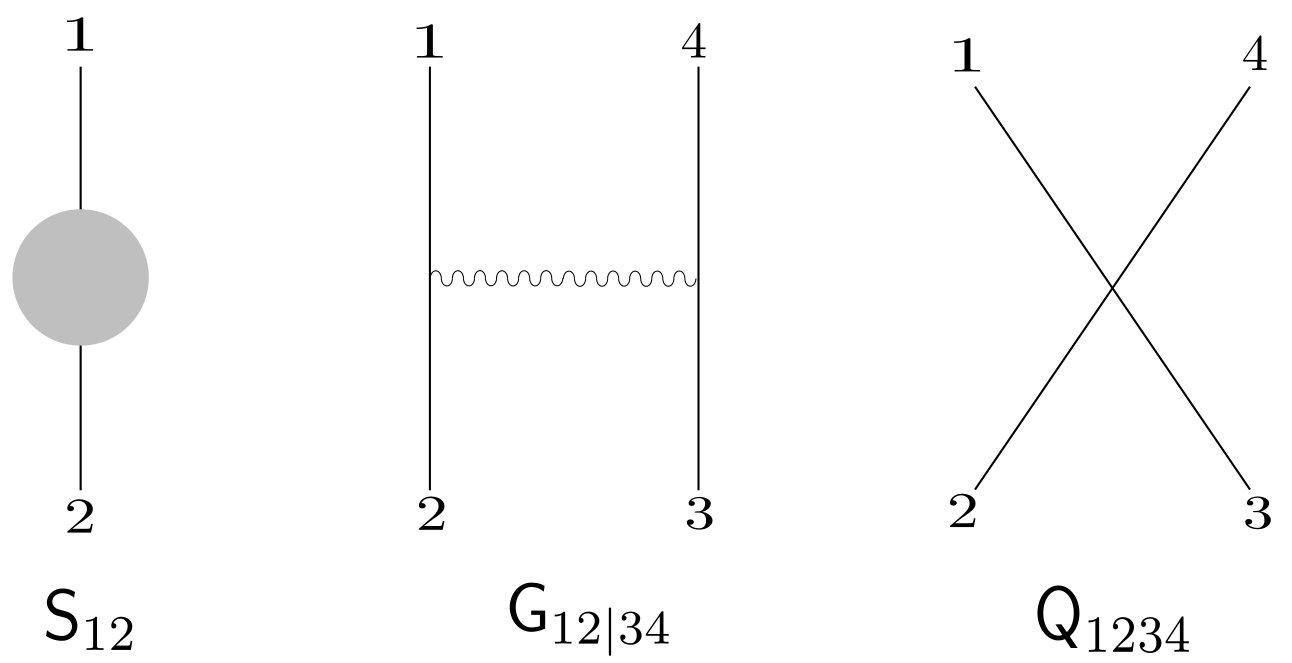

Let us first consider the diagrams that do not involve the contraction with the Wilson loop. The three basic building blocks for such diagrams are the self-energy diagram, the gluon exchange diagram, and the scalar quartic diagram (see figure 3). These are the diagrams which also show up in the computation of correlators of single-trace operators and have been computed in the literature (see for instance [44]). In what follows, the computations are done using the point-splitting regularization. In addition, we use the standard convention in the integrability literature and denote the coupling constant by $g$, which is related to the ’t Hooft coupling constant $\lambda$ as follows:

[TABLE]

The result for the self-energy diagram ${\sf S}_{ij}$ is

[TABLE]

where $\bar{d}_{ij}\equiv 2g^{2}d_{ij}$. Similarly, the results for the gluon exchange diagram ${\sf G}_{ij|kl}$ and the scalar quartic diagram ${\sf Q}_{ijkl}$ are

[TABLE]

with666The function ${\sf C}_{[12][34]}$ is antisymmetric with respect to the exchange of $1$ and $2$ (or $3$ and $4$). This is the reason for writing the subscripts as $[12][34]$.

[TABLE]

Here and below the subscripts specify the pattern of the contractions (see figure 3 for the explicit diagrammatic definition of the corner contribution).

These are the basic sets of the ‘‘bulk’’ diagrams and other diagrams can be obtained by taking the limit of these diagrams. Particularly important among them is the corner contribution ${\sf c}_{ijk}$ [44], which is a weighted sum of diagrams that are associated with a ‘‘corner’’ of the planar Wick contraction (see figure 4):

[TABLE]

Using (26), one can verify that the result can be simply written in terms of $\mathcal{Y}_{ijk}$ as

[TABLE]

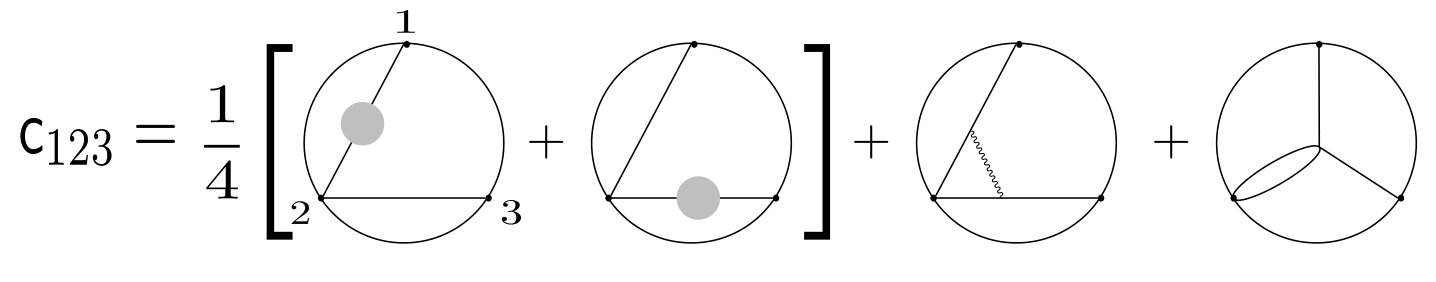

Using (22), one can easily verify that the corner contribution satisfies the following useful identities

[TABLE]

which will be important in the subsequent analysis. Another important feature is that the function ${\sf C}_{[12][34]}$ can be expressed in terms of ${\sf c}_{123}$,

[TABLE]

In the computation below, we will also need the coincident limit of the corner contribution, which reads

[TABLE]

Boundary Diagrams

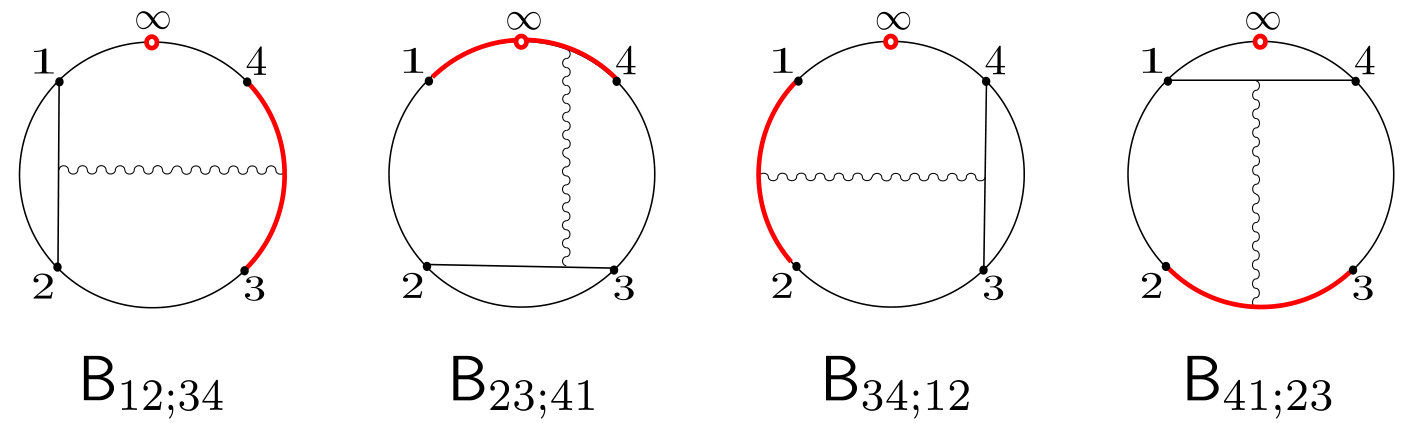

Let us next discuss the diagrams that contain the contraction with the Wilson loop. The most basic diagram of this type at one loop involves the scalar-scalar-gluon cubic vertex in which the two scalars come from the operator insertions while the gluon gets contracted with the Wilson loop.

To compute such a contribution, we simply need to bring down the cubic vertex from the action (see Appendix A for our convention of the action) and compute the following correlator using the tree-level Wick contraction,

[TABLE]

where $\mathcal{A}(\tau)$ is the gauge connection along the Wilson loop, $\mathcal{A}(\tau)\equiv A_{\mu}\frac{dx^{\mu}}{d\tau}$. The result is given in terms of $\mathcal{Y}_{ijk}$ as

[TABLE]

This integral can be evaluated using the explicit form of $\mathcal{Y}_{123}$, (22). The results read777One potentially subtle point is that the result of the integral contains the (di-)logarithms, and depending on the ordering of $x_{i}$-$x_{l}$, one has to choose different branches of the logarithms. There are two strategies to overcome this subtlety: The one is to evaluate each case separately. The other is to evaluate a diagram for one particular ordering and then analytically continue the result to obtain a different ordering. The result of the analytic continuation is ambiguous due to the choice of the branches of the logarithms, but one can fix the ambiguity by requiring the reality of the final answer. We tried both approaches and got the same answer. (see also figure 5)

[TABLE]

where $L_{R}(x)$ is the Rogers dilogarithm defined by

[TABLE]

The two important properties satisfied by the Rogers dilogarithm are

[TABLE]

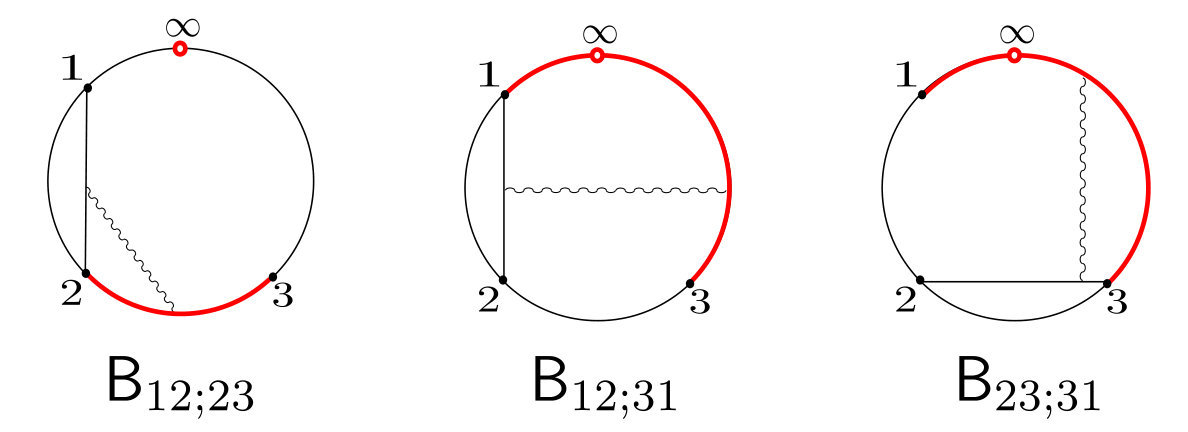

All the other relevant diagrams can be obtained by taking the coincident limit of some of the points. For instance, the diagrams that appear in the computation of the three-point functions are given by

[TABLE]

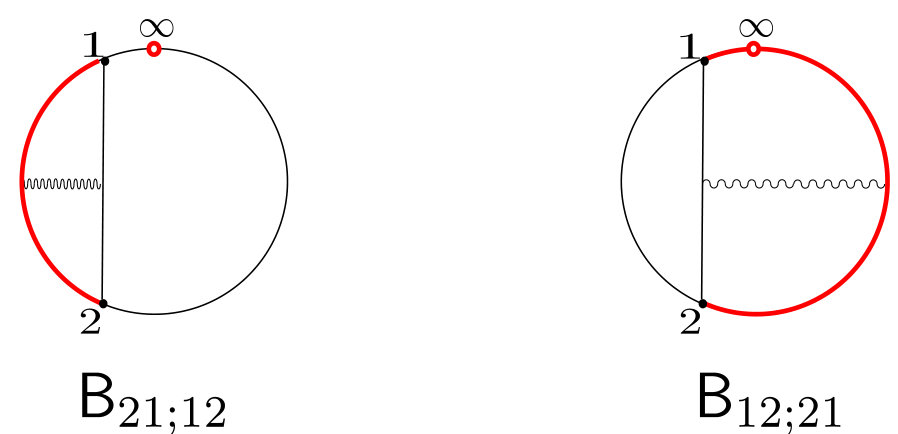

For an explicit diagrammatic representation of each diagram, see figure 6. Similarly the diagrams that are relevant for the two-point functions can be computed as follows:

[TABLE]

Note that these two diagrams would look similar if we were considering the correlator on a circular Wilson loop. Here the difference comes from the fact that one of them includes the integration around the spatial infinity while the other does not.

2.2 Two- and three-point functions

Let us now compute the two- and the three-point functions using the results in the previous subsection.

Two-point functions

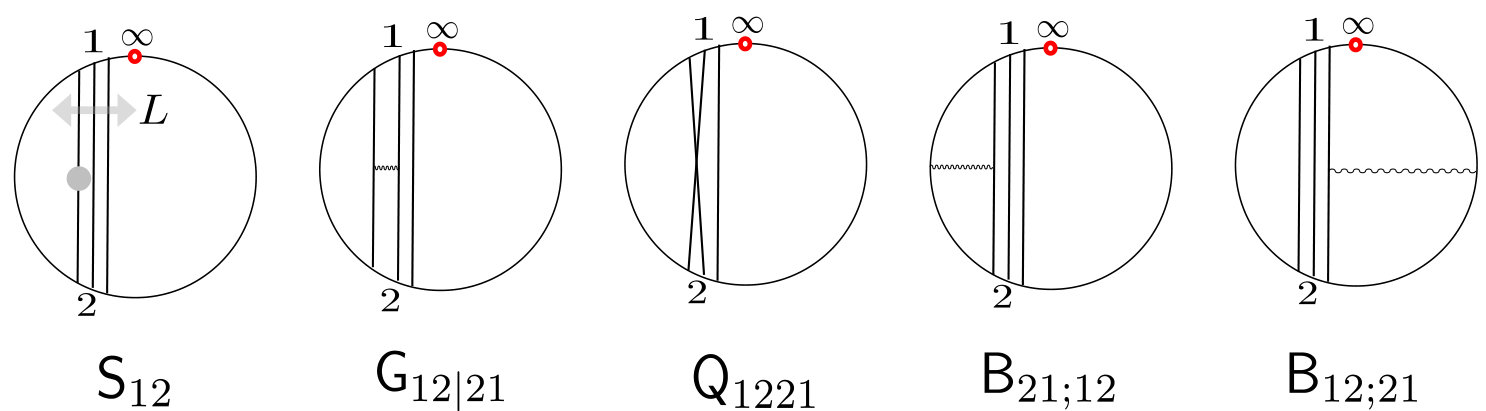

At one loop, the two-point functions of length $L$ operators get corrections from the following diagrams:

[TABLE]

One can simplify the computation using the identity,

[TABLE]

which can be verified using the results in the previous subsection. Thus, we obtain

[TABLE]

It is perhaps worth emphasizing that, unlike the single-trace operators, the one-loop correction to the two-point function on the Wilson loop is non-zero. In other words, the normalization constant $n_{L}$ is nontrivial and is given by

[TABLE]

Note that this result is in perfect agreement with the result computed from localization in [31].

Three-point functions

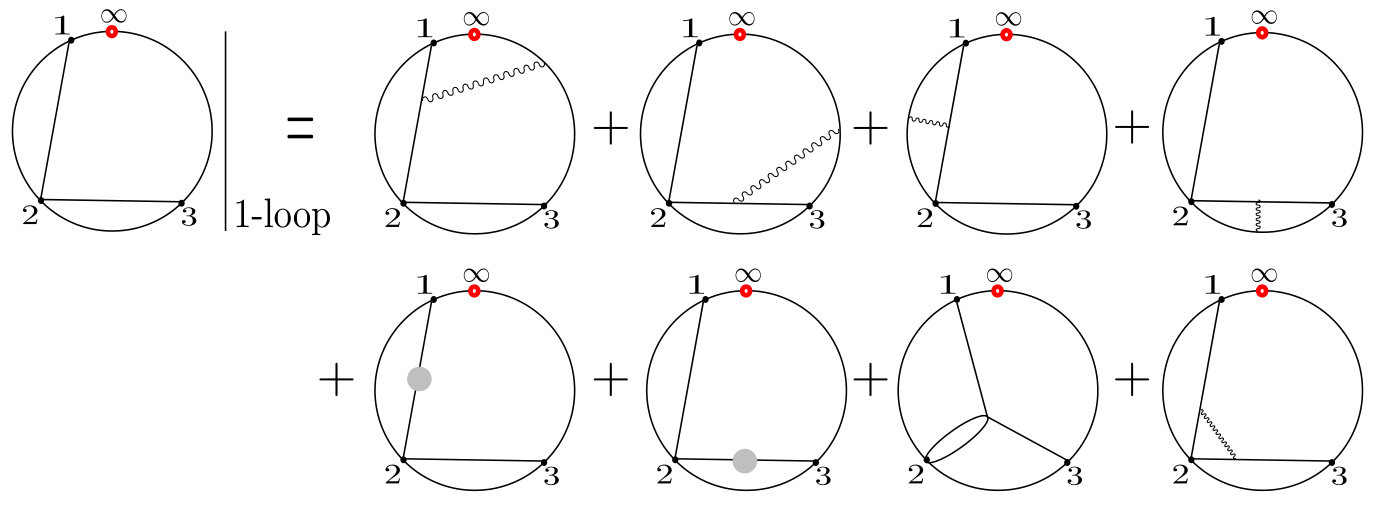

Let us next discuss the three-point functions. At tree level, the three-point function is given simply by a planar Wick contraction, and the number of propagators between a pair of operators is determined completely by the lengths of the operators: For instance, the number of propagators between $\mathcal{O}_{L_{i}}$ and $\mathcal{O}_{L_{j}}$ is given by

[TABLE]

where $i,j$ and $k$ are a cyclic permutation of the indices $1,2$ and $3$.

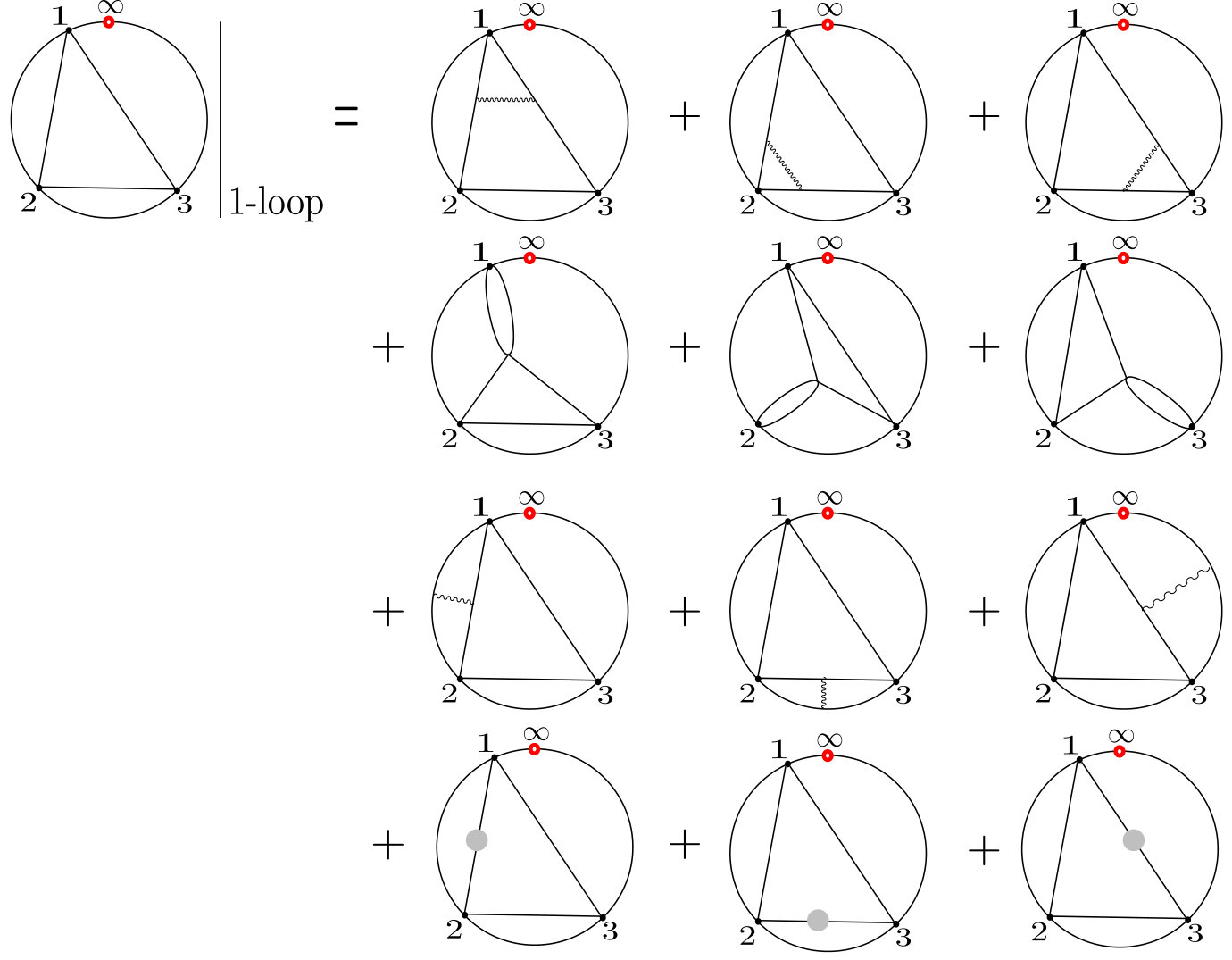

It turns out that the one-loop correction depends on whether $\ell_{ij}$’s are nonzero or not. If all $\ell_{ij}$’s are nonzero, we have the following one-loop diagrams (see figure 8):

[TABLE]

where the third term is the sum over the cyclic permutation of $\{1,2,3\}$. Summing them up and using the identity (40), we obtain

[TABLE]

Note that we split the contributions from ${\sf S}_{ij}$ into two pieces and reorganized the sum. It turned out that the second term in the summand coincides with the corner contribution ${\sf c}_{ijk}$. One can then show that their contribution vanishes owing to the cyclicity property of ${\sf c}_{ijk}$ (30). Furthermore, the first term in the summand can be computed using (25) and (38) as

[TABLE]

The asymmetry between the first two and the last terms come from the fact that ${\sf B}_{13;31}$ includes the integration at infinity while the other integrals do not. The sum of all these terms turned out to vanish and we get

[TABLE]

Let us next study the case where one of $\ell_{ij}$’s, say $\ell_{31}$, is zero. In this case, we lose the diagrams

[TABLE]

On the other hand, there are also new diagrams which are

[TABLE]

Summing all the contributions (see also figure 9), we obtain

[TABLE]

Combining the two results, we obtain the following expression for the general three-point function,

[TABLE]

Dividing them with the normalization $n_{L_{i}}$, we can compute the structure constant as

[TABLE]

These results coincide with the localization computation in [31].

3 Pertubation II: Four-Point Functions

3.1 General structure of tree-level contractions

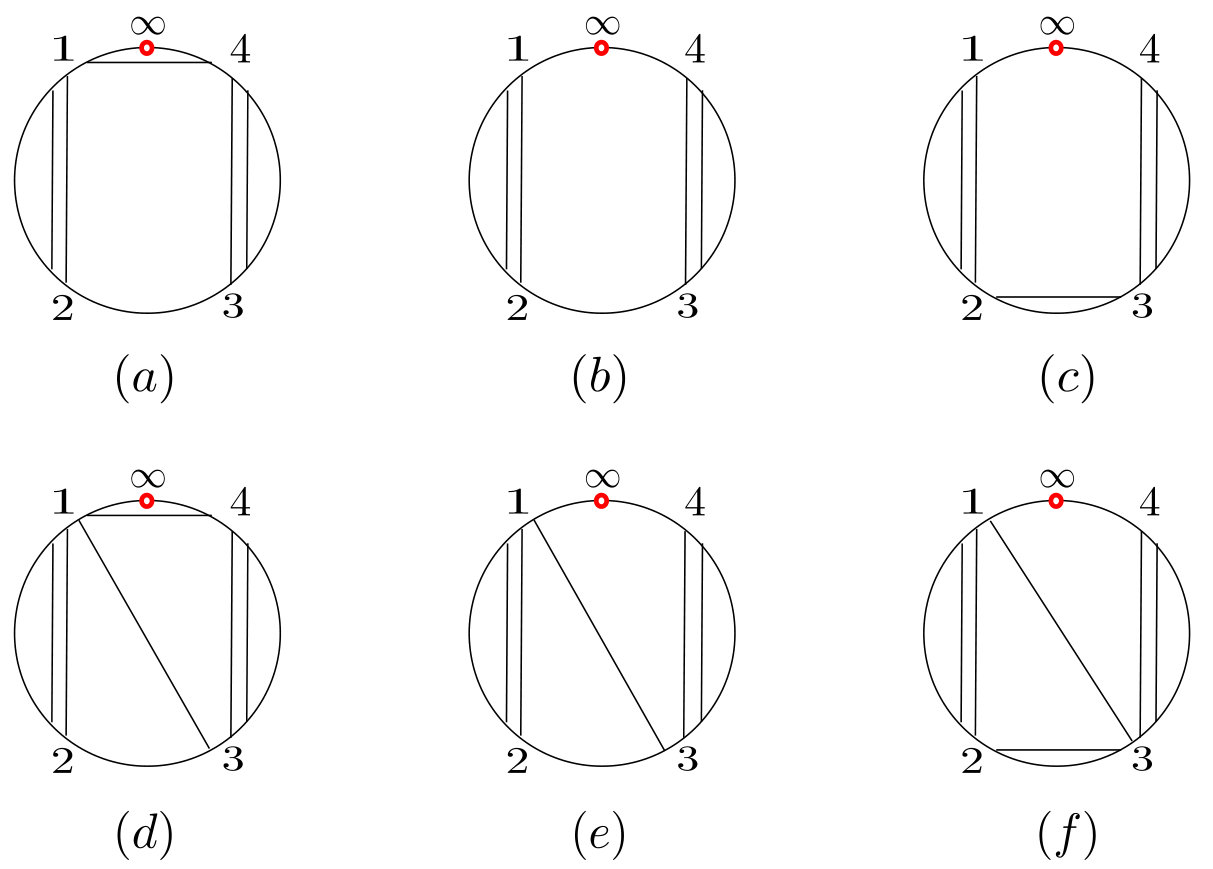

Before discussing the one-loop correction, let us first take a look at the general structure of the tree-level contractions.

Unlike the case for the two- and the three-point functions, there are multiple ways to perform the planar Wick contractions of four operators, and the tree-level answer is given by a sum of such contractions. Each diagram is specified by the numbers of propagators between two operators $\ell_{ij}$, which fall into two different classes; namely the ‘‘neighboring contractions’’

[TABLE]

and the ‘‘diagonal contractions’’

[TABLE]

Owing to the planarity, only one of the diagonal contractions can be nonzero, and they are determined by the lengths of four operators888This can be shown easily by writing the length of the operators in terms of $\ell_{ij}$, for instance $L_{1}=\ell_{12}+\ell_{13}+\ell_{41}$, and taking an appropriate linear combination.:

[TABLE]

Note that, when $L_{1}+L_{3}=L_{2}+L_{4}=0$, there are no diagonal contractions, $\ell_{13}=\ell_{24}=0$. On the other hand, the lengths of the neighboring contractions are not fixed and there is a one-dimensional ‘‘moduli space’’999One can view this as a discretized version of the one-dimensional of a disk with four marked points. of diagrams which is parametrized by the value of $\sigma\equiv(\ell_{14}+\ell_{23})/2$ (see figure 10 for an example). The sum over the moduli space is given by a geometric series with respect to the cross ratio in the following way:

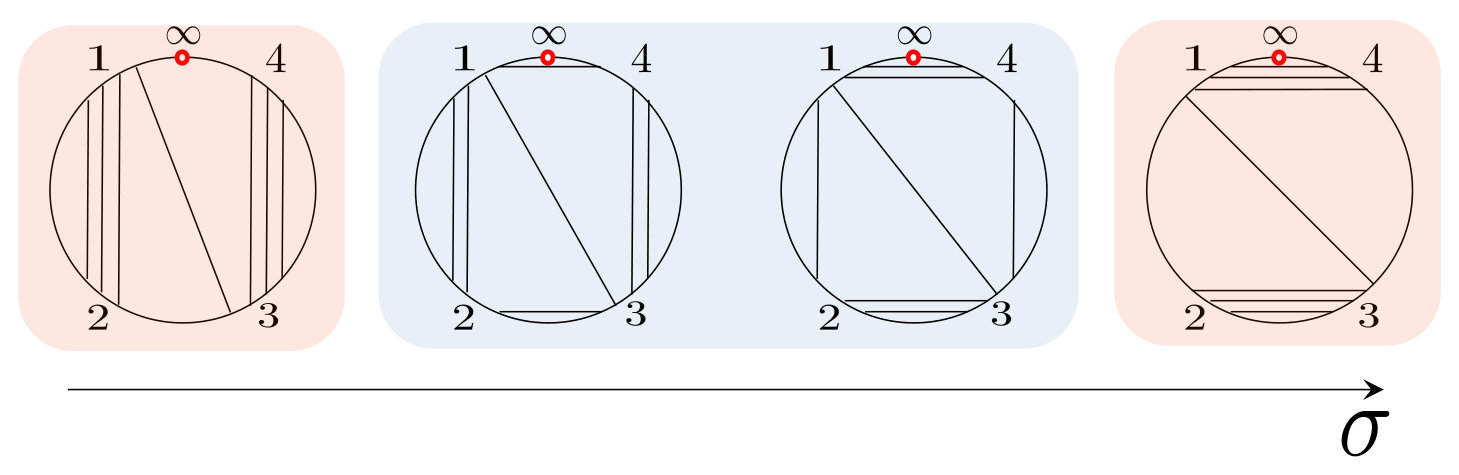

[TABLE]

where $\sigma_{\rm min}$ and $\sigma_{\rm max}$ are the minimal and the maximal values $\sigma$ can take. It is also possible to write down explicitly the contribution from the diagram with $\sigma_{\rm min}$. We then get

[TABLE]

where ${\sf D}_{\rm left}$ is the contribution from the diagram at the left edge of the moduli space,

[TABLE]

with

[TABLE]

and

[TABLE]

Similarly, the contribution from the diagram at the right edge of the moduli space reads

[TABLE]

with

[TABLE]

In the bulk of this moduli space, the diagrams are always of the ‘‘square shape’’; namely all the neighboring contractions are nonzero (see figure 10). At the boundary of the moduli space, however, the structure of the diagrams depends on the relative magnitude of the lengths $L_{k}$’s (see figure 11).

3.2 One-loop correction to the bulk diagrams

Let us now analyze the one-loop corrections to the bulk diagram, for which all neighboring contractions are nonzero. Most of the one-loop corrections can be obtained by dressing the tree-level diagrams with a gluon propagator. The only exception is the scalar quartic interaction ${\sf Q}_{1234}$. In a sense, the scalar quartic diagram sits between two tree-level diagrams. This can be seen easily from the fact that the expression (26) contains several different contractions, $\bar{d}_{ij}\bar{d}_{kl}$. This small complication can be overcome by decomposing ${\sf Q}_{1234}$ as follows and treating each term separately (see also figure 12):

[TABLE]

In what follows, we will use this decomposition and associate all the one-loop corrections with the individual tree-level diagrams.

Diagrams without diagonal contraction

With this in mind, we now study the bulk diagram without diagonal contractions, namely $\ell_{13}=\ell_{24}=0$. The one-loop corrections are given by101010Here we use the mod $4$ identification of the subscripts, namely $\ell_{45}\equiv\ell_{41}$. (see figure 13)

[TABLE]

Using (40), the first two terms in (63) can be simplified into

[TABLE]

Combining them with the third and the fourth terms in (63), we get

[TABLE]

Finally, the last two terms in (63) give

[TABLE]

Summing (65) and (LABEL:eq:secondfirstfour) and using

[TABLE]

we finally obtain the following answer

[TABLE]

Here $m(\chi)$ is the function introduced in [17], which reads111111Although we do not write it explicitly, the function $m(\chi)$ also depends on $\alpha$ and $\bar{\alpha}$, and they are also transformed in the same way when we perform the transformation for $\chi$. Namely

$m\left(\frac{\chi}{\chi-1}\right)\equiv g^{2}\left[\frac{\chi}{\chi-1}-\frac{1}{2}\left(\frac{\alpha}{\alpha-1}+\frac{\bar{\alpha}}{\bar{\alpha}-1}\right)\right]\Phi\left(\frac{\chi}{\chi-1}\right)\,.$

(69)

[TABLE]

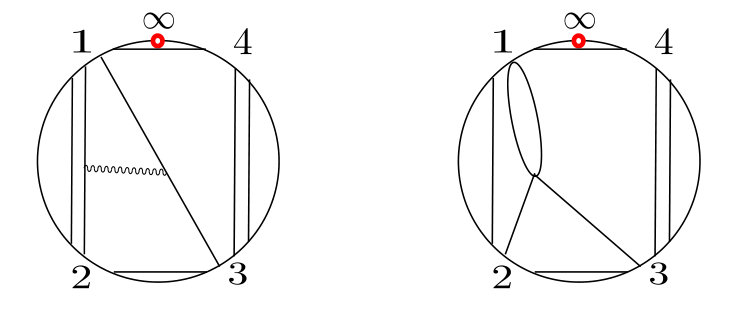

Diagrams with diagonal contraction

Let us next analyze the bulk diagram with diagonal contractions. We focus on the case with $\ell_{13}\neq 0$ since the other case ($\ell_{24}\neq 0$) can be analyzed similarly. In the presence of the diagram contractions, one cannot draw a scalar quartic diagrams or a gluon exchange diagrams involving all four operators. Instead the one-loop corrections are given by (see also figure 14)

[TABLE]

By appropriately reorganizing the terms and using the identities (40) and (30), one can show that the sum of these diagrams reduce to

[TABLE]

Summing them up, we get

[TABLE]

Similarly, the case with $\ell_{24}\neq 0$ reads

[TABLE]

3.3 One-loop correction to the boundary diagrams

We now compute the corrections to the diagrams that live at the boundaries of the moduli space. In what follows, we focus on the diagrams at the left end of the moduli space, namely the diagrams with a minimal $\sigma\equiv(\ell_{14}+\ell_{23})/2$ since the diagrams at the other end can be obtained by the permutation of the operator labels (we will write down the explicit results in the next section).

Diagrams without diagonal contraction

As in the previous subsection, let us first discuss the diagrams without diagonal contractions. In general, there are three different possibilities depending on the relative magnitude between $L_{1}+L_{4}$ and $L_{2}+L_{3}$.

When $L_{1}+L_{4}$ and $L_{2}+L_{3}$ are equal, we have $\ell_{14}=\ell_{23}=0$, and the one-loop corrections are given by the following sets of diagrams (see also figure 15-$(a)$):

[TABLE]

As in the analysis in the previous subsection, the terms in the first line add up to ${\sf S}_{12}$ and ${\sf S}_{34}$. Combining them with the rest of the contributions using (30) and (40), we get

[TABLE]

To further simplify this expression, we take the second equation of (36) and substitute $x$ with $x_{43}/x_{42}$ and $y$ with $x_{42}/x_{41}$. After this substitution, we get

[TABLE]

As a result we get the following one-loop correction:

[TABLE]

Let us next consider the case with $L_{1}+L_{4}>L_{2}+L_{3}$. In this case $\ell_{41}$ is nonzero, and the one-loop diagrams are given by (see also figure 15-$(b)$)

[TABLE]

Summing these contributions, we get

[TABLE]

Using the identities for $L_{R}(x)$, we can rewrite it as

[TABLE]

Similarly, the case with $L_{1}+L_{4}<L_{2}+L_{3}$ ($\ell_{23}\neq 0$) can be computed, and the result reads

[TABLE]

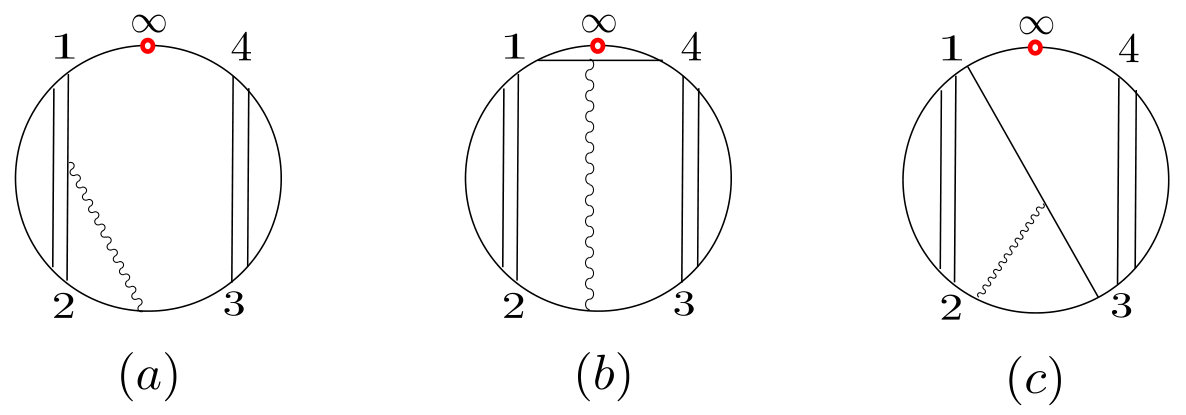

Diagrams with diagonal contraction

Next, we consider the diagrams with diagonal contractions. Here we focus on the case with $\ell_{13}\neq 0$ since the other case $\ell_{24}\neq 0$ can be obtained by the permutation of indices.

As in the preceding analyses, we can list all the diagrams that contribute and sum them up with the help of identities such as (30) and (40). There is however much a simpler way to perform the computation in this case: Since all the diagrams locally look like the diagrams for the three-point functions (see figure 15-$(c)$), we can add and subtract the results for the three-point function, which we already computed. As a result we obtain

[TABLE]

3.4 Final results and comparison with localization

Let us now finally write down the full answer for the one-loop four-point functions. Since we computed the corrections to the individual diagrams, what we need to do is to simply dress the tree-level answer (56) by appropriate one-loop integrals. The result reads

[TABLE]

with

[TABLE]

Here $\delta_{\ell_{ij}}$ means the Kronecker delta $\delta_{\ell_{ij},0}$.

We can also compute the normalized four-point functions by dividing the answer by $\sqrt{n_{L_{1}}n_{L_{2}}n_{L_{3}}n_{L_{4}}}$. The answer reads

[TABLE]

with

[TABLE]

Here ${\sf D}^{\prime}_{\rm left,right}$ are defined by

[TABLE]

Let us now compare the results we obtained with the results of the localization computation [31]. For this purpose, we need to set

[TABLE]

We then get

[TABLE]

We compared the sum of these two results with the results obtained by the localization. In all the cases that we tested, the results agreed perfectly.

4 Hexagonalization

Having computed the one-loop corrections, we now discuss how the results could be reproduced using integrability.

4.1 Proposal

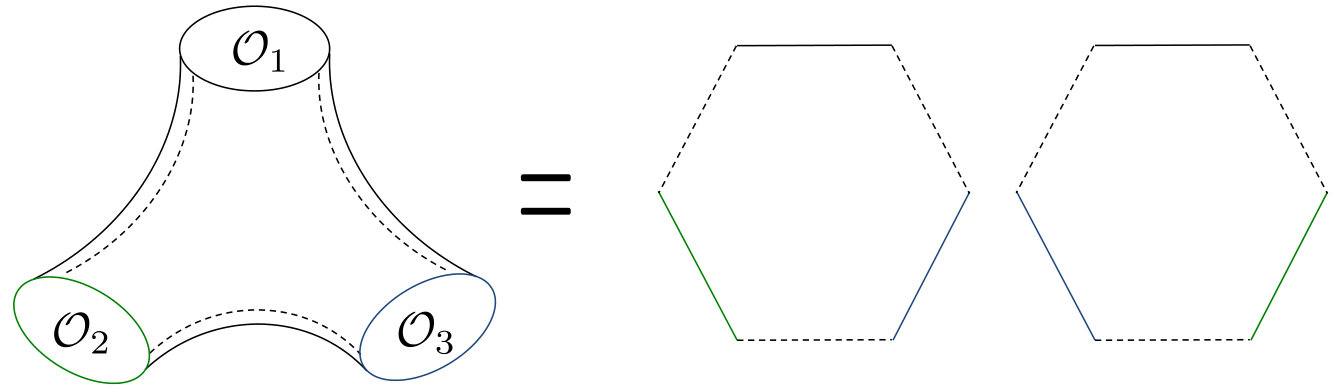

For the correlation functions of single-trace operators, the integrability-based approach, called hexagonalization, was proposed in [17]. The key idea of the hexagonalization is to cut the worldsheet into hexagonal patches and then glue them back together multiplying appropriate weight factors.

The approach consists of three steps: We first draw all possible tree-level graphs, each of which is distinguished by the numbers of contractions between operators. Next, we tessellate each graph into hexagons. The last step, which is the most important, is to glue the hexagons back together by summing over all possible states that appear on the glued edges. This last step is reminiscent of the sewing construction in 2d CFT, the difference being that the states that appear in our case are labelled by the numbers and the momenta of excitations (called magnons). The dependence on the cross ratio is incorporated as the weight factor for each state and the bridge-lengths appear as the propagation factor for individual magnons. For the planar four-point function, these procedures lead to the following expression121212Note that here we included the measure factors into the hexagon form factor $\mathcal{H}$. More precisely the relation between the definition in [17] and the definition here is given by

$\left.\mathcal{H}_{\psi_{1},\psi_{2},\psi_{3}}\right|_{\rm here}=\sqrt{\mu_{\psi_{1}}\mu_{\psi_{2}}\mu_{\psi_{3}}}\left.\mathcal{H}_{\psi_{1},\psi_{2},\psi_{3}}\right|_{\rm there}\,.$

(91) For explicit expressions of various factors, see [17]. :

[TABLE]

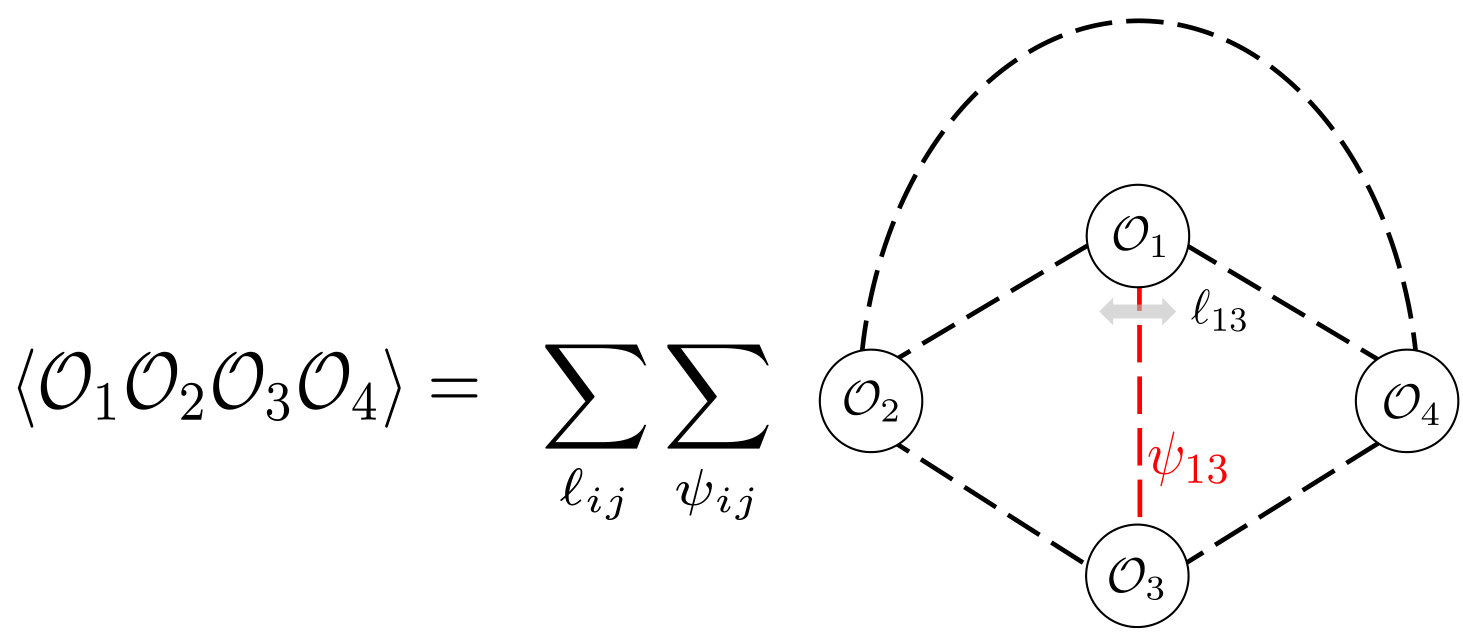

See also figure 16 for a pictorial explanation.

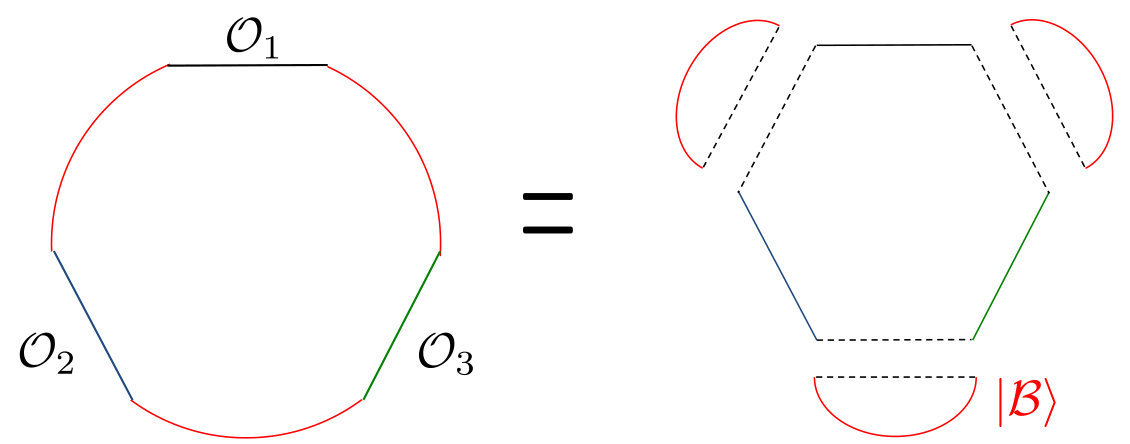

The goal of this section is to propose a generalization of this approach to the correlators on the Wilson loop. The planar diagrams for the correlators on the Wilson loop have the topology of a disk, and can also be tessellated into hexagons as shown in figure 17. The main difference, as compared to the correlators of single-trace operators, is that some of the edges of the hexagons are attached to the segments of the Wilson loop. In the integrability description, it is known [40, 41] that the Wilson loop is described by a boundary state, whose structure can be expressed schematically as

[TABLE]

where $A_{a}^{\dagger}$ is the creation operator of a magnon with index $a$ and $K^{ab}(p)$ is the analytically continued reflection matrix (see [40, 41] for explicit expressions). Expanding the exponential, the boundary state will be given by a sum of multi-particle states $|\tilde{\psi}_{k}\rangle$ with definite momentum and energy:

[TABLE]

where $b_{\tilde{\psi}_{k}}$ is a numerical coefficient.

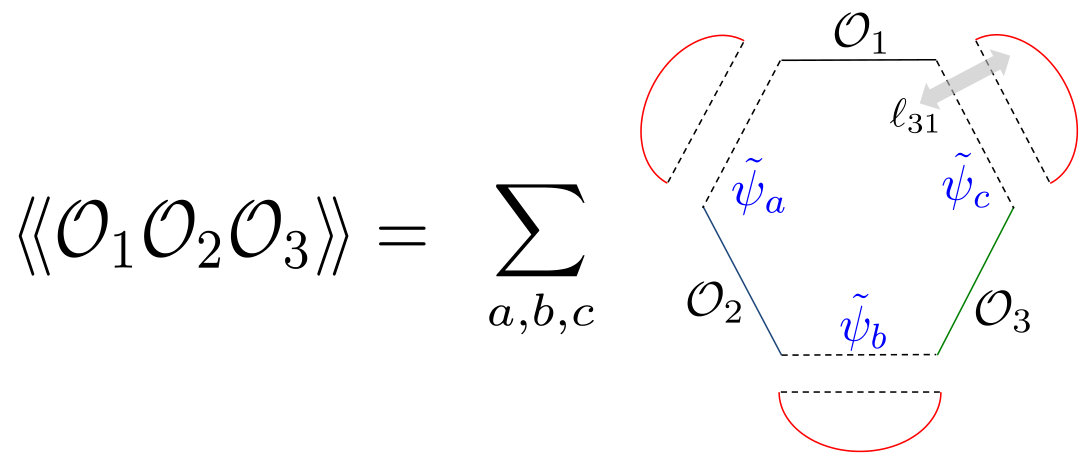

Given such a structure, it is natural to conjecture that the edges of the hexagon attached to the Wilson loop are contracted with the boundary state. For instance, the conjecture for the three-point function of protected operators on the Wilson loop reads131313Note that, since the three-point function does not have any cross ratios, the weight factor is just $1$ for the three-point function. (see also figure 17)

[TABLE]

Note that {\color[rgb]{0,0,1}\tilde{\psi}}’s here are the states obtained by the expansion of the boundary state. Similarly the conjecture for the four-point function is given by141414Here we assumed that $\ell_{24}=0$. The generalization for $\ell_{24}\neq 0$ is straightforward. (see also figure 18)

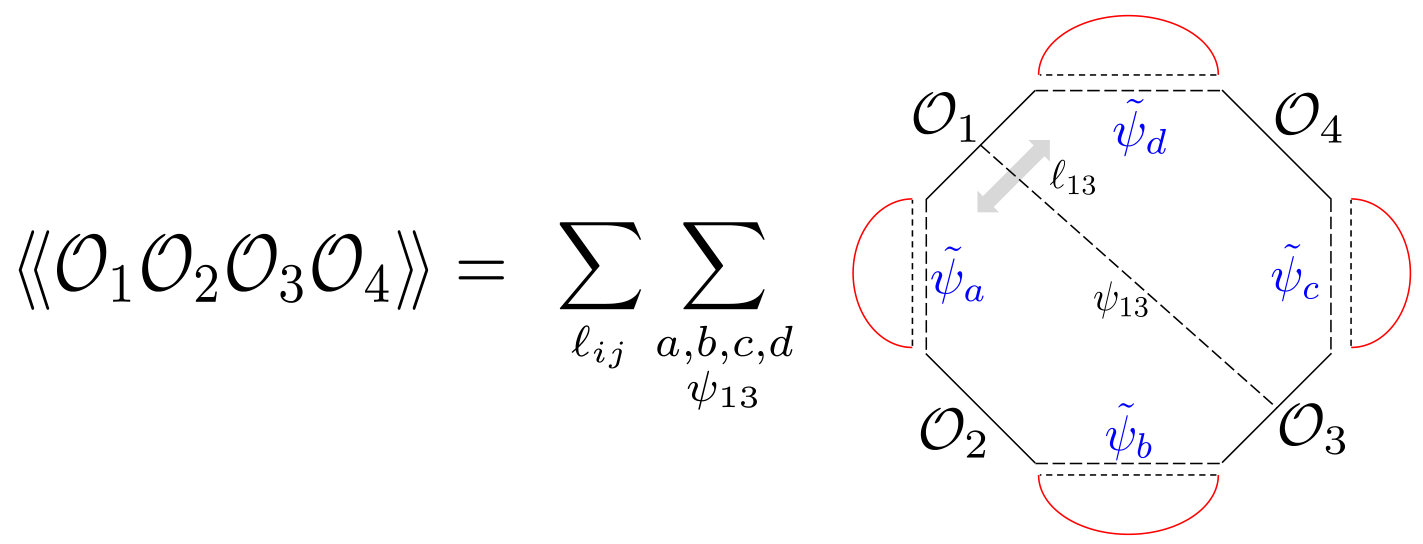

[TABLE]

In this paper, we will not perform the explicit integrability computation. Instead we will compare the perturbative results obtained in the preceding sections with the conjectures put forward above. As we see below, the comparison leads to a modification of the proposal.

4.2 A puzzle and a resolution

The proposal above allows us to compute the correction to each tree-level diagram. On the other hand, the one-loop results computed in the previous section are also given as the corrections to the individual diagrams. Therefore one can compare the one-loop results with the integrability computation at the level of individual diagrams.

Puzzle

Such comparison, however, leads to some puzzle. To see this, we need to recall how each factor in (95) and (96) scales at weak coupling. As discussed in [13], the propagation factor scales as

[TABLE]

while the $n$-particle state contribution to the boundary state scales as (see [40, 41])

[TABLE]

In addition, the hexagon form factor for the $n$-particle state (and two vacuum states $\emptyset$) scales as

[TABLE]

Here, we only considered the hexagon form factor with one excited state, but the analysis can be readily generalized to the case with multiple excited states. As a result, one can show that the only configurations that contribute at one loop are one-particle states on zero-length edges ($\ell_{ij}$), or ‘‘multi-particle string’’ configurations discussed in [22].

This in particular means that, for three-point functions with $\ell_{ij}\neq 0$, there is no configuration that contributes at one loop. However, this is clearly in contradiction with the results we obtained (51), which are nonzero $(\pi^{2}g^{2})$ even when all $\ell_{ij}$’s are nonzero. A similar contradiction can be seen also in the four-point function. For instance, consider the bulk diagram without diagonal contractions, namely $\ell_{13}=\ell_{24}=0$. The relevant magnon configuration for this diagram is the one-particle state living on the (zero-length) diagonal edge. This is precisely the configuration analyzed in [17], and the result is simply given by

[TABLE]

Comparing this with the perturbative results, (85) and (87), we see discrepancies by a constant shift ($\frac{2\pi^{2}g^{2}}{3}$ or $2\pi^{2}g^{2}$).

Resolution

Fortunately, there is a simple resolution to this puzzle. So far we have been comparing the integrability prediction with the correlators on the straight-line Wilson loop since they have direct connections with the defect CFT data. However, it turns out that the integrability computation is more naturally related to the normalized correlator on the circular Wilson loop defined by

[TABLE]

Using the perturbative answer for the expectation value of the circular Wilson loop [24],

[TABLE]

one can show that the extra factor $\left(\langle\mathcal{W}\rangle_{\rm circle}\right)^{\frac{2-m}{2}}$ kills precisely the unnecessary constant shifts.

Large Charge Asymptotics

We do not have a clear physical explanation as to why the integrability computation seems to give the correlators on the circular Wilson loop rather than the straightline Wilson loop. One interesting outcome of this conjecture is that the large-charge asymptotics of the structure constant is given by the expectation value of the Wilson loop. To see this, consider the three-point functions of long operators; more precisely the three-point function with $\ell_{ij}\gg 1$. Owing to the suppression coming from the propagation factor, the contributions from nontrivial magnon configurations are all suppressed, which means that the integrability answer is just $1$. Using the correspondence (101), this translates to the following asymptotics of the structure constant:

[TABLE]

In principle, this prediction can be verified by the localization computation [31]. It would also be interesting if one could derive this asymptotics from the defect CFT point of view151515See e.g. [45] for the analysis of the CFT data in the large charge limit..

Comparison with Localization

To provide further evidence for the conjecture, let us analyze the results computed by the localization in [31]. We refer the original paper for the details of the computation and simply show the results for a few short operators:

[TABLE]

where $\tilde{C}_{L_{1},L_{2},L_{3}}$ is the normalized structure constant on the circular Wilson loop,

[TABLE]

One can readily verify that the leading correction shows up at order161616Note that, for three-point functions, the number of contractions between operators is determined completely by the lengths of the operators, $\ell_{ij}=(L_{i}+L_{j}-L_{k})/2$.

[TABLE]

as is consistent with the suppression due to the propagation factor (97).

4.3 Prediction for multi-particle contributions

Let us now perform a more detailed comparison between the integrability computation and the one-loop results for the three- and four-point functions, and make predictions for multi-particle contributions in the hexagonalization approach.

First, by comparing the results for the three-point function, one can immediately conclude that the contribution from the one-particle state living on a boundary edge, namely an edge of a hexagon attached to the boundary state, is given by

[TABLE]

Let us next analyze the four-point functions. At one loop, there are several relevant configurations that contribute to the four-point functions; the one-particle states, the two-particle state, and the three-particle state. Among those contributions, we already know the contribution from the one-particle state is given either by (107) or by

[TABLE]

depending on whether the magnon lives on the boundary edge or on the diagonal edge. By subtracting these contributions from the one-loop answer, one can determine the contributions from the rest of the configurations. For instance, the diagram with $\ell_{13}=\ell_{24}=\ell_{23}=0$ and nonzero $\ell_{12}$, $\ell_{34}$ and $\ell_{41}$ receive the contributions from three different configurations,

[TABLE]

and their sum is given by171717See (87).

[TABLE]

We therefore conclude that the contribution from the two-particle state is given by

[TABLE]

Similarly, one can determine the contribution from the three-particle state as

[TABLE]

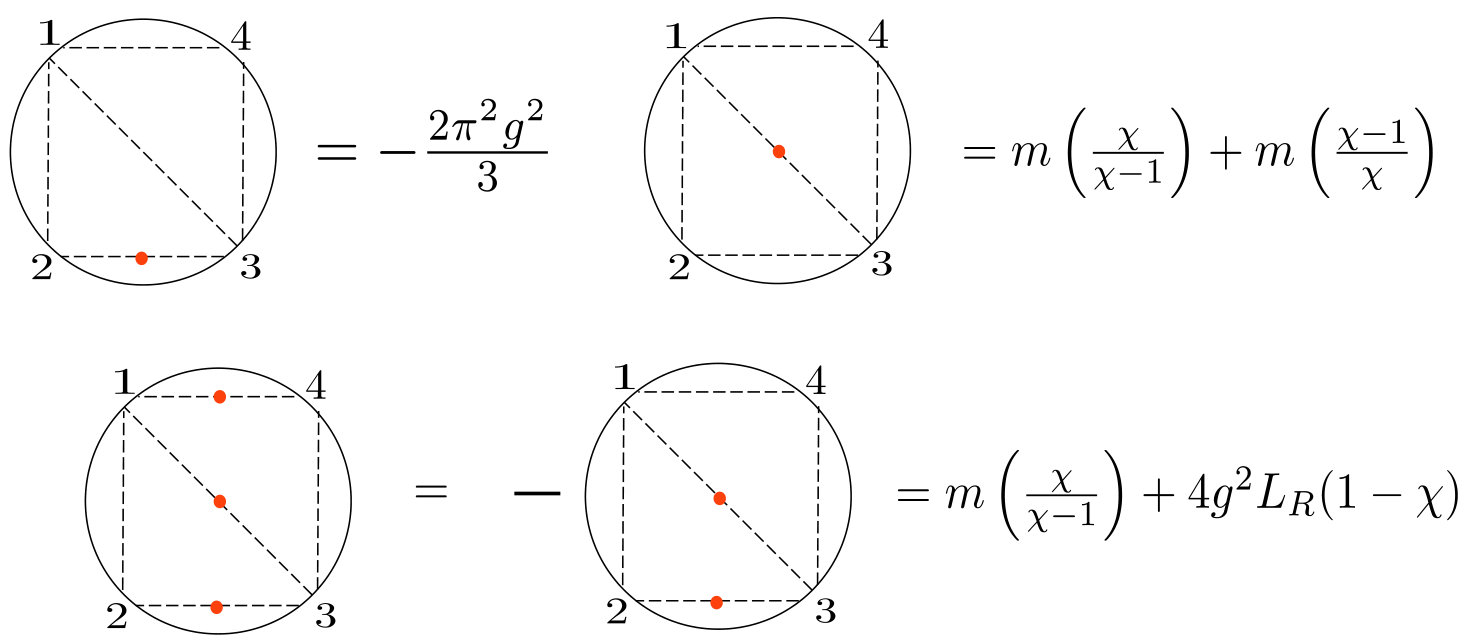

See figure 19 for a summary of the results.

Obviously, an important question is to reproduce these results by performing an explicit integrability computation. Since both the boundary state and the hexagon form factors are known, this is in principle a possible task. It can however be technically complicated and we will leave it for future investigations.

5 Non-BPS Structure Constants

In the previous section, we have seen that the hexagonalization computes the correlators of the BPS operators on the circular Wilson loop. It is then natural to conjecture that the same holds also for the correlators of the non-BPS operators.

In general, the three-point functions on the straightline Wilson loop in the planar limit are given by

[TABLE]

Here we assumed that the two-point function of each operator is canonically normalized. In order to convert this into the correlator on the circular Wilson loop, we need to multiply $(\langle\mathcal{W}\rangle_{\rm circle})^{-\frac{1}{2}}$ as in (101) and define

[TABLE]

Then the conjecture is that it is $\tilde{C}_{123}$ (rather than $C_{123}$) that can be computed by the integrability method.

Asymptotic part

In general, the hexagon approach to the non-BPS three-point function consists of two parts, the asymptotic part and the finite-size corrections.

The expression for the asymptotic part of the structure constant with a single non-BPS operator in the rank $1$ sector was given in [43]. The only difference from the current analysis is that, in [43], it was conjectured that the integrability method computes the standard structure constant $C_{123}$. However, as we saw above, in view of the comparison of the one-loop results, it is more natural to conjecture that the integrability method computes $\tilde{C}_{123}$.

Having made this remark, let us briefly review the proposal in [43] (with the modification mentioned above). The proposal is a natural generalization of the one made in [13], and reads181818Note that the paper [43] uses a convention for the S-matrix which is not standard in the $\mathcal{N}=4$ SYM literature. Here we rewrote it using standard conventions:

$\left.S(u_{i},u_{j})\right|_{\rm here}=\left.S(u_{j},u_{i})\right|_{\text{in \cite[cite]{[\@@bibref{}{Kim:2017phs}{}{}]}}}\,.$

(115)

[TABLE]

Here $\phi_{j}$ is the phase factor191919The Bethe equation is given by $e^{i\phi_{j}}=1$.

[TABLE]

where $S(u,v)$ is the S-matrix while $R_{L}$ and $R_{R}$ are the reflection matrices for the left- and the right-boundaries of the spin chain. The barred rapidities $\bar{u}$ denote the parity-flipped rapidities which can be characterized by the values of the Zhukovski variables202020The Zhukovski variables are defined by

$x(u)+\frac{1}{x(u)}=\frac{u}{g}\,,\qquad x^{\pm}(u)=x\left(u\pm\tfrac{i}{2}\right)\,.$

(118)

[TABLE]

and $p_{\rm tot}$ is the total momentum

[TABLE]

The main part of the conjecture $\mathcal{A}$ is a sum over partitions defined by

[TABLE]

Here $h(u,v)$ are the hexagon form factors and $\hat{u}_{s}$’s are given by

[TABLE]

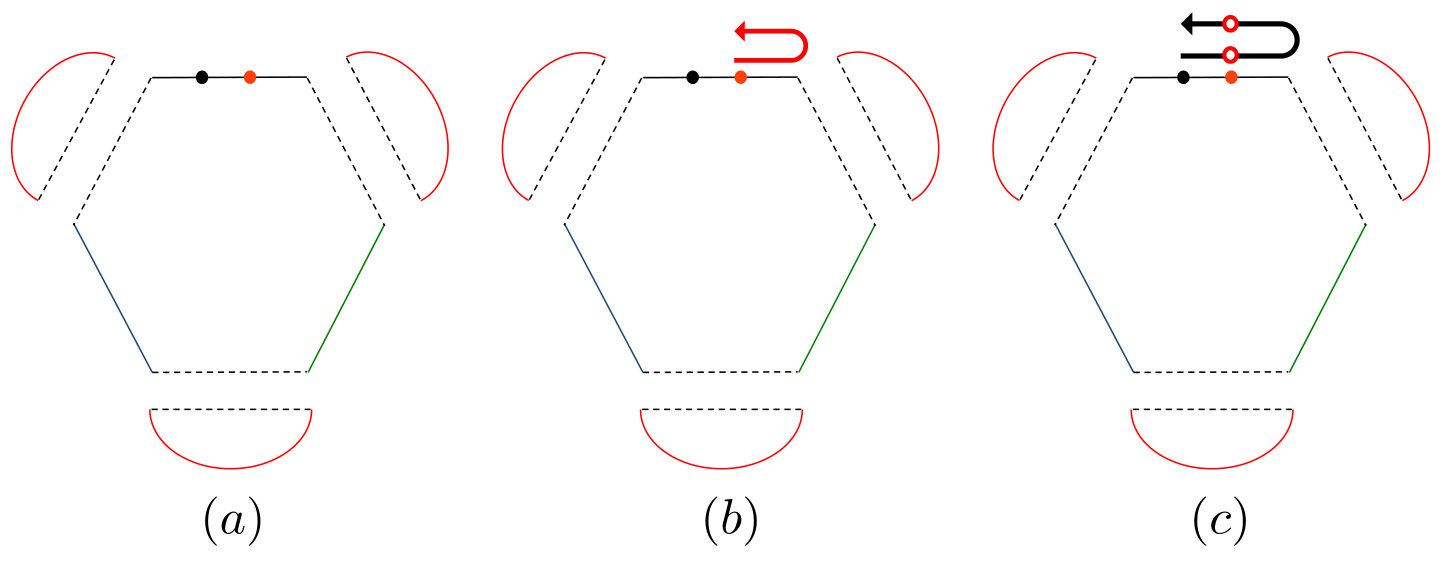

Although the expression (121) might look complicated at first sight, it has a natural physical interpretation. To see this, let us consider the expression for the two-magnon state:

[TABLE]

The first term is the standard hexagon form factor for the magnons with rapidities $u_{1}$ and $u_{2}$. On the other hand, the second term represents a process in which the magnon $u_{2}$ travels to the right boundary, gets reflected and then comes back to its original position. The phase factor acquired in this process is precisely $e^{2ip_{2}\ell_{31}}R_{R}(u_{2})$, and, since the magnon gets reflected, the relevant hexagon form factor is $h(u_{1},\bar{u}_{2})$. The third and the four terms can be understood in a similar manner. The only difference is that, when we move the magnon $u_{1}$ to the right boundary and brings it to the original position, we have to reorder the two magnons and this leads to the S-matrix factor, $S(u_{1},u_{2})S(u_{2},\bar{u}_{1})$. See also figure 20 for further explanation.

Finite-size corrections

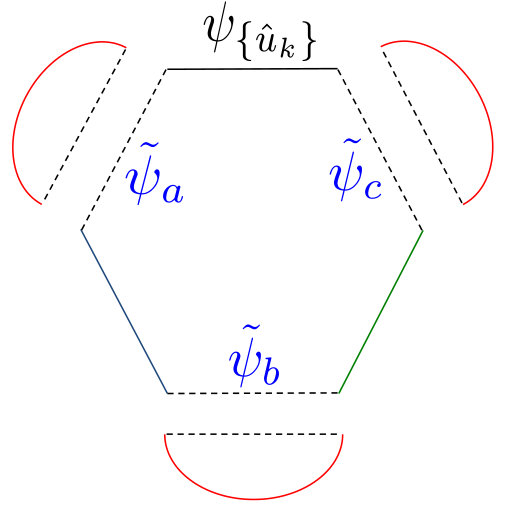

As in the original hexagon proposal [13], we expect that the asymptotic answer gets corrected by the contributions from the mirror particles. In fact, our conjecture in the previous section for the BPS three-point functions consist only such mirror-particle contributions since the asymptotic part is trivial.

In the case of non-BPS three-point functions, mirror particles interact with the physical magnons through the hexagon form factor. Written more explicitly, we expect that the sum over partitions $\mathcal{A}$ gets modified to (see also figure 21)

[TABLE]

with $\mathcal{H}_{\psi_{1},\psi_{2},\psi_{3}|\psi_{4},\psi_{5},\psi_{6}}$ being the hexagon form factor with $\psi_{1,2,3}$ on the mirror edges and $\psi_{4,5,6}$ on the physical edges. Here {\color[rgb]{0,0,1}\tilde{\psi}}’s are the states obtained by the expansion of the boundary state (94), and $\psi_{\{\hat{u}_{k}\}}$ is the multi-magnon state with rapidities $\{\hat{u}_{k}\}$ which describes the non-BPS operator.

Of course, what we have described above is merely a conjecture since we haven’t provided any evidence apart from the tree-level analysis performed in [43].

6 Conclusion

In this paper, we computed the correlation functions on the $1/2$-BPS Wilson loop in $\mathcal{N}=4$ SYM at one loop. The results are in perfect agreement with the localization computation performed in [31]. We then examined the results from the point of view of the hexagonalization approach [13, 17].

The relation between our conjecture and the hexagon formalism for the single-trace correlators [13] bears some resemblance to the KLT relation between open and closed string amplitudes in flat space [46]. For instance, the number of hexagons that we need for the correlators on the Wilson loop is precisely half the number that we need for the single-trace correlators, being in line with the slogan (closed string) = (open string)2. Of course the actual relation between the two is more complicated than the KLT relation since the boundary states would affect the computation nontrivially. Nevertheless it might be interesting to ask if the analogy can be made more precise.

Let us end this paper by mentioning several future directions. The most pressing question is to test our conjecture by performing the computation in the hexagonalization approach. We tried to perform such computation but did not succeed in doing so owing to the complexity of the multiparticle integrand. However, this is just technical difficulty and we believe that it can be overcome with some more efforts.

From the four-point function we computed in this paper, one can extract the structure constants of non-BPS operators on the Wilson loop by performing the conformal block expansion. A similar idea was employed in [47] to test the hexagon formalism for the single-trace structure constants. It would be interesting to perform the same analysis in our set-up and check the proposal in [43] at one loop and extend it to the higher-rank sectors.

Another interesting direction is to study the strong-coupling limit and compare it with the results in [36]. Also interesting would be to consider long operators at strong coupling. Such operators are dual to the classical open strings and the correlators are described by some nontrivial classical string configuration. Determining the shape of such a configuration is generally a hard problem, but one may be able to compute its area directly without needing to know its shape by applying the methods developed in [16, 48, 49, 50]. It would also be interesting to look for the analogue of the ‘‘simple’’ four-point functions analyzed in [51, 52].

We would also like to emphasize that the correlators on the Wilson loop are ideal quantities for understanding the connection between the OPE and integrability: Unlike standard single-trace operators whose OPE necessarily involves the multi-trace operators even in the planar limit, the OPE of operators on the Wilson loop is closed at large $N$. This would make it simpler to compare the OPE with the integrability-based approaches, and understand the relation between the two [47].

It goes without saying that one can try to generalize our analysis to other set-ups which are also described by the open string worldsheet. It would be particularly interesting to study the correlators of mesonic operators in the flavored/orientifolded $\mathcal{N}=4$ SYM [53, 54, 55]212121Other possible set-ups are the correlators on the domain-wall defect [56, 57] and the correlators of determinant-like operators which are described by open strings on the $Y=0$ branes [58, 59, 60]..

It would also be interesting to generalize our perturbative analysis to the non-planar level and check the predictions for the non-planar correlators from the localization in [32].

More ambitiously, it would be exciting if one could express the correlators in the Chern-Simons vector models in three dimensions [61, 62, 63, 64] in terms of hexagons. Being vector-like models, they likely admit a description in terms of some (limit of) open string theory in AdS222222See [65] for explicit proposals on the open-string dual of some of the vector-like models., and one might hope that their correlators can be decomposed in a way similar to the ones proposed in this paper. If true, that would provide a clue to the worldsheet description of the Vasiliev theory [61, 66, 67] to which these theories are believed to be dual to. This was actually the original motivation for this work and we hope to come back to it in the not-so-distant future.

Acknowledgement

We thank Thiago Fleury for sharing with us the Mathematica notebooks on the computation of the matrix part of the hexagon form factor. We are grateful to Perimeter Institute for Theoretical Physics where this work was initiated. The research of NK is supported in part by JSPS Research Fellowship for Young Scientists, from the Japan Ministry of Education, Culture, Sports, Science and Technology while the research of SK is supported by DOE grant number DE-SC0009988.

Appendix A Action and Propagators

Here we summarize our convention of the action and the propagators. The convention follows the one in [29], which is equivalent to the one in [23] up to minor modifications.

In our convention, the action of $\mathcal{N}=4$ SYM in the Euclidean signature reads

[TABLE]

where $D_{\mu}\equiv\partial_{\mu}-i[A_{\mu},\bullet]$ and $c$ and $\bar{c}$ are the BRST ghosts. The Gamma matrices $\Gamma^{A}=(\Gamma^{\mu},\Gamma^{i})$ are the ten-dimensional Dirac matrices which satisfy the orthogonality relation

[TABLE]

The propagators of individual fields can be read off from this action. For instance, the results for the gauge field and the scalar read

[TABLE]

where $a$-$d$ are the color indices.
