Approximate Calculation of Tukey's Depth and Median With High-dimensional Data

TL;DR

This paper introduces a fast, approximate algorithm for calculating Tukey's depth and median in high-dimensional data, leveraging a novel intersection-of-balls approach that avoids projections and scales linearly with dimension.

Contribution

The paper presents a new high-dimensional algorithm for Tukey depth and median calculation that is faster and more scalable than existing methods, without requiring data in general position.

Findings

Algorithm is significantly faster in high dimensions.

Complexity is linear in the dimension d.

Can handle thousands of multidimensional observations.

Abstract

We present a new fast approximate algorithm for Tukey (halfspace) depth level sets and its implementation-ABCDepth. Given a $d$-dimensional data set for any $d\geq 1$, the algorithm is based on a representation of level sets as intersections of balls in $\mathbb{R}^d$. Our approach does not need calculations of projections of sample points to directions. This novel idea enables calculations of approximate level sets in very high dimensions with complexity which is linear in $d$, which provides a great advantage over all other approximate algorithms. Using different versions of this algorithm we demonstrate approximate calculations of the deepest set of points ("Tukey median") and Tukey's depth of a sample point or out-of-sample point, all with a linear in $d$ complexity. An additional theoretical advantage of this approach is that the data points are not assumed to be in "general position". Examples with real and synthetic data show that the executing time of the algorithm in all mentioned versions in high dimensions is much smaller than the time of other implemented algorithms. Also, our algorithms can be used with thousands of multidimensional observations.

Figures

Tables

Table 1. Table 1: Error size of approximate median points in terms of p 𝑝 p -values P ​ ( χ 2 ​ ( d ) ≤ ‖ m ^ ‖ 2 ) 𝑃 superscript 𝜒 2 𝑑 superscript norm ^ 𝑚 2 P(\chi^{2}(d)\leq\left\|\hat{m}\right\|^{2})

n	Algorithm	d
		4	5	6	7	8	9	10	20	100	200
1000	DEEPLOC ABCDEPTH	0.0021 0.0011	0.0027 0.0016	0.0039 0.0012	0.0041 0.0011	0.0045 0.0015	0.0051 0.0015	0.0056 0.0012	0.0056 0.0012	0.0612 0.0022	0.1234 0.002

Table 2. Table 2: Comparison between DEEPLOC and ABCDepth execution times in seconds.

d	Algorithm	n
		320	640	1280	2560	3000	3500	4000	4500	5000	5500	6000	6500	7000
50	Deeploc ABCDepth	4.43 0.15	7.15 0.63	12.65 2.86	23.87 4.95	30.93 7.27	31.79 8.65	37.66 12.51	45.35 14.18	50.72 17.51	63.13 22.18	63.75 25.86	84.13 29.24	69.61 37.34
100	Deeploc ABCDepth	19.42 0.22	22.85 0.92	33.81 2.03	77.45 7.83	69.04 9.78	105.56 13.14	97.39 17.89	120.05 23.52	140.04 30.6	131.85 39.18	127.36 49.03	212.42 68.46	183.27 82.02
500	Deeploc ABCDepth	- 0.693	1616.53 3.181	* 8.4	* 27.9	* 41.61	* 53.73	* 71.95	* 89.36	* 109.22	* 140.18	* 151.45	* 180.5	* 213.01
1000	Deeploc ABCDepth	- 1.165	- 3.99	* 14.389	* 54.18	* 74.38	* 98.73	* 129.85	* 164.96	* 203.37	* 246.54	* 286.17	* 344.94	* 39.16
2000	Deeploc ABCDepth	- 2.21	- 7.86	- 27.25	* 107.46	* 132.77	* 180.02	* 243.1	* 297.6	* 386.75	* 475.87	* 554.23	* 666.4	* 764.74

Table 3. Table 3: Average time per data point.

d	n
	320	640	1280	2560	3000	3500	4000	4500	5000	5500	6000	6500	7000
50	0.07	0.21	1.21	8.23	12.64	19.22	28.56	42.04	64.33	77.45	98.79	121.86	150.73
100	0.08	0.25	1.23	8.18	13.91	20.48	28.51	44.31	65.55	81.91	99.96	123.84	154.65
500	0.13	0.42	1.84	11.42	17.93	21.42	35.41	52.07	73.21	95.18	119.82	141.88	176.12
1000	0.17	0.53	2.52	13.53	20.13	32.35	41.71	58.72	82.92	103.84	138.69	155.32	200.55
2000	0.26	0.94	4.12	18.32	28.12	38.79	56.04	73.79	102.98	124.48	156.54	186.59	232.45

Equations

$$D(x,\mu )=\min \{P(X\le x),P(X\ge x)\}=\min \{\mu ((-\infty ,x]),\mu ([x,+\infty ))\}.$$

$$\{\mathrm{Med}\mu \}=\bigcap _{\mathrm{J}=[\mathrm{a},\mathrm{b}]:\mu (\mathrm{J})>1/2}\mathrm{J},$$

$$D(x;\mu ,\mathcal{V})=\inf \{\mu (U)|x\in U\in \mathcal{U}\}=1-\sup \{\mu (V)|V\in \mathcal{V},x\in V^{\prime }\}$$

$$S_{\alpha }=S_{\alpha }(\mu ,\mathcal{V}):=\{x\in {\mathbb{R}}^d|D(x;\mu ,\mathcal{V})\ge \alpha \}.$$

$$S_{\alpha }(\mu ,\mathcal{V})=\bigcap _{V\in \mathcal{V},\mu (V)>1-\alpha }V.$$

$$C(\mu ,\mathcal{V})=\bigcap _{\alpha :S_{\alpha }\ne \varnothing }{S}_{\alpha }(\mu ,\mathcal{V})$$

$$D(x)=h⟺x\in S_{\alpha },\alpha \le h\mathrm{and}x\notin S_{\alpha },\alpha >h$$

$$D(x;\mu )=\inf \{\mu (H)|x\in H\in \mathcal{H}\},$$

$$S_{\alpha }(\mu ,\mathcal{V})=\bigcap _{B\in \mathcal{V},\mu (B)>1-\alpha }B,$$

$$\mu (A)=\frac{\#\{x_i:x_i\in A\}}{n},$$

$$D(x)=\min \{\#\{x_i:x_i\in H\}|x\in H\in \mathcal{H}\},x\in {\mathbb{R}}^d,$$

$$D(x)=\underset{\Vert u\Vert =1}{\min }\#\{x_i:⟨u,x_i⟩\le ⟨u,x⟩\},$$

$$S_{\frac{k}{n}}=\{x\in {\mathbb{R}}^d|D(x)\ge \lfloor n(1-\alpha )+1\rfloor \}=\{x\in {\mathbb{R}}^d|D(x)\ge n-k+1\},$$

$$S_{\frac{k}{n}}=\bigcap _{B\in \mathcal{V},\#\{x_i:x_i\in B\}\ge n-k+1}B,$$

$${\hat{S}}_M:=\bigcap _{i=1}^M{B}_i$$

$${\hat{S}}_M\supseteq {\hat{S}}_{M+1}\supset S,M=1,2,\dots$$

$$A_{N+1}\supset A_N,N=n,n+1,n+2,\dots ,$$

$${\hat{\hat{S}}}_{M,N}:=A_N\cap {\hat{S}}_M=\{a\in A_N|a\in {\hat{S}}_M,\}$$

$${\hat{\hat{S}}}_{M,N}\subseteq {\hat{\hat{S}}}_{M,N+1}\subset {\hat{S}}_M$$

$$O(\frac{nd(n-1)}{2})\sim O(d{n}^2)$$

$$O(n^2\log n).$$

$$O(k{n}^2).$$

$$O(d{n}^2)+O(n^2\log n)+O(k{n}^2)\sim O((d+k)n^2+n^2\log n),$$

$$\frac{k-1}{n}\le \frac{n+1}{2n}-\frac{1}{d+1},$$

$$D(\mathbf{x})=\frac{k}{n}⟺\mathbf{x}\in S_{\frac{k}{n}}\mathrm{and}\mathbf{x}\notin S_{\frac{k+1}{n}}.$$

$$O(d{n}^2+n^2\log n)+O(kn)\sim O(d{n}^2+n^2\log n),$$

Full text

1 INTRODUCTION

Although this paper is about multivariate medians and related notions, for completeness and understanding rationale of multivariate setup, we start from the univariate case. In terms of probability distributions, let $X$ be a random variable and let $\mu=\mu_{X}$ be the corresponding distribution, i.e., a probability measure on $(\mathbb{R},\mathcal{B})$ so that $P(X\leq x)=\mu\{(-\infty,x]\}$. For univariate case, a median of $X$ (or a median of $\mu_{X}$) is any number $m$ such that $P(X\leq m)\geq 1/2$ and $P(X\geq m)\geq 1/2$. In terms of data sets, this property means that to reach any median point from the outside of the data set, we have to pass at least $1/2$ of data points, so this is the deepest point within the data set. With respect to this definition, we can define the depth of any point $x\in\mathbb{R}$ as

[TABLE]

The set of all median points $\{\rm Med\mu\}$ is a non-empty compact interval (can be a singleton). As shown in merkle05 ,

[TABLE]

and (2) can be taken for an alternative (equivalent) definition of univariate median set. In $\mathbb{R}^{d}$ with $d>1$, there are quite a few different concepts of depth and medians (see for example survey15 , small90 , zuoserf00 ). In this paper we propose an algorithm for halfspace depth (Tukey’s depth, tukey75 ), which is based on extension and generalization of (2) to $\mathbb{R}^{d}$ with balls in place of intervals as in merkle10 .

The rest of the paper is organized as follows. Section 2 deals with a theoretical background of the algorithm in a broad sense. In Section 3 we present an approximate algorithm for finding Tukey median as well as versions of the same algorithm for finding Tukey depth of a sample point, the depth of out-of-sample point, and for data contours. We also provide a derivation of complexity for each version of the algorithm and present examples. Section 4 provides a comparison with several other algorithms in terms of performances.

2 THEORETICAL BACKGROUND: DEPTH FUNCTIONS BASED ON FAMILIES OF CONVEX SETS

Definition 2.1

Let $\mathcal{V}$ be a family of convex sets in $\mathbb{R}^{d}$, $d\geq 1$, such that: (i) $\mathcal{V}$ is closed under translations and (ii) for every ball $B\in\mathbb{R}^{d}$ there exists a set $V\in\mathcal{V}$ such that $B\subset V$. Let $\mathcal{U}$ be the collection of complements of sets in $\mathcal{V}$. For a given probability measure $\mu$ on $\mathbb{R}^{d}$, let us define

[TABLE]

The function $x\mapsto D(x;\mu,\mathcal{V})$ will be called a depth function based on the family $\mathcal{V}$.

Remark 2.1

Definition 2.1 is a special case of Type $D$ depth functions as defined in zuoserf00 which can be obtained by generalizations of (1) to higher dimensions. The conditions stated in merkle10 that provide a desirable behavior of the depth function are satisfied in this special case, with additional requirements that sets in $\mathcal{V}$ are closed or compact. For instance, taking $\mathcal{V}$ to be the family of all ”boxes” with sides parallel to coordinate hyper-planes yields the deepest points which coincide with the coordinate-wise median. It is easy to see that in this case, regardless of the measure $\mu$, there exists at least one point $x\in\mathbb{R}^{d}$ with $D(x;\mu,\mathcal{V})\geq\frac{1}{2}$. According to the next theorem (merkle10, , Theorem 4.1), in general case of arbitrary $\mathcal{V}$, the maximal depth can’t be smaller than $1/(d+1)$.

Theorem 2.1

Let $\mathcal{V}$ be any non-empty family of compact convex subsets of $\mathbb{R}^{d}$ satisfying the conditions as in Definition 2.1. Then for any probability measure $\mu$ on $\mathbb{R}^{d}$ there exists a point $x\in\mathbb{R}^{d}$ such that $D(x;\mu,{\mathcal{V}})\geq\frac{1}{d+1}$.

The set of points with maximal depth is called the center of distribution, denoted as $C(\mu,\mathcal{V})$. In general, one can observe level sets (or depth regions or depth-trimmed regions) of level $\alpha$ defined as

[TABLE]

Clearly, if $\alpha_{1}<\alpha_{2}$, then $S_{\alpha_{1}}\supseteq S_{\alpha_{2}}$ and $S_{\alpha}=\emptyset$ for $\alpha>\alpha_{m}$, where $\alpha_{m}$ is the maximal depth for a given probability measure $\mu$.

The borders of depth level sets are called depth contours (in two dimensions) or depth surfaces in general. Depth surfaces are of interest in multivariate statistical inference (see doga92 ; dughocha11 ; zhouserf08 ; rouru99 ). Although (4) suggests that in order to describe level sets we need to calculate depth functions, there is another way, as the next result shows (dono82 , zuoserf00 and Theorem 2.2. in merkle10 ).

Theorem 2.2

Let $D(x;\mu,\mathcal{V})$ be defined for $x\in\mathbb{R}^{d}$ as in Definition 2.1. Then for any $\alpha\in(0,1]$

[TABLE]

From (5) it follows that the center of a distribution is the smallest non-empty level set, or equivalently,

[TABLE]

Since sets in $\mathcal{V}$ are convex, the level sets are also convex. From (4) and (5) we can see that the depth function can be uniquely reconstructed starting from level sets as follows.

Corollary 2.1

For given $\mu$ and $\mathcal{V}$, let $S_{\alpha}$, $\alpha\geq 0$ be defined as in (5), with $S_{\alpha}=\emptyset$ for $\alpha>1$. Then the function $D:\mathbb{R}^{d}\mapsto[0,1]$ defined by

[TABLE]

is the unique depth function such that (4) holds.

The algorithm that we propose primary finds approximations to level sets based on formula (5), and then finds (approximate) depth via Corollary 2.1. The algorithm will be demonstrated in the case of half-space depth, which is described in the next section.

The scientific interest in algorithms for Tukey’s depth is shared between Statistics (robust estimation of location parameters, clustering, classification, outlier detection, especially with big data in high dimensions) and Computational geometry (as a challenge).

3 ABCDEPTH ALGORITHM FOR TUKEY DEPTH: IMPLEMENTATION AND THE OUTPUT

The most prominent representative of type $D$ depth functions is Tukey’s (or halfspace) depth, which is defined by (3) with $\mathcal{U}$ being a family of all open half-spaces, and $\mathcal{V}$ a family of closed half-spaces, as in the following definition.

[TABLE]

where $\mathcal{H}$ is the family of all open half-spaces. In this section, we consider only half-space depth, so we use the notation $D(x,\mu)$ instead of $D(x;\mu,{\mathcal{V}})$.

The idea traces back to J. W. Tukey’s lecture notes tukeymim and the conference paper tukey75 . It was first formalized in D. L. Donoho’s Ph. D. qualifying paper dono82 of 1982, a technical report gado87 and the 1992’s paper doga92 .

One depth function can be defined based on different families $\mathcal{V}$. We say that families $\mathcal{V}_{1}$ and $\mathcal{V}_{2}$ are depth-equivalent if $D(x;\mu,{\mathcal{V}_{1}})=D(x;\mu,{\mathcal{V}_{2}})$ for all $x\in\mathbb{R}^{d}$ and all probability measures $\mu$. Sufficient conditions for depth-equivalence are given in (merkle10, , Theorem 2.1), where it was shown that in the case of half-space depth the following families are depth-equivalent: a) Family of all open half-spaces; b) all closed half-spaces; c) all convex sets; d) all compact convex sets; e) all closed or open balls.

For determining level sets we choose closed balls, and so we can define $\mathcal{V}$ as a set of all closed balls (hyper-spheres) and level sets can be described as

[TABLE]

instead of using the classical approach based on half-spaces. The advantage of the formula (9) over the intersections of half-spaces is obvious if we recall that a ball $B$ is already the intersection of all tangent spaces that contain $B$.

From now on, we consider only the case where the underlying probability measure $\mu$ is derived from a given data set.

3.1 The sample version

In the data setup with a sample $x_{1},\ldots,x_{n}$ (allowing repetitions) and the counting measure

[TABLE]

it is a common practice to express the depth as an integer defined as

[TABLE]

whereas the depth in terms of probability is $D(x)/n$. As it was first noticed by Donoho dono82 , the depth can be expressed via one-dimensional projections to directions determined by normal vectors of hyperplanes that are borders of half-spaces (with $d=2$ the borders are straight lines).

[TABLE]

where $\langle\cdot,\cdot\rangle$ is the inner product of vectors in $\mathbb{R}^{d}$.

The level set in the sample version with $\alpha=k/n$ is defined by

[TABLE]

and (9) becomes

[TABLE]

where $\mathcal{V}$ is a family of all closed balls in $\mathbb{R}^{d}$.

All so far implemented algorithms (both exact and approximate) are based on calculation of the depth from the formula (12) or its variations. The approximate algorithm that we propose uses a completely new approach: we start with a discrete approximation to level sets using formula (9), and then we calculate the depth in conjunction with the formula (7). In the next subsections we present details of the approximations.

3.2 First approximation: finite intersection.

For a fixed sample size $n$ and a fixed $k$, for simplicity we write $S$ instead of $S_{\frac{k}{n}}$. So, for fixed $n$ and $k$, $S$ is an exact (unknown) level set as in (13) and (14). Let us choose $M$ points to be centers of balls. In most of examples in this paper, we choose the points from the sample ($M=n$), and then add new points at random if needed. The radius of each ball $B_{i}$ with the center at $c_{i}$ is equal to the $(n-k+1)$th smallest distance between $c_{i}$ and the points in the sample set $\{x_{1},\ldots,x_{n}\}$. In this way, we end up with the first approximation of the level set $S=S_{\frac{k}{n}}$:

[TABLE]

It is natural to assume that if we want to intersect more than $M$ balls, then we just add new balls to the existing intersection, hence the sets $\hat{S}_{M}$ are nested and

[TABLE]

As shown in (Akss2010, , Lemma 2), to decide whether or not the intersection in (15) is empty, it takes $M\cdot 2^{O(d^{2})}$ time, so the exact approach is not feasible. On the other hand, for a given point $s\in\mathbb{R}^{d}$ it is easy to decide whether or not it belongs to $\hat{S}$ as defined in (15). This observation leads to the second approximation as follows.

3.3 Second approximation: a discrete set of points.

Let $A_{n}=\{x_{1},\ldots,x_{n}\}$ (set of sample points), and let $D\supset A_{n}$ be a convex domain in $\mathbb{R}^{d}$. For $N=n+1,n+2,\ldots$, let $A_{N}$ be a set obtained from $A_{N-1}$ by randomly adding one point from $D$. Then we have

[TABLE]

and every set $A_{N}$ contains all sample points. We call sets $A_{N}$ ($N\geq n+1$) augmented data sets. Points in $A_{N}\setminus A_{n}$ will be called artificial points and their role is to ”shed light” on a depth region via discrete approximation as follows:

[TABLE]

where $\hat{S}_{M}$ is defined in (15). Let us note that $A_{N}$ does not depend on $k$, so the same $A_{N}$ can be used in approximation of all depth regions.

From (17) and (18), it follows that

[TABLE]

Therefore, for a fixed $M$, the sets $\hat{\vphantom{\rule{1.0pt}{5.71527pt}}\smash{\hat{S}}}_{M,N}$ approximate $\hat{S}_{M}$ from inside, obviously with accuracy which increases with $N$. In order to make a contour, we can construct a convex hull of $\hat{\vphantom{\rule{1.0pt}{5.71527pt}}\smash{\hat{S}}}_{\alpha}$ using QuickHull algorithm, for example. The relations in (19) remain true with ${\rm Conv\;}(\hat{\vphantom{\rule{1.0pt}{5.71527pt}}\smash{\hat{S}}})$ in place of $\hat{\vphantom{\rule{1.0pt}{5.71527pt}}\smash{\hat{S}}}$. Due to convexity of $\hat{S}_{M}$, the approximation with ${\rm Conv\;}(\hat{\vphantom{\rule{1.0pt}{5.71527pt}}\smash{\hat{S}}})$ would be better, but then the complexity would be too high for really high dimensions. As an alternative, we use $\hat{\vphantom{\rule{1.0pt}{5.71527pt}}\smash{\hat{S}}}_{M,N}$ as the final approximation to the true level set $S=S_{\frac{k}{n}}$.

3.4 More about artificial points

The simplest way to implement the procedure from 3.2 and 3.3 is to take $M=N=n$, and to use sample points for centers of balls and also for finding $\hat{\vphantom{\rule{1.0pt}{5.71527pt}}\smash{\hat{S}}}$ in (18). The basic Algorithm 1 of the subsection 3.5 is presented in that setup. However, in some cases this approach does not work, regardless of the sample size. As an example, consider a uniform distribution in the region bounded by circles $x^{2}+y^{2}=r^{2}_{i}$, $r_{1}=1$ and $r_{2}=2$. It is easy to prove (see also dughocha11 ) that the depth monotonically increases from [math] outside of the larger circle, to $1/2$ at the origin, which is the true and unique median. With a sample from this distribution, we will not have data points inside the inner circle, and we can not identify the median in the way proposed above.

In similar cases and whenever we have sparse data or small sample size $n$, we can still visually identify depth regions and center simply by adding artificial points to the data set. Let the data set contain points $x_{1},\ldots,x_{n}$ and let $x_{n+1},\ldots,x_{N}$ be points chosen from uniform distribution in some convex domain that contains the whole data set. Then we use augmented data set (all $N$ points) in (18), but $n$ in formulas (10) and (14) remains to be the cardinality of the original data set.

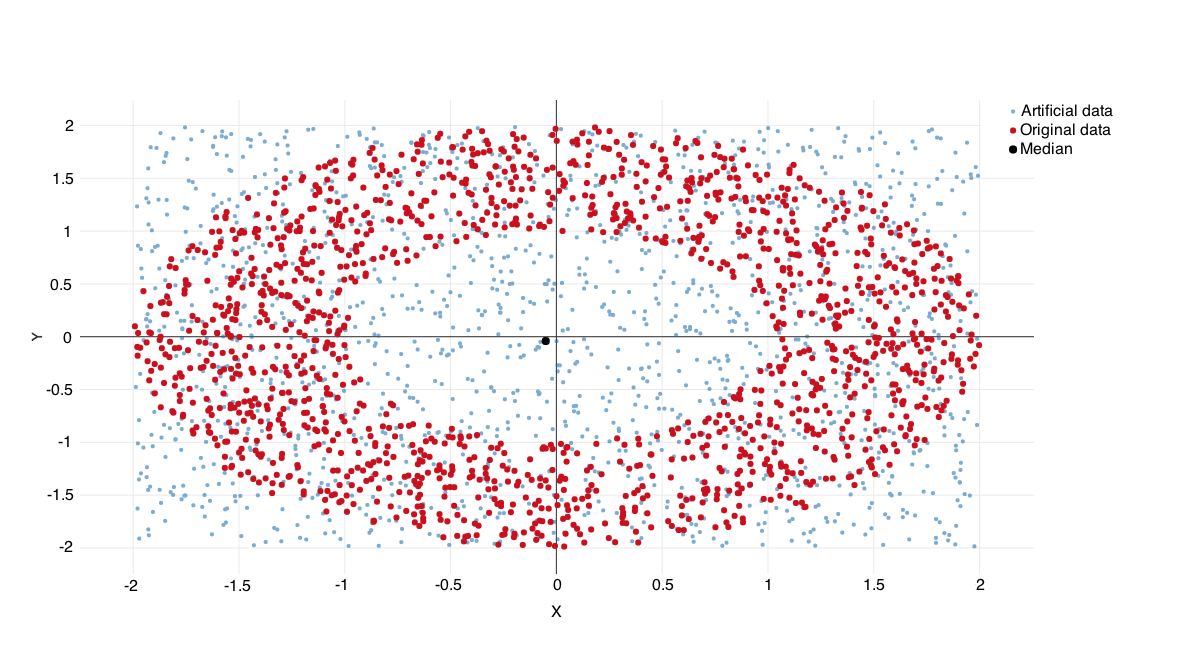

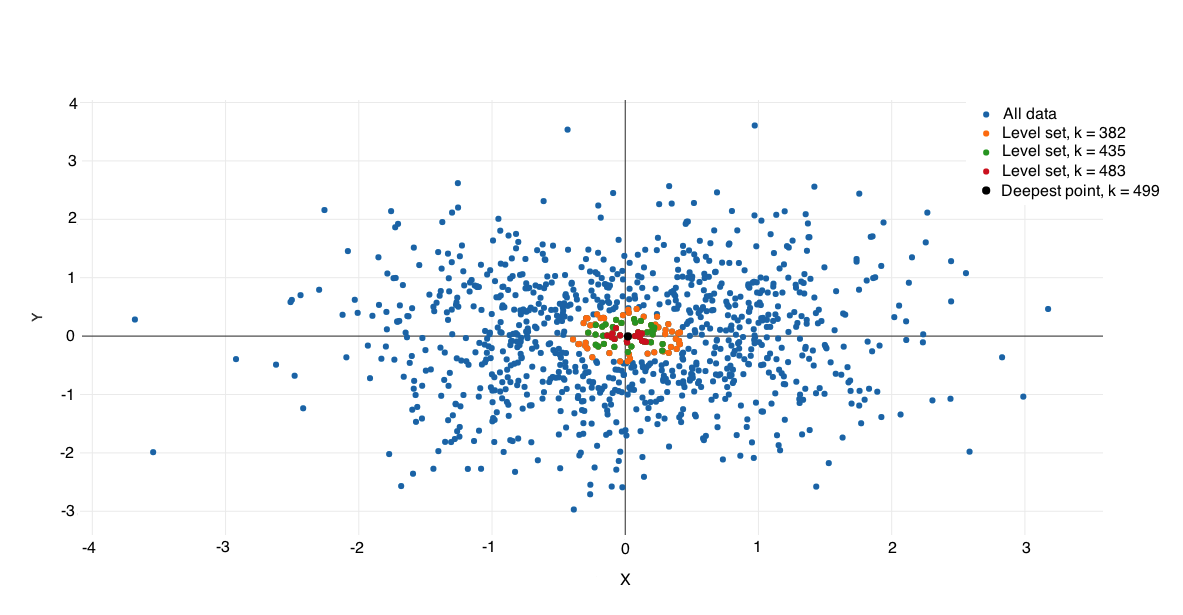

Figure 1 shows the output of ABCDepth algorithm in the ring example above. By adding artificial data points, we are able to obtain an approximate position of the Tukey’s median.

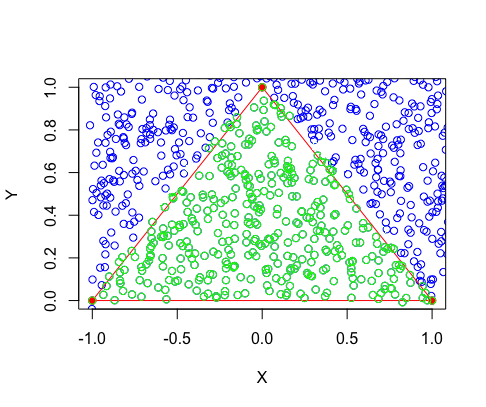

As another example, let us consider a triangle with vertices $A(0,1)$, $B(-1,0)$ and $C(1,0)$. Assuming that $A,B,C$ are sample points, all points in the interior and on the border of $ABC$ triangle have depth $1/3$, so the depth reaches its maximum value at $1/3$. Since the original data set contains only $3$ points, by adding artificial data and applying ABCDepth algorithm we can visualize the Tukey’s median set as shown in Figure 2.

In the rest of this section, we describe the details of implementation of the approximate algorithm for finding Tukey’s median, as well as versions of the same algorithm for finding Tukey depth of a sample point, the depth of out-of-sample point, and for data contours. For simplicity, in the rest of the paper we use notation $S_{\alpha}$ instead of $\hat{\vphantom{\rule{1.0pt}{5.71527pt}}\smash{\hat{S}}}_{\alpha}$ unless explicitly noted otherwise.

3.5 Implementation: Algorithm 1 for finding deepest points (Tukey’s median)

Phase 1 In order to execute the calculation in (14), constructing balls for intersection is the first step. Each ball is defined by $\lfloor n(1-\alpha)+1\rfloor$ nearest points to its center, so at the beginning of this phase, we calculate Euclidean inter-distances. Distances are stored as a triangular matrix in a list of lists structure, where $i$-th list $(i=1,...,n-1)$ contains distances $d_{i+1,j},j=1,\ldots,i$. This part of the implementation is described in lines $1-6$ of Algorithm 1.

Phase 2 In this phase, ABCDepth sorts distances for each point (center) and populates a hashmap structure, where the key is a center of a ball, and value is a list with $\lfloor n(1-\alpha)+1\rfloor$ nearest points. This part of algorithm is presented in lines $7-10$ of Algorithm 1.

Phase 3 Now, we intersect balls iteratively and in each iteration, $\alpha$ is increased by $\frac{1}{n}$. Since this algorithm is meant to find the deepest location, there is no need to start with the minimal value of $\alpha=\frac{1}{n}$; due to Theorem 2.1, we set the initial value of $\alpha$ to be $\frac{1}{d+1}$. Balls intersections are shown on Algorithm 1, lines $11-18$.

If the input set is sparse, ABCDepth optionally creates an augmented data set of total size $N$ as explained on page 3.3 and demonstrated on Figures 1 and 2. The rest of the algorithm takes three phases which we described above.

The initial version of ABCDepth algorithm was presented in bome15 .

3.5.1 Complexity

Theorem 3.1

ABCDepth algorithm for finding approximate Tukey median has order of $O((d+k)n^{2}+n^{2}\log{n})$ time complexity, where $k$ is the number of iterations in the iteration phase.

Proof 3.1**.**

To prove this theorem we use the pseudocode of Algorithm 1. Lines 1-6 calculate Euclidean inter-distances of points. The first for loop (line 1) takes all $n$ points, so its complexity is $O(n)$. Since there is no need to calculate $d(x_{i},x_{i})$ or $d(x_{j},x_{i})$ if it is already calculated, the second for-loop (line 2) runs in $O(\frac{n-1}{2})$ time. Finally, calculation of Euclidean distance takes $O(d)$ time. The overall complexity for lines 1-6 is:

[TABLE]

Iterating through the list of lists obtained in lines 1-6, the first for loop (line 7) runs in $O(n)$ time. For sorting the distances per each point, we use quicksort algorithm that takes $O(n\log n)$ comparisons to sort $n$ points hoare61 . Structure populating takes $O(1)$ time. Hence, this part of the algorithm has complexity of:

[TABLE]

In the last phase (lines 11-18), algorithm calculates level sets by intersecting balls constructed in the previous steps. In every iteration (line 12), all $n$ balls that contain $\lfloor n(1-\alpha_{k})+1\rfloor$ are intersected (line 13). The parameter $k$ can be considered as a number of iterations, i.e. it counts how many times the algorithm enters in while loop. Each intersection has the complexity of $O(\lfloor n(1-\alpha_{k})+1\rfloor)\sim O(n)$ due to the property of the hash-based data structure we use (see for example fastset ). We can conclude that the iteration phase has complexity of:

[TABLE]

From (20), (21), and (22),

[TABLE]

which ends the proof.

Remark 2**.**

$1^{\circ}$ From the relations between $S_{\alpha}$, $\hat{S}_{\alpha}$, and $\hat{\vphantom{\rule{1.0pt}{5.71527pt}}\smash{\hat{S}}}_{\alpha}$ (in notations as in 3.1, page 3.1), it follows that the maximal approximative depth for a given point can not be greater than its exact depth.

$2^{\circ}$ Under the assumption that data points are in the general position, the exact sample maximal depth is $\alpha_{m}=\frac{m}{n}$, where $m$ is not greater than $\lceil\frac{n}{2}\rceil$ (see (doga92, , Proposition 2.3)), and so by remark $1^{\circ}$, the number $k$ of steps satisfies the inequality

[TABLE]

and the asymptotical upper bound for $k$ is $\frac{n}{2}$.**

Remark 3**.**

In the case when we add artificial data points to the original data set, $n$ in (23) should be replaced with $N$, where $N$ is the cardinality of the augmented data set. The upper bound for $k$ in (23) remains the same. **

The rates of complexity with respect to $n$ and $d$ of Theorem 3.1 are confirmed by simulation results presented in Figures 3 and 4. Measurements are taken on simulated samples of size $n$ from $d$-dimensional $\mathcal{N}(0,I)$ distribution, where $I$ is the unit $d\times d$ matrix, with $d=2,...,10$ and $n=$ 40, 80, 160, 320, 640, 1280, 2560, 3000, 3500, 4000, 4500, 5000, 5500, 6000, 6500, 7000. The results are averaged on $10$ repetitions for each fixed pair $(d,n)$.

For assessing the accuracy of the median approximation, we also use simulated data sets from $\mathcal{N}(0,I)$. Let $\hat{m}$ be an approximate median obtained as the output of the algorithm. Knowing that the median of $\mathcal{N}(0,I)$ is at origin, and that the squared distance to origin has $\chi^{2}(d)$ distribution, it is convenient to take $p$-values $P(\chi^{2}(d)\leq\left\|\hat{m}\right\|^{2})$ as a measure of error. For samples of size $n=1000$ in ten selected dimensions, the measurements are performed using ABCDEPTH and DEEPLOC on each sample. The results summarized in Table 1, and graphically presented in figure 5, show the superiority of our algorithm and advantage that increases with dimensionality.

3.5.2 Examples

The first simple example considers $n$ points in dimension $1$ generated from normal $\mathcal{N}(0,1)$ distribution. By running ABCDepth in this case with $n=1000$, we got two points (as expected) in the median level set, $S_{0.5}=\{-0.00314,0.00034\}$. With another sample with $n=1001$ (odd number) from the same distribution, the median set was a singleton, $S_{0.5}=\{0.0043\}$

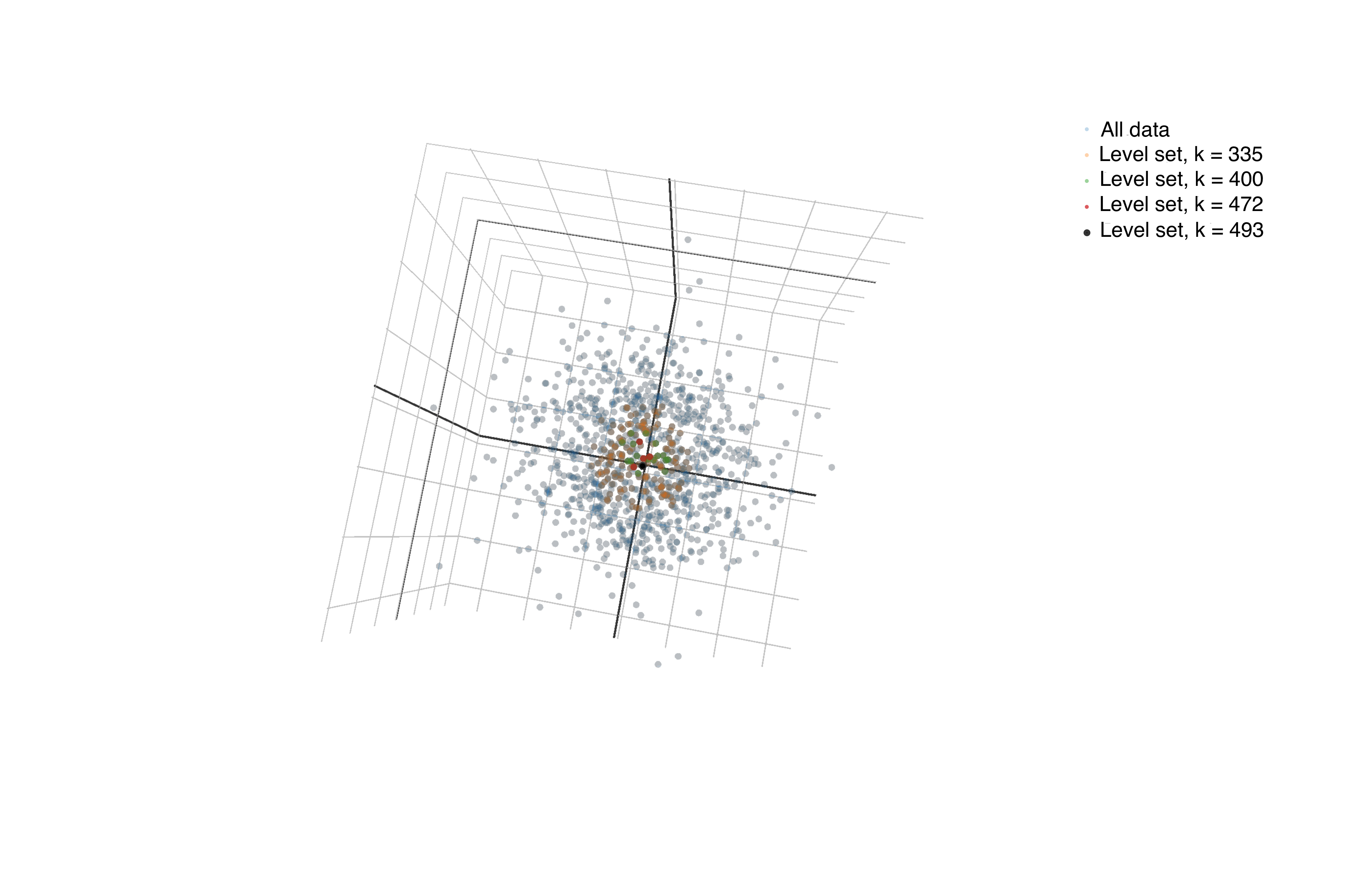

Now, we demonstrate data sets generated from bivariate and multivariate normal distribution. Figure 6 and Figure 7 show the median calculated from $1000$ points in dimension $2$ and $3$, respectively from normal $\mathcal{N}(0,I)$ distribution. Starting from $\alpha=\frac{1}{d+1}$ (see Theorem 2.1) the algorithm produces $\sim 200$ levels sets for $d=2$, and $\sim 300$ level sets for $d=3$, so not all of them are plotted. On both figures the median is represented as a black point with depth $\frac{499}{1000}$ on Figure 6, i.e. $\frac{493}{1000}$ on Figure 7.

All data generators that we use in this paper in order to verify and plot the algorithm output were presented at bome14 , and they are available within an open source project at https://bitbucket.org/antomripmuk/generators.

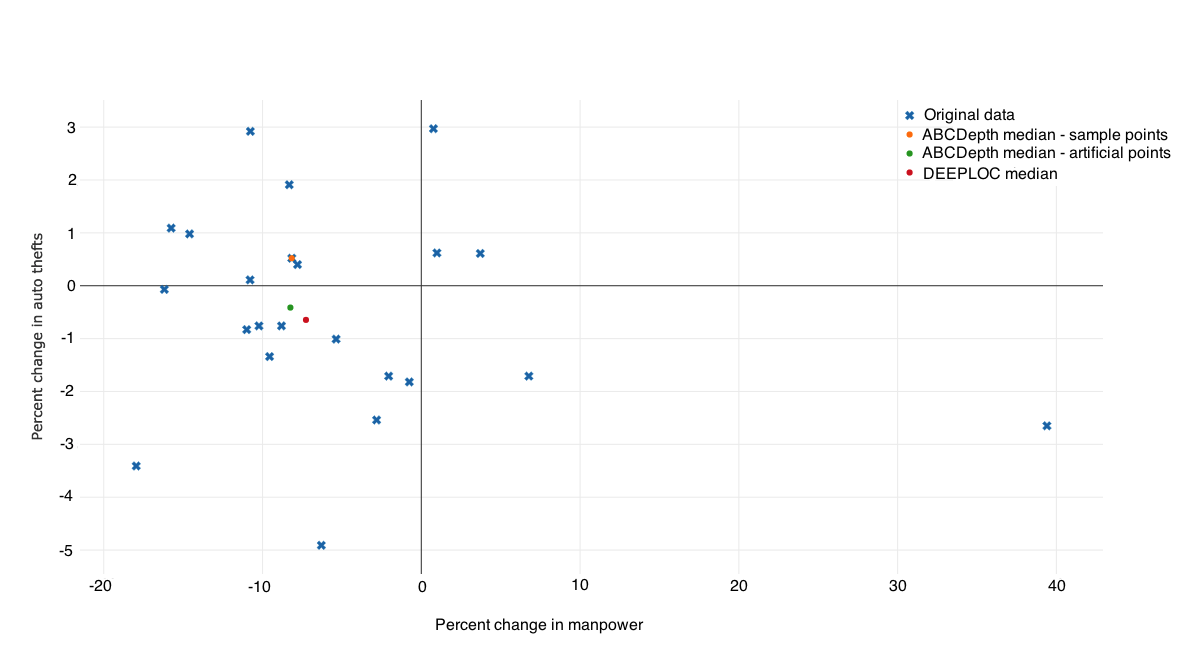

As a real data example, we take a data set which is rather sparse. The data set is taken from struro00 , and it has been used in several other papers as a benchmark. It contains 23 four-dimensional observations in period from 1966 to 1967 that represent seasonally adjusted changes in auto thefts in New York city. For the sake of clarity, we take only two dimensions: percent changes in manpower, and seasonally adjusted changes in auto thefts. The data is downloaded from http://lib.stat.cmu.edu/DASL/Datafiles/nycrimedat.html. Figure 8 shows the output of ABCDepth algorithm if we consider only points from the sample (orange point). Obviously, the approximate median belongs to the original data set. Then, we run ABCDepth algorithm with $1000$ artificial data points from the uniform distribution as explained in Section 2 and earlier in this section. The approximate median obtained by this run (green point) has the same depth of $\frac{9}{23}$ as the median calculated using DEEPLOC algorithm struro00 by running their Fortran code (red point). We check depths of those two points (green and red) applying depth function based on struyf98 and implemented in R ”depth” package depthr . Evidently, the median, in this case, is not a singleton, i.e. there is more than one point with depth $\frac{9}{23}$. By adding more than $1000$ artificial points, we can get more than one median point. We will discuss this example again in subsection 3.6.2.

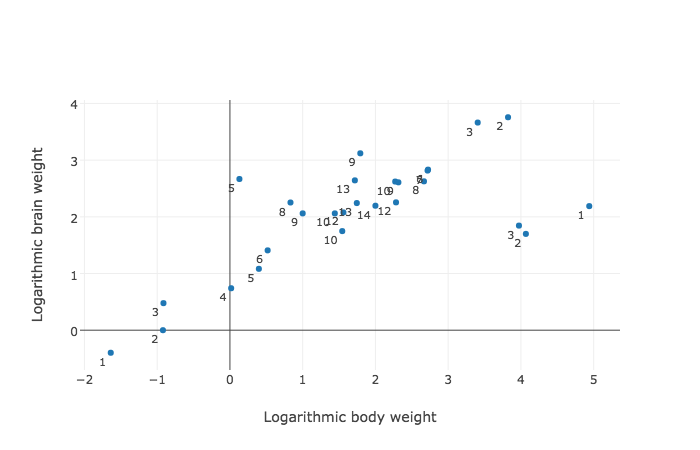

Another two examples are chosen from rouru96b . Figure 9 shows $27$ two-dimensional observations that represent animals brain weight (in g) and the body weight (in kg) taken from animals . In order to represent the same data values, we plotted the logarithms of those measurements as done in rouru96b .

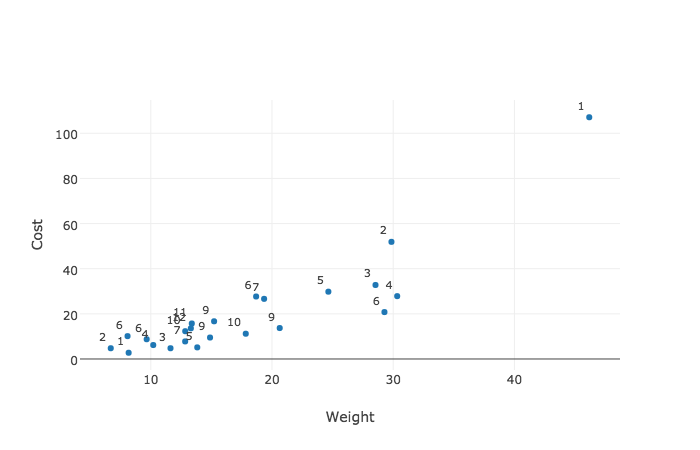

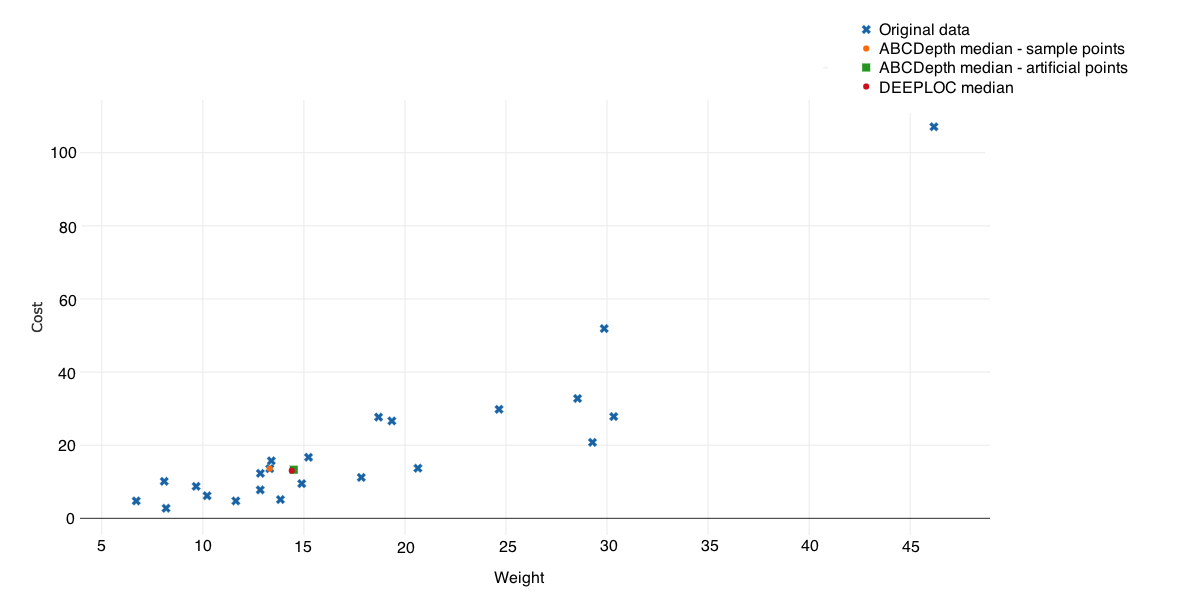

Figure 10 considers the weight and the cost of $23$ single-engine aircraft built between $1947-1979$. This data set is taken from aircraft .

As in Figure 8, in those two figures the orange point is the median obtained by running ABCDepth algorithm using only sample data. Green and red points represent outputs of ABCDepth algorithm applied by adding $1000$ artificial data points from the uniform distribution and DEEPLOC median, respectively. These two examples show the importance of out-of-sample points in finding the depth levels and Tukey’s median.

3.6 Adapted Implementation: Algorithm 2 for finding the Tukey’s depth of a sample point and out-of-sample point

Let us recall that by Corollary 2.1, a point $\bm{x}$ has depth $h$ if and only if $\bm{x}\in S_{\alpha}$ for $\alpha\leq h$ and $\bm{x}\not\in S_{\alpha}$ for $\alpha>h$. With a sample of size $n$, we can consider only $\alpha=\frac{k}{n}$, $k=1,\ldots,n$, because for $\frac{k-1}{n}<\alpha<\frac{k}{n}$, we have that $D(\bm{x})\geq\alpha\iff D(\bm{x})\geq\frac{k}{n}$. Therefore, the statement of Corollary 2.1 adapted to the sample distribution can be formulated as (using the fact that $S_{\beta}\subset S_{\alpha}$ for $\alpha<\beta$):

[TABLE]

From (25) we derive the algorithm for Tukey’s depth of a sample point $\bm{x}$ as follows. Let $\alpha_{k}=\frac{k}{n}$. The level set $S_{\alpha_{1}}$ contains all points in the sample. Then we construct $S_{\alpha_{2}}$ as an intersection of $n$ balls that contain $n-1$ sample points. If $\bm{x}\not\in S_{\alpha_{2}}$, we conclude that $D(\bm{x})=1/n$, and stop. Otherwise, we iterate this procedure till we get the situation as in right side of (25), when we conclude that the depth is $\frac{k}{n}$. The output of the algorithm is $k$.

Remark 4**.**

As in Remark 2, it can be shown that the approximate depth $k/n$ is never greater than the true depth.

Implementation-wise, in order to improve the algorithm complexity, we do not need to construct the level sets. It is enough to count balls that contain point $\bm{x}$. The algorithm stops when for some $k$, there exists at least one ball (among the candidates for the intersection) that does not contain $\bm{x}$. Thus, the depth of the point $\bm{x}$ is $k-1$.

With a very small modification, the same algorithm can be applied to a point $\bm{x}$ out of the sample. We can just treat $\bm{x}$ as an artificial point, in the same way as in previous sections. That is, the size of the required balls has to be $n-k+1$ points from the sample, not counting $\bm{x}$. The rest of the algorithm is the same as in the case of a sample point $\bm{x}$.

In both versions (sample or out-of-sample), we can use additional artificial points to increase the precision. The sample version of the algorithm is detailed below.

3.6.1 Complexity

Theorem 5**.**

Adapted ABCDepth algorithm for finding approximate Tukey depth of a sample point has order of $O(dn^{2}+n^{2}\log{n})$ time complexity.

Proof 3.2**.**

Balls construction for Algorithm 2 is the same as in Algorithm 1 (lines 1-10), so by Theorem 3.1 this part runs in $O(dn^{2}+n^{2}\log n)$ time. For the point with the depth $\alpha_{k}$, algorithm enters in iteration loop $k$ times and it iterates through all $n$ points to find the balls that contain point $\bm{x}$, so the whole iteration phase runs in $O(kn)$ time.

Overall complexity of the Algorithm 2 is:

[TABLE]

which had to be proved.

Remark 6**.**

When the input data set is sparse or when the sample set is small, we add artificial data to the original data set in order to improve the algorithm accuracy. In that case, $n$ in (26) should be replaced with $N$. **

3.6.2 Examples

To illustrate the output for the Algorithm 2, we use the same real data sets as we used in Figures 8-10. For all data sets we applied Algorithm 2 in two runs; first time with sample points only, and second time with additional $1000$ artificial points generated from uniform distribution. Points’ depths are verified using depth function from struyf98 implemented in depthr . For each data set, we calculate the accuracy as $\frac{100k}{n}\%$, where $n$ is the sample size and $k$ is the number of points that has the correct depth compared with algorithm presented in struyf98 .

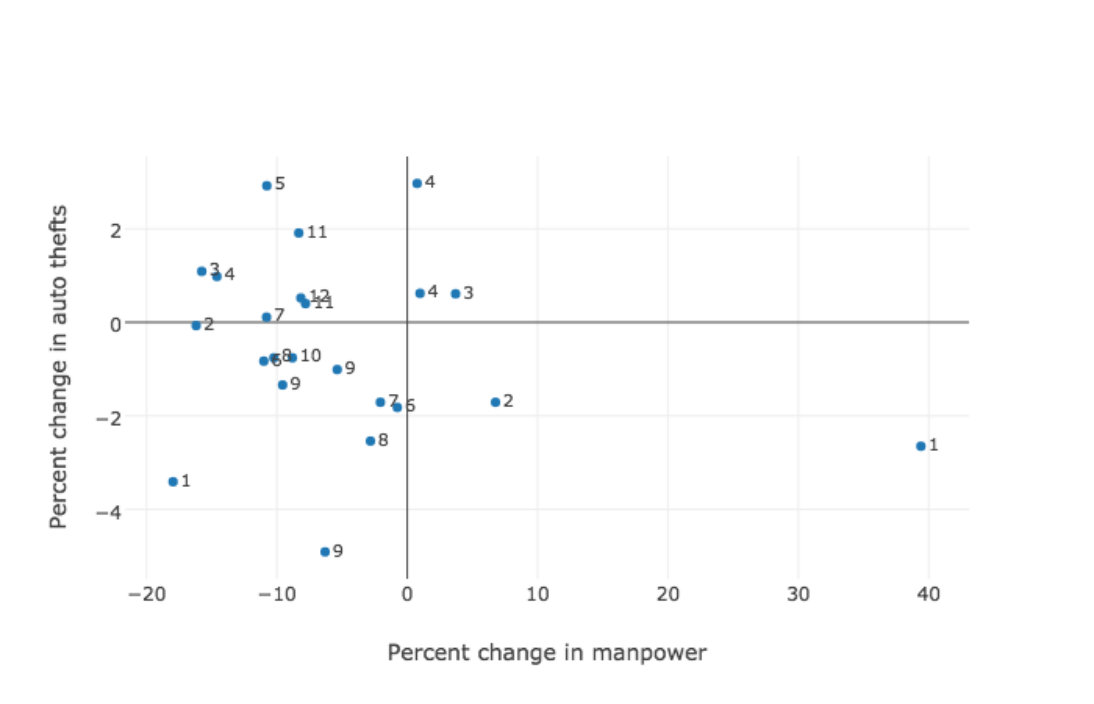

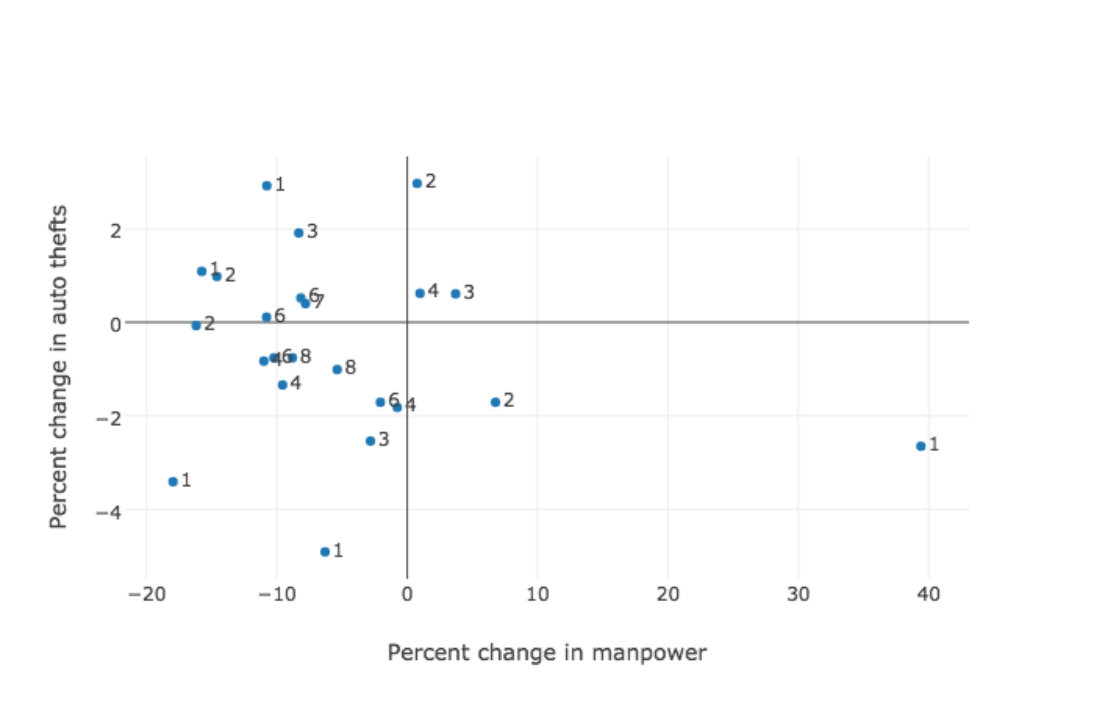

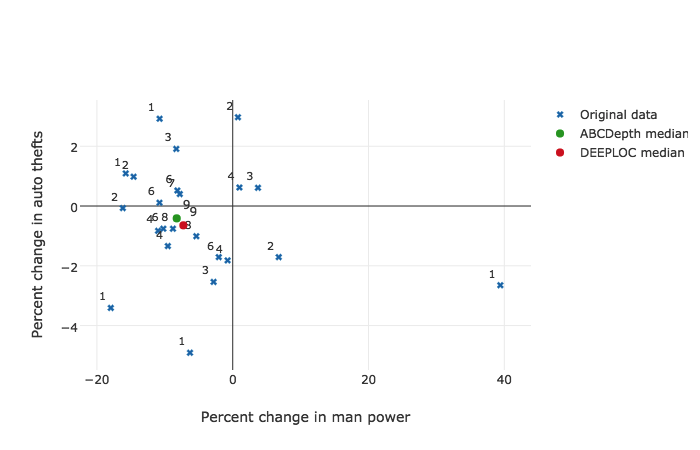

In Figure 11 we showed NY crime points depths with accuracy of $26\%$, but if we add more points to the original data set as we showed on Figure 12, the accuracy is greatly improved, to $87\%$.

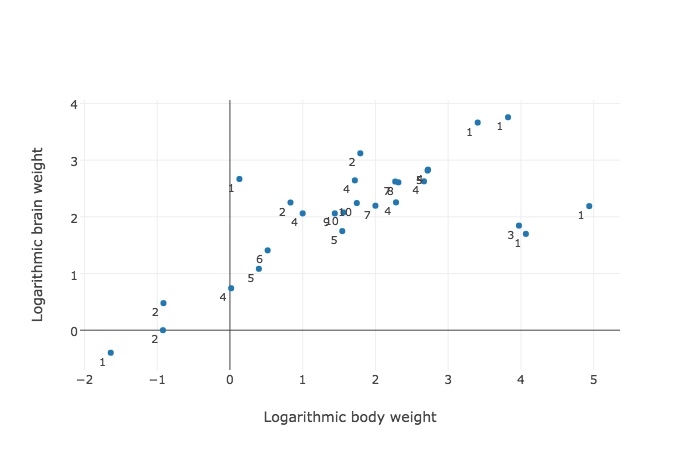

Figure 13 shows the same accuracy of $26\%$ for animals data set, in the case when Algorithm 2 is run with sample points only. By adding more points as in Figure 14, the accuracy is improved to $100\%$.

The third example is aircraft data set presented in Figure 15 and Figure 16. The accuracy with artificial points is $95\%$, otherwise it is $18\%$.

As the last example of this section, we would like to calculate depths of the points plotted on Figure 8 using ABCDepth Algorithm 2. In Figure 8 we plotted Tukey median for NY crime data set using Algorithm 1 with artificial data points (green point) and compared the result with the median obtained by DEEPLOC (red point). Both points are out of the sample. In Figure 17, we show depths of all sample points including the depths of two median points, all attained by ABCDepth Algorithm 2. Algorithm presented in struyf98 and ABCDepth Algorithm 2 calculate the same depth value for both median points.

4 Performance and Comparisons

According to Theorem 3.1, the complexity of calculating Tukey median grows linearly with the dimension and in terms of a number of data points, it grows with the order of $n^{2}\log n$. Rousseeuw and Ruts in rouru98 pioneered with an exact algorithm called HALFMED for Tukey median in two dimensions that runs in $O(n^{2}log^{2}{n})$ time. This algorithm is better than ABCDepth for $d=2$, but it processes only bivariate data sets. Struyf and Rousseeuw in struro00 implemented the first approximate algorithm called DEEPLOC for finding the deepest location in higher dimensions. Its complexity is $O(kmn\log{n}+kdn+md^{3}+mdn)$ time, where $k$ is the number of steps taken by the program and $m$ is the number of directions, i.e. vectors constructed by the program. This algorithm is very efficient for low-dimensional data sets, but for high-dimensional data sets ABCDepth algorithm outperforms DEEPLOC. Chan in chan04 presents an approximate randomized algorithm for maximum Tukey depth. It runs in $O(n^{d-1})$ time but it has not been implemented yet.

In Table 2 execution times of DEEPLOC algorithm and ABCDepth algorithm for finding Tukey median are reported. The measurements are performed using synthetic data generated from the multivariate normal $\mathcal{N}(0,1)$ distribution. In this table, we demonstrate how ABCDepth algorithm behaves with thousands of high-dimensional data points. It takes $\sim 13$ minutes for $n=7000$ and $d=2000$. Since DEEPLOC algorithm does not support data sets with $d>n$ and returns the error message: ”the dimension should be at most the number of objects”, we denoted those examples with $-$ sign in the table. The sign $*$ means that the median is not computable at least once in $12$ hours.

ABCDepth algorithm for finding Tukey depth of a point runs in $O(dn^{2}+n^{2}\log n)$ as we showed in Theorem 5. Most of the algorithms for finding Tukey depth are exact and at the same time computationally expensive. One of the first exact algorithms for bivariate data sets, called LDEPTH, is proposed by Rousseeuw and Ruts in rouru96 . It has complexity of $O(n\log n)$ and like HALFMED, it outperforms ABCDepth for $d=2$. Rousseeuw and Struyf in struyf98 implemented an exact algorithm for $d=3$ that runs in $O(n^{2}\log n)$ time, and an approximate algorithm for $d>3$ that runs in $O(md^{3}+mdn)$, where $m$ is the number of directions perpendicular to hyperplanes through $d$ data points.

The later work of Chen et al. in chmowa13 , presented approximate algorithms, based on the third approximation method of Rousseeuw and Struyf, in struyf98 , reducing the problem from $d$ to $k$ dimensions.

The first one, for $k=1$, runs in $O(\epsilon^{1-d}dn)$ time and the second one, for $k\geq 2$, runs in $O((\epsilon^{-1}c\log n)^{d})$, where $\epsilon$ and $c$ are empirically chosen constants. Another exact algorithm for finding Tukey depth in $\mathbb{R}^{d}$ is proposed by Liu and Zuo in zuo14 , which proves to be extremely time-consuming (see Table 5.1 of Section 5.3 in pavlo14 ) and the algorithm involves heavy computations, but can serve as a benchmark. Recently, Dyckerhoff and Mozharovskyi in pavlo16 proposed two exact algorithms for finding halfspace depth that run in $O(n^{d})$ and $O(n^{d-1}\log n)$ time.

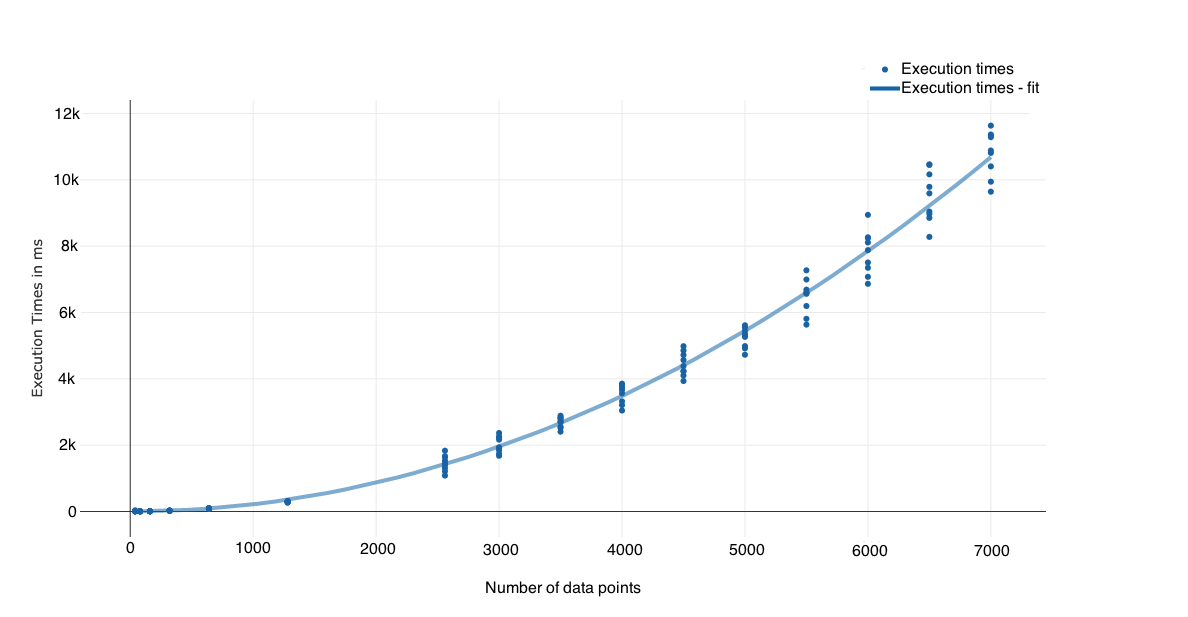

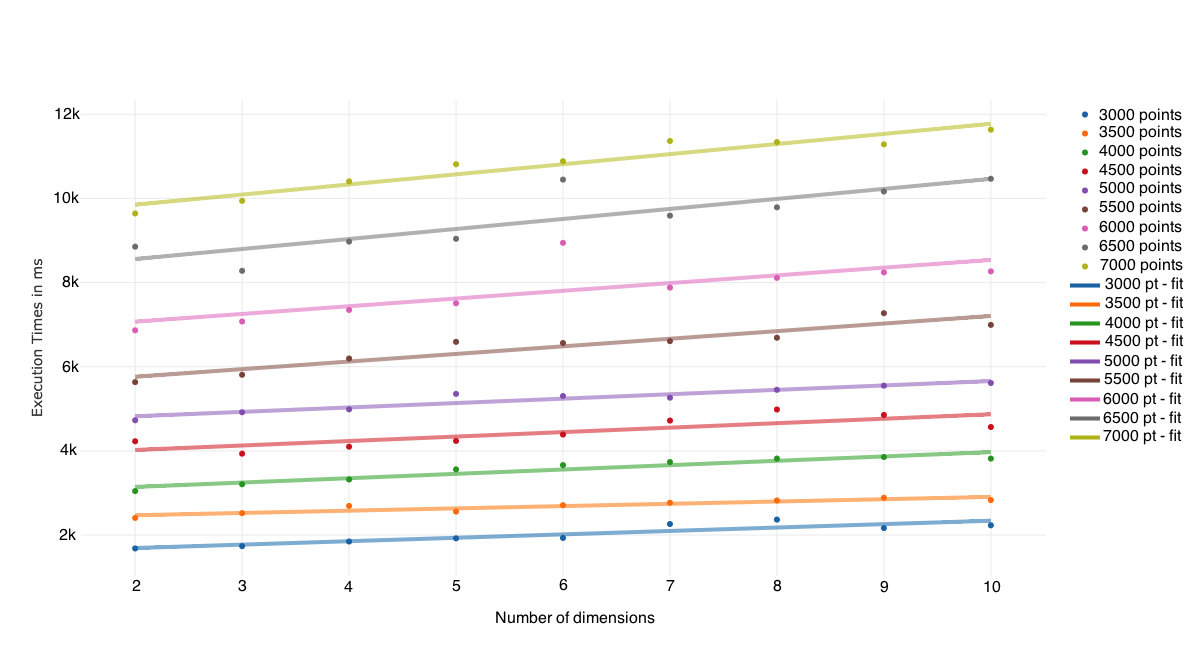

Table 3 shows execution times of ABCDepth algorithm for finding a depth of a sample point. Measurements are derived from synthetics data from the multivariate standard normal distribution. Execution time for each data set represents averaged time consumed per data point. Most of the execution time ($\sim 95\%$) is spent on balls construction (see lines 1-10 of the Algorithm 1), while finding a point depth itself (iteration phase of the Algorithm 2) is really fast since it runs in $O(kn)$ time.

The ABCDepth algorithms have been implemented in Java. Tests for all algorithms are run using one kernel of Intel Core i7 (2.2 GHz) processor. Computational codes are available from the authors upon request.

5 Concluding Remarks

There is no doubt that exact algorithms are needed, whether it is about calculating the depth of a point, or a multivariate median. Those algorithms are precise and serve as an benchmark measurement for all approximate algorithms. Nowadays, the real life applications such as clustering, classification, outlier detection or, in general, any kind of data processing, contain at least thousands of multidimensional observations. In those cases, available exact algorithms are not the best choice - the complexity of the exact algorithms grows exponentially with dimension due to projections of sample points to a large number of directions. Hence, the exact algorithms are time consuming and often restricted by number of observations and its dimensionality. Therefore, for large data sets, approximate algorithms correspond to a good solution.

In this paper we presented approximate ABCDepth algorithms based on a novel balls intersection idea explained in Sections 2 and 3 that brings a lots of advantages. With a small modification, the main idea from merkle10 is used for implementing two algorithms: one is for calculating Tukey median and the another one is for calculating Tukey depth of a sample and out-of-sample point. Using synthetic and real data sets and comparing our performances with those of previous approximate algorithms, we showed that our algorithms fulfill the following:

i) high accuracy (see examples in Sections 3.5.2 and 3.6.2)

ii) they are much faster especially for large $n$ and $d$ (see Tables 2 and 3 as well as Table 5.1 of Section 5.3 in pavlo14 )

iii) they can handle a larger number of multidimensional observations; those algorithms are the only algorithms tested with data sets that contain up to $n=7000$ and $d=2000$,

iv) Algorithm 1 computes multidimensional median with the complexity of $O((d+k)n^{2}+n^{2}\log{n})$

v) Algorithm 2 computes the depth of a single point with complexity of $O(dn^{2}+n^{2}\log{n})$

vi) both complexities have linear growth in $d$ and quadratic growth in $n$ (see Figures 3 and 4)

vii) an additional theoretical advantage of ABCDepth approach is that the data points are not assumed to be in ”general position”.

Disclaimer. A previous version of this work was presented in a poster session of CMStatistics2016 and the abstract is posted and available in cmstat . Otherwise, this paper has not been published in conference proceedings or elsewhere.

**Acknowledgements. ** We would like to express our gratitude to Anja Struyf and coauthors for sharing the code and the data that were used in their papers of immense importance in the area. Answering to Yijun Zuo’s doubts about the first arXiv version bm161 of this paper and solving difficult queries that he was proposing, helped us to improve the presentation and the algorithms. The second author acknowledges the support by grants III 44006 and 174024 from Ministry of Education, Science and Technological Development of Republic of Serbia.
