Transverse Velocities with the Moving Lens Effect

TL;DR

This paper discusses how the moving lens effect, caused by transverse velocities of large-scale structures, can be detected through CMB and galaxy surveys, enabling the inference of cosmic transverse velocities.

Contribution

It demonstrates that upcoming CMB and galaxy surveys can statistically detect the moving lens effect and reconstruct transverse velocities of large-scale structures.

Findings

Near-future surveys will enable the first detection of the moving lens effect.

The method allows for the reconstruction of transverse velocities from observational data.

The approach enhances understanding of cosmic structure dynamics.

Abstract

Gravitational potentials which change in time induce fluctuations in the observed cosmic microwave background (CMB) temperature. Cosmological structure moving transverse to our line of sight provides a specific example known as the moving lens effect. Here we explore how the observed CMB temperature fluctuations combined with the observed matter over-density can be used to infer the transverse velocity of cosmological structure on large scales. We show that near-future CMB surveys and galaxy surveys will have the statistical power to make a first detection of the moving lens effect, and we discuss applications for the reconstructed transverse velocity.

Figures

Equations

$$\Theta (\hat{\mathbf{n}})={\mathbf{v}}_{\perp }\cdot \mathbf{\beta }(\chi \hat{\mathbf{n}}),$$

$$\varphi (\hat{\mathbf{n}})=-2{\int }_0^{{\chi }_{\star }}\mathrm{d\chi }\frac{{\chi }_{\star }-\chi }{{\chi }_{\star }\chi }\Phi (\chi \hat{\mathbf{n}}),$$

$$\psi (\hat{\mathbf{n}})=-2{\int }_0^{{\chi }_{\star }}\mathrm{d\chi }\frac{1}{\chi }\Phi (\chi \hat{\mathbf{n}}),$$

$$\widehat{{\rm Y}}(\mathbf{L})=N(\mathbf{L})\int \frac{{\mathrm{d}}^2\mathbf{\ell }}{(2\pi {)}^2}g(\mathbf{\ell },\mathbf{L}){\Theta }^{\mathrm{obs}}(\mathbf{\ell }){\psi }^{\mathrm{obs}}(\mathbf{L}-\mathbf{\ell }).$$

$$\displaystyle\left\langle\hat{\Upsilon}(\mathbf{L})\hat{\Upsilon}(\mathbf{L}^{\prime})\right\rangle=(2\pi)^{2}\delta^{(2)}(\mathbf{L}+\mathbf{L}^{\prime})\Big{[}C_{L}^{\Upsilon\Upsilon}+N(\mathbf{L})\Big{]}\,,$$

$$C_{\ell }^{{\rm Y}{\rm Y}}=\frac{4\pi }{\Delta \chi }{\int }_{{\chi }_{\min }}^{{\chi }_{\max }}\mathrm{d}\chi \int \frac{\mathrm{d}k}{k}\frac{{\mathcal{P}}_v(k,\chi )}{(k\chi {)}^2}{\left[j_{\ell }(k\chi )\right]}^2,$$

$$N(\mathbf{L})={\left[\int \frac{{\mathrm{d}}^2\mathbf{\ell }}{(2\pi {)}^2}{C}_{|\mathbf{\ell }-\mathbf{L}|}^{\psi \psi }g(\mathbf{\ell },\mathbf{L})\mathbf{L}\cdot (\mathbf{L}-\mathbf{\ell })\right]}^{-1},$$

$$g(\mathbf{\ell },\mathbf{L})=\frac{\mathbf{L}\cdot (\mathbf{L}-\mathbf{\ell })}{C_{\ell }^{\Theta \Theta ,\mathrm{obs}}}\frac{C_{|\mathbf{\ell }-\mathbf{L}|}^{\psi \psi }}{C_{|\mathbf{\ell }-\mathbf{L}|}^{\psi \psi ,\mathrm{obs}}},$$

$$N(\mathbf{L},z)={\left[\int \frac{{\mathrm{d}}^2\mathbf{\ell }}{(2\pi {)}^2}\frac{{\left[\mathbf{L}\cdot (\mathbf{L}-\mathbf{\ell })\right]}^2}{C_{\ell }^{\Theta \Theta ,\mathrm{obs}}}\frac{{\left(C_{|\mathbf{\ell }-\mathbf{L}|}^{\psi \psi (z)}\right)}^2}{C_{|\mathbf{\ell }-\mathbf{L}|}^{\psi \psi (z),\mathrm{obs}}}\right]}^{-1}$$

$${\left(\frac{S}{N}\right)}^2=$$

$$\times {\text{cov}}^{-1}\left({\tilde{C}}_{\ell }^{{{\rm Y}}_X{\widehat{{\rm Y}}}_Y},{\tilde{C}}_{{\ell }^{\prime }}^{{{\rm Y}}_W{\widehat{{\rm Y}}}_Z}\right)C_{{\ell }^{\prime }}^{{{\rm Y}}_W{\widehat{{\rm Y}}}_Z},$$

$$\text{cov}\left({\tilde{C}}_{\ell }^{{{\rm Y}}_X{\widehat{{\rm Y}}}_Y},{\tilde{C}}_{{\ell }^{\prime }}^{{{\rm Y}}_W{\widehat{{\rm Y}}}_Z}\right)=\frac{{\delta }_{\ell {\ell }^{\prime }}}{2\ell +1}{f}_{\mathrm{sky}}^{-1}$$

$$\times \left({\tilde{C}}_{\ell }^{{{\rm Y}}_X{{\rm Y}}_W}{\tilde{C}}_{\ell }^{{\widehat{{\rm Y}}}_Y{\widehat{{\rm Y}}}_Z}+{\tilde{C}}_{\ell }^{{{\rm Y}}_X{\widehat{{\rm Y}}}_Z}{\tilde{C}}_{\ell }^{{{\rm Y}}_Y{\widehat{{\rm Y}}}_W}\right).$$

$${{\rm Y}}^{\varphi \psi }(\mathbf{L})\simeq \Theta (\mathbf{L})N(\mathbf{L})\int \frac{{\text{d}}^2\mathbf{\ell }}{(2\pi {)}^2}{C}_{|\mathbf{\ell }-\mathbf{L}|}^{\varphi \psi }g(\mathbf{\ell },\mathbf{L})\mathbf{L}\cdot (\mathbf{L}-\mathbf{\ell }),$$

$${{\rm Y}}^{\mathrm{\Theta }\psi }(\mathbf{L})\simeq \varphi (\mathbf{L})N(\mathbf{L})\int \frac{{\text{d}}^2\mathbf{\ell }}{(2\pi {)}^2}{C}_{|\mathbf{\ell }-\mathbf{L}|}^{\Theta \psi }g(\mathbf{\ell },\mathbf{L})\mathbf{L}\cdot (\mathbf{L}-\mathbf{\ell }),$$

$${{\rm Y}}^{\mathrm{kSZ}}(\mathbf{L})\simeq -v_{\text{d}}(\mathbf{L})N(\mathbf{L})\int \frac{{\text{d}}^2\mathbf{\ell }}{(2\pi {)}^2}{C}_{|\mathbf{\ell }-\mathbf{L}|}^{\delta \tau \psi }g(\mathbf{\ell },\mathbf{L}),$$

Full text

Introduction

Upcoming surveys of the cosmic microwave background (CMB) including those by Simons Observatory (Aguirre et al., 2018) and CMB-S4 (Abazajian et al., 2016) and galaxy surveys such as the Dark Energy Survey (DES) (The Dark Energy Survey Collaboration, 2005) and the survey by the Large Synoptic Survey Telescope (LSST) (Abell et al., 2009), will provide new opportunities for novel cosmological measurements. In particular, by using the CMB as a cosmological backlight, secondary fluctuations induced by the interaction of CMB photons with structure along the line of sight allow for new methods to study the history and evolution of the Universe. Such second-order effects include weak gravitational lensing by large-scale structure (see (Lewis and Challinor, 2006) for a review); the integrated Sachs-Wolfe (ISW) (Sachs and Wolfe, 1967) and Rees-Sciama effects (Rees and Sciama, 1968), describing the process by which time-dependent gravitational potentials alter the energy of CMB photons; and the Sunyaev-Zel’dovich (SZ) effect (Zeldovich and Sunyaev, 1969; Sunyaev and Zeldovich, 1970, 1972, 1980; Sazonov and Sunyaev, 1999), whereby CMB photons undergo Compton scattering with free electrons in galaxy clusters and the intergalactic medium.

Here we focus on the moving lens effect (Birkinshaw and Gull, 1983) as a source of secondary CMB anisotropies and estimate the prospects for detecting the effect with upcoming observations. The temperature fluctuations imprinted by the transverse motion of individual objects are expected to be weak and can be easily confused with other effects, which makes detection challenging (Tuluie and Laguna, 1995; Aghanim et al., 1998; Cooray, 2002). We consider a new statistical approach to detecting the moving lens effect, which effectively combines the signal from the many objects with a common bulk motion. Using this approach, we demonstrate that data expected from upcoming CMB experiments and galaxy surveys should have the statistical power to make a detection of the moving lens effect at high significance.

A gravitational potential moving with velocity $\mathbf{v}_{\perp}$ transverse to our line-of-sight direction $\hat{\mathbf{n}}$ leads to CMB temperature fluctuations given (at lowest order) by

[TABLE]

where $\Theta=\Delta T/T$ is the fractional CMB temperature fluctuation, $\chi$ is the conformal distance, and $\bm{\beta}$ is the deflection angle as seen by the lens (Birkinshaw and Gull, 1983; Aghanim et al., 1998; Gurvits and Mitrofanov, 1986; Cooray, 2002; Lewis and Challinor, 2006); see Fig. 1. We can understand the origin of this effect in a few physically equivalent ways.

The motion of an observer with respect to the CMB induces a kinematic dipole temperature anisotropy due to the Doppler boosting of the CMB monopole, and also results in angular aberration of CMB fluctuations (Challinor and van Leeuwen, 2002; Aghanim et al., 2014). We define the CMB rest frame as the reference frame in which the aberration of the CMB fluctuations vanishes, which is not identical to a frame in which the temperature dipole vanishes. The observed temperature dipole in the rest frame of the Solar System has an amplitude of about $10^{-3}$ (Aghanim et al., 2018a), while the anticipated intrinsic component (the amplitude in the CMB rest frame) is on the order $10^{-5}$, and so the CMB rest frame is often approximated by boosting to a frame in which the observed dipole vanishes (Notari and Quartin, 2012).

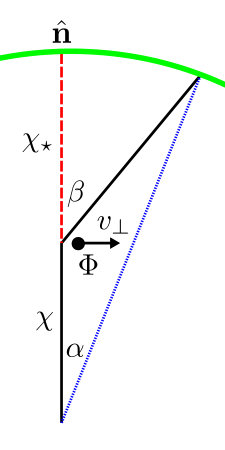

In the rest frame of the CMB, a massive object moving transverse to the line of sight of a stationary observer generates a gravitational potential which evolves in time. As CMB photons traverse this time-dependent potential, they receive a redshift or blueshift in close analogy with the ISW effect $\Theta(\hat{\mathbf{n}})=-2\int_{0}^{\chi_{\star}}\mathop{{\rm d}\chi}\mathbf{v}_{\perp}\cdot\bm{\nabla}_{\perp}\Phi(\chi\hat{\mathbf{n}})=\mathbf{v}_{\perp}\cdot\bm{\beta}(\chi\hat{\mathbf{n}})$, where $\chi_{\star}$ is the conformal distance to the surface of last scattering and $\Phi$ is the gravitational potential. This induces a characteristic dipole pattern of CMB temperature fluctuations oriented along the object’s transverse velocity.

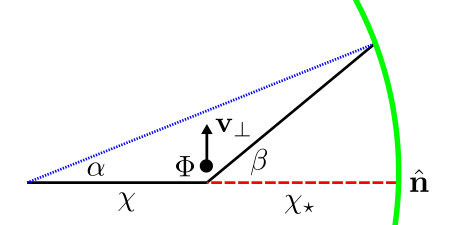

Next, viewed from the rest frame of the lens, this effect can be recast as lensing of the (kinematic) CMB dipole seen by the lens. The photons deflected toward the observer have a temperature $T(1+\mathbf{v}_{\perp}\cdot(\hat{\mathbf{n}}+\bm{\beta}))$, giving at lowest order $\Theta(\hat{\mathbf{n}})=\mathbf{v}_{\perp}\cdot\bm{\beta}$ after transforming to the observer frame.

Finally, the calculation for an observer moving with the same peculiar velocity as the lens with respect to the CMB is slightly more subtle. Photons deflected into the line of sight of the observer by gravitational lensing originate from the surface of last scattering separated from the observation direction $\hat{\mathbf{n}}$ by an angle $\bm{\alpha}$. In this moving frame, the CMB temperature has a kinematic dipole of the form $T_{0}[1+\mathbf{v}\cdot\hat{\mathbf{n}}]$. In the standard treatment, lensing remaps the observed temperature according to $T(\hat{\mathbf{n}})=\tilde{T}(\hat{\mathbf{n}}+\bm{\alpha})=\tilde{T}(\hat{\mathbf{n}})+\bm{\nabla}\tilde{T}(\hat{\mathbf{n}})\cdot\bm{\alpha}(\hat{\mathbf{n}})+\cdots$ where $\tilde{T}$ is the unlensed temperature, and in this case gives $\Theta=\mathbf{v}_{\perp}\cdot\bm{\alpha}$ at lowest order. It is clear that this differs from what was calculated above since $\bm{\alpha}\neq\bm{\beta}$. However, one must be careful to take into account the fact that the photons which are deflected into the line of sight of the observer were not emitted perpendicular to the surface of last scattering (an effect which is formally of the same order as the lensing deflection). This change to the emission angle is usually negligible for CMB temperature fluctuations (Lewis et al., 2017), but it cannot be ignored in this case since the dominant temperature source at the surface of last scattering is due to the Doppler effect and therefore has an intrinsic dipole anisotropy. The emission angle relative to the line of the sight to the lens is $\bm{\beta}$, and so the observed temperature fluctuation evaluated in the frame comoving with the lens is $\Theta(\hat{\mathbf{n}})=\mathbf{v}_{\perp}\cdot\bm{\beta}(\chi\hat{\mathbf{n}})$. It has previously been shown that one can also arrive at this expression by treating the kinematic component of the dipole as a source at infinite distance (Cooray and Seto, 2005). This analysis also demonstrates that the CMB dipole measured in the rest frame of the CMB (the intrinsic dipole) is physically distinct from the dipole induced by boosts away from that frame (the kinematic dipole) (Lewis and Challinor, 2006), and the former can therefore be reconstructed by measuring how it is lensed (Meerburg et al., 2017).

Estimator

We wish to construct a quadratic estimator for the transverse velocity field $\mathbf{v}_{\perp}(\hat{\mathbf{n}},z)$ on large angular scales ($\ell\lesssim 100$), given maps of the CMB temperature and of a tracer of the density field at some redshift on small angular scales ($\ell\gtrsim 2000$), analogous to a CMB lensing quadratic estimator (Hu and Okamoto, 2002), for example. Our focus is on the large-scale velocity field, where we anticipate that the velocity is linear and curl-free, such that we can define a transverse velocity potential $\Upsilon(\hat{\mathbf{n}},z)$, with $\mathbf{v}_{\perp}(\hat{\mathbf{n}},z)=\bm{\nabla}{\Upsilon}(\hat{\mathbf{n}},z)$. We utilize the typical definition of the gravitational lensing potential $\phi$ such that $\bm{\alpha}=\bm{\nabla}\phi$, with

[TABLE]

where we have assumed spatial flatness. We can construct a similar potential for the deflection as seen by the lens

[TABLE]

such that $\bm{\beta}=\bm{\nabla}\psi$, and which differs from the ordinary lensing potential $\phi$ by a ratio of the lens and source distances.

Given an observed map of the CMB temperature, $\Theta^{\mathrm{obs}}$, and a map of $\psi^{\mathrm{obs}}$ as derived from, for example, a survey of large-scale structure, we can write the desired quadratic estimator as

[TABLE]

We have suppressed the redshift dependence of $\hat{\Upsilon}$ and $\psi$, and the normalization $N(\mathbf{L})$ and filter $g(\bm{\ell},\mathbf{L})$ are to be determined. We are using the flat-sky approximation so that $\bm{\ell}$ and $\mathbf{L}$ are two-dimensional Fourier wavevectors, and have found the results agree well with a full-sky estimator, as is also the case with lensing estimators (Okamoto and Hu, 2003). Following, e.g., Ref. Hu and Okamoto (2002), we minimize the estimator variance subject to the constraint that the estimator is unbiased, i.e., that $\Upsilon(\mathbf{L})=\left\langle\hat{\Upsilon}(\mathbf{L})\right\rangle\!_{\Theta,\psi}$. At lowest order, the variance is

[TABLE]

where the transverse velocity potential power spectrum is defined as

[TABLE]

and $\mathcal{P}_{v}$ is the dimensionless power spectrum of the three-dimensional velocity $|\mathbf{v}|$. We find that we must fix the normalization to

[TABLE]

and that the filter which minimizes the variance is

[TABLE]

thereby giving for the noise on a reconstructed mode

[TABLE]

where we reintroduced the redshift dependence of our noise estimate.

In the above derivation, we ignored other secondary CMB fluctuations which may contribute to the estimator in Eq. (4). We discuss such biases and their mitigation after making an initial estimate of the signal-to-noise ratio for our estimator of the moving lens effect.

Signal-to-noise ratio

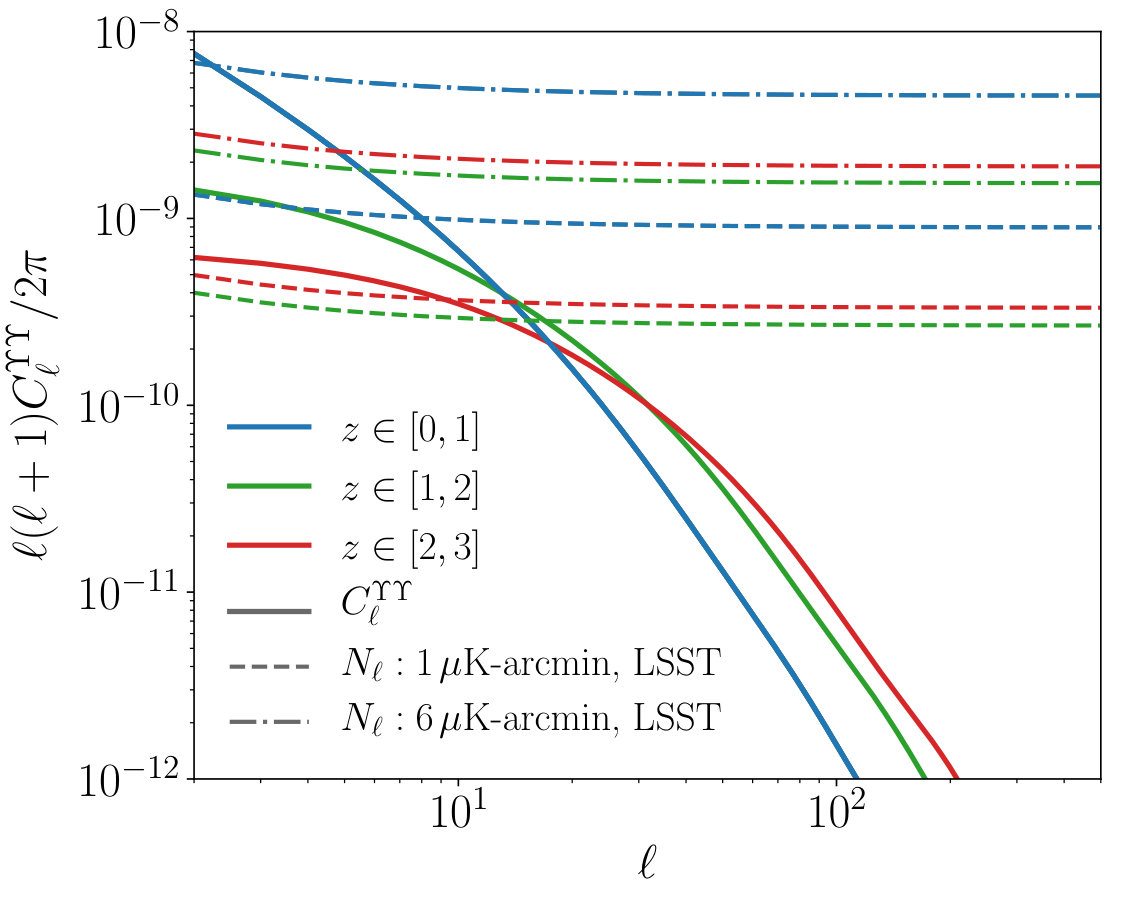

We now estimate the signal-to-noise ratio of the reconstructed transverse velocity potential assuming a cosmology consistent with the latest results from Planck (Aghanim et al., 2018b). We use the lensed $C_{\ell}^{\Theta\Theta}$, and add contributions from the kinetic Sunyaev-Zeldovich (kSZ) effect, which we take as a constant $3\,\mu\mathrm{K}^{2}$ in $\ell(\ell+1)C_{\ell}^{TT}/(2\pi)$ (Shaw et al., 2012; George et al., 2015). For the CMB temperature noise, we take ${N_{\ell}^{\Theta\Theta}=(\Delta_{T}^{2}/T^{2})\exp[\ell(\ell+1)\theta_{\mathrm{fwhm}}^{2}/(8\log 2)]}$. We show results for a range of CMB noise levels $\Delta_{T}\in[0.1,14]\ \mu$K-arcminute and beam sizes $\theta_{\mathrm{fwhm}}\in\{0.1,1.4,5.0\}$ arcminute. The noise power for the moving lens potential in each redshift bin is obtained from the galaxy shot noise using the analytic approximation for the galaxy number densities ${{\rm d}n/{\rm d}z\propto({z}/{z_{0}})^{\alpha}\exp[({-{z}/{z_{0}}})^{\beta}]\ \mathrm{arcmin}^{-2}}$ with $\{z_{0},\alpha,\beta,n_{\mathrm{tot}}[\mathrm{arcmin^{-2}}]\}$ taken to be $\{0.3,2,1,40\}$ and $\{0.88,1.25,2.29,12\}$ for LSST (Abell et al., 2009) and DES (The Dark Energy Survey Collaboration, 2005), respectively. We choose the redshift binning taking into account the photometric error expected by the these experiments, $\sigma_{z}=0.03(1+z)$, with each redshift bin width fixed to $4\sigma_{z}$, which amounts to 13 bins in the range $z\in[0,3.7]$. Finally, we assume constant galaxy bias of unity between galaxy and the matter over-density. The moving lens potential power spectrum $C_{\ell}^{\psi\psi}$ is calculated with a non-linear matter power spectrum and using the Limber approximation which is valid at small scales Limber (1953); Kaiser (1992, 1998); LoVerde and Afshordi (2008). All spectra were computed numerically using modified versions of both CAMB Lewis et al. (2000) and CLASS (Blas et al., 2011) with non-linear corrections implemented with HALOFIT (Takahashi et al., 2012; Mead et al., 2015, 2016; Smith et al., 2003), and we checked that the results from the two codes agree with one another and also with the halo model treatment of the matter power described in (Smith et al., 2018). We show the transverse velocity signal and the estimator noise in Fig. 2.

The most promising route for a first detection of the moving lens effect comes from cross-correlating the large-scale transverse velocity reconstructed from the CMB with that inferred directly from a galaxy survey. We assume that the latter method provides a precise enough measurement of the large-scale density that we can infer the large-scale transverse velocity without noise, which should be a reasonable approximation for the high number densities of galaxies expected in the surveys we are considering. We calculate the total signal-to-noise ratio by approximating the likelihood as Gaussian

[TABLE]

where the indices run over redshift bins, the fields with hats refer to transverse velocities reconstructed from the CMB, those without a hat refer to the velocities reconstructed from the galaxy distribution, the tilde refers to spectra including noise, and the covariance is given by

[TABLE]

To assess the detectability of the moving lens effect, we take as a null hypothesis a scenario in which there is no signal in the CMB-reconstructed transverse velocity, which we also take to have noise diagonal in the redshift bins ($\tilde{C}_{\ell}^{\hat{X}\hat{Y}}=\delta_{\hat{X}\hat{Y}}N_{\ell}^{\hat{X}}$), and no signal or noise in the cross with the galaxy-derived transverse velocity ($\tilde{C}_{\ell}^{X\hat{Y}}=0$) when calculating the covariance matrix.

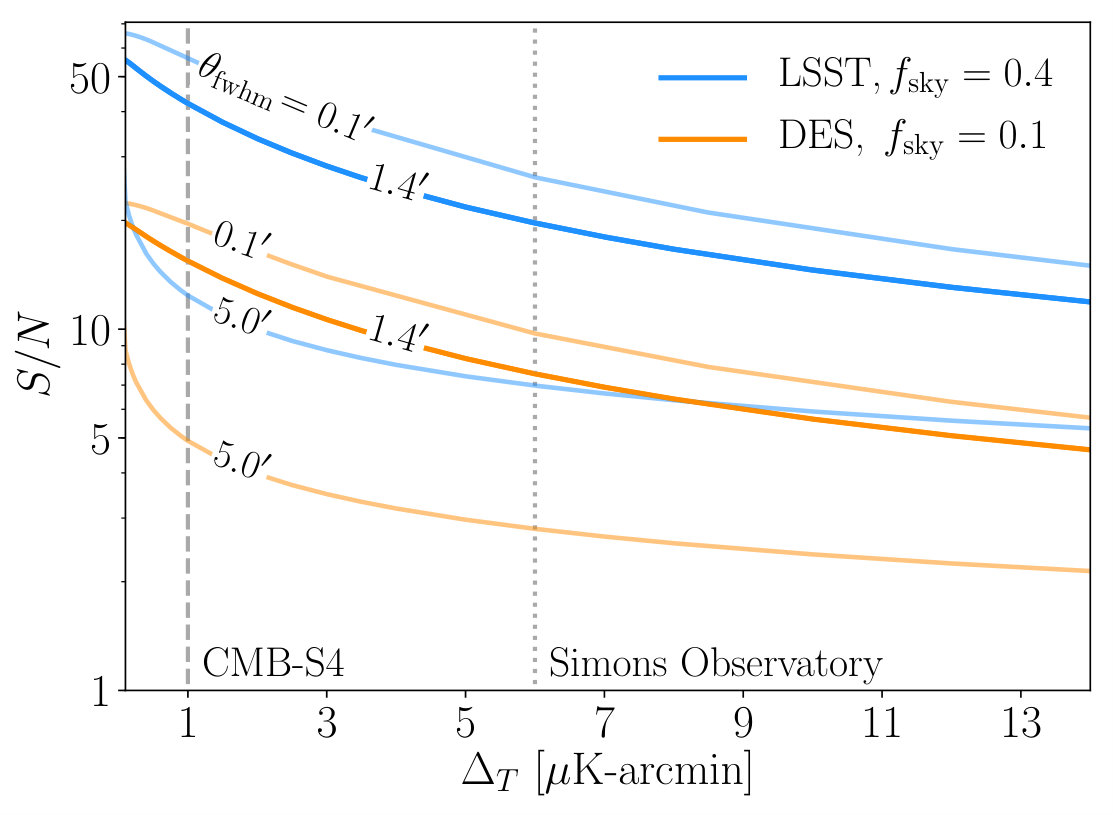

The results for the signal-to-noise ratio with these assumptions are shown in Fig 3. We find that with the method we described, Simons Observatory combined with DES will be able to detect the moving lens effect at about 8$\sigma$, and CMB-S4 combined with LSST at about 40$\sigma$, meaning that a first detection and subsequent precision measurement of the moving lens effect should be possible in the next several years. The signal-to-noise ratios in the results we have shown are limited in part by the contributions to the temperature spectrum that come from the kSZ effect and lensing on small scales. Reconstructing and removing the fluctuations from the kSZ effect, which may be possible with the upcoming experiments (Deutsch et al., 2017; Smith et al., 2018), together with applications of delensing such as in (Green et al., 2017) may improve the signal-to-noise ratio.

Biases

Ordinary lensing introduces two biases to the transverse velocity estimator. The first bias is proportional to the long-wavelength temperature gradient and takes the form

[TABLE]

where we have approximated the change to the temperature fluctuations due to lensing to first order in the deflection as \Delta\Theta(\hat{\mathbf{n}})\big{|}_{\textnormal{lens}}\simeq\nabla\Theta(\hat{\mathbf{n}})\cdot\bm{\alpha}(\hat{\mathbf{n}}). There exists a second bias from ordinary lensing,

[TABLE]

which can be understood as the large-scale gravitational potential fluctuations distorting small-scale ISW or Rees-Sciama temperature fluctuations.

The kSZ effect generates CMB temperature fluctuations of the form \Delta\Theta(\hat{\mathbf{n}})\big{|}_{\textnormal{kSZ}}=-\int\textnormal{d}\chi\;{v}_{\textnormal{d}}(\chi\hat{\mathbf{n}})\,d\tau/d\chi(\chi\hat{\mathbf{n}}) where $d\tau/d\chi(\chi\hat{\mathbf{n}})=\sigma_{T}an_{e}(\chi\hat{\mathbf{n}})$, $\sigma_{T}$ is the Thomson cross section, $a$ is the scale factor, $n_{e}$ is the free electron number density, and $v_{\textnormal{d}}$ is the remote CMB dipole projected along the line of sight, given by $v_{\textnormal{d}}=3\int\textnormal{d}^{2}\hat{\mathbf{n}}\;\Theta_{1}(\hat{\mathbf{n}}_{e},\hat{\mathbf{n}})(\hat{\mathbf{n}}_{e}\cdot\hat{\mathbf{n}})/(4\pi)$. We approximate the dipole seen by distant electrons as dominated by the Doppler effect $\Theta_{1}\simeq\mathbf{v}_{e}\cdot\hat{\mathbf{n}}$, where $\mathbf{v}_{e}$ is the electron velocity. The contribution from the kSZ effect to our transverse velocity estimator is then

[TABLE]

where $C^{\delta\tau\psi}_{\ell}$ is the cross-correlation between $\psi$ and $d\tau/d\chi$.

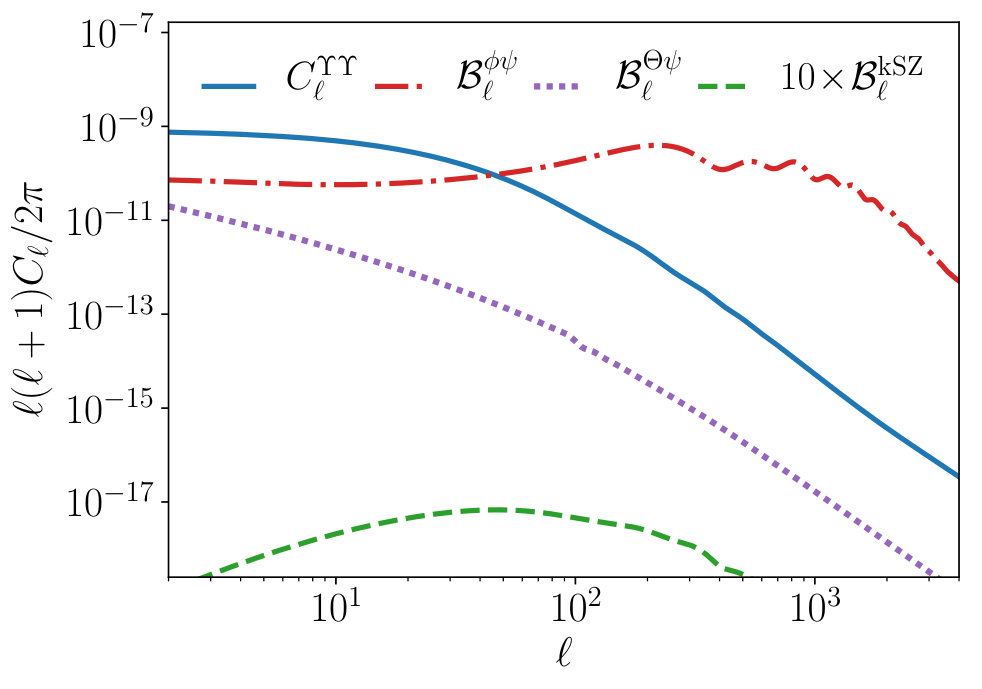

We now assess how large these biases would be if one were to naively apply the estimator shown in Eq. (9) to the data. We define the spectra of the biases as ${\langle\Upsilon^{B}(\bm{\ell}{})\Upsilon^{B}(\bm{\ell}^{\prime}{})\rangle=(2\pi)^{2}\mathcal{B}^{B}_{\ell}\delta^{(2)}(\bm{\ell}{}+\bm{\ell}^{\prime}{})}$ where $B\in\{\phi\psi,\Theta\psi,\mathrm{kSZ}\}$ and plot the results in Fig. 4 for the redshift bin $z\in[1.00,1.25]$. One can see that the $\phi\psi$-bias introduced in Eq. (12) traces the structure of the primary CMB temperature, due to the fact that our transverse velocity estimator is very similar to an estimator designed to reconstruct the large-scale primary temperature fluctuations from observation of small-scale temperature and lenses (Foreman et al., 2018). This bias is the largest of those we have considered, and it is smaller than the signal on large scales $\ell\lesssim 50$ which make the dominant contribution to the signal-to-noise ratio. Our knowledge of the large-scale CMB temperature allows us to cleanly remove the effects of the $\psi\phi$-bias by subtracting a best-fit multiple of the observed large scale temperature fluctuations from the reconstructed $\Upsilon$ map. This bias could also be reduced by delensing the temperature map (Hirata and Seljak, 2003; Green et al., 2017; Millea et al., 2017) before estimating the transverse velocity potential, or by suppressing its contribution to the estimator by bias-hardening (Namikawa et al., 2013).

The $\Theta\psi$-bias introduced in Eq. (13) is most important on large scales, though it is about two orders of magnitude smaller than the transverse velocity signal on most scales and redshifts. Our estimate of this bias included only the linear contributions to the ISW effect, but the non-linear Rees-Sciama effect may increase $C_{\ell}^{\Theta\psi}$ on small scales, thereby boosting the bias compared to what we have calculated here. The $\Theta\psi$-bias can also be mitigated by subtracting from the reconstructed $\Upsilon$ map the best-fit multiple of the gravitational lensing field $\phi$ which will be measured at high significance with the CMB experiments we are considering. The kSZ bias is sub-dominant on all scales of interest, though it too may be possible to reconstruct and remove with the experiments being discussed here (Deutsch et al., 2017; Smith et al., 2018).

Discussion

It has long been known that gravitational potentials moving transverse to our line of sight generate temperature fluctuations in the CMB Birkinshaw and Gull (1983). Individual objects induce small fluctuations in the temperature which are easily confused with other effects making detection challenging (Tuluie and Laguna, 1995; Aghanim et al., 1998; Cooray, 2002). By statistically combining the signal from many objects with a common bulk motion, the method we described greatly increases the prospects for reconstructing transverse velocities on large scales. We demonstrated that upcoming CMB experiments like Simons Observatory and CMB-S4 combined with galaxy surveys such as DES and LSST have the statistical power to make a detection of the moving lens effect at high significance. We also computed the leading biases and discussed how they can be mitigated.

Using the CMB to reconstruct the large-scale transverse velocity field allows for the use of small-scale CMB measurements to probe long-wavelength cosmological fluctuations at lower redshift, much like with CMB lensing (Hu and Okamoto, 2002), the kSZ effect (Zhang, 2010; Deutsch et al., 2017; Smith et al., 2018), and the polarized SZ effect (Kamionkowski and Loeb, 1997; Bunn, 2006; Deutsch et al., 2018; Meyers et al., 2018). Since the observation of large-scale modes is typically challenging, and the number of independent modes on large scales is inherently limited, it is generally useful to expand the list of methods to access large scales observationally. As a specific application, one could imagine using the large-scale velocity modes reconstructed with the moving lens effect to cancel cosmic variance (Seljak, 2009) for the purpose of constraining local non-Gaussianity (which induces a scale-dependent bias on large scales (Dalal et al., 2008)), in a way similar to what has been explored for CMB lensing (Schmittfull and Seljak, 2018) and the kSZ effect (Münchmeyer et al., 2018). Furthermore, because the moving lens effect is a result of purely gravitational effects, it can be used to measure quantities which cannot be accessed directly with the kSZ effect alone, such as the absolute growth rate, which is useful for studying dark energy (Linder, 2005), modified gravity (Linder and Cahn, 2007), and the effects of neutrino mass (Bond and Szalay, 1983). Combined with other probes, observations of the moving lens effect can also help reduce degeneracies due to astrophysical uncertainties such as the optical depth degeneracy of the kSZ effect (Smith et al., 2018).

The major leaps forward in the precision of near-future CMB and galaxy surveys will open many new cosmological opportunities. We have described a method which will allow for the first detection of the moving lens effect with forthcoming data, and will provide a novel probe of large-scale transverse velocities with a host of cosmological applications.
