Spin rotation effects in diffractive electroproduction of heavy quarkonia

TL;DR

This paper investigates how spin rotation effects influence the diffractive electroproduction of heavy quarkonia, revealing significant impacts on cross sections that vary with photon energy and virtuality.

Contribution

It provides the first comprehensive analysis of Melosh spin rotation effects in heavy quarkonia electroproduction within the color dipole framework.

Findings

Spin rotation effects significantly increase cross sections for charmonium and excited states.

Effects cause a 20-30% enhancement in production cross sections for certain bottomonium states.

Spin effects diminish with increasing photon virtuality Q^2, following universal patterns.

Abstract

In this work we present for the first time the comprehensive study of the Melosh spin rotation effects in diffractive electroproduction of S-wave heavy quarkonia off a nucleon target. Such a study has been performed within the color dipole approach using, as an example and a reference point, two popular parametrizations of the dipole cross section and two potentials describing the interaction between Q and bar{Q} and entering in the Schroedinger equation based formalism for determination of the quarkonia wave functions. We find a strong onset of spin rotation effects in 1S charmonium photoproduction which is obviously neglected in present calculations of corresponding cross sections. For photoproduction of radially excited Psi'(2S) these effects are even stronger leading to an increase of the photoproduction cross section by a factor of 2-3 depending on the photon energy. Even in production of radially excited Y'(2S) and Y"(3S) they can not be neglected and cause the 20-30% enhancement of the photoproduction cross section. Finally, we predict that the spin effects vanish gradually with photon virtuality Q^2 following universality properties in production of different heavy quarkonia as a function of Q^2 + M_V^2.

Figures

Equations

$$r_S\approx \frac{3}{\epsilon }=\frac{Y}{2\sqrt{Q^{2}z(1-z)+m_Q^2}}\sim \frac{Y}{\sqrt{Q^2+M_V^2}},$$

$$(Q^2+M_V^2)to0.0pt\text{lower}4.0pt\sim \text{hss}\text{raise}1.0pt>Q_{\mathrm{pQCD}}^2=\frac{Y^2}{r_0^2}.$$

$$(Q^2+M_V^2)\gg \frac{Y^2}{r_n^2},$$

$$\mathrm{Im}{\mathcal{A}}_{T,L}^{{\gamma }^{\ast }p\to Vp}(x,Q^2)=\int {\mathrm{d}}^{2}r\underset{0}{\overset{1}{\int }}\mathrm{d}z{\Psi }_V^{†}(r,z){\Psi }_{{\gamma }_{T,L}^{\ast }}(r,z;Q^2){\sigma }_{q\bar{q}}(x,r)$$

$${\frac{d{\sigma }^{{\gamma }^{\ast }p\to Vp}}{dt}|}_{t=0}=\frac{|\mathcal{A}{|}^2}{16\pi }.$$

$${\Psi }_{{\gamma }_{T,L}^{\ast }}^{(\mu ,\bar{\mu })}(r,z;Q^2)=\frac{\sqrt{N_c{\alpha }_{\mathrm{em}}}}{2\pi }{Z}_Q{\chi }_Q^{\mu †}{\hat{\mathcal{O}}}_{T,L}{\tilde{\chi }}_{\bar{Q}}^{\mu }{K}_0(\epsilon r),$$

$$\sum _{\mu ,\bar{\mu }}{\left({\chi }_Q^{\mu †}\hat{A}{\tilde{\chi }}_{\bar{Q}}^{\bar{\mu }}\right)}^{\ast }\left({\chi }_Q^{\mu †}\hat{B}{\tilde{\chi }}_{\bar{Q}}^{\bar{\mu }}\right)=\mathrm{Tr}({\hat{A}}^{†}\hat{B}).$$

$${\mathcal{O}}_T$$

$${\mathcal{O}}_L$$

$${\Psi }_V^{(\mu ,\bar{\mu })}(z,{\vec{p}}_T)=U^{(\mu ,\bar{\mu })}(z,{\vec{p}}_T){\Psi }_V(z,p_T),$$

$$U^{(\mu ,\bar{\mu })}(z,{\vec{p}}_T)=\frac{1}{\sqrt{2}}{\xi }_Q^{\mu †}\vec{\sigma }{\vec{e}}_V{\tilde{\xi }}_{\bar{Q}}^{\bar{\mu }},{\tilde{\xi }}_{\bar{Q}}^{\bar{\mu }}=i{\sigma }_y{\xi }_{\bar{Q}}^{\bar{\mu }\ast },$$

$${\xi }_Q^{\mu }=R(z,{\vec{p}}_T){\chi }_Q^{\mu },{\xi }_{\bar{Q}}^{\bar{\mu }}=R(1-z,-{\vec{p}}_T){\chi }_{\bar{Q}}^{\bar{\mu }},$$

$$R(z,{\vec{p}}_T)=\frac{m_Q+z{M}_V-i(\vec{\sigma }\times \vec{n}){\vec{p}}_T}{\sqrt{(m_Q+z{M}_V{)}^2+p_T^2}}.$$

$${\tilde{\xi }}_{\bar{Q}}^{\bar{\mu }}=i{\sigma }_y{R}^{\ast }(1-z,-{\vec{p}}_T)(-i){\sigma }_y^{-1}{\tilde{\chi }}_{\bar{Q}}^{\bar{\mu }},{\xi }_Q^{\mu †}={\chi }_Q^{\mu †}{R}^{†}(z,{\vec{p}}_T),$$

$$U^{(\mu ,\bar{\mu })}(z,{\vec{p}}_T)=\frac{1}{\sqrt{2}}{\chi }_Q^{\mu †}{R}^{†}(z,{\vec{p}}_T)\vec{\sigma }\cdot {\vec{e}}_V{\sigma }_y{R}^{\ast }(1-z,-{\vec{p}}_T){\sigma }_y^{-1}{\tilde{\chi }}_{\bar{Q}}^{\bar{\mu }}.$$

$$\mathrm{Im}{\mathcal{A}}_{T,L}^{{\gamma }^{\ast }p\to Vp}(x,Q^2)=\underset{0}{\overset{1}{\int }}\mathrm{d}z\int {\mathrm{d}}^{2}r{\Sigma }_{T,L}(z,\vec{r};Q^2){\sigma }_{q\bar{q}}(x,r),$$

$${\Sigma }_{T,L}(z,\vec{r};Q^2)=\int \frac{{\mathrm{d}}^2{p}_T}{2\pi }{e}^{-i{\vec{p}}_T\vec{r}}{\Psi }_V(z,p_T)\sum _{\mu ,\bar{\mu }}{U}^{†(\mu ,\bar{\mu })}(z,{\vec{p}}_T){\Psi }_{{\gamma }_{T,L}^{\ast }}^{(\mu ,\bar{\mu })}(r,z;Q^2).$$

$$\mathrm{Im}{\mathcal{A}}_L(x,Q^2)=\underset{0}{\overset{1}{\int }}\mathrm{d}z\int {\mathrm{d}}^{2}r{\Sigma }_L(z,r;Q^2){\sigma }_{q\bar{q}}(x,r),$$

$${\Sigma }_L(z,r;Q^2)=Z_q\frac{\sqrt{N_c{\alpha }_{em}}}{2\pi \sqrt{2}}4Qz(1-z)K_0(\epsilon r)\int p_T\mathrm{d}{p}_T{J}_0(p_{T}r){\Psi }_V(z,p_T)\frac{m_T{m}_L+m_Q^2}{m_Q(m_T+m_L)},$$

$$\mathrm{Im}{\mathcal{A}}_T(x,Q^2)=\underset{0}{\overset{1}{\int }}\mathrm{d}z\int {\mathrm{d}}^{2}r\left[{\Sigma }_T^{(1)}(z,r;Q^2){\sigma }_{q\bar{q}}(x,r)+{\Sigma }_T^{(2)}(z,r;Q^2)\frac{\mathrm{d}{\sigma }_{q\bar{q}}(x,r)}{\mathrm{d}r}\right],$$

$${\Sigma }_T^{(1)}=Z_q\frac{\sqrt{N_c{\alpha }_{em}}}{2\pi \sqrt{2}}2K_0(\epsilon r)\int \mathrm{d}{p}_T{J}_0(p_{T}r){\Psi }_V(z,p_T)p_T\frac{m_T^2+m_T{m}_L-2p_T^{2}z(1-z)}{m_T+m_L},$$

$${\Sigma }_T^{(2)}=Z_q\frac{\sqrt{N_c{\alpha }_{em}}}{2\pi \sqrt{2}}2K_0(\epsilon r)\int \mathrm{d}{p}_T{J}_1(p_{T}r){\Psi }_V(z,p_T)\frac{p_T^2}{2}\frac{m_T+m_L+m_T(1-2z{)}^2}{m_T(m_T+m_L)},$$

$$m_T^2=m_Q^2+p_T^2,m_L^2=4m_Q^{2}z(1-z),$$

$$M_V^2=\frac{m_T^2}{z(1-z)}.$$

$$\displaystyle\sigma^{\gamma^{\ast}p\rightarrow Vp}(x,Q^{2})=\sigma^{\gamma^{\ast}p\rightarrow Vp}_{T}+\tilde{\varepsilon}\,\sigma^{\gamma^{\ast}p\rightarrow Vp}_{L}=\frac{1}{16\pi B}\left(\Big{|}\mathcal{A}^{\gamma^{\ast}p\rightarrow Vp}_{T}\Big{|}^{2}+\tilde{\varepsilon}\Big{|}\mathcal{A}^{\gamma^{\ast}p\rightarrow Vp}_{L}\Big{|}^{2}\right)\,,$$

$${\mathcal{A}}_{T,L}^{{\gamma }^{\ast }p\to Vp}(x,Q^2)={\mathrm{Im}\mathcal{A}}_{T,L}^{{\gamma }^{\ast }p\to Vp}(x,Q^2)\left(1-i\frac{\pi }{2}\frac{\partial \ln {\mathrm{Im}\mathcal{A}}_{T,L}^{{\gamma }^{\ast }p\to Vp}(x,Q^2)}{\partial \ln x}\right).$$

$$\left(-\frac{{\Delta }_r}{m_Q}+V_{Q\bar{Q}}(r)\right){\Psi }_{nlm}(\vec{r})=E_{nl}{\Psi }_{nlm}(\vec{r})$$

$${\Psi }_{nlm}(\vec{r})={\Psi }_{nl}(r)\cdot Y_{lm}(\theta ,\phi )$$

$$V_{Q\bar{Q}}(r)=\frac{k}{r}-\frac{8\pi }{27}\frac{v(\lambda r)}{r},$$

$$V_{Q\bar{Q}}(r)=-\frac{16\pi }{25}\frac{1}{r\ln \left(\frac{1}{{\lambda }_{\mathrm{MS}}^2{r}^2}\right)}\left(1+2\left({\gamma }_E+\frac{53}{75}\right)\frac{1}{\ln \left(\frac{1}{{\lambda }_{\mathrm{MS}}^2{r}^2}\right)}-\frac{462}{625}\frac{\ln \left(\ln \left(\frac{1}{{\lambda }_{\mathrm{MS}}^2{r}^2}\right)\right)}{\ln \left(\frac{1}{{\lambda }_{\mathrm{MS}}^2{r}^2}\right)}\right)$$

$${\lambda }_{\mathrm{MS}}=0.509\text{mbox}GeV,k=0.153\text{mbox}{GeV}^2,\lambda =0.406\text{mbox}GeV,$$

$$V_{Q\bar{Q}}(r)=-6.41\text{mbox}GeV+(6.08\text{mbox}GeV)(r\cdot 1\text{mbox}GeV{)}^{0.106},$$

Full text

I Introduction

Detailed investigation of elastic virtual photo- and electroproduction of heavy quarkonia $\gamma^{*}\,p\to J\!/\!\psi(\psi^{\prime},\Upsilon,\Upsilon^{\prime},...)\,p$ is presently a very relevant and dynamic research area. Indeed, the charmonium (bottomonium) suppression phenomenon in nucleus-nucleus interactions represents an alternative probe for the medium created in heavy-ion collisions (HICs) satz . Since the size of heavy quarkonia is relatively small, the corresponding calculations of the production amplitudes are expected to be mainly based on perturbative QCD (pQCD), thus, minimizing the uncertainties coming from the nonperturbative interactions (for a detailed review on quarkonia physics, see e.g. Refs. ivanov-04 ; brambilla-04 ; brambilla-10 ).

This expectation can be verified within the color dipole approach jan-94 . Here, at large photon virtualities, $Q^{2}\gg M_{V}^{2}$, where $M_{V}$ is the mass of a vector meson, the small-size behavior of the dipole cross section zkl , $\sigma_{\bar{q}q}(r)\propto r^{2}$, together with the shrinkage of the $Q\bar{Q}$ component of the photon with $Q^{2}$, lead to the effect known as the scanning phenomenon bzk-93 ; bzk-94 ; jan-94 ; jan-96 ; jan-01 ; jan-07 . Namely, the vector meson production amplitude is scanned predominantly at dipole sizes of the order of $r\sim r_{S}$, in terms of the scanning radius $r_{S}$ given by

[TABLE]

where $m_{Q}$ is the mass of heavy quark and $z$ is the fraction of the photon momentum carried by a quark or antiquark from the $Q\bar{Q}$ component of the photon representing the dipole of transverse separation $\vec{r}$.

The scanning phenomenon allows to study the transition from the nonperturbative region of large $r_{S}$ to the perturbative region of very small $r_{S}$ by means of variation of $Q^{2}$ and the mass of vector meson $M_{V}$. The onset of pQCD regime requires that r_{S}\mathrel{\hbox to0.0pt{\lower 4.0pt\hbox{\hskip 1.0pt\sim}\hss}\raise 1.0pt\hbox{<}}r_{0} jan-07 , where $r_{0}\sim 0.3\,\,\mbox{fm}$ represents the gluon propagation radius spots ; drops . This leads to the following condition jan-07 ,

[TABLE]

Thus the charmonium real photoproduction ($Q^{2}=0$) does not probe the perturbative region and one needs Q^{2}\mathrel{\hbox to0.0pt{\lower 4.0pt\hbox{\hskip 1.0pt\sim}\hss}\raise 1.0pt\hbox{>}}10\div 20\,\,\mbox{GeV}^{2} to enter the pQCD regime. This is not so true for the bottomonium electroproduction where pQCD calculations can be safely performed already in the photoproduction limit $Q^{2}\to 0$ due to a large bottom mass.

On the other hand, another manifestation of the scanning phenomenon is that the fixed values of $r_{S}$ at different $Q^{2}$ lead to very similar cross sections in electroproduction of different vector mesons, i.e. the onset of such universality appears at the same values of $Q^{2}+M_{V}^{2}$.

Due to the nodal structure of wave functions bzk-93 ; jan-94-2s ; jan-96 ; jan-00a ; jan-00b ; jan-07 , for production of radially excited vector mesons the scanning phenomenon should be treated at sufficiently large scales $Q^{2}$

[TABLE]

where $r_{n}$ represents the position of the first node in the corresponding wave functions.

Within the nonrelativistic approximation ($M_{V}\sim 2m_{Q}$, $z\sim 0.5$) the factor $Y$ in Eq. (1) was evaluated in Ref. jan-94 to be $Y\approx 6$ and corresponds to a contribution from the symmetric $Q\bar{Q}$ photon configurations to the quarkonium production, when the quark $Q$ and antiquark $\bar{Q}$ carry almost the same fraction of the meson momentum, $z\sim 0.5$. Such an approximation has a reasonable accuracy for charmonium and is rather good for bottomonium production. In general, the parameter $Y$ depends on polarization and increases slowly with $Q^{2}$ jan-96 ; jan-07 due to relativistic corrections. Here the $Q^{2}$ dependence of $Y$ comes from the large-size asymmetric $Q\bar{Q}$ configurations of the virtual photon when the quark or antiquark in the photon carry a very small or a very large fraction of the meson momentum, $z\to 0,1$.

The above statement is such that elastic electroproduction of heavy quarkonia at $Q^{2}\gg 0$ probes mainly the phenomena at hard scale, when one should rely on pQCD calculations, while semihard-scale physics is of a nonperturbative origin and can be probed only at small $Q^{2}$ (see Eq. (2)). Given this statement, in the current paper we present for the first time a detailed analysis of effects of Melosh spin rotation melosh within the color dipole formalism bzk-91 ; bzk-93 ; bzk-94 ; jan-94 ; jan-96 ; yura-00 . In this analysis, we revise the corresponding results from Ref. yura-00 where we have found a missing factor in expressions for the production amplitudes leading to a modification of results for elastic photo- and electroproduction of charmonia. Besides, we extend our study of spin rotation effects also to bottomonium production including the excited $(2S)$ and $(3S)$ states.

In the next Sec. II, we start with a short review of the factorised light-cone dipole formalism to elastic photo- and electroproduction of heavy quarkonia. The corresponding generic formula for the forward amplitude introduced in Sect. II.1 depends on our knowledge of several ingredients such as the light-cone distribution or the wave function of a transversely or longitudinally polarised virtual photon for a $Q\bar{Q}$ fluctuation, the light-cone wave function of a heavy quarkonia, and the flavor independent universal dipole cross section depending on energy and the transverse separation between $Q$ and $\bar{Q}$.

The Sec. II.2 is devoted to description of the well-known perturbative distribution of heavy quarks in the photon. Here, we include the Melosh spin transformation and obtain the final expressions for photo- and electroproduction amplitudes at different polarizations modifying correctly the standard and frequently used formulas.

In Sec. II.3 within the nonrelativistic approximation we describe how the corresponding wave functions for heavy quarkonia in the rest $Q\bar{Q}$ frame can be obtained by solving the Schroedinger equation with different types of interquark $Q\bar{Q}$ potentials.

Then in the next Sec. II.4 we describe and discuss the procedure based only on widely-used prescription allowing to perform a Lorentz boost to the light-front frame.

As the last ingredient of the production amplitude, in Sec. II.5 we introduce two parametrizations of the dipole cross section used in our calculations.

The results of our model parameter-free calculations are compared with available data for $J\!/\!\psi(1S)$ and $\Upsilon(1S)$ photoproduction in Sec. III, and a reasonable agreement has been found. We also demonstrate a strong onset of spin rotation effects, which are usually neglected in present calculations, in production of radially excited $2S$ and $3S$ states. They lead to an enhancement of the ratio of $\psi^{\prime}(2S)$ to $J\!/\!\psi(1S)$ photoproduction cross sections by a factor of $2\div 3$ in a reasonable agreement with the data. In electroproduction of charmonia the effect of the Melosh spin transformation gradually decreases with photon virtuality manifesting a weak onset in bottomonium production as a clear consequence of the scanning phenomenon discussed above.

Finally, the results of the paper are summarized in Sec. IV. Here we discuss how manifestations and magnitudes of spin rotation effects are correlated with production of different states of heavy quarkonia.

II Color-dipole approach for electroproduction of heavy quarkonia

In the framework of color dipole approach bzk-91 ; bzk-93 ; bzk-94 ; jan-94 ; jan-96 ; yura-00 , the projectile photon (real or with virtuality $Q^{2}$) undergoes strong interactions via its Fock states containing quarks and gluons with the proton target in the rest frame of the target.

The Fock state expansion for the relativistic vector meson starts with the quark-antiquark $Q\bar{Q}$ state which can be considered as a color dipole. Here the relevant variables are the dipole moment $r$, which is the transverse separation between the quark and antiquark and $z$ representing the fraction of the light-cone (LC) momentum of the meson carried by a quark. The interaction of the relativistic color dipole with the target nucleon is described by the universal flavor independent color dipole cross section (introduced for the first time in Ref. zkl ), which is a universal function of $r$ and energy.

However, at high energy one should include also contributions of higher Fock states containing gluons, such as $Q\bar{Q}+g$ etc. Here in the leading-$\log(1/x)$ approximation the effect of higher Fock states can be reabsorbed into the energy dependence of the dipole cross section. Once the dipole scattering occurs, a coherent $Q\bar{Q}$ state forms a vector meson with given quantum numbers.

II.1 Dipole formula for production amplitude

The forward amplitude for exclusive electroproduction of a vector meson $V$ with mass $M_{V}$ in the target rest frame can be treated in the quantum-mechanical formalism bzk-91 ; bzk-93 ; bzk-94 ; jan-94 ; jan-96 ; yura-00 ,

[TABLE]

with the normalization

[TABLE]

In Eq. (4) $x$ is the standard Bjorken variable defined at small $Q^{2}$ by prescription from Ref. ryskin-95 as $x=(M_{V}^{2}+Q^{2})/s$ with the c.m. energy squared $s$ of the electron-proton system; $\Psi_{V}(r,z)$ is the LC vector meson wave function; $\Psi_{\gamma^{\ast}_{T,L}}(r,z;Q^{2})$ is the LC distribution or the wave function of a transversely (T) or longitudinally (L) polarized virtual photon for a $Q\bar{Q}$ fluctuation; $\vec{r}$ is the transverse size of the $Q\bar{Q}$ dipole; and $z=p_{Q}^{+}/p_{\gamma}^{+}$ is the boost-invariant fraction of the photon momentum carried by a heavy quark (or antiquark). The universal dipole cross section $\sigma_{q\bar{q}}(x,r)$ describes a QCD interaction of the $Q\bar{Q}$ dipole (with transverse separation $r$) with the target.

As was already discussed in Sec. I, in the analysis of heavy quarkonia production in the considering regime one can safely use the nonrelativistic QCD (NRQCD) limit with a good accuracy and neglect the relative motion of $Q$ and $\bar{Q}$ such that the momentum fraction is $z\sim 1/2$ and the corresponding LC wave function reduces down to $\Psi_{V}(r,z)\propto\delta(z-1/2)$.

II.2 The $Q\bar{Q}$ wave function of the photon

The perturbative distribution amplitude (or “wave function”, in what follows) for the $Q\bar{Q}$ Fock component of the photon is well known kogut ; bjorken ; nnn , and for $T$ and $L$ polarized photons it has the following form,

[TABLE]

where $N_{C}=3$ is the number of colors, $\varepsilon^{2}=z(1-z)Q^{2}+m_{Q}^{2}$, $Z_{Q}$ is the electric charge of the heavy quark ($Z_{c}=2/3$, $Z_{b}=1/3$), $K_{0}(\varepsilon r)$ is the modified Bessel function of the second kind, and $\chi^{\mu}_{Q}$ and $\tilde{\chi}^{\bar{\mu}}_{\bar{Q}}\equiv i\sigma_{y}\chi^{\bar{\mu}\ast}_{\bar{Q}}$ are the two-component spinors of the quark and antiquark in the light-front frame normalized as bzk-dy-01

[TABLE]

The operators $\hat{\mathcal{O}}_{T,L}$ in Eq. (6) read,

[TABLE]

where $\vec{e}_{\gamma}$ is the transverse photon polarisation vector, $\vec{n}=\vec{p}_{\gamma}/|\vec{p}_{\gamma}\,|$ is a unit vector along the photon momentum, and $\sigma_{x,y,z}$ are the Pauli matrices.

In order to incorporate the spin rotation effects in photo- and electroproduction of heavy quarkonia, we assume a simple factorization of the spatial and spin-dependent parts of the vector meson wave function such as

[TABLE]

where the operator

[TABLE]

is expressed in terms of the vector meson polarisation vector $\vec{e}_{V}$ and quark spinors $\xi$ in the meson rest frame. The latter are related to spinors $\chi$ in the light-front description by the following relation,

[TABLE]

which is known as the Melosh spin rotation melosh ; yura-00 with the corresponding $R$-matrix given by

[TABLE]

Using the quarkonium wave function given by Eq. (9) we assume that the vertex $\Psi\to Q\bar{Q}$ differs from the photon-like $\gamma^{\ast}\to Q\bar{Q}$ vertex with the structure $\psi_{\mu}\bar{u}\gamma^{\mu}u$ used in Refs. ryskin-92 ; brodsky-94 ; frankfurt-95 ; jan-96 . As was noticed in Ref. yura-00 for the case of charmonium production, assuming a similar structure of both vertices, the corresponding wave function in the $c\bar{c}$ rest frame contains both $S$- and $D$-wave states. However, the weight of the $D$-wave is strongly correlated with the structure of the vertex and cannot be proved by any reasonable nonrelativistic $c\bar{c}$ interaction potential.

Substituting

[TABLE]

into Eq. (10) one gets finally

[TABLE]

Then the resulting dipole formula for the amplitude of photo- and electroproduction of heavy quarkonia reads,

[TABLE]

where

[TABLE]

Finally, using Eqs. (15) and (16) one can arrive at the following final expressions for photo- and electroproduction amplitudes of heavy quarkonia in the polarised photon-nucleon scattering (compare with formulas in Ref. yura-00 ),

[TABLE]

for a longitudinally polarised photon111Here, we have found an additional factor of $\sqrt{2}$ which was missed in calculations in Ref. yura-00 ., and

[TABLE]

for a transversely polarised photon. In above formulas,

[TABLE]

such that the meson mass squared is

[TABLE]

Consequently, the total integrated electroproduction $\gamma^{\ast}p\rightarrow Vp$ cross section is conventionally represented as a sum of $T$ and $L$ contributions yura-00

[TABLE]

where $B$ is the slope parameter fitted to data and $\tilde{\varepsilon}$ represents the photon polarization with the value $\tilde{\varepsilon}=0.99$ obtained from H1 HERA data h1-00 .

Since the relative contribution of effects of the Melosh spin rotation to the integrated cross section of elastic electroproduction of heavy quarkonia does not depend on the magnitude of the slope parameter, so for simplicity, in all calculations, we take a constant experimental value $B=4.73$ GeV*-2* h1-00 as in Ref. yura-00 .

Note that the amplitudes $\mathcal{A}_{T}$ and $\mathcal{A}_{L}$ in Eq. (21) include also the corrections for the real part bronzan-74 ; jan-96 ; forshaw-03 ,

[TABLE]

II.3 Quarkonium wave function

The quarkonia wave functions in the $Q\bar{Q}$ rest frame and in impact parameter representation have been obtained by solving the Schroedinger equation for different interaction potentials between $Q$ and $\bar{Q}$ following the procedure from yura-00 . The corresponding Schroedinger equation has the following form,

[TABLE]

where the wave function $\Psi_{nlm}(\vec{r})$ depends on three-dimensional $Q\bar{Q}$ separation $\vec{r}$ and can be expressed in the factorized form,

[TABLE]

with $\Psi_{nl}(r)$ and $Y_{lm}(\theta,\varphi)$ representing the radial and orbital parts of the wave function. Consequently, the Schroedinger equation for the radial part $\Psi_{nl}(r)$ was solved numerically.

In the present paper in our comprehensive study of the onset of Melosh spin rotation effects in photo- and electroproduction of heavy quarkonia we adopt only two heavy quark interaction potentials $V_{Q\bar{Q}}(r)$, which provide the best description of available data. Besides, the relative contribution of spin rotation effects to integrated cross sections of elastic processes, $\gamma^{*}\,p\rightarrow J\!/\!\psi(\psi^{\prime},\Upsilon,\Upsilon^{\prime},\Upsilon^{\prime\prime})\,p$ is not correlated with our choice of a given potential. For this reason the following two interaction potentials $V_{Q\bar{Q}}(r)$ have been used:

1. The Buchmüller-Tye potential (BT) bt-80 , which has a linear string-like behavior at large transverse separations and a Coulomb shape at small $Q\bar{Q}$-distances,

[TABLE]

for $r\geq 0.01\,\,\mbox{fm}$, and

[TABLE]

for $r<0.01\,\,\mbox{fm}$. Here,

[TABLE]

$\gamma_{E}=0.5772$ is the Euler constant, and the function $v(x)$ is provided numerically in Ref. bt-80 . The corresponding masses of heavy quarks are the following: $m_{c}=1.48$GeV and $m_{b}=4.87$ GeV.

2. The power-like (POW) potential barik-80

[TABLE]

with $m_{c}=1.334\,\,\mbox{GeV}$ and $m_{b}=4.721\,\,\mbox{GeV}$.

II.4 Light-cone quarkonium wave function

In order to calculate the amplitude (4) of the elastic process $\gamma^{*}\,p\to V\,p$ one needs to know the LC quarkonium wave function $\Psi_{V}(r,z)$. Similarly to the LC photon-quark wave function $\Psi^{T,L}_{\gamma^{\ast}}$, it is defined in the light-front frame. Here, the lowest Fock component $|Q\bar{Q}\rangle$ is not related to the quarkonium wave function in the $Q\bar{Q}$ rest frame by applying a simple Lorentz boost. The solution of this problem is difficult, and without any unambiguous result up to now. One can find only recipes in the literature, and we use one of them presented in Ref. terentev . Here, as the first step we switch from the coordinate space to the momentum space applying the Fourier transformation to the nonrelativistic wave function (24), $\Psi(\vec{r})\Rightarrow\Psi(\vec{p})$, where $p$ represents the quark 3-momentum. Consequently, the wave function $\Psi(\vec{p})$ should be appropriately boosted to the light-front frame. For this purpose, it can be expressed in terms of the $Q\bar{Q}$ invariant mass

[TABLE]

with $p^{2}=p_{T}^{2}+p_{L}^{2}$, where $p_{L}$ is the longitudinal component of the quark 3-momentum $\vec{p}$. The same quantity in the light-front kinematics is given by

[TABLE]

The last two relations lead to following qualities,

[TABLE]

and

[TABLE]

which relate the kinematical variables in the infinite momentum and $Q\bar{Q}$ rest frames. As a result, this procedure leads to the following relation between the LC wave function $\Psi(p_{T},z)$ and its counterpart in the $Q\bar{Q}$ rest frame $\Psi(p)$,

[TABLE]

where $p=p(p_{T},z)$ is given by Eq. (31).

Note that in Ref. bzk-boosting the Terent’ev prescription terentev for the Lorentz boosting presented above has been discussed and compared with the exact calculations obtained by using the sophisticated Green function approach. Here, the boost-invariant Schroedinger equation for the Green function was derived, which replaces its standard 2-dimensional LC form kst-99 ; jan-01 . It was shown that for symmetric $c\bar{c}$ configurations $z\sim 0.5$ the corresponding LC wave functions for the ground-state charmonia practically coincide with the results provided by the phenomenological prescription terentev .

Finally, the LC wave function in the impact parameter representation is then obtained from $\Psi(p_{T},z)$ performing the Fourier transformation,

[TABLE]

II.5 Dipole cross section

The essential ingredient of the dipole formalism introduced in Ref. zkl is the dipole cross section $\sigma_{q\bar{q}}(r)$ with magnitudes at different transverse separations $\vec{r}$ representing the eigenvalues of the elastic amplitude operator. So dipoles with a definite transverse size $\vec{r}$ are the eigenstates of the interaction in QCD originated as a result of the hadronic cross section expansion over them. This cross section has two main properties – the flavor invariance due to universality of the QCD coupling, and the small size behavior, $\sigma_{q\bar{q}}(r)\propto r^{2}$ for $r\!\!\to\!0$, the property known as the color transparency. Thus the dipole cross section is a flavor independent universal function of $r$ and energy, and allows to describe in an uniform way various high-energy processes.

The hadron production cross sections are known to rise with energy, where the energy dependence can be included in two different ways corresponding to the same set of Feynman graphs. Within two-gluon exchange approximation zkl , the dependence on energy comes from the higher-order corrections related to gluon radiation and the dipole cross section is constant. Another way is to involve higher Fock components containing gluons in addition to the $Q\bar{Q}$ state. Here we prefer to introduce the energy dependence via $\sigma_{q\bar{q}}(r,s)$ not including higher Fock states into the wave functions (see Eq. (4)).

In the limit of small dipole separations one can apply perturbative QCD results, and the energy dependence comes as an effect of gluon radiation treated in the leading-$\log(1/x)$ approximation bfkl ; book . At large separations typical for light hadrons the effects of gluon bremsstrahlung can be also calculated taking the smallness of the quark-gluon correlation radius k3p . However, we are interested also in the intermediate region of dipole sizes, which is more complicated. Here the dipole cross section still cannot be predicted reliably because of poorly known higher order pQCD corrections and nonperturbative effects. Therefore, we use a phenomenological form interpolating between the two limiting cases of small and large transverse separations.

Although about ten different parametrizations of $\sigma_{q\bar{q}}(r,s)$ can be found recently in the literature, for our study we use only two of them since the relative contribution of spin rotation effects to elastic photo- and electroproduction cross sections of heavy quarkonia is not sensitive to our choice of $\sigma_{q\bar{q}}(r)$.

The first parametrization conventionally denoted as GBW has been suggested in Ref. gbw and has the following form,

[TABLE]

where $x_{0}=3.04\cdot 10^{-4}$. It well describes the data for DIS at small $x$, and at medium and high $Q^{2}$ gbw . However, at small $Q^{2}$ it fails to describe the energy dependence of the hadronic total cross sections. Here, the Bjorken $x$ is not a well defined variable, and we prefer to use the following prescription known from Ref. ryskin-95 , $x=(M^{2}_{V}+Q^{2})/s=(M_{V}^{2}+Q^{2})/(W^{2}+Q^{2})$.

A thorough analysis of this problem including a discussion of issues with the proper definition of $x$ has been presented in Ref. kst-99 . Here, the dipole cross section denoted as KST contains an explicit dependence on the c.m. energy $\sqrt{s}$, rather than $x$, since $\sqrt{s}$ is a more appropriate variable for hadronic processes. It has the following form kst-99 , which is similar to the one used in Ref. gbw ,

[TABLE]

Such a dipole cross section correctly reproduces the energy dependence of hadronic cross sections for the following choice

[TABLE]

where $s_{0}=1000\,\mbox{GeV}^{2}$, and the mean square of the pion charge radius is $\left<r^{2}_{ch}\right>=0.44\,\mbox{fm}^{2}$.

An improvement of data description at large dipole separations leads to a somewhat worse description of data on the proton structure function at large $Q^{2}$. Apparently, the KST dipole cross section cannot provide the Bjorken scaling appropriately, and the corresponding parameterization (36) can be applied successfully only up to $Q^{2}\approx 10\div 20\,\,\mbox{GeV}^{2}$.

Since quarkonium production covers mainly the range of scales between the kinematic domains where either of these parametrizations is more successful than another, one can treat differences in predictions obtained by using the GBW (II.5) and KST (36) dipole cross sections as a good measure of the underlined theoretical uncertainty. However, as was mentioned above, the choice of another arbitrary parametrization of the dipole cross section available in the literature has practically no impact on the relative magnitude of spin rotation effects, study of which represents the main scope of the present paper.

III Numerical results vs data

As the first step, we investigate the universality in production of different heavy quarkonia as a function of $Q^{2}+M_{V}^{2}$. As we have already discussed in Sec. I, this universality is controlled by the scanning radius $r_{S}$ (1) where the $Q^{2}$ behavior of polarization-dependent scale factors $Y_{T,L}$ has been discussed in Refs. jan-94 ; jan-96 ; jan-07 and is related to the $Q\bar{Q}$ configurations when $Q$ or $\bar{Q}$ carries a dominant fraction of the photon momentum $z\to 1$. Such configurations are different for $T$ and $L$ polarized photons leading to a strong inequality $Y_{L}<Y_{T}$ as was analysed in Refs. jan-94 ; jan-96 ; jan-07 assuming that the vertex $\Psi\rightarrow Q\bar{Q}$ has the structure $\Psi_{\mu}\bar{u}\gamma_{\mu}u$ like for the leading photon Fock state $\gamma^{*}\rightarrow Q\bar{Q}$.

However, as was already mentioned above, in the present paper following a justification in Ref. yura-00 we take different LC quarkonium wave functions corresponding to different structure of vertices $\Psi\rightarrow Q\bar{Q}$ and $\gamma^{*}\rightarrow Q\bar{Q}$. Consequently, in comparison with the early results from Refs. jan-94 ; jan-96 ; jan-07 , this leads to different expressions (18) and (17) for $T$ and $L$ production amplitudes and, consequently, to other relations between the factors $Y_{T}$ and $Y_{L}$ as is presented in Figs. 1 and 2.

At small r_{S}\mathrel{\hbox to0.0pt{\lower 4.0pt\hbox{\hskip 1.0pt\sim}\hss}\raise 1.0pt\hbox{<}}r_{0} the scanning phenomenon bzk-93 ; bzk-94 ; jan-94 ; jan-96 ; jan-98 ; jan-01 ; jan-07 , Eq. (1), can be understood qualitatively by analyzing the forward production amplitudes (18) and (17), which can be evaluated as,

[TABLE]

[TABLE]

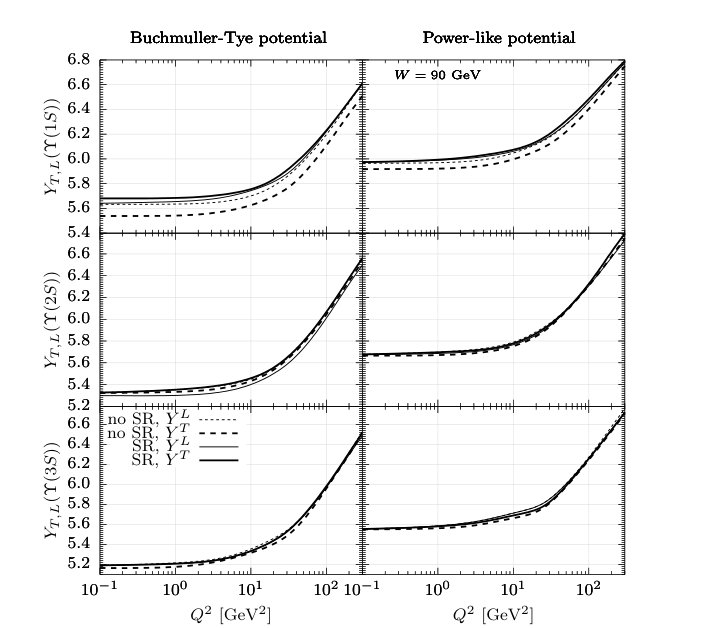

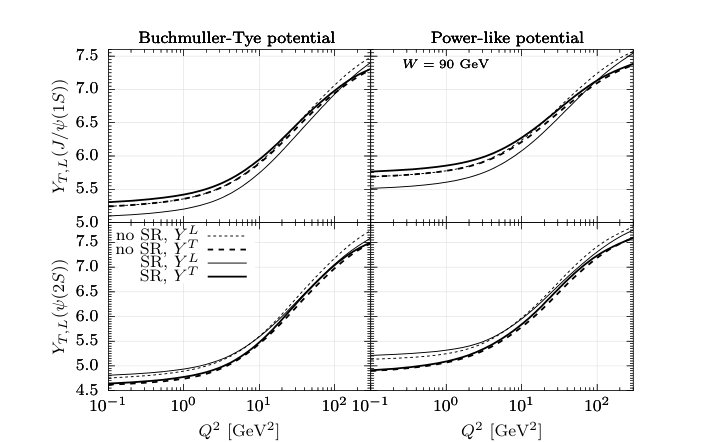

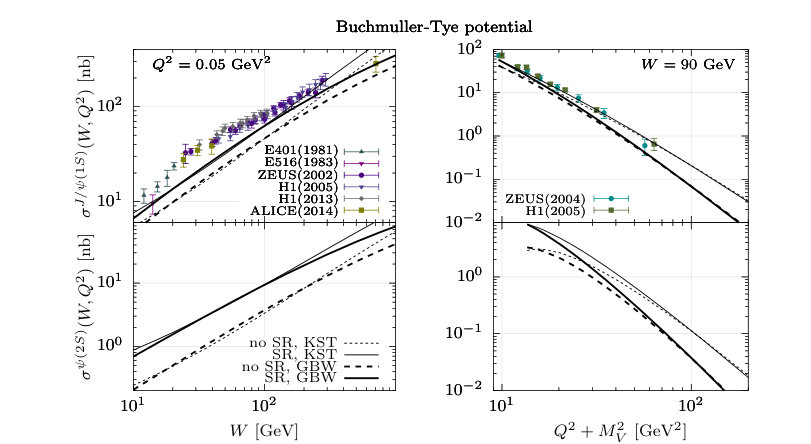

Figs. 1 and 2 show the $Q^{2}$-dependent scale parameters $Y_{L}$ and $Y_{T}$ for production of different heavy quarkonia using the BT and POW realistic potentials for determination of quarkonia wave functions. Evaluation of $Y_{L}$ and $Y_{T}$ was performed from amplitudes (18) and (17) neglecting (dashed lines) and including (solid line) the Melosh spin rotation effects.

For electroproduction of bottomonia (see Fig. 2) both scale parameters satisfy $Y_{T}\sim Y_{L}\sim 5.2\div 6.0$, depending on the shape of the $Q\bar{Q}$ interaction potential, and show a flat $Q^{2}$ behaviour as a consequence of the nonrelativistic approximation, $z\sim 0.5$. Besides, the onset of spin rotation effects does not lead practically to any changes of magnitudes for $Y_{T}$ and $Y_{L}$. One can also see that the scale parameters for production of radially excited $\Upsilon^{\prime}(2S)$ and $\Upsilon^{\prime\prime}(3S)$ are slightly smaller than for $\Upsilon(1S)$ as a manifestation of the node effect, i.e. due to a presence of nodes in the corresponding bottomonium wave functions for excited states.

Analogical situation concerns also electroproduction of charmonia at Q^{2}\mathrel{\hbox to0.0pt{\lower 4.0pt\hbox{\hskip 1.0pt\sim}\hss}\raise 1.0pt\hbox{<}}10\div 20\,\,\mbox{GeV}^{2}, when parameters $Y_{L}$ and $Y_{T}$ depicted in Fig. 1 exhibit a smooth rise with $Q^{2}$ and do not differ much from each other with the corresponding values similar to those for bottomonium production. Here the integrands in Eqs. (18) and (17) receive only a tiny contribution from asymmetric photon configurations, i.e. only the symmetric photon fluctuations with the meson momentum fraction $z\sim 0.5$ dominate. For this reason charmonium can be safely treated as a nonrelativistic object at small and medium values of $Q^{2}$, when r_{S}\mathrel{\hbox to0.0pt{\lower 4.0pt\hbox{\hskip 1.0pt\sim}\hss}\raise 1.0pt\hbox{>}}r_{0} (see Eq. (2)). In comparison to production of $L$ polarized $J\!/\!\psi(1S)$, the onset of spin rotation effects causes a slightly larger enhancement of the contribution from asymmetric configurations to the production of $T$ polarized $J\!/\!\psi(1S)$ and consequently leads to a smooth inequality Y_{T}(J\!/\!\psi)\mathrel{\hbox to0.0pt{\lower 4.0pt\hbox{\hskip 1.0pt\sim}\hss}\raise 1.0pt\hbox{>}}Y_{L}(J\!/\!\psi).

At larger $Q^{2}\gg M_{J\!/\!\psi}^{2}$, the scale parameters $Y_{L,T}$ have a stronger $Q^{2}$ dependence reaching the values $\sim 7.0\div 7.2$ at $Q^{2}=100\,GeV^{2}$, which significantly differ from the nonrelativistic value Y\mathrel{\hbox to0.0pt{\lower 4.0pt\hbox{\hskip 1.0pt\sim}\hss}\raise 1.0pt\hbox{<}}6. This is a direct consequence of the rising contribution from the large-size asymmetric $c\bar{c}$ photon fluctuations to the charmonium production.

Note that in comparison with bottomonium production, in electroproduction of charmonia the difference in magnitudes between $Y_{L}$ and $Y_{T}$ is higher confirming the expected inequality, $Y_{T}>Y_{L}$, for $J\!/\!\psi(1S)$ state. However, as a manifestation of the node effect, one can see a counter intuitive inequality, $Y_{L}>Y_{T}$, in production of radially excited $\psi^{\prime}(2S)$ state.

As the next step, we analyse the onset of spin rotation effects in production of heavy quarkonia. In Figs. 3 and 4 we present the calculations using Eq. (21) with amplitudes (18) and (17) for the integrated real (virtual) photoproduction cross section of the process $\gamma^{*}\,p\to J\!/\!\psi(1S)\,p$ (upper boxes) and $\gamma^{*}\,p\to\psi^{\prime}(2S)\,p$ (lower boxes). The model predictions for $J\!/\!\psi(1S)$ state are compared with the data as functions of c.m. energy $W$ and $Q^{2}+M_{J\!/\!\psi}^{2}$. The latter represents the scaling variable as was discussed above. These calculations were performed with the KST and GBW parametrizations for the dipole cross section depicted by thin and thick lines, respectively. Besides, the Fig. 3 and 4 corresponds to the charmonium wave functions calculated from the BT and POW potentials, respectively.

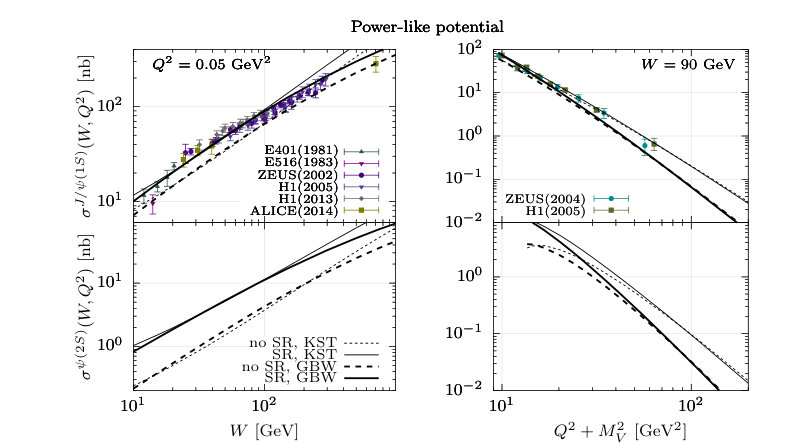

One can notice from Figs. 3 and 4 an overall reasonable agreement of the model predictions with available data, whereas the calculations using the $J\!/\!\psi(1S)$ wave function from the POW potential give a much better description. In the photoproduction limit ($Q^{2}\to 0$) such a good agreement with data is achieved mainly due to effects of the Melosh spin rotation causing the significant $20-30\,\%$ enhancement of the photoproduction cross section. Otherwise, the model calculations underestimate the data by a factor of 1.5 especially at smaller c.m. energies W\mathrel{\hbox to0.0pt{\lower 4.0pt\hbox{\hskip 1.0pt\sim}\hss}\raise 1.0pt\hbox{<}}50\div 70\,\,\mbox{GeV}. At larger values of $Q^{2}$, the onset of spin rotation effects gradually diminishes with $Q^{2}$ as is demonstrated in right boxes of Figs. 3 and 4.

Here, we would like to emphasize that inclusion of effects of the Melosh spin rotation is obviously neglected in recent studies of quarkonia produced in ultra-peripheral collisions at RHIC and LHC. Besides, a successful description of available data does not demand to include any additional new phenomena coming as another (hypothetical) reason for a required enhancement of the corresponding photoproduction cross sections.

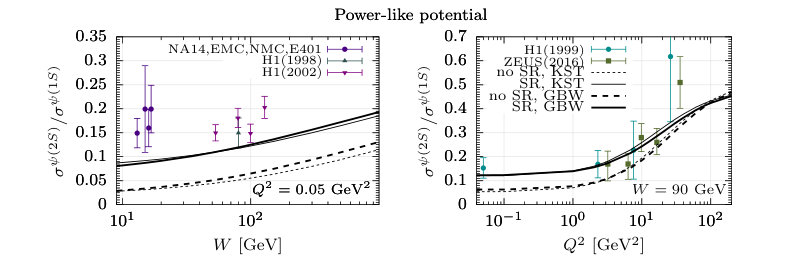

In the case of photoproduction of the radially excited $\psi^{\prime}(2S)$ state, as a consequence of the node effect, both Figs. 3 and 4 demonstrate that the onset of spin rotation effects is much stronger compared to $J\!/\!\psi(1S)$ production increasing the photoproduction cross section by a factor of $2\div 3$.

There are other theoretical uncertainties which may affect a successful description of data, like sensitivity to heavy quark mass discussed in Ref. yura-00 , the magnitude of the slope parameter in production of different heavy quarkonia and its dependence on the photon energy and virtuality, accuracy of the color dipole formalism at smaller c.m. energies W\mathrel{\hbox to0.0pt{\lower 4.0pt\hbox{\hskip 1.0pt\sim}\hss}\raise 1.0pt\hbox{<}}10\div 20\,\,\mbox{GeV}, inclusion of another realistic potentials for determination of the quarkonium wave functions and other more recent parameterizations for the dipole cross section, etc. Such a study is beyond the scope of the present paper, and will be presented elsewhere prepar .

Universality in production of different heavy quarkonia states is controlled by the scanning radius Eq. (1). This leads to a conclusion that, for example, we expect the same onset of spin rotation effects as well as the same magnitudes of the cross sections for $J\!/\!\psi(1S)$ electroproduction $\gamma^{*}\,p\to J\!/\!\psi(1S)\,p$ at some scale $Q^{2}(J\!/\!\psi)$, and for real photoproduction of $\Upsilon(1S)$. The corresponding $Q^{2}(J\!/\!\psi)$ can be estimated from Eq. (1) as follows,

[TABLE]

where the scale factors $Y_{\Upsilon}\sim 5.7$ and $Y_{J\!/\!\psi}\sim 7.0$ for the BT potential can be extracted from Figs. 1 and 2. Thus, one arrives at the value $Q^{2}(J\!/\!\psi)\sim 130\div 140\,\,\mbox{GeV}^{2}$.

As we have mentioned above for electroproduction of charmonia, the spin rotation effects gradually vanish with $Q^{2}$. Thus one can expect, combining the scanning phenomenon (1) with determination of the large scale $Q^{2}(J\!/\!\psi)\sim 130\div 140\,\,\mbox{GeV}^{2}$ from Eq. (41), that the onset of spin rotation effects in $\Upsilon(1S)$ photoproduction should be also very weak. Such an expectation is confirmed by Figs. 5 and 6 for the BT and POW potentials, where we present our model predictions for the c.m. energy $W$ and $Q^{2}$ dependence of the cross section for elastic photo- and electroproduction of bottomonia states $\Upsilon(1S)$, $\Upsilon^{\prime}(2S)$ and $\Upsilon^{\prime\prime}(3S)$. One can also see that the onset of spin rotation effects is stronger for radially excited states due to the presence of nodes in the corresponding wave functions.

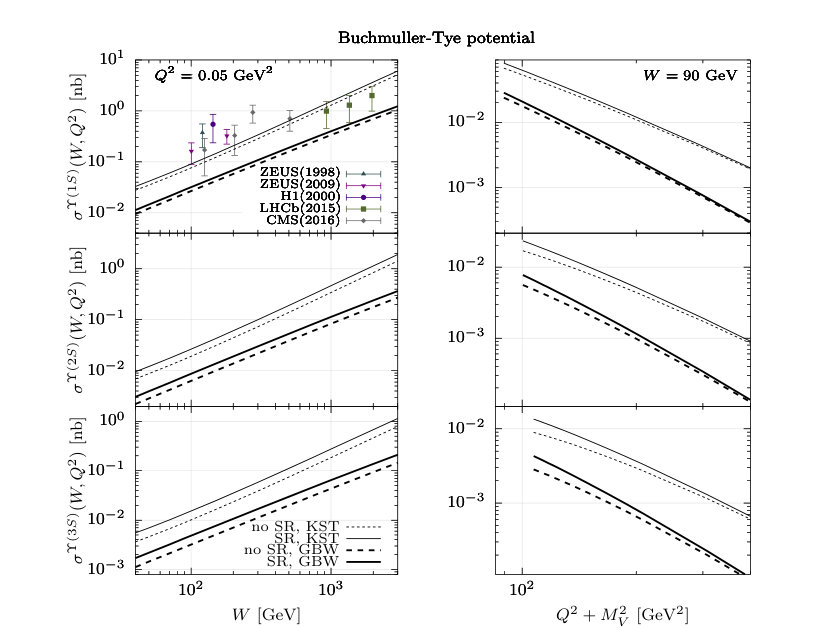

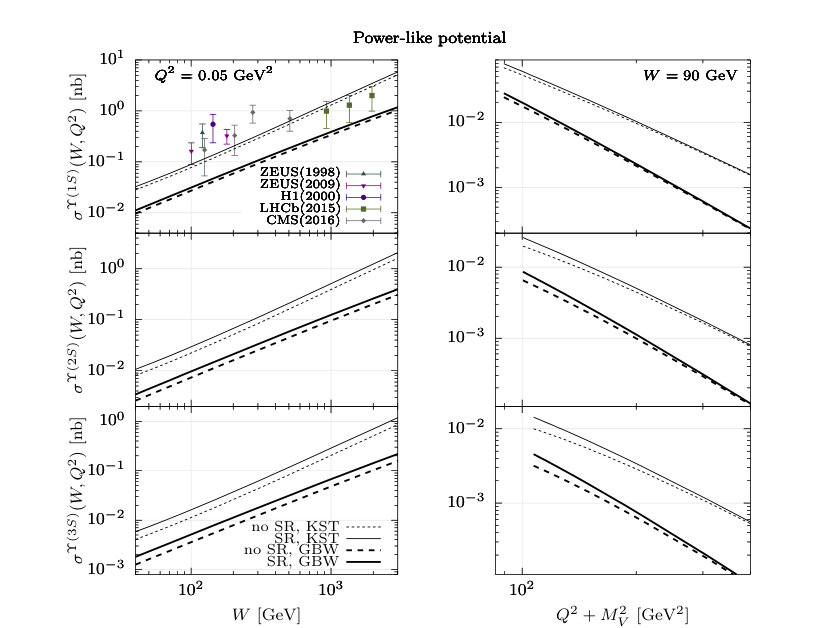

For real photoproduction of $\Upsilon(1S)$ our calculations are compared with available data. Upper left boxes of Figs. 5 and 6 demonstrate a reasonable agreement, which is better for the KST than for the GBW dipole cross section. As was already mentioned above, differences in predictions using the GBW and KST parametrizations can be treated as a measure of the underlined theoretical uncertainty.

As we have already analysed above, the spin rotation effects have a huge impact on the elastic photoproduction cross section of the $\gamma^{*}\,p\to J\!/\!\psi(\psi^{\prime}(2S))\,p$ process. They add about $\sim 20\div 30\%$ to the $J\!/\!\psi(1S)$ photoproduction cross section but cause a much more dramatic effect on $\psi^{\prime}(2S)$ state increasing the corresponding photoproduction cross section by a factor of $2\div 3$. Such a manifestation of spin rotation effects can be tested investigating also the ratio $R$ of $\psi^{\prime}(2S)$ to $J\!/\!\psi(1S)$ photo- and electroproduction cross sections as is depicted in Figs. 7 and 8 for the BT and POW potentials as functions of c.m. energy $W$ and $Q^{2}$. In comparison with the standard photoproduction cross section the study of $R$ allows to minimize the theoretical uncertainties connected mainly with our choice of parameterization for the dipole cross section, with determination of the corresponding slope parameters for the considered processes $\gamma^{*}\,p\to J\!/\!\psi(\psi^{\prime}(2S))\,p$ and quarkonium wave functions etc.

One can see a reasonable agreement of our calculations with available data. For a more reliable test of the model one needs more precise data. The rise of the ratio $R(W)$ with energy is in variance with the natural expectation that, in comparison to $J\!/\!\psi(1S)$, the larger size of $\psi^{\prime}(2S)$ should lead to a weaker dependence on energy since smaller $Q\bar{Q}$ dipole sizes have a steeper rise with energy. However, the predicted rise of $R(W)$ is another manifestation of the node effect. The small-size part of the $\psi^{\prime}(2S)$ wave function below the node position has a steeper energy dependence leading to a strong reduction of a cancellation in the production amplitude. As a result, the energy dependence of $\psi^{\prime}(2S)$ production is steeper compared to that of $J\!/\!\psi(1S)$. Similarly, the node effect causes a rise of the ratio $R(Q^{2})$ with $Q^{2}$ as is shown in right boxes of Figs. 7 and 8 where our predictions for the BT and POW potentials are compared with available data.

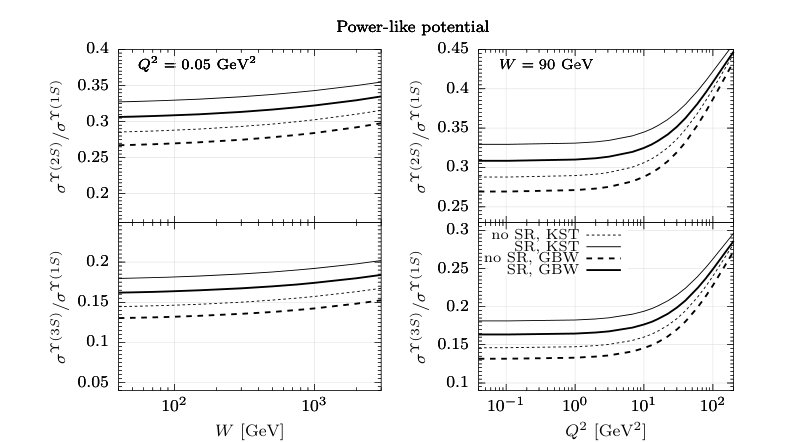

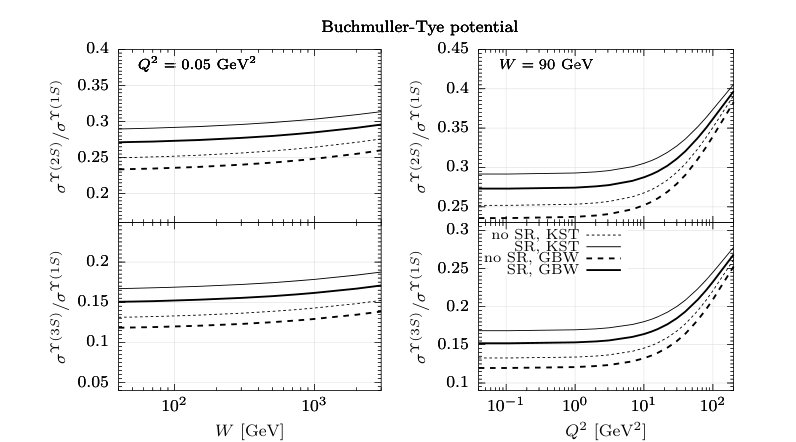

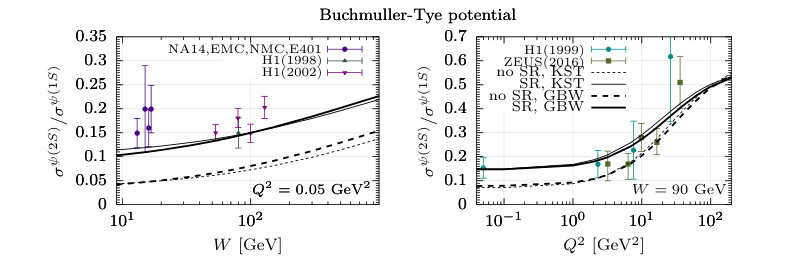

In the last two Figs. 9 and 10 we present our predictions for the ratios of $\Upsilon^{\prime}(2S)$ to $\Upsilon(1S)$ and $\Upsilon^{\prime\prime}(3S)$ to $\Upsilon(1S)$ photo- and electroproduction cross sections as function of c.m. energy $W$ and photon virtuality $Q^{2}$ for the BT and POW potentials. As was discussed above, the smaller $Q\bar{Q}$ dipole sizes at larger scale $Q^{2}+M_{V}^{2}$ diminish the spin rotation effects. Consequently, in comparison to $\Upsilon(1S)$, the larger sizes of radially excited bottomonia cause a stronger onset of these effects, whereas the higher size of $\Upsilon^{\prime\prime}(3S)$ compared to $\Upsilon^{\prime}(2S)$ leads even to an additional enhancement of the corresponding photoproduction cross section.

Figs. 9 and 10 clearly demonstrate the importance of the Melosh spin rotation effects increasing significantly the ratios $\sigma^{\gamma^{*}\,p\to\Upsilon^{\prime}(2S)\,p}/\sigma^{\gamma^{*}\,p\to\Upsilon(1S)\,p}$ and $\sigma^{\gamma^{*}\,p\to\Upsilon^{\prime\prime}(3S)\,p}/\sigma^{\gamma^{*}\,p\to\Upsilon(1S)\,p}$. As was mentioned above, the differences in predictions employing the GBW and KST parametrizations can be treated as a measure of the theoretical uncertainty in the current analysis.

IV Conclusions

In this paper, we present for the first time the detailed exploratory study of the Melosh spin rotation effects in elastic electroproduction $\gamma^{*}\,p\to V\,p$ of $S$-wave heavy quarkonia, where $V=J\!/\!\psi(1S),\psi^{\prime}(2S),\Upsilon(1S),\Upsilon^{\prime}(2S)$ and $\Upsilon^{\prime\prime}(3S)$.

The final factorized light-cone expressions for transversely (18) and longitudinally (17) polarized production amplitudes are based on our knowledge of the following ingredients: (i) the universal dipole cross section $\sigma_{q\bar{q}}(r,s)$ which depends on the transverse separation $r$ between $Q$ and $\bar{Q}$ and the c.m. energy squared, and describes the interaction of the $Q\bar{Q}$ dipole with a proton target; (ii) the perturbative light-cone wave function for the $Q\bar{Q}$ component of the photon $\Psi_{\gamma^{*}}(r,z;Q^{2})$ which depends on the photon virtuality $Q^{2}$ and the relative fraction $z$ of the photon momentum carried by the quark; and (iii) the light-cone wave function $\Psi_{V}(r,z)$ for the $S$-wave heavy quarkonium.

In our calculations of the photo- and electroproduction cross sections of heavy quarkonia, including also the effects of the spin rotation, we adopted as a reference the two distinct parametrizations for the dipole cross section $\sigma_{q\bar{q}}(r,s)$ in the saturated form at large $r$ and satisfying the small-$r$ behavior $\sigma_{q\bar{q}}(r)\propto r^{2}$ (color transparency), with the fitted parameters to obtain the best description of data for $\sigma^{\pi p}_{tot}(s)$ and the structure functions $F_{2}(x,Q^{2})$. The dipole cross section at smaller $Q\bar{Q}$ transverse separations has a steeper rise with energy.

There are no large uncertainties in description of the LC photon wave function. The same is not true for the light-cone wave functions of quarkonia where we are forced to use the standard prescription realizing the transition from a nonrelativistic wave function in the $Q\bar{Q}$ rest frame to its LC form in the light-front description. The former has been obtained by solving the Schroedinger equation for two different heavy-quark interaction potentials, which provide the best description of the available data on $J\!/\!\psi(1S)$ and $\Upsilon(1S)$ photo- and electroproduction, as well as on the ratio of $\psi^{\prime}(2S)$ to $J\!/\!\psi(1S)$ photoproduction cross sections.

Universality in production of different heavy quarkonia states is controlled by the scanning radius Eq. (1), and leads to very similar magnitudes of electroproduction cross sections at fixed values of the scaling variable $Q^{2}+M_{V}^{2}$. However, for production of radially excited heavy quarkonia this scanning phenomenon should be treated at sufficiently large $Q^{2}$ when the corresponding scanning radius $r_{S}\ll r_{n}$, with $r_{n}$ being the position of the first node in the quarkonium wave function.

In our model predictions we have included the Melosh spin rotation which is often neglected in present calculations of the corresponding cross sections for elastic processes $\gamma^{*}\,p\rightarrow V\,p$, where $V=J\!/\!\psi,\psi^{\prime},\Upsilon,\Upsilon^{\prime},\Upsilon^{\prime\prime},..$. Our observations are the following:

(i) Universal properties in production of different vector mesons controlled by the scanning radius Eq. (1) lead to very similar magnitudes of the Melosh spin rotation effects in production of charmonia and bottomonia at the same fixed values of $Q^{2}+M_{V}^{2}$;

(ii) Spin rotation effects contribute to obtain a reasonable agreement with available data without any adjusted parameter;

(iii) Spin rotation effects lead to a rise of the $\psi^{\prime}(2S)$ photoproduction cross section by a factor of $2\div 3$ causing a substantial enhancement of the $\psi^{\prime}(2S)$ to $J\!/\!\psi(1S)$ ratio of the photoproduction cross sections to the values close to experimental data;

(iv) Spin rotation effects are gradually diminished with $Q^{2}$, and we also find a weak onset of these effects in photoproduction of the $\Upsilon(1S)$ state as a manifestation of the scanning phenomenon;

(v) Similarly to production of radially excited charmonia, we predict a stronger onset of the spin rotation effects in production of $\Upsilon^{\prime}(2S)$ and $\Upsilon^{\prime\prime}(3S)$ states as a direct manifestation of the nodal structure of their wave functions. Notably, the spin rotation effects in production of $\Upsilon^{\prime\prime}(3S)$ are even stronger compared to $\Upsilon^{\prime}(2S)$ production.

In conclusion, a large importance of the Melosh spin transformation, especially in photoproduction of heavy quarkonia, can contribute to a better understanding of dynamics in production of charmonia and bottomonia in ultra-peripheral $pA$ and heavy-ion collisions at RHIC and LHC, and thus should also be taken into account and tested by future measurements at electron-ion colliders.

Acknowledgements

J.N. is partially supported by grants LTC17038 and LTT18002 of the Ministry of Education, Youth and Sports of the Czech Republic and by projects of the European Regional Development Fund CZ02.1.01/0.0/0.0/16_013/0001569 and CZ02.1.01/0.0/0.0/16_019/0000778. R.P. is supported in part by the Swedish Research Council grants, contract numbers 621-2013-4287 and 2016-05996, by CONICYT grant MEC80170112, by the Ministry of Education, Youth and Sports of the Czech Republic, project LT17018, as well as by the European Research Council (ERC) under the European Union’s Horizon 2020 research and innovation programme (grant agreement No 668679). The work of M.K. was supported in part by the Conicyt Fondecyt grant Postdoctorado N.3180085 (Chile) and by the grant LTC17038 of the Ministry of Education, Youth and Sports of the Czech Republic. The work has been performed in the framework of COST Action CA15213 “Theory of hot matter and relativistic heavy-ion collisions” (THOR).
