Observation of Reactor Antineutrinos with a Rapidly-Deployable Surface-Level Detector

TL;DR

This paper reports the successful detection of reactor antineutrinos using a small, mobile, surface-level detector with 3D segmentation, demonstrating the feasibility of deploying compact neutrino detectors for reactor monitoring.

Contribution

It introduces MiniCHANDLER, a portable antineutrino detector, and shows that effective detection is possible without overburden or extensive shielding.

Findings

Detected reactor antineutrinos at 5.5 sigma significance

Achieved a fourfold improvement in signal-to-noise ratio using 3D segmentation

Demonstrated surface-level detection with a small, mobile detector

Abstract

We deployed a small, 80kg, antineutrino detector based on solid plastic scintillator, called MiniCHANDLER for nearly three months at a distance of 25m from a 2.9GW thermal power reactor core at the North Anna Nuclear Generating Station. We report the detection of an antineutrino signal resulting from inverse beta decay at 5.5 sigma significance with no overburden and minimal shielding. This result also demonstrates that 3D segmentation can be used to significantly improve the signal to noise ratio, in this case by a factor of 4. In addition, this measurement represents an observation of the positron spectrum in a small, surface-deployed detector; this observation of reactor antineutrinos was achieved with a mobile neutrino detector mounted in an ordinary, small trailer.

Figures

Tables

Table 1. Table 1: Description of the operational run periods. Each run corresponds to 1 hour.

Period	Runs	Reason for New Period
1	258	10 ADC threshold
2	164	Streamlined disk I/O
3	255	Change to 14 ADC threshold
4	5	Reactor ramp-down
5	569	Reactor off
6	118	High voltage re-tune
7	49	Reactor ramp-up
8	476	Reactor at full power

Equations

$${\bar{\nu }}_e+p\to e^{+}+n.$$

$$\mathbf{p}=\mathbf{M}\cdot \mathbf{e},$$

$$\sqrt{{\chi }^2(\hat{a})-{\chi }^2(a=0)}.$$

Full text

I Introduction

Nuclear reactors have long been known to be a copious source of electron antineutrinos which are emitted as a byproduct of nuclear fission. It is not surprising, therefore, that neutrinos were proposed as a method to monitor nuclear reactor operations more than 40 years ago Borovoi and Mikaelyan (1978). Neutrino reactor monitoring is non-intrusive, since it can be performed from outside the reactor building. The reactor neutrino signal depends on both the reactor power and the composition of the reactor core. In particular, a core that is rich in plutonium will produce a neutrino spectrum of lower average energy than a reactor that is rich in uranium Huber (2011). These two signatures can be effectively disentangled by simultaneously measuring the neutrino rate and energy spectrum. Case studies Christensen et al. (2015, 2014) have revealed an important advantage of neutrino monitoring compared to the usual non-proliferation safeguards, which rely on a continuous history of reactor operations and re-fuelings: Should this continuity of knowledge be lost for a reactor, it is extremely difficult to restore. Neutrino reactor monitoring would not rely on a detailed knowledge of the reactor’s operational history, and thus the continuity of knowledge issue is avoided altogether.

There are a number of detailed case studies in the literature highlighting specific potential applications of small above-ground detectors. These applications include reactor power monitoring Bernstein et al. (2002, 2008), monitoring of spent nuclear fuel Brdar et al. (2017), plutonium disposition and mixed-oxide fuel usage Bernstein et al. (2018); Jaffke and Huber (2017). Recently, a detailed study has been presented  Carr et al. (2018, 2019), how these capabilities can be applied in a future agreement to denuclearize the Korean peninsula.

Reines and Cowan used a reactor as the source for their 1956 neutrino discovery experiment Cowan et al. (1956), and since then, many generations of reactor neutrino experiments have followed, with a reliance on overburden to shield cosmic rays being an element common to all. There have also been a number of successful safeguards-oriented reactor experiments Korovkin et al. (1988); Klimov et al. (1990, 1994); Bowden et al. (2007); Boireau et al. (2016) starting in the mid 1980s. Here again they all relied on significant overburden. For real-world applications, such as nuclear non-proliferation safeguards, it is exactly this dependence on overburden that has prevented the adoption of neutrino technologies. Practical applications require detectors which can operate with minimal shielding. In this paper we describe such a detector technology and report on the observation of reactor neutrinos in a small-scale prototype, for other similar measurements see Oguri et al. (2014); Carroll et al. (2018). Here we demonstrate a detector technology which can operate with minimal shielding, has a small detector volume, and requires no liquid scintillator; in particular, the neutrino spectrum is measured over a broad range of energies, including low energies, with high efficiency and good precision. This combination of features has been previously identified as crucial towards real-world application of neutrino reactor monitoring iae (2008).

In the typical reactor neutrino detector, electron antineutrinos are observed via the inverse beta decay process (IBD), in which the neutrino interacts with a hydrogen nucleus in an organic scintillator producing a positron and a neutron

[TABLE]

The positron deposits its kinetic energy in the scintillator and annihilates, resulting in a prompt (or primary) flash of light, while the neutron thermalizes and is captured by a nucleus, producing a delayed (or secondary) signal. The signature of the IBD interaction is the coincidence, in space and time, of positron-like and neutron-like events. This compares favorably to the two largest backgrounds which are 1) fast neutrons from the cosmic ray flux that recoil off of a proton in the scintillator and capture, and 2) random coincidence between unrelated positron and neutron-like events. The random coincident events have no correlation in space or time, while the fast neutron events generally share the temporal correlation of the IBD events but have a larger mean spatial separation due to the greater initial neutron energy and hence speed.

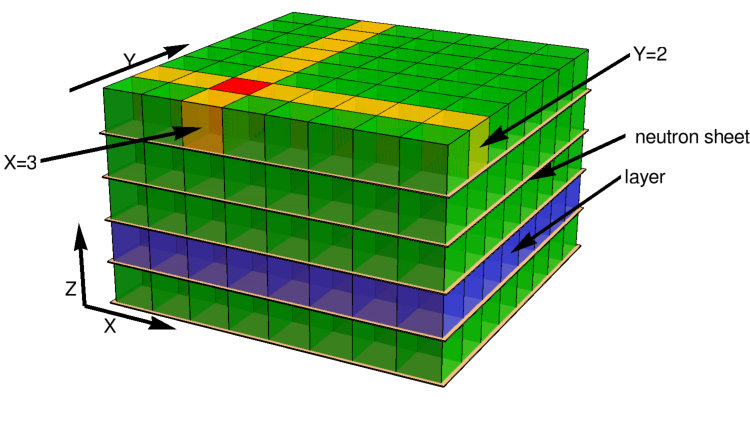

The CHANDLER (Carbon Hydrogen Anti-Neutrino Detector with a Lithium Enhanced Raghavan optical lattice) detector technology is designed for the detection and precision spectral measurement of reactor electron antineutrinos in the high-background surface-level environment. It also allows for portable detectors, which are easy to assemble and easy to maintain, while eliminating the complications and hazards associated with liquid scintillator. The CHANDLER design is based on the optical lattice, which was invented by Raju Raghavan as a part of the LENS R&D program Grieb et al. (2007). The Raghavan optical lattice (ROL) transports light by total internal reflection along rows and columns of cubes as shown in yellow in the left hand panel of Fig 1. The red cube represents the location of the original energy deposition in this example. This gives the detector spatial resolution at the level of a single cube, while at the same time maximizing the light collection efficiency. In CHANDLER, the ROL is formed out of layers of plastic scintillating cubes with a size of 6.2 cm in a tightly packed rectangular array. These in turn are stacked in alternating layers with thin neutron detection sheets in between, as shown in Fig. 1. In each layer light is transported along the rows and columns of the cube lattice by total internal reflection off the inner cube surfaces. This allows the determination the x-y position of the cube where the original energy deposition occurred (red cube) and the z-position is obtained as well, since light is largely confined to the layer in which it was generated. The neutron detection sheets are semi-translucent, *i.e. * enough of the light produced in these sheets will propagate into the adjacent cubes. However, the light produced in the cubes has only a small chance of traversing a sheet, resulting light leakage between the layers. The plastics used in the detector naturally maintain a thin cube-to-cube or cube-to-sheet air gap, which is required for total internal reflection. The plastic scintillator cubes are doped with a wavelength shifting compound so that the light from the neutron sheets can be absorbed in the cubes, re-emitted, and then transmitted by total internal reflection. The key to this pairing of plastic scintillator with neutron detection sheets is that the scintillator used in the neutron sheets releases its light much more slowly than the plastic, and this results in a clean neutron signature. Pairing neutron sheets with scintillator cubes was first implemented by the SoLid Collaboration Abreu et al. (2017), in which optically isolated cubes are read out by wavelength shifting fibers running along the edge of rows and columns of cubes. Replacing the fiber readout with a ROL allows to increase the photo-cathode coverage and thus increases light collection. As a result the energy resolution increases while maintaining the high spatial resolution and clean neutron tag of the SoLid design. When combined, these properties have significant advantages in the rejection of backgrounds that could otherwise overwhelm the neutrino signal in a surface-level detector. For other ongoing simulation studies and R&D for 2D segmented plastic detectors, see for instance Refs. Battaglieri et al. (2010); Kashyap et al. (2016); Mulmule et al. (2018); Kandemir and Cakir (2019).

The neutron detection sheets and plastic scintillator used in CHANDLER are sold commercially by Eljen Technology as EJ-426 and EJ-260 respectively. EJ-426 is composed of micro-particles of lithium-6 fluoride (6LiF) mixed with micro-crystals of silver activated zinc sulfide (ZnS:Ag) scintillator. Thermal neutrons are captured by a 6Li nucleus, resulting in a $\alpha$-particle and a triton which, due to their high specific energy loss, deposit their energy very locally in the ZnS:Ag scintillator. ZnS:Ag has a scintillation decay constant of about 200 ns, which is about 20 times longer than the decay time of the EJ-260 scintillator used in the cubes. This large difference in the scintillation light decay times is used to identify the neutron captures and separate them from signals originating in the plastic scintillator. The cube segmentation in CHANDLER makes it possible to apply an unbiased prompt/delayed spatial separation cut that is well matched to the typical positron/neutron separation of an IBD event. Compared to the standard Daya Bay analysis (An et al., 2015), which uses no spatial separation cut, the coincidence volume in CHANDLER is reduced by a factor of more than 2000. In addition, this segmentation can be used to veto fast neutron events with associated proton recoils in more than one cube, and to tag the 511 keV gammas from positron annihilation in an IBD event. Together these topological selections have enabled us to identify the IBD events in a surface-level detector where correlated background events outnumber the true IBD events by more than 400 to 1.

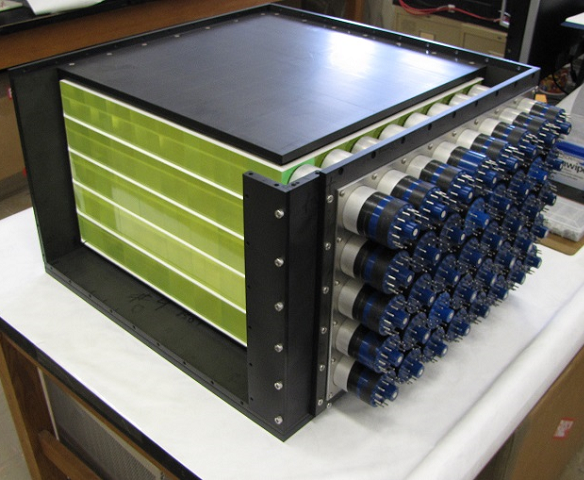

The MiniCHANDLER detector is a 80 kg prototype of the full CHANDLER detector. MiniCHANDLER was designed to maximize the detector mass within our limited project budget with a detector that replicates light transportation from the middle of the envisioned full-scale detector. MiniCHANDLER consists of five layers of an $8\!\times\!8$ cube array read out by PMTs on only one end of each cube row and column, so that two faces of the detectors are instrumented with PMTs. MiniCHANDLER has six neutron sheet layers: above and below each cube layer. The sheets are optically connected to the cube layers on both sides, see Fig. 1.

The PMTs used in MiniCHANDLER are Amperex XP2202s with a custom-built, resistive-divider base. The PMTs are operated at negative high voltage supplied by a CAEN mainframe with each channel individually tunable. The PMT signals were read out by a CAEN V1740 waveform digitizer with 62.5 MHz sample rate, a 12-bit ADC and 64 channels per card. To ensure high fidelity with this relatively sparse sample rate, the PMT signals were first passed through a pre-amplifier to shape the signal with a 25 ns time constant. The V1470 was internally triggered on every instance of a channel at or above 14 ADC counts (ADCC) over baseline. Each trigger led to a 129-sample read out of all channels in the module starting about 35 samples before the trigger. Two independently-triggered V1470 modules were used to read out the full detector.

Data from the waveform digitizers was sent to the DAQ computer over an optical link, where it was processed through a zero-suppression algorithm to suppress data from channels in which the waveform only deviated by 12 ADC counts or fewer from the baseline. Only after this zero suppression was the data written to disk as separate files for each module. The two data streams were merged off-line using events from an external strobe trigger (with a rate of slightly less than 1 Hz) to continuously synchronize the merging based on the time-stamps from the modules’ internal clocks. The strobe trigger merging was used to estimate the DAQ efficiency, which we found to be greater than 99.5%.

II Reactor and Deployment

The MiniCHANDLER detector, electronics and DAQ computing were loaded into a 14 foot trailer, dubbed the Mobile Neutrino Lab, which was equipped with a carefully designed quiet power supply, wi-fi connectivity, and air conditioning, allowing for fully remote operation. On June 15, 2017, after several weeks of commissioning and testing at Virginia Tech, the trailer was moved to the North Anna Nuclear Generating Station in Mineral, Virginia. The North Anna Plant consists of two pressurized water reactors, each with a licensed thermal power of 2940 MW 111https://www.nrc.gov/info-finder/reactors/na2.html. The Mobile Neutrino Lab was deployed next to Reactor 2, at a distance of about 25 m from the center of the core. At this location it was approximately 90 m from the core of Reactor 1, which was therefore responsible for about 7% of the neutrino interactions in the detector 222During the Reactor 2 shutdown, Reactor 1 was operating at full power, so, in the reactor-off subtraction that will be performed, its events are counted as a part of the background. Therefore, we calculate the expected rate relative to Reactor 2 alone.. The detector and DAQ were up and running in less than one day, which marked the start of the site specific commissioning. To combat the increased thermal neutron rate from the reactor, the detector was surrounded by a layer of 1-inch thick boron-loaded polyethylene with holes for the PMTs. The natural gamma rate at the reactor site is higher than the one experienced at Virginia Tech. To combat this we added an inch of lead shielding below the detector, and on the two sides closest to the containment building.

With commissioning complete, the data run began on August 9, 2017 and lasted through November 2, 2017. During this time we took 1133.6 hours of usable reactor-on data and 675.4 hours of reactor-off data. The data are divided into eight periods, where the transition between periods corresponds to changes in the operational state of either the detector system or the reactor. Table 1 describes the different periods, and lists the reasons for the start of each new operational period. Of particular note is the transition from period 2 to period 3, which corresponds to a shift in the trigger threshold from 10 ADCC to 14 ADCC. This became necessary when the rate of low-energy gamma rays increased due to the arrival of shipping containers of mildly activated equipment that were parked next to the Mobile Neutrino Lab in preparation for the refueling of Reactor 2.

III Calibration

For the study described here, a highly-accurate energy model and reconstruction was neither a requirement nor an objective. Nevertheless, matching the known energy dependence of reactor neutrinos in an observed reactor-on excess was an essential confirmation of neutrino detection. In addition, we were motivated to test a novel energy calibration source made possible by the high-segmentation of the ROL. Specifically, in polyvinyl toluene, a minimum ionizing particle has a $dE/dx$ of about 2 MeV/cm 333http://pdg.lbl.gov/2018/AtomicNuclearProperties/HTML/polyvinyltoluene.html, which means that a muon, passing vertically through a 6 cm cube deposits an average energy of around 12 MeV. In the following section we describe how we used vertical muons to measure the light pattern from every cube location in the detector, and how this allowed us to fix the energy scale at around 12 MeV. Here, we assume a proportional energy response for energies below 12 MeV.

The PMT high voltage was initially tuned to align the muon peaks across all channels to 1500 ADC counts. To account for gain fluctuations, the muon peak was measured in each channel for each run and the measured ADC values were scaled to realign the muon peaks. In this context the muon peaks are not limited to vertical muons, which have limited statistics in a single run, but include all triggers across all cube positions.

IV Event Reconstruction

Neutron identification in MiniCHANDLER is based on pulse shape discrimination, using the factor of 20 difference in the scintillation light decay times between the neutron sheets and the scintillator cubes. A naive particle identification (PID) variable can be formed from the ratio of the area under the waveform to its peak value. Large values of this variable correspond to neutron-like events, while small values correspond to signals generated in the plastic scintillator. Large signals, with peak values greater than 1000 ADCC were eliminated from considerations. If a signal satisfies our neutron PID criterion in at least one PMT channel, the whole event becomes a neutron candidate.

Instrumental effects in MiniCHANDLER, such as PMT flashers and analog overshoot from an earlier large pulse, can generate signals that satisfy this naive neutron PID selection, fortunately these effects almost never replicate the decaying light pattern of an energy deposition in the neutron sheets. We used a template-based $\chi^{2}$-criterion to reject these instrumental backgrounds from the neutron candidate list. To obtain the neutron-template we started with a sample of 100 hand-selected neutron capture waveforms. Each waveform was divided into eight regions. In each region, the ADC counts over baseline were summed, and these sums were divided by the total over all regions to form normalized amplitudes. Then these normalized amplitudes were averaged over the 100 hand-selected waveforms to form the neutron-template. Since, events in the plastic scintillator have short pulses which are contained entirely in the first region, the gamma-template is trivial. With these templates the neutron selection proceeds as follows.

Within each view of each layer, we select the channel with the highest amplitude signal, compute its normalized amplitudes and uncertainties in the eight regions, and compute the $\chi^{2}$s relative to both the neutron- ($\chi^{2}_{n}$) and gamma- ($\chi^{2}_{\gamma}$) templates. The reduced $\chi^{2}$s from both the $x$- and $y$-views are summed and we select good neutrons satisfying the criteria $\sum_{x,y}\chi^{2}_{n_{i}}/\nu_{i}<8$ and $\sum_{x,y}\chi^{2}_{\gamma_{i}}/\nu_{i}>150$, where $\nu_{i}$ is the number of time bins in the template, effectively the number of degrees of freedom. This $xy$-matching fixes the position of the neutron candidates.

Once neutron identification in a layer is done, we check the consistency of $xy$-matched neutrons from different layers. Neutron candidate events generally exhibit low occupancy in the detector. Therefore, the $xy$-position of an event is simply given by the location of those PMTs which see the most light. For about half of all neutron capture events we see light on only one side of the neutron sheet. We call these events “cube” neutrons since we can not distinguish whether the capture happened in the sheet above or below the cube. In these events the neutron $z$-position is assigned to the middle of the cube. For the remainder of events the neutron capture is seen on both sides, and the neutron capture position is known at the sheet level; we call these events “sheet” neutrons. Any event with more than one neutron candidate among the 5 layers is rejected. Tests with Li-free neutron sheets in our MicroCHANDLER prototype have shown that in the absence of 6Li there are practically no neutron-like signals in the detector. Therefore, for the purpose of this analysis, we can treat all neutron-like events as neutrons without introducing any bias.

Event reconstruction for prompt events is somewhat more complicated than for neutrons because the number of active cubes in the detector is often greater than one. This is due to the Compton scatter of positron annihilation gammas in IBD events, and to the possibility of multiple proton recoils in fast neutron backgrounds. In order to use this topological information, we need a reconstruction that is capable of evaluating energy depositions in multiple active cubes. Here a challenge arises when there is more than one active cube in a single detector layer. This is a non-trivial problem, because in each detector layer we have $2\times 8$ observed PMT signals, but there are $8\times 8$ unique cube locations. If we knew the true energy deposition in each cube in a layer, expressed as a 64-component vector, $\mathbf{e}$, then we could write an expression for expected PMT responses as the 16-component vector, $\mathbf{p}$. This forward problem is represented by

[TABLE]

where $\mathbf{M}$ is the $16\times 64$ transfer matrix. Each element of the transfer matrix, $M_{ij}$, describes the size of the signal in PMT $j$ arising from a 1 MeV energy deposition in cube $i$. This transfer matrix includes all effects arising from light propagation, including attenuation and scattering, and the electronics cross talk. Although, about 80% of the light detected is observed in the PMTs at the ends of the row and column centered on the emitting cube, the remaining 20% of light is spread out across the other PMTs in the plane. This unchanneled light is due to tiny imperfections in the ROL, and to scattering in the bulk of the plastic cubes. In addition to the unchanneled light, there is a bi-polar, inductive-pickup cross talk which is observed in channels neighboring one with a large amplitude pulse.

Our objective is to invert this matrix equation to solve for $\mathbf{e}$, the vector of cube energies, but first, we had to determine the transfer matrix, $\mathbf{M}$. Even then, there is no exact solution to Eq. 2, since $\mathbf{M}$ has no inverse.

A data driven approach was used to determine the elements of the transfer matrix. This is the best way ensure that all effects are properly accounted for. We used vertical muons, which are easily identified in our detector by requiring that the observed light be consistent with coming from the same single cube position in each plane. By definition, a vertical muon produces light in only one cube per plane, and that cube’s position is well-known from the $xy$-coordinates of the vertical muon. Unchanneled light and electronic cross talk spread this signal over all channels in the plane. By collecting a large sample of vertical muons, which occur at a rate of 0.7 Hz across the detector, we measured the response of each PMT in each plane to the energy depositions from every cube position in that plane. According to our simulation, the most probable energy deposition for a muon that satisfies the vertical selection is 11.42 MeV/cube. The transfer matrix elements were scaled to an equivalent energy of 1 MeV. In constructing the final transfer matrix, which is applied to all layers, we average the elements from the matrices measured in just the middle three detector layers, and we did this because we can only be certain that a “vertical” muon’s path through a layer was fully contained in a single cube when there are confirming hits above and below that layer. In the case of the top and bottom layers one of these confirming hits is missing.

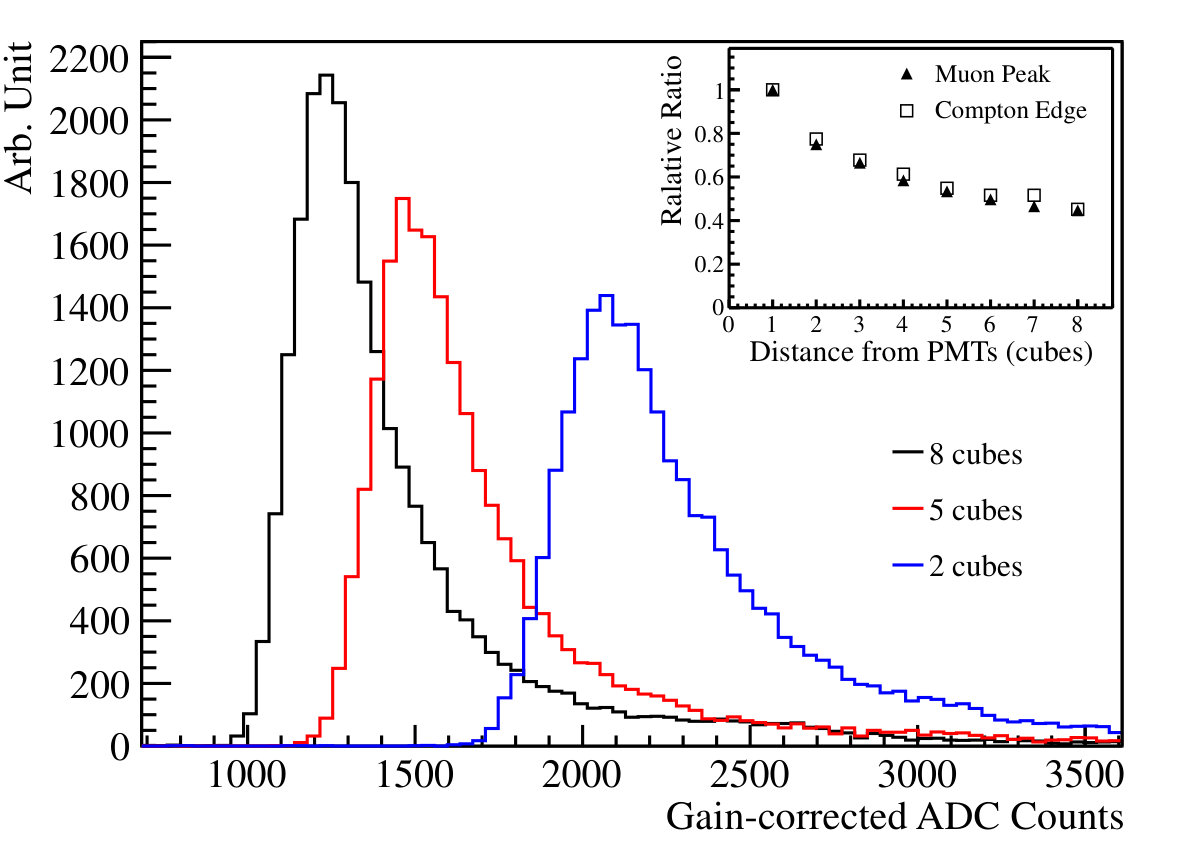

A sample of the vertical muon spectra from cubes at three different distances from the PMTs is shown in Fig. 2. The width of these energy distributions comes from of the natural Landau distribution in $dE/dx$, the geometrical acceptance for muons which are not perfectly vertical, and the intrinsic resolution of the detector. The shift in the peak position, as a function of distance from the PMT, shows the spatial dependence of the detector response function. This effect is explicitly accounted for in the transfer matrix. Throughout the region of interest, this spatial dependence is independent of the deposited energy. This is illustrated in the inset of Fig. 2, which compares the effective attenuation curve for vertical muons to the one derived from the $\sim\!1$ MeV Compton edge of 1273 keV gamma from a 22Na source.

Both the unchanneled light and the electronics cross talk scale with the amount of light detected in the primary channel, but the variances of the unchanneled light and electronics cross talk components do not. For unchanneled light the variance scales with the Poisson statistics of the photons at the PMT cathode, while for cross talk the variance scales with the electrons at the PMT anode. The future, full detector will use electronics without cross talk.

GEANT4 Dellacqua et al. (1994) was used to compute the true cube-by-cube energy depositions for a set of simulated gamma and IBD events. Using the transfer matrix, $\mathbf{M}$, and random fluctuations drawn from a Poisson-distribution with the appropriately scaled variances, this truth information was propagated to create a Monte Carlo realization of the measured PMT signals. This sample was used to test and tune the event reconstruction. As previously stated, Eq. 2 has no exact solution, any approximate solution must compensate for the lack of observables by some regularization scheme. This essentially amounts to using a Bayesian prior to select among the possible solutions. For our analysis the goal is to correctly reconstruct the number of cubes with a non-zero energy deposition, with a preference for suitable solutions with the fewest active cubes. This matches our expectation for IBD events, which the Monte Carlo has shown will almost never have more than five cubes with true energy depositions above the detection threshold in the MiniCHANDLER detector.

Using the variance found from data we constructed a suitable likelihood function, $L$, to measure how well a given set of reconstructed cube energy depositions, $\mathbf{e}_{r}$, corresponds to the measured PMT signals, $\mathbf{p}_{s}$. To minimize $\hat{L}\equiv-\log L$ we used the following algorithm: First set all $e_{r}(x,y)=0$ (i.e. all positions have an initial energy deposition of zero),such that the set of cubes with non-zero energy deposition, $\lambda$, is initially empty.

Find the additional cube $(x,y)$ that yields the smallest $\hat{L}$, when $\hat{L}$ is minimized by varying $e_{r}$ for the cubes in set $\lambda$ plus the new cube $(x,y)$. 2. 2.

If $\min(\hat{L}(\lambda))-\min(\hat{L}(\lambda+(x,y)))<L_{c}$, go to step 5. 3. 3.

Add cube $(x,y)$ to the $\lambda$ set. 4. 4.

While $\lambda$ has less than five cubes, return to step 1. 5. 5.

If $\hat{L}<L_{g}$, accept event as reconstructed, otherwise declare the reconstruction failed.

This algorithm allows the reconstruction to assign energy depositions to additional cubes as long as the improvement in $\hat{L}$ is sufficiently large ($>L_{c}$). This cutoff prevents over-fitting, since adding a cube always will decrease $\hat{L}$. The reconstruction is limited to no more than five cube in a layer, which is a conservative upper limit relative to the observation in our Monte Carlo that IBD events have no more than five active cubes in the whole detector. Step 5 ensures that the fit is a good match to the data by requiring the final $\hat{L}$ to satisfy a quality criterion ($<L_{g}$). This is rarely violated by IBD events in the Monte Carlo, but in data, where the true composition of the event types is unknown, we find about 7% of events fail this criterion in at least one layer. We thus quote a reconstruction efficiency of 93%, but, since the IBD events generally do not share the typical characteristics of the events that fail the reconstruction, we presume it to be much higher for true IBD events. The fit cutoff, $L_{c}$, was tuned on Monte Carlo IBD events and the quality parameter, $L_{g}$, was tuned on background data samples. This maximizes the reconstruction fidelity to the true cube positions and energy depositions, and minimizes reconstruction failures.

As a test, the reconstruction was applied to a sample of vertical muons from across the whole detector. The resulting energy spectrum was fitted to a convolution of Landau and Gaussian distributions. The fitted peak value was in good agreement with the most probable energy deposition from the simulation. We interpret the fitted Gaussian $\sigma$ to be the average energy resolution at 12 MeV, which was found to be 2.6%. If the resolution scaling is purely stochastic this would correspond to an average resolution of approximately 10%$/\sqrt{E\rm(MeV)}$.

V IBD Analysis

To compute the expected IBD spectrum and number of events, we use the Huber-Mueller reactor flux model Huber (2011); Mueller et al. (2011), and the IBD cross section from Ref. Vogel and Beacom (1999) with a neutron lifetime of 878.5 s. The thermal reactor power is taken to be 2.94 GW and the core-detector distance is 25 m. The detector mass is 80 kg, comprising $4\times 10^{27}$ target protons. From simulation we compute that 46% of all IBD neutrons in the detector capture on 6Li. Of these 34% are lost when we discard the first 40 $\mu$s in $\Delta t$. The entire reactor-on data set is comprised of 1133.6 hours of good data. Under these assumptions we expect about 3500 Li-tagged, IBD events. Given the uncertainties in the Monte Carlo, the reactor distance, and spill-in/spill-out effects, it is difficult to assign a firm error, but 10-20% appears reasonable. IBD neutrons created outside the detector and IBD neutrons reflected back into the detector are difficult to simulate precisely and Monte Carlo tests indicate that this effect is below 10%. The reactor detector distance is known to within 1 m, translating into about 8% uncertainty. The reactor power is know within 1% and fuel burn-up has not been corrected for, but this effect does not exceed 5%.

In quadrature these errors would add up to 12-14%, but for instance the distance uncertainty is non-Gaussian, i.e. the distance could be between 24 and 26 m but it certainly is not 26.5 m; the same holds for the neutron capture efficiency or the burn-up effect. So these errors can not be added up in quadrature. The exact value of the systematic uncertainty on the number of expected IBD events has no impact on the statistical significance of the IBD signal, since the IDB signal is derived entirely from a comparison of reactor-on and reactor-off data without recourse to the expected number of IBD events. The reason to calculate the expected number of IBD events is to check whether the number of expected events is consistent with the observed events, which it was found to be.

GEANT4 was used to simulate the cube-level energy depositions from IBD events, but we did not use it to propagate photons through the ROL. Instead we generated the PMT signals in ADCC using the forward transfer matrix derived from vertical muons, followed by a Poisson smearing based on the observed and scaled variances. The simulated PMTs signals were run through the reconstruction and event selection just like the data. Therefore, any non-linearity in the reconstructed energy spectrum should be common to both data and Monte Carlo, at least to within the precision of this analysis.

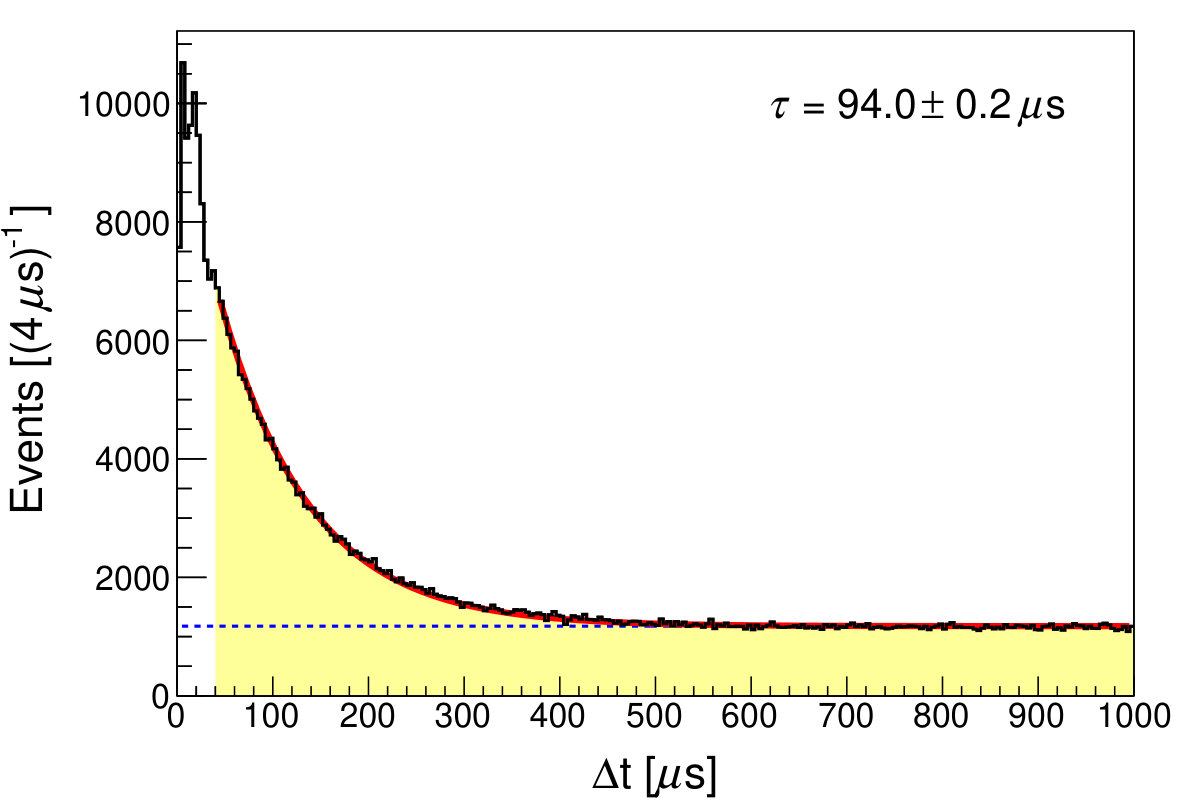

To form IBD event candidates, we begin by matching each neutron capture candidate with all non-neutron events with a successful reconstruction from the preceding 1000 $\mu$s. Next we apply a prompt/delayed spatial separation cut. The prompt event position is assigned to the center of the most energetic cube of the primary event. To assign the position of the delayed event we distinguish sheet and cube neutrons, as explained previously. As we expand the allowed separation, more correlated events are included in the sample. At short distances we find the largest enrichment of true IBD events, but as the separation grows fast neutron events start to dominate. To select the optimal separation cut, we studied IBD signal significance as a function of the separation cut. Figure 3 shows the $\Delta\chi^{2}$ relative to the null hypothesis, plotted as a function of the maximum allowed prompt/delayed separation. The stepped nature of this plot is due to the quantization of separation distances inherent in our assignment of event positions in the cube structure. The significance peaks at a separation of 1.5 cube lengths, or 9.3 cm. At this distance the cut includes the 19 nearest cube positions, and 20 nearest sheet positions. From our IBD Monte Carlo, we estimate that 67.3% of true IBD neutrons are captured within this region. As the fast neutron rejection improves in future incarnations of the detector, this cut can be opened up to improve the IBD efficiency while maintaining maximal significance.

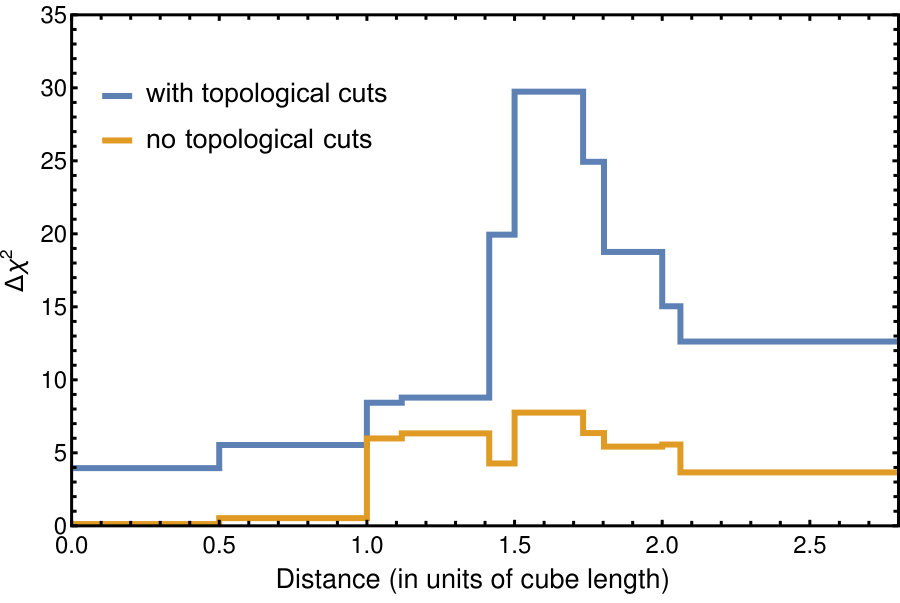

The 3D segmentation of MiniCHANDLER allows us to further select events based on the topology of the event. Under perfect conditions, one would design cuts to specifically tag the two 511 keV positron annihilation gammas. In the current MiniCHANDLER detector this is not practical for two reasons: First, the detector is too small to efficiently contain the first Compton scatter from both annihilation gammas. Second, with the current light collection scheme the detector’s energy threshold is about 50 keV, and at that level, many of the annihilation gamma Compton scatters are unseen in the detector. Therefore, we have implemented a set of cuts to retain events with any hint of the positron annihilation gammas, while rejecting events that are clearly inconsistent with their presence. Specifically, we required there to be least 1 cube, beyond the primary (or highest energy) cube, with energy deposition in the range of $50\,\mathrm{keV}\leq e_{r}\leq 511$ keV. Further, we require that the sum of energies in all cubes, excluding the primary cube and its most energetic immediate neighbor, be no more than 1022 keV, and that outside of the those two cubes there is no single cube energy above 511 keV. These last cuts are designed to remove fast neutrons with multiple proton recoils. As can be seen by comparing the blue and orange lines in Fig. 3, these topological cuts improve the signal significance from $\Delta\chi^{2}=7.7$ to $\Delta\chi^{2}=29.7$, or equivalently the signal-to-noise is improved by a factor of about 4. This demonstrates that the fine-grained 3D segmentation at the core of the CHANDLER technology adds considerable value relative to the coarser-grained 2D segmentation used in other contemporary detectors Ashenfelter et al. (2016); Allemandou et al. (2018). With anticipated improvements to the light collection, and a larger detector to better contain the annihilation gammas, the efficacy of these topological cuts should be significantly enhanced.

The surviving events are split into reactor-on and reactor-off samples (see Tab. 1). In each sample, they are sorted by their reconstructed prompt energy into 20 bins from $0.5-20$ MeV, with the lowest energy bin being 0.5 MeV wide and all other bins being 1 MeV wide. In each energy bin, the prompt/delayed $\Delta t$-distribution is fitted with an exponential plus flat function. The exponential time constant, $\tau$, is fixed to 94 $\mu$s, as was determined from a single $\Delta t$-fit to the data from all energy bins and reactor periods (see Fig. 4). These $\Delta t$-fits are used to statistically separate the time-correlated events (the exponential component) from the random coincident events (the flat component). Using all positron candidate events in the 1000 $\mu$s proceeding a neutron — as opposed to just using the first event, or vetoing all events when two or more positron candidates are observed — ensures that the $\Delta t$-distribution from the random coincident contribution is flat over all times. Then, by fitting this distribution out to more than 10 neutron capture lifetimes, we get a high-fidelity, high-statistics measure of the random component, which we then subtract to get the correlated rates. A sample $\Delta t$-distribution, with fit, is shown in Fig. 4. Due to effects related to the analog side of our signal processing chain, we exclude the first 40 $\mu$s from the fit. In the subsequent analysis, this results in a loss of 34% of all true IBD events.

In the final step of the analysis, we perform a background subtraction by taking the difference of correlated events in the reactor-on periods to those in the reactor-off periods. In this step there is a danger of introducing structure into the energy spectrum if the detector operation was not stable over time. Fig. 5 shows the correlated (red) and random coincident (blue) event rates, as a function of time, as extracted from the $\Delta t$-distribution fits, but without topological cuts applied, to enhance the fast neutron events relative to IBD.

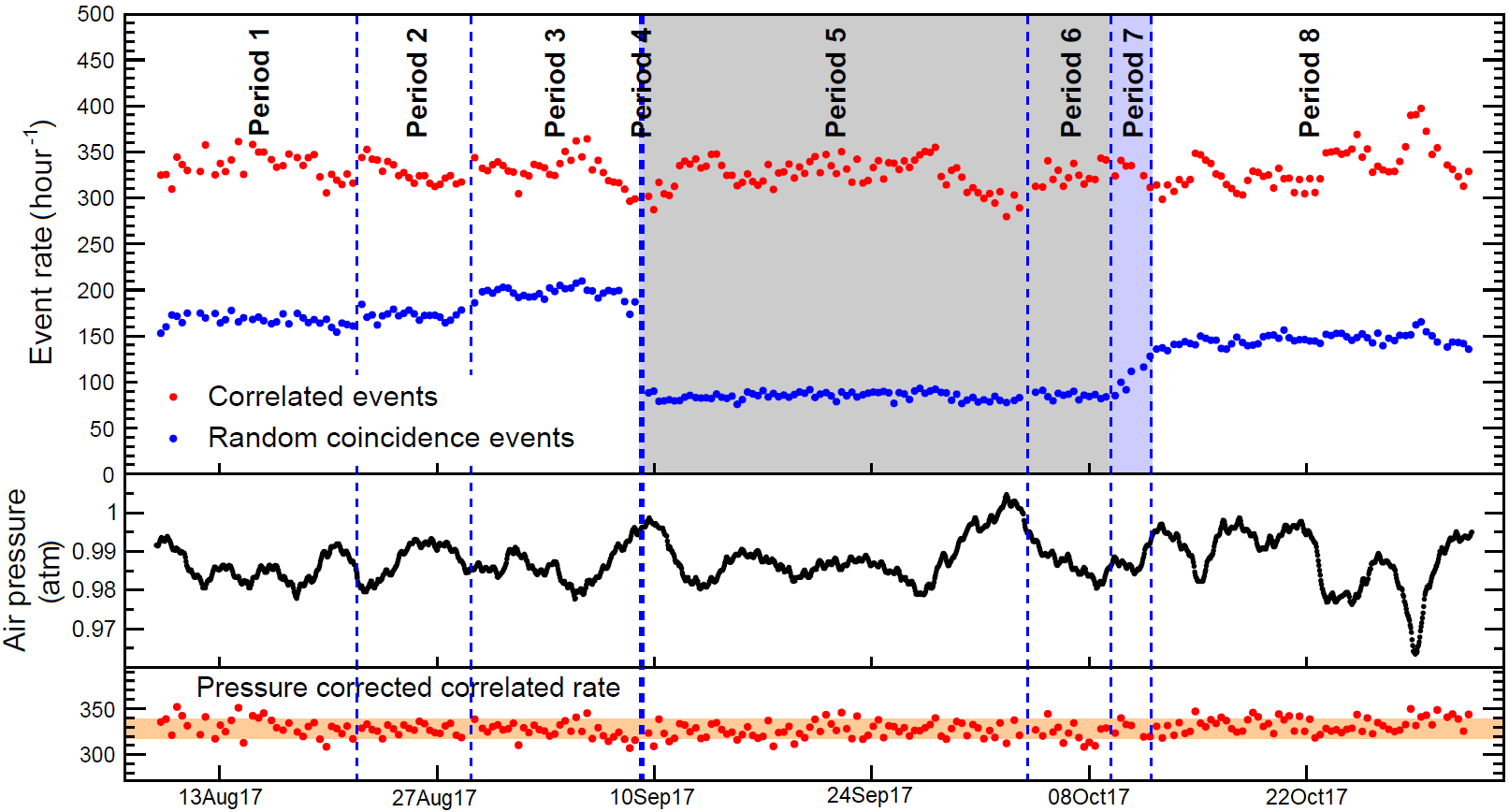

The random coincident rate shows large variations between periods, which are linked to specific operational events at the plant. For example, during the shutdown, when the thermal neutron rate from the reactor was essentially zero, the random coincident rate was cut in half. Similarly, at the start of period 3 we see a slightly higher random coincident rate, which corresponds to the arrival of several shipping containers as discussed earlier. The increased the trigger threshold from 10 to 14 ADCC that followed this event was applied after the fact in software to the data from periods 1 and 2 to ensure uniformity across the periods.

On the other hand, the period-to-period jumps observed in the random coincident rate are not seen in the correlated event rate. Instead, we see smaller undulations which are anti-correlated with the atmospheric pressure. This is exactly what one would expect if the correlated rate was dominated by fast neutrons in the cosmic ray flux, as should be the case here. It is well known that the cosmic neutron rate is related to the atmospheric pressure, which is a measure of the mass of the atmosphere above. The air pressure shown in the middle panel of Fig. 5 was measured at the Louisa County Airport, located 16.7 km from the North Anna Nuclear Generating Station, and was obtained from the NOAA website 444https://www.ncdc.noaa.gov/cdo-web/datatools/lcd, Station ID: WBAN:03715. Using this data, we compute a correction factor for the measured pressure, $P$, relative to the average pressure, $P_{0}$, which is equal to $e^{-\alpha(P-P_{0})}$ with $\alpha=7.3\,\rm{atm}^{-1}$ Lindgren (1962). In the bottom panel of Fig. 5, this correction factor is applied to the measured correlated event rates, which, once corrected, are stable across all data taking periods. The orange band represent the average statistical error of the correlated event rate as measured in 8 hour blocks.

While the air pressure’s impact on the fast neutron rate is a well-understood phenomenon that can be compensated for in the overall rate, it was not immediately clear whether differences in the average air pressure between the reactor-on and reactor-off periods could introduce an energy dependence in the correlated rate that could mimic an IBD signal. To test this hypothesis, the reactor-on data were split evenly into high-pressure and low-pressure sets and the analysis was run on both halves. The IBD excess measured in the two sub-samples agreed to within $1\,\sigma$.

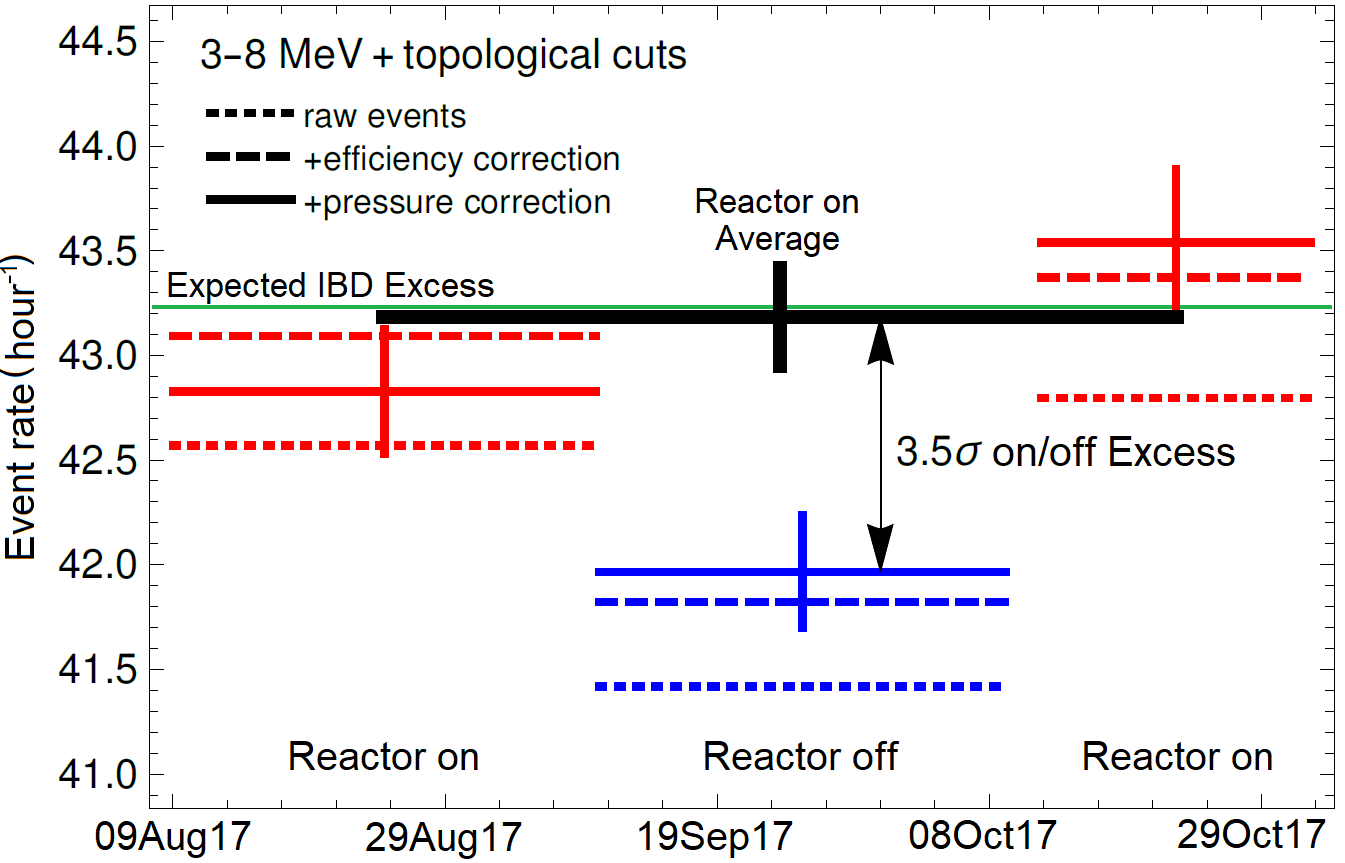

An analysis based purely on the total correlated event rates was conducted as a cross check of the spectral analysis. In this case, the air pressure correction was applied run-by-run. This incorrectly rescales the IBD signal events, however, since the correction is at most 5% in any given run, but this is of little consequence for the current purpose. Also, the DAQ live-time efficiency has a slight systematic difference between reactor-on and reactor-off runs due to the extra thermal neutron triggers when the reactor is on. We measured this efficiency in each run by comparing the number of recorded strobe triggers to the number that were sent. The statistical significance of this counting analysis is a strong function of the signal-to-noise ratio, so we applied a 3–8 MeV energy cut, which should retain 58% of IBD events while reducing the background by a factor of 3.6. To further enhance the signal-to-noise ratio the topological cuts are applied. The data is in three time periods: before, during and after the reactor shutdown. Respectively these correspond to the data taking periods of Tab. 1 as periods 1–3, periods 5–6, and period 8. The results are shown in Fig. 6.

This analysis finds an on/off-excess of $1.22\pm 0.35$ events/hour, which corresponds to a 3.5$\,\sigma$ significance. This compares well to the expected IBD rate in the 3–8 MeV range of 1.27 events/hour, which demonstrates that the topological cuts are highly efficient for true IBD events. Multiplying the observed excess by the total reactor-on time and correcting for the 58% efficiency of the 3–8 MeV cut this corresponds to $2418\pm 700$ events, which is entirely consistent with the result of the spectral analysis. The lower significance of the rate only analysis, is partly due to the inefficiency of the energy cut and partly to the absence of information from the IBD spectrum. If we use the full 0.5–20 MeV range, we find an on/off excess of $2.48\pm 0.94$ events/hour compared to an expectation of 2.17 IBD events/hour. This corresponds to only 2.6$\,\sigma$ significance, demonstrating a well-known feature of rate-only analyses: tight cuts must be applied to obtain a suitable signal-to-noise ratio, resulting in a lower overall IBD efficiency.

It is worth noting that the pressure and DAQ efficiency corrections are comparable in size to the expected IBD excess in this rate analysis. Therefore, when the signal-to-background ratio is low, this type of analysis may be less reliable than desired. Also, random coincident rates can be strongly correlation with the reactor power, see Fig. 5, and therefore must be separated in a robust way, such as the $\Delta t$ fit method illustrated in Fig. 4.

In a spectrum-based analysis we can exploit the fact that no IBD events are expected above 8 MeV and thus we can use this part of the spectrum as a side band to normalize the reactor-on/off periods relative to each other. We calculated a scale factor by taking the ratio of reactor-on and reactor-off correlated events in the 8 to 20 MeV region. Our computed scale factor is $1.666\pm 0.013$, which turns out to be very close to the factor we get from a dead-reckoning of the relative reactor-on/reactor-off live-time, $1.673\pm 0.005$. That we get this good agreement in spite of the $\sim$4% RMS on the atmospheric pressure correction, is due to the fact that the difference between the average pressure corrections in the reactor-on and reactor-off periods is, by chance, quite low (less than 0.6%). This scale factor is applied to the correlated event numbers in all energy bins of the reactor-off spectrum, and then we perform the reactor-off subtraction. The resulting spectrum is shown in Fig. 7. The error bars are obtained by propagating the error on the correlated event rate from the $\Delta$-t fit in each bin from both the reactor-on and reactor-off periods. The bin-to-bin correlated error from the scale factor is not shown in the plot, but it is included in the computation of the signal significance.

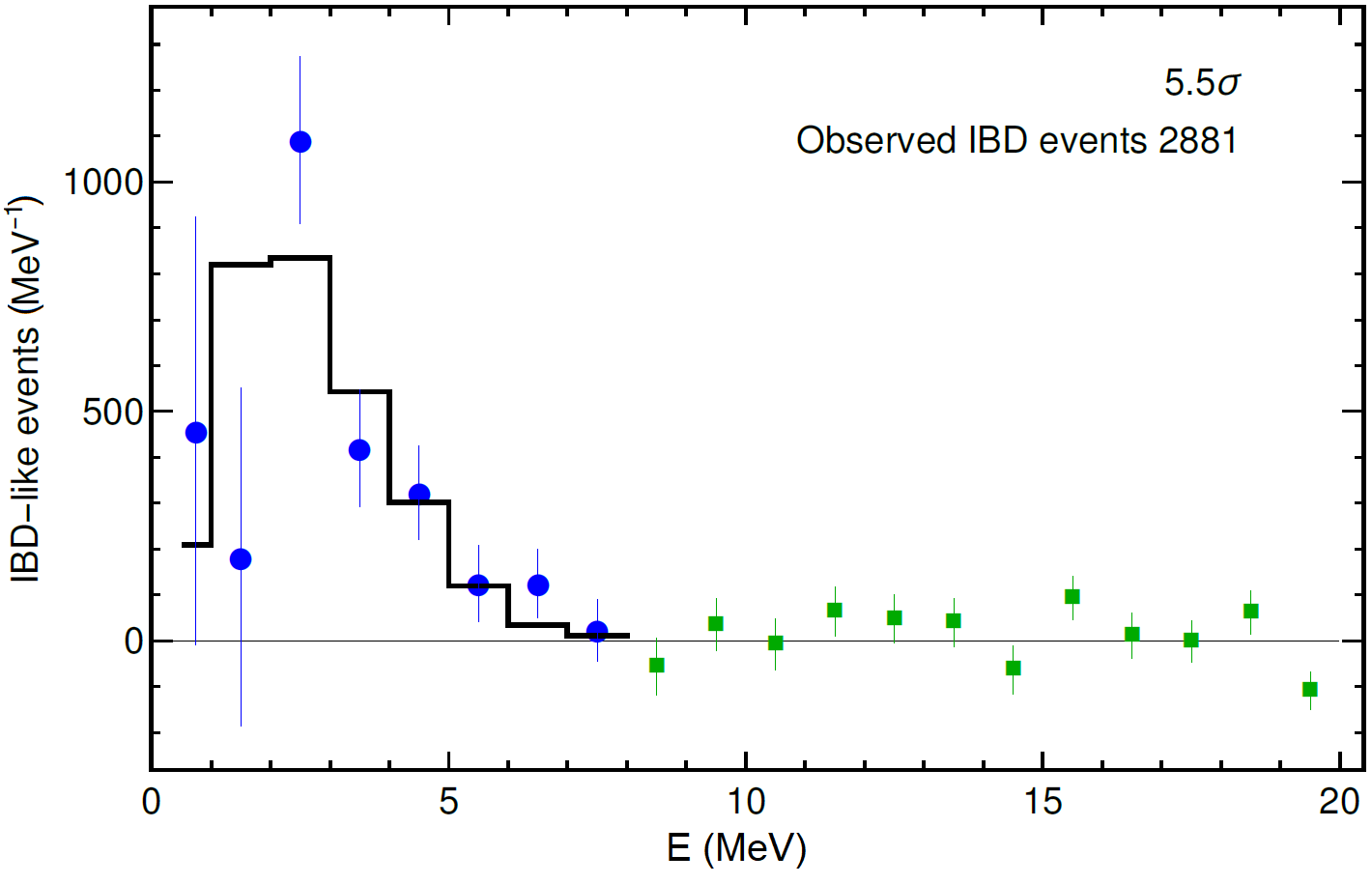

We perform a one-parameter fit of the observed reactor-on/off difference to the predicted signal spectrum. In this fit we fully account for the statistical uncertainty of the normalization between the reactor-on and reactor-off data sets. The result of the fit is the best-fit value ($\hat{a}$) of the amplitude, $a$. This is compared to the null hypothesis, where $a=0$, and the signal significance is

[TABLE]

Our best fit value corresponds to $2880\pm 528$ IBD events, for a ratio of observed to expected events of $82\%\pm 15\%$. Given that the distance cut has a simulated efficiency of $67\%$, and the topological cuts are expected to be very efficient for true IBD events, this is within expectations. Overall, this constitutes a 5.5 $\sigma$ detection of reactor neutrinos, in a detector with no overburden. Our signal has the expected temporal, spatial and energy signature expected for true IBD events.

Not surprisingly, we find the efficiency of the spectral analysis to be more than twice that of the most sensitive rate analysis. In the rate analysis, the low-energy bins, where the signal-to-noise is poor, can still contribute to the signal significance because their large uncertainties are contained bin-by-bin, such that they do not dilute the significance of the higher-energy bins where the signal-to-noise is much better. Furthermore, the spectral analysis does not rely on sizable corrections from the DAQ efficiency and atmospheric pressure, which makes it inherently more robust.

VI Outlook

An 80 kg prototype as presented in this paper is sufficient to demonstrate reactor-on/off detection of a multi-gigawatt reactor over a period of a few weeks. However, in a safeguards context there are numerous ways in which this information can be obtained much more easily without the recourse to neutrinos.

The unique capability offered by neutrino reactor monitoring is an in-situ, quasi-real-time determination of the core inventory of plutonium isotopes. All use case scenarios of reactor neutrino monitoring that go beyond a mere reactor-on/off detection, require a high-statistics measurement of the neutrino spectrum. Plutonium production reactors typically have a thermal power in the 20-200 MWth range, thus requiring a fairly sizable active detector mass. For instance, the case studies presented in Refs. Christensen et al. (2015, 2014) are based on a notional 5-ton, 100% efficient detector. In order to stay within the weight limits of a typical shipping container a detector module should not exceed 20 metric tons, translating to a required overall neutrino detection efficiency of about 25%. Furthermore, while liquid scintillator may not be a technical impossibility for safeguards applications, it would require significant engineering controls to be practical, making this technology easier to reject for a host country. In summary, the results presented here, establish a highly efficient liquid-free, unshielded detector with full spectral measurement capabilities. In other words, a real step in the direction of a practical safeguards detector.

The MiniCHANDLER project was undertaken with the singular goal of demonstrating the detection of reactor neutrinos and their energy spectrum with this novel technology. Bench tests with our MicroCHANDLER prototype have shown that the combination of new PMTs (Hamamatsu R6321-100) and light guides improves the energy resolution by a factor of two over the Amperex XP2202 PMTs alone, as implemented in this version of MiniCHANDLER. Critically, the proposed new optics provides a clean resolution of the 511 keV gamma’s Compton edge, which will allow us to implement topological selections with greatly improved fast-neutron rejection efficiency.

Other future improvements include an upgrade of the electronics, based on the SoLid detector readout Arnold et al. (2017). This will have at least three known benefits: 1) increasing the dynamic range by a factor of four, 2) fixing an undershoot/overshoot in the analog signal affecting high primary-energy event pairs with $\Delta t<40\,\mu$s, and 3) eliminating electronics cross talk. Additionally, we will double the 6Li concentration by putting a neutron sheet in the middle of each cube layer. Simulations show that this, so called “half-cube” modification should increase the 6Li capture efficiency by 35%, while decreasing the capture time by 48% Walters and Haghighat (2016). After returning from North Anna we tested this configuration by modifying a single layer of the MiniCHANDLER detector. We found that it reduced the capture time and increased the 6Li capture rate in agreement with simulation, while having no measurable effect on the light collection. Finally, simulations show that adding just a meter of water equivalent shielding would reduce the fast neutron background by an order of magnitude Walters and Haghighat (2016). Future deployments of CHANDLER detectors will likely be accompanied by a water tank, which can be filled on site, to provide an overburden of up to one meter.

With the aforementioned improvements we expect to achieve a signal-to-noise ratio of better than one-to-one, which is essential for the safeguards goal of determining the plutonium content from distortions in the neutrino spectrum.
