Unresolved Gamma-Ray Sky through its Angular Power Spectrum

TL;DR

This paper measures the angular power spectrum of unresolved gamma-ray background using eight years of Fermi LAT data, revealing evidence for two contributing source populations with distinct spectral properties.

Contribution

It provides the first robust measurement of the UGRB anisotropy spectrum with enhanced sensitivity, supporting a two-source population model over a single-source scenario.

Findings

Evidence (3.7σ) for two source populations contributing to UGRB

A double power law with exponential cutoff fits the anisotropy spectrum well

Photon indices for the two populations are 2.55 ± 0.23 and 1.86 ± 0.15

Abstract

The gamma-ray sky has been observed with unprecedented accuracy in the last decade by the Fermi large area telescope (LAT), allowing us to resolve and understand the high-energy Universe. The nature of the remaining unresolved emission (unresolved gamma-ray background, UGRB) below the LAT source detection threshold can be uncovered by characterizing the amplitude and angular scale of the UGRB fluctuation field. This work presents a measurement of the UGRB autocorrelation angular power spectrum based on eight years of Fermi LAT Pass 8 data products. The analysis is designed to be robust against contamination from resolved sources and noise systematics. The sensitivity to subthreshold sources is greatly enhanced with respect to previous measurements. We find evidence (with $\sim$3.7$\sigma$ significance) that the scenario in which two classes of sources contribute to the UGRB signal is favored over a single class. A double power law with exponential cutoff can explain the anisotropy energy spectrum well, with photon indices of the two populations being 2.55 $\pm$ 0.23 and 1.86 $\pm$ 0.15.

Figures

Tables

Table 1. Table 1: C P values and the corresponding errors δ 𝛿 \delta C P for each energy bin, as well as the range of multipoles considered in the fit of the APS and the systematic error associated to the instrumental effective area.

Emin-Emax	Fit range	C${}_P{}^{}\pm \delta$CP	C${}_{}{}^{sys}{}_{P,A_{\mathrm{eff}}}{}^{}$
$\left[\mathrm{GeV}\right]$	[lmin-lmax]	[${\mathrm{cm}}^{-4}{s}^{-2}{\mathrm{sr}}^{-2}\mathrm{sr}$]	[$\%$]
$0.5-1.0$	$50-150$	$\left(3.7\pm 1.5\right)$ E-18	20
$1.0-1.7$	$50-250$	$\left(6.6\pm 1.6\right)$ E-19	20
$1.7-2.8$	$50-450$	$\left(9.4\pm 1.8\right)$ E-20	20
$2.8-4.8$	$50-600$	$\left(3.4\pm 0.63\right)$ E-20	20
$4.8-8.3$	$50-900$	$\left(1.4\pm 0.18\right)$ E-20	20
$8.3-14.5$	$50-1000$	$\left(4.3\pm 0.61\right)$ E-21	20
$14.5-22.9$	$50-1000$	$\left(9.0\pm 2.1\right)$ E-22	20
$22.9-39.8$	$50-1000$	$\left(2.1\pm 1.0\right)$ E-22	20
$39.8-69.2$	$50-1000$	$\left(5.9\pm 4.0\right)$ E-23	20
$69.2-120.2$	$50-1000$	$\left(3.1\pm 1.5\right)$ E-23	22
$120.2-331.1$	$50-1000$	$\left(1.2\pm 0.73\right)$ E-23	25
$331.1-1000.0$	$50-1000$	$\left(-4.4\pm 11\right)$ E-25	32

Table 2. Table 2: Parameters of the fit of the global C P i ​ j superscript subscript 𝐶 𝑃 𝑖 𝑗 C_{P}^{ij} energy spectrum for both a single power law with an exponential cutoff and for a double power law with an exponential cutoff. E cut subscript 𝐸 cut E_{{\rm cut}} is in GeV, while N 1 subscript 𝑁 1 N_{1} and N 2 subscript 𝑁 2 N_{2} have the same dimension as E 2 superscript 𝐸 2 E^{2} C i ​ j P superscript subscript absent 𝑃 𝑖 𝑗 {}_{P}^{ij} . DoF is the difference between the number of C i ​ j P superscript subscript absent 𝑃 𝑖 𝑗 {}_{P}^{ij} considered ( ( 12 × ( 12 + 1 ) ) / 2 12 12 1 2 (12\times(12+1))/2 ) and the number of free parameters of the model. Since the fit has been performed on the C i ​ j P superscript subscript absent 𝑃 𝑖 𝑗 {}_{P}^{ij} normalized by a factor whose global dimension is E 2 superscript 𝐸 2 E^{2} , a factor of 2 should be added to the indices of the power laws to obtain the values in terms of intensity spectra.

Fit Parameters
Model	$N_1$	$\alpha$	$N_2$	$\beta$	$E_{\mathrm{cut}}$	${\chi }^2$	DoF
sPLE	(2.7$\pm$0.3)E-18	0.13$\pm$0.03	–	–	170$\pm$50	84.7	75
dPLE	(3.5$\pm$0.8)E-18	0.55$\pm$0.23	(7.6$\pm$6.4)E-19	$-$0.14$\pm$0.15	89$\pm$24	72.5	73

Table 3. Table 3: Main parameters of our analysis for each energy bin: energy boundaries, E min and E max ; the Fermi source catalog used to build the mask; the fraction of the sky outside the mask, f sky ; the number of photons outside the mask.

Parameters
Emin	Emax	Masked catalog(s)	fsky	Counts
$\left[\mathrm{GeV}\right]$	$\left[\mathrm{GeV}\right]$
0.5	1.0	FL8Y	0.134	577037
1.0	1.7	FL8Y	0.184	348514
1.7	2.8	FL8Y	0.398	321501
2.8	4.8	FL8Y	0.482	233035
4.8	8.3	FL8Y	0.549	120476
8.3	14.5	FL8Y	0.574	56535
14.5	22.9	FL8Y+3FHL	0.574	21399
22.9	39.8	FL8Y+3FHL	0.574	12464
39.8	69.2	FL8Y+3FHL	0.574	5159
69.2	120.2	FL8Y+3FHL	0.574	1955
120.2	331.1	3FHL	0.597	1013
331.1	1000.0	3FHL	0.597	150

Table 4. Table 4: Values of the measured autocorrelation amplitudes C P and their corresponding errors δ 𝛿 \delta C P for each energy bin, as obtained from the standard autocorrelation analysis.

Anisotropy energy spectrum parameters
for standard autocorrelation analysis
Emin	Emax	C${}_P{}^{}\pm \delta$CP
$\left[\mathrm{GeV}\right]$	$\left[\mathrm{GeV}\right]$	[${\mathrm{cm}}^{-4}{s}^{-2}{\mathrm{sr}}^{-2}\mathrm{sr}$]
0.5	1.0	(4.9$\pm$1.6) E-18
1.0	1.7	(6.3$\pm$1.6) E-19
1.7	2.8	(1.2$\pm$0.2) E-19
2.8	4.8	(4.7$\pm$0.8) E-20
4.8	8.3	(2.0$\pm$0.2) E-20
8.3	14.5	(6.0$\pm$0.8) E-21
14.5	22.9	(1.7$\pm$0.3) E-21
22.9	39.8	(6.0$\pm$1.3) E-22
39.8	69.2	(1.7$\pm$0.5) E-22
69.2	120.2	(6.9$\pm$1.9) E-23
120.2	331.1	(2.3$\pm$1.0) E-23
331.1	1000.0	(1.7$\pm$1.5) E-24

Table 5. Table 5: For each energy bin, we show the Poissonian noise term C N and its relative statistical error δ ​ C N / C N = 1 / N 𝛿 subscript 𝐶 𝑁 subscript 𝐶 𝑁 1 𝑁 \delta C_{N}/{C_{N}}=1/\sqrt{N} , N 𝑁 N being the number of counts in that macro energy bin; we then report the fraction of “missing noise” (relative to the Poissonian noise) arising from the determination of the autocorrelation amplitude C P subscript 𝐶 𝑃 C_{P} in the given macro energy bin with the standard autocorrelation analysis ( C P s ​ t ​ d superscript subscript 𝐶 𝑃 𝑠 𝑡 𝑑 C_{P}^{std} ) and the improved noiseless C P i ​ m ​ p superscript subscript 𝐶 𝑃 𝑖 𝑚 𝑝 C_{P}^{imp} , obtained with the technique of determining the autocorrelation in the macro energy bin by using the information from the cross-correlations between the micro energy-bins that form the macro energy bin (see text for details). The last column shows the ratio between the C P i ​ m ​ p superscript subscript 𝐶 𝑃 𝑖 𝑚 𝑝 C_{P}^{imp} and the Poissonian noise C N subscript 𝐶 𝑁 C_{N} .

Relevant parameters for the noise contribution study
Emin	Emax	CN	$\frac{\delta C_N}{C_N}$	$\frac{\left|C_P^{std}-C_P^{imp}\right|}{C_N}$	$\frac{C_P^{imp}}{C_N}$
$\left[\mathrm{GeV}\right]$	$\left[\mathrm{GeV}\right]$	[cm-4s-2sr-1]	$[\%]$	$[\%]$	$[\%]$
0.5	1.0	1.056 E-17	0.132	11.995	34.647
1.0	1.7	3.548 E-18	0.169	1.544	17.282
1.7	2.8	1.375 E-18	0.176	1.915	6.825
2.8	4.8	8.324 E-19	0.207	1.627	4.074
4.8	8.3	3.904 E-19	0.288	1.444	3.566
8.3	14.5	1.768 E-19	0.421	0.983	2.409
14.5	22.9	6.899 E-20	0.684	1.215	1.301
22.9	39.8	3.895 E-20	0.896	1.008	0.537
39.8	69.2	1.576 E-20	1.392	0.672	0.376
69.2	120.2	6.205 E-21	2.262	0.608	0.497
120.2	331.1	3.287 E-21	3.142	0.346	0.356
331.1	1000.0	5.094 E-22	8.165	0.433	-0.086

Table 6. Table 6: The sky coverage fraction f sky , the anisotropy amplitudes C P , and their relative errors δ 𝛿 \delta C P for each energy bin in the case the 3FGL catalog is used to mask the sky and the standard analysis is adopted. The ranges of multipoles considered in the fit of the APS are the same used for the nominal case and reported in Tab. I of the paper.

Parameters
Emin	Emax	fsky	C${}_P{}^{}\pm \delta$CP
$\left[\mathrm{GeV}\right]$	$\left[\mathrm{GeV}\right]$		[${\mathrm{cm}}^{-4}{s}^{-2}{\mathrm{sr}}^{-2}\mathrm{sr}$]
0.5	1.0	0.199	(1.5$\pm$0.3) E-17
1.0	1.7	0.250	(1.8$\pm$0.2) E-18
1.7	2.8	0.443	(3.3$\pm$0.2) E-19
2.8	4.8	0.511	(1.4$\pm$0.08) E-19
4.8	8.3	0.564	(4.1$\pm$0.2) E-20
8.3	14.5	0.586	(1.2$\pm$0.08) E-20
14.5	22.9	0.586	(2.9$\pm$0.3) E-21
22.9	39.8	0.586	(1.3$\pm$0.1) E-21
39.8	69.2	0.586	(3.6$\pm$0.5) E-22
69.2	120.2	0.586	(9.1$\pm$2.0) E-23
120.2	331.1	0.586	(3.6$\pm$1.0) E-23
331.1	1000.0	0.586	(2.9$\pm$1.5) E-24

Table 7. Table 7: Cross correlation amplitude C i ​ j P superscript subscript absent 𝑃 𝑖 𝑗 {}_{P}^{ij} (in cm − 4 ​ s − 2 ​ sr − 2 ​ sr superscript cm 4 superscript s 2 superscript sr 2 sr {\rm cm}^{-4}{\rm s}^{-2}{\rm sr}^{-2}{\rm sr} ) for each pair of energy bins. The diagonal entries refer to the autocorrelation C P .

	0.5-1.0	1.0-1.7	1.7-2.8	2.8-4.8	4.8-8.3	8.3-14.5	14.5-22.9	22.9-39.8	39.8-62.2	62.2-120.2	120.2-331.1	331.1-1000.
	$\left[\mathrm{GeV}\right]$	$\left[\mathrm{GeV}\right]$	$\left[\mathrm{GeV}\right]$	$\left[\mathrm{GeV}\right]$	$\left[\mathrm{GeV}\right]$	$\left[\mathrm{GeV}\right]$	$\left[\mathrm{GeV}\right]$	$\left[\mathrm{GeV}\right]$	$\left[\mathrm{GeV}\right]$	$\left[\mathrm{GeV}\right]$	$\left[\mathrm{GeV}\right]$	$\left[\mathrm{GeV}\right]$
0.5-1.0	3.7E-18
$\left[\mathrm{GeV}\right]$	$\pm$1.5E-18
1.0-1.7	1.6E-18	6.6E-19
$\left[\mathrm{GeV}\right]$	$\pm$4.5E-19	$\pm$1.6E-19
1.7-2.8	9.2E-19	2.7E-19	9.4E-20
$\left[\mathrm{GeV}\right]$	$\pm$2.3E-19	$\pm$5.6E-20	$\pm$1.8E-20
2.8-4.8	3.7E-19	1.5E-19	8.2E-20	3.4E-20
$\left[\mathrm{GeV}\right]$	$\pm$1.7E-19	$\pm$3.9E-20	$\pm$9.5E-21	$\pm$6.3E-21
4.8-8.3	2.1E-20	3.4E-20	2.8E-20	2.5E-20	1.4E-20
$\left[\mathrm{GeV}\right]$	$\pm$1.1E-19	$\pm$2.5E-20	$\pm$5.8E-21	$\pm$3.2E-21	$\pm$1.8E-21
8.3-14.5	1.0E-19	3.3E-20	1.6E-20	1.1E-20	5.4E-21	4.3E-21
$\left[\mathrm{GeV}\right]$	$\pm$6.6E-20	$\pm$1.5E-20	$\pm$3.6E-21	$\pm$1.9E-21	$\pm$9.6E-22	$\pm$6.1E-22
14.5-22.9	-5.2E-20	1.9E-20	4.8E-21	4.1E-21	2.5E-21	1.5E-21	9.0E-22
$\left[\mathrm{GeV}\right]$	$\pm$4.0E-20	$\pm$9.6E-21	$\pm$2.2E-21	$\pm$1.1E-21	$\pm$5.6E-22	$\pm$3.2E-22	$\pm$2.1E-22
22.9-39.8	4.0E-20	2.2E-20	3.4E-21	4.4E-21	2.0E-21	1.4E-21	4.5E-22	2.1E-22
$\left[\mathrm{GeV}\right]$	$\pm$3.0E-20	$\pm$7.1E-21	$\pm$1.6E-21	$\pm$8.4E-22	$\pm$4.0E-22	$\pm$2.3E-22	$\pm$1.3E-22	$\pm$1.0E-22
39.8-62.2	-1.1E-20	9.0E-22	3.5E-21	1.1E-21	1.0E-21	4.0E-22	3.8E-22	1.5E-22	5.9E-23
$\left[\mathrm{GeV}\right]$	$\pm$1.9E-20	$\pm$4.5E-21	$\pm$1.0E-21	$\pm$5.3E-22	$\pm$2.5E-22	$\pm$1.4E-22	$\pm$8.1E-23	$\pm$5.8E-23	$\pm$4.0E-23
62.2-120.2	-1.1E-20	3.2E-21	1.3E-21	2.9E-22	3.7E-22	1.2E-22	7.8E-23	7.6E-23	5.0E-23	3.1E-23
$\left[\mathrm{GeV}\right]$	$\pm$1.2E-20	$\pm$2.7E-21	$\pm$6.3E-22	$\pm$3.3E-22	$\pm$1.6E-22	$\pm$8.7E-23	$\pm$5.0E-23	$\pm$3.6E-23	$\pm$2.2E-23	$\pm$1.5E-23
120.2-331.1	1.1E-22	-3.2E-22	4.8E-22	7.2E-22	-4.1E-23	3.1E-23	-5.4E-23	2.2E-23	2.5E-23	9.7E-24	1.2E-23
$\left[\mathrm{GeV}\right]$	$\pm$8.0E-21	$\pm$1.9E-21	$\pm$4.4E-22	$\pm$2.2E-22	$\pm$1.1E-22	$\pm$6.2E-23	$\pm$3.5E-23	$\pm$2.5E-23	$\pm$1.6E-23	$\pm$9.7E-24	$\pm$7.3E-24
331.1-1000.	1.2E-23	6.9E-23	1.5E-22	1.2E-22	-1.7E-23	-9.6E-25	-3.8E-25	4.5E-25	1.1E-24	-4.0E-24	-1.6E-24	-4.4E-25
$\left[\mathrm{GeV}\right]$	$\pm$3.3E-21	$\pm$7.4E-22	$\pm$1.8E-22	$\pm$9.3E-23	$\pm$4.3E-23	$\pm$2.4E-23	$\pm$1.4E-23	$\pm$9.9E-24	$\pm$6.1E-24	$\pm$3.8E-24	$\pm$2.7E-24	$\pm$1.1E-24

Equations

$$C_{\ell }=\sum _{\alpha =1}^{N_b}{C}_{\ell ,\mathrm{micro}}^{\alpha \alpha }+2\sum _{\begin{array}{c}\alpha ,\beta \\ \alpha >\beta \end{array}}{C}_{\ell ,\mathrm{micro}}^{\alpha \beta }$$

$$C_{\ell }=\frac{N_b}{N_b-1}\sum _{\begin{array}{c}\alpha ,\beta \\ \alpha \ne \beta \end{array}}\frac{C_{\ell ,\mathrm{micro}}^{\alpha \beta ,\mathrm{Pol}}}{W_{E_{\alpha }}(\ell )W_{E_{\beta }}(\ell )}$$

$$N_1\times (E_i{E}_j{)}^{-\alpha }{e}^{\left(-\frac{E_i+E_j}{E_{\mathrm{cut}}}\right)}$$

$$\left[N_1\times (E_i{E}_j{)}^{-\alpha }+N_2\times (E_i{E}_j{)}^{-\beta }\right]e^{\left(-\frac{E_i+E_j}{E_{\mathrm{cut}}}\right)}$$

$$\frac{r_{\mathrm{src}}({\varphi }_{\mathrm{src}},E_{\min })-2\times \mathrm{PSF}({\mathrm{E}}_{\min })}{5\times \mathrm{PSF}({\mathrm{E}}_{\min })-2\times \mathrm{PSF}({\mathrm{E}}_{\min })}=\frac{\log ({\varphi }_{\mathrm{src}})-\log ({\varphi }_{\min })}{\log ({\varphi }_{\max })-\log ({\varphi }_{\min })}$$

$$W^{beam}(E,\ell )=2\pi {\int }_0^{\pi }{P}_{\ell }(\cos \theta )\mathrm{PSF}(\theta ,E)\sin \theta d\theta$$

$$C_{\ell }=\frac{C_{\ell }^{Pol}-C_N}{W_E^2(\ell )}$$

$$C_P=\frac{1}{4}(C_P^{1\times 1}+C_P^{2\times 2}+2C_P^{1\times 2})$$

$$C_{\ell }^{ij}=\frac{C_{\ell }^{ij,Pol}}{W_{E_i}(\ell )W_{E_j}(\ell )}$$

Full text

I I. Introduction

The Universe has a network of structures. The so-called cosmic web was formed by gravitational instabilities, starting from the tiny density fluctuations that originated during primordial inflation, which evolved into structures at very different scales, from stars to galaxies, up to galaxy clusters and filaments. Furthermore, this texture nurtures the formation of non-thermal astronomical sources.

In ten years of operation, the Fermi Large Area Telescope (LAT) has been providing an unprecedented census of non-thermal emitters in gamma rays. The most recent Fermi-LAT 8-year preliminary Point Source List (FL8Y111https://fermi.gsfc.nasa.gov/ssc/data/access/lat/fl8y/) contains 5524 objects detected with a significance greater than $4\sigma$ between $100$ MeV and $1$ TeV.

Gamma-ray sources that are too dim to be resolved individually by Fermi-LAT contribute cumulatively to the Unresolved Gamma-Ray Background (UGRB), see Ref. (Fornasa and Sanchez-Conde, 2015) for a recent review. Although the exact composition of the UGRB is still an open issue, high-latitude sources are expected to be mostly of extragalactic origin. Therefore they should follow the matter potential in the Universe (with some bias) and should be distributed anisotropically in the sky.

Different populations of gamma-ray emitters induce anisotropies in the UGRB with different amplitudes and different angular and energy spectra (2009PhRvL.102x1301S, ). A measurement of the gamma-ray angular power spectrum (APS) can therefore constrain the nature of the UGRB in a complementary way with respect to the intensity energy spectrum and the 1-point photon count probability distribution (Malyshev and Hogg, 2011; Feyereisen et al., 2015; Zechlin et al., 2016a; Lisanti et al., 2016; Zechlin et al., 2016b; Di Mauro et al., 2018). A different but related approach based on two-point statistics is the cross correlation of the gamma-ray sky with independent probes tracing the large scale structures of the Universe (Xia et al., 2011; Ando et al., 2014; Xia et al., 2015; Regis et al., 2015; Cuoco et al., 2015; Ando, 2014; Shirasaki et al., 2015; Ando and Ishiwata, 2016; Branchini et al., 2017; Lisanti et al., 2017a, b; Camera et al., 2013, 2015; Shirasaki et al., 2014, 2016; Tröster et al., 2017; Fornengo et al., 2015).

The first detection of anisotropies in the UGRB was reported by the Fermi-LAT Collaboration in 2012 (Ackermann et al., 2012), and then updated in 2016, employing 81 months of Pass 7 Fermi LAT data from 0.5 to 500 GeV (Fornasa et al., 2016) (hereafter Fornasa et al.). The latter analysis revealed a hint that the measured APS might be due to more than one population of sources (Ando et al., 2017).

The raw APS (namely, the one that is measured directly from Fermi-LAT gamma-ray maps) is the sum of three contributions: a) a noise term, $C_{N}$, due to fluctuations of photon counts, showing no correlation between different pixels in the sky and thus producing a flat APS; b) the auto-correlation of fluctuations due to individual sources with themselves ($C_{P}$): in the limit of point-like sources and infinite angular resolution of the telescope, this term shows up only at zero angular separation in real space (which implies a flat APS), but the finite size of the point-spread function (PSF) makes the associated APS decrease at high multipoles; c) the correlation between fluctuations induced by sources located in different positions in the sky: this contribution is expected to trace the cosmic web.

$C_{N}$ is expected to become less and less relevant as the statistics grow. $C_{P}$ decreases as the brightest sources become resolved. In the current state of gamma-ray searches, it is still the dominant physical contribution to the APS. The third term is expected to eventually take over once the sensitivity of the telescope is such that a sufficiently large number of bright sources are resolved (and so no longer contribute to the UGRB).

II II. Signal extraction

A study of morphological anisotropies requires data with a good angular resolution. The data selection used in this analysis is designed to obtain the purest event sample and to maximize both the precision of the reconstructed arrival directions and the total photon counts statistics. For these reasons we select Pass 8 222https://fermi.gsfc.nasa.gov/ssc/data/analysis/documentation/Cicerone/Cicerone_Data/LAT_DP.html data of the P8R3_SOURCEVETO_V2 event class333The new SOURCEVETO event class, currently under development in the LAT collaboration and planned for public release, has an acceptance comparable to P8R2_CLEAN_V6 with a residual contamination almost equal to that of P8R2_ULTRACLEANVETO_V6 at all energies., and we reject the quartile of events with the worst PSF, which corresponds to all the events flagged as PSF0 type.

The data selection comprises 8 years and is performed using version v10r0p5 of the Fermi Science Tools. Data in the energy range between 100 MeV and 1 TeV is subdivided into 100 logarithmically spaced “micro” bins, and for each of them we produce a count map and an exposure map, whose ratio gives 100 flux maps. They are then summed in order to obtain intensity maps in 12 “macro” energy bins between 524 MeV and 1 TeV (see Tab. 1). This choice minimizes the effects of the energy dependence of the exposure, and we exploited this fine binning in the estimation of the autocorrelation as will be explained in the next section. Data are spatially binned with HEALPix (Górski et al., 2005) order 9.

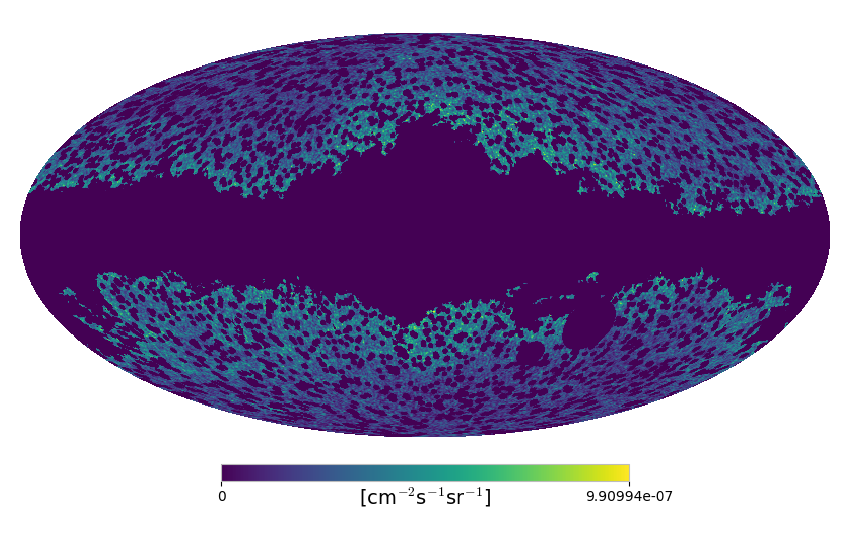

The flux maps are masked such that the majority of the Galactic interstellar emission is removed, as well as the contribution from the resolved sources listed in the FL8Y source list (adding sources from the 3FHL catalog (Ajello et al., 2017) when considering energies beyond 10 GeV). The source mask is built taking into account both the brightness of each source and the energy dependence of the PSF. We tested the effectiveness of our masks performing several tests described in the Supplemental Online Material (SOM) (ref, ). Fig. 1 illustrates the mask built for the energy bin between 1.7 and 2.8 GeV.

In order to eliminate the residual Galactic contribution, we subtract the Galactic diffuse emission (GDE) with the model gll_iem_v6.fits described in (Acero et al., 2016): in each micro energy bin, we perform a Poissonian maximum likelihood fit of data maps (considering only unmasked pixels) with the GDE model (with a free normalization) and a spatially constant term accounting for the UGRB and possible cosmic-ray residuals in the LAT; we find normalizations compatible with one within $1\sigma$ statistical uncertainty in each energy bin, and then we subtract the normalized GDE model from data maps. An example of masked map leaving only the UGRB in the energy bin (1.7–2.8) GeV is illustrated in the right panel of Fig. 1.

III III. Angular power spectrum analysis

The APS of intensity fluctuation is defined as: $C_{\ell}^{ij}=\frac{1}{2\ell+1}\langle\sum_{m}a_{\ell m}^{i}a_{\ell m}^{j*}\rangle$, where the brackets indicate the average on the modes $m$, the indexes $i$ and $j$ label the $i^{\rm{th}}$ and the $j^{\rm{th}}$ energy bins. When $i=j$, we refer to autocorrelation, to cross-correlation otherwise. The coefficients $a_{\ell m}$ are given by the expansion in spherical harmonics of the intensity fluctuations, $\delta I_{g}(\vec{n})=\sum_{\ell m}a_{\ell m}Y_{\ell m}(\vec{n})$, with $\delta I_{g}(\vec{n})\equiv I_{g}(\vec{n})-\langle I_{g}\rangle$ and $\vec{n}$ identifies the direction in the sky.The APS hence quantifies the amplitude of the anisotropy associated with each multipole $\ell$, which roughly corresponds to a pattern “spot” size of $\lambda\simeq(180^{\circ}/{\ell})$.

We compute the APS with PolSpice (Szapudi et al., 2001; Chon et al., 2004), a Fortran90 software tool which is based on the fast Spherical Harmonic Transform. PolSpice estimates the covariance matrix of the different multipoles taking into account the correlation effect induced by the mask with the algorithm described in (Efstathiou, 2004; Challinor and Chon, 2005). Prior to the measurement, we exploited the standard HEALPix routine to removed the monopole and the dipole terms from the intensity maps in order to eliminate possible spectral leakage (owing to the masking) of these large-scale fluctuations (which have large amplitudes) on the small scales we are interested in.

The resolution of the maps and the effect of the PSF are accounted for respectively by the pixel window function, $W^{{\rm pix}}(\ell)$, and the beam window function, $W^{{\rm beam}}(E,\ell)$, whose computation is described in the SOM. Any random noise would contribute to the signal when the autocorrelation in the $i^{\rm{th}}$ energy bin, $C_{\ell}\equiv C_{\ell}^{ii}$, is performed, hence it must be subtracted from the raw APS. We know that a Poissonian white noise would have a flat APS which can be estimated as in Fornasa et al.: $C_{N}=\frac{\langle n^{i}_{\gamma,{\rm pix}}/(\epsilon^{i}_{{\rm pix}})^{2}\rangle}{\Omega_{{\rm pix}}}$, $n^{i}_{\gamma,{\rm pix}}$ being the photon counts in the $i$th pixel, $\epsilon^{i}_{{\rm pix}}$ the exposure, $\Omega_{{\rm pix}}$ the pixel solid angle, and the average is on the unmasked pixels. Considering this as the only noise term, any other random component not following a Poisson distribution would not be taken into account. Moreover, the above equation for $\hat{C}_{N}$ represents only an estimator of the true $C_{N}$. Indeed, we found evidence of an underestimation of the noise term above a few GeV, and devised a method to determine the autocorrelation APS without relying on the estimate of $C_{N}$. We exploit cross-correlations between different but closely adjacent micro energy bins: these are not affected by the noise term, since any kind of noise would not correlate between independent data samples. Also, we do not expect any effect due to the energy resolution of the instrument since the width of the micro bins is larger than the energy resolution, except for bins below 1 GeV (the first macro bin) whose result is anyway compatible with the one obtained by the standard autocorrelation method which is valid at those energies. As explained in the previous section, our macro energy bins are composed of a number $N_{b}$ of micro energy bins. The APS computed in the macro bin can be seen as the sum of all the auto and cross APS computed for all the micro energy bins:

[TABLE]

where $\alpha,\beta=1,...,N_{b}$.

Under the reasonable assumption that the contributing sources have a broad and smooth energy spectrum, the APS for each macro energy bin can be obtained as:

[TABLE]

where $W_{E_{\alpha}}(\ell)=W^{{\rm beam}}_{E_{\alpha}}(\ell)W^{{\rm pix}}_{E_{\alpha}}(\ell)$ and $N_{b}$ is the number of micro bins in each macro energy bin444Note that Eq. 2 returns a better approximation if the width of the micro bins decreases, and/or $N_{b}$ increases, and/or the global spectrum of the underlying source population flattens. We calculated that when $N_{b}>3$, considering our micro energy bin width and an anisotropy energy spectrum $\sim E^{-4}$, the difference between Eq. 1 and Eq. 2 is less than 1%. We use $N_{b}$ = 6 for all but the two highest-energy macro bins, for which we use $N_{b}$ = 11 and $N_{b}$ = 12, respectively.. In this way, we avoid relying on the autocorrelation of the micro bins and therefore on the estimate of the noise. The SOM provides more details to support this approach.

IV A. Autocorrelation

anisotropy energy spectrum

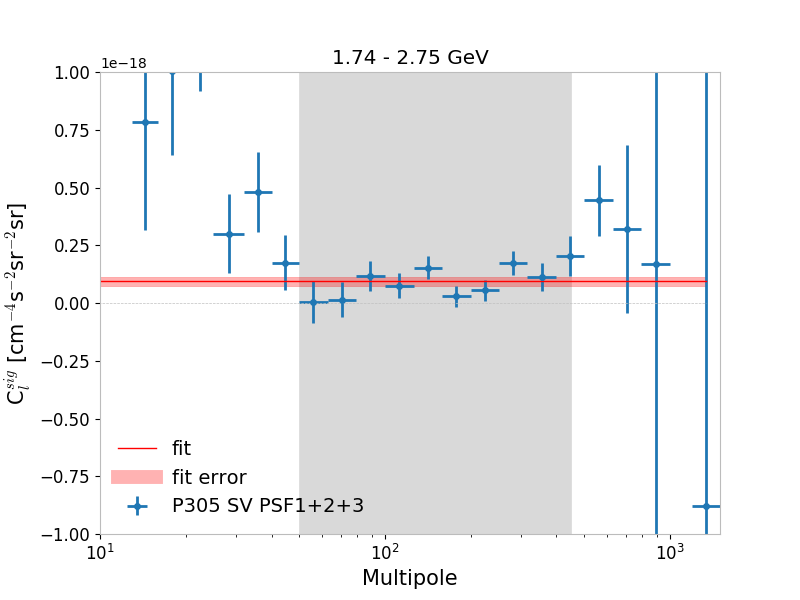

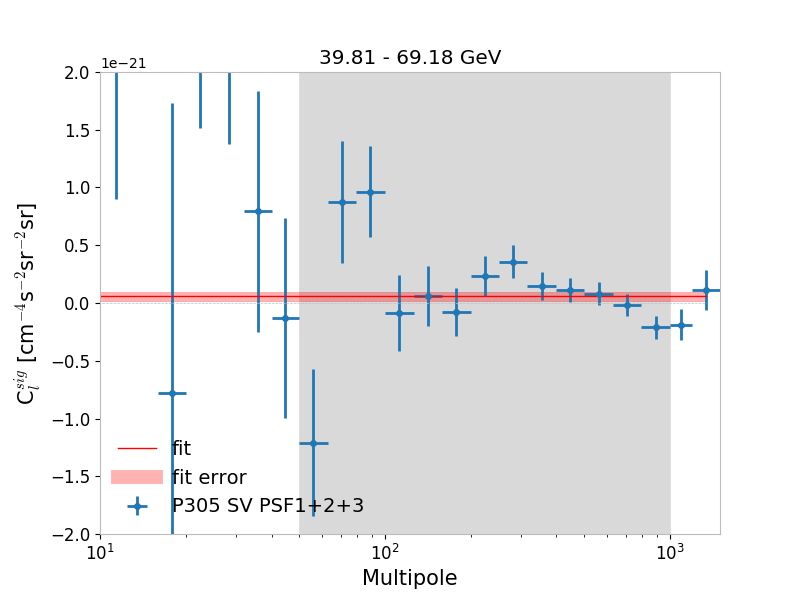

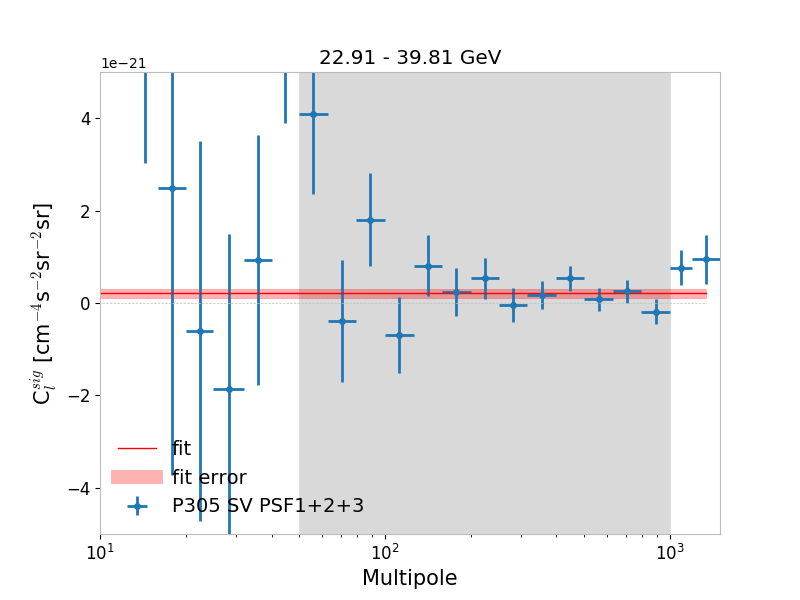

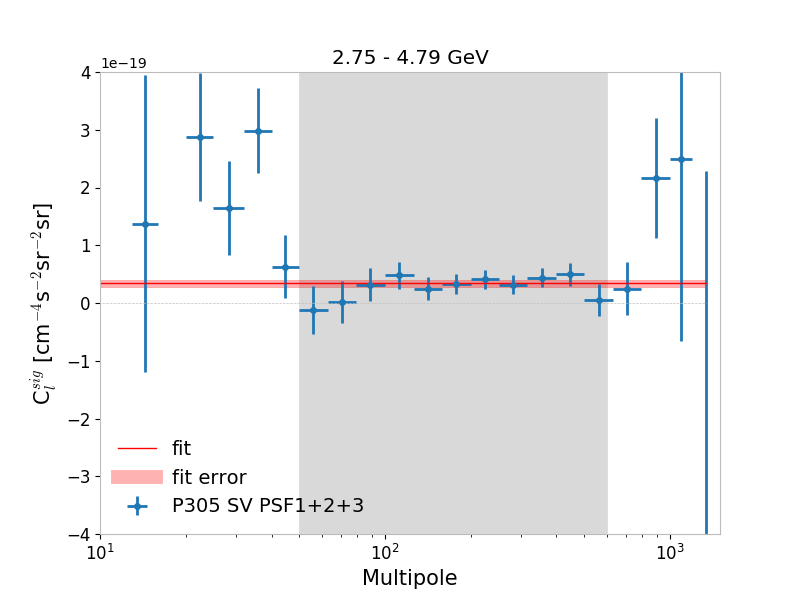

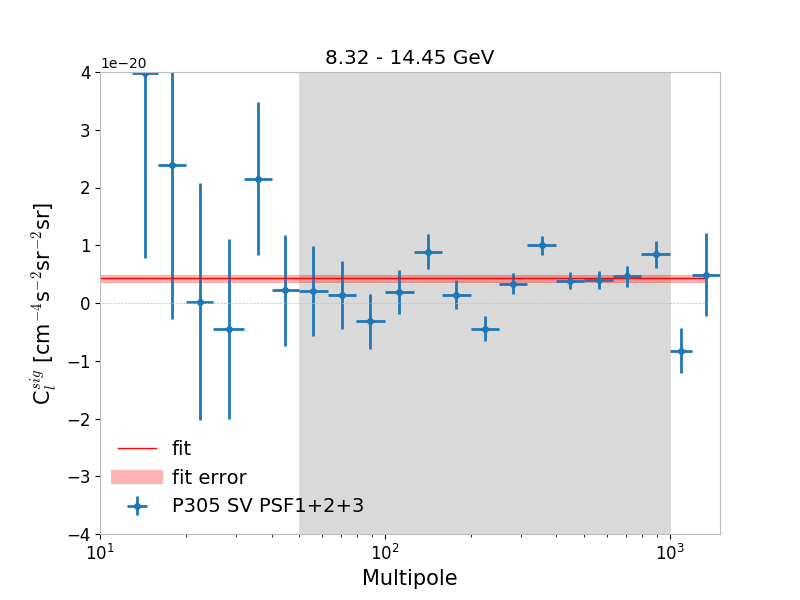

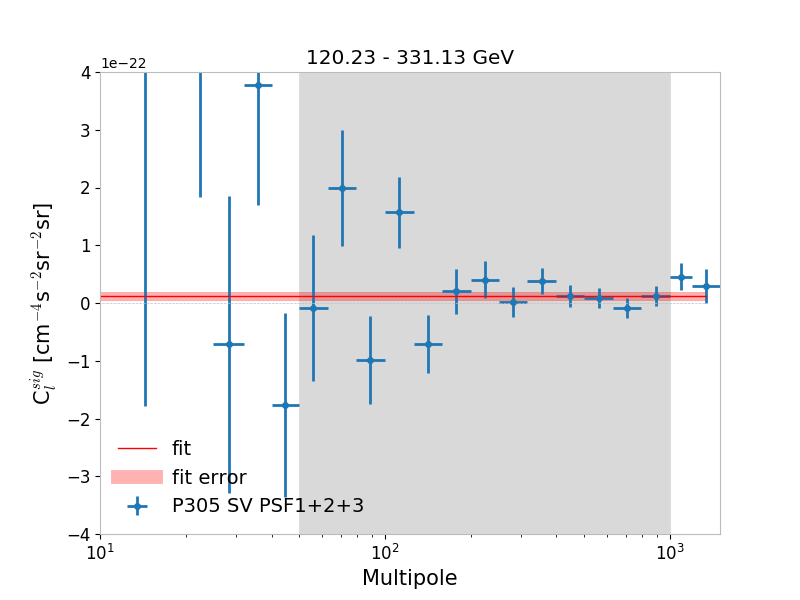

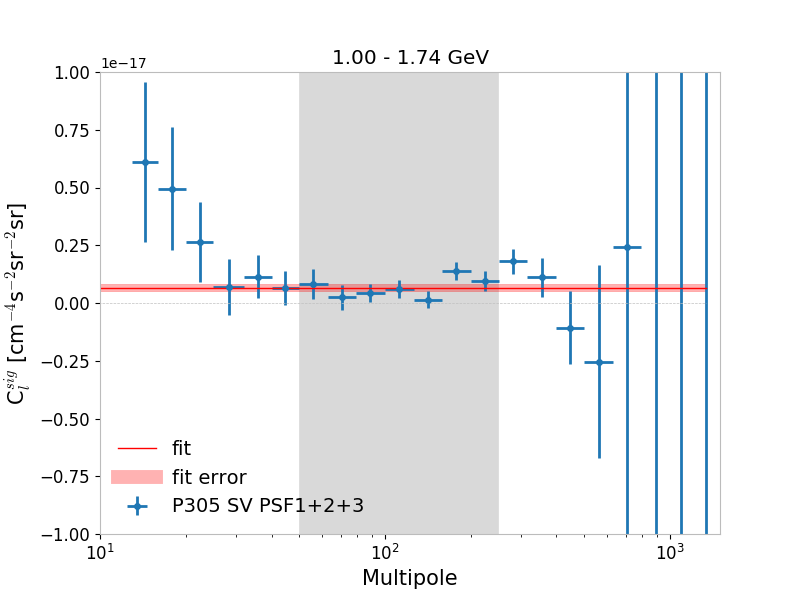

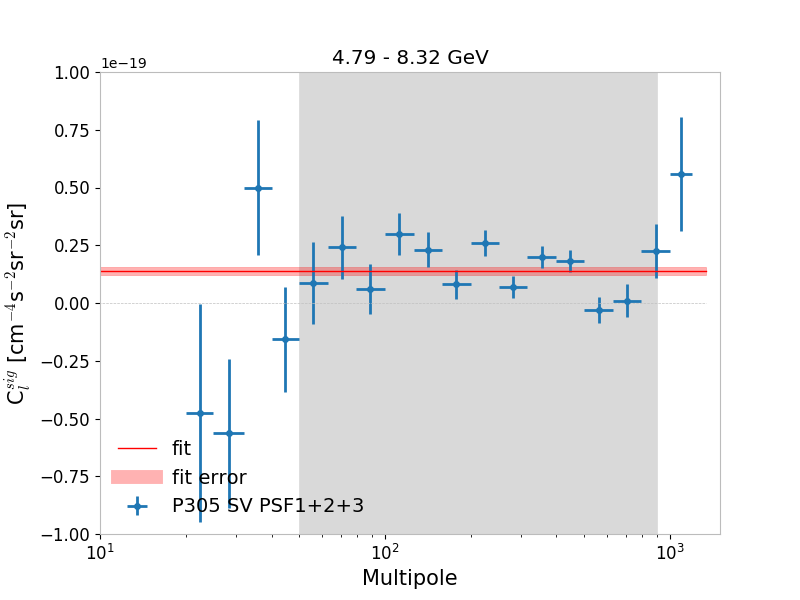

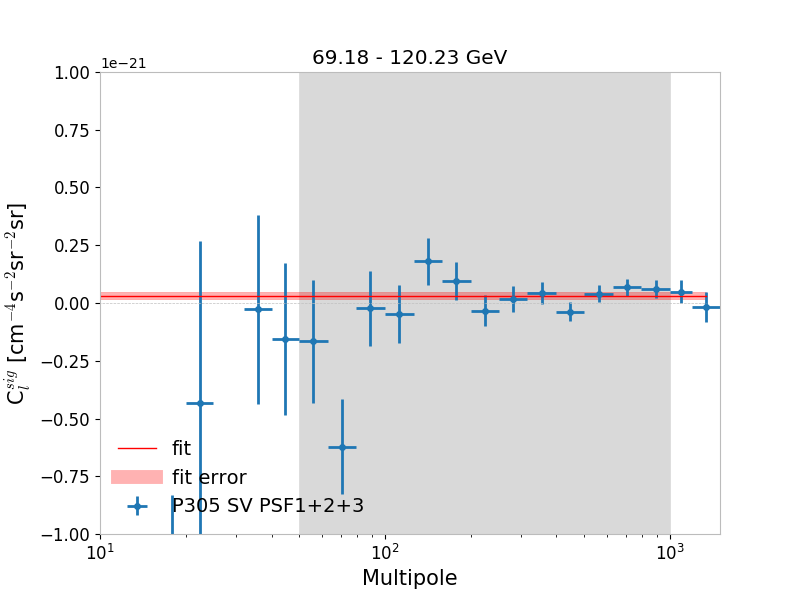

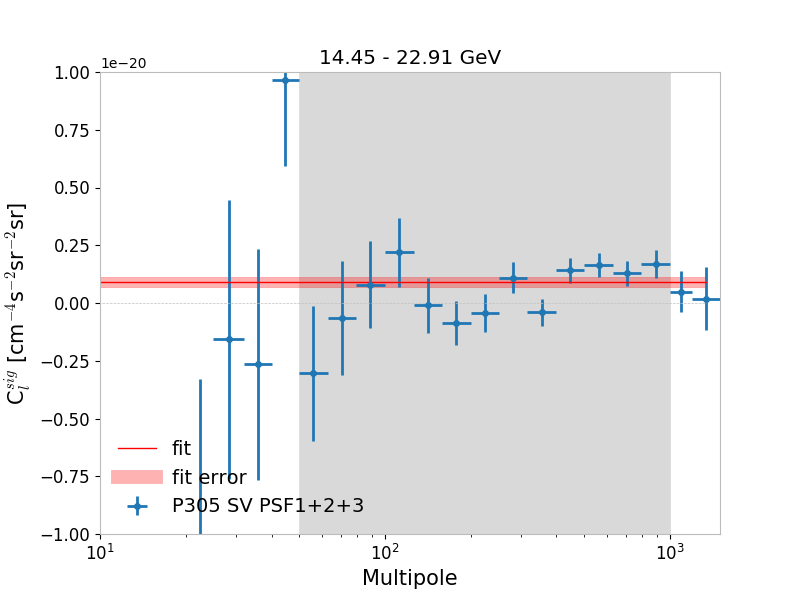

For each energy bin, we find no evidence for an $\ell$-dependent APS. This flat behavior is expected if the anisotropy signal is dominated by unresolved point-like sources isotropically distributed in the sky. We therefore derive the level of anisotropy, $C_{P}$, for each energy bin by fitting the APS with a constant value: this provides the energy spectrum of the anisotropy signal due to gamma-ray point-like sources. Prior to this fit, each APS was binned to reduce the correlation among neighboring $C_{\ell}$. To carry out the binning in the most effective way, we implemented the unweighted averaging procedure proposed in Fornasa et al., which was validated with Monte Carlo simulations (see Sec. IV-A of Fornasa et al.). The range of multipoles considered for the fitting procedure is determined taking into account several considerations: we exclude $l<50$ where residual large-scale contributions from the foreground emission are significant and leakage from large-scale fluctuations still could be important; the beam window function correction is inaccurate when considering scales much smaller than the PSF: the upper limit in multipole depends on the PSF and on the photon statistics at a specific energy, and hence varies with the energy bin. Further details are provided in the SOM.

In Tab. 1, we report the obtained $C_{P}$ as a function of energy, as well as the fitting range of multipoles considered, and the systematics related to the uncertainty of the Fermi-LAT effective area $A_{\rm{eff}}$555This uncertainty is obtained doubling the systematic uncertainty of the instrumental $A_{\rm{eff}}$, since the APS is the square of the intensity. https://fermi.gsfc.nasa.gov/ssc/data/analysis/LAT_caveats.html.

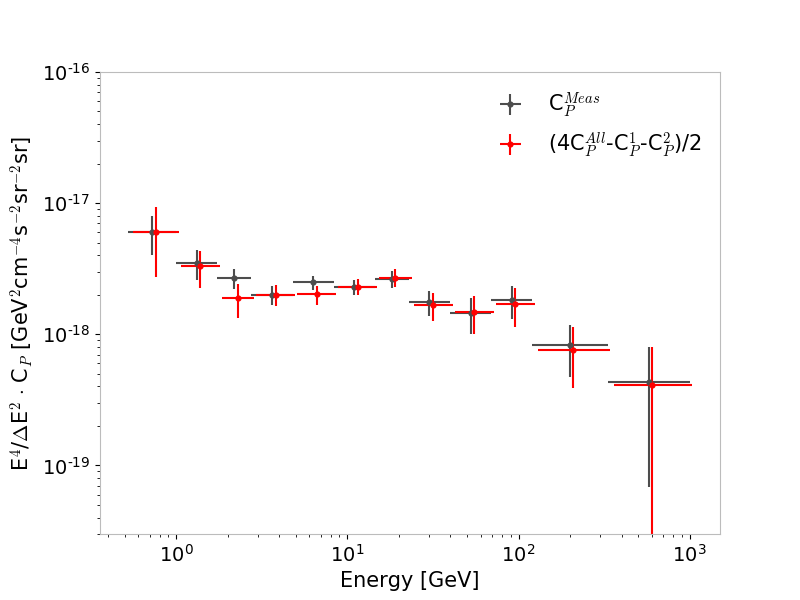

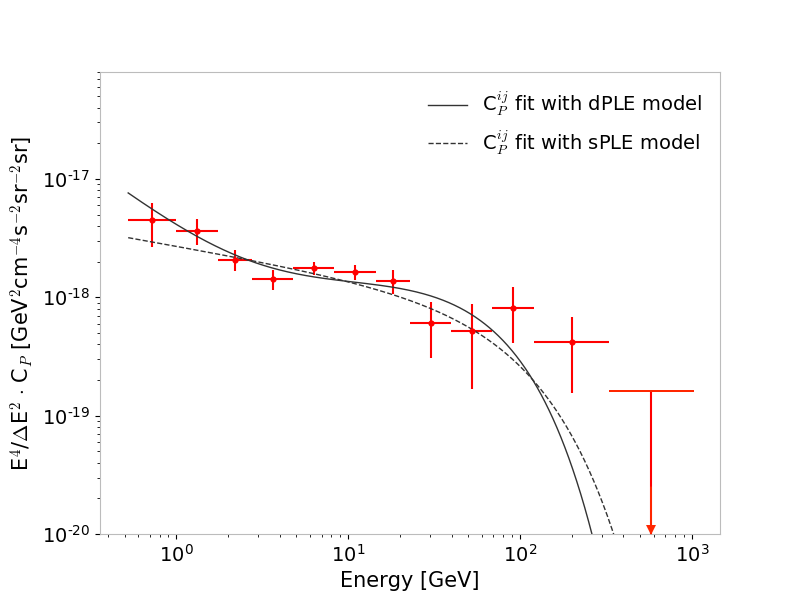

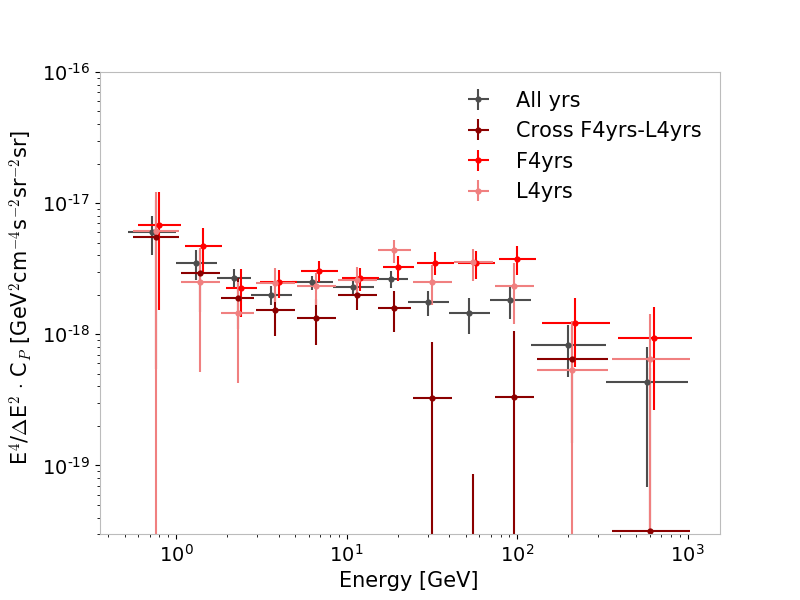

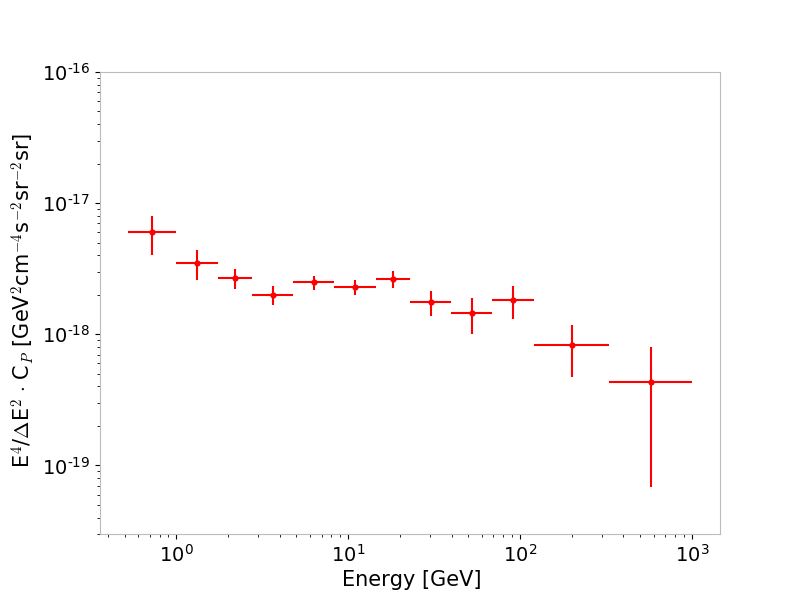

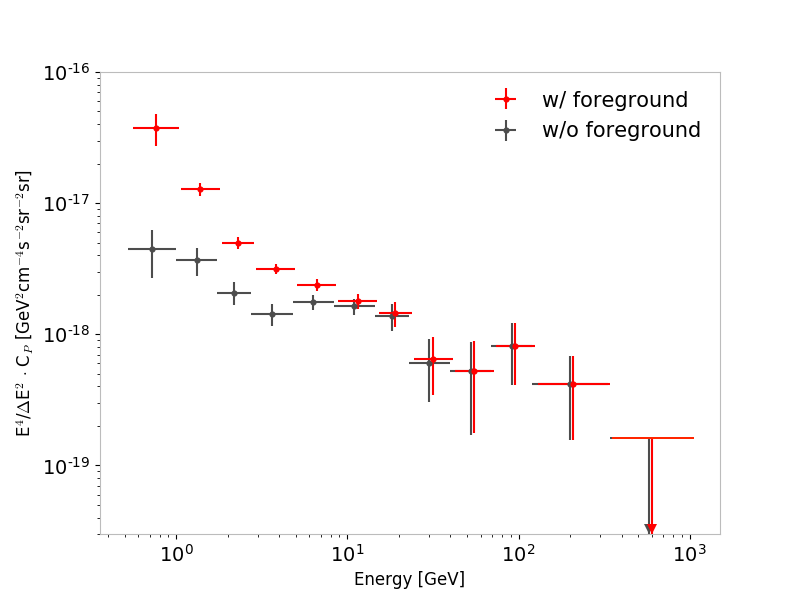

Fig. 2 shows our measurement of the anisotropy energy spectrum between 524 MeV and 1 TeV.

V B. Cross-correlations

between energy bins

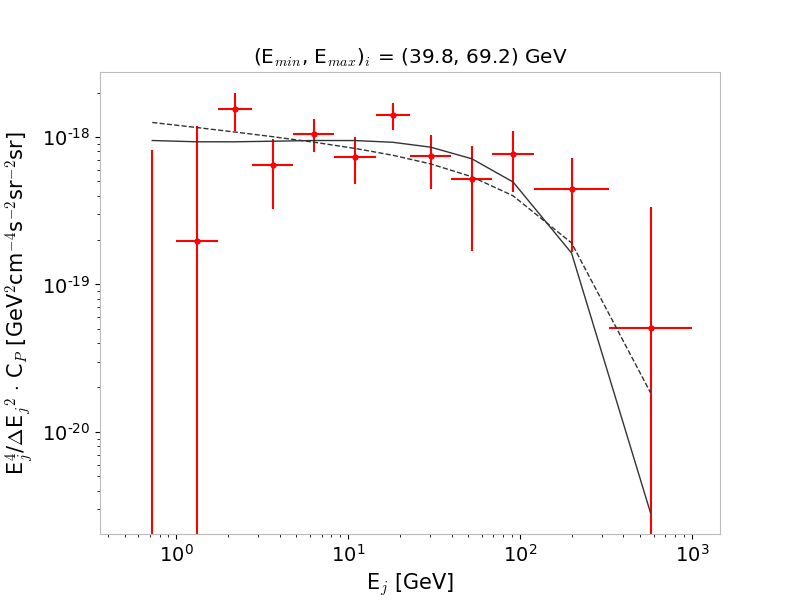

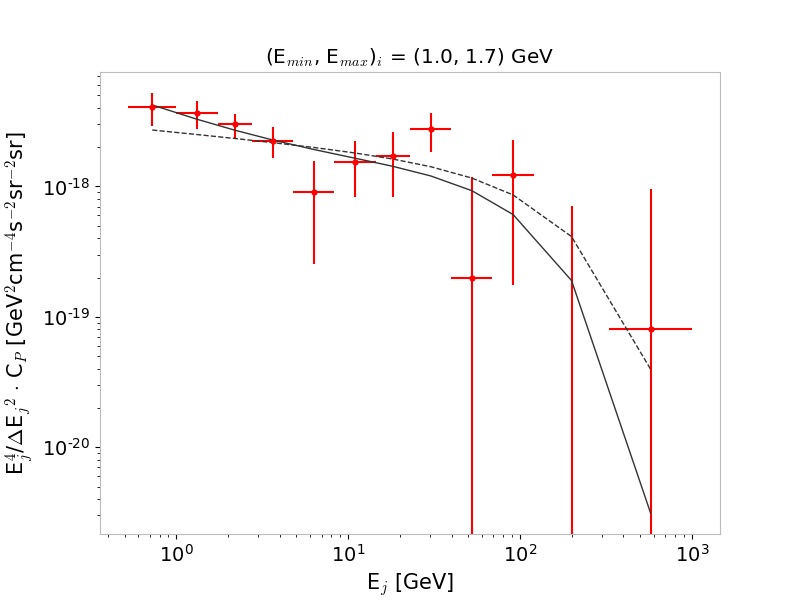

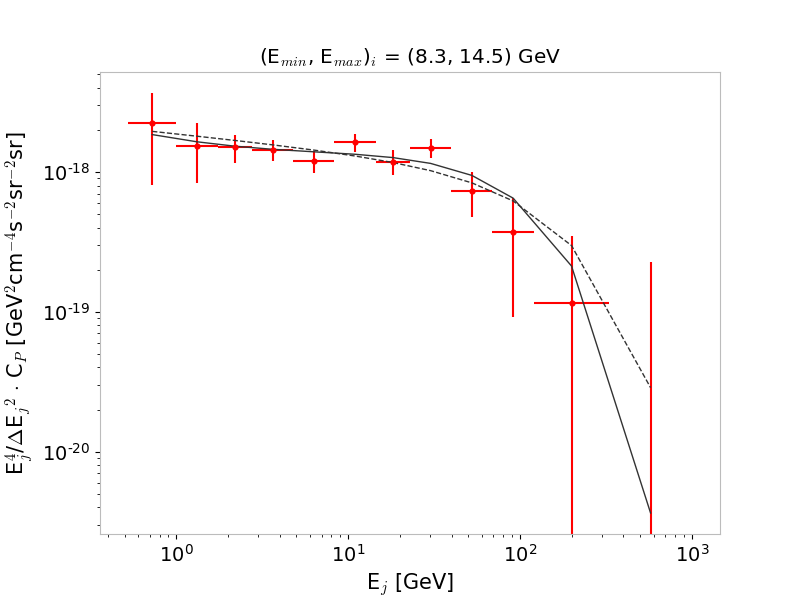

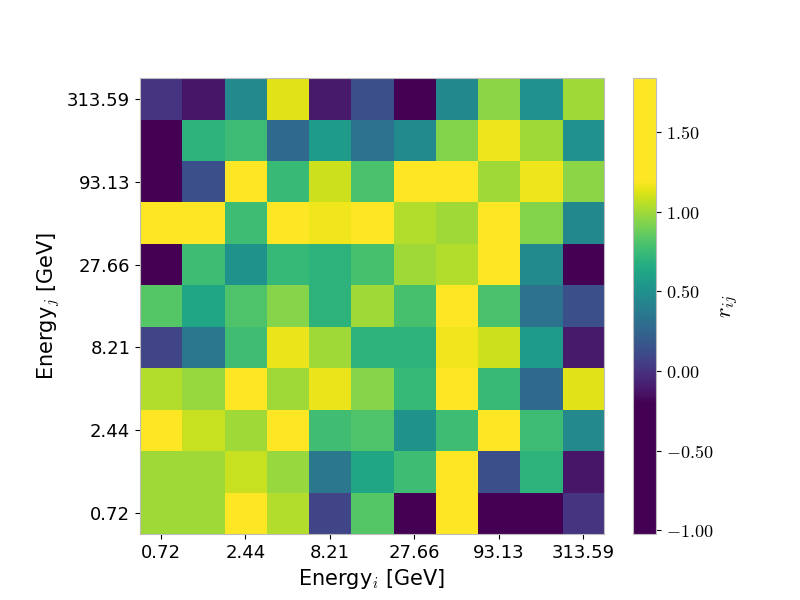

A way to discriminate whether the signal is due to either a single class or multiple classes of point-like sources is to study the cross-correlations among energy bins: distinct populations of sources, presenting different energy spectra, reasonably lie in different sky positions.

Similarly to the autocorrelation APS, we find flat cross-APS when performing cross-correlations between macro energy bins. If the anisotropy cross signal is due to a single class of sources, then $C_{P}^{ij}=\sqrt{C_{P}^{ii}\ C_{P}^{jj}}$, where $C_{P}^{ii}$ and $C_{P}^{jj}$ are the autocorrelation anisotropy levels in the energy bins $i$ and $j$ respectively. The ratio $r_{ij}=C_{P}^{ij}/\sqrt{C_{P}^{ii}\ C_{P}^{jj}}$ is the cross-correlation coefficient: it should be compatible with 1 for each $ij$ pair if the signal is due to a single class of sources. Fig. 3 (left panel) shows the $r_{ij}$ matrix: low-energy bins clearly correlate with nearby bins, while correlate less with the high-energy ones, and vice versa, meaning that sources contributing to the signal at low energy are not located at the same positions (on the spherical sky projection along the line of sight) as those that contribute at high energy. Hence, more than one class of source is present.

VI VI. Discussion

The global measurement, given by both the auto and the cross-correlations, can be exploited to perform a statistical test, in order to establish whether a double-population scenario is favored with respect to a single-population case. We compute the $\chi^{2}$ for two models: a single power law with an exponential cutoff, sPLE (3 free parameters: normalization, spectral index and cutoff energy), and a double power law with an exponential cutoff, dPLE (5 free parameters: 2 normalizations, 2 indexes and the cutoff energy666For simplicity (i.e., to reduce the number of parameters) and since we expect the first population to be subdominant at high energy, we apply a single spectral cutoff.). The analytical expressions of these two models are:

[TABLE]

[TABLE]

The fit is performed on the C${}_{P}^{ij}$ normalized by $E_{i}^{2}E_{j}^{2}/[(\Delta E_{i})(\Delta E_{j})]$, where $E_{i}$ and Ej refer to the logarithmic center of the $i^{\rm{th}}$ and $j^{\rm{th}}$ energy bins, and the resulting best-fit parameters are summarized in Tab. 2. The results of the best fits for the autocorrelation amplitudes $C_{P}$ are shown in Fig. 2.

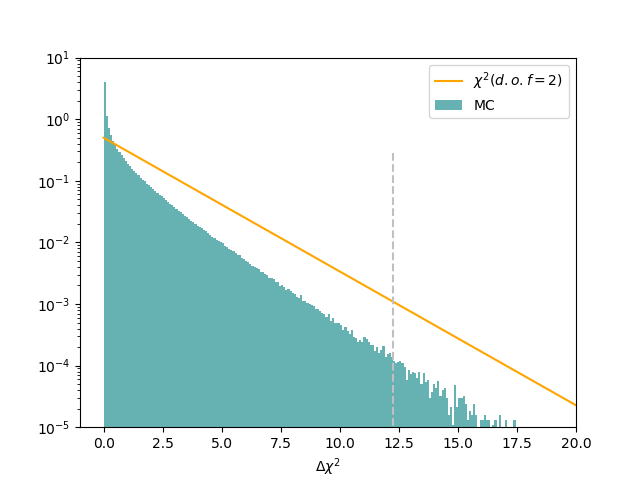

The chi-square difference between the two best-fit configurations is $\Delta\chi^{2}=\chi^{2}_{\rm{sPLE}}-\chi^{2}_{\rm{dPLE}}=12.24$. In order to obtain the statistical significance of the result, we performed $10^{7}$ Monte Carlo samplings of the null hypothesis (the sPLE model) and derived the distribution of the chi-square differences, from which we determine a preference for the dPLE model at the $99.98\%$ CL (corresponding to $\sim 3.7\sigma$). Details about the Monte Carlo can be found in the SOM.

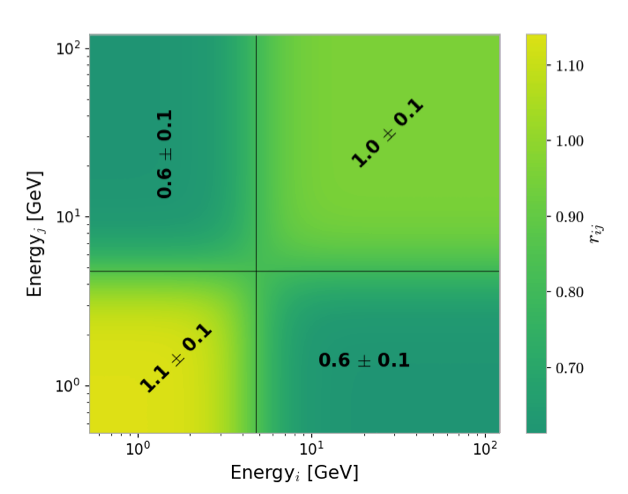

The two power-law indices resulting from the best fit of the dPLE model are $-2.55\pm 0.23$, for the low-energy component and $-1.86\pm 0.15$, for the one dominating above a few GeV.

The best fit for the dPLE model reveals a transition range between the two populations around 4 GeV. Separating the first 4 energy bins from the following 6 bins (we exclude the last 2 energy bins, which are completely beyond $E_{{\rm cut}}$, in order to avoid energies affected by absorption by the extragalactic background light), we define 4 sub-rectangles of the cross-correlation coefficient matrix, and evaluate the mean and the standard deviation of the mean for each sub-rectangle. The values are shown in the right-hand panel of Fig. 3: the off-diagonal region deviates from 1 at $4\sigma$, which unequivocally favors a double population scenario.

While detailed modeling of the underlying source classes is left for upcoming work, our findings are compatible with most of the contributions being from blazar-like sources above a few GeV.

At lower energies, a population with a softer spectrum, such as possibly misaligned AGNs (Di Mauro et al., 2014) or a different type of blazars (Ajello et al., 2012), appears to dominate the UGRB.

VII Acknowledgments

Acknowledgements.

The authors acknowledge Dr. Carlo Giunti for fruitful discussions about MC simulation procedures.The Fermi-LAT Collaboration acknowledges support for LAT development, operation and data analysis from NASA and DOE (United States), CEA/Irfu and IN2P3/CNRS (France), ASI and INFN (Italy), MEXT, KEK, and JAXA (Japan), and the K.A. Wallenberg Foundation, the Swedish Research Council and the National Space Board (Sweden). Science analysis support in the operations phase from INAF (Italy) and CNES (France) is also gratefully acknowledged. This work performed in part under DOE Contract DE-AC02-76SF00515. Some of the results in this paper have been derived using the HEALPix package. This work is supported by the “Departments of Excellence 2018 - 2022” Grant awarded by the Italian Ministry of Education, University and Research (MIUR) (L. 232/2016). MR acknowledges support by the Excellent Young PI Grant: “The Particle Dark-matter Quest in the Extragalactic Sky” funded by the University of Torino and Compagnia di San Paolo and by “Deciphering the high-energy sky via cross correlation” funded by Accordo Attuativo ASI-INAF n. 2017-14-H.0. NF acknowledges the research grant “The Anisotropic Dark Universe” Number CSTO161409, funded under the program CSP-UNITO “Research for the Territory 2016” by Compagnia di Sanpaolo and University of Torino.

VIII I. Mask construction and

foreground subtraction

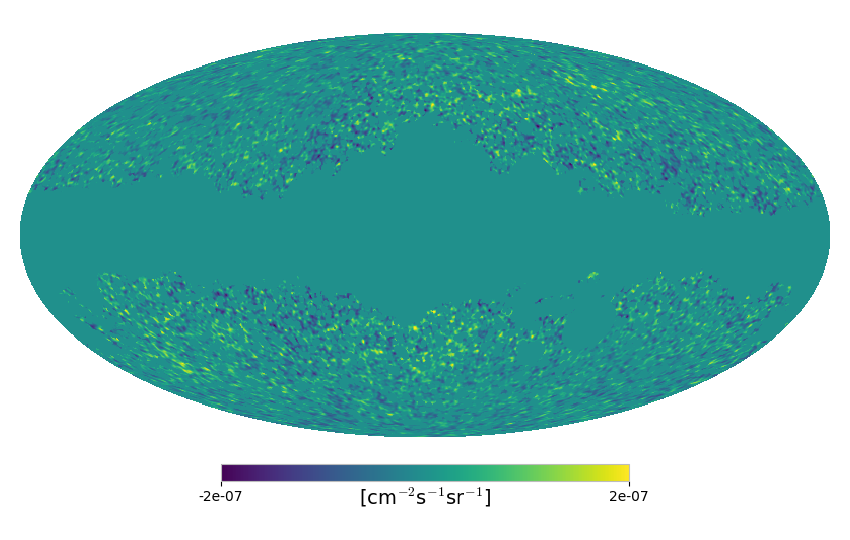

The mask consists of a region with shape determined by the intensity of the Galactic plane emission and circular regions around each source of the Fermi-LAT 8-year (FL8Y) source list, which is a preliminary version of the 4FGL catalog; for energies above 10 GeV, we also include sources from the 3FHL catalog, which is derived specifically for this energy range.

The Galactic plane mask, the same for all the energy bins, has been built by covering all the pixels where the flux of the Galactic model at 1 GeV is 3 times greater than the isotropic component evaluated at the same energy. The analysis is not sensitive to the exact value of this cut.

To build the mask of point sources, for each energy bin [$E\rm{{}_{min}}$, $E\rm{{}_{max}}$], we take the containment angle as given by the instrument point-spread function $\rm{PSF}(E_{\rm{min}})$777The PSF considered, according to our data selection, is the mean 68% containment angle among PSF1, PSF2 and PSF3 type response functions., and we vary that value to define the radius $r_{src}$ of the covering region on each source, going from a minimum of 2$\times\rm{PSF}(E_{\rm{min}})$, for the faintest source (with flux888 We consider the integral photon flux from 1 to 100 GeV for FL8Y sources, and the corresponding quantity estimated from 10 GeV and 1 TeV for 3FHL sources. $\phi_{\rm{min}}$), to a maximum of 5$\times\rm{PSF(E_{min})}$, for the brightest one (with flux $\phi_{\rm{max}}$); in formula:

[TABLE]

For bins above 14.5 GeV we conservatively keep Emin=8.3 GeV, because the fsky, namely the fraction of unmasked sky, is already greater than 55%; hence we do not expect to gain much more statistics in further shrinking the mask. This procedure, performed separately for each energy bin considered in our anisotropy analysis, properly interpolates the improvement with energy of the PSF. Notice that the majority of the sources with very high flux are located near the Galactic plane, and are already covered by the Galactic plane mask. Extended sources are masked with large radii according to their size. One example of a mask is shown in Fig. 1 of the paper.

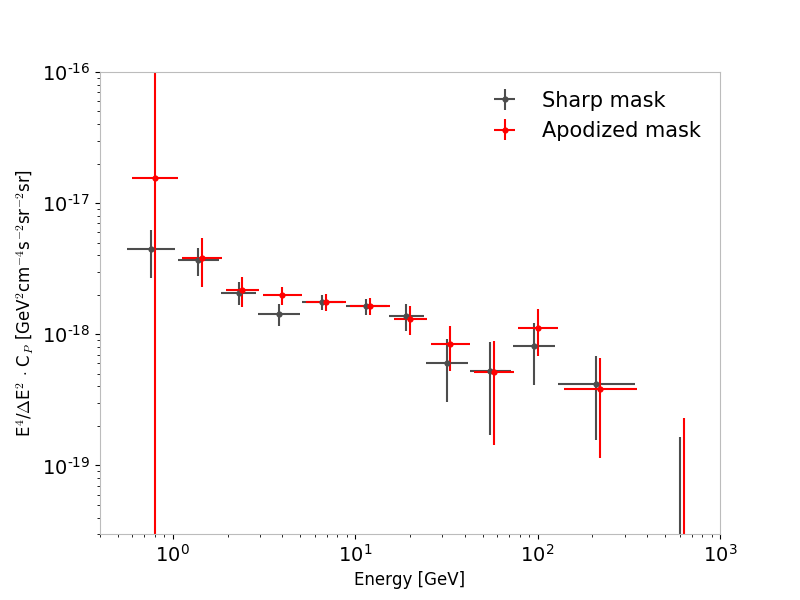

Once the Galactic foreground and individual sources mask is applied, we implement a further Galactic emission subtraction. This is performed in each micro energy bin of our analysis with the following procedure: assuming that the detected photons in each pixel outside the mask are the sum of an isotropic emission component $C$ and a high-latitude Galactic diffuse emission, we adopt the Galactic diffuse emission model gll_iem_v6.fits described in (Acero et al., 2016) and we fit it to data leaving free its normalization factor $N$ and the constant term $C$. This maximum likelihood fit for Poissonian statistics is performed over the micro energy binned data, and is done with maps downgraded to order 6 to limit the effects of statistical fluctuations of the counts in each pixel. The resulting normalization factors $N$ are compatible with 1 at every energy and are shown in Fig. 4 (left panel). They are then applied to the order 9 model maps, which are then subtracted from the corresponding order 9 data maps.

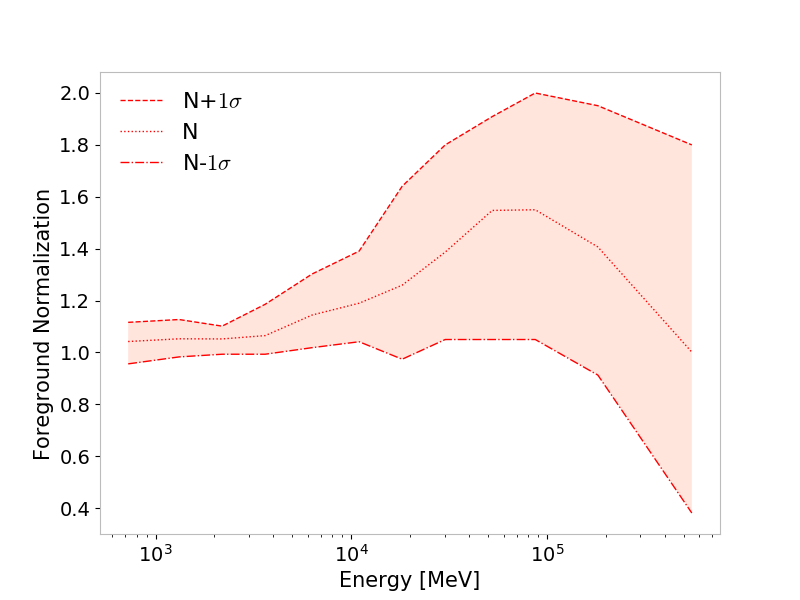

The effect of the foreground, even if not subtracted, is negligible at energies above $\sim$10 GeV, and this is shown in Fig. 4 (right panel), where we compare the anisotropy energy spectrum obtained with and without foreground subtraction. Several effects contribute to the explanation why the Galactic emission is not significantly affecting the measurement, mostly at high energy, is due to several combined effects: 1) the foreground mask itself is efficient, 2) we consider only multipoles above $\ell=50$, and 3) the energy spectrum of the foreground is significantly softer than the UGRB spectrum above a few GeV (and before the high-energy cutoff). We tested the possible systematics of this subtraction procedure by repeating the measurement considering as normalization factor of the model the upper (N+$1\sigma$) or the lower (N-$1\sigma$) values of the N factor uncertainty band (reported as a shaded region in the left panel of Fig. 4); this test did not highlight any evident systematics.

One issue related to the the foreground model regards the resolution of the interstellar gas component measurements at high latitudes ($\sim$ 0.7*∘*) which is adopted in the public model gll_iem_v6.fits: this is worse than the instrument PSF for energies above 1 GeV. As we know that the Galactic foreground is not affecting our measurements for energies above $\sim$10 GeV, the coarse-grained resolution of the gas-correlated component would potentially affect our foreground-subtraction in our second, third, fourth, and fifth energy bins (those between 1 and 10 GeV). We verified that using higher resolution maps (under internal development) does not affect our results.

We do not model the solar inverse Compton emission: it is localized along the ecliptic and hence expected to only contribute at very low multipoles, which we exclude from our analysis. Our case is analog to that discussed in Fornasa et al., and we refer to Sec. D of that work, which demonstrates that the effect of this component on the final anisotropy energy spectrum is negligible.

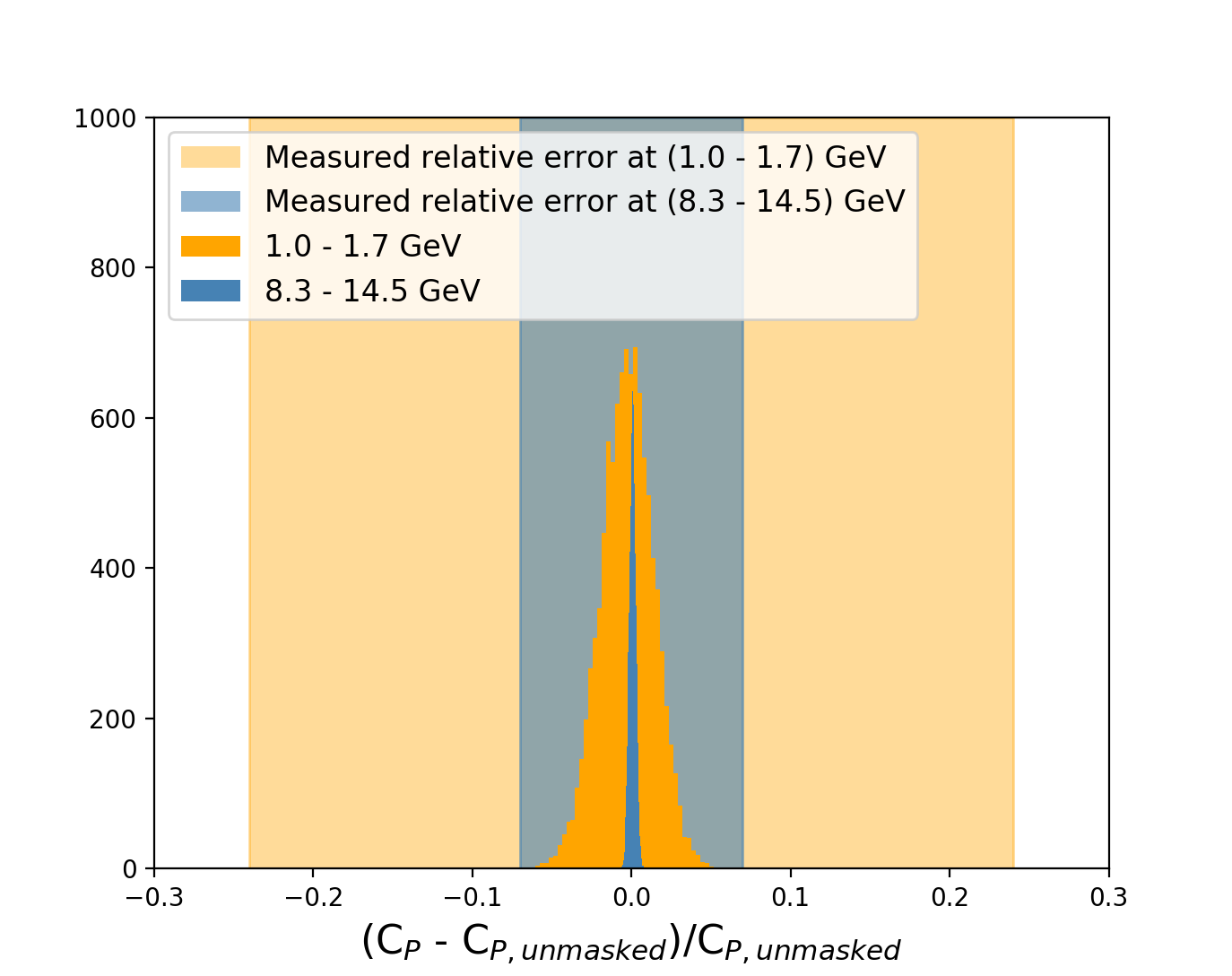

Any leakage from resolved point-like sources due to PSF effects could affect the APS measurement. We tested the reliability of our masks by considering an additional term in the Poissonian fitting procedure to extract the UGRB signal: a resolved point-like source template based on the FL8Y source list. To build such a template we considered the spectral shape and parameters provided with the FL8Y list for each source and then we integrated the resulting spectrum between $E_{min}$ and $E_{max}$ to compute the total flux in a given energy bin [$E_{min}$–$E_{max}$]. We created point source maps for each energy interval by placing these fluxes at relative source locations and then convolving with the instrumental PSF($\theta$). The $\Delta$(ln(Likelihood)) for each energy bin does not reveal a preference for the model with the additional source template: this test confirms that we have no leakage from point-like source emission outside our masks.

IX II. Window functions

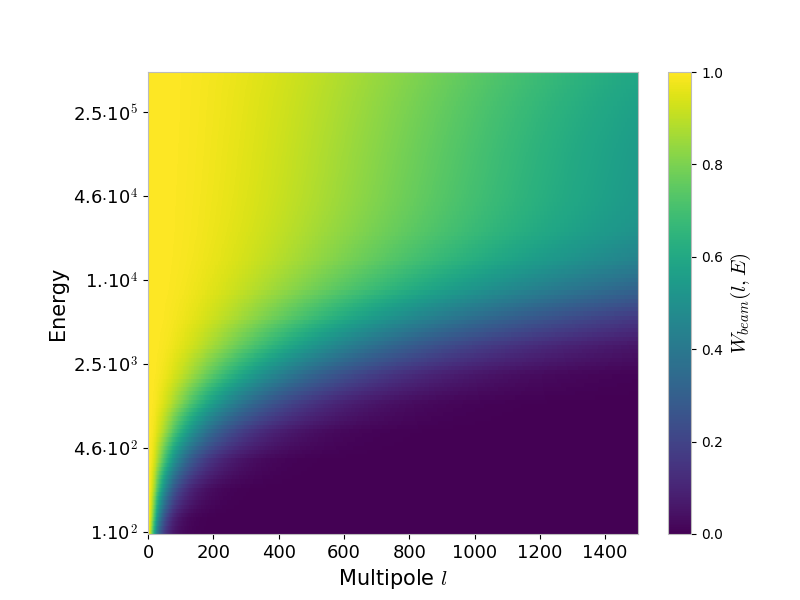

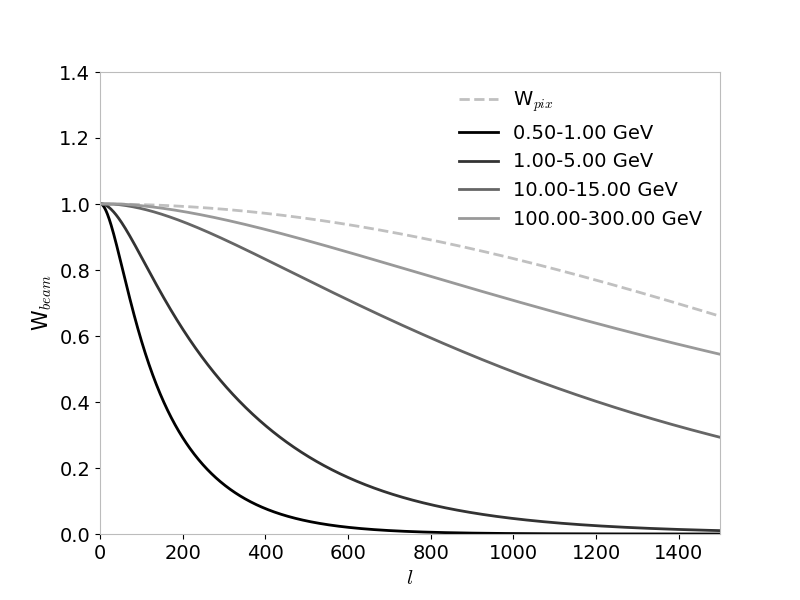

The map resolution and the effect of the PSF are taken into account by the pixel window function, $W^{pix}(\ell)$, and by the beam window function, $W^{beam}(E,\ell)$, respectively. The former is computed using the HEALPix routine pixwin, while the latter is determined as:

[TABLE]

where $P_{\ell}(\cos\theta)$ are the Legendre polynomials of index $\ell$. Since the PSF is a function of energy, it is necessary to average $W^{beam}(E,\ell)$ inside each energy bin weighted by the intensity energy spectrum of the UGRB, which is approximately a power law with index $-2.3$ (Ackermann et al., 2015). This gives the bin-averaged beam function $W^{beam}_{E}(\ell)$, where E here labels the energy bin under consideration. Fig. 5 shows $W^{beam}(E,\ell)$ as a function of energy and the multipole for the SOURCEVETO PSF1+2+3 class of events and some of its averages $W^{beam}_{E}(\ell)$.

We call $W_{E}(\ell)$ the product of the bin-averaged beam window function and the pixel window function.

X III. From APS to CP

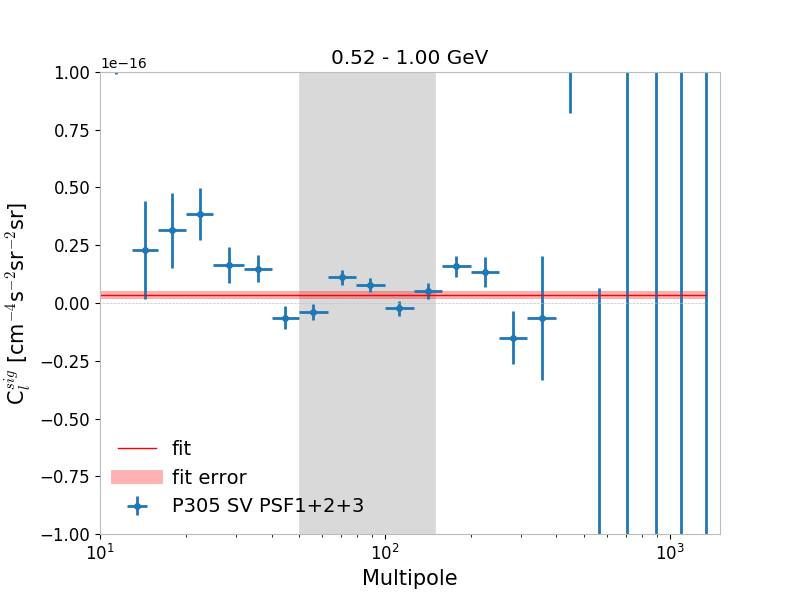

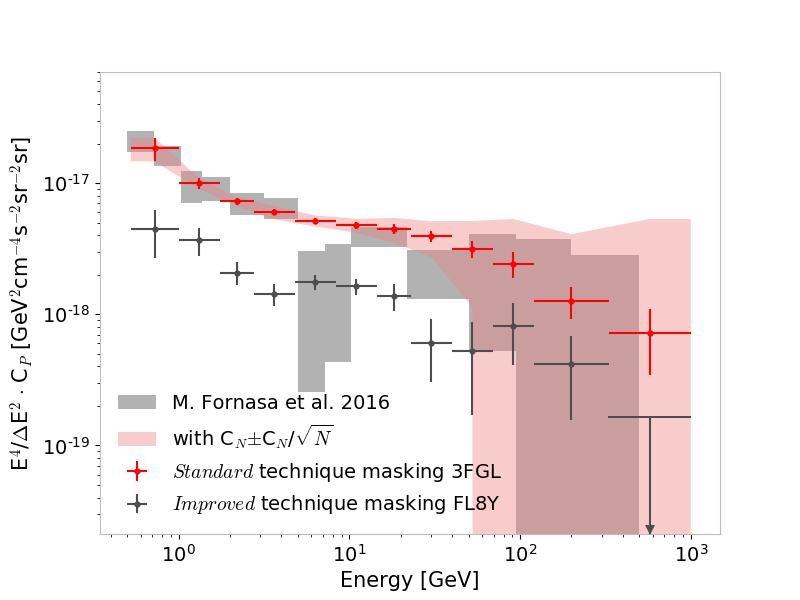

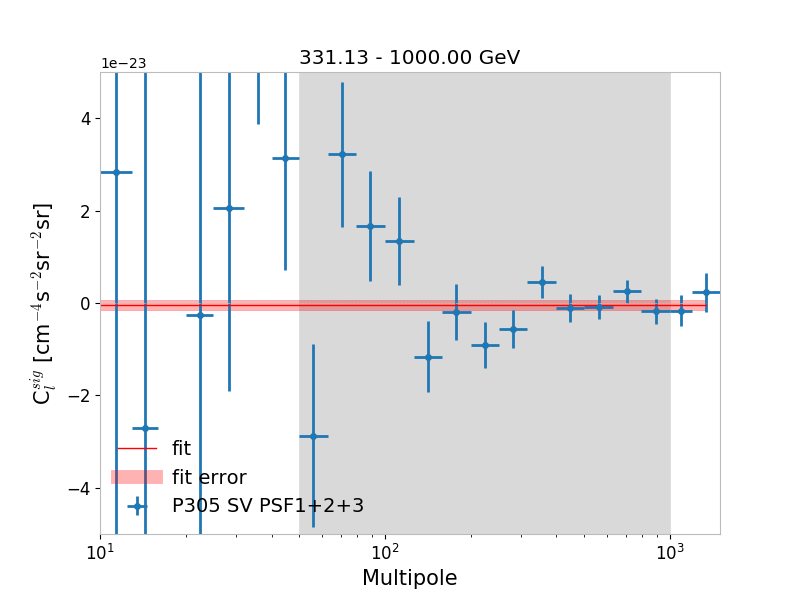

Fig. 7 shows the APS for all the energy bins: they are compatible with a flat spectrum, as expected if the anisotropy signal is dominated by a population of unresolved point-like sources isotropically distributed in the sky. We binned the obtained raw APS from PolSpice, as well as the associated covariance matrix returned by the algorithm, into 26 logarithmic multipole bins in order to smooth the intrinsic fluctuation of this function; to do this we implemented the unweighted averaging procedure proposed in Fornasa et al., which was validated with Monte Carlo simulations (see Sec. IV-A of Fornasa et al.). Assuming a signal dominated by the correlation at zero angular separation of an unresolved population (see Introduction), we fit the APS with a constant in a specific range of multipoles (as defined below): this returns the level of anisotropy $C_{P}$ in each energy bin. Since at the lowest multipoles a residual Galactic foreground contamination might be present, while at the highest multipoles the correction for the PSF can introduce inaccuracies, a proper definition of an energy-dependent range of multipoles in which to perform the fit is crucial.

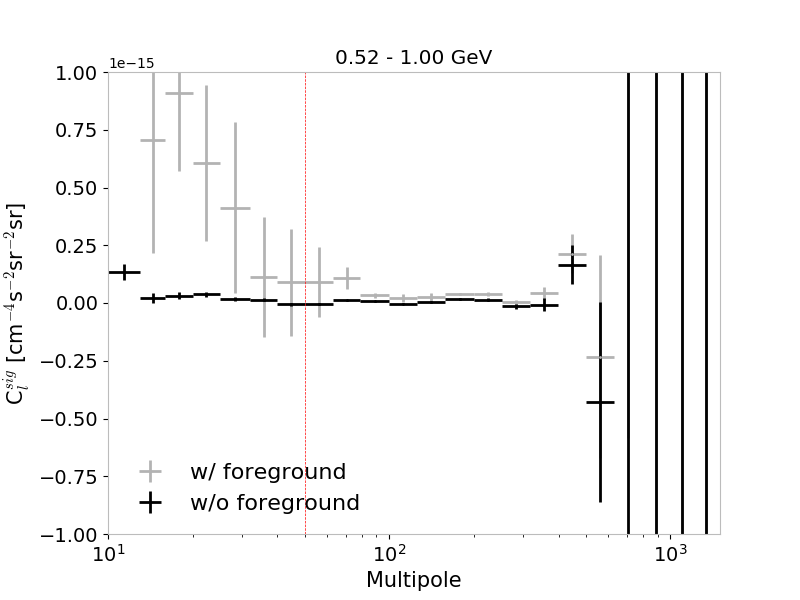

Regarding the large physical scales (low multipoles), we apply a cut for multipoles below $\ell_{min}=50$ at each energy. Fig. 6 shows the case of the first energy bin, where the Galactic foreground is expected to contribute the most: the effect of the foreground on the APS is in fact relevant at low multipoles: it affects the measurement and contributes to considerably increase the uncertainty below $\ell=50$, while its effect is reduced above this threshold. Fig. 6 also shows that subtraction is quite effective in reducing the impact of Galactic foreground in a wide multipole range. Even though the effect of Galactic foreground on the APS decreases with energy, to stay on the safe side we apply a cut $\ell_{min}=50$ at all energies.

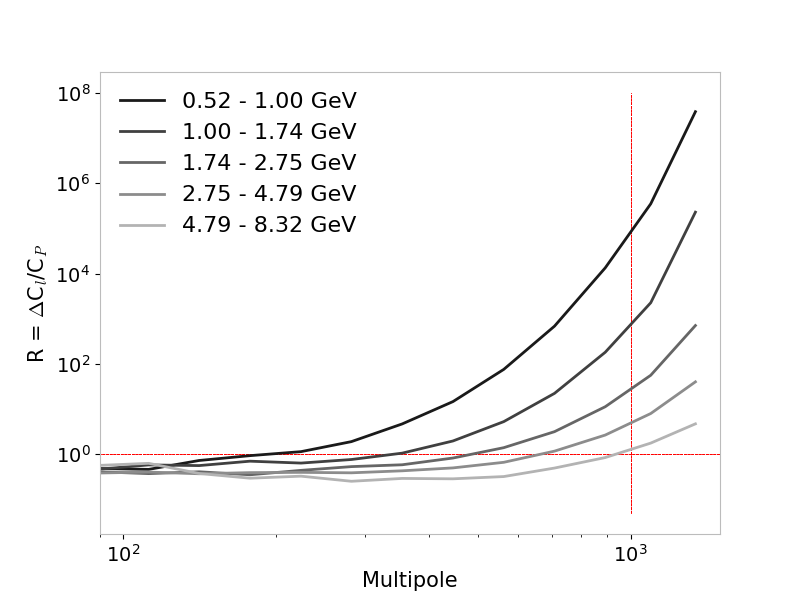

To determine the upper extent on the multipole range for the fit, we define a fiducial test which is sensitive to both the angular (and therefore $\ell$) extent of the PSF and the reduction of statistics at increasing energies. We define a trust function999The influence of the PSF correction on the $C_{P}$ can be found in the same definition of the APS, while for the case of the $C_{\ell}$ error it can be understood by looking at its analytical definition: \Delta C_{\ell}=\sqrt{\frac{2}{2\ell+1}}\bigg{(}C_{\ell}+\frac{C_{N}}{W_{\ell}^{2}}\bigg{)} $R(l)=\Delta C_{\ell}/C_{P}$ as the ratio between the absolute error of the APS at any given $\ell$, and the $C_{P}$ obtained by fitting the APS up to that multipole $\ell$. The maximal multipole $\ell_{max}$ up to which we trust the PSF correction is the one at which $R(\ell)$ becomes greater than 1. An example of this procedure is shown in the right panel of Fig. 6. In any case the maximum value considered is 1000, even if our method would allow a greater $l_{max}$, in order to avoid any edge effects related to the APS computation. The gray regions in the plots of Fig. 7 illustrate the range of multipoles in which the APS is fitted: one can notice how $\ell_{max}$ increases to higher multipoles as the energy increases, due to the progressive improvement of the PSF as a function of energy. The APS fit is performed considering the covariance matrix returned by PolSpice, for the range of multipoles determined by the procedure described above.

XI IV. Estimation of the Poissonian noise

This section reviews the standard procedure to compute the autocorrelation, focusing on the importance of the removal of the noise component, and motivates the need to define the new technique presented in Sec. III of the paper in order to obtain the autocorrelation APS.

The Poissonian noise $C_{N}$ is a constant term in the APS, and can be estimated as $C_{N}=\frac{\langle n^{i}_{\gamma,{\rm pix}}/(\epsilon^{i}_{{\rm pix}})^{2}\rangle}{\Omega_{{\rm pix}}}$. Being a shot noise term, it affects only the determination of the autocorrelation. In order to interpolate the variation in the detector exposure, it is computed in each “micro” energy bin and then summed in order to obtain the value for the “macro” energy bins for which we present our analysis. The CN values for each “macro” bin are reported in Tab.5.

The autocorrelation APS returned by PolSpice must be corrected for this noise: this is achieved by subtracting the CN constant term, after which the correction due to the PSF and pixel effects are applied:

[TABLE]

Let us call this the standard method.

For each APS in each macro energy bin we then compute the CP values and we obtain the anisotropy energy spectrum shown in Fig. 9, top-left panel. In the top-right panel we also show the cross-correlation between two independent data samples: the first 4 years (F4yrs) against the second 4 years (L4yrs) of data (i.e., the result of correlating F4yrs $\times$ L4yrs). The two samples have been subject to the same data selection discussed in Sec. II of the paper for the full analysis. The advantage in performing this check is that random fluctuations do not correlate between the two separate time periods, and a white noise subtraction is no longer needed for this cross-in-time correlation. This result is a noiseless realization of the anisotropy study, but being based on half the statistical sample it is affected by a larger error. If the noise estimate $C_{N}$ is correct, its subtraction in Eq. 5 is proper and the results obtained by the standard and noiseless determination of the CP should coincide. The top-right panel in Fig. 9 shows that this appears not to be the case, and suggest that a misestimation of the noise is present.

To investigate more deeply this point, in Fig. 9 (top-right panel) we also report the autocorrelations of the two sub-samples, F4yrs and L4yrs (i.e. F4yrs $\times$ F4yrs and L4yrs $\times$ L4yrs). We notice that, above a few GeV, the cross-correlation spectrum is systematically below the autocorrelation one, while the autocorrelations for the two smaller data samples are systematically above.

Since the total data sample is in fact composed of the union of F4yrs and L4yrs samples, which are independent, it should be that:

[TABLE]

where the indexes 1 and 2 refer to F4yrs and L4yrs respectively. Indeed, this is what we obtain, as illustrated in the bottom-left panel of Fig. 9: this proves the consistency of all the measurements among themselves and points to an underestimation of the random noise $C_{N}$ in the autocorrelations. This effect appears larger when the statistics are reduced (as occurs when we consider the two time bin samples, each of which has roughly half of the statistics of our full analysis). We find the same result (increase of the autocorrelation APS when the statistical sample is reduced) when we define the time bins as the first four even years (E4yrs, namely the 2nd, 4th, 6th, 8th) and the first four odd years (O4yrs, namely the 1st, 3rd, 5th, 7th); this should exclude systematics related to the time bins definition or unaccounted transients.

To confirm that the underestimation of the noise is accentuated when reducing the statistics of the sample, we applied our analysis to the PSF3 type events (which represent 1/3 of the data we use by adopting the PSF1+2+3 event types). In this case as well we find an autocorrelation spectrum above the one obtained with the whole sample. The same effect has been observed also when reducing the dimension of the energy bins, and an opposite behavior is found when enlarging the energy binning.

All this evidence suggests that the estimation of the noise in our measurement is not effective. A possible explanation could relate to a small deviation of the random noise distribution from a Poissonian, which could be induced, e.g., by data cleaning procedures or to an inaccurate estimator of the Poissonian noise (to estimate the noise, we use measured counts in each pixel which are just an estimator of the true photon emission). Another possible explanation is related to the effectiveness of the mask removal algorithm in PolSpice: it can introduce a small bias in the autocorrelation APS of noise-dominated maps (the cross-correlation case is exempt from such a bias, since it does not exhibit noise). This additional unaccounted for effect is of the order of one percent of the estimated Poissonian CN term that we estimate. Since the APS signal is largely sub-dominant at high energy as compared to the noise (which makes noise subtraction not only necessary but also delicate), it is clear that even a small deviation of the order of a few percent of the subtracted CN can result in a different measurement of the signal up to a $10\%$ (this is the case of the highest energy bin, where the estimated Poissonian noise is two orders of magnitude higher than the CP value), as can be seen by comparing the various estimates reported in Tab. 4 and Tab.5.

For this reason we decided to adopt a different technique to measure the autocorrelation APS in the various (macro) energy bins, that for definiteness we call improved noiseless. The technique is outlined in the main section of the paper, and is based on the fact that if the sources contributing to the APS signal have broad energy spectra (with no structure on the scale of our micro energy bins, as is expected for any astrophysical source), we can assume that the autocorrelation spectra of the micro bins are well approximated by the average APS of all the cross-correlations between the same bins. In this case the APS is simply given by Eq. 2 of the paper.

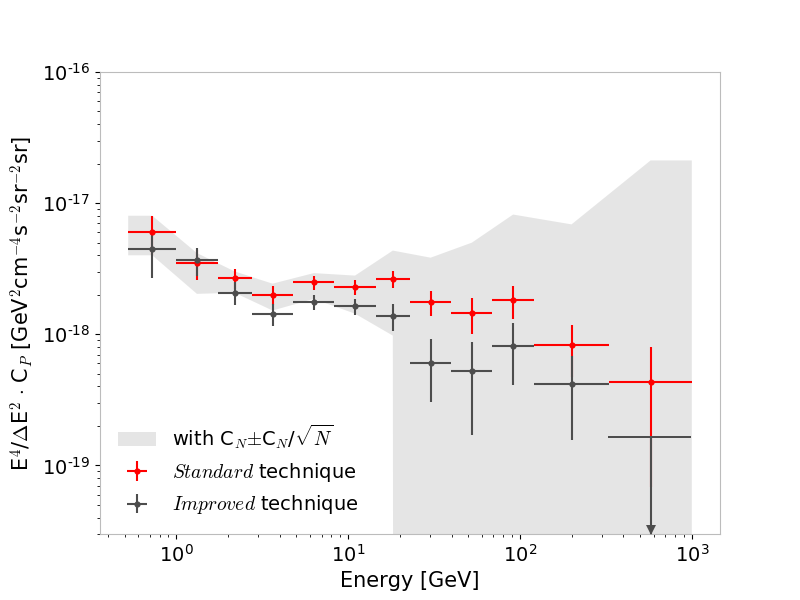

In the bottom-right panel of Fig. 9 we show the two measurements of anisotropy energy spectrum, obtained with the standard analysis and with the noiseless improved one, and we also report the statistical error band associated to the estimator of the noise term, applied to the standard measurement only. Tab. 5 outlines the impact of the unaccounted for noise term and the size. The CP values obtained with the standard analysis are reported in Tab. 4.

The APS estimator in Eq. 2 also could be computed by approximating each $C_{\ell,\rm{micro}}^{\delta\delta}$ term with a weighted mean of all the cross-correlation terms $C_{\ell,\rm{micro}}^{\gamma\delta}$101010Here we use $\gamma$ and $\delta$ in place of $\alpha$ and $\beta$ adopted in Eq. 2 in order to not generate confusion between the energy micro binning nomenclature and the fit parameters in Tab. II. (in place of the arithmetic mean adopted in the current work), the weights being $(E_{\gamma}E_{\delta})^{-\alpha}$, where $\alpha$ is taken from the best fit of the sPLE model. This second estimator of the autocorrelation in each macro bin returns a $C_{P}$ value almost identical to the one presented in this work.

XII V. Cross APS

The cross-APS between intensity maps in two different macro energy bins, $E_{i}$ and $E_{j}$, is computed as:

[TABLE]

In analogy to the determination of the autocorrelation APS, the amplitudes of the cross C${}_{P}^{ij}$ are determined by fitting the measured $C_{\ell}^{ij}$ with a constant value. For each couple of cross-correlated energy bins, the range of multipoles considered to compute the C${}_{P}^{ij}$ (the interval between $\ell_{min}=50$ and the energy-dependent $\ell_{max}$) is the smaller of the two intervals derived for $E_{i}$ and $E_{j}$ with the method of the trust function $R$ discussed in Sec. III and shown in Fig. 7 (i.e., it is the interval pertaining to the lowest energy between $E_{i}$ and $E_{j}$ ). In Tab. 7 we report the values of the C${}_{P}^{ij}$ for each pair of $E_{i}$ and $E_{j}$ bins.

Regarding the analysis of the auto- and cross-correlations aimed at determining the underlying field of sources, we perform a 2-dimensional fit as outlined in Sec. IV of the main paper. In Fig 8 the three panels report examples of cross-correlation anisotropy energy spectra for three different macro energy bins correlated with all the others, and the best-fit curves at those values of $E_{i}$ and $E_{j}$ are also reported.

In the determination of the $\chi^{2}$, we neglect covariance between signals in different macro energy bins. This is justified by the fact that the main source of error is given by the photon noise, which is uncorrelated in different energy bins.

The chi-square difference between the two best-fit configurations is $\Delta\chi^{2}=\chi^{2}_{sPLE}-\chi^{2}_{dPLE}$ = 12.24. In order to obtain the statistical significance of the result, we performed a Monte Carlo simulation to compute the $\Delta\chi^{2}$ distribution in the assumption that the null hypothesis (sPLE model) holds true. We produced $10^{7}$ fake-data samples generating fake $C_{P}^{ij}$values for each $E_{i}E_{j}$ from the best-fit parameters of the sPLE model, and randomized them according to gaussian distributions with standard deviations equal to the statistical errors of real data. Each fake-data sample is then fitted with both sPLE and dPLE models, the $\Delta\chi^{2}$ is computed, and eventually we obtain the $\Delta\chi^{2}$ distribution. The latter provides information about the $CL$ of rejection of the null hypothesis: in particular we find a $p$-value $=0.0002$ and determined that for real data sPLE model is rejected at the $99.98\%~{}CL$ (corresponding to $\sim 3.7\sigma$). In Fig. 8 (bottom-right) we report the $\Delta\chi^{2}$ distribution obtained from this Monte Carlo procedure compared to a $\chi^{2}$ distribution with 2 degrees of freedom, which is the one predicted by Wilks’ theorem (Wilks, 1938) for the case of linear and nested models111111Due to the non-linearity (in the parameters) of our models the applicability of Wilks’ theorem is not guaranteed and a Monte Carlo simulation is required..

XIII VI. Comparison with previous measurement

Fig. 10 compares the measurement of the anisotropy energy spectrum obtained in this paper (with point sources masked according to the FL8Y source list, and with the adoption of our improved technique) with the measurement we obtain by adopting the 3FGL catalog for masking resolved point sources and by using the standard analysis technique. The latter can be directly compared to the analysis of Fornasa et al., which adopted the same 3FGL catalog and the same noise-subtraction technique, but with lower photon count statistics.

We note that the results obtained with the 3FGL catalog, reported in Tab. 6, are totally consistent with the results of the previous investigation, the only difference being the gain in statistics which manifests itself in a noticeable reduction of the error bars. The greater statistics here are possible due to a larger integration time for the detector and also thanks to an improved technique adopted to define the point source mask.

The comparison with the new measurement performed by masking the FL8Y source list shows the extent of the reduction of the APS as a consequence of the reduced number of unresolved sources left after FL8Y. Since the anisotropy energy spectrum found masking the 3FGL sources shows similar features121212Best-fit parameters for dPLE model when considering 3FGL catalog are: $N_{1}=(1.30\pm 0.03)10\times^{-17}$, $\alpha=0.45\pm 0.05$, $N_{2}=(8.0\pm 2.9)\times 10^{-19}$, $\beta=-0.29\pm 0.06$ and $E_{{\rm cut}}=94\pm 8$ (parameters units are the same declared in the caption of Tab. II of the paper). to the result presented here, we expect the low-energy population to be present in the FL8Y catalog and to be a relevant fraction of objects not associated with any source of the 3FGL catalog.

XIV VII. Test on mask deconvolution

In order to check that mask deconvolution does not introduce artifacts in the measured angular power spectrum, we performed two additional checks. In the first, we have have performed an apodization of our masks with a scale of the order of half the masking radius defined for each source, adopting a sine behavior for the apodizing function. This operation should prevent possible artifacts driven by the sharp edges of the masked regions. Fig. 11 (left panel) shows that the results obtained with apodization are well consistent with the results obtained with our nominal masks, while exhibiting a larger error since the fraction of the unmasked sky is reduced.

The second check was an evaluation of the possible effects induced by the mask through simulated full-sky gamma-ray maps. We generated $10^{4}$ maps with the same (2-point) statistical correlation as the one estimated for the real sky in our analysis. We adopted the synfast generator provided by HEALPix, starting from a flat (in multipole) angular power spectrum with amplitude equal to our measurement. Each generated map was then analyzed with the PolSpice algorithm in two ways: first without a mask and then with the same mask adopted in our analysis. The distribution of the relative differences between the reconstructed $C_{P}$ from the full-sky and masked-sky analyses is shown in Fig. 11 (right panel) for two energy bins, $(1.0-1.7)$ GeV and $(8.3-14.5)$ GeV. The shaded bands indicate the corresponding statistical relative errors we obtained in the nominal analysis. We note that the differences are distributed around zero, with a width much smaller than the statistical error of our measurement. This demonstrates that the mask deconvolution is performed properly and it does not translate into a bias of the measured $C_{P}$.

{addmargin}

[-2em]-2em

{addmargin}

[-2em]-2em

[FIGURE:]
