Spatially-entangled Photon-pairs Generation Using Partial Spatially Coherent Pump Beam

TL;DR

This paper experimentally demonstrates how varying the spatial coherence of a pump beam influences the spatial entanglement of photon pairs generated via SPDC, enabling tailored entanglement for quantum applications.

Contribution

It introduces a method to control the degree of spatial entanglement in photon pairs by adjusting the pump's spatial coherence, supported by experimental validation.

Findings

Spatial coherence affects photon pair entanglement

Tailoring pump coherence controls entanglement degree

Experimental results match theoretical predictions

Abstract

We demonstrate experimental generation of spatially-entangled photon-pairs by spontaneous parametric down conversion (SPDC) using a partial spatially coherent pump beam. By varying the spatial coherence of the pump, we show its influence on the downconverted photon's spatial correlations and on their degree of entanglement, in excellent agreement with theory. We then exploit this property to produce pairs of photons with a specific degree of entanglement by tailoring of the pump coherence length. This work thus unravels the fundamental transfer of coherence occuring in SPDC processes, and provides a simple experimental scheme to generate photon-pairs with a well-defined degree of spatial entanglement, which may be useful for quantum communication and information processing

Figures

Tables

Table 1. Table 1: Values of σ k subscript 𝜎 𝑘 \sigma_{k} and σ k subscript 𝜎 𝑘 \sigma_{k} are listed in function of the coherence length ℓ c subscript ℓ 𝑐 \ell_{c} of the pump beam. The Schmidt number K 𝐾 K (exp.) is calculated using the formula K = 1 / 4 ​ [ 1 / ( σ r ​ σ k ) + σ r ​ σ k ] 2 𝐾 1 4 superscript delimited-[] 1 subscript 𝜎 𝑟 subscript 𝜎 𝑘 subscript 𝜎 𝑟 subscript 𝜎 𝑘 2 K=1/4\left[1/(\sigma_{r}\sigma_{k})+\sigma_{r}\sigma_{k}\right]^{2} . Because σ r subscript 𝜎 𝑟 \sigma_{r} does not depend on the coherence property of the source, K 𝐾 K decreases with the diminution of the coherence length ℓ c subscript ℓ 𝑐 \ell_{c} . Theoretical values of K 𝐾 K [ K 𝐾 K (theory)] are calculated from crystal parameters L ≈ 0.9 ​ m ​ m 𝐿 0.9 𝑚 𝑚 L\approx 0.9mm and pump properties ω ≈ 89 ​ μ 𝜔 89 𝜇 \omega\approx 89\mu m and λ p ≈ 405 ​ n ​ m subscript 𝜆 𝑝 405 𝑛 𝑚 \lambda_{p}\approx 405nm using equation  3 . Despite many approximations used and several sources of experimental uncertainties, the theoretical model is in good accordance in order of magnitude with experimental measurements.

Correlation length ($\mu$m)	${\sigma }_k(rad.m{m}^{-1})$	${\sigma }_r\left(\mu m\right)$	$K$ (exp.)	$K$ (theory)
$+\infty$	$2.4\pm 0.1$	$7.9\pm 0.3$	$727\pm 74$	$591$
122	$9.7\pm 0.3$	$8.4\pm 0.2$	$38\pm 4$	$115$
59	$17.2\pm 0.3$	$7.1\pm 0.1$	$17\pm 1$	$32$
41	$22.5\pm 0.5$	$7.1\pm 0.2$	$10\pm 1$	$16$

Equations

$$\Gamma ({\mathbf{k}}_1,{\mathbf{k}}_2)\sim \exp \left(-\frac{{\sigma }_r^2|{\mathbf{k}}_1-{\mathbf{k}}_2{|}^2}{2}\right)\exp \left(-\frac{|{\mathbf{k}}_1+{\mathbf{k}}_2{|}^2}{2{\sigma }_k^2}\right)$$

$${\sigma }_k=\sqrt{\frac{1}{{\ell }_c^2}+\frac{1}{4{\omega }^2}}$$

$$K=\frac{1}{4}{\left[\frac{2\omega l_c\sqrt{2\pi }}{\sqrt{\alpha L{\lambda }_p(l_c^2+4{\omega }^2)}}+\frac{\sqrt{\alpha L{\lambda }_p(l_c^2+4{\omega }^2)}}{2\omega l_c\sqrt{2\pi }}\right]}^2$$

$$\Gamma ({\mathbf{k}}_1,{\mathbf{k}}_2)\sim |\tilde{\chi }(|{\mathbf{k}}_1-{\mathbf{k}}_2{|}^2){|}^2\tilde{V}({\mathbf{k}}_1+{\mathbf{k}}_2,{\mathbf{k}}_1+{\mathbf{k}}_2)$$

$$|\tilde{\chi }(|{\mathbf{k}}_1-{\mathbf{k}}_2{|}^2){|}^2\sim \exp \left[-\frac{{\sigma }_r^2|{\mathbf{k}}_1-{\mathbf{k}}_2{|}^2}{2}\right]$$

$$\tilde{V}(\mathbf{k},{\mathbf{k}}^{\prime })\sim \exp \left[-\frac{{\omega }^2|\mathbf{k}-{\mathbf{k}}^{\prime }{|}^2}{2}-\frac{|\mathbf{k}+{\mathbf{k}}^{\prime }{|}^2}{8{\sigma }_k^2}\right]$$

$$P_{+}^{\Gamma }({\mathbf{k}}_1+{\mathbf{k}}_2)\sim \exp \left(-\frac{|{\mathbf{k}}_1+{\mathbf{k}}_2{|}^2}{2{\sigma }_k^2}\right)$$

$$\Gamma ({\mathbf{r}}_1,{\mathbf{r}}_2)\sim \exp \left(-\frac{|{\mathbf{r}}_1-{\mathbf{r}}_2{|}^2}{2\beta {\sigma }_r^2}\right)\exp \left(-2{\omega }^2|{\mathbf{r}}_1+{\mathbf{r}}_2{|}^2\right)$$

$$P_{-}^{\Gamma }({\mathbf{r}}_1-{\mathbf{r}}_2)\sim \exp \left(-\frac{|{\mathbf{r}}_1-{\mathbf{r}}_2{|}^2}{2\beta {\sigma }_r^2}\right)$$

$$\omega =\frac{1}{{\sigma }_{p_0}}$$

$$I_p({\mathbf{k}}_{\mathbf{p}})\sim \exp \left[-\frac{|{\mathbf{k}}_{\mathbf{p}}{|}^2}{2{\sigma }_p^2}\right]$$

$${\ell }_c=\frac{2}{\sqrt{{\sigma }_p^2-{\sigma }_{p_0}^2}}$$

$$P_{+}^{\Gamma }({\mathbf{k}}_{+})=\sum _{\mathbf{k}}\Gamma ({\mathbf{k}}_{+}-\mathbf{k},\mathbf{k})$$

$$P_{-}^{\Gamma }({\mathbf{r}}_{-})=\sum _{\mathbf{r}}\Gamma ({\mathbf{r}}_{-}+\mathbf{r},\mathbf{r})$$

$$P_{X+}^{\Gamma }(k_{y_1},k_{y_2})$$

$$=\sum _{k_x}\frac{\Gamma (k_{y_1},k_{y_2},k_x,-k_x)}{{\sum }_{k_{x_1},k_{x_2}}\Gamma (k_{y_1},k_{y_2},k_{x_1},k_{x_2})}$$

$$P_{X-}^{\Gamma }(y_1,y_2)$$

$$=\sum _x\frac{\Gamma (y_1,y_2,x,x+1)}{{\sum }_{x_1,x_2}\Gamma (y_1,y_2,x_1,x_2)}$$

Full text

††preprint: APS/123-QED

Quantum entanglement is considered as one of the most powerful resource for quantum information. In this respect, pairs of photons are the simplest system showing genuine quantum entanglement in all their degrees of freedom: spatial, spectral and polarization Brendel et al. (1999); Kwiat et al. (1995); Howell et al. (2004). Most of the fundamental experiments and related applications are implemented using polarization-entangled photons. Examples range from the first test of Bell’s inequality Aspect et al. (1982) to the recent development of long-distance quantum communication systems Liao et al. (2017). In the last years, there has been renewed interest in continuous variable entanglement between transverse position and momentum of photon-pairs Walborn et al. (2010). Indeed, their infinite-dimensional Hilbert space holds high potential for developing powerful information processing algorithms Tasca et al. (2011) and secured cryptography protocols Walborn et al. (2006). Furthermore, spatially-entangled photon-pairs sources are at the basis of many quantum imaging approaches, including ghost imaging Pittman et al. (1995), sub-shot-noise Brida et al. (2010) and sub-Rayleigh imaging Xu et al. (2015). All these quantum applications crucially rely on properties of the down-converted photons. In this respect, their degree of entanglement is a fundamental parameter that generally defines the power of the quantum-based technique. As concrete examples, it sets the information bound in high-dimensional quantum communication systems Dixon et al. (2012) and the spatial resolution in certain quantum imaging scheme Reichert et al. (2017). However, most apparatus used to produce entangled pairs are not flexible and adapting pairs characteristics to specific use is generally a challenging task. In this work, we propose an novel experimental approach based on spontaneous parametric down conversion (SPDC) with a partial spatially coherent pump beam to produce entangled photon-pairs with tunable degree of spatial entanglement.

SPDC is the most popular technique to produce spatially-entangled photon-pairs. In its conventional form, a coherent Gaussian beam of light (i.e. the pump beam) illuminates a non-linear crystal ($\chi^{2}$ non-linearity) that produces pairs of photons in accordance with energy and momentum conservation (Hong and Mandel, 1985). Properties of down-converted photons, including their degree of entanglement, are set by the crystal parameters and the pump beam properties Rubin (1996); Souto Ribeiro (1997); Joobeur et al. (1996); Fonseca et al. (1999); Saleh et al. (2005). During this process, coherence properties of the pump beam get entirely transferred to those of the two photon-field Monken et al. (1998); Kulkarni et al. (2017); Ismail et al. (2017). Interestingly, none of these experimental studies consider the use of a non-perfectly spatially coherent pump beam to produce photon-pairs, with the notable exception of the recent work of Y. Ismael et al. Ismail et al. (2017) that investigates polarization-entanglement between photons. Theoretically, the link between spatial coherence properties of the pump and the degree of entanglement of the down-converted field has been precisely established in Jha and Boyd (2010); Olvera and Franke-Arnold (2015); Giese et al. (2018). In this work, we first investigate experimentally the influence of the pump spatial coherence on the correlation properties of the spatially-entangled photon pairs. We then demonstrate the dependency of the degree of entanglement, characterized by the Schmidt number Fedorov et al. (2009), with the coherence of the pump. Finally, we exploit this effect to generate photon-pairs with a well-defined degree of entanglement by manipulating the transverse coherence length of the pump.

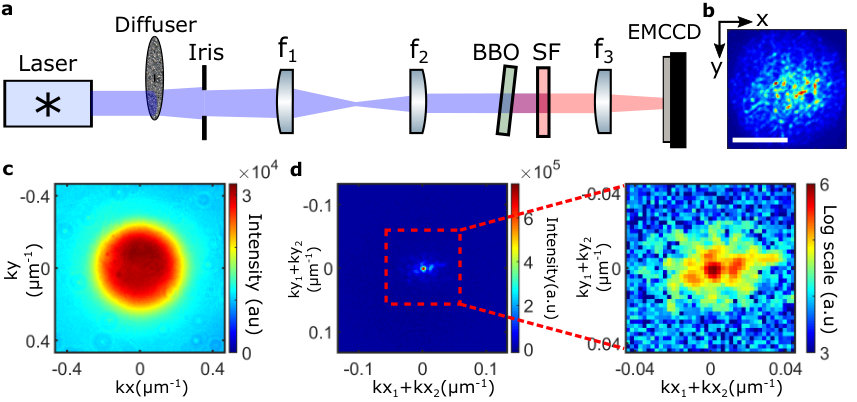

Figure 1.a shows the apparatus used to produce spatially entangled photon-pairs. A partially coherent beam of light is generated by intercepting the propagation path of a continuous-wavelength ($405$nm) Gaussian laser beam with a (rotating or not) random diffuser (plastic sleeve). Blue photons interact with a tilted non-linear crystal of $\beta$-baryum borate (BBO) to produce infrared pairs of photons by type I SPDC. At the output of the crystal, transverse momentum $\mathbf{k}$ of photons is mapped onto pixels of an electron multiplied charge coupled device (EMCCD) camera by a Fourier-lens imaging system ($f_{3}$). When the diffuser is maintained static, the crystal is illuminated by a speckle pattern (Figure 1.b). A direct intensity image (Figure 1.c) is acquired by photons accumulation on the camera sensor and shows an homogeneous structure, very similar to the one observed without diffuser (Figure 2.a1). However, when measuring the joint probability ditribution $\Gamma$ with the EMCCD camera Reichert et al. (2018); Defienne et al. (2018a), its projection along the sum-coordinate diagonal shows a central peak surrounded by a speckle pattern (Figure 1.c). The sum-coordinate projection represents the probability of detecting the two photons with symmetric momentum relative to their mean $\mathbf{k_{1}}+\mathbf{k_{2}}$ Moreau et al. (2012); Tasca et al. (2012) (see sup section 4). The presence of this speckle together with the absence of any spatial structure in the direct intensity image demonstrates that first-order spatial coherence of the pump field (i.e. intensity speckle pattern) gets entirely transferred to second-order coherence of the down-converted field (i.e. coincidence speckle pattern).

As a consequence, spatial incoherence properties of the pump must be retrieved in the momentum correlations of the pairs. When the diffuser is rotated faster than the camera integration time, the pump acts as a partial spatially coherent beam. Using a Gaussian-Schell model for the pump beam Mandel and Wolf (1965) and a Gaussian approximation for the down converted field Fedorov et al. (2009) (see sup section 1), $\Gamma$ is written as

[TABLE]

The position-correlation width $\sigma_{r}$ only depends on the crystal length $L$ and the pump frequency $\lambda_{p}$ as $\sigma_{r}=\sqrt{\alpha L\lambda_{p}/(2\pi)}$ ($\alpha=0.455$ Chan et al. (2007)). The momentum-correlation width $\sigma_{k}$ depends on the pump beam waist $\omega$ and its correlation length $\ell_{c}$ as

[TABLE]

For a given crystal, varying the coherence properties of the pump beam (i.e. waist and correlation length) modifies the spatial structure of the two-photon wave function and its associated joint probability distribution. In particular, decreasing the correlation length at fixed waist induces an increase of the momentum-correlation width: when one photon of a pair is detected at $\mathbf{k}$, the area of maximum probability detection for its twin is centered at $-\mathbf{k}$ and spreads as $\sigma_{k}^{2}\sim\ell_{c}^{-2}$. This effect is shown in Figure 2. For a perfectly coherent pump beam (no diffuser), the direct intensity image (Figure 2.a1) shows a well-defined homogeneous disk and the $X_{+}$-projection of $\Gamma$ (Figure 2.a2) shows a strong anti-diagonal. The $X_{+}$-projection image represents the joint probability of detecting one photon with momentum $k_{y_{1}}$ ($k_{x_{1}}$ can take any possible values) and its twin with momentum $k_{y_{2}}$ and $k_{x_{2}}=-k_{x_{1}}$ (see sup section 4). Such strong anti-diagonal is a clear signature of transverse momentum conservation in SPDC using a collimated pump beam. When a rotating diffuser is used (single layer of plastic sleeve), the pump beam becomes partially coherent which results in a blurring of the edges of the direct intensity disk (Figure 2.b1) and an increase of the diagonal width in the $X_{+}$-coordinate projection (Figure 2.b2). Broadening of momentum correlations with the decrease of pump spatial coherence shows very well when using rougher diffusers, respectively made by superimposing two layers of plastic sleeves (Figure 2.c1 and c2) and three layers (Figure 2.d1 and d2). A quantitative analysis of this effect is provided in Figure 3. On the one hand, values of $\sigma_{k}$ are determined by fitting sum-coordinate projection of $\Gamma$ (Figure 3.b) by a Gaussian model Fedorov et al. (2009). On the other hand, values of $\ell_{c}$ are measured by removing the crystal and Fourier-imaging the pump beam directly onto the camera (see sup section 3). The linear regression of $\sigma_{k}^{2}=f(1/\ell_{c}^{2})$ (Figure 3.a) returns a slope value of $0.82\pm 0.3$ with a determination coefficient of $0.98$. This result is in very good accordance with equation 2 and shows the relevance of the theoretical model Jha and Boyd (2010); Giese et al. (2018).

Not only does partial coherence influence momentum correlations between pairs, but it also modifies their degree of entanglement. An universal metric to quantify it is the Schmidt number $K$, that is directly related to the non-separability of the two-photon state Law and Eberly (2004). Experimentally, $K$ is estimated from measurements of $\sigma_{k}$ and $\sigma_{r}$ using the formula $K=1/4\left[1/(\sigma_{r}\sigma_{k})+\sigma_{r}\sigma_{k}\right]^{2}$ Fedorov (2015). While $\sigma_{k}$ is determined using the apparatus described previously (Figure 1), values of $\sigma_{r}$ are measured using a different experimental configuration in which the output surface of the crystal is imaged onto the EMCCD camera (see sup section 2). As reported in Table 1, $\sigma_{r}$ is constant for all diffusers and does not depend on the pump coherence properties. In consequence, the measured degree of entanglement $K$ [$K$ (exp.) in Table 1] decreases with the reduction of the correlation length $\ell_{c}$. As a comparison, values of $K$ [$K$ (theory) in Table 1] are calculated directly from crystal and pump properties using the theoritical model (equation 1)

[TABLE]

with $L\approx 0.9mm$ (cristal thickness), $\lambda_{p}\approx 405$nm (pump wavelength), $\alpha=0.455$ Chan et al. (2007) and $\omega\approx 89\mu m$ (pump waist). Despite the many approximations that have been made and taking into accounts experimental uncertainties, we observe an excellent agreement between theoretically expected values of $K$ and those measured experimentally. Knowing the characteristics of the crystal and the pump therefore allows predicting reasonably well the degree of entanglement of the source. For a given crystal, we show that manipulating the pump coherence using rotating random diffusers enable the deterministic control of the degree of entanglement in the two-photon field generated.

The future of quantum optical technologies depends on our capacity to detect Reichert et al. (2018); Defienne et al. (2018a) and manipulate photons Defienne et al. (2018b); Peng et al. (2018), but it also crucially relies on our ability to generate photons with properties adapted to specific application. In our work, we show how to produce spatially-entangled photons with specific degree of entanglement by controlling the spatial coherence of the pump beam with rotating random diffusers. For this, we investigated the fundamental transfer of coherence between the pump and the down-converted field and showed a good agreement with the theory Jha and Boyd (2010); Giese et al. (2018). This novel source may play an important role in free-space quantum communications, since it has been recently shown in theory that a two-photon field is less susceptible to atmospheric turbulence when it was generated by a partial spatially coherent beam Qiu and She (2012). In this respect, the use of a spatial light modulator in place of the random diffusers will be the next natural step to enable tailoring entanglement in real-time and use it as a tunable parameter to produce quantum states that are optimal for a given protocol and strength of turbulence. Incoherent two-photon illumination could also plays an important role in optical imaging to improve resolution Hong (2018). Finally, this work may have technological impact as it paves the way towards the development of cheap and compact photon-pairs source using Light Emitting Diodes as pump beams Salter et al. (2010).

Appendix A Theoretical model

A.1 Joint probability distribution in momentum-space $\Gamma(\mathbf{k_{1}},\mathbf{k_{2}})$

As demonstrated in Giese et al. (2018) (Equation B.8), the joint probability distribution $\Gamma(\mathbf{k_{1}},\mathbf{k_{2}})$ for a partial spatially coherent pump beam is written as

[TABLE]

where $\tilde{\chi}$ is the phase-matching function and $\tilde{V}$ is the transverse momentum-correlation function of the pump field. In our work, we use two distinct approximations:

• •

A Gaussian approximation (Fedorov et al., 2009) for $\tilde{\chi}$:

[TABLE]

where $\sigma_{r}=\sqrt{\alpha L\lambda_{p}/(2\pi)}$, with $\lambda_{p}$ is the pump wavelength, $L$ the crystal length and $\alpha=0.455$ Chan et al. (2007).

• •

A Gaussian-Schell approximation Mandel and Wolf (1965) for the partial spatially coherent pump beam, which results in $\tilde{V}$ being written as

[TABLE]

where $\sigma_{k}=\sqrt{1/l_{c}^{2}+1/(4\omega^{2})}$, with $l_{c}$ the coherence length of the pump and $\omega$ its waist.

Combining Equations 5, 6 and 4 leads to Equation 1.

A.2 Sum-coordinate projection of $\Gamma(\mathbf{k_{1}},\mathbf{k_{2}})$

The sum-coordinate projection of $\Gamma$, denoted $P_{+}^{\Gamma}$, is calculated by integrating equation 1 along $\mathbf{k_{1}}+\mathbf{k_{2}}$ and takes the simple form

[TABLE]

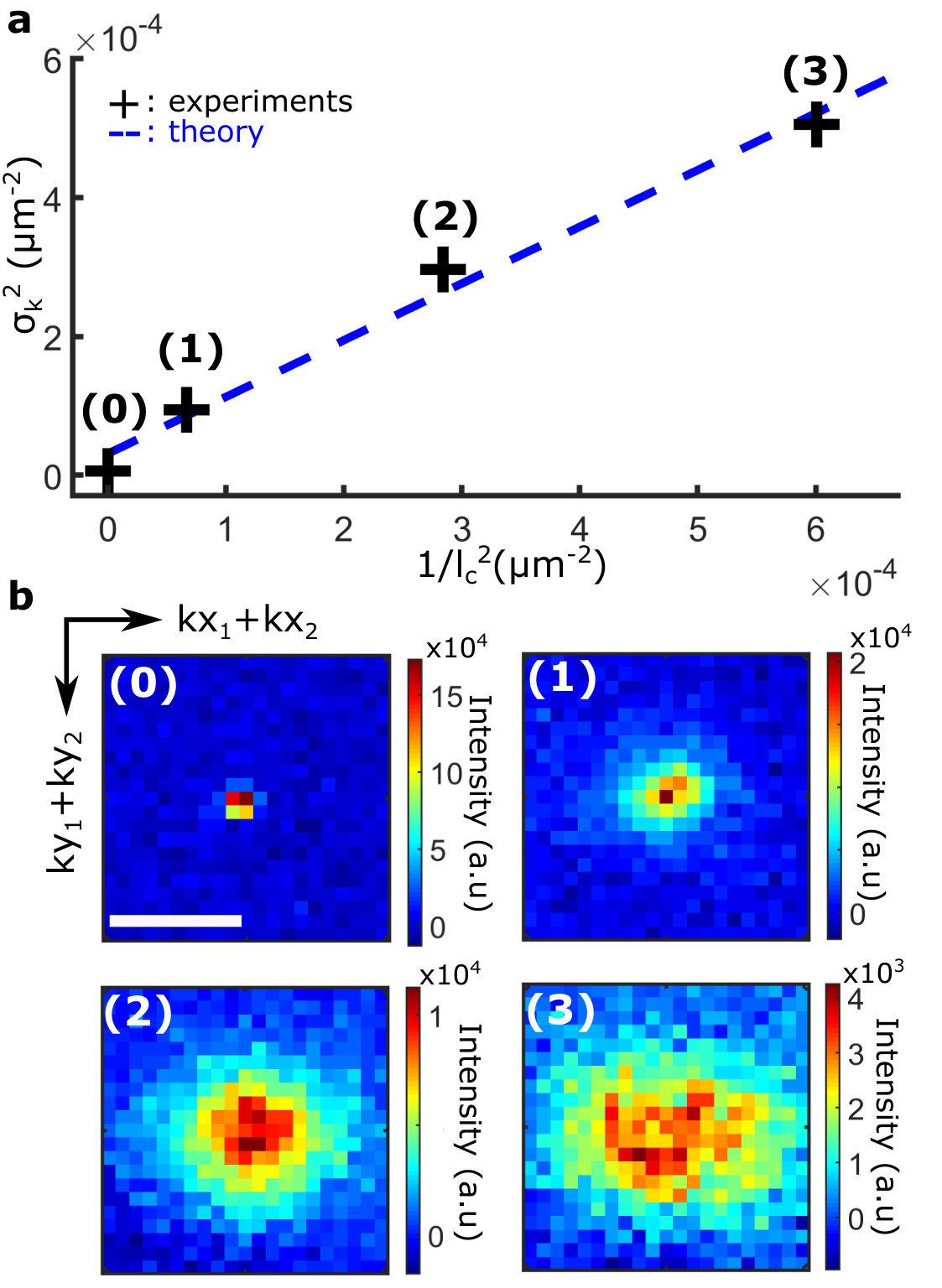

This model is used to fit the experimental data shown in Figure 3.b and to determine values of $\sigma_{k}$ reported in Table 1.

Appendix B Correlation-positions and $\sigma_{r}$ measurements

B.1 Position-correlations

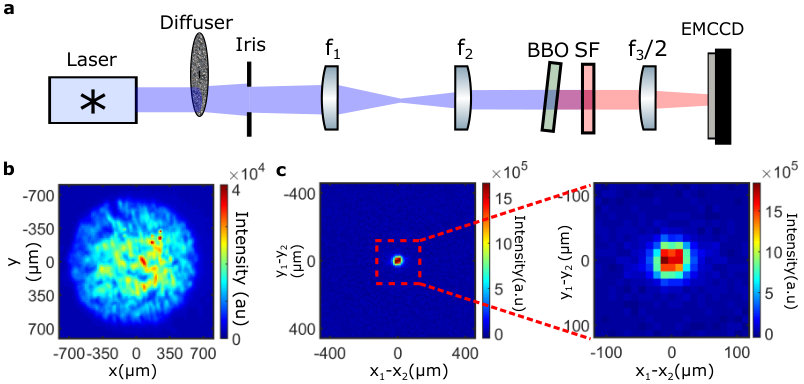

Position-correlations between pairs of photons are observed by imaging the output surface of the crystal and measuring the joint probability distribution $\Gamma$, as shown in Figure 4.a. The diffuser is maintained static and is the same than the one used in Figure 1. The direct intensity image (Figure 4.b) is acquired by photons accumulation on the camera sensor and shows an speckle structure. When measuring the joint probability ditribution $\Gamma$ with the EMCCD camera Reichert et al. (2018); Defienne et al. (2018a), its projection along the minus-coordinate diagonal shows a central peak (Figure 4.c). The minus-coordinate projection image represents the probablity of detecting two photons from a pair separated by a (oriented) distance $r_{1}-r_{2}$ Moreau et al. (2012); Tasca et al. (2012). The strong peak at the center is a clear signature of the strong correlations in position between pairs of photons.

B.2 $\sigma_{r}$ measurements using partially coherent pump beams

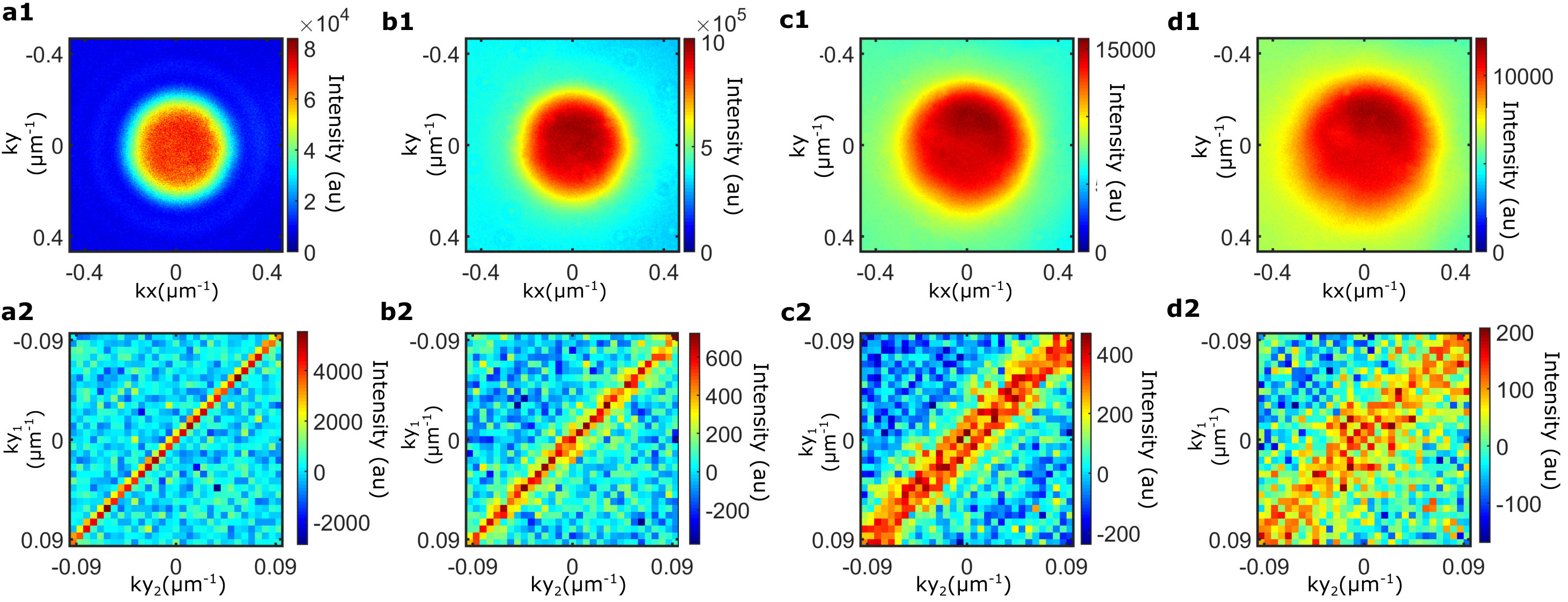

Values of $\sigma_{r}$ are determined using the experimental setup described Figure 4.a. The same rotating diffusers (respectively composed by one, two and three layers of plastic sleeve) than those of Figure 2 and Figure 3 are used to generate partially coherent pump beams with different correlation lengths. Interestingly, Figure 5 shows that neither the direct intensity images (Figure 5.a1-d1) nor the $X_{-}$-coordinate projections (Figure 5.a2-d2) depend on the coherence properties of the pump beam. The $X_{-}$-coordinate image represents the joint probability of detecting one photon at position $y_{1}$ ($x_{1}$ can take any possible values) and its twin with momentum $y_{2}$ and $x_{2}\approx x_{1}$ (see section 4). The strong diagonal is a clear signature of position-correlations: both photons are always produced at the same position in the crystal during the SPDC process, and this property does not depend on the coherence properties of the pump beam.

Similarly to the calculations of section 1 and those of Giese et al. (2018), the use of a Gaussian approximation Fedorov et al. (2009) and a Gaussian-Schell model Mandel and Wolf (1965) allows writing the joint probability distribution $\Gamma(\mathbf{r_{1}},\mathbf{r_{2}})$ as

[TABLE]

where $\omega$ is the pump beam waist and $\beta=(\alpha+\alpha^{-1})/\alpha$ ($\alpha=0.455$ Chan et al. (2007)). The minus-coordinate projection of $\Gamma$, denoted $P_{-}^{\Gamma}$, is calculated by integrating equation 12 along $\mathbf{r_{1}}-\mathbf{r_{2}}$ and takes the simple form

[TABLE]

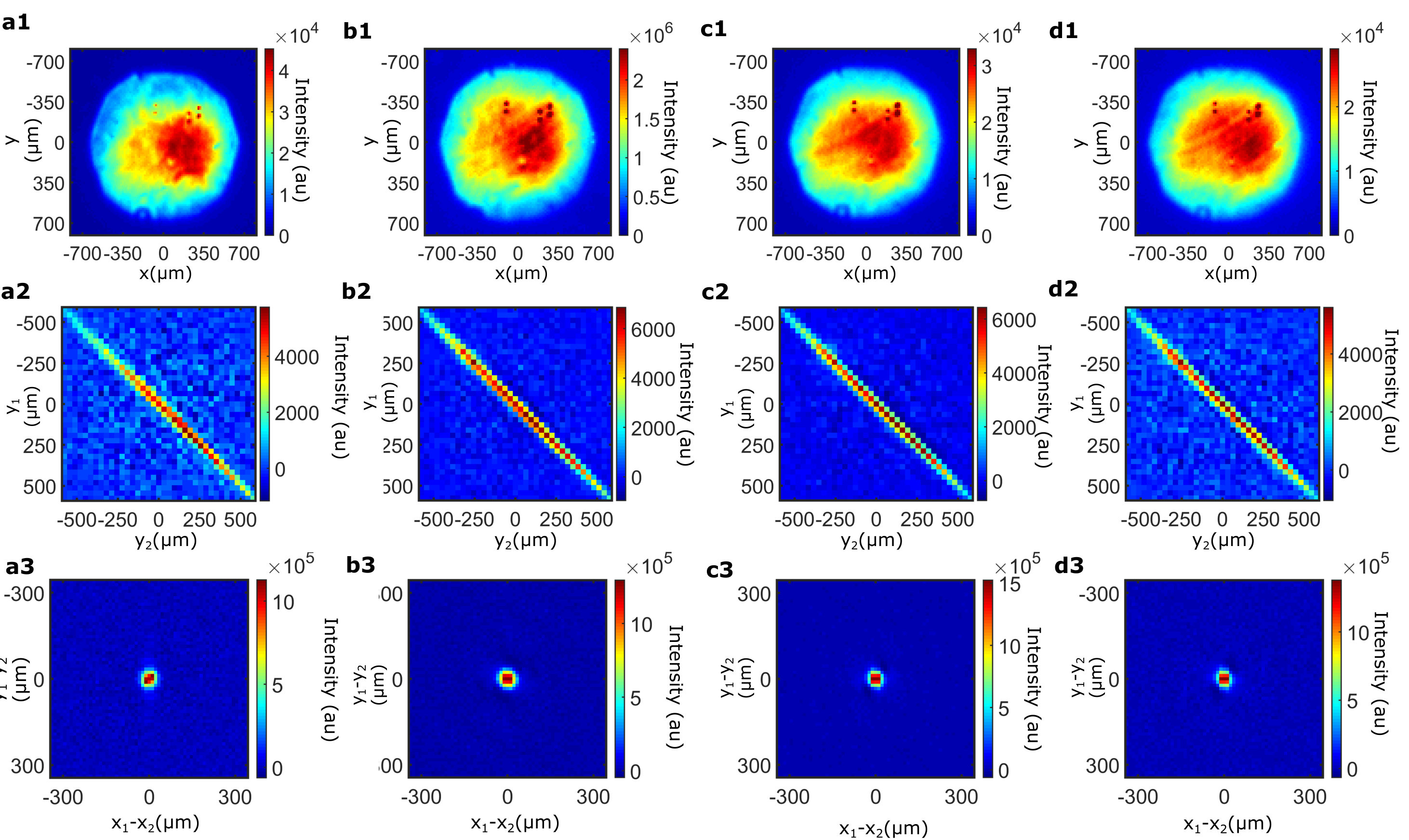

The minus-coordinate projection images acquired for different correlation lengths are shown in Figure 5.a3-d3. Values of $\sigma_{r}$ are determined by fitting the minus-coordinate images by equation 9 and are reported in Table 1.

Appendix C Pump beam analysis and coherence length $\ell_{c}$ measurement

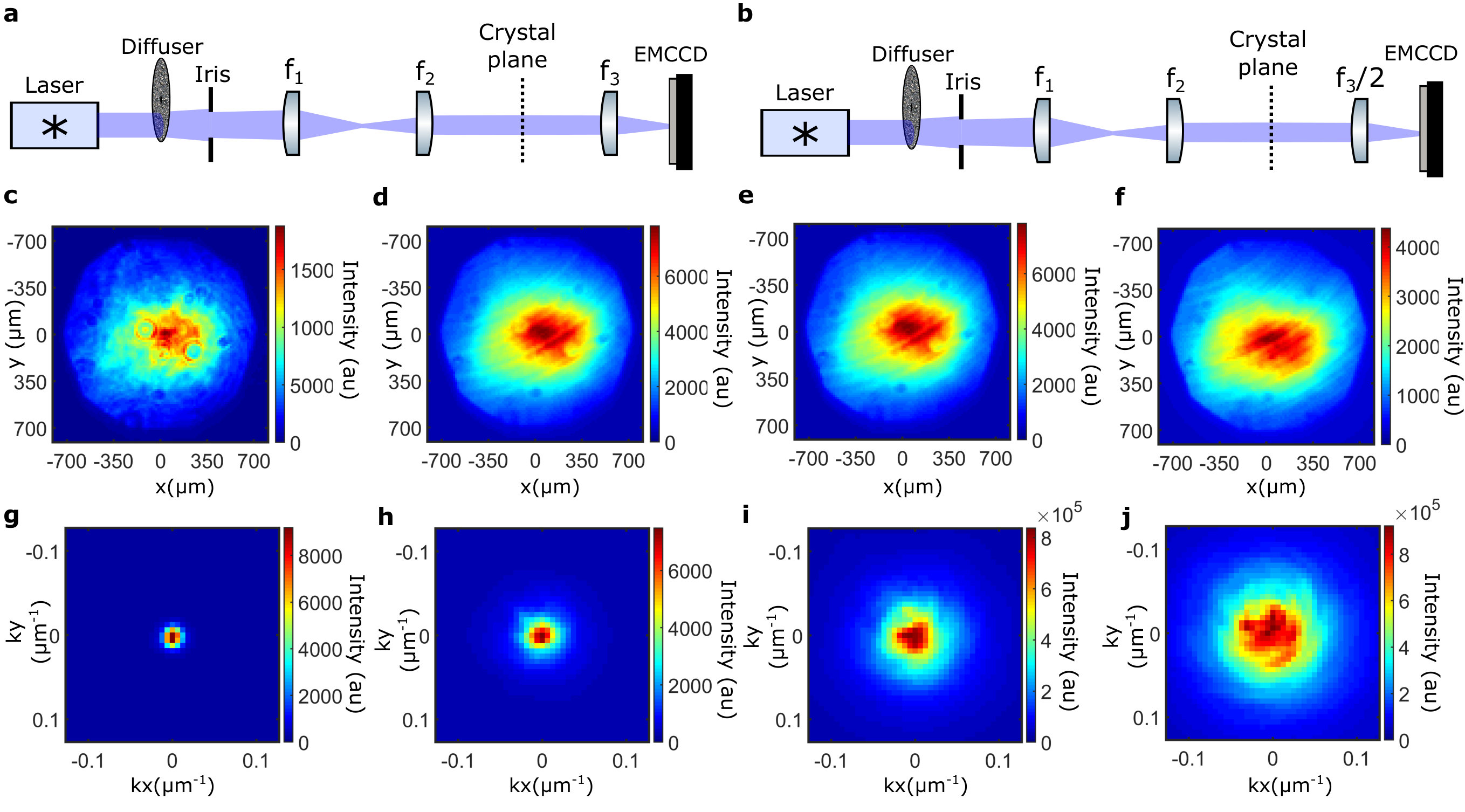

Properties of the pump beam, namely its waist $\omega$ and correlation length $\ell_{c}$, are measured using the two experimental configurations described in Figure 6.a and b.

C.1 Intensity distribution of the pump beam in the crystal plane

The intensity distribution of the pump beam in the crystal plane is measured using the experimental configuration described in Figure 6.b. Figures 6.c-f show results of four acquisitions performed without diffuser (Figure 6.c), with a rotating diffuser composed by one layer of plastic sleeve (Figure 6.d), two layers (Figure 6.e) and three layers (Figure 6.f). Since the diffusers rotate with a period much shorter than the acquisition time of the camera, the distribution of pump intensity at the crystal plane is homogenous and does not depend on the coherence properties of the pump.

C.2 Beam waist and correlation length measurements

Measurements of $\omega$ and $\ell_{c}$ are performed using the experimental configuration of Figure 1.a. In this case, the pump field at the crystal plane is Fourier-imaged onto the EMCCD camera via lens $f_{3}$. Figures 6.g-j show four direct intensity images acquired respectively without diffuser (Figure 6.g), with a rotating diffuser composed by one layer of plastic sleeve (Figure 6.h), two layers (Figure 6.i) and three layers (Figure 6.j). For a perfectly coherent pump, the width of the focus (denoted $\sigma_{p_{0}}$) in Figure 6.g is inversely proportional to the beam waist $\omega$

[TABLE]

Fitting this intensity distribution by Gaussian model provides an estimation of $\omega\approx 89\mu$m. For partially coherent pump beams, intensity distributions in the Fourier domain shown in Figure 6.h-j are written as

[TABLE]

where $\sigma_{p}=2\sqrt{1/\ell_{c}^{2}+1/(4\omega^{2})}$ (Gaussian-Schell model Mandel and Wolf (1965)). Fitting these distributions with equation 11 allows determining $\sigma_{p}$ in each case and calculating $\ell_{c}$ with the formula

[TABLE]

Values of $\ell_{c}$ are reported in Table 1.

Appendix D Image processing

D.1 Measurement process

We use an EMCCD Andor Ixon Ultra 897 to measure the joint probability distribution $\Gamma$ of spatially entangled photon pairs using a technique described in Defienne et al. (2018a). The camera was operated at $-60^{\circ}$C, with a horizontal pixel shift readout rate of $17$Mhz, a vertical pixel shift every $0.3\,\mu$s and a vertical clock amplitude voltage of $+4$V above the factory setting. When the camera is illuminated by photon pairs, a large set of images is first collected using an exposure time chosen to have an intensity per pixel approximately $5$ times larger than mean value of the noise ($\sim 171$ grey values). No threshold is applied. Processing the set of images using the fomula provided in Defienne et al. (2018a) finally enables to reconstruct $\Gamma$.

D.2 Projections of the joint probability distribution

In our experiment, $\Gamma$ takes the form of a 4-dimensional matrix containing $(75\times 75)^{2}\sim 10^{8}$ elements, where $75\times 75$ corresponds the size of the illuminated region of the camera sensor. The information content of $\Gamma$ is analyzed using four types of projections:

The sum-coordinate projection, defined as

[TABLE]

It represents the probability of detecting pairs of photons generated in all symmetric directions relative to the mean momentum $\mathbf{k}_{+}$. 2. 2.

The minus-coordinate projection, defined as

[TABLE]

It represents the probability for two photons of a pair to be detected in coincidence between pairs of pixels separated by an oriented distance ${\mathbf{r}_{-}}$. 3. 3.

The $X_{+}$-coordinate projection, defined as

[TABLE]

It represents the probability of detecting one photon with momentum $k_{y_{1}}$ (with no constraints on $k_{x_{1}}$) given that the other is detected with a momentum $k_{y_{2}}$ and $k_{x_{2}}=-k_{x_{1}}$ [symetric columns]. 4. 4.

The $X_{-}$-coordinate projection, defined as

[TABLE]

It represents the probability of detecting one photon at position ${y_{1}}$ (with no constraints on ${x_{1}}$) given that the other is detected with a momentum ${y_{2}}$ and ${x_{2}}={x_{1}}+1$ [adjacent columns].
